LXRs link metabolism to inflammation through Abca1-dependent regulation of membrane composition and TLR signaling

  1. Ayaka Ito
  2. Cynthia Hong
  3. Xin Rong
  4. Xuewei Zhu
  5. Elizabeth J Tarling
  6. Per Niklas Hedde
  7. Enrico Gratton
  8. John Parks
  9. Peter Tontonoz  Is a corresponding author
  1. Howard Hughes Medical Institute, University of California, Los Angeles, United States
  2. Wake Forest School of Medicine, United States
  3. University of California, Los Angeles, United States
  4. University of California, Irvine, United States
Research Article
  • Cited 92
  • Views 3,412
  • Annotations
Cite this article as: eLife 2015;4:e08009 doi: 10.7554/eLife.08009

Abstract

The liver X receptors (LXRs) are transcriptional regulators of lipid homeostasis that also have potent anti-inflammatory effects. The molecular basis for their anti-inflammatory effects is incompletely understood, but has been proposed to involve the indirect tethering of LXRs to inflammatory gene promoters. Here we demonstrate that the ability of LXRs to repress inflammatory gene expression in cells and mice derives primarily from their ability to regulate lipid metabolism through transcriptional activation and can occur in the absence of SUMOylation. Moreover, we identify the putative lipid transporter Abca1 as a critical mediator of LXR's anti-inflammatory effects. Activation of LXR inhibits signaling from TLRs 2, 4 and 9 to their downstream NF-κB and MAPK effectors through Abca1-dependent changes in membrane lipid organization that disrupt the recruitment of MyD88 and TRAF6. These data suggest that a common mechanism-direct transcriptional activation-underlies the dual biological functions of LXRs in metabolism and inflammation.

https://doi.org/10.7554/eLife.08009.001

eLife digest

Inflammation is a normal part of the immune response to infection or tissue damage. However, increased inflammation has been linked to diseases such as obesity, diabetes and atherosclerosis (in which the walls of the arteries become hardened). These same diseases have also been linked to problems with the production or breakdown of fatty molecules, such as cholesterol.

Transcription factors are proteins that bind to DNA to control gene expression. A transcription factor called LXR regulates the production and breakdown of cholesterol in response to changing levels of cholesterol in the body. LXR has also been shown to inhibit inflammatory responses, but previous studies suggested that these two actions of LXR are independent of each other.

Ito et al. have now challenged these findings by showing that LXR inhibits inflammation via changes in the metabolism of cholesterol and other fatty molecules. The experiments used genetically engineered immune cells, called macrophages, and mice to show that activating LXR causes cholesterol molecules to move between the membranes in a cell. This in turn leads to changes in the signals sent by proteins found at the cell surface, and eventually to a reduction of inflammation responses.

Future work will focus on better understanding the link between LXR's effects on metabolism and inflammation in models of human diseases such as diabetes and atherosclerosis.

https://doi.org/10.7554/eLife.08009.002

Introduction

The liver X receptors (LXRs) are members of the nuclear receptor superfamily that play pivotal roles in sterol homeostasis in mammals. LXRs control the expression of a battery of genes involved in cholesterol, fatty acid and phospholipid metabolism through direct binding to LXR response elements (LXREs) in their target promoters (Calkin and Tontonoz, 2012; Hong and Tontonoz, 2014). In addition to their ability to activate the expression of genes linked to lipid metabolism, LXRs also have the ability to antagonize inflammatory gene expression triggered by Toll-like receptor (TLR) activation (Joseph et al., 2003, 2004; Castrillo et al., 2003a). LXRs are not known to act as direct ligand-dependent repressors, that is, there is no well-documented example of LXR/RXR heterodimers binding to an LXRE in a gene promoter and repressing transcription in response to ligand. Rather, they have been proposed to act on inflammatory promoters through mechanisms that do not involve DNA-binding domain recognition of LXREs.

One proposed mechanism, termed ‘transrepression’, postulates that LXRs become SUMOylated in response to LXR agonist and that this SUMOylated LXR monomer stabilizes repressive nuclear complexes on the promoters of inflammatory genes. Key features of this model include the requirement for receptor SUMOylation, the involvement of an LXR monomer, and the mechanistic separation of the transcriptional activation and repression functions of LXRs (Ghisletti et al., 2007; Lee et al., 2009; Venteclef et al., 2010). Although several lines of evidence have supported the transrepression model, the requirement for receptor SUMOylation in the repressive actions of LXRs on inflammatory genes in cells and animals remains to be tested. The potential involvement of additional or alternative mechanisms has also not been excluded.

We demonstrate here that the ability of LXRs to antagonize endogenous inflammatory gene expression in cultured cells and in vivo is a consequence of changes in cellular lipid metabolism. We show that the ability of LXRs to activate transcription of the Abca1 sterol transporter, and thereby alter membrane cholesterol homeostasis, has a secondary effect on inflammatory signaling through inhibition of NF-κB and MAPK signaling pathways downstream of TLRs. These data present a unified view of LXR-dependent gene regulation in which direct transcriptional activation underlies the dual biological functions of LXRs in metabolism and inflammation. They further emphasize the importance of local membrane composition in the activation of TLR signaling pathways.

Results

Gene activation is required for inflammatory repression by LXRs

LXRs activate gene expression as heterodimers with RXRs. Previous studies have proposed that LXRs ‘transrepress’ inflammatory gene expression by acting as a monomer (Ghisletti et al., 2007; Lee et al., 2009; Venteclef et al., 2010). Unexpectedly, we found that siRNA-mediated knockdown of RXRα and RXRβ in primary mouse macrophages blunted the ability of LXR agonist to repress the LPS-induced expression of the endogenous inflammatory genes Nos2, Il1β, Ccl2, Cxcl1, Tnfα, Cox2 and Il6 (Figure 1A and Figure 1—figure supplement 1A,B). This observation suggested that LXR was acting to repress inflammation as a heterodimer with RXR in our system. We therefore explored alternative mechanisms for the repressive effects of LXR on inflammatory gene expression.

Figure 1 with 1 supplement see all

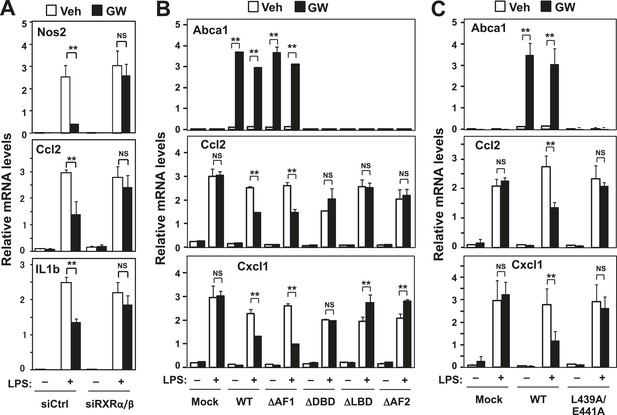

RXR and transactivation are required for LXR-dependent inflammatory repression.

(A) Bone marrow-derived macrophages from wild-type mice were transfected with siRNA targeting RXRα and RXRβ (siRXRαβ or control (siCtrl) for 48 hr, pretreated with GW3965 (1 µM) overnight, and then stimulated with LPS (10 ng/ml) for 4 hr. (B) Immortalized MEFs from Lxrα/Lxrβ/− mice reconstituted with wild-type human LXRα, AF1-deletion mutant (∆AF1), DNA-binding domain deletion mutant (∆DBD), ligand-binging domain deletion mutant (∆LBD), AF2-deletion mutant (∆AF2) or control mock were pretreated with the LXR agonist GW3965 (1 µM) overnight, followed by stimulation with LPS (10 ng/ml) for 4 hr. (C) Immortalized MEFs from Lxrα/Lxrβ/− mice reconstituted with wild-type human LXRα, L439A/E441A mutant or control mock were pretreated with the LXR agonist GW3965 (1 µM) overnight, followed by stimulation with LPS (10 ng/ml) for 4 hr. Gene expression was analyzed by real-time PCR. N = 4 per group. *p < 0.05, **p < 0.01, NS, not significant. Error bars represent means ± SEM.

https://doi.org/10.7554/eLife.08009.003

To test the structural requirements for LXR-dependent repression of endogenous inflammatory genes, we stably reconstituted immortalized mouse embryonic fibroblasts (MEFs) and immortalized primary bone marrow-derived macrophages (iBMDM) from mice lacking LXRα and LXRβ with wild-type and mutant LXRs (Figure 1, Figure 1—figure supplement 1). The synthetic LXR agonist GW3965 did not induce the canonical LXR target gene Abca1, nor did it repress LPS-induced inflammatory gene expression, in LXR-deficient MEFs or macrophages (Figures 1B,C, 2A,B) (Castrillo et al., 2003a, 2003b; Joseph et al., 2004). However, when LXR-deficient cells were reconstituted with wild-type LXRα, GW3965 treatment simultaneously induced Abca1 expression and repressed LPS-induced inflammatory gene expression (Ccl2 and Cxcl1) (Figure 1B,C). These results establish that both the activating and repressive effects of GW3965 under our experimental conditions are entirely mediated by LXRs. This is important to emphasize because many synthetic LXR agonists, including GW3965 and T0901317, can exhibit LXR-independent effects on gene expression, especially when used at concentrations higher than employed here. It is also important to note that this approach does not involve supraphysiologic overexpression of LXRs, as the level of reconstituted protein expression in these cells was within the physiologic range and restored target gene expression to physiologic levels (Figure 1—figure supplement 1C,D).

Figure 2 with 2 supplements see all

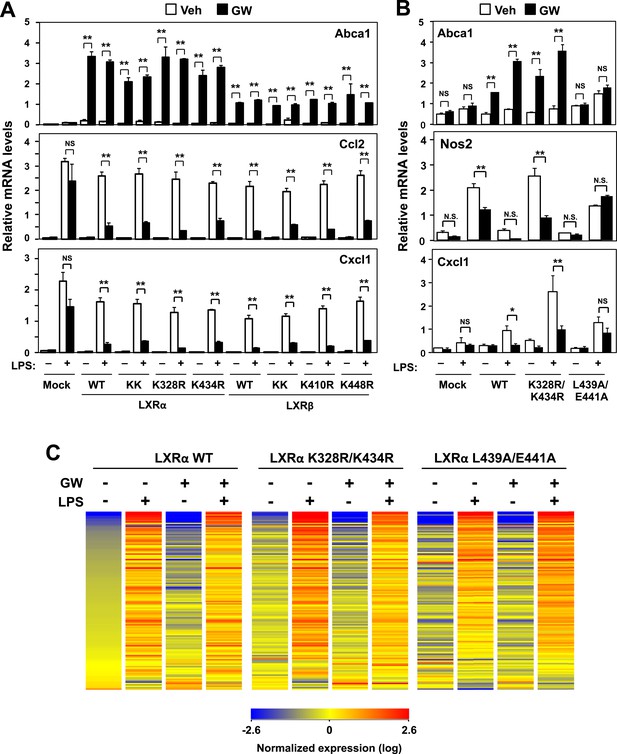

Transactivation but not sumoylation is required for LXR-mediated inflammatory repression.

(A) Immortalized MEFs from Lxrα/Lxrβ/− mice reconstituted with wild-type human LXRα, sumoylation site mutants (K328R/K434R (KK), K328R, K434R), wild-type human LXRβ, sumoylation site mutants (K410R/K448R (KK), K410R, K448R), or mock control were pretreated with GW3965 (1 µM) overnight, followed by stimulation with LPS (10 ng/ml) for 4 hr. (B, C) Immortalized bone marrow-derived macrophages from Lxrα−/−Lxrβ−/− mice reconstituted with wild-type human LXRα, K328R/K434R (KK) mutant, L439A/E441A mutant, or mock control were pretreated with GW3965 (1 µM) overnight, followed by stimulation with LPS (10 ng/ml) for 4 hr. Gene expression was analyzed by real-time PCR (B) and Agilent microarrays (C). Selected genes that are annotated with the ‘Immune system process’ GO term from the array studies are presented as a heatmap (≧ twofold change). N = 4 per group. *p < 0.05, **p < 0.01, NS, not significant. Error bars represent means ± SEM.

https://doi.org/10.7554/eLife.08009.005

To identify the domains important for LXR-dependent repression, we reconstituted LXR-deficient cells with various domain-deletion mutants of LXR. Agonist treatment induced Abca1 and repressed the levels of Ccl2 and Cxcl1 in AF1-deletion mutant cells. However, both the activation and repression activities of LXR were completely abolished in DNA binding domain- (DBD), ligand binding domain- (LBD) or AF2-deletion mutant cells (Figure 1B). Thus, the DBD, LBD and AF2 domains, but not the AF1 domain, are critical for both transactivation and repression by LXR. Furthermore, an LXR mutant defective in its ability to recruit co-activators, L439A/E441A (Tzukerman et al., 1994; Bastie et al., 2000), was unable to induce Abca1 or to repress inflammatory genes in both MEFs and iBMDM (Figure 1C, Figure 2B, Figure 2—figure supplement 1A), strongly suggesting that gene activation and inflammatory repression are mechanistically linked.

In contrast to activation-defective LXR proteins, mutants of LXRα and LXRβ that lack the SUMOylation sites previously identified (Ghisletti et al., 2007) were capable of inducing Abca1 and repressing inflammatory genes in both MEFs and iBMDM (Figure 2A,B and Figure 2—figure supplement 1A). We considered the possibility that alternative SUMOylation sites might be employed, however, mutation of three additional residues in the hinge region of the receptor predicted to be likely SUMOylation sites also had no effect on LXR-dependent repression of Cxcl1 or Ccl2 (Figure 2—figure supplement 1B). We also considered the possibility that SUMOylation might be required for a distinct subset of inflammatory genes in our system. However, transcriptional profiling revealed that LXR SUMOylation site mutants were capable of mediating ligand-dependent repression of a broad array of inflammatory genes (e.g., those annotated with the ‘Immune system process’ GO term; Figure 2C).

We further tested whether the SUMOylation machinery reported to target LXR was required for inflammatory repression in our system. Knocking down Ubc9 or Hdac4 by siRNA in iBMDM did not block repression (Figure 2—figure supplement 2). Thus, SUMOylation-dependent transrepression could not account for the inhibitory actions of LXR on inflammatory gene expression in our system.

Abca1 induction contributes to LXR-mediated inflammatory repression

Given our data suggesting that gene activation and inflammatory repression by LXRs were mechanistically linked, we hypothesized that there must be one or more direct LXR target genes whose action has a secondary effect on inflammatory gene expression. We therefore used siRNA to knockdown a panel of LXR target genes in primary BMDM and tested whether inflammatory repression was compromised. Surprisingly, we found that knockdown of Abca1, a gene critical for cellular cholesterol efflux (Oram, 2003), substantially impaired the ability of LXR agonists to repress inflammatory gene expression (Figure 3A). By contrast, knockdown of Abcg1 or Apoe, two other LXR target genes involved in metabolism, had no effect on inflammatory repression (Figure 3A and Figure 3—figure supplement 1).

Figure 3 with 1 supplement see all

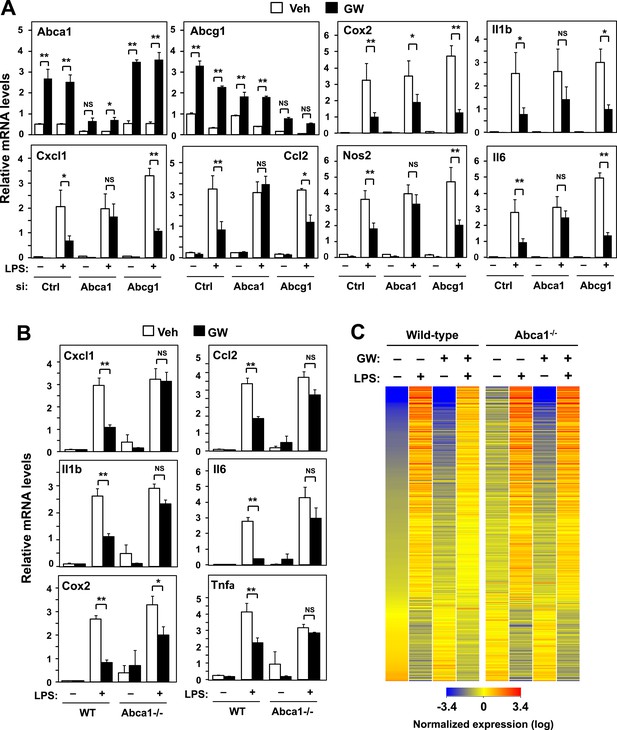

ABCA1 induction is critical for LXR-mediated repression.

(A) Bone marrow-derived macrophages from wild-type mice were transfected with siRNA targeting Abca1, Abcg1 or control (Ctrl) for 48 hr, pretreated with GW3965 (1 µM) overnight, and then stimulated with LPS (10 ng/ml) for 4 hr. (B, C) Bone marrow-derived macrophages from myeloid-specific Abca1−/− and control wild-type mice were pretreated with GW3965 (1 µM) overnight, followed by stimulation with LPS (10 ng/ml) for 4 hr. Gene expression was analyzed by real-time PCR (B) and Agilent microarrays (C). Selected genes from the array studies that are annotated with the ‘Immune system process’ GO term are presented as a heatmap (≥twofold changes shown). N = 4 per group. *p < 0.05, **p < 0.01, NS, not significant. Error bars represent means ± SEM.

https://doi.org/10.7554/eLife.08009.008

We corroborated these results by analyzing the effects of LXR agonist in BMDM from myeloid-specific Abca1−/− mice. Again, the ability of LXR agonist to repress inflammation was markedly inhibited in the genetic absence of Abca1 (Figure 3B), but not Abcg1 (Figure 3—figure supplement 1A). To comprehensively analyze the impact of Abca1 deficiency on inflammatory gene expression, we performed transcriptional profiling. This analysis revealed that most of the genes annotated with the ‘Immune system process’ GO term were not repressed by LXR activation in Abca1-deficient macrophages (Figure 3C), suggesting that LXR-induced Abca1 expression is broadly important for LXR-mediated repression. We also tested whether Abca1 was required for inflammatory repression by the synthetic glucocorticoid receptor (GR) agonist dexamethasone. The ability of dexamethasone to repress inflammatory gene expression was preserved in Abca1−/− cells, indicating that distinct mechanisms are involved in transcriptional repression by LXR and GR (Figure 3—figure supplement 1C).

Prior work has shown that LXR-dependent induction of Abca1 contributes to the maintenance of sterol homeostasis by promoting the efflux of cellular cholesterol to extracellular acceptors such as ApoA-I and ApoE (Santamarina-Fojo et al., 2001; Oram, 2003). Tangier disease is a severe HDL deficiency syndrome that is caused by mutations in the ABCA1 gene. We also tested the ability of LXR agonist to inhibit inflammatory gene expression in skin fibroblasts from a patient with Tangier disease that lack functional ABCA1 protein. LXR target genes were induced at similar levels in normal (healthy donor) and Tangier fibroblasts in response to activation by synthetic agonist (Figure 4A). While LXR activation with ligand repressed inflammatory gene expression in normal cells, this response was abrogated in Tangier fibroblasts (Figure 4B).

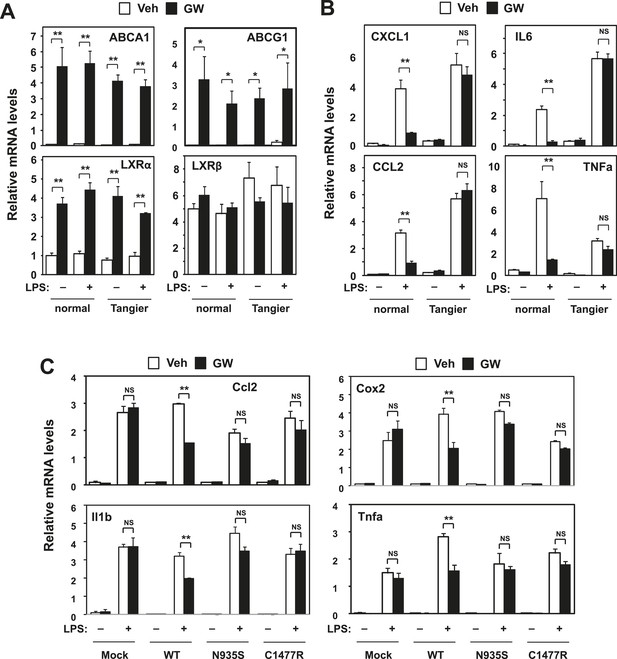

Intracellular cholesterol content affects LXR-mediated repression.

(A, B) Skin fibroblasts from a healthy donor (normal) and a Tangier disease patient (Tangier) were pretreated with GW3965 (1 µM) overnight, followed by stimulation with LPS (10 ng/ml) for 4 hr. (C) Immortalized bone marrow-derived macrophages from Abca1−/− mice reconstituted with wild-type Abca1, N935S mutant, C1447R mutant or mock control were pretreated with GW3965 (1 µM) overnight, followed by stimulation with LPS (10 ng/ml) for 4 hr. Gene expression was analyzed by real-time PCR. N = 4 per group. *p < 0.05, **p < 0.01, NS, not significant. Error bars represent means ± SEM.

https://doi.org/10.7554/eLife.08009.010

To further examine the function of Abca1 was critical for inflammatory repression, we reconstituted iBMDM from myeloid-specific Abca1−/− mice with wild-type Abca1 or two different Abca1 point mutants that lacks cholesterol efflux ability, N935S and C1477R (Singaraja et al., 2006; Kannenberg et al., 2013). When Abca1-deficient cells were reconstituted with wild-type Abca1, inflammatory gene expression was repressed by LXR activation; however, this effect was lost in cells expressing the N935S or C1477R mutants (Figure 4C). These data suggest that cholesterol transport by Abca1 is critical for inflammatory repression in human cells and that effective LXR-dependent inhibition of inflammation requires the ATP-dependent transporter function of Abca1.

Cellular cholesterol content affects inflammatory responses

The requirement for Abca1 in LXR-dependent inflammatory repression suggests that membrane cholesterol content or distribution is mechanistically linked to inflammatory gene repression. To test this idea, we loaded cells with cholesterol using cyclodexrin-cholesterol complexes or depleted cells of cholesterol by incubating them with hydroxypropyl-β-cyclodextrin (Klein et al., 1995; Christian et al., 1997). As expected, cholesterol addition activated LXR target genes and repressed SREBP target genes, whereas cholesterol removal inhibited LXR target genes and induced SREBP target genes (Figure 5). Remarkably, increasing the cholesterol content of the cell also enhanced the induction of inflammatory genes by LPS. On the other hand, decreasing cholesterol content inhibited the induction of inflammatory genes (Figure 5). These data are consistent with the hypothesis that regulation of membrane cholesterol content by LXRs may modulate inflammatory responses.

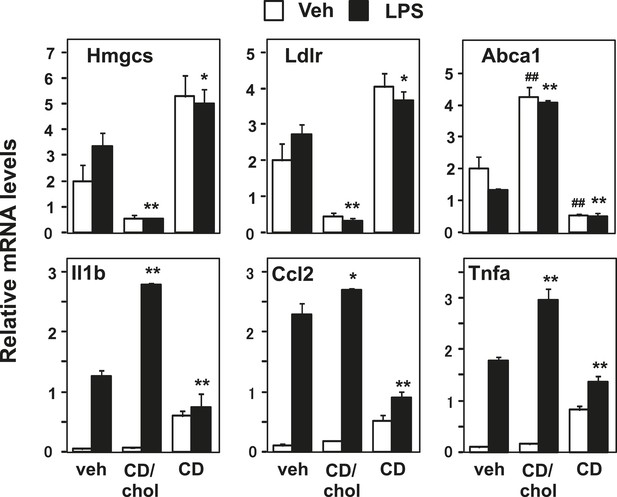

Manipulation of membrane cholesterol content affects inflammatory responses.

Bone marrow-derived macrophages were incubated with cyclodextrin cholesterol (CD-Chol, 100 µM) or hydroxypropyl-β-cyclodextrin (CD, 10 mM) for 1 hr and stimulated with LPS (10 ng/ml) for 4 hr. Gene expression was analyzed by real-time PCR. N = 4 per group. *p < 0.05, **p < 0.01, NS, not significant. Error bars represent means ± SEM.

https://doi.org/10.7554/eLife.08009.011

LXR activation inhibits inflammatory signaling through Abca1 induction

To further explore the connection between LXR-dependent target gene activation and inflammatory repression, we analyzed signaling pathways downstream of TLR4 in macrophages. We found that treatment of macrophages with LXR agonist inhibited the activation of ERK, p38 and JNK MAP kinases downstream of TLR4 activation (Figure 6A,B). Reduced levels of phospho-ERK, phospho-p38 and phospho-JNK were observed in the setting of LXR activation. Importantly, this effect was mediated by LXRs, as it was not observed in LXR-deficient macrophages. To test whether inhibition of MAPK signaling was mechanistically linked to the regulation of Abca1 expression by LXR, we repeated these studies in macrophages derived from myeloid-specific Abca1-deficient mice. Remarkably, the ability of LXR agonist to inhibit ERK, p38 and JNK activation was severely impaired in cells lacking Abca1 (Figure 6C,D).

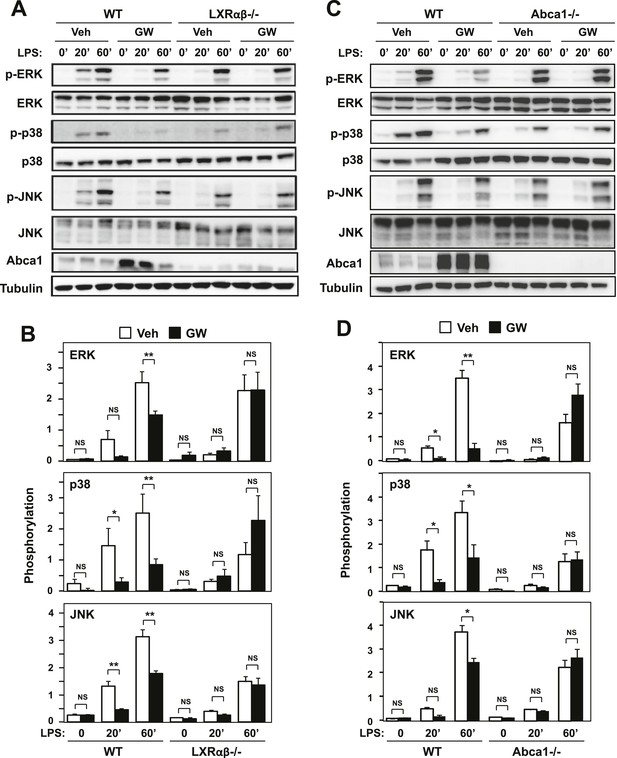

Ligand activation of LXR inhibits LPS-induced MAP kinase activation through Abca1 induction.

(AD) Bone marrow-derived macrophages from Lxrα/Lxrβ/− and control wild-type mice (A, B), or bone marrow-derived macrophages from myeloid-specific Abca1−/− and control wild-type mice (C, D) were pretreated with GW3965 (1 µM) overnight, followed by stimulation with LPS (10 ng/ml) for 20 min or 1 hr. Whole cell lysates were harvested and protein expression was analyzed by immunoblotting with the indicated antibodies (A, C). Protein expression was quantified by Image Quant TL7.0 (B, D). N = 4–6 per group. *p < 0.05, **p < 0.01, NS, not significant. Error bars represent means ± SEM.

https://doi.org/10.7554/eLife.08009.012

We also found that LXR agonist suppressed the activation of NF-κB signaling downstream of TLR4. Immunoblot analysis of whole cell lysates and nuclear extracts revealed that treatment of macrophages with GW3965 reduced the ratio of phospho-IκBα to total IκBα and reduced the nuclear abundance of p65 (Figure 7A,B). These effects of agonist were also LXR-dependent, as they were not observed in LXR-deficient macrophages. Furthermore, the ability of LXR agonist to suppress NF-κB signaling was abolished in Abca1-deficient macrophages (Figure 7C,D). Analysis of p65 localization by confocal immunofluorescence microscopy confirmed the ability of GW3965 to inhibit p65 nuclear translocation in an LXR-dependent and Abca1-dependent manner (Figure 7E,F).

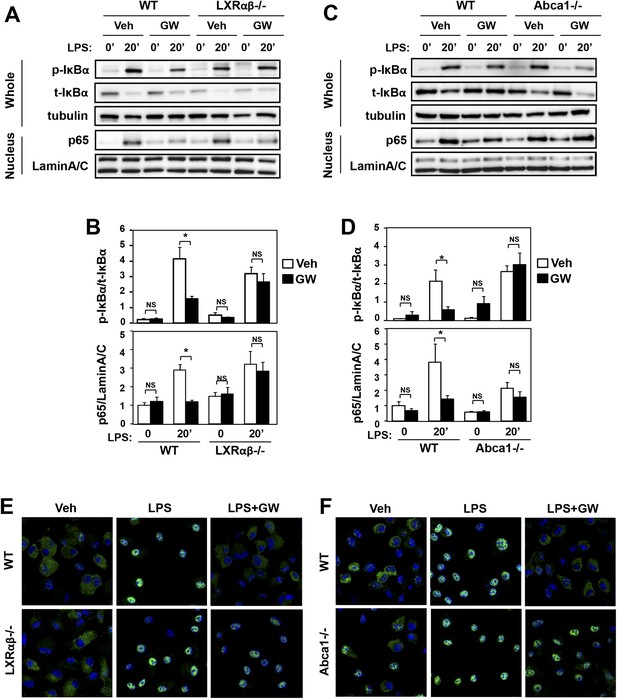

Ligand activation of LXR inhibits LPS-induced NF-κB activation through Abca1 induction.

(AF) Bone marrow-derived macrophages from Lxrα/Lxrβ/− and control wild-type mice (A, B, E), or bone marrow-derived macrophages from myeloid-specific Abca1−/− and control wild-type mice (C, D, F) were pretreated with GW3965 (1 µM) overnight, followed by stimulation with LPS (10 ng/ml) for 20 min. Whole cell lysates and nuclear lysates were harvested and protein expression was analyzed by immunoblotting with the indicated antibodies (A, C). Protein expression was quantified by Image Quant TL7.0 (B, D). N = 4–6 per group. *p < 0.05, **p < 0.01, NS, not significant. Error bars represent means ± SEM. Nuclear translocation of p65 was assessed by staining of p65 (green) and DAPI (blue) (E, F).

https://doi.org/10.7554/eLife.08009.013

To address whether p65-binding to its target inflammatory gene promoters was affected by LXR activation, we employed chromatin immunoprecipitation (ChIP) assays. The binding of p65 to the Nos2, IL1b and Ccl2 gene promoters was increased by LPS treatment as expected, whereas no binding was observed on the hemoglobin beta (Hbb2) gene promoter, which does not contain a p65 binding site (Figure 8). We found that LXR activation suppressed LPS-induced p65 recruitment to the Nos2s, Ccl2 and Il1b gene promoters. Moreover, the inhibitory effect of LXR agonist on p65 recruitment was lost in Abca1-deficient macrophages (Figure 8). Together, the data of Figures 6–8 demonstrate that LXR activation inhibits signaling through TLR4, and that Abca1 expression is critical for this phenomenon.

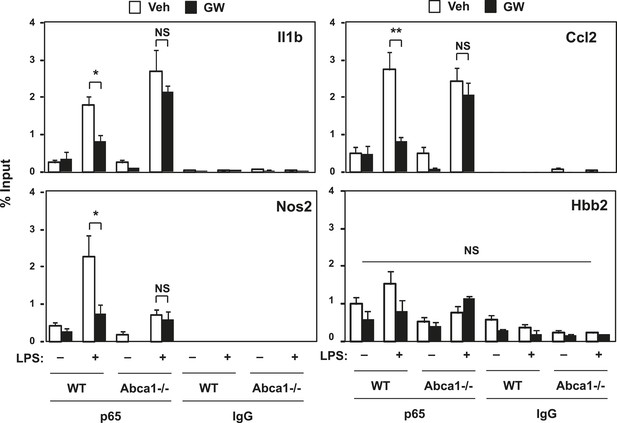

LXR activation decreases p65 occupancy on inflammatory gene promoters.

Recruitment of p65 to inflammatory gene promoters was assessed by ChIP-qPCR assays. Chromatin from wild-type or Abca1−/− cells was precipitated with p65 antibody or control IgG. N = 4 per group. *p < 0.05, **p < 0.01, NS, not significant. Error bars represent means ± SEM.

https://doi.org/10.7554/eLife.08009.014

LXR-dependent Abca1 expression redistributes membrane cholesterol and disrupts TLR signaling complexes in lipid rafts

We next tested the hypothesis that LXR agonist treatment relocalizes plasma membrane cholesterol away from detergent-resistant microdomains or rafts, thereby preventing the localization of TLR4 signaling molecules and impairing downstream signaling. BMDM from wild-type or LXR-deficient mice were treated overnight with GW3965, and then cell membranes were fractionated and the cholesterol content of each fraction determined. We found that LXR activation reduced the cholesterol content of Flotillin-enriched detergent-resistant membrane microdomains in wild-type type (<47% reduction) but not LXR-deficient macrophages (Figure 9A). Furthermore, this reduction in cholesterol content of detergent-resistant membrane microdomains was not observed in Abca1-deficient macrophages (Figure 9B). On the other hand, the expression of ganglioside GM1, a marker of lipid rafts, was not altered by LXR agonist (Figure 9C). These results suggest that LXR-dependent ABCA1 expression reduces the cholesterol content of detergent-resistant membrane microdomains without affecting the abundance of lipid rafts in the plasma membrane.

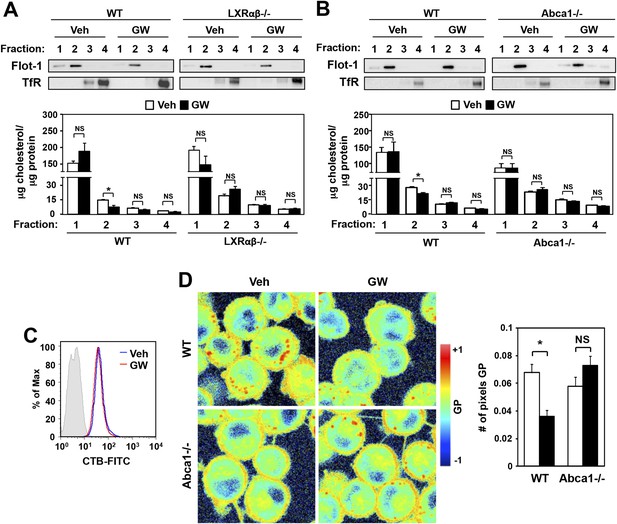

Ligand activation of LXR decreases cholesterol content in lipid rafts and increases membrane lipid mobility.

(A, B) Bone marrow-derived macrophages from Lxrα/Lxrβ/− and control wild-type mice (A), or bone marrow-derived macrophages from myeloid-specific Abca1−/− and control wild-type mice (B) were pretreated with GW3965 (1 µM) overnight. Lipid raft and non-raft fractions were isolated using the detergent method and each fraction was analyzed by Western blotting. The free cholesterol concentration in each fraction was determined and normalized to protein concentration. N = 5 per group. (C) The abundance of lipid rafts in the plasma membrane was analyzed by flow cytometry after staining with cholera toxin B (CTB). (D) Wild-type or Abca1−/− iBMDM were treated with oxidized LDL (50 µg/ml) for 48 hr, and GW3965 (1 µM) overnight. GP images (left) were obtained from fluorescence-lifetime imaging microscopy (FLIM). The GP scale used to pseudocolor the intensity image is shown at right. Plasma membrane fluidity was determined with GP and number of pixel in plasma membrane (right). *p < 0.05, **p < 0.01, NS, not significant. Error bars represent means ± SEM.

https://doi.org/10.7554/eLife.08009.015

The cholesterol content of the plasma membrane affects its fluidity and rigidity, and therefore could conceivably affects signaling through membrane receptors (Simons and Toomre, 2000; Fessler and Parks, 2011). Laurdan is a fluorescent lipophilic molecule that can be used to detect changes in membrane dynamics due to its sensitivity to the polarity of the membrane environment (Parasassi and Gratton, 1995; Vest et al., 2006; Golfetto et al., 2013). Changes in membrane dynamics shift the laurdan emission spectrum, which can be quantified by the generalized polarization (GP) calculated from the spectrum shifts (Parasassi et al., 1990). To examine if membrane dynamics were affected as a result of LXR-dependent reductions in raft cholesterol content, we stained living primary macrophages with laurdan. As shown in Figure 9D, plasma membrane rigidity was decreased in response to LXR activation, consistent with the altered cholesterol distribution. Furthermore, the ability of LXR agonist treatment to affect plasma membrane fluidity in primary macrophages was largely dependent on Abca1expression, as we did not observe a shift in laurdan signal in Abca1−/− macrophages (Figure 9D).

To gain additional insight into the inflammatory signaling pathways impacted by LXR, we tested the influence of LXR agonist treatment on gene expression induced by TLR2 (Pam3CSK4), TLR9 (CpG) and TLR3 (Poly I:C) agonists. LXR activation blunted the response to TLR2 and TLR9 (Figure 10A,B), but did not affect the induction of viral response genes by TLR3 (Figure 10C). Furthermore, loss of Abca1 expression in macrophages inhibited the ability of LXR agonist to repress gene expression stimulated by TLR2 and TLR9 as well as by TLR4. These observations suggested that LXR-dependent membrane lipid remodeling was targeting a component of the inflammatory signaling cascade common to TLRs 2, 4 and 9.

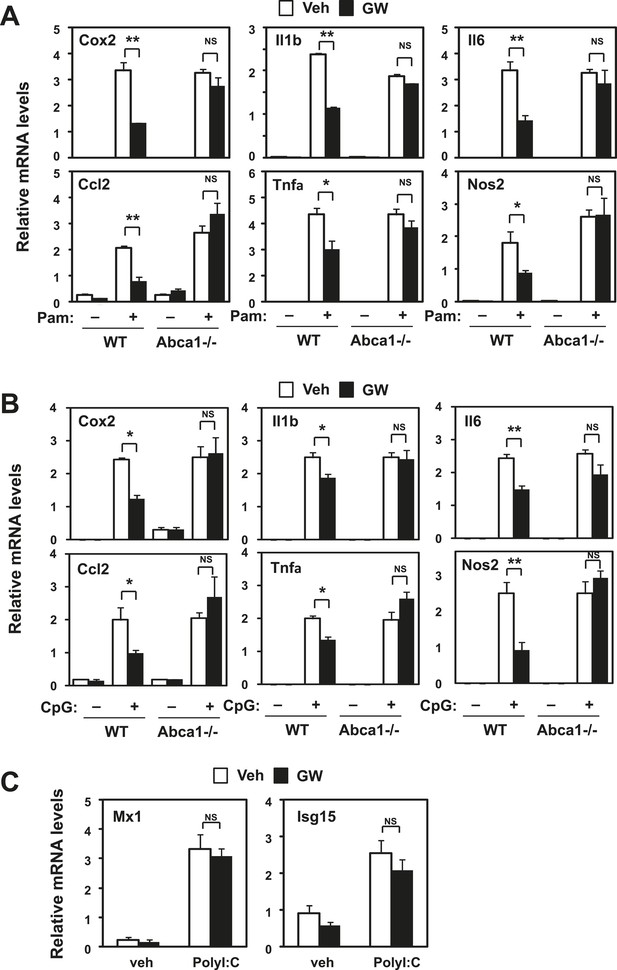

Inhibition of TLR2 and TLR9 signaling by LXR requires Abca1.

Bone marrow-derived macrophages from myeloid-specific Abca1−/− and control wild-type mice (A, B, C) were pretreated with GW3965 (1 µM) overnight, followed by stimulation with Pam3CSK4 (100 ng/ml), LPS (10 ng/ml), CpG (1 µM) or polyI:C (10 µg/ml) for 4 hr as indicated. Gene expression was analyzed by real-time PCR. N = 4 per group. *p < 0.05, **p < 0.01, NS, not significant. Error bars represent means ± SEM.

https://doi.org/10.7554/eLife.08009.016

The adaptor molecule MyD88 is commonly engaged by TLRs 2, 4 and 9 and links these receptors to the downstream activation of MAPKs and NF-κB, and ultimately to the induction of cytokine gene expression. Thus, MyD88 emerged as potential common component of inflammatory signaling pathways targeted by LXR and Abca1. Flow cytometry revealed that TLR4 expression in plasma membrane was not affected by LXR activation (Figure 11A). We therefore tested whether the recruitment of key adaptor molecules to lipid rafts was altered by LXR activation. We performed cell fractionation studies to assess the ability of MyD88 and TRAF6 to associate with lipid rafts in response to TLR4 activation by LPS. We confirmed the ability of our antibodies to detect MyD88 and TRAF6 using MyD88-deficient and siRNA to TRAF6 (Figure 11—figure supplement 1). LPS-dependent recruitment of MyD88 and TRAF6 in Flotillin-1-enriched detergent-resistant membrane microdomains was markedly reduced by treatment of iBMDM with GW3965 (Figure 11B). Furthermore, the ability of LXR agonist to inhibit recruitment of MyD88 and TRAF6 was lost in Abca1-deficient macrophages. These observations suggest that a reduction in raft cholesterol content in response to LXR activation and Abca1 expression leads to alterations in membrane dynamics and/or raft structure and to the disruption of functional TLR4 complexes. Therefore, downstream MAPK and NF-κB signaling and inflammatory gene expression are repressed.

Figure 11 with 1 supplement see all

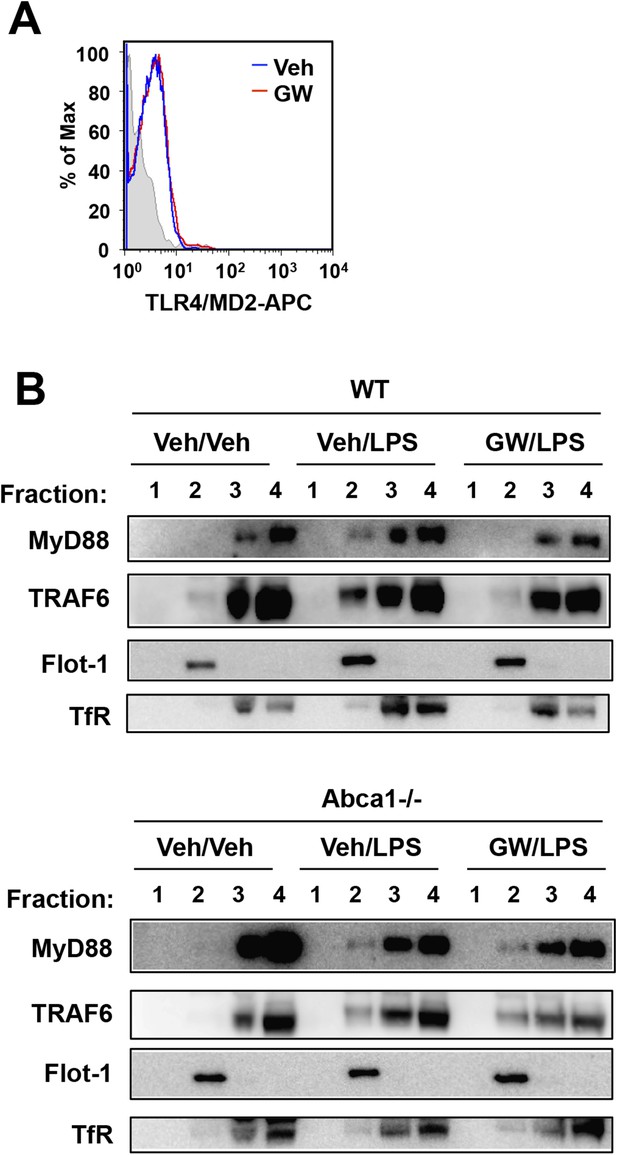

LXR activation inhibits recruitment of MyD88 and TRAF6 to lipid rafts.

(A) Wild-type iBMDM were pretreated with GW3965 (1 µM) overnight and TLR4 expression was analyzed by flow cytometry. (B) Wild-type or Abca1−/− iBMDM were pretreated with GW3965 (1 µM) overnight, followed by stimulation with LPS (10 ng/ml) for 10 min. Lipid raft and non-raft fractions were isolated using detergent method and each fraction was analyzed by Western blotting. Results are representative of two independent experiments.

https://doi.org/10.7554/eLife.08009.017

Abca1 contributes to LXR-dependent repression of inflammation in vivo

To test whether Abca1 was required for the ability of LXR agonists to repress inflammatory gene expression in vivo, we pretreated wild-type or myeloid-specific Abca1−/− mice with vehicle or GW3965 for 3 days and then challenged them with LPS. Analysis of gene expression in spleen and lung 2 hr after LPS treatment revealed that an array of inflammatory genes was induced by LPS as expected (Figure 12). This induction was substantially attenuated by LXR agonist treatment in wild-type mice, whereas little if any inflammatory repression was observed in mice lacking expression of Abca1 in macrophages (Figure 12). Taken together, these results suggest that the ability of LXRs to repress inflammation in macrophages derives primarily from their ability to regulate cellular cholesterol metabolism through Abca1. They further reveal an unexpected connection between Abca1-dependent membrane cholesterol distribution and TLR4-mediated inflammatory signaling.

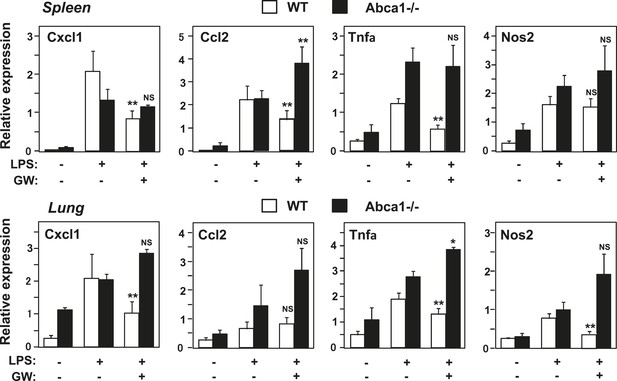

Abca1 contributes to LXR anti-inflammatory effects in vivo.

Myeloid-specific Abca1−/− and control wild-type mice were gavaged with GW3965 (40 mg/kg) for 3 days, followed by challenge with LPS (1 mg/kg) by intraperitoneal injection. 2 hr later, spleens (upper) and lungs (lower) were harvested, RNA isolated and gene expression analyzed by real-time PCR. N = 3–4 per group. *p < 0.05, **p < 0.01, NS, not significant. Error bars represent means ± SEM.

https://doi.org/10.7554/eLife.08009.019

Discussion

LXRs reciprocally regulate lipid metabolism and inflammation. Both of these processes are central to the pathogenesis of metabolic diseases such as atherosclerosis and diabetes (Castrillo et al., 2003a, 2003b; Joseph et al., 2004). LXRs have been proposed to repress inflammatory gene expression in trans by tethering to NF-κB transcriptional complexes in a SUMOylation-dependent manner (Ghisletti et al., 2007; Lee et al., 2009; Venteclef et al., 2010). This has heretofore been believed to be the sole mechanism underlying LXR's anti-inflammatory effects. The present study suggests that LXR-mediated transcriptional repression of endogenous inflammatory genes is principally dependent on LXR's capacity for transactivation. Our studies also identify the sterol transporter Abca1 as an important mediator of LXR's anti-inflammatory effects, both in vitro and in vivo. We find that Abca1 induction represses TLR-induced NF-κB and MAPK pathway activation by reducing the cholesterol content of detergent-resistant membrane domains. These findings reveal a previously unrecognized mechanism for LXR-mediated inflammatory repression in which inflammatory repression is secondary to activation-dependent changes in cellular lipid metabolism.

Although we cannot exclude the possibility that trans-repression may operate in certain contexts, LXR agonist did not repress endogenous inflammatory gene expression in the absence of RXRα and RXRβ in our system, suggesting that LXR/RXR heterodimers were mediating repression. This led us to explore additional mechanisms for LXR inflammatory crosstalk. We found that an LXR L439A/E441A mutant that lacks co-activator recruitment capacity was unable to repress inflammation. These studies suggested that repression was mechanistically linked with transcriptional activation, and that repression might be a secondary phenomenon.

We examined an array of endogenous gene expression in LXR-null cells reconstituted with various LXRs mutants and found that mutants that could not undergo SUMOylation at the previously identified lysines (LXRα K328 and K434 and LXRβ K410 and K448) were still competent to repress inflammatory gene expression. Interestingly, the nuclear receptor SF-1 can be modified by SUMO in its hinge region and this modification has been shown to be functionally important for gene repression in vivo (Campbell et al., 2008; Lee et al., 2011). In contrast to the LXR transrepression model, however, the repressive effects of SUMOylated SF-1 are mediated by direct binding of SF-1 to response elements in its target promoters. Nevertheless, we considered the possibility that alternative SUMOylation sites in the hinge region of LXR (LXRα K177/K178/K180) might be used for transrepression. However, mutation of the three hinge lysines to arginine did not alter LXR-dependent repression of endogenous inflammatory genes.

Prior studies from our group suggested that LXR-mediated inflammatory repression was not mediated by the inhibition of nuclear translocation or DNA binding of NF-κB and AP-1 (Castrillo et al., 2003a, 2003b). These conclusions were drawn based on the analysis of electrophoretic mobility shift assays. In retrospect, these studies likely had technical limitations that prevented us from appreciating the effects of LXR on NF-κB signaling. Our prior studies did not define which NF-κB isoforms were bound to our DNA probe, and according to a recent comprehensive analysis of DNA binding by NF-κB proteins (Siggers et al., 2012), the sequence we used is not predicted to have high affinity for the LPS-induced p65-p50 heterodimer (Hoffmann and Baltimore, 2006). Our subsequent analysis of IκB phosphorylation, p65 nuclear translocation, and p65 recruitment to gene promoters has revealed previously unrecognized impairments in NF-κB and MAPK signaling in the setting of LXR activation.

The observation that gene activation was required for LXR-mediated inflammatory repression led us to identify the cholesterol transport protein Abca1 as a key mediator of the phenomenon. Accumulating evidence suggests that changes in membrane lipid content can affect inflammatory responses (Westerterp et al., 2013; Rong et al., 2015). Our membrane dynamics and biochemical studies indicate that LXR-dependent Abca1 induction reduces raft cholesterol content and alters membrane fluidity, suggesting a biophysical basis for the ability of LXR to inhibit TLR signaling. Previous studies have reported that Abca1-deficient macrophages contain more cholesterol and TLR4 protein in plasma membrane lipid rafts and that this results in enhanced inflammatory signaling upon LPS treatment (Koseki et al., 2007; Zhu et al., 2008, 2010). Our data are consistent with these results and provide an additional mechanism whereby changes in Abca1 expression can affect TLR signaling. We found that Abca1 expression is important for the ability of LXR to inhibit signaling from TLRs 2, 4 and 9–all of which use MyD88 as a key adaptor. We showed that LXR activation inhibits recruitment of the adaptor proteins MyD88 and TRAF6 to rafts and thereby blocks TLR-induced activation of MAP kinases and NF-κB.

LXR activation leads to the induction of an entire cascade of genes involved in cellular lipid homeostasis (Calkin and Tontonoz, 2012; Hong and Tontonoz, 2014). Although Abca1 is clearly a major contributor, our data do not exclude the involvement of other factors. In our view, it is likely that additional LXR target genes involved in lipid handling may also contribute to effects on inflammation. One attractive additional player is the phospholipid-remodeling enzyme Lpcat3, which we have recently shown affects inflammatory signaling in hepatocytes in the setting of obesity (Rong et al., 2013).

In conclusion, these studies outline a mechanistic connection between regulated plasma membrane cholesterol distribution and TLR-mediated inflammatory signaling. They further support a unified view of the role of LXR in transcriptional regulation in which direct activation underlies the dual biological functions of these nuclear receptors in metabolism and inflammation.

Materials and methods

Experimental procedures

Reagents and plasmids

Request a detailed protocol

Synthetic LXR ligand GW3965 was provided by T. Wilson (GlaxoSmithKline). Human LXRα, LXRβ and their mutants were cloned into pDEST retrovirus vector using gateway technology (Invitrogen, Carlsbad, CA). Point mutations were introduced using the Quickchange site-directed mutagenesis kit (Stratagene) and verified by DNA sequencing.

Cell culture

Request a detailed protocol

Primary peritoneal macrophages were obtained from thioglycollate-treated mice 4 days after injection. For bone marrow-derived macrophages, bone marrow was isolated from femurs and tibias, and differentiated in DMEM supplemented with 20% fetal bovine serum (FBS), 30% L929 conditioned medium and antibiotics for 6–7 days. MEFs were immortalized by the SV40 Large T antigen retrovirus and selected with puromycin. Immortalized bone marrow-derived macrophages were obtained as previously described (Blasi et al., 1985; Gandino and Varesio, 1990). To reconstitute immortalized bone marrow derived macrophages from LXR-deficient mice with LXR wild-type or mutants, retrovirus supernatants from Phoenix E cells transfected with the expression vectors were infected to immortalized macrophages. The iBMDM stably expressing wild-type LXRα, LXRβ or mutants were obtained by 300 µg/ml of hygromycin B (Invitrogen). For RNAi experiments in macrophages, cells were transfected with control or ON-TARGETplus SMARTpool siRNAs (25 nM, Dharmacon) targeted RXRα, RXRβ, Ubc9, Hdac4, ABCA1, ABCG1 and TRAF6 using Darmafect 4 (Dharmacon). Cells were used for experiments after 48 hr incubation and target gene knockdown was validated by real-time PCR and Western Blot. For macrophage inflammatory responses, cells were placed in DMEM containing 0.5% FBS, 5 μM simvastatin, 100 μM mevalonic acid and 1 μM GW3965 or DMSO overnight. Cells were then stimulated with 10 ng/ml LPS or vehicle. For cellular cholesterol modification, bone marrow-derived macrophages were placed in DMEM containing 0.5% FBS, 5 μM simvastatin plus 100 μM mevalonic acid for 4 hr, then incubated with complexes of randomly methylated cyclodextrin (Trappsol) and cholesterol (Sigma–Aldrich) (CD/Chol, 100 μM) to overload with cholesterol (Klein et al., 1995) or hydroxypropyl-β-cyclodextrin (Trappsol) (CD, 10 mM) to deplete cholesterol for 1 hr and stimulated with LPS (10 ng/ml) for 4 hr.

Gene expression and microarray analysis

Request a detailed protocol

Total RNA was isolated from cells and tissues with Trizol (Invitrogen), following the manufacturer's instruction. 500 ng of total RNA was used for cDNA synthesis and quantified by real-time PCR using SYBR Green (Diagenode) and an ABI 7900 instrument. Gene expression levels were normalized to 36B4. Primer sequences are given in Table 1. For microarray experiments, RNA was pooled from n = 3–4 biological replicates and processed in the UCLA Clinical Microarray Core Facility using SurePrint G3 Mouse GE 8 × 60 K Microarrays (Agilent). Data was analyzed using GenespringGX (Agilent). The data discussed in this publication have been deposited in NCBI's Gene Expression Omnibus (Edgar et al., 2002) and are accessible through GEO Series accession number GSE70444 (http://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE70444) and GSE70463 (http://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE70463).

Table 1

qPCR primers

https://doi.org/10.7554/eLife.08009.020
Murine qPCR primersForwardReverse
36B4GGCCCTGCACTCTCGCTTTCTGCCAGGACGCGCTTGT
Abca1CGTTTCCGGGAAGTGTCCTAGCTAGAGATGACAAGGAGGATGGA
Abcg1TCACCCAGTTCTGCATCCTCTGCAGATGTGTCAGGACCGAGT
ApoeGACTTGTTTCGGAAGGAGCTGCCACTCGAGCTGATCTGTCA
Cox-2CAGGTCATTGGTGGAGAGGTGGGATGTGAGGAGGGTAGATCA
Cxcl1CACTGCACCCAAACCGAAGTGGACAATTTTCTGAACCAAGGG
HmgcsGCCGTGAACTGGGTCGAAGCATATATAGCAATGTCTCCT
Il-1bAGAAGCTGTGGCAGCTACCTGGGAAAAGAAGGTGCTCATGTCC
Il-6GCTACCAAACTGGATATAATCAGGACCAGGTAGCTATGGTACTCCAGAA
iNosGCAGCTGGGCTGTACAAAAGCGTTTCGGGATCTGAAT
Isg15CAGGACGGTCTTACCCTTTCCGCTGCAGTTCTGTACCACT
LdlrAGGCTGTGGGCTCCATAGGTGCGGTCCAGGGTCATCT
Mcp-1CATCCACGTGTTGGCTCAGATCATCTTGCTGGTGAATGA
Mx-1AAACCTGATCCGACTTCACTTCCTGATCGTCTTCAAGGTTTCCTTGT
RxraACCGCTCCATAGCTGTGAAAGTGAGCGCTGTTCCGGTGTA
RxrbGCCACTGGCATGAAAAGGATCTCCATCCCCGTCTTTGT
Srebp-1cGGAGCCATGGATTGCACATTGGCCCGGGAAGTCACTGT
TnfaTCTTCTCATTCCTGCTTGTGGGGTCTGGGCCATAGAACTGA
Human qPCR primersForwardReverse
36B4CCACGCTGCTGAACATGCTTCGAACACCTGCTGGATGAC
Abca1GCCTGCTAGTGGTCATCCTGCCACGCTGGGATCACTGTA
Abcg1ATGTCAGGTATGGGTTCGAAGTCTGGTCGATGTCACAGTGC
Cxcl1TCAAGAATGGGCGGAAAGCCAGCATCTTTTCGATGATTTTC
IL-6CCAGGAGCCCAGCTATGAACCCCAGGGAGAAGGCAACTG
LxraAAGCCCTGCATGCCTACGTTGCAGACGCAGTGCAAACA
LxrbTCGTGGACTTCGCTAAGCAAGCAGCATGATCTCGATAGTGGA
Mcp-1AGAAGCTGTGATCTTCAAGACCATTTGCTTGTCCAGGTGGTCCAT
TnfaTCTTCTCGAACCCCGAGTGACCTCTGATGGCACCACCAG

Chromatin immunoprecipitation (ChIP)

Request a detailed protocol

ChIP experiment was performed as described (Villanueva et al., 2011). Cells were crosslinked in DSG (disuccinimidyl glutarate) and 1% formaldehyde for 10 min and quenched with 2 M Glycine. Lysed cells were sonicated using a Bioruptor (Diagenode) according to the manufacturer's protocol, and chromatin was immunoprecipitated with antibodies against p65 (Santa Cruz C-20) or IgG (PP64, Millipore) overnight at 4°C for overnight in the presence of Protein A beads with salmon sperm DNA (Millipore). DNA enrichment was quantified by real-time PCR using SYBR Green (Diagenode) and an ABI 7900 instrument. Occupancy was normalized to input DNA. Primer sequences are given in Table 2.

Table 2

ChIP primers

https://doi.org/10.7554/eLife.08009.021
Murine ChIP primersForwardReverse
Hbb2AGGTGCACCATGATGTCTGTAGCAGGGTCAGTTGCTTCTT
Il-1bGGACAATTGTGCAGATGGTGCCTACCTTTGTTCCGCACAT
iNosGGAGTGTCCATCATGAATGAGCAACTCCCTGTAAAGTTGTGACC
Mcp-1TCCAGGGTGATGCTACTCCTAGTGAGAGTTGGCTGGTGCT

Protein analysis

Request a detailed protocol

Whole cell lysate were prepared in RIPA buffer (Boston Bioproducts) supplemented with protease inhibitors (Roche Diagnostics). The nuclear fractions were prepared as described (Villanueva et al., 2011). Proteins were separated on Nupage Bis-Tris gels then transferred to PVDF membrane (GE Osmonics).

Membranes were probed with antibodies against ABCA1 (Novus; NB400-105), LXRα (Perseus Proteomics; PP-K8607-10), LXRβ (Perseus Proteomics; PP-K8917-10), ERK (Cell Signaling; 9102), phospho-ERK (Cell Signaling; 9106), p38 MAPK (Cell Signaling; 9212), phospho-p38 MAPK (Cell Signaling; 9216), JNK (Santa Cruz; sc-372), phospho-JNK (Cell signaling; 4668), IκBα (Cell Signaling; 9242), phosphor- IκBα (Santa Cruz; sc-7977), p65 (Santa Cruz; sc-372), MyD88 (Cell Signaling; 4283), TRAF6 (Santa Cruz; sc-7221), tubulin (Calbiochem; CP06), Lamin A/C (Santa Cruz; sc-6215), Flottilin-1 (Cell Signaling; 3253) and transferrin receptor (Invitrogen; 13–6800). Immunoblots were developed HRP-conjugated secondary antibodies (Invitrogen) and chemiluminescence kit (GE healthcare). The signals were detected with Image Quant LAS4000 (GE healthcare) and quantified with Image Quant TL7.0 (GE healthcare).

Immunofluorescence

Request a detailed protocol

Cells were fixed in cold 4% paraformaldehyde for 10 min and permeabilized in 0.1% Triton X-100 at room temperature for 5 min. After blocking with 5% normal goat serum and 1% BSA in PBS, cells were incubated with rabbit anti-NF-κB p65 (1:100, Santa Cruz C-20) antibody at 4°C for overnight. After washes in PBS, coverslips were incubated at room temperature for 1 hr with the secondary antibody, Alexa488-conjugated goat anti-rabbit IgG (1:2000, Invitrogen A-11008). After cells were washed, cells were mounted in the presence of ProLong Gold Antifade Reagent with 4′,6′-diamidino-2-phenylindole (DAPI; Invitrogen). Images were collected with an LSM 510 confocal laser-scanning microscope (Carl Zeiss).

Detergent-resistant membrane isolation and cholesterol measurement

Request a detailed protocol

Detergent-resistant membrane was isolated as described (Lingwood and Simons, 2007). Briefly, cells were washed and harvested in TNE buffer (150 mM NaCl, 2 mM EDTA, 50 mM Tris–HCl, pH7.4), lysed by passing through a 25 gauge needle, and solubilized with 1% TritonX-100 at 4°C for 30 min. Lysates were mixed with Optiprep to form a 40% iodixanol bottom layer in the centrifuge tube, overlaid with a 30% iodixanol layer and a 0% (TNE buffer) layer, and centrifuged for 2 hr at 260,000×g in TLA100.2 rotor. Four fractions were collected from the top of the gradient and subjected to immunoblot analysis. Cholesterol concentration in each fraction was measured by Amplex Red Cholesterol Assay Kit (Invitrogen) and normalized to protein concentration.

Flow cytometry

Request a detailed protocol

Wild-type iBMDM were blocked with anti-mouse CD16/32 antibody (BioLegend). Cells were then stained with Alexa488-conjugated Cholera Toxin B subunit (1:100, Sigma–Aldrich) to examine the amount of lipid raft and APC-conjugated TLR4/MD2 complex (MTS510, eBioscience) or isotype control to examine TLR4/MD2 cell surface expression in 0.1% BSA, 5 mM EDTA in PBS. After washing, cells were analyzed on LSRII (BD bioscience) with FlowJo software (Treestar).

Membrane dynamics

Request a detailed protocol

Membrane dynamics was analyzed as described (Golfetto et al., 2013). Briefly, wild-type iBMDM were plated onto 35-mm Mattek glass-bottom dishes and placed in DMEM containing 0.5% FBS, 5 μM simvastatin plus 100 μM mevalonic acid and 1 μM GW3965 or DMSO overnight. Cells were incubated with 50 µM Laurdan (6-dodecanoyl-2-dimethylaminonaphthalene; Invitrogen) at 37°C for 30 min. Cells were then rinsed with PBS and new medium was added. Fluorescence-lifetime imaging microscopy (FLIM) and ratiometric GP data were acquired with a Zeiss LSM710 META laser scanning microscope coupled to a 2-photon Ti:Sapphire laser (Mai Tai, Spectra Physics, Newport Beach, CA) producing 80-fs pulses at a repetition of 80 MHz with two different filters: 460/80 nm for the blue channel and 540/50 nm for the green channel. Spectral data were processed by the SimFCS software (Laboratory for Fluorescence Dynamics). Plasma membrane fluidity was calculated with GP and number of pixel.

Animal studies

Request a detailed protocol

All animals were housed in a temperature-controlled room under a 12-hr light/12-hr dark cycle and under pathogen-free conditions. 24–26 weeks old male myeloid-specific Abca1−/− and control wild-type mice were gavaged with GW3965 (40 mg/kg) for 3 days. 2 hr after the last GW injection, the mice were challenged with LPS (1 mg/kg) or vehicle by intraperitoneal injection. Mice were sacrificed 2 hr later and spleen and lung were harvested. Animal experiments were conducted in accordance with the UCLA Animal Research Committee (UCLA Protocols 1999-131 and 2003-166).

Statistic analysis

Request a detailed protocol

Statistics were performed using ANOVA with post hoc tests to compare to the control group. p < 0.05 was considered statistically significant. Data was presented as means ± SE.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
    Use of cyclodextrins for manipulating cellular cholesterol content
    1. AE Christian
    2. MP Haynes
    3. MC Phillips
    4. GH Rothblat
    (1997)
    Journal of Lipid Research 38:2264–2272.
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
    Lpcat3-dependent production of arachidonoyl phospholipids is a key determinant of triglyceride secretion
    1. X Rong
    2. B Wang
    3. MM Dunham
    4. PN Hedde
    5. JS Wong
    6. E Gratton
    7. SG Young
    8. DA Ford
    9. P Tontonoz
    (2015)
    eLife, 4, 10.7554/eLife.06557.
  28. 28
    Regulation and intracellular trafficking of the ABCA1 transporter
    1. S Santamarina-Fojo
    2. AT Remaley
    3. EB Neufeld
    4. HB Brewer Jr
    (2001)
    Journal of Lipid Research 42:1339–1345.
  29. 29
  30. 30
  31. 31
  32. 32
    Human estrogen receptor transactivational capacity is determined by both cellular and promoter context and mediated by two functionally distinct intramolecular regions
    1. MT Tzukerman
    2. A Esty
    3. D Santiso-Mere
    4. P Danielian
    5. MG Parker
    6. RB Stein
    7. JW Pike
    8. DP McDonnell
    (1994)
    Molecular Endocrinology 8:21–30.
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38

Decision letter

  1. Ruslan Medzhitov
    Reviewing Editor; Howard Hughes Medical Institute, Yale University School of Medicine, United States

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for submitting your work entitled “Liver X receptors repress inflammation through ABCA1-dependent modulation of NF-κB and MAP kinase signaling” for peer review at eLife. Your submission has been favorably evaluated by Tadatsugu Taniguchi (Senior editor) and two reviewers, one of whom is a member of our Board of Reviewing Editors.

The reviewers have discussed the reviews with one another and the Reviewing editor has drafted this decision to help you prepare a revised submission.

Reviewers’ comments:

This manuscript provides compelling data refuting several papers suggesting that the anti-inflammatory effects of LXR agonism are due to increased SUMOylation of LXR, which was reported to recruit a co-repressor complex to promoters of inflammatory genes in macrophages. The present work suggests that SUMOylation is not required and that instead the mechanism involves the upregulation of ABCA1 expression. The authors show that ABCA1 is required for LXR-dependent anti-inflammatory activity through its ability to alter membrane lipid composition and in turn signaling through TLR4. While the data demonstrating that ABCA1 is required for the anti-inflammatory action of LXR agonists is quite good, the experiments were less robust in ruling out a role for SUMOylation or co-repression. Since a major conclusion of this work is based on co-repression not being involved, this is something that would need to be fleshed out in more detail. In addition, the proposed mechanism of ABCA1 effect (Figure 7) needs further experimental clarification.

1) The previous paper by Ghisletti et al., which was the basis for most of the conclusions that SUMOylation of LXRs mediates the anti-inflammatory effects, postulated that HDAC4 caused ligand-dependent SUMOylation via Ubc9, which in turn recruited N-CoR to target promoters (e.g., the iNos promoter). This previous paper used cells transfected with various siRNAs and/or LXR mutants to support their conclusions. The present manuscript has a similar set of experiments using retroviral expression in LXR KO and ABCA1 KO cells to show that LXR mutants lacking the SUMO sites still repress some genes. However, these experiments cannot be directly compared to Ghisletti et al., since the present work never even investigates the requirement of Ubc9 or N-CoR. In addition, perhaps the discrepancy may be due to the promoters studied in each paper. Ghisletti mainly studied the iNos promoter, while this paper focused mostly on other targets (e.g., IL-1b). At this point I do not believe one can entirely rule out the co-repression as part of the mechanism. The involvement of Ubc9 and N-CoR should be investigated. It would be important to include iNOS genes in the analyses here, as the effects may well be gene dependent and so direct comparison impossible and the issue will remain unresolved unless the same genes are analyzed.

2) I note that the present paper as well as the previous papers used siRNA as well as overexpression of mutant proteins to support their conclusions. Therefore, please include data showing the level of expression of proteins introduced into cells by retroviral infection, and the level of knockdown achieved by siRNA treatment. These are important controls to show the physiologic relevance of the findings.

3) Why is the LPS responds in the LXR-null macrophages slower than it is in WT cells (Figure 5A, B)? LPS induced Erk, p38 and JNK phosphorylation within 20 min in WT but not in the KO cells. It may be informative to also include a time course of this effect in the Abca1-null cells (Figure 5C, D) as well. It should be the same as the LXR KOs.

4) Please include statistical analysis in Figure 6G to show which effects are significant.

5) Figure 7F, G needs statistical quantitation. Visual inspection of this figure does not reveal “markedly reduced” changes in any of the bands due to LXR agonism. It is also not clear why flot-1 is not detected in any fractions in Figure 7B? This doesn't seem to correspond to what the authors are saying in the text. Please clarify. I found it hard to interpret Figure 7A and B.

7) Figures 7F and G are equally uninterpretable: the result showing MyD88 recruitment between Raw cells and BMDMs looks opposite – in one case LPS increases the recruitment, in another reduces it. I feel this is not the best assay to address the mechanism. One likely scenario is that ABCA1 mediated cholesterol efflux affects recruitment of TIRAP. TIRAP is a sorting adaptor responsible for recruitment of MyD88 to TLR4 at the plasma membrane. TIRAP interacts with PIP2, which is enriched at lipid rafts. So a plausible scenario is that cholesterol 'depletion' from PM may affect TIRAP mediated MyD88 recruitment. A direct way to test this is by looking at TIRAP recruitment to PM in response to LPS (Kagan, Cell. 2006 Jun 2;125(5):943-55.). This is a fairly simple experiment that can be done quickly and all the reagents are available from the authors of the above study.

8) Recruitment of TIRAP-MyD88 should only affect NF-kB/MAPK pathways, but not the TRAM-TRIF pathways leading to IFN-stimulated genes (ISGs). Is ISG expression affected in the conditions tested in the study (GW, ABCA-1 KO)? The authors already have the data, just need to discuss it.

9) Further to point 3 above, the authors should test the effect of LXR and ABCA1 deficiency on CpG induced gene expression. Regardless of the outcome, the result of this simple experiment would be very informative.

https://doi.org/10.7554/eLife.08009.022

Author response

[…] The authors show that ABCA1 is required for LXR-dependent anti-inflammatory activity through its ability to alter membrane lipid composition and in turn signaling through TLR4. While the data demonstrating that ABCA1 is required for the anti-inflammatory action of LXR agonists is quite good, the experiments were less robust in ruling out a role for SUMOylation or co-repression. Since a major conclusion of this work is based on co-repression not being involved, this is something that would need to be fleshed out in more detail. In addition, the proposed mechanism of ABCA1 effect (Figure 7) needs further experimental clarification.

1) The previous paper by Ghisletti et al., which was the basis for most of the conclusions that SUMOylation of LXRs mediates the anti-inflammatory effects, postulated that HDAC4 caused ligand-dependent SUMOylation via Ubc9, which in turn recruited N-CoR to target promoters (e.g., the iNos promoter). This previous paper used cells transfected with various siRNAs and/or LXR mutants to support their conclusions. The present manuscript has a similar set of experiments using retroviral expression in LXR KO and ABCA1 KO cells to show that LXR mutants lacking the SUMO sites still repress some genes. However, these experiments cannot be directly compared to Ghisletti et al., since the present work never even investigates the requirement of Ubc9 or N-CoR. In addition, perhaps the discrepancy may be due to the promoters studied in each paper. Ghisletti mainly studied the iNos promoter, while this paper focused mostly on other targets (e.g., IL-1b). At this point I do not believe one can entirely rule out the co-repression as part of the mechanism. The involvement of Ubc9 and N-CoR should be investigated. It would be important to include iNOS genes in the analyses here, as the effects may well be gene dependent and so direct comparison impossible and the issue will remain unresolved unless the same genes are analyzed.

This is an important point. In response to the reviewers’ comments, we have now performed additional knockdowns for Ubc9 and HDAC4 (Figure 2—figure supplement 2). The data indicate that neither of these factors is required for repression in our system. We have also included iNos gene expression in our analysis as requested in multiple figures (2, 3, 8, 10). iNos is not expressed by fibroblasts and therefore could not be included in the MEF studies. We have not performed N-CoR knockdowns, because this experiment is not informative in our view. Loss of N-CoR derepresses LXR target genes, and this actually leads to increased Abca1 expression, as well as a myriad of other effects on many different nuclear receptors.

We do not wish to claim that there is no role for SUMOylation in any context. However, our data do clearly show that it is possible for LXR to repress inflammation in the absence of SUMOylation. The SUMOylation hypothesis was primarily based on analysis artificial promoters and it was never tested in vivo. Our systems examine endogenous genes and, as outlined in more detail in point 2 below, does not employ supraphysiological levels of LXRs.

2) I note that the present paper as well as the previous papers used siRNA as well as overexpression of mutant proteins to support their conclusions. Therefore, please include data showing the level of expression of proteins introduced into cells by retroviral infection, and the level of knockdown achieved by siRNA treatment. These are important controls to show the physiologic relevance of the findings.

Thank you for this comment. We neglected to make it clear that we are not massively overexpressing LXRs in our system. Retroviral reconstitution of LXRs in the KO cells results in LXR protein expression within the physiological range and restores LXR target gene expression to levels comparable to WT cells (see Figure 1—figure supplement 1). We have now also provided additional data on protein expression for various mutant LXRs (Figure 1—figure supplement 1). We have also provided additional validation of the efficacy of the siRNA reagents (Figure 1—figure supplement 1, Figure 2—figure supplement 1). Note, the key experiments on Abca1 are all done with true KO cells and the absence of protein is confirmed by western (see Figure 6).

3) Why is the LPS responds in the LXR-null macrophages slower than it is in WT cells (Figure 5A, B)? LPS induced Erk, p38 and JNK phosphorylation within 20 min in WT but not in the KO cells. It may be informative to also include a time course of this effect in the Abca1-null cells (Figure 5C, D) as well. It should be the same as the LXR KOs.

This was an insightful comment. As requested we have now included the comparable time course for Abca1 in the new Figure 6. As predicted by the reviewer, the response is in fact similar to the LXR KOs. Thus, both knockouts share a common basal alteration in MAPK response, further emphasizing the link between LXR and Abca1 in inflammatory signaling.

4) Please include statistical analysis in Figure 6G to show which effects are significant.

We have now provided statistical analysis and also expanded the ChIP analysis to include both WT and Abca1-/- cells in the revised Figure 8.

5) Figure 7F, G needs statistical quantitation. Visual inspection of this figure does not revealmarkedly reducedchanges in any of the bands due to LXR agonism. It is also not clear why flot-1 is not detected in any fractions in Figure 7B? This doesn't seem to correspond to what the authors are saying in the text. Please clarify. I found it hard to interpret Figure 7A and B.

We have redone the studies in the original Figure 7F, G as outlined below and the results are now more clear. We apologize that the Flot-1 western image did not appear on the reviewer’s PDF. It did appear on our own PDF downloaded from the eLife site. We have remade the image and hope that this will correct the PDF conversion error (Revised Figure 9A, B). Note, although the magnitude of change in the cholesterol levels in the raft fraction is not large in absolute terms, it is nonetheless biologically significant. Cholesterol levels in membranes never change dramatically in any physiological context. E.g., a change in ER cholesterol content between 3 and 5% has been reported by Brown and Goldstein to control SREBP cleavage.

7) Figures 7F and G are equally uninterpretable: the result showing MyD88 recruitment between Raw cells and BMDMs looks opposite – in one case LPS increases the recruitment, in another reduces it. I feel this is not the best assay to address the mechanism. One likely scenario is that ABCA1 mediated cholesterol efflux affects recruitment of TIRAP. TIRAP is a sorting adaptor responsible for recruitment of MyD88 to TLR4 at the plasma membrane. TIRAP interacts with PIP2, which is enriched at lipid rafts. So a plausible scenario is that cholesterol 'depletion' from PM may affect TIRAP mediated MyD88 recruitment. A direct way to test this is by looking at TIRAP recruitment to PM in response to LPS (Kagan, Cell. 2006 Jun 2;125(5):943-55.). This is a fairly simple experiment that can be done quickly and all the reagents are available from the authors of the above study.

We have repeated and refined the assays in the old Figures 7F and G. We agree that the RAW cell data was ambiguous, and we now present data exclusively from bone marrow macrophages, as they represent the most physiological system. We now compare WT and ABCA1-/- macrophages and show that LXR activation clearly inhibits MyD88 and TRAF6 recruitment to rafts in WT but not Abca1-/- cells (new Figure 11B). We also appreciate the insightful suggestion regarding TIRAP, but based on our finding that TLR9 is also inhibited by LXR, TIRAP seems to be excluded as the mediator of the LXR effect.

8) Recruitment of TIRAP-MyD88 should only affect NF-kB/MAPK pathways, but not the TRAM-TRIF pathways leading to IFN-stimulated genes (ISGs). Is ISG expression affected in the conditions tested in the study (GW, ABCA-1 KO)? The authors already have the data, just need to discuss it.

We have now provided and discussed this data as requested (Figure 10). LXRs do not repress activation of the TRAM-TRIF-IRF3 arm stimulated by TLR3, consistent with MyD88 being the target.

9) Further to point 3 above, the authors should test the effect of LXR and ABCA1 deficiency on CpG induced gene expression. Regardless of the outcome, the result of this simple experiment would be very informative.

This was an excellent suggestion. We have now examined LXR effects on signaling through TLR2,3 and 9 (Figure 10). LXR represses TLR9 in an Abca1-dependent manner, again suggesting that MyD88 rather than TIRAP is the target.

https://doi.org/10.7554/eLife.08009.023

Article and author information

Author details

  1. Ayaka Ito

    Department of Pathology and Laboratory Medicine, Howard Hughes Medical Institute, University of California, Los Angeles, Los Angeles, United States
    Contribution
    AI, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  2. Cynthia Hong

    Department of Pathology and Laboratory Medicine, Howard Hughes Medical Institute, University of California, Los Angeles, Los Angeles, United States
    Contribution
    CH, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    No competing interests declared.
  3. Xin Rong

    Department of Pathology and Laboratory Medicine, Howard Hughes Medical Institute, University of California, Los Angeles, Los Angeles, United States
    Contribution
    XR, Acquisition of data, Analysis and interpretation of data
    Competing interests
    No competing interests declared.
  4. Xuewei Zhu

    1. Department of Internal Medicine-Section on Molecular Medicine, Wake Forest School of Medicine, Winston-Salem, United States
    2. Department of Biochemistry, Wake Forest School of Medicine, Winston-Salem, United States
    Contribution
    XZ, Acquisition of data, Contributed unpublished essential data or reagents
    Competing interests
    No competing interests declared.
  5. Elizabeth J Tarling

    Department of Medicine, University of California, Los Angeles, Los Angeles, United States
    Contribution
    EJT, Acquisition of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  6. Per Niklas Hedde

    Laboratory of Fluorescence Dynamics, Biomedical Engineering Department, Center for Complex Biological Systems, University of California, Irvine, Irvine, United States
    Contribution
    PNH, Conception and design, Acquisition of data, Analysis and interpretation of data
    Competing interests
    No competing interests declared.
  7. Enrico Gratton

    Laboratory of Fluorescence Dynamics, Biomedical Engineering Department, Center for Complex Biological Systems, University of California, Irvine, Irvine, United States
    Contribution
    EG, Conception and design, Analysis and interpretation of data
    Competing interests
    No competing interests declared.
  8. John Parks

    1. Department of Internal Medicine-Section on Molecular Medicine, Wake Forest School of Medicine, Winston-Salem, United States
    2. Department of Biochemistry, Wake Forest School of Medicine, Winston-Salem, United States
    Contribution
    JP, Conception and design, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    Competing interests
    No competing interests declared.
  9. Peter Tontonoz

    Howard Hughes Medical Institute, University of California, Los Angeles, Los Angeles, United States
    Contribution
    PT, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    ptontonoz@mednet.ucla.edu
    Competing interests
    PT: Reviewing editor, eLife.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1259-0477

Funding

Howard Hughes Medical Institute

  • Peter Tontonoz

National Institutes of Health (HL066088)

  • Peter Tontonoz

National Institutes of Health (HL118161)

  • Elizabeth J Tarling

National Institutes of Health (GM103540)

  • Enrico Gratton

National Institutes of Health (GM076516)

  • Enrico Gratton

American Heart Association (11POST7390075)

  • Ayaka Ito

National Institutes of Health (DK063491)

  • Peter Tontonoz

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Joseph Witztum and Robert Hegele for the Tangier fibroblasts. AI was funded by an AHA Fellowship (11POST7390075) and the Fellowship of Astellas Foundation for Research on Metabolic Disorders. EJT was supported by K99 HL118161 and AHA 13BGIA17080038. This work was supported by grants HL066088, DK063491, HL119962, GM103540, and GM076516. PT is an Investigator of the Howard Hughes Medical Institute.

Ethics

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocols (#99-131 and 2003-166) of the University of California, Los Angeles.

Reviewing Editor

  1. Ruslan Medzhitov, Howard Hughes Medical Institute, Yale University School of Medicine, United States

Publication history

  1. Received: April 17, 2015
  2. Accepted: July 13, 2015
  3. Accepted Manuscript published: July 14, 2015 (version 1)
  4. Version of Record published: July 29, 2015 (version 2)

Copyright

© 2015, Ito et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,412
    Page views
  • 1,035
    Downloads
  • 92
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
