Stress induced gene expression drives transient DNA methylation changes at adjacent repetitive elements

  1. David Secco Is a corresponding author
  2. Chuang Wang
  3. Huixia Shou
  4. Matthew D Schultz
  5. Serge Chiarenza
  6. Laurent Nussaume
  7. Joseph R Ecker
  8. James Whelan Is a corresponding author
  9. Ryan Lister Is a corresponding author
  1. The University of Western Australia, Australia
  2. Zhejiang University, China
  3. Salk Institute for Biological Studies, United States
  4. Université d'Aix-Marseille, France
  5. La Trobe University, Australia
Research Article
Cited
48
Views
4,934
Comments
0
Cite as: eLife 2015;4:e09343 doi: 10.7554/eLife.09343

Abstract

Cytosine DNA methylation (mC) is a genome modification that can regulate the expression of coding and non-coding genetic elements. However, little is known about the involvement of mC in response to environmental cues. Using whole genome bisulfite sequencing to assess the spatio-temporal dynamics of mC in rice grown under phosphate starvation and recovery conditions, we identified widespread phosphate starvation-induced changes in mC, preferentially localized in transposable elements (TEs) close to highly induced genes. These changes in mC occurred after changes in nearby gene transcription, were mostly DCL3a-independent, and could partially be propagated through mitosis, however no evidence of meiotic transmission was observed. Similar analyses performed in Arabidopsis revealed a very limited effect of phosphate starvation on mC, suggesting a species-specific mechanism. Overall, this suggests that TEs in proximity to environmentally induced genes are silenced via hypermethylation, and establishes the temporal hierarchy of transcriptional and epigenomic changes in response to stress.

https://doi.org/10.7554/eLife.09343.001

eLife digest

Phosphate is an important nutrient for all living organisms. This chemical group forms part of the backbone of DNA molecules, and has a crucial role in many chemical reactions that occur inside cells. Plants in particular need a source of phosphate to grow. This is why agricultural fertilizers are rich in phosphate, but unfortunately, the use of fertilizers is not sustainable. Many researchers are now looking for new ways to maintain high crop yields without chemical fertilizers, and understanding how crops are affected in times of shortage will be pivotal to achieving this goal.

DNA contains coded information in the form of genes, which can either be switched on or off. Chemical marks added to the DNA can earmark genes for activation or inactivation, a bit like handwritten annotations in an instruction manual. One example is the addition of a chemical tag called a methyl group to one of the letters of the DNA code—so-called ‘cytosine methylation’. However, little is known about how the pattern of these chemical marks on DNA changes in response to changes in the environment.

Secco et al. investigated changes in cytosine methylation in both rice and Arabidopsis plants that had been deprived of phosphate. Arabidopsis, or thale cress, is a model plant that is often studied by plant biologists because it is small and grows quickly. The experiments showed that when rice plants were not given enough phosphate, the pattern of DNA methylation changed. This was particularly true around certain genes that help the plants survive in these difficult conditions. Notably, in the absence of phosphate, methylation also occurs more often in DNA sequences called transposable elements that sit close to these useful genes, and less often around other genes.

Transposable elements, also known as ‘jumping genes’ can move within the genome and thus potentially have damaging effects through altering the DNA sequence. However, DNA methylation normally prevents this from happening. Therefore, the extra methylation observed by Secco et al. may be a cautionary measure to inactivate these transposable elements and limit their potential deleterious effects. Further experiments went on to show that these useful genes seem to be switched on before the DNA of these transposable elements is methylated, implying that the extra methylation observed in these transposable elements is a consequence of the activation of these nearby useful genes.

By contrast, similar experiments performed in Arabidopsis reveal a very limited change in DNA methylation when the plants are grown under stressful conditions. This might be because Arabidopsis has considerably fewer transposable elements than rice. The next challenge will be to explore how significant the environmentally induced silencing of transposable elements is to the stress responses and genome integrity of crop plants.

https://doi.org/10.7554/eLife.09343.002

Introduction

Phosphorus (P) is one of the most important macronutrients for all living organisms, being a key component of nucleic acids and membrane phospholipids, as well as being an essential element for energy-mediated metabolic processes. Plants preferentially absorb this nutrient as inorganic phosphate (Pi), a form of P with low availability and mobility in the soil (Poirier and Bucher, 2002). As a consequence, Pi is one of the most limiting nutrients for plant growth and development in most agricultural soils. To overcome these issues, application of large quantities of Pi fertilizers has been the primary strategy to maintain crop yields. Yet, this approach is increasingly economically and environmentally unsustainable, with the reserves of Pi rocks greatly diminishing. It is therefore critical to better understand the molecular mechanisms involved in Pi homeostasis in order to generate plants with increased P acquisition and use efficiency, associated with sustained yields that will contribute to improve global food security. Plants have developed a wide set of sophisticated responses aimed at acquiring and utilizing Pi efficiently in order to maintain cellular Pi homeostasis even under Pi limiting conditions (−Pi) (Rouached et al., 2010; Chiou and Lin, 2011; Peret et al., 2011). In −Pi, the expression level of genes encoding high affinity Pi transporters (PTs) in the roots increases in order to increase Pi uptake, as well as inducing and secreting acid phosphatases and ribonucleases to mobilize organically bound P. In contrast, the levels of P-containing intermediates such as nucleotides, RNA and phospholipids are dramatically reduced under −Pi, with phospholipids being replaced with sulpho- and galactolipids. As a consequence, genes involved in sulpho- and galactolipids synthesis, such as sulpholipid synthases (SQDs) and monogalactosyl diacylglycerol synthases (MGDs) are highly up-regulated in −Pi conditions (Misson et al., 2005; Secco et al., 2013a). Members of the SPX-domain containing protein family (e.g., SPX, PHO1 and NLA) have also been shown to be key regulators of Pi homeostasis, being involved in Pi transport and signaling (Wang et al., 2009; Rouached et al., 2010; Kant et al., 2011; Secco et al., 2012; Secco et al., 2013a; Puga et al., 2014; Wang et al., 2014).

In addition to the complex regulation observed at the transcriptome level, studies have shown that Pi homeostasis is also regulated by several post-transcriptional mechanisms involving non-coding RNAs, such as miR827, miR399 and IPS1 (Franco-Zorrilla et al., 2007; Chiou and Lin, 2011) as well as post-translational changes (Bayle et al., 2011; Lin et al., 2013; Park et al., 2014). However, only a limited number of studies have assessed the potential involvement of altered DNA or histone modifications in response to Pi starvation, and stresses in general (Sahu et al., 2013). Smith and colleagues previously reported that in Arabidopsis (Arabidopsis thaliana) the histone variant H2A.Z was deposited at a number of Pi starvation-induced (PSI) genes and that a loss H2A.Z resulted with their de-repression (Smith et al., 2010). In addition, using low resolution, non-quantitative and locus-specific methods, several studies have shown the potential involvement of altered DNA methylation in response to stresses (Labra et al., 2002; Chinnusamy and Zhu, 2009; Wang et al., 2011a, 2011b; Karan et al., 2012; Chen and Zhou, 2013; Sahu et al., 2013). Deep sequencing technologies now enable whole genome single base resolution analysis of DNA methylation (Cokus et al., 2008; Lister et al., 2008), thus enabling global assessment of changes in DNA methylation in response to environmental and developmental cues. Indeed, Dowen et al. (2012) previously reported that biotic stress could induce dynamic changes in DNA methylation of repetitive sequences or transposons, often coupled to transcriptional changes of neighbouring genes (Dowen et al., 2012). In addition, Zhong et al. (2013) recently reported that changes in DNA methylation patterns play a role in the process of tomato fruit ripening (Zhong et al., 2013).

Cytosine DNA methylation (mC) is involved in a range of important biological processes, including silencing of repetitive sequences and transposable elements (TEs), genomic imprinting, and stable gene silencing. In plants, DNA methylation exists in all sequence contexts (CG, CHG, CHH, where H = A, C or T) through the activity of multiple genetically distinct pathways (Law and Jacobsen, 2010; Matzke and Mosher, 2014; Mirouze and Vitte, 2014). De novo DNA methylation is mediated by the RNA-directed DNA methylation (RdDM) pathways. In the canonical RdDM pathway, transcripts produced from the RNA polymerase IV (Pol IV) are then copied into dsRNAs by the RNA-dependent RNA polymerase (RDR2) before being processed into 24-nucleotides (nt) small interfering RNAs (siRNAs) by DICER-LIKE 3 (DCL3). These newly generated siRNAs are then loaded onto ARGONAUTE 4 (AGO4) before being guided towards the nascent scaffold of RNAs transcribed by the RNA polymerase V (Pol V) through sequence complementarity. Finally, this complex recruits the DNA methyltransferase DOMAINS REARRANGED METHYLTRANSFERASE 2 (DRM2) to perform de novo methylation in all sequence contexts (Matzke and Mosher, 2014). Recently, another RdDM pathway, which is independent of Pol IV and DCL3, has been identified and is referred to as RDR6-RdDM (Nuthikattu et al., 2013; Panda and Slotkin, 2013; Creasey et al., 2014; Matzke and Mosher, 2014; Bond and Baulcombe, 2015). In this pathway, Pol II derived transcripts are copied by RDR6 into dsRNAs before being processed into 21-22-nt siRNAs by DCL2 and DCL4. These siRNAs can then either induce post-transcriptional gene silencing (PTGS) when loaded onto AGO1 or initiate de novo DNA methylation when associated with AGO2, thus ultimately triggering the canonical RdDM pathway. Maintenance of DNA methylation through replication is mediated by METHYLTRANSFERASE 1 (MET1) and CHROMOMETHYLASE 3 (CMT3) methyltransferases in the CG and CHG contexts, respectively, and are thus referred to as symmetrical methylation, while methylation in the non-symmetrical CHH context has to be established de novo after DNA replication and involves the activities of the DOMAINS REARRANGED METHYLTRANSFERASE 1 and 2 (DRM1/DRM2) and CMT2 methyltransferases (Finnegan et al., 1996; Du et al., 2012; Zemach et al., 2013). Within the plant species studied to date, the general methylation state of particular genomic features are relatively conserved, with TEs often highly methylated in all contexts, and CG methylation commonly located in gene bodies (Feng et al., 2010; Zemach et al., 2010; Mirouze and Vitte, 2014). However, large differences in global DNA methylation levels can be observed amongst plant species potentially associated with different TE content in the various plant genomes. Indeed, the TE-rich genome (∼40%) of rice has a much higher aggregate level of DNA methylation than the TE-poor (∼15%) Arabidopsis genome (Li et al., 2012; Ragupathy et al., 2013; Mirouze and Vitte, 2014).

Given the paucity of past studies assessing the impact of abiotic stresses upon the plant DNA methylome and the temporal relationship between DNA methylation and transcriptional changes, we performed a comprehensive spatio-temporal assessment of the impact of limiting a central plant macronutrient, Pi, upon DNA methylation patterns and transcription, in rice (Oryza sativa) and Arabidopsis. Using whole genome bisulfite sequencing, we identified species-specific, widespread and mitotically heritable changes in DNA methylation in response to Pi starvation that are particularly enriched at stress responsive genes. These changes in DNA methylation occur after changes in nearby gene expression, and are thus likely a consequence of induced transcription of nearby Pi responsive genes, as well as being largely independent of DCL3a. Altogether, we demonstrate a species-specific process in which Pi starvation causes highly localized changes in the genomic DNA methylation patterns in rice, which may act to repress the potentially deleterious activity of TEs located near genes that are highly induced upon stress.

Results

Transcriptional responses of rice to Pi starvation and resupply

A comprehensive time-course experiment of Pi-starved plants was undertaken, spanning medium (3 and 7 days), and long-term (21 days up to 52 days) Pi deprivation (−Pi), as well as both short term (1 and 3 days) and long-term (31 days) recovery (Figure 1A). The 52 days time point consisting of 21 days starvation +31 days recovery enabled investigation of the effects of long term resupply on Pi starved plants, and coincided with the emergence of the first panicles and grains (Figure 1A,B). Pre-germinated rice seedlings were grown for 14 days in Pi sufficient conditions (0.32 mM Pi) before being transferred to either Pi sufficient (0.32 mM Pi) or Pi deficient (0 mM Pi) media for 21 days. After 21 days of Pi deficient treatment, half of the plants were either maintained under Pi deficient conditions or re-supplied with Pi (0.32 mM) for 1, 3 or 31 days. To confirm the effectiveness of the Pi starvation and resupply treatments, physiological and molecular analyses were performed. Growth analyses revealed that 21 days of Pi deprivation resulted in a 2.3 fold decrease in shoot biomass (Figure 1—figure supplement 1A), however no significant differences could be observed for the root biomass after 21 days of treatment (Figure 1—figure supplement 1B). Consequently, the root-to-shoot biomass ratio, a parameter often used to assess the efficiency of various nutrient stresses, was significantly altered (t-test, p < 0.05), with plants grown under Pi deficient conditions for 21 days showing a 2.2 fold increase compared to plants grown under Pi sufficient conditions (Figure 1—figure supplement 1C), which is consistent with previous reports (Reymond et al., 2006; Jiang et al., 2007; Secco et al., 2013a). Pi concentration measurements revealed that 3 days of −Pi led to a threefold reduction in root Pi concentration, while 21 days −Pi resulted in a 6 fold decrease in root Pi concentration compared to plants continuously grown under Pi sufficient conditions (Figure 1C). Resupplying Pi for 1 day was sufficient to increase the root Pi concentration >4 fold compared to plants grown under Pi deficient conditions, and within 3 days of Pi resupply the root Pi concentration was similar to that of plants continuously grown under Pi sufficient conditions.

Figure 1 with 1 supplement see all

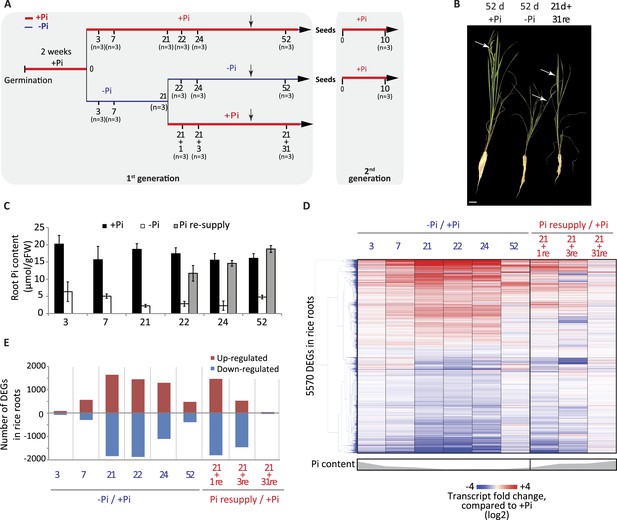

Effects of Pi starvation and resupply in rice.

(A) Schematic representation of the experimental design. Seeds were germinated in water for 2 days and then transferred to a Pi-sufficient hydroponic (0.32 mM) solution for 2 weeks before being either transferred to Pi-deficient media (0 mM) or maintained in Pi-sufficient solution. After 21 days of treatment, half of the Pi-starved plants were resupplied with Pi-sufficient media for up to 31 additional days. Seeds from plants continually grown in + and −Pi were harvested and grown in Pi sufficient conditions for 10 days. Black arrows indicate the time of emergence of panicles. (B) Morphological appearance of rice seedlings after 52 days of treatment. White arrows indicate panicles. (C) Pi concentration in the roots. (D) Hierarchical clustering of significantly (Cuffdiff, FDR < 0.05) differentially expressed genes (DEGs) in response to Pi starvation as determined by mRNA-seq. (E) Number of significantly differentially expressed genes in the roots for each time point. Source data for Figure 1 is available at Dryad (Secco et al., 2015).

https://doi.org/10.7554/eLife.09343.003

To investigate the transcriptional responses to Pi starvation and resupply, RNA sequencing (RNA-seq) was performed on root samples from all time points, using three biological replicates per condition (Figure 1—source data 1, available at Dryad, Secco et al., 2015). Hierarchical clustering of the steady state transcript abundance of the 5570 genes identified as significantly differentially expressed (Cuffdiff, FDR < 0.05) in at least one of the time points revealed a gradual increase in the number and fold change of differentially expressed genes upon −Pi, associated with the length of the Pi deprivation (Figure 1D,E; Figure 1—source data 1, available at Dryad, Secco et al., 2015). Of note, several phosphate starvation-induced (PSI) marker genes, including the SPX genes, MGD2 and PTs, were already induced and showed high steady state transcript abundance after only 3 days of Pi deprivation (Figure 1—source data 1, available at Dryad, Secco et al., 2015). Surprisingly, 52 days of Pi deprivation was associated with a decrease in the number and extent of significantly differentially abundant transcripts, including most of the PSI marker genes, potentially due to the concurrent occurrence of panicle development and grain filling. Indeed, a previous study aimed at profiling the shoots of rice grown in the field throughout their life cycle identified two major transcriptome changes, occurring just before panicle differentiation and straight after flowering (Sato et al., 2011). In addition, the transcription of some of the PSI genes, including MGD2 and PHO2, was reduced before the panicle differentiation, suggesting that the rice plants undergo a major change in Pi homeostasis at the vegetative-reproductive phase transition (Sato et al., 2011).

Resupplying Pi for 1 day after 21 days of starvation was sufficient for the transcript abundance of 40% of PSI differentially regulated genes to return to a level that was not significantly different from the +Pi condition at the matched time point (Figure 1D,E). Within 3 days of Pi resupply, the internal root Pi content was similar to that of Pi sufficient plants and the transcript abundance of 80% of the 5570 PSI differentially expressed genes had already returned to levels equivalent to Pi sufficient conditions. After 31 days of Pi resupply, the transcript abundance of only 80 PSI genes remained significantly different compared to Pi sufficient conditions. Overall, the physiological and transcriptional changes associated with Pi starvation and resupply confirmed the effectiveness of the Pi treatments, as well as the capacity of the rice plants to rapidly sense and respond to these changing nutrient conditions.

Pi starvation induces widespread changes in DNA methylation, enriched at key regulators of Pi homeostasis

To test whether Pi starvation affects genomic DNA methylation in rice, whole genome base resolution profiling of DNA methylation by MethylC-seq was performed on rice roots in triplicate at each time point (Figure 1A). Altogether, 45 root single-base resolution high coverage DNA methylomes were generated (77–87% of cytosines covered by at least one read, 82–88% of the genome) (Supplementary file 1). In order to identify a set of conserved PSI differentially methylated regions (DMRs) in the roots, the 21, 22 and 24 time points were utilized, resulting in the selection of 9 +Pi samples and 9 −Pi samples. The methylation levels in all sequence contexts (CNN) were then assessed for these samples, and only regions that showed significant differences in methylation levels (FDR < 0.01) in at least 7 of the 9 samples in each of the conditions were considered for further analysis, resulting in the identification of 175 high confidence root PSI DMRs (Figure 2—source data 1, available at Dryad, Secco et al., 2015). Among these 175 PSI DMRs, 84% were hypermethylated in response to Pi starvation (147 hypermethylated, 28 hypomethylated regions, Figure 2A). As observed for transcript abundance, 3 and 7 days of Pi deprivation resulted in fewer changes in DNA methylation levels, which increased with the duration of the Pi starvation. Indeed, hierarchical clustering of the 45 root samples based on their CNN methylation levels in the 175 PSI DMRs revealed two main clusters, with cluster 1 containing all +Pi samples as well as the 3 and 7 days −Pi samples, and cluster 2 comprising all long-term −Pi time points (≥21 days) in addition to the Pi re-supplied samples (Figure 2—figure supplement 1). Furthermore, unlike transcript abundance, where 3 days of Pi resupply was sufficient for the majority of PSI genes to return towards non-stressed level, DNA methylation levels were unaffected by 3 days of Pi recovery. While long-term (31 days) Pi resupply resulted in the PSI DMR methylation level moving towards the Pi sufficient methylation levels (Figure 2A), hierarchical clustering analysis revealed that the long-term resupply samples were still more closely related to the long-term Pi starvation samples rather than those of +Pi, as assessed by methylation level at the PSI DMRs in roots (Figure 2—figure supplement 1). Thus, nutrient stress-induced differential methylation states can persist for substantial periods of time following cessation of the stress conditions.

Figure 2 with 5 supplements see all

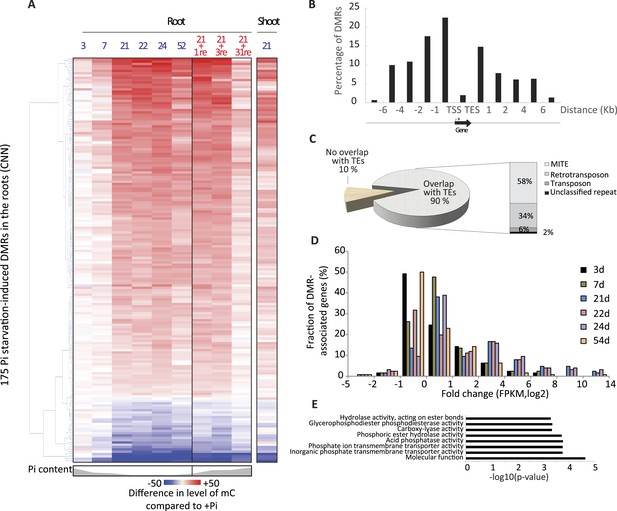

Pi starvation triggers widespread changes in DNA methylation in rice roots.

(A) Hierarchical clustering of the average difference in CNN methylation levels of the 175 PSI DMRs (FDR < 0.01) identified upon long term Pi starvation (21 days, 22 days and 24 days) in the roots in response to Pi starvation. (B) Normalised distribution of the distance of the DMRs to the nearest gene. The position of each DMR was calculated with respect to the nearest gene. DMRs were categorized in bins (within gene body, 0–1 kb, 1–2 kb, 2–4 kb, 4–6 kb, and >6 kb from the TSS or TES), and the number of DMRs in each bin was normalised by the total number of regions present in that bin category in the genome. TSS, Transcription Start Site; TES, Transcription End Site. (C) Proportion of DMRs overlapping with transposable elements (TEs), and their corresponding classes. (D) Distribution of non-redundant DMR-associated gene transcription levels identified by RNA-seq upon Pi deprivation. (E) Gene ontology enrichment analysis of non-redundant DMR-associated genes (p-value < 0.05). Source data for Figure 2 is available at Dryad (Secco et al., 2015).

https://doi.org/10.7554/eLife.09343.006

The root PSI DMRs had an average size of 205 bp with a mean of 16 differentially methylated cytosines per DMR, and were preferentially localized within the first two kilobases upstream (40%) and first kilobase downstream (15%) of the nearby gene (Figure 2B, Figure 2—figure supplement 2). Given the role of DNA methylation in repressing TE activity, and the high frequency of TEs in the rice genome, accounting for 40% of the total genome length (Ragupathy et al., 2013, Mirouze and Vitte, 2014), the position of the DMRs with respect to annotated TEs was assessed. Among the 175 root PSI DMRs, 90% overlapped with TEs, with Miniature Inverted-repeat Transposable Elements (MITEs), the most common class of TEs in the rice genome (69% of all TEs), accounting for 58% of the DMRs overlapping with TEs (Figure 2C). To investigate the specificity of the changes in DNA methylation in TEs, DNA methylation levels were assessed in TEs overlapping PSI DMRs as well as in all annotated TEs after 21 days of Pi treatment. Altogether, while TEs overlapping PSI DMRs show significant changes in DNA methylation in response to Pi starvation, the majority of all annotated TEs are unaffected by Pi starvation, suggesting that Pi starvation triggers specific and localized changes in DNA methylation in a subset of all annotated TEs (Figure 2—figure supplement 3). In addition, RNA-seq analysis failed to reveal any significantly differentially expressed TEs (Cuffdiff, FDR < 0.05) that overlapped with PSI DMRs, between Pi sufficient and deficient conditions (7 and 21 days), with more than 80% of them not being expressed (Figure 2—source data 2, available at Dryad, Secco et al., 2015). Next, each of the 175 PSI DMRs were assigned to the nearest gene, resulting in the association of 126 unique genes with PSI DMRs (Figure 2—source data 1, available at Dryad, Secco et al., 2015). Gene transcript abundance analyses revealed that 66 of these DMR-associated genes (52%) were differentially expressed by >2 fold (FDR < 0.05) in response to 21 days −Pi (Figure 2D). The steady state transcript abundance of 35% of the 126 genes was >4 fold higher following 21 days Pi starvation. Furthermore, gene ontology analyses revealed a strong enrichment for genes encoding proteins involved in phosphate homeostasis, such as acid phosphatases, phosphate transporters, and factors involved in glycerophosphodiester phosphodiesterase activity (Figure 2E, Figure 2—figure supplement 4). Of note, while the majority of DMR-associated genes were associated with only one DMR, several genes were associated with multiple DMRs, including key PSI marker genes such as SPX1, SPX2, SPX5, PT10 and MGD2, reinforcing the strong association between differential DNA methylation and transcription in response to −Pi.

To investigate whether Pi starvation could also induce differential methylation in tissues other than the root, which is the primary organ involved in Pi sensing and uptake, high coverage methylomes of rice shoots grown for 21 days under Pi sufficient or deficient conditions were also generated, performing 3 biological replicates per condition (Supplementary file 1). Firstly, changes in shoot methylation levels were assessed at the 175 PSI DMRs identified in the roots (Figure 2A, Figure 2—source data 1, available at Dryad, Secco et al., 2015), revealing similar changes in DNA methylation levels in response to Pi starvation in both roots and shoots, though to a lesser extent in the shoots. Secondly, shoot methylomes under Pi-sufficient and deficient conditions were analysed in order to identify shoot PSI DMRs. Due to the lower number of replicates used to identify shoot PSI DMRs (n = 3) compared to the root PSI DMRs (n = 9), a less stringent FDR cut-off of < 0.05 was selected for further analysis, resulting in the identification of 341 shoot PSI DMRs (FDR < 0.05) (Figure 2—source data 3, available at Dryad, Secco et al., 2015). Assigning the 341 shoot PSI DMRs to the nearest genes identified 43 distinct genes that were significantly differentially regulated by Pi starvation in the shoots (Figure 2—figure supplement 5). In addition, analysis of the methylation levels in all contexts (CNN) revealed that the 341 shoot PSI DMRs had similar patterns of methylation in both roots and shoots, suggesting that Pi starvation affects DNA methylation in roots and shoots in a similar manner. Altogether, more than 30 conserved regions showed significant changes in both roots and shoots, and could be associated to PSI marker genes such as SPX1, SPX2 and MGD2.

Pi starvation induced DMRs are mostly hypermethylated in the CHH context

To further examine the potential role of the PSI DMRs, only DMRs that were associated with significant changes in nearby gene transcript abundance following long-term Pi starvation were considered for downstream analysis. Among the 175 root PSI DMRs identified, 100 PSI DMRs were close to genes showing significant changes (FDR < 0.05) in gene transcription upon long term Pi starvation, corresponding to 66 unique genes (Figure 3A, Figure 2—source data 1, available at Dryad, Secco et al., 2015). Notably, 63 (95%) of these DMR-associated genes were induced by Pi starvation, and included key regulators of Pi homeostasis such as Pi transporters (PT3, PT4, PT9, PT10), SPX genes (SPX1, SPX2, SPX3, SPX5), MGD2, IPS1 and pre-miR827. Only three of the DMR-associated genes were down-regulated by long term Pi starvation. Hierarchical clustering of the differential methylation levels in all contexts for the root PSI DMRs in response to Pi deprivation revealed two distinct clusters, with DMRs in cluster 1 and 2 being hyper- and hypomethylated in response to Pi starvation, respectively (Figure 3A, Figure 3—figure supplement 1). The first group contained 81 PSI DMRs associated with 61 genes that were overwhelmingly hypermethylated in the CHH context, with a subset displaying CHG hypermethylation. Furthermore, these hypermethylated DMRs almost exclusively (80 of 81) overlapped with TEs (Figure 3A). In contrast, the 19 hypomethylated PSI DMRs from Cluster 2, associated with 13 unique genes, less frequently overlapped with TEs (42% overlap). Notably, most of the known key regulators of Pi homeostasis were present in both clusters, including the SPX genes, IPS1, pre-miR827 and some PTs. Altogether, the majority of PSI DMRs are located in close proximity to genes, gain DNA methylation in response to Pi deprivation, preferentially in the CHH context, and almost exclusively overlap with TEs.

Figure 3 with 1 supplement see all

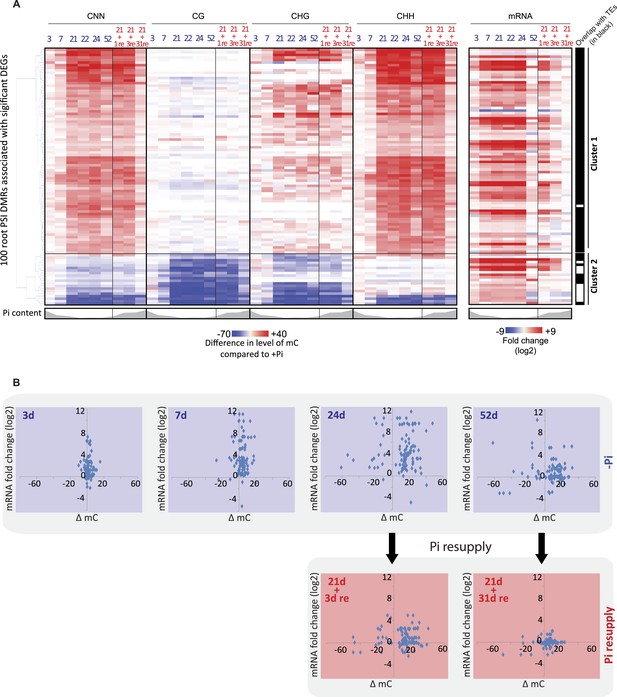

Pi starvation-induced DMRs are enriched at key regulators of Pi homeostasis.

(A) Hierarchical clustering of the differential methylation levels of the 100 root PSI DMRs associated with a significant change in nearby gene expression (DEGs) in response to Pi stress (left panel). Middle panel represents the DMR-associated gene transcript abundance fold change (log2) in response to Pi stresses, while right panel indicates DMRs that overlap with TEs (coloured in black). (B) Scatter plots of the changes in DNA methylation (compared to +Pi) (X) against the changes in gene transcript abundance of the nearby associated gene (FPKM, log2) (Y) for each of the 100 PSI DMRs, at various time points. Blue coloured plots represent Pi starvation [(−Pi) − (+Pi)] while red coloured plots represent Pi resupply [(Pi resupply) − (+Pi)]. Source data for Figure 3 is available at Dryad (Secco et al., 2015).

https://doi.org/10.7554/eLife.09343.015

Changes in gene transcription occur prior to changes in DNA methylation

The detailed time course analysed in this study provides the unique opportunity to decipher the temporal hierarchy between changes in transcription and changes in DNA methylation, which is critical to shed light on the potential causative relationships between the two, and the potential role of the PSI DMRs. The average changes in CNN methylation levels in the PSI DMRs in response to Pi stress were compared to the associated changes in nearby gene steady state transcript abundance (Figure 3B, Figure 3—figure supplement 1, Figure 2—source data 1, available at Dryad, Secco et al., 2015). After 3 and 7 days of Pi starvation, 18% and 55% of the PSI DMR associated genes, respectively, showed significant changes in transcript abundance (Cuffdiff, FDR < 0.05), while only 5% and 9% of the 100 PSI DMRs showed significant changes in DNA methylation compared to +Pi samples (t-test, FDR < 0.05) (Figure 3B, Figure 3—figure supplement 1, Figure 3—source data 1, available at Dryad, Secco et al., 2015). Long term Pi deprivation (≥21 days −Pi) was sufficient to induce significant changes in both gene transcript abundance and DNA methylation levels, with all PSI DMRs being significantly differentially methylated after 24 days of −Pi compared to +Pi (t-test, FDR < 0.05). Furthermore, while resupplying Pi starved plants with Pi for 3 days resulted in 87% of the DMR associated genes differentially expressed upon Pi starvation to return to Pi sufficient-like levels, 94% of PSI DMRs still showed significant differences in DNA methylation levels compared to +Pi conditions (t-test, FDR < 0.05). Finally, while 52 days of Pi starvation resulted in only 22% of PSI DMR associated genes showing significant changes in transcript abundance (Cuffdiff, FDR < 0.05) compared to +Pi, likely a consequence of the floral transition and nutrient reallocation to the grains, the majority of PSI DMRs remained unaffected, with 83% of PSI DMRs still showing significant changes in DNA methylation after 52 days −Pi compared to 52 days +Pi (t-test, FDR < 0.05). Resupplying Pi for 31 days resulted in 11 of the 100 PSI DMRs showing significant persisting changes in DNA methylation (t-test, FDR < 0.05) while no significant changes in gene transcription could be observed compared to +Pi. Taken together, Pi deprivation and Pi resupply appear to first rapidly modulate the transcript levels of genes induced by the stress before subsequently inducing changes in DNA methylation, indicating that the Pi starvation-induced changes in transcription precede, and are potentially causal, for the changes in DNA methylation. This induction of methylation may be involved in repressing the activity of specific TEs close to highly induced genes, via hypermethylation of the TEs in the CHH context.

Phosphate starvation induced DMRs are mainly transient

Due to the observation that differences in DNA methylation in some PSI DMRs may persist despite 31 days of Pi resupply, during which root fresh weight is increased by more than 2.2 fold (Figure 1—figure supplement 1), we wanted to assess the extent of potential transmission of changes in DNA methylation through mitosis. Hierarchical clustering of 45 root samples based on their methylation levels in all sequence contexts (CNN) in the 175 PSI DMRs revealed that the 31 days Pi recovered roots were more closely related to the −Pi samples than the +Pi samples, further indicating that some stress induced differences in DNA methylation can persist despite extended Pi recovery (Figure 2—figure supplement 1). However, resupplying Pi for 31 days resulted in 96 of the 175 PSI DMRs showing more than a 2 fold reduction in the differential DNA methylation levels induced by 52 days −Pi, when compared to +Pi, suggesting that the majority of PSI DMRs are returning towards Pi sufficient levels after 31 days of Pi resupply (Figure 4—figure supplement 1). Indeed, only 14 of the 175 PSI DMRs (11 hypermethylated, 3 hypomethylated) showed significant differences in DNA methylation level (CNN) between 52 days +Pi compared to 52 days resupply (t-test, FDR < 0.05), while not presenting significant differences between 52 days −Pi vs 52 days resupply (t-test, FDR > 0.05), suggesting that changes in DNA methylation persist in only a limited subset of these PSI DMRs after 31 days of Pi resupply (Figure 4A, Figure 4—source data 1, available at Dryad, Secco et al., 2015). Of note, despite identifying significant persisting differences in DNA methylation, Pi resupplied samples often showed DNA methylation levels that were intermediate between +Pi and −Pi samples. These persistent differences in methylation levels preferentially occurred in the CHH context (Figure 4A) and were associated with 13 unique genes located nearby, including key regulators of Pi homeostasis such as SPX2 and MGD2. Among these 14 persisting PSI DMRs, the single hypomethylated persisting DMR, namely the second DMR associated with SPX2 (denoted SPX_DMR2), showed the greatest change in DNA methylation level (CNN) in response to Pi stress, decreasing from 50% in +Pi to 1.3% in −Pi, as well as being maintained at a similar low level (1.5%) despite 31 days of Pi resupply (Figure 4A). Overall, it appears that only a small proportion of the Pi starvation induced changes in DNA methylation can be sustained despite 31 days of Pi resupply and active cell growth, while the majority of PSI DMRs have DNA methylation levels returning towards +Pi levels.

Figure 4 with 2 supplements see all

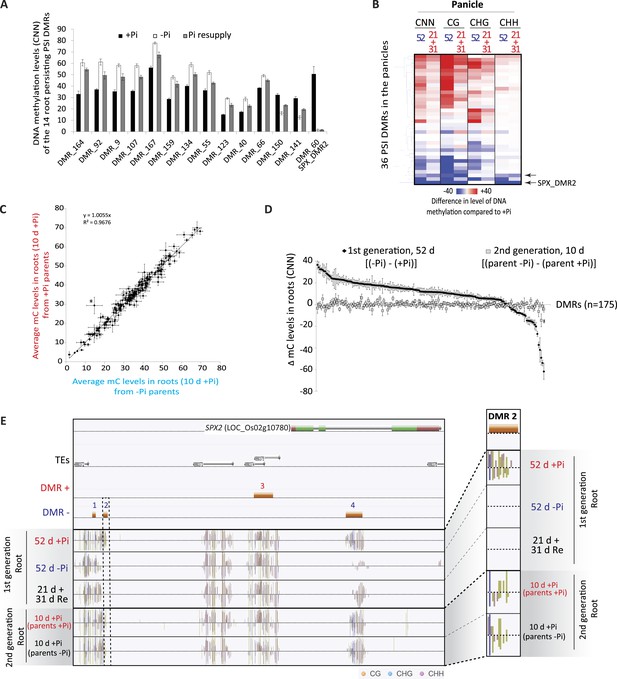

Phosphate starvation induced DMRs are mainly transient.

(A) Methylation levels (CNN) of the 14 regions showing persisting changes in DNA methylation despite 31 days of Pi resupply. Error bars indicates standard error. (B) Hierarchical clustering of the difference in methylation level of the 36 DMRs induced by 52 days of Pi deprivation in the panicles. Arrows indicate significant persisting changes in DNA methylation (t-test, FDR < 0.1). (C) Scatter plots representing the DNA methylation levels of the 175 PSI DMRs in the progeny of Pi deprived and non-stressed parents. Errors bars indicate standard error (n = 5). A linear trendline as well as its equation is shown. (D) Graphical representation of the changes in DNA methylation (CNN) of the 175 PSI DMRs between the first generation after 52 days of Pi treatment [(52d −Pi) − (52d +Pi)] and the offspring of stressed and non-stressed parents grown for 10 days in +Pi. PSI DMRs are sorted based on the change in DNA methylation levels at 52 days, in the first generation. Asterisks represent SPX_DMR2, and error bars indicate standard error. (E) Genome browser screenshot of the SPX2 locus, showing the methylation levels in the first generation at 52 days, as well as in the second generation at 10 days. Source data for Figure 4 is available at Dryad (Secco et al., 2015).

https://doi.org/10.7554/eLife.09343.018

In order to further investigate the observation that only a limited number of PSI DMRs can be transmitted through mitosis, we analysed a tissue that was only generated post-stress, the panicles from Pi recovered plants (Figure 1A,B). Indeed, by the time the panicles appeared (∼40 days after initiation of treatment), the recovering plants had been re-supplied with Pi for ∼20 days, and should thus have a physiological status similar to that of Pi sufficient plants. After 52 days of Pi treatment, panicles were collected from plants continuously grown in +Pi or −Pi, as well as 21 days Pi starved plants resupplied for 31 days, using independent triplicates. Generation of high coverage methylomes enabled the identification of 36 PSI DMRs in the panicles of plants grown for 52 days in +Pi and −Pi (FDR < 0.05). However, no significant differences (t-test, FDR < 0.05) could be observed in the DNA methylation levels of these 36 regions between panicles of plants grown for 52 days in −Pi compared to those resupplied with Pi for 31 days (Figure 4B, Figure 4—source data 2, available at Dryad, Secco et al., 2015). Yet, using a less stringent FDR cutoff of < 0.1, two of the 36 PSI DMRs identified in the panicles, including SPX2_DMR2, showed persisting differences in DNA methylation despite 31 days of Pi resupply, suggesting that a limited number of PSI DMRs could potentially be transmitted to newly generated tissue that has never experienced the stress.

We next tested whether PSI DMRs could be transmitted from Pi stressed plants to their progeny, and thus potentially act as a transgenerational stress memory mechanism. To do so, individual seeds from five individual plants continuously grown under Pi sufficient or deficient conditions were harvested, and subsequently germinated and grown for 10 days under Pi sufficient conditions (Figure 1A), before performing whole genome bisulfite sequencing on the corresponding root genomic DNA (n = 5 for each condition, Supplementary file 1). Analysis of the methylation levels in the progeny of stressed and non-stressed parents in the 175 root PSI DMRs that were identified in the first generation of plants failed to identify any significant differences in DNA methylation levels (t-test, FDR < 0.05) (Figure 4C,D,E, Figure 4—figure supplement 2, Figure 4—source data 3, available at Dryad, Secco et al., 2015). Indeed, independent of the treatment performed in the parental generation, DNA methylation levels were reset to a Pi-sufficient like level in the progeny (Figure 4C,D,E, Figure 4—figure supplement 2). While one DMR (SPX2_DMR2) showed a difference in methylation level between the progeny of plants continuously grown under −P compared to the progeny of those continuously grown in +P, the difference was not statistically significant (t-test, FDR < 0.05). Therefore, it does not appear that these stress induced differential methylation states can be transmitted through meiosis.

Thus, phosphate deprivation induces differential methylation in a variety of plant tissues in TEs that are close to PSI genes, and a limited subset of them, including DMRs associated with key regulators of Pi homeostasis such as SPX2, can be mitotically transmitted to newly generated cells, despite an extended period of stress recovery. However, no evidence of transgenerational transmission of PSI changes in DNA methylation was observed.

Stress-induced DMRs are mainly independent of the canonical RdDM pathway

In order to shed light on the DNA methylation pathway mediating Pi starvation-induced changes in DNA methylation, the phosphate starvation experiment was repeated using an RNAi line that knocks down DCL3a, a key factor involved in the canonical RdDM pathway. In rice, there are two DCL3 genes, DCL3a and DCL3b, the latter also being known as DCL5 (Fei et al., 2013). While DCL3b is mainly involved in the generation of stamen-specific 24-nt phased small RNAs, DCL3a is involved in producing 24-nt centromere-associated OsCentO siRNAs, MITE-derived siRNAs for abiotic stress responses, and non-canonical long miRNAs (Wu et al., 2010; Yan et al., 2011; Song et al., 2012; Wei et al., 2014). Furthermore, it has been shown that reducing the transcription of DCL3a via RNAi resulted in more than 80% of all 24-nt clusters being reduced by more than 3 fold, compared to WT (Wei et al., 2014). In this study, WT and DCL3a RNAi plants were grown as previously described (Figure 1A) and subjected to 21 days of Pi sufficient or deficient conditions, before performing RNA-seq and whole genome bisulfite sequencing on the root tissues. RNA-seq analysis (n = 3) confirmed that DCL3a was the most abundant DCL3 family member in the roots, with 11 times higher steady state transcript abundance than DCL3b under Pi sufficient conditions (Figure 5—figure supplement 1A; Figure 5—source data1, available at Dryad, Secco et al., 2015). In the DCL3a RNAi line, the transcript abundance of DCL3a decreased by 4.6 and 3.3 fold compared to WT in Pi sufficient or deficient conditions, respectively, while the abundance of DCL3b transcript was unaffected (Figure 5—figure supplement 1A,B, Figure 5—source data1, available at Dryad, Secco et al., 2015). In +Pi conditions, the reduced transcription of DCL3a was accompanied by widespread changes in DNA methylation, significantly altering DNA methylation levels in 9379 regions in the genome (6694 hypo- and 2685 hypermethylated regions in DCL3a RNAi line compared to WT; FDR < 0.05), in addition to 3531 genes displaying a significant change in transcript abundance (Cuffdiff, FDR < 0.05) compared to WT +Pi (Figure 5A, Figure 5—figure supplement 1B). Similar results were also observed between WT and DCL3a RNAi plants under Pi deficient conditions, with 8164 DMRs and 1791 differentially expressed genes identified (Figure 5A, Figure 5—figure supplement 1C, Figure 5—source data 1, available at Dryad, Secco et al., 2015). Analysis of the DMRs induced in DCL3a RNAi plants revealed that the majority of changes in DNA methylation occurred in the CG and CHG contexts, under both Pi sufficient and deficient conditions (Figure 5—figure supplement 1D,E,F,G). Among the 175 PSI DMRs identified previously (Figure 2A), only 8 and 5 regions also showed significant differences in DNA methylation between WT and DCL3a plants under Pi sufficient and deficient conditions, respectively, and corresponded to 11 unique PSI DMRs (8 unique associated genes) (Figure 5A,B,C,D; Figure 5—source data 2, available at Dryad, Secco et al., 2015). These 11 DMRs corresponded to 7 and 4 regions previously identified as hypo- and hypermethylated in response to −Pi in WT, respectively (Figure 2A). Of the 4 hypermethylated PSI DMRs altered in the DCL3a RNAi plants, only one was associated with significant changes in nearby gene transcript abundance in response to −Pi in WT, while all the hypomethylated PSI DMR associated genes were significantly differentially regulated by −Pi in WT (Figure 5—source data 2, available at Dryad, Secco et al., 2015). Furthermore, while reduction in DCL3a transcript levels only moderately affected DNA methylation in 6 of the 11 PSI DMRs (mC change < 15%), DNA methylation was almost completely abolished in all contexts in five of these hypomethylated PSI DMRs, which were associated with SPX1, SPX2 and MGD2 (Figure 5D,E,F). Among these, three DMRs were associated with SPX2, and showed an average reduction in DNA methylation levels from 47% in WT +Pi to 1% in DCL3a RNAi plants +Pi, indicating a requirement for DCL3a in maintaining the methylation in these regions (Figure 5E,F). Furthermore, among the 8 genes associated with DCL3a-dependant PSI DMRs, only SPX2 showed significant changes in transcript abundance between WT and DCL3a RNAi plants, decreasing by 69 fold under +Pi conditions (15.9 FPKM in WT +Pi and 0.2 FPKM in DCL3a RNAi plants +Pi) (Figure 5—figure supplement 1H). Despite a 2 fold difference in transcript abundance, no significant difference in SPX2 transcript abundance was observed between WT and DCL3a RNAi plants under −Pi conditions, suggesting that the Pi responsiveness of SPX2 is maintained in the DCL3a RNAi plants.

Figure 5 with 2 supplements see all

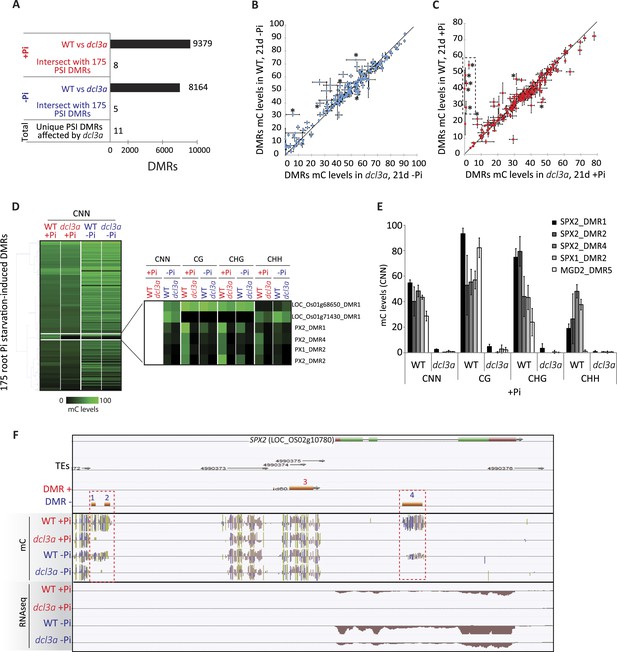

DCL3a knockdown has limited effects on Pi starvation-induced DMRs.

(A) Summary of the number of DMRs identified by comparing WT and DCL3a RNAi line (referred to as dcl3a) root methylomes (21 days) under + and −Pi conditions. For each condition, the DCL3a RNAi line-induced DMRs were intersected with the 175 root PSI DMRs, revealing a total of 11 unique PSI DMRs that are significantly altered in DCL3a RNAi plants. (B and C) DNA methylation levels in the 175 PSI DMRs in the DCL3a RNAi line vs WT under −Pi and +Pi conditions, respectively. Asterisks represent the significant changes (FDR < 0.05) in DNA methylation levels between WT and the DCL3a RNAi line. Black box indicates regions for which the DCL3a RNAi line almost completely abolishes DNA methylation, compared to WT. (D) Hierarchical clustering of the DNA methylation levels in the 175 PSI DMRs in the DCL3a RNAi line vs WT under −Pi (blue) and +Pi (red) conditions. (E) DNA methylation levels in 5 regions significantly affected in the DCL3a RNAi line. (F) Genome browser representation of the SPX2 locus, showing three DCL3a-dependant methylation regions, also responsive to Pi starvation, indicated by red boxes. Source data for Figure 5 is available at Dryad (Secco et al., 2015).

https://doi.org/10.7554/eLife.09343.024

In addition, in order to determine whether DCL3a is required for the stability of methylation at a distinct set of genomic loci upon Pi starvation, assessment of changes in DNA methylation between DCL3a RNAi plants grown in +Pi and −Pi conditions was conducted. Together, 409 PSI DMRs (FDR < 0.05) were identified in the stressed DCL3a RNAi plants (Figure 5—figure supplement 2, Figure 5—source data 3, available at Dryad, Secco et al., 2015). While the majority of changes in DNA methylation in these 409 DMRs were similar between WT and DCL3a RNAi plants (Figure 5—figure supplement 2), a subset of regions appeared to show changes in the DCL3a RNAi plants but not in WT, suggesting that DCL3a may mediate the stability of DNA methylation at some regions of the genome under these stress conditions. Associating each DMR to the nearest gene revealed 88 DMRs that were close to a gene that was significantly differentially expressed in WT upon Pi starvation (Cuffdiff, FDR < 0.05). However, these regions showed similar changes in DNA methylation upon Pi starvation in both WT plants and the DCL3a RNAi line. Thus, it appears that while DCL3a could potentially mediate the DNA methylation state of some genomic regions in response to Pi starvation, none of these were associated with changes in nearby gene expression.

Overall, it appears that down regulation of DCL3a has a very limited effect on the methylation of hypermethylated PSI DMRs, while several regions, particularly those hypomethylated in response to −Pi in WT, fully require the presence of a functional DCL3a. Altogether, the majority of PSI DMRs appear to be independent of the canonical RdDM pathway and are thus likely regulated via a different pathway that does not require DCL3a.

Pi starvation in Arabidopsis results in a limited number of changes in DNA methylation

To determine whether the widespread PSI DMRs observed in rice could also be seen in other plant species, a similar approach was undertaken in Arabidopsis. Due to the shorter life cycle of Arabidopsis compared to rice, Arabidopsis seedlings were germinated and grown either under Pi sufficient (500 μM) or deficient (13 μM) conditions for 10 days, thus corresponding to a similar stress as the long-term Pi starvation performed in rice relative to the lifespan of the plant. In addition, 7 days after germination, half of the Pi starved plants were transferred to Pi sufficient conditions for 3 days to allow recovery. RNA-seq analysis was performed to assess the transcriptional response to the Pi treatments, identifying 4560 genes displaying differential transcript abundance in the roots after 10 days of Pi starvation (Cuffdiff, FDR < 0.05) (Figure 6A, Figure 6—source data 1, available at Dryad, Secco et al., 2015). Known PSI marker genes such as SPX3, IPS1, miR399 and PHT1;9 showed >100 fold higher transcript abundance upon Pi starvation. In addition, resupplying Pi for 3 days was sufficient for the transcript abundance of the majority of the PSI genes to return to +Pi like levels. Indeed, of the 4560 PSI genes that displayed differential transcript abundance by 10 days of −Pi, only 10% showed significantly different transcript abundance after 3 days of resupply compared to +Pi. Together, this indicates that the Arabidopsis plants responded to both Pi deprivation and Pi resupply.

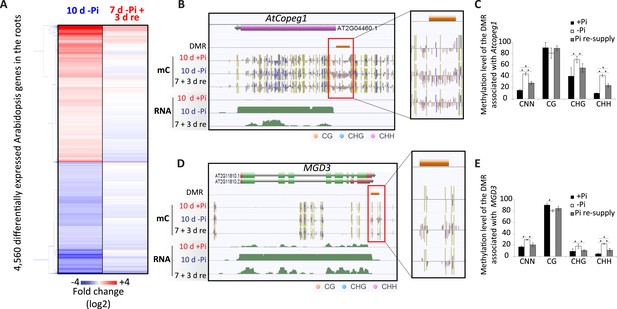

Pi starvation in Arabidopsis results in a limited number of changes in DNA methylation.

(A) Hierarchical clustering of significantly differentially regulated genes upon 10 days of Pi starvation and resupply. Arabidopsis seeds were germinated and grown in either Pi sufficient (500 µM Pi) or deficient (13 µM Pi) for 10 days. After 7 days of treatment, half of the Pi starved plants were re-supplied with 500 µM Pi for 3 days. (B and C) Genome browser representation of the two Arabidopsis PSI DMRs identified in this study (FDR < 0.2). AtCopeg1 (Copia evolved gene 1) is a Copia like transposon previously shown to be induced by Pi starvation (Duan et al., 2008), while MGD3 (monogalactosyl diacylglycerol synthase 3) encodes the major enzyme for galactolipid metabolism during Pi starvation. (C and E) DNA methylation levels in the CNN, CG, CHG and CHH contexts in the three Pi treatments (+Pi, −Pi and Pi resupply) in the DMRs associated with Atcopeg1 and MGD3, respectively. Asterisks represents significant differences in the methylation level (t-test < 0.05). Source data for Figure 6 is available at Dryad (Secco et al., 2015).

https://doi.org/10.7554/eLife.09343.030

To examine the extent of DNA methylation changes in response to Pi starvation and recovery in Arabidopsis, high coverage whole genome bisulfite sequencing (91–96% cytosines covered, 92–96% of genome covered) was performed on root samples pooled from 10 plants, in triplicate (Supplementary file 1). While no PSI DMRs could be detected using a FDR < 0.05, two PSI DMRs were identified using lower stringency parameters (FDR < 0.2), requiring only two of the three replicates to show significant methylation differences for each condition. Assignment of these DMRs to the nearest gene revealed that they were associated with two known PSI genes, MGD3, encoding for the major enzyme for galactolipid metabolism during phosphate starvation (Kobayashi et al., 2009), and Atcopeg1 (Copia evolved gene 1), the only expressed gene derived from the AtCopia95 retrotransposon in the Arabidopsis genome, which has been shown to be involved in many developmental and adaptive processes, including Pi starvation (Duan et al., 2008) (Figure 6B,D). Both DMRs overlapped with TEs and were hypermethylated in response to −Pi, preferentially in the CHH context (Figure 6B,C,D,E). For both DMRs, resupplying Pi for 3 days resulted in a significant reduction in the CHG and CHH methylation levels compared to −Pi (Figure 6C,E). For example, while under Pi sufficient conditions only 10% of the cytosines in the CHH context were methylated in the DMR associated with Atcopeg1, Pi starvation increased the number of methylated cytosines in the CHH context to 40%, before returning to 24% upon 3 days of Pi resupply, suggesting that the changes in DNA methylation observed are transient. Overall, despite Pi starvation having a limited effect upon DNA methylation in Arabidopsis compared to rice, with only 2 PSI DMRs identified, the location of these PSI DMRs appears to be conserved, with hypermethylated regions overlapping with specific TEs that are close to highly induced PSI genes.

Discussion

Plants have developed a wide array of mechanisms to tolerate changing environmental conditions. However, despite our understanding of Pi homeostasis greatly increasing during the past decade, very little is known about the potential role of changes in the epigenome in response to Pi starvation, and to stresses in general. Comprehensive methylome profiling coupled with an extensive time course experiment enabled investigation of the presence and potential role of dynamic epigenomic changes upon stress, revealing the temporal relationship between changes in DNA methylation and transcription, and the stability of altered DNA methylation states through mitosis and meiosis. Indeed, this study provides insights into the dynamic changes in DNA methylation in response to Pi starvation, with the identification of widespread changes in DNA methylation near PSI genes, in a species-dependent manner, likely correlated with the TE content of the genome. It is well known that plant genomes exhibit a very large diversity of size and repeat content as well as methylation levels, which were recently shown to be positively correlated, thus highlighting the central role of DNA methylation in repressing the potentially deleterious activity of TEs through hypermethylation (Mirouze and Vitte, 2014). However, the majority of DNA methylation analyses performed in plants to date have focused on Arabidopsis, despite being relatively depleted of TEs (15–20% of the genome) and being poorly methylated compared to other plant genomes (Mirouze and Vitte, 2014). Potentially, the differences in DNA methylation changes observed in rice and Arabidopsis in response to Pi starvation could primarily be due to the differential frequency of TEs in the genome of each species.

To date, only a limited number of studies have comprehensively investigated the involvement of DNA methylation in response to adverse environmental conditions (Dowen et al., 2012, Liang et al., 2014). Several studies have reported that changes in the environment can affect the methylation status of some regions of the genome, using low resolution and non-quantitative techniques such as methylation-sensitive amplification polymorphism (Choi and Sano, 2007; Hauser et al., 2011; Wang et al., 2011a, 2011b, Karan et al., 2012; Shaik and Ramakrishna, 2012; Sahu et al., 2013; Yu et al., 2013). However, these studies have lacked the resolution to provide the specific context and genomic location of the changes in DNA methylation, thus offering limited insights into the potential role of stress-induced changes in DNA methylation. While this study primarily focused in the main organ involved in nutrient sensing and uptake, namely the root, both roots and shoots appeared to exhibit similar changes in DNA methylation in response to Pi starvation. In addition, all but one of these DMRs overlapped with TEs. While, several studies have suggested that there is a negative relationship between methylation of TEs and nearby gene transcription (Hollister and Gaut, 2009; Ahmed et al., 2011; Eichten et al., 2012), we observed the opposite trend, with hypermethylated DMRs being located in close proximity to PSI genes. Consequently, we sought to shed light upon the temporal hierarchy, and thus potential causal relationships, between the observed environmentally-induced differential DNA methylation and the changes in gene transcript abundance. Using our time-course experiment, we demonstrated that upon Pi stress, changes in transcription occurred prior to changes in DNA methylation levels, thus suggesting that induction of gene transcription may be causal for the differential DNA methylation. In addition, since almost all the regions gaining DNA methylation in response to Pi deprivation overlap with TEs, such a process could potentially constitute a mechanism to repress the activity of specific TEs that are near highly induced PSI genes when plants are confronted with −Pi conditions. Indeed, vonHoldt and colleagues recently showed that the methylation pattern of TEs is a complex function of TE size, age and distance to a gene, with young TEs being preferentially poorly methylated (vonHoldt et al., 2012). During Pi stress, PSI genes are highly expressed, presumably requiring increased chromatin accessibility to facilitate access of Pol II and other transcription machinery, which may facilitate the transcription of poorly methylated nearby TEs, with potentially deleterious effects upon the genome such as insertional inactivation of genes and ectopic recombination. This hypothesis is strengthened by the fact that the majority of the hypermethylated PSI DMRs are independent of DCL3a, a key component of the canonical RdDM pathway. Thus, we hypothesize that the RDR6-RdDM pathway, another entry point into RdDM that recognizes Pol II-derived TE transcripts, may act to methylate these TEs. Overall, the observed increase in DNA methylation in specific TEs located close to PSI genes provides insights into a cellular activity that may act to maintain localized suppression of transposable elements in genomic regions that must be transcriptionally activated to respond to environmental perturbation (Figure 7).

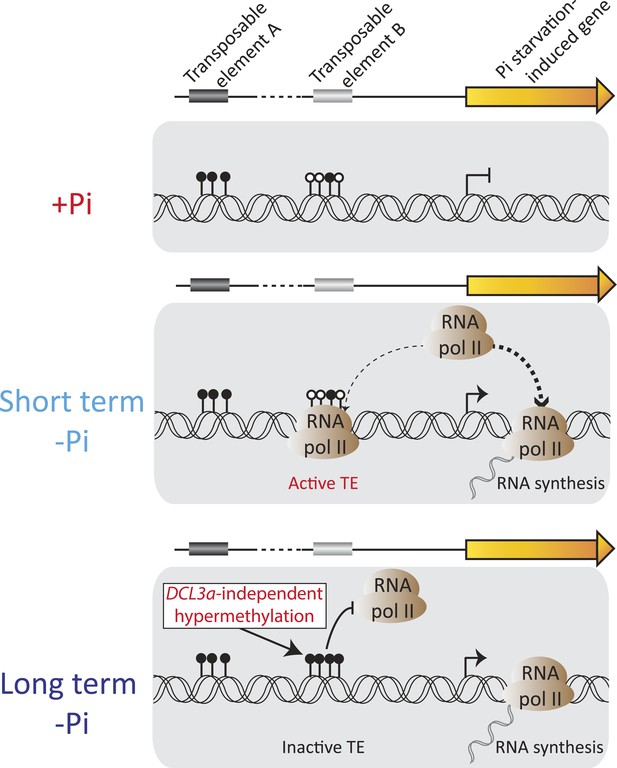

Model of the role of DNA methylation in response to Pi starvation.

Schematic of a PSI gene associated with two TEs. TE A represents TEs that are located distant from genes and are highly methylated, while TE B represents TEs that are close to genes and lowly methylated. Upon short term Pi deprivation, RNA polymerase II is recruited to Pi starvation-induced (PSI) genes, resulting in increased PSI gene expression. These high levels of RNA polymerase II could induce transcription of nearby and poorly methylated TEs, such as TE B, which could have deleterious effects upon the plant. As a consequence, upon prolonged Pi deprivation, TEs that are close to highly expressed stress-induced genes are hypermethylated, via a DCL3a-independent mechanism, thus preventing their transcription via RNA polymerase II. Black and white circles represent methylated and unmethylated cytosines, respectively. Thickness of the dashed lines represents the proportion of RNA polymerase II recruited to PSI genes or TEs.

https://doi.org/10.7554/eLife.09343.032

In contrast, hypomethylated rice root PSI DMRs overlapped less frequently with TEs, and were often affected by knockdown of DCL3a, suggesting a different function of this subset of PSI DMRs, and likely involving the canonical RdDM pathway. Among the 11 DCL3a-dependent PSI DMRs, those associated with SPX1 and SPX2 were the most affected by reduced transcription of DCL3a. It has recently been shown that both SPX1 and SPX2 can inhibit phosphate starvation responses through Pi-dependant direct interaction with PHR2, a key transcription factor controlling the majority of Pi-responsive genes. Under Pi sufficient conditions, SPX1 and SXP2 are tightly bound to PHR2, preventing PHR2 from interacting with its cognate binding sites, and suppressing induction of Pi responsive genes (Puga et al., 2014, Wang et al., 2014). Surprisingly, SPX2 transcript abundance was >65 fold lower in the DCL3a RNAi line compared to WT, potentially enabling PHR2 to interact with its target binding sites and induce transcription of PSI genes. Such a mechanism would thus explain the high number of differentially expressed genes observed between WT and the DCL3a RNAi line under +Pi conditions (3531), compared to −Pi (1791), where SPX2 is expressed at similar levels between WT and the DCL3a RNAi line. However, it remains unclear how the knockdown of DCL3a can repress SPX2 to such an extent in +Pi conditions. It is unlikely that the repression of SPX2 is a direct consequence of DCL3a-dependent changes in DNA methylation at this locus, since similar DNA methylation patterns are observed in DCL3a RNAi plants under +Pi and −Pi, while SPX2 is highly induced in −Pi and not expressed in +Pi (Figure 5F). In addition, several studies have shown that changes in DNA methylation within or near DNA binding elements could interfere with the binding of cognate transcription factors (Deng et al., 2001; Bird, 2002; Zhong et al., 2013). Zhong and colleagues (2013) recently showed in tomato that binding sites for RIN (Ripening Inhibitor), one the main transcription factors involved in fruit ripening, were frequently demethylated during ripening, thus enabling the induction of ripening genes (Zhong et al., 2013). Such a mechanism could potentially occur in rice, fine-tuning the expression of specific genes involved in Pi homeostasis by regulating the binding capacity of specific transcription factors to PSI genes. However, the involvement of such a mechanism in the Pi starvation response remains to be determined.

The Pi resupply experiment allowed us to determine whether PSI DMRs could be maintained despite an extensive period of Pi recovery and tissue growth. While the majority of PSI DMRs returned towards +Pi DNA methylation levels, 14 root PSI DMRs showed significant sustained changes in DNA methylation despite 31 days of Pi resupply, suggesting that these epialleles are likely to be transmitted to newly generated cells, and can thus be mitotically inherited. In addition, unlike animals where DNA methylation is reset in primordial germ cells and during embryogenesis, DNA methylation states in plants can be stably transmitted from parents to offspring (Kinoshita et al., 2007; Becker et al., 2011; Schmitz et al., 2011; Weigel and Colot, 2012), and thus could potentially establish a transgenerational ‘memory’ of the stress. However, to date few reports have studied the potential heritability of stress-induced DNA methylation changes, and no evidence of transgenerational transmission of stress-induced differential DNA methylation exists (Hauser et al., 2011, Pecinka and Scheid, 2012; Sahu et al., 2013). Boyko and colleagues reported that the progeny of stress-treated plants had increased homologous recombination frequency and global DNA methylation levels, as well as higher tolerance to stress (Boyko et al., 2010). However, no evidence of transgenerational transmission of differences in DNA methylation was observed, and the increase in global genome methylation levels did not persist in successive generations during the absence of stress (Boyko et al., 2010). Additionally, several recent studies suggest that specific mechanisms exist to prevent transgenerational inheritance of stress-induced epigenetic states (Baubec et al., 2014; Crevillen et al., 2014; Iwasaki and Paszkowski, 2014). Furthermore, Hagmann and colleagues, using a near-clonal North American A. thaliana population that has diverged under natural conditions for at least a century, recently showed that environment-induced changes are only minor contributors to durable genome-wide heritable epigenetic variation, with more than 97% of the total methylated genome space not being altered by the environment across dozens of generations (Hagmann et al., 2015). In this study, we found no evidence of transgenerational inheritance of PSI DMRs, suggesting that PSI DMRs, and potentially most stress-induced differential methylation in general, are not transmitted to their progeny and are thus not likely to contribute to transgenerational stress memory.

Altogether, this study reveals a species-specific process in which an abiotic stress induces dynamic and widespread changes in DNA methylation in rice. In addition, we establish the temporal relationship between differential transcription and DNA methylation, the limited stability of such induced DNA methylation events through mitosis, and the absence of their transmission through meiosis. These findings have important implications for interpreting the capacity of environmentally induced epialleles to influence genic transcription, and their stability through plant growth and reproduction.

Materials and methods

Plant materials and growth conditions

Rice (Oryza sativa L. cv. Nipponbare) was used for all physiological experiments. Hydroponic experiments were performed under controlled conditions (day/night temperature of 30/22°C and a 12 hr photoperiod, 200 µmol photons m−2 s−1), allowing 0.5 l of hydroponic solution per plant. The hydroponic solution consisted of a modified solution as described in (Secco et al., 2013a), containing 1.425 mM NH4NO3, 0.513 mM K2SO4, 0.998 mM CaCl2, 1.643 mM MgSO4, 0.075 µM (NH4)6Mo7O24, 0.25 mM NaSiO3, 0.009 mM MnCl2, 0.019 µM H3BO3, 0.155 µM CuSO4, 0.152 µM ZnSO4 and 0.125 mM EDTA-Fe, with or without 0.323 mM NaH2PO4, resulting in the +Pi and −Pi conditions. The pH of the solution was adjusted to 5.5 and the solution was renewed every 3 day. Rice seeds were first pre-germinated in tap water for 2 days before being transferred into the hydroponic solution, containing 0.323 mM Pi (+Pi) for 2 weeks. Half of the seedlings were then transferred to a solution lacking Pi (0 mM Pi) for 21 days, before being re-supplemented with 0.323 mM Pi for up to 31 days, while the other half of the seedlings continuously remained in +Pi conditions (control). During the resupply experiment, half of the rice seedlings were left in Pi deficient media, to serve as control. After 24 days of Pi starvation, plants grown under Pi deficient conditions were supplemented with 0.03 mM Pi (1/10th of Pi sufficient Pi concentration) until the end of the experiment to prevent them from dying. Roots and shoots were harvested separately at each time points. Furthermore, all ‘Materials and methods’ such as media replacement and sample collection were performed at similar time of the day (2 hr after light) in order to minimize possible circadian effect.

For Arabidopsis, seeds were germinated and grown vertically on Murashige and Skoog medium diluted 10-fold in Petri dishes supplemented with a Pi source of either 500 µM (+P) or 13 µM (-P) NaH2PO4 in a culture chamber under a 16-hr- light/8-hr-dark regime (25°C/22°C), as previously described (Misson et al., 2004).

Pi content determination

Determination of Pi in tissues was measured by releasing the cellular content of cells into water by repeated freeze–thaw cycle, or by incubation for 1 hr at 85°C, and quantifying Pi by the molybdate assay according to the procedure of Ames (Ames, 1966).

Total RNA isolation and RNA-seq library preparation

The total RNA from the roots and shoots tissues was extracted using TRIzol reagent (Invitrogen, Carlsbad, CA), according to the manufacturer's instructions. For Arabidopsis, RNA was extracted using the Spectrum Plant Total RNA kit from Sigma (St Louis, MO). The integrity and quality of the total RNA was determined using NanoDrop 1000 Spectrophotometer and formaldehyde-agarose gel electrophoresis. RNA was only used when the Abs260 nm/Abs280 nm ratio was >1.8.

For RNA-seq library synthesis (3 biological replicates per condition, 1 plant per replicate, except for Arabidopsis where only two replicates were used), total RNA was first depleted of rRNA using the Ribo-Zero rRNA removal kit (Plant Leaf, and Plant Seed/Root kits, Epicentre, Madison, WI). To do so, 1 µg of total RNA from root samples was used as input for rRNA removal, while 2 µg of total RNA was used for shoot samples. Sequencing libraries were generated using the TruSeq RNA Sample Prep Kit (Illumina, San Diego, CA).

For the rice 24 day and 52 day time point samples and the Arabidopsis samples, the Illumina TruSeq Stranded Total RNA with Ribo-Zero Plant kit was used to generate the libraries (Illumina).

Genomic DNA extraction and MethylC-Seq library generation

Genomic DNA (gDNA) was extracted plant tissues using the DNeasy Plant minikit (Qiagen, the Netherlands). 600 ng of purified gDNA, spiked in with 0.5% (wt/wt) unmethylated Lambda DNA (Promega, Madison, WI) was used to prepare MethylC-seq libraries using three biological replicates per condition (1 plant per replicate for rice), as previously described (Lister et al., 2013). In Arabidopsis, due to the reduced size of the roots and thus reduced amount of gDNA recovered, roots of 10 plants were pooled per replicate, and three independent replicates were used per time point. Briefly, gDNA was sonicated (Covaris) to a mean fragment size distribution of ∼200 bp. Sheared ends were repaired (End-It DNA End Repair kit, Epicentre, Madison, WI), followed by 3′ A-tailing with 0.2 mM dATP and 15 U of Klenow fragment of DNA polymerase and ligation of single-read methylated adapters (Illumina) using 15 U of T4 DNA ligase (New England Biolabs, Ipswich, MA). Sodium bisulfite conversion was then performed using the MethylCode Bisulfite conversion kit (Life Technologies, Carlsbad, CA) according to the manufacturer's instructions. Libraries were then amplified by PCR using 20 µl of bisulfite converted adapter-ligated DNA molecules were mixed with 25 µl of KAPA HiFi Hotstart Uracil+ ReadyMix (Kapa Biosystems, Wilmington, MA) and 5 µl of Truseq Primer Cocktail (Illumina) with cycle conditions of an initial denaturing at 95°C for 2 min, followed by 6 cycles of 98°C for 20 s, 60°C for 15 s, and 72°C for 1 min, followed by 10 min at 72°C. Libraries were then purified with AMPure XP beads (Beckman Coulter, Brea, CA) before being sequenced for 101 cycles using the Illumina HiSeq 1500, as per manufacturer's instructions.

Mapping of RNA-Seq reads, transcript assembly, and abundance estimation using tuxedo suite

All RNA-seq analyses were performed as previously reported (Secco et al., 2013a). Briefly TopHat2 and Cufflinks2 (Trapnell et al., 2012, 2013) packages were used to map sequence reads to the rice IRGSP-1.0 and Arabidopsis TAIR10 reference genomes and quantitate differential gene transcription (FDR < 0.05). TEs were classified using the classification of Plant Repeat database (http://plantrepeats.plantbiology.msu.edu/about.html#codes).

MethylC-seq data analysis

Read mapping, processing, and analysis were performed as described previously (Lister et al., 2013), aligning reads to the rice IRGSP-1.0 and Arabidopsis TAIR10 reference genomes. To estimate the bisulfite non-conversion frequency, the frequency of all cytosine basecalls at reference cytosine positions in the unmethylated control lambda genome was normalized by the total number of basecalls at cytosine reference positions in the lambda genome. DMRs were identified as previously described (Lister et al., 2013). Briefly, for each cytosine in the CNN context, a root mean square test was performed as previously reported (Perkins et al., 2011). To do so, a contingency table where rows indicated the position of each cytosine in the CNN context on the genome and the columns indicated the number of reads that supported a methylated cytosine or an unmethylated cytosine was generated. Next, p-values were simulated using 10,000 permutations and for each permutation, a new contingency table was generated by randomly assigning reads to cells with a probability equal to the product of the row marginal and column marginal divided by the total number of reads squared. To increase the efficiency of this process, the permutations were stopped when a p-value returned 100 permutations with a statistic greater than or equal to the original test statistic. The p-value cutoff that would control the FDR at our desired rate was determined as previously reported (Bancroft et al., 2013).The largest p-value cutoff that still satisfied our FDR requirement was then chosen and significant sites showing changes in DNA methylation were combined into DMRs if they were within 200 bases of one another and had methylation changes in the same direction. Furthermore, blocks that contained fewer than 8 and 5 differentially methylated sites were discarded in the rice and Arabidopsis analyses, respectively. The sample comparison details for the identification of the DMR sets described in this study are described below.

  • Rice root +Pi vs −Pi DMRs were identified (FDR < 0.01) between (21, 22, 24 days) +Pi and (21, 22, 24 days) −Pi samples, requiring ≥7 of 9 root −Pi samples to be differentially methylated compared to root + Pi samples, as well as enabling 1 of 9 root −Pi samples to be similar to + Pi and vice versa.

  • Rice shoot +Pi vs −Pi DMRs were identified (FDR < 0.05) between 21 days +Pi and 21 days −Pi samples, requiring 3 of 3 −Pi shoot samples to be differentially methylated compared to +Pi shoot samples.

  • Arabidopsis root +Pi vs −Pi DMRs were identified (FDR < 0.2) between 10 days +Pi and 10 days −Pi samples, requiring 3 of 3 −Pi root samples to be differentially methylated compared to +Pi root samples.

Persisting differences in DNA methylation levels were defined as being significantly different between 52 days + Pi and 52 days −Pi conditions (t-test, FDR < 0.05) and significantly different between 52 days Pi resupply and 52 days +Pi (t-test, FDR < 0.05), but not significant different between 52 days −Pi and 52 days Pi resupply (t-test, FDR >0.05). Persisting DMRs were identified in CNN context. FDR was calculated using the Benjamini Hochberg method.

Full browsing of the entire rice and Arabidopsis datasets can be found at http://www.plantenergy.uwa.edu.au/public/annoj/rice_Pi_starved_methylomes_Secco_et_al.htm and http://www.plantenergy.uwa.edu.au/public/annoj/Arabidopsis_Pi_starved_methylomes_Secco_et_al.htm, respectively. Transposable element track was obtained from Oryza Repeat Database (http://rice.plantbiology.msu.edu/annotation_oryza.shtml).

Estimation of methylation level (mC/C) with correction for non-conversion

To calculate the methylation levels (mCNN/CNN, mCG/CG, mCHG/CHG or mCHH/CHH), which is an estimate of the fraction of cytosines in the sequenced population which are methylated, we computed the fraction of all MethylC-Seq basecalls at cytosine reference positions that were cytosine (protected from bisulfite conversion), and then subtracted these estimates for the failure of the chemical conversion of unmethylated cytosine (non-conversion rate), based on the non-conversion rate to the unmethylated Lambda DNA spiked-in control.

Accession numbers

Illumina reads of all samples have been submitted to the Sequence Read Archive at the National Center for Biotechnology Information (http://www.ncbi.nlm.nih.gov/sra) under accession number SRP061678 (Stranded RNA-seq for rice after 3, 24 and 52 days of Pi stress), SRP032765 (Rice methylomes under Pi stress), SRP061677 (Stranded RNA-seq and methylomes for the rice DCL3a RNAi experiment), and SRP040029 (Methylomes and stranded RNA-seq for Arabidopsis under Pi stress).

Source data are deposited in the DRYAD repository: 10.5061/dryad.40gd6. (Secco et al., 2015).

References

  1. 1
  2. 2
    Assay of inorganic phosphate, total phosphate and phosphatases
    1. B Ames
    (1966)
    Methods in Enzymology pp. 115–118.
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
    Spreading of Heterochromatin is limited to specific families of Maize retrotransposons
    1. SR Eichten
    2. NA Ellis
    3. I Makarevitch
    4. CT Yeh
    5. JI Gent
    6. L Guo
    7. KM McGinnis
    8. XY Zhang
    9. PS Schnable
    10. MW Vaughn
    11. RK Dawe
    12. NM Springer
    (2012)
    PLOS Genetics, 8, 10.1371/journal.pgen.1003127.
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
    Century-scale methylome stability in a recently diverged Arabidopsis thaliana lineage
    1. J Hagmann
    2. C Becker
    3. J Muller
    4. O Stegle
    5. RC Meyer
    6. G Wang
    7. K Schneeberger
    8. J Fitz
    9. T Altmann
    10. J Bergelson
    11. K Borgwardt
    12. D Weigel
    (2015)
    PLOS Genetics, 11, 10.1371/journal.pgen.1004920.
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
    Salt stress induced variation in DNA methylation pattern and its influence on gene expression in contrasting Rice genotypes
    1. R Karan
    2. T DeLeon
    3. H Biradar
    4. PK Subudhi
    (2012)
    PLOS ONE, 7, 10.1371/journal.pone.0040203.
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
    Single-base resolution maps of cultivated and wild rice methylomes and regulatory roles of DNA methylation in plant gene expression
    1. X Li
    2. JD Zhu
    3. FY Hu
    4. S Ge
    5. MZ Ye
    6. H Xiang
    7. GJ Zhang
    8. XM Zheng
    9. HY Zhang
    10. SL Zhang
    11. Q Li
    12. RB Luo
    13. C Yu
    14. J Yu
    15. JF Sun
    16. XY Zou
    17. XF Cao
    18. XF Xie
    19. J Wang
    20. W Wang
    (2012)
    BMC Genomics, 13, 10.1186/1471-2164-13-300.
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
    The arabidopsis book
    1. Y Poirier
    2. M Bucher
    (2002)
    The arabidopsis book, Rockville, MD, American Society of Plant Biologists.
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
    NCBI Short Read Archive
    1. D Secco
    2. M Jabnoune
    3. H Walker
    4. H Shou
    5. P Wu
    6. Y Poirier
    7. J Whelan
    (2013)
    NCBI Short Read Archive, SRA097415. http://www.ncbi.nlm.nih.gov/sra/?term=SRA097415.
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
    Epialleles in plant evolution
    1. D Weigel
    2. V Colot
    (2012)
    Genome Biology, 13, 10.1186/gb-2012-13-10-249.
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81

Decision letter

  1. Detlef Weigel
    Reviewing Editor; Max Planck Institute for Developmental Biology, Germany

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for submitting your work entitled “Phosphate starvation induces widespread modulation of DNA methylation at stress responsive genes” for further consideration at eLife. Your article has been favorably evaluated by Detlef Weigel (Senior editor and Reviewing editor), and three reviewers. The manuscript has been improved since the previous version but there are some remaining issues that need to be addressed before final acceptance.

The reviewers very much appreciated your diligent follow up, and agreed that the observation of TE methylation following transcription of adjacent genes is an important one. Not only does it go against the commonly accepted wisdom of transcription being an outcome in changes of methylation, but your demonstration that this mostly does not involve the canonical RdDM pathway may also reveal a formerly unappreciated route to (somatic) methylation changes.

We would ask you for some minor tweaks. First, it would be good if the title better reflected the new data, and that you refer to the temporal order of transcription and methylation changes. Second, the reviewers were wondering whether there are phosphate-starvation-induced DMRs between DCL3a control and DCL3a stressed plants. The question that could be addressed with this is whether DCL3a is required for the stability of other regions in the genome that might not be the same as the stress-induced ones in the wild type. Finally, there are some minor changes, as listed below.

Abstract

Abstract. I find the word “proximal” a bit confusing. I would propose “nearby” or “close”.

In the first paragraph of the subsection “Pi starvation induces widespread changes in DNA methylation, enriched at key regulators of Pi homeostasis”. I could not find how many ready had to cover a position in order to be considered as covered. This should be specified.

The statement “the root PSI DMRs had an average size of 205 bp with a mean of 16 differentially methylated cytosines per DMR, and were preferentially localized within the first kilobase upstream (20%) and downstream (20%) of the proximal gene (Figure 2B, Figure 2-figure supplement 2)” and Figure 2B may be potentially wrong. There are many more short intergenic regions than the long ones, which typically leads to the pattern described by the authors. In order to perform this analysis in an unbiased way, the authors should calculate this as percentage within individual intergenic regions.

Discussion: “the differences in DNA methylation changes observed in rice and Arabidopsis in response to Pi starvation could primarily be due to the differential frequency of TEs in the genome of each species, suggesting that Arabidopsis may not be the best model in which to study the role of DNA methylation in controlling TE activity in plants”. I think the large number of very successful genetic screens with results published in the top journals disproves this statement.

Discussion: “Thus, the RDR6-RdDM pathway, another entry point into RdDM that recognizes Pol II-derived TE transcripts, may act to methylate these TEs. The authors should include “we hypothesize”.

[Editors’ note: a previous version of this study was rejected after peer review, but the authors submitted for reconsideration. The previous decision letter after peer review is shown below.]

Thank you for choosing to send your work entitled “Phosphate starvation in rice induces mitotically heritable modulation of DNA methylation at starvation responsive genes” for consideration at eLife. Your full submission has been evaluated by Detlef Weigel (Senior editor and Reviewing editor) and three peer reviewers, and the decision was reached after discussions between all involved. Based on our discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife at this time.

Detlef Weigel and the reviewers had a long discussion about the merits of the work. On the plus side, there was broad agreement that this is likely the most rigorous study of stress-induced DNA methylation changes in plants. On the negative side, it is difficult to come to any strong conclusions. First, the question of whether methylation changes are mostly a consequence of altered transcription or vice versa is not really solved. Much of the evidence points to transcriptional changes being more important, but there is some tantalizing evidence for the opposite scenario, such as methylation of transcription factor binding sites affecting RNA expression. However, this latter observation is not entirely new, as you point out yourself, and the statistical significance is difficult to judge without a genome-wide comparison. There is potential methylation of one PHR1 binding site, but what about all the other PHR1 binding sites in the genome, and what could be a plausible biological mechanism for such a specific effect? Finally, we appreciated the Arabidopsis data. We agreed that the differences in repeat content might explain the different effects seen in this species, but overall the Arabidopsis data do not help to better understand the phenomenon – with the added caveat that the experiments and analyses were not done exactly in the same way.

The agreement was that for eLife, causality of methylation and RNA expression changes would have to be established, using either chemical treatment or appropriate mutants. This would entail an entirely new set of experiments, and since it is eLife's policy to invite revision only when it is likely that the required experiments can be done in a short time frame, we are declining the study at this time. However, we think that this could in principle be appropriate for eLife with such added analyses, and we would reconsider such a substantially revised version of the work as a new submission.

Reviewer #1:

Secco and colleagues present one of the first single-nucleotide resolution studies on abiotic-stress-related methylation changes in plants. The experiment is well designed: rice plants are deprived of inorganic phosphate for up to 3 weeks, then are either kept under Pi deprivation or are re-supplied with Pi for another 1-31 days. The authors analyze gene expression by RNA-seq and DNA methylation by whole-genome bisulfite sequencing. The re-supply experiment is most noteworthy, as it shows very nicely a resetting of the transcriptional activity to control levels once Pi is available to the plant. The methylome, in contrast has a lag phase and only slowly returns back to the initial configuration, with some regions persistently maintaining their altered methylation pattern.

This study addresses the important question whether methylation can persistently change upon an abiotic stress signal and induce effects that would eventually allow the plant to adapt to a changing environment. Despite the quality of the data and the solid experimental setup, I have several major concerns:

1) I have had difficulties in assessing the general aim of the manuscript. On the one hand, the data presented are very descriptive, and most findings are not evaluated in detail. On the other hand, the data is presented in a way that suggests a regulatory or causal link between DNA methylation and transcription, although data support for this is only marginal or at least not verified. On several occasions the change in DNA methylation is described as being linked to the change in expression, as for the SPX2 locus, which is even given as an example of a putatively more general mechanism. In the Discussion, the authors then again refute links between methylation and expression. This latter take is much more consistent with their data (but is not kept up throughout the manuscript). For example, both hypo- and hyper-methylation-associated genes are up-regulated. Along the same line, re-establishment of control transcription levels does not correlate with re-established methylation after Pi resupply. SPX2 expression drops back to control levels after re-supply of Pi while the methylation is persistently altered. The conclusion from these observations should then be that gene expression and DNA methylation in response to Pi starvation are most likely not linked.

2) Another major concern is that many hypotheses built on the results from the methylome analysis are not verified, either statistically or experimentally, even though in many instances this would have been possible. There are numerous instances of claims about significant findings that lack statistical validation (explained below in more detail).

In the Abstract it reads that the detected changes in mC are “likely involved in the expression of repeat elements proximal to highly induced genes”. Why don't the authors use their transcriptome data or locus-specific analyses to address this important point?

3) The authors build their DMR detection on differentially methylated positions, which they then cluster into regions. It has been shown that for coverage and statistical reasons, DMPs are much easier to detect in the CG context than in CHG and CHH contexts. The DMR detection could therefore be biased towards 5mCG-rich regions. The authors should provide information on the DMPs and the distribution of the sequence contexts, so that it becomes clear whether DMR detection is skewed towards a specific context and thus towards certain genetic elements.

More importantly: why are the thresholds for DMR detection in the root and in the shoot different from each other (FDR<0.01 vs. FDR<0.05)? Could the lower threshold in the shoot explain why more DMRs are found in this tissue, which is not the primary Pi sensing organ?

What is the reasoning behind applying yet another FDR threshold for DMR detection in Arabidopsis (0.2 in this case)? It leaves the impression that the authors switch between different cut-off values in order to get some reportable DMRs where there are none or very few to report. Also, are the genes associated with these DMRs among the DEGs? It would be less confusing if the authors simply stated that no DMRs were detectable in Arabidopsis, as they allude to in the last paragraph of the Discussion.

Moreover, why was the sequencing for rice done on single plants while for Arabidopsis 10 plants were pooled in each replicate? Could it be that the higher number of DMRs is also due to high stochastic inter-individual variation? I suggest the authors compare differential methylation between replicates in both species. In any way it would be interesting to see the degree of that variation and how it scales to the variation between treatments. It should also be mentioned in the main text that the experimental setups significantly differed in this respect.

4) Changes in the CHH context imply that there is an involvement of the smallRNA machinery and the RdDM pathway. This is discussed nowhere in the manuscript.

5) The model on methylation-mediated binding of PHR1 to the P1BS binding motif is interesting, but it is completely speculative. Neither does the data show that expression of these genes is linked to methylation, nor do the authors provide evidence for the enhanced binding of PHR1 to the motif in its unmethylated state.

6) Transgenerational inheritance is only assessed in the context of persistence of several DMRs in the progeny of the stressed plants. As control I suggest that the authors identify DMRs between the two generations and check whether these DMRs are related to PSI loci. This way one might get an insight into DMRs induced in the germ line of the stressed plants, which would be the only ones possibly forwarded to the following generation.

Overall, the authors have generated a very interesting dataset, but, in terms of analysis and conclusions, in my view their study in its current state does not meet the standards of a high-profile publication.

Reviewer #2:

The manuscript by Secco and co-authors presents data on the identification of transcriptional and DNA methylation changes induced by phosphate (Pi) starvation and their dynamics in rice and to a smaller extent also Arabidopsis. In rice, part of the Pi starvation up- or down-regulated genes is associated with local DNA methylation changes, including some key Pi metabolism genes. Interestingly, these changes persist even after Pi re-supply, and based on this the authors suggest their mitotic heritability. However, they are not carried into the next generation. In contrast, Pi starvation induced DNA methylation changes were much more modest in Arabidopsis, indicating species-specific regulatory responses.

To my knowledge, this is so far the most comprehensive study addressing stress-induced DNA methylation changes. It provides important data towards the frequently proposed, but rarely evidenced, role of DNA methylation and transposable elements in controlling gene transcription.

I consider this study as an obvious candidate for publication in eLife upon revision.

Reviewer #3:

This study addresses the role of DNA methylation in plant gene regulation - specifically its role in transcriptional changes during phosphate starvation in rice. The authors perform a deep analysis of transcripts and DNA methylation using sequencing, following controlled phosphate starvation. They identify a set of genes that show transcriptional up-regulation together with coincident DNA demethylation in regions close to the TSS. Many of these genes are known to play functional roles in the phosphate starvation response. The authors demonstrate that many of these demethylated regions correspond to MITE transposons that have inserted close to the gene.

This is a thorough and detailed analysis, but it is essentially descriptive. It is unclear the extent to which the methylation changes are cause or effect of gene transcriptional induction. A number of mechanisms are possible, for example transcription may promote DNA demethylation via DNA glycosylases and/or inhibit DNA methylation maintenance. Mutations are available in rice DNA methylation factors, e.g. MET1 PMID 25002488 and DCL3 PMID 24554078, that may facilitate mechanistic experiments to test these ideas.

Transcriptional induction via transcription factors may be the most important factor here, which directly leads to demethylation of proximal TEs. In this scenario the methylation may not play an important role in control of gene expression. Removal of the methylation via mutation would allow expression of the target genes and associated TEs to be monitored to test the models proposed by the authors. It should also be possible to correlate Pol-II ChIP localisation with demethylation, in addition to other 5'-associated chromatin marks, e.g. H2A.Z, H3K4 methylation, nucleosome free regions. Further information is required to address how this methylation is removed and the extent to which it is really exerting an influence on the regulation of the genes of interest.

https://doi.org/10.7554/eLife.09343.034

Author response

We would ask you for some minor tweaks. First, it would be good if the title better reflected the new data, and that you refer to the temporal order of transcription and methylation changes.

We have changed the title to: “Stress induced gene expression drives transient DNA methylation changes at adjacent repetitive elements”.

Second, the reviewers were wondering whether there are phosphate-starvation-induced DMRs between DCL3a control and DCL3a stressed plants. The question that could be addressed with this is whether DCL3a is required for the stability of other regions in the genome that might not be the same as the stress-induced ones in the wild type.

We have performed a new analysis accordingly. We have added a new figure (Figure 5–figure supplement 2) and describe the new data in the Results section (subsection “Stress-induced DMRs are mainly independent of the canonical RdDM pathway”). Briefly, it appears that while DCL3a could potentially mediate DNA methylation state of some genomic regions in response to Pi starvation, none of these were associated with changes in nearby gene expression.

Finally, there are some minor changes, as listed below.

Abstract

Abstract. I find the wordproximala bit confusing. I would proposenearbyorclose”.

This has been changed throughout the manuscript.

In the first paragraph of the subsection “Pi starvation induces widespread changes in DNA methylation, enriched at key regulators of Pi homeostasis”. I could not find how many ready had to cover a position in order to be considered as covered. This should be specified.

We have modified a sentence in the main text to specify this as follows: “77-87% of cytosines covered by at least one read, 82-88% of genome”.

The statement “the root PSI DMRs had an average size of 205 bp with a mean of 16 differentially methylated cytosines per DMR, and were preferentially localized within the first kilobase upstream (20%) and downstream (20%) of the proximal gene (Figure 2B, Figure 2-figure supplement 2)” and Figure 2B may be potentially wrong. There are many more short intergenic regions than the long ones, which typically leads to the pattern described by the authors. In order to perform this analysis in an unbiased way, the authors should calculate this as percentage within individual intergenic regions.

We have modified the analysis to take this into account, normalising the number of DMRs in each bin by the number of regions present in the corresponding bin. To do so, the position of each DMR was calculated with respect to the nearest gene. DMRs were then categorized in bins (within gene body, 0-1kb, 1-2kb, 2-4kb, 4-6kb, and >6 kb from the TSS or TES), and the number of DMRs in each bin was normalised by the total number of regions present in that bin category in the genome. Figure 2B and the main text have been updated as follows: “The root PSI DMRs… were preferentially localized within the first two kilobases upstream (40%) and first kilobase downstream (15%) of the nearby gene”.

Discussion: “the differences in 439 DNA methylation changes observed in rice and Arabidopsis in response to Pi starvation could primarily be due to the differential frequency of TEs in the genome of each species, suggesting that Arabidopsis may not be the best model in which to study the role of DNA methylation in controlling TE activity in plants”. I think the large number of very successful genetic screens with results published in the top journals disproves this statement.

This sentence has been removed from the revised manuscript.

[Editors’ note: the author responses to the previous round of peer review follow.]

[…] The agreement was that for eLife, causality of methylation and RNA expression changes would have to be established, using either chemical treatment or appropriate mutants. This would entail an entirely new set of experiments, and since it is eLife's policy to invite revision only when it is likely that the required experiments can be done in a short time frame, we are declining the study at this time. However, we think that this could in principle be appropriate for eLife with such added analyses, and we would reconsider such a substantially revised version of the work as a new submission.

In this substantially revised manuscript, we have addressed the issues raised by the reviewers about our initial submission, including the main point regarding establishing the causality of changes in DNA methylation and transcript abundance. We believe this is important given that there is a very frequent assumption that changes in DNA methylation drive changes in transcription. Accordingly, in this revised manuscript we have:

1) Added an earlier time point to our extensive phosphate starvation time course experiment, enabling us to establish the temporal hierarchy between changes in DNA methylation and transcript abundance. With this new data we clearly show that the changes in DNA methylation occur after the changes in transcript abundance. Thus, the observed DNA methylation changes are likely a consequence of increased transcription of the proximal stress responsive genes. Therefore, this study provides insights into a cellular activity that potentially repress the activity of specific transposable elements in genomic regions that must be transcriptionally activated to respond to environmental perturbation.

2) Performed a new phosphate starvation experiment, including the suggested DCL3a RNAi line, which is impaired in 24nt siRNA biogenesis. As suggested by reviewer 3, this new experiment sheds light on the mechanism involved in regulating these stress-induced changes in DNA methylation. Overall, we could show that while reduced expression of DCL3a had severe effects on the epigenome, altering DNA methylation at >9,000 regions, very few effects were observed in the stress induced DMRs, with hypermethylated DMRs being almost exclusively DCL3a-independent. This indicates that the stress induced DNA hypermethylation generally does not involve the canonical RdDM pathway.

We believe that this study now goes well beyond previous investigations into the dynamic modulation of DNA methylation in response to stress, establishes the causality between changes in transcript abundance and changes in DNA methylation, and shows that this process is mainly DCL3a-independent.

Reviewer #1:

Secco and colleagues present one of the first single-nucleotide resolution studies on abiotic-stress-related methylation changes in plants. The experiment is well designed: rice plants are deprived of inorganic phosphate for up to 3 weeks, then are either kept under Pi deprivation or are re-supplied with Pi for another 1-31 days. The authors analyze gene expression by RNA-seq and DNA methylation by whole-genome bisulfite sequencing. The re-supply experiment is most noteworthy, as it shows very nicely a resetting of the transcriptional activity to control levels once Pi is available to the plant. The methylome, in contrast has a lag phase and only slowly returns back to the initial configuration, with some regions persistently maintaining their altered methylation pattern.

This study addresses the important question whether methylation can persistently change upon an abiotic stress signal and induce effects that would eventually allow the plant to adapt to a changing environment. Despite the quality of the data and the solid experimental setup, I have several major concerns:

1) I have had difficulties in assessing the general aim of the manuscript. On the one hand, the data presented are very descriptive, and most findings are not evaluated in detail. On the other hand, the data is presented in a way that suggests a regulatory or causal link between DNA methylation and transcription, although data support for this is only marginal or at least not verified. On several occasions the change in DNA methylation is described as being linked to the change in expression, as for the SPX2 locus, which is even given as an example of a putatively more general mechanism. In the Discussion, the authors then again refute links between methylation and expression. This latter take is much more consistent with their data (but is not kept up throughout the manuscript). For example, both hypo- and hyper-methylation-associated genes are up-regulated. Along the same line, re-establishment of control transcription levels does not correlate with re-established methylation after Pi resupply. SPX2 expression drops back to control levels after re-supply of Pi while the methylation is persistently altered. The conclusion from these observations should then be that gene expression and DNA methylation in response to Pi starvation are most likely not linked.

We acknowledge that the message of the previous version could have been clearer, and we have endeavoured to clarify the message in the revised manuscript. In this revised version, we have included an additional and earlier time point (3 days + or - Pi) in order to decipher the temporal hierarchy between changes in DNA methylation and transcript abundance. The new data shows that changes in DNA methylation occur after changes in proximal gene transcription (Figure 3B), thus indicating that changes in DNA methylation are likely a consequence of nearby induction of stress-responsive gene transcription. Overall, the revised manuscript clearly establishes the temporal relationship between differential transcription and DNA methylation.

2) Another major concern is that many hypotheses built on the results from the methylome analysis are not verified, either statistically or experimentally, even though in many instances this would have been possible. There are numerous instances of claims about significant findings that lack statistical validation (explained below in more detail).

In the abstract it reads that the detected changes in mC arelikely involved in the expression of repeat elements proximal to highly induced genes. Why don't the authors use their transcriptome data or locus-specific analyses to address this important point?

In the revised version of the manuscript, all claims about significant findings now include appropriate statistical validation. Due to extensive changes in the manuscript/Abstract, the Abstract sentence cited by Reviewer 1 is no longer present in the current version of the manuscript. Nonetheless, the following sentence has been added in the manuscript: “in addition, RNA-seq analysis failed to reveal any significantly differentially expressed TEs (Cuffdiff, FDR < 0.05) that overlapped with PSI DMRs, between Pi sufficient and deficient conditions (7 and 21 d), with more than 80% of them not being expressed”.

3) The authors build their DMR detection on differentially methylated positions, which they then cluster into regions. It has been shown that for coverage and statistical reasons, DMPs are much easier to detect in the CG context than in CHG and CHH contexts. The DMR detection could therefore be biased towards 5mCG-rich regions. The authors should provide information on the DMPs and the distribution of the sequence contexts, so that it becomes clear whether DMR detection is skewed towards a specific context and thus towards certain genetic elements.

We do not observe a bias towards DMR detection in mCG-rich regions. As shown in the manuscript Figure 2A, most PSI DMRs occur in the CHH context, thus indicating that the DMR detection is not biased towards the CG context.

We agree that the identification of DMPs can be biased towards the CG context (Author response image 1). However, comparison of the proportion of significantly differentially methylated cytosines located within the identified DMRs did not reveal an enrichment of DMPs in the CG context, suggesting that the identification of DMRs is unlikely to be biased towards the CG context.

More importantly: why are the thresholds for DMR detection in the root and in the shoot different from each other (FDR<0.01 vs. FDR<0.05)? Could the lower threshold in the shoot explain why more DMRs are found in this tissue, which is not the primary Pi sensing organ?

We agree with this comment. In the revised manuscript, all statistical analyses have been performed using a FDR threshold of 0.05, when the experiment was done using 3 biological replicates (n=3). However, due to the high number of replicates (n=9) used to identify root phosphate starvation induced (PSI) DMRs, a more stringent threshold of 0.01 was used, to detect a robust core set of PSI DMRs for further in depth analysis.

We agree that the higher FDR used for the shoot (FDR 0.05) is likely the cause of the increased DMRs identified in the shoots compared to the roots. However, we believe that the message of this comparison is clear: both roots and shoots have similar patterns of DNA methylation after phosphate starvation. We have modified the manuscript with respect to the reviewers comment, and clearly explained why different FDRs are being used.

What is the reasoning behind applying yet another FDR threshold for DMR detection in Arabidopsis (0.2 in this case)? It leaves the impression that the authors switch between different cut-off values in order to get some reportable DMRs where there are none or very few to report. Also, are the genes associated with these DMRs among the DEGs? It would be less confusing if the authors simply stated that no DMRs were detectable in Arabidopsis, as they allude to in the last paragraph of the Discussion.

We agree, and this has been clarified in the manuscript. In the revised version, we first used a FDR threshold of 0.05, showing that no DMRs could be identified using similar criteria as the rice DMR analysis. In addition, in order to assess whether any DMRs could be identified upon Pi starvation, a less stringent FDR threshold of 0.2 was used, resulting in the identification of only two PSI DMRs, proximal to phosphate-starvation induced genes.

Moreover, why was the sequencing for rice done on single plants while for Arabidopsis 10 plants were pooled in each replicate? Could it be that the higher number of DMRs is also due to high stochastic inter-individual variation? I suggest the authors compare differential methylation between replicates in both species. In any way it would be interesting to see the degree of that variation and how it scales to the variation between treatments. It should also be mentioned in the main text that the experimental setups significantly differed in this respect.

While we agree with the reviewer’s comments, Arabidopsis roots are much smaller than rice roots. Consequently, the quantity of DNA recovered from individual roots (especially after 10 d of –Pi) was insufficient to perform whole genome bisulfite sequencing on single roots of a single Arabidopsis plant. The higher number of DMRs observed in rice is unlikely due to higher stochastic inter-individual variation since the main criteria for DMR identification was requiring 7 of the 9 replicates to show similar changes in DNA methylation, as mentioned in the methods. Comparison of the variation of the replicates in rice can be seen in Figure 2–figure supplement 1.

4) Changes in the CHH context imply that there is an involvement of the smallRNA machinery and the RdDM pathway. This is discussed nowhere in the manuscript.

We agree, and this has been revised in the current version of the manuscript. Indeed, we have now added substantial new experiments, repeating the phosphate starvation and DNA methylome/transcriptome experiment in a rice DCL3a RNAi line in order to decipher the involvement of the canonical RdDM pathway in Pi starvation induced DMRs. This demonstrated that the majority of the Pi starvation induced DMRs are DCL3a-independent.

5) The model on methylation-mediated binding of PHR1 to the P1BS binding motif is interesting, but it is completely speculative. Neither does the data show that expression of these genes is linked to methylation, nor do the authors provide evidence for the enhanced binding of PHR1 to the motif in its unmethylated state.

We agree, and this has been removed in the revised manuscript.

6) Transgenerational inheritance is only assessed in the context of persistence of several DMRs in the progeny of the stressed plants. As control I suggest that the authors identify DMRs between the two generations and check whether these DMRs are related to PSI loci. This way one might get an insight into DMRs induced in the germ line of the stressed plants, which would be the only ones possibly forwarded to the following generation.

In the current version of the manuscript, we assess the persistence of altered DNA methylation in all the Pi starvation induced DMRs, and clearly show that none of the PSI DMRs identified in the first generation are transmitted to the second generation.

In addition, as suggested, we investigated whether DMRs could be identified between the two generations, and if so whether they were related to any PSI loci. In order to identify DMRs between the two generations and exclude any potential DMRs that might arise from comparing different developmental stages, we compared the 3d +Pi time-point of the first generation of plants (15 day old plants: germinated for 2 weeks in +Pi, followed by 3 d of +Pi) to 10 d old seedlings from the parental plants that were continuously grown in + or –Pi conditions. Overall, only 21 and 24 DMRs (FDR < 0.05) could be identified between the first generation (3d +Pi) plants versus the progeny of Pi stressed parent and progeny of non-stressed plants, respectively. Assignment of these DMRs to their proximal gene showed that the majority of these DMRs were located near transposons and genes encoding ‘expressed proteins’. Importantly, none of these proximal genes showed a significant difference in transcript abundance in response to Pi stress (Cufflinks, FDR <0.05).

In conclusion, the ‘resetting’ of many root PSI DMRs over time after stress cessation, the very limited number of PSI DMRs identified in the panicles, the absence of persistent PSI DMRs in the progeny of stressed plants, and the analysis described above indicate that it is very unlikely that these stress induced DMRs are transmitted to the following generation.

Reviewer #3:

[…] This study addresses the role of DNA methylation in plant gene regulation - specifically its role in transcriptional changes during phosphate starvation in rice. The authors perform a deep analysis of transcripts and DNA methylation using sequencing, following controlled phosphate starvation. They identify a set of genes that show transcriptional up-regulation together with coincident DNA demethylation in regions close to the TSS. Many of these genes are known to play functional roles in the phosphate starvation response. The authors demonstrate that many of these demethylated regions correspond to MITE transposons that have inserted close to the gene.

This is a thorough and detailed analysis, but it is essentially descriptive. It is unclear the extent to which the methylation changes are cause or effect of gene transcriptional induction. A number of mechanisms are possible, for example transcription may promote DNA demethylation via DNA glycosylases and/or inhibit DNA methylation maintenance. Mutations are available in rice DNA methylation factors, e.g. MET1 PMID 25002488 and DCL3 PMID 24554078, that may facilitate mechanistic experiments to test these ideas.

We agree with this point, and as suggested by Reviewer 3 we performed extensive additional experiments to shed light on the mechanism and role of phosphate starvation induced (PSI) differential DNA methylation.

Firstly, as mentioned above (see Reviewer 1 section), we improved the already extensive time course experiment, allowing us to decipher the temporal relationship between changes in DNA methylation and transcript abundance. Indeed, we could show that changes in DNA methylation occurred after changes in nearby transcript abundance, thus suggesting that increased transcription of stress responsive genes could lead to increased methylation of nearby TEs.

Secondly, to gain further insights into the mechanism involved in the PSI differential DNA methylation, as suggested by Reviewer 3, we performed a new experiment utilizing the suggested rice DCL3a RNAi line. We grew WT and a DCL3a RNAi line (PMID 24554078), which is impaired in 24nt siRNA biogenesis, under + or –Pi for 21 days, before performing MethylC-seq and RNA-seq. While reduced expression of DCL3a had major effects on the epigenome, altering DNA methylation at >9000 regions in the genome, very few effects were observed in the phosphate starvation induced DMRs, with hypermethylated DMRs being almost exclusively DCL3a-independent, indicating that this process likely does not involve the canonical RdDM pathway.

The suggested met1-2 mutant was not included in this new experiment due to the extremely deleterious effects of the mutation on plant growth and morphology: “…growth of the seedlings was significantly retarded, and they could only grow to ca. 3 cm in height with sporadic, deformed tiny roots, and then growth of the seedlings was totally halted and underwent necrotic death within 2 wk” (Hu et al., 2014 PMID 25002488).

Transcriptional induction via transcription factors may be the most important factor here, which directly leads to demethylation of proximal TEs. In this scenario the methylation may not play an important role in control of gene expression. Removal of the methylation via mutation would allow expression of the target genes and associated TEs to be monitored to test the models proposed by the authors. It should also be possible to correlate Pol-II ChIP localisation with demethylation, in addition to other 5'-associated chromatin marks, e.g. H2A.Z, H3K4 methylation, nucleosome free regions. Further information is required to address how this methylation is removed and the extent to which it is really exerting an influence on the regulation of the genes of interest.

While we agree with reviewer 3, we believe the model on methylation-mediated binding of PHR1 to the P1BS binding motif is too speculative at this stage and has thus been removed from the revised manuscript.

However, to shed light on the mechanism involved in the regulation Pi starvation-induced DMRs, as suggested by reviewer 3, we used a dcl3a RNAi line (PMID 24554078). Briefly, we now show that the majority of phosphate starvation induced DMRs are not dependent upon DCL3a and thus do not involve the canonical RdDM pathway. These findings have important implications for interpreting the capacity of environmentally induced epialleles to influence genic transcription, and their stability through plant growth and reproduction.

https://doi.org/10.7554/eLife.09343.035

Article and author information

Author details

  1. David Secco

    ARC Centre of Excellence in Plant Energy Biology, The University of Western Australia, Perth, Australia
    Contribution
    DS, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    david.secco@uwa.edu.au
    Competing interests
    The authors declare that no competing interests exist.
  2. Chuang Wang

    1. State Key laboratory of Plant Physiology and Biochemistry, College of Life Science, Zhejiang University, Hangzhou, China
    2. Joint Research Laboratory in Genomics and Nutriomics, Zhejiang University, Hangzhou, China
    Contribution
    CW, Acquisition of data
    Competing interests
    The authors declare that no competing interests exist.
  3. Huixia Shou

    1. State Key laboratory of Plant Physiology and Biochemistry, College of Life Science, Zhejiang University, Hangzhou, China
    2. Joint Research Laboratory in Genomics and Nutriomics, Zhejiang University, Hangzhou, China
    Contribution
    HS, Acquisition of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  4. Matthew D Schultz

    Genomic Analysis Laboratory, Salk Institute for Biological Studies, La Jolla, United States
    Contribution
    MDS, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  5. Serge Chiarenza

    UMR 6191 CEA, Centre National de la Recherche Scientifique, Laboratoire de Biologie du Développement des Plantes, Université d'Aix-Marseille, Saint-Paul-lez-Durance, France
    Contribution
    SC, Acquisition of data
    Competing interests
    The authors declare that no competing interests exist.
  6. Laurent Nussaume

    UMR 6191 CEA, Centre National de la Recherche Scientifique, Laboratoire de Biologie du Développement des Plantes, Université d'Aix-Marseille, Saint-Paul-lez-Durance, France
    Contribution
    LN, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  7. Joseph R Ecker

    Genomic Analysis Laboratory, Salk Institute for Biological Studies, La Jolla, United States
    Contribution
    JRE, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  8. James Whelan

    1. Joint Research Laboratory in Genomics and Nutriomics, Zhejiang University, Hangzhou, China
    2. Department of Animal, Plant and Soil Science, School of Life Science, ARC Centre of Excellence in Plant Energy Biology, La Trobe University, Bundoora, Australia
    Contribution
    JW, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    J.Whelan@latrobe.edu.au
    Competing interests
    The authors declare that no competing interests exist.
  9. Ryan Lister

    ARC Centre of Excellence in Plant Energy Biology, The University of Western Australia, Perth, Australia
    Contribution
    RL, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    ryan.lister@uwa.edu.au
    Competing interests
    The authors declare that no competing interests exist.

Funding

Gordon and Betty Moore Foundation (GBMF3034)

  • Joseph R Ecker

Australian Research Council (ARC) (FT120100862)

  • Ryan Lister

Australian Research Council (ARC) (FS100100022)

  • David Secco

Australian Research Council (ARC) (DE150100460)

  • David Secco

Australian Research Council (ARC) (CE140100008)

  • James Whelan
  • Ryan Lister

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors would like to thank Robert Schmitz and Justin Borevitz for critical reading of the article and useful discussions, as well as Xiaofeng Cao for sharing the DCL3a RNAi line.

Reviewing Editor

  1. Detlef Weigel, Reviewing Editor, Max Planck Institute for Developmental Biology, Germany

Publication history

  1. Received: June 10, 2015
  2. Accepted: July 20, 2015
  3. Accepted Manuscript published: July 21, 2015 (version 1)
  4. Version of Record published: August 18, 2015 (version 2)

Copyright

© 2015, Secco et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 4,934
    Page views
  • 1,338
    Downloads
  • 48
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biophysics and Structural Biology
    Jing Li et al.
    Research Article Updated
