Excitatory transmission onto AgRP neurons is regulated by cJun NH2-terminal kinase 3 in response to metabolic stress

  1. Santiago Vernia
  2. Caroline Morel
  3. Joseph C Madara
  4. Julie Cavanagh-Kyros
  5. Tamera Barrett
  6. Kathryn Chase
  7. Norman J Kennedy
  8. Dae Young Jung
  9. Jason K Kim
  10. Neil Aronin
  11. Richard A Flavell
  12. Bradford B Lowell
  13. Roger J Davis  Is a corresponding author
  1. University of Massachusetts Medical School, United States
  2. Beth Israel Deaconess Medical Center, United States
  3. Harvard Medical School, United States
  4. Howard Hughes Medical Institute, University of Massachusetts Medical School, United States
  5. Yale University School of Medicine, United States
  6. Howard Hughes Medical Institute, Yale University School of Medicine, United States
Research Article
  • Cited 7
  • Views 1,182
  • Annotations
Cite this article as: eLife 2016;5:e10031 doi: 10.7554/eLife.10031

Abstract

The cJun NH2-terminal kinase (JNK) signaling pathway is implicated in the response to metabolic stress. Indeed, it is established that the ubiquitously expressed JNK1 and JNK2 isoforms regulate energy expenditure and insulin resistance. However, the role of the neuron-specific isoform JNK3 is unclear. Here we demonstrate that JNK3 deficiency causes hyperphagia selectively in high fat diet (HFD)-fed mice. JNK3 deficiency in neurons that express the leptin receptor LEPRb was sufficient to cause HFD-dependent hyperphagia. Studies of sub-groups of leptin-responsive neurons demonstrated that JNK3 deficiency in AgRP neurons, but not POMC neurons, was sufficient to cause the hyperphagic response. These effects of JNK3 deficiency were associated with enhanced excitatory signaling by AgRP neurons in HFD-fed mice. JNK3 therefore provides a mechanism that contributes to homeostatic regulation of energy balance in response to metabolic stress.

https://doi.org/10.7554/eLife.10031.001

eLife digest

Consuming the right amount of food is important for health. Eating too little for a long time causes damage to organs, and overeating can cause harm as well, in the form of conditions such as obesity and type 2 diabetes. Several signaling molecules and brain regions are linked to controlling food consumption and ensuring the body receives the correct amount of nutrients to fuel its activities.

Previous studies have found that two proteins called JNK1 and JNK2, which are found in most tissues of the body, can reduce how much energy cells use. This can trigger insulin resistance and fat accumulation, and so suggests that blocking the activity of these proteins may help to treat type 2 diabetes and obesity. However, the role of another JNK protein – JNK3, which is mostly found in the brain – was not known.

Now, Vernia, Morel et al. have investigated the role of JNK3 in metabolism. It was found that JNK3 reduced the amount of food consumed by mice provided with a cafeteria (high fat) diet. Mice that lacked JNK3 ate far more food and gained more weight on a high fat diet than normal mice. However, JNK3 played no role in food consumption when mice were fed a standard chow diet. Treating normal mice with leptin – an appetite-suppressing hormone – caused them to lose weight, but did not affect mice that lacked JNK3.

Examining the brains of the mice revealed that in normal mice, JNK3 in a specific sub-population of neurons decreases the production of proteins that promote eating. However, the proteins continued to be produced in mice that lacked JNK3, encouraging overeating.

Overall, the results suggest that blocking the activity of all the JNK proteins will not help treat obesity and diabetes as shutting down JNK3 could encourage overeating. Therefore, future investigation into treatments for these conditions should focus on drugs that specifically target JNK1 and JNK2, and not JNK3.

https://doi.org/10.7554/eLife.10031.002

Introduction

The regulation of energy balance (food consumption and energy expenditure) is important for health and survival. Sustained negative energy balance caused by cachexia and anorexia is associated with serious injury to multiple organ systems (Aoyagi et al., 2015; Mehler and Brown, 2015). Similarly, sustained positive energy balance caused by hyperphagia results in obesity associated with severe metabolic disorders (e.g. type 2 diabetes, cardiovascular disease, hepatitis, neurodegeneration and cancer) that represent leading causes of morbidity and mortality (Flegal et al., 2013). The homeostatic maintenance of energy balance is therefore critically important.

It is established that the arcuate nucleus (ARC) in the hypothalamus plays a key role in the regulation of energy balance (Cone, 2005). AgRP neurons in the ARC mediate orexigenic signals, including neuropeptide Y (NPY), agouti-related peptide (AgRP), and γ-aminobutyric acid (GABA) that project to POMC neurons in the ARC and to secondary response neurons in many brain regions, including the lateral hypothalamus (LH) and the paraventricular nucleus (PVN) of the hypothalamus. In contrast, POMC neurons mediate anorexigenic signals, including cocaine and amphetamine regulated transcript (CART) and pro-opiomelanocortin (POMC)-derived α-melanocyte stimulating hormone (α-MSH). POMC neurons project to many brain areas, including the PVN and LH in the hypothalamus where α-MSH acts as an agonist of the melanocortin receptors MC3R and MC4R on secondary response neurons to inhibit feeding and increase energy expenditure. Importantly, this action of α-MSH is antagonized by AgRP. Moreover, POMC neurons receive inhibitory GABAergic input from AgRP neurons. Consequently, AgRP and POMC neurons act together to balance food consumption, energy expenditure and nutrient homeostasis (Cone, 2005).

AgRP and POMC neurons integrate signals from nutrients (e.g. glucose and fatty acids) and peripheral hormones (e.g. leptin, insulin, ghrelin, and cytokines) to mediate opposite actions regulating downstream neuroendocrine circuits linking internal and environmental stimuli with the coordinated control of homeostatic satiety (Blouet and Schwartz, 2010; Varela and Horvath, 2012). Thus, leptin activates POMC neurons (Cowley et al., 2001) and inhibits AgRP neurons (Takahashi and Cone, 2005) leading to reduced food consumption and increased energy expenditure. These processes can be regulated by intracellular signaling networks, including the Janus kinase 2-signal transducer and activator of transcription 3 (JAK2-STAT3) axis (Bates and Myers, 2003), Rho-associated coiled coil containing protein kinase 1 (ROCK1) (Huang et al., 2012), mechanistic target of rapamycin (mTOR) (Mori et al., 2009; Kocalis et al., 2014), adenosine monophosphate-activated protein kinase (AMPK) (Claret et al., 2007; Dagon et al., 2012), and phosphatidylinositol-4,5-bisphosphate 3-kinase (PI3K) (Niswender et al., 2003), that contribute to the fine-tuning of energy balance.

The anorexigenic hormone leptin plays a key role in the regulation of food consumption. Leptin can act directly on AgRP and POMC neurons, but leptin can also act on other neurons in several brain sub-regions, including mid-brain and brainstem nuclei (Scott et al., 2009; Patterson et al., 2011). Control of leptin signaling in these neurons is important for maintaining energy balance. For example, obesity causes an increase in the blood concentration of leptin, most likely because of increased adipose tissue mass. The increased leptin concentration can lead to tachyphylaxis and suppression of the anorexigenic actions of leptin (Frederich et al., 1995). This mechanism enables homeostatic regulation of feeding behavior in response to metabolic stress. Whether this mechanism represents “leptin resistance” is unclear (Myers et al., 2010) because some biochemical aspects of leptin signaling are maintained in the obese state (Ottaway et al., 2015). A requirement for leptin signaling may reflect the role of the leptin-stimulated JAK2-STAT3 pathway to increase expression of the negative regulator SOCS3 (Allison and Myers, 2014). Negative regulation of leptin signaling may also involve the tyrosine phosphatases PTPN1 and PTPN2 (Bence et al., 2006; Loh et al., 2011), reactive oxygen species (Diano et al., 2011), the endoplasmic reticulum unfolded protein response (Zhang et al., 2008; Ozcan et al., 2009), autophagy (Kaushik et al., 2011), and low-grade inflammation (de Git and Adan, 2015).

The purpose of the study reported here was to test whether the cJun NH2-terminal kinase (JNK) signaling pathway regulates feeding behavior. Previous studies have established that the ubiquitously expressed JNK1 and JNK2 isoforms play an important role in the metabolic stress response of peripheral tissues (Sabio and Davis, 2010). However, loss-of-function studies have not identified a role for JNK in the control of food consumption. Here we demonstrate that the neuronal isoform JNK3 (encoded by the Mapk10 gene) plays a key role in the maintenance of energy balance during consumption of a high fat diet (HFD) by promoting leptin signaling. Mapk10 gene ablation studies identify AgRP neurons as a site of JNK3 function. JNK3 is therefore a key mediator of homeostatic regulation of energy balance in response to metabolic stress.

Results

Feeding a high fat diet causes JNK3 activation

Leptin is an anorexigenic hormone. Indeed, treatment of chow-fed mice with leptin suppressed feeding behavior and caused decreased body mass (Figure 1A). In contrast, HFD-fed mice failed to respond to leptin (Figure 1A). The mechanism that accounts for this observation is unclear, but may involve both decreased leptin signaling and reduced signaling by down-stream mediators (e.g. MC4R). Tachyphylaxis may be a contributing factor and mutational analysis of leptin signaling components implicates functions of the leptin receptor, tyrosine phosphatases, reactive oxygen species, and SOCS3 (Myers et al., 2010).

Figure 1 with 3 supplements see all

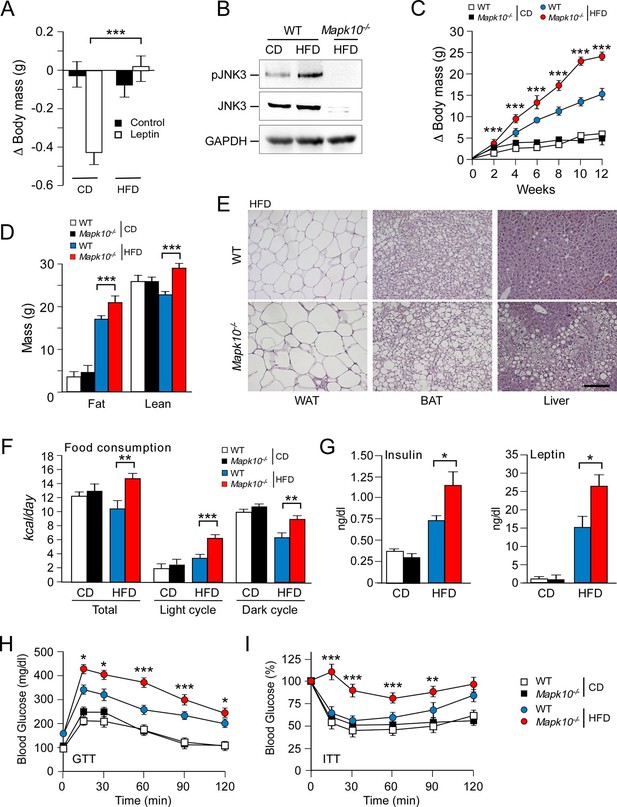

JNK3 deficiency causes hyperphagia and obesity.

(A) WT mice were fed (4 wk) a chow diet (CD) or a high-fat diet (HFD). The body mass change at 24 hr post-injection (i.p. with solvent (PBS) or 2.5 mg/kg leptin) was measured (mean ± SEM; n=8; ***p<0.001). (B) WT and Mapk10-/- mice fed (12 wk) a CD or a HFD were starved overnight. Phospho-JNK3, JNK3, and GAPDH in the hypothalamus were measured by immunoblot analysis. (C,D) The body mass gain of CD-fed and HFD-fed (12 wk) mice was measured (mean ± SEM; n=10~12) (C). Fat and lean mass were measured by 1H-MRS analysis (mean ± SEM; n=10~12). (D) Statistically significant differences between WT and Mapk10-/- mice are indicated (***p<0.001). (E) Paraffin embedded sections of epididymal white adipose tissue (WAT), interscapular brown adipose tissue (BAT), and liver were prepared from HFD-fed (12 wk) WT and Mapk10-/- mice. The sections were stained with hematoxylin & eosin. Scale bar, 100 µm. (F) Food consumption by WT and Mapk10-/- mice fed a CD or a HFD (3 wk) was measured (mean ± SEM; n=6; **p<0.01; ***p<0.001). (G) WT and Mapk10-/- mice fed a CD or a HFD (4 wk) were fasted overnight and the blood concentration of leptin and insulin was measured (mean ± SE; n=10~12; *p<0.05). (H,I) Glucose tolerance tests (H) and insulin tolerance tests (I) were performed on WT and Mapk10-/- mice fed a CD or a HFD (12 wk) by measurement of blood glucose concentration (mean ± SEM; n=10~12; *p < 0.05; **p < 0.01; ***p < 0.001).

https://doi.org/10.7554/eLife.10031.003

We considered the possibility that a stress-activated MAP kinase pathway may contribute to the regulation of leptin signaling in HFD-fed mice. It is established that feeding a HFD causes activation of the ubiquitously expressed isoforms JNK1 and JNK2 in peripheral tissues, including liver, muscle, and adipose tissue (Sabio and Davis, 2010). However, the regulation of JNK caused by feeding a HFD in the central nervous system is unclear because these ubiquitously expressed JNK isoforms in neurons are constitutively activated and are primarily localized to axons and dendrites (Coffey et al., 2000; Oliva et al., 2006). In contrast, the neuron-specific isoform JNK3 exhibits low basal activity and can be activated in the nucleus when neurons are exposed to environmental stress (Yang et al., 1997). We therefore tested whether feeding a HFD caused activation of JNK3. This analysis demonstrated that feeding a HFD caused JNK3 phosphorylation and activation in the hypothalamus (Figure 1B). JNK3 in the central nervous system is therefore responsive to diet-induced metabolic stress. This JNK3 pathway represents a possible mediator of altered leptin signaling in HFD-fed mice.

JNK3 deficiency promotes obesity and insulin resistance

To examine the role of the JNK3 pathway, we investigated the effect of feeding a chow diet (CD) or a HFD to wild-type (WT) mice or Mapk10-/- (JNK3-deficient) mice. We found that Mapk10-/- mice gained similar body mass when fed a CD, but these mice gained significantly greater mass when fed a HFD compared with WT mice (Figure 1C). 1H-MRS analysis demonstrated that the greater HFD-induced body mass was caused by increased fat and lean mass (Figure 1D). Indeed, HFD-fed Mapk10-/- mice exhibited increased liver, skeletal muscle, heart, and adipose tissue mass compared with HFD-fed WT mice (Figure 1—figure supplement 1A). Microscopic examination of tissue sections demonstrated increased hypertrophy of white and brown adipocytes and increased hepatic steatosis in HFD-fed Mapk10-/- mice compared with HFD-fed WT mice (Figure 1E).

We performed metabolic cage analysis to examine the mechanism of obesity promoted by JNK3 deficiency. These studies demonstrated that Mapk10 gene ablation selectively increased consumption of a HFD, but not a CD (Figure 1F). Time course analysis demonstrated that the HFD-selective hyperphagia was observed within 2 days of consuming the HFD (Figure 1—figure supplement 2A) and was detected prior to the development of obesity (Figure 1—figure supplement 2B). No significant changes in VO2, VCO2, or energy expenditure were detected in the HFD-fed mice (Figure 1—figure supplement 1B). These data suggest that hyperphagia contributes to the increased obesity of HFD-fed Mapk10-/- mice compared with HFD-fed WT mice.

We used a pair-feeding protocol to test whether the increased obesity of Mapk10-/- mice compared with WT mice was caused by greater food consumption. We found that WT and Mapk10-/- mice gained similar body mass when fed the same amount of food (Figure 1—figure supplement 3). These data demonstrate that hyperphagia accounts for the increased HFD-induced obesity of Mapk10-/- mice compared with WT mice.

Consequences of the increased HFD feeding behavior of Mapk10-/- mice include increased hyperinsulinemia and hyperleptinemia (Figure 1G), increased blood lipid concentrations (Figure 1—figure supplement 1C), decreased glucose tolerance (Figure 1H), and increased insulin resistance (Figure 1I) when fed a HFD, but not a CD. These data indicate that Mapk10-/- mice may exhibit increased HFD-induced insulin resistance. To test this hypothesis, we performed a hyperinsulinemic-euglycemic clamp study. No significant differences between CD-fed WT and Mapk10-/- mice were detected (Figure 2A–F). In contrast, HFD-fed Mapk10-/- mice showed significantly reduced glucose infusion rate (a measure of whole body insulin sensitivity), reduced glucose turnover, reduced whole body glycolysis, increased hepatic glucose production, and decreased hepatic insulin action compared with HFD-fed WT mice (Figure 2A–F). These data demonstrate that Mapk10-/- mice exhibit a profound defect in glycemic regulation compared with WT mice when fed a HFD, but not a CD.

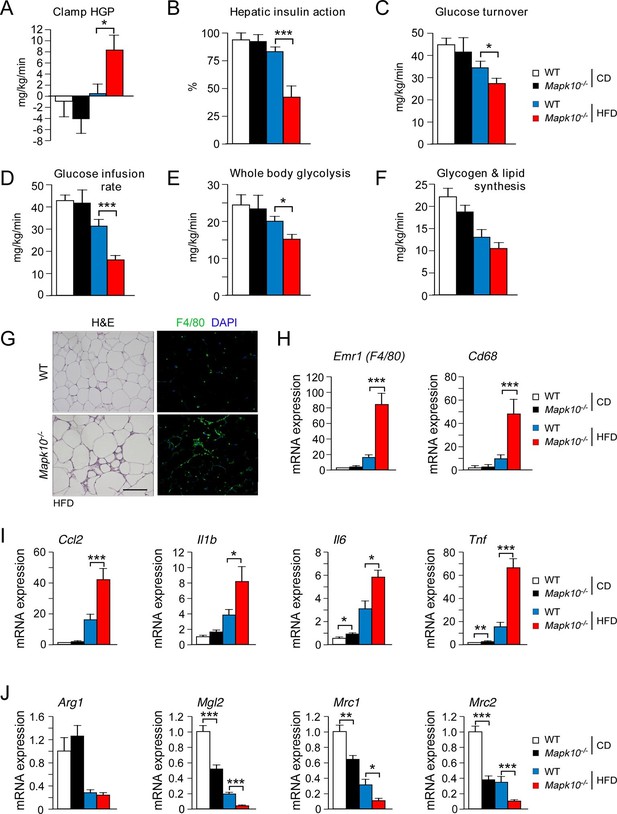

JNK3 deficiency promotes and adipose tissue inflammation and insulin resistance.

(A-F) Hyperinsulinemic-euglycemic clamps were performed on CD-fed or HFD-fed (3 wk) WT and Mapk10-/- mice. Clamp hepatic glucose production (A), hepatic insulin action (B), glucose turnover (C), glucose infusion rate (D), whole body glycolysis (E), and glycogen plus lipid synthesis (F) were measured (mean ± SE; n=8; *p<0.05; ***p<0.001). (G-J) Sections of epididymal WAT from HFD-fed (12 wk) WT and Mapk10-/- mice were stained with hematoxylin & eosin or with an antibody to the macrophage protein F4/80 (G). Macrophage infiltration was examined by measurement of the expression of Cd68 and Emr1 (F4/80) mRNA (H) and also mRNA expressed by genes associated with M1-like (I) and M2-like (J) polarization by Taqman© assays (mean ± SEM; n=10~12; *p<0.05; **p<0.01; ***p<0.001).

https://doi.org/10.7554/eLife.10031.007

JNK3 deficiency promotes adipose tissue inflammation

The increased adipose tissue mass of HFD-fed Mapk10-/- mice compared with HFD-fed control mice was associated with increased adipose tissue infiltration by F4/80+ macrophages (Figure 2G). Indeed, gene expression analysis identified markedly increased expression of macrophage marker genes (Emr1 (F4/80) & Cd68), increased expression of genes associated with M1-like macrophage polarization (Ccl2, Il1b, Il6 & Tnf), and decreased expression of genes associated with M2-like macrophage polarization (Arg1, Mgl2, Mrc1 & Mrc2) in the adipose tissue of HFD-fed Mapk10-/- mice compared with HFD-fed control mice (Figure 2H–J). These data indicate that JNK3 deficiency promotes increased adipose tissue inflammation in HFD-fed mice. It is likely that this increase in inflammation contributes to the glucose intolerant and insulin resistant phenotype of HFD-fed Mapk10-/- mice compared with HFD-fed WT mice (Brestoff and Artis, 2015).

JNK3 deficiency suppresses leptin signaling

Low concentrations of leptin were detected in the blood when WT and Mapk10-/- mice were fed a CD (Figure 1G). The blood leptin concentration was increased when these mice were fed a HFD and was significantly greater in HFD-fed Mapk10-/- mice compared with HFD-fed WT mice (Figure 1G). These changes in the amount of leptin circulating in the blood correlate, as expected, with differences in obesity (Friedman, 2014). However, the hyperleptinemia and hyperphagia of HFD-fed Mapk10-/-mice is not consistent with the established anorexigenic function of leptin. This analysis suggested that leptin signaling may be suppressed in HFD-fed Mapk10-/- mice. To test this hypothesis, we examined the effect of treating mice with leptin. We found that intracerebroventricular administration of leptin decreased the body mass of WT mice, but not Mapk10-/- mice (Figure 3A). Measurement of hypothalamic gene expression demonstrated that leptin decreased Agrp and Npy expression in WT mice, but not Mapk10-/- mice (Figure 3B). In contrast, leptin caused increased Pomc and Socs3 gene expression in both WT and Mapk10-/- mice (Figure 3B). These data indicate that Mapk10-/- mice exhibit a selective deficiency in leptin regulation of Agrp and Npy expression. To confirm this conclusion, we compared hypothalamic gene expression in CD-fed and HFD-fed mice. This analysis demonstrated increased Agrp and Npy expression in HFD-fed Mapk10-/- mice compared with HFD-fed WT mice (Figure 3C). In contrast, no significant difference in Pomc and Socs3 gene expression between HFD-fed WT and Mapk10-/- mice was detected (Figure 3C). These observations indicate that JNK3 deficiency caused a selective defect in leptin signaling.

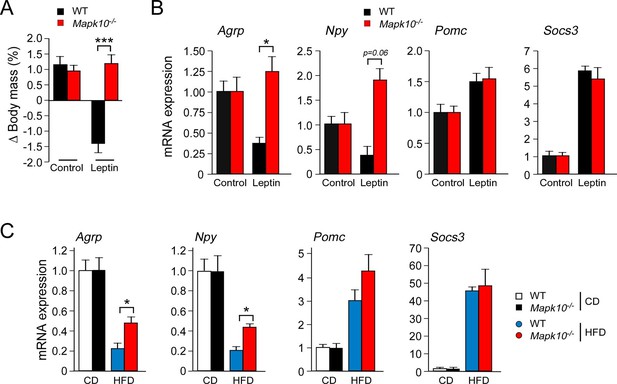

JNK3 deficiency causes a selective defect in AgRP neurons.

(A) HFD-fed (4 wk) WT and Mapk10-/- mice were treated by intracerebroventricular administration of 5 µg leptin or solvent (Control). The change in body mass at 24 hr post-treatment was measured (mean ± SEM; n=10~12; ***p<0.001). (B) WT and Mapk10-/- mice were treated without or with leptin (2h) prior to measurement of hypothalamic gene expression by Taqman© assays (mean ± SEM; n=10~12; *p<0.05). (C) Hypothalamic gene expression in CD-fed and HFD-fed (12 wk) WT and Mapk10-/- mice was measured by Taqman© assay (mean ± SEM; n=10~12; *p<0.05).

https://doi.org/10.7554/eLife.10031.008

LEPRb+ neurons mediate the effects of JNK3 on feeding behavior

To examine the mechanism of JNK3 function, we established floxed Mapk10 mice to investigate the neuron-specific effects of JNK3 on feeding behavior (Figure 4—figure supplement 1). We tested whether JNK3 in neurons that express the leptin receptor LEPRb regulates feeding behavior by investigating the effect of Mapk10 gene ablation specifically in LEPRb+ neurons. This analysis demonstrated that control Leprb-cre (LepRWT) mice and Leprb-cre Mapk10Loxp/LoxP (LepR∆J3) mice gained similar body mass when fed a CD. However, HFD-fed LepR∆J3 mice gained significant more body mass than LepRWT mice (Figure 4A and Figure 4—figure supplement 2A). 1H-MRS analysis showed that the difference in body mass was caused by increased fat mass (Figure 4B). Metabolic cage analysis demonstrated that Mapk10 gene ablation in LEPRb+ neurons caused no change in CD food consumption, but caused increased HFD food consumption (Figure 4C). This increase in HFD consumption was not associated with changes in VO2, VCO2, or energy expenditure (Figure 4—figure supplement 2B). JNK3 in LEPRb+ neurons of HFD-fed mice therefore regulates feeding behavior, but not other aspects of energy balance.

Figure 4 with 2 supplements see all

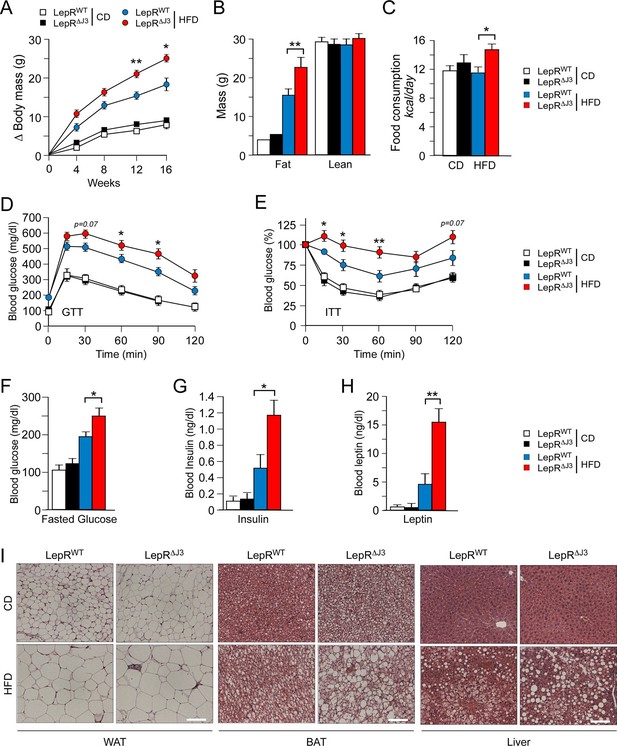

JNK3 deficiency in leptin-responsive neurons causes HFD-induced hyperphagia and obesity.

(A) The total body mass gain of CD-fed and HFD-fed mice was examined (mean ± SEM; n = 10~25; *p<0.05; **p<0.01). JNK3 deficiency in LEPRb+ neurons was studied by comparing Leprb-cre control mice (LepRbWT mice) and Leprb-cre Mapk10LoxP/LoxPmice (LepR∆J3 mice). (B) The fat and lean mass of CD-fed and HFD-fed (16 wk) mice was measured by 1H-MRS analysis (mean ± SEM; n = 8~10; **p<0.001). (C) Food consumption by CD-fed and HFD-fed (4 wk) LepRWT and LepR∆J3 mice was examined (mean ± SEM; n = 8; *p<0.05). (D,E) Glucose tolerance (D) and insulin tolerance (E) tests were performed using CD-fed and HFD-fed (12 wk) LepRWT and LepR∆J3 mice (mean ± SEM; n = 8~12; *p<0.05; **p<0.01). (F-H) CD-fed and HFD-fed (12 wks) LepRWT and LepR∆J3 mice were fasted overnight and the blood concentration of glucose (F), insulin (G), and leptin (H) was measured (mean ± SEM; n = 8~20; *p<0.05**p<0.01). (I) Sections of epididymal WAT, interscapular BAT, and liver from CD-fed and HFD-fed (12 wk) LepRWT and LepR∆J3 mice were stained with hematoxylin & eosin. Bar, 100 μm.

https://doi.org/10.7554/eLife.10031.009

The increased feeding behavior of HFD-fed (but not CD-fed) LepR∆J3 mice was associated with decreased glucose tolerance (Figure 4D), increased insulin resistance (Figure 4E), increased blood glucose concentration (Figure 4F), increased hyperinsulinemia (Figure 4G), and increased hyperleptinemia (Figure 4H). White and brown adipose tissue (WAT & BAT) in HFD-fed LepR∆J3 mice exhibited increased adipocyte hypertrophy compared with HFD-fed LepRWT mice (Figure 4I). Moreover, JNK3 deficiency in LepRb+ neurons caused increased HFD-induced hepatic steatosis (Figure 4I).

JNK3 in AgRP neurons suppresses HFD feeding behavior

To identify a LepRb+ neuronal sub-population relevant to JNK3-regulated HFD feeding behavior, we examined Mapk10 gene ablation in selected neurons within the hypothalamus. Gene expression analysis demonstrated that JNK3 was required for HFD-induced regulation of Agrp and Npy, but not Pomc (Figure 3). This analysis indicated that AgRP neurons rather than POMC neurons may play an important role in JNK3-regulated feeding behavior in HFD-fed mice. To test this hypothesis, we examined the phenotype of Agrp-cre Mapk10Loxp/LoxP (Agrp∆J3) mice and Pomc-cre Mapk10Loxp/LoxP (Pomc∆J3) mice. We found that JNK3 deficiency in POMC neurons of HFD-fed mice caused no significant changes in feeding behavior, glucose intolerance, blood glucose concentration, hypertrophy of white and brown adipocytes, and hepatic steatosis compared with control Pomc-cre (PomcWT) mice (Figure 5A,C,E). In contrast, JNK3 deficiency in AgRP neurons in HFD-fed mice caused increased feeding, increased glucose intolerance, increased blood glucose concentration, increased hypertrophy of white and brown adipocytes, and increased hepatic steatosis compared with control Agrp-cre (AgrpWT) mice (Figure 5B,D,F). Metabolic cage analysis demonstrated that the VO2, VCO2, and energy expenditure of HFD-fed Agrp∆J3 mice and Pomc∆J3 mice were similar to control mice (Figure 5—figure supplement 1). Together, these data demonstrate that JNK3 in AgRP neurons, but not POMC neurons, acts to suppress HFD consumption.

Figure 5 with 1 supplement see all

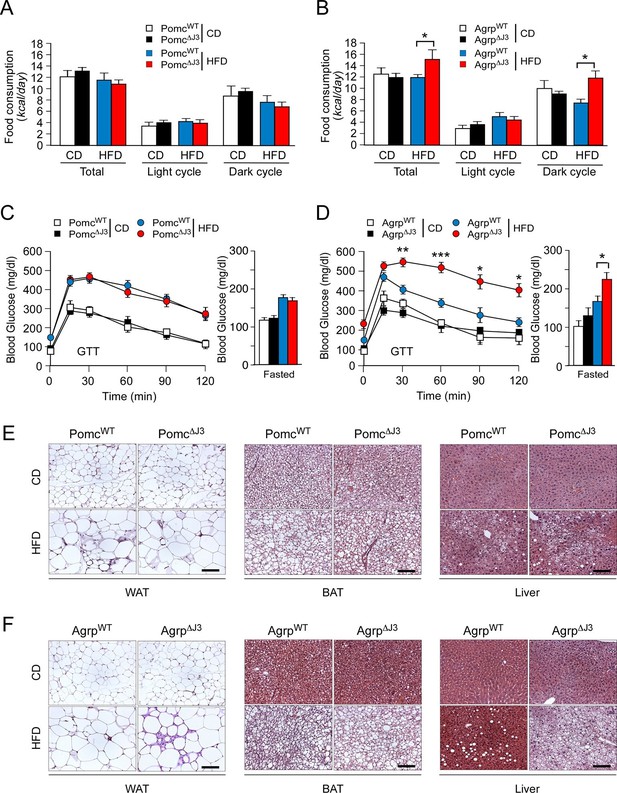

JNK3 in AgRP neurons, but not POMC neurons, regulates food consumption.

(A,B) Food consumption by CD-fed and HFD-fed (4 wk) mice was measured (mean ± SEM; n = 8; *p<0.05). JNK3 deficiency in POMC neurons was studied by comparing Pomc-cre control mice (PomcWT mice) and Pomc-cre Mapk10LoxP/LoxPmice (Pomc∆J3 mice). JNK3 deficiency in AgRP neurons was studied by comparing Agrp-cre control mice (AgrpWT mice) and Agrp-cre Mapk10LoxP/LoxPmice (Agrp∆J3 mice). (C,D) CD-fed and HFD-fed (16 wk) control mice and mice with JNK3 deficiency in POMC neurons (C) and AgRP neurons (D) or were tested using glucose tolerance assays and by measurement of fasting blood glucose concentration (mean ± SEM; n = 8~12; *p<0.05; **p<0.01; ***p<0.001). (E,F) Representative hematoxylin & eosin-stained sections of liver, epididymal WAT, and interscapular BAT from CD-fed and HFD-fed (16 wk) control mice and mice with JNK3 deficiency in POMC neurons (E) and AgRP neurons (F) are presented.

https://doi.org/10.7554/eLife.10031.012

JNK3 regulates excitatory transmission onto AgRP neurons of HFD-fed mice

Leptin and its receptor are known to affect synaptic transmission and modulate AgRP neuron activity (Pinto et al., 2004; Baver et al., 2014). We therefore examined miniature inhibitory postsynaptic currents (mIPSCs) and miniature excitatory postsynaptic currents (mEPSCs) of AgRP neurons in the ARC of WT and Mapk10-/- mice. This analysis demonstrated that JNK3 deficiency caused no change in mIPSC frequency or amplitude in CD-fed and HFD-fed mice (Figure 6A–D). Similarly, JNK3 deficiency caused no change in mEPSC frequency or amplitude in CD-fed mice (Figure 6E–H). In contrast, HFD-fed JNK3-deficient mice demonstrated increased mEPSC amplitudes in the absence of changes in mEPSC frequency (Figure 6E–H). Studies using the selective antagonist DNQX demonstrated that these mEPSC currents were mediated by AMPA receptors in AgRP neurons (Figure 6-figure supplement 1). Together, these data indicate that JNK3 deficiency leads to altered excitatory transmission onto AgRP neurons compared to WT mice when fed a HFD. This finding is consistent with the increased expression of AgRP and NPY (Figure 3C) and the increased food consumption (Figure 1F) observed in HFD-fed JNK3-deficient compared to HFD-fed WT mice.

Figure 6 with 1 supplement see all

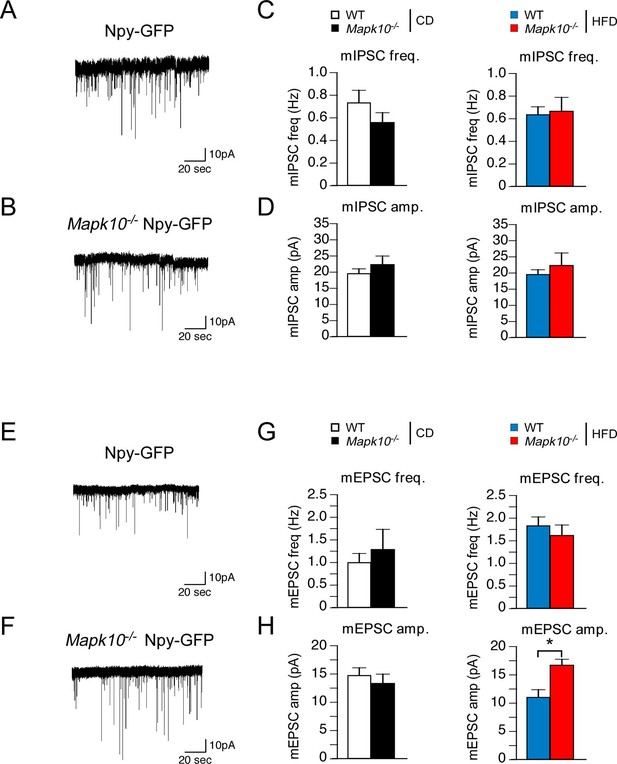

JNK3 regulates excitatory transmission onto AgRP neurons.

(A,B) Mapk10+/+ Npy-GFP and Mapk10-/- Npy-GFP mice were fed a HFD (3 wk) prior to electrophysiological recording of mIPSC from AgRP neurons. (C,D) mIPSC frequency (freq.) and amplitude (amp.) in recordings of CD-fed and HFD-fed mice were quantitated (mean ± SEM; n=11~12; *p<0.05). (E,F) Mapk10+/+ Npy-GFP and Mapk10-/- Npy-GFP mice were fed a HFD (3 wk) prior to electrophysiological recording of mEPSC from AgRP neurons. (G,H) mEPSC frequency and amplitude in recordings of CD-fed and HFD-fed mice were quantitated (mean ± SEM; n=10; *p<0.05).

https://doi.org/10.7554/eLife.10031.014

Discussion

The JNK signaling pathway is implicated in the metabolic stress response (Sabio and Davis, 2010). Studies of the ubiquitously expressed isoforms JNK1 and JNK2 demonstrate that the JNK pathway is activated in peripheral tissues by feeding a HFD (Hirosumi et al., 2002). Consequences of HFD-stimulated JNK1 and JNK2 activation in peripheral tissues include promotion of insulin resistance in adipose tissue, liver, and muscle (Sabio et al., 2008; Sabio et al., 2010b; Vernia et al., 2014). In contrast, central actions of JNK1 and JNK2 are mediated by the hypothalamic-pituitary axis by regulation of energy expenditure (Belgardt et al., 2010; Sabio et al., 2010a; Vernia et al., 2013). Together, these studies indicate that JNK1 and JNK2 play important roles in metabolic stress responses by causing insulin resistance in peripheral tissues and promoting obesity by suppressing energy expenditure (Sabio and Davis, 2010).

JNK3 is expressed in a limited number of tissues, including the brain and testis (Gupta et al., 1996). Since JNK1 and JNK2 are expressed ubiquitously, the expression of JNK3 by neurons means that these cells express all three JNK isoforms (Davis, 2000). To examine the role of JNK in neurons, the effects of ablation of the three genes that encode JNK (Mapk8, Mapk9, and Mapk10) in neurons have been examined. This analysis demonstrated that compound JNK-deficiency caused markedly increased survival responses associated with increased autophagy (Xu et al., 2011). Roles for individual JNK isoforms in neurons have also been studied (Coffey, 2014). JNK1 and, to some extent JNK2, are constitutively activated and are primarily localized to axons and dendrites (Coffey et al., 2000; Oliva et al., 2006) where they play a major role in the regulation of the cytoskeleton and axonal/dendritic morphology (Coffey, 2014). In contrast, JNK3 exhibits low basal activity and is activated in the nucleus when neurons are exposed to stress (Yang et al., 1997). Studies of Mapk10-/- mice demonstrate that JNK3 is required for stress-induced cJun phosphorylation and AP-1 activation in neurons (Yang et al., 1997). This role of JNK3 in neurons is non-redundant with JNK1 and JNK2.

Here we report that JNK3 in LEPRb+ neurons regulates feeding behavior in mice (Figure 4). The mechanism of JNK3 function requires metabolic stress (e.g. feeding a HFD) to cause JNK3 activation. This distinguishes the JNK3 deficiency phenotype from other negative regulators of leptin signaling. Thus, JNK3 deficiency does not cause hyperphagia when mice are fed a chow diet, but JNK3 deficiency does cause hyperphagia when mice are fed a HFD. In contrast, PTPN1-deficiency causes hypophagia on both CD and HFD (Bence et al., 2006). This analysis indicates that JNK3 is not required for fine-tuning leptin receptor signaling, but JNK3 is essential for determining the leptin signaling response during exposure to metabolic stress. JNK3 therefore serves a key role in the establishment of the set-point for the threshold of leptin signaling that controls feeding behavior in response to metabolic stress.

Gene ablation studies in sub-populations of LEPRb+ neurons demonstrated that HFD (but not CD) hyperphagia was found in mice with JNK3 deficiency in AgRP neurons, but not POMC neurons (Figure 5). These data demonstrate that JNK3 deficiency in AgRP neurons is sufficient to cause HFD hyperphagia, although possible roles for JNK3 in other LEPRb+ neurons cannot be excluded by this analysis. We conclude that orexigenic signaling by AgRP neurons contributes to the effects of JNK3 deficiency on HFD hyperphagia.

Molecular mechanisms that account for JNK3 function include altered excitatory transmission to AgRP neurons in HFD-fed mice. Our recordings measured glutamatergic transmission from all inputs to AgRP neurons and demonstrated an increase in mEPSC amplitude, but not frequency, from HFD-fed JNK3-deficient mice compared with HFD-fed control mice (Figure 6). This observation is consistent with a possible postsynaptic function of JNK3 in AgRP neurons whereby JNK3 affects AMPA and/or NMDA receptor activity within these neurons. Interestingly, glutamatergic input to AgRP neurons stimulates feeding behavior (Liu et al., 2012). Previous studies have established functional connections between the JNK signaling pathway and glutamatergic receptor signaling in neurons. For example, the JNK scaffold proteins JIP1/2 can regulate NMDA receptor signaling (Kennedy et al., 2007) and AMPA receptor phosphorylation by JNK regulates AMPA receptor function and trafficking (Thomas et al., 2008). Further studies are required to identify the complete spectrum of JNK3 targets in AgRP neurons. Nevertheless, since an increased AMPA response was detected in JNK3-deficient AgRP neurons (Figure 6H and Figure 6-figure supplement 1), we conclude that JNK-mediated AMPA receptor regulation (Thomas et al., 2008) may contribute to the hyperphagic phenotype of HFD-fed JNK3-deficient mice.

The results of the present study indicate that JNK3 plays a major role in the regulation of energy balance. This function of JNK3 to regulate feeding behavior differs from the roles of JNK1/JNK2 to regulate energy expenditure and insulin resistance (Sabio and Davis, 2010). These conclusions are based on loss-of-function studies. A contrasting conclusion has been reported based on gain-of-function studies using transgenic expression of a MKK7-JNK1 fusion protein (that mimics constitutively activated JNK1) in AgRP neurons that causes a small increase in food consumption by CD-fed mice (Tsaousidou et al., 2014). Since JNK1-deficient (Mapk8-/-) mice do not exhibit altered feeding behavior (Sabio et al., 2008) and endogenous JNK1 is constitutively activated in neurons (Coffey, 2014), it is unclear why transgenic over-expression of an activated Mapk8 allele (encoding a MKK7-JNK1 fusion protein) in WT mice would cause a small change in feeding behavior. However, the pro-apoptotic function of this activated Mapk8 allele (Lei et al., 2002) may cause defects in hypothalamic neuronal circuits that contribute to the reported phenotype. On balance, we favor the conclusion that JNK1 and JNK2 do not influence feeding behavior (Sabio and Davis, 2010), but JNK3 promotes leptin-mediated suppression of HFD feeding behavior (when JNK3 is activated), but not CD feeding behavior (when JNK3 is inactive).

The observation that JNK1 and JNK2 promote obesity (by inhibiting energy expenditure) and cause insulin resistance in peripheral tissues indicates that drugs that block JNK signaling may be therapeutically beneficial for the treatment of pre-diabetes (Sabio and Davis, 2010). However, this study demonstrates that JNK3 inhibition causes HFD-dependent hyperphagia (Figure 1F). This represents a potential problem for drug therapy. While JNK1/2 inhibition may be therapeutically beneficial, hyperphagia may therefore result from JNK3 inhibition. Consequently, the most effective drug strategy for the treatment of pre-diabetes may require a small molecule that inhibits JNK1/2, but not JNK3.

Materials and methods

Mice

We have described Mapk10-/- mice previously (Yang et al., 1997). We obtained C57BL/6J mice (stock number 000664), B6.129S4-Gt(ROSA)26Sortm1(FLP1)Dym/RainJ (Farley et al., 2000) (stock number 009086), B6.129-Leprtm2(cre)Rck/J mice (DeFalco et al., 2001) (stock number 008320), B6.FVB-Tg(Npy-hrGFP)1Lowl/J mice (van den Pol et al., 2009) (stock number 006417), Agrptm1(cre)Lowl/J mice (Tong et al., 2008) (stock number 012899), and Tg(Pomc1-cre)16Lowl/J mice (Balthasar et al., 2004) (stock number 005965) from the Jackson Laboratory. These mice were backcrossed to the C57BL/6J genetic background.

We established Mapk10LoxP/LoxP mice using homologous recombination in C57BL/6N embryonic stem cells, the generation of chimeric mice, and breeding to obtain germ-line transmission of the floxed Mapk10 allele using standard procedures. The mice used for these studies were backcrossed to the C57BL/6J strain. The Frt-Neo cassette was excised by crossing the mice with FLP transgenic mice. Homologous recombination of 5’ arm of the targeting vector was verified by PCR using the primers 1F: 5’-TGTGACCTTCTAATACAG-3’ and 2R: 5’-CCTAAGACTGTCAGAGAG-3’ (Mapk10+: 135 bp; Mapk10LoxP: 282 bp). Homologous recombination of the 3’ arm of the targeting vector was verified by PCR using the primers (3F: 5’-CTGAGTGACGTGTGGAG-3’ and 5R: 5’-TCATTGGGTTGGGATATTC-3’) followed by digestion with XhoI (Mapk10+: 1,975 bp; Mapk10LoxP: 1026 bp & 1028 bp). Cre-mediated recombination between the LoxP sites was detected by PCR using the primers 1F and 4R: 5’-GATTCTCCCTGTCTGAG-3’ (Mapk10+: 1008 bp; Mapk10Loxp: 1759 bp; Mapk10: 171 bp). The Mapk10LoxP/LoxP mice were routinely genotyped by PCR using primers 1F and 2R (Mapk10+: 135 bp; Mapk10LoxP: 282 bp).

Male mice (8 wks old) were fed a chow diet (Iso Pro 3000, Purina) or a HFD (F3282, Bioserve) for 4 to 12 wks. Body weight was measured on a weekly basis and whole body fat and lean mass were non-invasively measured using 1H-MRS (Echo Medical Systems, Houston, TX). The mice were housed in a facility accredited by the American Association for Laboratory Animal Care (AALAC). The Institutional Animal Care and Use Committee (IACUC) of the University of Massachusetts and the University of Cincinnati approved all studies using animals.

Hyperinsulinemic-euglycemic clamp studies

Request a detailed protocol

The clamp studies were performed at the National Mouse Metabolic Phenotyping Center at the University of Massachusetts Medical School. A 2 hr hyperinsulinemic-euglycemic clamp was conducted using overnight fasted conscious mice with a primed and continuous infusion of human insulin (150 mU/kg body weight priming followed by 2.5 mU/kg/min; Humulin; Eli Lilly), and 20% glucose was infused at variable rates to maintain euglycemia (Kim et al., 2004).

Metabolic cages

Request a detailed protocol

The analysis was performed by the National Mouse Metabolic Phenotyping Centers at the University of Massachusetts Medical School and the University of Cincinnati. The mice were housed under controlled temperature and lighting with free access to food and water. The food/water intake, energy expenditure, respiratory exchange ratio, and physical activity were measured using metabolic cages (TSE Systems, Chesterfield, MO).

Leptin treatment

Request a detailed protocol

Intracerebroventricular treatment with leptin was performed using mice with a cannula stereotaxically implanted into the 3rd ventricle (coordinates from Bregma: anteroventral, -1.8 mm; lateral, 0.0 mm; dorsoventral, 5.0 mm). Mice were monitored daily and allowed to recover for 1 week after surgery. Mice received either solvent (artificial cerebrospinal fluid; aCSF) or Leptin (5 µg) in 2 µl delivered over 10 min. Leptin treatment by intraperitoneal (ip) injection was performed following 3 consecutive days of sham injection.

RNA analysis

Request a detailed protocol

Tissue isolated from mice starved overnight was used to isolate total RNA using the RNAeasy mini kit (Qiagen). Total RNA (500 ng) was converted into cDNA using the high capacity cDNA reverse transcription kit (Life Technologies, Carlsbad, CA). The diluted cDNA was used for real-time quantitative PCR analysis using a Quantstudio PCR PCR machine (Life Technologies). TaqMan assays (Life Technologies) were used to quantify Adipoq (Mm00456425_m1), Agrp (Mm00475829_g1), Arg1 (Mm00475988_m1), Ccl2 (Mm00441242_m1), Emr1 (F4/80) (Mm00802530_m1), Il1b (Mm00434228_m1), Il6 (Mm00446190_m1), Mapk8 (Jnk1) (Mm00489514_m1), Mapk9 (Jnk2) (Mm00444231_m1), Mapk10 (Jnk3) (Mm00436518_m1), Mgl2 (Mm00460844_m1), Mrc1 (Mm00485148_m1), Mrc2 (Mm00485184_m1), Npy (Mm03048253_m1), Pomc (Mm00435874_m1), and Tnf (Mm00443258_m1). The relative mRNA expression was normalized by measurement of the amount of 18S RNA in each sample using Taqman© assays (catalog number 4308329; Life Technologies).

Blood analysis

Request a detailed protocol

Blood glucose was measured with an Ascensia Breeze 2 glucometer (Bayer, Pittsburgh, PA). Adipokines and insulin in plasma were measured by multiplexed ELISA using a Luminex 200 machine (Millipore, Billerica, MA).

Glucose and insulin tolerance tests

Request a detailed protocol

Glucose and insulin tolerance tests were performed by intraperitoneal injection of mice with glucose (1 g/kg) or insulin (1.5 U/kg) using methods described previously (Sabio et al., 2008).

JNK3 activation

Request a detailed protocol

Mice (8–12 week-old) were fasted overnight. Hypothalamic extracts were prepared using Triton lysis buffer (20 mM Tris-pH 7.4, 1% Triton-X100, 10% glycerol, 137 mM NaCl, 2 mM EDTA, 25 mM β-glycerophosphate, 1 µM sodium orthovanadate, 1 µM PMSF and 10 µg/mL leupeptin and aprotinin). Extracts (30–50 µg of protein) were examined by immunoblot analysis by probing with antibodies to JNK3 (Cell Signaling Technologies, Danvers, MA) and GAPDH (Santa Cruz Biotechnology, Dallas, TX). Activated JNK was isolated by immunoprecipitation with the mouse monoclonal p-JNK antibody G9 (Cell Signaling Technologies) pre-bound to protein G Sepharose (GE Healthcare, Pittsburgh, PA) and detected by immunoblot analysis by probing with an antibody to JNK3 (Cell Signaling Technologies). Immunocomplexes were detected by fluorescence using anti-mouse and anti-rabbit secondary IRDye antibodies (LI-COR Biosciences, Lincoln, NE) and quantitated using the Li-COR Imaging system

Analysis of tissue sections

Request a detailed protocol

Histology was performed using tissue fixed in 10% formalin for 24 h, dehydrated, and embedded in paraffin. Sections (7 µm) were cut and stained using hematoxylin & eosin (American Master Tech Scientific, Lodi, CA). Paraffin sections were stained with an antibody to F4/80 (Abcam, Cambridge, MA) that was detected by incubation with anti-rabbit Ig conjugated to Alexa Fluor 488 (Life Technologies). DNA was detected by staining with DAPI (Life Technologies). Fluorescence was visualized using a Leica TCS SP2 confocal microscope equipped with a 405 nm diode laser (Leica Microsystems, Buffalo Grove, IL).

Electrophysiology

Request a detailed protocol

Brain slice preparations were performed using 8–10-weeks-old mice anaesthetized with isoflurane before decapitation and removal of the entire brain. The brains were immediately submerged in ice-cold, carbogen-saturated (95% O2, 5% CO2) high sucrose solution (238 mM sucrose, 26 mM NaHCO3, 2.5 mM KCl, 1.0 mM NaH2PO4, 5.0 mM MgCl2, 10.0 mM CaCl2, 11 mM glucose). Then, 300 µm thick coronal sections were cut with a Leica VT1000S Vibratome and incubated in oxygenated aCSF (126 NaCl, 21.4 mM NaHCO3, 2.5 mM KCl, 1.2 mM NaH2PO4, 1.2 mM MgCl2, 2.4 mM CaCl2, 10 mM glucose) at 34°C for 30 min. The slices were maintained and recorded at room temperature (20–24°C). The intracellular solution for voltage clamp recording contained the following: 140 mM CsCl, 1 mM BAPTA, 10 mM HEPES, 5 mM MgCl2, 5 mM Mg-ATP, and 0.3 mM Na2GTP, pH 7.35 and 290 mOsm.

To isolate glutamatergic, action potential-independent events, minitature excitatory postsynaptic currents (mEPSCs) were recorded in the presence of tetrodotoxin (1 µM) and picrotoxin (100 μM) in whole cell voltage clamp mode. To record miniature inhibitory postsynaptic currents (mIPSCs), the neurons were recorded in the presence of TTX and kynurenic acid (1 mM). The membrane potential was clamped at −60 mV. All recordings were made using a Multiclamp 700B amplifier, and data were filtered at 1.4 kHz and digitized at 20 kHz. Data was analyzed using Clampfit 10.2 and Origin Pro 8.6.

Statistical analysis

Request a detailed protocol

Differences between groups were examined for statistical significance using the Student’s test or analysis of variance (ANOVA) with the Fisher’s test.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
    Dual roles for c-Jun N-terminal kinase in developmental and stress responses in cerebellar granule neurons
    1. ET Coffey
    2. V Hongisto
    3. M Dickens
    4. RJ Davis
    5. MJ Courtney
    (2000)
    The Journal of Neuroscience 20:7602–7613.
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
    Selective interaction of JNK protein kinase isoforms with transcription factors
    1. S Gupta
    2. T Barrett
    3. AJ Whitmarsh
    4. J Cavanagh
    5. HK Sluss
    6. B Dérijard
    7. RJ Davis
    (1996)
    The EMBO Journal 15:2760–2770.
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
    Anorexia nervosa – medical complications
    1. PS Mehler
    2. C Brown
    (2015)
    Journal of Eating Disorders, 3, 10.1186/s40337-015-0040-8.
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58

Decision letter

  1. Richard D Palmiter
    Reviewing Editor; Howard Hughes Medical Institute, University of Washington, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your work entitled "JNK3 participates in an AgRP/NPY neuron circuit that suppresses feeding behavior in response to metabolic stress" for peer review at eLife. Your submission has been favorably evaluated by Tony Hunter (Senior Editor) and three reviewers, one of whom is a member of our Board of Reviewing Editors.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

All the reviewers agree that this manuscript does a fine job of demonstrating that JNK3 function is important for body weight regulation and that its function in AgRP-expressing neurons is particularly important. However, the mechanism(s) by which JNK3 acts within AgRP neurons is not sufficiently developed. In particular the deficiency in Lepr signaling seems unlikely.

Essential revisions:

For publication in eLife, the authors need to delineate the mechanism by which loss of JNK3 signaling in AgRP neurons promotes obesity. The reviewers have suggested several approaches to address this issue. Alternatively, the authors may decide that publishing the more descriptive part of the study (Figures 15) in another journal is the best option.

Reviewer #1:

This paper provides evidence that lack of JNK3 expression in all cells, all neurons that express the leptin-receptor or just the sub-population of neurons that expresses AgRP leads to obesity when mice are reared on a high-fat diet (HFD) but not on a normal (control diet). The obesity is associated with elevated leptin, elevated insulin, glucose intolerance, insulin resistance, and many other parameters associated with obesity. The most important contribution is their systematic demonstration that the phenotype of global KO of the gene encoding JNK3 is replicated quite well by KO only in AgRP neurons. The authors go on to explore how loss of JNK3 function in AgRP neurons might lead to the hyperphagic obese phenotype, but those studies are less compelling.

1) The authors show that leptin receptors can be activated (phosphorylated) in the JNK3 KO but the dose-response is apparently shifted – LepR is fully activated (phosphorylated) with 2.5 mg/kg leptin but only partially activated with 0.1 mg/kg (Figure 7B). They attribute this hypo-sensitivity to a reduced level of Lepr mRNA (about half normal). They show that phospho-cJun (transcription factor) normally binds to an AP1 site in the promoter of Lepr gene and hence the lack of phosphorylation of c-Jun could impair transcription of Lepr gene. There are two problems with this analysis: (a) The Lepr mRNA (rather than protein) measurements were made in hypothalamic samples, not in AgRP neurons where it is relevant. (b) Complete loss of Lepr in AgRP neurons has a relatively small effect on obesity and heterozygous Lepr db/+ mice (with half the normal level of Lepr mRNA) do not become more obese on a HFD than WT mice. Thus, it seems unlikely that reduced levels of LepR account for the obesity observed in this JNK3 KO model.

2) Their data in Figure 6 are more promising. They show that mEPSCs amplitude in AgRP neurons is enhanced in slices, suggestive of enhanced excitatory signaling within AgRP neurons. If this enhanced excitability extends to in vivo situation, then that could drive the hyperphagia and ultimately the obesity. Thus, I suggest that the authors do whatever they can to demonstrate that AgRP neurons are hyperactive in vivo. First they need to demonstrate that the mice are hyperphagic before they become obese. The experiment in Figure 4C was performed after there was already a difference in body weight. A pair-feeding experiment would also be useful to demonstrate that the obesity is due to hyperphagia. Looking for markers of enhanced neuronal activity in AgRP neurons (e.g. Fos) might also be revealing. However, the ultimate experiment would be to use in vivo recording or calcium imaging of AgRP neurons – techniques that are available to this group.

Reviewer #2:

Vernia and colleagues present an interesting paper in which the conclusion are based on a broad set of experiments and well justified. They show that the loss of the neuronally expressed JNK3 is associated with increased obesity due to increased food consumption. This is brought about by the elimination of JNK3 in leptin receptor expressing neurons. They narrow this down further by doing an AgRP-specific elimination and compare that to a POMC neuronal-specific elimination. They demonstrate hyperphagia to be present in only Agrp-specific nulls for JNK3. They go on to demonstrate that this is in fact due at least in part due to reduced leptin receptor expression on AgRP-neurons. All of this happens exclusively in the context of high fat diet exposure.

These are interesting findings that should be of broad interest to the field. It is surprising to find JNK3 necessary for leptin receptor expression and to see it distinct from the role of JNK1/2 in the periphery where their lack results in improvement in the metabolic phenotype due to reduced inflammatory tone.

There is very little to criticize here. The authors address an important question, find a surprising answer of broad interest and base their conclusion on a broad set of genetic data.

The only area that falls short is a further analysis of the signaling mechanisms in place. What other component of leptin signaling are affected by the lack of JNK3? The downstream analysis could be broader. Where does the cell specificity come in? How does JNK3 deficiency lead to reduce lepR expression in AgRP neurons, and it does not lead to reduced lepR expression in POMC neurons?

Reviewer #3:

In this manuscript Vernia et al. show that JNK3 plays a role in inhibiting high-fat diet-induced weight gain and does so through actions at AgRP/NPY neurons, which may include bolstering leptin actions. Overall, the metabolic studies convincingly show that JNK3 deficiency increases HFD-induced weight gain, hyperphagia, adipose hypertrophy, glucose intolerance and insulin resistance. The logical set of cell-type-selective JNK3 deletions provides compelling evidence that JNK3 actions specifically in AgRP neurons are necessary to reduce HFD-induced weight gain. Thus, the overall conclusion is well supported by the data presented in Figures 15.

The primary weakness in the work is the cursory attempt to provide some mechanistic insight (Figures 6 and 7). The mEPSC recordings add very little to the paper as is. It is important to know that mIPSCs don't also increase and how the deletion affects basal regulation of POMC neurons. In Figure 7, the overall JNK3 knockout was used and thus, it is not possible to determine if leptin receptor expression is also reduced in POMC cells or rather, if maybe POMC cells do not express JNK3 or require JNK3 to bolster leptin sensitivity. In my opinion, these last 2 experiments do not need to be included to support the conclusions made, but if they are included, they need to be done more thoroughly so that they can be better interpreted.

JNK3 is the neuron-specific isoform of JNK and its activity is dynamically regulated rather than constitutive like the other 2 isoforms. Together with the compelling evidence provided here that JNK3 helps reduce high-fat diet-induced weight gain through actions in AgRP neurons, this work adds significant new insight into JNK3 function and the hypothalamic regulation of energy balance in the face of metabolic challenge.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for submitting your work entitled "Excitatory transmission onto AgRP neurons is regulated by cJun NH2-terminal kinase 3 in response to metabolic stress" for consideration by eLife. Your article has been evaluated by a Reviewing Editor and overseen by Tony Hunter as the Senior Editor.

In response to our reviews, the authors of this paper have now dropped data (old Figure 7) suggesting that reduced leptin receptor expression was responsible for the obesity of JNK3-deficient mice in favor enhanced glutamatergic (mEPSC) signaling (Figure 6). The authors have added panels to Figure 6 showing that inhibitory (mIPSC) is unchanged. Overall, the hypothesis that enhanced glutamatergic signaling (excitation) of AgRP neurons would maintain Npy and Agrp expression and enhance feeding behavior makes sense, especially because the previous work from the Lowell lab (Liu et al., 2012) showing that removing NMDA receptors from AgRP neurons has the opposite effect. However, there are a few loose ends that need attention.

1) Unfortunately, the electrophysiology experiments were performed on Mapk10 KO mice rather than mice lacking Mapk10 selectively in AgRP neurons; hence, it is not possible to make a strong conclusion that the enhanced excitatory transmission is due to lack of JNK3 in AgRP neurons.

2) The authors suggest in the Discussion that NMDA signaling is enhanced, but their experiments do not distinguish NMDA from AMPA signaling.

3) The hypothesis that links JNK3 deficiency and the presumptive enhanced NMDA signaling is not clearly explained. In the fifth paragraph of the Discussion the authors say that JIP proteins might be involved and refer to Kennedy et al. (2007). If I understand that paper correctly, it suggests that lack of JIP proteins influences JNK localization (activity) and prevents phosphorylation of NR2 subunit of NMDA receptor. If so, it seems like lack of JNK3 would impair (not enhance) NMDA function in the present studies. The authors admit that "further studies are required to identify the complete spectrum of JNK3 targets in AgRP neurons". I would argue that they have not identified any direct JNK3 targets in AgRP neurons.

Essential revisions:

At the very least, the authors need to discern whether AMPA or NMDA receptor signaling is altered in JNK3-deficient AgRP neurons and provide some data or reasonable hypothesis indicating how lack of JNK3 could lead to enhanced AMPA/NMDA signaling.

https://doi.org/10.7554/eLife.10031.016

Author response

Essential revisions:

For publication in eLife, the authors need to delineate the mechanism by which loss of JNK3 signaling in AgRP neurons promotes obesity. The reviewers have suggested several approaches to address this issue. Alternatively, the authors may decide that publishing the more descriptive part of the study (Figures 15) in another journal is the best option.

Thank you for providing this opportunity to improve our manuscript. We have carefully considered the reviewers’ comments and we have thoroughly revised the manuscript by including new experiments to more fully establish our conclusions. Specifically, we demonstrate that JNK3 plays no role in the regulation of feeding behavior in chow-fed mice, but activated JNK3 in high fat diet-fed mice regulates excitatory transmission onto ARP/NPY neurons. Collectively, our data establish a new paradigm for the regulation of feeding behavior by metabolic stress.

Reviewer #1: This paper provides evidence that lack of JNK3 expression in all cells, all neurons that express the leptin-receptor or just the sub-population of neurons that expresses AgRP leads to obesity when mice are reared on a high-fat diet (HFD) but not on a normal (control diet). The obesity is associated with elevated leptin, elevated insulin, glucose intolerance, insulin resistance, and many other parameters associated with obesity. The most important contribution is their systematic demonstration that the phenotype of global KO of the gene encoding JNK3 is replicated quite well by KO only in AgRP neurons. The authors go on to explore how loss of JNK3 function in AgRP neurons might lead to the hyperphagic obese phenotype, but those studies are less compelling. 1) The authors show that leptin receptors can be activated (phosphorylated) in the JNK3 KO but the dose-response is apparently shifted – LepR is fully activated (phosphorylated) with 2.5 mg/kg leptin but only partially activated with 0.1 mg/kg (Figure 7B). They attribute this hypo-sensitivity to a reduced level of Lepr mRNA (about half normal). They show that phospho-cJun (transcription factor) normally binds to an AP1 site in the promoter of Lepr gene and hence the lack of phosphorylation of c-Jun could impair transcription of Lepr gene. There are two problems with this analysis: (a) The Lepr mRNA (rather than protein) measurements were made in hypothalamic samples, not in AgRP neurons where it is relevant. (b) Complete loss of Lepr in AgRP neurons has a relatively small effect on obesity and heterozygous Lepr db/+ mice (with half the normal level of Lepr mRNA) do not become more obese on a HFD than WT mice. Thus, it seems unlikely that reduced levels of LepR account for the obesity observed in this JNK3 KO model.

We agree. These data have been removed from the revised manuscript. Conclusions about leptin receptor expression have also been removed from the text. The mechanistic analysis in the revised manuscript focuses on the role of JNK3 to regulate excitatory transmission onto ARP/NPY neurons.

2) Their data in Figure 6 are more promising. They show that mEPSCs amplitude in AgRP neurons is enhanced in slices, suggestive of enhanced excitatory signaling within AgRP neurons. If this enhanced excitability extends to in vivo situation, then that could drive the hyperphagia and ultimately the obesity. Thus, I suggest that the authors do whatever they can to demonstrate that AgRP neurons are hyperactive in vivo. First they need to demonstrate that the mice are hyperphagic before they become obese. The experiment in Figure 4C was performed after there was already a difference in body weight. A pair-feeding experiment would also be useful to demonstrate that the obesity is due to hyperphagia. Looking for markers of enhanced neuronal activity in AgRP neurons (e.g. Fos) might also be revealing. However, the ultimate experiment would be to use in vivo recording or calcium imaging of AgRP neurons – techniques that are available to this group.

We have revised the manuscript to address these important points:

A) We performed a time course analysis using metabolic cages to examine when hyperphagia is detected in mice fed a high fat diet. This analysis demonstrates that hyperphagia is detected within 2 days of high fat diet consumption (Figure 1—figure supplement 2A). 1H-MRS analysis on day 3 demonstrated no obesity phenotype (Figure 1—figure supplement 2B). These data demonstrate that the high fat diet hyperphagia phenotype occurs prior to the development of obesity.

B) We performed a pair-feeding study using high fat diet-fed WT and JNK3-deficient mice. This analysis demonstrates that no obesity phenotype was detected when the WT and JNK3-deficient mice consumed the same amount of food (Figure 1—figure supplement 3). These data demonstrate that the greater obesity of high fat diet-fed JNK3-deficient mice compared with WT mice is caused by increased food consumption.

C) We have not performed in vivo recording and calcium imaging of AgRP neurons, as requested; we believe that such studies are beyond the scope of the present manuscript. We did examine cFos staining, but no differences in the number of cFos-positive AgRP neurons were detected between WT and JNK3 KO mice. We have expanded the electrophysiological analysis of AgRP neurons from chow diet-fed mice and high fat diet-fed mice in the revised manuscript (Figure 6). This analysis demonstrates that JNK3-deficiency causes no phenotype in chow diet-fed mice, but does cause increased mEPSC amplitude in high fat diet-fed mice (Figure 6).

Reviewer #2: […] There is very little to criticize here. The authors address an important question, find a surprising answer of broad interest and base their conclusion on a broad set of genetic data. The only area that falls short is a further analysis of the signaling mechanisms in place. What other component of leptin signaling are affected by the lack of JNK3? The downstream analysis could be broader. Where does the cell specificity come in? How does JNK3 deficiency lead to reduce lepR expression in AgRP neurons, and it does not lead to reduced lepR expression in POMC neurons?

Based on the comments of the other reviewers, we have deleted the section of the original manuscript on LepRb expression. In the revised manuscript, we have focused the data presentation and the central conclusions of our study on the finding that excitatory transmission onto AgRP neurons is regulated by the JNK3 signaling pathway in HFD-fed mice. This observation provides a mechanism for the HFD-specific hyperphagia of JNK3 KO mice. Further studies will be required to identify direct molecular targets of JNK3 signaling; this analysis is beyond the scope of the present study.

Reviewer #3: […] The primary weakness in the work is the cursory attempt to provide some mechanistic insight (Figures 6 and 7). The mEPSC recordings add very little to the paper as is. It is important to know that mIPSCs don't also increase and how the deletion affects basal regulation of POMC neurons. In Figure 7, the overall JNK3 knockout was used and thus, it is not possible to determine if leptin receptor expression is also reduced in POMC cells or rather, if maybe POMC cells do not express JNK3 or require JNK3 to bolster leptin sensitivity. In my opinion, these last 2 experiments do not need to be included to support the conclusions made, but if they are included, they need to be done more thoroughly so that they can be better interpreted.

We agree that the leptin receptor expression data do not strengthen our study. Based on this criticism and the comments of reviewer #1, we have deleted these data from the revised manuscript. We have revised the manuscript to include new data to document mIPSCs (Figure 6) and we have more fully documented the changes in mEPSCs. We believe that these data do strengthen the study.

JNK3 is the neuron-specific isoform of JNK and its activity is dynamically regulated rather than constitutive like the other 2 isoforms. Together with the compelling evidence provided here that JNK3 helps reduce high-fat diet-induced weight gain through actions in AgRP neurons, this work adds significant new insight into JNK3 function and the hypothalamic regulation of energy balance in the face of metabolic challenge.

Thank you for these comments.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

In response to our reviews, the authors of this paper have now dropped data (old Figure 7) suggesting that reduced leptin receptor expression was responsible for the obesity of JNK3-deficient mice in favor enhanced glutamatergic (mEPSC) signaling (Figure 6). The authors have added panels to Figure 6 showing that inhibitory (mIPSC) is unchanged. Overall, the hypothesis that enhanced glutamatergic signaling (excitation) of AgRP neurons would maintain Npy and Agrp expression and enhance feeding behavior makes sense, especially because the previous work from the Lowell lab (Liu et al., 2012) showing that removing NMDA receptors from AgRP neurons has the opposite effect. However, there are a few loose ends that need attention.

1) Unfortunately, the electrophysiology experiments were performed on Mapk10 KO mice rather than mice lacking Mapk10 selectively in AgRP neurons; hence, it is not possible to make a strong conclusion that the enhanced excitatory transmission is due to lack of JNK3 in AgRP neurons.

2) The authors suggest in the Discussion that NMDA signaling is enhanced, but their experiments do not distinguish NMDA from AMPA signaling.

3) The hypothesis that links JNK3 deficiency and the presumptive enhanced NMDA signaling is not clearly explained. In the fifth paragraph of the Discussion the authors say that JIP proteins might be involved and refer to Kennedy et al. (2007). If I understand that paper correctly, it suggests that lack of JIP proteins influences JNK localization (activity) and prevents phosphorylation of NR2 subunit of NMDA receptor. If so, it seems like lack of JNK3 would impair (not enhance) NMDA function in the present studies. The authors admit that "further studies are required to identify the complete spectrum of JNK3 targets in AgRP neurons". I would argue that they have not identified any direct JNK3 targets in AgRP neurons.

Our focus on JNK3 function in AgRP neurons is based on the findings that:

1) JNK3-deficiency causes changes in Agrp and Npy expression, but not Pomc expression, in the response to leptin administration (Figure 3B) or feeding a HFD (Figure 3C);

2) mEPSC amplitudes are increased in AgRP neurons of JNK3-deficient mice (Figure 6); and

3) JNK3-deficiency in AgRP neurons is sufficient to cause hyperphagy on a HFD (Figure 5).

Together, these data provide strong evidence for a function of JNK3 in AgRP neurons. We agree that electrophysiological studies of AgRP-cre+ Mapk10LoxP/LoxP NPY-GFP mice would be interesting, but these mice are not available in our colony; we consider these studies to be beyond the scope of the present study.

We apologize for the poor presentation of the conclusions of our study in the Discussion section of our manuscript where we suggested that NMDA receptors may be regulated (based on the two papers we cited) without adequately addressing the role of AMPA receptors. We have revised the manuscript to make our presentation clearer. Moreover, we have included new data in the manuscript (Figure 6—figure supplement 1) that demonstrates the role of AMPA responses in the mEPSC recordings. These new data have enabled greater focus of the manuscript. These data represent a key finding that provides a mechanism for JNK3 function mediated by the regulation of AMPA responses. It is established that AMPA receptor phosphorylation by JNK controls AMPA receptor trafficking and function (Thomas et al. 2008).

Although an altered AMPA response in AgRP neurons contributes to the JNK3 phenotype, we cannot exclude the possibility that there is also an altered NMDA response. We feel that dissecting the specific contributions of AMPA and NMDA receptors, while interesting, is outside the scope of this study. In addition, while our recordings show alterations in mEPSC amplitudes, further studies are needed to identify the full spectrum of JNK3 targets that could potentially result in this observation. Such targets may include the JNK scaffold protein JIP1 (that inhibits NMDAR signaling) and JIP2 (that increases NMDAR signaling), but we consider studies of these scaffold proteins to be beyond the scope of the present manuscript.

Essential revisions:

At the very least, the authors need to discern whether AMPA or NMDA receptor signaling is altered in JNK3-deficient AgRP neurons and provide some data or reasonable hypothesis indicating how lack of JNK3 could lead to enhanced AMPA/NMDA signaling.

We agree – this is an important point. We did not make conclusions about AMPA vs. NMDA currents in the previous version of this manuscript. We have therefore revised the manuscript to include new data documenting that the mEPSC currents that we detect are mediated by AMPA receptor responses, not NMDA receptor responses (Figure 6—figure supplement 1). These data have enabled us to focus on AMPA responses and the established role of JNK phosphorylation to regulate AMPA receptor trafficking and function (subsection “JNK3 regulates excitatory transmission onto AgRP neurons of HFD-fed mice“). We believe that our revised manuscript has been substantially improved by incorporation of these changes.

https://doi.org/10.7554/eLife.10031.017

Article and author information

Author details

  1. Santiago Vernia

    Program in Molecular Medicine, University of Massachusetts Medical School, Worcester, United States
    Present address
    Genes and Metabolism Section, MRC Clinical Sciences Centre, Imperial College London, Hammersmith Campus, London, United Kingdom
    Contribution
    SV, Final approval of version to be published, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Caroline Morel
    Competing interests
    No competing interests declared.
  2. Caroline Morel

    Program in Molecular Medicine, University of Massachusetts Medical School, Worcester, United States
    Contribution
    CM, Final approval of version to be published, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Santiago Vernia
    Competing interests
    No competing interests declared.
  3. Joseph C Madara

    1. Division of Endocrinology, Beth Israel Deaconess Medical Center, Boston, United States
    2. Harvard Medical School, Boston, United States
    Contribution
    JCM, Final approval of version to be published, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  4. Julie Cavanagh-Kyros

    1. Program in Molecular Medicine, University of Massachusetts Medical School, Worcester, United States
    2. Howard Hughes Medical Institute, University of Massachusetts Medical School, Worcester, United States
    Contribution
    JCK, Final approval of version to be published, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  5. Tamera Barrett

    1. Program in Molecular Medicine, University of Massachusetts Medical School, Worcester, United States
    2. Howard Hughes Medical Institute, University of Massachusetts Medical School, Worcester, United States
    Contribution
    TB, Final approval of version to be published, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  6. Kathryn Chase

    Department of Medicine, Division of Endocrinology, University of Massachusetts Medical School, Worcester, United States
    Contribution
    KC, Final approval of version to be published, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  7. Norman J Kennedy

    Program in Molecular Medicine, University of Massachusetts Medical School, Worcester, United States
    Contribution
    NJK, Final approval of version to be published, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  8. Dae Young Jung

    Program in Molecular Medicine, University of Massachusetts Medical School, Worcester, United States
    Contribution
    DYJ, Final approval of version to be published, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  9. Jason K Kim

    1. Program in Molecular Medicine, University of Massachusetts Medical School, Worcester, United States
    2. Department of Medicine, Division of Endocrinology, University of Massachusetts Medical School, Worcester, United States
    Contribution
    JKK, Final approval of version to be published, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  10. Neil Aronin

    Department of Medicine, Division of Endocrinology, University of Massachusetts Medical School, Worcester, United States
    Contribution
    NA, Final approval of version to be published, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  11. Richard A Flavell

    1. Department of Immunobiology, Yale University School of Medicine, New Haven, United States
    2. Howard Hughes Medical Institute, Yale University School of Medicine, New Haven, United States
    Contribution
    RAF, Final approval of version to be published, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4461-0778
  12. Bradford B Lowell

    1. Division of Endocrinology, Beth Israel Deaconess Medical Center, Boston, United States
    2. Harvard Medical School, Boston, United States
    Contribution
    BBL, Final approval of version to be published, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  13. Roger J Davis

    1. Program in Molecular Medicine, University of Massachusetts Medical School, Worcester, United States
    2. Howard Hughes Medical Institute, University of Massachusetts Medical School, Worcester, United States
    Contribution
    RJD, Final approval of version to be published, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    roger.davis@umassmed.edu
    Competing interests
    RJD: Reviewing Editor, eLife.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0130-1652

Funding

National Institute of Diabetes and Digestive and Kidney Diseases (R01DK107220)

  • Roger J Davis

Howard Hughes Medical Institute (Investigatorship)

  • Richard A Flavell
  • Roger J Davis

National Institute of Diabetes and Digestive and Kidney Diseases (U24DK093000)

  • Jason K Kim

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Dr. David Garlick for pathological analysis of tissue sections and Armanda Roy for technical assistance, and Kathy Gemme for administrative assistance. These studies were supported by grants R01 DK107220 (to RJD) and U24 DK093000 (to JKK) from the National Institutes of Health. RJD and RAF are investigators of the Howard Hughes Medical Institute.

Ethics

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocols (#A-978 and #A-1032) of the University of Massachusetts Medical School.

Reviewing Editor

  1. Richard D Palmiter, Howard Hughes Medical Institute, University of Washington, United States

Publication history

  1. Received: July 11, 2015
  2. Accepted: February 22, 2016
  3. Accepted Manuscript published: February 24, 2016 (version 1)
  4. Version of Record published: March 9, 2016 (version 2)

Copyright

© 2016, Vernia et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,182
    Page views
  • 326
    Downloads
  • 7
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Genetics and Genomics
    Malini Rajan et al.
    Research Article
    1. Cell Biology
    2. Plant Biology
    Charlotte Kirchhelle et al.
    Research Article Updated
