Small G-proteins of the ADP-ribosylation-factor-like (Arl) subfamily have been shown to be crucial to ciliogenesis and cilia maintenance. Active Arl3 is involved in targeting and releasing lipidated cargo proteins from their carriers PDE6δ and UNC119a/b to the cilium. However, the guanine nucleotide exchange factor (GEF) which activates Arl3 is unknown. Here we show that the ciliary G-protein Arl13B mutated in Joubert syndrome is the GEF for Arl3, and its function is conserved in evolution. The GEF activity of Arl13B is mediated by the G-domain plus an additional C-terminal helix. The switch regions of Arl13B are involved in the interaction with Arl3. Overexpression of Arl13B in mammalian cell lines leads to an increased Arl3·GTP level, whereas Arl13B Joubert-Syndrome patient mutations impair GEF activity and thus Arl3 activation. We anticipate that through Arl13B’s exclusive ciliary localization, Arl3 activation is spatially restricted and thereby an Arl3·GTP compartment generated where ciliary cargo is specifically released.https://doi.org/10.7554/eLife.11859.001
Most types of cells in humans and other animals have slender, hair-like structures known as cilia that project out of the cell surface. These structures sense and respond to signals from the external environment and are crucial for organisms to develop normally. Defects in cilia can lead to many serious conditions such as Joubert syndrome, which affects the development of the brain and other organs in humans.
The Arl family of “G-proteins” play important roles in the formation and operation of cilia. They contain a section called a G-protein domain whose activity can be switched on by interactions with other proteins called guanine nucleotide exchange factors (or GEFs for short). A member of the Arl family called Arl3 is found in higher amounts in cilia than in other parts of the cell. It is involved in the transport of proteins to the cilia from other parts of the cell, but it is not known which GEFs are able to activate it.
Here, Gotthardt, Lokaj et al. used several biochemical techniques to show that another member of the Arl family called Arl13B actually acts as a GEF to activate Arl3 in cilia. Arl13B is only found in cilia and the GEF activity relies on its G-protein domain and another element at one end called a C-terminal helix. Previous studies have shown that mutations in the gene that encodes Arl13B can cause Joubert syndrome in humans. Gotthardt, Lokaj et al. found that mutant forms of Arl13B had significantly lower GEF activity than normal Arl13B proteins.
Together, Gotthardt, Lokaj et al.’s findings provide an explanation for why Arl3 is only activated in cilia even though it is found throughout the cell. Further work is needed to understand how the activity of Arl13B is regulated.https://doi.org/10.7554/eLife.11859.002
Primary cilia are highly conserved organelles essential for developmental signalling pathways and cellular homeostasis. The small G-proteins of the Arl family Arl3, Arl6 and Arl13B have been shown to be important in the trafficking of ciliary proteins and structural integrity of the cilium (Li et al., 2012). Mutations in Arl proteins or their regulators can lead to cilia dysfunction causing ciliopathies such as Joubert syndrome (JS), Bardet–Biedl syndrome (BBS), or retinitis pigmentosa (RP) (Cantagrel et al., 2008; Chiang et al., 2004; Schwahn et al., 1998). Different ciliopathies are characterized by overlapping phenotypes such as renal cysts, polydactyly, brain malfunction, situs inversus, and vision impairment (Waters and Beales, 2011). Mutations in Arl6 –the first member of the Arl family found mutated in a human ciliopathy – cause BBS, whereas mutations in Arl13B lead to JS. JS in particular is characterized by a brain malformation with a characteristic molar tooth sign combined with polydactyly and kidney cysts. Although no mutations in Arl3 have been identified so far in ciliopathies Arl3(-/-) mice exhibit a ciliopathy related phenotype and die by 3 weeks of age (Schrick et al., 2006). One of the X-linked RP genes is RP2, which functions as a GTPase activating protein (GAP) specific for Arl3 (Veltel et al., 2008).
As most small G-proteins Arl3 cycles between inactive GDP-bound and active GTP-bound forms and in the latter it binds specifically to effectors (Cherfils and Zeghouf, 2013). Effectors of Arl3 are the carrier proteins PDE6δ, which binds farnesylated and geranylgeranylated cargo, and Unc119a/b, which binds myristoylated cargo. Binding of activated Arl3 to the cargo-carrier complex induces conformational changes leading to the release of the cargo (Ismail et al., 2012, 2011; Wright et al., 2011). A close structural homologue of Arl3 is Arl2, which binds to the same set of effectors (Van Valkenburgh et al., 2001). However, while Arl2 and Arl3 can release cargo such as Ras or RheB, only Arl3 is able to release ciliary cargo such as INPP5E, NPHP3, and GNAT-1 (Ismail et al., 2012; Thomas et al., 2014; Wright et al., 2011). The highly conserved Arl3 − only present in ciliated organisms – localizes throughout the cell and is enriched in the primary cilium (Avidor-Reiss et al., 2004; Blacque et al., 2005; Zhou et al., 2006). While RP2 functions as an Arl3 GAP and is thus important for the import of lipidated cargo by recycling Arl3 and its effectors (Schwarz et al., 2012; Wright et al., 2011; Zhang et al., 2015), the guanine nucleotide exchange factor (GEF) that activates Arl3 remains unknown. We had anticipated that in order for Arl3 to mediate cargo release inside cilia, an Arl3-specific GEF should be localized there as well.

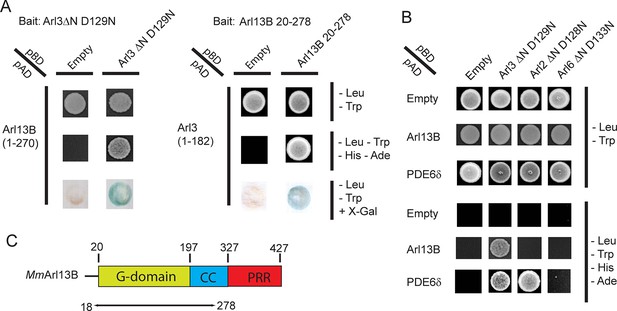

To identify regulatory proteins of Arl3 we employed a yeast-2-hybrid (Y2H) screen using the fast cycling mutant Arl3△ND129N as bait. The homologous mutation which in Ras was shown to decrease nucleotide and to increase GEF affinity while maintaining its ability to bind to effectors was used by us to identify the GEF for the plant specific ROP proteins (Berken et al., 2005; Cool et al., 1999). Screening a mouse retinal cDNA Y2H library identified several clones growing on selective media. Sequence analysis revealed Arl13B (residues 1–270) in addition to known Arl3 effectors such as PDE6δ and Unc119a. Intriguingly, in a parallel screen with mouse Arl13B20-278 as bait Arl3 was found as rescuing clone. The interaction between Arl3 and Arl13B was further verified by directed 1:1 Y2H analysis (Figure 1A). Arl13B is an unusual Arl protein containing a C-terminal coiled-coil and proline rich region in addition to its G-domain (Figure 1C). The data show that the interaction is mediated by Arl13B’s G-domain and part of the coiled-coil region. To investigate the specificity of the Arl13B-Arl3 interaction we tested the related constructs of Arl2 and Arl6 neither of which enabled growth on selective medium (Figure 1B).
To verify this interaction in vitro, we tested purified proteins in a glutathione-S-transferase (GST) pull-down assay. Due to better stability and purity of Arl13B from Chlamydomonas reinhardtii (Cr) the following experiments were performed with the homologous Cr-proteins purified from Escherichia coli. We thus prepared CrArl13B18-–278 (CrArl13B from now) analogous to mouse Arl13B18-–278 used in the Y2H screen and tested its interaction with GST-CrArl3 loaded with either GDP or GppNHp (a non-hydrolyzable GTP analogue) (Figure 2A). CrArl13B·GppNHp but not CrArl13B·GDP bound to GST-–CrArl3, and binding was slightly stronger to GST-CrArl3·GDP than to GST-CrArl3·GppNHp. These data show that the interaction between Arl3 and Arl13B is conserved between mouse and Chlamydomonas.

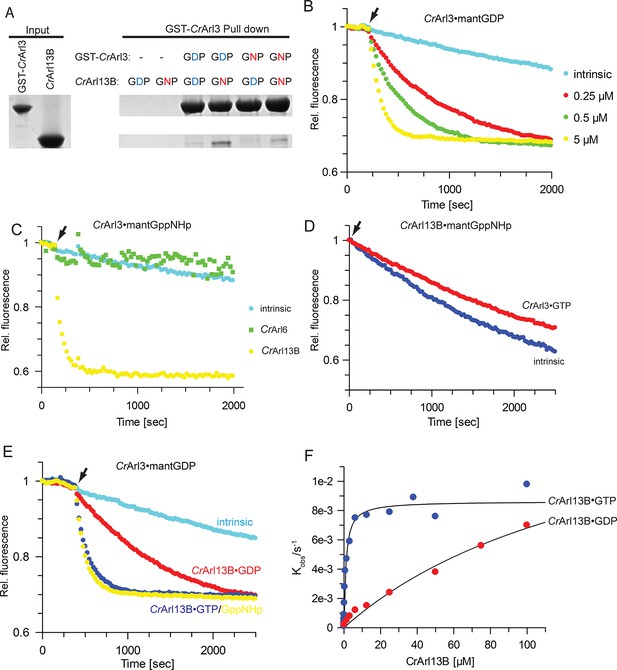

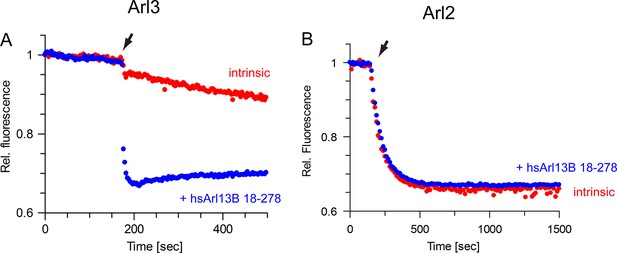

Since the rather weak interaction in the pull-down experiments and the nucleotide-independent binding suggested that Arl3 is not an effector for Arl13B, we turned our attention to a possible GEF function. As a ciliary protein Arl13B is a good, albeit, as a G-protein, a very unusual candidate GEF for Arl3. The dissociation of a fluorescent GDP-analogue (mantGDP) from CrArl3 in the presence of excess of unlabelled GTP was monitored after adding CrArl13B·GTP. The nucleotide dissociation was strikingly accelerated in the presence of CrArl13B·GTP and was dependent on the CrArl13B concentration (Figure 2B and Table 1). Consistent with features of a typical GEF (Bos et al., 2007) Arl13B did not discriminate whether mantGppNHp or mantGDP was bound to Arl3 and exchanged both nucleotides with the same velocity (Table 2). As a control CrArl6 did not stimulate the nucleotide release of CrArl3 nor did CrArl3 catalyze that of CrArl113B (Figure 2B, C).
We next asked whether the nucleotide-bound state of CrArl13B affects its GEF activity as suggested by the GST pull-down experiments. CrArl13B preloaded with GDP, GTP, or GppNHp was used to analyze the exchange activity. At 5 µM GEF, the exchange was about ninefold slower for GDP- than for GTP- and GppNHp-bound CrArl13B (Figure 2E). The observed rate constants of mantGDP-dissociation showed a hyperbolic dependence on CrArl13B concentration, with a maximum release rate of 0.86 × 10-2 sec. The KM for the reaction is 1.1 µM for CrArl13B·GTP and 155 µM for CrArl13B·GDP (Figure 2F) showing that CrArl13B·GTP has a higher affinity than CrArl13B·GDP. Since the in vitro determined maximal nucleotide release stimulation of 70-fold appears relatively slow but not unusual, it is quite conceivable that additional factors such as the presence of membranes or lipids enhance the GEF activity as shown for the Ras-GEF SOS (Gureasko et al., 2008) and other GEFs (Cabrera et al., 2014; Pasqualato et al., 2002). Since Arl3 has a high affinity to membranes (Kapoor et al., 2015) and Arl13B is palmitoylated (Cevik et al., 2010) the reaction between them is thus most likely orchestrated on the ciliary membrane.

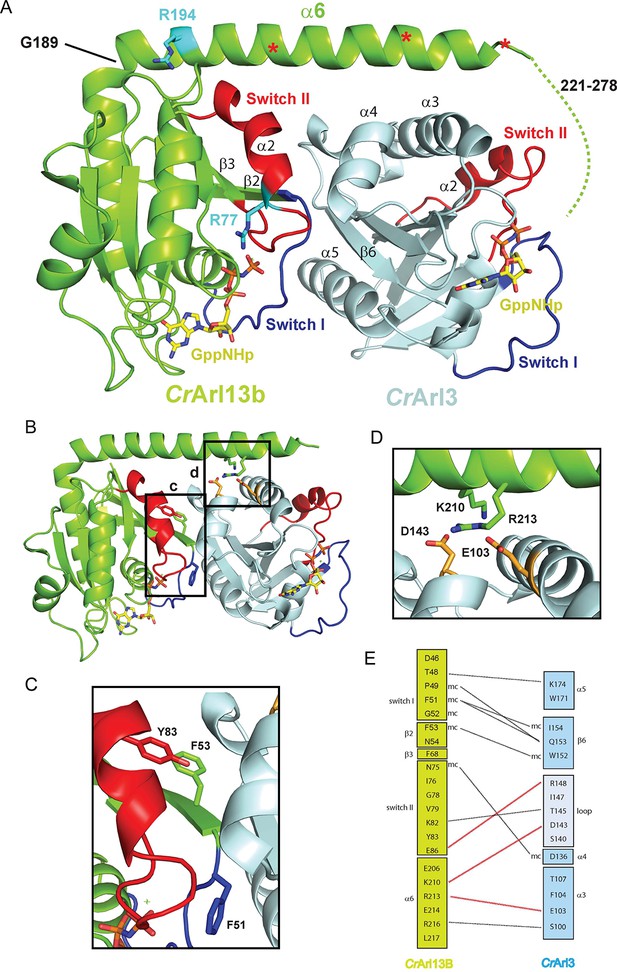

Next, we employed x-ray crystallography to elucidate the structural basis for the interaction. We thus co-crystallized CrArl13B·GppNHp and CrArl3·GDP in the presence of alkaline phosphatase in order to allow formation of nucleotide free CrArl3. Since CrArl13B requires bound nucleotide for stability (and most likely for activity) complex formation could not be performed with nucleotide free Arl3 GEF-substrate. The obtained crystals diffracted to 2.5Å and the structure was solved by molecular replacement showing one complex in the asymmetric unit (Table 3). Although crystallization was done in the presence of alkaline phosphatase GppNHp was clearly visible in both active sites, suggesting that the structure represents the post-nucleotide-exchange state. The nucleotide dependency of CrAr13B’s GEF activity suggested that switch I and II contribute to the interface. The structure shows indeed that a major part of the interaction is mediated by switch I and II of CrArl13B which contact CrArl3 via α4Arl3, β6Arl3, and α5Arl3 located opposite to the nucleotide binding site (Figure 3A, 3E). Further interactions are between the long α-helix α6Arl13B which makes a 90° turn at residue G189, and α3/ α4Arl3. The last 58 residues, predicted to be α-helical, are not visible in the electron density presumably because they are flexible.

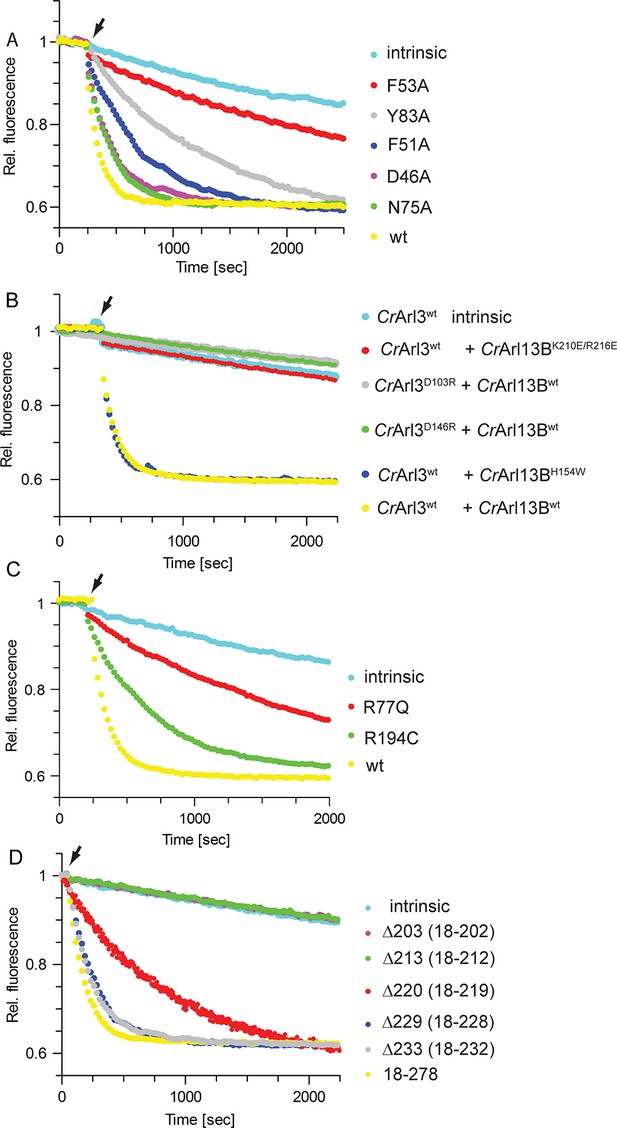

To examine the interface we mutated residues within switch I, II, and α6 of CrArl13B (Figure 3B–D). Switch I mutant CrArl13BF53A showed a markedly decreased GEF activity whereas the D46A, F51A, N75A, and Y83A mutants had only a minor effect (Figure 4A). The charge-reversal mutations K210E/R216E in α6Arl13B as well as D103R and D146R in CrArl3 show no activity, as expected, whereas a control mutation H154W outside the interface has no effect (Figure 4B). Since CrArl13B’s analogous Joubert mutation R77Q and to a lesser extent R194C have been shown to impair the conformational stability of switch II (Miertzschke et al., 2014), we next tested the analogous mutants CrArl13BR77Q and CrArl13BR194C for their GEF activities. CrArl13BR77Q displayed a reduced activity in contrast to a very mild effect of CrArl13BR194C (Figure 4C).
GEF proteins normally act by directly interfering with the nucleotide binding site thereby decreasing nucleotide affinity (Cherfils and Zeghouf, 2013). In the crystal structure the nucleotide binding site of CrArl3 is not directly contacted by CrArl13B. We were not able to trap the interacting residues presumably due to the presence of nucleotide and/or the flexibility of the interacting residues of Arl13B. Considering the length of the C-terminus required for catalysis (see below) it is however suggestive that the mobile C-terminus of Arl13B is involved in the GEF reaction by contacting the relevant surface of Arl3. To examine the importance of this region for catalysis we prepared deletion constructs with differing length of the α6-helix (see red asterisks in Figure 3A). Whereas the C-terminal deletion constructs △233(18–232) and △243(18–242) had no effect, a longer deletion to residue 220(18–219) showed a reduced stimulation (Figure 4D). Finally, the GEF activity of △213(18–212) and △203(18–202) was completely abolished. In support of their importance residues 212–228 are highly conserved among species and we would speculate that these residues contact Arl3 close to the nucleotide binding site.

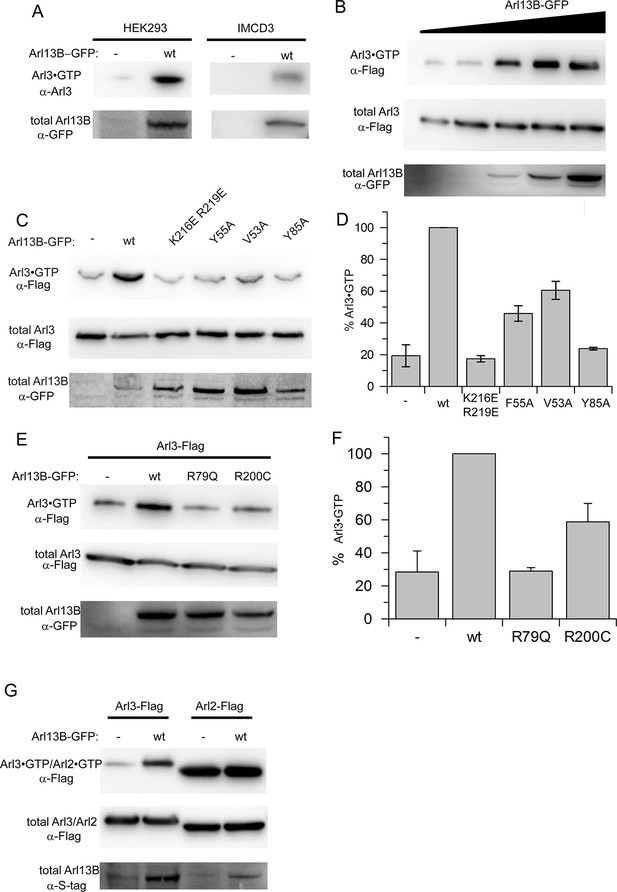

We next decided to demonstrate the GEF activity of Arl13B in mammalian cells. Therefore we used a stably transfected murine inner medullary collecting duct 3 (IMCD3) cell line and transiently transfected HEK293 cells overexpressing human Arl13B-GFP. To quantify Arl3 activation, Arl3·GTP was affinity-precipitated with the effector GST-PDE6δ (Linari et al., 1999) and analysed by immunoblot. The level of endogenous Arl3·GTP was strikingly increased in cells overexpressing Arl13B compared to control cells (Figure 5A). Furthermore, the level of GTP-bound Arl3-Flag depended on the Arl13B concentration (Figure 5B). Consistent with the Y2H data the Arl2·GTP level was not affected by overexpressed Arl13B indicating selectivity for Arl3 (Figure 5G). Interface mutations in Arl13B which disrupted the in vitro exchange activity were also tested in HEK293 cells. Consistently, cells transfected with Arl13BK216E/R219E, Arl13BY55A or Arl13BY85A did not markedly increase the Arl3·GTP level (Figure 5C,D). Intriguingly, the Arl3·GTP level in cells overexpressing the Joubert mutant variants Arl13BR79Q and Arl13BR200C was lower than those expressing Arl13Bwt. Consistent with the biochemical data the R79Q mutation impaired Arl3 activation was more pronounced than R200C (Figure 5E,F). Finally, we were able to purify human Arl13B (18–278) from insect cells in reasonable amounts to test its GEF activity. Confirming the conservation of structure and function the human Arl13B also exhibits strong GEF activity for Arl3 (Figure 6A). The stimulation of the nucleotide release was more efficient compared to CrArl13B, with a 900fold acceleration at 5 µM. In agreement with the different biological function (Zhou et al., 2006), the nucleotide dissociation of Arl2 was not accelerated by Arl13B (Figure 6B).
Arl13B has been implicated in a number of ciliary functions (Cevik et al., 2010; Humbert et al., 2012; Larkins et al., 2011; Li et al., 2010), and its deletion is causing multiple phenotypes such as the lethal hennin mouse mutant or the scorpion zebrafish mutant (Caspary et al., 2007; Sun et al., 2004). Here we describe a molecular function for Arl13B acting as GEF for Arl3 whereby the nucleotide state of Arl13B determines its catalytic activity in this activation cascade.

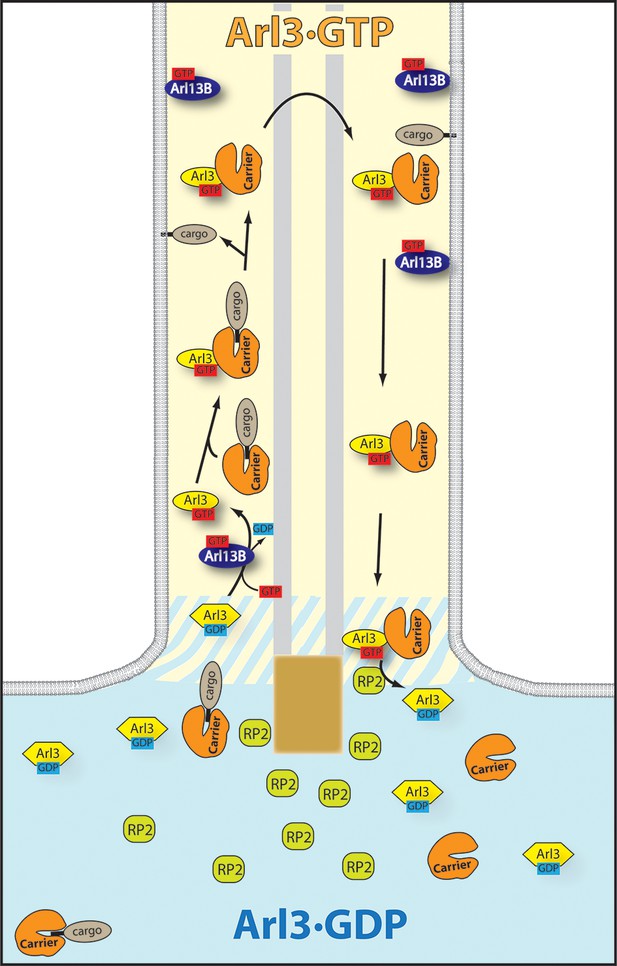

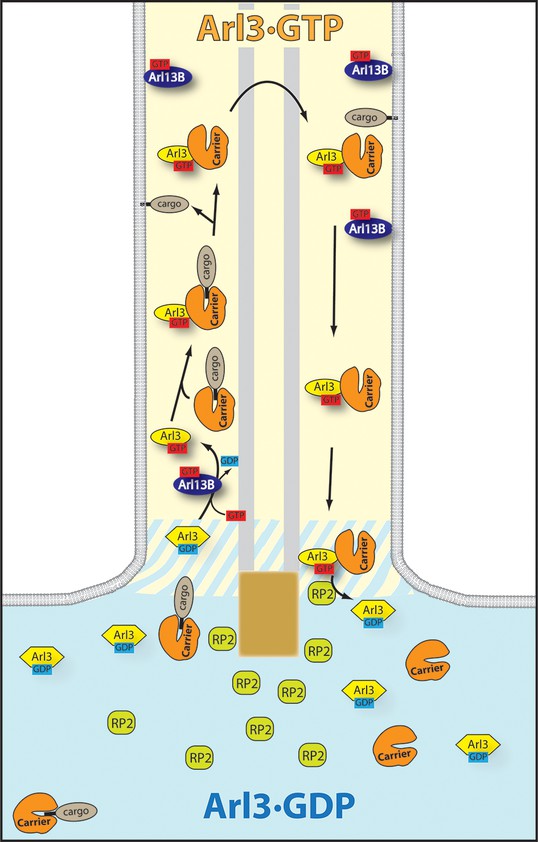

Our results have important implications for the regulation of sorting and transport processes into cilia. It has been shown earlier that Arl3 but not Arl2 can release ciliary cargo from the transport proteins PDE6δ and Unc119 (Ismail et al., 2012, 2011; Wright et al., 2011). One would predict that Arl3, which is enriched in cilia but also in other microtubule dense structures (Grayson et al., 2002; Zhou et al., 2006), is only activated inside cilia where Arl13B exclusively resides (Blacque et al., 2005; Caspary et al., 2007; Duldulao et al., 2009) in order to avoid release of ciliary prenylated and myristoylated cargo in the cytoplasm, where other cargo such as Ras, RheB, or Src kinases can be released by Arl2. The observation that expression of constitutive active ARL-3 (Q70L/Q72L) in Lieshmania donovani and in Caenorhabditis elegans resulted in decreased flagellum length and in impaired ciliogenesis might be explained by Arl3-GTP being located all over the cell and by subsequent mistargeting of proteins destined for the cilium (Cuvillier et al., 2000; Li et al., 2010).
The different subcellular localization of Arl3-GAP and GEF resembles very closely the Ran driven nucleocytoplasmic transport system. Nucleocytoplasmic transport through the nuclear pore is regulated by a Ran gradient across the nuclear pore (Stewart, 2007). This gradient is regulated by the Ran-GEF RCC1, which is retained inside the nucleus, and by the major form of Ran-GAP, which is located at the exit side of the nuclear pore complex (NPC), by binding to RanBP2 (Mahajan et al., 1997). Import cargo bound to importins is released from the carrier by Ran·GTP. The export complex formed by the exportin-cargo complex is in turn stabilized by Ran·GTP and dissociated after exit from the NPC and hydrolysis of GTP. Since the Arl3 specific GAP RP2 is absent from primary cilia and enriched in the preciliary region as observed by us and others (Blacque et al., 2005; Evans et al., 2010; Grayson et al., 2002), we can assume that a similar Arl3·GTP gradient exists across the transition zone and that the Arl3·GTP compartment inside cilia creates a driving force for the transport of prenylated and myristoylated proteins which are allosterically released by Arl3·GTP from their carrier proteins PDE6δ and Unc119a/b (see Figure 7 for a schematic overview). The Ran-GEF RCC1 is retained in the nucleus through its interaction with nucleosomes (Nemergut et al., 2001). In the case of Arl13B, the N-terminal palmitoylation site, but also the other domains seem to be indispensable for its ciliary localization and retention (Cevik et al., 2010; Duldulao et al., 2009).
Since Arl13B’s GEF activity is higher in the GTP-bound conformation one may ask if and how the nucleotide status of Arl13B itself is regulated. We have shown before that the intrinsic GTP hydrolysis activity of Arl13B is very low and that the protein active site does not contain a catalytic glutamine residue (Miertzschke et al., 2014). Although we cannot exclude that an Arl13B specific GAP would supply catalytic residues an alternative explanation would be that Arl13B in the absence of GTP hydrolysis is mostly in the GTP-bound form. This does not exclude the existence of an Arl13B-GEF which is presently unknown.
Since both the mutations of the Arl3-GAP RP2 in RP and the Arl3-GEF Arl13B in JSyndrome lead to ciliary defects and ciliopathies, we conclude that the amount of Arl3·GTP needs to be precisely regulated and that both an increase and a decrease of Arl3·GTP is not tolerated for proper function of the cilium.
Mouse retina cDNA library was generated according to 'Mate&Plate' Library System User Manual (Clonetech), cloned into pGADT7 (short: pAD) and introduced into Saccharomyces cerevisiae Y187. Yeast techniques and two-hybrid methods were performed according to the Yeast Protocols Handbook and the Matchmaker GAL4 Two-Hybrid System 3 manual (Clontech) with S. cerevisiae AH109. Murine Arl3△ND129N (residues 17–182), Arl6△ND133N (residues 16–186), Arl2△ND128N (residues 17–184) and Arl13B (residue 20–278)were cloned into a Gateway compatible pBD-Gal4 vector (a kind gift from R. Roepman) and S. cerevisiae AH109 used as recipient for transformation.
CrArl13B (UniProt: A8INQ0) and CrArl3 (UniProt: A8ISN6) were amplified by PCR from a cDNA library from C. reinhardtii CC-124 WT(wild- type)mt-[137c] [nit1, nit2, agg1] (a gift from T. Happe). Respective mutants were generated by site directed mutagenesis PCR. CrArl3 and CrArl13B proteins were expressed as GST-fusions and purified as previously described (Miertzschke et al., 2014). CrArl3 full length was additionally cloned into the pET20 vector to produce C-terminally His-tagged protein. Murine Arl3 full length (UniProt: Q9WUL7) and human Arl2 full length (Uniprot: P36404) in pET20 vectors were already available. Proteins were expressed in BL21DE3 CodonPlus RIL cells at 18°C after induction with 100 µM Isopropyl β-D-1-thiogalactopyranoside (IPTG). Purification of CrArl3-His, murine Arl3-His and human Arl2-His were conducted as described previously (Veltel et al., 2008). Human recombinant His-Arl13B 18–278 was expressed in High-Five insect cells for 66 hr at 27°C after virus infection. Insect cells were lysed in 30 mM Tris (pH7.5), 150 mM NaCl, 5 mM MgCl2, 3 mM β-mercaptoethanol, 10% glycerole, and 0.1 mM GTP and Complete protease inhibitor cocktail (Roche) using a Microfluidizer M-110S (Microfluidics). Protein was purified by affinity chromatography using a Talon Superflow column (Clonetech) and size exclusion chromatography. All proteins were stored in buffer M containing 25 mM Tris (pH 7.5) 100 mM NaCl, 5 mM MgCl2, 3mM β-mercaptoethanol and 1% glycerole.
Nucleotide exchange to GDP, GTP, or (N-methylanthraniloyl) mantGDP on Arl proteins was performed in the presence of 50mM ethylenediaminetetraacetic acid (EDTA) and a five fold (two fold for mantGxP) excess of nucleotide. After incubation for 2 hrs 100 mM MgCl2 was added and the protein separated from the excess of nucleotide by a HiTrap desalting column (GE Healthcare). The nucleotide exchange to GppNHp and mantGppNHp was performed using agarose coupled alkaline phosphatase (AP). AP was removed by centrifugation and excess of nucleotide removed by a desalting column. The amount of protein-bound nucleotide was analyzed by C18 reversed-phase high performance liquid chromatography (HPLC) and quantified with a calibrator detector (Beckman Coulter) and an integrator (Shimadzu).
Per sample 50 µg GST-CrArl3 was bound to 50 µl glutathione agarose and washed 2x with 500 µl buffer M. GST-CrArl3 was incubated in 100 µl buffer M containing 1 mg/ml CrArl13B18-–278 (~37 µM) for 30 min and afterwards washed 2x with 500 µl buffer M. Protein was eluted from beads by addition of sodium dodecyl sulfate (SDS) loading buffer and subsequent boiling and analyzed by sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE).
CrArl13B·GppNHp and CrArl3·GDP (12 mg/ml) were mixed in the presence of AP in the ratio 1:1.2 (Arl3:Arl13B). With the sitting drop/vapour diffusion method crystals appeared in 0.1M Tris pH 8.5, 25% PEG 6000 (PEGII suite, Qiagen) after 3 days. Crystals were fished out of the 96 well plate and flash frozen in a cryo-solution containing the same constituents as the crystallization condition supplemented with 20% glycerol. Data collection was done at the PXII-XS10SA beamline of the Swiss Light Source (SLS) Villingen. Data were indexed and processed with XDS (Kabsch, 1993). Molecular replacement was done with PHASER from the CCP4 package (The CCP4 suite: programs for protein crystallography, 1994). The structure refinement was done using phenix.refine of PHENIX (Adams et al., 2010). Images were generated with PYMOL (http://www.pymol.org). Atomic coordinates and structural factors have been deposited in the Protein Data Bank (PDB) under the accession code 5DI3.
Nucleotide exchange reactions were performed in buffer M at 20°C. As standard conditions, 500 nM G-protein was incubated and the GEF reaction was started with the addition of a mix Arl13B and an excess of nucleotide. Unless otherwise stated 5 µM GEF was used. Since the species of the in excess added unlabeled G-nucleotide (GDP, GTP, or GppNHP) does not influence the velocity of the GEF reaction, the mix always contained an 800-fold excess of the respective nucleotide which was bound to Arl13B in order to avoid undesirable intrinsic nucleotide exchange of Arl13B. For the intrinsic dissociation the same volume buffer containing unlabeled nucleotide was added. The fluorescence change was monitored using a FluoroMax 4 Spectrofluorometer (Jobin Yvon) with an excitation at 366 nm and emission at 450 nm. Data was fitted to single exponential functions using Grafit5 (Erithacus software) to obtain the koff values. All quantitative parameters were measured two or more times. To ensure that all CrArl13B mutants are 100% loaded with the same nucleotide, they were exchanged to GppNHp with alkaline phosphatase and the stimulation of the nucleotide release measured for CrArl3·mantGppNHp. KM and Vmax were obtained by fitting the data to the Michaelis Menten equation using Grafit5.
Mouse renal epithelial Flp-In cells from the inner medullary collecting duct (IMCD3 Flp-In; kind gift from MV Nachury) and HEK293 cells were cultured at 37°C and 5% CO2 in Dulbecco’s Modified Eagle Medium (DMEM)/F12, 4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid (HEPES) (Life technologies) complemented with 10% fetal bovine serum and 1% L-glutamine.
The parental IMCD3 Flp-In cell line contains a stably integrated FRT cassette and was co-transfected with pOG44 coding a FLP recombinase and the appropriate pgLAP5 vector (Addgene) using Lipofectamine 2000 (Life technologies). For selection of successful stable genomic integration the media was supplemented with 200 μg/ml hygromycin (Merck) and expression of the GFP-fusion protein was checked by Western Blot using an anti-GFP antibody (Santa Cruz Biotechnology).
For pull-downs of overexpressed Arl3-Flag 2.5 × 106 HEK293 cells were seeded in 15 cm2 dishes 24 hr prior to transfection. Cells were transfected using Polyethylenimine (PEI) at a ratio 3:1 of PEI (µg) : total DNA (µg). Cells were induced to ciliate by withdrawing serum for 30 hr. ~2.5 × 107 cells (1 × 15 cm2 dish) were lysed in 1 ml lysis buffer for 30 min at 4°C. For pull-downs of endogenous Arl3 1 × 108 cells (4 × 15 cm2 dish) were used. Lysate was cleared by centrifugation and protein concentration normalized. Per sample 50 µg GST-PDE6δ was coupled to 50 µl glutathione agarose which was incubated with cleared lysates for 45 min at 4°C. Cleared lysate was removed and beads washed 2x with 500 µl buffer M. Samples were eluted with 1 × SDS-loading buffer. For the detection of affinity-precipitated endogenous Arl3 an anti-Arl3 antibody (Novus Biologicals) was used, and in case of Arl3-Flag an anti-Flag antibody (Thermo Scientific) was used. Expression of Arl13B-GFP was checked using an anti-GFP antibody (Santa Cruz Biotechnology) and antibody against S-peptide, which is located between Arl13B and GFP in pGLAP5. The level of Arl3·GTP was quantified using ImageJ. Experiments were repeated two or more times.
PHENIX : a comprehensive python-based system for macromolecular structure solutionActa Crystallographica Section D Biological Crystallography 66:213–221.https://doi.org/10.1107/S0907444909052925
Functional genomics of the cilium, a sensory organelleCurrent Biology 15:935–941.https://doi.org/10.1016/j.cub.2005.04.059
Mutations in the cilia gene ARL13B lead to the classical form of joubert syndromeThe American Journal of Human Genetics 83:170–179.https://doi.org/10.1016/j.ajhg.2008.06.023
The graded response to sonic hedgehog depends on cilia architectureDevelopmental Cell 12:767–778.https://doi.org/10.1016/j.devcel.2007.03.004
Joubert syndrome Arl13b functions at ciliary membranes and stabilizes protein transport in Caenorhabditis elegansThe Journal of Cell Biology 188:953–969.https://doi.org/10.1083/jcb.200908133
Regulation of small GTPases by GEFs, GAPs, and GDIsPhysiological Reviews 93:269–309.https://doi.org/10.1152/physrev.00003.2012
Comparative genomic analysis identifies an ADP-ribosylation factor–like gene as the cause of Bardet-Biedl syndrome (bBS3)The American Journal of Human Genetics 75:475–484.https://doi.org/10.1086/423903
The ras mutant D119N is both dominant negative and activatedMolecular and Cellular Biology 19:6297–6305.https://doi.org/10.1128/MCB.19.9.6297
LdARL-3A, a leishmania promastigote-specific ADP-ribosylation factor-like protein, is essential for flagellum integrityJournal of Cell Science 113(Pt 11):2065–2074.
The retinitis pigmentosa protein RP2 links pericentriolar vesicle transport between the golgi and the primary ciliumHuman Molecular Genetics 19:1358–1367.https://doi.org/10.1093/hmg/ddq012
Membrane-dependent signal integration by the ras activator son of sevenlessNature Structural & Molecular Biology 15:452–461.https://doi.org/10.1038/nsmb.1418
ARL13B, PDE6D, and CEP164 form a functional network for INPP5E ciliary targetingProceedings of the National Academy of Sciences 109:19691–19696.https://doi.org/10.1073/pnas.1210916109
Arl2-GTP and Arl3-GTP regulate a GDI-like transport system for farnesylated cargoNature Chemical Biology 7:942–949.https://doi.org/10.1038/nchembio.686
Automatic processing of rotation diffraction data from crystals of initially unknown symmetry and cell constantsJournal of Applied Crystallography 26:795–800.https://doi.org/10.1107/S0021889893005588
Arl13b regulates ciliogenesis and the dynamic localization of shh signaling proteinsMolecular Biology of the Cell 22:4694–4703.https://doi.org/10.1091/mbc.E10-12-0994
The small GTPases ARL-13 and ARL-3 coordinate intraflagellar transport and ciliogenesisThe Journal of Cell Biology 189:1039–1051.https://doi.org/10.1083/jcb.200912001
The emerging role of Arf/Arl small GTPases in cilia and ciliopathiesJournal of Cellular Biochemistry 113:2201–2207.https://doi.org/10.1002/jcb.24116
Structural insights into the small g-protein Arl13B and implications for Joubert syndromeBiochemical Journal 457:301–311.https://doi.org/10.1042/BJ20131097
ADP-ribosylation factor-like 3 is involved in kidney and photoreceptor developmentThe American Journal of Pathology 168:1288–1298.https://doi.org/10.2353/ajpath.2006.050941
Positional cloning of the gene for x-linked retinitis pigmentosa 2Nature Genetics 19:327–332.https://doi.org/10.1038/1214
The x-linked retinitis pigmentosa protein RP2 facilitates g protein trafficHuman Molecular Genetics 21:863–873.https://doi.org/10.1093/hmg/ddr520
Molecular mechanism of the nuclear protein import cycleNature Reviews Molecular Cell Biology 8:195–208.https://doi.org/10.1038/nrm2114
The CCP4 suite: programs for protein crystallographyActa Crystallographica. Section D, Biological Crystallography 50:760–763.https://doi.org/10.1107/S0907444994003112
ADP-ribosylation factors (aRFs) and ARF-like 1 (aRL1) have both specific and shared effectors: CHARACTERIZING ARL1-BINDING PROTEINSJournal of Biological Chemistry 276:22826–22837.https://doi.org/10.1074/jbc.M102359200
The retinitis pigmentosa 2 gene product is a GTPase-activating protein for arf-like 3Nature Structural & Molecular Biology 15:373–380.https://doi.org/10.1038/nsmb.1396
An ARL3-UNC119-RP2 GTPase cycle targets myristoylated NPHP3 to the primary ciliumGenes & Development 25:2347–2360.https://doi.org/10.1101/gad.173443.111
Mistrafficking of prenylated proteins causes retinitis pigmentosa 2The FASEB Journal 29:932–942.https://doi.org/10.1096/fj.14-257915
Arl2 and Arl3 regulate different microtubule-dependent processesMolecular Biology of the Cell 17:2476–2487.https://doi.org/10.1091/mbc.E05-10-0929
David E ClaphamReviewing Editor; Howard Hughes Medical Institute, Boston Children's Hospital, United States
In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.
Thank you for submitting your work entitled "A G-protein activation cascade from Arl13b to Arl3 and implications for ciliary targeting of lipidated proteins" for consideration by eLife. Your article has been reviewed by Richard Aldrich (Senior editor), David Clapham (Reviewing editor), and three peer reviewers. One of the three reviewers, DickGörlich (reviewer# 3), has agreed to reveal his identity.
The reviewers have discussed the reviews with one another and the Reviewing editor has drafted this decision to help you prepare a revised submission.
The manuscript by Gotthardt et al. identifies Arl13b as the GEF for Arl3 and describes a comprehensive interaction, activity and structural investigation of the two proteins. Arl13b is a G-protein residing in the cilium and is often used as a marker to visualize cilia. However, the molecular function of Arl13b is not known. Arl3 is another G-protein that is required for proper cilium function and is specifically involved in the transport of lipidated cargo proteins to the cilium. The authors of the manuscript carried out yeast-2-hybrid analysis using a mouse retinal cDNA library whereby they identified an interaction between Arl3 and Arl13b. Using recombinantly purified Chlamydomonas proteins, for which the solubility was apparently better, it is convincingly shown that Arl13b is indeed a GEF for Arl3. The crystal structure of the complex is also presented and numerous structure-based or disease causing mutations are tested for their impact on GEF activity. The crystal structure represents the post-catalytic state of the complex (Arl3 in a GTP-analog bound state) and thus does not reveal any direct mechanistic insights into the GEF mechanism. The structure does however reveal the molecular basis for Arl3-Arl13b interaction and suggest that residues following a coiled-coil region of Arl13b may be responsible for interaction with the Arl3 G-site, a notion that is confirmed using truncated Arl13b protein in GEF assays. Finally, the manuscript presents the impact of over-expression of WT or mutant Arl13b on the level of Arl3-GTP in different human cell lines and also demonstrates GEF activity for the human proteins pointing to an evolutionarily conserved mechanism.
1) Figure 2 and corresponding legend are confusing. The legend for C) refers to a red, blue and yellow curve although the curves in panel C) are actually green, blue and yellow. It appears that the figure legends for panel C and E have been swapped. Similarly it appears that the legend for panel D and F have been swapped.
3) The authors state: “In the crystal structure, the nucleotide binding site of CrArl3 is not directly contacted by CrArl13B, and cannot be trapped presumably due to the presence of nucleotide and/or its flexibility”. This is quite a bold statement. Maybe change to: “we were not able to trap…”.
4) This sentence needs clarification or rephrasing: “Intriguingly, the Arl3·GTP level of cells overexpressing the Joubert mutant variants Arl13BR79Q and Arl13BR200C was less increased consistent with the biochemical data whereby the effect of R79Q was more drastic (Figure 5E,F)”.
5) Table 3 appears to have a typo for R.m.s.d. for bond length. The number should probably be 0.005̄A instead of 0.0005A. If not then the structure was refined with too tight geometry restraints (even for 0.005A one could argue that it would make sense to loosen the restraints a bit).
6) One reviewer suggested a cartoon illustrating a ciliary targeting cycle.
7) There is an obvious parallel to the RanGTP gradient model for importin and exportin function. Right now, this is just mentioned in passing, late in the Discussion, and not in sufficient detail to grasp the concept. This could be expanded and linked to references. The rationale of the story would become clearer if the Ran-gradient concept were explained first.
8) The main text should start with a coherent introduction. Right now, the introductory paragraph is far too minimalistic for any reader who is not absolutely acquainted with the ciliary targeting field. For example, it should be explained which proteins are targeted, how Arl3 mediates cargo release, how the Arl3 GAP functions in ciliary protein targeting, and why the localisation of this GAP is important. And it should be explained what a ciliopathy phenotype actually is.
These points can be answered in the Discussion:
9) Arl13 itself is a GTP-binding protein, and the authors show that its GTP-bound form has a higher Arl3-GEF activity. How is the nucleotide-bound state of Arl13 controlled? Has Arl3 any effect?
10) It is a bit odd that Arl3 (in the nucleotide exchange intermediate) crystallised with a bound GppNp. Did the authors also try to co-crystallise the D129N mutant? And does this mutant indeed have a higher affinity for Arl13B?https://doi.org/10.7554/eLife.11859.014
