Opposing roles for DNA replication initiator proteins ORC1 and CDC6 in control of Cyclin E gene transcription

  1. Manzar Hossain
  2. Bruce Stillman  Is a corresponding author
  1. Cold Spring Harbor Laboratory, United States
Research Article
  • Cited 5
  • Views 1,767
  • Annotations
Cite as: eLife 2016;5:e12785 doi: 10.7554/eLife.12785

Abstract

Newly born cells either continue to proliferate or exit the cell division cycle. This decision involves delaying expression of Cyclin E that promotes DNA replication. ORC1, the Origin Recognition Complex (ORC) large subunit, is inherited into newly born cells after it binds to condensing chromosomes during the preceding mitosis. We demonstrate that ORC1 represses Cyclin E gene (CCNE1) transcription, an E2F1 activated gene that is also repressed by the Retinoblastoma (RB) protein. ORC1 binds to RB, the histone methyltransferase SUV39H1 and to its repressive histone H3K9me3 mark. ORC1 cooperates with SUV39H1 and RB protein to repress E2F1-dependent CCNE1 transcription. In contrast, the ORC1-related replication protein CDC6 binds Cyclin E-CDK2 kinase and in a feedback loop removes RB from ORC1, thereby hyper-activating CCNE1 transcription. The opposing effects of ORC1 and CDC6 in controlling the level of Cyclin E ensures genome stability and a mechanism for linking directly DNA replication and cell division commitment.

https://doi.org/10.7554/eLife.12785.001

eLife digest

Living cells must replicate their DNA before they divide so that the newly formed cells can each receive an identical copy of the genetic material. Before DNA replication can begin, a number of proteins must come together to form so-called pre-replicative complexes at many locations along the DNA molecules. These protein complexes then serve as landing pads for many other DNA replication proteins.

One component of the pre-replicative complex, a protein called ORC1, helps to recruit another protein called CDC6 that in turn acts with Cyclin E to promote the replication of the DNA. Cyclin E is a protein that is only expressed when cells commit to divide. Previous research has shown that a lack of ORC1 causes the levels of Cyclin E to rise in human cells, but it was not understood how cells regulate the levels of Cyclin E.

Now, Hossain and Stillman show that the ORC1 protein switches off the gene that encodes Cyclin E early on in newly born cells, and therefore prevents the Cyclin E protein from being produced. The experiments show that ORC1 does this by binding near one end of the gene for Cyclin E and interacting with two other proteins to inactivate the gene. Thus, ORC1 establishes a period when Cyclin E is absent from a newly formed cell. This essentially gives the cell time to ‘decide’ (based on external cues and its own signaling) whether it will divide again or enter into a non-dividing state.

When a cell does decide to divide, the levels of CDC6 rise. CDC6 is another component of the pre-replicative complex and Hossain and Stillman find that CDC6 works to counteract the effects of ORC1 and reactivate the gene for Cyclin E. This activity leads to a dramatic increase in the production of Cyclin E, which in turn allows the cells to commit to another round of DNA replication and division.

The opposing effects of ORC1 and CDC6 control the levels of Cyclin E and provide a link between DNA replication and a cell’s decision to divide. Further work is now needed to see whether ORC1 inactivates other genes in addition to the one that encodes Cyclin E.

https://doi.org/10.7554/eLife.12785.002

Introduction

In addition to its role in the initiation of DNA replication, ORC1, the largest subunit of the Origin Recognition Complex (ORC) controls Cyclin E-dependent duplication of centrosomes and centrioles in cells by acting as an inhibitor of Cyclin E-CDK2 activity (Hemerly et al., 2009; Hossain and Stillman, 2012). The Cyclin E-CDK2 kinase inhibitory activity is compromised by ORC1 Meier-Gorlin syndrome mutations that also alter the interaction between ORC1 and histone H4K20me2 (Hossain and Stillman, 2012; Kuo et al., 2012; Zhang et al., 2015; Bicknell et al., 2011b; Bicknell et al., 2011a; de Munnik et al., 2012). Unlike the well-characterized yeast complex that is a stable, six subunit complex throughout the cell division cycle, ORC in human cells is a very dynamic complex (Sasaki and Gilbert, 2007; DePamphilis, 2005). ORC1 binds to mitotic chromosomes as cells enter into mitosis (Kara et al., 2015; Okuno et al., 2001), and in human cells, it is modified by ubiquitin and then degraded during the G1 to S phase transition (Abdurashidova et al., 2003; Kara et al., 2015; Kreitz et al., 2001; Mendez et al., 2002; Ohta et al., 2003; Siddiqui and Stillman, 2007; Tatsumi et al., 2000). The assembly of the full ORC occurs in mid G1 phase of the cell division cycle in preparation for its role in assembly of the pre-replicative complex (pre-RC) at sites across chromosomes (Kara et al., 2015; Siddiqui and Stillman, 2007).

The ORC1-related protein CDC6 is also required for pre-RC assembly, but it is targeted for proteasome degradation by the SCFCyclin F ubiquitin ligase complex late in the cell cycle and the anaphase-promoting complex/cyclosome (APC/C) in early G1 phase and then stabilized in mid G1 phase by Cyclin E-CDK2-mediated phosphorylation (Mailand and Diffley, 2005; Petersen et al., 2000; Walter et al., 2016). This phosphorylation is mediated by the direct interaction between Cyclin E and CDC6 and CDC6 and Cyclin E-CDK2 cooperate to promote the initiation of DNA replication (Coverley et al., 2002; Furstenthal et al., 2001; Cook et al., 2002).

As proliferating cells divide, they must make a decision whether to continue to proliferate or enter into proliferative quiescence. This decision is made by a complex regulatory process known as START in yeast and the restriction point in mammalian cells (Johnson and Skotheim, 2013). Key among these regulators are the Cyclin D-CDK4/6 kinases that mono-phosphorylate the retinoblastoma (RB) protein and contributes to the release of repression of E2F-transcription factors (Narasimha et al., 2014; Ewen et al., 1993; Hinds et al., 1992; Lundberg and Weinberg, 1998; Resnitzky et al., 1994). E2F1-regulated genes include genes encoding Cyclin E (CCNE1) and CDC6 (Hateboer et al., 1998; Ohtani et al., 1998; Yan et al., 1998; DeGregori et al., 1995). Cyclin E-CDK2 amplifies the phosphorylation of RB, but how this is achieved is not known (Narasimha et al., 2014). Here, we demonstrate that ORC1 is required for repression of the gene encoding Cyclin E and that CDC6 is involved in relieving the repression in cooperation with Cyclin E-CDK2. We suggest that ORC1 establishes a period in the newly born cells during which Cyclin E is not expressed, allowing time for the cells to decide whether to proliferate again or enter into replicative quiescence.

Results

ORC1 binds to RB and SUV39H1 and represses CCNE1 gene transcription

Apart from its role in DNA replication, human ORC1 controls centriole and centrosome copy number by binding and inhibiting the kinase activity of Cyclin E-CDK2 (Hemerly et al., 2009). That work suggested that ORC1 might also control Cyclin E by regulating its protein level during the G1 phase of the cell division cycle. To determine if this was the case, ORC1 was depleted using siRNA in U2OS cells that had been synchronized in mitosis by nocodazole treatment and released into the next cell cycle. As early as 9 hr post release, Cyclin E protein level was elevated in ORC1-depleted U2OS cells, compared to control siRNA treated cells (Figure 1A). The expression of CCNE1 mRNA increased at all times following ORC1 depletion in synchronized U2OS cells (Figure 1B) and quantitation of multiple experiments showed significant increases from 6–24 hr post release (Figure 1—figure supplement 1A–D). This data suggests that ORC1 inhibits CCNE1 gene expression.

Figure 1 with 2 supplements see all

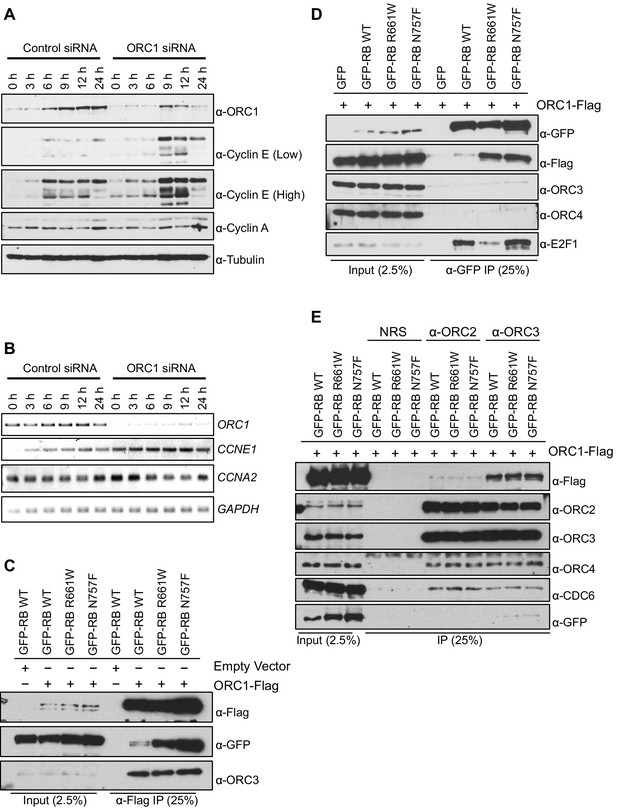

ORC1 represses Cyclin E gene expression and interacts with RB.

(AB) Nocodazole arrested U2OS cells were transfected with control or ORC1 siRNA then released into the next cycle. (A) protein levels were estimated by immunoblotting with antibodies against ORC1, Cyclin E, Cyclin A and α-Tubulin. Low and high indicates different exposures. (B) mRNA levels of ORC1, Cyclin E (CCNE1), Cyclin A (CCNA2) and GAPDH. Quantitation of mRNA levels from multiple experiments is shown in Figure 1—figure supplement 1. (CE) Interaction between ORC1 and RB or its pocket mutants. GFP, GFP-tagged wild-type or mutant RB were co-transfected in HEK293 cells with either ORC1-Flag or empty vector. Immunoprecipitation with anti-Flag antibody (C) or GFP antibody (D) from cell lysates followed by immunoblotting with the indicated antibodies. (E) Cell lysate from HEK293 cells overexpressing GFP-tagged wild type or mutant RB and ORC1-Flag were immunoprecipitated with normal rabbit serum (NRS) or ORC2 or ORC3 antibodies, immunoblotted with the indicated antibodies. Binding of ORC1 to wild-type and RB mutants and the effect of Cyclin E-CDK2 is shown in Figure 1—figure supplement 2. GFP, Green fluorescent protein; ORC, Origin Recognition Complex; RB, Retinoblastoma.

https://doi.org/10.7554/eLife.12785.003

Transcription of the gene encoding Cyclin E (CCNE1) is known to be regulated by the E2F1 transcription factor and to be repressed by RB protein (Nielsen et al., 2001; Geng et al., 1996; DeGregori et al., 1995), a member of the so-called 'pocket protein' family (Dick and Rubin, 2013; Dyson, 1998; Giacinti and Giordano, 2006). Since ORC1 binds RB (Mendoza-Maldonado et al., 2010), we explored a role for ORC1 in transcriptional repression of the CCNE1 gene.

RB was expressed as a fusion to the maltose binding protein (MBP) and it bound to S35-labelled ORC1 protein (Figure 1—figure supplement 2A). RB binds other binding partners dependent on a canonical LxCxE motif and although ORC1 has a conserved LPCRD/E sequence, it was not required for the interaction between ORC1 and RB (Figure 1—figure supplement 2A and B). Consistent with this finding, two pocket mutants within RB (R661W and N757F) that are defective in binding to LxCxE containing proteins (Chen and Wang, 2000) showed no defect in binding to ORC1 in vitro (Figure 1—figure supplement 2C) or in vivo (Figure 1C). In fact, the mutant RB proteins bound ORC1 better than the wild type, perhaps due to loss of competition between ORC1 and other RB binding proteins or due to conformational changes in RB. When Green Fluorescent Protein (GFP)-RB fusion protein was expressed in cells with ORC1-Flag-tagged protein, the ORC1-Flag protein bound WT and pocket mutant RB, but other ORC subunits did not bind to RB (Figure 1D). We confirmed this observation by showing that immunoprecipitation with anti-ORC2 or anti-ORC3 antibodies failed to precipitate GFP-RB or its mutants, but did bind ORC1-Flag (Figure 1E). Given that the ORC1-RB interaction is independent of other ORC subunits, it suggests that ORC1 has additional functions that are separate from its role in DNA replication.

The phosphorylation of RB is an important step that relieves repression of E2F target genes (Rubin, 2013). In the presence of purified Cyclin E-CDK2 kinase plus ATP RB no longer bound to ORC1 (Figure 1—figure supplement 2A and C), suggesting that Cyclin E might feedback and relieve repression of the CCNE1 gene by disrupting the RB-ORC1 interaction.

RB interacts with chromatin and histone-modifying enzymes to repress E2F1 transcription activity (Dick and Rubin, 2013). Specifically, it has been suggested that RB binds to the SUV39H1 histone methyltransferase that tri-methylates histone H3K9 and then HP1α binds to histone H3K9me3 and that these direct interactions contribute to repression of CCNE1 transcription (Nielsen et al., 2001). It is important to note, however, that others suggested that another protein mediates the RB-SUV39H1 interaction (Vandel et al., 2001). Since ORC1 interacts with both RB and HP1α (Prasanth et al., 2010), we tested whether ORC1 also interacts with SUV39H1. Using purified proteins we found that both RB and ORC1 directly bound to SUV39H1, and ORC1 directly bound to CDC6 (Saha et al., 1998) (Figure 2A and Figure 2—figure supplement 1). Under these conditions, ORC1 bound to HP1α weakly, but the binding increased when higher levels of GST-HP1α were added, consistent with published data (Prasanth et al., 2010). Although both RB and ORC1 directly interacted with SUV39H1, ORC1 bound SUV39H1 much better than RB (Figure 2—figure supplement 2A–D). Consistent with the in vitro data, we observed that anti-SUV39H1 antibodies precipitated ORC1 and RB in the RB-positive cells (U2OS and MCF7), with ORC1 being the predominant interacting protein in MCF7 cells (Figure 2B). Furthermore, the interaction between SUV39H1 with ORC1 protein did not require RB because anti-ORC1 antibodies co-precipitated SUV39H1 from RB-negative SaOS-2 cells (Figure 2C). This observation was confirmed when GFP-RB or GFP-ORC1 were transiently expressed with T7-SUV39H1 in 293 cells; ORC1 more readily bound to SUV39H1 (Figure 2D), whereas higher levels of GFP-RB were required to observe an interaction with SUV39H1 (Figure 2—figure supplement 3A). Domain mapping demonstrated that SUV39H1 interacted with ORC1 through its SET domain containing C-terminus, which is required for its histone methyltransferase (HMT) activity. Moreover, SUV39H1 interacted with ORC1 and ORC1 mutants that could not be phosphorylated by Cyclin-CDK and did not interact in a complex with other ORC subunits, similar to the ORC1-RB interaction (Figure 2—figure supplement 3B–C). These data suggest that the ORC1-SUV39H1 interaction does not require other ORC subunits or CDK phosphorylation of ORC1, and therefore ORC1 plays a role independent of its role in DNA replication.

Figure 2 with 4 supplements see all

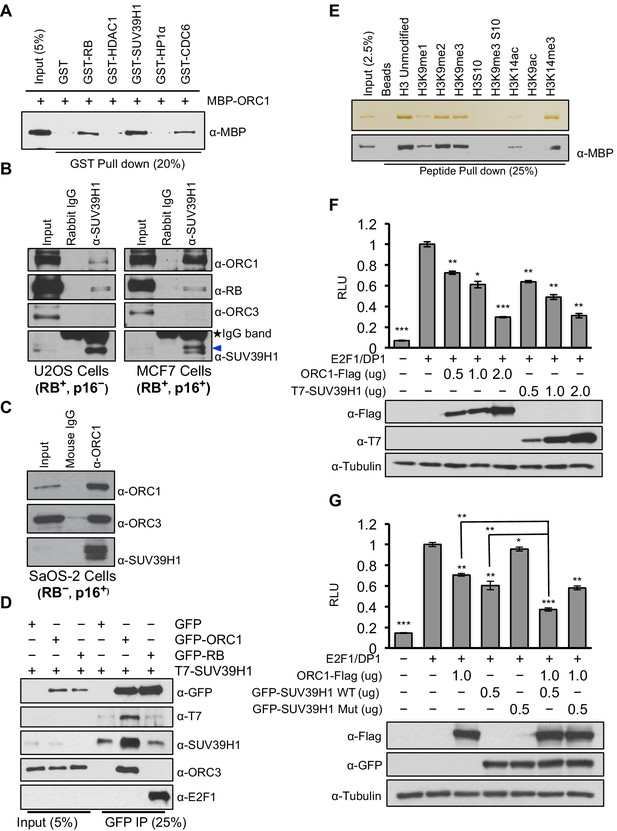

ORC1 binds SUV39H1 to control Cyclin E gene transcription.

(A) Purified MBP-ORC1 and various GST-fused proteins were mixed and proteins bound in a GST-pull down were detected by immunoblotting with anti-MBP antibodies. The purified proteins are shown in Figure 2—figure supplement 1. (B) U2OS and MCF7 cell lysates were immunoprecipitated with SUV39H1 antibody and immunoblotted with the indicated antibodies. Rabbit IgG served as control antibody. Asterisk indicates the cross-reacting antibody band; arrow indicates the SUV39H1 protein. (C) Immunoprecipitation from RB-negative SaOS-2 cell lysates with ORC1 antibody or IgG and immunoblotted with antibodies against ORC1, SUV39H1 or ORC3. (D) HEK293 cells were transiently co-transfected with GFP, GFP-ORC1 or GFP-RB plus T7-SUV39H1 plasmids (2.5 μg each). GFP antibody immunoprecipitates were immunoblotted with the indicated antibodies. The interaction between ORC1 and SUV39H1 and between RB and SUV39H1 is shown with purified proteins and quantitated in Figure 2—figure supplement 2. Higher levels of RB are required to demonstrate an interaction with SUV39H1 in vivo and ORC1 interacts with the SET domain of SUV39H1, Figure 2—figure supplement 3. (E) MBP-ORC1 was incubated with bead-bound histone peptides with or without the indicated modifications and bound MBP-ORC1 was observed by immunoblotting with anti-MBP antibody (lower box) or silver staining (upper box). (FG) Wild-type CCNE1-luciferase reporter assay in U2OS cells. U2OS cells were transiently co-transfected with 500 ng of 10–4 CCNE1 promoter, 50 ng E2F1, 50 ng DP1 and 20 ng pCMV-LacZ plasmids along with the indicated amounts ORC1 and/or SUV39H1 plasmids. (F) Increasing amounts of ORC1-Flag or T7-SUV39H1 repress Cyclin E gene promoter. Experiments were carried out in triplicate. Expression of proteins was confirmed by Immunoblot; α-Tubulin as loading control. Statistical analysis was performed using the Student’s t test. *p<0.05; **p<0.005; ***p<0.001. (G) ORC1-Flag cooperates with wild type but not mutant SUV39H1 to repress CCNE1 gene expression. The experiments were carried out in triplicate. Expression of proteins was confirmed by Western blots. α-Tubulin served as a control for equal loading of each sample. Statistical analysis was performed using the Student’s t test. *p<0.01; **p<0.005; ***p<0.0001. Repression of transcription by ORC1 and SUV39H1 was also demonstrated using an artificial promoter and tethering the proteins via the GAL4 DNA binding domain in Figure 2—figure supplement 4. ORC, Origin Recognition Complex; MBP, Maltose binding protein; GST, Glutathione S transferase.

https://doi.org/10.7554/eLife.12785.006

Since SUV39H1 tri-methylates histone H3K9 after its de-acetylation by HDAC1, a prerequisite step for establishing CCNE1 gene repression, we explored the ORC1 protein interactions with different histone H3 modifications (Nicolas et al., 2003; Stewart et al., 2005; Vaute et al., 2002). Purified ORC1 bound to unmodified or mono-, di- or tri-methylated H3K9 or H3K14-tri-methyl modifications, while the interaction was abolished when histone H3 was acetylated at the same positions or when H3 serine-10 was phosphorylated, which normally occurs during mitosis (Figure 2E). Thus, ORC1 can bind to RB, SUV39H1 and to the repressive H3K9-me3 modification on histone H3, suggesting that it might mediate repression of E2F1-dependent CCNE1 transcription.

To test if ORC1 has a role in repression of the E2F1-regulated CCNE1 gene, the CCNE1 promoter was linked to the luciferase-coding region to create a reporter for CCNE1 gene transcription (Geng et al., 1996). Transfection of plasmids expressing E2F1 and its binding partner DP1 activated gene expression, whereas expression of ORC1 or SUV39H1 protein repressed CCNE1 expression in a dose-dependent manner (Figure 2F). In a GAL4-based reporter gene assay, expression of either GAL4-ORC1 or GAL4-SUV39H1 also repressed transcription of the reporter gene in a dose-dependent manner (Figure 2—figure supplement 4A). In contrast, neither expression of ORC3 nor ORC4 altered E2F1-driven CCNE1 transcription (Figure 2—figure supplement 4B). Moreover, SUV39H1 co-operated with ORC1 to further repress the CCNE1 promoter, but a mutant of SUV39H1 (H324K) (Li et al., 2002; Rea et al., 2000; Stewart et al., 2005) that has lost its catalytic activity was unable to do so (Figure 2G). We therefore conclude that ORC1-SUV39H1 co-operation for transcriptional repression of the CCNE1 gene is mediated through the HMT activity of SUV39H1.

Cell-cycle-dependent association of ORC1, RB, SUV39H1 and CDC6 proteins with the CCNE1 gene promoter

Having established that ORC1 can repress CCNE1 gene transcription in cooperation with the methyltransferase activity of SUV39H1, we investigated the positioning of ORC1, RB and SUV39H1 proteins within the CCNE1 promoter in vivo. A previous publication (Dellino et al., 2013) reported ORC1 chromatin immuno-precipitation following crosslinking (ChIP) and re-analysis this whole genome Chip-Seq data revealed a weak ORC1 peak (peak height of 7 reads) within the CCNE1 promoter; however, a duplicate was not reported. Therefore, to test whether ORC1 associated with the CCNE1 promoter, we modified a chromatin immunoprecipitation (ChIP) method for ORC1 initially using asynchronously growing MCF7 cells and the immunoprecipitated DNA was analyzed by polymerase chain reaction (PCR) using multiple primer pairs across the CCNE1 promoter (Figure 3A). ORC1 bound to the CCNE1 promoter encompassing the region from -280 to +63 base pairs (probes E and F), a region that is known to bind the E2F1 transcription factor (see Gene Expression Omnibus [GEO] transcription factor binding site accession numbers GSM935484 and GSM935477) and contains five E2F1 consensus binding sites (red bars, Figure 3A). Our ChIP analysis also showed that RB bound to the same regions bound by ORC1, but not to other probes (Figure 3B). When a similar ChIP analysis was performed using antibodies targeted to SUV39H1, histone H3K9me3 and CDC6, these proteins bound to the same region (-342 to +63) of the CCNE1 promoter (Figure 3C, also see Figure 4 below).

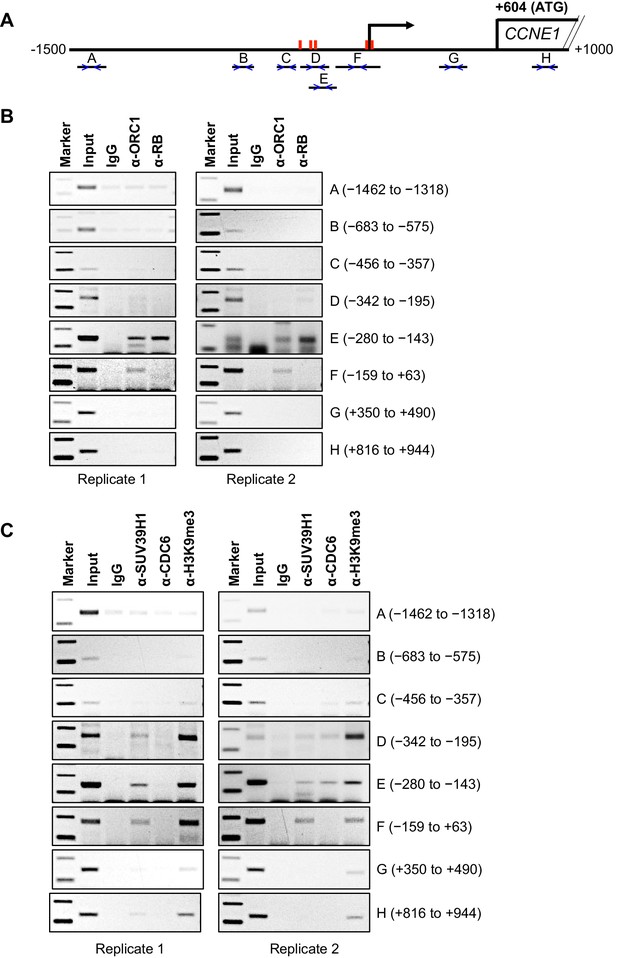

Binding of ORC1, RB, SUV39H1 and CDC6 proteins to the CCNE1 promoter.

(A) Schematic of the CCNE1 promoter and the regions amplified with different primer pairs used for ChIP assay were indicated as follows: A (−1462 to −1318); B (−683 to −575); C (−456 to −357); D (−342 to −195); E (−280 to −143); F (−159 to +63); G (+350 to +490); H (+816 to +944). The red bars indicate five E2F1 consensus sites. The truncated box indicates the first exon of the CCNE1 gene. (B–C) The occupancy of ORC1, RB, SUV39H1 and CDC6 proteins was analyzed by chromatin immunoprecipitation at the CCNE1 promoter in asynchronous growing MCF7 cells. ORC1 and RB are mouse antibodies, while SUV39H1 and CDC6 are rabbit antibodies. In the marker lanes, the two bands are 100 and 200 base pairs. The experiments were done in triplicate and two of these experiments are shown.

https://doi.org/10.7554/eLife.12785.011

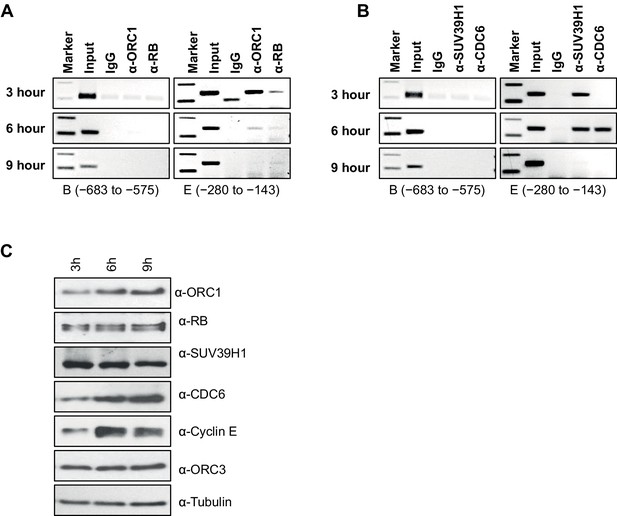

Dynamic association of ORC1, RB, SUV39H1 and CDC6 proteins to the CCNE1 promoter during the cell cycle.

(AB) Nocodazole arrested U2OS cells were released for different times (3, 6 and 9 hr) and analyzed for occupancy of ORC1, RB, SUV39H1 and CDC6 proteins at the CCNE1 promoter by ChIP assay. The primer pairs used to analyze two different regions of the CCNE1 promoter are indicated. The experiments were done in triplicate with results similar to those shown. (C) Whole cell protein levels of nocodazole arrested and released U2OS cells at different time points (as indicated in hours) by immunoblotting with antibodies against ORC1, RB, SUV39H1, CDC6, Cyclin E, ORC3 and α-Tubulin. ORC, Origin Recognition Complex; RB, Retinoblastoma.

https://doi.org/10.7554/eLife.12785.012

We next studied the temporal dynamics of protein binding to the CCNE1 promoter during the G1 phase of the cell cycle in synchronized U2OS cells. In this analysis, cells were blocked in mitosis with nocodazole and released into the next G1 phase and ChIP analyses for ORC1, CDC6, RB and SUV39H1 were performed using primer pairs B and E (Figures 4A and B). ORC1 and RB bound to the probe E region, but not the probe B region, at 3 hr post mitosis, and then binding was reduced at 6 hr and eliminated by 9 hr (Figure 4A), even though ORC1 protein remained in the cell (Figure 4C). SUV39H1 was detected at 3 and 6 hr, but not at 9 hr. Interestingly, CDC6 transiently bound to the promoter only at 6 hr (Figure 4B), precisely the time when Cyclin E proteins levels dramatically increase (Figure 4C). In the following section, we investigated the physiological role of CDC6 binding to CCNE1 promoter.

CDC6 cooperates with Cyclin E-CDK2 to remove RB from ORC1 and activate CCNE1 gene transcription

Cyclin E-CDK2 cooperates with CDC6 to stimulate entry from G1 phase into S-phase of the mammalian cell division cycle (Cook et al., 2002; Coverley et al., 2002; Hateboer et al., 1998). Since CDC6 protein levels increase during late G1 phase (Hateboer et al., 1998; Mendez and Stillman, 2000) and CDC6 binds ORC1 (Figure 2A), we hypothesized that CDC6 may help alleviate ORC1-mediated repression of the CCNE1 gene. CDC6 and Cyclin E-CDK2 were purified and increasing amounts were titrated into a mixture containing purified RB and ORC1 (Figure 5—figure supplement 1) and the interaction between RB and ORC1 was monitored. MBP-ORC1 bound to CDC6 (Figure 5A) and increasing amounts of Cyclin E-CDK2 did not interfere with this interaction (Figure 5B). Moreover, increased binding between CDC6 and ORC1 did not interfere with binding between ORC1 and RB (Figure 5B). Cyclin E-CDK2 disrupted the interaction between ORC1 and RB (Figure 5C and Figure 2—figure supplement 2A), but it took relatively high levels of Cyclin E-CDK2. Importantly, the addition of CDC6 along with CyclinE-CDK2 cooperatively disrupted the interaction between ORC1 and RB, even at low concentrations of Cyclin E-CDK2 (Figure 5C). As shown before with Xenopus proteins (Furstenthal et al., 2001), human CDC6 bound to Cyclin E-CDK2 in a manner dependent on the CDC6 Cyclin 'Cy' binding motif CDC694RRL96 but not to the CDC694ARA96'Cy' mutant (Figure 5D).

Figure 5 with 1 supplement see all

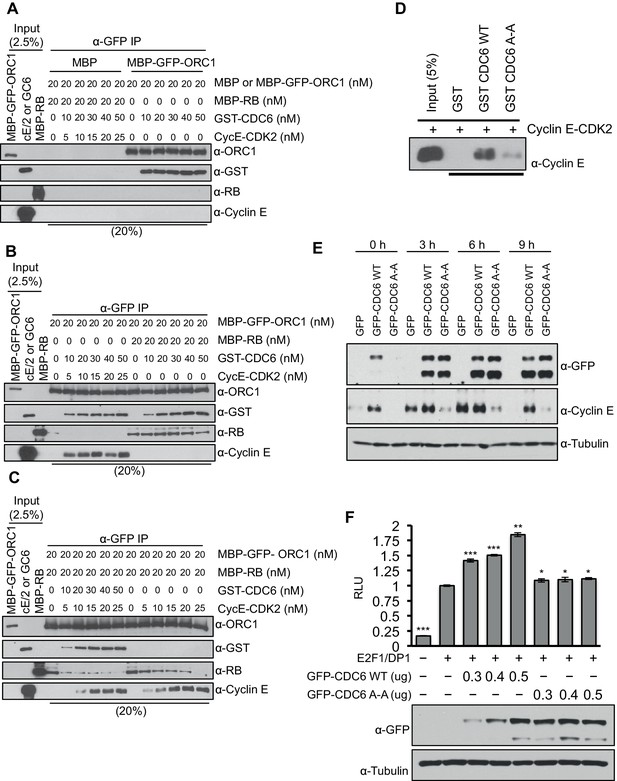

CDC6 co-operates with Cyclin E-CDK2 to activate E2F1-dependent CCNE1 gene transcription.

(AC) Equimolar amounts of MBP-GFP-ORC1 and MBP-RB proteins were incubated with increasing amounts of GST-CDC6 and/or Cyclin E-CDK2. MBP-GFP-ORC1 protein was immunoprecipitated with GFP antibody, then immunoblotted with the indicated antibodies. The purified proteins used in these experiments are shown in Figure 5—figure supplement 1 (A) MBP-GFP-ORC1 binds GST-CDC6. MBP protein served as control. (B) The binding of MBP-GFP-ORC1 protein to either GST-CCD6 in the presence of Cyclin E-CDK2 (left section) or MBP-RB (right section). (C) The binding of MBP-GFP-ORC1 to MBP-RB in the presence of increasing molar amounts of Cyclin E-CDK2 (right section) or both GST-CDC6 and Cyclin E-CDK2 (left section). (D) GST-pull down assay using GST-CDC6 wild type or CDC694ARA96 mutant (CDC6A-A) with purified Cyclin E-CDK2 protein followed by Immunoblotting with Cyclin E antibody. GST protein served as control. (E) Nocodazole arrested U2OS cells were transfected with 500 ng of GFP, GFP-CDC6 wild type or CDC694ARA96 mutant (CDC6A-A) plasmids, then released into the next cell cycle. At indicated times, whole cell extracts were immunoblotted with specific antibodies against GFP and Cyclin E. α-Tubulin served as loading control. (F), CCNE1 promoter-luciferase reporter assay in U2OS cells. Cells transiently co-transfected with 500 ng of 10–4 CCNE1 promoter, 50 ng E2F1, 50 ng DP1 and 20 ng pCMV-LacZ plasmids together with increasing amounts GFP-CDC6 WT or CDC694ARA96 plasmids for 24 hr. Relative luciferase activity was normalized to co-transfected LacZ control. Experiments in triplicate. Protein expression determined by immunoblot; α-Tubulin as loading control. Statistical analysis was performed using the Student’s t test. *p<0.05; **p<0.001; ***p<0.0005. GFP, Green fluorescent protein; MBP, Maltose binding protein; GST, Glutathione S transferase.

https://doi.org/10.7554/eLife.12785.013

Based upon the biochemical data, we hypothesized that CDC6 and Cyclin E-CDK2 cooperated to relieve ORC1-SUV39H1-RB-mediated repression of CCNE1. If this is the case, then CDC6 overexpression should increase CCNE1 expression in vivo. To test this hypothesis, we expressed GFP-tagged CDC6 wild type or its 'Cy' mutant in nocodazole arrested U2OS cells and released them from the nocodazole block to estimate the level of endogenous Cyclin E protein at different times in G1. Expression of wild type CDC6 but not its 'Cy' mutant led to an increase in the endogenous level of Cyclin E protein (Figure 5E). In fact, the Cdc6 'Cy' mutant acted as a dominant negative to prevent normal Cyclin E expression. Consistent with these results, overexpression of CDC6 wild type but not its 'Cy' mutant further enhanced E2F1-DP1 activated transcription from the CCNE1 promoter (Figure 5F). Based on these data, we suggest that CDC6 co-operates with Cyclin E-CDK2 kinase to abolish the interaction between RB and ORC1, contributing to alleviating the repression imposed by RB on the CCNE1 gene, leading to CCNE1 gene transcription.

Data presented so far suggests that ORC1-mediated CCNE1 transcriptional repression also requires SUV39H1. We therefore transfected into RB+ U2OS cells a CCNE1-luciferase reporter plasmid with E2F1-DP1 and depleted ORC1, SUV39H1 or CDC6 using siRNA (Figure 6A). Depletion of either ORC1 or SUV39H1 with two different siRNAs led to significant increases in CCNE1 promoter activity above its basal, E2F1/DP1-dependent level. In contrast, depletion of CDC6 protein had no effect on the basal, E2F1/DP1-dependent promoter activity (Figure 6A). We further investigated the binding to the CCNE1 promoter of SUV39H1 and the presence of its product, the histone H3K9me3 mark, upon depletion of ORC1 protein in asynchronously growing U2OS cells by ChIP assay. Upon depletion of ORC1 compared to control siRNA the methyltransferase activity of SUV39H1 was drastically reduced on the CCNE1 promoter as evident by a dramatic reduction in the histone H3K9m3 mark at the promoter, while the binding of SUV39H1 was only slightly reduced (Figure 6B). The reduced binding of H3K9me3 was most evident within the region -280 to -143 of the CCNE1 promoter, where ORC1 binding was centered (Figure 6B, Figure 6—figure supplement 1). Depletion of ORC1 also resulted in reduced levels of the histone H3K9me3 mark as well as a slight reduction in the level of SUV39H1 protein (Figure 6C). Our results support the hypothesis that ORC1 is involved in transcription repression by recruiting the SUV39H1 protein, which thereby creates the histone H3K9me3 transcriptional repressor mark on CCNE1 promoter.

Figure 6 with 1 supplement see all

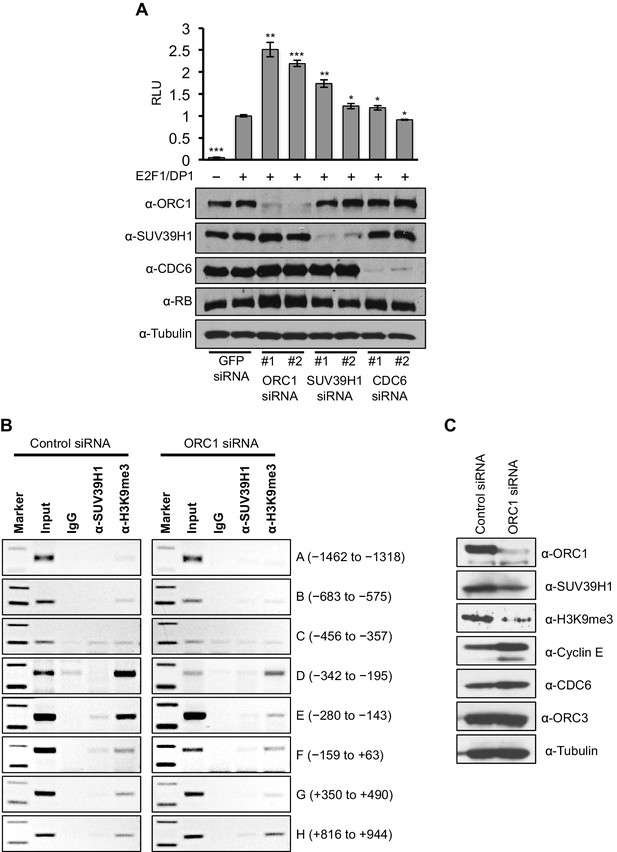

ORC1 depletion decreases association of SUV39H1 and H3K9me3 with the CCNE1 promoter and increases CCNE1 gene transcription.

(A) CCNE1-luciferase reporter assay in U2OS cells. U2OS cells transiently co-transfected with 500 ng of 10–4 CCNE1 promoter, 50 ng E2F1, 50 ng DP1 and 20 ng pCMV-LacZ. U2OS cells were also transiently transfected for 24 hr with two different siRNAs targeting either ORC1, SUV39H1 or CDC6. GFP siRNA was used as a control. Relative luciferase activity was normalized to co-transfected LacZ control. Depletion of proteins was confirmed by Immunoblot; α-Tubulin as loading control. Statistical analysis was performed using the Student’s t test. *p<0.005; **p<0.001; ***p<0.0005. (B) The CCNE1 promoter was analyzed for SUV39H1 binding and the presence of the H3K9me3 mark by ChIP assay in U2OS cells treated with either control siRNA or ORC1 siRNA for 48 hr. The experiments were done in triplicate and one experiment is shown. (C) Immunoblot of protein levels following control and ORC1 siRNA treatment at different times post nocodazole release. α-Tubulin was used as loading control.

https://doi.org/10.7554/eLife.12785.015

To separate the function of ORC1 as a transcription co-repressor from its well-established role in DNA replication, we identified C-terminus truncation mutants (1–700 aa and 1–768 aa) of ORC1 (full length ORC1 is 1–861 aa) that were defective in binding to the other ORC subunits, but still capable of binding RB and SUV39H1 (Figure 7A–C). These ORC1 mutants were fully active in repressing CCNE1 transcription (Figure 7D), demonstrating that the effects of ORC1 on CCNE1 gene repression were not due to an indirect effect of the role of ORC in DNA replication.

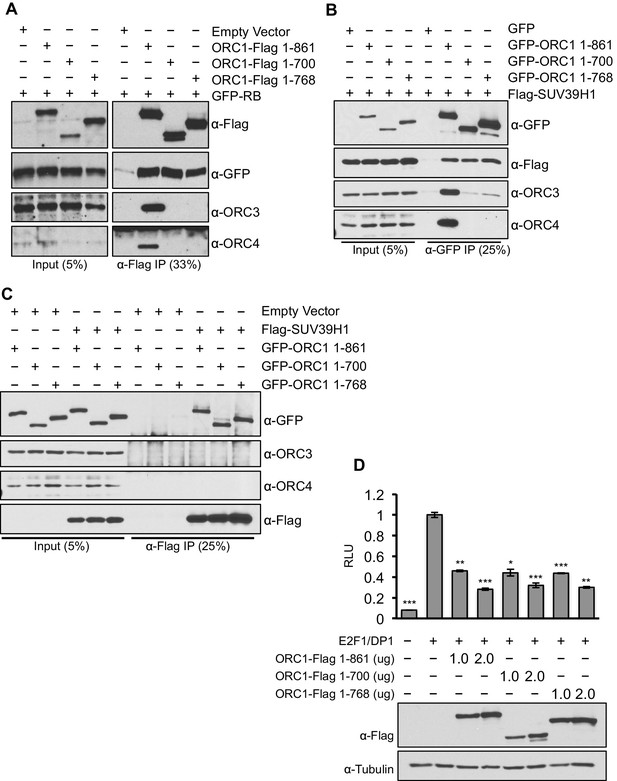

ORC1 mutants separate its role as a transcription co-repressor from its role in DNA replication.

(A) HEK293 cells were transfected with ORC1-Flag or its truncation mutants and GFP-RB as indicated. Whole cell extracts were immunoprecipitated with anti-Flag antibody and immunoprecipitates were analyzed by immuoblot with the indicated antibodies. (B and C) In vivo interaction between SUV39H1 and ORC1 or its truncation mutants. GFP-tagged wild-type ORC1 (1–861) or its truncation mutants (1–700 and 1–768) plasmids were co-transfected into HEK293 cells with Flag-SUV39H1 plasmid and either GFP-vector or empty vector as a control plasmids. Immunoprecipitation with anti-GFP antibody (B) or anti-Flag antibody (C) from cell lysates of HEK293 cells expressing the indicated constructs, followed by immunoblotting with the indicated antibodies. (D). U2OS cells transiently transfected for 24 hr with increasing amounts of wild type ORC1-Flag (1–861) or truncation mutants (1–700 and 1–768). Relative luciferase activity normalized to co-transfected lacZ control. Experiments were in triplicate. Expression of proteins determined by Immunoblot; α-Tubulin as loading control. Statistical analysis was performed using the Student’s t test. *p<0.005; **p<0.001; ***p<0.0005. ORC, Origin Recognition Complex.

https://doi.org/10.7554/eLife.12785.017

Discussion

ORC1 in plants is known to activate transcription in via a plant homeodomain (PHD) that is not found in animal and fungi ORC1 (Sasaki and Gilbert, 2007; de la Paz Sanchez and Gutierrez, 2009). In contrast, ORC1 in the budding yeast S. cerevisiae binds to the Sir1 protein and is involved in repression of transcription of mating type genes (Bell et al., 1993; Triolo and Sternglanz, 1996). In Drosophila and animal cells, ORC, including human ORC1, binds the HP1 proteins that are often involved in transcriptional repression, but a direct link between this interaction and transcription repression has not been established (Auth et al., 2006; Badugu et al., 2003; Lidonnici et al., 2004; Pak et al., 1997; Prasanth et al., 2010; Sasaki and Gilbert, 2007). In this report, we have established opposing roles for ORC1 and CDC6 in control of transcription of the Cyclin E gene CCNE1. ORC1, with RB and SUV39H1, bind to the CCNE1 promoter adjacent to the E2F1 transcription factor binding sites and repress the E2F1-dependent promoter and this repression is relieved by CDC6 that is bound to Cyclin E-CDK2 kinase. Consistent with this model, CDC6 binds to the CCNE1 promoter transiently, just at the time during G1 phase when Cyclin E levels increase dramatically. We suggest that low levels of both Cyclin E and CDC6, both E2F1-controlled genes, appear upon activation of Cyclin D-CDK4 (Narasimha et al., 2014). The expression of CDC6-Cyclin E-CDK2 provides positive feedback, disrupting the repressive RB-ORC1 interaction. The disruption of RB-ORC1 interaction further weakens ORC1 association the with promoter and results in a dramatic reduction in the repressive histone H3K9me3 mark at the promoter, increasing CCNE1 gene transcription and amplifying the levels of CDC6 and Cyclin E-CDK2 (Figure 8, bottom panel). The opposing expression levels of ORC1 and CDC6 during the cell cycle (Figure 8, top panel) are consistent with this model. The production of higher levels of Cyclin E-CDK2 and CDC6 can then function in pre-RC assembly, as they are known to do (Cook et al., 2002; Coverley et al., 2002; Hateboer et al., 1998).

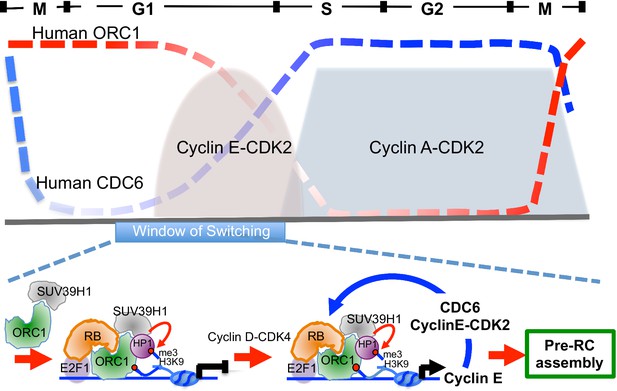

Model showing contrasting roles of DNA replication proteins ORC1 and CDC6 in the regulation of CCNE1 transcription and commitment to pre-RC assembly and cell division.

Top panel summarizes the cycle levels of ORC1 and CDC6. The bottom panel shown the ORC1 associated complexes at different stages of the cell division cycle. Blue arrow, positive feedback inhibition of ORC1-RB interaction.

https://doi.org/10.7554/eLife.12785.018

Our work also shows that ORC1 binds to CCNE1 promoter and recruits SUV39H1, forming the repressive H3K9me3 mark that can then bind the HP1 protein. Interestingly, HP1 is known to bind both SUV39H1 and ORC1 (Prasanth et al., 2010; Stewart et al., 2005). Thus, ORC1 participates in multiple protein-protein interactions to ensure stable repression of CCNE1 and perhaps other E2F1-regulated genes during early G1 phase.

In this way ORC1, which binds mitotic chromosomes and is then inherited into the daughter cells (Kara et al., 2015; Okuno et al., 2001), creates an opportunity to repress CCNE1 gene transcription and allow the newborn cells time to integrate information to decide whether to proliferate or exit the cell division cycle. If proliferation and cell division are destined to occur, Cyclin D-CDK4/6 mono-phosphorylates RB and primes it for Cyclin E-dependent activation of E2F regulated genes (Narasimha et al., 2014). We show that low levels of CDC6-Cycin-E-CDK2 can, in a feedback loop, amplify this commitment by antagonizing ORC1-RB interactions (Figure 8). Consistent with the model, we demonstrated that over-expression of CDC6, but not a CDC6 that cannot bind Cyclin E, enhances the levels of endogenous Cyclin E during the very earliest period of G1 phase. Cell-cycle regulated Cyclin E is essential for maintenance of genome stability since cancer cells that have de-regulated Cyclin E fail to produce sufficient pre-RCs during G1 phase and as a consequence have problems in S phase and accumulate DNA damage (Ekholm-Reed et al., 2004; Jones et al., 2013; Odajima et al., 2010). Of interest is our observation that at the time CDC6 is recruited to the CCNE1 promoter, ORC1 binding to the promoter declines.

In human cells, ORC1 shows a dynamic, temporally regulated nuclear localization pattern such that in early G1 phase it is distributed in a punctate pattern throughout the nucleus, but in late G1 phase, ORC1 predominantly binds to regions of the genome that replicate late in the subsequent S phase (Kara et al., 2015). We suggest that the events that occur at the CCNE1 promoter, ORC1 binding first and recruitment of SUV39H1 and RB, followed by recruitment of Cyclin E-CDK2 and CDC6, may occur at many ORC1 binding sites in the genome, even those sites that are destined to assemble the entire ORC protein and promote pre-RC formation. SUV39H1 binding to ORC1 may influence its temporally dynamic nuclear localization during G1 phase. Such a scenario may also explain observations that have implicated a role for RB in DNA replication (Bosco et al., 2001; Kennedy et al., 2000; Sterner et al., 1998). The ORC1-CDC6 switch might temporally influence pre-RC assembly just like it does for CCNE1 gene regulation, a possibility we are investigating.

Materials and methods

Cell culture and cell synchronization, with siRNA treatment or transient transfection of expression plasmids

U2OS, HEK293 and MCF7 cells were obtained from the Cold Spring Harbor Laboratory cell culture collection and cultured in DMEM containing high glucose (Gibco) supplemented with 10% inactivated fetal calf serum and Penicillin/Streptomycin. RB defective SaOS-2 cells were obtained from ATCC (HTB-85) and were cultured in McCoy’s media supplemented with 15% inactivated fetal calf serum and Penicillin/Streptomycin. All the cell lines were tested negative for the mycoplasma contamination. To synchronize U2OS cells at G2/M boundary, 100 ng/mL of nocodazole was added to fresh medium for 16 hr. After 16 hr of block the cells were washed two times with 1x Phosphate Buffered Saline (PBS) and subsequently, released into the fresh media. For depletion of ORC1 protein in synchronized U2OS cells, the U2OS cells transiently transfected with 100nM of siRNAs (control GFP as well as ORC1 siRNA) using Lipofectamine RNAiMax and at the same time were treated with nocodazole, then the cells were incubated and released as described. Plasmids expressing exogenous genes were transfected using 2.5 μg of DNA except where indicated using lipofectamine 2000 transfection reagents (ThermoFisher Scientific; Waltham, MA). The sequences of the siRNAs used are listed in the Supplementary file 1.

Plasmid construction and mutagenesis

Plasmids expressing GFP-RB, 10–4 CCNE1 (Addgene: Cyclin E gene) promoter, E2F1, DP1, HDAC1 and pGL2-GAL4-UAS-Luc were purchased from Addgene. pCMV-LacZ plasmid was purchased from Clontech. Plasmid Flag-SUV39H1 was a gift from Peter Zhou (Dong et al., 2013). ORC1-Flag or its mutant derivatives, ORC3-Flag, ORC4-Flag and T7-SUV39H1 plasmids were generated with a C-terminal Flag tag or N-terminal T7 tag in the pLPC vector (McCurrach et al., 1997) (gift from Scott Lowe, Memorial Sloan Kettering Cancer Center) for mammalian expression. Human ORC1 or its mutants, RB or its mutants, CDC6 or its mutants and SUV39H1 or its mutants were also cloned into pEGFP-C1 (Clontech, Mountain View, CA) for transient overexpression in mammalian cells. GAL4-DBD, GAL4-ORC1 and GAL-SUV39H1 plasmids were made by replacing the GFP insert in pEGFP-C1 constructs with in frame GAL4 DBD sequences. MBP-GFP-ORC1 plasmid is made by cloning GFP-ORC1 insert (amplified from GFP-ORC1 plasmid) in pMALc2E vector, while MBP-RB plasmid is made similar to MBP-ORC1 as described previously (Hossain and Stillman, 2012) for protein expression in bacterial cells. Human RB or its mutants, CDC6 or its mutant, SUV39H1 or its mutant, HP1α and HDAC1 were also cloned in pGEX-6P1 vector to produce Glutathione S transferase (GST) fusion proteins in bacterial cells. The mutant plasmids were generated following the site directed mutagenesis protocol (Quickchange, Stratagene, CA). All the plasmid constructs were verified by sequencing. The oligonucleotide sequences used to generate the plasmids are listed in the Supplementary file 1.

Recombinant protein expression and purification

Wildtype ORC1, GFP-ORC1 and RB were fused to the maltose binding protein (MBP) in frame by cloning in the bacterial expression vector pMALc2E (New England Biolab). To generate Glutathione S transferase (GST) fusion proteins, wild type RB or its mutants (R661W and N757F), HDAC1, SUV39H1 or its fragments, HP1α or CDC6 were cloned into the bacterial expression vector pGEX6P1 (GE Healthcare Life Sciences, NJ). The MBP fusion recombinant proteins were expressed and purified using amylose beads according to the procedure described previously (Hossain and Stillman, 2012). For GST fusion proteins, transformed E. coli BL21 cells with their respective plasmids were induced for 12 hr with 0.3 mM of IPTG at 16°C. The induced cells were pelleted, washed, and further lysed with sonication in a lysis buffer A containing 25 mM Tris-HCl at pH 7.5, 150 mM NaCl, 0.02% NP-40, 5 mM benzamidine-HCl, 1 mM phenylmethylsulfonylfluoride, Protease cocktail inhibitor tablets [Roche], 10% glycerol) plus 100 mg/ml lysozyme. The lysed bacterial cells were centrifuged and the clarified supernatant is incubated with pre-washed Glutathione sepharose beads for 3 hr at 4°C. The bead-bound proteins were washed with three column volumes of buffer A plus 0.05% NP-40 + 500 mM NaCl and further with five column volumes of buffer A alone. Fusion protein was eluted in a stepwise manner with buffer A containing 20 mM reduced glutathione, pH7.5. Fractions containing purified proteins were pooled, concentrated, and dialyzed, and protein concentration was estimated using a standard Bradford protein assay.

Pull down assays

For MBP-RB or MBP-ORC1 pull down assay, the same protocol as described previously was used (Hossain and Stillman, 2012), except that here we have used a different binding buffer with following composition; 25 mM Tris-Cl at pH 7.5, 100 mM KCl, 0.1% Nonidet P-40, 0.1 mM EDTA, 5 mM magnesium acetate, 1 mM DTT. For MBP-ORC1 pull down, Cyclin E-CDK2 protein was incubated with wild type GST-RB or its mutants in the presence or absence of 1 mM ATP. The pull down was further immunoblotted with anti-GST antibody (27-4577-01; GE Healthcare Life Sciences, NJ).

The histone peptide pull down assay followed the procedure described previously (Hossain and Stillman, 2012) with the minor modification of binding buffer composition (50 mM Tris-HCl at pH 7.5, 150 mM NaCl, 0.05% NP-40). The pull down was silver stained or immunoblotted with anti-MBP antibody (E8038S; New England Biolab). The biotin-labeled histone H3 peptides were purchased from AnaSpec (Fremont, CA) and bound to Streptavidin beads (Sigma-Aldrich, St. Louis, MO) prior to pull down studies.

For GST pull down assay, bead-bound GST fusion proteins (RB, HDAC1, SUV39H1 or its mutants, HP1α, and GST-CDC6 or its mutant) were incubated with either MBP-ORC1 or MBP-RB or Cyclin E-CDK2 protein. The composition of binding buffer used in the assay was; 25 mM Tris-Cl at pH 7.5, 150 mM KCl, 0.15% Nonidet P-40, 0.1 mM EDTA, 5 mM magnesium acetate, 1 mM DTT. The pull down was further immunoblotted with respective anti-GST (27-4577-01; GE Healthcare Life Sciences, NJ) or anti-Cyclin E antibodies (sc-247; Santa Cruz Biotechnology, Dallas, TX).

For titration-based binding experiments, increasing molar amounts of GST-CDC6 and/or Cyclin E-CDK2 along together with equimolar amounts of MBP-RB (20nM) and MBP-GFP-ORC1 (20nM) were used in different combinations. The reaction mixture was incubated for 4 hr at 4°C followed by 1 hr more incubation with bead coupled anti-GFP antibody (ABP-NAB-GFPA025; Allele Biotech, San Diego, CA) to precipitate MBP-GFP-ORC1. The reaction mixture was incubated and washed with binding buffer with following composition; 25 mM Tris-Cl at pH 7.5, 150 mM KCl, 0.15% Nonidet P-40, 0.1 mM EDTA, 5 mM magnesium acetate, 1 mM DTT and 1 mM ATP. The pull down was immunoblotted with the following antibodies; anti-ORC1 antibody (pKS1-40), anti-RB antibody (#9309; Cell Signaling, Danvers, MA), anti-GST (27-4577-01; GE Healthcare Life Sciences, NJ) and anti-Cyclin E antibody (sc-247; Santa Cruz Biotechnology, Dallas, TX).

Immunoprecipitation

For expression of proteins, HEK293 cells were transiently transfected with the indicated plasmids with lipofectamine 2000 transfection reagents (ThermoFisher Scientific). Immunoprecipitation from HEK293 cells was performed using the procedure described previously (Hemerly et al., 2009) with slight modification in the protocol. Following expression of proteins, the cells were harvested and washed in PBS and lysed in a buffer containing 20 mM Tris-HCl pH7.5, 200 mM NaCl, 0.3% NP-40, 5 mM MgCl2, 0.1 mM EDTA, 10% Glycerol, 1 mM DTT, 1 mM CaCl2, 20 uM MG132 and protease as well as phosphatase inhibitor tablets (Roche). Benzonase (Sigma-Aldrich, St. Louis, MO) was added to the buffer and the suspension incubated for 30 min on ice with intermittent mixing. The concentration of NaCl and NP-40 was reduced to 100 mM and 0.15%, respectively with dilution buffer after 30 min incubation on ice. The extract was centrifuged at 14, 000 rpm for 15 min at 4°C. The proteins were precipitated with specific antibodies as indicated in figure legends using FLAG, GFP, ORC2 or ORC3 antibodies. The whole cell extract was first incubated with antibodies for 4 hr and subsequently, 2 hr with pre-washed gamma bind G sepharose beads with end-to end shaking at 4°C. The beads were washed 3 times with washing buffer containing 20 mM Tris-HCl pH7.5, 100 mM NaCl, 0.1% NP-40, 5 mM MgCl2, 0.1 mM EDTA, 10% Glycerol, 1 mM DTT and protease as well as phosphatase inhibitor tablets from Roche. Finally, the washed beads were suspended in Laemmli sample buffer and 8% SDS-PAGE gels were run and immunoblotted. For immunoprecipitation of endogenous ORC1 and SUV39H1 proteins from U2OS or MCF7 cells and SaOS-2 cells, we have used monoclonal ORC1 antibody coupled to magnetic beads as described previously (Kara et al., 2015) as well as rabbit polyclonal SUV39H1 antibody (A302-128A; Bethyl Laboratories), respectively.

For immunoprecipitations, the following antibodies were used: rabbit polyclonal anti-Flag antibody (F7425; Sigma), GFP nAb (ABP-NAB-GFPA025; Allele Biotech, San Diego, CA), polyclonal anti-SUV39H1 antibody (A302-128A; Bethyl Laboratories), mouse monoclonal ORC1 78-1-172 (Kara et al., 2015), rabbit polyclonal anti-ORC2 antibody (CS205-5) (Prasanth et al., 2004), and rabbit polyclonal anti-ORC3 (CS1890) antibody (Siddiqui and Stillman, 2007). For immunoblots, monoclonal FLAG antibody (F1804; Sigma), polyclonal GFP antibody (G1544; Sigma), monoclonal mouse SUV39H1 antibody (05–615; Millipore), monoclonal mouse T7 antibody (Cold Spring Harbor Laboratory antibody facility), mouse monoclonal anti-ORC1 antibody (pKS1-40) (Hemerly et al., 2009), monoclonal mouse ORC2 antibody (920-2-44) (Siddiqui and Stillman, 2007), mouse monoclonal ORC3 antibody (PKS1-16) (Prasanth et al., 2004), goat polyclonal anti-ORC4 antibody (ab9641; Abcam, Cambridge, MA), monoclonal mouse E2F-1 antibody (KH95; Santa Cruz Biotechnology, Dallas, TX) and rabbit GAL4 antibody (sc-577; Santa Cruz Biotechnology, Dallas, TX) were used.

RNA extraction and qRT-PCR

Nocodazole arrested U2OS cells were transfected with 100 nM siRNA (Dharmacon Inc., Lafayette, CO), and RNA was prepared at the indicated time points post-drug release using the RNeasy Mini Kit (Qiagen cat. #74104) including on-column DNase digestion (Qiagen cat. # 79254) and eluted in the supplied RNase-free water. The cDNA used for Q-PCR was prepared from 1μg each RNA sample using TaqMan Reverse Transcription Reagents (Applied Biosystems #N808-0234) with random hexamer priming in a GeneAmp PCR system 9700 thermocycler. Each Q-PCR reaction was prepared using 2 μL of 1-to-20 diluted cDNA and 13 μL LightCycler 480 SYBR Green I Master Mix (Roche #04887352001) and were performed in 384-well plates using the LightCycler 480 (Roche) as per manufacturer’s instructions.

For semi-quantitative RT-PCR, equal amounts of RNA (0.2 μg) were used for RT-PCR using the Qiagen’s One-Step RT PCR kit following manufacturer’s instructions. PCR was performed for 22 cycles and subsequently, run on 1.8% agarose gel. The primer sequences used for RT-PCR analysis are listed in the Supplementary file 1.

Luciferase reporter assay

For the luciferase reporter assay, 0.3 x 106 U2OS cells were seeded in six-well plates. Cells were transfected with 0.5 μg CCNE1 promoter luciferase plasmid (p10-4), 50 ng E2F1 plasmid, 50 ng of DP1 plasmid and 20 ng LacZ plasmid. Together with above plasmids, the cells were also transfected either with ORC1-Flag or its mutants, ORC3-Flag, ORC4-Flag, T7-SUV39H1, GFP-SUV39H1 or its mutant, GFP-CDC6 or its mutant for overexpression at the indicated amounts in micrograms. The cells were transfected using Lipofectamine 2000 (Life Technologies) for 24 hr. For GAL4-based luciferase assay, the U2OS cells were transfected with 0.5 μg of GAL4-UAS-Luciferase promoter plasmid and 20 ng of LacZ plasmid along with GAL4-DBD fused ORC1 or SUV39H1 at the indicated amounts. In each of the experiments, the amount of plasmid was kept constant by the addition of empty vector DNA. For siRNA-mediated depletion of proteins and luciferase measurement, 100 nM of specific siRNAs targeting ORC1, SUV39H1 or CDC6 were used together with p10-4, E2F1/DP1 and LacZ plasmids. GFP siRNA is used as negative control. β-Galactosidase activity was measured as described previously (Smale, 2010), while luciferase activity was measured using luciferase (Promega) luminescent assay kit according to the manufacturer’s instructions. Luciferase activities were normalized to β-galactosidase activities and denoted as relative light units (RLU). Expression or depletion of proteins was confirmed by Western blot. All the experiments were done in triplicates.

Chromatin immunoprecipitation

MCF7 and U2OS cells were used for chromatin immunoprecipitation. The cells were harvested by trypsinization and washed with cold PBS. The cells (3.0x107) were fixed with 1% formaldehyde for 10 min at room temperature. The cross-linking was stopped by addition 125 mM of glycine for 5 min on ice. The fixed cells were washed with cold PBS and lysed for 10 min on ice with buffer containing 10 mM Tris pH 8.0, 10 mM NaCl, 2 mM MgCl2, 0.4% NP40, 1 mM DTT, 10% Glycerol, protease and phosphatase inhibitors. Preliminary experiments demonstrated that ORC1 was most efficiently extracted from the resulting cells by digestion of the cross-linked chromatin with micrococcal nuclease (MNase; Sigma) and extraction with high salt (300–600 mM NaCl). Thus, the nuclei were treated with MNase with 1 mM CaCl2 at 37°C (so that most of the extracted DNA ran on an agarose gel as ~1–4 nucleosome length), the reaction was quenched with 2 mM EGTA and washed with buffer containing 10 mM Tris pH 8.0, 10 mM NaCl, 2 mM MgCl2, 1 mM DTT, 10% Glycerol, protease and phosphatase inhibitors. The pelleted residual nuclei were further lysed in buffer containing 20 mM Tris pH 8.0, 1 mM EDTA, 0.5 mM EGTA, 300 mM NaCl, 0.5% TritonX-100, 0.05% Sodium Deoxycholate, 0.1% IGE-PAL, 1 mM PMSF and protease/phosphatase inhibitors for 30 min at 4°C with rotation. The lysate was further diluted to bring the salt concentration to 200 mM and sonicated very briefly. The lysate was centrifuged (20,800 X g in an Eppendorf centrifuge) at 4°C to pellet down the debris and supernatant was used for pre-clearing with protein G Dynabeads (Invitrogen) for 2 hr 4°C. The antibodies were bound to protein G Dynabeads for 5 hr at 4°C in PBS containing 0.5% BSA. The antibodies used for chromatin immunoprecipitation were as follows: mouse monoclonal ORC1 [78-1-172; (Kara et al., 2015)], mouse RB (#9309, Cell Signaling), rabbit polyclonal SUV39H1 (A302-128A; Bethyl Laboratories), rabbit polyclonal CDC6 (CS1881), rabbit polyclonal histone H3K9me3 (ab8898, Abcam) as well as control mouse and rabbit IgG (Invitrogen). Pre-cleared nuclear extracts was incubated with antibody-bound beads overnight with rotation at 4°C. 0.4 ml of the nuclear extract was used for each IP and 0.1 ml was kept aside for 'Input' in Q-PCR analysis. Beads were then washed with three times with low-salt buffer (20 mM Tris pH8.0, 200 mM NaCl, 0.5% TritonX-100, 0.05% Sodium Deoxycholate, 0.1% IGE-PAL, 1 mM PMSF), three times high-salt buffer (20 mM Tris pH8.0, 500 mM NaCl, 0.5% TritonX-100, 0.05% Sodium Deoxycholate, 0.1% IGE-PAL, 1 mM PMSF), three times with lithium chloride buffer (20 mM Tris pH8.0, 200 mM NaCl, 250 mM LiCl, 0.5% TritonX-100, 0.05% Sodium Deoxycholate, 0.1% IGE-PAL, 1 mM PMSF) and twice with TE buffer (10 mM Tris pH8.0, 1 mM EDTA). Chromatin was eluted from beads twice with 100 ul elution buffer (100 mM sodium bicarbonate, 1% SDS) at room temperature. Protein-DNA crosslinks in the IP samples as well as in input samples were reversed overnight by addition of 300 mM NaCl and 2 ug RNase A at 65°C. The ChIP and input samples were then incubated with 60 ug of proteinase K for 2 hr at 42°C. The samples were further extracted with phenol:chloroform:isoamyl alchol [IAA] (once for ChIP and twice for input) and once with chloroform extraction. The ethanol precipitation were done by adding 10 ug of glycogen, washed with 70% ethanol, air dried and then re-suspended in 50 ul of RNase-DNase free water. The purified DNA was used as template in different PCR amplifications (Applied Biosystems Thermocycler). The sequences of the various primers is listed in Supplementary file 1. Due to very high GC content of human CCNE1 promoter, the number of PCR cycles was extensively and independently optimized with different DNA polymerases (Supplementary file 2) for each primer set to maintain linear amplification in all experiments. PCR products were resolved by 2% agarose gel electrophoresis. Images of ethidium bromide-stained DNAs were acquired using an UV trans-illuminator equipped with a digital camera. Intensities of the amplified PCR bands were quantitated by ImageJ software.

Data analysis

Data are shown as the average ± the standard deviation (SD) of results of at least three independent experiments. In the luciferase assay, the statistical differences between cells overexpressing ORC1 and/or SUV39H1 or CDC6 or no E2F1/DP1 were compared to E2F1/DP1 alone without overexpression, and statistically evaluated by Student’s t test analysis. The lines above the bar graph were used to indicate the statistical differences between overexpressing samples. In the luciferase assay with depletion of specific proteins, the statistical differences between siRNAs against the ORC1, SUV39H1 or CDC6 were compared to control GFP siRNA using the Student’s t test.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
    Regulation of cyclin E transcription by E2Fs and retinoblastoma protein
    1. Y Geng
    2. EN Eaton
    3. M Picón
    4. JM Roberts
    5. AS Lundberg
    6. A Gifford
    7. C Sardet
    8. RA Weinberg
    (1996)
    Oncogene 12:1173–1180.
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
    Beta-galactosidase assay
    1. ST Smale
    (2010)
    Cold Spring Harbor Protocols, 10.1101/pdb.prot5423.
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68

Decision letter

  1. Michael R Botchan
    Reviewing Editor; University of California, Berkeley, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your work entitled "Opposing roles for ORC1 and CDC6 in an RB-SUV39H1 dependent switch for control of Cyclin E gene transcription" for consideration by eLife. Your article has been favorably evaluated by Jessica Tyler (Senior editor) and three reviewers, one of whom, Michael Botchan, is a member of our Board of Reviewing Editors.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

This manuscript builds on a deep vein pursued for many years in the Stillman laboratory focused on the functions of the ORC-1 protein in human cells. As the central ATPase and the major DNA binding subunit of the ORC complex, ORC1 is of course key for the initiation of DNA replication; the protein also functions in the regulation of centrosomes and centrioles in direct ways through its negative regulation of Cyclin E-dependent CDK activity. The present story ostensibly is about the roles of ORC1 in negative regulation of the transcription of the Cyclin E gene (CCNE1) through the recruitment of SUV39H1, binding directly to the proximal regulatory regions of the gene. The model put forward is that together with Rb, E2F1/DP and HP1 the transcription is turned down. The work then builds upon the finding that Cdc6 interferes in many of their assays with this negative regulation. All together a fascinating and potentially exciting proposal is made that links all of this into a model for how an autocatalytic stimulatory cascade, starting with cyclin D/Cdk activity in early G1 might feed into a control for a switch to enough Cyclin E expression to execute progression through the restriction point. We believe that the work is at present not yet ready for a publication in eLife but would be with further critical new studies that substantiate the overarching and exciting new ideas.

Summary:

The work does present many experiments that support the conclusions and certainly the biochemical studies establish many of the protein/protein interactions critical for the models. Si RNA to ORC1 does lead to enhanced Cyclin E gene mRNA and CCNE1 reporter constructs transfected with ORC1 or mutants of ORC1 respond as predicted and are antagonized by CDC6 expression. Many other such experiments are consistent with the central proposals as are the scholarly arguments tying together points from the literature. However, one finds most of the cell-based findings dependent upon over-expression of recombinant proteins and acute transfection protocols.

Essential revisions:

1) Depletion of ORC1 protein does lead to more mRNA for CCNE1 but might that result be indirect? ORC1 can bind to many proteins, including the targets defined here. Therefore it is essential for this work to show directly that, under normal progression, ORC1 binds to the endogenous gene (where?), along with Rb, the methylase – or HP1 and E2F1, and that, upon progression, the CDC6 protein actually replaces the repressive components with a loss of local Rb.

2) There are no chromatin binding experiments (ChIP), which would be required to make definitive conclusions. In particular, the authors would need to show using ChIP that ORC1, RB, and Suv39h1 are recruited at the appropriate stage of the cell cycle and that the result of such binding is transcriptional repression. This comment from reviewer #2 overlaps with #1 but adds the following: functional, gene ablation experiments should also be performed, again, by studying physiological levels of each protein without protein over-production.

3) From reviewer #3: The paper has many luciferase reporter assays to show the repression of a transiently transfected CCNE promoter by over-expressed Rb+ORC1+SUV39H1. What is missing is a clear demonstration that (a) the endogenous CCNE promoter is epigenetically repressed by the recruitment of this ORC1-dependent complex under normal levels of expression of E2F1/DP1, Rb, ORC1 and SUV39H1 and (b) that the physical interaction of endogenous levels of ORC1 with Rb and SUV39H1 is essential for this regulation. If this deficit is rectified, there could be two papers: "ORC1 inhibits CCNE by epigenetic modification of the CCNE promoter" and "CDC6 together with Cyclin E-CDK2, disrupts an ORC1-RB-SUV39H1 repressor complex to activate the CCNE promoter". While we do not suggest writing two papers the authors should in a revision more completely describe how CDC6 actually works for activation (see below #9).

4) siORC1 increases cyclin E mRNA 1.3-1.4X. This is the result that put the investigators on the way to this interesting hypothesis. However, the hypothesis makes some clear predictions that have not been tested: does siORC1 decrease H3K9me3 marks on the CCNE promoter? Does siORC1 decrease the association of Rb and of SUV39H1 at the CCNE promoter?

5) If ORC1 represses the CCNE promoter in early G1 by facilitating the Rb-SUV39H1 complex, another important test will be to show that ORC1 ChIPs to the CCNE promoter, in an Rb dependent manner at the E2F1/DP1 ChIP sites. This experiment is of course another suggestion for testing a major conclusion and other approaches may suffice.

6) The interaction of ORC1 with RB or with SUV39H1 is at the center of this hypothetical repressor complex. To prove this hypothesis the authors need to find a well defined amino acid change or mutant in ORC1 that disrupts this interaction and demonstrate that such a mutant ORC1 fails to repress the cyclin E promoter in the reporter assays used. Even better, if an ORC1 resistant to Si RNA is available and used, then such a mutant ORC1 should fail to restore normal expression of CCNE when endogenous ORC1 has been knocked down by siRNA.

7) Since the ORC1-SUV39H1 interaction occurs in the absence of Rb, does siORC1 still de-repress CCNE mRNA in Rb- cells such as SaOS-2. In other words, is Rb required for the repression by ORC1 on the endogenous CCNE promoter?

8) 293 cells express adenovirus E1A, believed to inactivate Rb. Despite this, overexpressed of GFP-Rb interacts with ORC1. Is this sufficient to repress the endogenous CCNE promoter despite the presence of E1A? Will this increase H3K9me2 to the CCNE promoter?

9) Similar experiments are necessary to show that endogenous CDC6 de-represses the endogenous CCNE promoter by disrupting the endogenous Rb-ORC1-Suv39H1 complex, but as said above, this might require writing two papers if the experiments are difficult and time consuming.

https://doi.org/10.7554/eLife.12785.024

Author response

Essential revisions:

1) Depletion of ORC1 protein does lead to more mRNA for CCNE1 but might that result be indirect? ORC1 can bind to many proteins, including the targets defined here. Therefore it is essential for this work to show directly that, under normal progression, ORC1 binds to the endogenous gene (where?), along with Rb, the methylase – or HP1 and E2F1, and that, upon progression, the CDC6 protein actually replaces the repressive components with a loss of local Rb.

We agree with the reviewers that it is essential to show the binding of ORC1 protein to CCNE1 promoter. At the time of initial submission of this paper to eLife, we tried to do conventional chromatin immunoprecipitation (ChIP) assays for ORC1 protein but our attempts failed due to highly GC-rich region of CCNE1 promoter. The region -363 to +63 of CCNE1 promoter is 85% GC rich, where all of the E2F1 sites lie and RB protein binds. Thus conventional ChIP-seq experiments did not work. Because of the reviewers’ comments, we invested considerable time in designing specific primer pairs that would allow detection of protein binding using ChIP and PCR. We also optimized the immunoprecipitation protocol using a monoclonal anti-ORC1 antibody that we made that specifically immunoprecipitates human ORC1 and found that ChIP using this antibody best worked with chromatin fragmented by micrococcal nuclease, followed by salt extraction from nuclei (ORC1 is known to bind tightly with a nuclear structure). Using this new protocol and synchronization of cells into early G1 phase, we were able to detect binding of ORC1, SUV39H1 and RB to the CCNE1 promoter in early G1 phase and transient CDC6 binding to the CCNE1 promoter precisely at the time when the promoter is activated in vivo. In the revised manuscript, we provide the data for binding ORC1, RB, SUV39H1, H3K9me3 and CDC6 proteins to the CCNE1 promoter in asynchronously growing MCF7 cells as well as in synchronized U2OS cells.

2) There are no chromatin binding experiments (ChIP), which would be required to make definitive conclusions. In particular, the authors would need to show using ChIP that ORC1, RB, and Suv39h1 are recruited at the appropriate stage of the cell cycle and that the result of such binding is transcriptional repression. This comment from reviewer #2 overlaps with #1 but adds the following: functional, gene ablation experiments should also be performed, again, by studying physiological levels of each protein without protein over-production.

We now provide the requested ChIP data for ORC1, RB, SUV39H1 and CDC6 proteins binding to CCNE1 promoter from synchronized U2OS cells. The U2OS cells were arrested with nocodazole and released for different times (as indicated in manuscript) and the fragmented chromatin immunoprecipitated using ORC1, RB, SUV39H1 and CDC6 antibodies to determine both the location and time of binding to the CCNE1 promoter. We have also performed functional gene ablation experiments by depletion of ORC1 in U2OS cells and investigated the binding of histone H3K9me3 and SUV39H1 to the CCNE1 promoter. Our new results show that upon ORC1 depletion, the H3K9me3 mark is drastically reduced at the CCNE1 promoter, as well as slight reduction in SUV39H1 binding.

3) From reviewer #3: The paper has many luciferase reporter assays to show the repression of a transiently transfected CCNE promoter by over-expressed Rb+ORC1+SUV39H1. What is missing is a clear demonstration that (a) the endogenous CCNE promoter is epigenetically repressed by the recruitment of this ORC1-dependent complex under normal levels of expression of E2F1/DP1, Rb, ORC1 and SUV39H1 and (b) that the physical interaction of endogenous levels of ORC1 with Rb and SUV39H1 is essential for this regulation. If this deficit is rectified, there could be two papers: "ORC1 inhibits CCNE by epigenetic modification of the CCNE promoter" and "CDC6 together with Cyclin E-CDK2, disrupts an ORC1-RB-SUV39H1 repressor complex to activate the CCNE promoter". While we do not suggest writing two papers the authors should in a revision more completely describe how CDC6 actually works for activation (see below #9).

We do not suggest that there is “epigenetic” repression because this would imply inheritance for multiple generations, but we suggest that this system is reset every cell cycle so that a decision can be made about expression of Cyclin E. We suggest that repression is caused by DNA binding proteins recruited to the CCNE1 promoter and establishment of a histone H3K9me3 mark that can bind HP1. The combination of ORC1, RB and SUV39H1 results in the repressive histone H3K9me3 mark at the promoter. We provide new data that shows that this repressive mark on the endogenous promoter is dependent on ORC1. Furthermore, our new data from synchronized U2OS cells shows binding of ORC1, RB, SUV39H1 to the CCNE1 promoter in early G1 phase and then at the time when Cyclin E levels increase, CDC6 is transiently recruited to the endogenous CCNE1 promoter. These data are entirely consistent with our model that ORC1 and CDC6 have opposing roles in control of CCNE1 gene transcription. The experiments were done under normal levels of expression of E2F1/DP1, RB, ORC1 and SUV39H1 proteins. The significance of CDC6 in transcriptional activation is more elaborated in the revised manuscript. Entirely consistent with the model, we showed that increased expression of CDC6 actually causes increases in endogenous Cyclin E protein levels very early in G1 phase. We prefer to keep all the data in a single paper, albeit it now has increased in size due to the new data.

4) siORC1 increases cyclin E mRNA 1.3-1.4X. This is the result that put the investigators on the way to this interesting hypothesis. However, the hypothesis makes some clear predictions that have not been tested: does siORC1 decrease H3K9me3 marks on the CCNE promoter? Does siORC1 decrease the association of Rb and of SUV39H1 at the CCNE promoter?

We have now performed ChIP with H3K9me3 and Suv39h1 antibodies on the CCNE1 promoter following siRNA mediated depletion of endogenous Orc1 protein. There is a dramatic reduction in the repressive H3K9me3 mark at the promoter following ORC1 depletion. The results are presented in the revised manuscript and its significance discussed.

5) If ORC1 represses the CCNE promoter in early G1 by facilitating the Rb-SUV39H1 complex, another important test will be to show that ORC1 ChIPs to the CCNE promoter, in an Rb dependent manner at the E2F1/DP1 ChIP sites. This experiment is of course another suggestion for testing a major conclusion and other approaches may suffice.

In the original manuscript we did not emphasize that ORC1 is recruited in an RB dependent manner, but we have stressed that ORC1 protein binds more strongly to SUV39H1 and is responsible, in part, for recruiting SUV39H1 to the CCNE1 promoter.

6) The interaction of ORC1 with RB or with SUV39H1 is at the center of this hypothetical repressor complex. To prove this hypothesis the authors need to find a well defined amino acid change or mutant in ORC1 that disrupts this interaction and demonstrate that such a mutant ORC1 fails to repress the cyclin E promoter in the reporter assays used. Even better, if an ORC1 resistant to Si RNA is available and used, then such a mutant ORC1 should fail to restore normal expression of CCNE when endogenous ORC1 has been knocked down by siRNA.

We have spent considerable time and effort mapping the interactions between RB and ORC1 on one hand and ORC1 and SUV39H1 on the other. We prefer not to put this data in the paper since it has proven to be really complicated and is not yet complete for publication. For example, we have the mapped the region in ORC1 required for binding the SUV39H1 protein using in vitro interactions, but when mutant versions were used in vivo, it was not as straight forward as the in vitro data. We suspect that this might be due to the fact that RB interacts also with SUV39H1. We also mapped the regions of ORC1 that interacts with RB and found that the N-terminus of ORC1 binds the C-terminus of RB, but in addition, the C-terminus of ORC1 binds the N-terminus of RB. Thus the interaction between ORC1 and RB involves two separate domains in both proteins. Thus, in the present study, it was difficult to map the minimal interaction region in ORC1 required to bind either SUV39H1 or RB proteins and do the experiments suggested. We are continuing to study these protein-protein interactions, but think the new additional data strengthens our paper without this protein interaction data.

7) Since the ORC1-SUV39H1 interaction occurs in the absence of Rb, does siORC1 still de-repress CCNE mRNA in Rb- cells such as SaOS-2. In other words, is Rb required for the repression by ORC1 on the endogenous CCNE promoter?

In order to address the effect of ORC1 depletion in RB negative SaOS-2 cells, we first compared protein levels of the two osteosarcoma cell lines, U2OS (RB+/+) and SaOS-2 (RB-/-). To our surprise, compared to U2OS cells, the level of cyclin E was extremely low in the RB negative SaOS-2 cells (see Author response image 1), while we detect comparable levels of ORC1, SUV39H1, Cyclin A, ORC3 and tubulin proteins in both cell lines. This data shows that apart from RB, other proteins in SaOS-2 cells must control the level of cyclin E or that the Cyclin E gene promoter is altered by mutation. Furthermore, upon ORC1 depletion, the CCNE1 mRNA increased slightly by 48hr in asynchronously growing SaOS-2 cells. We chose not to include this data in the revised manuscript because it looks as if the SaOS2 cells have very low levels of Cyclin E independent of RB and figuring this out will be a distraction from the main point of our paper.

Author response image 1
Protein levels in U2OS cells and SaOS-2 cells detected by immunoblot.
https://doi.org/10.7554/eLife.12785.021

8) 293 cells express adenovirus E1A, believed to inactivate Rb. Despite this, overexpressed of GFP-Rb interacts with ORC1. Is this sufficient to repress the endogenous CCNE promoter despite the presence of E1A? Will this increase H3K9me2 to the CCNE promoter?

We have not used the 293 cells for CCNE1 promoter assay; the 293 cell line was only used to detect the interactions of over-expressed proteins.

9) Similar experiments are necessary to show that endogenous CDC6 de-represses the endogenous CCNE promoter by disrupting the endogenous Rb-ORC1-Suv39H1 complex, but as said above, this might require writing two papers if the experiments are difficult and time consuming.

We have shown in the manuscript that co-operation of CDC6/Cyclin E-CDK2 is required to reduce the interaction ORC1 protein to RB protein and it is already known that phosphorylation of RB causes its dissociation E2F1 protein. There is a paper published in 2014 by Park et al. (PMID: 24728993), wherein they have shown that phosphorylation of SUV39H1 by CyclinE-CDK2 (or CyclinA-CDK2) preferentially dissociates it from chromatin. Thus CDC6/Cyclin E-CDK2 cooperation might also lead to SUV39H1 phosphorylation and ultimately leading to falling apart of critical proteins involved in repressor complex. We have shown in our paper that CDC6 expression can activate the endogenous CCNE1 promoter in very early G1 phase and that this activation requires CDC6 binding to Cyclin E-CDK2. This is entirely consistent with our model.

https://doi.org/10.7554/eLife.12785.025
