The DEG/ENaC cation channel protein UNC-8 drives activity-dependent synapse removal in remodeling GABAergic neurons

  1. Tyne W Miller-Fleming
  2. Sarah C Petersen
  3. Laura Manning
  4. Cristina Matthewman
  5. Megan Gornet
  6. Allison Beers
  7. Sayaka Hori
  8. Shohei Mitani
  9. Laura Bianchi
  10. Janet Richmond
  11. David M Miller III  Is a corresponding author
  1. Vanderbilt University, United States
  2. University of Illinois at Chicago, United States
  3. University of Miami, United States
  4. Tokyo Women's Medical University, Japan
Research Article
  • Cited 11
  • Views 2,525
  • Annotations
Cite this article as: eLife 2016;5:e14599 doi: 10.7554/eLife.14599

Abstract

Genetic programming and neural activity drive synaptic remodeling in developing neural circuits, but the molecular components that link these pathways are poorly understood. Here we show that the C. elegans Degenerin/Epithelial Sodium Channel (DEG/ENaC) protein, UNC-8, is transcriptionally controlled to function as a trigger in an activity-dependent mechanism that removes synapses in remodeling GABAergic neurons. UNC-8 cation channel activity promotes disassembly of presynaptic domains in DD type GABA neurons, but not in VD class GABA neurons where unc-8 expression is blocked by the COUP/TF transcription factor, UNC-55. We propose that the depolarizing effect of UNC-8-dependent sodium import elevates intracellular calcium in a positive feedback loop involving the voltage-gated calcium channel UNC-2 and the calcium-activated phosphatase TAX-6/calcineurin to initiate a caspase-dependent mechanism that disassembles the presynaptic apparatus. Thus, UNC-8 serves as a link between genetic and activity-dependent pathways that function together to promote the elimination of GABA synapses in remodeling neurons.

https://doi.org/10.7554/eLife.14599.001

eLife digest

The brain contains billions of nerve cells, or neurons, that communicate with one another through connections called synapses. As the brain develops, these circuits are extensively modified as new synapses are created and others are removed. Neurological disorders may emerge if these processes are not regulated correctly. Identifying the biological pathways that control the addition and removal of synapses could therefore provide new insights into how to treat human brain diseases.

To communicate across a synapse, the signaling neuron releases chemicals called neurotransmitters that alter the activity of the receiving neuron. Some neurotransmitters, such as GABA, inhibit the activity of the receiving neuron. The activity of a neuron – and hence how often it releases neurotransmitters – depends on different ions moving into and out of the neuron through proteins called ion channels that are embedded in the cell membrane. For example, the movement of calcium ions into the neuron can trigger the release of neurotransmitters.

The roundworm Caenorhabditis elegans is often used as a model organism to study how the brain develops. During development, the worm nervous system eliminates synapses that release GABA and reassembles them at new locations. However, the nervous system does not eliminate these synapses at random. Miller-Fleming, Petersen et al. now show that a C. elegans protein called UNC-8 is responsible for this effect. UNC-8 forms part of an ion channel that allows sodium ions to enter the neuron and is selectively produced in GABA neurons that are destined for remodeling.

Miller-Fleming, Petersen et al. found that inside GABA-releasing neurons, calcium ions stimulate an enzyme called calcineurin that may in turn activate UNC-8. Sodium ions then enter the neuron through UNC-8 channels. This boosts the activity of the calcium ion channels, which further increases how many calcium ions enter the cell. Ultimately, the amount of calcium inside the neuron becomes high enough to activate an additional pathway that eliminates the synapse. This downstream pathway involves components of a cell-killing (or “apoptotic”) mechanism that is repurposed in this case to remove the GABA release apparatus at the synapse.

Other proteins are likely to help UNC-8 sense the activity of neurons and destroy synapses in response. Further work is required to investigate these additional components and to determine how they work with UNC-8 to remove synapses in the nervous system during development.

https://doi.org/10.7554/eLife.14599.002

Introduction

Neural circuits are reorganized during development to produce a mature, functional nervous system. Circuit refinement involves both the elimination of specific synapses and the strengthening of others. These developmental changes in brain architecture are temporally coordinated with critical periods in which neuronal wiring can be shaped by activity. The establishment of binocular vision in the mammalian brain, for example, depends on visual input during a distinct developmental period in which the circuit is uniquely sensitive to neural activity. GABA signaling regulates the onset and duration of this critical period of plasticity in the visual circuit, but the molecular mechanisms that drive synaptic remodeling in this pathway are poorly defined (Deidda et al., 2015; Hensch, 1998).

Calcium influx by voltage-gated calcium channels (VGCCs) triggers neurotransmitter secretion in active neurons (Catterall et al., 2008). Elevated intracellular calcium can also regulate synaptic strength by controlling gene expression and protein function (Flavell and Greenberg, 2008; Baumgärtel and Mansuy, 2012). For example, the calcium-sensitive phosphatase, calcineurin, antagonizes long term potentiation (LTP) through dephosphorylation of an AMPA receptor subunit that results in its endocytosis from the postsynaptic membrane (Baumgärtel and Mansuy, 2012; Winder et al., 1998). Recent work has shown that functional synaptic components can also be removed by the canonical apoptotic protease, caspase-3 (Ertürk et al., 2014; Wang et al., 2014). In C. elegans, the cell death pathway component CED-3/caspase-3 and its upstream regulator CED-4/Apaf1 promote synaptic disassembly by activating the F-actin severing protein gelsolin; the calcium sensitivity of this pathway points to a potential role for neuronal activity in synaptic remodeling (Pinan-Lucarre et al., 2012; Meng et al., 2015; Liu et al., 2011).

Degenerin/Epithelial Sodium Channels (DEG/ENaCs) are voltage-insensitive, trimeric cation channels. The term degenerin arises from the finding that constitutively active forms of DEG/ENaC channels induce neurodegeneration (Bianchi and Driscoll, 2002). ENaCs are expressed in mammalian epithelial tissues, where they promote sodium reabsorption (Wemmie et al., 2002). Emerging evidence indicates that DEG/ENaCs may also influence neuronal plasticity and synaptic function (Wemmie et al., 2002, 2003; Kreple et al., 2014). For example, the acid-sensing DEG/ENaC protein, ASIC1a, is expressed in distinct brain regions where it promotes learning and memory (Wemmie et al., 2003, 2004; Zha et al., 2006; Ziemann et al., 2009). Models to explain this role of DEG/ENaCs in synaptic plasticity have posited that depolarizing DEG/ENaC-dependent cation transport activity could enhance the activation of voltage-sensitive postsynaptic ion channels (Wemmie et al., 2006). DEG/ENaCs can also function in the presynaptic compartment to elevate neurotransmitter secretion (Cho and Askwith, 2008; Voglis and Tavernarakis, 2008; Younger et al., 2013). In this case, the depolarizing activity of a presynaptic ENaC channel is proposed to enhance neurotransmitter release by elevating calcium import at local VGCCs (Younger et al., 2013). Here, we describe a DEG/ENaC protein that likely exerts a similar effect on intracellular calcium, but with the strikingly different downstream outcome of presynaptic destruction.

In the nematode C. elegans, a simple, well-defined GABAergic circuit is remodeled during development in a mechanism that is accelerated by neural activity (White et al., 1978; Hallam and Jin, 1998; Park et al., 2011; Thompson-Peer et al., 2012). Dorsal D (DD) motor neurons initially form synapses with ventral muscles (Figure 1A), which are later eliminated and relocated to dorsal muscles (Figure 1B). Ventral D (VD) motor neurons generate ventral synapses and express the transcriptional repressor protein UNC-55, which prevents these cells from remodeling; thus both DD and VD synapses are remodeled in unc-55 mutants (Figure 1B,C) (Walthall and Plunkett, 1995; Zhou and Walthall, 1998; Shan et al., 2005). Several lines of evidence indicate that UNC-55 blocks the native DD remodeling program: (1) Ectopic expression of UNC-55 in DD neurons prevents synaptic remodeling (Shan et al., 2005); (2) Ventral VD synapses are initially established and then removed in unc-55 mutants in a sequence that parallels the DD remodeling program (Petersen et al., 2011; Meng et al., 2015); (3) VD neurons form ectopic but functional synapses with dorsal muscles in unc-55 mutants (Thompson-Peer et al., 2012); (4) The transcription factor genes irx-1 and hbl-1, which UNC-55 negatively-regulates, normally function in DD neurons to promote remodeling (Petersen et al., 2011; Thompson-Peer et al., 2012). We exploited the anti-remodeling role of UNC-55 in a screen designed to detect key components of the DD remodeling program as RNAi hits that prevent the ectopic remodeling phenotype of unc-55 mutants. This approach revealed a molecularly diverse array of genes that drive removal of GABA synapses (Petersen et al., 2011). Here we demonstrate that one of these UNC-55 targets, the DEG/ENaC protein UNC-8, functions to dismantle the presynaptic apparatus in remodeling GABA neurons (Figure 1D,E). The necessary roles of UNC-2/VGCC and TAX-6/Calcineurin in this synapse elimination mechanism argue that intracellular calcium is involved. Our results indicate that UNC-8 promotes synapse removal downstream of TAX-6 and thus could be potentially activated by TAX-6/Calcineurin. In turn, we suggest that the depolarizing activity of UNC-8 DEG/ENaC could enhance UNC-2/VGCC function. The net positive feedback loop involving UNC-2/VGCC, TAX-6/Calcineurin and UNC-8/DEG/ENaC could elevate presynaptic calcium above a critical threshold to activate a downstream caspase-dependent pathway leading to destabilization of the presynaptic apparatus (Meng et al., 2015). Thus, we propose a model in which UNC-8 triggers a synaptic removal mechanism that is regulated by the intersection of a genetic program that controls UNC-8 expression and a calcium-signaling pathway that promotes neurotransmission as well as synapse elimination.

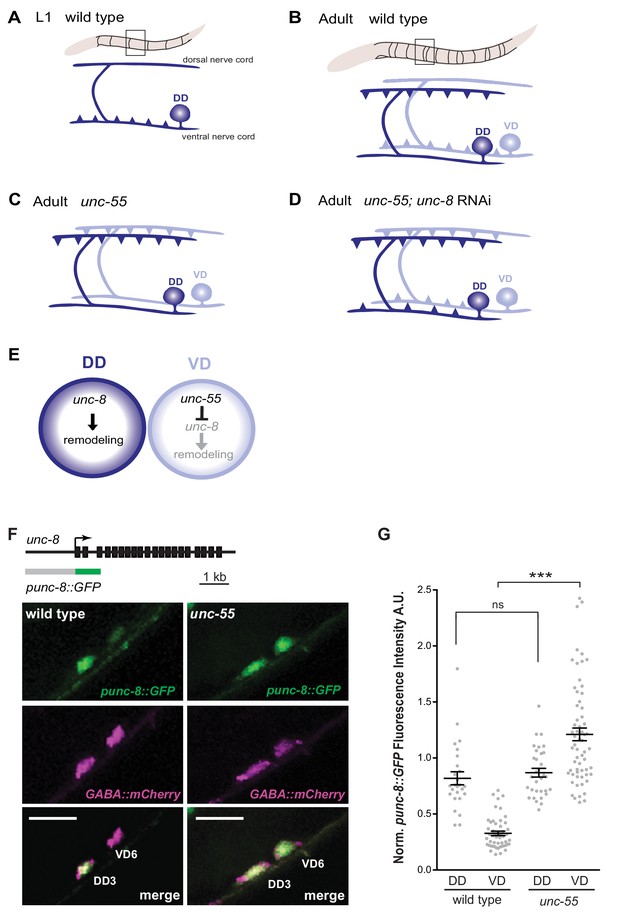

Figure 1 with 1 supplement see all
GABAergic neuron synaptic remodeling is transcriptionally controlled and depends on UNC-8.

(A) Dorsal D (DD) GABAergic motor neurons (dark blue) synapse with ventral muscles during embryonic development. (B) DD synapses are relocated to dorsal muscles at the end of the first larval stage (L1). Ventral D (VD) GABAergic motor neurons (light blue) are generated in the late L1 and innervate ventral muscles. (C) The COUP/TF transcription factor UNC-55 is expressed in VD neurons and blocks remodeling; VD neurons relocate synapses to the dorsal side in loss-of-function unc-55 mutants. (D/E) UNC-8/DEG/ENaC expression is negatively regulated by UNC-55 and RNAi knockdown of unc-8 suppresses ectopic VD remodeling in unc-55 mutants. These results suggest that UNC-8 may also promote DD remodeling. Schematics modified from Petersen et al. (2011). (F) unc-8 expression in remodeling neurons is visualized with a punc-8::GFP reporter gene. Strong punc-8::GFP (green) expression was observed in DD motor neurons in wild type, but was also detected in VD motor neurons in unc-55 animals. GABAergic motor neurons are labeled with pttr-39::mCherry (magenta). Scale bar is 10 μm. (G) Normalized fluorescence intensity is plotted on the Y-axis in arbitrary units (A.U.). punc-8::GFP expression is enhanced in VDs, but not DDs, in unc-55 mutants (***p<0.001, ns is not significant, One-Way ANOVA with Bonferroni correction). n ≥ 26 DDs and n ≥ 51 VDs per genotype, data are mean ± SEM.

https://doi.org/10.7554/eLife.14599.003

Results

UNC-8 is expressed in remodeling D-class motor neurons

Our previous microarray data indicated that unc-8 expression is elevated in GABA neurons in unc-55 mutants (Petersen et al., 2011). As an independent test of this finding and to determine if unc-8 is also expressed in DD neurons, we used a GFP reporter gene (punc-8::GFP) that includes a 1.6 kb genomic region upstream of the unc-8 coding sequence (Etchberger et al., 2007). In wild-type adults, punc-8::GFP is expressed in DD GABAergic neurons, but shows little detectable GFP signal in VD motor neurons (Figure 1F,G). In an unc-55 mutant, however, punc-8::GFP expression was clearly visible in both DD and VD neurons. As an additional test of this model, we fused GFP to the UNC-8 C-terminus in a fosmid reporter gene that spans the unc-8 locus to include large flanking regions. The resultant UNC-8::GFP fusion protein is functional in vivo and is expressed in DD neurons in the wild type and also in VD neurons in an unc-55 mutant. In this case, we also detected strong UNC-8::GFP expression in adjacent ventral cord DA and DB cholinergic neurons as predicted by the selective degeneration of these cells in a mutant that encodes a constitutively active UNC-8 protein (Wang et al., 2013). These results suggest that the fosmid reporter likely includes gene regulatory regions that direct expression of the native UNC-8 protein (Figure 1—figure supplement 1A–C). Together, these findings establish that UNC-8 expression is correlated with the execution of a genetically controlled program that promotes remodeling of GABAergic synapses.

UNC-8 promotes the removal of ventral DD synapses

Our RNAi results suggested that UNC-8 promotes synapse removal in remodeling GABA neurons (Figure 1D,E) (Petersen et al., 2011). To confirm this finding, we generated a loss-of-function allele unc-8(tm5052) that deletes 197 nucleotides of the first transmembrane domain and shifts the reading frame to introduce a premature stop codon (Figure 2A). In this configuration, unc-8(tm5052) should result in an unstable unc-8 mRNA and likely null allele.

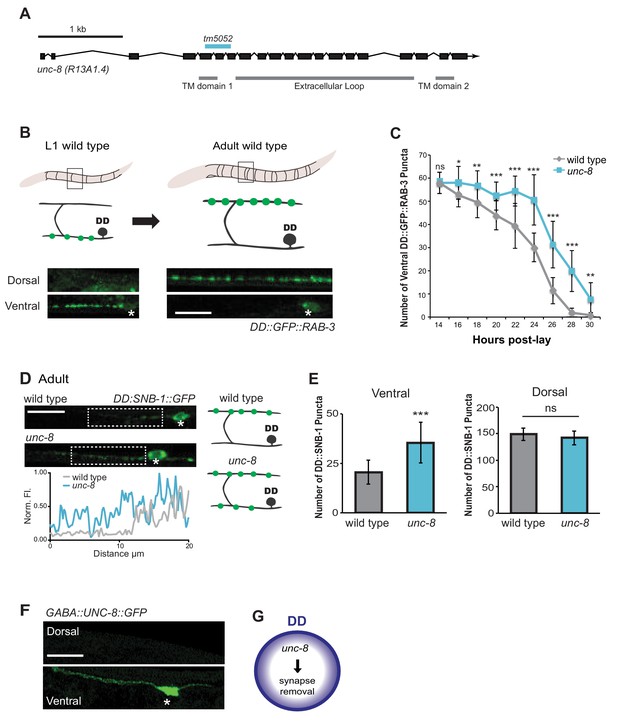

Figure 2 with 1 supplement see all
The DEG/ENaC subunit UNC-8 promotes removal of ventral DD synapses.

(A) Schematic of the unc-8 gene and predicted UNC-8 protein. DEG/ENaC channel subunits contain two transmembrane domains (TM domains) and a large extracellular loop (gray bars). The unc-8 deletion allele tm5052 is indicated (blue bar). (B) DD GABA neuron synapses (green) with ventral muscles are relocated to the dorsal side during development. DD-specific GFP-tagged RAB-3 (pflp-13::GFP::RAB-3) labels synapses in the ventral nerve cord of early L1 larvae and the dorsal nerve cord of adults. Asterisk denotes DD4 soma. Scale bar is 10 μm. (C) DD remodeling was quantified by counting GFP::RAB-3 puncta during larval stages. Removal of ventral DD synapses is significantly delayed in unc-8 animals (*p<0.05, **p<0.01, ***p<0.001, ns is not significant, Student’s t-test, data are mean ± SD). (D) Representative images of wild-type and unc-8 adult ventral nerve cords (asterisk denotes DD5 soma). Ventral DD synapses labeled with GFP-tagged synaptobrevin (pflp-13::SNB-1::GFP) are retained in unc-8 mutant adult animals. Scale bar is 10 μm. Inset shows pixel intensity over a 20 μm region (indicated by dashed boxes) of the ventral nerve cord in wild-type and unc-8 animals. (E) Removal of DD::SNB-1::GFP puncta is defective in unc-8 mutant adults; however, dorsal DD synaptic assembly is not affected (***p<0.001, n ≥ 20, ns is not significant, Student’s t-test, data are mean ± SD). (F) Ventral localization of GFP-tagged UNC-8 in GABA neurons. Asterisk denotes DD5 soma. Scale bar is 10 μm. (G) UNC-8 promotes removal of ventral presynaptic components in DD neurons, but is not required for dorsal synapse formation.

https://doi.org/10.7554/eLife.14599.005

To ask if UNC-8 promotes DD synapse removal, we utilized a DD-specific promoter (pflp-13) to drive expression of the presynaptic vesicle-associated proteins, GFP::RAB-3 and SNB-1::GFP/synaptobrevin. DD remodeling is initiated toward the end of the first larval stage (L1) and involves the relocation of ventral presynaptic components to the dorsal side (Figure 2B, Figure 2—figure supplement 1A) (Hallam and Jin, 1998; Petersen et al., 2011). Dorsal and ventral synapses were quantified throughout the remodeling period in early stage larval animals by monitoring GFP::RAB-3 puncta. This experiment revealed that the removal of ventral DD synapses was significantly delayed in unc-8 mutants compared to wild type (Figure 2C). This effect is unlikely due to slower overall development as the birth of post-embryonic VD neurons is unaffected in unc-8 mutants (Figure 2—figure supplement 1C). In addition, residual ventral SNB-1::GFP puncta are visible in the DD neurons of adult unc-8 animals, but rarely in wild type indicating that unc-8 is required for the complete removal of ventral GABA synapses in remodeling DD neurons (Figure 2D,E). In contrast, assembly of dorsal DD synapses was not perturbed in unc-8 animals (Figure 2E, Figure 2—figure supplement 1B,D). These results suggest that unc-8 is required for the efficient removal of presynaptic components in the DD remodeling program, but is not necessary for assembly of nascent DD synapses with dorsal muscles (Figure 2G). The idea that unc-8 promotes removal of ventral presynaptic components in the DD remodeling program is consistent with our finding that expression of a GFP-tagged UNC-8 protein in GABA neurons results in UNC-8::GFP puncta that are exclusively localized to the ventral nerve cord (Figure 2F).

UNC-8 promotes synapse elimination in remodeling GABAergic neurons

Having shown that unc-8 is required for the timely and efficient removal of ventral synapses in remodeling DD neurons, we next used unc-8(tm5052) to confirm this function in VD neurons that remodel in unc-55 mutants. This test is important because previous evidence suggests that VD remodeling in unc-55 mutants is driven by the ectopic activation of the native DD remodeling program (Shan et al., 2005; Petersen et al., 2011). Expression of the GABAergic presynaptic marker SNB-1::GFP in wild-type adults shows a uniform pattern of SNB-1::GFP puncta in the ventral nerve cord that corresponds to VD synapses with ventral muscles (Figure 3A) (Hallam and Jin, 1998). As previously reported, ventral SNB-1::GFP clusters are largely depleted in unc-55 mutant animals due to ectopic VD remodeling (Petersen et al., 2011). We constructed an unc-55; unc-8 double mutant to ask if unc-8 is required for the removal of ventral synapses in remodeling GABA neurons. Both fluorescence intensity measurements as well as quantification of SNB-1::GFP puncta number revealed significant retention of the SNB-1::GFP signal in the ventral nerve cord of unc-55;unc-8 mutant animals in comparison to unc-55 alone (Figure 3A–D, Figure 3—figure supplement 1A). We also performed time course experiments to confirm that the retention of ventral GABA synapses during larval development in unc-55; unc-8 animals persists into adulthood (Figure 3—figure supplement 1B). Because this assay should detect ventral SNB-1::GFP puncta in both DD and VD neurons, we co-labeled these synapses with the DD-specific marker, flp-13::mCherry::RAB-3 to identify the fraction of each GABA neuron type. This experiment revealed that approximately 40% of residual GABA synapses in unc-55; unc-8 animals are derived from DD neurons and the balance (~60%) from VD neurons (Figure 3—figure supplement 1C). Our results indicate that the wild-type unc-8 gene is capable of promoting the removal of ventral synapses in both classes of GABA neurons thus supporting the hypothesis that the DD and VD remodeling programs utilize shared sets of active components (Shan et al., 2005; Petersen et al., 2011).

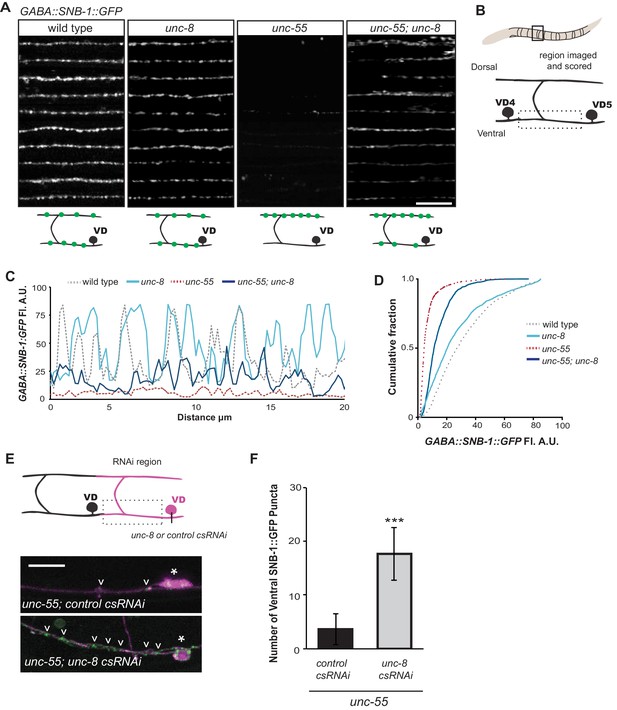

Figure 3 with 2 supplements see all
UNC-8 drives removal of ventral GABAergic synapses.

(A) Ventral GABA synapses labeled with GFP-tagged synaptobrevin (punc-25::SNB-1::GFP) for 10 adult animals. Wild-type and unc-8(tm5052) show similar distributions of SNB-1::GFP puncta. Ventral SNB-1::GFP is depleted from unc-55 due to VD remodeling, but partially restored in unc-55; unc-8 animals. (B) Data for Figure panels A, C, D were collected from the ventral nerve cord between VD4 and VD5. (C) SNB-1::GFP fluorescent intensity measurements from each genotype. Each line represents the pixel intensity over a 20 μm region of the VNC from a single representative animal. (D) Cumulative frequency curves for SNB-1::GFP fluorescence intensity for each genotype (n > 10 animals). unc-55 animals show a significant loss of ventral SNB-1::GFP fluorescence (p< 0.0001 vs wild type). SNB-1::GFP fluorescence is partially restored in unc-55; unc-8 animals, demonstrating the role of UNC-8 for synapse removal (p<0.0001 vs unc-55). p values calculated with Kruskal-Wallis and Dunn’s post test. (E) Knockdown of unc-8 by GABA-neuron-specific RNAi (unc-8 csRNAi) restored SNB-1::GFP puncta to the VNC of unc-55; juIs1 animals vs control animals expressing the empty vector RNAi (control csRNAi). GABAergic neurons are labeled with punc-25::mCherry (magenta). Asterisks denote GABA neuron cell bodies and arrowheads point to SNB-1::GFP-labeled ventral synapses. (F) Quantification of ventral synapses in the region anterior to each cell body expressing the RNAi construct (n > 60 animals). RNAi knockdown of unc-8 in unc-55 mutant GABA neurons significantly suppresses synapse removal (***p<0.001, Student’s t-test. Data are mean ± SD). Scale bars are 10 μm.

https://doi.org/10.7554/eLife.14599.007

UNC-8 expression in GABAergic neurons is required for synapse removal

Having established that UNC-8 is necessary for the complete removal of GABAergic presynaptic proteins (Figures 2,3) and that punc-8::GFP is expressed in remodeling DD and VD neurons (Figure 1F), we next asked if UNC-8 function is cell-autonomous. To address this question, we used cell-specific RNA interference (csRNAi) to knock down unc-8 expression in GABA neurons. unc-55 animals expressing empty vector RNAi display a stereotypical loss of ventral GABA synapses as predicted. In contrast, unc-55 mutant VD neurons that express the unc-8(csRNAi) transgene show significant retention of GABAergic synapses in the ventral nerve cord (Figure 3E,F), thus demonstrating that unc-8 functions in GABA neurons to promote the elimination of ventral synapses. As an additional test of this model, we restored wild-type unc-8 function to unc-55;unc-8 mutant animals by expressing unc-8 cDNA in GABA neurons. In this case, SNB-1::GFP puncta are efficiently removed from the ventral nerve cord, thus confirming that unc-8 exerts a cell-autonomous role in the disassembly of ventral GABAergic synapses (Figure 3—figure supplement 2A). Finally, we determined that forced expression of unc-8 cDNA in wild-type VD neurons induces synapse elimination whereas the ventral synapses of neighboring VD neurons not expressing the UNC-8 transgene are maintained. In addition to confirming the active role of UNC-8 in GABA neuron synapse elimination, this experiment also demonstrates that expression of UNC-8 alone is sufficient to promote synaptic disassembly in a GABA neuron that otherwise maintains a stable, functional presynaptic apparatus (Figure 3—figure supplement 2B).

UNC-8 promotes disassembly of the presynaptic complex in remodeling GABAergic neurons

Having confirmed that wild-type unc-8 promotes the removal of the presynaptic proteins SNB-1::GFP and GFP::RAB-3 from the ventral nerve cord in remodeling GABA neurons (Figure 2C–E, Figure 3, Figure 3—figure supplement 1), we next used additional fluorescent markers to ask if the unc-8 gene also drives the elimination of other key components of the presynaptic apparatus. For this experiment, we monitored fluorescent markers for the presynaptic density protein α-liprin/SYD-2 (Dai et al., 2006) and the membrane-associated endocytic protein endophillin/UNC-57 (Schuske et al., 2003). As observed for SNB-1::GFP, all the additional presynaptic proteins examined appear as distinct puncta that localize to the presynaptic membrane in wild-type and unc-8 GABA neurons. This ventral localization is substantially reduced in unc-55 animals. The partial recovery of fluorescent puncta in unc-55; unc-8 animals relative to unc-55 shows that UNC-8 promotes the elimination of ventral SNB-1::GFP, UNC-57::GFP, mCherry::RAB-3, and SYD-2::GFP puncta (Figure 3—figure supplement 1A, Figure 4A–E). Because these components mark synaptic vesicles (SNB-1, RAB-3) as well as the presynaptic membrane (SYD-2, UNC-57), their removal predicts that unc-8 could be required for dismantling the overall presynaptic apparatus. To investigate this possibility, we simultaneously imaged mCherry::RAB-3 and UNC-57::GFP to monitor the organization of the presynaptic domain in unc-55; unc-8 animals. RAB-3 cycles on and off synaptic vesicles in a GTP/GDP-dependent manner and UNC-57/endophilin recycles between vesicles and the presynaptic membrane (Schuske et al., 2003; Nonet et al., 1997). As expected, mCherry::RAB-3 and UNC-57::GFP are strongly co-localized at ventral synapses in wild-type animals (r2 = 0.72 ± 0.03) (Figure 4F). Although fewer presynaptic clusters are detected at ventral synapses in unc-55; unc-8 mutants, residual mCherry::RAB-3 and UNC-57::GFP puncta are comparably co-localized (r2 = 0.67 ± 0.04) (Figure 4G, Figure 4—figure supplement 1A–C).

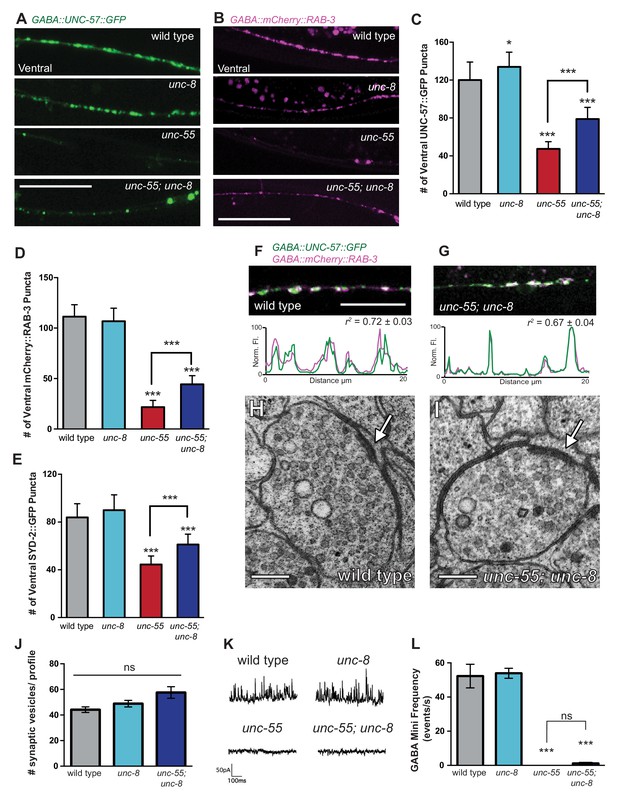

Figure 4 with 3 supplements see all
UNC-8 promotes disassembly of the presynaptic apparatus in GABAergic motor neurons.

Fluorescent puncta for presynaptic proteins (UNC-57::GFP, mCherry::RAB-3, and SYD-2::GFP) were counted in the ventral nerve cord from VD3 to VD11. (A/C) Representative images (A) and quantification (C) of endophilin/UNC-57 indicate that unc-8 promotes removal of UNC-57::GFP from ventral synapses in remodeling neurons (*p<0.05, ***p<0.001, n ≥ 25). (B/D) Representative images (B) and quantification (D) show reduced removal of the presynaptic G protein RAB-3 in unc-55; unc-8 animals (***p<0.001, n ≥ 21). Scale bars are 10 μM. (E) Efficient removal of the presynaptic density protein α-liprin/SYD-2 from ventral synapses in unc-55 requires unc-8 (***p<0.001, n ≥ 21, One-Way ANOVA with Bonferroni correction, data are mean ± SD). (F/G) GFP-tagged endophilin (punc-25::UNC-57::GFP) and mCherry::RAB-3 (punc-25::mCherry::RAB-3) are co-localized in GABA neurons of wild-type and unc-55;unc-8 animals. Representative images and normalized fluorescence intensity plots for a 20 μm region of the ventral nerve cord are shown. Scale bar is 10 μm. ris Pearson’s correlation coefficient (n > 10, mean ± SEM). Presynaptic components are co-localized in wild type (r= 0.72 ± 0.03) and unc-55;unc-8 (r2 = 0.67 ± 0.04). Average r2 value for unc-55;unc-8 is not statistically different from the average r2 value for wild type (p<0.001, Mann-Whitney test, see Figure 4—figure supplement 1). (H/I) Electron micrographs of GABA synapses with ventral muscles in (H) wild type and (I) unc-55;unc-8. No ventral GABA presynaptic densities were detected in unc-55. Arrows point to presynaptic density, scale bars are 200 nm. (J) Synaptic vesicles were quantified in ventral GABAergic synapses. Synapses in wild-type, unc-8 and unc-55;unc-8 animals contain comparable numbers of synaptic vesicles (N > 5 for each genotype, ns is not significant). (K) Representative traces of ventral mini-iPSCs from each genotype. (L) The high frequency of ventral mini-iPSCs in wild-type and in unc-8 animals were not observed in unc-55 or unc-55;unc-8 (***p<0.001, ns is not significant, n ≥ 5, data are mean ± SEM, One-Way ANOVA with Bonferroni correction).

https://doi.org/10.7554/eLife.14599.010

We used electron microscopy (EM) to test this idea by examining the structure of the GABAergic synapses in unc-55; unc-8. At the EM level, both GABAergic and cholinergic synapses show electron-dense presynaptic terminals and abundant synaptic vesicles, but can be distinguished by morphological criteria (see Materials and methods). We identified ventral GABAergic synapses in wild-type, unc-8 and in unc-55; unc-8 animals (wild type = 6 synapses/20.08 μm, n = 3 animals, unc-8 = 5 synapses/12.88 μm, n = 2 animals, unc-55; unc-8 = 2 synapses/12.16 μm, n = 2 animals, Figure 4H–J, Figure 4—figure supplement 1D, and Figure 4—figure supplement 2). As expected, no ventral GABAergic synapses were detected in unc-55 mutants (0 synapses/9.84 μm, n = 2 animals); whereas ventral cholinergic motor neuron synapses were preserved (data not shown). The finding that GABAergic synapses were detectable in unc-55;unc-8 double mutants is consistent with the partial restoration of fluorescently-labeled presynaptic markers to ventral GABA neuron processes in unc-55; unc-8 animals (Figure 3A, Figure 3—figure supplement 1, Figure 4 A–G) and therefore argues that the wild-type unc-8 gene promotes disassembly of multiple components of the presynaptic apparatus.

Having confirmed that unc-55; unc-8 animals contain GABAergic presynaptic domains we next used electrophysiological recordings to ask if these residual synapses are functional. Spontaneous inhibitory postsynaptic events (iPSCs) arising from GABA release were recorded from ventral body muscles (see Materials and methods). Robust, iPSCs were detected for wild-type and unc-8 animals (Figure 4K,L). Ventral iPSCs were not produced in unc-55 mutants as expected since these animals lack ventral GABAergic synapses (Figure 3A) (Petersen et al., 2011). Interestingly, ventral iPSCs were not restored in unc-55; unc-8 animals despite the presence of organized clusters of fluorescent presynaptic proteins (Figure 3A, Figure 4A–G) and electron dense active zones with abundant synaptic vesicles (Figure 4I–J). Total ventral synaptic activity (cholinergic and GABAergic) was measured to confirm that spontaneous ventral cholinergic activity was unaffected by the unc-55 and unc-8 mutations (Figure 4—figure supplement 1E–F). We see no significant change in the expression or clustering of postsynaptic GABAA receptors (UNC-49::GFP) in unc-55; unc-8 animals in comparison to wild type; UNC-49::GFP is closely co-localized with presynaptic mCherry::RAB-3 at ventral unc-8 and unc-55; unc-8 GABAergic synapses both before remodeling and in adults (Figure 4—figure supplement 3) (Gally and Bessereau, 2003; Petersen et al., 2011). Together, these data argue against the possibility that the absence of IPSCs in unc-55; unc-8 animals is caused by a defective postsynaptic response to GABA and therefore favor the hypothesis that presynaptic dysfunction limits GABA secretion.

To summarize, we have shown that unc-55 animals lack GABAergic neuromuscular junctions and that presynaptic components are partially restored in unc-55; unc-8 mutants. Despite the presence of both presynaptic domains with abundant synaptic vesicles and clusters of postsynaptic GABAA receptors, residual GABAergic synapses in unc-55; unc-8 animals are not functional. Taken together, these results indicate that UNC-8 is required for the efficient removal of the ventral presynaptic apparatus, but that the presynaptic defect of unc-55; unc-8 animals could be due to an additional UNC-8-independent pathway, potentially involving the previously described homeodomain transcription factor irx-1 (Petersen et al., 2011), acting in parallel to promote the disassembly of the ventral synaptic architecture of remodeling GABAergic neurons.

UNC-8 channel activity is required for synapse removal

We have shown that UNC-8 protein preferentially gates sodium when expressed in Xenopus oocytes (Wang et al., 2013). We therefore considered the hypothesis that UNC-8 channel function is required for synaptic elimination. This idea is consistent with our finding that the unc-8 mutant disrupts DD and VD synapse removal (Figures 2C and 3A). As a specific test of this hypothesis, we treated unc-55 mutant animals with Benzamil, which has previously been shown to inhibit DEG/ENaC channel activity (Kleyman and Cragoe, 1988). In this experiment, unc-55 mutant animals were grown on media containing 3 mM Benzamil (see Materials and methods). Ventral SNB-1::GFP puncta were scored in adult animals. As expected, unc-55 animals from control plates show few ventral SNB-1::GFP puncta in GABA neurons (Figure 5A,B). In contrast, treatment of unc-55 animals with Benzamil results in a significantly larger number of residual SNB-1::GFP puncta on the ventral side (Figure 5A,B). However, Benzamil treatment of unc-55;unc-8 animals does not induce any additional enhancement of ventral SNB-1::GFP puncta. This result argues that Benzamil antagonizes synaptic removal by specifically inhibiting UNC-8 (Figure 5—figure supplement 1A). To confirm that Benzamil inhibits UNC-8 channel activity, we expressed the constitutively active UNC-8(G387E) protein in Xenopus oocytes for electrophysiological analysis (Figure 5—figure supplement 1B). We have previously established that the UNC-8(G387E) protein shows robust sodium transport activity in an extracellular solution that is depleted of calcium and other divalent cations (Figure 5C, Figure 5—figure supplement 1C) (Wang et al., 2013). Under these conditions, Benzamil strongly inhibits UNC-8(G387E) sodium transport with a Ki ~ 119 μM (Figure 5C,D). In the presence of extracellular calcium, Benzamil acts as a more potent inhibitor (Ki = 47 μM) suggesting that calcium ions enhance Benzamil binding (Figure 5—figure supplement 1C). A similar effect of extracellular divalent cations on inhibitor potency was previously observed for the DEG/ENaC inhibitor Amiloride (Wang et al., 2013). Treatment with Amiloride also antagonizes the removal of ventral SNB-1::GFP puncta in unc-55 mutant neurons (Figure 5B), but does not alter ventral SNB-1::GFP puncta in either unc-8 or unc-55;unc-8 animals (Figure 5—figure supplement 1A). Taken together, these results show that Amiloride and Benzamil disrupt the GABA neuron synaptic removal and are consistent with the idea that this effect is due to the inhibition of sodium transport by an UNC-8-containing DEG/ENaC channel (Figure 5E).

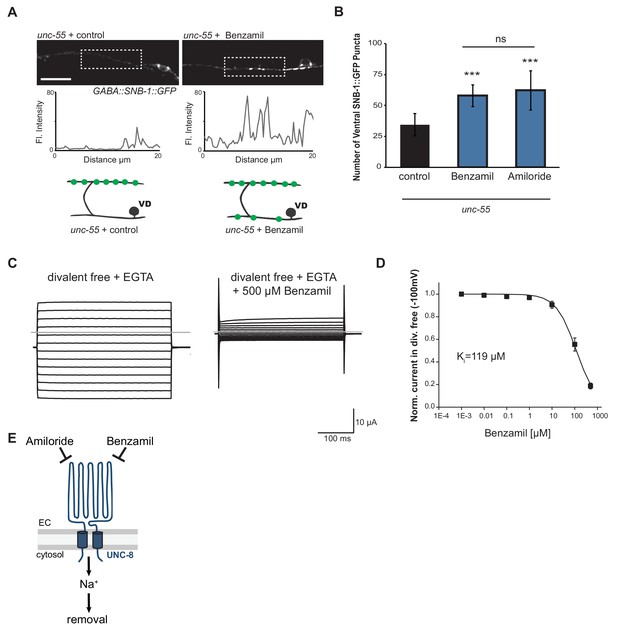

Figure 5 with 1 supplement see all
UNC-8 cation channel activity promotes the removal of ventral synapses in remodeling GABA neurons.

(A) Representative images and fluorescence intensity plots (generated from 20 μm dashed region) of SNB-1::GFP-marked ventral GABA neuron synapses in unc-55 animals treated with either 3 mM Benzamil or water (control). Scale bar is 10 μm. (B) Benzamil and Amiloride antagonize the removal of ventral GABA synapses in unc-55 mutant animals. Ventral GABA neuron synapses were quantified by counting SNB-1::GFP puncta (***p<0.001, ns is not significant, n ≥ 25 animals, data are mean ± SD, One-Way ANOVA with Bonferroni correction). (C) Benzamil blocks UNC-8(G387E) current in Xenopus oocytes. Representative currents from oocyte expressing UNC-8(G387E) in a bath of divalent cation-free solution plus EGTA. Currents elicited by 20mV voltage steps from -160mV to +100mV. The holding potential was -30mV. The gray line represents the zero current level (left). The same oocyte exposed to 500µM Benzamil (right). (D) Benzamil dose-response curve in divalent cation-free bath solution. Currents recorded with Benzamil were normalized against recordings in divalent cation-free bath solution plus EGTA at -100mV. Data were fitted to the Boltzmann's equation to derive Ki = 119 µM (n = 10 oocytes). Data are mean ± SEM. (E) Pharmacological inhibition of UNC-8 channel activity with either Benzamil or Amiloride blocks removal of ventral synapses in remodeling GABA neurons synaptic remodeling (EC is extracellular).

https://doi.org/10.7554/eLife.14599.014

UNC-8 removes synapses in an activity-dependent pathway

Previous work has shown that neuronal activity promotes DD presynaptic remodeling; the dorsal DD synapse formation is accelerated in mutants that enhance synaptic activity and delayed by genetic defects that block neurotransmission (Thompson-Peer et al., 2012). We predicted that neuronal activity is also required for the removal of ventral synapses in remodeling GABA neurons. Voltage-gated calcium channels (VGCCs) promote synaptic vesicle fusion and neurotransmitter release by elevating intracellular calcium (Catterall et al., 2008). In C. elegans, the unc-2 gene encodes a CaV2 α1 subunit of a P/Q-type calcium channel (Mathews et al., 2003). UNC-2 is localized to the presynaptic terminals of ventral cord motor neurons and is required for neurotransmitter release (Gracheva et al., 2008; Saheki and Bargmann, 2009). We determined that unc-55; unc-2 double mutants show a significantly greater number of SNB-1::GFP puncta on the ventral side in comparison to unc-55 animals (Figure 6A,B). This result indicates that wild-type unc-2 promotes synapse removal in remodeling GABA neurons. Because comparable levels of ventral SNB-1::GFP signal were observed in unc-55; unc-8 animals, we next conducted a genetic test to ask if unc-2 and unc-8 eliminate ventral synapses by either independent or shared mechanisms. We observed no additional increase in the number of ventral cord SNB-1::GFP puncta in unc-55; unc-8; unc-2 animals compared to either double mutant (i.e., unc-55;unc-8 or unc-55;unc-2). This result favors a model in which unc-2 and unc-8 act together in a linear pathway to remove ventral synapses in remodeling GABA neurons (Figure 6A,B,E).

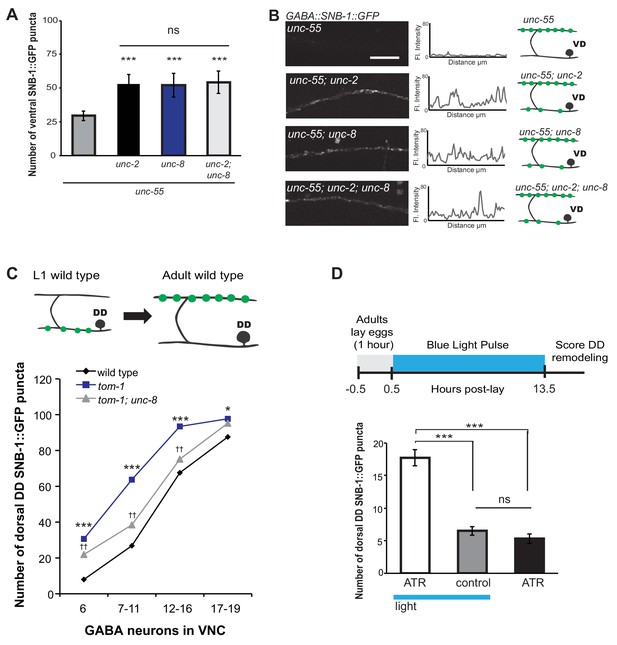

UNC-8 drives synaptic remodeling in an activity-dependent pathway that requires neurotransmitter release.

(A) Loss-of-function mutations in either unc-2 (VGCC) or unc-8 impairs removal of ventral SNB-1::GFP in unc-55 animals. The unc-8 mutation does not enhance the unc-55;unc-2 remodeling defect, demonstrating that UNC-2/VGCC and UNC-8/DEG/ENaC function in a common pathway to promote GABA synapse removal (***p<0.001 vs unc-55, One-Way ANOVA with Bonferroni correction, data are mean ± SD, n ≥ 17). (B) Representative images and insets show fluorescence intensity plots over a 20 μm region of the ventral nerve cord for each genotype. Scale bar is 5 μm. (C) DD synapses are precociously remodeled in tom-1 mutants. This effect is suppressed in unc-8; tom-1 animals (*p<0.05, ***p<0.001 vs wild type, ††p<0.01 vs tom-1 Student’s t-test, results pooled from > 3 independent experiments per genotype) Plots are normalized for the total number of GABA neurons labeled with SNB-1::GFP in the ventral cord to account for developmental delay in tom-1 mutants. (D) Optogenetic stimulation of channelrhodopsin (ChR2)-induced activity in GABA neurons for 13 hr (0.5 Hz) results in precocious appearance of SNB-1::GFP marked DD synapses in the dorsal nerve cord (n ≥ 18 animals, ***p<0.001, data are mean ± SEM, One-Way ANOVA with Bonferroni correction), ATR is all-trans retinal. Mutant alleles were unc-2(e55) and tom-1(ok2437).

https://doi.org/10.7554/eLife.14599.016

We performed an additional genetic experiment to confirm that UNC-8 functions in an activity-dependent pathway in remodeling DD motor neurons. The tomosyn protein, TOM-1, normally down-regulates neurotransmitter release by inhibiting synaptic vesicle (SV) priming (Gracheva et al., 2006; McEwen, 2006). We confirmed that a loss-of-function tom-1/tomosyn mutant, which enhances evoked SV fusion, results in precocious assembly of dorsal DD synapses (Figure 6C) (Thompson-Peer et al., 2012). This effect was not observed, however, in tom-1;unc-8 double mutants which suggests that wild-type unc-8 function is necessary for the accelerated remodeling of DD neurons in tom-1 mutant animals (Figure 6C). Although we previously determined that UNC-8 is exclusively involved in the removal of ventral DD synapses in wild-type animals, this result suggests that UNC-8 is also necessary for the precocious assembly of dorsal DD synapses in tom-1 mutants. Perhaps UNC-8 exerts an indirect effect on dorsal assembly in this context in which remodeling is triggered prematurely when potential recycling of presynaptic components to nascent dorsal synapses could be limiting (Park et al., 2011).

Our genetic results indicate that UNC-8 functions in an activity-dependent synaptic remodeling pathway. Because this conclusion is based on the analysis of mutants that alter neural activity throughout the C. elegans nervous system, we performed an experiment to ask if the GABA neuron activity alone is sufficient to drive synaptic remodeling. This requirement predicts that optogenetic activation of GABAergic neurons should accelerate the remodeling process. To test this idea, we used a GABA neuron-specific promoter to drive channelrhodopsin (ChR2) expression in DD neurons (Liu et al., 2009). Blue light exposure of these GABA::ChR2 transgenic animals evoked muscle relaxation with an immediate cessation of locomotion as expected for a treatment that enhances GABA release (data not shown) (Schuske et al., 2004). Synchronized populations of GABA::ChR2 animals were exposed to blue light at 0.5 Hz for 13 hr. DD neurons were assayed for precocious remodeling by counting the number of dorsal SNB-1::GFP puncta at the end of this period. The results of this experiment show that optogenetic activation of GABA neurons accelerates DD remodeling and that both blue light and exogenous all-trans retinal (ATR) are required for this effect; DD neurons that express ChR2 (GABA::ChR2) remodel earlier with significantly more dorsal puncta after 13 hr of light exposure in comparison to controls (Figure 6D). This finding argues that neuronal activity in DD neurons is sufficient to drive synaptic remodeling and thus suggests that a mechanism linking neural activity and unc-8 function could be cell autonomous to GABA neurons.

The calcium/calmodulin-dependent phosphatase calcineurin promotes synapse removal in the UNC-8 pathway

We have shown that calcium signaling through UNC-2 induces removal of ventral GABA synapses and that UNC-8 functions in this pathway to promote synapse disassembly (Figure 6A). In considering potential mechanisms for this effect, we performed a genetic experiment to test the idea that elevated intracellular calcium arising from UNC-2 function could activate cytoplasmic signaling proteins that drive synapse disassembly. One of these candidate downstream effectors, the calcium/calmodulin-activated phosphatase, calcineurin, is highly expressed throughout the nervous system and has been implicated in activity-dependent mechanisms that regulate synaptic maintenance and function (Baumäartel and Mansuy, 2012; Winder et al., 1998). Calcineurin is composed of two protein components, the catalytic subunit calcineurin A and the regulatory subunit calcineurin B. To determine if calcineurin function is required for the GABA neuron remodeling mechanism, we first tested the role of the C. elegans calcineurin A homolog, TAX-6 (Figure 7A). We found that a tax-6 loss-of-function allele impedes the removal of ventral synapses in remodeling GABA neurons (Figure 7B). To ask if tax-6 is expressed in GABA neurons, we determined that a translational reporter gene, ptax-6::TAX-6::GFP is co-localized with the GABA neuron-specific marker, punc-47::mCherry (Figure 7C). We then used a loss-of-function allele of the calcineurin B homolog cnb-1 to confirm the role of calcineurin in synaptic disassembly. Our results indicate that cnb-1 function is required for the efficient removal of ventral synapses in remodeling GABA neurons. In addition, genetic ablation of unc-8 in unc-55; cnb-1 animals do not enhance this phenotype, which suggests that UNC-8 and calcineurin promote synapse elimination in a common pathway (Figure 7D).

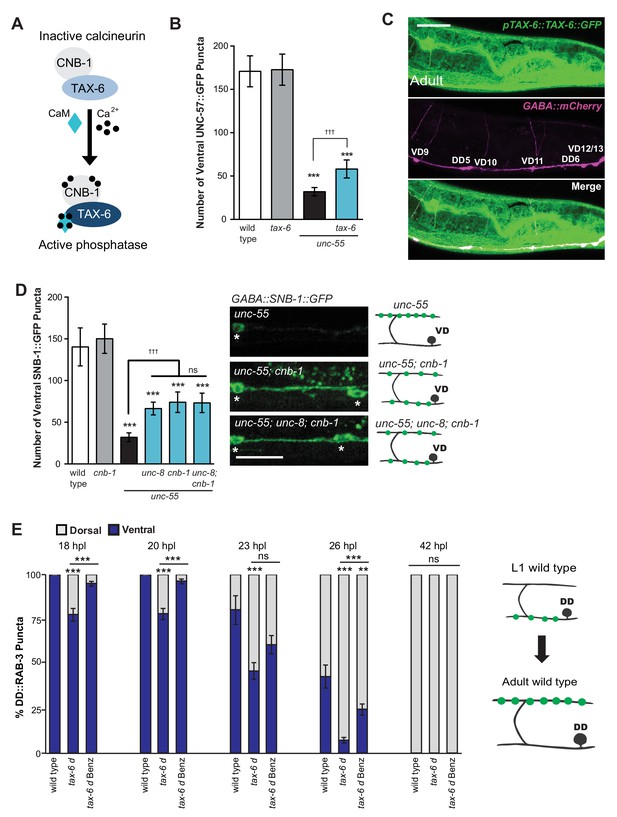

The calcium/calmodulin-dependent phosphatase calcineurin promotes GABA synapse removal in the UNC-8 pathway.

(A) Calcineurin A and B subunits (TAX-6 and CNB-1, respectively) require calcium and calmodulin (CaM) to activate phosphatase activity. (B) Loss of tax-6 partially suppresses the unc-55 remodeling phenotype in GABA neurons (***p<0.001, ns is not significant, One-Way ANOVA with Bonferroni correction, data are mean ± SD, n ≥ 25). (C) GFP-tagged TAX-6 under the control of the tax-6 promoter region (ptax-6::TAX-6::GFP) is expressed in GABA neurons (punc-47::mCherry). Scale bar is 20 μm. (D) CNB-1 is required for remodeling in unc-55 animals. Loss of cnb-1 function does not enhance the unc-55; unc-8 remodeling defect, suggesting that calcineurin and UNC-8 promote synapse removal in a common genetic pathway (left, ***p<0.001 compared to wild type, tttp<0.001 compared to unc-55, ns is not significant, One-Way ANOVA with Bonferroni correction, data are mean ± SD, wild type n = 10, mutants n = 20). Representative images of ventral nerve cords in unc-55, unc-55; cnb-1 and unc-55; unc-8; cnb-1 animals. Asterisks denote GABA neuron soma, scale bar is 20 μm (right). (E) Gain-of-function tax-6 (tax-6d) mutants remodel precociously and this effect is suppressed by Benzamil. Percentage of ventral (blue) vs dorsal (gray) DD synapses (pflp-13::GFP::RAB-3, **p<0.01, ***P<0.001, ns is not significant, One-Way ANOVA with Bonferroni correction, n ≥ 8 animals per timepoint, data are mean ± SEM). Results for tax-6d and for the tax-6d control for Benzamil treatment (see Materials and methods) are combined because they were not significantly different. Benz denotes 3mM DEG/ENaC inhibitor Benzamil. Mutant alleles were tax-6(p675), tax-6d(jh107), cnb-1(ok276).

https://doi.org/10.7554/eLife.14599.017

These results indicate that calcineurin promotes the removal of ventral synapses and therefore predict that the constitutively active gain-of-function allele tax-6(d) should induce precocious synapse disassembly. To test this idea, we used the presynaptic marker GFP::RAB-3 to determine that DD ventral synapses are removed prematurely in tax-6(d) mutants; dorsal synaptic assembly is also precocious and occurs significantly earlier than in wild-type controls. Additionally, we determined that treatment of tax-6(d) animals with the DEG/ENaC inhibitor Benzamil significantly delays the precocious remodeling phenotype (Figure 7E). These results argue that intracellular calcium acting through TAX-6/Calcineurin promotes the overall synaptic remodeling mechanism and that this effect requires UNC-8 channel activity, thereby suggesting that unc-8 functions downstream of tax-6.

To summarize, our findings are consistent with the hypothesis that neuronal activity drives synaptic remodeling through a calcium-dependent signaling pathway in which calcineurin and unc-8 function together to promote disassembly of the presynaptic apparatus.

UNC-8 promotes synapse elimination in a common pathway with the cell death gene, CED-4

Previous work has shown that the canonical apoptotic pathway promotes the removal of ventral GABA synapses in remodeling DD neurons. In this mechanism, the adaptor protein CED-4/Apaf1 and its downstream effector, CED-3/caspase activate the actin-severing protein gelsolin to destabilize a presynaptic F-actin network during synapse elimination (Meng et al., 2015). Because synaptic removal is activated during a discrete developmental period, a specific signal is likely required to trigger this pathway. Based on our finding that calcium signaling and UNC-8 function together to promote GABA synapse elimination and previous work that detected roles for calcium in caspase activation and gelsolin function (Pinan-Lucarre et al., 2012; Liu et al., 2011), we considered the possibility that these components function in a common pathway and that calcium activates the overall mechanism. To test this idea, we first asked if the cell death gene ced-4 is required for GABA synapse removal in unc-55 mutants in which both DD and VD neurons remodel. A loss-of-function mutation in ced-4 results in significant retention of ventral GABA synapses in comparison to unc-55 mutant animals and therefore confirms that ced-4 is necessary for the efficient removal of ventral synapses in both classes (e.g., DD and VD) of remodeling GABA neurons (Figure 8A, [Meng et al., 2015]). The ced-4-dependent effect on remodeling in unc-55 animals is comparable to that of unc-55; unc-8 double mutants. Furthermore, the combination of ced-4 and unc-8 mutants did not further enhance the restoration of ventral synapses over that of either unc-55; unc-8 or unc-55; ced-4 animals (Figure 8A). Together, these results suggest that the DEG/ENaC protein UNC-8 functions in a common pathway with ced-4 to eliminate ventral GABA synapses. Because we have also shown that calcium and unc-8 function in a common pathway to promote removal of GABA synapses, we propose that a rise in intracellular calcium in active GABA neurons is sufficient to trigger ced-4-dependent synapse elimination (Figure 8B, see Discussion).

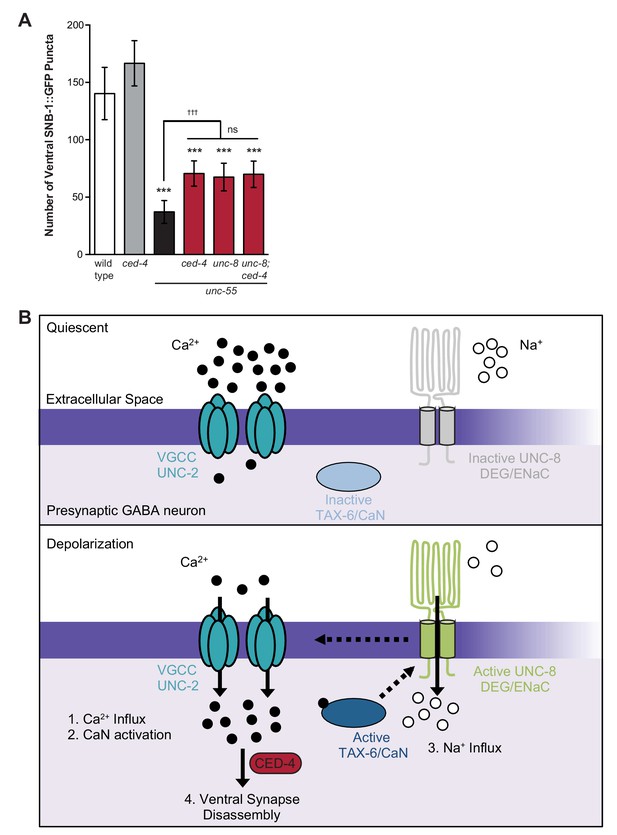

Model of UNC-8-driven synapse disassembly in the GABA neuron remodeling program.

(A) A loss-of-function mutation in the pro-apoptotic gene ced-4 partially suppresses GABA neuron remodeling in unc-55 animals. Genetic ablation of unc-8 in the triple mutant unc-55; ced-4; unc-8 mutants does not enhance the remodeling defect and thus suggests that UNC-8 and CED-4 promote synapse elimination in a common pathway (***p<0.001 compared to wild type, tttp<0.001 compared to unc-55, ns is not significant, One-Way ANOVA with Bonferroni correction, data are mean ± SD, wild type n = 10, mutants n ≥ 20) Mutant allele is ced-4(n1162). (B) Model of a calcium-dependent mechanism for removal of the presynaptic apparatus. A DEG/ENaC channel containing UNC-8 is not active (gray) in quiescent GABA motor neurons (top panel). (1) GABA neuron depolarization activates the voltage-gated calcium channel (VGCC), UNC-2, to allow calcium entry (black circles bottom panel). (2) Intracellular calcium activates the calcium/calmodulin-dependent phosphatase, calcineurin (CaN/TAX-6). (3) CaN phosphatase may activate UNC-8, which results in the movement of sodium ions (white circles) into the presynaptic GABA neuron, further depolarizing the presynaptic membrane and activating VGCCs. This positive feedback loop is predicted to further elevate intracellular calcium. (4) Our results show that UNC-8 drives the removal of presynaptic components and functions in a common genetic pathway with calcium signaling and with the apoptotic protein CED-4. Therefore, we hypothesize that selective expression of UNC-8 in remodeling GABA neurons effectively boosts the level of intracellular calcium to activate a CED-4-dependent pathway for removal of the presynaptic apparatus.

https://doi.org/10.7554/eLife.14599.018

Discussion

Developing nervous systems are dynamically remodeled during genetically defined intervals in which circuit architecture is particularly sensitive to neural activity. These 'critical periods' have been widely observed, but the underlying mechanisms that account for the dual roles of transcriptional pathways and synaptic activity in circuit refinement are incompletely defined. In this study, we show that a member of the conserved DEG/ENaC family of cation channel proteins, UNC-8, is transcriptionally controlled to mediate an activity-dependent pathway that promotes the removal of GABAergic synapses in C. elegans.

The UNC-8/DEG/ENaC protein promotes synapse elimination in an activity-dependent pathway

Previous work has detected roles for DEG/ENaC proteins in synaptic function and neural plasticity. For example, members of the ASIC (acid-sensing ion channels) class of the DEG/ENaC family proteins are activated by low pH and have been implicated in learning and memory (Wemmie et al., 2002, 2004; Zha et al., 2006). In one possible mechanism to explain this role, acidification of the synaptic cleft that accompanies the neurotransmitter release is thought to trigger ASIC-mediated sodium influx. The resultant membrane depolarization is proposed to enhance postsynaptic signaling by activating local voltage gated ion channels and NMDA receptors (Wemmie et al., 2013). Presynaptic roles are also possible as suggested by studies in C. elegans that detected an ASIC-like channel that promotes neurotransmitter secretion in a learning and memory paradigm (Voglis and Tavernarakis, 2008). Our finding that a reconstituted UNC-8 channel is in fact inhibited by low pH, however, suggests that UNC-8 is unlikely to function as an ASIC-like protein in vivo (Wang et al., 2013). This observation is important because non-ASIC members of the DEG/ENaC family are also expressed in the brain, but their roles in synaptic function are largely unknown (Giraldez et al., 2013; Yamamura et al., 2004; Waldmann, 1995). A recent study established that the DEG/ENaC protein, pickpocket, exerts a homeostatic function that maintains neurotransmitter release at the Drosophila neuromuscular junction. In this mechanism, sodium influx arising from elevated pickpocket transcription and membrane insertion is proposed to result in local depolarization that activates a nearby voltage-gated calcium channel (VGCC) and consequent neurotransmitter release (Younger et al., 2013). This model is consistent with the finding that the CaV2.1 VGCC channel subunit cacophony is required for synaptic homeostasis (Müller and Davis, 2012). Our results are suggestive of a similar presynaptic role for UNC-8 of enhancing intracellular calcium influx with the important difference that UNC-8 ultimately eliminates neurotransmitter secretion by triggering destruction of the presynaptic apparatus. In addition, our findings provide a plausible explanation for the radically different outcomes of pickpocket and UNC-8 channel function.

In this study, we demonstrate that UNC-8 promotes the removal of presynaptic domains in remodeling GABAergic neurons. This UNC-8 function requires its intrinsic cation channel activity (Figure 5) which likely involves sodium influx since electrophysiological studies of a reconstituted UNC-8 channel in Xenopus oocytes indicate that UNC-8 preferentially transports sodium and is impermeant to calcium (Wang et al., 2013). Because our evidence points to punctate UNC-8 localization within the ventral nerve cord (Figure 2F), it is reasonable to predict that UNC-8-dependent sodium import would activate nearby VGCC channels (Wemmie et al., 2013). This idea is consistent with the observation that VGCC function is required for ASIC-induced elevation of intracellular calcium in hippocampal neurons (Zha et al., 2006). Furthermore, our results show that synaptic removal in remodeling C. elegans GABA neurons is disrupted by genetic ablation of the CaV2 channel subunit, UNC-2. As a key component of the presynaptic apparatus, UNC-2 mediates calcium influx to drive neurotransmitter release (Richmond et al., 2001). We suggest that the UNC-2-dependent rise in cytoplasmic calcium in active GABA neurons is enhanced by UNC-8 cation channel function. Moreover, because our genetic results indicate that unc-2 and unc-8 function in a common pathway (Figure 6A), the elevation of intracellular calcium arising from this interaction could be required for efficient removal of the presynaptic apparatus in remodeling GABA neurons (see below).

Calcium signaling and a caspase-dependent mechanism drive GABA neuron synapse elimination

The idea of a downstream role for calcium in synaptic remodeling is underscored by our finding that the calcineurin homolog, TAX-6, also functions in the unc-8-dependent mechanism of synapse elimination (Figure 7). The serine-threonine phosphatase activity of calcineurin/CaN is calcium and calmodulin-dependent and has been shown to regulate neural plasticity. For example, calcineurin/CaN antagonizes LTP in a mechanism that dephosphorylates the GluR1 subunit of the AMPA receptor to promote its removal from the postsynaptic membrane (Winder et al., 1998; Gorski et al., 2012; Lee et al., 1998). TAX-6/Calcineurin could exert a parallel role in the removal of the presynaptic apparatus in GABA neurons by activating the UNC-8 channel. Our finding that the DEG/ENaC inhibitor, Benzamil, potently blocks the accelerated remodeling phenotype of a constitutively active TAX-6 protein is consistent with this idea (Figure 7E). The resultant positive feedback loop involving UNC-2, TAX-6/Calcineurin and UNC-8 should further elevate intracellular calcium (Figure 8). In an analogous mechanism, phosphorylation by CaMKII activates ASIC1a and the resultant VGCC-dependent elevation of intracellular calcium in turn promotes CaMKII activity (Zha et al., 2006; Gao et al., 2005; Zha and Zha, 2013). In this model, UNC-8 would act as a synaptic amplifier to drive a self-reinforcing signaling pathway that elevates intracellular calcium.

The key role of calcium signaling in this model is consistent with previous work showing that removal of the GABA presynaptic apparatus requires components of the canonical apoptotic pathway including the caspase-3 homolog CED-3 and its upstream activator CED-4/Apaf1. In this mechanism, the CED-3 protease cleaves the actin-severing protein gelsolin to release an active gelsolin domain that in turn destabilizes an F-actin network at the presynaptic membrane (Meng et al., 2015). Notably, both CED-3 and gelsolin function in calcium-dependent pathways (Pinan-Lucarre et al., 2012; Liu et al., 2011). Because our genetic evidence argues that unc-8 and ced-4 function in a common pathway (Figure 8A), we propose a model in which UNC-8 promotes the elevation of intracellular calcium above a critical threshold that then triggers the apoptotic pathway to dismantle the presynaptic region. The localization of apoptotic components to the presynaptic membrane (Meng et al., 2015) may ensure that a local rise in calcium near the synapse is sufficient to activate this mechanism, but also protects the neuron from apoptotic death. The conserved role of CED-3/caspase-3 in synapse elimination in other species (Ertürk et al., 2014; Wang et al., 2014;Li et al., 2010) argues that similar DEG/ENaC-dependent mechanisms could be widely employed to trigger synaptic destruction.

Multiple components regulate GABA neuron synaptic remodeling

Our results show that unc-8 promotes the removal of ventral synapses in remodeling DD and VD motor neurons, but is generally not necessary for the nascent assembly of dorsal synapses (Figure 2E). The proposed downstream role of the apoptotic pathway is similarly limited to synaptic removal (Meng et al., 2015). In addition, the elimination of GABAergic synapses is only partially dependent on this unc-8 pathway (Figure 2C, Figure 3, Figure 3—figure supplement 1A, Figure 4) (Meng et al., 2015). These findings point to important roles for additional components in GABA neuron synaptic remodeling (Howell et al., 2015; He et al., 2015). For example, the cyclin box-containing protein CYY-1 and cyclin-dependent kinase CDK-5 function together to promote synaptic removal and reassembly, respectively (Park et al., 2011). In previous work, we have shown that the Iroquois family homeodomain transcription factor, IRX-1, promotes synaptic removal. IRX-1 also promotes dorsal DD synapse formation, suggesting that IRX-1 orchestrates expression of multiple genes that drive DD synaptic remodeling (Petersen et al., 2011). The exact function of the IRX-1 pathway in synaptic disassembly is unknown, but likely involves the extraction of components that are required for GABA release since functional GABA synapses are restored to the ventral nerve cord of unc-55 animals that are also mutant for irx-1 (Petersen et al., 2011). In the future, it will be interesting to define the specific roles of each of these effectors in the mechanism of GABA neuron synaptic remodeling. Despite the necessity for additional pathways functioning in parallel to unc-8 to execute a comprehensive GABA neuron remodeling program, our results also determined that UNC-8 alone is sufficient to trigger synapse elimination (Figure 3—figure supplement 2B). This finding argues that transcriptional regulation of unc-8 expression effectively functions as a genetic switch that determines the developmental fate of the presynaptic signaling apparatus in active GABAergic neurons.

Materials and methods

C. elegans strains and genetics

Request a detailed protocol

Strains were maintained at 20°C on NGM plates seeded with OP50 (E. coli), unless otherwise stated (Brenner, 1974). The wild type strain is N2 and only hermaphrodite animals were analyzed. The unc-55(e1170) and unc-8(tm5052) alleles were used for these studies. For a complete list of the strains used in this study, see Supplementary file 1A.

The unc-8(tm5052) allele was obtained from a UV/TMP mutagenized library, as described previously (Gengyo-Ando and Mitani, 2000) and was identified by PCR amplification with primers spanning the deleted region. tm5052 likely corresponds to an unc-8 null allele because it deletes a portion of the fifth and entire sixth exon (197 base pairs) with the insertion of CT resulting in a premature stop codon prior to the first transmembrane domain. We used the following primers to detect the tm5052 mutation: Forward 5’-TGGGGCCCTAATAATTTCGA-’3 and Reverse 5’- AGTGACAGTATGAAGCCAGG-’3.

Molecular biology and transgenes

Request a detailed protocol

Construction of GABA csRNAi transgenic lines

RNAi plasmids used for GABA neuron-specific knock down of unc-8 target the first 7 exons of the unc-8 coding region. To clone the unc-8 sense construct pSA76, a 2.3 kb region of unc-8 cDNA was amplified with the following primers containing 5’AscI/3’SacII adaptors: Forward 5’- GGCGCGCCATGTCACCTTTGCTGACGT-3’ and Reverse 5’-GCCAGGAGGTGATATTCTAGCCGCGG-3’. This fragment was cloned into pCR2.1 via TOPO-TA reaction (Invitrogen, Waltham, MA) to yield pSA75. The 2.3 kb unc-8 cDNA fragment was then subcloned into the existing GABAergic cell-specific RNAi (csRNAi) plasmid pSA47 via AscI/SacII to yield pSA76 (Petersen et al., 2011). pSA76 contains the DD/VD specific promoter, pttr-39 and the unc-119 wild-type mini gene (Maduro and Pilgrim, 1995). To construct the unc-8 antisense plasmid pSA78, the 2.3 kb unc-8 cDNA fragment was amplified with the following primers containing 5’’SacII/3’AscI adaptors: Forward 5’-CCGCGGATGTCACCTTTGCTGACGTG-3’ and Reverse 5’- CCAGGAGGTGATATTCTAGGGCGCGCC-3’. The unc-8 antisense fragment was subcloned into pCR2.1 via TOPO-TA reaction (Invitrogen) to yield pSA73. The unc-8 fragment from pSA73 was then inserted into the GABA neuron-specific RNAi (csRNAi) plasmid pSA47 via AscI/SacII to yield pSA77. The unc-8-containing region of pSA77 between ScaI and SacII was then inserted into plasmid pSA49 to yield pSA78. The pttr-39 promoter in pSA78 drives expression of the 2.3 kb unc-8 antisense fragment and mCherry. pSA76 (unc-8 sense) and pSA78 (unc-8 antisense) were linearized and ligated, then transformed into unc-119 worms via microparticle bombardment to yield a spontaneous integrant (strain NC2601) as indicated by 100% transmission of rescued (unc-119+) movement (indicating unc-8 sense) and mCherry expression in all GABAergic motor neurons (indicating unc-8 antisense) (Praitis et al., 2001). A control plasmid was also created containing pttr39-driven mCherry and the unc-119 rescuing gene, which was transformed into unc-119 worms via microparticle bombardment.

Recombineering UNC-8::GFP fosmid

Request a detailed protocol

The UNC-8::GFP fosmid was recombineered as previously described (Tursun et al., 2009). Briefly, the 30 kb fosmid WRM0635cA02 containing the unc-8 genetic locus was obtained from GeneService (Nottingham, UK) and purified. Fosmid DNA was transformed into electrocompetent SW105 cells and was verified by PCR. A GFP-galK recombineering cassette was amplified with 50 kb homology arms from pBALU1 and gel-purified. The GFP-galK PCR product was transformed into electrocompetent, λRed recombinase-activated, fosmid-containing SW105 cells. The cells containing the fosmid and GFP-galK were grown for more than 60 hr at 32°C and streaked on MacConkey and galactose plates with chloramphenicol to ensure the insertion of recombineering cassette. To excise galK from the GFP intron, colonies were incubated with 0.1% arabinose to create an unc-8::GFP expression fosmid. This unc-8::GFP fosmid was then purified and confirmed by sequencing. The fosmid was injected into unc-8(tm5052) animals at 25 ng/μl with co-injection marker pceh-22::GFP at 15 ng/μl.

Construction of punc-25::UNC-8::GFP plasmid

Request a detailed protocol

UNC-8 cDNA was PCR-amplified from pSGEM/pTWM60 (Wang et al., 2013) with primers that span the UNC-8 cDNA sequence and exclude the 3’ stop codon. The primer sequences are: Forward 5’-ATGAGCGCAAGGAGTAGT-3’ and Reverse 5’- TTTGCTCATTAACTCCTTTGT-3’. Primers include either 5’-AscI or 3’-SacII adaptors for inserting UNC-8 cDNA into pMLH260 (punc-25::coq1cDNA::GFP::unc-54) in place of the coq-1 fragment. The resultant plasmid, pTWM62 (punc-25::UNC-8::GFP) was injected (10 ng/μl) with co-selectable marker pmyo-2::mCherry::unc-54 (2.5 ng/μl) into unc-8 (tm5052) animals.

Construction of pttr-39::UNC-8 plasmid

Request a detailed protocol

UNC-8 cDNA was PCR-amplified from pSGEM/pTWM60 (Wang et al., 2013) with primers that span the UNC-8 cDNA sequence. The primer sequences are: Forward 5’-ATGAGCGCAAGGAGTAGT-3’ and Reverse 5’- TTTGCTCATTAACTCCTTTGT-3’. Primers include either 5’-AscI or 3’-EcoRI adaptors for inserting UNC-8 cDNA into pTWM35 (pttr39::arx-5::GFP::unc-54) in place of the ARX-5::GFP fragment. The resultant plasmid, pTWM92 (pttr-39::UNC-8cDNA) was injected (25 ng/μl) with co-selectable markers pmyo-2::mCherry::unc-54 (2 ng/μl) and punc-25::mCherry::RAB-3 (5 ng/μl) into unc-55; unc-8 (tm5052) juIs1 or juIs1 animals.

Staging and synapse quantification

Request a detailed protocol

For time-course experiments, 100 adult hermaphrodites from each genotype were picked to fresh 60 mm plates and allowed to lay eggs for one hour. The mid-point at which the eggs were laid is considered T0. All adults were removed from the plates after 1 hr. Plates were maintained at 23°C until assayed. Puncta arising from localization of fluorescent presynaptic markers were counted with a Zeiss Axiovert microscope (63X oil objective) in immobilized animals. For timecourse experiments puncta were counted between DD1 and DD6 (Figures 2C, 6C,D, 7E, Figure 2—figure supplement 1B–D) or from VD3 to VD11 in adults (Figure 3—figure supplement 1B). Data were pooled from 3 separate experiments. In young adults, labeled puncta were counted in the ventral nerve cord region between VD3 and VD11 (Figures 2E, 4A–E, 5B, 6A, 7B,D, 8A, Figure 1—figure supplement 1C, Figure 3—figure supplement 1, Figure 5—figure supplement 1A). For experiments featuring mosaic expression of either unc-8(csRNAi) (Figure 3F) or unc-8cDNA (Figure 3—figure supplement 2), puncta were counted from individual DD and VD neurons. The examiner was blinded to genotype.

Confocal microscopy and image analysis

Request a detailed protocol

Animals were immobilized with 15 mM levamisole/0.05% tricaine and mounted on a 2% agarose pad in M9 buffer as previously described (Smith et al., 2010). Z-stack images were collected on a Leica TCS SP5 confocal microscope using a 63X oil objective (0.5 μm/step), spanning the focal depth of the ventral nerve cord GABA neurons and synapses. Leica Application Suite Advanced Fluorescence (LAS-AF) software was used to generate maximum intensity projections. Images in Figure 3A were collected from 10 animals of each genotype. Ventral nerve cord images between VD4 and VD5 were straightened using an ImageJ plug-in and aligned in rows. All fluorescence intensity plots were created by drawing a line through the ventral nerve cords of each animal and calculating the fluorescence intensity value in arbitrary units over the distance in micrometers with the ImageJ plot profile tool. For Figure 1, DD and VD neurons were identified by the GABA-specific marker pttr-39::mCherry. The cells were traced in ImageJ and the background was subtracted. The unc-8::GFP fluorescence intensity was then normalized to the pttr-39::mCherry fluorescence intensity for each cell. Fluorescence intensity plots in Figure 4 and Figure 4—figure supplement 1 were created with the ImageJ plot profile tool, analyzing the same region of the ventral nerve cord in both GFP and RFP channels. Fluorescence intensity values were normalized for each channel. The coefficient of determination (r2) was calculated in ImageJ using the Manders coefficients macro, from at least 10 animals for each genotype. r2 values were averaged and presented as mean ± SEM. An r2value of 0 represents no co-localization, whereas r2 = 1 represents complete co-localization.

Pharmacology

Request a detailed protocol

Amiloride hydrochloride hydrate (Sigma, #A7410) stock solution was prepared in sterile water (50 mg/ml) and stored at -20°C. A final concentration of 3 mM Amiloride diluted in OP50 bacteria was seeded on NGM plates. Control NGM plates contained the same volume of sterile water added to OP50. Benzamil hydrochloride hydrate (Sigma, #B2417, St. Louis, MO) stock solution was prepared in sterile water (1 mg/ml) and stored at 4°C. A final concentration of 3 mM Benzamil diluted in OP50 bacteria was seeded on NGM plates. Control NGM plates contained the same volume of sterile water added to OP50. Plates were stored at 4°C for up to one week. Five adult unc-55; juIs1 animals were placed on either Amiloride, Benzamil, or control plates at room temperature and progeny examined at the young adult stage (Figure 5A,B and Figure 5—figure supplement 1A). Adult tax-6(d); wyIs202 animals were grown on Benzamil or control plates and their larval progeny were collected on control or Benzamil plates for timecourse assays (Figure 7E). The number of ventral puncta was counted using a Zeiss Axiovert microscope (63X oil objective) and Z-stack images were captured on a Leica TCS SP5 confocal microscope using a 63X oil objective (0.5 μm/step). The examiner was blinded to genotype and treatment condition.

Optogenetics

Request a detailed protocol

All-trans retinal (Sigma, #R2500) was dissolved in ethanol to prepare a 100 mM stock and stored at -20°C. 300 μM of all-trans retinal stock solution (ATR plates) or ethanol (control plates) was added to OP50 bacteria and seeded onto NGM plates. Plates were protected from light and were stored at 4°C for up to one week. 100 adult hermaphrodites were placed on either ATR or control plates, allowed to lay eggs for 1 hr and then removed from the plate. The midpoint of this hour is considered T0. Plates were exposed to blue light pulses with a 470-nm LED light (#M470L2, Thor Labs, Newton, NJ) for 13 hr (0.5 Hz, 2 mW/mm2 measured with Solartech Inc. Solar Meter 9.4 radiometer). Light stimulation was controlled using NI Max software through TTL signals generated by a digital function generator (National Instruments, Austin, TX). 13 hr after egg laying, animals were assayed for DD remodeling by counting the number of dorsal SNB-1::GFP puncta. The examiner was blinded to the treatment. Data were collected from three independent time course experiments with at least six animals per treatment.

Electrophysiology

Request a detailed protocol

The C. elegans dissection and electrophysiological methods were as previously described (Richmond and Jorgensen, 1999). Animals were immobilized along the dorsal axis with Histoacryl Blue glue, and a lateral cuticle incision was made with a hand-held glass needle, exposing ventral medial body wall muscles. Muscle recordings were obtained in the whole-cell voltage-clamp mode using an EPC-10 patch-clamp amplifier and digitized at 1 kHz. The extracellular solution consisted of 150 mM NaCl, 5 mM KCl, 5 mM CaCl2, 4 mM MgCl2, 10 mM glucose, 5 mM sucrose, and 15 mM HEPES (pH 7.3, ~340 mOsm). The low Cl intracellular patch pipette solution used to isolate outward GABA minis at a 0 mV holding potential was composed of 115 mM KGluconate, 25 mM KCl, 0.1 mM CaCl2, 1 mM BAPTA and 50 mM HEPES. Data were acquired using Pulse software (HEKA, Southboro, Massachusetts, United States) run on a Dell computer. Subsequent analysis and graphing was performed using Pulsefit (HEKA), Mini analysis (Synaptosoft Inc., Decatur, Georgia, United States) and Igor Pro (Wavemetrics, Lake Oswego, Oregon, United States).

Oocyte expression and electrophysiology

Request a detailed protocol

UNC-8(G387E) cRNA was synthesized using T7 mMESSAGE mMACHINE kit (Ambion, Waltham, MA). cRNA was purified and examined on a denaturating agarose gel to confirm correct size and integrity. cRNA quantification was performed spectroscopically. Stage VI defolliculated oocytes from Xenopus Laevis were purchased from Ecocyte Bioscience US LLC (Austin, Texas). Oocytes were injected with 10 ng/oocyte of cRNA and incubated in OR2 solution (82.5 mM NaCl, 2.5 mM KCl, 1 mM CaCl2, 1 mM MgCl2, 1 mM Na2HPO4, 0.5 g/liter polyvinyl pyrolidone, and 5 mM HEPES, pH 7.2, supplemented with penicillin and streptomycin (0.1 mg/ml) and 2 mM Na-pyruvate) plus 500 µM amiloride (to prevent channel hyperactivation-dependent cell death) at 20°C for 2–3 d before recordings. Currents were measured using a two-electrode voltage-clamp amplifier (GeneClamp 500B; Axon Instruments, Sunnyvale, CA) at room temperature. Electrodes (0.2–0.5 MΩ) were filled with 3 M KCl, and oocytes were perfused with a physiological NaCl solution (100 mM NaCl, 2 mM KCl, 1 mM CaCl2, 2 mM MgCl2, and 10 mM HEPES, pH 7.2) and divalent cation free plus EGTA NaCl solution (110 mM NaCl, 2 mM KCl, 1 mM EGTA, and 10 mM HEPES, pH 7.2). pH was adjusted at the indicated values using NaOH. The oocyte membrane was clamped at −30 mV and stepped from −160 to +100 mV. Benzamil was added to the solutions from a stock of 10 mM. A saturating concentration of benzamil (1mM) was added at the end of each experiment to confirm that endogenous/leak currents were similar in amplitude to non-injected oocytes within each oocyte batch. Oocytes that had larger endogenous/leak currents were not further analyzed. We used the pCLAMP suite of programs (Axon Instruments) for data acquisition and analysis. Currents were filtered at 200 Hz and sampled at 1 kHz. We used OriginPro 8 (OriginLab Corporation, Northampton, MA) to generate graphs, Ki, and for statistical analysis.

Electron microscopy

Request a detailed protocol

Young adult hermaphrodites of each strain were prepared for high-pressure freeze (HPF) fixation as described (Rostaing et al., 2004). 10–15 animals were loaded into a specimen chamber filled with E. coli. The specimens were frozen rapidly in a high-pressure freezer (Bal-Tec HPM010) at −180°C and high pressure. Freeze substitution was performed on frozen samples in a Reichert AFS machine (Leica, Oberkochen, Germany) with 0.1% tannic acid and 2% OsO4 in anhydrous acetone. The temperature was kept at −90°C for 107 hr, increased at 5°C/hr to −20°C, and kept at -20°C for 14 hr. The temperature was then increased by 10°C/h to 20°C. Fixed specimens were embedded in Epon resin after infiltration in 50% Epon/acetone for 4 hr, 90% Epon/acetone for 18 hr, and 100% Epon for 5 hr. Embedded samples were incubated for 48 hr at 65°C. All specimens were prepared in the same fixation procedure and labeled with anonymous tags so that the examiner was blinded for genotype. Ultra thin (40 nm) serial sections were cut using an Ultracut 6 (Leica) and collected on formvar- covered, carbon-coated copper grids (EMS, FCF2010-Cu). Grids were counterstained in 2% aqueous uranyl acetate for 4 min, followed by Reynolds lead citrate for 2 min. Images were obtained on a Jeol JEM-1220 (Tokyo, Japan) transmission electron microscope operating at 80 kV. Micrographs were collected using a Gatan digital camera (Pleasanton, CA) at a magnification of 100k. Images were quantified using NIH ImageJ software. Dorsal and ventral cords were distinguished by size and morphology. GABAergic synapses were identified by previously established criteria, including position in the cord as well as the morphology of the synapse (White et al., 1986; Jin et al., 1999). GABAergic synapses are larger than their cholinergic motor neuron counterparts, and the active zones in these synapses form a direct, perpendicular angle with muscle arms. On the other hand, the presynaptic density in cholinergic synapses orient at an acute angle to the muscle, generally 30–45° and are often dyadic. Some images were collected at 30 k to aid in identifying synaptic identity based on terminal position in the cord. Two colleagues with expertise in EM reconstruction of the C. elegans ventral nerve cord independently reviewed synapse images from each strain to verify identification. Each profile represents an image taken of a 40 nm section. A synapse was defined as a set of serial sections containing a presynaptic density and flanking sections from both sides without presynaptic densities. Synaptic vesicles were identified as spherical, light gray structures with an average diameter of ~30 nm. At least two animals were analyzed for each genotype. Numbers of profiles analyzed for each genotype were: wild type = 502, unc-8 = 322, unc-55 = 246, unc-55; unc-8 = 304 for ventral GABAergic synapse evaluation; wild type = 502, unc-8 = 322, unc-55 = 246, unc-55; unc-8 = 304 for ventral cholinergic synapse evaluation.

References

  1. 1
  2. 2
  3. 3
    The genetics of Caenorhabditis elegans
    1. S Brenner
    (1974)
    Genetics 77:71–94.
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
    GABA is dispensable for the formation of junctional GABA receptor clusters in Caenorhabditis elegans
    1. C Gally
    2. JL Bessereau
    (2003)
     Journal of Neuroscience  23:2591–2599.
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
    The Caenorhabditis elegans gene unc-25 encodes glutamic acid decarboxylase and is required for synaptic transmission but not synaptic development
    1. Y Jin
    2. E Jorgensen
    3. E Hartwieg
    4. HR Horvitz
    (1999)
    Journal of Neuroscience 19:539–548.
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
    Identification and cloning of unc-119, a gene expressed in the Caenorhabditis elegans nervous system
    1. M Maduro
    2. D Pilgrim
    (1995)
    Genetics 141:977–988.
  29. 29
    Critical residues of the caenorhabditis elegans unc-2 voltage-gated calcium channel that affect behavioral and physiological properties
    1. EA Mathews
    2. E García
    3. CM Santi
    4. GP Mullen
    5. C Thacker
    6. DG Moerman
    7. TP Snutch
    (2003)
    The Journal of Neuroscience  23:6537–6545.
  30. 30
  31. 31
  32. 32
  33. 33
    Caenorhabditis elegans rab-3 mutant synapses exhibit impaired function and are partially depleted of vesicles
    1. ML Nonet
    2. JE Staunton
    3. MP Kilgard
    4. T Fergestad
    5. E Hartwieg
    6. HR Horvitz
    7. EM Jorgensen
    8. BJ Meyer
    (1997)
    Journal of Neuroscience  17:8061–8073.
  34. 34
  35. 35
  36. 36
  37. 37
    Creation of low-copy integrated transgenic lines in caenorhabditis elegans
    1. V Praitis
    2. E Casey
    3. D Collar
    4. J Austin
    (2001)
    Genetics 157:1217–1226.
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
    Genetic transformation of the synaptic pattern of a motoneuron class in caenorhabditis elegans
    1. WW Walthall
    2. JA Plunkett
    (1995)
    Journal of Neuroscience 15:1035–1043.
  52. 52
  53. 53
  54. 54
    Acid-sensing ion channel 1 is localized in brain regions with high synaptic density and contributes to fear conditioning
    1. JA Wemmie
    2. CC Askwith
    3. E Lamani
    4. MD Cassell
    5. JH Freeman
    6. MJ Welsh
    (2003)
     Journal of Neuroscience 23:5496–5502.
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
    UNC-55, an orphan nuclear hormone receptor, orchestrates synaptic specificity among two classes of motor neurons in Caenorhabditis elegans
    1. HM Zhou
    2. WW Walthall
    (1998)
    Journal of Neuroscience  18:10438–10444.
  67. 67

Decision letter

  1. Kang Shen
    Reviewing Editor; Howard Hughes Medical Institute, Stanford University, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "The DEG/ENaC Cation Channel Protein UNC-8 Drives Activity-Dependent Synapse Removal in Remodeling GABAergic Neurons" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by Kang Shen as the Reviewing Editor and Gary Westbrook as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

General assessment:

This manuscript addresses the molecular mechanisms that govern a poorly understood, but critical biological process, synapse remodeling. UNC-55 is a transcription factor that prevents the VD class GABAergic motor neurons to adopt the fate of another subclass of GABAergic motor neuron (DD), which undergoes post-embryonic synapse remodeling. Previously, the corresponding author's group performed micro-array experiments to compare the transcriptional profiles of GABAergic motor neurons in the presence and absence of UNC-55, identified a dozen of UNC-55-regulated transcripts (Petersen, JNS, 2011). This manuscript explores the functional involvement of and potential mechanisms through one of these targets, the UNC-8 ENaC sodium channel affect remodeling.

In this paper, the authors used several presynaptic fluorescent markers to quantify the remodeling phenotype of GABAergic motor neurons in wild-type and unc-55 mutants, and to access the effect of removing UNC-8/ENaC, and its putative pathway components (UNC-2/VGCC, TAX-6/calcineurin, CED-4/Apaf). They confirmed that removing these components, either individually, or in combination with removing UNC-8, led to a similar degree and partial restoration of the ventral presynaptic structures in unc-55 background. They performed EM analyses to confirm the anatomic presence of these structures, and, by electrophysiology analyses, that these structures (in unc-55; unc-8) appeared to lack the ability to release synaptic vesicles. Because a previous study from the group (Petersen, 2011) revealed that IRX-1, a TF, is an UNC-55-target that functions similarly to UNC-8 to promote the remodeling of GABAergic neurons, author probed the genetic relationship between unc-8 and irx-1. They found that removing both in unc-55 background led to an increased effect on promoting the remodeling. Hence, placing UNC-8 and IRX-1 in two parallel pathways negatively regulated by UNC-55.

Both reviewers found the manuscript contains a lot of data, and two semi-related studies that address two UNC-55-dependent mechanisms that regulate synaptic remodeling. Both reviewers are impressed with the comprehensive EM and electrophysiological analyses. They found that the manuscript is appropriate for publication after the authors address the following questions. As you will see, many of the comments are about writing and the strength of the conclusions. Some comments need to be addressed experimentally.

Essential revisions:

1) Most importantly, both reviewers raised concerns about the interpretation of "synapse elimination" phenotypes in the unc-8 mutants. One reviewer wrote: "In several places, the manuscript made strong statements along the line that 'UNC-8 drives presynaptic structure removal'. I feel that authors may want to soften these statements and may need additional data to enforce such statement, for following reasons: a) the rescuing effect of removing UNC-8, UNC-2, TAX-6 and CED-4 is not only partial, and appears to reflect morphological, but not functional rescue of unc-55's GABAergic neuron defects. Compared to the effect of removing IRX-1 (Peterson 2011; and this study), the role UNC-8 pathway is less prominent. B) if UNC-2 is to be stated as 'required for remodeling', it would be useful to analyze the remodeling phenotype in unc-2 single mutants (as shown for unc-8 in Figure 2).".

Another reviewer wrote: "My main concern of this study is the interpretation of synapse removal. As shown in Figure 2C, wt and unc-8 mutant worms eliminate similar number of synapses between 18 and 30 hours, i.e., about fifty DD synapses (RAB-3 puncta) disappear from the ventral cord. These results seem to indicate that synapse removal remains fully active without UNC-8. Would it be possible that the defects (ventral puncta) in unc-8 mutants are due to ectopic synapse formation or false deposit of synaptic proteins? Indeed, more RAB-3 puncta exist in unc-8 mutants prior to remodeling (Figure 2C; at 18 hours post-lay).

Similarly, in the case of VD neurons, how do we know that ventral puncta in unc-55, unc-8 mutants are due to failed synapse elimination, instead of ectopic protein trafficking or synapse formation? Do these fluorescent puncta eventually disappear? Time-course analyses of puncta removal from ventral cord in unc-55 and unc-55, unc-8 mutants may be useful to address this issue.

In addition, do these presynaptic puncta have postsynaptic UNC-49::GFP? Because the authors mentioned that UNC-49::GFP clusters remain unchanged, would it be possible that these ventral synapses have lost their postsynaptic partners? If these ventral synapses had postsynaptic receptors prior to remodeling, that could be an indication for failed synapse removal in presynaptic neurons.

Finally, given that no GABA transmission is recovered in unc-55, unc-8 mutants, the physiological consequence of remaining presynaptic components is unclear.”

2) Presynaptic Marker analyses: Authors accessed the phenotype and genetic interactions between unc-55 and unc-8 (and some other suppressors) used several presynaptic markers to conclude that their interaction reflects the change of the entire presynaptic structure, instead of specific effect on individual protein/marker expression or subcellular localization. I like the vigor of this approach. I did notice (e.g. compare Figure 2C, E; Figure 7B) that the phenotype, and partial suppression effect of unc-8 and its putative pathway components, was variable and dependent on the marker used. If I understand the Figure 2 and Figure 3 properly, it seems that the delayed remodeling phenotype of unc-8 mutants may be more severe with the Pflp-13 driven SNB-1 than the RAB-3 marker. It would be useful for readers to clarify these points in Discussion.

3) This manuscript may benefit from reorganization and editing. The second part of the story, the analyses between UNC-55 and IRX-1, almost stands alone as a separate study. Having it inserted between that of unc-8 and unc-2/tax-6/tom etc. (Figure 4 and Figure 4—figure supplement 1) cuts the flow of the paper. I suggest moving this part of the study after those defining the genetic pathway of unc-8. These sections (the unc-8 pathway) could be extensively condensed and shortened as it employs very similar assays as those in unc-8 analyses.

4) This study significantly extends from the 2011 paper. This does not at all reduce my enthusiasm to support it publication, but I think it is important for authors to refer in those places to the previous study so that they can clearly describe and discuss the importance of the extended analyses. For example, the electrophysiology analyses of ventral GABA minis on unc-55; unc-8 etc. has been extended and complemented with the hyperosmotic responses to pinpoint a potential functional defect in vesicle priming or fusion. This applies similarly to the much more substantial marker analyses on unc-55; unc-8 mutants.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "The DEG/ENaC Cation Channel Protein UNC-8 Drives Activity-Dependent Synapse Removal in Remodeling GABAergic Neurons" for further consideration at eLife. Your revised article has been favorably evaluated by Gary Westbrook as the Senior editor, a Reviewing editor, and two reviewers.

Both reviewers found that the revision significantly improved the manuscript and found that the manuscript is suitable for publication in eLife if these three remaining questions are addressed. We expect a quick turn-around for this last set of questions.

1) Because the authors now demonstrate that in unc-55; unc-8 double mutants, both DDs and VDs contributed to the ventral residual synaptic marker expression, shouldn't DD in Figure 1D's also show both ventral triangles?

2) Why was the electrophysiology data of unc-8 mutants removed? These data are critical for readers to understand the phenotype of unc-8 mutants. We think that the Figure 4G–H in the original manuscript should be shown in the final manuscript.

3) The UNC-49 results were verbally described in the rebuttal letter, but the actual data were not shown in the revised manuscript. To convincingly show synapse elimination/removal, it is important to demonstrate that remaining presynaptic markers have had postsynaptic partners prior to remodeling.

https://doi.org/10.7554/eLife.14599.020

Author response

[…] Both reviewers found the manuscript contains a lot of data, and two semi-related studies that address two UNC-55-dependent mechanisms that regulate synaptic remodeling. Both reviewers are impressed with the comprehensive EM and electrophysiological analyses. They found that the manuscript is appropriate for publication after the authors address the following questions. As you will see, many of the comments are about writing and the strength of the conclusions. Some of the comments need to be addressed experimentally.

We thank reviewers for their appreciation of this work and for many insightful suggestions for improving the manuscript. Of particular note, we have sought to clarify the impression that our results are limited to the ectopic synaptic removal mechanism that occurs in unc-55 mutants. In fact, our goal is to understand the native synaptic remodeling mechanism (in DD neurons). We have exploited the unc-55 remodeling phenotype to facilitate experimental analysis and because ample evidence supports the conclusion that the endogenous DD neuron remodeling pathway is activated in unc-55 mutant VD neurons. For example, multiple components of the DD remodeling mechanism including genes either reported in previous papers (irx-1, oig-1, hbl-1, ced-4) or in this work (unc-8, tax-6/cnb-1) also promote synaptic removal in unc-55 mutant VD neurons. Moreover, both DD and VD remodeling programs are activity-dependent. We have emphasized these points in additional text now included in the Introduction and Discussion.

Essential revisions:

1) Most importantly, both reviewers raised concerns about the interpretation of "synapse elimination" phenotypes in the unc-8 mutants. One reviewer wrote: "In several places, the manuscript made strong statements along the line that 'UNC-8 drives presynaptic structure removal'. I feel that authors may want to soften these statements and may need additional data to enforce such statement, for following reasons: a) the rescuing effect of removing UNC-8, UNC-2, TAX-6 and CED-4 is not only partial, and appears to reflect morphological, but not functional rescue of unc-55's GABAergic neuron defects. Compared to the effect of removing IRX-1 (Peterson 2011; and this study), the role UNC-8 pathway is less prominent.”

We agree that the role of unc-8 (and unc-2, tax-6, ced-4) in synaptic removal is less prominent that of the transcription factor irx-1. We have modified the text to acknowledge this point and to more carefully describe our interpretation of these findings. In particular, we have re-worded statements to the effect that “unc-8 is required for synaptic removal” to say “unc-8 promotes synaptic removal.” This alternative description reflects our finding that unc-8 functions in parallel to other pathways that also promote synaptic removal. In fact, other known components of the remodeling mechanism are also not absolutely required. For example, the apoptotic pathway that removes DD synapses in young larvae is complemented by an additional unknown mechanism that eventually dismantles these connections by the adult stage (Meng et al. 2015). Together, these findings indicate that the synaptic remodeling mechanism is complex and likely involves multiple pathways. We have included the results of an additional experiment that validates the role of unc-8 in synaptic removal. We interpret our genetic results to indicate that wild-type unc-8 is required for the removal of a significant fraction of presynaptic domains in remodeling GABAergic neurons. To test the hypothesis that unc-8 function is also sufficient to drive synapse removal, we have used a transgenic strategy to over-express unc-8 in ventral cord GABAergic neurons. In this experiment, we observed that ventral synapses are substantially reduced in VD neurons that express ectopic unc-8, whereas neighboring VD neurons that do not express unc-8 retain the wild-type complement of ventral presynaptic domains. This result supports the model that UNC-8 drives presynaptic removal. This experiment has been included in Figure 3—figure supplement 2B.

“b) if UNC-2 is to be stated as 'required for remodeling', it would be useful to analyze the remodeling phenotype in unc-2 single mutants (as shown for unc-8 in Figure 2).".

We thank the reviewer for this suggestion. Our genetic results have shown that unc-2 promotes synaptic removal in the unc-55 remodeling program. To directly test the proposal that unc-2 is also involved in DD remodeling, we used the DD::mCherry::RAB-3 marker to monitor the DD presynaptic domain in unc-2 mutants. The results of this experiment were inconclusive, however. Although the removal of DD presynaptic domains was delayed in an unc-2 mutant in comparison to wild type, we also noted that unc-2 mutants develop more slowly as well. In the future, we could potentially obviate this problem by using cell-specific RNAi to target unc-2 specifically in GABA neurons.

Another reviewer wrote: "My main concern of this study is the interpretation of synapse removal. As shown in Figure 2C, wt and unc-8 mutant worms eliminate similar number of synapses between 18 and 30 hours, i.e., about fifty DD synapses (RAB-3 puncta) disappear from the ventral cord. These results seem to indicate that synapse removal remains fully active without UNC-8. Would it be possible that the defects (ventral puncta) in unc-8 mutants are due to ectopic synapse formation or false deposit of synaptic proteins? Indeed, more RAB-3 puncta exist in unc-8 mutants prior to remodeling (Figure 2C; at 18 hours post-lay).”

Thank you, this is an insightful observation. We have now quantified the number of synapses in wild-type and unc-8 animals prior to the 18-hour time point. This experiment shows that wild-type and unc-8 animals display similar numbers of ventral puncta at this stage. The higher number of puncta observed in unc-8 animals at later time points is consistent with the proposal that removal of ventral DD synapses is delayed in unc-8 mutants in comparison to wild type. These new data are now included in Figure 2C.

“Similarly, in the case of VD neurons, how do we know that ventral puncta in unc-55, unc-8 mutants are due to failed synapse elimination, instead of ectopic protein trafficking or synapse formation? Do these fluorescent puncta eventually disappear? Time-course analyses of puncta removal from ventral cord in unc-55 and unc-55, unc-8 mutants may be useful to address this issue.”

Thank you for this observation and experimental suggestion. We performed time-course analysis in both unc-55 and unc-55; unc-8 animals (See Figure 3—figure supplement 1B). At early time points (12, 18, 25, and 36 hours post lay) unc-55 and unc-55; unc-8 animals show similar numbers of ventral synapses. At later stages (> 48 hour post lay), as previously reported in Petersen et al. (2011), the number of ventral GABA synapses declines in unc-55 mutants. In contrast, the number of ventral synapses in the unc-55; unc-8 animals remains steady (through 96 hours post lay) and does not decline. These results are consistent with the idea that the residual ventral synapses that we detected by fluorescence and electron microscopy in unc-55; unc-8 adults are likely to correspond to GABA synapses that are not properly removed as opposed to new synapses which might otherwise appear in this experimental approach as a spike in ventral puncta during later development of unc-55; unc-8 animals. Additionally, it is unlikely that the GABA synapses we see by EM in the ventral nerve cords of unc-55; unc-8 animals are due to ectopic protein trafficking, as they include organized presynaptic structures with active zones, synaptic vesicles, dense core vesicles, and juxtaposed postsynaptic muscle arms.

“In addition, do these presynaptic puncta have postsynaptic UNC-49::GFP? Because the authors mentioned that UNC-49::GFP clusters remain unchanged, would it be possible that these ventral synapses have lost their postsynaptic partners? If these ventral synapses had postsynaptic receptors prior to remodeling, that could be an indication for failed synapse removal in presynaptic neurons.

Finally, given that no GABA transmission is recovered in unc-55, unc-8 mutants, the physiological consequence of remaining presynaptic components is unclear.”

Thank you for this suggestion. We have performed experiments to test whether the ventral presynaptic puncta in unc-55; unc-8 GABA neurons co-localize with postsynaptic UNC-49::GFP. These results (described below) are not included in the revised version of this paper, however, because we have also removed electrophysiological data indicating that residual ventral synapses in unc-55; unc-8 animals are not functional and will publish these findings in a separate paper separate manuscript featuring the parallel roles of unc-8 and irx-1 during synaptic remodeling. We captured images of wild-type, unc-8, and unc-55; unc-8 animals co-expressing a presynaptic GABA marker (punc-25::mCherry::RAB-3) and a postsynaptic GABA receptor marker (punc-49::UNC-49::GFP) and analyzed these images for co-localization using ImageJ software. Although, co-localization of mCherry::RAB-3 and UNC-49::GFP in unc-55; unc-8 animals (r2= 0.53) is decreased in comparison to wild-type and unc-8 animals (r2 = 0.80 and 0.77, respectively), we attribute this difference to the observation that there is less punc-25::mCherry::RAB-3 ventral puncta in unc-55; unc-8 animals compared to wild type. This observation suggests that these synapses have not lost their postsynaptic partners.

Reviewers are correct to note that GABA synaptic function is not restored in unc-55; unc-8 animals. We agree that these apparently non-functional presynaptic GABAergic domains are not physiologically competent. However, the existence of these presynaptic structures in an unc-55; unc-8 mutant whether functional or not provides clear evidence that wild-type UNC-8 promotes the removal of presynaptic components including proteins that are required for neurotransmitter release (e.g., RAB-3, SNB-1/V-SNARE, UNC-57/endophilin, SYD-2/Liprin). The non-functionality of the presynaptic regions that are not removed in unc-8 mutants suggests that an additional parallel pathway, which is still active in an unc-8 mutant, must account for this deficit. At the recommendation of the reviewers (see below) who felt that our analysis of a second parallel acting remodeling pathway detracted from the main point of this work (i.e., UNC-8 promotes synaptic remodeling) these data have been removed from the paper and will be featured in a separate manuscript that documents the parallel roles of the unc-8 and irx-1-dependent remodeling pathways.

2) Presynaptic Marker analyses: Authors accessed the phenotype and genetic interactions between unc-55 and unc-8 (and some other suppressors) used several presynaptic markers to conclude that their interaction reflects the change of the entire presynaptic structure, instead of specific effect on individual protein/marker expression or subcellular localization. I like the vigor of this approach. I did notice (e.g. compare Figure 2C, E; Figure 7B) that the phenotype, and partial suppression effect of unc-8 and its putative pathway components, was variable and dependent on the marker used. If I understand the Figure 2 and Figure 3 properly, it seems that the delayed remodeling phenotype of unc-8 mutants may be more severe with the Pflp-13 driven SNB-1 than the RAB-3 marker. It would be useful for readers to clarify these points in Discussion.

Thank you for this comment. We apologize for the confusion and have sought to clarify this point by noting that we used two different paradigms to monitor synapse removal (e.g., the native DD remodeling program and ectopic remodeling in unc-55 mutant VD neurons). The data in Figure 2 were collected using a DD-specific promoter to monitor the removal defect specifically in DD neurons. We have sought to clarify this point by labeling all the experiments where we used the DD-specific marker as “DD::SNB-1::GFP or DD::GFP::RAB-3” rather than using the less descriptive nomenclature “pflp-13::..”. Additionally, in Figures 38 we have labeled the DD and VD markers as “GABA::SNB-1::GFP”, etc. rather than with the C. elegans gene names “punc-25/pttr-39”. Finally, these figures now include additional schematics depicting the type of remodeling GABA neuron (DD or VD) to help readers recognize each of these specific experimental paradigms. We have also modified the text to clarify this point.

3) This manuscript may benefit from reorganization and editing. The second part of the story, the analyses between UNC-55 and IRX-1, almost stands alone as a separate study. Having it inserted between that of unc-8 and unc-2/tax-6/tom etc. (Figure 4 and Figure 4—figure supplement 1) cuts the flow of the paper. I suggest to move this part of the study after those defining the genetic pathway of unc-8. These sections (the unc-8 pathway) could be extensively condensed and shortened as it employs very similar assays as those in unc-8 analyses.

Thank you for this suggestion. We agree that our analysis of irx-1 detracts from the main thrust of the paper and that it could stand alone as a separate study. Accordingly, we have removed these data from the paper for a separate manuscript.

4) This study significantly extends from the 2011 paper. This does not at all reduce my enthusiasm to support it publication, but I think it is important for authors to refer in those places to the previous study so that they can clearly describe and discuss the importance of the extended analyses. For example, the electrophysiology analyses of ventral GABA minis on unc-55; unc-8 etc. has been extended and complemented with the hyperosmotic responses to pinpoint a potential functional defect in vesicle priming or fusion. This applies similarly to the much more substantial marker analyses on unc-55; unc-8 mutants.

Thank you for noting that this work significantly extends our previous findings. Our earlier paper (Petersen et al., 2011) provided the initial evidence of a role for UNC-8 in synaptic remodeling by detecting unc-8 as an unc-55-regulated transcript and by demonstrating that RNAi knockdown of unc-8 suppresses unc-55 (i.e., retards synaptic removal). We have summarized these results here and emphasized additional experiments in this paper that extend our original findings. For example, the first Results section uses an unc-8 promoter-GFP reporter gene to confirm the prediction that unc-8 is negatively regulated by unc-55 in VD neurons. Next, we report experiments with a new unc-8 deletion allele that confirm the initial RNAi results and which show, for the first time, that unc-8 also functions in DD neurons to promote synapse removal in the native GABA neuron remodeling pathway. Electrophysiological data (e.g., “…hyperosmotic responses to pinpoint a potential functional defect in vesicle priming…”) have been removed from this paper for a separate manuscript that will test a specific molecular model to explain this effect.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Both reviewers found that the revision significantly improved the manuscript and found that the manuscript is suitable for publication in eLife if these three remaining questions are addressed. We expect a quick turn-around for this last set of questions.

1) Because the authors now demonstrate that in unc-55; unc-8 double mutants, both DDs and VDs contributed to the ventral residual synaptic marker expression, shouldn't DD in Figure 1D's also show both ventral triangles?

Yes, we agree that this work demonstrates a role for unc-8 in the removal of both DD and VD ventral synapses, and the schematic in Figure 1D has been modified to reflect this conclusion.

2) Why was the electrophysiology data of unc-8 mutants removed? These data are critical for readers to understand the phenotype of unc-8 mutants. We think that the Figure 4G–H in the original manuscript should be shown in the final manuscript.

We have restored the original electrophysiology data (Figure 4K–L) and controls (Figure 4—figure supplement 1, panels E and F). We are happy with this arrangement but note that inclusion of the electrophysiology data showing that unc-55; unc-8 synapses are non-functional also required us to suggest that an additional pathway, acting in parallel, likely accounts for this effect (see subsection “UNC-8 channel activity is required for synapse removal”).

3) The UNC-49 results were verbally described in the rebuttal letter, but the actual data were not shown in the revised manuscript. To convincingly show synapse elimination/removal, it is important to demonstrate that remaining presynaptic markers have had postsynaptic partners prior to remodeling.

These data are now included (Figure 4—figure supplement 3). We show that pre- and postsynaptic compartments of wild-type and unc-8 animals (as well as unc-55 and unc-55; unc-8 animals) co-localize in larval animals prior to remodeling and are also juxtaposed after remodeling.

https://doi.org/10.7554/eLife.14599.021

Article and author information

Author details

  1. Tyne W Miller-Fleming

    Neuroscience Program, Vanderbilt University, Nashville, United States
    Contribution
    TWM-F, Conception and design, Generated transgenic lines, Collected images, and quantified results, Wrote the final document, Critically revised the manuscript and approved the final version for publication
    Contributed equally with
    Sarah C Petersen
    Competing interests
    The authors declare that no competing interests exist.
  2. Sarah C Petersen

    Department of Cell and Developmental Biology, Vanderbilt University, Nashville, United States
    Present address
    Department of Neuroscience, Kenyon College, Gambier, United States
    Contribution
    SCP, Conception and design, Generated transgenic lines, Collected images, and quantified results, Critically revised the manuscript and approved the final version for publication
    Contributed equally with
    Tyne W Miller-Fleming
    Competing interests
    The authors declare that no competing interests exist.
  3. Laura Manning

    Department of Biological Sciences, University of Illinois at Chicago, Chicago, United States
    Contribution
    LM, Conception and design, Performed EM experiments, Critically revised the manuscript and approved the final version for publication
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1597-0600
  4. Cristina Matthewman

    Department of Physiology and Biophysics, University of Miami, Miami, United States
    Contribution
    CM, Conception and design, Performed oocyte electrophysiology assays, Critically revised the manuscript and approved the final version for publication
    Competing interests
    The authors declare that no competing interests exist.
  5. Megan Gornet

    Department of Cell and Developmental Biology, Vanderbilt University, Nashville, United States
    Contribution
    MG, Obtained results for unc-55; unc-2; juIs1 strain, Critically revised the manuscript and approved the final version for publication
    Competing interests
    The authors declare that no competing interests exist.
  6. Allison Beers

    Department of Cell and Developmental Biology, Vanderbilt University, Nashville, United States
    Contribution
    AB, Obtained results for the unc-55; tax-6; nuIs279 strain, Critically revised the manuscript and approved the final version for publication
    Competing interests
    The authors declare that no competing interests exist.
  7. Sayaka Hori

    Department of Physiology, Tokyo Women's Medical University, Tokyo, Japan
    Contribution
    SH, Generated the unc-8 (tm5052) mutant allele, Critically revised the manuscript and approved the final version for publication
    Competing interests
    The authors declare that no competing interests exist.
  8. Shohei Mitani

    Department of Physiology, Tokyo Women's Medical University, Tokyo, Japan
    Contribution
    SM, Generated the unc-8 (tm5052) mutant allele, Critically revised the manuscript and approved the final version for publication
    Competing interests
    The authors declare that no competing interests exist.
  9. Laura Bianchi

    Department of Physiology and Biophysics, University of Miami, Miami, United States
    Contribution
    LB, Designed and interpreted experiments, Critically revised the manuscript and approved the final version for publication
    Competing interests
    The authors declare that no competing interests exist.
  10. Janet Richmond

    Department of Biological Sciences, University of Illinois at Chicago, Chicago, United States
    Contribution
    JR, Conception and design, Designed and interpreted experiments and performed in vivo electrophysiological measurements, Critically revised the manuscript and approved the final version for publication
    Competing interests
    The authors declare that no competing interests exist.
  11. David M Miller III

    1. Neuroscience Program, Vanderbilt University, Nashville, United States
    2. Department of Cell and Developmental Biology, Vanderbilt University, Nashville, United States
    Contribution
    DMM, Conception and design, Designed and interpreted experiments, Wrote the final document, Critically revised the manuscript and approved the final version for publication
    For correspondence
    david.miller@vanderbilt.edu
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9048-873X

Funding

National Institute of Neurological Disorders and Stroke (1F31NS084732)

  • Tyne W Miller-Fleming

National Institute of Neurological Disorders and Stroke (1F31NS063669)

  • Sarah C Petersen

National Institute of Neurological Disorders and Stroke (5R01NS081259)

  • David M Miller III

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank MQ Dong for MQD5, M Francis for IZ1607, O Hobert for otEx2876, Y Jin for juIs137, E Jorgensen for oxIs351, J Kaplan for nuIs279, K Shen for wyIs202, M Zhen for hpIs3, M Zhen and M Kittelman for advice on scoring GABA synapses by electron microscopy and members of the Miller Lab for discussions. This work made use of instruments in the Electron Microscopy Service (Research Resources Center, UIC). Some strains used in this study were provided by the CGC, which is funded by the NIH Office of Research Infrastructure Programs (P40 OD010440). We also received strains from the Japanese National BioResource Project. This work was supported by NIH grants 5R01NS081259 (DMM), 1F31NS084732 (TWM), 1F31NS063669 (SCP).

Reviewing Editor

  1. Kang Shen, Howard Hughes Medical Institute, Stanford University, United States

Publication history

  1. Received: January 21, 2016
  2. Accepted: July 11, 2016
  3. Accepted Manuscript published: July 12, 2016 (version 1)
  4. Version of Record published: August 10, 2016 (version 2)
  5. Version of Record updated: August 4, 2017 (version 3)

Copyright

© 2016, Miller-Fleming et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,525
    Page views
  • 499
    Downloads
  • 11
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
