Arabidopsis FORGETTER1 mediates stress-induced chromatin memory through nucleosome remodeling

Research Article
Cited
1
Views
2,103
Comments
0
Cite as: eLife 2016;5:e17061 doi: 10.7554/eLife.17061

Abstract

Plants as sessile organisms can adapt to environmental stress to mitigate its adverse effects. As part of such adaptation they maintain an active memory of heat stress for several days that promotes a more efficient response to recurring stress. We show that this heat stress memory requires the activity of the FORGETTER1 (FGT1) locus, with fgt1 mutants displaying reduced maintenance of heat-induced gene expression. FGT1 encodes the Arabidopsis thaliana orthologue of Strawberry notch (Sno), and the protein globally associates with the promoter regions of actively expressed genes in a heat-dependent fashion. FGT1 interacts with chromatin remodelers of the SWI/SNF and ISWI families, which also display reduced heat stress memory. Genomic targets of the BRM remodeler overlap significantly with FGT1 targets. Accordingly, nucleosome dynamics at loci with altered maintenance of heat-induced expression are affected in fgt1. Together, our results suggest that by modulating nucleosome occupancy, FGT1 mediates stress-induced chromatin memory.

https://doi.org/10.7554/eLife.17061.001

eLife digest

In nature, plant growth is often limited by unfavourable conditions or disease. Plants have thus evolved sophisticated mechanisms to adapt to such stresses. In fact, brief exposure to stress can prime plants to be better prepared for a future stress following a period without stress. However, the molecular basis of this memory-like phenomenon is poorly understood.

Now, Brzezinka, Altmann et al. have used priming by heat stress as a model to dissect the memory of environmental stresses in thale cress, Arabidopsis thaliana. First, a library of mutant plants were tested to identify a gene that is specifically required for heat stress memory but not for the initial responses to heat. Brzezinka, Altmann et al. identified one such gene and termed it FORGETTER1 (or FGT1 for short). Further experiments then revealed that the FGT1 protein binds directly to a specific class of heat-inducible genes that are relevant for heat stress memory.

Brzezinka, Altmann et al. propose that the FGT1 protein makes sure that the heat-inducible genes are always accessible and active by modifying the way the DNA containing these genes is packaged. DNA is wrapped around protein complexes called nucleosomes and depending on how tightly the DNA of a gene is wrapped makes it more or less easy to activate the gene. In agreement with this model, FGT1 does interact with proteins that can reposition nucleosomes and leave the DNA more loosely packaged. Also, the fact that plants that lack a working FGT1 gene repackage the DNA of memory-related genes too early after experiencing heat stress provides further support for the model.

Together these findings could lead to new approaches for breeding programmes to improve stress tolerance in crop plants. One future challenge will be to find out whether memories involving nucleosomes are also made in response to other stressful conditions, such as attack by pests and disease.

https://doi.org/10.7554/eLife.17061.002

Introduction

Abiotic stress is a major threat to global crop yields and this problem is likely to be exacerbated in the future. A large body of research has focused on the immediate stress responses. However, in nature, stress is frequently chronic or recurring, suggesting that temporal dynamics are an important, but under-researched, component of plant stress responses. Indeed, plants can be primed by a stress exposure such that they respond more efficiently to another stress incident that occurs after a stressless period (Hilker et al., 2015). Priming has been described in response to pathogen attack, heat stress (HS), drought, and salt stress (Charng et al., 2006; Conrath, 2011; Jaskiewicz et al., 2011; Ding et al., 2012; Sani et al., 2013). Such stress priming and memory may be particularly beneficial to plants due to their sessile life style.

Chromatin structure can be modulated by nucleosome positioning, histone variants and posttranslational histone modifications that together control the access of sequence-specific transcription factors and the general transcription machinery to gene loci (Struhl and Segal, 2013; Zentner and Henikoff, 2013). Chromatin mediates long-term stability of environmentally and developmentally-induced gene expression states (Gendrel and Heard, 2014; Steffen and Ringrose, 2014; Berry and Dean, 2015). Hence, the modification of chromatin structure has been suggested to mediate the priming and memory of stress-induced gene expression. Indeed, the above mentioned cases of plant stress priming are associated with lasting histone H3 methylation (Conrath, 2011; Jaskiewicz et al., 2011; Ding et al., 2012; Sani et al., 2013; Lämke et al., 2016). However, the underlying mechanism and the contribution of other determinants of chromatin structure such as nucleosome positioning and occupancy remain unknown.

Moderate HS allows a plant to acquire thermotolerance and subsequently withstand high temperatures that are lethal to a plant in the naïve state (Mittler et al., 2012). After returning to non-stress temperatures, acquired thermotolerance is maintained over several days, and this maintenance phase is genetically separable from the acquisition phase (Charng et al., 2006, 2007; Meiri and Breiman, 2009; Stief et al., 2014). We refer to this maintenance phase as HS memory. The immediate HS response (acquisition phase) involves the activation of heat shock transcription factors (HSFs) that induce heat shock proteins (HSPs). Their chaperone activity ensures protein homeostasis (Scharf et al., 2012). The HS response is conserved in animals, plants and fungi (Richter et al., 2010).

Among the 21 HSFs in Arabidopsis thaliana (Scharf et al., 2012), only HSFA2 is specifically required for HS memory (Charng et al., 2007). It activates HEAT-STRESS-ASSOCIATED32 (HSA32), a gene with chaperone-like activity, although no homology to known chaperone families (Wu et al., 2013). Like HSFA2, HSA32 is critically required for HS memory (Charng et al., 2006). HSA32 is induced by HS and this induction is sustained for at least three days. A set of HS memory-related genes was identified based on their similar expression pattern, which is in contrast to that of canonical HS-inducible genes (HSP70, HSP101) that show upregulation after HS, but not sustained induction (Stief et al., 2014). Among the HS memory-related genes are small HSPs (such as HSP21, HSP22.0, HSP18.2). A subset of these loci show transcriptional memory in the sense that recurring stress causes a more efficient re-activation compared to the first stress incident, even though active transcription has subsided before the second stress (Lämke et al., 2016). Sustained induction and transcriptional memory of these genes is associated with hyper-methylation of H3K4 (H3K4me2 and H3K4me3) and requires HSFA2, which binds directly to these genes (Lämke et al., 2016). Interestingly, HSFA2 dissociates from these loci before its requirement becomes apparent at the physiological and gene expression levels, thus implicating the existence of additional factors.

Here, we report the identification of FGT1 from an unbiased screen for factors that are required for the sustained induction of HSA32. FGT1 is required for HS memory at the physiological and gene expression levels. FGT1 is the single A. thaliana orthologue of metazoan Strawberry notch, a highly conserved co-activator of the developmental regulator Notch. We show that FGT1 associates with memory genes in a HS-dependent way. Moreover, FGT1 is widely associated with the transcriptional start site of expressed genes. We further show that FGT1 interacts with highly conserved chromatin remodeling complexes and is required for proper nucleosome dynamics at HS-memory genes. Thus, FGT1 maintains its target loci in an open and transcription-competent state by interacting with remodeler complexes around the transcriptional start site.

Results

FGT1 is required for HS memory and sustained induction of HSA32 and other memory genes

In order to identify regulators of HS memory we generated a transgenic HSA32::HSA32-LUCIFERASE (HSA32::HSA32-LUC) reporter line. LUC expression in this line was induced by HS and expression remained high for at least 3 d (Figure 1A), thus mimicking expression of the endogenous HSA32 (Charng et al., 2006). We mutagenized the HSA32::HSA32-LUC line with ethyl methanesulfonate and screened M2 families for mutants with modified maintenance of LUC activity after HS. To this end, 4 d-old plate-grown seedlings were treated with an acclimatizing heat treatment (ACC, see Materials and methods). LUC-derived bioluminescence was monitored 1, 2 and 3 d later, and putative mutants were isolated that had normal LUC activity 1 d after ACC and reduced activity 3 d after ACC. Among the recovered mutants with such a LUC expression profile was forgetter1 (fgt1-1), on which we focused further analyses. LUC expression in fgt1-1 was induced normally, however, it declined precociously, which was most apparent 3 d after ACC.

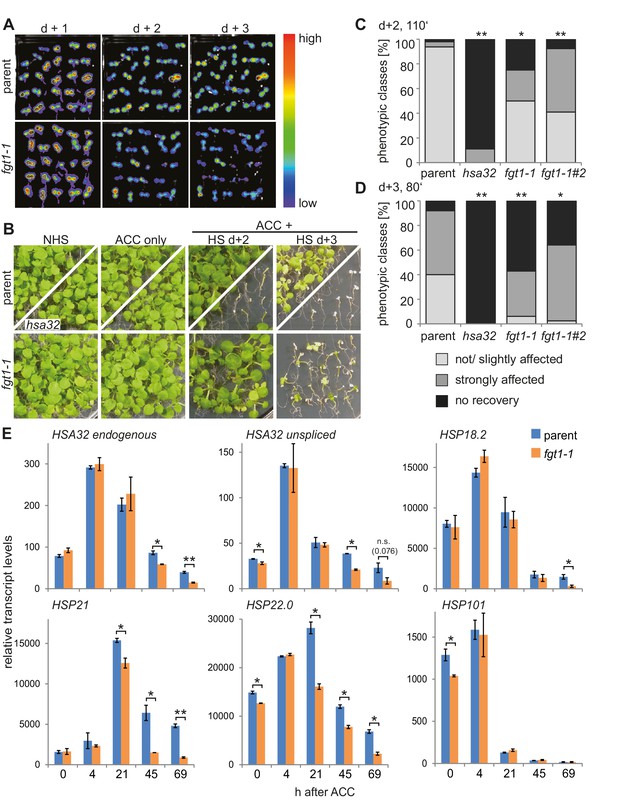

Figure 1 with 3 supplements see all
FGT1 is required for HS memory and sustained induction of memory genes in A. thaliana.

(A) fgt1-1 displays normal induction but reduced maintenance of pHSA32::HSA32-LUC expression. Bioluminescence of fgt1-1 or the parent assayed 1, 2, or 3 d after an acclimatizing HS (ACC). The color scale of relative LUC activity is shown. (B) fgt1-1 is impaired in HS memory at the physiological level. Seedlings of the indicated genotypes (cf. fgt1-1#2 in CD) were acclimatized 4 d after germination and treated with a tester HS 2 or 3 d later. Pictures were taken after 14 d of recovery. (CD) Quantification of the data shown in (B). The fgt1-1 lines represent independent backcrosses. Data are averaged over at least two independent assays (n>36). Fisher’s exact test, *p<0.05; **p<0.001. (E) Transcript levels of HS memory genes after ACC decline prematurely in fgt1-1. Expression values were normalized to the reference At4g26410 and the corresponding no-HS control (NHS). Data are averages and SE of two biological replicates. *p<0.05; **p<0.01 (Student’s t test).

https://doi.org/10.7554/eLife.17061.003

We next investigated whether this correlated with modified HS memory at the physiological level by applying a tester HS 2 or 3 d after ACC. The tester HS is lethal to a naïve plant or a mutant with loss of HS memory. Indeed, fgt1-1 mutants displayed reduced growth and survival under these conditions (Figure 1B–D). To check whether fgt1-1 mutants had a generally impaired HS response, we also tested fgt1-1 seedlings for acquisition of thermotolerance and for basal thermotolerance, i. e. the amount of heat that can be tolerated without prior acclimation. fgt1-1 mutants behaved very similar to the parental line in these assays (Figure 1—figure supplements 1,2), indicating that the immediate responses to HS were not affected in fgt1-1. Thus, fgt1-1 is specifically impaired in HS memory. Notably, fgt1-1 did not have any obvious morphological alterations under standard growth conditions.

We next examined whether the premature decline of LUC expression mimicked that of the endogenous HSA32 gene by quantitative RT-PCR (qRT-PCR) specific for the endogenous HSA32. HSA32endo and LUC transcripts were induced normally in fgt1-1 during the first day after ACC, but declined faster thereafter (Figure 1E, Figure 1—figure supplement 3). A similar defect was observed for the HS memory-related genes HSP21, HSP22.0 and HSP18.2, but not the HS-inducible non-memory genes HSP101 and HSP70. For intron-containing genes, we measured unspliced transcripts as a proxy for transcriptional activity. Unspliced HSA32 transcripts were induced in fgt1-1 similarly as in the parent up to 21 h, but declined faster thereafter. Notably, unspliced transcript levels in the parent were still elevated 20-fold relative to the non-HS control (NHS) at 69 h after ACC, indicating continued transcription throughout the memory phase. Similar results were obtained for HSP21, but not for the non-memory genes. This is in accordance with what was observed previously (Lämke et al., 2016). Thus, FGT1 is required to facilitate sustained transcription of HS memory genes after HS.

FGT1 encodes the orthologue of Drosophila Strawberry notch, a protein involved in induction of Notch and EGFR target genes

To identify the molecular lesion underlying the fgt1-1 mutant phenotype, we combined recombination breakpoint mapping with Illumina sequencing. We identified a 0.77 MB interval at the bottom of chromosome 1, containing a splice acceptor site mutation in At1g79350 (Figure 2A). This mutation caused retention of intron 19, resulting in a premature stop codon. At1g79350 was previously tentatively identified as EMB1135 with a reported embryo-defective phenotype (Meinke et al., 2008). However, it was not confirmed that the disruption of this gene in the emb1135 allele indeed causes the phenotype and neither fgt1-1, nor any of several putative loss-of-function T-DNA insertion lines showed any obvious morphological phenotype. Three independent lines of evidence show that FGT1 is At1g79350. First, we complemented the LUC expression and physiological memory phenotypes by expressing a genomic FGT1 fragment (SA13) in the fgt1-1 background (Figure 2B–D). Second, similar results were obtained for a FGT1-YFP fusion protein that was driven by the constitutive 35S CaMV promoter (Figure 2—figure supplement 1A,B). Finally, fgt1-2 and fgt1-3, two putative loss-of-function T-DNA alleles displayed reduced HS memory (Figure 2—figure supplement 1C–E).

Figure 2 with 3 supplements see all
FGT1 encodes the A. thaliana orthologue of Drosophila Sno and binds histones.

(A) Gene model of FGT1 (At1g79350) with domains and location of mutations; exons (grey and colored bars); black line, intron. fgt1-1 has a C to T mutation at the splice acceptor site of intron 19/exon 20. (BD) Complementation of fgt1-1 by a genomic FGT1 fragment (SA13). (B) pHSA32::HSA32-LUC-derived bioluminescence of indicated genotypes assayed 1, 2, or 3 d after ACC. (C,D) Seedlings of the indicated genotypes were acclimatized 5 d after germination and received a tester HS 3 d later. (C) Quantification; n = 48–49, Fisher’s exact test, **p<0.01. (D) Representative picture taken after 14 d recovery. (E) FGT1 transcript levels increase transiently after ACC. Relative FGT1 transcript levels were determined by qRT-PCR and normalized to At4g26410. Errors are SE of two biological replicates. (F) FGT1 is localized to the nucleus in 3 d-old seedling roots. 35S::FGT1-YFP transgenic seedlings were imaged for YFP fluorescence. Left, overlay; middle, bright field; right, YFP fluorescence. Scale bar, 40 µm. (G) FGT1 binds histone H3 in vivo. Nuclear protein extracts of transgenic 35S::FGT1-YFP, 35S::YFP and non-transgenic Col-0 seedlings harvested 28 h after the indicated treatments were immuno-precipitated with anti-GFP antibody. Co-purification of histone H3 was assessed by immunoblotting.

https://doi.org/10.7554/eLife.17061.007

FGT1 contains an ATP-binding DExD/H-like helicase domain, a Helicase C-like domain, and a PHD finger (Figure 2A). FGT1 is a single copy gene in A. thaliana. Interestingly, it is highly homologous over the whole length of the protein with Sno from Drosophila melanogaster, human SBNO1 and SBNO2, and Caenorhabditis elegans let-765 (Figure 2—figure supplement 2) (Majumdar et al., 1997; Simms and Baillie, 2010; Grill et al., 2015). Sno genes are required for the expression of Notch and EGFR target genes and it has been hypothesized that they interact with co-activator proteins to spatio-temporally regulate transcription (Tsuda et al., 2002), yet no molecular mode of action has been demonstrated. Although DExD helicases have been ascribed a role in RNA processing and translation, roles in gene expression and transcription have been suggested (Fuller-Pace, 2006). FGT1 is expressed throughout the plant (Winter et al., 2007) and was slightly induced (1.7 fold) at 4 h after HS, but not thereafter (Figure 2E).

We next tested the subcellular localization of the complementing FGT1-YFP fusion protein in roots of 3 d-old stably transformed seedlings. FGT1-YFP was localized to the nucleus (Figure 2F). PHD domains have the potential to bind to methylated histone H3 tails (Musselman and Kutateladze, 2011). We thus tested whether FGT1PHD-GST was precipitated by H3 histone tail peptides that were either unmethylated or mono-, di-, or trimethylated, respectively (Figure 2—figure supplement 3). We observed comparable binding to H3 aa 1–20, H3 aa 21–44 or H3 aa 1–20 methylated at K4 or K9. In contrast, the PHD domain of ING1 (Lee et al., 2009) bound under the same conditions only to the H3K4me3 peptide (Figure 2—figure supplement 3). This suggests that FGT1-PHD binds to the N-terminal region of H3, albeit not in a methylation-specific manner (at least with respect to methylated K4 and K9). In addition, histone H3 was co-immunoprecipitated with FGT1-YFP, but not YFP alone, from extracts of transgenic A. thaliana seedlings (Figure 2G). In summary, nuclear FGT1 is the A. thaliana orthologue of the DExD helicase Sno and associates with H3 in vivo, consistent with a function as a co-activator.

FGT1 associates with HSA32 and other memory genes

Given its potential function as a co-activator, we next asked whether FGT1 binds directly to its putative target genes during HS memory. To test this, we performed chromatin immunoprecipitation (ChIP) followed by qPCR analysis on 35S::FGT1-YFP plants (Figure 3). FGT1 bound to a broad region around the transcriptional start sites (TSS) of HSA32, HSP18.2, and HSP22.0. The enrichment of FGT1 in the heat-treated samples was highest 4 h and 28 h after ACC compared to the NHS, and was still present at 52 h. Such heat-dependent enrichment was not observed at the ACTIN7 (ACT7) and AtMu1 control loci. The enrichment at the active ACT7 gene was comparable to that of HSA32 before HS, suggesting that FGT1 binds HSA32 and ACT7 already pre-HS. The ChIP-signal in FGT1-YFP plants at bound loci was strongly enhanced compared to non-transgenic control samples (Figure 3—figure supplement 1A). A comparable but overall weaker binding pattern was observed for a FGT1-YFP driven by the endogenous promoter (Figure 3—figure supplement 1B,C), indicating that the observed binding pattern does not result from FGT1 overexpression. Thus, FGT1 binds to memory genes in a region encompassing the TSS and proximal promoter, where it may mediate their sustained expression after HS.

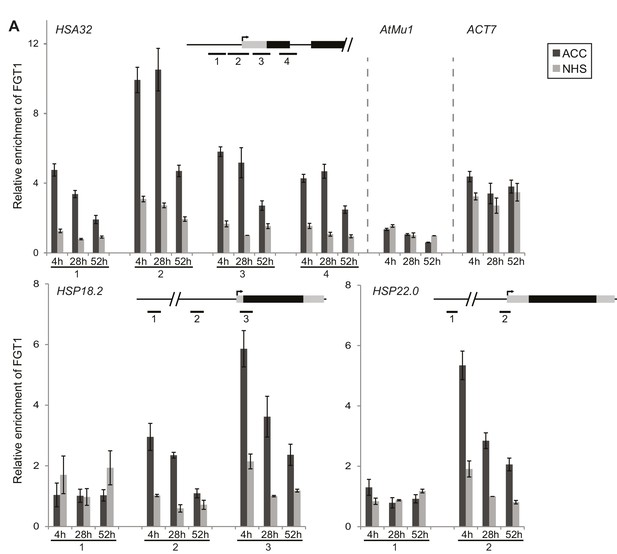

Figure 3 with 1 supplement see all
FGT1 binds memory-associated genes in a HS-dependent manner.

FGT1 binds to HSA32, HSP18.2 and HSP22.0. ChIP-qPCR on 35S::FGT1-YFP seedlings was performed 4, 28 or 52 h after an acclimatizing HS (ACC) or no HS (NHS). As controls, the active gene ACT7 or the inactive transposon AtMu1 were used. Schematics show regions analyzed relative to TSS. HSA32 1–4: −175, −75, +57, +194 bp. HSP18.2 1–3: −1068, −367, +32 bp. HSP22.0 1–2: −3000, −60 bp; ACT7: +55 bp. AtMu1: -175 bp relative to ATG. Amplification values were normalized to input and region 2HSA32 at 28 h NHS (HSA32, AtMu1 and ACT7), region 2HSP18.2 at 28 h NHS or region 3HSP22.0 at 28 h NHS, respectively. Data are averages of at least three biological replicates. Error bars indicate SE.

https://doi.org/10.7554/eLife.17061.011

FGT1 binds widely to the proximal promoter of expressed genes

Because of the highly conserved nature of FGT1 and the binding to ACT7, we suspected that FGT1 may have genomic targets beyond the tested candidates. To obtain a global view, we performed ChIP-seq on 35S::FGT1-YFP plants 28 h after ACC or NHS. Peak calling identified 942 (60) genes with FGT1 enrichment after ACC (NHS), and no binding in the corresponding non-transgenic control samples. While the NHS peaks remained associated with FGT1 after ACC, the ACC peaks were overall less strongly enriched under NHS conditions (Figure 4—figure supplement 1). Coverage profiling of the FGT1-associated genes indicated that FGT1 bound primarily to the proximal promoter just upstream of the TSS and somewhat more weakly to the region downstream of the transcription termination site (TTS). In contrast, the signal was very low in the transcribed region. For both conditions (ACC and NHS), FGT1-associated genes showed a higher expression in seedlings under normal growth conditions compared to non-target genes (Figure 4A), suggesting that FGT1 binding is positively correlated with transcription.

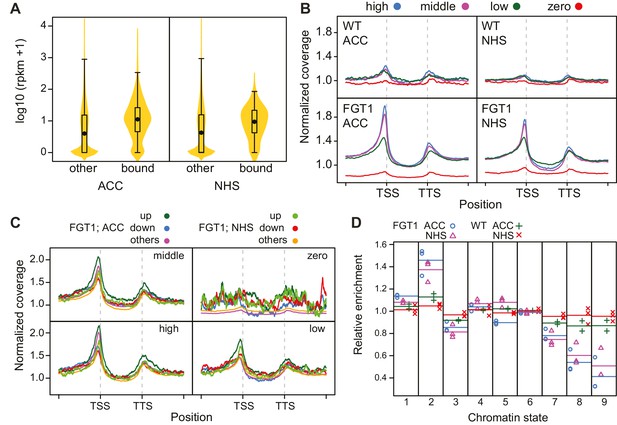

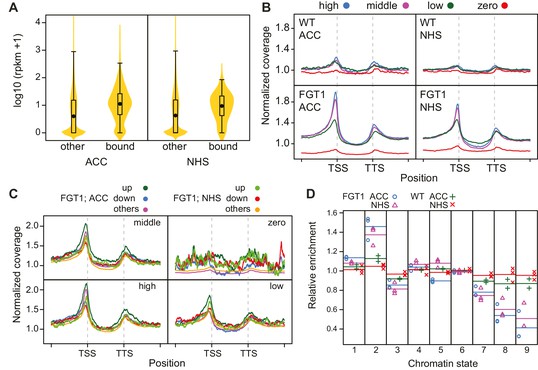

Figure 4 with 1 supplement see all
FGT1 globally binds expressed genes upstream of the TSS.

(A) FGT1-associated genes (ChIP-seq peaks) are more highly expressed than other genes. Violin plot indicates expression levels of FGT1-bound genes compared to all other genes (Figure 4—figure supplement 1). Expression data were taken from (Gan et al., 2011). (B) Normalized global read coverages of ACC or NHS FGT1-YFP or wild-type control samples as determined by ChIP-seq. Genes were categorized into not expressed genes and equally sized groups of highly, moderately and lowly expressed genes (Gan et al., 2011). Coverage profiles include 2 kb up- and downstream of the TSS and TTS, respectively. Genic regions were normalized to a standard length. (C) Normalized read coverages of HS-responsive genes from ACC or NHS FGT1-YFP. The panels show global analysis of genes in the respective expression class (cf. B) according to their expression pattern 4 h after ACC (Stief et al., 2014) in wild type (up, down, others). (D) FGT1 is enriched in chromatin state 2 (Sequeira-Mendes et al., 2014). Relative enrichment of FGT1-bound sequences or WT control after ACC or NHS in different chromatin states indicated depletion of FGT1 in heterochromatin (states 8, 9) and enrichment in state 2 (promoter and intergenic regions, open chromatin). Lines denote average of replicates.

https://doi.org/10.7554/eLife.17061.013

Given that the identified peaks were wide and flat, we hypothesized that the peak calling may have underestimated the number of targets. Thus, we investigated the global correlation of FGT1 binding and expression under NHS conditions by plotting global coverage profiles grouped according to the relative expression in non-stressed seedlings (Gan et al., 2011). This revealed that FGT1 is preferentially associated with expressed genes at a global scale (Figure 4B). FGT1 is most strongly associated with genes that have high or intermediate expression in a pattern similar to that observed for the peak genes (Figure 4—figure supplement 1). We next asked whether FGT1 shows differential association with genes that are HS-responsive (Stief et al., 2014). FGT1 associated most strongly with those expressed genes that are upregulated at 4 h after ACC, irrespective of their expression level before HS (Figure 4C). This is especially true for genes that are lowly expressed without HS; this category contains typical HS-responsive genes. Accordingly, FGT1 associated most strongly with genes that are upregulated at 4 h and/ or 52 h after ACC and this is more pronounced in the ACC samples (Figure 7C). Thus, HS increases binding of FGT1 to HS-responsive genes globally, and these genes are associated with low levels of FGT1 already before HS.

The A. thaliana genome was categorized into nine chromatin states based on the differential presence of histone modifications, variants and DNA methylation (Sequeira-Mendes et al., 2014). Analyzing the overlap between FGT1-bound sequences with different chromatin states, we found that FGT1 was highly enriched in sequences annotated as chromatin state 2 (Figure 4D). This state is found in poised chromatin, mostly in promoters and intergenic regions (hence transcript levels are low). It is enriched in H3.3, H3K4me2, H3K4me3, H2A.Z, H2Bub, H3K27me3, AT-rich and relatively low in overall nucleosome abundance. Strikingly, state 2 peaks immediately before the TSS, and has a smaller peak just after the TTS, mimicking closely the global coverage profile of FGT1 (Sequeira-Mendes et al., 2014). In contrast, FGT1 was depleted from the heterochromatic states 8 and 9. Thus, FGT1 binding globally associates with the nucleosome-poor regions flanking the transcription units of expressed genes.

FGT1 interacts with SWI/SNF and ISWI chromatin remodelers

To elucidate the mechanism of how FGT1 promotes gene expression, we isolated FGT1-interacting proteins. To this end, we purified native FGT1-YFP complexes from 35S::FGT1-YFP seedlings 28 h after ACC or control (NHS) treatment. FGT1-YFP and associated proteins were then subjected to LC-MS/MS analysis. As controls, we performed purifications on 35S::YFP and Col-0 plants, respectively. Among the peptides identified specifically in the FGT1-YFP samples were both A. thaliana orthologues of the ISWI chromatin remodeler, CHR11 and CHR17, and the SWI/SNF chromatin remodeler BRAHMA (BRM), suggesting that FGT1 interacts with chromatin remodeling proteins (Table 1). Because of the high homology between CHR11 and CHR17, most of the identified peptides could not be assigned unequivocally to either of the two proteins, however, a few specific peptides were recovered demonstrating the presence of both ISWI proteins (Table 1). We also identified several known subunits (SWI3a, b, d, SWP73b) of the BRM complex. We did not observe differences between the ACC and NHS samples, suggesting that the mode of action of FGT1 is independent of HS. To confirm the interactions between FGT1 and the remodelers we used bimolecular fluorescent complementation in transiently transformed tobacco leaves (Walter et al., 2004). We thus confirmed the interaction of FGT1 with CHR11, CHR17 and BRM in the nucleus (Figure 5). In summary, FGT1 interacts with chromatin remodeling proteins of the ISWI and SWI/SNF classes.

Table 1

FGT1 interacts with chromatin remodeling proteins in vivo. FGT1-interacting proteins identified by native co-immunoprecipitation followed by mass spectrometry (nHPLC-MS/MS) from 5 d-old 35S::FGT1-YFP seedlings subjected to ACC or NHS 28 h before sampling. Col-0 and 35S::YFP were used as controls. The data represent the number of unique peptides found in the indicated experiments.

https://doi.org/10.7554/eLife.17061.015
BackgroundTreatmentExpNumber of peptides
FGT1CHR11/ CHR17Chr11Chr17BRMSWI3aSWI3bSWI3dSWP73b
35S::FGT1-YFPACC15841------
256123223113
34311--2----
NHS1332------1
252114214--3
3514-------
Col-0ACC1-3---------
NHS1-3---------
35S::YFPNHS1-3---------
FGT1 interacts in vivo with SWI/SNF (BRM) and ISWI (CHR11, CHR17) chromatin remodeling proteins.

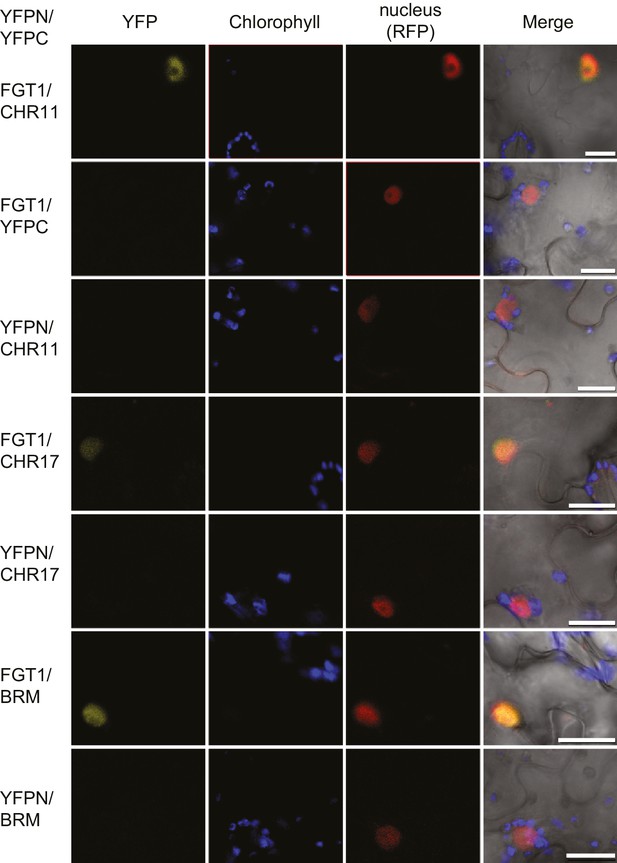

Bimolecular Fluorescence Complementation confirms the interaction of FGT1 and CHR11, CHR17 or BRM in the nucleus of tobacco leaf cells. The indicated constructs were co-transformed and analyzed 2 d later with an LSM710 confocal microscope. YFP, BiFC signal in the YFP spectrum; RFP, signal from co-expressed nuclear RFP-fusion protein. Size bar, 20 µm.

https://doi.org/10.7554/eLife.17061.016

BRM and ISWI are required for HS memory

To determine whether the interaction of FGT1 and the remodelers was functionally relevant during HS memory, we examined whether remodeler mutants displayed normal HS memory. As the loss of BRM causes sterility, we performed the assay on the progeny of a heterozygous brm-1/+ plant and genotyped individual seedlings after phenotyping. Indeed, brm-1 mutants displayed reduced HS memory (Figure 6A,B). The highly similar CHR11 and CHR17 proteins show functional redundancy and the double mutant displays severe developmental defects including dwarfism (Li et al., 2012). Thus, we performed the experiment on the progeny of a chr11/chr11 chr17/+ plant. As for brm-1, we genotyped individual seedlings after the phenotypic analysis was completed. We observed that chr11 single mutants and chr11/chr11 chr17/+ seedlings were defective in the physiological HS memory (Figure 6A,B). Due to their growth defects, we could not analyze chr11 chr17 double mutants. To test whether the remodeler mutants have a generally impaired HS response, we also tested their ability to acquire thermotolerance and their basal thermotolerance. Mutants in the remodelers behaved similar to the wild type or slightly better in these assays (Figure 6—figure supplements 1, 2), which indicates that the responses to acute HS were not compromised. Thus, the remodeler mutants under investigation displayed a specific impairment of HS memory and not a general defect in HS responses. We also tested the expression of HS-responsive genes after ACC in wild type, and brm-1/+ or chr11/chr11 chr17/+ -segregating lines, respectively. qRT-PCR analysis revealed that both mutant lines show a premature decline of expression of HSA32, HSP18.2, HSP21, HSP22 and HSP101 (Figure 6C). In many cases, transcript levels were already lower at the earliest time point measured (immediately after the end of ACC), suggesting that the remodelers were also necessary for full induction of these genes. Interestingly, this was not correlated with a reduced level of acquired thermotolerance in our assays (Figure 6—figure supplement 1).

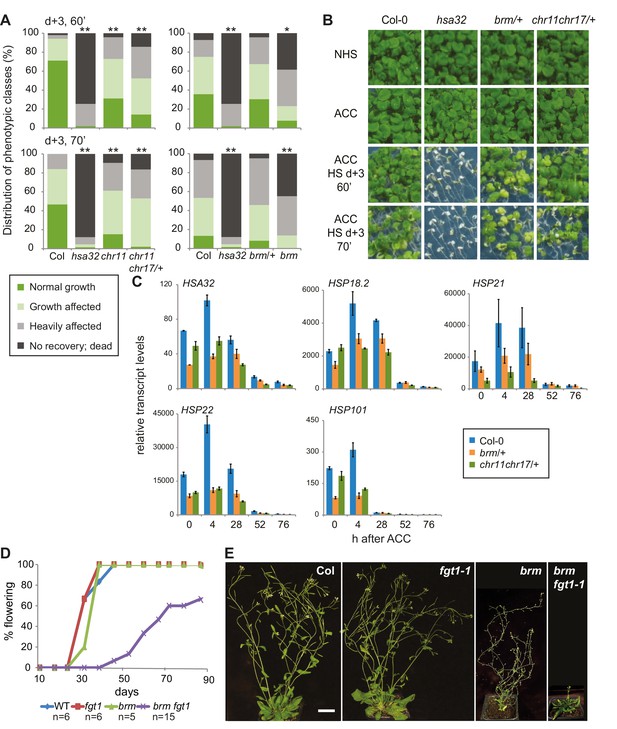

Figure 6 with 3 supplements see all
The ISWI and BRM chromatin remodelers are required for HS memory and BRM interacts genetically with FGT1.

(A) chr11/chr11, chr11/chr11 chr17/+ and brm-1 mutants show reduced HS memory. Seedlings of the indicated genotypes were acclimatized 5 d after germination and treated with a tester HS 3 d later. hsa32 was included as a control. Individual seedlings were phenotypically categorized 14 d after ACC and genotyped by PCR. Data are averaged over at least two independent assays, Fisher’s exact test, *p<0.05, **p<0.001; n>28. (B) Representative picture of the data shown in (A) taken 14 d after ACC. (C) Transcript levels of HS-inducible genes after ACC are reduced in brm-1/+ and chr11/chr11 chr17/+-segregating lines compared to Col-0. Transcript levels were normalized to At4g26410 and the corresponding NHS sample. Data are averages and SE of at least three biological replicates. (D, E) The brm-1 fgt1-1 double mutant is delayed in growth and development in long-day conditions. (D) Flowering time in days to first open flower. Genotypes were isolated from a segregating population. The percentage of flowering plants is plotted against the days of growth. (E) Representative individuals of the indicated genotypes grown for 51 d (Col-0, fgt1-1) or 67 d (brm-1, brm-1 fgt1-1). Size bar, 2 cm.

https://doi.org/10.7554/eLife.17061.017

Genetic interaction of FGT1 and BRM

Given the similar HS memory phenotypes and their physical interaction, we asked whether FGT1 interacted with BRM also genetically. Indeed, the brm-1 fgt1-1 double mutants displayed several novel phenotypes compared to the brm-1 single mutant (Figure 6D,E). During seedling development, growth of the brm-1 fgt1-1 double mutant was retarded, resulting in reduced development and delayed leaf initiation (Figure 6—figure supplement 3). Later on, flowering time (days to flowering) was delayed compared to the wild type or either single mutant (Figure 6D,E). As the double mutants have to be isolated from a segregating population due to the sterility of brm-1, we could not obtain suitable material for testing HS memory. Nevertheless, the additive phenotypes observed in the double mutant clearly suggest that both genes act partially redundantly, in agreement with the idea that they act at least partly on the same targets. The additional phenotypes indicate that FGT1 also plays a role during plant development, which is consistent with the large number of target genes that are not related to HS memory.

BRM globally binds HS memory genes and FGT1 target genes

To compare BRM and FGT1 genomic targets, we took advantage of published BRM ChIP-seq data (Li et al., 2016). We observed a highly significant overlap between genes associated with BRM under non-stress conditions and FGT1-associated genes (NHS and ACC; Figure 7A). Globally, BRM was more strongly associated with FGT1 ACC target genes than with the rest of the genome (Figure 7B). Strikingly, BRM showed a very similar coverage profile as FGT1; a pronounced peak at the TSS and a second, weaker peak just downstream the TTS. When comparing the association with genes that are induced at 4 and/or 52 h after ACC, we found BRM to be strongly enriched at memory genes (up at 4 and 52 h) and late-inducible genes (up at 52 h only), compared to downregulated or non-responsive genes (Figure 7C). Again, this was very similar to the results observed for FGT1. Notably, the association of BRM and (to a lesser extent) FGT1 with memory genes was established before HS. The overlapping binding pattern of FGT1 and BRM was also apparent from browser screenshots of individual loci (Figure 7—figure supplement 1). In summary, genome-wide BRM target genes overlap strongly with FGT1 target genes and they are pre-associated with memory genes under non-stress conditions, strongly supporting the interaction of FGT1 and BRM.

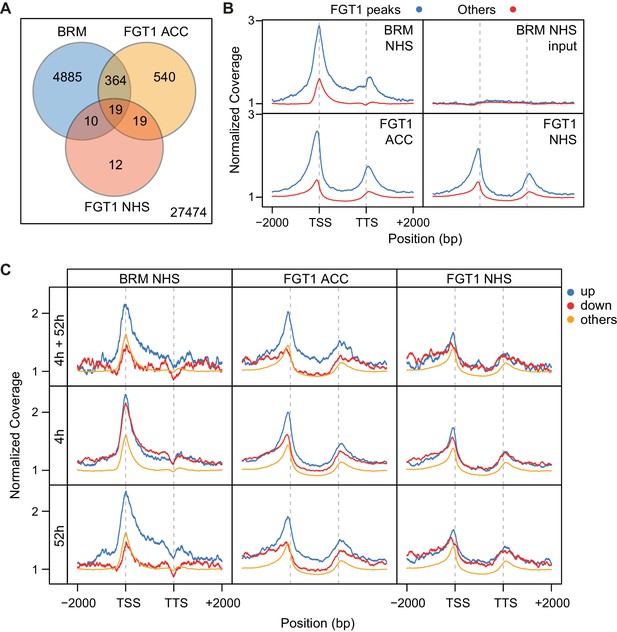

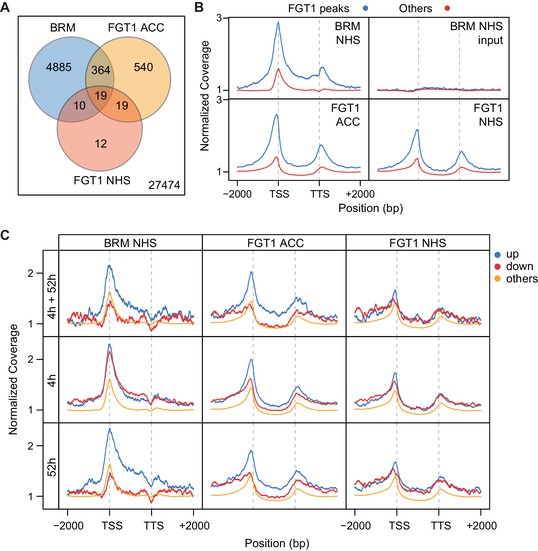

Figure 7 with 1 supplement see all
BRM and FGT1 show overlapping genomic targeting at HS-responsive genes.

(A) BRM and FGT1 target genes overlap highly significantly. FGT1 ACC and NHS peak overlapping genes were compared to BRM identified peaks (Li et al., 2016). The number of overlapping genes is represented and their significance was estimated by Fisher test (BRM vs. FGT1 NHS p<10−8, BRM vs. FGT1 ACC p<10−76). (B) BRM is enriched at FGT1 target genes and shows a similar coverage profile as FGT1. Normalized coverage profiles of BRM are displayed for FGT1 ACC peak genes and all other genes. FGT1 panels correspond to those in Figure 4—figure supplement 1. (C) Before HS, BRM binds preferentially to HS memory genes and late HS-induced genes in a pattern similar to FGT1. BRM and FGT1 are strongly enriched at HS memory genes (4 h + 52 h up, top panel, blue line). Normalized read coverages of BRM, FGT1 ACC and FGT1 NHS of genes with changed (up, down, other) expression at 4 and/or 52 h after ACC (Stief et al., 2014) are displayed.

https://doi.org/10.7554/eLife.17061.021

Nucleosome redistribution dynamics after HS are affected in fgt1-1

Given the physical and genetic interaction with chromatin remodeling complexes, we next examined the possibility that FGT1 functions by regulating nucleosome dynamics at memory genes. To this end, we determined nucleosome occupancy around the TSS of HSA32, HSP22.0, HSP18.2 and HSP101 during two days after ACC in fgt1-1 by qPCR of Micrococcal Nuclease-digested chromatin (MNase-qPCR). At HSA32, HSP22.0 and HSP18.2, FGT1 was required for the correct positioning and occupancy of the +1 nucleosome already under control conditions (Figure 8), consistent with the fact that FGT1 was bound to these loci already before HS (Figure 3, Figure 7—figure supplement 1). Interestingly, while at HSA32 occupancy at the +1 nucleosome was reduced in fgt1-1 compared to parental seedlings, it was increased at HSP22.0 and HSP18.2. In wild type, nucleosome occupancy was strongly reduced at 4 h after ACC for all three genes and recovered slowly over the next two days (Figure 8—figure supplement 1). At HSA32 and HSP22.0 nucleosome occupancy was still not fully recovered after 52 h. At HSP18.2 it was fully recovered by 52 h (but not yet 28 h). In fgt1-1, nucleosome recovery was accelerated (Figure 8—figure supplement 1). Nucleosome dynamics at HSP101 were not affected in fgt1-1. Thus, FGT1 is required to maintain low relative nucleosome occupancy at memory genes after HS.

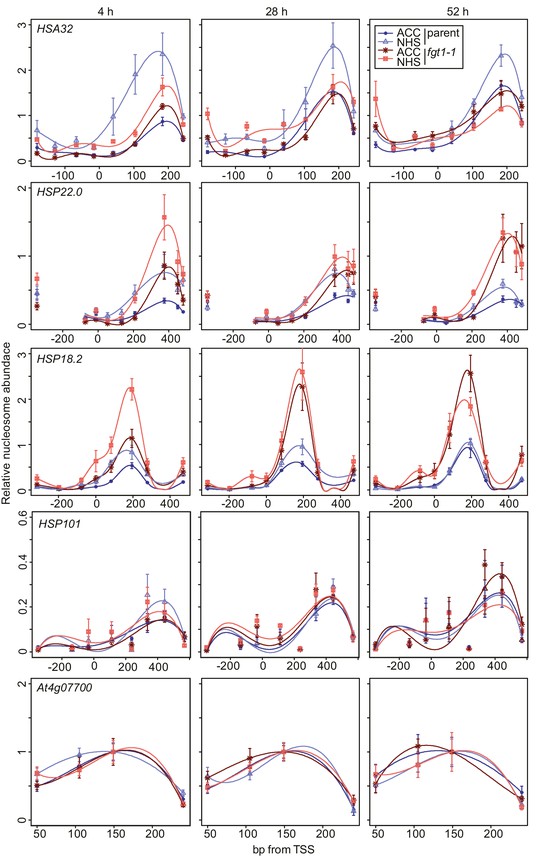

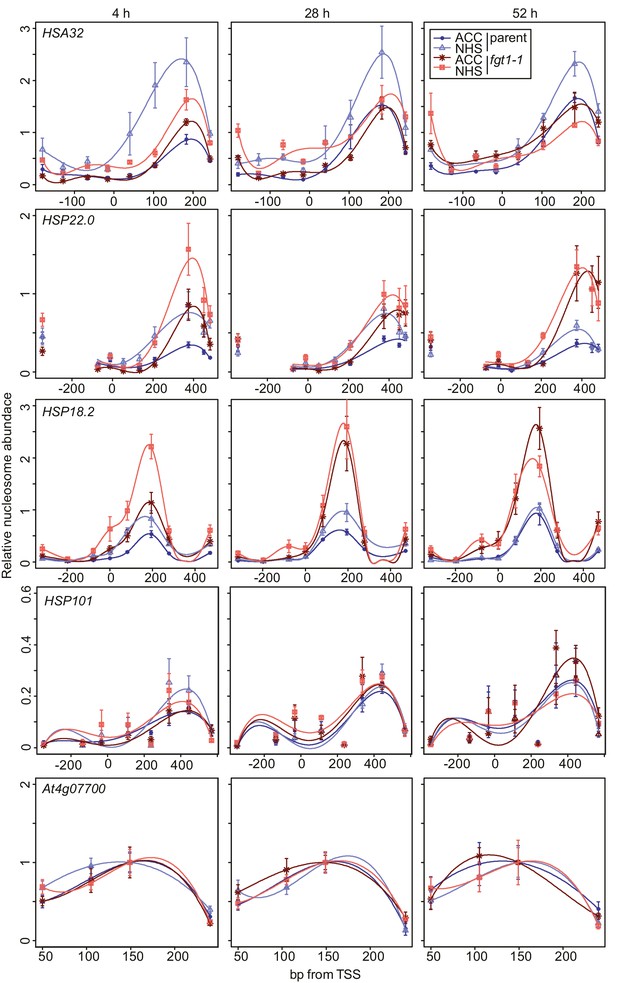

Figure 8 with 2 supplements see all
FGT1 is required for nucleosome occupancy and nucleosome recovery after HS at memory genes.

FGT1 is required for proper nucleosome organization around the TSS of memory genes before HS and is required to maintain low nucleosome occupancy during the memory phase. Chromatin dynamics at HSA32, HSP22.0, HSP18.2, HSP101 and At4g07700 at 4, 28, or 52 h after acclimatizing HS (ACC) or no HS (NHS) in the parent (blue) or fgt1-1 (red), respectively. Nucleosome occupancy was determined by MNase-qPCR. Data shown are averages of at least three biological replicates and SE.

https://doi.org/10.7554/eLife.17061.023

Because of the sterility and developmental defects of brm-1 and chr11 chr17 mutants we were unable to examine nucleosome dynamics in heat-stressed seedings of the remodeler mutants. Given the pre-association of BRM and FGT1 with the memory loci and the findings for fgt1-1, we reasoned that nucleosome abundance at these loci may be altered already under non-stress conditions. Indeed, rosette leaves of fgt1-1, brm-1 and chr11/chr11 chr17/+ showed similarly increased nucleosome abundance under greenhouse conditions for HSA32, HSP18.2 and HSP22.0 (Figure 8—figure supplement 2). In contrast, the nucleosome abundance at HSP101 was not changed.

Discussion

FGT1 and HS memory

Here, we have reported the identification of the A. thaliana orthologue of Sno, FGT1, as a regulator of sustained gene induction after HS. We identified FGT1 from an unbiased mutagenesis screen for factors that are required for the maintenance of high HSA32::LUC expression after HS, but not for its initial induction. Genome-wide determination of FGT1-binding sites and its high phylogenetic conservation suggest that FGT1 has a general function in promoting gene expression. FGT1 interacts with conserved chromatin remodeling complexes, and the catalytic subunits of these complexes are also required for physiological HS memory. Together, our data suggest the following model (Figure 9); HS induces memory gene expression through HSF proteins. FGT1 binds to these loci at the nucleosome-depleted region (NDR) adjacent to the TSS, where it interacts with nucleosome remodeling complexes. By tuning nucleosome occupancy around the TSS, FGT1 maintains these loci in a memory-competent state. This allows active transcription to be maintained for several days after HS, thus contributing to HS memory.

FGT1 interacts with chromatin remodelers and affects nucleosome dynamics during transcription and HS memory.

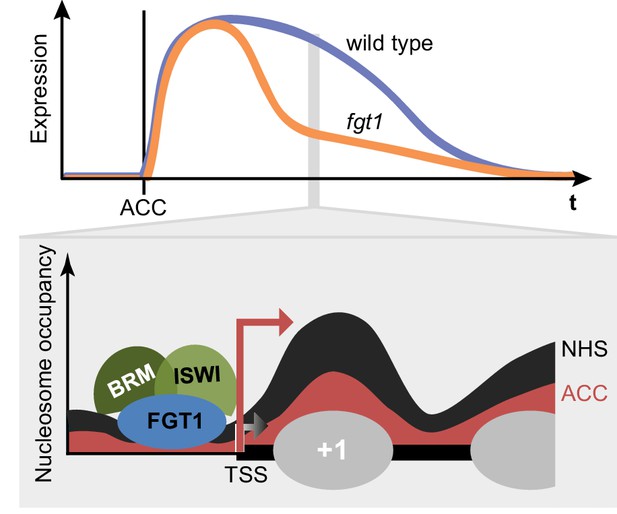

Top: Schematic representation of HS memory gene expression in wild type and fgt1 after acclimatizing HS (ACC). Loss of FGT1 causes loss of sustained gene induction. Bottom: FGT1 interacts with ISWI and BRM remodelers near the TSS to maintain low nucleosome occupancy. In the absence of FGT1, nucleosome recovery is accelerated. Profiles were drawn based on the data obtained for HSA32. Angled arrows indicate transcriptional activity.

https://doi.org/10.7554/eLife.17061.026

We have previously found that sustained induction and transcriptional memory after HS are associated with HSFA2-dependent H3K4 hyper-methylation (Lämke et al., 2016). Whether FGT1 interacts with HSFA2 and H3K4 methylation remains a question for future studies. FGT1 and BRM are associated with HS memory loci already before HS, when their expression levels are low. FGT1 binding increases after HS and is maintained at high levels over the course of HS memory. It is unclear whether HS memory is conserved outside the plant kingdom. However, our results strongly indicate that FGT1 has a more generic role in transcription, despite the lack of morphological aberrations under standard growth conditions. This general function of FGT1 is partially redundant with that of the SWI/SNF remodeler BRM (as apparent in the double mutant). It is conceivable that FGT1 is required for regulated gene expression, which is prevalent especially during development and under stress conditions.

FGT1 is the A. thaliana orthologue of the highly conserved Sno helicase

FGT1 shows a high conservation over the whole protein length with its metazoan orthologues. Sno is a component of the inductive Notch signaling pathway and important for patterning of the Drosophila wing margin (Majumdar et al., 1997). It is also required for the activation of downstream genes of the Notch and EGFR pathways (Majumdar et al., 1997; Tsuda et al., 2002). The C. elegans orthologue let-765 was implicated as a positive regulator of lin-3/egf expression in vulval induction (Simms and Baillie, 2010), and mammalian SBNO may be involved in neuron development (Grill et al., 2015).

FGT1 contains a DExD helicase domain, which is classically considered as an RNA helicase (Fuller-Pace, 2006). Interestingly, other DExD/H helicase proteins have been implicated in coordinating transcription and co-transcriptional RNA processing by interacting with co-activator/-repressor proteins (Fuller-Pace, 2006). While FGT1 binds to active genes, it was not associated with transcribed regions, but rather with the flanking promoter and terminator sequences, supporting the notion of a role in transcriptional regulation rather than RNA processing. However, we currently cannot rule out a role for (non-)coding RNAs in FGT1-dependent regulation. FGT1 also contains a Helicase C domain, which is frequently found in chromatin remodeler proteins (Clapier and Cairns, 2009). In fact, the combination of two helicase domains as present in FGT1 is reminiscent of remodeler proteins. In addition, FGT1 contains a PHD domain. Several PHD domains display very high binding affinities to specific posttranslational modifications of histone H3 (Musselman and Kutateladze, 2011). Using recombinant FGT1PHD or transgenic FGT1-YFP, we confirmed H3 binding, however, we did not observe preferential binding to any of the tested modifications (Figure 2G, Figure 2—figure supplement 3), suggesting that other determinants contribute to targeting FGT1. In agreement with this, the PHD domain of FGT1 could not be assigned to any of the characterized subgroups with high specificity for methylated H3 (Lee et al., 2009).

FGT1 interacts with chromatin remodeling proteins

Chromatin remodeling complexes use the energy of ATP to move nucleosomes along DNA, and to eject or exchange nucleosomes on DNA (Clapier and Cairns, 2009; Narlikar et al., 2013; Struhl and Segal, 2013), thus changing the accessibility of DNA for other proteins. Chromatin remodeling complexes have widespread functions during development and have been linked with several pathologies, including tumorigenesis (Narlikar et al., 2013). Four families of chromatin remodelers are conserved in metazoans, plants and yeast; the SWI/SNF, the ISWI, the CHD and the INO80 families (Clapier and Cairns, 2009). The catalytic subunits of all families contain a Snf2-related helicase domain and form large multi-subunit complexes. Although they have differing functions, there is evidence that remodelers of different families interact on the chromatin (Clapier and Cairns, 2009; Narlikar et al., 2013). FGT1 interacts with remodelers of the ISWI and SWI/SNF families. Both ISWI orthologues, BRM and several accessory subunits (SWI3, BAF73b) were identified by co-immunoprecipitation. ISWI is required for the regular spacing of nucleosomes downstream of the +1 border nucleosome (Clapier and Cairns, 2009; Li et al., 2014). FGT1 was found previously in a co-immunoprecipitation experiment with CHR17, thus independently confirming our results (Smaczniak et al., 2012). Drosophila BRM was originally identified due to its activating function that antagonizes Polycomb group silencing (Tamkun et al., 1992; Clapier and Cairns, 2009). During HS memory, both BRM and ISWI act as positive regulators of the memory, suggesting that both contribute to maintaining the chromatin open and accessible. FGT1, localized just upstream of the TSS, may bridge both remodelers. This notion is consistent with the localization of BRM and ISWI in other systems (Gkikopoulos et al., 2011; Yen et al., 2012; Narlikar et al., 2013) and with the high overlap in BRM and FGT1 localization (Figure 7 and Li et al., 2016). Moreover, remodelers of different families cooperate to regulate dynamic sites (Morris et al., 2014). The evidence for interaction with BRM is further strengthened by the double mutant analysis, which demonstrated that FGT1 activity becomes critical in the absence of BRM.

FGT1 modulates nucleosome occupancy near the TSS

FGT1 binds to expressed genes just upstream of the TSS and just downstream of the TTS. Whether this reflects one function or two separable functions, remains to be investigated. The FGT1 peaks that we detected were wide and relatively flat. Consistent with FGT1 interacting with BRM and CHR11/CHR17, such a binding pattern is characteristic for chromatin remodeling proteins but not sequence-specific transcription factors (Gkikopoulos et al., 2011; Yen et al., 2012; Zentner and Henikoff, 2013; Li et al., 2016). FGT1 was preferentially associated with medium and highly expressed genes. Among the lowly expressed genes, those that are HS-inducible were more strongly bound than other genes - not only after HS, but also under control conditions. This indicates that despite an overall correlation with expression, FGT1 binding does not simply reflect the transcriptional activity of a locus. It is tempting to speculate that at some loci FGT1 binding indicates a readiness for transcription rather than actual transcription, similar to what was described as a poised state (Levine et al., 2014). FGT1 binding overlaps the NDRs present next to the TSS and TTS. Hence, FGT1 may be required to maintain the NDR by interacting with remodeler proteins. Accordingly, we observed changes in the nucleosome occupancy of this region and particularly the adjacent +1 nucleosome in fgt1-1 mutants. The changes in nucleosome occupancy at FGT1 target loci preceded HS, in agreement with the FGT1 binding pattern. In non-stressed adult leaves, similar changes were observed for brm and iswi mutants. Locus-specific and developmental effects indicate the involvement of additional components. Thus, it is likely that BRM and ISWI cooperate with FGT1 to mediate nucleosome occupancy before and after HS. We propose that the molecular function of Sno/FGT1 orthologues is conserved and that they promote transcriptional regulation through interaction with chromatin remodeling complexes. The reported function of Sno as a co-activator is consistent with this mechanism; moreover, the interacting chromatin remodelers are highly conserved in metazoans.

In summary, we have uncovered a role for nucleosome occupancy in stress memory that is modulated by the conserved chromatin regulator FGT1. Sno/FGT1 also functions in a broader context to sustain gene expression during development, stress adaptation and pathologies. Our results identify a mechanism of how environmentally-induced gene expression is sustained after cessation of an external cue and provides a molecular framework for a chromatin memory. This mechanism may be exploited to improve stress tolerance in crop plants.

Materials and methods

Plant materials, growth conditions and HS assays

Arabidopsis thaliana Col-0 seedlings were grown on GM medium (1% (w/v) glucose) under a 16 h/ 8 h light/dark cycle at 23°C/21°C. brm-1, hsa32-1 and hsp101 were previously described (Charng et al., 2006; Hurtado et al., 2006; Stief et al., 2014). chr11-1-/-chr17-1+/- was obtained from K. Kaufmann (Li et al., 2012; Smaczniak et al., 2012). T-DNA insertion lines in FGT1 (fgt1-2, SALKseq_17372; fgt1-3, SALK_036520) and brm-1 were obtained from NASC. Heat treatments were performed on 4 d-old seedlings unless stated otherwise. Seedlings were treated with an acclimatizing HS (ACC) of 37°C for 60 min, followed by 90 min at 23°C and 45 min at 44°C starting eight hours after light onset. As tester HS a 44°C treatment for the indicated times was applied. After HS, plants were returned to normal growth conditions. Thermotolerance assays were performed as described (Stief et al., 2014). For all assays, all genotypes of one treatment were grown on the same plate.

Construction of transgenic lines

To generate HSA32::HSA32-LUC, a 4.6 kb fragment encompassing the complete HSA32 gene and 2.2 kb of promoter sequences was amplified (pHSA32_for_SacI GTGGAGAGCTCAAAGCTGCCATGAATGTGTT, HSA32_rev_PstI AACACTGCAGACAATGCCAAGTTTGATGCCTGA) from genomic DNA, the Stop codon was mutated and replaced by the LUC reporter gene. The resulting HSA32::HSA32-LUC construct was transformed into Col-0. For pFGT1::FGT1 (SA13) a 10.7 kb genomic fragment encompassing the complete FGT1 gene and including 1.5 kb promoter sequences was amplified (EMBFrag1_FSphI TACTGCATGCCTTTAGCGTTATCGAATCT, EMBFrag4_RBamhI CAAGAGGTTAGGATCCGCTTCCAGACA) and inserted into pBarMAP (ML516). To make 35S::FGT1-YFP (SA1), FGT1 was amplified from cDNA mutating the stop codon (EMB1135BamHI_F AGGGATCCACAATGACGCAGTCGCCTGTTCAAC, EMBBamHInoStpR A AGG ATC CGC ATC ATC AAT CTC TTG AAC CCA TGC T) and inserted into pBarM:35S::YFP (IB30), thus generating pBarM:35S::FGT1-YFP. For pFGT1::FGT1-YFP (EB19) the FGT1 stop codon in SA13 was mutated to a SalI site into which YFP was inserted to generate pFGT1::FGT1-YFP. All constructs were inserted into Agrobacterium tumefaciens strain GV3101 and transformed into A. thaliana using the floral dip method (Clough and Bent, 1998).

Reporter gene analyses

LUC activity was detected by spraying seedlings with 2 mM Luciferin (Promega, Mannheim, Germany) and imaging with a Nightowl (Berthold Technologies, Bad Wildbad, Germany). Image analysis was performed with IndiGO software (Berthold). The signal threshold was adjusted to the signal of the parental line. YFP and RFP fluorescence was imaged using a Zeiss LSM710 confocal microscope (Zeiss, Jena, Germany). Controls were imaged using the same settings and laser intensities. For BiFC YFPN-FGT1, YFPC-CHR11, YFPC-CHR17 and YFPC-BRM constructs were generated using published vectors pE-SPYCE and pE-SPYNE, respectively (Walter et al., 2004; Weltmeier et al., 2006). Combinations of YFPN and YFPC fusion constructs were co-expressed in four to six week-old Nicotiana benthamiana leaves using leaf infiltration of A. tumefaciens GV3101 suspensions containing the tested construct combinations. Fluorescence in the YFP spectrum was analysed 2 d after infiltration. A UBC10::BRU1-RFP construct was co-transformed to image nuclei (Ohno et al., 2011).

Gene expression analysis

RNA extraction, reverse transcription and qPCR were performed as described previously (Stief et al., 2014; Lämke et al., 2016). At4g26410 was used as a reference gene (Czechowski et al., 2005). Primer sequences are listed in Supplementary file 1.

Histone peptide binding assays

The PHD domains of FGT1 (aa 667–757) and ING1 (Lee et al., 2009) were subcloned into pGEX-4T-1 (Amersham Biosciences, Pittsburgh, PA), expressed in E. coli BL21 (DE3) as GST fusion proteins and purified using Glutathione affinity resins (Thermo Fisher Scientific, Waltham, MA). The histone peptide binding assay was performed as described (Kabelitz et al., 2016). In brief, 1 µg of biotinylated histone peptides (Merck-Millipore, Darmstadt, Germany) were incubated with 10 µg of GST-fusion protein in binding buffer (50 mM Tris-HCl pH 7.5, 300 mM NaCl, 0.1% NP-40, 1 mM PMSF, protease inhibitors) overnight at 4°C with rotation. After incubation with Streptavidin Dynabeads (Thermo Fisher Scientific) and extensive washing with TBST, bound proteins were analyzed by SDS-PAGE and immunoblotting with anti-GST antibodies (Merck-Millipore). Results for GST-ING1 were taken from Kabelitz et al. (2016), as the experiments were performed in parallel.

ChIP-qPCR, MNase-qPCR

ChIP was performed as described (Lämke et al., 2016). MNase-qPCR was performed as described (Liu et al., 2014). Primer sequences are listed in Supplementary file 1. Curves were created based on a polynomial regression (HSA32, HSP22.0, HSP101, At4g07700) or spline interpolation (HSP18.2). The position of the center of each amplicon relative to the TSS is indicated. The +1 nucleosome of At4g07700 was used for normalization (Kumar and Wigge, 2010).

ChIP-seq analysis

ChIP-seq was done with three biological replicates for two genotypes (35S::FGT1-YFP, Col-0) and two treatments (acclimated (ACC) and control (NHS)). 5 d-old seedlings were treated with ACC or NHS and harvested 28 h later. ChIP was performed as described above. Library preparation and 100 bp single-end sequencing on an Illumina HiSeq 2500 were performed by ATLAS Biolabs (Berlin, Germany). Data were delivered as de-multiplexed fastq files. Raw data have been deposited at NCBI SRA under accession number SRA GSE79453. BRM ChIP-seq raw data (Li et al., 2016) were downloaded from NCBI SRA. All statistical analyses were done using R (http://www.r-project.org). Figures were made using R base plotting or the lattice package.

Read adapters were removed using Trimmomatic (Bolger et al., 2014). The resulting reads were mapped against the A. thaliana TAIR10 reference genome using bwa mem (Li, 2013). Mapping files were further transformed into sorted bam files and indexed using samtools (Li et al., 2009). Duplicate reads were removed using samtools rmdup. One Col-0 ACC sample was filtered out due to its very low number of mapped reads.

Peak calling was done using MACS (Zhang et al., 2008) for each sample separately, lower mfold was decreased to 2. Only peaks called for all three FGT1 samples with the same treatment and not called for any of the 2 Col-0 control samples were considered as a signal. Distances between the peaks thus identified and annotated genes were calculated using bedtools closestBed (Quinlan and Hall, 2010). The expression of those genes was estimated based on published RNA-seq data for 11 d-old seedlings (Gan et al., 2011).

For coverage profiles, base coverages for the whole genome and selected regions were computed using bedtools coverage and normalized by division by the total number of covered bases (as calculated by multiplying the number of mapped reads by their length), chloroplast and mitochondrion sequences were excluded. Coverage profiles around genes were made using 2 kb prior to the TSS, gene regions, and 2 kb after the TTS. Values were averaged over biological replicates. Genic (transcribed) region base coverages were scaled to the same length to make them comparable between different genes. Genes were categorized into not expressed genes and equally sized groups of highly, moderately and lowly expressed genes according to their expression under standard conditions as determined by a published RNA-seq experiment (Gan et al., 2011). This dataset corresponds to the closest developmental stage and environmental conditions regarding our ChIP-seq experiment with available data at NCBI GEO (GSM764077). Coverage profiles for each class were calculated by averaging the values for all member genes for each genotype x treatment combination. Another classification was done by grouping genes based on their expression pattern 4h after ACC as determined by ATH1 microarray hybridization (Stief et al., 2014). Coverage profiles for those classes were calculated as described above.

FGT1 binding enrichment depending on chromatin state was investigated by comparing coverages for chromatin states as described (Sequeira-Mendes et al., 2014). Coverages were normalized regarding the total number of covered bases and the length of each chromatin state region. Values for each state were averaged at the sample level.

Immunoprecipitation and mass spectrometry

Native FGT1-YFP protein complexes were immunoprecipitated from 35S::FGT1-YFP seedlings and subjected to nHPLC-MS/MS for identification. In detail, 2.5 g of 4 d-old seedlings subjected to ACC or NHS were harvested 28 h later and snap-frozen in liquid nitrogen. Nuclei were extracted according to (Kaufmann et al., 2010) and sonified using a Diagenode Bioruptor (3 cycles/ 30 s on/off) on low intensity settings. Protein extracts were incubated with α-GFP paramagnetic beads for 1.5 h at 4°C and native protein complexes recovered using α-GFP isolation kit (Miltenyi Biotec, Bergisch Gladbach, Germany) and eluted in 8 M urea (Sigma-Aldrich, München, Germany). Eluates were diluted and digested with trypsin (Promega) as described (Smaczniak et al., 2012). Peptides were desalted, lyophilized and re-suspended in 30 μL 5% (v/v) acetonitrile, 2% (v/v) trifluoroacetic acid. Measurements were performed on a Q Exactive Plus orbitrap mass spectrometer coupled with an Easy nLC1000 HPLC (Thermo Fisher Scientific). Spectra were analyzed using MaxQuant software (Cox and Mann, 2008) and the A. thaliana TAIR10 annotations. A decoy database search was used to limit false discovery rates to <1% on the protein level.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
    Priming and memory of stress responses in organisms lacking a nervous system
    1. M Hilker
    2. J Schwachtje
    3. M Baier
    4. S Balazadeh
    5. I Bäurle
    6. S Geiselhardt
    7. DK Hincha
    8. R Kunze
    9. B Mueller-Roeber
    10. MC Rillig
    11. J Rolff
    12. T Romeis
    13. T Schmülling
    14. A Steppuhn
    15. J van Dongen
    16. SJ Whitcomb
    17. S Wurst
    18. E Zuther
    19. J Kopka
    (2015)
    Biological Reviews of the Cambridge Philosophical Society, 10.1111/brv.12215.
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
    Aligning sequence reads, clone sequences and assembly contigs with BWA-MEM
    1. H Li
    (2013)
    arXiv 1303.3997.
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57

Decision letter

  1. Detlef Weigel
    Reviewing Editor; Max Planck Institute for Developmental Biology, Germany

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Arabidopsis FORGETTER1 mediates stress-induced chromatin memory through nucleosome remodeling" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Detlef Weigel as the Senior and Reviewing Editor. The following individual involved in review of your submission has agreed to reveal his identity: Yijun Qi (Reviewer #1).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Through a mutant screen, you have identified a new gene, FORGETTER1 (FGT1), that is required for maintenance of heat-induced gene expression. You propose that the FGT1 protein globally associates with the promoter regions of actively expressed genes in a heat-dependent fashion, interacting in this process with chromatin remodelers of the SWI/SNF and ISWI families. You conclude that FGT1 mediates stress-dependent chromatin memory by modulating nucleosome occupancy.

The reviewers agreed that such findings should in principle be published at the highest levels. While the reviewers furthermore agreed that the data presented are clear, they also agreed that the conclusions went considerably beyond what the data showed directly. To bring the interpretation more in line with the data, they ask you to tone down your claims, and also to add a series of new data to support their claims:

Essential revisions:

1) Perform a carefully controlled RNA-seq time course experiment (wt, fgt1-1, brm1 etc) over a heat shock to compare fgt1 and swi/snf effects more precisely. Alternatively, test whether SWI/SNF and ISWI is required for FGT1 binding to HS memory genes or vice versa, with FGT1 ChIP in the swi/snf or iswi mutants and SWI/SNF and ISWI ChIP in the fgt1 mutant, and add RNAPII ChIP.

2) Examine whether nucleosome redistribution dynamics during the HS memory phase are affected by swi/snf or iswi mutations.

3) Include as a control analysis of nucleosome occupancy of a gene that is not a target of FGT1 nor persistently expressed (i.e. HSP101).

4) Provide a better control for FGT1-H3 interaction.

We have included the full reviews, which mention separate points for essential revisions, but after discussion, we condensed them to the four points above

Reviewer #1:

In this manuscript, the authors identified FORGETTER1 (FGT1) as a new factor that is required for heat stress (HS) memory. They found that FGT1 primarily binds to the proximal promoter upstream of the TSS as well as the region downstream of the TTS and functions as a co-activator of memory genes. Moreover, they showed that FGT1 interacts with SWI/SNF and ISWI chromatin remodelers that are also required for HS memory. Finally, they showed that FGT1 is required for maintaining low nucleosome occupancy during the memory phase. The authors propose that FGT1 modulates HS memory through modulating nucleosome occupancy dynamics and transcription-competent chromatin. These findings advance our understanding about the molecular mechanism of stress memory and should be of general interest. The data are of high quality and well presented. Meanwhile, I feel the authors should make efforts to provide the missing link between FGT1 and nucleosome dynamics. My requests for additional experiments are listed below.

1) The interaction between FGT1 and SWI/SNF and ISWI was shown by IP Mass-spec and BiFC experiments. As this is one of the key points of this paper, additional approaches should be employed to demonstrate the interaction.

2) The authors should test whether SWI/SNF and ISWI is required for FGT1 binding to HS memory genes or vice versa. This can be done by performing FGT1 ChIP analyses in the swi/snf or iswi mutants and SWI/SNF and ISWI ChIP in the fgt1 mutant.

3) The authors should examine whether nucleosome redistribution dynamics during the HS memory phase are affected by swi/snf or iswi mutations.

4) It would be also interesting to examine which histone marks are affected by fgt1 during HS memory.

Reviewer #2:

Organisms respond to changes in environmental conditions through changes in transcription. Most of these changes are transient and are lost if the environmental stimulus is removed. For example, heat shock leads to transient upregulation of protein folding chaperones. However, in Arabidopsis, heat stress also leads to persistent expression of several genes (HSA32, HSP21, HSP22.0, HPS18.2) for ~3 days and this protects plants from lethal heat stress during this period. This phenomenon is called heat stress memory and requires an HSF-related transcription factor HSFA2 and is correlated with changes in histone H3 lysine 4 methylation.

Here, the authors perform a genetic screen for mutants that fail to express HSA32 three days after heat stress. This screen identified a mutant in a gene called FORGETTER (FGT1), which is homologous to Strawberry Notch in animals. This mutant resulted in 1) normal expression of HSA32 immediately after a mild heat shock, 2) normal survival of a lethal heat stress administered 90 minutes after a mild heat stress, 3) low expression of an HSA32 reporter (compared with wild type) after 2 or 3 days of recovery and 4) poor survival of a lethal heat stress after 3 days of recovery. These results suggest that FGT1 is specifically required for the long-term effects of mild heat stress. The manuscript seeks to understand the phenotype of the fgt1 mutant and to define the molecular role of FGT1 in stress memory. This is a very interesting phenomenon and the system is excellent. The experiments are well designed and the data are clear. However, I do not agree with the authors' interpretation of several experiments and I am not convinced that they support the major conclusions of the paper. As a result, I do not feel that this work is mature enough to recommend publication in eLife.

To validate these observations, the authors measured the mRNA levels of both genes that exhibit persistent expression after heat stress (HSA32, HSP21, HSP22.0 and HSP18.2) and a gene that is induced by heat stress but does not show persistent expression (HSP101) in the fgt1-1 mutant. Surprisingly, despite having used an HSA32 reporter for the screen, the fgt1-1 mutant plants showed normal persistent expression of HSA32 and HSP18.2 and slightly defective persistence of HSP21 and HSP22.0. However, the authors claim that the very slight decrease in HSA32 after 45 and 69h are the source of the phenotype. Because there was no statistical analysis of this difference, it is unclear if it is significant. These differences do not appear to be as strong as the differences observed with the Luciferase reporter (Figure 1A). Quantitation of the luciferase for comparison would have clarified the phenotype. To convince the reader that the mutation is impacting transcription, ChIP against RNAPII would have helped. Furthermore, inclusion of the HSFA2 mutant for comparison would have made the strength of the phenotype easier to assess. It is possible that the mutation has a larger effect on the reporter and that the survival phenotype is the result of an effect on a different subset of genes (i.e., HSP21 and HSP22). If so, then the persistent expression of genes in response to heat stress involves both an FGT1-dependent and an FGT1-independent mechanism.

The authors hypothesize that FGT1 promotes persistent expression of HSP21 and HSP22.0 by remodeling nucleosomes because the protein possesses a PHD finger domain and a Helicase C domain. Consistent with this hypothesis, FGT1 localizes to the nucleus, interacts with both active genes and heat stress-induced genes and physically interacts with the BRM (SWI/SNF) and CHR11/CHR17 (ISWI). Unfortunately, a number of experiments create uncertainty about this conclusion. First, the changes in nucleosome occupancy in the fgt1 mutant do not correlate with binding of FGT1: FGT1 binds strongly to the HSA32 promoter/TSS upon heat stress and this correlates with decreased nucleosome occupancy. The fgt1 mutant shows lower nucleosome occupancy prior to heat stress and this decreases to a comparable level to the wild type in the days following heat stress. Therefore, FGT1 is not required for the decrease in nucleosome occupancy at HSA32. In the cases of HSP18.2 and HSP22, although the fgt1 mutant shows increased nucleosome occupancy, the changes in the wild type strain upon heat stress are difficult to appreciate and, as mentioned above, there is no obvious effect of this mutation on the expression of HSP18.2. It would have been helpful to include a gene that is neither a target of FGT1 nor persistently expressed (i.e. HSP101) as a more relevant control. Likewise, as mentioned above, examining the effect of the HSFA2 mutant in this assay would have been informative. Also, peptide binding experiments show that the PHD finger interacts non-specifically with (non-overlapping) histone peptides. The authors did not include a biologically irrelevant peptide control, but the low affinity and the lack of specificity cast doubt on the claim that "FGT1 binds to the N-terminal region of H3[…]". It seems equally plausible that FGT1 binds to the FLAG peptide. Finally, ChIP seq shows that FGT1 associates with both the transcription start sites and the transcription termination sites of active genes. Given the DExD-like helicase domain, this raises the alternative hypothesis that the protein is involved in post-transcriptional events and might impact the ability of plants to survive through influencing protein levels.

The authors also explored the role of BRM and CHR11/CHR17 in heat stress memory. Mutations in BRM1 and FGT1 produced synthetic flowering and development phenotypes, suggesting non-overlapping roles in these processes. Both mutant plants were somewhat defective in heat stress protection after 3d of recovery. However, these mutant plants also showed significantly lower peak levels of the HS-induction of HSA32, HSP18.1, HSP21 and HSP22. Therefore, the decrease in expression afterward appears proportional to the wildtype, but starting at a significantly lower peak level. If so, then poor survival after 3d of recovery is likely due to lower levels of induced transcription, not less sustained transcription.

Reviewer #3:

How plants adapt to heat stress and remember previous heat shocks is a very interesting area of biology. This paper breaks new ground by discovering a new component, FORGETTER1, which the authors show is necessary for plants to "remember" heat stress correctly at the level of transcriptional regulation. Interestingly, the fgt1-1 mutants have a specific defect in acquired thermotolerance, consistent with the proposed role for this gene in controlling the transcriptional response to temperature. The authors present a rather complete story, since they go from a genetic screen, to mapping and examining the underlying molecular mechanism. It is a bit of an open question as to the actual role of FGT1 in transcriptional memory itself, but that is probably beyond the scope of this study.

Here are a few suggestions that came to my mind on reading the paper, and resolving these might make the study even stronger:

1) For the ChIP-seq of FGT1 it would be nice to see screen shots of actual loci from a browser. Averaged data is rather hard to interpret. Relating to this, different gene lists were used for "active" genes and HS responsive genes for Figure 4B and 4C. Isn't there a more relevant list of genes whose transcription appears to show "memory" of heatshock? Another way of looking at this, what about the transcriptome of fgt1 itself?

2) The model for FGT1 action is interesting. It seems to invoke a specific role for +1 nucleosomes in responding to temperature. It's striking that there is such a strong enrichment for FGT1 at the +1 position as well as the TTS. Of course these are sites where there is global enrichment for H2A.Z-Nucleosomes (Coleman-Derr and Zilberman 2012) and H2A.Z-nucleosomes are evicted in response to temperature (Kumar and Wigge 2010). It is therefore curious that no attempt is made to synthesise what is already known about temperature-dependent gene expression and its regulation by chromatin. At a minimum, one could simply overlay the distribution of FGT1 with that of H2A.Z.

https://doi.org/10.7554/eLife.17061.036

Author response

Essential revisions:

1) Perform a carefully controlled RNA-seq time course experiment (wt, fgt1-1, brm1 etc) over a heat shock to compare fgt1 and swi/snf effects more precisely. Alternatively, test whether SWI/SNF and ISWI is required for FGT1 binding to HS memory genes or vice versa, with FGT1 ChIP in the swi/snf or iswi mutants and SWI/SNF and ISWI ChIP in the fgt1 mutant, and add RNAPII ChIP.

This revision concerns the interaction of FGT1 and the SWI/SNF and ISWI chromatin remodelers globally and the level at which FGT1 acts. We have addressed this issue via two complementary approaches. (1) We have analyzed the overlap in genome-wide binding sites of the SWI/SNF protein BRM with those of FGT1. The BRM ChIP-seq dataset employed for this purspose has recently been published (Li et al., Nat Genet 2016), using a BRM-GFP line and anti-GFP antibody in non-stressed conditions. At the genome-wide level, we detected a highly significant overlap between regions bound by BRM and FGT1 as shown in Figure 7A. In particular, BRM associates significantly more strongly with FGT1-bound regions than with the rest of the genome and both factors show a very similar binding profile across genes (Figure 7B). The same enrichment of BRM binding is also seen for genes that show sustained expression after HS in our time-course microarray experiments (Figure 7C, Stief et al. 2014). These results are supported by a series of browser screenshots of individual genes, as suggested by Reviewer #3 (Figure 7—figure supplement 1). Thus, we conclude that a high fraction of FGT1-bound regions is also bound by BRM and the significant overlap in these orthogonal genome-wide datasets strongly supports our interpretation of a functional interaction between the two proteins.

(2) To strengthen the conclusion that FGT1 acts at the transcriptional level, we have added the analysis of unspliced transcripts of one additional memory gene (HSP21) and two additional HS-inducible non-memory genes (HSP70, 101), which clearly show that the effect is specific for memory genes and occurs before splicing, i. e. (co-) transcriptionally (Figure 1—figure supplement 3). The other memory genes do not contain introns, thus precluding this type of analysis. Moreover, the transcript analysis of the LUC transgene shows that the magnitude of the effect is similar to that observed for the endogenous HSA32 gene, suggesting that the transgene mimicks closely the behavior of the endogeneous HSA32. This is in accordance with the analysis of unspliced HSA32 transcripts (Figure 1E), for which the primers detected both the endogene and the transgene. To clarify the significance of the differences, we have also added statistical analysis for the qRT-PCR experiments presented in Figure 1E and Figure 1—figure supplement 3. Regarding the RNA pol II ChIP, we have not been able to obtain reproducible chromatin immunoprecipitation with the available antibody (abcam ab817) despite several attempts by different researchers in the group with different antibody lots. Together, these two approaches support the functional interaction of BRM and FGT1 at the transcriptional start sites of a subset of genes genome-wide.

Besides providing this additional experimental evidence, we have toned down the relevant conclusions, bringing them closely in line with what we have directly shown experimentally and we have adjusted the model in Figure 9. For example, we have rephrased where previous wording suggested that FGT1 is recruiting the remodelers (see Discussion).

Regarding the additional suggestions, we feel that the additional qRT-PCR expression analysis (see above) and the strong overlap of BRM and FGT1 binding alleviate the immediate need for the extensive RNA-seq experiment to a large degree. Together with the phenotypic similarity in the memory assays (Figure 6) and the synergistic double mutant phenotypes, the above overlap analysis of genomic binding provides clear support for our interpretation of a functional interaction between FGT1 and SWI/SNF chromatin remodelers at the genome-wide level; this is particularly convincing to us, as it is based on completely independent datasets.

As for the additional ChIP experiments, these are unfortunately not feasible at the moment. We have not been able to obtain sufficient quantities of anti-BRM antibody (Archacki et al., Planta 2009) to perform a solid analysis of BRM binding in wild type and fgt1 mutants. The preliminary results suggest that FGT1 is not required for binding of BRM to memory genes.

Both the brm-1 and the chr11/17 double mutants are sterile (Hurtado et al. 2006; Li et al. 2012), so after crossing in the FGT1-YFP transgene it would not be possible to obtain sufficient homogeneous starting material for these ChIP experiments at the relevant seedling stage, as our protocol requires two grams of starting material. The brm-1 homozygous mutants cannot be distinguished with certainty from wild-type seedlings up until about 12 days after germination, i.e. much later than when we perform all our analyses; the chr11/17 double mutant, by contrast, is severely dwarfed and occurs at a very reduced frequency, hence obtaining sufficient material is not feasible.

2) Examine whether nucleosome redistribution dynamics during the HS memory phase are affected by swi/snf or iswi mutations.

This revision concerns the nucleosome redistribution dynamics after heat shock in the swi/snf and iswi mutants. As argued in detail above, we are unfortunately not able to perform these experiments at the moment due to inherent limitations of the biological material. (Our MNase-qPCR protocol requires at least one gram of starting material.) However, to determine whether loss of FGT1 and of SWI/SNF or ISWI remodelers have similar effects on nucleosome distributions at HS memory genes, we have assayed nucleosome occupancy in fgt1-1, brm-1 and chr11/chr11 chr17/+ plants at the rosette stage under normal growth conditions, where sufficient material could be obtained. The results are shown in Figure 8—figure supplement 2. Consistent with the expectation from the ChIP-seq analyses, which show binding of FGT1 and BRM to memory-gene promoters even in the absence of heat stress, our results demonstrate very similar changes in nucleosome occupancy in all three mutants relative to their respective wild-type. Namely, nucleosome occupancy was increased at HSA32, HSP22 and HSP18.2 in the mutants. Also, the HSA32 profile in the Col wildtype with or without the HSA32::LUC transgene (parent and wild type, respectively) looked very similar, lending further support to the notion that the transgene behaves similarly to the endogenous HSA32. These results strengthen our interpretation that FGT1, BRM and ISWI interact functionally at the promoters of HS memory genes.

To better illustrate the role of FGT1 in nucleosome recovery after HS, we have calculated the relative nucleosome recovery rates based on the data shown in Figure 8 (see new Figure 8—figure supplement 1). Over the three analysed memory genes, the results clearly indicate that the +1 nucleosome recovers faster to pre-HS levels in fgt1-1. In contrast, nucleosome recovery dynamics were not affected at the non-memory gene HSP101.Taken together, these findings show that fgt1 and the remodeler mutants show both a modified nucleosome profile before HS, and a specific defect during the memory phase in fgt1.

3) Include as a control analysis of nucleosome occupancy of a gene that is not a target of FGT1 nor persistently expressed (i.e. HSP101).

We have included nucleosome occupancy at the HS-inducible non-memory gene HSP101 in all analyses of nucleosome occupancy (Figure 8 and Figure 8—figure supplements 1 and 2). We have also included HSP101 in the new rosette leaf analysis of fgt1-1 and the remodeler mutants under non-stress conditions (Figure 8—figure supplement 2). In all cases, we do not see any deviations in the profile observed in the mutants compared to wild type.

In addition, we have included the HS-inducible non-memory genes HSP70 and HSP101 in the analysis of spliced and unspliced transcript levels presented in Figure 1—figure supplement 3. Here again, no difference was observed in fgt1-1 compared to the parent.

Together, these new results corroborate the notion that the effects observed in fgt1 and the remodeler mutants are specific for memory genes.

4) Provide a better control for FGT1-H3 interaction.

To independently support the interaction of FGT1 with histone H3, we have performed an in vivoanti-YFP immunoprecipitation experiment on the FGT1-YFP expressing line, followed by Western blotting with an anti-histone H3 antibody. The results of this experiment shown in the (new) Figure 2G demonstrate that FGT1-YFP can precipitate histone H3 from plant extracts, whereas overexpressed YFP alone cannot. While we cannot formally exclude that the interaction in the in vitropull-downs (now displayed as Figure 2—figure supplement 3) is mediated by the FLAG-tag and the in vivoprecipitation is due to FGT1 binding to other proteins, the most parsimonious and to us most plausible interpretation of these results is that FGT1 directly binds histone H3, consistent with the well-established activity of PHD domains as histone H3-methyl binding domains.

Reviewer #1:

In this manuscript, the authors identified FORGETTER1 (FGT1) as a new factor that is required for heat stress (HS) memory. […]

1) The interaction between FGT1 and SWI/SNF and ISWI was shown by IP Mass-spec and BiFC experiments. As this is one of the key points of this paper, additional approaches should be employed to demonstrate the interaction.

2) The authors should test whether SWI/SNF and ISWI is required for FGT1 binding to HS memory genes or vice versa. This can be done by performing FGT1 ChIP analyses in the swi/snf or iswi mutants and SWI/SNF and ISWI ChIP in the fgt1 mutant.

3) The authors should examine whether nucleosome redistribution dynamics during the HS memory phase are affected by swi/snf or iswi mutations.

4) It would be also interesting to examine which histone marks are affected by fgt1 during HS memory.

We agree with the reviewer that knowledge about potential histone marks affected by FGT1 would be very interesting. However, given the many possibilities, we feel it is outside of the scope of the present work to address this question.

Reviewer #2:

To validate these observations, the authors measured the mRNA levels of both genes that exhibit persistent expression after heat stress (HSA32, HSP21, HSP22.0 and HSP18.2) and a gene that is induced by heat stress but does not show persistent expression (HSP101) in the fgt1-1 mutant. Surprisingly, despite having used an HSA32 reporter for the screen, the fgt1-1 mutant plants showed normal persistent expression of HSA32 and HSP18.2 and slightly defective persistence of HSP21 and HSP22.0. However, the authors claim that the very slight decrease in HSA32 after 45 and 69h are the source of the phenotype. Because there was no statistical analysis of this difference, it is unclear if it is significant.

We have added statistics for the transcript level analysis shown in Figure 1E, which demonstrates that the premature decline of both spliced and unspliced (where analysed) transcript levels of HSA32, HSP18.2, HSP21 and HSP22.0 during the later timepoints is significant and is specific for memory genes (see also new Figure 1—figure supplement 3).

These differences do not appear to be as strong as the differences observed with the Luciferase reporter (Figure 1A). Quantitation of the luciferase for comparison would have clarified the phenotype.

We have also added LUC quantitation in Figure 1—figure supplement 3 to indicate that the transgene behaves similar to the endogene. This is entirely consistent with the result for unspliced HSA32, where the primers do not discriminate between endogene and transgene.

To convince the reader that the mutation is impacting transcription, ChIP against RNAPII would have helped.

As described above, we were unfortunately not able to establish RNA PolII ChIP in our lab. Instead, we added data for unspliced transcripts of HSP21, 101 and 70 to support our conclusions (see above).

Furthermore, inclusion of the HSFA2 mutant for comparison would have made the strength of the phenotype easier to assess. It is possible that the mutation has a larger effect on the reporter and that the survival phenotype is the result of an effect on a different subset of genes (i.e., HSP21 and HSP22). If so, then the persistent expression of genes in response to heat stress involves both an FGT1-dependent and an FGT1-independent mechanism.

To estimate the strength of the fgt1-1 phenotype at the physiological level, we have included the hsa32 mutant in Figure 1B-D and 2 C-D. Previous publications report a similar strength in phenotype of hsa32 and hsfa2 (e. g. Charng et al., Plant Physiol 2007). In comparison, the phenotype of fgt1-1 is weaker, suggesting additional factors contribute to the memory. We have clarified the conclusion that the phenotype of fgt1-1 is caused by the cumulative misregulation of several memory genes and not just HSA32.

The authors hypothesize that FGT1 promotes persistent expression of HSP21 and HSP22.0 by remodeling nucleosomes because the protein possesses a PHD finger domain and a Helicase C domain. Consistent with this hypothesis, FGT1 localizes to the nucleus, interacts with both active genes and heat stress-induced genes and physically interacts with the BRM (SWI/SNF) and CHR11/CHR17 (ISWI). Unfortunately, a number of experiments create uncertainty about this conclusion. First, the changes in nucleosome occupancy in the fgt1 mutant do not correlate with binding of FGT1: FGT1 binds strongly to the HSA32 promoter/TSS upon heat stress and this correlates with decreased nucleosome occupancy. The fgt1 mutant shows lower nucleosome occupancy prior to heat stress and this decreases to a comparable level to the wild type in the days following heat stress. Therefore, FGT1 is not required for the decrease in nucleosome occupancy at HSA32. In the cases of HSP18.2 and HSP22, although the fgt1 mutant shows increased nucleosome occupancy, the changes in the wild type strain upon heat stress are difficult to appreciate and, as mentioned above, there is no obvious effect of this mutation on the expression of HSP18.2. It would have been helpful to include a gene that is neither a target of FGT1 nor persistently expressed (i.e. HSP101) as a more relevant control. Likewise, as mentioned above, examining the effect of the HSFA2 mutant in this assay would have been informative.

We show that both FGT1 and BRM are associated with memory genes already before HS (Figure 7C). Consistently, there are changes in the nucleosome profiles already before HS. This is confirmed in the newly included analysis of fgt1-1, brm-1 and chr11/chr11 chr17/+ rosette leaves presented in Figure 8—figure supplement 2. Upon HS, there is a decrease in nucleosome occupancy in both wild type and mutant. As the first timepoint analyzed was 4 h after the end of the HS, we are unable to say whether there are subtle differences in the immediate response. However, the recovery to pre-stress levels occurred faster in the fgt1 mutant. To clarify this observation, we have calculated the rate of recovery at the peak nucleosome after HS relative to the respective NHS control (Figure 8—figure supplement 1). Again, this effect was not found in HSP101.

We agree with the reviewer that the analysis of nucleosome dynamics in hsfa2 would be interesting. However, we feel it is outside of the scope of the present work to address this question.

Also, peptide binding experiments show that the PHD finger interacts non-specifically with (non-overlapping) histone peptides. The authors did not include a biologically irrelevant peptide control, but the low affinity and the lack of specificity cast doubt on the claim that "FGT1 binds to the N-terminal region of H3[…]". It seems equally plausible that FGT1 binds to the FLAG peptide.

Please refer to response to essential revision #4 above.

Finally, ChIP seq shows that FGT1 associates with both the transcription start sites and the transcription termination sites of active genes. Given the DExD-like helicase domain, this raises the alternative hypothesis that the protein is involved in post-transcriptional events and might impact the ability of plants to survive through influencing protein levels.

As seen from the representative screenshots in Figure 7—figure supplement 1 and the overall occupancy analysis (Figures 4, 7), the peak of the association with FGT1 is upstream of the TSS and downstream of the TTS, and thus outside the transcribed region, which is not consistent with a role in RNA processing. Transcript levels of unspliced and spliced RNA were in good accordance, suggesting that processing was not affected. While we cannot formally exclude a role in regulating protein levels, we find that the most parsimonious interpretation of the results is that FGT1 functions in nucleosome positioning alongside remodeling complexes.

The authors also explored the role of BRM and CHR11/CHR17 in heat stress memory. Mutations in BRM1 and FGT1 produced synthetic flowering and development phenotypes, suggesting non-overlapping roles in these processes. Both mutant plants were somewhat defective in heat stress protection after 3d of recovery. However, these mutant plants also showed significantly lower peak levels of the HS-induction of HSA32, HSP18.1, HSP21 and HSP22. Therefore, the decrease in expression afterward appears proportional to the wildtype, but starting at a significantly lower peak level. If so, then poor survival after 3d of recovery is likely due to lower levels of induced transcription, not less sustained transcription.

We agree with the reviewer (as we mentioned in the original version) that the induction of memory genes is slightly altered in the remodeler mutants. Given the wide genome-wide distribution of the remodelers, clearly they have functions beyond HS memory. However, we did not find a defect in the acquisition of thermotolerance or basal thermotolerance (Figure 6—figure supplements 12). The interaction with FGT1, the defect in the physiological memory assay and the very similar nucleosome profiles in rosette leaves, together indicate a function in HS memory together with FGT1.

Reviewer #3:

How plants adapt to heat stress and remember previous heat shocks is a very interesting area of biology. This paper breaks new ground by discovering a new component, FORGETTER1, which the authors show is necessary for plants to "remember" heat stress correctly at the level of transcriptional regulation. Interestingly, the fgt1-1 mutants have a specific defect in acquired thermotolerance, consistent with the proposed role for this gene in controlling the transcriptional response to temperature. The authors present a rather complete story, since they go from a genetic screen, to mapping and examining the underlying molecular mechanism. It is a bit of an open question as to the actual role of FGT1 in transcriptional memory itself, but that is probably beyond the scope of this study.

Here are a few suggestions that came to my mind on reading the paper, and resolving these might make the study even stronger:

1) For the ChIP-seq of FGT1 it would be nice to see screen shots of actual loci from a browser. Averaged data is rather hard to interpret. Relating to this, different gene lists were used for "active" genes and HS responsive genes for Figure 4B and 4C. Isn't there a more relevant list of genes whose transcription appears to show "memory" of heatshock? Another way of looking at this, what about the transcriptome of fgt1 itself?

In the new Figure 7C, we show the association of FGT1 and BRM with early and late HS-inducible and memory genes. The HS gene classes are based on the microarrays that we published in Stief et al. 2014. They show a remarkable overlap of BRM and FGT1 for HS memory genes under control conditions and after ACC, respectively.

To improve the clarity of the presentation, we have included screen shots from the FGT1 and the BRM ChIP-seq experiments for several loci (HSA32, HSP18.2, HSP21, HSP22, ACT7, HSP101) that further illustrate the very similar binding patterns of the two proteins (Figure 7—figure supplement 1).

2) The model for FGT1 action is interesting. It seems to invoke a specific role for +1 nucleosomes in responding to temperature. It's striking that there is such a strong enrichment for FGT1 at the +1 position as well as the TTS. Of course these are sites where there is global enrichment for H2A.Z-Nucleosomes (Coleman-Derr and Zilberman 2012) and H2A.Z-nucleosomes are evicted in response to temperature (Kumar and Wigge 2010). It is therefore curious that no attempt is made to synthesise what is already known about temperature-dependent gene expression and its regulation by chromatin. At a minimum, one could simply overlay the distribution of FGT1 with that of H2A.Z.

We agree that a role for H2A.Z eviction in heat-shock memory related to FGT1 function represents an attractive possibility. Based on individual-locus genome browser analysis, there indeed seems to be some overlap between FGT1 and H2A.Z bound sequences. However, we have repeatedly assayed the arp6 mutant, which is defective in H2A.Z incorporation into nucleosomes, in our HS memory assays, and did not observe any difference in HS memory. Thus, we conclude that FGT1 likely functions independently of H2A.Z.

https://doi.org/10.7554/eLife.17061.037

Article and author information

Author details

  1. Krzysztof Brzezinka

    1. Institute for Biochemistry and Biology, University of Potsdam, Potsdam, Germany
    Contribution
    KB, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Simone Altmann
    Competing interests
    The authors declare that no competing interests exist.
  2. Simone Altmann

    1. Institute for Biochemistry and Biology, University of Potsdam, Potsdam, Germany
    Present address
    1. School of Life Sciences, University of Dundee, Dundee, United Kingdom
    Contribution
    SA, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Krzysztof Brzezinka
    Competing interests
    The authors declare that no competing interests exist.
  3. Hjördis Czesnick

    1. Institute for Biochemistry and Biology, University of Potsdam, Potsdam, Germany
    Contribution
    HC, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  4. Philippe Nicolas

    1. Institute for Biochemistry and Biology, University of Potsdam, Potsdam, Germany
    Present address
    1. Boyce Thompson Institute, Cornell University, Ithaca, United States
    Contribution
    PN, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  5. Michal Gorka

    1. Max-Planck-Institute for Molecular Plant Physiology, Potsdam, Germany
    Contribution
    MG, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0002-1289-6858
  6. Eileen Benke

    1. Institute for Biochemistry and Biology, University of Potsdam, Potsdam, Germany
    Contribution
    EB, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  7. Tina Kabelitz

    1. Institute for Biochemistry and Biology, University of Potsdam, Potsdam, Germany
    Contribution
    TK, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  8. Felix Jähne

    1. Institute for Biochemistry and Biology, University of Potsdam, Potsdam, Germany
    Contribution
    FJ, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  9. Alexander Graf

    1. Max-Planck-Institute for Molecular Plant Physiology, Potsdam, Germany
    Contribution
    AG, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  10. Christian Kappel

    1. Institute for Biochemistry and Biology, University of Potsdam, Potsdam, Germany
    Contribution
    CK, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0002-1450-1864
  11. Isabel Bäurle

    1. Institute for Biochemistry and Biology, University of Potsdam, Potsdam, Germany
    Contribution
    IB, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    1. isabel.baeurle@uni-potsdam.de
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0001-5633-8068

Funding

Alexander von Humboldt-Stiftung (Sofja-Kovalevskaja-Award)

  • Isabel Bäurle

Deutsche Forschungsgemeinschaft (SFB973, Project A2)

  • Isabel Bäurle

Royal Society (University Resarch Fellowship)

  • Isabel Bäurle

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank the European Arabidopsis stock centre and K Kaufmann for seeds. We thank K Henneberger, V Schüler, K Sklodowski for technical assistance, members of our laboratory, A Sicard and M Lenhard for helpful comments. We thank C Schmidt and D Mäker for excellent plant care.

Reviewing Editor

  1. Detlef Weigel, Reviewing Editor, Max Planck Institute for Developmental Biology, Germany

Publication history

  1. Received: April 19, 2016
  2. Accepted: August 25, 2016
  3. Version of Record published: September 28, 2016 (version 1)

Copyright

© 2016, Brzezinka et al

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,103
    Page views
  • 689
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry
    2. Neuroscience
    Hansen Wang et al.
    Research Article
