An alternative splicing program promotes adipose tissue thermogenesis

  1. Santiago Vernia
  2. Yvonne JK Edwards
  3. Myoung Sook Han
  4. Julie Cavanagh-Kyros
  5. Tamera Barrett
  6. Jason K Kim
  7. Roger J Davis  Is a corresponding author
  1. University of Massachusetts Medical School, United States
  2. Howard Hughes Medical Institute, United States
Research Article
  • Cited 11
  • Views 2,225
  • Annotations
Cite this article as: eLife 2016;5:e17672 doi: 10.7554/eLife.17672

Abstract

Alternative pre-mRNA splicing expands the complexity of the transcriptome and controls isoform-specific gene expression. Whether alternative splicing contributes to metabolic regulation is largely unknown. Here we investigated the contribution of alternative splicing to the development of diet-induced obesity. We found that obesity-induced changes in adipocyte gene expression include alternative pre-mRNA splicing. Bioinformatics analysis associated part of this alternative splicing program with sequence specific NOVA splicing factors. This conclusion was confirmed by studies of mice with NOVA deficiency in adipocytes. Phenotypic analysis of the NOVA-deficient mice demonstrated increased adipose tissue thermogenesis and improved glycemia. We show that NOVA proteins mediate a splicing program that suppresses adipose tissue thermogenesis. Together, these data provide quantitative analysis of gene expression at exon-level resolution in obesity and identify a novel mechanism that contributes to the regulation of adipose tissue function and the maintenance of normal glycemia.

https://doi.org/10.7554/eLife.17672.001

eLife digest

The process of building a protein from the information encoded in a gene begins when the gene is copied to form a pre-messenger RNA molecule. This molecule is then edited to produce a final messenger RNA that is “translated” to form the protein. Different segments of the pre-messenger RNA molecule can be removed to create different messenger RNAs. This “alternative splicing” enables a single gene to produce multiple protein variants, allowing a diverse range of processes to be performed by cells.

Fat cells store energy in the form of fats and can release this energy as heat in a process called thermogenesis. This helps to regulate the body’s metabolism and prevent obesity. Vernia et al. now find that that feeding mice a high-fat diet causes widespread changes in alternative splicing in fat cells. Further bioinformatics analysis revealed that the NOVA family of splicing factors – proteins that bind to the pre-messenger RNAs to control alternative splicing – contribute to the alternative splicing of around a quarter of the genes whose splicing changes in response to a fatty diet.

Mice whose fat cells were deficient in the NOVA splicing factors displayed increased thermogenesis. As a consequence, when these animals were fed a high-fat diet, they gained less weight than animals in which NOVA proteins were present. Their metabolic activity was also better, meaning they were less likely to show the symptoms of pre-diabetes. Moreover, the activity of certain genes that are known to promote thermogenesis was greater in the fat cells that were deficient in NOVA proteins.

Overall, the results presented by Vernia et al. suggest that the normal role of NOVA proteins is to carry out an alternative splicing program that suppresses thermogenesis, which in turn may promote obesity. Drugs that are designed to target NOVA proteins and increase thermogenesis may therefore help to treat metabolic diseases and obesity. The next step is to identify the protein variants that are generated by NOVA proteins and work out how they contribute to thermogenesis.

https://doi.org/10.7554/eLife.17672.002

Introduction

Alternative pre-mRNA splicing is an important mechanism that increases the complexity of the transcriptome (Pan et al., 2008; Wang et al., 2008) and expands the diversity and function of the proteome (Nilsen and Graveley, 2010; Yang et al., 2016). Indeed, differences in pre-mRNA splicing can contribute to the specialization of different cell types within the body (Vaquero-Garcia et al., 2016). The regulation of alternative pre-mRNA splicing is therefore an important aspect of cellular differentiation. Indeed, processes that regulate pre-mRNA splicing represent potential mechanisms that can control cell function. Recent studies have identified changes in pre-mRNA splicing associated with autism (Irimia et al., 2014; Weyn-Vanhentenryck et al., 2014), cardiac hypertrophy (Mirtschink et al., 2015), embryonic stem cell re-programming (Han et al., 2013a), tumorigenesis (Oltean and Bates, 2014; Hsu et al., 2015; Koh et al., 2015), and the regulation of signal transduction pathways (Gupta et al., 1996; Tournier et al., 1999; Maimon et al., 2014; Martinez et al., 2015). Moreover, alternative pre-mRNA splicing associated with pathogenesis represents a tractable target for the development of new therapies (Daguenet et al., 2015).

The role of alternative pre-mRNA splicing in metabolism is unclear. We studied pre-mRNA splicing in adipocytes to investigate whether adipocyte function may be regulated by changes in pre-mRNA splicing. Adipose tissue is critically important for whole body metabolic regulation because it acts as both an endocrine organ and as a storage depot for triglyceride (Rosen and Spiegelman, 2014). Interestingly, both adipose tissue deficiency (lipodystrophy) and adipose tissue accumulation (obesity) are associated with the development of metabolic syndrome and pre-diabetes (Grundy, 2015). Moreover, the widespread incidence of human obesity represents a major risk factor for the development of diabetes and mortality (Flegal et al., 2013). It is therefore important that we obtain an understanding of the molecular mechanisms that control adipocyte function.

The purpose of this study was to examine alternative pre-mRNA splicing in adipocytes. We report that the consumption of a high fat diet causes differential exon inclusion/exclusion in the transcriptome. Bioinformatics analysis implicated a role for NOVA pre-mRNA splicing factors and this was confirmed by studies of mice with adipocyte-specific NOVA deficiency. Functional studies demonstrated that NOVA acts to suppress adipose tissue thermogenesis. Together, these data demonstrate that alternative pre-mRNA splicing contributes to the regulation of adipocyte biology.

Results

Diet-induced obesity induces a program of alternative pre-mRNA splicing

We examined gene expression in white epididymal adipocytes by RNA sequencing (Illumina NextSeq 500 machine, 150 bp paired-end format, approximately 400 million mean reads/sample, n=3) (Table 1). Comparison of adipocyte mRNA isolated from mice fed (16 wk) a chow diet (CD) or a high fat diet (HFD) demonstrated differential expression of 4941 genes (q<0.05; absolute log2-fold change >0.75) and differential inclusion/exclusion of 1631 exons (FDR<0.05; absolute change in exon inclusion (absolute ∆Inc level) >0.1) (corresponding to 1249 genes) in the transcriptome (Figure 1A and Figure 1—figure supplements 1 and 2). This differential exon inclusion/exclusion in mRNA most likely represents alternative pre-mRNA splicing in adipocytes. However, it is possible that some of the detected changes in pre-mRNA splicing reflect the differential presence of stromal vascular cells (Figure 1—figure supplement 3). Only 6.4% of the differentially expressed genes were alternatively spliced, but 25% of the alternatively spliced genes were differentially expressed (Figure 1B). These data indicate that the genomic response to the consumption of a HFD causes quantitative changes in both gene expression and alternative pre-mRNA splicing in adipocytes. Analysis of the co-regulated genes demonstrated enrichment for pathways including mRNA processing and multiple signaling pathways (e.g. insulin signaling and MAPK signaling) that are known to regulate adipose tissue biology (Figure 1—figure supplement 4).

Figure 1 with 5 supplements see all
Diet-induced obesity causes changes in alternative pre-mRNA splicing in adipose tissue.

(A) RNA-seq analysis demonstrates that the consumption (16 wk) of a HFD, compared with a CD, causes significant changes in mRNA expression genes (q<0.05; absolute log2-fold change >0.75) and differential exon inclusion/exclusion (FDR<0.05; absolute ∆Inc level >0.1) in the epididymal adipocyte transcriptome. (B) Genes that are significantly differentially expressed and genes that are subjected to alternative pre-mRNA splicing are depicted using a Venn diagram. (C,D) Classification of HFD-induced alternative splicing events (C) and selected examples (D) are presented. (E) Enrichment of NOVA CLIP-seq tags with significantly (FDR<0.05; absolute ∆Inc level >0.1) alternatively spliced exons (± 500 bp of intron/exon junctions) compared with non-alternatively spliced exons (FDR≥0.05) and random genomic sequences. (F) Immunoblot analysis of NOVA proteins in lysates prepared from hepatocytes and epididymal adipocytes. (G) Nova1 and Nova2 mRNA expression by epididymal adipocytes of wild-type and obese ob/ob mice (6 wk old) was examined by quantitative RT-PCR (mean ± SEM; n=5; *p<0.05; ***p<0.001). The source data are included as Figure 1—source data 1. (H) Wild-type mice were fed a CD or an HFD (16 wk). Nova1 and Nova2 mRNA expression by epididymal adipocytes was measured by quantitative RT-PCR analysis (mean ± SEM; n=7; *p<0.05). The source data are included as Figure 1—source data 2.

https://doi.org/10.7554/eLife.17672.003
Table 1

Summary of RNA-seq data.

https://doi.org/10.7554/eLife.17672.011
GEO
Accession
Subseries/
Superseries
Biological groupsSample numberPlatformMean read number / sample
(after trimming, if applicable)
Read length (after trimming, if applicable)Mean read alignment rate
GSE76294/
GSE76134
FWT (3)
F∆N1 (3)
F∆N2 (3)
9Illumina
HiSeq 2000/
2 x 100 bp
135,500,000100 bp89.4%
GSE76133/
GSE76134
CD (3)
HFD (3)
6Illumina
NextSeq 500/
2 x 150 bp
406,200,00090 bp74.9%
GSE76317/
GSE76134
FWT (4)
F∆N1,2 (4)
8Illumina
NextSeq 500/
2 x 150 bp
319,700,000130 bp92.5%

The most common form of HFD-induced alternative pre-mRNA splicing was exon skipping (1052 exons), but we also detected 144 mutually exclusive exon inclusions, 160 retained introns, 123 alternative 5’ splice sites, and 152 alternative 3’ splice sites (FDR<0.05; absolute ∆Inc level >0.1) (Figure 1C,D).

In contrast to the extensive changes in alternative pre-mRNA splicing in adipocytes caused by diet-induced obesity (Figure 1A–C) few HFD-regulated alternative pre-mRNA splicing events were detected in liver, although we did find 2 skipped exons, 0 mutually exclusive exon inclusions, 13 retained introns, 1 alternative 5’ splice site, and 1 alternative 3’ splice site (FDR<0.05; absolute ∆Inc level >0.1). This comparative analysis of gene expression indicates that widespread changes in pre-mRNA splicing are not a general response to diet-induced obesity, but a selective response of white adipocytes to the consumption of a HFD.

One example of altered splicing is the mutually exclusive inclusion of exons 7a or 7b in the tyrosine kinase FYN that changes the strength of SH3 domain-mediated autoinhibition (Brignatz et al., 2009). Increased inclusion of Fyn exon 7b, compared with exon 7a, in response to the consumption of an HFD (Figure 1—figure supplement 2B) is anticipated to increase FYN tyrosine kinase activity (Brignatz et al., 2009) leading to suppression of fatty acid oxidation and promotion of insulin resistance (Bastie et al., 2007). Together, these data indicate that alternative pre-mRNA splicing may contribute to the adipocyte response to obesity.

Obesity suppresses expression of the NOVA group of pre-mRNA splicing factors

To gain insight into the mechanism of HFD-induced pre-mRNA splicing, we examined exons (plus 500 bp of flanking intron sequence) to identify potential motifs that were significantly enriched for alternatively spliced exons. This analysis led to the identification of potential binding sites (YCAY) for NOVA alternative pre-mRNA splicing factors (Darnell, 2013). Indeed, we found significant (p<2.2 × 10−16) enrichment of UV-mediated cross-linking and immunoprecipitation sequencing (CLIP-seq) tags for NOVA proteins identified in brain tissue (Licatalosi et al., 2008) within the HFD-induced group of alternatively spliced exons in adipocytes (Figure 1E). The NOVA CLIP-seq tags intersected with 56% of the HFD-induced alternatively spliced exons (FDR<0.05; absolute ∆Inc level >0.1) (Figure 1E) and were associated with both HFD-induced exon inclusion (53% intersection) and HFD-induced exon exclusion (62% intersection), consistent with the known role of NOVA proteins to cause context-dependent exon inclusion/exclusion (Ule et al., 2006). This analysis implicates a role for NOVA proteins in a sub-set of HFD-induced alternative splicing events.

NOVA proteins are expressed in several tissues, including neurons (Darnell, 2013), vascular endothelial cells (Giampietro et al., 2015), and pancreatic β cells (Villate et al., 2014). Whether NOVA proteins are expressed in peripheral metabolic tissues is unclear. Indeed, NOVA proteins were not detected in liver, but both NOVA1 and NOVA2 proteins were found in white adipocytes (Figure 1F). Interestingly, Nova gene expression in white adipocytes was partially reduced in obese humans and mice (Figure 1G and Figure 1—figure supplement 5) and in mice fed a HFD (Figure 1H). This decrease in NOVA expression may be relevant to obesity-regulated changes in alternative pre-mRNA splicing in adipocytes. Moreover, the absence of NOVA expression in liver (Figure 1F) may contribute to the minimal effect of HFD consumption on alternative splicing of pre-mRNA in the liver.

NOVA contributes to the obesity-induced program of alternative pre-mRNA splicing

Reduced expression of Nova1 or Nova2 in mice causes developmental defects and neonatal lethality (Jensen et al., 2000; Ruggiu et al., 2009). We therefore established Nova1LoxP/LoxP and Nova2LoxP/LoxP mice to study the role of NOVA proteins in adult mice with tissue-specific NOVA deficiency (Figure 2—figure supplement 1). Adipoq-Cre−/+ mice were used to selectively ablate Nova1 and Nova2 genes in mature adipocytes. We initially compared control FWT mice (Adipoq-Cre/+) with compound mutant F∆N1,2 mice (Adipoq-Cre/+ Nova1LoxP/LoxP Nova2LoxP/LoxP).

RNA-seq analysis of white adipocytes from HFD-fed FWT and F∆N1,2 mice (150 bp paired-end format, approximately 320 million mean reads/sample, n = 4) was performed (Table 1). Compound NOVA1/2 deficiency caused only a small change in gene expression (55 genes; q<0.05; absolute log2-fold change >0.75), but NOVA1/2 deficiency caused a large change in differential exon inclusion/exclusion (1169 exons; FDR<0.05; absolute ∆Inc level >0.1) in the adipocyte transcriptome (Figure 2A and Figure 1—figure supplement 1). These data indicate that NOVA deficiency primarily changes pre-mRNA splicing. The most common form of alternative pre-mRNA splicing caused by NOVA deficiency was exon skipping (768 exons), but we also detected 128 mutually exclusive exon inclusions, 99 intron retentions, 64 alternative 5’ splice sites, and 110 alternative 3’ splice sites (Figure 2D,E). Analysis of white adipocytes with single gene ablations of Nova1 or Nova2 identified fewer changes in alternative pre-mRNA splicing, including 10 & 7 skipped exons, 1 & 4 mutually exclusive exon inclusions, 12 & 16 intron retentions, 1 & 0 alternative 5’ splice sites, and 2 & 4 alternative 3’ splice sites, respectively (FDR<0.05; absolute ∆Inc level >0.1). These data indicate that NOVA1 and NOVA2 can cause isoform-specific changes in adipocyte pre-mRNA alternative splicing. However, the effect of compound NOVA1 plus NOVA2 deficiency to cause widespread changes in alternative pre-mRNA splicing (Figure 2) indicates that these NOVA proteins exhibit some functional redundancy in adipocytes.

Figure 2 with 1 supplement see all

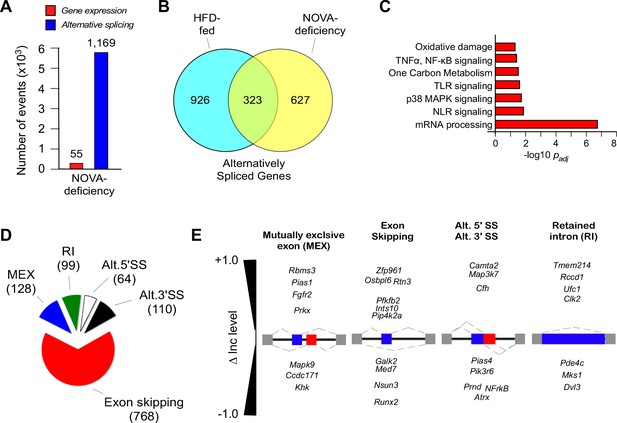

NOVA proteins contribute to alternative pre-mRNA splicing associated with diet-induced obesity.

(A) RNA-seq analysis of FWT and F∆N1,2 mice fed an HFD (16 wk) identifies significant changes in gene expression (q<0.05; absolute log2-fold change >0.75) and differential exon inclusion/exclusion (FDR<0.05; absolute ∆Inc level >0.1) in the epididymal adipocyte transcriptome. (B) The number of genes with significant differential alternative splicing (CD-fed vs HFD-fed WT mice and HFD-fed FWT mice vs HFD-fed F∆N1,2 mice) are depicted using a Venn diagram. (C) Biological pathway enrichment analysis of the 323 genes co-regulated by alternative pre-mRNA splicing following HFD consumption and NOVA deficiency. (D,E) Classification of alternative splicing events caused by NOVA deficiency (D) and selected examples (E) are presented.

https://doi.org/10.7554/eLife.17672.012

Comparison of white adipocyte genes with differential alternative splicing (FDR<0.05; absolute ∆Inc level >0.1) caused by the consumption of a HFD (Figure 1A) or NOVA1/2 deficiency (Figure 2B) demonstrated 323 co-regulated genes (Figure 2B). These co-regulated genes represent 26% of the 1249 HFD-regulated genes and 34% of the 950 NOVA-regulated genes. Analysis of the co-regulated genes demonstrated enrichment for pathways including mRNA processing and multiple signaling pathways (e.g. NF-κB signaling, MAPK signaling) that contribute to the physiological regulation of adipose tissue (Figure 2C).

NOVA-mediated alternative pre-mRNA splicing suppresses JNK signaling in adipose tissue

To confirm the observation that NOVA proteins contribute to signaling mechanisms that can mediate metabolic regulation, we examined the expression of the JNK group of MAPK in cells that express NOVA proteins (white adipocytes) and cells that do not express NOVA proteins (hepatocytes) (Figure 3A). The genes Mapk8 (encodes the JNK1 protein kinase) and Mapk9 (encodes the JNK2 protein kinase) express pre-mRNA are alternatively spliced by the mutually exclusive inclusion of either exon 7a or 7b to yield the α and β isoforms of the JNK1 and JNK2 protein kinases (Gupta et al., 1996). The sequences surrounding exons 7a and 7b contain consensus sites for NOVA binding (YCAY) that are established to be NOVA binding sites by CLIP-seq analysis (Licatalosi et al., 2008). We designed and validated a Taqman assay to quantitate the inclusion of exon 7a or 7b sequences in Mapk8 mRNA (Mapk8α and Mapk8β) and Mapk9 mRNA (Mapk9α and Mapk9β) (Figure 3—figure supplement 1A,B). This analysis demonstrated that adipocytes and hepatocytes express different alternatively spliced JNK isoforms (Figure 3—figure supplement 1C). These tissue-specific differences in Mapk8/9 pre-mRNA splicing may be influenced by the selective expression of NOVA proteins in adipocytes, but not hepatocytes (Figures 1F and 3A), although NOVA-independent mechanisms likely also contribute to the observed cell type-specific pattern of JNK isoform expression.

Figure 3 with 3 supplements see all

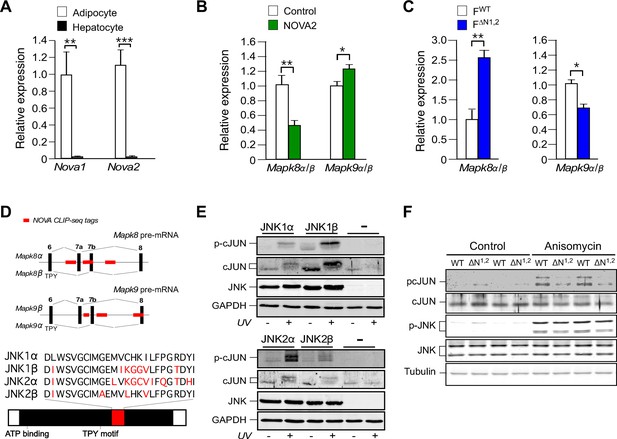

NOVA promotes signal transduction by JNK in adipose tissue.

(A) The expression of Nova mRNA in adipocytes and hepatocytes was measured by quantitative RT-PCR (mean ± SEM; n=7~8; **p<0.01; ***p<0.001). The source data are included as Figure 3—source data 1. (B) The α / β expression ratios of Mapk8 and Mapk9 mRNA by hepatocytes was measured by quantitative RT-PCR (mean ± SEM; n=10; *p<0.05; **p<0.01). The effect of hepatic expression of GFP (Control) or NOVA2 using adenoviral vectors was examined. The source data are included as Figure 3—source data 2. (C) The expression ratio of the α and β isoforms of Mapk8 and Mapk9 mRNA by FWT and F∆N1,2 adipocytes was measured by quantitative RT-PCR (mean ± SEM; n=5~8; *p<0.05; **p<0.01). The source data are included as Figure 3—source data 3. (D) The mutually exclusive inclusion of exons 7a or 7b in Mapk8 and Mapk9 mRNA is illustrated. NOVA CLIP-seq tags are highlighted in red. (E) Mapk8∆/∆ Mapk9-/- MEF transduced with retroviruses expressing JNK1α, JNK1β, JNK2α, JNK2β or empty vector (-) were exposed without and with 60 J/m2 UV (60 min) and lysates were examined by immunoblot analysis. (F) Adipocytes prepared from FWT and F∆N1,2 mice were treated without and with 1 µg/ml anisomycin (10 min) and lysates were examined by immunoblot analysis.

https://doi.org/10.7554/eLife.17672.014

To test the role of NOVA proteins on JNK isoform expression, we examined the effect of increased and decreased NOVA expression. We found that hepatic expression of NOVA2 caused a decrease in the Mapk8α/β ratio and an increase in the Mapk9α/β ratio, indicating that NOVA can promote the expression of the Mapk8β and Mapk9α alternatively spliced isoforms (Figure 3B). In contrast, adipocyte-specific deficiency of NOVA1 plus NOVA2 caused an increase in the Mapk8α/β ratio and a decrease in the Mapk9α/β ratio, indicating that NOVA-deficiency promotes the expression of the Mapk8α and Mapk9β alternatively spliced isoforms (Figure 3C). These observations are consistent with the finding that HFD consumption causes both decreased NOVA expression (Figure 1H) and significant changes in the mutually exclusive inclusion of Mapk8 exons 7a and 7b (FDR=0.0066). Together, these data demonstrate that NOVA proteins can promote the expression of the Mapk8β and Mapk9α isoforms.

The sequence differences between the α and β isoforms of JNK1 and JNK2 are located in the substrate binding site (Figure 3D) and influence the interaction of JNK with protein substrates (Davis, 2000). Studies using the substrate cJun demonstrate low activity (JNK1α and JNK2β) and high activity (JNK1β and JNK2α) groups of JNK protein kinases in vitro (Figure 3—figure supplement 2) and in vivo (Figure 3E). Since NOVA can promote the expression of Mapk8β and Mapk9α mRNA that encode the high activity forms of JNK1 and JNK2, NOVA-deficiency can be predicted to cause expression of the low activity forms JNK1α and JNK2β in adipocytes. To test this conclusion, we prepared primary adipocytes from FWT and F∆N1,2 mice and examined stress-induced JNK activation. No differences in JNK expression or stress-induced activating phosphorylation (pThr180-Pro-pTyr182) of JNK between FWT and F∆N1,2 adipocytes were detected by immunoblot analysis (Figure 3F). However, stress-induced phosphorylation of the JNK substrate pSer63 cJun was markedly suppressed in F∆N1,2 adipocytes compared with FWT adipocytes (Figure 3F). Together, these data confirm that NOVA proteins can regulate signaling mechanisms in adipocytes.

To examine the consequences of reduced JNK signaling in adipocytes, we established F∆J1,2 mice with adipocyte-specific JNK-deficiency (Adipoq-Cre−/+ Mapk8LoxP/LoxP Mapk9LoxP/LoxP). These mice exhibited increased core body temperature and increased expression of genes that mediate sympathetic activation (Adr3b) and thermogenesis (Ucp1) in adipocytes (Figure 3—figure supplement 3). We therefore considered the possibility that NOVA-deficiency in adipocytes might also cause increased adipose tissue thermogenesis.

NOVA-mediated alternative pre-mRNA splicing in adipose tissue regulates energy expenditure

To test the physiological role of NOVA proteins in adipocytes, we examined the effect of feeding a CD or a HFD to control FWT and F∆N1,2 mice. We found that CD-fed FWT and F∆N1,2 mice gained similar body mass, but HFD-fed F∆N1,2 mice gained significantly less mass than HFD-fed FWT mice (Figure 4A and Figure 4—figure supplement 1A). Proton magnetic resonance imaging demonstrated that the decreased body mass was caused by reduced fat mass (Figure 4B). Analysis of organs at necropsy demonstrated a reduction in mass of the liver and adipose tissue in HFD-fed F∆N1,2 mice compared with HFD-fed FWT mice (Figure 4—figure supplement 1B) and analysis of tissue sections demonstrated reduced adipocyte hypertrophy, reduced hepatic steatosis, and reduced hypertrophy of pancreatic islets in the NOVA-deficient mice (Figure 4—figure supplement 2).

Figure 4 with 5 supplements see all

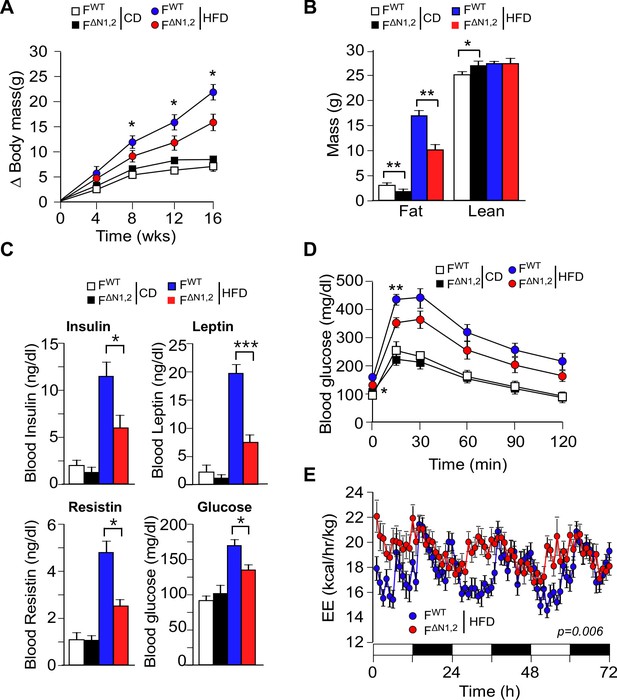

NOVA promotes the development of diet-induced obesity.

(A) The change in body mass of FWT and F∆N1,2 mice fed a CD or a HFD is presented (mean ± SEM; n=8~30; *p<0.05). (B) Body composition was examined by proton magnetic resonance spectroscopy (mean ± SEM; n=8~22; *p<0.05; **p<0.01). The source data are included as Figure 4—source data 1. (C) Blood insulin, leptin, resistin, and glucose in overnight starved CD-fed and HFD-fed (12 wks) FWT and F∆N1,2 mice were measured (mean ± SEM; n=8~16; *p<0.05; ***p<0.001). The source data are included as Figure 4—source data 2. (D) CD-fed and HFD-fed (12 wks) FWT and F∆N1,2 mice were examined by glucose tolerance tests (mean ± SEM; n=8~26; *p<0.05; ***p<0.001). The source data are included as Figure 4—source data 3. (E) Energy expenditure (EE) by HFD-fed (4 wks) FWT mice (n = 9) and F∆N1,2 mice (n = 8) was examined using metabolic cages over 3 days (12 hr light; 12 hr dark). The source data are included as Figure 4—source data 4.

https://doi.org/10.7554/eLife.17672.021

The reduced obesity of HFD-fed F∆N1,2 mice compared with FWT mice suggested that NOVA-deficiency may suppress HFD-induced metabolic syndrome. Indeed, hyperinsulinemia and hyperleptinemia were reduced in F∆N1,2 mice compared with FWT mice (Figure 4C). Moreover, HFD-fed FWT mice were found to be more glucose intolerant than F∆N1,2 mice (Figure 4D) and the HFD-induced hyperglycemia observed in FWT mice was suppressed in F∆N1,2 mice (Figure 4C). Similar (although smaller) phenotypes were detected in mice with adipocyte-specific single gene ablation of Nova1 or Nova2 (Figure 4—figure supplement 3).

Metabolic cage analysis demonstrated that food/water consumption and physical activity of FWT and F∆N1,2 mice were similar (Figure 4—figure supplement 4), but F∆N1,2 mice exhibited greatly increased energy expenditure compared with FWT mice (Figure 4E and Figure 4—figure supplement 5). This increase in energy expenditure may account for the suppression of HFD-induced obesity caused by NOVA deficiency in adipocytes. These data demonstrate that NOVA proteins in adipocytes suppress energy expenditure and promote obesity-associated metabolic syndrome.

NOVA-mediated alternative pre-mRNA splicing regulates adipose tissue thermogenesis

We measured core body temperature by telemetry using an implanted probe in mice housed at the ambient temperature of the vivarium (21°C) and following a cold challenge (4°C). This analysis demonstrated that the core body temperature of F∆N1,2 mice was significantly higher than FWT mice during the course of this study (Figure 5A). This was associated with increased expression of genes in sub-cutaneous adipocytes of F∆N1,2 mice that are associated with a 'browning' (beige/brite) phenotype (Cidea, Dio2, Ppargc1a, Ppargc1b, and Ucp1) compared with FWT mice (Figure 5B). Together, these data indicate that NOVA proteins in adipocytes can suppress adipose tissue thermogenesis.

Figure 5 with 2 supplements see all

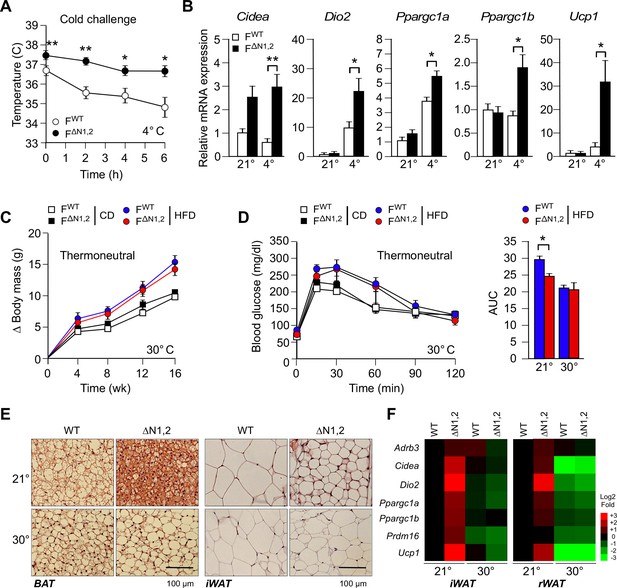

NOVA regulates a thermogenic program in adipose tissue.

(A) FWT and F∆N1,2 mice were subject to cold challenge (4°C). Core body temperature was measured by telemetry using an implanted probe (mean ± SEM; n=8; *p<0.05; **p<0.01). The source data are included as Figure 5—source data 1. (B) The effect of cold challenge (4°C, 6 hr) on gene expression by inguinal adipocytes (iWAT) of FWT and F∆N1,2 mice was examined by quantitative RT-PCR (mean ± SEM; n=6~8; *p<0.05; **p<0.01). The source data are included as Figure 5—source data 2. (C) FWT and F∆N1,2 mice were housed under thermal neutral conditions (30°C). The change in body mass of CD and HFD-fed mice is presented (mean ± SEM; n=7~18). (D) Glucose tolerance tests were performed on FWT and F∆N1,2 mice housed under thermoneutral conditions (30°C). The effect of feeding a CD or a HFD (16 wk) is presented (mean ± SEM; n=8). The source data are included as Figure 5—source data 3. (E) Sections of brown adipose tissue (BAT) and iWAT of HFD-fed (16 wk) mice housed at 21°C and 30°C were stained with hematoxylin & eosin. The data shown are representative of 6 mice per group. (F) FWT and F∆N1,2 mice housed at 21°C and 30°C were fed a HFD (16 wk). Gene expression by adipocytes of iWAT and retroperitoneal adipose tissue (rWAT) was examined by quantitative RT-PCR (mean, n=8). The data are presented as a heat map.

https://doi.org/10.7554/eLife.17672.033

To test whether NOVA proteins act by a cell autonomous mechanism to regulate the beige/brite phenotype, we established primary adipocytes in culture. Sympathetic stimulation of adipose tissue increases cAMP and promotes the browning of white adipocytes (Rosen and Spiegelman, 2014). This process can be studied in vitro by treating adipocytes with drugs that raise intracellular cAMP. Indeed, treatment of primary adipocytes with the drug forskolin increases cAMP concentration and promotes the beige/brite phenotype (Rosen and Spiegelman, 2014), and causes increased expression of the Adrb3, Dio2, Fgf21, Ppargc1a, and Ucp1 genes (Figure 5—figure supplement 1A). This treatment also causes decreased Nova gene expression and promotes expression of the alternatively spliced isoform Mapk9β (Figure 5—figure supplement 1A). To examine whether NOVA proteins contribute to the beige/brite phenotype, we compared the effects of increased cAMP on FWT and F∆N1,2 primary adipocytes. This analysis demonstrated that NOVA-deficiency caused increased expression of genes in adipocytes that mediate sympathetic activation (Adrb3) and thermogenesis (Ucp1) (Figure 5—figure supplement 1B).

To further test the cell autonomous role of NOVA proteins on the beige/brite phenotype, we examined 3T3L1 adipocytes that are normally resistant to the effects of cAMP to promote browning. These cells express NOVA1, but NOVA2 was not detected. Nova1 knock-down using shRNA was associated with increased expression of the beige/brite phenotype genes Prdm16 and Ucp1 (Figure 5—figure supplement 2A). Similarly, knock-down of Mapk8β mRNA plus Mapk9α mRNA using shRNA caused increased expression of the Prdm16 and Ucp1 genes (Figure 5—figure supplement 2B). Together, these data confirm that NOVA-mediated alternative splicing in adipocytes contributes to adipose tissue thermogenesis.

NOVA-mediated adipose tissue thermogenesis contributes to the development of metabolic syndrome

To test the role of adipose tissue thermogenesis in the metabolic phenotype of F∆N1,2 mice (Figure 4), we examined the effect of housing mice under thermoneutral conditions (30°C). We found that F∆N1,2 mice and FWT mice gained equal body mass at thermoneutrality (Figure 5C). Moreover, the increased glucose tolerance of F∆N1,2 mice compared with FWT mice at 21°C was not observed at 30°C (Figure 5D). These data indicate that the improved glycemic regulation exhibited by F∆N1,2 mice compared with FWT mice at 21°C was caused by increased thermogenesis. Consistent with this conclusion, we found that the reduced adipocyte hypertrophy observed in HFD-fed F∆N1,2 mice compared with FWT mice at 21°C was not observed at 30°C (Figure 5E). Similarly, the increased expression of thermogenesis-related genes (Adrb3, Cidea, Dio2, Ppargc1a/b Prdm16, and Ucp1) by adipocytes in HFD-fed F∆N1,2 mice compared with FWT mice at 21°C was not found at 30°C (Figure 5F). Together, these data demonstrate that adipose tissue thermogenesis contributes to the improved glycemia of mice with NOVA-deficiency in adipocytes.

Discussion

The browning of white adipose tissue is associated with the appearance of beige/brite adipocytes, increased energy expenditure, and improved obesity-induced metabolic syndrome (Rosen and Spiegelman, 2014). An understanding of molecular mechanisms that account for browning is therefore important for the development of potential therapies for the treatment of metabolic syndrome based on increasing adipose tissue energy expenditure. It is established that beige/brite adipocytes in white adipose tissue depots can arise from specialized progenitor cells (Wang et al., 2013b). Beige/brite adipocytes may also arise from inactive cells present within white adipose tissue (Rosenwald et al., 2013). These two mechanisms may contribute to functional beige/brite cell development (Rosen and Spiegelman, 2014).

The increased adipose tissue browning detected in mice with adipocyte-specific NOVA deficiency was observed using floxed Nova alleles and a Cre driver (Adipoq-Cre) that is expressed in mature adipocytes. It is therefore likely that the increased white adipose tissue browning caused by NOVA deficiency does not reflect a change in adipocyte differentiation from specialized progenitor cells, but rather a change in mature adipocyte function. Whether these mature adipocytes represent white adipocytes or inactive beige/brite adipocytes is unclear. However, the observation that housing mice at thermoneutrality prevents the effect of NOVA deficiency to cause 'browning' suggests that NOVA deficiency may act by promoting the activation of inactive beige/brite adipocytes.

Our analysis demonstrates that NOVA expression in white adipocytes is reduced in obese humans and mice (Figure 1). These changes in NOVA expression may cause changes in adipose tissue physiology. Gene knockout studies demonstrate that compound NOVA-deficiency in adipocytes caused increased adipose tissue thermogenesis and improved whole body glycemia in HFD-fed mice (Figure 4). However, partial NOVA-deficiency in adipocytes (potentially modeling the changes in NOVA expression caused by feeding a HFD) caused modest changes in adipocyte physiology (Figure 4—figure supplement 3). The significance of the decrease in adipocyte NOVA expression in HFD-fed mice is therefore unclear. Nevertheless, our data establish that NOVA proteins in adipocytes function to suppress adipose tissue thermogenesis. The mechanism appears to be mediated by NOVA-regulated changes in pre-mRNA splicing that promote adipocyte thermogenic gene expression (Figure 5), but we cannot exclude additional contributions caused by other biochemical actions of NOVA proteins, including alternative mRNA polyadenylation (Licatalosi et al., 2008) and functional regulation of Argonaute/microRNA complexes (Storchel et al., 2015). Further studies will be required to examine the relative contributions of NOVA-regulated pre-mRNA splicing, alternative polyadenylation, and microRNA function. However, our analysis demonstrates that NOVA proteins do function as alternative pre-mRNA splicing factors in adipocytes (Figure 2).

The changes in pre-mRNA splicing caused by NOVA proteins include both increased and decreased exon inclusion, consistent with the known context-dependent role of NOVA proteins to promote both exon inclusion and exclusion (Ule et al., 2006). Importantly, there are significant gaps in our knowledge concerning mechanisms of alternative pre-mRNA splicing in adipocytes. First, NOVA proteins may act in a combinatorial manner with other splicing factors (Zhang et al., 2010), but roles for such factors in adipocytes have not been established. Second, our analysis of mice with NOVA-deficiency in adipocytes implicates a role for NOVA proteins in the alternative splicing of 26% of the genes that are regulated by HFD consumption (Figure 2B). Consequently, NOVA proteins do not contribute to 74% of the genes that exhibit HFD-regulated pre-mRNA splicing and mechanisms that contribute to the regulation of these genes have not been established. Further studies will be required to achieve an understanding of these processes.

The regulation of adipose tissue thermogenesis by NOVA proteins may not be entirely dependent upon the classical UCP1 pathway (Kozak, 2010) because of the existence of alternative thermogenic mechanisms (Kazak et al., 2015). Nevertheless, our data demonstrate that NOVA proteins can suppress adipocyte thermogenesis. Reduced NOVA expression in adipocytes causes thermogenesis (Figure 5) and may potentially be achieved by drugs targeting NOVA-mediated pre-mRNA splicing. This role of NOVA proteins is most likely mediated by a network response to a pre-mRNA splicing program that collectively regulates adipocyte thermogenesis.

In conclusion, we describe a NOVA-dependent alternative pre-mRNA splicing program in white adipocytes that regulates browning of white adipose tissue. These data identify alternative pre-mRNA splicing as a biological process that may be targeted by drugs designed to increase adipocyte thermogenesis and improve metabolic syndrome caused by obesity.

Materials and methods

Mice

C57BL/6J mice (RRID:IMSR_JAX:000664), B6.Cg-Lepob/J (RRID:IMSR_JAX:000632), B6;FVB-Tg(Adipoq-Cre)1Evdr (RRID:IMSR_JAX:010803) (Eguchi et al., 2011), B6;129-Gt(ROSA)26Sortm1(cre/ERT)Nat/J mice (RRID:IMSR_JAX:004847) (Badea et al., 2003), and B6.129S4-Gt(ROSA)26Sortm1(FLP1)Dym/RainJ mice (RRID:IMSR_JAX:009086) (Farley et al., 2000) were obtained from The Jackson Laboratory. We have previously reported Mapk8LoxP/LoxP (Das et al., 2007), Mapk9LoxP/LoxP mice (Han et al., 2013b), and Mapk9-/- mice (RRID:IMSR_JAX:004321) (Yang et al., 1998).

We generated Nova1 and Nova2 conditional mice using ES cells targeted by homologous recombination (Nova1tm1a(EUCOMM)Hmgu and Nova2tm1a(KOMP)Wtsi), the preparation of chimeric mice, and breeding to obtain germ-line transmission of the disrupted Nova1 and Nova2 genes using standard methods. The Frt-NeoR-Frt cassette was excised by crossing with FLPeR mice to obtain mice with the Nova1LoxP and Nova2LoxP alleles. Mice were genotyped by PCR analysis of genomic DNA using the primers 10F (5’-GTCCGTAAGGCATGTC-3’) and 2R (5’-AGCAAAAAGCCATCCATG-3’) to detect the Nova1+ (894 bp), Nova1LoxP (1,101 bp), and Nova1 (281 bp) alleles, the primers 1F (5’-CAGAAGAACTGGAGAC-3’) and N2-2R (5’- GGTTGGGCTGTCAGTG-3’) to detect the Nova2+ (149 bp) and Nova2LoxP (127 bp) alleles, or with the primers N2delF1 (5’-CAGGCTGGCGCCGGAAC-3’) and N2-2R (5’-GGTTGGGCTGTCAGTG-3’) to detect the Nova2LoxP (970 bp) and Nova2 (153 bp) alleles.

All mice were studied on the C57BL/6J strain background. Male mice (8 wks old) were fed a chow diet (Iso Pro 3000, Purina) or a HFD (S3282, Bioserve). Body weight was measured with a scale. Whole body fat and lean mass were non-invasively measured using 1H-MRS (Echo Medical Systems).

The mice were housed at 21°C (alternatively at 4°C or 30°C, where indicated) in a specific pathogen-free facility accredited by the American Association for Laboratory Animal Care (AALAC). The Institutional Animal Care and Use Committee (IACUC) of the University of Massachusetts Medical School approved all studies using animals.

Metabolic cages

Request a detailed protocol

The analysis was performed by the Mouse Metabolic Phenotyping Center at the University of Massachusetts Medical School. The mice were housed under controlled temperature and lighting with free access to food and water. The food/water intake, energy expenditure, respiratory exchange ratio, and physical activity were measured using metabolic cages (TSE Systems).

Body temperature

Request a detailed protocol

Biocompatible and sterile microchip transponders (IPTT-300 Extended Accuracy Calibration; Bio Medic Data Systems) were implanted subcutaneously. Cold tolerance tests (4°C) were performed using mice fed a chow diet ad-libitum.

Blood analysis

Request a detailed protocol

Blood glucose was measured with an Ascensia Breeze 2 glucometer (Bayer). Adipokines and insulin in plasma were measured by multiplexed ELISA using a Luminex 200 machine (Millipore).

Glucose and insulin tolerance tests

Request a detailed protocol

Glucose and insulin tolerance tests were performed by intraperitoneal injection of mice with glucose (1 g/kg) or insulin (1.5 U/kg) using methods described previously (Sabio et al., 2008).

Hepatic expression of NOVA

Request a detailed protocol

Mice (8 wks) were fed a HFD. At 12 wks, the mice treated with 5 × 109 pfu/mouse Adenovirus-NOVA2 or Adenovirus-GFP (Applied Biological Materials Inc.) by tail vein injection. The mice were euthanized at 2 wks post-injection.

Plasmids

Human Flag-tagged Mapk8α1, Mapk8β1, Mapk9α2, and Mapk9β2 cDNA cloned in the expression vector pCDNA3 have been described previously (Gupta et al., 1996). Murine Mapk8α1, Mapk8β1, Mapk9α2, and Mapk9β2 cDNA were isolated by RT-PCR and cloned by blunt-end ligation in the SnaB1 site of the retroviral expression vector pBABE-puro (Addgene plasmid #1764) (Morgenstern and Land, 1990). Retroviral stocks were prepared by transfection of Phoenix-ECO cells (American Type-Culture Collection, ATCC CRL-3214) (Lamb et al., 2003).

The DNA sequences used to generate shRNA vectors were Nova1 (5’-CCGGGCTGCTCAGTATTTAATTACTCGAGTAATTAAATACTGAGCAGCTTTTTG-3’), Mapk8β (5’-CCGGTCATGGGAGAAATGATCAAAGCTCGAGCTTTGATCATTTCTCCCATGATTTTTG-3’), Mapk9α (5’-CCGGGTGAAAGGTTGTGTGATATTCCTCGAGGAATATCACACAACCTTTCACTTTTTG-3’). These sequences were cloned in the Age1/EcoR1 sites of the lentiviral vector pLKO.1-puro (Addgene #8453; [Stewart et al., 2003]). Lentiviral stocks were prepared by transfection of 293T cells with the indicated replication-incompetent lentiviral vector (pLKO1-shRNA) together with the packaging plasmid psPAX2 and the envelope plasmid pMD2.G (Addgene #12259 and #12260; [Naldini et al., 1996]).

Adipocyte tissue culture

Request a detailed protocol

Primary inguinal adipocytes were prepared from male mice (8 wk old). The fat pads were minced with a razor blade and incubated (40 min, 37°C) in 12.5 mM Hepes pH 7.4, 120 mM NaCl, 6 mM KCl, 1.2 mM MgSO4, 1 mM CaCl2, 2%BSA, 2.5 mM glucose, 1 mg/ml collagenase II (Sigma) and 0.2 mg/ml DNAse I (Sigma). The digested tissue was filtered through a 100 µm nylon strainer and centrifuged (8 min at 250 g). The pellet was suspended in Dulbecco’s modified Eagle’s medium (DMEM):Ham’s F12 (1:1) medium with 8%FBS, 1x Antibiotic-Antimycotic, 2 mM glutamine (Life Technologies). 100,000 cells/well were seeded in 12 well plates. The medium was refreshed every 2 days. On day 6, differentiation was induced using medium further supplemented with 0.5 mM IBMX (Sigma), 5 µg/ml insulin (Sigma), 1 µM Troglitazone (TZD; Calbiochem), and 2.5 µM dexamethasone (Sigma). On day 8, the medium was refreshed using medium supplemented with insulin and troglitazone only. On day 11, the medium was refreshed using medium supplemented with insulin only. Mature adipocytes were observed on day 14.

3T3-L1 MBX cells (American Type-Culture Collection, ATCC CRL-3242) were cultured in high glucose DMEM supplemented with 10% fetal bovine serum (FBS), sodium pyruvate (1 mM), glutamine (2 mM), and 100 units/ml penicillin, and 100 µg/ml streptomycin (Life Technologies). Transduction assays were performed using pLKO1 lentiviruses and selection with 2 µg/ml puromycin. The cells were differentiated to adipocytes by growing to confluence for 48–72 hr. On day 0, the media were changed to media supplemented with 0.5 mM IBMX (Sigma), 5 µg/ml insulin (Sigma), 1 µM Troglitazone (TZD; Calbiochem), and 1 µM dexamethasone (Sigma)). This medium was refreshed every 2 days. On day 4, the medium was refreshed using medium supplemented with insulin and TZD only. On day 6, the medium was refreshed using medium supplemented with 0.5 µg/ml insulin only. Mature adipocytes were observed on day 8.

Murine embryo fibroblasts

Request a detailed protocol

E13.5 primary murine fibroblasts (MEF) obtained from mice that express 4-hydroxytamoxifen-inducible Cre were established in culture (Das et al., 2007). CreERT2-/+ Mapk8+/+ Mapk9+/+ MEF and CreERT2-/+ Mapk8LoxP/LoxP Mapk9-/- MEF (Das et al., 2007) were cultured in DMEM supplemented with 10% fetal bovine serum, 100 units/ml penicillin, 100 µg/ml streptomycin, 0.1 mM 2-mercaptoethanol, and 2 mM L-glutamine (Life Technologies). Transduction assays were performed using pBABE-puro retroviruses and selection with 2 µg/ml puromycin (Lamb et al., 2003). Cells were treated with 1 µM 4-hydroxytamoxifen (24h) and subsequently cultured (5 days). The cells were exposed without or with 60 J/m2 UV-C and incubated (60 mins) prior to harvesting.

Protein kinase assays

Request a detailed protocol

Lysates were prepared from TNFα-treated (10 ng/ml, 10 mins) and non-treated transfected HEK 293T/17 cells (American Type-Culture Collection, ATCC CRL-11268) expressing Flag-tagged JNK proteins (Gupta et al., 1996). JNK proteins were isolated by immunoprecipitation using agarose-bound Flag M2 antibody (Sigma-Aldrich Cat# A2220, RRID:AB_10063035) (Gupta et al., 1996). JNK activity was measured using an in vitro protein kinase assay with the substrates cJun and [γ-32P]ATP as substrates (Whitmarsh and Davis, 2001).

Immunoblot analysis

Request a detailed protocol

Tissue extracts were prepared using Triton lysis buffer (20 mM Tris-pH 7.4, 1% Triton-X100, 10% glycerol, 137 mM NaCl, 2 mM EDTA, 25 mM β-glycerophosphate, 1 mM sodium orthovanadate, 1 mM PMSF and 10 µg/mL leupeptin plus aprotinin). Extracts (30–50 µg of protein) were examined by immunoblot analysis by probing with antibodies to cJUN (Cell Signaling Technology Cat# 9165L, RRID:AB_2129578), pSer63-cJUN (Cell Signaling Technology Cat# 9261S, RRID:AB_2130162), Flag M2 (Sigma-Aldrich Cat# F1804, RRID:AB_262044), GAPDH (Santa Cruz Biotechnology Cat# sc-365062, RRID:AB_10847862), JNK1/2 (BD Biosciences Cat# 554285, RRID:AB_395344), pThr180-Pro-pTyr182-JNK (pJNK) (Cell Signaling Technology Cat# 4668P, RRID:AB_10831195), NOVA1 (Abcam Cat# ab97368, RRID:AB_10680798), NOVA2 (Sigma-Aldrich Cat# AV40400, RRID:AB_1854572), and βTubulin (BioLegend Cat# 903401, RRID:AB_2565030). Immunocomplexes were detected by fluorescence using anti-mouse and anti-rabbit secondary IRDye antibodies (Li-Cor) and quantitated using the Li-Cor Imaging system

Analysis of tissue sections

Request a detailed protocol

Histology was performed using tissue fixed in 10% formalin for 24 hr, dehydrated, and embedded in paraffin. Sections (7 µm) were cut and stained using hematoxylin & eosin (American Master Tech Scientific). Paraffin sections were stained with an antibody to insulin (Dako Cat# A0564, RRID:AB_10013624) that was detected by incubation with anti-Ig conjugated to Alexa Fluor 488 (Life Technologies). DNA was detected by staining with DAPI (Life Technologies). Fluorescence was visualized using a Leica TCS SP2 confocal microscope equipped with a 405-nm diode laser.

Adipocyte isolation

Request a detailed protocol

Inguinal, retroperitoneal, and epididymal fat pads were surgically removed at necropsy. Adipocytes were isolated after incubation (40 min at 37°C with shaking) of adipose tissue in 12.5 mM Hepes pH 7.4, 120 mM NaCl, 6 mM KCl, 1.2 mM MgSO4, 1 mM CaCl2, 2% BSA, 2.5 mM glucose, 1 mg/ml collagenase II (Sigma #C6885) and 0.2 mg/ml DNAse I (Sigma #DN25)). Larger particles were removed using a 100 µm nylon sieve and the filtrates were centrifuged at 1000 rpm (3 min). Floating adipocytes were washed twice with 1x PBS and subsequently centrifuged at 1000 rpm (3 min) prior to RNA isolation. The stromal vascular fraction (SVF) was collected after centrifugation at 3000 rpm (5 min) prior to RNA isolation. The expression of adipocyte marker genes (Adipoq & Leptin), SVF marker genes (Emr1 (F4/80), Itgam (Cd11b), Cd68) in adipocytes and the SVF was measured by quantitative RT-PCR analysis (Figure 1—figure supplement 3). The expression of a gene (Fabp4) that is expressed by both adipocytes and SVF was also examined.

RNA sequencing

Request a detailed protocol

RNA was isolated using the RNeasy kit (Qiagen). RNA quality (RIN > 9) was verified using a Bioanalyzer 2100 System (Agilent Technologies). Total RNA (10 µg) was used for the preparation of each RNA-seq library by following the manufacturer’s instructions (Illumina). Three or four independent libraries prepared from different mice were sequenced (Illumina) for each condition. Table 1 presents a summary of the adipocyte RNA-seq data and associated GEO accession numbers. The liver RNA-seq data (CD vs HFD (n=3)) were previously reported (Vernia et al., 2014) (GEO accession number GSE55190).

Quantitative RT-PCR analysis of gene expression

Request a detailed protocol

The expression of mRNA was examined by quantitative PCR analysis using a Quantstudio PCR system (Life Technologies). Taqman assays were used to quantitate Adipoq (Mm00456425_m1), Adrb3 (Mm02601819_g1), Cd68 (Mm03047340_m1), Dio2 (Mm00515664_m1), Emr1 (F4/80) (Mm00802530_m1), Fabp4 (Mm00445880_m1), Itgam (Cd11b) (Mm00434455_m1), Leptin (Mm00434759_m1), Mapk8 (Mm00489514_m1), Mapk9 (Mm00444231_m1), Nova1 (Mm01289097_m1), Nova2 (Mm01324153_m1), Ppargc1a (Mm00447183_m1), Ppargc1b (Mm00504720_m1), Prdm16 (Mm00712556_m1), Ucp1 (Mm01244861_m1) mRNA and 18S RNA (4308329) (Applied Biosystems). Standard curves were constructed using the threshold cycle (Ct) values for each template dilution plotted as a function of the logarithm of the amount of input template. The number of mRNA copies for each gene-sample combination was calculated using the slope of the standard curve. To obtain a normalized abundance, copy numbers were corrected for the amount of 18S RNA in each sample.

Quantitative RT-PCR analysis of alternative splicing

Request a detailed protocol

The inclusion of exons 7a and 7b in Mapk8 and Mapk9 mRNA was examined by quantitative PCR using the Quantifast probe PCR kit (Qiagen) and the following combination of primers and Taqman probes (Applied Biosystems): Mapk8α: Fwd, GGAGAACGTGGACTTATGGTCTGT; Probe: 6FAM-TGCCACAAAATCCT-MGBNFQ; Rev, TGATCAATATAGTCCCTTCCTGGAA. Mapk8β: Fwd, GAACGTTGACATTTGGTCAGTTG; Probe, 6FAM-AGAAATGATCAAAGGTGGTGTT-MGBNFQ; Rev, TCAATATGATCTGTACCTGGGAACA. Mapk9α: Fwd, GGTCAGTGGGTTGCATCATG; Probe, 6FAM-AGCTGGTGAAAGGTT-MGBNFQ; Rev, TGATCAATATGGTCAGTACCTTGGA. Mapk9β: Fwd, ATCTGGTCTGTCGGGTGCAT; Probe: 6FAM-AAATGGTCCTCCATAAAG-MGBNFQ; Rev, GATCAATATAGTCTCTTCCTGGGAACA. Mapk8 and Mapk9 spliced variants were quantitated using the relative quantification method. The alternative splicing is represented as the ratio Mapk8α/Mapk8β and Mapk9α/Mapk9β.

Semi-quantitative RT-PCR analysis of alternative splicing

Request a detailed protocol

RT-PCR analysis was performed using amplimers based on the sequences of Adam15 exons 19 and 21 (svADAM15F1: 5’-GCGGGCACAGCAGATGAC-3’ and svADAM15R1: 5’- GGGTTGGCAGGCAGTGGC-3’) and Yap1 exons 5 and 7 (svYap1F1: 5-GGAGAAGGAGAGACTG-3’ and svYap1R2: 5’-GTCCCTCCATCCTGCTC-3’). The PCR products were examined by agarose gel electrophoresis and staining with ethidium bromide. Adam15 mRNA and exon 20-skipped Adam15 mRNA were detected as 277 bp and 78 bp DNA fragments. Yap1 mRNA and exon 6-skipped Yap1 mRNA were detected as 144 bp and 96 bp DNA fragments.

Bioinformatics analysis

Request a detailed protocol

Fastqc v0.10.1 (http://www.bioinformatics.babraham.ac.uk/projects/fastqc/) and cutadapt (v1.7) (https://pypi.python.org/pypi/cutadapt/1.7.1) were used to generate sequence quality reports and trim/filter the sequences respectively. Reads below a minimum quality PHRED score of 30 at the 3’ end were trimmed (Table 1). The filtered reads were aligned to the mouse reference genome (Ensembl GRCm38). Alignments were carried out using Bowtie2 (v2.2.1.0) (Langmead and Salzberg, 2012) and Tophat2 (v2.0.9) (Kim et al., 2013). Samtools (v0.0.19) (Li et al., 2009) and IGV (v2.3.60) (Thorvaldsdottir et al., 2013) were used for indexing the alignment files and viewing the aligned reads respectively. Gene expression was quantitated as fragments per kilobase of exon model per million mapped fragments (FPKM) using Cufflinks (v2.2.0) (Trapnell et al., 2010). Differentially expressed genes were identified using Cufflinks tools (Cuffmerge and Cuffdiff). CummeRbund (v2.4.1) (Trapnell et al., 2012) was used to assess biological replicate concordance. Significant changes in gene expression were defined as q<0.05 and absolute log2 fold change >0.75. Gene sets were examined using Wikipathways in Webgestalt (Wang et al., 2013a). Alternative splicing was examined using rMATS software (v3.0.9) (Shen et al., 2014). rMATS was run using default settings to compute p-values and FDRs of splicing events. Significant changes in alternative splicing were defined as FDR<0.05 and absolute ∆Inc level >0.1. Rmats2sashimiplot (https://github.com/Xinglab/rmats2sashimiplot) and Sashimiplot (Katz et al., 2015) were used for quantitative visualization of alternative exon expression from rMATS.

The microarray analysis of human adipose tissue mRNA expression data (GEO GSE25402) (Arner et al., 2012) was performed using Genespring. The summarization method was based on RMA16, the normalization method was based on the median approach on log2 scale, and the fold change was computed from average signal intensity values.

NOVA interactions with pre-mRNA were examined using CLIP-seq data obtained from murine brain (Licatalosi et al., 2008) provided (in BED format) by Dr. R. B. Darnell (Rockefeller University). The coordinates were based on the mm9 assembly. The UCSC liftOver utility was used to convert the NOVA CLIP-seq tag coordinates from the mm9-based assembly to the mm10/GRCm38 assembly. The coordinates for the NOVA CLIP-seq tags were sorted based on chromosome and start position. Custom PERL scripts (Source code 1 and 2) were used to extract three groups of genomic regions: (1) statistically significant differentially expressed alternatively spliced exons (FDR<0.05 and the absolute inclusion level difference >0.1) (n = 1631); (2) exons not meeting statistical significance (FDR≥0.05) (n = 11,490); and (3) randomly selected regions of the mouse genome comprising 100 bp (n = 10,000). The coordinates for each genomic region were expanded to include an additional 500 bp of sequence flanking the 5’ and 3’ ends of the genomic region. If an exon belongs to a gene comprising one or more alternatively spliced exons with FDR<0.5 and one or more alternatively spliced exons with FDR≥0.05, the exon was excluded from the second group. In each group, the regions were sorted based on the chromosome and the start position. Duplicated regions were removed. The BEDtools (2.22.0) intersect command (Quinlan, 2014) was used to determine the intersection between the regions in each group and the NOVA-CLIP-seq tags. The number of intersecting regions between a group and the NOVA binding sites were tallied. For each group, the number and the percentage of regions with and without NOVA binding sites were calculated (Figure 1E). Thus, NOVA CLIP-tags intersecting with the following groups were examined: (1) statistically significant differentially spliced exons plus 500 bp of flanking sequence both upstream and downstream; (2) non-alternatively spliced exons plus 500 bp of flanking sequence both upstream and downstream; (3) random genomic sequences of similar fragment size (Figure 1E). Statistical significance between two groups was determined by the Pearson’s Chi-squared test.

Statistical analysis of experimental data

Request a detailed protocol

Values are given as means ± SEM of at least three independent experiments. Sample sizes were determined by prior experimentation. Differences between groups were examined for statistical significance using the Student´s test or analysis of variance (ANOVA) with the Fisher’s test (*p<0.05, **p<0.01 and ***p<0.001).

References

  1. 1
  2. 2
    A noninvasive genetic/pharmacologic strategy for visualizing cell morphology and clonal relationships in the mouse
    1. TC Badea
    2. Y Wang
    3. J Nathans
    (2003)
    Journal of Neuroscience 23:2314–2322.
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
    Selective interaction of JNK protein kinase isoforms with transcription factors
    1. S Gupta
    2. T Barrett
    3. AJ Whitmarsh
    4. J Cavanagh
    5. HK Sluss
    6. B Dérijard
    7. RJ Davis
    (1996)
    The EMBO Journal 15:2760–2770.
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61

Decision letter

  1. Benjamin J Blencowe
    Reviewing Editor; University of Toronto, Canada

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "A pre-mRNA Alternative Splicing Program Promotes Adipose Tissue Thermogenesis" for consideration by eLife. Your article has been favorably evaluated by Fiona Watt (Senior editor) and three reviewers, one of whom is a member of our Board of Reviewing Editors. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

The authors have investigated the contribution of alternative splicing to the development of diet-induced obesity. They observe obesity-induced changes in programs of adipocyte gene expression and alternative splicing associated with multiple signalling pathways that are known to regulate adipose tissue biology. They link changes in alternative splicing to Nova splicing regulators through an analysis of motif enrichment, published CLIP-Seq data, and the surprising observation that Nova proteins are expressed in adipocytes. The authors also provide evidence that Nova deficiency in adipocytes results in increased adipose tissue thermogenesis and improved glycemia. Collectively, the authors' study represents an important advance in understanding the role of alternative splicing in metabolic regulation and its contribution to the development of diet-induced obesity. The authors are requested to address the following points in a revised manuscript.

1) The methods suggest that adipocytes were isolated by flotation before RNA-Seq was performed, but the results just say "adipose tissue mRNA". The distinction is crucial, because events that are attributed to alternative splicing could reflect different levels of specific isoforms in cell types that differ in number over the course of a high fat diet. Please describe the isolation protocol in more detail, and show some evidence that isolation was successful and close to complete, e.g. macrophage gene expression in the stromal-vascular fraction, and adipocyte-specific genes (e.g. leptin, adiponectin) in the fat cell fraction.

2) More information on the motif enrichment analysis should be provided. How was this analysis performed and were YCAY motifs the most highly enriched in association with obesity induced changes in alternative splicing? If other enriched motifs were detected (which is typically the case with such analyses), what are they? While it is not the authors' responsibility to comprehensively identify splicing pathway in adipocytes, some perspective on the present results would help a great deal, especially since many of the alternative splicing events lack NOVA binding sites.

3) In Figures 1A and 2A the authors report that approximately 6,000 alternative splicing events change between normal diet and HFD, as well as for WT and NOVA1/2 mutants on HFD. However, the ΔPSI cut-off used is >1%. In most studies employing RNA-Seq analysis to analyze splicing changes, ΔPSI cut-offs applied are typically >10%, in large part because smaller ΔPSI values are unreliable (they are within the noise range of the detection) and unlikely biologically significant. This raises some concern about the CLIP-Seq analysis in which ~42% of the HFD induced AS events are claimed to have NOVA CLIP-Seq tags (Figure 1E). What was the ΔPSI cut-off used for this analysis? Do the authors observe similar results (NOVA motif and GO term enrichment etc.) when a more stringent ΔPSI is applied? In general, RNA-Seq measurements of alternative splicing should be validated by performing RT-PCR assays on a representative subset of the detected changes (see also comment 6 below).

4) The authors make use of Nova CLIP-Seq datasets from the Darnell lab, which were generated from brain tissue. This is not apparent unless one digs into the Methods section. Ideally, the authors should confirm Nova binding to pre-mRNA sequences associated with Nova- regulated exons in adipocytes, or at the very least mention in the main text the source of their data and the caveats associated with comparing binding data from another tissue source. Keeping in mind point 3 above, it would be informative to know whether enriched YCAY motifs supported by CLIP-Seq data form distributions that are predictive of increased versus decreased exon inclusion (as per the binding maps published by Darnell and colleagues), when Nova is expressed in versus depleted from adipocytes.

5) Subheading: "NOVA-mediated alternative pre-mRNA splicing regulates adipose tissue thermogenesis". Although this statement is supported by the experiments examining JNK alternative splicing, the authors cannot exclude that much of the biology they observe may arise from other Nova-dependent changes. In this regard, what is the extent of overlap in mRNA level changes when comparing CD-fed vs HFD-fed WT mice and HFD-fed FWT mice vs HFD-fed F∆N1,2 mice? Can the authors confirm whether NOVA-mediated splicing of JnK1/2 inhibits thermogenic gene expression program by restoring the splicing of JnK1/2 in 3T3L1 adipocytes?

6) In Figure 3—figure supplement 1C expression of Jnk1e, 1 and Jnk2, 2 splice isoform ratios in adipocytes (express Nova1/2) and hepatocytes (do not express Nova1/2) is calculated using qPCR assays. From the figure it seems that Nova1/2 promote the expression of Jnk1m and Jnk2. This is contradictory to what Figure 3B and C show. Is this due to incorrect α/β ratio calculation? The legend in Figure 3—figure supplement 1C states that α/β ratio is calculated; however, the numbers on the graph show the β/α ratio. A comparison of Jnk1/2 isoform ratios in two different tissues after normalizations further convolutes the results. Also, it is recommended that the authors use a different approach to quantify Jnk1/2 splice isoform ratios as qPCR assays can give inaccurate results due to different primer efficiencies between separate assays. Use of semi-quantitative, end-point RT-PCR assays (with primers to flanking constitutive exons so as to simultaneously detect included and skipped isoforms) is quite standard in the field.

7) In Figure 1H, reduced Nova1/2 mRNA levels are shown in ob/ob mice compared to controls. But ob/ob is a genetic model of obesity. Are Nova1/2 mRNA and protein levels affected with diet-induced obesity? NOVA1 and NOVA2 western blots should be performed on normal-fed and HFD-fed adipocytes to strengthen the claims.

8) How do the authors reconcile the observations that NOVA levels go down in over-nutrition and obesity, but loss of NOVA in fat promotes thermogenesis and energy expenditure? Is the thought that the diet-induced reduction in NOVA is a compensatory act to prevent massive weight gain?

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "A pre-mRNA Alternative Splicing Program Promotes Adipose Tissue Thermogenesis" for further consideration at eLife. Your revised article has been favorably evaluated by Fiona Watt as the Senior editor and Ben Blencowe as the Reviewing editor.

It is recommended that the authors modify their title ahead of publication to: "A Nova-Regulated Alternative Splicing Program Associated with Adipose Tissue Thermogenesis", or simply by removing 'pre-mRNA' in their current title. The authors should also correct the following sentence in the Abstract by inserting 'a' as indicated: 'Together, these data provide ‘a’ quantitative analysis of gene expression at exon-level resolution in obesity'.

https://doi.org/10.7554/eLife.17672.047

Author response

1) The methods suggest that adipocytes were isolated by flotation before RNA-Seq was performed, but the results just say "adipose tissue mRNA". The distinction is crucial, because events that are attributed to alternative splicing could reflect different levels of specific isoforms in cell types that differ in number over the course of a high fat diet. Please describe the isolation protocol in more detail, and show some evidence that isolation was successful and close to complete, e.g. macrophage gene expression in the stromal-vascular fraction, and adipocyte-specific genes (e.g. leptin, adiponectin) in the fat cell fraction.

We have revised the manuscript to expand the description of the procedure employed to isolate adipocytes, subsection “Adipocyte isolation”, and we have included new figure to document macrophage and adipocyte gene expression in isolated adipocytes and the stromal vascular fraction (Figure 1—figure supplement 3).

2) More information on the motif enrichment analysis should be provided. How was this analysis performed and were YCAY motifs the most highly enriched in association with obesity induced changes in alternative splicing? If other enriched motifs were detected (which is typically the case with such analyses), what are they? While it is not the authors' responsibility to comprehensively identify splicing pathway in adipocytes, some perspective on the present results would help a great deal, especially since many of the alternative splicing events lack NOVA binding sites.

We have revised the manuscript to provide a detailed description of the methods used to associate NOVA motifs with HFD-induced alternative pre-mRNA splicing in the subsection “Bioinformatics analysis”. We find an intersection of NOVA motifs with 56% of HFD-induced alternatively spliced exons (Figure 1E). However, functional analysis using the adipocyte-specific NOVA1/2 knockout mice implicates NOVA in the alternative pre-mRNA splicing of only 26% of the HFD-regulated genes (Figure 2B). As noted by the editor and the reviewers, this means that the majority (74%) of HFD-induced gene splicing events are NOVA- independent. Our analysis does not provide insight into these NOVA-independent splicing events. Tackling this problem is a key goal for our future studies.

3) In Figures 1A and 2A the authors report that approximately 6,000 alternative splicing events change between normal diet and HFD, as well as for WT and NOVA1/2 mutants on HFD. However, the ΔPSI cut-off used is >1%. In most studies employing RNA-Seq analysis to analyze splicing changes, ΔPSI cut-offs applied are typically >10%, in large part because smaller ΔPSI values are unreliable (they are within the noise range of the detection) and unlikely biologically significant. This raises some concern about the CLIP-Seq analysis in which ~42% of the HFD induced AS events are claimed to have NOVA CLIP-Seq tags (Figure 1E). What was the ΔPSI cut-off used for this analysis? Do the authors observe similar results (NOVA motif and GO term enrichment etc.) when a more stringent ΔPSI is applied? In general, RNA-Seq measurements of alternative splicing should be validated by performing RT-PCR assays on a representative subset of the detected changes (see also comment 6 below).

We are very grateful to the reviewers for making this point. We agree that a more stringent threshold for exon inclusion/exclusion will most likely provide increased biological significance. To achieve better transparency for our analysis, we have included a new supplementary Figure that shows the number of alternative splicing events (for both HFD and NOVA KO adipocytes) at different FDR and ∆ Inc levels (Figure 1—figure supplement 1). We have also revised Figures 1 & 2 to present all the RNA-seq data with increased threshold stringencies: a) RNA-seq differential gene expression, q<0.05; log2-fold change >0.75; and b) RNA-seq differential exon inclusion/exclusion, FDR<0.05, absolute ∆Inc level >0.1. We believe that this change represents a substantial improvement in the presentation of our data.

The analysis of the intersection of NOVA CLIP-seq tags with the HFD-induced alternatively spliced exons presented in revised Figure 1E was performed using the more stringent thresholds (FDR<0.05, absolute ∆Inc level >0.1). The analysis shows 56% intersection (p<2x10-16).

The GO analysis (Figure 1—figure supplement 4 & Figure 2C) presented in the revised manuscript is based on the more stringent thresholds for differential gene expression (q<0.05; log2-fold change >0.75;) and alternative splicing (FDR<0.05, absolute ∆Inc level >0.1).

We have revised the manuscript to include semi-quantitiative RT-PCR analysis of the effects of HFD and NOVA-deficiency on selected genes (Figure 1—figure supplement 2). These data complement the quantitative RT-PCR analysis of splicing presented in Figure 3A, 3B, 3C and Figure 3—figure supplement 1 and Figure 5—figure supplements 1 & 2.

4) The authors make use of Nova CLIP-Seq datasets from the Darnell lab, which were generated from brain tissue. This is not apparent unless one digs into the Methods section. Ideally, the authors should confirm Nova binding to pre-mRNA sequences associated with Nova- regulated exons in adipocytes, or at the very least mention in the main text the source of their data and the caveats associated with comparing binding data from another tissue source. Keeping in mind point 3 above, it would be informative to know whether enriched YCAY motifs supported by CLIP-Seq data form distributions that are predictive of increased versus decreased exon inclusion (as per the binding maps published by Darnell and colleagues), when Nova is expressed in versus depleted from adipocytes.

Thank you for raising this important point. We have revised the manuscript in the first paragraph of the subsection “Obesity suppresses expression of the NOVA group of pre-mRNA splicing factors” to explicitly state that the CLIP-seq tag data were obtained from brain tissue rather than the relevant cell type (adipocytes). Clearly the use of adipocyte CLIP-seq data would represent a significant improvement in our analysis. However, we have not yet been able to successfully adapt CLIP protocols to the analysis of adipocytes, most likely because of the lipid-laden nature of these cells. We will need to develop new procedures before we will able to include CLIP studies in our analysis of adipocytes.

We have examined the intersection of NOVA CLIP-seq tags with exons that are differentially included/excluded in our analysis (FDR<0.05, absolute ∆Inc level >0.1). The intersection is 53% for included exons and 62% for excluded exons in adipocytes of ice fed a HFD. The analysis is consistent with the RNA map reported by Darnell and colleagues (Ule et al. (2006) Nature 444, 580-586). We have revised the manuscript to include this information in the aforementioned subsection.

5) Subheading: "NOVA-mediated alternative pre-mRNA splicing regulates adipose tissue thermogenesis". Although this statement is supported by the experiments examining JNK alternative splicing, the authors cannot exclude that much of the biology they observe may arise from other Nova-dependent changes. In this regard, what is the extent of overlap in mRNA level changes when comparing CD-fed vs HFD-fed WT mice and HFD-fed FWT mice vs HFD-fed F∆N1,2 mice? Can the authors confirm whether NOVA-mediated splicing of JnK1/2 inhibits thermogenic gene expression program by restoring the splicing of JnK1/2 in 3T3L1 adipocytes?

Thank you for this comment concerning the Discussion section of our manuscript. We agree. Our data do support a role for NOVA-mediated pre-mRNA splicing, but we cannot exclude a role for other possible functions of NOVA proteins. Examples include alternative mRNA polyadenylation (Licatalosi et al. 2008) and functional regulation of Argonaute/microRNA complexes (Storchel et al. 2015). The manuscript has been revised to explicitly state this in the third paragraph of the Discussion.

There are 4,941 significant changes in gene expression caused by HFD (Figure 1A) and 55 significant changes in gene expression caused by NOVA-deficiency in HFD-fed mice (Figure 1B) (q<0.05; log2-fold change ≥0.75). The comparison requested indicates that there is little similarity between the very large change in gene expression caused by HFD (4,941 genes) and the modest change in gene expression caused by NOVA- deficiency (55 genes) in HFD-fed mice.

The proposed complementation assay using JNK is an interesting experiment, although rather artificial using 3T3 L1 cells. We are currently tackling this problem using mice engineered to conditionally express in a tissue-specific manner exon 7a or 7b Jnk1 and Jnk2. We believe that this study, which is beyond the scope of the present analysis, will provide a definitive complementation test for the role of JNK. In the present study, we show that JNK is a target of NOVA-mediated splicing and that JNK signaling is repressed by NOVA. This analysis therefore validates the conclusion that NOVA can regulate signaling in adipocytes. However, the overall conclusions of our study – stated in the Discussion section of the manuscript is that “this role of NOVA proteins is most likely mediated by a network response to a pre-mRNA splicing program that collectively regulates adipose tissue thermogenesis”. We believe that it is premature to focus on a specific NOVA target (e.g. JNK) when we know that 950 genes exhibit NOVA-mediated changes in splicing (Figure 2B). For this reason, “JNK” is not mentioned in the Abstract or the Discussion sections of the manuscript.

6) In Figure 3—figure supplement 1C expression of Jnk1α, 1β and Jnk2α, 2β splice isoform ratios in adipocytes (express Nova1/2) and hepatocytes (do not express Nova1/2) is calculated using qPCR assays. From the figure it seems that Nova1/2 promote the expression of Jnk1α and Jnk2β. This is contradictory to what Figure 3B and C show. Is this due to incorrect α/β ratio calculation? The legend in Figure 3—figure supplement 1C states that α/β ratio is calculated; however, the numbers on the graph show the β/α ratio. A comparison of Jnk1/2 isoform ratios in two different tissues after normalizations further convolutes the results. Also, it is recommended that the authors use a different approach to quantify Jnk1/2 splice isoform ratios as qPCR assays can give inaccurate results due to different primer efficiencies between separate assays. Use of semi-quantitative, end-point RT-PCR assays (with primers to flanking constitutive exons so as to simultaneously detect included and skipped isoforms) is quite standard in the field.

We agree with the point noted concerning the Jnk splice forms expressed in liver and adipocytes. These tissue-specific differences in splicing most likely reflect non-NOVA regulatory mechanisms that influence the splicing of JNK1 and JNK2. This is an important point that is now stated in the revised manuscript in the first paragraph of the subsection “NOVA-mediated alternative pre-mRNA splicing suppresses JNK signaling in adipose tissue”. Nevertheless, our conclusion that NOVA proteins promote the expression of JNK1β & JNK2α and repress the expression of JNK1α & JNK2β is supported by two observations. First, expression of NOVA2 in the liver causes a decrease in the JNK1α/β ratio and an increase in the JNK2β/α ratio (Figure 3B). Second, NOVA1/2-deficiency in adipocytes causes an increase in the JNK1α/β ratio and a decrease in the JNK2α/β ratio (Figure 3C). Together, these data demonstrate that NOVA proteins promote the expression of JNK1β & JNK2α. Nevertheless, liver and adipocytes clearly exhibit tissue-specific differences in JNK expression that are NOVA-independent. Our current studies are focused on understanding this tissue-specific different in Jnk1 and Jnk2 pre-mRNA alternative splicing. Studies of this NOVA-independent mechanism fall outside of the scope of the present analysis.

Thank you for identifying the error in Figure 3—figure supplement 1C. You are correct, the β/α ratio was presented instead of the stated α/β ratio. This has now been corrected in revised Figure 3—figure supplement 1C.

Semi-quantitative RT-PCR assays are useful. Indeed, we have performed such assays to validate some changes in alternative pre-mRNA splicing (Figure 1—figure supplement 2). However, this approach is not appropriate for studies of the mutually exclusive inclusion of exons 7a and 7b in Jnk1 and Jnk2 using flanking primers to exons 6 & 8. This is because the length of exons 7a and 7b is identical. Consequently, exon 6 & 8 primers in a semi-quantitative PCR assay cannot distinguish between the inclusion of exons 7a or 7b. It is for this reason that we developed a quantitative Taqman assay using exon 6 & 8 primers to measure the inclusion of exons 7a and 7b in Jnk1 and Jnk2 mRNA. The method is described in detail in the manuscript in the subsections “Quantitative RT-PCR analysis of gene expression” and “Quantitative RT-PCR analysis of alternative splicing” and is fully validated (Figure 3 —figure supplement 1).

7) In Figure 1H, reduced Nova1/2 mRNA levels are shown in ob/ob mice compared to controls. But ob/ob is a genetic model of obesity. Are Nova1/2 mRNA and protein levels affected with diet-induced obesity?

We have revised the manuscript to present data on NOVA expression in CD-fed and HFD-fed mice (Figure 1G, H).

8) How do the authors reconcile the observations that NOVA levels go down in over-nutrition and obesity, but loss of NOVA in fat promotes thermogenesis and energy expenditure? Is the thought that the diet-induced reduction in NOVA is a compensatory act to prevent massive weight gain?

It is most likely that the changes in NOVA expression represent a compensatory mechanism. However, it should be noted that the obesity-induced decrease in NOVA expression is relatively modest ~ 50%. This modest decrease in NOVA expression should be interpreted in the context of our knockout mouse analysis that demonstrates minor phenotypes for adipocyte-specific NOVA1 knockout mice and NOVA2 knockout mice (Figure 4—figure supplement 3). The large effect of NOVA-deficiency on thermogenesis was only detected in the compound NOVA1/2 knockout mice (Figure 4). This analysis of mutant mice suggests that the decrease in NOVA expression caused by obesity is likely to lead to only modest changes in adipose tissue thermogenesis.

However, we cannot exclude the possibility that the HFD-induced decrease in NOVA expression plays a key role in other aspects of adipocyte biology.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

It is recommended that the authors modify their title ahead of publication to: "A Nova-Regulated Alternative Splicing Program Associated with Adipose Tissue Thermogenesis", or simply by removing 'pre-mRNA' in their current title. The authors should also correct the following sentence in the Abstract by inserting 'a' as indicated: 'Together, these data provide <a> quantitative analysis of gene expression at exon-level resolution in obesity'.

We have revised the title of the paper by deleting the words “pre-mRNA”, as requested. The revised title is: “An Alternative Splicing Program Promotes Adipose Tissue Thermogenesis”. We have also corrected the Abstract, as requested.

https://doi.org/10.7554/eLife.17672.048

Article and author information

Author details

  1. Santiago Vernia

    Program in Molecular Medicine, University of Massachusetts Medical School, Worcester, United States
    Present address
    Genes and Metabolism Section, MRC Clinical Sciences Centre, Hammersmith Campus, Imperial College London, London, United Kingdom
    Contribution
    SV, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  2. Yvonne JK Edwards

    Program in Molecular Medicine, University of Massachusetts Medical School, Worcester, United States
    Contribution
    YJKE, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  3. Myoung Sook Han

    Program in Molecular Medicine, University of Massachusetts Medical School, Worcester, United States
    Contribution
    MSH, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  4. Julie Cavanagh-Kyros

    1. Program in Molecular Medicine, University of Massachusetts Medical School, Worcester, United States
    2. Howard Hughes Medical Institute, Worcester, United States
    Contribution
    JC-K, Acquisition of data, Analysis and interpretation of data
    Competing interests
    No competing interests declared.
  5. Tamera Barrett

    1. Program in Molecular Medicine, University of Massachusetts Medical School, Worcester, United States
    2. Howard Hughes Medical Institute, Worcester, United States
    Contribution
    TB, Acquisition of data, Analysis and interpretation of data
    Competing interests
    No competing interests declared.
  6. Jason K Kim

    Program in Molecular Medicine, University of Massachusetts Medical School, Worcester, United States
    Contribution
    JKK, Acquisition of data, Analysis and interpretation of data
    Competing interests
    No competing interests declared.
  7. Roger J Davis

    1. Program in Molecular Medicine, University of Massachusetts Medical School, Worcester, United States
    2. Howard Hughes Medical Institute, Worcester, United States
    Contribution
    RJD, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    roger.davis@umassmed.edu
    Competing interests
    RJD: Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0130-1652

Funding

National Institute of Diabetes and Digestive and Kidney Diseases (UC2 DK093000)

  • Jason K Kim

National Institute of Diabetes and Digestive and Kidney Diseases (R01 DK107220)

  • Roger J Davis

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Robert Darnell for providing NOVA CLIP-seq data, Armanda Roy for expert technical assistance, and Kathy Gemme for administrative assistance. The RNA-seq data has been deposited in the Gene Expression Omnibus (GEO) database with accession number GSE76134. RJD is an investigator of the Howard Hughes Medical Institute. This study was supported by NIH grant R01 DK107220 (to RJD). The UMASS Mouse Metabolic Phenotyping Center is supported by NIH grant UC2 DK093000 (to JKK).

Ethics

Human subjects: The reported human studies are limited to the analysis of de-identified human gene expression data previously deposited in the GEO database (accession no: GSE25402). This analysis is exempt from a requirement for specific ethical approval.

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocols (#A-1032) of the University of Massachusetts Medical School.

Reviewing Editor

  1. Benjamin J Blencowe, University of Toronto, Canada

Publication history

  1. Received: May 10, 2016
  2. Accepted: August 14, 2016
  3. Version of Record published: September 16, 2016 (version 1)

Copyright

© 2016, Vernia et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,225
    Page views
  • 429
    Downloads
  • 11
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Cell Biology
    Xuchen Hu et al.
    Research Article Updated
    1. Cell Biology
    2. Genetics and Genomics
    Malini Rajan et al.
    Research Article
