The evolutionary origin of bilaterian smooth and striated myocytes

  1. Thibaut Brunet  Is a corresponding author
  2. Antje HL Fischer
  3. Patrick RH Steinmetz
  4. Antonella Lauri
  5. Paola Bertucci
  6. Detlev Arendt  Is a corresponding author
  1. European Molecular Biology Laboratory, Germany
Research Article
  • Cited 8
  • Views 1,636
  • Annotations
Cite as: eLife 2016;5:e19607 doi: 10.7554/eLife.19607

Abstract

The dichotomy between smooth and striated myocytes is fundamental for bilaterian musculature, but its evolutionary origin is unsolved. In particular, interrelationships of visceral smooth muscles remain unclear. Absent in fly and nematode, they have not yet been characterized molecularly outside vertebrates. Here, we characterize expression profile, ultrastructure, contractility and innervation of the musculature in the marine annelid Platynereis dumerilii and identify smooth muscles around the midgut, hindgut and heart that resemble their vertebrate counterparts in molecular fingerprint, contraction speed and nervous control. Our data suggest that both visceral smooth and somatic striated myocytes were present in the protostome-deuterostome ancestor and that smooth myocytes later co-opted the striated contractile module repeatedly – for example, in vertebrate heart evolution. During these smooth-to-striated myocyte conversions, the core regulatory complex of transcription factors conveying myocyte identity remained unchanged, reflecting a general principle in cell type evolution.

https://doi.org/10.7554/eLife.19607.001

Introduction

Musculature is composed of myocytes that are specialized for active contraction (Schmidt-Rhaesa, 2007). Their contractile apparatus centers on actomyosin, a contractile module that dates back to stem eukaryotes (Brunet and Arendt, 2016a) and incorporated accessory proteins of pre-metazoan origin (Steinmetz et al., 2012). Two fundamentally distinct types of myocytes are distinguished based on ultrastructural appearance. In striated myocytes, actomyosin myofibrils are organized in aligned repeated units (sarcomeres) separated by transverse ‘Z discs’, while in smooth myocytes adjacent myofibrils show no clear alignment and are separated by scattered ‘dense bodies’ (Figure 1A). In vertebrates, striated myocytes are found in voluntary skeletal muscles, but also at the anterior and posterior extremities of the digestive tract (anterior esophagus muscles and external anal sphincter), and in the muscular layer of the heart; smooth myocytes are found in involuntary visceral musculature that ensures slow, long-range deformation of internal organs. This includes the posterior esophagus and the rest of the gut, but also blood vessels, and most of the urogenital system. In stark contrast, in the fruit fly Drosophila virtually all muscles are striated, including gut visceral muscles (Anderson and Ellis, 1967; Goldstein and Burdette, 1971; Paniagua et al., 1996); the only exception are little-characterized multinucleated smooth muscles around the testes (Susic-Jung et al., 2012). Also, in the nematode Caenorhabditis, somatic muscles are striated, while the short intestine and rectum visceral myocytes are only one sarcomere-long and thus hard to classify (Corsi et al., 2000; White, 1988).

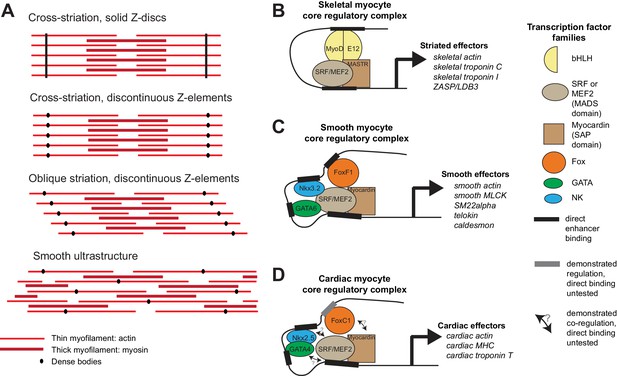

Ultrastructure and core regulatory complexes of myocyte types.

(A) Schematic smooth and striated ultrastructures. Electron-dense granules called ‘dense bodies’ separate adjacent myofibrils. Dense bodies are scattered in smooth muscles, but aligned in striated muscles to form Z lines. (BD) Core regulatory complexes (CoRCs) of transcription factors for the differentiation of different types of myocytes in vertebrates. Complexes composition from (Creemers et al., 2006; Meadows et al., 2008; Molkentin et al., 1995) for skeletal myocytes, (Hoggatt et al., 2013; Nishida et al., 2002; Phiel et al., 2001) for smooth myocytes and (Durocher et al., 1997; Lee et al., 1998) for cardiomyocytes. Target genes from (Blais et al., 2005) for skeletal myocytes, (Nishida et al., 2002) from smooth myocytes and (Schlesinger et al., 2011) for cardiomyocytes.

https://doi.org/10.7554/eLife.19607.002

The evolutionary origin of smooth versus striated myocytes in bilaterians accordingly remains unsolved. Ultrastructural studies have consistently documented the presence of striated somatic myocytes in virtually every bilaterian group (Schmidt-Rhaesa, 2007) and in line with this, the comparison of Z-disc proteins supports homology of striated myocytes across bilaterians (Steinmetz et al., 2012). The origin of smooth myocyte types, however, is less clear. Given the absence of smooth muscles from fly and nematode, it has been proposed that visceral smooth myocytes represent a vertebrate novelty, which evolved independently from non-muscle cells in the vertebrate stem line (Goodson and Spudich, 1993; OOta and Saitou, 1999). However, smooth muscles are present in many other bilaterian groups, suggesting instead their possible presence in urbilaterians and secondary loss in arthropods and nematodes. Complicating the matter further, intermediate ultrastructures between smooth and striated myocytes have been reported, suggesting interconversions (reviewed in [Schmidt-Rhaesa, 2007]).

Besides ultrastructure, the comparative molecular characterization of cell types can be used to build cell type trees (Arendt, 2003, 2008; Musser and Wagner, 2015; Wagner, 2014). Cell type identity is established via the activity of transcription factors acting as terminal selectors (Hobert, 2016) and forming ‘core regulatory complexes’ (CoRCs; [Arendt et al., 2016; Wagner, 2014]), which directly activate downstream effector genes. This is exemplified for vertebrate myocytes in Figure 1B. In all vertebrate myocytes, transcription factors of the Myocardin family (MASTR in skeletal muscles, Myocardin in smooth and cardiac muscles) directly activate effector genes encoding contractility proteins (Figure 1B) (Creemers et al., 2006; Meadows et al., 2008; Wang and Olson, 2004; Wang et al., 2003). They heterodimerize with MADS-domain factors of the Myocyte Enhancer Factor-2 (Mef2) (Black and Olson, 1998; Blais et al., 2005; Molkentin et al., 1995; Wales et al., 2014) and Serum Response Factor (SRF) families (Carson et al., 1996; Nishida et al., 2002). Other myogenic transcription factors are specific for different types of striated and smooth myocytes. Myogenic Regulatory Factors (MRF) family members, including MyoD and its paralogs Myf5, Myogenin and Mrf4/Myf6 (Shi and Garry, 2006), directly control contractility effector genes in skeletal (and esophageal) striated myocytes, cooperatively with Mef2 (Blais et al., 2005; Molkentin et al., 1995) – but are absent from smooth and cardiac muscles. In smooth and cardiac myocytes, this function is ensured by NK transcription factors (Nkx3.2/Bapx and Nkx2.5/Tinman, respectively), GATA4/5/6 and Fox transcription factors (FoxF1 and FoxC1, respectively), which bind to SRF and Mef2 to form CoRCs directly activating contractility effector genes (Durocher et al., 1997; Hoggatt et al., 2013; Lee et al., 1998; Morin et al., 2000; Nishida et al., 2002; Phiel et al., 2001) (Figure 1B).

Regarding effector proteins (Figure 1B) (Kierszenbaum and Tres, 2015), all myocytes express distinct isoforms of the myosin heavy chain: the striated myosin heavy chain ST-MHC (which duplicated into cardiac, fast skeletal and slow skeletal isoforms in vertebrates) and the smooth/non-muscle myosin heavy chain SM-MHC (which duplicated in vertebrates into smooth myh10, myh11 and myh14, and non-muscle myh9) (Steinmetz et al., 2012). The different contraction speeds of smooth and striated muscles are due to the distinct kinetic properties of these molecular motors (Bárány, 1967). In both myocyte types, contraction occurs in response to calcium, but the responsive proteins differ (Alberts et al., 2014): the Troponin complex (composed of Troponin C, Troponin T and Troponin I) for striated muscles, Calponin and Caldesmon for smooth muscles. In both myocyte types, calcium also activates the Calmodulin/Myosin Light Chain Kinase pathway (Kamm and Stull, 1985; Sweeney et al., 1993). Striation itself is implemented by specific effectors, including the long elastic protein Titin (Labeit and Kolmerer, 1995) (which spans the entire sarcomere and gives it elasticity and resistance) and ZASP/LBD3 (Z-band Alternatively Spliced PDZ Motif/LIM-Binding Domain 3), which binds actin and stabilizes sarcomeres during contraction (Au et al., 2004; Zhou et al., 2001). The molecular study of Drosophila and Caenorhabditis striated myocytes revealed important commonalities with their vertebrate counterparts, including the Troponin complex (Beall and Fyrberg, 1991; Fyrberg et al., 1990, 1994; Marín et al., 2004; Myers et al., 1996), and a conserved role for Titin (Zhang et al., 2000) and ZASP/LBD3 (Katzemich et al., 2011; McKeown et al., 2006) in the striated architecture.

Finally, smooth and striated myocytes also differ physiologically. All known striated myocyte types (apart from the myocardium) strictly depend on nervous stimulations for contraction, exerted by innervating motor neurons. In contrast, gut smooth myocytes are able to generate and propagate automatic (or ‘myogenic’) contraction waves responsible for digestive peristalsis in the absence of nervous inputs (Faussone‐Pellegrini and Thuneberg, 1999; Sanders et al., 2006). These autonomous contraction waves are modulated by the autonomic nervous system (Silverthorn, 2015). Regarding overall contraction speed, striated myocytes have been measured to contract 10 to 100 times faster than their smooth counterparts (Bárány, 1967).

To elucidate the evolutionary origin and diversification of bilaterian smooth and striated myocytes, we provide an in-depth ultrastructural, molecular and functional characterization of the myocyte complement in the marine annelid Platynereis dumerilii, which belongs to the Lophotrochozoa. Strikingly, as of now, no invertebrate smooth visceral muscle has been investigated on a molecular level (Hooper and Thuma, 2005; Hooper et al., 2008). Platynereis has retained more ancestral features than flies or nematodes and is thus especially suited for long-range comparisons (Denes et al., 2007; Raible et al., 2005). Also, other annelids such as earthworms have been reported to possess both striated somatic and midgut smooth visceral myocytes based on electron microscopy (Anderson and Ellis, 1967). Our study reveals the parallel presence of smooth myocytes in the musculature of midgut, hindgut and pulsatile dorsal vessel and of striated myocytes in the somatic musculature and the foregut. Platynereis smooth and striated myocytes closely parallel their vertebrate counterparts in ultrastructure, molecular profile, contraction speed and reliance on nervous inputs, thus supporting the ancient existence of a smooth-striated duality in protostome/deuterostome ancestors.

Results

Platynereis midgut and hindgut muscles are smooth, while foregut and somatic muscles are striated

Differentiation of the Platynereis somatic musculature has been documented in much detail (Fischer et al., 2010) and, in 5 days post-fertilization (dpf) young worms, consists of ventral and dorsal longitudinal muscles, oblique and parapodial muscles, head muscles and the axochord (Lauri et al., 2014). At this stage, we found the first Platynereis visceral myocytes around the developing tripartite gut, which is subdivided into foregut, midgut and hindgut (based on the conserved regional expression of foxA, brachyury and hnf4 gut specification factors [Martín-Durán and Hejnol, 2015]; Figure 2—figure supplement 1). At 7 dpf, visceral myocytes form circular myofibres around the foregut, and scattered longitudinal and circular fibres around midgut and hindgut (Figure 2A, Figure 2—figure supplement 2A), which expand by continuous addition of circular and longitudinal fibres to completely cover the dorsal midgut at 11dpf (Figure 2A, Figure 2—figure supplement 2B) and finally form a continuous muscular orthogon around the entire midgut and hindgut in the 1.5 months-old juvenile (Figure 2A, Figure 2—figure supplement 2C).

Figure 2 with 2 supplements see all
Development and ultrastructure of visceral and somatic musculature in Platynereis larvae and juveniles.

(A) Development of visceral musculature. All panels are 3D renderings of rhodamine-phalloidin staining imaged by confocal microscopy. Visceral muscles have been manually colored green and somatic muscle red. Scale bar: 50 μm. (B) Schematic of the musculature of a late nectochaete (six dpf) larva. Body outline modified from (Fischer et al., 2010). Ventral view, anterior is up. (CM) Electron micrographs of the main muscle groups depicted in B. Each muscle group is shown sectioned parallel to its long axis, so in the plane of its myofilaments. Scale bar: 2 μm. (C’,E’) are schematic drawings of the cells shown in (C,E). The Z-lines are made of aligned dense bodies (in black), myofilaments are in red, cytoplasm is in yellow and plasma membrane in grey. Attachment points of myofilaments on the dense bodies are represented with dotted lines when they are outside of the plane of section in the electron micrograph. Zoom panel in C’ shows oblique striation with a 5° angle between myofilaments and Z-lines (compare to Figure 1A). (H) shows another cross-section in the stomodeum of the individual shown in G, in the region encased by the yellow box, and observed at a higher magnification. (J) shows the dorsal midgut in cross-section, dorsal side up.

https://doi.org/10.7554/eLife.19607.003

We then proceeded to characterize the ultrastructure of Platynereis visceral and somatic musculature by transmission electron microscopy (Figure 2C–M). All somatic muscles and anterior foregut muscles display prominent oblique striation with discontinuous Z-elements (Figure 2C–H; compare Figure 1A), as typical for protostomes (Burr and Gans, 1998; Mill and Knapp, 1970; Rosenbluth, 1972). To the contrary, visceral muscles of the posterior foregut, midgut and hindgut are smooth with scattered dense bodies (Figure 2I–M). The visceral muscular orthogon is partitioned into an external longitudinal layer and an internal circular layer (Figure 2J), as in vertebrates (Marieb and Hoehn, 2015) and arthropods (Lee et al., 2006). Thus, according to ultrastructural appearance, Platynereis has both somatic (and anterior foregut) striated muscles and visceral smooth muscles.

The molecular profile of smooth and striated myocytes

We then set out to molecularly characterize annelid smooth and striated myocytes via a candidate gene approach. As a starting point, we investigated, in the Platynereis genome, the presence of regulatory and effector genes specific for smooth and/or striated myocytes in the vertebrates. We found striated muscle-specific and smooth muscle/non-muscle isoforms of both myosin heavy chain (consistently with published phylogenies [Steinmetz et al., 2012]) and myosin regulatory light chain. We also identified homologs of genes encoding calcium transducers (calponin for smooth muscles; troponin I and troponin T for striated muscles), striation structural proteins (zasp/lbd3 and titin), and terminal selectors for the smooth (foxF and gata456) and striated phenotypes (myoD).

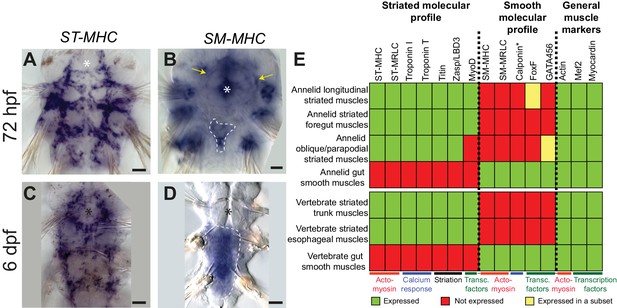

We investigated expression of these markers by whole-mount in situ hybridization (WMISH). Striated effectors are expressed in both somatic and foregut musculature (Figure 3A,C; Figure 3—figure supplement 1). Expression of all striated effectors was observed in every somatic myocyte group by confocal imaging with cellular resolution (Figure 3—figure supplement 2). Interestingly, myoD is exclusively expressed in longitudinal striated muscles, but not in other muscle groups (Figure 3—figure supplement 2).

Figure 3 with 5 supplements see all
Expression of smooth and striated muscle markers in Platynereis larvae.

Animals have been stained by WMISH and observed in bright-field Nomarski microscopy. Ventral views, anterior side up. Scale bar: 25 μm. (AD) Expression patterns of the striated marker ST-MHC and the smooth marker SM-MHC. These expression patterns are representative of the entire striated and smooth effector module (see Figure 3—figure supplement 1 and Figure 3—figure supplement 3). Note that SM-MHC (panel B) is expressed around the forming midgut and hindgut (dotted white line) as well as in the stomodeal sheath (white arrows) and in lateral cells in the parapodia. The identity of these cells is unknown, but preliminary observations suggest they will become part of the nephridial tubule/nephridiopore complex that opens at the base of the parapodia in annelids. Asterisk: stomodeum. (E) Table summarizing the expression patterns of smooth and striated markers in Platynereis and vertebrate muscles. (*) indicates that Platynereis and vertebrate Calponin are mutually most resembling by domain structure, but not one-to-one orthologs, as independent duplications in both lineages have given rise to more broadly expressed paralogs with a different domain structure (Figure 7—figure supplement 3).

https://doi.org/10.7554/eLife.19607.006

The expression of smooth markers is first detectable at three dpf in a small triangle-shaped group of mesodermal cells posteriorly abutting the macromeres (which will form the future gut) (Figure 3B, Figure 3—figure supplement 3A–C). At this stage, smooth markers are also expressed in the foregut mesoderm (Figure 3B, Figure 3—figure supplement 3A–C, yellow arrows). At six dpf, expression of all smooth markers is maintained in the midgut and hindgut differentiating myocytes (Figure 3D, Figure 3—figure supplement 3D–G, Figure 3—figure supplement 4A–E) but smooth effectors disappear from the foregut, which turns on striated markers instead (Figure 3—figure supplement 1R–W) – reminiscent of the replacement of smooth fibres by striated fibres during development of the vertebrate anterior esophageal muscles (Gopalakrishnan et al., 2015). Finally, in 2-month-old juvenile worms, smooth markers are also detected in the dorsal pulsatile vessel (Figure 3—figure supplement 3H–M) – considered equivalent to the vertebrate heart (Saudemont et al., 2008) but, importantly, of smooth ultrastructure in polychaetes (Jensen, 1974; Spies, 1973). None of the striated markers is expressed around the midgut or the hindgut (Figure 3—figure supplement 4F–K), or in the dorsal vessel (Figure 3—figure supplement 3L). Taken together, these results strongly support conservation of the molecular fingerprint of both smooth and striated myocytes between annelids and vertebrates.

We finally investigated general muscle markers that are shared between smooth and striated muscles. These include actin, mef2 and myocardin – which duplicated into muscle type-specific paralogs in vertebrates but are still present as single-copy genes in Platynereis. We found them to be expressed in the forming musculature throughout larval development (Figure 3—figure supplement 5A–F), and confocal imaging at six dpf confirmed expression of all three markers in both visceral (Figure 3—figure supplement 5G–L) and somatic muscles (Figure 3—figure supplement 5M).

Smooth and striated muscles differ in contraction speed

We then characterized the contraction speed of the two myocyte types in Platynereis by measuring myofibre length before and after contraction, and by dividing the difference by the duration of contraction. Live confocal imaging of contractions in Platynereis larvae with fluorescently labeled musculature (Video 1, Video 2) gave a striated contraction rate of 0.55 ± 0.27 s−1 (Figure 4A–E) and a smooth myocyte contraction rate of 0.07 ± 0.05 s−1 (Figure 4G). As in vertebrates, annelid striated myocytes thus contract nearly one order of magnitude faster than smooth myocytes (Figure 4F).

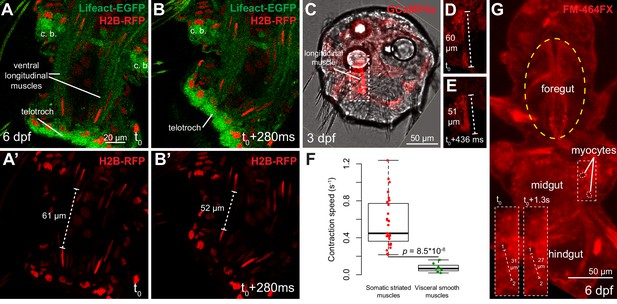

Contraction speed quantifications of smooth and striated muscles.

(AB) Snapshots of a time lapse live confocal imaging of a late nectochaete larva expressing fluorescent markers. Ventral view of the two posterior-most segments, anterior is up. (C) Snapshots of a time-lapse live confocal imaging of a three dpf larva expressing GCaMP6s. Dorsal view, anterior is up. (DE) Two consecutive snapshots on the left dorsal longitudinal muscle of the larva shown in C, showing muscle contraction. (F) Quantification of smooth and striated muscle contraction speeds (see Experimental procedures and Figure 4—source data 1), p-value by Mann-Whitney’s U test. Each point represents a biological replicate (see Materials and methods). (G) Snapshot of a time-lapse live confocal imaging of a late nectochaete larva. Ventral view, anterior is up. Optical longitudinal section at the midgut level.

https://doi.org/10.7554/eLife.19607.012
Video 1
Live imaging of somatic muscle contraction visualized by GCaMP6s.

Dorsal view of a three dpf Platynereis larva injected (at the zygote stage) with a mRNA encoding GCaMP6s and mounted in 3% LMP agar between a slide and a cover slip. Anterior side is up. Left side is the red (GCaMP6s) fluorescence channel, right side shows overlay of transmitted light and red fluorescence channel. Time step between two frames: 0.436 s.

https://doi.org/10.7554/eLife.19607.014
Video 2
Live imaging of visceral muscle contraction visualized by FM-464FX.

Ventral view of a six dpf Platynereis larva stained with the vital dye FM-464FX and mounted in 3% LMP agar between a slide and a cover slip. Red fluorescence signal is shown. Anterior side is up. Time step between two frames: 1.29 s.

https://doi.org/10.7554/eLife.19607.015

Striated, but not smooth, muscle contraction depends on nervous inputs

Finally, we investigated the nervous control of contraction of both types of muscle cells. In vertebrates, somatic muscle contraction is strictly dependent on neuronal inputs. By contrast, gut peristalsis is automatic (or myogenic – i.e. does not require nervous inputs) in vertebrates, cockroaches (Nagai and Brown, 1969), squids (Wood, 1969), snails (Roach, 1968), holothurians and sea urchins (Prosser et al., 1965). The only exceptions appear to be bivalves and malacostracans (crabs, lobster and crayfish), in which gut motility is neurogenic (Prosser et al., 1965). Regardless of the existence of an automatic component, the gut is usually innervated by nervous fibres modulating peristalsis movements (Wood, 1969; Wu, 1939).

Gut peristalsis takes place in Platynereis larvae and juveniles from six dpf onwards (Video 3), and we set out to test whether nervous inputs were necessary for it to take place. We treated 2-month-old juveniles with 180 μM Brefeldin A, an inhibitor of vesicular traffic which prevents polarized secretion (Misumi et al., 1986) and interferes with neurotransmission (Malo et al., 2000). Treatment stopped locomotion in all treated individuals, confirming that neurotransmitter release by motor neurons is required for somatic muscles contraction, while DMSO-treated controls were unaffected. On the other hand, vigorous gut peristalsis movements were maintained in Brefeldin-A-treated animals (Video 4). Quantification of the propagation speed of the peristalsis wave (Figure 5A–D; see Materials and methods) indicated that contractions propagated significantly faster in Brefeldin-A-treated individuals than in controls. The frequency of wave initiation and their recurrence (the number of repeated contraction waves occurring in one uninterrupted sequence) did not differ significantly in Brefeldin-A-treated animals (Figure 5E,F). These results indicate that, as in vertebrates, visceral smooth muscle contraction and gut peristalsis do not require nervous (or secretory) inputs in Platynereis.

Platynereis gut peristalsis is independent of nervous inputs and dependent on gap junctions.

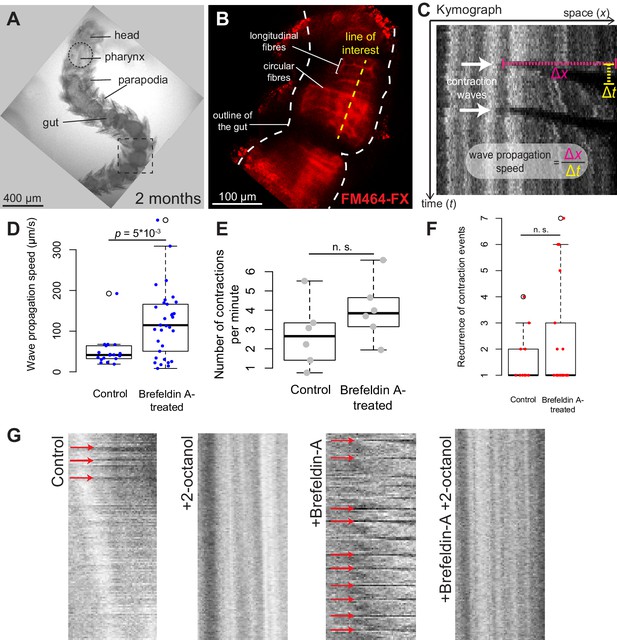

(A) Two-month-old juvenile mounted in 3% low-melting point (LMP) agarose for live imaging. (B) Snapshots of a confocal live time-lapse imaging of the animal shown in A. Gut is observed by detecting fluorescence of the vital membrane dye FM-464FX. (C) Kymograph of gut peristalsis along the line of interest in (B). Contraction waves appear as dark stripes. A series of consecutive contraction waves is called a contraction event: here, two contraction waves are visible, which make up one contraction event with a recurrence of 2. (D) Quantification of the propagation speed of peristaltic contraction waves in mock (DMSO)-treated individuals and Brefeldin-A-treated individuals (inhibiting neurotransmission). Speed is calculated from kymographs (see Materials and methods and Figure 5—source data 1), p-value by Mann-Whitney’s U test. Each point represents a contraction wave. Five biological replicates for each category (see Materials and methods). (E,F) Same as in E, but showing respectively the frequency of initiation and the recurrence of contraction events. Each point represents a biological replicate (see Materials and methods). (G) Representative kymographs of controls, animals treated with Brefeldin A (inhibiting neurotransmission), animals treated with 2-octanol (inhibiting gap junctions) and animals treated with both (N = 10 for each condition). 2-Octanol entirely abolishes peristaltic waves with or without Brefeldin A.

https://doi.org/10.7554/eLife.19607.016
Video 3
Live imaging of gut peristalsis in a control 2-month-old juvenile worm.

Lateral view of an individual stained with FM-464FX and mounted in 3% LMP agar between a slide and a cover slip. Left side is the transmitted light signal and right side is the red fluorescence channel. Note the peristalsis waves travelling along the gut, interrupted with rest periods.

https://doi.org/10.7554/eLife.19607.018
Video 4
Live imaging of gut peristalsis in a Brefeldin-A-treated 2-month-old juvenile worm.

Ventral view of an individual treated with 180 μM Brefeldin-A, stained with FM-464FX (not shown) and mounted in 3% LMP agar between a slide and a cover slip. Transmitted light signal is shown. Note the vigorous and constant gut peristalsis waves travelling along the gut. The straight posture of the animal (compare with its bent control sibling in Video 3) is an effect of somatic muscle inhibition by Brefeldin-A.

https://doi.org/10.7554/eLife.19607.019

An enteric nervous system is present in Platynereis

In vertebrates, peristaltic contraction waves are initiated by self-excitable myocytes (Interstitial Cajal Cells) and propagate across other smooth muscles by gap junctions ensuring direct electrical coupling (Faussone‐Pellegrini and Thuneberg, 1999; Sanders et al., 2006). We tested the role of gap junctions in Platynereis gut peristalsis by treating animals with 2.5 mM 2-octanol, which inhibits gap junction function in both insects (Bohrmann and Haas-Assenbaum, 1993; Gho, 1994) and vertebrates (Finkbeiner, 1992). 2-Octanol abolishes gut peristalsis, both in the absence and in the presence of Brefeldin A (Figure 5G), indicating that propagation of the peristalsis wave relies on direct coupling between smooth myocytes via gap junctions.

The acceleration of peristalsis upon Brefeldin A treatment indicates that gut peristalsis is modulated by secreted signals (neurotransmitters, hormones or neurohormones) whose net combined effect in normal, resting conditions is to slow down the self-generated peristaltic waves. This is consistent with the existence of neurotransmitters that inhibit visceral muscle contraction in other bilaterians such as vertebrates (adrenaline [Burnstock, 1958]) and squids (acetylcholine [Wood, 1969]). To gain insights into the nature of these secreted signals, we investigated the innervation of the Platynereis gut. Immunostainings of juvenile worms for acetylated tubulin revealed a dense, near-orthogonal nerve net around the entire gut (Figure 6A), which is tightly apposed to the visceral muscle layer (Figure 6C) and includes serotonergic neurites (Figure 6B,C) and cell bodies (Figure 6D), as well as previously described neurons expressing the conserved neuropeptide Myoinhibitory Peptide, that stimulates gut peristalsis (Williams et al., 2015). Interestingly, some enteric serotonergic cell bodies are devoid of neurites, thus resembling the vertebrate (non-neuronal) enterochromaffine cells – endocrine serotonergic cells residing around the gut and activating gut peristalsis by direct serotonin secretion upon mechanical stretch (Bulbring and Crema, 1959).

The enteric nerve net of Platynereis.

(A) Immunostaining for acetylated tubulin, visualizing neurites of the enteric nerve plexus. Z-projection of a confocal stack at the level of the midgut. Anterior side up. (B) Same individual as in A, immunostaining for serotonin (5-HT). Note serotonergic neurites (double arrow), serotonergic neuronal cell bodies (arrow, see D), and serotonergic cell bodies without neurites (arrowhead). (C) Same individual as in A showing both acetylated tubulin and 5-HT immunostainings. Snapshot in the top right corner: same individual, showing both neurites (acetylated tubulin, yellow) and visceral myofibres (rhodamine-phalloidin, red). The acetylated tubulin appears yellow due to fluorescence leaking in the rhodamine channel. (D) 3D rendering of the serotonergic neuron shown by arrow in B.

https://doi.org/10.7554/eLife.19607.020

Discussion

Smooth and striated myocyte coexisted in bilaterian ancestors

Our study represents the first molecular characterization of protostome visceral smooth musculature (Hooper and Thuma, 2005; Hooper et al., 2008). The conservation of molecular signatures for both smooth and striated myocytes indicates that a dual musculature already existed in bilaterian ancestors: a fast striated somatic musculature (possibly also present around the foregut – as in Platynereis, vertebrates [Gopalakrishnan et al., 2015] and sea urchins [Andrikou et al., 2013; Burke, 1981]), under strict nervous control; and a slow smooth visceral musculature around the midgut and hindgut, able to undergo automatic peristalsis due to self-excitable myocytes directly coupled by gap junctions. In striated myocytes, a core regulatory complex (CoRC) involving Mef2 and Myocardin directly activated striated contractile effector genes such as ST-MHC, ST-MRLC and the Troponin genes (Figure 7—figure supplement 1). Notably, myoD might have been part of the CoRC in only part of the striated myocytes, as it is only detected in longitudinal muscles in Platynereis. The absence of myoD expression in other annelid muscle groups is in line with the ‘chordate bottleneck’ concept (Thor and Thomas, 2002), according to which specialization for undulatory swimming during early chordate evolution would have fostered exclusive reliance on trunk longitudinal muscles, and loss of other (myoD-negative) muscle types. In smooth myocytes, a CoRC composed of NK3, FoxF and GATA4/5/6 together with Mef2 and Myocardin activated the smooth contractile effectors SM-MHC, SM-MRLC and calponin (Figure 7—figure supplement 1). In spite of their absence in flies and nematodes, gut myocytes of smooth ultrastructure are widespread in other bilaterians, and an ancestral state reconstruction retrieves them as present in the last common protostome/deuterostome ancestor with high confidence (Figure 7—figure supplement 2), supporting our homology hypothesis. Our results are consistent with previous reports of Calponin immunoreactivity in intestinal muscles of earthworms (Royuela et al., 1997) and snails (which also lack immunoreactivity for Troponin T) (Royuela et al., 2000).

Origin of the enteric nervous system and enterochromaffine cells

In both Platynereis and vertebrates, visceral smooth myocytes are able to contract automatically but undergo modulation by secretory cells that form an enteric nerve plexus. Interestingly, an enteric nervous system has been found in most bilaterians investigated, including Platynereis (this study), earthworms (Barna et al., 2001; Csoknya et al., 1991; Telkes et al., 1996), snails (Furukawa et al., 2001), insects (Copenhaver and Taghert, 1989), nematodes (Brownlee et al., 1994) and echinoderms (García-Arrarás et al., 1991, 2001). This suggests that the urbilaterian ancestor already possessed enteric neurons. In vertebrates, the enteric nervous system is entirely produced by the neural crest (Le Douarin and Teillet, 1973), a specialized migratory embryonic lineage which is a vertebrate innovation (Shimeld and Holland, 2000). This suggests that the neural crest ‘took over’ the production of the pre-existing enteric neurons (as it did with pharyngeal cartilage, of endomesodermal origin in stem-chordates (Meulemans and Bronner-Fraser, 2007), but produced by the neural crest in amniotes [Lièvre and Le Douarin, 1975; Sefton et al., 2015]). Alternatively, the ancient enteric neurons could have been lost in stem-vertebrates and later replaced by a novel, neural-crest-derived population. A careful comparison of the molecular fingerprints of invertebrate and vertebrate enteric neurons will be required to distinguish between these competing hypotheses. Alongside the enteric nervous system (which includes serotonergic neurons in both vertebrates and annelids), the gut wall of both Platynereis and vertebrates also harbors non-neuronal, paracrine serotonergic cells (or enterochromaffine cells) – which are, unlike enteric neurons, of endodermal origin in vertebrates (Andrew, 1974; Fontaine and Le Douarin, 1977), and potentially represent another ancient bilaterian cell type modulating gut peristalsis.

Origin of smooth and striated myocytes by cell type individuation

How did smooth and striated myocytes diverge in evolution? Figure 7 presents a comprehensive cell type tree for the evolution of myocytes, with a focus on Bilateria. This tree illustrates the divergence of the two muscle cell types by progressive partitioning of genetic information in evolution – a process called individuation (Arendt et al., 2016; Wagner, 2014). The individuation of fast and slow contractile cells involved two complementary processes: (1) changes in CoRC (black circles, Figure 7) and (2) emergence of novel genes encoding new cellular modules, or apomeres (Arendt et al., 2016) (grey squares, Figure 7).

Figure 7 with 3 supplements see all

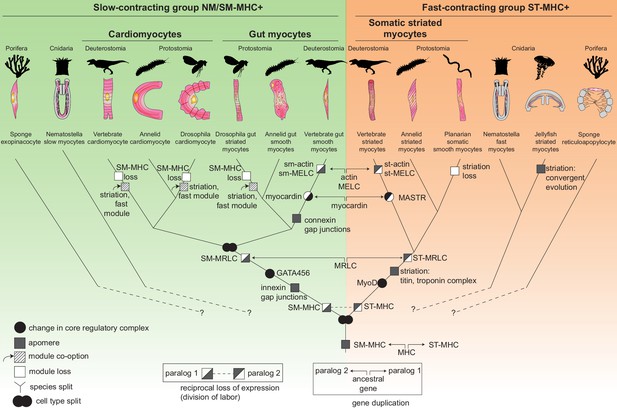

The evolutionary tree of animal contractile cell types.

Bilaterian smooth and striated muscles split before the last common protostome/deuterostome ancestor. Bilaterian myocytes are split into two monophyletic cell type clades: an ancestrally SM-MHC+ slow-contracting clade (green) and an ancestrally ST-MHC+ fast-contracting clade (orange). Hypothetical relationships of the bilaterian myocytes to the SM-MHC+ and ST-MHC+ contractile cells of non-bilaterians are indicated by dotted lines (Steinmetz et al., 2012). Apomere: derived set of effector genes common to a monophyletic group of cell types (Arendt et al., 2016). Note that ultrastructure only partially reflects evolutionary relationships, as striation can evolve convergently (as in medusozoans), be co-opted (as in insect gut myocytes or in vertebrate and insect cardiomyocytes), be blurred, or be lost (as in planarians). Conversion of smooth to striated myocytes took place by co-option of striation proteins (Titin, Zasp/LDB3) and of the fast contractile module (ST-MHC, ST-MRLC, Troponin complex) in insect cardiomyocytes and gut myocytes, as well as in vertebrate cardiomyocytes. Nodes can either represent cell type duplications (indicated by two partly overlapping circles) or speciation events, as typical for a cell type tree (Arendt, 2008; Serb and Oakley, 2005).

https://doi.org/10.7554/eLife.19607.021

Around a common core formed by the Myocardin:Mef2 complex (both representing transcription factors of pre-metazoan ancestry [Steinmetz et al., 2012]), smooth and striated CoRCs incorporated different transcription factors implementing the expression of distinct effectors (Figure 1B; Figure 7—figure supplement 1) – notably the bilaterian-specific bHLH factor MyoD (Steinmetz et al., 2012) and GATA4/5/6, which arose by bilaterian-specific duplication of a single ancient pan-endomesodermal GATA transcription factor (Leininger et al., 2014; Martindale et al., 2004).

Regarding the evolution of myocyte-specific apomeres, one prominent mechanism of divergence has been gene duplication. While the MHC duplication predated metazoans, other smooth and striated-specific paralogs only diverged in bilaterians. Smooth and striated MRLC most likely arose by gene duplication in the bilaterian stem-line (Supplementary file 1). Myosin essential light chain, actin and myocardin paralogs split even later, in the vertebrate stem-line (Figure 7). Similarly, smooth and non-muscle mhc and mrlc paralogs only diverged in vertebrates. The calponin-encoding gene underwent parallel duplication and subfunctionalization in both annelids and chordates, giving rise to both specialized smooth muscle paralogs and more broadly expressed copies with a different domain structure (Figure 7—figure supplement 3). This slow and stepwise nature of the individuation process is consistent with studies showing that recently evolved paralogs can acquire differential expression between tissues that diverged long before in evolution (Force et al., 1999; Lan and Pritchard, 2016).

Complementing gene duplication, the evolution and selective expression of entirely new apomeres also supported individuation: for example, Titin and all components of the Troponin complex are bilaterian novelties (Steinmetz et al., 2012). In vertebrates, the new gene caldesmon was incorporated into the smooth contractile module (Steinmetz et al., 2012).

Smooth to striated myocyte conversion

Strikingly, visceral smooth myocytes were previously assumed to be a vertebrate innovation, as they are absent in fruit flies and nematodes (two groups which are exceptions in this respect, at least from ultrastructural criteria [Figure 7—figure supplement 2A]). This view was seemingly supported by the fact that the vertebrate smooth and non-muscle myosin heavy chains (MHC) arose by vertebrate-specific duplication of a unique ancestral bilaterian gene, orthologous to Drosophila non-muscle MHC (Goodson and Spudich, 1993) – which, as our results suggest, rather reflects gradual individuation of pre-existing cell types (see above). Strikingly, the striated gut muscles of Drosophila resemble vertebrate and annelid smooth gut muscles by transcription factor expression (nk3/bagpipe [Azpiazu and Frasch, 1993], foxF/biniou [Jakobsen et al., 2007; Zaffran et al., 2001]), even though they express the fast/striated contractility module (Fyrberg et al., 19941990; Marín et al., 2004). If smooth gut muscles are ancestral for protostomes, as our results indicate, this suggests that the smooth contractile module was replaced by the fast/striated module in visceral myocytes during insect evolution. Interestingly, chromatin immunoprecipitation assays (Jakobsen et al., 2007) show that the conserved visceral transcription factors foxF/biniou and nk3/bagpipe do not directly control contractility genes in Drosophila gut muscles (which are downstream mef2 instead), but establish the morphogenesis and innervation of the visceral muscles, and control non-contractile effectors such as gap junctions – which are the properties these muscles seem to have conserved from their smooth ancestors. The striated gut myocytes of insects would thus represent a case of co-option of an effector module from another cell type, which happened at an unknown time during ecdysozoan evolution (Figure 7; Figure 7—figure supplement 1).

Another likely example of co-option is the vertebrate heart: vertebrate cardiomyocytes are striated and express fast myosin and troponin, but resemble smooth myocytes by developmental origin (from the splanchnopleura), function (automatic contraction and coupling by gap junctions) and terminal selector profile (Figure 1B). These similarities suggest that cardiomyocytes might stem from smooth myocytes that likewise co-opted the fast/striation module. Indicative of this possible ancestral state, the Platynereis dorsal pulsatile vessel (considered homologous to the vertebrate heart based on comparative anatomy and shared expression of NK4/tinman [Saudemont et al., 2008]) expresses the smooth, but not the striated, myosin heavy chain (Figure 3—figure supplement 3H–M). An ancestral state reconstruction based on ultrastructural data further supports the notion that heart myocytes were smooth in the last common protostome/deuterostome ancestor, and independently acquired striation in at least five descendant lineages (Figure 7—figure supplement 2B) – usually in species with large body size and/or fast metabolism.

Striated to smooth conversions

Smooth somatic muscles are occasionally found in bilaterians with slow or sessile lifestyles – for example in the snail foot (Faccioni-Heuser et al., 1999; Rogers, 1969), the ascidian siphon (Meedel and Hastings, 1993), and the sea cucumber body wall (Kawaguti and Ikemoto, 1965). As an extreme (and isolated) example, flatworms lost striated muscles altogether, and their body wall musculature is entirely smooth (Rieger et al., 1991). Interestingly, in all cases that have been molecularly characterized, smooth somatic muscles express the same fast contractility module as their striated counterparts, including ST-MHC and the Troponin complex – in ascidians (Endo and Obinata, 1981; Obinata et al., 1983), flatworms (Kobayashi et al., 1998; Sulbarán et al., 2015; Witchley et al., 2013), and the smooth myofibres of the bivalve catch muscle (Nyitray et al., 1994; Ojima and Nishita, 1986). (It is unknown whether these also express zasp and titin in spite of the lack of striation). This suggests that these are somatic muscles that have secondarily lost striation (in line with the sessile lifestyle of ascidians and bivalves, and with the complete loss of striated muscles in flatworms). Alternatively, they might represent remnants of ancestral smooth somatic fibres that would have coexisted alongside striated somatic fibres in the last common protostome/deuterostome ancestor. Interestingly, the fast contractile module is also expressed in acoel body wall smooth muscles (Chiodin et al., 2011); since acoels belong to a clade that might have branched off before all other bilaterians (Cannon et al., 2016) (although a position within deuterostomes has also been envisioned [Bourlat et al., 2003, 2006; Philippe et al., 2011]), these could represent fast-contracting myocytes that never evolved striation in the first place, similar to those found in cnidarians. In all cases, the fast contractility module appears to represent a consistent synexpression group (i.e. its components are reliably expressed together), and a stable molecular profile of all bilaterian somatic muscles, regardless of the presence of morphologically overt striation. This confirms the notion that, even in cases of ambiguous morphology or ultrastructure, the molecular fingerprint of cell types holds clue to their evolutionary affinities.

Implications for cell type evolution

In the above, genetically well-documented cases of cell type conversion (smooth to striated conversion in insect visceral myocytes and vertebrate cardiomyocytes), cells kept their ancestral CoRC of terminal selector transcription factors, while changing the downstream effector modules. This supports the recent notion that CoRCs confer an abstract identity to cell types, which remains stable in spite of turnover in downstream effectors (Wagner, 2014) – just as hox genes impart conserved abstract identity to segments of vastly diverging morphologies (Deutsch, 2005). Tracking cell-type-specific CoRCs through animal phylogeny thus represents a powerful means to decipher the evolution of cell types.

Pre-bilaterian origins

If the existence of fast-contracting striated and slow-contracting smooth myocytes predated bilaterians – when and how did these cell types first split in evolution? The first evolutionary event that paved the way for the diversification of the smooth and striated contractility modules was the duplication of the striated myosin heavy chain-encoding gene into the striated isoform ST-MHC and the smooth/non-muscle isoform SM-MHC. This duplication occurred in single-celled ancestors of animals, before the divergence of filastereans and choanoflagellates (Steinmetz et al., 2012). Consistently, both sm-mhc and st-mhc are present in the genome of the filasterean Ministeria (although st-mhc was lost in other single-celled holozoans) (Sebé-Pedrós et al., 2014). Interestingly, st-mhc and sm-mhc expression appears to be segregated into distinct cell types in sponges, cnidarians (Steinmetz et al., 2012) and ctenophores (Dayraud et al., 2012), suggesting that a cell type split between slow and fast contractile cells is a common feature across early-branching metazoans (Figure 7). Given the possibility of MHC isoform co-option (as outlined above), it is yet unclear whether this cell type split happened once or several times. The affinities of bilaterians and non-bilaterians contractile cells remain to be tested from data on the CoRCs establishing contractile cell types in non-bilaterians.

Conclusions

Our results indicate that the split between visceral smooth myocytes and somatic striated myocytes is the result of a long individuation process, initiated before the last common protostome/deuterostome ancestor. Fast- and slow-contracting cells expressing distinct variants of myosin II heavy chain (ST-MHC versus SM-MHC) acquired increasingly contrasted molecular profiles in a gradual fashion – and this divergence process continues to this day in individual bilaterian phyla. Blurring this picture of divergence, co-option events have led to the occasional replacement of the slow contractile module by the fast one, leading to smooth-to-striated myocyte conversions. Our study showcases the power of molecular fingerprint comparisons centering on effector and selector genes to reconstruct cell type evolution (Arendt, 2008). In the bifurcating phylogenetic tree of animal cell types (Liang et al., 2015), it remains an open question how the two types of contractile cells relate to other cell types, such as neurons (Mackie, 1970) or cartilage (Brunet and Arendt, 2016b; Lauri et al., 2014; Tarazona et al., 2016).

Materials and methods

Immunostainings and in situ hybridizations

Immunostaining, rhodamine-phalloidin staining, and WMISH were performed according to previously published protocols (Lauri et al., 2014). Antibodies against acetylated tubulin and serotonin were purchased from Sigma Aldrich (RRID:AB_477585) and ImmunoStar (RRID:AB_572263), respectively. Rhodamine-phalloidin was purchased from ThermoFischer Scientific (RRID:AB_2572408). For all stainings not involving phalloidin, animals were mounted in 97% TDE/3% PTw for imaging following (Asadulina et al., 2012). Phalloidin-stained larvae were mounted in 1% DABCO/glycerol instead, as TDE was found to quickly disrupt phalloidin binding to F-actin. Confocal imaging of stained larvae was performed using a Leica SPE and a Leica SP8 microscope. Stacks were visualized and processed with ImageJ 1.49v (RRID:SCR_003070). 3D renderings were performed with Imaris 8.1 (RRID:SCR_007370). Bright-field Nomarski microscopy was performed on a Zeiss M1 microscope. Z-projections of Nomarski stacks were performed using Helicon Focus 6.7.1 (RRID:SCR_014462).

Transmission electron microscopy

TEM was performed as previously published (Lauri et al., 2014).

Pharmacological treatments

Brefeldin A was purchased from Sigma Aldrich (B7561) and dissolved in DMSO to a final concentration of 5 mg/mL. Animals were treated with 50 μg/mL Brefeldin A in 6-well plates filled with 5 mL filtered natural sea water (FNSW). Controls were treated with 1% DMSO (which is compatible with Platynereis development and survival without noticeable effect). Other neurotransmission inhibitors were found to be ineffective on Platynereis (as they elicited no impairment of locomotion): tetanus toxin (Sigma Aldrich T3194; 100 μg/mL stock in distilled water) up to 5 μg/mL; TTX (Latoxan, L8503; 1 mM stock) up to 10 μM; Myobloc (rimabotulinum toxin B; Solstice Neurosciences) up to 1%; saxitoxin 2 HCl (Sigma Aldrich NRCCRMSTXF) up to 1%; and neosaxitoxin HCl (Sigma Aldrich NRCCRMNEOC) up to 1%. (±)−2-Octanol was purchased from Sigma Aldrich and diluted to a final concentration of 2.5 mM (2 μL in 5 mL FNSW). (±)−2-Octanol treatment inhibited both locomotion and gut peristalsis, in line with the importance of gap junctions in motor neural circuits (Kawano et al., 2011; Kiehn and Tresch, 2002). No sample size was computed before the experiments. At least two technical replicates were performed for each assay, with at least five biological replicates per sample per technical replicate. A technical replicate is a batch of treated individuals (together with their control siblings), and a biological replicate is a treated (or control sibling) individual.

Live imaging of contractions

Animals were mounted in 3% low melting point agarose in FNSW (2-Hydroxyethylagarose, Sigma Aldrich A9414) between a slide and a cover slip (using five layers of adhesive tape for spacing) and imaged with a Leica SP8 confocal microscope. Fluorescent labeling of musculature was achieved either by microinjection of mRNAs encoding GCaMP6s, LifeAct-EGFP or H2B-RFP, or by incubation in 3 μM 0.1% FM-464FX (ThermoFisher Scientific, F34653). Contraction speed was calculated as (l2-l1)/(l1*t), where l1 is the initial length, l2 the length after contraction, and t the duration of the contraction. Kymographs and wave speed quantifications were performed with the ImageJ Kymograph plugin: http://www.embl.de/eamnet/html/kymograph.html. No sample size was computed before the experiments. At least two technical replicates were performed for each assay, with at least two biological replicates per sample per technical replicate. A technical replicate is a batch of treated individuals (together with their control siblings), and a biological replicate is a treated (or control sibling) individual.

Ancestral state reconstruction

Ancestral state reconstructions were performed with Mesquite 3.04 using the Maximum Likelihood and Parsimony methods.

Cloning

The following primers were used for cloning Platynereis genes using a mixed stages Platynereis cDNA library (obtained from 1, 2, 3, 5, 6, 10 and 14-days old larvae) and either the HotStart Taq Polymerase from Qiagen or the Phusion polymerase from New England BioLabs (for GC-rich primers):

Gene nameForward primerReverse primer

foxF

CCCAGTGTCTGCATCCTTGT

CATGGGCATTGAAGGGGAGT

zasp

CATACCAGCCATCCCGTCC

AAATCAGCGAACTCCAGCGT

troponin T

TTCTGCAGGGCGCAAAGTCA

CGCTGCTGTTCCTTGAAGCG

SM-MRLC

TGGTGTTTGCAGGGCGGTCA

GGTCCATACCGTTACGGAAGCTTTT

calponin

ACGTGCGGTTTACGATTGGA

GCTGGCTCCTTGGTTTGTTC

transgelin1

GCTGCCAAGGGAGCTGACGC

ACAAAGAGCTTGTACCACCTCACCC

myocardin

GACACCAGTCCGAAGCTTGA

CGTGGTAGTAGTCGTGGTCG

The following genes were retrieved from an EST plasmid stock: SM-MHC (as two independent clones that gave identical expression patterns) and ST-MRLC. Gene orthology (Supplementary fils 1) was determined by phylogenetic analysis using MrBayes (RRID:SCR_012067) or PhyML (Guindon et al., 2010) run from http://www.atgc-montpellier.fr/phyml/ (RRID:SCR_014629).

Other genes were previously published: actin and ST-MHC (under the name mhc1-4) (Lauri et al., 2014) and GATA456 (Gillis et al., 2007).

References

  1. 1
    Molecular Biology of the Cell
    1. B Alberts
    2. A Johnson
    3. J Lewis
    4. D Morgan
    5. M Raff
    6. K Roberts
    7. P Walter
    (2014)
    New York: Garland Science.
  2. 2
  3. 3
    Further evidence that enterochromaffin cells are not derived from the neural crest
    1. A Andrew
    (1974)
    Journal of Embryology and Experimental Morphology 31:589–598.
  4. 4
  5. 5
  6. 6
    Evolution of eyes and photoreceptor cell types
    1. D Arendt
    (2003)
    The International Journal of Developmental Biology 47:563–572.
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
    SRF and TEF-1 control of chicken skeletal alpha-actin gene during slow-muscle hypertrophy
    1. JA Carson
    2. RJ Schwartz
    3. FW Booth
    (1996)
    The American Journal of Physiology 270:C1624–C1633.
  31. 31
  32. 32
  33. 33
    Caenorhabditis elegans twist plays an essential role in non-striated muscle development
    1. AK Corsi
    2. SA Kostas
    3. A Fire
    4. M Krause
    (2000)
    Development 127:2041–2051.
  34. 34
  35. 35
    Immunohistochemical and ultrastructural study of the enteric nervous system of earthworm, Lumbricus terrestris L
    1. M Csoknya
    2. I Lengvári
    3. I Benedeczky
    4. J Hámori
    (1992)
    Acta Biologica Hungarica 43:241–251.
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
    Troponin and its components from ascidian smooth muscle
    1. T Endo
    2. T Obinata
    (1981)
    Journal of Biochemistry 89:1599–1608.
  42. 42
  43. 43
  44. 44
  45. 45
    Digestive systems: Holothuroidea
    1. J-P Feral
    2. C Massin
    (1982)
    Echinoderm Nutr pp. 191–212.
  46. 46
  47. 47
  48. 48
    Analysis of endoderm formation in the avian blastoderm by the use of quail-chick chimaeras. The problem of the neurectodermal origin of the cells of the APUD series
    1. J Fontaine
    2. NM Le Douarin
    (1977)
    Journal of Embryology and Experimental Morphology 41:209–222.
  49. 49
    Preservation of duplicate genes by complementary, degenerative mutations
    1. A Force
    2. M Lynch
    3. FB Pickett
    4. A Amores
    5. YL Yan
    6. J Postlethwait
    (1999)
    Genetics 151:1531–1545.
  50. 50
  51. 51
    The enterins: a novel family of neuropeptides isolated from the enteric nervous system and CNS of Aplysia
    1. Y Furukawa
    2. K Nakamaru
    3. H Wakayama
    4. Y Fujisawa
    5. H Minakata
    6. S Ohta
    7. F Morishita
    8. O Matsushima
    9. L Li
    10. E Romanova
    11. JV Sweedler
    12. JH Park
    13. A Romero
    14. EC Cropper
    15. NC Dembrow
    16. J Jing
    17. KR Weiss
    18. FS Vilim
    (2001)
    Journal of Neuroscience 21:8247–8261.
  52. 52
  53. 53
  54. 54
  55. 55
    The enteric nervous system of echinoderms: unexpected complexity revealed by neurochemical analysis
    1. JE García-Arrarás
    2. M Rojas-Soto
    3. LB Jiménez
    4. L Díaz-Miranda
    (2001)
    Journal of Experimental Biology 204:865–873.
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
    The vertebrate heart in relation to the protochordates
    1. R Hirakow
    (1985)
    Fortschritte Der Zoologie 30:367–369.
  66. 66
    Chapter Twenty-Five - Terminal Selectors of Neuronal Identity
    1. O Hobert
    (2016)
    In: P. M Wassarman, editors. Current Topics in Developmental Biology. Academic Press. pp. 455–475.
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
    Electron microscopy on the longitudinal muscle of the sea-cucumber (Stichopus japonicus). Ebashi Al Ed
    1. S Kawaguti
    2. N Ikemoto
    (1965)
    Molecular Biology XII:124–131.
  76. 76
  77. 77
  78. 78
    Histology and Cell Biology: An Introduction to Pathology (4e)
    1. AL Kierszenbaum
    2. L Tres
    (2015)
    Philadelphia: Saunders.
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
    The migration of neural crest cells to the wall of the digestive tract in avian embryo
    1. NM Le Douarin
    2. MA Teillet
    (1973)
    Journal of Embryology and Experimental Morphology 30:31–48.
  84. 84
    Mesenchymal derivatives of the neural crest: analysis of chimaeric quail and chick embryos
    1. CS Le Lièvre
    2. NM Le Douarin
    (1975)
    Journal of Embryology and Experimental Morphology 34:125–154.
  85. 85
    Muscle Development in Drosophila
    1. H-H Lee
    2. S Zaffran
    3. M Frasch
    (2006)
    62–78, Development of the larval visceral musculature, Muscle Development in Drosophila, Springer.
  86. 86
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92
    Human Anatomy & Physiology
    1. EN Marieb
    2. KN Hoehn
    (2015)
    Boston: Pearson.
  93. 93
  94. 94
  95. 95
  96. 96
  97. 97
  98. 98
  99. 99
  100. 100
    Striated muscle-type tropomyosin in a chordate smooth muscle, ascidian body-wall muscle
    1. TH Meedel
    2. KE Hastings
    (1993)
    Journal of Biological Chemistry 268:6755–6764.
  101. 101
  102. 102
    The fine structure of obliquely striated body wall muscles in the earthworm, Lumbricus terrestris Linn
    1. PJ Mill
    2. MF Knapp
    (1970)
    Journal of Cell Science 7:233–261.
  103. 103
    Novel blockade by brefeldin A of intracellular transport of secretory proteins in cultured rat hepatocytes
    1. Y Misumi
    2. Y Misumi
    3. K Miki
    4. A Takatsuki
    5. G Tamura
    6. Y Ikehara
    (1986)
    The Journal of Biological Chemistry 261:11398–11403.
  104. 104
  105. 105
  106. 106
  107. 107
  108. 108
  109. 109
  110. 110
  111. 111
    Heart ultrastructure in four species of onychophora (Peripatopsidae and Peripatidae) and phylogenetic implications
    1. A Nylund
    2. H Ruhberg
    3. A Tjonneland
    4. B Meidell
    (1988)
    Zool Beitr 32:17–30.
  112. 112
  113. 113
    Isolation of troponins from striated and smooth adductor muscles of Akazara scallop
    1. T Ojima
    2. K Nishita
    (1986)
    Journal of Biochemistry 100:821–824.
  114. 114
  115. 115
  116. 116
    Ultrastructure of invertebrate muscle cell types
    1. R Paniagua
    2. M Royuela
    3. RM García-Anchuelo
    4. B Fraile
    (1996)
    Histology and Histopathology 11:181–201.
  117. 117
  118. 118
  119. 119
  120. 120
  121. 121
  122. 122
  123. 123
  124. 124
  125. 125
    The Structure and Function of Muscle
    1. J Rosenbluth
    (1972)
    389–420, Obliquely striated muscle, The Structure and Function of Muscle, New York and London, Academic Press.
  126. 126
  127. 127
    Immunocytochemical electron microscopic study and Western blot analysis of caldesmon and calponin in striated muscle of the fruit fly Drosophila melanogaster and in several muscle cell types of the earthworm Eisenia foetida
    1. M Royuela
    2. B Fraile
    3. ML Picazo
    4. R Paniagua
    (1997)
    European Journal of Cell Biology 72:90–94.
  128. 128
  129. 129
  130. 130
  131. 131
    The Evolution of Organ Systems
    1. A Schmidt-Rhaesa
    (2007)
    Oxford; New York: Oxford University Press.
  132. 132
  133. 133
  134. 134
  135. 135
  136. 136
  137. 137
  138. 138
  139. 139
    Human Physiology: An Integrated Approach
    1. DU Silverthorn
    (2015)
    San Francisco: Pearson.
  140. 140
  141. 141
  142. 142
  143. 143
  144. 144
    Myosin light chain phosphorylation in vertebrate striated muscle: regulation and function
    1. HL Sweeney
    2. BF Bowman
    3. JT Stull
    (1993)
    The American Journal of Physiology 264:C1085–C1095.
  145. 145
  146. 146
  147. 147
  148. 148
  149. 149
    Homology, Genes, and Evolutionary Innovation
    1. GP Wagner
    (2014)
    Princeton; Oxford: Princeton University Press.
  150. 150
  151. 151
  152. 152
  153. 153
  154. 154
  155. 155
  156. 156
  157. 157
  158. 158
    On the physiology and pharmacology of the earthworm gut
    1. KS Wu
    (1939)
    Journal of Experimental Biology 16:184–197.
  159. 159
  160. 160
    Drosophila D-titin is required for myoblast fusion and skeletal muscle striation
    1. Y Zhang
    2. D Featherstone
    3. W Davis
    4. E Rushton
    5. K Broadie
    (2000)
    Journal of Cell Science 113:3103–3115.
  161. 161

Decision letter

  1. Alejandro Sánchez Alvarado
    Reviewing Editor; Stowers Institute for Medical Research, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "The evolutionary origin of bilaterian smooth and striated myocytes" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by Alejandro Sánchez Alvarado as a Reviewing Editor and Fiona Watt as the Senior Editor. The following individual involved in the review of your submission has agreed to reveal his identity: Martin J Cohn (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

In this manuscript, the authors identify striated and smooth muscle in the annelid Platynereis and discovers their respective molecular profiles, from which the authors derive homology with the vertebrate counterparts, and thus infer a divergence of these two cell types before the protostome/deuterostome split. This is of great relevance because the two most widely used protostome model organisms, flies and nematodes, lack obvious homologs of vertebrate smooth muscle, and such lack has contributed to the view that smooth muscle originated in the vertebrate lineage. Overall, the design of the experiments reported is logical, and the hypothesis that smooth and striated muscle cell types were present in the common ancestor of bilateria is supported by multiple and rigorously obtained lines of evidence. Moreover, the conclusions and interpretations are justified by the clear and convincing data presented in the main and supplemental figures. As such, this elegant study will be of great interest to an unusually broad group of readers.

Essential revisions:

Before this manuscript can be considered further for publication in eLife, the authors need to address the following concerns:

1) Results, first paragraph and Figure 2: The introductory information on the somatic and visceral muscles of Platynereis a little sketchy, for an audience 99% of whom has no acquaintance with it. The text refers to Fisher et al. for background, but the paper does not appear to mention "visceral muscles" or "gut muscles". The current text signals the first visceral myocytes at 5 days, but it is not shown. At 7 days and 11 days, all that is shown are manually color-coded 3D renderings – which are not that easy to decipher except for the general fact that visceral muscles are central to more peripheral somatic ones, which makes sense, but is not very informative. Therefore, barring an oversight on our part, the first published embryological and anatomical data on gut muscles in Platynereis is represented in Figure 2A of the current manuscript as a highly stylized and processed image. Could we have more "original" data, for example, in the form of transverse sections, optical or real, which would show the spatial arrangements of gut versus somatic muscles. This could also include those "intrinsic muscles" that appear in Figure 3—figure supplement 3, which on a schematic seem to radiate from the gut to the walls of the animal (but not so clearly at all in the adjacent panels N or P). Also, the relationship with the tripartite organization shown in Figure 2 —figure supplement 1 is not visually explicit (and as it stands that supplementary figure is not very useful).

2) Figure 2 panels C-I: Concerning discontinuous Z lines: for a non-specialist, it is not clear from the EM what is oblique relative to what (in some panels the Z lines seem virtually parallel to other striation, presumably the filaments) and what is the relationship with the schematics in Figure 1. Maybe a higher magnification would help? Contrary to what the legend says, H is not an enlargement of the yellow box in G (even if it looks similar).

3) Figure 3, panel B: smooth muscle MHC is expressed in many more places than the small posterior triangle at 72hpf: this should be commented on. Figure 3—figure supplement 3, panel J: Why is actin considered a muscle marker? Is it smooth muscle actin? The Panels J and K look like featureless clouds of fluorescent color that could easily be made to overlap more or less by adjusting the intensity and are not very convincing. In general, Figure 3—figure supplement 3 in its current form is probably the least satisfactory piece of expression data: expression of Gata456 in the gut region is not clear at 72hpf, (if anything, on the wholemount, more of a gap than a signal in the posterior midline is what is seen) and at 6dpf it is embedded in a ubiquitous-looking expression in the posterior half of the animal, which weakens the correlation. FoxF1 and NK3 are expressed in a dotted or very patchy pattern hard to relate to MRLC and calponin. On the schematic, the red and orange should be differentiated more. These ambiguities need to be resolved.

4) Figure 3—figure supplement 4: Why such different shapes of the midgut given that we are looking at Z stacks of confocal views: we would expect that a more homogenous morphology could be achieved from animal to animal. Without the dashed line it would be difficult to conclude that we are looking at the same structure.

https://doi.org/10.7554/eLife.19607.026

Author response

Essential revisions:

Before this manuscript can be considered further for publication in eLife, the authors need to address the following concerns:

1) Results, first paragraph and Figure 2: The introductory information on the somatic and visceral muscles of Platynereis a little sketchy, for an audience 99% of whom has no acquaintance with it. The text refers to Fisher et al. for background, but the paper does not appear to mention "visceral muscles" or "gut muscles". The current text signals the first visceral myocytes at 5 days, but it is not shown.

The first elements of visceral musculature detectable by phalloidin stainings are indeed found at 5 days post-fertilization, as a few scattered and disconnected myofibres of minute size on the ventral body side. Figure 2—figure supplement 1A shows a picture of a slightly older individual (6 dpf), stained with phalloidin. The first elements of the incipient visceral musculature are isolated myofibres that can be recognized, in this panel and in the following, by its position immediately basal to the midgut epithelium (arrow).

At 7 days and 11 days, all that is shown are manually color-coded 3D renderings – which are not that easy to decipher except for the general fact that visceral muscles are central to more peripheral somatic ones, which makes sense, but is not very informative. Therefore, barring an oversight on our part, the first published embryological and anatomical data on gut muscles in Platynereis is represented in Figure 2A of the current manuscript as a highly stylized and processed image. Could we have more "original" data, for example, in the form of transverse sections, optical or real, which would show the spatial arrangements of gut versus somatic muscles.

We have now included a full additional supplementary figure (Figure 2—figure supplement 2) compiling virtual cross-sections of confocal stacks of the Platynereis musculature at 7 dpf, 11 dpf, and 1.5 months post-fertilization, as well as interpretative schematics. These new panels illustrate in detail how the visceral muscles come to surround the gut as a circular layer crossed by perpendicular transverse myofibres. As explained above, the visceral musculature can be recognized by its basal position directly adjacent to the midgut epithelium. In cases where it was not directly apparent, we found that the midgut epithelium could be made visible by enhancing the green (phalloidin) signal, and that information was used to draw its outline in the schematic drawings on the right side.

This could also include those "intrinsic muscles" that appear in Figure 3—figure supplement 3, which on a schematic seem to radiate from the gut to the walls of the animal (but not so clearly at all in the adjacent panels N or P).

The intrinsic muscles are visible and labeled in Figure 2—figure supplement 2 panels A-A’ and B-B’. These new data show that the intrinsic muscles cross the body cavity from dorsal to ventral and are located around the gut (more peripherally than the visceral musculature) rather than radiating from it as we had previously thought. We have corrected our interpretation accordingly in the schematic Figure 3—figure supplement 3M. We thank the referee for raising this point.

Also, the relationship with the tripartite organization shown in Figure 2 —figure supplement 1 is not visually explicit (and as it stands that supplementary figure is not very useful).

We have completed Figure 2—figure supplement 1 with ventral and lateral views of phalloidin stainings that make the tripartite gut organization more evident and help to interpret the gene expression panels. This scheme also illustrates the position of the sectional plane in Figure 2—figure supplement 2 (though the animal in Figure 2—figure supplement 1A is one day younger, the overall anatomy does not change).

2) Figure 2 panels C-I: Concerning discontinuous Z lines: for a non-specialist, it is not clear from the EM what is oblique relative to what (in some panels the Z lines seem virtually parallel to other striation, presumably the filaments) and what is the relationship with the schematics in Figure 1. Maybe a higher magnification would help?

We have added an interpretative schematic of the electron micrographs of obliquely striated longitudinal and oblique myocytes shown in Figure 2C and E, as well as a zoom on oblique striation itself (and a schematic of it) in panel 2C.

We hope the new panels make it clearer that the (discontinuous) Z-lines (in black) serve as an anchor band to the arrays of myofilaments (in red; in cases where the anchoring point is located outside of the plane of section, it is represented by a dotted line). Regarding the definition of oblique striation: A muscle is called “cross-striated” if its myofilaments are perpendicular to the Z-lines, and “oblique” if the angle between myofilaments and Z-lines is other than 90°. In the case of the Platynereis obliquely striated muscles, we agree with the referees that the myofilaments are “virtually parallel” to the Z-lines, as they form a 5° angle (Figure 2C) – so that the myofilaments are indeed almost (but not quite) parallel to the Z-lines.

Contrary to what the legend says, H is not an enlargement of the yellow box in G (even if it looks similar).

We agree. H and G actually show two consecutive cross-sections of the stomodeum of the same individual, observed at two different magnifications. Additionally, we noticed that the yellow box was originally and erroneously positioned on the contralateral body side to the one H illustrates. We have replaced the box on the correct body side and now state in the figure legend that H is another cross-section of the muscle in the yellow box, observed at a higher magnification, rather than an enlargement.

3) Figure 3, panel B: smooth muscle MHC is expressed in many more places than the small posterior triangle at 72hpf: this should be commented on.

We have now added comments on the other expression sites: the stomodeum (both stomodeal mesoderm and ectoderm) and internal cells of the parapodia. While a full characterization of the latter cells is beyond the scope of our paper, our preliminary observations suggest they might be part of the nephridial complex (nephridial tubule and nephridiopore – which opens at the base of the parapodium in polychaetes), which is now mentioned in the text.

Figure 3—figure supplement 3, panel J: Why is actin considered a muscle marker? Is it smooth muscle actin?

Phylogeny of the actin gene shows that the ancestral bilaterian had a single actin gene, which gave rise by duplication to vertebrate non-muscle, smooth muscle and striated muscle actins (the muscle and non-muscle isoforms of Drosophila arose by independent duplications – see e.g. Oota and Saitou, Mol. Biol. Evol., 1999). The Platynereis genome appears to contain a single actin gene expressed in both myocytes (at a high level – as the strongest signal is observed in the musculature in both in situ hybridizations and phalloidin stainings) and in all cells at a much lower, housekeeping level. This difference in expression level allows to use it as a muscle marker gene.

The Panels J and K look like featureless clouds of fluorescent color that could easily be made to overlap more or less by adjusting the intensity and are not very convincing.

We agree. Double in situ hybridizations are straightforward at early larval stages of Platynereis (such as 48 hpf; e.g., Denes et al., Cell, 2007) but more difficult at 72 hpf, which is the stage of earliest detectable gene expression in future smooth myocytes (at even later stages, double WMISH become impossible). The problem is compounded by the fact that visceral myocytes are located far from the surface of the animal, which represents a challenge for both permeabilization during the protocol and for imaging, and that the forming gut is prone to background staining formation (as it has endogenous alkaline phosphatase activity). For all of these reasons, the double WMISH are difficult to interpret for observers not closely familiar with Platynereis musculature. In spite of our best efforts, we could not optimize the double in situ hybridization protocol beyond the quality shown in the first submitted version of the manuscript. We have thus decided to remove this dataset, which was not essential to our conclusion – since we also documented smooth muscle gene expression by confocal imaging (of single WMISH) with cellular resolution at 6 dpf (Figure 3—figure supplement 4). We have also removed the brightfield panels of foxF and NK3 expression at 3 days, as these were only informative in the context of the double WMISH showing the expression sites to be forming muscles. Expression of foxF in the visceral musculature remains supported by confocal imaging of single WMISH at 6 dpf.

In general, Figure 3—figure supplement 3 in its current form is probably the least satisfactory piece of expression data: expression of Gata456 in the gut region is not clear at 72hpf, (if anything, on the wholemount, more of a gap than a signal in the posterior midline is what is seen) and at 6dpf it is embedded in a ubiquitous-looking expression in the posterior half of the animal, which weakens the correlation. FoxF1 and NK3 are expressed in a dotted or very patchy pattern hard to relate to MRLC and calponin. On the schematic, the red and orange should be differentiated more. These ambiguities need to be resolved.

We agree that the panels illustrating GATA456 expression were not clear. For this reason, we have replicated the in situ hybridizations in order to optimize the signal-to-noise ratio. These new stainings are much clearer and are now featured in our new Figure 3—figure supplement 3. We hope it is now clear that GATA456 is far from ubiquitous, and is detected in cells covering the midgut (including midline cells – see the cells within the white outline in Figure 3—figure supplement 3C, F)) as well as in some additional segmentally iterated bilateral cells (as also observed by confocal imaging Figure 3—figure supplement 4D).

The Figure panels showing FoxF1 and Nk3 expression at three days have been removed (as the expression is much better documents at 6dpf). We have also changed the orange color in the schematic so that the contrast with the red color is clearer.

4) Figure 3—figure supplement 4: Why such different shapes of the midgut given that we are looking at Z stacks of confocal views: we would expect that a more homogenous morphology could be achieved from animal to animal. Without the dashed line it would be difficult to conclude that we are looking at the same structure.

We agree that the morphology of the midgut at this stage is variable. These differences are due to several factors: at 6 dpf, development is not perfectly synchronous anymore; the shape and position of the large lipid droplets (around which the gut forms by cellularization of the macromeres) differ between individuals (see e.g. Figure 3—figure supplement 3); and muscle contraction itself changes the shape of the animal at this stage – depending on which muscles are contracted during fixation (while variations are mild at 48 hpf and 72 hpf, when musculature development is still limited, they are more extensive in the very muscular 6 dpf larvae). Manual examination of confocal stacks confirms that the relative positions and connections of these cells to neighboring structures are the same, and thus that we are observing the same structure – the forming midgut.
