Membranes, energetics, and evolution across the prokaryote-eukaryote divide

  1. Michael Lynch  Is a corresponding author
  2. Georgi K Marinov
  1. Indiana University, United States
Research Article
  • Cited 15
  • Views 2,488
  • Annotations
Cite this article as: eLife 2017;6:e20437 doi: 10.7554/eLife.20437

Abstract

The evolution of the eukaryotic cell marked a profound moment in Earth’s history, with most of the visible biota coming to rely on intracellular membrane-bound organelles. It has been suggested that this evolutionary transition was critically dependent on the movement of ATP synthesis from the cell surface to mitochondrial membranes and the resultant boost to the energetic capacity of eukaryotic cells. However, contrary to this hypothesis, numerous lines of evidence suggest that eukaryotes are no more bioenergetically efficient than prokaryotes. Thus, although the origin of the mitochondrion was a key event in evolutionary history, there is no reason to think membrane bioenergetics played a direct, causal role in the transition from prokaryotes to eukaryotes and the subsequent explosive diversification of cellular and organismal complexity.

https://doi.org/10.7554/eLife.20437.001

eLife digest

Over time, life on Earth has evolved into three large groups: archaea, bacteria, and eukaryotes. The most familiar forms of life – such as fungi, plants and animals – all belong to the eukaryotes. Bacteria and archaea are simpler, single-celled organisms and are collectively referred to as prokaryotes.

The hallmark feature that distinguishes eukaryotes from prokaryotes is that eukaryotic cells contain compartments called organelles that are surrounded by membranes. Each organelle supports different activities in the cell. Mitochondria, for example, are organelles that provide eukaryotes with most of their energy by producing energy-rich molecules called ATP. Prokaryotes lack mitochondria and instead produce their ATP on their cell surface membrane.

Some researchers have suggested that mitochondria might actually be one of the reasons that eukaryotic cells are typically larger than prokaryotes and more varied in their shape and structure. The thinking is that producing ATP on dedicated membranes inside the cell, rather than on the cell surface, boosted the amount of energy available to eukaryotic cells and allowed them to diversify more. However, other researchers are not convinced by this view. Moreover, some recent evidence suggested that eukaryotes are no more efficient in producing energy than prokaryotes.

Lynch and Marinov have now used computational and comparative analysis to compare the energy efficiency of different organisms including prokaryotes and eukaryotes grown under defined conditions. To do the comparison, the results were scaled based on cell volume and the total surface area deployed in energy production.

From their findings, Lynch and Marinov concluded that mitochondria did not enhance how much energy eukaryotes could produce per unit of cell volume in any substantial way. Although the origin of mitochondria was certainly a key event in evolutionary history, it is unlikely to have been responsible for the diversity and complexity of today’s life forms.

https://doi.org/10.7554/eLife.20437.002

Introduction

The hallmark feature distinguishing eukaryotes from prokaryotes (bacteria and archaea) is the universal presence in the former of discrete cellular organelles enveloped within lipid bilayers (e.g. the nucleus, mitochondria, endoplasmic reticulum, golgi, vacuoles, vesicles, etc.). Under a eukaryocentric view of life, these types of cellular features promoted the secondary origin of genomic modifications that ultimately led to the adaptive emergence of fundamentally superior life forms (Martin and Koonin, 2006; Lane and Martin, 2010). Most notably, it has been proposed that the establishment of the mitochondrion provided an energetic boost that fueled an evolutionary revolution responsible for all things eukaryotic, including novel protein folds, membrane-bound organelles, sexual reproduction, multicellularity, and complex behavior (Lane, 2002, 2015).

However, despite having more than two billion years to impose their presumed superiority, eukaryotes have not driven prokaryotes extinct. Prokaryotes dominate eukaryotes both on a numerical and biomass basis (Whitman et al., 1998; Lynch, 2007), and harbor most of the biosphere’s metabolic diversity. Although there is no logical basis for proclaiming the evolutionary inferiority of prokaryotes, one central issue can be addressed objectively – the degree to which the establishment of eukaryotic-specific morphology altered energetic efficiency at the cellular level.

Drawing on observations from biochemistry, physiology, and cell biology, we present a quantitative summary of the relative bioenergetic costs and benefits of the modified architecture of the eukaryotic cell. The data indicate that once cell-size scaling is taken into account, the bioenergetic features of eukaryotic cells are consistent with those in bacteria. This implies that the mitochondrion-host cell consortium that became the primordial eukaryote did not precipitate a bioenergetics revolution.

Results

The energetic costs of building and maintaining a cell

The starting point is a recap of recent findings on the scaling properties of the lifetime energetic expenditures of single cells. All energy utilized by cells can be partitioned into two basic categories: that employed in cell maintenance and that directly invested in building the physical infrastructure that comprises a daughter cell. Maintenance costs involve a diversity of cellular functions, ranging from turnover of biomolecules, intracellular transport, control of osmotic balance and membrane potential, nutrient uptake, information processing, and motility. Cell growth represents a one-time investment in the production of the minimum set of parts required for a progeny cell, whereas cell maintenance costs scale with cell-division time. The common usage of metabolic rate as a measure of power production is uninformative from an evolutionary perspective, as it fails to distinguish the investment in cellular reproduction from that associated with non-growth-related processes.

To make progress in this area, a common currency of energy is required. The number of ATPADP turnovers meets this need, as such transformations are universally deployed in most cellular processes of all organisms, and where other cofactors are involved, these can usually be converted into ATP equivalents (Atkinson, 1970). When cells are grown on a defined medium for which the conversion rate from carbon source to ATP is known (from principles of biochemistry), the two categories of energy allocation can be quantified from the regression of rates of resource consumption per cell on rates of cell division (Bauchop and Elsden, 1960; Pirt, 1982; Tempest and Neijssel, 1984).

A summary of results derived from this method reveals two universal scaling relationships that transcend phylogenetic boundaries (Lynch and Marinov, 2015). First, basal maintenance costs (extrapolated to zero-growth rate, in units of 109 molecules of ATP/cell/hour, and normalized to a constant temperature of 20C for all species) scale with cell volume as a power-law relationship

(1a) CM=0.39V0.88,

where cell volume V is in units of μm3. Second, the growth requirements per cell (in units of 109 molecules of ATP/cell) scale as

(1b) CG=27V0.97.

The total cost of building a cell is

(1c) CT=CG+tCM,

where t is the cell-division time in hours.

Derived from cells ranging over four orders of magnitude in volume, neither of the preceding scaling relationships is significantly different from expectations under isometry (with exponent 1.0), as the standard errors of the exponents in Equations (1a,b) are 0.07 and 0.04, respectively. Moreover, as there is no discontinuity in scaling between prokaryotes and eukaryotes, these results suggest that a shift of bioenergetics from the cell membrane in prokaryotes to the mitochondria of eukaryotes conferred no directly favorable energetic effects. In fact, the effect appears to be negative.

Taking into account the interspecific relationships between cell-division time and cell volume (Lynch and Marinov, 2015) and using Equation (1b), one can compute the scaling of the rate of incorporation of energy into biomass, CG/t. For bacteria, cell-division times decline with increasing cell volume as V-0.17, albeit weakly (the SE of the exponent being 0.11), implying that the rate of biomass accumulation scales as V0.97+0.17=V1.14 on a per-cell basis and as V1.14-1.00=V0.14 on a cell volumetric basis (with the SEs of both exponents being 0.12). In contrast, in most eukaryotic groups, cell-division times increase with cell volume, on average scaling as V0.13, implying a scaling of V0.84 for the rate of biomass accumulation per cell and V-0.16 on a volumetric basis (with SEs equal to 0.06 for the exponents). Thus, in terms of biomass production, the bioenergetic efficiency of eukaryotic cells declines with cell volume, whereas that of bacterial cells does not. The pattern observed in bacteria is inconsistent with the view that surface area limits the rate of energy production, as this leads to an expected scaling of V2/3 on a per-cell basis.

Energy production and the mitochondrion

The argument that mitochondria endow eukaryotic cells with exceptionally high energy provisioning derives from the idea that large internal populations of small mitochondria with high surface area-to-volume ratios provide a dramatic increase in bioenergetic-membrane capacity (Lane and Martin, 2010). In prokaryotes, the F0F1 ATP synthase (the molecular machine that transforms ADP to ATP in the process of chemiosmosis) and the electron transport chain (ETC) components (which create the chemiosmotic proton gradient) are restricted to the cell membrane, but in eukaryotes, they are confined to inner mitochondrial membranes. A key question is whether the bioenergetic capacity of cells is, in fact, limited by membrane surface area.

Although the situation at the time of first colonization of the mitochondrion is unknown, the iconic view of mitochondria being tiny, bean-shaped cellular inclusions is not entirely generalizable. For example, many unicellular eukaryotes harbor just a single mitochondrion or one that developmentally moves among alternative reticulate states (e.g. Rosen et al., 1974; Osafune et al., 1975; Biswas et al., 2003; Yamaguchi et al., 2011). Such geometries necessarily have lower total surface areas than a collection of spheroids with similar total volumes. For the range of species that have been examined, many of which do have small individualized mitochondria, the total outer surface area of mitochondria per cell is generally on the order of the total area of the plasma membrane, with no observed ratio exceeding 5:1, and many being considerably smaller than 1:1 (Figure 1a). It may be argued that the outer surface area of the mitochondrion is of less relevance than that of the inner membrane (where the ATP synthase complex sits), but the ratios of inner (including the internal cristae) to outer membrane areas for mitochondria in mammals, the green alga Ochromonas, the plant Rhus toxicodendron, and the ciliate Tetrahymena are 5.0 (SE = 1.1), 2.4, 2.5, and 5.2, respectively (Supplementary material). Thus, the data are inconsistent with the idea that the mitochondrion engendered a massive expansion in the surface area of bioenergetic membranes in eukaryotes.

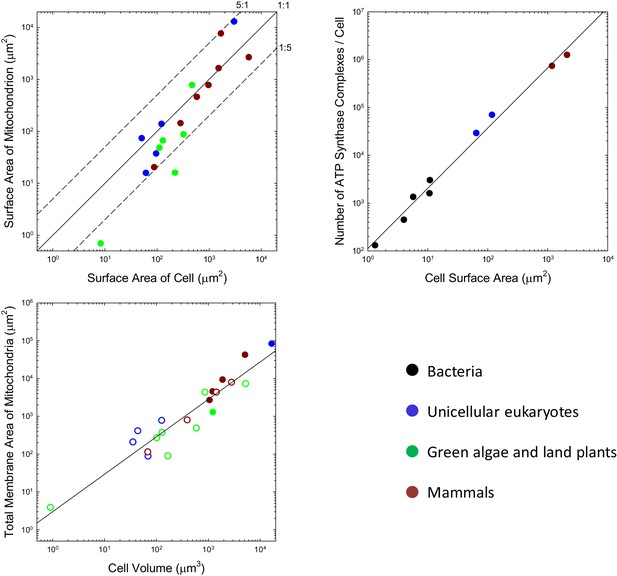

Scaling features of membrane properties with cell size.

(a) Relationship between the total outer surface area of mitochondria and that of the plasma membrane for all species with available data. Diagonal lines denote three idealized ratios of the two. (b) The number of ATP synthase complexes per cell scales with cell surface area (S, in μm2) as 113S1.26 (r2=0.99). (c) Relationship between the total (inner + outer) surface area of mitochondria and cell volume for all species with available data. Open points are extrapolations for species with only outer membrane measures, derived by assuming an inner:outer ratio of 4.6, the average of observations in other species. References to individual data points are provided in Appendix 1–tables 1 and 2.

https://doi.org/10.7554/eLife.20437.003

Three additional observations raise questions as to whether membrane surface area is a limiting factor in ATP synthesis. First, the localization of mitochondrial ATP synthase complexes is restricted to two rows on the narrow edges of the inner cristae (Kühlbrandt, 2015). Because this confined region comprises <<10% of the total internal membrane area, the surface area of mitochondrial membranes allocated to ATP synthase appears to be less than the surface area of the cell itself. Second, only a fraction of bacterial membranes appears to be allocated to bioenergetic functions (Magalon and Alberge, 2016), again shedding doubt on whether membrane area is a limiting factor for energy production. Third, in every bacterial species for which data are available, growth in cell volume is close to exponential, that is, the growth rate of a cell increases as its cell volume increases despite the reduction in the surface area:volume ratio (Voorn and Koppes, 1998; Godin et al., 2010; Santi et al., 2013; Iyer-Biswas et al., 2014; Osella et al., 2014; Campos et al., 2014).

Further insight into this issue can be achieved by considering the average packing density of ATP synthase for the few species with proteomic data sufficient for single-cell counts of individual proteins. By accounting for the stoichiometry of the various subunits in the complex, it is possible to obtain several independent estimates of the total number of complexes per cell under the assumption that all the proteins are assembled (Supplementary material). For example, the estimated number of complexes in E. coli is 3018, and the surface area of the cell is ~15.8 μm2. Based on the largest diameter of the molecule (the F1 subcomplex), a single ATP synthase in this species occupies ~64 nm2 (Lücken et al., 1990) of surface area, so the total set of complexes occupies ~1.8% of the cell membrane. Four other diverse bacterial species for which these analyses can be performed yield occupancies ranging from 0.6% to 1.5%, for an overall average of 1.1% for bacteria. This will be an overestimate if only a fraction of proteins are properly assembled and embedded in the cell membrane.

This kind of analysis can be extended to eukaryotes, noting that eukaryotic ATP synthases are slightly larger, with maximum surface area of ~110 nm2 (Abrahams et al., 1994; Stock et al., 1999). Although ATP synthase resides in mitochondria in eukaryotes, it is relevant to evaluate the fractional area that would be occupied were they to be located in the cell membrane. Such hypothetical packing densities are 5.0% and 6.6%, respectively, for the yeasts S. cerevisiae and S. pombe, and 6.6% and 6.8% for mouse fibroblasts and human HeLa cells. Although these observations suggest a ~5 fold increase in ATP synthase abundance with cell surface area in eukaryotes, the data conform to a continuous allometric function with no dichotomous break between the bacteria and eukaryotes (Figure 1b).

Similar conclusions can be reached regarding the ETCs, although direct comparisons are more difficult due to the diversity of electron transport chain complexes in prokaryotes (Price and Driessen, 2010). The number of ETC complexes is comparable to that of ATP synthases in both bacteria and eukaryotes (Supplementary Material), and the physical footprint of the ETC is ~5× that of F0F1 (~570 nm2; Dudkina et al., 2011), implying that an average of ~5.5% of bacterial cell membranes is dedicated to the ETC and that the corresponding hypothetical packing density for eukaryotes would be ~30% (if in the cell membrane).

There are a number of uncertainties in these packing-density estimates, and more direct estimates are desirable. The optimum and maximum-possible packing densities for ATP synthase also remain unclear. Nonetheless, the fact remains that any packing problems that exist for the cell membrane are also relevant to mitochondrial membranes, which have additional protein components (such as those involved in internal-membrane folding and transport into and out of the mitochondrion).

The biosynthetic cost of lipids

Any attempt to determine the implications of membranes for cellular evolution must account for the high biosynthetic costs of lipid molecules. There are two ways to quantify such a cost. First, from an evolutionary perspective, the cost of synthesizing a molecule is taken to be the sum of the direct use of ATP in the biosynthetic pathway plus the indirect loss of ATP resulting from the use of metabolic precursors that would otherwise be converted to ATP and available for alternative cellular functions (Akashi and Gojobori, 2002; Lynch and Marinov, 2015). Second, to simply quantify the direct contribution to a cell’s total ATP requirement, the costs of diverting metabolic precursors are ignored.

By summing the total costs of all molecules underlying a cellular feature and scaling by the lifetime energy expenditure of the cell, one obtains a measure of the relative drain on the cell’s energy budget associated with building and maintaining the trait. This measurement, sc, can then be viewed as the fractional increase in the cell’s energy budget that could be allocated to growth, reproduction, and survival in the absence of such an investment, ignoring the direct fitness benefits of expressing the trait, sa. For selection to be effective, the net selective advantage of the trait, sn=sa-sc, must exceed the power of random genetic drift, 1/Ne in a haploid species and 1/(2Ne) in a diploid, where Ne is the effective population size.

Most cellular membranes are predominantly comprised of glycerophospholipids, which despite containing a variety of head groups (e.g. glycerol, choline, serine, and inositol), all have total biosynthetic costs per molecule (in units of ATP hydrolyses, and including the cost of diverting intermediate metabolites) of

(2a)cL320+[38(NL16)]+(6NU),(2b)cL340+[40(NL16)]+(6NU),

in bacteria and eukaryotes, respectively, where NL is the mean fatty-acid chain length, and NU is the mean number of unsaturated carbons per fatty-acid chain (Supplementary material). Although variants on glycerophospholipids are utilized in a variety of species (Guschina and Harwood, 2006; Geiger et al., 2010), these are structurally similar enough that the preceding expressions should still provide excellent first-order approximations. The reduced (direct) cost, which ignores the loss of ATP-generating potential from the diversion of metabolic precursors, is

(3a)cL110+[7(NL16)]+(6NU),(3b)cL120+[9(NL16)]+(6NU),

in bacteria and eukaryotes, respectively. From the standpoint of a cell’s total energy budget, the evolutionary cost of a lipid molecule is cL/CT.

For most lipids in biological membranes, 14NL22 and 0NU6, so the cost per lipid molecule is generally in the range of cL200 to 600 ATP, although the average over all lipids deployed in species-specific membranes is much narrower (below). Cardiolipin, which rarely constitutes more than 20% of membrane lipids is exceptional, having an evolutionary cost of ~640 ATP/molecule (and a reduced cost of ~240 ATP). To put these expenditures into perspective, the evolutionary biosynthetic costs of each of the four nucleotides is ≈ 50 ATP hydrolyses per molecule (Lynch and Marinov, 2015), whereas the average cost of an amino acid is ≈30 ATP (Atkinson, 1970; Akashi and Gojobori, 2002).

Application of the preceding expressions to the known membrane compositions of cells indicates that the biosynthetic costs of eukaryotic lipids are higher than those in bacteria (Supplementary table). For example, for a diversity of bacterial species the average direct cost per lipid molecule in the plasma membrane is 123 (SE = 3) ATP, whereas that for eukaryotes is 143 (2). The latter estimate is identical to the mean obtained for whole eukaryotic cells, but the cost of mitochondrial lipids is especially high, 155 (5). These elevated expenses in eukaryotes are joint effects of the cost of mitochondrial export of oxaloacetate to generate acetyl-CoA and the tendency for eukaryotic lipids to have longer chains containing more desaturated carbons.

To understand the total bioenergetic cost associated with membranes, we require information on the numbers of lipid molecules required for membrane formation, which is equivalent to the total surface area of the membrane divided by the number of lipid molecules/unit surface area, and multiplied by two to account for the lipid bilayer. Estimates of the head-group areas of membrane lipids are mostly within 10% of an average value of 6.5 × 10−7 μm(Petrache et al., 2000; Kučerka et al., 2011), so the cost of a membrane (in units of ATP, and ignoring lipid turnover and the space occupied by transmembrane proteins) is

(4) CL(3.1×106)c¯LA,

where A is the membrane surface area in units of μm2, and c¯L is the average cost of a lipid.

Enough information is available on the total investment in mitochondrial membranes that a general statement can be made. Over the eukaryotic domain, the total surface area of mitochondria (inner plus outer membranes, summed over all mitochondria, in μm2) scales with cell volume (V, in units of μm3) as 3.0V0.99 (Figure 1c; SEs of intercept and slope on log plots are 0.22 and 0.08, respectively). Applying this to Equation (4), with the average total cost of mitochondrial lipids (c¯L=440 ATP/ molecule; Appendix 1–table 4), and using the expression for the total growth requirements of a cell, Equation (1b), the relative cost of mitochondrial membrane lipids is

(5) sc0.15V0.02,

or 15% of the total growth budget of a minimum-sized (1 μm3) eukaryotic cell, and nearly independent of cell size within the range typically found in eukaryotes (SE of the exponent is 0.08). The direct contribution of mitochondrial membrane lipids to a cell’s growth budget is ~36% of this total cost. These costs of mitochondrial membranes represent a baseline price, not incurred by prokaryotes, associated with relocating bioenergetics to the interior of eukaryotic cells, that is, ~5%. Unfortunately, the additional costs of maintenance of mitochondrial lipids is unknown, but for rapidly growing cells, the vast majority of a cell’s energy budget is allocated to growth (Lynch and Marinov, 2015), so the above costs should still apply as first-order approximations; for slowly growing cells, the costs will be higher or lower depending on whether the cost of mitochondrial-membrane maintenance is above or below that for total cellular maintenance. Proteins do not occupy >50% of membranes, so accounting for this would change the preceding results by a factor <2.

For prokaryotic cells without internal membranes, the relative contribution of the cell membrane to a cell’s total energy budget is expected to decline with increasing cell size, owing to the decline in the surface area to volume ratio. For the tiny cells of Leptospira interrogans and Mycoplasma pneumoniae (average volumes of 0.03 and 0.22 μm3, respectively), ~63 and 43% of a cell’s growth budget must be allocated to the plasma membrane, but for the larger Bacillus subtilis and Escherichia coli (on average, 1.4 and 1.0 μm3, respectively), these contributions drop to ~14 and 19%, and they would be expected to continue to decline with further increases in cell size, scaling inversely with the linear dimension of the cell.

In contrast, owing to the increased investment in internal membranes, the fraction of a eukaryotic cell’s energy budget devoted to membranes does not diminish with increasing cell size. Although there are only a few eukaryotic cell types for which this issue can be evaluated quantitatively (Table 1), the data span three orders of magnitude in cell volume and uniformly suggest that ~10 to 30% of the total growth budget is allocated to lipid biosynthesis, and that an increasing fraction of such costs is associated with internal membranes in cells of increasing size. The picoplanktonic alga Ostreococcus, which has a cell volume of just 0.22 μm3 (below that of many prokaryotes), devotes ~32% of its energy budget to membranes, and 44% of these costs (~18% of the total cell budget) are associated with internal membranes. A moderate-sized mammalian cell devotes a similar ~30% of its energy budget to membranes, but 96% of these costs (~29% of the total cell budget) are associated with internal membranes.

Table 1
Contributions of membranes to total cellular growth costs.

Ot denotes the green alga Ostreococcus tauri, Sc the yeast Saccharomyces cerevisiae, Ds the green alga Dunaliella salina, and Ss the pig (Sus scrofa) pancreas cell; references given in Supplementary material. Cell volumes and total membrane areas are in units of μm3 and μm2, respectively, with the latter excluding membranes associated with the plastids in the algal species. The fraction of the total cell growth budget allocated to membranes is obtained by the ratio of Equations (1b) and (4), using the species-specific reduced costs in Table 1 where available, and otherwise applying the averages for eukaryotic species; this total cost is then apportioned into five different fractional contributions in the following lines.

https://doi.org/10.7554/eLife.20437.004
OtScDsSs
Cell volume1445911060
Total membranes15204229912952
Fraction of absolute cell growth budget0.3240.0960.0940.302
Plasma membrane0.5560.3280.1340.044
Mitochondria0.2430.3590.1970.223
Nucleus0.1130.0850.0340.008
Endoplasmic reticulum + Golgi0.0340.1110.3180.706
Vesicles/vacuoles0.0550.1140.3160.019

Taken together, these observations imply that the use of internal membranes constitutes a major drain on the total energy budgets of eukaryotic cells, much more than would be expected in bacteria of comparable size. Moreover, because the lipids associated with mitochondria alone constitute 20% to 35% of a eukaryotic cell’s investment in membranes (Table 1), the energetic burden of localizing membrane bioenergetics to mitochondria is substantial.

Finally, given that the observations summarized in Figure 1a,b are derived from a diversity of studies, likely with many unique inaccuracies, it is worth considering whether the overall conclusions are consistent with the known capacity of ATP synthase. First, it bears noting that only a fraction of the energy invested in biosynthesis is derived directly from the chemiosmotic activity of ATP synthase. For example, amino-acid biosynthesis involves ~1.5 oxidations of NADH and NADPH for every ATP hydrolysis (Akashi and Gojobori, 2002). Assuming that each of the former is equivalent to ~3 ATP hydrolyses, this implies that only ~18% of the energy invested in amino-acid biosynthesis involves ATP hydrolysis. As noted in the Supplementary text, the ratio of use of NADH/NADPH to ATP is more on the order of 2.0 in lipid biosynthesis, reducing the direct investment in ATP to ~14% Thus, as the vast majority of the energetic cost of building a cell is associated with synthesis of the monomeric building blocks of proteins and membranes, only ~15% of biosynthetic energy may be derived from ATP hydrolysis.

Given the known energy requirements for the maintenance and growth of a cell, the cell-division time, and the number of ATP synthase complexes per cell, it is possible to estimate the required rate of ADP ATP conversions per complex. Using the cellular energetic data previously presented (Lynch and Marinov, 2015) and the ATP synthase abundances in Appendix 1–table 2, after discounting the maximum values by 85%, the estimated required rates of ATP production/complex/sec are: 2109, 221, and 19 respectively for the bacteria B. subtilis, E. coli, and M. pneumoniae, and 1440 and 329 for the yeasts S. cerevisiae and S. pombe. Several attempts have been made to estimate the maximum turnover rates (per sec) for F0F1 ATP synthase, usually in reconstituted liposomes, and these average 195/s in bacteria (Etzold et al., 1997; Slooten and Vandenbranden, 1989; Toei et al., 2007), 295 in soybean plastids (Schmidt and Gräbe, 1985; Junesch and Gräber, 1991), 120 in S. cerevisiae (Förster et al., 2010), and 440 in bovine heart (Matsuno-Yagi and Hatefi, 1988). Thus, given that a substantial fraction of complexes are likely to be misassembled in artificial membranes, the energy-budget based estimates of the numbers of ATP turnovers generated per cell appear to be consistent with the known capacity of ATP synthase.

The cellular investment in ribosomes

The ribosome content of a cell provides a strong indicator of its bioenergetic capacity. Owing to the large number of proteins required to build the complex, ribosomes are energetically costly, and the number per cell appears to be universally correlated with cellular growth rate (Fraenkel and Neidhardt, 1961; Tempest et al., 1965; Brown and Rose, 1969; Poyton, 1973; Dennis and Bremer, 1974; Freyssinet and Schiff, 1974; Alberghina et al., 1975; Boehlke and Friesen, 1975; Waldron and Lacroute, 1975; Scott et al., 2010).

We previously pointed out that the genome-wide total and mean number of transcripts per gene scale with cell volume as V0.36 and V0.28 respectively, and that the analogous scalings are V0.93 and V0.66 for proteins, with no dichotomous break between prokaryotes and eukaryotes (Lynch and Marinov, 2015). As with the transcripts they process and the proteins they produce, the numbers of ribosomes per cell also appear to scale sublinearly with cell volume, in a continuous fashion across bacteria, unicellular eukaryotes, and cells derived from multicellular species (Figure 2). These observations are inconsistent with the idea that entry into the eukaryotic world resulted in an elevated rate of protein production. Moreover, as noted previously (Lynch and Marinov, 2015), the absolute costs of producing individual proteins and maintaining the genes associated with them are substantially higher in eukaryotes than in bacteria, owing to the substantial increase in gene lengths, investment in nucleosomes, etc.

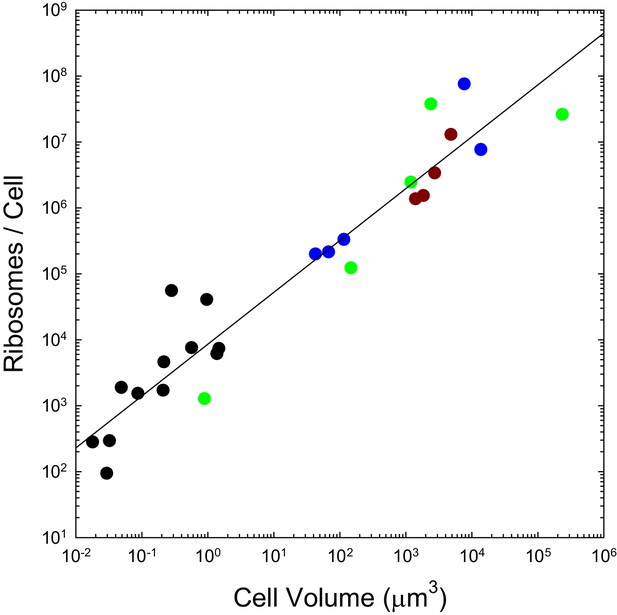

The number of ribosomes per cell scales with cell volume (V, in μm3) as 7586V0.82 (r2 = 0.92; SEs of the intercept and slope on the log scale are 0.13 and 0.05, respectively).

Color coding as in previous figures. The data presented in this figure can be found in Figure 2—source data 1; see also Appendix 1–table 3.

https://doi.org/10.7554/eLife.20437.005

Discussion

Lane (2015) and Lane and Martin (2010) have proposed a scenario for how the mitochondrion became established by a series of adaptive steps, arguing that the eukaryotic leap to increased gene number and cellular complexity, and a subsequent adaptive cascade of morphological diversification, ‘was strictly dependent on mitochondrial power'. However, the scaling of the costs of building and maintaining cells is inconsistent with an abrupt shift in volumetric bioenergetic capacity of eukaryotic cells, and although the absolute costs of biosynthesis, maintenance, and operation of individual genes are much greater in eukaryotes, the proportional costs are less (Lynch and Marinov, 2015). This means that evolutionary additions and modifications of genes are more easily accrued in eukaryotic genomes from a bioenergetics perspective, regardless of their downstream fitness effects.

The analyses presented here reveal a number of additional scaling features involving cellular bioenergetic capacity that appear to transcend the substantial morphological differences across the bacterial-eukaryotic divide. There is not a quantum leap in the surface area of bioenergetic membranes exploited in eukaryotes relative to what would be possible on the cell surface alone, nor is the idea that ATP synthesis is limited by total membrane surface area supported. Moreover, the numbers of both ribosomes and ATP synthase complexes per cell, which jointly serve as indicators of a cell’s capacity to convert energy into biomass, scale with cell size in a continuous fashion both within and between bacterial and eukaryotic groups. Although there is considerable room for further comparative analyses in this area, when one additionally considers the substantial cost of building mitochondria, it is difficult to accept the idea that the establishment of the mitochondrion led to a major advance in net bioenergetic capacity.

Most discussion of the origin of the mitochondrion by endosymbiosis starts (and often ends) with a consideration of the benefits gained by the host cell. This ignores the fact that the eukaryotic consortium consists of two participants. At least initially, the establishment of a stable symbiotic relationship requires that each member of the pair gain as much from the association as is lost by relinquishing independence. Under the scenario painted by Lane and Martin (2010), and earlier by Martin and Müller (1998), the original mitochondrial-host cell affiliation was one in which the intracellular occupant provided hydrogen by-product to fuel methanogenesis in the host cell, while eventually giving up access to external resources and thereby coming to rely entirely on the host cell for organic substrates. For such a consortium to be evolutionarily stable as a true mutualism, both partners would have to acquire more resources than would be possible by living alone, in which case this novel relationship would be more than the sum of its parts.

Although some scenario like this might have existed in the earliest stages of mitochondrial establishment, it is also possible that one member of the original consortium was a parasite rather than a benevolent partner (made plausible by the fact that many of the α-protobacteria to which mitochondria are most closely related are intracellular parasites). Despite its disadvantages, such a system could be rendered stable if one member of the pair (the primordial mitochondrion) experienced relocation of just a single self-essential gene to the other member’s genome, while the other lost a key function that was complemented by the presence of the endosymbiont. This scenario certainly applies today, as all mitochondria have relinquished virtually all genes for biosynthesis, replication, and maintenance, and as a consequence depend entirely on their host cells for these essential metabolic functions. In contrast, all eukaryotes have relocated membrane bioenergetics from the cell surface to mitochondrial membranes.

Such an outcome represents a possible grand example of the preservation of two ancestral components by complementary degenerative mutations (Force et al., 1999). Notably, this process of subfunctionalization is most likely to proceed in relatively small populations because the end state is slightly deleterious from the standpoint of mutational vulnerability, owing to the fact that the original set of tasks becomes reliant on a larger set of genes (Lynch et al., 2001). Thus, a plausible scenario is that the full eukaryotic cell plan emerged at least in part by initially nonadaptive processes made possible by a very strong and prolonged population bottleneck (Lynch, 2007; Koonin, 2015).

The origin of the mitochondrion was a singular event, and we may never know with certainty the early mechanisms involved in its establishment, nor the order of prior or subsequent events in the establishment of other eukaryotic cellular features (Koonin, 2015). However, the preceding observations suggest that if there was an energetic boost associated with the earliest stages of mitochondrial colonization, this has subsequently been offset by the loss of the use of the eukaryotic cell surface for bioenergetics and the resultant increase in costs associated with the construction of internal membranes. Rather than a major bioenergetic revolution being provoked by the origin of the mitochondrion, at best a zero-sum game is implied.

Thus, if the establishment of the mitochondrion was a key innovation in the adaptive radiation of eukaryotes, the causal connection does not appear to involve a boost in energy acquisition. Notably, a recent analysis suggests that the origin of the mitochondrion postdated the establishment of many aspects of eukaryotic cellular complexity (Pittis and Gabaldón, 2016). It is plausible, that phagocytosis was a late-comer in this series of events, made possible only after the movement of membrane bioenergetics to the mitochondrion, which would have eliminated the presumably disruptive effects of ingesting surface membranes containing the ETC and ATP synthase.

Materials and methods

The results in this paper are derived from an integration of bioenergetic analyses based on known biochemical pathways and existing morphological observations on a variety of cell-biological features. The sources of this information, as well as the basic approaches employed can be found in the Appendix (where not mentioned directly in the text). The central analyses involve: (1) estimation of the biosynthetic costs for lipid-molecule production (in terms of ATP equivalents per molecule produced); (2) mitochondrial surface areas and cell membrane areas; (3) investments in lipids at the cell-membrane and organelle levels; and (4) numbers of ATP synthase complexes, ETC complexes, and ribosomes per cell.

Appendix

The biosynthetic costs of lipid molecules

The vast majority of lipids in most membranes are phospholipids, with a polar (hydrophilic) head group attached to a negatively charged phosphate, which in turn is attached to a glycerol-3-phosphate (G3P), which links to two fatty-acid chains. Diversity within this lipid family is associated with variation in: the nature of the head groups; the number of carbon atoms in the fatty-acid chains; and the number of double bonds connecting such carbon atoms (their presence leading to ‘unsaturated’ fatty acids). Common head groups are choline, ethanolamine, serine, glycerol, inositol, and phosphatidyl glycerol. In both bacteria and eukaryotes, fatty-acid chains usually contain 12 to 22 carbons, and only rarely harbor more than three unsaturated bonds.

Evaluation of the total cost of synthesizing a lipid molecule requires a separate consideration of the investments in the three molecular subcomponents: the fatty-acid tails; head groups; and linkers. As adhered to in Lynch and Marinov (2015), such costs will be quantified in units of ATP usage, specifically relying on the number of phosphorus atoms released via hydrolyses of ATP molecules, the primary source of energy in most endergonic cellular reactions. CTP, which is utilized in a few reaction steps in lipid biosynthesis, will be treated as equivalent to ATP, and electron transfers resulting from conversions of NADH to NAD+, NADPH to NADP+, and FADH2 to FAD will be taken to be equivalent to 3, 3, and 2 ATP hydrolyses, respectively (all conventions in biochemistry based on energetic analyses; it is assumed that NADP+/NADPH is efficiently recycled and obtained from sources other than action of the NADH kinase, which would elevate the cost to four high-energy phosphate groups). The following results are derived from observations cataloged in most biochemistry text books:

  • The starting point for the synthesis of most fatty acids is the production of one particular linear chain, palmitate, which contains 16 carbon atoms. Synthesis of this molecule takes place within a large complex, known as fatty-acid synthase. In bacteria, biosynthesis of each palmitate molecule requires the consumption of 8 acetyl-CoA molecules, 7 ATPs, and reductions of 14 NADPHs. Each molecule of acetyl-CoA is generally derived from a pyruvate molecule, but each acetyl-CoA molecule diverted to lipid production deprives the cell of one rotation of the energy producing citric-acid cycle, which would otherwise yield 3 NADH, 1 FADH2, and 1 ATP per rotation; this leads to a net loss to the cell of the equivalent of 12 ATPs per acetyl-CoA molecule. Thus, the total cost of production of one molecule of palmitate in bacteria is (8×12)+(7×1)+(14×3)=145 ATP.Fatty-acid production is slightly more expensive in nonphotosynthetic eukaryotes, where acetyl-CoA is produced in the mitochondrion and reacts with oxaloacetate to produce citrate, which must then be exported. Cleavage of oxaloacetate in the cytosol regenerates acetyl-CoA at the expense of 1 ATP, and a series of reactions serve to return oxaloacetate to the citric-acid cycle in an effectively ATP neutral way. Thus, the cost of palmitate increases to 145+8=153 ATP.

  • Each additional pair of carbons added to the palmitate chain requires one additional acetyl-CoA, one additional ATP, and two additional NADPHs, or an equivalent of 19 ATPs in bacteria, and accounting for mitochondrial export increases this to 20 in eukaryotes.

  • Each subsequent desaturation of a fatty-acid bond consumes one NADPH, or 3 ATP equivalents.

  • The G3P linker emerges from one of the last steps in glycolysis, and its diversion to lipid production deprives the cell of one further step of ATP production as well as a subsequent pyruvate molecule. As pyruvate normally can yield the equivalent of 3 ATPs in the conversion to acetyl-CoA, which then would generate a net 12 ATPs following entry into the citric-acid cycle, the use of G3P as a linker in a lipid molecule has a cost of 1+3+12=16 ATP. Linking each fatty-acid tail requires 1 ATP, and linking the head group involves two CTP hydrolyses.

  • All that remains now is to add in the cost of synthesis of the head group, which we do here still assuming 16 saturated bonds in each fatty acid. In the case of phosphatidylglycerol, the head group is G3P, the cost of which is 16 ATP as just noted, so the total cost of this molecule in a bacterium is (2145)+(16+4)+16=326 ATP. From Akashi and Gojobori (2002), the cost of a serine is 10 ATP, so the total cost of a phosphatidylserine is 320 ATP, and because ethanolamine and choline are simple derivatives of serine, this closely approximates the costs of both phosphatidylethanolamine and phosphatidylcholine. The headgroup of phosphatidylinositol is inosital, which is derived from glucose-6-phosphate, diverting the latter from glycolysis and depriving the cell of the equivalent of 9 ATPs, so the total cost of production of this molecule is 319 ATP. As a first-order approximation, we will assume all of the above molecules to have a cost of 321 ATP when containing fully saturated fatty acids with chain length 16. Finally, cardiolipin is synthesized by the fusion of two phosphatidylglycerols and the release of one glycerol, so taking the return from the latter to be 15 ATP, the total cost per molecule produced is 637 ATP.

Estimation of absolute protein copy numbers per cell

Information on absolute protein copy numbers per cell was collected from publicly available proteomics measurements (Lu et al., 2007; Wiśniewski et al., 2012, 2014; Maass et al., 2011; Maier et al., 2011; Schmidt et al., 2011; Beck et al., 2009; Kulak et al., 2014; Ghaemmaghami et al., 2003; Marguerat et al., 2012; Schwanhäusser et al., 2011) as well as from ribosome profiling data (as described in Lynch and Marinov, 2015).

The number of protein complexes NPC was calculated as follows:

NPC,raw=pNp/sp|p|

where Np are the estimated per cell copy numbers for each subunit p with a stoichiometric ratio sp. Clear outliers (i.e., subunits with zero or near-zero counts) were removed from the calculation.

As proteomics measurements may not be absolutely reliable, the raw estimates NPC,raw were then further corrected where possible by taking advantage of the availability of direct counts of the number of ribosomes per cell:

NPC,corr=NPC,rawcR

where the ribosomal correction factor cR is determined as follows:

cR=NR,directNR,raw

where NR,raw refers to the estimated ribosome copy numbers derived as above, while NR,direct is obtained from direct measurements of ribosome copies per cell.

The composition of the E. coli FO-particle is 1a:2b:10–12c while that of the F1-particle is 3α:3β:1δ:1γ:1ϵ (Jonckheere et al., 2012; Capaldi et al., 2000), where the individual subunits are encoded by the following genes:

SubunitGene
aatpB
batpF
catpE
αatpA
βatpD
γatpG
δatpH
ϵatpC

The same composition and stoichiometry was also assumed for other prokaryotes.

The composition of the yeast F1-particle is 3α:3β:1δ:1γ:1ϵ:1OSCP (Jonckheere et al., 2012). The FO-particle has 10 copies of subunit 9 (equivalent to c), and one copy each of subunits 6 (equivalent to a), 8, 4 (equivalent to b), d, h, f, e, g, i and k, where the individual subunits are encoded by the following genes:

SubunitGene
αATP1
βATP2
γATP3
δATP16
ϵATP15
aMT-ATP6
4ATP4
9ATP9
8MT-ATP8
dATP7
eATP21
hATP14
fATP17
gATP20
iATP18
kATP19
OSCPATP5

The composition of the mammalian F1-particle is 3α:3β:1δ:1γ:1ϵ:1OSCP (Jonckheere et al., 2012). The FO-particle has 8 copies of subunit c, and one copy each of subunits a, 8, b, d, F6, f, e, and g, where the individual subunits are encoded by the following genes:

SubunitGene
αATP5A1
βATP5B
γATP5C1
δATP5D
ϵATP5E
aMT-ATP6
bATP5F1
cATP5G1
ATP5G2
ATP5G3
8MT-ATP8
dATP5H
eATP5I
F6ATP5J
fATP5J2
gATP5L
OSCPATP5O

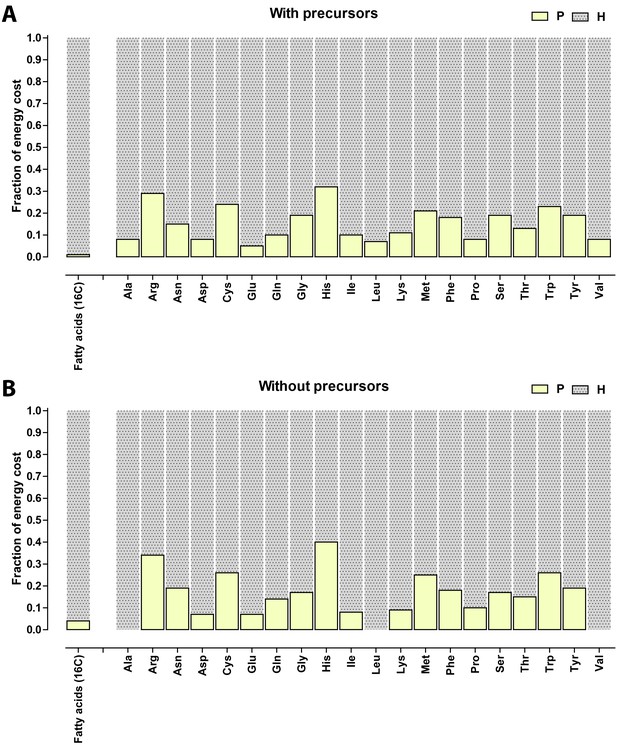

Appendix 1—figure 1
Relative contribution of ATP (P) and NADH/NADPH/FADH2 (H) to the biosynthetic costs of lipids and amino acids.

(A) Nonreduced costs including opportunity cost of precursors; (B) Reduced costs without precursors. Amino acid values are obtained from Akashi and Gojobori (2002), assuming growth on glucose.

https://doi.org/10.7554/eLife.20437.011
Appendix 1—table 1
Features of mitochondrial membranes.

Cell volumes are from Lynch and Marinov (2015), in some cases supplemented with additional references from the literature. V: cell volume (in μm3); SAC: cellular surface area (in μm2); SAMI: inner mitochondrial membrane surface area (in μm2); SAMI+MO: inner+outer mitochondrial membrane surface area (in μm2); MI/MO ratio between inner and outer mitochondrial membrane surface area

https://doi.org/10.7554/eLife.20437.012
SpeciesVSACSAMISAMI+MOMI/MOReferences
Unicellular eukaryotes
Exophiala dermatitidis43.8050.9573.98Biswas et al. (2003)
Candida albicans35.3696.1037.37Tanaka et al. (1985); Klis et al. (2014)
Saccharomyces cerevisiae69.0761.4215.83Uchida et al. (2011)
Tetrahymena pyriformis16666.003014.0512987.6083968.505.200Gleason et al. (1975); Poole (1983)
Trichoderma viride126.70122.01139.40Rosen et al. (1974)
Mammals
Cat, gracilis muscle2.323Schwerzmann et al. (1989)
Hamster, intestinal enterocyte1890.005772.002668.009351.003.256Buschmann and Manke (1981a, 1981b)
Human HeLa cells2798.671178.001424.74
Mouse heart7.020Kistler and Weber (1975)
Mouse liver3.540Kistler and Weber (1975)
Mouse lymphocyte50.6988.2720.43Al-Hamdani et al. (1979); Mayhew et al. (1979)
Mouse immunoblast392.98282.94143.52Al-Hamdani et al. (1979)
Mouse pancreas1434.00973.00779.00Dean (1973)
Pig pancreas cell1060.00581.90460.502698.504.860Bolender (1974)
Rat Leydig cell, testes1210.001517.001641.004561.001.779Mori and Christensen (1980)
Rat liver cell5100.001680.007651.6542615.564.718Weibel et al. (1969); Jakovcic et al. (1978)
Rat heart12.760Reith et al. (1973)
Rat L-8 skeletal muscle cell4.670Reith et al. (1973)
Land plants and algae
Arabidopsis thaliana, cotyledon5237.751307.00
Chlamydomonas reinhardtii128.38129.6066.82Calvayrac et al. (1974); Hayashi and Ueda (1989)
Chlorella fusca102.00111.4048.40Atkinson et al. (1974); Forde et al. (1976)
Dunaliella salina590.80322.5087.40Maeda and Thompson (1986)
Medicago sativa, meristem166.90221.5016.00Zhu et al. (1991)
Ochromonas danica2.450Smith-Johannsen and Gibbs, 1972
Ostreococcus tauri0.918.300.70Henderson et al. (2007)
Polytoma papillatum862.54471.43778.64Gaffal et al. (1982)
Rhus toxicodendron1222.001288.502.545Vassilyev (2000)
Appendix 1—table 2
Estimated abundance of ATP synthase complexes in species with quantitative proteomics data.

ATP synthase surface area assumed to be maximum associated with the inner ring, 6.4 × 10−5 m2 for bacteria, 1.1 × 10−4 for eukaryotes. V: cell volume (in μm3); SAC: cellular surface area (in μm2); NPC,raw: raw protein complex copy number estimates; NPC,corr: corrected protein complex copy number estimates; cR: correction factor; PD: packing density (copies/μm2); fSA: fraction of SA: cell division time (hours); CG, CM, CT: costs of building a cell per in 109 ATP equivalents; CG: growth; CM: maintenance (per hours); CT: total; Rmax and Rred: maximum (all ATP equivalents) and reduced (without ATP equivalents expended in the form of NADH/NADPH/FADH2) required rate of ATP synthesis (per complex per second) to satisfy lifetime energy requirements.

https://doi.org/10.7554/eLife.20437.013
F0F 1 copies per cell
SpeciesVSACNPC,rawNPC,corrcRPDfSAtCGCMCTRmaxRredReferences
Prokaryotes
Bacillus subtilis1.40710.69243516020.661500.0101.1692.511.1693.85140622109Jeong et al. (1990); Weart et al. (2007); Sharpe et al. (1998)
Escherichia coli0.98310.85105630182.862780.0180.9915.650.2115.861475221Young (2006); Milo and Phillips, 2016
Leptospira interrogans0.2205.7211871344NA2350.015Beck et al. (2009)
Mycoplasma pneumoniae0.0331.321171311.12990.00663.740.920.053.8712919Zucker-Franklin et al. (1996a), 1996b
Staphylococcus aureus0.2884.00447NANA1120.007Kehle and Herzog (1989)
Fungi
Saccharomyces cerevisiae (hap)37.94064.4215659291261.864520.0502.502468.2018.792515.1595981440
Schizosaccharomyces pombe118.000116.3865363701291.076030.0664.312347.808.702385.292193329
Mammals
Homo sapiens , HeLa cell2798.6681178.0012843767372700.576260.068Borle (1969a, 1969b)
Mus musculus , fibroblast NIH3T31765.0002100.001255254NANA5980.066Schwanhäusser et al. (2011)
Appendix 1—table 3
Estimated numbers of ribosomes per cell.

Direct estimates taken from microscopic examinations; proteomic estimates are from averaging of cell-specific estimates for each ribosomal protein subunit. V: cell volume (in μm3); NR,direct: directly estimated copies per cell; NR,raw: estimated copies per cell based on proteomics studies. See Figure 2—source data 1 for further details.

https://doi.org/10.7554/eLife.20437.014
SpeciesVNR,directNR,rawReferences
Bacteria
Bacillus subtilis1.446000Barrera and Pan (2004)
9124Maass et al. (2011)
Escherichia coli0.9372,000Bremer and Dennis (1996)
45,100Fegatella et al. (1998)
26,300Fegatella et al. (1998)
13,500Fegatella et al. (1998)
6800Fegatella et al. (1998)
55,000Bakshi et al. (2012)
20,100
12,000Arfvidsson and Wahlund (2003)
6514Wiśniewski et al. (2014)
17,979Lu et al. (2007)
Legionella pneumophila0.587400Leskelä et al. (2005)
Leptospira interrogans0.224500Beck et al. (2009)
3745Schmidt et al. (2011)
Mycoplasma pneumonii0.05140Yus et al. (2009)
300Seybert et al. (2006)
140Kühner et al. (2009)
255Maier et al. (2011)
Mycobacterium tuberculosis0.211672Yamada et al. (2015)
Rickettsia prowazekii0.091500Pang and Winkler (1994)
Sphingopyxis alaskensis0.071850Fegatella et al. (1998)
200Fegatella et al. (1998)
Spiroplasma melliferum0.02275Ortiz et al. (2006)
Staphylococcus aureus0.3154,400Martin and Iandolo (1975)
Vibrio angustum27,500Flärdh et al. (1992)
8000Flärdh et al. (1992)
Archaea
ARMANundescribed0.0392Comolli et al. (2009)
Eukaryotes
Exophiala dermatitidis44195,000Biswas et al. (2003)
Saccharomyces cerevisiaehaploid68200,000Warner (1999)
220,000Yamaguchi et al. (2011)
134,438Kulak et al. (2014)
74,800Ghaemmaghami et al. (2003)
Schizosaccharomyces pombe133150,000Marguerat et al. (2012)
500,000Maclean (1965)
356,180Kulak et al. (2014)
101,099Marguerat et al. (2012)
Tetrahymena pyriformis1458888,900,000Hallberg and Bruns (1976)
Tetrahymena thermophila1274274,000,000Calzone et al. (1983)
Chlamydomonas reinhardtiicytoplasm139120,500Bourque et al. (1971)
chloroplast55,000
Ostreococcus tauri0.911250Henderson et al. (2007)
Adonis aestivalisvegetative238047,700,000Lin and Gifford (1976)
transitional228739,066,666
floral269023,933,333
Glycine max SB-1 cell9,373,333Jackson and Lark (1982)
Rhus toxicodendron12222,400,000Vassilyev (2000)
Zea mays root cell240,00025,500,000Hsiao and (1970)
Hamster, intestinal enterocyte18901,500,000Buschmann and Manke (1981a, 1981b)
HeLa cell28003,150,000Duncan and Hershey (1983)
Zhao et al. (2008)
4,631,143Kulak et al. (2014)
Mouse pancreas14341,340,000Dean (1973)
Rat liver cell494012,700,000Weibel et al. (1969)
Appendix 1—table 4
Costs of lipids.

The average cost per molecule is calculated for a variety of species using estimates of lipid compositions from the literature and the formulas described in the text. The fraction of fatty acids of given length and saturation level is not shown. Cardiolipin costs are assumed to be 637 (evolutionary) and 236 (reduced) ATP. The cost for molecules in the ‘other’ category is assumed to be the average of glycerophospholipids (GPL) in the species and cardiolipin.

https://doi.org/10.7554/eLife.20437.015
GPL costCompositionMean cost
SpeciesMembraneTot.Red.GPLCardiolipinOtherTot.Red.References
Escherichia coliWhole cell3671150.9260.0600.015385124Haest et al. (1969); Rietveld et al. (1993); Raetz et al. (1979)
Bacillus subtilisWhole cell3081020.8180.1830.000368127Bishop et al. (1967); López et al. (1998)
Caulobacter crescentusWhole cell3401110.7760.1050.119389132Contreras et al. (1978); Chow and Schmidt (1974)
Staphylococcus aureusWhole cell3231050.9310.0700.000345114Haest et al. (1972); Mishra and Bayer (2013)
Zymomonas mobilisWhole cell3701180.9900.0100.000373119Carey and Ingram (1983)
372123mean
83SE
Candida albicansWhole cell3381230.9340.0660.000358131Goyal and Khuller (1992); Singh et al. (2010)
Chlamydomonas reinhardtiiWhole cell3901400.9350.0650.000406146Janero and Barrnett (1981); Giroud et al. (1988); Tatsuzawa et al. (1996)
Debaryomyces hanseniiWhole cell4081410.9130.0870.000428150Kaneko et al. (1976)
Dictyostelium discoideumWhole cell4001410.9650.0140.000395139Davidoff and Korn (1963); Ellingson (1974); Weeks and Herring (1980); Paquet et al. (2013)
Paramecium tetraureliaWhole cell4151460.9960.0040.000415146
Pichia pastorisWhole cell4121440.9750.0250.000418147Klug et al. (2014)
Saccharomyces cerevisiaeWhole cell3721330.9530.0470.000385138Longley et al. (1968); Kaneko et al. (1976); Sharma (2006); Klis et al. (2014)
Schizosaccharomyces pombeWhole cell4111420.9450.0550.000424147Koukou et al. (1990)
403143mean
82SE
Debaryomyces hanseniiPlasma membrane3981370.9130.0870.000418146Kaneko et al. (1976); Turk et al. (2007)
Dictyostelium discoideumPlasma membrane4141450.9800.0200.000418147Weeks and Herring (1980)
Dunaliella salinaPlasma membrane3781371.0000.0000.000378137Peeler et al. (1989); Azachi et al. (2002)
Mus musculus , thymocytesPlasma membrane4091420.9210.0000.079418145Van Blitterswijk et al. (1982)
Saccharomyces cerevisiaePlasma membrane3581290.9490.0350.026375135Longley et al. (1968); Zinser et al. (1991); Swan and Watson (1997); Tuller et al. (1999); Blagović et al. (2005)
Schizosaccharomyces pombePlasma membrane4111420.8560.0520.092433151Koukou et al. (1990)
Vigna radiata , seedlingPlasma membrane4021411.0000.0000.000402141Yoshida and Uemura (1986)
406143mean
82SE
Candida albicansMitochondrion3441250.7100.1640.126411150Goyal and Khuller (1992)
Danio rerio , whole fishMitochondrion4721620.8540.1040.042492172Almaida-Pagán et al. (2014)
Pichia pastorisMitochondrion4211450.9440.0540.002433150Wriessnegger et al. (2009); Klug et al. (2014)
Rattus norwegicus , liverMitochondrion4451540.8380.1480.024480169Tahin et al. (1981); Colbeau et al. (1971)
Saccharomyces cerevisiaeMitochondrion3121160.8970.0970.006345128Tuller et al. (1999); Zinser et al. (1991); Blagović et al. (2005)
Serripes groenlandicus , gillMitochondrion4281470.9720.0280.000434150Gillis and Ballantyne (1999)
Sus scrofa , heartMitochondrion4091430.7970.1860.017453161Comte et al. (1976)
Tetrahymena pyriformisMitochondrion4021440.8120.1310.057439159Gleason (1976); Nozawa (2011)
436155mean
165SE

References

  1. 1
  2. 2
  3. 3
  4. 4
    Levels and rates of synthesis of ribosomal ribonucleic acid, transfer ribonucleic acid, and protein in neurospora crassa in different steady states of growth
    1. FA Alberghina
    2. E Sturani
    3. JR Gohlke
    (1975)
    The Journal of Biological Chemistry 250:4381–4388.
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
    Cellular content of ribonucleic acid and protein in Saccharomyces cerevisiae as a function of exponential growth rate: calculation of the apparent peptide chain elongation rate
    1. KW Boehlke
    2. JD Friesen
    (1975)
    Journal of Bacteriology 121:429–433.
  18. 18
  19. 19
  20. 20
  21. 21
    Studies on the structure and cellular location of various ribosome and ribosomal RNA species in the green alga Chlamydomonas reinhardi
    1. DP Bourque
    2. JE Boynton
    3. NW Gillham
    (1971)
    Journal of Cell Science 8:153–183.
  22. 22
    Escherichia Coli and Salmonella Typhimurium: Cellular and Molecular Biology, Vol. 97
    1. H Bremer
    2. PP Dennis
    (1996)
    1559, Modulation of chemical composition and other parameters of the cell by growth rate, Escherichia Coli and Salmonella Typhimurium: Cellular and Molecular Biology, Vol. 97, 2nd edn.
  23. 23
    Effects of temperature on composition and cell volume of Candida utilis
    1. CM Brown
    2. AH Rose
    (1969)
    Journal of Bacteriology 97:261–270.
  24. 24
  25. 25
  26. 26
  27. 27
    Regulation of protein synthesis in Tetrahymena. Quantitative estimates of the parameters determining the rates of protein synthesis in growing, starved, and starved-deciliated cells
    1. FJ Calzone
    2. RC Angerer
    3. MA Gorovsky
    (1983)
    The Journal of Biological Chemistry 258:6887–6898.
  28. 28
  29. 29
    Cross-linking and electron microscopy studies of the structure and functioning of the Escherichia coli ATP synthase
    1. RA Capaldi
    2. B Schulenberg
    3. J Murray
    4. R Aggeler
    (2000)
    The Journal of Experimental Biology 203:29–33.
  30. 30
    Lipid composition of Zymomonas mobilis: effects of ethanol and glucose
    1. VC Carey
    2. LO Ingram
    (1983)
    Journal of Bacteriology 154:1291–1300.
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
    Membrane phospholipid composition of Caulobacter crescentus
    1. I Contreras
    2. L Shapiro
    3. S Henry
    (1978)
    Journal of Bacteriology 135:1130–1136.
  36. 36
    Fatty acid and phospholipid composition of the cellular slime mold, Dictyostelium discoideum. The occurance of previously undescribed fatty acids
    1. F Davidoff
    2. ED Korn
    (1963)
    The Journal of Biological Chemistry 238:3199–3209.
  37. 37
  38. 38
    Macromolecular composition during steady-state growth of Escherichia coli B-r
    1. PP Dennis
    2. H Bremer
    (1974)
    Journal of Bacteriology 119:270–281.
  39. 39
  40. 40
    Identification and quantitation of levels of protein synthesis initiation factors in crude HeLa cell lysates by two-dimensional polyacrylamide gel electrophoresis
    1. R Duncan
    2. JW Hershey
    (1983)
    The Journal of Biological Chemistry 258:7228–7235.
  41. 41
  42. 42
  43. 43
    Implications of rRNA operon copy number and ribosome content in the marine oligotrophic ultramicrobacterium Sphingomonas sp. strain RB2256
    1. F Fegatella
    2. J Lim
    3. S Kjelleberg
    4. R Cavicchioli
    (1998)
    Applied and Environmental Microbiology 64:4433–4438.
  44. 44
  45. 45
    Preservation of duplicate genes by complementary, degenerative mutations
    1. A Force
    2. M Lynch
    3. FB Pickett
    4. A Amores
    5. YL Yan
    6. J Postlethwait
    (1999)
    Genetics 151:1531–1545.
  46. 46
    Synthesis of the inner mitochondrial membrane and the intercalation of respiratory enzymes during the cell cycle of Chlorella
    1. BG Forde
    2. BE Gunning
    3. PC John
    (1976)
    Journal of Cell Science 21:329–340.
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
    Fatty acids of mitochondrial membranes from Tetrahymena pyriformis
    1. FK Gleason
    (1976)
    Journal of Lipid Research 17:16–20.
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
    The shape of mitochondria and the number of mitochondrial nucleoids during the cell cycle of Euglena gracilis
    1. Y Hayashi
    2. K Ueda
    (1989)
    Journal of Cell Science 93:565–570.
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
    Cellular and thylakoid-membrane phospholipids of Chlamydomonas reinhardtii 137+
    1. DR Janero
    2. R Barrnett
    (1981)
    Journal of Lipid Research 22:1126–1130.
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
    A colloidal gold labeling technique for the direct determination of the surface area of eukaryotic cells
    1. T Kehle
    2. V Herzog
    (1989)
    European Journal of Cell Biology 48:19–26.
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
    Power, Sex, Suicide: Mitochondria and the Meaning of Life
    1. N Lane
    (2002)
    Oxford, UK: Oxford Univ. Press.
  86. 86
    The Vital Question
    1. N Lane
    (2015)
     New York, NY: W. W. Norton & Co., Inc.
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92
  93. 93
  94. 94
    The probability of preservation of a newly arisen gene duplicate
    1. M Lynch
    2. M O'Hely
    3. B Walsh
    4. A Force
    (2001)
    Genetics 159:1789–1804.
  95. 95
    The Origins of Genome Architecture
    1. M Lynch
    (2007)
    Sunderland, MA:  Sinauer Assocs., Inc.
  96. 96
  97. 97
  98. 98
  99. 99
  100. 100
  101. 101
  102. 102
    Translational control of protein synthesis in Staphylococcus aureus
    1. SE Martin
    2. JJ Iandolo
    (1975)
    Journal of Bacteriology 122:1136–1143.
  103. 103
  104. 104
  105. 105
  106. 106
  107. 107
    Cell Biology by the Numbers
    1. R Milo
    2. R Phillips
    (2016)
    New York, NY: Garland Science, Taylor & Francis Group.
  108. 108
  109. 109
  110. 110
  111. 111
  112. 112
  113. 113
  114. 114
  115. 115
  116. 116
  117. 117
  118. 118
  119. 119
  120. 120
    Mitochondria of Tetrahymena pyriformis: enumeration and sizing of isolated organelles using a coulter counter and pulse-height analyser
    1. RK Poole
    (1983)
    Journal of Cell Science 61:437–451.
  121. 121
    Effect of growth rate on the macromolecular composition of Prototheca zopfii, a colorless alga which divides by multiple fission
    1. RO Poyton
    (1973)
    Journal of Bacteriology 113:203–211.
  122. 122
  123. 123
    Cardiolipin accumulation in the inner and outer membranes of Escherichia coli mutants defective in phosphatidylserine synthetase
    1. CR Raetz
    2. GD Kantor
    3. M Nishijima
    4. KF Newman
    (1979)
    Journal of Bacteriology 139:544–551.
  124. 124
    The inner membrane of mitochondria under influence of triiodothyronine and riboflavin deficiency in rat heart muscle and liver: a quantitative electronmicroscopical and biochemical study
    1. A Reith
    2. D Brdiczka
    3. J Nolte
    4. HW Staudte
    (1973)
    Experimental Cell Research 77:1–14.
  125. 125
    Polymorphic regulation of membrane phospholipid composition in Escherichia coli
    1. AG Rietveld
    2. JA Killian
    3. W Dowhan
    4. B de Kruijff
    (1993)
    The Journal of Biological Chemistry 268:12427–12433.
  126. 126
  127. 127
  128. 128
  129. 129
  130. 130
  131. 131
  132. 132
  133. 133
  134. 134
  135. 135
    Bacillus subtilis cell cycle as studied by fluorescence microscopy: constancy of cell length at initiation of DNA replication and evidence for active nucleoid partitioning
    1. ME Sharpe
    2. PM Hauser
    3. RG Sharpe
    4. J Errington
    (1998)
    Journal of Bacteriology 180:547–555.
  136. 136
  137. 137
  138. 138
  139. 139
  140. 140
  141. 141
  142. 142
    Three-dimensional behaviour of mitochondria during cell division and germ tube formation in the dimorphic yeast Candida albicans
    1. K Tanaka
    2. T Kanbe
    3. T Kuroiwa
    (1985)
    Journal of Cell Science 73:207–220.
  143. 143
  144. 144
  145. 145
  146. 146
  147. 147
  148. 148
  149. 149
  150. 150
  151. 151
  152. 152
  153. 153
    Effect of growth rate on the amounts of ribosomal and transfer ribonucleic acids in yeast
    1. C Waldron
    2. F Lacroute
    (1975)
    Journal of Bacteriology 122:855–865.
  154. 154
  155. 155
  156. 156
    The lipid composition and membrane fluidity of Dictyostelium discoideum plasma membranes at various stages during differentiation
    1. G Weeks
    2. FG Herring
    (1980)
    Journal of Lipid Research 21:681–686.
  157. 157
  158. 158
  159. 159
  160. 160
  161. 161
  162. 162
  163. 163
  164. 164
  165. 165
    The selective value of bacterial shape
    1. KD Young
    (2006)
    Microbiology and Molecular Biology Reviews 70:660–703.
    https://doi.org/10.1128/MMBR.00001-06
  166. 166
  167. 167
  168. 168
  169. 169
  170. 170
  171. 171

Decision letter

  1. Paul G Falkowski
    Reviewing Editor; Rutgers University, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Membranes, Energetics, and Evolution Across the Prokaryote-Eukaryote Divide" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by Paul Falkowski as the Reviewing Editor and Patricia Wittkopp as the Senior Editor. The following individual involved in review of your submission has agreed to reveal his identity: Ron Milo (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary: Both reviewers identified many strengths of this work, but also have identified additional elements to consider. I hope you find their detailed and constructive reviews helpful. We anticipate that this work will be an important contribution to the field that will spark additional discussion and debate.

Essential revisions: Both reviewers have provided detailed reviews of this manuscript, and we believe that considering all of their comments will be beneficial in this case. These comments are provided in their entirety below. The most essential comment from the reviewers that must be addressed is: The "possibility that protein packing density in the membranes under consideration is a fundamental limitation needs to be taken into account."

Reviewer #1:

This is an interesting analysis of the relative bioenergetic characteristics in the growth of prokaryotic and eukaryotic cells. The article addresses the basic conjecture, that the evolution of the eukaryotic type, specifically the development of mitochondrial systems, endowed the eukaryotes with energetic advantages over the prokaryotic cellular organization. The authors are challenging this often-made, yet largely unsubstantiated, assumption that the presence of mitochondria in eukaryotes confers a large bioenergetic advantage owing to a corresponding increase in internal membrane surface area due to the presence of the mitochondrial inner membrane. To address this question, the authors perform an analysis based upon previous scaling relationships they have developed between quantities such as the volume of a cell and the rates of ATP consumption and combined these with a new analysis that includes protein and lipid abundances combined with estimations, from the literature, of their costs as expressed in terms of ATP equivalents.

The authors note that the energetics of the cell can be divided into maintenance costs and the costs of duplicating the parental cell and their analysis goes on from there. Basically, they are concluding that if there ever was an energetic advantage (e.g. on a cell volume basis), then it no longer exists and that the eukaryotic cell type does not confer energetic advantages. Overall, I think the article is sound, albeit, it is difficult for this reviewer to critically assess the validity of their calculations, which on the surface seems sound. On the other hand, the article is written in a with the tenor of a polemic and is a bit rambling. Consequently, I believe it needs to be considerably shortened (25%).

1) Subsection “The energetic costs of building and maintaining a cell”, second paragraph: authors should cite Daniel Atkinson on the biosynthetic costs.

2)Subsection “The energetic costs of building and maintaining a cell”, last paragraph: A relatively simple scaling relationship for bacterial growth may apply for certain species, but it needs to be pointed out that at either end of the range in size there are slowdowns in growth rate, with certain larger bacteria, for example, having more protracted cell division times.

3) The possibility that protein packing density in the membranes under consideration is a fundamental limitation needs to be taken into account. My recollection is that many membrane systems are at least 50% protein by weight. It may be true that the bioenergetic machinery responsible for ATP production only occupies several percent of the total area, but this may be the upper limit for the bioenergetic system reflecting and optimal allocation of different protein functions, such as transporters, also necessary for metabolism. Presumably, the other mitochondrial components especially are present in an optimal stoichiometric ratio with respect to the ATP synthase and may indeed occupy much more of the membrane area. For example, if the ATP synthase has an intrinsically higher enzymatic turnover frequency than the enzymes powering the generation of proton motive force, then it's amount can be comparatively small on a stoichiometric basis and the other membrane complexes may occupy a large fraction of the membrane surface.

Reviewer #2:

The authors revisit the hypothesis that the mitochondria were essential for the development of eukaryotic complexity for energetic reasons. The authors thoroughly analyze the ATP and other investments as performed by current eukaryotic cells and compare them to prokaryotes. They use empirical scaling laws to see if the observed changes are more than one would expect from simple scaling with cell volume. They find no strong evidence for a significant energetic benefit from mitochondria which leads them to cast doubt on high profile earlier reports.

I find the study scientifically sound and interesting. I have suggestions for improvement in terms of clarity and accuracy as given below.

Main text, third paragraph: "This implies that the mitochondrion-host cell consortium that became the primordial eukaryote did not precipitate a bioenergetics revolution."

In order to say it did not cause a bioenergetics revolution I need to have a definition of what is the definition such a revolution in as rigorous terms as possible. Either by the authors or by them repeating in detail a definition from previous authors.

Throughout the paper the scaling laws have no uncertainty ranges on their parameter values. This makes it hard to understand how predictive they are and should be corrected.

Subsection “The energetic costs of building and maintaining a cell”, fourth paragraph: "that a shift of bioenergetics from the cell membrane in prokaryotes to the mitochondria of eukaryotes conferred no directly favorable energetic effects. In fact, the effect appears to be negative."

One could claim that because prokaryotic ATP production is associated with the cell membrane and it scales like the surface area an exponent of 1 with cell volume is not what one would expect (but rather 2/3) and the evidence supporting an approx ~1 exponent suggests there is some favorable energetic effect. I am not saying this is proof of such an effect but I think this point should be acknowledged/discussed.

Subsection “Energy production and the mitochondrion”, last sentence: "and that the corresponding hypothetical packing density for eukaryotes would be 30% (if in the cell membrane)."

The authors do not seem to reflect more on this value they derive but it seems like a very high value to me. Given that packing of equally sized circles on a sphere cannot achieve more than I think about 60% usage of the sphere area this is not far from the maximal possible and this is before considering all the other protein machines needed in the membrane real estate or the requirements for lipids.

Subsection “The biosynthetic cost of lipids”: "and Escherichia coli (… 0.98 μm3, respectively)"

The volume of an E. coli cell can easily change by a factor of 5 depending on growth rate so giving the volume as 0.98 μm3 without stating anything about growth conditions is odd. Better state as ~1 μm3 or the like.

Discussion, fifth paragraph: "because the end state is slightly deleterious owing to the additional investment required to carry out individual tasks (Lynch et al. 2001)."

I found it hard to follow the logic here and I think other readers might have this problem. It is worth explaining in a bit more detail what is meant.

Discussion, last paragraph: "It is plausible, that phagocytosis was a late-comer in this series of events, made possible only after the movement of membrane bioenergetics to the mitochondrion, which would have eliminated the disruptive effects of surface membrane ingestion on the ETC and ATP synthase."

I did not understand the connection here. Please clarify.

https://doi.org/10.7554/eLife.20437.016

Author response

Essential revisions: Both reviewers have provided detailed reviews of this manuscript, and we believe that considering all of their comments will be beneficial in this case. These comments are provided in their entirety below. The most essential comment from the reviewers that must be addressed is: The "possibility that protein packing density in the membranes under consideration is a fundamental limitation needs to be taken into account."

Reviewer #1:

[…] 1) Subsection “The energetic costs of building and maintaining a cell”, second paragraph: authors should cite Daniel Atkinson on the biosynthetic costs.

Thank you for pointing this out; done. Fully admit to not having read this before, and it is remarkable how similar his results are to those of Akashi and Gojobori. Although he did not deal with lipids to any great extent, the little he did seems to be compatible with our calculations, so that is gratifying as well.

2)Subsection “The energetic costs of building and maintaining a cell”, last paragraph: A relatively simple scaling relationship for bacterial growth may apply for certain species, but it needs to be pointed out that at either end of the range in size there are slowdowns in growth rate, with certain larger bacteria, for example, having more protracted cell division times.

Our point is already that there is a slowdown in the growth rate of bacterial cells at the low end of the size range. We are less clear as to what species the reviewer is referring to at the large end, as we attempted to perform as thorough and as unbiased a survey as possible; we have emphasized that there if a broad range around the general pattern.

3) The possibility that protein packing density in the membranes under consideration is a fundamental limitation needs to be taken into account. My recollection is that many membrane systems are at least 50% protein by weight. It may be true that the bioenergetic machinery responsible for ATP production only occupies several percent of the total area, but this may be the upper limit for the bioenergetic system reflecting and optimal allocation of different protein functions, such as transporters, also necessary for metabolism. Presumably, the other mitochondrial components especially are present in an optimal stoichiometric ratio with respect to the ATP synthase and may indeed occupy much more of the membrane area. For example, if the ATP synthase has an intrinsically higher enzymatic turnover frequency than the enzymes powering the generation of proton motive force, then it's amount can be comparatively small on a stoichiometric basis and the other membrane complexes may occupy a large fraction of the membrane surface.

As noted below, in response to the second review, we have acknowledged the uncertainties in this area, but also note that protein packing issues will also apply to internal mitochondrial membranes (and perhaps even more so, owing to the need for proteins involved in the maintenance membrane folding). Thus, because there is not a dramatic increase in mitochondrial membrane area relative to that of the cell surface, the packing uncertainty does not seem to weaken our general conclusion that eukaryotes have not experienced a major increase in bioenergetics capacity relative to prokaryotes. Moreover, our goal throughout the paper has been to bring as many additional and independent lines of evidence to bear on this conclusion as possible – the smooth scaling of bioenergetics growth and maintenance requirements across the prokaryotic-eukaryotic divide, as well as the scaling of numbers of ATP synthase complexes and ribosomes, all support our general conclusion; and the substantial additional costs of building internal membranes in eukaryotic cells does as well.

Reviewer #2:

[…] The authors revisit the hypothesis that the mitochondria were essential for the development of eukaryotic complexity for energetic reasons. The authors thoroughly analyze the ATP and other investments as performed by current eukaryotic cells and compare them to prokaryotes. They use empirical scaling laws to see if the observed changes are more than one would expect from simple scaling with cell volume. They find no strong evidence for a significant energetic benefit from mitochondria which leads them to cast doubt on high profile earlier reports.

I find the study scientifically sound and interesting. I have suggestions for improvement in terms of clarity and accuracy as given below.

Main text, third paragraph: "This implies that the mitochondrion-host cell consortium that became the primordial eukaryote did not precipitate a bioenergetics revolution."

In order to say it did not cause a bioenergetics revolution I need to have a definition of what is the definition such a revolution in as rigorous terms as possible. Either by the authors or by them repeating in detail a definition from previous authors.

We sympathize with the reviewer’s request for more rigor here. The statements we have made are based on many made the Lane books, and also paraphrase the claims in the Lane and Martin paper. One could argue that these statements are a bit overstated and not based on any quantitative analysis, so is difficult to state them as formal hypotheses, but I think that we have come close to a representation in the first sentence in the section on “energy production in the mitochondrion”. Given the quotes we provide from the Lane and Martin paper below, it seems unlikely that any reader would find that we are overstating the claims being made. (The source of their repeated statements about a 200,000-fold expansion in genes and genome size eludes us, and makes no sense):

“The endosymbiosis that gave rise to mitochondria restructured the distribution of DNA in relation to bioenergetic membranes, permitting a remarkable 200,000-fold expansion in the number of genes expressed. This vast leap in genomic capacity was strictly dependent on mitochondrial power, and prerequisite to eukaryote complexity: the key innovation en route to multicellular life.”

“By enabling oxidative phosphorylation across a wide area of internal membranes, mitochondrial genes enabled a roughly 200,000-fold rise in genome size compared with bacteria. ……. Mitochondria increased the number of proteins that a cell can evolve, inherit and express by four to six orders of magnitude, but this requires mitochondrial DNA.”

“For four billion years bacteria have remained in a local minimum in the complexity fitness landscape, a deep canyon bounded on all sides by steep energetic constraints. The possession of mitochondria enabled eukaryotes to tunnel through this mountainous energetic barrier. Mitochondria allowed their host to evolve, explore and express 200,000-fold more genes with no energetic penalty.”

“Without mitochondria, prokaryotes – even giant polyploids – cannot pay the energetic price of complexity; …… The conversion from endosymbiont to mitochondrion provided a freely expandable surface area of internal bioenergetic membranes, serviced by thousands of tiny specialized genomes that permitted their host to evolve, explore and express massive numbers of new proteins in combinations and at levels energetically unattainable for its prokaryotic contemporaries. If evolution works like a tinkerer, evolution with mitochondria works like a corps of engineers.”

Throughout the paper the scaling laws have no uncertainty ranges on their parameter values. This makes it hard to understand how predictive they are and should be corrected.

These were given in our prior publication, and are now repeated here.

Subsection “The energetic costs of building and maintaining a cell”, fourth paragraph: "that a shift of bioenergetics from the cell membrane in prokaryotes to the mitochondria of eukaryotes conferred no directly favorable energetic effects. In fact, the effect appears to be negative."

One could claim that because prokaryotic ATP production is associated with the cell membrane and it scales like the surface area an exponent of 1 with cell volume is not what one would expect (but rather 2/3) and the evidence supporting an approx ~1 exponent suggests there is some favorable energetic effect. I am not saying this is proof of such an effect but I think this point should be acknowledged/discussed.

This is a good point that we had not made clear enough, so we now have added a sentence to this paragraph to make the SA:V expectation explicit.

Subsection “Energy production and the mitochondrion”, last sentence: "and that the corresponding hypothetical packing density for eukaryotes would be 30% (if in the cell membrane)."

The authors do not seem to reflect more on this value they derive but it seems like a very high value to me. Given that packing of equally sized circles on a sphere cannot achieve more than I think about 60% usage of the sphere area this is not far from the maximal possible and this is before considering all the other protein machines needed in the membrane real estate or the requirements for lipids.

These are good points, and we now make a statement just before “the biosynthetic cost…” section to this effect. We do not think that these uncertainties upset our general conclusions, as the more general and compelling evidence derives from the absolute surface areas of the cell vs. mitochondrial membranes, both of which will be subject to the same packing problems (and as noted, perhaps more in mitochondria).

“There are a number of uncertainties in these packing-density estimates, and more direct estimates are desirable. The optimum and maximum-possible packing densities for ATP synthase also remain unclear. Nonetheless, the fact remains that any packing problems that exist for the cell membrane are also relevant to mitochondrial membranes, which have additional protein components (such as those involved in internal-membrane folding).”

Subsection “The biosynthetic cost of lipids”: "and Escherichia coli (… 0.98 μm3, respectively)"

The volume of an E. coli cell can easily change by a factor of 5 depending on growth rate so giving the volume as 0.98 μm3 without stating anything about growth conditions is odd. Better state as ~1 μm3 or the like.

In general, we have reduced the numbers of digits used throughout, with no resultant changes in the conclusions.

Discussion, fifth paragraph: "because the end state is slightly deleterious owing to the additional investment required to carry out individual tasks (Lynch et al. 2001)."

I found it hard to follow the logic here and I think other readers might have this problem. It is worth explaining in a bit more detail what is meant.

This has been reworded in a way that is hopefully now clearer.

Discussion, last paragraph: "It is plausible, that phagocytosis was a late-comer in this series of events, made possible only after the movement of membrane bioenergetics to the mitochondrion, which would have eliminated the disruptive effects of surface membrane ingestion on the ETC and ATP synthase."

I did not understand the connection here. Please clarify.

We have tried to word this in a clearer way – the basic issue is that a cell would have a difficult time maintaining cell-membrane bioenergetics if the membrane and its resident ATP synthases was constantly being ingested.

https://doi.org/10.7554/eLife.20437.017

Article and author information

Author details

  1. Michael Lynch

    Department of Biology, Indiana University, Bloomington, United States
    Contribution
    Conceptualization, Data curation, Funding acquisition, Validation, Investigation, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    milynch@indiana.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1653-0642
  2. Georgi K Marinov

    Department of Biology, Indiana University, Bloomington, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Writing—original draft
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1822-7273

Funding

National Science Foundation (MCB-1050161)

  • Michael Lynch
  • Georgi K Marinov

National Institute of General Medical Sciences (R01-GM036827)

  • Michael Lynch
  • Georgi K Marinov

US Army Research Office

  • Michael Lynch

US Army Research Office (W911NF-14-1-0411)

  • Michael Lynch

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

Support was provided by the Multidisciplinary University Research Initiative awards W911NF-09-1-0444 and W911NF-14-1-0411 from the US Army Research Office, National Institutes of Health award R01-GM036827, and National Science Foundation award MCB-1050161. This material is also based upon work supported by the National Science Foundation grant CNS-0521433. We are grateful to J Dacks, D Devos, J McKinlay, J Murray, and R Phillips for helpful comments.

Reviewing Editor

  1. Paul G Falkowski, Rutgers University, United States

Publication history

  1. Received: August 7, 2016
  2. Accepted: January 17, 2017
  3. Version of Record published: March 16, 2017 (version 1)
  4. Version of Record updated: July 5, 2018 (version 2)

Copyright

© 2017, Lynch et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,488
    Page views
  • 489
    Downloads
  • 15
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Evolutionary Biology
    2. Plant Biology
    David Winship Taylor, Hongqi Li
    Insight
