Abstract

The evolution of the eukaryotic cell marked a profound moment in Earth’s history, with most of the visible biota coming to rely on intracellular membrane-bound organelles. It has been suggested that this evolutionary transition was critically dependent on the movement of ATP synthesis from the cell surface to mitochondrial membranes and the resultant boost to the energetic capacity of eukaryotic cells. However, contrary to this hypothesis, numerous lines of evidence suggest that eukaryotes are no more bioenergetically efficient than prokaryotes. Thus, although the origin of the mitochondrion was a key event in evolutionary history, there is no reason to think membrane bioenergetics played a direct, causal role in the transition from prokaryotes to eukaryotes and the subsequent explosive diversification of cellular and organismal complexity.

https://doi.org/10.7554/eLife.20437.001

eLife digest

Over time, life on Earth has evolved into three large groups: archaea, bacteria, and eukaryotes. The most familiar forms of life – such as fungi, plants and animals – all belong to the eukaryotes. Bacteria and archaea are simpler, single-celled organisms and are collectively referred to as prokaryotes.

The hallmark feature that distinguishes eukaryotes from prokaryotes is that eukaryotic cells contain compartments called organelles that are surrounded by membranes. Each organelle supports different activities in the cell. Mitochondria, for example, are organelles that provide eukaryotes with most of their energy by producing energy-rich molecules called ATP. Prokaryotes lack mitochondria and instead produce their ATP on their cell surface membrane.

Some researchers have suggested that mitochondria might actually be one of the reasons that eukaryotic cells are typically larger than prokaryotes and more varied in their shape and structure. The thinking is that producing ATP on dedicated membranes inside the cell, rather than on the cell surface, boosted the amount of energy available to eukaryotic cells and allowed them to diversify more. However, other researchers are not convinced by this view. Moreover, some recent evidence suggested that eukaryotes are no more efficient in producing energy than prokaryotes.

Lynch and Marinov have now used computational and comparative analysis to compare the energy efficiency of different organisms including prokaryotes and eukaryotes grown under defined conditions. To do the comparison, the results were scaled based on cell volume and the total surface area deployed in energy production.

From their findings, Lynch and Marinov concluded that mitochondria did not enhance how much energy eukaryotes could produce per unit of cell volume in any substantial way. Although the origin of mitochondria was certainly a key event in evolutionary history, it is unlikely to have been responsible for the diversity and complexity of today’s life forms.

https://doi.org/10.7554/eLife.20437.002

Introduction

The hallmark feature distinguishing eukaryotes from prokaryotes (bacteria and archaea) is the universal presence in the former of discrete cellular organelles enveloped within lipid bilayers (e.g. the nucleus, mitochondria, endoplasmic reticulum, golgi, vacuoles, vesicles, etc.). Under a eukaryocentric view of life, these types of cellular features promoted the secondary origin of genomic modifications that ultimately led to the adaptive emergence of fundamentally superior life forms (Martin and Koonin, 2006; Lane and Martin, 2010). Most notably, it has been proposed that the establishment of the mitochondrion provided an energetic boost that fueled an evolutionary revolution responsible for all things eukaryotic, including novel protein folds, membrane-bound organelles, sexual reproduction, multicellularity, and complex behavior (Lane, 2002, 2015).

However, despite having more than two billion years to impose their presumed superiority, eukaryotes have not driven prokaryotes extinct. Prokaryotes dominate eukaryotes both on a numerical and biomass basis (Whitman et al., 1998; Lynch, 2007), and harbor most of the biosphere’s metabolic diversity. Although there is no logical basis for proclaiming the evolutionary inferiority of prokaryotes, one central issue can be addressed objectively – the degree to which the establishment of eukaryotic-specific morphology altered energetic efficiency at the cellular level.

Drawing on observations from biochemistry, physiology, and cell biology, we present a quantitative summary of the relative bioenergetic costs and benefits of the modified architecture of the eukaryotic cell. The data indicate that once cell-size scaling is taken into account, the bioenergetic features of eukaryotic cells are consistent with those in bacteria. This implies that the mitochondrion-host cell consortium that became the primordial eukaryote did not precipitate a bioenergetics revolution.

Results

The energetic costs of building and maintaining a cell

The starting point is a recap of recent findings on the scaling properties of the lifetime energetic expenditures of single cells. All energy utilized by cells can be partitioned into two basic categories: that employed in cell maintenance and that directly invested in building the physical infrastructure that comprises a daughter cell. Maintenance costs involve a diversity of cellular functions, ranging from turnover of biomolecules, intracellular transport, control of osmotic balance and membrane potential, nutrient uptake, information processing, and motility. Cell growth represents a one-time investment in the production of the minimum set of parts required for a progeny cell, whereas cell maintenance costs scale with cell-division time. The common usage of metabolic rate as a measure of power production is uninformative from an evolutionary perspective, as it fails to distinguish the investment in cellular reproduction from that associated with non-growth-related processes.

To make progress in this area, a common currency of energy is required. The number of ATP $\to$ ADP turnovers meets this need, as such transformations are universally deployed in most cellular processes of all organisms, and where other cofactors are involved, these can usually be converted into ATP equivalents (Atkinson, 1970). When cells are grown on a defined medium for which the conversion rate from carbon source to ATP is known (from principles of biochemistry), the two categories of energy allocation can be quantified from the regression of rates of resource consumption per cell on rates of cell division (Bauchop and Elsden, 1960; Pirt, 1982; Tempest and Neijssel, 1984).

A summary of results derived from this method reveals two universal scaling relationships that transcend phylogenetic boundaries (Lynch and Marinov, 2015). First, basal maintenance costs (extrapolated to zero-growth rate, in units of 10⁹ molecules of ATP/cell/hour, and normalized to a constant temperature of 20 $^{\circ}$ C for all species) scale with cell volume as a power-law relationship

C_{M} = 0.39 V^{0.88},

where cell volume $V$ is in units of μm³. Second, the growth requirements per cell (in units of 10⁹ molecules of ATP/cell) scale as

C_{G} = 27 V^{0.97} .

The total cost of building a cell is

C_{T} = C_{G} + t C_{M},

where $t$ is the cell-division time in hours.

Derived from cells ranging over four orders of magnitude in volume, neither of the preceding scaling relationships is significantly different from expectations under isometry (with exponent 1.0), as the standard errors of the exponents in Equations (1a,b) are 0.07 and 0.04, respectively. Moreover, as there is no discontinuity in scaling between prokaryotes and eukaryotes, these results suggest that a shift of bioenergetics from the cell membrane in prokaryotes to the mitochondria of eukaryotes conferred no directly favorable energetic effects. In fact, the effect appears to be negative.

Taking into account the interspecific relationships between cell-division time and cell volume (Lynch and Marinov, 2015) and using Equation (1b), one can compute the scaling of the rate of incorporation of energy into biomass, $C_{G} / t$ . For bacteria, cell-division times decline with increasing cell volume as $\sim V^{- 0.17}$ , albeit weakly (the SE of the exponent being 0.11), implying that the rate of biomass accumulation scales as $\sim V^{0.97 + 0.17} = V^{1.14}$ on a per-cell basis and as $\sim V^{1.14 - 1.00} = V^{0.14}$ on a cell volumetric basis (with the SEs of both exponents being 0.12). In contrast, in most eukaryotic groups, cell-division times increase with cell volume, on average scaling as $\sim V^{0.13}$ , implying a scaling of $\sim V^{0.84}$ for the rate of biomass accumulation per cell and $\sim V^{- 0.16}$ on a volumetric basis (with SEs equal to 0.06 for the exponents). Thus, in terms of biomass production, the bioenergetic efficiency of eukaryotic cells declines with cell volume, whereas that of bacterial cells does not. The pattern observed in bacteria is inconsistent with the view that surface area limits the rate of energy production, as this leads to an expected scaling of $\sim V^{2 / 3}$ on a per-cell basis.

Energy production and the mitochondrion

The argument that mitochondria endow eukaryotic cells with exceptionally high energy provisioning derives from the idea that large internal populations of small mitochondria with high surface area-to-volume ratios provide a dramatic increase in bioenergetic-membrane capacity (Lane and Martin, 2010). In prokaryotes, the F₀F₁ ATP synthase (the molecular machine that transforms ADP to ATP in the process of chemiosmosis) and the electron transport chain (ETC) components (which create the chemiosmotic proton gradient) are restricted to the cell membrane, but in eukaryotes, they are confined to inner mitochondrial membranes. A key question is whether the bioenergetic capacity of cells is, in fact, limited by membrane surface area.

Although the situation at the time of first colonization of the mitochondrion is unknown, the iconic view of mitochondria being tiny, bean-shaped cellular inclusions is not entirely generalizable. For example, many unicellular eukaryotes harbor just a single mitochondrion or one that developmentally moves among alternative reticulate states (e.g. Rosen et al., 1974; Osafune et al., 1975; Biswas et al., 2003; Yamaguchi et al., 2011). Such geometries necessarily have lower total surface areas than a collection of spheroids with similar total volumes. For the range of species that have been examined, many of which do have small individualized mitochondria, the total outer surface area of mitochondria per cell is generally on the order of the total area of the plasma membrane, with no observed ratio exceeding 5:1, and many being considerably smaller than 1:1 (Figure 1a). It may be argued that the outer surface area of the mitochondrion is of less relevance than that of the inner membrane (where the ATP synthase complex sits), but the ratios of inner (including the internal cristae) to outer membrane areas for mitochondria in mammals, the green alga Ochromonas, the plant Rhus toxicodendron, and the ciliate Tetrahymena are 5.0 (SE = 1.1), 2.4, 2.5, and 5.2, respectively (Supplementary material). Thus, the data are inconsistent with the idea that the mitochondrion engendered a massive expansion in the surface area of bioenergetic membranes in eukaryotes.

Figure 1

Download asset Open asset

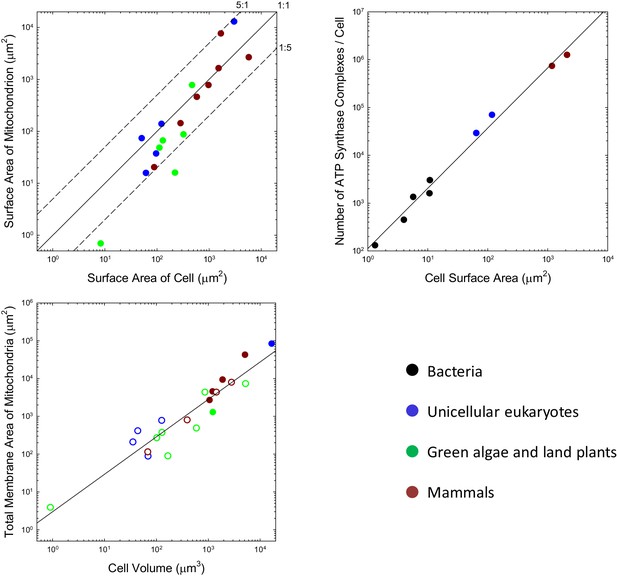

Scaling features of membrane properties with cell size.

(a) Relationship between the total outer surface area of mitochondria and that of the plasma membrane for all species with available data. Diagonal lines denote three idealized ratios of the two. (b) The number of ATP synthase complexes per cell scales with cell surface area (S, in μm²) as $113 S^{1.26}$ ( $r^{2} = 0.99$ ). (c) Relationship between the total (inner + outer) surface area of mitochondria and cell volume for all species with available data. Open points are extrapolations for species with only outer membrane measures, derived by assuming an inner:outer ratio of 4.6, the average of observations in other species. References to individual data points are provided in Appendix 1–tables 1 and 2.

https://doi.org/10.7554/eLife.20437.003

Three additional observations raise questions as to whether membrane surface area is a limiting factor in ATP synthesis. First, the localization of mitochondrial ATP synthase complexes is restricted to two rows on the narrow edges of the inner cristae (Kühlbrandt, 2015). Because this confined region comprises <<10% of the total internal membrane area, the surface area of mitochondrial membranes allocated to ATP synthase appears to be less than the surface area of the cell itself. Second, only a fraction of bacterial membranes appears to be allocated to bioenergetic functions (Magalon and Alberge, 2016), again shedding doubt on whether membrane area is a limiting factor for energy production. Third, in every bacterial species for which data are available, growth in cell volume is close to exponential, that is, the growth rate of a cell increases as its cell volume increases despite the reduction in the surface area:volume ratio (Voorn and Koppes, 1998; Godin et al., 2010; Santi et al., 2013; Iyer-Biswas et al., 2014; Osella et al., 2014; Campos et al., 2014).

Further insight into this issue can be achieved by considering the average packing density of ATP synthase for the few species with proteomic data sufficient for single-cell counts of individual proteins. By accounting for the stoichiometry of the various subunits in the complex, it is possible to obtain several independent estimates of the total number of complexes per cell under the assumption that all the proteins are assembled (Supplementary material). For example, the estimated number of complexes in E. coli is 3018, and the surface area of the cell is ~15.8 μm². Based on the largest diameter of the molecule (the F $_{1}$ subcomplex), a single ATP synthase in this species occupies ~64 nm² (Lücken et al., 1990) of surface area, so the total set of complexes occupies ~1.8% of the cell membrane. Four other diverse bacterial species for which these analyses can be performed yield occupancies ranging from 0.6% to 1.5%, for an overall average of 1.1% for bacteria. This will be an overestimate if only a fraction of proteins are properly assembled and embedded in the cell membrane.

This kind of analysis can be extended to eukaryotes, noting that eukaryotic ATP synthases are slightly larger, with maximum surface area of ~110 nm² (Abrahams et al., 1994; Stock et al., 1999). Although ATP synthase resides in mitochondria in eukaryotes, it is relevant to evaluate the fractional area that would be occupied were they to be located in the cell membrane. Such hypothetical packing densities are 5.0% and 6.6%, respectively, for the yeasts S. cerevisiae and S. pombe, and 6.6% and 6.8% for mouse fibroblasts and human HeLa cells. Although these observations suggest a ~5 fold increase in ATP synthase abundance with cell surface area in eukaryotes, the data conform to a continuous allometric function with no dichotomous break between the bacteria and eukaryotes (Figure 1b).

Similar conclusions can be reached regarding the ETCs, although direct comparisons are more difficult due to the diversity of electron transport chain complexes in prokaryotes (Price and Driessen, 2010). The number of ETC complexes is comparable to that of ATP synthases in both bacteria and eukaryotes (Supplementary Material), and the physical footprint of the ETC is ~5× that of F₀F₁ (~570 nm²; Dudkina et al., 2011), implying that an average of ~5.5% of bacterial cell membranes is dedicated to the ETC and that the corresponding hypothetical packing density for eukaryotes would be ~30% (if in the cell membrane).

There are a number of uncertainties in these packing-density estimates, and more direct estimates are desirable. The optimum and maximum-possible packing densities for ATP synthase also remain unclear. Nonetheless, the fact remains that any packing problems that exist for the cell membrane are also relevant to mitochondrial membranes, which have additional protein components (such as those involved in internal-membrane folding and transport into and out of the mitochondrion).

The biosynthetic cost of lipids

Any attempt to determine the implications of membranes for cellular evolution must account for the high biosynthetic costs of lipid molecules. There are two ways to quantify such a cost. First, from an evolutionary perspective, the cost of synthesizing a molecule is taken to be the sum of the direct use of ATP in the biosynthetic pathway plus the indirect loss of ATP resulting from the use of metabolic precursors that would otherwise be converted to ATP and available for alternative cellular functions (Akashi and Gojobori, 2002; Lynch and Marinov, 2015). Second, to simply quantify the direct contribution to a cell’s total ATP requirement, the costs of diverting metabolic precursors are ignored.

By summing the total costs of all molecules underlying a cellular feature and scaling by the lifetime energy expenditure of the cell, one obtains a measure of the relative drain on the cell’s energy budget associated with building and maintaining the trait. This measurement, $s_{c},$ can then be viewed as the fractional increase in the cell’s energy budget that could be allocated to growth, reproduction, and survival in the absence of such an investment, ignoring the direct fitness benefits of expressing the trait, $s_{a}$ . For selection to be effective, the net selective advantage of the trait, $s_{n} = s_{a} - s_{c},$ must exceed the power of random genetic drift, $1 / N_{e}$ in a haploid species and $1 / (2 N_{e})$ in a diploid, where $N_{e}$ is the effective population size.

Most cellular membranes are predominantly comprised of glycerophospholipids, which despite containing a variety of head groups (e.g. glycerol, choline, serine, and inositol), all have total biosynthetic costs per molecule (in units of ATP hydrolyses, and including the cost of diverting intermediate metabolites) of

\begin{aligned} (2a) & c_{L} & ≃ 320 + [38 \cdot (N_{L} - 16)] + (6 \cdot N_{U}), \\ (2b) & c_{L} & ≃ 340 + [40 \cdot (N_{L} - 16)] + (6 \cdot N_{U}), \end{aligned}

in bacteria and eukaryotes, respectively, where $N_{L}$ is the mean fatty-acid chain length, and $N_{U}$ is the mean number of unsaturated carbons per fatty-acid chain (Supplementary material). Although variants on glycerophospholipids are utilized in a variety of species (Guschina and Harwood, 2006; Geiger et al., 2010), these are structurally similar enough that the preceding expressions should still provide excellent first-order approximations. The reduced (direct) cost, which ignores the loss of ATP-generating potential from the diversion of metabolic precursors, is

\begin{aligned} (3a) & c_{L}^{'} & ≃ 110 + [7 \cdot (N_{L} - 16)] + (6 \cdot N_{U}), \\ (3b) & c_{L}^{'} & ≃ 120 + [9 \cdot (N_{L} - 16)] + (6 \cdot N_{U}), \end{aligned}

in bacteria and eukaryotes, respectively. From the standpoint of a cell’s total energy budget, the evolutionary cost of a lipid molecule is $c_{L} / C_{T}$ .

For most lipids in biological membranes, $14 \leq N_{L} \leq 22$ and $0 \leq N_{U} \leq 6,$ so the cost per lipid molecule is generally in the range of $c_{L} ≃ 200$ to $600$ ATP, although the average over all lipids deployed in species-specific membranes is much narrower (below). Cardiolipin, which rarely constitutes more than 20% of membrane lipids is exceptional, having an evolutionary cost of ~640 ATP/molecule (and a reduced cost of ~240 ATP). To put these expenditures into perspective, the evolutionary biosynthetic costs of each of the four nucleotides is ≈ 50 ATP hydrolyses per molecule (Lynch and Marinov, 2015), whereas the average cost of an amino acid is ≈30 ATP (Atkinson, 1970; Akashi and Gojobori, 2002).

Application of the preceding expressions to the known membrane compositions of cells indicates that the biosynthetic costs of eukaryotic lipids are higher than those in bacteria (Supplementary table). For example, for a diversity of bacterial species the average direct cost per lipid molecule in the plasma membrane is 123 (SE = 3) ATP, whereas that for eukaryotes is 143 (2). The latter estimate is identical to the mean obtained for whole eukaryotic cells, but the cost of mitochondrial lipids is especially high, 155 (5). These elevated expenses in eukaryotes are joint effects of the cost of mitochondrial export of oxaloacetate to generate acetyl-CoA and the tendency for eukaryotic lipids to have longer chains containing more desaturated carbons.

To understand the total bioenergetic cost associated with membranes, we require information on the numbers of lipid molecules required for membrane formation, which is equivalent to the total surface area of the membrane divided by the number of lipid molecules/unit surface area, and multiplied by two to account for the lipid bilayer. Estimates of the head-group areas of membrane lipids are mostly within 10% of an average value of 6.5 × 10⁻⁷ μm²(Petrache et al., 2000; Kučerka et al., 2011), so the cost of a membrane (in units of ATP, and ignoring lipid turnover and the space occupied by transmembrane proteins) is

C_{L} ≃ (3.1 \times 10^{6}) \cdot {\bar{c}}_{L} \cdot A,

where $A$ is the membrane surface area in units of μm², and ${\bar{c}}_{L}$ is the average cost of a lipid.

Enough information is available on the total investment in mitochondrial membranes that a general statement can be made. Over the eukaryotic domain, the total surface area of mitochondria (inner plus outer membranes, summed over all mitochondria, in μm²) scales with cell volume ( $V$ , in units of μm³) as 3.0V^0.99 (Figure 1c; SEs of intercept and slope on log plots are 0.22 and 0.08, respectively). Applying this to Equation (4), with the average total cost of mitochondrial lipids ( ${\bar{c}}_{L} = 440$ ATP/ molecule; Appendix 1–table 4), and using the expression for the total growth requirements of a cell, Equation (1b), the relative cost of mitochondrial membrane lipids is

s_{c} ≃ 0.15 V^{0.02},

or $\sim 15 %$ of the total growth budget of a minimum-sized (1 μm³) eukaryotic cell, and nearly independent of cell size within the range typically found in eukaryotes (SE of the exponent is 0.08). The direct contribution of mitochondrial membrane lipids to a cell’s growth budget is ~36% of this total cost. These costs of mitochondrial membranes represent a baseline price, not incurred by prokaryotes, associated with relocating bioenergetics to the interior of eukaryotic cells, that is, ~5%. Unfortunately, the additional costs of maintenance of mitochondrial lipids is unknown, but for rapidly growing cells, the vast majority of a cell’s energy budget is allocated to growth (Lynch and Marinov, 2015), so the above costs should still apply as first-order approximations; for slowly growing cells, the costs will be higher or lower depending on whether the cost of mitochondrial-membrane maintenance is above or below that for total cellular maintenance. Proteins do not occupy >50% of membranes, so accounting for this would change the preceding results by a factor <2.

For prokaryotic cells without internal membranes, the relative contribution of the cell membrane to a cell’s total energy budget is expected to decline with increasing cell size, owing to the decline in the surface area to volume ratio. For the tiny cells of Leptospira interrogans and Mycoplasma pneumoniae (average volumes of 0.03 and 0.22 μm³, respectively), ~63 and 43% of a cell’s growth budget must be allocated to the plasma membrane, but for the larger Bacillus subtilis and Escherichia coli (on average, 1.4 and 1.0 μm³, respectively), these contributions drop to ~14 and 19%, and they would be expected to continue to decline with further increases in cell size, scaling inversely with the linear dimension of the cell.

In contrast, owing to the increased investment in internal membranes, the fraction of a eukaryotic cell’s energy budget devoted to membranes does not diminish with increasing cell size. Although there are only a few eukaryotic cell types for which this issue can be evaluated quantitatively (Table 1), the data span three orders of magnitude in cell volume and uniformly suggest that ~10 to 30% of the total growth budget is allocated to lipid biosynthesis, and that an increasing fraction of such costs is associated with internal membranes in cells of increasing size. The picoplanktonic alga Ostreococcus, which has a cell volume of just 0.22 μm³ (below that of many prokaryotes), devotes ~32% of its energy budget to membranes, and 44% of these costs (~18% of the total cell budget) are associated with internal membranes. A moderate-sized mammalian cell devotes a similar ~30% of its energy budget to membranes, but 96% of these costs (~29% of the total cell budget) are associated with internal membranes.

Table 1

Contributions of membranes to total cellular growth costs. Ot denotes the green alga Ostreococcus tauri, Sc the yeast Saccharomyces cerevisiae, Ds the green alga Dunaliella salina, and Ss the pig (Sus scrofa) pancreas cell; references given in Supplementary material. Cell volumes and total membrane areas are in units of μm³ and μm², respectively, with the latter excluding membranes associated with the plastids in the algal species. The fraction of the total cell growth budget allocated to membranes is obtained by the ratio of Equations (1b) and (4), using the species-specific reduced costs in Table 1 where available, and otherwise applying the averages for eukaryotic species; this total cost is then apportioned into five different fractional contributions in the following lines.

https://doi.org/10.7554/eLife.20437.004

	Ot	Sc	Ds	Ss
Cell volume	1	44	591	1060
Total membranes	15	204	2299	12952
Fraction of absolute cell growth budget	0.324	0.096	0.094	0.302
Plasma membrane	0.556	0.328	0.134	0.044
Mitochondria	0.243	0.359	0.197	0.223
Nucleus	0.113	0.085	0.034	0.008
Endoplasmic reticulum + Golgi	0.034	0.111	0.318	0.706
Vesicles/vacuoles	0.055	0.114	0.316	0.019

Taken together, these observations imply that the use of internal membranes constitutes a major drain on the total energy budgets of eukaryotic cells, much more than would be expected in bacteria of comparable size. Moreover, because the lipids associated with mitochondria alone constitute 20% to 35% of a eukaryotic cell’s investment in membranes (Table 1), the energetic burden of localizing membrane bioenergetics to mitochondria is substantial.

Finally, given that the observations summarized in Figure 1a,b are derived from a diversity of studies, likely with many unique inaccuracies, it is worth considering whether the overall conclusions are consistent with the known capacity of ATP synthase. First, it bears noting that only a fraction of the energy invested in biosynthesis is derived directly from the chemiosmotic activity of ATP synthase. For example, amino-acid biosynthesis involves ~1.5 oxidations of NADH and NADPH for every ATP hydrolysis (Akashi and Gojobori, 2002). Assuming that each of the former is equivalent to ~3 ATP hydrolyses, this implies that only ~18% of the energy invested in amino-acid biosynthesis involves ATP hydrolysis. As noted in the Supplementary text, the ratio of use of NADH/NADPH to ATP is more on the order of 2.0 in lipid biosynthesis, reducing the direct investment in ATP to ~14% Thus, as the vast majority of the energetic cost of building a cell is associated with synthesis of the monomeric building blocks of proteins and membranes, only ~15% of biosynthetic energy may be derived from ATP hydrolysis.

Given the known energy requirements for the maintenance and growth of a cell, the cell-division time, and the number of ATP synthase complexes per cell, it is possible to estimate the required rate of ADP $\to$ ATP conversions per complex. Using the cellular energetic data previously presented (Lynch and Marinov, 2015) and the ATP synthase abundances in Appendix 1–table 2, after discounting the maximum values by 85%, the estimated required rates of ATP production/complex/sec are: 2109, 221, and 19 respectively for the bacteria B. subtilis, E. coli, and M. pneumoniae, and 1440 and 329 for the yeasts S. cerevisiae and S. pombe. Several attempts have been made to estimate the maximum turnover rates (per sec) for F $_{0}$ F $_{1}$ ATP synthase, usually in reconstituted liposomes, and these average 195/s in bacteria (Etzold et al., 1997; Slooten and Vandenbranden, 1989; Toei et al., 2007), 295 in soybean plastids (Schmidt and Gräbe, 1985; Junesch and Gräber, 1991), 120 in S. cerevisiae (Förster et al., 2010), and 440 in bovine heart (Matsuno-Yagi and Hatefi, 1988). Thus, given that a substantial fraction of complexes are likely to be misassembled in artificial membranes, the energy-budget based estimates of the numbers of ATP turnovers generated per cell appear to be consistent with the known capacity of ATP synthase.

The cellular investment in ribosomes

The ribosome content of a cell provides a strong indicator of its bioenergetic capacity. Owing to the large number of proteins required to build the complex, ribosomes are energetically costly, and the number per cell appears to be universally correlated with cellular growth rate (Fraenkel and Neidhardt, 1961; Tempest et al., 1965; Brown and Rose, 1969; Poyton, 1973; Dennis and Bremer, 1974; Freyssinet and Schiff, 1974; Alberghina et al., 1975; Boehlke and Friesen, 1975; Waldron and Lacroute, 1975; Scott et al., 2010).

We previously pointed out that the genome-wide total and mean number of transcripts per gene scale with cell volume as $V^{0.36}$ and $V^{0.28}$ respectively, and that the analogous scalings are $V^{0.93}$ and $V^{0.66}$ for proteins, with no dichotomous break between prokaryotes and eukaryotes (Lynch and Marinov, 2015). As with the transcripts they process and the proteins they produce, the numbers of ribosomes per cell also appear to scale sublinearly with cell volume, in a continuous fashion across bacteria, unicellular eukaryotes, and cells derived from multicellular species (Figure 2). These observations are inconsistent with the idea that entry into the eukaryotic world resulted in an elevated rate of protein production. Moreover, as noted previously (Lynch and Marinov, 2015), the absolute costs of producing individual proteins and maintaining the genes associated with them are substantially higher in eukaryotes than in bacteria, owing to the substantial increase in gene lengths, investment in nucleosomes, etc.

Figure 2

Download asset Open asset

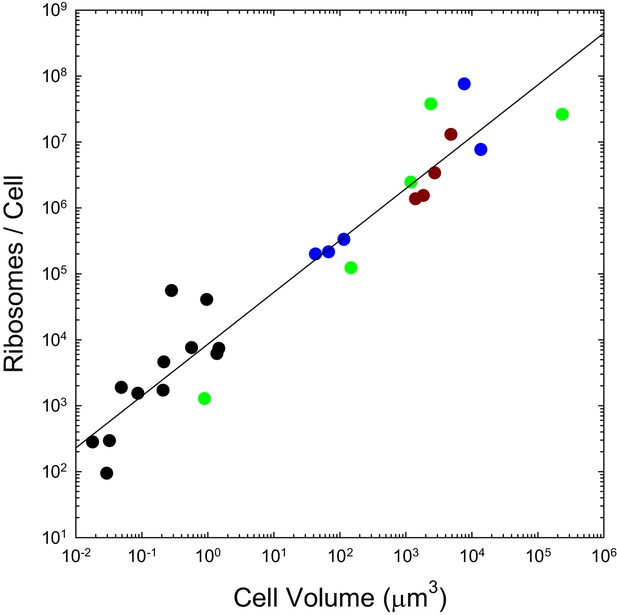

The number of ribosomes per cell scales with cell volume ( $V$ , in μm³) as $8551 V^{0.79}$ ( $r^{2} = 0.91$ ; SEs of the intercept and slope on the log scale are 0.14 and 0.06, respectively).

Color coding as in previous figures. References to individual data points are provided in Appendix 1–table 3.

https://doi.org/10.7554/eLife.20437.005

Discussion

Lane (2015) and Lane and Martin (2010) have proposed a scenario for how the mitochondrion became established by a series of adaptive steps, arguing that the eukaryotic leap to increased gene number and cellular complexity, and a subsequent adaptive cascade of morphological diversification, ‘was strictly dependent on mitochondrial power'. However, the scaling of the costs of building and maintaining cells is inconsistent with an abrupt shift in volumetric bioenergetic capacity of eukaryotic cells, and although the absolute costs of biosynthesis, maintenance, and operation of individual genes are much greater in eukaryotes, the proportional costs are less (Lynch and Marinov, 2015). This means that evolutionary additions and modifications of genes are more easily accrued in eukaryotic genomes from a bioenergetics perspective, regardless of their downstream fitness effects.

The analyses presented here reveal a number of additional scaling features involving cellular bioenergetic capacity that appear to transcend the substantial morphological differences across the bacterial-eukaryotic divide. There is not a quantum leap in the surface area of bioenergetic membranes exploited in eukaryotes relative to what would be possible on the cell surface alone, nor is the idea that ATP synthesis is limited by total membrane surface area supported. Moreover, the numbers of both ribosomes and ATP synthase complexes per cell, which jointly serve as indicators of a cell’s capacity to convert energy into biomass, scale with cell size in a continuous fashion both within and between bacterial and eukaryotic groups. Although there is considerable room for further comparative analyses in this area, when one additionally considers the substantial cost of building mitochondria, it is difficult to accept the idea that the establishment of the mitochondrion led to a major advance in net bioenergetic capacity.

Most discussion of the origin of the mitochondrion by endosymbiosis starts (and often ends) with a consideration of the benefits gained by the host cell. This ignores the fact that the eukaryotic consortium consists of two participants. At least initially, the establishment of a stable symbiotic relationship requires that each member of the pair gain as much from the association as is lost by relinquishing independence. Under the scenario painted by Lane and Martin (2010), and earlier by Martin and Müller (1998), the original mitochondrial-host cell affiliation was one in which the intracellular occupant provided hydrogen by-product to fuel methanogenesis in the host cell, while eventually giving up access to external resources and thereby coming to rely entirely on the host cell for organic substrates. For such a consortium to be evolutionarily stable as a true mutualism, both partners would have to acquire more resources than would be possible by living alone, in which case this novel relationship would be more than the sum of its parts.

Although some scenario like this might have existed in the earliest stages of mitochondrial establishment, it is also possible that one member of the original consortium was a parasite rather than a benevolent partner (made plausible by the fact that many of the $α$ -protobacteria to which mitochondria are most closely related are intracellular parasites). Despite its disadvantages, such a system could be rendered stable if one member of the pair (the primordial mitochondrion) experienced relocation of just a single self-essential gene to the other member’s genome, while the other lost a key function that was complemented by the presence of the endosymbiont. This scenario certainly applies today, as all mitochondria have relinquished virtually all genes for biosynthesis, replication, and maintenance, and as a consequence depend entirely on their host cells for these essential metabolic functions. In contrast, all eukaryotes have relocated membrane bioenergetics from the cell surface to mitochondrial membranes.

Such an outcome represents a possible grand example of the preservation of two ancestral components by complementary degenerative mutations (Force et al., 1999). Notably, this process of subfunctionalization is most likely to proceed in relatively small populations because the end state is slightly deleterious from the standpoint of mutational vulnerability, owing to the fact that the original set of tasks becomes reliant on a larger set of genes (Lynch et al., 2001). Thus, a plausible scenario is that the full eukaryotic cell plan emerged at least in part by initially nonadaptive processes made possible by a very strong and prolonged population bottleneck (Lynch, 2007; Koonin, 2015).

The origin of the mitochondrion was a singular event, and we may never know with certainty the early mechanisms involved in its establishment, nor the order of prior or subsequent events in the establishment of other eukaryotic cellular features (Koonin, 2015). However, the preceding observations suggest that if there was an energetic boost associated with the earliest stages of mitochondrial colonization, this has subsequently been offset by the loss of the use of the eukaryotic cell surface for bioenergetics and the resultant increase in costs associated with the construction of internal membranes. Rather than a major bioenergetic revolution being provoked by the origin of the mitochondrion, at best a zero-sum game is implied.

Thus, if the establishment of the mitochondrion was a key innovation in the adaptive radiation of eukaryotes, the causal connection does not appear to involve a boost in energy acquisition. Notably, a recent analysis suggests that the origin of the mitochondrion postdated the establishment of many aspects of eukaryotic cellular complexity (Pittis and Gabaldón, 2016). It is plausible, that phagocytosis was a late-comer in this series of events, made possible only after the movement of membrane bioenergetics to the mitochondrion, which would have eliminated the presumably disruptive effects of ingesting surface membranes containing the ETC and ATP synthase.

Materials and methods

The results in this paper are derived from an integration of bioenergetic analyses based on known biochemical pathways and existing morphological observations on a variety of cell-biological features. The sources of this information, as well as the basic approaches employed can be found in the Appendix (where not mentioned directly in the text). The central analyses involve: (1) estimation of the biosynthetic costs for lipid-molecule production (in terms of ATP equivalents per molecule produced); (2) mitochondrial surface areas and cell membrane areas; (3) investments in lipids at the cell-membrane and organelle levels; and (4) numbers of ATP synthase complexes, ETC complexes, and ribosomes per cell.

Appendix

The biosynthetic costs of lipid molecules

The vast majority of lipids in most membranes are phospholipids, with a polar (hydrophilic) head group attached to a negatively charged phosphate, which in turn is attached to a glycerol-3-phosphate (G3P), which links to two fatty-acid chains. Diversity within this lipid family is associated with variation in: the nature of the head groups; the number of carbon atoms in the fatty-acid chains; and the number of double bonds connecting such carbon atoms (their presence leading to ‘unsaturated’ fatty acids). Common head groups are choline, ethanolamine, serine, glycerol, inositol, and phosphatidyl glycerol. In both bacteria and eukaryotes, fatty-acid chains usually contain 12 to 22 carbons, and only rarely harbor more than three unsaturated bonds.

Evaluation of the total cost of synthesizing a lipid molecule requires a separate consideration of the investments in the three molecular subcomponents: the fatty-acid tails; head groups; and linkers. As adhered to in Lynch and Marinov (2015), such costs will be quantified in units of ATP usage, specifically relying on the number of phosphorus atoms released via hydrolyses of ATP molecules, the primary source of energy in most endergonic cellular reactions. CTP, which is utilized in a few reaction steps in lipid biosynthesis, will be treated as equivalent to ATP, and electron transfers resulting from conversions of NADH to NAD $^{+}$ , NADPH to NADP $^{+}$ , and FADH $_{2}$ to FAD will be taken to be equivalent to 3, 3, and 2 ATP hydrolyses, respectively (all conventions in biochemistry based on energetic analyses; it is assumed that NADP $^{+}$ /NADPH is efficiently recycled and obtained from sources other than action of the NADH kinase, which would elevate the cost to four high-energy phosphate groups). The following results are derived from observations cataloged in most biochemistry text books:

The starting point for the synthesis of most fatty acids is the production of one particular linear chain, palmitate, which contains 16 carbon atoms. Synthesis of this molecule takes place within a large complex, known as fatty-acid synthase. In bacteria, biosynthesis of each palmitate molecule requires the consumption of 8 acetyl-CoA molecules, 7 ATPs, and reductions of 14 NADPHs. Each molecule of acetyl-CoA is generally derived from a pyruvate molecule, but each acetyl-CoA molecule diverted to lipid production deprives the cell of one rotation of the energy producing citric-acid cycle, which would otherwise yield 3 NADH, 1 FADH $_{2}$ , and 1 ATP per rotation; this leads to a net loss to the cell of the equivalent of 12 ATPs per acetyl-CoA molecule. Thus, the total cost of production of one molecule of palmitate in bacteria is $(8 \times 12) + (7 \times 1) + (14 \times 3) = 145$ ATP.Fatty-acid production is slightly more expensive in nonphotosynthetic eukaryotes, where acetyl-CoA is produced in the mitochondrion and reacts with oxaloacetate to produce citrate, which must then be exported. Cleavage of oxaloacetate in the cytosol regenerates acetyl-CoA at the expense of 1 ATP, and a series of reactions serve to return oxaloacetate to the citric-acid cycle in an effectively ATP neutral way. Thus, the cost of palmitate increases to $145 + 8 = 153$ ATP.
Each additional pair of carbons added to the palmitate chain requires one additional acetyl-CoA, one additional ATP, and two additional NADPHs, or an equivalent of 19 ATPs in bacteria, and accounting for mitochondrial export increases this to 20 in eukaryotes.
Each subsequent desaturation of a fatty-acid bond consumes one NADPH, or 3 ATP equivalents.
The G3P linker emerges from one of the last steps in glycolysis, and its diversion to lipid production deprives the cell of one further step of ATP production as well as a subsequent pyruvate molecule. As pyruvate normally can yield the equivalent of 3 ATPs in the conversion to acetyl-CoA, which then would generate a net 12 ATPs following entry into the citric-acid cycle, the use of G3P as a linker in a lipid molecule has a cost of $1 + 3 + 12 = 16$ ATP. Linking each fatty-acid tail requires 1 ATP, and linking the head group involves two CTP hydrolyses.
All that remains now is to add in the cost of synthesis of the head group, which we do here still assuming 16 saturated bonds in each fatty acid. In the case of phosphatidylglycerol, the head group is G3P, the cost of which is 16 ATP as just noted, so the total cost of this molecule in a bacterium is $≃ (2 \cdot 145) + (16 + 4) + 16 = 326$ ATP. From Akashi and Gojobori (2002), the cost of a serine is 10 ATP, so the total cost of a phosphatidylserine is 320 ATP, and because ethanolamine and choline are simple derivatives of serine, this closely approximates the costs of both phosphatidylethanolamine and phosphatidylcholine. The headgroup of phosphatidylinositol is inosital, which is derived from glucose-6-phosphate, diverting the latter from glycolysis and depriving the cell of the equivalent of 9 ATPs, so the total cost of production of this molecule is 319 ATP. As a first-order approximation, we will assume all of the above molecules to have a cost of 321 ATP when containing fully saturated fatty acids with chain length 16. Finally, cardiolipin is synthesized by the fusion of two phosphatidylglycerols and the release of one glycerol, so taking the return from the latter to be 15 ATP, the total cost per molecule produced is 637 ATP.

Estimation of absolute protein copy numbers per cell

Information on absolute protein copy numbers per cell was collected from publicly available proteomics measurements (Lu et al., 2007; Wiśniewski et al., 2012, 2014; Maass et al., 2011; Maier et al., 2011; Schmidt et al., 2011; Beck et al., 2009; Kulak et al., 2014; Ghaemmaghami et al., 2003; Marguerat et al., 2012; Schwanhäusser et al., 2011) as well as from ribosome profiling data (as described in Lynch and Marinov, 2015).

The number of protein complexes $N_{P C}$ was calculated as follows:

N_{P C, r a w} = \frac{\sum_{p} N_{p} / s_{p}}{| p |}

where $N_{p}$ are the estimated per cell copy numbers for each subunit $p$ with a stoichiometric ratio $s_{p}$ . Clear outliers (i.e., subunits with zero or near-zero counts) were removed from the calculation.

As proteomics measurements may not be absolutely reliable, the raw estimates $N_{P C, r a w}$ were then further corrected where possible by taking advantage of the availability of direct counts of the number of ribosomes per cell:

N_{P C, c o r r} = N_{P C, r a w} \cdot c_{R}

where the ribosomal correction factor $c_{R}$ is determined as follows:

c_{R} = \frac{N_{R, d i r e c t}}{N_{R, r a w}}

where $N_{R, r a w}$ refers to the estimated ribosome copy numbers derived as above, while $N_{R, d i r e c t}$ is obtained from direct measurements of ribosome copies per cell.

The composition of the E. coli F $_{O}$ -particle is 1 $a$ :2 $b$ :10–12 $c$ while that of the F $_{1}$ -particle is 3 $α$ :3 $β$ :1 $δ$ :1 $γ$ :1 $ϵ$ (Jonckheere et al., 2012; Capaldi et al., 2000), where the individual subunits are encoded by the following genes:

Subunit	Gene
$a$	atpB
$b$	atpF
$c$	atpE
$α$	atpA
$β$	atpD
$γ$	atpG
$δ$	atpH
$ϵ$	atpC

The same composition and stoichiometry was also assumed for other prokaryotes.

The composition of the yeast F $_{1}$ -particle is 3 $α$ :3 $β$ :1 $δ$ :1 $γ$ :1 $ϵ$ :1OSCP (Jonckheere et al., 2012). The F $_{O}$ -particle has 10 copies of subunit 9 (equivalent to $c$ ), and one copy each of subunits 6 (equivalent to $a$ ), 8, 4 (equivalent to $b$ ), $d$ , $h$ , $f$ , $e$ , $g$ , $i$ and $k$ , where the individual subunits are encoded by the following genes:

Subunit	Gene
$α$	ATP1
$β$	ATP2
$γ$	ATP3
$δ$	ATP16
$ϵ$	ATP15
$a$	MT-ATP6
$4$	ATP4
$9$	ATP9
$8$	MT-ATP8
$d$	ATP7
$e$	ATP21
$h$	ATP14
$f$	ATP17
$g$	ATP20
$i$	ATP18
$k$	ATP19
OSCP	ATP5

The composition of the mammalian F $_{1}$ -particle is 3 $α$ :3 $β$ :1 $δ$ :1 $γ$ :1 $ϵ$ :1OSCP (Jonckheere et al., 2012). The F $_{O}$ -particle has 8 copies of subunit $c$ , and one copy each of subunits $a$ , 8, $b$ , $d$ , $F_{6}$ , $f$ , $e$ , and $g$ , where the individual subunits are encoded by the following genes:

Subunit	Gene
$α$	ATP5A1
$β$	ATP5B
$γ$	ATP5C1
$δ$	ATP5D
$ϵ$	ATP5E
$a$	MT-ATP6
$b$	ATP5F1
$c$	ATP5G1 ATP5G2 ATP5G3
$8$	MT-ATP8
$d$	ATP5H
$e$	ATP5I
$F_{6}$	ATP5J
$f$	ATP5J2
$g$	ATP5L
OSCP	ATP5O

Appendix 1—figure 1

Download asset Open asset

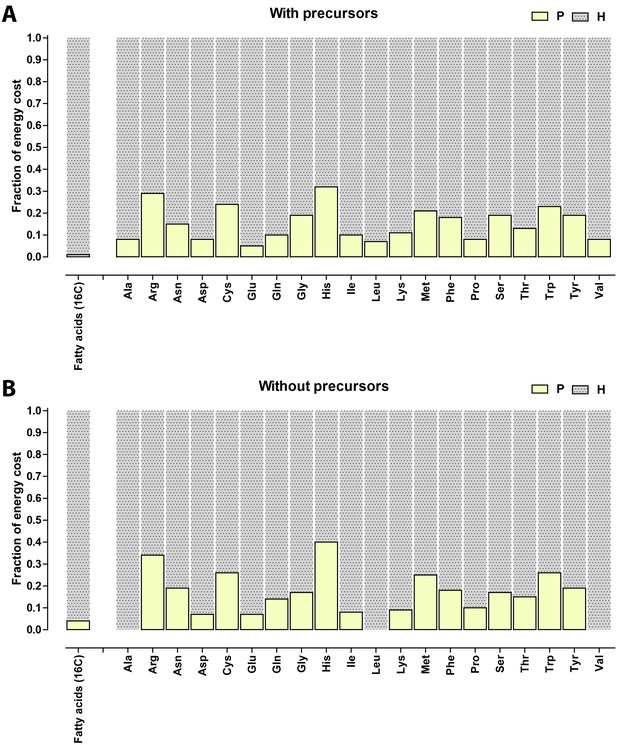

Relative contribution of ATP (P) and NADH/NADPH/FADH $_{2}$ (H) to the biosynthetic costs of lipids and amino acids.

(A) Nonreduced costs including opportunity cost of precursors; (B) Reduced costs without precursors. Amino acid values are obtained from Akashi and Gojobori (2002), assuming growth on glucose.

https://doi.org/10.7554/eLife.20437.006

Appendix 1—table 1

Features of mitochondrial membranes. Cell volumes are from Lynch and Marinov (2015), in some cases supplemented with additional references from the literature. $V$ : cell volume (in μm³); $S A_{C}$ : cellular surface area (in μm²); $S A_{M I}$ : inner mitochondrial membrane surface area (in μm²); $S A_{M I + M O}$ : inner+outer mitochondrial membrane surface area (in μm²); $M I / M O$ ratio between inner and outer mitochondrial membrane surface area

https://doi.org/10.7554/eLife.20437.007

Species	$V$	$S A_{C}$	$S A_{M I}$	$S A_{M I + M O}$	$M I / M O$	References
Unicellular eukaryotes
Exophiala dermatitidis	43.80	50.95	73.98			Biswas et al. (2003)
Candida albicans	35.36	96.10	37.37			Tanaka et al. (1985); Klis et al. (2014)
Saccharomyces cerevisiae	69.07	61.42	15.83			Uchida et al. (2011)
Tetrahymena pyriformis	16666.00	3014.05	12987.60	83968.50	5.200	Gleason et al. (1975); Poole (1983)
Trichoderma viride	126.70	122.01	139.40			Rosen et al. (1974)
Mammals
Cat, gracilis muscle					2.323	Schwerzmann et al. (1989)
Hamster, intestinal enterocyte	1890.00	5772.00	2668.00	9351.00	3.256	Buschmann and Manke (1981a, 1981b)
Human HeLa cells	2798.67	1178.00	1424.74
Mouse heart					7.020	Kistler and Weber (1975)
Mouse liver					3.540	Kistler and Weber (1975)
Mouse lymphocyte	50.69	88.27	20.43			Al-Hamdani et al. (1979); Mayhew et al. (1979)
Mouse immunoblast	392.98	282.94	143.52			Al-Hamdani et al. (1979)
Mouse pancreas	1434.00	973.00	779.00			Dean (1973)
Pig pancreas cell	1060.00	581.90	460.50	2698.50	4.860	Bolender (1974)
Rat Leydig cell, testes	1210.00	1517.00	1641.00	4561.00	1.779	Mori and Christensen (1980)
Rat liver cell	5100.00	1680.00	7651.65	42615.56	4.718	Weibel et al. (1969); Jakovcic et al. (1978)
Rat heart					12.760	Reith et al. (1973)
Rat L-8 skeletal muscle cell					4.670	Reith et al. (1973)
Land plants and algae
Arabidopsis thaliana, cotyledon	5237.75		1307.00
Chlamydomonas reinhardtii	128.38	129.60	66.82			Calvayrac et al. (1974); Hayashi and Ueda (1989)
Chlorella fusca	102.00	111.40	48.40			Atkinson et al. (1974); Forde et al. (1976)
Dunaliella salina	590.80	322.50	87.40			Maeda and Thompson (1986)
Medicago sativa, meristem	166.90	221.50	16.00			Zhu et al. (1991)
Ochromonas danica					2.450	Smith-Johannsen and Gibbs, 1972
Ostreococcus tauri	0.91	8.30	0.70			Henderson et al. (2007)
Polytoma papillatum	862.54	471.43	778.64			Gaffal et al. (1982)
Rhus toxicodendron	1222.00			1288.50	2.545	Vassilyev (2000)

Appendix 1—table 2

Estimated abundance of ATP synthase complexes in species with quantitative proteomics data. ATP synthase surface area assumed to be maximum associated with the inner ring, 6.4 × 10⁻⁵m² for bacteria, 1.1 × 10⁻⁴ for eukaryotes. $V$ : cell volume (in μm³); $S A_{C}$ : cellular surface area (in μm²); $N_{P C, r a w}$ : raw protein complex copy number estimates; $N_{P C, c o r r}$ : corrected protein complex copy number estimates; $c_{R}$ : correction factor; $P D$ : packing density (copies/μm²); $f_{S A}$ : fraction of $S A$ : cell division time (hours); $C_{G}$ , $C_{M}$ , $C_{T}$ : costs of building a cell per in 10⁹ ATP equivalents; $C_{G}$ : growth; $C_{M}$ : maintenance (per hours); $C_{T}$ : total; $R_{m a x}$ and $R_{r e d}$ : maximum (all ATP equivalents) and reduced (without ATP equivalents expended in the form of NADH/NADPH/FADH₂) required rate of ATP synthesis (per complex per second) to satisfy lifetime energy requirements.

https://doi.org/10.7554/eLife.20437.008

			F₀F ₁ copies per cell
Species	$V$	$S A_{C}$	$N_{P C, r a w}$	$N_{P C, c o r r}$	$c_{R}$	$P D$	$f_{S A}$	$t$	$C_{G}$	$C_{M}$	$C_{T}$	$R_{m a x}$	$R_{r e d}$	References
Prokaryotes
Bacillus subtilis	1.407	10.69	2435	1602	0.66	150	0.010	1.16	92.51	1.16	93.85	14062	2109	Jeong et al. (1990); Weart et al. (2007); Sharpe et al. (1998)
Escherichia coli	0.983	10.85	1056	3018	2.86	278	0.018	0.99	15.65	0.21	15.86	1475	221	Young (2006); Milo and Phillips, 2016
Leptospira interrogans	0.220	5.72	1187	1344	NA	235	0.015							Beck et al. (2009)
Mycoplasma pneumoniae	0.033	1.32	117	131	1.12	99	0.006	63.74	0.92	0.05	3.87	129	19	Zucker-Franklin et al. (1996a), 1996b
Staphylococcus aureus	0.288	4.00	447	NA	NA	112	0.007							Kehle and Herzog (1989)
Fungi
Saccharomyces cerevisiae (hap)	37.940	64.42	15659	29126	1.86	452	0.050	2.50	2468.20	18.79	2515.15	9598	1440
Schizosaccharomyces pombe	118.000	116.38	65363	70129	1.07	603	0.066	4.31	2347.80	8.70	2385.29	2193	329
Mammals
Homo sapiens , HeLa cell	2798.668	1178.00	1284376	737270	0.57	626	0.068							Borle (1969a, 1969b)
Mus musculus , fibroblast NIH3T3	1765.000	2100.00	1255254	NA	NA	598	0.066							Schwanhäusser et al. (2011)

Appendix 1—table 3

Estimated numbers of ribosomes per cell. Direct estimates taken from microscopic examinations; proteomic estimates are from averaging of cell-specific estimates for each ribosomal protein subunit. $V$ : cell volume (in μm³); $N_{R, d i r e c t}$ : directly estimated copies per cell; $N_{R, r a w}$ : estimated copies per cell based on proteomics studies

https://doi.org/10.7554/eLife.20437.009

Species		$V$	$N_{R, d i r e c t}$	$N_{R, r a w}$	References
Bacteria
Bacillus subtilis		1.407	6000		Barrera and Pan (2004)
				9124	Maass et al. (2011)
Escherichia coli		0.983	72,000		Bremer and Dennis (1996)
			45,100		Fegatella et al. (1998)
			26,300		Fegatella et al. (1998)
			13,500		Fegatella et al. (1998)
			6800		Fegatella et al. (1998)
			55,000		Bakshi et al. (2012)
			20,100
			12,000		Arfvidsson and Wahlund (2003)
				6514	Wiśniewski et al. (2014)
				17,979	Lu et al. (2007)
Legionella pneumophila		0.580	7400		Leskelä et al. (2005)
Leptospira interrogans		0.220	4500		Beck et al. (2009)
				1039	Schmidt et al. (2011)
Mycoplasma pneumonii		0.050	140		Yus et al. (2009)
			300		Seybert et al. (2006)
			422		Kühner et al. (2009)
				255	Maier et al. (2011)
Mycobacterium tuberculosis		0.215	1672		Yamada et al. (2015)
Rickettsia prowazekii		0.089	1500		Pang and Winkler (1994)
Sphingopyxis alaskensis		0.050	1850		Fegatella et al. (1998)
			200		Fegatella et al. (1998)
Spiroplasma melliferum		0.018	275		Ortiz et al. (2006)
Staphylococcus aureus		0.288	54,400		Martin and Iandolo (1975)
Vibrio angustum			27,500		Flärdh et al. (1992)
			8000		Flärdh et al. (1992)
Archaea
ARMAN	undescribed	0.030	92		Comolli et al. (2009)
Eukaryotes
Exophiala dermatitidis		43.800	195,000		Biswas et al. (2003)
Saccharomyces cerevisiae	haploid	69.071	200,000		Warner (1999)
			220,000		Yamaguchi et al. (2011)
				153,456	Kulak et al. (2014)
				72,284	Ghaemmaghami et al. (2003)
Schizosaccharomyces pombe		118.000	150,000		Marguerat et al. (2012)
			500,000		Maclean (1965)
				505,260	Kulak et al. (2014)
				100,568	Marguerat et al. (2012)
Tetrahymena pyriformis		14002.067	7,490,000		Hallberg and Bruns (1976)
Tetrahymena thermophila		7856.00	74,000,000		Calzone et al. (1983)
Chlamydomonas reinhardtii	cytoplasm	151.000	120,500		Bourque et al. (1971)
	chloroplast		55,000
Ostreococcus tauri		0.910	1250		Henderson et al. (2007)
Adonis aestivalis	vegetative	2380.300	47,700,000		Lin and Gifford (1976)
	transitional	2287.000	39,066,666
	floral	2690.000	23,666,666
Glycine max SB-1 cell			9,373,333		Jackson and Lark (1982)
Rhus toxicodendron		1222	2,400,000		Vassilyev (2000)
Zea mays root cell		240,000	25,500,000		Hsiao and (1970)
Hamster, intestinal enterocyte		1890	1,500,000		Buschmann and Manke (1981a, 1981b)
HeLa cell		2798.668	3,300,000		Duncan and Hershey (1983)
					Zhao et al. (2008)
				5,748,830	Kulak et al. (2014)
Mouse pancreas		1434.000	1,340,000		Dean (1973)
Rat liver cell		4940.000	12,700,000		Weibel et al. (1969)

Appendix 1—table 4

Costs of lipids. The average cost per molecule is calculated for a variety of species using estimates of lipid compositions from the literature and the formulas described in the text. The fraction of fatty acids of given length and saturation level is not shown. Cardiolipin costs are assumed to be 637 (evolutionary) and 236 (reduced) ATP. The cost for molecules in the ‘other’ category is assumed to be the average of glycerophospholipids (GPL) in the species and cardiolipin.

https://doi.org/10.7554/eLife.20437.010

		GPL cost		Composition			Mean cost
Species	Membrane	Tot.	Red.	GPL	Cardiolipin	Other	Tot.	Red.		References
Escherichia coli	Whole cell	367	115	0.926	0.060	0.015	385	124		Haest et al. (1969); Rietveld et al. (1993); Raetz et al. (1979)
Bacillus subtilis	Whole cell	308	102	0.818	0.183	0.000	368	127		Bishop et al. (1967); López et al. (1998)
Caulobacter crescentus	Whole cell	340	111	0.776	0.105	0.119	389	132		Contreras et al. (1978); Chow and Schmidt (1974)
Staphylococcus aureus	Whole cell	323	105	0.931	0.070	0.000	345	114		Haest et al. (1972); Mishra and Bayer (2013)
Zymomonas mobilis	Whole cell	370	118	0.990	0.010	0.000	373	119		Carey and Ingram (1983)
							372	123	mean
							8	3	SE
Candida albicans	Whole cell	338	123	0.934	0.066	0.000	358	131		Goyal and Khuller (1992); Singh et al. (2010)
Chlamydomonas reinhardtii	Whole cell	390	140	0.935	0.065	0.000	406	146		Janero and Barrnett (1981); Giroud et al. (1988); Tatsuzawa et al. (1996)
Debaryomyces hansenii	Whole cell	408	141	0.913	0.087	0.000	428	150		Kaneko et al. (1976)
Dictyostelium discoideum	Whole cell	400	141	0.965	0.014	0.000	395	139		Davidoff and Korn (1963); Ellingson (1974); Weeks and Herring (1980); Paquet et al. (2013)
Paramecium tetraurelia	Whole cell	415	146	0.996	0.004	0.000	415	146
Pichia pastoris	Whole cell	412	144	0.975	0.025	0.000	418	147		Klug et al. (2014)
Saccharomyces cerevisiae	Whole cell	372	133	0.953	0.047	0.000	385	138		Longley et al. (1968); Kaneko et al. (1976); Sharma (2006); Klis et al. (2014)
Schizosaccharomyces pombe	Whole cell	411	142	0.945	0.055	0.000	424	147		Koukou et al. (1990)
							403	143	mean
							8	2	SE
Debaryomyces hansenii	Plasma membrane	398	137	0.913	0.087	0.000	418	146		Kaneko et al. (1976); Turk et al. (2007)
Dictyostelium discoideum	Plasma membrane	414	145	0.980	0.020	0.000	418	147		Weeks and Herring (1980)
Dunaliella salina	Plasma membrane	378	137	1.000	0.000	0.000	378	137		Peeler et al. (1989); Azachi et al. (2002)
Mus musculus , thymocytes	Plasma membrane	409	142	0.921	0.000	0.079	418	145		Van Blitterswijk et al. (1982)
Saccharomyces cerevisiae	Plasma membrane	358	129	0.949	0.035	0.026	375	135		Longley et al. (1968); Zinser et al. (1991); Swan and Watson (1997); Tuller et al. (1999); Blagović et al. (2005)
Schizosaccharomyces pombe	Plasma membrane	411	142	0.856	0.052	0.092	433	151		Koukou et al. (1990)
Vigna radiata , seedling	Plasma membrane	402	141	1.000	0.000	0.000	402	141		Yoshida and Uemura (1986)
							406	143	mean
							8	2	SE
Candida albicans	Mitochondrion	344	125	0.710	0.164	0.126	411	150		Goyal and Khuller (1992)
Danio rerio , whole fish	Mitochondrion	472	162	0.854	0.104	0.042	492	172		Almaida-Pagán et al. (2014)
Pichia pastoris	Mitochondrion	421	145	0.944	0.054	0.002	433	150		Wriessnegger et al. (2009); Klug et al. (2014)
Rattus norwegicus , liver	Mitochondrion	445	154	0.838	0.148	0.024	480	169		Tahin et al. (1981); Colbeau et al. (1971)
Saccharomyces cerevisiae	Mitochondrion	312	116	0.897	0.097	0.006	345	128		Tuller et al. (1999); Zinser et al. (1991); Blagović et al. (2005)
Serripes groenlandicus , gill	Mitochondrion	428	147	0.972	0.028	0.000	434	150		Gillis and Ballantyne (1999)
Sus scrofa , heart	Mitochondrion	409	143	0.797	0.186	0.017	453	161		Comte et al. (1976)
Tetrahymena pyriformis	Mitochondrion	402	144	0.812	0.131	0.057	439	159		Gleason (1976); Nozawa (2011)
							436	155	mean
							16	5	SE

References

(1994) Structure at 2.8 A resolution of F1-ATPase from bovine heart mitochondria
Nature 370:621–628.

https://doi.org/10.1038/370621a0
- PubMed
- Google Scholar
1. Akashi H
2. Gojobori T
(2002) Metabolic efficiency and amino acid composition in the proteomes of Escherichia coli and Bacillis subtilis
PNAS 99:3695–3700.

https://doi.org/10.1073/pnas.062526999
- PubMed
- Google Scholar
(1979) Ultrastructural morphometry of blastogenesis I: transformation of small lymphocytes stimulated in vivo with dinitrochlorobenzene
Cell and Tissue Research 200:495–509.

https://doi.org/10.1007/BF00234859
- PubMed
- Google Scholar
(1975)
Levels and rates of synthesis of ribosomal ribonucleic acid, transfer ribonucleic acid, and protein in neurospora crassa in different steady states of growth

The Journal of Biological Chemistry 250:4381–4388.
- PubMed
- Google Scholar
(2014) Changes in mitochondrial membrane composition and oxidative status during rapid growth, maturation and aging in zebrafish, Danio rerio
Biochimica et Biophysica Acta (BBA) - Molecular and Cell Biology of Lipids 1841:1003–1011.

https://doi.org/10.1016/j.bbalip.2014.04.004
- Google Scholar
1. Arfvidsson C
2. Wahlund KG
(2003) Time-minimized determination of ribosome and tRNA levels in bacterial cells using flow field-flow fractionation
Analytical Biochemistry 313:76–85.

https://doi.org/10.1016/S0003-2697(02)00541-9
- PubMed
- Google Scholar
(1974) The growth and division of the single mitochondrion and other organelles during the cell cycle of Cholera, studied by quantitative stereology and three dimensional reconstruction
Protoplasma 81:77–109.

https://doi.org/10.1007/BF02055775
- PubMed
- Google Scholar
1. Atkinson DE
(1970) Adenine nucleotides as universal stoichiometric metabolic coupling agents
Advances in Enzyme Regulation 9:207–219.

https://doi.org/10.1016/S0065-2571(71)80045-6
- PubMed
- Google Scholar
1. Azachi M
2. Sadka A
3. Fisher M
4. Goldshlag P
5. Gokhman I
6. Zamir A
(2002) Salt induction of fatty acid elongase and membrane lipid modifications in the extreme halotolerant alga Dunaliella salina
Plant Physiology 129:1320–1329.

https://doi.org/10.1104/pp.001909
- PubMed
- Google Scholar
(2012) Superresolution imaging of ribosomes and RNA polymerase in live Escherichia coli cells
Molecular Microbiology 85:21–38.

https://doi.org/10.1111/j.1365-2958.2012.08081.x
- PubMed
- Google Scholar
1. Barrera A
2. Pan T
(2004) Interaction of the Bacillus subtilis RNase P with the 30S ribosomal subunit
RNA 10:482–492.

https://doi.org/10.1261/rna.5163104
- PubMed
- Google Scholar
1. Bauchop T
2. Elsden SR
(1960) The growth of micro-organisms in relation to their energy supply
Microbiology 23:457–469.

https://doi.org/10.1099/00221287-23-3-457
- PubMed
- Google Scholar
1. Beck M
2. Malmström JA
3. Lange V
4. Schmidt A
5. Deutsch EW
6. Aebersold R
(2009) Visual proteomics of the human pathogen Leptospira interrogans
Nature Methods 6:817–823.

https://doi.org/10.1038/nmeth.1390
- PubMed
- Google Scholar
(1967) The chemical composition of the cytoplasmic membrane of Bacillus subtilis
European Journal of Biochemistry 2:448–453.

https://doi.org/10.1111/j.1432-1033.1967.tb00158.x
- PubMed
- Google Scholar
1. Biswas SK
2. Yamaguchi M
3. Naoe N
4. Takashima T
5. Takeo K
(2003) Quantitative three-dimensional structural analysis of Exophiala dermadtitidis yeast cells by freeze-substitution and serial ultrathin sectioning
Journal of Electron Microscopy 52:133–143.

https://doi.org/10.1093/jmicro/52.2.133
- PubMed
- Google Scholar
(2005) Lipid analysis of the plasma membrane and mitochondria of Brewer's yeast
Folia Microbiologica 50:24–30.

https://doi.org/10.1007/BF02931290
- PubMed
- Google Scholar
1. Boehlke KW
2. Friesen JD
(1975)
Cellular content of ribonucleic acid and protein in Saccharomyces cerevisiae as a function of exponential growth rate: calculation of the apparent peptide chain elongation rate

Journal of Bacteriology 121:429–433.
- PubMed
- Google Scholar
1. Bolender RP
(1974) Stereological analysis of the guinea pig pancreas. I. analytical model and quantitative description of nonstimulated pancreatic exocrine cells
The Journal of Cell Biology 61:269–287.

https://doi.org/10.1083/jcb.61.2.269
- PubMed
- Google Scholar
1. Borle AB
(1969a) Kinetic analyses of calcium movements in HeLa cell cultures. I. calcium influx
The Journal of General Physiology 53:43–56.

https://doi.org/10.1085/jgp.53.1.43
- PubMed
- Google Scholar
1. Borle AB
(1969b) Kinetic analyses of calcium movements in HeLa cell cultures. II. calcium efflux
The Journal of General Physiology 53:57–69.

https://doi.org/10.1085/jgp.53.1.57
- PubMed
- Google Scholar
(1971)
Studies on the structure and cellular location of various ribosome and ribosomal RNA species in the green alga Chlamydomonas reinhardi

Journal of Cell Science 8:153–183.
- PubMed
- Google Scholar
1. Bremer H
2. Dennis PP
(1996)
Escherichia Coli and Salmonella Typhimurium: Cellular and Molecular Biology, Vol. 97

1559, Modulation of chemical composition and other parameters of the cell by growth rate, Escherichia Coli and Salmonella Typhimurium: Cellular and Molecular Biology, Vol. 97, 2nd edn.
- Google Scholar
1. Brown CM
2. Rose AH
(1969)
Effects of temperature on composition and cell volume of Candida utilis

Journal of Bacteriology 97:261–270.
- PubMed
- Google Scholar
1. Buschmann RJ
2. Manke DJ
(1981a) Morphometric analysis of the membranes and organelles of small intestinal enterocytes. I. fasted hamster
Journal of Ultrastructure Research 76:1–14.

https://doi.org/10.1016/S0022-5320(81)80046-9
- PubMed
- Google Scholar
1. Buschmann RJ
2. Manke DJ
(1981b) Morphometric analysis of the membranes and organelles of small intestinal enterocytes. II. lipid-fed hamster
Journal of Ultrastructure Research 76:15–26.

https://doi.org/10.1016/S0022-5320(81)80047-0
- PubMed
- Google Scholar
(1974) Generalization of the mitochondrial cycle in synchronous Euglena gracilis Z. during heterotrophic and phototrophic growth
Protoplasma 8:355–370.

https://doi.org/10.1007/BF01276351
- Google Scholar
(1983)
Regulation of protein synthesis in Tetrahymena. Quantitative estimates of the parameters determining the rates of protein synthesis in growing, starved, and starved-deciliated cells

The Journal of Biological Chemistry 258:6887–6898.
- PubMed
- Google Scholar
(2014) A constant size extension drives bacterial cell size homeostasis
Cell 159:1433–1446.

https://doi.org/10.1016/j.cell.2014.11.022
- PubMed
- Google Scholar
(2000)
Cross-linking and electron microscopy studies of the structure and functioning of the Escherichia coli ATP synthase

The Journal of Experimental Biology 203:29–33.
- PubMed
- Google Scholar
1. Carey VC
2. Ingram LO
(1983)
Lipid composition of Zymomonas mobilis: effects of ethanol and glucose

Journal of Bacteriology 154:1291–1300.
- PubMed
- Google Scholar
1. Chow TC
2. Schmidt JM
(1974) Fatty acid composition of Caulobacter crescentus
Journal of General Microbiology 83:369–373.

https://doi.org/10.1099/00221287-83-2-369
- Google Scholar
(1971) Enzymic characterization and lipid composition of rat liver subcellular membranes
Biochimica et Biophysica Acta (BBA) - Biomembranes 249:462–492.

https://doi.org/10.1016/0005-2736(71)90123-4
- PubMed
- Google Scholar
(2009) Three-dimensional analysis of the structure and ecology of a novel, ultra-small archaeon
The ISME journal 3:159–167.

https://doi.org/10.1038/ismej.2008.99
- PubMed
- Google Scholar
(1976) Lipid composition and protein profiles of outer and inner membranes from pig heart mitochondria. comparison with microsomes
Biochimica et Biophysica Acta (BBA) - Biomembranes 419:271–284.

https://doi.org/10.1016/0005-2736(76)90353-9
- Google Scholar
(1978)
Membrane phospholipid composition of Caulobacter crescentus

Journal of Bacteriology 135:1130–1136.
- PubMed
- Google Scholar
1. Davidoff F
2. Korn ED
(1963)
Fatty acid and phospholipid composition of the cellular slime mold, Dictyostelium discoideum. The occurance of previously undescribed fatty acids

The Journal of Biological Chemistry 238:3199–3209.
- PubMed
- Google Scholar
1. Dean PM
(1973) Ultrastructural morphometry of the pancreatic -cell
Diabetologia 9:115–119.

https://doi.org/10.1007/BF01230690
- PubMed
- Google Scholar
1. Dennis PP
2. Bremer H
(1974)
Macromolecular composition during steady-state growth of Escherichia coli B-r

Journal of Bacteriology 119:270–281.
- PubMed
- Google Scholar
(2011) Interaction of complexes I, III, and IV within the bovine respirasome by single particle cryoelectron tomography
PNAS 108:15196–15200.

https://doi.org/10.1073/pnas.1107819108
- PubMed
- Google Scholar
1. Duncan R
2. Hershey JW
(1983)
Identification and quantitation of levels of protein synthesis initiation factors in crude HeLa cell lysates by two-dimensional polyacrylamide gel electrophoresis

The Journal of Biological Chemistry 258:7228–7235.
- PubMed
- Google Scholar
1. Ellingson JS
(1974) Changes in the phospholipid composition in the differentiating cellular slime mold, Dictyostelium discoideum
Biochimica et Biophysica Acta (BBA) - Lipids and Lipid Metabolism 337:60–67.

https://doi.org/10.1016/0005-2760(74)90040-X
- Google Scholar
(1997) Turnover number of Escherichia coli F0F1 ATP synthase for ATP synthesis in membrane vesicles
European Journal of Biochemistry 243:336–343.

https://doi.org/10.1111/j.1432-1033.1997.0336a.x
- PubMed
- Google Scholar
(1998)
Implications of rRNA operon copy number and ribosome content in the marine oligotrophic ultramicrobacterium Sphingomonas sp. strain RB2256

Applied and Environmental Microbiology 64:4433–4438.
- PubMed
- Google Scholar
(1992) Ribosomes exist in large excess over the apparent demand for protein synthesis during carbon starvation in marine Vibrio sp. strain CCUG 15956
Journal of Bacteriology 174:6780–6788.

https://doi.org/10.1128/jb.174.21.6780-6788.1992
- PubMed
- Google Scholar
1. Force A
2. Lynch M
3. Pickett FB
4. Amores A
5. Yan YL
6. Postlethwait J
(1999)
Preservation of duplicate genes by complementary, degenerative mutations

Genetics 151:1531–1545.
- PubMed
- Google Scholar
(1976)
Synthesis of the inner mitochondrial membrane and the intercalation of respiratory enzymes during the cell cycle of Chlorella

Journal of Cell Science 21:329–340.
- PubMed
- Google Scholar
1. Förster K
2. Turina P
3. Drepper F
4. Haehnel W
5. Fischer S
6. Gräber P
7. Petersen J
(2010) Proton transport coupled ATP synthesis by the purified yeast H+ -ATP synthase in proteoliposomes
Biochimica et Biophysica Acta (BBA) - Bioenergetics 1797:1828–1837.

https://doi.org/10.1016/j.bbabio.2010.07.013
- PubMed
- Google Scholar
1. Fraenkel DG
2. Neidhardt FC
(1961) Use of chloramphenicol to study control of RNA synthesis in bacteria
Biochimica et Biophysica Acta 53:96–110.

https://doi.org/10.1016/0006-3002(61)90797-1
- PubMed
- Google Scholar
1. Freyssinet G
2. Schiff JA
(1974) The chloroplast and cytoplasmic ribosomes of Euglena: ii. characterization of ribosomal proteins
Plant Physiology 53:543–554.

https://doi.org/10.1104/pp.53.4.543
- PubMed
- Google Scholar
(1982) Morphometric analysis of several intracellular events occurring during the vegetative life cycle of the unicellular alga Polytoma papillatum
Protoplasma 110:185–195.

https://doi.org/10.1007/BF01283321
- Google Scholar
(2010) Amino acid-containing membrane lipids in bacteria
Progress in Lipid Research 49:46–60.

https://doi.org/10.1016/j.plipres.2009.08.002
- PubMed
- Google Scholar
1. Ghaemmaghami S
2. Huh WK
3. Bower K
4. Howson RW
5. Belle A
6. Dephoure N
7. O'Shea EK
8. Weissman JS
(2003) Global analysis of protein expression in yeast
Nature 425:737–741.

https://doi.org/10.1038/nature02046
- PubMed
- Google Scholar
1. Gillis TE
2. Ballantyne JS
(1999) Mitochondrial membrane composition of two arctic marine bivalve mollusks, Serripes groenlandicus and Mya truncata
Lipids 34:53–57.

https://doi.org/10.1007/s11745-999-337-0
- PubMed
- Google Scholar
(1988) Lipids of Chlamydomonas reinhardtii. Analysis of molecular species and intracellular site(s) of biosynthesis
Plant & Cell Physiology 29:587–595.

https://doi.org/10.1093/oxfordjournals.pcp.a077533
- Google Scholar
(1975) Effect of chloramphenicol on replication of mitochondria in Tetrahymena
Journal of Cellular Physiology 85:59–72.

https://doi.org/10.1002/jcp.1040850108
- PubMed
- Google Scholar
1. Gleason FK
(1976)
Fatty acids of mitochondrial membranes from Tetrahymena pyriformis

Journal of Lipid Research 17:16–20.
- PubMed
- Google Scholar
1. Godin M
2. Delgado FF
3. Son S
4. Grover WH
5. Bryan AK
6. Tzur A
7. Jorgensen P
8. Payer K
9. Grossman AD
10. Kirschner MW
11. Manalis SR
(2010) Using buoyant mass to measure the growth of single cells
Nature Methods 7:387–390.

https://doi.org/10.1038/nmeth.1452
- PubMed
- Google Scholar
1. Goyal S
2. Khuller GK
(1992) Phospholipid composition and subcellular distribution in yeast and mycelial forms of Candida albicans
Medical Mycology 30:355–362.

https://doi.org/10.1080/02681219280000461
- Google Scholar
1. Guschina IA
2. Harwood JL
(2006) Lipids and lipid metabolism in eukaryotic algae
Progress in Lipid Research 45:160–186.

https://doi.org/10.1016/j.plipres.2006.01.001
- PubMed
- Google Scholar
(1972) Chages in permeability of Staphylococcus aureus and derived liposomes with varying lipid composition
Biochimica et Biophysica Acta (BBA) - Biomembranes 255:720–733.

https://doi.org/10.1016/0005-2736(72)90385-9
- PubMed
- Google Scholar
(1969) Changes in the chemical and the barrier properties of the membrane lipids of E. coli by variation of the temperature of growth
Chemistry and Physics of Lipids 3:413–417.

https://doi.org/10.1016/0009-3084(69)90048-6
- PubMed
- Google Scholar
1. Hallberg RL
2. Bruns PJ
(1976) Ribosome biosynthesis in Tetrahymena pyriformis. regulation in response to nutritional changes
The Journal of Cell Biology 71:383–394.

https://doi.org/10.1083/jcb.71.2.383
- PubMed
- Google Scholar
1. Hayashi Y
2. Ueda K
(1989)
The shape of mitochondria and the number of mitochondrial nucleoids during the cell cycle of Euglena gracilis

Journal of Cell Science 93:565–570.
- Google Scholar
(2007) 3-D ultrastructure of O. tauri: electron cryotomography of an entire eukaryotic cell
PLoS One 2:e749.

https://doi.org/10.1371/journal.pone.0000749
- PubMed
- Google Scholar
1. Hsiao TC
(1970) Rapid changes in levels of polyribosomes in Zea mays in response to water stress
Plant Physiology 46:281–285.

https://doi.org/10.1104/pp.46.2.281
- PubMed
- Google Scholar
1. Iyer-Biswas S
2. Wright CS
3. Henry JT
4. Lo K
5. Burov S
6. Lin Y
7. Crooks GE
8. Crosson S
9. Dinner AR
10. Scherer NF
(2014) Scaling laws governing stochastic growth and division of single bacterial cells
PNAS 111:15912–15917.

https://doi.org/10.1073/pnas.1403232111
- PubMed
- Google Scholar
1. Jackson PJ
2. Lark KG
(1982) Ribosomal RNA synthesis in soybean suspension cultures growing in different media
Plant Physiology 69:234–239.

https://doi.org/10.1104/pp.69.1.234
- PubMed
- Google Scholar
(1978) Biochemical and stereological analysis of rat liver mitochondria in different thyroid states
The Journal of Cell Biology 77:887–901.

https://doi.org/10.1083/jcb.77.3.887
- PubMed
- Google Scholar
1. Janero DR
2. Barrnett R
(1981)
Cellular and thylakoid-membrane phospholipids of Chlamydomonas reinhardtii 137+

Journal of Lipid Research 22:1126–1130.
- PubMed
- Google Scholar
1. Jeong JW
2. Snay J
3. Ataai MM
(1990) A mathematical model for examining growth and sporulation processes of Bacillus subtilis
Biotechnology and Bioengineering 35:160–184.

https://doi.org/10.1002/bit.260350208
- PubMed
- Google Scholar
(2012) Mitochondrial ATP synthase: architecture, function and pathology
Journal of Inherited Metabolic Disease 35:211–225.

https://doi.org/10.1007/s10545-011-9382-9
- PubMed
- Google Scholar
1. Junesch U
2. Gräber P
(1991) The rate of ATP-synthesis as a function of delta pH and delta psi catalyzed by the active, reduced H(+)-ATPase from chloroplasts
FEBS Letters 294:275–278.

https://doi.org/10.1016/0014-5793(91)81447-g
- PubMed
- Google Scholar
1. Kaneko H
2. Hosohara M
3. Tanaka M
4. Itoh T
(1976) Lipid composition of 30 species of yeast
Lipids 11:837–844.

https://doi.org/10.1007/BF02532989
- PubMed
- Google Scholar
1. Kehle T
2. Herzog V
(1989)
A colloidal gold labeling technique for the direct determination of the surface area of eukaryotic cells

European Journal of Cell Biology 48:19–26.
- PubMed
- Google Scholar
1. Kistler A
2. Weber R
(1975) A morphometric analysis of inner membranes related to biochemical characteristics of mitochondria from heart muscle and liver in mice
Experimental Cell Research 91:326–332.

https://doi.org/10.1016/0014-4827(75)90111-1
- PubMed
- Google Scholar
(2014) Cell wall-related bionumbers and bioestimates of Saccharomyces cerevisiae and Candida albicans
Eukaryotic cell 13:2–9.

https://doi.org/10.1128/EC.00250-13
- PubMed
- Google Scholar
1. Klug L
2. Tarazona P
3. Gruber C
4. Grillitsch K
5. Gasser B
6. Trötzmüller M
7. Köfeler H
8. Leitner E
9. Feussner I
10. Mattanovich D
11. Altmann F
12. Daum G
(2014) The lipidome and proteome of microsomes from the methylotrophic yeast Pichia pastoris
Biochimica et Biophysica Acta (BBA) - Molecular and Cell Biology of Lipids 1841:215–226.

https://doi.org/10.1016/j.bbalip.2013.11.005
- PubMed
- Google Scholar
1. Koonin EV
(2015) Energetics and population genetics at the root of eukaryotic cellular and genomic complexity
PNAS 112:15777–15778.

https://doi.org/10.1073/pnas.1520869112
- PubMed
- Google Scholar
(1990) Effect of ethanol on the phospholipid and fatty acid content of Schizosaccharomyces pombe membranes
Journal of General Microbiology 136:1271–1277.

https://doi.org/10.1099/00221287-136-7-1271
- PubMed
- Google Scholar
(2011) Fluid phase lipid areas and bilayer thicknesses of commonly used phosphatidylcholines as a function of temperature
Biochimica et Biophysica Acta (BBA) - Biomembranes 1808:2761–2771.

https://doi.org/10.1016/j.bbamem.2011.07.022
- PubMed
- Google Scholar
1. Kulak NA
2. Pichler G
3. Paron I
4. Nagaraj N
5. Mann M
(2014) Minimal, encapsulated proteomic-sample processing applied to copy-number estimation in eukaryotic cells
Nature Methods 11:319–324.

https://doi.org/10.1038/nmeth.2834
- PubMed
- Google Scholar
1. Kühlbrandt W
(2015) Structure and function of mitochondrial membrane protein complexes
BMC Biology 13:89.

https://doi.org/10.1186/s12915-015-0201-x
- PubMed
- Google Scholar
1. Kühner S
2. van Noort V
3. Betts MJ
4. Leo-Macias A
5. Batisse C
6. Rode M
7. Yamada T
8. Maier T
9. Bader S
10. Beltran-Alvarez P
11. Castaño-Diez D
12. Chen WH
13. Devos D
14. Güell M
15. Norambuena T
16. Racke I
17. Rybin V
18. Schmidt A
19. Yus E
20. Aebersold R
21. Herrmann R
22. Böttcher B
23. Frangakis AS
24. Russell RB
25. Serrano L
26. Bork P
27. Gavin AC
(2009) Proteome organization in a genome-reduced bacterium
Science 326:1235–1240.

https://doi.org/10.1126/science.1176343
- PubMed
- Google Scholar
1. Lane N
2. Martin W
(2010) The energetics of genome complexity
Nature 467:929–934.

https://doi.org/10.1038/nature09486
- PubMed
- Google Scholar
Book
1. Lane N
(2002)
Power, Sex, Suicide: Mitochondria and the Meaning of Life

Oxford, UK: Oxford Univ. Press.
- Google Scholar
Book
1. Lane N
(2015)
The Vital Question

New York, NY: W. W. Norton & Co., Inc.
- Google Scholar
(2005) Sensitive genus-specific detection of Legionella by a 16S rRNA based sandwich hybridization assay
Journal of Microbiological Methods 62:167–179.

https://doi.org/10.1016/j.mimet.2005.02.008
- PubMed
- Google Scholar
1. Lin J
2. Gifford Jr. EM
(1976) The distribution of ribosomes in the vegetative and floral apices of Adonis aestivalis
Canadian Journal of Botany 54:2478–2483.

https://doi.org/10.1139/b76-265
- Google Scholar
(1968) Composition of the protoplast membrane from Saccharomyces cerevisiae
Biochemical Journal 108:401–412.

https://doi.org/10.1042/bj1080401
- PubMed
- Google Scholar
(1998) Variations of the envelope composition of Bacillus subtilis during growth in hyperosmotic medium
Current Microbiology 36:55–61.

https://doi.org/10.1007/s002849900279
- PubMed
- Google Scholar
1. Lu P
2. Vogel C
3. Wang R
4. Yao X
5. Marcotte EM
(2007) Absolute protein expression profiling estimates the relative contributions of transcriptional and translational regulation
Nature Biotechnology 25:117–124.

https://doi.org/10.1038/nbt1270
- PubMed
- Google Scholar
(1990) Structure of the ATP synthase complex (ECF1F0) of Escherichia coli from cryoelectron microscopy
Biochemistry 29:5339–5343.

https://doi.org/10.1021/bi00474a019
- Google Scholar
1. Lynch M
2. Marinov GK
(2015) The bioenergetic costs of a gene
PNAS 112:15690–15695.

https://doi.org/10.1073/pnas.1514974112
- PubMed
- Google Scholar
1. Lynch M
2. O'Hely M
3. Walsh B
4. Force A
(2001)
The probability of preservation of a newly arisen gene duplicate

Genetics 159:1789–1804.
- PubMed
- Google Scholar
Book
1. Lynch M
(2007)
The Origins of Genome Architecture

Sunderland, MA: Sinauer Assocs., Inc.
- Google Scholar
1. Maass S
2. Sievers S
3. Zühlke D
4. Kuzinski J
5. Sappa PK
6. Muntel J
7. Hessling B
8. Bernhardt J
9. Sietmann R
10. Völker U
11. Hecker M
12. Becher D
(2011) Efficient, global-scale quantification of absolute protein amounts by integration of targeted mass spectrometry and two-dimensional gel-based proteomics
Analytical Chemistry 83:2677–2684.

https://doi.org/10.1021/ac1031836
- PubMed
- Google Scholar
1. Maclean N
(1965) Ribosome numbers in a fission yeast
Nature 207:322–323.

https://doi.org/10.1038/207322a0
- PubMed
- Google Scholar
1. Maeda M
2. Thompson GA
(1986) On the mechanism of rapid plasma membrane and chloroplast envelope expansion in Dunaliella salina exposed to hypoosmotic shock
The Journal of Cell Biology 102:289–297.

https://doi.org/10.1083/jcb.102.1.289
- PubMed
- Google Scholar
1. Magalon A
2. Alberge F
(2016) Distribution and dynamics of OXPHOS complexes in the bacterial cytoplasmic membrane
Biochimica et Biophysica Acta (BBA) - Bioenergetics 1857:198–213.

https://doi.org/10.1016/j.bbabio.2015.10.015
- Google Scholar
1. Maier T
2. Schmidt A
3. Güell M
4. Kühner S
5. Gavin AC
6. Aebersold R
7. Serrano L
(2011) Quantification of mRNA and protein and integration with protein turnover in a bacterium
Molecular Systems Biology 7:511.

https://doi.org/10.1038/msb.2011.38
- PubMed
- Google Scholar
1. Marguerat S
2. Schmidt A
3. Codlin S
4. Chen W
5. Aebersold R
6. Bähler J
(2012) Quantitative analysis of fission yeast transcriptomes and proteomes in proliferating and quiescent cells
Cell 151:671–683.

https://doi.org/10.1016/j.cell.2012.09.019
- PubMed
- Google Scholar
1. Martin SE
2. Iandolo JJ
(1975)
Translational control of protein synthesis in Staphylococcus aureus

Journal of Bacteriology 122:1136–1143.
- PubMed
- Google Scholar
1. Martin W
2. Koonin EV
(2006) Introns and the origin of nucleus-cytosol compartmentalization
Nature 440:41–45.

https://doi.org/10.1038/nature04531
- PubMed
- Google Scholar
1. Martin W
2. Müller M
(1998) The hydrogen hypothesis for the first eukaryote
Nature 392:37–41.

https://doi.org/10.1038/32096
- PubMed
- Google Scholar
1. Matsuno-Yagi A
2. Hatefi Y
(1988) Estimation of the turnover number of bovine heart FoF1 complexes for ATP synthesis
Biochemistry 27:335–340.

https://doi.org/10.1021/bi00401a050
- Google Scholar
(1979) On the problem of counting and sizing mitochondria: a general reappraisal based on ultrastructural studies of mammalian lymphocytes
Cell and Tissue Research 204:297–303.

https://doi.org/10.1007/BF00234641
- PubMed
- Google Scholar
Book
1. Milo R
2. Phillips R
(2016)
Cell Biology by the Numbers

New York, NY: Garland Science, Taylor & Francis Group.
- Google Scholar
1. Mishra NN
2. Bayer AS
(2013) Correlation of cell membrane lipid profiles with daptomycin resistance in methicillin-resistant Staphylococcus aureus
Antimicrobial Agents and Chemotherapy 57:1082–1085.

https://doi.org/10.1128/AAC.02182-12
- Google Scholar
1. Mori H
2. Christensen AK
(1980) Morphometric analysis of Leydig cells in the normal rat testis
The Journal of Cell Biology 84:340–354.

https://doi.org/10.1083/jcb.84.2.340
- PubMed
- Google Scholar
1. Nozawa Y
(2011) Adaptive regulation of membrane lipids and fluidity during thermal acclimation in Tetrahymena
Proceedings of the Japan Academy, Series B 87:450–462.

https://doi.org/10.2183/pjab.87.450
- PubMed
- Google Scholar
(2006) Mapping 70S ribosomes in intact cells by cryoelectron tomography and pattern recognition
Journal of Structural Biology 156:334–341.

https://doi.org/10.1016/j.jsb.2006.04.014
- PubMed
- Google Scholar
1. Osafune T
2. Mihara S
3. Hase E
4. Ohkuro I
(1975) Electron microscope studies of the vegetative cellular life cycle of Chlamydomonas reinhardi dangeard in synchronous culture. III. Three-dimensional structures of mitochondria in the cells at intermediate stages of the growth phase of the cell cycle
Journal of Electron Microscopy 24:247–252.

https://doi.org/10.1093/oxfordjournals.jmicro.a049977
- PubMed
- Google Scholar
(2014) Concerted control of Escherichia coli cell division
PNAS 111:3431–3435.

https://doi.org/10.1073/pnas.1313715111
- PubMed
- Google Scholar
1. Pang H
2. Winkler HH
(1994) The concentrations of stable RNA and ribosomes in Rickettsia prowazekii
Molecular Microbiology 12:115–120.

https://doi.org/10.1111/j.1365-2958.1994.tb01000.x
- PubMed
- Google Scholar
1. Paquet VE
2. Lessire R
3. Domergue F
4. Fouillen L
5. Filion G
6. Sedighi A
7. Charette SJ
(2013) Lipid composition of multilamellar bodies secreted by Dictyostelium discoideum reveals their amoebal origin
Eukaryotic Cell 12:1326–1334.

https://doi.org/10.1128/EC.00107-13
- PubMed
- Google Scholar
(1989) Lipid characterization of an enriched plasma membrane fraction of Dunaliella salina grown in media of varying salinity
Plant Physiology 89:970–976.

https://doi.org/10.1104/pp.89.3.970
- PubMed
- Google Scholar
(2000) Area per lipid and acyl length distributions in fluid phosphatidylcholines determined by (2)H NMR spectroscopy
Biophysical Journal 79:3172–3192.

https://doi.org/10.1016/S0006-3495(00)76551-9
- PubMed
- Google Scholar
1. Pirt SJ
(1982) Maintenance energy: a general model for energy-limited and energy-sufficient growth
Archives of Microbiology 133:300–302.

https://doi.org/10.1007/BF00521294
- PubMed
- Google Scholar
1. Pittis AA
2. Gabaldón T
(2016) Late acquisition of mitochondria by a host with chimaeric prokaryotic ancestry
Nature 531:101–104.

https://doi.org/10.1038/nature16941
- PubMed
- Google Scholar
1. Poole RK
(1983)
Mitochondria of Tetrahymena pyriformis: enumeration and sizing of isolated organelles using a coulter counter and pulse-height analyser

Journal of Cell Science 61:437–451.
- PubMed
- Google Scholar
1. Poyton RO
(1973)
Effect of growth rate on the macromolecular composition of Prototheca zopfii, a colorless alga which divides by multiple fission

Journal of Bacteriology 113:203–211.
- PubMed
- Google Scholar
1. Price CE
2. Driessen AJ
(2010) Biogenesis of membrane bound respiratory complexes in Escherichia coli
Biochimica et Biophysica Acta (BBA) - Molecular Cell Research 1803:748–766.

https://doi.org/10.1016/j.bbamcr.2010.01.019
- PubMed
- Google Scholar
(1979)
Cardiolipin accumulation in the inner and outer membranes of Escherichia coli mutants defective in phosphatidylserine synthetase

Journal of Bacteriology 139:544–551.
- PubMed
- Google Scholar
1. Reith A
2. Brdiczka D
3. Nolte J
4. Staudte HW
(1973)
The inner membrane of mitochondria under influence of triiodothyronine and riboflavin deficiency in rat heart muscle and liver: a quantitative electronmicroscopical and biochemical study

Experimental Cell Research 77:1–14.
- PubMed
- Google Scholar
(1993)
Polymorphic regulation of membrane phospholipid composition in Escherichia coli

The Journal of Biological Chemistry 268:12427–12433.
- PubMed
- Google Scholar
1. Rosen D
2. Edelman M
3. Galun E
4. Danon D
(1974) Biogenesis of mitochondria in Trichoderma viride: structural changes in mitochondria and other spore constituents during conidium maturation and germination
Journal of General Microbiology 83:31–49.

https://doi.org/10.1099/00221287-83-1-31
- Google Scholar
1. Santi I
2. Dhar N
3. Bousbaine D
4. Wakamoto Y
5. McKinney JD
(2013) Single-cell dynamics of the chromosome replication and cell division cycles in mycobacteria
Nature Communications 4:2470.

https://doi.org/10.1038/ncomms3470
- PubMed
- Google Scholar
1. Schmidt A
2. Beck M
3. Malmström J
4. Lam H
5. Claassen M
6. Campbell D
7. Aebersold R
(2011) Absolute quantification of microbial proteomes at different states by directed mass spectrometry
Molecular Systems Biology 7:510.

https://doi.org/10.1038/msb.2011.37
- PubMed
- Google Scholar
1. Schmidt G
2. Gräber P
(1985) The rate of ATP synthesis by reconstituted CF0F1 liposomes
Biochimica et Biophysica Acta (BBA) - Bioenergetics 808:46–51.

https://doi.org/10.1016/0005-2728(85)90026-X
- Google Scholar
1. Schwanhäusser B
2. Busse D
3. Li N
4. Dittmar G
5. Schuchhardt J
6. Wolf J
7. Chen W
8. Selbach M
(2011) Global quantification of mammalian gene expression control
Nature 473:337–342.

https://doi.org/10.1038/nature10098
- PubMed
- Google Scholar
(1989) Oxidative capacity of muscle and mitochondria: correlation of physiological, biochemical, and morphometric characteristics
PNAS 86:1583–1587.

https://doi.org/10.1073/pnas.86.5.1583
- PubMed
- Google Scholar
1. Scott M
2. Gunderson CW
3. Mateescu EM
4. Zhang Z
5. Hwa T
(2010) Interdependence of cell growth and gene expression: origins and consequences
Science 330:1099–1102.

https://doi.org/10.1126/science.1192588
- PubMed
- Google Scholar
(2006) Structural analysis of Mycoplasma pneumoniae by cryo-electron tomography
Journal of Structural Biology 156:342–354.

https://doi.org/10.1016/j.jsb.2006.04.010
- PubMed
- Google Scholar
1. Sharma SC
(2006) Implications of sterol structure for membrane lipid composition, fluidity and phospholipid asymmetry in Saccharomyces cerevisiae
FEMS Yeast Research 6:1047–1051.

https://doi.org/10.1111/j.1567-1364.2006.00149.x
- PubMed
- Google Scholar
(1998)
Bacillus subtilis cell cycle as studied by fluorescence microscopy: constancy of cell length at initiation of DNA replication and evidence for active nucleoid partitioning

Journal of Bacteriology 180:547–555.
- PubMed
- Google Scholar
1. Singh A
2. Prasad T
3. Kapoor K
4. Mandal A
5. Roth M
6. Welti R
7. Prasad R
(2010) Phospholipidome of Candida: each species of Candida has distinctive phospholipid molecular species
Omics : A Journal of Integrative Biology 14:665–677.

https://doi.org/10.1089/omi.2010.0041
- PubMed
- Google Scholar
1. Slooten L
2. Vandenbranden S
(1989) ATP-synthesis by proteoliposomes incorporating Rhodospirillum rubrum F0F1 as measured with firefly luciferase: dependence on delta psi and delta pH
Biochimica et Biophysica Acta (BBA) - Bioenergetics 976:150–160.

https://doi.org/10.1016/S0005-2728(89)80224-5
- Google Scholar
1. Smith-Johannsen H
2. Gibbs SP
(1972) Effects of chloramphenicol on chloroplast and mitochondrial ultrastructure in Ochromonas danica
The Journal of Cell Biology 52:598–614.

https://doi.org/10.1083/jcb.52.3.598
- PubMed
- Google Scholar
(1999) Molecular architecture of the rotary motor in ATP synthase
Science 286:1700–1705.

https://doi.org/10.1126/science.286.5445.1700
- PubMed
- Google Scholar
1. Swan TM
2. Watson K
(1997) Membrane fatty acid composition and membrane fluidity as parameters of stress tolerance in yeast
Canadian Journal of Microbiology 43:70–77.

https://doi.org/10.1139/m97-010
- PubMed
- Google Scholar
(1981) The fatty acid composition of subcellular membranes of rat liver, heart, and brain: diet-induced modifications
European Journal of Biochemistry 121:5–13.

https://doi.org/10.1111/j.1432-1033.1981.tb06421.x
- PubMed
- Google Scholar
(1985)
Three-dimensional behaviour of mitochondria during cell division and germ tube formation in the dimorphic yeast Candida albicans

Journal of Cell Science 73:207–220.
- PubMed
- Google Scholar
(1996) Fatty acid and lipid composition of the acidophilic green alga Chlamydomonas sp.1
Journal of Phycology 32:598–601.

https://doi.org/10.1111/j.0022-3646.1996.00598.x
- Google Scholar
(1965) Magnesium-limited growth of Aerobacter aerogenes in a chemostat
Journal of General Microbiology 39:355–366.

https://doi.org/10.1099/00221287-39-3-355
- PubMed
- Google Scholar
1. Tempest DW
2. Neijssel OM
(1984) The status of YATP and maintenance energy as biologically interpretable phenomena
Annual Review of Microbiology 38:459–513.

https://doi.org/10.1146/annurev.mi.38.100184.002331
- PubMed
- Google Scholar
1. Toei M
2. Gerle C
3. Nakano M
4. Tani K
5. Gyobu N
6. Tamakoshi M
7. Sone N
8. Yoshida M
9. Fujiyoshi Y
10. Mitsuoka K
11. Yokoyama K
(2007) Dodecamer rotor ring defines H+/ATP ratio for ATP synthesis of prokaryotic V-ATPase from Thermus thermophilus
PNAS 104:20256–20261.

https://doi.org/10.1073/pnas.0706914105
- PubMed
- Google Scholar
1. Tuller G
2. Nemec T
3. Hrastnik C
4. Daum G
(1999) Lipid composition of subcellular membranes of an FY1679-derived haploid yeast wild-type strain grown on different carbon sources
Yeast 15:1555–1564.

https://doi.org/10.1002/(SICI)1097-0061(199910)15:14<1555::AID-YEA479>3.0.CO;2-Z
- PubMed
- Google Scholar
1. Turk M
2. Montiel V
3. Zigon D
4. Plemenitas A
5. Ramos J
(2007) Plasma membrane composition of Debaryomyces hansenii adapts to changes in pH and external salinity
Microbiology 153:3586–3592.

https://doi.org/10.1099/mic.0.2007/009563-0
- PubMed
- Google Scholar
1. Uchida M
2. Sun Y
3. McDermott G
4. Knoechel C
5. Le Gros MA
6. Parkinson D
7. Drubin DG
8. Larabell CA
(2011) Quantitative analysis of yeast internal architecture using soft X-ray tomography
Yeast 28:227–236.

https://doi.org/10.1002/yea.1834
- PubMed
- Google Scholar
(1982) Comparative lipid analysis of purified plasma membranes and shed extracellular membrane vesicles from normal murine thymocytes and leukemic GRSL cells
Biochimica et Biophysica Acta (BBA) - Biomembranes 688:495–504.

https://doi.org/10.1016/0005-2736(82)90361-3
- PubMed
- Google Scholar
1. Vassilyev AE
(2000) Quantitative ultrastructural data of secretory duct epithelial cells in Rhus toxicodendron
International Journal of Plant Sciences 161:615–630.

https://doi.org/10.1086/314288
- Google Scholar
1. Voorn WJ
2. Koppes LJ
(1998) Skew or third moment of bacterial generation times
Archives of Microbiology 169:43–51.

https://doi.org/10.1007/s002030050539
- PubMed
- Google Scholar
1. Waldron C
2. Lacroute F
(1975)
Effect of growth rate on the amounts of ribosomal and transfer ribonucleic acids in yeast

Journal of Bacteriology 122:855–865.
- PubMed
- Google Scholar
1. Warner JR
(1999) The economics of ribosome biosynthesis in yeast
Trends in Biochemical Sciences 24:437–440.

https://doi.org/10.1016/S0968-0004(99)01460-7
- PubMed
- Google Scholar
1. Weart RB
2. Lee AH
3. Chien AC
4. Haeusser DP
5. Hill NS
6. Levin PA
(2007) A metabolic sensor governing cell size in bacteria
Cell 130:335–347.

https://doi.org/10.1016/j.cell.2007.05.043
- PubMed
- Google Scholar
1. Weeks G
2. Herring FG
(1980)
The lipid composition and membrane fluidity of Dictyostelium discoideum plasma membranes at various stages during differentiation

Journal of Lipid Research 21:681–686.
- PubMed
- Google Scholar
(1969) Correlated morphometric and biochemical studies on the liver cell. I. morphometric model, stereologic methods, and normal morphometric data for rat liver
The Journal of Cell Biology 42:68–91.

https://doi.org/10.1083/jcb.42.1.68
- PubMed
- Google Scholar
(1998) Prokaryotes: the unseen majority
PNAS 95:6578–6583.

https://doi.org/10.1073/pnas.95.12.6578
- PubMed
- Google Scholar
1. Wiśniewski JR
2. Hein MY
3. Cox J
4. Mann M
(2014) A "proteomic ruler" for protein copy number and concentration estimation without spike-in standards
Molecular & Cellular Proteomics 13:3497–3506.

https://doi.org/10.1074/mcp.M113.037309
- PubMed
- Google Scholar
(2012) Extensive quantitative remodeling of the proteome between normal colon tissue and adenocarcinoma
Molecular Systems Biology 8:611.

https://doi.org/10.1038/msb.2012.44
- PubMed
- Google Scholar
(2009) Lipid analysis of mitochondrial membranes from the yeast Pichia pastoris
Biochimica et Biophysica Acta (BBA) - Molecular and Cell Biology of Lipids 1791:166–172.

https://doi.org/10.1016/j.bbalip.2008.12.017
- PubMed
- Google Scholar
(2015) Structome analysis of virulent Mycobacterium tuberculosis, which survives with only 700 ribosomes per 0.1 fl of cytoplasm
PLoS One 10:e0117109.

https://doi.org/10.1371/journal.pone.0117109
- PubMed
- Google Scholar
1. Yamaguchi M
2. Namiki Y
3. Okada H
4. Mori Y
5. Furukawa H
6. Wang J
7. Ohkusu M
8. Kawamoto S
(2011) Structome of Saccharomyces cerevisiae determined by freeze-substitution and serial ultrathin-sectioning electron microscopy
Microscopy 60:321–335.

https://doi.org/10.1093/jmicro/dfr052
- Google Scholar
1. Yoshida S
2. Uemura M
(1986) Lipid composition of plasma membranes and tonoplasts isolated from etiolated seedlings of mung bean (Vigna radiata L.)
Plant Physiology 82:807–812.

https://doi.org/10.1104/pp.82.3.807
- PubMed
- Google Scholar
1. Young KD
(2006) The selective value of bacterial shape
Microbiology and Molecular Biology Reviews 70:660–703.

https://doi.org/10.1128/MMBR.00001-06
- Google Scholar
1. Yus E
2. Maier T
3. Michalodimitrakis K
4. van Noort V
5. Yamada T
6. Chen WH
7. Wodke JA
8. Güell M
9. Martínez S
10. Bourgeois R
11. Kühner S
12. Raineri E
13. Letunic I
14. Kalinina OV
15. Rode M
16. Herrmann R
17. Gutiérrez-Gallego R
18. Russell RB
19. Gavin AC
20. Bork P
21. Serrano L
(2009) Impact of genome reduction on bacterial metabolism and its regulation
Science 326:1263–1268.

https://doi.org/10.1126/science.1177263
- PubMed
- Google Scholar
1. Zhao L
2. Kroenke CD
3. Song J
4. Piwnica-Worms D
5. Ackerman JJ
6. Neil JJ
(2008) Intracellular water-specific MR of microbead-adherent cells: the HeLa cell intracellular water exchange lifetime
NMR in Biomedicine 21:159–164.

https://doi.org/10.1002/nbm.1173
- PubMed
- Google Scholar
(1991) Quantitative cytology of the alfalfa generative cell and its relation to male plastid inheritance patterns in three genotypes
Theoretical and Applied Genetics 81:21–26.

https://doi.org/10.1007/BF00226107
- PubMed
- Google Scholar
(1991) Phospholipid synthesis and lipid composition of subcellular membranes in the unicellular eukaryote Saccharomyces cerevisiae
Journal of Bacteriology 173:2026–2034.

https://doi.org/10.1128/jb.173.6.2026-2034.1991
- PubMed
- Google Scholar
(1966b) The interaction of mycoplasmas with mammalian cells: II. monocytes and lymphocytes
Journal of Experimental Medicine 124:533–542.

https://doi.org/10.1084/jem.124.3.533
- PubMed
- Google Scholar
1. Zucker-Franklin D
(1996a) The interaction of mycoplasmas with mammalian cells: I. Hela cells, neutrophils, and eosinophils
Journal of Experimental Medicine 124:521–532.

https://doi.org/10.1084/jem.124.3.521
- Google Scholar

Article and author information

Author details

Michael Lynch

Department of Biology, Indiana University, Bloomington, United States

Contribution
ML, Conceptualization, Data curation, Funding acquisition, Validation, Investigation, Methodology, Writing—original draft, Project administration, Writing—review and editing

For correspondence
milynch@indiana.edu

Competing interests
The authors declare that no competing interests exist.

"This ORCID iD identifies the author of this article:" 0000-0002-1653-0642
Georgi K Marinov

Department of Biology, Indiana University, Bloomington, United States

Contribution
GKM, Data curation, Formal analysis, Investigation, Methodology, Writing—original draft

Competing interests
The authors declare that no competing interests exist.

"This ORCID iD identifies the author of this article:" 0000-0003-1822-7273

Funding

National Science Foundation (MCB-1050161)

Michael Lynch
Georgi K Marinov

National Institute of General Medical Sciences (R01-GM036827)

Michael Lynch
Georgi K Marinov

US Army Research Office

Michael Lynch

US Army Research Office (W911NF-14-1-0411)

Michael Lynch

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

Support was provided by the Multidisciplinary University Research Initiative awards W911NF-09-1-0444 and W911NF-14-1-0411 from the US Army Research Office, National Institutes of Health award R01-GM036827, and National Science Foundation award MCB-1050161. This material is also based upon work supported by the National Science Foundation grant CNS-0521433. We are grateful to J Dacks, D Devos, J McKinlay, J Murray, and R Phillips for helpful comments.

Copyright

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

6,854

views
970

downloads
68

citations

Views, downloads and citations are aggregated across all versions of this paper published by eLife.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Article PDF

Open citations (links to open the citations from this article in various online reference manager services)

Mendeley

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

Michael Lynch
Georgi K Marinov

(2017)

Membranes, energetics, and evolution across the prokaryote-eukaryote divide

eLife 6:e20437.

https://doi.org/10.7554/eLife.20437

Share this article

Cite this article

Scaling features of membrane properties with cell size.

The number of ribosomes per cell scales with cell volume (V, in μm3) as 8551⁢V0.79 (r2=0.91; SEs of the intercept and slope on the log scale are 0.14 and 0.06, respectively).

Relative contribution of ATP (P) and NADH/NADPH/FADH2 (H) to the biosynthetic costs of lipids and amino acids.

Author details

Michael Lynch

Contribution

For correspondence

Competing interests

Georgi K Marinov

Contribution

Competing interests

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

Categories and tags

Research organisms

Further reading

The number of ribosomes per cell scales with cell volume ( $V$ , in μm³) as $8551 V^{0.79}$ ( $r^{2} = 0.91$ ; SEs of the intercept and slope on the log scale are 0.14 and 0.06, respectively).

Relative contribution of ATP (P) and NADH/NADPH/FADH $_{2}$ (H) to the biosynthetic costs of lipids and amino acids.
