Spinal microcircuits comprising dI3 interneurons are necessary for motor functional recovery following spinal cord transection

  1. Tuan V Bui
  2. Nicolas Stifani
  3. Turgay Akay
  4. Robert M Brownstone  Is a corresponding author
  1. Brain and Mind Research Institute, University of Ottawa, Canada
  2. Dalhousie University, Canada
  3. University College London, United Kingdom
Research Article
  • Cited 15
  • Views 1,852
  • Annotations
Cite this article as: eLife 2016;5:e21715 doi: 10.7554/eLife.21715

Abstract

The spinal cord has the capacity to coordinate motor activities such as locomotion. Following spinal transection, functional activity can be regained, to a degree, following motor training. To identify microcircuits involved in this recovery, we studied a population of mouse spinal interneurons known to receive direct afferent inputs and project to intermediate and ventral regions of the spinal cord. We demonstrate that while dI3 interneurons are not necessary for normal locomotor activity, locomotor circuits rhythmically inhibit them and dI3 interneurons can activate these circuits. Removing dI3 interneurons from spinal microcircuits by eliminating their synaptic transmission left locomotion more or less unchanged, but abolished functional recovery, indicating that dI3 interneurons are a necessary cellular substrate for motor system plasticity following transection. We suggest that dI3 interneurons compare inputs from locomotor circuits with sensory afferent inputs to compute sensory prediction errors that then modify locomotor circuits to effect motor recovery.

https://doi.org/10.7554/eLife.21715.001

eLife digest

Circuits of nerve cells, or neurons, in the spinal cord control movement. After an injury to the spinal cord, the connections between the brain and spinal neurons may be severed, meaning that the spinal circuits can no longer work properly. This loss of communication between the brain and the spinal cord often leads to paralysis below the level of the injury.

There are currently no effective treatments for individuals who have lost the ability to walk following spinal cord injury. However, the spinal cord retains circuits that are sufficient to restore walking and these circuits can be activated with training. That is, rehabilitative training can lead to improvements in movement by promoting spinal cord plasticity – the ability of other neurons in the spinal cord to take over the roles of the severed neurons. By understanding how rehabilitation leads to these improvements following injury, new strategies could be developed to optimize the recovery process.

Previous research showed that spinal neurons called dI3 interneurons are involved in short term adjustments of movement. Could these interneurons also be involved in longer term adaptations?

Bui, Stifani et al. compared normal mice with genetically engineered mice that had dI3 interneurons “removed” from their circuits. This revealed that although dI3 interneurons in mice are integrated with spinal circuits that are involved in walking, they are not necessary for normal walking. Following the severing of the spinal cord, the experimental mice, unlike the normal mice, did not recover the ability to step. Thus, circuits comprising dI3 interneurons are necessary for recovering the ability to move after an injury.

Now that Bui, Stifani et al. have identified this essential circuit, the next step is to investigate how dI3 interneurons promote spinal cord plasticity. Understanding these mechanisms could help to develop therapies that enhance rehabilitation-assisted improvement of movement following spinal cord injury.

https://doi.org/10.7554/eLife.21715.002

Introduction

Like other regions of the central nervous system, the spinal cord is remarkably plastic (Wolpaw, 2007; Grau, 2014). Such plasticity has been demonstrated, for example, following spinal cord injury, when training can lead to a degree of recovery of spinal locomotor circuits such that stepping movements are restored (Barbeau et al., 1987; Courtine et al., 2009; Harkema et al., 2012; Hubli and Dietz, 2013; Martinez et al., 2013; Takeoka et al., 2014). After complete spinal transection in cats and rodents, a treadmill-training regimen that provides rhythmic sensory input to the spinal cord leads to the re-acquisition of the complex sequence of muscle activation that produces stepping (Barbeau and Rossignol, 1987; Sławińska et al., 2012). Multiple modalities of sensory input are likely required to promote these sustained changes in spinal circuits, as removing cutaneous inputs degrades the quality of recovery in both cat (Bouyer and Rossignol, 2003) and rats (Sławińska et al., 2012), and eliminating muscle proprioceptive afferents impairs recovery in mice (Takeoka et al., 2014). But in addition to determining the afferent inputs involved, it is necessary to identify the spinal circuits involved in this plasticity in order to understand how the nervous system acquires new motor skills in health and injury.

One approach towards understanding these circuits would be to study neurons that are interposed between sensory inputs and spinal locomotor circuits. Furthermore, since there is a relationship between short-term adaptation and longer-term plasticity (Bastian, 2008), it might be useful to focus on interposed neurons that are known to be involved in adaptive responses. We previously showed that dI3 interneurons (INs), a population defined by expression of the LIM-homeodomain transcription factor Isl1 (Liem et al., 1997), receive multimodal monosynaptic sensory afferent inputs and project to spinal motoneurons. Eliminating glutamatergic output by these neurons led to deficits in motor responses to sensory perturbation: while the mice could place their paws on wire rungs, they were unable to adjust their grasp in response to sensory stimulation provided by increasing the inclination of the rungs. This indicates that a microcircuit involving dI3 INs mediates adaptive changes in motor behaviour (Bui et al., 2013). We thus focussed on this population to determine if they have a role in locomotor recovery.

Here, we have considered the position of dI3 INs in spinal microcircuits, and show that they are indeed interposed between sensory inputs and locomotor circuits. We demonstrate that while dI3 INs are not required for normal locomotor function, they are necessary for stable recovery of locomotor activity following spinal cord transection. Specifically, we demonstrate that eliminating glutamatergic output from dI3 INs precludes locomotor recovery after spinal cord transection. Thus, dI3 INs are involved in spinal microcircuits that mediate motor system plasticity.

Results

dI3 interneurons are not necessary for locomotor function

We first determined whether dI3 INs are an essential component of spinal locomotor circuits and thus necessary for locomotion. To do so, we genetically eliminated glutamatergic neurotransmission from dI3 INs using dI3OFF (Isl1Cre/+;Slc17a6fl/fl) mice (Bui et al., 2013). Within their cages, dI3OFF mice did not reveal obvious locomotor deficits (Bui et al., 2013). There was no difference between the weights of control (19.8 ± 2.3 g; n = 14) and dI3OFF mice (19.0 ± 2.7 g; n = 9, p>0.44). Footprint and inter-limb coordination analysis revealed subtle alterations in locomotion in adults (Figure 1A). The hind paws, but not the forepaws, of dI3OFF mice were more widely spaced than those of control mice (Figure 1B), and dI3OFF mice had a greater propensity to make coincident contact with the ground with three or four paws (Figure 1A,C, and Video 1), however inter-limb coordination was similar in dI3OFF and control mice (Figure 1—figure supplement 1). During treadmill locomotion (Video 1), dI3OFF mice had longer stance times on average, and a steeper relationship between stance duration and cycle period than seen in controls (Figure 1D,E). Collectively, the shorter swing phases, increased time with more paws in contact with the treadmill, and more widely spaced hind paws in dI3OFF mice could result from a reduction in extensor activity and/or compensation for a reduction in stability. Taken together, these results show that while dI3 INs sculpt hind limb movement, they are not critical for the fundamental rhythm and/or pattern of locomotion.

Figure 1 with 1 supplement see all

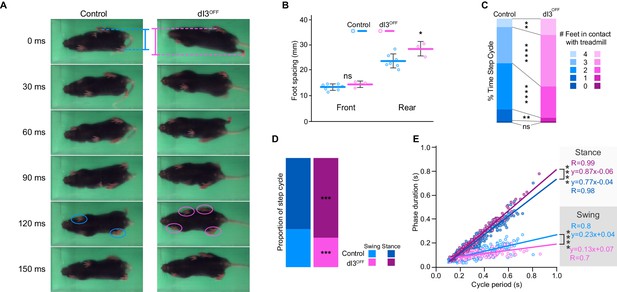

dI3 INs are subtly involved in locomotion.

(A) Footprint snapshots in control (cyan) and dI3OFF (magenta) littermates at 30 ms intervals starting from the onset of the stance of right hindlimb (top) running at 30 cm/s. Coloured lines represent hindlimb feet spacing, circles indicate foot contact. (B) Front and rear foot spacing for control (cyan, n = 6) and dI3OFF (magenta, n = 3) animals running between 10 and 50 cm/s. Mean +/− Standard Deviation. (C) Proportion of time with indicated number of feet contacting the treadmill belt in same animals running between 10 and 18 cm/s. (D) Percentage of swing (light shades) and stance (dark shades) in same animals running between 10 and 18 cm/s. (E) Correlation between swing or stance duration and cycle period in same animals running between 9.5 cm/s and 72 cm/s. Each data point represents a single step cycle. Analysis of Covariance (ANCOVA) on slopes. (B, C, D) Two-way ANOVA followed by Sidak post-hoc multiple comparison test. *p<0.05, **p<0.01, ***p<0.001, and ****p<0.0001, ns non-significant.

https://doi.org/10.7554/eLife.21715.003
Video 1
Foot print recordings in intact animals.

Foot print recordings of control and dI3OFF animals running at 30 cm/s, recorded at 100 fps and displayed at 15 fps. Animals were recorded separately.

https://doi.org/10.7554/eLife.21715.011

dI3 interneurons activate locomotor circuits

We next sought to determine whether dI3 INs, in addition to their projections to motoneurons (Bui et al., 2013), also have access to spinal circuits for locomotion. Considering that sensory stimulation can trigger locomotor activity (Lundberg, 1979; Hultborn et al., 1998) and that dI3 INs can be monosynaptically activated by stimulation of low-threshold sensory afferents (Bui et al., 2013), we asked whether dI3 INs could activate spinal locomotor circuits. To do so, we studied sensory-evoked locomotion in control and dI3OFF mice, stimulating a sensory (sural) rather than a mixed (tibial) nerve to avoid stimulating motor axons. Furthermore, as sensory afferents may have multiple routes to spinal locomotor circuits, we stimulated the sural nerve, which we previously showed both anatomically and physiologically project directly to dI3 INs (Bui et al., 2013), rather than a dorsal root. We thus studied sensory-evoked locomotor activity in neonatal (P1-P3) mice by isolating their spinal cords with the sensory sural nerve in continuity (Figure 2A). Given that the Vesicular glutamate transporter 2 (vGluT2) coded by the gene Slc17a6 is also expressed in high threshold small to medium sized primary afferents responsible for pain, itch, and thermoception (Brumovsky et al., 2007; Lagerström et al., 2010; Liu et al., 2010; Scherrer et al., 2010), we focussed on low threshold stimulation, with threshold defined as the lowest amplitude that produced a volley in the proximal dorsal root (A-wave in Figure 2B; control: 4.9 ± 6.4 µA, n = 13; dI3OFF: 2.9 ± 1.4 µA, n = 12; p>0.29).

Figure 2 with 1 supplement see all

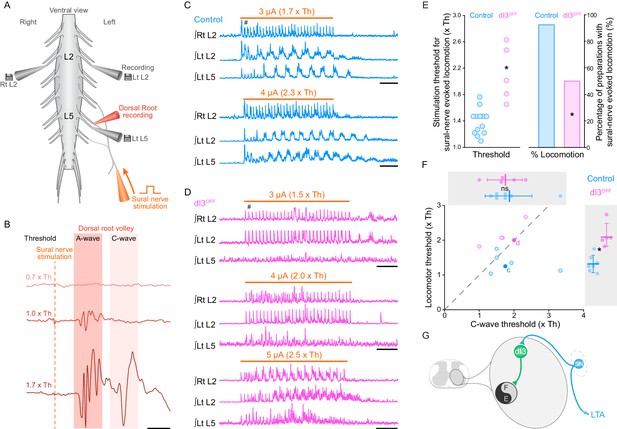

dI3 INs activate spinal locomotor circuits.

(A) Experimental preparation showing isolated spinal cord with sural nerve attached. Sural nerve stimulation (arrow) is used to evoke locomotion, while recording ipsilateral (Left) L5 and bilateral L2 ventral root activity (grey electrodes). Stimulus strength determined by volleys in dorsal root recordings (red electrode). (B) Dorsal root potentials in response to sural nerve stimulation (single pulse, 0.25 ms) recorded in ipsilateral L5 dorsal root of a dI3OFF spinal cord. Dotted line denotes stimulation artifact. Stimulation strength is in relation to the threshold (Th) to evoke a short-latency A-wave. A-wave threshold was 1.5 μA for this dI3OFF spinal cord. (C) Rectified and time-integrated ventral root recordings during sural-nerve stimulation (10 s train, 3 Hz, 0.25 ms long pulses, thick orange line) in control mice. Brief voltage deflections in the recordings are stimulation artifacts (#). (D) Rectified and time-integrated ventral root recordings during sural-nerve stimulation in dI3OFF mice. Note the lack of locomotor activity with stimulation strength ≤2 x Th. Brief voltage deflections in the recordings are stimulation artifacts (#). (E) Threshold of stimulation to evoke locomotor activity by sural nerve stimulation (left) and percentage of preparations with sural-nerve evoked locomotor activity (right) in control and dI3OFF mice. The threshold of stimulation was not determined for one of the six dI3OFF spinal cords in which sural-nerve evoked locomotion was observed. Two-tailed Student’s t-test for threshold of stimulation, Fisher’s exact test for percentage of successful preparations. (F) Relationship between the thresholds for evoking locomotion and the long latency C-wave. Dashed line represents line of unity. Spinal cords in which locomotor but not C-wave thresholds were measured are not shown. There is no difference in C-wave thresholds (inset above), but there is a significant increase in locomotor threshold (right inset) between control (cyan) and dI3OFF mice (magenta). dI3 INs corresponding to recordings in panels 2C and 2D are marked by full colored circles and their respective letters. Two-tailed Student’s t-test. (G) Diagram depicting access of dI3 INs to spinal locomotor circuits. Stimulation of low-threshold afferents (LTA, blue) recruits dI3 INs, which provide drive to spinal locomotor circuits (black and grey circle). *p<0.05, Scale bars, 5 ms (B), 2 s (C, D).

https://doi.org/10.7554/eLife.21715.012

In 13 of 14 control spinal cords, stimulation of the sural nerve generated locomotor activity (Figure 2C,E), whereas this was only possible in 6 of 12 dI3OFF mice (Figure 2D,E, p<0.05). Furthermore, the thresholds required for evoking locomotor activity in these 6 dI3OFF spinal cords were significantly higher than control thresholds (Figure 2C–E), with activity evoked only when stimulation was equal to or greater than the threshold for producing the higher threshold C-wave (in contrast to 5/6 controls that responded to low threshold stimulation, Figure 2B,F). In the dI3OFF spinal cords in which locomotor activity could be evoked, left-right alternation (control phase: 0.46 ± 0.11; dI3OFF phase: 0.53 ± 0.14; p>0.15; Figure 2—figure supplement 1A) and locomotor frequency (control: 1.2 ± 0.1 Hz; dI3OFF: 1.3 ± 0.2 Hz; p>0.63; Figure 2—figure supplement 1B) were similar to control spinal cords. The lack of response to low threshold stimulation in dI3OFF spinal cords was not due to sural nerve dysfunction, as low threshold sural nerve stimulation produced a normal volley in the dorsal root (Figure 2B), nor was it due to a general inability of afferent stimulation to produce locomotor activity, as dorsal root stimulation was able to evoke locomotion in dI3OFF mice (Figure 2—figure supplement 1C,D). Thus dI3 IN output is necessary for low threshold-evoked locomotor activity, demonstrating that dI3 INs can activate spinal locomotor circuits (Figure 2G).

dI3 interneurons receive rhythmic inputs from spinal locomotor circuits

To further understand the relationship between dI3 INs and locomotor circuits, we next asked whether there was a reciprocal relationship between them, that is, whether dI3 INs receive inputs from locomotor circuits. During drug-induced locomotor activity in hemisected (Figure 3A) or dorsal horn removed (Figure 3C) spinal cords from neonatal (P1-P6) Isl1Cre/+;Thy1-fs-YFP mice (n = 7), whole-cell recordings of upper and lower lumbar dI3 INs revealed cyclic membrane potential depolarisations (Figure 3B,D and Figure 3—figure supplement 1A), with 27 of 40 (68%) dI3 INs firing rhythmic bursts of action potentials. Raster and polar plots of up to 50 randomly selected action potentials from each of the 27 rhythmically active dI3 INs showed that the majority (22 of 27, 81%) of neurons were active primarily during the extensor phase of the step cycle (cf. 5/27 in flexor phase, Figure 3—figure supplement 1B). This extensor-dominant pattern of activity was seen irrespective of whether the interneurons were located in the upper or lower lumbar segments, or medial or lateral grey matter (Figure 3E and Figure 3—figure supplement 1A). Peak activity of those active during extension was at the midpoint of that phase (Figure 3F,G). The dominant extensor phase activity may explain the differences in locomotion between control and dI3OFF mice, as elimination of dI3 IN output could result in reduced plantar flexion (physiological extension) (Bui et al., 2013) during paw ground contact (Engberg, 1964), resulting in reduced weight support and rear track widening (Donelan et al., 2004). Together, these data demonstrate that dI3 INs receive inputs – either directly or indirectly – from locomotor circuits, and are predominantly active during the ipsilateral extensor phase of the step cycle.

Figure 3 with 1 supplement see all

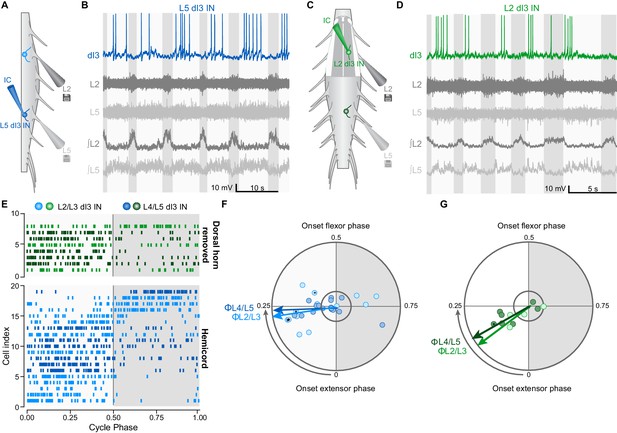

dI3 INs are rhythmically active during fictive locomotion.

(A) Schematic of hemicord preparation indicating the position of recording electrodes as well as L2/L3 (light blue) and L4/L5 (dark blue) dI3 INs. (B) Current-clamp recording of L5 dI3 IN rhythmically active during drug-evoked locomotion in hemicord preparation. dI3 IN: whole-cell patch clamp recording. L2, L5: raw ventral root recordings. ∫L2, L5: rectified and integrated ventral root recordings. (C) Schematic of L1-L3 dorsal horn removed preparation indicating the position of recording electrodes as well as L2/L3 (light green) and L4/L5 (dark green) dI3 INs. For recordings of L4/L5 dI3 INs, the dorsal horn overlying L4-L6 was removed. (D) Current-clamp recording of L3 dI3 IN rhythmically active during drug-evoked locomotion in dorsal horn removed preparation. dI3 IN: whole-cell patch clamp recording. L2, L5: raw ventral root recordings. ∫L2, L5: rectified and integrated ventral root recordings. (E) Raster plot of dI3 IN spiking during drug-evoked locomotion. 50 randomly selected spikes (a fewer number of spikes from cells 2, 3, 5, and 14 from hemicord preparations and cell 4 from dorsal horn removed preparation were recorded) are shown for each cell. Locomotor cycles were double-normalized such that a phase of 0 marks the beginning of extensor phase, 0.5 marks the beginning of the flexor phase/end of the extensor phase. Only dI3 INs determined to be rhythmically active are shown (see F, G). (F) Polar plot summarizing rhythmic activity of dI3 INs in hemicords (n = 13 L2/L3 dI3 INs light blue, and 16 L4/L5 dI3 INs dark blue). Mean phase and angular concentration r calculated from 50 or fewer randomly selected spikes. Each point depicts the average phase at which spikes occurred during the step cycle. The distance away from the centre represents r. The inner circle represents r = 0.24, which corresponds to significant rhythmicity (p<0.05) for 50 randomly selected spikes. Asterisks mark cells where rhythmicity was statistically demonstrated though fewer than 50 spikes were recorded. Arrows depict mean phase (Φ) of dI3 INs whose average phase was during the extensor phase. (G) Polar plot summarizing rhythmic activity of dI3 INs in dorsal horn removed spinal cords (n = 4 L2/L3 dI3 INs light green, and 7 L4/L5 dI3 INs dark green). Arrows depict mean phase (Φ) of dI3 INs whose average phase was during the extensor phase.

https://doi.org/10.7554/eLife.21715.016

To determine the nature of this input, we performed voltage-clamp recordings of dI3 INs that were rhythmically active during extensor (n = 8) or flexor (n = 2) phases. We found that, regardless of their location in the lumbar spinal cord, the post-synaptic currents (PSCs) recorded in 7 out of 8 dI3 INs reversed between −90 and −40 mV, indicating they were inhibitory. In the neurons active in extension, these inhibitory PSCs (IPSCs) were phasic, indicating that they predominantly received rhythmic synaptic inhibition during the flexor phase (Figure 4A, and Figure 4—figure supplement 1A). Three of these neurons also received some excitatory post-synaptic currents (EPSCs) during the extensor phase. Quantification of the distribution of the IPSCs across the step cycle revealed that the onset and termination of inhibitory input mirrored those of the L2 flexor bursts (Figure 4B). When additional brief L2 bursts were present, these bursts also coincided with inhibition of dI3 INs, with the inhibitory input being of longer duration than the abbreviated L2 bursts (Figure 4C).

Figure 4 with 1 supplement see all

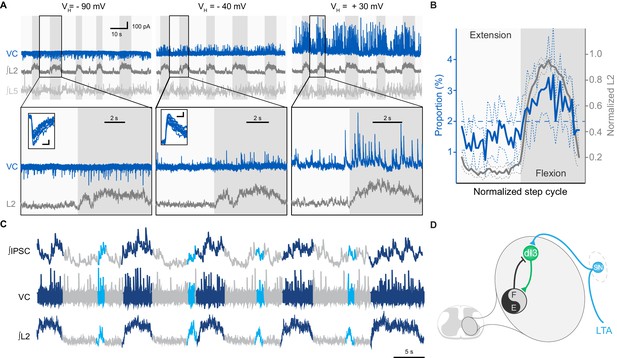

dI3 INs receive rhythmic synaptic inputs during drug-evoked locomotion.

(A) Voltage-clamp recording (VC) of L5 dI3 IN during drug-evoked locomotion at different holding potentials (VH). Bottom two rows are expanded time-scale representation of data in boxes seen in top two rows. Insets depict 10 postsynaptic currents of greatest magnitude within the flexor phase. Scale bars within insets, 5 ms, 25 pA. (B) Distribution of IPSCs through the step cycle (n = 6622 IPSCs occurring in 116 step cycles in seven preparations) overlaid with averaged normalised L2 ventral root recordings (means and standard deviations shown). Step cycle was divided into 50 bins. Dashed line at 2% indicates the proportion of IPSCs if they were evenly distributed throughout the step cycle. (C) Voltage-clamp recording (VC) at holding potential of −40 mV of L5 dI3 IN during drug-evoked locomotion with brief flexion bursts (cyan) during extension. Bursts of IPSCs were observed during regular (dark blue) and brief flexion bursts as evidenced in integrated IPSCs trace (top trace). (D) Diagram showing added inhibition of dI3 INs arising from flexor module of spinal locomotor circuits.

https://doi.org/10.7554/eLife.21715.020

In contrast to the dominant extensor bursting dI3 INs, the two dI3 INs that were active during the flexor phase of the step cycle had no evident rhythmic IPSCs, but were excited during flexion (Figure 4—figure supplement 1B), supporting that this subset likely belonged to a different functional sub-population of dI3 INs.

Together, these data indicate dI3 INs are reciprocally connected to spinal locomotor circuits. dI3 INs excite spinal locomotor circuits, and in turn, the majority of dI3 INs are rhythmically inhibited during the flexor phase by these circuits (Figure 4D). The timing of this inhibitory input suggests that locomotor circuits are transmitting an inhibitory efference copy to these dI3 INs during the flexor phase of the locomotor cycle.

dI3 interneurons are necessary for recovery of locomotor function

In light of their interposition between sensory afferents and spinal locomotor circuits, and their involvement in movement adaptation (Bui et al., 2013), we next asked whether dI3 INs are involved in microcircuits responsible for plastic changes following spinal cord transection. To do so, we isolated spinal cords from the brain by performing lower thoracic spinal cord transections in control (n = 22), and dI3OFF (n = 16) adult mice. Mice were subjected to regular treadmill training to promote spinal locomotor recovery (Figure 5A). We quantified forelimb/hindlimb step ratios as initial estimates of recovered hindlimb locomotor performance over time, counting any (however minimal) forward excursion of the toes as a ‘step’ (control: n = 6; dI3OFF: n = 3). Step ratios of animals from both groups plateaued by 50 days following transection (Figure 5C). But the number of forward toe excursions in dI3OFF mice was about half that in control mice (Figure 5C,D, and Video 2), indicating poor capacity of motor recovery by dI3OFF mice following spinal transection.

Figure 5 with 2 supplements see all

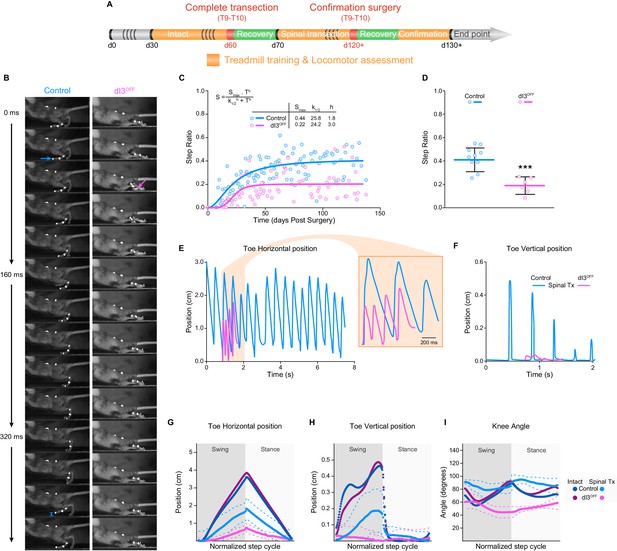

dI3 INs are involved in locomotor recovery following complete spinal transection.

(A) Experimental paradigm. Orange indicates period of treadmill training and locomotor performance assessments. Green indicates period of recovery following surgical procedures (red). Days (d) from birth are indicated. (B) Kinematic recording snapshots in control and dI3OFF mice 50 days following complete (and confirmed) lower thoracic spinal transection. Arrows depict proper paw dorsiflexion in control (cyan) and abnormal plantarflexion in dI3OFF (magenta) mice during stance. Cyan segment at t = 384 ms indicates toe elevation in control, which is absent in dI3OFF during the swing phase. Pictures at 32 ms intervals. (C) Hindlimb/Forelimb step ratio (S) as a function of time (T) following complete spinal transection in control (n = 6) and dI3OFF (n = 3) animals with non-linear sigmoidal fit, S = Smax * Th / (k1/2h + Th) where Smax is the maximum step ratio, h is the Hill slope (recovery rate), and k1/2 is the number of days to reach half the maximal step ratio. R2 = 0.53 and 0.23 respectively. (D) Hindlimb/Forelimb step ratio 30 days following complete spinal transection (Tx) in control (n = 10), and dI3OFF (n = 6) animals. Mean +/− Standard Deviation. Two-tailed Student’s t-test (***p<0.0001). (E to I) Toe coordinates along X (horizontal forward-backward axis E,G) and Y (vertical elevation F, H) axes, and knee angle (I) in control and dI3OFF spinal-transected animals 40 days post-surgery on a treadmill at 7 cm/s. Dashed lines represent standard deviation. Minimum weight-support was provided when necessary to complete the task. In G, H, and I, data from intact animals are shown in dark blue (control) and dark pink (dI3OFF) for comparison. Multiple t-tests corrected for multiple comparison Holm-Sidak. *p<0.05.

https://doi.org/10.7554/eLife.21715.023
Video 2
Foot print recordings following spinal cord transection.

Foot print recordings of control and dI3OFF animals at 7 cm/s 50 days after spinal transection, recorded at 100 fps and displayed at 15 fps. Animals were recorded separately.

https://doi.org/10.7554/eLife.21715.031

To assess the quality of locomotor recovery, high-speed kinematic video recordings (Figure 5B) were analyzed in the 3 control and 3 dI3OFF animals that had anatomically and functionally confirmed complete transections (Figure 5—figure supplement 1). The spinal-transected control animals had some recovery of locomotion, although limb movements were reduced compared to their intact counterparts (Figure 5E–I, Figure 5—figure supplement 2, and Video 3). On the other hand, dI3OFF mice had minimal horizontal movements of distal hind limb segments (Figure 5E,G, and Figure 5—figure supplement 2C) and an almost complete absence of vertical excursions (Figure 5F,I, Figure 5—figure supplement 2D, and Video 4). Furthermore, while the kinematic parameters of spinal-transected control animals for the most part were a scaled version of those in intact animals, the parameters in dI3OFF animals differed in trajectory (Figure 5—figure supplement 2E–I). For example, the knee angle linearly decreased during flexion (when it is normally biphasic) and linearly increased during extension (when it is normally primarily decreasing, Figure 5I). That is, while control mice recovered a degree of the complex sequence of muscle activation that produces stepping, the minimal movements of dI3OFF mice had linear kinematics with no resemblance to locomotion (Figure 5H,I). Furthermore, during unrestrained overground locomotion (data not shown), there was almost a complete absence of hindlimb movement in dI3OFF mice, in stark contrast to control mice, suggesting that the minimal movements seen during treadmill walking in dI3OFF mice were specific to the treadmill environment.

Video 3
Kinematic recordings in intact animals.

Kinematic recordings of control and dI3OFF animals running at 20 cm/s, recorded at 250 fps and displayed at 15 fps. Animals were recorded separately.

https://doi.org/10.7554/eLife.21715.032
Video 4
Kinematic recordings following spinal cord transection.

Kinematic recordings of control and dI3OFF animals at 7 cm/s 50 days after spinal transection recorded at 250 fps and displayed at 15 fps. Weight support was provided. Animals were recorded separately.

https://doi.org/10.7554/eLife.21715.033

Taken together, these results illustrate an absence of locomotor recovery in dI3OFF animals, and demonstrate the critical role of dI3 INs in driving recovery of locomotor function after spinal transection.

Discussion

We have shown here that dI3 INs are involved in spinal plasticity, and are integral to recovery of locomotor function following spinal cord transection. They are positioned between multimodal sensory inputs (Bui et al., 2013) and spinal locomotor circuits, and have a bi-directional relationship with these locomotor circuits, receiving an efference copy of their activity (Figure 6A). We showed previously that elimination of dI3 INs from spinal microcircuits via genetically eliminating their glutamatergic output results in the abolition of short term motor adaptation (Bui et al., 2013), and now demonstrate that this mutation also results in the loss of plasticity required for locomotor recovery. Together, we suggest that dI3 INs function to integrate sensory input with motor commands in order to drive motor plasticity at level of the spinal cord (Figure 6).

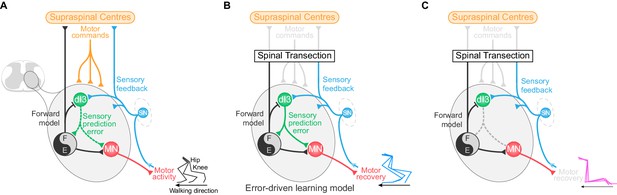

dI3 IN-mediated locomotor learning following spinal cord transection.

(A) Schematic showing the relationship of dI3 INs (green) to supraspinal centres (orange), sensory input (SN, blue), motoneurons (MN, red), and spinal locomotor circuits (black and grey circle). The types of signals conveyed by each projection are labelled. dI3 IN axons are depicted with dotted lines to demonstrate that they are not necessary for the generation of the normal rhythm and pattern of locomotion. (B) Schematic showing that following loss of connectivity with higher learning centres, locomotor learning is driven by sensory prediction error in a microcircuit centred around dI3 INs as comparators. dI3 INs act as comparators between a forward model from motor circuits and sensory feedback, and the solid projections from dI3 INs indicate that they are required for locomotor recovery following spinal cord transection. (C) Removing the output of dI3 INs from the circuit prevents the comparison of sensory feedback and forward models, and thus precludes functional locomotor recovery.

https://doi.org/10.7554/eLife.21715.034

dI3 IN microcircuits and locomotion

Sensory inputs to the spinal cord are required for the recovery of function following injury (Dietz et al., 2002; Rossignol and Frigon, 2011; Takeoka et al., 2014). Experiments in animal models such as rodents and cats have demonstrated that sensory inputs have access to spinal locomotor circuits, are phasically gated during the step cycle (Forssberg et al., 1977), and their stimulation can lead to alterations in the timing and coordination of ongoing locomotor activity (Duysens and Pearson, 1976; Loeb et al., 1987; Gossard et al., 1994; Stecina et al., 2005). Furthermore, stimulation of sensory afferents in in vitro isolated spinal cords can be sufficient to activate spinal locomotor circuits (Bonnot et al., 2002; Cherniak et al., 2014). Therefore, spinal locomotor circuits remain accessible through sensory afferents following the loss of descending inputs.

Activation of sensory afferents by treadmill training is a guiding principle of locomotor rehabilitation (Harkema, 2008). This strategy has shown that activation of sensory afferents during imposed walking movements retrains spinal locomotor circuits to generate the rhythmic, patterned activation of hindlimb muscles required for locomotion (Dietz et al., 1995; Edgerton and Roy, 2009; Rossignol and Frigon, 2011; Harkema et al., 2012). In spinal-transected cats, at least one source of cutaneous afferents from the hindlimb is required to ensure full recovery of treadmill locomotion with plantar foot placement (Bouyer and Rossignol, 2003). And following spinal transection in rodents, recovery of hindlimb movements became highly disorganized following pharmacological block of paw cutaneous afferents, indicating the important role of these afferents in functional recovery (Sławińska et al., 2012). Proprioceptive afferents also play an important role in recovery following incomplete spinal cord injury (Takeoka et al., 2014).

Thus, target neurons responsible for spinal mechanisms involved in sensory-mediated plasticity of locomotor circuits would be expected to receive sensory inputs from a variety of afferent types and project to spinal locomotor circuits. We have shown previously that dI3 INs receive different modalities of sensory inputs (Bui et al., 2013), and here we show that they can activate spinal locomotor circuits. Furthermore, we now show that they are necessary for sensory-mediated recovery of function following spinal transection. That dI3 INs receive multimodal sensory inputs could explain why different sensory modalities contribute to locomotor recovery following spinal cord injury and would suggest, perhaps, that the combined inputs from different modalities, through temporal and spatial summation, may be beneficial to training strategies.

The identity of the locomotor neurons excited by dI3 INs remains elusive: in addition to their outputs to motoneurons, dI3 INs also project to as yet unidentified neurons in the intermediate laminae of the cervical and lumbar spinal cord (Bui et al., 2013). Unfortunately, although we increasingly understand locomotor circuits (Kiehn, 2016), knowledge of the neuronal substrate for activation of these circuits either by descending commands (Jordan et al., 2008; Bretzner and Brownstone, 2013; Bouvier et al., 2015), or by sensory inputs (Whelan et al., 2000; Marchetti et al., 2001; Cherniak et al., 2014) is lacking. Understanding dI3 IN target neurons in the intermediate laminae of the spinal cord may shed light on these questions, and would be a key next step in the determination of the cellular mechanisms of plasticity induced by dI3 INs.

Possible mechanisms underlying dI3 IN-mediated plasticity

We have shown that dI3 INs are necessary for training-induced recovery of locomotor activity following spinal transection. It is unlikely that this recovery results simply from a loss of afferent input to locomotor circuits, as sensory stimulation – either by increasing stimulation intensity or by number of fibres (by dorsal root stimulation) – can still evoke locomotor activity in dI3OFF mouse spinal cords. We thus suggest that dI3 INs are mediating plastic changes in these circuits. In other words, the re-acquisition of locomotion can be considered to be a low level form of motor learning, in which repeated activity leads to sustained changes in the central nervous system such that spinal circuits below the site of a lesion can produce locomotor activity in the absence of descending motor commands. In this light, it is therefore instructive to consider that circuits that mediate short-term adaptation are those that lead to long-term learning through various mechanisms (Hirano et al., 2016). We have previously shown that dI3 INs mediate short-term adaptation in regulating paw grasp in response to changing sensory stimulation (Bui et al., 2013). Long-term changes, however, must be accompanied by homeostatic plastic mechanisms that prevent instability induced by positive feedback (Turrigiano, 1999; Desai, 2003; Quartarone and Hallett, 2013). These mechanisms could include, for example, changes in connectivity, synaptic strength, and/or morphology of spinal neurons (Brownstone et al., 2015). Such changes have been proposed to underlie spontaneous or training-induced changes in motor output in spinal cord injury patients (Harkema, 2008; Knikou, 2010; Dietz, 2012) and in animal models of spinal cord injury (Côté and Gossard, 2004; Frigon et al., 2009; Tillakaratne et al., 2010; Martin, 2012; van den Brand et al., 2012; Houle and Côté, 2013; Takeoka et al., 2014). Similar mechanisms of plasticity may also occur during learning in intact developing and mature spinal cords (Tahayori and Koceja, 2012; Grau, 2014). Studying such changes at synapses between dI3 INs and their target locomotor circuit neurons may reveal specific mechanisms underlying this plasticity.

Functional implications

From a circuit perspective, we know from cerebellar studies that motor learning relies on comparator neurons – neurons that compare actual sensory inputs (what did happen, or instructive inputs) with the sensory input predicted by the motor command (what should have happened) (Bastian, 2006; Shadmehr et al., 2010; Wolpert et al., 2011; Cullen and Brooks, 2015). Predictive inputs arise from forward models derived from a copy of the motor command – an efference copy. By comparing these two inputs, comparator neurons calculate the ‘sensory prediction error,’ which is then used to modify circuit function, either for corrective responses or sustained learning (Shadmehr et al., 2010; Requarth and Sawtell, 2014; Brownstone et al., 2015). Most dI3 INs receive excitatory instructive inputs from a variety of sensory afferents (Bui et al., 2013), as well as inhibitory rhythmic input from locomotor circuits. We suggest that this inhibitory input, which mirrors the motor output, is the manifestation of a forward model and is suggestive of a negative image of the expected excitatory sensory input (Requarth and Sawtell, 2014). That is, in addition to instructive inputs, dI3 INs receive inputs indicative of a predictive forward model. These two classes of inputs position dI3 INs as comparators between actual and predicted movement, and thus calculators of sensory prediction error. We suggest that this error signal leads to plastic changes in locomotor circuits, mediating long-term learning such as that necessary for locomotor recovery after spinal cord transection (Figure 6B).

Within this framework, sensory information provided by training would lead to activation of locomotor circuits, which would then produce a forward model to predict the sensory consequences of the movement. Through training, the sensory prediction error is iteratively calculated by dI3 INs, and would lead to synaptic and/or cellular changes in locomotor circuits, leading to sustained recovery of motor function (Brownstone et al., 2015). Therefore, functional removal of dI3 INs from the circuits results in the loss of sensory prediction error signals, and thus prevents the benefit of locomotor training following spinal transection (Figure 6C).

Motor learning is distributed across hierarchical control structures, with different levels of the hierarchy functioning together to ensure adaptation and learning (Kawato et al., 1987; Gordon and Ahissar, 2012). We show that dI3 INs form an intra-spinal closed loop circuit, in which the microcircuits that route sensory information to locomotor circuits are themselves under the influence of the locomotor circuits that they modulate (Figure 6A). These closed loops would be nested within other control loops, such as peripheral sensorimotor loops (Dimitriou and Edin, 2010) and those situated between spinal motor circuits and descending motor systems (Arshavsky et al., 1972; Hantman and Jessell, 2010; Azim et al., 2014). Together, these nested loops create a hierarchical control system that would optimise motor learning (Kawato et al., 1987). That one of these loops may exist in the spinal cord would be important for rehabilitative techniques: targeting intraspinal learning circuits such as those formed by dI3 INs could lead to new strategies to facilitate spinal circuit function in order to improve motor behaviour affected by a number of neurological diseases and injuries.

Materials and methods

Animals

All animal procedures were approved by the University Committee on Laboratory Animals of Dalhousie University (protocol 13–143) and conform to the guidelines put forth by the Canadian Council for Animal Care.

Expression of yellow fluorescent protein (YFP) driven by the promoter for the homeodomain transcription factor Isl1 was obtained by crossing Isl1Cre/+ (RRID:IMSR_JAX:024242) and Thy1-fs-YFP mice to yield Isl1-YFP mice. Conditional knockout of Slc17a6 (vGluT2) in Isl1 expressing neurons was accomplished by crossing Isl1Cre/+ mice with a strain of mice bearing a conditional allele of the Slc17a6 (vGluT2) gene to yield dI3OFF mice as previously described (Hnasko et al., 2010; Bui et al., 2013). Control animals consisted of Isl1Cre/+:Slc17a6flox/+ and Isl1+/+:Slc17a6flox/flox mice. No differences were observed between these two control genotypes and animals were thus pooled into a single control group.

Treadmill locomotion

Request a detailed protocol

Limb movement during locomotor behaviour was described by using motion analysis techniques combined with high-speed video recordings of the behaviour (Akay et al., 2014). Analysis of footprints during treadmill locomotion (10 cm/s to 50 cm/s) was performed using an Exer Gait XL treadmill (Columbus Instruments) and analyzed with Treadscan Analysis System v4.0 (Clever Sys). Analysis was performed on segments in which the mice maintained their position on the treadmill. For kinematic analysis, mice walked on a treadmill (either custom made by the workshop of Zoological Institute, University of Cologne or an Exer Gait XL from Columbus Instruments) at speeds ranging from 3 to 72 cm/s and recorded with a high-speed camera (Photron PCL R2, Photron; or IL3-100, Fastec Imaging) at a capture rate of 250 frames per second (Fps). The animals were briefly anesthetized with isoflurane and custom-made three-dimensional reflective markers (~2 mm diameters) were glued onto the shaved skin at the level of the anterior iliac crest, hip, knee (in some cases), ankle, metatarsophalangeal (MTP) joint, and the tip of the fourth digit (toe) of one or both hindlimbs. Joint coordinates were automatically tracked by Vicon Motus software or by custom scripts for ImageJ (Schneider et al., 2012) (RRID:SCR_003070) and R (R Core Team, 2013) (RRID:SCR_000432). These coordinates were used to compute hip, knee, ankle, and paw angles. For the knee joint, in consideration of movement of the skin over the knee, the actual knee coordinates and angles were calculated geometrically using the length of the femur and tibia. Stance onset was determined by using local maxima of the position of the toe marker in the horizontal plane. Several step cycles were averaged from portion of recordings when animals were producing a steady locomotor output.

Electrophysiology

Request a detailed protocol

Extracellular ventral and dorsal root recordings via suction electrodes were amplified 10,000 X in differential mode, bandpass-filtered (10 Hz to 3 KHz) using a custom-built extracellular amplifier, and acquired at 10 kHz (Digidata 1322A, pClamp nine software, Molecular Devices RRID:SCR_011323). Whole-cell patch-clamp signals were obtained using a MultiClamp 700B amplifier (Molecular Devices) as previously described (Bui et al., 2013).

To study sensory-evoked locomotor activity, in-vitro preparations with the sural nerve in continuity with the spinal cord were prepared from Isl1-YFP or dI3OFF postnatal (P1-P3) mice. Surgical procedures to isolate the spinal cord were similar to Bui et al. (2013) except that the skin of the right hindlimb was dissected and muscles removed to expose and dissect the sciatic and sural nerves. The sural, common peroneal, and tibial nerves were then transected distally. The spinal cords were left to recover for 1–2 hr before recording. Locomotion was induced by dorsal root or sural nerve stimulation using a 10 s long train of 250 µs pulses at 3 Hz using a Grass Technologies S88 square pulse stimulator (Natus Neurology Inc.). The presence of more than four successive rhythmic bursts within the stimulation train in at least one ventral root was used to indicate the presence of locomotor-like activity.

To record rhythmic inputs to dI3 INs during fictive locomotion, hemisected spinal cords were prepared from Isl1-YFP postnatal (P1-P6) mice as previously described (Bui et al., 2013). Following anaesthesia with xylazine and ketamine, mice were decapitated. Their spinal cords were isolated by vertebrectomy in room temperature recording ACSF (in mM: NaCl, 127; KCl, 3; NaH2PO4, 1.2; MgCl2, 1; CaCl2, 2; NaHCO3, 26; D-glucose, 10). Ventral and dorsal roots were dissected as distally as possible, and spinal cords were pinned with the ventral side up. A surgical blade was used to make a longitudinal incision down the midline (in a rostro-caudal direction). The hemicords were then allowed to equilibrate in room temperature recording ACSF for at least one hour, then pinned, medial-side up to a base of clear Sylgard (Dow Corning) in a recording chamber and perfused with circulating room temperature recording ACSF. Ventral roots were placed in suction electrodes (A-M Systems Inc.). In a subset of experiments examining the activity of dI3 INs during drug-evoked locomotion, bilateral dorsal cords were removed from segments L1 to L3 or from segments L4 to L6. Spinal cords were pinned on their sides and insect pins were used to trace a line followed by a surgical blade to section the spinal cord.

Fictive locomotion was elicited by application of NMDA (5 µM), serotonin (10 µM) and dopamine (50 µM) (Jiang et al., 1999). Data from spinal cords in which synchronous activity was produced in flexor- and extensor-dominant ventral roots were excluded. Circular statistics (Zar, 1996) using 50 randomly selected spikes for each dI3 IN were used to determine the phasic relationships between dI3 IN spiking and ventral root bursting during drug-induced locomotion.

Whole-cell patch-clamp electrodes were filled with an internal solution containing (in mM: K-methane-sulphonate, 140; NaCl, 10; CaCl2, 1; HEPES, 10; EGTA, 1; ATP-Mg, 3; GTP0.4; pH 7.2–7.3 adjusted with KOH; osmolarity adjusted to ~295 mOsm with sucrose). In the hemisected cords, care was taken to record from cells that were in the middle of the ventral-dorsal axis of the hemicord to avoid motoneurons. In order to avoid recording from neurons close to the central canal (possibly sympathetic preganglionic neurons), neurons that were near the surface were also avoided.

Most dI3 INs exhibited rhythmic, alternating phases of membrane depolarization, which in some cases were accompanied by firing of action potentials, and quiescent hyperpolarization. In the cells where cyclical change of membrane potential was not accompanied by firing of action potentials, application of a bias depolarizing current led to phasic firing of action potentials during periods of membrane depolarization.

The locomotor cycle was double-normalized (Kwan et al., 2009) such that each cycle was divided into extensor and flexor phases, with 0 to 0.5 spanning the onset to the termination of the extensor phase and 0.5 to 1 spanning the flexor phase of each cycle. Polar plots of rhythmic activity were used for analysis of the rhythmic activity of each cell. The angle represents the mean phase (Φ) whereas the distance from origin is a measure of concentration around the mean phase, which we refer to here as r. After calculating the cosine and sine of the phase of each spike, Φ was calculated as the average cosine and sine of the spikes and the angular concentration, r, was calculated as the square root of the sum of squares of the average cosine and average sine (Zar, 1996). Thus if the neuron fires once per cycle at precisely the same phase, then r = 1. Conversely, if there were a random distribution of firing across the step cycle, then the average sine and cosine would both be 0, and r = 0 (i.e. all spikes are uniformly dispersed across the step cycle). The inner circle represents an r value of 0.24, as for 50 randomly-selected spikes, values above this threshold indicate that cells were rhythmically active (p<0.05).

To determine the rhythmicity of inputs to dI3 INs, unitary PSCs were extracted from voltage-clamp recordings at −40 mV. Outward IPSCs and inward EPSCs were detected in Clampfit using a template. The phase of each IPSC and EPSC was calculated and circular statistics were applied as above to determine whether dI3 INs received rhythmic inputs. The proportion of IPSCs that occurred within a certain phase of the step cycle was determined by calculating the proportion of IPSCs within each of 50 equal bins across the step cycle.

Spinal cord transection

Request a detailed protocol

Complete transections were performed at T9-T10 under isoflurane anaesthesia. Animals were individually housed, given analgesics for 3 days, and allowed to recover for at least one week prior to further testing. Animals were monitored twice daily and bladders expressed manually. Humane endpoints were defined as self-mutilation, improper feeding, decreased grooming, ataxia, or a loss of body weight >20%. Completeness of spinal transections was confirmed by a second surgery as described below.

Locomotor training was provided at least once per week (average twice per week). Animals were allowed to habituate to the treadmill environment before recordings ranging from 20 to 40 s at speeds between 3 and 7 cm/s. When required to ensure the completion of the task, animal support was provided by holding the animal in a horizontal position while maintaining permanent contact with the treadmill belt. 5 to 10 recordings were performed per sessions.

Animals showing regular locomotor performance were selected for spinal transection. In sterile conditions, animals were anesthetized with isoflurane to the point of loss of hindlimb reflexes, then shaved and disinfected using Chlorexidine, 70% isopropyl alcohol and 10% betadine from the neck to the lumbar region, and placed on a heating pad. A Tegaderm film (Ref 70200749300, 3M) was placed for stability and to ensure sterile conditions throughout the procedure. An incision was made, paraspinal muscles were incised and spread to expose the T9-T10 laminae, and laminectomy was performed to expose the spinal cord. Double incisions were performed on the rostral and caudal portions of the exposed cord. A Pasteur pipet melted into a custom hook was used to insert underneath the cord and remove the sectioned segment. A piece of sterile Absorbable Hemostat Surgifoam (Ref 63713-0019-75, Ethicon) was placed into the created spinal space. Deep and superficial muscles were sutured with Chromic Gut 6–0 sutures (Ref 796G; Ethicon), and skin with 6–0 Ethilon nylon monofilament suture (Ref 1856G; Ethicon). Tissue was kept moist at all times using sterile saline solution.

Animals, individually housed until suture removal about 10 days later, were allowed to recover for at least one week prior to further testing. They were monitored twice per day and bladders were expressed manually as necessary. Animal weight was monitored daily. Analgesics were administered sub-cutaneously for 3 days after the surgery (buprenorphine: 0.05 mg/kg working solution, 3 µg/ml twice daily; and ketoprofen: 5 mg/kg working solution, 1 mg/ml once a day). Antibiotic (enrofloxacin: 5 mg/kg, working solution 0.25 mg/ml) was administered sub-cutaneously at the time of surgery then provided in drinking water (400 mg/l) until complete healing. Animals were provided with accessible food, water, and soft bedding.

We confirmed complete transection (Figure 5—figure supplement 1A,B) by proceeding with a second transection at least 40 days after the first in 11 control and 6 dI3OFF mice (7 and 5 survived, respectively). Animals were excluded (4 control and 2 dI3OFF mice) from the analysis if the second surgery induced a locomotor deficit (Figure 5—figure supplement 1C), indicating incomplete initial transection.

Step ratio analysis

Request a detailed protocol

In order to assess locomotor function recovery, we quantified the ratio of hindlimb to forelimb steps. A hindlimb step was counted when there was any forward movement of the toes. Ventral treadmill video recordings were analyzed using the ImageJ Cell counter plugin. An average of 40 forelimb steps were counted per recording. The number of rear steps was averaged between both hindlimbs. The ratio was calculated as the average number of hindlimb steps divided by the number of forelimb steps.

Kinematic recording analysis

Request a detailed protocol

For kinematic analysis, were analyzed using a custom script in R (https://github.com/nstifani). The following packages were used: tcltk, zoo, and rgl, all available from the Comprehensive R Archive Network (CRAN repository http://cran.r-project.org). Data recorded from intact control (n = 12) and dI3OFF (n = 6) animals running at 10 to 60 cm/s. Left and right hind limbs were recorded separately and processed in parallel. A total of 382 control and 172 dI3OFF step cycles were analyzed. Subsequently, step cycles (swing and stance) were normalized to durations of 100 data points (equivalent to a normalised step cycle duration of 400 ms). Measured variables were averaged per animal and across recordings. Following transection and recovery, data recorded from spinalized controls (n = 3) and dI3OFF (n = 3) animals at speeds between 3 and 7 cm/s were added to the recorded data from intact animals. Steps cycles (control: n = 46; dI3OFF: n = 16) were normalized as described above.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
    Cat hindlimb motoneurons during locomotion. IV. participation in cutaneous reflexes
    1. GE Loeb
    2. WB Marks
    3. JA Hoffer
    (1987)
    Journal of Neurophysiology 57:563–573.
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
    A Language and Environment for Statistical Computing
    1. R Core Team
    (2013)
    R Foundation for Statistical Computing, Vienna, Austria.
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
    Properties of rhythmic activity generated by the isolated spinal cord of the neonatal mouse
    1. P Whelan
    2. A Bonnot
    3. MJ O'Donovan
    (2000)
    Journal of Neurophysiology 84:2821–2833.
  70. 70
  71. 71
  72. 72
    Biostatistical Analysis
    1. J Zar
    (1996)
    Upper Saddle River, New Jersey: Prentice Hall.

Decision letter

  1. Ole Kiehn
    Reviewing Editor; Karolinska Institutet, Sweden

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Spinal microcircuits comprising dI3 interneurons are necessary for motor recovery following spinal cord transection" for consideration by eLife. Your article has been favorably evaluated by Eve Marder (Senior Editor) and three reviewers, one of whom, Ole Kiehn (Reviewer #1), is a member of our Board of Reviewing Editors, and another is Serge Rossignol (Reviewer #2).

The reviewers have discussed the reviews with one another and there is general enthusiasm about the work; however, there are issues that need to be addressed in a revision. The Reviewing Editor has drafted this decision to help you prepare a revised submission. Included are also the individual reviews.

Summary:

The manuscript by Bui et al. reports the functional role of a selected group of interneurons (dI3) in mouse normal locomotion and recovery after spinal cord transection. This work is based on elegant mouse genetic experiments to visualize these neurons through their specific transcription factor expression and on the results of genetic ablation of dI3 cells. Using kinematic analysis of locomotion, motor behavioral tests and electrophysiological measurements, Bui et al. show that dI3 cells receive a direct sensory input from hindlimbs and play a moderate role in normal locomotion. The function of dI3 cells becomes much more prominent after complete transection of the spinal cord: thus, despite regular treadmill training, dI3OFF mice show gross impairment in regaining motor behavior. The authors explain their findings by assigning a key role of the dI3 INs in a learning spinal circuit suggesting that dI3 neurons are important during the critical phase of network plasticity that ensures the quality and extent of recovery after injury. This work is of general interest. The results have translational value to the human condition and deal with the thorny issue of recovery after injury and the relative contribution of neurorehabilitation. While the authors' work is of high quality, innovative and well illustrated there are points that should be resolved to improve the presentation and discuss alternative explanations for the rehabilitation.

Essential revisions:

1) It is not so clear if the authors believe that it is only mechanoreceptors in the skin that are acting on the dI3 neurons or if other sensory modalities e.g. from muscle spindles or tendon organs also can reach the dI3 neurons. Muscle proprioception may be involved in the reconfiguration that happens after spinal cord injury. Some justification for the entire focus on the sural nerve stimulation in the study is needed. This issue becomes particularly important when the authors start to talk about the possibility to evoke locomotion with dorsal root stimulation in the absence of transmission in the dI3 neurons. The authors should somehow clarify these issues when they introduce the sural nerve stimulation.

Also locomotion is induced in the control at 1.7th which clearly evokes a C wave as shown in Figure 2B. The conclusion really hinges on the fact that in dI3OFF, stimulation below 2.5Th does not generally evoke locomotion. Figure 2F shows that the distinction is somewhat marginal. It is unfortunate that there is no data shown for stimulation of locomotion at 1Th since already C waves are evoked at 1.7Th, the lowest level of stimulation evoking locomotion in the control. Please discuss this also in relationship to stimulation of other afferents.

2) Subsection “dI3 interneurons are not necessary for locomotor function”, first paragraph; Figure 1A shows that indeed the interlimb distance is different between control and dI3OFF mice. However, it is quite apparent that the two mice have different sizes and that the interlimb distance may be more related to the facts that the mice are simply bigger. Has this been considered? Is the average weight of the control and dI3OFF mice similar? Please provide data that consider this issue.

3) The whole-cell recordings during fictive locomotion are of particular interest in showing alternation of excitation and inhibition in dI3 neurons (Figure 4). It is clear from the panel in A that there is an alternating rhythmic excitation and inhibition, which is seen when the membrane potential is held at +30 mV. There is no mention of this in the text; instead it is said consistently that these neurons only receive a rhythmic inhibition. The authors need to clarify or at least mention this in the text and rectify the description; maybe also describe this in relation to the so-called "balanced network" theory (Berg & Hounsgaard).

4) It is not clear what the authors imply by the word learning. It was shown long time ago that after an acute spinalization, cats can express spinal locomotion without having to relearn the locomotor pattern. So, the circuits are present; evident from the pharmacological stimulation. If no pharmacological stimulant is given, the recovery process of spinal locomotion depends on re-establishing a proper synaptic excitation/inhibition through sensory stimulation as well as intrinsic neuronal changes to progressively reactivate the circuitry. So is the locomotor deficit in spinal dI3OFF mice a deficit in learning capability or a shutting down of important sensory feedback through dI3 INs on the CPG?. In the end, what the authors provide is the evidence that inputs through a class of IN is important for the expression of spinal locomotion. Learning through training implies that the approximate movements can be somewhat spontaneously generated. If there is no movement, training will be of little use. This issue should be discussed.

5) The Discussion is too long and contains a large amount of speculative arguments which may not be totally relevant to the reader. Thus, to interpret their results the authors claim to adopt "cerebellar models of motor learning" (subsection “Possible mechanisms underlying dI3 IN -mediated plasticity”, first paragraph) that are then expanded to "comparator neurons calculate the sensory prediction error" and to electric organ discharge of mormyrid fish (second paragraph of the aforementioned subsection). The Discussion should be cut down substantially and avoid excessive speculations that are not close to the actual data. When implementing these changes the authors should address the alternative explanations to the learning (see above).

6) It is not clear if dI3OFF spinal cords show any change in structure and cell composition? While the authors have done a lot of electrophysiological measurements, it is not clear if there are any discernible alterations in neuronal/glial composition of the genetic model. This information is not apparent even in the earlier publication (Neuron 2013) by the same group. Of course, while reflexes and network activities may rely on the actual operation of a limited number of circuit components, after transection even an apparently modest histological change may have profound consequences on function. Some discussion of this issue is needed.

https://doi.org/10.7554/eLife.21715.035

Author response

Essential revisions:

1) It is not so clear if the authors believe that it is only mechanoreceptors in the skin that are acting on the dI3 neurons or if other sensory modalities e.g. from muscle spindles or tendon organs also can reach the dI3 neurons. Muscle proprioception may be involved in the reconfiguration that happens after spinal cord injury. Some justification for the entire focus on the sural nerve stimulation in the study is needed. This issue becomes particularly important when the authors start to talk about the possibility to evoke locomotion with dorsal root stimulation in the absence of transmission in the dI3 neurons. The authors should somehow clarify these issues when they introduce the sural nerve stimulation.

This study is not intended to dissociate the types of afferents that are responsible for recovery of function, but rather the spinal circuits that mediate this recovery. Interestingly – and possibly importantly – dI3 INs receive multimodal sensory inputs (Bui et al., 2013). That is, they integrate information that arises from different afferent types. One type includes low threshold cutaneous mechanoreceptors. We have now stressed this point (subsection “dI3 IN microcircuits and locomotion”, third paragraph), and hope that this is now clear in the manuscript.

There is no doubt that primary afferents have many synaptic targets in the cord. In our 2013 paper, we showed reduction of disynaptic reflex responses in adult mice when stimulating the sural (primarily cutaneous) nerve. Stimulation of the tibial nerve, a mixed nerve, led to less clear-cut results because of obscuration by monosynaptic reflexes. That is, sural nerve stimulation resulted in clearer responses, likely because of the reduced number of pathways between these afferents and the motoneurons.

In parallel to this, it is plausible that we would have had similar results in this study regardless of which afferents we stimulated. The reason for choosing the sural nerve is one of signal to noise, because the quantity of afferents stimulated would be lower – and yet effective in eliciting activity in controls – and so we would be more likely to get a “cleaner” result (which we did). So we don’t think there is anything necessarily magical about either the sural nerve or cutaneous afferents in this sense, but this paradigm was useful to demonstrate that dI3 INs can activate locomotor circuits. We have clarified the text surrounding our choice to use the sural nerve (subsection “dI3 interneurons activate locomotor circuits”, first paragraph).

Also locomotion is induced in the control at 1.7th which clearly evokes a C wave as shown in Figure 2B. The conclusion really hinges on the fact that in dI3OFF, stimulation below 2.5Th does not generally evoke locomotion. Figure 2F shows that the distinction is somewhat marginal. It is unfortunate that there is no data shown for stimulation of locomotion at 1Th since already C waves are evoked at 1.7Th, the lowest level of stimulation evoking locomotion in the control. Please discuss this also in relationship to stimulation of other afferents.

We apologise for the confusion induced by the assumption that Figure 2B and C are from the same preparation. We don’t think the difference is marginal as illustrated in 2F andsupported by statistical analysis. The C-wave threshold differs between animals, and hence in that figure we plotted locomotor threshold vs. c-wave threshold for each animal. None of the mutants had rhythmic activity when stimulation was below the line of unity, whereas only one control was above the line of unity. We have now marked the points in Figure 2F that correspond to the preparations shown in Figures 2C and D, and trust that this clarifies the issue.

2) Subsection “dI3 interneurons are not necessary for locomotor function”, first paragraph; Figure 1A shows that indeed the interlimb distance is different between control and dI3OFF mice. However, it is quite apparent that the two mice have different sizes and that the interlimb distance may be more related to the facts that the mice are simply bigger. Has this been considered? Is the average weight of the control and dI3OFF mice similar? Please provide data that consider this issue.

We agree that this is an important point. While we previously showed that adult dI3OFF mice are similar in weights to controls, we have now included this in this manuscript as well (subsection “dI3 interneurons are not necessary for locomotor function”).

3) The whole-cell recordings during fictive locomotion are of particular interest in showing alternation of excitation and inhibition in dI3 neurons (Figure 4). It is clear from the panel in A that there is an alternating rhythmic excitation and inhibition, which is seen when the membrane potential is held at +30 mV. There is no mention of this in the text; instead it is said consistently that these neurons only receive a rhythmic inhibition. The authors need to clarify or at least mention this in the text and rectify the description; maybe also describe this in relation to the so-called "balanced network" theory (Berg & Hounsgaard).

In Figure 4, the reversal potential of the PSCs, whether during extension or flexion, is between -90 and -40 mV. This indicates that these are inhibitory PSCs. Excitatory PSCs would be expected to be inward at -40 mV, and if there are any of these, they are essentially indistinguishable from noise. We do mention in the text that a few cells received excitation (subsection “dI3 interneurons receive rhythmic inputs from spinal locomotor circuits”, second paragraph) but have no clear-cut evidence of a Berg and Hounsgaard “balanced” network. We trust that the revised text is clearer.

4) It is not clear what the authors imply by the word learning. It was shown long time ago that after an acute spinalization, cats can express spinal locomotion without having to relearn the locomotor pattern. So, the circuits are present; evident from the pharmacological stimulation. If no pharmacological stimulant is given, the recovery process of spinal locomotion depends on re-establishing a proper synaptic excitation/inhibition through sensory stimulation as well as intrinsic neuronal changes to progressively reactivate the circuitry. So is the locomotor deficit in spinal dI3OFF mice a deficit in learning capability or a shutting down of important sensory feedback through dI3 INs on the CPG? In the end, what the authors provide is the evidence that inputs through a class of IN is important for the expression of spinal locomotion. Learning through training implies that the approximate movements can be somewhat spontaneously generated. If there is no movement, training will be of little use. This issue should be discussed.

Thank you for this comment. We have revised the text to raise this important point (subsection “Possible mechanisms underlying dI3 IN-mediated plasticity”).

Regarding the issue of the use of the word “learning,” which we use late in the Discussion, we think this is partly an issue of semantics. Rossignol, for example, has provided evidence of locomotor circuit plasticity (“learning”) following hemisection. Learning involves the acquisition of a skill (for example) by training, and we would argue that this is what is happening following spinalisation, whether in the cat or the mouse or any other animal. We don’t know the mechanism by which training leads to “re-emergence” (?) of the activity of locomotor circuits. (Is it LTP? synaptic scaling? Etc.), but raise possibilities.

We trust that our changes are satisfactory.

5) The Discussion is too long and contains a large amount of speculative arguments which may not be totally relevant to the reader. Thus, to interpret their results the authors claim to adopt "cerebellar models of motor learning" (subsection “Possible mechanisms underlying dI3 IN -mediated plasticity”, first paragraph) that are then expanded to "comparator neurons calculate the sensory prediction error" and to electric organ discharge of mormyrid fish (second paragraph of the aforementioned subsection). The Discussion should be cut down substantially and avoid excessive speculations that are not close to the actual data. When implementing these changes the authors should address the alternative explanations to the learning (see above).

We have shortened the Discussion. We would argue that the crux of this paper is the evidence that dI3 INs are positioned as comparator neurons based upon theoretical frameworks established for other areas of motor learning in the nervous system, most notably the cerebellum. Therefore, while we have substantially reduced the amount of text devoted to this discussion, we think it still of value to bring up this concept.

6) It is not clear if dI3OFF spinal cords show any change in structure and cell composition? While the authors have done a lot of electrophysiological measurements, it is not clear if there are any discernible alterations in neuronal/glial composition of the genetic model. This information is not apparent even in the earlier publication (Neuron 2013) by the same group. Of course, while reflexes and network activities may rely on the actual operation of a limited number of circuit components, after transection even an apparently modest histological change may have profound consequences on function. Some discussion of this issue is needed.

We have not experimentally addressed the morphological and anatomical changes in this study, but focused on identifying circuits involved in recovery of function. We discuss possible changes in connectivity, synaptic strength, and morphology in spinal neurons that could lead to recovery (subsection “Possible mechanisms underlying dI3 IN-mediated plasticity”). However, given that the reviewers would like us to shorten our Discussion, we have decided not to delve into neuronal-glial compositions.

https://doi.org/10.7554/eLife.21715.036

Article and author information

Author details

  1. Tuan V Bui

    Department of Biology, Brain and Mind Research Institute, University of Ottawa, Ottawa, Canada
    Contribution
    TVB, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Nicolas Stifani
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0024-1544
  2. Nicolas Stifani

    Department of Medical Neuroscience, Dalhousie University, Halifax, Canada
    Contribution
    NS, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Tuan V Bui
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8584-9561
  3. Turgay Akay

    Department of Medical Neuroscience, Dalhousie University, Halifax, Canada
    Contribution
    TA, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  4. Robert M Brownstone

    1. Department of Medical Neuroscience, Dalhousie University, Halifax, Canada
    2. Division of Neurosurgery, Department of Surgery, Dalhousie University, Halifax, Canada
    3. Sobell Department of Motor Neuroscience and Movement Disorders, Institute of Neurology, University College London, London, United Kingdom
    Contribution
    RMB, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    R.Brownstone@ucl.ac.uk
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5135-2725

Funding

Canadian Institutes of Health Research (Operating grant, FRN 79413)

  • Robert M Brownstone

Nova Scotia Health Research Foundation (Post-doctoral fellowship)

  • Tuan V Bui

Natural Sciences and Engineering Research Council of Canada (Discovery grant, RGPIN-2015-06403)

  • Tuan V Bui

Canada Research Chairs (Research Chair)

  • Robert M Brownstone

Canadian Institutes of Health Research (Fellowship)

  • Tuan V Bui

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Larry Jordan, Tom Jessell, and Marco Beato for helpful comments, Angelita Alcos and Nadia Farbstein for technical assistance, Tom Hnasko for the Slc17a6 (vGluT2) conditional knockout mice, Frederic Bretzner, Pratip Mitra, Philippe Magown, and Izabela Panek for discussion and comments, Meggie Reardon for assistance in developing the sural nerve attached spinal cord preparation, Amrit Sampalli and Islay Wright for technical support and mathematical input. TVB was supported by a Nova Scotia Health Research Foundation post-doctoral fellowship, a CIHR Research Fellowship and a NSERC Discovery Grant (RGPIN-2015–06403). This research was undertaken, in part, thanks to funding to RMB from the Canada Research Chairs program, and was funded by the Canadian Institutes of Health Research (FRN 79413).

Ethics

Animal experimentation: All animal procedures were approved by the University Committee on Laboratory Animals of Dalhousie University (protocol 13-143) and conform to the guidelines put forth by the Canadian Council for Animal Care.

Reviewing Editor

  1. Ole Kiehn, Karolinska Institutet, Sweden

Publication history

  1. Received: September 21, 2016
  2. Accepted: December 12, 2016
  3. Accepted Manuscript published: December 15, 2016 (version 1)
  4. Accepted Manuscript updated: December 22, 2016 (version 2)
  5. Version of Record published: January 6, 2017 (version 3)

Copyright

© 2016, Bui et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,852
    Page views
  • 421
    Downloads
  • 15
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
