Polo-like kinase-dependent phosphorylation of the synaptonemal complex protein SYP-4 regulates double-strand break formation through a negative feedback loop.

  1. Saravanapriah Nadarajan
  2. Talley J Lambert
  3. Elisabeth Altendorfer
  4. Jinmin Gao
  5. Michael D Blower
  6. Jennifer C Waters
  7. Monica P Colaiácovo  Is a corresponding author
  1. Harvard Medical School, United States
  2. Massachusetts General Hospital, United States
Research Article
  • Cited 19
  • Views 1,274
  • Annotations
Cite this article as: eLife 2017;6:e23437 doi: 10.7554/eLife.23437

Abstract

The synaptonemal complex (SC) is an ultrastructurally conserved proteinaceous structure that holds homologous chromosomes together and is required for the stabilization of pairing interactions and the completion of crossover (CO) formation between homologs during meiosis I. Here, we identify a novel role for a central region component of the SC, SYP-4, in negatively regulating formation of recombination-initiating double-strand breaks (DSBs) via a feedback loop triggered by crossover designation in C. elegans. We found that SYP-4 is phosphorylated dependent on Polo-like kinases PLK-1/2. SYP-4 phosphorylation depends on DSB formation and crossover designation, is required for stabilizing the SC in pachytene by switching the central region of the SC from a more dynamic to a less dynamic state, and negatively regulates DSB formation. We propose a model in which Polo-like kinases recognize crossover designation and phosphorylate SYP-4 thereby stabilizing the SC and making chromosomes less permissive for further DSB formation.

https://doi.org/10.7554/eLife.23437.001

eLife digest

The majority of DNA in animal cells is stored in structures called chromosomes. Most cells contain two sets of chromosomes, one inherited from the mother and one from the father. Sperm and egg cells, however, contain only a single set of chromosomes. A specialized type of cell division called meiosis generates these cells. During meiosis, the chromosomes in a cell replicate to produce a cell that contains four copies of each chromosome. The equivalent chromosomes from the mother and the father are initially kept close together by a zipper-like structure called the synaptonemal complex. This allows the chromosomes to exchange segments of DNA, before the cell divides twice in successive rounds to produce four cells, each containing one set of chromosomes.

Severing both of the DNA strands that make up a DNA molecule forms what is known as a double-strand break. To exchange DNA segments with another chromosome, double-strand breaks that form in the DNA of one chromosome are repaired in a process known as crossover formation. Only a subset of the double-strand breaks are designated to be repaired by crossover formation, but at least one crossover needs to form between each chromosome pair. This generates diversity and ensures that the chromosomes separate correctly at the first cell division.

Since the synaptonemal complex holds equivalent chromosomes close together it ensures that at least some of the breaks are repaired by crossover formation. Nadarajan et al. have now investigated how a chemical modification called phosphorylation affects how the synaptonemal complex behaves in the roundworm Caenorhabditis elegans. A combination of genetic and cell-based approaches revealed that enzymes called polo-like kinases phosphorylate one of the proteins – called SYP-4 – that makes up the synaptonemal complex. This phosphorylation occurs after double-strand break sites have been designated to become crossovers.

The synaptonemal complex is normally a dynamic structure, with the proteins that it consists of being continuously replaced. However, Nadarajan et al. found that phosphorylating SYP-4 made the synaptonemal complex less dynamic than it had previously been, which prevented further double-strand breaks from forming.

Polo-like kinases are found in many organisms, from yeast to humans. Further work is now needed to investigate whether polo-like kinases phosphorylate the synaptonemal complex – and hence prevent the continuous formation of double-strand breaks – in animals such as mice and humans. This is important because failing to shut down the formation of double-strand breaks can result in cancer, infertility, miscarriages and birth defects in humans.

https://doi.org/10.7554/eLife.23437.002

Introduction

Meiosis is a specialized cell division program during which the diploid germ cell genome is halved to generate haploid gametes, and therefore it is critical for sexual reproduction. This halving is achieved by following one round of DNA replication with two consecutive rounds of cell division where homologs segregate away from each other at meiosis I, and sister chromatids segregate at meiosis II. Accurate chromosome segregation at meiosis I depends on several earlier key steps including pairing and the assembly of the synaptonemal complex (SC) between homologous chromosomes (homologs), formation of programmed DNA double-strand breaks (DSBs) and the repair of a subset of these DSBs as interhomolog crossover (CO) recombination events (Page and Hawley, 2003).

The SC plays a conserved and central role during meiosis. The assembly of the SC is required for the stabilization of pairing interactions between the homologs and for interhomolog CO formation (Nag et al., 1995; Storlazzi et al., 1996; Page and Hawley, 2001; MacQueen et al., 2005; Colaiácovo et al., 2003; de Vries et al., 2005; Smolikov et al., 2009, Smolikov et al., 2007b). While the components of the SC do not share a high degree of sequence conservation between species, this tripartite proteinaceous structure is conserved at the ultrastructural level (Colaiácovo, 2006). The SC is comprised of lateral element components that assemble along chromosome axes and central region components that bridge the gap between each pair of axes, much like the steps on a ladder. In the nematode C. elegans, there are four central region components of the SC, SYP-1, SYP-2, SYP-3 and SYP-4, which begin to localize between the homologs in the leptotene/zygotene stage of meiotic prophase and are fully assembled throughout the interface between homologs by pachytene (MacQueen et al., 2002; Colaiácovo et al., 2003; Smolikov et al., 2009, Smolikov et al., 2007b, Smolikov et al., 2007a). However, the SC is not static and has been shown to be a dynamic structure that undergoes continuous turnover. In budding yeast, Zip1, the central region component of the SC, has been shown to be continuously incorporated into a fully assembled SC in a non-uniform spatial pattern influenced by recombination (Voelkel-Meiman et al., 2012). In C. elegans, recent studies have shown that the central region of the SC contains mobile subunits (Rog et al., 2017) and that the SC persists in a more dynamic state in the absence of DSBs, leading to the suggestion that CO-committed intermediates may stabilize the SC (Machovina et al., 2016). However, how these changes in SC dynamics are regulated is not well understood.

Interhomolog CO formation is extremely important not only for producing genetic diversity but also for generating physical linkages (chiasmata) between homologs, which are essential for the proper bi-orientation and separation of homologs at meiosis I (Page and Hawley, 2003). Meiotic recombination initiates with the formation of programmed DSBs induced by the conserved topoisomerase-like protein Spo11/SPO-11 (Keeney et al., 1997; Bergerat et al., 1997; Dernburg et al., 1998). DSBs are made in excess to ensure that at least one CO (obligate CO) is established for each pair of homologs (Yokoo et al., 2012; Jones, 1984). However, the engagement of homologous chromosomes during recombination and/or SC assembly has been proposed to turn off further programmed DSB formation (reviewed in Keeney et al., 2014). One possibility is that once a DSB is designated to become a CO a feedback mechanism turns off further programmed DSBs from forming. An alternative, albeit non-mutually exclusive possibility, is that SC formation may result in structural changes along the chromosomes which suppress further DSB formation. The molecular basis for transmission of this feedback regulation remains an open question.

Here, we provide a mechanistic basis for how the switch in SC dynamics and the transmission of feedback regulation on further DSB formation work during meiosis in C. elegans. We show that the Polo-like kinases, PLK-1 and PLK-2, are critical components of this negative feedback loop that couple CO designation with DSB formation. We show that a central region component of the SC, SYP-4, is phosphorylated at Serine 269 in a PLK-1/2-dependent manner. Phosphorylation of SYP-4 coincides with the appearance of CO-promoting factor CNTD1/COSA-1 and is dependent on the formation of DSBs and CO designation/precursor formation, which in turn inhibits additional DSBs from being formed. Further, phosphorylation of SYP-4 by PLK-1/2 switches the central region of the SC from a more dynamic to a less dynamic state. Thus, we propose a model in which PLK-1/2 mediate the phosphorylation of SYP-4 in response to CO designation/precursor formation, which in turn stabilizes SC dynamics and prevents further DSB formation.

Results

PLK-2 localization on chromosomes during pachytene is dependent on the SYP proteins

plk-2 encodes one of the three Polo-like kinases in C. elegans and is the ortholog of mammalian PLK1. PLK-2 localizes to chromosome-associated patches at the nuclear periphery of leptotene/zygotene nuclei, which correspond to the regions of the chromosomes referred to as pairing centers that are tethered to the nuclear envelope at this stage, and relocalizes to synapsed chromosomes in pachytene nuclei (Labella et al., 2011; Harper et al., 2011). To test whether PLK-2 localization on chromosomes is dependent on central region components of the SC, we analyzed the localization of PLK-2 in the syp-1(me17) and syp-4(tm2713) null mutants, which fail to synapse. We found that PLK-2 localized to the chromosome-associated patches at the nuclear periphery in leptotene/zygotene stage nuclei, but we did not detect PLK-2 signal on chromosomes in pachytene nuclei in syp-1 and syp-4 mutants (Figure 1). In C. elegans, PLK-1 functions redundantly with PLK-2 and it can partially substitute for the function of PLK-2 during pairing and synapsis of homologous chromosomes (Nishi et al., 2008; Harper et al., 2011; Labella et al., 2011). To determine whether PLK-1 also localized to synapsed chromosomes, we examined the immunolocalization of PLK-1 in wild type germlines. While PLK-1 is observed on chromosome-associated aggregates at the nuclear periphery during leptotene/zygotene as expected, we did not detect any PLK-1 signal in pachytene stage nuclei even in the absence of PLK-2, although we cannot rule out the possibility that PLK-1 signal could be below threshold levels of detection by immunofluorescence (Figure 1—figure supplement 1). Given that all of the four SYP proteins are interdependent on each other for their localization and for SC formation (Colaiácovo et al., 2003; Smolikov et al., 2009, Smolikov et al., 2007a), we infer from our analysis of the syp-1 and syp-4 mutants that PLK-2 localization to chromosomes during pachytene is dependent on all four SYP proteins.

Figure 1 with 1 supplement see all
PLK-2 localization on synapsed chromosomes is dependent on the SYP proteins.

High-magnification images of leptotene/zygotene (A) and pachytene stage (B) nuclei from wild type, syp-4, and syp-1 mutant gonads stained with HTP-3 (green), PLK-2 (red), and DAPI (blue). (A) PLK-2 is observed localizing to aggregates at the nuclear periphery during leptotene/zygotene in synapsis-defective mutants. These aggregates, which have been previously shown to correspond to the pairing centers (Labella et al., 2011; Harper et al., 2011), are larger in wild type than in the syp-1 and syp-4 mutants given that the pairing centers of homologous chromosomes are not held in close juxtaposition in these mutants as frequently as in wild type at this stage in meiosis. (B) The more extensive localization of PLK-2 observed along chromosomes during pachytene in wild type is lost in syp-1 and syp-4 mutants. The thinner continuous tracks of HTP-3 staining observed in syp null mutants are due to HTP-3 localizing to unsynapsed axes. 27, 17, and 15 gonad arms were analyzed for wild type, syp-4, and syp-1, respectively. Scale bar, 3 μm.

https://doi.org/10.7554/eLife.23437.003

SYP-4 phosphorylation is dependent on the Polo-like kinases PLK-1 and PLK-2

To determine whether the SYP proteins are potential targets for phosphorylation by the Polo-like kinases, we examined the SYP-1/2/3/4 proteins for the presence of potential PLK phosphorylation sites using the phosphorylation site prediction programs GSP-polo and PHOSIDA (Liu et al., 2013; Gnad et al., 2011, 2007). We identified S269 in SYP-4 as a potential Polo-like kinase phosphorylation site (Figure 2A). To test whether the S269 site is phosphorylated in vivo, we generated a phosphopeptide antibody against the SYP-4 S269 site. Phospho-specificity of the pSYP-4 antibody was confirmed by lack of pSYP-4 signal in the syp-4(S269A) phosphodead mutant (Figure 2D). Affinity purified phospho-specific SYP-4 antibody signal (pSYP-4) was detected on chromosomes starting at early pachytene, even though SYP-4 localizes at the interface between homologous chromosomes earlier, starting at the leptotene/zygotene stage (Smolikov et al., 2009). pSYP-4 was first observed as foci and short stretches on chromosomes in early pachytene nuclei and then fully colocalized with SYP-1 throughout the full length of the chromosomes by mid-pachytene (Figure 2B and C). In late pachytene, as the SC starts to disassemble, pSYP-4 signal was also lost from most of the interface between homologs and was restricted to a single portion of each bivalent referred to as the short arm of the bivalent, which also retains residual SC proteins until later in prophase I and which we have previously shown to correspond to the shortest distance from the position of the single CO event to a chromosome end (Figure 2B and C; (Nabeshima et al., 2005). To test whether the S269 site on SYP-4 is phosphorylated in a PLK-2-dependent manner in vivo, we immunostained plk-2(ok1936) gonad arms with the pSYP-4 antibody. Although we observed a strong reduction in the pSYP-4 signal compared to wild type, there was residual phosphorylation of SYP-4 in the plk-2 mutant. Since PLK-1 can substitute for the function of PLK-2 during the pairing of homologous chromosomes, we examined whether SYP-4 was phosphorylated in the absence of both PLK-1 and PLK-2. We found that pSYP-4 signal, but not SYP-4, was completely lost upon depletion of plk-1 by RNAi in the plk-2 mutant (Figure 2D and Figure 2—figure supplement 1). Taken together, our data suggest that SYP-4 is phosphorylated at the S269 site and that its phosphorylation is dependent on Polo-like kinases PLK-1 and PLK-2.

Figure 2 with 1 supplement see all
Phosphorylation of SYP-4 at the S269 site is dependent on Polo-like kinase.

(A) Schematic representation of the SYP-4 protein with the predicted Polo-like kinase phosphorylation site (S269) indicated. CC indicates the coiled-coil domains and aa indicates amino acid. (B) Low-magnification images of whole-mounted gonads depicting SYP-1 (green) and phosphorylated SYP-4 (pSYP-4; red) localization in wild type. pSYP-4 signal is observed starting at early-pachytene although SC assembly, as observed here by SYP-1 immunostaining, starts earlier at the leptotene/zygotene stage. PMT (premeiotic tip) and LZ (leptotene/zygotene). (C) High-magnification images of wild type germline nuclei at the indicated stages stained with DAPI (blue), anti-SYP-1 (green) and anti-pSYP-4 (red). 16 gonad arms were analyzed for wild type (B–C). Phosphorylated SYP-4 signal is absent at leptotene/zygotene, observed colocalizing with SYP-1 in mid-pachytene and acquiring a similar restricted localization as SYP-1 during the disassembly of the SC starting at late pachytene. (D) High-magnification images of mid-pachytene nuclei from wild type, plk-2(ok1936), plk-2(ok1936); plk-1(RNAi), and syp-4(S269A) mutants stained with DAPI (blue), anti-SYP-1 (green) and anti-pSYP-4 (red). Phosphorylated SYP-4 signal is absent in the syp-4(S269A) mutant indicating specificity of the phospho-specific antibody. Phosphorylated SYP-4 signal is reduced in mid-pachytene nuclei in plk-2 mutants and absent at that stage in plk-2; plk-1(RNAi) germlines. Note that an uneven SYP-1 signal intensity is observed along chromosomes in plk-2; plk-1(RNAi) germlines, but pSYP-4 signal is not detected even on chromosomes with strong SYP-1 signal. 22, 17, 16, and 18 gonad arms were analyzed for wild type, plk-2(ok1936), plk-2(ok1936); plk-1(RNAi), and syp-4(S269A) mutants, respectively. Scale bar, 20 μm for (B) and 3 μm for (C) and (D).

https://doi.org/10.7554/eLife.23437.005

Phosphorylation of SYP-4 is dependent on crossover precursor formation

Although the SYP proteins load on chromosomes starting in leptotene/zygotene, SYP-4 is phosphorylated starting at early pachytene, which coincides with the time when CO precursor markers are observed (Yokoo et al., 2012). We next tested the hypothesis that SYP-4 is phosphorylated in response to CO precursor formation. As we predicted, phosphorylation of SYP-4 coincided with the appearance of pro-crossover factor GFP::COSA-1 foci (Figure 3A). In early pachytene, GFP::COSA-1 foci were first observed only in some, but not on all, of the six pairs of homologous chromosomes. Strikingly, at that same stage, phosphorylated SYP-4 was first observed on 76% of chromosomes (n = 78) with GFP::COSA-1 foci, whereas a low percentage of chromosomes showed either only pSYP-4 signal (5.8%; n = 6) or COSA-1 foci (18.4%; n = 19) (Figure 3A and Figure 3—figure supplement 1). This result suggests that SYP-4 may be phosphorylated in response to CO precursor formation.

Figure 3 with 3 supplements see all
SYP-4 is phosphorylated in response to CO precursor formation.

(A) Low-magnification image of a whole-mounted gonad from an animal expressing GFP::COSA-1 stained with anti-GFP (green), anti-pSYP-4 (red), and DAPI (blue). GFP::COSA-1 foci are detected from early to late pachytene, coinciding with the temporal window in which pSYP-4 signal is observed on chromosomes. Insets on the right are high-magnification images showing that stretches of pSYP-4 signal are first observed at early pachytene mainly on chromosomes that have a GFP::COSA-1 focus (top row of insets). pSYP-4 signal is then observed continuously along the length of the chromosomes at mid-pachytene. Finally, pSYP-4 signal starts to be lost from some chromosome subdomains and is retained from the off-centered site of the CO event marked by GFP::COSA-1 through the shortest distance to one end of the chromosomes (this will later become the short arm of the bivalent; bottom row of insets). PMT (premeiotic tip) and LZ (leptotene/zygotene). Scale bar, 20 μm. 21 gonads were analyzed. (B) High-magnification images of pachytene stage nuclei stained with anti-SYP-1 (green), anti-pSYP-4 (red), and DAPI (blue) for the indicated genotypes. pSYP-4 signal is mostly lost in spo-11, dsb-1, dsb-2, mre-11, rad-51 and rad-54 mutants. Arrow points to the chromosome that still shows pSYP-4 localization in these mutants. The extensive localization of pSYP-4 along synapsed chromosomes can be rescued by exogenous induction of DSBs via γ-IR in spo-11 mutants. pSYP-4 signal is not detected in pro-crossover mutants cosa-1 and zhp-3. Scale bar, 20 μm for (A) and 3 μm for (B). At least 15 animals were examined for each genotype.

https://doi.org/10.7554/eLife.23437.007

To further examine the link between SYP-4 phosphorylation and recombination, we examined phosphorylation of SYP-4 in the spo-11(ok79) null mutant. We found that pSYP-4 was largely abrogated in spo-11 mutants except on a single chromosome track in 19.7% (n = 126) of mid to late pachytene nuclei (Figure 3B and Figure 3—figure supplement 2). Moreover, a COSA-1::GFP focus was observed on each of these chromosomes exhibiting pSYP-4 signal (Figure 3—figure supplement 3A). These residual COSA-1 foci and SYP-4 phosphorylation tracks may reflect recombination initiated from spontaneous DSBs or other DNA lesions, and is similar to the observation of SPO-11-independent COSA-1 foci in late pachytene nuclei made by Pattabiraman et al., 2017. To determine which chromosome exhibited the pSYP-4 track in spo-11 mutants, we identified the X chromosome by HIM-8 staining and chromosomes III and V by fluorescence in situ hybridization. We found that 46% of pSYP-4 tracks corresponded to the X chromosome, 11.6% to chromosome V and 9.5% to chromosome III (Figure 3—figure supplement 3B and C). The higher frequency of pSYP-4 tracks along the X chromosome could be due to its distinct chromatin structure and/or a result of it undergoing delayed replication compared to autosomes (Bender et al., 2004; Kelly et al., 2002; Jaramillo-Lambert et al., 2007), which might lead to a higher number of DNA lesions that could be processed for CO precursor formation during meiosis.

Introduction of exogenous DSBs by γ-irradiation restored SYP-4 phosphorylation, suggesting that the absence of SYP-4 phosphorylation in spo-11 mutants was due to lack of DSBs and not due to the lack of the SPO-11 protein (Figure 3B and Figure 3—figure supplement 1). We observed a similar loss of phosphorylated SYP-4, except for a single chromosome track in <20% of nuclei, in mutants for genes involved in DSB formation (spo-11, dsb-1, and dsb-2), resection (mre-11) and strand invasion/exchange (rad-51 and rad-54) during homologous recombination (Figure 3 and Figure 3—figure supplement 2). However, the SYP-4 phosphorylation signal was completely absent in pachytene stage nuclei in the zhp-3 and cosa-1 pro-crossover defective mutants (Figure 3 and Figure 3—figure supplement 2). Taken together, our data suggest that SYP-4 phosphorylation is dependent on CO precursor formation.

Homologous chromosome pairing and meiotic progression are not altered in syp-4 phosphodead and phosphomimetic mutants

Previous work has shown that Polo-like kinases regulate pairing in C. elegans (Labella et al., 2011; Harper et al., 2011). To test whether phosphorylation of SYP-4 regulates pairing, we analyzed pairing in syp-4(S269A) phosphodead and syp-4(S269D) phosphomimetic mutants. Analysis of homologous pairing for chromosome V by fluorescence in situ hybridization (FISH) and for the X chromosome using a HIM-8 antibody that recognizes the X-chromosome pairing center revealed no significant difference in pairing levels throughout the germline for these chromosomes in either the phosphodead or phosphomimetic mutants compared to wild type (Figure 4A). To test whether Polo-like kinases regulate meiotic progression through phosphorylation of SYP-4 at the S269 site, we analyzed the localization of phosphorylated SUN-1 with a SUN-1 S8 phospho-specific antibody in syp-4(S269A) phosphodead and syp-4(S269D) phosphomimetic mutants. SUN-1 encodes for a conserved inner nuclear envelope protein, which clusters at chromosome ends associated with the nuclear envelope, and its phosphorylation is dependent on CHK-2 and PLK-2 (Woglar et al., 2013). In wild type, SUN-1 S8 phosphorylation is observed upon entry into meiosis in leptotene/zygotene stage nuclei and its signal is no longer detected around mid-pachytene, except in a few nuclei (Woglar et al., 2013). We did not observe any significant difference in SUN-1 S8P phospho-specific antibody localization in either syp-4(S269A) phosphodead or syp-4(S269D) phosphomimetic mutants compared to wild type (Figure 4B). Altogether, our data indicate that meiotic pairing and early meiotic progression are not dependent on the phosphorylation of SYP-4.

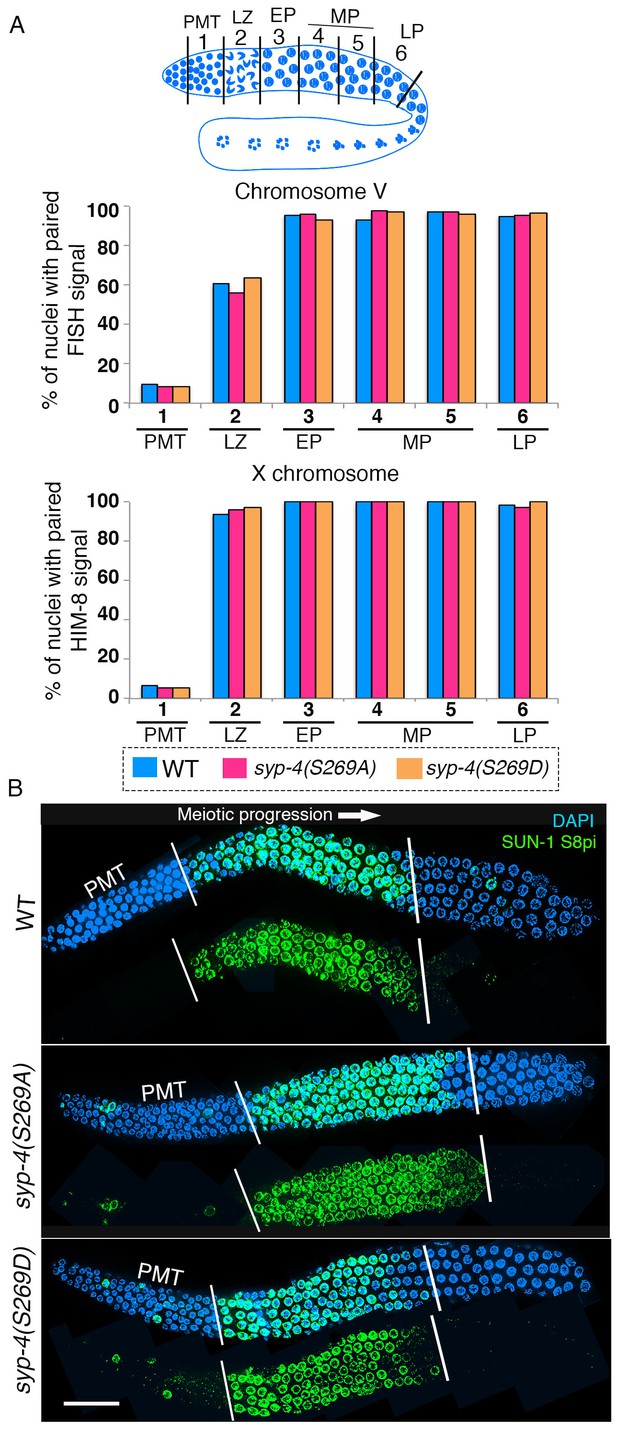

SYP-4 phosphorylation at the S269 site does not affect pairing or SUN-1 S8pi localization.

Homologous pairing for chromosomes V and X was analyzed using FISH and immunostaining against the X chromosome pairing center protein HIM-8, respectively. (A) Schematic representation of the C. elegans germline indicating the different zones scored for homologous chromosome pairing. Graphs depict no statistically significant difference in the percentage of nuclei with paired FISH signals for chromosome V and paired HIM-8 signals for the X-chromosome in the germline of the indicated mutants compared to wild type (signals were scored as paired when separated by ≤0.75 µm). X-axes indicate the position along the germline. PMT- premeiotic tip, L/Z- leptotene/zygotene, EP- early pachytene, MP- mid pachytene, and LP- late pachytene. Six gonad arms were analyzed for each genotype. (B) Low-magnification images of whole-mounted gonads indicate no difference in the length of the germline region stained with anti-SUN-1 S8pi (green) for wild type (top), syp-4(S269A) phosphodead (middle), and syp-4(S269D) phosphomimetic mutants (bottom). Left white vertical bar indicates entrance into meiosis and right vertical bar indicates end of zone where SUN-1 S8pi signal is detected. Scale bar, 15 μm. >18 gonad arms were analyzed for each genotype.

https://doi.org/10.7554/eLife.23437.011

Polo-like kinases regulate DNA double-strand break formation through phosphorylation of SYP-4

C. elegans chromosomes exhibit strict CO interference and undergo a single CO per homologous chromosome pair (Yokoo et al., 2012; Libuda et al., 2013). Partial depletion of central region components of the SC has been shown to attenuate CO interference and elevate the number of COs observed between homologs (Libuda et al., 2013). To test the hypothesis that phosphorylation of SYP-4 regulates CO interference, we crossed GFP::COSA-1 into the syp-4(S269A) phosphodead and syp-4(S269D) phosphomimetic mutants and analyzed CO levels by counting the number of COSA-1 foci observed per nucleus. If phosphorylation of SYP-4 functions as a signal to promote CO interference and prevent more than one CO per chromosome, we would expect to see an increase in the number of COs per nucleus in the phosphodead mutants as that signal is no longer present. However, we did not observe a significant increase in the number of COs, as marked by COSA-1, per nucleus in syp-4(S269A) phosphodead mutants (Figure 5A). Similarly, we did not observe a significant decrease in the number of COs in syp-4(S269D) phosphomimetic mutants (Figure 5A). We observed a significant reduction in brood size in both syp-4(S269A) phosphodead and syp-4(S269D) phosphomimetic mutants compared to wild type (Supplementary file 1). However, we only saw 6–8% embryonic lethality accompanied by 0.3–1% males among the progeny from these mutants, suggesting only a mild increase of autosomal and X chromosome nondisjunction during meiosis in these mutants, which could stem in part from the <4% of oocytes observed having a reduced number of COSA-1 foci (Supplementary file 1). These results suggest that PLK-dependent phosphorylation of SYP-4 does not regulate CO interference.

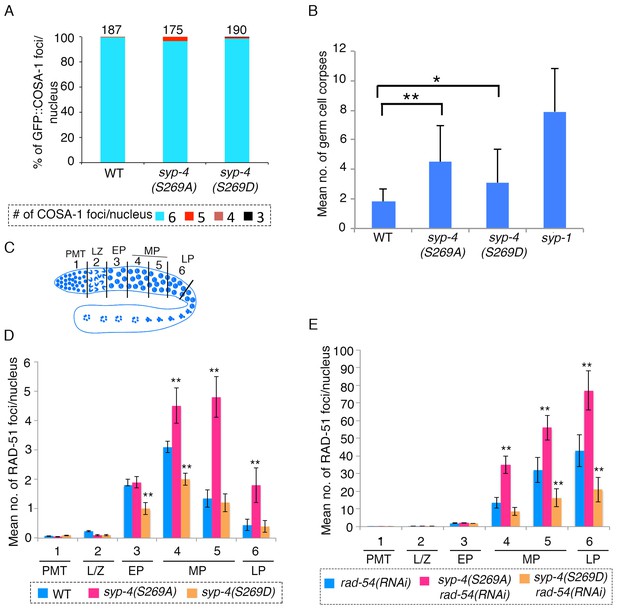

Figure 5 with 1 supplement see all
SYP-4 phosphorylation at the S269 site by Polo-like kinase regulates DSB formation.

(A) Graph depicts no statistically significant difference in the percentage of GFP::COSA-1 foci scored per nucleus for either the syp-4(S269A) or syp-4(S269D) mutants compared to wild type. Color code at the bottom indicates the number of GFP::COSA-1 foci observed per nucleus. Number on the top of the histogram bars represent the total number of nuclei scored for each genotype. (B) Graph depicts the increase in the mean number of germ cell corpses detected for both syp-4(S269A) and syp-4(S269D) mutants compared to wild type (**p<0.0001 and *p<0.0008, respectively, by the two-tailed Mann-Whitney test, 95% C.I.). The syp-1 mutant was used as a positive control given its elevated levels of germ cell apoptosis. 56, 72, 61, and 40 animals were analyzed for wild type, syp-4(S269A), syp-4(S269D) and syp-1(me17) mutants, respectively. (C) Schematic representation of the C. elegans germline indicating the different zones scored for the number of RAD-51 foci/nucleus. (D) Histogram depicts the increase in the mean number of RAD-51 foci observed per nucleus in the germlines of syp-4(S269A) mutants compared to wild type and the decrease in the mean number of RAD-51 foci observed in syp-4(S269D) mutants compared to wild type. (E) Similar analysis as in (D) except it is performed in a rad-54(RNAi) background allowing for a quantification of the total number of DSBs observed in each indicated genotype. This analysis reveals that the altered numbers of RAD-51 foci are due to increased levels of DSBs in syp-4(S269A) mutants and decreased levels of DSBs in syp-4(S269D) mutants. (D–E) X-axes indicate the position along the germline. PMT- premeiotic tip, L/Z- leptotene/zygotene, EP- early pachytene, MP- mid-pachytene, and LP- late pachytene. Six gonad arms were analyzed for each genotype. ** Indicates p<0.0001 by the two-tailed Mann-Whitney test, 95% C.I.

https://doi.org/10.7554/eLife.23437.013

Unprocessed meiotic DSBs can trigger germ cell apoptosis in late pachytene due to activation of a DNA damage checkpoint in the C. elegans germline (Schumacher et al., 2001). Our analysis revealed a significant increase in the levels of germ cell apoptosis in both phosphodead and phosphomimetic mutants (Figure 5B). To test whether this is due to a role for PLK-dependent phosphorylation of SYP-4 in regulating the progression of meiotic recombination, we examined the levels of RAD-51 foci, a protein involved in DNA strand invasion/exchange during DSB repair, in nuclei throughout the germline of the syp-4(S269A) phosphodead and syp-4(S269D) phosphomimetic mutants. We observed a significant increase in the number of RAD-51 foci per nucleus starting at mid pachytene in syp-4(S269A) phosphodead mutants compared to wild type, and the levels of foci remained higher than wild type through late pachytene (Figure 5D and Figure 5—figure supplement 1). In contrast, the number of RAD-51 foci observed in early and mid-pachytene nuclei was significantly lower than in wild type in syp-4(S269D) phosphomimetic mutants (Figure 5D). These results suggest that PLK-dependent phosphorylation of SYP-4 regulates progression of meiotic recombination. To distinguish whether this phosphorylation regulates DSB formation or repair we quantitated the levels of RAD-51 foci observed per nucleus throughout the germline in the absence of RAD-54. Depletion of rad-54 traps RAD-51 association at DSB sites, which allows for the scoring of the total number of DSBs repaired via a RAD-51 intermediate (Mets and Meyer, 2009). We observed significantly elevated levels of RAD-51 foci in syp-4(S269A) phosphodead mutant germlines upon depletion of rad-54 by RNAi compared to rad-54(RNAi) in an otherwise wild type background (Figure 5E). In contrast, syp-4(S269D) phosphomimetic mutant germlines displayed significantly reduced RAD-51 foci levels upon rad-54(RNAi) compared to control (Figure 5E). These results indicate that phosphorylation of SYP-4 at S269 regulates DSB formation. Altogether, these data support a role for PLK-dependent phosphorylation of SYP-4 in negatively regulating DSB formation in the C. elegans germline.

Phosphorylation of SYP-4 regulates the dynamics of the central region of the SC

In C. elegans, the assembly of the SC is independent of DSB formation (Dernburg et al., 1998). To understand the role of PLK-dependent phosphorylation on the SC structure, we analyzed the immunolocalization of the lateral element protein HTP-3, and all four central region components of the SC, SYP-1/2/3/4, in syp-4(S269A) phosphodead and syp-4(S269D) phosphomimetic mutants. We did not observe obvious defects in either SC assembly or maintenance in either mutant background (Figure 6—figure supplement 1). Moreover, western blot analysis revealed no change in SYP-1 or SYP-3 protein levels in whole worm lysates from either syp-4(S269A) phosphodead or syp-4(S269D) phosphomimetic mutants compared to wild type (we were precluded from examining SYP-2 and SYP-4 in this way since the available antibodies do not work on westerns) (Figure 6—figure supplement 1).

To test whether phosphorylation of SYP-4 affects the dynamics of the SC central region we performed Fluorescence Recovery After Photobleaching (FRAP) in live animals expressing SYP-3::GFP in an otherwise wild-type background as well as in the syp-4(S269A) phosphodead and syp-4(S269D) phosphomimetic mutants. We measured the extent of recovery of the fluorescence signal post-photobleaching for nuclei in the leptotene/zygotene stage, where SYP-4 is not phosphorylated, and at mid-pachytene, where SYP-4 is phosphorylated on all chromosomes in wild type. First, we observed that the majority of the SYP-3::GFP signal was recovered within 20 min after photobleaching in wild type nuclei. However, the extent of recovery of the fluorescence signal was higher in leptotene/zygotene nuclei compared to mid-pachytene nuclei in wild type (p<0.0001 by the Dunn’s multiple comparisons test), suggesting that the central region of the SC transitions from a more dynamic state into a less dynamic or more stable state as meiotic prophase progresses (Figure 6, Supplementary file 2, Video 1 and Video 2. In contrast, in syp-4(S269A) phosphodead mutants, the extent of recovery for the SYP-3::GFP signal was high in both leptotene/zygotene and mid-pachytene stage nuclei, and similar at mid-pachytene to that measured for leptotene/zygotene nuclei in wild type (Figure 6 and Supplementary file 2). This result suggests that phosphorylation of SYP-4 can alter the dynamics of the central region of the SC by stabilizing it. This is further supported by our observation of a lower extent of recovery of the SYP-3::GFP signal after photobleaching in leptotene/zygotene nuclei in syp-4(S269D) phosphomimetic mutants compared to that observed for wild-type nuclei at that stage (p<0.0001) (Figure 6). Specifically, the lower rate of recovery observed after photobleaching for the phosphomimetic mutant was similar for leptotene/zygotene and mid-pachytene nuclei and comparable to that observed in mid-pachytene stage nuclei for wild type (Figure 6A and Supplementary file 2). Altogether, these data suggest that PLK-dependent phosphorylation of SYP-4 in pachytene changes the central region of the SC from a more dynamic to a less dynamic, and therefore more stable, state, which in turn impinges on DSB formation.

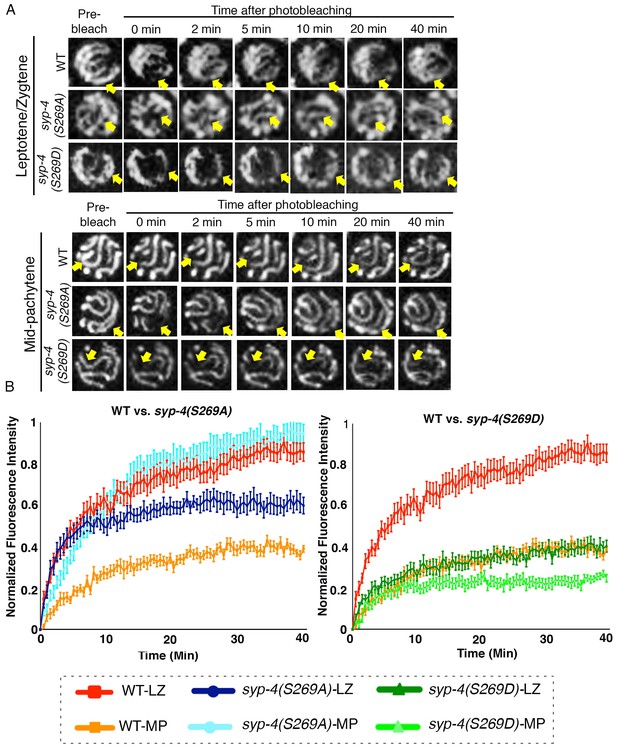

Figure 6 with 1 supplement see all
PLK-dependent phosphorylation of SYP-4 changes the SC central region from a more dynamic to a less dynamic state.

(A) Representative images showing the GFP::SYP-3 fluorescence detected in leptotene/zygotene and mid-pachytene nuclei for the indicated genotypes during FRAP experiments. Arrows indicate the small region that was bleached and measured for fluorescence recovery on each nucleus. GFP::SYP-3 signal recovery after photobleaching during leptotene/zygotene is faster in both wild type and syp-4(S269A) mutants compared to syp-4(S269D) mutants. At mid-pachytene, while the rate of fluorescence signal recovery is slower compared to earlier prophase for wild type, the syp-4(269A) mutants continue to exhibit a rapid recovery rate comparable to that observed earlier in leptotene/zygote, while the syp-4(S269D) mutants continue to exhibit a slower recovery rate. (B) Graph showing quantitation of GFP::SYP-3 fluorescence recovery in leptotene/zygotene and mid-pachytene stage nuclei in wild type compared to syp-4(S269A), and syp-4(S269D) mutants. The total of number of nuclei measured in each group were: Mid-pachytene_WT: n = 20; Mid-pachytene _syp-4(S269D): n = 18; Mid-pachytene _ syp-4(S269A): n = 20; Leptotene/zygotene _WT: n = 28; Leptotene/zygotene_ syp-4(S269D): n = 20; Leptotene/zygotene _ syp-4(S269A): n = 21. Error bars represent standard error of the mean. Bar code in the bottom indicates the stage of the nuclei and genotype. LZ – leptotene/zygotene; MP – mid-pachytene.

https://doi.org/10.7554/eLife.23437.018
Video 1
Example of a nucleus included in the FRAP analysis for Figure 6.

Mid-pachytene stage nuclei from wild type hermaphrodite animals expressing SYP-3::GFP included for analysis for FRAP experiment in Figure 6. Playback time is 447x in real-time.

https://doi.org/10.7554/eLife.23437.022
Video 2
Example of a nucleus excluded from FRAP analysis in Figure 6.

Mid-pachytene stage nuclei from wild type hermaphrodite animals expressing SYP-3::GFP excluded from the FRAP analysis since this nucleus is rotating on its own axis. Playback time is 447x in real-time.

https://doi.org/10.7554/eLife.23437.023

Discussion

We have discovered that Polo-like kinase-dependent phosphorylation of a central region component of the SC, SYP-4, negatively regulates DSB formation through a feedback loop in C. elegans. Our data suggest that Polo-like kinases may phosphorylate SYP-4 starting at early pachytene, which is consistent with when PLK-2 is observed localizing on the homologous chromosomes. Although SC assembly is DSB-dependent in many organisms, it is DSB-independent in C. elegans (Loidl et al., 1994; Baudat et al., 2000; Romanienko and Camerini-Otero, 2000; Dernburg et al., 1998). Surprisingly, we found that DSB formation and recombination are required for phosphorylation of SYP-4. In mutants defective in DSB formation and recombination (spo-11, dsb-1, dsb-2, mre-11, rad-51, rad-54, zhp-3, and cosa-1), SYP-4 is no longer phosphorylated (except along one chromosome track for early recombination mutants) at the S269 site in pachytene nuclei. This raises an important question: does the Polo-like kinase-dependent phosphorylation of SYP-4 at the S269 site occur in response to recombination? We found that the appearance of foci for the pro-crossover factor COSA-1 coincides with the phosphorylation of SYP-4. Recent studies showed that central region components of the SC impose CO interference and prevent additional CO formation in response to CO designation (Libuda et al., 2013). We did not see any significant difference in CO number in syp-4 phosphodead and phosphomimetic mutants compared to wild type, which rules out the possibility that phosphorylation of SYP-4 at S269 mediates the regulation of CO interference. Instead, we found that SYP-4 phosphorylation at S269 mediates the regulation of DSB formation. Recent studies, and this study, show that the central region of the SC exists in different dynamic states at different stages of meiotic prophase (Voelkel-Meiman et al., 2012; Machovina et al., 2016): more dynamic at the leptotene/zygotene stage and less dynamic at the mid-pachytene stage in wild type. Our data suggest that the more dynamic state of the central region of the SC in leptotene/zygotene corresponds to the region in the germline where homologs are permissive for DSB formation, whereas the less dynamic state of the central region of the SC coincides with the stage of meiosis where homologs are less permissive to DSB formation. Thus we propose that upon CO designation/precursor formation, PLK-1/2 mediates the phosphorylation of the S269 site in SYP-4 (Figure 7). This phosphorylation event leads to the stabilization of the central region of the SC and makes it less dynamic. Therefore, phosphorylation of SYP-4 functions as a signaling mechanism to alter the SC structure thereby inhibiting further DSB formation in C. elegans. Consistent with our model, the central region of the SC remains dynamic in later stages of meiosis in syp-4 phosphodead mutants (this study) and in meiotic recombination defective mutants (Machovina et al., 2016; Pattabiraman et al., 2017). Moreover, the observation that the SC persists in a more dynamic state during pachytene in spo-11 mutant animals (Machovina et al., 2016; Pattabiraman et al., 2017), despite the lack of programmed meiotic DSB formation in this mutant, rules out the possibility that the elevated DSB levels observed in syp-4 phosphodead mutants cause the prolonged dynamic state of the SC.

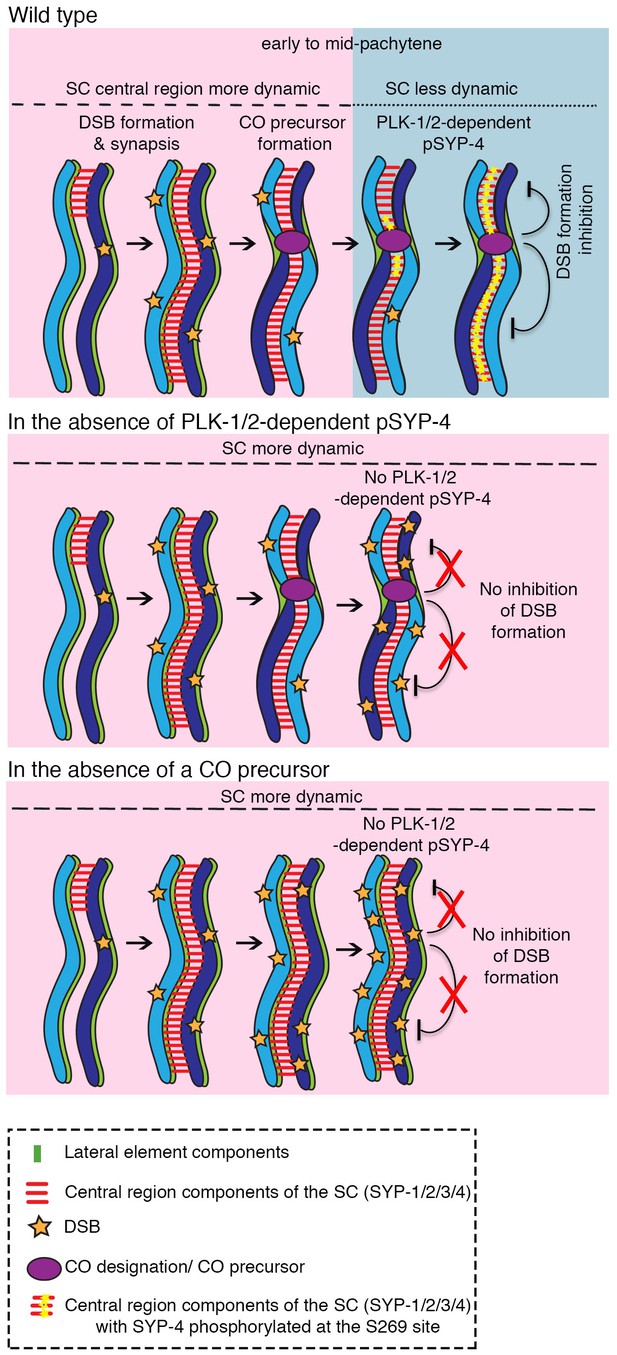

Model for how PLK-1/2-dependent phosphorylation of the synaptonemal complex protein SYP-4 regulates double-strand break formation through a negative feedback loop.

In wild type, PLK-1/2-dependent phosphorylation of SYP-4 at the S269 site occurs in response to CO designation. This phosphorylation switches the central region of the SC from a more dynamic (pink) to a less dynamic state (blue) during pachytene, inhibiting additional DSB formation on the homologous chromosomes. In the phosphodead mutant, in the absence of phosphorylation of SYP-4 at the S269 site, the SC fails to stabilize and the absence of a feedback loop results in continued DSB formation along the homologous chromosomes. Our model suggests that in the absence of CO designation, PLK-1/2-dependent phosphorylation of SYP-4 does not take place and the SC persists in a more dynamic state, which allows the homologs to remain in a DSB-permissive state.

https://doi.org/10.7554/eLife.23437.024

Finally, in early pachytene, PLK-1/2-dependent phosphorylation of SYP-4 is observed along chromosomes that engage in CO designation in wild type worms. In spo-11 mutants, we observed a single chromosome with a COSA-1::GFP focus colocalizing with a pSYP-4 track in approximately 20% of nuclei. This suggests that SYP-4 phosphorylation acts at the level of individual chromosomes, given that the phosphorylated state of SYP-4 at one chromosome does not affect or is independent of the state of SYP-4 phosphorylation on the other chromosomes.

Novel role for conserved Polo-like kinase in ensuring CO formation

Polo-like kinase is a highly conserved kinase present from yeast to humans and has been shown to play multiple roles during both mitotic and meiotic cell divisions (Archambault and Glover, 2009). The yeast Polo-like kinase Cdc5 has been implicated in the resolution of double Holliday junctions in homologous recombination, promotion of CO formation, breakdown of the SC, co-orientation of sister chromatids, and loss of cohesion from chromosome arms at anaphase I (Clyne et al., 2003; Lee and Amon, 2003; Brar et al., 2006; Attner et al., 2013; Sourirajan and Lichten, 2008). In mouse spermatocytes, PLK1 has been shown to phosphorylate the central element proteins SYCP1 and TEX12 to promote SC disassembly and is required for exit from meiotic prophase (Jordan et al., 2012). In C. elegans, PLK-2 functions redundantly with PLK-1 to promote pairing and synapsis of homologous chromosomes in the leptotene/zygotene stage of meiosis (Harper et al., 2011; Labella et al., 2011). Our study reveals a novel role for PLK-1/2 in recognizing CO designation and generating an inhibitory signal that prevents further DSB formation. The mechanism by which PLK-1/2 recognize CO designation remains to be determined.

Feedback regulation of DSB formation and the dynamics of the central region of the SC

Even though DNA damage can be very deleterious, programmed DSBs are induced and repaired in a highly regulated manner during meiosis to ensure interhomolog CO formation, which is critical for achieving accurate chromosome segregation at meiosis I (Martinez-Perez and Colaiácovo, 2009). Regulatory mechanisms need to be set in place to ensure that sufficient DSBs are formed to generate at least one CO per pair of homologous chromosomes and then turn off DSB formation once interhomolog engagement is achieved. Studies in different model organisms have described the existence of feedback mechanisms to regulate meiotic DSB number and distribution.

Work done in both mice and Drosophila has shown that ATM kinase, which is activated in response to DNA damage, is also activated by SPO11-mediated DSBs and is implicated in controlling meiotic DSB levels by inhibiting further DSB formation via a negative feedback mechanism (Lange et al., 2011; Joyce et al., 2011). Studies in yeast, have shown both cis- and trans-acting regulation of DSB formation acting respectively either along the same or between different homologous chromosomes or sister chromatids. During regulation in cis, presence of a strong DSB hotspot inhibits DSB formation nearby (Wu and Lichten, 1995; Xu and Kleckner, 1995; Fukuda et al., 2008) whereas during regulation in trans, DSB formation at one site inhibits DSB formation at either the same site or a nearby site on the homologous partner. Communication between interhomolog interaction and DSB formation is important to establish an even spacing of total recombination events, and the Mec1 (ATR) DNA damage response kinase is proposed to mediate this by trans inhibition (Zhang et al., 2011). Meanwhile, the Tel1 (ATM) kinase exerts cis inhibition at the local scale, on the same chromatid and between sister chromatids (Garcia et al., 2015). Following meiotic DSB formation, Tel1 and Mec1 may phosphorylate Rec114, a Spo11-accessory protein required for DSB formation, which has been proposed to inhibit further DSB formation by reducing the interaction of Rec114 with DSB hotspots (Carballo et al., 2013). In C. elegans, our data suggests that PLK-1/2-dependent phosphorylation of SYP-4 functions as a signal to constrain further DSB formation when one of the DSBs undergoes CO designation/precursor formation. However, we cannot rule out a role for ATM/ATR kinases in PLK-1/2-mediated DSB inhibition.

Studies in yeast and mice suggest that defects in interhomolog engagement result in increased DSB formation. In yeast, the ZMM proteins (Zip1-4, Msh4-5, Mer3, and others) are required for both SC and CO formation and studies in zmm mutants implicate interhomolog engagement as directly responsible for inhibiting DSB formation (Keeney et al., 2014). In mice, unsynapsed chromosomes exhibit elevated DSB levels (Kauppi et al., 2013; Thacker et al., 2014; Hayashi et al., 2010; Lam and Keeney, 2015) and the illegitimate (non-homologous) synapsis observed in Spo11-/- mutants is sufficient to evict the HORMA-domain proteins HORMAD1/2 from chromosomes (Wojtasz et al., 2009) suggesting a role for SC formation in the feedback mechanism that inhibits further DSB formation once interhomolog engagement is achieved. However, the molecular basis for transmission of the interhomolog engagement-mediated feedback loop on DSB formation is not understood. Axial element proteins Hop1 and Red1 in yeast, HTP-1 and HTP-3 in C. elegans, and HORMAD1, which is a component of unsynapsed axes in mice, have been shown to be required for normal levels of programmed DSBs (Mao-Draayer et al., 1996; Woltering et al., 2000; Blat et al., 2002; Niu et al., 2005; Carballo et al., 2008; Lam and Keeney, 2015; Goodyer et al., 2008; Couteau and Zetka, 2005; Martinez-Perez and Villeneuve, 2005; Sanchez-Moran et al., 2007; Latypov et al., 2010). Our work implicates a central region component of the SC in functioning as a signaling unit to inhibit further DSB formation along synapsed chromosomes once a CO is designated or after CO precursor formation in C. elegans. This SC-mediated feedback mechanism may also be present in humans since a central element protein of the SC, SYCE1, has PLK phosphorylation sites at S29 and S191 predicted by the phosphorylation site predictor GSP polo and both of these sites are identified as phosphorylated in vivo in humans by Phosphosite Plus (Hornbeck et al., 2015).

Materials and methods

C. elegans strains and genetics

Request a detailed protocol

C. elegans strains were cultured at 20°C under standard conditions and the N2 Bristol strain was used as the wild-type background (Sulston and Brenner, 1974). The following mutations and chromosome rearrangements were used: LG I: syp-4(rj48 (S269A) I, syp-4(rj49 (S269D) I, syp-4(rj48 (S269A) I; mels9(unc-119(+) pie-1promoter::gfp::syp-3, syp-4(rj49 (S269D) I; mels9(unc-119(+) pie-1promoter::gfp::syp-3, syp-4(rj48 (S269A) I; meIs8 [pie-1p::GFP::cosa-1 + unc-119(+)] II, syp-4(rj49 (S269D) I; meIs8 [pie-1p::GFP::cosa-1 + unc-119(+)] II, syp-4(tm2713) I/hT2 [bli-4(e937) let-?(q782) qIs48] (I;III), plk-2(ok1936) I, zhp-3(jf61)/hT2[bli-4(e937) let-?(q782) qIs48 (I:III)]I. LG II: rol-1(e91) dsb-2(me96)/mnC1 (dyp-1(e128) unc-52(e444)) II. LG III: cosa-1(me13)/qC1(qls26) III. LG IV: dsb-1(tm5034) IV/nT1(unc-?(n754) let-?) (IV;V), syp-1(me17) V/nT1 [unc-?(n754) let-? qIs50] (IV;V), spo-11(ok79) IV/nT1 [unc-?(n754) let-?] (IV;V), mre-11(ok179) IV/nT1 [unc-?(n754) let-?] (IV;V), rad-51(lg8701) IV/nT1 [let-?(m435)] (IV;V), rad-54 (tm1268)/ hT2 [bli-4(e937) let-?(q782) qIs48] (I;III).

Antibodies

A rabbit phospho-specific polyclonal antibody was generated by Abmart (China) using the phospho-peptide C-QFDR(pS)FILAS encompassing the S269 site in SYP-4. Two peptides were synthesized: An antigen peptide with phosphoserine C-QFDR(pS)FILAS and a control peptide without phosphorylation (C-QFDRSFILAS). Serum harvested from the rabbits immunized with the antigen peptides went through two rounds of affinity purification. First, serum was passed through a column to which the antigenic peptide was coupled in order to isolate phospho-specific SYP-4 antibodies. The eluate from the first column was then passed through a second column to which the control peptide was coupled and flow through was collected. This second step was done to remove any non-phosphorylated SYP-4 antibodies. An ELISA titer of ≥1:50,000 against the modified peptide and a modified/unmodified titer ratio of ≥8 were used as validation criteria.

A rabbit polyclonal antibody was generated against a SYP-2 peptide (RRVSFASPVSSSQ) by Abmart and used at a 1:200 dilution for immunofluorescence. A polyclonal antibody against a SYP-1 peptide (VDAPTEALIETPVDDQSSGFLC) was generated by the GenScript Antibody Group (Piscataway, NJ) and used at a 1:3000 dilution for immunofluorescence and 1:5000 dilution for western blot analysis.

All other primary antibodies were used at the following dilutions for immunofluorescence: chicken α-GFP (1:400; Abcam, Cambridge, MA), rabbit α-SYP-1 (1:200; MacQueen et al., 2002), rabbit α-SYP-3 (1:200; Smolikov et al., 2007b), rabbit α-SYP-4 (1:200; Smolikov et al., 2009), guinea pig α-HTP-3 (1:400; Goodyer et al., 2008), rabbit α-RAD-51 (1:10,000; Novus Biological (SDI), Littleton, CO), rabbit α-HIM-8 (1:500; Novus Biological (SDI)), rabbit α-PLK-1 (1:50; Labella et al., 2011), rabbit α-PLK-2 (1:200; Nishi et al., 2008), guinea pig α-SUN-1 Ser8-pi (1:700; Woglar et al., 2013). The following secondary antibodies from Jackson ImmunoResearch (West Grove, PA) were used at a 1:200 dilution: α-chicken FITC, α-rabbit Cy3, α-goat alexa 488, and α-guinea pig alexa 488. Vectashield containing 1 μg/μl of DAPI from Vector Laboratories (Burlingame, CA) was used as a mounting media and anti-fading agent.

Primary antibodies were used at the following dilutions for western blot analysis: rabbit α-SYP-3 (1:200; Smolikov et al., 2007b), mouse α-tubulin (1:2000; Sigma, St. Louis, MO), and histone H3 (1:2000; Abcam). HRP-conjugated secondary antibodies, donkey anti-goat, rabbit anti-mouse, and mouse anti-rabbit from Jackson ImmunoResearch were used at a 1:10,000 dilution.

Immunofluorescence and imaging

Request a detailed protocol

Whole mount preparation of dissected gonads and immunostaining procedures were performed as in (Colaiácovo et al., 2003). Immunofluorescence images were captured with an IX-70 microscope (Olympus, Waltham, MA) fitted with a cooled CCD camera (CH350; Roper Scientific) driven by the Delta Vision system (Applied Precision, Pittsburgh, PA). Images were subjected to deconvolution by using the SoftWoRx 3.3.6 software (Applied Precision).

Generation of mutants via the CRISPR-Cas9 system

Request a detailed protocol

CRISPR-Cas9 genome editing technology was used to engineer syp-4 phosphodead and phosphomimetic mutations at the endogenous locus (Tzur et al., 2013). To generate a phosphodead syp-4 mutant, serine 269 (S269A) was mutated to alanine. To generate a phosphomimetic mutant, serine 269 (S269D) was mutated to aspartic acid. We used the sgRNA recognition site (AATTTGTGGAAGTCTCAGTCTGG) 2414 base pairs downstream of the start codon. We cloned the sgRNA in to the pU6::unc-119_sgRNA plasmid (Friedland et al., 2013). The donor sequence containing the genomic sequence of syp-4 extending from 943 bp upstream to 2128 bp downstream of the start codon with the following changes: TC to GA change at positions 1021 and 1022, to generate the phosphomimetic mutant, and a T to G change at position 1021, to generate the phosphodead mutant (resulting in a silent mutation that is expected to prevent re-cutting by Cas9), was cloned into the BglII site of the pCFJ104 vector expressing Pmyo-3::mCherry::unc-54 (Frøkjaer-Jensen et al., 2008). A cocktail consisting of a plasmid expressing the sgRNA (200 ng/μl), a plasmid expressing the donor sequence (97.5 ng/μl), Cas9 (200 ng/μl) and the co-injection marker pCFJ 90 (Pmyo-2::mCherry::unc-54utr; 2.5 ng/μl) was microinjected into the gonad arms of the worms (P0s). F1 animals expressing the co-injection marker were sequenced to identify mutants and homozygous animals were picked from among the F2 generation and confirmed by sequencing.

Irradiation experiments

Request a detailed protocol

Young (~18 hr post-L4 stage) wild type and spo-11 mutant adult animals were irradiated with approximately 10 Gy from a Cs137 source. Irradiated and untreated control worms were dissected 6–8 hr post-irradiation and immunostained with the phospho-specific SYP-4 antibody.

RNA interference

Request a detailed protocol

Feeding RNAi experiments were performed as in (Govindan et al., 2006) with the following modifications: three L4-stage animals were placed on each RNAi plate and 24 hr post-L4 animals from the next generation were screened for a phenotype. Control RNAi was performed by feeding HT115 bacteria expressing the empty pL4440 vector. For complete depletion of rad-54, L1-stage animals were placed on the RNAi plates and F2 animals were scored for a phenotype. Animals were grown on the rad-54(RNAi) plates the entire time.

Fluorescence in situ hybridization (FISH)

Request a detailed protocol

FISH probes were generated as in (Smolikov et al., 2007b). The 5S rDNA probe was generated by PCR with the primers 5'-TACTTGGATCGGAGACGGCC-3' and 5'-CTAACTGGACTCAACGTTGC-3'. FISH probes were labeled using Terminal Transferase (NEB M0315S, Ipswich, MA) with Fluorescein-12-dCTP (Perkin Elmer NEL-424, Waltham, MA). The average numbers of nuclei scored per zone (n) for a given genotype to analyze pairing for chromosome V using FISH and pairing for the X chromosome using HIM-8 staining were as follows: zone 1 (n = 263), zone 2 (n = 145), zone 3 (n = 157), zone 4 (n = 153), zone 5 (n = 148), and zone 6 (n = 134). Statistical comparisons between genotypes were conducted using the two-tailed Mann-Whitney test, 95% confidence interval (C.I.).

RAD-51 time course analysis

Request a detailed protocol

Quantitative analysis of RAD-51 foci/nucleus was performed as in (Colaiácovo et al., 2003). The average number of nuclei scored per zone (n) for a given genotype was as follows: zone 1 (n = 235), zone 2 (n = 122), zone 3 (n = 119), zone 4 (n = 108), zone 5 (n = 99), and zone 6 (n = 95). Statistical comparisons between genotypes were conducted using the two-tailed Mann-Whitney test, 95% C.I.

Germ cell apoptosis

Request a detailed protocol

Germ cell corpses were scored in adult hermaphrodites (~18 hr post-L4) as in (Kelly et al., 2000). Statistical comparisons between different genotypes were conducted using the two-tailed Mann-Whitney test, 95% C.I.

FRAP image acquisition

Request a detailed protocol

Day-1 (~18 hr post-L4) animals expressing SYP-3::GFP were anaesthetized with 0.1% levamisole and loaded with levamisole onto 4% agarose pads on slides (VWR; cat#16004–368, Radnor, PA) and then covered with No. 1.5 coverslips. Images were acquired with a Nikon 60X/1.4 Plan Apo VC objective on an inverted Nikon Ti Microscope with Perfect Focus System and a Spectral Borealis-modified Yokogawa CSU-X1 spinning disc confocal head. EGFP fluorescence was excited with a 488 nm solid-state laser (~220µW at the sample) and emission was collected through an ET525/50m emission filter (Chroma, Bellows Falls, VT) onto an ORCA-ER CCD camera (Hamamatsu, Boston, MA) with binning of 2 × 2 for an effective pixel size of 217 nm. Z-stacks of five planes with a 0.75 µm step-size were acquired every 30 s for a total of 80 volumes (40 min). After two baseline volumes were acquired, a diffraction-limited volume in roughly 10 nuclei across the field of view was photobleached throughout the Z-stack encompassing the entire depth of the nuclei using a MicroPoint (Photonic Instruments, Saint Charles, IL) equipped with a Coumarin 440 dye cell; MicroPoint laser power was adjusted in pilot experiments so that bleaching resulted in a ~90% reduction in local fluorescence intensity. Hardware and image acquisition were controlled with MetaMorph 7.8.4 (Molecular Devices, Sunnyvale, CA).

FRAP analysis

Request a detailed protocol

Z-stack sum-intensity projections were used for FRAP analysis. Images were qualitatively evaluated for animal health, and data sets in which animals ceased movement during the time-series were rejected. Gross lateral animal movement and drift were corrected for translation and rotation using the StackReg plugin (Thévenaz et al., 1998) in Fiji (Schindelin et al., 2012), rectangular regions encompassing individual nuclei were extracted for further rigid body registration in StackReg to minimize the impact of chromosomal movement on intensity measurements. Only nuclei for which the photobleached region (region of interest, ROI) was in focus for the entire time period of fluorescence recovery were examined, whereas nuclei demonstrating obvious rotation around the lateral (XY) plane were excluded from analysis. After registration, the average intensity of the bleached region in each nucleus was measured over the duration of the time-lapse by manually tracing the photobleached region to correct for chromosomal movement. Background measured in a non-fluorescent region of the image was subtracted from each time point, and intensity measured in a region of interest encompassing all nuclei was used for double-normalization to correct for photobleaching during acquisition as well as lost signal due to the bleach pulse as described in (Phair et al., 2004). Double-normalized traces were fit to a one-phase association curve: Y=A*(1-e-Kt), where A is the mobile fraction (fit plateau), and K is the association rate. Traces that could not be fit to a one-phase association were rejected. The significance of the differences between the mobile fractions of different groups was assessed with a Kruskal-Wallis test. Statistical analysis was performed in Prism six (GraphPad, La Jolla, CA). The difference across groups was p<0.0001.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
    The control of chiasma distribution
    1. GH Jones
    (1984)
    Symposia of the Society for Experimental Biology 38:293–320.
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
    Caenorhabditis elegans msh-5 is required for both normal and radiation-induced meiotic crossing over but not for completion of meiosis
    1. KO Kelly
    2. AF Dernburg
    3. GM Stanfield
    4. AM Villeneuve
    (2000)
    Genetics 156:617–630.
  35. 35
    X-chromosome silencing in the germline of C. elegans
    1. WG Kelly
    2. CE Schaner
    3. AF Dernburg
    4. MH Lee
    5. SK Kim
    6. AM Villeneuve
    7. V Reinke
    (2002)
    Development 129:479–492.
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
    Analysis of meiotic recombination pathways in the yeast Saccharomyces cerevisiae
    1. Y Mao-Draayer
    2. AM Galbraith
    3. DL Pittman
    4. M Cool
    5. RE Malone
    (1996)
    Genetics 144:71–86.
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
    Heteroduplex DNA formation and homolog pairing in yeast meiotic mutants
    1. DK Nag
    2. H Scherthan
    3. B Rockmill
    4. J Bhargava
    5. GS Roeder
    (1995)
    Genetics 141:75–86.
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
    Methods in Enzymology
    1. RD Phair
    2. SA Gorski
    3. T Misteli
    (2004)
    393–414, Measurement of dynamic protein binding to chromatin in vivo, using photobleaching microscopy, Methods in Enzymology, 375, 10.1016/s0076-6879(03)75025-3.
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
    The DNA of Caenorhabditis elegans
    1. JE Sulston
    2. S Brenner
    (1974)
    Genetics 77:95–104.
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
    Factors that affect the location and frequency of meiosis-induced double-strand breaks in Saccharomyces cerevisiae
    1. TC Wu
    2. M Lichten
    (1995)
    Genetics 140:55–66.
  78. 78
    Sequence non-specific double-strand breaks and interhomolog interactions prior to double-strand break formation at a meiotic recombination hot spot in yeast
    1. L Xu
    2. N Kleckner
    (1995)
    The EMBO Journal 14:5115–5128.
  79. 79
  80. 80

Decision letter

  1. Scott Keeney
    Reviewing Editor; Howard Hughes Medical Institute, Memorial Sloan Kettering Cancer Center, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Polo-like kinase-dependent phosphorylation of SYP-4 regulates double-strand break formation via a negative feedback loop" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor (Scott Keeney) and Jessica Tyler as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The manuscript by Nadarajan et al. addresses an important question of the interplay between synapsis and recombination, particularly how PLK-2 phosphorylation of SYP-4 regulates recombination by affecting the ability to continue to form DSBs.

Recent work has revealed the existence of mechanisms that ensure that meiotic DSB formation is shut off when certain conditions along homologous chromosomes are met. In addition, signal transduction pathway(s) that limit DSBs have been identified. In a number of organisms, including yeast, mouse and Drosophila, the ATM kinase signal transduction pathway limits DSBs, both along the genome and locally. Moreover, assembly of the SC central element is implicated in limiting DSB formation, as suggested by increased DSB formation in budding yeast mutants that abrogate SC assembly. In general, however, these regulatory mechanisms remain poorly understood.

This manuscript describes the function of PLK-2 dependent phosphorylation of SYP-4 in C. elegans. Phosphorylation of SYP-4 depends on double strand break formation (DSB), correlates with the initiation of meiosis specific crossover recombination and is required for wildtype levels of DSB formation. Evidence is presented that this phosphorylation event controls the dynamics of the synaptonemal complex: In early meiotic prophase, the SC is more dynamic, incorporating new components of the SC, such as SYP-3, more readily. This dynamicity is lost later in meiotic prophase and correlates with SYP-4 phosphorylation. When the SYP-4 phosphoacceptor site is mutated to alanine, preventing phosphorylation, the SC is dynamic longer than in wildtype worms and when the SYP-4 phosphoacceptor site is mutated to aspartic acid, mimicking constitutive phosphorylation, the SC is less dynamic earlier than in wildtype worms. The authors present a model in which the phosphorylation of SYP-4 in a PLK dependent manner occurs in response to the formation of a crossover precursor, inhibiting the formation of additional DSBs and promoting the stability of the SC.

The authors' experiments support most of the conclusions of the paper and the model they propose. The manuscript is clearly written and provides important information about a crucial mechanism that links the stability of synaptonemal complex, the progression of meiotic recombination and the regulation of DSB formation.

Essential revisions:

The reviewers and reviewing editor raised a number of concerns that must be adequately addressed before the paper can be accepted. Some of the required revisions will likely require further experimentation within the framework of the presented studies and techniques.

Additional experimental data needed:

1) More evidence/validation for phospho-specific antibody is needed, since this is such a critical tool. For example, structural changes may be happening that might affect e.g. epitope accessibility. Does the anti-pSYP-4 work for western? If so, show a western of anti-pSYP-4 and sensitivity of the band to phosphatase treatment. At a bare minimum, the authors need to show that SYP-4 is still recruited along chromosomes under conditions where the presumed phospho-specific SYP-4 antibody does not detect a signal, especially in the plk mutant condition. The principal evidence for SYP-4-phopho-specificity of the antibody is that the signal is delayed or disappears in the plk-2 and/or plk-1 mutant. But in the same mutant, SYP-1 assembly is also compromised, at a similar stage (e.g. Harper et al., 2011, Figure 1D; 6A). The interdependence between the SYPs was shown in null mutants, but syp-4(S269A) could be functional for SC assembly but unstable/reduced later assuming it is not required for SC maintenance. Details should be given about the affinity purification of the antibody: Was that done with a S269-nonphospho-peptide? How was success of the affinity-purification determined?

2) Please document the effect of syp-4 point mutants on chromosome segregation or offspring viability (apart from the mild increase in apoptosis).

3) Quantify and document better the per-chromosome correlation of COSA-1 and pSYP-4. From Figure 3, it doesn't seem that stretches of pSYP 4 signal are first observed only on chromosomes that have a GFP::COSA-1 foci. Some quantification as well as better images should be provided. For example, one could determine the contour of the stretch of pSYP-4 staining and calculate the association of stretches with the COSA-1 foci.

4) Define single pSYP-4 chromosome in more detail. What is the cause for the single chromosome staining: Is there a second wave of PLK-1 phosphorylation? Is it known which chromosome track stains with pSYP-4 in the DSB break processing mutants? Is it always the same chromosome track? Can some FISH be done to address this? This is off-topic of the main point of the paragraph but it suggests that some chromosome stretches get pro-crossover factors which pSYP-4 can respond to. However, is that a reasonable assumption? This is somewhat important in the interpretation of the pairing data that is presented subsequently. Is there no difference in the pairing data because one chromosome behaves aberrantly from the rest and that happens to be the chromosome you which you tested for pairing? It also would be nice to have some speculation statement about the chromosome track.

5) Address concerns about chromosome movements within cells for FRAP experiments (subsection “FRAP Analysis”) in regards to FRAP analysis in Figure 6. Although the impact of cellular movement was minimized for intensity measurements, what about chromosomal movements within the cell? Meiotic prophase generally has been shown to display significant changes in motion of its chromosomes. It would be important to have data and a statement that this was not a concern in generating the change of fluorescent intensity. This is particularly important because z-projections were used for the analysis. Chromosome motion instead of incorporation of central element may or may not be distinguished well in projections.

Major points that can be addressed by text fixes or changes to figures with available data:

6) Incorporate SC dynamics (and how they change) into the Figure 7 model. It is also suggested the authors should show the proposed feed-back loop, i.e. showing that DSBs trigger an event that in turn triggers their own switch off.

7) The authors are careful to point out in the Results section that their data are consistent with phosphorylation of SYP-3 being PLK dependent. However, they start their Discussion with: "We have discovered that phosphorylation of a central region component of the SC, SYP-4, by Polo-like kinases…" and "Our data indicate that Polo-like kinases phosphorylate SYP-4 starting at early pachytene…" The authors haven't provided any data demonstrating that PLK-1 or PLK-2 directly phosphorylates SYP-4. They can only say the phosphorylation is dependent on PLK-1/2 and that their data suggests that polo-like kinases phosphorylate SYP-4 in early pachytene, consistent with PLK-2's localization.

8) In Smolikov et al., PLOS Genetics (2009), elevated levels of persistent RAD-51 foci were interpreted as a defect in recombination progression, rather than as a failure to shut-off DSBs. Given the SYP-4 involvement in DSB shut-off, this might be a good opportunity to reevaluate the earlier findings. More generally, this would also be a good opportunity to reevaluate the implications of using rad-54 or other recombination-defective mutations as a tool to estimate total DSB levels in wild type.

9) Provide better introduction and discussion of current results relative to other organisms. Please introduce and discuss similarities and differences of DSB limitation via Plk in C. elegans compared to the role of ATM/Tel1 in other organisms. In addition, the discussion of similarities to the homolog engagement pathway for DSB regulation that has been previously documented in yeast and mouse needs to be improved. In the Introduction it is stated: "However, once a DSB is designated to become a CO a feedback mechanism turns off further programmed DSBs from forming (Lam and Keeney 2015). The molecular basis for transmission of this feedback regulation remains an open question." The first statement is not a fair summary of what is known. And the implication from second sentence seems to be that the current results will address the lack of information, but the connection of the current findings to these other organisms is not convincing. CO designation is one possibility for why "homolog engagement" turns off DSB formation in yeast and mouse, but it is not the only possibility. Keeney's and Toth's labs propose that it is SC formation that triggers DSB inhibition, in part because even non-homologous SC formation in the absence of SPO11 is accompanied by TRIP13-dependent HORMAD depletion from chromosomes in mouse (see Wojtasz 2009, Thacker 2014, and Keeney 2014). In any case, the text shouldn't state it so categorically that DSB inhibition is a consequence of CO designation, because there is certainly no evidence to strongly support that conclusion. Concerning the molecular basis of the feedback: indeed this is not known. But it clearly does not require polo kinase in yeast (Cdc5) because Keeney's lab showed that the homolog engagement (ZMM-dependent) pathway operates even in an ndt80 mutant (Thacker 2014). Cdc5 is not expressed in the absence of Ndt80. Minor point: the Lam and Keeney 2015 paper does not seem to be a particularly apt reference for this general point. Perhaps Keeney et al. 2014 would be better.

10) Subsection “PLK-2 localization on chromosomes during pachytene is dependent on the SYP proteins”. In Figure 1, the localization in PLK-2 to the nuclear periphery of syp-4 is qualitatively different than in WT. In fact, PLK-2 location is different between syp-1 and syp-4 mutants. This is in contrast to the statement in the figure legend that PLK-2 localization is not different. So, either the figure for the syp-4 mutant is not representative or there is a difference that exists. There is also a distinct difference in the HTP-3 staining for syp-4. Some comment should be made.

11) In Figure 1B, the image contrast/ detection thresholds for WT and syp mutants appear to be set differently. If anything, the background should be set lighter in syp mutants. The same concern applies for PLK-1 in Figure 1—figure supplement.1B, and Figure 2D the syp-4 and plk-2 panels. In Figure 3A, the colored boxes are hard to see and the fact that different antibodies and stages are identically color-coded is confusing (e.g. green stands for COSA-1 and also midpachytene).

12) Primary data should be provided for RAD-51 foci in the S269A mutant (i.e. a representative IF image).

13) The possible cause/effect relationship between SC dynamics and extra RAD-51 should be discussed clearly. While the inference is that continued SC dynamics result in extra DSBs, currently there is no evidence to exclude the reverse relationship. If additional experimental data are available, great; if not, adding discussion would suffice. For example, have the authors explored whether the SC in syp-4 (A269S) still exhibits high dynamics in the absence of DSBs/SPO-11? If syp-4 (S269A)-induced SC dynamics persist despite absence of DSBs, this would allow excluding a role of extra DSBs in inducing SC dynamic. Or: does the S269D phosphomimetic mutation eliminate SC dynamics in absence of DSBs? Notably, even in absence of DSBs, some SYP-4 phosphorylation is still happening. Is it possible to compare the SC dynamics phenotypes of S269A and other recombination mutant(s) that assemble apparently normal SC?

14) Does SYP-4 phos work via chromosome association of DSB-1 and -2? It would be interesting to discuss this possibility.

15) It seems that the authors' model SYP-4 phos should be more important when total DSBs are low (e.g., in a dsb-2 mutant or spo-11 + low IR dose). Did the authors test this? If not, it could be a Discussion point.

https://doi.org/10.7554/eLife.23437.028

Author response

Essential revisions:

The reviewers and reviewing editor raised a number of concerns that must be adequately addressed before the paper can be accepted. Some of the required revisions will likely require further experimentation within the framework of the presented studies and techniques.

Additional experimental data needed:

1) More evidence/validation for phospho-specific antibody is needed, since this is such a critical tool. For example, structural changes may be happening that might affect e.g. epitope accessibility. Does the anti-pSYP-4 work for western? If so, show a western of anti-pSYP-4 and sensitivity of the band to phosphatase treatment.

Unfortunately, the anti-pSYP-4 antibody does not work on western blots.

At a bare minimum, the authors need to show that SYP-4 is still recruited along chromosomes under conditions where the presumed phospho-specific SYP-4 antibody does not detect a signal, especially in the plk mutant condition. The principal evidence for SYP-4-phopho-specificity of the antibody is that the signal is delayed or disappears in the plk-2 and/or plk-1 mutant. But in the same mutant, SYP-1 assembly is also compromised, at a similar stage (e.g. Harper et al., 2011, Figure 1D; 6A). The interdependence between the SYPs was shown in null mutants, but syp-4(S269A) could be functional for SC assembly but unstable/reduced later assuming it is not required for SC maintenance.

We now provide several lines of evidence that the pSYP-4 antibody is specific. First, in Figure 6—figure supplement 1C, we show that SYP-4 is recruited along the homologous chromosomes in the syp-4(S269A) phosphodead mutant but we do not detect phosphorylated SYP-4 signal in this mutant background (Figure 2D), which argues that the pSYP-4 signal is specific and not a consequence of SYP-4 not being loaded or maintained on the chromosomes. Second, as the reviewers suggested, we now show SYP-4 in addition to SYP-1 localization in the plk-2;plk- 1(RNAi) mutant (Figure 2—figure supplement 1A and Figure 2). This new data is now mentioned as follows: “We found that pSYP-4 signal, but not SYP-4, was completely lost upon depletion of plk-1 by RNAi in the plk-2 mutant (Figure 2D and figure 2—figure supplement 1)”. In the plk-2;plk-1(RNAi) mutant, we observe an uneven localization for both SYP-1 and SYP-4 along the homologous chromosomes. Specifically, SYP-1 and SYP-4 form tracks of uneven intensity along DAPI-stained chromosomes, and we now clearly indicate that in our revised figure legends for both Figure 2 and Figure 2—figure supplement 1A. However, even where we observe strong signal for SYP-1 or SYP-4 we still do not observe pSYP-4 signal. We would like to clarify that we did not argue that SYP protein localization is normal in this mutant background. Rather, even though the SYP proteins are able to localize, albeit unevenly, on the chromosomes we did not detect any SYP-4 phosphorylation on those chromosomes. Third, in the recombination defective mutants, even though SYP-1 can still load on the chromosomes, we do not see pSYP-4 localization, except for a single chromosome track in 19.7% of nuclei in mutants for factors involved in early steps of recombination (the pSYP-4 signal is completely absent in pro-crossover mutants) (Figure 3 and Figure 3—figure supplement 1). Finally, we do not observe any obvious defects in SC maintenance in the syp-4(S269A) mutant (Figure 6—figure supplement 1). Together, these data strongly support the specificity of the phospho SYP-4 antibody.

Details should be given about the affinity purification of the antibody: Was that done with a S269-nonphospho-peptide? How was success of the affinity-purification determined?

As per the reviewer’s request, we now provide additional information about the affinity purification method used for the SYP-4 phospho-specific antibody in the Materials and methods subsection “Antibodies”. A rabbit phospho-specific polyclonal antibody was generated by Abmart using the phospho-peptide C-QFDR(pS)FILAS encompassing the S269 site in SYP-4. Two peptides were synthesized: An antigen peptide with phosphoserine C-QFDR(pS)FILAS and a control peptide without phosphorylation (C-QFDRSFILAS). Serum harvested from the rabbits immunized with the antigen peptides went through two rounds of affinity purification. First, serum was passed through a column to which the antigenic peptide was coupled in order to isolate phospho- specific SYP-4 antibodies. The eluate from the first column was then passed through a second column to which the control peptide was coupled and flow through was collected. This second step was done to remove any non-phosphorylated SYP-4 antibodies. An ELISA titer of ≥ 1:50,000 against the modified peptide and a modified/unmodified titer ratio of ≥ 8 were used as validation criteria. In addition, phospho- specificity of the antibody was tested by immunofluorescence in syp- 4(S269A) phosphodead mutants (Figure 2D).

2) Please document the effect of syp-4 point mutants on chromosome segregation or offspring viability (apart from the mild increase in apoptosis).

We have now added Supplementary file 1 reporting the brood size, percentage of embryonic lethality, and percentage of males observed in the syp- 4 point mutants compared to wild type. This new data is now mentioned as follows: “We observed a significant reduction in brood size in both syp- 4(S269A) phosphodead and syp-4(S269D) phosphomimetic mutants compared to wild type (Supplementary file 1). However, we only saw 6-8% embryonic lethality accompanied by 0.3-1% males among the progeny from these mutants, suggesting only a mild increase of autosomal and X chromosome nondisjunction during meiosis in these mutants, which could stem in part from the <4% of oocytes observed having a reduced number of COSA-1 foci (Supplementary file 1).”

3) Quantify and document better the per-chromosome correlation of COSA-1 and pSYP-4. From Figure 3, it doesn't seem that stretches of pSYP 4 signal are first observed only on chromosomes that have a GFP::COSA-1 foci. Some quantification as well as better images should be provided. For example, one could determine the contour of the stretch of pSYP-4 staining and calculate the association of stretches with the COSA-1 foci.

As per the reviewer’s suggestion, we now show the quantification of the per- chromosome correlation of COSA-1::foci and pSYP-4 in Figure 3—figure supplement 1. We also included high-magnification images in Figure 3A to show the colocalization of pSYP-4 with COSA-1::GFP in early, mid and late pachytene nuclei. The new data is now mentioned as follows: “Strikingly, at that same stage, phosphorylated SYP-4 was first observed on 76% of chromosomes (n=78) with GFP::COSA-1 foci, whereas a low percentage of chromosomes showed either only pSYP-4 signal (5.8%; n=6) or COSA-1 foci (18.4%; n=19) (Figure 3A and Figure 3—figure supplement 1)”.

4) Define single pSYP-4 chromosome in more detail. What is the cause for the single chromosome staining: Is there a second wave of PLK-1 phosphorylation? Is it known which chromosome track stains with pSYP-4 in the DSB break processing mutants? Is it always the same chromosome track? Can some FISH be done to address this? This is off-topic of the main point of the paragraph but it suggests that some chromosome stretches get pro-crossover factors which pSYP-4 can respond to. However, is that a reasonable assumption? This is somewhat important in the interpretation of the pairing data that is presented subsequently. Is there no difference in the pairing data because one chromosome behaves aberrantly from the rest and that happens to be the chromosome you which you tested for pairing? It also would be nice to have some speculation statement about the chromosome track.

To address the reviewer’s questions we now show that the COSA-1::GFP foci are observed on the chromosomes with the pSYP-4 signal in spo-11 mutants (figure 3—figure supplement 3) suggesting that SYP-4 phosphorylation occurs in response to CO precursor formation, which is consistent with our model. We also examined which chromosome exhibited the pSYP-4 track in spo-11 mutants. Specifically, we performed HIM-8 staining to mark the X chromosome and FISH to identify chromosomes III and V in the spo-11 mutant. We found that 46% of pSYP-4 tracks corresponded to the X chromosome, 11.6% to chromosome V and 9.5% to chromosome III. The higher frequency of pSYP-4 signal along the X chromosome could be due to its distinct chromatin structure and/or a result of it undergoing delayed replication compared to autosomes (Bender et al., 2004; Kelly et al., 2002; Gao et al., 2015; Jaramillo-Lambert et al., 2007), which might result in DSBs being carried into meiosis. We now include all this new data as Figure 3—figure supplements 3A-C, and in the main text as follows: “Moreover, a COSA-1::GFP focus was observed on each of these chromosomes exhibiting pSYP-4 signal (Figure 3—figure supplement 3A). […] The higher frequency of pSYP-4 tracks along the X chromosome could be due to its distinct chromatin structure and/or a result of it undergoing delayed replication compared to autosomes (Bender et al., 2004; Kelly et al., 2002; Jaramillo-Lambert et al., 2007), which might lead to a higher number of DNA lesions that could be processed for CO precursor formation during meiosis.”

Regarding whether there may be a second wave of PLK-1 phosphorylation that could result in this single chromosome with pSYP-4 staining, we were not able to detect PLK-1 signal on chromosomes during pachytene in either wild type or plk-2 mutants (Figure 1—figure supplement 1), although we cannot rule out the possibility that there is some PLK-1 that is below threshold levels of detection by immunofluorescence as mentioned in the subsection “PLK-localization on chromosomes during pachytene is dependent on the SYP proteins”. Since PLK-2 is still present in the spo-11 mutant and we see COSA-1::GFP foci on the pSYP-4 tracks, we reason that the single pSYP-4 tracks seen in spo-11 mutants are due to CO precursor formation and PLK-2-dependent phosphorylation of SYP-4.

5) Address concerns about chromosome movements within cells for FRAP experiments (subsection “FRAP Analysis”) in regards to FRAP analysis in Figure 6. Although the impact of cellular movement was minimized for intensity measurements, what about chromosomal movements within the cell? Meiotic prophase generally has been shown to display significant changes in motion of its chromosomes. It would be important to have data and a statement that this was not a concern in generating the change of fluorescent intensity. This is particularly important because z-projections were used for the analysis. Chromosome motion instead of incorporation of central element may or may not be distinguished well in projections.

We now include a revised and expanded description in the Materials and methods section that also addresses the issue of chromosome movements. There we now explain that a small region of the nuclei was photobleached throughout the Z stack for the entire length of the nuclei and measured for extent of fluorescence recovery. We used the StackReg plugin in Fiji to correct for gross lateral animal movement and drift. Then we used rigid body registration in StackReg to minimize the impact of chromosomal movement on intensity measurements. In this case, because only the chromosomes are fluorescent (and not the nuclei as a whole) it is precisely the chromosomes themselves that are being registered over time. When this registration failed – for instance the chromosomal structure demonstrated obvious rotation around the lateral plane, and not just lateral translation, or rotation around the detection axis – then nuclei were excluded from further analysis due to our inability to reliably measure intensity of the same chromosomal region over time. Nuclei with the photobleached region (region of interest, ROI) in focus for the entire period of fluorescence recovery were selected for further analyses. To further correct for chromosomal movement, the photobleached regions were traced manually to measure average fluorescence intensity over the duration of the time-lapse.

We also include now two videos, one depicting an example of a wild type nucleus we scored and another showing a wild type nucleus we did not score due to poor chromosome registration over the duration of the time-lapse –Videos 1 and 2.

Major points that can be addressed by text fixes or changes to figures with available data:

6) Incorporate SC dynamics (and how they change) into the Figure 7 model. It is also suggested the authors should show the proposed feed-back loop, i.e. showing that DSBs trigger an event that in turn triggers their own switch off.

As requested, we have made changes to the model on Figure 7 to incorporate SC dynamics and how they change. However, we respectfully choose to keep the current diagram where the negative inhibition on further DSB formation is shown on the chromosome at pachytene after phosphorylation of SYP-4 since our data supports a model in which PLK-1/2-dependent phosphorylation of SYP- 4 in response to CO designation results in changes in SC dynamics and that in turn switches off additional DSB formation along those chromosomes in pachytene.

7) The authors are careful to point out in the Results section that their data are consistent with phosphorylation of SYP-3 being PLK dependent. However, they start their Discussion with: "We have discovered that phosphorylation of a central region component of the SC, SYP-4, by Polo-like kinases…" and "Our data indicate that Polo-like kinases phosphorylate SYP-4 starting at early pachytene…" The authors haven't provided any data demonstrating that PLK-1 or PLK-2 directly phosphorylates SYP-4. They can only say the phosphorylation is dependent on PLK-1/2 and that their data suggests that polo-like kinases phosphorylate SYP-4 in early pachytene, consistent with PLK-2's localization.

We have now carefully gone over the text and made sure that we consistently only indicate that phosphorylation of SYP-4 is PLK-dependent. Examples of these changes are in the first paragraph of the Discussion.

8) In Smolikov et al., PLOS Genetics (2009), elevated levels of persistent RAD-51 foci were interpreted as a defect in recombination progression, rather than as a failure to shut-off DSBs. Given the SYP-4 involvement in DSB shut-off, this might be a good opportunity to reevaluate the earlier findings. More generally, this would also be a good opportunity to reevaluate the implications of using rad-54 or other recombination-defective mutations as a tool to estimate total DSB levels in wild type.

In Smolikov et al. (2009) we examined the levels of RAD-51 foci throughout the germline of syp-4 null mutants. In that case, as in the Colaiacovo et al. (2003) and Smolikov et al. (2007) papers, the different syp null mutants (syp-1, syp-2, syp-3 and syp-4) impaired the ability to stabilize homologous chromosome pairing interactions, but not initial DSB formation. As a result, DSBs formed but repair between homologs was not possible due to complete absence of an SC, resulting in persistent DSBs and a lack of crossovers. That is different from this current study in which in the context of the phosphodead and phosphomimetic mutants the SC proteins, such as SYP-4, are still associating with the chromosomes (Figure 6—figure supplement 1) and DSB repair can still take place between homologs resulting in detectable CO precursors (Figure 5). The use of a rad-54 mutant to essentially “trap” RAD-51 at sites of DSB repair, is currently the only strategy available to assess DSB levels in the C. elegans germline. However, available data does argue that elevated RAD-51 can be due to more breaks, delayed repair, and/or increased time where breaks are occurring and therefore caution should be exercised when interpreting alteration of RAD-51 levels.

9) Provide better introduction and discussion of current results relative to other organisms. Please introduce and discuss similarities and differences of DSB limitation via Plk in C. elegans compared to the role of ATM/Tel1 in other organisms. In addition, the discussion of similarities to the homolog engagement pathway for DSB regulation that has been previously documented in yeast and mouse needs to be improved. In the Introduction it is stated: "However, once a DSB is designated to become a CO a feedback mechanism turns off further programmed DSBs from forming (Lam and Keeney 2015). The molecular basis for transmission of this feedback regulation remains an open question." The first statement is not a fair summary of what is known. And the implication from second sentence seems to be that the current results will address the lack of information, but the connection of the current findings to these other organisms is not convincing. CO designation is one possibility for why "homolog engagement" turns off DSB formation in yeast and mouse, but it is not the only possibility. Keeney's and Toth's labs propose that it is SC formation that triggers DSB inhibition, in part because even non-homologous SC formation in the absence of SPO11 is accompanied by TRIP13-dependent HORMAD depletion from chromosomes in mouse (see Wojtasz 2009, Thacker 2014, and Keeney 2014). In any case, the text shouldn't state it so categorically that DSB inhibition is a consequence of CO designation, because there is certainly no evidence to strongly support that conclusion. Concerning the molecular basis of the feedback: indeed this is not known. But it clearly does not require polo kinase in yeast (Cdc5) because Keeney's lab showed that the homolog engagement (ZMM-dependent) pathway operates even in an ndt80 mutant (Thacker 2014). Cdc5 is not expressed in the absence of Ndt80. Minor point: the Lam and Keeney 2015 paper does not seem to be a particularly apt reference for this general point. Perhaps Keeney et al. 2014 would be better.

As suggested, we modified our statement which now reads as follows: “However, the engagement of homologous chromosomes during recombination and/or SC assembly has been proposed to turn off further programmed DSB formation (reviewed in Keeney et al. 2014). One possibility is that once a DSB is designated to become a CO a feedback mechanism turns off further programmed DSBs from forming. An alternative, albeit non-mutually exclusive possibility, is that SC formation may result in structural changes along the chromosomes which suppress further DSB formation.” While we kept the second statement, that the molecular basis of the feedback is not known, we did modify the beginning of the following paragraph to clearly indicate that the findings regarding a polo kinase requirement apply to C. elegans. We also do this now in the first paragraph of the Discussion.

We also expanded our Discussion to address the similarities and differences of DSB limitation via PLK in C. elegans compared to the role of ATM/Tel1 in other organisms and expand on the point that it is SC formation that triggers DSB inhibition in yeast and mouse. Finally, we also replaced the Lam and Keeney (2015) for the Keeney et al. (2014) reference as recommended.

10) Subsection “PLK-2 localization on chromosomes during pachytene is dependent on the SYP proteins”. In Figure 1, the localization in PLK-2 to the nuclear periphery of syp-4 is qualitatively different than in WT. In fact, PLK-2 location is different between syp-1 and syp-4 mutants. This is in contrast to the statement in the figure legend that PLK-2 localization is not different. So, either the figure for the syp-4 mutant is not representative or there is a difference that exists. There is also a distinct difference in the HTP-3 staining for syp-4. Some comment should be made.

In this figure we are showing that PLK-2 still forms aggregates, likely at the pairing centers, during the leptotene/zygotene stage in syp-1 and syp-4 mutants, but that we no longer see any PLK-2 signal on pachytene stage nuclei. However, in the syp-1 and syp-4 mutants, as previously reported in MacQueen et al. (2002) and Smolikov et al. (2009), while chromosomes initially attempt to pair at leptotene/zygotene, the levels of pairing at that stage are somewhat lower than in wild type. Therefore, the pairing centers of chromosomes are not held in close juxtaposition at the same levels as in wild type. This is why the PLK-2 signal forms fewer and larger aggregates in wild type (where homologs find each other more effectively and start to stabilize those pairing interactions) compared to the syp null mutants at that stage (where homologs pair less frequently and do not successfully stabilize those interactions). We now explain this in the figure legend for Figure 1. Moreover, we replaced the syp-1 and syp-4 mutant images in Figure 1A for more representative images that show the higher number of smaller PLK-2 aggregates observed at leptotene/zygotene in both mutants compared to wild type. The nuclei shown for wild type, syp-1, and syp-4 mutants are all from the same stage.

HTP-3 staining is different in wild type compared to both syp-1 and syp-4 null mutants because chromosomes are synapsed in wild type and therefore their axes are held in close juxtaposition, which is observed as thicker HTP-3 signal, while in the syp null mutants homologous chromosomes are not held together and a lot more thinner tracks of HTP-3 are observed. We also explain this now in the figure legend.

11) In Figure 1B, the image contrast/ detection thresholds for WT and syp mutants appear to be set differently. If anything, the background should be set lighter in syp mutants. The same concern applies for PLK-1 in Figure 1—figure supplement 1B, and Figure 2D the syp-4 and plk-2 panels. In Figure 3A, the colored boxes are hard to see and the fact that different antibodies and stages are identically color-coded is confusing (e.g. green stands for COSA-1 and also midpachytene).

We have now corrected this and have set the same image intensity for the images in Figure 1B, Figure 1—figure supplement 1B and Figure 2D. In Figure 3A, we removed the colored boxes and included high-resolution images of single nuclei from early, mid and late pachytene stages to more clearly show the colocalization of COSA-1::GFP foci with pSYP-4.

12) Primary data should be provided for RAD-51 foci in the S269A mutant (i.e. a representative IF image).

We now show a representative IF image in Figure 5—figure supplement 1.

13) The possible cause/effect relationship between SC dynamics and extra RAD-51 should be discussed clearly. While the inference is that continued SC dynamics result in extra DSBs, currently there is no evidence to exclude the reverse relationship. If additional experimental data are available, great; if not, adding discussion would suffice. For example, have the authors explored whether the SC in syp-4 (A269S) still exhibits high dynamics in the absence of DSBs/SPO-11? If syp-4 (S269A)-induced SC dynamics persist despite absence of DSBs, this would allow excluding a role of extra DSBs in inducing SC dynamic. Or: does the S269D phosphomimetic mutation eliminate SC dynamics in absence of DSBs? Notably, even in absence of DSBs, some SYP-4 phosphorylation is still happening. Is it possible to compare the SC dynamics phenotypes of S269A and other recombination mutant(s) that assemble apparently normal SC?

We propose that the SC is stabilized by PLK-dependent phosphorylation, which inhibits further DSB formation. In the absence of PLK-dependent SYP-4 phosphorylation in syp-4(S269A) phosphodead mutants, the SC persists in a more dynamic state in mid-pachytene and chromosomes exhibit significantly elevated numbers of DSBs. Consistent with our model, in spo-11 mutants, which we showed only have <20% of nuclei with pSYP-4 signal along a single chromosome, the SC persisted in a more dynamic state throughout pachytene as measured by FRAP analysis in Machovina et al., 2016 and Pattabiraman and Villeneuve (personal communication). This rules out the argument that it is the extra DSBs that cause the SC to remain in a more dynamic state. We now better address this in the first paragraph of the Discussion.

14) Does SYP-4 phos work via chromosome association of DSB-1 and -2? It would be interesting to discuss this possibility.

To address this comment we examined pSYP-4 localization in dsb-1 and dsb-2 mutants. Similar to what we observed for other mutants defective in early steps of recombination we did not detect pSYP-4 signal in most of the germline nuclei in dsb-1 and dsb-2 mutants and only a few nuclei showed a pSYP-4 track (Figure 3B). This new result is described in the subsection “Phosphorylation of SYP-4 is dependent on crossover precursor formation” and discussed in the first paragraph of the Discussion.

15) It seems that the authors' model SYP-4 phos should be more important when total DSBs are low (e.g., in a dsb-2 mutant or spo-11 + low IR dose). Did the authors test this? If not, it could be a Discussion point.

Our model is that SYP-4 is phosphorylated on the chromosomes that undergo interhomolog CO precursor formation. In the absence of CO formation, for example in pro-crossover mutants, although they undergo DSB formation we do not detect SYP-4 phosphorylation. In addition, in spo-11(ok79) mutant animals expressing COSA-1::GFP, the pSYP-4 tracks colocalize with COSA-1::GFP foci (Figure 3—figure supplement 3). This argues that even if a chromosome might undergo only one DSB, as long as this break gets processed into a CO you will get phosphorylated SYP-4 along that chromosome.

As described for point #14, we examined pSYP-4 localization in dsb-1 and dsb-2 mutants, and similar to other recombination defective mutants, we did not detect pSYP-4 signal in most nuclei and only a few nuclei carried a pSYP-4 track (we added this new data to Figure 3B). Extrapolating from our spo-11 mutant analysis, we hypothesize that those chromosomes with the pSYP-4 signal in dsb- 1 and dsb-2 mutants also correspond to chromosome that underwent a DSB and CO precursor formation.

https://doi.org/10.7554/eLife.23437.029

Article and author information

Author details

  1. Saravanapriah Nadarajan

    Department of Genetics, Harvard Medical School, Boston, United States
    Contribution
    SN, Conceptualization, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  2. Talley J Lambert

    Department of Cell Biology, Harvard Medical School, Boston, United States
    Contribution
    TJL, Formal analysis, Visualization, Methodology, Writing—original draft
    Competing interests
    The authors declare that no competing interests exist.
  3. Elisabeth Altendorfer

    Department of Genetics, Harvard Medical School, Boston, United States
    Contribution
    EA, Formal analysis, Investigation, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  4. Jinmin Gao

    Department of Genetics, Harvard Medical School, Boston, United States
    Contribution
    JG, Formal analysis, Investigation, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  5. Michael D Blower

    1. Department of Genetics, Harvard Medical School, Boston, United States
    2. Department of Molecular Biology, Massachusetts General Hospital, Boston, United States
    Contribution
    MDB, Resources, Formal analysis, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  6. Jennifer C Waters

    Department of Cell Biology, Harvard Medical School, Boston, United States
    Contribution
    JCW, Resources, Supervision, Visualization, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  7. Monica P Colaiácovo

    Department of Genetics, Harvard Medical School, Boston, United States
    Contribution
    MPC, Conceptualization, Supervision, Funding acquisition, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    mcolaiacovo@genetics.med.harvard.edu
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7803-4372

Funding

National Institutes of Health (R01GM072551)

  • Monica P Colaiácovo

Lalor Foundation

  • Saravanapriah Nadarajan

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We are grateful to the Caenorhabditis Genetics Center for providing strains, to M. Zetka for the HTP-3 and PLK-1 antibodies, R. Lin for the PLK-2 antibody, and V. Jantsch for the SUN-1 S8pi antibody. We thank J. Engebrecht and members of the Colaiácovo lab for critical reading of this manuscript and for providing helpful suggestions. We thank Hunter Elliott in the Image and Data Analysis Core at Harvard Medical School for advice on FRAP image analysis and the Nikon Imaging Center at Harvard Medical School for use of their microscopes. This work was supported by National Institutes of Health grant R01GM072551 to MPC and a fellowship from the Lalor Foundation to SN.

Reviewing Editor

  1. Scott Keeney, Howard Hughes Medical Institute, Memorial Sloan Kettering Cancer Center, United States

Publication history

  1. Received: November 18, 2016
  2. Accepted: March 23, 2017
  3. Accepted Manuscript published: March 27, 2017 (version 1)
  4. Version of Record published: May 9, 2017 (version 2)

Copyright

© 2017, Nadarajan et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,274
    Page views
  • 466
    Downloads
  • 19
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Crossref, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Cell Biology
    Rui Jia, Juan S Bonifacino
    Research Article Updated
    1. Cancer Biology
    2. Cell Biology
    Hao Zeng et al.
    Research Article
