Transcription factor Emx2 controls stereociliary bundle orientation of sensory hair cells
Abstract
The asymmetric location of stereociliary bundle (hair bundle) on the apical surface of mechanosensory hair cells (HCs) dictates the direction in which a given HC can respond to cues such as sound, head movements, and water pressure. Notably, vestibular sensory organs of the inner ear, the maculae, exhibit a line of polarity reversal (LPR) across which, hair bundles are polarized in a mirror-image pattern. Similarly, HCs in neuromasts of the zebrafish lateral line system are generated as pairs, and two sibling HCs develop opposite hair bundle orientations. Within these sensory organs, expression of the transcription factor Emx2 is restricted to only one side of the LPR in the maculae or one of the two sibling HCs in neuromasts. Emx2 mediates hair bundle polarity reversal in these restricted subsets of HCs and generates the mirror-image pattern of the sensory organs. Downstream effectors of Emx2 control bundle polarity cell-autonomously via heterotrimeric G proteins.
https://doi.org/10.7554/eLife.23661.001Introduction
The asymmetric location of cilia on the apical surface of epithelial cells is critical for many functions such as left-right asymmetry and normal flow of the cerebral spinal fluid. Abnormal positioning of the monocilium in the node and multicilia of ependymal cells lining the brain ventricles can lead to left-right asymmetry defects and hydrocephalus, respectively (Tissir et al., 2010; Song et al., 2010). Similarly, the asymmetrical orientation or polarity of hair bundle on top of sensory HCs provides the directional sensitivity for detecting sensory inputs in the form of vibrations (Shotwell et al., 1981). The mechanisms underlying the precise positioning of hair bundle are unclear.
Each hair bundle is comprised of specialized microvilli (also called stereocilia) arranged in a staircase pattern that are tethered to the kinocilium, a true cilium. Deflection of the hair bundle towards its kinocilium leads to the opening of the mechanotransduction channels located on the tips of stereocilia and depolarizes the HC. Hair bundle displacement in the opposite direction results in hyperpolarization (Figure 1A; Shotwell et al., 1981). Therefore, the orientation and positioning of the hair bundle determine the directional sensitivity of the HC.
Within each sensory organ of the inner ear, HCs display a well-defined pattern of hair bundle polarity tailored to its function. The organ of Corti (sensory organ for sound detection) and the three cristae (vestibular organs for detecting angular acceleration) exhibit a polarity pattern where all the hair bundles are polarized in the same direction (unidirectional). In contrast, maculae of the utricle and saccule, vestibular organs for detecting linear acceleration, are divided by the LPR into two regions with opposing hair bundle polarities. Across the LPR, hair bundles are oriented toward each other in the utricle and away from each other in the saccule (Figure 1A). Similar to the hair bundle polarity pattern in the utricle, HCs in neuromast organs of the zebrafish lateral line are also oriented toward each other in a 1:1 ratio (López-Schier et al., 2004).
Asymmetric localization of the hair bundle begins with the docking of the basal body to the center of the apical surface to form the kinocilium. The nascent kinocilium then moves from the center to the periphery where adjacent specialized-microvilli gradually differentiate into a staircase architecture and establishes the intrinsic polarity of the hair bundle (Lu and Sipe, 2016; Tilney et al., 1992). The directed movement of the kinocilium and subsequent staircase formation of the stereocilia in each HC require an intracellular complex, Insc/LGN/Gαi, which has been determined to mediate spindle orientation during mitosis in other cell types (Morin and Bellaïche, 2011; Lu and Sipe, 2016; Ezan et al., 2013; Tarchini et al., 2013, 2016). This complex, tethered to the cell cortex of sensory HCs, presumably relocates the basal body/nascent kinocilium to the cell periphery via the attached microtubules, in a manner similar to relocating centrioles during mitosis. In humans, mutations of LGN (also known as GPSM2) cause a syndromic hearing loss suggesting that the directed kinocilium migration and bundle assembly are critical for hearing (Doherty et al., 2012).
In addition to establishing the intrinsic polarity of individual HCs, precise arrangement of hair bundle patterns in each inner ear organ is regulated by global and intercellular signaling mechanisms as well. The global polarity signaling molecules Wnts are required for establishing directional polarity in the developing mouse limb bud and Drosophila wing (Wu et al., 2013; Gao et al., 2011), as well as hair bundle alignment in the organ of Corti (Qian et al., 2007; Dabdoub and Kelley, 2005). A highly conserved intercellular signaling pathway, the core planar cell polarity (cPCP) pathway, coordinates polarity between adjacent cells. This cPCP complex is comprised of transmembrane proteins Van Gogh (Vang), Frizzled (Fz), and Celsr as well as cytoplasmic proteins such as Dishevelled (Dvl) and Prickle (Pk) (Goodrich and Strutt, 2011; Wallingford, 2012). Mutations of cPCP components such as Van Gogh-like 2 (Vangl2), Fz, and Dvl, affect the coordinated alignment of hair bundles among HCs but not the peripheral positioning of the kinocilium or the intrinsic bundle polarity of individual HCs (Montcouquiol et al., 2003; Wang et al., 2005, 2006).
Hair bundles are misaligned in the maculae of Vangl2 mutants and the LPR is disrupted (Montcouquiol et al., 2006; Yin et al., 2012). However, it is debatable whether this complex is directly involved in the LPR establishment because the distribution of cPCP components such as Prickle-like 2 (Pk2) and Vangl2 are not reversed across the LPR in normal maculae as predicted by the polarity of the hair bundle (Deans et al., 2007; Jones et al., 2014). By contrast, all hair bundles were orientated in the same direction and the LPR was reportedly absent in knockout maculae of Emx2, which encodes a homeobox-containing transcription factor (Holley et al., 2010). This defect was attributed to an imbalance between proliferation and differentiation of sensory precursors rather than a specific role for Emx2 in directing hair bundle polarity.
In our study, we show that Emx2 expression is required to reverse hair bundles from their ‘default’ polarity in the macula and neuromast. Ectopic expression of Emx2 in HCs is sufficient to reverse the ‘default’ bundle polarity. Our loss- and gain-of-function experiments in both inner ear and neuromast indicate that Emx2 is necessary and sufficient to mediate hair bundle orientation in vertebrate HCs.
Results

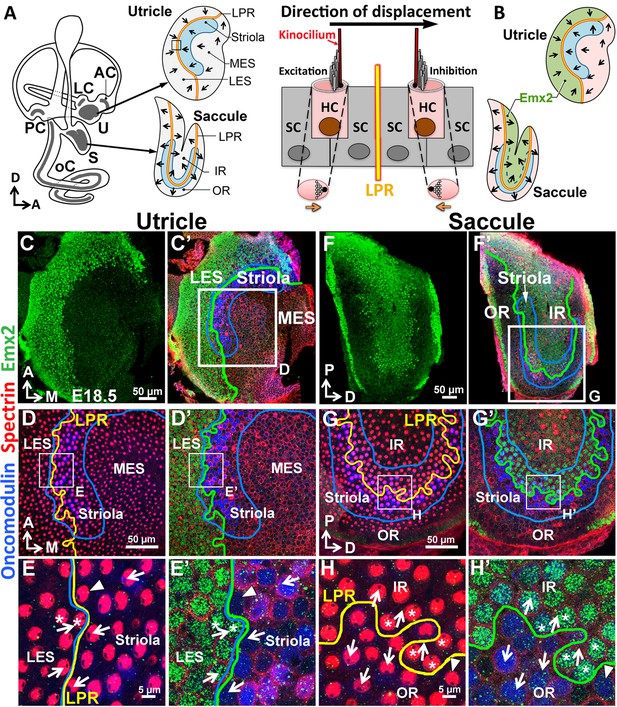

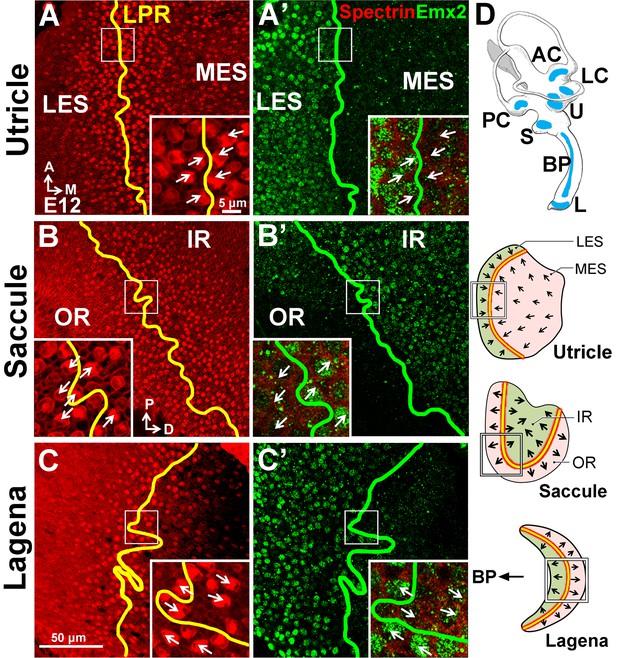

The border of Emx2 expression domain coincides with the LPR in maculae
We investigated the reported hair bundle polarity phenotype in Emx2 knockout maculae (Holley et al., 2010) by examining the normal expression pattern of Emx2. Using both in situ hybridization and immunostaining, we found that Emx2 expression is restricted to the lateral extrastriolar region (LES) of the utricle and inner region (IR) of the saccule (Figure 1B,C,C’,F,F’, Figure 1—figure supplement 1A–F). The border of the Emx2 expression domain (Figure 1C’,F’, green line bordering the green region) closely follows the LPR in the two maculae, at the lateral edge of the oncomodulin-positive striola in the utricle and at the center of the saccule bisecting the striola (blue outlined; Li et al., 2008; Desai et al., 2005). The coincidence of the Emx2 border (green line) with the LPR (yellow line) was confirmed by comparing Emx2 immunoreactivity to hair bundle polarity. We used the absence of anti-spectrin staining at the kinocilium location for determining hair bundle polarity (Figure 1D–E’,G–H’; Deans et al., 2007). Using this approach, we found that only HCs lateral to the LPR in the utricle and internal to the LPR in the saccule are Emx2 positive and they show polarities different from the rest of the maculae (Figure 1D–E’,G–H’, arrows). These results indicate that Emx2 expression is restricted to one side of the LPR in the maculae that share the same hair bundle polarity.
The LES and IR regions are preserved in Emx2-/- maculae

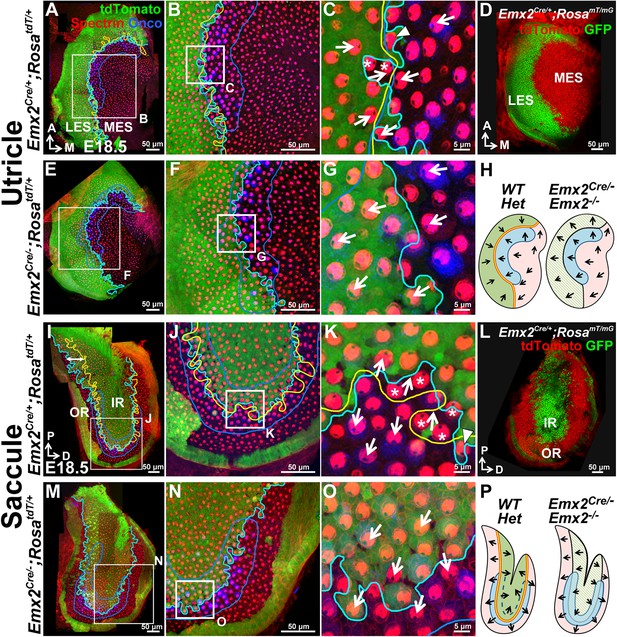

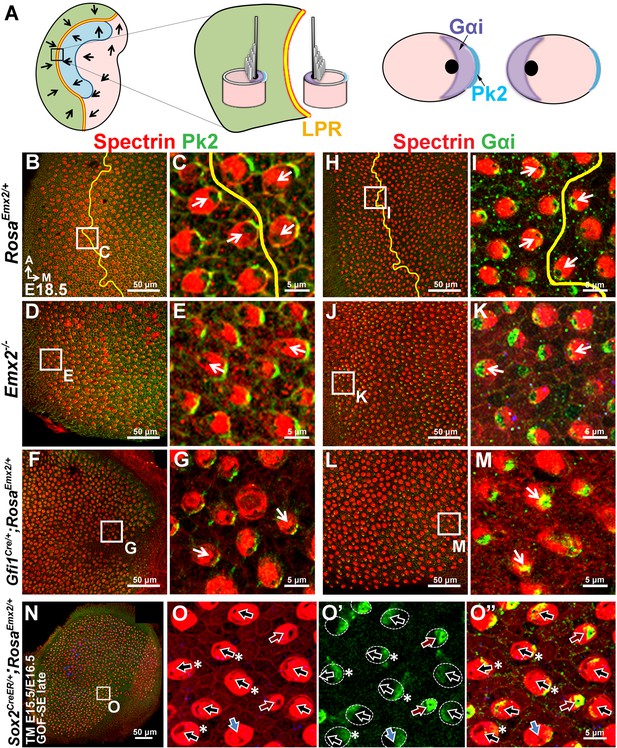

Extrapolating from the normal restricted expression of Emx2 shown above and the unidirectional polarity phenotype previously reported in Emx2 knockouts (Holley et al., 2010) suggest that Emx2 has a role in regional hair bundle polarity patterning. However, since Emx2 encodes a transcription factor and has been implicated in regional patterning in other systems (Pellegrini et al., 1996; Miyamoto et al., 1997), the lack of LPR in Emx2-/- maculae could be caused by the loss of the Emx2 expression domain rather than altering the hair bundle polarity. Indeed, the area of the maculae was reported to be smaller in Emx2-/- mutants than wildtype (Holley et al., 2010). To address this possibility, we took a genetic approach. First, we lineage-traced the descendants of Emx2 expressing cells in wildtype by crossing Emx2Cre/+ mice (Kimura et al., 2005) to Cre reporter mice, RosatdT/+ or RosamT/mG. The lineage-traced domain of Emx2 (Figure 2A–D,I–L) corresponded to its expression pattern (Figure 1C–H’), regionally restricted to the LES of utricle and IR of saccule. Within the Emx2-lineage domain of the two maculae (Figure 2B–C,J–K, green), hair bundles were oriented in the opposite direction from the rest of the sensory organ. The border of the lineage domain in the maculae (Figure 2A–C,I–K, cyan line) largely coincided with the LPR (yellow line). Immediately lateral or inside of the LPR in the respective utricle and saccule, there were occasional cre reporter-negative HCs with reversed polarity (Figure 2C,K, Figure 2—figure supplement 1, asterisks) but these cells were invariably positive for Emx2 immunostaining (Figure 1E’,H’, Figure 2—figure supplement 1, asterisks). By contrast, medial or outside of the LPR in the respective utricle and saccule, there were also cre-reporter positive HCs with default polarity (Figure 2C,K, Figure 2—figure supplement 1, arrowheads) but they were negative for Emx2 immunostaining (Figure 1E’H’, Figure 2—figure supplement 1, arrowheads). These cre-reporter positive HCs with default polarity were particularly abundant in the posterior-ventral region of the saccule where the border of Emx2-lineage domain and LPR diverged (Figure 2I, double-headed arrow). Overall, these results indicate that the border of the Emx2-lineage domain, though not as faithful as the immunostaining results, corresponds reasonably well with the LPR.
-
Figure 2—source data 1
- https://doi.org/10.7554/eLife.23661.005
-
Figure 2—source data 2
- https://doi.org/10.7554/eLife.23661.006
Encouraged by the lineage results, we investigated whether Emx2Cre, in which Cre is inserted into exon1 of the Emx2 locus, generates a functional null. Our results showed that Emx2Cre/Cre and Emx2Cre/- embryos exhibit brain, kidney and ear phenotypes similar to Emx2-/- mutants indicating that Emx2Cre is a null allele (Figure 2—figure supplement 2; Pellegrini et al., 1996; Miyamoto et al., 1997). Thus, this Emx2Cre strain allowed us to investigate the Emx2-lineage domain in Emx2 functional null mutants. We observed that the Emx2-lineage domain remained in both maculae of Emx2Cre/-;RosatdT/+ mutant ears. The spatial relationship of Emx2-lineage domain with the striola was maintained but hair bundle polarity within the domain was reversed (Figure 2E–H,M–P, green region) compared to controls (Figure 2C,K, green region). We also did not observe a reduction in the size of maculae (Figure 2—source data 1) or total HC number in the utricle (Figure 2—source data 2) of our Emx2 mutants. Taken together, our results indicate that the unidirectional hair bundle phenotype in Emx2-/- maculae is not caused by the loss of a domain, rather Emx2 has a role in establishing regional bundle polarity in the maculae. Furthermore, the strong correlation between the border of Emx2 immunostaining domain and the LPR suggests that Emx2 has a cell-autonomous role in reversing bundle polarity.

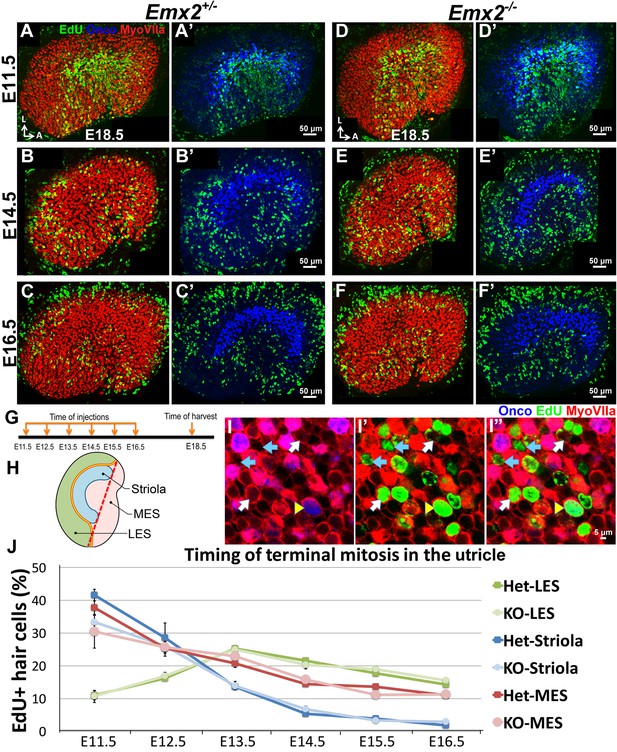

Timing of terminal mitosis of HC precursors in the Emx2-/- utricle is unchanged
Since Emx2 has been implicated in regulating cell divisions in the brain (Galli et al., 2002; Heins et al., 2001), hair bundle polarity defects in the Emx2 mutants could be indirectly related to the timing of terminal mitosis in the maculae. For example, sensory progenitors expressing Emx2 may remain in the cell cycle longer and fail to respond to polarity signal(s) that are instructing post-mitotic HCs in non-Emx2 regions. We addressed this possibility by comparing the timing of HC terminal mitosis between Emx2 heterozygous and knockout utricles. A thymidine analog, EdU, was injected intraperitoneally to pregnant dams between embryonic day (E) 11.5 to E16.5, and embryos were harvested at E18.5. Myosin VIIa-positive HCs with strong EdU labeling served as a proxy for the time of terminal mitosis. Although our results indicate that HC precursors in the LES (where Emx2 is normally expressed) undergo terminal mitosis later than the rest of the maculae, we did not observe any obvious difference in this timing between controls and Emx2-/- utricles (Figure 3). These results suggest that Emx2 does not affect hair bundle polarity indirectly via regulating the timing of terminal mitosis of HC precursors in the LES.
-
Figure 3—source data 1
- https://doi.org/10.7554/eLife.23661.010
Ectopic Emx2 reverses hair bundle polarity

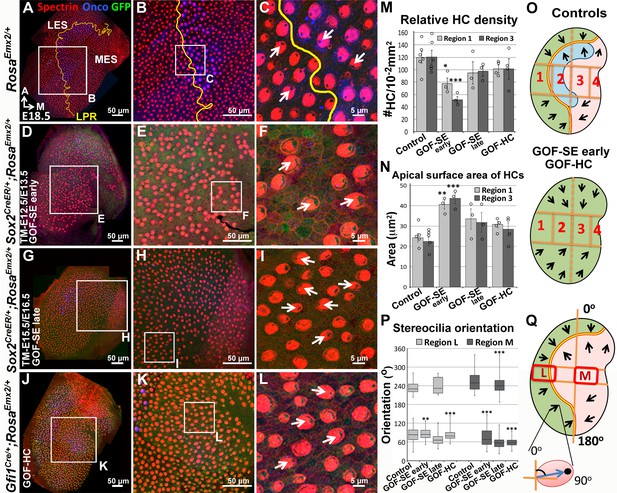

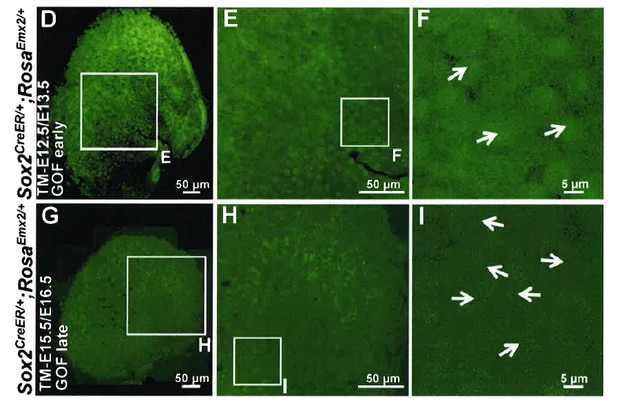

If Emx2 directs hair bundle polarity, one would predict the ectopic expression of Emx2 in naïve (non-Emx2) HCs should alter their polarity. Thus, we generated RosaEmx2 mice, modeled after the Cre reporter, RosatdT/+ (Rosa-Ai14; Madisen et al., 2010), such that Emx2 transcription can be activated in the presence of Cre. We first ectopically expressed Emx2 in all sensory epithelia of the inner ear by breeding Sox2CreER (Arnold et al., 2011) to RosaEmx2 mice and administered tamoxifen to pregnant dams at E12.5/E13.5 (GOF-SE early). Compared to hair bundles pointing toward the LPR in control utricles (Figure 4A–C), the LPR was absent in GOF-SE early mutants. All hair bundles in the entire utricle were uniformly pointing toward the medial direction (Figure 4D–F,O–Q). This ability of ectopic Emx2 to reverse hair bundle polarity is developmentally dependent. By delaying the tamoxifen administration to E15.5 and E16.5 (GOF-SE late), at which time many HC precursors have undergone terminal mitosis and started to differentiate (Figure 3), only a partial polarity phenotype was observed in the medial utricle (Figure 4G–I,P–Q, region M). These results suggest that once the kinocilium position is established, it no longer responds to Emx2-dependent cues. Ectopic expression of Emx2 during early prosensory development also resulted in increased apical HC surface area and reduced HC density, which may not be related to the bundle polarity phenotype (Figure 4D–F,M–O). To better pinpoint the role of Emx2 in hair bundle polarity, we overexpressed Emx2 specifically in nascent HCs rather than all cell types in the prosensory domain using the Gfi1Crestrain (Yang et al., 2010). In Gfi1Cre/+;RosaEmx2/+ mutant utricles (GOF-HC), all HCs in the utricle were pointing towards the medial edge (Figure 4J–L,P–Q) even though the total HC number remained the same (Figure 2—source data 2). The hair bundle reversal in the medial utricle was approximately 180° different from controls (Figures 4P and 8K, compare region M between control and GOF-HC utricles). Similar findings were observed in the saccule: only the outer region (OR) of the saccule where Emx2 is not normally expressed showed a hair bundle reversal phenotype (Figure 5C–D,O) compared to controls (Figure 5A–B). Gain-of Emx2 function in naïve HCs also affected some of their endogenous properties since only a low percentage of Gfi1Cre/+;RosaEmx2/+ maculae retained their oncomodulin staining (Figure 5C–D, n = 1/5).
-
Figure 4—source data 1
- https://doi.org/10.7554/eLife.23661.012
-
Figure 4—source data 2
- https://doi.org/10.7554/eLife.23661.013
-
Figure 4—source data 3
- https://doi.org/10.7554/eLife.23661.014

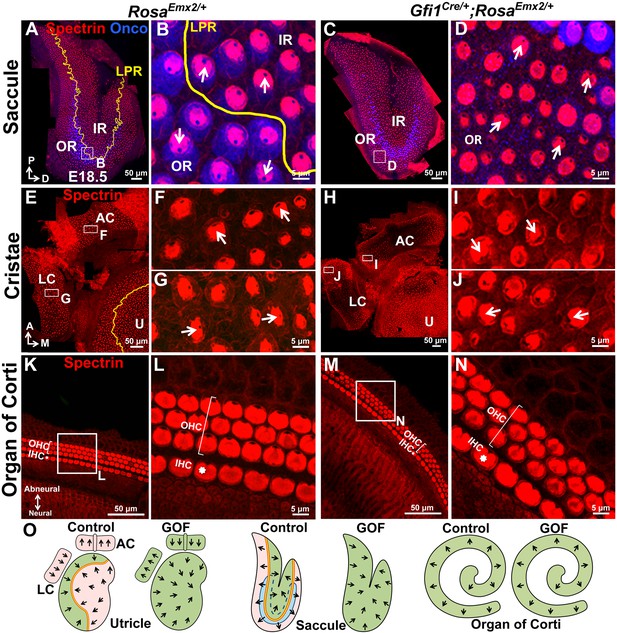

In addition to maculae, we also examined the impact of Emx2 in other sensory organs. In the vestibular system, hair bundles in cristae detect unidirectional fluid flow through semicircular canals and all three cristae exhibit a defined polarity. For example, hair bundles are all oriented toward the anterior direction in the anterior crista and medial direction in the lateral crista (Figure 5E–G, arrows), and Emx2 immunostaining was not detected in these HCs (Figure 1—figure supplement 1G–H’; Holley et al., 2010). In Gfi1Cre/+;RosaEmx2/+ ears, hair bundle polarity in both anterior and lateral cristae was reversed (Figure 5H–J,O) compared to controls (Figure 5E–G). By contrast, in the organ of Corti, Emx2 is normally expressed in the HCs as well as the Hensen’s and Claudius’ cells (Figure 1—figure supplement 1I–J’; Holley et al., 2010). As a result, no hair bundle polarity abnormality was observed in the cochlea of Gfi1Cre/+;RosaEmx2/+ mutants (Figure 5K–O), similar to the LES and IR. Consistent with the normal expression pattern of Emx2 and these GOF results, Emx2-/- mutants have no apparent phenotype in the cristae but the outer HCs are absent and inner HCs are poorly organized into two rows (Figure 2—figure supplement 2H–K; Holley et al., 2010). We attributed these cochlear phenotypes to an earlier requirement of Emx2 function in the organ of Corti prior to kinocilium positioning.
The Gfi1Cre/+;RosaEmx2/+ mice survived until early postnatal ages and they exhibited balance deficits that are presumably caused by the polarity phenotype in the cristae and maculae. Taken together, these results suggest that Emx2 has a dominant, cell-autonomous effect in dictating hair bundle polarity pattern in the inner ear which is likely to be important for normal inner ear functions.
Distribution of intercellular and intracellular polarity components in Emx2 mutants
To determine how downstream effectors of Emx2 mediate hair bundle orientation, we investigated whether an intercellular polarity pathway, cPCP, responsible for hair bundle alignment was altered in Emx2 mutants. Comparing the distribution of some of the cPCP proteins such as Pk2 and Vangl2 between control and Emx2 mutant utricles, we confirmed that Pk2 immunoreactivity in control utricles is always concentrated on the medial side of the HC-supporting cell border despite the hair bundle polarity reversal across the LPR (Figure 6A–C; Deans et al., 2007). This expression pattern of Pk2 is maintained in both loss- and gain-of Emx2 function utricles, including the respective lateral and medial regions of mutants where the hair bundle polarity is reversed (Figure 6D–G, Figure 2—figure supplement 2F–G). Similar to Pk2, the distribution of Vangl2 in control utricles, though strongest between supporting cells, is not changed across the LPR (Figure 6—figure supplement 1A–B; Jones et al., 2014). This expression pattern of Vangl2 is also maintained in the Emx2 mutants (Figure 6—figure supplement 1C–F). Together, these results indicate that the distribution of intercellular polarity proteins in the utricle is not altered by loss- or gain- of Emx2 function and suggest that Emx2 functions independently or downstream of the cPCP complex.
The intracellular signaling complex, Insc/LGN/Gαi, is required to guide the migration of the kinocilium to its asymmetrical apical location in HCs (Ezan et al., 2013; Tarchini et al., 2013). This complex is distributed as a crescent shape that is always associated with the kinocilium at the apical surface of HCs (Ezan et al., 2013; Tarchini et al., 2013). In other systems, the Insc/LGN/Gαi complex is often associated with one of the members of Par membrane proteins (Di Pietro et al., 2016). By contrast, a Par protein, Par6, is found complementary to the Insc/LGN/Gαi complex in HCs and located opposite the kinocilium (Figure 6—figure supplement 1G–H; Ezan et al., 2013). The distribution patterns of Gαi and Par6 are reversed across the LPR, in alignment with the position of the kinocilium (Figure 6H–I, Figure 6—figure supplement 1G–H), in contrast to the cPCP proteins. These spatial relationships among Gαi, Par6, and the kinocilium are preserved in the loss- and gain- of Emx2 function mutants (Figure 6J–M, Figure 6—figure supplement 1I–L). However, in the GOF-SE late utricles, in which the hair bundle reversal phenotype was only partially penetrant, some of the HCs with normally-positioned kinocilia in the medial utricle showed mislocalization of Gαi and Par6 (Figure 6N–O”, Figure 6—figure supplement 1M–N”, black arrows with asterisks), whereas Pk2 localization remained unchanged (Figure 6—figure supplement 2). Therefore, these results suggest that by delaying ectopic Emx2 expression until after E15.5, while Emx2 can no longer change the position of kinocilia that has already been established, it can still effectively alter the distribution of Gαi and Par6. This suggests that downstream effectors of Emx2 may normally mediate hair bundle polarity by altering the intracellular polarity complex.

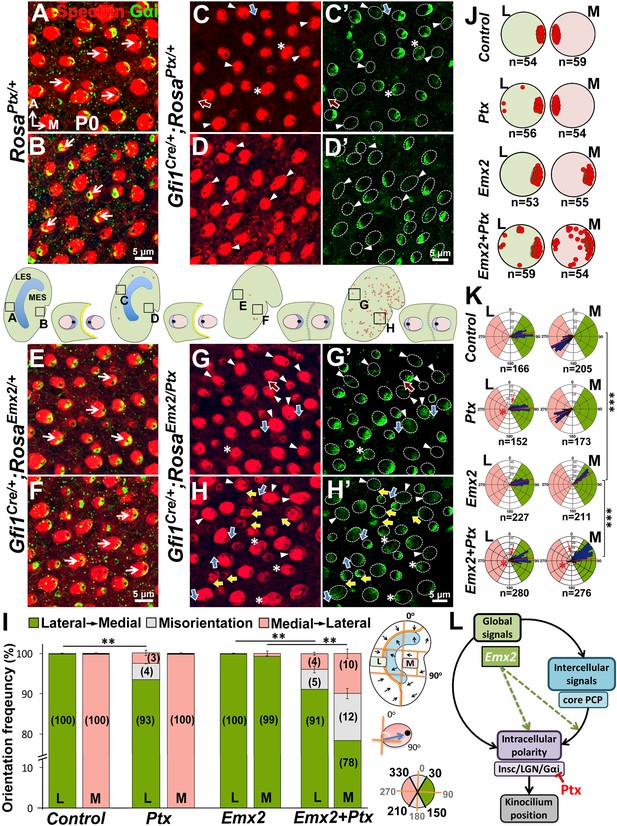

Blocking Gαi partially rescues the polarity reversal phenotype induced by ectopic Emx2

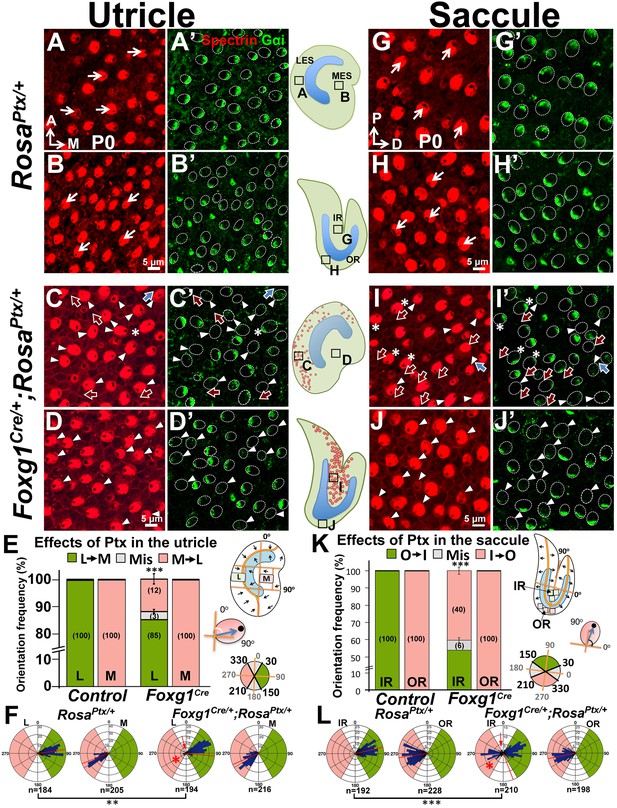

Blocking the Gαi activity with pertussis toxin (Ptx) or knocking out one of the genes that encodes Gαi, Gnai3, can lead to misoriented or reversed hair bundle polarity (Ezan et al., 2013; Tarchini et al., 2013) in cochlear HCs. The polarity-reversal phenotype is rarely observed among cPCP mutants (Montcouquiol et al., 2003; Wang et al., 2005, 2006) but resembles those in the Emx2 mutants. The relocated hair bundle to the same side of the HC in Ptx mutants where the cPCP protein Fz is located, is similar to other epithelial cells in the brain and wing, which we considered to be the default pattern (Strutt, 2001; Vladar et al., 2012; Tree et al., 2002; Boutin et al., 2014; Guirao et al., 2010). The bundle polarity phenotype caused by Ptx suggests that heterotrimeric G proteins are normally required to reverse the kinocilium from its default location in the cochlea. Since cochlear HCs express Emx2 and ectopic Emx2 is capable of affecting Gαi localization independent of the kinocilium (Figure 6N–O”), we hypothesized that Emx2 normally utilizes the Insc/LGN/Gαi complex to change the kinocilium from the default location in cochlear HCs. Under this scenario, Ptx should affect the hair bundle position in macular regions where Emx2 is expressed and may have no effect in the Emx2-negative regions. Additionally, Ptx should block polarity changes induced by ectopic Emx2.
We tested this hypothesis by first examining hair bundle polarity in maculae overexpressing the catalytic S1 subunit of Ptx by crossing RosaPtx/+ mice (Regard et al., 2007) with Foxg1Cre/+ strain, in which Cre is activated early at the otic placode stage (Hébert and McConnell, 2000). Compared to controls (Figure 7A–B’,G–H’), hair bundle misorientation (blue arrows) and reversal (red arrows) were observed only in Emx2-positive, LES of utricles (Figure 7C–C’,E–F, 15%) and IR of saccules (Figure 7I–I’,K–L, 46%) of Foxg1Cre/+;RosaPtx/+ ears as predicted by the hypothesis. No apparent phenotype was observed in the Emx2-negative medial utricle or the OR of the saccule (Figure 7D–D’,E–F,J–J’,K–L). Despite the preferential hair bundle phenotype in the Emx2-positive regions, diffuse or reduced Gαi immunostaining was broadly evident, indicating that Ptx affected the entire mutant maculae (Figure 7C’,D’,I’,J’, arrowheads). These results indicate that Ptx affects the distribution of Gαi in macular HCs, similar to cochlear HCs (Ezan et al., 2013; Tarchini et al., 2013). Additionally, within the Emx2-positive domain, some Gαi staining was no longer associated with the kinocilium, regardless of whether the kinocilium location was normal or reversed (Figure 7C–C’,I–I’, asterisks). The uncoupling of Gαi and kinocilium observed in the Emx2-positive domains suggests a stronger effect of Ptx in these regions. More importantly, only the kinocilium positions within the Emx2-positive domain were affected by Ptx is consistent with the hypothesis that Ptx only affects the kinocilium position in the regions where Emx2 is expressed.
-
Figure 7—source data 1
- https://doi.org/10.7554/eLife.23661.020
Next, we investigated whether hair bundle polarity reversal caused by ectopic Emx2 can be inhibited by Ptx. Since Foxg1Cre/+;RosaEmx2/Ptx compound mutants are early lethal, we generated compound mutants of Emx2 and Ptx using Gfi1Cre/+ mice. First, HC-specific induction of Ptx in Gfi1Cre/+;RosaPtx/+ utricles (Figure 8) showed similar but milder polarity phenotypes than Foxg1Cre/+;RosaPtx/+ mutants (Figure 7). Only 7% of hair bundle in the LES were affected, whereas hair bundle polarity was normal in the MES of Gfi1Cre/+;RosaPtx/+ utricles (Figure 8C–D’,I–K). Additionally, a similar abnormality in Gαi distribution and its uncoupling from the kinocilium as Foxg1Cre/+;RosaPtx/+ maculae was observed (Figure 8C–D’, arrowheads and asterisks). Comparing Ptx single (Gfi1Cre/+;RosaPtx/+) with Ptx and Emx2 compound mutant utricles (Gfi1Cre/+;RosaEmx2/Ptx) revealed no significant change in hair bundle polarity in the LES (Figure 8C–C’,G–G’,I, 7% versus 9%). However, despite the absence of polarity defect in the medial utricle of Ptx mutants (Figure 8D–D’,I–K), a moderate but significant rescue of bundle polarity reversal induced by ectopic Emx2 (Figure 8E–F) was observed in Ptx and Emx2 compound mutants (Figure 8H–H’, yellow arrows, I, 22%). These results suggest that Ptx not only blocks endogenous hair bundle polarity within the Emx2 domain, it also rescues polarity effects induced by ectopic Emx2 in regions that is not normally affected by Ptx. Taken together, our results indicate Emx2 requires heterotrimeric G proteins in mediating hair bundle position.
-
Figure 8—source data 1
- https://doi.org/10.7554/eLife.23661.022
Conserved role of Emx2 in establishing hair bundle polarity pattern
Since the LPR is conserved among vertebrates (Desai et al., 2005; Huss et al., 2010; Hammond and Whitfield, 2006), we asked whether Emx2 has a role in establishing the LPR in other species. We first investigated the chicken inner ear, which has an additional macular organ, the lagena, which exhibits the LPR. Our immunostaining results indicate that Emx2 is expressed in the LES and IR of the respective utricle and saccule in chicken (Figure 9A–B’,D). In the lagena, its expression is restricted to the region closer to the auditory sensory epithelium, the basilar papilla (Figure 9C–D). Consistent with the mouse, the border of the Emx2 expression domain (green line) coincides with the LPR (yellow line) in all three chicken maculae.
The lateral line system is responsible for detecting water pressure changes, which allows aquatic vertebrates to participate in schooling behavior, avoid predators and catch preys (Chitnis et al., 2012). This system is made up of clusters of HCs called neuromast. Within each neuromast organ, HCs are arranged in pairs with their hair bundles pointing toward each other, aligned in either anterior-posterior (A-P) or dorsal-ventral (D-V) direction (depending on the neuromast) along the body axis (Figure 10A–B; López-Schier et al., 2004). Core PCP proteins also regulate hair bundle polarity in neuromasts but their normal distribution is similar between HCs with opposite bundle polarities (Mirkovic et al., 2012). These similarities to the maculae prompted us to investigate the role of emx2 in the neuromast.
-
Figure 10—source data 1
- https://doi.org/10.7554/eLife.23661.025
-
Figure 10—source data 2
- https://doi.org/10.7554/eLife.23661.026

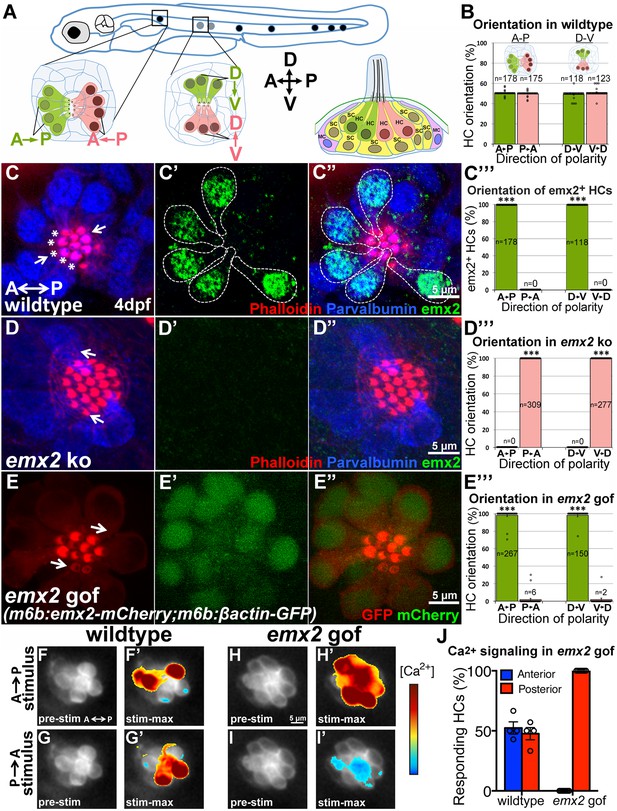

We found that in zebrafish, emx2 is expressed in half of the HCs, oriented towards the posterior or ventral direction within the respective A-P and D-V neuromast (Figure 10C–C’’’). To test the role of emx2 in establishing hair bundle polarity in zebrafish, we generated loss- and gain- of emx2 zebrafish mutants. Using CRISPR/Cas9, we generated emx2 knockouts (Figure 10—figure supplement 1A). In emx2 knockouts, all hair bundles were uniformly polarized toward the anterior or dorsal direction in the respective A-P and D-V neuromasts (Figure 10D–D”’). In contrast, neuromasts of m6b:emx2-mCherry transgenic fish (emx2 gof), which overexpress emx2 under a HC-specific promoter myosin6b, showed hair bundles pointing only toward the posterior or ventral direction in A-P and D-V neuromasts, respectively (Figure 10E–E’’’). Additionally, in zebrafish utricle and cristae, we found the predicted polarity reversal phenotype in loss- and gain- of emx2 function larvae comparable to what we observed in mice (Figure 10—figure supplement 1B–J). Taken together, these results indicate that Emx2 has an evolutionarily conserved role in determining hair bundle polarity of sensory HCs and establishing the LPR.
Next, we investigated whether the unidirectional hair bundle polarity shown in emx2 zebrafish mutants exhibit the predicted functional change in directional sensitivity. Specifically, we tested whether all HCs in A-P neuromasts only respond to stimulus from the anterior direction in emx2 gof fish. We used a fluid jet to stimulate control and emx2 gof neuromasts expressing m6b:GCaMP6s-CAAX in either the anterior or posterior direction and measured mechanically evoked calcium responses (Figure 10F–J). Our results showed that in controls, a similar proportion of HCs exhibited mechanically evoked calcium responses from either direction (Figure 10F–G’,J). In contrast, in emx2 gof A-P neuromasts, all HCs showed a robust increase in calcium during a stimulus directed towards the posterior, and a corresponding decrease in calcium when the stimulus was directed towards the anterior. Our calcium imaging results show that emx2 gof HCs only respond to anterior-to-posterior stimuli, which are consistent with the unidirectional posterior-pointing hair bundles in these mutants (Figure 10H–J). In support of these - hair bundle polarity defects, the emx2 gof larvae showed abnormal swimming behavior before their demise. We predict that Emx2 knockouts in both zebrafish and mouse are likely to change the directional sensitivity of their HCs and exhibit behavioral deficits if viable.
Discussion
Emx2 is a global polarity cue
The intrinsic polarity of individual cells within a tissue is regulated by global and intercellular polarity cues, which collectively give rise to the tissue’s polarity. The molecular mechanisms of these cross-talks are not well understood (Figure 8L). The regional expression pattern of Emx2 in the maculae and its role in reversing hair bundle polarity within its expression domain qualifies this transcription factor as a global polarity cue. Since distribution of the cPCP proteins in maculae is not changed between Emx2-positive and negative regions across the LPR suggests that HCs in the Emx2 domain normally do not undergo cellular rotation to acquire the polarity reversal pattern, as in the case of ommatidia formation in Drosophila (Jenny, 2010). Furthermore, the normal distribution of cPCP proteins in Emx2 mutants indicates that Emx2 effectors function either independently or downstream from the cPCP proteins.
In most other epithelial tissues, trichomes or cilia are associated with the side of the cell where Fz is located and opposite to the side where Vangl and Pk are located (Strutt, 2001; Vladar et al., 2012; Tree et al., 2002; Boutin et al., 2014; Guirao et al., 2010). A similar pattern is observed in the medial utricle. However, the relationship between distribution of cPCP proteins and hair bundle polarity appears to be reversed in the presence of Emx2. For example, hair bundles in Emx2-positive domains are located opposite to the Fz expression in cochlear HCs and are associated with Pk in lateral utricular HCs (Figure 6C,E; Deans et al., 2007; Montcouquiol et al., 2006; Wang and Nathans, 2007). These results suggest that the interpretation of normal polarity cues is changed by Emx2.
Although Emx2 does not normally function by regulating cPCP proteins but Emx2 changing downstream effectors of cPCP proteins remains a distinct possibility (Figure 8L). Regulating downstream effectors that resulted in altered tissue polarity has been reported when a cPCP component, pk, was disrupted in Drosophila (Gubb et al., 1999). The abnormal ratio of isoforms between pk and spiny-legs (pk:sple) does not affect the distribution of Dachsous or Fat but changes the effective dose of Dachs (atypical myosin), an effector of the Dachsous-Fat polarity pathway (Olofsson et al., 2014; Ayukawa et al., 2014; Ambegaonkar and Irvine, 2015). Consequently, localization of fz and strabismus (Vangl in mammals) as well as the trichomes are reversed in the wing and abdomen of fly mutants. In a similar manner, Emx2 could regulate downstream effectors of the cPCP proteins and alter the intrinsic hair bundle polarity (Figure 8L). The cPCP effectors are known to affect the cilia position in other systems (Park et al., 2006; Wong and Adler, 1993; Carvajal-Gonzalez et al., 2016a, 2016b) and centrioles/basal body positioning could be the level where the Emx2 effectors alter the interpretation of the intercellular polarity cues.
Emx2 mediates hair bundle positioning via the heterotrimeric G proteins
As a transcription factor, Emx2 regulates diverse cellular pathways such as regional specification, cell proliferation and fates (Pellegrini et al., 1996; Tole et al., 2000; Heins et al., 2001; Mallamaci et al., 2000). Therefore, it is possible that Emx2’s effects on hair bundle reversal is indirect, resulting from changing the HC fate or other cellular pathways. Nevertheless, whichever the pathway(s) might be, the outcome is a cell-autonomous switch in the location of the hair bundle by 180°, in part, via the heterotrimeric G proteins (Figure 8L). This conclusion is based on several lines of evidence. First, ectopic Emx2 is sufficient to relocate Gαi and Par6 even after the kinocilium is established suggests that Emx2 effectors regulate intracellular polarity signaling. Second, the ability of Ptx to block hair bundle polarity of Emx2-positive HCs in cochlea and maculae, though variable in efficiency among different mutant strains (Figures 7–8; Ezan et al., 2013; Tarchini et al., 2013), suggest that heterotrimeric G proteins are critical for this process. Third, the ability of Ptx to block ectopic Emx2’s effects on polarity further supports the requirement of G proteins by Emx2 effectors. Extrapolating from previous results (Ezan et al., 2013; Tarchini et al., 2013), Emx2 effectors most likely mediate the change in hair bundle position via the Insc/LGN/Gαi complex. Additionally, our results suggest that this Insc/LGN/Gαi complex is more important for Emx2-positive than negative regions and other mechanisms are required for targeting the kinocilium in Emx2-negative HCs. Taken together, our results illustrate a global polarity cue bypasses the cPCP proteins and functions at the intracellular level.
Other roles of Emx2
Our results link Emx2 to basal body positioning in sensory HCs. Notably, Emx2 has been implicated in regulating symmetric versus asymmetric cell division in the brain (Galli et al., 2002; Heins et al., 2001), which could also be a result of altering spindle orientation. Though speculative, it is possible that Emx2 effectors could function at multiple steps of a cell cycle: spindle orientation during mitosis and/or basal body positioning during differentiation. Identifying these effectors will be important. Furthermore, in both maculae and neuromasts, HCs with opposite hair bundle polarities are innervated by different populations of neurons that project, at least in the maculae, to different regions of the brain (Maklad et al., 2010; Nagiel et al., 2008; Pujol-Martí et al., 2014). These innervation patterns could be guided by downstream targets of Emx2, and Emx2 has also been implicated in mediating neuronal migration in the brain (Shinozaki et al., 2002). In summary, our results demonstrated a conserved role of Emx2 in mediating hair bundle polarity in sensory HCs. This largely unexplored cellular process of planar targeting of the cilium at the apical cell surface has profound effects on HC function and may have broader implications in other ciliated cells and neuronal pathfinding.
Materials and methods
Mouse strains
Request a detailed protocolThe RosaEmx2-GFP(designated RosaEmx2) mouse strain was generated by knocking in the cassette, attb-pCA promoter-lox-stop-lox-Emx2-T2A-Gfp-WPRE-polyA-attb, to the Rosa locus using integrase technology (conducted by Applied StemCell, Inc., Milpitas, CA, Tasic et al., 2011). One founder with the correct insertion, identified based on PCR analyses, was propagated and maintained in the FVB background. Primers used for genotyping offspring are as follow: PR425 (GGTGATAGGTGGCAAGTGGTATTC) and pCA-R2 (GGCTAT GAACTAATGACCCCGT) for the RosaEmx2-GFP allele, and R10 (CTCTGCTGCCTCCTGGCTTCT) and R11 (CGAGGCGGATACAAGCAATA) for the wildtype allele with expected fragment sizes of 369 and 311 base pairs, respectively.
Emx2+/- mice were provided by Peter Gruss at the Max-Planck Institute (RRID:IMSR_EM:00065; Pellegrini et al., 1996) and maintained in a mixed C57BL/6J and CD1 background. Emx2Cre mice were obtained from Shinichi Aizawa at RIKEN Center for Developmental Biology and maintained in the C57BL/6J background (RRID:IMSR_RBRC02272; Kimura et al., 2005). Gfi1Creknock-in mice were obtained from Lin Gan at University of Rochester (RRID:MGI:4430834; Yang et al., 2010]), Sox2CreERmice from Konrad Hochedlinger at Harvard University (RRID:IMSR_JAX:017593; Arnold et al., 2011), and the Foxg1Cre mice from Susan McConnell at Stanford University (RRID:IMSR_JAX:004337; Hébert and McConnell, 2000). Rosa Ptx/+ mice were generated by Shaun Coughlin at University of California at San Francisco (RRID:MGI:3784870; Regard et al., 2007) and provided by Yingzi Yang at Harvard Medical School. Gfi1Creand Sox2CreERstrains were maintained in a CD-1 background, while Foxg1Cre strain was maintained in a mixed background of C57BL/6J and Swiss Webster. Rosa26RtdTomato (designated RosatdT, RRID:IMSR_JAX:007914, Madisen et al., 2010) and Rosa26RmtdTomato/mGFP (designated RosamT/mG, RRID:IMSR_JAX:007576, Muzumdar et al., 2007) were purchased from Jackson laboratory and maintained in a C57BL/6J background. All animal experiments were conducted under approved NIH animal protocols (#1212-14, #1362-13) and according to NIH animal user guidelines.
Zebrafish strains
Request a detailed protocolZebrafish were maintained under standard conditions. All transgenic fish were maintained in a TAB5 wildtype background (S Burgess, NIH). The transgenic line, Tgmyosin6b:emx2-p2A-nls-mCherry, designated as m6b:emx2-mCherry, was generated using a Gateway cloning Technology. First, a middle entry clone, pME-emx2, was constructed using a zebrafish emx2 cDNA clone (IMAGE: 7403786) with PCR primers encoding attB sites: attB1 emx2 forward primer (GGGGACAAGTTTGTACAAAAAAGCAGGCTGCCACCATGTTTCAACCCACACCGAAGAGGTG) and attB2 emx2 reverse primer (GGGGCACTTTGTACAAGAAAGCTGGGTGATCGTCTGAGGTGACGTCAATTTCCTC). Then, the myosin6b:emx2-p2A-nls-mCherry plasmid was constructed using a 5’ entry clone containing the HC-specific promoter of 6myosin6b (Obholzer et al., 2008), the middle entry clone pME-emx2, a 3’ entry clone encoding p2A-nuclear localized mCherry (p3E-p2A-nls-mCherry, gift from Kristen Kwan at the University of Utah), and a destination vector containing the transgensis marker pcmcl2-gfp (tol2kit #395; Kwan et al., 2007). Larvae injected with this plasmid at the one-cell stage were selected based on the GFP signal within the heart and raised to adulthood. These founders were bred to wildtype or to the previously described transgenic line, Tgmyo6b:βactin(actb1)-EGFPvo8, designated as m6b:βactin-GFP fish (Kindt et al., 2012)for hair bundle polarity analyses. Double transgenic fish were identified based on green hair cells (βactin-GFP) and mCherry-positive nuclei (emx2).
Knockout emx2 zebrafish were generated using CRISPR/Cas9 technology as described (Varshney et al., 2015). Two target sites on Exon1 of emx2 were chosen for generating guide RNA: GGTAAAACACCTCTTCGGTGTGG and GGCTTTCACTCCAGCGGCAGGGG (Figure 10—figure supplement 1A). Genotyping of injected larvae and F1 larvae was conducted by PCR using the primers emx2-fPCR-Fwd (TCACTTAAACTGGGGAATCTTGA) and emx2-fPCR-Rev (GGAGGAGGTACTGAATGGACTG), followed by subcloning and sequencing of the PCR fragments. F1 generated fish were analyzed for hair bundle polarity between 3 to 5 days post fertilization (dpf).
To create a transgenic line for calcium imaging to examine the directional sensitivity of HCs, a middle entry GCaMP6s-CAAX clone was created. This version of GCaMP6s was modified for zebrafish and has been used previously (Tabor et al., 2014). From the tol2 kit, vectors p3E-polyA (301) and pDestTol2CG2 (395), were recombined with p5E-6myosin6b (Kindt et al., 2012), and the middle entry GCaMP6s-CAAX to create Tgmyosin6b:GCaMP6s-CAAX, designated as m6b:GCaMP6s-CAAX. Then, double transgenic fish expressing emx2 and GCaMP6s-CAAX was generated by crossing emx2 gof with Tgmyosin6b:GCaMP6s-CAAX and screened for larvae expressing green HCs (GCaMP6s-CAAX) with mCherry-positive nuclei (emx2).
In situ hybridization
Request a detailed protocolSection and whole mount in situ hybridization of the utricle and saccule were performed as described previously (Morsli et al., 1998). In situ probes for Emx2 (Simeone et al., 1992), β-tectorin (Rau et al., 1999), and Lfng (Morsli et al., 1998) were prepared as described.
Whole mount immunostaining
Request a detailed protocolIn general, E18.5 mouse embryos were harvested and fixed with 4% paraformaldehyde in PBS at 4°C overnight. For anti-Pk2 and anti-Vangl2 staining, hemi-sectioned embryo heads were fixed for 30 min at 4°C. After fixation, samples were washed with PBS and various inner ear sensory organs were dissected, blocked with PBS containing 0.2% Triton-X and 4% donkey serum for 30 min before incubating with primary antibodies diluted in blocking solution overnight at 4°C. Then, samples were washed extensively with PBS before incubating with secondary antibodies at 1:250 dilutions in blocking solution for 2 hr at room temperature. Samples were mounted with ProLong Gold Antifade (Invitrogen) after extensive washing with PBS and imaged with a Zeiss LSM780 confocal microscope. All low power immunostaining pictures are composite images taken at 40x magnification.
For staining zebrafish larvae, 3–5 dpf embryos were fixed with 4% paraformaldehyde in PBS for 3.5 hr at 4°C. Post-fixed larvae were rinsed with PBS and treated with pre-chilled acetone for 3–5 min at −20°C. Then, larvae were incubated with a blocking solution (2% goat serum, 1% BSA in PBS solution for 2 hr at room temperature), followed by incubation with primary antibodies diluted in PBS with 1% bovine serum albumin (BSA) at 4°C overnight. The next day, larvae were washed four times with PBS for 5 min each before incubating with secondary antibodies at 1:250 dilutions in blocking solution for 2 hr at room temperature. Then, larvae were washed and mounted with Antifade and imaged with a Zeiss LSM780 confocal microscope.
Primary antibodies used in this study are listed as follow: mouse anti-βII-spectrin (1:500; BD Biosciences Cat# 612562 RRID:AB_399853), rabbit anti-Emx2 (1:250; KO609, Trans Genic, Fukuoka, Japan), rabbit anti-Gαi (1: 1000; provided by B. Nurnberg; (Gohla et al., 2007; Ezan et al., 2013), goat anti-oncomodulin (1:250; Santa Cruz Biotechnology Cat# sc-7446 RRID:AB_2267583), rabbit anti-Pard6 (1:250; Santa Cruz Biotechnology Cat# sc-67393 RRID:AB_2267889), mouse anti-parvalbumin (1:5000; Millipore Cat# MAB1572 RRID:AB_2174013), rabbit anti-Pk2 (1:250; Deans et al., 2007) and goat anti-Vangl2 (1:250; Santa Cruz Biotechnology Cat# sc-416561 RRID:AB_2213082). In addition, two rabbit polyclonal antibodies, anti-Pk2 and anti-Emx2 were generated for this study (Thermo Fisher Scientific, Waltham, MA) using the synthetic peptide of Pk2 as described (Deans et al., 2007) and the full-length mouse Emx2 protein, respectively. Both antibodies were affinity-purified and used at a 1:1000 dilution and show immunostaining patterns indistinguishable from those of the anti-Pk2 and anti-Emx2 described above. Fluorescence-labeled phalloidin (1:50; #F432, Thermo Fisher Scientific, Waltham, MA) was used to visualize actin in the stereocilia on top of sensory HCs.
Secondary antibodies that were used in these studies are listed as follow: Alexa Fluor 405 Donkey anti rabbit IgG (ab175651, Abcam, Cambridge, MA), Alexa Fluor 405 Donkey anti mouse IgG (ab175658, Abcam, Cambridge, MA), Alexa Fluor 405 Donkey anti goat IgG (ab175664, Abcam, Cambridge, MA), Alexa Fluor 488/568/647 Donkey Anti-Rabbit IgG (Thermo Fisher Scientific Cat# A21206 RRID:AB_2535792/Cat# A10042 RRID:AB_2534017/Cat# A-31573 RRID:AB_2536183), Alexa Fluor 488/568/647 Donkey Anti-Mouse IgG (Thermo Fisher Scientific Cat# A-21202 RRID:AB_2535788/Cat# A10037 RRID:AB_2534013/Cat# A-31571 RRID:AB_162542), Alexa Fluor 488/568/647 Donkey Anti-Goat IgG (Thermo Fisher Scientific Cat# A-11055 also A11055 RRID:AB_2534102/Cat# A-11057 RRID:AB_2534104/Cat# A-21447 RRID:AB_2535864), Alexa Fluor 647 Goat Anti-Mouse IgG (Thermo Fisher Scientific Cat# A-21235 RRID:AB_2535804), and Alexa Fluor 568 Goat Anti-Rabbit IgG (Molecular Probes Cat# A-11011 RRID:AB_143157).
Tamoxifen administration
Request a detailed protocolA stock solution of 30 mg tamoxifen (T5648, Sigma Aldrich, St. Louis, MO) in 1 ml of corn oil was prepared. To avoid premature abortion of fetuses due to tamoxifen, 0.2 mg β-estradiol (20 mg/ml of ethanol; E8875, Sigma Aldrich, St. Louis, MO) was added per ml of tamoxifen stock solution. On designated gestation days at noon, pregnant females were gavaged with the tamoxifen containing β-estradiol stock solution at 1 mg/10 g body weight. The morning of a found plug was considered as embryonic day 0.5.
EdU administration and cell cycle exit analysis
Request a detailed protocolPregnant mice were injected intraperitonealy with 5-ethynyl-2'-deoxyuridine (EdU; 1 mg/ml solution; Thermo Fisher Scientific, Waltham, MA) three times (10 am, 12 pm and 2 pm) on a given day between embryonic day (E) 11.5 and E16.5 at an amount of 10 mg EdU/g of body weight, and all embryos were harvested and fixed with 4% paraformaldehyde at E18.5 (Figure 3G). EdU-labeled cells were detected with a Click-iT reaction (Bok et al., 2013; Thermo Fisher Scientific, Waltham, MA). Processed utricles were then flat-mounted and imaged using LSM780 confocal microscopy.
Under this injection regiment, HC precursors that underwent terminal mitosis soon after EdU incorporation should be strongly labeled, whereas precursors that have already exited from the cell cycle at the time of EdU delivery should not be labeled. HC precursors that underwent several rounds of cell division after EdU incorporation should have weak or no EdU labeling in the nucleus. Since weak EdU labeling can also be a result of HC precursors that incorporated EdU at the end of S phase of the last cell cycle, we scored all Myosin VIIa-positive HCs that have robust or distinct EdU labeling in the nuclei (Figure 3I). For quantification of EdU-labeled HCs, the utricle was divided into three regions: striola, lateral and medial extrastriolar regions (LES and MES). Oncomodulin-positive region was marked as striola. The separation between LES and MES was defined by drawing a straight line linking the two ends of oncomodulin-positive striolar region to the edge of the utricle as shown in Figure 3H. Approximately 300, 450, and 500 HCs were counted in the striola, LES and MES of each utricle, respectively.
Quantification and statistical analyses
Request a detailed protocolFor quantification of HC density and surface area in the utricle, a straight A-P line between the two widest points of a given utricle along the anterior-posterior axis was drawn on a stitched confocal image taken at 40x magnification. Two lines perpendicular to the A-P line, marking the middle-third region were drawn and this region was sub-divided into four equal parts marked as 1, 2, 3, and 4 (Figure 4O). Within regions 1 and 3, total number of HCs per 0.01 mm2 and apical surface area of HCs were scored as representatives for the lateral and medial region of the utricle, respectively.
For hair bundle orientation analyses, regions 1 and 3 were further divided into three equal sections. Hair bundle angles were measured in the middle one-third, defined as regions L (lateral) and M (medial, Figure 4P). Each region contains at least 50 HCs. The hair bundle angle of each HC was measured based on the position of the kinocilium on the apical surface by defining 0° as the anterior apex of the utricle and the medial side as 90o. Since LPR falls within region L of controls, we identified two different groups of HCs in controls (Figure 4Q).
In Ptx alone or Emx2 and Ptx epistatic experiments of utricles, we defined HC polarity between 30-150° as pointing medial (Figures 7E–F and 8I,K, green) and between 210-330° as pointing lateral (Figures 7E–F and 8I,K, pink). Polarities of hair bundles that are outside of these ranges are considered misorientated (Figures 7E and 8I, grey, and Figures 7F, 8K, white). In order to avoid confusion in accessing polarity phenotypes of mutants, oncomodulin-positive HCs in control and Ptx specimens of region L, in which HCs are pointing toward the lateral edge were not included in the quantification of hair bundle angles shown in regions L of Figures 7E–F and and 8I–K.
To quantify the hair bundle orientation in the saccule, a line drawn along the notch of the saccule was defined as the anterior-posterior axis. Then a perpendicular dorsal-ventral line was drawn, which bisected the A-P line into two halves. We defined the dorsal end as 0° and the posterior end as 90°. Three 50 µm2 squares in the anterior region of the IR and OR were selected and hair bundle polarity within were scored (Figure 7K). These regions were selected to avoid variation in polarity among HCs of controls and to specifically exclude the striola, which is bisected by the LPR in the saccule (Figures 1B,H and 2P). At least 50 HCs were counted from each region. hair bundle polarity in the IR and OR of a normal saccule is between 30°–150° (Figure 7K–L, green) and 210o−330° (Figure 7K–L, pink), respectively. The hair bundle polarity of HCs outside of these two ranges is considered misorientated (Figure 7K, grey and 7L, white).
Statistical analyses of our quantification were performed using Prism 5 (GraphPad Soft-ware). HC density, apical surface area of HC, and hair bundle orientation were analyzed using an unpaired Student’s t test or one-way ANOVA with the appropriate post hoc test.
Calcium imaging
Request a detailed protocolFor calcium imaging, measurements were made as previously described (Kindt et al., 2012; Zhang et al., 2016). Briefly, larvae were anesthetized with 0.03% 3-amino benzoic acid ethylester (MESAB, Western Chemical, Ferndale, WA) in E3, and mounted with tungsten pins onto a Sylgard recording chamber. Larvae were then microinjected in the heart with 125 μM α-bungarotoxin (Tocris, Bristol, UK) to suppress muscle activity. After paralysis, calcium imaging was performed in extracellular solution in mM: 130 NaCl, 2 KCl, 2 CaCl2, 1 MgCl2 and 10 HEPES, pH 7.3, 290 mOsm. A pressure clamp (HSPC-1, ALA Scientific, New York, NY) attached to a glass pipette (tip diameter ~30–50 μm) was filled with extracellular solution and used to mechanically stimulate HCs along the anterior-posterior axis of the fish. Calcium measurements were made on a Nikon Eclipse NiE microscope using a 60 × 1.0 NA CFI Fluor water-immersion objective and the following filter set: excitation: 480/30 and emission: 535/40. The microscope was equipped with an Orca D2 camera (Hamamatsu, Hamamatsu City, Japan), and images were acquired using Elements software (Nikon Instruments Inc., Melville, NY).
