Regulation of localization and function of the transcriptional co-activator YAP by angiomotin

  1. Susana Moleirinho
  2. Sany Hoxha
  3. Vinay Mandati
  4. Graziella Curtale
  5. Scott Troutman
  6. Ursula Ehmer
  7. Joseph L Kissil  Is a corresponding author
  1. The Scripps Research Institute, United States
  2. Klinikum rechts der Isar, Technische Universität München, Germany
Research Article
  • Cited 31
  • Views 4,220
  • Annotations
Cite this article as: eLife 2017;6:e23966 doi: 10.7554/eLife.23966

Abstract

The Hippo-YAP pathway is a central regulator of cell contact inhibition, proliferation and death. There are conflicting reports regarding the role of Angiomotin (Amot) in regulating this pathway. While some studies suggest a YAP-inhibitory function other studies indicate Amot is required for YAP activity. Here, we describe an Amot-dependent complex comprised of Amot, YAP and Merlin. The phosphorylation of Amot at Serine 176 shifts localization of this complex to the plasma membrane, where it associates with the tight-junction proteins Pals1/PATJ and E-cadherin. Conversely, hypophosphorylated Amot shifts localization of the complex to the nucleus, where it facilitates the association of YAP and TEAD, induces transcriptional activation of YAP target genes and promotes YAP-dependent cell proliferation. We propose that phosphorylation of AmotS176 is a critical post-translational modification that suppresses YAP’s ability to promote cell proliferation and tumorigenesis by altering the subcellular localization of an essential YAP co-factor.

https://doi.org/10.7554/eLife.23966.001

eLife digest

Cells in animals and other multi-cellular organisms need to know when and where they should grow and divide. Individual cells communicate with their surrounding environment and each other via signaling pathways such as the Hippo-YAP pathway, which stimulates cells to grow and therefore influences the size of organs. When the Hippo part of the pathway is active it causes a protein known as YAP to move out of a compartment in the cell called the nucleus. Inside the nucleus, YAP helps to activate genes that promote cell growth. If the Hippo pathway can no longer respond to cues from the environment, YAP becomes over-active and can contribute to the development of various cancers. Therefore researchers are trying to better understand how it is regulated.

Many signals both from inside and outside the cell influence YAP activity. For example, some signals block YAP from entering the nucleus, whereas others cause YAP to be broken down entirely. Several studies have recently identified a signal protein called angiomotin as a regulator of YAP. However, the studies provide conflicting reports as to whether angiomotin promotes or inhibits cell growth.

Like many other proteins, angiomotin can be tagged with a small molecule called a phosphate group that can alter its activity. Moleirinho, Hoxha et al. studied human cells containing versions of angiomotin that mimic different forms of the protein with or without the phosphate. The experiments indicate that when a phosphate is attached at a particular position (known as serine 176), angiomotin predominantly interacts with YAP and another protein called Merlin at the cell surface. On the other hand, when angiomotin does not have a phosphate attached to it, all three proteins can move into the nucleus, where YAP is able to activate genes and promote cell growth.

Overall, these findings indicate that adding a phosphate group to angiomotin can act as a switch to regulate where in the cell it and YAP are found and thus, whether YAP is active. Future experiments will investigate which enzymes add the phosphate group to serine 176, and when they are able to do so.

https://doi.org/10.7554/eLife.23966.002

Introduction

Angiomotin (Amot) was originally identified as an angiostatin-binding protein involved in the regulation of endothelial cell polarization, migration, proliferation, and angiogenesis (Kikuno et al., 1999; Levchenko et al., 2003; Troyanovsky et al., 2001). Amot is expressed as two isoforms generated by alternative splicing, full-length Amot-p130 (referred to as Amot in this manuscript) and truncated Amot-p80, which lacks the 409-amino acid N-terminus (Ernkvist et al., 2006). Amot, Angiomotin-like 1 (AmotL1) and Angiomotin-like 2 (AmotL2) compose the Motin family of proteins, which share an N-terminus with conserved glutamine-rich domains and PPxY motifs, and a C-terminus containing conserved coiled-coil (CC) and PDZ-binding domains (Bratt et al., 2002; Nishimura et al., 2002; Zheng et al., 2009). Although structurally similar, the functions of Motin family members appear to be distinctive, as divergent spatiotemporal and expression levels have been described across human and mouse tissues and cell lines for each of the family members (Moleirinho et al., 2014).

Functionally, Amot is required for endothelial cell migration, by binding to the Syx:Patj/Mupp1 polarity complex to localize RhoA activity to the leading edge of migratory cells (Ernkvist et al., 2009). It has also been implicated in epithelial cell polarity, as an inhibitor of the GTPase-Activating Protein (GAP) Rich1 and shown to compromise the integrity of tight junctions by promoting Rich1-mediated hydrolysis of Rho GTPases Rac1 and Cdc42 (Wells et al., 2006; Yi et al., 2011). Amot regulates collective migration of epithelial cells as part of a signaling axis composed of Merlin-Amot-Rich1 and the Rac1 small GTPase (Das et al., 2015). At tight junctions (TJ), TJ-associated Merlin inhibits Rac1 activation through the Amot-Rich1 axis, relocalizing Merlin to the cytoplasm during cell migration and releasing Rac1 from a suppressed state (Das et al., 2015; Yi et al., 2011). Amot also directly binds to YAP, a central effector of the Hippo signaling pathway, via 106LPTY109/239PPxY242 motifs present in the N-terminal domain of Amot-p130 and WW domain present in YAP (Yi et al., 2013, 2011; Zhao et al., 2011).

The Hippo-YAP signaling pathway, originally characterized in Drosophila, is highly conserved in mammals and regulates organ size, cell contact inhibition, proliferation, apoptosis and polarity (Ramos and Camargo, 2012; Yi and Kissil, 2010; Yu et al., 2015). At the core of the mammalian pathway, MST1/2 promote phosphorylation of WW45 (also known as Sav1), Lats1/2, and MOB1 (MOBKL1A/B). Once activated, Lats1/2 phosphorylates the primary downstream effector YAP, promoting ubiquitination and proteosomal degradation by a SCFbeta-TRCP E3 ligase and sequestering YAP from the nucleus, where it functions as a transcriptional co-activator (Hao et al., 2008; Zhao et al., 2010b, 2007). Among the different transcription factors activated by YAP, the DNA-binding TEA domain (TEAD) transcription factors are thought to mediate a YAP-driven pro-proliferative gene expression program (Galli et al., 2015; Zhao et al., 2010b, 2007).

YAP’s involvement in cancer has been demonstrated in several tissues, including liver, intestine, heart, pancreas, and brain (Yu et al., 2015; Guerrant et al., 2016). Importantly, recent studies revealed YAP plays a key role in developing resistance to RAF- and MEK-targeted therapies in lung and colon cancer cells (Lin et al., 2015) and cancer relapse in KRAS-driven colon and pancreatic cancers (Kapoor et al., 2014; Shao et al., 2014). Upstream of the core kinase cassette is the tumor suppressor Merlin (moesin-ezrin-radixin-like protein), which is inactivated in Neurofibromatosis type 2 (NF2) (McClatchey et al., 1998). Functions for Merlin have been described in the nucleus (Li et al., 2014, 2010) as well as at the plasma membrane (Yin et al., 2013; Zhang et al., 2010).

In the mouse-liver, homozygous deletion of Nf2 results in tumor formation. However, heterozygous deletion of Yap significantly suppresses the loss-of-Nf2 phenotype, thus implicating YAP as a major downstream effector of NF2 (Zhang et al., 2010). Analysis of liver-specific Nf2 knockout mice and Nf2:Amot double knockout (DKO) mice showed Amot is required for hepatic ductal cell proliferation and tumor formation in the context of either Nf2 loss or DDC (3,5-diethoxycarbonyl-1,4-dihydrocollidine)-induced injury. Additionally, substantially increased expression of Amot was observed in NF2-null human schwannomas samples, which primarily displayed localization of Amot in the nucleus (Yi et al., 2013). Further evidence demonstrated that in renal cell carcinoma (RCC), Amot promotes the proliferation of renal epithelial and RCC cells, and is crucial for YAP transcriptional activity by promoting its nuclear localization (Lv et al., 2016). However, it has also been reported that Amot functions as a negative regulator of YAP activity, as direct association of Amot and YAP results in translocation to cytoplasm/cell junctions (Leung and Zernicka-Goetz, 2013; Zhao et al., 2011). Moreover, a number of studies suggest that Amot acts as a scaffold protein to promote localization of YAP, as well as other Hippo/YAP core kinases, to the cytoplasm/cell junctions/actin cytoskeleton and promote Lats1/2-mediated phosphorylation of YAP (Chan et al., 2011; Dai et al., 2013; Paramasivam et al., 2011; Wang et al., 2011). One possible explanation for these opposing regulatory functions of Amot could be attributed to post-translational modifications. Phosphorylation of Ser175 on human Amot (corresponding to Ser176 in mouse) at the conserved HVRSLS motif by Lats1/2 has been reported as a key post-translational modification controlling Amot function and association with YAP (Hirate et al., 2013; Moleirinho et al., 2014). Here we show that Amot-p130 functions as a scaffold protein mediating YAP and Merlin association and that phosphorylation of Amot at Ser176 induces translocation of the complex from the cytoplasm and nucleus to the plasma membrane. This relocalization of the Amot/YAP/Merlin complex significantly impacts the activity of YAP and regulates YAP’s ability to promote cell proliferation and tumorigenesis. These results uncover an unrecognized layer of regulation in the Hippo-YAP pathway and resolve questions regarding the seemingly opposing functions of Amot.

Results

Amot, YAP and Merlin form a complex that localizes to the nucleus and cytoplasm

Previous work by multiple groups identified the p130 splice isoform of Angiomotin (Amot) as a binding partner of YAP and Merlin (Chan et al., 2011; Yi et al., 2013, 2011; Zhao et al., 2011). We first thought to assess whether Amot-p130, YAP and Merlin form a complex and subsequently whether this is dependent on Angiomotin phosphorylation. We used HEK293, as they express relatively high levels of endogenous Angiomotin. First, to determine the interaction between Merlin and YAP, HEK293 cells were transfected with expression vectors for HA-tagged Merlin and V5-tagged YAP. Reciprocal co-immunoprecipitation (co-IP) analyses using anti-HA or anti-V5 antibodies revealed association between YAP and Merlin (Figure 1A). The Merlin-YAP interaction was also confirmed in another independent cell type – the hSC2λ immortalized human Schwann cells (Figure 1B). Importantly, further validation of the association between YAP and Merlin was confirmed at the endogenous protein levels, using antibodies directed against Merlin or YAP (Figure 1C).

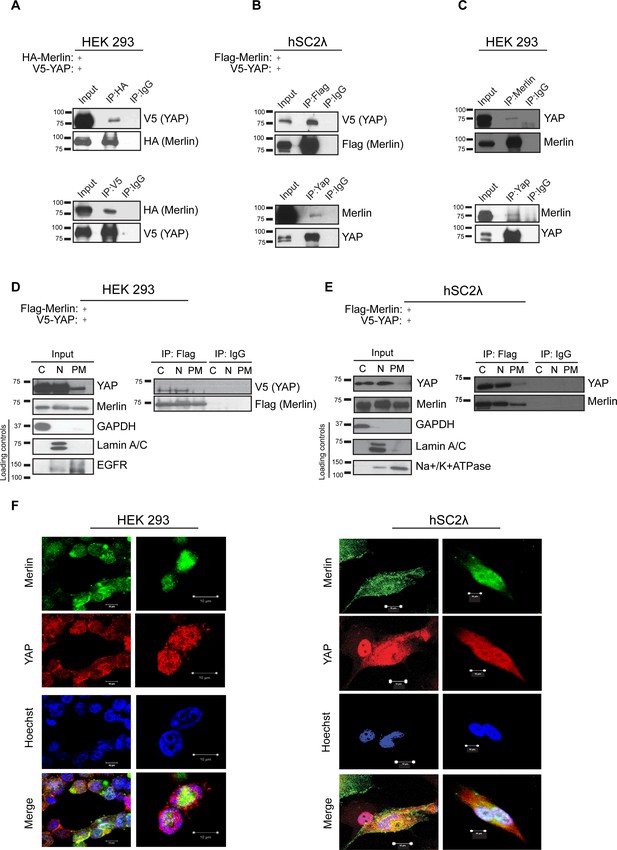

YAP associates with Merlin in the nucleus and cytoplasm.

Co-immunoprecipitation of YAP and Merlin. (A) HEK293 or (B) hSC2λ cells were co-transfected with expression plasmids for HA-Merlin or Flag-Merlin and V5-YAP. Total cell lysates (Input) and HA, Flag, YAP or V5 immunoprecipitates (IP) were subjected to immunoblotting analysis with anti-V5, anti-HA, anti-Flag, Merlin or YAP antibodies as indicated. (C) Association of endogenous YAP and Merlin. Total lysates from HEK293 cells (input) or IPs with anti-Merlin or anti-YAP antibodies were subjected to immunoblotting analysis with indicated antibodies. (D–F) YAP associates with Merlin in the nucleus and in the cytoplasm. (D) HEK293 or (E) hSC2λ cells expressing Flag-Merlin and V5-YAP were fractionated into cytoplasmic, nuclear, and plasma membrane fractions. Cell lysates (input) and V5-IP or Flag-IP of each subcellular fraction were subjected to immunoblot analysis with indicated antibodies. GAPDH, Lamin A/C, and EGFR/ Na+/K+ATPase were used as fractionation controls for the cytoplasmic, nuclear, and plasma membrane fractions, respectively. IgG was used as a non-specific antibody control for IPs throughout. The blots shown are representative of three independent biological replicates (n = 3). (F) HEK293 (left) or hSC2λ (right) cells were co-transfected with YAP and Merlin expression plasmids and subjected to immunofluorescence staining with anti-YAP and anti-Merlin antibodies. Hoechst was used for nuclei fluorescence staining. Pictures show fields at 63x magnification and representative of three independent biological replicates, in each of which 20 independent fields were examined. Scale bar = 10 μm.

https://doi.org/10.7554/eLife.23966.003

As previous studies reported multiple cellular localizations for Merlin and YAP, we sought to determine the cellular compartments where YAP and Merlin co-localize. Flag-tagged Merlin and V5-tagged YAP were co-transfected in both HEK293 and hSC2λ cells and the localization and association of these proteins were examined by subcellular fractionation coupled to IP with an anti-Flag antibody. These subcellular fractionation studies showed an association between Merlin and YAP primarily in the nucleus and cytoplasm, and to a much lesser extent at the plasma membrane (Figure 1D–E). Further confirmation of Merlin and YAP co-localization was provided by immunofluorescence (IF) staining, in HEK293 and hSC2λ cells, where we observed co-localization of IF signal predominantly in the cytoplasm and nucleus (Figure 1F). Thus, we conclude that YAP associates with Merlin, co-localizing mostly in the cytoplasm and nucleus.

YAP-Merlin complex formation is dependent on Amot-p130

Since Amot directly binds YAP and Merlin through two distinct domains (Yi et al., 2013, 2011), we hypothesized that Amot could act as a scaffold and recruit YAP and Merlin into the same complex. To confirm this hypothesis we generated HEK293 cells stably expressing a lentiviral short hairpin RNA specific to Amot (HEK293-shAmot cells). Co-IP experiments with HA-tagged Merlin and V5-tagged YAP confirmed that in the absence of Amot, the complex is not formed as YAP and Merlin could no longer be co-immunoprecipitated (Figure 2A). Similarly, knockdown of Amot using an siRNA smartpool impaired the association of Merlin and YAP (Figure 2—figure supplement 1).

Figure 2 with 2 supplements see all

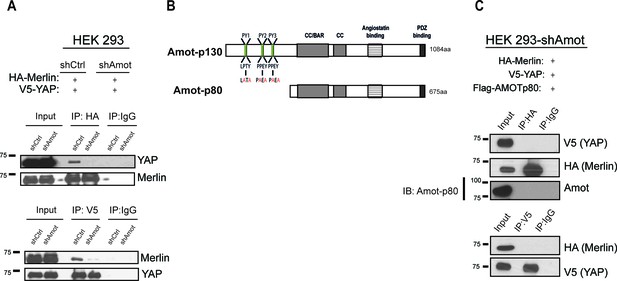

YAP and Merlin association is dependent on Amot-p130.

(A) HEK293 cells stably infected with lentiviral vectors encoding a control shRNA (shCtr) or shRNA targeting Amot (shAmot) were co-transfected with expression plasmids for HA-Merlin and V5-YAP. Total lysates (input) and HA or V5 IPs were subjected to immunoblot analysis with anti-YAP and anti-Merlin antibodies as indicated. (B) Graphical representation of Amot p130 and p80 isoforms. Amot-p130 N-terminus PPxY and LPxY motifs are shown, and the generated PY motif mutants are highlighted in red. See Figure 2—figure supplement 1. CC/BAR – Coiled-Coil/(Bin/Amphiphysin/Rvs) domain. PDZ – Post synaptic density protein (PSD95, Drosophila disc large (Dlg1) and Zonula occludens-1 (ZO-1) domain. (C) HEK293-shAmot cells were co-transfected with HA-Merlin, V5-YAP, and Flag-Amot-p80. Total lysates (Input) and HA or V5 IPs were subjected to immunoblot analysis with anti-V5 and anti-HA antibodies as indicated. The blots shown are representative of three independent biological replicates (n = 3).

https://doi.org/10.7554/eLife.23966.004

To further validate the scaffolding role of Amot we evaluated whether Amot-80 can support the interaction between Merlin and YAP. Amot-p80 lacks the 409 amino acid N-terminus present in Amot, which harbors the PPxY motifs (239PPEY242 and 284PPEY287), and an unconventional LPTY motif (106LPTY109) that mediate the interaction with YAP (Ernkvist et al., 2006; Wang et al., 2012; Yi et al., 2013) (Figure 2B). As expected, attempting to IP HA-Merlin or V5-YAP demonstrated that Amot-p80 was unable to support the association between these proteins (Figure 2C). Moreover, mutation of the individual PPEY/LPTY motifs or combinations thereof, significantly impaired the association between Merlin and YAP (Figure 2—figure supplement 2). Taken together, these results show that Amot functions as a scaffold that supports the YAP-Merlin association.

Angiomotin phosphorylation does not impair formation of a YAP/Merlin complex

Several reports have shown the importance of Amot post-translational modifications in regulating its function, specifically phosphorylation of Serine 176 (Serine 175 in humans) (Adler et al., 2013a; Chan et al., 2013; Dai et al., 2013; Hirate et al., 2013; Paramasivam et al., 2011). We therefore explored whether Amot phosphorylation regulates formation of the Amot/YAP/Merlin complex. HEK293-shAmot cells were transfected with expression vectors for Flag-Merlin, V5-YAP and either HA-Amot-p130, HA-Amot-p130S176A (non-phosphorylated mutant) or HA-Amot-p130S176E (phosphomimetic mutant) and similar levels of the different Amot alleles were confirmed (Figure 3—figure supplement 1). IPs were carried out using anti-Flag or anti-V5 antibodies and the presence of Merlin and YAP was determined by western blotting. These analyses demonstrated that all three forms of Amot support the formation of the complex, as evidenced by the co-IP of Merlin and YAP (Figure 3A–C). Further validation of these results were demonstrated by co-IP experiments in which Amot was IPed using an anti-HA antibody (Figure 3—figure supplement 2). In addition, we examined whether phosphorylated Amot is still able to bind both YAP and Merlin, by using an antibody that specifically binds phosphorylated S176 (p-S176). The antibody was used to IP phosphorylated Amot and co-IP of Merlin and YAP was assessed by western blotting. These experiments showed that Amot phosphorylated at S176 binds to both YAP and Merlin. Similarly, IP with antibodies against YAP or Merlin also showed co-IP with phosphorylated Amot (Figure 3D). Collectively, our findings demonstrate that Amot S176 phosphorylation state does not affect formation of the Amot/YAP/Merlin complex.

Figure 3 with 3 supplements see all

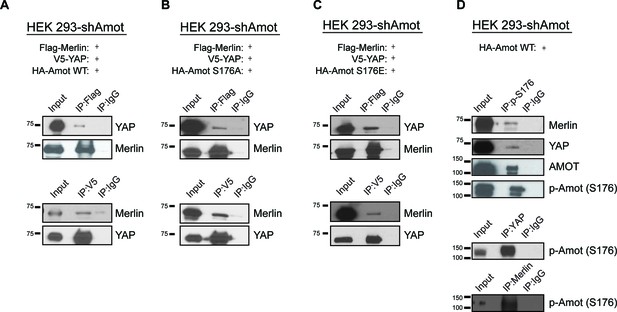

Phosphorylation status of Amot-p130S176 does not impact formation of the Amot/YAP/Merlin complex.

HEK293-shAmot cells were co-transfected with expression plasmids for Flag-Merlin, V5-YAP, and (A) HA-Amot-WT (B) HA-Amot-p130S176A or (C) HA-Amot-p130S176E. Total lysates (input) and Flag or V5 IPs were subjected to immunoblot analysis with anti-YAP and anti-Merlin antibodies as indicated. (D) HEK293-shAmot cells were co-transfected with an expression plasmid for Amot-p130. Total lysates (input) and IPs for phospho-Amot (Ser176), YAP, and Merlin were subjected to immunoblot analysis with indicated antibodies. The blots shown are representative of three independent biological replicates (n = 3).

https://doi.org/10.7554/eLife.23966.007

A major regulatory mechanism of YAP localization is through Lats1/2 phosphorylation of Ser127 promoting YAP cytoplasmic sequestration through 14-3-3 binding and concomitant sequestration from the nucleus (Zhao et al., 2010b, 2007). We therefore evaluated whether YAP phosphorylation at Serine 127 plays a role in the establishment of the Amot/YAP/Merlin complex. Using similar IP approaches described above, we found that both phosphorylated YAP and constitutively active YAPS127A mutant retain their ability to associate with Amot/Merlin (Figure 3—figure supplement 2). Surprisingly, a YAP mutant where five major phosphorylation sites have been abolished (YAP-5A [Zhao et al., 2010b]) was no longer associated with the complex (Figure 3—figure supplement 2C).

AmotS176 phosphorylation regulates YAP localization at the plasma membrane

To determine whether phosphorylation induces a change in the sub-cellular localization of Amot/YAP/Merlin complex, 293-shAmot cells were transfected with expression vectors for Amot-p130, Amot-p130S176A or Amot-p130S176E. The transfected cells were fractionated and the presence of Amot determined by Western blot analysis. In the cells expressing Amot-p130, the majority of this protein localized to cytoplasmic and nuclear fractions, and to a lesser extent in the plasma membrane fraction. Interestingly, Amot-p130S176A showed a marked increase in nuclear localization and almost no presence at the plasma membrane. In contrast, Amot-p130S176E showed a clear shift in localization towards the cytoplasm and plasma membrane (Figure 4A). Immunoblotting of total cell extracts confirmed similar expression levels of Amot-p130, Amot-p130S176E and Amot-p130S176A (Figure 4B). To determine the broader relevance of our findings in HEK293 cells to additional biological systems, we carried out a similar analysis in human hSC2λ Schwann cells and HepG2 hepatocellular carcinoma cells. Fractionation studies from these additional cell types followed a similar distribution pattern to the transfected 293-shAmot cells (Figure 4—figure supplements 1A and 2A).

Figure 4 with 2 supplements see all

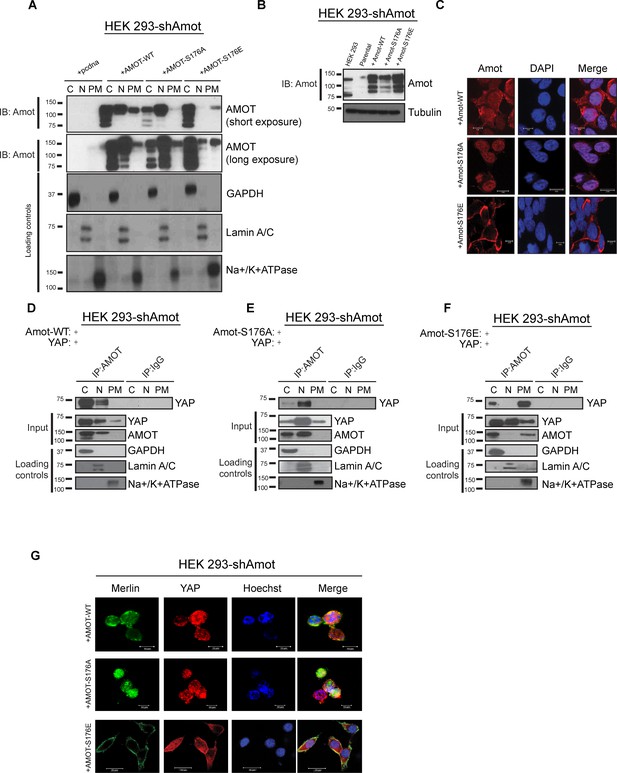

Amot-p130S176 shifts localization of the YAP/Merlin complex.

(A) Phosphorylation of Amot-p130 shifts its localization at the plasma membrane. HEK293-shAmot cells were transfected with Amot-WT, Amot-p130S176A or Amot-p130S176E expression plasmids and fractionated into cytoplasm (C), nuclear (N) and plasma membrane (PM) fractions. Immunoblot analysis was conducted using an anti-Amot antibody. GAPDH, Lamin A/C, and Na+/K+ATPase were using as controls for the cytoplasmic, nuclear, and plasma membrane fractions, respectively. (B) IB analysis was used to verify the transfection efficiency of the indicated constructs in total lysates of HEK293-shAmot cells. Tubulin was used as loading control. Blots shown are representative of three independent biological experiments (n = 3). (C) HEK293-shAmot cells were transfected with Amot-WT, Amot-p130S176A or Amot-p130S176E and subjected to immunofluorescence staining using an antibody against Amot. DAPI was used for nuclei fluorescence staining. Pictures show fields at 63x magnification and are representative of three independent biological replicates, in each of which 20 independent fields were examined. Scale bar = 10 μm. (D–F) Phosphorylation state of Amot-p130 mediates YAP localization. HEK293-shAmot cells were co-transfected with YAP and (D) Amot-WT, (E) Amot-p130S176A or (F) Amot-p130S176E and subjected to subcellular fractionation as in (A). Cell lysates (input) and Amot IPs of each one of the subcellular fractions were subjected to immunoblot analysis with anti-YAP antibodies as indicated. Loading controls were as in (A). All western blots shown are representative of three independent biological replicates (n = 3). (G) Double-immunofluorescence staining with anti-YAP and anti-Merlin antibodies on HEK293-shAmot cells transfected with expression vectors for Amot-WT, Amot-p130S176A or Amot-p130S176E. Hoechst was used for staining of nuclei. Pictures show fields at 63x magnification and are representative of three independent biological replicates, in each of which 20 independent fields were examined. Scale bar = 10 μm.

https://doi.org/10.7554/eLife.23966.011

To complement the biochemical fractionation studies, we assessed localization of the different Amot proteins by IF staining in the 293-shAmot cells. These analyses confirmed the fractionation findings, demonstrating a stronger intensity of Amot in the cytoplasm and nucleus of cells expressing Amot-p130, a shift to nuclear staining in Amot-p130S176A expressing cells and cytoplasmic/plasma membrane localization in Amot-p130S176E expressing cells (Figure 4C).

We next examined if the status of S176 can regulate localization of the Amot/YAP/Merlin complex. First, we examined Amot/YAP localization using co-IP studies in fractions prepared from 293-shAmot cells transfected with expression vectors for Amot-p130, Amot-p130S176A or Amot-p130S176E. In agreement with our previous results, in 293-shAmot cells transfected with Amot-p130 and YAP, Amot co-IPed with YAP mainly in the cytoplasm but also in the nucleus with little to no interaction detected at the plasma membrane (Figure 4D). Importantly, in cells expressing the Amot-p130S176A allele, the Amot-YAP complex mainly localized to the nucleus with little to no interaction detected in the cytoplasm and plasma membrane (Figure 4E). Significantly, in cells expressing the Amot-p130S176E allele an increase in the Amot-YAP association was detected at the plasma membrane, in addition to the cytoplasmic fraction. Little to no interaction was detected in the nucleus (Figure 4F). Thus, the distribution of Amot/YAP complex mimics the distribution observed for Amot (Figure 4A). In addition to the analysis in the 293-shAmot cells, a similar analysis carried out in the hSC2λ and HepG2 cells confirmed a similar distribution pattern (Figure 4—figure supplements 1B–D and 2B–D).

These findings were extended and confirmed by IF analysis of the YAP-Merlin association in 293-shAmot cells, where the localization of YAP and Merlin to the plasma membrane is significantly enhanced in cells expressing the Amot-p130S176E allele (Figure 4G). Overall our findings demonstrate that while AmotS176 phosphorylation does not impact the formation of the Amot/YAP/Merlin complex, it mediates the localization of the complex through phosphorylation of Serine 176 that leads to recruitment of the complex to the plasma membrane or a shift to a nuclear localization in the hypophosphorylated state.

Phosphorylation of Amot promotes localization to junctional structures at the plasma membrane

Previous studies showed binding of Amot to the tight junction-associated proteins Pals1 and Patj at the apical membrane (Ernkvist et al., 2009; Sugihara-Mizuno et al., 2007; Wells et al., 2006; Yi et al., 2011). To further characterize the mechanisms by which phosphorylated Amot shifts from the cytoplasm and nucleus to the plasma membrane, we examined the interactions between Amot-p130, Amot-p130S176A and Amot-p130S176E with Patj, Pals1 and E-cadherin. Using co-IP, we found that Flag-tagged Patj strongly associates with Amot-p130S176E, compared to weaker or null interaction with Amot-p130 and Amot-p130S176A, respectively. In a reciprocal approach, IP of the different Amot forms demonstrated a stronger association between Patj and Amot-p130S176E (Figure 5A–C). Similar results were obtained when examining the association of Pals1 or E-cadherin with Amot. While we were consistently able to co-IP Pals1 or E-cadherin with Amot-p130S176E, this association was greatly diminished with Amot-p130S176A or wild type Amot-p130 (Figure 5D–E). These findings suggest that localization of phosphorylated Amot-p130 to the cell membrane is mediated through interactions with components of junctional structures, which remain to be identified.

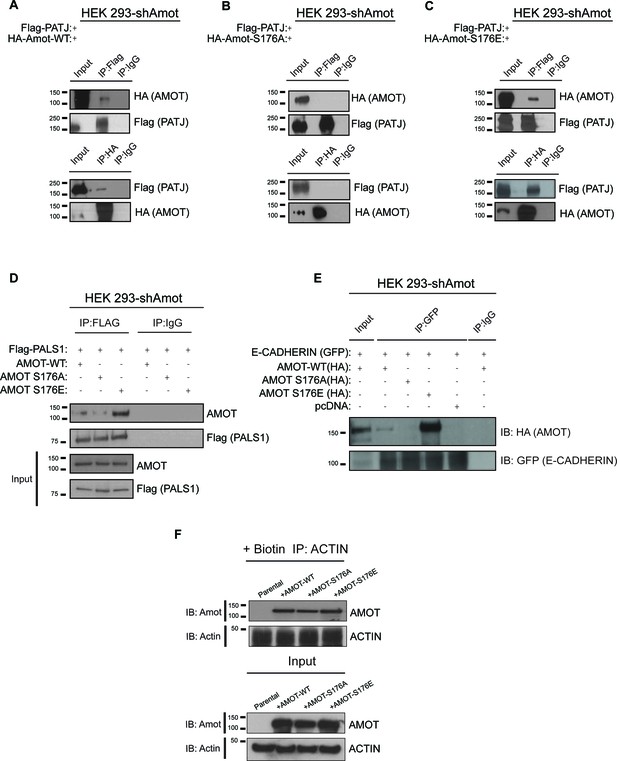

AmotS176 status impacts binding to the junctional proteins PATJ, Pals1 and E-cadherin.

HEK293-shAmot cells were co-transfected with Flag-PATJ and (A) HA-Amot-WT or (B) HA-Amot-p130S176A or (C) HA-Amot-p130S176E. Total lysates (Input) and Flag or HA IPs were subjected to immunoblot analysis with anti-HA and anti-Flag antibodies, as indicated. (D–E) HEK293-shAmot cells were co-transfected with (D) Flag-Pals1 or (E) E-cadherin and relevant Amot alleles as in panels (A–C). Total lysates (input) and Flag IP were subjected to IB analysis with anti-Amot and anti-Flag antibodies as indicated. (F) HEK293-shAmot cells were transfected with expression vectors for HA-Amot-WT, HA-Amot-p130S176A or HA-Amot-p130S176E. Cells were extracted in F-actin stabilizing buffer and F-actin was pulled down using Biotinylated-phalloidin and streptavidin-coupled magnetic beads. Pull downs were then alayzed by western blotting using anti-Amot or Actin antibodies. The blots shown are representative of three biological replicates (n = 3).

https://doi.org/10.7554/eLife.23966.014

Previous reports concluded that phosphorylation of Amot at Serine 176 reduces the association between Amot and F-actin (Chan et al., 2013; Mana-Capelli et al., 2014; Dai et al., 2013). To assess this directly in cells, we employed a co-precipitation approach relying on the high selectivity and binding affinity of phalloidin to F-actin, previously employed to identify F-actin binding proteins in cells (Clarke and Mearow, 2013; Fulga et al., 2007). Briefly, biotinylated phalloidin was used to specifically pull-down F-actin from 293-shAmot cells transfected with expression vectors for Amot-p130, Amot-p130S176A or Amot-p130S176E and levels of precipitated proteins were examined by western blotting. As shown in Figure 5F, similar amounts of all Amot proteins were present in the pull downs (Upper panel). Importantly, similar levels of Actin were present in all pull downs indicating the expression of the different Amot alleles did not affect cellular levels of F-actin (Lower panel).

Amot phosphorylation regulates YAP-driven cellular proliferation and transcriptional activities

Given the impact of Amot-p130S176 phosphorylation on localization of the Amot/YAP/Merlin complex, we conducted loss- and gain-of-function studies to gain insight into the functional significance of this phosphorylation. First, we determined whether AmotS176 phosphorylation modulates cell proliferation. The 293-shAmot cells transfected with expression plasmids for Amot-p130 and Amot-p130S176A proliferated at increased rates compared to control transfected cells, as determined by cell counting and BrdU incorporation over a 96 hr period. In contrast, the Amot-p130S176E expressing cells exhibited a growth rate comparable to that of the control cells (Figure 6A–B). Similar results were obtained in hSC2λ and HepG2 cells transfected with the different Amot alleles (Figure 6—figure supplement 1A–B). These findings indicate that expression of Amot can promote the proliferation of these three different cell types and that this activity is diminished when Amot is phosphorylated at Serine 176.

Figure 6 with 3 supplements see all

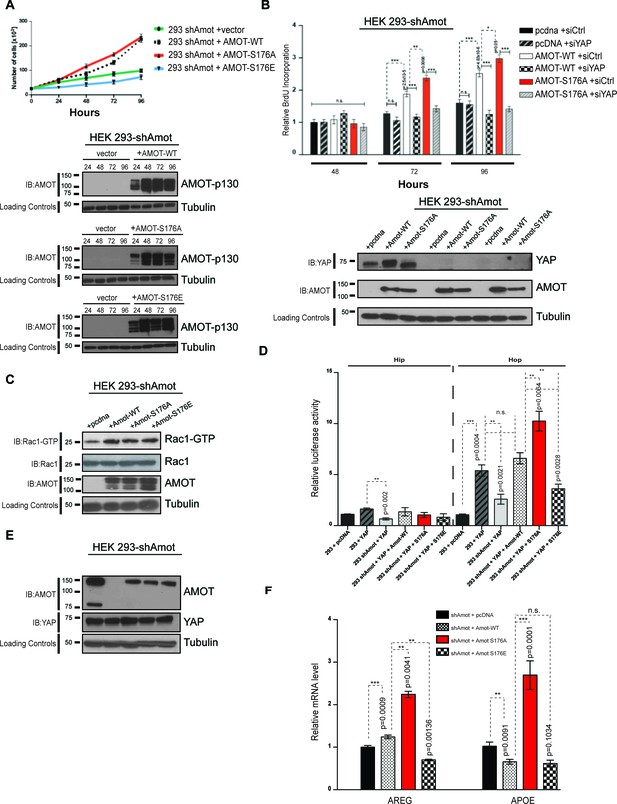

AmotS176A promotes the proliferative and transcriptional activities of YAP.

(A) AmotS176 regulates cellular proliferation. HEK293-shAmot cells were transiently transfected with indicated expression plasmids and total cell numbers were counted over 4 days. Means of each data point were calculated from three independent biological replicates conducted in triplicate. Error bars represent ±S.D. Immunoblot analysis was used to verify the transfection efficiency of the indicated Amot-p130 constructs. Tubulin was used as a loading control. The blots shown are representative of three biological replicates. (B) Amot expression drives proliferative phenotype that is YAP-dependent. HEK293-shAmot cells were co-transfected with the indicated expression plasmid and either a SMARTpool of siRNAs targeting YAP or a non-targeting control (siCtr). Levels of BrdU incorporation compared to HEK293-shAmot+pcDNA+siCtr (set to 1) were determined 48 hr, 72 hr, and 96 hr post co-transfection for all the conditions. Means were calculated from three biological replicates conducted in triplicate. Error bars represent ±S.D. Individual pairwise comparisons were assessed by Student's t-test, *p<0.05; **p<0.01; ***p<0.001; n.s. – non-significant. Exact p-values are indicated in the figure. Immunoblot analysis to confirm efficient knockdown of YAP using two independent siRNAs (siYAP-A and siYAP-B) (see Figure S6) and efficient overexpression of the indicated Amot-p130 constructs in HEK293-shAmot cells. Tubulin was used as a loading control. The blots shown are representative of three biological replicates (n = 3). (C) Amot-p130 serine 176 does not affect Rac1 activation. IB analysis of cell lysates from HEK293-shAmot cells expressing Amot-WT, Amot-p130S176A or Amot-p130S176E with anti-Rac1-GTP, anti-Rac1 and anti-Amot antibodies as indicated. Tubulin was used as a loading control. Cells were serum starved overnight and stimulated with 10 ng/mL EGF for 5’. The blots shown are representative of three biological replicates (n = 3). (D) AmotS176 status regulates YAP transcriptional activity. HEK293 and HEK293-shAmot cells were transfected with indicated constructs and HIP-flash or HOP-flash reporters. Reporter’s firefly luciferase activity was normalized to the levels of Renilla luciferase used as an internal control. The means of luciferase activity were calculated from three biological replicates conducted in quadruplicate. Error bars represent ±S.D. Individual pairwise comparisons were assessed by Student's t-test, **p<0.01; ***p<0.001; n.s. – non-significant. Exact p-values are indicated in the figure. (E) Immunoblot analysis showing efficient transfection of Amot-p130, Amot-p130 mutants, and YAP in cell lysates used in (D). Tubulin was used as a loading control. The blots shown are representative of three biological replicates. (F) AmotS176 status regulates expression of endogenous YAP targets. Expression of the YAP target genes Areg and ApoE was probed in HEK293-shAmot cells expressing Amot-WT, Amot-p130S176A or Amot-p130S176E by quantitative real-time PCR. mRNA levels were compared with the empty vector control (set to 1). Means were calculated from Ct values in three independent biological replicates conducted in triplicate. GAPDH was used to normalize for variances in input cDNA. See Table 1. Error bars represent ±S.D. Individual pairwise comparisons were assessed by Student's t-test, **p<0.01; ***p<0.001; n.s. – non-significant. Exact p-values are indicated in the figure.

https://doi.org/10.7554/eLife.23966.015
Figure 6—source data 1

Cell counts for HEK293 cells, treated as described Figure 6A.

https://doi.org/10.7554/eLife.23966.016
Table 1

Primer sequences used in qPCR.

https://doi.org/10.7554/eLife.23966.028
GenePrimers
ForwardReverse
Amot5’-CAGCTTGCAGAGAAGGAATATGAG-3’5’-CTGGCTTTCTTTATTTTTTGCAAAG-3’
ApoE5’-AGGAACTGAGGGCGCTGA-3’5’-AGTTCCGATTTGTAGGCCTTCA-3’
Areg5’-TGATCCTCACAGCTGTTGCT-3’5’-TCCATTCTCTTGTCGAAGTTTCT-3’
GAPDH5’ – GATCATCAGCAATGCCTCCT-3’5’ – TGTGGTCATGAGTCCTTCCA-3’

As work from our group and others has shown that Angiomotin functions as a regulator of small G-proteins from the Rac1/cdc42 family (Wells et al., 2006; Yi et al., 2011), we assessed whether the increased proliferation observed in the Amot-p130 and Amot-p130S176A expressing cells is mediated by activation of Rac1. Towards this goal we analyzed the status of active Rac1 (Rac1-GTP) in these cells compared to control 293-shAmot cells. As expected, transfection with the different Amot alleles resulted in increased Rac1-GTP levels. However, we found no significant differences in Rac1-GTP levels between the cells, suggesting the status of Amot serine 176 phosphorylation does not affect Rac1 activation (Figure 6C).

We next determined whether the observed increased rates of cell proliferations induced by Amot-p130 and Amot-p130S176A expression are YAP-dependent, by introducing two independent siRNAs against YAP into these cells. Indeed, the increased proliferation afforded by Amot-p130 and Amot-p130S176A was completely inhibited by YAP knockdown (Figure 6B and Figure 6—figure supplement 2A). The expression of Amot-p130 and Amot-p130S176A and reduction of YAP levels was confirmed by immunoblotting (Figure 6B).

Next, we determined if Amot Serine 176 phosphorylation regulates YAP-mediated transcriptional activation. We used two independent luciferase reporter assays, the HIP/HOP-flash and 8xGTIIC luciferase reporters (Leask and Abraham, 2006; Zhao et al., 2008). The HIP (Hippo-YAP signaling incompetent promoter)/HOP (Hippo-YAP signaling optimal promoter)-flash reporters contain, respectively, seven mutated TEAD-binding sites and multimerized (x8) TEAD-binding sites from the promoter of YAP’s direct target CTGF (Leask and Abraham, 2006; Zhao et al., 2008). The former is a negative control for HOP-flash activity (Kim and Gumbiner, 2015). In agreement with our previously reported findings (Yi et al., 2013), the activity of YAP in the HOP-reporter assay was suppressed in 293-shAmot cells, while the reintroduction of Amot fully rescued YAP activity (Figure 6D–E). Moreover, the expression of Amot-p130S176A resulted in a substantial increase in the activation of the HOP-flash reporter when compared to Amot. Significantly, Amot-p130S176E was unable to rescue the function of YAP in the 293-shAmot cells (Figure 6D–E). As expected, no significant changes in activation of the HIP reporter were observed under similar experimental conditions (Figure 6D). These observations were further confirmed using the GTIIC luciferase system, which has eight copies of TEAD-binding sequence driving the expression of the luciferase gene (Davidson et al., 1988; Ota and Sasaki, 2008; Yi et al., 2013) (Figure 6—figure supplement 2B).

To further evaluate the regulation of YAP’s activity by Amot, we investigated the impact of Amot-p130, Amot-p130S176A and Amot-p130S176E expression in the 293-shAmot cells on known gene targets of YAP by quantitative real-time PCR. We focused on Areg (amphiregulin) and ApoE (Apolipoprotein E) as previous findings suggest Amot plays a role in their regulation (Yi et al., 2013). While expression of both Amot-p130 and Amot-p130S176E had only minor effects on levels of Areg and ApoE, the expression of Amot-p130S176A significantly induced up-regulation of Areg and ApoE by 2.5, and 3-fold respectively, relative to control cells (Figure 6F). Similar results were obtained in hSC2λ and HepG2 cells transfected with the different Amot alleles (Figure 6—figure supplement 3).

Previously it was shown that Amot is part of transcriptionally active YAP-Tead-containing complex in the nuclei of adult liver and HEK293 cells (Yi et al., 2013). We hypothesized that Amot exerts its function in this complex in the dephosphorylated state. To test this, we performed reciprocal IP assays with antibodies against YAP or pan-Tead. We observed efficient co-IP of YAP and pan-Tead in the presence of Amot-p130 and Amot-p130S176A but not in the presence of Amot-p130S176E (Figure 7A). Moreover, we conducted Chromatin immunoprecipitation (ChIP) with Amot antibodies in 293-shAmot cells transfected with Amot-p130, Amot-p130S176A or an empty control vector, followed by RT-PCR analysis. These experiments showed a striking enrichment and binding of Amot-p130S176A to the promoter of ApoE and Areg, compared to Amot (Figure 7B). These findings suggest that phosphorylation of Amot serine 176 prevents YAP-mediated transcriptional activation by inhibiting Amot nuclear function as a co-factor in a YAP-Tead transcriptional complex (Figure 7C).

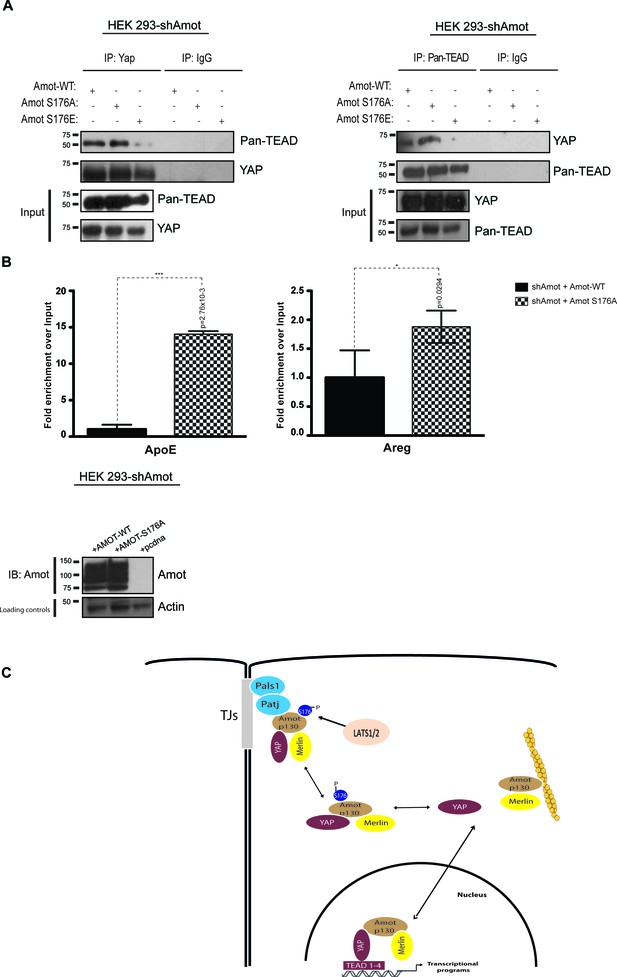

AmotS176A but not AmotS176E is required for formation of the nuclear Yap-Tead complex.

HEK293-shAmot cells were co-transfected with Amot-WT or Amot-p130S176A or Amot-p130S176E. Total lysates (Input) and Pan-Tead or YAP IPs were subjected to immunoblot analysis with anti-Pan-Tead or anti-YAP antibodies, as indicated. The blots shown are representative of three independent biological replicates. (B) ChIP analysis of HEK293T-shAmot cells transfected with Amot-WT, Amot-p130S176A or an empty vector control. Real-time quantitative PCR was performed in eluted DNA using primers targeting the promoter regions of ApoE and Areg. See Table 2. The data show the means ±s.e.m. from three independent biological replicates (n = 3). Individual pairwise comparisons were assessed by Student's t-test, **p<0.01; ***p<0.001; n.s. – non-significant. Exact p-values are indicated in the figure. (C) Proposed model for YAP-Merlin complex regulation by AmotS176. Hypophosphorylation of AmotS176 promotes translocation of the Amot-p130/YAP/Merlin complex from the cytoplasm to the nucleus where it binds to TEADs and activates YAP-dependent transcriptional programs. Conversely, phosphorylation of AmotS176 induces cytoplasmic sequestration and plasma membrane localization of the tertiary complex. At the membrane, the complex associates with the junctional proteins Patj and Pals1 and YAP’s nuclear functions are inhibited. S176 in blue indicates phosphorylation.

https://doi.org/10.7554/eLife.23966.029
Figure 7—source data 1

Source data for qPCR analysis of ApoE expression in HEK293 cells.

Analysis as described in Figure 7B.

https://doi.org/10.7554/eLife.23966.030
Figure 7—source data 2

Source data for qPCR analysis of AREG expression in HEK293 cells.

Analysis as described in Figure 7B.

https://doi.org/10.7554/eLife.23966.031
Table 2

Primer sequences used in CHIP.

https://doi.org/10.7554/eLife.23966.032
GenePrimers
ForwardReverse
ApoEGCGTTCACTGTGGCCTGTCCAGCATGGAGGACAGCCCTGGC
AregTGTTCTTCCCAGAAACCCTCTTTACCTACACCATCTCACAGC

Discussion

The role of Angiomotin regulating the Hippo/YAP pathway has so far been elusive, mainly due to conflicting reports suggesting that YAP regulation by Angiomotin is either positive or negative. To gain a deeper understanding of Amot function, we employed multiple cell types originating from tissues in which dysregulation of the Hippo-YAP pathway is observed under pathological conditions. Our study reveals that Angiomotin phosphorylation at serine 176 mediates YAP localization. This post-translational modification is the key event determining a promoting or repressing regulation of YAP by Angiomotin. We found that phosphorylation at serine 176 does not mediate Angiomotin’s scaffolding functions but does impact the localization of a tertiary complex composed by Amot, YAP and Merlin, which is present in both the cytoplasm and nucleus for the wild type protein. The serine 176 phosphomimetic mutant (AmotS176E) is recruited to the plasma membrane where it is found co-localized and associated with Patj, Pals1 and E-cadherin at junctional structures. Our previous studies indicate that Amot is required for YAP function in the nucleus (Yi et al., 2013). Thus, the relocation of Amot out of the nucleus and sequestration of Amot/YAP complex to the plasma membrane, function to prevent YAP from operating as a growth-promoting transcriptional activator. The non-phosphorylated mutant (AmotS176A) is preferentially localized to the nucleus, where it facilitates YAP interactions with TEADs and concomitant activation of target gene transcription.

Angiomotin’s involvement in regulation of Hippo-YAP signaling arises from studies showing that Amot functions as a scaffold protein for several components of this signaling cascade including YAP, Merlin, Kibra, Lats, and F-actin (Moleirinho et al., 2014). Our findings extend Amot scaffolding functions to the formation of the YAP-Merlin complex independent of Amot Ser176 phosphorylation, although it is possible that additional PTMs might regulate the complex specifically at different sub-cellular localizations. Multiple reports describe the role of AmotS176 phosphorylation on Amot interactions with binding partners and function (Adler et al., 2013b; Chan et al., 2013; Hirate et al., 2013; Mana-Capelli et al., 2014). While these reports converge towards the idea that Amot serine 176 phosphorylation is mediated by Lats1/2 and that this impacts Amot’s binding to F-actin, they differ significantly when examining the influence on Amot localization and function. Whilst the discussion of these differences merits a separate review, we highlight a few points that agree or conflict with our current findings. In regards to the effect of Amot phosphorylation on binding to F-actin or YAP, previous reports conclude that serine 176 phosphorylation impairs the interaction between Amot and F-actin and suggest that this can favor binding to YAP (Chan et al., 2013; Mana-Capelli et al., 2014; Dai et al., 2013). Our findings suggest that serine 176 phosphorylation does not impact association with F-actin. However, in agreement with one of these studies (Dai et al., 2013) our findings suggest that phosphorylation on Amot has little impact on the Amot-YAP association. Possible explanations for the differences between our current findings and previous reports could be attributed to the use of HEK293 cells expressing high levels of endogenous Amot, which might mask some of the interactions with the mutated alleles. To circumvent this possibility, our studies incorporated HEK293 cells in which endogenous Amot expression was knocked-down and the different mutant alleles reintroduced. Additionally, previous studies used different cell types, which not only could impact the stability of the Amot/YAP interaction but also explain the observed differences in Amot localization. In MCF10A, MCF7 and MDA-MB-468 cells, hypophosphorylated Amot showed junctional localization and co-localization with F-actin (Adler et al., 2013b; Chan et al., 2013). Although we cannot exclude differences in the actin cytoskeleton between the different cell lines used in those studies, we observe enrichment of AmotS176E to the plasma membrane, in agreement with Hirate et al. (2013), and enrichment of AmotS176A to the nucleus. Furthermore, our studies confirm previous findings and show that Amot is required for YAP activity and that the AmotS176A mutant displays prominent nuclear function by means of increased levels of YAP target gene expression, increased cell proliferation rates and higher colony formation capacity (Adler et al., 2013b; Chan et al., 2013; Hirate et al., 2013). Importantly, in vivo studies are needed to clarify the role of Amot in different cell and tissue types. We further extended the analysis of Amot phosphorylation on the Amot-YAP-Merlin complex, by determining whether its formation depends on YAPS127 phosphorylation site. In agreement with previous reports showing that the Amot-YAP interaction is independent of phosphorylation at YAPS127 (Wang et al., 2011; Zhao et al., 2011), we observed that the YAP-Merlin-Angiomotin complex also occurs independently of YAPS127 (Figure 3—figure supplement 3A and B). Interestingly, mutation of serine in each of YAP’s five HxRxxS consensus sites (S5A, Zhao et al., 2010b) precluded formation of the complex (Figure 3—figure supplement 3C). The molecular mechanisms underlying the reduced association between the S5A and the Amot-merlin complex remain to be elucidated. However, this is not likely as a result of increased nuclear localization of YAP-S5A, since wild-type Amot can also be found in the nucleus in complex with wild type YAP. Therefore, it is likely that at least one additional post-translational modification of YAP could regulate the formation of the Amot-YAP-Merlin complex and future studies are needed to identify this modification.

We found that AmotS176 phosphorylation induces association of the YAP-Merlin complex with Patj, Pals1 and E-cadherin, and that plasma membrane sequestration inhibits YAP activity. Several reports have described the localization of Amot at junctions in epithelial and endothelial cells (Bratt et al., 2005; Ernkvist et al., 2008; Patrie, 2005; Wells et al., 2006) and its colocalization with Patj/Pals1 via its C-terminal PDZ-binding motifs (Wells et al., 2006). However, binding to Patj is not required for Amot’s localization to the plasma membrane, as a mutant lacking the PDZ binding motifs still localize to the cell cortex (Sugihara-Mizuno et al., 2007). This suggests that an additional mechanism can regulate Amot membrane localization, which is in agreement with our findings where phosphorylation of AmotS176 induces localization of Amot-YAP-Merlin complex to the cell cortex. In HeLa, HEK293 and MDCK cells, Amot mediates YAP localization at the plasma membrane resulting in suppression of cell proliferation (Chan et al., 2011; Paramasivam et al., 2011; Zhao et al., 2011). Thus, we propose that phosphorylation of Amot triggers a shift of the YAP-Merlin complex from the nucleus to the plasma membrane, thus suppressing the nuclear activity of YAP and exerting cell growth and tumor suppressive functions (Figure 7C).

Amot associates with Merlin and Rich1 at junctional structures and inhibits Rac1 and downstream signaling into the MAPK pathway (Yi et al., 2011). Our results suggest that AmotS176 phosphorylation does not impact the ability to modulate Rac1 activity at the cell membrane. Yet, it is possible that AmotS176 phosphorylation modulates Merlin’s nuclear function. Previous studies showed that nuclear accumulation of Merlin results in inhibition of the CRL4DCAF1 E3 ubiquitin ligase. In NF2-mutant tumors, CRL4DCAF1 ubiquitinates Lats, suppressing phosphorylation and activating YAP (Li et al., 2014, 2010). In light of our findings, we can speculate that in the nucleus, Lats is inactivated by CRL4DCAF1-driven ubiquitylation and becomes unable to phosphorylate Amot, resulting in an increase of YAP transcriptional activity. However, if Lats remains active and Amot phosphorylation occurs, Amot-YAP-Merlin tertiary complex translocates from the nucleus to the cytoplasm and plasma membrane, resulting in suppression of YAP nuclear functions. Future studies will be required to shed light on this possibility.

Another open question pertains to what mechanism/s regulate Angiomotin/YAP localization. Lats1/2 are obvious candidates, as they were shown to phosphorylate both YAP and Amot (Adler et al., 2013b; Chan et al., 2013; Hirate et al., 2013; Mana-Capelli et al., 2014). However, the role of Lats1/2 in regulation of these proteins and the relationship between Lats, YAP and Angiomotin is complex. For example, a number of reports suggest that Lats phosphorylates Amot, leading to reduced binding to F-actin and increased YAP binding and inhibition (Chan et al., 2013; Mana-Capelli et al., 2014). Moreover, Amot has been proposed to activate Lats2 and increase phosphorylation of YAP (Paramasivam et al., 2011; Chan et al., 2013). In contrast, we have previously shown that in multiple systems, Amot antagonizes the association of Lats and YAP and inhibits phosphorylation of YAP by Lats (Yi et al., 2013). Given the complexity of the interactions between Amot and YAP, addressing the role of Lats1/2 in regulating the translocation and activity of the Amot-YAP complex will require future studies. Another potential regulatory mechanism stems from the lack of interaction between Amot and YAP-S5A mentioned above. This finding suggests that additional phosphorylation events could regulate the complex. As a number of other kinases such as AMPK and CK1delta/epsilon have been shown to phosphorylate YAP (Wang et al., 2015; Zhao et al., 2010a). Further work will be required to determine the relevant phosphorylation sites and responsible kinases

In conclusion, our studies suggest a mechanism to explain the previous conflicting observations regarding the role of Amot by demonstrating that AmotS176 phosphorylation state is a key event that dictates a positive or negative regulation of YAP by Amot by targeting the Amot-YAP-Merlin complex to the plasma membrane, sequestration in the cytoplasm or translocation to the nucleus.

Materials and methods

Plasmids and siRNAs

Request a detailed protocol

The expression plasmids for HA-Amot-p130, HA-Amot-p130S176A and HA-Amot-p130S176E were a gift from Dr. Hiroshi Sasaki (Kumamoto University, Japan). The following plasmids were previously described: psCMV-Pals1-Flag; PATJ-Flag (Wells et al., 2006; Yi et al., 2011); Flag or HA-tagged Merlin (Kissil et al., 2002, 2003); pCMV-Flag-Amot-p80, pCMV-V5-YAP and pCMV-Amot-130 LPxY/PPxY mutants (Yi et al., 2011, Yi et al., 2013). The pcDNA4/His-MaxB-YAP-S127A (Plasmid #18988) and pCMV-Flag-YAP-5SA (Plasmid #27371) were from Addgene. Human Amot-p130 shRNA vectors have been previously described (Yi et al., 2011). siRNA duplexes targeting human YAP (ID #s20366) as well as non-targeting control siRNAs (ID #4390843) were from Thermo Fischer Scientific (Carlsbad, CA). The second siRNA targeting human YAP1 (5 FlexiTube #SI02662954) was purchased from Qiagen. siRNA targeting human angiomotin (ON-TARGETplus Human AMOT siRNA- smartpool L-015417-01-0005) or control pool of siRNA (ON-TARGETplus Non-targeting pool-set of 4 LU-017595-01-0002).

Cell culture, transfection, and infection conditions

Request a detailed protocol

HEK293 and HepG2 cells were purchased from the ATCC. hSC2λ cells were obtained from the laboratory of Dr. Margret Wallace (Li et al., 2016). All cell lines were authenticated by short tandem repeat (STR) DNA profiling (DDC Medical). Cells were tested every 3 months for mycoplasma contamination and confirmed free of contamination. Cells were maintained in low glucose Dulbecco’s Modified Eagle’s Medium (DMEM) (Gibco) supplemented with 10% fetal bovine serum (Atlas Biologicals) and antibiotics (100 units/ml penicillin and 100 μg/ml Streptomycin) (Gibco), at 37°C in a humidified atmosphere of 5% CO2 (v/v). All experiments were carried out on cells grown to 70–80% confluency. Transfections were performed using Lipofectamine 2000 (Invitrogen, Carlsbad, CA) unless stated otherwise. Lentiviral infection of HEK293 cells was performed according to standard protocols. Briefly, HEK293T cells were co-transfected with packaging plasmids VSVG, Δ8.2, and either with pLKO.1-GFP or pLKO.1-shAmot constructs. Supernatants were collected 48 hr and 72 hr after transfection, and cells were infected with 4 mL of viral supernatant containing 4 mL of polybrene (8 μg/mL). After 48 hr, transduced cells were selected with puromycin (2 μg/mL) and this selection maintained for 72 hr.

Antibodies

Rabbit polyclonal anti-Angiomotin was previously described (Yi et al., 2011) (IB: 1:1500). The following antibodies are available commercially: anti-phospho-Angiomotin (ABS1045 from EMD Millipore; 1:2000). Anti-HA tag (sc805, 1:1000); monoclonal anti-Merlin (E-2, 1:500); polyclonal anti-Merlin (C-18, 1:500); polyclonal anti-YAP (H-125, 1:1000); polyclonal anti-Lamin A/C (sc-6215 (N-18), 1:500); polyclonal anti-EGFR (sc03, 1:1000) were from Santa Cruz Biotechnologies. Anti-Flag tag (F1804, 1:1000); anti-GAPDH (68795, 1:10000); anti-tubulin (T5168, 1:1000); anti-actin (A4700; 1:10000) were from Sigma. Anti-V5 tag (ab27671, 1:2000) from Abcam. Anti-6x His tag (MA1-21315, 1:2000) from Thermo Scientific. Anti-phospho-YAP (4911, 1:1000); anti-pan-Tead (13295; 1:1000) from Cell Signaling Technologies. Anti-Na+/K+ATPase (a-5, 1:2500) from Developmental Studies Hybridoma Bank (University of Iowa). For immunofluorescence the following antibodies were used at the stated concentrations: rabbit monoclonal anti-YAP D8H1X (14074, 1:50), Cell Signaling Technologies; mouse monoclonal anti-Merlin (E-2; 1:50), Santa Cruz Biotechnologies; Rabbit polyclonal anti-Angiomotin (1: 200).

Immunoprecipitation and immunoblotting

Request a detailed protocol

150 cm diameter dishes were transiently transfected with 10 μg of plasmid DNAs using Lipofectamine 2000 (Invitrogen). 48 hr later cell lysates were collected, washed twice in ice-cold PBS, and lysed with radioimmuno precipitation assay buffer (RIPA: 50 mM Tris-HCl; 150 mM NaCl; 1% NP40; 0.1% sodium dodecyl sulfate; 0.5% sodium deoxycholate; 1:25 protease inhibitor cocktail and phosphatase inhibitors (Roche Applied Science)). 1 mg of protein was immunoprecipitated with Protein A/G resins (#20333; #20398; Thermo Scientific) and indicated antibody with gentle rotation at 4°C, overnight. Immunoprecipitates were washed four times in RIPA buffer, and bound proteins were dissociated in 25 μL of 1x loading dye (25 mM Tris-HCl pH 6.8, 4% SDS, 5% glycerol, bromophenol blue). Eluted proteins were separated on SDS/10% polyacrylamide gel and transferred onto Immobilon-P membranes (Millipore). To prevent nonspecific binding, membranes were incubated in blocking buffer (5% skimmed dried milk, 33.3 mM Tris-HCl, 16.68 mM Tris base, 138 mM NaCl, 2.7 mM KCl, 0.1% Tween-20) with agitation for 1 hr at room temperature, followed by immediate incubation with specific antibodies diluted in either 5% BSA or blocking buffer, overnight. Membranes were then washed three times in washing buffer (33.3 mM Tris-HCl, 16.68 mM Tris base; 138 mM NaCl; 2.7 mM KCl; 0.1% Tween-20), incubated for 1 hr at room temperature with goat anti-mouse HRP-conjugated antibody (sc-2005; 1:10000) or Protein A-HRP linked (NA9120V; 1: 2000; GE Healthcare) and protein expression was detected by chemiluminescence using ECL (#RPN2106 or #RPN2236, GE Healthcare).

F-actin pull down assay

Request a detailed protocol

Cells were collected and lysed with actin stabilization buffer (1% Triton-X 100, 0.1% SDS, 10 mM EDTA, 1% sodium deoxycholate, 200 pM sodium vanadate, 200 pM NaF, 1 complete protease inhibitor cocktail tablet, 0.5 mM ATP and Tris-Buffered Saline, pH 7.4). Biotinylated-phalloidin (5 µg, Thermo-Fisher Scientific) was added to samples and incubated for 60’ at 4°C with constant rotation. Subsequently, 20 µL of streptavidin-coupled magnetic Dynabeads were added, incubated for 60’ at 4°C with constant rotation. The magnetic beads were isolated with a magnet, washed 3X with PBS and analyzed as described.

Immunofluorescence

Request a detailed protocol

Immunofluorescence staining was carried out as previously described (Li et al., 2010). Briefly, cells were grown on coverslips and transfected the next day using Lipofectamine. After 48 hr, coverslips were fixed with 4% paraformaldehyde in PBS for 20 min at room temperature and incubated in permeabilization buffer (0.3% sodium deoxycholate and 0.3% Triton-X in PBS) for 30 min on ice. Coverslips were then washed twice in PBS and blocked in 5% goat serum/0.3% Triton-X in PBS for 1 hr at room temperature followed by overnight incubation with indicated primary antibodies. After three PBS washes, coverslips were incubated with goat anti-mouse Alexa Fluor 488 (#A11029, 1:400; Life Technologies), goat anti-rabbit Alexa Fluor 568 (#A11011, 1:400; Life Technologies) or both secondary antibodies for 1 hr at room temperature. Cells were stained 5 min with 1 μg/mL of DAPI or Hoechst and mounted in Vectashield. Slides were examined using confocal microscopy (LSM 780; Carl Zeiss; Plan Neofluar 63x/1.3 NA Korr differential interference contrast M27 objective in water) at room temperature. Digitalized images were assembled using ZEN 2011 (64 bit) software (Carl Zeiss).

Sub-cellular fractionation

Request a detailed protocol

Cells were incubated on ice for 20 min in ice-cold cytoplasmic buffer (20 mM Tris-HCl pH 7.4, 150 mM KCl, 1.5 mM MgCl2, 1 mM PMSF, 1 mM DTT, 0.5%Nonidet P-40, protease inhibitor mixture), centrifuged at 4000 g for 5’ at 4°C. Supernatant was kept for the cytosolic and plasma membrane fractions. The pellet was washed five times with nuclear washing buffer (10 mM HEPES pH7.9, 10 mM KCl, 1.5 mM MgCl2, 0.34 M Sucrose, and complete protease inhibitor mixture), lysed on ice for 20 min in 400 μl of RIPA buffer and centrifuged at 13,000 g for 10 min at 4°C. Supernatant was kept as the nuclear fraction. For the cytosolic and plasma membrane fractions the supernatant was spun at 200,000 g for 30 min at 4°C and the resultant supernatant centrifuged again at 13,000g for 5 min at 4°C and kept as the cytosolic fraction. The pellet was washed in 500 μl lysis buffer (50 mM Tris pH 7.4, 1 mM EDTA, 2.5 mm MgCl2, 150 mM NaCl, and complete protease inhibitor mixture) and re-sedimented at 200,000g for 30 min at 4°C. The pellet was then resuspended in ice-cold IP buffer (1 M Tris-HCl pH 7.4, 4 M NaCl, 10% (w/v) Triton X-100, and complete protease inhibitor mixture), incubated on a rocker for 30 min at 4°C, and cleared by centrifugation at 13,000g for 15 min at 4°C. The supernatant was kept as the plasma membrane fraction.

Immunoprecipitation and Rac1-GTP pull-down

Request a detailed protocol

HEK293-shAmot cells were transfected with 8 μg of plasmid DNA (empty vector control/ wild type Amot-p130/AmotS176A/AmotS176E) and 48 hr later lysed in RIPA buffer and precipitated with indicated antibody overnight. Rac1-GTP was pulled down according to the manufacturer’s instructions (Millipore, #17–441).

BrdU incorporation assay

Request a detailed protocol

HEK293-shAmot cells were seeded at a cell density of 2 × 105 cells per well in 6-well plates. On the following day cells were co-transfected with 40 nM of siRNAs (targeting either YAP or a non-targeting siRNA duplex (control)), and 2 μg of plasmid DNA (empty vector control/ wild type Amot-p130/AmotS176A/AmotS176E) using TransIT-LT1 and TransIT-TKO (Mirus, Fisher Scientific, Illinois) according to manufacturer’s instructions. After 24 hr, cells were trypsinized and 2 × 104 cells/well were reseeded in sterile 96-well tissue culture plates. 48 hr, 72 hr, and 96 hr after co-transfection, plates were processed and analysed using BrdU cell proliferation assay kit following manufacturer’s instructions (Millipore, #2750). Plates were read using a spectrophotometer microplate reader set to 450 nm (SpectraMax M5; Molecular Devices).

Luciferase assay

Request a detailed protocol

The HIP/HOP-flash luciferase reporter system was a kind gift from Dr. Barry Gumbiner (Gumbiner and Kim, 2014) and the GTIIC-luciferase reporter was previously described (Yi et al., 2013). HEK293 and HEK293-shAmot cells were seeded at a concentration of 40 × 103 cells/50 μl in 96-well plates. On the following day the indicated luciferase reporters and plasmids were transfected to a total of 160 ng and incubated overnight at 37°C. Luciferase activity was then measured with Dual Luciferase Reporter Assay System (Promega; #E1910) according to manufacturer’s instructions. The reporter’s firefly luciferase activity was normalized to the levels of Renilla luciferase used as an internal control reporter. The relative luciferase activity displayed on the Y-axis indicates the ratio between Firefly/Renilla luciferase activities.

RNA extraction and quantitative real-time PCR (qPCR)

Request a detailed protocol

Extraction of RNA from cell lysates was performed using Qiagen RNeasy kit (Qiagen) followed by cDNA synthesis of 1 μg DNase-digested RNA, using SuperScript III First-Strand Synthesis System for quantitative RT–PCR (Invitrogen) according to manufacturer’s instructions. Quantitative PCR of the synthesized cDNA was conducted using SYBR Green 2x Master Mix (Applied Biosystems) according to the manufacturer’s protocol. 10 ng of each sample were used in each analysis. Real-time quantitative RT-PCR reactions were performed on StepOnePlus Real-Time PCR System (Applied Biosystems) and analysed using StepOne Software v2.2.2. All measurements were conducted three times in triplicate and standardized to the levels of GADPH. Relative changes in gene expression were calculated according to the 2−ΔΔCT algorithm (Livak et al., 2001). Sequence of the qPCR primers is provided in Table 1.

Chromatin immunoprecipitation (ChIP) and qPCR analysis

Request a detailed protocol

20 million HEK293T-shAmot cells were fixed with 1% formaldehyde for 10 min at RT. Fixation was halted with 125 mM glycine for 5 min at RT. Fixed cells were washed twice with cold PBS. Cell pellets were then resuspended in ChIP lysis buffer and chromatin was sheared with sonicator to obtain 0.3–0.5 kb DNA fragments. Angiomotin antibody (5 μg) and Dynabeads Protein A were added to the cell lysate and incubated overnight at 4°C. Beads were washed with buffer 1 (150 mM NaCL, 20 mM TrisCl pH 8.0, 5 mM EDTA, 65% w/v sucrose, 10% Triton-X-100, 20% SDS) and then washed with TE buffer. DNA was eluted by resuspending the beads in TE/1%SDS. ChIP DNA and Input were treated with RNase A (5 μg) for 1 hr at 37°C. Proteinase K (0.5 mg/mL) was added and incubated overnight at 65°C to reverse crosslinking. DNA was then purified phenol:chloroform and resuspended in a 30 μL of elution buffer. DNA was used for real time-PCR using SYBR Green PCR kit. A standard dilution curve was obtained for each Input and 1 μL of ChIP DNA was used in each PCR reaction. Melt curves were analyzed to confirm specificity of the amplified target.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60

Decision letter

  1. Helen McNeill
    Reviewing Editor; University of Toronto, Canada

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Regulation of localization and function of the transcriptional co-activator YAP by angiomotin" for consideration by eLife. Your article has been favorably evaluated by Anna Akhmanova (Senior Editor) and three reviewers, one of whom is a member of our Board of Reviewing Editors. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

In this manuscript, the authors demonstrate that Amot acts as a scaffold to recruit YAP to Merlin, and that the formation of this complex is not affected by the phosphorylation of Amot at S176. Interestingly, however, the mutation of S176 to E induces a clear relocalization of Amot from the nucleus to the plasma membrane and the cytosolic fraction (with the plasma membrane localization very apparent by microscopy), while mutation to A result in strong nuclear signal. This is accompanied by a redistribution of YAP and Merlin (and in consequence of the complex) to the plasma membrane in the S176E cells, perhaps through augmented association with Pals1/Patj. The consequence of the phosphorylation status of Amot on proliferation / YAP activity was investigated, revealing strong activity of the S to A mutant in all assays, and inactivity of the S176E mutant. It provides evidence that AMOT facilitates YAP nuclear and transcriptional function, unless phosphorylated at ser 176, which facilitates AMOT interaction with plasma membrane proteins. The authors’ findings disagree with some previous conclusions about the role of AMOT, which they address well, and which makes the finding of importance.

All reviewers thought that this work was novel and interesting. However additional controls are considered necessary to demonstrate some of the reagents are specific, quantification is needed, and some of the conclusions should be moderated or caveats considered in the Discussion.

1) What is the expression level of the ectopically expressed Amot, compared to that endogenously expressed in HEK cells? Almost the entire analysis depends on exogenous expression of AMOT and AMOT mutants. It is well known that overexpression of proteins often leads to their accumulation in inappropriate compartments. Since so much of the conclusions and model depend on the idea of compartments and pools, it is essential that the authors ensure that their proteins are expressed at normal cellular levels, and that all mutants are expressed at similar levels

2) Ectopically expressed PATJ and PALS1 co-Ips with Amot and AmotS>E, but not AmotS>A. This may be due to Amot localization at the membrane versus nucleus. Is association of Amot with Patj/PALS1 really needed for the membrane localization of the complex? The authors should knockdown Patj/PALS1 (to see if localization of AmotS>E changes) to support this conclusion.

3) Could the interaction (or non-interaction) of the Amot constructs with Patj and Pals1 be only a reflection of the differential proportion of the Amot constructs in the plasma membrane fraction where Patj and Pals1 reside? (i.e. is the differential association the cause of the localization or the consequence of altered localization?). As presented, this set of experiments is supportive of the differential localization, but does not necessarily demonstrate a direct role for association with Patj/Pals1 (especially as the PDZ motif is dispensable for Amot localization to the cortex). Is the association with Patj/Pals1 bringing Amot to the cortex? If more direct evidence for a preferential association of Amot S176E to Patj/Pals1 cannot be experimentally determined, the authors may want to revise the presentation of the associated results and conclusions.

Specific comments/suggestions to address in the Discussion:

4) Is it possible that overexpressed protein does not reveal a change in affinity upon altered phosphorylation?

5) The authors should discuss the 5A YAP results. Do they believe this can be explained by increased nuclear localization of 5AYAP?

6) The authors ignore the role of Lats, which is also thought to bind to AMOT, and the role of its phosphorylation of YAP in YAP regulation. Most studies on the hippo pathway agree that this phosphorylation event controls both the levels and nuclear-cytoplasmic distribution of YAP, but these two properties are not addressed. The authors do show that phosphorylation of YAP on ser 127 does not affect binding to AMOT, but do not show how AMOT regulates YAP phosphorylation or stability. Also, they do in fact see a change in binding of 5 ser > ala YAP mutations, which have been shown to regulate YAP function in addition to s127. This difference must be considered.

7) There is no consideration of any upstream regulation of the pathway in either the experimental analysis or in the evaluation of the models and literature. What controls AMOT phosphorylation? Are Mst/hippo kinases involved in AMOT regulation? Are the authors imagining that this regulation has something to do with cell-cell contact control of the pathway? Or control by soluble growth factors and signaling receptors? In the absence of this broader context, it is very difficult to think about mechanisms and models. At the least this should be touched on in the Discussion.

8) Their model implies a constitutive binding of YAP to AMOT in the control YAP localization by AMOT, without considering catalytic effects, especially those that might be conferred by Lats phosphorylation. Similar to other models, it invokes simple sequestration at the membrane via AMOT-PATJ binding to restrain YAP. Yet only a small fraction of S176 AMOT seems to associate with membranes or PATJ. Similarly, the model implies that the cytoplasmic and nuclear pools of YAP are all bound to AMOT. If a large fraction of YAP in the cytosol or nucleus is free, different mechanisms from the one proposed must be involved in controlling its localization.

9) The authors discuss previous studies showing that AMOT interacts with the actin cytoskeleton and that this interaction is regulated by AMOT phosphorylation. However, they do not address this potentially important pool of AMOT in their study. How does the actin associated pool fractionate in their protocol – with cytoplasmic, nuclear, or membrane fractions?

10) Figure 5B vs. A and C. The amount of flag PATJ IPed by anti-flag seems extremely low in this panel compared to others, so lack of HA-AMOT S176A co-IPing doesn't seem to be a well-controlled finding.

11) Others have reported that cadherins can also interact with merlin-AMOT complexes at the membrane in addition to PATJ. Do the authors think that this may also be a significant interaction worth examining?

12) The interpretation that the interaction between YAP and Merlin is predominantly occurring in the nucleus and the cytoplasm is supported by the data, but quantification of these experiments would help providing an assessment as to whether this simply reflect the relative levels of YAP across the different fractions or whether there is evidence for a truly differential interaction across fractions. [This would also be consistent with all the results presented for the phosphorylation experiments, so I would suggest considering this possibility in the text]. Perhaps an alternative way to provide support for a compartment-specific interaction would be to employ a fluorescence-based approach (e.g. split GFP, FRET).

13) The presentation of the western blots (IP/western) should be accompanied by quantification. I was surprised that experiments that I would assume should be loaded on the same SDS page gel (e.g. different constructs for the rescue experiments in Figure 3) were shown as separate panels. In the absence of quantification, this makes it very difficult to comment on whether a reduction/increase in complex formation occurs following mutation at this site (though clearly, the interaction is not abrogated by these mutations).

14) What is the intracellular localization of endogenous Merlin (and YAP)? The localization experiments currently presented all depend upon transient transfection.

15) For Figure 2, please provide supporting evidence for efficient Amot KD (if the same results have been also obtained with a different Amot hairpin, please also add the results in supplementary to confirm the specificity of the effect on complex formation).

16) If the phosphospecific antibody works in IF, it would be nice to provide additional evidence that the phosphorylated form is enriched in the plasma membrane fraction (alternatively, this could be done by immunoblotting). This would support the results obtained with the S to E mutation.

17) What is the relative level of expression (in relation to the endogenous) of the different Amot constructs? Similarly, the authors may want to comment on the expression levels of the other constructs they used in relation to the respective endogenous proteins. Could some of the results observed due to overexpression / tagging artifacts?

18) Concerning the Figure 3—figure supplement 2C (as per Discussion), since a YAP protein in which the 5 serines are mutated to alanines predominantly resides in the nucleus, could it be that the nuclear sequestration is the primary cause of the absence of complex formation?

19) Other comments: – this likely happened through PDF generation during submission, but the quality of the images is problematic. Labels do not display clearly, and microscopy images are extremely difficult to evaluate. The authors need to provide high quality images with the revision.

https://doi.org/10.7554/eLife.23966.033

Author response

[…] All reviewers thought that this work was novel and interesting. However additional controls are considered necessary to demonstrate some of the reagents are specific, quantification is needed, and some of the conclusions should be moderated or caveats considered in the Discussion.

1) What is the expression level of the ectopically expressed Amot, compared to that endogenously expressed in HEK cells? Almost the entire analysis depends on exogenous expression of AMOT and AMOT mutants. It is well known that overexpression of proteins often leads to their accumulation in inappropriate compartments. Since so much of the conclusions and model depend on the idea of compartments and pools, it is essential that the authors ensure that their proteins are expressed at normal cellular levels, and that all mutants are expressed at similar levels

We agree with the reviewers’ comments. Assessment of expression of the different Amot alleles and comparison to endogenous Amot levels are now included in Figure 3—figure supplement 1. Overall, we find the levels of exogenous Amot to be approximately 1.5 to 2 –fold higher than endogenous. Importantly, this overexpression does not alter the localization of wild type Amot, as exogenous FLAG-tagged Angiomotin shows a similar subcellular distribution to the endogenous protein (Figure 3—figure supplement 1).

2) Ectopically expressed PATJ and PALS1 co-Ips with Amot and AmotS>E, but not AmotS>A. This may be due to Amot localization at the membrane versus nucleus. Is association of Amot with Patj/PALS1 really needed for the membrane localization of the complex? The authors should knockdown Patj/PALS1 (to see if localization of AmotS>E changes) to support this conclusion.

In spite our extensive attempts, using several different shRNA/siRNAs, we were unable to achieve efficient knockdown of PATJ/PALS1 and thus unable to assess whether the membrane localization of AmotS>E is changed upon loss of these proteins. In addition, while responding to other review comments, we are able to detect enhanced association of the AmotS>E mutant with E-cadherin (Figure 5E). Therefore, while our results support a differential localization of this mutant to junctional structures, we cannot demonstrate a direct role for PATJ, PALS1 or E-cadherin in the localization of AmotS>E. We have revised the presentation of results and conclusions to reflect this.

3) Could the interaction (or non-interaction) of the Amot constructs with Patj and Pals1 be only a reflection of the differential proportion of the Amot constructs in the plasma membrane fraction where Patj and Pals1 reside? (i.e. is the differential association the cause of the localization or the consequence of altered localization?). As presented, this set of experiments is supportive of the differential localization, but does not necessarily demonstrate a direct role for association with Patj/Pals1 (especially as the PDZ motif is dispensable for Amot localization to the cortex). Is the association with Patj/Pals1 bringing Amot to the cortex? If more direct evidence for a preferential association of Amot S176E to Patj/Pals1 cannot be experimentally determined, the authors may want to revise the presentation of the associated results and conclusions.

Please see our response to question 2.

Specific comments/suggestions to address in the Discussion:

4) Is it possible that overexpressed protein does not reveal a change in affinity upon altered phosphorylation?

While this is a possibility, we believe the likelihood for this is low. If one hypothesizes that phosphorylation at S176 has an impact on the affinity of Amot towards merlin or YAP, it would be expected that the S176A or S176E mutants would have different effects on affinity and association with their binding partners, which is not what we observed in our studies.

5) The authors should discuss the 5A YAP results. Do they believe this can be explained by increased nuclear localization of 5AYAP?

The literature indicates the S5A mutant is preferentially localized to the nucleus. The experiment shown in Figure 3—figure supplement 2C suggests that the YAP-S5A mutant is no longer associated with the Amot-merlin complex. We don’t think it has to do with the increased nuclear localization of YAP-S5A, since wild-type Amot (which was used in the study shown in Figure 3—figure supplement 2C) can also be found in the nucleus in complex with wild type YAP (see examples in Figure 4). Clearly additional studies are needed to elucidate the mechanisms involved. We included a discussion of this in the manuscript.

6) The authors ignore the role of Lats, which is also thought to bind to AMOT, and the role of its phosphorylation of YAP in YAP regulation. Most studies on the hippo pathway agree that this phosphorylation event controls both the levels and nuclear-cytoplasmic distribution of YAP, but these two properties are not addressed. The authors do show that phosphorylation of YAP on ser 127 does not affect binding to AMOT, but do not show how AMOT regulates YAP phosphorylation or stability. Also, they do in fact see a change in binding of 5 ser > ala YAP mutations, which have been shown to regulate YAP function in addition to s127. This difference must be considered.

Although we did briefly discuss the role of Lats in the paper, the role of Lats is complicated and not straightforward. Indeed Lats1/2 phosphorylate and regulate YAP localization and levels and a number of studies have shown Lats regulates phosphorylation of Amot on S176. However, the relationship between Lats, YAP and Angiomotin is complex. For example, a number of papers suggest that Lats phosphorylates Amot, leading to reduced binding to F-actin and increased YAP binding and inhibition (Chan, JBC, 2013 and Mana-Capelli, MBC, 2014). Moreover, Amot has been proposed to activate Lats2 and increase phosphorylation of YAP (Paramasivam, MBC, 2011 and Chan, JBC, 2013). In contrast, we have previously shown that in multiple systems, Amot antagonizes the association of Lats and YAP and inhibits phosphorylation of YAP by Lats (Yi, Sci Signal, 2013). Given the complexity of the interactions between YAP, Amot and YAP, we believe this question requires a more extensive and in depth analysis which is beyond the scope of the current manuscript. Some of the issues raised in our response are also addressed in the Discussion of the manuscript.

7) There is no consideration of any upstream regulation of the pathway in either the experimental analysis or in the evaluation of the models and literature. What controls AMOT phosphorylation? Are Mst/hippo kinases involved in AMOT regulation? Are the authors imagining that this regulation has something to do with cell-cell contact control of the pathway? Or control by soluble growth factors and signaling receptors? In the absence of this broader context, it is very difficult to think about mechanisms and models. At the least this should be touched on in the Discussion.

We agree with this point. We initially left this out due to space considerations. In particular, while are many possible scenarios involving regulation of Amot activity by upstream events, since S176 has been shown to be phosphorylated by Lats, we can speculate that many of the upstream events regulating the Hippo cascade will also regulate Amot. We now include this in the Discussion.

8) Their model implies a constitutive binding of YAP to AMOT in the control YAP localization by AMOT, without considering catalytic effects, especially those that might be conferred by Lats phosphorylation. Similar to other models, it invokes simple sequestration at the membrane via AMOT-PATJ binding to restrain YAP. Yet only a small fraction of S176 AMOT seems to associate with membranes or PATJ. Similarly, the model implies that the cytoplasmic and nuclear pools of YAP are all bound to AMOT. If a large fraction of YAP in the cytosol or nucleus is free, different mechanisms from the one proposed must be involved in controlling its localization.

We agree that examining the dynamics of the association of the complex would be useful, however, given space and time limitations we did not yet get to do these types of analyses.

We agree that a fraction of Amot-S176E appears to be localized to the PM, while additional protein is found in the cytoplasm and none in the nucleus (see example in Figure 4F). In the same figure, YAP is found in all 3 fractions. Importantly, our previous studies (Yi et al., 2013) and those of others suggest that Amot is required for YAP function in the nucleus. Thus, if Amot is the limiting factor and is excluded from the nucleus this should impair the nuclear function of YAP regardless of whether there is “free” YAP elsewhere in the cell. In this model, it is not just simply the exclusion of YAP from the nucleus, but also the exclusion of a limiting factor, namely Amot, that impairs the nuclear function of YAP. In a reciprocal manner, the Amot-S176A mutant is distributed between the nucleus and the cytoplasm and the majority of YAP is nuclear and bound to AmotS176A (Figure 4E) and active (Figures 5, 6). Overall this is an excellent point raised by the reviewer and we expanded on this in the discussion of the model in the manuscript. Having said all this, it is indeed quite likely that additional mechanisms are involved in regulation of YAP function.

9) The authors discuss previous studies showing that AMOT interacts with the actin cytoskeleton and that this interaction is regulated by AMOT phosphorylation. However, they do not address this potentially important pool of AMOT in their study. How does the actin associated pool fractionate in their protocol – with cytoplasmic, nuclear, or membrane fractions?

We thank the reviewer for this comment. In the revised version of the manuscript we include data assessing the association of the different Amot alleles with F-actin. While most of the other reports relied on co-localization by IF and in vitro studies using purified protein, we wished to directly assess the interaction of Amot with F-actin in cells. To achieve this, we used biotin-XX-phalloidin which preferentially binds F-actin. We then precipitated the F-actin from cells transfected with the different Amot mutants and assessed the levels of Amot that were co-precipitated. This analysis shows that there are no differences in the association of the different mutants with F-actin. While our findings contrast with some of the previous reports regarding the association of Amot with F-actin, we believe that the approach we employed directly assess the interaction between F-actin and Amot, while other reported efforts employed methods that are either indirect (IF) or in vitro. We include this new data in Figure 5F and Discussion.

10) Figure 5B vs. A and C. The amount of flag PATJ IPed by anti-flag seems extremely low in this panel compared to others, so lack of HA-AMOT S176A co-IPing doesn't seem to be a well-controlled finding.

We thank the reviewer for catching this. We now provide a revised figure in which the levels of IPed PATJ are similar between the different conditions.

11) Others have reported that cadherins can also interact with merlin-AMOT complexes at the membrane in addition to PATJ. Do the authors think that this may also be a significant interaction worth examining?

We thank the reviewer for this comment. We indeed examined this and find that Amot can co-IP with E-cadherin. Moreover, as in the case of PATJ/Pals1 the association is enhanced with the Amot-S176E mutant. We include this new information in Figure 5E and in the text of the manuscript.

12) The interpretation that the interaction between YAP and Merlin is predominantly occurring in the nucleus and the cytoplasm is supported by the data, but quantification of these experiments would help providing an assessment as to whether this simply reflect the relative levels of YAP across the different fractions or whether there is evidence for a truly differential interaction across fractions. [This would also be consistent with all the results presented for the phosphorylation experiments, so I would suggest considering this possibility in the text]. Perhaps an alternative way to provide support for a compartment-specific interaction would be to employ a fluorescence-based approach (e.g. split GFP, FRET).

As noted by the reviewer, the data support the formation of the Merlin/YAP/Amot complex predominantly in the cytoplasm and nucleus (Figure 1) and this interaction does not appear to be regulated by phosphorylation status of S176 (Figure 3). We agree that while the data suggests that the relative levels of YAP in the different compartment might underlie the reason for detecting the complex mostly in cytoplasm and nucleus, there could be other factors regulating the interaction. For example, other PTMs on YAP and/or Amot could impact the interaction at the plasma membrane. However, identifying and characterizing these potential events will require an extensive amount of time and effort and is beyond the scope of the current manuscript. As suggested by the reviewer, we included a brief discussion of this possibility in the manuscript.

13) The presentation of the western blots (IP/western) should be accompanied by quantification. I was surprised that experiments that I would assume should be loaded on the same SDS page gel (e.g. different constructs for the rescue experiments in Figure 3) were shown as separate panels. In the absence of quantification, this makes it very difficult to comment on whether a reduction/increase in complex formation occurs following mutation at this site (though clearly, the interaction is not abrogated by these mutations).

We agree that it would have been beneficial to have all the samples run on the same gel. However, given the number of samples and the need for clear boundaries between the lanes we had to run the samples on separate gels. Regardless, western blotting using film is only semi-quantitative and therefore for relying on relatively small changes in band intensity, such as those referred to in Figure 3A-C, is problematic. Thus, although we cannot exclude the possibility of minor changes to the affinity of the complex, as the reviewer noted the interaction between Merlin and YAP is not abrogated by the changes in status of Amot-S176. This point does not really alter our interpretation of the results. Further detailed analysis using purified proteins and assessment of complex affinity by sophisticated biochemical approaches will be needed to further resolve this issue.

14) What is the intracellular localization of endogenous Merlin (and YAP)? The localization experiments currently presented all depend upon transient transfection.

The localization of endogenous Merlin and Amot can be seen in the IF experiments shown in Figure 4G.

15) For Figure 2, please provide supporting evidence for efficient Amot KD (if the same results have been also obtained with a different Amot hairpin, please also add the results in supplementary to confirm the specificity of the effect on complex formation).

We provide additional support in Figure 2—figure supplement 1. In this experiment, Amot was knocked down using smartpool siRNA and the effects on Amot levels and the requirement for Amot for the association of Merlin and YAP was confirmed.

16) If the phosphospecific antibody works in IF, it would be nice to provide additional evidence that the phosphorylated form is enriched in the plasma membrane fraction (alternatively, this could be done by immunoblotting). This would support the results obtained with the S to E mutation.

Unfortunately, we were unable to optimize the antibody for IF and therefore unable to carry out this experiment.

17) What is the relative level of expression (in relation to the endogenous) of the different Amot constructs? Similarly, the authors may want to comment on the expression levels of the other constructs they used in relation to the respective endogenous proteins. Could some of the results observed due to overexpression / tagging artifacts?

Please see our response to question 1.

18) Concerning the Figure 3—figure supplement 2C (as per Discussion), since a YAP protein in which the 5 serines are mutated to alanines predominantly resides in the nucleus, could it be that the nuclear sequestration is the primary cause of the absence of complex formation?

Please see our response to question 5.

19) Other comments: – this likely happened through PDF generation during submission, but the quality of the images is problematic. Labels do not display clearly, and microscopy images are extremely difficult to evaluate. The authors need to provide high quality images with the revision.

Thank you for point this out. We redid the images at a higher resolution.

https://doi.org/10.7554/eLife.23966.034

Article and author information

Author details

  1. Susana Moleirinho

    Department of Molecular Medicine, The Scripps Research Institute, Jupiter, United States
    Contribution
    SM, Conceptualization, Formal analysis, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Sany Hoxha
    Competing interests
    The authors declare that no competing interests exist.
  2. Sany Hoxha

    Department of Molecular Medicine, The Scripps Research Institute, Jupiter, United States
    Contribution
    SH, Formal analysis, Investigation, Methodology
    Contributed equally with
    Susana Moleirinho
    Competing interests
    The authors declare that no competing interests exist.
  3. Vinay Mandati

    Department of Molecular Medicine, The Scripps Research Institute, Jupiter, United States
    Contribution
    VM, Formal analysis, Investigation
    Competing interests
    The authors declare that no competing interests exist.
  4. Graziella Curtale

    Department of Molecular Medicine, The Scripps Research Institute, Jupiter, United States
    Contribution
    GC, Formal analysis, Investigation
    Competing interests
    The authors declare that no competing interests exist.
  5. Scott Troutman

    Department of Molecular Medicine, The Scripps Research Institute, Jupiter, United States
    Contribution
    ST, Investigation, Methodology
    Competing interests
    The authors declare that no competing interests exist.
  6. Ursula Ehmer

    Department of Medicine II, Klinikum rechts der Isar, Technische Universität München, Munich, Germany
    Contribution
    UE, Investigation, Methodology
    Competing interests
    The authors declare that no competing interests exist.
  7. Joseph L Kissil

    Department of Molecular Medicine, The Scripps Research Institute, Jupiter, United States
    Contribution
    JLK, Conceptualization, Formal analysis, Supervision, Funding acquisition, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    jkissil@scripps.edu
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6471-346X

Funding

National Cancer Institute (CA124495)

  • Joseph L Kissil

National Institute of Neurological Disorders and Stroke (NS077952)

  • Joseph L Kissil

Children's Tumor Foundation (YIA)

  • Susana Moleirinho

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Drs. Margaret Wallace and Hua Li (University of Florida) for the immortalized human Schwann cells; Dr. Hiroshi Sasaki (Institute of Molecular Embryology and Genetics, Japan) for providing the HA-Amotp130/S176A/S176E/pcDNA3.1-pA83 plasmids and Dr. Barry M Gumbiner (University of Virginia Health Sciences Center) for HIP/HOP-flash luciferase reporters. This work was supported by the NIH (NS077952 and CA124495 to JK). SM is a recipient of the Young Investigator Award from Children’s Tumor Foundation.

Reviewing Editor

  1. Helen McNeill, University of Toronto, Canada

Publication history

  1. Received: December 6, 2016
  2. Accepted: April 6, 2017
  3. Version of Record published: May 3, 2017 (version 1)

Copyright

© 2017, Moleirinho et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 4,220
    Page views
  • 709
    Downloads
  • 31
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cancer Biology
    Takahisa Maruno et al.
    Research Article Updated

    Pancreatic ductal adenocarcinoma (PDAC) is a devastating disease. Although rigorous efforts identified the presence of ‘cancer stem cells (CSCs)’ in PDAC and molecular markers for them, stem cell dynamics in vivo have not been clearly demonstrated. Here we focused on Doublecortin-like kinase 1 (Dclk1), known as a CSC marker of PDAC. Using genetic lineage tracing with a dual-recombinase system and live imaging, we showed that Dclk1+ tumor cells continuously provided progeny cells within pancreatic intraepithelial neoplasia, primary and metastatic PDAC, and PDAC-derived spheroids in vivo and in vitro. Furthermore, genes associated with CSC and epithelial mesenchymal transition were enriched in mouse Dclk1+ and human DCLK1-high PDAC cells. Thus, we provided direct functional evidence for the stem cell activity of Dclk1+ cells in vivo, revealing the essential roles of Dclk1+ cells in expansion of pancreatic neoplasia in all progressive stages.

    1. Cancer Biology
    László Bányai et al.
    Research Article

    A major goal of cancer genomics is to identify all genes that play critical roles in carcinogenesis. Most approaches focused on genes positively selected for mutations that drive carcinogenesis and neglected the role of negative selection. Some studies have actually concluded that negative selection has no role in cancer evolution. We have re-examined the role of negative selection in tumor evolution through the analysis of the patterns of somatic mutations affecting the coding sequences of human genes. Our analyses have confirmed that tumor suppressor genes are positively selected for inactivating mutations, oncogenes, however, were found to display signals of both negative selection for inactivating mutations and positive selection for activating mutations. Significantly, we have identified numerous human genes that show signs of strong negative selection during tumor evolution, suggesting that their functional integrity is essential for the growth and survival of tumor cells.
