Abstract

Cell surface receptors govern a multitude of signalling pathways in multicellular organisms. In plants, prominent examples are the receptor kinases FLS2 and BRI1, which activate immunity and steroid-mediated growth, respectively. Intriguingly, despite inducing distinct signalling outputs, both receptors employ common downstream signalling components, which exist in plasma membrane (PM)-localised protein complexes. An important question is thus how these receptor complexes maintain signalling specificity. Live-cell imaging revealed that FLS2 and BRI1 form PM nanoclusters. Using single-particle tracking we could discriminate both cluster populations and we observed spatiotemporal separation between immune and growth signalling platforms. This finding was confirmed by visualising FLS2 and BRI1 within distinct PM nanodomains marked by specific remorin proteins and differential co-localisation with the cytoskeleton. Our results thus suggest that signalling specificity between these pathways may be explained by the spatial separation of FLS2 and BRI1 with their associated signalling components within dedicated PM nanodomains.

https://doi.org/10.7554/eLife.25114.001

eLife digest

Unlike most animals, plants cannot move away if their environment changes for the worse. Instead, a plant must sense these changes and respond appropriately, for example by changing how much it grows. Disease-causing microbes in the immediate environment represent another potential threat to plants. To detect these microbes, plant cells have proteins called “pattern recognition receptors” in their surface membranes that sense certain molecules from the microbes (similar receptors are found in animals too). When a receptor protein recognises one such microbial molecule, it becomes activated and forms a complex with other proteins referred to as co-receptors. The protein complex then sends a signal into the cell to trigger an immune response.

Plants also use similar receptor proteins to sense their own signalling molecules and regulate their growth and development. These growth-related receptors rely on many of the same co-receptors and signalling components as the immunity-related receptors. This posed the question: how can plant cells use the same proteins to trigger different responses to different signals?

Bücherl et al. have now used high-resolution microscopy and the model plant Arabidopsis thaliana to show that the plant’s immune receptors and growth receptors are found in separate clusters at the plant cell’s surface membrane. These clusters are only a few hundred nanometres wide, and they also contained other signalling components that are needed to quickly relay the signals into the plant cell.

Bücherl et al. suggest that, by organizing their receptors into these physically distinct clusters, plant cells can use similar proteins to sense different signals and respond in then different ways. This idea will need to be tested in future studies. Further work is also needed to understand how these clusters of signalling proteins are assembled and inserted at specific locations within the surface membrane of a plant cell.

https://doi.org/10.7554/eLife.25114.002

Introduction

Multicellular organisms employ cell-surface receptors for surveying the environment and adjusting to changing physiological conditions. In plants, the repertoire of cell surface receptors has been considerably expanded and receptor kinases (RKs) form one of the largest protein families with over 600 members in Arabidopsis thaliana (hereafter, Arabidopsis) (Shiu and Bleecker, 2001). The schematic architecture of plant RKs is similar to that of animal receptor tyrosine kinases (RTKs); comprising an extracellular ligand binding domain, a single transmembrane helix, and an intracellular kinase domain (Shiu and Bleecker, 2001). Prominent examples of plant RKs are the immune receptor FLAGELLIN SENSING 2 (FLS2) (Gómez-Gómez and Boller, 2000) and the growth receptor BRASSINOSTEROID INSENSITIVE 1 (BRI1) (Clouse et al., 1996; Li and Chory, 1997). FLS2 is a pattern recognition receptor (PRR) that perceives the pathogen-associated molecular pattern (PAMP) flg22, an immunogenic epitope of bacterial flagellin, to initiate PAMP-triggered immunity (PTI) (Felix et al., 1999; Zipfel et al., 2004; Chinchilla et al., 2006; Boller and Felix, 2009). BRI1 binds brassinosteroids (BRs), a class of phytohormones involved in various aspects of plant growth and development (Kinoshita et al., 2005; Kim and Wang, 2010; Singh and Savaldi-Goldstein, 2015).

Despite their different biological functions, FLS2- and BRI1-mediated signalling pathways share several similarities, in particular at or close to the plasma membrane (PM). The PM is the cellular compartment, where both receptors localise to (Robatzek et al., 2006; Friedrichsen et al., 2000), where they bind their respective ligands flg22 or BRs (Gómez-Gómez et al., 2001; Bauer et al., 2001; Kinoshita et al., 2005), and where presumably their main signalling activity is executed (Smith et al., 2014; Irani et al., 2012). Although FLS2 and BRI1 are competent for ligand binding via their extracellular leucine-rich repeat (LRR) domains, they rely on SOMATIC EMBRYOGENESIS RECEPTOR-LIKE KINASE (SERK) co-receptors for signalling initiation (Nam and Li, 2002; Li et al., 2002; Chinchilla et al., 2007; Heese et al., 2007; Roux et al., 2011; Gou et al., 2012), which are also LRR-RKs (Aan den Toorn et al., 2015). Structural and biochemical analysis of FLS2- and BRI1-SERK hetero-oligomers revealed that flg22 and BRs act as ‘molecular glues’ that stabilise or induce receptor complexes (Sun et al., 2013; She et al., 2011; Hothorn et al., 2011). Ligand binding additionally triggers auto- and trans-phosphorylation events within the receptor complexes (Schulze et al., 2010; Wang et al., 2008) and, in the case of BRI1, also the release of inhibitory mechanisms (Wang and Chory, 2006; Jaillais et al., 2011). After gaining their full kinase activities, FLS2 and BRI1 receptor complexes initiate phosphorylation cascades that culminate in flg22- or BR-responsive transcriptional regulation (Guo et al., 2013; Li et al., 2016). The relay of phosphorylation signals from the PM to the nucleus involves receptor-like cytoplasmic kinases (RLCKs) that can associate to the PM and that are direct substrates of the ligand-binding receptor complexes (Lin et al., 2013; Belkhadir and Jaillais, 2015; Couto and Zipfel, 2016). Similar to the SERK co-receptors, the RLCKs BRASSINOSTEROID SIGNALING KINASE 1 (BSK1) and BOTRYTIS-INDUCED KINASE 1 (BIK1) are common signalling components in both pathways. Whereas BSK1 is a positive regulator for both signalling routes (Tang et al., 2008; Shi et al., 2013), BIK1 is a positive regulator for PTI responses (Lu et al., 2010; Zhang et al., 2010), but a negative regulator for BR signalling (Lin et al., 2013).

Even though FLS2- and BRI1-mediated signalling pathways have been extensively studied genetically and biochemically, little is known about how FLS2 and BRI1 are organised within the PM and how these two receptors fulfil their sensory activity at the cell periphery. In contrast to the original fluid mosaic model (Singer and Nicolson, 1972), which considered the PM as a two-dimensional liquid composed of a lipid bilayer that is interspersed by integral or associated proteins, it is nowadays accepted that the PM is a highly structured and dynamic cellular compartment organised at three hierarchic levels (Kusumi et al., 2011; Nicolson, 2014). The first level of PM organisation is characterised by the interaction of the lipid bilayer with the underlying cortical cytoskeleton, the second level by protein-lipid interactions with the PM, and the third level of PM organisation is the result of protein-protein interactions that lead to formation of PM-associated or -integral homo- and hetero-oligomers (Kusumi et al., 2011), e.g. FLS2- or BRI1-SERK3/BAK1 complexes. In plants, the cell wall has additional influence on the PM organisation and dynamics (Martinière et al., 2012). As a consequence, lateral mobility and distribution of lipids and proteins within the PM is highly heterogeneous leading to the formation of dynamic protein clusters and PM sub-compartments with different shapes and sizes (Jaqaman and Grinstein, 2012; Jarsch et al., 2014; Ziomkiewicz et al., 2015). Each compartment or domain provides specific biophysical and biochemical environments for its residents and thus directly influences associated signalling activities (Kusumi et al., 2012; Saka et al., 2014; Garcia-Parajo et al., 2014; Tapken and Murphy, 2015).

With regard to PM signalling, specialised PM areas often referred to as PM nanodomains have attracted particular attention. For example, EPIDERMAL GROWTH FACTOR RECEPTOR (EGFR), a mammalian RTK, forms clusters that co-localise with PM nanodomains, and EGFR cluster formation depends on the integrity of the PM lipid composition (Gao et al., 2015). A recent report showed that BRI1 also localises to PM nano- or micro-domains in Arabidopsis roots and that partitioning of BRI1 into different PM microdomains is crucial for BR signalling (Wang et al., 2015). Due to the numerous similarities between BRI1 and FLS2 signalling initiation, we were interested in elucidating the localisation patterns of these two LRR-RKs in a comparative fashion within the highly structured PM of plant cells.

Here, we investigated the steady-state PM organisation of FLS2 and BRI1 receptors using live-cell imaging, single-particle tracking and quantitative co-localisation analysis in the PM of leaf epidermal cells, a cell file, in which both receptors are similarly expressed. Our results showed that FLS2 and BRI1 are heterogeneously distributed and that both receptors form transient receptor clusters. Although the spatial characteristics of FLS2 and BRI1 receptor clusters were similar, we observed differences in their dynamic behaviour with FLS2 clusters being more stable. Moreover, we detected only a limited overlap between the two receptor populations. This finding was confirmed by visualising FLS2 and BRI1 clusters within distinct remorin-labelled PM nanodomains. We additionally investigated the PM localisation patterns of BSK1 and BIK1 in complex with the two ligand-binding LRR-RKs. Imaging of FLS2 and BRI1 signalling complexes revealed a confined PM localisation and cluster formation. Importantly, BIK1 signalling complexes localised differentially, whereby BRI1-BIK1, but not FLS2-BIK1, complexes associated with cortical microtubules. Together, our data suggest that the distinct spatiotemporal localisation of FLS2 and BRI1 within specialised PM nanodomains may contribute to signalling specificity between immune and growth signalling mediated by these receptors.

Results

FLS2 and BRI1 form receptor clusters within the PM

To obtain an overview of the PM distribution of FLS2 and BRI1, we investigated two stable transgenic Arabidopsis lines that express the C-terminally GFP-tagged receptors under their native promoters (Göhre et al., 2008; Geldner et al., 2007). Live-cell imaging using confocal laser scanning microscopy (CLSM) revealed that FLS2 and BRI1 were heterogeneously distributed within the PM (Figure 1A and B). Both receptors formed dispersed punctate structures with increased fluorescence intensities. This local concentration of FLS2 and BRI1 subpopulations within the PM indicates the formation of receptor clusters, a phenomenon known from mammalian transmembrane receptors or helper proteins, such as EGFR (Clayton et al., 2007) or LINKER OF ACTIVATED T CELLS (LAT) (Su et al., 2016). To emphasis our observation of receptor clusters, we processed the presented images using a spot-enhancing filter described by Sage et al. (2005) and applied the ‘fire’ lookup table (Figure 1—figure supplement 1). Importantly, we observed similar cluster formation of FLS2 and BRI1 whether upon native expression in Arabidopsis or after transient expression in Nicotiana benthamiana (N. benthamiana) (Figure 1C and D). This feature enabled us to perform further co-localisation analysis in this heterologous system.

Figure 1 with 2 supplements see all

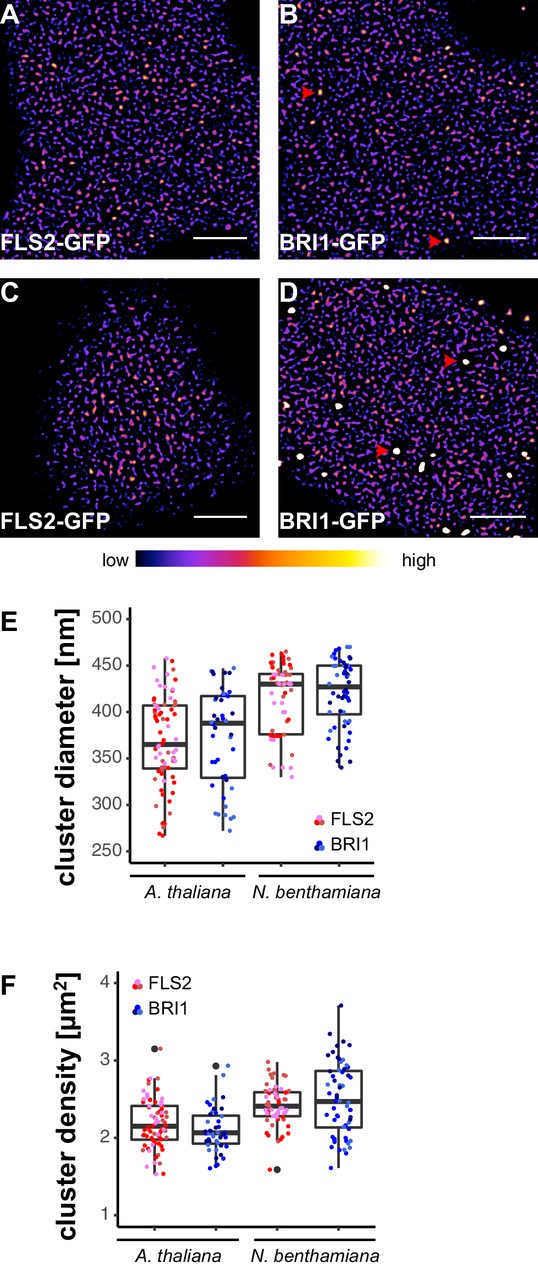

FLS2 and BRI1 form receptor clusters within the plasma membrane.

(A, B) Plasma membrane localisation of FLS2-GFP (A) and BRI1-GFP (B) in epidermal cells of Arabidopsis seedling cotyledons. (C, D) Plasma membrane localisation of FLS2-GFP (C) and BRI1-GFP (D) after transient expression in epidermal leaf cells of N. benthamiana. (E) Quantification of FLS2-GFP and BRI1-GFP plasma membrane receptor cluster diameters in epidermal cells of Arabidopsis cotyledons and after transient expression in N. benthamiana leaves. The coloured data points represent the technical replicates of 3 independent experiments. No statistical differences were observed based on two-tailed heteroscedastic t-tests and a Bonferroni multiple hypothesis correction. (F) Quantification of FLS2-GFP and BRI1-GFP plasma membrane receptor cluster densities in epidermal cells of Arabidopsis seedlings and after heterologous expression in N. benthamiana. The coloured data points represent the technical replicates of 3 independent experiments. No statistical differences were observed based on two-tailed heteroscedastic t-tests and a Bonferroni multiple hypothesis correction. The presented images were acquired using confocal laser scanning microscopy (CLSM). Scale bars represent 5 µm. The colour bar represents the colour code for fluorescence intensities. Black dots represent outliers. Red arrowheads indicate endosomal compartments of BRI1-GFP. Endosomal compartments were omitted for quantitative analysis.

https://doi.org/10.7554/eLife.25114.003

Besides residing within the PM, BRI1-GFP additionally localised to mobile endomembrane compartments with high fluorescence intensities (highlighted by red arrowheads in Figure 1B and D). These intracellular compartments most likely resembled trans-Golgi network/early endosomes and late endosomes/multi-vesicular bodies (Geldner et al., 2007; Irani et al., 2012).

In contrast to the highly mobile endomembrane compartments, the visualised FLS2- and BRI1-GFP clusters appeared rather immobile and seemed to follow a certain spatial organisation. FLS2 and BRI1 clusters often aligned in pearl chain-like structures and interconnected lines with low fluorescence intensities frequently separated by PM areas containing several receptor clusters, in particular for FLS2-GFP (Figure 1—figure supplement 2).

It is known that the cytoskeleton influences the hierarchic PM organisation (Plowman et al., 2005; Kusumi et al., 2011) and therefore we visualised FLS2 and BRI1 in the presence of actin and microtubule markers. As shown in Figure 1—figure supplement 2, pearl chain-like aligned FLS2 and BRI1 clusters often coincided with the underlying actin cytoskeleton, whereas the interconnected lines with low fluorescence intensities overlapped with cortical microtubule filaments, both in Arabidopsis and N. benthamiana.

Next, we quantified the size and density of individual receptor clusters. The mean values (± standard deviation) for FLS2 receptor cluster diameters were 356 ± 49 nm and 387 ± 55 nm in Arabidopsis and N. benthamiana, respectively, compared to 372 ± 38 nm in Arabidopsis and 392 ± 37 nm in N. benthamiana for BRI1 (Figure 1E and Supplementary file 1). Although there was a slight trend towards increased receptor cluster sizes in N. benthamiana, no statistical difference was observed. On average, we observed 2.21 ± 0.33 FLS2 clusters in Arabidopsis and 2.23 ± 0.26 in N. benthamiana per µm2, whereas the densities of BRI1 clusters were 2.02 ± 0.27 and 2.43 ± 0.39 per µm2 in Arabidopsis and N. benthamiana, respectively (Figure 1F and Supplementary file 1). Thus, based on our confocal micrograph analysis, FLS2 and BRI1 showed similar spatial features. Both LRR-RKs were heterogeneously distributed within the PM and formed receptor clusters of comparable size and density. Only a difference with regard to the exclusion of receptor clusters from PM areas by cortical microtubules was observed, with FLS2 being more strongly affected.

In addition to confocal microscopy, we applied variable angle epifluorescence microscopy (VAEM) to further characterise the dynamic behaviour of PM-localised FLS2 and BRI1 receptors. VAEM is a technique related to total internal reflection microscopy (TIRF) (Vizcay-Barrena et al., 2011). In comparison to CLSM, VAEM has the advantages of improved z-resolution and fast image acquisition (Vizcay-Barrena et al., 2011). Therefore VAEM is ideal for studying protein localisation and protein dynamics within or close to the PM (Wan et al., 2011; Vizcay-Barrena et al., 2011). As shown in Figure 2A–D, single frame VAEM images resembled our observations made using CLSM (Figure 1A–D). We repeatedly observed dispersed FLS2- and BRI1-GFP clusters in the PM of Arabidopsis or N. benthamiana leaf epidermal cells. However, using VAEM we were able to acquire image time series (Video 1 and 2). Micrograph analysis using kymograph representations revealed increased stability and reduced mobility for FLS2-GFP compared to BRI1-GFP clusters, both in Arabidopsis and N. benthamiana (Figure 2E). These observations were confirmed using single-particle tracking. BRI1-GFP showed a trend towards increased lateral cluster displacement (Figure 2F) and FLS2-GFP showed an increased population of long-lived receptor clusters (Figure 2G). Additionally, we noticed that some FLS2 and BRI1 clusters suddenly appeared or disappeared from the PM. These observations most likely reflect constitutive exo- and endocytosis processes (Beck et al., 2012; Martins et al., 2015; Wang et al., 2015).

Figure 2 with 1 supplement see all

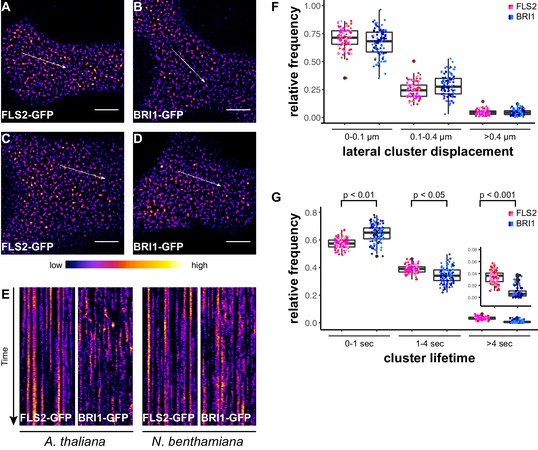

FLS2 receptor clusters are more stable than BRI1 clusters.

(A, B) Plasma membrane localisation of FLS2-GFP (A) and BRI-GFP (B) in epidermal cells of Arabidopsis seedling cotyledons. (C, D) Plasma membrane localisation of FLS2-GFP (C) and BRI1-GFP (D) after transient expression in epidermal leaf cells of N. benthamiana. (E) Kymograph analysis of FLS2-GFP and BRI1-GFP plasma membrane receptor clusters in epidermal cells of Arabidopsis seedling cotyledons and after transient expression in N. benthamiana. Kymographs were obtained from VAEM time series with a temporal resolution of 0.5 s over 250 frames along the indicated arrows in micrographs (A) to (D). (F) Quantification of FLS2-GFP and BRI1-GFP receptor cluster displacements in epidermal cells of Arabidopsis seedling cotyledons obtained from VAEM time series with a temporal resolution of 0.5 s over 250 frames. The coloured data points represent the technical replicates of 4 independent experiments. No statistical differences were observed based on two-tailed heteroscedastic t-tests and a Bonferroni multiple hypothesis correction. (G) Quantification of FLS2-GFP and BRI1-GFP receptor cluster lifetimes in epidermal cells of Arabidopsis seedling cotyledons obtained from VAEM time series with a temporal resolution of 0.5 s over 250 frames. The coloured data points represent the technical replicates of 4 independent experiments. The indicated p-values were obtained using a two-tailed heteroscedastic t-test and a Bonferroni multiple hypothesis correction. The presented images were acquired using variable angle epi-fluorescence microscopy (VAEM). Scale bars represent 5 µm. The colour bar represents the colour code for fluorescence intensities. Black dots represent outliers.

https://doi.org/10.7554/eLife.25114.006
Video 1
Dynamics of FLS2 receptor clusters within the plasma membrane.

The presented time series was acquired from an epidermal cell of an Arabidopsis seedling cotyledon expressing FLS2-GFP under its native promoter using variable angle epi-fluorescence microscopy (VAEM). The acquisition time was 0.5 s per frame over 250 frames in total. The scale bar represents 5 µm.

https://doi.org/10.7554/eLife.25114.008
Video 2
Dynamics of BRI1 receptor clusters within the plasma membrane.

The presented time series was acquired from an epidermal cell of an Arabidopsis seedling cotyledon expressing BRI1-GFP under its native promoter using variable angle epi-fluorescence microscopy (VAEM). The acquisition time was 0.5 s per frame over 250 frames in total. The scale bar represents 5 µm.

https://doi.org/10.7554/eLife.25114.009

Taken together, we observed that FLS2 and BRI1 formed non-randomly distributed receptor clusters across the PM. These receptor clusters were comparable in size and density; however, showed differences with regard to dynamic features.

Receptor activation reduces the lateral receptor cluster mobility

Using our non-treated conditions, we visualised both inactive FLS2 populations and partially active BRI1 receptors given the presence of endogenous BRs. This experimental setup most likely best reflects the steady-state configuration of both receptors in a natural situation prior to pathogen attack. Still, we were also interested to test how ligand availability influences the dynamic behaviour of FLS2 and BRI1 receptor clusters.

First, we deprived seedlings from endogenous BRs by cultivating them for 2 days in liquid medium containing 5 µM brassinazole (BRZ), an inhibitor of brassinosteroid biosynthesis (Asami et al., 2000). As shown in Figure 3, depletion of endogenous BRs resulted in increased BRI1 cluster mobility (Figure 3A). In contrast, the lateral displacement of FLS2 clusters was not affected (Figure 3A). The determined cluster lifetimes for FLS2 and BRI1 showed a similar distribution as under non-treated conditions with a slight trend towards increased stability for BRI1 clusters upon BZR treatment (Figure 3B). Subsequently, we activated BRI1-mediated signalling by exogenous application of 100 nM 24-epi-brassinolide (BL). In analogy to BRZ-treatment, BL had no effect on FLS2 clusters but decreased the lateral displacement of BRI1 receptor clusters within a time frame of 30 min (Figure 3C–H).

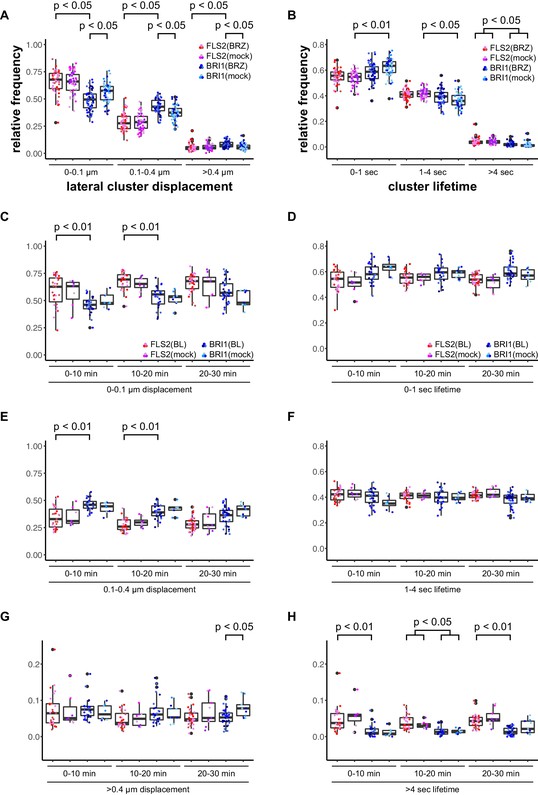

BRs reduce BRI1 cluster displacement within the plasma membrane.

(A) Quantification of FLS2-GFP and BRI1-GFP receptor cluster displacements in epidermal cells of Arabidopsis seedling cotyledons after 2 days in liquid medium containing 5 µM BRZ. (B) Quantification of FLS2-GFP and BRI1-GFP receptor cluster lifetimes in epidermal cells of Arabidopsis seedling cotyledons after 2 days in liquid medium containing 5 µM BRZ. (C) Time-dependent quantification of short-range FLS2-GFP and BRI1-GFP receptor cluster displacements in epidermal cells of Arabidopsis seedling cotyledons after BRZ-treatment and subsequent application of 100 nM BL. (D) Time-dependent quantification of short FLS2-GFP and BRI1-GFP receptor cluster lifetimes in epidermal cells of Arabidopsis seedling cotyledons after BRZ-treatment and subsequent application of 100 nM BL. (E) Time-dependent quantification of medium-range FLS2-GFP and BRI1-GFP receptor cluster displacements in epidermal cells of Arabidopsis seedling cotyledons after BRZ-treatment and subsequent application of 100 nM BL. (F) Time-dependent quantification of medium FLS2-GFP and BRI1-GFP receptor cluster lifetimes in epidermal cells of Arabidopsis seedling cotyledons after BRZ-treatment and subsequent application of 100 nM BL. (G) Time-dependent quantification of long-range FLS2-GFP and BRI1-GFP receptor cluster displacements in epidermal cells of Arabidopsis seedling cotyledons after BRZ-treatment and subsequent application of 100 nM BL. (H) Time-dependent quantification of long FLS2-GFP and BRI1-GFP receptor cluster lifetimes in epidermal cells of Arabidopsis seedling cotyledons after BRZ-treatment and subsequent application of 100 nM BL. The presented data points were obtained from VAEM time series with a temporal resolution of 0.5 s over 250 frames. The coloured data points represent the technical replicates of 3 independent experiments. The indicated p-values were obtained using a one-tailed heteroscedastic t-test and a Bonferroni multiple hypothesis correction.

https://doi.org/10.7554/eLife.25114.010

Accordingly, we observed a reduction in lateral cluster displacement for FLS2 receptors after seedlings were exposed to 100 nM flg22, whereas BRI1 was unaffected (Figure 4). Again, there was no quantitative effect on the receptor cluster lifetimes of both receptors (Figure 4).

Activation of FLS2 results in reduced lateral receptor cluster displacement.

(A) Time-dependent quantification of short-range FLS2-GFP and BRI1-GFP receptor cluster displacements in epidermal cells of Arabidopsis seedling cotyledons after application of 100 nM flg22. (B) Time-dependent quantification of short FLS2-GFP and BRI1-GFP receptor cluster lifetimes in epidermal cells of Arabidopsis seedling cotyledons after application of 100 nM flg22. (C) Time-dependent quantification of medium-range FLS2-GFP and BRI1-GFP receptor cluster displacements in epidermal cells of Arabidopsis seedling cotyledons after application of 100 nM flg22. (D) Time-dependent quantification of medium FLS2-GFP and BRI1-GFP receptor cluster lifetimes in epidermal cells of Arabidopsis seedling cotyledons after application of 100 nM flg22. (E) Time-dependent quantification of long-range FLS2-GFP and BRI1-GFP receptor cluster displacements in epidermal cells of Arabidopsis seedling cotyledons after application of 100 nM flg22. (F) Time-dependent quantification of long FLS2-GFP and BRI1-GFP receptor cluster lifetimes in epidermal cells of Arabidopsis seedling cotyledons after application of 100 nM flg22. The presented data points were obtained from VAEM time series with a temporal resolution of 0.5 s over 250 frames. The coloured data points represent the technical replicates of 3 independent experiments. The indicated p-values were obtained using a one-tailed heteroscedastic t-test and a Bonferroni multiple hypothesis correction.

https://doi.org/10.7554/eLife.25114.011

Our findings that receptor activation leads to reduced lateral mobility within the PM are contrary to Wang et al. (2015), who reported increased BRI1 diffusion after ligand application in Arabidopsis roots, but in line with observations made for the plant receptors FLS2 and LYK3 (Ali et al., 2007; Haney et al., 2011) as well as the mammalian cell surface receptor EGFR (Low-Nam et al., 2011). Thus, FLS2 and BRI1 exhibited comparable behaviour in response to their respective ligands, nonetheless, the dynamic features of both cluster populations still differed from each other.

FLS2 and BRI1 show distinct plasma membrane localisation patterns

To address whether FLS2 and BRI1 clusters coincide or are spatially separated within the PM, we performed co-localisation studies. As positive control, we first determined the overlap of two differently tagged FLS2 receptor populations. We co-expressed FLS2-GFP and FLS2-mCherry (Mbengue et al., 2016) in leaf epidermal cells of N. benthamiana and, as shown in Figure 5A–D, both fluorescently tagged FLS2 populations showed similar PM localisation patterns and also co-localised (Figure 5C and D). Based on quantitative co-localisation analysis, we determined moderate to high Pearson correlation coefficients for FLS2-GFP and FLS2-mCherry fluorescence signals (Figure 5I and Figure 5—figure supplement 1).

Figure 5 with 1 supplement see all

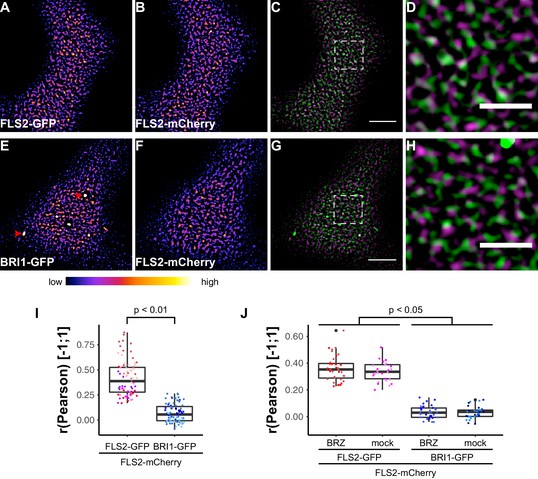

FLS2 and BRI1 show distinct plasma membrane localisation patterns.

(A–D) Confocal micrographs of FLS2-GFP (A) and FLS2-mCherry (B) plasma membrane localisation after transient co-expression in epidermal leaf cells of N. benthamiana as well as the merged image (C) and an image inset (D). (E–H) Confocal micrographs of BRI1-GFP (E) and FLS2-mCherry (F) plasma membrane localisation after transient co-expression in epidermal leaf cells of N. benthamiana as well as the merged image (G) and an image inset (H). (I) Quantitative co-localisation analysis for FLS2-GFP or BRI1-GFP, respectively, with FLS2-mCherry after transient co-expression in epidermal leaf cells of N. benthamiana. The coloured data points represent the technical replicates of 6 independent experiments. The indicated p-values were obtained using a two-tailed heteroscedastic t-test and a Bonferroni multiple hypothesis correction. (J) Quantitative co-localisation analysis for FLS2-GFP or BRI1-GFP, respectively, with FLS2-mCherry after transient co-expression in epidermal leaf cells of N. benthamiana and BRZ-treatment. The coloured data points represent the technical replicates of 2 independent experiments. The indicated p-values were obtained using a two-tailed heteroscedastic t-test and a Bonferroni multiple hypothesis correction. The presented images were acquired using confocal laser scanning microscopy (CLSM). Scale bars in (C) and (G) represent 5 µm, scale bars in (D) and (H) represent 2 µm. The areas that correspond to the images (D) and (H) are indicated by the dashed squares in images (C) and (G). Red arrowheads indicate endosomal compartments of BRI1-GFP. Endosomal compartments were omitted for quantitative analysis. The colour bar represents the colour code for fluorescence intensities.

https://doi.org/10.7554/eLife.25114.012

Subsequently, we compared the distributions of BRI1-GFP and FLS2-mCherry receptors (Figure 5E–H). Quantitative image analysis of the obtained image series indicated a strongly reduced co-localisation between BRI1-GFP and FLS2-mCherry when compared to the FLS2-GFP/FLS2-mCherry combination (Figure 5A–D). As shown in Figure 5I, we determined Pearson correlation coefficients of around zero, which represents non-correlated localisation or no co-localisation (McDonald and Dunn, 2013). Based on our previous findings, which indicated increased lateral BRI1 mobility by depletion of endogenous BRs, we also analysed the co-localisation of both receptors after BRZ-treatment. However, we observed the same co-localisation pattern as under non-treated steady-state conditions (Figure 5J), suggesting a ligand-independent spatial separation of FLS2 and BRI1 receptors. These results were confirmed using image randomisation and by using BRI1-mRFP as reference (Figure 5—figure supplement 1 and Supplementary file 1). Consequently, our quantitative co-localisation analysis revealed distinct immune and growth receptor clusters within the PM of leaf epidermal cells.

To obtain a more dynamic view on the co-localisation or spatial separation between the FLS2 and BRI1 receptor populations, we additionally applied dual-colour VAEM on leaf epidermal cells that co-expressed BRI1-GFP and FLS2-mCherry (Video 3 and 4, Figure 6). We hardly observed overlap between the two LRR-RKs as indicated by the kymograph representation in Figure 6H.

Video 3
Visualization of FLS2 receptor cluster dynamics within the plasma membrane.

The presented time series was acquired from an epidermal leaf cell after transient co-expression of FLS2-GFP and FLS2-mCherry in N. benthamiana using variable angle epi-fluorescence microscopy (VAEM). The acquisition time was 0.25 s per frame per channel over 200 frames in total. FLS2-GFP fluorescence is shown in green, FLS2-mCherry fluorescence is shown in magenta. The scale bar represents 5 µm.

https://doi.org/10.7554/eLife.25114.014
Video 4
Simultaneous visualization of FLS2 and BRI1 receptor cluster dynamics within the plasma membrane.

The presented time series was acquired from an epidermal leaf cell after transient co-expression of BRI1-GFP and FLS2-mCherry in N. benthamiana using variable angle epi-fluorescence microscopy (VAEM). The acquisition time was 0.25 s per frame per channel over 200 frames in total. BRI1-GFP fluorescence is shown in green, FLS2-mCherry fluorescence is shown in magenta. The scale bar represents 5 µm.

https://doi.org/10.7554/eLife.25114.015

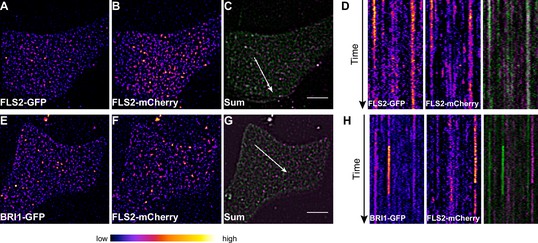

FLS2 and BRI1 clusters are spatiotemporally separated.

(A–C) Plasma membrane localisation of FLS2-GFP (A) and FLS2-mCherry (B) after transient co-expression in epidermal leaf cells of N. benthamiana as well as the merged image (C). (D) Kymograph analysis of VAEM micrograph shown in (C). The spatial dimension of the kymograph is indicated by the white arrow in (C). The acquisition time of a single channel was 0.25 s. For each channel 200 frames were collected. (E–G) Plasma membrane localisation of BRI1-GFP (E) and FLS2-mCherry (F) after transient co-expression in epidermal leaf cells of N. benthamiana as well as the merged image (G). (H) Kymograph analysis of VAEM micrograph shown in (G). The spatial dimension of the kymograph is indicated by the white arrow in (C). The acquisition time of a single channel was 0.25 s. For each channel 200 frames were collected. The presented images were acquired using variable angle epi-fluorescence microscopy (VAEM). In the merged images FLS2-GFP or BRI1-GFP signals are shown in green and FLS2-mCherry signals are shown in magenta. The scale bar represents 5 µm. The colour bar represents the colour code for fluorescence intensities. Two independent experiments with similar results were performed.

https://doi.org/10.7554/eLife.25114.016

Collectively, our co-localisation analysis revealed that the vast majority of the two LRR-RKs formed distinct receptor clusters that were spatiotemporally separated.

FLS2 and BRI1 co-localise differentially with remorin nanodomain markers

So far, we provided evidence for the formation of distinct FLS2 and BRI1 clusters that were heterogeneously distributed within the PM of leaf epidermal cells. Considering the proposed hierarchic organisation of the PM (Kusumi et al., 2011), one could assume that these receptor clusters may reside within PM nanodomains. In fact, this was recently shown for BRI1 in root epidermal cells by co-localising it with the PM nanodomain marker AtFLOT1 (Wang et al., 2015). Interestingly, proteomic studies identified two remorin (REM) proteins, REM1.2 and REM1.3, that were enriched in detergent-resistant membranes upon flg22 application (Keinath et al., 2010). REMs form a large plant-specific protein family with characteristic PM nanodomain localisation patterns (Jarsch et al., 2014). Moreover, different members of this family have previously been associated with plant-microbe interactions (Raffaele et al., 2009; Lefebvre et al., 2010; Tóth et al., 2012; Perraki et al., 2012, 2014; Bozkurt et al., 2014) and with SERK-dependent processes (Gui et al., 2016).

Based on the findings of Keinath et al. (2010), we investigated the spatial relationship between the two LRR-RKs and REM1.2 in leaf epidermal cells. As shown in Figure 7A I–A III and I, we identified a positive correlation for FLS2-GFP and mRFP-REM1.2 fluorescence intensities. In contrast, the co-localisation of this PM nanodomain marker with BRI1 was unspecific (Figure 7B I−B III and I, Figure 7—figure supplement 1). Similar results were obtained using mRFP-REM1.3 as PM nanodomain marker (Figure 7C I–D III and I, Figure 7—figure supplement 1).

Figure 7 with 1 supplement see all

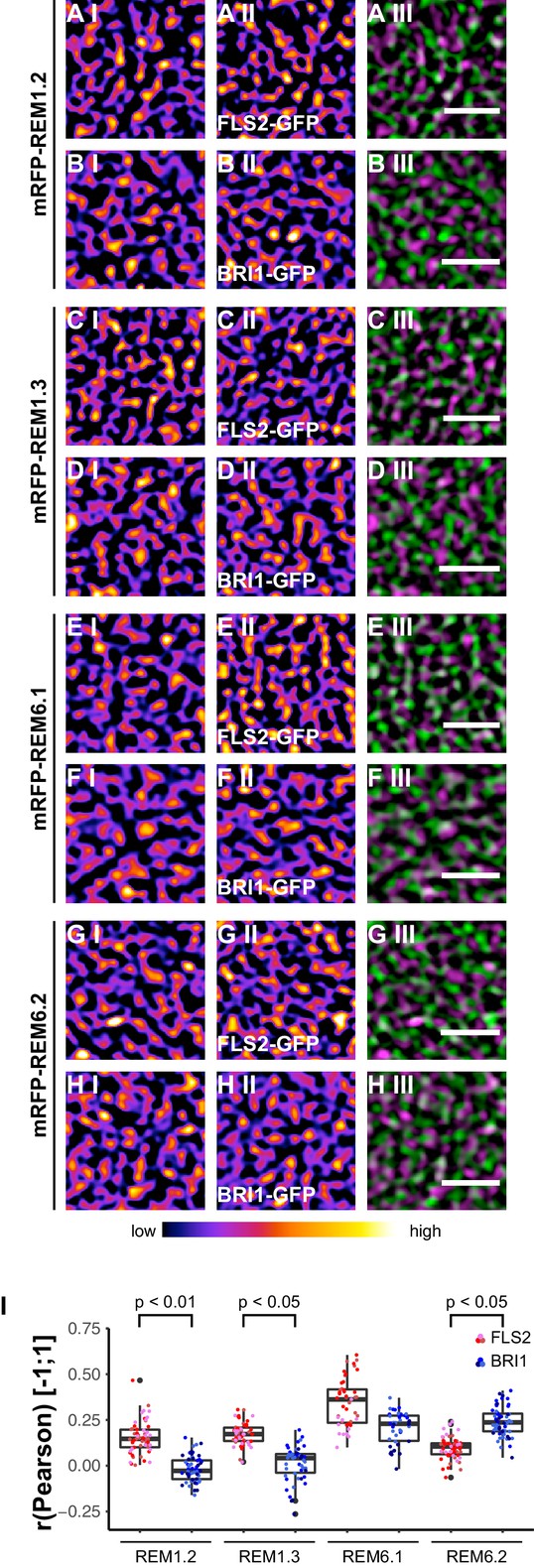

FLS2 and BRI1 co-localize differentially with remorin markers.

(A I–A III) Confocal micrographs of mRFP-REM1.2 (A I) and FLS2-GFP (A II) plasma membrane localisation after transient co-expression in epidermal leaf cells of N. benthamiana as well as the merged image (A III). (B I–B III) Confocal micrographs of mRFP-REM1.2 (B I) and BRI1-GFP (B II) plasma membrane localisation after transient co-expression in epidermal leaf cells of N. benthamiana as well as the merged image (B III). (C I–C III) Confocal micrographs of mRFP-REM1.3 (C I) and FLS2-GFP (C II) plasma membrane localisation after transient co-expression in epidermal leaf cells of N. benthamiana as well as the merged image (C III). (D I–D III) Confocal micrographs of mRFP-REM1.3 (D I) and BRI1-GFP (D II) plasma membrane localisation after transient co-expression in epidermal leaf cells of N. benthamiana as well as the merged image (D III). (E I–E III) Confocal micrographs of mRFP-REM6.1 (E I) and FLS2-GFP (E II) plasma membrane localisation after transient co-expression in epidermal leaf cells of N. benthamiana as well as the merged image (E III). (F I–F III) Confocal micrographs of mRFP-REM6.1 (F I) and BRI1-GFP (F II) plasma membrane localisation after transient co-expression in epidermal leaf cells of N. benthamiana as well as the merged image (F III). (G I–G III) Confocal micrographs of mRFP-REM6.2 (G I) and FLS2-GFP (G II) plasma membrane localisation after transient co-expression in epidermal leaf cells of N. benthamiana as well as the merged image (G III). (H I–H III) Confocal micrographs of mRFP-REM6.2 (H I) and BRI1-GFP (H II) plasma membrane localisation after transient co-expression in epidermal leaf cells of N. benthamiana as well as the merged image (H III). (I) Quantitative co-localisation analysis for FLS2-GFP and BRI1-GFP with mRFP-REM1.2, mRFP-REM1.3, mRFP-REM6.1, and mRFP-REM6.2, respectively. The coloured data points represent the technical replicates of 3 independent experiments. The indicated p-values were obtained using a two-tailed heteroscedastic t-test and a Bonferroni multiple hypothesis correction. In the merged images FLS2-GFP or BRI1-GFP signals are shown in green and REM signals are shown in magenta. Scale bars represent 2 µm. The colour bar represents the colour code for fluorescence intensities. Black dots represent outliers.

https://doi.org/10.7554/eLife.25114.017

Besides REM1.2 and REM1.3, Benshop et al. (2007) identified REM6.1 and REM6.2 as flg22-induced phosphoproteins. Therefore, we investigated also the co-localisation of FLS2 and BRI1 with these two REM proteins. The results are shown in Figure 7E I to Figure 7H III. Similar to REM1.2 and REM1.3, we revealed a positive correlation between FLS2-GFP and mRFP-REM6.1 protein populations. However, REM6.1-labelled PM nanodomains also harboured a considerable amount of BRI1 receptors (Figure 7F III and I, Figure 7—figure supplement 1). For mRFP-REM6.2, we observed unexpectedly the opposite behaviour (Figure 7G I–H III). REM6.2-positive PM nanodomains contained a significantly elevated amount of BRI1 compared to FLS2 receptors. The results of quantitative co-localisation analysis are summarised in Figure 7I.

Taken together, these findings demonstrated that the heterogeneously distributed FLS2 and BRI1 receptor clusters are indeed residing within PM nanodomains of leaf epidermal cells. The differential co-localisation of the two LRR-RKs with regard to the tested REM marker proteins further emphasised the spatial separation and distinct localisation of FLS2 and BRI1 receptors.

BRI1-BIK1, but not FLS2-BIK1, complexes associate with cortical microtubules

Our cell biological study indicated a spatial separation between immune and growth receptors in steady-state conditions. Though, genetically and biochemically there exist apparent connections between FLS2- and BRI1-mediated signalling pathways, although many of these interconnections seem to occur at the transcriptional level (Albrecht et al., 2012; Belkhadir et al., 2012, 2014; Lozano-Durán et al., 2013; Fan et al., 2014; Malinovsky et al., 2014; Lozano-Durán and Zipfel, 2015; Jiménez-Góngora et al., 2015). Nevertheless, both receptors depend on additional PM-localised or PM-associated signalling components for relaying the information of ligand binding to the extracellular LRRs domains across the PM and into the cell interior. Therefore we assume that a signalling competent unit contains at least one ligand-binding receptor, one (or several) co-receptor(s), and one (or several) RLCK(s). Intriguingly, FLS2 and BRI1 employ, at least from a genetic perspective, the same components; SERK co-receptors (Nam and Li, 2002; Li et al., 2002; Chinchilla et al., 2007; Heese et al., 2007; Roux et al., 2011; Gou et al., 2012), and the RLCKs BSK1 and BIK1 (Tang et al., 2008; Shi et al., 2013; Lu et al., 2010; Zhang et al., 2010; Lin et al., 2013).

To investigate the spatial organisation of FLS2 and BRI1 signalling units, we made use of bimolecular fluorescence complementation (BiFC). Since epitope-tagging of BAK1/SERK3 (and potentially other SERKs) compromises its function in immune signalling (Ntoukakis et al., 2011) we decided to omit these co-receptors for our study. Instead, we visualised FLS2 and BRI1 in complex with BSK1 or BIK1 using CLSM. As shown in Figure 8 and Figure 9, in addition to the ligand binding receptors, the two RLCKs also appeared heterogeneously distributed, and BSK1 and BIK1 clusters became evident.

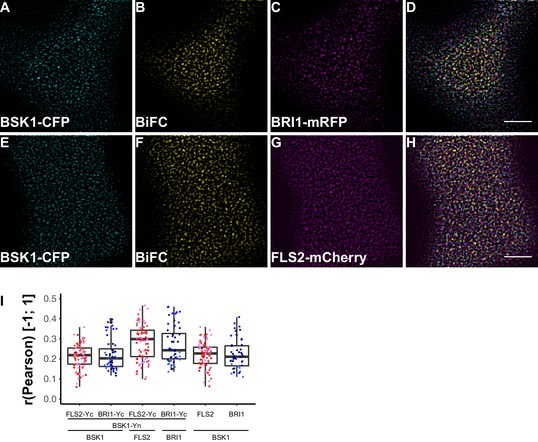

FLS2 and BRI1 signaling complexes also undergo cluster formation within the plasma membrane.

(A–D) Confocal micrographs of BSK1-CFP (A), BSK1-nYFP/BRI1-cYFP (BiFC) (B), and BRI1-mRFP (C) plasma membrane localisation after transient co-expression in epidermal leaf cells of N. benthamiana as well as the merged image (D). (E–H) Confocal micrographs of BSK1-CFP (E), BSK1-nYFP/FLS2-cYFP (BiFC) (F), and FLS2-mCherry (G) plasma membrane localisation after transient co-expression in epidermal leaf cells of N. benthamiana as well as the merged image (H). (I) Quantitative co-localisation analysis for the reconstituted YFP fluorescence intensities (BiFC) with BSK1-CFP (BSK1) as well as BRI1-mRFP (BRI1) or FLS2-mCherry (FLS2) and the quantified co-localisation between BSK1-CFP with BRI1-mRFP or FLS2-mCherry. The coloured data points represent the technical replicates of 3 independent experiments. No statistical differences were observed based on two-tailed heteroscedastic t-tests and a Bonferroni multiple hypothesis correction. BiFC stands for bimolecular fluorescence complementation and the labelled image panels show YFP fluorescence signals for the respective protein complexes. Yc and Yn indicate the C- and N-terminal fragments of the split YFP fluorophore, respectively. Scale bars represent 5 µm. Black dots represent outliers.

https://doi.org/10.7554/eLife.25114.019
Figure 9 with 1 supplement see all

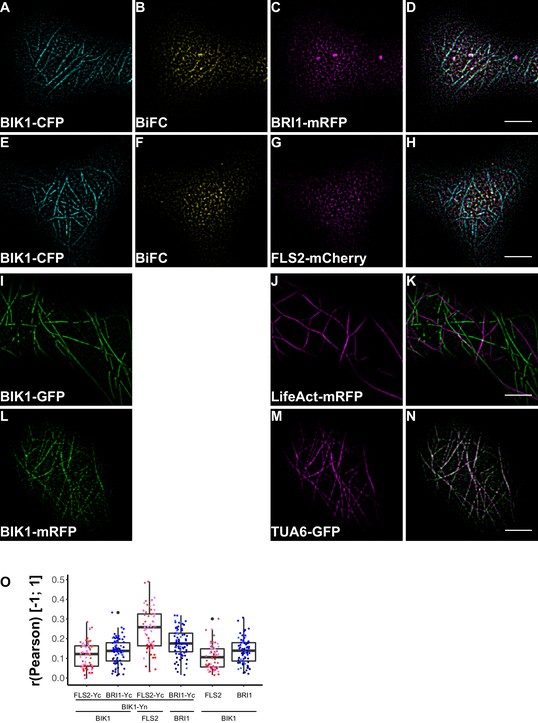

BRI1-BIK1, but not FLS2-BIK1, complexes associate with cortical microtubules.

(A–D) Confocal micrographs of BIK1-CFP (A), BIK1-nYFP/BRI1-cYFP (BiFC) (B), and BRI1-mRFP (C) plasma membrane localisation after transient co-expression in epidermal leaf cells of N. benthamiana as well as the merged image (D). (E–H) Confocal micrographs of BIK1-CFP (E), BIK1-nYFP/FLS2-cYFP (BiFC) (F), and FLS2-mCherry (G) plasma membrane localisation after transient co-expression in epidermal leaf cells of N. benthamiana as well as the merged image (H). (I–K) Confocal micrographs of BIK1-GFP (I) and LifeAct-tRFP (J) fluorescence intensities after transient co-expression in epidermal leaf cells of N. benthamiana as well as the merged image (K). (L–N) Confocal micrographs of BIK1-mRFP (L) and TUB5-GFP (M) fluorescence intensities after transient co-expression in epidermal leaf cells of N. benthamiana as well as the merged image (N). (O) Quantitative co-localisation analysis for the reconstituted YFP fluorescence intensities (BiFC) with BIK1-CFP (BIK1) as well as BRI1-mRFP (BRI1) or FLS2-mCherry (FLS2) and the quantified co-localisation between BIK1-CFP with BRI1-mRFP or FLS2-mCherry. The coloured data points represent the mean values of 3 independent experiments. No statistical differences were observed based on two-tailed heteroscedastic t-tests and a Bonferroni multiple hypothesis correction. BiFC stands for bimolecular fluorescence complementation and the labelled image panels show YFP fluorescence signals for the respective protein complexes. Yc and Yn indicate the C- and N-terminal fragments of the split YFP fluorophore, respectively. LifeAct-tRFP was employed to visualise actin filaments, whereby tRFP stands for TagRFP. Scale bars represent 5 µm. Black dots represent outliers.

https://doi.org/10.7554/eLife.25114.020

In agreement with the localisation patterns of BSK1 and BIK1 alone, also BiFC complexes formed clusters within the PM (Figure 8B and F, Figure 9B and F). Quantitative image analysis and visual image inspection indicated independent cluster populations but similar co-localisation behaviour for BSK1 in complex with FLS2 and BRI1 (Figure 8I). Thus, we did not reveal major differences for FLS2 and BRI1 signalling complexes at this stage.

This situation changed dramatically when we focused our attention on BIK1 complexes. Although quantitative image analysis did not indicate differences between FLS2- and BRI1-BIK1 complexes (Figure 9O), localisation patterns were entirely different for immune and growth signalling complexes. As shown in Figure 9, BRI1-BIK1, but not FLS2-BIK1, complexes co-localised with microtubule-associated BIK1 populations (Figure 9—figure supplement 1). The finding that signalling complexes also localised differentially further underlined our notion of spatial separation for the two LRR-RKs within the PM of plant cells, in addition to the aforementioned differences in PM localisation for FLS2 and BRI1 themselves.

In conclusion, using various different imaging approaches we were able to discriminate specific PM localisation patterns for the PRR FLS2 and the hormone receptor BRI1. We showed that both ligand-binding receptors are heterogeneously distributed due to the formation of transient receptor clusters. We observed that FLS2 and BRI1 clusters undergo different dynamics but that ligand availability reduces lateral cluster mobility in both cases. Moreover, we could visualise receptor clusters for both LRR-RKs within distinct PM nanodomains and differential PM localisation for steady-state FLS2- and BRI1 signalling complexes. Taken together, our findings emphasise a model of signalling pathway-specific pools of downstream components and suggest that spatial separation of immune and growth signalling platforms may contribute to the generation of signalling specificity.

Discussion

Plants and animals employ cell surface receptors for the perception of various extracellular signals like hormones or PAMPs. In Arabidopsis, the immune receptor FLS2 and the growth receptor BRI1 represent two of the best-studied transmembrane receptors. Genetic and biochemical studies have linked extracellular ligand binding to the generation of specific flg22- or BR-triggered physiological responses. However, little is known about the organisation of these two receptors within the PM, the compartment where both LRR-RKs perceive their ligands and initiate their signalling cascades. Here, we provide evidence that FLS2 and BRI1 are heterogeneously distributed within the PM by formation of distinct PM nanodomain-localised receptor clusters. In addition, we show that the RLCKs BSK1 and BIK1 also form PM clusters, and that FLS2- and BRI1-BIK1 complexes localise differentially.

Recently, Somssich et al. (2015) reported a comparative study that investigated PM-associated signalling principles of plant RKs. Using the flg22- and CLAVATA3 (CLV3)-triggered pathways as examples for plant immune and growth signalling, they addressed the receptor/co-receptor association prior and during signalling initiation. Similar to previous studies (Chinchilla et al., 2007; Heese et al., 2007; Schulze et al., 2010; Roux et al., 2011; Sun et al., 2013), Somssich et al. (2015) revealed that the initiation of FLS2-mediated signalling strictly relies on ligand-induced complex formation between FLS2 and SERKs. In contrast, CLV-mediated signalling was found to depend on preformed receptor/co-receptor complexes (Somssich et al., 2015), in line with findings for the BRI1-BAK1 association in Arabidopsis roots (Bücherl et al., 2013). Interestingly, the association between receptors and co-receptors, but also BAK1 and its negative regulator BIR2 (Halter et al., 2014), occurs in clusters or subdomains of the PM, further emphasising our observations presented here.

Formation of PM receptor clusters is a well-known phenomenon for mammalian receptors like T-cell receptors (TCRs) or EGFR (Dinic et al., 2015; Gao et al., 2015; Su et al., 2016). The RTK EGFR constitutively undergoes clustering and EGFR clusters play important roles in cell signalling (Clayton et al., 2007; Gao et al., 2015; Paviolo et al., 2015). Using super-resolution microscopy, Gao et al. (2015) showed that EGFR clusters localise to PM nanodomains and that cluster formation relies on the integrity of the PM lipidome since sterol depletion of the PM using methyl-β-cyclodextrin (MβCD) disrupts clustering. Similar observations have recently been made for BRI1 in Arabidopsis roots (Wang et al., 2015). Wang et al. (2015) observed that BRI1 localises to FLOT1- and clathrin heavy chain (CHC)-labelled PM nanodomains and that partitioning of BRI1 into PM nanodomains as well as the PM lipidome are crucial for BR responses. These findings are in line with our observations for FLS2 and BRI1 in epidermal leaf cells since MβCD treatment also affected FLS2 clusters (Figure 2—figure supplement 1). Thus, both LRR-RKs constitutively formed PM receptor clusters that were influenced by the PM lipid-composition and localised to PM nanodomains labelled by distinct REM protein markers. However, the differential co-localisation to specific PM nanodomains allowed us to discriminate FLS2 and BRI1 receptor clusters, thus indicating their spatial separation within the PM.

Clustering of PM receptors is thought to provide a mechanism for modulating intermolecular interactions and for fine-tuning signal transduction (Bray et al., 1998; Abulrob et al., 2010). For example, Hsieh et al., 2010 reported that EGFR clustering enhances the recruitment of downstream signalling components. Interestingly, we not only observed cluster formation for FLS2 and BRI1, but also for their downstream signalling components BSK1 and BIK1, as well as for the respective RK-RLCK complexes. We propose that similar mechanisms as described for EGFR may also account for FLS2- and BRI1-mediated signalling, and, furthermore, that clustering of PM proteins is a more general organising principle for plant PM proteins (Kleine-Vehn et al., 2011; Wang et al., 2013; Demir et al., 2013; Jarsch et al., 2014).

In fact, in animal cells, most lipids and proteins are heterogeneously distributed across the PM due to intermolecular interactions that generate inhomogeneities of varying size and stability (Jaqaman and Grinstein, 2012; Saka et al., 2014). Besides molecular interactions among PM constituents, the cortical cytoskeleton influences the formation and/or stability of PM nanodomains in animals and plants (Plowman et al., 2005; Chichili and Rodgers, 2009; Jaumouillé et al., 2014; Dinic et al., 2013; Szymanski et al., 2015; Su et al., 2016). Intriguingly, we repeatedly observed close association between FLS2 and BRI1 clusters with actin filaments. Though, it is currently unclear how or whether actin contributes to the formation and/or stability or FLS2 and BRI1 clusters. It was however shown previously that actin-myosin function is required for flg22-induced endocytosis (Beck et al., 2012).

In addition to a contribution to PM nanodomain formation, cortical cytoskeleton components also affect lateral mobility of PM proteins in animal cells (Chichili and Rodgers, 2009; Jaqaman and Grinstein, 2012). However, in plant cells, it seems that the cell wall is mainly responsible for restricting movements of PM proteins within the lipid bilayer (Martinière et al., 2012). Similar to the findings of Martinière et al. (2012), we observed very limited dynamics of FLS2 and BRI1 clusters within the PM. The study of Jarsch et al. (2014), which described various different localisation patterns for the REM protein family in plant PMs, revealed that the clusters of these PM-associated proteins also hardly undergo lateral movements. Since REMs bind to the inner leaflet of PMs (Konrad et al., 2014) and therefore cannot directly interact with the extracellular cell wall, a restrictive influence of the cortical cytoskeleton on the lateral PM mobility should not be excluded.

Our quantification of FLS2 and BRI1 cluster densities and sizes yielded similar values as described by Jarsch et al. (2014) for REM nanodomains. With around two clusters per µm2, the detected cluster densities were slightly higher than determined for the REM nanodomain markers, which range from 0.1 to 1 per µm2 (Jarsch et al., 2014). Although we revealed cluster diameters in the range of approximately 250–500 nm that are again in line with the dimensions of REM PM nanodomains (Jarsch et al., 2014), we assume that the actual size of FLS2 and BRI1 clusters is smaller. Similar to our observations, Demir et al. (2013) reported PM nanodomain sizes of ca. 250 nm for the potato REM1.3 when visualized by CLSM. However, subsequent analysis of these protein clusters using the super-resolution imaging method STED (stimulated emission depletion) led to more confined dimensions of around 100 nm (Demir et al., 2013).

Even though the spatial features of FLS2 and BRI1 clusters were comparable and similar to REM proteins, we observed major differences for the dynamics of protein clusters, both among the transmembrane receptors and with regard to REM proteins. In contrast to the high stability of REM nanodomains (Jarsch et al., 2014), the lifetimes of FLS2 and BRI1 clusters were much shorter and they exhibited a more dynamic behaviour. Furthermore, comparison between FLS2 and BRI1 populations revealed that the PRR clusters were characterized by increased stability under steady-state conditions. The low lateral mobility of the two LRR-RK cluster populations and the observation of subpopulations with higher displacement values are in line with the recent report of Wang et al. (2015). They described two subpopulations for BRI1 with low and high lateral mobility, respectively, in the PM of epidermal root cells. Under steady-state conditions, the majority of BRI1 receptors underwent only short-range movements (Wang et al., 2015), similar to our results for epidermal leaf cells. In stark contrast to Wang et al. (2015) are our observations of reduced cluster mobility for FLS2 and BRI1 receptors in the presence of their respective ligands. However, our observations are in line with a previous report about FLS2 in Arabidopsis protoplasts (Ali et al., 2007) and with findings for the mammalian PM receptor EGFR (Low-Nam et al., 2011). Thus, increased receptor confinement in response to ligand binding may be a more general phenomenon for cell surface receptors. A plausible explanation for reduced lateral mobility is the well-established formation or stabilisation of receptor (hetero-)oligomers within the PM for activation of signal transduction as previously reported for FLS2 and BRI1 (Chinchilla et al., 2007; Somssich et al., 2015; Wang et al., 2008; Bücherl et al., 2013). The low lateral mobility of PM proteins in general and the additional confinement in response to ligands also suggests a ligand-independent pre-organisation of receptors and/or signalling units (Martinière et al., 2012; Abulrob et al., 2010; Sandor et al., 2016).

Wang et al. (2015) also showed that BRI1 receptors co-localise with the PM nanodomain marker FLOT1. Since proteomic studies previously revealed that REM1.2 and REM1.3 are phosphorylated and enriched in detergent-resistance membranes in a flg22-dependent manner (Benschop et al., 2007; Keinath et al., 2010), we used several REM proteins as references for investigating the localisation of FLS2 and BRI1 to PM nanodomains. The identified differential co-localisation of the two transmembrane receptors with four different REM markers clearly demonstrated that both FLS2 and BRI1 clusters reside within PM nanodomains. Combined with our hypothesis of an interplay between receptor clusters and the cortical cytoskeleton, these findings are in agreement with the three-tiered hierarchical PM organization model proposed by Kusumi et al. (2011).

Moreover, the visualisation of the two LRR-RKs in different PM nanodomains underlined our results obtained by FLS2-BRI1 co-localisation that indicated a spatial separation for immune and growth receptors in plant PMs in steady-state conditions. The visualisation of FLS2 and BRI1 signalling complexes additionally confirmed these results. In particular, we found that BRI1-BIK1, but not FLS2-BIK1, complexes associated with cortical microtubules. Cortical microtubules are also anchor-points for the cellulose synthase complex (Paredez et al., 2006; Gutierrez et al., 2009). Intriguingly, activation of BR signalling has an immediate effect on cell wall morphology (Elgass et al., 2009). Thus, a link between microtubule-associated BRI1-BIK1 complexes and BR-induced cell wall changes may exist. Interestingly, BIK1 fulfils opposing roles for BR and immune signal transduction (Lin et al., 2013). Whereas BIK1 is a positive regulator of FLS2-mediated signalling by connecting, for example, ligand perception to ROS production (Kadota et al., 2014; Li et al., 2014), BIK1 negatively regulates BRI1-mediated cellular responses (Lin et al., 2013). Based on our observations, this differential signalling specificity may be encoded in differential protein complex localisation (and composition) at the PM.

Only 5–10% of BRI1 receptor molecules are actively involved in BR signal transduction (van Esse et al., 2012). In addition, hyper-activation of BRI1 by exogenous application of BRs results in only a partial mobility shift of BRI1, whereas its chemical or genetic inactivation only affects a subpopulation of BRI1 receptors (Wang et al., 2015). Interestingly, the observation that only a subset of FLS2 receptors are present in steady-state complexes with their downstream substrates BIK1 and BSK1, in what could be defined as pre-formed signalling platforms, correlates with the previous observation that flg22 binding to only a small subset of receptors is required for inducing a saturating response (Meindl et al., 2000; Bauer et al., 2001).

Collectively, our results suggest a spatial separation of FLS2 and BRI1 signalling platforms under steady-state conditions. These findings demonstrate the existence of pathway-specific signalling component pools as previously postulated (Albrecht et al., 2012; Halter et al., 2014). The establishment of physically separated signalling units is an economically favourable concept for plant cells, since common signalling components can be employed along different and even antagonistic signal transduction routes. We propose that the spatiotemporal separation of FLS2 and BRI1 signalling platforms in steady-state conditions is a means to generate signalling specificity between the two pathways upon ligand perception, in addition to potential differential phosphorylation of common signalling components (e.g. SERK3/BAK1, BIK1, and BSK1). Whether differential phosphorylation of common signalling components in fact is a consequence of spatially separated signalling complexes will be investigated in future studies, besides the composition and stoichiometry of distinct PM signalling pools.

Methods and materials

Plant materials

Arabidopsis seedlings were grown on Murashige and Skoog (MS) salt medium containing 1% sucrose and 0.8% agar with a 16 hr photoperiod at 22°C. N. benthamiana plants were soil-grown under a photoperiod of 16 hr and at 22°C.

We used the previously published Arabidopsis lines Col-0/pFLS2::FLS2-GFP (Göhre et al., 2008), Col-0/pBRI1::BRI1-GFP (Geldner et al., 2007), and Col-0/p35S::mCherry-TUA5 (Gutierrez et al., 2009). The double transgenic lines pBRI1::BRI1-GFP/p35S::mCherry-TUA5 and pFLS2::FLS2-GFP/p35S::mCherry-TUA5 were generated by crossing and imaged in the F1 population.

For the generation of the Col-0/p35S::Lifeact-TagRFP line, a previously described plasmid was used (Tilsner et al., 2012). Col-0 plants were stably transformed using the floral dip method (Clough and Bent, 1998). The double transgenic pBRI1::BRI1-GFP/p35S::Lifeact-TagRFP and pFLS2::FLS2-GFP/p35S::Lifeact-TagRFP lines were generated by crossing and imaged in the F1 population.

Molecular cloning

The REM constructs used in this study were described previously (Jarsch et al., 2014). For the generation of the bimolecular fluorescence complementation (BiFC) constructs, BIK1-CFP, BIK1-mRFP, BRI1-GFP, BRI1-mRFP, and BSK1-CFP BIK1, BRI1, and FLS2 were PCR amplified from Arabidopsis Col-0 cDNA and BSK1 was PCR amplified from Arabidopsis Col-0 genomic DNA. Subsequently, the gel purified PCR products were inserted via Gateway TOPO reaction into pENTR-D-TOPO plasmids and the products were verified via sequencing. Expression vectors for BiFC experiments were generated by Gateway LR reactions using the respective pENTR clones and the pAM-35S-GW-YFPc as well as pAM-35S-GW-YFPn (Lefebvre et al., 2010), CFP-tagged constructs using pGWB44 (Nakagawa et al., 2007), RFP-tagged using pB7RWG2 (Karimi et al., 2002), GFP-tagged constructs using pK7FGW2 (Karimi et al., 2002). FLS2-mCherry was generated from pCAMBIA2300 pFLS2::FLS2-3xMYC-GFP. Using the SalI restriction enzyme and subsequent ligation, GFP was substituted with mCherry.

Transient expression in N. benthamiana

Agrobacterium tumefaciens GV3101 or GV3103 strains carrying p35S::BIK1-CFP, p35S::BSK1-CFP, pFLS2::FLS2-GFP, p35S::BRI1-GFP, p35S::BIK1-YFPn, p35S::BSK1-YFPn, p35S::BRI1-YFPc, p35S::FLS2-YFPc, p35S::BRI1-mRFP, pFLS2::FLS2-mCherry, p35S::GFP-TUA6, or p35S::Lifeact-TagRFP were grown overnight in Luria-Bertani (LB) medium containing the respective antibiotics. Bacteria were harvested by centrifugation at 3.000 g for 5 min and re-suspended in H2O. After a second centrifugation step bacteria were re-suspended in infiltration buffer containing 10 mM MgCl2, 10 mM MES pH 5.6, and 100 µM acetosyringone. Bacterial suspensions were adjusted to OD600 = 0.2 or, for bimolecular fluorescence complementation constructs containing suspensions, to OD600 = 0.4. Subsequently, the respective bacterial suspensions were combined for co-infiltration with a bacterial suspension providing the p19 helper plasmid. The final Agrobacterium tumefaciens suspension mixes were syringe infiltrated into the adaxial side of N. benthamiana leaves. The used N. benthamiana plants were 4–5 weeks old.

Confocal laser scanning microscopy (CLSM)

Cotyledons of Arabidopsis seedlings or leaf discs of N. benthamiana were imaged on a Leica TCS SP5 (Leica, Germany) confocal microscope using a 63 × 1.2 NA water immersion objective. CFP, GFP, and YFP were excited using the Argon ion laser lines 458 nm, 488 nm, and 514 nm, respectively. TagRFP, mRFP and mCherry were excited using a DPSS laser (561 nm) when imaged in combination with GFP or using a HeNe laser (594 nm) when imaged in combination with YFP. Fluorescence emission was collected within following band width generated by an AOTF: 465–505 nm for CFP, 500–540 nm for GFP, 520–560 nm for YFP, and 590–630 nm (DPSS excitation) or 600–640 nm (HeNe excitation) for TagRFP/mRFP/mCherry.

Variable angle epifluorescence microscopy (VAEM)

Cotyledons of Arabidopsis seedlings or leaf discs of N. benthamiana were imaged on a Zeiss Elyra PS1 (Zeiss, Germany) microscope using a 100 × 1.4 NA oil immersion objective. GFP was excited using a 488 nm solid-state laser diode and mCherry was excited using a 561 nm solid-state laser diode. Fluorescence emission was collected with an EM-CCD camera with bandwidth filters ranging from 495–550 nm for GFP and 575–635 nm for mCherry. For samples expressing GFP only fluorescence was collected with an acquisition time of 500 ms. For GFP/mCherry expressing samples the acquisition times were 250 ms for each channel using the ‘fast-channel’ mode. Throughout image acquisition the microscope was operated in the ‘TIRF’ mode.

Plant treatments

For brassinazole (BRZ; TCI, UK) treatment, 20 mM DMSO stock solution was diluted to a final concentration of 5 µM BRZ using liquid MS medium. Arabidopsis seedlings were transferred 3 days post germination in a 12-well plate containing the 5 µM BRZ solution or mock, respectively, and cultivated for another 2 days prior to imaging. For treatment of Nicotiana benthamiana leaves, BRZ was added to the infiltration suspension in a final concentration of 10 µM and co-infiltrated.

For 24-epi-brassinolide (BL; Sigma-Aldrich, UK) treatment, 1 mM EtOH stock solution was diluted to a final concentration of 100 nM BL using liquid MS medium. For microscopy cotyledons were directly mounted in 100 nM BL and incubated for the indicated time period.

For flg22 treatment, an aqueous 100 µM stock solution of flg22 (EZ Biolabs, USA) was diluted to a final concentration of 100 nM flg22 using liquid MS medium. For microscopy, cotyledons were directly mounted in 100 nM flg22 and incubated for the indicated time period.

For methyl-β-cyclodextrin (MβCD; Sigma-Aldrich, UK) treatment, a 30 mM MβCD solution was prepared in liquid MS. Plants were incubate for the indicated time period in a 12-well plate at room temperature prior to mounting in the same solution on object slides for microscopy.

Image processing

Confocal and VAEM micrographs were analysed and modified using FIJI (ImageJ 2.0.0–39/rc-1.50b). To emphasise cluster formation, the presented images and time series were modified using the ‘LoG3D’ plugin (Sage et al., 2005). Time series were additionally neutralised with a saturation of zero prior to contrasting. For the generation of kymographs, we used the plugin ‘Multi Kymograph’ with a line width of one.

Particle detection and analysis

For single particle analysis we used the plugin TrackMate (2.7.4). After selecting a region of interest (ROI) encompassing the cell outline the LoG detector was selected. Based on preliminary particle analysis using FIJI the estimated blob diameter was set to 0.3 µm and the threshold was set to zero. To exclude false-positive particles and endomembrane compartments we applied a quality (Auto setting) and mean intensity filter. Subsequently, the simple LAP tracker was selected with a maximal linking distance of 0.5 µm and without gap-closing. Using the analysis option within the TrackMate dialog window we obtained statistics for particle size, track duration, and particle displacement.

Co-localisation analysis

Co-localisation analysis was carried out as described previously (Jarsch et al., 2014) using ImageJ/FIJI. Endomembrane compartments were excluded from the co-localisation analysis by ROI selection.

Briefly, acquired confocal images were ‘Mean’ filtered with a radius of 2 pixels. Background was subtracted using the ‘Rolling ball’ method with a radius of 20 pixels. ROIs were manual selected and for quantifying the co-localisation the plugin ‘Intensity Correlation Analysis’ (Li et al., 2004) was applied.

Statistical analysis

Statistical analysis using Student’s t-tests was carried out in Numbers (Apple, USA). Box plots were generated in R.

Accession numbers

BIK1 (AT2G39660), BRI1 (AT4G39400), BSK1 (AT4G35230), FLS2 (AT5G46330), REM1.2 (AT3G61260), REM1.3 (AT2G45820), REM6.1 (AT2G02170), REM6.2 (AT1G30320), TUA5 (AT5G19780), TUB5 (AT1G20010).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92
  93. 93
  94. 94
  95. 95
  96. 96
  97. 97
  98. 98
  99. 99
  100. 100
  101. 101
  102. 102
  103. 103
  104. 104
  105. 105
  106. 106
  107. 107
  108. 108
  109. 109
  110. 110
  111. 111
  112. 112
  113. 113
  114. 114
  115. 115
  116. 116
  117. 117

Decision letter

  1. Thorsten Nürnberger
    Reviewing Editor; University of Tübingen, Germany

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

[Editors’ note: a previous version of this study was rejected after peer review, but the authors submitted for reconsideration. The first decision letter after peer review is shown below.]

Thank you for submitting your work entitled "Plant immune and growth receptors share common signaling components but localise to distinct plasma membrane nanodomains" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom, Thorsten Nürnberger (Reviewer #1), is a member of our Board of Reviewing Editor, and the evaluation has been overseen by Detlef Weigel as the Senior Editor.

Our decision has been reached after a long consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife.

All referees agree that your research addresses a key problem in receptor biology, which is how common co-receptors serve different receptors that are implicated in different or even opposing physiological programs. They also agree that the type of cell biology approach chosen here is timely and potentially suited to address the experimental problem to be solved. However, the referees also raised a number of technical and conceptual concerns about your work that due to their substantial nature prohibit a more positive decision for the moment. In particular, criticism has been raised mainly because of the extensive use of the transient expression system, and that co-localization (or the absence of it) of BRI1-GFP/FLS2-RFP, BRI1-GFP/BAK1-RFP and FLS2-GFP/BAK1-RFP have not been firmly established in stable transgenics. Moreover, since endogenous brassinolide levels might influence cluster formation, it would have been desirable to see the experiment to be conducted either in BL-deficient lines or by use of brassinazole. This would have allowed to compare truly non-stimulated BRI1 and FLS2 pathways. Although the referees acknowledge that your work did not attempt to study the fate of individual receptor complexes post stimulation, there was consensus that such data would have substantially increased the impact of your study for the field and beyond. In the light of these concerns, I regret to say that we cannot be more supportive at this point. Should you feel able, however, to address the aforementioned issues in an appropriate way eLife would invite you to re-submit your revised work.

Reviewer #1:

In my view, this is an important piece of work reporting a phenomenon suited to explain how common co-receptors serve surface receptors that are implicated in physiologically diverse programs, such as immunity and development. As this appears to be the first study ever to address such topic in higher organisms I clearly see the novelty and why it would make a valuable contribution to eLife. As I cannot really comment the quality and validity of the cell biological work I support publication of this work because of its eminent importance for the field and beyond.

Reviewer #2:

FLS2 and BRI1 trigger different gene transcriptional profiles and physiological responses. However, they share common co-receptor SERKs. In addition, different members of RLCKs function differentially downstream of the RLK complexes. How the signaling specificity is governed at the RLK level is not clear. This work examined how FLS2 and BRI1 distribute on the PM mainly by imaging the GFP or mCherry-tagged proteins without ligand treatments. They concluded that FLS2 and BRI1 are in PM nanoclusters, majority of which are in a spatially not over-lapping manner at the steady state. FLS2, but not BRI1, co-localizes with specific remorin protein-markers for certain nanodomains. FLS2 and BRI1 are associated with the cytoskeleton with FLS2 linked to actin-myosin and BRI1 linked to cortical microtubules.

This work is interesting and provides some insights into the FLS2 and BRI1 signaling. It is known that upon the ligand perception, FLS2 and BRI1 complex with SERK3 and activate the signaling. However, the majority of work here was done with FLS2 without flg22 treatment and examines the steady state of FLS2. BRI1 localization was done in a similar fashion-without BR treatment. Unlike FLS2 signaling, the endogenous BR signaling is constantly on in the cells (although likely at a low level). It remains unknown how the steady-state FLS2 patterns are related to the ligand-activated clusters and how this change may affect the signaling specificity, the key question that this manuscript is attempting to address. Recent work reported a highly dynamic behavior of FLS2 and BRI1 in particular in response to the cognate ligand perception (Somssich et al., Real-time dynamics of peptide ligand-dependent receptor complex formation in planta. Science Signaling 2015; Wang et al., Spatiotemporal dynamics of the BRI1 receptor and its regulation by membrane microdomains in living Arabidopsis cells. Molecular Plant 2015). The conclusion that FLS2 and BRI1 are largely in spatially separated nanoclusters at the steady state was based on the comparison between FLS2 and BRI1 localization in the absence of ligands in WT plants. The BR signaling is on in the absence of exogenous BR treatment. What they have observed in this experimental setting may contain both steady-state and activated form of BRI1. Additional experiments with BR biosynthetic mutants will be helpful to confirm the conclusion. Comparison the RLK patterns with and without ligands will provide insights into how these patterns contribute the signaling specificity.

Considering that the nanodomains are usually 10-100 nm in size, the resolutions of current confocal microscopic techniques to differentiate the two objectives are rather limited (CLSM 500~700 nm). Cautious should be taken into account for the spatial separations of clusters. As only 5~10% BRI1 are actively involved in BR signaling (van Esse et al., 2012), the BRI1 patterns are based on the observations from the "majority" of BRI1. At the moment, the knowledge is lacking on where those 5~10% activated portions are. The highly dynamic nature of BRI1 and FLS2 clusters upon the ligand perception will add another layer of complications.

Reviewer #3:

Bücherl et al. report that the immune receptor FLS2 and the brassinosteroid receptor BRI1 are found in distinct nanodomains of the plasma membrane (PM) that display differences in mobility and association to the cytoskeleton and contain different remorins. The topic is exciting and timely as understanding the spatiotemporal dynamics of receptor interactions will be key to understanding how specificity is generated at the PM. Unfortunately this manuscript does not advance our understanding of this topic sufficiently to warrant publication in eLife and the quality of the data presented raises several points:

1) Based on the similarity in cluster size observed in stable transgenic Arabidopsis line and after transient expression in N. benthamiana all following experiments are performed in N. benthamiana epidermal cells. In remains unclear if the two signalling pathways are operational and if endogenous receptors could interfere with the analysis.

2) The Pearson correlation coefficients for FLS2-GFP and FLS2-mCherry are moderate at best. Jarsch et al. report values of around 0,7 for individual remorins tagged with GFP and mRFP and values below 0,5 as observed for FLS2-GFP and FLS2-mCherry would be sitting on the fence of random distribution and positive correlation according to Jarsch et al. This could either be a technical issue regarding alignment of the CLSM that can easily be controlled by using multicolour fluorescent beads. Alternatively the low correlation coefficient could indicate that one of the two fusion proteins is non-functional and thus behaves differently. Has functionality of the FLS2-fusions been fully evaluated by mutant complementation? Given that the authors excluded the co-receptor BAK1 form their analysis as it has been shown that functionality of BAK1-GFP is compromised, the authors are obviously aware of the importance of this matter but I could not find convincing evidence for full functionality of FL2-XFP in the published literature.

3) To go beyond the level of high-resolution descriptive the authors would need to include data supporting that the observed nanoclusters are functionally relevant. What happens to signalling in remorin mutants? Are nanoclusters dependent on the cytoskeleton? How is the co-receptor BAK1 distributed and does absence of BAK1 affect nanocluster formation?

[Editors’ note: what now follows is the decision letter after the authors submitted for further consideration.]

Thank you for resubmitting your work entitled "Plant immune and growth receptors share common signaling components but localise to distinct plasma membrane nanodomains" for further consideration at eLife. Your revised article has been favorably evaluated by Detlef Weigel (Senior editor) and three reviewers, one of whom, Thorsten Nürnberger, is a member of our Board of Reviewing Editors.

The manuscript has been improved but there are two remaining issues that need to be addressed before acceptance, as outlined below:

1) The Pearsson correlation coefficient for FLS2-GFP vs FLS2-mCherry is surprisingly low. You argue that this is due to the low number of receptors per cluster and the dynamic behaviour of the clusters. This is one possible explanation, yet in the absence of a positive control technical reasons cannot be excluded.

2) Regarding functionality of FLS2-GFP the authors refer to Mbengue et al., 2016 yet one does not find evidence in there that demonstrates a wt-level flg22 response in the complementation line used.

https://doi.org/10.7554/eLife.25114.027

Author response

[Editors’ note: the author responses to the first round of peer review follow.]

All referees agree that your research addresses a key problem in receptor biology, which is how common co-receptors serve different receptors that are implicated in different or even opposing physiological programs. They also agree that the type of cell biology approach chosen here is timely and potentially suited to address the experimental problem to be solved. However, the referees also raised a number of technical and conceptual concerns about your work that due to their substantial nature prohibit a more positive decision for the moment. In particular, criticism has been raised mainly because of the extensive use of the transient expression system, and that co-localization (or the absence of it) of BRI1-GFP/FLS2-RFP, BRI1-GFP/BAK1-RFP and FLS2-GFP/BAK1-RFP have not been firmly established in stable transgenics.

We agree with the Reviewers that working with stable transgenic lines is always desirable. However, the generation of multiple tagged-lines that would be required for the multiple co- localization experiments as performed in our study would have been extremely tedious. Importantly, several recent excellent publications in the plant field have used heterologous transient expression of tagged Arabidopsis PM proteins to study their dynamic localization pattern using confocal microscopy (e.g. Martinière et al., 2012; Jarsch et al., 2014; Chaparro-Garcia et al., 2015; Bozkurt et al., 2015; Somssich et al., 2015; Mbengue et al., 2016). In addition, most, if not all, similar studies in animals (all of them being published in respected high-ranking journals) are also performed upon transient heterologous expression, for similar reasons.

It is also important to flag that we have provided a comparison of PM localization patterns of FLS2-GFP and BRI1-GFP expressed stably in Arabidopsis under the expression of their native promoter or transiently in Nicotiana benthamiana (Figure 1A-D), which revealed that the localization of the respective receptors was similar in both systems. This justified our use of transient expression in N. benthamiana for further experiments presented in this manuscript. Also, the main aim of our study is to perform a side-by-side comparison of the localization patterns and properties of FLS2 and BRI1 under steady-state conditions; our results provide ample evidence that these are distinct (based also on co-localization with distinct REM markers and downstream RLCKs).

We nevertheless provide here some preliminary evidence for the co-localisation of BAK1- mCherry with FLS2-GFP and BRI1-GFP, respectively, within PM nanodomains of stable transgenic Arabidopsis lines (see Author response image 1). Moreover, data included in a manuscript submitted elsewhere show BRI1/BAK1 association within such nanodomains (Hutten et al., under revision with PLoS One; co-last authors: Johannes Hohlbein & Jan Willem Borst; co-author: CA Bücherl). Unfortunately, we have been so far not able to address this question for the FLS2/BAK1 combination, due to technical feasibility regarding FLIM in living leaf tissue and our inability to detect red fluorescent when expressing FLS2-RFP in stable transgenic plants.

Author response image 1

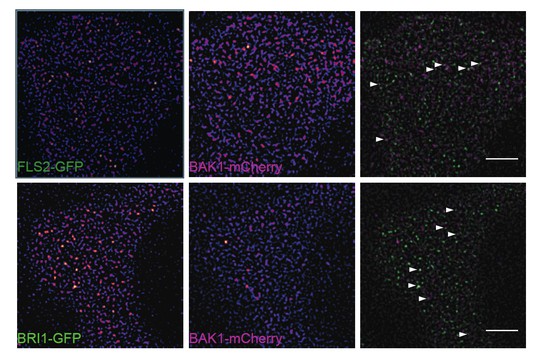

Subpopulations of FLS2 and BRI1 co-localise with BAK1 in plasma membrane nanodomains.

The images show the plasma membrane localisation of FLS2-GFP or BRI1-GFP with BAK1- mCherry. The white arrowheads indicate plasma membrane nanodomains that contain fluorescently labelled receptor and co-receptor molecules simultaneously. The images were acquired 5 days post germination using VAEM and the scale bars represent a distance of 5 µm. The lines were generated by crossing pFLS2::FLS2-GFP (Göhre et al., 2008) or pBRI1::BRI1- GFP (Friedrichsen et al., 2000), respectively, with pBAK1::BAK1-mCherry (Bücherl et al., 2013).

https://doi.org/10.7554/eLife.25114.023

Moreover, since endogenous brassinolide levels might influence cluster formation, it would have been desirable to see the experiment to be conducted either in BL-deficient lines or by use of brassinazole. This would have allowed to compare truly non-stimulated BRI1 and FLS2 pathways.

We agree with the Reviewers that for full comparison the localisation of both receptors should also be assessed under similar activation states. Therefore, we now included experiments after BRZ treatment in the revised manuscript. The respective results are shown in current Figure 3 and Figure 5J (see also 1. Comment, section: reviewer #2).

Although the referees acknowledge that your work did not attempt to study the fate of individual receptor complexes post stimulation, there was consensus that such data would have substantially increased the impact of your study for the field and beyond.

We have now addressed the immediate impact of flg22 and 24-epi-brassinolide applications on FLS2 and BRI1 clusters, and included our new results in Figures 3 and 4 in the revised manuscript. We believe these results improve our manuscript and we are thankful for the valuable comment.

Reviewer #1:

In my view, this is an important piece of work reporting a phenomenon suited to explain how common co-receptors serve surface receptors that are implicated in physiologically diverse programs, such as immunity and development. As this appears to be the first study ever to address such topic in higher organisms I clearly see the novelty and why it would make a valuable contribution to eLife. As I cannot really comment the quality and validity of the cell biological work I support publication of this work because of its eminent importance for the field and beyond.

We thank this reviewer for these very positive comments.

Reviewer #2:

FLS2 and BRI1 trigger different gene transcriptional profiles and physiological responses. However, they share common co-receptor SERKs. In addition, different members of RLCKs function differentially downstream of the RLK complexes. How the signaling specificity is governed at the RLK level is not clear. This work examined how FLS2 and BRI1 distribute on the PM mainly by imaging the GFP or mCherry-tagged proteins without ligand treatments. They concluded that FLS2 and BRI1 are in PM nanoclusters, majority of which are in a spatially not over-lapping manner at the steady state. FLS2, but not BRI1, co-localizes with specific remorin protein-markers for certain nanodomains. FLS2 and BRI1 are associated with the cytoskeleton with FLS2 linked to actin-myosin and BRI1 linked to cortical microtubules.

This work is interesting and provides some insights into the FLS2 and BRI1 signaling.

We thank this reviewer for these positive comments.

It is known that upon the ligand perception, FLS2 and BRI1 complex with SERK3 and activate the signaling. However, the majority of work here was done with FLS2 without flg22 treatment and examines the steady state of FLS2. BRI1 localization was done in a similar fashion-without BR treatment. Unlike FLS2 signaling, the endogenous BR signaling is constantly on in the cells (although likely at a low level). It remains unknown how the steady-state FLS2 patterns are related to the ligand-activated clusters and how this change may affect the signaling specificity, the key question that this manuscript is attempting to address. Recent work reported a highly dynamic behavior of FLS2 and BRI1 in particular in response to the cognate ligand perception (Somssich et al., Real-time dynamics of peptide ligand-dependent receptor complex formation in planta. Science Signaling 2015; Wang et al., Spatiotemporal dynamics of the BRI1 receptor and its regulation by membrane microdomains in living Arabidopsis cells. Molecular Plant 2015). The conclusion that FLS2 and BRI1 are largely in spatially separated nanoclusters at the steady state was based on the comparison between FLS2 and BRI1 localization in the absence of ligands in WT plants. The BR signaling is on in the absence of exogenous BR treatment. What they have observed in this experimental setting may contain both steady-state and activated form of BRI1. Additional experiments with BR biosynthetic mutants will be helpful to confirm the conclusion. Comparison the RLK patterns with and without ligands will provide insights into how these patterns contribute the signaling specificity.

We thank this reviewer for this valuable comment, and agree that some aspects of our manuscript require the absence or presence of ligands to allow full comparison between the FLS2 and BRI1 receptor populations. In order to compare both receptors in an inactive configuration, we now included BRZ treatments for the characterization of FLS2 and BRI1 clusters (new Figure 3), and also for the co-localisation studies between the two receptors (new Figure 5J). Similarly, we studied FLS2 and BRI1 cluster behaviour after exogenous application of 24-epi-brassinolide or flg22, respectively (new Figure 3 & 4).

Considering that the nanodomains are usually 10-100 nm in size, the resolutions of current confocal microscopic techniques to differentiate the two objectives are rather limited (CLSM 500~700 nm). Cautious should be taken into account for the spatial separations of clusters.

We agree that the presented values for FLS2 and BRI1 cluster sizes are most likely overestimations as stated in our discussion. It can be expected that many of the observed receptor clusters are actually below the diffraction limit of roughly 250-300 nm for CLSM and VAEM. To determine the true size of FLS2 and BRI1 clusters, the application of super-resolution methods would be required. Currently, we are not able to apply these methods on our samples. We tried to investigate our samples using SIM (structured illumination microscopy), but unfortunately, it was technically not feasible.

With regard to the spatial separation of clusters, our inability to differentiate between objects closer than 250-300 nm means that we would actually underestimate the separation of small and nearby clusters. Therefore, this should not interfere with our current conclusions. Though, we hope to be able to revisit these questions with improved technical capabilities in the future.

As only 5~10% BRI1 are actively involved in BR signaling (van Esse et al., 2012), the BRI1 patterns are based on the observations from the "majority" of BRI1. At the moment, the knowledge is lacking on where those 5~10% activated portions are. The highly dynamic nature of BRI1 and FLS2 clusters upon the ligand perception will add another layer of complications.

Unfortunately, we are currently not able to address this important question, which receptors or receptor complexes among the total population are signalling active – neither for BRI1 nor for FLS2. Ligand perception most likely influences the dynamic behaviour of individual receptors or receptor clusters (see Figure 3 and Figure 4 of the revised manuscript). However, at the moment the outcomes are still controversial (as discussed in our discussion) and need to be specifically addressed in more details in future studies.

Regarding ligand perception by FLS2, the report of Somssich et al., 2015 showed that flg22 triggers first the association of FLS2 with BAK1 followed by the aggregation of FLS2/BAK1 complexes. Here, it is important to mention that the FRET approaches applied by Somssich et al., 2015 have a very high spatial resolution in the range of around 10 nm. In contrast, our confocal or VAEM techniques are diffraction-limited approaches, and thus provide only a spatial resolution of around 250-300 nm. Consequently, the temporal dynamics described by Somssich et al., 2015 do not necessarily require high spatial dynamics or long-distance molecular movements within the plasma membrane – they can occur within a single nanodomain harbouring both FLS2 and BAK1 molecules. Such a scenario is in line with our new results of increased receptor confinement after ligand application (new Figures 3 and 4 of the revised manuscript). Additionally, these findings are in agreement with a previous study of FLS2 by Ali et al., 2007 and with findings for EGFR (Low-Nam et al., 2012), which both show that receptor mobility decreases upon ligand perception.

Regarding ligand perception by BRI1, Wang et al., 2015 indeed reported increased spatial receptor dynamics one hour after BL application in Arabidopsis roots. These results are in stark contrast to our observations and to findings for FLS2 and EGFR stated above. The reference has been included and discussed in our manuscript. Possible explanations for the apparent discrepancy between the results may be of technical and experimental nature. We limited our observation of receptor clusters to 30 min only (to avoid capturing FLS2 endocytosis, which most likely represents a post-ligand degradation step of the activated receptor), applied different imaging and data analysis settings, and studied the receptors in epidermal leaf cells.

Taken together, the well-established associations between FLS2, BRI1 and their co-receptors after ligand perception, as well as the findings reported by Somssich et al., 2015 and Ali et al., 2007, are in line with our observations of (at least initially) increased receptor confinement upon ligand binding.

Reviewer #3:

Bücherl et al. report that the immune receptor FLS2 and the brassinosteroid receptor BRI1 are found in distinct nanodomains of the plasma membrane (PM) that display differences in mobility and association to the cytoskeleton and contain different remorins. The topic is exciting and timely as understanding the spatiotemporal dynamics of receptor interactions will be key to understanding how specificity is generated at the PM.

We thank this reviewer for these positive comments, and for acknowledging the timeliness and importance of our study and its results.

1) Based on the similarity in cluster size observed in stable transgenic Arabidopsis line and after transient expression in N. benthamiana all following experiments are performed in N. benthamiana epidermal cells. In remains unclear if the two signalling pathways are operational and if endogenous receptors could interfere with the analysis.

As this comment concerns the use of the transient expression system, we refer this reviewer to our response to the second comment from the general editorial comments above. In particular, considering whether the two signalling pathways are operational, we refer to the recent publications of Charparro-Garcia, 2015, Bozkurt et al., 2015; Somssich et al., 2015; and Mbengue et al., 2016.

Regarding the presence of endogenous receptors on the analysis, we do not think that a withdrawal of endogenous populations would change the conclusions of our observations. Preliminary data indicate no major differences for FLS2-GFP expressed under the FLS2 promoter in either wild-type Col-0 or fls2 mutant background (see Author response image 2). Though, the presence of endogenous receptors may lead to reduced fluorescence in certain clusters, which would not affect the present conclusions.

Author response image 2
FLS2-GFP forms receptor clusters in fls2 mutant background.

The images show the plasma membrane localisation of pFLS2::FLS2-GFP stably transformed in the fls2 mutant or Columbia wild type background, respectively. The images were acquired 5 days post germination using CLSM and the scale bars represents a distance of 5 µm.

https://doi.org/10.7554/eLife.25114.024

2) The Pearson correlation coefficients for FLS2-GFP and FLS2-mCherry are moderate at best. Jarsch et al. report values of around 0,7 for individual remorins tagged with GFP and mRFP and values below 0,5 as observed for FLS2-GFP and FLS2-mCherry would be sitting on the fence of random distribution and positive correlation according to Jarsch et al. This could either be a technical issue regarding alignment of the CLSM that can easily be controlled by using multicolour fluorescent beads.

We agree with this reviewer that our absolute correlation values are moderate. The discrepancy to the reported values of Jarsch et al., 2014 stems on the one hand from the use of slightly different correlation factors. Jarsch et al., 2014 reported so-called ‘Overlap coefficients’ whereas we use ‘Pearson correlation coefficients’. Overlap coefficients range from 0 to 1 and random or no co-localisation is therefore still represented by positive values – in contrast to Pearson correlation that ranges from -1 to +1. To avoid confusion, we removed the misleading reference from this section in the revised manuscript.

On the other hand, we investigated different protein populations with different dynamic features. Remorin proteins seem to localise very stably to certain plasma membrane domains – in the range of minutes and above. The investigated FLS2 and BRI1 clusters in our manuscript, however, are in comparison very short-lived. The high temporal dynamics of these receptor clusters reduces the probability to find the two differently tagged receptor populations at the same time at the same spot. Additionally, the number of individual receptors per cluster seems to be rather low; thus, further decreasing the probability of spatio-temporal co-occupancy of specific PM nanodomains.

Although our Pearson correlation values are low to moderate in absolute numbers, they are still a valuable measure for our comparative approach. For this purpose, we also switched the reference from FLS2-mCherry to BRI1-mRFP for control experiments showing the same outcome.

Alternatively the low correlation coefficient could indicate that one of the two fusion proteins is non-functional and thus behaves differently. Has functionality of the FLS2-fusions been fully evaluated by mutant complementation? Given that the authors excluded the co-receptor BAK1 form their analysis as it has been shown that functionality of BAK1-GFP is compromised, the authors are obviously aware of the importance of this matter but I could not find convincing evidence for full functionality of FL2-XFP in the published literature.

With regard to the functionality or usability of the two FLS2 variants, we would like to refer to the recent publication of Mbengue et al., PNAS 2016.

3) To go beyond the level of high-resolution descriptive the authors would need to include data supporting that the observed nanoclusters are functionally relevant. What happens to signalling in remorin mutants? Are nanoclusters dependent on the cytoskeleton? How is the co-receptor BAK1 distributed and does absence of BAK1 affect nanocluster formation?

We absolutely agree with this reviewer that the next step is to characterise the functional importance of PM nanodomains. However, this is a whole project by itself, and goes beyond the scope of the current manuscript, whose main aim was to assess the comparative localization patterns of BRI1 (a steroid hormone receptor) and FLS2 (an immune receptor), which Reviewer 1 has already highlighted as being very important and timely.

The physiological characterisation of rem mutants is ongoing. It is however worthwhile to note that no significant phenotype has ever been reported so far for any single rem mutant in Arabidopsis, and thus that the generation of multiple mutants may be required. Similarly, studies on the interplay between cytoskeleton and receptor clusters are in progress. Preliminary data indicate that cluster formation is not abolished upon actin depolymerisation, for example; however, the influence on cluster dynamics is still unclear (see Author response image 3).

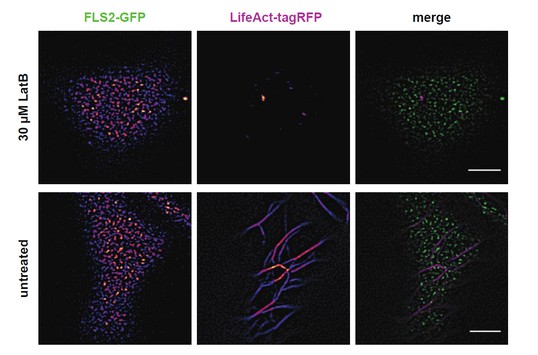

Author response image 3
Actin depolymerisation does not abolish FLS2 cluster formation.
https://doi.org/10.7554/eLife.25114.025

The images show the plasma membrane localisation of pFLS2::FLS2-GFP and p35S::LifeAct- tagRFP after depolymerisation of the actin cytoskeleton by 3.5 h incubation in 30 µM LatriculinB. The images were acquired 14 days post germination using CLSM and the scale bars represents a distance of 5 µm.

</Author response image 3 title/legend>

As mentioned earlier (see response to general editorial comments), our included preliminary data (Author response image 1) indicate the co-localisation of BAK1 with BRI1 and FLS2 in certain PM nanodomains. As part of another submitted manuscript (Hutten et al., under revision with PLoS One; co-last authors: Johannes Hohlbein & Jan Willem Borst; co-auther: CA Bücherl), we show that absence of SERK1 and BAK1 does not abolish cluster formation for BRI1. Further, we show here preliminary data indicating a similar situation for FLS2 (see Author response image 4).

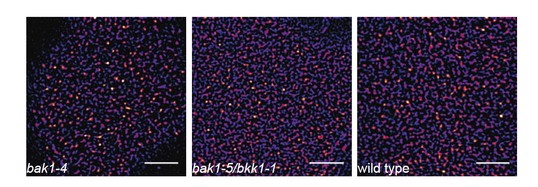

Author response image 4
FLS2 still undergoes cluster formation in serk mutant backgrounds.
https://doi.org/10.7554/eLife.25114.026

The images show the plasma membrane localisation of pFLS2::FLS2-GFP in bak1-4, bak1- 5/bkk1-1, and Columbia wild type background, respectively. The images were acquired 5 days post germination using CLSM and the scale bars represents a distance of 5 µm.

</Author response image 4 title/legend>

We hope this reviewer and the Editor will agree that, although these are very important questions, they remain beyond the scope of the current manuscript.

[Editors' note: the author responses to the re-review follow.]

The manuscript has been improved but there are two remaining issues that need to be addressed before acceptance, as outlined below:

1) The Pearsson correlation coefficient for FLS2-GFP vs FLS2-mCherry is surprisingly low. You argue that this is due to the low number of receptors per cluster and the dynamic behaviour of the clusters. This is one possible explanation, yet in the absence of a positive control technical reasons cannot be excluded.

Although the Pearson R correlation coefficients may appear low, our conclusions of co-localisation vs. non-co-localisation are always based on statistically significant differences as illustrated in our graphs and explained in the figure legends.

Also, on a more technical side, in noisy data, Pearson R correlation coefficients of (+/-) 0.3-0.5 are generally considered to be moderate, rather than small [typically guidelines for this are taken from the work of Jacob Cohen, see chapter 3, Cohen, J. (1988) Statistical power analysis for the behavioral sciences 2nd ed.]. Pearson’s R is different from the typical Spearman’s R in this respect. The data we are looking at is inherently noisy because of low receptor numbers per cluster so a moderate correlation is a good indicator of co-localisation. It is possible to interpret Pearson’s R as the proportion of the variability explained by the variable under test, given the noisy nature of our data then we think that we have accounted for the larger fraction of the variation.

2) Regarding functionality of FLS2-GFP the authors refer to Mbengue et al., 2016 yet one does not find evidence in there that demonstrates a wt-level flg22 response in the complementation line used.

While it is correct that we cannot necessarily claim that the FLS2-GFP and FLS2-mCherry fusion proteins used in this study and previous publications are as active as wild-type untagged FLS2, the fact that the FLS2-GFP and FLS2-mCherry undergo flg22-induced endocytosis indicates that they represent biologically-active receptors capable of perceiving the flg22 ligand and to become activated (and then later endocytosed) in response to flg22 perception. Then, as eluded to above, the main conclusions made in our manuscript is that FLS2-GFP and FLS2-mCherry co-localise based on a positive Pearson R correlation coefficient, while the comparison between FLS2-mCherry and BRI1-GFP, for example, yields a Pearson R correlation coefficient close to zero, with the difference between these Pearson R correlation coefficients being statistically significant.

https://doi.org/10.7554/eLife.25114.028

Article and author information

Author details

  1. Christoph A Bücherl

    The Sainsbury Laboratory, Norwich Research Park, Norwich, United Kingdom
    Contribution
    CAB, Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  2. Iris K Jarsch

    Ludwig-Maximilians-Universität München, Institute of Genetics, Martinsried, Germany
    Present address
    The Henry Wellcome Building of Cancer and Developmental Biology, Wellcome Trust/Cancer Research UK Gurdon Institute, University of Cambridge, Cambridge, United Kingdom
    Contribution
    IKJ, Resources, Software, Visualization, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  3. Christian Schudoma

    The Sainsbury Laboratory, Norwich Research Park, Norwich, United Kingdom
    Present address
    Earlham Institute, Norwich, United Kingdom
    Contribution
    CSc, Data curation, Software, Formal analysis, Visualization
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0003-1157-1354
  4. Cécile Segonzac

    The Sainsbury Laboratory, Norwich Research Park, Norwich, United Kingdom
    Present address
    Plant Science Department, Plant Genome and Breeding Institute, Seoul National University, Seoul, Republic of Korea
    Contribution
    CSe, Resources, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0002-5537-7556
  5. Malick Mbengue

    The Sainsbury Laboratory, Norwich Research Park, Norwich, United Kingdom
    Present address
    Laboratoire de Recherche en Sciences Végétales, Université de Toulouse, CNRS, UPS Auzeville, BP42617, 31326 Castanet Tolosan, Toulouse, France
    Contribution
    MM, Resources, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  6. Silke Robatzek

    The Sainsbury Laboratory, Norwich Research Park, Norwich, United Kingdom
    Contribution
    SR, Resources, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  7. Daniel MacLean

    The Sainsbury Laboratory, Norwich Research Park, Norwich, United Kingdom
    Contribution
    DM, Data curation, Software, Visualization, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0003-1032-0887
  8. Thomas Ott

    Ludwig-Maximilians-Universität München, Institute of Genetics, Martinsried, Germany
    Present address
    University of Freiburg, Faculty of Biology, Cell Biology, Freiburg, Germany
    Contribution
    TO, Resources, Software, Visualization, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  9. Cyril Zipfel

    The Sainsbury Laboratory, Norwich Research Park, Norwich, United Kingdom
    Contribution
    CZ, Conceptualization, Supervision, Funding acquisition, Investigation, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    cyril.zipfel@tsl.ac.uk
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0003-4935-8583

Funding

Gatsby Charitable Foundation

  • Silke Robatzek
  • Daniel MacLean
  • Cyril Zipfel

H2020 European Research Council

  • Cyril Zipfel

Deutsche Forschungsgemeinschaft

  • Thomas Ott

Universitat Bayern

  • Iris K Jarsch

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank Jordi Chan for providing the 35S::GFP-TUA6 construct, Niko Geldner for providing the Col-0/pBRI1::BRI1-GFP line, Jelmer J Lindeboom for providing the Col-0/p35S::mCherry-TUA5 line, Jens Tilsner for providing the p35S::Lifeact-TagRFP plasmid, and Martina Beck for providing the Col-0/p35S::Lifeact-TagRFP line. The authors are also thankful to Grant Calder and Eva Wegel (JIC Bioimaging facility) for assistance at the microscopes. This research was funded by the Gatsby Charitable Foundation (CZ; SR; DM), the European Research Council (grant ‘PHOSPHinnATE’) (CZ), as well as an Emmy-Noether grant, the Collaborative Research Center 924 (SFB924) both of the Deutsche Forschungsgemeinschaft (DFG) (TO), and Universität Bayern (IKJ).

Reviewing Editor

  1. Thorsten Nürnberger, Reviewing Editor, University of Tübingen, Germany

Publication history

  1. Received: January 13, 2017
  2. Accepted: March 4, 2017
  3. Accepted Manuscript published: March 6, 2017 (version 1)
  4. Version of Record published: April 6, 2017 (version 2)

Copyright

© 2017, Bücherl et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,149
    Page views
  • 1,376
    Downloads
  • 7
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Microbiology and Infectious Disease
    Longhui Zeng et al.
    Research Article Updated
