Metaphase chromosome structure is dynamically maintained by condensin I-directed DNA (de)catenation

  1. Ewa Piskadlo
  2. Alexandra Tavares
  3. Raquel A Oliveira Is a corresponding author
  1. Instituto Gulbenkian de Ciência, Portugal
Research Article
Cited
0
Views
1,550
Comments
0
Cite as: eLife 2017;6:e26120 doi: 10.7554/eLife.26120

Abstract

Mitotic chromosome assembly remains a big mystery in biology. Condensin complexes are pivotal for chromosome architecture yet how they shape mitotic chromatin remains unknown. Using acute inactivation approaches and live-cell imaging in Drosophila embryos, we dissect the role of condensin I in the maintenance of mitotic chromosome structure with unprecedented temporal resolution. Removal of condensin I from pre-established chromosomes results in rapid disassembly of centromeric regions while most chromatin mass undergoes hyper-compaction. This is accompanied by drastic changes in the degree of sister chromatid intertwines. While wild-type metaphase chromosomes display residual levels of catenations, upon timely removal of condensin I, chromosomes present high levels of de novo Topoisomerase II (TopoII)-dependent re-entanglements, and complete failure in chromosome segregation. TopoII is thus capable of re-intertwining previously separated DNA molecules and condensin I continuously required to counteract this erroneous activity. We propose that maintenance of chromosome resolution is a highly dynamic bidirectional process.

https://doi.org/10.7554/eLife.26120.001

eLife digest

Living cells can contain huge amounts of genetic information encoded in long strands of DNA. In total several metres of DNA are packed into a small space inside each human cell and these strands can easily become entangled and knotted. When a cell divides to produce new cells the DNA is duplicated and the two copies must be reliably separated, meaning all the knots must be undone. If the DNA strands are not properly separated it can cause extensive damage to genes when the cell tries to divide.

Enzymes called topoisomerases work to undo the tangles in DNA allowing it to be divided into two cells. A large protein complex called “condensin I” plays also an important part in organising DNA, and it has also been implicated in helping to resolve knots in the DNA. However, it was not known how condensin I contributes to the successful separation of DNA into new cells, or when in the course of a cell dividing the knots finally get untangled.

Cell division is similar in humans and the fruit fly Drosophila melanogaster, and so the fly is often used as a simple way to study this process in the laboratory. Now, Piskadlo et al. have examined the role of condensin I in dividing fruit fly cells by using recently developed techniques that rapidly shut down key molecular machineries while cells divide. The results show that condensin I and an enzyme called Topoisomerase II work together to separate entangled DNA. Topisomerase II can both entangle and disentangle DNA strands and it is condensin I that guides this process to ensure that ultimately all the knots are removed.

These findings show that successful cell division requires constant attention from condensin I to make sure Topoisomerase II aids cell division, rather than making the DNA more tangled. Overall this requires more active and constant work to disentangle DNA than expected, and further work is now needed to explain why. Understanding how cells avoid DNA damage during division clarifies why errors in this process cause diseases. For example, changes to condensin I are common in certain cancers and can also lead to disrupted brain development (e.g. microcephaly).

https://doi.org/10.7554/eLife.26120.002

Introduction

Mitotic chromosome assembly, although poorly understood at the molecular level (Piskadlo and Oliveira, 2016), fulfils three major tasks essential for faithful chromosome segregation: First, it ensures chromosome compaction making cell division feasible within the cell space. Secondly, it provides chromosomes with the right mechanical properties (e.g. bendiness and rigidity) to facilitate their drastic movements during mitosis. Lastly, it ensures the resolution of the topological constrains that exist between the two sister DNA molecules, as well as between neighbouring chromosomes (chromosome individualization), a key requisite for efficient chromosome partitioning. At the heart of these structural changes are the condensin complexes. Condensin complexes, one of the most abundant non-histone complexes on mitotic chromosomes (Cuylen and Haering, 2011; Hirano et al., 1997; Ono et al., 2003), are composed of two structural maintenance of chromosome (SMC) proteins (SMC2 and SMC4) bridged by a kleisin subunit (Barren/Cap-H for condensin I and Barren2/Cap-H2 for condensin II)(Cuylen and Haering, 2011; Hirano et al., 1997; Ono et al., 2003). Despite extensive research over the last years, how condensins contribute to chromosome morphology is not completely understood. Biochemical and phenotypic analysis of condensin depletion suggest several possible activities for these complexes, including the resolution of DNA entanglements (Gerlich et al., 2006; Hagstrom et al., 2002; Hirano, 2006; Hudson et al., 2003; Oliveira et al., 2005; Ribeiro et al., 2009; Steffensen et al., 2001) and structural integrity by conferring chromosome rigidity (Gerlich et al., 2006; Houlard et al., 2015; Oliveira et al., 2005; Ribeiro et al., 2009). Whether or not these complexes also promote chromatin compaction remains controversial (Hagstrom et al., 2002; Hirano, 2006; Hirano et al., 1997; Hudson et al., 2003; Kimura and Hirano, 1997; Lavoie et al., 2002; Oliveira et al., 2005; Steffensen et al., 2001). The multiple phenotypes observed on mitotic chromosomes upon depletion of condensin complexes raise the possibility that these complexes may have distinct roles at different times of mitosis. Additionally, several lines of evidence support that these complexes also influence interphase chromosome structure (Cobbe et al., 2006; Hartl et al., 2008). Thus, it is difficult, if not impossible to interpret the results when condensins are depleted prior to mitotic entry using conventional depletion approaches. To circumvent this limitation, we adopt a ‘reverse and acute’ approach to dissect the role of condensin I in the maintenance of chromosome organization. We find that inactivation of one condensin I specifically during metaphase leads to over-compaction at the majority of chromosomal regions. We further demonstrate that upon condensin I cleavage previously separated sister DNA molecules undergo topoisomerase II-dependent re-intertwining and complete failure in chromosome segregation.

Results

A TEV-protease mediated system to inactivate condensin I in Drosophila melanogaster

To study the role of condensin complexes in the maintenance of chromosome structure, specifically during metaphase, we developed a system to enable analysis of chromosomal structural changes upon rapid and temporally controlled inactivation of condensin in Drosophila melanogaster. Our analysis focused on condensin I complex as prior studies reveal a minor role for condensin II in mitotic chromosome organization in Drosophila (Hartl et al., 2008; Herzog et al., 2013; Savvidou et al., 2005). We developed a fast inactivation system to disrupt condensin I in the living fly (Figure 1 and Figure 1—figure supplement 1), following a similar strategy previously used for the structurally related complex cohesin (Oliveira et al., 2010; Pauli et al., 2008; Uhlmann et al., 2000). This system is based on the use of an exogenous protease (Tobacco Etch Virus, TEV) to cleave an engineered protein of interest that contains TEV-cleavage sites and allows specific, rapid and efficient protein inactivation in a tissue- and/or time-dependent manner (Figure 1, Figure 1—figure supplement 1 and data not shown). To produce flies carrying solely TEV-sensitive condensin I complexes, we produced four versions of the kleisin subunit Barren that contain three consecutive TEV-cleavage sites at four different positions: aa175, aa389, aa437, aa600 (Figure 1—figure supplement 1). All versions are fully functional as they were able to complement the lethality associated with the Barren null allele BarrL305 (Bhat et al., 1996) (Figure 1—figure supplement 1b and data not shown). In vitro cleavage experiments reveal that all modified proteins are efficiently cleaved by TEV protease (Figure 1B and Figure 1—figure supplement 1). The construct Barren3xTEV175-myc was chosen for future analysis based on the healthiness of the rescued strains (referred as BarrenTEV hereafter).

Figure 1 with 1 supplement see all

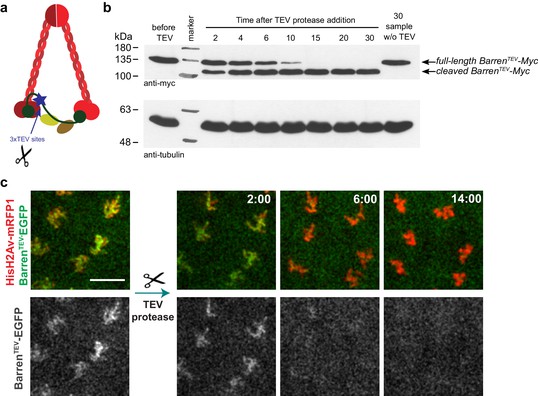

TEV-mediated cleavage of Barren disrupts condensin I function within a few minutes.

(a) Schematic representation of condensin complex indicating the position of the 3xTEV cleavage sites in the kleisin subunit Barren (aa175). (b) In vitro cleavage of BarrenTEV-myc. Extracts were prepared from ovaries of flies expressing solely TEV-cleavable Barren and incubated with TEV protease for the indicated time points (periods of time). The presence of full-length and cleaved Barren was monitored by western blot using myc antibodies. Tubulin was used as loading control. (c) Early embryos (0–30 min old) expressing HisH2AvD-mRFP1 (red) were injected with mRNA coding for BarrenTEV-EGFP (green). Embryos were aged for 1 hr-1hr 30m to allow for protein expression. Embryos were injected with 12 mg/ml UbcH10C114S protein to arrest in metaphase and subsequently with TEV-protease; images depict the same region before and after TEV injection; times (minutes:seconds) are relative to the time of injection; scale bar is 10 μm.

https://doi.org/10.7554/eLife.26120.003

TEV protease-mediated inactivation of condensin complexes has been previously successfully applied in yeast and mouse oocytes (Cuylen et al., 2011; Houlard et al., 2015). However, in both cases the inactivation of condensin complexes took place within over an hour after TEV protease induction. Direct injection of TEV-protease into syncytial embryos, in contrast, allowed cleavage and the removal of chromosome-associated BarrenTEV within 8–15 min (Figure 1b,c), enabling the analysis of the immediate consequences upon disruption of this complex. To confirm that TEV-protease was able to inactivate condensin I efficiently within a few minutes, by cleavage of BarrenTEV, we injected TEV protease in embryos derived from females surviving solely on BarrenTEV (ectopic expression of BarrenTEV in a BarrL305 null background). Injection of TEV-protease in early interphase embryos leads to complete failure of the subsequent mitosis (which takes place within ~15 min in these embryos). Although chromosomes were able to condense upon nuclear envelope breakdown, centromeres, monitored by the Cenp-A ortholog Cid-EGFP, display significant stretching upon microtubule attachment (Figure 2, Video 1 and Video 2). Moreover, resolution of sister chromatids is completely impaired, as chromatids appeared as a fused chromatin mass or display very thick bridges during the attempted anaphase (Figure 2, Video 1 and Video 2). These results are in accordance with previous findings for condensin I depletion (Gerlich et al., 2006; Hagstrom et al., 2002; Hirano, 2006; Hudson et al., 2003; Oliveira et al., 2005; Ribeiro et al., 2009; Steffensen et al., 2001), which ensures the developed system is efficient at promoting rapid condensin I inactivation.

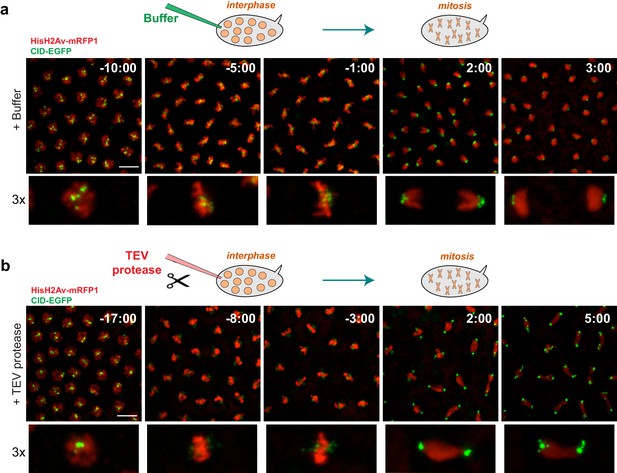

Condensin I inactivation prior to mitotic entry.

Embryos surviving solely on BarrenTEV were injected with buffer (a) or 13 mg/ml TEV protease (b) ~10–15 min before mitosis; Embryos also express His2A–mRFP1 (red) and Cid-EGFP (green); scale bars, 10 μm. Bottom rows show higher magnifications (~3x) of a single nuclear division. Times (minutes:seconds) are relative to the time of anaphase onset.

https://doi.org/10.7554/eLife.26120.005
Video 1
Mitosis in Drosophila embryos.

Embryos were injected with buffer in early interphase and monitored throughout the subsequent mitosis. Embryos express HisH2Av-mRFP1 (red) and Cid-EGFP (green). Times are relative to injection time. Scale bar is 10 um.

https://doi.org/10.7554/eLife.26120.006
Video 2
Mitosis upon condensin I inactivation in Drosophila embryos.

Embryos surviving solely on BarrenTEV were injected with TEV protease in early interphase and monitored in the subsequent mitosis. Embryos express HisH2Av-mRFP1 (red) and Cid-EGFP (green). Times are relative to injection time. Scale bar is 10 um.

https://doi.org/10.7554/eLife.26120.007

Condensin I inactivation in metaphase leads to increased chromosome compaction

To test the role of condensin I in the maintenance of chromosome architecture, we allowed mitotic chromosomes to assemble without any perturbation on their structure and subsequently disrupted condensin I during the metaphase-arrest. Embryos were arrested in metaphase, with a functional mitotic spindle, by the use of a catalytically dead dominant-negative form of the E2 ubiquitin ligase necessary for anaphase onset (UbcH10C114S)(Oliveira et al., 2010; Rape et al., 2006). Arrested embryos were subsequently injected with TEV protease to destroy condensin I. Given the known role of condensin I in the rigidity of pericentromeric region of chromosomes (Gerlich et al., 2006; Oliveira et al., 2005; Ribeiro et al., 2009), we first tested the effect of TEV protease injection at those chromosomal sites. Whereas injection of buffer causes no change in the distance between centromeres, TEV protease injection in strains containing solely TEV-cleavable Barren results in rapid separation of centromeres, that appear to stretch towards the poles, leaving behind the majority of the chromatin mass (Figure 3, Video 3 and Video 4). These findings imply that condensin I is not only required for the establishment of a rigid structure at the pericentromeric domains prior to metaphase, but also for the maintenance of such organization.

Figure 3 with 1 supplement see all

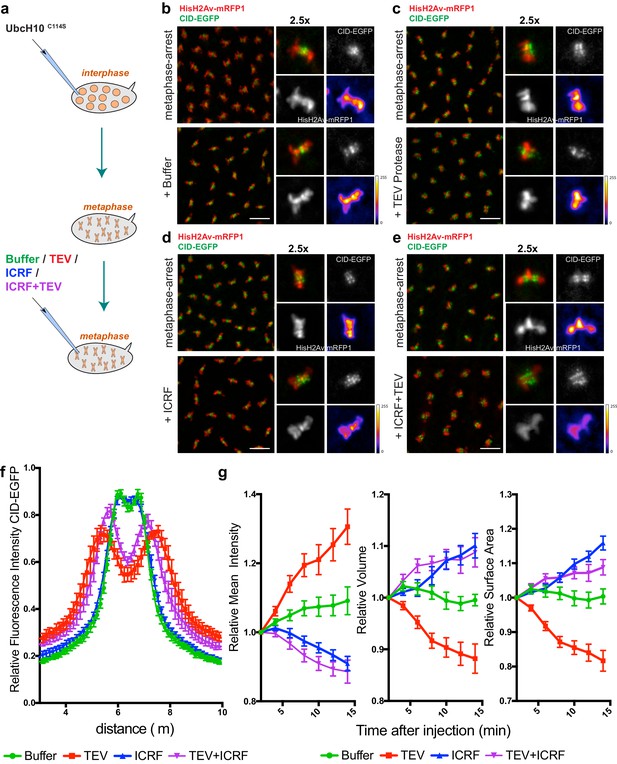

Condensin I inactivation in pre-assembled chromosomes leads to disruption of centromere structure and hyper-compaction of mitotic chromosomes.

(a) Schematic representation of the experimental layout. Embryos expressing solely BarrenTEV were injected with 12 mg/ml of a dominant-negative form of the human E2 ubiquitin-conjugating enzyme (UbcH10C114S) to induce a metaphase arrest. Embryos were subsequently injected with buffer (b), 13 mg/ml TEV protease (c), 280 μM ICRF (d) or a mixture containing 13 mg/ml TEV protease and 280 μM ICRF (e); Images depict embryos before the second injection and 14 min after. Embryos also express His2A–mRFP1 (red) and Cid-EGFP (green); scale bars, 10 μm. Insets show higher magnifications (2.5x) of a single metaphase. Times (minutes:seconds) are relative to the time of the second injection. (f) Quantitative analysis of centromere positioning 10 min after the second injection, as above; graph shows average ± SEM of individual embryos (n ≥ 7 embryos for each experimental condition); for each embryo, a minimum of 8 metaphases was measured; (g) quantifications of mean voxel intensity, volume and surface area of the entire metaphase plate quantified in 3D, over time, and normalized to the time of the second injection. Graphs represent the average ± SEM of individual embryos (n ≥ 10 embryos for each experimental condition); for each embryo, a minimum of 8 metaphases was quantified.

https://doi.org/10.7554/eLife.26120.008
Video 3
Buffer injection in metaphase-arrested embryos.

Embryos expressing solely BarrenTEV were injected with 12 mg/ml of a dominant-negative form of the human E2 ubiquitin-conjugating enzyme (UbcH10C114S), to induce a metaphase arrest, and subsequently injected with buffer. Embryos also express His2A–mRFP1 (red) and Cid-EGFP (green); scale bars, 10 μm. Times (minutes:seconds) are relative to the time of buffer injection.

https://doi.org/10.7554/eLife.26120.011
Video 4
Condensin I inactivation in metaphase-arrested embryos.

Embryos expressing solely BarrenTEV were injected with 12 mg/ml of a dominant-negative form of the human E2 ubiquitin-conjugating enzyme (UbcH10C114S), to induce a metaphase arrest, and subsequently injected with 13 mg/ml TEV protease. Embryos also express His2A–mRFP1 (red) and Cid-EGFP (green); scale bars, 10 μm. Times (minutes:seconds) are relative to the time of TEV injection.

https://doi.org/10.7554/eLife.26120.012

Surprisingly, non-centromeric regions do not follow similar disorganization and in fact appeared to become more compacted. We defined chromosome compaction by degree of chromatin density, inferred from the signal of fluorescently labelled histone H2Av-mRFP1. To quantify the changes in chromosome compaction upon condensin inactivation, we used quantitative imaging analysis to monitor the mean voxel intensity, volume and surface area of each metaphase plate, over time, in 3D (Figure 3d). We found that injection of TEV protease in strains surviving only on BarrenTEV leads to an overall over-compaction of the entire chromatin mass, as evidenced by an increase in the mean voxel intensity and a decrease in both the surface area and the volume of the metaphase plate (Figure 3c,d). Injection of the protease in strains that do not contain TEV-cleavage sites does not result in any evident change in chromosome compaction relative to controls (Figure 3—figure supplement 1), implying that chromosome over-compaction is specific of condensin I inactivation.

In contrast, inactivation of Topoisomerase II (TopoII) using a small molecule inhibitor (ICRF-193), leads to rapid de-compaction of chromosomes (Figure 3d,g and Video 5). TopoII has been previously implicated in chromosome compaction although its role in the process remains controversial (Piskadlo and Oliveira, 2016). Although we cannot exclude that chromosome decompaction may be exacerbated by the fact that ICRF-193 traps TopoII onto chromatin, our results support that TopoII may contribute to chromosome compaction in metaphase, consistent with previous observations (Samejima et al., 2012), possibly by promoting self-entanglements within the same chromatid (Kawamura et al., 2010). Importantly, combined inactivation of both TopoII and condensin I results in chromosome decompaction similar to TopoII inhibition alone (Figure 3e,g and Video 6). This finding implies that chromatin hyper-compaction observed upon loss of condensin I depends on TopoII activity.

Video 5
Topoisomerase II inhibition in metaphase-arrested embryos.

Embryos expressing solely BarrenTEV were injected with 12 mg/ml of a dominant-negative form of the human E2 ubiquitin-conjugating enzyme (UbcH10C114S), to induce a metaphase arrest, and subsequently injected with 280 μM ICRF-193. Embryos also express His2A–mRFP1 (red) and Cid-EGFP (green); scale bars, 10 μm. Times (minutes:seconds) are relative to the time of ICRF injection.

https://doi.org/10.7554/eLife.26120.013
Video 6
Concomitant inactivation of Topoisomerase II and Condenin I in metaphase-arrested embryos.

Embryos expressing solely BarrenTEV were injected with 12 mg/ml of a dominant-negative form of the human E2 ubiquitin-conjugating enzyme (UbcH10C114S), to induce a metaphase arrest, and subsequently injected with a mix of 280 μM ICRF-193 and 13 mg/ml TEV protease. Embryos also express His2A–mRFP1 (red) and Cid-EGFP (green); scale bars, 10 μm. Times (minutes:seconds) are relative to the time of the second injection.

https://doi.org/10.7554/eLife.26120.014

Condensin I inactivation results in de novo sister chromatid intertwines

The unexpected finding that condensin I inactivation promotes further chromosome compaction, together with the observation that TopoII inhibition reverts this hyper-compaction phenotype, lead us to hypothesize that the observed increase in compaction stems from re-entanglements of DNA strands, which would consequently lead to an increase in chromatin density. Enzymatically, TopoII can promote both the decatenation and the concatenation of DNA strands. Efficient chromosome segregation requires that TopoII is strongly biased towards decatenation prior to anaphase onset but it is conceivable that TopoII can additionally drive the concatenation of native metaphase chromosomes, in vivo. To test whether condensin I removal leads to re-catenation of previously separated sisters, we tested several predictions that arise from this hypothesis: First, the hyper-compaction observed in metaphase, if derived from sister-chromatid re-intertwining, should be dependent on the proximity between DNA molecules. The physical separation of sister chromatids will increase the distance between these two molecules, placing them too far apart, and consequently decreasing the likelihood of their re-entanglement, as recently proposed (Sen et al., 2016). Secondly, re-intertwining in late metaphase should lead to severe segregation failures. And lastly, DNA entanglements and the consequent segregation defects should depend on TopoII activity.

To evaluate the effect of sister chromatid proximity in chromosome condensation upon condensin inactivation we combined TEV-mediated cleavage of condensin I and cohesin by the use of strains carrying TEV-sensitive Rad21 (cohesin) and Barren (condensin) proteins. We took advantage of the fact that Rad21TEV cleavage is more efficient than BarrenTEV (Figure 1—figure supplement 1), which allowed the analysis of changes in chromosome architecture upon condensin inactivation after artificial separation of sister chromatids. Upon TEV protease injection, pole-ward chromosome segregation is initiated within 2 to 5 min and with similar kinetics in both strains (Figure 4a).

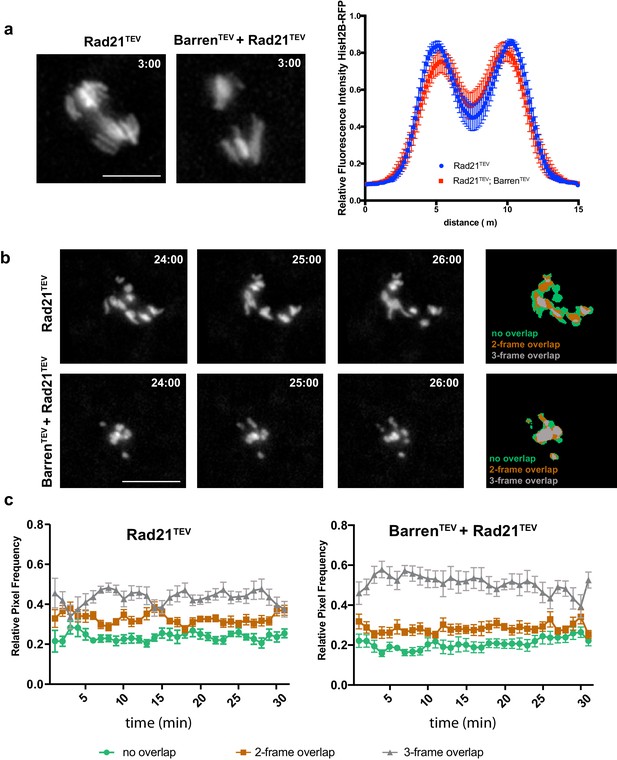

Condensin I inactivation in separated sister chromatids reduces their movement.

(a) Representative images of the initial separation after TEV-mediated cleavage of Rad21TEV and Rad21TEV + BarrenTEV. Graph plots the relative distribution of HisH2B-RFP at the maximal state of sister chromatid separation triggered by TEV-mediated cleavage of Rad21TEV, in strains that contain solely Rad21TEV or both Rad21TEV and BarrenTEV. A 15 μm line was used to measure plot profiles along the segregation plane, measured 3–5 min after TEV protease injection. Graphs plot the average ± SEM of individual embryos (n ≥ 7 embryos for each experimental condition). For each embryo, between 8 and 12 anaphases were analysed. (b) Example of chromosome movement analysis; left panel represents average of the binary images of three consecutive frames, used to estimate chromosome displacements: blue, non-overlapping pixels; green, two- out of three-frame overlap; grey, three-frame overlap. Scale bar is 10 μm. (c) Frequency of overlapping pixels to estimate chromosome displacement (as in b), over time, after TEV protease injection.

https://doi.org/10.7554/eLife.26120.015

After the initial pole-ward chromatid movement, isolated chromatids shuffle between the poles, consistent with previous observations (Oliveira et al., 2010). To quantify the degree of movement, we used a displacement-quantification method that infers chromosome movement by the overlap between chromosome positions on consecutive frames (Mirkovic et al., 2015). Cohesin cleavage alone leads to strong shuffling of isolated single chromatids, as previously described. However, concomitant inactivation of condensin and cohesin results in much slower chromatid movements, with chromatids accumulating in the middle of the segregation plane (Figure 4b,c). Condensin I is thus important for efficient movement of isolated chromatids. This may be due abnormal centromere/kinetochore structure and/or to a possible role for condensin in the error-correction process, as recently proposed (Peplowska et al., 2014; Verzijlbergen et al., 2014).

The reduced chromosome movement observed upon condensin I inactivation leads to considerable differences in chromatid positioning in both experimental set-ups. Thus, we restricted our chromosome morphology/compaction analysis to measurements of isolated single sisters, as quantifying the entire chromatin mass would include many confounding variables. Measurements of isolated single chromatids were performed at 20 min after injections and normalized to the values at 5 min after protease injection (once complete separation has occurred but no significant changes in chromosome structure was yet observed). Chromatids considerably change their shape, becoming thicker and shorter (Figure 5b,c, Video 7 and Video 8), as previously described (Green et al., 2012; Ono et al., 2003). To directly measure the degree of compaction of these isolated sisters, we measured their mean voxel intensity. This analysis revealed that despite the significant changes in chromatid organization, there is no overall change in the mean voxel intensity of single chromatids (Figure 5d), indicating that shape changes are not accompanied by an overall increase in chromatin compaction. We therefore conclude that condensin I inactivation does not promote further chromosome compaction if sister chromatids are physically apart, in contrast to the effect observed in metaphase-arrested chromosomes (Figure 3). These results support that over-compaction observed in metaphase chromosomes may arise from sister chromatid re-intertwining, consistent with previous observations using yeast circular mini-chromosomes (Sen et al., 2016). It is conceivable that condensin I inactivation also promotes abnormal re-entanglement in cis (between distal regions of the same chromatid). The shape changes observed upon condensin inactivation from isolated sisters (shorter and thicker chromatids) could indeed be explained by an excess of concatenation within the same DNA molecule, leading to the shortening of the longitudinal axis. However, our compaction measurements indicate that such changes, if occur, do not lead to detectable increase in chromatin density.

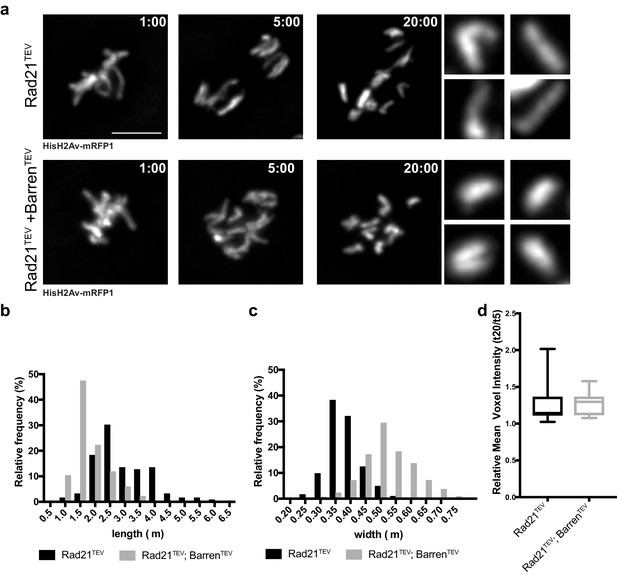

Chromosome over-compaction depends on sister-chromatid proximity.

(a) Stills from metaphase-arrested embryos after injection of TEV protease in strains surviving solely on Rad21TEV (cohesin cleavage) or Rad21TEV+BarrenTEV (cohesin and condensin cleavage); embryos also express HisH2B-RFP; scale bars, 5 μm. Insets show higher magnifications (3x) of single chromatids 20 min after TEV injection. Times (minutes:seconds) are relative to the time of TEV injection. (b–c) Relative frequency of sister chromatid length (b) and width (c) at 20 min after TEV injections (n ≥ 120 single chromatids from seven independent embryos for each experimental condition). (d) Mean voxel intensity of isolated single chromatids 20 min after TEV injections, normalized to mean voxel intensity 5 min past injection. (n ≥ 10 embryos for each experimental condition).

https://doi.org/10.7554/eLife.26120.017
Video 7
Artificial induction of sister chromatid separation in metaphase-arrested embryos.

Embryos expressing solely Rad21TEV and wild-type Barren were injected with 12 mg/ml of a dominant-negative form of the human E2 ubiquitin-conjugating enzyme (UbcH10C114S), to induce a metaphase arrest, and subsequently injected with 13 mg/ml TEV protease. Embryos also express His2B–RFP; scale bars, 10 μm. Times (minutes:seconds) are relative to the time of the second injection.

https://doi.org/10.7554/eLife.26120.019
Video 8
Effect of condensin I inactivation on isolated sister chromatids.

Embryos expressing uniquely TEV-sensitive Rad21 and Barren were injected with 12 mg/ml of a dominant-negative form of the human E2 ubiquitin-conjugating enzyme (UbcH10C114S), to induce a metaphase arrest, and subsequently injected with 13 mg/ml TEV protease. Embryos also express His2B–RFP; scale bars, 10 μm. Times (minutes:seconds) are relative to the time of the second injection.

https://doi.org/10.7554/eLife.26120.020

Next, we sought to evaluate chromosome segregation defects, which serve as an indirect read-out for the amount of DNA catenations bridging DNA molecules. To monitor segregation defects when condensin I or TopoII are inactivated specifically in metaphase, we developed conditions in which unperturbed chromosomes would be transiently arrested in metaphase by the dominant negative UbcH10C114S, for ~3–5 min, and subsequently injected with the respective perturbing factor in metaphase. Embryos were subsequently injected with a wild-type version of UbcH10 14 min later, which causes anaphase onset and mitotic exit in about 4–8 min (Figure 6a). We monitored the segregation efficiency during anaphase by quantitative analysis of the profile of Histone H2AvD-mRFP (to visualize chromatin separation) and Cid-EGFP (to infer centromere segregation) along the segregation plane (Figure 6). In this assay, injection of buffer causes virtually no defects in the segregation of sister chromatids (Figure 6b, Figure 6—figure supplement 1 and Video 9).

Figure 6 with 1 supplement see all

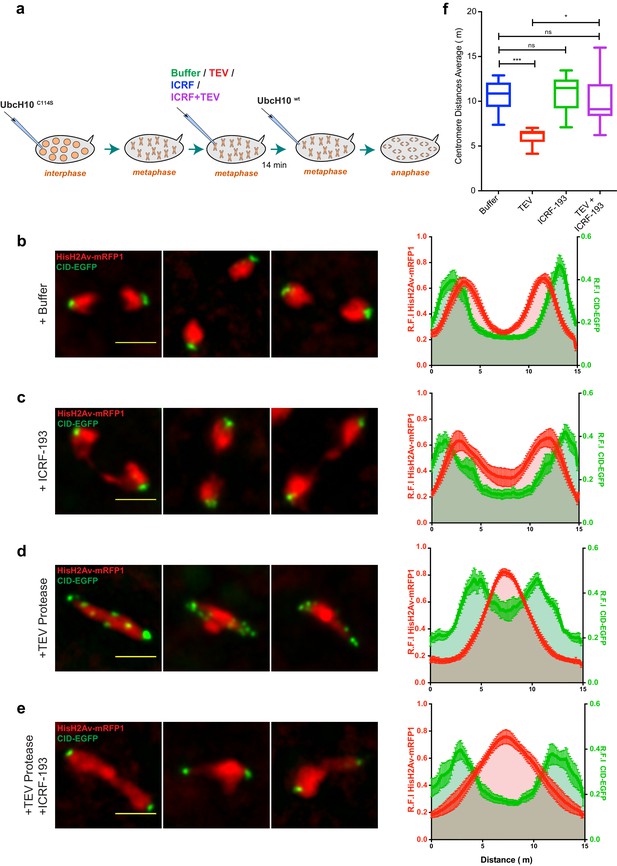

Condensin I inactivation results in TopoII-dependent sister chromatids intertwines and segregation failure.

(a) Schematic representation of the experimental set-up. Embryos were arrested with 12 mg/ml UbcH10C114S and injected with buffer (b), 280 μM ICRF-193 (c), 13 mg/ml TEV protease (d) or TEV+ICRF-193, while in metaphase; Embryos were subsequently injected with 14 mg/ml of a wild-type version of UbcH10 to release them from the arrest. Images depict representative images of the anaphase; Graphs plot the relative distribution of HisH2Av-mRFP1 and Cid-EGFP across the 15 μm segregation plane, measured 4–6 min after anaphase onset. Graphs plot the average +_SEM of individual embryos (n ≥ 10 embryos for each experimental condition). For each embryo, at least eight anaphases were analysed. (f) Quantification of centromere distances during UbcH10wt-induced anaphase as in (b–e). Graphs plot the distances between segregating centromeres measured 6 min after anaphase onset (n ≥ 10 embryos for each experimental condition; for each embryo, at least eight anaphases were analysed). Statistical analysis was performed using the non-parametric Kruskal-Wallis test; ns p>0.05, *p<0.05; ***p<0.001.

https://doi.org/10.7554/eLife.26120.021
Video 9
Induced anaphase in control embryos.

Embryos expressing solely BarrenTEV were injected with 12 mg/ml of a dominant-negative form of the human E2 ubiquitin-conjugating enzyme (UbcH10C114S), to induce a metaphase arrest, and subsequently injected with buffer. After 14 min embryos were injected a wild-type version of UbcH10 to induce anaphase. Embryos also express His2A–mRFP1 (red) and Cid-EGFP (green); scale bars, 10 μm.

https://doi.org/10.7554/eLife.26120.024

Inactivation of TopoII under these conditions leads mostly to the appearance of fine chromatid bridges (Figure 6c and Video 10). These residual bridges are insufficient to delay centromere separation (11,01 ± 2,03 μm upon ICRF-193 treatment compared to 10,72 ± 1,69 μm in buffer-injected embryos; Figure 6f). The extent of chromatin bridges observed upon metaphase-specific inactivation of TopoII is considerably lower when compared to experiments where this enzyme is inhibited prior to mitotic entry (Figure 6—figure supplement 1). These findings imply that in metaphase-arrested chromosomes the amount of unresolved catenations is residual. In contrast, inactivation of condensin I during metaphase leads to complete impairment of the segregation process, as revealed by the high frequency of ‘fused’ chromatin masses, with the chromosomes remaining in the centre of the segregation plane, and a significant decrease in the distance between segregating centromeres (6,08 ± 0,92 μm) (Figure 6d,f and Video 11). The degree of segregation defects observed in these metaphase-inactivation experiments, is even higher than the defects observed upon condensin inactivation prior to mitotic entry (Figure 6—figure supplement 1). The severity of segregation impairment upon metaphase-specific condensin I inactivation indicates that in the absence of this complex previously resolved sister DNA molecules undergo re-catenation.

Video 10
Induced anaphase after timely inhibition of topoisomerase II.

Embryos expressing solely BarrenTEV were injected with 12 mg/ml of a dominant-negative form of the human E2 ubiquitin-conjugating enzyme (UbcH10C114S), to induce a metaphase arrest, and subsequently injected with 280 μM ICRF-193. After 14 min embryos were injected a wild-type version of UbcH10 to induce anaphase. Embryos also express His2A–mRFP1 (red) and Cid-EGFP (green); scale bars, 10 μm.

https://doi.org/10.7554/eLife.26120.025
Video 11
Induced anaphase after timely inhibition of Condensin I.

Embryos expressing solely BarrenTEV were injected with 12 mg/ml of a dominant-negative form of the human E2 ubiquitin-conjugating enzyme (UbcH10C114S), to induce a metaphase arrest, and subsequently injected with 13 mg/ml TEV protease. After 14 min embryos were injected a wild-type version of UbcH10 to induce anaphase. Embryos also express His2A–mRFP1 (red) and Cid-EGFP (green); scale bars, 10 μm.

https://doi.org/10.7554/eLife.26120.026

To directly test this hypothesis, we accessed whether or not de novo chromatin intertwines take place upon condensin inactivation, as the formation of these new links should depend on TopoII activity. If TopoII-dependent re-catenation occurs upon condensin I inactivation, one would expect that the combination of TopoII and condensin I inactivation should reduce the amount of chromatin trapped in the middle of the segregation plane. On the contrary, if segregation defects result from pre-existing catenations, combined inhibition of condensin I and TopoII should increase, or at least maintain, the density of chromosome bridges and segregation impairment.

To address this issue, we used the same experimental layout as above but induced concomitant inactivation of condensin I and TopoII during the metaphase arrest. These experiments reveal a partial rescue of the retained chromatin mass, inferred by HisH2Av-mRFP1 profile (Figure 6e and Video 12). Chromosome positioning may not be linearly correlated with the amount of linkages bridging the two sister chromatids and thus the reduction on chromosome intertwines may be even more pronounced than inferred by histone profiles. In accordance with this notion, the efficiency of chromosome separation inferred by the position of centromeres returns to levels indistinguishable from wild-type (Figure 6e,f and Video 12). Thus, concomitant inactivation of condensin I and TopoII significantly reverts the defects associated with condensin I removal. We therefore conclude that the segregation defects observed upon metaphase-specific condensin I inactivation are caused by de novo TopoII-dependent re-intertwining of previously separated sister chromatids.

Video 12
Induced anaphase after timely inhibition of Condensin I and topoisomerase II.

Embryos expressing solely BarrenTEV were injected with 12 mg/ml of a dominant-negative form of the human E2 ubiquitin-conjugating enzyme (UbcH10C114S), to induce a metaphase arrest, and subsequently injected with a mix of 280 μM ICRF-193 and 13 mg/ml TEV protease. After 14 min embryos were injected a wild-type version of UbcH10 to induce anaphase. Embryos also express His2A–mRFP1 (red) and Cid-EGFP (green); scale bars, 10 μm.

https://doi.org/10.7554/eLife.26120.027

Discussion

The role of condensin complexes in chromosome compaction has been extensively debated. Here we provide evidence that temporally controlled inactivation of condensin I, specifically during metaphase, causes an increase in the overall levels of chromosome compaction in non-centromeric regions. These findings strongly argue that condensin I is required to maintain chromosomal architecture but not to sustain their compacted state. Studies using similar inactivation techniques in mouse oocytes have proposed that condensins confirm longitudinal rigidity, as chromosomes disassemble upon condensin inactivation (particularly condensin II)(Houlard et al., 2015). At first sight, these findings may be perceived as in sharp contrast to our current observations. It should nevertheless be noted that meiotic chromosomes are under very different force-balance than their mitotic counterparts. In particular, spindle attachment on meiotic bivalents imposes stretching along the longitudinal axis of chromosomes, similarly to what we report here for the pericentromeric region in mitotic chromosomes. Our results now demonstrate that when chromosomes are not subjected to significant additional forces, condensin I inactivation results in an overall chromatin over-compaction rather than chromosome de-condensation. This force-dependent phenotype may explain several inconsistencies in prior analysis on condensins depletion that as sample preparation, chromosome state, presence/absence of microtubules, or even the cell division type (mitosis vs meiosis) may play a major role in chromosome morphology. In contrast to condensin I inactivation, TopoII inhibition leads to rapid chromosome decompaction. These finding are consistent with the idea that metaphase chromosome structure is organized as a chromatin network resultant from self-entanglements of DNA strands, as initially proposed by biophysical studies on isolated chromosomes (Kawamura et al., 2010). Restricting/favouring chromosome entanglements may thus dictate the state of chromosome compaction.

Condensin has been previously proposed to interplay with TopoII, both for chromosome compaction and sister chromatid resolution. The exact details for this interaction, however, remain elusive. Both condensins and TopoII inactivation impair sister chromatid resolution (Bhat et al., 1996; Clarke et al., 1993; Gerlich et al., 2006; Hagstrom et al., 2002; Hirano, 2006; Hudson et al., 2003; Oliveira et al., 2005; Ribeiro et al., 2009; Steffensen et al., 2001; Uemura et al., 1987), suggesting these two molecules have cooperative roles on chromosome resolution. In contrast, cytological analyses suggest that condensin and TopoII have opposite roles in shaping mitotic chromatin (Samejima et al., 2012), raising further doubts on their functional interaction. It has long been hypothesized that condensin may impose directionality on TopoII reactions (Baxter et al., 2011; Charbin et al., 2014; Coelho et al., 2003; Leonard et al., 2015), as this enzyme is able to both decatenate and catenate DNA strands. But this model has been very difficult to formally prove. Studies in yeast using artificial circular mini-chromosomes, in which the levels of catenation can be directly measured, support that full decatenation by TopoII requires condensin activity (Baxter and Aragón, 2012; Baxter et al., 2011; Charbin et al., 2014). Whether the same is true in large and linear native chromosomes remained to be addressed, particularly as circular chromosomes are under different topological constrains when compared to linear ones. The experimental approach used in our study allowed the manipulation of native chromosomes, in their natural environment, providing evidence that upon removal of condensin I, previously separated sister chromatids re-intertwine in a TopoII-dependent manner. These findings are in agreement with a recent study that revealed that the resolution of sister chromatids from circular minichromosomes can be reverted by increased expression of TopoII (Sen et al., 2016). All together, these results support that condensin I is not directly necessary for TopoII catalytic activity, but rather to impose directionality on TopoII reactions, favouring resolution of the sister DNA molecules rather than their intertwine. Upon condensin I removal, creation of new links between previously separated DNA strands leads to their increased proximity, which may underlie the observed increase in chromosome compaction. Importantly, our studies reveal that TopoII is able to promote erroneous re-entanglements of sister chromatids throughout mitosis, an activity that needs to be constantly opposed by condensin I.

How condensin I is able to confer such directionality remains to be addressed. Condensins are enriched at the chromosome axis where they have been proposed to promote interactions within the same chromatid (Ono et al., 2003; Steffensen et al., 2001). Condensin I was shown to display significant turn-over on mitotic chromosomes (Gerlich et al., 2006; Oliveira et al., 2007) highlighting that its mode of action relies in dynamic reactions rather than statically holding chromatin loops. Bringing strands of DNA from the same chromatid in close proximity could alone favour sister chromatid decatenation by limiting the probability contacts between sister DNA molecules. Models that predict that DNA loops can extrude away from condensin have been hypothesized (Goloborodko et al., 2016; Nasmyth, 2001) and are better at explaining the directionally issue, as they provide a mechanism that inherently explains how condensins distinguish intra- versus inter-chromosomal looping. Random intrachromatid linkages are also possible (Cheng et al., 2015; Cuylen et al., 2011), although in this case additional mechanisms may ensure that connections in cis are favoured over linkages between sister- (and nearby) chromatids. Condensin I- mediated supercoiling of the DNA molecule has also been proposed to change DNA structure to favour DNA decatenation activity (Baxter and Aragón, 2012; Baxter et al., 2011; Sen et al., 2016), although it is yet to be determined whether the supercoiling activity of this complex can account for all the phenotypes associated with condensin loss.

Our analysis further reveals that maintenance of chromosome architecture, particularly sister chromatid resolution, is not a unidirectional process but instead a much more dynamic reaction than previously anticipated. It is conceivable that the highly compacted chromatin state present in metaphase chromosomes could, on its own, shift TopoII reaction towards sister chromatid re-entanglement given the increased proximity between DNA strands. Condensin I would thus counteract an inherent tendency of chromosomes to re-intertwine, a reaction necessary throughout metaphase. Additionally, it is possible that a dynamic balance of chromosome entanglements allows remodelling of chromosome architecture, providing chromosomes with plasticity to counteract the cytoplasmic drag faced during dynamic movements. Energy released during these reactions could potentially be used to further facilitate chromosome movement. Mitotic chromosomes should thus be visualized as highly dynamic structures during mitosis, whose re-shaping may be fundamental for the fidelity of their own segregation.

Materials and methods

Fly strains

To destroy condensin by TEV protease-mediated cleavage, strains carrying solely TEV-sensitive Barren versions were produced. A construct carrying a ~4.7 kb Barren genomic region was used as a starting point (kindly provided by Beat Suter, Institute of Cell Biology, University of Bern). This region contains the regulatory sequences and was previously shown to restore Barren function (Masrouha et al., 2003). This construct was engineered to add a 10xMyc sequence at the C-terminus of Barren. Three consecutive TEV recognition sites were placed at different positions (corresponding to a.a. 175, a.a. 389, a.a. 437 and a.a 600). Cloning details are available upon request. Each variant of genomic Barren with different TEV sites was cloned into pCaSpeR4 vector used for fly transformation. Transgenic flies were produced by P-element integration (BestGene Inc, Chino Hills, CA). Transgenes were placed in a BarrL305 background, a Barren null allele (Bhat et al., 1996), over a deficiency for the corresponding genomic region (Df(2L)Exel7077, stock #7850 from Bloomington stock center). To destroy cohesin by TEV-protease we used strains carrying Rad21TEV, previously described (Oliveira et al., 2010; Pauli et al., 2008). Fly strains also expressed His2AvD–mRFP1 or polyubiquitin His2B–RFP, to monitor DNA and EGFP–Cid to monitor centromeres (Schuh et al., 2007). A list with detailed genotypes can be found in Table 1.

Table 1

List of fly strains used in this study

https://doi.org/10.7554/eLife.26120.028
CHR#*GenotypeReference
1418BarrL305/CyOBhat et al. (1996)
(RRID:BDSC_4402)
1421Df(2L)Exel7077/CyOBlommington #7850
(RRID:BDSC_7850)
1513w;; Barr(175 - 3TEV)-myc10 III.5This study
1509w; Barr(175 - 3TEV)-myc10 II.1;This study
1522w;; Barr(389 - 3TEV)-myc10 III.2This study
1514w;; Barr(437 - 3TEV)-myc10 III.1This study
1520w;; Barr(600 - 3TEV)-myc10 III.3This study
1525w;; Barr(wt)-myc10 III.1This study
1560w; BarrL305/ Df(2L)Exel7077; Barr(175 - 3TEV)-myc10 III.5This study
820w;; HisH2AvD-mRFP1 III.1, CGC (CID-EGFP) III.1Schuh et al. (2007)
1564Df(2L)Exel7077 / CyO; HisH2AvD-mRFP1 III.1, CGC (CID-EGFP) III.1This study
w; BarrL305/ Df(2L)Exel7077; Barr(175 - 3TEV)-myc10 III.5/ HisH2AvD-mRFP1 III.1, CGC (CID-EGFP) III.1
629w;; Rad21ex15, polyubiq-H2B-RFP, tubpr-Rad21(550-3TEV) -myc10Oliveira et al. (2010)
1646w; BarrL305, Barr(175 - 3TEV)-myc10 II.1; +/+This study
1648w; BarrL305, Barr(175 - 3TEV)-myc10 II.1; Rad21ex15, polyubiq-H2B-RFP, tubpr-Rad21(550-3TEV) -myc10This study
  1. *Reference number in our internal lab fly database

Microinjections

Microinjection experiments were performed as previously described (Oliveira et al., 2010). 1–1.5 hr old embryos (or 0–30 min for mRNA injections) were collected and processed according to standard protocols, and embryos were injected at the posterior pole (up to three sequential injections) using a Burleigh Thorlabs Micromanipulator, a Femtojet microinjection system (Eppendorf, Germany), and pre-pulled Femtotip I needles (Eppendorf). Embryos were injected with buffer, drugs or proteins purified from E. coli at the following concentrations: Buffer (20 mM Tris-HCl at pH 8.0, 1 mM EDTA, 50 mM NaCl and 2 mM DTT), 13 mg/ml TEV protease in TEV buffer, 12 mg/ml UbcH10C114S, 14 mg/ml UbcH10wt and/or 280 μM ICRF-193 (Sigma-Aldrich, St Louis, MO).

Protein purification

Purified TEV protease was described previously (Haering et al., 2008). Purification of UbcH10wt and UbcH10C114S was performed from BL21 cells as previously described (Oliveira et al., 2010), with minor modifications, as follows. Bacterial cells were grown for 16 hr at 37°C, 225 rpm. This pre-culture was used to inoculate fresh LB media and cells were allowed to grow until 0.8/1 ODs. Cultures were then induced with 1 mM IPTG and after 4 hr of induction at 37°C, 225 rpm, cells were harvested. Pellets were ressuspended in Lysis Buffer (20 mM Tris-HCL pH7.5, 0.5M NaCl, 5 mM Imidazole with protease inhibitors) and sonicated 5x on ice in 30 s cycles (power 5- Sonicator XL2020, Misonix, Farmingdale, NY). The soluble fraction of the extracts was then incubated in TALON Metal Affinity Resin (Takara Bio Inc. , Japan), according to manufacturer’s instructions. After several washes with Lysis Buffer, the resin coated with the protein was packed into a Poly-Prep Chromatography Column (Biorad, Hercules, CA). Proteins were eluted in the same buffer with 300 mM imidazole. For buffer exchange, purified UbcH10wt and UbcH10C114S proteins were dialyzed overnight, at 4°C, in a Slide-a-Lyzer 7 KDa Dialysis cassettes (Thermo Scientific, Waltham, MA). Final storage buffer was 20 mM Tris-HCL pH7.5, 0.3M NaCl). The purified proteins were concentrated in a Vivaspin 6 Centrifugal Concentrator MWCO 10.000 KDa (GE Healthcare, Issaquah, WA).

mRNA synthesis

Barren175TEV-EGFP was cloned into a pRNA plasmid and mRNA was synthesized by in vitro transcription with the mMessage mMachine T3 kit (Ambion, Austin, TX), followed by purification with RNeasy kit (Qiagen, Germany), and elution in RNase-free water. To probe for the efficiency of BarrenTEV removal (Figure 1C), 0–30 min old embryos surviving only on BarrenTEV-Myc were injected with BarrenTEV-EGFP mRNA in pure water at ~2.2 μg/μl. Embryos were left to develop at 22°C for 1,5–2 hr, to allow for protein translation, before the subsequent injections.

In vitro cleavage experiments

Ovaries were dissected from females and homogenized in PBS. Extracts were sonicated for 2 min in a water-bath (power 5- Sonicator XL2020, Misonix). After centrifugation for 10 min at 15.000 rpm at 4°C, the supernatant was removed and adjusted to a final concentration of 2 μg/μl. For cleavage experiments, 80 μl of extract were incubated with 2 μg of TEV protease. At the indicated time points, 10 μl of the reaction were diluted with sample buffer, boiled and stored at −20°C.

Western-blot

Samples were loaded on a 10% SDS-gel for electrophoresis and transferred onto a membrane (Immun-Blot PVDF, Biorad). Western-blot analysis was performed according to standard protocols using the following antibodies: anti myc-tag (1:200, Santa Cruz Biotechnology, Dallas, TX, Cat# sc-47694 RRID:AB_627266), anti-α-tubulin (1:50.000, DM1A, Sigma-Aldrich Cat# T9026 RRID:AB_477593) and anti-Barren (1:3000, kindly provided by Hugo Bellen, (Bhat et al., 1996), RRID:AB_2567044).

Microscopy

Aligned embryos on coverslips were covered with Series 700 halocarbon oil (Sigma-Aldrich). Imaging of embryos after mRNA injection (Figure 1c) was performed with a spinning disc Revolution XD microscope (Andor, UK) at 22°C. Stacks of around 20 frames 1 μm were taken at indicated times using a 100 × 1.4 oil immersion objective (Nikon, Japan) and iXon +512 EMCCD camera (Andor). Time-lapse microscopy was performed with an inverted wide-field DeltaVision microscope (Applied Precision Inc., Issaquah, WA) at 18–20°C in a temperature-controlled room. One stack of ~20 frames (0.8 μm apart) was acquired every 1 or 2 min using a 100 × 1.4 oil immersion objective (Olympus, Japan) and an EMCCD camera (Roper Cascade 1024, Roper Technologies, Inc., Sarasota, FL). Widefield images were restored by deconvolution with the Huygens v15.10/16.10 deconvolution software using a calculated point-spread function (RRID:SCR_014237, Scientific Volume Imaging, The Netherlands). Movies were assembled using FIJI software (RRID:SCR_002285) (Schindelin et al., 2012) and selected stills were processed with Photoshop CS6 (Adobe Systems Incorporated, San Jose, CA).

Quantitative imaging analysis

For the quantification of chromosome condensation presented in Figure 3g and Figure 3—figure supplement 1, deconvolved images were analyzed using Imaris v6.1 software (RRID:SCR_007370, Bitplane, Switzerland). The same metaphase was tracked over time and average values for mean voxel intensity, volume and surface area were normalized to the first frame after injection. For the fluorescence profiles presented in Figures 3f and 6b–e,a wide 15 μm-long line was placed manually along the segregation plane and measured using the ‘Plot Profile’ function on FIJI software. For each data set, values were normalized to the maximum. Measurements of single chromatids width and length were performed on projected images (maximum intensity projection), using FIJI software and single chromatids mean voxel intensity measurements were performed using Imaris software. Quantification of chromosome movement (Figure 4) was performed as previously described (Mirkovic et al., 2015). Briefly, HisH2B-RFP was imaged at 1 min intervals. Images were segmented to select the chromosomal regions, based on an automatic threshold (set in the first frame after TEV injection), to create binary images. For each movie, a walking average of 3 frames was produced (using kymograph plug-in, written by J. Rietdorf and A. Seitz, EMBL, Heidelberg, Germany) creating a merged image in which the intensity is proportional to the overlap between consecutive frames. Intensity profiles were used to estimate the percentage of non-overlapping, 2- frame overlap and 3-frame overlap pixels. Graphic representation was performed using Prism seven software (RRID:SCR_002798, GraphPad, La Jolla, CA).

Statistical analysis

To compare the average of the centromere distances between each experimental condition (Figure 6f), at least 10 independent embryos were analyzed. Statistical analysis was performed using Prism seven software (RRID:SCR_002798). Given that some datasets did not pass the normality test (D'Agostino and Pearson normality test), multiple comparisons were performed using the non-parametric Krustal-Wallis test.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
    Topoisomerase II inhibition prevents anaphase chromatid segregation in mammalian cells independently of the generation of DNA strand breaks
    1. DJ Clarke
    2. RT Johnson
    3. CS Downes
    (1993)
    Journal of Cell Science 105:563–569.
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
    The Drosophila chk2 gene loki is essential for embryonic DNA double-strand-break checkpoints induced in S phase or G2
    1. N Masrouha
    2. L Yang
    3. S Hijal
    4. S Larochelle
    5. B Suter
    (2003)
    Genetics 163:973–982.
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46

Decision letter

  1. David Sherratt
    Reviewing Editor; University of Oxford, United Kingdom

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Metaphase chromosome structure is dynamically maintained by Condensin I-directed DNA (de)catenation" for consideration by eLife. Your article has been favorably evaluated by Anna Akhmanova (Senior Editor) and three reviewers, one of whom is a member of our Board of Reviewing Editors. The following individual involved in review of your submission has agreed to reveal their identity: Luis Aragon (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Three reviewers have assessed your manuscript, and the consensus opinion is that the experimental system is powerful; that the technical execution of the experiments was outstanding; and that the material is suitable for publication after revisions have been undertaken. Below, the overall view, comments and concerns are listed.

A number of studies have demonstrated the importance of condensin complexes for the structural organization and segregation of mitotic chromosomes, but the precise molecular function of these protein complexes has remained incompletely understood. Oliveira and colleagues report the effects of inactivating condensin I by TEV protease-mediated cleavage of the kleisin subunit at metaphase in Drosophila embryos. They observe that sister chromatids fail to resolve while centromeres stretch to the cell poles upon anaphase onset. Interestingly, the density of chromatin mass simultaneously increases in a Topo II-dependent manner, which suggests that sister chromatids that had been previously separated re-entangle in the absence of condensin function. This conclusion is supported by the facts that (1) the density of already separated sister chromatids does not increase upon condensin cleavage and (2) simultaneous inactivation of Topo II decreases the segregation defect caused by condensin cleavage. The authors conclude that condensin's role is to maintain sister separation beyond the initial condensation process by preventing re-catenation by Topo II.

Specific comments:

A) The authors miss an opportunity to make their discussion and interpretation of their data as incisive and authoritative as it could be. They need to make it clear that the interpretation that hyper-compaction of chromosome arms is a consequence of increased catenation is a hypothesis; it is not directly demonstrated, only inferred. Furthermore, central to the biological relevance of the observations made is a precise definition of the term 'condensation'. The authors here have a chance to clearly define 'condensation' [see below] and compare it with 'compaction' or 'over-compaction' which is the phenotype measured in the imaging assays; and which does not necessarily reflect a specific 'structure', determined by a specific mechanism. Does the intermingling of sister chromatids, which follows condensin inactivation, indeed reflect the same biological process that takes place during the folding of mitotic chromosomes during mitotic prophase? Presumably not. The statement that condensin removal leads to 'over-condensation' of chromatids is terribly misleading if all that happens is that chromatids get intertwined ['…leads to 'over-compaction as a consequence of chromosome intertwining' would work]. Condensation [the formation of an ordered (intra-chromatid) architecture that cannot just be achieved by compacting chromatin fibers in a random manner] is actually precisely the opposite of what is being observed in this case. The conclusions that "Topo II may alone drive chromosome condensation" is hence a conceptual misinterpretation, as is would suggest that TopoII would either actively drive intra-chromatid catenation of that condensation is a self-organizing principle of mitotic chromatin and TopoII facilitated this process. In either case, only limited conclusions about the principles of the formation of mitotic chromosomes during prophase (i.e. the condensation mechanism) can be drawn from the intertwining of metaphase sister chromatids that results from condensin inactivation.

B) It would be interesting to know whether when TopoII is depleted in metaphases arrested by SAC, if segregation is more defective than when TopoII is inactivated in metaphases obtained by UbcH10(C114S) (where SAC is not engaged). Yeast work (Farcas et al. 2011; Sen et al. 2016) has shown that plasmids contain higher levels of catenanes in nocodazole arrests than cdc20-depletion arrests, and that condensin activity is different in both arrest. Is this also the case here? The authors should comment on whether this experiment is technically feasible, whether they have this information, and whether they would consider it desirable to include this information and the result.

C) Could one compare the levels of sister chromatid (re-)entangling after condensin inactivation in metaphase to the levels of intertwining before mitotic chromosomes start to form (i.e. after S phase). Perhaps the authors could measure histone H2Av-mRFP1 densities after TopoII inhibition in G2 phase cells and compare these values to the values measured after condensin activation during metaphase (Figure 3G)? The authors might consider whether this would be a 'doable' and informative experiment.

D) Does TEV cleavage remove Barren also from centromeres? This is difficult to judge, since the CID-EGFP signal masks the Barren-TEV-EGFP signal in Figure 1C. It might be useful to show images without a labelled version of CID [it would also be useful if the authors defined 'CID' at its first use].

https://doi.org/10.7554/eLife.26120.029

Author response

Specific comments:

A) The authors miss an opportunity to make their discussion and interpretation of their data as incisive and authoritative as it could be. They need to make it clear that the interpretation that hyper-compaction of chromosome arms is a consequence of increased catenation is a hypothesis; it is not directly demonstrated, only inferred.

We have changed the text accordingly throughout the manuscript to present the results in a more direct and incisive manner. We additionally removed the consequential tone between the chromosome compaction observations and chromatid re-entanglement, and present the link between the two as a possibility. Although these two observations are likely to be connected, we agree it is not fully demonstrated. The Abstract was therefore considerably modified to highlight the major findings of the paper (chromatid-re-intertwining).

Furthermore, central to the biological relevance of the observations made is a precise definition of the term 'condensation'. The authors here have a chance to clearly define 'condensation' [see below] and compare it with 'compaction' or 'over-compaction' which is the phenotype measured in the imaging assays; and which does not necessarily reflect a specific 'structure', determined by a specific mechanism. Does the intermingling of sister chromatids, which follows condensin inactivation, indeed reflect the same biological process that takes place during the folding of mitotic chromosomes during mitotic prophase? Presumably not. The statement that condensin removal leads to 'over-condensation' of chromatids is terribly misleading if all that happens is that chromatids get intertwined ['…leads to 'over-compaction as a consequence of chromosome intertwining' would work]. Condensation [the formation of an ordered (intra-chromatid) architecture that cannot just be achieved by compacting chromatin fibers in a random manner] is actually precisely the opposite of what is being observed in this case. The conclusions that "Topo II may alone drive chromosome condensation" is hence a conceptual misinterpretation, as is would suggest that TopoII would either actively drive intra-chromatid catenation of that condensation is a self-organizing principle of mitotic chromatin and TopoII facilitated this process. In either case, only limited conclusions about the principles of the formation of mitotic chromosomes during prophase (i.e. the condensation mechanism) can be drawn from the intertwining of metaphase sister chromatids that results from condensin inactivation.

We thank the reviewers for pointing out this very important point. Indeed our experiments reveal mechanisms required for maintenance of chromosome architecture, which may or may not be similar to the process of chromosome condensation. We have changed the manuscript so that the term condensation is only used to refer to the normal process of mitotic chromosome assembly and used solely the term compaction to refer to the chromatin density we measure upon metaphase perturbations. We also defined specifically the term compaction. You can now read: “We defined chromosome compaction by degree of chromatin density, inferred from the signal of fluorescently labelled histone H2Av-mRFP1.”

B) It would be interesting to know whether when TopoII is depleted in metaphases arrested by SAC, if segregation is more defective than when TopoII is inactivated in metaphases obtained by UbcH10(C114S) (where SAC is not engaged). Yeast work (Farcas et al. 2011; Sen et al. 2016) has shown that plasmids contain higher levels of catenanes in nocodazole arrests than cdc20-depletion arrests, and that condensin activity is different in both arrest. Is this also the case here? The authors should comment on whether this experiment is technically feasible, whether they have this information, and whether they would consider it desirable to include this information and the result.

We agree that it would be very interesting to address the efficiency of DNA decatenation in a SAC-arrest situation, as the absence of spindle forces is likely to play a major role in this process. We have thus attempted to address this important issue by several means. However, several experimental limitations precluded a definitive answer. Below is a summary of our attempts to address the issue and the reasons why we considered these experiments inconclusive. A major technical limitation is the inability to measure the levels of catenation specifically in metaphase (a clear advantage of the referred studies in budding yeast, by the use of purifiable minichromosomes). Throughout the manuscript we used an alternative method, the efficiency of chromosome segregation during anaphase, as an indirect read-out for the amount of catenation. It is thus virtually impossible to access the catenation levels by this method in the absence of a functional spindle, as no anaphase takes place. We therefore opted for not including them in the manuscript.

1) We have attempted to drive cells into anaphase upon SAC-arrest imposed by spindle depolymerization. This was achieved by colchicine arrest to depolymerize microtubules followed by a Mad2deltaC injection, which works as a dominant negative for the SAC arrest. This method was efficient in driving cells out of mitosis. However, in these experiments, chromosomes simply exited mitosis without any evident separation (formed a tetraploid nucleus), and it was thus impossible to estimate catenation levels under these conditions.

2) We additionally attempted to use centromere separation in metaphase as an alternative measure of the amount of catenation. TEV-mediated cleavage of cohesin in embryos previously injected with colchicine resulted in a ~ 30% increase in the distances between sister-centromeres without full separation. The absence of full separation of sister chromatids could potentially be interpreted as a read-out of residual catenation, which would be sufficient to keep sister DNA molecules in proximity. However, ongoing studies in the lab revealed that chromatids that have been previously fully separated have a tendency to stay together upon disruption of the mitotic spindle. We therefore trust that the proximity between sister-chromatids observed upon cohesin cleavage is not a reliable read-out of the amount of DNA catenation as chromatids tend to “stick to each other” even when fully separated.

If the reviewers have any suggestions for an alternative experimental setup that could conclusively address this point we would be happy to consider it.

C) Could one compare the levels of sister chromatid (re-)entangling after condensin inactivation in metaphase to the levels of intertwining before mitotic chromosomes start to form (i.e. after S phase). Perhaps the authors could measure histone H2Av-mRFP1 densities after TopoII inhibition in G2 phase cells and compare these values to the values measured after condensin activation during metaphase (Figure 3G)? The authors might consider whether this would be a 'doable' and informative experiment.

We have included this comparative analysis as a supplement to Figure 6. As expected, Topo II inhibition before mitotic entry leads to thick chromatin bridges. By contrast, inactivation in metaphase chromosomes produces a much milder phenotype, reinforcing that the degree of catenation in metaphase chromosomes is indeed residual. It was also interesting to note that the defects associated with condensin inactivation before mitosis were, by contrast, milder than observed upon condensin inactivation in metaphase-arrested chromosomes. This further supports the notion that TopoII dependent re-entanglement should be actively suppressed during metaphase, as the degree of re-entanglement in a prolonged metaphase may be even higher than the starting point.

D) Does TEV cleavage remove Barren also from centromeres? This is difficult to judge, since the CID-EGFP signal masks the Barren-TEV-EGFP signal in Figure 1C. It might be useful to show images without a labelled version of CID [it would also be useful if the authors defined 'CID' at its first use].

To address this point, we performed similar cleavage experiments in strains that do not express CID-GFP maker. This enables tracing BarrenTEV-EGFP alone, confirming that after TEV injection Barren is rapidly removed from all chromosome regions, including centromeres. We replaced the previous figure with this new result (Figure 1C). We have also included a description of CID, as suggested (see subsection “A TEV-protease mediated system to inactivate condensin I in Drosophila melanogaster”).

https://doi.org/10.7554/eLife.26120.030

Article and author information

Author details

  1. Ewa Piskadlo

    Instituto Gulbenkian de Ciência, Oeiras, Portugal
    Contribution
    EP, Conceptualization, Resources, Formal analysis, Investigation, Methodology, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0003-0857-6744
  2. Alexandra Tavares

    Instituto Gulbenkian de Ciência, Oeiras, Portugal
    Contribution
    AT, Resources, Methodology, Writing—review and editing, Protein purification
    Competing interests
    The authors declare that no competing interests exist.
  3. Raquel A Oliveira

    Instituto Gulbenkian de Ciência, Oeiras, Portugal
    Contribution
    RAO, Conceptualization, Formal analysis, Supervision, Funding acquisition, Writing—original draft
    For correspondence
    rcoliveira@igc.gulbenkian.pt
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0002-8293-8603

Funding

Fundação para a Ciência e a Tecnologia (SRFH/BD/52172/2013)

  • Ewa Piskadlo

European Commission (MCCIG321883/CCC)

  • Raquel A Oliveira

European Molecular Biology Organization (IG2778)

  • Raquel A Oliveira

Fundação para a Ciência e a Tecnologia (IF/0085½012/CP0185/CT0004 WP1)

  • Raquel A Oliveira

European Commission (ERC-2014-STG-638917-ChromoCellDev)

  • Raquel A Oliveira

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank S Heidmann, H Bellen and B Suter for fly strains, antibodies and plasmids, I Telley, A Athanasiadis for helpful advice, the Advance Imaging Unit and fly facility for technical assistance, all the members of the RAO laboratory for discussions and comments, and Kim Nasmyth for comments on the manuscript. EP holds a PhD fellowship from the Fundação para a Ciência e Tecnologia (SRFH/BD/52172/2013). This work was supported by the following grants awarded to RAO: FCT Investigator grant (IF/00851/2012/CP0185/CT0004 WP1), Marie Curie Career Integration Grant (MCCIG321883/CCC), EMBO Installation Grant (IG2778) and European Research Council Starting Grant (ERC-2014-STG-638917).

Reviewing Editor

  1. David Sherratt, Reviewing Editor, University of Oxford, United Kingdom

Publication history

  1. Received: February 18, 2017
  2. Accepted: May 5, 2017
  3. Accepted Manuscript published: May 6, 2017 (version 1)
  4. Version of Record published: May 31, 2017 (version 2)

Copyright

© 2017, Piskadlo et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,550
    Page views
  • 385
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Scopus, Crossref.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
