The structural basis for dynamic DNA binding and bridging interactions which condense the bacterial centromere

  1. Gemma LM Fisher
  2. César L Pastrana
  3. Victoria A Higman
  4. Alan Koh
  5. James A Taylor
  6. Annika Butterer
  7. Timothy Craggs
  8. Frank Sobott
  9. Heath Murray
  10. Matthew P Crump
  11. Fernando Moreno-Herrero
  12. Mark S Dillingham  Is a corresponding author
  1. University of Bristol, United Kingdom
  2. Centro Nacional de Biotecnologia, Consejo Superior de Investigaciones Cientificas, Spain
  3. Newcastle University, United Kingdom
  4. University of Antwerp, Belgium
  5. University of Sheffield, United Kingdom
  6. University of Leeds, United Kingdom
Research Article
  • Cited 1
  • Views 895
  • Annotations
Cite as: eLife 2017;6:e28086 doi: 10.7554/eLife.28086

Abstract

The ParB protein forms DNA bridging interactions around parS to condense DNA and earmark the bacterial chromosome for segregation. The molecular mechanism underlying the formation of these ParB networks is unclear. We show here that while the central DNA binding domain is essential for anchoring at parS, this interaction is not required for DNA condensation. Structural analysis of the C-terminal domain reveals a dimer with a lysine-rich surface that binds DNA non-specifically and is essential for DNA condensation in vitro. Mutation of either the dimerisation or the DNA binding interface eliminates ParB-GFP foci formation in vivo. Moreover, the free C-terminal domain can rapidly decondense ParB networks independently of its ability to bind DNA. Our work reveals a dual role for the C-terminal domain of ParB as both a DNA binding and bridging interface, and highlights the dynamic nature of ParB networks in Bacillus subtilis.

https://doi.org/10.7554/eLife.28086.001

Introduction

Bacterial chromosomes are actively segregated and condensed by the ParABS system and condensin (Wang et al., 2014; Song and Loparo, 2015). In B. subtilis, this machinery is physically targeted to the origin proximal region of the chromosome by eight palindromic DNA sequences called parS (consensus sequence 5′-TGTTNCACGTGAAACA-3′) to which the ParB (Spo0J) protein binds (Breier and Grossman, 2007; Lin and Grossman, 1998). These nucleoprotein complexes act as a positional marker of the origin and earmark this region for segregation in a manner somewhat analogous to eukaryotic centromeres and their binding partners.

ParB is an unusual DNA binding protein. In addition to sequence-specific interactions with the parS sequence, the protein also spreads extensively around the site for about 18 kbp (Breier and Grossman, 2007; Murray et al., 2006; Lynch and Wang, 1995). The mechanistic basis for this behaviour is not well understood and a matter of active debate. Earlier models envisioned a lateral 1D spreading around parS to form a filament (Murray et al., 2006; Rodionov et al., 1999), principally because spreading can be inhibited in a polar manner by ‘roadblocks’ placed to the side of parS sequences. However, ParB foci appear to contain fewer proteins than are necessary to form a filament, and single molecule analyses using direct imaging (Graham et al., 2014) and magnetic tweezers (Taylor et al., 2015) have shown that binding of DNA by ParB is accompanied by condensation. These ‘networks’ were inferred to be dynamic and poorly-ordered, consisting of several DNA loops between distally bound ParB molecules. In cells, they are presumably anchored at parS sites by sequence-specific interactions but must also contain many interactions with non-specific DNA (nsDNA), as well as self-association interactions that bridge ParB protomers to form DNA loops. Modelling suggests that a combination of 1D spreading and 3D bridging interactions can explain the condensation activity and recapitulate the polar effect of roadblocks on ParB spreading (Broedersz et al., 2014). Recently, single-molecule imaging of the F-plasmid SopB led to a broadly similar model, defining ParB networks as fluid structures that localise around parS using a ‘nucleation and caging’ mechanism (Sanchez et al., 2015). Despite these recent experiments converging on DNA bridging models to explain the ParB spreading phenomenon, the mechanism underpinning this behaviour remains unresolved. In particular, the relationship between these dynamic nucleoprotein complexes and the molecular architecture of the ParB protein is unclear and is the subject of the work presented here.

Genomically-encoded ParB proteins comprise three distinct domains (Figure 1A and Figure 1—figure supplement 1A,B and C). Our understanding of their structure is limited to the N-terminal domain (NTD) which binds ParA (Bouet and Funnell, 1999; Davey and Funnell, 1997; Davis et al., 1992; Radnedge et al., 1998) and the central DNA binding domain (CDBD) which binds parS and possibly also nsDNA (Leonard et al., 2004; Schumacher and Funnell, 2005). A structure of Thermus thermophilus ParB lacking the C-terminal domain (CTD) revealed a compact dimer in which the helix-turn-helix (HtH) motifs were symmetrically arranged in a manner suitable for binding to the palindromic parS sequence (Figure 1—figure supplement 1D) (Leonard et al., 2004). Analysis of the CTD by analytical ultracentrifugation suggested that it also formed a dimer, and it was argued that this interface might promote spreading interactions. Recently, a structure of Helicobacter pylori ParB, in which the protein was also truncated by removal of the CTD, showed a strikingly different conformation, where the NTD had moved away from the CDBD domain to form a tetrameric self-association interface (Figure 1—figure supplement 1E) (Chen et al., 2015). The CDBD was bound to a parS half site, and it was argued that tetramerisation of the NTD could be responsible for bridging interactions between specific and nsDNA bound to the CDBD.

Figure 1 with 1 supplement see all

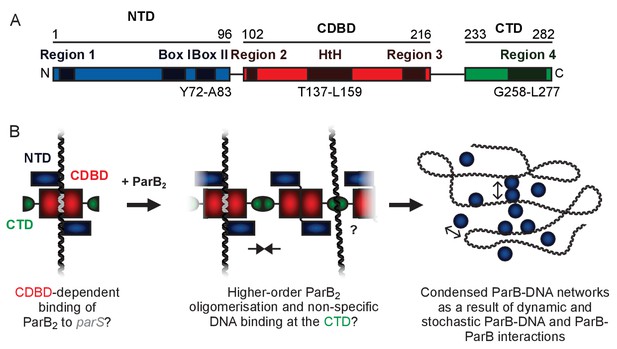

A hypothetical model for ParB-mediated condensation of the origin of replication region.

(A) Domains and regions as identified in (Bartosik et al., 2004; Kusiak et al., 2011). (B) ParB is thought to be anchored at parS (grey) via the HtH motif found in the CDBD (red). ParB protomers self-associate via poorly defined interactions and also make non-specific contacts with DNA segments, leading to the formation of ParB networks. In this work we have investigated the potential role of the CTD (green) in mediating ParB oligomerisation and non-specific DNA binding.

https://doi.org/10.7554/eLife.28086.002

In previous work, we hypothesised that ParB contains a second DNA binding locus for nsDNA that functions independently of the HtH motif (Figure 1B) (Taylor et al., 2015). This idea was attractive to us for several reasons. Firstly, in a single DNA binding locus model, it is not straightforward to reconcile the strict localisation of ParB networks to just a few parS sites (and their surroundings) with the limited discrimination between specific and nsDNA binding that is observed in vitro (a <10 fold apparent difference in affinity) (Taylor et al., 2015; Broedersz et al., 2014). Secondly, although binding to parS protects the CDBD region from proteolysis, binding to nsDNA affords no such protection, implying that it interacts elsewhere on the protein (Taylor et al., 2015). Thirdly, the distantly-related ParB protein from plasmid P1 provides a precedent for a second DNA binding locus in a Type I centromere binding protein (albeit an additional specific DNA binding site), and highlights the CTD as the putative candidate region (Schumacher et al., 2007). However, the lack of any structural information for the CTD of a genomically-encoded ParB prevents a rigorous comparison of the systems because the primary structure similarity in this region is negligible.

In this work, we have probed the role of the CDBD and CTD of B. subtilis ParB using a combination of structural, biochemical, single molecule and in vivo approaches. We find that while the CDBD is responsible for specific recognition of parS, the CTD provides both a second nsDNA binding site and a self-association interface that is important for bridging interactions and DNA condensation.

Results

The R149 residue within the HtH motif is essential for specific binding to parS, but not required for non-specific binding and condensation

Genetic and structural analyses have suggested that residue R149 may be critically important for specific binding to parS at the HtH locus (Graham et al., 2014; Chen et al., 2015; Autret et al., 2001; Gruber and Errington, 2009). To probe the role of the HtH motif using biochemical techniques, we compared binding of parS by wild type ParB and ParBR149G using electrophoretic mobility shift assays containing Mg2+ cations (TBM-EMSA). As reported previously, inclusion of divalent cations in both the gel composition and running buffer enables the clear differentiation of specific and nsDNA-binding activities of ParB (Taylor et al., 2015). As expected, binding of wild type ParB to parS-containing DNA produced a distinct band shift corresponding to the ParB2-parS complex, as well as poorly migrating species at high [ParB] (Figure 2A). These latter complexes are also formed on DNA that does not contain parS, and are therefore indicative of ParB bound to nsDNA flanking the central parS sequence. ParB, and mutants thereof, were purified to homogeneity (Figure 2—figure supplement 1A). EMSA experiments with ParBR149G fail to produce the specific ParB2-parS complex whereas the formation of nsDNA complexes is largely unaffected (Figure 2A). The retention of nsDNA binding activity in ParBR149G is further supported by data using gels lacking Mg2+ ions (TBE-EMSA) (Figure 2—figure supplement 1C), as well as a solution-based protein-induced fluorescence enhancement (PIFE) assay (Figure 2—figure supplement 1B), in which an increase in Cy3 intensity reports ParB binding. For wild type ParB, the data were fitted to the Hill equation yielding an apparent Kd of 361 ± 14 nM and Hill coefficient of 3.2 ± 0.3 in reasonable agreement with published data (Lin and Grossman, 1998; Taylor et al., 2015). ParBR149G produced a similar binding isotherm yielding a moderately weaker Kd of 493 ± 18 nM. This apparent Kd was not significantly altered when the Hill coefficient was not shared between datasets indicating the cooperativity of binding was not impaired in this ParB variant.

Figure 2 with 1 supplement see all
The R149 residue within the HtH motif is essential for specific binding to parS, but not required for non-specific binding and condensation.

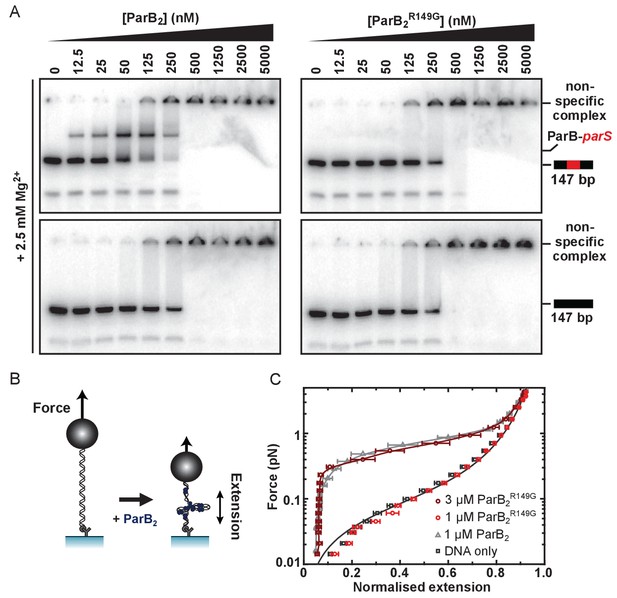

(A) Representative TBM-EMSAs for wild type ParB and ParBR149G monitoring binding of parS-containing or non-specific 147 bp dsDNA. (B) Schematic of the magnetic tweezer assay used to monitor ParB-dependent DNA condensation. (C) Mean force-extension curves for parS-containing DNA molecules in the presence of wild type ParB and ParBR149G. Non-condensed DNA data is fitted to the worm-like chain model. Solid lines in condensed data are guides for the eye. Errors are the standard error of the mean of measurements on different molecules (N ~15–35 molecules).

https://doi.org/10.7554/eLife.28086.004

We next investigated the ability of ParBR149G to condense DNA tethers using magnetic tweezers (Figure 2B). We previously showed that wild type ParB mediates progressive condensation of DNA substrates which is reversible by both force and protein unbinding (Taylor et al., 2015). The condensed state is not highly ordered and its formation is not dependent upon parS sequences, indicating that nsDNA binding is required for condensation. At a concentration sufficient for efficient condensation by wild type ParB (1 µM), ParBR149G did not fully condense DNA, although fluctuations of the DNA tether were consistent with minor condensation events that do not greatly affect the mean extension value measured (data not shown). However, at moderately elevated concentrations (3-fold), reversible condensation did occur and was qualitatively equivalent to wild type behaviour (Figure 2C and Figure 2—figure supplement 1D).

Together, these data show that mutation of the HtH motif effectively eliminates the ability of ParB to interact specifically with its cognate parS site, while nsDNA binding and condensation is relatively unaffected. This is consistent either with the R149G mutation exclusively affecting nucleobase-specific contacts in the ParB-parS complex, and/or with the idea that nsDNA binding may occur at a second DNA binding locus.

The structure of BsParB CTD reveals a dimer with a putative DNA binding interface

We next used solution NMR to determine the structure of the CTD alone (see Figure 3—source data 1 for structure validation and statistics and Figure 3—figure supplement 1A for an assigned 1H-15N HSQC spectrum). The structure forms a well-defined dimer containing two α-helices and two β-strands per monomer in a α1-β1-β2-α2 arrangement (Figure 3A and B). The dimer interface is formed via an intermolecular β-sheet and two domain-swapped C-terminal helices. Although this protein fold is somewhat similar to that seen in the plasmid P1 and SopB ParB proteins (Figure 3—figure supplement 1B,C and D) (Schumacher and Funnell, 2005; Schumacher et al., 2007), there are also significant differences especially in the N-terminal region: the α1 helix in the chromosomal ParB structure is replaced by an additional β-strand in the CTDs of P1 ParB and SopB. Analytical ultracentrifugation, native mass spectrometry and circular dichroism (CD) thermal melt scans further confirmed that the CTD was primarily dimeric in solution and measured a Tm of 68°C (Figure 3—figure supplement 1E and F). NMR H-D exchange data revealed that the dimer exchanges slowly (which will be relevant to the interpretation of later experiments), with those most stable being the intermolecular H-bonds between the two β2 strands (data not shown; the half-lives range from 10 min to 4 hr). This secondary structure element is at the centre of the hydrophobic core which is made up of several Ile, Val and Phe residues in the β-sheet (Figure 3C). The α1 helix forms a leucine zipper with the α2 helix, where alternating Leu residues interdigitate (Figure 3D). A striking feature of the structure is a highly electropositive face of the dimer arising from several conserved Lys residues (Figure 3E and F) analogous to the plasmid-encoded SopB and P1 ParB proteins (Figure 3—figure supplement 1G,H and I).

Figure 3 with 1 supplement see all

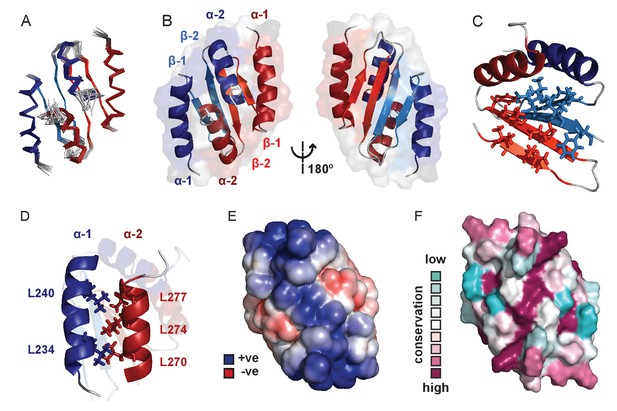

Solution NMR structure of the dimeric ParB C-terminal domain.

(A) Ensemble overlay of the 14 lowest-energy CTD structures. Red and blue depict separate monomers within the dimer. (B) Secondary structure elements are identified. α1 indicates the N-terminus of each monomer. (C) The hydrophobic core of Ile, Val, Leu and Phe residues. For clarity, portions of both monomers were removed. (D) Interdigitating Leu residues of both monomers form a leucine-zipper interaction. (E) Surface charge representation reveals a large electropositive region across the β-sheet face (orientation as in B, right hand side). Continuum electrostatics calculations used the PDB2PQR web server (Dolinsky et al., 2004) and the APBS plugin for PyMOL (Lerner and Carlson, 2006; Baker et al., 2001). (F) Evolutionary conservation surface profile of the CTD of ParB prepared using ConSurf (Goldenberg et al., 2009; Celniker et al., 2013) (orientation as in E). The chemical shifts, restraints and structural co-ordinates have been deposited with the BMRB (34122) and PDB (5NOC).

https://doi.org/10.7554/eLife.28086.006

The CTD binds DNA non-specifically via a lysine-rich surface

To test the idea that the lysine-rich surface we had observed might bind to DNA, we performed TBE-EMSAs with the isolated CTD. These showed that the CTD was indeed able to bind dsDNA (Figure 4Ai) resulting in the formation of a ‘ladder’ of bands of decreasing mobility. This is highly reminiscent of patterns formed by full length ParB under the same conditions (Figure 4Aii and (Taylor et al., 2015)) except for the presence of smaller gaps between the ‘rungs’ as would be expected for a protein of smaller size. The CTD was also shown to bind to hairpin oligonucleotides as short as 10 bp and to ssDNA (Figure 4—figure supplement 1A and data not shown). We do not see substantial differences in the affinity of ParB for DNA substrates with different sequences and so this binding activity appears to be non-specific (data not shown). Native mass spectrometry of complexes formed between the CTD and a 15 bp duplex DNA revealed a stoichiometry of 1 DNA per dimer (Figure 4D). This is in contrast to the P1 ParB system where the CTD operates in a different binding mode, and can bind two 16-mers (Schumacher et al., 2007).

Figure 4 with 1 supplement see all
The CTD binds DNA via a lysine-rich surface.

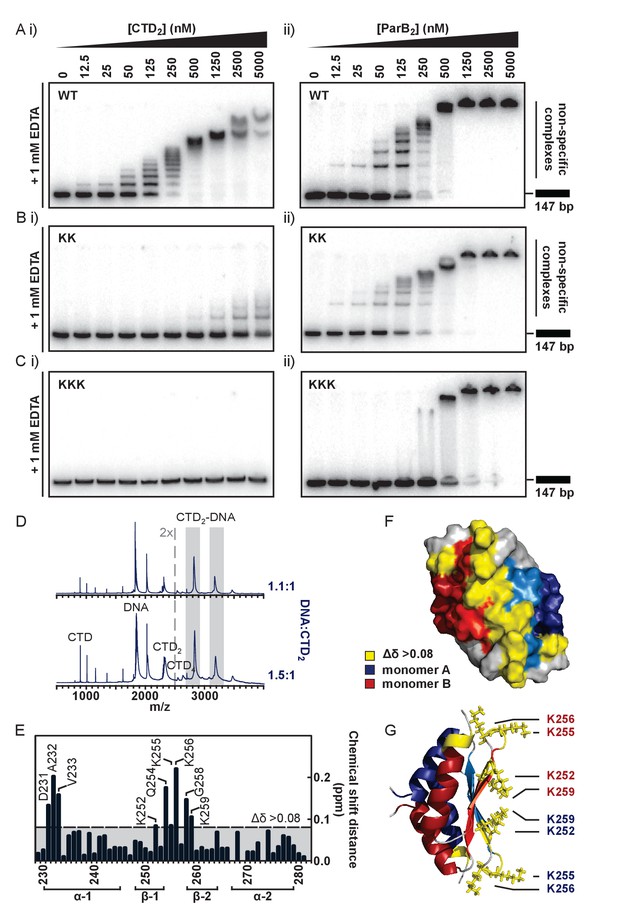

(A–C) TBE-EMSAs for the titration of full length ParB and CTD against 147 bp DNA. Wild type and mutant proteins, K255A + K257A and K252A + K255A + K259A, are indicated. (D) Native mass spectrometry. Titrations of a 15 bp nsDNA hairpin against CTD were performed between ratios of 1.1:1 and 1.5:1 DNA:CTD2. Example spectra are shown with the DNA-CTD2 complex shaded in grey. (E) Deviations in the assigned 1H-15N HSQC spectra of CTD upon titration with a 10 bp hairpin DNA. (F) Chemical shift perturbations exceeding 0.08 ∆δ are highlighted on the structure in yellow. (G) Lys residues thought most likely to bind to DNA are shown as sticks.

https://doi.org/10.7554/eLife.28086.009

To further probe the putative DNA binding surface, we performed a titration of the 10 bp hairpin DNA against the isotopically-labelled CTD dimer (Figure 4E, assigned 1H-15N HSQC spectra are shown in Figure 4—figure supplement 1B). Residues with large chemical shift perturbations (CSPs, Δδ > 0.08) are either directly involved in DNA-binding or undergo a conformational change as an indirect result of DNA-binding, and these were mapped onto the structure (Figure 4F). Two regions of interest were identified: D231-V233, and K252-K259, which are found on the intermolecular β-sheet face and proximal loop regions to form a large, concave and positively-charged interaction surface (Figure 4G).

To confirm that this surface was responsible for DNA binding we substituted several Lys residues with Ala and monitored the effect on DNA binding using EMSA and PIFE assays. In the first instance, a dual K255A/K257A substitution was studied in the context of both the CTD-only construct (CTDKK) and the full length ParB protein (ParBKK). CTDKK displayed a greatly reduced affinity (~50 fold) for DNA, but the binding was not completely abolished (Figure 4Bi). CD thermal melt analysis confirmed that this defect was not attributable to global misfolding (Figure 4—figure supplement 1C). The full length ParBKK variant showed a sigmoidal DNA binding isotherm in a PIFE assay, indicating strong positive cooperativity as observed for wild type ParB but the apparent Kd was 6-fold weaker (Figure 4—figure supplement 1D). In EMSA assays, this variant showed no defect in specific binding to parS as would be expected (Figure 4—figure supplement 1E). Somewhat more surprisingly however, these lysine substitutions appeared to have a negligible effect on nsDNA binding when assessed using the TBE-EMSA assays (Figure 4Bii). This may well reflect the complexity that arises when a partially defective nsDNA binding locus is physically attached to the wild type CDBD domain (which is still fully competent to bind DNA).

We next designed a triple K252A/K255A/K259A variant with the aim of fully dissipating the positive charge density across the surface of the CTD, rather than only targeting the loop-proximal regions. EMSA analysis showed that DNA binding was completely abolished in CTDKKK up to concentrations of 50 µM (Figure 4Ci and Figure 4—figure supplement 1F). CD thermal melt analysis showed that CTDKKK was equivalently folded to wild type CTD at ambient temperatures, but with a reduced Tm (53°C) indicating a moderate destabilising effect of the mutations (Figure 4—figure supplement 1G). Interestingly, analysis of full length ParBKKK showed a clear and consistent defect in all nsDNA binding assays used. TBM-EMSA gels showed that ParB-parS complexes were still formed, although it should be noted that their yield was reduced relative to wild type (Figure 4—figure supplement 1I). TBE-EMSA gels showed a complete eradication of the discrete lower mobility bands which arise from nsDNA binding (Figure 4Cii). Moreover, nsDNA binding was undetectable using the PIFE analysis (Figure 4—figure supplement 1H). Interestingly, EMSA analysis showed that DNA-bound ParBKKK networks do still form as very low mobility species that assemble co-operatively at high ParB concentrations. Given that the ParBKKK protein retains a functional HtH motif, this property might well reflect a role for the CDBD in binding to nsDNA, albeit weakly compared to the parS sequence. This highlights the potential complexity of nsDNA binding in ParB which might involve synergistic binding by both the CDBD and CTD domains.

DNA binding by the CTD is essential for DNA condensation and bridging in vitro

We next exploited our double- and triple-lysine mutant ParB proteins to test the role of the DNA-binding activity associated with the CTD in forming condensed ParB networks. These networks have been extensively characterised previously for wild type ParB using magnetic tweezers with single tethered DNA substrates (Taylor et al., 2015) and also in TIRF-based microscopy (Graham et al., 2014).

Unlike full length ParB, the CTD was not capable of condensing DNA tethers under any condition tested, even up to 5 µM CTD2 concentrations and under applied forces as low as 0.02 pN (Figure 1—figure supplement 1Ai). This is consistent with the expected requirement for multiple protein-protein and/or protein-DNA interfaces to promote DNA looping and condensation. Incubation of full length ParBKK with single DNA tethers resulted in defective DNA condensation compared to wild type ParB (Figure 5A). When it was observed, condensation was sudden (rather than progressive, as for wild type ParB) and full condensation required the applied force to be dropped to an exceptionally low value (0.09 pN) (Figure 5—figure supplement 1Aii). The DNA molecules also showed unusually large steps when decondensed by force, suggesting that ParBKK was infrequently stabilising in cis DNA-bridging interactions between isolated DNA regions (data not shown). Co-incubation of ParBKKK with single DNA tethers under our standard experimental conditions resulted in no measurable condensation events, even under applied forces as low as 0.02 pN and at elevated concentrations (Figure 5A and Figure 5—figure supplement 1Aiii). The average work done by ParB compared to the variant proteins during these condensation events was determined from the difference between the integral of the force-extension curve in the presence of the protein and that of DNA alone. This provides a means to quantitatively compare the condensation efficiency between mutants (Figure 5—figure supplement 1B). We also performed plectoneme stabilisation experiments (Figure 5B). In this assay, a single torsionally-constrained DNA molecule is positively supercoiled at a 4 pN force by applying 60 turns. ParB is then introduced and, after full buffer exchange, all turns are released whilst monitoring DNA extension. Any deviation of DNA extension from that expected of bare DNA is indicative of supercoiled regions being stabilised by ParB. ParBKK could stabilise DNA-bridging interactions between isolated DNA regions but this was often characterised by large steps in the DNA tether extension increase which is unlike the behaviour of wild type (Figure 5C and Figure 5—figure supplement 1C). ParBKKK was unable to stabilise plectoneme structures showing that it cannot bridge DNA segments in trans (Figure 5D and Figure 5—figure supplement 1D).

Figure 5 with 1 supplement see all
DNA binding by the CTD is required for efficient DNA condensation in vitro.

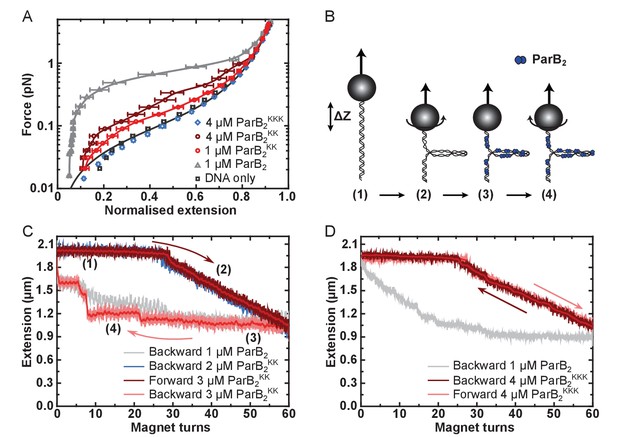

(A) Mean force-extension curves of DNA molecules co-incubated with ParB variants at the indicated concentrations. Non-condensed (protein-free) DNA data is fitted to the worm-like chain model. Solid lines in condensed data are guides for the eye. Errors are the standard error of the mean of measurements on different molecules (N ~ 18–35 molecules). (B) Schematic of plectoneme stabilisation assay. A single torsionally-constrained DNA molecule was positively supercoiled at 4 pN force by applying 60 turns. This shortens the tether length due to the formation of plectonemes in the overwound DNA. ParB2 is then introduced and all turns are released whilst monitoring DNA extension. Evidence for ParB-dependent plectoneme stabilisation is provided by hysteresis in the extension as a function of magnet turns as the supercoiling is removed. (C) Plectoneme stabilisation assay comparing bare DNA, wild type ParB and ParBKK. The double-mutant protein supported DNA bridging and occasionally large steps were observed in the backward trace (see text for discussion). (D) Plectoneme stabilisation assay comparing wild type ParB and ParBKKK. No activity was detected for the triple-mutant protein.

https://doi.org/10.7554/eLife.28086.011

The CTD can both inhibit the formation of, and decondense, ParB-DNA networks in vitro

The CTD potentially acts as both an oligomerisation interface and also a site of nsDNA-binding. Therefore, we hypothesised that the CTD might have a dominant negative effect on full length ParB by competing for the DNA and protein interfaces that mediate the formation of ParB networks in the magnetic tweezers (MT).

Purified CTD completely inhibited the formation of the condensed state if pre-incubated with wild type ParB and DNA under the high stretching force regime (Figure 6A and Figure 6—figure supplement 1A). We also tested whether the introduction of free CTD to pre-condensed tethers was able to disrupt ParB-DNA networks. Condensed ParB networks were completely stable in a flow of free ParB on the timescale of these experiments, and the DNA tethers were also able to re-condense following force-induced decondensation (Figure 6Bi). However, the inclusion of excess free CTD rapidly disrupted ParB networks, with some degree of decondensation observed in 94% of all the molecules tested (Figure 6Bii). Moreover, those molecules which did not decondense spontaneously could be stretched by force, but were then unable to recondense when permissive forces were restored. This ability of the CTD to decondense ParB networks demonstrates that the protein-protein and/or protein:DNA interfaces that maintain the condensed state under a low force regime are dynamic (i.e. they are exchanging while the overall structure of the network is maintained).

Figure 6 with 2 supplements see all

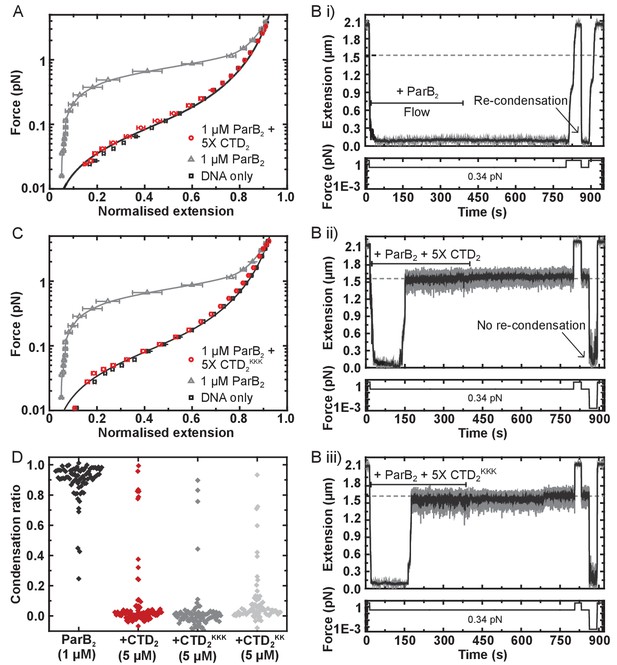

The CTD of ParB both inhibits and disrupts ParB-dependent DNA condensation.

(A) Mean force-extension curves for DNA molecules co-incubated with 1 µM ParB2 in the presence or absence of 5 µM CTD2. Non-condensed (protein-free) DNA data is fitted to the worm-like chain model. Solid lines in condensed data are guides for the eye. (B) (i) ParB-DNA networks are stable in magnetic tweezers in the presence of 1 µM ParB2. (ii) ParB-DNA complexes spontaneously decondense following the introduction of 1 µM ParB2 and 5 µM free CTD2. (iii) ParB-DNA complexes spontaneously decondense following the introduction of 1 µM ParB2 and 5 µM CTD2KKK. (C) Mean force-extension curves for DNA molecules co-incubated with 1 µM ParB2 in the presence or absence of 5 µM mutant CTD2KKK. Errors are the mean of measurements on different molecules (N > 40 molecules) (D) Condensation ratio (see Materials and methods for definition) for individual DNA condensation events involving the addition of CTD competitor variants to pre-condensed ParB-DNA networks.

https://doi.org/10.7554/eLife.28086.013

We have shown above that the CTD binds tightly to nsDNA. Therefore, its ability to prevent condensation and induce decondensation might simply reflect competition for the nsDNA that becomes available during exchange of ParB:DNA interfaces. Indeed, we have shown previously that free DNA is a potent inducer of network decondensation in the MT apparatus (Taylor et al., 2015). To test the idea that the CTD dimerisation interface is also important for maintaining the condensed state, we repeated our experiments with the CTDKK and CTDKKK constructs, which are defective and apparently unable (respectively) to bind nsDNA. Both mutant proteins were as effective as wild type in preventing condensation (Figure 6C and Figure 6—figure supplement 1B), and both were able to induce decondensation in approximately 95% of all molecules tested (Figure 6Biii and D). This strongly suggests that CTD-dependent ParB network dissipation is primarily mediated by competition for the CTD dimerisation interface and further confirms that the CTDKKK construct is folded. This competition presumably results from the formation of heteroligomers between full length ParB and the CTD, which disrupts interactions that are essential for condensation (Figure 6—figure supplement 1C).

The CTD is critical for the formation of ParB foci in vivo

To test the importance of the CTD dimerisation and DNA binding interfaces in vivo, we compared the ability of wild type and mutant ParB-GFP proteins to form foci in B. subtilis cells when expressed from the endogenous locus. Wild type ParB-GFP formed discrete foci around oriC as expected (Murray et al., 2006; Graham et al., 2014; Autret et al., 2001; Real et al., 2005; Glaser et al., 1997; Lin et al., 1997; Lewis and Errington, 1997; Marston and Errington, 1999). In contrast, ParBKKK-GFP failed to form discrete foci (Figure 7Ai–ii) despite wild type expression (Figure 7—figure supplement 1A). Interestingly, the triple-mutant protein appeared to localise non-specifically to the nucleoid, perhaps as a result of residual DNA binding by the HtH motifs, suggesting that ParBKKK-GFP retained the ability to dimerise. A caveat in interpreting this experiment is that, in addition to a complete eradication of nsDNA binding by the CTD domain, the ParBKKK mutant protein also showed a reduction in parS binding (Figure 4—figure supplement 1I). Therefore, we cannot exclude the possibility that defective parS binding also contributes to the lack of ParB foci formation we have observed. A ParBL270D+L274D construct, designed to prevent leucine zipper-mediated dimerisation of the CTD, was completely unable to form ParB foci (Figure 7Aiii–v) despite being expressed at approximately wild type levels (Figure 7—figure supplement 1B). The complete deletion of the CTD by truncation to E222 or E227 resulted in the same phenotype (data not shown).

Figure 7 with 1 supplement see all
DNA-binding and dimerisation by the CTD is critical for ParB function in vivo.

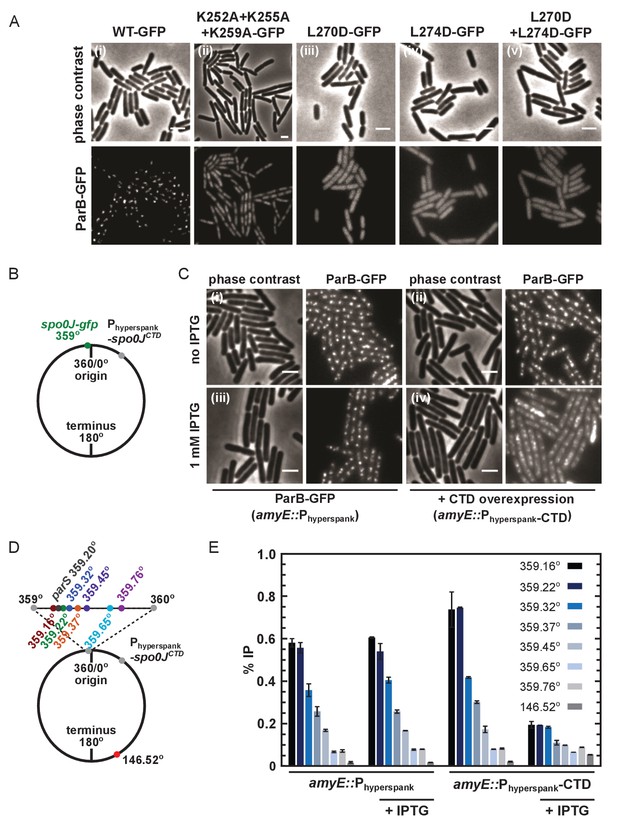

(A) Variant ParB-GFP mutants form abnormal foci in B. subtilis. Cells were grown overnight in slow growth conditions before dilution (1:100) into fast growth media, and were allowed to achieve at least five mass doublings before observation by microscopy (N > 300 cells). Scale bar is 2 µm. (B) Construct design for overexpression of the CTD in vivo. (C) CTD overexpression was induced by IPTG in the presence of chromosomally-encoded wild type ParB-GFP using the Phyperspank construct. Cells were grown as in A. (D) Construct design for ChIP-qPCR. (E) ChIP-qPCR assay for ParB spreading. Cells were grown slowly overnight, diluted (1:100) into fast growth media, and allowed to reach eight mass doublings before crosslinking with 1% formaldehyde. Background IP was measured at the terminus (146°). Primer pairs produced 200–300 bp fragments.

https://doi.org/10.7554/eLife.28086.016

Our attempts to purify recombinant ParBL270D+L274D failed because the protein was insoluble upon overexpression in E. coli. This raises the possible caveat that the loss of function associated with this dimerisation mutant in vivo might reflect mis-folding. Therefore, we also investigated whether the free CTD was able to interfere with dimerisation in vivo, thereby causing a dominant negative effect on ParB function. A B. subtilis strain was engineered with a C-terminal gfp fusion replacing the endogenous spo0J and the unlabelled CTD-only gene inserted at an ectopic locus downstream of a Phyperspank promoter, designed for high protein expression that is tightly-controlled with IPTG (Figure 7B). Overexpression of the CTD caused ParB-GFP foci to become diffuse (Figure 7C), although expression levels of endogenous ParB-GFP were unaffected (Figure 7—figure supplement 1C).

ChIP-qPCR analysis allowed us to more directly characterise the effect of CTD expression upon ParB spreading (i.e. the enrichment of ParB at and widely around parS sites). Spreading was measured around a single parS site (359.20°) and used a locus towards the terminus to monitor background ‘enrichment’ (146.52°) (Figure 7D). As expected, in the absence of CTD expression, ParB was highly enriched not only at parS sites (~40 fold), but also for several kilobase pairs around parS (Figure 7E). Overexpression of CTD significantly decreased the signal around parS (up to ~4 fold), indicating that it interferes with spreading. Western blotting of cells grown under equivalent conditions to the ChIP-qPCR assay and using the same batch of polyclonal anti-ParB antibody suggests that the CTD is not preferentially recognised over the endogenous full length ParB protein (Figure 7—figure supplement 1D). Note that the reduced signal observed for the parS fragment does not necessarily indicate defective specific binding, because the PCR product at parS is much larger than the 16 bp parS site or the 24 bp footprint of a ParB dimer (Murray et al., 2006). We can conclude that non-specific DNA interactions are reduced, but we are unable to say whether specific interactions are also reduced, or are maintained at wild type levels.

Finally, we determined the consequence of decreased ParB spreading in vivo induced by CTD overexpression by measuring the rate of DNA replication initiation. ParB normally inhibits the activity of Soj, a regulator of the master bacterial initiation protein DnaA (Murray and Errington, 2008). Marker frequency analysis showed that CTD overexpression stimulated the frequency of DNA replication initiation, indicating that regulation of DnaA by Soj was adversely affected (Figure 7—figure supplement 1E). Together, these results are consistent with our in vitro observations, and support a model in which dynamic ParB-DNA networks are dependent upon ParB oligomerisation and DNA-binding interfaces in the CTD.

Discussion

ParB proteins form long-distance bridging interactions on DNA, forming foci that facilitate chromosomal partitioning reactions (Lynch and Wang, 1995; Rodionov et al., 1999; Bingle et al., 2005). These foci are anchored at parS sites and interact non-specifically around a single site for ±18 kbp (Breier and Grossman, 2007; Wang et al., 2017). This ParB ‘spreading’ activity is a conserved property across chromosomal and plasmid segrosomes, yet the interaction interfaces involved have remained elusive, particularly for genomically-encoded systems (Graham et al., 2014). This is, in part, due to the variable structures of ParB proteins and their cognate centromere sequences, even within the type I subclass of which B. subtilis ParB is a member (Gerdes et al., 2000; Schumacher, 2008). Increasing evidence indicates that ParB spreading is the result of a DNA-bridging activity mediated by ParB-ParB oligomerisation interfaces (Graham et al., 2014; Taylor et al., 2015; Broedersz et al., 2014; Sanchez et al., 2015; Sanchez et al., 2013). However, a complete understanding of the relationship between ParB structure and function has been hindered by the lack of any full length structure for a chromosomally-encoded ParB. Indeed, the organisation of the N-terminal (NTD), central DNA-binding (CDBD) and C-terminal (CTD) domains appears to be quite complex (Figure 1—figure supplement 1A,B and C; Figure 6—figure supplement 2A). For the type I ParB protein class, there is evidence to suggest that dimerisation and/or tetramerisation can occur at the NTD and CDBD, and that dimerisation can occur at the CTD (Leonard et al., 2004; Schumacher and Funnell, 2005; Chen et al., 2015). Alongside an ability to bind DNA both specifically and non-specifically, a combination of some or all of these protein:protein interfaces must support ParB spreading and network formation (Figure 6—figure supplement 2A).

To address the putative role of the CTD in spreading (Leonard et al., 2004), we resolved the first structure of a genomic ParB CTD. The structure revealed a conserved lysine-rich surface and we showed that this binds to DNA in an apparently non-specific manner. This novel DNA binding locus is distinct from the sequence-specific DNA binding site for parS formed by the classical HtH motif within the CDBD domain. In this respect, there are parallels with the plasmid-encoded ParB proteins P1 and SopB (Schumacher et al., 2007; Schumacher et al., 2010). In these systems, the CTDs share similar surface electrostatics in which a polar distribution of charged residues results in both positively- and negatively- charged surfaces on opposite faces of the domain. In both B. subtilis ParB and P1 ParB, the Lys/Arg rich surface has been shown to bind to DNA using structural or biochemical techniques ([Schumacher and Funnell, 2005; Schumacher et al., 2007] and this work), but experiments with SopB do not support the idea that it shares this activity (Ah-Seng et al., 2009). The integrity of the CTD may also be important for stabilising the N-terminal region of the protein. When SopB was truncated ahead of the CTD, it could not bind sopC (the F-plasmid equivalent of parS) (Kusukawa et al., 1987), and analogous results have been obtained with T. thermophilus and B. subtilis ParB ((Leonard et al., 2004) and unpublished observations).

Our CTD structure facilitated the design of separation of function mutations to test the importance of the dimerisation and DNA binding activities using a variety of in vitro and in vivo readouts of ParB function. We showed that the DNA binding interface in the CTD is not required for parS binding, and that this is instead dependent on the HtH motif found within the CDBD domain as predicted in several previous studies (Graham et al., 2014; Chen et al., 2015; Autret et al., 2001; Gruber and Errington, 2009; Gerdes et al., 2000; Bignell and Thomas, 2001; Theophilus and Thomas, 1987; Lobocka and Yarmolinsky, 1996). In contrast, the CTD is essential for the formation of nsDNA complexes that are observed as ladders of decreasing mobility in EMSA assays. Mutant proteins that were unable to bind DNA at the CTD locus were severely defective in both DNA condensation assays in vitro and ParB foci formation assays in vivo. Moreover, ParB proteins that were designed to be unable to form oligomeric structures by mutation of the CTD-CTD dimerisation interface were completely unable to form ParB foci. Finally, we showed that the free CTD domain can disrupt ParB networks, both in vitro and in vivo. Overexpression of the CTD in B. subtilis can lead directly to the assembly of heterodimers or heterooligomers with full length ParB that interfere with wild-type function. However, this is not the case when using purified proteins in vitro, and we envision at least two non-exclusive explanations for the CTD-induced decondensation we observe in the MT assay (see Figure 6—figure supplement 2B): the CTD could simply compete for binding to the DNA substrate (scenario 1 in the figure), or the CTD could exchange with full length ParB to form mixed species (scenarios 2 and 3). The first possibility can be excluded as being solely responsible for decondensation, because a CTD construct that is devoid of DNA binding activity has the same dominant negative effect. In the second scenario, the CTD might form inactive heterodimers with the full length ParB in free solution, such that it can longer exchange with the condensed network. Alternatively, the CTD could interact with the full length ParB that remains bound to DNA in the network. This could ‘cap’ the bridging interactions, if indeed the CTD interface were important for such interactions (although we cannot exclude the alternative idea that binding of the CTD has an allosteric effect on a different bridging interface). In either case our results highlight a critical function for the CTD interface in overall ParB function, but we favour the second idea. Although our NMR experiments indicate that exchange of the CTD interface does occur, it is on a timescale of hours to days. This is too slow to account for the effect we observe in the MT if it is simply based on monomer exchange between the CTD dimer and the full length ParB dimer in free solution. However, the situation in the ParB network is very different, because the opposing force generated by the MT can dramatically increase the rate of exchange of bridging interactions that hold the DNA in a condensed state. Ultimately, a direct demonstration of this idea will require a correlative measurement of DNA extension with the observation of ParB/CTD binding under conditions of controlled force, and this will be the subject of future studies. Taken together, our observations support the idea that the CTD is essential for both DNA binding and for ParB-ParB bridging interactions that support DNA condensation in vitro.

We propose that the presence of two DNA binding loci in ParB can help to explain how ParB networks are anchored at parS in vivo. Importantly, this architecture resolves the paradoxical observation that the apparent specificity for parS in vitro (<10 fold greater affinity for parS versus nsDNA) is insufficient to explain the strict localisation of ParB around just eight sites in a ~4 Mbp genome (Taylor et al., 2015; Broedersz et al., 2014). In a two DNA binding site model, specific and non-specific binding can be semi-independent activities that are architecturally-coupled only when ParB oligomerises into networks. This model can also explain why DNA condensation does not require parS in vitro, whereas the absence of parS sites prevents the formation of ParB-DNA foci in vivo ((Graham et al., 2014; Taylor et al., 2015; Sanchez et al., 2015; Erdmann et al., 1999) and this work). In a test tube, whenever ParB is present at concentrations that licence oligomerisation, it is always in large stoichiometric excess over binding sites and all available DNA will be bound. In cells, the situation is very different because there is a limited pool of ParB (Graham et al., 2014). Specific interaction with parS preferentially anchors the ParB network at parS, leaving a vast number of unoccupied sites. If parS sites are absent in cells, ParB might still form networks, but these would not be anchored at specific sites and would therefore fail to form foci, as has been observed experimentally (Erdmann et al., 1999; Sullivan et al., 2009). A rigorous proof of these ideas will require a modelling approach that will be the subject of future work.

Previously, high-resolution SIM and ChIP-seq data have suggested that ParB-DNA partition complexes involve stochastic and dynamic binding of ParB to both DNA and other ParB proteins, resulting in the formation of fluid intra-nucleoid ‘ParB cages’ on DNA (Sanchez et al., 2015). This view is consistent with the disorder observed in MT assays (Taylor et al., 2015), and with the dominant negative effect of the free CTD domain on ParB networks shown here. However, a recent structural study of H. pylori ParB concluded that a novel tetramerisation interface within the NTD was also likely to be important in bridging (Chen et al., 2015; Song et al., 2017). Moreover, spreading could be facilitated by parS-dependent conformational changes that act as nucleation points for networks (Broedersz et al., 2014; Leonard et al., 2004). A more complete understanding of ParB network formation and its regulation will be required to underpin future studies on how ParB acts together with ParA and condensin to orchestrate efficient chromosome segregation.

Materials and methods

Plasmids and DNA substrate preparation

All mutagenesis used the pET28a-ParB expression vector as a template (Taylor et al., 2015). The R149G mutation was introduced by site-directed mutagenesis using a QuikChange II XL kit (Agilent Technologies). The full length ParB gene (1-849) with the K255A + K257A or K252A + K255A + K259A substitutions was produced synthetically (Life Technologies) and subcloned into pET28a using NcoI and BamHI restriction sites (Taylor et al., 2015). CTD only (217-282) constructs were produced using PCR with primer overhangs incorporating 5’ PacI and 3’ XmaI restriction sites for subcloning (5’ - GCGTAAGCCCCGGGCAGAATGTTCCACGTGAAACAAAG - 3’ and 5’ - GCGTCATGTTAATTAATCATTATGATTCTCGTTCAGACAAAAG - 3’) into pET47b (Novagen) to produce a protein with an N-terminal HRV 3C protease cleavable His-tag. The integrity of all DNA sequences was confirmed by direct sequencing (DNA Sequencing Service, University of Dundee).

Preparation of radiolabelled, 5’ Cy3-labelled and magnetic tweezer DNA substrates was as described (Taylor et al., 2015). 10 bp DNA hairpins were prepared by heating a self-complementary oligonucleotide (5' - GCGTACATCATTCCCTGATGTACGC - 3') in 10 mM Na2HPO4/NaH2PO4 pH 6.5, 250 mM KCl and 5 mM EDTA to 95°C for 25 min, followed by rapid cooling in an ice bath. The DNA was purified by anion-exchange chromatography using a 0.25–1 M KCl gradient, and desalted over multiple NAP-10 columns (GE Healthcare Life Sciences) before concentration in a centrifugal vacuum concentrator.

ParB overexpression and purification

ParB, and the variants R149G, K255A + K257A and K252A + K255A + K259A, were overexpressed and purified as described (Taylor et al., 2015). CTD, and mutants thereof, were His-tagged and purified to homogeneity as follows. Cell pellets, produced as described (Taylor et al., 2015), were resuspended in 20 mM Tris-HCl pH 7.5, 500 mM NaCl and 1 mM BME (TNB buffer) with the addition of 10 mM imidazole, 5% (v/v) glycerol and protease inhibitor cocktail set II (Millipore), before being snap-frozen and stored at −80°C. Cells were lysed by sonication in the presence of 0.2 mg/ml lysozyme (Sigma). The lysate was clarified by centrifugation and loaded onto a 5 ml HisTrap HP column (GE Healthcare Life Sciences) equilibrated with TNB buffer +10 mM imidazole. CTD elution was achieved with a linear gradient of 10 mM to 500 mM imidazole. Peak fractions were assessed by SDS-PAGE and pooled accordingly. The tag was removed with HRV 3C protease (Thermo Scientific, Pierce) for 16 hr at 4°C during dialysis into TNB buffer +10 mM imidazole. The products were subsequently loaded onto a HisTrap HP column whereby the cleaved CTD was collected in the flow-through volume, followed by concentration by centrifugation in Amicon Ultra-15 3 kDa MWCO spin filters (Millipore). This concentrate was loaded at 1 ml/min onto a Hiload 16/600 Superdex S75 gel filtration column (GE Healthcare Life Sciences) equilibrated with 50 mM Tris-HCl pH 7.5, 1 mM EDTA, 300 mM NaCl and 1 mM DTT (storage buffer). Appropriate peak fractions were pooled, followed by final concentration by centrifugation as described. Spectrophotometric grade glycerol (Alfa Aesar) was added to 10% (v/v). The final protein was then snap-frozen as aliquots and stored at −80°C. ParB concentration was determined by spectrophotometry using theoretical extinction coefficients of 7450 M−1 cm−1 and 2560 M−1 cm−1 for ParB and CTD respectively. ParB concentrations in all assays refer to the dimeric state. The wild type, K255A + K257A and K252A + K255A + K259A variants of ParB behaved equivalently during purification, and run almost identically on preparative size exclusion columns (both in the context of the CTD and full length protein), suggesting that they are all dimeric. For structure determination by NMR, the CTD was dual isotopically (13C and 15N) labelled during overexpression in M9 media, as described previously (Williams et al., 2007), and subsequently purified as above.

CD spectroscopy

CD spectra were collected using a JASCO J-810 spectropolarimeter fitted with a Peltier temperature control (Jasco UK). 50 µM protein samples were buffer exchanged into phosphate buffered saline (PBS; 8.2 mM NaH2PO4, 1.8 mM KH2PO4, 137 mM NaCl and 2.7 mM KCl (pH 7.4)) by 16 hr dialysis at 4°C using a membrane with a MWCO of 3.5 kDa. At 20 µM and using a 0.1 cm quartz cuvette, thermal stability data was acquired across a 190–260 nm absorbance scan (1 nm data pitch at a scanning speed of 100 nm/min) from 5°C to 90°C at 5°C increments. Raw data was normalised to molar ellipticity (MRE (deg.cm2.dmol−1)) using calculation of the concentration of peptide bonds and the cell path length. A buffer only baseline was subtracted from all datasets. All data for mutant variants was acquired alongside a wild type CTD control.

NMR

NMR datasets were collected at 35°C, utilising a Varian VNMRS 600 MHz spectrometer with a cryogenic cold-probe. The purified protein was buffer exchanged into PBS (10 mM NaH2PO4, 1.8 mM KH2PO4, 137 mM NaCl and 2.7 mM KCl (pH 6.1)) and concentrated to 1 mM. 1H-15N HSQC, 1H-13C HSQC, HNCACB, CBCA(CO)NH, HNCA, HN(CO)CA, HNCO, CC(CO)NH, H(CCO)NH, HCCH-TOCSY, 15N-NOESY-HSQC (150 ms mixing time), 13C-NOESY-HSQC (140 ms mixing time) and aromatic 13C-NOESY-HSQC (140 ms mixing time) experiments were collected on 13C,15N-labelled CTD. 2D 1H-1H TOCSY and NOESY spectra were recorded on unlabelled protein. 13C,15N-labelled and unlabelled protein were mixed in equimolar amounts to create a mixed labelled sample used to record 3D13C,15N F1-filtered, 13C,15N F3-edited 13C-NOSEY-HSQC and 15N-NOESY-HSQC experiments (Zwahlen et al., 1997). A hydrogen-deuterium (HD) exchange experiment was conducted by recording 1H-15N HSQC experiments at several intervals following dissolution of freeze-dried protein in D2O. A titration was conducted by adding a 10 bp DNA hairpin step-wise to 13C, 15N-labelled CTD and recording a 1H-15N HSQC experiment after each addition. The final molar ratio of protein:DNA was 1:1.25. All NMR data were processed using NMRPipe (Delaglio et al., 1995). Spectra were assigned using CcpNmr Analysis 2.4 (Vranken et al., 2005). Proton chemical shifts were referenced with respect to the water signal relative to DSS.

Heteronuclear NOE experiments showed residues 214–228 to be highly flexible. This was supported by chemical shift analysis with TALOS+ (Shen et al., 2009) and the absence of any medium or long-range NOEs for these residues. Structure calculations were only conducted on residues 229–280, as the unstructured tail made unfavourable energy contributions to the calculation which distorted the selection of ensembles of low-energy structures. Structure calculations were conducted using ARIA 2.3 (Rieping et al., 2007). 10 structures were calculated at each iteration except iteration 8, at which 200 structures were calculated. The 20 lowest energy structures from this iteration went on to be water refined. Spin diffusion correction was used during all iterations (Linge et al., 2004). Two cooling phases, each with 30,000 steps were used. Torsion angle restraints were calculated using TALOS+. Standard ARIA symmetry restraints for two monomers with C2 symmetry were included (Bardiaux et al., 2009). Structural rules were enabled, using the secondary structure predictions made by TALOS+. The HD exchange experiment showed 29 NH groups to be protected after 8 min. Initial structure calculations were conducted without hydrogen bond restraints. Hydrogen bond donors were then identified and corresponding hydrogen bond restraints included in later calculations. Calculations were conducted using a flat-bottom harmonic wall energy potential for the distance restraints until no consistent violations above 0.1 Å were observed. The final calculation was then performed using a log-harmonic potential (Nilges et al., 2008) with a softened force-field (Mareuil et al., 2015). Structures were validated using the Protein Structure Validation Software (PSVS) suite 1.5 (Bhattacharya et al., 2007) and CING (Doreleijers et al., 2012). The chemical shifts, restraints and structural co-ordinates have been deposited with the BMRB (34122) and PDB (5NOC).

EMSA experiments

The specific and nsDNA-binding activity of ParB was analysed by TBM- and TBE-PAGE as described (Taylor et al., 2015). Serial dilutions of ParB, to the indicated concentrations, were incubated with 20 nM 147 bp parS or ‘scrambled’ DNA (at a ratio of 1:19 labelled to unlabelled), 50 mM HEPES-KOH pH 7.5, 100 mM KCl, 2.5 mM MgCl2, 0.1 mg/ml BSA, 1 mM DTT and 2.5% (v/v) Ficoll in a 20 µl reaction volume. Where indicated, different length dsDNA substrates were used equivalently. Samples were incubated at room temperature for 30 min followed by 5 min on ice. 10 µl of each were loaded onto a 6% acrylamide/bis-acrylamide (29:1) gel in 90 mM Tris, 150 mM H3BO3 (final pH 7.5), supplemented with either 2.5 mM MgCl2 (TBM) or 1 mM EDTA (TBE). Gels were pre-run at 150 V, 4°C for 30 min in a buffer identical to their composition, and run post-loading at 150 V, 4°C for 1 hr. For imaging, gels were vacuum-dried, exposed to a phosphor screen and subsequently scanned by a Phosphor-Imager (Typhoon FLA 9500, GE Healthcare Life Sciences). Gels are representative of three biological replicate experiments.

Protein induced fluorescence enhancement (PIFE) assay

ParB DNA-binding to non-specific substrates was analysed in a solution-based assay where a change of emitted Cy3 fluorescence acted as a reporter of ParB binding (Taylor et al., 2015). ParB was incubated with 20 nM 147 bp 5’-Cy3-labelled DNA, 50 mM HEPES-KOH pH 7.5, 100 mM KCl, 2.5 mM MgCl2, 0.1 mg/ml BSA and 1 mM DTT. Samples of 120 µl were incubated at room temperature for 30 min before being transferred into a quartz cuvette for data collection. Cy3 fluorescence in each sample was measured by excitation at 549 nm and an emission scan between 560 and 600 nm (Cary Eclipse Fluorescence Spectrophotometer, Agilent Technologies). Peak maxima were calculated by the area under the curve function in GraphPad Prism software, and the increase in fluorescence calculated relative to a DNA only control. Where appropriate, data was fitted with a Hill equation.

(1) Y=Bmax × [ParB2]hKdapph+[ParB2]h

Where Y is the measured increase in fluorescence, Bmax is the maximal increase in fluorescence, h is the Hill coefficient and Kdapp is the apparent dissociation constant. When comparing wild type and mutant binding isotherms, the data were well-fitted using a shared value for the Hill coefficient (i.e. there was no evidence for changes in binding cooperativity as a result of the mutations studied). Standard errors for the fitted parameters were calculated in GraphPad Prism using three independent repeat experiments.

Magnetic tweezers

Instrument and samples

We used a home-made magnetic tweezers setup similar in design to that described in Strick et al. (1998), Carrasco et al. (2013) and detailed in Pastrana et al. (2016). In brief, images of 1 μm superparamagnetic beads tethered to the surface of a glass slide by DNA constructs are acquired with a 100x oil immersion objective and a CCD camera. Real-time image analysis was used to determine the spatial coordinates of beads with nm accuracy in x, y and z. A step-by-step motor located above the sample moves a pair of magnets allowing the application of stretching forces to the bead-DNA system. Applied forces can be quantified from the Brownian excursions of the bead and the extension of the DNA tether. Unless specified otherwise, data were acquired at 120 Hz and filtered down to 3 Hz for representation and analysis.

Fabrication of DNA substrates for MT experiments containing a single parS sequence with biotins and digoxigenins at the tails was described in Taylor et al. (2015). The DNA substrates were incubated with 1 μm streptavidin-coated beads (MyOne, Invitrogen) for 10 min. Then, the DNA-bead complex was injected in a liquid cell functionalised with anti-digoxigenin antibodies (Roche) and incubated for 10 min before applying force. In a first step, visual inspection allows identification and selection of tethered DNA molecules. Torsionally-constrained molecules and beads with more than a single DNA molecule were identified from its distinct rotation-extension curves. Double or multiple tethers were discarded for further analysis in this work. All the experiments were performed in a reaction buffer composed of 100 mM NaCl, 50 mM Tris-HCl or HEPES-KOH pH 7.5, 100 μg/ml BSA and 0.1% Tween 20 (v/v).

CTD-induced decondensation

Once selected single torsionally-relaxed DNA molecules, 1 μM ParB2 was incubated for 2–3 min and condensation was induced by decreasing the force to 0.34 pN. Immediately after this, one cell-volume of reaction buffer containing 5 μM CTD and 1 μM ParB2, pre-incubated for 2–3 min, was applied at a constant flow velocity of 16 µl/min. In control experiments where only 1 μM ParB2 was applied, the reaction was supplemented with a volume of storage buffer equal to that used in the CTD experiments and thus maintaining the ionic conditions.

To have a measurement of the degree of induced decondensation, we determined a condensation ratio, Cr (Figure 6D), which was calculated simply as:

(2) Cr= z0-zz0

where z0 is the expected extension at 0.34 pN measured before ParB injection and z is the equilibrium extension after induced-decondensation. z was determined from average extensions of 120 data points at 390 s after the cell volume was completely exchanged. These data were acquired at 60 Hz and filtered down to 3 Hz.

Force-extension curves and work calculation

Force-extension curves were obtained by decreasing the applied force in steps from 4 pN to ~0.02 pN for a total measuring time of 13 min. This procedure is initially performed for bare DNA molecules. Then, the force is reset to 4 pN and ParB variants are flown and incubated for 2 min before starting the measurement of a new force-extension curve using the same magnet positions in absence of proteins. In every case, the force applied to each bead was calculated from the force-extension data of bare DNA molecules.

The work done during condensation (ΔW) can be calculated by the difference in work between the force-extension curve in the presence of ParB variants and that of bare DNA (Equation 3), where zmax is the extension at the maximum applied force of 4 pN. Integrals were calculated using the trapezoidal rule using OriginLab software.

(3) ΔW=0zmax(FParBFDNA)dz

Native mass spectrometry

Mass spectra were collected using a Synapt G2 HDMS T-wave ion mobility mass spectrometer (Waters) with nano-electrospray using in-house made gold-coated borosilicate capillaries. Protein only experiments required buffer exchange to 300 mM NH4Ac (pH 6.9) using Micro Bio-Spin P-6 Gel columns (Bio-Rad). In analysis of CTD-DNA interactions, mixtures of CTD and 15 bp hairpin DNA were co-incubated for 5 min at 30°C prior to buffer exchange. The sequence of the 15 bp DNA hairpin was 5’- GCATAGCGTACATCATTCCCTGATGTACGCTATGC-3’. CTD samples were loaded at 10 or 50 µM. The following parameters were applied to preserve non-covalent interactions (Sobott et al., 2005; Konijnenberg et al., 2013): backing pressure ca. 5 mbar (adjusted with Speedivalve), source pressure 5.8 × 10−3 mbar, trap pressure 4.4 × 10−2 mbar; capillary voltage 1.3–1.7 kV, sampling cone 20–60 V, extraction cone 1 V, trap and transfer collision energy 10–25 V and 2–5 V, trap DC bias 35–45 V, IMS wave velocity 300–750 m/s, IMS wave height 40 V, helium cell gas flow 180 ml/min, IMS gas flow 90 ml/min (IMS gas cell pressure ca. 3.1 mbar) and source temperature 30°C. The measured mass of CTD was 8096.1 ± 0.2 Da, which matches well with the calculated value of 8096.1 Da. Molecular weights of multiply charged proteins, DNA and complexes were calculated using the MaxEnt1 function in MassLynx (Waters). For the error of the mass measurements in both directions, the MaxEnt peak width at half height was divided by 2. Both biological (new sample preparations from a fresh stock aliquot) and technical (repeat MS measurements of the same buffer exchanged complexes) repeats were undertaken.

AUC

Sedimentation velocity experiments were conducted in an Optima XL-A analytical ultracentrifuge using an An-60 Ti rotor (Beckman) at 20°C. 420 µl volume solutions of 250 µM ParB CTD were prepared in storage buffer with 10% (v/v) glycerol and loaded into a sedimentation velocity cell with sapphire windows and a buffer only reference channel. A rotor speed of 60,000 rpm was employed, with absorbance scans (A280) taken across a radial range of 5.85 to 7.25 cm at 2 min intervals to a total of 200 scans. Data were fitted (baseline, meniscus, frictional coefficient (f0), and time- and radial-invariant noise) to a continuous c(s) distribution model using SEDFIT version 9.4, at a 95% confidence level (Schuck, 2000; Brown and Schuck, 2006). The partial specific volume (v¯) of the CTD and storage buffer density and viscosity were calculated using Sednterp (Hayes et al., 1995). Residuals are shown as a grayscale bitmap where the vertical axis lists each of the 200 scans (with scan one at the top) and the horizontal axis depicts radial position over which the data were fitted. Shade indicates variance between fitted and raw data.

In vivo fluorescence imaging

Nutrient agar (Oxoid) was used for routine selection and maintenance of B. subtilis strains. Supplements were added as required: chloramphenicol (5 µg/ml), erythromycin (1 µg/ml), kanamycin (2 µg/ml), spectinomycin (50 µg/ml), tetracycline (10 µg/ml), zeomycin (10 µg/ml), and ampicillin (200 µg/ml). Cells were grown in defined minimal medium base (Spizizen minimal salts supplemented with Fe-NH4-citrate (1 µg/ml), MgSO4 (6 mM), CaCl2 (100 µM), MnSO4 (130 µM), ZnCl2 (1 µM), thiamine (2 µM)) supplemented with casein hydrolysate (200 µg/ml) and/or various carbon sources (succinate (2.0%), glucose (2.0%)). Supplements were added as required: tryptophan (20 µg/ml), erythromycin (1 µg/ml), spectinomycin (50 µg/ml), IPTG (1 mM). Standard techniques were used for strain construction (Harwood and Cutting, 1990). B. subtilis competent cells were transformed using an optimised two-step starvation procedure as described (Anagnostopoulos and Spizizen, 1961; Hamoen et al., 2002). All plasmids and strains were verified by sequencing.

To visualise cells, starter cultures were grown at 37°C overnight in SMM-based medium supplemented with tryptophan (20 µg/ml), casein hydrolysate (200 µg/ml), succinate (2.0%), then diluted 1:100 into fresh medium supplemented with glucose (2.0%) and with/without 1 mM IPTG (as indicated) and allowed to achieve early exponential growth (OD600 0.3–0.4). Cells were mounted on ~1.2% agar pads (0.25X minimal medium base) and a glass coverslip was placed on top. To visualise individual cells the cell membrane was stained with 0.4 µg/ml FM5-95 (Molecular Probes). Microscopy was performed on an inverted epifluorescence microscope (Nikon Ti) fitted with a Plan-Apochromat objective (Nikon DM 100x/1.40 Oil Ph3). Light was transmitted from a 300 Watt xenon arc-lamp through a liquid light guide (Sutter Instruments) and images were collected using a CoolSnap HQ2 cooled CCD camera (Photometrics). All filters were Modified Magnetron ET Sets from Chroma. Digital images were acquired of >300 cells per sample (and for two biological repeats) and analysed using METAMORPH software (version V.6.2r6).

ChIP-qPCR

To determine the amount of ParB bound to the chromosome by ChIP-qPCR, starter cultures were grown overnight at 30°C in SMM-based medium supplemented with tryptophan (20 µg/ml), casein hydrolysate (200 µg/ml) and succinate (2.0%), then diluted 1:100 into fresh medium supplemented with glucose (2.0%) and 1 mM IPTG (as indicated), and allowed to grow to an A600 of 1. Samples were treated with sodium phosphate (final concentration 10 mM) and cross-linked with formaldehyde (final concentration 1%) for 10 min at room temperature, followed by a further incubation for 30 mins at 4°C. Cells were pelleted at 15°C and washed three times with PBS (pH 7.3). Cell pellets were resuspended in 500 µl of lysis buffer (50 mM NaCl, 10 mM Tris-HCl pH 8.0, 20% sucrose, 10 mM EDTA, 100 µg/ml RNase A, ¼ complete mini protease inhibitor tablet (Roche), 2000 K u/µl Ready-Lyse lysozyme (Epicentre)) and incubated at 37°C for 45 min to degrade the cell wall. 500 µl of IP buffer (300 mM NaCl, 100 mM Tris-HCl pH 7.0, 2% Triton X-100, ¼ complete mini protease inhibitor tablet (Roche), 1 mM EDTA) was added to lyse the cells and the mixture was incubated at 37°C for a further 10 min before cooling on ice for 5 min. To shear DNA to an average size of ~500 to 1000 bp samples were sonicated (40 amp) four times at 4°C. The cell debris was removed by centrifugation at 15°C and the supernatant transferred to a fresh Eppendorf tube. To determine the relative amount of DNA immunoprecipitated compared to the total amount of DNA, 100 µl of supernatant was removed, treated with Pronase (0.5 mg/ml) for 10 min at 37°C before SDS (final concentration 0.67%) was added, and stored at 4°C.

To immunoprecipate protein-DNA complexes, 800 µl of the remaining supernatant was incubated with polyclonal anti-ParB antibodies (Eurogentec) for 1 hr at room temperature. Protein-G Dynabeads (750 µg, Invitrogen) were equilibrated by washing with bead buffer (100 mM Na3PO4, 0.01% Tween 20), resuspended in 50 µl of bead buffer, and then incubated with the sample supernatant for 3 hr at room temperature. The immunoprecipated complexes were collected by applying the mixture to a magnet and washed once with the following buffers for 5 min in the respective order: 0.5X IP buffer; 0.5X IP buffer + NaCl (500 mM); stringent wash buffer (250 mM LiCl, 10 mM Tris-HCl pH 8.0, 0.5% Tergitol-type NP-40, 0.5% C24H39NaO4, 10 mM EDTA). Finally, the complexes were washed a further three times with TET buffer (10 mM Tris-HCl pH 8.0, 1 mM EDTA, 0.01% Tween 20) and resuspended in 112 µl of TE buffer (10 mM Tris-HCl pH 8.0, 1 mM EDTA). Formaldehyde crosslinks of both the total DNA and the immunoprecipate was reversed by incubation at 65°C for 16 hr. The reversed DNA was then removed from the magnetic beads and transferred to a clean PCR tube and stored at 4°C for qPCR analysis.

To measure the amount of DNA bound to ParB, GoTaq (Promega) qPCR mix was used for the PCR reactions and qPCR was performed in a Rotor-Gene Q Instrument (Qiagen) using serial dilution of the immunoprecipitate and the total DNA control as the template. Oligonucleotide primers were then designed that amplify at an interval of ~500–1000 bp away from parS359˚ and were typically 20–25 bases in length and amplified a ~ 200–300 bp PCR product (Table 1). Error bars indicate the standard deviation of two technical replicates.

Table 1
Primer sequences used in ChIP-qPCR
https://doi.org/10.7554/eLife.28086.018
PlasmidGenotypeGenome location
oqAKPCR35’-AGCCGGATTGATCAAACATC-3’359.32°
oqAKPCR45’-AGAGCCGATCAGACGAAAAC-3’359.32°
oqAKPCR55’-GAGGCAAGCAAAGCTCACTC-3’359.45°
oqAKPCR65’-TGCCATGACAGAGCTGAAAC-3’359.45°
oqAKPCR75’-CTTTTCCAAGGCCTTTAGCC-3’359.22°
oqAKPCR85’-TCACGGAAAACCCATCATTT-3’359.22°
oqAKPCR95’-TATTGGCCTGCTTCATACCC-3’359.65°
oqAKPCR105’-TGGAGATTCTGTCCACGAAA-3’359.65°
oqPCR95’-AAAAAGTGATTGCGGAGCAG-3’359.16°
oqPCR105’-AGAACCGCATCTTTCACAGG-3’359.16°
oqPCR255’-TCCATAATCGCCTCTTGGAC-3’359.37°
oqPCR265’-AAGCGCATGCTTATGCTAGG-3’359.37°
oqPCR315’-GATCCGAAGGTCTGTCTACG-3’359.76°
oqPCR325’-CGATTGCGATTGTACGGTTG-3’359.76°
oqPCR575’-TTTGCATGAACTGGGCAATA-3’146.52°
oqPCR585’-TCCGAACATGTCCAATGAGA-3’146.52°

Western blot analysis

Proteins of the whole cell extract were separated by electrophoresis using a NuPAGE 4–12% Bis-Tris gradient gel in MES buffer (Life Technologies) and transferred to a Hybond-P PVDF membrane (GE Healthcare Life Sciences) using a semi dry apparatus (Hoefer Scientific Instruments). Polyclonal primary antibodies were used to probe protein of interest and then detected with an anti-rabbit horseradish peroxidase-linked secondary antibody using an ImageQuant LAS 4000 mini digital imaging system (GE Healthcare Life Sciences).

Marker frequency analysis

To obtain chromosomal DNA, starter cultures were grown at 37˚C in SMM based medium supplemented with tryptophan (20 µg/ml), casein hydrolysate (200 µg/ml), succinate (2.0%) overnight, then diluted 1:100 into fresh medium supplemented with glucose (2.0%) and with/without 1 mM IPTG (as indicated) and allowed to achieve early exponential growth (OD6000.3–0.5). Sodium azide (0.5%; Sigma) was added to exponentially growing cells to prevent further metabolism. Chromosomal DNA was isolated using a DNeasy Blood and Tissue Kit (Qiagen). GoTaq (Promega) qPCR mix was used for PCR reactions. Q-PCR was performed in a Rotor-Gene Q Instrument (Qiagen). For quantification of the origin, the intergenic region between dnaA and dnaN was amplified using primers 5’-GATCAATCGGGGAAAGTGTG-3’ and 5’-GTAGGGCCTGTGGATTTGTG-3’. For quantification of the terminus, the region downstream of yocG was amplified using primers 5’-TCCATATCCTCGCTCCTACG-3’ and 5’-ATTCTGCTGATGTGCAATGG-3’. By use of crossing points (CT) and PCR efficiency a relative quantification analysis (ΔΔCT) was performed using Rotor-Gene Software version 2.0.2 (Qiagen) to determine the ori/ter ratio of each sample. These results were normalised to the ori/ter ratio of a DNA sample from B. subtilis spores which only contain one chromosome and thus have an ori/ter ratio of 1. Error bars indicate the standard deviation of three technical replicates.

References

  1. 1
  2. 2
    Requirements for transformation in bacillus subtilis
    1. C Anagnostopoulos
    2. J Spizizen
    (1961)
    Journal of Bacteriology 81:741–746.
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
    Molecular Biological Methods for Bacillus
    1. CR Harwood
    2. SM Cutting
    (1990)
    New York: Wiley.
  30. 30
    Program Sednterp: Sedimentation Interpretation Program
    1. D Hayes
    2. T Laue
    3. J Philo
    (1995)
    Thousand Oaks: Alliance Protein Laboratories.
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
    APBS plugin for PyMOL
    1. MG Lerner
    2. H Carlson
    (2006)
    University of Michigan USA, Ann Arbor.
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
    The flight of macromolecular complexes in a mass spectrometer
    1. F Sobott
    2. MG McCammon
    3. H Hernández
    4. CV Robinson
    (2005)
    Philosophical Transactions of the Royal Society A: Mathematical, Physical and Engineering Sciences 363:379–391.
    https://doi.org/10.1098/rsta.2004.1498
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76

Decision letter

  1. Antoine M van Oijen
    Reviewing Editor; University of Wollongong, Australia

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "The structural basis for dynamic DNA binding and bridging interactions which condense the bacterial centromere" for consideration by eLife. Your article has been favorably evaluated by John Kuriyan (Senior Editor) and three reviewers, one of whom is a member of our Board of Reviewing Editors. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Using a combination of structural and single-molecule biophysical approaches, the authors study the structure of the B. subtilis ParB protein (Spo0J), how it interacts with specific and nonspecific DNA, and how it forms supramolecular structures. In general, the experiments are well designed and multiple approaches were used to examine DNA binding and condensation. The structure of the B. subtilis Spo0J C-terminal domain (CTD) is new. Particularly, the authors demonstrate that the central DNA-binding domain (CDBD) is required for specific DNA binding but not needed for interaction with nonspecific DNA and that the CTD is responsible for the intramolecular dimerization and the binding to nonspecific DNA. They specifically distinguish between the CTD-DNA and CTD-CTD interactions by using a CTD mutant that does not bind DNA but is shown to interfere with compaction. The mechanism proposed explains a large amount of previously reported data and represents a significant step forward in our understanding of bacterial chromosome segregation. However, before publication is considered, additional experimental data are needed to address the concerns detailed below.

Essential revisions:

1) The CTD-CTD interaction:

The authors use the CTD peptide both in in vitro competition and in vivo interference assays. They observe an inhibition of DNA condensation in vitro, and the absence of foci formation in vivo, from which they conclude on the direct involvement of the CTD in these activities. However, another interpretation of the results would be that the CTD from the peptide and the full-length exchange between dimers resulting in equilibrium with heterodimers as the major species. In particular, in vivo this would lead to an important decrease in ParB2 concentration that would greatly reduce the possibility to spread on the DNA and thus to form visible foci. Moreover, the overexpression of CTD reduces significantly the specific binding of ParB to parS, while the spreading activity in the vicinity of parS is not reduced (Figure 5E). This data appears in direct contradiction with the author's proposition of the roles of the CTD for which we would expect no reduction in parS binding and the absence of spreading away from parS. In the same vein, in vitro, the formation of heterodimers would also prevent the formation of the DNA binding domain (alignment of the two HTH motifs in the ParB dimer) resulting in the absence of DNA compaction.

A major concern surrounds the implication that the C-terminal dimerization domain exists as a monomer (e.g. Figure 1B) and/or can exchange during DNA binding (exchange is mentioned several times in the Results but not in the Discussion). As far as I know, in all ParBs tested at physiological, solution concentrations (low μm and nM), C-terminal fragments are always dimers and N-terminal fragments are never dimers. The N-terminal interactions have been uncovered only at crystallographic concentrations. In the third paragraph of the Introduction, for example, the compact dimer of T. thermophilus Spo0J referred to here is not seen in biochemical experiments in the same study – the N-terminal fragments are monomers in solution.

In contrast to the situation proposed, the P1 ParB C-terminal dimer interaction is very strong and requires denaturation with GuHCl and renaturation to allow exchange and heterodimerization (JBC 2000, 275:8213). Otherwise dimer exchange does not happen during the time scale of DNA binding (> many minutes), although may occur with longer incubations (and likely would if coexpressed in vivo). The NMR H-D experiment cited but not presented (subsection “The structure of BsParB CTD reveals a dimer with a putative DNA binding interface”) does not allow interpretation without knowing concentrations and time scales. If exchange is significantly slower than DNA binding, then the ability to exchange is not relevant to the model. Similarly, the competition experiments in Figure 6 seem to preincubate the CTD with ParB, so it is not clear for how much time exchange has been allowed to occur. I would expect exchange to occur eventually if the two proteins are mixed together in vitro or expressed together in vivo, but the question of time-scale is critical here. Finally, exchange is not necessary for the bridging interactions to be necessary for condensation, nor do the data exclude roles for the N-terminal region (which previous studies, e.g. Graham et al., 2014, also show). I think the authors need to support the idea of exchange (during DNA binding) by reporting kinetics. They could measure the kD of dimerization directly. They could show that with their ParB, heterodimer ParB/DNA complexes form readily by EMSA, for example. Or their model could be modified or described differently if I have misinterpreted the implications here.

2) The non-specific DNA binding activity:

- In the absence of a totally defective mutant in the HTH motif, the author could not discriminate between the contribution of the HTH and the CTD domains for non-specific DNA binding. They cannot formally exclude that the HTH is not providing the main non-specific DNA binding activity as observed in some plasmid counterparts. Also, with the ParBR149G variant, they cannot conclude that "the HTH motif is dispensable for non-specific binding and condensation" as point mutants in the second helix of HTH usually remains fully proficient for non-specific DNA binding.

- The non-specific activity measured by EMSA corresponds to DNA that is stuck in the wells. This retention occurs at the same protein concentration for all tested variants (Figure 2A). For the triple KKK mutant, which is proposed to be defective in ns-DNA binding activity, the same retention in the well is observed (Figure 4—figure supplement 1I) and occurs at the same concentration as for the WT, thus preventing to conclude initially that this activity (retention in the wells) arises from the non-specific DNA binding activity of the CTD.

- in vivo, the triple KKK mutant does not form foci as the WT ParB does. However, this variant displays a specific DNA binding activity on parS DNA that is strongly reduced (> 20-fold; compare Figure 4E to Figure 2A), preventing directly the nucleation at parS and subsequently the formation of the foci. This variant could thus not serve as validating in vivo that the loss of the positively charge residues in the CTD prevents forming the ParB foci.

- The authors use in their rational that ParB of plasmid P1 harbors a DNA binding activity in the CTD but this is due to an extra loop in this dimerization domain that binds specifically to direct repeats in the cognate parS sequence, and thus could not be compared per se to the putative non-specific DNA binding interface.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "The structural basis for dynamic DNA binding and bridging interactions which condense the bacterial centromere" for further consideration at eLife. Your revised article has been favorably evaluated by John Kuriyan (Senior Editor), a Reviewing Editor, and two reviewers.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance. The reviewers comment on the need for clarification and rephrasing of interpretations in a number of places of the manuscript. While these issues can likely be addressed without the need for new experiments, a revised manuscript will need to include the suggestions put forward by the reviewers.

Reviewer #2:

The manuscript has been improved by adding schematics for the binding interfaces and by expending the discussion on the networking interactions and on the free-CTD experiments (– Discussion, third paragraph). Also the authors have removed some over-interpretations as mentioned in their rebuttal. Lastly, some rewriting – for instance subsection “The CTD binds DNA non-specifically via a lysine-rich surface”, last paragraph; subsection “The CTD is critical for the formation of ParB foci in vivo”, first and third paragraphs – clarify the interpretation of the experiments.

Amongst the new experiments provided within the rebuttal, it seems to me that at least Figure 2Ai-ii and Figure 2Bii should be included in the manuscript as supplementary data to support the arguing on the low exchange rate between subunits (as fully discussed in the new version).

However, the authors do not provide a direct evidence for the respective contribution of the HTH and CTD motifs to non-specific DNA binding activity, while some rationales/arguments have not been changed thus some sentences are still misleading to me:

- "we hypothesised that ParB contains a second DNA binding locus for nsDNA that functions independently of the helix-turn-helix motif. This idea was attractive to us for several reasons". As acknowledged by the authors in their rebuttal, the binding mode is very different for ParB of P1 as it binds specifically to dedicated motifs of parS. But, the 3rd reason still suggests that the CTD of ParB P1 is a precedent for nsDNA binding despite this argument should be removed.

- "This is in contrast to the P1 ParB system where the CTD can bind two 16-mers". This comparison should not be made as this compares two different activities (specific versus non-specific binding) by two different interfaces (loops versus positively charged faces).

- "Together, these data show that mutation of the HtH motif effectively eliminates the ability of ParB to interact specifically with its cognate parS site, while nsDNA binding and condensation is relatively unaffected. This is consistent with the idea that nsDNA binding may occur at a second DNA binding locus." The specificity of binding is totally lost with the point mutation (R149G), but nothing is shown concerning the remaining non-specific DNA binding activity from the HtH motif. Thus, testing only for the loss of specific DNA binding could not provide a direct argument for searching a "second binding locus" for non-specific DNA binding and should not be written as such as a rational.

- "A striking feature of the structure is a highly electropositive face of the dimer arising from several conserved Lys residues analogous to the plasmid-encoded SopB and P1 ParB proteins". The authors have to discuss at some point the difference with SopB for which, despite the presence of the high electropositive face in the CTD, no residual non-specific DNA binding activity was reported in a triple HtH mutant by contrast to a point mutant in the HtH (equivalent to ParB-R149G) that eliminates the parS DNA binding but not nsDNA binding (Ah-seng et al., 2009), both mutants harboring the highly electropositive face of the CTD.

Reviewer #3:

In this revision, Fisher et al. have further clarified the details of the activities and structure of the ParB C-terminal dimerization domain (CTD) in DNA binding and condensation. With one exception (see #1), they have addressed my concerns here. In this study, the major new information is the identification of non-specific DNA binding activity of the CTD. In addition, they present the first structure of the CTD of a bacterial ParB, which turns out to be similar to those of two plasmid ParBs published previously. The authors use sophisticated biophysical approaches, such as magnetic tweezers, to examine the condensation (considered as bridging) activities of ParB and their dependence on the CTD, and these approaches are uncommon and an elegant way to dissect these complexes. The idea that the dimerization domain is involved in bridging and condensation is not new and has been proposed and observed in several studies (e.g. Graham et al., 2014; Sanchez et al., 2015; Schumacher and Funnell, 2005; Schumacher, Mansoor and Funnell, 2007), but these experiments directly probe the role of the CTD in condensation.

1) My major concern is with the models (represented in cartoons in Figure 1 and Figure 6—figure supplement 2, form Y), that the CTD is monomeric in solution, a concern from the original review, to which the authors did not respond here. In their figures, they represent ParB as dimerized either by CTD or NTD in solution (but not both). As mentioned in previous reviews, the dimer forms of Spo0J/ParB lacking the CTD were seen only in the crystal structures, and the T. thermophilus Spo0J fragment was shown in the same paper to be monomeric in solution. I also note that the DNA binding experiments in the latter study were also done at crystallographic, not physiological, concentrations of protein. As well as published experiments from other ParBs, the current authors' own experiments presented here show that the CTD exchanges extremely slowly in solution, evidence of a very tight kD. I accept their arguments here that exchange may be different when bound to DNA, but this is not represented in their cartoons. Similarly, the poor folding and insolubility of the CTD leucine mutants (dimer interface) also supports that the CTD is never "free".

This (CTD monomers in solution) may not be what the authors intend, but it is misleading and needs to be changed (or clarified) in these cartoons.

2) Are the CTD or ParB KK and KKK mutants still dimers? The NMR structure clearly predicts that these mutations do not damage the dimer interface, and I expect this to be the case, but this should be confirmed experimentally and reported. Otherwise the authors cannot conclude that the effects of these mutations can be directly attributed to DNA binding defects. Similarly, they argue that CTD interference is due to dimerization since the KKK mutants also interfere; this is a circular argument without independent evidence that the mutations do not interfere with dimerization.

3) "we showed that the CTD is not required for parS binding": where are the experiments in this study to support the conclusion; i.e. parS binding in the absence of the CTD? The ParB/CTD-KKK mutants presumably still dimerize (comment #2) and indeed they contribute to the affinity of parS binding. I think that they mean that the CTD DNA binding interface is not required for parS binding, which should be clarified.

4) Subsection “The R149 residue within the HTH motif is essential for specific binding to parS, but not required for non-specific binding and condensation”, last sentence: The lack of specific DNA binding by the R149G mutation does not mean that the authors have destroyed (or even significantly damaged) the DNA binding interface in the HTH region; it means that they have destroyed a critical specificity determinant. Therefore although it is consistent with the idea of another DNA binding interface, it is equally consistent with a damaged recognition (but not other contacts) of the HTH interface. This is particularly relevant since, in several ParB structures, there are several nonspecific, phosphate contacts with the DNA by the HTH. The authors are careful with their terminology, but it still seems somewhat misleading to not point out that the results are consistent with both possibilities.

5) "a secondary role for the CDBD in binding to nsDNA, albeit weakly compared to the parS sequence" – however not weakly compared to the CTD nsDNA binding activity. Given that only one ParB dimer can occupy parS, most ParBs presumably will bind nsDNA via the HTH in the context of condensed complexes/foci. This would still be important for the condensation activities. I would delete the word "secondary".

https://doi.org/10.7554/eLife.28086.024

Author response

Essential revisions:

1) The CTD-CTD interaction:

The authors use the CTD peptide both in in vitro competition and in vivo interference assays. They observe an inhibition of DNA condensation in vitro, and the absence of foci formation in vivo, from which they conclude on the direct involvement of the CTD in these activities. However, another interpretation of the results would be that the CTD from the peptide and the full-length exchange between dimers resulting in equilibrium with heterodimers as the major species. In particular, in vivo this would lead to an important decrease in ParB2 concentration that would greatly reduce the possibility to spread on the DNA and thus to form visible foci. Moreover, the overexpression of CTD reduces significantly the specific binding of ParB to parS, while the spreading activity in the vicinity of parS is not reduced (Figure 5E). This data appears in direct contradiction with the author's proposition of the roles of the CTD for which we would expect no reduction in parS binding and the absence of spreading away from parS. In the same vein, in vitro, the formation of heterodimers would also prevent the formation of the DNA binding domain (alignment of the two HTH motifs in the ParB dimer) resulting in the absence of DNA compaction.

A major concern surrounds the implication that the C-terminal dimerization domain exists as a monomer (e.g. Figure 1B) and/or can exchange during DNA binding (exchange is mentioned several times in the Results but not in the Discussion). As far as I know, in all ParBs tested at physiological, solution concentrations (low μm and nM), C-terminal fragments are always dimers and N-terminal fragments are never dimers. The N-terminal interactions have been uncovered only at crystallographic concentrations. In the third paragraph of the Introduction, for example, the compact dimer of T. thermophilus Spo0J referred to here is not seen in biochemical experiments in the same study – the N-terminal fragments are monomers in solution.

In contrast to the situation proposed, the P1 ParB C-terminal dimer interaction is very strong and requires denaturation with GuHCl and renaturation to allow exchange and heterodimerization (JBC 2000, 275:8213). Otherwise dimer exchange does not happen during the time scale of DNA binding (> many minutes), although may occur with longer incubations (and likely would if coexpressed in vivo). The NMR H-D experiment cited but not presented (subsection “The structure of BsParB CTD reveals a dimer with a putative DNA binding interface”) does not allow interpretation without knowing concentrations and time scales. If exchange is significantly slower than DNA binding, then the ability to exchange is not relevant to the model. Similarly, the competition experiments in Figure 6 seem to preincubate the CTD with ParB, so it is not clear for how much time exchange has been allowed to occur. I would expect exchange to occur eventually if the two proteins are mixed together in vitro or expressed together in vivo, but the question of time-scale is critical here. Finally, exchange is not necessary for the bridging interactions to be necessary for condensation, nor do the data exclude roles for the N-terminal region (which previous studies, e.g. Graham et al., 2014, also show). I think the authors need to support the idea of exchange (during DNA binding) by reporting kinetics. They could measure the kD of dimerization directly. They could show that with their ParB, heterodimer ParB/DNA complexes form readily by EMSA, for example. Or their model could be modified or described differently if I have misinterpreted the implications here.

We showed that the truncated ParB-CTD construct was not only devoid of condensation activity itself, but also that it interfered with the formation of ParB networks by wild-type ParB both in vitro and in vivo. The referees were concerned about the molecular interpretation of this dominant negative effect.

In the manuscript, we discussed two non-exclusive explanations for the effect in vitro (see Figure 1; we will return later to the in vivo situation below). (1) The CTD simply competes with wild type ParB for binding to the DNA or (2/3) the CTD oligomerisation interface exchanges between the truncated CTD-only construct and the full length ParB. (Other formal explanations are possible although we think highly unlikely, e.g. the CTD-only construct acting as an unfoldase for the full length ParB.)

Explanation (1) can be excluded because a mutant CTD-only construct that can’t bind to DNA has the same effect. In scenarios (2) and (3), the CTD-only construct somehow poisons the wild type protein by forming heterodimers or heteroligomers that are unable to condense the DNA, and this could be thought about as occurring in two ways; either (2) heterodimerisation of the free ParB in solution inactivating the protein such that it no longer exchanges with the ParB network, eventually leading to decondensation or (3) heteroligomerisation on the ParB:DNA nucleoprotein complex that is being monitored in the magnetic tweezers (MT) apparatus, with the CTD-only construct acting as a “cap” for the CTD protein:protein interfaces, thereby dissolving the bridges in the network and leading to decondensation (see Figure 1 for cartoon). We think that it is the distinction between options (2) and (3) where the referees are concerned, and where we may have failed to fully discuss and/or explain the relevance of our data in discriminating between the two. Note that, in either case, we would argue that the dominant negative effect of the CTD points to a critical role of the CTD interface in ParB function, which is our central conclusion.

Alongside the original data, our new data suggest that option (2) is unlikely and provides direct evidence in support of (3). In line with the reviewers’ comments, and certainly in the case of the truncated CTD-only construct, the CTD interface does not exchange in free solution (i.e. in the DNA-free state) on a timescale that could simply titrate out the wild type protein dimer. Indeed, although our original NMR data shows that subunit exchange can occur, it is on a slower timescale (1/2 life >4hrs) than the effect we observe in minutes in the tweezers (see Figure 2A for details and discussion). On this basis, scenario (2) is unlikely.

However, the situation with the ParB nucleoprotein complex held in the MT apparatus is very different. The ParB binds co-operatively to DNA and transitions to a new, higher order configuration which leads to the DNA forming a compact condensed state under zero externally-applied force conditions. This condensed state is fully reversible by application of high force, which can be imposed by the MT apparatus (or potentially by the crowded nucleoid in vivo). By definition, these reversible force-dependent molecular interactions are the “bridges” that join DNA segments to condense the substrate. The dissociation rate for a non-covalent bond rises exponentially with opposing force, such that small changes in force can exert large effects on the exchange of the bridging interfaces (Bell, 1978; Evans and Ritchie, 1997), leaving them exposed for heterotypic interactions with appropriate interfaces in free solution. Under conditions where the CTD-only construct is at high concentration and in large excess over the ParB-DNA complex as in our MT experiments, it should rapidly interact with and “cap” the interface. This phenomenon is perhaps best demonstrated by the fact that one can repeatedly condense and decondense ParB-DNA nucleoprotein complexes by cycling through high and low force regimes, even in the absence of free ParB (Figure S5 in Taylor et al., 2015; original manuscript Figure 6Bi), but that this cycle is broken by the addition of free CTD to the system, leaving the DNA in a permanently decondensed state (original manuscript Figure 6bii).

Directly demonstrating that this subunit exchange occurs on the DNA is not trivial. In addition to performing blue-native PAGE on the free proteins, we have performed EMSA as suggested by the referees (Figure 2B). The results are equivocal because the higher order complexes formed by ParB run in the wells, so we have no resolution to monitor the exchange of subunits. They do however suggest that the CTD does not prevent full length ParB from binding to DNA, which is a feature of model (3). Instead, we have recently developed a more direct method to test model (3), which uses a combined TIRF-MT correlative approach to monitor DNA condensation and fluorescent ParB/CTD binding simultaneously, under conditions of controlled external force (Figure 3A). The experiments show that ParB binds to DNA without DNA condensation if the force is non-permissive (Figure 3B), and that the ParB CTD inhibits the condensation of DNA-bound ParB without detectably displacing ParB from DNA (Figure 3C). This shows that the inhibitory effect of the CTD on the full length ParB arises from the uncoupling of DNA binding from condensation, which strongly suggests to us that the CTD plays a role in bridging between segments of DNA in the network. Further experiments of this type will be the subject of a future publication.

We now return to the question of the dominant negative effect of the CTD in vivo, which is perhaps more straightforward to understand. As noted by the referees, since the polypeptides are translated together in the cell, they could heterodimerize immediately to form species that are inactivated and cannot go on to form higher order ParB structures (i.e. there is no need to invoke exchange of subunits). Alternatively, they could interfere with the ParB structures once formed as per our interpretation of the in vitro experiments described above. Again, we would argue that either scenario confirms the general importance of the CTD interface in the overall function of ParB in vivo.

Regarding Figure 7E, the referees also stated that “the overexpression of CTD reduces significantly the specific binding of ParB to parS, while the spreading activity in the vicinity of parS is not reduced”. This would contradict our model, which predicts that, upon CTD overexpression, binding around parS, but notprecisely at the parS sequence, would be reduced. Unfortunately, the ChIP-PCR method does not offer the resolution to measure specific binding alone, because regions of the DNA amplified very close to the parS sequence score for both specific binding and non-specific binding in the immediate vicinity. The data shows significant decreases in enrichment of DNA very close to parS, but also for other regions of non-specific DNA extending to ~3.5 kbp away from parS (original manuscript Figure 7E; 359.45o). Note also that the background is higher for the CTD expression experiment, as defined by the percentage of DNA immunoprecipitated at the terminus (146o), such that the fold-enrichment at each of the probed sites is smaller than may be immediately apparent. We can conclude that non-specific DNA interactions are reduced, but we are unable to say whether specific interactions are also reduced, or are maintained at wild type levels.

Taking into account all of the above, we have made the following modifications to the manuscript:

We have added further details for the CTD-mediated decondensation experiment in the Materials and methods so that the timescale for potential exchange of substrates is clear to the reader. We have also clarified the timescale for HD exchange in the NMR experiments in the Results section.

We have produced a new figure (Figure 6—figure supplement 2 in the modified manuscript) which more thoroughly presents the possible mechanisms for ParB network formation. This figure also enables significant further discussion of ParB exchange, and the extent to which we can differentiate between different models for the dominant negative behaviour of the CTD in vitro and in vivo, including the lack of evidence for rapid exchange of ParB in free solution.

We have more explicitly explained the limitations in interpreting the ChIP-PCR experiment with respect to specific DNA binding.

2) The non-specific DNA binding activity:

- In the absence of a totally defective mutant in the HTH motif, the author could not discriminate between the contribution of the HTH and the CTD domains for non-specific DNA binding. They cannot formally exclude that the HTH is not providing the main non-specific DNA binding activity as observed in some plasmid counterparts. Also, with the ParBR149G variant, they cannot conclude that "the HTH motif is dispensable for non-specific binding and condensation" as point mutants in the second helix of HTH usually remains fully proficient for non-specific DNA binding.

- The non-specific activity measured by EMSA corresponds to DNA that is stuck in the wells. This retention occurs at the same protein concentration for all tested variants (Figure 2A). For the triple KKK mutant, which is proposed to be defective in ns-DNA binding activity, the same retention in the well is observed (Figure 4—figure supplement 1I) and occurs at the same concentration as for the WT, thus preventing to conclude initially that this activity (retention in the wells) arises from the non-specific DNA binding activity of the CTD.

- in vivo, the triple KKK mutant does not form foci as the WT ParB does. However, this variant displays a specific DNA binding activity on parS DNA that is strongly reduced (> 20-fold; compare Figure 4E to Figure 2A), preventing directly the nucleation at parS and subsequently the formation of the foci. This variant could thus not serve as validating in vivo that the loss of the positively charge residues in the CTD prevents forming the ParB foci.

- The authors use in their rational that ParB of plasmid P1 harbors a DNA binding activity in the CTD but this is due to an extra loop in this dimerization domain that binds specifically to direct repeats in the cognate parS sequence, and thus could not be compared per se to the putative non-specific DNA binding interface.

We show in this paper that the CTD of ParB has a non-specific DNA binding activity. The referees were concerned that we should not dismiss the role that the HtH motif may also play in this activity, partly by analogy to plasmid-encoded ParBs. We agree with this point, and had not intended to give the impression that the HtH motif and the CTD were exclusively responsible for specific and non-specific binding respectively. Indeed, several aspects of our own data highlight the fact that non-specific binding to DNA is more complex than a simple interaction of a CTD dimer with a duplex, and that there must be some overlapping function for the CDBD and CTD, especially in the context of condensed DNA (illustrated for example by the very interesting behaviour of the “KKK” mutant under conditions of high free [Mg2+] which the referees have highlighted).

The referees also questioned whether the KKK mutant could unequivocally establish the importance of the CTD nsDNA binding in vivo because, although nsDNA binding is completely abrogated, there is also defect in parS binding. We accept this point and have modified the Discussion accordingly (see below).

Finally, the referees pointed out that the role of the CTD of P1 is rather different to that proposed here for genomic BsParB. We accept this and had only intended to flag this up as a precedent for a DNA binding role in the CTD. Indeed, the binding mode and stoichiometry looks like it will be rather different. In the light of referees’ comments we have made the following modifications:

In three places in the manuscript we have changed "the HTH motif is dispensable for non-specific binding and condensation" (or similar) to "the R149 residue within the HTH motif is not required for non-specific binding and condensation" (or similar).

We now explicitly refer to the possibility that the CDBD/HTH region of the protein is also involved in nsDNA binding, with reference to the observation that large nucleoprotein complexes can still form on nsDNA even when the ability of the CTD to bind nsDNA has been effectively eliminated. New Figure 6—figure supplement 2 in the modified manuscript also illustrates this binding mode.

We have modified the Results and Discussion sections to acknowledge the parS binding deficiency of the KKK mutant and the implications of this for interpretation of the in vivo data.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance. The reviewers comment on the need for clarification and rephrasing of interpretations in a number of places of the manuscript. While these issues can likely be addressed without the need for new experiments, a revised manuscript will need to include the suggestions put forward by the reviewers.

Reviewer #2:

The manuscript has been improved by adding schematics for the binding interfaces and by expending the discussion on the networking interactions and on the free-CTD experiments (Discussion, third paragraph). Also the authors have removed some over-interpretations as mentioned in their rebuttal. Lastly, some rewriting – for instance subsection “The CTD binds DNA non-specifically via a lysine-rich surface”, last paragraph; subsection “The CTD is critical for the formation of ParB foci in vivo”, first and third paragraphs – clarify the interpretation of the experiments.

Amongst the new experiments provided within the rebuttal, it seems to me that at least Figure 2Ai-ii and Figure 2Bii should be included in the manuscript as supplementary data to support the arguing on the low exchange rate between subunits (as fully discussed in the new version).

However, the authors do not provide a direct evidence for the respective contribution of the HTH and CTD motifs to non-specific DNA binding activity, while some rationales/arguments have not been changed thus some sentences are still misleading to me:

- "we hypothesised that ParB contains a second DNA binding locus for nsDNA that functions independently of the helix-turn-helix motif. This idea was attractive to us for several reasons". As acknowledged by the authors in their rebuttal, the binding mode is very different for ParB of P1 as it binds specifically to dedicated motifs of parS. But, the 3rd reason still suggests that the CTD of ParB P1 is a precedent for nsDNA binding despite this argument should be removed.

The P1 structure does nevertheless provide a precedent for the CTD binding to DNA which we feel is highly relevant to our work. We appreciate that this is not a nonspecific DNA binding activity and that the binding mode is different. To be absolutely clear to the reader, we have modified the text in the Introduction to explain this.

“Thirdly, the distantly-related ParB protein from plasmid P1 provides a precedent for a second DNA binding locus in a Type I centromere binding protein (albeit an additional specific DNA binding site), and highlights the CTD as the putative candidate region”.

- "This is in contrast to the P1 ParB system where the CTD can bind two 16-mers". This comparison should not be made as this compares two different activities (specific versus non-specific binding) by two different interfaces (loops versus positively charged faces).

This related to point (1) above. We now explicitly clarify that the DNA binding mode is significantly different.

“This is in contrast to the P1 ParB system where the CTD operates in a different binding mode, and can bind two 16-mers”.

- "Together, these data show that mutation of the HtH motif effectively eliminates the ability of ParB to interact specifically with its cognate parS site, while nsDNA binding and condensation is relatively unaffected. This is consistent with the idea that nsDNA binding may occur at a second DNA binding locus." The specificity of binding is totally lost with the point mutation (R149G), but nothing is shown concerning the remaining non-specific DNA binding activity from the HtH motif. Thus, testing only for the loss of specific DNA binding could not provide a direct argument for searching a "second binding locus" for non-specific DNA binding and should not be written as such as a rational.

Given that we would subsequently directly demonstrate non-specific DNA binding at the CTD, we were attempting to guide the reader through our paper. For clarification we have modified the text to acknowledge other possible interpretations of the R149G mutation on nsDNA binding. (see also our response to reviewer #3, point 4).

“This is consistent either with the R149G mutation exclusively affecting nucleobase-specific contacts in the ParB-parS complex, and/or with the idea that nsDNA binding may occur at a second DNA binding locus.”

– "A striking feature of the structure is a highly electropositive face of the dimer arising from several conserved Lys residues analogous to the plasmid-encoded SopB and P1 ParB proteins". The authors have to discuss at some point the difference with SopB for which, despite the presence of the high electropositive face in the CTD, no residual non-specific DNA binding activity was reported in a triple HtH mutant by contrast to a point mutant in the HtH (equivalent to ParB-R149G) that eliminates the parS DNA binding but not nsDNA binding (Ah-seng et al., 2009), both mutants harboring the highly electropositive face of the CTD.

This is a fair and important point. We have now added a comment pointing out the distinction between ParB and SopB and the appropriate reference (Ah-seng et al., 2009).

[In both B. subtilis ParB and P1 ParB, the Lys/Arg rich surface has been shown to bind to DNA using structural or biochemical techniques ((Schumacher and Funnell, 2005; Schumacher, Mansoor and Funnell, 2007) and this work), but experiments with SopB do not support the idea that it shares this activity (Ah-seng et al., 2009).]

Reviewer #3:

In this revision, Fisher et al. have further clarified the details of the activities and structure of the ParB C-terminal dimerization domain (CTD) in DNA binding and condensation. With one exception (see #1), they have addressed my concerns here. In this study, the major new information is the identification of non-specific DNA binding activity of the CTD. In addition, they present the first structure of the CTD of a bacterial ParB, which turns out to be similar to those of two plasmid ParBs published previously. The authors use sophisticated biophysical approaches, such as magnetic tweezers, to examine the condensation (considered as bridging) activities of ParB and their dependence on the CTD, and these approaches are uncommon and an elegant way to dissect these complexes. The idea that the dimerization domain is involved in bridging and condensation is not new and has been proposed and observed in several studies (e.g. Graham et al., 2014; Sanchez et al., 2015; Schumacher and Funnell, 2005; Schumacher, Mansoor and Funnell, 2007), but these experiments directly probe the role of the CTD in condensation.

1) My major concern is with the models (represented in cartoons in Figure 1 and Figure 6—figure supplement 2, form Y), that the CTD is monomeric in solution, a concern from the original review, to which the authors did not respond here. In their figures, they represent ParB as dimerized either by CTD or NTD in solution (but not both). As mentioned in previous reviews, the dimer forms of Spo0J/ParB lacking the CTD were seen only in the crystal structures, and the T. thermophilus Spo0J fragment was shown in the same paper to be monomeric in solution. I also note that the DNA binding experiments in the latter study were also done at crystallographic, not physiological, concentrations of protein. As well as published experiments from other ParBs, the current authors' own experiments presented here show that the CTD exchanges extremely slowly in solution, evidence of a very tight kD. I accept their arguments here that exchange may be different when bound to DNA, but this is not represented in their cartoons. Similarly, the poor folding and insolubility of the CTD leucine mutants (dimer interface) also supports that the CTD is never "free".

We are not aware of any data reporting the protein:protein interfaces which are associated in free solution in full length genomic ParB. However, the referee is correct to point out that we failed to illustrate the possibility that both CTD and NTD interfaces are satisfied in free solution. We have now illustrated all possible dimer structures in our cartoon (Figure 6—figure supplement 2) and have also indicated in the legend that scenarios in which the CTD is dimerised may be considered to be more likely because the purified CTD is a tight dimer in free solution.

“In free solution, the interfaces supporting dimerization of ParB are unclear, but scenarios in which the CTD is dimerised may be considered to be more likely because the purified CTD has been shown to be a tight dimer.”

This (CTD monomers in solution) may not be what the authors intend, but it is misleading and needs to be changed (or clarified) in these cartoons.

2) Are the CTD or ParB KK and KKK mutants still dimers? The NMR structure clearly predicts that these mutations do not damage the dimer interface, and I expect this to be the case, but this should be confirmed experimentally and reported. Otherwise the authors cannot conclude that the effects of these mutations can be directly attributed to DNA binding defects. Similarly, they argue that CTD interference is due to dimerization since the KKK mutants also interfere; this is a circular argument without independent evidence that the mutations do not interfere with dimerization.

Yes. We showed in the paper that WT, KK and KKK variants of the CTD display similar CD spectra (Figure 3—figure supplement 1 and Figure 4—figure supplement 1). We now also explain in the Materials and methods that the WT, KK and KKK variants of the CTD (and the full length protein) run almost identically on preparative size exclusion columns (Author response image 1 shows normalised UV traces for elution of the CTDs indicated from a Superdex 75 column).

“The wild type, K255A+K257A and K252A+K255A+K259A variants of ParB behaved equivalently during purification, and run almost identically on preparative size exclusion columns (both in the context of the CTD and full length protein), suggesting that they are all dimeric.”

3) "we showed that the CTD is not required for parS binding": where are the experiments in this study to support the conclusion; i.e. parS binding in the absence of the CTD? The ParB/CTD-KKK mutants presumably still dimerize (comment #2) and indeed they contribute to the affinity of parS binding. I think that they mean that the CTD DNA binding interface is not required for parS binding, which should be clarified.

The referee is quite correct here; we are referring to the binding interface and not the entire CTD domain. We have corrected this in the text.

“We showed that the DNA binding interface in the CTD is not required for parS binding, and that this is instead dependent on the HtH motif found within the CDBD domain as predicted in several previous studies.”

4) Subsection “The R149 residue within the HTH motif is essential for specific binding to parS, but not required for non-specific binding and condensation”, last sentence: The lack of specific DNA binding by the R149G mutation does not mean that the authors have destroyed (or even significantly damaged) the DNA binding interface in the HTH region; it means that they have destroyed a critical specificity determinant. Therefore although it is consistent with the idea of another DNA binding interface, it is equally consistent with a damaged recognition (but not other contacts) of the HTH interface. This is particularly relevant since, in several ParB structures, there are several nonspecific, phosphate contacts with the DNA by the HTH. The authors are careful with their terminology, but it still seems somewhat misleading to not point out that the results are consistent with both possibilities.

This is related to point (3) made by the reviewer #2 above. The text now explains that the lack of specific binding in R149G is consistent with two possible interpretations that are not mutually exclusive. See above.

5) "a secondary role for the CDBD in binding to nsDNA, albeit weakly compared to the parS sequence" – however not weakly compared to the CTD nsDNA binding activity. Given that only one ParB dimer can occupy parS, most ParBs presumably will bind nsDNA via the HTH in the context of condensed complexes/foci. This would still be important for the condensation activities. I would delete the word "secondary".

We accept this point and have changed the text accordingly.

https://doi.org/10.7554/eLife.28086.025

Article and author information

Author details

  1. Gemma LM Fisher

    DNA:protein Interactions Unit, School of Biochemistry, University of Bristol, Bristol, United Kingdom
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    César L Pastrana and Victoria A Higman
    Competing interests
    No competing interests declared
    ORCID icon 0000-0001-8468-5032
  2. César L Pastrana

    Department of Macromolecular Structures, Centro Nacional de Biotecnologia, Consejo Superior de Investigaciones Cientificas, Madrid, Spain
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Writing—review and editing
    Contributed equally with
    Gemma LM Fisher and Victoria A Higman
    Competing interests
    No competing interests declared
  3. Victoria A Higman

    School of Chemistry, University of Bristol, Bristol, United Kingdom
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Methodology, Writing—review and editing
    Contributed equally with
    Gemma LM Fisher and César L Pastrana
    Competing interests
    No competing interests declared
  4. Alan Koh

    Centre for Bacterial Cell Biology, Institute for Cell and Molecular Biosciences, Newcastle University, Newcastle, United Kingdom
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  5. James A Taylor

    DNA:protein Interactions Unit, School of Biochemistry, University of Bristol, Bristol, United Kingdom
    Present address
    Laboratory of Molecular Biology, National Institute of Diabetes and Digestive and Kidney Diseases, National Institutes of Health, Bethesda, United States
    Contribution
    Data curation, Formal analysis, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  6. Annika Butterer

    Biomolecular and Analytical Mass Spectrometry Group, Department of Chemistry, University of Antwerp, Antwerpen, Belgium
    Present address
    Institute of Pharmacy and Biochemistry, Johannes Gutenberg-Universität Mainz, Mainz, Germany
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  7. Timothy Craggs

    Department of Chemistry, University of Sheffield, Sheffield, United Kingdom
    Contribution
    Formal analysis, Supervision, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon 0000-0002-7121-0609
  8. Frank Sobott

    1. Biomolecular and Analytical Mass Spectrometry Group, Department of Chemistry, University of Antwerp, Antwerpen, Belgium
    2. Astbury Centre for Structural Molecular Biology, University of Leeds, Leeds, United Kingdom
    3. School of Molecular and Cellular Biology, University of Leeds, Leeds, United Kingdom
    Contribution
    Resources, Supervision, Funding acquisition, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  9. Heath Murray

    Centre for Bacterial Cell Biology, Institute for Cell and Molecular Biosciences, Newcastle University, Newcastle, United Kingdom
    Contribution
    Resources, Supervision, Funding acquisition, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
  10. Matthew P Crump

    School of Chemistry, University of Bristol, Bristol, United Kingdom
    Contribution
    Resources, Supervision, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  11. Fernando Moreno-Herrero

    Department of Macromolecular Structures, Centro Nacional de Biotecnologia, Consejo Superior de Investigaciones Cientificas, Madrid, Spain
    Contribution
    Conceptualization, Supervision, Funding acquisition, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  12. Mark S Dillingham

    DNA:protein Interactions Unit, School of Biochemistry, University of Bristol, Bristol, United Kingdom
    Contribution
    Conceptualization, Supervision, Funding acquisition, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    mark.dillingham@bristol.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon 0000-0002-4612-7141

Funding

Wellcome (100401 and 077368)

  • Victoria A Higman
  • James A Taylor
  • Timothy Craggs
  • Mark Simon Dillingham

Biotechnology and Biological Sciences Research Council (1363883)

  • Gemma LM Fisher

H2020 European Research Council (681299)

  • Fernando Moreno-Herrero

Ministerio de Economía y Competitividad (FIS2014-58328-P)

  • Fernando Moreno-Herrero

Royal Society

  • Heath Murray

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Benjamin Bardiaux for providing the Aria software, and also Chris Williams, Joe Beesley and Antony Burton for assistance with NMR, CD and AUC data acquisition, respectively. GLMF was supported by the Biotechnology and Biological Sciences Research Council (1363883). MSD, JAT, VAH and TDC were supported by the Wellcome Trust (100401 and 077368). FMH acknowledges support from the European Research Council (681299) and from MINECO (FIS2014-58328-P). HM was supported by The Royal Society.

Reviewing Editor

  1. Antoine M van Oijen, Reviewing Editor, University of Wollongong, Australia

Publication history

  1. Received: April 25, 2017
  2. Accepted: December 2, 2017
  3. Version of Record published: December 15, 2017 (version 1)

Copyright

© 2017, Fisher et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 895
    Page views
  • 150
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Structural Biology and Molecular Biophysics
    Chen Fan et al.
    Research Article Updated
    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics
    Iwan Zimmermann et al.
    Tools and Resources
