The AAA protein Msp1 mediates clearance of excess tail-anchored proteins from the peroxisomal membrane

Research Article
Cited
0
Views
909
Comments
0
Cite as: eLife 2017;6:e28507 doi: 10.7554/eLife.28507

Abstract

Msp1 is a conserved AAA ATPase in budding yeast localized to mitochondria where it prevents accumulation of mistargeted tail-anchored (TA) proteins, including the peroxisomal TA protein Pex15. Msp1 also resides on peroxisomes but it remains unknown how native TA proteins on mitochondria and peroxisomes evade Msp1 surveillance. We used live-cell quantitative cell microscopy tools and drug-inducible gene expression to dissect Msp1 function. We found that a small fraction of peroxisomal Pex15, exaggerated by overexpression, is turned over by Msp1. Kinetic measurements guided by theoretical modeling revealed that Pex15 molecules at mitochondria display age-independent Msp1 sensitivity. By contrast, Pex15 molecules at peroxisomes are rapidly converted from an initial Msp1-sensitive to an Msp1-resistant state. Lastly, we show that Pex15 interacts with the peroxisomal membrane protein Pex3, which shields Pex15 from Msp1-dependent turnover. In sum, our work argues that Msp1 selects its substrates on the basis of their solitary membrane existence.

https://doi.org/10.7554/eLife.28507.001

eLife digest

The phrase “finding a needle in a haystack” refers to the difficulty of locating a specific target among a large number of very similar objects. Living cells face a comparable challenge whenever they carry out seek and destroy missions aimed at broken or otherwise undesirable molecules. Scientists are still figuring out how these quality control systems can quickly and accurately pick out the few unwanted molecules that occasionally appear in crowds of normal molecules.

Msp1 is a quality control protein that resides on the outer surfaces of two compartments within cells: mitochondria and peroxisomes. Previous work showed that when a protein called Pex15, which is normally found in peroxisomes, is mistakenly sent to mitochondria it is rapidly eliminated by Msp1.

Weir et al. set out to understand if Msp1 can distinguish incorrectly localized Pex15 from correctly localized Pex15. Fluorescence microscopy was used to watch how Msp1 eliminates Pex15 from compartments within living yeast cells. Although Msp1 did not normally recognize Pex15 at peroxisomes, when Weir et al. attempted to over-load peroxisomes with Pex15 they saw that Msp1 provided a counterforce. Comparing how quickly cells eliminated excess Pex15 at peroxisomes with predictions from mathematical models showed that Pex15 “matures” from an Msp1-sensitive to an Msp1-insensitive state. Further experiments revealed that Pex15 binds to another protein found in peroxisomes, called Pex3, which protects Pex15 from Msp1. By contrast, occasional Pex15 molecules that reached mitochondria remained immature and sensitive to Msp1.

Proteins similar to Msp1 are also found in humans, and Weir et al. hope that a better understanding of how Msp1 works in yeast will help scientists studying human disorders caused by defects in similar quality control systems. This could help to combat disease like cancer, neurodegenerative diseases and cystic fibrosis – which have all been linked to quality control systems that have started to target too few or too many proteins.

https://doi.org/10.7554/eLife.28507.002

Introduction

Tail-anchored (TA) proteins are integral membrane proteins with a single C-terminal transmembrane segment (TMS). In the budding yeast Saccharomyces cerevisiae, the majority of TA proteins are captured post-translationally by cytosolic factors of the conserved Guided Entry of TA proteins (GET) pathway, which deliver them to the endoplasmic reticulum (ER) membrane for insertion by a dedicated insertase (Denic et al., 2013; Hegde and Keenan, 2011). TA proteins native to the outer mitochondrial and peroxisomal membranes are directly inserted into these membranes by mechanisms that are not well defined (Chen et al., 2014a; Papić et al., 2013, and reviewed in Borgese and Fasana, 2011). Gene deletions of GET pathway components (getΔ) result in reduced cell growth, TA protein mistargeting to mitochondria, and cytosolic TA protein aggregates (Jonikas et al., 2009; Schuldiner et al., 2008). Two recent studies identified the ATPase associated with diverse cellular activities (AAA ATPase) Msp1 as an additional factor for supporting cell viability in the absence of GET pathway function (Chen et al., 2014b; Okreglak and Walter, 2014). Specifically, they observed that msp1Δ cells accumulate mislocalized TA proteins in the mitochondria and that double msp1Δ getΔ cells have synthetic sick genetic interactions. This sick phenotype is associated with disruption of mitochondrial function and is exacerbated by overexpression of TA proteins prone to mislocalization (Chen et al., 2014b). Msp1 is a cytosolically-facing transmembrane AAA ATPase which resides on both mitochondria and peroxisomes (Chen et al., 2014b; Okreglak and Walter, 2014). Closely-related members of Msp1’s AAA ATPase subfamily form hexamers that bind hydrophobic membrane substrates and use the energy of ATP hydrolysis to extract them from the membrane for protein degradation (Olivares et al., 2016). Several lines of evidence are consistent with the working model that Msp1 operates by a similar mechanism: ATPase-dead mutations of Msp1 are unable to complement msp1Δ mutant phenotypes; mitochondrial mistargeting of TA proteins leads to their enhanced co-immunoprecipitation with ATPase-dead Msp1; cells lacking Msp1 have increased half-lives of mistargeted TA proteins; and lastly, a complementary analysis of the mammalian Msp1 homolog ATAD1 (Chen et al., 2014b) established a conserved role for Msp1 in correcting errors in TA protein sorting.

Substrate selectivity mechanisms of many AAA proteins have been successfully dissected by bulk cell approaches for measuring substrate turnover. These approaches are resolution-limited, however, when used to study Msp1 in getΔ cells because TA proteins mistargeted to mitochondria co-exist with a dominant TA population that remains correctly localized in the same cell. Previous studies overcame this issue through two different approaches that increased the ratio of mistargeted to properly localized substrates. In one case, cells were engineered to produce a Pex15 deletion mutant (Pex15ΔC30) that is efficiently mistargeted to mitochondria because it lacks its native peroxisomal targeting signal (Okreglak and Walter, 2014). A major limitation of this approach, however, is its inherent unsuitability for establishing if native Pex15 is a latent Msp1 substrate because of undefined peroxisomal factors. Second, a cell microscopy pulse-chase approach was used to monitor turnover of mitochondrial signal from transiently expressed fluorescently-labeled wild-type Pex15 made susceptible to mistargeting by deletion of GET3 (Chen et al., 2014b). In this approach, expression of Pex15 was transcriptionally controlled by the inducible GAL promoter in cells expressing wild-type, ATPase-dead, or no Msp1. Comparison of mitochondrial Pex15 clearance following GAL promoter shut-off revealed that cells lacking functional Msp1 had a reduced fractional rate of substrate clearance (Chen et al., 2014b); however, these cells also had a larger starting population of mitochondrial Pex15. Thus the presence of Msp1 during Pex15 pulse periods (Chen et al., 2014b; Okreglak and Walter, 2014) leaves open the possibility that Msp1 does not mediate substrate extraction from the mitochondrial outer membrane but instead blocks substrate insertion into this membrane. Distinguishing between these possibilities requires better tools for temporally controlling and accurately measuring Msp1 activity in cells.

Substrate recognition by AAA proteins can be controlled by a variety of intrinsic substrate determinants and extrinsic factors (Olivares et al., 2016). Some insight into Msp1 substrate selectivity comes from negative evidence showing that native mitochondrial TA proteins are inefficient Msp1 substrates (Chen et al., 2014b). Thus, substrates might contain intrinsic Msp1 recognition determinants or native mitochondrial TA proteins might be protected from Msp1 recognition by extrinsic mitochondrial factors. Similarly, the potential existence of extrinsic peroxisomal factors might explain why Pex15 (a native peroxisomal TA protein) appears to stably co-reside with Msp1 at peroxisomes but is a substrate for Msp1 at mitochondria (Chen et al., 2014b; Okreglak and Walter, 2014).

Results

Efficient clearance of a fully-integrated substrate from mitochondria by de novo Msp1 induction

To generate a defined Msp1 substrate population prior to initiation of Msp1 activity, we utilized two established synthetic drug-inducible gene expression systems to orthogonally control expression of Pex15 and Msp1. Briefly, we created a yeast strain genetic background with two transcriptional activator-promoter pairs: 1. the doxycycline (DOX)-activated reverse tetracycline trans-activator (rTA) (Roney et al., 2016) for controlling expression of fluorescently-labeled Pex15 (YFP-Pex15) from the TET promoter; and 2. the β-estradiol-activated synthetic transcription factor Z4EV (McIsaac et al., 2013) for controlling Msp1 expression from the Z4EV-driven (ZD) promoter (Figure 1—figure supplement 1A–C). Next, we pre-loaded mitochondria with Pex15 in the absence of any detectable Msp1 (Figure 1—figure supplement 1A) by growing cells for 2 hr in the presence of a high DOX concentration (50 μg/ml) necessary to induce sufficient mitochondrial mistargeting (Figure 1A and see below). This was followed by 2 hr of DOX wash-out to allow for mitochondrial maturation of newly-synthesized YFP-Pex15 (Figure 1A). Using confocal microscopy, we could resolve the relatively faint mitochondrial YFP fluorescence from the much brighter punctate YFP fluorescence (corresponding to peroxisomes, see below) by signal co-localization with Tom70-mTurquoise2 (a mitochondrial marker; Figure 1B) (see Figure 1—figure supplement 2, Videos 1 and 2, and Materials and methods for computational image analysis details). Lastly, we monitored changes in mitochondrial YFP-Pex15 fluorescence density by timelapse live-cell imaging in the presence or absence of β-estradiol to define the effect of de novo induction of Msp1 activity (Figure 1A). Starting with the same pre-existing mitochondrial Pex15 population, we found that de novo Msp1 induction significantly enhanced mitochondrial YFP signal decay (Figure 1B–C). We reached a similar conclusion when we used a deletion variant of Pex15 (Pex15ΔC30) that is efficiently mistargeted to mitochondria because it lacks a C-terminal peroxisome targeting signal (Okreglak and Walter, 2014)(Figure 2A–C). To establish if Pex15ΔC30was fully membrane-integrated prior to Msp1 induction, we harvested cells after DOX treatment. Following cell lysis, we isolated crude mitochondria by centrifugation and treated them with Proteinase K (PK). Immunoblotting analysis against a C-terminal epitope engineered on Pex15 revealed the existence of a protected TMS-containing fragment that became PK-sensitive after solubilizing mitochondrial membranes with detergent (Figure 2D). Taken together, these findings argue that Msp1 can extract a fully-integrated substrate from the mitochondrial outer membrane and gave us a new tool for mechanistic dissection of Msp1 function in vivo.

Figure 1 with 2 supplements see all
Pulse-chase analysis of mitochondrial Pex15 turnover by Msp1.

(A) Cells containing the doxycycline-inducible promoter driving YFP-Pex15 expression and the β-estradiol-inducible promoter driving Msp1 expression were grown for 2 hr in the presence of 50 µg/ml doxycycline (DOX) before they were washed and grown for 2 hr in drug-free media. PEX15 mRNAs have a half-life of ~31 min (Geisberg et al., 2014), arguing that approximately 7.3% of PEX15 mRNAs remained when imaging began. This calculation likely overestimates the persistence of PEX15 mRNA on a per cell basis because it doesn’t account for PEX15 mRNA dilution due to cell division. Following this period of substrate pre-loading, half of the cells were exposed to 1 µM β-estradiol while the other half received vehicle, followed by time-lapse imaging of both cell populations using a spinning disk confocal microscope. This experiment was performed twice with similar results. (B) Representative confocal micrographs from the experiment described in part A. Each image represents a maximum intensity projection of a Z-stack. Red cell outlines originate from a single bright-field image acquired at the center of the Z-stack. Scale bar, 5 μm. (C) Quantitation of mitochondrial YFP-Pex15 fluorescence from the experiment described in part A. YFP-Pex15 fluorescence density corresponds to the total YFP-Pex15 signal at each computationally-defined mitochondrion (marked by Tom70-mTurquoise2) divided by the mitochondrial pixel volume (see Materials and methods and Figure 1—figure supplement 2 for more details). Shown are violin plots of the resulting YFP-Pex15 density distributions. These data represent analysis of 123 mock-treated and 93 β-estradiol-treated cells followed throughout the time course as well as progeny from cell divisions during the experiment.

https://doi.org/10.7554/eLife.28507.003
Figure 2 with 1 supplement see all
Pulse-chase analysis of mitochondrial Pex15ΔC30 turnover by Msp1.

(A) Experimental timeline of the staged expression experiment for monitoring Msp1-dependent turnover of mitochondrial YFP-Pex15ΔC30. This experiment was performed twice with similar results. (B) Representative confocal micrographs from the experiment described in part A. Each image represents a maximum intensity projection of a Z-stack. Red cell outlines originate from a single bright-field image acquired at the center of the Z-stack. Contrast-enhanced YFP-Pex15ΔC30 fluorescence is shown for later timepoints +β-estradiol to permit visualization of dim signals. Scale bar, 5 μm. (C) Quantitation of mitochondrial YFP-Pex15ΔC30 fluorescence from the experiment described in part B. YFP-Pex15ΔC30 fluorescence density corresponds to the total YFP signal at each computationally-defined mitochondrion (marked by Tom70-mTurquoise2) divided by the mitochondrial pixel volume (see Materials and methods for more details). These data represent analysis of 382 mock-treated and 210 β-estradiol-treated TET-YFP-PEX15ΔC30 cells and 198 cells lacking YFP-tagged Pex15 followed throughout the time course as well as progeny from cell divisions during the experiment. Laser power was increased from the experiment shown in Figure 1B–C, and therefore AUs are not comparable between these experiments. (D) Protease protection assay monitoring YFP-Pex15ΔC30-V5 integration into mitochondria. Crude mitochondria were isolated from TET-YFP-pex15ΔC30-V5 cells (see Materials and methods for details) and subjected to Proteinase K (PK) or mock treatment in the presence or absence of 1% Triton X-100. Samples were resolved by SDS-PAGE and analyzed by immunoblotting with the indicated antibodies. Immunoblotting with an α-V5 antibody visualized bands at the predicted molecular weight for full-length YFP-Pex15ΔC30-V5 (top), Pex15ΔC30-V5 lacking the YFP tag (middle and Figure 2—figure supplement 1), and a smaller protease-resistant fragment (PF, bottom). Immunoblotting was performed against the mitochondrial inner membrane protein Sdh4 to assess accessibility of the mitochondrial intermembrane space to PK. See Figure 2—figure supplement 1 for α-YFP immunoblotting.

https://doi.org/10.7554/eLife.28507.006
Video 1
Representative output from segmenting mitochondria in confocal Z-stacks.

An animated Z-stack showing raw Tom70-mTurquoise2 fluorescence visualized by spinning disk confocal microscopy (left), segmented mitochondria identified in the image (middle), and an overlay of the raw image and segmentation output (right). See Materials and methods and Figure 1—figure supplement 2 for segmentation details. Each contiguous single-color object represents one segmented mitochondrion. Video travels from the bottom to the top of the Z-stack in 0.2 μm slices.

https://doi.org/10.7554/eLife.28507.008
Video 2
Representative output from segmenting peroxisomes in confocal Z-stacks.

An animated Z-stack showing raw mCherry-PTS1 fluorescence visualized by spinning disk confocal microscopy (left), segmented peroxisomes identified in the image (middle), and an overlay of the raw image and segmentation output (right). See Materials and methods and Figure 1—figure supplement 2 for segmentation details. Each contiguous single-color object represents one segmented peroxisome. Video travels from the bottom to the top of the Z-stack in 0.2 μm slices.

https://doi.org/10.7554/eLife.28507.009

Differential kinetic signatures of mitochondrial versus peroxisomal Pex15 clearance by Msp1

While performing the previous analysis, we observed that β-estradiol also enhanced YFP-Pex15 signal decay at punctate, non-mitochondrial structures. To test if these punctae corresponded to peroxisomes, we used a strain with mCherry-marked peroxisomes (mCherry-PTS1) and induced YFP-Pex15 expression with a lower DOX concentration (10 μg/ml). Indeed, we saw robust YFP and mCherry signal co-localization with little apparent Pex15 mistargeting to mitochondria (Figure 3A–B). As we initially surmised, β-estradiol-driven Msp1 expression enhanced YFP-Pex15 signal decay at peroxisomes (Figure 3A–C). Immunoblotting analysis of lysates prepared from comparably-treated cells provided further support for our conclusion that de novo induction of Msp1 activity enables degradation of peroxisomal Pex15 (Figure 3D).

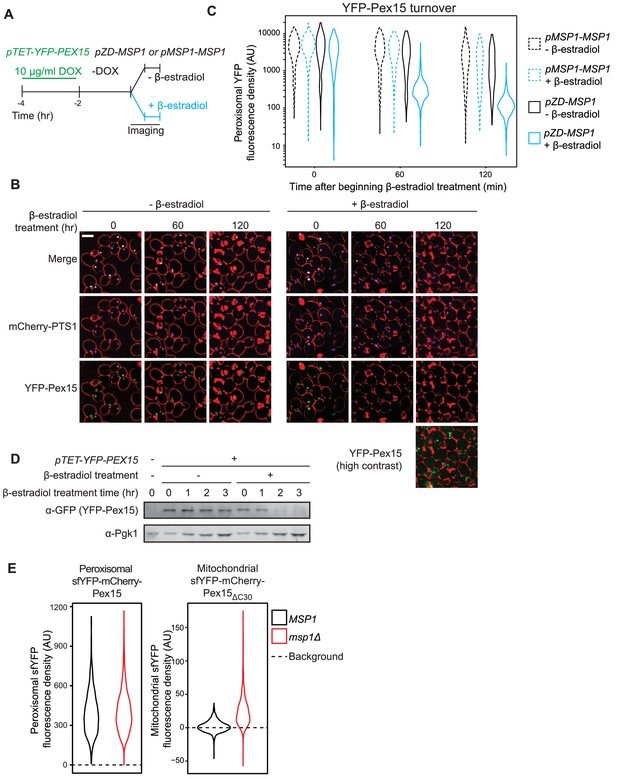

Figure 3 with 1 supplement see all
Pulse-chase analysis of peroxisomal Pex15 turnover by Msp1.

(A) Experimental timeline of a pulse-chase analysis similar to the one described in Figure 1A but with 10 µg/ml DOX. This experiment was performed twice with similar results. (B) Representative confocal micrographs from the experiment described in part A. Each image represents a maximum intensity projection of a Z-stack. Red cell outlines originate from a single bright-field image acquired at the center of the Z-stack. Scale bar, 5 μm. Contrast-enhanced YFP-Pex15 fluorescence is shown for the last timepoint +β-estradiol to permit visualization of dim signals. (C) Quantitation of peroxisomal YFP-Pex15 fluorescence from the experiment described in part A. YFP-Pex15 fluorescence density corresponds to the total YFP-Pex15 signal at each computationally-defined peroxisome (marked by mCherry-PTS1) divided by the peroxisomal pixel volume (see Materials and methods for more details). Shown are violin plots of the resulting YFP-Pex15 density distributions. Solid lines represent cells with Msp1 expression driven by the β-estradiol-inducible ZD promoter. Dashed lines represent cells with Msp1 produced from the endogenous MSP1 promoter. These data represent analysis of 270 mock-treated and 304 β-estradiol-treated pMSP1-MSP1 cells and 219 mock-treated and 319 β-estradiol-treated pZD-MSP1 cells followed throughout the time course as well as progeny from cell divisions during the experiment. The 515 nm laser power was decreased relative to the experiments in Figures 1 and 2 and therefore AUs are not comparable between these experiments. (D) Immunoblot analysis of YFP-Pex15 levels after activating MSP1 expression. Whole cell lysates were prepared from cells grown as described in part A at the indicated timepoints after initiating β-estradiol treatment, and then YFP-Pex15 protein was resolved by SDS-PAGE and immunoblotting. Each sample was prepared from an equal volume of culture to measure turnover of YFP-Pex15 from equivalent amounts of starting material. α-Pgk1 immunoblotting was performed as a loading control. Immunoblotting revealed no significant YFP-Pex15 turnover in the absence of Msp1 induction, whereas the corresponding peroxisomal Pex15 levels dropped somewhat during the timecourse (compare lanes 2–5 to left Figure 3C left panels). YFP-Pex15 dilution by cell division may explain this discrepancy. (E) Quantitation of endogenously expressed peroxisomal sfYFP-mCherry-Pex15 (left) or mitochondrial sfYFP-mCherry-Pex15ΔC30 (right) sfYFP fluorescence density in wild-type and msp1Δ cells. Peroxisomal sfYFP fluorescence density corresponds to the total sfYFP signal at each computationally-defined peroxisome (marked by mTurquoise2-PTS1) divided by the peroxisome volume in pixels. Mitochondrial sfYFP fluorescence density corresponds to the total sfYFP signal at each computationally-defined mitochondrion (marked by Tom70-mTurquoise2) divided by the mitochondrial volume in pixels. Shown are violin plots of the resulting sfYFP fluorescence density distributions. Background represents the mean auto-fluorescence in the sfYFP channel from peroxisomes and mitochondria in strains lacking fluorescently labeled Pex15. Background is normally distributed around the mean and therefore low-fluorescence or non-fluorescent organelles can have negative fluorescence density after background subtraction. These data represent analysis of 941 sfYFP-mCherry-Pex15 MSP1 cells, 942 sfYFP-mCherry-Pex15 msp1Δ cells, 807 sfYFP-mCherry-Pex15ΔC30 MSP1 cells, and 918 sfYFP-mCherry-Pex15ΔC30 msp1Δ cells.

https://doi.org/10.7554/eLife.28507.010

To our knowledge, Msp1-induced turnover of peroxisomal Pex15 had not been reported previously. We found two pieces of evidence that this unexpected phenotype was the product of Pex15 overexpression. First, treatment of pTET-YFP-PEX15 cells with 5 μg/ml DOX concentration still induced a > 10 fold higher YFP fluorescence at peroxisomes relative to steady state levels of YFP-Pex15 expressed from its native promoter (Figure 3—figure supplement 1A–B). Second, we could detect no difference in natively-expressed peroxisomal Pex15 levels when we compared wild-type and msp1Δ cells (Figure 3E, left panel). This is unlikely a signal detection problem because we could robustly detect the accumulation of natively-expressed Pex15ΔC30 at mitochondria in msp1Δ cells (Figure 3E, right panel).

Why does Msp1-dependent turnover of peroxisomal Pex15 necessitate excess substrate when the same AAA machine clears mitochondria of even trace amounts of mistargeted Pex15? In search of an answer to this question, we repeated our analysis at higher temporal resolution and found a major difference between the kinetic signatures of mitochondrial and peroxisomal Pex15 turnover by Msp1 (Figure 4A and see below). Specifically, while mitochondrial Pex15 turnover showed simple exponential decay (i.e. linear decay after log-transformation), the decay of peroxisomal Pex15 appeared to be more complex, comprising faster and slower kinetic components. We detected no major kinetic differences between Msp1 targeting to mitochondria and peroxisomes that could explain this phenomenon (Figure 1—figure supplement 1B–C) but found a potential clue from a proteome-wide pulse-chase study showing that while most proteins decay exponentially, some exhibit non-exponential decay that can be explained by their stoichiometric excess over their binding partners (McShane et al., 2016). Since peroxisomal membranes have unique residents that interact with native Pex15 (Eckert and Johnsson, 2003), we hypothesized that non-exponential decay of overexpressed peroxisomal Pex15 arises due to the existence of an Msp1-sensitive ‘solitary’ Pex15 state and an Msp1-insensitive ‘partner-bound’ Pex15 state. This solitary state would be minimally populated by endogenously expressed Pex15 under steady-state conditions, but a significant fraction of overexpressed Pex15 molecules would be solitary because of stoichiometric excess. By contrast, since mitochondria are unlikely to have Pex15-binding partners, mitochondrial Pex15 would exist in an obligate solitary state and would therefore decay exponentially.

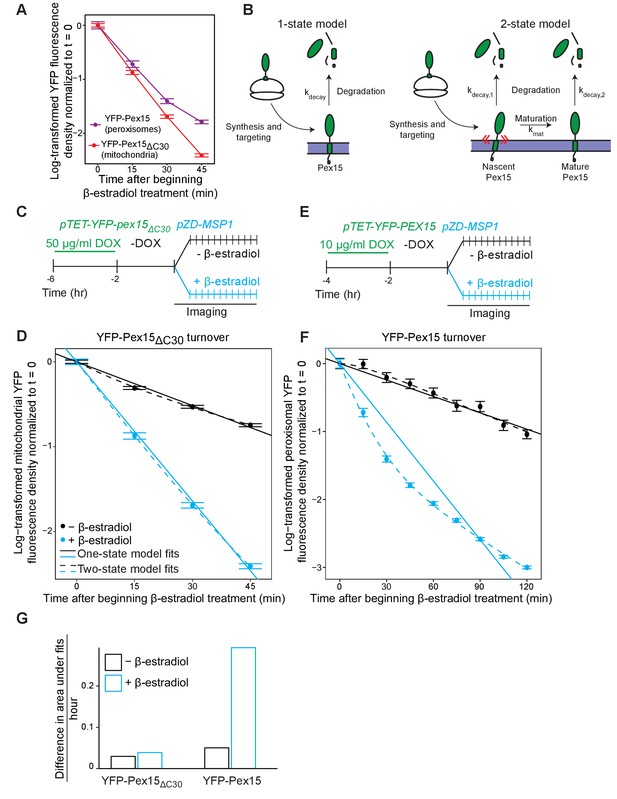

Figure 4 with 1 supplement see all
Experimental and theoretical evidence for the 2-state model of Pex15 turnover at peroxisomes.

(A) The apparent difference in the kinetic profiles of Msp1-induced substrate turnover at peroxisomes (Pex15) versus mitochondria (Pex15ΔC30). These data represent quantitation of data from the experiments described in Figure 2 (YFP-Pex15ΔC30) and additional timepoints from the experiment described in Figure 3 (YFP-Pex15). YFP signal density at mitochondria (red) or peroxisomes (purple) is plotted after normalization to the 0 hr timepoint, with lines directly connecting timepoints. Error bars represent standard error of the mean. These data are reproduced in parts D and F. (B) Schematics of the two competing models for Pex15 turnover. In the 1-state model, newly-synthesized Pex15 is first targeted and inserted into the peroxisome membrane and then degraded by a simple exponential decay process that occurs with the rate constant kdecay. In the 2-state model, there is an additional exponential maturation process that converts Pex15 from a nascent state to a mature state at a rate defined by kmat. In addition, this model includes the new exponential decay constant kdecay,2 for the mature Pex15 state that is distinct from the kdecay,1 of the nascent state. (C) Experimental timeline of the staged expression experiment for monitoring Msp1-dependent turnover of mitochondrial Pex15ΔC30 with high temporal resolution. (D) Quantitation of mitochondrial YFP-Pex15ΔC30 fluorescence from the experiment described in part C. YFP signal density at mitochondria was determined as described in Figure 1 and plotted after normalization to the 0 hr timepoint. Error bars represent standard error of the mean. Data were fitted to the competing models described in part B as indicated (See Materials and methods for model fitting details). See Figure 4—figure supplement 1A for fit parameters. (E) Experimental timeline of the staged expression experiment for monitoring Msp1-dependent turnover of peroxisomal Pex15 with high temporal resolution. This experiment was performed twice with similar results. (F) Quantitation of peroxisomal YFP-Pex15 fluorescence from the experiment described in part E. YFP signal density at peroxisomes was determined as described in Figure 3C and plotted as in part D. See Figure 4—figure supplement 1A for fit parameters. See Figure 4—figure supplement 1B for a similar plot containing only 0–45 min timepoints as plotted for YFP-Pex15ΔC30 in part D. (G) Area between the 1-state and 2-state fits shown in parts D and F. See Materials and methods for details. Total area between curves is divided by time to normalize between fits from different time scales.

https://doi.org/10.7554/eLife.28507.012

To test this hypothesis, we fit our microscopic YFP-Pex15 decay data against two competing stochastic models, which were previously used to describe proteome-wide protein decay data (see Materials and methods for modelling details) (McShane et al., 2016). In the 1-state (exponential) model (Figure 4B, left), we posit that all Pex15 molecules have the same probability of decay (kdecay). In the 2-state (non-exponential) model (Figure 4B, right), we introduce the probability (kmat) of nascent Pex15 maturation, alongside distinct probabilities for decay of the nascent (kdecay,1) and mature (kdecay,2) Pex15 states. Depending upon the determined fit parameters, the 2-state model can approximate a 1-state model by minimizing the contribution of one of the two states (Sin et al., 2016). To quantify the difference between the 1-state and 2-state models for each sample, and therefore to assess the contribution of a distinct second substrate state to turnover, we measured the area between the 1-state and 2-state fit curves (see Materials and methods).

To analyze mitochondrial Msp1 substrate turnover, we chose YFP-Pex15ΔC30 over wild-type Pex15 to avoid measuring weak mitochondrial signals juxtaposed to strong peroxisomal signals (compare Figure 1B and Figure 2B). We also restricted our analysis to the first 45 min of β-estradiol treatment because longer Msp1 induction times led to a significant fraction of mitochondria with no detectable YFP signal, which would interfere with turnover fitting (Figure 2B, later timepoints). In both the presence and absence of Msp1, our measurements could be similarly explained by both 1-state and 2-state models. The fits from these two models were almost identical (Figure 4C–D, Figure 4G, and Figure 4—figure supplement 1A). Thus, we parsimoniously concluded that Msp1 enhances Pex15 clearance from mitochondria as part of a simple exponential process. Turning to overexpressed YFP-Pex15 at peroxisomes, where YFP-Pex15 persisted at peroxisomes for over 3 hr (Figure 3B, later timepoints), we could undertake quantitative analysis on a longer timescale. We again found that the 1-state model and 2-state were indistinguishable in the absence of Msp1. By contrast, the 1-state and 2-state models yielded markedly different fits for our measurements taken after inducing expression of Msp1 (Figure 4E–G and Figure 4—figure supplement 1A–B). The fit parameters from the 2-state model, which more closely approximated measured Pex15 turnover, revealed that Pex15 in the nascent state decayed ~4 fold faster (kdecay, 1 = 3.45 hr−1) than Pex15 in the mature state (kdecay, 2 = 0.87 hr−1) (Figure 4—figure supplement 1A).

Msp1 selectively clears newly-resident Pex15 molecules from peroxisomes

The 1-state and 2-state models of peroxisomal Pex15 turnover make distinct predictions about the effect of Msp1 expression on the age of Pex15 molecules. Specifically, in the 1-state model, transient Msp1 overexpression in cells with constitutive Pex15 expression should equally destabilize all Pex15 molecules, thus rapidly reducing their mean age over time (Figure 5B, top left panel). By contrast, in the 2-state model, Pex15 age should be buffered against Msp1 overexpression because of two opposing forces (Figure 4B and Figure 5B, top right panel): At one end, there would be an increase in kdecay,1 leading to less nascent Pex15, which would drive down the mean age over time. However, there would also be an opposing consequence of rapid depletion of new peroxisomal Pex15 by Msp1: the mature population of Pex15 would receive fewer new (younger) molecules, which would drive up the mean age over time. Notably, both models predict that transient Msp1 expression would result in a decrease in peroxisomal Pex15 levels, albeit with differing kinetics (Figure 5B, bottom panels). We simulated Pex15 levels and age following transient Msp1 activation in the 1- and 2-state models with a set of possible half-lives that ranged from our microscopically determined value of 58 min to as slow as 143 min, as reported in the literature (Belle et al., 2006) (Figure 5B). Since our half-life value includes decay due to dilution from cell division, it is likely an underestimate of the actual value.

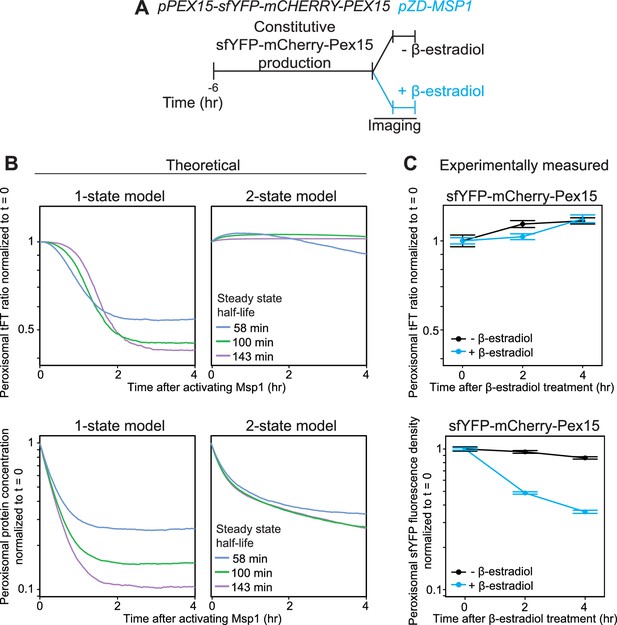

Figure 5 with 1 supplement see all
Experimental measurement of Pex15 levels and age after Msp1 activation compared to theoretical modeling.

(A) Schematic of the staged expression experiment for monitoring turnover of sfYFP-mCherry-Pex15 expressed from the native genomic PEX15 promoter following Msp1 overexpression. (B) Simulations of mCherry/sfYFP ratio (top) and Pex15 decay (bottom) as a function of time following Msp1 activation in a 1-state or 2-state regime. Different colors show Pex15 dynamics resulting from the indicated theoretical half-life parameters. See Materials and methods for simulation details. (C) Experimentally measured mCherry/sfYFP ratio (top) and sfYFP density decay (bottom) from the experiment described in part B. Error bars represent standard error of the mean. Greater than 100 cells were imaged for each sample at each time point, and different fields of cells were imaged at each time point to minimize photobleaching. This experiment was performed twice with similar results.

https://doi.org/10.7554/eLife.28507.014

To measure the effect of Msp1 overexpression on the age of Pex15 molecules, we N-terminally tagged natively-expressed Pex15 with a tandem fluorescent timer (tFT-Pex15) (Figure 5—figure supplement 1A and Khmelinskii et al., 2012) comprising a slow-maturing mCherry and a rapidly-maturing superfolder YFP (sfYFP). On a population level, the mean ratio of mCherry to sfYFP fluorescence is a hyperbolic function of tFT-Pex15 age (Figure 5—figure supplement 1B and Khmelinskii et al., 2012). In this strain background, we marked peroxisomes using mTurquoise2-PTS1 and induced overexpression of Msp1 from a ZD promoter using β-estradiol (Figure 5A). Live-cell confocal microscopy combined with computational image analysis revealed a progressive reduction in peroxisomal sfYFP signal following Msp1 overexpression consistent with the predictions of both models, though with kinetics more akin to the predictions of the 2-state model (Figure 5B–C, bottom panels). More strikingly, the peroxisomal mCherry:sfYFP fluorescence ratio was insensitive to β-estradiol treatment, consistent with the prediction of the 2-state model (Figure 5B–C, top panels). Collectively, our experimental evidence and theoretical analysis strongly support the existence of a Pex15 maturation process at peroxisomes that converts newly-synthesized Pex15 molecules from an Msp1-sensitive to an Msp1-insensitive state.

Pex3 is a Pex15-interacting protein that protects Pex15 from Msp1-dependent clearance at peroxisomes

To gain insight into the molecular basis of Pex15 maturation at peroxisomes, we hypothesized the existence of peroxisomal proteins that interact with Pex15 and whose absence would reveal that natively-expressed Pex15 is a latent substrate for Msp1. The cytosolic AAA proteins Pex1 and Pex6 are two prime candidates for testing this hypothesis because they form a ternary complex with Pex15 (Birschmann et al., 2003). However, we did not observe the expected decrease in YFP-Pex15 levels in pex1Δ or pex6Δ cells that would be indicative of enhanced turnover by Msp1 (Figure 6—figure supplement 1A). To look for additional Pex15 binding partners, we noted that the Pex1/6/15 complex is a regulator of peroxisome destruction by selective autophagy (Kamber et al., 2015; Nuttall et al., 2014). This process is initiated by Atg36, a receptor protein bound to the peroxisomal membrane protein Pex3 (Motley et al., 2012). Consistent with a previously published split-ubiquitin assay for detecting protein-protein interactions (Eckert and Johnsson, 2003), we found that Pex15 interacts with Pex3 by co-immunoprecipitation analysis (Figure 6A). Before we could test if Pex3 protects Pex15 from Msp1-dependent turnover, we had to overcome a major technical challenge. Specifically, Pex3 is essential for targeting of numerous peroxisomal membrane proteins, which is why pex3Δ cells lack functional peroxisomes (Fang et al., 2004). Since Pex3 is normally turned over very slowly (Figure 6—figure supplement 1D and Belle et al., 2006), promoter shut-off is not a suitable method for acutely depleting Pex3. Instead, we exploited an established Auxin-inducible degradation system to rapidly eliminate Pex3 from peroxisomes in situ. First, we appended a tandem V5 epitope tag followed by an Auxin-inducible degron sequence (Nishimura et al., 2009) to the cytosolic C-terminus of Pex3 (Pex3-V5-AID). Next, we overexpressed an E3 ubiquitin ligase from rice (OsTir1) that binds and ubiquitinates Auxin-bound AID to enable degradation of AID fusions by the proteasome (Nishimura et al., 2009). Immunoblotting analysis for the V5 epitope revealed that Auxin addition induced rapid Pex3 destruction, which was dependent on OsTir1 expression and independent of Msp1 (Figure 6—figure supplement 1B–E). Importantly, microscopic analysis of cells co-expressing Pex3-GFP-AID and mCherry-PTS1 revealed that peroxisomes persisted for hours following Pex3 destruction (Figure 6—figure supplement 1B).

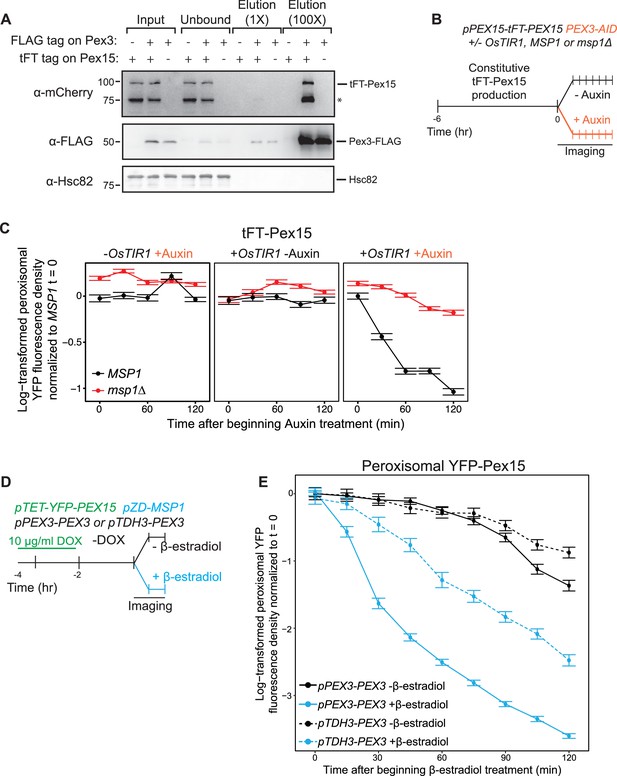

Figure 6 with 1 supplement see all
Pex3 protects Pex15 from Msp1-induced turnover.

(A) Whole cell lysates prepared from PEX3 msp1Δ and PEX3-FLAG msp1Δ cells expressing tFT-Pex15 from its native genomic promoter or lacking tagged Pex15 were solubilized with NP-40 and then incubated with anti-FLAG resin. The resulting immunoprecipitates (IP) were washed and then eluted with FLAG peptide. IP inputs, post-IP depleted lysates, and IP elutions were resolved by SDS-PAGE and analyzed by immunoblotting with the indicated antibodies (see Materials and methods for details). *, a tFT-Pex15 degradation product lacking the N-terminal sfYFP. (B) Schematic of the staged degradation experiment for monitoring tFT-Pex15 turnover following Pex3-AID degradation. Wild-type and msp1Δ cells containing tFT-Pex15 constitutively expressed from the PEX15 promoter and expressing Pex3-AID were grown in exponential phase for 6 hr. The experiment was performed in the presence and absence of the E3 ligase OsTir1 which ubiquitinates Pex3-AID following Auxin treatment (Nishimura et al., 2009). Half of the cells were then subjected to treatment with 1 mM Auxin while the other half received DMSO vehicle, followed by time-lapse imaging of both cell populations using a spinning disk confocal microscope. (C) Quantitation of peroxisomal sfYFP fluorescence from tFT-Pex15 from the experiment described in part B. YFP signal density at peroxisomes was determined as described in Figure 3C and plotted after normalization to the 0 hr timepoint of the identically treated MSP1 strain. Error bars represent standard error of the mean. These data represent analysis of >100 cells for each sample at each timepoint. Different fields of cells were imaged at each timepoint to minimize photobleaching. This experiment was performed twice with similar results. (D) Schematic of the staged expression experiment for monitoring Msp1-dependent turnover of peroxisomal Pex15 in the presence and absence of overexpressed Pex3. This experiment was performed twice with similar results. (E) Quantitation of peroxisomal YFP-Pex15 fluorescence from the experiment described in part D. YFP signal density at peroxisomes was determined as described in Figure 3C and plotted as in Figure 4F. Pex3-overexpressing cells (pTDH3-PEX3) are shown with dashed lines, whereas solid lines indicate peroxisomal YFP levels in cells producing Pex3 from its endogenous promoter. These data represent analysis of 243 mock-treated and 128 β-estradiol-treated PEX3 wild type cells and 171 mock-treated and 197 β-estradiol-treated pTDH3-PEX3 cells followed throughout the time course as well as progeny from cell divisions during the experiment.

https://doi.org/10.7554/eLife.28507.016

We next introduced the Pex3 AID system into either wild-type or msp1Δ cells with endogenously expressed tFT-Pex15. To monitor changes in peroxisomal sfYFP fluorescence density after Pex3 depletion we again used live-cell confocal microscopy combined with computational image analysis (Figure 6B). Strikingly, we observed that Pex3 degradation immediately increased the rate of Msp1-dependent Pex15 turnover (Figure 6C), thus unmasking endogenous Pex15 as a latent substrate. By contrast, Pex3 degradation did not result in Msp1-dependent destabilization of Pex11 and Pex12, two peroxisomal membrane proteins we analyzed as controls for the substrate specificity of Msp1 (Figure 6—figure supplement 1I–J). We observed a similar phenomenon in cells overexpressing YFP-Pex15, albeit to a lesser extent, possibly because of excess YFP-Pex15 relative to endogenous Pex3 prior to Auxin addition (Figure 6—figure supplement 1F–H). Consistent with this idea, constitutive overexpression of Pex3 from the strong TDH3 promoter blunted the effect of de novo Msp1 induction on transiently overexpressed YFP-Pex15 (Figure 6D–E). Taken together, these data argue that Pex3 stoichiometrically protects Pex15 from Msp1 recognition at peroxisomes.

Organelle-restricted Pex15 clearance by Msp1 with artificial transmembrane anchors

A recent study showed that GFP fused to the TMS of the mammalian Msp1 homolog ATAD1 is targeted to both mitochondria and peroxisomes (Liu et al., 2016). This suggests that the TMS of Msp1 is an ambiguous targeting signal whose function is to localize the rest of Msp1 into proximity with its substrates. To explore this issue, we first attempted to restrict Msp1 to either mitochondria or peroxisomes by replacing Msp1’s TMS with the signal anchor of Tom70 (Tom70TMS-Msp1), a mitochondrial outer membrane resident, or the transmembrane peroxisomal targeting signal of Pex22 (Pex22TMS-Msp1), respectively (Figure 7A). Indeed, Tom70TMS-Msp1-YFP produced from the MSP1 promoter is primarily localized to mitochondria with some residual localization to peroxisomes, whereas Pex22TMS-Msp1-YFP was exclusively localized to peroxisomes (Figure 7B and Figure 7—figure supplement 1A). Next, we monitored the ability of these Msp1 chimeras to suppress mitochondrial accumulation of tFT-Pex15ΔC30 in cells lacking wild type Msp1 and found that Tom70TMS-Msp1 was fully functional, whereas Pex22TMS-Msp1 was unable to complement the msp1Δ phenotype (Figure 7C and Figure 7—figure supplement 1B). Lastly, we monitored clearance of excess peroxisomal YFP-Pex15 following de novo induction of Msp1 chimaeras (Figure 7D). This analysis revealed that Pex22TMS-Msp1 enhanced substrate turnover more robustly than Tom70TMS-Msp1 (Figure 7E), which we can simply explain by its relatively higher peroxisome abundance (Figure 7B). These data lead us to speculate that the Msp1 AAA domain (with its juxtamembrane region) initiates substrate clearance by directly binding to substrate regions at the interface between the aqueous cytosol and the lipid core.

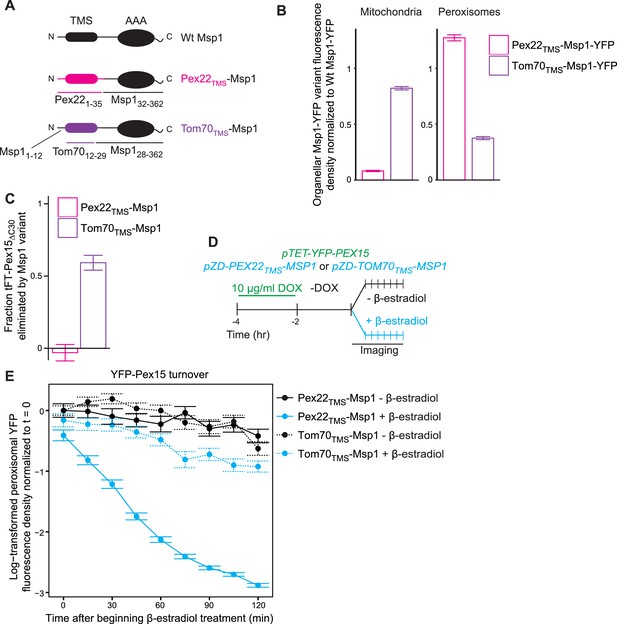

Figure 7 with 1 supplement see all
The Msp1 TMS targets Msp1 to peroxisomes and mitochondria, but is dispensible for substrate engagement.

(A) Schematic representation of Msp1 TMS chimaeras. Top, wild type Msp1, with an N-terminal TMS and C-terminal AAA ATPase domain. Middle, Msp1 with its N-terminal 31 amino acids deleted and replaced with the first 35 amino acids of Pex22. Bottom, Msp1 with its TMS (residues 13–27) replaced with residues 12–29 of Tom70. (B) Quantitation of mitochondrial (left) and peroxisomal (right) YFP density in cells producing Pex22TMS-Msp1-YFP (pink) or Tom70TMS-Msp1-YFP (purple) from the native MSP1 promoter. YFP signal density was determined at mitochondria as described in Figure 2C, and at peroxisomes as described in Figure 3C. YFP fluorescence density at each organelle was normalized to the mean fluorescence density at the same organelle for wild type Msp1-YFP. Error bars represent standard error of the population mean. See Figure 7—figure supplement 1A for representative images. These data represent analysis of >250 cells from each strain. (C) Quantitation of endogenously expressed mitochondrial tFT-Pex15ΔC30 sfYFP fluorescence density in cells producing Pex22TMS-Msp1 or Tom70TMS-Msp1 from the native MSP1 promoter. Mitochondrial sfYFP fluorescence density was calculated as described for Figure 3E. Bars represent the fraction of tFT-Pex15ΔC30 eliminated by the Msp1 variant, calculated as (mitochondrial mean YFP density in msp1Δ - mitochondrial mean YFP density in TMS variant)/(mitochondrial mean YFP density in msp1Δ - mitochondrial mean YFP density in MSP1). See Figure 7—figure supplement 1B for a violin plot of the mitochondrial sfYFP fluorescence distributions. These data represent analysis of >250 cells from each strain. (D) Experimental timeline of the staged expression experiment for monitoring turnover of peroxisomal Pex15 following transient expression of Pex22TMS-Msp1 or Tom70TMS-Msp1 from the ZD promoter. (E) Quantitation of peroxisomal YFP-Pex15 fluorescence from the experiment described in part D. YFP signal density at peroxisomes was determined as described in Figure 3C and plotted as in Figure 4F. Cells producing Pex22TMS-Msp1 and Tom70TMS-Msp1 from the ZD promoter are shown with solid lines and dashed lines respectively. These data represent analysis of 158 mock-treated Pex22TMS-Msp1 cells, 231 β-estradiol-treated Pex22TMS-Msp1 cells, 130 mock-treated Tom70TMS-Msp1 cells, and 171 β-estradiol-treated Tom70TMS-Msp1 cells followed throughout the time course as well as progeny from cell divisions during the experiment.

https://doi.org/10.7554/eLife.28507.018

Discussion

Errors in TA protein targeting by the GET pathway pose a constant threat to mitochondrial health. Two recent studies revealed that yeast Msp1 (ATAD1 in humans), a AAA membrane protein resident on the surface of mitochondria and peroxisomes, is part of a conserved mechanism for preventing mistargeted TA proteins from accumulating in mitochondria (Chen et al., 2014b; Okreglak and Walter, 2014). At the same time, this pioneering work raised an important question about Msp1’s substrate selectivity: What distinguishes TA proteins mistargeted to mitochondria from TA proteins native to mitochondria and peroxisomes?

Here, we answer this question as it pertains to Pex15, a native peroxisomal TA protein known to be an Msp1 substrate when mistargeted to mitochondria (Chen et al., 2014b; Okreglak and Walter, 2014). As our starting point, we coupled live-cell quantitative microscopy with two orthogonal drug-inducible gene-expression systems to show that de novo induction of Msp1 activity clears a fully-integrated Pex15 variant from mitochondria (Figure 7). This result solidifies the working model in the literature that Msp1 is a mechanoenzyme capable of extracting its substrates from the membrane (Chen et al., 2014b; Okreglak and Walter, 2014; Wohlever et al., 2017). We were also able to reveal that peroxisomal Pex15 is a latent Msp1 substrate at peroxisomes. The key starting observation that led us to this conclusion was that Pex15 overexpressed at peroxisomes was turned over by an unusual non-exponential process, which depended on Msp1 induction. By model fitting of these data and comparative analysis with the exponential decay of mitochondrial Pex15, we found evidence for a Pex15 maturation mechanism unique to peroxisomes. By positing that this mechanism converts newly-resident peroxisomal Pex15 from an initial Msp1-sensitive state to an Msp1-resistant state, we were able to account for the non-exponential decay kinetics (Figure 8). Moreover, we validated a key prediction of this mechanism by showing that Msp1 selectively removes peroxisomal Pex15 from the young end of its molecular age distribution. More broadly, a testable hypothesis that emerges as an extension of our work is that native mitochondrial TA proteins are latent substrates normally shielded from Msp1 by maturation mechanisms specific to mitochondria.

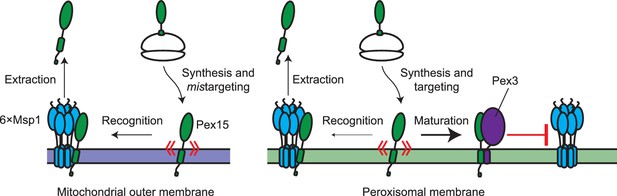

Model for substrate selection by Msp1.

On the left, mistargeted Pex15 inserts into mitochondria and is then recognized by Msp1 for extraction. On the right, following insertion into peroxisomes, nascent Pex15 can be recognized by Msp1 in principle but in practice this requires either Pex15 and/or Msp1 to be present above their usual levels. Otherwise, normal Msp1 recognition is slow relative to the faster ‘maturation’ process involving Pex3 interaction with Pex15, which blocks Msp1 recognition.

https://doi.org/10.7554/eLife.28507.020

The precise molecular mechanism by which Pex15 matures into an Msp1-resistant state remains to be worked out. However, our evidence strongly argues that complex assembly between Pex15 and the peroxisomal membrane protein Pex3 is a critical component of this process. Pex3 has been previously shown to play a role in the insertion of peroxisomal membrane proteins (Fang et al., 2004). Thus, it is possible that loss of Pex3 function leads to indirect loss of another membrane protein that itself blocks Msp1-dependent turnover of Pex15. We cannot formally exclude this possibility but we find it unlikely for three reasons. First, we showed that Pex3 co-immunoprecipitates with Pex15. Thus, in principle, Pex3 could physically occlude an Msp1 binding site on Pex15 or make Pex15 structurally more resistant to mechanodisruption. Second, we showed that rapid degradation of Pex3 causes a near-instantaneous increase in the rate of Msp1-dependent Pex15 clearance from peroxisomes without destabilizing two control peroxisomal membrane proteins. Third, we found that overproduction of Pex3 increased protection of overexpressed Pex15 from Msp1-dependent turnover at peroxisomes. Our results do not rule out the possibility that additional binding partners of Pex15, such as certain components of the importomer for peroxisomal matrix proteins (Rosenkranz et al., 2006), confer protection from Msp1. More broadly, a simple extension of our working model for Msp1 substrate selectivity leads to the intriguing hypothesis that native mitochondrial TA proteins are shielded from Msp1 by their binding partners. The microscopy methodology we have described here will facilitate testing of this idea in the near future.

Lastly, our work adds Msp1 to the growing class of proteostasis pathways that mediate degradation of excess subunits of soluble (Sung et al., 2016) and transmembrane complexes (Kihara et al., 1995; Lippincott-Schwartz et al., 1988; Westphal et al., 2012). Interestingly, Msp1 is expressed at a relatively low level (Ghaemmaghami et al., 2003) and its prolonged overexpression induces severe growth defects (data not shown). This raises the possibility that superphysiological levels of Msp1 are detrimental because they reduce the abundance of undefined protein complexes via hypervigilant membrane clearance of immature subunits and complex assembly intermediates. Future tests of this idea using proteome-wide approaches have the potential to define the full breadth of Msp1’s role in maintaining protein complex homeostasis.

Materials and methods

Key resources table
Reagent type (species)
or resource
DesignationSource or
reference
IdentifiersAdditional information
strain, strain background
(S. cerevisiae)
BY4741PMID: 9483801
strain, strain background
(S. cerevisiae)
BY4741 trp1Δ::pTDH3-
mTURQUOISE2-PTS1-SpHIS5
This paperEuroscarf:VDY3349
strain, strain background (S. cerevisiae)BY4741 trp1Δ::pTDH3-
mTURQUOISE2-PTS1-SpHIS5
ura3Δ::pPEX15-sfYFP-
mCHERRY-PEX15-tPEX15-KANMX
This paperEuroscarf:VDY3350
strain, strain background
(S. cerevisiae)
BY4741 trp1Δ::pTDH3-
mTURQUOISE2-PTS1-SpHIS5
ura3Δ::pPEX15-sfYFP-
mCHERRY-PEX15-tPEX15-KANMX
msp1Δ::HPHMX
This paperEuroscarf:VDY3351
strain, strain background
(S. cerevisiae)
BY4741 trp1Δ::pTDH3-
mTURQUOISE2-PTS1-SpHIS5
ura3Δ::pPEX15-sfYFP-
mCHERRY-PEX15-
tPEX15-KANMX
CgLEU2-Z4EV-pZD-MSP1
This paperEuroscarf:VDY3352
strain, strain background
(S. cerevisiae)
BY4741 trp1Δ::pTDH3-
mTURQUOISE2-PTS1-SpHIS5
ura3Δ::pPEX15-sfYFP-
mCHERRY-PEX15-tPEX15-
KANMX pex15Δ::URA
This paperEuroscarf:VDY3516
strain, strain background
(S. cerevisiae)
BY4741 trp1Δ::pTDH3-
mTURQUOISE2-PTS1-SpHIS5
ura3Δ::pPEX15-sfYFP-
mCHERRY-PEX15-
tPEX15-KANMX
pex15Δ::URA msp1Δ::
HPHMX PEX3-3FLAG-NATMX
This paperEuroscarf:VDY3518
strain, strain background
(S. cerevisiae)
BY4741 trp1Δ::pTDH3-
mTURQUOISE2-PTS1-SpHIS5
pex15Δ::URA
msp1Δ::HPHMX
PEX3-3FLAG-NATMX
This paperEuroscarf:VDY3519
strain, strain background
(S. cerevisiae)
BY4741 TOM70-
mTURQUOISE2-SpHIS5
This paperEuroscarf:VDY3354
strain, strain background
(S. cerevisiae)
BY4741 TOM70-
mTURQUOISE2-SpHIS5
ura3Δ::pPEX15-sfYFP-
mCHERRY-pex15ΔC30-
tPEX15-KANMX
This paperEuroscarf:VDY3355
strain, strain background
(S. cerevisiae)
BY4741 TOM70-
mTURQUOISE2-SpHIS5
ura3Δ::pPEX15-sfYFP-
mCHERRY-pex15ΔC30-
tPEX15-KANMX msp1Δ::HPHMX
This paperEuroscarf:VDY3356
strain, strain background
(S. cerevisiae)
BY4741 TOM70-
mTURQUOISE2-SpHIS5
trp1Δ::pTDH3-mCHERRY-
PTS1-CgURA3
This paperEuroscarf:VDY3357
strain, strain background
(S. cerevisiae)
BY4741 TOM70-
mTURQUOISE2-SpHIS5
trp1Δ::pTDH3-mCHERRY-
PTS1-CgURA3 MSP1-
YFP-KANMX
This paperEuroscarf:VDY3358
strain, strain background
(S. cerevisiae)
BY4741 TOM70-
mTURQUOISE2-SpHIS5
trp1Δ::pTDH3-mCHERRY-
PTS1-CgURA3 CgLEU2-
Z4EV-pZD-MSP1-
YFP-KANMX
This paperEuroscarf:VDY3359
strain, strain background
(S. cerevisiae)
BY4741 TOM70-
mTURQUOISE2-SpHIS5
trp1Δ::pTDH3-mCHERRY-
PTS1-CgURA3 CgLEU2-
Z4EV-pZD-MSP1
This paperEuroscarf:VDY3360
strain, strain background
(S. cerevisiae)
BY4741 trp1Δ::pTDH3-
mCHERRY-PTS1-CgURA3
YFP-PEX15-tPEX15-KANMX
This paperEuroscarf:VDY3001
strain, strain background
(S. cerevisiae)
BY4741 TOM70-
mTURQUOISE2-SpHIS5
trp1Δ::pTDH3-mCHERRY-
PTS1-CgURA3
ura3Δ::CgTRP1-rTA-pTET-
YFP-PEX15-tPEX15
This paperEuroscarf:VDY3607
strain, strain background
(S. cerevisiae)
BY4741 TOM70-
mTURQUOISE2-SpHIS5
trp1Δ::pTDH3-mCHERRY-
PTS1-CgURA3
CgLEU2-Z4EV-pZD-MSP1
ura3Δ::CgTRP1-rTA-pTET-
YFP-PEX15-tPEX15
This paperEuroscarf:VDY3527
strain, strain background
(S. cerevisiae)
BY4741 TOM70-
mTURQUOISE2-SpHIS5
trp1Δ::pTDH3-mCHERRY-
PTS1-CgURA3
CgLEU2-Z4EV-pZD-MSP1
ura3Δ::CgTRP1-rTA-pTET-
YFP-PEX15-tPEX15
NATMX-pTDH3-PEX3
This paperEuroscarf:VDY3608
strain, strain background
(S. cerevisiae)
BY4741 TOM70-
mTURQUOISE2-SpHIS5
trp1Δ::pTDH3-mCHERRY-
PTS1-CgURA3 CgLEU2-
Z4EV-pZD-MSP1 ura3Δ::CgTRP1-
rTA-pTET-YFP-pex15ΔC30-tPEX15
This paperEuroscarf:VDY3362
strain, strain background
(S. cerevisiae)
BY4741 TOM70-
mTURQUOISE2-SpHIS5
trp1Δ::pTDH3-mCHERRY-
PTS1-CgURA3
CgLEU2-Z4EV-pZD-MSP1
ura3Δ::CgTRP1-rTA-pTET-
YFP-pex15ΔC30-V5-tPEX15
This paperEuroscarf:VDY3412
strain, strain background
(S. cerevisiae)
BY4741 trp1∆::pTDH3-
mCherry-PTS1::HPHMX,
Pex3-GFP-AID-HIS3M × 6
leu2∆::pTDH3-OsTIR1-
CgLEU2
This paperEuroscarf:VDY2837
strain, strain background
(S. cerevisiae)
BY4741 PEX3-V5-AID-KANMXThis paperEuroscarf:VDY2770
strain, strain background
(S. cerevisiae)
BY4741 PEX3-V5-AID-KANMX
leu2Δ::pTDH3-OsTIR1-CgLEU2
This paperEuroscarf:VDY2773
strain, strain background
(S. cerevisiae)
BY4741 PEX3-V5-AID-KANMX
leu2Δ::pTDH3-OsTIR1-CgLEU2
msp1Δ::HIS
This paperEuroscarf:VDY3399
strain, strain background
(S. cerevisiae)
BY4741 TOM70-
mTURQUOISE2-SpHIS5
trp1Δ::pTDH3-mCHERRY-
PTS1-CgURA3 ura3Δ::CgTRP1-
rTA-pTET-YFP-PEX15-tPEX15
PEX3-V5-AID-KANMX
leu2Δ::pTDH3-OsTIR1-CgLEU2
This paperEuroscarf:VDY3363
strain, strain background
(S. cerevisiae)
BY4741 TOM70-
mTURQUOISE2-SpHIS5
trp1Δ::pTDH3-mCHERRY-
PTS1-CgURA3 ura3Δ::CgTRP1-
rTA-pTET-YFP-PEX15-tPEX15
PEX3-V5-AID-KANMX
leu2Δ::pTDH3-OsTIR1-
CgLEU2 msp1Δ::HPHMX
This paperEuroscarf:VDY3364
strain, strain background
(S. cerevisiae)
BY4741 PEX11-mTURQ
UOISE2-SpHIS5
This paperEuroscarf:VDY3444
strain, strain background
(S. cerevisiae)
BY4741 PEX11-
mTURQUOISE2-SpHIS5
ura3Δ::pPEX15-sfYFP-
mCHERRY-PEX15-
tPEX15-KANMX
This paperEuroscarf:VDY3445
strain, strain background
(S. cerevisiae)
BY4741 PEX11-
mTURQUOISE2-SpHIS5
ura3Δ::pPEX15-sfYFP-
mCHERRY-PEX15-tPEX15-
KANMX pex1Δ::NATMX
This paperEuroscarf:VDY3446
strain, strain background
(S. cerevisiae)
BY4741 PEX11-
mTURQUOISE2-SpHIS5
ura3Δ::pPEX15-sfYFP-
mCHERRY-PEX15-tPEX15-
KANMX pex6Δ::URA
This paperEuroscarf:VDY3447
strain, strain background
(S. cerevisiae)
BY4741 PEX3-V5-AID-KANMX
trp1Δ::pTDH3-
mTURQUOISE2-PTS1-SpHIS5
This paperEuroscarf:VDY3528
strain, strain background
(S. cerevisiae)
BY4741 PEX3-V5-AID-KANMX
trp1Δ::pTDH3-
mTURQUOISE2-PTS1-SpHIS5
leu2Δ::pTDH3-OsTIR1-CgLEU2
This paperEuroscarf:VDY3529
strain, strain background
(S. cerevisiae)
BY4741 PEX3-V5-AID-KANMX
trp1Δ::pTDH3-
mTURQUOISE2-PTS1-SpHIS5
PEX11-sfYFP-mCHERRY-CgURA3
leu2Δ::pTDH3-OsTIR1-CgLEU2
This paperEuroscarf:VDY3609
strain, strain background
(S. cerevisiae)
BY4741 PEX3-V5-AID-KANMX
trp1Δ::pTDH3-mTURQ
UOISE2-PTS1-SpHIS5
PEX11-sfYFP-mCHERRY-
CgURA3
leu2Δ::pTDH3-OsTIR1-
CgLEU2 msp1Δ::HPHMX
This paperEuroscarf:VDY3610
strain, strain background
(S. cerevisiae)
BY4741 PEX3-V5-AID-KANMX
trp1Δ::pTDH3-mTUR
QUOISE2-PTS1-SpHIS5
PEX12-sfYFP-mCHERRY-
CgURA3 leu2Δ::pTDH3-
OsTIR1-CgLEU2
This paperEuroscarf:VDY3611
strain, strain background
(S. cerevisiae)
BY4741 PEX3-V5-AID-KANMX
trp1Δ::pTDH3-mTURQ
UOISE2-PTS1-SpHIS5
PEX12-sfYFP-
mCHERRY-CgURA3
leu2Δ::pTDH3-OsTIR1-
CgLEU2 msp1Δ::HPHMX
This paperEuroscarf:VDY3612
strain, strain background
(S. cerevisiae)
BY4741 PEX3-V5-AID-URA
trp1Δ::pTDH3-mTURQU
OISE2-PTS1-SpHIS5
ura3Δ::pPEX15-sfYFP-
mCHERRY-PEX15-tPEX15-KANMX
This paperEuroscarf:VDY3615
strain, strain background
(S. cerevisiae)
BY4741 PEX3-V5-AID-URA
trp1Δ::pTDH3-mTURQU
OISE2-PTS1-SpHIS5
ura3Δ::pPEX15-sfYFP-
mCHERRY-PEX15-tPEX15-
KANMX msp1Δ::HPHMX
This paperEuroscarf:VDY3616
strain, strain background
(S. cerevisiae)
BY4741 PEX3-V5-AID-URA
trp1Δ::pTDH3-mTURQU
OISE2-PTS1-SpHIS5
ura3Δ::pPEX15-sfYFP-
mCHERRY-PEX15-tPEX15-
KANMX leu2Δ::pTDH3-
OsTIR1-CgLEU2
This paperEuroscarf:VDY3613
strain, strain background
(S. cerevisiae)
BY4741 PEX3-V5-AID-URA
trp1Δ::pTDH3-mTURQU
OISE2-PTS1-SpHIS5
ura3Δ::pPEX15-sfYFP-
mCHERRY-PEX15-
tPEX15-KANMX
leu2Δ::pTDH3-OsTIR1-
CgLEU2 msp1Δ::HPHMX
This paperEuroscarf:VDY3614
strain, strain background
(S. cerevisiae)
BY4741 TOM70-
mTURQUOISE2-SpHIS5
trp1Δ::pTDH3-mCHERRY-
PTS1-CgURA3
PEX22TMS-MSP1-YFP
This paperEuroscarf:VDY3617
strain, strain background
(S. cerevisiae)
BY4741 TOM70-
mTURQUOISE2-SpHIS5
trp1Δ::pTDH3-mCHERRY-
PTS1-CgURA3 TOM70TMS-
MSP1-YFP
This paperEuroscarf:VDY3618
strain, strain background
(S. cerevisiae)
BY4741 TOM70-
mTURQUOISE2-SpHIS5
ura3Δ::pPEX15-sfYFP-
mCHERRY-pex15ΔC30-
tPEX15-KANMX PEX22TMS-MSP1
This paperEuroscarf:VDY3619
strain, strain background
(S. cerevisiae)
BY4741 TOM70-
mTURQUOISE2-SpHIS5
ura3Δ::pPEX15-sfYFP-
mCHERRY-pex15ΔC30-
tPEX15-KANMX
TOM70TMS-MSP1
This paperEuroscarf:VDY3620
strain, strain background
(S. cerevisiae)
BY4741 TOM70-
mTURQUOISE2-SpHIS5
trp1Δ::pTDH3-mCHERRY-
PTS1-CgURA3
CgLEU2-Z4EV-pZD-
PEX22TMS-MSP1
ura3Δ::CgTRP1-rTA-
pTET-YFP-PEX15-tPEX15
This paperEuroscarf:VDY3621
strain, strain background
(S. cerevisiae)
BY4741 TOM70-
mTURQUOISE2-SpHIS5
trp1Δ::pTDH3-mCHERRY-
PTS1-CgURA3
CgLEU2-Z4EV-pZD-
TOM70TMS-MSP1
ura3Δ::CgTRP1-rTA-
pTET-YFP-PEX15-tPEX15
This paperEuroscarf:VDY3622
antibodyMouse anti-V5 monoclonalInvitrogenCat #R960
antibodyMouse anti-FLAG
monoclonal (M2)
SigmaCat #F3165
antibodyMouse anti-mCherry
monoclonal (1C51)
NovusCat #NBP1-96752
antibodyMouse anti-Pgk1
monoclonal
Thermo FisherCat #459250
antibodyRabbit anti-Hsc82
polyclonal
AbcamCat #ab30920
antibodyRabbit anti-Sdh4
polyclonal
Pfanner LabKind gift
of N. Pfanner
antibodyMouse anti-GFP
monoclonal
SigmaCat # 11814460001
antibodyGoat anti-mouse IgG
(H + L)-HRP conjugated
secondary
Bio-RadCat #170–6515
recombinant
DNA reagent
pKT211 (pKT-YFP-
SpHIS5) (plasmid)
PMID: 15197731
recombinant
DNA reagent
pKT-mTURQUOISE2-
SpHIS5 (plasmid)
This paper
recombinant
DNA reagent
pKT-pTDH3-mTURQU
OISE2-SpHIS5 (plasmid)
This paper
recombinant
DNA reagent
pKT-pTDH3-mCHERRY-
CgURA3 (plasmid)
This paper
recombinant
DNA reagent
pNH604-rTA-pTET-YFP-
PEX15 (plasmid)
This paper
recombinant
DNA reagent
pNH604-rTA-pTET-YFP-
pex15ΔC30 (plasmid)
This paper
recombinant
DNA reagent
pFA6a-pPEX15-sfYFP-
mCHERRY-PEX15-
KANMX (plasmid)
This paper
recombinant
DNA reagent
pFA6a-pPEX15-sfYFP-
mCHERRY-pex15ΔC30-
KANMX (plasmid)
This paper
recombinant
DNA reagent
pFA6a-V5-AID-
KANMX (plasmid)
PMID: 27798238
recombinant
DNA reagent
pFA6a-V5-AID-
URA3 (plasmid)
PMID: 27798238
recombinant
DNA reagent
pFA6a-GFP-AID-
HIS3M × 6 (plasmid)
PMID: 27798238
recombinant
DNA reagent
pNH605-OsTIR1
(plasmid)
PMID: 27798238
recombinant
DNA reagent
pNH605-Z4EV-pZD
(plasmid)
This study
recombinant
DNA reagent
p3FLAG-NATMX (plasmid)PMID: 17719544
peptide,
recombinant protein
Proteinase KSigmaCat #3115879001
commercial
assay or kit
SuperSignal West
Femto Substrate
Thermo FisherCat #34095
chemical
compound, drug
3-indoleacetic acid
(Auxin)
SigmaCat #I3750
chemical
compound, drug
β-EstradiolSigmaCat #E8875
chemical
compound, drug
DoxycyclineSigmaCat #D3447
chemical
compound, drug
CycloheximideSigmaCat #C7698
chemical
compound, drug
Concanavalin AMP BiomedicalsCat #2195283
chemical
compound, drug
3 × FLAG peptideSigmaCat #F4799
chemical
compound, drug
Complete Protease
Inhibitor Cocktail, EDTA-free
SigmaCat #5056489001
chemical
compound, drug
PhenylmethylsulfonylfluorideSigmaCat #78830
software,
algorithm
R 3.3.0R foundation
for Statistical
Computing
www.R-project.org/
software,
algorithm
ggplot2 R packageHadley Wickhamwww.ggplot2.org/
software,
algorithm
reshape2 R packageHadley Wickhamwww.CRAN.R-project.org/package=reshape2
software,
algorithm
gridExtra R packageBaptiste Auguiewww.CRAN.R-project.org/package=gridExtra
software,
algorithm
readr R packageHadley Wickham,
Jim Hester,
Roman Francois
www.CRAN.R-project.org/package=readr
software,
algorithm
plyr R packageHadley Wickhamwww.CRAN.R-project.org/package=plyr
software,
algorithm
Cairo R packageSimon Urbanek
and
Jeffrey Horner
www.CRAN.R-project.org/package=Cairo
software,
algorithm
minpack.lm R
package
Timur V. Elzhov,
Katharine M.
Mullen,
Andrej-Nikolai
Spiess, Ben
Bolker
www.CRAN.R-project.org/package=minpack.lm
software,
algorithm
Python 3.5.2Python Software
Foundation
www.python.org/
software,
algorithm
scipy Python
package
Open sourcewww.scipy.org/
software,
algorithm
numpy Python
package
Open sourcewww.numpy.org/
software,
algorithm
scikit-image
Python package
Open sourcewww.scikit-image.org/
software,
algorithm
pyto_segmenter
Python package
This paperhttps://github.com/deniclab/pyto_segmenter
software,
algorithm
Various Python and
R analysis scripts
This paperhttps://github.com/deniclab/Weir_2017_Analysis

Yeast strain construction

All S. cerevisiae gene deletion and tagged strains were constructed using standard homologous recombination methods (Longtine et al., 1998) and are listed in the Key resources table. Cassettes for fluorescent protein tagging at genes’ endogenous loci were PCR amplified from the pKT vector series (Sheff and Thorn, 2004). Tandem fluorescent timer-tagged Pex15 was expressed from a transgene integrated at the ura3 locus. Fluorescent peroxisome markers, expressed as transgenes from the TRP1 locus, were generated by creating pKT plasmid variants containing the S. cerevisiae TDH3 promoter upstream of a gene encoding a fluorescent protein with an engineered PTS1 sequence (Serine-Lysine-Leucine-stop). Strains with β-estradiol-induced Msp1 expression were made by homologous recombination of a 5’ LEU2-marked Z4EV expression cassette with a 3’ Z4EV-driven (ZD) promoter (McIsaac et al., 2013) upstream of the endogenous MSP1 ORF. Similar cassettes were constructed for yeast expression of Pex221-35-Msp132-362 protein and Msp11-12-Tom7012-29-Msp128-362 from the endogenous MSP1 locus. Strains with doxycycline-induced expression of Pex15 variants were made by homologous recombination of a 5’ CgTRP1-marked expression cassette the G76V variant of the reverse tetracycline transactivator (rTA) (Roney et al., 2016) with a 3’ GAL1 promoter variant altered for control by rTA driving expression of the YFP ORF (lacking a stop codon) fused to the PEX15 ORF or mutant variant, and followed by the PEX15 terminator. This cassette was integrated into the ura3 locus of strains as indicated in the strain table. PEX3-FLAG was generated by integrating a previously described C-terminal 3 × FLAG tagging cassette (Denic and Weissman, 2007).

Immunoblotting analysis

Yeast cultures were grown overnight to 0.8 OD600 units at 30°C in YEPD (1% yeast extract (BD Biosciences, San Jose, CA), 2% bacto-peptone (BD Biosciences), 2% glucose (Sigma, St. Louis, MO)) and treated with 3-indoleacetic acid (auxin, 500 μM) (Sigma), cycloheximide (100 μg/mL) (Sigma) or DMSO vehicle as indicated. Cells were pelleted by 3000 × g centrifugation for 1 min, resuspended in ice cold 0.2 M NaOH and incubated on ice for 10 min. Cells were then pelleted by 10,000 × g centrifugation for 1 min and boiled in SDS-PAGE sample buffer (50 mM Tris-HCl pH 6.8, 2.5% sodium dodecyl sulfate, 0.008% bromophenol blue, 10% glycerol, 5% β-mercaptoethanol). Following centrifugation to remove any insoluble cell debris, supernatant samples were resolved by SDS-PAGE (70 min at 195V) using Novex 4–20% Tris-Glycine gels (Thermo Fisher Scientific, Waltham, MA) and electroblotted onto nitrocellulose membranes. Blocking and antibody incubations (mouse anti-FLAG M2 (Sigma), mouse anti-V5 R960-25 (Thermo Fisher Scientific), mouse anti-GFP (Sigma), mouse anti-Pgk1 22C5D8 (Thermo Fisher Scientific), rabbit anti-Hsc82 ab30920 (Abcam), and rabbit anti-Sdh4 (gift of N. Pfanner)) were performed in 5% milk in TBST (10 mM Tris-HCl pH 7.4, 150 mM NaCl, 0.25 mM EDTA, 0.05% Tween-20). HRP-conjugated secondary antibodies (BioRad, Hercules, CA) were detected following incubation with SuperSignal West Femto Substrate (Thermo Fisher Scientific) using a ChemImager (AlphaInnotech, San Jose, CA). Fluorescent secondary antibodies (Thermo Fisher Scientific) were detected using a Typhoon Trio imager (GE Healthcare, Chicago, IL).

Protease protection of YFP-Pex15ΔC30-V5 at mitochondria

VDY3412 cells were pre-grown to late log phase (1 OD600) in 100 mL YEPD and then diluted to 0.1 OD600 in 1 L YEPD. Cells were grown with shaking at 30°C to 1 OD600 and then treated with 50 μg/ml doxycycline (Sigma) for 4 hr at 30°C with shaking. Cells were harvested by centrifugation. Crude mitochondria were isolated from harvested cells as described previously (Meisinger et al., 2006). 100 μg of crude mitochondria was treated with 10 μg Proteinase K (Roche, Basel, Switzerland) or mock treated in the presence or absence of 1% Triton X-100 (Sigma) at room temperature for 30 min. Phenylmethanesulfonyl fluoride (PMSF) (Sigma) was added to each sample to a final concentration of 5 mM to inhibit Proteinase K and samples were incubated 10 min on ice. Samples were mixed with boiling SDS-PAGE sample buffer and subjected to SDS-PAGE and immunoblotting analysis as described earlier.

Live-cell imaging of tagged Pex15 and Msp1

Cells were inoculated into 2 mL of complete synthetic media with glucose (0.67% yeast nitrogen base (BD Biosciences), 2% glucose, 1 × CSM (Sunrise Sciences, San Diego, CA)) and grown overnight at 30°C on a roller drum. The following morning, cells were back-diluted to 0.05 OD600 in fresh media and grown to mid-to-late log phase (0.5–1 OD600) for imaging with drug treatments as indicated in figure schematics. β-estradiol (Sigma) was used at 1 μM for all experiments; doxycycline was used at concentrations indicated in figure legends. Cells in culture media were applied directly to the well of a concanavalin A (MP Biomedicals, Santa Ana, CA)-coated Lab-Tek II chambered coverglass (Thermo Fisher) and allowed to adhere for 5 min at room temperature. Culture media was removed and adhered cells were immediately overlaid with a 1% agarose pad containing complete synthetic media with glucose and supplemented with drugs when applicable. The agarose pad was overlaid with liquid media for timelapse imaging experiments. Live-cell imaging was performed at 25°C on a TI microscope (Nikon, Tokyo, Japan) equipped with a CSU-10 spinning disk (Yokogawa, Tokyo, Japan), an ImagEM EM-CCD camera (Hamamatsu, Hamamatsu, Japan), and a 100 × 1.45 NA objective (Nikon). The microscope was equipped with 447 nm, 515 nm and 591 nm wavelength lasers (Coherent, Santa Clara, CA) and was controlled with MetaMorph imaging software (Molecular Devices, Sunnyvale, CA). Z-stacks were acquired with 0.2 µm step size for 6 µm per stack. Camera background noise was measured with each Z-stack for normalization during timelapse imaging.

Sample size estimation and experimental replication details

For quantitative microscopy experiments, the number of cells present in each sample was manually counted in brightfield images and indicated in the associated figure legend. Each experiment was repeated the number of times indicated in the associated figure legend. Replicates represent technical replicates in which the same strains were subjected to repetition of the entire experiment, often on different days.

Image post-processing and organelle segmentation

All fluorescence images were normalized to background noise to compensate for uneven illumination and variability in camera background signal. To identify peroxisomes and mitochondria, images of their respective markers were processed by an object segmentation script. Briefly, images were smoothed using a Gaussian filter and then organelle edges were identified by processing each slice with a Canny edge detector (Canny, 1986) implemented in the Python package scikit-image. Enclosed objects were filled and individual three-dimensional objects were identified by locally maximizing Euclidean distance to the object border. Individual objects were identified and separated by watershed segmentation as implemented in scikit-image. For mitochondria, contiguous but separately segmented objects were merged to form one mitochondrion. For YFP-Pex15 quantitation at mitochondria, regions of mitochondria that overlapped with peroxisomes were removed by eliminating segmented mitochondria pixels that overlapped with segmented peroxisomes. Segmentation code is available at http://www.github.com/deniclab/pyto_segmenter (Weir, 2017a) and sample implementation is available at www.github.com/deniclab/Weir_2017_analysis (Weir, 2017b) (copies archived at https://github.com/elifesciences-publications/pyto_segmenter and https://github.com/elifesciences-publications/Weir_2017_analysis respectively). Raw source images are available on the Dryad data repository associated with this manuscript.

Fluorescence intensity analysis

Following organelle segmentation, total fluorescence intensity for Pex15 was determined in each segmented object by summing intensities in the corresponding pixels for YFP fluorescence images (and mCherry images for mCherry-sfYFP-Pex15 and mCherry-sfYFP-Pex15ΔC30 in Figure 5C). Fluorescence density was calculated by dividing total pixel intensity by object volume in pixels. Background was calculated empirically by measuring Pex15 fluorescence intensity in peroxisomes and/or mitochondria in cells lacking fluorescently labeled Pex15, and the mean background density was subtracted from each segmented object’s fluorescence density. Because Pex15 fluorescence density was approximately log-normally distributed, mean and standard error of the mean were calculated on logarithmically transformed fluorescence densities when applicable. Plotting was performed using R and the ggplot2 package. See www.github.com/deniclab/Weir_2017_analysis for tabulated data and analysis code.

Model fitting and statistics

For 1-state and 2-state model fitting, organelle fluorescence density means were first normalized to the sample’s mean at time 0. For the 1-state model, log-transformed mean fluorescence densities at each time point were fit to a linear model using least squares fitting in R. For the 2-state model, logarithmically transformed data was fit to a logarithmically transformed version of a previously derived 2-state degradation model (Sin et al., 2016) using the Levenberg-Marquardt algorithm (Levenberg, 1944) for non-linear least squares fitting as implemented in the R package minpack.lm. Error for fit parameters was obtained from fit summary statistics. The difference between the 1-state and 2-state model fits was determined by integrating the difference between the two fit equations over the measured time interval, then dividing by the time interval to normalize across timecourse experiments of different lengths. See www.github.com/deniclab/Weir_2017_analysis for tabulated data and R code. Observed half-life was determined by converting the peroxisomal YFP-Pex15 –Msp1 kdecay (Figure 4—figure supplement 1) using the equation half-life = ln(2)/kdecay, and then multiplied by 60 to convert from hours to minutes. Error bars represent standard error of the mean.

Simulation of protein age and turnover

To stochastically model peroxisomal Pex15 levels and age following transient Msp1 expression, we used a Gillespie algorithm approach (Gillespie, 1977). In brief, this approach cycles through the following steps: 1. Model the expected time until the next ‘event’ takes place (import, degradation, or maturation of a Pex15 molecule) by summing event rates and drawing from an exponential distribution based on the summed rate constant, 2. Age all simulated Pex15 molecules according to time passage, 3. Determine which of the possible events took place by weighted random draws based on each event’s probability of occurring, 4. Execute that event, and then repeat these steps until the simulation’s time has expired. Based on our observation that Pex15 turnover in the absence of Msp1 occurs with exponential decay kinetics (Figure 4F), we established starting conditions by drawing 1000 ages from an exponential distribution with half-life indicated in Figure 5B. For the rest of the simulation we used this rate constant to predict import of new molecules and as a steady-state degradation rate constant (and as kdecay,2 in 2-state simulations). We treated this vector of 1000 ages as a single peroxisome containing 1000 Pex15 molecules (this is likely an over-estimation of Pex15 amounts in many cases, but over-estimating Pex15 levels improved statistical robustness of the analysis and did not alter simulation mean outcomes). When simulating steady state 2-state behavior using the calculated kmat value, we found that ~60% of the elements existed in the ‘unstable’ form at steady state (data not shown) and therefore used this as a starting value. For 2-state simulations we randomly drew 600 of the vector elements to be ‘unstable’ at the start of the simulation, weighting probabilities of each draw using an exponential distribution with kmat as the decay rate constant. After validating that our starting conditions represented a stable steady state by simulating without perturbing rate constants, we began the reported simulations with kdecay set to 2.82 hr−1, the best linear fit for turnover from the first three time points (for 1-state simulations), or with kdecay,1 (for 2-state simulations) set to the calculated value from Figure 4F. Simulations ran for 4 hr of simulated time and values for particle age and abundance were recorded at every simulated minute. 100 simulations were performed with each set of parameters and the mean particle age and abundance at each minute were calculated across the 100 simulations. Finally, we modeled maturation of sfYFP fluorescence and mCherry fluorescence based on established maturation half-times (Hansen and O'Shea, 2013; Khmelinskii et al., 2012), respectively) and calculated the mean population tFT ratio at each minute. We normalized these data to the value at the simulation’s starting point. See the www.github.com/deniclab/Weir_2017_analysis for Gillespie simulation R code.

Pex3-GFP-AID fluorescence microscopy

Yeast cultures were grown overnight in synthetic medium to 0.5 OD600 and treated with 3-indoleacetic acid (Auxin, 1 mM) (Sigma) or DMSO vehicle as indicated. Following concentration of cells by centrifugation, cells were imaged at room temperature on an Axiovert 200M microscope body (Carl Zeiss, Oberkochen, Germany) equipped with a CSU-10 spinning disk (Yokogawa) and 488 nm and 561 nm lasers (Coherent) using an oil-immersion 100 × 1.45 NA objective (Carl Zeiss). Images were acquired using a Cascade 512B EM-CCD detector (Photometrics, Tuscon, AZ) and MetaMorph acquisition software (Molecular Devices).

Pex3-FLAG immunoprecipitation

1 L yeast cell culture was grown to 1.8–2.2 OD600 in YEP +5% glucose at 30°C with shaking. Cells were collected by centrifuging 20 min at 3000 × g, 4°C, then washed once with 50 ml sterile H2O. Cells were resuspended in 1 ml ice-cold lysis buffer (50 mM HEPES-KOH pH 6.8, 150 mM KOAc, 2 mM MgCl2, 1 mM CaCl2, 0.2 M sorbitol, 2x cOmplete protease inhibitors (Sigma)) per 6 g wet weight, and dripped into liquid nitrogen to flash-freeze. Cells were lysed cryogenically using a PM100 ball mill (Retsch, Haan, Germany) and stored at −80°C. 0.4 g lysed cell powder was thawed on ice and mixed with 1.6 mL IP buffer (50 mM HEPES-KOH pH 6.8, 150 mM KOAc, 2 mM Mg[OAc]2, 1 mM CaCl2, 15% glycerol, 1% NP-40, 5 mM sodium fluoride, 62.5 mM β-glycerophosphate, 10 mM sodium vanadate, 50 mM sodium pyrophosphate). Lysates were detergent solubilized at 4°C for 1 hr with nutation and then subjected to low-speed centrifugation (twice at 3000 × g, 4°C for 5 min) to remove any unlysed cells and cell debris. The supernatants were further cleared by ultracentrifugation (100,000 × g, 4°C for 30 min) before adding 40 µL protein G Dynabeads (Sigma) conjugated to anti-FLAG M2 monoclonal antibody (Sigma). Following incubation for 3 hr at 4°C with nutation, Dynabeads were washed four times with IP buffer and bound proteins were eluted at room temperature with two sequential rounds of 10 µl 1 mg/mL 3 × FLAG peptide (Sigma) in IP buffer. Immunoblotting analysis was performed as described above.

Note added in proof

A complementary structure-function analysis of Msp1 was published while this work was under review (Wohlever et al., 2017).

References

  1. 1
  2. 2
  3. 3
  4. 4
    A computational approach to edge detection
    1. J Canny
    (1986)
    IEEE Transactions on Pattern Analysis and Machine Intelligence 8:679–698.
    https://doi.org/10.1109/TPAMI.1986.4767851
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42

Decision letter

  1. Ramanujan S Hegde
    Reviewing Editor; MRC Laboratory of Molecular Biology, United Kingdom

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "A New Quantitative Cell Microscopy Approach Reveals Mechanistic Insights into Clearance of Membrane Substrates by Msp1" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors and the evaluation has been overseen by Ivan Dikic as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This study has investigated the function of the AAA+ ATPase Msp1, a recently discovered factor needed for degradation of tail–anchored (TA) membrane proteins mislocalized to mitochondria and peroxisomes. Relatively little is known about what defines an Msp1 substrate or how this factor facilitates substrate degradation, but this pathway is likely to be important for maintenance of mitochondrial (and presumably peroxisomal) homeostasis. Earlier work had established that the peroxisomal protein Pex15 is a target for Msp1–mediated degradation when it is mis–targeted to mitochondria. Yet, Pex15 can co–exist with Msp1 in peroxisomes. Why Pex15 is a target for the Msp1 pathway in mitochondria but not in peroxisomes is the main issue that has been addressed. The central proposal in this study is that Msp1–dependent degradation of Pex15 occurs only when Pex15 is free from its Pex3 binding partner. The primary support for this conclusion is the observation that Pex15 over–expression, which presumably saturates its Pex3 partner, results in Msp1–dependent Pex15 degradation even from peroxisomes. The implication is that Msp1 may select its clients on the basis of being 'solitary' from their native multi–protein complexes. This would explain how Msp1 can reside in both mitochondria and peroxisomes to degrade only mislocalized proteins while avoiding normal residents.

Essential revisions:

The main new suggestion in this manuscript, that Pex15 in isolation from its Pex3 binding partner is the molecular target of Msp1 in peroxisomes, was found to be plausible but not strongly established. Thus, most of the suggested experiments are aimed toward improving support for this key claim.

1) While the model presented is intriguing, the data do not, at present, fully support the claim that Msp1 is active on the peroxisomal membrane. The authors claim that Pex3 protects Pex15 from Msp1 mediated degradation. However, there is no experimental indication that this interaction occurs on the peroxisomal membrane. In fact, in Lam et al., 2010, Pex3 was shown to interact with Pex15 only during biogenesis and in the ER. Thus, to establish the central claim of this study, it seems critical to convincingly show that Pex15 actually interacts with Pex3 in peroxisomes, thereby lending support to the idea that this interaction is the protective agent in peroxisomes.

2) Part of the support for Pex3 being important in protecting Pex15 from degradation is the finding that Pex3 deletion results in Pex15 degradation. However, controls are not shown to ascertain whether the effect of Pex3 elimination causes a change in the peroxisomal membrane that alters the half–life of all peroxisomal proteins. It is important to establish the degree of specificity of Msp1–mediated degradation upon Pex3 deletion and rule out a more trivial generic destabilization of peroxisomes in general.

3) The authors claim that the degraded Pex15 in peroxisomes is the overexpressed fraction that presumably saturates Pex3. This claim would be more strongly supported by three additional results. First (and easiest), it is important to establish that the low concentration of Doxycycline used in Figure 3 (for example) causes overexpression of the protein. The authors could, for example, add a control image that compares the overexpressed phenotype with its native expression levels to be sure that the experiment starts when Pex15 is actually overexpressed. Second, it is worth testing whether co–expression of Pex3 can blunt Msp1 degradation of Pex15. Third, it is worth testing whether quantitative IP of Pex3 is able to co–deplete Pex15 in wt cells, that excess Msp1 has no effect on this, and that co–depletion is only partial when Pex15 is overexpressed (i.e., showing that it is indeed in excess of Pex3).

4) The experiment showing that Pex15 is actually inserted into the membrane as a transmembrane protein was not convincing (and I'm a bit suspicious about whether this is actually the case). The C–terminal region does not seem to contain a transmembrane segment by prediction algorithms (e.g., TMHMM), and manual inspection fails to reveal any region that contains a continuous hydrophobic sequence longer than ~10 residues. It is in this context that the protease protection experiment shown in Figure 2D becomes important. Unfortunately, the blot is rather dirty in the critical control lane. This appears to be due to Triton X–100 in that sample forming mixed micelles with SDS that migrate near and distort the region of the blot where their key protected fragment runs. This distortion makes it quite plausible that the band seen with detergent might well be the same band seen without detergent, but altered in its migration due to the mixed micelle artifact. If this were the case, the data would not convincingly support transmembrane insertion. Thus, the authors must clean up this experiment. There are a couple of options: (i) use far less detergent, such as 0.1% Tx100, to minimize the artifact; (ii) immunoprecipitate the sample before doing the blot, with the last wash of the IPs being in detergent–free buffer to avoid this artifact.

https://doi.org/10.7554/eLife.28507.024

Author response

Essential revisions:

The main new suggestion in this manuscript, that Pex15 in isolation from its Pex3 binding partner is the molecular target of Msp1 in peroxisomes, was found to be plausible but not strongly established. Thus, most of the suggested experiments are aimed toward improving support for this key claim.

1) While the model presented is intriguing, the data do not, at present, fully support the claim that Msp1 is active on the peroxisomal membrane. The authors claim that Pex3 protects Pex15 from Msp1 mediated degradation. However, there is no experimental indication that this interaction occurs on the peroxisomal membrane. In fact, in Lam et al., 2010, Pex3 was shown to interact with Pex15 only during biogenesis and in the ER. Thus, to establish the central claim of this study, it seems critical to convincingly show that Pex15 actually interacts with Pex3 in peroxisomes, thereby lending support to the idea that this interaction is the protective agent in peroxisomes.

We appreciate the work done by Lam et al., 2010 but our reading of their data led us to a different conclusion. In that manuscript, the authors isolated microsomes from yeast cells and then performed vesicle budding assays to produce vesicles containing both Pex3 and Pex15 (distinct from COPII vesicles that can co–bud from microsomes under these in vitro conditions). However, these experiments do not demonstrate any evidence of physical interaction between Pex3 and Pex15 (in the ER or in the aforementioned vesicles) nor is this one of the claims by the authors. Indeed, the only experiment performed to assess whether Pex3 and Pex15 directly interact is shown in Figure 5 of that paper, in which the authors affinity–purified Pex15 from budded vesicles in the presence or absence of Triton X–100. A small fraction of Pex3 only copurified with Pex15 in the absence of detergent, suggesting that these proteins reside in the same vesicles to some extent, but do not physically interact (or at least not in a way that persists following immunoprecipitation in the presence of detergent). Further contributing to this confusion, the Saccharomyces Genome Database has misannotated the existence of a Pex3 and Pex15 reconstituted complex based on this manuscript, when in fact the data only support cofractionation in vesicles.

Related to this matter, we thank reviewer #2 for pointing out that a bulk–cell interaction between Pex3 and Pex15 was previously observed using split ubiquitin technology in Eckert and Johnsson, 2003 (now referenced in the revised manuscript). This inspired us to use a related approach with sub–cellular resolution to experimentally test our claim that Pex15 and Pex3 physically interact at peroxisomes. Specifically, we made yeast strains expressing from endogenous loci Pex15 and Pex3 tagged with the N– and C–terminal fragments of the fluorescent protein Venus, respectively. Only in the presence of both fluorescent protein fragment tags did we observe bimolecular fluorescence complementation resulting in Venus fluorescence, which co–localized fluorescence from a peroxisomal matrix marker (see Author response image 1).

Author response image 1

2) Part of the support for Pex3 being important in protecting Pex15 from degradation is the finding that Pex3 deletion results in Pex15 degradation. However, controls are not shown to ascertain whether the effect of Pex3 elimination causes a change in the peroxisomal membrane that alters the half–life of all peroxisomal proteins. It is important to establish the degree of specificity of Msp1–mediated degradation upon Pex3 deletion and rule out a more trivial generic destabilization of peroxisomes in general.

This concern is well taken and we have now tested the degree of specificity of Msp1–sensitivity among several other peroxisomal membrane proteins upon Pex3 depletion. Before addressing this concern, we reasoned that our original data might underestimate the actual contribution of Pex3 to protection of natively–expressed Pex15 because they were obtained following TET inducible overexpression of YFP–Pex15. Thus, we switched to monitoring the dynamics of peroxisomal membrane proteins expressed from their native promoters. Indeed, this resulted in a more dramatic destabilization of Pex15 by an Msp1–dependent process (see Figure 6B–C compared to Figure 6—figure supplement 1F–G in the revised manuscript). By contrast, two other peroxisomal membrane proteins, Pex11 and Pex12, persisted at peroxisomes following degradation of Pex3, regardless of whether Msp1 was present or not (Figure 6—figure supplement 1I–J in the revised manuscript). Taken together, these new data argue against the possibility that Pex3 depletion induces generic Msp1–dependent destabilization of peroxisomal membrane proteins.

3) The authors claim that the degraded Pex15 in peroxisomes is the overexpressed fraction that presumably saturates Pex3. This claim would be more strongly supported by three additional results. First (and easiest), it is important to establish that the low concentration of Doxycycline used in Figure 3 (for example) causes overexpression of the protein. The authors could, for example, add a control image that compares the overexpressed phenotype with its native expression levels to be sure that the experiment starts when Pex15 is actually overexpressed. Second, it is worth testing whether co–expression of Pex3 can blunt Msp1 degradation of Pex15. Third, it is worth testing whether quantitative IP of Pex3 is able to co–deplete Pex15 in wt cells, that excess Msp1 has no effect on this, and that co–depletion is only partial when Pex15 is overexpressed (i.e., showing that it is indeed in excess of Pex3).

We thank the reviewers for these suggestions, which also expand on reviewer #3’s minor points. In the original Figure 3—figure supplement 1B–C we compared the peroxisomal levels of YFPPex15 produced from its endogenous promoter to the amount produced following 2 hours of induction with 5 ug/ml doxycycline, a concentration lower than that used for any of our Pex15 turnover experiments. This resulted in YFP–Pex15 levels 10 times higher at peroxisomes than in cells where the protein was produced from the endogenous PEX15 promoter. To test if elevated expression of Pex3 could blunt Msp1 degradation of excess Pex15 molecules, we overexpressed Pex3 from the strong TDH3 promoter and obtained the expected result. Since this approach didn’t confer complete protection from Msp1, it points to the presence of additional protection factors. Indeed, Pex15 has been shown to interact with several other peroxisomal membrane proteins in previous studies (for examples, see Eckert and Johannson, 2003 and Rosenkranz et al.,2006, among others), which may play a role in shielding Pex15 from Msp1. We have added a section to the discussion covering these points.

Lastly, we have attempted to quantitate the extent of the Pex3–Pex15 interaction after extraction from membranes with detergent. After optimizing our affinity purification of Pex3 (natively expressed), we found that near–quantitative Pex3 from the flow–through was accompanied by only a partial depletion of Pex15 (also natively expressed). Since affinity purification protocols in detergent have a tendency to disrupt labile native membrane protein interactions, we plan to develop in the future quantitative in vivo reporters of Pex3–Pex15 complex dynamics (e.g. FRET–based).

4) The experiment showing that Pex15 is actually inserted into the membrane as a transmembrane protein was not convincing (and I'm a bit suspicious about whether this is actually the case). The C–terminal region does not seem to contain a transmembrane segment by prediction algorithms (e.g., TMHMM), and manual inspection fails to reveal any region that contains a continuous hydrophobic sequence longer than ~10 residues. It is in this context that the protease protection experiment shown in Figure 2D becomes important. Unfortunately, the blot is rather dirty in the critical control lane. This appears to be due to Triton X–100 in that sample forming mixed micelles with SDS that migrate near and distort the region of the blot where their key protected fragment runs. This distortion makes it quite plausible that the band seen with detergent might well be the same band seen without detergent, but altered in its migration due to the mixed micelle artifact. If this were the case, the data would not convincingly support transmembrane insertion. Thus, the authors must clean up this experiment. There are a couple of options: (i) use far less detergent, such as 0.1% Tx100, to minimize the artifact; (ii) immunoprecipitate the sample before doing the blot, with the last wash of the IPs being in detergent–free buffer to avoid this artifact.

The relatively hydrophilic transmembrane segments of mitochondrial and peroxisomal membrane proteins are notoriously difficult to predict by algorithms trained using databases dominated by the more hydrophobic secretory pathway membrane proteins. For example, TMHMM does not predict that either Msp1 or Pex14 are membrane–integral even though this is well–established by protease protection assays (see Chen et al.,2014 and Albertini et al.,1997, respectively). Thus, we took the advice to improve the quality of our own protease protection assay for Pex15ΔC30 in earnest. We repeated this assay using a room temperature protease treatment rather than 4 °C and did not observe any background banding in the Triton X–100 control lane (see Figure 2D). We note that room temperature incubation of mitochondria resulted in loss of the N–terminal YFP from most molecules of Pex15ΔC30 as well as Proteinase K–independent degradation of Tom70. We therefore did not include the anti–Tom70 control blot. A related concern was expressed by reviewer #2 about protein size, prompting us to now display the contiguous anti–V5 blot (with molecular markers indicated) that shows full–length and YFP clipped Pex15ΔC30–V5, as well as the much smaller protected fragment (PF) that has the expected size of the Pex15 transmembrane domain–V5.

https://doi.org/10.7554/eLife.28507.025

Article and author information

Author details

  1. Nicholas R Weir

    Department of Molecular and Cellular Biology, Harvard University, Cambridge, United States
    Contribution
    Data curation, Software, Formal analysis, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon 0000-0002-1797-849X
  2. Roarke A Kamber

    Department of Molecular and Cellular Biology, Harvard University, Cambridge, United States
    Contribution
    Investigation, Visualization, Writing—review and editing
    Competing interests
    No competing interests declared
  3. James S Martenson

    Department of Molecular and Cellular Biology, Harvard University, Cambridge, United States
    Contribution
    Investigation, Visualization, Writing—review and editing
    Competing interests
    No competing interests declared
  4. Vladimir Denic

    Department of Molecular and Cellular Biology, Harvard University, Cambridge, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    vdenic@mcb.harvard.edu
    Competing interests
    No competing interests declared
    ORCID icon 0000-0002-1982-7281

Funding

National Institutes of Health

  • Vladimir Denic

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank A Murray, E O’Shea, D Botstein, S McIsaac, N Pfanner, and A Amon for reagents, S Mukherji for modeling advice, L Bagamery for microscopy assistance, and members of the Denic Laboratory, M Gropp, A Murray, and R Gaudet for comments on the manuscript. This work was supported by the National Institutes of Health (R01GM099943-04).

Reviewing Editor

  1. Ramanujan S Hegde, Reviewing Editor, MRC Laboratory of Molecular Biology, United Kingdom

Publication history

  1. Received: May 10, 2017
  2. Accepted: September 12, 2017
  3. Accepted Manuscript published: September 14, 2017 (version 1)
  4. Version of Record published: October 9, 2017 (version 2)

Copyright

© 2017, Weir et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 909
    Page views
  • 213
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Scopus, Crossref.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
