1. Neuroscience

Brainstem network dynamics underlying the encoding of bladder information

  1. Anitha Manohar
  2. Andre L Curtis
  3. Stephen A Zderic
  4. Rita J Valentino  Is a corresponding author
  1. University of Pennsylvania, United States
https://doi.org/10.7554/eLife.29917
Share this article
Cite this article
  1. Anitha Manohar
  2. Andre L Curtis
  3. Stephen A Zderic
  4. Rita J Valentino
(2017)
Brainstem network dynamics underlying the encoding of bladder information
eLife 6:e29917.
https://doi.org/10.7554/eLife.29917
  2. Download BibTeX
  3. Download .RIS

Abstract

Urodynamic status must interact with arousal and attentional processes so that voiding occurs under appropriate conditions. To elucidate the central encoding of this visceral demand, multisite recordings were made within a putative pontine-cortical micturition circuit from the pontine micturition center (PMC), locus coeruleus (LC) and medial prefrontal cortex (mPFC) during cystometry in unanesthetized rats. PMC neurons had homogeneous firing patterns, characterized by tonic activity and phasic bursts that were temporally associated with distinct phases of the micturition cycle. LC and cortical activation became synchronized 20-30 s prior to micturition. During this pre-micturition interval, a theta oscillation developed in the LC, the mPFC desynchronized and LC-mPFC coherence increased in the theta frequency range. The temporal offset between the shift in LC-mPFC network activity and micturition may allow time to disengage from ongoing behaviors unrelated to micturition and initiate specific voiding behaviors so that micturition occurs in environmentally and socially appropriate conditions.

https://doi.org/10.7554/eLife.29917.001

eLife digest

How do we know when we need to find a bathroom? As the bladder fills up, it sends signals to the brain to say that it needs emptying. But before the brain sends a message back to the bladder muscles telling them to contract to release urine, it first triggers a change in behavior. By increasing our alertness and arousing our senses, the brain ensures that we begin to look for a place where it is safe and appropriate to urinate. Only when we have found such a place will the brain tell the bladder to empty.

Previous work has suggested that two brain regions play important roles in this process: the pontine micturition center (PMC) and its neighbor, the locus coeruleus. The PMC is thought to act as an on-off switch. When the bladder reaches a certain level of fullness the PMC activates, which tells the bladder muscles to contract. The locus coeruleus helps animals pay attention to important stimuli by making them more alert and energized whenever such stimuli are present.

By recording the activity of neurons in the brains of rats while also measuring the pressure inside their bladders, Manohar et al. show that the PMC and the locus coeruleus work together to coordinate behavior and bladder emptying. Filling the bladder causes neurons in the locus coeruleus to activate in synchronized waves. This helps the locus coeruleus communicate with the brain’s outer layer, the cortex, leading to an increase in sensory alertness and arousal. This all happens before the bladder reaches the threshold fullness that activates the PMC, explaining why behavioral changes occur before urination. Manohar et al. show too that PMC neurons also activate when the rat is not urinating, suggesting that the PMC is more than an on-off switch.

Healthy people experience the sensation of needing to empty their bladder well before the bladder is full, but people who do not receive these sensory signals may be unable to tell when they need to take action. This can lead to bedwetting in children and to incontinence in the elderly. Targeting the brain circuit that responds to bladder signals could lead to new treatments for these conditions.

https://doi.org/10.7554/eLife.29917.002

Introduction

The physiological elimination of urine, micturition, must occur in socially appropriate and environmentally safe conditions. In some species micturition is integral to social communication, for example, with regard to sexual status and social rank (Ralls, 1971; Desjardins et al., 1973). These neurobehavioral aspects of micturition demand precise temporal coordination between bladder activity and the initiation of motor patterns that characterize voiding behavior. For example, bladder filling should increase arousal and shift the focus of attention before pressure reaches the micturition threshold so that ongoing behavior is suspended and voiding behavior is initiated prior to the passage of urine. A lack of coordination between voiding behaviors and micturition characterizes dysfunctional voiding syndromes, such as enuresis that can occur both in children and older adults (Torrens and Collins, 1975; Nevéus, 2017). This temporal coordination is performed by circuits that convey reciprocal communication between the brain and bladder.

The pontine micturition center (PMC) is central to a circuit that is positioned to coordinate neurobehavioral and visceral limbs of micturition (Valentino et al., 2011b). Through its projections to lumbosacral preganglionic neurons that regulate the parasympathetic innervation of the detrusor, the PMC is proposed to function as an all or none switch, whereby the neurons become activated at some threshold pressure and engage the descending limb that initiates bladder contraction (de Groat, 2006). In contrast to our knowledge of how the brain regulates bladder function, there is a paucity of information on the bottom-up processing of bladder information that is necessary for the neurobehavioral limb of the micturition reflex. Human brain imaging studies using SPECT, PET and fMRI have guided our current thinking about the structures involved in this complex process (Griffiths, 2004; Griffiths et al., 2009). However, these approaches have limitations with respect to temporal and spatial resolution. Using anatomical and physiological approaches, we described one circuit that is positioned to convey bladder information to cortical regions involved in executive function. We identified a population of spinal-projecting PMC neurons that are retrogradely labeled from both the lumbosacral spinal cord and the pontine noradrenergic nucleus locus coeruleus (LC) (Valentino et al., 1996). The LC has a widely distributed axonal network that extensively innervates the forebrain and particularly the cortex where norepinephrine serves as a neuromodulator of cortical activity (Swanson and Hartman, 1975). Selective pharmacological or optogenetic activation of LC neurons or activation using Gs-linked DREADDS is sufficient to produce cortical electroencephalographic (EEG) activation indicative of arousal (Berridge and Foote, 1991; Carter et al., 2010; Vazey and Aston-Jones, 2014). Notably, LC neurons are activated by bladder and colonic distention and this is temporally linked to cortical EEG activation (Elam et al., 1986; Page et al., 1992; Lechner et al., 1997). In addition to increasing arousal in response to salient stimuli, LC activation is thought to reset attentional networks to shift the focus of attention to salient stimuli (Aston-Jones and Bloom, 1981a; Aston-Jones and Cohen, 2005; Bouret and Sara, 2005). Integrating these findings, we proposed a model whereby increases in bladder pressure could activate PMC neurons that project to the LC and the impact on LC-cortical projections would increase arousal, reorient attention and promote the initiation of a voiding behavioral repertoire while suspending incompatible ongoing behaviors (Valentino et al., 1999; Valentino et al., 2011a). Thus, through collateral projections to the LC and spinal cord based on dual retrograde labeling, the PMC could coordinate visceral and neurobehavioral limbs of the micturition reflex.

To begin to test components of this model we recorded unit activity from PMC neurons and/or LC neurons along with local field potentials (LFP) from the medial prefrontal cortex (mPFC) simultaneously with urodynamic endpoints measured during in vivo cystometry in unanesthetized rats (Figure 1A,B, Figure 1—figure supplement 1–1).

Figure 1 with 2 supplements see all
Download asset Open asset

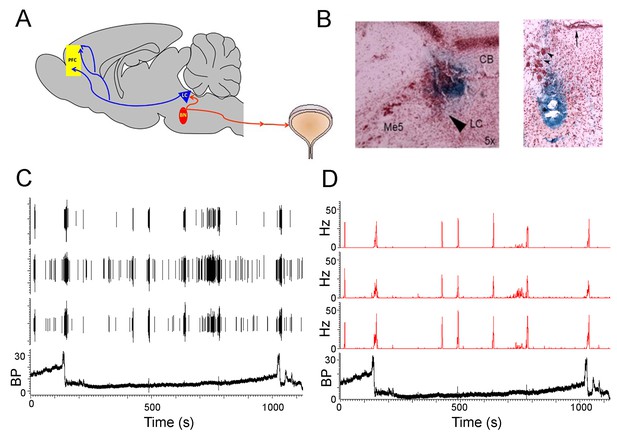

PMC neuronal activity during micturition cycles in unanesthetized rats.

(A) Schematic showing proposed circuitry engaged during micturition and recording sites. The PMC (red oval) projects to lumbosacral preganglionic parasympathetic neurons that give rise to cholinergic input to the detrusor and produce contraction. A population of PMC spinal-projecting neurons are retrogradely labeled from the LC (blue triangle) which is just caudal, dorsal and lateral to the PMC. LC neurons project widely throughout the cortex. In the present study, single unit activity was recorded from PMC neurons and/or LC neurons and local field potential activity was recorded from the medial prefrontal cortex (yellow rectangle). Neuronal recordings were obtained simultaneously with in vivo cystometry recordings from an implanted bladder catheter. (B) Representative Prussian blue histological verification of a recording in the LC (left) and the PMC (right). For the LC photomicrograph CB (Cerebellum), Me5 (mesencephalic trigeminal nucleus) and the arrow points to the LC. For the PMC photomicrograph, the arrow points to the ventricle and the arrowheads point to the mesencephalic trigeminal nucleus. Figure 1—figure supplement 1 shows a section slightly rostral to this with a lesion created by the wires (C) Raw waveform traces showing spikes from three PMC neurons and simultaneously recorded bladder pressure (BP mm Hg) during two micturition cycles. (D) Ratemeter records of the same cells shown in C.

https://doi.org/10.7554/eLife.29917.003

Results

Relationship between PMC neuronal activity and bladder pressure

After the first micturition cycle, subsequent cycles in rats became regular, with bladder pressure gradually increasing to a peak, at which point micturition occurred and bladder pressure fell to 0 mm Hg (Figure 1—figure supplement 1–2). Single unit activity was recorded from 36 PMC neurons from three rats during in vivo cystometry. Figure 1C,D shows activity from three single units recorded on one channel in the PMC during two micturition cycles. Whether depicted as the raw waveform trace (Figure 1C) or rate (Figure 1D), the pattern of PMC neuronal discharge was relatively homogeneous and this was true across all three rats (Figures 1C, D and 2A). The PMC has been proposed to function as a switch such that neuronal activation results in micturition (de Groat, 2006). Consistent with this, in all rats, PMC neurons discharged during micturition until bladder pressure decreased to zero and the bladder was empty (Figures 1C, D and 2A). Figure 2B shows the change in discharge rate associated with micturition for the individual cells shown in the example rasters. Most neurons increased their discharge rate and no recorded neurons were inhibited at this time. All PMC neurons also exhibited burst activity at different times with respect to micturition (Table 1). This was particularly apparent within the 20 s period following micturition during which bursts averaging 28 ± 1 Hz frequency and 606 ± 66 ms in duration occurred (Table 1, Figures 1C, 2A and C). These post-micturition bursts were sometimes associated with a very small, transient increase in bladder pressure (Figure 2A asterisks). Notably, in all PMC cells similar bursts (28 ± 2 Hz, 432 ± 35 ms duration) occurred regularly during inter-micturition intervals when bladder pressure was low (Table 1, Figure 1C). Burst activity was rare during the pre-micturition period (20 s prior to micturition). Notably, some cells were distinguished by tonic discharge between bursts (Figure 1C, first and third cells).

Table 1
Burst analysis of PMC neurons*
https://doi.org/10.7554/eLife.29917.006
Interval# Bursts†#spikes/burstISI (ms)Duration (ms)
Pre-micturition0.3 ± 0.14.9 ± 0.254 ± 2263 ± 14
Intermicturition
 Interval		12.3 ± 1.912.4 ± 1.238 ± 1
 		432 ± 35

Post-micturition2.7 ± 0.518.4 ± 2.740 ± 3606 ± 66

  1. *values are means ± SEM determined from 36 cells from 3 rats.

    †Mean #bursts/cell/micturition cycle

  2. Pre-micturition = 20 s before micturition

    Intermicturition interval = 120 s after first and 120 s before the following micturition

  3. Post-micturition = 20 s after micturition

Figure 2
Download asset Open asset

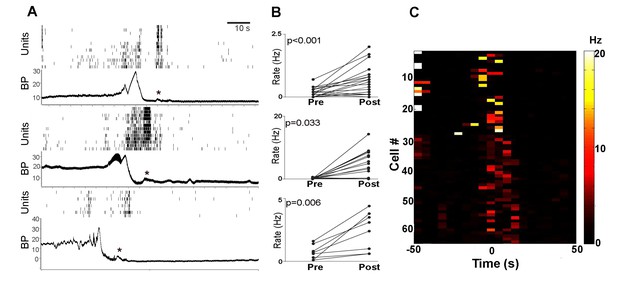

PMC neuronal activity of each rat.

(A) Each panel shows PMC cell rasters and bladder pressure (BP in mm Hg) during a representative micturition cycle from each of the three rats. Note that some PMC units discharge even when BP is relatively low. Activity increases prior to peak micturition pressure and a burst of activity occurs after bladder emptying when BP returns to baseline. A slight rise in BP is temporally associated with this burst (asterisks). (B) Pairwise pre-and post-micturition firing rate changes (Hz) for individual neurons shown in the rasters in A. Pre-micturition rates were determined from the period between 40–50 s prior to peak BP and Post-micturition rates were determined from 0 to 10 s sec after peak micturition pressure. For all three panels the mean post rates were greater than mean pre-rates as indicated by the Student’s t-test value (matched pairs) in the figure. (C) Heatmap of all PMC neurons recorded from the three rats showing discharge rate in Hz (coded by color scale on right) for the period of 50 s before and 50 s after micturition indicated by time = 0. For most cells, data are shown for two micturition cycles indicative of technical reproducibility. Note firing occurring 0–20 s after micturition. Bin size = 10 s.

https://doi.org/10.7554/eLife.29917.007

Relationship between LC activity and bladder pressure

LC neuronal activity was recorded from 51 neurons of 4 rats. As described in previous studies in unanesthetized rats (Aston-Jones and Bloom, 1981a), LC neurons were spontaneously active throughout the recordings although discharge rate fluctuated with the micturition cycle. Figure 3A,E shows how activity of LC units of one representative rat is temporally correlated to bladder pressure. In contrast to PMC neurons, LC neurons consistently increased their discharge rate 10–30 s prior to micturition and this activation ceased with micturition (Figure 3A,B,C,E). The distribution of latencies between significant LC activation and micturition ranged between 0 and 65 s with most cells having a latency between 10–30 s (Figure 3D).

Figure 3
Download asset Open asset

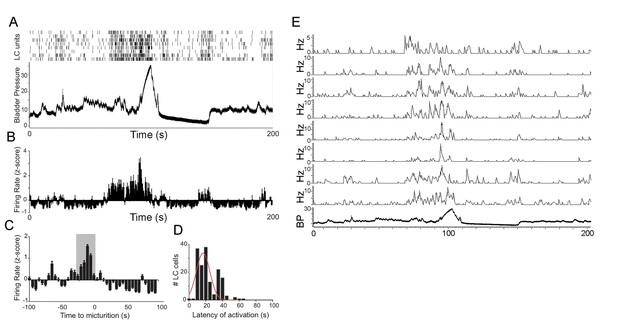

LC neuronal activity during micturition cycles in unanesthetized rats.

(A) Spike rasters of 8 discriminated LC neurons from an individual rat and simultaneously recorded bladder pressure (mm Hg) during a micturition cycle. Abscissa indicates time in seconds. (B) Bars indicate the average z-score firing rate of the LC units shown in A. The abscissa in B is time locked to that in A and the firing rate is evaluated in Hz in 1 s bins. (C) Bar graph shows average LC firing rate from all animals (n = 4 animals, 51 neurons) across 10 micturition cycles in 5 s bins (normalized z-score). The gray box highlights the bins 30 s prior to micturition-note consistent LC activation at this time). Peak bladder pressure is at time 0 s. (D) Histogram showing the distribution of latencies of LC activation prior to peak micturition pressure for all neurons and across all micturition cycles. (E) Ratemeter records of same cells as in A.

https://doi.org/10.7554/eLife.29917.008

For one rat, the proximity of the LC and the PMC allowed for detection and recording of units from both regions during cystometry (Figure 4). Notably, the temporal relationship between LC activation, PMC neuronal activation and micturition in this particular case argued against the hypothesis that PMC neurons drive LC neurons prior to micturition because LC activation preceded PMC neuronal activation.

Figure 4
Download asset Open asset

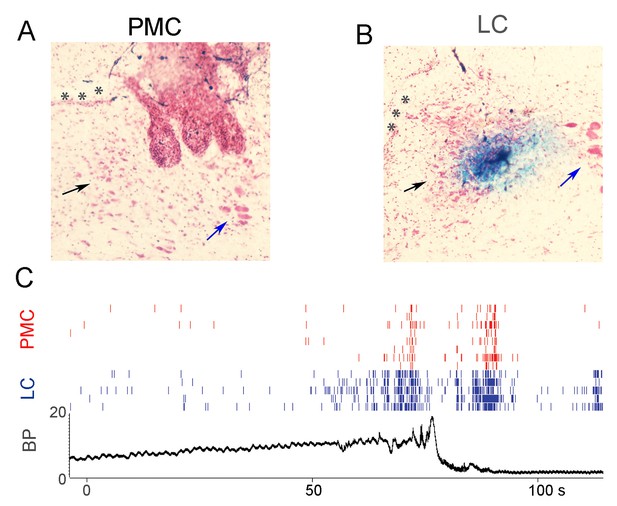

Simultaneous recordings of PMC and LC neuronal firing during micturition.

(A) Histological verification of recording sites in the PMC. The track of the electrode wires can be seen and the most medial track impinges on the lateral part of the PMC (black arrow). Asterisks indicate the ventricle and the blue arrow points to the mesencephalic trigeminal nucleus. (B) Histological verification of the recording site in the LC of the same rat which is apparent as the Prussian blue reaction product. Arrows and asterisks as in A. (C) Spike rasters of multiple BN neurons (red) and LC neurons (blue) recorded from the same rat during a micturition cycle. The lower panel shows bladder pressure recorded simultaneously. Note that LC neuronal activation precedes PMC neuronal activation and both occur prior to peak micturition pressure. Likewise, after bladder pressure returns to baseline, LC neurons become activated and this precedes activation of PMC neurons.

https://doi.org/10.7554/eLife.29917.009

LC-cortical synchrony during micturition cycles

The LC neuronal activation, occurring 10–30 s prior to micturition, was temporally correlated with mPFC desynchronization (Figure 5A1, A2). Simultaneous local field potential recordings (LFP) in LC and mPFC demonstrate a shift from low frequency activity at baseline (e.g., Figure 5B1, 0–47 s) to a prominent theta oscillation in the LC during the pre-micturition period (e.g., Figure 5B1, 47–77 s). This was accompanied by a desynchronization of the mPFC (Figure 5A2, B2). Interestingly, although the mPFC LFP magnitude was small during the 30 s period prior to micturition relative to the preceding baseline interval, there was still evidence of a theta oscillation in the mPFC during this time as well (white arrowheads in Figure 5B2, Figure 6B, cf., red and black lines). This effect was consistent as indicated by the mean power spectra of LC and mPFC LFP activity generated from each of 3 rats recorded across 8 micturition cycles (3, 2, and 3 for the individual rats) (Figure 6A,B). Thus, LC activity recorded from 60 to 30 s before micturition shifted from mixed low frequency activity to a prominent theta oscillation occurring 30–0 s before micturition. In concert, the mPFC power spectrum shifted from high amplitude, low frequency activity (0–5 Hz) to much lower amplitude oscillations and a decrease of power in all frequencies, characteristic of desynchronization. An increase in coherence between the LC and mPFC in the theta frequency characterized this pre-micturition interval (Figure 6C). This change in LC and mPFC LFP activity reverted with bladder emptying (Figure 5).

Figure 5
Download asset Open asset

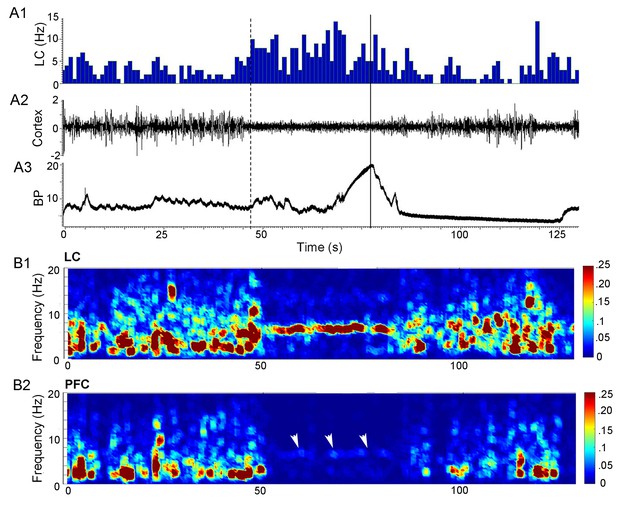

Synchronization between LC and cortical network activity prior to micturition.

(A) A1 shows a ratemeter record of a single LC unit (bin size = 1 s). A2 is the raw cortical LFP trace. A3 shows bladder pressure (BP, mm Hg) with the solid line indicating peak micturition pressure. The dotted line indicates 30 s before peak micturition pressure. Note that LC activation is temporally correlated with cortical desynchronization and both occur just over 30 s prior to peak micturition pressure. (B) Heat maps showing power in different frequency bands (0–20 Hz, y-axis) with respect to time in LC (B1) and mPFC (B2) from same rat as shown in A. The abscissae indicate time (s) and are aligned to correspond to abscissae in A. The LC LFP shows a prominent theta rhythm prior to peak micturition pressure that corresponds to cortical desynchronization. White arrowheads in B2 point to a dim band in the theta frequency range of the mPFC LFP.

https://doi.org/10.7554/eLife.29917.010
Figure 6
Download asset Open asset
Mean power spectral density plots of LC and mPFC local field potentials and LC-mPFC coherence at different times preceding micturition.

Red lines indicate the mean power (A,B) or coherence (C) determined 30 s before peak micturition pressure (red) and the black lines are the same for the preceding 30 s period. Means are from eight micturition cycles from three rats as described in the text. A two-way repeated measures ANOVA with frequency as the repeated measure indicated significant differences between the two time periods for LC power (F(1,742)=221, p<0.0001), PFC power (F(1,742)=671, p<0.0001 and LC-PFC coherence (F(1,2940) = 121, p<0.001).

https://doi.org/10.7554/eLife.29917.011

Discussion

The current study combined multisite neuronal recordings with cystometry to demonstrate how neuronal activity within a pontine micturition circuit is coordinated with bladder pressure and micturition in the unanesthetized rat. Neuronal activity was relatively homogeneous both within the PMC and the LC. As predicted, PMC neuronal activity was temporally correlated with micturition. However, a novel finding was the consistent high frequency bursts of activity following micturition and the repeated patterns of similar bursts during the intermicturition interval when bladder pressure was low. These patterns suggest that the PMC is more than an on-off switch in the regulation of micturition. Importantly, the findings demonstrated a temporal offset between LC neuronal activation and micturition during which a theta oscillation develops in the LC, LC-mPFC coherence is increased and the mPFC becomes desynchronized. These changes in the LC-mPFC network activity may facilitate the initiation of voiding behaviors prior to micturition by increasing arousal and shifting attention towards visceral demands.

Caveats

The present findings should be interpreted with consideration of certain technical limitations. In vivo cystometry was used to monitor and regulate micturition cycles. However, it does not mimic natural micturition cycles, which would be longer in the absence of steady bladder infusion. Although the multiwire recording technique allows for sampling activity from multiple neurons within the same nucleus, the results are inevitably biased toward activity that the wires can record from and that can be reliably discriminated. We cannot rule out the possibility that certain neuronal populations in a nucleus were not sampled. This may be a particular problem for PMC which is neurochemically heterogeneous (Sutin and Jacobowitz, 1988). This is less of a caveat for the LC, which is relatively homogeneous in the rat (Aston-Jones et al., 1995). Only females were used in the study because the bladder surgery is somewhat easier. The surgery was relatively complex because of the need to electrophysiologically localize brain electrodes as well as to implant the catheter, so that we chose to use females. Therefore, there is a caveat that our interpretations may not extend to both sexes. However, we previously demonstrated the same temporal correlation between cortical activation and peak bladder pressure in male rats (Kiddoo et al., 2006; Rickenbacher et al., 2008).

PMC neuronal activity

Most previous studies of PMC neuronal activity with relation to bladder pressure were done in anesthetized rats or cats with the bladder distended under isotonic conditions such that reflex contractions would occur (Willette et al., 1988; Tanaka et al., 2003; de Groat and Wickens, 2013). Three general neuronal types were identified in these conditions, neurons that discharge before and during reflex bladder contractions, neurons that are inhibited during contractions and active between contractions and neurons that fire transiently at the beginning of the contractions. The majority of recorded neurons in those studies were of the second type. One study recorded activity throughout the pons and medulla during cystometry in the absence of anesthesia in the decerebrate cat (Sugaya et al., 2003). This study also reported neurons that were either activated, inhibited or unaffected during the contraction with the majority being inhibited. Notably, in that study the mapping of these neuronal types demonstrated that nearly all neurons that were inhibited during bladder contraction were ventral to the region corresponding to the PMC, whereas most neurons within the PMC were activated during bladder contraction.

The present study is unique in recording single unit activity from the PMC in the intact unanesthetized and freely moving rat during cystometry. PMC neurons recorded in this study were homogeneous in the temporal correlation of their discharge pattern with the micturition cycle and resembled the previously described excitatory neurons. Notably, the present results are consistent with recent studies using photometry to measure the calcium currents in genetically-identified CRF-PMC neurons in unanesthetized mice during cystometry (Hou et al., 2016). These studies demonstrated a signal that was most prominent coincident with and up to 10 s after micturition. The present unit recordings have temporal resolution to detect changes in discharge rates and patterns such as bursts, that underlie the encoding of information. The post-micturition burst was consistent across all PMC neurons. If this results in increased glutamate release, it could be a mechanism to assure complete emptying. However, CRF is co-localized with glutamate in PMC neurons (Hou et al., 2016) and evidence suggests that CRF is inhibitory in this pathway and may counteract the excitatory effects of glutamate neurotransmission (Pavcovich and Valentino, 1995). Higher frequency bursts that favor neuropeptide release could be a mechanism for switching the function of the nucleus from one that facilitates active emptying to one that facilitates storage by countering detrusor contraction. Repetition of this high frequency burst during the intermicturition phases when bladder pressure is low would also be consistent with that. Future studies of simultaneous manipulation and recording of PMC neurons during cystometry would better address this question.

LC neuronal activity

Rat LC neurons are relatively homogeneous in that they are all noradrenergic and have similar electrophysiological properties (Aston-Jones et al., 1995). A characteristic property of LC neurons of both anesthetized and unanesthetized rats is their activation by salient sensory stimuli of all modalities (Aston-Jones and Bloom, 1981b). LC neurons are also activated by diverse physiological stimuli including hypotension and non-noxious distention of the bladder or colon (Elam et al., 1985; Elam et al., 1986; Valentino and Wehby, 1988; Page et al., 1992; Lechner et al., 1997). In the present study, LC neuronal recordings during in vivo cystometry in unanesthetized rats revealed an exquisite sensitivity of LC neurons in that they become tonically activated approximately 20 s prior to micturition and in most cases before the steady pressure rise to micturition threshold (Figures 3 and 5). Possibly, this is a response to bladder wall stretching rather than an increase in intravesicular pressure. The timing of activation of LC neurons and PMC neurons with respect to micturition argues against our hypothesis that PMC projections to the LC drive its activation by bladder stimuli. This was particularly apparent in the one case in which both LC and PMC neurons could be recorded in the same subject. However, because only a small subpopulation of PMC neurons project to the LC, it is possible that our neuronal sampling did not detect PMC-LC projection neurons (Valentino et al., 1996). Previous lesion studies provided evidence that LC activation by colonic distention was mediated by PMC but bladder distention was not examined in that study (Rouzade-Dominguez et al., 2001). Another route by which the LC could receive bladder information is through the ventrolateral periaqueductal gray (vlPAG). Anterogradely labeled vlPAG fibers innervate both PMC and the rostromedial peri-LC and synaptically contact LC dendrites in this region (Bajic et al., 2000). The PAG then could regulate both the LC and the PMC in response to bladder related stimuli. The apparent lack of temporal coordination between LC and PMC neuronal discharge could then be explained if they received distinct vlPAG afferents.

Coordination between the bladder, LC and cortical activity

The LC-norepinephrine system densely innervates the mPFC and modulates its activity and executive functions (Arnsten and Li, 2005; Arnsten, 2011). Regionally selective pharmacological activation of the LC or activation using Designer Receptor Exclusively Activated by Designer Drug (DREADD) technology produces a desynchronization of the cortical EEG (an arousal response) (Berridge and Foote, 1991; Vazey and Aston-Jones, 2014). Moreover, LC activation by certain stimuli is necessary for their ability to elicit cortical arousal (Valentino et al., 1991). This includes bladder distention produced by injection of saline in anesthetized rats (Page et al., 1992). In addition to increasing arousal, the LC-norepinephrine system has been implicated in shifting attention towards salient stimuli (Aston-Jones and Bloom, 1981b; Aston-Jones and Cohen, 2005). The present results identified an important temporal relationship between LC activity, mPFC activity and bladder pressure, with LC and cortical activation being synchronized to occur approximately 20 s prior to micturition. The examination of network activity in the LC and between the LC and mPFC revealed that during this pre-micturition interval when LC neuronal activity is elevated, network activity shifts from low frequency oscillations to a prominent theta oscillation. At the same time mPFC activity desynchronizes as characterized by a decreased power in all frequencies but LC-mPFC coherence, specifically in the theta frequency, is increased. This network shift that is temporally offset from micturition may be a neural code to increase arousal and reset behavior prior to micturition so that voiding occurs in appropriate environments.

Taken together, the present results highlight the complex synchronization of pontine and cortical neurons with bladder afferent information that is required to maintain coordination between voiding behavior and urination. Just as normal bladder signals are relayed to the cortex, signals arising from bladder-related pathology could impact on cortical function through these same networks. Consistent with this, partial bladder outlet obstruction produces an abnormal urodynamic pattern that is associated with robust changes in cortical network activity (Rickenbacher et al., 2008). This condition is characterized by frequent non-micturition contractions that are temporally correlated with persistent cortical theta oscillations. Selective lesion of LC-forebrain projections using the toxin, DSP-4, prevented the cortical changes without affecting the abnormal urodynamics. This underscores the importance of the LC-cortical network in communicating bladder status to the cortex and suggests that dysregulation of this network could be a prominent signature of underlying bladder pathology.

Materials and methods

Subjects

Female adult Sprague-Dawley rats (Charles River, Wilmington, MA) were maintained in a temperature and light controlled environment (20°C, 12 hr light-dark cycle, lights on at 0700 hr) with food and water available ad libitum. Rats were housed 2/cage until the day of surgery. The care and use of animals were approved by the Children’s Hospital of Philadelphia Institutional Animal Care and Use Committee.

Surgery for electrode implantation

Request a detailed protocol

Surgery was performed at least 1 week after arrival at the animal facility. Surgery for implantation of an 8-microwire bundle electrode (NB Labs, Denison, TX) into the locus coeruleus (LC) was identical to that previously described (Curtis et al., 2012). Briefly, rats were anesthetized with an isoflurane-air mixture and positioned in a stereotaxic frame. Body temperature was maintained at 37.5o C by a feedback controlled heating unit. A hole (4 mm diameter) was drilled in the skull centered at 3.7 mm caudal and 1.2 mm lateral to lambda for approaching the LC. Additional holes were drilled to insert skull screws for fixing the microwire bundle electrode to the skull with dental cement.

Neuronal recordings with glass micropipettes (2–4 μm diameter tip, 4–7 MOhm) filled with 0.5 M sodium acetate buffer were used to initially localize the LC. These were advanced toward the LC with a micromanipulator. Neuronal signals were amplified, filtered and monitored with an oscilloscope and a loudspeaker. LC neurons were tentatively identified during recording by their spontaneous discharge rates (0.5–5 Hz), entirely positive, notched waveforms (2–3 ms duration), and biphasic excitatory–inhibitory responses to contralateral hindpaw or tail pinch. Trajectories where LC units were encountered with the glass micropipette for at least 400 μm (dorsal-ventral penetration) were targeted for implantation with the microwire electrode bundle (NB Labs, Denison, TX) consisting of 8 Teflon insulated stainless steel wires (50 μm diameter) that were gathered in a circular bundle (7–8 mm long) and cut to produce bare wire tips for recording. A ground wire from the electrode encircled a skull screw and was in contact with brain tissue through another hole drilled next to the anchoring skull screw. The multiwire bundle was attached to a Microstar head stage and connected to a 16-channel data acquisition system (AlphaLab; Alpha Omega; Nazareth Illit, Israel). Accurate placement was aided by recording neuronal activity through the multiwire bundle during the implantation procedure. After detecting LC activity, the multiwire bundle was affixed to the skull and screws with dental cement. The scalp wound was sutured closed.

Surgery was similar for targeting of the electrode into the PMC, which is just rostral and medial to the ventral LC. As for the LC, the PMC was first localized with a glass micropipette as previously described. First the LC was localized and then the micropipette was repositioned rostrally until LC activity was no longer encountered. The multiwire bundle was then repositioned 200 μm medial to this point.

Rats had an additional depth electrode (tungsten microelectrode, 250 μm diameter) implanted into the medial prefrontal cortex (mPFC) (+3.2 AP, −0.6 ML, −3.0 DV) for mPFC local field potential (LFP) recordings. Animals were allowed 3 days to recover before bladder catheter implantation.

Surgery for bladder catheter implantation

Request a detailed protocol

At least 2 days after the electrode implantation, rats were anesthetized with isoflurane and a small cut was made between the scapulae to provide an exit for the bladder catheter. A midline incision was made in the abdomen to access the bladder. A 5-French umbilical artery catheter was tunneled subcutaneously from the hole between the scapulae to the abdomen. The catheter end, which had been previously cauterized and flared, was brought intraperitoneally and inserted into the bladder dome and sutured above the flare. The exposed catheter end was connected to a port that allowed infusion of saline into the bladder.

Experimental protocol

Request a detailed protocol

Three days after the bladder catheter implantation rats were placed into a cystometry chamber (Med Associates, St. Albans, CT). Sterile saline was continuously infused (100 μl/min) through the bladder catheter while urodynamic endpoints, including bladder pressure and the timing of micturition were recorded on-line for 1 hr using cystometry equipment (Medical Associates, St. Albans, VT) and software (Cystometry Analysis Software, SOF-522, Catamount R and D, St. Albans, VT). Neuronal activity was recorded from PMC neurons and/or LC neurons and LFPs were recorded simultaneously through micturition cycles. Figure 1A illustrates points along the pontine-cortical micturition circuit at which recordings were taken. Single unit LC waveforms were discriminated and sorted using the WaveMark template-matching algorithm in Spike2 (Cambridge Electronic Design, CED, v7.09, Cambridge, England), as described previously (Curtis et al., 2012). Local field potentials (LFPs) from LC were obtained from one of the wires of the multiwire bundle (sampled at 780 Hz, filtered from 1 to 150 Hz). Electrode recordings in the mPFC were amplified at a gain of 5000 and band pass filtered between 1–150 Hz.

Neuronal firing analysis

Request a detailed protocol

LC neuronal firing rate (in Hz) was estimated in 5 s time bins as the total number of spikes in each time bin divided by duration of time bin in seconds. For each neuron, the z-score was calculated by subtracting the mean average background firing rate from the firing rate and then divided by the standard deviation. The examples showing the spike rasters are accompanied by histograms showing the z-score firing rate in 1 s bins. The average across animals were estimated in 5 s bins. For burst analysis the following criteria were used: the maximum interspike interval defining burst onset was 80 ms, interspike intervals < 160 ms, number of spikes > 4.

Spectral analysis

Request a detailed protocol

To obtain time-frequency decomposition of the LFP signals, power spectral density was estimated using multitaper spectral estimators (Chronux toolbox scripts with MATLAB; three tapers, moving windows of 2 s width and 0.5 s overlap,±1 Hz bandwidth and displayed using interpolated smoothing between 0–20 Hz).

Histology

Request a detailed protocol

At the end of the experiment, rats were anesthetized and current was passed through the electrode (10 mA, 15 s). Rats were transcardially perfused with 60 ml of 10% potassium ferrocyanide in 0.1 M phosphate buffered saline to form a Prussian blue reaction product for identification of the recording site. Frozen sections were cut on a cryostat and stained with neutral red for visualization of the Prussian blue labeled recording site (Figure 1B). Data were used only from histologically identified cases. There was no removal of outliers.

References

    1. Aston-Jones G
    2. Bloom FE
    (1981a)
    Activity of norepinephrine-containing locus coeruleus neurons in behaving rats anticipates fluctuations in the sleep-waking cycle
    The Journal of Neuroscience : The Official Journal of the Society for Neuroscience 1:876–886.
    1. Aston-Jones G
    2. Bloom FE
    (1981b)
    Norepinephrine-containing locus coeruleus neurons in behaving rats exhibit pronounced responses to non-noxious environmental stimuli
    Journal of Neuroscience 1:887–900.
  6. Book
    1. Aston-Jones G
    2. Shipley MT
    3. Grzanna R
    (1995)
    The locus coeruleus, A5 and A7 noradrenergic cell groups
    In: Paxinos G, editors. The Rat Brain. Academic Press. pp. 183–213.
    1. Berridge CW
    2. Foote SL
    (1991)
    Effects of locus coeruleus activation on electroencephalographic activity in neocortex and hippocampus
    Journal of Neuroscience 11:3135–3145.
    1. Valentino RJ
    2. Chen S
    3. Zhu Y
    4. Aston-Jones G
    (1996)
    Evidence for divergent projections of corticotropin-releasing hormone neurons of Barrington's nucleus to the locus coeruleus and spinal cord
    Brain Research 732:1–15.
    1. Willette RN
    2. Morrison S
    3. Sapru HN
    4. Reis DJ
    (1988)
    Stimulation of opiate receptors in the dorsal pontine tegmentum inhibits reflex contraction of the urinary bladder
    The Journal of pharmacology and experimental therapeutics 244:403–409.

Decision letter

  1. Peggy Mason
    Reviewing Editor; University of Chicago, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Network Dynamics Underlying The Encoding Of Bladder Information" for consideration by eLife. Your article has been reviewed by four peer reviewers, one of whom, Peggy Mason is a member of our Board of Reviewing Editors and the evaluation has been overseen by Sabine Kastner as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: John T Williams (Reviewer #1); Joel Geerling (Reviewer #4).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

This study provides novel and exciting insight into the hindbrain circuit activity supporting micturition in the behaving rat. The data are valuable. Please attend to the following major concerns and send us back a revision:

The figures need to be redone. They are difficult to view and do not do justice to the work.

Please give evidence that the LC and BAR neurons are indeed from LC and BAR. For LC, that is straightforward as the senior author is well aware. For BAR, provide all the evidence supporting the conclusion that neurons are from Bar and directly compare to the characteristics of BAR neurons in mice inferred in the Sabatini work.

There are some writing issues to fix which are detailed in the specific comments.

Reviewer #1:

This manuscript examines a sequence of events involving three brain areas correlating that activity in these areas with different phases of the micturition reflex. The results show that the activity in the locus coeruleus precedes an increase in firing in Barrington's nucleus and the activity in the locus coeruleus drives asynchronous activity in the prefrontal cortex. Upon micturition the activity in the locus coeruleus declines dramatically. The firing of neurons in Barrington's nucleus drives micturition. In addition, there are bursts of activity in Barrington's nucleus following micturition. The work defines a sequence of events resulting in a key biological process that requires a focused attention and a satisfying outcome.

1) Using awake behaving animals is a key step in obtaining the results.

2) The presentation of the results is stepwise and clear.

3) The numbers of animals is small but the clarity of the results do not justify or require a large number of animals. In this day of the requirement for sex differences in animal work some comment might be helpful. I can only imagine that it might be technically easier in females?

4) The central control of a very basic behavior such as micturition is not only important to understand but is also seemingly a great model. Although there may well be more components involved in this process this work defines key components.

Reviewer #2:

This is a very important and impressive investigation of the coordination between PFC and the pons in producing the full behavior of micturition. The authors recorded from PMC, LC (and in one case from both simultaneously) while recording LFPs in PFC and performing cystometry with infusion and a continuous record of vesicular pressure.

The result is the finding that PMC neurons are typically excited during emptying with a small excitation at the end of the void as well as not rare bursts during storage between voids. The LC neurons are excited in the moments leading up to emptying and so their change in activity precedes that of PMC cells. Results are consistent with the idea that LC activity desynchronizes / arouses PFC.

The authors point out both the limitations (e.g. recording bias away from some critical subpopulation of PMC cells) and the likely implications (e.g. PAG drives the show, first exciting LC cells and then PMC cells). The authors also make some intriguing speculations such as the idea that the bursts are releasing CRF important in storage whereas the emptying firing is such that it will result in Glu release and then excitation of sacral circuits.

My one major request is that the figures be improved. They are so small that even at >>100%, this reviewer cannot read them. Additionally, while the rasters are of use for many purposes, they do not allow the reader to see the firing rate (solid is solid). It is recommended that the authors put in instantaneous firing rate traces in place of or in addition to the rasters. Black on white is also recommended, again for better readability.

Reviewer #3:

The manuscripts is an original research article based on the recordings data from multiple sites within a pontine-cortical micturition circuit which included Barrington's nucleus (BN), the locus coeruleus (LC) and the medial prefrontal cortex (mPFC). The recordings were done simultaneously with in vivo cystometry performed to evaluate brain activity during micturition episodes in unanesthetized rats. The study is well designed and methodologically sound. It contains new information about temporal activation of different brain areas associated with distinct phases of the micturition cycle. Specifically, the authors established that there is a temporal offset between the shift in LC-mPFC network activity and micturition which allows to switch attention from ongoing activities to voiding behavior in a timely manner. A few points require additional clarifications.

1) Abstract. Please provide more specific information in the sentence "BN neurons had homogeneous firing patterns, characterized by tonic activity and phasic bursts…". What firing patterns were observed? What frequency? Amplitude etc.?

2)Results section. While it is understood that all the numerical parameters in this section are presented in Table 1, some numbers (# of bursts, spikes, duration etc.) and levels of statistical significance should be included in the text itself. When referring to "increased discharge rate…" please specify by how much, what percentage of neurons expressed this effect etc.

3) Figure 1 C2 panel – no numbers are visible on Y axis for MV and BP

4) Subsection “LC-cortical synchrony during micturition cycles” sentence "Interestingly, although the magnitude was small there was…" – small in comparison to what? And how small?

5) Discussion section – please remove "in the unanesthetized rat" as you mention it at the end of this sentence.

6) Discussion section describe the caveats of the study. If the listed caveats are applicable to the entire study (it looks like they are), then please move this paragraph to the end of the Discussion section.

7. Please proofread the text for misspellings etc. (there are at least 10 of them in the text).

Reviewer #4:

The authors provide interesting and potentially useful new information in rats correlating the timing of micturition and neuronal firing in a brainstem region as well as LFP in the mesial frontal cortex. A strength of their work is the combination of neuronal recordings and bladder cystometry in awake animals, and their attempting to record multiple groups of neurons. A weakness of the paper is the lack of any experiment attempting to test their hypothesis that these neurons are in fact connected (that activity in one can be triggered or interrupted by manipulating the others) or that any of this activity influences behavior in the way they hypothesize at the end of the abstract. There are some uncertainties inherent to their approach, detailed below, which undercut the certainty expressed in conclusions throughout the text (see below).

More importantly, after comparing their results with previous examples of micturition-related unit activity in the dorsolateral pons (including results published from the same lab) I am not convinced that they recorded neurons inside the specific, tiny populations they claim to have stabbed with their electrodes. Finding LC-like activity and then targeting that region (or something ventral-medial to that region) as described in the methods did get their electrodes into the right ballpark, but from there, based on the histology and unit data shown in the figures, it does not appear that neurons in what they call Barrington's nucleus, or having any of the characteristics of a BN neuron (firing just before and during micturition, causing bladder contraction) were recorded in the "BN" unit group. Instead, some or most of the units labeled "LC" appear likely to represent neuronal activity of BN neurons. Showing electrode tracts from exemplary cases in neutral-red (Nissl) stained tissue is better than not showing anything, but it does not reveal the neurons that were recorded or in any way support the claim that any of them were part of the now-well-defined populations that the authors were attempting to record. Previous work from the authors used juxtacellular labeling (Rouzade-Dominguez et al., 2003) to reveal the location and peptidergic identity of neurons in this region, and newer molecular-genetic techniques allow definitive identification using Cre-conditional optrode stimulation/recording or calcium imaging. Lacking any of these more specific methods for cellular identification, suppositional labels like "LC" or "BN" are unwarranted -- these labels should be dropped, especially given that the only units with a BN/PMC-like pattern of activity (beginning prior to bladder contraction, increasing as bladder pressure rises, and then stopping ~once the sphincter opens and bladder pressure falls) were grouped as "LC".

Another concern I had relates to the numbers of animals and numbers of units in each analysis. The animal N and unit n in certain analyses from the Results section through the Materials and methods was left a bit hazy, and should be clarified.

https://doi.org/10.7554/eLife.29917.014

Author response

This study provides novel and exciting insight into the hindbrain circuit activity supporting micturition in the behaving rat. The data are valuable. Please attend to the following major concerns and send us back a revision:

The figures need to be redone. They are difficult to view and do not do justice to the work.

Please give evidence that the LC and BAR neurons are indeed from LC and BAR. For LC, that is straightforward as the senior author is well aware. For BAR, provide all the evidence supporting the conclusion that neurons are from Bar and directly compare to the characteristics of BAR neurons in mice inferred in the Sabatini work.

Figures. The figures have been redone as suggested. Figure 1, which had several parts was divided into two figures and a supplemental figure. The lettering on the axes have been made larger. The traces are now black on white and records of spontaneous rate have been added. A reason for not including the ratemeter records originally is that PMC neurons dramatically increase rates during bursts and rate plots don’t have the resolution to show the details of bursts or even that the cells show occasional tonic activity because it is relatively so low, i.e., the pattern and low firing rate activity is lost in the ratemeter record when there are short duration high frequency bursts. Therefore, we kept rasters and raw waveform traces. The raster in Figure 2 is now black on white. The original Figure 4 was divided into two figures. The lettering on the axes was enlarged. We want to emphasize that our goal in most cases was to show as much data from individual neurons as possible rather than means because this underscores how firing rates and patterns were consistently affected by changes in bladder pressure in a particular nucleus.

Electrode localization. The terms Barrington’s nucleus (BN) and the pontine micturition center (PMC) have been used interchangeably to refer to the area in the dorsolateral pons containing neurons that project to the lumbosacral spinal cord which when electrically or chemically stimulated elicit bladder contraction. However, neurons in this region that are transsynaptically labeled from the bladder extend outside of the counterstained oval cluster that has come to be known as the BN. Given this and the comments of Reviewer 4 we replaced our reference to BN with the PMC and this is also consistent with the nomenclature used by Hou et al., (2016). Chronic recordings in unanesthetized rats require multiwire microelectrodes. A limitation with recordings from multiwire electrodes is that one cannot precisely identify the neurons being recorded. Unlike experiments in anesthetized head-fixed rats in which neurons can be recorded with glass microelectrodes filled with biocytin, one cannot juxtacellularly label neurons with wire electrodes and determine their identity later. And the limitation to recordings in anesthetized rats is that anesthesia confounds the micturition reflex so this experiment could not have been done using juxtacellular labeling. It is not valid to compare the characteristics of the CRF+PMC neurons recorded in the paper by Hou et al., (2016) to our PMC neurons for two reasons. Neural recordings made from electrodes in the Hou et al., (2016) paper were whole cell recordings done in slices and activity was evoked by current injection. The in vivo recordings performed during micturition in the Hou paper used fiber photometry which measures calcium transients, not action potentials. This type of recording does not detect rate or pattern and cannot detect bursts that we see in our electrode recordings. Nonetheless, their findings are notably consistent with our data in showing that the largest activation of PMC neurons occurs following (and not before) the peak bladder pressure for several seconds and this similarity is now highlighted the Discussion section of the revised manuscript.

We have recorded from locus coeruleus (LC) neurons in anesthetized and unanesthetized rats for over 30 years and are familiar with the distinct electrophysiological characteristics of the neurons which we identify prior to securing the electrode. These are described in the Matierials and methods. During recordings in unanesthetized rats, LC neurons show a characteristic positive correlation with the arousal state as indicated by cortical electroencephalographic or local field potential (LFP) activity (Aston-Jones and Bloom, 1981). This was an important aspect of our findings, where bladder pressure served as the eliciting stimulus. However, it can also be seen in our traces at other times, i.e., when LC discharge rate is low, cortical LFP activity is synchronous and of high amplitude and low frequency, consistent with low arousal state. When LC discharge is high, cortical activity becomes desynchronized (low amplitude, high frequency) characteristic of arousal. This is very characteristic of LC neurons and was observed in all of our LC traces. These electrophysiological characteristics coupled with the histology provide evidence that our LC recordings were indeed in LC.

There are some writing issues to fix which are detailed in the specific comments.

Reviewer #1

We appreciate the reviewer’s comments. The only comment requiring an answer was #3.

3) The numbers of animals is small but the clarity of the results do not justify or require a large number of animals. In this day of the requirement for sex differences in animal work some comment might be helpful. I can only imagine that it might be technically easier in females?

The reviewer is correct in that the bladder surgery is technically easier for female rats and that was a rationale for the use of females only. However, in past studies in which we performed cystometry and cortical LFP recordings in unanesthetized male rats, we also demonstrated that cortical desynchronization preceded peak micturition pressure and micturition (Kiddoo et al., 2006; Rickenbacher et al.,2008). We discuss the use of a single sex in the Caveat section.

Reviewer #2:

This is a very important and impressive investigation of the coordination between PFC and the pons in producing the full behavior of micturition. The authors recorded from PMC, LC (and in one case from both simultaneously) while recording LFPs in PFC and performing cystometry with infusion and a continuous record of vesicular pressure.

The result is the finding that PMC neurons are typically excited during emptying with a small excitation at the end of the void as well as not rare bursts during storage between voids. The LC neurons are excited in the moments leading up to emptying and so their change in activity precedes that of PMC cells. Results are consistent with the idea that LC activity desynchronizes / arouses PFC.

The authors point out both the limitations (e.g. recording bias away from some critical subpopulation of PMC cells) and the likely implications (e.g. PAG drives the show, first exciting LC cells and then PMC cells). The authors also make some intriguing speculations such as the idea that the bursts are releasing CRF important in storage whereas the emptying firing is such that it will result in Glu release and then excitation of sacral circuits.

My one major request is that the figures be improved. They are so small that even at >>100%, this reviewer cannot read them. Additionally, while the rasters are of use for many purposes, they do not allow the reader to see the firing rate (solid is solid). It is recommended that the authors put in instantaneous firing rate traces in place of or in addition to the rasters. Black on white is also recommended, again for better readability.

We appreciate the reviewer’s comments. The major criticism related to the figures and these were revised as described above.

Reviewer #3:

The manuscripts is an original research article based on the recordings data from multiple sites within a pontine-cortical micturition circuit which included Barrington's nucleus (BN), the locus coeruleus (LC) and the medial prefrontal cortex (mPFC). The recordings were done simultaneously with in vivo cystometry performed to evaluate brain activity during micturition episodes in unanesthetized rats. The study is well designed and methodologically sound. It contains new information about temporal activation of different brain areas associated with distinct phases of the micturition cycle. Specifically, the authors established that there is a temporal offset between the shift in LC-mPFC network activity and micturition which allows to switch attention from ongoing activities to voiding behavior in a timely manner. A few points require additional clarifications.

1) Abstract. Please provide more specific information in the sentence "BN neurons had homogeneous firing patterns, characterized by tonic activity and phasic bursts…". What firing patterns were observed? What frequency? Amplitude etc.?.

The limitation to 150 words in the Abstract really precludes details. It is also important to note that because these are extracellular recordings amplitude is not meaningful because it is related to the proximity of the cell to the electrode, it is not a true action potential amplitude which could only be determined from intracellular recordings. Also firing rates for PMC neurons are not very meaningful because the neurons don’t have a tonic regular firing rate.

2)Results section. While it is understood that all the numerical parameters in this section are presented in Table 1, some numbers (# of bursts, spikes, duration etc.) and levels of statistical significance should be included in the text itself. When referring to "increased discharge rate…" please specify by how much, what percentage of neurons expressed this effect etc.

We now indicate that all PMC neurons showed burst activity and added the mean frequency and duration in the text. Because basal discharge rates are variable we plotted the rates for each individual neuron that we recorded from and this is shown in Figure 2B with an overall statistic for each animal so the reviewer and readers can see what happened to every cell. This is much more revealing than documenting an average rate in the text.

3) Figure 1 C2 panel – no numbers are visible on Y axis for MV and BP

This has now been added and the Figure is now Figure 1—figure supplement 1.

4) Subsection “LC-cortical synchrony during micturition cycles” sentence "Interestingly, although the magnitude was small there was…" – small in comparison to what? And how small?

This was addressed in comment of reviewer 2 above (Discussion section).

5) Discussion section – please remove "in the unanesthetized rat" as you mention it at the end of this sentence.

Corrected.

6) Discussion section describe the caveats of the study. If the listed caveats are applicable to the entire study (it looks like they are), then please move this paragraph to the end of the Discussion section.

This is a matter of style and we prefer to begin a discussion of the interpretation of our results by first stating the caveats.

7. Please proofread the text for misspellings etc. (there are at least 10 of them in the text)

Done.

Reviewer #4:

The authors provide interesting and potentially useful new information in rats correlating the timing of micturition and neuronal firing in a brainstem region as well as LFP in the mesial frontal cortex. A strength of their work is the combination of neuronal recordings and bladder cystometry in awake animals, and their attempting to record multiple groups of neurons. A weakness of the paper is the lack of any experiment attempting to test their hypothesis that these neurons are in fact connected (that activity in one can be triggered or interrupted by manipulating the others) or that any of this activity influences behavior in the way they hypothesize at the end of the abstract. There are some uncertainties inherent to their approach, detailed below, which undercut the certainty expressed in conclusions throughout the text (see below).

This is the first study to combine neuronal recordings in these multiple brain regions simultaneously with measurements of urodynamic function in unanesthetized freely moving animals and that is its strength. We discuss how the data (with caveats) argue against the hypothesis that Barrington’s nucleus is signaling bladder information to the LC and this was important. As an alternative we speculate that LC activation prior to micturition may be through periaqueductal gray afferents. However, the examination of other afferents to the LC was beyond the scope of this manuscript and the subject of future studies. There is a well-established literature that the LC projects to the mPFC and modulates its activity. With regards to bladder related activity, we previously demonstrated that LC activation was required for cortical activation evoked by bladder distention in anesthetized rats (Page et al., 1992) and that is now mentioned in the Discussion section. We also discuss our previous study that provided evidence that the LC was necessary for the development of cortical theta oscillations in rats with partial bladder outlet obstruction (Rickenbacher et al., 2008). Along with this literature, our demonstration in the present study of the consistent temporal correlation between LC and mPFC activation during the micturition cycle, accompanied by increased LC-mPFC coherence at the time preceding micturition support the hypothesis that LC activation initiates arousal prior to micturition.

More importantly, after comparing their results with previous examples of micturition-related unit activity in the dorsolateral pons (including results published from the same lab) I am not convinced that they recorded neurons inside the specific, tiny populations they claim to have stabbed with their electrodes. Finding LC-like activity and then targeting that region (or something ventral-medial to that region) as described in the methods did get their electrodes into the right ballpark, but from there, based on the histology and unit data shown in the figures, it does not appear that neurons in what they call Barrington's nucleus, or having any of the characteristics of a BN neuron (firing just before and during micturition, causing bladder contraction) were recorded in the "BN" unit group. Instead, some or most of the units labeled "LC" appear likely to represent neuronal activity of BN neurons. Showing electrode tracts from exemplary cases in neutral-red (Nissl) stained tissue is better than not showing anything, but it does not reveal the neurons that were recorded or in any way support the claim that any of them were part of the now-well-defined populations that the authors were attempting to record. Previous work from the authors used juxtacellular labeling (Rouzade-Dominguez et al., 2003) to reveal the location and peptidergic identity of neurons in this region, and newer molecular-genetic techniques allow definitive identification using Cre-conditional optrode stimulation/recording or calcium imaging. Lacking any of these more specific methods for cellular identification, suppositional labels like "LC" or "BN" are unwarranted -- these labels should be dropped, especially given that the only units with a BN/PMC-like pattern of activity (beginning prior to bladder contraction, increasing as bladder pressure rises, and then stopping ~once the sphincter opens and bladder pressure falls) were grouped as "LC".

I respectfully argue with the Reviewer’s suggestion that the neurons we indicated as LC neurons were actually Barrington’s nucleus neurons. To reiterate, our LC recordings were in the LC based not only on histological verification, but on the neuronal discharge characteristics in unanesthetized rats described by our laboratory and others (Aston-Jones and Bloom, 1981). Importantly, BN neurons would not be expected to exhibit a regular tonic discharge rate in the absence of bladder pressure increases followed by an activation 20-30 s prior to micturition as was consistently observed in the LC neurons of this study. Conversely LC neurons do not go from being nearly silent to a 25 Hz burst of 600 ms duration like the neurons we indicate are BN neurons. This is not at all characteristic of LC neurons. Even when the bladder is mechanically distended to bring pressure up to 70 mm Hg (greater than in this study), LC neuronal discharge only increases to 50-100% of its baseline rate (Elam et al., 1986; Page et al., 1992). Finally, as reproduced above, the findings of Hou et al., 2017 using optical recordings from genetically-identified CRF+ BN neurons were consistent with ours by showing activation with the onset and following micturition, not 20-30 s before.

Another concern I had relates to the numbers of animals and numbers of units in each analysis. The animal N and unit n in certain analyses from the Results through the Methods was left a bit hazy, and should be clarified.

We included the number of cells and rats in all analyses.

https://doi.org/10.7554/eLife.29917.015

Article and author information

Author details

  1. Anitha Manohar

    The Children’s Hospital of Philadelphia, University of Pennsylvania, Philadelphia, United States
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3011-2623

  2. Andre L Curtis

    The Children’s Hospital of Philadelphia, University of Pennsylvania, Philadelphia, United States
    Contribution
    Formal analysis, Supervision, Methodology, Writing—original draft, Supervision and training in LC recordings
    Competing interests
    No competing interests declared

  3. Stephen A Zderic

    The Children’s Hospital of Philadelphia, University of Pennsylvania, Philadelphia, United States
    Contribution
    Conceptualization, Methodology
    Competing interests
    No competing interests declared

  4. Rita J Valentino

    The Children’s Hospital of Philadelphia, University of Pennsylvania, Philadelphia, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    valentinorj@nida.nih.gov
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6839-6628

Funding

National Institute of Diabetes and Digestive and Kidney Diseases (DK102367)

  • Stephen A Zderic
  • Rita J Valentino

Foederer Foundation

  • Stephen A Zderic
  • Rita J Valentino

National Institute on Aging (AG052780)

  • Stephen A Zderic
  • Rita J Valentino

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This research was supported by DK102367, AG052780 and a Foederer grant.

Ethics

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC- protocol IAC12-000684) of the Children's Hospital of Philadelphia. All surgery was performed under isofluorane anesthesia. Animals received analgesics pre- and post-operatively and every effort was made to minimize suffering.

Reviewing Editor

  1. Peggy Mason, University of Chicago, United States

Version history

  1. Received: June 26, 2017
  2. Accepted: October 22, 2017
  3. Version of Record published: December 4, 2017 (version 1)

Copyright

This is an open-access article, free of all copyright, and may be freely reproduced, distributed, transmitted, modified, built upon, or otherwise used by anyone for any lawful purpose. The work is made available under the Creative Commons CC0 public domain dedication.

Metrics

  • 1,642
    Page views
  • 245
    Downloads
  • 17
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Anitha Manohar
  2. Andre L Curtis
  3. Stephen A Zderic
  4. Rita J Valentino
(2017)
Brainstem network dynamics underlying the encoding of bladder information
eLife 6:e29917.
https://doi.org/10.7554/eLife.29917

Categories and tags

Research organism

Further reading

    1. Neuroscience

    Urodynamics: How the brain controls urination

    Anna P Malykhina
    Insight

    Coordination between the brainstem and the cortex helps to ensure that urination occurs at an appropriate time.

    1. Evolutionary Biology
    2. Neuroscience

    Diversity and evolution of cerebellar folding in mammals

    Katja Heuer, Nicolas Traut ... Roberto Toro
    Research Article

    The process of brain folding is thought to play an important role in the development and organisation of the cerebrum and the cerebellum. The study of cerebellar folding is challenging due to the small size and abundance of its folia. In consequence, little is known about its anatomical diversity and evolution. We constituted an open collection of histological data from 56 mammalian species and manually segmented the cerebrum and the cerebellum. We developed methods to measure the geometry of cerebellar folia and to estimate the thickness of the molecular layer. We used phylogenetic comparative methods to study the diversity and evolution of cerebellar folding and its relationship with the anatomy of the cerebrum. Our results show that the evolution of cerebellar and cerebral anatomy follows a stabilising selection process. We observed 2 groups of phenotypes changing concertedly through evolution: a group of 'diverse' phenotypes - varying over several orders of magnitude together with body size, and a group of 'stable' phenotypes varying over less than 1 order of magnitude across species. Our analyses confirmed the strong correlation between cerebral and cerebellar volumes across species, and showed in addition that large cerebella are disproportionately more folded than smaller ones. Compared with the extreme variations in cerebellar surface area, folial anatomy and molecular layer thickness varied only slightly, showing a much smaller increase in the larger cerebella. We discuss how these findings could provide new insights into the diversity and evolution of cerebellar folding, the mechanisms of cerebellar and cerebral folding, and their potential influence on the organisation of the brain across species.

    1. Neuroscience

    Hunger- and thirst-sensing neurons modulate a neuroendocrine network to coordinate sugar and water ingestion

    Amanda J González Segarra, Gina Pontes ... Kristin Scott
    Research Article

    Consumption of food and water is tightly regulated by the nervous system to maintain internal nutrient homeostasis. Although generally considered independently, interactions between hunger and thirst drives are important to coordinate competing needs. In Drosophila, four neurons called the interoceptive subesophageal zone neurons (ISNs) respond to intrinsic hunger and thirst signals to oppositely regulate sucrose and water ingestion. Here, we investigate the neural circuit downstream of the ISNs to examine how ingestion is regulated based on internal needs. Utilizing the recently available fly brain connectome, we find that the ISNs synapse with a novel cell-type bilateral T-shaped neuron (BiT) that projects to neuroendocrine centers. In vivo neural manipulations revealed that BiT oppositely regulates sugar and water ingestion. Neuroendocrine cells downstream of ISNs include several peptide-releasing and peptide-sensing neurons, including insulin producing cells (IPCs), crustacean cardioactive peptide (CCAP) neurons, and CCHamide-2 receptor isoform RA (CCHa2R-RA) neurons. These neurons contribute differentially to ingestion of sugar and water, with IPCs and CCAP neurons oppositely regulating sugar and water ingestion, and CCHa2R-RA neurons modulating only water ingestion. Thus, the decision to consume sugar or water occurs via regulation of a broad peptidergic network that integrates internal signals of nutritional state to generate nutrient-specific ingestion.
