1. Microbiology and Infectious Disease

Severe infections emerge from commensal bacteria by adaptive evolution

  1. Bernadette C Young  Is a corresponding author
  2. Chieh-Hsi Wu
  3. N Claire Gordon
  4. Kevin Cole
  5. James R Price
  6. Elian Liu
  7. Anna E Sheppard
  8. Sanuki Perera
  9. Jane Charlesworth
  10. Tanya Golubchik
  11. Zamin Iqbal
  12. Rory Bowden
  13. Ruth C Massey
  14. John Paul
  15. Derrick W Crook
  16. Timothy E Peto
  17. A Sarah Walker
  18. Martin J Llewelyn
  19. David H Wyllie
  20. Daniel J Wilson  Is a corresponding author
  1. University of Oxford, United Kingdom
  2. Oxford University Hospitals NHS Foundation Trust, United Kingdom
  3. Royal Sussex County Hospital, United Kingdom
  4. Brighton and Sussex Medical School, University of Sussex, United Kingdom
  5. NIHR Health Protection Unit in Healthcare Associated Infections and Antimicrobial Resistance at University of Oxford in partnership with Public Health England, United Kingdom
  6. University of Bristol, United Kingdom
  7. Public Health England, United Kingdom
  8. National Institute for Health Research, Oxford Biomedical Research Centre, United Kingdom
  9. Jenner Institute, United Kingdom
  10. Oxford Martin School, University of Oxford, United Kingdom
https://doi.org/10.7554/eLife.30637
Share this article
Cite this article
  1. Bernadette C Young
  2. Chieh-Hsi Wu
  3. N Claire Gordon
  4. Kevin Cole
  5. James R Price
  6. Elian Liu
  7. Anna E Sheppard
  8. Sanuki Perera
  9. Jane Charlesworth
  10. Tanya Golubchik
  11. Zamin Iqbal
  12. Rory Bowden
  13. Ruth C Massey
  14. John Paul
  15. Derrick W Crook
  16. Timothy E Peto
  17. A Sarah Walker
  18. Martin J Llewelyn
  19. David H Wyllie
  20. Daniel J Wilson
(2017)
Severe infections emerge from commensal bacteria by adaptive evolution
eLife 6:e30637.
https://doi.org/10.7554/eLife.30637
  2. Download BibTeX
  3. Download .RIS

Abstract

Bacteria responsible for the greatest global mortality colonize the human microbiota far more frequently than they cause severe infections. Whether mutation and selection among commensal bacteria are associated with infection is unknown. We investigated de novo mutation in 1163 Staphylococcus aureus genomes from 105 infected patients with nose colonization. We report that 72% of infections emerged from the nose, with infecting and nose-colonizing bacteria showing parallel adaptive differences. We found 2.8-to-3.6-fold adaptive enrichments of protein-altering variants in genes responding to rsp, which regulates surface antigens and toxin production; agr, which regulates quorum-sensing, toxin production and abscess formation; and host-derived antimicrobial peptides. Adaptive mutations in pathogenesis-associated genes were 3.1-fold enriched in infecting but not nose-colonizing bacteria. None of these signatures were observed in healthy carriers nor at the species-level, suggesting infection-associated, short-term, within-host selection pressures. Our results show that signatures of spontaneous adaptive evolution are specifically associated with infection, raising new possibilities for diagnosis and treatment.

https://doi.org/10.7554/eLife.30637.001

Introduction

Infections remain a leading cause of global mortality, with bacterial pathogens among the greatest concern (GBD 2015 Mortality and Causes of Death Collaborators, 2016). However, many of the bacteria imposing the greatest burden of mortality, such as Staphylococcus aureus, are frequently found as commensal components of the body's microbiota (Turnbaugh et al., 2007). For them, infection is a relatively uncommon event that is often unnecessary (Casadevall et al., 2011; Méthot and Alizon, 2014), and perhaps disadvantageous (Brown et al., 2012), for onward transmission. Genomics is shedding light on important bacterial traits such as host-specificity, toxicity and antimicrobial resistance (Sheppard et al., 2013; Laabei et al., 2014; Chewapreecha et al., 2014; Chen et al., 2015; Earle et al., 2016). These approaches offer new opportunities to understand the role of genetics and within-host evolution in the outcome of human interactions with major bacterial pathogens (Didelot et al., 2016).

Several lines of evidence support a plausible role for within-host evolution influencing the virulence of bacterial pathogens. Common bacterial infections, including S. aureus, are often associated with colonization of the nose by a genetically similar strain. In these patients, the nose is considered the likely source of infection because the nose is more often the site of asymptomatic colonization than any other body site (von Eiff et al., 2001; Kluytmans et al., 1997; Yang et al., 2010). Genome sequencing suggests that bacteria mutate much more quickly than previously accepted, and this confers a potent ability to adapt, for example evolving antimicrobial resistance de novo within individual patients (Howden et al., 2011; Eldholm et al., 2014). Opportunistic pathogens infecting cystic fibrosis patients have been found to rapidly adapt to the lung environment, with strong evidence of parallel evolution across patients (Lieberman et al., 2011; Marvig et al., 2013; Markussen et al., 2014; Lieberman et al., 2014; Marvig et al., 2015). However, the selection pressures associated with antimicrobial resistance and opportunistic infections of cystic fibrosis patients may not typify within-host adaptation in common commensal pathogens that have co-evolved with humans for thousands or millions of years (Moeller et al., 2016; Lees et al., 2017).

Candidate gene studies have demonstrated that substitutions in certain regions, notably quorum-sensing systems such as the S. aureus accessory gene regulator (agr), arise particularly quickly in vivo and in culture (Traber et al., 2008). The agr operon encodes a pheromone that coordinates a shift at higher cell densities from production of surface proteins promoting biofilm formation to production of secreted toxins and proteases promoting inflammation and dispersal (Novick and Geisinger, 2008). Mutants typically produce the pheromone but no longer respond to it (Painter et al., 2014). The evolution of agr has been variously ascribed to directional selection (Sakoulas et al., 2009), balancing selection (Robinson et al., 2005), social cheating (Pollitt et al., 2014) and life-history trade-off (Shopsin et al., 2010). However, the role of agr mutants in infection remains unclear, since they are frequently sampled from both asymptomatic carriage and severe infections (Smyth et al., 2012; Painter et al., 2014).

Whole-genome sequencing case studies add weight to the idea that within-host evolution plays an important role in infection. In one persistent S. aureus infection, a single mutation was sufficient to permanently activate the stringent stress response, reducing growth, colony size and experimentally measured infection severity (Gao et al., 2010). In another patient, we found that bloodstream bacteria differed from those initially colonizing the nose by several mutations including loss-of-function of the rsp regulator (Young et al., 2012). Functional follow-up revealed that the rsp mutant expressed reduced cytotoxicity (Laabei et al., 2015), but maintained the ability to cause disseminated infection (Das et al., 2016). Unexpectedly, we found that bloodstream-infecting bacteria exhibit lower cytotoxicity than nose-colonizing bacteria more generally (Laabei et al., 2015). These results raise the question: are unique hallmarks of de novo mutation and selection associated with bacterial evolution in severely infected patients?

We addressed this question by investigating the genetic variants arising from within-patient evolution of S. aureus sampled from 105 patients with concurrent nose colonization and blood or deep tissue infection. We annotated variants to test for systematic differences between colonizing and infecting bacteria. We discovered several groups of genes showing significant enrichments of protein-altering variants compared to other genes, indicating adaptive evolution. For genes implicated in pathogenesis, adaptive mutants were limited to infecting bacteria, while other pathways showed adaptation in the nose and infection site. Adaptive enrichments were not observed in asymptomatic carriers, nor between unrelated bacteria, indicating evolution in response to infection-associated, within-host selection pressures. Our results reveal that adaptive evolution of genes involved in regulation, toxin production, abscess formation, cell-cell communication and bacterial-host interaction drives parallel differentiation between commensal constituents of the nose and infecting bacteria, providing new insights into the evolution of infection in a major pathogen.

Results

Infecting bacteria are typically descended from the patient’s commensal bacteria

We identified 105 patients suffering severe S. aureus infections admitted to hospitals in Oxford and Brighton, England, for whom we could recover contemporaneous nose swabs from admission screening. Of the 105 patients, 55 had bloodstream infections, 37 had soft tissue infections and 13 had bone and joint infections (Table 1). The infection was most often sampled on the same day as the nose, with an interquartile range of 1 day earlier to 2 days later (Supplementary file 1).

Table 1
Distribution of infection types and relatedness of nose-colonizing and infecting S. aureus among 105 patients revealed by genomic comparison.
https://doi.org/10.7554/eLife.30637.002
Infection sitesRelation of nose-colonizing to infecting bacteria
Unrelated
(≥1104 variants)		Closely related
(≤66 variants)
Zero shared genotypesOne shared genotype
Bloodstream4438
Soft tissue42310
Bone and joint283
Total107421

To discover de novo mutations within and between S. aureus in the nose and infection site, we whole-genome sequenced 1163 bacterial colonies, a median of 5 per site. We detected single-nucleotide polymorphisms (SNPs) and short insertions/deletions (indels) using previously developed, combined reference-based mapping and de novo assembly approaches (Young et al., 2012; Golubchik et al., 2013; Iqbal et al., 2012). We identified 35 distinct strains, defined by multilocus sequence type (ST), across patients (Supplementary file 1). As expected (von Eiff et al., 2001), most patients possessed extremely closely related nose-colonizing and infecting bacteria, sharing the same ST and differing by 0–66 variants (95 patients). The nose-colonizing and infecting bacteria of nine patients were unrelated, possessing different STs and differing by 9398–50573 variants (e.g. Figure 1A). In one further patient, we deemed the nose-colonizing and infecting bacteria to be unrelated despite sharing the same ST because they differed by 1104 variants, far outside the within-ST variation evident in any individual nose or infection site (Figure 1—figure supplement 1), and corresponding to around 70 years of divergence based on our previous estimates of within-host evolution (Young et al., 2012). In 9/95 patients with extremely closely related nose-colonizing and infecting bacteria, another, unrelated ST was also present in the nose (six patients) or the infection site (three patients); we excluded these unrelated bacteria from further analysis. After excluding variants differentiating unrelated nose-colonizing and infecting bacteria, we catalogued 1322 de novo mutations that we deemed arose within the 105 patients.

Figure 1 with 1 supplement see all
Download asset Open asset

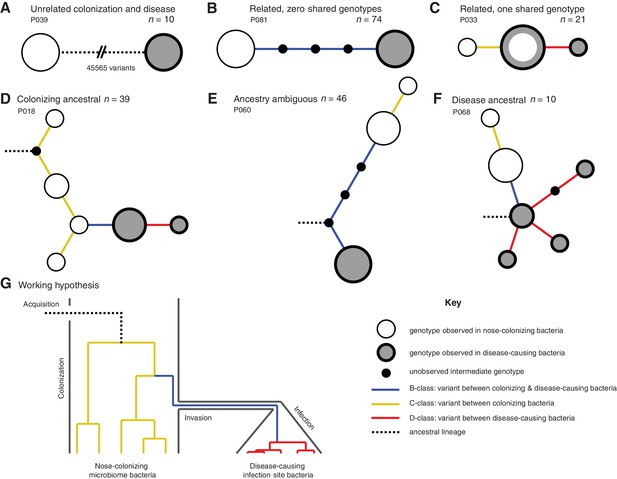

Infection-causing S. aureus form closely related but distinct populations descended from nose-colonizing bacteria in the majority of infections.

Bacteria sampled from the nose and infection site of 105 patients formed one of three population structures, illustrated with example haplotrees: (A) Unrelated populations differentiated by many variants. (B) Highly related populations separated by few variants. (C) Highly related populations with one genotype in common. Reconstructing the ancestral genotype in each patient helped identify the ancestral population: (D) Nose-colonizing bacteria ancestral. (E) Ambiguous ancestral population. (F) Infection site bacteria ancestral. (G) Phylogeny illustrating the working hypothesis that variants differentiating highly related nose-colonizing and infection-causing bacteria would be enriched for variants that promote, or are promoted by, infection. In A–F, haplotree nodes represent observed genotypes sampled from the nose (white) or infection site (grey), with area proportional to genotype frequency, or unobserved intermediate genotypes (black). Edges represent mutations. Patient identifiers and sample sizes (n) are given. In A–G, edge color indicates that mutations occurring on those branches correspond to B-class variants between nose-colonizing and infection-causing bacteria (blue), C-class variants among nose-colonizing bacteria (gold) or D-class variants among infection-causing bacteria (red). Black dashed edges indicate ancestral lineages. A B C.

https://doi.org/10.7554/eLife.30637.003

In patients with closely related strains, the within-patient population structure was always consistent with a unique migration event from the nose to the infection site, or occasionally, vice versa. Infecting and nose-colonizing bacteria usually formed closely related but distinct populations with no shared genotypes (74/95 patients, e.g. Figure 1B), separated by a mean of 5.7 variants. There was never more than one identical genotype between nose-colonizing and infecting bacteria, (21/95 patients, e.g. Figure 1C), indicating that the migration event from one population to the other involved a small number of founding bacteria (Moxon and Murphy, 1978; Margolis and Levin, 2007; Prajsnar et al., 2012). In such patients, the shared genotype likely represents the migrating genotype itself. Population structure did not differ significantly between infection types (p=0.38, Table 1). Genetic diversity in the nose (mean pairwise distance, π = 2.8 variants) was similar to that previously observed in asymptomatic nasal carriers (Golubchik et al., 2013) (Reference Panel I, π = 4.1, p=0.13), but was significantly lower in the infection site (π = 0.6, p=10–10.0), revealing limited diversification post-infection.

In most patients, the infection appeared to be descended from the nose. We used 1149 sequences from other patients and carriers (Reference Panel II) to reconstruct the most recent common ancestor (MRCA) for the 95/105 (90%) patients with related nose-colonizing and infecting bacteria. We thereby distinguished wild type from mutant alleles. In 49 such patients, we could determine the ancestral population. The nose population was likely ancestral in 39/49 (80% of patients with related strains, or 72% of all patients) because all infecting bacteria shared de novo mutations in common that distinguished them from the MRCA, whereas nose-colonizing bacteria did not. In 16 of those, confidence was high because both mutant and ancestral alleles were observed in the nose, confirming it as the origin of the de novo mutation (e.g. Figure 1D). Conversely, in 10/49 patients, bacteria colonizing the nose were likely descended from blood or deep tissue infections (20% of patients with related strains, or 18% of all patients) (e.g. Figure 1F). Confidence was high for just three of those patients, and they showed unusually high diversity (Supplementary data, P063, P072, P093), suggesting that in persistent infections, infecting bacteria can recolonize the nose.

Protein-truncating mutants are over-represented within infected patients

To help identify variants that could promote, or be promoted by, infection of the blood and deep tissue by bacteria colonizing the nose, we reconstructed within-patient phylogenies and classified variants by their position in the phylogeny. Sequencing multiple colonies per site enabled us to classify variants into those representing genuine differences between nose-colonizing and infection populations (B-class), variants specific to the nose-colonizing population (C-class) and variants specific to the disease-causing infection population (D-class). We hypothesized that B-class variants would be most enriched for variants promoting, or promoted by, infection, if such variants occur (Figure 1G).

We cross-classified variants by their predicted functional effect: synonymous, non-synonymous or truncating within protein-coding sequences, or non-coding (Table 2, Supplementary file 2). As expected, the prevailing tendency of selection within patients was to conserve protein sequences, with dN/dS ratios indicating rates of non-synonymous change 0.55, 0.68 and 0.63 times the rate expected under strict neutral evolution for B-, C- and D-class variants, respectively.

Table 2
Cross-classification of variants within patients by phylogenetic position and predicted functional effect, and comparison to asymptomatic nose carriers.

Neutrality indices (McDonald and Kreitman, 1991; Rand and Kann, 1996) were defined as the odds ratio of mutation counts relative to synonymous variants in patients versus asymptomatic nose carriers (Reference Panel I). Those significant at p<0.05 and p<0.005 are emboldened and underlined respectively.

https://doi.org/10.7554/eLife.30637.005
Number of variants (Neutrality index)
Phylogenetic positionSynonymousNon-synonymousProtein truncatingNon-codingTotal
Patients with severe infections (n = 105)
Between nose-colonization and infection site (B-class)93265 (1.1)39 (3.1)140 (1.2)537
Within nose-colonization
(C-class)		93325 (1.3)59 (4.7)145 (1.3)622
Within infection site
(D-class)		2682 (1.2)15 (4.3)40 (1.3)163
Total212672 (1.2)113 (3.9)325 (1.3)1322
Asymptomatic carriers (Golubchik et al., 2013) (Reference panel I, for comparison, n = 13)
Within nose-colonization
(C-class)		3797545184

In a longitudinal study of one long-term carrier, we previously reported that a burst of protein-truncating variants punctuated the transition from asymptomatic nose carriage to infection (Young et al., 2012). Here, we found a 3.9-fold over-abundance of protein-truncating variants of all phylogenetic classes in infected patients compared to asymptomatic carriers (Reference Panel I, p=0.002, Table 2), supporting the conclusion that loss-of-function mutations are disproportionately associated with evolution within infected patients. This may reflect a reduction in the efficiency with which selection removes deleterious protein-truncating mutations, and provides evidence of a systematic difference in selection within severely infected patients.

Quorum sensing and cell-adhesion proteins exhibit adaptive evolution between nose-colonizing and infecting bacteria

We hypothesized that variants associated with infection would be enriched among the protein-altering B-class variants between the nose and infection site (Figure 1G). Therefore, we aggregated mutations by genes in a well-annotated reference genome, MRSA252, and tested each gene for an excess of non-synonymous and protein-truncating B-class variants compared to other genes, taking into account the length of the genes. Aggregating by gene was necessary because 1318/1322 variants were unique to single patients. The two exceptions involved non-coding variants arising in two patients each, one B-class variant 130 bases upstream of azlC, an azaleucine resistance protein (SAR0010), and one D-class variant 88 bases upstream of eapH1, a secreted serine protease inhibitor (SAR2295) (Stapels et al., 2014).

We found a significant excess of five protein-altering B-class variants representing a 58.3-fold enrichment in agrA, which encodes the response regulator that mediates activation of the quorum-sensing system at high cell densities (p=10–7.5, Figure 2A, Table 3). The clfB gene encoding clumping factor B, which binds human fibrinogen and loricrin (Foster et al., 2013), showed an excess of five protein-altering B-class variants, representing a 15.9-fold enrichment that was near genome-wide significance after multiple testing correction (p=10–4.7). Both signals of enrichment produced neutrality indices exceeding one, consistent with adaptive evolution (Supplementary file 3).

Figure 2 with 3 supplements see all
Download asset Open asset

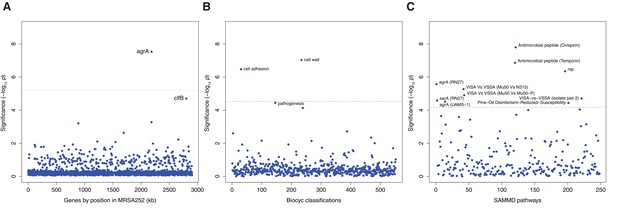

Genes, ontologies and pathways enriched for protein-altering substitutions between nose-colonizing and infection-causing bacteria within infected patients.

(A) Significance of enrichment of 2650 individual genes. (B) Significance of enrichment of 552 gene sets defined by BioCyc gene ontologies. (C) Significance of enrichment of 248 gene sets defined by SAMMD expression pathways. Genes, pathways and ontologies that approach or exceed a Bonferroni-corrected significance threshold of α = 0.05, weighted for the number of tests per category, (red lines) are named.

https://doi.org/10.7554/eLife.30637.006
Table 3
Genes, gene ontologies and expression pathways exhibiting the most significant enrichments or depletions of protein-altering B-class variants separating nose and infection site bacteria.

Enrichments below one represent depletions. The total number of variants and genes available for analysis differed by database. A -log10 p-value above 5.2, 4.5 or 4.2 was considered genome-wide significant for loci, gene ontologies or expression pathways respectively (in bold).

https://doi.org/10.7554/eLife.30637.010
Gene groupNo. protein-altering
B-class variants		Cumulative lengthof genes (kb)EnrichmentSignificance (-log10 p value)
Locus
agrA50.758.277.53
clfB52.615.874.70
Total2892363.8
BioCyc Gene Ontology (Caspi et al., 2016)
Cell wall1830.95.027.03
Cell adhesion1317.26.446.47
Pathogenesis31112.52.414.44
Total2882359.3
SAMMD Expression PathwayDown-regulatedUp-regulatedDown-regulatedUp-regulatedDown-regulatedUp-regulated
Ovispirin-1 (Pietiäinen et al., 2009)407121.2142.92.650.397.80
Temporin L (Pietiäinen et al., 2009)4214125.1156.12.780.746.86
rsp (Lei et al., 2011)27161.113.73.610.606.35
agrA (RN27) (Dunman et al., 2001)93041.085.01.832.945.57
VISA-vs-VSSA (Mu50 vs N315) (Cui et al., 2005)017034.403.955.27
VISA-vs-VSSA (Mu50 vs Mu50-P) (Cui et al., 2005)017036.703.704.90
VISA-vs-VSSA (isolate pair 2) (Howden et al., 2008)14326.959.74.060.394.71
sarA (RN27) (Dunman et al., 2001)62349.957.70.973.224.59
agrA (UAMS-1 OD 1.0) (Cassat et al., 2006)0502.7014.574.52
Pine-Oil Disinfectant-Reduced-Susceptibility (Lamichhane-Khadka et al., 2008)17536.423.63.761.704.44
Total2752093.5

Previously, we identified a truncating mutation in the transcriptional regulator rsp to be the most likely candidate for involvement in the progression to infection in one long-term nasal carrier (Young et al., 2012). Although we observed just one variant in rsp among the 105 patients (3.9-fold enrichment, p=0.27), we found it was a non-synonymous B-class variant resulting in an alanine to proline substitution in the regulator’s helix-turn-helix DNA binding domain. In separately published experiments (Das et al., 2016), we demonstrated that this and the original mutation induce similar loss-of-function phenotypes which, like agr loss-of-function mutants, express reduced cytotoxicity, but maintained an ability to persist, disseminate and cause abscesses in vivo.

We found no significant enrichments of protein-altering variants among D-class variants, but we observed a significant excess of six protein-altering C-class variants in pbp2 which encodes a penicillin binding protein involved in cell wall synthesis (19.0-fold enrichment, p=10–6.0, Figure 2—figure supplement 1A). Pbp2 is an important target of β-lactam antibiotics (Łeski and Tomasz, 2005), revealing adaption – potentially in response to antibiotic treatment – in the nose populations of some patients.

Genes modulated by virulence regulators and antimicrobial peptides show adaptive evolution between colonizing and infecting bacteria

To improve the sensitivity to identify adaptive evolution associated with infection, we developed a gene set enrichment analysis (GSEA) approach in which we tested for enrichments of protein-altering B-class variants among groups of genes. GSEA allowed us to detect signatures of adaptive evolution in groups of related genes that were not apparent when interrogating individual genes.

We grouped genes in two different ways: by gene ontology and by expression pathway. First, we obtained a gene ontology for the reference genome from BioCyc (Caspi et al., 2016), which classifies genes into biological processes, cellular components and molecular functions. There were 552 unique gene ontology groupings of two or more genes. We tested for an enrichment among genes belonging to the ontology, compared to the rest of the genes.

Second, we obtained 248 unique expression pathways from the SAMMD database of transcriptional studies (Nagarajan and Elasri, 2007). For each expression pathway, genes were classified as up-regulated, down-regulated or not differentially regulated in response to experimentally manipulated growth conditions or expression of a regulatory gene. For each expression pathway, we tested for an enrichment in genes that were up- or down-regulated compared to genes not differentially regulated.

The most significant enrichment for protein-altering B-class variants between nose and infection sites occurred in the group of genes down-regulated by the cationic antimicrobial peptide (CAMP) ovispirin-1 (p=10–7.8), with a similar enrichment in genes down-regulated by temporin L exposure (p=10–6.9, Figure 2C). Like human CAMPs, the animal-derived ovispirin and temporin compounds inhibit epithelial infections by killing phagocytosed bacteria and mediating inflammatory responses (Pietiäinen et al., 2009). In response to inhibitory levels of ovispirin and temporin, agr, surface-expressed adhesins and secreted toxins are all down-regulated. Collectively, down-regulated genes showed 2.7-fold and 2.8-fold enrichments of adaptive evolution, respectively. Conversely, genes up-regulated in response to CAMPs, including the vraSR and vraDE cell-wall operons and stress response genes (Pietiäinen et al., 2009), exhibited 0.4-fold and 0.7-fold enrichments (i.e. depletions), respectively (Table 3). Thus, expression of the genes undergoing adaptive evolution is strongly inhibited in vitro by host-derived antimicrobial peptides.

Genes belonging to the cell wall ontology showed the second most significant enrichment for adaptive evolution (p=10–7.0). Genes contributing to this 5.0-fold enrichment included the immunoglobulin-binding S. aureus Protein A (spa), the serine rich adhesin for platelets (sasA), clumping factors A and B (clfA, clfB), fibronectin binding protein A (fnbA) and bone sialic acid binding protein (bbp). The latter four genes contributed to another statistically significant 6.4-fold enrichment of adaptive protein evolution in the cell adhesion ontology (p=10–6.5, Figure 3). Therefore, there is a general enrichment of surface-expressed host-binding antigens undergoing adaptive evolution.

Figure 3 with 2 supplements see all
Download asset Open asset

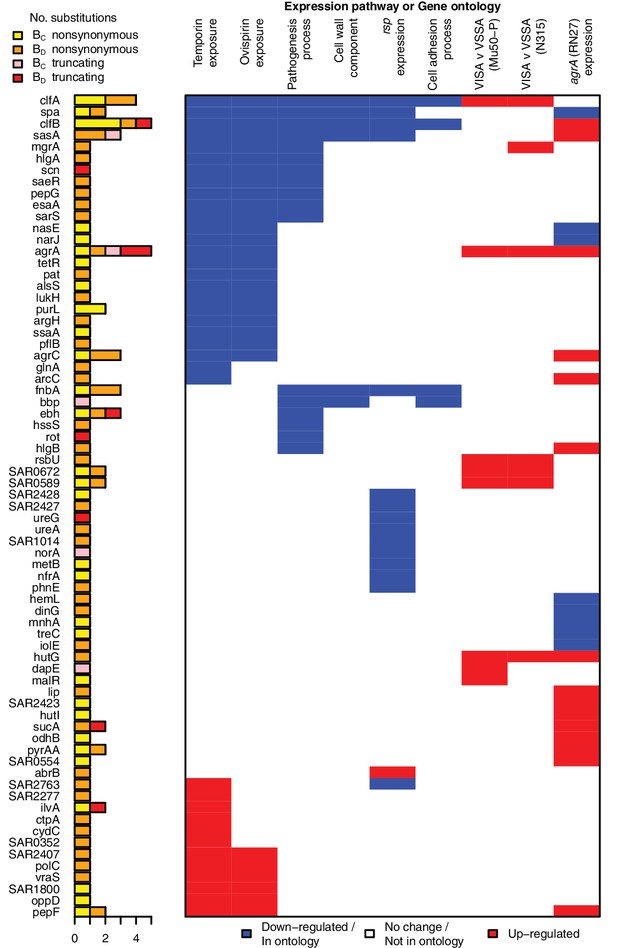

All genes contributing to the pathways and ontologies most significantly enriched for protein-altering substitutions between nose-colonizing and infection-causing bacteria.

The pathogenesis ontology, in which significant enrichments were observed in infection-causing but not nose-colonizing bacteria, is shown for comparison. Every gene with at least one substitution between nose-colonizing and infection-causing bacteria and which was up- (red) or down- regulated (blue) in one of the pathways or a member of one of the ontologies (blue) is shown. To the left, the number of altering (yellow/orange) and truncating (pink/red) B-class variants is shown, broken down by the population in which the mutant allele was found: nose (BC; yellow/pink) or infection site (BD; orange/red).

https://doi.org/10.7554/eLife.30637.011

The rsp regulon showed the most significant enrichment among gene sets defined by response to individual bacterial regulators (p=10–6.4). Genes down-regulated by rsp in exponential phase (Lei et al., 2011), including surface antigens and the urease operon, exhibited a 3.6-fold enrichment for adaptive evolution, while up-regulated genes showed 0.6-fold enrichment. So whereas rsp loss-of-function mutants were rare per se, genes up-regulated in such mutants were hotspots of within-patient adaptation in infected patients. Since expression is a prerequisite for adaptive protein evolution, this implies there are alternative routes by which genes down-regulated by intact rsp can be expressed and thereby play an important role within patients other than direct inactivation of rsp.

Loss-of-function in agr mutants represent one alternative route, since they exhibit similar phenotypes to rsp mutants, with reduced cytotoxicity and increased surface antigen expression, albeit reduced ability to form abscesses (Das et al., 2016). We found significant enrichments of genes regulated by agrA in two different backgrounds (p<10–4.5) and by sarA (p=10–4.6), underlining the influence of adaptive evolution on both secreted and surface-expressed proteins during infection. We found that expression of genes enriched for protein-altering substitutions was also altered in strains possessing reduced susceptibility to vancomycin, although not in a consistent direction across strains (p<10–4.7), and to pine-oil disinfectant (p=10–4.4), suggesting such genes may be generally involved in response to harsh environments. All significant signals of enrichment produced neutrality indices exceeding one, consistent with adaptive evolution (Supplementary file 3).

Several genes contributed to multiple evolutionary signals, particularly cell-wall anchored proteins involved in adhesion, the infection process and immune evasion (Foster et al., 2013), including fnbA, clfA, clfB, sasA and spa. These multifactorial, partially overlapping signals suggest a large target for selection in adapting to the within-patient environment (Figure 3). The fact that we observed no comparable significant enrichments in C-class and D-class protein-altering variants (Figure 2—figure supplement 1) indicates that these evolutionary patterns are associated specifically with the infection process.

Adaptive evolution in pathogenesis genes is found only in infecting bacteria

Having identified adaptive evolution differentiating nose-colonizing and infection-causing bacteria, we next asked whether the mutant alleles were preferentially found in the nose or infection site. We used 1149 sequences from other patients or carriers (Reference Panel II) to reconstruct the genotype of the MRCA of nose-colonizing and infecting bacteriain each patient, respectively. This allowed us to sub-classify B-class variants by whether the mutant allele was found in the nose-colonizing bacteria (BC-class) or the disease-causing infection site bacteria (BD-class).

A priori, we had expected the enrichments of adaptive evolution to be driven primarily by mutants occurring in the infection-causing bacteria (BD-class). One group of genes showed a signal of such an enrichment among BD-class variants specifically. Genes belonging to the BioCyc pathogenesis ontology were marginally genome-wide significant in BD-class variants, showing a 3.1-fold enrichment (p=10–4.6) and a statistically insignificant 1.7-fold enrichment in BC-class variants (p=0.13). BD-class mutants driving this differential signal arose in toxins including gamma hemolysin and several regulatory loci implicated in toxicity and virulence regulation: rot, sarS and saeR.

Surprisingly, however, we found that all other significantly enriched gene sets were driven by mutant alleles occurring both in nose-colonizing and infecting bacteria (Figure 2—figure supplement 2). This indicates there are common selection pressures in the nose and infection site during the process of infection within patients, leading to convergent evolution across body sites. So while adaptation in pathogenesis genes appears specifically infection-associated, other signals of adaptation in severely infected patients are driven by selection pressures, which might compensate for an altered within-host environment during infection, that are as likely to favor mutants in nose-colonizing bacteria as infecting bacteria.

Signals of adaptation are specific to infected patients and differ from prevailing signatures of selection

Two lines of evidence show that the newly discovered signatures of within-host adaptive evolution, both in infecting and nose-colonizing bacteria, are unique to evolution in infected patients. To test this theory against the alternative explanation that our approach merely detects the most rapidly evolving proteins, we searched for similar signals in alternative settings: evolution within asymptomatic carriers, and species-level evolution between unrelated bacteria.

There was no significant enrichment of protein-altering variants in any gene, ontology or pathway among 235 variants identified from 10 longitudinally sampled asymptomatic nasal carriers (Reference Panel III, Figure 2—figure supplement 3, Supplementary file 4). To address the modest sample size, we performed goodness-of-fit tests, focusing on the signals most significantly enriched in patients. We found significant depletions of protein-altering variants in carriers relative to patients in the rsp, agr and sarA regulons (p=10–4.0) and the pathogenesis ontology (p=10–3.2, Supplementary file 5).

Nor were the relative rates of non-synonymous to synonymous substitution (dN/dS) higher between unrelated S. aureus (Reference Panel IV) in the genes that contributed most to the signals associated with adaptation within patients: agrA, agrC clfA, clfB, fnbA and sasA. Although synonymous diversity was somewhat higher than typical in these genes, the dN/dS ratios showed no evidence for excess protein-altering change in these compared to other genes (Figure 3—figure supplement 1). Accordingly, incorporating this locus-specific variability of dN/dS into the GSEA did not affect the results (Figure 3—figure supplement 2). Taken together these lines of evidence show that the ontologies, pathways and genes significantly differentiated between nose-colonizing and infecting bacteria arise in response to selection pressures specifically associated with infected patients, and are not repeated in asymptomatic carriers or species-level evolution.

Discussion

We found that common, life-threatening infections of S. aureus are frequently descended from commensal bacteria colonizing the nose. These infections are associated with repeatable patterns of bacterial evolution driven by within-patient mutation and selection. Genes involved in pathogenesis, notably toxins and regulators, showed evidence for adaptation in infecting but not nose-colonizing bacteria. Surprisingly, other signatures of adaptation occurred in parallel in nose-colonizing and infecting bacteria, affecting genes responding to cationic antimicrobial peptides and the virulence regulators rsp and agr. Such genes mediate toxin production, abscess formation, immune evasion and bacterial-host binding. Adaptation within both regulator and effector genes reveals that multiple, alternative evolutionary paths are targeted by selection in infected patients.

The signatures of within-patient adaptation that we found differed from prevailing signals of selection at the species level. This discordance means that infection-associated adaptive mutations within patients are rarely transmitted, and argues against a straightforward host-pathogen arms race as the predominant evolutionary force acting within and between patients. Instead, it supports the notion of a life-history trade-off between adaptations favoring colonization and infection distinct from those favoring dissemination and onward transmission (Shopsin et al., 2010). Infection of this sort can be characterized in terms of an ecological source-sink model, in which commensal bacteria provide the source for potentially life-threatening infections (Sokurenko et al., 2006). Ultimately, the short-term survival advantage gained by infecting bacteria, analogous to the short-term advantage of cancerous cells derived from the host, may lead to the demise of both the host and pathogen, epitomizing a tragedy of the commons (Rankin et al., 2007). As such, infection may represent an ever-present risk of mutation among commensal bacteria favored by short-term selection but ultimately incidental or damaging to the bacterial reproductive life cycle.

We did not observe analogous signatures of bacterial adaptation and excess loss-of-function mutations in healthy nose carriers, indicating that risk factors for infections, such as a weakened or over-activated immunological response, comorbidities or medical interventions, may play an important role in creating distinctive selection pressures in infected patients. The effects of such risk factors may be mediated, at least in part, through the selection pressure they exert on commensal bacteria.

The existence of signatures of adaptive substitutions associated with infection raises the possibility of developing new diagnostic techniques and personalizing treatment to the individual patient’s commensal bacteria. The ability of genomics to characterize the selective forces driving adaption within the human body in unprecedented detail provides new opportunities to improve experimental models of infection. Ultimately, it may be possible to develop therapies that utilize our new understanding of within-patient evolution to target the root causes of infection from the bacterial perspective.

Materials and methods

Patient sample collection

Request a detailed protocol

105 patients with severe S. aureus infections for whom the organism could be cultured from both admission screening nasal swab and clinical sample were identified prospectively from the microbiological laboratories of hospitals in Oxford and Brighton, England. This study design builds in robustness to potential confounders by matching infection-causing and nose-colonizing bacteria within the same patients. Clinical samples comprised 55 blood cultures and 50 pus, soft tissue, bone or joint samples. The bacteria sampled and sequenced from one patient (‘patient S’, P005 in this study) have been previously described (Das et al., 2016). Five individuals had both blood and another culture-positive clinical sample; we focus analysis on the blood sample. Nasal swabs were incubated in 5% NaCl broth overnight at 37C, then streaked onto SASelect agar (BioRad) and incubated overnight at 37C. We picked five colonies per sample (12 during the pilot phase involving 9 patients), streaked each onto Columbia blood agar and incubated overnight at 37C for DNA extraction. Clinical samples were handled according to the local laboratory standard operating procedure for pus, sterile site and blood cultures. When bacterial growth was confirmed as S. aureus, the primary culture plate was retrieved, and multiple colonies were picked. These were streaked onto Columbia blood agar and incubated overnight at 37C for DNA extraction.

Power calculation for within-patient sample sizes

Request a detailed protocol

Sequencing multiple colonies per site allowed us to distinguish genuine genetic substitutions between nose-colonizing and infection-causing bacteria from polymorphic variants restricted to the nose-colonizing or infection-causing bacteria respectively. Following previous studies of within-host S. aureus evolution that we conducted (Young et al., 2012; Golubchik et al., 2013) and the initial pilot phase in which we sequenced 12 colonies per site, we chose to continue with five colonies per site as a compromise between power to distinguish within-site polymorphisms from true between-site substitutions and the cost of whole genome sequencing. Under a standard neutral model with low mutation rate, five colonies per sample is expected to confer 91% power to correctly distinguish within-site polymorphisms from between-site substitutions, compared to 0% power with one colony per sample. The power calculation is

Pr(0<i<n|0<i)=Pr(0<i<n)Pr(0<i)=∫01Pr(0<i<n)p(f)df∫01Pr(0<i)p(f)df=∫01(1−fn−(1−f)n)f−1df∫01(1−(1−f)n)f−1df

where i and f are the observed sample count and unobserved frequency of a mutant allele in a particular site, n is the sample size, and random sampling is assumed. The frequency distribution of a neutral mutant allele, pf, is derived in (Sawyer et al., 1992). If the population were expanding, the power would be greater because mutant alleles would be biased yet more toward low frequencies.

Reference panels

Request a detailed protocol

For comparison to the patient-derived bacteria, we collated previously described samples from other sources to construct four Reference Panels: I. A collection of 131 genomes capturing cross-sectional diversity in the noses of 13 asymptomatic carriers (Golubchik et al., 2013), arising from a carriage study of S. aureus in Oxfordshire (Everitt et al., 2014) (BioProject PRJEB2881). II. A compilation of 95 unrelated samples from the same Oxfordshire carriage study (BioProject accession number PRJEB5225), 145 sequences from a study of within-host evolution of S. aureus in three individuals (Young et al., 2012) (BioProject PRJEB2862) and 909 sequences from nasal carriage and bloodstream infection used in a study of whole genome sequencing to predict antimicrobial resistance (Gordon et al., 2014) (BioProject PRJEB5261). We used these samples to improve our reconstruction of ancestral genotypes in each patient. III. A collection of 237 genomes from longitudinal samples from 10 patients (Golubchik et al., 2013; Gordon et al., 2017), (BioProject PRJNA380544) arising from the same Oxfordshire carriage study. We used these to compare evolution within patients and asymptomatic carriers. IV. A collection of 16 previously published high-quality closed reference genomes, comprising unrelated isolates mainly of clinical and animal origin: MRSA252 (Genbank accession number BX571856.1), MSSA476 (BX571857.1), COL (CP000046.1), NCTC 8325 (CP000253.1), Mu50 (BA000017.4), N315 (BA000018.3), USA300_FPR3757 (CP000255.1), JH1 (CP000736.1), Newman (AP009351.1), TW20 (FN433596.1), S0385 (AM990992.1), JKD6159 (CP002114.2), RF122 (AJ938182.1), ED133 (CP001996.1), ED98 (CP001781.1), EMRSA15 (HE681097.1) (Holden et al., 2004; Gill et al., 2005; Gillaspy, 2006; Kuroda et al., 2001; Diep et al., 2006; Baba et al., 2008; Holden et al., 2010; Schijffelen et al., 2010; Chua et al., 2010; Herron-Olson et al., 2007; Guinane et al., 2010; Lowder et al., 2009; Holden et al., 2013). We used these to contrast species-level evolution to within-patient evolution.

Whole genome sequencing

Request a detailed protocol

For each bacterial colony, DNA was extracted from the subcultured plate using a mechanical lysis step (FastPrep; MPBiomedicals, Santa Ana, CA) followed by a commercial kit (QuickGene; Fujifilm, Tokyo, Japan), and sequenced at the Wellcome Trust Centre for Human Genetics, Oxford on the Illumina (San Diego, CA) HiSeq 2000 platform, with paired-end reads 101 base pairs for nine patients in the pilot phase, and 150 bases in the remainder. We sequenced 62 genomes in duplicate, a technical replication rate of 5.1%; no genetic discordancies were detected within duplicates.

Variant calling

Request a detailed protocol

We used Velvet (Zerbino and Birney, 2008) to assemble reads into contigs de novo, and Stampy (Lunter and Goodson, 2011) to map reads against two reference genomes: MRSA252 (Holden et al., 2004) and a patient-specific reference comprising the contigs assembled for one colony sampled from each patient’s nose. Repetitive regions, defined by BLASTing (Altschul et al., 1990) the reference genome against itself, were masked prior to variant calling. To obtain multilocus sequence types (Enright et al., 2000), we used BLAST to find the relevant loci, and looked up the nucleotide sequences in the online database at http://saureus.mlst.net/.

Bases called at each position in the reference and those passing previously described (Young et al., 2012; Golubchik et al., 2013; Didelot et al., 2012) quality filters were used to identify single nucleotide polymorphisms (SNPs) from Stampy-based mapping to MRSA252 and the patient-specific reference genomes. We used Cortex (Iqbal et al., 2012) to identify SNPs and short indels. Variants found by Cortex were excluded if they had fewer than ten supporting reads or if the base call was heterozygous at more than 5% of reads.

Where physically clustered variants with the same pattern of presence/absence across genomes were found, these were considered likely to represent a single evolutionary event: tandem repeat mutation or recombination. These were de-duplicated to a single variant to avoid inflating evidence of evolutionary events in these regions.

Variant annotation and phylogenetic classification

Request a detailed protocol

Maximum likelihood trees were built to infer bacterial relationships within patients (Gusfield, 1991). To prioritize variants for further analysis, they were classified according to their phylogenetic position in the tree: B-class (between nose colonization and infection site), C-class (within nose-colonizing population) and D-class (within infection site population). Variants were cross-classified by their predicted functional effect based on mapping to the reference genome or BLASTing to a reference allele: synonymous, non-synonymous or truncating for protein-coding sequences, or non-coding.

Where variation was found using a patient-specific reference, these variants were annotated by first aligning to MRSA252 using Mauve (Darling et al., 2004). If no aligned position in MRSA252 could be found, additional annotated references were used. Where variation was found using Cortex only, the variant was annotated by first locating it by comparing the flanking sequence to MRSA252 and other annotated references using BLAST. MRSA252 orthologs were identified using geneDB (Logan-Klumpler et al., 2012) and KEGG (Kanehisa et al., 2016).

Reconstructing ancestral genotypes per patient

Request a detailed protocol

We constructed a species-level phylogeny for all bacteria sampled from the 105 patients together with Reference Panel II (unrelated asymptomatic nose-colonization isolates and bloodstream infection isolates) using a two-step neighbor-joining and maximum likelihood approach, based on a whole-genome alignment derived from mapping all genomes to MRSA252. We first clustered individuals into seven groups using neighbour-joining (Saitou and Nei, 1987), before resolving the relationships within each cluster by building a maximum likelihood tree using RAxML (Stamatakis, 2014), assuming a general time reversible (GTR) model. To overcome a limitation in the presence of divergent sequences whereby RAxML fixes a minimum branch length that may be longer than a single substitution event, we fine-tuned the estimates of branch lengths using ClonalFrameML (Didelot and Wilson, 2015). We used these subtrees to identify, for each patient, the most closely related ‘nearest neighbor’ sampled from another patient or carrier. We employed this nearest neighbor as an outgroup, and used the tree to reconstruct the sequence of the MRCA of colonizing and infecting bacteria for each patient using a maximum likelihood method (Pupko et al., 2000) in ClonalFrameML (Didelot and Wilson, 2015). This in turn allowed us to identify the ancestral (wild type) and derived (mutant) allele for all variants mapping to MRSA252. For variants not mapping to MRSA252, we repeated the Cortex variant calling analysis, this time including the nearest neighbor, and identified the ancestral allele as the one possessed by the nearest neighbor. This approach allowed us to identify ancestral (wild type) versus derived (mutant) alleles for 97% of within-patient variants. We used the reconstructions of the within-patient MRCA sequences and identity of ancestral vs derived alleles to sub-categorize B-class variants into those in which the mutant allele was found in the nose-colonizing population (BC-class) versus the infection-causing population (BD-class). 521 (97%) of B-class variants were typeable, and in 281 (54%) of these, the mutant allele was found in the infection site population. This allowed us to test for differential enrichments in these two sub-classes.

Mean pairwise genetic diversity

Request a detailed protocol

Separately for the nose site and infection site of each patient, we calculated the mean pairwise diversity π as the mean number of variants differing between each pair of genomes. We compared the distributions of π between patients and Reference Panel II (13 cross-sectionally sampled asymptomatic nose carriers) using a Mann-Whitney-Wilcoxon test.

Calculating dN/dS ratio

Request a detailed protocol

For assessing the dN/dS ratio within patients, we adjusted the ratio of raw counts of total numbers of non-synonymous and synonymous SNPs by the ratio expected under strict neutrality. We estimated that the rate of non-synonymous mutation was 4.9 times higher than that of synonymous mutation in S. aureus based on codon usage in MRSA252 and the observed transition:transversion ratio in non-coding SNPs.

The neutrality index

Request a detailed protocol

To compare the relative dN/dS ratios between two groups of variants we computed a Neutrality Index as R1/R2 where R1 and R2 were the ratio of counts of non-synonymous to synonymous variants in each group respectively (McDonald and Kreitman, 1991; Rand and Kann, 1996). We compared B-, C- and D-class variants within patients to C-class patients within Reference Panel I (13 cross-sectionally sampled asymptomatic carriers). A Neutrality Index in excess of one indicates a higher dN/dS ratio in the former group. We used Fisher’s exact test to evaluate the significance of the differences between the groups.

Gene enrichment analysis

Request a detailed protocol

To test for significant enrichment of variants in a particular gene, we employed a Poisson regression in which we modelled the expected numbers of de novo variants across patients in any gene j as λ0Lj under the null hypothesis of no enrichment, where λ0 gives the expected number of variants per kilobase and Lj is the length of gene j in kilobases. We compared this to the alternative hypothesis in which the expected number of variants was λiLi for gene i, the gene of interest, and λ1Lj for any other gene j. Using R (R Core Team, 2015), we estimated the parameters λ0, λ1 and λi from the data by maximum likelihood and tested for significance via a likelihood ratio test with one degree of freedom. This procedure assumes no recombination within patients, which was reasonable since we found little evidence of recombination in this study or previously (Golubchik et al., 2013), including no within-host genetic incompatibilities, and we removed physically clustered variants associated with possible recombination events. We analyzed all protein-coding genes in MRSA252, testing for an enrichment of variants expected to alter the transcribed protein (both non-synonymous and truncating mutations). These tests were also applied to synonymous mutations and no enrichments were found.

Gene set enrichment analysis

Request a detailed protocol

Since the number of genes outweighed the number of variants detected, we had limited power to detect weak to modest enrichments at the individual gene level. Instead we pooled genes using ontologies from the BioCyc MRSA252 database (Caspi et al., 2016) and expression pathways from the SAMMD database of transcriptional studies (Nagarajan and Elasri, 2007). The BioCyc database comprises ontologies describing biological processes, cellular components and molecular functions. The SAMMD database groups genes up-regulated, down-regulated or not differentially regulated in response to experimentally manipulated growth conditions or isogenic mutations, usually of a regulatory gene. After excluding ontologies or pathways with two groups, one involving a single gene, and combining ontologies or pathways with identical groupings of genes, we conducted 800 GSEAs in addition to the 2650 ontologies comprised of individual loci. The number of groupings of genes was always two for BioCyc (included/excluded from the ontology) and two or three for SAMMD (up-/down-/un-differentially regulated in the experiment). Again we employed a Poisson regression in which we modelled the expected numbers of variants in any gene j as λ0Lj under the null hypothesis of no enrichment where λ0 gives the expected number of variants per kilobase and Lj is the length of gene j in kilobases. We compared this to the alternative hypothesis in which the expected number of variants was λ1Lj, λ2Lj or λ3Lj for gene j depending on the grouping in the ontology/pathway. Using R, we estimated the parameters λ0, λ1, λ2 and λ3 from the data by maximum likelihood and tested for significance via a likelihood ratio test with one or two degrees of freedom, depending on the number of groupings in the ontology/pathway.

GSEA multiple testing correction

Request a detailed protocol

To account for the multiplicity of testing, we adjusted the p-value significance thresholds from a nominal α = 0.05 using the weighted Bonferroni method. We weighted the significance thresholds by the relative number of tests in each category: 2650 genes, 552 BioCyc ontologies and 248 SAMMD expression pathways. This avoids overly stringent multiple testing correction in categories with fewer tests (Roeder and Wasserman, 2009), for example, the 248 SAMMD expression pathways, owing to other categories with very large numbers of tests, for example, the 2650 genes. This gave adjusted significance thresholds of 10-5.2 for genes, 10-4.5 for BioCyc ontologies and 10-4.2 for SAMMD expression pathways.

Longitudinal evolution in asymptomatic carriers

Request a detailed protocol

To test whether the patterns of evolution we observed between colonizing and invading bacteria in severely infected patients were typical or unusual, we analyzed Reference Panel III (a collection of 10 longitudinally sampled asymptomatic carriers). Since natural selection is more efficacious over longer periods of time, the longitudinal sampling of these individuals gave us greater opportunity to detect subtle evolutionary patterns in asymptomatic carriers. We characterized variation in these carriers as in the patients. Given the modest sample size and smaller number of variants detected in these individuals (235), we performed GSEA to test for enrichments only in particular genes, ontologies and pathways that were significantly enriched within patients, requiring less stringent multiple testing correction.

omegaMap analysis

Request a detailed protocol

We estimated dN/dS ratios between unrelated S. aureus to characterize the prevailing patterns of selection at the species level. We used Mauve (Darling et al., 2004) to pairwise align 15 reference genomes against MRSA252, that is Reference Panel IV. This allowed us to distinguish orthologs from paralogs in the next step in which we multiply aligned all coding sequences overlapping those in MRSA252 using PAGAN (Löytynoja et al., 2012). After removing sequences with premature stop codons, we analyzed each alignment of between two and 16 genes using a modification of omegaMap (Wilson and McVean, 2006), assuming all sites were unlinked. We previously showed this assumption, which confers substantial computational efficiency savings, does not adversely affect estimates of selection coefficients (Wilson et al., 2011). We estimated variation in dN/dS within genes using Monte Carlo Markov chain, running each chain for 10,000 iterations. We assumed exponential prior distributions on the population scaled mutation rate (θ), the transition:transversion ratio (κ) and the dN/dS ratio (ω) with means 0.05, 3 and 0.2, respectively. We assumed equal codon frequencies and a mean of 30 contiguous codons sharing the same dN/dS ratio. For each gene, we computed the posterior mean dN/dS ratio across sites. This allowed us to rank the relative strength of selection across genes in MRSA252, and to account for differences in dN/dS, as well as gene length, in the GSEA. We achieved this by modifying the expected number of variants in gene j to be λ0ωjLj under the null hypothesis of no enrichment versus λ1ωjLj, λ2ωjLj or λ3ωjLj under the alternative hypothesis depending on the ontology or pathway, where ωj is the posterior mean dN/dS in gene j.

Ethical framework

Request a detailed protocol

Ethical approval for linking genetic sequences of S. aureus isolates to patient data without individual patient consent in Oxford and Brighton in the U.K. was obtained from Berkshire Ethics Committee (10/H0505/83) and the U.K. Health Research Agency [8-05(e)/2010].

Data availability

The following data sets were generated
The following previously published data sets were used
    1. Matthew Holden
    (2004) Reference Panel IV MRSA252
    Publicly available at NCBI Nucleotide (accession no. BX571856.1).
    https://www.ncbi.nlm.nih.gov/nuccore/BX571856.1
    1. Matthew Holden
    (2004) Reference Panel IV MSSA476
    Publicly available at NCBI Nucleotide (accession no. BX571857.1).
    https://www.ncbi.nlm.nih.gov/nuccore/BX571857.1
    1. SR Gill
    (2005) Reference Panel IV COL
    Publicly available at NCBI Nucleotide (accession no. CP000046.1).
    https://www.ncbi.nlm.nih.gov/nuccore/CP000046.1
    1. AF Gillaspy
    (2006) Reference Panel IV NCTC 8325
    Publicly available at NCBI Nucleotide (accession no. CP000253.1).
    https://www.ncbi.nlm.nih.gov/nuccore/CP000253.1
    1. M Kuroda
    (2001) Reference Panel IV Mu50
    Publicly available at NCBI Nucleotide (accession no. BA000017.4).
    https://www.ncbi.nlm.nih.gov/nuccore/BA000017.4
    1. M Kuroda
    (2001) Reference Panel IV N315
    Publicly available at NCBI Nucleotide (accession no. BA000018.3).
    https://www.ncbi.nlm.nih.gov/nuccore/BA000018.3
    1. BA Diep
    (2006) Reference Panel IV USA300_FPR3757
    Publicly available at NCBI Nucleotide (accession no. CP000255.1).
    https://www.ncbi.nlm.nih.gov/nuccore/CP000255.1
    1. A Copeland
    (2007) Reference Panel IV JH1
    Publicly available at NCBI Nucleotide (accession no. CP000736.1).
    https://www.ncbi.nlm.nih.gov/nuccore/CP000736.1
    1. T Baba
    (2008) Reference Panel IV Newman
    Publicly available at NCBI Nucleotide (accession no. AP009351.1).
    https://www.ncbi.nlm.nih.gov/nuccore/AP009351.1
    1. Matthew Holden
    (2010) Reference Panel IV TW20
    Publicly available at NCBI Nucleotide (accession no. FN433596.1).
    https://www.ncbi.nlm.nih.gov/nuccore/FN433596.1
    1. MJ Schijffelen
    (2010) Reference Panel IV S0385
    Publicly available at NCBI Nucleotide (accession no. AM990992.1).
    https://www.ncbi.nlm.nih.gov/nuccore/AM990992.1
    1. K Chua
    (2010) Reference Panel IV JKD6159
    Publicly available at NCBI Nucleotide (accession no. CP002114.2).
    https://www.ncbi.nlm.nih.gov/nuccore/CP002114.2
    1. Herron-Olson
    (2007) Reference Panel IV RF122
    Publicly available at NCBI Nucleotide (accession no. AJ938182.1).
    https://www.ncbi.nlm.nih.gov/nuccore/AJ938182.1
    1. CM Guinane
    (2010) Reference Panel IV ED133
    Publicly available at NCBI Nucleotide (accession no. CP001996.1).
    https://www.ncbi.nlm.nih.gov/nuccore/CP001996.1
    1. BV Lowder
    (2009) Reference Panel IV ED98
    Publicly available at NCBI Nucleotide (accession no. CP001781.1).
    https://www.ncbi.nlm.nih.gov/nuccore/CP001781.1
    1. Matthew Holden
    (2013) Reference Panel IV EMRSA15
    Publicly available at NCBI Nucleotide (accession no. HE681097.1).
    https://www.ncbi.nlm.nih.gov/nuccore/HE681097.1

References

    1. Enright MC
    2. Day NP
    3. Davies CE
    4. Peacock SJ
    5. Spratt BG
    (2000)
    Multilocus sequence typing for characterization of methicillin-resistant and methicillin-susceptible clones of Staphylococcus aureus
    Journal of Clinical Microbiology 38:1008–1015.
    1. Gillaspy AF
    (2006)
    Gram Positive Pathogens
    The Staphylococcus aureus NCTC8325 genome, Gram Positive Pathogens, ASM Press.
    1. Kluytmans J
    2. van Belkum A
    3. Verbrugh H
    (1997)
    Nasal carriage of Staphylococcus aureus: epidemiology, underlying mechanisms, and associated risks
    Clinical Microbiology Reviews 10:505–520.
  69. Software
    1. R Core Team
    (2015) R: A Language and Environment for Statistical Computing
    R Foundation for Statistical Computing, Vienna, Austria.
    https://www.R-project.org/
    1. Saitou N
    2. Nei M
    (1987)
    The neighbor-joining method: a new method for reconstructing phylogenetic trees
    Molecular Biology and Evolution 4:406–425.
    1. Sawyer SA
    2. Hartl DL
    3. Sawyer, DL Hartl SA
    (1992)
    Population genetics of polymorphism and divergence
    Genetics 132:1161–1176.

Decision letter

  1. Matthew TG Holden
    Reviewing Editor; University of St Andrews, United Kingdom

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Severe infections emerge from commensal bacteria by adaptive evolution" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Gisela Storz as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The reviewers find that the paper describes an interesting study of a large data set of Staphylococcus aureus genomes representing isolates from carriage and disease in the same individuals. By analysing genetic changes distinguishing the carriage and disease isolates, the study sheds light on the within-host adaptive evolution in an important opportunistic pathogen.

1) Using genome-level resolution, and taking into account within-host diversity, the study demonstrates that the invasive disease is primarily caused by the carried strain.

2) There were repeatable patterns of evolution in the infection isolates indicative of within patient mutation and selection and these differed from prevailing signals of selection at the species level.

3) Adaptations during infection are not necessarily advantageous for transmission, and therefore may disrupt the reproductive life cycle of S. aureus.

4) Genetic diversity was much lower amongst infecting isolates compared to colonizing isolates, a pattern which suggests a bottleneck or small founding population for infection.

5) There is an excess of protein altering variation in the variants that differentiate carriage isolates from disease isolates, but not in those found between carriage isolates or between disease isolates.

6) These variants are shown to be concentrated in genes and pathways relevant to host-interaction and disease causation, are not subject to excess variation in the general population.

The analysis is both detailed and comprehensive and uses appropriate tools and techniques, backed up with rigorous statistical tests. The study is based on a large cohort of patients, and includes multiple isolates from each condition (carriage and disease) in each patient, and provides and unprecedented view of the population structures in disease vs. colonization.

Essential revisions:

1) In referring to the origin of the S. aureus within the host, the authors use a mixture of terms. For example, the title refers to 'commensal bacteria', in the abstract there is refer to infections emerging from the 'nose microbiota', and also 'nose-colonizing bacteria'. In the introduction there is mention of 'asymptomatic carriage' and 'commensal components of the body's microbiota' and in the Discussion section there is 'commensal bacteria colonizing the nose'. Given the journal's general audience, the manuscript would benefit from some more general information in the introduction about S. aureus relationship with the host and carriage, i.e. the observation about variable carriage in the human population (for example Kluytmans, et al., 1997), and that the nose is regarded as the primary colonization site, although there are other colonization sites in humans (see Yang et al., 2010; see following points).

2) The authors could also aid interpretation by being more consistent with the use of terms to describe origin of the S. aureus within the host, and also use them to accurately represent the sampling that has been conducted. For example, the authors have sequenced colonies that have been selectively grown from nose swabs, and therefore it is confusing to refer to nose microbiota. Experimentally, the microbiota of the patients has not been genomically characterized, therefore it is somewhat misleading to refer to the microbiota in this way. Additionally, it infers that S. aureus is a constituent part of the microbiota, which is not the case (see point above Kluytmans et al., 1997).

3) S. aureus can colonize multiple sites-the pharynx, groin, axilla, rectum, etc. (Yang et al., 2010). In the description of the results there appears to be an assumption that the nares population represents the entire colonizing S. aureus population. The experimental design means that additional colonizing S. aureus diversity elsewhere on these individuals will not be captured, therefore the interpretation of the patterns of diversity they observe needs to be considered and qualified more fully in the discussions.

4) The results suggest that it is not necessarily the case that the infecting population comes from the host, as not every S. aureus infected patient has nares S. aureus colonization, and also their data indicate that ~10% of their isolates are unrelated. Looking at Supplementary file 1, it also seems that at least a few of the infecting populations were clearly mixed with distinct STs or outliers (patients 23, 61, and 90), as were a few of the colonizing populations (patients 29, 33, 36, 45, 77, 94). This complicates interpretation further, as it suggests that the infecting populations did not necessarily evolve on or within the patient, but may have been at least in part acquired independently. Given both of these issues, interpreting the direction of infection and colonization (as in Figure 1D-F) seems problematic. This would then seem to call into question the classification of variants into the B, C, D classes. Can the authors address these concerns to strengthen their classification?

5) The authors refer to some of the changes that they see in disease isolates as "adaptive" changes, and define adaptive changes in the Introduction as "evolution in response to disease-associated, within-host selection pressures." However, the definition they seem to use throughout the text is more operational: (Introduction) "enrichments in protein altering variants". A clearer definition is warranted. Can the authors clarify if they mean enrichments above baseline or expected rates as might be seen in "relaxed" purifying selection or neutrality, or are they referring more strictly to situations in which dN/dS values are significantly greater than 1?

6) An important distinction in the definition of adaptation might be between adaptation that happened at the colonizing site that was later co-opted in disease, and evolution that truly was "disease-associated". It may be interesting to consider Gould and Vrba's idea of "exaptation" in this context, where changes that evolved in another selective context become beneficial, for another reason, in a new context. It seems possible that the variants that arise in invasive disease may have evolved much earlier under selection in the colonizing site. In this regard, it may be possible to estimate the timing of certain mutations using molecular clock approaches (especially given the multiple isolates collected from each individual). Even if the mutations in question did, in fact, arise very quickly during the process of invasion, it would be interesting to know how much these rates differ from expected rates of evolution. Adding an analysis of inferred rates of evolution would greatly enhance this manuscript.

7) Toxicity is used throughout the text and is a general term, which can encompass multiple proteins and potential effects. It does not specify the kind of toxicity (e.g. cell death, superantigen activity), target of the toxicity, the effector of the toxicity, or the way it is measured. The general concept of "toxicity" is qualitatively different from phenotypes like "abscess formation" or "quorum sensing" which are specific and measureable. The authors could add clarity using a term like "toxin production", or specifying, "in vitro cell death".

https://doi.org/10.7554/eLife.30637.065

Author response

Essential revisions:

1) In referring to the origin of the S. aureus within the host, the authors use a mixture of terms. For example, the title refers to 'commensal bacteria', in the abstract there is refer to infections emerging from the 'nose microbiota', and also 'nose-colonizing bacteria'. In the introduction there is mention of 'asymptomatic carriage' and 'commensal components of the body's microbiota' and in the Discussion section there is 'commensal bacteria colonizing the nose'. Given the journal's general audience, the manuscript would benefit from some more general information in the introduction about S. aureus relationship with the host and carriage, i.e. the observation about variable carriage in the human population (for example Kluytmans, et al., 1997), and that the nose is regarded as the primary colonization site, although there are other colonization sites in humans (see Yang et al., 2010; see following points).

Thank you for highlighting this important issue. From the outset, we have tried to assist comprehension for a general audience by avoiding field-specific terms such as ‘isolates’ and we subsequently identified mixed terminology as a difficulty in our drafting process, so I am grateful to the reviewers for flagging that our efforts to clarify the usage have not gone far enough. The paper now clarifies throughout that colonizing bacteria refers to the nose. I have adopted rigid use of infection in preference to disease and expurgated invasion as an unnecessary qualifier. I have cited the suggested papers and expanded on the points immediately relevant to this study in the Introduction.

2) The authors could also aid interpretation by being more consistent with the use of terms to describe origin of the S. aureus within the host, and also use them to accurately represent the sampling that has been conducted. For example, the authors have sequenced colonies that have been selectively grown from nose swabs, and therefore it is confusing to refer to nose microbiota. Experimentally, the microbiota of the patients has not been genomically characterized, therefore it is somewhat misleading to refer to the microbiota in this way.

I have removed mention of the microbiota extensively, in particular wherever it could mislead readers into thinking we have performed metagenomic sequencing, rather than selectively growing S. aureus.

Additionally, it infers that S. aureus is a constituent part of the microbiota, which is not the case (see point above Kluytmans et al., 1997)

I regret that I do not follow this point. From the bacterium’s perspective, the human nose (and other body sites) is its natural niche, so surely it is accurate to define S. aureus as a constituent part of the nose microbiota, present in around 30% of healthy adults at any one time.

3) S. aureus can colonize multiple sites-the pharynx, groin, axilla, rectum, etc. (Yang et al., 2010). In the description of the results there appears to be an assumption that the nares population represents the entire colonizing S. aureus population. The experimental design means that additional colonizing S. aureus diversity elsewhere on these individuals will not be captured, therefore the interpretation of the patterns of diversity they observe needs to be considered and qualified more fully in the discussions.

It is true that S. aureus colonize body sites other than the nose less frequently and, as requested, in the Introduction we now make this plain, citing the additional reference.

I certainly wouldn’t want our claims to rest on a false assumption that the nose represented the entire colonizing population. I don’t believe there are any points in the paper where this occurs, I believe that our interpretations have always carefully considered this caveat, and I do not believe there are any conclusions in the Discussion section or elsewhere that rest on such an assumption. The improvements in terminology, where reference to colonization is now always qualified as nose-colonization, should make this clear when perhaps previously it wasn’t.

4) The results suggest that it is not necessarily the case that the infecting population comes from the host, as not every S. aureus infected patient has nares S. aureus colonization, and also their data indicate that ~10% of their isolates are unrelated. Looking at Supplementary file 1, it also seems that at least a few of the infecting populations were clearly mixed with distinct STs or outliers (patients 23, 61, and 90), as were a few of the colonizing populations (patients 29, 33, 36, 45, 77, 94). This complicates interpretation further, as it suggests that the infecting populations did not necessarily evolve on or within the patient, but may have been at least in part acquired independently. Given both of these issues, interpreting the direction of infection and colonization (as in Figure 1D-F) seems problematic. This would then seem to call into question the classification of variants into the B, C, D classes. Can the authors address these concerns to strengthen their classification?

The reviewers are absolutely right that the valid interpretation of the results of any within-host study relies on the identification of variants that truly arose within-host. This is a point on which we have taken great care:

As the reviewers note, we began the Results section by stating clearly that in 10 patients, the invasive S. aureus were unrelated to the nose-colonizing S. aureus. At the end of this paragraph, we stated that we excluded variants differentiating unrelated STs from further analysis. I have now clarified that in one of these 10 patients, nose-colonizing and infecting bacteria possessed the same ST but differed by 1104 variants, far outside the within-ST variation evident in any individual nose or infection site (Figure 1—figure supplement 1), and corresponding to around 70 years of divergence based on our previous estimates of within-host evolution (Young et al., 2012), which are consistent with others’ estimates from between-host evolution (e.g. Harris et al., 2010). The other nine with unrelated STs differed by 9398-50573 variants.

The key consideration is what threshold to apply to distinguish related from unrelated nose and infecting bacteria. Figure 1—figure supplement 1 is designed to make transparent our reasoning: as the legend states, “When the number of B-class variants was 66 or less, nose-colonizing and infecting bacteria were considered related, since a similar range of (C-class) diversity was observed within the nose-colonizing populations of bacteria with the same multilocus sequence type. When the number of B-class variants was 1104 or more, nose-colonizing and infecting bacteria were considered unrelated.”

The choice of threshold was clear-cut in these patients, as can be seen from comparing the empirical distributions of B, C and D-class variants in Figure 1—figure supplement 1. This is one of the benefits of having sequenced multiple colonies per body site. However, as noted above we were also guided by past studies that we (and others) conducted, which show the S. aureus substitution rate is around 8 variants per genome per year. So the 66-variant threshold represents 4.1 years since the nose and infection populations diverged, within the range of diversity we saw among C-class variants.

The reviewers are right to note that there were interesting signals in our data that we did not dwell on because the focus of the study was the role of de novo mutation and selection within patients. For example, we did indeed show in Supplementary file 1 that in nine of the 95 patients with extremely closely related nose-colonizing and infecting bacteria, there were also present S. aureus of another, unrelated ST. We now specifically alert readers at the beginning of the Results, making clear that these unrelated populations were excluded from further analysis. It would be tempting to devote more space to the multiply infected patients but the paper is already complex and a sample size of three is too small to draw meaningful conclusions without the ethical approval to explore their case histories.

I must push back on the suggestion that these real-world complexities pose problems for inferring, in cases where there are closely related nose-colonizing and infecting bacteria, whether the nose-colonizing bacteria are ancestral to the infecting bacteria (e.g. Figure 1D), vice versa (e.g. Figure 1F), or indeed making no conclusion (e.g. Figure 1E). We are able to make these inferences because we leveraged multiple colony sequencing to identify novel mutations that had recently arisen in one population, the hallmark of which being the observation of both ancestral and mutant alleles, and then we observed the new mutant allele fixed in the other population. This same sequencing strategy enabled us to classify mutations that differentiated the nose-colonizing from infecting bacteria (B-class) from those that varied within the nose only (C-class) or infection site only (D-class) with 91% power, as explained in the Materials and methods section Power calculation for within-patient sample sizes.

5) The authors refer to some of the changes that they see in disease isolates as "adaptive" changes, and define adaptive changes in the Introduction as "evolution in response to disease-associated, within-host selection pressures." However, the definition they seem to use throughout the text is more operational: (Introduction) "enrichments in protein altering variants". A clearer definition is warranted. Can the authors clarify if they mean enrichments above baseline or expected rates as might be seen in "relaxed" purifying selection or neutrality, or are they referring more strictly to situations in which dN/dS values are significantly greater than 1?

The reviewers are right to insist on a crystal-clear definition of what evidence warrants the use of the term ‘adaptive’ when applied to genetic differences, a term that is the subject of very wide misuse, and frequently applied with little or no more than an assertion.

As the reviewers rightly highlight, we defined this in the Introduction and I have now clarified it to say, “We discovered several groups of genes showing significant enrichments of protein altering variants compared to other genes, indicating adaptive evolution”. This is our principal use of the term, and we describe the precise technical criteria to meet statistical significance in the subsections “Gene enrichment analysis” and “Gene set enrichment analysis”. Occasionally, and where clearly stated, we inferred evidence of adaptation based on the dN/dS ratio, e.g. from a Reference Panel using omegaMap (Wilson and McVean, 2006).

As requested, I have further clarified at the beginning of the Results section “Quorum sensing and cell adhesion proteins exhibit adaptive evolution between nose-colonizing and infecting bacteria” that the gene enrichment analyses detect evidence for adaptation when there is a significant enrichment of protein-altering variants in a particular gene compared to other genes.

The question of whether an enrichment of protein-altering variants compared to other genes is truly indicative of adaptive evolution is an important one. Strong gene-specific and gene-set-specific enrichments of B-class variants are unlikely to reflect relaxed constraint, which should manifest as a fairly homogeneous pattern across genes. Nevertheless, I have introduced a new table (Supplementary file 3) that explicitly presents, for all the significant enrichments shown in Table 3, Neutrality Indices that support the interpretation of these enrichments as evidence for adaptive evolution.

The Neutrality Index (Rand and Kann, 1996, McDonald and Kreitman, 1991) is able to infer adaptive evolution even when a test based solely on dN/dS would not because it does not make the same, overly stringent, null hypothesis of strict neutrality in which equal rates of protein-altering and non-protein altering variation are assumed. Instead, the Neutrality Index effectively compares the dN/dS ratio between populations (i.e. the B-class variants) to the dN/dS ratio within populations (i.e. the C/D-class variants). Selection is expected to have left a stronger imprint on inter-population (B-class) variation because it has had longer to act on older variants. For that reason, a Neutrality Index above one (a greater dN/dS ratio in B- versus C/D-class variants) would be interpreted as adaptive evolution even in cases if the absolute dN/dS ratios were both below one. Note that this test is helpful for interpretation but we did not use it as the main test because it is less powerful than the test for gene or gene set specific enrichments of protein-altering B-class variants.

6) An important distinction in the definition of adaptation might be between adaptation that happened at the colonizing site that was later co-opted in disease, and evolution that truly was "disease-associated". It may be interesting to consider Gould and Vrba's idea of "exaptation" in this context, where changes that evolved in another selective context become beneficial, for another reason, in a new context. It seems possible that the variants that arise in invasive disease may have evolved much earlier under selection in the colonizing site. In this regard, it may be possible to estimate the timing of certain mutations using molecular clock approaches (especially given the multiple isolates collected from each individual). Even if the mutations in question did, in fact, arise very quickly during the process of invasion, it would be interesting to know how much these rates differ from expected rates of evolution. Adding an analysis of inferred rates of evolution would greatly enhance this manuscript.

This is a really interesting point and one that we would have loved to investigate in more detail. I agree that the reviewer’s theory of exaptation is very plausible. For a well-powered statistical analysis, a sampling frame that was equally large but with longitudinal sampling to capture the nose population prior to invasion would be ideal. We have achieved this with one patient (Young et al., 2012), but obtaining large patient numbers currently seems remote.

The BEAST analysis is also a great suggestion, one that we contemplated during the study, and one of several interesting potential follow-up analyses. However, given the current complexity of the paper and the methods used in it, together with reservations over statistical power, we decided against including such an analysis. Nevertheless, the data will be released into the public domain so colleagues interested in pursuing this will be able to as soon as the paper is published.

7) Toxicity is used throughout the text and is a general term, which can encompass multiple proteins and potential effects. It does not specify the kind of toxicity (e.g. cell death, superantigen activity), target of the toxicity, the effector of the toxicity, or the way it is measured. The general concept of "toxicity" is qualitatively different from phenotypes like "abscess formation" or "quorum sensing" which are specific and measureable. The authors could add clarity using a term like "toxin production", or specifying, "in vitro cell death".

We have clarified by using “toxin production” or “cytotoxicity” where unclear.

https://doi.org/10.7554/eLife.30637.066

Article and author information

Author details

  1. Bernadette C Young

    1. Nuffield Department of Medicine, Experimental Medicine Division, University of Oxford, Oxford, United Kingdom
    2. Microbiology and Infectious Diseases Department, Oxford University Hospitals NHS Foundation Trust, Oxford, United Kingdom
    Contribution
    Study design, Sample collection, DNA extraction, Bioinformatics, Analysis, Writing
    For correspondence
    bernadette.young@ndm.ox.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6071-6770

  2. Chieh-Hsi Wu

    Nuffield Department of Medicine, Experimental Medicine Division, University of Oxford, Oxford, United Kingdom
    Contribution
    Bioinformatics, Analysis, Writing
    Competing interests
    No competing interests declared

  3. N Claire Gordon

    Nuffield Department of Medicine, Experimental Medicine Division, University of Oxford, Oxford, United Kingdom
    Contribution
    Sample collection, DNA extraction
    Competing interests
    No competing interests declared

  4. Kevin Cole

    Department of Infectious Diseases and Microbiology, Royal Sussex County Hospital, Brighton, United Kingdom
    Contribution
    DNA extraction
    Competing interests
    No competing interests declared

  5. James R Price

    1. Department of Infectious Diseases and Microbiology, Royal Sussex County Hospital, Brighton, United Kingdom
    2. Department of Global Health and Infection, Brighton and Sussex Medical School, University of Sussex, Brighton, United Kingdom
    Contribution
    Sample collection
    Competing interests
    No competing interests declared

  6. Elian Liu

    1. Nuffield Department of Medicine, Experimental Medicine Division, University of Oxford, Oxford, United Kingdom
    2. Microbiology and Infectious Diseases Department, Oxford University Hospitals NHS Foundation Trust, Oxford, United Kingdom
    Contribution
    DNA extraction
    Competing interests
    No competing interests declared

  7. Anna E Sheppard

    1. Nuffield Department of Medicine, Experimental Medicine Division, University of Oxford, Oxford, United Kingdom
    2. NIHR Health Protection Unit in Healthcare Associated Infections and Antimicrobial Resistance at University of Oxford in partnership with Public Health England, Oxford, United Kingdom
    Contribution
    Bioinformatics
    Competing interests
    No competing interests declared

  8. Sanuki Perera

    1. Nuffield Department of Medicine, Experimental Medicine Division, University of Oxford, Oxford, United Kingdom
    2. Microbiology and Infectious Diseases Department, Oxford University Hospitals NHS Foundation Trust, Oxford, United Kingdom
    Contribution
    DNA extraction
    Competing interests
    No competing interests declared

  9. Jane Charlesworth

    Nuffield Department of Medicine, Experimental Medicine Division, University of Oxford, Oxford, United Kingdom
    Contribution
    Bioinformatics
    Competing interests
    No competing interests declared

  10. Tanya Golubchik

    Nuffield Department of Medicine, Experimental Medicine Division, University of Oxford, Oxford, United Kingdom
    Contribution
    Bioinformatics
    Competing interests
    No competing interests declared

  11. Zamin Iqbal

    Wellcome Trust Centre for Human Genetics, University of Oxford, Oxford, United Kingdom
    Contribution
    Bioinformatics
    Competing interests
    No competing interests declared

  12. Rory Bowden

    Wellcome Trust Centre for Human Genetics, University of Oxford, Oxford, United Kingdom
    Contribution
    Study design, Interpretation
    Competing interests
    No competing interests declared

  13. Ruth C Massey

    School of Cellular and Molecular Medicine, University of Bristol, Bristol, United Kingdom
    Contribution
    Study design, Interpretation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8154-4039

  14. John Paul

    1. National Infection Service, Public Health England, London, United Kingdom
    2. National Institute for Health Research, Oxford Biomedical Research Centre, Oxford, United Kingdom
    Contribution
    Study design, Sample collection, Interpretation
    Competing interests
    No competing interests declared

  15. Derrick W Crook

    1. Nuffield Department of Medicine, Experimental Medicine Division, University of Oxford, Oxford, United Kingdom
    2. National Infection Service, Public Health England, London, United Kingdom
    3. National Institute for Health Research, Oxford Biomedical Research Centre, Oxford, United Kingdom
    Contribution
    Study design, Sample collection, Interpretation
    Competing interests
    No competing interests declared

  16. Timothy E Peto

    1. Nuffield Department of Medicine, Experimental Medicine Division, University of Oxford, Oxford, United Kingdom
    2. National Institute for Health Research, Oxford Biomedical Research Centre, Oxford, United Kingdom
    Contribution
    Study design, Sample collection, Interpretation
    Competing interests
    No competing interests declared

  17. A Sarah Walker

    1. Nuffield Department of Medicine, Experimental Medicine Division, University of Oxford, Oxford, United Kingdom
    2. National Institute for Health Research, Oxford Biomedical Research Centre, Oxford, United Kingdom
    Contribution
    Study design, Sample collection, Interpretation
    Competing interests
    No competing interests declared

  18. Martin J Llewelyn

    1. Department of Infectious Diseases and Microbiology, Royal Sussex County Hospital, Brighton, United Kingdom
    2. Department of Global Health and Infection, Brighton and Sussex Medical School, University of Sussex, Brighton, United Kingdom
    Contribution
    Study design, Sample collection, Interpretation
    Competing interests
    No competing interests declared

  19. David H Wyllie

    1. Nuffield Department of Medicine, Experimental Medicine Division, University of Oxford, Oxford, United Kingdom
    2. Centre for Molecular and Cellular Physiology, Jenner Institute, Oxford, United Kingdom
    Contribution
    Study design, Analysis
    Competing interests
    No competing interests declared

  20. Daniel J Wilson

    1. Nuffield Department of Medicine, Experimental Medicine Division, University of Oxford, Oxford, United Kingdom
    2. Wellcome Trust Centre for Human Genetics, University of Oxford, Oxford, United Kingdom
    3. Institute for Emerging Infections, Oxford Martin School, University of Oxford, Oxford, United Kingdom
    Contribution
    Study design, Analysis, Writing
    For correspondence
    daniel.wilson@ndm.ox.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0940-3311

Funding

Wellcome (Health Innovation Challenge Fund WT098615/Z/12/Z)

  • Derrick W Crook

National Institute for Health Research (Oxford NIHR Biomedical Research Centre)

  • Derrick W Crook
  • Timothy E Peto

Department of Health (Health Innovation Challenge Fund HICF-T5-358)

  • Derrick W Crook

Royal Society (Sir Henry Dale Fellowship 101237/Z/13/Z)

  • Daniel J Wilson

Institut Mérieux (Mérieux Research Grant)

  • Rory Bowden
  • Derrick W Crook
  • Daniel J Wilson

Public Health England (HPRU in Healthcare Associated Infections and Antimicrobial Resistance HPRU-2012-10041)

  • Derrick W Crook
  • Timothy E Peto
  • A Sarah Walker

National Institute for Health Research (HPRU in Healthcare Associated Infections and Antimicrobial Resistance HPRU-2012-10041)

  • Derrick W Crook
  • Timothy E Peto
  • A Sarah Walker

Wellcome (Sir Henry Dale Fellowship 101237/Z/13/Z)

  • Daniel J Wilson

Wellcome (Sir Henry Dale Fellowship 102541/Z/13/Z)

  • Zamin Iqbal

Royal Society (Sir Henry Dale Fellowship 102541/Z/13/Z)

  • Zamin Iqbal

Wellcome (Research Training Fellowship 101611/Z/13/Z)

  • Bernadette C Young

Wellcome (Wellcome Trust Centre for Human Genetics core funding 090532/Z/09/Z)

  • Rory Bowden

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We would like to thank Ed Feil, Stephen Leslie, Gil McVean and Richard Moxon for helpful insights and useful discussions. Sequencing reads uploaded to short read archive (SRA) under BioProject PRJNA369475. RNAseq data relating to isolate from P005 (aka ‘patient S’) previously submitted under BioProject PRJNA279958. The views expressed in this publication are those of the authors and not necessarily those of the funders. This study was supported by the National Institute for Health Research (NIHR) Oxford Biomedical Research Centre (BRC), a Mérieux Research Grant, the National Institute for Health Research Health Protection Research Unit (NIHR HPRU) in Healthcare Associated Infections and Antimicrobial Resistance at Oxford University in partnership with Public Health England (PHE) (grant HPRU-2012–10041), and the Health Innovation Challenge Fund (a parallel funding partnership between the Wellcome Trust (grant WT098615/Z/12/Z) and the Department of Health (grant HICF-T5-358)). TEP and DWC are NIHR Senior Investigators. DJW and ZI are Sir Henry Dale Fellows, jointly funded by the Wellcome Trust and the Royal Society (Grants 101237/Z/13/Z and 102541/Z/13/Z). BCY is a Research Training Fellow funded by the Wellcome Trust (Grant 101611/Z/13/Z). We acknowledge the support of Wellcome Trust Centre for Human Genetics core funding (Grant 090532/Z/09/Z).

Ethics

Human subjects: Ethical approval for linking genetic sequences of S. aureus isolates to patient data without individual patient consent in Oxford and Brighton in the U.K. was obtained from Berkshire Ethics Committee (10/H0505/83) and the U.K. Health Research Agency [8-05(e)/2010].

Reviewing Editor

  1. Matthew TG Holden, University of St Andrews, United Kingdom

Publication history

  1. Received: July 21, 2017
  2. Accepted: December 2, 2017
  3. Version of Record published: December 19, 2017 (version 1)

Copyright

© 2017, Young et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 6,077
    Page views
  • 866
    Downloads
  • 55
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Bernadette C Young
  2. Chieh-Hsi Wu
  3. N Claire Gordon
  4. Kevin Cole
  5. James R Price
  6. Elian Liu
  7. Anna E Sheppard
  8. Sanuki Perera
  9. Jane Charlesworth
  10. Tanya Golubchik
  11. Zamin Iqbal
  12. Rory Bowden
  13. Ruth C Massey
  14. John Paul
  15. Derrick W Crook
  16. Timothy E Peto
  17. A Sarah Walker
  18. Martin J Llewelyn
  19. David H Wyllie
  20. Daniel J Wilson
(2017)
Severe infections emerge from commensal bacteria by adaptive evolution
eLife 6:e30637.
https://doi.org/10.7554/eLife.30637

Categories and tags

Research organism

Further reading

    1. Immunology and Inflammation
    2. Microbiology and Infectious Disease

    Cellular and molecular dynamics in the lungs of neonatal and juvenile mice in response to E. coli

    Sharon A McGrath-Morrow, Jarrett Venezia ... Alan L Scott
    Research Article

    Bacterial pneumonia in neonates can cause significant morbidity and mortality when compared to other childhood age groups. To understand the immune mechanisms that underlie these age-related differences, we employed a mouse model of E. coli pneumonia to determine the dynamic cellular and molecular differences in immune responsiveness between neonates (PND 3-5) and juveniles (PND 12-18), at 24, 48, and 72 hours. Cytokine gene expression from whole lung extracts was also quantified at these time points, using qRT-PCR. E. coli challenge resulted in rapid and significant increases in neutrophils, monocytes, and γδT cells, along with significant decreases in dendritic cells and alveolar macrophages in the lungs of both neonates and juveniles. E. coli challenged juvenile lung had significant increases in interstitial macrophages and recruited monocytes that were not observed in neonatal lungs. Expression of IFNg-responsive genes was positively correlated with the levels and dynamics of MHCII-expressing innate cells in neonatal and juvenile lungs. Several facets of immune responsiveness in the wild-type neonates were recapitulated in juvenile MHCII-/- juveniles. Employing a pre-clinical model of E. coli pneumonia, we identified significant differences in the early cellular and molecular dynamics in the lungs that likely contribute to the elevated susceptibility of neonates to bacterial pneumonia and could represent targets for intervention to improve respiratory outcomes and survivability of neonates.

    1. Microbiology and Infectious Disease

    Phage tRNAs evade tRNA-targeting host defenses through anticodon loop mutations

    Daan F van den Berg, Baltus A van der Steen ... Stan JJ Brouns
    Short Report

    tRNAs in bacteriophage genomes are widespread across bacterial host genera, but their exact function has remained unclear for more than 50 years. Several hypotheses have been proposed, and the most widely accepted one is codon compensation, which suggests that phages encode tRNAs that supplement codons that are less frequently used by the host. Here, we combine several observations and propose a new hypothesis that phage-encoded tRNAs counteract the tRNA-depleting strategies of the host using enzymes such as VapC, PrrC, Colicin D, and Colicin E5 to defend from viral infection. Based on mutational patterns of anticodon loops of tRNAs encoded by phages, we predict that these tRNAs are insensitive to host tRNAses. For phage-encoded tRNAs targeted in the anticodon itself, we observe that phages typically avoid encoding these tRNAs. Further supporting the hypothesis that phage tRNAs are selected to be insensitive to host anticodon nucleases. Altogether our results support the hypothesis that phage-encoded tRNAs have evolved to be insensitive to host anticodon nucleases.

    1. Microbiology and Infectious Disease

    The Plasmodium falciparum apicoplast cysteine desulfurase provides sulfur for both iron-sulfur cluster assembly and tRNA modification

    Russell P Swift, Rubayet Elahi ... Sean T Prigge
    Research Article Updated

    Iron-sulfur clusters (FeS) are ancient and ubiquitous protein cofactors that play fundamental roles in many aspects of cell biology. These cofactors cannot be scavenged or trafficked within a cell and thus must be synthesized in any subcellular compartment where they are required. We examined the FeS synthesis proteins found in the relict plastid organelle, called the apicoplast, of the human malaria parasite Plasmodium falciparum. Using a chemical bypass method, we deleted four of the FeS pathway proteins involved in sulfur acquisition and cluster assembly and demonstrated that they are all essential for parasite survival. However, the effect that these deletions had on the apicoplast organelle differed. Deletion of the cysteine desulfurase SufS led to disruption of the apicoplast organelle and loss of the organellar genome, whereas the other deletions did not affect organelle maintenance. Ultimately, we discovered that the requirement of SufS for organelle maintenance is not driven by its role in FeS biosynthesis, but rather, by its function in generating sulfur for use by MnmA, a tRNA modifying enzyme that we localized to the apicoplast. Complementation of MnmA and SufS activity with a bacterial MnmA and its cognate cysteine desulfurase strongly suggests that the parasite SufS provides sulfur for both FeS biosynthesis and tRNA modification in the apicoplast. The dual role of parasite SufS is likely to be found in other plastid-containing organisms and highlights the central role of this enzyme in plastid biology.
