Measuring ligand efficacy at the mu-opioid receptor using a conformational biosensor

  1. Kathryn E Livingston
  2. Jacob P Mahoney
  3. Aashish Manglik
  4. Roger K Sunahara
  5. John R Traynor  Is a corresponding author
  1. University of Michigan Medical School, United States
  2. University of Michigan, United States
  3. University of California San Francisco, United States
  4. University of California San Diego School of Medicine, United States
Research Article
  • Cited 5
  • Views 2,118
  • Annotations
Cite this article as: eLife 2018;7:e32499 doi: 10.7554/eLife.32499

Abstract

The intrinsic efficacy of orthosteric ligands acting at G-protein-coupled receptors (GPCRs) reflects their ability to stabilize active receptor states (R*) and is a major determinant of their physiological effects. Here, we present a direct way to quantify the efficacy of ligands by measuring the binding of a R*-specific biosensor to purified receptor employing interferometry. As an example, we use the mu-opioid receptor (µ-OR), a prototypic class A GPCR, and its active state sensor, nanobody-39 (Nb39). We demonstrate that ligands vary in their ability to recruit Nb39 to µ-OR and describe methadone, loperamide, and PZM21 as ligands that support unique R* conformation(s) of µ-OR. We further show that positive allosteric modulators of µ-OR promote formation of R* in addition to enhancing promotion by orthosteric agonists. Finally, we demonstrate that the technique can be utilized with heterotrimeric G protein. The method is cell-free, signal transduction-independent and is generally applicable to GPCRs.

https://doi.org/10.7554/eLife.32499.001

Introduction

The intrinsic efficacy of a ligand acting at a 7-transmembrane (TM) domain, G-protein-coupled receptor (GPCR) describes its ability to shift the equilibrium from inactive receptor (R) in favor of active receptor states (R*). Thus, intrinsic efficacy is the parameter that distinguishes agonists, partial agonists, antagonists, and inverse agonists and is a major determinant of pharmacological activity of a drug molecule, along with receptor affinity. This is particularly highlighted by the mu-opioid receptor (µ-OR), a GPCR responsible for both the pain relieving and unwanted effects of opioid drugs, such as life-threatening respiratory depression and the rewarding properties that underlie addiction to drugs such as morphine, oxycodone, and heroin. Even though opioid drugs bind to the same orthosteric site on µ-OR, the physiological outcomes observed are determined by their degree of intrinsic efficacy and the efficacy requirements of the system (Morgan and Christie, 2011). For example, the discriminative stimulus of opioid agonists varies depending on efficacy (Walker et al., 2004), suggesting that opioid agonist efficacy is a determinant of abuse potential. Thus, it has been shown that higher efficacy ligands have greater addictive liability compared to lower-efficacy opioid ligands (Center for Substance Abuse Treatment, 2004). In order to be able to predict the ability of µ-OR agonists to cause various physiological effects, an understanding of their intrinsic efficacy is required.

Current approaches to determine the intrinsic efficacy of agonists rely upon measurement of signaling downstream of the receptor in tissue- or cell-based systems. In spite of the use of methods to account for signal amplification which can cause system and measurement bias the calculated intrinsic efficacy of ligands can vary based on the species of the tissue or cellular background, ligand bias, and temporal effects (Kenakin, 2002; Kenakin and Christopoulos, 2011; Luttrell and Kenakin, 2011; Klein Herenbrink et al., 2016). For example, using the same cellular background, the putatively biased opioid ligand TRV130 initiates arrestin recruitment (74% of morphine) downstream of mouse µ-OR, less with human µ-OR (14% of morphine), and shows undetectable levels using rat µ-OR (DeWire et al., 2013). Complications such as these make correlations of physiological effects to values of efficacy and ‘bias factors’ (Rajagopal et al., 2010; Kenakin et al., 2012) difficult to interpret. Therefore, in this study we sought to establish a method to evaluate the intrinsic efficacy of opioid ligands utilizing a cell-free assay, thereby removing confounds of signaling outputs and signal amplification.

The recently solved crystal structure of µ-OR in complex with the highly efficacious agonist BU72 utilized nanobody 39 (Nb39), a camelid antibody fragment, to stabilize active µ-OR (Huang et al., 2015). Nb39 enhances agonist affinity at µ-OR and stabilizes conformational changes in the receptor associated with a signaling-competent, active-like state, including an outward movement of TM6 (Farrens et al., 1996; Palczewski et al., 2000; Rasmussen et al., 2011b). Nanobodies are small, monomeric proteins that can be utilized as conformational biosensors and have therefore been used as tools to monitor formation of active-state β2-adrenergic receptors in live cells (Irannejad et al., 2013). Consequently, we sought to use Nb39 as a G protein mimic and a probe to detect active-state conformation of purified monomeric µ-OR in reconstituted high density lipoprotein (rHDL) particles, comprised of the lipids 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine and 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoglycerol and Apolipoprotein-A1 (Apo-A1) (Kuszak et al., 2009), using a variety of orthosteric ligands. We predicted that the intrinsic efficacy of an agonist will determine the rate of Nb39 binding to µ-OR.

We also wished to utilize Nb39 to probe the mechanism by which small molecule positive allosteric modulators (PAMs) alter the activity of orthosteric µ-OR ligands. µ-PAMS, exemplified by BMS-986122 (Burford et al., 2013), enhance the affinity and/or efficacy of orthosteric ligands for µ-OR, but show a distinct dependence on which orthosteric ligand is used to probe the allosteric interaction, with the degree of cooperativity being sensitive to the intrinsic efficacy of the orthosteric ligand (Burford et al., 2013; Livingston and Traynor, 2014). We have suggested that the mechanism of allosteric enhancement of orthosteric agonist activity involves a disruption of binding of the endogenous negative allosteric modulator Na+, thereby stabilizing an agonist-bound active (R*) state of the µ-OR (Livingston and Traynor, 2014).

In this report, we demonstrate that the rate of Nb39 binding to purified µ-OR simulates the action of heterotrimeric G protein and provides a measure of the intrinsic efficacy of opioid ligands, and that the efficacy rankings determined using this second messenger- and cell/tissue-independent assay are significantly correlated with other measures of efficacy. Moreover, we observed differences in Nb39 dissociation suggestive of ligand-specific R* states. Finally, we show that µ-PAMs can alone promote Nb39 binding, indicating that they stabilize formation of R* to increase the apparent efficacy of partial agonist drugs such as morphine.

Results

Measure of orthosteric agonist efficacy using an interferometry-based technique

Nb39 enhances the affinity of orthosteric agonists, such as BU72, to bind µ-OR (Huang et al., 2015) by stabilizing active (R*) states of µ-OR. Since agonists shift the equilibrium of receptor to R* in proportion to their efficacy to activate downstream signaling, we predicted that agonists should enhance the binding of Nb39 in an efficacy-dependent manner. To test this hypothesis, we implemented an interferometry-based technique to study the association and dissociation kinetics of Nb39 binding to µ-OR in rHDL. The formation of µ-OR containing rHDL was performed using a low µ-OR to rHDL ratio and an ApoAI construct that heavily favors incorporation of µ-OR monomers into rHDL particles (Kuszak et al., 2009). The µ-OR-containing rHDL particles were immobilized on an interferometry probe, and the probe was then exposed to saturating concentrations of ligands and a sub-saturating concentration of Nb39 (1 µM) (Figure 1). As shown in Figure 2, there was no detectable binding of Nb39 to µ-OR in the absence of ligand, indicating a lack of spontaneous formation of active µ-OR, even with Nb39 present. This supports published research indicating low levels of constitutive activity of µ-OR (Divin et al., 2009; Connor and Traynor, 2010).

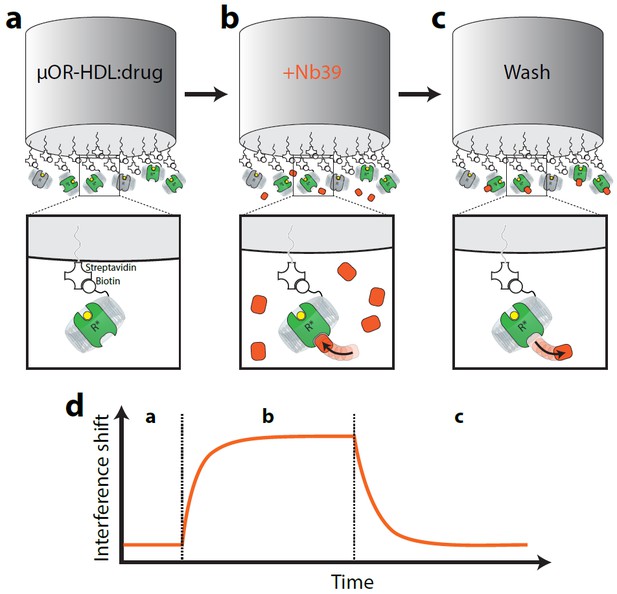

Cartoon schematic of interferometry assay to detect µ-OR:Nb39 interactions.

Briefly, (a) Biotin-conjugated rHDL particles containing µ-OR are loaded on streptavidin-coated tips and incubated with saturating ligand (or vehicle) for 10 min. (b) Probe is exposed to Nb39 for five min in the presence of ligand or vehicle until steady state is reached. (c) In the presence of ligand, probe is moved to well containing no Nb39 to monitor dissociation for 5 min.

https://doi.org/10.7554/eLife.32499.002

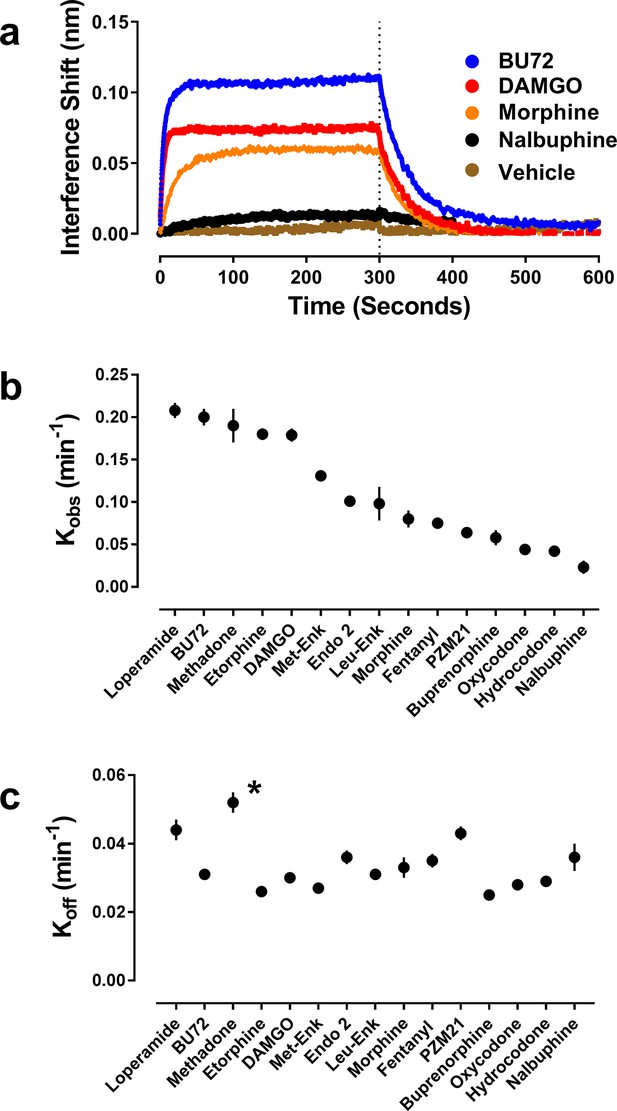

Orthosteric ligand-mediated Nb39 association and dissociation in µ-OR-rHDL.

As described in the Materials and methods, the association and dissociation of Nb39 (1 µM) was measured using an OctetRed® instrument. Shown is a representative experiment comparing four orthosteric agonists at 30 µM (a) Using GraphPad Prism 6.02, one-phase association lines were fit and the calculated kobs (b) and koff (c) for each ligand are plotted (±s.e.m.). Rate constants are means of multiple independent experiments as listed in see Table 1. *Dissociation of Nb39 from the methadone-bound receptor is statistically different from all other ligands (one-way ANOVA with Tukey’s post-hoc test).

https://doi.org/10.7554/eLife.32499.003

Conversely, pre-incubation of µ-OR with a wide range of agonists of varying structure, both peptides and small molecules, caused binding of Nb39, although to varying degrees (Table 1). In particular, the presence of a saturating concentration (30 µM) of the high-efficacy agonist BU72 (Neilan et al., 2004; Huang et al., 2015) drove robust and rapid binding of Nb39 (Figure 2, Table 1). In the presence of the high-efficacy peptide agonist DAMGO, Nb39 bound to µ-OR with a similar rate constant, but DAMGO lead to less overall binding of Nb39 compared to BU72. In contrast, pre-incubation with the partial agonist morphine caused slower Nb39 association and less overall binding of Nb39 relative to BU72 and DAMGO (Figure 2, Table 1), and the rate constant for Nb39 binding in the presence of the low-efficacy nalbuphine was slower still. Neither of the orthosteric antagonists (naloxone or diprenorphine) promoted a µ-OR:Nb39 interaction (Table 1).

Table 1
Association and dissociation kinetics of Nb39 to µ-OR-rHDL in the presence of various agonists.

kobs and koff were determined for each independent experiment (number of individual experiments indicated in ‘n’ column) and averaged. One-phase association and single-phase exponential decay models were used. Half-time values (t1/2) numbers were calculated from the respective k values (t1/2 = 0.693/k). A one-way ANOVA was performed followed by a Tukey post-hoc test. Methadone was found to be statistically different compared to all other orthosteric ligands other than loperamide and PZM21. Both loperamide and PZM21 were also found to be statistically different from several other ligands, though not as many as methadone.

https://doi.org/10.7554/eLife.32499.004
Ligandkobs ± SEM (min−1)t1/2ass (sec)koff (min−1)t1/2dis (sec)N
BU720.20 ± 0.013.50.031 ± 0.0012214
DAMGO0.179 ± 0.0083.90.030 ± 0.001236
Leu-Enk0.098 ± 0.027.10.031 ± 0.001239
L-Methadone0.19 ± 0.023.60.052 ± 0.003136
Morphine0.08 ± 0.018.50.033 ± 0.003217
Nalbuphine0.023 ± 0.008300.036 ± 0.0041911
PZM210.064 ± 0.004110.043 ± 0.002166
Endomorphin 20.101 ± 0.0026.90.036 ± 0.002196
Loperamide0.208 ± 0.0093.20.044 ± 0.003166
Oxycodone0.044 ± 0.001160.028 ± 0.001259
Etorphine0.180 ± 0.0073.90.026 ± 0.001276
Fentanyl0.075 ± 0.0059.20.035 ± 0.002206
Met-Enk0.131 ± 0.0045.30.027 ± 0.001266
Hydrocodone0.042 ± 0.004170.029 ± 0.001246
Buprenorphine0.058 ± 0.009120.025 ± 0.001276
Naloxonen/a----n/a----3
Diprenorphinen/a----n/a----3
BMS-9861220.012 ± 0.001560.027 ± 0.0032510
BMS-9861870.025 ± 0.006280.037 ± 0.0051911

The above data indicate that the binding of Nb39 is related to agonist efficacy, with higher efficacy ligands producing an increased Nb39 binding signal and a more rapid association of Nb39. However, the magnitude of the interference shift is problematic to use as the readout for efficacy since this depends on the initial amount of stable receptor loaded onto the probe which is difficult to control because of problems of equalizing receptor loads onto the probe, use of different receptor preparations, plus the fact that is not known how much receptor is actually functional. Consequently, we focused on the association rate constants (Kobs and t1/2). First, we made sure that agonist binding kinetics was not a confounding factor in measuring Nb39 binding. Opioid ligands have very fast binding kinetics (Huang et al., 2015) and to confirm equilibrium was reached we used maximal agonist concentrations and for two distinct ligands, DAMGO and PMZ21 showed these gave the same results with 10 or 30 min incubation (PZM21 kobs (10 min)=0.060 ± 0.008 min−1 and kobs (30 min)=0.064 ± 0.004 min−1; DAMGO kobs (10 min)=0.15 ± 0.006 min−1 and kobs (30 min)=0.16 ± 0.008 min−1). Then, to confirm that the rate constant of Nb39 association to agonist-bound receptor accurately reflects the intrinsic efficacy of a given agonist, we compared Nb39 association with four accepted methods of agonist efficacy measurement: (i) maximal ability to activate heterotrimeric G protein (Strange, 2008), (ii) intrinsic efficacy as defined by Ehlert’s equation (Ehlert, 1985), (iii) reduction in agonist affinity in the presence of Na+ ions and GTP (Lee et al., 1999; Zhen et al., 2015) and (iv) tau (τ) as calculated using the Black-Leff operational model (Black and Leff, 1983). These complimentary methods of agonist efficacy determination generally agree with one another, but use different measurements of receptor activity to calculate efficacy.

The Nb39 association half-time (t1/2) (Table 1) correlated with the ability of each orthosteric ligand, when used at a saturating concentration (10 μM), to stimulate G protein activation as measured by GTPγ35S binding (taken from [Livingston and Traynor, 2014]), giving r2 = 0.75, p<0.0001 (Figure 3a). Next, we compared the Nb39 association data with the intrinsic efficacy (e) of the various orthosteric ligands, calculated using the Ehlert equation (Ehlert, 1985) with potency and maximal response obtained from GTPγ35S-binding assays and affinity values obtained using radioligand competition binding (Livingston and Traynor, 2014). There was a statistically significant correlation between the t1/2 of Nb39 binding and intrinsic efficacy (r2 = 0.44, p=0.02; Figure 3b). For instance, etorphine and BU72 are high-efficacy ligands with equivalent e values (4.7) and pre-incubating µ-OR with either ligand results in a similar Nb39 association half-time (t1/2 = 3.5 sec for BU72, 3.9 sec for etorphine). In this case, the correlation was weaker than the comparison between Nb39 association and GTPγ35S maximum stimulation, and we excluded data collected with nalbuphine, as a potency value could not be determined due to its weak activation of G protein in our system.

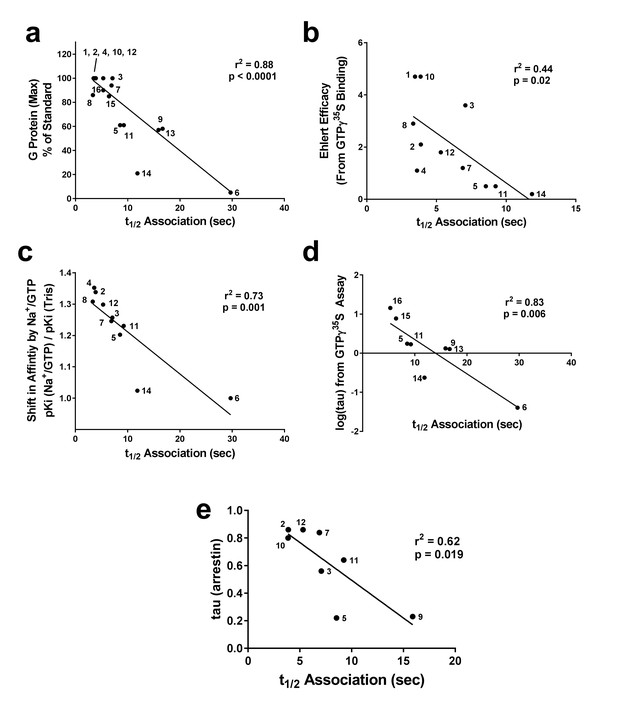

Correlation of association times of Nb39 with various measures of agonist efficacy.

The t1/2 of association of Nb39 in the presence of saturating agonist was measured and is plotted against (a) maximal stimulation of GTPγ35S binding by agonist, (b) the calculated Ehlert efficacy (Ehlert, 1985) values for each agonist to activate G protein, (c) the shift in affinity of the agonist as measured by radioligand competition binding in the absence or presence of Na+/Guanine nucleotide, and (d) the τ value using data from GTPγ35S assays (Livingston and Traynor, 2014) or (e) β-arrestin recruitment assays; McPherson et al., 2010), analyzed with the Black-Leff operational model (Black and Leff, 1983). Data used to compile correlation graphs is listed in the source data table. The ligands are: (1) BU72, (2) DAMGO, (3) Leu-Enk, (4) L-methadone, (5) Morphine, (6) Nalbuphine, (7) Endomorphin 2, (8) Loperamide, (9) Oxycodone, (10) Etorphine, (11) Fentanyl, (12) Met-Enk, (13) Hydrocodone, (14) Buprenorphine, (15) Morphine + BMS-986122, (16) Morphine + BMS-986187. Correlation analysis was performed using GraphPad Prism 6.02.

https://doi.org/10.7554/eLife.32499.005

Determination of efficacy can vary based on signaling output chosen, especially in the case of bias where ligands may preferentially activate certain pathways over others. To avoid the use of a signaling measure, that is G-protein activation or β-arrestin recruitment, we examined the shift in agonist affinity in response to the presence of Na+ ions and GTP, using GTPγS. It is known that addition of Na+ ions and guanine nucleotide decreases the affinity of agonists to bind µ-OR and that the degree of shift is larger for higher efficacy ligands (Lee et al., 1999). Using our previously published data (Livingston and Traynor, 2014), we plotted the shift in affinity of the orthosteric ligands by the addition of NaCl/GTPγS (100 mM and 10 µM, respectively) versus the calculated t1/2 of Nb39 association to ligand-bound µ-OR, from Table 1. This correlation was significant (Figure 3c, r2 = 0.73, p=0.002), although BU72 and etorphine had to be excluded from the analysis due to their paradoxical lack of a Na+/GTPγS shift (Lee et al., 1999). Finally, using the Black-Leff operational model (Black and Leff, 1983), the intrinsic efficacy (τ) was calculated using our published data from the [35S] GTPγS assay (Livingston and Traynor, 2014). This variable can only be reliably calculated and separated from functional affinity (KA) for partial agonists (Figure 3d). Using this limited dataset (Figure 3—source data 1), we observed a significant correlation (r2 = 0.83) between τ and the t1/2 of Nb39 association.

The above efficacy comparisons are all related to receptor-G-protein interactions. However, as mentioned above the μ-OR, like other GPCRs, may show a signaling bias in that ligands could preferentially activate G proteins or β-arrestin-mediated downstream signaling, this has been demonstrated for example with the newer ligands PZM21(Manglik et al., 2016) and TRV130 (DeWire et al., 2013). To determine if there was a correlation with β-arrestin recruitment, we compared published data of τ values for a series of eight opioid ligands (McPherson et al., 2010) with their Nb39 association rates from Table 1. For this dataset there was a significant correlation, albeit weaker (r2 = 0.62, p=0.019; Figure 3e).

In addition to monitoring Nb39 association, the interferometry technique also allows for measurement of the dissociation of Nb39 from ligand-bound µ-OR (Figures 1 and 2). Compared to the wide range of association rates observed, the dissociation of Nb39 was generally constant across the various ligands, including full and partial agonists and compounds such as buprenorphine that have slower receptor dissociation (Table 1). As examples, the Nb39 dissociation rate (t1/2) was the same from both morphine-bound µ-OR (0.033 min−1), the BU72-bound µ-OR (0.031 min−1) and buprenorphine bound µ-OR (0.025 min−1), despite the markedly different efficacies of these agonists. This may suggest that both full and partial agonists are capable of producing similar active states, although to different extents as indicated by the observed association rates, or that Nb39 is incapable of differentiating partial agonist from full agonist states. Unexpectedly, Nb39 dissociated more rapidly from L-methadone- and loperamide-bound µ-OR, with rates of 0.052 ± 0.003 min−1 and 0.044 ± 0.003 min−1 for L-methadone and loperamide, respectively (Figure 2c; Table 1). This difference can be interpreted as a distinct methadone-and loperamide-bound µ-OR conformation(s) with decreased affinity for Nb39 as compared to other ligands. To further explore this possibility, we utilized the biased opioid agonist PZM21(Manglik et al., 2016). The presence of PZM21 resulted in Nb39 recruitment and afforded dissociation kinetics (Table 1) similar to those of methadone, providing further evidence that different ligands may cause the receptor to interact with Nb39 in unique ways.

To ensure that Kobs provides a viable surrogate for Nb39 interaction with μ-OR, we experimentally determined the true Kon, Koff, and Kd of Nb39 for particular agonists (Figure 4). The agonists chosen included the highly efficacious BU72 and DAMGO, the partial agonist morphine, and methadone which showed atypical dissociation. The ligands displayed differences in their ability to produce binding of increasing concentrations of Nb39. In addition, the Koff values given in the figure legend were similar to those shown in Table 1, with methadone as an outlier in both cases. The affinity of Nb39 for μ-OR varied for each ligand such that the calculated Kon values followed the same pattern as Kobs, namely BU72 > DAMGO > methadone > morphine. From these data, it can be seen that Kobs is a suitable parameter for efficacy determination.

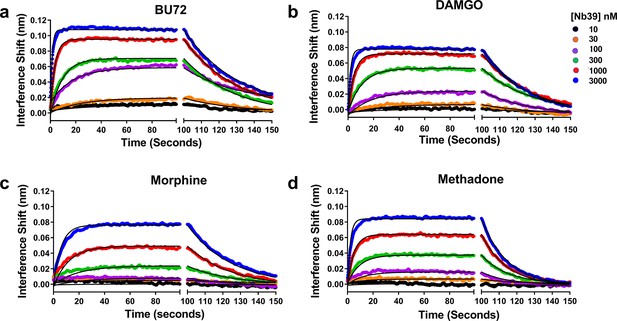

Association and dissociation of a range of Nb39 concentrations induced by various agonists.

The association of six different concentrations of Nb39 was measured in the presence of saturating ligand concentrations. Utilizing global regression analysis, the Kd of Nb39 (nM) for ligand bound receptor was calculated as follows: BU72 (144 ± 4), DAMGO (194 ± 9), Morphine (944 ± 13), Methadone (580 ± 3). The Kon values (min−1, M−1 × 10−5) were BU72 (2.35 ± 0.45), DAMGO (17.8 ± 0.5), Morphine (0.43 ± 0.05), and Methadone (1.21 ± 0.07) and the Koff values (min−1) BU72 (0.034 ± 0.0003), DAMGO (0.034 ± 0.003), morphine (0.04 ± 0.003), methadone (0.07 ± 0.0002).

https://doi.org/10.7554/eLife.32499.007

Allosteric modulation of µ-OR in rHDL by small-molecule PAMs

Previously, we have suggested that the μ-PAM, BMS-986122, enhances the affinity and efficacy of orthosteric ligands by stabilizing active state(s) of µ-OR. To test this hypothesis using the binding of Nb39 to µ-OR, we first needed to validate that BMS-986122 had detectible allosteric activity at monomeric µ-OR in rHDL particles, as all previous data on the compound were generated using cell membrane preparations. The affinity of L-methadone for monomeric µ-OR determined from competition binding experiments using the opioid antagonist 3H-diprenorphine (DPN) in the presence or absence of 10 µM BMS-986122 was enhanced three-fold in the presence of 10 µM BMS-986122 (Figure 5). This shift is much smaller than seen in membranes prepared from C6 rat glioma cells stably expressing MOPr (Burford et al., 2013). In order to determine if this diminished BMS-986122 activity in the µ-OR-rHDL system was a property of BMS-986122 or a property of purified µ-OR, we investigated BMS-986187, another PAM that is structurally distinct from BMS-986122 (Figure 5). Although initially discovered as a PAM of the closely related delta opioid receptor (δ-OR), this compound is a weak PAM at the µ-OR (Burford et al., 2015). In contrast to BMS-986122, BMS-986187 produced a 12-fold enhancement of L-methadone affinity for µ-OR in the rHDL system (from a Ki = 2696 (1970–3691) nM to 212 (142-317) nM), and shifted the affinity of DAMGO by 6-fold (from a Ki of 1240 (632–2438) nM to 212 (142-317) nM), although it failed to alter the affinity of morphine, (Ki = 630 nM in the absence and 500 nM in the presence of BMS-986197 (Figure 5). This probe dependence matches that seen with BMS-986122 in cell membranes, and can be most simply explained by a two-state model of GPCR function (Monod et al., 1965; Livingston and Traynor, 2014) in which the µ-PAMs stabilize R* states of µ-OR. We performed competition assays with L-methadone in the presence of increasing concentrations of BMS-986187 and applied the allosteric ternary complex model (GraphPad Prism) to calculate a cooperativity factor (α) of 58 and a KB of 4.5 µM, representing the affinity of BMS-986187 for the unoccupied µ-OR in rHDL. This is similar to data obtained for BMS-986187 at the μ-OR in cloned membranes (KB of 5.5 µM, log αβ of 1.16; Livingston et al., 2018) determined from a [35S]GTPγS functional assay using a derivation of the allosteric ternary complex model (Leach et al., 2010). From these values, we determined the affinity of BMS-986187 for the methadone-bound µ-OR in rHDL (KB/α) to be 77 nM. This represents an increase of 58-fold in the affinity of the modulator in the presence of methadone, indicating a strong preference for the active R* state of the receptor.

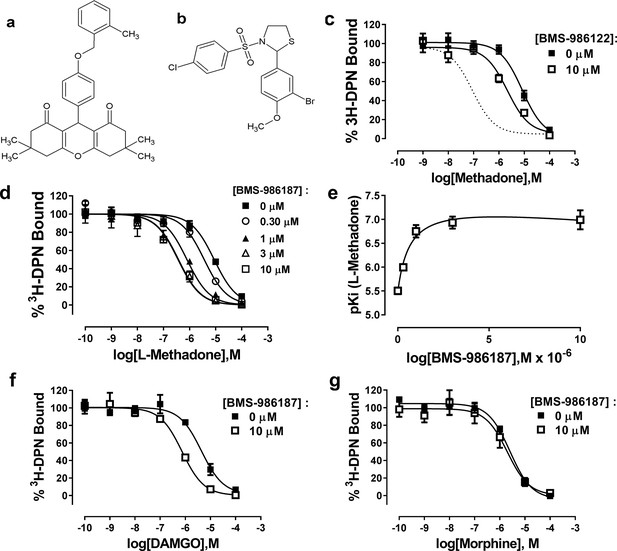

Allosteric modulation of µ-OR-rHDL by small molecule PAMs.

Structures of (a) BMS-986187 and (b) BMS-986122. The ability of BMS-986122 (c) or BMS-986187 (d) to enhance the binding affinity of L-methadone was measured using displacement of the orthosteric antagonist 3H-diprenorphine. The dotted line in (c) shows the effect previously obtained in membranes from C6μ cells (Livingston and Traynor, 2014). The effect of BMS-986187 on L-methadone affinity is plotted in (e). Enhancement of the affinity of DAMGO or morphine in the presence of 10 µM BMS-986122 is shown in (f) and (g), respectively. All plotted points are means ±s.e.m. of three (morphine) or five independent experiments (all other), each in duplicate. Nonlinear regression analysis with GraphPad Prism 6.02 was utilized to determine the affinity of the ligands. Hill slopes were not significantly different from unity.

https://doi.org/10.7554/eLife.32499.008

We hypothesized that both PAMs stabilize active R* states of µ-OR but that BMS-986187 has an increased allosteric interaction with μ-opioid agonists compared to BMS-986122, as seen by the enhanced cooperativity with μ-opioid agonists in competition binding assays and in our previous functional and binding assays using cell membranes (Livingston et al., 2018). Therefore, we predicted that the allosteric ligands alone should promote the binding of Nb39, but that Nb39 binding in the presence of BMS-986187 would be more rapid and to a greater extent than in the presence of BMS-986122. Indeed, both allosteric ligands were able to cause Nb39 binding, although at a slower rate as compared to most orthosteric agonists (Figure 6a; Table 1). However, dissociation of Nb39 from the BMS-986122-bound or BMS-986187-bound µ-OR proceeded with a koff similar to Nb39 dissociation from µ-OR bound to orthosteric agonists (other than methadone, loperamide and PMZ21). This suggests that the active states of µ-OR stabilized by the PAMs may be similar to those stabilized by traditional orthosteric agonists, although different from those stabilized by L-methadone and PMZ21.

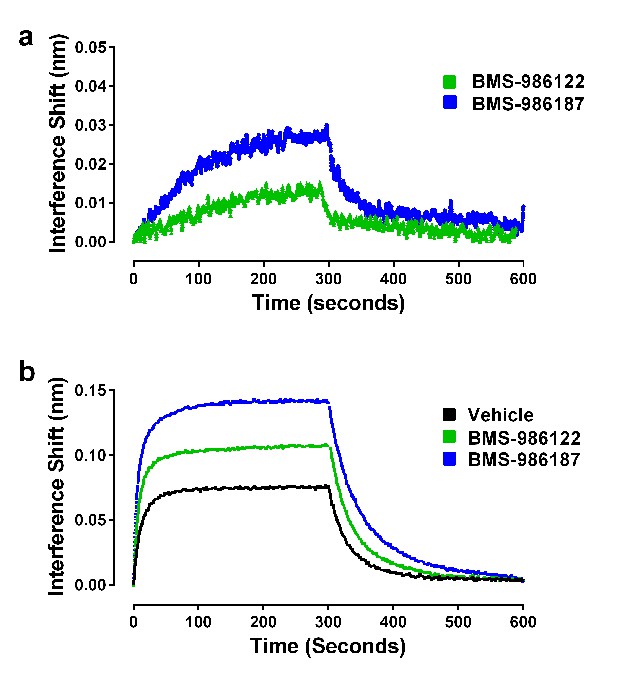

Effects of allosteric ligands on binding kinetics of Nb39.

The association and dissociation of Nb39 (1 µM) was measured as described in the Materials and methods. (a) Shown is a representative experiment of data in Table 1, comparing two allosteric agonists at 30 µM. (b) Representative experiment comparing the kinetics of Nb39 binding in the presence of morphine in the absence (black), or presence of 30 µM BMS-986122 (green), or 30 µM BMS-986187 (blue).

https://doi.org/10.7554/eLife.32499.009

In addition to the ability of the PAMs to stabilize R* conformations of µ-OR alone, we were interested in investigating the cooperative effects of the allosteric ligands on the ability of orthosteric agonists to promote Nb39 binding. Since both allosteric ligands have the ability to increase the efficacy of various orthosteric ligands in cell-based signaling assays (Livingston and Traynor, 2014; Burford et al., 2015), we expected that this increase in efficacy would manifest as an increase in the observed association rate constant of Nb39, and that BMS-986187 would have a larger effect than BMS-986122. Shown in Figure 6b is the ability of the two µ-PAMs to enhance morphine-driven recruitment of Nb39. As predicted, both allosteric ligands enhanced the rate constant of Nb39 association. Using the association rates in the presence of modulator and data from cell-based GTPγ35S-binding assays of morphine in the presence of the modulators, the τ values were plotted in Figure 3e. These agreed with the correlation, indicating the increase in association was accompanied by an increase in intrinsic efficacy.

We repeated the same experiment with the orthosteric ligands L-methadone and DAMGO, but used a lower concentration of Nb39 (100 nM) to enhance sensitivity as these orthosteric ligands are of higher efficacy. Both PAMs enhanced the rate constant of DAMGO-driven Nb39 binding (Table 2) and slowed the dissociation of Nb39 from µ-OR, with BMS-986187 having a larger effect. Unexpectedly, the association of Nb39 to L-methadone-bound µ-OR was slowed in the presence of either BMS-986122 or BMS-986187. Additionally, the dissociation of Nb39 was unchanged by BMS-986122 but slowed significantly by BMS-986187 (Table 2).

Table 2
Alteration in Nb39 kinetics in the presence of µ-PAMs
https://doi.org/10.7554/eLife.32499.010
Morphine (1 µM Nb39)
kobs (min−1)t1/2Assoc (sec)koff (min−1)t1/2Diss(sec)N
Vehicle0.08 ± 0.018.50.033 ± 0.001213
BMS-9861220.11 ± 0.0016.40.032 ± 0.0002223
BMS-9861870.13 ± 0.01 ***5.30.024 ± 0.0004293
L-Methadone (100 nM Nb39)
kobs (min−1)t1/2Assoc (sec)koff (min−1)t1/2Diss(sec)n
Vehicle0.087 ± 0.0098.00.050 ± 0.004 147
BMS-9861220.077 ± 0.0079.00.047 ± 0.004 +157
BMS-9861870.055 ± 0.004 *130.033 ± 0.002 **217
DAMGO (100 nM Nb39)
kobs (min−1)t1/2Assoc (sec)koff (min−1)t1/2Diss(sec)n
Vehicle0.051 ± 0.003140.035 ± 0.003 207
BMS-9861220.050 ± 0.01130.029 ± 0.003247
BMS-9861870.050 ± 0.004140.022 ± 0.001*317
  1. Values are means from independent experiments (number of individual experiments indicated in ‘n’ column). Analyses were performed by two-way ANOVA with a Tukey post-hoc test.

    *Indicates significance compared to vehicle condition for each orthosteric ligand (*p<0.05, **p<0.01, ***p<0.001). ++Indicates p<0.01 as compared to L-methadone/BMS-986187 combination.

  2. †Indicates p<0.01 as compared to morphine/vehicle combination.

    ‡Indicates p<0.01 as compared to DAMGO/vehicle combination.

Finally, we sought to determine if we could use purified heterotrimeric G protein binding to μ-OR in place of the Nb39 biosensor. In order to allow for measures of association and dissociation, soluble heterotrimeric G protein composed of a complex of myristoylated Gαi1, β1, and the γ2 C68S mutant lacking prenylation was utilized (see Materials and methods). For this experiment, we studied BU72 and morphine as two ligands with differing efficacy. Each ligand was able to promote binding of 100 nM heterotrimeric G protein to μ-OR, though to different extents and there was low binding in the absence of ligand (Figure 7a). Utilizing a global fit of the data, the Kd for G protein varied between ligands (see legend to Figure 7). In contrast to Nb39 which dissociated very rapidly, the dissociation t1/2 of G protein was much slower in the presence of BU72 (231 min) or morphine (182 min). To test the hypothesis that this slow dissociation was due to formation of highly stable nucleotide-free receptor:G protein complexes (Rasmussen et al., 2011b), dissociation was measured in the presence of 1 µM GDP. The presence of the nucleotide rapidly enhanced G protein dissociation (Figure 7b).

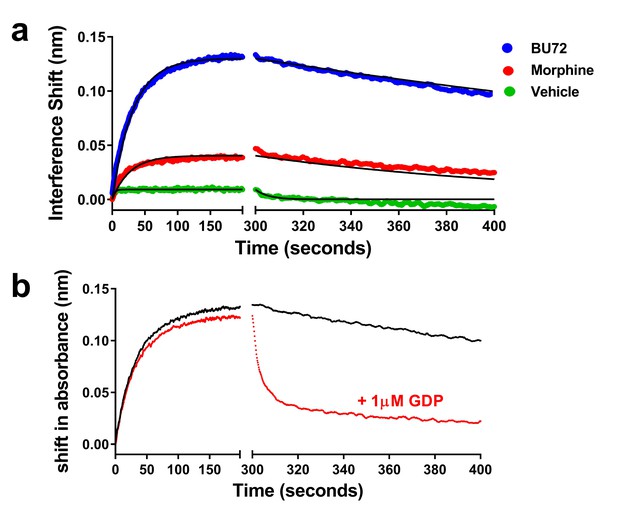

Association and dissociation of heterotrimeric G protein and the effect of GDP on dissociation.

(a) Utilizing a global fit analysis the affinity (Kd) of G protein for μ-receptor was determined as 13 ± 1 nM for the BU72-bound receptor and 2.9 ± 0.8 nM for the morphine-bound receptor, though these are pseudo-affinity constants as the G protein binding was nearly irreversible on the time-scale studied. Only in the presence of nucleotide (b) did the BU72-bound heterotrimer rapidly dissociate.

https://doi.org/10.7554/eLife.32499.011

Discussion

We have described a method for examining the efficacy of orthosteric and allosteric ligands of a prototypic class A GPCR, µ-OR, which relies upon the ability of the conformationally-selective sensor Nb39 to recognize active (R*) state(s) of the receptor as confirmed using heterotrimeric G protein. Understanding the effects of ligands on the distribution of receptor conformations is crucial in predicting their activity at downstream signaling outputs and in vivo. Direct measurement of Nb39 binding to µ-OR using interferometry is independent of signaling and does not require calculations of efficacy from parameters determined in signaling assays. Further, the output of the interferometry assay is not subject to amplification and is dependent only upon receptor-ligand interaction, enabling detection of fine distinctions in agonist action that may be masked when measuring a downstream signaling output (Black and Leff, 1983; Ehlert, 1985). Importantly, the technique has the potential to detect differences in agonist-induced receptor conformations that may predict biased signaling without relying upon traditional calculations of ‘bias factors’ (Kenakin et al., 2012; Stott et al., 2016). Finally, the method can be applied to positive allosteric modulation of orthosteric ligands and provides insight into the mechanism of action of PAMs at µ-OR by showing these molecules, although acting at a distinct site, stabilize active (R*) receptor states even in the absence of orthosteric agonist. Overall, the method provides a way of quantitatively examining the efficacy of µ-OR orthosteric and allosteric ligands to stabilize R*, and can readily be applied to other GPCRs with conformationally-selective nanobodies available (Staus et al., 2014; 2016).

As predicted based on data from previous studies with nanobodies (Rasmussen et al., 2011a; Irannejad et al., 2013; Huang et al., 2015), orthosteric agonists resulted in robust Nb39 binding, while the orthosteric antagonists naloxone or diprenorphine failed to promote detectable Nb39 binding. We show the ability of an agonist to promote Nb39 binding is correlated with its ability to promote signal transduction through Gi/o protein as measured by GTPγ35S binding. In fact, measurement of Nb39 binding is more sensitive than GTPγ35S binding, as some low-efficacy ligands, including nalbuphine and the µ-OR PAMs, were able to promote Nb39 binding but failed to show measurable G protein activity using the GTPγ35S-binding assay (Livingston and Traynor, 2014). While theoretically measuring the same process, that is µ-OR active-state promotion by agonists, leading to a protein-protein interaction at the receptor’s cytoplasmic face, the output of the GTPγ35S assay can vary dramatically based upon nucleotide concentration, receptor:Gi/o protein ratios, MgCl2 concentration, NaCl concentrations, time, and temperature (Traynor and Nahorski, 1995; Szekeres and Traynor, 1997; Remmers et al., 2000; Heusler et al., 2016). In comparison, Nb39 binding is not an enzymatic process like nucleotide exchange, but instead represents a bimolecular binding event. However, it is recognized that measured efficacy in a cellular context will depend on the signal measured and the environment of the receptor.

It is important to note that the fact we see differences in Kobs for the various agonists indicates that each agonist stabilizes a different distribution of active states of μ-OR, but that these states are all recognized by Nb39. The range of active µ-OR conformations formed by the orthosteric agonists and/or allosteric modulators recognized by Nb39 is, as of yet, unknown, and within a cellular context will depend on the environment and state of the receptor, but the crystal structure of active µ-OR bound to Nb39 shows that the nanobody does stabilize an active state of the receptor displaying the prototypic outward movement of TM6 associated with activation of GPCRs (Farrens et al., 1996; Scheerer et al., 2008; Rasmussen et al., 2011b; Kruse et al., 2013; Huang et al., 2015). Also, the affinities of the agonist BU72 for Nb39-bound µ-OR and Gαi-bound µ-OR are similar (Huang et al., 2015), suggesting the conformations of µ-OR stabilized by Nb39 and Gαi are also comparable, a finding confirmed by our current data with heterotrimeric G protein. The correlation with other efficacy measures leaves room for interpretation on the nature of receptor states that Nb39 can bind. If Nb39 was able to recognize and bind all active-like conformations capable of initiating downstream signal transduction, one might expect perfect correlations with other measures of efficacy. As evidenced, the correlation with Ehlert’s efficacy values shows this is not the case. Although a well-accepted method for determining intrinsic efficacy, Ehlert’s measure relies upon data collected from a signaling assay, therefore if a ligand has a signaling bias, the results may differ depending on which signaling output is chosen. The Ehlert equation relies upon a potency value (EC50), affinity value, and an Emax that is relative to a chosen standard. The EC50 of an assay will be heavily reliant on the system: receptor reserve, time of incubation, and inherent system maximum and is therefore not an absolute number (Strange, 2008). Additionally, the affinity of the ligand is not a factor in the interferometry assay as all ligands are present at saturating concentrations. This is likely why the correlation with τ as calculated from the operational model is stronger (Figure 4). By calculating τ alone, ligand affinity is removed as a descriptor of efficacy.

Data from the interferometry experiments correlated strongly with the shift in affinity of orthosteric agonists in the presence of Na+ ions and Guanine nucleotides. Affinity is ideally system-independent and so the Na+/GTPγS shift appears to be more reflective of true intrinsic efficacy, or ability of a ligand to discriminate between R and R*, with no dependence on the selection and measurement of a signaling output. It should be noted that two agonists, etorphine and BU72, are unique in that they exhibit little sensitivity to Na+/GTPγS despite their high efficacy. It is possible that their insensitivity to Na+ ions is not absolute. Rather, etorphine and BU72 may be extremely negatively cooperative with Na+ binding, thereby reducing the potency of Na+ to alter the affinity of these ligands to such a degree that no shift was observed at the Na+ concentration tested (100 mM). Nonetheless, the lack of the ability of Na+/GTPγS to alter affinity of etorphine and BU72 is in agreement with the lack of allosteric effects of the PAMs on these ligands (Livingston and Traynor, 2014), suggesting they drive formation of R* too efficiently to be further enhanced by allosteric ligands. Indeed, NMR data have suggested that BU72 is a ‘superagonist’ capable of stabilizing conformational changes in µ-OR, in particular increased dynamics in intracellular loop 1 and helix 8, that are not seen with other full agonists (Sounier et al., 2015). Etorphine may act in a similar fashion.

The rationale of the present study was to directly compare agonist ability to generate an active conformation of the μ-OR as a determinant of intrinsic efficacy without the need to measure a downstream signal. The comparative measures above are all indicative of Gα function. However, if measures are taken downstream that involve the Gβγ subunit then the actual value of the efficacy measure might vary but the rank order should stay the same since Nb39 mimics the action of heterotrimeric G proteins. It is possible that non-G-protein-mediated actions, that could include β-arrestin recruitment, would show a different rank order. Consequently, we also compared the kinetics of Nb39 binding induced by several agonists with published agonist efficacy data for β-arrestin recruitment (McPherson et al., 2010) and saw a significant correlation suggesting that Nb39 may recognize μ-OR states that recruit β-arrestin as well as those that recruit G protein, or that recruitment of β-arrestin to μ-OR must be preceded by transition to a Nb39-recognizable state. We did not necessarily expect this finding given that nanobodies which promote high affinity agonist binding of the β2AR recognize a conformation of the receptor similar to the conformation which binds G protein (Rasmussen et al., 2011a). On the other hand the result does support the finding that some ligands, including the biased agonist PZM21, show different kinetics. It will be important in the future to develop the system to follow β-arrestin recruitment to purified μ-OR directly. However, this will require the purification of homogenous, phosphorylated receptor.

Like the orthosteric agonists, the allosteric ligands BMS-986122 and BMS-986187 also drove Nb39 binding to µ-OR suggesting they can directly activate the receptor to form R*, even in the absence of an agonist occupying the orthosteric site. However, the rate and extent of Nb39 binding produced by the PAMs was low, comparable to low-efficacy orthosteric agonists such as nalbuphine. Compared to BMS-986122, BMS-986187 promoted Nb39 binding to a greater extent and at a faster rate, in line with its higher activity to enhance orthosteric ligand binding affinity to µ-OR in rHDL particles. The fact that BMS986187 is able to recruit Nb39, albeit to a much smaller extent than orthosteric agonists, identifies this compound as an ago-PAM, a compound that can activate receptor in the absence of orthosteric agonist and demonstrates the high sensitivity of the assay. This is supported by our recent observation that BMS986187 acts as an agonist in the adenylate cyclase assay but not in an assay for G-protein activation of β-arrestin recruitment (Livingston et al., 2018). Our proposed mechanism for PAMs at the μ-OR is to allosterically modulate the Na ion binding site and therefore drive or help to drive a active conformational (R*) ensembles. Thus, there is a fine line between a PAM and an ago-PAM that predicts a continuum between compounds that are silent (SAMs) and bind to the allosteric site without any obvious activity, PAMs that promote agonist action and ago-PAMs. Moreover, these definitions will depend on the efficacy requirements of the system.

When added together with orthosteric ligands the PAM, BMS-986187, increased the association rate of Nb39 to µ-OR induced by morphine, but did not alter the rate of Nb39 binding in the presence of DAMGO and decreased the effect of association rate in the presence of methadone. In previous studies, we showed the efficacy of the partial agonist morphine, determined using Ehlert’s equation, was increased two-fold by BMS-986122 (from e = 0.5 to e = 1.0), whereas the efficacy of DAMGO (e = 2.0 versus 2.1) was essentially unchanged in the presence of BMS-986122 and L-methadone was slightly decreased (from e = 1.1 to 0.9). Instead with L-methadone and DAMGO there is an increase in potency. Crystallographic work is underway to determine the mode of PAM binding and to determine the structural features that govern allosteric modulation of µ-OR.

In addition to association rate constants, valuable information can be obtained from the rates of Nb39 dissociation since we can assume this rate is a product of the affinity of Nb39 for agonist-bound and active µ-OR. The dissociation rate of Nb39 was equal in the presence of most orthosteric and the allosteric ligands examined in this study, arguing that Nb39 recognizes all active (R*) conformations equally and/or that both full and partial orthosteric agonists, as well as the allosteric modulators, stabilize a common ensemble of µ-OR active conformations that is recognized by Nb39. These arguments are consistent with the exception of L-methadone, loperamide and PZM21 which show faster Nb39 dissociation. This indicates that the receptor has decreased affinity for Nb39 in the presence of these ligands, possibly reflecting a unique set of receptor conformations. In support of a differential binding mode for L-methadone, this ligand is the most sensitive orthosteric agonist toward allosteric modulation with three different chemical scaffolds (BMS-986122, BMS-986187, and MS1 [Bisignano et al., 2015]), and in turn greatly enhances the affinity of BMS-986187 for the allosteric site. This suggests that L-methadone, and possibly PZM21 and loperamide, could engage with µ-OR in distinct ways, generating unique conformational ensembles that can be seen in its effects on the binding characteristics of both Nb39 and small-molecule allosteric modulators. It is possible that other factors, including differential rates of ligand dissociation could be confounding factors in Nb39 dissociation, but the fact that these differences are only seen for three ligands would argue against this. Although we have tested a number of structurally diverse µ-OR orthosteric ligands, and both full and partial agonists, it is feasible that each ligand generates distinct active conformations that are indistinguishable to Nb39, including as discussed above the possibility of β-arrestin preferring conformations. This is likely given evidence at the β2-adrenergic (Yao et al., 2006) and β1-adrenergic receptors (Warne et al., 2011) suggests partial agonist conformations differ from full agonist-bound conformations. Thus, it should be possible to develop selective nanobodies that recognize agonist-specific µ-OR* states. If true it is feasible that these different conformational states may contribute to the lower levels of cross-tolerance observed with methadone compared to other opioids in animal models (Neil, 1982; Posa et al., 2016), and the higher relative potency values for methadone than expected during opioid rotation in patients (Knotkova et al., 2009). Moreover, these different receptor states could explain the reported biased agonist nature of PMZ21(Manglik et al., 2016). However, this represents the most basic piece of the puzzle and in the whole cell many factors not present in rHDL particles, such as differential posttranslational processing of the receptor, and the presence of accessory proteins, as well as different membrane lipids could contribute to the ensemble of receptor conformations obtained.

The affinity of Nb39 for μ-OR (Huang et al., 2015) is low compared to Nb80 at the β2AR (Manglik et al., 2016). Thus, Nb39 does not bind receptor in the absence of agonist and so does not create agonist conformations of the receptor or force orthosteric agonist to bind to these unique conformations. Although it is possible that the agonist bound Nb39 conformation in the presence of Nb 39 could be different from the agonist and heterotrimerc G-protein-bound conformations, our findings using a mutated, soluble form of heterotrimeric G protein confirmed the biological relevance of our model system by demonstrating that Nb39 is a suitable surrogate for heterotrimeric G proteins which are the native ‘active-state sensors’ of R* states of GPCRs. However, for these assays protein tools such as nanobodies are preferred due to the challenges associated with using G-protein complexes made up of three subunits. These include selection of subunits, which themselves could cause differences in receptor binding (Remmers et al., 2000), inclusion or exclusion of nucleotide, selection and concentration of nucleotide, and nonspecific binding. Indeed, some native Gα subtypes and wild-type Gγ cannot be used as obligatory lipid groups (palmitoylation, geranyl-geranylation) require detergents which would disrupt the rHDL particles, and also could drive direct lipid-lipid association with the rHDL particles. This creates the possibility for multiphase association and dissociation kinetics which can make data analysis difficult, for example the Kd value may be an amalgamation of two distinct values derived from binding of G protein to receptor and to the rHDL discs. Moreover, heterotrimeric G-protein binding is not simply a bimolecular interaction between G protein and receptor but an enzymatic process in which nucleotide can dramatically influence rates and extents of binding. The extremely slow dissociation of heterotrimeric G protein makes the Kd calculated a ‘pseudo’ rate constant as the reaction is irreversible on the time scale of the assay in the absence of nucleotide.

In summary, we have described a novel method for the quantitative evaluation of efficacy of both orthosteric and allosteric ligands using purified µ-OR in rHDL particles. This biophysical technique is also able to identify ligands, in particular L-methadone and PZM21, that induce distinct conformations of µ-OR. Allosteric modulators of µ-OR are themselves capable of generating active conformations of µ-OR competent to bind Nb39 and of driving G-protein-independent high-affinity agonist binding. This technique is more sensitive than traditional measures of efficacy and is not reliant upon signal amplification. The methodology should be applicable to a wide variety of GPCRs.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or referenceIdentifiersAdditional information
Peptide,
recombinant protein
mu-opioid receptorManglik et al. (2012)
OPRM1
Peptide,
recombinant protein
GbetagammaIñiguez-Lluhi et al., 1992
Peptide,
recombinant protein
Myristoylated Gαi1Greentree and Linder, 2004
Peptide,
recombinant protein
Apolipoprotein-AIKuszak et al., 2009
Peptide,
recombinant protein
[D-Ala2, N-Me-Phe4,
Gly5-ol]-Enkephalin
acetate salt
(DAMGO)
SigmaE7384CAS#100929-53-1
Peptide,
recombinant protein
Leu-EnkephalinSigmaL9133
Peptide,
recombinant protein
Met-EnkephalinSigmaM6638CAS#82362-17-2
Peptide,
recombinant protein
Endomorphin 2SigmaSCP0133
Peptide,
recombinant protein
Nanobody 39 (Nb39)Huang et al., 2015
Chemical
compound, drug
3H-diprenorphinePerkin ElmerNET1121250UC
Chemical
compound, drug
Morphine sulfateNational Institute on Drug
Abuse, NIH. Drug Supply
Catalog
9300–001CAS # 6211-15-0
Chemical
compound, drug
(R)-MethadoneNational Institute on Drug
Abuse, NIH. Drug Supply
Catalog
9250–005CAS# 125-58-6
Chemical
compound, drug
BuprenorphineNational Institute on Drug
Abuse, NIH. Drug Supply
Catalog
9064–110CAS# 53152-21-9
Chemical
compound, drug
BU72Huang et al. (2015)
Chemical
compound, drug
DiprenorphineOtherCAS# 14357-78-9:
Opioid Research Center,
U Michigan
Chemical
compound, drug
EtorphineOtherCAS# 14521-96-1: Opioid
Research Center,
U Michigan
Chemical
compound, drug
FentanylNational Institute on Drug
Abuse, NIH. Drug Supply Catalog
9801–001CAS# 1443-54-5
Chemical
compound, drug
HydrocodoneOtherCAS# 125-29-1:Opioid
Research Center,
U Michigan
Chemical
compound, drug
LoperamideOtherCAS # 34552-83-5: Opioid
Research Center,
U Michigan
Chemical
compound, drug
NalbuphineOtherCAS# 23277-43-2: Opioid
Research Center,
U Michigan
Chemical
compound, drug
NaloxoneSigmaPHR1802CAS# 51481-60-8
Chemical
compound, drug
OxycodoneOtherCAS# 76-42-6: Opioid
Research Center,
U Michigan
Chemical
compound, drug
PZM21Manglik et al. (2016)
Chemical
compound, drug
BMS-986187Bristol Myers Squib;Burford et al. (2015)

CAS# 684238-37-7
Chemical
compound, drug
BMS-986122Bristol Myers Squib;Burford et al. (2013)CAS# 313669-88-4
Software,
algorithm
GraphPad Prism 6.0GraphPad, La Jolla, CAhttps://www.graphpad.com/scientific-software/prism/
Software,
algorithm
Octet Data Analysis
7.0 software
Pall Forte Biohttps://shop.fortebio.com/site-license-octet-data-analysis-software-version-7.x.html

Materials

[3H]-Diprenorphine (DPN) was from PerkinElmer Life Sciences. BMS-986122 and BMS-986187 (structures in Figure 5) were synthesized or obtained as previously described (Burford et al., 2013; 2015). Fentanyl, morphine, methadone and buprenorphine were from the NIDA Drug supply; other opiates were from the Opioid Basic Research Center at the University of Michigan. All other chemicals, unless otherwise specified, were purchased from Sigma (St. Louis, MO).

Purification of µ-OR

Request a detailed protocol

Full-length Mus musculus µ-OR bearing an amino-terminal FLAG epitope tag and a carboxy-terminal 6xHis tag was expressed in Sf9 insect cells (Invitrogen) using the Best Bacbaculovirus system (Expression Systems). A tobacco etch virus (TEV) protease recognition sequence was inserted after residue 51 and a rhinovirus 3C protease recognition sequence was inserted before residue 359 for cleavage during purification. Insect cells were infected with baculovirus encoding µ-OR 48–60 hr at 27°C. Receptor was solubilized and purified in a final buffer comprised of 25 mM HEPES pH 7.4, 100 mM NaCl, 0.01% MNG (Anatrace), and 0.001% cholesterol hemisuccinate (CHS), as previously described (Manglik et al., 2012).

Purification of Nb39

Request a detailed protocol

 Nb39 was purified as described (Huang et al., 2015). Briefly, Nb39 bearing a carboxy-terminal His tag was expressed in the periplasm of Escherichia coli strain WK6 grown in Terrific Broth medium containing 0.1% glucose, 2 mM MgCl2, and 50 mg/ml ampicillin and induced with 0.5 mM isopropyl-b-D-thiogalactoside (IPTG). Cells were harvested after overnight growth at 25°C and incubated in a buffer containing 200 mM Tris, pH 8.0, 0.5 mM EDTA, 500 mM sucrose for one h on ice. Bacteria were osmotically lysed by rapid dilution in water. The periplasmic fraction was isolated by centrifugation of cell debris and was supplemented with NaCl (300 mM final) and imidazole (10 mM final). Nb39 was isolated from the periplasmic fraction by nickel affinity chromatography, and subsequently purified by size-exclusion chromatography in a buffer comprised of 20 mM HEPES pH7.5 and 100 mM NaCl. Peak fractions were pooled and concentrated to approximately 1 mM.

Apolipoprotein purification and biotinylation

Request a detailed protocol

Apolipoprotein-AI (Apo-AI) was purified as described previously (Kuszak et al., 2009). Apo-A1 was biotinylated using NHS-PEG4-biotin (Pierce Biotechnology) at a 1:1 molar ratio. Following a 30 min biotinylation reaction at room temperature, the sample was dialyzed to remove free biotin.

Purification and formation of G-protein heterotrimeric complex

Request a detailed protocol

Myristoylated Gαi1containing a hexahistidine tag inserted at residue 121 (Kozasa and Gilman, 1995) was expressed in Escherichia coli and purified as described (Greentree and Linder, 2004). To prepare Gβγ subunit lacking the geranyl-geranyl modification, Trichoplusiani cells (High Five; Invitrogen) were infected with baculovirus encoding for Gβ1 and His6-Gγ2C68S (Iñiguez-Lluhi et al., 1992) at an MOI of 1 for each virus. Cells were harvested ~48 hr post-infection and lysed by nitrogen cavitation in a buffer containing 50 mM HEPES (pH 8.0), 65 mM NaCl, 5 mMβ-mercaptoethanol (β-ME), and protease inhibitors (35 µg/ml phenylmethylsulfonyl fluoride, 32 µg/ml each N-tosyl-L-phenylalanine chloromethyl ketone and N-tosyl-L-lysine chloromethyl ketone, 3.2 µg/ml each leupeptin and soybean trypsin inhibitor). The lysate was centrifuged for 10 min at 1000 g and the resulting supernatant was centrifuged for 40 min at 100,000 g. The clarified lysate was supplemented with NaCl to a final concentration of 300 mM and applied to a packed column of cobalt-NTA resin (TALON;Clontech) pre-equilibrated with wash buffer containing 20 mM HEPES (pH 8.0), 300 mM NaCl, 5 mM β-ME, and protease inhibitors. The column was washed with 10 column volumes of wash buffer then eluted with a buffer composed of 20 mM HEPES (pH 8.0), 50 mM NaCl, 150 mM imidazole, 5 mM β-ME, and protease inhibitors. Fractions were analyzed by SDS-PAGE, and those containing Gβγ were pooled and diluted to a final volume of 50 ml using 20 mM HEPES (pH 8.0), 5 mM β-ME. The diluted fractions were loaded onto a MonoQ HR 10/10 (GE Life Sciences) pre-equilibrated with 20 mM HEPES (pH 8.0) and eluted using a linear gradient of NaCl in the same buffer. Fractions containing Gβγ were pooled, concentrated using an Amicon Ultra centrifugal filter, and applied to a Superdex S200 XK 16/70 (GE Life Sciences). Size exclusion chromatography was performed using a buffer composed of 20 mM HEPES, 100 mM NaCl, 1 mM EDTA, and 100 µM Tris(2-carboxyethyl)phosphine (TCEP). Peak fractions were pooled and concentrated to ~5 mg/ml as determined by Bradford assay. Concentrated protein was flash-frozen in liquid nitrogen and stored at −80°C until use. Complexes of myr-Gαi1 and Gβγ were prepared by mixing the subunits at a 1.2:1 molar ratio in a buffer containing 20 mM HEPES (pH 8.0), 100 mM NaCl, 1 mM EDTA, 1.1 mM MgCl2, 10 µM GDP, and 100 µM TCEP. Following a 30 min incubation at 4°C, complexes were isolated by size exclusion chromatography using a Superdex S200 HR 10/30 (GE Life Sciences). Peak fractions were pooled, concentrated using an Amicon Ultra centrifugal filter, and flash frozen in liquid nitrogen for storage at −80°C.

µ-OR-rHDL Reconstitution

Request a detailed protocol

Purified µ-OR was reconstituted into high-density lipoprotein (HDL) particles using biotinylated Apo-AI and the lipids 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine (POPC) and 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoglycerol (POPG) (both from Avanti Polar Lipids) in a 3:2 molar ratio as previously described (Whorton et al., 2007). For OctetRed® experiments, rHDL particles containing receptor were separated from empty rHDL by anti-FLAG affinity chromotography and elution fractions positive for 3H-diprenorphine binding were pooled.

Nb39 kinetic assays

Request a detailed protocol

Nb39 binding to µ-OR in the presence or orthosteric and/or allosteric ligands was measured using the Octet RED biolayer interferometry system (Pall ForteBio). In this assay, µ-OR-containing biotinylated rHDL particles are immobilized on a streptavidin-coated fiber optic probe that is incubated into buffers containing ligands in the presence or absence of Nb39. Different reconstituted receptor preparations were tested with each ligand to ensure the kinetics did not vary based on the preparation. Dissociation of bound Nb39 was initiated by placing the probe in buffer containing ligands but no Nb39. Specifically, biosensors (Pall ForteBio) were loaded with biotinylated µ-OR-rHDL particles for 15 min at room temperature and the biosensors were transferred to the Octet RED instrument. Sensors were placed into assay buffer (20 mM HEPES, pH 7.7, 100 mM NaCl, 1 mM EDTA, 0.05% (w/v) BSA) with vehicle or various orthosteric/allosteric ligands for 10 min to reach equilibrium, unless stated otherwise. To measure Nb39 association, the probe was transferred to assay buffer with Nb39 (at indicated concentrations) for 5 min, followed by a 10 min dissociation step in assay buffer (preliminary studies showed that dissociation of Nb39 was quite rapid). All ligands (orthosteric and allosteric), once introduced to the probe, remained in each subsequent buffer during association and dissociation. All experiments were carried out at 25°C with the assay plate shaking at 2000 r.p.m. Non-specific binding was measured using a vehicle control with no ligands and this was subtracted to account for baseline drift. Raw data were processed to remove baseline using Octet Data Analysis 7.0 software (Pall Forte Bio) and exported to GraphPad Prism 6.0 for curve fitting of association and dissociation using a global linear regression analysis of the families of curves. The number of independent experiments is listed in the figure legends or tables. No statistical methods were used to predetermine sample size.

Radioligand binding assays

Request a detailed protocol

For competition binding experiments in µ-OR- rHDL, a mixture of µ-OR-rHDL and 3H-diprenorphine (3H-DPN) was incubated with varying concentrations of agonist in a binding buffer comprised of 25 mM HEPES pH 7.4, 100 mM NaCl, and 0.1% BSA in the presence or absence of 3 µM Nb39. For assays performed using cell membranes, conditions listed were kept the same except for exclusion of BSA and inclusion of 10 µg protein per well. Binding reactions were incubated for 2 h at 25°C. Free radioligand was separated from bound radioligand by rapid filtration onto a Whatman GF/C filter pretreated with 0.1% polyethylenimine using a 24-well harvester (Brandel). Nonspecific binding was measured in the presence of 10 µM naloxone, an opioid antagonist. Radioligand activity was measured by liquid scintillation counting using a Wallac 1450 MicroBeta counter (Perkin Elmer). A minimum of three independent experiments, each in duplicate, were performed and the values were pooled to generate the mean curves displayed in the figures. Competition binding data were fit to a one-site model using GraphPad Prism 6.0. Data are presented as means with 95% confidence limits in parentheses. No statistical methods were used to predetermine sample size.

References

  1. 1
  2. 2
    Operational models of pharmacological agonism
    1. JW Black
    2. P Leff
    (1983)
    Proceedings of the Royal Society B: Biological Sciences 220:141–162.
    https://doi.org/10.1098/rspb.1983.0093
  3. 3
  4. 4
  5. 5
    Clinical guidelines for the use of buprenorphine in the treatment of opioid addiction
    1. Center for Substance Abuse Treatment
    (2004)
  6. 6
  7. 7
  8. 8
  9. 9
    The relationship between muscarinic receptor occupancy and adenylate cyclase inhibition in the rabbit myocardium
    1. FJ Ehlert
    (1985)
    Molecular Pharmacology 28:410–421.
  10. 10
  11. 11
    Purification of recombinant G protein alpha subunits from Escherichia coli
    1. WK Greentree
    2. ME Linder
    (2004)
    Methods in Molecular Biology 237:3–20.
  12. 12
  13. 13
  14. 14
    G protein beta gamma subunits synthesized in Sf9 cells. functional characterization and the significance of prenylation of gamma
    1. JA Iñiguez-Lluhi
    2. MI Simon
    3. JD Robishaw
    4. AG Gilman
    (1992)
    The Journal of Biological Chemistry 267:23409–23417.
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
    Purification of recombinant G proteins from Sf9 cells by hexahistidine tagging of associated subunits. characterization of alpha 12 and inhibition of adenylyl cyclase by alpha z
    1. T Kozasa
    2. AG Gilman
    (1995)
    The Journal of Biological Chemistry 270:1734–1741.
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
    Signal Transduction Protocols
    1. LM Luttrell
    2. TP Kenakin
    (2011)
    L. M Luttrell, S. S. G Ferguson, editors. Totowa, NJ: Humana Press.
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
    Morphine- and methadone-tolerant mice differ in cross-tolerance to other opiates. heterogeneity in opioid mechanisms indicated
    1. A Neil
    (1982)
    Naunyn-Schmiedeberg's Archives of Pharmacology 320:50–53.
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
    Delta opioid modulation of the binding of guanosine-5'-O-(3-[35S]thio)triphosphate to NG108-15 cell membranes: characterization of agonist and inverse agonist effects
    1. PG Szekeres
    2. JR Traynor
    (1997)
    The Journal of Pharmacology and Experimental Therapeutics 283:1276–1284.
  49. 49
    Modulation by mu-opioid agonists of guanosine-5'-O-(3-[35S]thio)triphosphate binding to membranes from human neuroblastoma SH-SY5Y cells
    1. JR Traynor
    2. SR Nahorski
    (1995)
    Molecular Pharmacology 47:848–854.
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54

Decision letter

  1. Volker Dötsch
    Reviewing Editor; J.W. Goethe-University, Germany

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Measuring Ligand Efficacy at the Mu-Opioid Receptor Using a Conformational Biosensor" for consideration by eLife. Your article has been favorably evaluated by Philip Cole (Senior Editor) and three reviewers, one of whom, Volker Dötsch (Reviewer #1), is a member of our Board of Reviewing Editors. The following individuals involved in review of your submission have agreed to reveal their identity: Christopher Evans (Reviewer #2); Terry Kenakin (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Overall, the reviewers liked your approach and consider it an important advance in the field. Some questions, however, remain. In particular the dose response mentioned in question 1 should be carefully addressed.

Summary:

The paper describes a methodology for assessing ligand-induced activated conformation(s) of the Mu-opioid receptor using the binding of a nanobody previously described for stabilizing the active conformation of the isolated receptor for crystal analysis. This is an interesting and informative approach to measure discrete aspects of ligand interactions. The approach can assess characteristics such as ability to determine association and dissociation kinetics of "active states" that are likely to be important for ligand characteristics as a result of different complexes formed and post-translational modifications.

Essential revisions:

1) What are the effects of agonist concentration above and below the saturating concentrations that were used? This may be especially important for partial agonists or those with slow kinetics. Some agonist dose-response for nanobody association and dissociation should be presented for drugs comparing high or low affinity agonists and high or low efficacy agonists to determine how the assay responds to the dose variable.

2) The cellular milieu and complex formation of the receptor with other proteins including kinases, arrestins and calmodulins is likely to alter a receptors ability to assume agonist conformations as are the extent of different post-translational modifications. Thus, like the crystal structures, the assay proposed is lacking many of the interactions that could regulate agonist signaling and this assay is undertaken in a privileged and non-environmental working condition of the receptor. Similarly, the nano body can also bind to the GPCR by conformational remodeling of the conformational ensemble that a specific ligand is inducing. If this is the case the binding affinity and association rates would be biased by this remodeling process. These issues should be discussed by the authors in the manuscript.

3) Since µ-PAMs alone promote Nb39 binding but show no signaling is it accurate to define this assay as one measuring efficacy/intrinsic activity?

4) The evidence for ligand-induced unique/distinct conformations is not clear. There are kinetics of ligand association/dissociation, ion interactions, as well as the nanobody associations and dissociations which are the measured output. Without knowing the kinetics of all players how can alternative conformations be assumed as opposed to duration spent in common conformational states?

5) In many PAM programs, some of the members are PAM Agonists, i.e. it is a fine line between making it easier for an agonist to promote an active state vs. actually having the PAM itself induce the active state. It would be nice if the authors expanded on their thoughts on this a little more.

6) It is not clear exactly which 'allosteric binding model' is used in this study - standard Graphpad model? Is this the Hall model or more comprehensive model? This should be specified. Also, the authors discuss 'allosteric efficacy' and this is confusing since this implies beta effects from the allosteric functional model whereas it appears only alpha effects where measured – alpha is only part of the story as beta effects can increase or decrease ternary and quaternary complex production. In this regard, the authors need to specify why only affinity measurements should reflect everything there might be to know about the quality of the active state ensemble.

7) In general, more discussion of when only G protein alpha effects reflect total opioid agonist efficacy would make this a stronger paper.

https://doi.org/10.7554/eLife.32499.014

Author response

Essential revisions:

1) What are the effects of agonist concentration above and below the saturating concentrations that were used? This may be especially important for partial agonists or those with slow kinetics. Some agonist dose-response for nanobody association and dissociation should be presented for drugs comparing high or low affinity agonists and high or low efficacy agonists to determine how the assay responds to the dose variable.

The aim of this study was to determine if we could use nanobody as a mimic for G protein and so measure the rate of nanobody binding as an indicator of agonist efficacy. For the purposes of this present manuscript we used a maximal concentration of agonist to ensure rapid agonist binding and high agonist occupancy of the receptor (this is outlined on in the third paragraph of the subsection “Measure of orthosteric agonist efficacy using an interferometry-based technique”) and to obtain the maximal kinetics of Nb39 association to the agonist bound state of the receptor and its dissociation from the receptor. Also partial agonists such as nalbuphine and the very slowly dissociating partial agonist buprenorphine show the same off rates of Nb39 binding as the other (full) agonists (Table 1) suggesting that agonist binding kinetics are not a confounding issue. This is highlighted in the seventh paragraph of the aforementioned subsection. Use of lower concentrations to obtain dose-response relationships will make it difficult to separate the kinetics of ligand binding from the kinetics of Nb39 binding, and will result in changes in fractional occupancy of the agonist (according to each agonist’s cooperativity with Nb39) over the time course of our measurement. However, we agree such experiments could be informative and we are planning to tackle these in the future, but they will provide different information to that we were seeking in this present study.

2) The cellular milieu and complex formation of the receptor with other proteins including kinases, arrestins and calmodulins is likely to alter a receptors ability to assume agonist conformations as are the extent of different post-translational modifications. Thus, like the crystal structures, the assay proposed is lacking many of the interactions that could regulate agonist signaling and this assay is undertaken in a privileged and non-environmental working condition of the receptor. Similarly, the nano body can also bind to the GPCR by conformational remodeling of the conformational ensemble that a specific ligand is inducing. If this is the case the binding affinity and association rates would be biased by this remodeling process. These issues should be discussed by the authors in the manuscript.

We agree that the environment of the receptor and any modifications to this or accessory proteins will modulate the ability of receptor to assume agonist conformations and these may therefore be different from the purified protein situation. It would be impossible to mimic every environment that could occur in different μ-OR containing neurons across the nervous system. We have therefore added a caveat to our observations on receptor conformations in the eighth paragraph of the Discussion.

However, this diversity in cellular environments and the impact of environment on signaling parameters is something we are trying to avoid by using a reductionist approach as stated in the second paragraph of the Introduction. We have added a statement with this caveat in the second and third paragraphs of the Discussion.

The nanobody could potentially drive conformational remodeling of the receptor. However, Nb39 does not bind to receptor in the absence of ligand so is not driving an active conformation by itself and therefore not forcing a ligand to bind to a certain conformation. It is therefore likely that the agonist must first stabilize the receptor in an “active-like” ensemble that is competent to bind Nb39, thus the Nb39 on-rate should be directly related to the agonist’s ability to produce these active-like states. We have added a statement in the ninth paragraph of the Discussion.

3) Since µ-PAMs alone promote Nb39 binding but show no signaling is it accurate to define this assay as one measuring efficacy/intrinsic activity?

Although the mu-PAMS do not activate G protein, as measured by the [35S]GTPγS assay, they do inhibit adenylate cyclase activity, but this is very poor in line with their weak ability to recruit Nb39. Thus, we do believe this assay is measuring efficacy, and that the sensitivity of this assay is high and on the order of assays measuring downstream (and amplified) second messengers. This is discussed in more detail in our answer to point 5, below.

4) The evidence for ligand-induced unique/distinct conformations is not clear. There are kinetics of ligand association/dissociation, ion interactions, as well as the nanobody associations and dissociations which are the measured output. Without knowing the kinetics of all players how can alternative conformations be assumed as opposed to duration spent in common conformational states?

The point we make is that nanobody dissociation is altered differentially when the receptor is bound to certain agonists, and we suggest that these agonists possess unique cooperativity with Nb39 binding that allows them to produce an altered rate of dissociation of Nb39. We agree that the kinetics of ligand and ions etc. could be a confounding factor but it is clear from our data that most compounds follow a similar pattern of Nb39 dissociation except for one or two compounds, and, for example, it is not related to ligand efficacy. If ligand dissociation is a confounding factor then we might have expected differences across all ligands. However, this is not the case; the dissociation rate constant for Nb39 was similar in the presence of quickly-dissociating agonists like the endogenous ligands and slowly-dissociating agonists including buprenorphine. Nonetheless, we have added a caveat in the Discussion (eighth paragraph).

5) In many PAM programs, some of the members are PAM Agonists, i.e. it is a fine line between making it easier for an agonist to promote an active state vs. actually having the PAM itself induce the active state. It would be nice if the authors expanded on their thoughts on this a little more.

We agree with this and our data do show that the modulators themselves have some intrinsic activity because they recruit Nb39 to the receptor, albeit to a low extent (see also response to point above). This agrees with our recently published data showing that BMS986187 has agonist activity at mu-receptors at the level of adenylate cyclase (Livingston et al., 2018), although the level of efficacy is too low to be observed in GTPγS or β-arrestin assays. The high sensitivity of the assay is an additional strength. We have proposed (Livingston and Traynor, 2014) that PAM activity at the mu-opioid receptor is due to a negative, indirect, interaction between the PAM site and the Na+ ion site such that this makes it more favorable for an orthosteric agonist to drive formation of R* – this would be a PAM. If the PAM alone is sufficient to drive Na+ from its binding site this would favor transition to R* and so be an ago-PAM. Thus, there is a continuum between a NAM (negative modulator), SAM (silent modulator) which shows no interaction with the Na+ site, a PAM and an ago-PAM. The sixth paragraph of the Discussion has been extended to include these comments.

6) It is not clear exactly which 'allosteric binding model' is used in this study – standard Graphpad model? Is this the Hall model or more comprehensive model? This should be specified. Also, the authors discuss 'allosteric efficacy' and this is confusing since this implies beta effects from the allosteric functional model whereas it appears only alpha effects where measured – alpha is only part of the story as beta effects can increase or decrease ternary and quaternary complex production. In this regard, the authors need to specify why only affinity measurements should reflect everything there might be to know about the quality of the active state ensemble.

This refers to data in Figure 5D reported using the standard GraphPad model, so we agree we are only measuring alpha effects. This is now specified in the first paragraph of the subsection “Allosteric modulation of µ-OR in rHDL by small-molecule PAMs”. We used the term “allosteric efficacy” as a general term to describe the enhancement of any agonist-dependent parameter. We have replaced the words allosteric efficacy in the second paragraph of the subsection “Allosteric modulation of µ-OR in rHDL by small-molecule PAMs” and removed these words from the section heading.

7) In general, more discussion of when only G protein alpha effects reflect total opioid agonist efficacy would make this a stronger paper.

Much of the study uses Nb39 but we do show that this also applies to heterotrimeric Gabg proteins. For each Gα activated there is one Gβγ subunit so that the rank order of efficacy for measures downstream of heterotrimeric G protein should not change. However, we agree we are only measuring Gα effects and this is a limitation when considering all of the downstream processes that could involve Gα and Gβγ (e.g. Adenylate cyclase for Gα; GIRK for Gβγ) with different efficacy requirements. On the other hand, the method is a way to directly compare efficacy of the opioid molecules not the many different cascades that can happen downstream of the receptor. A comment has been added to the fifth paragraph of the Discussion.

https://doi.org/10.7554/eLife.32499.015

Article and author information

Author details

  1. Kathryn E Livingston

    1. Department of Pharmacology, University of Michigan Medical School, Ann Arbor, United States
    2. Edward F Domino Research Center, University of Michigan, Ann Arbor, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8652-4045
  2. Jacob P Mahoney

    1. Department of Pharmacology, University of Michigan Medical School, Ann Arbor, United States
    2. Edward F Domino Research Center, University of Michigan, Ann Arbor, United States
    Contribution
    Conceptualization, Writing—review and editing
    Competing interests
    No competing interests declared
  3. Aashish Manglik

    Department of Pharmaceutical Chemistry, School of Pharmacy, University of California San Francisco, San Francisco, United States
    Contribution
    Resources, Visualization, Writing—review and editing
    Competing interests
    No competing interests declared
  4. Roger K Sunahara

    Department of Pharmacology, University of California San Diego School of Medicine, La Jolla, United States
    Contribution
    Resources
    Competing interests
    No competing interests declared
  5. John R Traynor

    1. Department of Pharmacology, University of Michigan Medical School, Ann Arbor, United States
    2. Edward F Domino Research Center, University of Michigan, Ann Arbor, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Methodology, Writing—original draft, Writing—review and editing
    For correspondence
    jtraynor@umich.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1849-8316

Funding

National Institutes of Health (T32 DA007267)

  • Kathryn E Livingston

American Heart Association (13PRE17110027)

  • Jacob P Mahoney

National Institutes of Health (T32GM007767)

  • Jacob P Mahoney

National Institutes of Health (R37 DA039997)

  • John R Traynor

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by the National Institutes of Health grant R37 DA039997 (to JRT) and an EDGE award (to KEL) from the Endowment for the Basic Sciences, University of Michigan. KEL was supported by the National Institutes of Health Training grant T32 DA007267, JPM was supported by T32GM007767 and the AHA Midwest Affiliate Predoctoral Fellowship (13PRE17110027). We thank Drs. Neil Burford and Andrew Alt at Bristol-Myers Squibb for the gifts of BMS-986122 and BMS-986187. We thank Dr. John Tesmer at University of Michigan for use of equipment and facilities and Dr. Jorge Iñiguez-Lluhí for assistance in kinetic analysis.

Reviewing Editor

  1. Volker Dötsch, J.W. Goethe-University, Germany

Publication history

  1. Received: October 5, 2017
  2. Accepted: May 26, 2018
  3. Accepted Manuscript published: June 22, 2018 (version 1)
  4. Version of Record published: July 12, 2018 (version 2)

Copyright

© 2018, Livingston et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,118
    Page views
  • 481
    Downloads
  • 5
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics
    Pim J Huis in 't Veld et al.
    Research Article
    1. Biochemistry and Chemical Biology
    2. Genetics and Genomics
    Camilla Nehammer et al.
    Research Article
