Stomach-brain synchrony reveals a novel, delayed-connectivity resting-state network in humans

  1. Ignacio Rebollo  Is a corresponding author
  2. Anne-Dominique Devauchelle
  3. Benoît Béranger
  4. Catherine Tallon-Baudry
  1. École normale supérieure, INSERM, PSL Research University, France
  2. Fondation Campus Biotech Geneva, Switzerland
  3. Institut du Cerveau et de la Moelle épinière - ICM, France
Research Article
  • Cited 3
  • Views 3,678
  • Annotations
Cite this article as: eLife 2018;7:e33321 doi: 10.7554/eLife.33321

Abstract

Resting-state networks offer a unique window into the brain’s functional architecture, but their characterization remains limited to instantaneous connectivity thus far. Here, we describe a novel resting-state network based on the delayed connectivity between the brain and the slow electrical rhythm (0.05 Hz) generated in the stomach. The gastric network cuts across classical resting-state networks with partial overlap with autonomic regulation areas. This network is composed of regions with convergent functional properties involved in mapping bodily space through touch, action or vision, as well as mapping external space in bodily coordinates. The network is characterized by a precise temporal sequence of activations within a gastric cycle, beginning with somato-motor cortices and ending with the extrastriate body area and dorsal precuneus. Our results demonstrate that canonical resting-state networks based on instantaneous connectivity represent only one of the possible partitions of the brain into coherent networks based on temporal dynamics.

https://doi.org/10.7554/eLife.33321.001

eLife digest

The brain is always active. Even when it is not receiving sensory input, it generates its own spontaneous activity. This activity shapes how we interpret future sensory signals and creates our inner mental world. Moreover, this spontaneous activity is not random. When a healthy volunteer lies inside a brain scanner without performing any task, his or her brain shows predictable patterns of activity. Specific groups of brain regions – often with related roles – become active at the same time as one another. Each set of regions is referred to as a resting state network.

Of course, the brain does not operate in isolation from the rest of the body. Our internal organs continuously send signals to the brain via the spinal cord and cranial nerves. Specialized cells in the stomach wall in particular produce a slow rhythmic pattern of electrical activity. Known as the gastric rhythm, this activity helps ensure that the stomach muscles contract at the correct speed for digestion. But the stomach also produces this rhythm even when empty, suggesting that it has other roles too.

To find out what these might be, Rebollo et al. placed electrodes on the abdomen of healthy volunteers lying inside brain scanners. By examining the volunteers’ spontaneous brain activity, Rebollo et al. identified a new resting state network that is active in synchrony with the gastric rhythm. The regions within this so-called gastric network are not active at the same time as each other, but instead become active in a specific sequence that is repeated at each gastric cycle. Many of the regions within the gastric network belong to other resting state networks too. Some of the regions help regulate automatic bodily functions such as heart rate, while others process information about the body’s position in space.

The existence of the gastric network suggests a link between the automatic regulation of processes such as digestion, and spontaneous brain activity. Future studies could examine whether this link impacts perception and cognition, and whether this link plays a role in disorders where the connection between the digestive system and the brain appears to be altered.

https://doi.org/10.7554/eLife.33321.002

Introduction

The parsing of the brain into resting-state networks (RSNs) has been widely exploited to study the brain’s functional architecture in health and disease (Fox and Raichle, 2007). With long-time scales, RSNs closely match the anatomical backbone of the brain (van den Heuvel et al., 2009; Honey et al., 2009; Shen et al., 2015). With short-time scales (~10–100 s), spontaneous brain activity is characterized by the emergence and dissolution of network patterns encompassing and extending classical RSN topologies (Ponce-Alvarez et al., 2015; Shine et al., 2016) with rich temporal trajectories (Mitra et al., 2015). Temporal trajectories indicate the existence of delays between regions, whereas the methods most often used to parse brain activity into functional networks (seed-based correlation and independent component analysis) make the implicit assumption that RSNs are characterized by instantaneous or zero delay connectivity. Therefore, we analyzed delayed connectivity in resting-state BOLD signals using techniques widely used in electrophysiological studies of large-scale brain dynamics (Lachaux et al., 1999) that quantify the stability of temporal delays between time series.

More specifically, we studied the delayed coupling between resting-state brain activity and a visceral organ, the stomach. The stomach continuously produces a slow electrical rhythm (0.05 Hz, one cycle every 20 s) that can be non-invasively measured (electrogastrogram, EGG [Koch and Stern, 2004]). The gastric basal rhythm is continuously (Bozler, 1945) and intrinsically (Suzuki et al., 1986) generated in the stomach wall by a network of specialized cells, the interstitial cells of Cajal (Sanders et al., 2014), which form synapse-like connections not only with gastric smooth muscle but also with afferent sensory neurons (Powley and Phillips, 2011). The stomach is an interesting candidate for large-scale brain coordination for several reasons. First, visceral inputs can reach a number of cortical targets (Critchley and Harrison, 2013; Park and Tallon-Baudry, 2014). Second, gastric frequency (~0.05 Hz) falls within the range of BOLD fluctuations that are used to define RSNs and that are free from known cardiac and respiratory artifacts (Glerean et al., 2012). Finally, the amplitude of alpha rhythm, the dominant rhythm in the human brain at rest, depends on the phase of gastric rhythm (Richter et al., 2017).

We simultaneously recorded brain activity with fMRI and stomach activity with EGG (Figure 1a) in 30 human participants at rest with open eyes. We then determined the regions in which spontaneous fluctuations in brain activity were phase synchronized with gastric basal rhythm; we refer to these regions as the gastric network.

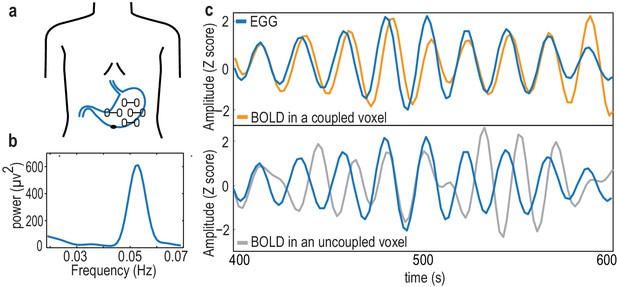

The electrogastrogram (EGG) and gastric-BOLD coupling.

(a) Bipolar electrode montage used to record the EGG. (b) Example of an EGG spectrum in a single participant, with the typical spectral signature in the normogastric frequency range (0.033–0.066 Hz). (c) Example of a 200 s time series of the EGG and BOLD signal filtered at the gastric peak frequency in an EGG-coupled voxel (top), characterized by a stable, non-zero phase relationship between EGG and BOLD, resulting in a high phase-locking value, and in an EGG-uncoupled voxel (bottom) in which no stable phase relationship between EGG and BOLD can be observed.

https://doi.org/10.7554/eLife.33321.003

Results

EGG-BOLD phase coupling defines the gastric network

We first determined gastric frequency (Figure 1b) in each participant as the frequency of the largest spectral peak within the normogastric range (0.033–0.066 Hz). The mean EGG peak frequency across the 30 participants was 0.047 Hz (±SD 0.003, range 0.041–0.053). EGG peak frequency measured inside and outside the scanner did not differ (EGG outside the scanner measured in 29 of the 30 participants, mean 0.046 Hz ± SD 0.006; two-sided paired t-test, t(28)=0.35, p=0.725 Bayes Factor <0.001, indicating decisive evidence for the null hypothesis).

In each participant and at each voxel, we quantified the degree of phase synchrony between the EGG signal and BOLD time series filtered around gastric frequency (Figure 1c). We computed the phase-locking value (PLV) (Lachaux et al., 1999), a measure widely used in electrophysiology that varies between zero when two time series show no consistent phase relationship (Figure 1c, bottom panel) and one when two time series have a consistent phase relationship over time (Figure 1c, upper panel). PLV has three important properties: PLV is high for any lag between the time series as long as this lag is constant over time, PLV is independent of signal amplitude, and PLV gives no indication on the directionality of interactions between the two time series. In each participant and at each voxel, we estimated the PLV that could be expected by chance from EGG signals that were shifted with respect to the BOLD time series. The empirical PLVs were then compared with chance-level PLVs using a cluster-based statistical procedure that intrinsically corrects for multiple comparisons (Maris and Oostenveld, 2007). Significant phase coupling between the EGG and resting-state BOLD time series occurred in twelve nodes (voxel threshold p<0.01, two-sided paired t-test between observed and chance PLV; cluster threshold corrected for multiple comparisons, Monte-Carlo p<0.05). Exact p-values are reported for each cluster in Table 1.

Table 1
Description of the 12 nodes showing larger-than-chance gastric-BOLD phase coupling.

AAL: Automated Anatomical labeling (Tzourio-Mazoyer et al., 2002). MNI: Montreal Neurological Institute.

https://doi.org/10.7554/eLife.33321.004
Node nameMonte-Carlo pSum (t)Cluster
volume
in mm3
Label AALmm3% Area in ClusterMax tMNI of max tEGG-BOLD shared Variance ± sem
XYZ
Primary Somatosensory Right (SIr)0.0049216.5180Postcentral R1718.84.845−284612.5% ± 2.0
Secondary Somatosensory Right (SIIr)0.0131146.1120Rolandic Oper R121.84.254−221315.7% ± 2.2
Heschl R64.73.951−1910
Temporal Sup R9965.357−2513
Secondary Somatosensory Left (SIIl)0.0094167.0138Postcentral L392.04.5−66−222216.6% ± 2.2
SupraMarginal L213.33.8−60−2516
Heschl L1513.13.9−54−167
Temporal Sup L6055.2−54−197
Medial Wall Motor Regions (MWM)0.0036269.5228Supp Motor Area L302.73.80−134915.8% ± 2.1
Supp Motor Area R544.54.89-452
Cingulum Mid L666.74.90−2243
Cingulum Mid R756.74.76−1043
Posterior Cingulate Sulcus (pCS)0.0061196.7171Cingulum Mid L393.94.2-9−375216.9% ± 2.3
Cingulum Mid R242.14.56−3749
Precuneus L211.23.90−3755
Precuneus R392.33.86−4052
Paracentral Lobule R399.14.115−4055
Dorsal Precuneus (dPrec)0.0071186.6156Precuneus L422.34.9-3−676112.7% ± 1.9
Precuneus R875.24.43−6464
Dorsal Precuneus Left Anterior (ladPrec)0.0178125.5108Precuneus L573.24.1-6−557312.0% ± 2.0
Paracentral Lobule L487.04.3-6−3476
Occipital Ventral (vOcc)0.0017374.2321Calcarine L181.64.10−641016.6% ± 2.6
Lingual L6664.40−677
Lingual R10894.46−70-5
Cerebellum 6 R212.34.312−70−14
Vermis 4 55115.04.60−61-2
Vermis 694.83.73−70-8
Occipital Dorsal (dOcc)0.0034285.1243Calcarine L211.843−761616.7% ± 2.7
Cuneus L13817.74.5-3−8531
Cuneus R729.94.96−7628
Extrastriate Body Area Right (EBA)0.0103163.3138Occipital Inf R458.94.548−76−1414.3% ± 2.0
Temporal Inf R271.54.457−70−11
Cerebellum Crus1 R332.44.845−82−26
Superior Parieto-Occipital Sulcus (sPOS)0.0245107.187Cuneus R212.94.621−764312.5% ± 1.8
Occipital Sup R 547.55.124−7943
Retrosplenial Cortex (RSC)0.0084175.6147Cingulum Post L31.33.5-6−431015.4% ±2.1
Cingulum Post R95.33.76−407
Lingual R181.54.19−37-2
Precuneus L362.04.4-6−497

The gastric network (Table 1, Figure 2a) comprises the right primary somatosensory cortex (SIr), bilateral secondary somatosensory cortices (SII), medial wall motor regions (MWM), comprising the caudate cingulate motor zone (CCZ), posterior rostral cingulate motor zone (RCZp), and right supplementary motor area (SMA), a region of the right occipito-temporal cortex overlapping the extrastriate body area (EBA), as well as nodes in the posterior cingulate sulcus (pCS), dorsal precuneus (dPrec), occipital cortex (ventral and dorsal portions, vOcc and dOcc), retrosplenial cortex (RSC), and superior parieto-occipital sulcus (sPOS). Estimating chance-level PLV by computing gastric-BOLD coupling between the BOLD signal of one participant with the EGG of the other 29 participants resulted in a qualitatively similar network, with coupling occurring either in the same or neighboring voxels (Supplemental Figure 2). The average shared variance between the EGG and BOLD signals across participants, as estimated from squared coherence, ranged from 12% in the left anterior dorsal precuneus to 16.9% in the posterior cingulate sulcus (Table 1).

Figure 2 with 1 supplement see all

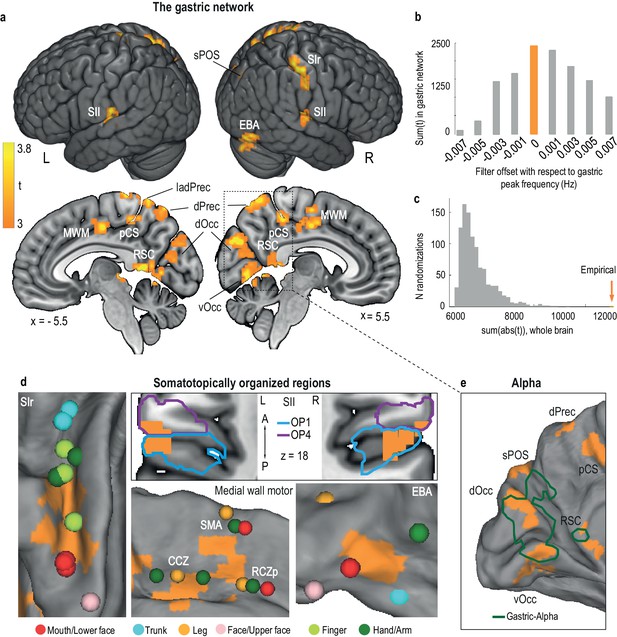

The gastric network.

(a) Regions significantly phase synchronized to gastric rhythm (n = 30, voxel level threshold, p<0.01 two-sided; cluster level threshold, p<0.05, two-sided, intrinsically corrected for multiple comparisons). (b) Gastric-BOLD coupling is specific to gastric frequency. Summary statistics in the gastric network are maximal at the EGG peak frequency (orange) and decrease when offsetting the filter to higher or lower frequencies. (c) Summary statistics distribution under the null hypothesis from 1000 surrogate datasets in which the EGG signal was time-shifted with respect to the BOLD signal. The empirical finding (orange arrow) falls well outside the null distribution. (d) The gastric network (orange) comprises the following somatotopically organized regions: primary somatosensory cortex (Panel SI, with peak activations during stimulation of the trunk and hand (Fabri et al., 2005), finger (Weibull et al., 2008), face (Kopietz et al., 2009), and mouth, that is, teeth (Trulsson et al., 2010), lips and tongue (Miyamoto et al., 2006); secondary somatosensory cortex (Panel SII, cytoarchitectonic subdivisions of SII according to (Scheperjans et al., 2008); OP1, parietal operculum 1 and OP4, parietal operculum 4, presented on a horizontal slice at z = 18); medial wall motor areas (Panel MWM, with peak activations during movement (Amiez and Petrides, 2014) in the caudate cingulate zone (CCZ), posterior rostral cingulate zone (RCZp) and supplementary motor area (SMA)); and extrastriate body area (Panel EBA with peak activations during body part viewing (Orlov et al., 2010), note that because of the visualization on an inflated cortex, the extension of the EBA node to the cerebellum is not visible). (e) Regions in which the alpha and gastric rhythms are coupled (green, modified from [Richter et al., 2017]). Abbreviations are the same as those in Table 1.

https://doi.org/10.7554/eLife.33321.005

An analysis of covariance across nodes did not reveal significant links between gastric-BOLD coupling strength (defined as the difference between empirical and chance PLV) and gender (F(1, 28)=1.02, p=0.46), body mass index (BMI) (F(1, 28)=1.3, p=0.3) or trait anxiety scores (F(1, 28)=1.02, p=0.47. Statistics (including Bayes Factor) per node are reported in Table 2. Note that there is less variation in BMI in our sample than in the general population since all participants had a BMI smaller than 25.

Table 2
Effects of demographical variables on coupling strength at each node.

Statistics are not corrected for multiple comparisons. Bayes factor smaller than 0.33 indicate evidence for the null hypothesis, Bayes factor larger than three indicate evidence for an effect

https://doi.org/10.7554/eLife.33321.009
GenderBMIStai A
tpBfrpBfrpBf
SI1.5370.1460.8300.0720.7070.1510.0220.9090.142
SIIr0.4760.6420.3750.1870.3220.230−0.0840.6570.156
SIIl2.5420.0233.4550.2700.1500.396−0.2720.1460.402
RCZp1.4290.1750.7380.1070.5750.165−0.2550.1740.353
pCS2.5060.0253.2500.1420.4540.187−0.2960.1120.493
dPrec1.2650.2270.6280.0350.8530.144−0.2430.1960.324
dPrec la1.2890.2180.6420.2240.2340.285−0.2150.2540.269
vOcc2.3420.0342.4870.3420.0650.7690.0030.9880.141
dOcc2.0750.0571.6560.3370.0690.729−0.0680.7230.150
EBA1.8820.0811.267−0.0640.7350.150−0.2500.1830.341
sPOS2.1640.0481.8890.4810.0075.133−0.1430.4500.187
RSC1.1290.2780.5560.1050.5790.165−0.3170.0880.600

Controls: gastric frequency specificity, false-positive rate, and head micromovements

To assess the robustness of the gastric network, we ran several controls. First, we verified that EGG-BOLD coupling was specific to gastric frequency. We filtered both EGG and BOLD time series at frequencies that were slightly offset from the peak gastric frequency of each participant and recomputed cluster statistics. Summary statistics (sum of the absolute t-values resulting from the paired t-test between empirical and chance-level PLV at each voxel, either summed across the whole brain or within the gastric network) decreased when shifting below or above the gastric peak frequency (Figure 2b). This result indicates that the gastric network corresponds to BOLD fluctuations specifically occurring at gastric frequency.

Second, we estimated the likelihood of false positives with our statistical procedure. We randomly sampled surrogate datasets in which a random time shift was applied to the EGG of each participant a thousand times. Next, we tested whether any of those 1000 combinations would generate summary statistics as large as the original data when compared with the chance-level estimate we used to determine significantly coupled regions at the group level (Figure 2c). This result was never observed, indicating that the probability of our results being a false positive is less than 0.001.

Third, we verified that gastric-BOLD coupling strength was unrelated to BOLD power at gastric frequency. We computed the correlation between BOLD power at gastric frequency and coupling strength for each participant and voxel, and found the two measures to be unrelated (Fisher z-transformed Pearson correlation coefficients tested against zero, t(29)=1.19, p=0.24; Bayes factor <0.001, indicating decisive evidence for the absence of a link between coupling strength across the brain and BOLD power at gastric frequency).

Finally, we investigated whether submillimeter head movements might have influenced the results. We defined voxel motion susceptibility as the regression coefficient of head movement (Power et al., 2012) from the BOLD time series. Coupling strength and voxel motion were unrelated (Fisher z-transformed Pearson correlation coefficients tested against zero, t(29)=-0.34, p=0.73; Bayes factor <0.001, indicating decisive evidence for the absence of a link between coupling strength and head movement). Stomach contractions might also lead to small head movements that could be phase locked to gastric rhythm. Although gastric rhythm is continuously produced even during fasting, it is larger during stomach contractions. Thus, we tested whether the effects we found were due to differences in EGG power (or frequency) across participants. We found no link between coupling strength in the 12 nodes and EGG power (ANCOVA, F(1, 28)=0.9, p=0.51; all Bayes factor <0.33, indicating substantial evidence for the null hypothesis) nor between coupling strength and EGG peak frequency (ANCOVA, F(1, 28)=1.6, p=0.17; Bayes Factor <0.33, indicating substantial evidence for the null hypothesis in 9 of 12 nodes; Bayes Factor <1.3 in the three remaining nodes, indicating anecdotal or no evidence).

The gastric network is thus specific to individual gastric peak frequency, is highly unlikely to be a chance finding, is not dependent on BOLD power, and is not linked to spurious effects of head movement on the BOLD signal.

The gastric network includes body maps associated with touch, action and vision

We then examined the areas comprising the gastric network in more detail. By definition, the gastric network is composed of regions with activity that co-fluctuates with gastric basal rhythm. Five nodes of the gastric network also share a common functional feature, somatotopic organization, as detailed in Figure 2d.

The gastric network includes the following regions with a well-known body representation based on touch: the right primary somatosensory cortex in the hand and mouth region and bilateral secondary somatosensory cortices. We quantified the overlap between these gastric network nodes and known cytoarchitectonic subdivisions of the somatosensory cortices (Geyer et al., 2000; Grefkes et al., 2001). The gastric network mostly overlapped with area 1 (60.2% of the SIr node) and to a lesser extent, with area 2 (13.1%) and area 3b (9.9%). The SII nodes of the gastric network overlapped with the secondary somatosensory cortices and more precisely with the somatotopically organized subdivisions of the parietal operculum OP1 and OP4 (22). The right SII node mostly overlapped with area OP1 (35.2% of the node), while the left SII node overlapped with both OP1 (21.7%) and OP4 (14.9%). Additionally, both left and right SII nodes extended more ventrally to the temporal cortex.

The gastric network also includes three medial wall motor regions (CCZ, RCZp, and SMA) that reveal their somatotopic organization when participants are required to move specific body parts (Amiez and Petrides, 2014). Note that gastric-BOLD coupling also included a more posterior area in the cingulate sulcus (pCS). Finally, the gastric network overlapped with the EBA, a region of the lateral occipital cortex activated when participants view images of body parts (Downing et al., 2001) with a clear somatotopic organization (Orlov et al., 2010). The overlap between the gastric network and EBA occurred in the lower face region, which includes the mouth.

Thus, the gastric network overlaps with body maps classically associated with different modalities, including touch in somatosensory cortices, action in MWM and vision in the EBA.

The gastric network includes regions involved in the generation of the alpha rhythm

Finally, we found gastric-BOLD coupling in the posterior bank of the parieto-occipital sulcus (dOcc and vOcc) and retrosplenial cortex. In a previous study using magneto-encephalography (Richter et al., 2017), the amplitude of the alpha rhythm in these regions was modulated by gastric phase (Figure 2e).

Gastric-brain coupling in the right posterior insula

The insula is one region that receives visceral inputs (Critchley and Harrison, 2013; Park and Tallon-Baudry, 2014), but it did not appear to be significantly phase synchronized to the EGG using our whole-brain, statistically conservative procedure. Thus, we performed post-hoc region-of-interest analysis of the three insular subdivisions (anterior dorsal, anterior ventral, posterior [Deen et al., 2011]) in both hemispheres. Only the right posterior insula showed evidence for gastric-BOLD coupling across participants (empirical vs. chance-level PLV, paired t-test, two sided, t(29)=2.78, p=0.043, Bonferroni corrected; all other regions, p>0.21).

The use of statistical thresholds results in binary outputs. To get a finer grained picture, we computed effect sizes in the 6 insular subdivisions and in the 12 gastric network nodes (Cohen’s d for the difference between empirical and chance PLV on the mean time series in each region of interest). Mean Cohen’s d across gastric network nodes was 1.19 ± 0.21 STD, ranging from 0.80 in the dorsal occipital cortex to 1.62 in the right secondary somatosensory cortex. The right posterior insula had an effect size of 0.84, within the lower range of the gastric network. All other insula subdivisions displayed smaller effect sizes (right: dorsal anterior 0.61, ventral anterior 0.54; left: posterior 0.60, dorsal anterior 0.41, ventral anterior = 0.52). Thus, the right posterior insula does show evidence for coupling with the stomach, with an effect size comparable to that of the weakest nodes of the gastric network, provided signal-to-noise ratio is first increased by averaging within a region of interest.

Partial overlap between gastric network and autonomic networks

Is the gastric network specific to the stomach, or is it also linked to other organs such as the heart? We determined brain regions (FWE corrected p<0.05; Figure 3A) fluctuating with high- and low-frequency heart rate variability, that represent parasympathetic and a mixture of sympathetic and parasympathetic outputs, respectively. Of the gastric network, 30% was also related to heart rate variability, mostly in medial motor regions and in the posterior cingulate cluster (low-frequency heart rate variability), and, to a lesser extent, in the dorsal occipital cluster (high-frequency heart rate variability). Because we did not record any measure that isolates sympathetic output, we additionally analyzed the overlap between the gastric network and known sympathetic areas (Beissner et al., 2013). This overlap was very limited (34 voxels, 4.7% of the gastric network) and confined to SIr and the anterior parts of medial motor regions (Figure 3—figure supplement 1).

Figure 3 with 1 supplement see all

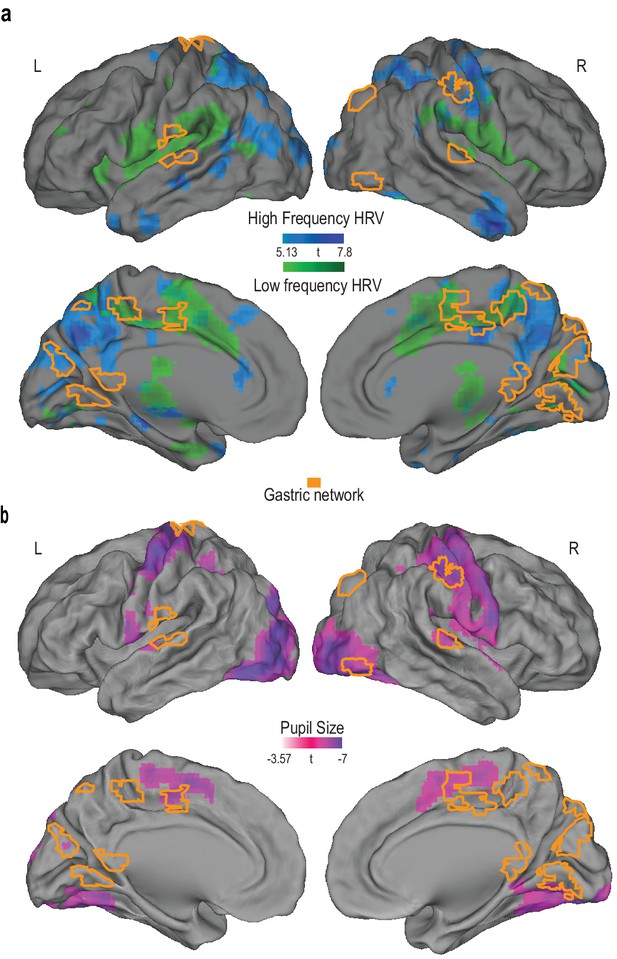

Overlap between the gastric network and regions correlating with heart rate variability and pupil size.

(A) Random effects analysis across participants (N = 30), for the main effects of high- (blue) and low (green)-frequency heart rate variability power fluctuations presented on an inflated brain (pFWE < 0.05 and 30 voxels). The gastric network is represented in orange. (B) Random effects analysis across participants (N = 20), for the main effect of pupil diameter (pink; threshold p<0.001 and 30 voxels). At this threshold, only negative correlations were observed.

https://doi.org/10.7554/eLife.33321.011

We also determined brain regions that correlate with pupil diameter (n = 20 due to data loss or artefacts; Figure 3B). The strongest correlations were found in occipital regions, somato-motor cortices and medial wall motor regions. 17% of the gastric network (SI, SIIr, MWM and EBA) overlaps with regions correlating with pupil diameter. Shared variance between pupil diameter and EGG, estimated from squared coherence, was 9.7 ± 2.5%. Coupling strength averaged across SI, SIIr, MWM and EBA did not correlate with shared pupil-EGG variance (mean r = 0.05, p=0.82, BF = 0.17 which indicates substantial evidence for the null hypothesis).

Temporal sequence within a gastric cycle and delayed connectivity between the nodes of the gastric network

In the different nodes of the gastric network, gastric-brain coupling occurred with different phase delays with respect to the gastric cycle. We analyzed between-participant phase-delay consistency and found temporal delays of ~3.3 s between the earliest nodes (somatosensory cortices) and latest nodes (dorsal precuneus and EBA) of the gastric network (Figure 4a,b). The delay in the right posterior insula was in the range of the earliest nodes of the gastric network (Figure 4a). The Watson-Williams test for circular data confirmed that different nodes of the gastric network were coupled to the gastric rhythm with different phase delays (F(11, 29)=5.22, p<10−6), indicating a precise temporal sequence of activations within each gastric cycle.

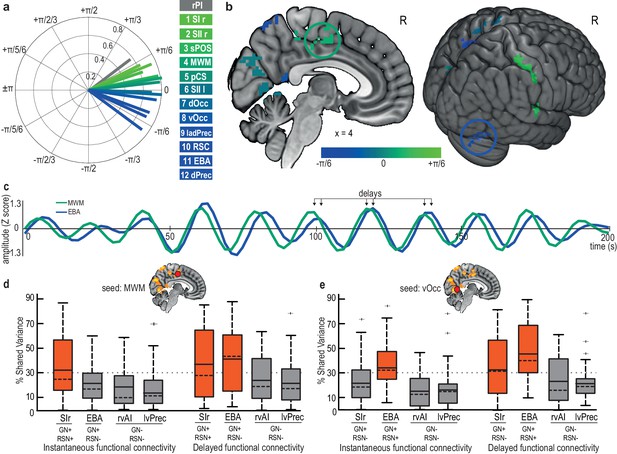

Early and late nodes of the gastric network are functionally connected but with a delay.

(a) Phase-delay consistency of each node of the gastric network. Vector length quantifies the phase consistency across participants, and vector angle indicates phase advance (green) or phase lag (blue) within the gastric network. Temporal delays can reach up to ~3.3 s (±π/6) between the earliest nodes (primary and secondary somatosensory cortices) and the latest nodes (dorsal precuneus and EBA). The right posterior insula (gray) is earlier than any node of the gastric network. (b) Group-averaged phase delays for each cluster in the gastric network. The two circled regions (EBA, blue; MWM, green) are illustrated in C. (c) A 200 s BOLD time series in MWM and EBA in a single participant, showing phase consistency with delays. (d). Group-level functional connectivity across all participants using MWM as a seed, either instantaneous (left) or delayed (right), with regions belonging or not to the gastric network (GN+/-, defined by delayed connectivity) and with regions belonging or not to the same resting-state network (RSN+/-, defined by instantaneous connectivity). Boxes are colored red when the mean FC exceeds 30%. The boxplot presents the mean (full line), median (dashed line), first and third quartiles (box), and extrema (whiskers) excluding outliers (+, defined as exceeding 1.5 interquartile ranges above the third quartile). (e) Group-level functional connectivity across all participants using the vOcc as a seed. Abbreviations: EBA, extrastriate body area; MWM, medial wall motor regions; rSI, right primary somatosensory cortex; rVAI, right ventral anterior insula; lvPrec, left ventral precuneus.

https://doi.org/10.7554/eLife.33321.016

Thus, each node of the gastric network appears to be characterized by a specific temporal delay with respect to gastric phase. These temporal delays were accompanied by delayed functional connectivity (FC) between the nodes of the gastric network.

We first illustrated this point with an example in a single participant (Figure 4c), with two 200 s time series of the gastric network (MWM and EBA). The two time series systematically co-varied with a temporal delay. The existence of temporal delays between the nodes of the gastric network is one of the reasons why the gastric network could not be observed in prior studies. Indeed, fMRI RSN studies are typically based on measures of instantaneous FC, such as shared variance estimated from the squared Pearson correlation coefficient, which does not detect the temporally delayed interactions revealed here. These measures differ from delayed FC measures based on the consistency of phase delays over time, such as shared variance estimated from squared coherence. In the example illustrated in Figure 4c, instantaneous FC between the two time series is 56%, whereas delayed FC is 86%. If we advance the timing of the medial wall time series by 2 s, instantaneous FC increases to 86%. This finding shows that the difference between the two FC estimates is due to temporal delays only.

We then estimated both instantaneous and delayed FC between all nodes of the gastric network in all participants. Delayed FC between gastric nodes (mean 40.8% ± SD 8%, ranging from 26.5% between the right primary somatosensory cortex and RSC, up to 63.9% between the ventral and dorsal occipital cortices) was systematically larger (paired t-test, t(29)=9.02, p<10−10) than instantaneous FC (mean 30.2% ± SD 11%, ranging from 9.3% between the dorsal precuneus and right SII, up to 61.2% between right and left SII). Next, we verified (Figure 4d,e) that two regions belonging to both the gastric network and the same RSN (i.e. two regions of the gastric network with little temporal delay, such as MWM and SIr) would display large values of both delayed and instantaneous FC, whereas two regions belonging to the gastric network but not to the same classical RSN (i.e. two regions of the gastric network with a large temporal delay, such as MWM and EBA) would show large delayed FC and small instantaneous FC. Thus, in contrast to classical RSNs, the gastric network appears to be characterized by between-node delayed connectivity.

Slow temporal fluctuations in gastric-BOLD coupling are associated with changes in BOLD amplitude and occur simultaneously in all nodes

Thus far, we have identified a sequence of activation that occurs at each gastric cycle, which characterizes gastric-BOLD coupling. We then investigated whether slow temporal fluctuations in the strength of gastric-BOLD coupling were accompanied by fluctuations in BOLD amplitude. As illustrated in Figure 5a, we found that episodes of elevated gastric-BOLD synchronization corresponded to episodes of increased BOLD amplitude. Indeed, time-varying PLV and BOLD time series, computed in sliding time windows of 60 s (approximately three gastric cycles), were significantly correlated (Fisher z-transformed Pearson correlation coefficients t-tested against zero, Bonferroni corrected p<0.006 in all gastric nodes, mean r across nodes 0.18 STD =± 0.02, ranging from 0.15 in MWM to 0.22 in SIIl).

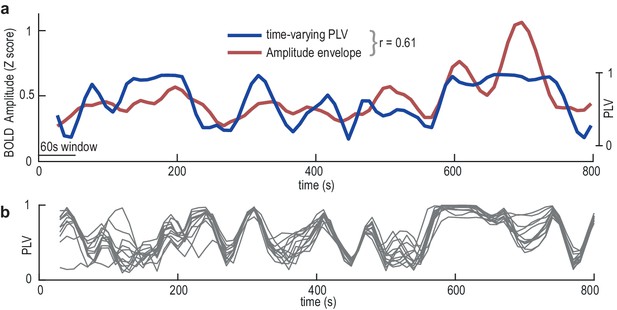

Dynamic fluctuations in EGG-BOLD coupling.

(a) Data from the superior parieto-occipital sulcus in a single participant showing the correlation (r = 0.61) between the time-varying gastric-BOLD coupling (PLV, blue) and the amplitude envelope of the BOLD time series (red). (b) Time-varying PLV at each node of the gastric network in the same participant showing a strong correlation across nodes (average r across all possible node pairs 0.35).

https://doi.org/10.7554/eLife.33321.019

Next, we tested whether slow temporal fluctuations in gastric-BOLD synchronization occurred simultaneously or independently in the different nodes of the gastric network (Figure 5b). We computed the correlation between time-varying PLVs for all possible node pairs in each participant and found that at the group level, this correlation was significantly positive (Fisher z-transformed average Pearson correlation coefficients against zero, t(29)=9.22, p<10−10, mean r = 0.129 ± STD 0.075, range across participants 0.02–0.35). To determine whether the overall pattern of synchronous fluctuations in gastric-BOLD coupling strength was driven by specific node pairs, we investigated correlations between node pairs. All node pairs but RSC-SIr, sPOS-RSC, sPOS-SIIr and sPOS-ladPrec showed a significant positive correlation at the group level (Fisher z-transformed Pearson correlation coefficients in all pairs tested against zero, Bonferroni corrected). The three nodes showing the largest covariation in time-varying PLV with the other nodes were dPrec, pCS and vOcc, and the three nodes showing the least covariation in time-varying PLV with the other nodes were RSC, SIr and sPOS. Thus, slow temporal fluctuations in gastric-BOLD coupling are associated with changes in BOLD amplitude and occur simultaneously in all nodes.

Discussion

Here, we reveal the existence of the gastric network, comprising brain regions with BOLD time series that are phase synchronized with gastric basal rhythm. Within the gastric network, approximately 15% of the BOLD variance is explained by gastric-BOLD phase synchrony. The gastric network cuts across classical RSNs and shows only partial overlap with autonomic control regions. A number of brain regions composing the gastric network have convergent functional properties involved in mapping bodily space through touch, action and vision. The network is characterized by a precise temporal sequence of activations within a gastric cycle, beginning with somato-motor cortices and ending with extra-striate body area and dorsal precuneus. This temporal sequence is accompanied by delayed functional connectivity between nodes of the gastric network, which explains why this RSN could not be identified with standard correlation methods that only capture instantaneous connectivity. Furthermore, slow temporal fluctuations in gastric-BOLD coupling are associated with changes in BOLD amplitude and occur simultaneously in all nodes. Thus, our results suggest that canonical RSNs based on instantaneous connectivity represent only one of the possible partitions of the brain into coherent networks based on temporal dynamics.

Neural origin of gastric-BOLD coupling

SIr, SII and medial wall motor regions likely receive direct gastric inputs. The stimulation of the splanchnic (spinal) nerve that innervates the stomach evokes responses in contralateral SI and bilateral SII in several mammals (Amassian, 1951), and the spinothalamic tract was recently shown to target MWM in monkeys (Dum et al., 2009). Vagal stimulation can also evoke responses in somato-motor cortices (Ito et al., 2003). In addition, single neurons with convergent visceral and hand inputs have been observed in SI (Brüggemann et al., 1997), in line with the overlap we observed between the gastric network and hand representation. SIr, SII and MWM are not only targeted by documented ascending visceral pathways, they are also early nodes of the gastric network, with a phase advance compared with that of other nodes. Thus, these areas could be the entry point of gastric afferences.

We found the right posterior insula, a region that receives direct cardiac inputs in monkeys (Zhang et al., 1998) and is considered as a visceral cortex, to be coupled with the stomach, with coupling similar to the weakest node of the gastric network. In addition, the right posterior insula appeared with a phase advance, in line with its role in visceroception. To be revealed, gastric-BOLD coupling in the right posterior insula required a region-of-interest approach, that is an increase of signal-to-noise ratio by averaging across voxels. The modest involvement of the insula in the present data might be due to the absence of an interoceptive task. Indeed, BOLD signal in the insula increases when participants explicitly monitor a visceral variable (see, e.g.[Critchley et al., 2004]).

Regions receiving direct visceral inputs are also early nodes of the gastric network. This suggests that the BOLD fluctuations locked to the gastric rhythm have a neural origin. An additional argument for a neural origin is that we found gastric-BOLD coupling in parieto-occipital regions, where neural activity in the alpha range is modulated by gastric phase (Richter et al., 2017). However, below, we examine the possibility that other non-neural mechanisms might contribute to gastric-BOLD coupling.

Artefactual BOLD fluctuations caused by head movements driven by stomach contractions seem unlikely. Indeed, gastric-BOLD coupling was neither related to head movement nor to EGG power that increases during stomach contractions. Another possibility is a vascular artifact. During digestion, gastric blood flow does indeed vary (Matheson et al., 2000), but cerebral blood flow is unaltered (Gallavan et al., 1980). Artificial distension of the stomach can cause increases in peripheral blood pressure (Min et al., 2011), but this peripheral increase is mostly due to the insertion of a bag catheter, not to its inflation (Cantù et al., 2008). Finally, spontaneous fluctuations in blood pressure in humans occur at approximately 0.1 Hz (so-called Mayer waves), which is much faster than gastric rhythm. Thus, a vascular effect seems unlikely, and the hypothesis that activity in the gastric network is driven by neural activity in areas directly receiving ascending inputs appears more plausible.

What is the functional role of the gastric network?

Twenty years and thousands of articles after the discovery of the default network, the debate on its functional role at rest or during tasks is still open. Thus, any discussion of the functional role the gastric network can only be tentative and speculative at this stage. Several non-mutually exclusive interpretations can nevertheless be considered.

The functional role of the coupling between stomach and body maps might be related to homeostatic regulations, which would account for the partial overlap between the gastric network and regions involved in heart rate variability. More specifically, the gastric network might be involved in the regulation of digestion, which is accompanied by changes in cardiac output and heart rate (Kelbaek et al., 1989). In addition, the unusual experimental setting with abdominal electrodes and a moderate fasting state might have drawn participants' attention toward their internal state, notably of hunger. Since participants had been fasting for only 2 hr, their state of hunger was probably rather moderate and unlikely to have dominated their spontaneous thoughts for 20 min.

We find areas containing body maps in the gastric network. This could simply indicate that the stomach, as any other body part, such as for example the hand, is represented in any body map. The body maps of the gastric network are classically associated with different sensory modalities and resting-state networks. In addition to the primary and secondary somatosensory cortices, the gastric network includes MWM (CCZ, RCZp and SMA) that are involved in motor preparation and display a clear somatotopic organization (Amiez and Petrides, 2014; Picard and Strick, 2001). The gastric network also comprises the EBA, a functional region in the occipito-temporal cortex that selectively responds to visual images of the human body (Downing et al., 2001; Weiner and Grill-Spector, 2011) and is causally involved in body visual recognition (Urgesi et al., 2007), with a fine topographical organization (Orlov et al., 2010). The stomach, an organ that cannot be easily touched, moved or seen, thus appears to be mapped in body maps related to touching, moving or seeing the body. However, the areas where the stomach is represented are more multi-sensory than usually held. The EBA is not purely visual since it is also activated when participants move or imagine body parts without visual feedback (Astafiev et al., 2004), as well as during haptic recognition of body parts (Kitada et al., 2009; Costantini et al., 2011). Primary somatosensory cortex combines internal and external bodily information since it receives both tactile and visceral afferents (Brüggemann et al., 1997; Follett and Dirks, 1994). Medial wall motor regions do not only contain motor maps but also receive visceral inputs (Levinthal and Strick, 2012). Thus, activity in 5 out of the 12 nodes of the gastric network could be simply explained by a representation of the stomach in the brain body maps.

However, the gastric network is not limited to body maps, it also comprises regions that play a role in mapping the external space in bodily coordinates, namely, the right superior parieto-occipital sulcus, dorsal precuneus and RSC. The superior parieto-occipital sulcus region is a visuo-motor area that encodes visual stimuli in bodily coordinates during action (Bernier and Grafton, 2010). The dorsal precuneus and RSC both implement the integration of information into an egocentric reference frame (i.e. centered on the body), a key basic mechanism involved in many different situations (Burgess et al., 2001; Vann et al., 2009), including foraging. All 12 nodes of the gastric network but three (the posterior cingulate sulcus and ventral and dorsal occipital clusters) either contain body maps or map external information in bodily coordinates. One could thus speculate that the gastric network coordinates these different body-centered maps. Indeed, the gastric rhythm is continuously produced and originates in the center of the body. In this view, the function of gastric-BOLD coupling in those nine areas would be to co-register body-centered maps of the body and of the external space.

In which type of tasks would the gastric network play a role? Foraging and feeding behaviors are likely candidates, since they involve both the coordination of different egocentric maps and the homeostatic regulation of digestion. Besides, in SI and EBA gastric-BOLD coupling is maximal in the hand and mouth region, suggesting a potential link with the stereotypical actions of feeding behavior, where food goes from hand to mouth, and from mouth to stomach. Still, the coordination of different systems of bodily coordinates is important for many actions besides feeding, such as navigating in the environment or grasping any object. Whether the gastric network plays a role in food-related, but also nonfood-related behaviors, remains to be determined.

Delays and directionality of interactions

The gastric network is characterized by temporal fluctuations with delays between the gastric rhythm and brain regions. Delays in resting-state functional connectivity have been highlighted only recently (Yellin et al., 2015; Mitra and Raichle, 2016), but have long been documented in stimulus-induced BOLD responses (Saad et al., 2001; Kruggel et al., 1999). Within functionally coherent systems such as the visual (Saad et al., 2001) or auditory (Kruggel et al., 1999) systems, delays of 2 s are common. In this light, our finding of up to 3 s delays between areas much further apart thus not appear so surprising. Still, the interpretation of long delays is not straightforward. They are unlikely to directly reflect synaptic delays of fast sequential neural transmission between areas since feed-forward transfer, with only minimal local computations, can be as fast as 10 to 15 ms per processing stage (Thorpe et al., 1996). However, if local recurrent processing is involved, longer delays might occur. Delays might additionally reflect regional differences in the timing of the vascular response (Saad et al., 2001; Kruggel et al., 1999), in slow changes of neural activity over time, as in accumulation processes (Yellin et al., 2015), or in the involvement of neuromodulatory influences. The different factors may further be combined, that is neuromodulation might affect cerebrovascular reactivity (Krimer et al., 1998).

What is the directionality of the brain-stomach interactions? The methods used here do not allow to answer this question since PLV is not a directed measure. If the gastric network plays a role in homeostasis, interactions are likely to be bidirectional, because homeostasis implies both the monitoring of ascending inputs, to evaluate the peripheral state, and the production of descending control commands. Medial wall motor regions, which both receive inputs from the spino-thalamic tract, and generate sympathetic outputs, might fit with this schema. On the other hand, the gastric-locked modulation of the alpha rhythm in the ventral and dorsal occipital clusters was previously shown to be mostly due to ascending influences from the stomach to the brain (Richter et al., 2017).

The gastric network is a novel resting-state network

RSNs have been defined as segregated systems that show synchronous fluctuations during rest (Fox and Raichle, 2007). The gastric network, albeit distinct from classical RSNs falls under this definition. In terms of dynamics, the gastric network is defined by its phase synchronization with the stomach and its delayed connectivity between nodes. The gastric network can thus be considered a novel RSN that could not be previously observed due to methodological reasons.

As opposed to classical RSNs, the gastric network is characterized by delayed connectivity, with temporal delays that can extend to several seconds but are stable over time and captured by coherence and phase synchrony. Delays are an intrinsic characteristic of brain dynamics unfolding in anatomically connected networks (Deco et al., 2011) and pervasive even at the timescale of BOLD signal fluctuations (Mitra et al., 2015). Canonical RSNs based on instantaneous connectivity represent only one of the possible partitions of the brain into coherent networks based on temporal dynamics. Therefore, we propose the addition of delayed connectivity to the operational definition of RSNs.

Materials and methods

Experimental procedure

Participants

Thirty-four right-handed human participants took part in this study. All volunteers were interviewed by a physician to ensure the following inclusion criteria: absence of digestive, psychiatric or neurological disorders; BMI between 18 and 25; and compatibility with MRI recordings. Participants received a monetary reward and provided written informed consent for participation in the experiment and publication of group data. The study was approved by the ethics committee Comité de Protection des Personnes Ile de France III (approval identifier: 2007-A01125-48). All participants fasted for at least 90 min before the recordings. Data from four participants were excluded. Two were excluded because coughing artifacts caused excessive head movement during acquisition and corrupted the EGG data, and two were excluded because their EGG spectrum did not show a clear peak that could allow us to identify the frequency of their gastric rhythm. A total of 30 participants (mean age 24.2 ± SD 3.31, 15 females, mean BMI 21.48 ± SD 1.91) were included in the analysis described below. Because effect size was not known a priori, the study was powered to detect medium size effect (i.e. slightly above the median sample size of fMRI studies [Poldrack et al., 2017]).

MRI data acquisition

MRI was performed at 3 Tesla using a Siemens MAGNETOM Verio scanner (Siemens, Germany) with a 32-channel phased-array head coil. The resting-state scan lasted 900 s during which participants were instructed to lay still and fixate on a bull’s eye on a gray background. A functional MRI time series of 450 volumes was acquired with an echo-planar imaging (EPI) sequence and the following acquisition parameters: TR = 2000 ms, TE = 24 ms, flip angle = 78°, FOV = 204 mm, and acquisition matrix = 68×68 × 40 (voxel size = 3×3 × 3 mm3). Each volume comprised 40 contiguous axial slices covering the entire brain. High-resolution T1-weighted structural MRI scans of the brain were acquired for anatomic reference after the functional sequence using a 3D gradient-echo sequence (TE = 1.99 ms, TR = 5000 ms, TI-1 = 700 ms/TI-2=2500 ms, flip angle-1 = 4°/flip angle-2 = 5°, bandwidth = 240 Hz/pixel, acquisition matrix = 240 × 256×224, and isometric voxel size = 1.0 mm3). The anatomical sequence duration was 11 min 17 s. Cushions were used to minimize head motion during the scan.

Physiological signal acquisition

Physiological signals were simultaneously recorded during functional MRI acquisition using MRI compatible equipment. The electrogastrogram (EGG) and electrocardiogram (ECG) were acquired using bipolar electrodes connected to a BrainAmp amplifier (Brain products, Germany) placed between the legs of participants; the electrodes received a trigger signaling the beginning of each MRI volume. EGG was acquired at a sampling rate of 5000 Hz and a resolution of 0.5 μV/bit with a low-pass filter of 1000 Hz and no high-pass filter (DC recordings). ECG was acquired at a sampling rate of 5000 Hz and a resolution of 10 μV/bit with a low-pass filter of 1000 Hz and a high-pass filter of 0.016 Hz. Eye position and pupil diameter were recorded from the right eye with an EYELINK 1000 (SR Research, Canada) and simultaneously sent to BrainAmp amplifiers.

The skin of participants was rubbed and cleaned with alcohol to remove dead skin, and electrolyte gel was applied improve the signal-to-noise ratio. The EGG was recorded via four bipolar electrodes placed in three rows over the abdomen, with the negative derivation placed 4 cm to the left of the positive one. Figure 1a shows the electrode placement scheme. Electrodes covered a large portion of the left abdomen, to increase the chance of having an electrode close to the pacemaker of the stomach, located at the greater curvature of the mid to upper corpus (O'Grady et al., 2010). Because the gastric rhythm propagates from the pacemaker zone to the whole stomach, any electrode placed over the stomach (not necessarily over the pacemaker) will record the gastric rhythm, but with a possible delay. The midpoint between the xyphoid process and umbilicus was identified, and the first electrode pair was set 2 cm below this area, with the negative derivation set at the point below the rib cage closest to the left mid-clavicular line. Another electrode pair was set 2 cm above the umbilicus and aligned with the first electrode pair. The positive derivation of the third pair was set in the center of the square formed by electrode pairs one and two. The positive derivation of the fourth electrode pair was centered on the line traversing the xyphoid process and umbilicus at the same level as the third electrode. The ground electrode was placed below the lower left costal margin. The ECG was acquired using three bipolar electrodes that shared the same negative derivation, set at the third intercostal space. The positive derivations were set at the fifth intercostal space and separated by 4 cm.

Electrophysiological data were collected during fMRI data acquisition, as well as at least 30 s before and after. In addition, to rule out the possibility that the scanner pulse and B0 magnetic field could distort the frequency content of the EGG, a second EGG acquisition with an 8 min duration was performed after the acquisition of the MRI scans, with the participant positioned outside the tunnel of the scanner. Paired sample t-test was then performed to compare the peak frequencies obtained for each participant inside the scanner with those obtained outside the scanner for the same channels. This control analysis was run on 29 participants due to corrupted data in the EGG recordings outside the scanner tunnel in one participant.

MRI preprocessing

Brain imaging data were preprocessed using Matlab (Matlab 2013b, MathWorks, Inc., United States) and the Statistical Parametric Mapping toolbox (SPM 8, Wellcome Department of Imaging Neuroscience, University College London, U.K.). Images of each individual participant were corrected for slice timing and motion with six movement parameters (three rotations and three translations). Two participants who moved more than 3 mm during the functional scan were excluded from the study. Each participant’s structural image was normalized to Montreal Neurological Institute (MNI) space of 152 participants’ average T1 template provided by SPM with affine registration followed by nonlinear transformation (Ashburner and Friston, 1999; Friston et al., 1995). The normalization parameters determined for the structural volume were then applied to the corresponding functional images. The functional volumes were spatially smoothed with a 3 mm3 full-width half-maximum (FWHM) Gaussian kernel. The time series of voxels inside the brain, as determined using an SPM a priori mask, were subjected to the following preprocessing steps using the FieldTrip toolbox (Oostenveld et al., 2011) (Donders Institute for Brain, Cognition and Behaviour, Radboud University Nijmegen, the Netherlands. See http://www.ru.nl/neuroimaging/fieldtrip, release 01/09/2014). Linear and quadratic trends from each voxel’s time series were removed by fitting and regressing basis functions, and we bandpass filtered the BOLD time series between 0.01 and 0.1 Hz using a fourth order Butterworth infinite impulse response filter. A correction for cerebrospinal fluid motion was obtained by regressing out the time series of a 9 mm diameter sphere located in the fourth ventricle (MNI coordinates of the center of the sphere [0 –46 −32]).

EGG preprocessing

Data analysis was performed using the FieldTrip toolbox. Data were low-pass filtered below 5 Hz to avoid aliasing and downsampled from 5000 Hz to 10 Hz. To identify the EGG peak frequency (0.033–0.066 Hz) for each participant, we computed the spectral density estimate at each EGG channel over the 900 s of an EGG signal acquired during the fMRI scan using Welch’s method on 200 s time windows with 150 s overlap. Spectral peak identification was based on the following criteria: peaking power larger than 15μV2 and sharpness of the peak. Two participants were excluded from further analysis at this stage because their spectral peak was not well defined, with a power smaller than 15μV2. In 20 participants, peaking power was the largest at the EGG electrode with the best defined spectral peak. In 10 participants, we used the second most powerful channel because the spectral peak was sharper. Data from the selected EGG channel were then bandpass filtered to isolate the signal related to gastric basal rhythm (linear phase finite impulse response filter, FIR, designed with Matlab function FIR2, centered at EGG peaking frequency, filter width ±0.015 Hz, filter order of 5). Data were filtered in the forward and backward directions to avoid phase distortions and downsampled to the sampling rate of the BOLD acquisition (0.5 Hz). Filtered data included 30 s before and after the beginning and end of MRI data acquisition to minimize ringing effects.

MR gradient artifacts affect the electrophysiological signal down to approximately 10 Hz, which is far above EGG frequency (~0.05 Hz). Thus, no specific artifact gradient procedure was necessary. We further checked that EGG frequency inside and outside the scanner did not differ (see Results).

Data analysis

Quantification of gastric-BOLD phase synchrony

The BOLD signals of all brain voxels were bandpass filtered with the same filter parameters as the ones used for the EGG preprocessing. The first and last 15 volumes (30 s) were discarded from both the BOLD and EGG time series. The updated duration of the fMRI and EGG signals in which the rest of the analysis was performed was 840 s. The Hilbert transform was applied to the BOLD and EGG time series to derive the instantaneous phases of the signals. The PLV (Lachaux et al., 1999) was computed as the absolute value of the time average difference in the angle between the phases of the EGG and each voxel across time (Equation 1).

(1) PLVx,y=|1Tt=1Tei(x(t)y(t))|

where T is the number of time samples, and x and y are the two time series. The PLV measures phase synchrony irrespective of temporal delays and amplitude fluctuations and is bounded between 0 (no synchrony) and 1 (perfect synchrony). Two pure sinewaves at the same frequency will thus always have a PLV of 1. However, the stomach is not perfectly regular, and the EGG is not a perfect sinewave. The phase-locking procedure identifies BOLD regions that go faster when the stomach goes faster, and slower when the stomach goes slower. The bandpass filter we use is large enough to retrieve all those fluctuations. The PLV was first assessed over the whole duration of the recording. In a second step, we computed the time-varying PLV in a 60 s time window shifted by 10 s.

Statistical procedure for determining regions showing significant gastric-BOLD coupling at the group level

We employed a two-step statistical procedure adapted from a previous work (Richter et al., 2017). We estimated chance-level gastric-BOLD coupling at each voxel and in each participant. We then used group-level statistics to determine regions in which gastric-BOLD coupling was greater than chance.

We first estimated the chance-level PLV at each voxel for each participant. We created surrogate datasets in which the phase relationship between the EGG and BOLD time series was disrupted by offsetting the EGG time series with respect to the BOLD time series. In other word, acceleration/deceleration in the EGG are no longer aligned with the acceleration/deceleration in the BOLD. In practice, the EGG time series was shifted by a time interval of at least ±60 s (i.e. approximately 3 cycles of the gastric rhythm) with respect to the BOLD time series. Data at the end of the recording were wrapped to the beginning. Given the 420 samples in the BOLD time series, this procedure generated 360 surrogate datasets from which we could compute the distribution of the chance-level PLV for each voxel in each participant. The chance-level PLV was defined as the median value of the chance-level PLV distribution for each voxel and participant. Because the amplitudes of the series in the surrogate datasets are identical to the original ones, any bias due to signal amplitude is present in both original and surrogate datasets. Note that PLV is a measure that depends on sample size (Vinck et al., 2010; Bastos and Schoffelen, 2015). Here, we can safely compare PLV values between the original and surrogate datasets in each participant because the original and surrogate datasets contain exactly the same number of samples (420 samples in all datasets in all participants). We defined coupling strength as the difference between the empirical PLV and chance-level PLV.

In a second step, we tested whether the empirical PLV differed from the chance-level PLV across participants. We used a cluster-based permutation procedure (Maris and Oostenveld, 2007), as implemented in FieldTrip (Oostenveld et al., 2011), that extracts clusters of voxels showing significant differences at the group level while intrinsically correcting for multiple comparisons. This non-parametric method is exempt from the high rate of false positives associated with the Gaussian shape assumption often present in fMRI studies (Eklund et al., 2016). The procedure consists of comparisons between the empirical PLV and chance-level PLV across participants using t-tests at each voxel. Candidate clusters are formed by neighboring voxels exceeding the first-level t-threshold (p<0.01, two-sided). Each candidate cluster is characterized by the sum of the t-values in the voxels defining the cluster. To determine the sum of t-values that could obtained by chance, we computed a cluster statistics distribution under the null hypothesis by randomly shuffling the labels ‘empirical’ and ‘chance level’ 10,000 times and applied the clustering procedure. At each permutation, we retained the largest positive and smallest negative summary statistics obtained by chance across all voxels and thus built the distribution of cluster statistics under the null hypothesis and assessed the empirical clusters for significance. Because the maximal values across the whole brain are retained to build the distribution under the null hypothesis, this method intrinsically corrects for multiple comparisons. Clusters are characterized by their summary statistics (sum(abs(t))) and Monte-Carlo p value. Clusters with a Monte-Carlo p value<0.05 (two-sided, corrected for multiple comparisons) were considered significant and are reported in the Results section as nodes of the gastric network.

As an additional control, we computed gastric-BOLD coupling at each voxel between the BOLD data of the participant and the EGG data of the other 29 participants. Chance-level PLV was defined as the median of the 29 surrogate PLVs, and compared to empirical PLV using the clustering method described above. Note that in this case, chance level PLV is estimated from only 29 surrogate data sets, as compared to 360 surrogate data sets in time-shift approach, resulting in a less precise estimate.

Quantification of gastric-bold shared variance

To estimate the amount of variance in the BOLD signal that could be accounted for by gastric coupling, we computed the squared coherence coefficient between the EGG and average BOLD time course across all voxels in each significant cluster using FieldTrip software. The coherence coefficient measures phase and amplitude consistency across time and is a frequency domain analog of the cross-correlation coefficient in the temporal domain. Therefore, its squared value can be interpreted as the amount of shared variance between two signals at a certain frequency (Bastos and Schoffelen, 2015). First, we estimated the frequency spectrum of the full-band (0.01–0.1 Hz) EGG and BOLD signals (Welch method on a 120 s time window with 20 s overlap). We then computed the coherence coefficient between the spectrum of each participant’s EGG and each cluster’s time series at gastric frequency (ω) as the absolute value of the product of the amplitudes (A) of the signals and their phase (φ) difference averaged across time windows (t) and normalized by the square root of the product of their squared amplitudes averaged across time windows.

(2) cohxy(ω)=|1Tt=1TAx(w,t)Ay(w,t)ei(φx(w,t)φy(w,t))|(1Tt=1TAx2(w,t))(1Tt=1TAy2(w,t))

The coherence coefficient was then squared and averaged across participants such that the final group value represented the shared variance between the EGG and each cluster BOLD activity at the normogastric peak.

Between-participant phase-delay consistency

To quantify temporal delays in the gastric network, we ran group-level analysis on the gastric-BOLD phase-locking angle. In each participant, we first computed a mean BOLD time series per node by averaging the voxel time series in each significant cluster. We then computed the relative phase-locking angle ϕk relative of the node k between the node time series x and the EGG y using equation 3, where ϕk relative corresponds to the phase-locking angle ϕk of node k with respect to the EGG minus the average angle across all nodes. ϕk relative thus quantifies the phase advance or lag of each node relative to the gastric network. We analyze relative, rather than absolute phase values, because of there might be a constant but unknown phase delay between the recorded EGG and the rhythm of the gastric pacemaker.

(3) Φk=arg(1Tt=0Tei(ϕx(t)ϕy(t)))
(4) Φk relative = Φk 1KkKΦk

Between-participant phase-delay consistency was then obtained at each node by averaging the unit vectors of the relative phase-locking angles across P participants using Equation 5.

(5) Betweenparticipantphasedelayconsistencyk=|1PP=1Pei(ϕk)|

To determine whether there were significant differences across the angle of gastric network clusters, we submitted the values of each node and participant’s relative phase-locking angle to Watson-Williams test, a circular analog of one-way ANOVA for circular data, using the circstat Matlab toolbox (Berens, 2009)

Functional connectivity: correlation and coherence

FC was defined as shared variance and computed using either the squared Pearson correlation coefficient or squared coherence. We computed the Pearson correlation between the bandpass-filtered BOLD time series (gastric peaking frequency ± 0.015 Hz) averaged across voxels in each gastric node, as well as in two control regions outside the gastric network, the right ventral precuneus and right ventral insula. The ventral precuneus, a core node of the default network, was defined using a 9 mm3 ROI centered in the coordinates provided by Fox et al. (2005) (MNI x=-5 y = −52.5 z = 41). The right ventral insula ROI was provided by the parcellation performed by Deen et al. (2011).

To compute coherence between BOLD time series, we first estimated the frequency spectrum of the full-band (0.01–0.1 Hz) BOLD time series using the Welch method with 36 time windows of 120 s with 20 s overlap. We then computed coherence using the FieldTrip implementation of equation number two and used the squared coherence at the gastric peak frequency of each participant as an estimate of shared variance.

Heart rate variability analysis

We first removed the MRI gradient artefact from the ECG data using the FMRIB plug-in (Iannetti et al., 2005; Niazy et al., 2005, version 1.21) for EEGLAB (Delorme and Makeig, 2004, version 14.1.1), provided by the University of Oxford Centre for Functional MRI of the Brain (FMRIB). Data from the three ECG channels was then 1–100 Hz bandpass filtered using a FIR filter, designed with Matlab function firws. We then retrieved the inter-beat-interval (IBI) time series by identifying R peaks using a custom semi-automatic algorithm, which combined automatic template matching with manual selection of R peaks for extreme IBIs. This procedure was performed in the ECG channel of each participant that required the least manual identification of R peaks. The resulting IBI time series were then interpolated at 1 Hz using a spline function (order 3), and band-pass filtered at high (0.04–0.15 Hz) and low frequencies (0.15–0.4 Hz) of heart rate variability using a FIR filter (designed with Matlab function FIR2, center frequency for LFHRV 0.1 Hz ± 0.06 Hz, HFHRV centered at 0.275 ± 0.125 Hz) and then downsampled at MRI frequency (0.5 Hz). The amplitude envelope of HF- and LF-HRV were then computed using the Hilbert transform and used as regressors of interest (without convolution with the HRF as in [Critchley et al., 2003]) in two separate first level GLMs, which also included six movements parameters as regressors. The MRI pre-processing parameters were the same as for the gastric-BOLD coupling analysis (slice-timing and motion correction, co-registration to MNI space and spatial smoothing of FWHM = 3 mm). The BOLD time series were high-pass filtered (cutoff: 128 s) for the GLM analysis. GLM analysis was performed using SPM8 (Friston et al., 1994).

Contrast images from the first level were entered into two separate second level random-effects analysis to test for consistent effects across the 30 participants separately for HF and LF HRV. The contrast images were spatially smoothed (FWHM = 8 mm), and submitted to a one-sample T-test. Statistical inference was performed at the voxel level, family-wise-error-corrected (pFWE < 0.05) for multiple comparisons over the whole brain.

Pupil diameter analysis

Pupil size during blinks and saccades (as automatically detected by the EyeLink software) was estimated by interpolating between pupil size 100 ms before and 100 ms after each event. Artefacted windows separated by less than 200 ms were combined and treated as a single epoch. Data from seven participants were excluded due to a high (>20%) amount of artefacted data. Data from three participants were excluded because MRI and pupil data could not be synchronized, due to missing triggers. Pupil data from the remaining 20 participants were downsampled at MRI frequency (0.5 Hz), bandpassed filtered (0.0078–0.1 Hz) using a butterworth infinite impulse response filter and used as a regressor (convolved with the canonical HRF as in [Yellin et al., 2015; Schneider et al., 2016]) in a first level GLM, which also included six movement nuissance regressors. The BOLD time series were high-pass filtered (cutoff: 128 s) for the GLM analysis (SPM8). Contrast images from the first level were entered into a second level random-effects analysis to test for consistent effects of pupil size across the 20 participants. The contrast images were spatially smoothed (FWHM = 8 mm), and submitted to a one-sample T-test. Statistical inference was performed at the voxel level, (p<0.001, uncorrected for multiple comparisons).

Bayes factor

Bayesian statistics on correlation coefficients were computed and interpreted according to (Wetzels and Wagenmakers, 2012) and (Kass and Raftery, 1995), and Bayesian statistics on two sample (unpaired) comparisons according to (Rouder and Morey, 2011). Regarding the specific test of an absence of effect of voxel motion susceptibility on coupling strength (H0), submillimeter voxel motion was estimated as in (Power et al., 2012), and H1 was modeled as the minimum effect size required to detect a significant difference from zero, given one-sample t-test of 29 degrees of freedom on a normal distribution with a mean of 0 and a standard deviation of 1. The same method was used to test for the absence of a difference between the EGG peak frequency measured inside and outside the scanner.

Anatomical and functional overlays and meta-analysis

Functional group-level images were overlaid on a 3D rendering of the MNI template using MRIcroGL (https://www.nitrc.org/frs/?group_id=889, June 2015). The results from the literature were converted when necessary from Talairach coordinates to MNI coordinates using the nonlinear transform provided by (http://imaging.mrc-cbu.cam.ac.uk/imaging/MniTalairach) and visualized using Caret software (Van Essen et al., 2001) (http://www.nitrc.org/projects/caret/, v5.65). Overlap of the gastric network with cytoarchitectonic subdivisions of primary and secondary somatosensory cortices was determined with the anatomy toolbox for SPM (Eickhoff et al., 2005; Eickhoff et al., 2007; Eickhoff et al., 2006).

Nifti overlays availability

Unthresholded t maps of empirical vs chance PLV comparisons (intermediate step for Figure 2a), mask of significant clusters (Figure 2a), unthresholded and significant mask of HF and LF HRV and pupil diameter (Figure 3) and average phase-locking angle of each significant cluster (Figure 4b) are available at Neurovault (Gorgolewski et al., 2015) at the following address: http://neurovault.org/collections/GMHHGEXA/

Custom code

The custom code used for this article (Rebollo, 2018) can be accessed online at the following address: https://github.com/irebollo/stomach_brain_Scripts. A copy is archived at https://github.com/elifesciences-publications/stomach_brain_Scripts.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
    CircStat: AMATLABtoolbox for circular statistics
    1. P Berens
    (2009)
    Journal of Statistical Software, 31, 10.18637/jss.v031.i10.
  8. 8
  9. 9
    The action potentials of stomach
    1. E Bozler
    (1945)
    American Journal of Physiology-Legacy Content 144:693–700.
    https://doi.org/10.1152/ajplegacy.1945.144.5.693
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
    Bayes Factors
    1. RE Kass
    2. AE Raftery
    (1995)
    Journal of the American Statistical Association 90:773–795.
    https://doi.org/10.1080/01621459.1995.10476572
  41. 41
  42. 42
  43. 43
    Handbook of Electrogastrography
    1. K Koch
    2. R Stern
    (2004)
    New York: Oxford University Press.
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
    How networks communicate: propagation patterns in spontaneous brain activity
    1. A Mitra
    2. ME Raichle
    (2016)
    Philosophical Transactions of the Royal Society B: Biological Sciences 371:20150546.
    https://doi.org/10.1098/rstb.2015.0546
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87

Decision letter

  1. Hugo Critchley
    Reviewing Editor; University of Sussex, United Kingdom

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Stomach-brain synchrony binds neural representations of the body in a novel, delayed-connectivity resting-state network" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and David Van Essen as the Senior Editor. The following individual involved in review of your submission has agreed to reveal his identity: Hugo Critchley (Reviewer #1).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Rebollo and colleagues measured phase coupling between the blood-oxygen level dependent (BOLD) signal and stomach slow-wave potentials in resting humans. In their manuscript, the authors describe a novel, elegant experiment through which they achieved this goal obtaining an interesting set of findings. Simultaneous functional magnetic resonance imaging (fMRI) and electrogastrography (EGG) recordings revealed that the time series of stomach slow waves and the time series of BOLD signal are significantly phase-coupled in twelve different voxel clusters scattered across the brain – a set of clusters that the authors call "gastric network". In these clusters the empirically measured phase-locking value (PLV) of the two-time series is significantly different from the median value of simulated PLVs that could be expected by chance.

The empirical PLV is computed plugging the amplitude-normalised, Fourier-transformed values of the two series into the classical equation for coherence. In turn, squared coherence is used to estimate of shared variance between the BOLD signal and slow-wave potentials: on average, between 12% and 16.9%. The authors used PLV to calculate the relative phase-locking angle of each node of the gastric network – a measure of the lag between an event in the slow-wave cycle and the corresponding change of BOLD phase in a voxel cluster. This led them to conclude that some gastric network nodes are up to 3.3 s slower to adjust their phase to slow-wave potentials than other nodes. Such delays are accompanied by corresponding delays in between-node functional connectivity. Thus, in contrast with classical resting-state networks, the gastric network nodes are related to each other not only through instantaneous flows of current, but also through delayed connectivity.

The reviewers were impressed at the technical achievements described and agreed on the good aspects, potential interest and significance of this MS. The reviewers also recognised the need for some additional informative analyses. BTW I did not comment on the lack of Insula activity because that was the first and most striking observation!

Essential revisions:

1) Testing phase timing relationships that take into account any temporal differences seems counterintuitive: Band-pass filtering at a specific frequency (here around 3 cycles per min) would reveal areas showing that frequency: The difference between high and low PVL reflects the consistency with which a region expresses that frequency, rather than necessarily any implied causal relationship perhaps. Can the authors present a clearer picture concerning causal relationships between EGG and brain haemodynamics?

2) In establishing the individual specificity of the relationships, the authors chose not to randomise across participants the testing of EGG (from other participants) PSVs with brain haemodynamics: Would this be a more or less powerful demonstration of the individual specificity of brain coupling to gastric rhythm?

3) The authors make a case for the gastric coupling to be unrelated to typical autonomic regulation areas, including insula, based on citation of a meta-analysis of largely task evoked changes in cardiovascular and or electrodermal autonomic responses. While this meta-analysis does include some HRV data and resting studies, they are predominantly focused on sympathetic cardiovascular arousal, which may be associated with EGG suppression. The author's acquired heart rate and pupil data on their participants, suggesting they could either test within their data for autonomic overlap with EEG-coupled areas on an individual basis, or test if EEG frequency rhythms apparent within these autonomic data series.

4) The measurement of slow fluctuations within already slow haemodynamic signal changes and suggesting that seconds-long lags between regions that argued to be functionally connected are both somewhat removed from the heuristic model of <10ms-a-synapse processing and representation of sensory information within and between brain regions. It is for example possible that the neural input signal is modulating cerebrovascular reactivity /tonicity through intrinsic neuromodulatory systems rather than reflecting neuron to neuron information exchange. If the gastric input anchors body centered representations within a single functional system, the differential regional expression of significant time lags requires more mechanistic explanation.

5) Related to this is the controversial claim is the statement that the newly discovered coupling between gastric rhythm and resting-state BOLD signal "appears to bind together distributed maps encoded in bodily coordinates into a coherent functional system (subsection “Gastric network and bodily space”)".

This assertion should be discussed in more detail. First, the very idea that synchronous oscillations serve a high-level cognitive purpose as binding may not be completely proved, as the unresolved debate over binding-by-γ-synchrony shows (Merker, 2013; Ray and Maunsell, 2015). Rather than acting as an information-processing neural code of a sort, γ oscillations may simply be a neural signature of the balance between excitation and inhibition. Likewise, the EGG-BOLD synchrony found by the authors may reflect general homeostatic processes which do not play a particular role in cognition. Cerebral blood flow supplies nutrients to neurons, and such nutrients come from digestive processes. In this context, the slow-wave potentials of interstitial cells of Cajal may simply trigger food intake, given the fact that participants fasted for at least 90 minutes before the experiment (Subsection “Experimental procedure”). This could explain why the gastric network so neatly overlaps with areas mapping faces and hands in general (OP1 and OP4: subsection “The gastric network includes body maps associated with touch, action and vision”), the mouth (EBA: subsection “The gastric network includes body maps associated with touch, action and vision”), teeth, lips, tongue, and hand fingers (right SI: subsection “The gastric network includes body maps associated with touch, action and vision”), as well as with three medial wall motor preparation regions (CCZ, RCZp, and SMA: subsection “The gastric network includes body maps associated with touch, action and vision”) which become more active when subjects are asked to move their tongue or their hand (Amiez and Petrides, 2014). The authors previously excluded that variations in cerebral blood flow could be due to digestion, although they backed their position with a single 1980 study on regional blood flow in the conscious dog (Gallavan et al., 1980). Nevertheless, they should consider the opposite hypothesis, namely, that the lack of nutrients to digest may spawn a long-range synchrony between the stomach and brain areas related to food intake. Data on caloric intake prior to the experiment, blood ghrelin levels, or a self-reported hunger scale may have shed light on the issue. Thus, I recommend the authors discuss and rule out more mundane interpretations before asserting that "stomach-brain synchrony binds neural representations of the body".

6) The interesting, newly-discovered synchrony arises in a resting state: In a task-free environment, what is the functional advantage of having "different body-centered representations" anchored by a delayed-connectivity gastric network (subsection “The gastric network is a novel resting-state network”) with lags up to 3.3 seconds? Of note, previous "binding-by-synchrony" proposals were based on task-dependent results.

7) Only 5 out of 12 nodes of the gastric network have a clear somatotopic organisation (subsection “Experimental procedure”): thus, "binding" interpretation of the authors does not explain the role that the majority of the nodes play in the network. Even the nodes which do have a somatotopic arrangement contain neurons tuned to the external perception of body parts, be it touch (nodes partially overlapping with SI and SII), motor preparation (MWM) or vision (EBA). As the authors concede, the stomach is "an organ that cannot be easily touched, moved, or seen (subsection “Gastric network and bodily space”)". It is intriguing and difficult to understand why the network revealed here seems organized around brain areas involved in body and bodily space as well as the stronger claim that it is gastric rhythm by itself that functionally links these areas.

8) The authors make the point that SI, SII and MWM "likely" have direct gastric input, hence their claim that gastric-BOLD coupling has a neural origin (subsection “Neural origin of gastric-BOLD coupling”). Yet the insular cortex is almost completely missing from the gastric network (subsection “Marginal gastric-brain coupling in the insula and autonomic control networks”). This is surprising, given that the insula is certainly linked to the stomach and likely supports representations of the whole body (Craig, 2002, 2009). The authors should advance a clear hypothesis to explain this seemingly counter-intuitive finding which relates to the real meaning of the brain-stomach synchronization.

9) The authors should discuss the possibility that unusual measuring circumstances, wherein the participants lie in the scanner with electrodes fitted on their stomach area, create unusual conditions leading heightened awareness of the own body. This is not to say that activity in all nodes of the current network is directly and primarily related to body awareness. Indeed, some areas (SI, SII) receive direct gastric input. The network presented here may be less homogeneous than argued here and that activity in some of the nodes may have multiple bases. This would particularly seem to be the case for EBA and one can imagine different explanations for activity in EBA and for the fact that it comes on the latest. In the same vein, some arguments in defense of the representational specificity of the network appear overly speculative, e.g. suggestions about the spatial aspects of the body representation function.

https://doi.org/10.7554/eLife.33321.022

Author response

Summary:

Rebollo and colleagues measured phase coupling between the blood-oxygen level dependent (BOLD) signal and stomach slow-wave potentials in resting humans. In their manuscript, the authors describe a novel, elegant experiment through which they achieved this goal obtaining an interesting set of findings. Simultaneous functional magnetic resonance imaging (fMRI) and electrogastrography (EGG) recordings revealed that the time series of stomach slow waves and the time series of BOLD signal are significantly phase-coupled in twelve different voxel clusters scattered across the brain – a set of clusters that the authors call "gastric network". In these clusters the empirically measured phase-locking value (PLV) of the two-time series is significantly different from the median value of simulated PLVs that could be expected by chance.

The empirical PLV is computed plugging the amplitude-normalised, Fourier-transformed values of the two series into the classical equation for coherence. In turn, squared coherence is used to estimate of shared variance between the BOLD signal and slow-wave potentials: on average, between 12% and 16.9%. The authors used PLV to calculate the relative phase-locking angle of each node of the gastric network – a measure of the lag between an event in the slow-wave cycle and the corresponding change of BOLD phase in a voxel cluster. This led them to conclude that some gastric network nodes are up to 3.3 s slower to adjust their phase to slow-wave potentials than other nodes. Such delays are accompanied by corresponding delays in between-node functional connectivity. Thus, in contrast with classical resting-state networks, the gastric network nodes are related to each other not only through instantaneous flows of current, but also through delayed connectivity.

The reviewers were impressed at the technical achievements described and agreed on the good aspects, potential interest and significance of this MS. The reviewers also recognised the need for some additional informative analyses. BTW I did not comment on the lack of Insula activity because that was the first and most striking observation!

We thank the reviewers for their time and positive comments, as well as for their useful suggestions to improve data analysis and discussion. Briefly, we performed all required controls and additional data analysis, notably a refined analysis of the insula and analysis of HRV and pupil diameter. We have also rewritten large sections of the Discussion section, in particular to offer a more balanced and comprehensive view of the different possible functional roles of the gastric network (trying to synthetize all comments from the reviewers on this issue, i.e., points 5, 6,7,9), and to discuss the possible origins of the long delays observed here.

We respond to each point in detail below.

Essential revisions:

1) Testing phase timing relationships that take into account any temporal differences seems counterintuitive: Band-pass filtering at a specific frequency (here around 3 cycles per min) would reveal areas showing that frequency: The difference between high and low PVL reflects the consistency with which a region expresses that frequency, rather than necessarily any implied causal relationship perhaps. Can the authors present a clearer picture concerning causal relationships between EGG and brain haemodynamics?

We are measuring temporal (phase) differences that are consistent over gastric cycles, without any a priori on the value of the temporal difference. One of the reasons why we chose this approach is that the phase of the gastric rhythm recorded by external, cutaneous electrodes is arbitrary. This important information was missing in the previous version. Briefly, the gastric rhythm is mostly generated in the pacemaker zone located at the greater curvature of the mid to upper corpus and propagates to the rest of the stomach with delays (O'Grady et al., 2010). Depending on where the electrodes are located with respect to the pacemaker zone, we might pick the gastric rhythm with a delay specific to a given participant and electrode. Hence, the measure of interest is the consistency of the delay between BOLD and EGG across gastric cycles, rather than an absolute delay value. This is now specified in subsection “EGG preprocessing”). Note that this is also the reason why we analyze relative, rather than absolute, delays between nodes (now explained in subsection “Between-participants phase-delay consistency”).

The second issue raised in the comment is that "band-pass filtering would reveal areas showing gastric frequency". The band passed EGG and BOLD data contain information about amplitude and phase. PLV is sensitive to phase, but not amplitude (as now specified when introducing PLV in the Results section). We nevertheless verified that coupling strength and BOLD power at gastric frequency were not correlated (Bayes factor<0.001, indicating decisive evidence for the absence of a link between coupling strength across the brain and BOLD power at gastric frequency). This result has been added to subsection “Partial overlap between gastric network and autonomic networks”.

In addition, while we used a procedure validated in a previous study (Richter et al., 2017), we realized that the procedure was not fully explained in the previous version of this article. We have modified the Material and methods section to be more explicit. Briefly, the whole method relies on the fact that the stomach is not perfectly regular, and the EGG is not a perfect sine wave. The phase-locking procedure identifies BOLD regions that go faster when the stomach goes faster, and slower when the stomach goes slower. The band pass filter we use is large enough to retrieve all those fluctuations. In the surrogate dataset, the phase link between the BOLD and the EGG is broken because the two-time series are no longer temporally aligned. Furthermore, any bias due to power of the BOLD at gastric frequency is also present in the surrogate datasets and is thus taken into account.

Last, regarding causality: PLV reveals consistent temporal relationships between two-time series, independently from amplitude, but does not say anything about the directionality of interactions. This is now specified when introducing PLV in the Results section. We have also added a full paragraph in the Discussion section about the directionality of interactions.

2) In establishing the individual specificity of the relationships, the authors chose not to randomise across participants the testing of EGG (from other participants) PSVs with brain haemodynamics: Would this be a more or less powerful demonstration of the individual specificity of brain coupling to gastric rhythm?

We opted for randomizing within participants for two reasons: first, this is a more conservative approach, since the only difference between empirical and surrogate datasets is BOLD-EGG phase relationships. Second, we can create a large number of surrogate datasets (360), to obtain a good estimate of chance level PLV.

Still, we ran this control and now also report the gastric-network when estimating chance-level PLV by computing gastric-BOLD coupling between the BOLD signal of one participant with the EGG of the other 29 participants. Although this approach should be more liberal (i.e., EGG frequency and power in the surrogate data are different from the original data) and less powerful (we estimate chance level PLV in each participant from only 29 surrogate data sets), the results are qualitatively similar, with coupling occurring either in the same or neighboring voxels. This additional control is presented in Figure 2, and the Material and methods section updated.

3) The authors make a case for the gastric coupling to be unrelated to typical autonomic regulation areas, including insula, based on citation of a meta-analysis of largely task evoked changes in cardiovascular and or electrodermal autonomic responses. While this meta-analysis does include some HRV data and resting studies, they are predominantly focused on sympathetic cardiovascular arousal, which may be associated with EGG suppression. The author's acquired heart rate and pupil data on their participants, suggesting they could either test within their data for autonomic overlap with EEG-coupled areas on an individual basis, or test if EEG frequency rhythms apparent within these autonomic data series.

- Heart-rate variability. We identified the brain regions associated with high and low frequency heart rate variability in our data, at rest (subsection “Partial overlap between gastric network and autonomic networks”). Briefly, the overlap between the gastric network with HRV regions is larger (30%) than previously observed with metanalytic data. The overlap occurs mostly in medial motor regions and in the posterior cingulate cluster, and, to a lesser extent, in the dorsal occipital clusters. We now present those results in a new Figure 3A. The overlap between a pure sympathetic measure (EDA) from the meta-analysis of Beissner et al., is presented in Figure 3—figure supplement 1, as well as the comparison between the resting state HRV (HF and LF) and meta-analytic HF-HRV and EDA. Note that in this new analysis we do find a link between low-frequency HRV and insula, as expected from the literature. We have modified the discussion to acknowledge the partial overlap between the gastric network and heart-rate variability regions.

- Pupil. As now reported in the Results section:

" We also determined brain regions that correlate with pupil diameter (n=20 due to data loss or artefacts; Figure 3B). The strongest correlations were found in occipital regions, somato-motor cortices and medial wall motor regions. 17% of the gastric network (SI, SIIr, MWM and EBA) overlaps with regions correlating with pupil diameter. Shared variance between pupil diameter and EGG, estimated from squared coherence, was 9.7% ± 2.5%. Coupling strength averaged across SI, SIIr, MWM and EBA did not correlate with shared pupil-EGG variance (mean r= 0.05, p=0.82, BF= 0.17 which indicates substantial evidence for the null hypothesis). "

These two new analysis led us to reconsider the potential link between gastric-BOLD coupling and homeostatic regulations, as reflected in the new section of the discussion entitled "What is the functional role of the gastric network?".

4) The measurement of slow fluctuations within already slow haemodynamic signal changes and suggesting that seconds-long lags between regions that argued to be functionally connected are both somewhat removed from the heuristic model of <10ms-a-synapse processing and representation of sensory information within and between brain regions. It is for example possible that the neural input signal is modulating cerebrovascular reactivity /tonicity through intrinsic neuromodulatory systems rather than reflecting neuron to neuron information exchange. If the gastric input anchors body centered representations within a single functional system, the differential regional expression of significant time lags requires more mechanistic explanation.

We have added a full paragraph on delays in the Discussion section:

"The gastric network is characterized by temporal fluctuations with delays between the gastric rhythm and brain regions.[…] The different factors may further be combined, i.e. neuromodulation might affect cerebrovascular reactivity(55)."

5) Related to this is the controversial claim is the statement that the newly discovered coupling between gastric rhythm and resting-state BOLD signal "appears to bind together distributed maps encoded in bodily coordinates into a coherent functional system (subsection “Gastric network and bodily space”)".

This assertion should be discussed in more detail. First, the very idea that synchronous oscillations serve a high-level cognitive purpose as binding may not be completely proved, as the unresolved debate over binding-by-γ-synchrony shows (Merker, 2013; Ray and Maunsell, 2015). Rather than acting as an information-processing neural code of a sort, γ oscillations may simply be a neural signature of the balance between excitation and inhibition. Likewise, the EGG-BOLD synchrony found by the authors may reflect general homeostatic processes which do not play a particular role in cognition. Cerebral blood flow supplies nutrients to neurons, and such nutrients come from digestive processes. In this context, the slow-wave potentials of interstitial cells of Cajal may simply trigger food intake, given the fact that participants fasted for at least 90 minutes before the experiment (Subsection “Experimental procedure”). This could explain why the gastric network so neatly overlaps with areas mapping faces and hands in general (OP1 and OP4: subsection “The gastric network includes body maps associated with touch, action and vision”), the mouth (EBA: subsection “The gastric network includes body maps associated with touch, action and vision”), teeth, lips, tongue, and hand fingers (right SI: subsection “The gastric network includes body maps associated with touch, action and vision”), as well as with three medial wall motor preparation regions (CCZ, RCZp, and SMA: subsection “The gastric network includes body maps associated with touch, action and vision”) which become more active when subjects are asked to move their tongue or their hand (Amiez and Petrides, 2014). The authors previously excluded that variations in cerebral blood flow could be due to digestion, although they backed their position with a single 1980 study on regional blood flow in the conscious dog (Gallavan et al., 1980). Nevertheless, they should consider the opposite hypothesis, namely, that the lack of nutrients to digest may spawn a long-range synchrony between the stomach and brain areas related to food intake. Data on caloric intake prior to the experiment, blood ghrelin levels, or a self-reported hunger scale may have shed light on the issue. Thus, I recommend the authors discuss and rule out more mundane interpretations before asserting that "stomach-brain synchrony binds neural representations of the body".

We agree with the reviewer that the use of the term "binding", or any reference a computational role of synchronous oscillations, were inappropriate; they have been removed (see also points 6 and 7).

In the new subsection "What is the functional role of the gastric network", we explicitly acknowledge that any discussion on the functional role of the gastric network is speculative at this point. We now consider several possibilities: a general role in homeostasis, a more specific role in digestion, a simple cortical mapping of the stomach (a body part) on body part maps, or a more speculative interpretation in terms of coordination of bodily coordinates. Note that the title has also be modified (see minor point 2) to be more factual: "Stomach-brain synchrony reveals a novel, delayed-connectivity resting-state network".

6) The interesting, newly-discovered synchrony arises in a resting state: In a task-free environment, what is the functional advantage of having "different body-centered representations" anchored by a delayed-connectivity gastric network (subsection “The gastric network is a novel resting-state network”) with lags up to 3.3 seconds? Of note, previous "binding-by-synchrony" proposals were based on task-dependent results.

The term "binding", or any reference a computational role of synchronous oscillations, were inappropriate; they have been removed (see also points 5 and 7).

In the new subsection "What is the functional role of the gastric network" we now propose different functions for the gastric network. Some of them are relevant during cognitive rest (homeostatic regulation, digestion), others would be useful during actions such as navigation or grasping. Note that we also explicitly acknowledge the speculative nature of the discussion of the functional role of the gastric network.

7) Only 5 out of 12 nodes of the gastric network have a clear somatotopic organisation (subsection “Experimental procedure”): thus, "binding" interpretation of the authors does not explain the role that the majority of the nodes play in the network. Even the nodes which do have a somatotopic arrangement contain neurons tuned to the external perception of body parts, be it touch (nodes partially overlapping with SI and SII), motor preparation (MWM) or vision (EBA). As the authors concede, the stomach is "an organ that cannot be easily touched, moved, or seen (subsection “Gastric network and bodily space”)". It is intriguing and difficult to understand why the network revealed here seems organized around brain areas involved in body and bodily space as well as the stronger claim that it is gastric rhythm by itself that functionally links these areas.

The term "binding", or any reference a computational role of synchronous oscillations, were inappropriate; they have been removed (see also points 5 and 6).

While we retained the notion of functional connectivity between areas (as routinely used in fMRI studies), we no longer make the stronger claim that the gastric rhythm functionally links these areas.

In the new subsection "What is the functional role of the gastric network", we explicitly propose different tentative and non-mutually exclusive interpretations. The hypothesis of a simple cortical mapping of the stomach (a body part) on body part maps accounts for 5 out of the 12 nodes of the gastric network. As rightly underlined by the reviewer, this hypothesis involves a convergence between external and internal information and we know highlight the multi-sensory nature of SI, EBA and MWM.

We have also clarified the more speculative hypothesis that the gastric network coordinates areas involved in body and bodily space:

"However, the gastric network is not limited to body maps, it also comprises regions that play a role in mapping the external space in bodily coordinates, namely, the right superior parieto-occipital sulcus, dorsal precuneus and RSC. […] In this view, the function of gastric-BOLD coupling in those 9 areas would be to co-register body-centered maps of the body and of the external space. "

8) The authors make the point that SI, SII and MWM "likely" have direct gastric input, hence their claim that gastric-BOLD coupling has a neural origin (subsection “Neural origin of gastric-BOLD coupling”). Yet, the insular cortex is almost completely missing from the gastric network (subsection “Marginal gastric-brain coupling in the insula and autonomic control networks”). This is surprising, given that the insula is certainly linked to the stomach and likely supports representations of the whole body (Craig, 2002, 2009). The authors should advance a clear hypothesis to explain this seemingly counter-intuitive finding which relates to the real meaning of the brain-stomach synchronization.

We have considerably refined our analysis of the insula (subsection “Gastric-brain coupling in the right posterior insula”). Indeed, the use of statistical thresholds results in a binary output. To avoid this issue, we computed the effect size of gastric-BOLD coupling in the 6 insular ROIs, as well as in the 12 gastric nodes. Effect size in the right posterior insula was similar to that of the weakest node of the gastric network. This indicates the right posterior insula does show evidence for coupling with the stomach, provided signal-to-noise ratio is increased by averaging within a region of interest. We also analyzed the phase delay of the right posterior insula and show that the right posterior insula behaves as an early node, which is in line with its role in visceroception.

In addition, we underline in the Discussion section that the modest involvement of the insula in the present data might be due to the absence of an interoceptive task.

9) The authors should discuss the possibility that unusual measuring circumstances, wherein the participants lie in the scanner with electrodes fitted on their stomach area, create unusual conditions leading heightened awareness of the own body. This is not to say that activity in all nodes of the current network is directly and primarily related to body awareness. Indeed, some areas (SI, SII) receive direct gastric input. The network presented here may be less homogeneous than argued here and that activity in some of the nodes may have multiple bases. This would particularly seem to be the case for EBA and one can imagine different explanations for activity in EBA and for the fact that it comes on the latest. In the same vein, some arguments in defense of the representational specificity of the network appear overly speculative, e.g. suggestions about the spatial aspects of the body representation function.

The unusual measuring circumstances are now acknowledged. In the new subsection entitled "What is the functional role of the gastric network?", we specifically consider the possibility that participants' attention was drawn to their internal state (notably hunger, see also point 5).

Regarding delays, in the revised version we only highlight areas that come first as regions receiving visceral inputs. We have added a new subsection entitled "Delays and directionality of interactions", where we list the different possible explanations for long delays.

Last, we concur with the reviewer about the speculative discussion of the functional role of the gastric network. This section of the Discussion section has been completely rewritten to offer a more balanced and comprehensive view of the different possibilities, trying to synthetize all comments from the reviewers on the functional role of the gastric network (i.e., points 5, 6,7,9). The hypothesis that gastric network coordinates different body-centered maps is explained more clearly, and its speculative nature highlighted.

https://doi.org/10.7554/eLife.33321.023

Article and author information

Author details

  1. Ignacio Rebollo

    Laboratoire de neurosciences cognitives, Département d’études cognitives, École normale supérieure, INSERM, PSL Research University, Paris, France
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    For correspondence
    ignarebo@gmail.com
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4119-9955
  2. Anne-Dominique Devauchelle

    1. Laboratoire de neurosciences cognitives, Département d’études cognitives, École normale supérieure, INSERM, PSL Research University, Paris, France
    2. Fondation Campus Biotech Geneva, Geneva, Switzerland
    Contribution
    Data curation, Software, Investigation, Made substantial contributions to the acquisition and analysis of the data, Revised the article and provided approval for the final version of the article
    Competing interests
    No competing interests declared
  3. Benoît Béranger

    Centre de NeuroImagerie de Recherche, Institut du Cerveau et de la Moelle épinière - ICM, Paris, France
    Contribution
    Investigation, Made substantial contributions to the acquisition of the data, Revised the article and provided approval for the final version of the article
    Competing interests
    No competing interests declared
  4. Catherine Tallon-Baudry

    Laboratoire de neurosciences cognitives, Département d’études cognitives, École normale supérieure, INSERM, PSL Research University, Paris, France
    Contribution
    Conceptualization, Data curation, Supervision, Funding acquisition, Methodology, Writing—original draft, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8480-5831

Funding

H2020 European Research Council (670325)

  • Catherine Tallon-Baudry

Agence Nationale de la Recherche (ANR-10-LABX-0087 IEC)

  • Catherine Tallon-Baudry

DIM cerveau et pensee

  • Ignacio Rebollo

Fondation Bettencourt Schueller

  • Ignacio Rebollo

Agence Nationale de la Recherche (ANR-10-IDEX-0001-02 PSL*)

  • Catherine Tallon-Baudry

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by the European Research Council (ERC) under the European Union’s Horizon 2020 research and innovation program (grant agreement No 670325) to CT-B, as well as by ANR-10-LABX-0087 IEC and ANR-10-IDEX-0001–02 PSL*. IR was supported by a grant from DIM Cerveau et Pensée and Fondation Bettencourt-Schueller. We thank Margaux Romand-Monnier for help during data acquisition.

Ethics

Human subjects: Participants received provided written informed consent for participation in the experiment. The study was approved by the ethics committee Comité de Protection des Personnes Ile de France III

Reviewing Editor

  1. Hugo Critchley, University of Sussex, United Kingdom

Publication history

  1. Received: November 3, 2017
  2. Accepted: March 20, 2018
  3. Accepted Manuscript published: March 21, 2018 (version 1)
  4. Version of Record published: May 4, 2018 (version 2)

Copyright

© 2018, Rebollo et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,678
    Page views
  • 518
    Downloads
  • 3
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Neuroscience
    Apurwa M Sharma et al.
    Research Advance
    1. Neuroscience
    Anton Miroschnikow et al.
    Research Article
