Thalidomide promotes degradation of SALL4, a transcription factor implicated in Duane Radial Ray syndrome

  1. Katherine A Donovan
  2. Jian An
  3. Radosław P Nowak
  4. Jingting C Yuan
  5. Emma C Fink
  6. Bethany C Berry
  7. Benjamin L Ebert
  8. Eric S Fischer  Is a corresponding author
  1. Dana-Farber Cancer Institute, United States
  2. Harvard Medical School, United States
  3. Brigham and Women’s Hospital, United States
https://doi.org/10.7554/eLife.38430
Share this article
Cite this article
  1. Katherine A Donovan
  2. Jian An
  3. Radosław P Nowak
  4. Jingting C Yuan
  5. Emma C Fink
  6. Bethany C Berry
  7. Benjamin L Ebert
  8. Eric S Fischer
(2018)
Thalidomide promotes degradation of SALL4, a transcription factor implicated in Duane Radial Ray syndrome
eLife 7:e38430.
https://doi.org/10.7554/eLife.38430
  2. Download BibTeX
  3. Download .RIS

Abstract

In historical attempts to treat morning sickness, use of the drug thalidomide led to the birth of thousands of children with severe birth defects. Despite their teratogenicity, thalidomide and related IMiD drugs are now a mainstay of cancer treatment; however, the molecular basis underlying the pleiotropic biology and characteristic birth defects remains unknown. Here we show that IMiDs disrupt a broad transcriptional network through induced degradation of several C2H2 zinc finger transcription factors, including SALL4, a member of the spalt-like family of developmental transcription factors. Strikingly, heterozygous loss of function mutations in SALL4 result in a human developmental condition that phenocopies thalidomide-induced birth defects such as absence of thumbs, phocomelia, defects in ear and eye development, and congenital heart disease. We find that thalidomide induces degradation of SALL4 exclusively in humans, primates, and rabbits, but not in rodents or fish, providing a mechanistic link for the species-specific pathogenesis of thalidomide syndrome.

https://doi.org/10.7554/eLife.38430.001

eLife digest

Thalidomide was sold in the 1950s and 1960s as a sedative and anti-nausea medication for pregnant women suffering from morning sickness. Studies in mice and other animals had suggested thalidomide was safe and led some countries to allow the drug to be used in humans. By 1961, it became clear that thalidomide use by pregnant women led to serious birth defects, and the drug was removed from the market. By then, thalidomide had caused birth defects in over 10,000 babies, a tragedy that has been described as the biggest man-made medical disaster in human history. It led many countries to adopt tougher standards for drug safety.

Thalidomide and similar drugs are now used with great success to treat leprosy and various blood cancers. But questions remain about exactly how the drugs work and how they cause birth defects like shortened arms and legs. Previous studies have shown that thalidomide binds to a protein called cereblon, which marks other proteins for destruction and removal from the cell. Thalidomide hijacks cereblon and causes it to tag the wrong proteins.

To learn more about how thalidomide causes birth defects, Donovan et al. treated human embryonic stem cells and cancer cells with thalidomide and related drugs. Analyzing the proteins inside the cells revealed that the drugs caused dramatic reductions in the amount of a protein called SALL4, which is essential for limb development. It was already known that mutations in the gene that produces SALL4 cause two conditions called Duane Radial Ray syndrome and Holt-Oram syndrome. Both conditions can result in birth defects like those seen in babies exposed to thalidomide.

As well as showing that thalidomide-hijacked cereblon marks SALL4 for destruction, Donovan et al. also reveal why mice do not develop birth defects when exposed to thalidomide. This is because genetic differences make the mouse cereblon proteins unable to tag SALL4. Researchers could now build on these results to develop safer versions of thalidomide that do not target SALL4 while still successfully treating leprosy and cancers.

https://doi.org/10.7554/eLife.38430.002

Introduction

Thalidomide was first marketed in the 1950s as a nonaddictive, nonbarbiturate sedative with anti-emetic properties, and was widely used to treat morning sickness in pregnant women. Soon after its inception, reports of severe birth defects appeared, but it was denied that these were linked to thalidomide. In 1961, two independent reports confirmed that thalidomide was causative to this, the largest preventable medical disaster in modern history (Lenz, 1962; McBride, 1961). In addition to thousands of children born with severe birth defects, there were reports of increased miscarriage rates during this period (Lenz, 1988). Despite this tragedy, thalidomide, and its close derivatives, lenalidomide and pomalidomide, known as immunomodulatory drugs (IMiDs), continue to be used to treat a variety of clinical conditions such as multiple myeloma (MM) and 5q-deletion associated myelodysplastic syndrome (del(5q)-MDS) (D'Amato et al., 1994; Pan and Lentzsch, 2012).

Although a potentially transformative treatment for MM, the molecular mechanisms of thalidomide teratogenicity, and many of its biological activities remain elusive. It was only recently shown that thalidomide and analogs exert their therapeutic effect by binding to the Cullin RING E3 ubiquitin ligase CUL4-RBX1-DDB1-CRBN (CRL4CRBN) (Chamberlain et al., 2014; Fischer et al., 2014; Ito et al., 2010) and promoting ubiquitination and degradation of key efficacy targets (neo-substrates), such as the zinc finger (ZnF) transcription factors IKAROS (IKZF1), AIOLOS (IKZF3), and ZFP91 (An et al., 2017; Fischer et al., 2014; Gandhi et al., 2014b; Krönke et al., 2014; Lu et al., 2014). IMiDs can also promote degradation of targets that lack a zinc finger domain, including Casein Kinase 1 alpha (CSNK1A1) (Krönke et al., 2015; Petzold et al., 2016) and GSPT1 (Matyskiela et al., 2016). CRL4CRBN has further been implicated in the IMiD-independent turnover of GLUL, BSG, and MEIS2 (Eichner et al., 2016; Krönke et al., 2014; Nguyen et al., 2016;Fischer et al., 2014), and regulation of AMPK (Lee et al., 2013), processes potentially inhibited by IMiDs. Although no obvious sequence homology exists between the known IMiD-dependent CRL4CRBN substrates, all share the characteristic β-hairpin loop structure observed in X-ray crystal structures of IMiDs bound to CRBN and CSNK1A1 or GSPT1 (Matyskiela et al., 2016; Petzold et al., 2016), and a key glycine residue that engages the phthalimide moiety of IMiDs (An et al., 2017; Matyskiela et al., 2016; Petzold et al., 2016). Despite progress in understanding the therapeutic mechanism of action of thalidomide, the cause of thalidomide syndrome has remained unknown since its description in 1961. Over the last 60 years, multiple theories such as anti-angiogenic properties or the formation of reactive oxygen species (ROS) by thalidomide, or specific metabolites of thalidomide have been linked to thalidomide-induced defects. However, rarely do they explain the full spectrum of birth defects caused by all members of the IMiD family of drugs (Vargesson, 2015). Moreover, it has been shown that species such as mice, rats, and bush babies are resistant to thalidomide-induced teratogenicity (Butler, 1977; Heger et al., 1988; Ingalls et al., 1964; Vickers, 1967), which suggests an underlying genetic difference between species, more likely to be present in a specific substrate rather than in a general physiological mechanism such as anti-angiogenic effects or ROS production. To date, IMiD target identification efforts have largely focused on elucidating the mechanism of therapeutic efficacy of these drugs in MM and del(5q)-MDS (Gandhi et al., 2014a; Krönke et al., 2015, 2014; Lu et al., 2014). However, these hematopoietic lineages may not express the specific proteins that are important in the developmental events disrupted by thalidomide during embryogenesis. In the absence of tractable animal models that closely resemble the human disease, we focused on human embryonic stem cells (hESC) as a model system that more likely expresses proteins relevant to embryo development, and set out to investigate the effects of thalidomide in this developmental context.

Results

IMiDs induce CRL4CRBN-dependent degradation of multiple C2H2 zinc finger transcription factors

We established a mass spectrometry-based workflow (Figure 1—figure supplement 1A) to detect IMiD-induced protein degradation in hESC. To identify targets of IMiDs, we treated cells with 10 µM thalidomide, 5 µM lenalidomide, 1 µM of pomalidomide, or a DMSO control (Figure 1—figure supplement 1B). To minimize transcriptional changes and other secondary effects that often result from extended drug exposure (An et al., 2017), cells were treated for 5 h and protein abundance was measured in multiplexed mass spectrometry-based proteomics using tandem mass tag (TMT) isobaric labels (McAlister et al., 2014) (Figure 1—figure supplement 1 and Materials and methods). From ~10,000 proteins quantified in H9 hESC, only the developmental spalt-like transcription factor SALL4 showed statistically significant downregulation across all three drug treatments with a change in protein abundance greater than 1.5-fold, and a p value < 0.001 (Figure 1A–C). In accordance with previous findings, we also observed that treatment with lenalidomide led to degradation of CSNK1A1 (Krönke et al., 2015; Petzold et al., 2016). Pomalidomide induced degradation of additional targets, including the previously characterized zinc finger protein ZFP91 (An et al., 2017) and the largely uncharacterized proteins ZBTB39, FAM83F, WIZ, RAB28, and DTWD1 (Figure 1A–C).

Figure 1 with 2 supplements see all
Download asset Open asset

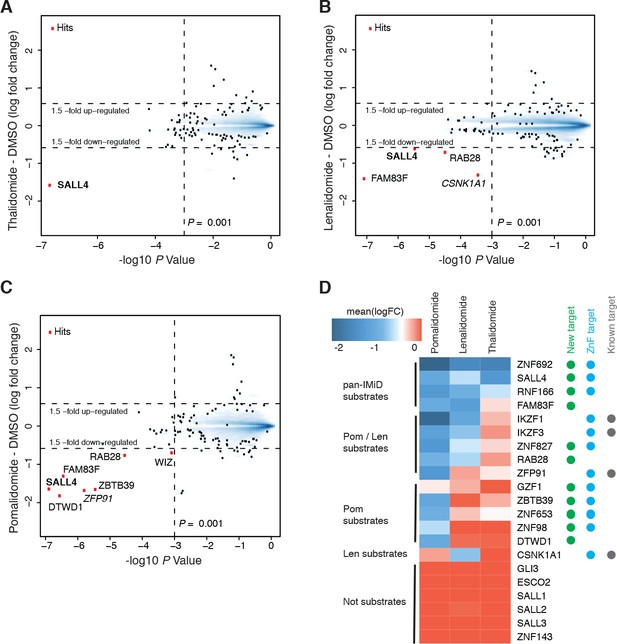

Identification of SALL4 as an IMiD-dependent CRL4CRBN substrate.

(A–C) Scatter plot depicting identification of IMiD-dependent substrate candidates. H9 human embryonic stem cells (hESC) were treated with 10 µM thalidomide (A), 5 µM lenalidomide (B), 1 µM pomalidomide (C), or DMSO control, and protein abundance was analyzed using TMT quantification mass spectrometry (see Materials and methods for details). Significant changes were assessed by a moderated t-test as implemented in the limma package (Ritchie et al., 2015), with the log2 fold change (log2 FC) shown on the y-axis, and negative log10 p values on the x-axis (two independent biological replicates for each of the IMiDs, or three independent biological replicates for DMSO). (D) Heatmap displaying the mean log2 FC of the identified IMiD-dependent targets comparing treatment with thalidomide, lenalidomide, and pomalidomide. Mean log2 FC values were derived from averaging across proteomics experiments in four different cell lines (hESC, MM1s, Kelly, SK-N-DZ). The heatmap colors are scaled with blue indicating a decrease in protein abundance (−2 log2 FC) and red indicating no change (0 log2 FC) in protein abundance. Targets newly identified in this study are marked with a green dot, ZnF containing targets with a cyan dot, and previously characterized targets with a gray dot. Substrates are grouped according to their apparent IMiD selectivity in the mass spectrometry-based proteomics. It should be noted that this does not refer to absolute selectivity but rather relative selectivity.

https://doi.org/10.7554/eLife.38430.003
Figure 1—source data 1

Output from limma processing of hES cells thalidomide vs. DMSO mass spectrometry experiment.

https://doi.org/10.7554/eLife.38430.006
Figure 1—source data 2

Output from limma processing of hES cells lenalidomide vs. DMSO mass spectrometry experiment.

https://doi.org/10.7554/eLife.38430.007
Figure 1—source data 3

Output from limma processing of hES cells pomalidomide vs. DMSO mass spectrometry experiment.

https://doi.org/10.7554/eLife.38430.008
Figure 1—source data 4

Output from limma processing of Kelly cells thalidomide vs. DMSO mass spectrometry experiment.

https://doi.org/10.7554/eLife.38430.009
Figure 1—source data 5

Output from limma processing of Kelly cells lenalidomide vs. DMSO mass spectrometry experiment.

https://doi.org/10.7554/eLife.38430.010
Figure 1—source data 6

Output from limma processing of Kelly cells pomalidomide vs. DMSO mass spectrometry experiment.

https://doi.org/10.7554/eLife.38430.011
Figure 1—source data 7

Output from limma processing of MM1s cells thalidomide vs. DMSO mass spectrometry experiment.

https://doi.org/10.7554/eLife.38430.012
Figure 1—source data 8

Output from limma processing of MM1s cells lenalidomide vs. DMSO mass spectrometry experiment.

https://doi.org/10.7554/eLife.38430.013
Figure 1—source data 9

Output from limma processing of MM1s cells pomalidomide vs. DMSO mass spectrometry experiment.

https://doi.org/10.7554/eLife.38430.014
Figure 1—source data 10

Output from limma processing of SK-N-DZ cells pomalidomide vs. DMSO mass spectrometry experiment.

https://doi.org/10.7554/eLife.38430.015
Figure 1—source data 11

Output from limma processing of SK-N-DZ cells CC-220 vs. DMSO mass spectrometry experiment.

https://doi.org/10.7554/eLife.38430.016
Figure 1—source data 12

Output from limma processing of SK-N-DZ cells dBET57 vs. DMSO mass spectrometry experiment.

https://doi.org/10.7554/eLife.38430.017
Figure 1—source data 13

Output from limma processing of SK-N-DZ cells pomalidomide vs. DMSO mass spectrometry experiment.

https://doi.org/10.7554/eLife.38430.018
Figure 1—source data 14

Output from limma processing of SK-N-DZ cells pomalidomide +MLN4924 vs. DMSO mass spectrometry experiment.

https://doi.org/10.7554/eLife.38430.019
Figure 1—source data 15

Uncropped immunoblots.

Uncropped western blots with the corresponding main or supplementary figure numbers shown. GAPDH loading control is presented with each plot. Size markers (kDa) are indicated. Cyan boxes highlight the cropped segment presented in main or supplementary figures. SALL4 is expressed in two isoforms, which we observe at 150 and 100 kDa apparent molecular weights. Different cell lines appear to express different relative levels of these isoforms. Additional variance in apparent molecular weight may arise from post-translational modifications.

https://doi.org/10.7554/eLife.38430.020

This diverse set of neo-substrates observed in response to treatment with different IMiDs (number of substrates identified: Thal < Len << Pom) prompted us to further expand our exploration of IMiD-dependent neo-substrates by profiling IMiDs in additional cell lines. As degradation is mediated through CRL4CRBN, and because CRBN expression levels are high in the central nervous system (CNS), we assessed the effects of IMiDs in two different neuroblastoma cell lines, Kelly and SK-N-DZ cells, as well as the commonly used multiple myeloma cell line, MM1s, as a control. Comprehensive proteomics studies across multiple independent replicates of hESC, Kelly, SK-N-DZ, and MM1s cells (Figure 1A–D, see Materials and methods and Figure 1—figure supplements 1 and 2 for details), revealed multiple novel substrates for IMiDs (ZNF692, SALL4, RNF166, FAM83F, ZNF827, RAB28, ZBTB39, ZNF653, DTWD1, ZNF98, and GZF1). To validate these novel targets, we carried out a ‘rescue’ proteomics experiment, in which we treated SK-N-DZ cells with 1 µM pomalidomide or with a co-treatment of 1 µM pomalidomide and 5 µM MLN4924 (a specific inhibitor of the NAE1/UBA3 Nedd8 activating enzyme). Inhibition of the Cullin RING ligase (CRL) by MLN4924 fully abrogated IMiD-induced degradation of targets (Figure 1—figure supplement 2B,C), and thereby confirmed the CRL-dependent mechanism. This approach was confirmed by spot-checking IMiD-dependent degradation for novel targets for which antibodies were available by western blot (Figure 1—figure supplement 2D). All targets that were found to be consistently degraded across multiple large-scale proteomics experiments were validated in those independent validation experiments, providing a high confidence target list (Figure 1D).

Eight of the 11 new targets found in the proteomics screen are ZnF proteins (SALL4, ZNF827, ZBTB39, RNF166, ZNF653, ZNF692, ZNF98 and GZF1), and except for RNF166, all contain at least one ZnF domain that has the characteristic features previously described as critical for IMiD-dependent degradation (An et al., 2017) (Figure 1—figure supplement 2E). We also observe a striking difference in substrate specificity among thalidomide, lenalidomide, and pomalidomide (Figure 1D). We find that thalidomide induces robust degradation of the zinc finger transcription factors ZNF692, SALL4, and the ubiquitin ligase RNF166 in cell lines expressing detectable levels of those proteins (Figure 1D and Figure 1—figure supplement 2A). Lenalidomide results in additional degradation of ZNF827, FAM83F, and RAB28 along with the lenalidomide-specific substrate CSNK1A1. Pomalidomide shows the most pronounced expansion of targets, and in addition induces robust degradation of ZBTB39, ZFP91, DTWD1, and ZNF653. It is interesting to note that DTWD1 is, as CSNK1A1 and GSPT1, another non zinc finger target that was found to be robustly degraded by pomalidomide. Although this expansion of substrates is interesting and may contribute to some of the clinical differences between lenalidomide and pomalidomide, a target causative for teratogenicity would need to be consistently degraded across all IMiDs.

SALL4, a key developmental transcription factor, is a bona fide IMiD-dependent CRL4CRBN target

The robust down-regulation of SALL4, a spalt-like developmental transcription factor important for limb development (Koshiba-Takeuchi et al., 2006), upon treatment with thalidomide, lenalidomide, and pomalidomide prompted us to further investigate SALL4 as an IMiD-dependent target of CRL4CRBN. Strikingly, human genetic research has shown that familial loss of function (LOF) mutations in SALL4 are causatively linked to the clinical syndromes, Duane Radial Ray syndrome (DRRS) also known as Okihiro syndrome, and mutated in some patients with Holt-Oram syndrome (HOS). Remarkably, both DRRS and HOS have large phenotypic overlaps with thalidomide embryopathy (Kohlhase et al., 2003), and this phenotypic resemblance has led to misdiagnosis of patients with SALL4 mutations as cases of thalidomide embryopathy and the hypothesis that the tbx5/sall4 axis might be involved in thalidomide pathogenesis (Knobloch and Rüther, 2008; Kohlhase et al., 2003).

Thalidomide embryopathy is characterized not only by phocomelia, but also various other defects (Table 1), many of which are specifically recapitulated in syndromes known to originate from heterozygous LOF mutations in SALL4 (Kohlhase, 1993). The penetrance of DRRS in individuals with heterozygous SALL4 mutations likely exceeds 90% (Kohlhase, 2004), and thus partial degradation of SALL4 through IMiD exposure will likely result in similar clinical features observed in DRRS. All currently described SALL4 mutations are heterozygous LOF mutations, and the absence of homozygous mutations indicates the essentiality of the gene. Accordingly, homozygous deletion of Sall4 is early embryonic lethal in mice (Sakaki-Yumoto et al., 2006). Mice with heterozygous deletion of Sall4 show a high frequency of miscarriage, while surviving litters show ventricular septal defects and anal stenosis, both phenotypes that are observed in humans with DRRS or thalidomide syndrome (Sakaki-Yumoto et al., 2006). Mice carrying a heterozygous Sall4 genetrap allele show defects in heart and limb development, partially reminiscent of patients with DRRS or HOS (Koshiba-Takeuchi et al., 2006). Another genetic disorder with a related phenotype is Roberts syndrome, caused by mutations in the ESCO2 gene (Afifi et al., 2016). While ESCO2 similarly encodes for a zinc finger protein and is transcriptionally regulated by ZNF143 (Nishihara et al., 2010), ESCO2 (as well as ZNF143, SALL1, SALL2, and SALL3) protein levels were found to be unchanged in all of our mass spectrometry experiments despite robust and ubiquitous expression (Figure 1D, Figure 1—figure supplements 1 and 2 and Figure 1—source data 1–14).

Table 1
Common phenotypes in thalidomide syndrome, Duane Radial Ray syndrome, and Holt-Oram syndrome.
https://doi.org/10.7554/eLife.38430.021
Thalidomide syndromeDuane Radial Ray syndromeHolt-Oram
syndrome
Upper limbs
ThumbsThumbsThumbs
RadiusRadiusRadius
HumerusHumerusHumerus
UlnaUlnaUlna
FingersFingersFingers
Lower limbs
Mostly normal lower limbsMostly normal lower limbs
Talipes dislocationTalipes dislocation
Hip dislocation
Shortening of long bones
Ears
Absence or abnormal pinnaeAbnormal pinnae
DeafnessDeafness
Microtia
Eyes
ColobomataColobomata
MicrophthalmosMicrophthalmos
Abduction of the eyeAbduction of the eye
Duane anomalyDuane anomaly
Stature
Short staturePostnatal growth retardation
Heart
Ventricular septal defectsVentricular septal defectsVentricular septal defects
Atrial septal defectsAtrial septal defectsAtrial septal defects

The remarkable phenotypic overlap of LOF mutations in SALL4 with thalidomide embryopathy led us to further assess whether thalidomide and related IMiDs directly induce degradation of SALL4 in an IMiD and CRL4CRBN-dependent manner. To extend our mass spectrometry findings, we treated H9 hESC with increasing doses of thalidomide, lenalidomide, pomalidomide, or with DMSO as a control, and assessed protein levels of SALL4 by western blot. We observed a dose-dependent decrease in protein levels with all three drugs (Figure 2A and Figure 2—figure supplement 1), in accordance with IMiD-induced protein degradation. We then used qPCR to confirm that thalidomide treatment does not reduce the level of SALL4 mRNA, but rather upregulates SALL4 mRNA, consistent with the protein-level changes being caused by post-transcriptional effects (Figure 2—figure supplement 1I).

Figure 2 with 1 supplement see all
Download asset Open asset

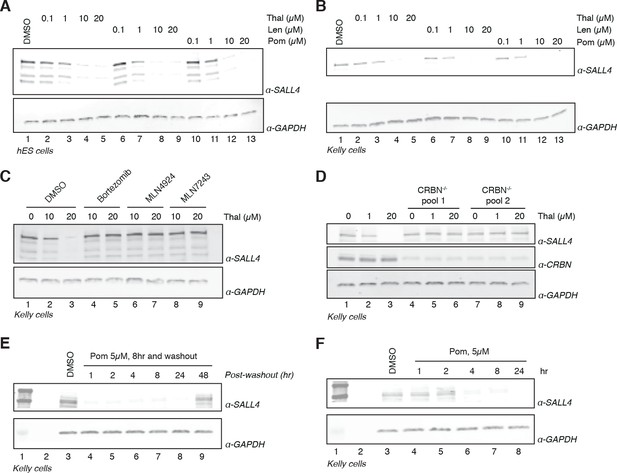

Validation of SALL4 as a bona fide IMiD-dependent CRL4CRBN substrate.

(A) H9 hESC were treated with increasing concentrations of thalidomide, lenalidomide, pomalidomide, or DMSO as a control. Following 24 h of incubation, SALL4 and GAPDH protein levels were assessed by western blot analysis. (B) As in (A), but treatment was done in Kelly cells. (C) Kelly cells were treated with increasing concentrations of thalidomide and co-treated with 5 µM bortezomib, 5 µM MLN4924, 0.5 µM MLN7243, or DMSO as a control. Following 24 h incubation, SALL4 and GAPDH protein levels were assessed by western blot analysis. (D) Parental Kelly cells or two independent pools of CRBN-/- Kelly cells were treated with increasing concentrations of thalidomide. Following 24 h incubation, SALL4, CRBN, and GAPDH protein levels were assessed by western blot analysis. (E) Kelly cells were treated with 5 µM pomalidomide or DMSO as a control for 8 h, at which point the compound was washed out. Cells were harvested at 1, 2, 4, 8, 24, and 48 h post-washout and SALL4 and GAPDH protein levels were assessed by western blot analysis. (F) Kelly cells were treated with 5 µM pomalidomide for 1, 2, 4, 8, and 24 h, or with DMSO as a control. Following time course treatment, SALL4 and GAPDH protein levels were assessed by western blot analysis. One representative experiment is shown in this figure, from three replicates for each of the western blots.

https://doi.org/10.7554/eLife.38430.022
Figure 2—source data 1

Uncropped immunoblots.

(A−J) Uncropped western blots with the corresponding main or supplementary figure numbers shown. GAPDH loading control is presented with each plot. Size markers (kDa) are indicated. Cyan boxes highlight the cropped segment presented in main or supplementary figures. SALL4 is expressed in two isoforms, which we observe at 150 and 100 kDa apparent molecular weights. Different cell lines appear to express different relative levels of these isoforms. Additional variance in apparent molecular weight may arise from post-translational modifications.

https://doi.org/10.7554/eLife.38430.024

We next sought to assess the robustness of SALL4 degradation across different lineages by subjecting a panel of cell lines (Kelly, SK-N-DZ, HEK293T, and H661 cells) to increasing concentrations of thalidomide, lenalidomide, pomalidomide, or DMSO as a control and performed western blot analysis (Figure 2B and Figure 2—figure supplement 1A–C). We observed a dose-dependent decrease in SALL4 protein levels with all three IMiD analogs and in all tested cell lines. In accordance with a CRL4CRBN-dependent mechanism, the IMiD-induced degradation was abrogated by co-treatment with the proteasome inhibitor bortezomib, the NEDD8 inhibitor MLN4924, or the ubiquitin E1 (UBA1) inhibitor MLN7243 (which blocks all cellular ubiquitination by inhibiting the initial step of the ubiquitin conjugation cascade) (Figure 2C and Figure 2—figure supplement 1D,E). To further evaluate the CRL4CRBN-dependent mechanism, we generated CRBN-/- Kelly and HEK293T cells using CRISPR/Cas9 technology and treated the resulting CRBN-/- cells and parental cells with increasing concentrations of thalidomide, lenalidomide, or pomalidomide (Figure 2D and Figure 2—figure supplement 1F). In agreement with the CRBN-dependent mechanism, no degradation of SALL4 was observed in CRBN-/- cells. Thalidomide has a plasma half-life (t1/2) of ~6 to 8 h (~3 h for lenalidomide, ~9 h for pomalidomide) and a maximum plasma concentration (Cmax) of ~5–10 µM (~2.5 µM for lenalidomide, 0.05 µM for pomalidomide) upon a typical dose of 200–400 mg, 25 mg, or 2 mg for thalidomide, lenalidomide, or pomalidomide, respectively (Chen et al., 2017; Hoffmann et al., 2013; Teo et al., 2004). To recapitulate these effects in vitro, we treated Kelly cells with 1 or 5 µM pomalidomide for 8 h, followed by washout of the drug and assessment of time-dependent recovery of SALL4 protein levels (Figure 2E and Figure 2—figure supplement 1G). Treatment with pomalidomide induces degradation of SALL4 as early as 4 h post treatment (Figure 2F and Figure 2—figure supplement 1H), which recovered to levels close to pre-treatment level after 48 h post washout (Figure 2E), together suggesting that a single dose of IMiD drugs will be sufficient to deplete SALL4 protein levels for >24 h.

In vitro binding assays confirm IMiD-dependent binding of SALL4 to CRL4CRBN

Bona fide targets of IMiD-induced degradation typically bind to CRBN (the substrate-recognition domain of the E3 ligase) in vitro in a compound-dependent manner. Thus, we sought to test whether SALL4 binds to CRBN and to map the ZnF domain required for binding using purified recombinant proteins. Based on conserved features among IMiD-sensitive ZnF domains (Figure 3A, C–x(2)-C-G motif within the canonical C2H2 zinc finger motif), the second (SALL4ZnF2) and fourth (SALL4ZnF4) ZnF domains of SALL4 (aa 410–433, and aa 594–616, respectively) were identified as candidate degrons for IMiD-induced binding. We expressed, purified, biotinylated, and subjected these ZnF domains to in vitro CRBN binding assays (An et al., 2017; Petzold et al., 2016). We observed dose-dependent binding between SALL4ZnF2 or SALL4ZnF4 and CRBN similar to that described for IKZF1/3 and ZFP91, albeit with reduced apparent affinity for SALL4ZnF4 (Figure 3B,C) (Petzold et al., 2016). To estimate apparent affinities (KD(app)) we titrated bodipy-FL labelled DDB1∆B-CRBN to biotinylated SALL4ZnF2, or SALL4ZnF4 at 100 nM with saturating concentrations of IMiDs (50 µM) and measured the affinity by TR-FRET (Figure 3D and Figure 3—figure supplement 1A,B), which confirmed the weak affinity of SALL4ZnF4. However, we noticed that a construct spanning ZnF1 and ZnF2 of SALL4 (SALL4ZnF1-2) exhibited even tighter binding to CRBN (Figure 3D and Figure 3—figure supplement 1A,B) and enhanced dose-dependent complex formation in TR-FRET (Figure 3E). These findings suggest that multiple zinc finger domains of SALL4 contribute to binding, and may result in multivalent recruitment to CRBN in vivo. However, the strength of the interaction with ZnF4 is unlikely to be sufficient for degradation in cells, and moreover, the rank order of Pom >Thal >> Len in binding observed with ZnF2 is in accordance with the cellular potency in degradation of SALL4, suggesting that ZnF2 is the critical ZnF domain for SALL4 degradation. We confirmed the specificity of the SALL4ZnF2 interaction by introducing a point mutation to glycine 416 (G416), the residue critical for IMiD-dependent binding to CRBN (Petzold et al., 2016). Mutations to alanine (G416A) rendered SALL4ZnF2 resistant to IMiD-dependent binding to CRBN (Figure 3F and Figure 3—figure supplement 1C,D). Mutating glutamine 595 (Q595) in SALL4ZnF4, another residue previously shown to be critical for IMiD-dependent CRBN binding in the ZnF domains of IKZF1/3, impaired IMiD-dependent binding (Figure 3—figure supplement 1E), confirming the specificity of the interaction despite the weak binding affinity. As we observed increased affinity of the tandem-ZnF construct SALL4ZnF1-2 compared with the single SALL4ZnF2, we sought to test whether ZnF1 was sufficient for binding. We introduced the G416N mutation in ZnF2 or a S388N mutation in ZnF1 into the SALL4ZnF1-2 construct (S388 is the ZnF1 sequence equivalent of ZnF2 G416; ZnF1-2: C-x-x-C-S/G) and performed CRBN binding assays. G416N, but not S388N, fully abrogated IMiD-dependent binding of SALL4ZnF1-2 to CRBN (Figure 3—figure supplement 1F–I), confirming the strict dependence on the ZnF2 interaction with CRBN. To test whether the second zinc finger of SALL4 is critical for IMiD-induced degradation in cells, we introduced G416A and G416N mutations into Flag-tagged full-length SALL4. When expressed in Kelly cells, the parental wild-type Flag-SALL4 was readily degraded by thalidomide treatment (Figure 3G). Similarly, Flag-tagged SALL4 with G600A or G600N mutations in ZnF4 were also shown to be readily degraded with thalidomide treatment, suggesting that SALL4ZnF4 is dispensable for binding and subsequent degradation (Figure 3G). Finally, the two conservative mutations in ZnF2 (G416A or G416N), both known to specifically disrupt binding to CRBN while maintaining the overall zinc finger fold (Petzold et al., 2016), rendered SALL4 stable under these treatment conditions, demonstrating that SALL4ZnF2 is necessary for CRL4CRBN-mediated degradation of SALL4 in cells (Figure 3H). In vitro ubiquitination assays further confirm that SALL4ZnF1-2 is ubiquitinated by CRL4CRBN in an IMiD-dependent fashion (Figure 3I). Together, our cellular and biochemical data establish SALL4 as a bona fide IMiD-dependent target of CRL4CRBN, and demonstrate that the second zinc finger is necessary for IMiD-dependent degradation, while the tandem array of ZnF1-2 further strengthens the interaction in vitro.

Figure 3 with 1 supplement see all
Download asset Open asset

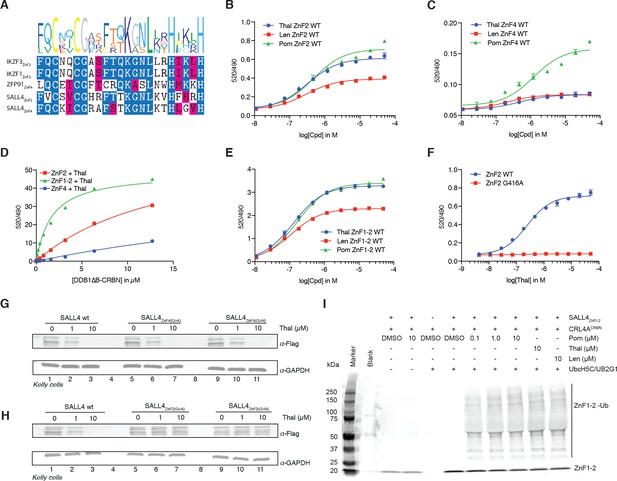

SALL4 ZnF2 is the zinc finger responsible for IMiD-dependent binding to CRL4CRBN.

(A) Multiple sequence alignment of the validated ‘degrons’ from known IMiD-dependent zinc finger substrates, along with the two candidate zinc finger degrons from SALL4. (B) TR-FRET: titration of IMiD (thalidomide, lenalidomide and pomalidomide) to DDB1∆B-CRBNSpy-BodipyFL at 200 nM, hsSALL4ZnF2 at 100 nM, and terbium-streptavidin at 4 nM. (C) As in (B), but with hsSALL4ZnF4 with DDB1∆B-CRBNSpy-BodipyFL at 1 µM. (D) TR-FRET: titration of DDB1∆B-CRBNSpy-BodipyFL to biotinylated hsSALL4ZnF2, hsSALL4ZnF1-2, or hsSALL4ZnF4 at 100 nM and terbium-streptavidin at 4 nM in the presence of 50 µM thalidomide. (E) As in (B), but with hsSALL4ZnF1-2. (F) As in (B), but with hsSALL4ZnF2 and hsSALL4ZnF2G416A mutant as thalidomide titration. (G) Kelly cells transiently transfected with Flag-hsSALL4WT, Flag-hsSALL4G600A, or hsSALL4G600N were treated with increasing concentrations of thalidomide or DMSO as a control. Following 24 h of incubation, SALL4 (α-Flag) and GAPDH protein levels were assessed by western blot analysis (one representative experiment is shown out of three replicates. (H) As in (G), but with Flag-hsSALL4WT, Flag-hsSALL4G416A, or Flag-hsSALL4G416N. (I) In vitro ubiquitination of biotinylated hsSALL4ZnF1-2 by CRL4CRBN in the presence of thalidomide (10 µM), lenalidomide (10 µM), or pomalidomide (0.1, 1 and 10 µM), or DMSO as a control.

https://doi.org/10.7554/eLife.38430.025
Figure 3—source data 1

Uncropped immunoblots.

(A−B) Uncropped western blots with the corresponding main or supplementary figure numbers shown. GAPDH loading control is presented with each plot. Size markers (kDa) are indicated. Cyan boxes highlight the cropped segment presented in main or supplementary figures. SALL4 is expressed in two isoforms, which we observe at 150 and 100 kDa apparent molecular weights. Different cell lines appear to express different relative levels of these isoforms. Additional variance in apparent molecular weight may arise from post-translational modifications.

https://doi.org/10.7554/eLife.38430.027

Species-specific teratogenicity is a result of genetic differences in both CRBN and SALL4

One characteristic feature of IMiD phenotypes is the absence of defining limb deformities following administration to pregnant rodents, which contributed to the initial approval by regulatory agencies in Europe. In contrast, many non-human primates exhibit phenotypes that mimic the human syndrome (Neubert et al., 1988; Smith et al., 1965; Vickers, 1967). These remarkable species-specific phenotypes have historically complicated studies of thalidomide embryopathies, and suggest a genetic difference between these species that would abrogate the detrimental effects of thalidomide. Mouse Crbn harbors a critical polymorphism (Figure 4A,B and Figure 5) that prevents IMiD-dependent degradation of ZnF substrates and CSNK1A1 (Krönke et al., 2015), which could explain the absence of a SALL4-dependent phenotype in mice. Mice and rats (both insensitive to thalidomide embryopathies) harbor an isoleucine at CRBN position 388 (residue 388 refers to the human CRBN sequence). In contrast, sensitive primates have a valine in position 388 that is necessary for CRL4CRBN to bind, ubiquitinate, and subsequently degrade ZnF substrates (Figure 4A,B and Figure 5A). Consistent with this concept, treatment of mouse embryonic stem cells (mESC) with increasing concentrations of thalidomide or pomalidomide does not promote degradation of mmSALL4 (Figure 4C and Figure 4—figure supplement 1A), and introducing a V388I mutation into hsCRBN renders the protein less effective to bind to SALL4 in vitro (Figure 4B). We thus asked whether ectopic expression of hsCRBN in mouse cells would lead to IMiD-induced degradation of mmSALL4, similar to what had been observed for CSNK1A1, and could hence render mice sensitive to IMiD-induced birth defects. Expression of hsCRBN in mouse cells, while sensitizing cells to degradation of IMiD targets such as mmIKZF1/3, mmCSNK1A1 (Krönke et al., 2015), mmZFP91, or mmGZF1 (Figure 4D,E), does not result in degradation of mmSALL4 (Figure 4F). To test whether a fully human CRBN in a human cell background would be sufficient to induce SALL4 degradation, we introduced hsSALL4, or mmSALL4 into human cells (Kelly cells) and found that while ectopically expressed hsSALL4 is readily degraded upon IMiD treatment, mmSALL4 is unaffected even at arbitrarily high doses of IMiDs (Figure 4G and Figure 4—figure supplement 1B,C). Sequence analysis reveals that mice and zebrafish have critical mutations in the ZnF2 domain of SALL4 (Figure 5B), which abrogate binding to hsCRBN in vitro (Figure 4H), and render mmSALL4 and drSALL4 insensitive to IMiD-mediated degradation in cells (Figure 4G,I and Figure 4—figure supplement 1C). In line with these findings, mice harboring a homozygous CRBN I391V knock-in allele, despite exhibiting degradation of mmIKZF1/3, mmZFP91, and mmCSNK1A1 Fink et al., 2018, show increased miscarriage upon IMiD treatment compared with control mice; however, they do not exhibit IMiD-induced embryopathies resembling the human phenotype Fink et al., 2018 . We next sought to test whether exchange of the mmSALL4 ZnF2 domain for the hsSALL4 ZnF2 domain would be sufficient to enable mmSALL4 degradation in a human cell line (Kelly cells). Strikingly, through the five amino acid substitutions required to ‘humanize’ the mmSALL4 ZnF2 domain, we were able to induce thalidomide-mediated mouse SALL4 degradation in a human cell line (Figure 4G).

Figure 4 with 1 supplement see all
Download asset Open asset

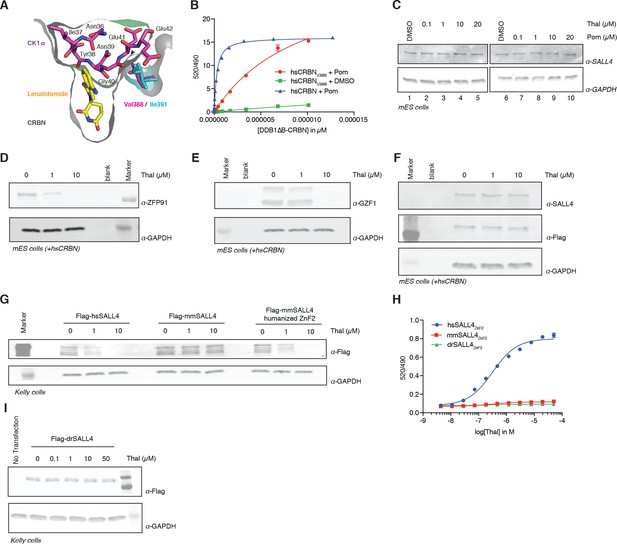

Identification of the sequence differences in the IMiD-dependent binding region of both CRBN and SALL4 in specific species.

(A) Close-up view of the beta-hairpin loop region of Ck1a (CSNK1A1) interacting with CRBN and lenalidomide (PDB: 5fqd) highlighting the additional bulkiness of the V388I mutation (PDB: 4ci1) present in mouse and rat CRBN. CSNK1A1 and lenalidomide are depicted as stick representations in magenta and yellow, respectively, the Ile391 of mouse CRBN corresponding to human Val388 is depicted as a stick representation in cyan, and CRBN is depicted as a surface representation. (B) TR-FRET: titration of DDB1∆B-hsCRBNSpy-BodipyFL, or DDB1∆B-hsCRBNV388ISpy-BodipyFL to biotinylated hsSALL4ZnF1-2 at 100 nM, and terbium-streptavidin at 4 nM in the presence of 50 µM pomalidomide or DMSO. (C) mES cells were treated with increasing concentrations of thalidomide and pomalidomide or DMSO as a control. Following 24 h of incubation, SALL4 and GAPDH protein levels were assessed by western blot analysis. (D) mES cells constitutively expressing Flag-hsCRBN were treated with increasing concentrations of thalidomide. Following 24 h of incubation, ZFP91 and GAPDH protein levels were assessed by western blot analysis. (E) As in (C), but measuring GZF1 and GAPDH protein levels. (F) As in (C), but measuring SALL4, hsCRBN (α-Flag), and GAPDH protein levels. (G) Kelly cells were transiently transfected with Flag-hsSALL4, Flag-mmSALL4, or Flag-mmSALL4 containing a humanized ZnF2 (Y415F, P418S, I419V, L430F, Q435H), and treated with increasing concentrations of thalidomide. Following 24 h of incubation, hsSALL4, mmSALL4, humanized mmSALL4 (α-Flag), and GAPDH protein levels were assessed by western blot analysis. (H) TR-FRET: titration of thalidomide to DDB1∆B-CRBNSpy-BodipyFL at 200 nM, hsSALL4ZnF2, mmSALL4ZnF2, or drSALL4ZnF2 all at 100 nM, and terbium-streptavidin at 4 nM. Data are presented as means ± s.d. (n = 3). (I) As in (G), but with Flag-drSALL4.

https://doi.org/10.7554/eLife.38430.028
Figure 4—source data 1

Uncropped immunoblots.

(A−J) Uncropped western blots with the corresponding main or supplementary figure numbers shown. GAPDH loading control is presented with each plot. Size markers (kDa) are indicated. Cyan boxes highlight the cropped segment presented in main or supplementary figures. SALL4 is expressed in two isoforms, which we observe at 150 and 100 kDa apparent molecular weights. Different cell lines appear to express different relative levels of these isoforms. Additional variance in apparent molecular weight may arise from post-translational modifications.

https://doi.org/10.7554/eLife.38430.030
Figure 5
Download asset Open asset

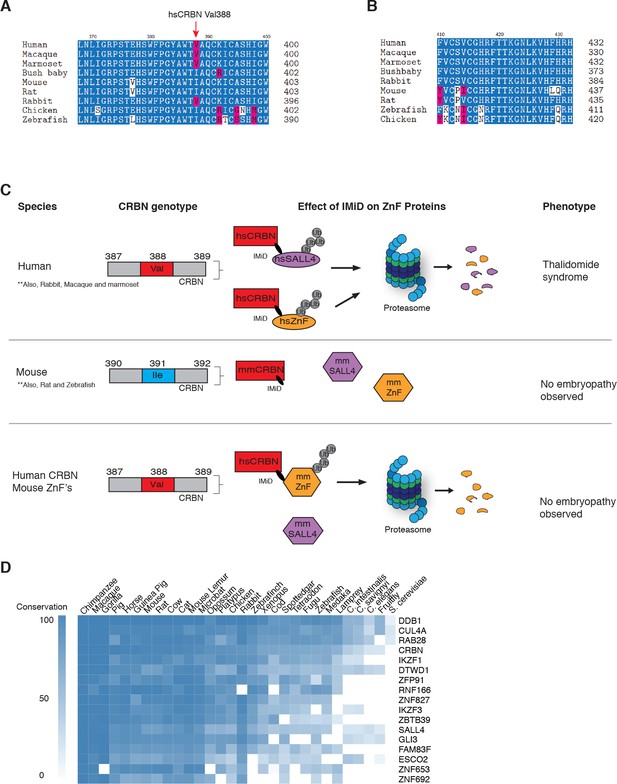

Sequence differences in the IMiD-dependent binding region of both CRBN and SALL4 interfere with ternary complex formation in specific species.

(A) A multiple sequence alignment of the region of CRBN critical for IMiD mediated ZnF binding from human, bush baby mouse, rat, macaque, marmoset, and rabbit is shown, highlighting the V388I polymorphism. (B) A multiple sequence alignment of SALL4ZnF2 from human, macaque, marmoset, bush baby, rabbit, mouse, rat, zebrafish, and chicken, highlighting the differences in sequence across species. (C) Schematic summary of species-specific effects of IMiD treatment on ZnF degradation and relationship to thalidomide syndrome phenotype. The top panel depicts sensitive species: hsCRBNV388 is capable of IMiD-dependent binding, ubiquitination, and subsequent degradation of hsSALL4 and hsZnF targets, and thalidomide embryopathy is observed. The middle panel depicts insensitive species: mmCRBNI391 is capable of binding IMiDs, but not binding mmSALL4 and mmZnF targets, and no embryopathy is observed. The bottom panel depicts humanizing CRBN as ineffective for inducing the phenotype: hsCRBNV388 is capable of IMiD-dependent ubiquitination and subsequent degradation of mmZnF proteins, but not mmSALL4, and the embryopathy is not observed. These data are consistent with a ‘double protection’ mechanism caused by mutations in both CRBN and SALL4 preventing IMiD-dependent binding and subsequent degradation in insensitive species. (D) Heatmap comparing the sequence conservation of IMiD-dependent targets across 30 different species. High conservation is displayed as blue and low conservation is displayed as white.

https://doi.org/10.7554/eLife.38430.031

The observation that SALL4 degradation depends on both the sequence of SALL4 (zinc finger 2 differs between human and rodents), and the sequence of CRBN, supports a genetic cause for the species-specific effects, and highlights the complexities of modelling teratogenic adverse effects of IMiDs in murine and other animal models (Sakaki-Yumoto et al., 2006) (Figure 5A–C). Of note, the only non-human primate known to be insensitive to thalidomide-induced embryopathies, the greater bush baby, also harbors an isoleucine in the critical CRBN V388 position (Butler, 1977), while all sensitive non-human primates and rabbits harbor the conserved valine (Figure 5A). We thus show that species can be rendered resistant by mutations in CRBN, SALL4, or both, and hence our data suggest that thalidomide embryopathy is primarily a human disease (with some non-human primates, and rabbits more closely resembling the phenotypes), and thus explain the historic observation that modelling thalidomide embryopathies in animals is challenging. We note that zebrafish and chicken both contain an Ile in the V388 position; however, these were reported to exhibit defects to limb/fin formation upon exposure to thalidomide or knock-down of Crbn (Eichner et al., 2016; Ito et al., 2010), partially resembling thalidomide-induced defects. These findings are in contrast with the observations in higher eukaryotes, as Crbn knock-out mice have been reported to exhibit normal morphology (Lee et al., 2013), and children harboring a homozygous C391R mutation in CRBN (C391 is a structural cysteine coordinating the zinc in the thalidomide-binding domain of CRBN and we failed to produce any protein from a C391R cDNA), a loss of function mutation, were born without characteristic birth defects but exhibited severe neurological defects (Sheereen et al., 2017). Whether the phenotypes in zebrafish and chicken are a result of species-specific downstream pathways or the high dose (400 µM) and direct application of thalidomide to the limb buds (Ito et al., 2010), which both could result in off-target effects, remains to be shown. The plasma concentration of thalidomide in humans is, however, unlikely to exceed 10 µM (Bai et al., 2013; Dahut et al., 2009), a concentration that results in effective degradation of SALL4, but is 40 times below the dose found to be teratogenic in chicken and zebrafish embryos. While we do not observe degradation of mmSALL4 or drSALL4 upon high-dose exposure, we cannot rule out that such high doses will induce degradation of other ZnF targets in zebrafish or chicken, which could potentially result in the observed phenotypes. In fact, we show that IMiDs lead to degradation of multiple ZnF transcription factors, a class of proteins known to evolve very rapidly (Schmitges et al., 2016), and it is likely that IMiDs will exhibit species-specific effects. Sequence analysis shows that IMiD-dependent ZnF targets such as SALL4, ZNF653, ZNF692, or ZBTB39, as well as other known genetic causes of limb defects in ZnF transcription factors, such as ESCO2, are highly divergent even in higher eukaryotes (Figure 5D).

Discussion

We show that thalidomide, lenalidomide, and pomalidomide all induce degradation of SALL4, which has been causatively linked to the most characteristic and common birth defects of the limbs and inner organs by human genetics. While other targets of thalidomide, such as CSNK1A1 for lenalidomide or GZF1, ZBTB39 for pomalidomide, may contribute to the pleiotropic developmental conditions observed upon thalidomide exposure, SALL4 is consistently degraded across all IMiDs and human geneticists associate heterozygous loss of SALL4 with human developmental syndromes that largely phenocopy thalidomide syndrome. Moreover, from the targets degraded across IMiDs, IKZF1/3 have been shown to be non-causative for birth defects, RNF166 is a ubiquitin ligase involved in autophagy (Heath et al., 2016), and ZNF692 knock-out mice do not exhibit a teratogenic phenotype (International Mouse Phenotyping Consortium et al., 2016). While only genetic studies in non-human primates or rabbits can provide the ultimate molecular role of SALL4 and other targets in thalidomide embryopathies, the known functions of SALL4 are consistent with a potential role in thalidomide embryopathies.

The polypharmacology of IMiDs (most notably pomalidomide), together with the size and rapid evolution of the C2H2 family of zinc finger transcription factors (Figure 5D), which results in most C2H2 zinc finger transcription factors being highly species-specific (Najafabadi et al., 2015; Schmitges et al., 2016), help to explain the pleiotropic effects of IMiDs, which still remain largely understudied. Thalidomide embryopathies thus represent a case in which animal studies fall short, and it is likely that the clinical features of IMiD efficacy as well as adverse effects, are a result of induced degradation of multiple C2H2 zinc finger transcription factors. For example, we see some degree of degradation for GZF1, another C2H2 transcription factor, while GZF1 is unlikely to cause the defining birth defects of thalidomide, mutations in GZF1 have been associated with joint laxity and short stature, which are both also found in thalidomide-affected children (Patel et al., 2017). We also note that CRBN expression levels influence the efficacy of IMiDs in inducing protein degradation, and it is conceivable that these contribute to a certain degree of tissue selectivity of IMiD effects, which for example, could increase the therapeutic index in MM as hematopoietic lineages tend to have high levels of CRBN.

Thalidomide teratogenicity was a severe and widespread public health tragedy, affecting more than 10,000 individuals, and the aftermath has shaped many of the current drug regulatory procedures. Our findings that thalidomide and its derivatives induce degradation of SALL4, provide a direct link to genetic disorders of SALL4 deficiency, which phenocopy many of the teratogenic effects of thalidomide. While other effects of thalidomide, such as anti-angiogenic properties may contribute to birth defects, degradation of SALL4 is likely to contribute to birth defects. These findings can inform the development of new compounds that induce CRBN-dependent degradation of disease-relevant proteins but avoid degradation of developmental transcription factors such as SALL4, and thus have the potential for therapeutic efficacy without the risk of teratogenicity, a defining feature of this class of drugs. This is further relevant to the development of thalidomide-derived bifunctional small molecule degraders (commonly referred to as PROTACs) (Raina and Crews, 2017), as we show that IMiD-based PROTACs (and novel IMiD derivatives such as CC-220) can be effective inducers of ZnF targets including SALL4 degradation (Figure 1—figure supplement 1C). Lastly, the surprising expansion in substrate repertoire for pomalidomide, suggests that IMiDs exhibit a large degree of polypharmacology contributing to both efficacy and adverse effects. Transcription factors, and specifically C2H2 zinc fingers are highly divergent between species, and hence IMiDs and related compounds are likely to exhibit species-specific effects by virtue of their mode of action. In turn, the discovery that IMiDs target an unanticipated large set of C2H2 zinc finger proteins with significant differences among thalidomide, lenalidomide, pomalidomide, and CC-220, suggests that this chemical scaffold holds the potential to target one of the largest families of human transcription factors.

Materials and methods

Key resources table
Reagent type (species)
or resource		DesignationSource or referenceIdentifiersAdditional information
Gene (H. sapiens)CRBNFischer et al. (2014)Gene ID: 51185
Gene (M. musculus)CRBNDr. Ben Ebert (Brigham and
Womens Hospital, Dana
Farber Cancer Institute)		Gene ID: 58799
Gene (H. sapiens)SALL4IDTGene ID: 57167
Gene (H. sapiens)DDB1∆BPetzold et al. (2016)Gene ID: 1642
Gene (M. musculus)SALL4IDTGene ID: 99377
Gene (D. rerio)SALL4IDTGene ID: 572527
Cell line (H. sapiens)H9 hES cellsDr. Wade Harper
(Harvard Medical School)		RRID:CVCL_9773
Cell line (H. sapiens)Kelly CellsDr. Nathanael Gray (Dana
Farber Cancer Institute,
Harvard Medical School)		RRID:CVCL_2092
Cell line (H. sapiens)SK-N-DZ cellsATCCRRID:CVCL_1701; CRL-2149
Cell line (H. sapiens)MM1s cellsATCCRRID:CVCL_8792; CRL-2974
Cell line (H. sapiens)H661 cellsATCCRRID:CVCL_1577; HTB-183
Cell line (H. sapiens)HEK293T cellsATCCRRID:CVCL_0063; CRL-3216
Cell line (M. musculus)TC1 mESC cellsDr. Richard Gregory
(Boston Childrens Hospital,
Harvard Medical School)		RRID:CVCL_M350
Cell line (T. ni)High Five insect cellsThermo Fisher ScientificRRID:CVCL_C190; B85502
Chemical compound,
drug		ThalidomideMedChemExpressHY-14658
Chemical compound,
drug		LenalidomideMedChemExpressHY-A0003
Chemical compound,
drug		PomalidomideMedChemExpressHY-10984
Chemical compound,
drug		CC-220MedChemExpressHY-101291
Chemical compound,
drug		CC-885Cayman chemical19966
Chemical compound,
drug		dBET57Nowak et al. (2018)
Chemical compound,
drug		BortezomibMedChemExpressHY-10227
Chemical compound,
drug		MLN4924MedChemExpressHY-70062
Chemical compound,
drug		MLN7243Active BiochemA1384
Recombinant DNA
reagent		pCDH-MSCV
(PGK promoter plasmid)		Dr. Ben Ebert (Brigham and
Womens Hospital, Dana
Farber Cancer Institute)
Recombinant DNA
reagent		pNTM (CMV
promoter plasmid)		Dr. Nicolas Thomä,
FMI, Switzerland
Recombinant DNA
reagent		pAC8 (Polyhedrin
promoter plasmid)		Dr. Nicolas Thomä,
FMI, Switzerland
Peptide, recombinant
protein		hsHis6-3C-Spy-CRBNNowak et al. (2018)
Peptide, recombinant
protein		hsHis6-3C-Spy-CRBN_V388IThis study
Peptide, recombinant
protein		hsStrep-BirA-SALL4
(590–618)		This study
Peptide, recombinant
protein		hsStrep-BirA-SALL4_Q595H
(590-618)		This study
Peptide, recombinant
protein		hsStrep-BirA-SALL4 (378–438)This study
Peptide, recombinant
protein		hsStrep-BirA-SALL4 (402–436)This study
Peptide, recombinant
protein		mmStrep-BirA-SALL4 (593–627)This study
Peptide, recombinant
protein		drStrep-BirA-SALL4 (583–617)This study
Peptide, recombinant
protein		SpyCatcher S50CNowak et al. (2018)
Peptide, recombinant
protein		His-hsDDB1(1–1140)-His-hsCUL4A
(38-759)-His-mmRBX1(12–108)
(CRL4-CRBN)		Fischer et al. (2011)
Peptide, recombinant
protein		UbiquitinBoston BiochemU-100H
Peptide, recombinant
protein		His-E1Boston BiochemE-304
Peptide, recombinant
protein		UBE2G1Boston BiochemE2-700
Peptide, recombinant
protein		UbcH5cBoston BiochemE2-627
AntibodyMouse anti-SALL4abcamRRID:AB_2183366; ab57577WB (1:250)
AntibodyRabbit anti-SALL4 - chip gradeabcamRRID:AB_777810; ab29112WB (1:250)
AntibodyRabbit anti-DTWD1Sigma AldrichRRID:AB_2677903; HPA042214WB (1:500)
AntibodyMouse anti-FLAG M2Sigma AldrichRRID:AB_262044; F1804WB (1:1000)
AntibodyRabbit anti-CRBNNovus BiologicalsRRID:AB_11037820; NBP1-91810WB (1:500)
AntibodyRabbit anti-GZF1Thermo Fisher ScientificRRID:AB_2551727; PA534375WB (1:500)
AntibodyMouse anti-GAPDHSigma AldrichRRID:AB_1078991; G8795WB (1:10,000)
AntibodyIRDye680 Donkey anti-mouse IgGLiCorRRID:AB_10953628; 92668072WB (1:10,000)
AntibodyIRDye800 Goat anti-rabbitLiCorRRID:AB_621843; 92632211WB (1:10,000)
AntibodyRabbit anti-Strep-Tag IIabcamRRID:AB_1524455; ab76949WB (1:10,000)
Antibodyanti-Strep-Tag II HRP conjugateMilliporeRRID:AB_10806716; 71591WB (1:10,000)
Antibodyanti-Mouse IgG HRP conjugateCell SignallingRRID:AB_330924; 7076WB (1:10,000)
OtherAmersham ECL prime western
blot reagent		GE healthcareRPN2232
OtherBODIPY-FL-MaleimideThermo Fisher ScientificB10250
OtherTb streptavidinInvitrogenLSPV3966
OtherTMT 10-plex labelsThermo Fisher Scientific90406
OtherLipofectamine 2000Invitrogen11668019

Compounds, enzymes, and antibodies

Request a detailed protocol

Thalidomide (HY-14658, MedChemExpress), lenalidomide (HY-A0003, MedChemExpress), pomalidomide (HY-10984, MedChemExpress), CC-220 (HY-101291, MedChemExpress), CC-885 (19966, Cayman chemical), dBET57 (Nowak et al., 2018), bortezomib (HY-10227, MedChemExpress), MLN4924 (HY-70062, MedChemExpress), and MLN7243 (A1384, Active Biochem) were purchased from the indicated vendors and subjected to in-house LC-MS for quality control.

HEK293T, SK-N-DZ, MM1s, and H661 were purchased from ATCC and cultured according to ATCC instructions. H9 hESC, mESC, and Kelly cells were kindly provided by the labs of J. Wade Harper (HMS), Richard I. Gregory (TCH/HMS), and Nathanael Gray (DFCI/HMS), respectively. Sequencing grade modified trypsin (V5111) was purchased from Promega (Promega, USA) and mass spectrometry grade lysyl endopeptidase from Wako (Wako Pure Chemicals, Japan). Primary and secondary antibodies used included anti-SALL4 at 1:250 dilution (ab57577, abcam – found reactive for human SALL4), anti-SALL4 chip grade at 1:250 dilution (ab29112, abcam – found reactive for mouse Sall4), anti-DTWD1 1:500 (HPA042214, Sigma), anti-Flag 1:1000 (F1804, Sigma), anti-CRBN 1:500 (NBP1-91810, Novus Biologicals), anti-GZF1 at 1:500 (PA534375, Thermo Fisher Scientific), anti-GAPDH at 1:10,000 dilution (G8795, Sigma), IRDye680 Donkey anti-mouse at 1:10,000 dilution (926–68072, LiCor), IRDye800 Goat anti-rabbit at 1:10,000 dilution (926–32211, LiCor) and rabbit anti-Strep-Tag II antibody at 1:10,000 (ab76949, Abcam), anti-mouse IgG HRP-linked Antibody at 1:10,000 dilution (7076, Cell Signaling), Amersham ECL Prime Western Blotting Detection Reagent (RPN2232, GE).

Cell culture

Request a detailed protocol

HEK293T cells were cultured in DMEM supplemented with 10% dialyzed fetal bovine serum (FBS) and 2 mM L-glutamine. SK-N-DZ cells were cultured in DMEM supplemented with 10% dialyzed FBS, 0.1 mM non-essential amino acids (NEAA), and 2 mM L-glutamine. H661, MM1s, and Kelly cells were cultured in RPMI1640 supplemented with 10% dialyzed FBS. H9 hESC cells were cultured in Essential 8 (Gibco) media on Matrigel-coated nunc tissue culture plates. TC1 mouse embryonic stem cells (mESCs) were adapted to gelatin cultures and fed with KO-DMEM (Gibco) supplemented with 15% stem cell-qualified fetal bovine serum (FBS, Gemini), 2 mM L-glutamine (Gibco), 20 mM HEPES (Gibco), 1 mM sodium pyruvate (Gibco), 0.1 mM of each non-essential amino acids (Gibco), 0.1 mM 2-mercaptoethanol (Sigma), 104 U mL−1 penicillin/streptomycin (Gibco), and 103 U mL−1 mLIF (Gemini).

Cell lines were acquired from sources provided in the key resource table. All cell lines are routinely authenticated using ATCC STR service, and are tested for mycoplasma contamination on a monthly basis. All cell lines used for experiments tested negative.

Western blot

Request a detailed protocol

Cells were treated with compounds as indicated and incubated for 24 h, or as indicated. Samples were run on 4−20%, AnyKD or 10% (in-vitro ubiqutination assay) SDS-PAGE gels (Bio-rad), and transferred to PVDF membranes using the iBlot 2.0 dry blotting system (Thermo Fisher Scientific). Membranes were blocked with LiCor blocking solution (LiCor), and incubated with primary antibodies overnight, followed by three washes in LiCor blocking solution and incubation with secondary antibodies for 1 h in the dark. After three final washes, the membranes were imaged on a LiCor fluorescent imaging station (LiCor). When Anti-mouse IgG, HRP Antibody was used, after three washes, the membranes were incubated with Amersham ECL Prime Western Blotting Detection Reagent for 1 min and subjected to imaging by Amersham Imager 600 (GE).

Q5 mutagenesis and transient transfection

Request a detailed protocol

hsCRBN, hsSALL4, mmSALL4, and drSALL4 were PCR amplified and cloned into a pNTM-Flag based vector. Mutagenesis was performed using the Q5 site-directed mutagenesis kit (NEB, USA) with primers designed using the BaseChanger web server (http://nebasechanger.neb.com/).

Primer sets used for Q5 mutagenesis are:

hsSALL4 - S388N

Fwd 5’−3’: AAGTACTGTAaCAAGGTTTTTG

Rev 5’−3’: ACACTTGTGCTTGTAGAG

hsSALL4 – G416A

Fwd 5’−3’: TCTGTCTGTGcTCATCGCTTCAC

Rev 5’−3’: GCACACGAAGGGTCTCTC

hsSALL4 – G416N

Fwd 5’−3’: CTCTGTCTGTaaTCATCGCTTCACCAC

Rev 5’−3’: CACACGAAGGGTCTCTCT

hsSALL4 – G600A

Fwd 5’−3’: AAGATCTGTGcCCGAGCCTTTTC

Rev 5’−3’: ACACTGGAACGGTCTCTC

hsSALL4 – G600N

Fwd 5’−3’: TAAGATCTGTaaCCGAGCCTTTTCTAC

Rev 5’−3’: CACTGGAACGGTCTCTCC

Humanizing mmSALL4 – Y415F, P418S, I419V, L430F, Q435H

Fwd 5’−3’: AGGGCAATCTCAAGGTCCACTTtCAcCGACACCCTCAGGTGAAGGCAAACCCCC

Rev 5’−3’: TGGTGGTGAAGCGGTGACCACAGAcAGaGCACACGaAAGGTCTCTCTCCGGTGTG

For transient transfection, 0.2 million cells were seeded per well in a 12 well plate on day 1. On day 2, cells were transfected with 200–300 ng of plasmid (pNTM-Flag containing gene of interest) using 2 µL of lipofectamine 2000 transfection reagent (Invitrogen). On day 3, the desired concentration of IMiD was added to each well and cells were harvested after 24 h for western blot analysis using the protocol described above.

Constructs and protein purification

Request a detailed protocol

His6DDB1∆B (Petzold et al., 2016), His6-3C-SpyhsCRBN, His6-3C-SpyhsCRBNV388I, Strep-BirAhsSALL4590-618 (ZnF4), Strep-BirAhsSALL4Q595H590-618 (ZnF4), Strep-BirAhsSALL4378-438 (ZnF1-2), Strep-BirAhsSALL4402-436 (ZnF2), Strep-BirAmmSALL4593-627 (ZnF4), Strep-BirAdrSALL4583-617 (ZnF2) were subcloned into pAC-derived vectors or BigBac vector for HishsDDB11-1140-HishsCUL4A38-759-HhismmRBX112-108 (CRL4CRBN). Mutant Strep-BirAhsSALL4378-438 (ZnF1-2) and Strep-BirAhsSALL4402-436 (ZnF2) constructs were derived from these constructs using Q5 mutagenesis (NEB, USA). Recombinant proteins expressed in Trichoplusia ni High Five insect cells (Thermo Fisher Scientific) using the baculovirus expression system (Invitrogen). For purification of DDB1∆B-CRBNSpyBodipyFL or CRL4CRBN, cells were resuspended in buffer containing 50 mM tris(hydroxymethyl)aminomethane hydrochloride (Tris-HCl) pH 8.0, 200 mM NaCl, 1 mM tris(2-carboxyethyl)phosphine (TCEP), 1 mM phenylmethylsulfonyl fluoride (PMSF), 1× protease inhibitor cocktail (Sigma) and lyzed by sonication. Cells expressing variations of Strep-BirASALL4 were lyzed in the presence of 50 mM Tris-HCl pH 8.0, 500 mM NaCl, 1 mM TCEP, 1 mM PMSF, and 1× protease inhibitor cocktail (Sigma). Following ultracentrifugation, the soluble fraction was passed over appropriate affinity resin Ni Sepharose 6 Fast Flow affinity resin (GE Healthcare) or Strep-Tactin Sepharose XT (IBA), and eluted with 50 mM Tris-HCl pH 8.0, 200 mM NaCl, 1 mM TCEP, 100 mM imidazole (Fischer Chemical) for His6-tagged proteins or 50 mM Tris-HCl pH 8.0, 500 mM NaCl, 1 mM TCEP, 50 mM D-biotin (IBA) for Strep-tagged proteins. Affinity-purified proteins were either further purified via ion exchange chromatography (Poros 50HQ) and subjected to size exclusion chromatography (SEC200 HiLoad 16/60, GE) (His6DDB1∆B-His6-3C-SpyCRBN or CRL4CRBN) or biotinylated overnight, concentrated, and directly loaded on the size exclusion chromatography (ENRich SEC70 10/300, Bio-rad) in 50 mM HEPES pH 7.4, 200 mM NaCl, and 1 mM TCEP. Biotinylation of Strep-BirASALL4 constructs was performed as previously described (Cavadini et al., 2016).

The protein-containing fractions were concentrated using ultrafiltration (Millipore), flash frozen in liquid nitrogen, and stored at −80°C or directly covalently labeled with BODIPY-FL-SpyCatcherS50C as described below.

Spycatcher S50C mutant

Request a detailed protocol

Spycatcher (Zakeri et al., 2012) containing a Ser50Cys mutation was obtained as a synthetic dsDNA fragment from IDT (Integrated DNA technologies) and subcloned as a GST-TEV fusion protein in a pET-Duet-derived vector. Spycatcher S50C was expressed in BL21 DE3 and cells were lyzed in the presence of 50 mM Tris-HCl pH 8.0, 200 mM NaCl, 1 mM TCEP, and 1 mM PMSF. Following ultracentrifugation, the soluble fraction was passed over glutathione sepharose 4B (GE Healthcare) and eluted with wash buffer (50 mM Tris-HCl pH 8.0, 200 mM NaCl, 1 mM TCEP) supplemented with 10 mM glutathione (Fischer BioReagents). The affinity-purified protein was TEV cleaved, subjected to size exclusion chromatography, concentrated, and flash frozen in liquid nitrogen.

In vitro ubiquitination assays

Request a detailed protocol

In vitro ubiquitination was performed by mixing biotinylated SALL4 ZnF1-2 at 0.6 μM, and CRL4CRBN at 80 nM with a reaction mixture containing IMiDs at indicated concentrations or a DMSO control, E1 (UBA1, Boston Biochem) at 30 nM, E2 (UbcH5c, Boston Biochem and UBE2G1) at 1.0 μM each, ubiquitin (Ubiquitin, Boston Biochem) at 23 μM. Reactions were carried out in 50 mM Tris pH 7.5, 30 mM NaCl, 5 mM MgCl2, 0.2 mM CaCl2, 2.5 mM ATP, 1mM DTT, 0.1% Triton X-100 and 2.0 mg mL−1 BSA, incubated for 60 min at 30°C and analyzed by western blot using rabbit anti-Strep-Tag II antibody at 1:10,000 (ab76949, Abcam) as described above.

Lentiviral infection of mES cells

Request a detailed protocol

TC1 mES cells were transduced with a pCDH-MSCV-based lentiviral vector expressing hsCRBN, GFP, and the puromycin resistance gene. Infection was performed after 24 h in culture in a six-well 0.2% gelatin-coated plate using standard infection protocol in the presence of 2 µg mL−1 polybrene (hexadimethrine bromide, Sigma). 72 h after transduction the cells were subjected to two rounds of puromycin selection (5 µg mL−1) to form mES cells stably expressing hsCRBN, which were confirmed to be >90% GFP-positive under fluorescent microscope.

Labeling of Spycatcher with Bodipy-FL-maleimide

Request a detailed protocol

Purified SpycatcherS50C protein was incubated with DTT (8 mM) at 4°C for 1 h. DTT was removed using a ENRich SEC650 10/300 (Bio-rad) size exclusion column in a buffer containing 50 mM Tris pH 7.5 and 150 mM NaCl, 0.1mM TCEP. Bodipy-FL-maleimide (Thermo Fisher Scientific) was dissolved in 100% DMSO and mixed with SpycatcherS50C to achieve 2.5 molar excess of Bodipy-FL-maleimide. SpyCatcherS50C labeling was carried out at room temperature (RT) for 3 h and stored overnight at 4°C. Labeled SpycatcherS50C was purified on an ENRich SEC650 10/300 (Bio-rad) size exclusion column in 50 mM Tris pH 7.5, 150 mM NaCl, 0.25 mM TCEP, and 10% (v/v) glycerol, concentrated by ultrafiltration (Millipore), flash frozen (~40 µM) in liquid nitrogen, and stored at −80°C.

Bodipy-FL-Spycatcher labeling of CRBN-DDB1∆B

Request a detailed protocol

Purified His6DDB1∆B-His6-3C-SpyCRBN constructs (WT and V388I) were incubated overnight at 4°C with Bodipy-FL-maleimide-labeled SpyCatcherS50C protein at stoichiometric ratio. The protein was concentrated and loaded on the ENrich SEC 650 10/300 (Bio-rad) size exclusion column, and the fluorescence was monitored with absorption at 280 and 490 nm. Protein peak corresponding to the labeled protein was pooled, concentrated by ultrafiltration (Millipore), flash frozen in liquid nitrogen, and stored at −80°C.

Time-resolved fluorescence resonance energy transfer (TR-FRET)

Request a detailed protocol

Compounds in binding assays were dispensed into a 384-well microplate (Corning, 4514) using the D300e Digital Dispenser (HP) normalized to 1% DMSO and containing 100 nM biotinylated strep-avi-SALL4 (WT or mutant, see Figure legends), 1 µM His6-DDB1∆B-His6-CRBNBodipy-Spycatcher, and 4 nM terbium-coupled streptavidin (Invitrogen) in a buffer containing 50 mM Tris pH 7.5, 100 mM NaCl, 1mM TCEP, and 0.1% Pluronic F-68 solution (Sigma). Before TR-FRET measurements were conducted, the reactions were incubated for 15 min at RT. After excitation of terbium fluorescence at 337 nm, emission at 490 nm (terbium) and 520 nm (Bodipy) were recorded with a 70 µs delay over 600 µs to reduce background fluorescence, and the reaction was followed over 30× 200 s cycles of each data point using a PHERAstar FS microplate reader (BMG Labtech). The TR-FRET signal of each data point was extracted by calculating the 520/490 nm ratios. Data from three independent measurements (n=3), each calculated as an average of five technical replicates per well per experiment, was plotted and the half-maximal effective concentrations EC50 values calculated using variable slope equation in GraphPad Prism 7. Apparent affinities were determined by titrating Bodipy-FL-labelled DDB1∆B-CRBN to biotinylated strep-avi-SALL4 (constructs as indicated) at 100 nM, and terbium-streptavidin at 4 nM. The resulting data were fitted as described previously (Petzold et al., 2016).

Quantitative RT-PCR analysis

View detailed protocol

H9 hES cells treated with 10 µM thalidomide or DMSO for 24 h were subjected to gene expression analysis. RNA was isolated using the RNeasy Plus mini kit (Qiagen) and cDNA created by reverse transcription using ProtoScript II reverse transcriptase (NEB) following the manufacturer’s instructions. The following primer sets from IDT were used with SYBR Green Master Mix (Applied Biosystems) to probe both GAPDH and total SALL4 levels:

SALL4total – F: GGTCCTCGAGCAGATCTTGT

SALL4total – R: GGCATCCAGAGACAGACCTT

GAPDH – F: GAAGGTGAAGGTCGGAGTC

GAPDH – R: GAAGATGGTGATGGGATTTC

Analysis was performed on a CFX Connect Real-Time PCR System (Bio-Rad) in a white 96-well PCR plate. Relative expression levels were calculated using the ΔΔCT method.

Sample preparation TMT LC-MS3 mass spectrometry

View detailed protocol

H9 hESC, Kelly, SK-N-DZ, and MM1s cells were treated with DMSO, 1 µM pomalidomide, 5 µM lenalidomid,e or 10 µM thalidomide in biological triplicates (DMSO) or biological duplicates (pomalidomide, lenalidomide, thalidomide) for 5 h, and cells were harvested by centrifugation. Lysis buffer (8 M urea, 50 mM NaCl, 50 mM 4-(2hydroxyethyl)-1-piperazineethanesulfonic acid (EPPS) pH 8.5, 1× Roche protease inhibitor, and 1× Roche PhosphoStop) was added to the cell pellets and cells were homogenized by 20 passes through a 21 gauge (1.25 in. long) needle to achieve a cell lysate with a protein concentration between 0.5 and 4 mg mL−1. The homogenized sample was clarified by centrifugation at 20,000 × g for 10 min at 4°C. A micro-BCA assay (Pierce) was used to determine the final protein concentration in the cell lysate. 200 µg protein for each sample were reduced and alkylated as previously described (An et al., 2017). Proteins were precipitated using methanol/chloroform. In brief, four volumes of methanol were added to the cell lysate, followed by one volume of chloroform, and finally three volumes of water. The mixture was vortexed and centrifuged at 14,000 × g for 5 min to separate the chloroform phase from the aqueous phase. The precipitated protein was washed with three volumes of methanol, centrifuged at 14,000 × g for 5 min, and the resulting washed precipitated protein was allowed to air dry. Precipitated protein was resuspended in 4 M urea, 50 mM HEPES pH 7.4, followed by dilution to 1 M urea with the addition of 200 mM EPPS pH 8 for digestion with LysC (1:50; enzyme:protein) for 12 h at room temperature. The LysC digestion was diluted to 0.5 M urea, 200 mM EPPS pH 8, and then digested with trypsin (1:50; enzyme:protein) for 6 h at 37°C. Tandem mass tag (TMT) reagents (Thermo Fisher Scientific) were dissolved in anhydrous acetonitrile (ACN) according to manufacturer’s instructions. Anhydrous ACN was added to each peptide sample to a final concentration of 30% v/v, and labeling was induced with the addition of TMT reagent to each sample at a ratio of 1:4 peptide:TMT label. The 10-plex labeling reactions were performed for 1.5 h at room temperature and the reaction quenched by the addition of 0.3% hydroxylamine for 15 min at room temperature. The sample channels were combined in a 1:1:1:1:1:1:1:1:1:1 ratio, desalted using C18 solid phase extraction cartridges (Waters) and analyzed by LC-MS for channel ratio comparison. Samples were then combined using the adjusted volumes determined in the channel ratio analysis and dried down in a speed vacuum. The combined sample was then resuspended in 1% formic acid, and acidified (pH 2−3) before being subjected to desalting with C18 SPE (Sep-Pak, Waters). Samples were then offline fractionated into 96 fractions by high pH reverse-phase HPLC (Agilent LC1260) through an aeris peptide xb-c18 column (phenomenex) with mobile phase A containing 5% acetonitrile and 10 mM NH4HCO3 in LC-MS grade H2O, and mobile phase B containing 90% acetonitrile and 10 mM NH4HCO3 in LC-MS grade H2O (both pH 8.0). The 96 resulting fractions were then pooled in a non-continuous manner into 24 fractions or 48 fractions and every fraction was used for subsequent mass spectrometry analysis.

Data were collected using an Orbitrap Fusion Lumos mass spectrometer (Thermo Fisher Scientific, San Jose, CA, USA) coupled with a Proxeon EASY-nLC 1200 LC pump (Thermo Fisher Scientific). Peptides were separated on a 50 cm and 75 μm inner diameter Easyspray column (ES803, Thermo Fisher Scientific). Peptides were separated using a 3 h gradient of 6–27% acetonitrile in 1.0% formic acid with a flow rate of 300 nL/min.

Each analysis used an MS3-based TMT method as described previously (McAlister et al., 2014). The data were acquired using a mass range of m/z 350–1350, resolution 120,000, AGC target 1 × 106, maximum injection time 100 ms, dynamic exclusion of 90 s for the peptide measurements in the Orbitrap. Data-dependent MS2 spectra were acquired in the ion trap with a normalized collision energy (NCE) set at 35%, AGC target set to 1.8 × 104, and a maximum injection time of 120 ms. MS3 scans were acquired in the Orbitrap with a HCD collision energy set to 55%, AGC target set to 1.5 × 105, maximum injection time of 150 ms, resolution at 50,000, and with a maximum synchronous precursor selection (SPS) precursors set to 10.

LC-MS data analysis

Request a detailed protocol

Proteome Discoverer 2.2 (Thermo Fisher) was used for RAW file processing and controlling peptide and protein level false discovery rates, assembling proteins from peptides, and protein quantification from peptides. MS/MS spectra were searched against a Uniprot human database (September 2016) with both the forward and reverse sequences. Database search criteria are as follows: tryptic with two missed cleavages, a precursor mass tolerance of 20 ppm, fragment ion mass tolerance of 0.6 Da, static alkylation of cysteine (57.02146 Da), static TMT labeling of lysine residues and N-termini of peptides (229.16293 Da), and variable oxidation of methionine (15.99491 Da). TMT reporter ion intensities were measured using a 0.003 Da window around the theoretical m/z for each reporter ion in the MS3 scan. Peptide spectral matches with poor-quality MS3 spectra were excluded from quantitation (summed signal-to-noise across 10 channels > 200 and precursor isolation specificity < 0.5). Reporter ion intensities were normalized and scaled using in-house scripts and the R framework (R Core Team, 2013). Statistical analysis was carried out using the limma package within the R framework (Ritchie et al., 2015).

CRISPR/Cas9-mediated genome editing

Request a detailed protocol

For the generation of HEK293T CRBN-/- and KellyCRBN-/- cells, HEK293T or Kelly cells were transfected with 4 µg of spCas9-sgRNA-mCherry using lipofectamine 2000. 48 h post transfection, pools of mCherry-expressing cells were obtained by fluorescence assisted cell sorting (FACS). Two independent pools were sorted to avoid clonal effects and artifacts specific to a single pool. For SALL4 antibody validation, HEK293T or Kelly cells were transfected with 4 µg of spCas9-sgRNA-mCherry using lipofectamine 2000. Protein levels were assessed by western blot 48 h post-transfection.

 Guide RNA sequences used:

CRBN: TGCGGGTAAACAGACATGGC

SALL4-1: CCTCCTCCGAGTTGATGTGC

SALL4-2: ACCCCAGCACATCAACTCGG

SALL4-3: CCAGCACATCAACTCGGAGG

Data availability

All mass spectrometry raw data is deposited and made available via the PRIDE archive under accessions: PXD010416, PXD010417, PXD010418, PXD010420, PDX010428. Source files have been provided for all figures.

The following data sets were generated

References

    1. Kohlhase J
    (1993)
    GeneReviews
    SALL4-Related Disorders, GeneReviews, Seattle, WA, University of Washington.
    1. Kohlhase J
    (2004)
    GeneReviews
    SALL4-Related Disorders, GeneReviews, Seattle, WA, University of Seattle.
    1. McBride WG
    (1961)
    Thalidomide and congenital abnormalities
    The Journal of American Medical Association 278:1358.
  44. Software
    1. R Core Team
    (2013)
    R: A language and environment for statistical computing
    R Foundation for Statistical Computing, Vienna, Austria.
  50. Book
    1. Smith RL
    2. Fabro S
    3. Schumacher H
    4. Williams
    (1965)
    Studies on the relationship between the chemical structure and embryotoxic activity of thalidomide and related compounds
    In: Robson J. M, Sullivan F, Smith R. L, editors. Embryopathic Activity of Drugs, Biological Council Symposium. London: Churchill. pp. 194–209.
    1. Vickers TH
    (1967)
    The thalidomide embryopathy in hybrid rabbits
    British Journal of Experimental Pathology 48:107–117.

Article and author information

Author details

  1. Katherine A Donovan

    1. Department of Cancer Biology, Dana-Farber Cancer Institute, Boston, United States
    2. Department of Biological Chemistry and Molecular Pharmacology, Harvard Medical School, Boston, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared

  2. Jian An

    1. Department of Cancer Biology, Dana-Farber Cancer Institute, Boston, United States
    2. Department of Biological Chemistry and Molecular Pharmacology, Harvard Medical School, Boston, United States
    Contribution
    Formal analysis, Investigation, Visualization, Writing—review and editing
    Competing interests
    No competing interests declared

  3. Radosław P Nowak

    1. Department of Cancer Biology, Dana-Farber Cancer Institute, Boston, United States
    2. Department of Biological Chemistry and Molecular Pharmacology, Harvard Medical School, Boston, United States
    Contribution
    Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared

  4. Jingting C Yuan

    Department of Cancer Biology, Dana-Farber Cancer Institute, Boston, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared

  5. Emma C Fink

    1. Division of Hematology, Brigham and Women’s Hospital, Boston, United States
    2. Department of Medical Oncology, Dana-Farber Cancer Institute, Boston, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6589-8558

  6. Bethany C Berry

    Department of Cancer Biology, Dana-Farber Cancer Institute, Boston, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared

  7. Benjamin L Ebert

    1. Division of Hematology, Brigham and Women’s Hospital, Boston, United States
    2. Department of Medical Oncology, Dana-Farber Cancer Institute, Boston, United States
    Contribution
    Supervision, Writing—review and editing
    Competing interests
    No competing interests declared

  8. Eric S Fischer

    1. Department of Cancer Biology, Dana-Farber Cancer Institute, Boston, United States
    2. Department of Biological Chemistry and Molecular Pharmacology, Harvard Medical School, Boston, United States
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    eric_fischer@dfci.harvard.edu
    Competing interests
    is a member of the scientific advisory board of C4 Therapeutics.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7337-6306

Funding

National Cancer Institute (R01CA214608)

  • Katherine A Donovan
  • Radoslaw P Nowak
  • Eric S Fischer

Novartis

  • Katherine A Donovan
  • Bethany C Berry
  • Eric S Fischer

Damon Runyon Cancer Research Foundation (DRR-50-18)

  • Eric S Fischer

Linde Family Foundation

  • Eric S Fischer

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Michael J Eck, Stephen C Blacklow, and Nathanael S Gray for critical feedback on the manuscript. We thank Richard I Gregory, J Wade Harper, Nathanael S Gray, and Nicolas H Thomä for providing reagents. Financial support for this work was provided by NIH grant NCI R01CA214608 (grant to ESF), The Novartis/Dana-Farber Drug Discovery Program (grant to ESF), the Friends of Dana Farber (grant to ESF), and the Linde Family Foundation (start-up funds to ESF). Eric S Fischer is a Damon Runyon-Rachleff Innovator supported in part by the Damon Runyon Cancer Research Foundation (DRR-50–18).

Copyright

© 2018, Donovan et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 31,567
    views
  • 5,150
    downloads
  • 351
    citations

Views, downloads and citations are aggregated across all versions of this paper published by eLife.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Katherine A Donovan
  2. Jian An
  3. Radosław P Nowak
  4. Jingting C Yuan
  5. Emma C Fink
  6. Bethany C Berry
  7. Benjamin L Ebert
  8. Eric S Fischer
(2018)
Thalidomide promotes degradation of SALL4, a transcription factor implicated in Duane Radial Ray syndrome
eLife 7:e38430.
https://doi.org/10.7554/eLife.38430

Share this article

https://doi.org/10.7554/eLife.38430

Categories and tags

Research organism

Further reading

    1. Biochemistry and Chemical Biology
    2. Developmental Biology

    Thalidomide: Unlocking a dark past

    Fernando Rodríguez-Pérez, Michael Rape
    Insight

    A transcription factor called SALL4 could be the missing link between thalidomide and the limb defects caused by the drug.

    1. Biochemistry and Chemical Biology
    2. Microbiology and Infectious Disease

    Malaria parasites require a divergent heme oxygenase for apicoplast gene expression and biogenesis

    Amanda Mixon Blackwell, Yasaman Jami-Alahmadi ... Paul A Sigala
    Research Article

    Malaria parasites have evolved unusual metabolic adaptations that specialize them for growth within heme-rich human erythrocytes. During blood-stage infection, Plasmodium falciparum parasites internalize and digest abundant host hemoglobin within the digestive vacuole. This massive catabolic process generates copious free heme, most of which is biomineralized into inert hemozoin. Parasites also express a divergent heme oxygenase (HO)-like protein (PfHO) that lacks key active-site residues and has lost canonical HO activity. The cellular role of this unusual protein that underpins its retention by parasites has been unknown. To unravel PfHO function, we first determined a 2.8 Å-resolution X-ray structure that revealed a highly α-helical fold indicative of distant HO homology. Localization studies unveiled PfHO targeting to the apicoplast organelle, where it is imported and undergoes N-terminal processing but retains most of the electropositive transit peptide. We observed that conditional knockdown of PfHO was lethal to parasites, which died from defective apicoplast biogenesis and impaired isoprenoid-precursor synthesis. Complementation and molecular-interaction studies revealed an essential role for the electropositive N-terminus of PfHO, which selectively associates with the apicoplast genome and enzymes involved in nucleic acid metabolism and gene expression. PfHO knockdown resulted in a specific deficiency in levels of apicoplast-encoded RNA but not DNA. These studies reveal an essential function for PfHO in apicoplast maintenance and suggest that Plasmodium repurposed the conserved HO scaffold from its canonical heme-degrading function in the ancestral chloroplast to fulfill a critical adaptive role in organelle gene expression.

    1. Biochemistry and Chemical Biology
    2. Cell Biology

    Endogenous oligomer formation underlies DVL2 condensates and promotes Wnt/β-catenin signaling

    Senem Ntourmas, Martin Sachs ... Dominic B Bernkopf
    Research Article

    Activation of the Wnt/β-catenin pathway crucially depends on the polymerization of dishevelled 2 (DVL2) into biomolecular condensates. However, given the low affinity of known DVL2 self-interaction sites and its low cellular concentration, it is unclear how polymers can form. Here, we detect oligomeric DVL2 complexes at endogenous protein levels in human cell lines, using a biochemical ultracentrifugation assay. We identify a low-complexity region (LCR4) in the C-terminus whose deletion and fusion decreased and increased the complexes, respectively. Notably, LCR4-induced complexes correlated with the formation of microscopically visible multimeric condensates. Adjacent to LCR4, we mapped a conserved domain (CD2) promoting condensates only. Molecularly, LCR4 and CD2 mediated DVL2 self-interaction via aggregating residues and phenylalanine stickers, respectively. Point mutations inactivating these interaction sites impaired Wnt pathway activation by DVL2. Our study discovers DVL2 complexes with functional importance for Wnt/β-catenin signaling. Moreover, we provide evidence that DVL2 condensates form in two steps by pre-oligomerization via high-affinity interaction sites, such as LCR4, and subsequent condensation via low-affinity interaction sites, such as CD2.
