Thalamic reticular control of local sleep in mouse sensory cortex

Research Article
  • Cited 2
  • Views 1,768
  • Annotations
Cite this article as: eLife 2018;7:e39111 doi: 10.7554/eLife.39111

Abstract

Sleep affects brain activity globally, but many cortical sleep waves are spatially confined. Local rhythms serve cortical area-specific sleep needs and functions; however, mechanisms controlling locality are unclear. We identify the thalamic reticular nucleus (TRN) as a source for local, sensory-cortex-specific non-rapid-eye-movement sleep (NREMS) in mouse. Neurons in optogenetically identified sensory TRN sectors showed stronger repetitive burst discharge compared to non-sensory TRN cells due to higher activity of the low-threshold Ca2+ channel CaV3.3. Major NREMS rhythms in sensory but not non-sensory cortical areas were regulated in a CaV3.3-dependent manner. In particular, NREMS in somatosensory cortex was enriched in fast spindles, but switched to delta wave-dominated sleep when CaV3.3 channels were genetically eliminated or somatosensory TRN cells chemogenetically hyperpolarized. Our data indicate a previously unrecognized heterogeneity in a powerful forebrain oscillator that contributes to sensory-cortex-specific and dually regulated NREMS, enabling local sleep regulation according to use- and experience-dependence.

https://doi.org/10.7554/eLife.39111.001

eLife digest

Falling asleep affects our behavior immediately and profoundly. During sleep, large electrical waves appear across the brain in areas responsible for consciousness, sensation and movement. In the cortex – the outer layer of the brain – sleep waves arise from networks that connect to the thalamus, a deeper structure within the brain. However, not all areas of the brain sleep equally. We know this intuitively because sensory stimuli, such as an alarm clock or a baby’s cry, can still wake us up. By contrast, we typically do not move much or take major decisions while we sleep. Therefore, the brain areas involved in sensation should not be expected to sleep in the same way as areas involved in movement or reasoning.

Neighboring brain areas generally show very different sleep waves. The brain regions that we use during the day can also affect how sleep varies from one area to the next. It is not well understood what determines these ‘local’ sleep properties.

By studying the brains of mice, Fernandez et al. now show that the networks between the cortex and thalamus are much more varied than previously thought, in particular regarding a thalamic nucleus that is relevant for sleep wave generation. These previously unrecognized differences deep within the brain are part of the origin of local sleep in the outer layer of the brain. Sleep wave activity differed depending on whether the networks were involved in sensory or non-sensory roles. The networks allow sensory areas to switch efficiently between different forms of local sleep. This might underlie how the brain’s sensory activity during the day can influence local sleep at night.

There is growing evidence that major sleep disorders are due to disturbances to local sleep. Techniques to modify or restore specific sleep waves locally in the brain could help to develop new sleep therapies. For example, having a detailed map of electrical waves within the sleep-disordered brain could help researchers to apply transcranial stimulation techniques in ways that might help to treat these debilitating disorders.

https://doi.org/10.7554/eLife.39111.002

Introduction

Sleep is a global vigilance state with well-known behavioral, electroencephalographic and neuromodulatory attributes. However, cerebral correlates of non-rapid-eye-movement sleep (NREMS) and REMS, notably several major EEG sleep rhythms, occur variably at different times in different brain regions (Massimini et al., 2004; Nir et al., 2011; Siclari and Tononi, 2017). This suggests that, on top of a global regulation, forebrain pacemakers with regionally specific oscillatory properties shape sleep across the cortex (Krueger et al., 2013). Such local aspects probably underlie the sleeping brain’s decreased capacity to integrate external information and enable plasticity in specific neural circuits (Siclari and Tononi, 2017; Crunelli et al., 2018). For example, sleep-dependent memory consolidation is linked to spatially confined regulation of NREMS rhythms in the brain areas involved in recent learning (Rasch and Born, 2013). Furthermore, sleep disorders may arise from a pathologically altered spatial heterogeneity that negatively impacts sleep as a global state (Krueger et al., 2013; Siclari and Tononi, 2017).

Prototype cellular pacemakers for NREMS rhythms, notably for the slow-oscillation (SO) (<1 Hz), delta waves (1–4 Hz) and sleep spindles (10–15 Hz) have been known for decades (for review, see (Steriade et al., 1993; Astori et al., 2013; Sanchez-Vives et al., 2017)). However, the spatiotemporal variability of cortical rhythms challenges the idea that these are homogeneous sources across the cortical surface (Piantoni et al., 2016; Siclari and Tononi, 2017). For example, ‘fast’ and ‘slow’ human sleep spindles distribute variably and correlate differentially with memory consolidation, which has prompted a search for at least two, if not several, separately active spindle generators (Schabus et al., 2007; Frauscher et al., 2015). Interestingly, anatomical and functional boundaries of cortical areas go in parallel with variations of sleep rhythms (Fernandez et al., 2017; Piantoni et al., 2017). Moreover, sleep rhythms can show local singularities within a single cortical area according to developmental stage, or as a result of experience and learning during the day (Huber et al., 2004; Kurth et al., 2010; Johnson et al., 2012; Laventure et al., 2016). There is also evidence for the localized appearance of sleep-related patterns in individual cortical columns (Pigarev et al., 1997; Rector et al., 2005). Therefore, modality-specific thalamocortical loops could account for diversity in local NREMS. Moreover, there should be powerful local tuning mechanisms to locally switch between different NREMS rhythms. The current view is dominated by cortical focal influences as essential to shape local rhythms (Contreras et al., 1996; Piantoni et al., 2017; Siclari and Tononi, 2017). In contrast, thalamic oscillators are seen as broad and relatively homogeneous sources of oscillatory power that can spread focally or globally to cortex (Bonjean et al., 2012), but that have little bearing on their ultimate cortical correlates.

This view is becoming revised as novel observations on heterogeneous thalamic pacemaker mechanisms are reported. Of interest is the thalamic reticular nucleus (TRN), typically referred to as an inhibitory shell of highly oscillatory, burst-prone cells surrounding the dorsal thalamus (Pinault, 2004; Fogerson and Huguenard, 2016). Burst discharge generates large inhibitory synaptic potentials (Herd et al., 2013; Rovó et al., 2014) that entrain thalamocortical neurons into rhythmicity. Bursting is based on the CaV3.3 channel that is crucial for sleep spindle generation (Astori et al., 2011; Pellegrini et al., 2016), but many studies indicate that not all TRN cells burst equally (Contreras et al., 1992; Brunton and Charpak, 1997; Lee et al., 2007; Kimura et al., 2012; Clemente-Perez et al., 2017; Higashikubo and Moore, 2018). Then, the TRN is parcellated into at least five modality-specific sectors, sensory, motor or limbic ones, according to their innervation by a particular dorsal thalamic nucleus and the reciprocally connected cortical area (Crabtree, 1999; Pinault, 2004). Moreover, optogenetic activation of TRN promotes cortical spindles or delta waves (Halassa et al., 2011; Lewis et al., 2015), suggesting that the exact patterns of TRN cell activity may determine the contribution of these two rhythms at the cortical surface. Most recently, various discharge propensity in TRN cells was linked to the differential expression of parvalbumin (PV) or somatostatin (Clemente-Perez et al., 2017). The number of PV-expressing cells is smaller in TRN of schizophrenic patients and mouse models (Steullet et al., 2018) in which reduced sleep spindle density is a common observation (Manoach et al., 2016). Together, there is accruing evidence for marked molecular and functional TRN cell heterogeneity. However, whether TRN heterogeneity is relevant for brain correlates of NREMS has so far not been tested.

This study shows that the heterogeneous cellular properties of optogenetically identified TRN sectors are a major source of local NREMS rhythms in sensory cortices. We identify the ionic mechanisms underlying this heterogeneity and study its impact on major NREMS correlates in sensory and non-sensory cortices using genetic and chemogenetic approaches. We thereby unravel novel organizing principles of NREMS topography in mouse and show that heterogeneity in TRN sectors accounts for a previously unrecognized enrichment of fast and large sleep spindles in somatosensory cortices that are coupled to the SO. We also find that TRN heterogeneity enables rapid switching between different forms of NREMS rhythms, suggesting that this could underlie the regulation of local NREMS by use and experience.

Results

TRN cell burst discharge propensity in acute slices varies across sensory and non-sensory sectors

To identify TRN cells belonging to a sensory sector, we used stereotaxic injections of AAV-ChR2_EYFP into somatosensory (S1, barrel field) or auditory cortex (AC) of 3- to 4-week-old mice. Non-sensory TRN sectors related to associative areas, such as the medial prefrontal cortex (PFC), were instead targeted through injections into the mediodorsal (MD) thalamic nucleus that is the input structure forming reciprocal loops with several areas of the PFC (Mátyás et al., 2014; Delevich et al., 2015; Collins et al., 2018) and that forms reciprocal circuits with the TRN (Mitchell, 2015). Enhanced yellow fluorescent protein (EYFP) fluorescence was present at injection sites and in restricted portions of TRN 3–4 weeks after injection, as verified on coronal sections stained immunohistochemically for PV to delineate the dorso-ventral extent of the TRN (Figure 1). The observed sectorial portions coincided with the ones established previously (Pinault and Deschênes, 1998; Pinault, 2004). Thus, injections into S1 revealed fibers navigating through the postero-dorsal portion of the TRN that terminated in elongated fluorescent spots in the thalamic ventral posterior medial nucleus corresponding to thalamic barreloids (Bourassa et al., 1995). AC injections resulted in fluorescent labeling of postero-central regions of the TRN that are anterior to the medial geniculate nucleus. Finally, MD injections labeled antero-ventral portions of the TRN, overlapping with TRN areas innervating motor and intralaminar nuclei (Pinault and Deschênes, 1998; Pinault, 2004).

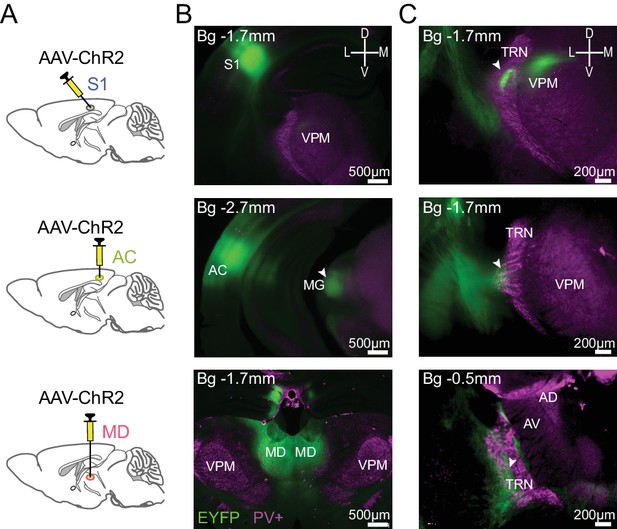

Identification of TRN sectors through anterograde tracing.

(A) Scheme illustrating injection of AAV-ChR2_EYFP into S1 (top), AC (middle) and MD (bottom). (B) Epifluorescent micrographs of coronal sections at 2.5x magnification, anteroposterior position indicated with respect to bregma (Bg). ChR2-EYFP (green) expression in infected S1 neurons and their projection to TRN and VPM (top), in AC neurons and their projection to medial geniculate nucleus (MG) (middle) and in MD neurons (bottom), with immunostaining for PV-positive (PV+, magenta) TRN neurons. The VPM appears in light magenta due to its innervation by TRN. (C) Expanded view of the target TRN sector at 5x magnification. White arrowheads indicate sites of projection into TRN.

https://doi.org/10.7554/eLife.39111.003

In acute coronal slices prepared from injected animals, TRN cells recorded in the green fluorescent areas through whole-cell patch clamp recordings reliably (> 85 % of the cells across sectors) responded to optogenetic stimulation (470 nm light, pulse duration ≤1 ms, 0.16 mW/mm2) with rapid excitatory postsynaptic currents ranging between -42 to -938 pA (Figure 2A). Paired stimuli (interstimulus interval: 100 ms) yielded paired-pulse facilitation for cortical afferents (S1-innervated TRN cells: 203 ± 12%, n = 12, Wilcoxon signed rank-test, p=4.9x10−4 for 2nd vs 1st stimulus; for AC-innervated TRN cells: 175 ± 21%, n = 6, p=0.03), as described previously (Astori and Lüthi, 2013), whereas paired responses to MD stimulation showed comparable size (105 ± 4 %, n = 13, p=0.27). Cells showed values for resting membrane potential and capacitance consistent with previous data (Figure 2B; Astori et al., 2011). Rebound action potential discharge was elicited in response to square somatic current injections (negative current injections of -50 to -300 pA for 500 ms to hyperpolarize the somatic membrane potential < -100 mV, yielding cell input resistance values of 344 ± 18 MΩ for all three sectors). Rebound oscillatory bursting hallmarks the capacity of TRN cells to engage in rhythm generation (Astori et al., 2011Wimmer et al., 2012Clemente-Perez et al., 2017). S1- and AC-innervated TRN cells showed the rhythmic, repetitive burst discharge described previously (Figure 2C; Cueni et al., 2008; Astori et al., 2011), evident as several groups of high-frequency action potentials each riding on a triangular-shaped membrane depolarization and followed by a pronounced afterhyperpolarization. Repetitive burst discharge strongly depended on the membrane voltage, showing an inverted U-shaped voltage dependence that peaked at -65 to -60 mV for S1-innervated cells (Figure 2D1,E). Only 1/12 S1-innervated TRN cells was a non-repetitive bursting cell (Figure 2F). Similar burst propensity was found for TRN cells innervated from AC (Figure 2E), but 4/13 cells were non-repetitive bursters (Figure 2F). In TRN cells responding to MD inputs, repetitive bursting was weak (Figure 2C,D1) and 9/14 cells discharged maximally one burst (Figure 2F). These results show that repetitive burst propensity is stronger in sensory compared to non-sensory TRN sectors. Within sensory sectors, the somatosensory sector displayed the highest density of strongly bursting cells, whereas the auditory sector had a smaller proportion of cells with rhythmic bursting.

Figure 2 with 1 supplement see all
Oscillatory burst firing varies across TRN sectors and depends on CaV3.3 Ca2+ channels.

(A) Representative traces of paired EPSCs in whole-cell voltage-clamped TRN neurons at −60 mV of WT and CaV3.3 KO mice upon light activation of S1 (top), AC (middle) and MD (bottom) afferents. Afferent-specific forms of short-term plasticity are preserved across genotypes (see Results for averaged data). (B) Box-and-whisker-plots of the mean capacitance (Cm) and the resting membrane potential (VRMP) of the recorded TRN neurons (WT: n = 12 for S1, n = 13 for AC, n = 14 for MD; CaV3.3 KO: n = 12 for S1, n = 13 for AC, n = 11 for MD). It can be noted that the Cm of S1-innervated TRN neurons in CaV3.3 KO showed a reduction compared to WT, suggesting smaller cell size (Mann-Whitney test, p=0.007). (C) Representative current-clamp recordings of oscillatory bursting responses of TRN neurons across sectors, induced through hyperpolarizing current injections (−50 to −300 pA for 500 ms). Horizontal lines denote −60 mV. Note the strong repetitive burst firing in sensory sectors that is impaired in the CaV3.3 KO cells, whereas MD-innervated cells mostly discharge a single burst. (D) Graph of the number of repetitive bursts as a function of the membrane potential prior to the hyperpolarizing pulse (Cueni et al., 2008). This yields a U-shaped curve reaching a peak at −65 and −60 mV in all sectors of WT mice (D1) that was abolished in CaV3.3 KO mice (D2). Dashed horizontal lines at ordinate value one indicate the border between repetitive and not-repetitive bursting conditions. (E) Mean number of repetitive bursts of TRN neurons (between −60 and −65 mV) across sectors and genotype. Mann-Whitney tests were used for comparison between genotypes, and p-values are given above the bars. (F) Histogram of the proportion of repetitive (colored rectangles) and non-repetitive bursting (grey rectangles with color surroundings) TRN neurons in the different sectors. Chi-square test followed by pairwise proportion test with Holm’s p-value adjustment was used for statistical evaluation, with significant value given above the bars.

https://doi.org/10.7554/eLife.39111.004

To test whether the heterogeneity of burst discharge across TRN sectors depended on CaV3.3 channels, the optogenetic strategy described above was applied to animals with a genetic deletion of the Cacna1i (CaV3.3, α1I) gene (Astori et al., 2011). This channel is primarily responsible for burst discharge in TRN cells, while co-expressed CaV3.2 channels play a minor role (Pellegrini et al., 2016). Accordingly, TRN cells of these animals are unable to burst repetitively, whereas tonic action potential discharge is preserved. Cells patched in acute slices from Cacna1i-/- (CaV3.3 KO) animals showed passive properties comparable to those in C57BL/6J (WT) cells of the corresponding sectors (Figure 2B), although S1-innervated cells had a smaller capacitance indicative of reduced cell size, perhaps resulting from morphological alterations in these constitutive knock-outs. Light-evoked synaptic responses showed a similar range of amplitudes (−10 to −1076 pA) and a short-term plasticity that was comparable to the one found for WT cells (S1-innervated TRN cells: 188 ± 32%, n = 7, p=0.016; for AC-innervated TRN cells: 203 ± 13%, n = 8, p=0.008; for MD-innervated TRN cells: 87 ± 8, n = 10, p=0.31; two-way ANOVA with factors ‘genotype’ and ‘sector’, p=0.28 for interaction). However, the vigorous bursting in somatosensory and auditory TRN cells was suppressed, thus abolishing the dependence of repetitive burst discharge propensity on TRN sector type (Kruskal-Wallis with factor ‘sector’, p=3×10−4 for WT, p=0.14 for CaV3.3 KO) (Figure 2D2, E). Together, these data indicate that the CaV3.3 channel endows superior bursting capacity to sensory over non-sensory TRN cells.

It has been shown that TRN bursting capacities are sensitive to cortical lesions (Paz et al., 2010). To exclude the possibility that the viral injections compromised TRN discharge, we also recorded from TRN cells in slices prepared from uninjected animals and identified putative sensory and non-sensory sectors in horizontal slices along the anteroposterior axis. These experiments confirmed the different burst propensity in sensory vs non-sensory sectors (Figure 2—figure supplement 1).

Mouse NREMS shows spectral features that are specific to functional cortical areas

We next monitored local NREMS in cortical areas connected to the TRN sectors studied in vitro. Under stereotaxic guidance, animals were implanted for in vivo multi-site recordings of local field potentials (LFPs) in the same cortical areas that were previously targeted for the anterograde viral tracing of TRN sectors, along with electroencephalography/electromyography (EEG/EMG) (Figure 3A,B). For S1 and AC, electrodes were positioned in deep layers (layers 5 and 6), whereas infra-/prelimbic cortical areas (collectively referred to as PFC) were implanted in middle layers (layers 3 and 5, see Materials and methods for exact stereotaxic coordinates), according to the majority of thalamocortical input received in the respective areas. Additionally, the secondary somatosensory cortex (S2) was implanted (layers 2/3 and 4) to monitor NREMS in an associative sensory cortical area with strong reciprocal connections to S1 (Zingg et al., 2014). We chose high-impedance electrodes (~10–12 MΩ) for LFP recordings to maximize detection of local signals. Simultaneous EEG/EMG recordings on the contralateral hemisphere were used for vigilance state scoring (Figure 3A,B).

Figure 3 with 1 supplement see all

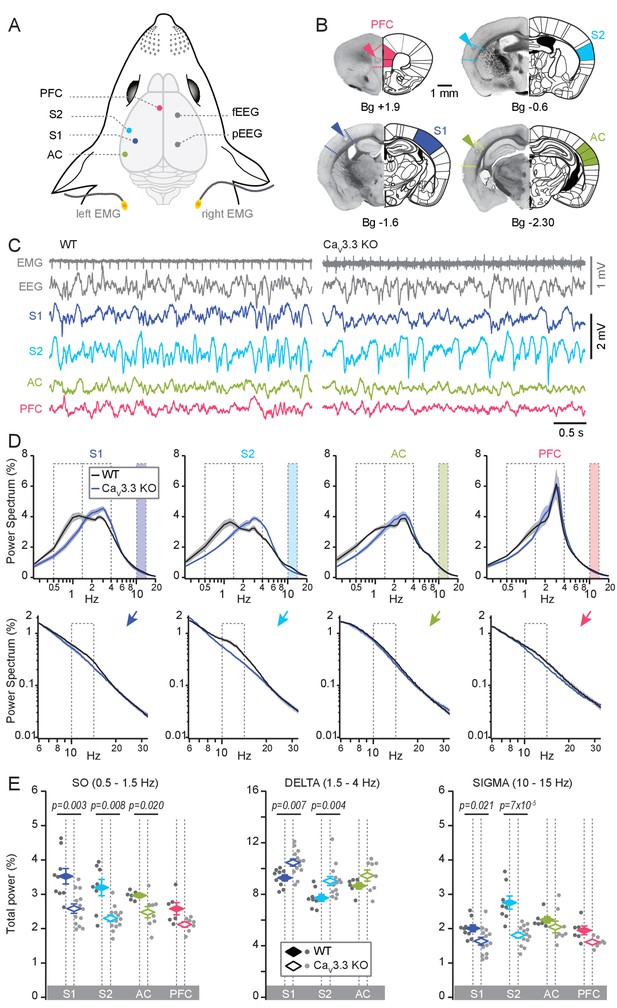

Cortical-area specific NREMS features depend on CaV3.3 Ca2+ channels.

(A) Schematic illustrating implantation sites for LFP, EEG (fEEG and pEEG; frontal and parietal EEG) and EMG electrodes. S1, S2; primary and secondary somatosensory areas; AC, auditory cortex; PFC, medial prefrontal cortex. (B) Histological sections of representative cases confirming the location of the recording sites. Arrowheads mark site of lesion caused by electrocoagulation. Anteroposterior stereotaxic coordinates are given relative to Bregma (Bg). (C) Representative raw traces of NREMS for WT (left) and CaV3.3 KO (right) animals, showing (from top to bottom) the EMG, EEG and LFP signals for S1, S2, AC and PFC (infra-/prelimbic area). The heart beat is visible on the EMG trace. (D) Power spectra corresponding to the LFP recordings, plotted in a linear-log plot to emphasize the three frequency bands of interest: the SO (0.5–1.5 Hz), the delta (1.5–4 Hz) and the sigma band (10–15 Hz). The sigma band is colored and shown in expanded log-log plots at the bottom. Normalized mean ±S.E.M. values of power spectral density are shown for S1, S2, AC and PFC for both genotypes (WT: n = 9 for S1, n = 8 for S2, n = 6 for AC, n = 6 for PFC; CaV3.3 KO: n = 13 for S1, n = 13 for S2, n = 8 for AC, n = 7 for PFC). (E) Mean total power for the three frequency bands across S1, S2, AC and PFC, with values for individual animals shown in points (dark gray for WT, light gray for CaV3.3 KO animals), and mean values ± S.E.M. in color diamonds. Statistical significance was tested for each area separately, comparing WT and CaV3.3 KO. Mann-Whitney non-parametric test for WT vs CaV3.3 KO, for S1, p=0.003 for the SO, p=0.007 for delta, p=0.021 for sigma; for S2, p=0.008 for the SO, p=0.005 for delta, p=6.9×10−5 for sigma; for AC, p=0.02 for the SO, p>0.05 for delta and sigma; for PFC, all p-values>0.05. Bonferroni-corrected α-threshold for the three frequency bands was 0.017.

https://doi.org/10.7554/eLife.39111.007

Animals were recorded in head-restrained mode, which yields a sleep profile comparable to that in freely moving conditions, as previously shown (Fernandez et al., 2017; Lecci et al., 2017). Each mouse was recorded for 2–3 hr/day and spontaneously switched between periods of wakefulness, NREMS and REMS with power spectra typical for each vigilance state (Figure 3—figure supplement 1A).

NREMS was accompanied by distinct LFP waveforms across cortical areas of WT animals (Figure 3C). In S1 and S2, prominent activity in the SO (0.5–1.5 Hz, frequency band chosen based on visual inspection of the power spectrum) and the sleep spindle (sigma, 10–15 Hz) frequency ranges was visible (Figure 3—figure supplement 1B). Activity in the delta (1.5–4 Hz) frequency range was evident as large positive deflections (Figure 3—figure supplement 1B). Similar, yet weaker rhythmic activity was observed in AC and PFC. The PFC showed signals dominated by slow events, as reported (Fernandez et al., 2017), which included a component around 4 Hz resembling a respiratory-related rhythm in frontal brain areas (Figure 3C,D; Zhong et al., 2017). Power spectral analyses over total NREMS times of 2200–6100 s per animal (average 4487 ± 603 s, concatenated from NREMS bouts across recording days) showed that NREMS in all recorded areas had broadly elevated power in the low-frequency range covering both the SO and the delta range (0.5–4 Hz), whereas a ‘shoulder’ in the sigma band was present only in somatosensory areas (n = 9 for S1 and n = 8 for S2) but not in AC (n = 6) and PFC (n = 6) (Figure 3D).

NREMS in animals lacking CaV3.3 channels showed several marked changes that were apparent in both the raw traces and in characteristic alterations of the power spectra (NREMS recording times of 1800–7000 s per animal, average 3459 ± 421 s). First, there was a striking lack of visually recognizable sleep spindle activity in S1 and S2, and a sigma power shoulder was not present in the power spectrum (Figure 3C,D, bottom panel showing enlarged portions of the power spectrum and Figure 3—figure supplement 1B). Second, activity in the delta range was augmented, whereas the SO was less prominent in LFP traces from S1, S2 and AC. These visual observations manifested as a rightward shift of the low-frequency activity in the power spectrum, with a clear power peak present in the delta band that dominated over power values < 1.5 Hz. The power spectra for WT and CaV3.3 KO animals intersected in the slow frequencies around 1.6–1.8 Hz for S1, S2 and AC, suggesting a consistent spectral border between the SO and the delta bands. Separate quantification of total power in the SO, the delta and the sigma frequency band confirmed these observations (Figure 3E). After Bonferroni correction, the sigma power reduction in S1 appeared as a trend. However, this is an underestimation because the difference between the two curves extends up to ~18 Hz. In PFC, in contrast, no alterations in the power spectrum were observed, with in particular no significant change in the sigma power and in the SO peak. The delta band was not analyzed in this area due to the superposition of the respiratory rhythm on top of the delta waves.

Together, the lack of CaV3.3 channels altered the spectral mix of NREMS in sensory circuits, whereby power in the delta frequency band became overrepresented compared to the SO. This shift was greatest in S1 and S2, where in addition sigma power activity was suppressed. In contrast, the PFC did not show these alterations in two of the three major frequency bands, suggesting a minor dependence on CaV3.3 channels.

Chemogenetic inhibition of TRN cells reproduces the switch from spindle- to delta-enriched sleep

The results from CaV3.3 KO animals suggest that strong CaV3.3-dependent burst discharge is required for spindle-enriched NREMS. Therefore, acute reduction of TRN excitability to suppress bursting should also deplete spindles and lead to a NREMS enriched in delta waves. To test this, we hyperpolarized TRN cells with a chemogenetic approach, whereby we expressed the inhibitory DREADD receptor hM4Di in VGAT-Ires-Cre animals (Vong et al., 2011) through bilateral injection of AAV-hM4D(Gi)_mCherry or AAV-hM4D(Gi)_IRES_mCitrine in the region of the somatosensory TRN sector (Figure 4—figure supplement 1A). In acute slices prepared 3 weeks after injection, bath application of the DREADD-ligand Clozapine N-oxide (CNO, 10 μM) induced a marked membrane hyperpolarization (ΔV = −13.9 ± 1.5 mV, n = 10, paired t-test, p=6×10−6) of fluorescent cells held in whole-cell current-clamp at resting membrane potentials ranging from −50 to −70 mV (Figure 4A,B). Cellular input resistance was reduced and rebound burst discharge suppressed in the continuous presence of CNO. Bursting could be recovered upon direct current (d.c.) injection to restore the original membrane potential (d.c. injection tested in n = 3 cells, Figure 4A). Non-fluorescent cells in the vicinity of the injected area did not respond to CNO (Figure 4B). This result is consistent with CNO-induced activation of K+ conductances and shows that TRN neurons become silenced without impairing rebound bursting and action potential firing. Treatment with CNO thus overall reduces TRN excitability, and in particular specifically reproduces the decreased burst propensity of TRN cells found in the CaV3.3-KO animals that is relevant for the altered NREMS spectral properties.

Figure 4 with 1 supplement see all

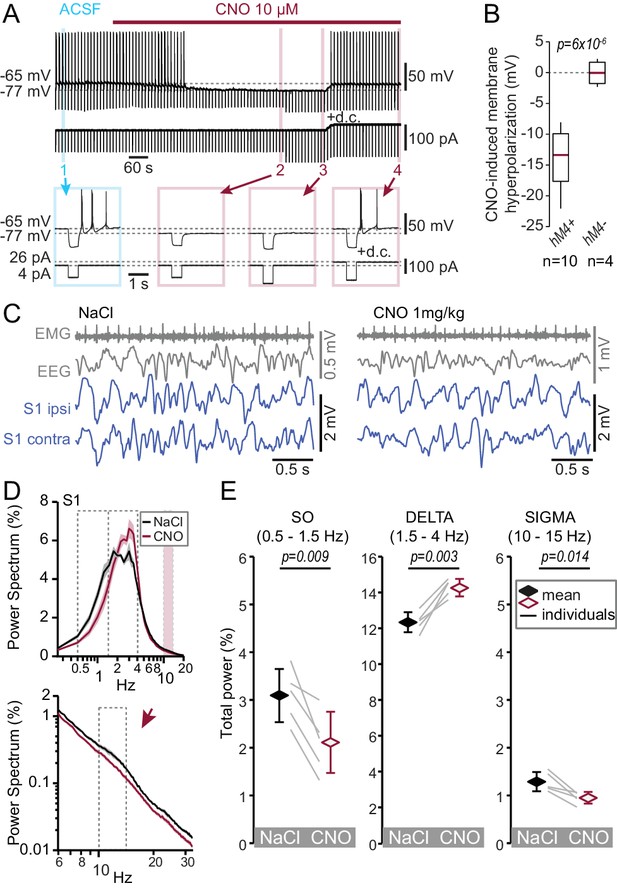

Chemogenetic hyperpolarization of TRN cells mimics the NREMS phenotype of the CaV3.3 KO mice.

(A) Representative membrane voltage recording of a whole-cell patch-clamped TRN cell in vitro exposed to CNO (10 μM, bath application indicated by horizontal bar) recorded in a slice from a mouse injected with AAV8-hM4D(Gi)_IRES_mCitrine. The cell was injected every 10 s with brief negative current pulses to elicit rebound discharge. The application of CNO hyperpolarized the membrane potential, suppressed rebound bursting and decreased membrane input resistance, as evident by the smaller voltage deflection in response to the negative current step (−80 pA). Current step size was increased to −120 pA to compensate for the decreased membrane resistance. Subsequent injection of direct current (d.c.) to counteract membrane hyperpolarization then reinstated burst discharge. Numbers indicate portions of the trace shown expanded below. Horizontal dotted lines indicate mean membrane potential before and during CNO application. (B) Box-and-whisker plot of membrane hyperpolarization in vitro (ΔV, calculated as the difference before and during CNO) for fluorescent (hM4+, n = 10, ΔV = −13.9 ± 1.5 mV, paired t-test, p=6×10−6) and non-fluorescent cells (hM4-, n = 4, ΔV = 0.0 ± 0.9 mV, paired t-test, p=0.97). The CNO-effects between the two-cell groups differed significantly (unpaired t-test, p=1.1×10−4). (C) Representative traces in vivo during NREMS 30 min after the injection of NaCl (left) or CNO (right) in the same animal, showing (from top to bottom) the EMG, EEG and S1-LFP (ipsilateral and contralateral to EEG) signals. (D) Mean ±S.E.M. power spectra of the S1-LFPs for NaCl and CNO injections in vivo during the NREMS periods 20 to 65 min after injection. Expanded portion is shown below in log-log scale to emphasize the sigma band (10–15 Hz). (E) Mean total power for the three frequency bands of interest. Diamonds and error bars show the Mean ±S.E.M. across subjects. Gray lines represent individual animals. Repeated-measures ANOVA for factors ‘frequency’ and ‘treatment’, p=7.7×10−5 was followed by paired t-tests for individual frequency bands, with values given above the bars. Bonferroni-corrected, α threshold was 0.017.

https://doi.org/10.7554/eLife.39111.010

Similarly injected animals were also implanted in vivo for S1 LFP and EEG/EMG freely moving recordings and treated with CNO (i.p. 1 mg/kg) or NaCl at 2 hr into the light phase (ZT2). The latencies to fall asleep were comparable after drug or NaCl injections (31.4 ± 3.7 min for CNO, 24.8 ± 2.1 min for NaCl; n = 5, paired t-test, p=0.16). NREMS analysis was done for the time period of 20–65 min after drug injection, which is the period where drug effects peak (Figure 4—figure supplement 1B). Total time spent in NREMS was not different between CNO and NaCl injections in the analysis period (24.1 ± 1.7 min for CNO, 27.7 ± 1.9 min for NaCl injections, Wilcoxon signed rank-test, p=0.22) and mean NREMS bout durations were comparable (93.3 ± 12.3 s for CNO, 91.2 ± 32.5 s for NaCl, Wilcoxon signed rank-test, p=0.31). Following CNO injections, S1 LFP signals during NREMS showed reduced spindle activity and instead became enriched in activity in the delta frequency range (Figure 4C,D, repeated-measures ANOVA with factors ‘frequency’ and ‘treatment’, p=7.7×10−5). Compared to NaCl injections, total power in the delta frequency range was increased, whereas the SO and spindle activity were suppressed (Figure 4D,E). Control animals injected with AAV8 carrying a DREADD-unrelated optogenetic construct (see Materials and methods) did not respond to CNO (Figure 4—figure supplement 1C–F). The CNO-induced acute membrane hyperpolarization thus reproduced the major power spectral changes observed in NREMS of the CaV3.3 KO mouse: the suppression of the SO and sleep spindle power, and the enhancement of delta power. As CNO-induced hyperpolarization suppressed burst discharge (see also Figure 2D1), the joint results from the genetic and the chemogenetic manipulations identify decreased TRN bursting as the primary factor relevant for the enrichment of delta power at the expense of sigma and SO power in NREMS.

CaV3.3 channels amplify and accelerate spindles in the somatosensory areas

Given the importance of CaV3.3-dependent TRN burst discharge for NREMS in sensory cortices, the question remains open of how this discharge pattern controls the properties of local, discrete spindle events. The exact sources of regional spindle properties have recently received considerable attention (Schabus et al., 2007; Frauscher et al., 2015; Piantoni et al., 2017). Therefore, we developed an algorithm to isolate discrete spindle events in NREMS of WT and CaV3.3 KO mice. We followed a previously established thresholding approach in rat that successfully characterized spindles in both rodent and human (Mölle et al., 2009) complemented with additional criteria, as detailed in the Materials and methods (Figure 5—figure supplement 1). For the band-pass filtering, we were guided by the observation that in both S1 and S2 of the CaV3.3 KO animals, power was attenuated beyond the widely used sigma band of 10–15 Hz. Therefore, we chose 9–16 Hz to allow for the possible inclusion of comparatively slow and fast spindles.

We isolated 727–2289 events per WT mouse and area that showed the typical spindle-shaped, waxing-waning waveform (Figure 5A). Spindles in S1 and S2 showed large amplitudes that were comparable to that of the SO, whereas those in AC and PFC were less prominent (Figure 5A). In the CaV3.3 KO animals, the large spindle events were reduced in S1 and S2, but remained comparable in AC. There was also a reduction of event amplitude in PFC (Figure 5B1). Cumulative probability density curves showed a marked leftward shift of the amplitude distribution in S1 and S2, but not in AC and PFC (Figure 5B2). We also analyzed the intra-spindle frequencies, one of the major markers of spindle heterogeneity (Figure 5C). The frequency of detected events was distributed according to a Gaussian between 9 and 16 Hz, with a maximum around 10–12 Hz, yielding means of 11.6 ± 0.09 Hz for S1; 11.7 ± 0.05 Hz for S2; 11.2 ± 0.05 Hz for AC; 11.5 ± 0.03 Hz for PFC (Figure 5C1). All distributions showed a tail indicating a small proportion of events with a frequency >14 Hz (Figure 5C2). In the CaV3.3 KO animals, frequencies were specifically attenuated in S1 and S2, but remained comparable in AC and PFC. The greater activity of CaV3.3 channels in the sensory sectors of TRN thus correlated strongly with higher amplitudes and frequencies of individual spindles in S1 and S2.

Figure 5 with 1 supplement see all

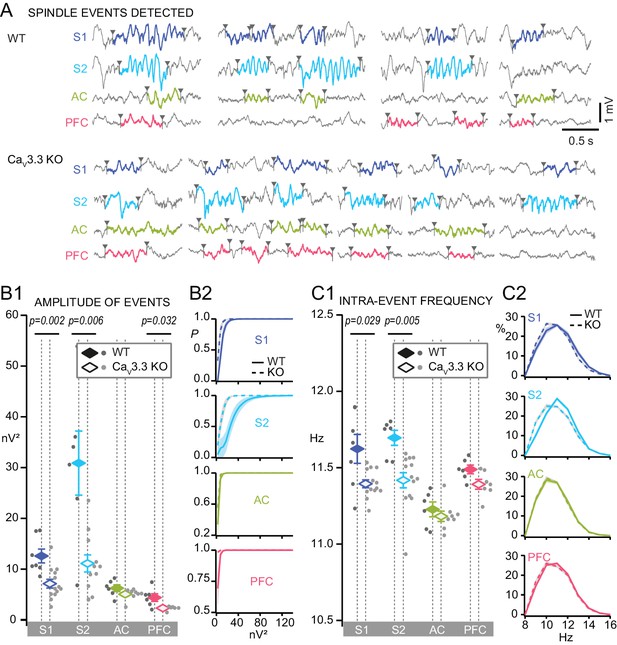

Discrete spindle events are amplified and accelerated in somatosensory areas by CaV3.3 channels.

(A) Representative traces during NREMS for WT and CaV3.3 KO for S1, S2, AC and PFC, showing examples of algorithm-detected discrete spindle events (9–16 Hz, colored and bordered by arrowheads). (B) Mean amplitude of detected spindles quantified as mean power of the band-pass filtered signal (9–16 Hz). (B1) Mean spindle power levels across animals, values for individual animals shown by dots (dark gray for WT, light gray for CaV3.3 KO animals) and mean values ± S.E.M. by colored diamonds. Statistical significance was tested for each area separately using Mann-Whitney test, comparing WT (S1, n = 7; S2, n = 6; AC, n = 6; PFC, n = 6) and CaV3.3 KO (S1, n = 13; S2, n = 13; AC, n = 8; PFC, n = 7). p-values obtained were: for S1, p=0.002; for S2, p=0.006; for AC, p>0.05; for PFC, p=0.032. (B2) Cumulative probability distributions. (C) Same for intra-spindle frequencies. (C1) p-values obtained were: for S1, p=0.029; for S2, p=0.005; for AC and PFC, p>0.05. (C2) Probability distribution of spindle events according to their intra-spindle frequency.

https://doi.org/10.7554/eLife.39111.013

CaV3.3 channels ensure the temporal coordination of sleep spindles with the active state of the SO

Sleep spindles are temporally grouped by the active state of the SO, which reflects the strong role of corticothalamic volleys in recruiting thalamic circuits (Contreras et al., 1996). This grouping is key for the promotion of sleep-dependent memory consolidation (Mölle et al., 2009) and it may be disrupted in some cases of schizophrenia (Manoach et al., 2016). We determined the onset times of detected spindles with respect to the phase of the SO (Figure 6A) and confirmed such time-locking throughout all areas, with ~60% and 40% of detected spindles initiating during the cortical active and silent states (also named UP and DOWN states), respectively (Figure 6B,C). Remarkably, the same analysis in the CaV3.3 KO animals showed that the time-locking of sleep spindles to the SO was altered for S1 and S2 (Figure 6B,C), but not for AC and PFC. In both S1 and S2, the presence of spindles on the active state was diminished in favor of spindles in the silent state. In S1 from CaV3.3 KO animals, the occurrence of spindles was comparable between active and silent states, whereas events occurred preferentially in the silent state in S2. This difference in the coupling was not due to a less faithful detection of the smaller spindles in the CaV3.3 KO animals, because the analysis produced similar results when it was limited to WT spindles with amplitudes corresponding to those of the CaV3.3 KO animals. Therefore, the presence of CaV3.3 ensures the timely occurrence of sleep spindles with respect to the cortical active state.

Phase-locking of spindles to the active state of the SO depends on CaV3.3 channels in somatosensory cortices.

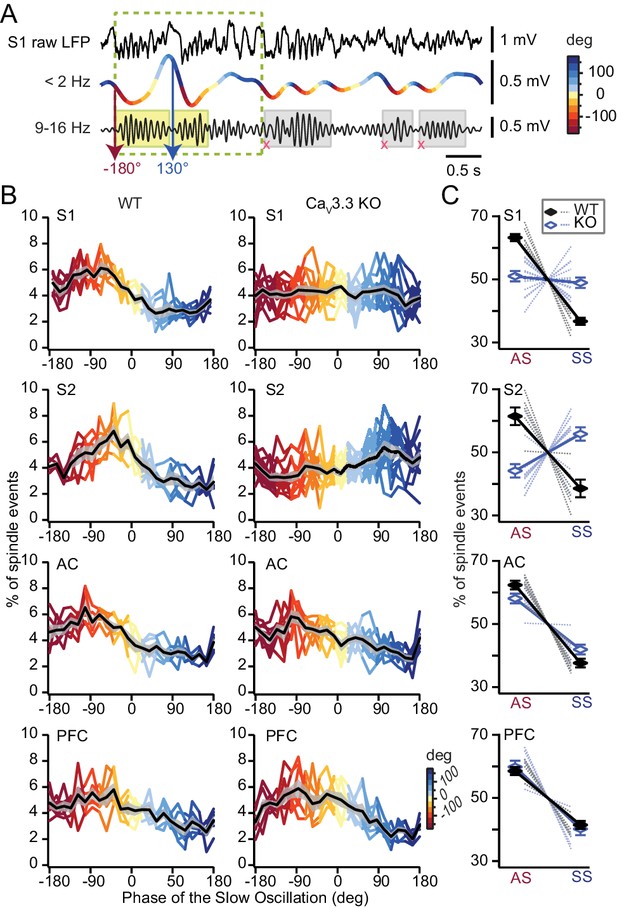

(A) Illustration of the method to determine the phase value of the SO at which a detected spindle event starts (yellow shaded rectangles). SO periods were determined based on (Mölle et al., 2009) and indicated as dashed rectangle. Spindles that did not coincide with detected SO were not included in this analysis (gray shaded rectangles). (B) Graphs presenting sleep spindle occurrence as a function of SO phase. Colored lines represent individual animals, black lines the mean ±S.E.M. (gray-shaded curve). Same animal numbers as in Figure 5. (C) Mean occurrence of spindle onsets for the active (AS, −180°, 0°) and the silent (SS, 0°, 180°) state of the SO. Statistical significance was tested for each area separately with respect to spindle occurrence as a function of AS and SS. All tests were paired t-test, except for S2 for which we used Wilcoxon signed rank-test. For WT, p-values obtained were: for S1, p=2×10−5; for S2, p=0.031; for AC, p=3×10−4; for PFC, p=0.001. For CaV3.3 KO, p-values obtained were: for S1, p=0.543; for S2, p=0.033; for AC, p=0.001; for PFC, p=0.003. Comparison between genotypes was done for the active state (AS) using unpaired t-test, except for S2 for which we used Mann-Whitney test. p-values obtained were: for S1, p=8.3×10−6; for S2, p=5×10−4; for AC, p=0.06; for PFC, p=0.59.

https://doi.org/10.7554/eLife.39111.016

Discussion

We identify a novel mechanism underlying local cortical correlates of NREMS. It arises through heterogeneity in thalamic circuits and correlates with variable oscillatory bursting propensity across TRN sectors. Strong CaV3.3-dependent bursting in the somatosensory TRN sector led to local NREMS with fast and large spindles coupled to the SO, whereas this was not the case for cortical areas corresponding to TRN sectors with weakly bursting cells. Intriguingly, high burst propensity was also coupled to a dual regulation of local NREMS, such that the SO and spindles could be suppressed in favor of delta waves. Sectorial attributes of TRN circuits thus emerge as a powerful source for local NREMS correlates. They additionally facilitate a tuning of NREMS between major spectral correlates, offering a candidate mechanism for local sleep modulation, possibly in response to use, experience and learning. A sectorial heterogeneity of TRN will also advance insight into a proposed common vulnerability of TRN circuitry for both sleep as well as wakefulness-driven selective attention in neuropsychiatric disorders (Krol et al., 2018).

The TRN has been traditionally regarded as a homogeneous sleep rhythm pacemaker (Fuentealba and Steriade, 2005; Fogerson and Huguenard, 2016) that underlies global thalamic inhibition (Halassa and Acsády, 2016). Although its molecular and functional heterogeneity is increasingly recognized, consequences for NREMS are so far poorly explored and the role of sector-specific TRN cell characteristics is unknown. Thus, it is not clear whether heterogeneous cellular discharge properties (Contreras et al., 1992; Brunton and Charpak, 1997; Lee et al., 2007; Kimura et al., 2012; Higashikubo and Moore, 2018) or variable expression of PV and somatostatin are important for local sleep (Clemente-Perez et al., 2017). Furthermore, sensory but not limbic TRN cells preferentially engage in sleep-related activity (Halassa et al., 2014), but it is not known whether they are cellularly distinct. Therefore, this study is the first to bring together TRN heterogeneities at both the in vitro and the in vivo levels using optogenetically assisted mapping of TRN sectors. We show that cellular heterogeneities align with identified TRN sectors, and TRN sectors with area-specific NREMS, thus establishing the TRN sector-specific cellular properties as a source for local and tunable NREMS. Based on a previous study demonstrating that PV-positive cells are stronger bursters than cells enriched in somatostatin (Clemente-Perez et al., 2017), we propose that PV-positive TRN cells are primary determinants of the unique sleep spindle properties in somatosensory cortex.

The focus on NREMS in specific cortical areas using LFP recordings, combined with genetic and chemogenetic manipulation and cellular analysis, reveals novel and surprising topographical aspects of mouse NREMS (Terrier and Gottesmann, 1978; Kim et al., 2015; Fernandez et al., 2017). One remarkable observation is that somatosensory cortices showed a clear sigma power ‘shoulder’ and strong, fast, CaV3.3-dependent spindle events. The widespread idea from EEG recordings that sleep spindle generation in mouse NREMS is weak (Astori et al., 2011) should thus be revised as we now show that full-fledged spindle activity is generated in local regions of the mouse brain. The highly focal synaptic organization of the barrel system, where TRN-thalamic, thalamocortical and corticothalamic projections between barreloid and barrel topographically match on a cell-to-cell basis (Desîlets-Roy et al., 2002; Wimmer et al., 2010), together with a high density of PV-positive, bursty cells in the TRN somatosensory sector (Clemente-Perez et al., 2017), are likely important anatomical substrates enabling strong local spindles. The tight alignment of thalamic unit and S1 LFP activity recorded simultaneously during spindles in urethane anaesthesia (Rovó et al., 2014) supports this interpretation. We also observed prominent sigma power and high-amplitude spindles in S2 that exceeded levels in S1. High reciprocal cortical connectivity between S1 and S2 (Feldmeyer et al., 2013), and a differential recruitment of first- and higher order thalamic nuclei in these two areas, could be some of the reasons behind this difference. In contrast to S1 and S2, no discernable sigma power shoulder was present in AC, and detected spindles showed no dependence on the CaV3.3 channel. We found a tendency for a decreased density of highly burst-prone cells in mouse, which possibly reduces the strength of spindle generation in auditory sectors. It also remains to be seen whether there exist functional and anatomical differences in the overall connectivity of each sensory TRN sector (Crabtree, 1999). Similarly, the spectral composition of NREMS in pre- and infralimbic portions of the PFC showed no prominent sigma power and no overall dependence on CaV3.3 channels, consistent with a minor expression of CaV3.3 channels in the MD-innervated sector and with the presence of a majority of somatostatin-positive, weakly bursting cells in these areas of the TRN (Clemente-Perez et al., 2017). However, discrete spindles could be detected in mouse and they are well-described for rat PFC (Siapas and Wilson, 1998; Peyrache et al., 2011; Maingret et al., 2016). Discrete spindle events were accompanied by a phase entrainment of TRN discharge in sleeping rats, although mean firing rates seemed low (Gardner et al., 2013). There could thus be a spindle-generating circuitry independent of the powerful CaV3.3-dependent mechanisms in sensory TC loops, in which anterior and midline thalamic nuclei and hippocampus are involved. Such ideas remain to be tested also regarding the notion of distinct frontal spindles in both human (Schabus et al., 2007) and mouse (Kim et al., 2015).

Power in the SO band was consistently co-modulated with sleep spindle activity in both the CaV3.3 KO mouse and during chemogenetic TRN inhibition. This could be evidence in favor of a role of TRN in the generation of the SO (Crunelli et al., 2015). Our chemogenetic results generally support the idea that the TRN sustains low-frequency activity in cortico-thalamocortical loops, an effect which could possibly also result secondarily from its phasic recruitment by cortex to generate sleep spindles. Also, the increase of delta power could have de-emphasized the relative presence of SOs. Additionally, possible roles of CaV3.3 channels in cortically generated rhythms could arise from a subgroup of cortical interneurons (Liu et al., 2011).

The genetic removal of the CaV3.3 channel enhanced delta power in S1 and S2 at the expense of sleep spindles. Chemogenetic hyperpolarization reproduced this observation closely. Although the chemogenetic approach suppresses excitability in a manner that is not limited to bursting, the close correspondence with the observations in the CaV3.3-KO animals, in which only bursting but not tonic firing is impaired (Astori et al., 2011), strongly suggests that suppressed bursting, which is the common denominator of both experimental approaches, is the principal mechanism involved in the effects at the level of NREMS. While the reduction in sleep spindle activity under these conditions is expected (Astori et al., 2011), an enhancement and/or unmasking of delta wave-generating activity in thalamocortical circuits has now become apparent thanks to the locality of our recordings. It is reminiscent of previous observations of an opposite regulation of slow wave/delta and spindle power during NREMS (Dijk et al., 1993; Steriade et al., 1993; Franken et al., 1998), which has been explained based on the different membrane potential polarizations of TC cells involved in spindle or delta rhythm generation (Nuñez et al., 1992). Here, we identify TRN cell membrane potential polarization as a determinant for such regulation in somatosensory thalamocortical circuits during NREMS. Remarkably, the capability of TRN in generating either spindles or delta waves was also evident based on whether brief or prolonged optogenetic stimulation was applied (Halassa et al., 2011; Lewis et al., 2015). This underscores the power of TRN-dependent inhibition in controlling thalamocortical synchrony according to discharge patterns. We add to this the capability of a local, switchable tuning of NREMS spectral properties in somatosensory cortex. In agreement with pioneering work on delta waves, we propose that TRN hyperpolarization liberates TC cells from phasic hyperpolarization to engage in a clock-like rhythm at delta frequencies (Steriade et al., 1993). Results consistent with this interpretation were also obtained in animals doubly deficient in CaV3 channels (Pellegrini et al., 2016). Recently, it was also shown that optogenetic inhibition of anterior TRN cells may suppress rather than strengthen low-frequency EEG activity (Herrera et al., 2016), yet this effect occurred with a 10-s-long delay after acute inhibition of TRN cell discharge.

The powerful control of delta power by TRN-dependent mechanism could be relevant for the role of delta waves in the homeostatic regulation of NREMS. The increase in low-frequency power of NREMS over the 0.75–4 Hz power band, referred to as slow-wave activity, is the most widely used marker to quantify homeostatic sleep pressure (Borbély and Tobler, 2011). We find here that slow-wave activity contains a thalamically controlled component that can be rapidly and bidirectionally modulated through TRN membrane polarization. Such mechanisms could contribute to sleep-deprivation induced boosting of the high- but not the low-frequency component of slow-wave activity (Achermann and Borbély, 1997; Huber et al., 2000). Bidirectional regulation of slow-wave activity in local brain areas according to use dependence has also been described (Kattler et al., 1994; Pigarev et al., 1997; Vyazovskiy et al., 2000; Miyamoto and Hensch, 2003; Huber et al., 2006). More complex localized alterations in NREMS are observed following exposure to learning tasks that involve enhanced power in both the low-frequency range (SO and delta waves in the slow wave activity frequency range of 0.5–4 Hz) and in the fast sleep spindle range (Huber et al., 2004). Learning tasks involving motor cortex increase the density of individual spindle events in a manner specifically restricted to motor cortex (Johnson et al., 2012) or augmented both slow wave and sleep spindle power in supplementary motor cortex (Tamaki et al., 2013). Therefore, cortical modules are capable of generating qualitatively different forms of local NREMS spontaneously and according to recent use and experience. Membrane potential polarization within TRN sectors could represent a powerful addition to previously proposed mechanisms that primarily imply changes in cortical synaptic strength (Tononi and Cirelli, 2014). Both ascending brainstem and basal forebrain (McCormick and Bal, 1997; Beierlein, 2014) as well as descending cortical inputs (McCormick and von Krosigk, 1992; Zhang et al., 2012) regulate TRN membrane potential and burst propensity. Whether differential neuromodulation of TRN sectors contributes to use- and experience-dependent sleep regulation remains an intriguing topic for further study.

Compromised sleep spindle generation is a promising read-out for neuropsychiatric disorders involving aberrant sensory percepts and attentional deficits, such as schizophrenia (Manoach et al., 2016). In large-scale genome-wide association studies, the gene encoding CaV3.3 channels ranks in the top list of candidate risk genes in schizophrenia, together with several genes that are highly enriched in TRN and implied in repetitive burst discharge (Krol et al., 2018). Based on our data, we propose that wake-related deficits in some of these patients may show a specificity for certain sensory modalities that co-vary with local deficits in sleep spindles and their coupling to the SO. This could help to further refine the classification and diagnosis of these complex disorders.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
Genetic reagent
(M. musculus)
CaV3.3 KOPMID: 21808016MGI:5637591generated by
Dr. H. Prosser,
then at GSK
Genetic reagent
(M. musculus)
VGAT-Ires-CrePMID: 21745644MGI:5141270generated by
Dr. B. Lowell,
Harvard
Recombinant
DNA reagent
AAV1-hSyn-
ChR2(H134R)_
eYFP-WPRE-hGH
Penn Vector Core26973P
Recombinant
DNA reagent
AAV8-hSyn-DIO-
hM4D(Gi)_mCherry
UNC Vector CoreN/A
Recombinant
DNA reagent
ssAAV8/2-hSyn1-dlox-
HA_hM4D(Gi)_IRES_
mCitrine-dlox-WPRE-
hGHp(A)
Zurich viral
vector repository
v93-8
Antibodymouse anti-PV
RRID:AB_10000343
SwantPV 235Dilution 1/4000
Antibodygoat anti-mouse CY5
RRID:AB_2338713
Jackson
ImmunoResearch
115-175-146Dilution 1/500
Peptide,
recombinant
protein
streptavidin coupled
with Alexa Fluor 594
RRID:AB_2337250
Jackson
ImmunoResearch
016-580-084Dilution 1/8000
Chemical
compound,
drug
CNOTocris6329
Software,
algorithm
NeuroexplorerPlexon
Software,
algorithm
Intan RHD2000
recording
system with Matlab
toolbox 1.2.2
IntanTeck
Software,
algorithm
PClamp10.2Molecular
Devices
Software,
algorithm
Igor Pro 7WaveMetrics
Software,
algorithm
Matlab 2018 aMathWorks
Software,
algorithm
R 3.5.1R Core Team

Animal handling

Mice from the C57BL/6J line (also referred to as wild-type, WT), the CaV3.3 KO line and the VGAT-Ires-Cre line (Jackson Labs, generated by Dr. B. Lowell, Beth Israel Deaconess Medical Center, Harvard) (Vong et al., 2011) were bred on a C57BL/6J background and housed in a temperature- and humidity-controlled animal house with a 12 hr/12 hr light-dark cycle (lights on at 9 am). Food and water were available ad libitum. For viral injections, 3- to 4-week-old mice of either sex were transferred to a P2 safety level housing room with identical conditions 1 day prior to injection. Then, for in vitro experimentation, animals were transferred 3 to 4 weeks later to a housing room with identical conditions, 3–5 days prior to sacrifice. For in vivo experimentation, animals were brought to the recording room at least one week prior to experimentation. All experimental procedures complied with the Swiss National Institutional Guidelines on Animal Experimentation and were approved by the Swiss Cantonal Veterinary Office Committee for Animal Experimentation.

Viral injections

Mice 3- to 4-week-old were anaesthetized using Ketamine-Xylazine (83 and 3.5 mg/kg, respectively). Mice were placed on a heating blanket to maintain the body temperature at 37°C. An initial dose of analgesic was administrated at the beginning of the surgery (Carprofen i.p. 5 mg/kg). The animal was head-fixed on a stereotactic apparatus equipped with a head adaptor for young animals (Stoelting 51925, Wood Dale, IL). A small incision was made on the skin and the bone exposed at the desired injection site. Viruses were injected with a thin glass pipette (5-000-1001-X, Drummond Scientific, Broomall, PA) pulled on a vertical puller (Narishige, Tokyo, Japan). WT and CaV3.3 KO mice were injected bilaterally with a virus encoding ChR2-EYFP (500 nl of AAV1-hSyn-ChR2(H134R)_eYFP-WPRE-hGH, 1012 GC, ~100–200 nl/min) for one of the following sites (in stereotaxic coordinates, relative to bregma: anteroposterior, lateral, depth from surface): S1 (-1.7, ±3.1, -0.8), AC (-2.5, ±4, -1.1), MD (-1.7, ±0.4, -3.2). VGAT-Ires-Cre mice were injected bilaterally with a virus encoding DREADD-mCherry (500 nl of AAV8-hSyn-DIO-hM4D(Gi)_mCherry, 6.4x1012 GC), or DREADD-IRES-mCitrine (500 nl of ssAAV8/2-hSyn1-dlox-HA_hM4D(Gi)_IRES_mCitrine-dlox-WPRE-hGHp(A), 3.1x1012 GC) or a control AAV8 encoding a DREADD-unrelated construct (500 nl of AAV8-hSyn-FLEX-Jaws_KGC_GFP_ER2, 3.2x1012 GC) in the sensory sector of the TRN (-1.7, ±2.25, -2.9).

In vitro electrophysiological recordings

Adult WT, CaV3.3 KO and VGAT-Ires-Cre mice (3–4 weeks post viral injection), 7- to 9-week-old, were briefly anaesthetized with isoflurane and their brains quickly extracted. Acute 300-µm-thick coronal brain slices were prepared in ice-cold oxygenated sucrose solution (which contained in mM: NaCl 66, KCl 2.5, NaH2PO4 1.25, NaHCO3 26, D-saccharose 105, D-glucose 27, L(+)-ascorbic acid 1.7, CaCl2 0.5 and MgCl2 7), using a sliding vibratome (Histocom, Zug, Switzerland). Slices were kept for 30 min in a recovery solution at 35°C (in mM: NaCl 131, KCl 2.5, NaH2PO4 1.25, NaHCO3 26, D-glucose 20, L(+)-ascorbic acid 1.7, CaCl2 2, MgCl2 1.2, myo-inositol 3, pyruvate 2) before being transferred to room temperature for at least 30 more min before starting the recording. Recording glass pipettes were pulled from borosilicate glass (TW150F-4) (World Precision Instruments, Sarasota, FL) with a DMZ horizontal puller (Zeitz Instruments, Martinsried, Germany) to a final resistance of 2–4 MΩ. Pipettes were filled with a K+-based intracellular solution that contained in mM: KGluconate 140, Hepes 10, KCl 10, EGTA 0.1, phosphocreatine 10, Mg-ATP 4, Na-GTP 0.4, pH 7.3, 290–305 mOsm, supplemented with ~2 mg/ml of neurobiotin (Vector Labs, Servion, Switzerland). Slices were placed in the recording chamber of an upright microscope (Olympus BX50WI, Volketswil, Switzerland) and continuously superfused at room temperature with oxygenated ACSF containing in mM: NaCl 131, KCl 2.5, NaH2PO4 1.25, NaHCO3 26, D-glucose 20, L(+)-ascorbic acid 1.7, CaCl2 2 and MgCl2 1.2, picrotoxin 0.1, glycine 0.01. Cells were visualized with differential interference contrast optics and 10X and 40X immersion objectives. Infrared images were acquired with an iXon Camera X2481 (Andor, Belfast, Northern Ireland). Signals were amplified using a Multiclamp 700B amplifier, digitized via a Digidata1322A and sampled at 10 kHz with Clampex10.2 (Molecular Devices, San José, CA). Immediately after gaining whole-cell access, cell capacitance Cm was measured in voltage-clamp at −60 mV through applying 500 ms-long, 20 mV hyperpolarizing steps (5 steps/cell). Whole-field blue LED (Cairn Res, Faversham, UK) stimulation (455 nm, duration: 0.1 to 1 ms, maximal light intensity 0.16 mW/mm2) in voltage-clamp (−60 mV) was used to assess the connectivity of TRN neurons through fibers arising from the previously injected area (S1, AC or MD). Once identified, squared somatic current injections (−50 to −300 pA for 500 ms, 4 injections/cell and membrane potential) hyperpolarized neurons below −100 mV from membrane potentials between −90 and −50 mV (corrected for a liquid junction potential of 10 mV) and induced repetitive burst discharge in TRN neurons. For comparison between neurons from different TRN sectors, the response to this current injection was also used to assess cellular input resistance Ri. For CNO application, a stable baseline of at least 2 min was recorded before bath application of water-soluble CNO (10 µM, Tocris, Bristol, UK) for at least 2 min until its hyperpolarizing effect reached a plateau. Washout of CNO did not reverse the hyperpolarizing effect for up to 10 min of washout. Two VPM and two TRN neurons outside the visually identified fluorescent site of injection were used as control for CNO’s effect on membrane potential.

Cell parameters were calculated on Clampfit v.10.2. and IgorPro Wavemetrics (Lake Oswego, OR). Input and access resistances were evaluated all along the recordings. Neurons presenting a variation of the access resistance >20% or a holding current at −60 mV < −150 pA were excluded from analysis. Light-evoked excitatory postsynaptic current (EPSC) amplitudes were measured in traces presenting monophasic synaptic events that occurred at fixed latency after LED onset and that were not contaminated by asynchronous release. In the subset of neurons that underwent paired-pulse stimulation, traces containing spontaneous activity between the two LED stimulations were discarded. Paired-pulse ratios are expressed as percentage of the second over the first EPSC amplitude (6 paired-stimuli/cell). The bursting of TRN neurons was assessed by counting the number of Ca2+ spikes following a 500 ms hyperpolarization below −100 mV. Ca2+ spikes were counted as bursts if they generated triangular-shaped membrane depolarizations followed by a clear afterhyperpolarization, regardless of the presence of high-frequency action potentials on top of the Ca2+ spikes.

In vivo multi-site electrophysiological recordings

Surgery was performed as recently described (Lecci et al., 2017). Briefly, animals were subjected to gas anaesthesia (isoflurane supplemented with a mixture O2 and N2O) and small craniotomies (0.3–0.5 mm) were performed at the location for implantation of high-impedance fine tungsten LFP microelectrodes (10–12 MΩ, 75 µm shaft diameter, FHC, Bowdoin, ME) at the following sites (in stereotaxic coordinates, relative to bregma: anteroposterior, lateral, depth from surface): sensory regions S1 (−1.7, 3.0, -1.0), S2 (−0.7, 4.2, -1.1), and AC (−2.5, 4.0, -1.1), limbic areas of PFC (+1.8, 0.3, -1.85). Implantations were guided through calculating the corresponding interaural coordinates. As a neutral reference for LFP electrodes, a silver wire (Harvard Apparatus, Holliston, MA) was inserted in the bone over lateral portions of the cerebellum. On the contralateral skull site, two conventional gold-coated low-impedance electrodes were implanted over the dura mater through frontal and parietal bones for differential surface EEG recordings. Two gold pellets inserted into the muscles of the neck served as EMG electrodes. Multi-site recordings were carried out in head-restrained conditions, for which a light-weight metal head-post (Bourgeois Mécanique SAS, Lyon, France) was glued and cemented onto the midline skull in order to perform painless head-fixed recording sessions (Fernandez et al., 2017; Lecci et al., 2017). Carprofen (5 mg/kg, i.p.) and paracetamol (2 mg/mL, drinking water) were provided during the pre- and post-operative periods. Mice were gently and gradually habituated to a custom-made head-fixation system (Bourgeois Mécanique SAS, Lyon, France) by increasing the amount of time spent in head fixation daily from 10 to 30 min to 2–3 hr/day. Mice sat within a cardboard roll such that only the head protruded. Occasionally, a heating pad was placed underneath the cardboard. After each head-restrained period, mice were rewarded with ad libitum drops of sweetened water. Mice typically started sleeping spontaneously after 7–14 d of habituation, generating periods of both NREMS and REMS. LFP and EEG/EMG signals were amplified 1000x through a 16-channel Multiple Acquisition Processor System (Plexon Inc., Dallas, TX), high- and low-pass filtered at 0.8 and 300 Hz, respectively, and digitized at 1 kHz. For multi-site recordings, 5 WT and 6 CaV3.3 KO animals had all four recording sites histologically confirmed, 1 WT (S1, S2, PFC) and 3 CaV3.3 KO (2x S1, S2, AC; 1x S1, S2, PFC) animals had three confirmed recording sites, 3 WT (1x S1, AC; 2x S1, S2) and 4 CaV3.3 KO (S1, S2) animals had two confirmed sites. Four animals were excluded because recording sites could not be identified or because brain appearance was not satisfying (ventricle dilatation or damaged brain slice).

In vivo chemogenetics

After 1 week of recovery from viral injection, bilateral S1 LFP electrodes, and EEG/EMG electrodes were implanted as described above, followed by a week of recovery. After 4 days of habituation to the tethering cable, baseline activity was recorded in freely moving conditions during 3 to 4 days. 3 weeks after viral injections, intra-peritoneal injection of CNO (water-soluble diluted in NaCl 0.9%, dosis 1 mg/kg, Ref. 6329, Tocris, Bristol, UK) or NaCl 0.9% was performed at Zeitgeber time ZT2 in a random cross-over design, with the experimenter blind to the injection. Recordings under each condition took place on 4–5 successive days, with 2–3 CNO and 1–2 NaCl injections per animal. Signals were acquired at 1 kHz with an Intan digital RHD2132 amplifier board and a RHD2000 USB Interface board, with a high-pass filter set at 0.8 Hz (Intan Technologies, Los Angeles, CA). Data were acquired in Matlab using the RHD2000 Matlab toolbox and customized display software in Matlab. To assess the time course of CNO action, 3 DREADD-mCherry and 3 AAV8-control animals were recorded starting at ZT0. Based on these dynamics, we chose a window of 45 min (starting 20 min after the injection) for comparison of CNO and NaCl effects (Figure 4—figure supplement 1B,D). The average power spectrum per animal was calculated as mean between recording sites and repetition-days for the two conditions (CNO or NaCl). Spectral analysis of the signals was performed as described in the data analysis section. For chemogenetic recordings, a total of 3 DREADD-mCherry and 2 control AAV8 mice had bilateral S1 recording sites histologically confirmed, 2 DREADD-mCherry and 1 control AAV8 had one confirmed S1 recording sites.

Histology and immunofluorescent labeling

After completion of patch-clamp recordings in vitro, slices were post-fixed in paraformaldehyde (4%) for >24 hr. An immunostaining on free-floating sections was used to outline PV-positive (PV+) neurons in the TRN and to recover neurobiotin-filled neurons. To ensure proper staining of PV+ neurons, a 5-day incubation at 4°C of the primary antibody (mouse anti-PV, 1/4000, Swant Inc., Marly, Switzerland) in 1% Triton was required. The secondary antibody (goat anti-mouse CY5, 1/500, Jackson ImmunoResearch, Ely, Nevada) and Streptavidin (coupled with Alexa Fluor 594, 1/8000, Jackson ImmunoResearch) were incubated at 4°C for 24 hr. Sections were observed with an Axiovision Imager Z1 (Carl Zeiss) microscope equipped with an AxioCam MRc5 camera. Objectives were EC-Plan Neofluar 2.5x/0.075 ∞/0.17, 5x/0.16 ∞/0.17. The AxioVision Rel. 4.7 and Adobe Photoshop CS5 software were used to merge micrographs from the different channels. The nomenclature of the location of TRN sectors in Figure 1 follows the descriptions established by Pinault and Deschênes (1998).

After completion of in vivo recordings (multi-site or chemogenetics recordings), recording sites were marked through electro-coagulation (50 μA, 8–10 s) during deep pentobarbital anaesthesia (80 mg/kg) before transcardiac perfusion (4% paraformaldehyde in 0.1 M phosphate buffer). After >24 hr post-fixation, 100 µm coronal brain sections were cut and imaged to confirm electrocoagulation sites of LFP implantation or fluorescent expression of viral injection site.

In vivo data analysis

Data were analyzed using IgorPro (Wavemetrics, v7, Lake Oswego, OR), MatLab (MathWorks) and Excel (Microsoft).

Scoring of vigilance states

Sleep and wake episodes were detected manually according to standard scoring procedures (Fernandez et al., 2017). Briefly, wakefulness was accompanied by large or tonic EMG signal (active and quiet wakefulness), EEG of low-voltage and exhibiting fast oscillatory components, such as theta and gamma oscillations. Drowsiness period between wakefulness and NREMS were discarded, as well as intermediate sleep periods between NREMS and REMS. Only consolidated clear episodes of NREMS were selected for the analysis: high amplitude voltage and slow EEG components, such as periods of slow oscillation (<1.5 Hz), delta waves (1.5–4 Hz) and spindles (10–15 Hz). REMS was clearly distinguishable with reduced EMG activity (atonia) and predominant theta (~6–10 Hz) on the low-amplitude EEG. For the chemogenetic data analysis, NREMS was scored in 4 s epochs with the same criteria and only consolidated NREMS (>20 s) were included in further analysis. All scorings were done with custom-made software prepared in Igor and Matlab.

Spectral analysis of the signals

Power spectra were computed on raw signals using a squared Fast Fourier Transform (FFT) on 4 s windows after offset correction (mean substracted for each window). Each mean power spectrum per mouse and per channel was normalized by its sum between 0 and 35 Hz and expressed in percentage to compare between animals. The total power per frequency band of interest, SO 0.5–1.5 Hz, delta 1.5–4 Hz and sigma 10–15 Hz, was measured using the integral of the normalized power spectrum in-between frequency band borders.

Dynamics of delta time course (Chemogenetics)

The dynamics of delta activity were extracted from the area under the power spectrum in the delta band (1.5–4 Hz) for each 4 s epoch of consolidated NREMS (>20 s continuous bouts). The time-series were calculated in quantiles of identical amounts of NREMS (12 for baseline and 36 for post-injections) and normalized by the mean of the first two baseline bins.

Spindle event detection

The square-power of the filtered enlarged sigma band (9–16 Hz, Finite Impulse Response) calculated separately for the recordings from each brain area was used to detect onset and offset of spindles. We applied a threshold of [1.5 x the S.D. + 1 x the mean] of the sigma power, and detected all events above this threshold that lasted at least 3 cycles (Figure 5—figure supplement 1A). The onset and offset times of a spindle event were extended to the closest cycle at 0 crossing before and after the threshold. Events that were overlapping or that were separated by <10 ms were fused. Events that were at the beginning time point or last time point of a NREMS bout were discarded. Amplitudes of spindles were computed from the average amplitude of the sigma power between onset and offset time and averaged per mouse. Frequency of spindles were determined by extracting the peak frequency from the magnitude FFT on each spindle event (86.3% of events had a distinguishable frequency peak and were included), followed by calculating the mean intra-frequency per mouse. Two WT mice with S1 and S2 recording sites were omitted due to an unusually reduced signal amplitude that prevented comparison to other mice (note that no normalization was applied for spindle detection).

Slow oscillation detection

Periods of clear and visible SOs were detected based on (Mölle et al., 2009). Briefly, each signal was 2 Hz low-pass filtered, minimum (y1) and maximum (y2) were detected, as well as the corresponding time point (x1 and x2). The mean minima (Y1) and the mean maxima (Y2) as well as their difference (Y2-Y1) were calculated. Constraints for selecting periods of SOs were: (1) times between x1 and x2 were comprised between 0.5 s and 2 s, (2) if y1 was lower than 2/3 of the mean Y1, (3) y2-y1 was at least 2/3 of Y2-Y1. These constraints allowed to select the largest SOs periods. Only events that had a time overlap ≥95% to a SO were selected for the phase-locking analysis. Angle phase values of the SO at each spindle event onset time detected were extracted using a Hilbert transform.

Statistics

In vitro. Statistical analysis was done using R programming language (2.15.0, R Core Team) [The R Development Core Team, The R Foundation for Statistical Computing (www.r-project.org/foundation), 2007]. The normality of the data sets was assessed using Shapiro-Wilk normality test. Comparisons between paired conditions (amplitude of 1st versus 2nd EPSCs during paired-stimulation and effect of CNO on membrane potential) were done using Wilcoxon signed rank-test and paired Student’s t-test, respectively. Comparisons between unpaired conditions in non-normally distributed datasets (passive cellular properties, sector effect on repetitive bursting in WT, sector effect on repetitive bursting in CaV3.3 KO, genotype effect on repetitive bursting) were done using Mann-Whitney or Kruskal-Wallis H tests. Comparisons between unpaired conditions in normally distributed datasets (sector and genotype effect onto PPR and CNO effect onto WT vs CaV3.3 KO) were done using unpaired Student’s t-tests or two-way ANOVAs. Bonferroni correction was applied whenever more than two comparisons were done for the same data set. The proportion of repetitive bursting neurons in the different TRN sectors was compared using Chi-square test for independence followed by a pairwise proportion test with Holm’s adjustment method. Exact significant p-values are indicated.

In vivo. Statistical analysis was done using IgorPro, R programming language and Matlab. The normality of the data sets was assessed using Shapiro-Wilk normality test. Comparisons between genotypes per site of recording were done using Student’s t-test (parametric data set) or Mann-Whitney (non-parametric unpaired data set). Comparisons between paired conditions (CNO versus NaCl, or SO Active state versus Silent state) were done using paired Student’s t-test (parametric data set) or Wilcoxon signed-rank test (non-parametric paired data). Bonferroni correction was applied when more than two comparisons were done for the same data set.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
    Genetic variation in EEG activity during sleep in inbred mice
    1. P Franken
    2. A Malafosse
    3. M Tafti
    (1998)
    American Journal of Physiology-Regulatory, Integrative and Comparative Physiology 275:R1127–R1137.
    https://doi.org/10.1152/ajpregu.1998.275.4.R1127
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86

Decision letter

  1. John Huguenard
    Reviewing Editor; Stanford University School of Medicine, United States
  2. Andrew J King
    Senior Editor; University of Oxford, United Kingdom

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Thalamic reticular control of local sleep in mouse sensory cortex" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Andrew King as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Jeanne Paz (Reviewer #2); Christopher I Moore (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This study by Fernandez et al. identifies the TRN as a source for local, sensory-cortex-specific non-rapid-eye-movement sleep (NREMS) in mouse. The writing is clear, and the methodology and results are for the most part (see below), very strong. The authors put forward a clear case that local field potential recordings from different cortical regions exhibit distinct NREMS-related activity patterns, and link these to burst firing in associated areas of the TRN. In brain slices, they confirm that parts of TRN associated with sensory or non-sensory cortex show different bursting activity, and that this distinction is lost in CaV3.3 knockout mice. The authors conclude that the CaV3.3 channel endows higher bursting capacity to sensory over non-sensory TRN cells. Sensory cortices (especially S1) have more σ band activity and spindles compared to non-sensory (PFC), while reducing bursting by knocking out CaV3.3 or inhibiting TRN via DREADDS is sufficient to interfere with normal bursting, and shifts relative signal power away from σ and toward δ.

Essential revisions:

1) CNO induced hyperpolarization does not simply reduce TRN bursting. More likely it silences ALL TRN output, both bursting and non-bursting. Along these lines, CNO induces a significant increase in membrane conductance leading to reduced hyperpolarization from negative conditioning current pulses – this resultant reduced hyperpolarization would reduce the likelihood of a rebound burst and should be controlled for by increasing the current step.

2) Why were cortical injections chosen for sensory (S1, A1) TRN projections, but thalamic (MD) for "non"-sensory TRN projections? This is not very well rationalized.

3) The Discussion is quite long and speculative, arguably going beyond what is warranted from the specific results in this study.

4) In the end, there is somewhat limited information provided here regarding TRN heterogeneity beyond what is already known. Lee et al. and Clemente et al. have already documented similar differences in TRN bursting. What is new here is the spectral analysis of mPFC power during sleep and the effects of loss of Cav3.3 on this. Accordingly, the novelty of these experimental findings needs to be very clearly described in the Discussion section, by not only citing the previous papers but by being very explicit about what is novel here compared with previous studies.

5) Spindle power is mainly seen in S2. The reasons for this are not very well developed in the manuscript.

6) To determine if the alterations in NREMS of CaV3.3-/- animals were caused by suppressed TRN burst discharge the authors used chemogenetic inhibition of TRN cells and found that they could reproduce the switch from spindle- to δ-enriched sleep. The authors conclude that decreased TRN bursting produces an enrichment of δ power at the expense of σ and SO power in NREMS. How do the authors explain the enhanced δ activity when inhibiting TRN cells? Lewis et al., 2015 had showed that tonic optical activation of TRN enhances δ power in the cortex which seems inconsistent with the findings described in this study. How do the authors explain this discrepancy?

7) Given the previous findings of TRN heterogeneity (Clemente, Halassa), the authors should close the loop, and determine whether the diversity in CaV 3.3 behavior they observe is actually related to the highly parallel diversity observed between PV and SOM cell types in the Clemente et al. work. There is a mixing of PV and other cell types in the recipient zones the authors identified: Slice recordings, for example, from a PV-tagged animal, and comparison of these cells in the SI pathway with all others, would likely be enough, though SOM tagged recordings would also be informative.

Minor point:

The authors throw up their hands a little bit in the Discussion about how their algorithm might have impacted their findings. The authors should determine whether their algorithm impacts aspects of the behavior they observe. Specifically, they could sub-sample the spindles identified in the WT to be only from the same amplitude distribution as the CaV3.3-/- mice, and then see whether they still observe phase locking to the SO. This analysis should take just a few hours - they just need to limit their already conducted analyses to a smaller part of the data set - and would let them know much better if perhaps there is a fundamental mechanism at play.

https://doi.org/10.7554/eLife.39111.022

Author response

Essential revisions:

1) CNO induced hyperpolarization does not simply reduce TRN bursting. More likely it silences ALL TRN output, both bursting and non-bursting. Along these lines, CNO induces a significant increase in membrane conductance leading to reduced hyperpolarization from negative conditioning current pulses – this resultant reduced hyperpolarization would reduce the likelihood of a rebound burst and should be controlled for by increasing the current step.

As suggested by the reviewers, we have performed additional experiments during which we compensate for the increased membrane conductance induced by CNO. We additionally show now that counteracting CNO-induced hyperpolarization through direct current injections re-instates rebound bursting. We thus conclude that CNO thus does not block bursting directly but instead brings cells below threshold for rebound burst discharge. The corresponding Figure4A, B are now replaced with a new representative recording and new mean data and the corresponding text is entered in the first paragraph of the subsection “Chemogenetic inhibition of TRN cells reproduces the switch from spindle- to delta enriched sleep” and in the legend to Figure 4. The methodological information has been complemented on in the first paragraph of the subsection “In vitro electrophysiological recordings”.

2) Why were cortical injections chosen for sensory (S1, A1) TRN projections, but thalamic (MD) for "non"-sensory TRN projections? This is not very well rationalized.

The strategy to target a non-sensory area of the TRN was based on available classic literature that points to the MD as a major associative thalamic nucleus interacting with non-sensory TRN portions (see e.g. Pinault and Deschênes, 1998; Mitchell, 2016). Moreover, MD-prefrontal connections form important reciprocal thalamocortical loops (Delevich et al., 2015; Collins et al., 2018). In contrast, the literature on the anatomy of prefrontal-TRN synaptic projections is scarce in rodent, and the relationship between the multiple corticothalamic projections into the mouse MD (Mátyás et al., 2014) and their innervation of TRN is not known. Therefore, the identification of non-sensory TRN sectors was based on targeting the clearly identifiable MD. Based on the reviewer’s note, we have now further rationalized this point in the first paragraph of the subsection “TRN cell burst discharge propensity in acute slices varies across sensory and non-sensory sectors”.

3) The Discussion is quite long and speculative, arguably going beyond what is warranted from the specific results in this study.

We have accommodated this important concern mainly through two changes. First, we have carried out additional control analyses for the quality of our spindle detections. This has allowed us to remove the corresponding Discussion paragraph.

Second, we have further alleviated the Discussion through removing the comparison between species, which seems to us the most speculative part.

4) In the end, there is somewhat limited information provided here regarding TRN heterogeneity beyond what is already known. Lee et al. and Clemente et al. have already documented similar differences in TRN bursting. What is new here is the spectral analysis of mPFC power during sleep and the effects of loss of Cav3.3 on this. Accordingly, the novelty of these experimental findings needs to be very clearly described in the Discussion section, by not only citing the previous papers but by being very explicit about what is novel here compared with previous studies.

We realize that we need to more clearly state that this is the first study that identifies heterogeneities of the TRN based on the functional identification of cells through optogenetically assisted circuit mapping. The point here is that we worked with an a priori functional specification of thalamocortical circuits in which cellular properties were then studied. This also allowed to make a strong case for a subcortical determinant of local sleep properties, the TRN. To make this point more clear, we have reworded our statement in the second paragraph of the Discussion.

5) Spindle power is mainly seen in S2. The reasons for this are not very well developed in the manuscript.

We agree with the reviewers that spindle power is very pronounced in S2, the secondary somatosensory cortex known to be involved in sensory discrimination. We understand the reviewer’s comments as asking for the possible mechanistic reasons underlying this observation. A comprehensive answer would require additional studies to define the sources of sleep spindles in S2. For example, opto- or chemogenetic inhibition of S1 would help decide whether the well-described strong reciprocal wiring with the barrel cortex in S1 (Feldmeyer et al., 2013) is implied in amplifying spindles in S2. Furthermore, there is the possibility of a differential involvement of first- and higher-order thalamic nuclei in sleep spindle generation in S1 compared to S2. This question would also be addressable using opto- or chemogenetic interference. These possibilities remain open to experimentation and could shed light on what are probably multiple origins of cortical spindles. We allude to these possibilities through adding an additional sentence to the third paragraph of the Discussion.6) To determine if the alterations in NREMS of CaV3.3-/- animals were caused by suppressed TRN burst discharge the authors used chemogenetic inhibition of TRN cells and found that they could reproduce the switch from spindle- to δ-enriched sleep. The authors conclude that decreased TRN bursting produces an enrichment of δ power at the expense of σ and SO power in NREMS. How do the authors explain the enhanced δ activity when inhibiting TRN cells? Lewis et al., 2015 had showed that tonic optical activation of TRN enhances δ power in the cortex which seems inconsistent with the findings described in this study. How do the authors explain this discrepancy?

The reviewers note that a previously published study by Lewis et al. seems at odds with some of our observations. However, several technical and analytical points warrant attention that make us feel this conclusion is premature.

This study is mostly concerned with awake mice, only Figure 4D refers to sleeping mice. Full power spectra are not shown and power values are calculated by pooling power in the slow oscillation (0.5-1.5 Hz) and δ (1.5-4 Hz) frequency ranges. This makes a separate assessment of effect on slow oscillations and δ waves not possible. Electrodes used in this study were bundles implanted by hand, which is unlikely to lead to a reliable positioning in a defined cortical layer. In our work, all electrode positioning in the spindle-power rich deep cortical layers were verified post-hoc, and proper positioning was an important inclusion criterion. Finally, the effects of optogenetic stimulation of TRN cells reported by Lewis et al. are ambiguous: tonic TRN optogenetic stimulation actually decreased rather than increased firing rate in a majority of TRN cells (58.8%) in awake mice. Overall, the intended tonic excitation of TRN seems thus to have resulted in a substantial inhibition of these cells.

Together, we feel that it is premature to claim that the findings by Lewis et al. are inconsistent with ours. On the contrary, we argue that the predominant inhibition of TRN cells by optogenetic stimulation makes their observations possibly quite compatible with ours. In further support of this, it is mentioned in the text that spindle power actually decreases, an observation that we also make. However, likely differences in the precision of the recording sites, different analysis procedures and the use of different frequency bands makes final conclusions not possible at this point. Given these discrepancies, we prefer not to further discuss them in the main text.

7) Given the previous findings of TRN heterogeneity (Clemente, Halassa), the authors should close the loop, and determine whether the diversity in CaV 3.3 behavior they observe is actually related to the highly parallel diversity observed between PV and SOM cell types in the Clemente et al. work. There is a mixing of PV and other cell types in the recipient zones the authors identified: Slice recordings, for example, from a PV-tagged animal, and comparison of these cells in the SI pathway with all others, would likely be enough, though SOM tagged recordings would also be informative.

We fully agree with the reviewers that the parallels between the discharge patterns of PV- and SOM-expressing TRN cells and the ones of our sectorially identified cells are striking and should be clarified. This should ideally be done at all levels, from the in vitro analysis to sleep. Given that our paper studies sleep as the read-out for TRN heterogeneity, the principal and most forward moving question is to test whether the roles of PV- and SOM-expressing cells in natural non-REM sleep are indeed different. We thus carried out a series of sleep recordings in PV-Cre and SOM-Cre mouse lines (n = 8 each) that were chemogenetically manipulated in precisely the same way as the VGAT-Ires-Cre line in the original manuscript. The results obtained are presented in Author response image 1.

This first series of experiments indeed suggests that chemogenetic hyperpolarization of PV-, but not of SOM-expressing cells reproduces most observations found in the VGAT-Ires-Cre line, in which all TRN cells are hyperpolarized irrespective of their neurochemical nature. Thus, we find an increase in power in the δ (1.5-4 Hz) frequency band, while power in the slow oscillation (0.5-1.5 Hz) and the spindle bands (10-15 Hz) was reduced. Such changes could not be detected in the SOM-Cre expressing mouse line.

Author response image 1
(A) Effects of chemogenetic hyperpolarization of PV-expressing TRN cells, experiment and analysis as described in Figure 4.

(B) Effects of chemogenetic hyperpolarization of SOM-expressing TRN cells, experiment and analysis as described in Figure 4.

https://doi.org/10.7554/eLife.39111.020

These data suggest that PV-expressing TRN cells are primarily implied in the control of local non-REM sleep. This result is consistent with the cellular and in vivo optogenetics findings described by Clemente-Perez et al. and with the important role of bursting cells for local non-REM sleep identified here. It is thus a starting point in bringing together neurochemical and electrophysiological heterogeneities.

Here are our arguments that make us think that these data are nevertheless preliminary and need important controls. First, the effects in the PV-Cre line are more moderate than in the VGAT-Ires-Cre line. This could mean that PV-expressing cells are only partially responsible for local sleep control, and that there other cellular subgroups involved. Alternatively, the chemogenetic manipulation in this mouse line could be weaker or less efficient. At the moment, we cannot distinguish between these possibilities. Moreover, the histological inspection of the brains used for these recordings make us think that the PV- and the SOM-expressing cell populations might not be completely separate and/or that there might be other cell groups. Additionally, we found virally driven mCherry expression in restricted cell groups of the dorsal thalamus in some mice. These were excluded from the data shown here but nevertheless made us doubtful about whether the findings can be unambiguously attributed to PV-expressing TRN cells. Immunohistochemistry in combination with viral tracing will be required to more definitely define the chemogenetically manipulated cell types and their roles in non-REM sleep.

We think this important and exciting next step requires a separate study combining optogenetically assisted circuit mapping and chemogenetics in in vitro and in vivo assessments. This goes beyond the scope of the current work. Therefore, in the revised manuscript, we define it as an important step to clarify in the second paragraph of the Discussion.

Minor point:

The authors throw up their hands a little bit in the Discussion about how their algorithm might have impacted their findings. The authors should determine whether their algorithm impacts aspects of the behavior they observe. Specifically, they could sub-sample the spindles identified in the WT to be only from the same amplitude distribution as the CaV3.3-/- mice, and then see whether they still observe phase locking to the SO. This analysis should take just a few hours - they just need to limit their already conducted analyses to a smaller part of the data set - and would let them know much better if perhaps there is a fundamental mechanism at play.

We have carried out an analysis according to this excellent suggestion. Briefly, for every brain area we recorded, we selected spindle events in all wild-type animals that had an amplitude that fell within the mean ± 1SD of the amplitude of the spindle events in the CaV3.3-KO animals in the corresponding brain area. The coupling of these remaining events to the slow oscillation was then again analyzed (See Author Response Image 2). The results show that the overall preferential occurrence of spindle events on the cortical upstate is preserved. This again suggests that the differential coupling between slow oscillations and spindles between WT and KO animals was not due to detection failures. To make this clear in the manuscript, we have added a sentence to the Results section “CaV3.3 channels ensure the temporal coordination of sleep spindles with the active state of the SO”. This also has allowed us to shorten the Discussion, as requested in the point 3) of the essential revisions.

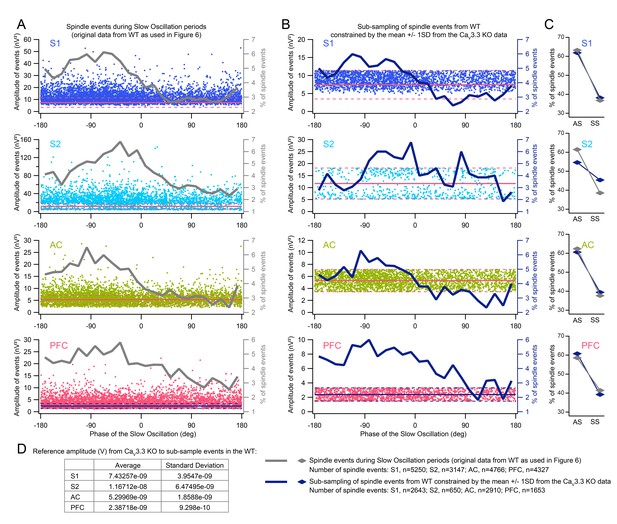

Author response image 2
(A) Graph dots represent the amplitude of each spindle event of the WT detected during periods of slow oscillation SO (amplitude is extracted from the power of the FIR filtered signal in the 9-16Hz band) as a function of SO phase, for the 4 sites of recording, S1, S2, AC and PFC.

Superimposed in grey is the normalized spindle occurrence (right y-axis) as a function of SO phase. Horizontal plain red line (and blue in the case of PFC) corresponds to mean amplitude of spindle events in the case of the CaV3.3-KO, dashed line is the mean +/- 1 standard deviation. The dataset presented in this figure is the same as in Figure 6 of the main paper. (B) Sub-sampling of spindle events in the WT constrained by the amplitude of the CaV3.3-KO for each area recorded: all spindle events from the WT outside the mean +/- 1SD from the CaV3.3-KO are discarded. Superimposed in dark blue is the spindle occurrence (right y-axis) as a function of SO phase for the sub-sampled spindle events. (C) Mean occurrence of spindle onsets for the active (AS, -180°, 0°) and the silent (SS, 0°, 180°) state of the SO, in grey is the same WT data as in Figure 6, in dark blue is the sub-sampled WT data constrained to the CaV3.3-KO mean +/- 1SD. D. Table presenting values of mean spindle amplitude and SD across CaV3.3-KO mice and taken to apply the subsampling of WT spindle events as in B and C. Number of spindle events for each condition (across all WT mice) is indicated in the legend on the right.

https://doi.org/10.7554/eLife.39111.021
https://doi.org/10.7554/eLife.39111.023

Article and author information

Author details

  1. Laura MJ Fernandez

    Department of Fundamental Neurosciences, University of Lausanne, Lausanne, Switzerland
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Validation, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7942-3369
  2. Gil Vantomme

    Department of Fundamental Neurosciences, University of Lausanne, Lausanne, Switzerland
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7441-0737
  3. Alejandro Osorio-Forero

    Department of Fundamental Neurosciences, University of Lausanne, Lausanne, Switzerland
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4341-4206
  4. Romain Cardis

    Department of Fundamental Neurosciences, University of Lausanne, Lausanne, Switzerland
    Contribution
    Resources, Software, Formal analysis, Visualization, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  5. Elidie Béard

    Department of Fundamental Neurosciences, University of Lausanne, Lausanne, Switzerland
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  6. Anita Lüthi

    Department of Fundamental Neurosciences, University of Lausanne, Lausanne, Switzerland
    Contribution
    Conceptualization, Data curation, Supervision, Funding acquisition, Validation, Visualization, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    anita.luthi@unil.ch
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4954-4143

Funding

Swiss National Science Foundation (31003A_166318)

  • Laura MJ Fernandez
  • Gil Vantomme
  • Alejandro Osorio-Forero
  • Romain Cardis
  • Elidie Béard
  • Anita Lüthi

État de Vaud

  • Laura MJ Fernandez
  • Gil Vantomme
  • Alejandro Osorio-Forero
  • Romain Cardis
  • Elidie Béard
  • Anita Lüthi

FBM Poste de soutien à un congé parental

  • Laura MJ Fernandez

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We are grateful to all lab members for critical input at all stages of this manuscript. In particular, Sandro Lecci was heavily involved in supporting experimentation and in data analysis discussions. The excellent animal care and support by the Team of our Animalerie, headed by Alain Gnecchi and Michelle Blom, and the expert veterinary advice and support of Drs. Gisèle Ferrand and Laure Sériot are highly appreciated. We thank Christiane Devenoges for excellent technical support on histology and genotyping. We are indebted to Antoine Adamantidis, Simone Astori, Paul Franken, Manuel Mameli and Mehdi Tafti for many constructive discussions and experimental input. Simone Astori, Sylvain Crochet, Sandro Lecci and Francesca Siclari provided critical comments on prefinal versions of the manuscript. Many thanks to Christian Lüscher and Manuel Mameli for making the VGAT-Ires-Cre animals available to us. This study was supported by the Swiss National Science Foundation, the Fondation Pro-Femmes, and Etat de Vaud.

Ethics

Animal experimentation: All experimental procedures complied with the Swiss National Institutional Guidelines on Animal Experimentation (Swiss Federal Act on Animal Protection, LPA 2005) and were approved by the Swiss Cantonal Veterinary Office Committee for Animal Experimentation. All experiments were carried out in accordance with approved protocols by the Swiss Cantonal Veterinary Office Committee for in vitro experimentation on mice (reference VD2062) and for in vivo experimentation on mice (references VD2387 and VD2401).

Senior Editor

  1. Andrew J King, University of Oxford, United Kingdom

Reviewing Editor

  1. John Huguenard, Stanford University School of Medicine, United States

Publication history

  1. Received: June 15, 2018
  2. Accepted: December 19, 2018
  3. Accepted Manuscript published: December 25, 2018 (version 1)
  4. Version of Record published: January 22, 2019 (version 2)

Copyright

© 2018, Fernandez et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,768
    Page views
  • 369
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
