Cryo-EM structures and functional characterization of the murine lipid scramblase TMEM16F

  1. Carolina Alvadia
  2. Novandy K Lim
  3. Vanessa Clerico Mosina
  4. Gert T Oostergetel
  5. Raimund Dutzler  Is a corresponding author
  6. Cristina Paulino  Is a corresponding author
  1. University of Zurich, Switzerland
  2. University of Groningen, Netherlands
Research Article
  • Cited 15
  • Views 2,786
  • Annotations
Cite this article as: eLife 2019;8:e44365 doi: 10.7554/eLife.44365

Abstract

The lipid scramblase TMEM16F initiates blood coagulation by catalyzing the exposure of phosphatidylserine in platelets. The protein is part of a family of membrane proteins, which encompasses calcium-activated channels for ions and lipids. Here, we reveal features of murine TMEM16F (mTMEM16F) that underlie its function as a lipid scramblase and an ion channel. The cryo-EM data of mTMEM16F in absence and presence of Ca2+ define the ligand-free closed conformation of the protein and the structure of a Ca2+-bound intermediate. Both conformations resemble their counterparts of the scrambling-incompetent anion channel mTMEM16A, yet with distinct differences in the region of ion and lipid permeation. In conjunction with functional data, we demonstrate the relationship between ion conduction and lipid scrambling. Although activated by a common mechanism, both functions appear to be mediated by alternate protein conformations that are at equilibrium in the ligand-bound state.

https://doi.org/10.7554/eLife.44365.001

Introduction

Lipid scramblases facilitate the movement of lipids between both leaflets of the bilayer (Bevers and Williamson, 2016; Nagata et al., 2016; Williamson, 2015), thereby dissipating the asymmetry present in the membrane. In contrast to ATP-dependent lipid flippases and floppases, scramblases are generally non-selective and do not require the input of energy (Pomorski and Menon, 2016). Lipid scrambling changes the properties of the bilayer and thus contributes to membrane synthesis, fusion and repair and the release of extracellular vesicles (Whitlock and Hartzell, 2017). The resulting exposure of negatively charged phospholipids to the outside is sensed by receptors that in turn initiate cellular responses such as blood coagulation and apoptosis (Nagata et al., 2016). In platelets, scrambling is mediated by the protein TMEM16F, which catalyzes the externalization of phosphatidylserine (PS) in response to an increase in the intracellular Ca2+ concentration to trigger blood clotting (Bevers and Williamson, 2016; Suzuki et al., 2013). Splicing mutations that lead to a truncated version of TMEM16F were found to cause Scott syndrome, a severe bleeding disorder in humans and dogs (Brooks et al., 2015; Castoldi et al., 2011; Lhermusier et al., 2011). TMEM16F belongs to the TMEM16 protein family, whose members either function as Ca2+ activated anion-selective channels (Caputo et al., 2008; Schroeder et al., 2008; Yang et al., 2008) or as Ca2+ activated lipid scramblases (Brunner et al., 2016; Falzone et al., 2018; Whitlock and Hartzell, 2017). The structure of the fungal TMEM16 homologue from Nectria haematococca (nhTMEM16), determined by X-ray crystallography, has defined the general architecture of the family and provided insight into the mechanism of lipid translocation (Brunner et al., 2014). In nhTMEM16, each subunit of the homodimeric protein contains a membrane-accessible polar furrow termed the ‘subunit cavity’, which provides a suitable pathway for the polar lipid headgroups on their way across the hydrophobic core of the bilayer (Bethel and Grabe, 2016; Brunner et al., 2014; Jiang et al., 2017; Lee et al., 2018; Stansfeld et al., 2015). This process closely resembles the ‘credit card mechanism’ for scrambling, which was previously postulated based on theoretical considerations (Pomorski and Menon, 2006). Conversely, single particle cryo-electron microscopy (cryo-EM) structures of murine TMEM16A (mTMEM16A), which instead of transporting lipids solely facilitates selective anion permeation (Dang et al., 2017; Paulino et al., 2017a; Paulino et al., 2017b), revealed the structural differences that underlie the distinct function of this branch of the TMEM16 family. In mTMEM16A, the rearrangement of an α-helix that lines one edge of the ‘subunit cavity’ in nhTMEM16 seals the membrane-accessible furrow, resulting in the formation of a protein-enclosed aqueous pore that is for a large part shielded from the bilayer. In both proteins, binding of Ca2+ mediates the activation of the permeation region contained in each subunit, which in mTMEM16A was shown to act as an independent entity (Jeng et al., 2016; Lim et al., 2016). Whereas the structures of nhTMEM16 and mTMEM16A have defined the architecture of two distantly related members of the family, TMEM16F appears, with respect to phylogenetic relationships, as intermediate between the two proteins. Although working as lipid scramblase (Suzuki et al., 2010; Watanabe et al., 2018), it is closer related to the ion channel mTMEM16A than to nhTMEM16 (Brunner et al., 2016; Falzone et al., 2018; Whitlock and Hartzell, 2017). Moreover, whereas scrambling-related ion conduction was found to be a feature of several family members (Lee et al., 2016; Malvezzi et al., 2018; Whitlock and Hartzell, 2016), TMEM16F is the only lipid scramblase for which rapidly activated calcium-dependent currents were recorded in excised patches (Yang et al., 2012). To better understand how the small sequence differences in TMEM16F give rise to its distinct functional properties, we determined the structure of murine TMEM16F (mTMEM16F) by cryo-EM in Ca2+-bound and Ca2+-free states, both in a detergent and in a lipid environment. In parallel, we characterized the lipid transport properties of mTMEM16F in vitro after reconstitution of the protein into liposomes, as well as ion conduction properties in transfected cells by electrophysiology. Collectively, our study reveals the architecture of mTMEM16F, defines conformational changes upon ligand binding and suggests potential mechanisms for ion and lipid conduction. In the most plausible scenario, both transport processes are activated by the same mechanism and mediated by distinct protein conformations, which are at equilibrium in a calcium-bound state.

Results

Functional properties of mTMEM16F

In our study, we explored the relationship between the structure of mTMEM16F, which shares a sequence identity of over 90% with its human orthologue, to its diverse functional properties. For this purpose, we have expressed mTMEM16F in HEK293 cells, purified it in the detergent digitonin in the absence of Ca2+ and, when indicated, added Ca2+ briefly before experiments (Figure 1—figure supplement 1A,B). To confirm that the purified protein has retained its function as a Ca2+-activated lipid scramblase, we investigated lipid transport with proteoliposomes using an assay that was previously established for fungal TMEM16 scramblases (Malvezzi et al., 2013; Ploier and Menon, 2016). This assay monitors the irreversible reduction of fluorescent lipids upon addition of the membrane-impermeable reagent dithionite to the outside of liposomes. The fluorescence rapidly decays to about half of its initial value in the absence of scrambling due to the bleaching of lipids already facing the outside, and it decreases further in a time-dependent manner in cases where a scramblase catalyzes lipid transport from the inner to the outer leaflet (Figure 1—figure supplement 1C). Our data reveal a Ca2+-induced activity, which, although dependent on the composition of proteoliposomes, facilitates transport of lipids with different headgroups, consistent with the broad lipid selectivity that was described for mTMEM16F and other TMEM16 scramblases (Brunner et al., 2014; Malvezzi et al., 2013; Suzuki et al., 2013) (Figure 1—figure supplement 1C–E). Activation of scrambling is fast, as evidenced by the immediate decay of the fluorescence upon addition of Ca2+ to the outside of mTMEM16F containing proteoliposomes (Figure 1—figure supplement 1F), and saturates with an EC50 for Ca2+ of about 1 µM (Figure 1A,B). Thus, our experiments demonstrate the function of purified and reconstituted mTMEM16F as a Ca2+-activated lipid scramblase.

Figure 1 with 1 supplement see all

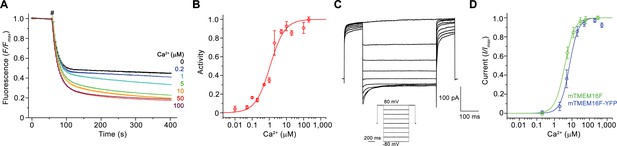

Functional characterization of mTMEM16F.

(A) Ca2+-dependence of scrambling activity in mTMEM16F-containing proteoliposomes. Traces depict fluorescence decrease of tail-labeled NBD-PE lipids after addition of dithionite (#) at different Ca2+ concentrations. Data show averages of three technical replicates. (B) Ca2+ concentration-response relationship of mTMEM16F scrambling (EC50 = 1.1 μM, n = 1.0). Data show mean of six independent experiments from three protein reconstitutions. (C) Representative current traces at 200 μM Ca2+ recorded from inside-out patches excised from HEK293 cells transiently expressing a mTMEM16F-YFP fusion construct. Inset shows voltage protocol. (D) Ca2+ concentration-response relationship of currents recorded from inside-out patches of a stable HEK293 cell-line expressing mTMEM16F (green, EC50 = 3.9 μM, n = 1.6) and from HEK293 cells transiently expressing a mTMEM16F-YFP fusion construct (blue, EC50 = 7.2 μM, n = 1.7). Data show mean of five (stable cell-line) and seven biological replicates (transfected cells). B, D Solid lines show fit to a Hill equation. A, B, D, errors are s.e.m..

https://doi.org/10.7554/eLife.44365.002

Besides its capability to transport lipids, mTMEM16F was also reported to act as an ion channel (Kunzelmann et al., 2014; Scudieri et al., 2015; Yang et al., 2012; Yu et al., 2015). To recapitulate these properties, we have studied ion conduction in inside-out patches excised from HEK293 cells expressing mTMEM16F. As described previously, mTMEM16F mediates currents that are activated in response to elevated intracellular Ca2+ concentrations (Yang et al., 2012) (Figure 1C,D; Figure 1—figure supplement 1G). Analogous to the Ca2+-dependence of scrambling, the activation of ion conduction is rapid and currents (recorded at 80 mV) saturate with an EC50 of 4–7 µM. Similar results were obtained from the stable cell-line expressing mTMEM16F, used for reconstitution and structure determination, and from cells that were transfected with a construct containing a C-terminal fusion to YFP, which was used for the further characterization of mTMEM16F by electrophysiology (Figure 1D; Figure 1—figure supplement 1H). The Hill coefficient of about 1.7 for both mTMEM16F constructs emphasizes the cooperativity of the process. Unlike for the anion-selective mTMEM16A, the currents are slightly selective for cations over anions and they retain their strong outward rectification in the entire ligand-concentration range (Figure 1C; Figure 1—figure supplement 1G,I). Whereas the mild rectification of instantaneous currents is likely a consequence of conduction through an asymmetric pore (Paulino et al., 2017b), the presence of time-dependent relaxations in response to changes in the transmembrane voltage and the increased rectification at steady-state reflect a voltage-dependent transition that is not obviously linked to ligand binding (Figure 1C; Figure 1—figure supplement 1G). As the activation of ion conduction and lipid scrambling occurs in a very similar ligand concentration range, both processes likely rely on the same mechanism of Ca2+-activation.

Structural characterization

Since mTMEM16F combines the functional properties of a lipid scramblase and an ion channel, we were interested in the architectural features that distinguishes it from the anion-selective channel mTMEM16A and the fungal scramblase nhTMEM16. For that purpose, we determined structures of mTMEM16F in the absence and presence of Ca2+ (Table 1). Structures of the protein in the detergent digitonin were determined for Ca2+-bound and Ca2+-free states by cryo-EM at 3.2 Å and 3.6 Å, respectively (Figure 2; Figure 2—figure supplements 1 and 2; Videos 1 and 2). Both structures are very similar, except for conformational differences at the Ca2+-binding site and the ‘subunit cavity’ (Figure 2C).

Figure 2 with 7 supplements see all

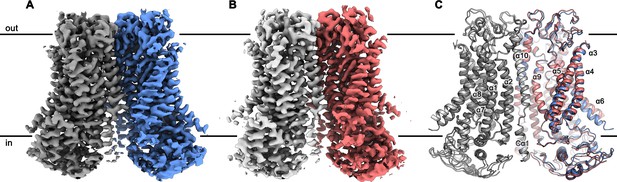

mTMEM16F structures.

Cryo-EM map of mTMEM16F in digitonin in presence (A) and absence (B) of calcium at 3.2 Å and 3.6 Å, respectively. (C) Cartoon representation of a superposition of the Ca2+-bound (blue and grey) and Ca2+-free mTMEM16F (magenta and light grey) dimer. Both structures superimpose with a root mean square deviation (RMSD) of 1.2 Å. Transmembrane helices are labelled and the membrane boundary is indicated.

https://doi.org/10.7554/eLife.44365.004
Table 1
Cryo-EM data collection, refinement and validation statistics.
https://doi.org/10.7554/eLife.44365.012
mTMEM16F dig, +Ca2+
(EMDB 4611,
PDBID 6QP6)
mTMEM16F dig, -Ca2+
(EMDB 4612,
PDBID 6QPB)
mTMEM16F
2N2, +Ca2+
(EMDB 4613,
PDBID 6QPC)
mTMEM16F
2N2, -Ca2+
(EMDB 4614,
PDBID 6QPI)
Data collection and processing
Microscope
Camera
Magnification
FEI Talos Arctica
Gatan K2 Summit + GIF
49,407
FEI Talos Arctica
Gatan K2 Summit + GIF
49,407
FEI Talos Arctica
Gatan K2 Summit + GIF
49,407
FEI Talos Arctica
Gatan K2 Summit + GIF
49,407
Voltage (kV)
Exposure time frame/total (s)
Number of frames per image
200
0.15/9
60
200
0.15/9
60
200
0.15/9
60
200
0.15/9
60
Electron exposure (e–/Å2)52525252
Defocus range (μm)−0.5 to −2.0−0.5 to −2.0−0.5 to −2.0−0.5 to −2.0
Pixel size (Å)
Box size (pixels)
1.012
220
1.012
220
1.012
256
1.012
220
Symmetry imposedC2C2C2C2
Initial particle images (no.)1,348,2471,314,6761,019,0121,593,115
Final particle images (no.)219,302194,284186,487280,891
Map resolution (Å)
0.143 FSC threshold

3.18

3.64

3.54

3.27
Map resolution range (Å)2.9–4.53.2–53.3–53.0–4.2
Refinement
Initial model usedPDBID 5OYBPDBID 6QP6PDBID 6QP6PDBID 6QPB
Model resolution (Å)
FSC threshold

3.3

3.8

4.0

7.0
Model resolution range (Å)80–3.280–3.680–3.580–3.3
Map sharpening B factor (Å2)−94−139−121−131
Model composition
Nonhydrogen atoms
Protein residues
Ligands

12144
1462
8

12136
1460
2

9060
1138
6

2288
462
-
B factors (Å2)
Protein
Ligand

53.3
39.1

52
34.8

72.7
54.6

7.8
-
R.m.s. deviations
Bond lengths (Å)
Bond angles (°)

0.009
1

0.007
0.9

0.005
0.87

0.004
0.655
Validation
MolProbity score
Clashscore
Poor rotamers (%)

1.36
6.5
0.46

1.23
4.5
0.3

1.3
5.6
0.22

1.17
2.4
0
Ramachandran plot
Favored (%)
Allowed (%)
Disallowed (%)

98.6
1.4
0

98.4
1.6
0

98.4
1.6
0

97.2
2.8
0
Video 1
Structure of mTMEM16F in complex with Ca2+.

Shown is the cryo-EM density map of mTMEM16F obtained in complex with Ca2+ in digitonin superimposed on the refined structure. For clarity, only a single subunit is displayed. The cryo-EM map is depicted as blue surface, the model as blue sticks, and calcium ions as green spheres.

https://doi.org/10.7554/eLife.44365.013
Video 2
Structure of mTMEM16F in absence of Ca2+.

Shown is the cryo-EM density map of the mTMEM16F obtained in a Ca2+-free state in digitonin superimposed on the refined structure. For clarity, only a single subunit is displayed. The cryo-EM map is depicted as magenta surface and the model as red sticks.

https://doi.org/10.7554/eLife.44365.014

To investigate the effect of a lipid bilayer on the structural properties of mTMEM16F, we reconstituted the protein into large 2N2 lipid nanodiscs with a lipid composition that retains scrambling activity, although with slower kinetics (Figure 1—figure supplement 1D), and collected cryo-EM data of both states in a membrane-like environment (Figure 2—figure supplements 3 and 4). While of similar nominal resolution to the data obtained in detergent, the preferred orientation of the protein in nanodiscs on the grids resulted in anisotropic cryo-EM maps, in which some of the details are blurred (Figure 2—figure supplements 35). This problem is less pronounced in the data obtained in nanodiscs in presence of Ca2+ than in the dataset of the Ca2+-free sample. Nonetheless, both datasets are of sufficient quality to allow for a comparison of corresponding states of mTMEM16F in a detergent and lipid environment. For most parts, these structures are virtually indistinguishable except for α3 and α4, which show a larger tilt towards α6 in the cryo-EM maps of nanodisc samples, a feature that is more prominent in the Ca2+-free state (Figure 2—figure supplement 6). Thus, our data reveal a general equivalence of structures in detergent and in a membrane environment but they also hint at context-dependent differences in a region that constitutes the ion and lipid permeation path (Figure 2—figure supplements 5 and 6). In addition, we were interested whether we could identify any structural flexibility within each of the four datasets. While no heterogeneity was found in the data in absence of Ca2+ both in detergent and nanodiscs (Figure 2—figure supplements 2I and 4I), we were able to identify classes with slightly altered conformations for α3 and α4 in the detergent and nanodiscs samples in presence of Ca2+ (Figure 2—figure supplements 1I and 3I). These differences are more pronounced in the Ca2+-bound nanodisc sample and could point towards a further structural transition of these α-helices from their current position into an open conformation of the ‘subunit cavity’, as observed for the fungal scramblases nhTMEM16 (Kalienkova et al., 2019) and afTMEM16 (Falzone et al., 2019) and for the human TMEM16K (hTMEM16K, Bushell et al., 2018). However, despite the conformational spread of α3 and α4, no class showing an open conformation of the ‘subunit cavity’ was identified in our data (Figure 2—figure supplement 6).

Unassigned densities near the dimer interface present in all cryo-EM maps most likely account for tightly bound lipids (Figure 2—figure supplement 7). Although the potential functional relevance of these lipids is still unclear, similar densities were found in other mammalian TMEM16 proteins, such as mTMEM16A (Paulino et al., 2017a; Dang et al., 2017) and hTMEM16K (Bushell et al., 2018), but not in fungal homologs. In contrast to mTMEM16A (Paulino et al., 2017b), nhTMEM16 (Kalienkova et al., 2019) and afTMEM16 (Falzone et al., 2019) no obvious distortion of the detergent micelle or the lipid nanodiscs was observed in the maps of mTMEM16F (Figure 2—figure supplements 1H, 2H, 3H and 4H). Yet, in light of the structural similarity between family members, a destabilizing effect of the protein in its active conformation on the membrane is conceivable. Due to the superior quality of the structures of mTMEM16F in detergent, they are used for further structural analysis.

Relationship to other TMEM16 structures

With a pairwise sequence identity of 38%, mTMEM16F is closer to the anion channel mTMEM16A (Figure 3—figure supplement 1) than to the more distantly related fungal scramblase nhTMEM16 and its mammalian orthologue hTMEM16K, with which it shares sequence identities of 21% and 25%, respectively. It is thus not surprising that, with respect to its general architecture, mTMEM16F closely resembles mTMEM16A (Figure 3—figure supplement 2). The similarity to mTMEM16A extends to all parts of the protein, including the cytoplasmic and extracellular domains, and it is particularly pronounced in the Ca2+-bound conformations, which superimpose with a root mean square deviation (RMSD) of 2.1 Å (Figure 3—figure supplement 2A). The RMSD decreases to 1 Å when relating Cα-positions of the transmembrane domain of a single subunit (encompassing 298 Cα-positions, which are also used in superpositions with nhTMEM16, Figure 3A,B). The potential correspondence of both structures of mTMEM16F to functional states of a scramblase is best illustrated in their comparison to nhTMEM16, for which closed, intermediate and open conformations have been determined (Kalienkova et al., 2019). The equivalence of the Ca2+-free conformation of mTMEM16F with an inactive ligand-free state of a TMEM16 scramblase is evident in the low RMSD of 2.0 Å of a superposition with the Ca2+-free conformation of nhTMEM16 in nanodiscs (Figure 3C). In the case of Ca2+-bound structures, the relationship of mTMEM16F to the intermediate conformation of nhTMEM16 observed in nanodiscs is, with an RMSD of 1.9 Å, much closer than to the open conformation of the same protein, where the RMSD of 3.1 Å underlines their nonequivalence (Figure 3D,E; Figure 3—figure supplement 2B). The large differences originate from the diversity of conformations of the subunit cavity observed for Ca2+-bound states of TMEM16 proteins. The cavity is accessible to the membrane in the case of the Ca2+-bound open state of nhTMEM16 (Brunner et al., 2014; Kalienkova et al., 2019) and equivalent conformations of its close homologues afTMEM16 (Falzone et al., 2019) and hTMEM16K (Bushell et al., 2018), but not in the Ca2+-bound intermediate and closed conformations of nhTMEM16 (Kalienkova et al., 2019) and the observed Ca2+-bound conformation of mTMEM16F (Figure 3C–E). It is thus uncertain whether the here captured Ca2+-bound structure of mTMEM16F shows a partly activated state, which is incapable of scrambling lipids, akin to the intermediate state of nhTMEM16, or whether the scrambling mechanism of mTMEM16F differs from nhTMEM16 and its mammalian orthologues. In light of the ion permeation properties of mTMEM16F and its similarity to mTMEM16A, it is conceivable that the here observed Ca2+-bound structure is close to a conducting conformation for ions. In that respect, the question is pertinent why mTMEM16F but not mTMEM16A catalyzes lipid movement.

Figure 3 with 2 supplements see all

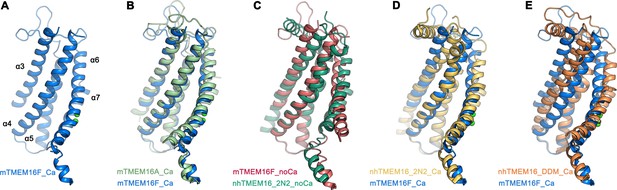

Comparison of the ‘subunit cavity’ of TMEM16 homologues.

(A) ‘Subunit cavity’ in the Ca2+-bound mTMEM16F structure composed of α-helices 3–7 (blue). (B) Superposition of the ‘subunit cavity’ between the Ca2+-bound structures of mTMEM16F (blue) and the anion channel mTMEM16A (PDBID 5OYB (Paulino et al., 2017a), green). (C) Superposition of the ‘subunit cavity’ between the Ca2+-free structure of mTMEM16F (magenta) and the Ca2+-free structure of the fungal scramblase nhTMEM16 in nanodiscs (PDBID 6QM4 (Kalienkova et al., 2019), teal) displaying a closed state of the scramblase. (D) Superposition of the Ca2+-bound structure of mTMEM16F (blue) with a Ca2+-bound conformation of nhTMEM16 in nanodiscs (PDBID 6QMA (Kalienkova et al., 2019), yellow) displaying an intermediate state of the scramblase. (E) Superposition of the Ca2+-bound structure of mTMEM16F (blue) with a Ca2+-bound conformation of nhTMEM16 in detergents (PDBID 6QM5 (Kalienkova et al., 2019), orange) displaying an open state of the scramblase.

https://doi.org/10.7554/eLife.44365.015

Architecture of the ‘subunit cavity’

The structure of the putative catalytic unit of mTMEM16F in a Ca2+-bound conformation shows a strong resemblance to the ion permeation path in mTMEM16A, where an hourglass-shaped pore contains two aqueous vestibules on either side of the membrane that are bridged by a narrow neck (Paulino et al., 2017a) (Figure 4—figure supplement 1A). A related architecture is observed in mTMEM16F, where closer interactions between α-helices and the presence of bulky residues along the path further constrict the pore below the size of permeating ions (Figure 4A–E; Figure 4—figure supplement 1A,B). Thus, it is unclear whether the observed conformation of mTMEM16F could facilitate ion conduction. In mTMEM16A, a strong positive electrostatic potential throughout the pore, originating from an excess of cationic residues, determines its selectivity for anions (Paulino et al., 2017a). Due to an altered distribution of charges in the pore region of mTMEM16F, the potential is less positive on both entrances to the narrow neck, which is consistent with the poor selectivity of currents passed by this protein (Figure 4—figure supplement 1C; Figure 1—figure supplement 1I).

Figure 4 with 1 supplement see all

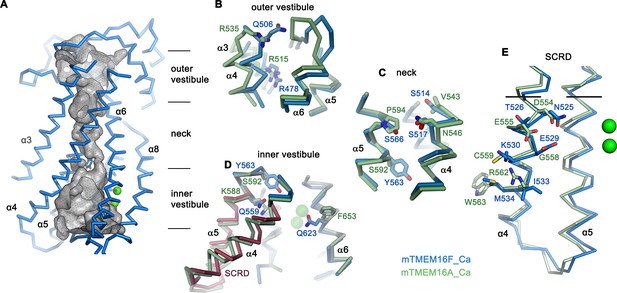

Pore region of mTMEM16F.

(A) ‘Subunit cavity’ in the Ca2+-bound state of mTMEM16F showing the putative ion conduction pore. Grey mesh shows pore surface (sampled with probe radius of 1 Å). (B to D) Superposition of selected pore regions of mTMEM16F (blue) and the anion channel mTMEM16A (green, remodeled version of PDBID 5OYB, see Materials and methods) along the extracellular vestibule (B), the neck (C) and the intracellular vestibule, with the 35 amino acid long scrambling domain (SCRD) on α4 and α5 of mTMEM16F highlighted in brown (D). (E) View of the SCRD rotated by about 90° relative to D. The SCRD boundary is indicated by black lines. A-E, Selected residues are displayed as sticks, bound calcium ions as green spheres.

https://doi.org/10.7554/eLife.44365.018

Whereas in the extracellular vestibule the uncharged Gln 506, which has replaced an arginine at the equivalent position in mTMEM16A, lowers the positive charge density in the outer mouth of the pore, Arg 478 at the extracellular boundary to the neck is conserved (Figure 4B). The neck of mTMEM16F exhibits a similar amphiphilic character as found in mTMEM16A but it contains several changes, which decrease its hydrophobicity (Figure 4C). Further towards the cytoplasm, the bulky Tyr 563 lowers the pore diameter of mTMEM16F to 1.6 Å (Figure 4 C,D; Figure 4—figure supplement 1B). Finally, at the boundary to the wide intracellular vestibule, Gln 559 replaces a lysine at the equivalent position in mTMEM16A, thereby removing another positive charge from the putative ion permeation path (Figure 4D).

Similar to its paralogue mTMEM16A, the interacting α-helices 4 and 6 disengage towards the cytoplasm and open a hydrophilic gap to the membrane, which causes a dilation of the pore at the intracellular vestibule (Figure 4D). In mTMEM16F, this region contains the scrambling domain (SCRD), encompassing the intracellular parts of α4 and α5, which was previously described as determinant for lipid movement (Gyobu et al., 2017; Yu et al., 2015) (Figure 4D,E). The intracellular gap of mTMEM16F also parallels the equivalent region of nhTMEM16, but the closure of the cavity towards the extracellular side interrupts the polar and membrane-accessible furrow found in the Ca2+-bound ‘open state’ of the fungal scramblase nhTMEM16 and instead resembles its Ca2+-bound intermediate observed in nanodiscs (Kalienkova et al., 2019) (Figure 3D,E). The region of the closed cavity that faces the lipid bilayer in mTMEM16F is hydrophobic and resembles mTMEM16A, except for few residues such as Gln 623, located on α6 facing the SCRD, and Lys 370 located at the extracellular domain close to the membrane boundary (Figure 4D; Figure 4—figure supplement 1A).

Calcium activation

The structure of mTMEM16F in the presence of Ca2+ defines the location of two Ca2+ ions in each subunit that are bound to a site which strongly resembles its counterpart in nhTMEM16 (Brunner et al., 2014) and mTMEM16A (Paulino et al., 2017a) (Figure 5; Figure 5—figure supplement 1A). In this site, conserved acidic and polar residues located on α-helices 6–8 coordinate the ions with similar geometry. Different from its paralogue functioning as anion channel, mTMEM16F does not contain an insertion of a residue in α6 near the hinge (Figure 3—figure supplement 1), which causes a partial unwinding and the formation of a π-bulge in mTMEM16A (Paulino et al., 2017a). Consequently, the helix in the ligand-bound conformation of mTMEM16F might be in a less strained conformation.

Figure 5 with 2 supplements see all

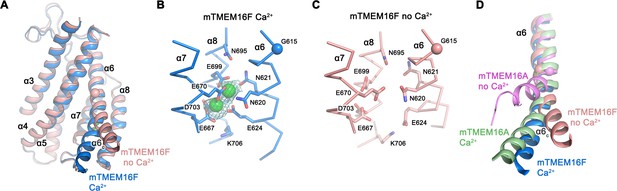

Ca2+-binding site and conformational changes.

(A) Superposition of α-helices 3–8 of mTMEM16F in the presence (blue) and absence of Ca2+ (coral). (B and C) Close-up of the Ca2+-binding site in complex (B) or in absence of Ca2+ (C). Coordinating residues are depicted as sticks, calcium ions as green spheres (with surrounding cryo-EM density contoured at 5σ). (D) Comparison of Ca2+-induced movements in mTMEM16F (Ca2+-bound in blue, Ca2+-free in coral) and mTMEM16A (Ca2+-bound (PDBID 5OYB) in green, Ca2+-free (PDBID 5OYG) in pink). Shown is a cartoon superposition of α6. A-D. Pivot for movement is depicted as sphere.

https://doi.org/10.7554/eLife.44365.020

The conformational changes that take place in mTMEM16F upon ligand binding can be appreciated in the comparison of Ca2+-bound and Ca2+-free conformations (Figures 2C and 5A–C; Figure 5—figure supplement 1). As in mTMEM16A, the absence of Ca2+ causes a local transition confined to the pore region, whereas the remainder of the structure remains largely unaffected (Figures 2C and 5A). Besides comparably small rearrangements of α3 and α4, which are less pronounced in the nanodisc structures (Figure 2—figure supplement 6), the largest difference is found at the intracellular half of α6 (α6c, Figure 5A). In the presence of Ca2+, the bound ligands provide an interaction platform for negatively charged and polar residues on α6, thereby immobilizing the helix in the observed conformation (Figure 5B). In the ligand-free state, this helix has altered its conformation in response to the loss of the positively charged interaction partner, leading to an increase in mobility of α6c as indicated by the weaker density (Figure 5—figure supplement 1B). The transition can be described by a rigid-body movement of α6c by 20°, around a hinge located close to a conserved glycine residue (Gly 615, Figure 3—figure supplement 1), whose equivalent in mTMEM16A was shown to be critical for conformational rearrangements (Paulino et al., 2017a). However, in contrast to mTMEM16A, the observed change in mTMEM16F is considerably smaller, proceeds in the opposite direction and it is not accompanied by a rotation around the helix axis (Figure 5D). Thus, whereas in the apo-form of mTMEM16A α6c approaches α4, thereby closing the gap between both helices, the movement of α6c in mTMEM16F is directed away from α4 (Figure 5A,D). The observed structural transition opens the access of the ion binding site to the cytoplasm and widens the gap to the SCRD, which likely contributes to the inhibition of scrambling by increasing the energy barrier for lipid flipping by a currently unclear mechanism.

In the recent structure of hTMEM16K, which was crystallized in 100 mM Ca2+ (Bushell et al., 2018), besides the two Ca2+ in the consensus site responsible for activation, an additional Ca2+ ion was identified to bind to a site at the intracellular end of α10. This ion is coordinated by negatively charged residues located on α2 and the loop following α10, which are conserved among mammalian but not fungal homologues. Residual density in the Ca2+-containing data, which is absent in data of Ca2+-free samples, indicate the presence of an ion at the equivalent position in mTMEM16F (Figure 5—figure supplement 2). A similar unassigned density is also found in the Ca2+-containing data of mTMEM16A (Paulino et al., 2017b), but not in fungal homologues (Falzone et al., 2019; Kalienkova et al., 2019), thus revealing a position of still unclear functional relevance that is shared among mammalian TMEM16 family members and can be occupied by Ca2+ at μM concentrations.

Functional characterization of mutants of the Ca2+-binding site

Whereas the described structures revealed the detailed architecture of mTMEM16F and its conformational changes in response to ligand binding, the similarity of the protein to its paralogue working as anion channel leaves important aspects of structure-function relationships ambiguous.

The first question we have addressed was whether Ca2+-binding to the conserved site of mTMEM16F would affect scrambling and ion conduction in a similar manner. We have thus investigated the scrambling activity of mutants of the Ca2+-binding site and found a strong decrease in the potency of Ca2+ in the mutant E667Q located on α7 and little detectable activity in the mutant E624Q on α6 (Figures 5B and 6A; Figure 6—figure supplement 1A,B), consistent with a very similar phenotype of equivalent mutants on the activation of the chloride channel mTMEM16A (Brunner et al., 2014; Lim et al., 2016; Tien et al., 2014; Yu et al., 2012). By using patch-clamp electrophysiology, we found a comparable effect of the same mutations on the activation of currents, in line with previous observations (Yang et al., 2012), thus emphasizing the mutuality in the regulation of both processes (Figures 5B and 6B; Figure 6—figure supplement 1C,D). We next investigated the role of the observed conformational change of α6 for activation and the importance of the conserved glycine position as hinge for its movement. In patch-clamp experiments, the mutation of the conserved Gly 615 to alanine increased the potency of Ca2+ (Figure 6B; Figure 6—figure supplement 1E), indicating a stabilization of the open state upon mutation of this flexible position, which parallels a behavior observed in the channel mTMEM16A (Paulino et al., 2017a; Peters et al., 2018). Hence, the effect of mutations on the Ca2+-binding site and the gating hinge indicate that the conformational changes observed in α6 are the basis of a common mechanism of activation of ion conduction and scrambling in mTMEM16F.

Figure 6 with 2 supplements see all

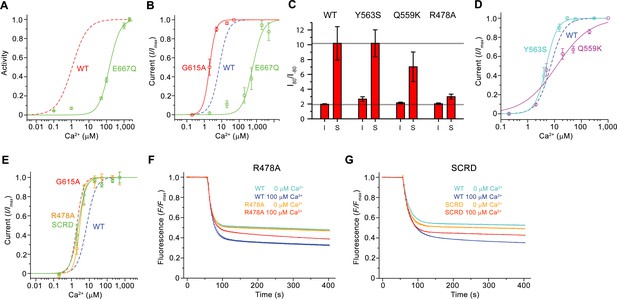

Functional properties of mutants.

(A) Ca2+ concentration-response relationship of lipid scrambling in the binding site mutant E667Q. Data show average of either six (0, 1, 10, 100, 1000 µM) or three (other concentrations) independent experiments from two protein reconstitutions. (B) Ca2+ concentration-response relationship of currents of E667Q (n = 4) and the hinge residue G615A (n = 4). (A and B) For comparison WT traces are shown as dashed lines. (C) Rectification indices (I80mV/I–80mV) of instantaneous (I) and steady-state currents (S) of WT (n = 12) and the mutants Y563S (n = 8), Q559K (n = 10) and R478A (n = 10). Unlike Q599K, the difference between R478A and WT was found to be statistically significant. (D and E) Ca2+ concentration-response relationship of currents of mutants Y563S (n = 3) and Q559K (n = 5) (D) and R478A (n = 5) and mTMEM16FSCRD (SCRD, n = 6) (E). (F and G) Scrambling of the mutants R478A (F) and mTMEM16FSCRD (SCRD) (G). F, G Data show averages of three independent experiments of one protein reconstitution. WT reconstituted in a separate set of liposomes from the same batch is shown in comparison. B, D, E Data show averages from independent biological replicates. A-G, Errors are s.e.m.

https://doi.org/10.7554/eLife.44365.023

Functional characterization of mutants affecting ion conduction and scrambling

After the characterization of the effect of mutations in the Ca2+-binding site on activation, we were interested in other structural elements mediating ion conduction and scrambling. The resemblance of the pore region of mTMEM16F and mTMEM16A suggests that ion conduction could proceed at the same location after local conformational changes that increase its diameter. We have thus investigated the influence of mutations of pore-lining residues on ion conduction and gating by analyzing the Ca2+ concentration-response relationships, ion selectivity and the rectification properties of currents. In all mutants, we either truncated the residues to alanine or replaced them with their equivalent amino acid found in mTMEM16A. Since, in the cryo-EM structure, Tyr 563 constricts the pore of mTMEM16F (Figure 4A,C; Figure 4—figure supplement 1A,B), we investigated the mutant Y563S. A similar Ca2+ potency and ion selectivity as the WT and no noticeable alteration of the rectification properties of currents were found (Figure 6C,D; Figure 6—figure supplement 2A–C), thus suggesting that Tyr 563 does not impose a rate-limiting barrier to ion conduction in the open state.

As described previously (Yang et al., 2012), the mutation of Gln 559 to lysine at the boundary between the intracellular vestibule and the narrow neck (Figure 4D) decreases the weak cation over anion selectivity of mTMEM16F, as expected for the introduction of a positively charged residue interacting with permeating ions (Figure 6—figure supplement 2D). In the mutant Q559K, we find a slightly lower Ca2+ potency and a markedly decreased slope in the Ca2+ concentration-response relationship compared to WT, as well as a moderate decrease in the rectification of steady-state currents, an effect that is particularly pronounced in a subset of the data (Figure 6C,D; Figure 6—figure supplement 2A,E). In contrast to the subtle phenotype of Y563S, the mutation of the conserved Arg 478 (Figure 4B) at the extracellular entrance of the narrow neck to alanine, yields a several-fold decreased current density compared to WT, yet with increased potency of Ca2+ and strongly decreased voltage-dependent relaxations. Consequently, the strong rectification at steady-state disappears, suggesting that the residue plays an important role during channel activation (Figure 6E; Figure 6—figure supplement 2A,F). Collectively, the observed changes in the activation and conduction properties of the mutants Q559K and R478A are consistent with their location in the pore. The increase of Ca2+-potency found in R478A and the strongly decreased time-dependent reduction of currents at negative voltage might indicate a stabilization of the open state. Moreover, the change in selectivity observed for the mutant Q559K provides direct evidence for its location at the pore lining.

As the mutation R478A at the extracellular part of the pore affected channel properties, we investigated its effect on lipid scrambling. Strikingly, this mutant showed a strongly decreased rate of lipid permeation (Figure 6F; Figure 6—figure supplement 2G), consistent with data previously obtained from cellular assays (Gyobu et al., 2017), whereas the activity of mutants Y563S and Q559K was robust (Figure 6—figure supplement 2G–I). Next, we investigated the scrambling activity of the mutants K370A and Q623F, which change the properties of two polar residues facing the outside of the subunit cavity (Figure 4B, Figure 4—figure supplement 1A). Both residues are located at opposite ends of the otherwise hydrophobic surface of the contact region between α4 and α6. They were selected under the assumption that mutations would interfere with lipid transport in a mechanism that does not rely on the opening of the subunit cavity. Conversely, they would be located on the outside and thus not interfere with lipid scrambling in a mechanism that requires cavity opening. Since both mutants did not show a detectable effect on scrambling, they are likely not located on the lipid permeation path (Figure 6—figure supplement 2G,J,K). By contrast, the strong inhibitory effect of the mutation R478A, suggests that an opening of the subunit cavity is necessary to bring this otherwise buried residue into direct contact with permeating lipids.

Finally, we searched for additional mutants with a different effect on ion conduction and lipid scrambling. Similar to previous data from cellular assays (Yu et al., 2015), a construct of mTMEM16F where the SCRD was replaced by the equivalent region of mTMEM16A (mTMEM16FSCRD, Figure 4E) exhibited strongly compromised scrambling activity in our in vitro experiments (Figure 6G; Figure 6—figure supplement 2G). In contrast, when investigating the TMEM16FSCRD construct by electrophysiology, we observed robust currents, although with a several-fold reduction in current amplitudes, and an increased potency for Ca2+ compared to WT (Figure 6E; Figure 6—figure supplement 2L). Thus, besides the point mutant R478A, also the SCRD chimera appears to exert different effects on lipid and ion permeation, indicating that both processes might be less coupled than previously anticipated (Jiang et al., 2017; Whitlock and Hartzell, 2016; Yu et al., 2015).

Discussion

By combining data from cryo-electron microscopy, in vitro scrambling assays and electrophysiology, our study has provided insight into the diverse functional behavior of mTMEM16F, a member of the TMEM16 family that facilitates the transport of lipids and ions across cellular membranes. Both processes are controlled by the binding of Ca2+ to a site located within the transmembrane domain that is accessible from the cytoplasm and they are mediated by the same structural element located at the periphery of each subunit. Whereas in a cellular environment, the significance of TMEM16F mediated lipid movement is established, the role of ion conduction is currently unclear. Notably, due to the strong outward rectification, ionic currents would be small at resting potential but they could suffice to provide a shunt for the dissipation of charge during the scrambling of anionic lipids, which probably occurs at comparable rates (Watanabe et al., 2018; Yang et al., 2012). Although our results offer detailed insights into potential transport mechanisms, there are still open questions related to the uncertain correspondence of the Ca2+-bound conformation of the protein to a defined functional state. We thus envision three alternative scenarios for ion and lipid permeation. In all scenarios, the structures obtained in Ca2+-free conditions describe an inactive conformation of the protein, while the Ca2+-bound structures either represent an intermediate or final state of activation. Whereas, in light of our cryo-EM structures, all three scenarios appear plausible, the combination with functional data points towards a mechanism where ion conduction and scrambling are mediated by distinct protein conformations.

In the first scenario (‘out-of-the-groove mechanism’), the here reported Ca2+-bound mTMEM16F structures represent a conformation close to the endpoint of the protein activation (Figure 7A). Since, in the Ca2+-bound state, the extracellular part of the subunit cavity remains shielded from the membrane, the diffusion of lipids would proceed outside of the cavity for about two-thirds of their transition. In this scenario, scrambling would be facilitated by interactions with the SCRD, which exposes polar residues to the inner leaflet of the bilayer at the gap between α4 and α6. Protein interactions with the lipid headgroups destabilize the membrane and consequently lower the barrier for lipid movement, which does not proceed in tight contact with the protein, as proposed in a recent study (Malvezzi et al., 2018). By contrast, ion conduction takes place in a sufficiently expanded protein-enclosed pore separated from the scrambling path. Upon activation, the observed movement of α6 towards α4 would change the structure in vicinity of the SCRD sufficiently to allow both lipid movement and ion conduction. This scenario would imply that there are two classes of TMEM16 scramblases acting by distinct mechanisms. The first class would allow the passage of lipids through a membrane-accessible furrow and include fungal scramblases (Brunner et al., 2014; Falzone et al., 2019; Kalienkova et al., 2019) and their mammalian orthologues residing in intracellular organelles, such as hTMEM16K (Bushell et al., 2018). A second class, defined by mTMEM16F and its orthologues, which are located in the plasma membrane, are closely related to the ion channels mTMEM16A and B and thus show pronounced ion conduction properties but do not contain a membrane-accessible polar subunit cavity.

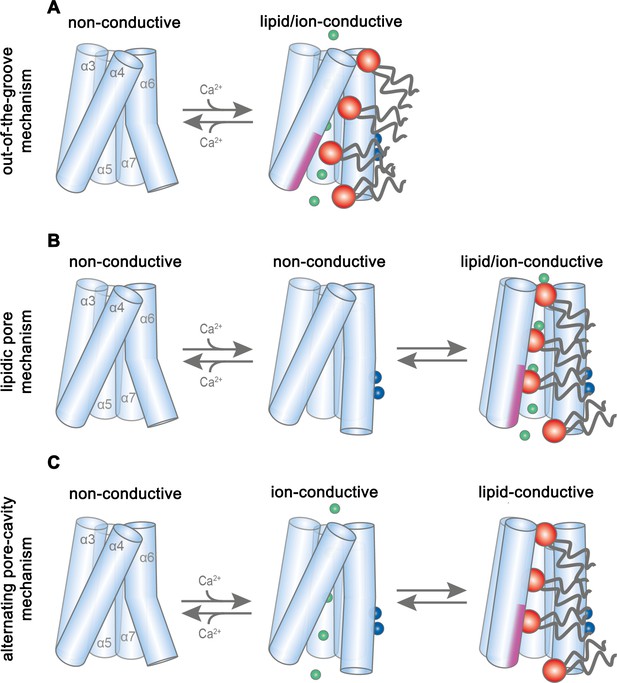

Potential transport mechanisms in mTMEM16F.

(A) ‘Out-of-the-groove mechanism’: upon calcium-activation the subunit cavity remains closed, ions and lipids permeate separate parts of the protein. (B) ‘Lipidic pore mechanism’: upon Ca2+ binding, the cavity opens with ions and lipids permeating the same open cavity conformation. (C) ‘Alternating pore-cavity mechanism’: After Ca2+-binding the open lipid-conductive cavity and ion conductive protein-surrounded pore are in equilibrium. This mechanism appears most likely in light of the functional data on mTMEM16F and the results on a related study on the activation of the lipid scramblase nhTMEM16 (Kalienkova et al., 2019). A-C, Schematic representation of mTMEM16F α3–7 depicted as cylinders, bound calcium ions as blue spheres, conducting chloride ions as green spheres, scrambling lipid head groups as red spheres and their respective acyl chains as grey lines. The scrambling domain (SCRD) is indicated as purple area at the intracellular side of α-helix 4.

https://doi.org/10.7554/eLife.44365.026

In a second scenario, scrambling would proceed on the surface of a subunit cavity that has opened to the membrane (Figure 7B,C). In this case, the Ca2+-bound mTMEM16F structures display intermediates, whereby the conformational heterogeneity of α3 and α4 observed in the nanodisc samples indicates a potential rearrangement towards a fully active protein conformation (Figure 2—figure supplements 3I and 4I). Consequently, the comparison to Ca2+-free structures reveals the first ligand-dependent activation step. Full activation of the protein to a scrambling-competent state requires a consecutive transition that might be facilitated by lipid interactions with the protein at the SCRD, thereby facilitating the conformational change of α4 (Lee et al., 2018). This transition would lead to the exposure of a membrane-spanning hydrophilic furrow as observed in the scramblase nhTMEM16 (Brunner et al., 2016). This scenario is generally consistent with the activation mechanism for the fungal scramblases nhTMEM16 (Kalienkova et al., 2019) and afMEM16 (Falzone et al., 2019) and the human scramblase TMEM16K (Bushell et al., 2018). The fully active conformation was not observed in our structures, since it is either transient, as proposed for lipid scrambling in rhodopsin (Morra et al., 2018), or disfavored in our lipid nanodiscs, potentially due to an impairing lipid composition or the absence of interacting components (Schreiber et al., 2018; Ye et al., 2018). In such a scenario, we foresee two potential alternatives for the observed ion conduction. Conduction could either proceed in the same conformation as scrambling, in a pore that is partially lined by translocating lipids and thus be directly coupled to lipid movement (‘lipidic pore mechanism’), as suggested in previous investigations (Jiang et al., 2017; Whitlock and Hartzell, 2016) (Figure 7B). Alternatively, ion conduction and scrambling could be mediated by distinct alternating conformations, which are at equilibrium in the Ca2+-bound state (Falzone et al., 2018; Kalienkova et al., 2019). Here, scrambling proceeds in an open subunit cavity, as observed for nhTMEM16, afTMEM16 and hTMEM16K, while ion conduction is catalyzed by a protein-enclosed pore that resembles the Ca2+-bound mTMEM16F and mTMEM16A structures (‘alternating pore-cavity mechanism’, Figure 7C).

Whereas our structures do not show an opened subunit cavity, the functional data are most consistent with distinct conformations facilitating ion conduction and scrambling, as described in the ‘alternating pore-cavity mechanism’. In this case, mutations could shift the equilibrium between both states and have opposite effects on either function. This is observed for the mutants R478A and TMEM16FSCRD, which both mediate Ca2+-activated currents with smaller magnitude but increased ligand potency compared to WT, while both show impaired lipid permeation properties (Figure 6E–G). Particularly, this scenario would account for the strong effect of the mutation of Arg 478 on lipid permeation (Figure 6F) (Gyobu et al., 2017), which in our structures is buried in the protein but would become exposed to the membrane in an open cavity. In contrast, the mutation of polar residues on the outside of the subunit cavity, which would contribute to scrambling in the ‘out-of-the-groove mechanism’, have little impact on lipid movement (Figure 6—figure supplement 2J,K). A shift in the equilibrium of the two states might also underlie the decrease in the open probability of the ion conduction pore at negative voltages (Figure 1C, Figure 1—figure supplement 1G). A definitive resolution of the mechanistic ambiguity will require further investigations, for which our study has provided an important foundation.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifierAdditional information
AntibodyMouse monoclonal
Anti-c-Myc
Millipore SigmaCat#M4439;
Clone#9E10
Dilution – 1:5000
AntibodyPeroxidase Affinipure
goat anti-mouse IgG
Jackson
Immunoresearch
Cat#115-035-146Dilution – 1:10000
Chemical
compound, drug
FuGENE six transfection
reagent
PromegaCat# E2691
Chemical
compound, drug
Hygromycin BGibco, Thermo
Fisher Scientific
Cat#10687010
Chemical
compound, drug
Tetracycline
hydrochloride
Millipore SigmaCat#T7660
Chemical
compound, drug
n-dodecyl-β-d-
maltopyranoside,
Solgrade
AnatraceCat#D310S
Chemical
compound, drug
EX-CELL 293
Serum-Free medium
Millipore SigmaCat#14571C
Chemical
compound, drug
Fetal bovine serumMillipore SigmaCat#F7524
Chemical
compound, drug
L-glutamineMillipore SigmaCat#G7513
Chemical
compound, drug
Penicillin-streptomycinMillipore SigmaCat#P0781
Chemical
compound, drug
Valproic acidMillipore SigmaCat#P4543
Chemical
compound, drug
HyClone HyCell
TransFx-H medium
GE HealthcareCat#SH30939.02
Chemical
compound, drug
Poloxamer 188Millipore SigmaCat#P5556
Chemical
compound, drug
Polyethylenimine
MAX 40 K
PolysciencesCat# 24765–1
Chemical
compound, drug
Dulbecco’s Modified
Eagle’s Medium - high
glucose
Millipore SigmaD5671
Chemical
compound, drug
Dulbecco’s Phosphate
Buffered Saline
Millipore SigmaD8537
Chemical
compound, drug
Digitonin Reagent USPPanReac AppliChemCat#A1905
Chemical
compound, drug
Calcium nitrate
tetrahydrate
Millipore SigmaCat#C4955
Chemical
compound, drug
Sodium chlorideMillipore SigmaCat#71380
Chemical
compound, drug
HEPESMillipore SigmaCat#H3375
Chemical
compound, drug
Ethylene glycol-bis(2-
aminoethylether)-N,N,N′,N′-
tetraacetic acid
Millipore SigmaCat#03777
Chemical
compound, drug
cOmplete, EDTA-free
Protease Inhibitor
Cocktail
RocheCat#5056489001
Chemical
compound, drug
Digitonin, High
Purity - Calbiochem
EMD MilliporeCat#300410
Chemical
compound, drug
BiotinMillipore SigmaCat#B4501
Recombinant
protein
PNGase FRaimund Dutzler
laboratory
NA
Commercial
assay or kit
Amicon Ultra-4–100 KDa
cutoff
EMD MilliporeCat#UFC8100
Commercial
assay or kit
0.22 μm Ultrafree-MC
Centrifugal Filter
EMD MilliporeCat#UFC30GV
Chemical
compound, drug
1-palmitoyl-2-oleoyl
-glycero-3-phosphocholine
Avanti Polar
Lipids, Inc
Cat#850457C
Chemical
compound, drug
1-palmitoyl-2-oleoyl-sn-
glycero-3-phospho-(1'-rac-
glycerol)
Avanti Polar
Lipids, Inc
Cat#840457C
Chemical
compound
Diethyl etherMillipore SigmaCat#296082
Commercial
assay or kit
Bio-Beads SM-2
Adsorbents
Bio-RadCat# 1523920
Chemical
compound, drug
Soybean Polar
Lipid Extract
Avanti Polar
Lipids, Inc
Cat#541602C
Chemical
compound, drug
CholesterolMillipore SigmaCat#C8667
Chemical
compound
18:1-06:0 NBD-PEAvanti Polar
Lipids, Inc
Cat#810155C
Chemical
compound, drug
18:1-06:0 NBD-PSAvanti Polar
Lipids, Inc
Cat#810194C
Chemical
compound, drug
14:0 NBD-PEAvanti Polar
Lipids, Inc
Cat#810143 C
Chemical
compound, drug
Potassium chlorideMillipore SigmaCat#746436
Chemical
compound, drug
Triton X-100Millipore SigmaCat#T9284
Chemical
compound, drug
Sodium dithioniteMillipore SigmaCat#157953
Chemical
compound, drug
N-Methyl-D-glucamineMillipore SigmaCat#66930
Chemical
compound, drug
Sulphuric acid 95–97%EMD MilliporeCat# 1.00731.1000
Commercial
assay or kit
Borosilicate glass
capilliary with filament
Sutter InstrumentCat#BF150-86-10HP
Commercial
assay or kit
Pierce Streptavidin
Plus UltraLink Resin
Thermo Fisher
Scientific
Cat#53117
Commercial
assay or kit
Superose 6 10/300 GLGE HealthcareCat#17-5172-01
Commercial
assay or kit
Flp-In T-Rex Core KitThermoFisher
Scientific
Cat#K650001
Commercial
assay or kit
Whatman Nuclepore
Track-Etched Membranes
diam.19mm, pore
size 0.4μm,
polycarbonate
Millipore SigmaCat#WHA800282
Commercial
assay or kit
MicroforgeNarishigeNA
Commercial
assay or kit
Axopatch 200B ampliferMolecular DevicesNA
Commercial
assay or kit
Digidata 1440Molecular DevicesNA
Commercial
assay or kit
300 mesh Au 1.2/1.3
cryo-EM grids
QuantifoilCat#N1-C14nAu30-01
Cell line
(Human)
Flp-In T-REx 293
ThermoFisher

Scientific
Cat#R78007
Cell line
(Human)
HEK-293TATCCCat#CRL-1573
Cell line
(Human)
HEK293S GnTI-ATCCCat#CRL-3022
Recombinant DNAMouse mTMEM16F
open reading frame
Dharmacon - Horizon
Discovery
GenBank#BC060732
Recombinant DNAMammalian expression
vector with C-terminal 3C
protease cleavage site, Myc
tag and streptavidin
binding peptide
Raimund Dutzler
laboratory
NA
Recombinant DNAMammalian expression
vector with C-terminal 3C
protease cleavage site,
Venus and Myc tags
and streptavidin binding
peptide
Raimund Dutzler
laboratory
NA
Recombinant DNASynthesized
mTMEM16FSCRD cDNA
GenScriptNA
Recombinant DNAMembrane scaffold
protein (MSP) 2N2
Stephen Sligar
laboratory
Addgene:Cat#29520
Software, algorithmWEBMAXC calculatorBers et al., 2010http://maxchelator.stanford.edu/webmaxc/webmaxcS.htm
Software, algorithmAxon Clampfit 10.7Molecular DevicesNA
Software, algorithmAxon Clampex 10.6Molecular DevicesNA
Software, algorithmFocus 1.1.0Biyani et al. (2017)https://focus.c-cina.unibas.ch/about.php
Software, algorithmMotionCorr2 1.1.0Zheng et al. (2017)http://msg.ucsf.edu/em/software/motioncor2.html
Software, algorithmCTFFIND 4.1Rohou and Grigorieff (2015)http://grigoriefflab.janelia.org/ctf
Software, algorithmRelion v 2.1 and 3.0Kimanius et al., 2016
Zivanov et al., 2018
https://www2.mrc-lmb.cam.ac.uk/relion/
Software, algorithmPhenix 1.13Adams et al. (2010)http://http://phenix-online.org/
Software, algorithmCoot 0.8.9.1Emsley and Cowtan (2004)https://www2.mrc-lmb.cam.ac.uk/personal/pemsley/coot/
Software, algorithmPymol 2.0Schrodinger LLChttps://pymol.org/2/
Software, algorithmChimera 1.12Pettersen et al. (2004)https://www.cgl.ucsf.edu/chimera/

Cell lines

Request a detailed protocol

Flp-In T-REx 293 cell lines stably expressing mTMEM16F were adapted to suspension cultures and were grown at 37°C and 5% CO2 in EX-CELL 293 Serum-free medium supplemented with 1% fetal bovine serum, 6 mM L-glutamine and 100 U/ml penicillin–streptomycin. GnTI- cells were grown in HyClone HyCell TransFx-H medium supplemented with 1% fetal bovine serum, 4 mM L-glutamine, 1 g/l poloxamer 188 and 100 U/ml penicillin–streptomycin. Adherent HEK293T cells were grown in DMEM medium supplemented with 10% fetal bovine serum, 2 mM L-glutamine, 1 mM Sodium pyruvate and 100 U/ml penicillin–streptomycin. Mycoplasma test performed on the used cells was negative.

Construct preparation

Request a detailed protocol

The gene encoding mTMEM16F (GenBank: BC060732) was obtained from Dharmacon-Horizon Discovery and stably inserted into a tetracycline-inducible HEK293T cell line using the Flp-In T-Rex System. For that purpose, the mTMEM16F sequence was cloned into two pcDNA5/FRT expression vectors, one with C-terminal Rhinovirus 3C protease recognition site, Myc and Streptavidin-binding peptide (SBP) tags and the other with an extra Venus tag before the Myc and SBP tags. Both cell lines were created in the same manner: briefly, 1 µg of mTMEM16F expression vector and 9 µg pOG44 recombinase were co-transfected after mixing with 30 µg Fugene6 transfection reagent. Hygromycin (50 µg/ml in the first week and 100 µg/ml afterwards) was used as selection marker and resistant foci appeared after 2 weeks. Per cell line, 15 foci were expanded and mTMEM16F expression was assayed after tetracycline induction (2 µg/ml) for 48 hr, extraction with 2% n-dodecyl-β-d-maltopyranoside (DDM) and Western blot analysis using a mouse monoclonal anti-Myc and a Peroxidase Affinipure goat anti-mouse IgG antibodies (Figure 1—figure supplement 1A).

For mutagenesis, the sequence of mTMEM16F was cloned into FX-cloning compatible pcDNA3.1 vectors (Geertsma and Dutzler, 2011) and point mutations were introduced with the non-overlapping primers modified QuikChange method (Zheng et al., 2004). The sequence was not codon optimized except for the removal of a SapI restriction site. For experiments requiring protein purification, the sequence was cloned into an expression vector with C-terminal 3C recognition site, Myc and SBP tags. For electrophysiology experiments, an expression vector with either a Venus (in the case of WT and mutants E624Q, E667Q and Y563S) or a GFP tag (in the case of mutants Q559K, G615A, R478A and mTMEM16FSCRD) between the 3C site and Myc-SBP was used instead. All constructs were verified by sequencing. The mTMEM16FSCRD construct, with residues 525–559 mutated to their equivalent in mTMEM16A, was synthesized by GenScript. The plasmid used for the expression of the membrane scaffold protein (MSP) 2N2 was obtained from Addgene (plasmid #29520).

Protein expression and purification

Request a detailed protocol

Wild-type mTMEM16F was expressed by tetracycline induction (2 µg/ml) of the stably transfected mTMEM16F-3C-Myc-SBP cell line for 48–70 hr. After induction, the medium was further supplemented with 3.5 mM valproic acid. Mutant mTMEM16F constructs were expressed by transient transfection of GnTI cells. For cell transfection, DNA was complexed in a 1:2.5 ratio with Polyethylenimine MAX 40 K in non-supplemented DMEM medium for 20 min before addition to the cells. After transfection, the medium was further supplemented with 3.5 mM valproic acid and the cells were collected after 48–60 hr, washed with PBS and stored at −80°C until further use.

Protein purification of wild-type and mutant mTMEM16F was carried out at 4°C and was completed within 14 hr. In all cases, we have purified the protein under Ca2+-free conditions and added 1 mM Ca2+ when indicated during cryo-EM sample preparation. Cells were resuspended in 2% digitonin (PanReac AppliChem), 150 mM NaCl, 20 mM HEPES, pH 7.5, 5 mM EGTA and protease inhibitors and the membranes were solubilized by gentle mixing for 2 hr. Solubilized proteins were isolated by centrifugation at 85 000 g for 30 min and allowed to bind to streptavidin UltraLink resin beads for 2 hr under gentle agitation. The beads were loaded onto a gravity column and washed with 60 column volumes (CV) of SEC buffer containing 0.1% digitonin (EMD Millipore), 150 mM NaCl, 20 mM HEPES, pH 7.5 and 2 mM EGTA. Bound protein was eluted with 3 CV of SEC buffer supplemented with 4 mM biotin. Samples used for cryo-EM were digested with PNGaseF for 2 hr. Protein was concentrated using a 100 kDa cutoff filter, filtered through a 0.22 µm filter and loaded onto a Superose 6 10/300 GL column pre-equilibrated with SEC buffer. Protein-containing peak fractions were pooled, concentrated, filtered and immediately used for either cryo-EM sample preparation or reconstitution into nanodiscs or liposomes. The MSP 2N2 protein was expressed and purified as described (Ritchie et al., 2009). In this case, the N-terminal poly-histidine tag was not cleaved after purification.

Nanodisc reconstitution was performed as described (Gao et al., 2016) with minor modifications. Purified protein was incorporated into nanodiscs composed of a1-palmitoyl-2-oleoyl-glycero-3-phosphocholine (POPC) and 1-palmitoyl-2-oleoyl-sn-glycero-3-phospho-(1'-rac-glycerol) (POPG) mixture at a molar ratio of 3:1. After mixing, the chloroform-dissolved lipids were initially dried under a nitrogen stream, washed with diethyl ether and again dried under nitrogen stream and vacuum desiccation overnight. The lipid mix was solubilized in 30 mM DDM, at a final lipid concentration of 10 mM. A molar ratio of 2:10:2200 of mTMEM16F:MSP 2N2:lipids was used for reconstitution. Purified protein was incubated with the lipid mix on ice for 40 min. Subsequently, 2N2 was added to the mixture and further incubated for 40 min on ice. Detergent was removed overnight after addition of 50 mg of SM-II biobeads per mg of DDM. Biobeads were removed from the clear sample by column filtration and the nanodisc suspension was incubated with streptavidin UltraLink resin for 2 hr. Further purification proceeded as described for the digitonin-solubilized protein, except that no detergent was present in any of the buffers.

Liposome reconstitution and scrambling experiments

Request a detailed protocol

For the characterization of lipid scrambling, purified mTMEM16F was reconstituted into liposomes containing trace amounts (0.5% weight/weight) of fluorescently (nitrobenzoxadiazole, NBD) labeled lipids. The lipid mix used for the majority of scrambling experiments was soybean polar lipids extract with 20% cholesterol (mol/mol) and 0.5% 18:1-06:0 NBD-PE. To investigate whether scrambling proceeds independently of the chemical nature of the headgroup of the labeled lipid or the location of the fluorophore, the tail labeled 18:1-06:0 NBD-PE was substituted by 18:1-06:0 NBD-PS or head-labeled 14:0 NBD-PE while maintaining the other liposome components unchanged. To characterize the protein activity in the lipid mix used for the preparation of nanodisc samples, we reconstituted mTMEM16F into liposomes composed of 3 POPC:1 POPG: 0.5% 18:1-06:0 NBD-PE. Lipids were treated similarly as the ones used for nanodisc reconstitution until solubilization. Liposomes were prepared as described (Geertsma et al., 2008). For liposomes, the lipids were solubilized in 20 mM HEPES pH 7.5, 300 mM KCl and 2 mM EGTA (buffer A) in a final concentration of 20 mg/ml, sonicated, subjected to three freeze-thaw cycles in liquid N2 and stored at −80°C. The liposomes were protected from direct light as much as possible. Prior to reconstitution, the lipids were extruded 21 times through a 400 nm pore polycarbonate membrane and diluted to 4 mg/ml in buffer A. Liposomes were destabilized by addition of Triton X-100 aliquots in 0.02% steps until the onset of lipid solubilization monitored by the decrease of the scattering at 540 nm in a spectrophotometer. After addition of another aliquot of 0.1% Triton X-100, the protein was added at a lipid-to-protein ratio of 100:1 (weight/weight) unless stated otherwise to the destabilized liposomes and the mixture was incubated at room temperature (RT) for 15 min under gentle agitation. Subsequently, 20 mg of SM-II biobeads per mg of lipids were added four times to completely remove digitonin and Triton X-100. After 45 min, the sample was moved to 4°C. Proteoliposomes were harvested after 24 hr by filtration to remove the biobeads followed by centrifugation at 150,000 g for 30 min. The pelleted proteoliposomes were resuspended in buffer A with solutions containing the appropriate amount of Ca(NO3)2 to obtain the indicated concentrations of free Ca2+ calculated with the online WEBMAXC calculator (Bers et al., 2010). The liposomes were resuspended at either 10 or 20 mg/ml and subjected to three freeze-thaw cycles in liquid N2. All remaining steps were carried out at RT. After extrusion through a 400 nm membrane pre-equilibrated in buffer A containing the desired amount of free Ca2+, proteoliposomes were diluted to 0.2 mg/ml in 80 mM HEPES pH 7.5, 300 mM KCl, 2 mM EGTA plus Ca2+ (buffer B). Scrambling was performed essentially as described for other scramblases of the TMEM16 family (Brunner et al., 2014; Malvezzi et al., 2013). Scrambling was monitored by spectrofluorimeter measurements of the NBD fluorophore with an excitation wavelength of 470 nm and emission wavelength of 530 nm. After 60 s of recording, 30 mM of the membrane-impermeable reducing agent sodium dithionite was added to irreversibly bleach exposed NBD groups. The total recording time was of 400 s unless stated otherwise and the sample was stirred during the entire measurement. The NBD-fluorescence decay was plotted as F/Fmax. To investigate the ligand-dependence of the scrambling rate, we measured the NBD-fluorescence value 120 s after the addition of dithionite at different Ca2+ concentrations and quantified scrambling activity as 1-FCa2+/F0Ca2+ since we were unable to detect any pronounced scrambling activity for mTMEM16F in the absence of Ca2+. The effect of Ca2+ on the scrambling rate was studied using symmetric buffer conditions, with the same Ca2+ concentration inside and outside the liposomes. To investigate the delay time between calcium addition and scrambling activation we reconstituted mTMEM16F in calcium-free liposomes and recorded the NBD-fluorescence decay upon addition of 100 µM Ca(NO3)2 to the outside buffer, 120 s after dithionite addition, and monitored fluorescence for extra 420 s. The same batch of liposomes was incubated in buffer B containing 100 µM Ca(NO3)2 for 10 min prior to measurement as control.

In empty liposomes, addition of dithionite causes a decrease of the fluorescence to about half of its initial value, due to the bleaching of the fraction of fluorescent lipids located in the outer leaflet of the bilayer (Figure 1—figure supplement 1C). In contrast, proteoliposomes containing an active scramblase show a stronger time-dependent decrease of the fluorescence to a plateau, which corresponds to the fraction of fluorescent lipids that are not accessible to dithionite since they either reside in liposomes not containing a reconstituted scramblase or they are located on the inside of a multi-lamellar vesicle (Malvezzi et al., 2018; Ploier and Menon, 2016) (Figure 1A; Figure 1—figure supplement 1C–F). For different reconstitutions, we find similar plateau values for empty liposomes and proteoliposomes in Ca2+-free conditions. In contrast, the plateau of fully activated samples is consistent for different constructs using the same batch of destabilized lipids but it varies between different reconstitutions, with fluorescence levels ranging from 18% to 30%. We attribute this difference to the efficiency of reconstitution that is dependent on the batch of destabilized liposomes. Independent of the plateau, all reconstitutions showed a very similar Ca2+-dependence. Due to the variable reconstitution efficiency, all the mutants were purified in parallel with wild type (WT) mTMEM16F and reconstituted using the same batch of lipids in equivalent reconstitution conditions. Protein incorporation into liposomes for WT and mutants was verified by Western blot against the Myc tag after solubilization of proteoliposomes with DDM. With the exception of mTMEM16FSCRD, all mutants reconstituted with an efficiency similar to WT (Figure 6—figure supplement 2G). mTMEM16FSCRD behaved well during purification but reconstituted with somewhat lower efficiency. For that purpose, it was compared to WT reconstituted at lower lipid to protein ratio of 150:1. For this case proteoliposomes contained similar protein levels (Figure 6—figure supplement 2G).

Electrophysiology

Request a detailed protocol

For electrophysiology, HEK293T cells were transfected with plasmids at a concentration of 8 µg DNA per 100 mm culture dish with 25 µl FuGENE 6 transfection reagent. Transfected cells were identified by Venus or GFP fluorescence and used for patch clamp experiments within 24–72 hr of transfection. WT currents were also recorded from cells stably expressing mTMEM16F without fluorescent fusion protein used for purification. All recordings were performed in the inside-out configuration (Hamill et al., 1981) at RT (20–22°C). Inside-out patches were excised from HEK293T cells expressing the mTMEM16F construct of interest after the formation of a gigaohm seal. Seal resistance was typically 4–8 GΩ or higher. Patch pipettes were pulled from borosilicate glass capillaries (OD 1.5 mm, ID 0.86 mm) and were fire-polished using a microforge. Pipette resistance was typically 3–8 MΩ when filled with pipette solutions. Voltage-clamp recordings were performed using the Axopatch 200B amplifier controlled by the Clampex 10.6 software through Digidata 1440. The data were sampled at 10 kHz and filtered at 1 kHz. Solution exchange was achieved using a double-barreled theta glass pipette mounted on an ultra-high speed piezo-driven stepper (Siskiyou). Liquid junction potential was not corrected. Step-like solution exchange was elicited by analogue voltage signals delivered through Digidata 1440. All recordings were measured in symmetrical NaCl solutions except for selectivity experiments. The background current was recorded in Ca2+-free solution and subtracted prior to analysis. Ca2+-free intracellular solution contained 150 mM NaCl, 5 mM EGTA, and 10 mM HEPES, pH 7.40. High intracellular Ca2+ solution, with a free concentration of 1 mM, contained 150 mM NaCl, 5.99 mM Ca(OH)2, 5 mM EGTA, and 10 mM HEPES, pH 7.40. The pH was adjusted using 1 M NMDG-OH solution. Intermediate Ca2+ solutions were obtained by mixing high Ca2+ and Ca2+-free intracellular solutions at the ratio calculated according to the WEBMAXC calculator (Bers et al., 2010), free Ca2+ concentrations above 1 mM (up to 10 mM) were adjusted by adding CaCl2 from a 1 M stock solution. The Ca2+-free intracellular solution was also used as the pipette solution. For permeability experiments using (NMDG)2SO4 to compensate for the ionic strength, the appropriate NaCl concentration was adjusted by mixing NaCl stock solutions and (NMDG)2SO4 stock solutions at the required ratios. Stock NaCl solutions were the same as above. Stock (NMDG)2SO4 solutions contained 100 mM (NMDG)2SO4, 5.99 mM Ca(OH)2, 5 mM EGTA, 10 mM HEPES, pH 7.40, and 100 mM (NMDG)2SO4, 5 mM EGTA, and 10 mM HEPES, pH 7.40.

Current of mTMEM16F runs down in the excised patch configuration. In order to obtain a more accurate EC50 of Ca2+-activation, rundown correction was performed using a previously described method (Lim et al., 2016). In short, a reference Ca2+ pulse was applied at a regular time interval before and after the test pulse. The magnitude of the test pulse was normalized to the average magnitude of the pre- and post-reference pulses. The normalized concentration–response data were fitted to the Hill equation. To correct for rundown during rectification experiments, the instantaneous and steady-state current at each voltage step was divided by the ratio of the remaining current at the 80 mV pre-pulse and expressed as normalized current (I/I80mV). The rectification indices of instantaneous currents were calculated as the ratio between the current measured at 80 mV, 100 ms before the voltage jump, and 6 ms after changing to −80 mV at which the capacitive transients have already decayed. For calculation of the rectification index of steady-state currents, the value at −80 mV was taken once the current response has reached a plateau (typically 150–200 ms after the voltage change).

The significance of differences between the constructs was determined with a one-way ANOVA and a Tukey-Kramer post-hoc test. Values were considered significantly different if p<0.05. By this criterion, shifts in the EC50 for mutants E667Q, G615A and TMEM16FSCRD compared to WT were determined as significant whereas the shift in R478A is slightly above the significance threshold. For the characterization of rectification properties of steady-state currents, only the shift of the mutant R478A compared to WT was calculated to be statistically significant. In case of the mutant Q559K, the high variance due to the presence of two populations of data with strong and weak rectification properties rendered the shift in its value as statistically insignificant.

Cryo-electron microscopy sample preparation and imaging

Request a detailed protocol

2.5 μl of freshly purified protein at a concentration of 3.3 mg ml–1, when solubilized in digitonin, and 1 mg ml–1, when reconstituted in nanodiscs, were applied on holey-carbon cryo-EM grids (Quantifoil Au R1.2/1.3, 200, 300 and 400 mesh), which were prior glow-discharged at 5 mA for 30 s. For the datasets obtained for the Ca2+-bound structures, samples were supplemented with 1 mM CaCl2 before freezing. Grids were blotted for 2–5 s in a Vitrobot (Mark IV, Thermo Fisher) at 10–15°C temperature and 100% humidity, subsequently plunge-frozen in liquid ethane and stored in liquid nitrogen until further use. Cryo-EM data were collected on a 200 keV Talos Arctica microscope (Thermo Fisher) using a post-column energy filter (Gatan) in zero-loss mode, a 20 eV slit, a 100 μm objective aperture, in an automated fashion using EPU software (Thermo Fisher) on a K2 summit detector (Gatan) in counting mode. Cryo-EM images were acquired at a pixel size of 1.012 Å (calibrated magnification of 49,407x), a defocus range from –0.5 to –2 μm, an exposure time of 9 s with a sub-frame exposure time of 150 ms (60 frames), and a total electron exposure on the specimen of about 52 electrons per Å2. Best regions on the grid were manually screened and selected with the help of an in-house script to calculate the ice thickness (manuscript in preparation). Data quality was monitored on the fly using the software FOCUS (Biyani et al., 2017).

Image processing

Request a detailed protocol

For the detergent dataset collected in presence of Ca2+, the 5633 dose-fractionated cryo-EM images recorded (final pixel size 1.012 Å) were subjected to motion-correction and dose-weighting of frames by MotionCor2 (Zheng et al., 2017). The CTF parameters were estimated on the movie frames by ctffind4.1 (Rohou and Grigorieff, 2015). Bad images showing contamination, a defocus above –0.5 or below –2 μm, or a bad CTF estimation, were discarded. The resulting 4225 images were used for further analysis with the software package RELION2.1 (Kimanius et al., 2016). Particles were initially picked automatically from a subset of the dataset using 2D-class averages from the previously obtained mTMEM16A cryo-EM map (Paulino et al., 2017a) as reference. The resulting particles where used to create a better reference for autopicking, which was then repeated on the whole dataset. The final round of autopicking yielded 1,348,247 particles, which were extracted with a box size of 220 pixels, and initial classification steps were performed with two-fold binned data. False positives were removed in the first round of 2D classification. Remaining particles were subjected to several rounds of 2D classification, resulting in 680,465 particles that were further sorted in several rounds of 3D classification. The mTMEM16A cryo-EM map, low-pass filtered to 50 Å, was used as a reference for the first round of 3D classification and the best output class was used in subsequent jobs in an iterative way. The best 3D classes, comprising 219,302 particles, were subjected to auto-refinement, yielding a map with a resolution of 3.8 Å. In the last refinement iteration, a mask excluding the micelle was used and the refinement was continued until convergence, which improved the resolution up to 3.5 Å. Using a mask generated from the final PDB model, we obtained a map at 3.4 Å. Finally, the newly available algorithms for CTF refinement and Bayesian polishing implemented in Relion3.0 (Zivanov et al., 2018)., where applied to further improve the resolution to 3.18 Å with a map sharpened at –94 Å2. During final 3D classification and auto-refinement jobs, a C2-symmetry was imposed. Local resolution was estimated by RELION. All resolutions were estimated using the 0.143 cut-off criterion (Rosenthal and Henderson, 2003) with gold-standard Fourier shell correlation (FSC) between two independently refined half maps (Scheres and Chen, 2012). During post-processing, the approach of high-resolution noise substitution was used to correct for convolution effects of real-space masking on the FSC curve (Chen et al., 2013). The directional resolution anisotropy of density maps was quantitatively evaluated using 3DFSC (Biyani et al., 2017).

For the other datasets, a similar workflow for image processing was applied. In the case of the detergent dataset collected in absence of Ca2+, a total of 1,314,676 particles were extracted after autopicking from 4621 images. Several rounds of 2D and 3D classification resulted in a final number of 194,284 particles, which after refinement yielded a 4.1 Å map. Providing a mask in the last iteration of the refinement, the resolution was improved to 3.8 Å. After post-processing the resolution improved to 3.6 Å. For the dataset in nanodiscs in the presence of Ca2+, 1,019,012 particles were picked from 4480 images and extracted with a box size of 256 pixels. The final set of 186,487 particles was refined, yielding a map with a resolution of 3.9 Å, which after post-processing was improved to 3.5 Å. Finally, the dataset in nanodisc in absence of Ca2+ resulted in 1,593,115 autopicked particles from 6465 images, which were reduced to 280,891 particles after several rounds of 2D and 3D classification. Refinement was performed providing a mask in the last iteration, reaching a resolution of 3.3 Å after post-processing.

The analysis of structural heterogeneity within each dataset was conducted by running an additional 3D classification step with finer angular sampling on the final particle set. While some structural flexibility was revealed for α3 and α4 in the dataset in presence of Ca2+ (Figure 2—figure supplements 1I and 3I), no alternative conformations could be identified in the dataset in absence of Ca2+ (Figure 2—figure supplements 2I and 4I), as reflected in the better resolved density of the helices (Figure 2—figure supplement 5).

Finally, as revealed by the angular distribution and the 3D FSC plots obtained for the data in nanodiscs, the samples suffered from favorite orientation of the particles in vitreous ice, thereby compromising to some extent the detailed features of the maps (Figure 2—figure supplements 35). The problem is less pronounced in the nanodisc data obtained in presence of Ca2+ than in the dataset of the Ca2+-free sample. Nevertheless, the data in nanodiscs are of sufficient quality to allow for a comparison of corresponding states of mTMEM16F in detergent and a lipid environment.

Model building refinement and validation

Request a detailed protocol

The model of the Ca2+-bound state of mTMEM16F in digitonin was built in COOT (Emsley and Cowtan, 2004), using the structure of mTMEM16A (PDBID 5YOB) as template. The density was of sufficiently high resolution to unambiguously place the model consisting of residues 43–81, 87–149, 202–223, 228–427, 445–488, 503–587, 590–640, 645–791, 795–875. A DPPC (1,2-didecanoyl-sn-glycero-3-phosphocholine-ligand ID P1O) molecule was fitted into unassigned electron density close to the dimer interface of mTMEM16F, although the exact lipid species could not be determined. Coordinates were manually edited in COOT (Emsley and Cowtan, 2004) and the model was improved by real-space refinement in Phenix (Adams et al., 2010), whereby secondary structure elements and the symmetry between both subunits of the dimeric protein were constrained. The models of the Ca2+-bound (PDBID 6QP6) and Ca2+-free (PDBID 6QPB) structure in digitonin and the Ca2+-bound structure obtained in nanodiscs (PDBID 6QPC) of mTMEM16F were built using the refined Ca2+-bound structure as starting model. Major conformational changes were restricted to the second half of α6 and to some extent to α3 and α4. These regions were rebuilt manually in COOT (Emsley and Cowtan, 2004) and subsequently refined in Phenix (Adams et al., 2010), as described above. Due to the strong anisotropy of the dataset of mTMEM16F obtained in nanodiscs in absence of calcium, only the transmembrane domain, as a poly-alanine model, was interpreted (PDBID 6QPI). For validation of the refinement, Fourier shell correlations (FSC) between the refined model and the final map were determined (FSCSUM, Figure 2—figure supplements 1E, 2E, 3E and 4E). To monitor the effects of potential over-fitting, random shifts (up to 0.3 Å) were introduced into the coordinates of the final model, followed by refinement in Phenix (Adams et al., 2010) against the first unfiltered half-map. The FSC between this shaken-refined model and the first half-map used during validation refinement is termed FSCwork, the FSC against the second half-map, which was not used at any point during refinement, FSCfree. The marginal gap between the curves describing FSCwork and FSCfree indicates no over-fitting of the model. The higher resolution of α-helix three obtained in the cryo-EM map of mTMEM16F in digitonin in absence of Ca2+ allowed the unambiguous assignment of its residues. Based on this structure and the conservation between both paralogs, we remodeled α3 of mTMEM16A (Paulino et al., 2017a), which in its original data was poorly resolved. In the new model of mTMEM16A, the register of α3 has shifted by three residues and Arg 515 now superimposes with Arg 478 in mTMEM16F, both pointing into the pore lumen (Figure 4B; Figure 4—figure supplement 1A). The corrected model of mTMEM16A was used for structural comparisons throughout the manuscript. The pore diameter was calculated in HOLE (Smart et al., 1996). Pictures were generated using pymol (The PyMOL Molecular Graphics System, Version 2.0 Schrödinger, LLC), chimera (Pettersen et al., 2004) and chimeraX (Goddard et al., 2018).

Electrostatic calculations

Request a detailed protocol

The electrostatic potential was calculated as described (Paulino et al., 2017a). The linearized Poisson–Boltzmann equation was solved in CHARMM (Brooks et al., 1983; Im et al., 1998) on a 200 Å ×140 Å × 190 Å grid (1 Å grid spacing) followed by focusing on a 135 Å x 100 Å x 125 Å grid (0.5 Å grid spacing). Partial protein charges were derived from the CHARMM36 all-hydrogen atom force field. Hydrogen positions were generated in CHARMM. The protein was assigned a dielectric constant (ϵ) of 2. Its transmembrane region was embedded in a 30-Å-thick slab (ϵ = 2) representing the hydrophobic core of the membrane and two adjacent 15-Å-thick regions (ϵ = 30) representing the headgroups. This region contained a cylindrical hole around the water-filled intracellular vestibule of one subunit and was surrounded by an aqueous environment (ϵ = 80) containing 150 mM of monovalent mobile ions.

Statistics and reproducibility

Request a detailed protocol

Electrophysiology data were repeated multiple times from different transfections with very similar results. Conclusions of experiments were not changed upon inclusion of further data. In all cases, leaky patches were discarded. Statistical difference between the constructs were determined with one-way ANOVA and Tukey-Kramer post-hoc test.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
    Coot: model-building tools for molecular graphics
    1. P Emsley
    2. K Cowtan
    (2004)
    Acta Crystallographica Section D Biological Crystallography 60:2126–2132.
    https://doi.org/10.1107/S0907444904019158
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
    A Fluorescence-based assay of phospholipid scramblase activity
    1. B Ploier
    2. AK Menon
    (2016)
    Journal of Visualized Experiments, 10.3791/54635, 27684510.
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69

Decision letter

  1. Kenton Jon Swartz
    Reviewing Editor; National Institute of Neurological Disorders and Stroke, National Institutes of Health, United States
  2. Richard Aldrich
    Senior Editor; The University of Texas at Austin, United States
  3. Joel Meyerson
    Reviewer
  4. Angela Ballesteros
    Reviewer; National Institute of Neurological Disorders and Stroke, National Institutes of Health, United States
  5. Stephen Barstow Long
    Reviewer; Memorial Sloan Kettering Cancer Center, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Cryo-EM structures and functional characterization of the lipid scramblase TMEM16F" for consideration by eLife. Your article has been reviewed by Richard Aldrich as the Senior Editor, Kenton Swartz as the Reviewing Editor, and three reviewers. The following individuals involved in review of your submission have agreed to reveal their identity: Joel Meyerson (Reviewer #1); Angela Ballesteros (Reviewer #2); Stephen Barstow Long (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The TMEM16 family of proteins contains members who function either as lipid scramblases, or anion selective channels. TMEM16F is a lipid scramblase integral to the coagulation response in platelets, and splicing mutations that yield a truncated protein cause a bleeding disorder in humans. Additionally, TMEM16F shows rapidly activated calcium-dependent currents. The authors' central aim is to understand the mechanism(s) underpinning the protein's dual lipid and ion conduction abilities.

To pursue this question Alvadia and coworkers determined cryo-EM structures of mTMEM16F with and without calcium, solubilized in both digitonin and nanodisc. These four structures were used for analysis throughout. For comparative structural analysis, mTMEM16F structures were compared to existing structures of nhTMEM16 (scramblase) and mTMEM16A (anion channel). The mTMEM16F calcium-free structures reveal a closed conformation as expected, but the calcium-bound structures do not reveal an active state conformation. However, the calcium-bound structure in nanodisc, in particular, shows conformational mobility for α-helices 3 and 4. The authors infer that the calcium-bound structure perhaps represents an intermediate state.

In parallel, the authors reconstituted mTMEM16F in liposomes to assay its lipid transport properties and used patch clamp recordings to characterize the protein's ion conduction properties. On this functional platform they were able to interrogate mutations targeted at calcium binding (E667Q, E624Q), ion conduction (Y563S, Q559K, R478A), and scrambling (K370A, Q623F, TMEM16Fscrd chimera). By integrating the structural and functional analysis, the authors ultimately propose a model in which both transport processes are activated by the same mechanism and mediated by distinct protein conformations that exist in equilibrium. This study succeeds in defining the architecture of mTMEM16F and performing functional experiments to probe the structures. The cryo-EM work is expertly done, the text is well-written, and figures are clear and professional. While there remains uncertainty about the correspondence of the calcium-bound conformation of the protein to a defined functional state, the authors openly acknowledge this, address it to the best of their ability within the scope of the paper, and fairly present it as a question that begs further interrogation. The current study tackles an experimentally challenging member of an important family of proteins, enhances our understanding of lipid scramblase and ion channel activity of TMEM16F, and provides the foundation for future studies. The following are suggestions for improving the manuscript in revision.

Essential revisions:

1) For experiments examining calcium-activated currents, in addition to providing representative current traces at different calcium concentrations, please indicate the zero current level and provide data for 0 calcium so the reader can appreciate whether there is constitutive activation. It would also be good to provide current traces for Y363S and Q559K.

2) The calculation of the rectification index for the wild-type TMEM16F and Y563S, Q559K and R478A mutants shown in Figure 6C and Figure 6—figure supplement 2A is hard to comprehend and important methodological details about these experiments are missing and make the evaluation and interpretation of these data difficult.

- Please provide more detailed information about the protocol used in the recordings and the calculation of this index should be included in the Materials and methods section.

- Including the full traces at +80 and -80mV in the figures and indicating which point of the trace was used to estimate both the instantaneous and steady-state rectification indexes would help the reader to better understand the data.

- The differences observed in the rectification index of the steady-state currents with the mutants Q559K and R478A are not clearly explained in the text (subsection “Functional characterization of mutants affecting ion conduction and scrambling”), and the statistical evaluation on the significance of these differences is not presented in the figure. Please revise the text and include the statistical significances in the figure and/or figure legend.

3) The ion selectivity properties are only estimated for the mutant Q559K (Figure 6—figure supplement 2 panel B). Have the authors also evaluated the ionic selectivity of the Y563S mutant, which is also located in the pore constriction?

4) The authors show in this study that the calcium-activated currents on mutants for the residues located at the pore constriction (Y563S) and the intracellular vestibule close to the neck (Q559K) are activated at lower calcium concentration that the wild-type TMEM16F and could play a role in the stabilization of the open state. Have the authors undertaken scrambling assays with the TMEM16F Y563S and Q559K mutants to evaluate the role of the pore region in lipid scrambling? This might help to distinguish between some of the alternative mechanisms discussed in the manuscript.

5) In TMEM16A, the glycine residue at the hinge of the TM6 (G644, Paulino et al., 2017 and Lam et al., 2018) allows the movement of TM6 after calcium release and the partial closure of the cavity at the intracellular side. The authors show that the G615A mutant causes a left shift in the EC50 for calcium activation, suggesting a displacement of the open-close equilibrium towards the open state. The evaluation of the lipid scrambling of the TMEM16F G615A mutant would highlight the role of this residue in PLS activity and help to investigate whether the activation of the scramblase and channel functions share a common mechanism (subsection “Functional characterization of mutants of the Ca2+-binding site”). Do the authors have any data on this?

https://doi.org/10.7554/eLife.44365.045

Author response

Essential revisions:

1) For experiments examining calcium-activated currents, in addition to providing representative current traces at different calcium concentrations, please indicate the zero current level and provide data for 0 calcium so the reader can appreciate whether there is constitutive activation. It would also be good to provide current traces for Y363S and Q559K.

We now provide the current traces of the mutants Y363S and Q559K, indicate the 0-current levels in all traces and provide an inset of each figure that enlarges the 0 Ca2+ currents that have already been included in the figure. In no case did we observe significant activity in absence of Ca2+. See Figure 6—figure supplement 2.

2) The calculation of the rectification index for the wild-type TMEM16F and Y563S, Q559K and R478A mutants shown in Figure 6C and Figure 6—figure supplement 2A is hard to comprehend and important methodological details about these experiments are missing and make the evaluation and interpretation of these data difficult.

- Please provide more detailed information about the protocol used in the recordings and the calculation of this index should be included in the Materials and methods section.

We have included a short paragraph in the subsection “Electrophysiology” describing the quantification of the rectification index. “The rectification indices of instantaneous currents were calculated as the ratio between the current measured at 80 mV, 100 ms before the voltage jump, and 6 ms after changing to -80 mV at which the capacitive transients have already decayed. For calculation of the rectification index of steady-state currents, the value at -80 mV was taken once the current response has reached a plateau (typically 150-200 ms after the voltage change).”

- Including the full traces at +80 and -80mV in the figures and indicating which point of the trace was used to estimate both the instantaneous and steady-state rectification indexes would help the reader to better understand the data.

We have added this to Figure 6—figure supplement 2.

- The differences observed in the rectification index of the steady-state currents with the mutants Q559K and R478A are not clearly explained in the text (subsection “Functional characterization of mutants affecting ion conduction and scrambling”), and the statistical evaluation on the significance of these differences is not presented in the figure. Please revise the text and include the statistical significances in the figure and/or figure legend.

The change in the steady state rectification was generally more severe for the mutant R478A compared to the mutant Q559K. We have rewritten the paragraph as follow (see subsection “Functional characterization of mutants affecting ion conduction and scrambling”):”In contrast to the subtle phenotype of Y563S, the mutation of the conserved Arg 478 (Figure 4B) at the extracellular entrance of the narrow neck to alanine, yields a several-fold decreased current density compared to WT, yet with increased potency of Ca2+ and strongly decreased voltage-dependent relaxations. Consequently, the strong rectification at steady-state disappears, suggesting that the residue plays an important role during channel activation (Figure 6E; Figure 6—figure supplement 2A,F). Collectively, the observed changes in the activation and conduction properties of the mutants Q559K and R478A are consistent with their location in the pore. The increase of Ca2+-potency found in R478A and the strongly decreased time-dependent reduction of currents at negative voltage might indicate a stabilization of the open state. Moreover, the change in selectivity observed for the mutant Q559K provides direct evidence for its location at the pore lining.”

We have also carried out a statistical analysis to show that the change in R478A significant but not the change in Q559K due to the high variance of the data. We now state this in the methods and the figure legend. See subsection “Electrophysiology”: “For the characterization of rectification properties of steady-state currents, only the shift of the mutant R478A compared to WT was calculated to be statistically significant. In case of the mutant Q559K, the high variance due to the presence of two populations of data with strong and weak rectification properties rendered the shift in its value as statistically insignificant.”

See also Figure 6 legend: “Unlike Q599K, the difference between R478A and WT was found to be statistically significant.”

3) The ion selectivity properties are only estimated for the mutant Q559K (Figure 6—figure supplement 2 panel B). Have the authors also evaluated the ionic selectivity of the Y563S mutant, which is also located in the pore constriction?

We have now also estimated the ion selectivity of Y563S and did not find any significant change compared to WT. This is expected for a channel that does not strongly interact with permeating ions.

4) The authors show in this study that the calcium-activated currents on mutants for the residues located at the pore constriction (Y563S) and the intracellular vestibule close to the neck (Q559K) are activated at lower calcium concentration that the wild-type TMEM16F and could play a role in the stabilization of the open state. Have the authors undertaken scrambling assays with the TMEM16F Y563S and Q559K mutants to evaluate the role of the pore region in lipid scrambling? This might help to distinguish between some of the alternative mechanisms discussed in the manuscript.

We have remeasured the concentration-response relationships of currents of the mutants Y563S and Q559K and found no significant shift to WT (although we could reproduce the lower slope in the activation of Q559K) and thus have removed the claim that both mutants stabilize the open conformation. In contrast we still find the increase in the Ca2+-potency of R478A and TMEM16FSCRD. In our revised manuscript we have now included data on the scrambling properties of Y563S and Q559K and found that both mutants show robust scrambling activity, in contrast to R478A and TMEM16FSCRD. These results now even put stronger emphasis on the reversed phenotype of R478A and TMEM16FSCRD with respect to ion conduction and scrambling.

We have introduced changes in several parts of the manuscript: see subsection “Functional characterization of mutants affecting ion conduction and scrambling” and the Discussion section.

5) In TMEM16A, the glycine residue at the hinge of the TM6 (G644, Paulino et al., 2017 and Lam et al., 2018) allows the movement of TM6 after calcium release and the partial closure of the cavity at the intracellular side. The authors show that the G615A mutant causes a left shift in the EC50 for calcium activation, suggesting a displacement of the open-close equilibrium towards the open state. The evaluation of the lipid scrambling of the TMEM16F G615A mutant would highlight the role of this residue in PLS activity and help to investigate whether the activation of the scramblase and channel functions share a common mechanism (subsection “Functional characterization of mutants of the Ca2+-binding site”). Do the authors have any data on this?

We should emphasize that, due to technical limitations of the assay, the quantification of dose-response relationships from scrambling data is much less accurate than for ion-conduction. This does not affect the mutant E667Q where the Ca2+-potency is 100-fold lower than for WT and where scrambling data and ion conduction data show comparable shifts. In contrast, the shifts for the mutant G615A observed for ionic currents is below 10-fold, which can still be accurately determined by electrophysiology but not from scrambling data. Preliminary scrambling data for G615A shows a Ca2+-dependent activation that is not significantly different from WT. Due the described limitations of the assay we prefer not to include these measurements in our study since it would lead to misleading interpretations.

https://doi.org/10.7554/eLife.44365.046

Article and author information

Author details

  1. Carolina Alvadia

    Department of Biochemistry, University of Zurich, Zurich, Switzerland
    Contribution
    Formal analysis, Validation, Investigation, Visualization, Writing—original draft, Writing—review and editing, Generated stable cell-lines and expression constructs, Purified proteins for cryo-EM and functional characterization, Reconstituted protein into nanodiscs and liposomes and carried out lipid transport experiments, Helped in model building and refinement, Jointly planned experiments, analyzed the data and wrote the manuscript
    Contributed equally with
    Novandy K Lim and Vanessa Clerico Mosina
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8446-1098
  2. Novandy K Lim

    Department of Biochemistry, University of Zurich, Zurich, Switzerland
    Contribution
    Formal analysis, Validation, Investigation, Writing—original draft, Writing—review and editing, Purified proteins for cryo-EM and functional characterization, Recorded and analyzed electrophysiology data, Jointly planned experiments, analyzed the data and wrote the manuscript
    Contributed equally with
    Carolina Alvadia and Vanessa Clerico Mosina
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5098-929X
  3. Vanessa Clerico Mosina

    Department of Structural Biology at the Groningen Biomolecular Sciences and Biotechnology Institute, University of Groningen, Groningen, Netherlands
    Contribution
    Formal analysis, Validation, Investigation, Visualization, Writing—original draft, Writing—review and editing, Collected cryo-EM data, Carried out image processing, Jointly planned experiments, analyzed the data and wrote the manuscript
    Contributed equally with
    Carolina Alvadia and Novandy K Lim
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8013-0144
  4. Gert T Oostergetel

    Department of Structural Biology at the Groningen Biomolecular Sciences and Biotechnology Institute, University of Groningen, Groningen, Netherlands
    Contribution
    Formal analysis, Collected cryo-EM data
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6816-136X
  5. Raimund Dutzler

    Department of Biochemistry, University of Zurich, Zurich, Switzerland
    Contribution
    Conceptualization, Resources, Formal analysis, Supervision, Funding acquisition, Validation, Visualization, Writing—original draft, Project administration, Writing—review and editing, Jointly planned experiments, analyzed the data and wrote the manuscript
    For correspondence
    dutzler@bioc.uzh.ch
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2193-6129
  6. Cristina Paulino

    Department of Structural Biology at the Groningen Biomolecular Sciences and Biotechnology Institute, University of Groningen, Groningen, Netherlands
    Contribution
    Conceptualization, Resources, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Writing—original draft, Project administration, Writing—review and editing, Prepared the samples for cryo-EM, Collected cryo-EM data, Carried out image processing, Performed model building and refinement, Jointly planned experiments, analyzed the data and wrote the manuscript
    For correspondence
    c.paulino@rug.nl
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7017-109X

Funding

Nederlandse Organisatie voor Wetenschappelijk Onderzoek (740.018.016)

  • Cristina Paulino

FP7 European Research Council (339116, AnoBest)

  • Raimund Dutzler

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank S Klauser, S Rast and M Punter for their help in establishing and maintaining the computer infrastructure. Y Neldner for help during the generation of stable mTMEM16F cell-lines. D Deneka is acknowledged for help with nanodisc reconstitution. V Kalienkova is acknowledged for helpful discussions. All members of the Dutzler and Paulino labs are acknowledged for their help at various stages of the project.

Senior Editor

  1. Richard Aldrich, The University of Texas at Austin, United States

Reviewing Editor

  1. Kenton Jon Swartz, National Institute of Neurological Disorders and Stroke, National Institutes of Health, United States

Reviewers

  1. Joel Meyerson
  2. Angela Ballesteros, National Institute of Neurological Disorders and Stroke, National Institutes of Health, United States
  3. Stephen Barstow Long, Memorial Sloan Kettering Cancer Center, United States

Publication history

  1. Received: December 12, 2018
  2. Accepted: February 19, 2019
  3. Accepted Manuscript published: February 20, 2019 (version 1)
  4. Version of Record published: March 12, 2019 (version 2)

Copyright

© 2019, Alvadia et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,786
    Page views
  • 533
    Downloads
  • 15
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
