Metabolic and non-metabolic liver zonation is established non-synchronously and requires sinusoidal Wnts

  1. Ruihua Ma
  2. Angelica S Martínez-Ramírez
  3. Thomas L Borders
  4. Fanding Gao
  5. Beatriz Sosa-Pineda  Is a corresponding author
  1. Feinberg Cardiovascular and Renal Research Institute, Department of Medicine, Northwestern University Feinberg School of Medicine, United States
Research Article
  • Cited 0
  • Views 574
  • Annotations
Cite this article as: eLife 2020;9:e46206 doi: 10.7554/eLife.46206

Abstract

The distribution of complementary metabolic functions in hepatocytes along a portocentral axis is called liver zonation. Endothelial secreted Wnt ligands maintain metabolic zonation in the adult murine liver but whether those ligands are necessary to initiate zonation in the immature liver has been only partially explored. Also, numerous non-metabolic proteins display zonated expression in the adult liver but it is not entirely clear if their localization requires endothelial Wnts. Here we used a novel transgenic mouse model to compare the spatial distribution of zonated non-metabolic proteins with that of typical zonated metabolic enzymes during liver maturation and after acute injury induced by carbon tetrachloride (CCl4). We also investigated how preventing Wnt ligand secretion from endothelial cells affects zonation patterns under homeostasis and after acute injury. Our study demonstrates that metabolic and non-metabolic zonation are established non-synchronously during maturation and regeneration and require multiple endothelial Wnt sources.

Introduction

The liver executes multiple functions involved with anabolic and catabolic metabolism, bile and protein secretion, drug detoxification, glycogen storage, and other processes. These tasks are performed simultaneously and with maximal energy-efficiency thanks to a unique anatomical architecture consisting of hexagonal functional units (a.k.a. ‘lobules’), typically arranged in a honeycomb-like pattern (Gebhardt and Matz-Soja, 2014). At the periphery of the lobules, blood enters the portal vein and the hepatic artery and flows into the liver sinusoids towards the central vein. Inside the lobules, the highly polarized hepatocytes assemble into cords that face the hepatic sinusoids on the basolateral side and form canaliculi on the apical side (Tanaka and Miyajima, 2016). Although morphologically quite similar, hepatocytes accomplish very different metabolic roles according to their specific position along the lobular portocentral axis. The segregation of hepatocytes into discrete functional areas is referred to as ‘Liver Zonation’ and is the basis for the partition of the hepatic lobule into three metabolic zones: periportal Zone 1 consisting of 6–8 hepatocyte layers that receive blood enriched in oxygen and nutrients and control glycogen metabolism, amino acid utilization and ammonia detoxification; intermediate perivenous Zone 2 consisting of 6–10 hepatocyte layers with a major role in xenobiotic metabolism; and perivenous Zone 3 formed by 2–3 hepatocyte layers that surround the central veins and perform biotransformation reactions, glutamine synthesis and glycolysis (Jungermann and Katz, 1989). Metabolic zonation optimizes liver physiology by quickly adapting this organ to exogenous nutritional challenges and endogenous metabolic demands. Moreover, pathologic alterations that permanently change zonation patterns lead to metabolic disease (Gebhardt and Matz-Soja, 2014).

Pioneer studies revealed that canonical Wnt/β-catenin signaling preserves metabolic zonation in the adult liver (Benhamouche et al., 2006; Burke et al., 2009; Planas-Paz et al., 2016; Sekine et al., 2006; Yang et al., 2014) and promotes the expression of pericentral enzymes involved with glutamine synthesis in the late fetal liver (Burke et al., 2018). More recent investigations also demonstrated that Wnt ligands and the Wnt agonist R-spondin3 produced by hepatic endothelial cells are necessary to preserve metabolic zonation in the adult liver (Leibing et al., 2018; Planas-Paz et al., 2016; Preziosi et al., 2018; Rocha et al., 2015; Wang et al., 2015). While these and other studies have increased our knowledge of adult metabolic zonation, we still do not know much about how metabolic and non-metabolic proteins begin to segregate into specific regions in the maturing liver or how zonated protein expression is reestablished in hepatocytes following acute hepatic injury. Moreover, it has been shown that hepatic sinusoidal cells produce Wnt ligands (Ding et al., 2010; Wang et al., 2015) but the potential contribution of this specialized endothelium to liver zonation recovery after acute injury has not been directly proven.

Here we used a novel transgenic mouse strain (Cldn2-EGFP) (Gong et al., 2003) to investigate how the tight junction protein claudin-2 becomes zonated in hepatocytes during liver maturation and after CCl4-induced acute injury. We also used conditional deletion approaches and Cldn2-EGFP mice to investigate the role of hepatic sinusoid-derived Wnt ligands in the establishment and maintenance of liver zonation, and the role of endothelial-derived Wnt ligands in zonation restoration after CCl4-induced damage.

Results

Spatiotemporal analysis of postnatal liver zonation using Cldn2-EGFP transgenic mice

Published studies showed that the tight junction protein claudin-2 exhibits zonated expression in perivenous areas of the adult murine liver (Matsumoto et al., 2014; Rahner et al., 2001). Using immunohistochemistry analysis, we corroborated claudin-2 expression almost exclusively in perivenous areas in the adult mouse liver (Figure 1A). In addition, we discovered that this protein is expressed throughout this organ of mice at postnatal [P] day 2 (Figure 1A). To further examine how claudin-2 hepatic expression transitions from birth to adulthood, we took advantage of Cldn2-EGFP mice that express a green fluorescence protein (GFP) transgene under the control of Cldn2 regulatory elements (Gong et al., 2003). Our immunostaining results showed identical distribution of claudin-2 and GFP in various tissues of wildtype and Cldn2-EGFP mice dissected at P2 or 6 months of age (including the liver [Figure 1A], intrahepatic bile ducts [Figure 1—figure supplement 1A], extrahepatic biliary tissues [Figure 1—figure supplement 1B] and gut [data not shown]). Also, double-immunofluorescence staining of 1–6 months old Cldn2-EGFP livers showed co-expression of GFP with various hepatocyte markers (i.e., HNF4α, Tbx3 and Prox1; Figure 1B), the Zone 3 marker GS (Figure 1B) and the Zone 2/3 marker Cyp2e1 (Figure 1B). In contrast, GFP expression was very low or negligible in periportal hepatocytes expressing the cell adhesion protein and Zone 1 marker E-cadherin (Figure 1B). These results demonstrate that GFP expression faithfully recapitulates the endogenous expression of claudin-2 in many tissues of Cldn2-EGFP mice.

Figure 1 with 3 supplements see all

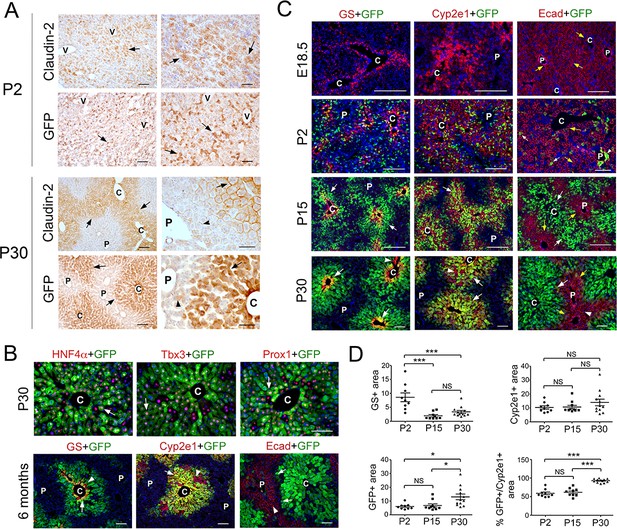

Claudin-2 expression becomes zonated during liver maturation.

(A) Immunohistochemistry analysis of claudin-2 and claudin-2/GFP expression showing identical distribution of these proteins in hepatocytes (arrows) at P2 and P30. Few hepatocytes near the portal veins (arrowheads) also express low claudin-2 or claudin-2/GFP at P30. Wildtype specimens were used for claudin-2 analysis and Cldn2-EGFP specimens for claudin-2/GFP analysis. Scale bars: 50 μm (right); and 100 μm (left). (B) Double-immunofluorescence analysis showing co-expression of claudin-2/GFP (arrows) with the hepatocyte transcription factors HNF4α, Tbx3 and Prox1 around the central veins in P30 Cldn2-EGFP livers. Scale bars: 100 μm. (C) Double-immunofluorescence results show lack of claudin-2/GFP hepatic expression late in gestation (E18.5), numerous claudin-2/GFP+ hepatocytes (arrows) distributed throughout the liver after birth (P2), and high claudin-2/GFP expression (arrows) restricted to Zone 3 (GS+) and Zone 2/3 (Cyp2e1+) hepatocytes in juvenile (P15) and adult (P30) livers (a few pericentral/perivenous hepatocytes [arrowheads] do not express GFP at P30). E-cadherin expression (yellow arrows) is detected in all hepatocytes at E18.5 and P2, and is restricted to periportal hepatocytes that lack high claudin-2/GFP expression at P15-P30. Scale bars: 200 μm (E18.5, P2, P15) and 100 μm (P30). (D) Quantification of GS+, Cyp2e1+ and claudin-2/GFP+ areas and the relative abundance of claudin-2/GFP+ hepatocytes in Zone 2 in postnatal (P2), juvenile (P15) and adult (P30) livers. 3–4 representative fields from three individual livers of each genotype were used for quantification. Statistical difference was determined by one-way ANOVA with Bonferroni’s multiple comparisons test. NS, not significant (p>0.05), *p<0.05, ***p<0.001. (A–C) Each image represents 3–4 individual livers. (C), central vein. (P), portal vein. (V), vein. Related data can be found in Figure 1—figure supplements 13.

Next, we compared the spatiotemporal distribution of GFP with that of other zonated proteins in the liver of Cldn2-EGFP mice harvested at different ages using double-immunofluorescence analysis. As previously shown (Burke et al., 2018; Notenboom et al., 1997), GS was expressed exclusively in the first 2–3 layers of hepatocytes surrounding the central veins at E18.5 (Figure 1C) and this restricted expression pattern remained unchanged at P2, P15 and P30 (Figure 1C). Similarly, Cyp2e1 expression was confined to a large area of pericentral/perivenous hepatocytes from E18.5 to adulthood (Figure 1C). Different to those proteins, claudin-2/GFP expression was not detected in hepatocytes at E18.5 (Figure 1C) whereas that protein was broadly expressed in hepatocytes at P2 (Figure 1C and Figure 1—figure supplement 2B). The wide distribution of claudin-2/GFP in hepatocytes was transient since this protein was largely confined to pericentral (GS+) and perivenous (Cyp2e1+) hepatocytes at both P15 and P30 (Figure 1C,D). On the other hand, we uncovered that E-cadherin was expressed in all hepatocytes at both E18.5 and P2 (Figure 1C; Figure 1—figure supplement 2) and was restricted to periportal hepatocytes at P15 and P30 (Figure 1C). Those findings concur with a published study (Rocha et al., 2015) showing that E-cadherin is not fully zonated in the murine liver at P10. Similar to E-cadherin, the periportal enzyme phosphoenolpyruvate carboxykinase (PEPCK) was broadly expressed at birth (P0) and was restricted to Zone one by P11 (Figure 1—figure supplement 3A), and this transition coincided with induction of the Wnt/β-catenin inhibitor APC (Benhamouche et al., 2006) in periportal hepatocytes (Figure 1—figure supplement 3C). In conclusion, our study uncovered a dynamic, non-synchronous spatiotemporal segregation of metabolic and membrane-associated hepatocyte functions in the maturing liver.

Endothelial-secreted Wnt ligands maintain claudin-2 zonated expression in the adult liver

Wnt/β-catenin signaling is a key regulator of metabolic zonation (Benhamouche et al., 2006; Burke et al., 2009; Planas-Paz et al., 2016; Sekine et al., 2006; Yang et al., 2014) and recent studies demonstrated that hepatic endothelial cells (HECs) produce Wnt ligands and agonists that preserve homeostatic metabolic zonation in the adult liver (Leibing et al., 2018; Planas-Paz et al., 2016; Preziosi et al., 2018; Rocha et al., 2015; Wang et al., 2015). We observed that most claudin-2/GFP+ hepatocytes juxtaposed HECs in the liver of Cldn2-EGFP newborn and adult mice (Figure 2A) and this result suggested to us that claudin-2 zonated expression requires endothelial Wnt signaling. To investigate this possibility, we deleted the Wls gene (encoding a protein necessary for Wnt exocytosis) (Carpenter et al., 2010) in murine ECs using conditional-deletion approaches.

Figure 2 with 1 supplement see all

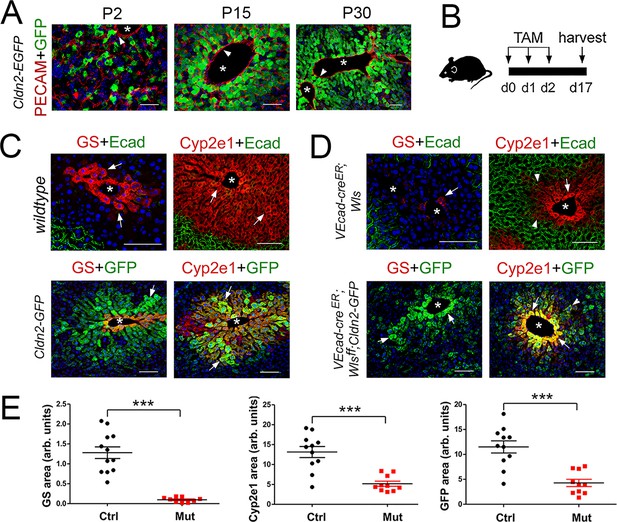

Wls deletion in HECs severely reduces the expression of claudin-2 and Cyp2e1 in perivenous hepatocytes in adult livers.

(A) Immunofluorescence results showing that pericentral claudin-2/GFP+ hepatocytes physically contact the central vein endothelium (PECAM+, arrowheads) in newborn (P2) juvenile (P15) and adult (P30) Cldn2-EGFP livers. (B) Schematic of tamoxifen administration and tissue harvesting. (C) Tamoxifen injection does not affect the zonated distribution of GS, Cyp2e1 and E-cadherin in wildtype livers (top, arrows), or claudin-2/GFP, GS and Cyp2e1 (bottom, arrows) in Cldn2-GFP livers. (D) Wls deletion in endothelial cells causes near depletion of GS+ hepatocytes (top left, arrows), decreases both Cyp2e1 (right panels, arrows) and claudin-2/GFP perivenous expression (bottom panels, arrows; arrowheads show distal perivenous hepatocytes expressing low GFP), and expands E-cadherin expression into the margins of Zone 2 (top right, arrowheads). (E) Quantification of Zone 3 (GS+) and Zone 2 (Cyp2e1+/GFP+) areas in adult livers with or without endothelial Wls. Statistical difference was determined by two-tailed unpaired Student’s t-test (***p<0.001, 3–4 representative fields from three individual livers of each genotype were used for quantification). Each image represents three individual livers. Asterisks indicate central vein lumens. Scale bars: 50 μm (A), 100 μm (C,D). Related data can be found in Figure 2—figure supplement 1.

Adult wildtype (control) mice, Cldn2-EGFP (control) mice, Cdh5-CreERT2;Wlsf/f (Wang et al., 2010) (Wls-deleted) mice, and Cdh5-CreERT2;Wlsf/f;Cldn2-EGFP (Wls-deleted) mice were injected with tamoxifen and their liver was harvested and processed for immunostaining 2 weeks later (Figure 2B). Tamoxifen treatment did not affect GS, Cyp2e1 or E-cadherin expression in wildtype livers (Figure 2C), or claudin-2/GFP expression in Cldn2-EGFP livers (Figure 2C and data not shown). In contrast, Wls endothelial deletion eliminated GS pericentral expression almost entirely (Figure 2D,E; Figure 2—figure supplement 1A,B) and reduced Cyp2e1 perivenous expression significantly (Figure 2D,E; Figure 2—figure supplement 1A,C) in Cdh5-CreERT2;Wlsf/f and Cdh5-CreERT2;Wlsf/f;Cldn2-EGFP livers. Also, Wls endothelial deletion reduced claudin-2/GFP expression (Figure 2D,E) and claudin-2 expression (Figure 2—figure supplement 1A,D) significantly in perivenous areas of Cdh5-CreERT2;Wlsf/f;Cldn2-EGFP and Cdh5-CreERT2;Wlsf/f livers. Furthermore, Wls endothelial deletion caused ectopic expansion of E-cadherin expression in perivenous hepatocytes of Cdh5-CreERT2;Wlsf/f and Cdh5-CreERT2;Wlsf/f;Cldn2-EGFP livers (Figure 2D and data not shown). These results demonstrate that endothelial Wnt signaling preserves metabolic and non-metabolic zonation in the adult murine liver.

LSEC Wnt ligand secretion is dispensable to initially establish hepatic zonation and is necessary to maintain adult hepatic zonation

Murine HECs are heterogeneous (Halpern et al., 2018) and include both central vein endothelial cells (CEVs) and liver sinusoidal endothelial cells (LSECs). CEVs and LSECs express CD31/PECAM-1 whereas LSECs uniquely express the lymphatic marker Lyve-1 (Halpern et al., 2018; Mouta Carreira et al., 2001). Also, recent studies showed that CEVs express Wnt2 and Wnt9b ligands and the Wnt agonist R-spondin 3 (Rspo3) and LSECs express Wnt2 ligands in the homeostatic adult mouse liver (Ding et al., 2010; Halpern et al., 2018; Preziosi et al., 2018; Rocha et al., 2015; Wang et al., 2015; Zhao et al., 2019). Similar to those findings, we detected Wnt2, Wnt9b and Rspo3 transcripts in cells lining the central veins in adult (P60) and newborn (P2) mouse livers (Figure 3A). We also uncovered that LSECs adjacent or close to the central veins expressed Wnt2, Wnt9b and Rspo3 in P2 livers (Figure 3A) whereas LSECs located more distal to the central veins expressed Wnt2 in P60 livers (Figure 3A and Figure 3—figure supplement 1). Additional results of immunofluorescence analysis showed that most GS+ hepatocytes in Zone 3 and most Cyp2e1+ hepatocytes in Zone 2/3 adjoined LSECs in the liver of newborn (P2), juvenile (P15) and adult (P30) mice (Figure 3B). Similarly, most claudin-2/GFP+ hepatocytes were contiguous to LSECs in Cldn2-EGFP livers at P2, P15 and P30 (Figure 3B). These findings posited that Zone 2/3 hepatocyte expression requires Wnt ligands secreted from LSECs. To test this notion, we deleted Wls in LSECs of Cldn2-EGFP mice using Lyve1-Cre mice (Pham et al., 2010).

Figure 3 with 3 supplements see all

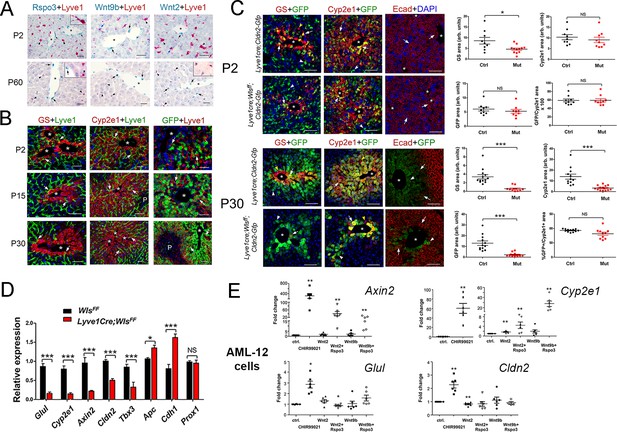

Lack of Wnt ligand secretion from LSECs impairs adult zonation maintenance.

(A) Double in situ hybridization for Rspo3 (green), Wnt9b (green) and Wnt2 (green) showing a few LSCEs (Lyve1+, red) expressing those transcripts (blue arrows and inset) in P2 livers. Only Wnt2 transcripts are detected in some LSECs (inset) in P60 livers. Arrows indicate central vein endothelial cells and arrowheads indicate LSECs. Scale bars: 25 μm. Each image is representative of 3 individual mice (n = 3). (B) Double-immunofluorescence results show that hepatic Zones 3 (GS+) and 2/3 (Cyp2e1+) are densely irrigated by the hepatic sinusoids (Lyve1+, arrows) in P2, P15 and P30 wildtype livers. The sinusoidal vasculature (arrows) is also in direct contact with claudin-2/GFP+ hepatocytes in P2, P15 and P30 Cldn2-EGFP livers. Scale bars: 50 μm. Each image is representative of 2–4 individual mice (n = 2–4). (C) P2, Quantitative double immunofluorescence results show that Zone 2 (Cyp2e1+, claudin-2/GFP+) is relatively unchanged and Zone 3 (GS+) is significantly reduced in Lyve1-Cre;Wlsf/f;Cldn2-GFP livers at P2. E-cadherin expression (arrows) is indistinguishable in P2 livers with or without endothelial Wls-deletion. P30, Similar quantitative results demonstrate that GS+ hepatocytes are nearly absent, Zone 2 (Cyp2e1+/GFP+) is significantly reduced and restricted to pericentral areas, and E-cadherin expression (arrows, arrowheads are GFP+ hepatocytes) is expanded towards the central veins in P30 Lyve1-Cre;Wlsf/f;Cldn2-GFP livers. 3–4 representative fields from three individual livers of each genotype were used for quantification. p values were determined by two-tailed unpaired Student’s t-test, NS, not significant (p>0.05), *p<0.05, ***p<0.001. Arrows indicate GFP-double positive hepatocytes, white arrowheads are GFP+ hepatocytes and yellow arrowheads are GFP hepatocytes. Scale bars: 100 µm (D) Q-PCR results demonstrate reduced expression of Zone 2/3 transcripts, increased expression of Zone 1 transcripts, and normal levels of the hepatocyte transcript Prox1, in adult Lyve1-Cre;Wlsf/f livers (n = 3). p values were determined by two-way ANOVA, NS, not significant (p>0.05), *p<0.05, ***p<0.001. (E) Q-PCR results showing the effects of culturing AML-12 mouse hepatic cells with CHIR99021, Wnt2, Wntb9, or Wnt2/Wnt9b plus Rspo3 on Axin2, Cyp2e1, Glul and Cldn2 expression. p values from two-tailed unpaired Student’s t-test, *p<0.05, ***p<0.01; n = 6. (A–C) Asterisks indicate central vein lumens. Related data can be found in Figure 3—figure supplements 13.

First, we performed lineage tracing experiments in Lyve1-Cre;ROSA-LacZ mice and found that LSECs (Lyve1+) expressed the β-galactosidase reporter protein and CEVs (PECAM+/Lyve1) lacked that protein (Figure 3—figure supplement 2). These results demonstrated that Wnt ligand secretion should be preserved in CEVs and abolished in LSECs using Lyve1-Cre. Next, we produced Lyve1-Cre;Cldn2-EGFP mice (control) and Lyve1-Cre;Wlsf/f;Cldn2-EGFP mice (Wls-deficient) and analyzed their liver using immunofluorescence, morphometry and immunohistochemistry analyses. We uncovered slightly reduced abundance of GS+ hepatocytes and normal abundance of Cyp2e1+, claudin-2/GFP+ and E-cadherin+ hepatocytes (Figure 3C) in Lyve1-Cre;Wlsf/f;Cldn2-EGFP livers compared to control livers at P2. In contrast, GS expression was almost undetected and the areas of Cyp2e1 and claudin-2/GFP expression were significantly reduced and restricted to a few layers of pericentral hepatocytes in Lyve1-Cre;Wlsf/f;Cldn2-EGFP adult (P30) livers in comparison to control livers (Figure 3C). Identical alterations in GS, Cyp2e1 and claudin-2 hepatocyte expression were also noticed in the liver of Lyve1-Cre;Wlsf/f adult mice (Figure 3—figure supplement 3). Interestingly, Wls deletion in LSECs also affected E-cadherin expression since we observed ectopic expression of this protein in pericentral and perivenous hepatocytes in Lyve1-Cre;Wlsf/f;Cldn2-EGFP adult livers (Figure 3C). Results from qRT-PCR experiments confirmed significant decreases in pericentral/perivenous transcripts (i.e., Glul, Cyp2e1, Axin2, Cldn2 and Tbx3), and significant upregulation of the periportal transcripts Apc and Cdh1 (Figure 3D) in P30 Lyve1-Cre;Wlsf/f livers. In summary, we determined that Wnt ligand secretion from LSECs is dispensable or redundant for the initiation of hepatic zonation, and is necessary to maintain metabolic and non-metabolic zonation in the adult liver.

To further examine the effects of Wnt/β-catenin stimulation on claudin-2 hepatocyte expression, we cultured the murine hepatocyte-derived cell line AML12 (Lehwald et al., 2011) in the presence of CHIR99021 (a GSK-3 inhibitor that promotes nuclear β-catenin accumulation (Gerbal-Chaloin et al., 2014), Wnt2, Wnt9b, or Wnt2/Wnt9b and Rspo3. QRT-PCR results showed significantly increased expression of the Wnt/β−catenin target Axin2 in AML12 cells incubated with CHIR99021, Wnt2+Rspo3 or Wnt9b+Rspo3 (Figure 3E). Similarly, CHIR99021, Wnt2 and Wnt9b increased Cyp2e1 expression in those cells and the addition of Rspo3 further enhanced the effect of Wnt2/Wnt9b (Figure 3E). On the other hand, although CHIR99021 stimulated Glul and Cldn2 expression by 2–3–fold (Figure 3E) the presence of Wnt2/Wnt9b alone or in combination with Rspo3 did not increase those transcripts (in fact, Wnt2 marginally reduced their levels; Figure 3E). The reason(s) behind the distinct responses of Cyp2e1, Glul and Cldn2 to Wnt signaling are unclear but could involve variable thresholds for Wnt stimulation, synergy of Wnt/β-catenin signaling with other pathways, and/or differences in cellular composition between AML-12 cells and intact hepatocytes.

Zones 3 and 2 are reestablished differently in the regenerating liver after acute injury

In rodents administered a CCl4 bolus, the cytochrome P450 enzyme Cyp2e1 metabolizes this compound into highly reactive free radicals that cause cellular damage and necrosis of Zone 2/3 hepatocytes. This process is followed by a regenerative phase encompassing hepatocyte mass recovery, restoration of zonated patterns, and remodeling of the entire organ’s architecture (Tanaka and Miyajima, 2016). In spite of the extensive literature on the effects of CCl4, our knowledge about the reestablishment of hepatic zonation following acute or chronic exposure to CCl4 is still limited and most publications in this topic did not examine parenchymal and non-parenchymal cell behaviors simultaneously (Font-Burgada et al., 2015; Pu et al., 2016; Zhao et al., 2019). Furthermore, we do not know if claudin-2 expression is affected following acute CCl4 exposure or how the expression of this protein is restored in the injury model. To address those issues, we injected Cldn2-EGFP mice with CCl4 and analyzed their liver 2–7 days post-injection (Figure 4A). Quantification of ALT/AST serum levels validated the occurrence of liver damage at day two and functional recovery of this organ at day 7 (Figure 4B) after a CCl4 bolus.

Figure 4 with 2 supplements see all

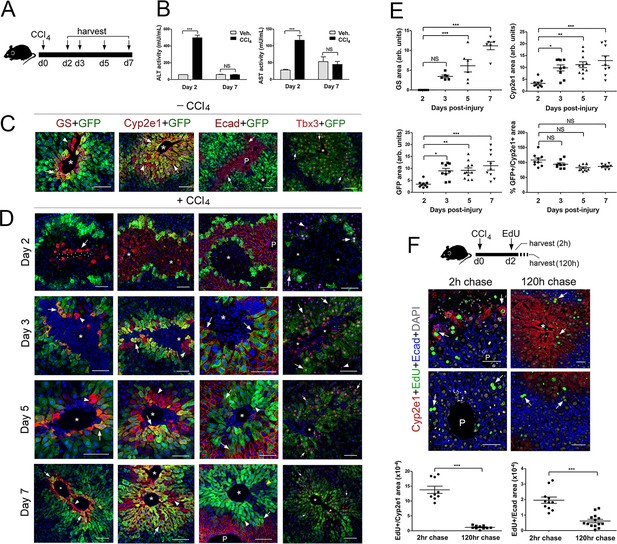

Proliferation and not de novo expression restore Claudin-2+ and Cyp2e1+ hepatocytes in the CCl4-injured liver.

(A) Experimental strategy for Cldn2-EGFP mice injected with CCl4. (B) ALT/AST serum levels demonstrate liver damage 2 days post-CCl4 (n = 3). p values were determined by two-way ANOVA, NS, not significant (p>0.05), ***p<0.001. (C) Expression of Zone 3 (GS+), Zone 2/3 (Cyp2e1+, claudin-2/GFP+) and Zone 1 (Ecad+) markers and Tbx3 in the corn oil-injected Cldn2-EGFP adult liver. (D) Spatial distribution of the markers indicated above during the recovery phase that follows a CCl4 bolus (see text for details). (Day 2, arrow, enucleated GS+ cell. Days 3–7, arrows, GFP double-positive hepatocytes; arrowheads, GFP hepatocytes. Asterisks indicate central vein lumens.) (E) Quantification of GS+, Cyp2e1+ and claudin-2/GFP+ areas, and the GFP+/Cyp2e1+ ratio, 2–7 days post-CCl4. 3–4 representative fields from three individual livers dissected at the indicated time points were used for quantification. p values were determined by one-way ANOVA with Bonferroni’s multiple comparisons test, NS, not significant (p>0.05), *p<0.05, **p<0.01, ***p<0.001. (F) (Top) Schematic of EdU administration and tissue harvesting post-CCl4. (Middle) Immunofluorescence results show EdU incorporation (arrows) in Cyp2e1+ hepatocytes located in the Zone 2 remnant and the undamaged Zone 1 (Ecad+) 2 days post-CCl4. Both Cyp2e1+ hepatocytes (arrows, top) and Ecad+ hepatocytes located at the margins of restored Zone 2 (arrows, bottom) retain the EdU label after a 5 day chase. (Bottom) Quantification of EdU+ hepatocytes in Zone 2/3 and Zone 1. 3–4 representative fields from three individual livers dissected at the indicated time points were used for quantification. p values were determined by two-tailed unpaired Student’s t-test, ***p<0.001. (C,D,F) asterisks and dots indicate central vein lumens and images are from 3 to 4 individual livers. (B, F) n = 3. NS, not significant (p>0.05), *p<0.05, **p<0.01, ***p<0.001. P, portal veins. Scale bars: 100 μm (C, D) and 50 μm (F). Related data can be found in Figure 4—figure supplements 1 and 2.

To examine changes in zonation patterns downstream of CCl4 acute exposure, we stained Cldn2-EGFP livers with anti-GS (Zone 3), anti-Cyp2e1 (Zone 2/3), anti-E-cadherin (Zone 1), anti-GFP (claudin-2+ hepatocytes), and anti-Tbx3 (Zone 2/3) antibodies. In comparison to control livers, (Figure 4C) most hepatocytes in Zone 3 (GS+) looked enucleated and necrotic and only 1–2 layers of normal-looking nucleated Cyp2e1+/GFP+ hepatocytes remained in Zone 2 (Figure 4D) 2 days post-CCl4 injection. On the other hand, a few nucleated GS+ hepatocytes reappeared at the margins of an enlarged Cyp2e1+/GFP+ area and their number increased 3–5 days post-CCl4 administration (Figure 4D). Finally, the areas of GS, Cyp2e1 and claudin-2/GFP expression looked nearly restored 7 days after the initial CCl4 bolus (Figure 4D). The analysis of temporal patterns of tissue damage and zonation recovery in the liver of wildtype mice injected with CCl4 showed identical results (including claudin-2 expression; Figure 4—figure supplement 1).

Our analysis revealed that E-cadherin hepatic expression also changes upon CCl4 exposure since Zone 2/3 GFP+ hepatocytes did not express this protein in control livers (Figure 4C) and most GFP+ hepatocytes expressed E-cadherin 2–5 days after CCl4 injection (Figure 4D). Thus, in the CCl4-acutely injured liver E-cadherin expression transiently expands into Zone two during the ‘injury phase’ and then retracts to its original periportal (Zone 1) domain during the ‘repair phase’. Finally, since Tbx3 and claudin-2/GFP proteins colocalize extensively in the uninjured adult liver (Figures 1C and 4C) we compared their expression in the Cldn2-EGFP injured liver and uncovered broad overlap of Tbx3 and GFP immunoreactivity throughout the course of recovery (i.e., 2–7 days post-CCl4; Figure 4C). More interesting, we observed that GFP periportal hepatocytes transiently expressed low-to-moderate levels of Tbx3 2–5 days post-CCl4 injection (Figure 4C). This result argues that periportal hepatocytes also respond to local cues during the ‘repair phase’ that follows CCl4-induced injury.

To further investigate how Zone 2/3 (Cyp2e1+) hepatocytes recover in the CCl4-injured liver, we injected wildtype mice with ethynyldeoxyuridine (EdU) 2 days after the initial CCl4 bolus and sacrificed the animals 2 hr or 5 days (i.e., 120 hr) later. Results of quantitative immunofluorescence analysis showed incorporation of EdU in the surviving Cyp2e1+ hepatocytes after a 2 hr chase (Figure 4F) and persistent EdU labeling in the expanded Zone 2 (Cyp2e1+) after a 5 day chase (Figure 4F). In addition, we detected EdU incorporation in Ecad+/Cyp2e1 periportal hepatocytes after a 2 hr or 5 day chase (Figure 4F). This result was intriguing because a recent study (Font-Burgada et al., 2015) showed restoration of hepatocyte mass from Sox9+ periportal hepatocytes in a mouse model of chronic liver damage. Therefore, we investigated if Sox9+-hepatocytes contribute to restore metabolic zonation in the CCl4-injured liver by injecting Sox9CreER;ROSA-EGFP mice with tamoxifen and then CCl4 and harvesting the liver 7 days later (Figure 4—figure supplement 2A). Results of immunostaining showed expression of the GFP lineage-tracer in a few periportal hepatocytes and no GFP expression in Cyp2e1+ hepatocytes (Figure 4—figure supplement 2B) in the CCl4-injured Sox9CreER;ROSA-EGFP liver. This finding ruled out the contribution of Sox9+ periportal hepatocytes to metabolic Zone 2/3 restoration after CCl4-acute damage. Instead, our results indicate that in this injury model metabolic Zone 2 is recovered via proliferation of undamaged hepatocytes and metabolic Zone 3 is induced de novo.

To complement our analysis of Cldn2-GFP livers exposed to CCl4, we investigated the composition of the immune infiltrates in tissues harvested 2–7 days after CCl4 injection (Figure 5A) using double-immunofluorescence and antibodies recognizing the pan-macrophage marker F4/80, the M1 macrophage marker CD86, and the M2 macrophage marker CD206 (Shapouri-Moghaddam et al., 2018). This analysis showed that most macrophages in Cldn2-GFP control livers were parenchymal Kupffer cells since they expressed F4/80 (Figure 5B) but not CD86 (Figure 5C) or CD206 (data not shown). On the other hand, in CCl4-injected Cldn2-GFP livers most macrophages infiltrating the central veins represented M1 macrophages that expressed F4/80 and CD86 (Figure 5B,C) but not CD206 (Figure 5D and data not shown). Quantitative results demonstrated that the average abundance of perivenous macrophages increased at around day three post-CCl4 and began to decline afterwards (Figure 5E). Also, most CD86+ macrophages concentrated around the central veins in CCl4-injected livers (Figure 5C) although in periportal areas of this organ a few isolated CD86+ cells were also found within the hepatic sinusoids (Figure 5F). This finding argues that perhaps some periportal CD86+ macrophages travel through the sinusoids towards pericentral areas in the CCl4-damaged liver.

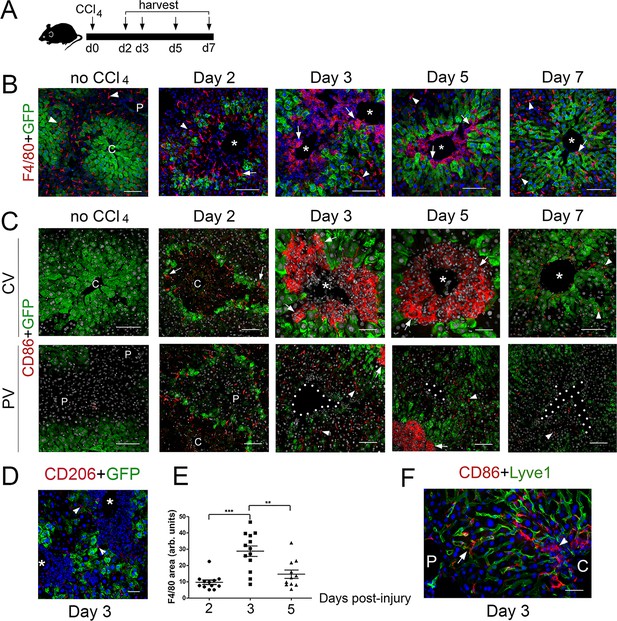

M1 macrophages infiltrate the perivenous space in CCl4-acutely injured livers.

(A) Experimental strategy for Cldn2-EGFP mice injected with CCl4. (B) (No CCl4) Results of double-immunofluorescence analysis show expression of the pan-macrophage marker F4/80+ in Kupffer cells (arrowheads) in a control adult liver (no CCl4 injection). (Day 2–5) In the CCl4-injected Cldn2-EGFP liver, macrophages (arrows) start to infiltrate the necrotic perivenous area at day two and form a physical barrier between the central vein endothelium and the expanding GFP+ Zone 2 at days 3 and 5. Resolution of macrophage perivenous infiltrates and restoration of claudin-2/GFP expression occur 7 days post-CCl4 injection (arrows are Kupffer cells). (C) (No CCl4) M1 macrophages (CD86+) are not detected in perivenous or periportal regions in Cldn2-EGFP control mice (C is central vein, P is portal vein). (Day 2–5, top) Immunofluorescence images of CCl4-injected Cldn2-EGFP livers showing increasingly abundant infiltrates of CD86+ macrophages (arrows) 2 days post-CCl4 and persistence of these cells around the central veins at days 3 and 5. CD86+ macrophages are no longer present in perivenous areas at day 7 (CV, central vein region). (Day 2–5, bottom) CD86+ macrophages are very scarce in periportal areas in CCl4-injected livers (PV, portal vein region). (The exposure in the green channel was decreased for better visualization of the red [CD86] signal. (D) Macrophages infiltrating the perivenous region do not express the M2 macrophage marker CD206 3 days post-CCl4 injection (arrowheads indicate low expression of this marker in LSECs). (E) Quantification of F4/80+ immunofluorescence distribution 2-, 3- and 5 days post-CCl4. p values were determined by one-way ANOVA with Bonferroni’s multiple comparisons test. **p<0.01, ***p<0.001. 3–4 representative fields from three individual livers dissected at the indicated time points were used for quantification. Asterisks and C, central veins. P, portal veins. CV, central vein area. PV, portal vein area. (F) A few CD86+ macrophages are seen within the Lyve1+ hepatic sinusoids in periportal areas of the CCl4 injected liver. CD86+ macrophages are overabundant in perivenous areas (right, ‘C’, arrowhead) in comparison to periportal areas (‘P’). Each image represents 3–4 individual livers. Scale bars: 100 μm (B), (C) [no CCl4, Days 2,7]) Scale bars: 50 μm (C) [Days 3,5], (D,F).

Endothelial Wnts reestablish claudin-2 zonated expression in hepatocytes following CCl4-induced acute injury

HECs produce Wnts and other factors that stimulate liver growth (Ding et al., 2010; Hu et al., 2014; Leibing et al., 2018; Preziosi et al., 2018; Zhao et al., 2019) and Wnt ligands that help to repair the architecture of the CCl4-injured liver (Zhao et al., 2019). Our finding that most claudin2-GFP+ hepatocytes were contiguous to HECs (PECAM-1+) during the recovery period that follows a CCl4 bolus (Figure 6A) posited that Wnt secretion from HECs help reestablishing metabolic and non-metabolic zonation in this injury model. To test this notion, we administered CCl4 to Cdh5-CreERT2 (control) and Cdh5-CreERT2;Wlsf/f mice at day 0, injected three consecutive daily doses of tamoxifen, and harvested the livers 2–15 days post CCl4 injection. We uncovered similar increases in circulating ALT/AST levels at day 2 and numerous macrophage infiltrates in hepatic perivenous areas at day 5 in Cdh5-CreERT2 and Cdh5-CreERT2;Wlsf/f mice (Figure 6B). These results validated the occurrence of hepatic damage in both mouse strains. Similar to our previous findings in Cldn2-EGFP mice (Figure 2), Zones 3 (GS+) and 2 (Cyp2e1+) looked almost recovered at day 7 and these areas were completely restored at day 15 in the Cdh5-CreERT2 liver. In contrast, Zone 3 was nearly absent and Zone 2 was significantly reduced in Cdh5-CreERT2;Wlsf/f livers at days 5, 7 and 15 post-CCl4 administration (Figure 6B). Also, E-cadherin expression retracted to its normal location in periportal Zone 1 in Cdh5-CreERT2 livers 7–15 days post-CCl4 injection whereas E-cadherin expression was ectopically expanded into perivenous areas in CCl4-injured Cdh5-CreERT2;Wlsf/f livers dissected at similar time points (Figure 6B). These results demonstrate that endothelial Wnt secretion is necessary to reestablish Zone 3, to recover the normal size of Zone 2, and to restore E-cadherin expression to Zone 1 hepatocytes, in CCl4-acutely injured livers.

Endothelial Wnt ligand secretion reestablishes metabolic zonation in the CCl4-acutely injured liver.

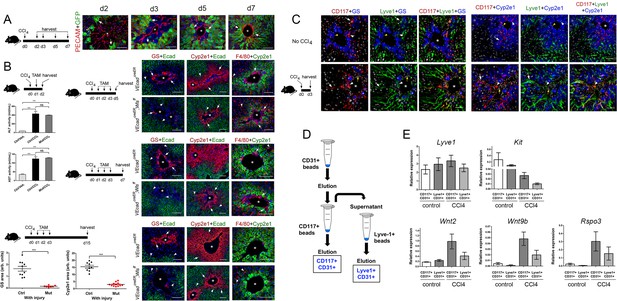

(A) (Left) Schematic of CCl4 administration and tissue harvesting using Cldn2-EGFP mice. (Right) Double-immunofluorescence results show physical association of claudin-2/GFP+ hepatocytes (arrows) with hepatic endothelial cells (PECAM+) throughout the recovery period that follows CCl4-acute injury. (B) (Top, left) Schematic of the experimental strategy and tissue harvesting. ALT/AST serum levels demonstrate that CCl4 promotes liver damage in Cdh5-CreERT2 and Cdh5-CreERT2;Wlsf/f mice injected with tamoxifen. (n = 3). p values were determined by one-way ANOVA with Bonferroni’s multiple comparisons test, NS, not significant (p>0.05), ***p<0.001. (Right and bottom) Diagrams indicate the experimental strategy and tissue harvesting. Double-immunofluorescence and quantitative results show progressive expansion and full restoration of Zone 3 (GS+, arrows) and Zone 2 (Cyp2e1+, arrows) and transient macrophage infiltrates (F4/80+, arrows; arrowheads are Kupffer cells) in the liver of Cdh5-CreERT2 mice after acute CCl4 administration. In contrast, Zone 3 is nearly absent, Zone 2 is significantly smaller, and Zone 1 is expanded, in Cdh5-CreERT2;Wlsf/f livers 5-, 7- and 15 days post-CCl4. Perivenous macrophage infiltrates are observed in both Cdh5-CreERT2 and Cdh5-CreERT2;Wlsf/f livers 5–7 days post-CCl4 but not 15 days after CCl4 administration. p values were determined by two-tailed unpaired Student’s t-test, ***p<0.001, (n = 3). (C) (Left) Schematic of CCl4 administration and tissue harvesting. (Right) Triple-immunofluorescence results show that CD117 proteins are restricted to the Lyve-1+/Lyve-1LOW sinusoidal endothelium traversing Zones 2/3 in the normal and CCl4-injected (day 3) adult liver. (D) Schematic of CD117+ and Lyve1+ HECs isolation. Nonparenchymal liver cells (NPCs) were isolated using a two-step collagenase perfusion method and incubated with CD31-coated Dynabeads. The eluted CD31+ (HEC) fraction was incubated with CD117-coated Dynabeads to isolate CD117+CD31+ (‘pericentral/perivenous’) HECs. The unbound fraction from this step was incubated with Lyve-1-coated Dynabeads to separate Lyve+CD31+ hepatic sinusoidal cells from other HECs. (E) QRT-PCR results show comparable Lyve1 transcript expression in CD117+/CD31+ and Lyve1+/CD31+ isolates from saline-injected (‘control’) or CCl4-injected (day 3) livers, lower Kit expression in LSECs from injured livers compared to control livers, and higher Wnt2, Wnt9b and Rspo3 expression in LSECs from injured livers compared to control livers. (Three individual livers per condition were used to isolate LSECs.) (A–C) Each image represents 2–4 individual livers. Asterisks: central veins. (B) NS, not significant (p>0.05), ***p<0.001, (n = 3). Scale bars: 50 μm (C), 100 μm (A, B).

HECs are heterogeneous and similar to hepatocytes these cells display zonated distribution of various proteins. For instance, recent studies in adult mouse livers showed that central vein endothelial cells express Wnt2, Wnt9b and Rspo3 transcripts whereas perivenous sinusoidal cells express Wnt2 transcripts (Halpern et al., 2018; Zhao et al., 2019). Also, Kit transcripts (encoding the surface marker CD117) are abundant in HECs located close to the CV and low or absent in HECs located in periportal areas of the adult liver (Halpern et al., 2018). Using immunostaining analysis, we uncovered that the hepatic sinusoids traversing Zones 2 and 3 express CD117 but not those located in periportal liver areas of the adult mouse liver (Figure 6C). Also, in those tissues the CD117+ sinusoidal cells located in pericentral areas expressed very low levels of Lyve-1 (Figure 6C). This expression pattern was almost identical in the CCl4-injected liver (at day 3) although in the injured organ the LSECs within Zone 2 (Cyp2e1+) showed more extensive colocalization of CD117 and Lyve-1 compared to the uninjured liver (Figure 6C). Since CD117 is expressed more abundantly in percentral/perivenous LSECs than in periportal LSECs, we attempted to isolate these 2 cell populations using CD117-coated magnetic beads and then investigate their Wnt/Rspo expression profile under normal and acute injury conditions. For the ‘injury’ experiment, LSECs were isolated from mouse livers 3 days after a CCl4 bolus because at this time point we observed de novo induction of GS expression, expansion of Zone 2 (Cyp2e1+/claudin-2+) and perivenous and periportal hepatocyte proliferation (Figure 4). Also, for these experiments we included an initial purification step with anti-CD31 antibodies to remove potential contamination of CD117+ immune cells in the injured liver (Figure 6D). The results of qRT-PCR analysis showed relatively similar Lyve1 expression between CD117+/CD31+ cells (‘pericentral/perivenous LSECs’) and Lyve-1+/CD31+ cells (‘periportal LSECs’; Figure 6E). Also, this analysis showed relatively higher Kit expression in CD117+/CD31+ cells compared to Lyve-1+/CD31+ cells in both the homeostatic and injured liver. On the other hand, Kit expression was lower in LSECs from CCl4-injured livers compared to LSECs from control livers (Figure 6E) and this result likely indicates that many perivenous LSECs were lost due to extensive tissue damage. Interestingly, the LSECs isolated from CCl4-injured livers expressed higher levels of Wnt2, Wnt9b and Rspo3 compared to LSECs from control livers, and this difference was more prominent in the CD117+/CD31+ LSEC fraction (Figure 6E). This result was surprising since Rspo3 and Wnt9b transcripts are mainly expressed in pericentral LSECs in the uninjured liver (Figure 3A and Zhao et al., 2019). Therefore, we postulate that Wnt ligands and Wnt agonists are broadly upregulated in LSECs upon acute liver injury.

Lyve1-cre;Wlsf/f mice are refractory to CCl4-induced liver damage

As we found that the expanding claudin2-GFP+ area continuously juxtaposed LSECs (Lyve-1+) in Cldn2-GFP livers exposed to CCl4 (Figure 7A) and pericentral/perivenous LSECs express Wnt ligands in the CCl4-acutely injured liver (Figure 6E), we investigated whether Wls deletion from LSECs affects zonation restoration in the CCl4-injury model. We used Lyve1-Cre;Wlsf/f mice for these experiments because we predicted that the remaining Cyp2e1+ hepatocytes (Figure 7B) should be susceptible to CCl4-induced toxicity. CCl4 administration to Lyve1-Cre (control) mice led to extensive Zone 2 damage, loss of Zone 3 and elevated ALT/AST serum levels 2 days post injection (Figure 7C), extensive perivenous macrophage infiltration at day 4 (Figure 7D), and almost complete restoration of tissue architecture and metabolic zonation at day 7 (Figure 7E). Surprisingly, CCl4 administration to Lyve1-Cre;Wlsf/f mice did not produce any obvious changes in tissue architecture or zonated marker distribution in comparison to Lyve1-Cre;Wlsf/f mice injected with saline (Figure 7B–E; Figure 7—figure supplement 1). Furthermore, Lyve1-Cre;Wlsf/f mice injected with CCl4 had normal ALT/AST serum levels at day 2 (Figure 7C) and did not show perivenous macrophage infiltrates at day 4 (Figure 7D). We also injected Cdh5-CreERT2;Wlsf/f mice first with tamoxifen (to delete Wls) and 2 weeks later with CCl4 (to induce Zone 2/3 hepatotoxicity) and then harvested their liver 3 days later. Similar to Lyve1-Cre;Wlsf/f mice, in Cdh5-CreERT2;Wlsf/f livers administered a CCl4 bolus we did detect macrophage infiltrates (Figure 7—figure supplement 2B) or observed features indicative of liver damage (Figure 7—figure supplement 2A). Thus, we conclude that the remaining Cyp2e1+ hepatocytes in Lyve1-Cre;Wlsf/f livers are protected or refractory to CCl4-induced toxicity.

Figure 7 with 2 supplements see all

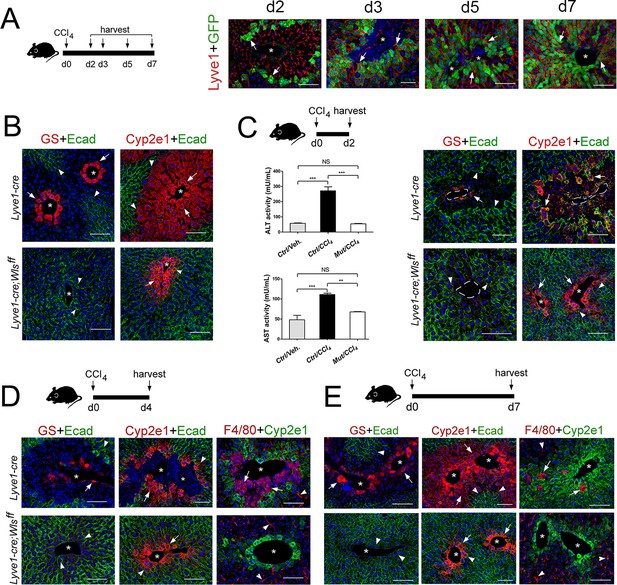

Lyve1-Cre;Wlsf/f mice are refractory to CCl4-induced hepatotoxicity.

(A) (Left) Schematic of CCl4 administration and tissue harvesting using Cldn2-EGFP mice. (Right) Double-immunofluorescence results show that claudin-2/GFP+ hepatocytes (arrows) are in close proximity to the sinusoidal endothelium (Lyve1+, arrows) throughout the recovery period that follows CCl4 acute injury. (B) GS (Zone 3), Cyp2e1 (Zone 2/3) and E-cadherin (Zone 1) expression in control and Lyve1-Cre;Wlsf/f livers without CCl4 treatment. (C–E) Top: Schematics of tissue harvesting post-CCl4 administration. (C) (Left) ALT/AST serum levels indicate liver damage in Lyve1-Cre (control) mice and no liver damage in Lyve1-Cre;Wlsf/f mice, 2 days post-CCl4. p values were determined by one-way ANOVA with Bonferroni’s multiple comparisons test. NS, not significant (p>0.05), **p<0.01, ***p<0.001 (n = 3). (C–E) (top panels): Immunostaining results show that in Lyve1-Cre livers injected with CCl4, Zone 3 is nearly undetected (GS, arrows) and Zone 2 (Cyp2e1, arrows) is severely destroyed at day 2 (C); a few enucleated cells express GS (arrow) around the central vein, Zone 1 (‘E-cad’, arrowheads) is expanded, and Zone 2 (‘Cyp2e1’, arrow) is separated from the central vein by macrophage infiltrates (‘F4/80’, arrows; arrowheads are Kupffer cells) at day 4; and Zones 1–3 (‘E-cad’/‘Cyp2e1’/‘GS‘, arrows) look nearly restored and macrophage infiltrates are scarce (arrows) at day 7. (C–E) (bottom panels): GS+ cells and macrophage infiltrates are undetected and both, Cyp2e1 and E-cadherin expression are unchanged, in Lyve1-Cre;Wlsf/f livers 2–7 days post-CCl4. Each image represents 3–4 individual livers. Asterisks: central veins. Scale bars: 100 μm. Related data can be found in Figure 7—figure supplements 1 and 2.

Discussion

The concept of Liver Zonation was proposed almost 40 years ago to explain the spatial separation of metabolic functions in the adult liver (Jungermann and Katz, 1989). Subsequent breakthroughs were the identification of Wnt/β-catenin signaling as a key regulator of metabolic hepatic zonation (Benhamouche et al., 2006; Burke et al., 2009; Burke et al., 2018; Planas-Paz et al., 2016; Sekine et al., 2006; Yang et al., 2014) and the discovery that HECs are a major source of Wnt ligands in the adult liver (Leibing et al., 2018; Planas-Paz et al., 2016; Preziosi et al., 2018; Rocha et al., 2015; Wang et al., 2015). Our study extends those findings by showing that similar regulatory mechanisms control metabolic and non-metabolic zonation in the liver. Specifically, we demonstrate that: 1) endothelial Wnt signaling restricts the expression of a tight junction protein (claudin-2) and the expression of a cell adhesion protein (E-cadherin) to complementary regions in the adult liver; 2) the restoration of metabolic and non-metabolic zonation after CCl4-acute injury requires Wnt ligands produced by endothelial cells; and 3) the secretion of Wnt ligands from hepatic sinusoidal cells is dispensable or redundant for the establishment of metabolic and non-metabolic zonation in the newborn liver, and is necessary to preserve zonation patterns in the adult liver.

Our study also introduces a novel transgenic mouse model (Cldn2-EGFP) suitable to investigate changes in claudin-2 expression during development, regeneration and disease. Using those mice, we discovered a unique distribution of claudin-2 proteins in hepatocytes relative to other membrane proteins and enzymes both at birth and in adulthood. Claudin-2 function is necessary for proper bile flow and bile composition (Matsumoto et al., 2014; Yeh et al., 2010) and the spatiotemporal changes that we uncovered probably reflect how the maturing liver adapts to new metabolic demands and stressors. We also obtained evidence that the mechanism(s) that initiate claudin-2 expression in immature hepatocytes and the mechanism(s) that preserve claudin-2 expression in mature hepatocytes are different. Specifically, we found that Wnt ligand secretion from the hepatic sinusoidal endothelium is necessary to maintain claudin-2 expression in adult hepatocytes and dispensable for the onset of claudin-2 expression in newborn hepatocytes. Our discovery that Wnt/β-catenin signaling regulates claudin-2 expression in mature hepatocytes concurs with a published study showing that β-catenin deletion in adult hepatocytes causes significant downregulation of claudin-2 proteins (Yeh et al., 2010). Investigating how claudin-2 expression is regulated in hepatic cells has clinical relevance because deficiency of this protein causes intrahepatic cholestasis and increases gall stone formation in mice (Matsumoto et al., 2014; Yeh et al., 2010). To further investigate the effects of Wnt signaling on claudin-2 expression, we performed experiments in the hepatocyte-derived cell line AML-12. Surprisingly, the addition of Wnt2 or Wnt9b alone or in combination with Rspo3 had no demonstrable effect on Cldn2 expression whereas those same factors stimulated the expression of Axin2 (a known Wnt/β-catenin target gene) in AML-12 cells. Possible explanations for those unanticipated results include differences in the cellular context of immortalized AML-12 cells compared to intact hepatocytes, or the requirement of distinct Wnt thresholds and/or specific Wnt ligand combinations to stimulate Axin2 vs. Cldn2 hepatocyte expression.

Another interesting finding in our study is that preserving metabolic and non-metabolic zonation in the adult liver requires Wnt ligand secretion from LSECs. Using the same Lyve1-Cre mouse strain that we used here, other researchers produced Lyve1-Cre;Wlsf/f mice and similar to us they described that GS and Cyp2e1 proteins were absent or barely detected in the mutant adult liver (Preziosi et al., 2018). On the other hand, that study did not examine alterations in other zonated proteins in the mutant adult liver or the phenotype of Lyve1-Cre;Wlsf/f newborn livers. Furthermore, those authors concluded that Wls was deleted in both CEVs and LSECs in Lyve1-Cre;Wlsf/f livers. In contrast, our results of lineage tracing experiments invalidated that cre recombinase was ever expressed in CEVs in our Lyve1-Cre;Wlsf/f mice. Whether differences in the genetic background of the mice used in the two studies explain the discrepant results is unclear. On the other hand, our discovery that GS and Cyp2e1 protein expression was relatively normal in the Lyve1-Cre;Wlsf/f newborn liver indicates that other cellular sources of Wnts (most probably CEVs) and not LSECs initiate metabolic zonation. Moreover, our results from in situ hybridization experiments and qRT-PCR analysis of isolated LSECs (CD117+/CD31+ and Lyve-1+/CD31+/CD117LOW) support a model in which CEVs produce Wnt ligands and agonists (most likely Wnt2, Wnt9b and Rspo3) that induce metabolic Zones 2/3 in the perinatal liver, and LSECs secrete Wnt ligands (mainly Wnt2) that preserve metabolic and non-metabolic zonation in the adult liver. Overall, our results support and expand other published data (Ding et al., 2010; Wang et al., 2015; Zhao et al., 2019).

We also took advantage of Cldn2-EGFP mice to analyze simultaneously parenchymal and non-parenchymal cell behaviors in the CCl4-acute injury mouse model. Our analysis revealed several interesting new findings in this model, including a small population of intact Cyp2e1+/GFP+ hepatocytes that remained located at the margins of the area of necrosis. Why some Cyp2e1+ hepatocytes survive the injurious insult is not known, but one possibility is that the dose of CCl4 is too low to access all Zone 2 hepatocytes. On the other hand, some results in our study indicated that the remaining Cyp2e1+ hepatocytes and the surrounding Cyp2e1 hepatocytes repaired the damaged Zone 2 through proliferation: 1) those cells expressed the regulator of hepatic progenitor proliferation Tbx3 [(Lüdtke et al., 2009; 2) both Cyp2e1+ hepatocytes and Cyp2e1 hepatocytes incorporated EdU in their DNA and retained this label for up to 5 days. This notion is favored by the results of recent studies showing that liver repair mainly occurs via proliferation of perivenous and periportal hepatocytes in different mouse models of liver injury (including the CCl4 model described here) (Chen et al., 2020; Matsumoto et al., 2020; Sun et al., 2020). Interestingly, we found that in contrast to Cyp2e1+/GFP+ hepatocytes all hepatocytes in pericentral Zone 3 (GS+/GFP+) were destroyed upon CCl4 acute exposure and in the next 1–2 days GS expression was induced de novo in a few GFP+ hepatocytes located at the front of Zone 2. The number of GS+/GFP+ hepatocytes subsequently increased and those cells gradually adjoined the central vein endothelium as the immune infiltrates resolved. These results demonstrate that Zone 3 is specified de novo at the front of an expanding Zone 2 during the repair process that follows CCl4-acute liver injury. Similar observations were reported in a recent study in which Axin2+ hepatocytes were genetically ablated and the authors showed complete destruction of Zone 3 and subsequent reappearance of GS+ hepatocytes in areas juxtaposed to the CV endothelium (Sun et al., 2020). We hypothesize that Wnt ligands and Wnt agonists produced by intact LSECs are major players in the induction of a new Zone 3 in the CCl4-injury model because the new GS+ cells were always juxtaposed or near the liver sinusoidal endothelium and, conversely, those cells were physically separated from the central vein endothelium by macrophage infiltrates. Whether a specialized subset of LSECs produces the Wnt ligands and agonists that repair Zones 2 and 3 remains an open question although our results of immunofluorescence and magnetic bead purification experiments suggested that CD117+/Lyve-1+ LSECs are major sources of Wnt2, Wnt9b and Rspo3 during the repair process that follows CCl4-induced injury.

In summary, our study complements and expands current knowledge on liver zonation and regeneration by showing that multiple Wnt endothelial sources help to orchestrate the spatiotemporal distribution of hepatocyte functions during liver maturation and to promote metabolic zone re-specification during liver repair. The advantages we encountered using Cldn2-GFP mice advocate their use in similar investigations of parenchymal and non-parenchymal cell behavior in chronic liver damage or conditions that lead to pathologic claudin-2 expression.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource/referenceIdentifiersAdditional
Information
Commercial assay or kitClick-iT EdU Imaging KitInvitrogenInvitrogen: C10338
Commercial assay or kitPureLink RNA Mini KitInvitrogenInvitrogen: 12183018A
Commercial assay or kitiScript cDNA Synthesis KitBioradBiorad: 170–8891
Commercial assay or kitALT Activity AssaySigmaSigma: MAK052
Commercial assay or kitAST Activity AssaySigmaSigma: MAK055
Commercial assay or kitABC reagentVector LaboratoriesVector: PK-6100
Commercial assay or kitDAB solutionVector LaboratoriesVector: SK-4105
Commercial assay or kitPierce ECL Plus Western blotting SubstratePiercePierce: 32132
Commercial assay or kitRNAscope 2.5 HD Duplex manual assayAdvanced cell diagnosticsCat. #: 322436
Commercial assay or kitDynabeadsTM FlowCompTM MouseCD4 kitInvitrogenCat. #: 11461D
ProbeRNAscope Probe Mm-Wnt2Advanced cell diagnosticsCat #: 313601NM_023653.5, region 857–2086
ProbeRNAscope Probe Mm-Rspo3-O2Advanced cell diagnosticsCat. #: 483781NM_028351.3, region 717–2099
ProbeRNAscope Probe Mm-Wnt9bAdvanced cell diagnosticsCat.#: 405091NM_011719.4, region 706–1637
ProbeRNAscope Probe Mm-Lyve1-C2Advanced cell diagnosticsCat. #: 42451-C2NM_053247.4, region 2–952
ProbeRNAscope Probe Positive Control ProbeAdvanced cell diagnosticsCat. #: 320761Mm-Polr2a, NM_001291068.1, region 3212–4088
ProbeRNAscope 2-Plex Negative ControlAdvanced cell diagnosticsCat. #: 320751DapB, CP015375.1, region 2252107–2252555
Antibodyanti-mouse GFP (chicken polyclonal)AbcamCat. #: ab13970; RRID:AB_300798IF, IHC (1:1000)
Antibodyanti-mouse GS (rabbit polyclonal)AbcamCat. #: ab49873; RRID:AB_880241IF, IHC (1:5000)
Antibodyanti mouse Cyp2e1 (rabbot polyclonal)AbcamCat. #: ab28146; RRID:2089985IF, IHC (1:500)
Antibodyanti-mouse E-cadherin (rat monoclonal)NovexCat. #: 13–1900; RRID:AB_2533005IF (1:5000)
Antibodyanti-mouse HNF-4α (goat polyclonalSanta Cruz BiotechnologyCat. #: sc-6556; RRID:AB_2117025IF (1:50)
Antibodyanti-mouse Prox1 (rabbit polyclonal)ProteintechCat. #: 11067–2-AP; RRID:AB_2268804IF (1:1000)
Antibodyanti-mouse Tbx3 (rabbit polyclonal)AbcamCat. #: ab99302; RRID:AB_10861059IF (1:100)
Antibodyanti-mouse APC (rabbit polyclonal)AbcamCat. #: ab52223; RRID:AB_867687IF (1:50)
Antibodyanti-mouse F4/80 (rat monoclonal)AbcamCat. #: ab6640; RRID:AB_1140040IF (1:1000)
Antibodyanti-mouse PECAM-1 (rat monoclonal)BD PharmingenCat. #: 550274;
RRID:AB_393571
IF (1:100) MI (2 µg/25 µL)
Antibodyanti-mouse Lyve1 (goat polyclonal)R and D SystemsCat. #: BAF2125; RRID:AB_2138529IF (1:250)
Antibodyanti-mouse Claudin-2 (rabbit polyclonal)InvitrogenCat. #: 51–6100; RRID:AB_2533911IHC (1:250)
Antibodyanti-mouse CD86 (rat monoclonal)SouthernBiotechCat. #: 1735–01; RRID:AB_2795211IF (1:100)
Antibodyanti-mouse PCK1 (rabbit polyclonal)AbcamCat. #: ab28455;
RRID:AB_777191
IHC (1:100)
Antibodyanti-mouse Beta-gal (chicken polyclonal)AbcamCat. #: ab9361; RRID:AB_307210IF (1:2000)
Antibodyanti-mouse Lyve1 (rat monoclonal)R and D systemsCat. #: MAB215, RRID:AB_2138528MI (2 µg/25 µL)
Antibodyanti-mouse CD117 (rat monoclonal)R and D SystemsCat. #: MAB1356; RRID:AB_2131131IF (1:50) MI (2 µg/25 µL)
AntibodyCy3 Anti-Rabbit IgG (H+L) (donkey polyclonal)Jackson ImmunoResearchCat. #: 705-165-152; RRID:AB_2307443IF (1:250)
AntibodyCy3 Anti-Goat IgG (H+L) (donkey polyclonal)Jackson ImmunoResearchCat. #: 705-165-147; RRID:AB_2307351IF (1:250)
AntibodyCy3 Anti-Rat IgG (H+L) (donkey polyclonal)Jackson ImmunoResearchCat. #: 712-165-153; RRID:AB_2340667IF (1:250)
AntibodyAlexa Fluor 488 Anti-Chicken IgY (IgG) (H+L) (donkey polyclonal)Jackson ImmunoResearchCat. #: 703-545-155; RRID:AB_2340375IF (1:250)
AntibodyAlexa Fluor 488 Anti-Rat IgG (H+L) (donkey polyclonal)Jackson ImmunoResearchCat. #: 712-545-153; RRID:AB_2340684IF (1:250)
AntibodyAlexa Fluor 488 Anti-Goat IgG (H+L) (donkey polyclonal)Jackson ImmunoResearchCat. #: 705-545-147; RRID:AB_2336933IF (1:250)
AntibodyBiotin-SP (long spacer) Anti-Rabbit IgG (H+L) (donkey polyclonal)Jackson ImmunoResearchCat. #: 711-065-152; RRID:AB_2340593IHC (1:250)
Sequencebased reagentGlul_FThis paperPCR primersTGAACAAAGGCATCAAGCAAATG
Sequence-based reagentGlul_RThis paperPCR primersCAGTCCAGGGTACGGGTCTT
Sequence- based reagentCyp2e1_FThis paperPCR primersCGTTGCCTTGCTTGTCTGGA
Sequence-based reagentCyp2e1_RThis paperPCR primersAAGAAAGGAATTGGGAAAGGTCC
Sequence- based reagentAxin2_FThis paperPCR primersTGACTCTCCTTCCAGATCCCA
Sequence- based reagentAxin2_RThis paperPCR primersTGCCCACACTAGGCTGACA
Sequence-based reagentCldn2_FThis paperPCR primersCAACTGGTGGGCTACATCCTA
Sequence- based reagentCldn2_RThis paperPCR primersCCCTTGGAAAAGCCAACCG
Sequence-based reagentTbx3_FThis paperPCR primersAGATCCGGTTATCCCTGGGAC
Sequence based reagentTbx3_RThis paperPCR primersCAGCAGCCCCCACTAACTG
Sequence-based reagentCdh1_FThis paperPCR primersCCAAGCACGTATCAGGGTCA
Sequence- based reagentCdh1_RThis paperPCR primersACTGCTGGTCAGGATCGTTG
Sequence-based reagentProx1_FThis paperPCR primersAAGCGCAATGCAGGAAGGGCT
Sequence- based reagentProx1_RThis paperPCR primersACCACTTGATGAGCTGCGAGG
Sequence- based reagentActb_FThis paperPCR primersAGATCAAGATCATTGCTCCTCCT
Sequence-based reagentActb_RThis paperPCR primersACGCAGCTCAGTAACAGTCC
Sequence- based reagentApc_FThis paperPCR primersCTTGTGGCCCAGTTAAAATCTGA
Sequence- based reagentApc_RThis paperPCR primersCGCTTTTGAGGGTTGATTCCT
Sequence- based reagentWnt2_FThis paperPCR primersTCCGAAGTAGTCGGGAATCG
Sequence- based reagentWnt2_RThis paperPCR primersGCCCTGGTGATGGCAAATAC
Sequence- based reagentWnt9b_FThis paperPCR primersGGGCATCAAGGCTGTGAAGA
Sequence- based reagentWnt9b_RThis paperPCR primersAACAGCACAGGAGCCTGACA
Sequence- based reagentRspo3_FThis paperPCR primersACACCTTGGAAAGTGCCTTGA
Sequence- based reagentRspo3_RThis paperPCR primersGCCTCACAGTGTACAATACTGACACA
Sequence- based reagentPecam1_FThis paperPCR primersAGCCTAGTGTGGAAGCCAAC
Sequence- based reagentPecam1_RThis paperPCR primersGGAGCCTTCCGTTCTTAGGG
Sequence- based reagentKit_FThis paperPCR primersCAGGAGCAGAGCAAAGGTGT
Sequence-based reagentKit_RThis paperPCR primersGGGCCTGGATTTGCTCTTTG
Sequence-based reagentLyve1_FThis paperPCR primersGCCAACGCGGCCTGTAAGAT
Sequence- based reagentLyve1_RThis paperPCR primersCCCAGGTGTCGGATGAGTTG
Sequence- based reagentDll4_FThis paperPCR primersTGTGATTGCCACAGAGGTATAAGG
Sequence- based reagentDll4_RThis paperPCR primersGCAATGTAAACAATGCAGAAGGAA
Cell line (Mus musculus)Mus musculus AML12 Cell lineATCCCat. #: CRL-2254; RRID:CVCL_0140
Cell culture mediaDMEM F12GibcoCat. #: 11320–033
Chemical compound, drugDexamethasoneSigma-AldrichCat. #: D4902(40 ng/ml)
Chemical compound, drug10 mg/ml insulin,5.5 mg/ml transferrin,5 ng/ml seleniumGibcoCat. #: 41400045(1X)
Chemical compound, drugCHIR99021Sigma AldrichCat. #: SML1046(3 µM)
Chemical compound, drugCCl4Sigma AldrichCat. #: 319961
Chemical compound, drugTamoxifenSigma AldrichCat. #: T5648
Chemical compound, drugCorn oilSigma AldrichCat. #: C8267
Chemical compound, drugMayer's HematoxylinScyTek LaboratoriesCat. #: HMM500
Chemical compound, drugDAPILife TechnologiesCat. #: D1306(1 µg/mL)
Chemical compound, drugTRIzol ReagentThermo FisherCat. #: 15596026
Chemical compound, drugcOmpleteTM, Mini EDTA-free protease inhibitorRocheCat. #: 11836170001
Chemical compound, drugDynabeadsTM Sheep Anti-Rat IgGInvitrogenCat. #: 1103525 µl/sample
Chemical compound, drugColagenase H from clostridium histolyticumMillipore SigmaCat. #: 110740590010.5 mg/mL
Recombinant proteinRspo3R and D SystemsCat. #: 4120-RS-025(500 ng/ml)
Recombinant proteinWnt2AbnovaCat. #: H00007472-P01(500 ng/ml)
Recombinant proteinWnt9bR and D SystemsCat. #: 3669-WN-025(500 ng/ml)
Strain Mus musculusB6.129P2-Lyve1tm1.1(EGFP/cre)Cys/JThe Jackson LaboratoryCat. #: JAX:012601; RRID:IMSR_JAX:012601
Strain Mus musculusCdh5CreERT2Ralf H. Adams, Max Planck Institute for Molecular Biomedicine, Münster, Germany Wang et al., 2010
Strain Mus musculusTg[Cldn2-EGFP]OU78Gsat/MmucdMutant Mouse Regional Resource Center [MMRRC], University of California, Davis Gong et al., 2003
Strain Mus musculus129S-Wlstm1.1Lan/JThe Jackson LaboratoryCat. # JAX:012888; RRID:IMSR_JAX:012888
Strain Mus musculusRoB6.129S4-Gt(ROSA)26Sortm1Sor/JsaThe Jackson LaboratoryCat. # JAX:004077; RRID:IMSR_JAX:004077
Strain Mus musculusSox9CreERT2 (Tg(Sox9-cre/ERT2)1Msan/The Jackson LaboratoryCat. # JAX:018829; RRID:IMSR_JAX:018829
SoftwareAdobe Photoshop CCAdobe SystemsRRID:SCR_014199
SoftwareImageJNIH https://imagej.net/RRID:SCR_003070
SoftwareGraphPad Prism 5.0 softwareGraphPad Software;http://www.graphpad.comRRID:SCR_002798

Mice

Cldn2-EGFP (Tg[Cldn2-EGFP]OU78Gsat/Mmucd; Mutant Mouse Regional Resource Center [MMRRC], University of California, Davis) were produced by the GENSAT Project (Rockefeller University, NY Gong et al., 2003). Ralf H. Adams (Max Planck Institute for Molecular Biomedicine, Münster, Germany) provided the Cdh5CreERT2 mice (hereafter named as Cdh5-CreERT2 Wang et al., 2010). WlsloxP/loxP (129S-Wlstm1.1Lan/J, stock 012888), ROSA26-LacZ (B6.129S4-Gt(ROSA)26Sortm1Sor/J, stock 003474), ROSA26-EGFP (B6.129-Gt(ROSA)26Sortm2Sho/J, stock 004077), Sox9-CreERT2 (Tg(Sox9-cre/ERT2)1Msan/J, stock 018829) and Lyve1-Cre (B6.129P2-Lyve1tm1.1(EGFP/cre)Cys/J, stock 012601) mice were from The Jackson Laboratory (Bar Harbor, ME).

Animal experiments

Request a detailed protocol

For adult Wls endothelial deletion, Cdh5-CreERT2;WlsloxP/loxP mice and Cdh5-CreERT2 littermates (4–6 weeks old) received one intraperitoneal (i.p.) tamoxifen injection (250 mg/kg) for three consecutive days, and used for further experiments after a 2 week wash out period. For acute liver injury induction, an i.p. bolus of 1 μL/g body weight CCl4 (Sigma, 319961, St. Louis, MO) diluted 4x in corn oil (Sigma, C8267, St. Louis, MO) was administered. For EdU labeling, mice first received an i.p. CCl4 bolus (1 μL/g body weight) and 2 days later they were injected (i.p.) with EdU (50 μg/g body weight; Invitrogen A10044, Waltham, MA). For lineage tracing experiments using Sox9-CreERT2; ROSA26-EGFP mice, the animals first received an i.p. CCl4 bolus (1 μL/g body weight) and for the next 3 days they received one daily intraperitoneal (i.p.) tamoxifen injection (250 mg/kg). Blood was collected from the retro-orbital plexus and coagulated at room temperature for 1 hr. Adult mice used in this study were age- and gender-matched littermates. The animal experiments are not randomized and the investigators were not blinded to allocation during experiments and outcome assessment.

Morphometric analysis

Request a detailed protocol

Images were taken at 10x magnification for Zone 1 (Ecad+) and Zone 2/3 (Cyp2e1+/claudin-2/GFP+), and 20x for Zone 3 (GS+). Areas for quantification were selected using Photoshop CC 2015 and were measured using Image J software. Edu+ hepatocytes were counted using ImageJ. Triplicate samples were used and at least three different areas were selected per sample for quantification.

Immunofluorescence

Request a detailed protocol

Livers of embryos (embryonic [E] day E18.5), newborn (postnatal [P] day P2) or juvenile (P15) mice were harvested and fixed in 4% paraformaldehyde (PFA) at 4°C for 5 hr. Adult livers were isolated from mice perfused with 4% PFA, and post-fixed in 4% PFA at 4°C for 5 hr. Livers were then immersed in 30% sucrose overnight at 4°C, embedded in Tissue-Tek (Sakura, 25608–930, Torrance, CA) and cryosectioned (10 μm). Sections were incubated in blocking solution (Roche 11096176001, Mannheim, Germany) at room temperature for 30 min, then incubated with primary antibodies at room temperature overnight and with secondary antibodies for 2 hr at room temperature. Signals were developed with fluorescent-conjugated secondary antibodies (Alexa Fluor 488, Cy3 or Cy5; Jackson ImmunoResearch Laboratories) and nuclei were stained with DAPI (Cell Signaling Technology). Immunostaining images were obtained with a ZEISS Axioscop two fluorescence microscope and processed with Adobe Photoshop CC (Adobe Systems).

Immunohistochemistry

Request a detailed protocol

Livers were isolated from newborn, P15 or adult mice and fixed with 4% PFA as indicated before. After embedding in paraffin, 7 μm sections were cut, deparaffinized in xylene, rehydrated in ethanol, and incubated with citrate antigen retrieval buffer in a 2100-Retriever (BioVendor Laboratory Medicine, Inc). After blocking, sections were incubated overnight at room temperature with primary antibodies followed by 2 hr incubation at room temperature with biotinylated secondary antibodies, and 30 min incubation at room temperature with ABC reagent (Vector Laboratories, PK-6100, Burlingame, CA). Sections were incubated with DAB solution (Vector Laboratories, SK-4105, Burlingame, CA) for visualizing the immunocomplexes, and counterstained with haematoxylin before mounting. Images were acquired with a ZEISS AXIOSCOP two fluorescence microscope and processed with Adobe Photoshop CC (Adobe Systems).

Click-it edu incorporation assay

Request a detailed protocol

The Click-iT EdU reaction was performed as per the manufacturer’s instructions (Click-iT EdU Imaging Kit, Invitrogen, C10338, Waltham, MA).

Real-time PCR

Request a detailed protocol

RNA was isolated with PureLink RNA Mini Kit (Invitrogen, 12183018A). cDNA was synthesized using iScript cDNA Synthesis Kit (Biorad, 170–8891). The expression of mRNA for genes of interest was normalized to β-actin.

Alanine aminotransferase (ALT) and Aspartate aminotransferase (AST) Assays

Request a detailed protocol

Whole blood was collected from the retroorbital plexus and coagulated at room temperature for 1 hr. The serum was separated by centrifugation at 3000 rpm at 4°C for 15 min. The serum levels of ALT and AST were measured using the ALT (Sigma, MAK052) and AST (Sigma, MAK055) kits according to the manufacturer’s instructions.

Cell culture

Request a detailed protocol

The AML12 mouse hepatocyte cell line was purchased from ATCC (ATCC CRL-2254) and cultured in DMEM F12 medium (Gibco, cat no. 11320–033) supplemented with 10% fetal bovine serum, 40 ng/ml dexamethasone (Sigma-Aldrich, catalog number D4902), 10 μg/ml insulin, 5.5 μg/ml transferrin and 5 ng/ml selenium (Gibco, catalog number 41400045). The cells were maintained in a humid, 5% CO2 atmosphere. To stimulate β-catenin activity, we followed a protocol similar to that described in Gerbal-Chaloin et al. (2014). Cells were plated in gelatin coated 6-well plates for 48 hr, fasted 24 hr in serum free medium, and incubated 24 hr with 3 μM CHIR99021 (GS3K inhibitor; Sigma-Aldrich, cat no. SML1046), 500 ng/ml Wnt2 (Abnova, cat no. H00007472-P01) or 500 ng/mL Wnt9b (R and D System, cat no. 3669-WN-025). For some experiments, the cells were incubated with Wnt2 or Wnt9b plus 500 ng/mL Rspo3 (R and D Systems, cat no. 4120-RS-025). RNA was isolated as described above and qRT-PCR was performed for Axin2, Cyp2e1, Glul and Cldn2. Actb expression was used for normalization.

In situ hybridization

Request a detailed protocol

Livers were isolated from newborn (P2) or adult mice, cut in slices and fixed in 4% PFA at 4°C overnight. After embedding in paraffin, 7 μm sections were cut, deparaffinized in xylene, rehydrated in ethanol, and processed for RNA in situ hybridization using the RNAScope 2.5 HD Duplex Kit following the manufacturer’s instructions (Advanced Cell Diagnostics). The following RNAscope probes were used: Wnt2 (Mm-Wnt2, Cat. 313601, NM_023653.5, region 857–2086), Wnt9b (Mm-Wnt9b, Cat. 405091, NM_011719.4, region 706–1637), Rspo3 (Mm-Rspo3-02, Cat. 483781, NM_028351.3, region 717–2099), Lyve1 (Mm-Lyve1-C2, Cat. 428451-C2, NM_053247.4, region 2–952), DapB (negative control, Cat. 320751, CP015375.1, region 2252107–2252555), Polr2a (positive control, Mm-Polr2a, Cat. 320761, NM_001291068.1, region 3212–4088).

Hepatic endothelial cell (HEC) isolation with magnetic beads

Request a detailed protocol

Before HECs isolation, 2 μg of each rat anti-CD31(BD Pharmigen, cat. 550274), rat anti-CD117 (R and D Systems, cat. MAB1356) and rat anti-Lyve-1 (R and D systems, cat. MAB215) antibodies were incubated with 25 µl of magnetic beads (Dynabeads Sheep Anti-Rat IgG, Invitrogen, cat.11035) 1 hr at 4°C. A Dynamag-15 Magnet (Invitrogen, cat.12301D) was used to isolate the antibody conjugated-beads as per the manufacturer’s recommendation. HECs were isolated from mice injected with CCl4 or saline and sacrificed 3 days later. The liver was perfused through the inferior vena cava first with 20 mL perfusion medium I (1X PBS, 10 mM HEPES, 0.5 g/L KCl, 50 mM glucose, 0.2 mM EDTA, pH 7.4) at 37°C, followed by 50 mL perfusion medium II (1X PBS, 30 mM HEPES, 0.5 g/L KCl, 50 mM glucose, 1 mM CaCl2, 0.5 mg/mL Collagenase H, pH 7.4) at 37°C. Upon dissecting the liver, the cells were dispersed in cold DMEM medium and passed through a 100 µm strainer. The nonparenchymal cells (NPCs) were separated from hepatocytes by low-speed centrifugation (50 x g, 5 min) at 4°C. The supernatant containing NPCs was collected and washed twice at 50 x g for 5 min at 4°C, and pelleted at 170 x g for 10 min. The cell pellets were resuspended in 1 mL red cell lysis buffer (155 mM NH4Cl, 12 mM NaHCO3, 0.1 mM EDTA) and incubated for 1 min at room temperature (RT), followed by addition of 10 mL isolation buffer (1X PBS Ca2+ and Mg2+ free, 0.1% BSA, 2 mM EDTA, pH 7.4). 1 × 107 NPCs were resuspended in 1 mL isolaton buffer and incubated with 25 µL of anti-CD31 Dynabeads for 30 min at 4°C, After the tube was placed in the magnet for 1 min, the supernatant was discarded, the magnetic beads were washed twice with isolation buffer and the CD31+ cells were incubated with release buffer [Dynabeads FlowComp Mouse CD4, Invitrogen, 11461D] 10 min at RT, eluted and incubated with 25 µL of anti-CD117 Dynabeads for 30 min at 4°C. After Dynabead binding, the CD117+/CD31+ fraction was isolated as indicated above and lysed in TRIzol (1 mL) for RNA isolation. The unbound supernatant was incubated with anti-Lyve-1 Dynabeads and the Lyve1+/CD31+/CD117low cells were isolated as previously indicated.

Statistics and quantitative analysis

Request a detailed protocol

The data represent the mean ± SEM and P value were calculated by two-tailed unpaired Student’s t-test (Figures 2E, 3C, D, 4F and 6E) or one-way ANOVA (Figures 1D, 4E, 5E, 6B and 7C) or two-way ANOVA (Figures 3E, F and 4B) by the GraphPad Prism 8.0 software. NS, not significant (p>0.05), *p<0.05, **p<0.01, ***p<0.001. Each quantitative experiment was repeated at least three times. We considered biological replicates as those animals or tissues subjected to the same experimental test, and technical replicates as individual samples or tissues subjected to the same analysis.

Study approval

Request a detailed protocol

All animal experiments were performed in accordance with protocols reviewed and approved by the Institutional Animal Care and Use Committee at Northwestern University. The animal welfare assurance number for this study is A3283-01.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
    LYVE-1 is not restricted to the lymph vessels: expression in normal liver blood sinusoids and down-regulation in human liver Cancer and cirrhosis
    1. C Mouta Carreira
    2. SM Nasser
    3. E di Tomaso
    4. TP Padera
    5. Y Boucher
    6. SI Tomarev
    7. RK Jain
    (2001)
    Cancer Research 61:8079–8084.
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35

Decision letter

  1. Didier YR Stainier
    Senior Editor; Max Planck Institute for Heart and Lung Research, Germany
  2. Holger Willenbring
    Reviewing Editor; University of California, San Francisco, United States
  3. Holger Willenbring
    Reviewer; University of California, San Francisco, United States
  4. Sabine Colnot
    Reviewer; Institut National de la Santé et de la Recherche Médicale, France

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This paper includes a detailed description of establishment of lobular zonation in postnatal liver development and after liver injury. The role of Wntsignaling in this process and the importance of sinusoidal endothelial cells as a source of Wnts is specifically investigated. The results provide a reference point and tools for future studies of liver zonation.

Decision letter after peer review:

Thank you for submitting your article "Endothelial Wnt signaling establishes metabolic zonation during liver maturation and after acute hepatic injury" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Holger Willenbring as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Didier Stainier as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Sabine Colnot (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The manuscript by Ma et al. investigates the effect of endothelial cell-derived Wnts on zonation in liver maturation and regeneration. The authors present an analysis of how metabolic zonation in the mouse liver changes from the perinatal period to adulthood, using markers of Zones 1-3, including new Cldn2-EGFP mice. They show that glutamine synthetase and Cyp2e1 zonation is fixed early, whereas specific zonation of claudin-2, E-cadherin and PEPCK occurs later. The authors further show that deleting Wntless (Wls) in sinusoidal endothelial cells (LSECs) using Lyve1-Cre reduces Zones 2 and 3 and increases Zone 1 marker expression. They confirm these findings in adult mice using VE-cadherincreER, which deletes Wls in all endothelial cells. The authors also use VE-cadherincreER;Wls mice to show that Wnts secreted by endothelial cells are needed to re-establish Zone 3 marker expression after CCl4 injury. The detailed description of the development and maintenance of metabolic zonation is convincing and interesting. The authors show for the first time that Wnt secretion by LSECs rather than central vein endothelial cells (CEVs) is responsible for liver zonation. Which Wnts are involved and how they shape the different expression patterns of zonated genes is not investigated. It is possible that zonated genes differ in their responsiveness to Wnts or that LSECs differ in which and how much Wnt they secrete. Addressing these questions would provide valuable mechanistic insight. The manuscript would also benefit from more detailed characterization of the new Cldn2-EGFP mouse. The Discussion should be revised to be more focused and put the new findings in perspective with the existing literature. Along these lines, some interesting but descriptive observations should be interpreted more carefully or removed.

If certain experimental revisions cannot be carried out, please provide clear arguments explaining why these experiments are not possible in the Rebuttal letter.

Essential revisions:

1) Quantification of Wnts and R-spondin3 in LSECs in all 3 zones, CEVs and portal vein endothelial cells in the perinatal and adult normal liver and in the CCl4-injured liver, with and without Wls inactivation, e.g., using RNA in situ hybridization.

2) Analysis of whether increasing Wnt levels affects the expression patterns of glutamine synthetase, Cyp2e1 and claudin-2, e.g., in vitro.

3) Detailed characterization of Cldn2-EGFP mice: Overlap of claudin-2 and EGFP expression should be analyzed at different time points, e.g., using RNA in situ hybridization. Whether claudin-2 and Cyp2e1 are invariably co-expressed or whether some Cyp2e1+ cells lack claudin-2 expression should be clarified. Co-staining of claudin-2 with a biliary marker should be added.

4) Lyve1-Cre;Wls mice and also VE-cadherincreER;Wls mice are shown to be resistant to CCl4 liver damage. It is hypothesized that reduction of Zones 2 and 3 and thus Cyp2e1 expression leads to insufficient CCl4 activation in these mice. This could be tested by expressing Cyp2e1 in these zones, e.g., using AAV8 vectors, which preferentially transduce these zones.

5) Interesting but descriptive observations that should be interpreted more carefully or removed:

– The part of the manuscript about the source of new hepatocytes after CCl4 injury states that some Zone 2 cells are spared despite expressing the CCl4 activator Cyp2e1 and that these cells are the main drivers of regeneration, although periportal hepatocytes also proliferate. Because these results were obtained using EdU labeling, it is possible that these cells underwent polyploidization instead of division, which is not addressed.

– Similarly, it is concluded that stem cells or progenitor cells do not contribute to regeneration after CCl4 injury but no data is shown.

6) In the Discussion, the new results should be put into perspective with existing literature, including recent papers like PMID 30762896. For example, it should be discussed why VE-cadherincreER;Wls mice acutely died after injection of CCl4 followed by tamoxifen in that paper but not in the authors' study.

7) The title should be revised to highlight the manuscript's novel findings.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your article "Metabolic and non-metabolic liver zonation is established non-synchronously and requires sinusoidal Wnts" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Holger Willenbring as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Didier Stainier as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Sabine Colnot (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Ma et al. report Wnt-dependent establishment of liver zonation in postnatal development and after injury, including essential contribution of LSECs to Wnt secretion. The revised manuscript is improved, but two key points remain to be addressed to support the conclusions and novelty.

Essential revisions:

1) Quantification of Wnt2, Wnt9b and Rspo3 expression in endothelial cells in normal and injured liver is still missing. The reviewers agree with the authors that analyzing these genes in Wls-deleted mice will probably not be informative; however, these genes should be analyzed and quantified in all three zones of the liver lobule in untreated and CCl4-treated wildtype mice. A minimum of 3 mice per group should be analyzed.

2) in vitro testing of Wnt2 (not Wnt3), with and without Rspo3. This additional experiment will better integrate the in vitro data with the in vivo data and potentially clarify or substantiate the findings related to how LSECs contribute to liver zonation, e.g., whether there is Wnt/Rspo redundancy. The in vitro LiCl data could be removed because this compound lacks specificity.

https://doi.org/10.7554/eLife.46206.sa1

Author response

Essential revisions:

1) Quantification of Wnts and R-spondin3 in LSECs in all 3 zones, CEVs and portal vein endothelial cells in the perinatal and adult normal liver and in the CCl4-injured liver, with and without Wls inactivation, e.g., using RNA in situ hybridization.

As requested by the reviewers, we performed in situ hybridization experiments in perinatal (P2) and adult (P30) wildtype livers to investigate the expression of Rspo3, Wnt2 and Wnt9b in CEVs and LSECs. We did not quantify these results because we did not have sufficient material for a quantitative analysis (the reason being that we had to purchase a complete RNAscope system and the included kit only has sufficient reagents to stain 20 slides). Also, although initially we considered using our regular in situ hybridization protocol with digoxigenin-labelled probes we did not succeed obtaining plasmids for the 3 probes from other collaborators (and we did not attempt to prepare the vectors ourselves due to time limitations). Moreover, we obtained an in situ hybridization protocol suitable for adult mouse livers from the reviewer that we tested using an Alb probe and worked very well. However, when we used a DIG-labeled Rspo3 probe validated in embryonic tissues we did not obtain a signal using sections of the same liver. Notwithstanding, our double RNAscope in situ results using a Lyve1 probe combined with Wnt2, Rspo3 or Wnt9b probes were successful since, as reported recently by the R. Nusse’s group (Zhao et al., 2019) we demonstrated expression of Wnt2, Rspo3 and Wnt9b in the central vein endothelium (new Figure 3A). More important, we conclusively demonstrate expression of those transcripts in perivenous LSECs in P2 and P30 livers (new Figure 3A).

Finally, we did not perform the suggested in situ experiments in wildtype and Wls-deleted CCl4 livers for 2 reasons: 1) since Zhao et al., 2019, already reported the expression of various Wnts in PECAM+ endothelial cells in the CCl4-injured liver, the results of the proposed experiment would not be completely novel; 2) we did not perform an in situ analysis in the Wls-depleted liver since this alteration mainly blocks the secretion of Wnts and probably does not affect the expression of these ligands or Rspo3 (unless there is some sort of feedback effect, something that is beyond the scope of our study).

2) Analysis of whether increasing Wnt levels affects the expression patterns of glutamine synthetase, Cyp2e1 and claudin-2, e.g., in vitro.

In new Figure 3 (“Lack of Wnt ligand secretion from LSECs impairs adult zonation maintenance”) we added a new result (Figure 3F) showing how Wnt/β-catenin stimulation affects Axin2, Cyp2e1, Glul and Cldn2 transcript expression in the Wnt-responsive mouse hepatocyte cell line AML12. These new results show that culturing AML12 cells with known Wnt pathway stimulators (i.e., LiCl, CHI99021 or Wnt3a) significantly increases expression of the canonical target Axin2. Those treatments also had variable effect on Cyp2e1 expression and only minimally affected Glul and Cldn2 expression. We discussed these new results in the Discussion section in the amended manuscript.

3) Detailed characterization of Cldn2-EGFP mice: Overlap of claudin-2 and EGFP expression should be analyzed at different time points, e.g., using RNA in situ hybridization. Whether claudin-2 and Cyp2e1 are invariably co-expressed or whether some Cyp2e1+ cells lack claudin-2 expression should be clarified. Co-staining of claudin-2 with a biliary marker should be added.

The new Figure 1 and its associated supplementary figures, Figure 1—figure supplements 1-3 describe in detail the expression of claudin-2/GFP in the liver of Cldn2-EGFP mice at various stages: E18.5, P2, P15, P30 and 6 months of age. In liver sections, we used double-immunofluorescence to show the extent of overlap of claudin-2/GFP with Cyp2e1 and these results are quantified in new Figure 1D. We did not perform in situ experiments using Cldn2 and Cyp2e1 probes due to the limited reagents in each RNAscope kit. Moreover, for these experiments we have to isolate new livers from Cldn2-EGFP mice of different ages since all the specimens that we used for immunostaining analysis were prepared using conditions that are not suitable for in situ analysis. Also, it was not possible to stain Claudin2-EGFP liver sections with chicken anti-GFP and rabbit anti-claudin-2 antibodies since these reagents use conditions that are incompatible (i.e., paraffin vs. frozen sections). However, we believe that the results in new Figure 1A convincingly show the identical distribution of GFP and claudin-2 proteins in newborn and adult livers. Moreover, new Figure 1—figure supplement 1 demonstrates identical expression of GFP and claudin-2 in the intrahepatic bile ducts and gall bladder of mice.

4) Lyve1-Cre;Wls mice and also VE-cadherincreER;Wls mice are shown to be resistant to CCl4 liver damage. It is hypothesized that reduction of Zones 2 and 3 and thus Cyp2e1 expression leads to insufficient CCl4 activation in these mice. This could be tested by expressing Cyp2e1 in these zones, e.g., using AAV8 vectors, which preferentially transduce these zones.

We agree that we need more experimental evidence in support that Lyve1-Cre;Wls mice and VE-cadherincreER;Wls mice are resistant to CCl4-induced injury because their liver has low Cyp2e1 expression. We also agree that performing the suggested AAV8-Cyp2e1 experiments should be an appropriate way to test this hypothesis. However, the preparation and isolation of the AAV8 constructs will be time consuming and currently only 2 people in my laboratory are helping the paper’s resubmission since the postdoc involved in this project left the lab in May. Therefore, as I decided to focus on the most relevant aspects of the story the previous conclusion was removed in the new Discussion section and is briefly alluded to it at the end of the new Results subsection “These unexpected results suggested that although some Cyp2e1+ hepatocytes remain in Lyve1-cre;Wlsf/f livers, these cells are protected or refractory to CCl4-induced toxicity”.

5) Interesting but descriptive observations that should be interpreted more carefully or removed:

– The part of the manuscript about the source of new hepatocytes after CCl4 injury states that some Zone 2 cells are spared despite expressing the CCl4 activator Cyp2e1 and that these cells are the main drivers of regeneration, although periportal hepatocytes also proliferate. Because these results were obtained using EdU labeling, it is possible that these cells underwent polyploidization instead of division, which is not addressed.

– Similarly, it is concluded that stem cells or progenitor cells do not contribute to regeneration after CCl4 injury but no data is shown.

We agree that some of our previous interpretations were probably partially incorrect and therefore generated some confusion. Therefore, based on the most recent publication of the Nusse’s group (Zhao et al., 2019) and our new data on Tbx3 expression in the CCl4-injury liver, we modified our initial model of zonation recovery and propose that Zone 2 is restored via proliferation of (GFP+/Cyp2e1+) and (GFP-/Cyp2e1-) hepatocytes located around the damaged area, and Zone 3 is induced de novo at the margins of expanding Zone 2 (new Discussion section). I should also indicate that we performed lineage-tracing experiments using Sox9creER;ROSA-EGFP mice to investigate if Sox9+ hepatocytes contribute to repopulate the damaged perivenous areas in the CCl4-acute injury model and our new results ruled out this possibility (new Figure 4—figure supplement 2).

6) In the Discussion, the new results should be put into perspective with existing literature, including recent papers like PMID 30762896. For example, it should be discussed why VE-cadherincreER;Wls mice acutely died after injection of CCl4 followed by tamoxifen in that paper but not in the authors' study.

We agree with the reviewers that is important to compare our findings with the existing literature. In this revision, we cite other related publications throughout the Results section to compare our new findings with published data. Also, the new Discussion section discusses both, similarities and differences between the recently published study from the Nusse’s group (PMID 30762896) and ours.

I should mention that the Zhao et al. study showed that Wls deletion using VE-cadherincreER reduces Axin2 expression and EdU incorporation in hepatocytes mouse livers acutely damaged with CCl4. In contrast, our findings in new Figure 6 provides a detailed description of how endothelial Wls deletion affects zonation pattern recovery and Zone 3 restoration after acute CCl4 administration. Thus, our study significantly expands the observations in the Zhao et al. paper. On the other hand, the only explanation I have for the different survival of VE-cadherincreER;Wlsf/f mice injected with CCl4 is that our respective studies used mice of different genetic background (mixed NMRI vs. mixed C57/BL6). The comparison of our results and those in the Zhao et al. study using VE-cadherincreER;Wlsf/fmice injected with CCl4 is included in new Discussion section.

7) The title should be revised to highlight the manuscript's novel findings.

We thank the reviewers for their reasonable suggestion. The previous title “Endothelial Wnt signaling establishes metabolic zonation during liver maturation and after acute hepatic injury” has been changed to “Metabolic and non-metabolic liver zonation is established nonsynchronously and requires sinusoidal Wnts” to better highlight our novel findings.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Essential revisions:

1) Quantification of Wnt2, Wnt9b and Rspo3 expression in endothelial cells in normal and injured liver is still missing. The reviewers agree with the authors that analyzing these genes in Wls-deleted mice will probably not be informative; however, these genes should be analyzed and quantified in all three zones of the liver lobule in untreated and CCl4-treated wildtype mice. A minimum of 3 mice per group should be analyzed.

2) in vitro testing of Wnt2 (not Wnt3), with and without Rspo3. This additional experiment will better integrate the in vitro data with the in vivo data and potentially clarify or substantiate the findings related to how LSECs contribute to liver zonation, e.g., whether there is Wnt/Rspo redundancy. The in vitro LiCl data could be removed because this compound lacks specificity.

I would like to thank again the reviewers of our paper for their valuable criticism and insightful suggestions. Their latest revision mentioned the need to fill some important gaps and asked that we perform 2 additional experiments: 1) Analyzing and quantifying (in triplicate) the expression of Wnt2, Wnt9b and Rspo3 in endothelial sinusoidal cells located in Zones 1-3, in control and CCl4 injured livers; 2) Repeating the in vitro experiments in AML12 cells using Wnt2 instead of Wnt3 and with and without Rspo3.

For the first experiment, the reviewers initially suggested to perform quantitative in situ hybridization experiments using RNAscope but I mentioned that those experiments would be quite expensive. Therefore, they suggested instead FACS isolation of CD117+ liver endothelial cells as this marker is zonated in liver sinusoidal cells or LSECs. We followed their advice and used magnetic beads to separate CD31+/CD117HIGH (‘pericentral’) endothelial cells from Lyve1+/CD31+/CD117LOW (‘mid-zonal/periportal’) LSECs. The experiments were repeated in 3 individual control livers and 3 individual CCl4-injured livers. Similar to the recent Halpern et al. paper (Halpern et al., 2018), the isolated CD117HIGH and CD117LOW endothelial cells were LSECs as they expressed Lyve-1. Also, we detected differences in Wnt2, Wnt9b and Rspo3 transcript expression between CD31+/Lyve1+/CD117HIGH cells and Lyve1+/CD31+/CD117LOW cells isolated from control livers that matched the former published scRNAseq results. Perhaps more interesting, we found that Wnt2, Wnt9b and Rspo3 transcripts were upregulated in both CD31+/Lyve1+/CD117HIGH cells and Lyve1+/CD31+/CD117LOW cells from CCl4-injured livers. Our interpretation of these quantitative results is that Wnt signaling is upregulated along the hepatic sinusoids upon acute liver injury. Also, to complement this analysis we performed immunofluorescence experiments and demonstrated that CD117 is expressed in pericentral/perivenous liver sinusoidal cells but not in central vein endothelial cells in both, control livers and CCl4-injured livers. The new results are now part of new Figure 6C-E and the conclusions from these experiments are incorporated in the new Discussion section.

In regards to the second point, we performed the suggested experiments in AML12 cells and included the new results in panel E of new Figure 3. These results demonstrate stimulation of Axin2 and Cyp2e1 expression with Wnt2 and Wnt9b and a synergistic effect of Rspo3. In contrast, these experiments did not show an obvious effect of the Wnt ligands/agonist on Glul or Cldn2 expression. Several possible explanations for these discrepant results are considered in the new Discussion section of our manuscript, including: differences in the threshold and/or combination of Wnt ligands needed to stimulate the expression of those genes; the possibility that other pathways cooperate with Wnt/β-catenin to stimulate Cldn2 expression (especially since we found that a GSK3 inhibitor increases Cldn2 expression in AML12 cells), and the fact that AML12 is an immortalized hepatocyte cell line. These new results are also discussed in the amended version of the manuscript.

In sum, all the new results are shown in Figure 3E and Figure 6C-E, and the text changes are indicated in blue in the revised article file. I hope that our new results answer the remaining concerns of the reviewers and they find our latest manuscript suitable for publication in eLife. I am very grateful for their valuable advice, their suggestions on how to investigate the expression of Wnts in endothelial sinusoidal cells, and for agreeing to disclose their names.

https://doi.org/10.7554/eLife.46206.sa2

Article and author information

Author details

  1. Ruihua Ma

    Feinberg Cardiovascular and Renal Research Institute, Department of Medicine, Northwestern University Feinberg School of Medicine, Chicago, United States
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Validation, Investigation, Visualization, Methodology, Project administration
    Competing interests
    No competing interests declared
  2. Angelica S Martínez-Ramírez

    Feinberg Cardiovascular and Renal Research Institute, Department of Medicine, Northwestern University Feinberg School of Medicine, Chicago, United States
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Validation, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared
  3. Thomas L Borders

    Feinberg Cardiovascular and Renal Research Institute, Department of Medicine, Northwestern University Feinberg School of Medicine, Chicago, United States
    Contribution
    Resources, Formal analysis, Validation, Investigation, Visualization
    Competing interests
    No competing interests declared
  4. Fanding Gao

    Feinberg Cardiovascular and Renal Research Institute, Department of Medicine, Northwestern University Feinberg School of Medicine, Chicago, United States
    Contribution
    Resources, Formal analysis, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Beatriz Sosa-Pineda

    Feinberg Cardiovascular and Renal Research Institute, Department of Medicine, Northwestern University Feinberg School of Medicine, Chicago, United States
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Project administration
    For correspondence
    beatriz.sosa-pineda@northwestern.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6872-5444

Funding

Feinberg School of Medicine (New Faculty Award 10040043-01)

  • Beatriz Sosa-Pineda

Consejo Nacional de Ciencia y Tecnología (Postdoctoral Fellowship (ASMR))

  • Angelica S Martínez-Ramírez

Feinberg School of Medicine funded all the experiments associated with the study. CONACYT awarded a fellowship to Dr. Martinez-Ramirez The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Selina Begum, Ming-Yi Chiang and the Center of Comparative Medicine (Northwestern) for technical support, RH. Adams (Max Planck Institute for Molecular Biomedicine, Münster, Germany) for the VE-cadherin-CreERT2 mice, Karen M Ridge for assisting the magnetic bead cell isolation experiments, and the GENSAT BAC Transgenic project (Rockefeller University, NY) for the Cldn2-GFP mice.

Ethics

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocols (IS00003824, welfare assurance number A3283-01) of Northwestern University.

Senior Editor

  1. Didier YR Stainier, Max Planck Institute for Heart and Lung Research, Germany

Reviewing Editor

  1. Holger Willenbring, University of California, San Francisco, United States

Reviewers

  1. Holger Willenbring, University of California, San Francisco, United States
  2. Sabine Colnot, Institut National de la Santé et de la Recherche Médicale, France

Publication history

  1. Received: February 18, 2019
  2. Accepted: March 6, 2020
  3. Accepted Manuscript published: March 10, 2020 (version 1)
  4. Version of Record published: March 12, 2020 (version 2)

Copyright

© 2020, Ma et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 574
    Page views
  • 127
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    2. Neuroscience
    Jay Li et al.
    Research Article Updated
    1. Developmental Biology
    2. Plant Biology
    André Kuhn et al.
    Research Article
