Human and other animal cells deploy three closely related dioxygenases (PHD 1, 2 and 3) to signal oxygen levels by catalysing oxygen regulated prolyl hydroxylation of the transcription factor HIF. The discovery of the HIF prolyl-hydroxylase (PHD) enzymes as oxygen sensors raises a key question as to the existence and nature of non-HIF substrates, potentially transducing other biological responses to hypoxia. Over 20 such substrates are reported. We therefore sought to characterise their reactivity with recombinant PHD enzymes. Unexpectedly, we did not detect prolyl-hydroxylase activity on any reported non-HIF protein or peptide, using conditions supporting robust HIF-α hydroxylation. We cannot exclude PHD-catalysed prolyl hydroxylation occurring under conditions other than those we have examined. However, our findings using recombinant enzymes provide no support for the wide range of non-HIF PHD substrates that have been reported.

https://doi.org/10.7554/eLife.46490.001

Introduction

The HIF prolyl hydroxylases PHD1, 2 and 3 (or EGLN2, 1 and 3) are closely related isoforms of enzymes within the 2-oxoglutarate-dependent dioxygenase family that signal oxygen levels in human and animals cells. The enzymes catalyse the post-translational hydroxylation of specific prolyl residues in the transcription factor Hypoxia Inducible Factor (HIF)-α subunits. Prolyl hydroxylation promotes the association of HIF-α with the von-Hippel-Lindau ubiquitin E3 ligase (pVHL) and subsequent degradation by the ubiquitin-proteasome pathway. PHD-catalysed hydroxylation is highly sensitive to the availability of oxygen and provides an ‘oxygen-sensing’ mechanism that, via HIF, regulates a wide range of cellular and systemic responses to oxygen, including those (e.g. blood haematocrit) that operate precisely around the ‘set-point’ of physiological oxygen availability (for reviews, see Schofield and Ratcliffe, 2004; Kaelin and Ratcliffe, 2008; Myllyharju, 2013; Semenza, 2012).

The discovery of the PHDs raised the question as to whether there are other dioxygenase-substrate combinations with analogous oxygen sensing roles in human cells, and the assignment of additional (non-HIF) substrates of the PHDs has been a major focus of research in the field. More than 20 potential non-HIF substrates have been reported to date (German et al., 2016; Luo et al., 2014; Xie et al., 2009; Guo et al., 2016; Köditz et al., 2007; Moser et al., 2015; Moser et al., 2013; Moore et al., 2015; Heir et al., 2016; Segura et al., 2016; Zheng et al., 2014; Cummins et al., 2006; Rodriguez et al., 2016; Lee et al., 2015; Huo et al., 2012; Luo et al., 2011; Mikhaylova et al., 2008; Di Conza et al., 2017; Anderson et al., 2011; Xie et al., 2012; Xie et al., 2015; Ullah et al., 2017; Rodriguez et al., 2018; Takahashi et al., 2011) (Table 1).

Table 1
Non-HIF substrates tested in assays of PHD-catalysed hydroxylation.

Potential target proline residues in the proposed substrate (Gene ID, column 1) have been defined according to the sequence numbering of the canonical proteoform (Uniprot Accession, column 2).

https://doi.org/10.7554/eLife.46490.002
SubstrateUniprot Acc #Target site(s)PHD isoformReference
ACACBO00763-1P343; P450; P2131PHD3German et al., 2016
ACTBP60709-1P307; P322PHD3Luo et al., 2014
ADRB2P07550-1P382; P395PHD3Xie et al., 2009
AKT1P31749-1P125; P313; P318; P423PHD2Guo et al., 2016
ATF4P18848-1P156; P162; P164; P167; P174PHD3Köditz et al., 2007
CENPNQ96H22-1P311PHD2Moser et al., 2015
CEP192Q8TEP8-3P2313PHD1Moser et al., 2013
EEF2KO00418-1P98Not definedMoore et al., 2015
EPORP19235-1P443; P450PHD3Heir et al., 2016
FLNAP21333-1P2317; P2324PHD2Segura et al., 2016
FOXO3O43524-1P426; P437PHD1Zheng et al., 2014
IKBKBO14920-1P191PHD1Cummins et al., 2006
MAPK6Q16659-1P25PHD3Rodriguez et al., 2016
NDRG3Q9UGV2-1P294PHD2Lee et al., 2015
PDE4DQ08499-1P29; P382; P419PHD2Huo et al., 2012
PKMP14618-1P403; P408PHD3Luo et al., 2011
POLR2AP24928-1P1465PHD1Mikhaylova et al., 2008
PPP2R2AP63151-1P319PHD2Di Conza et al., 2017
SPRY2O43597-1P18; P144; P160PHD1, 2, 3Anderson et al., 2011
TELO2Q9Y4R8-1P374; P419; P422PHD3Xie et al., 2012
THRAP10827-1P160; P162PHD2, 3Xie et al., 2015
TP53P04637-1P142PHD1Ullah et al., 2017
TP53P04637-1P359PHD3Rodriguez et al., 2018
TRPA1O75762-1P394PHD2Takahashi et al., 2011

The existence of multiple non-HIF substrates has a number of important implications. If this were the case, it would be predicted: (i) that many non-HIF dependent biological systems would be regulated by oxygen, (ii) that PHD substrate competition might modulate the responses to hypoxia mediated by HIF, (iii) that inhibitors of the PHDs, including those in clinical trials (for review see Maxwell and Eckardt, 2016; Gupta and Wish, 2017), would have multiple consequences unrelated to HIF. We therefore sought to test reported non-HIF peptide and polypeptide substrates of PHDs in assays of prolyl hydroxylation.

Proposed substrates were tested for their ability to support prolyl hydroxylation, using both synthetic peptides representing the proposed hydroxylation site, and using predominantly full-length polypeptides/proteins prepared by coupled in vitro transcription-translation (IVTT). Direct evidence of prolyl hydroxylation catalysed by recombinant PHD enzymes was sought using a range of mass spectrometry (MS) methods. These assays were complemented by assays for hydroxyproline production using a radiochemical method (Koivunen et al., 2006; Juva and Prockop, 1966).

Unexpectedly, we did not detect enzyme-catalysed prolyl hydroxylation for any of the reported non-HIF substrates under conditions in which robust HIF prolyl hydroxylation was observed. We did observe a large number of peptide and polypeptide oxidations, but found no evidence that these were dependent on the catalytic activity of PHDs.

Results

Assays of prolyl hydroxylation using peptide substrates

Following reports of non-HIF substrates of the HIF prolyl hydroxylases (PHDs), we sought to measure the hydroxylation of synthetic peptides representing the reported sites of hydroxylation using in vitro assays of PHD activity. Assays were initially performed in response to particular published reports, and deployed a range of recombinant enzyme preparations, comprising either the full-length polypeptide or the active catalytic domain of the relevant PHD enzyme. These assays did not reveal hydroxylation at detectable levels on a range of reported non-HIF substrates.

We therefore decided to perform a systematic analysis of PHD-catalysed hydroxylation across all reported non-HIF substrates for which target residue(s) had been defined (Table 1). In this series of experiments, full-length recombinant proteins representing each of the PHD enzymes were used; PHD1 and PHD2 from an insect cell baculovirus expression system (Hirsilä et al., 2005) and PHD3 from Escherichia coli or insect cells. The enzymes were reacted with HIF-α peptides and those representing each of the reported sites of hydroxylation. Peptide products were analysed by matrix-assisted laser desorption/ionisation time-of-flight mass spectrometry (MALDI-TOF-MS) and electrospray-ionisation liquid chromatography-mass spectrometry (ESI-LC-MS). Based on structural and kinetic data for the PHD-HIF interaction (Hirsilä et al., 2003; Chowdhury et al., 2009), peptides were typically synthesised as 21–25 mers placing the target prolyl residues centrally within the sequence, except when hydroxylation of a specific isolated peptide had been reported, in which case this exact sequence was used instead, or in addition. In some cases, peptides representing different isoforms of the reported non-HIF substrates were also tested. Peptide sequences are listed in Table 1—source data 1.

A total of 44 non-HIF peptides representing putative sites of prolyl hydroxylation within 23 reported protein substrates were tested in this way. Reactions were conducted in batches, with each batch containing a parallel reaction with a HIF-1α peptide (human HIF-1α: 556–574) that is known to be hydroxylated by all three PHD enzymes. Reaction products were analysed initially by MALDI-TOF-MS and subsequently by ESI-LC-MS. Each PHD isoform catalysed near complete hydroxylation of the positive control HIF-1α peptide. By contrast, no PHD isoform catalysed detectable hydroxylation of any other peptide. Similar results were obtained by MALDI-TOF-MS and by ESI-LC-MS. The signal-to-noise ratio was generally better with ESI-LC-MS; the results for these assays are exemplified in Figure 1 and presented in full in Figure 1—figure supplement 1. Inspection of the MS spectra revealed apparent oxidation (i.e. a +16 Da mass shift relative to the unmodified substrate) on certain peptides, for example ACTB/310–334 (Figure 1). However, in no case was an increase in the apparent oxidation detectable in reactions containing PHD enzymes, when compared with control reactions without enzyme. These enzyme independent oxidations were not analysed further in this series of experiments. Thus, these peptide-based assays did not provide any evidence for PHD-catalysed prolyl hydroxylation, within the limits of detection, across a wide range of reported sites in non-HIF proteins.

Figure 1 with 1 supplement see all
Assays of peptide hydroxylation.

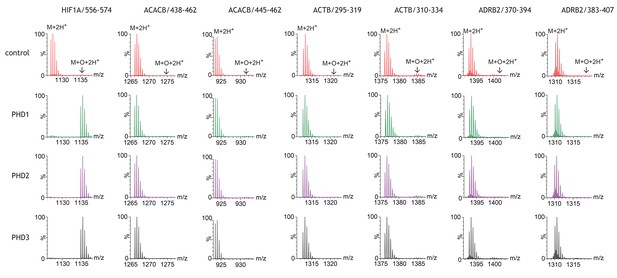

LC-MS spectra of peptides derived from HIF-1α (left) and selected non-HIF peptidyl substrates (see Figure 1—figure supplement 1 for complete dataset) reacted with the indicated PHD isoform, or no PHD enzyme (control). In control reactions the doubly-charged (M+2H+) peptides showed the calculated mass. Following incubation with PHDs, only the doubly-charged HIF-1α peptide mass is shifted by an m/z increment of 7.997 Da (M+O+2H+) indicative of prolyl hydroxylation. No PHD-dependent mass shift was observed on any of the non-HIF substrates.

https://doi.org/10.7554/eLife.46490.005

Assays of prolyl hydroxylation on full-length polypeptide substrates

In many cases, the exact peptide sequence of the proposed non-HIF substrate, as opposed to the target prolyl residue in the protein, had not been reported. It therefore remained possible that more extensive sequences are required to support hydroxylation than had been presented by the peptides that we tested.

To address this, we proceeded to produce the reported PHD substrates as extended FLAG-tagged polypeptides, principally in full-length form using IVTT, and to react the IVTT products with recombinant PHD enzymes. In this series of experiments, we tested every reported enzyme-substrate couple (i.e., the proposed substrate or substrates together with the specific PHD or PHDs that had been reported to catalyse that particular hydroxylation, see Table 2), with the exception of RNA Polymerase II subunit RPB1, which we were unable to produce by IVTT. To ensure comparable enzyme/substrate ratios in the reactions, the soluble products of the IVTTs were quantified and normalised by FLAG-tag immunoblotting prior to reaction with the relevant PHD enzyme. The reacted IVTT products were purified by FLAG affinity chromatography, then subjected to digestion with trypsin or other proteases, as indicated in Table 2, and analysed by LC-MSMS. To facilitate accurate quantitation of HIF-1α hydroxylation by MS, two methionine residues were mutated to alanine within the tryptic fragment that contains the target residue Pro564 (since methionine residues are prone to non-enzymatic oxidation); these substitutions being known not to substantially alter rates of HIF-1α hydroxylation (Tian et al., 2011).

Table 2
Summary of oxidations observed on protein substrates produced by IVTT and reacted with the indicated PHD enzyme(s).

Mass spectrometry was performed on IVTT-derived substrates (column 1) reacted in the presence or absence of the indicated PHD isoform (column 2). Substrates were immunopurified by FLAG affinity and digested with the specified protease(s) (column 3) to yield peptides encompassing the putative target prolyl site, which are indicated in bold (column 4); note, during sample processing peptides containing cysteine residues were derivatized with iodoacetamide to give carbamidomethylated cysteine (+57.02). Reference to primary data for non-HIF substrates (i.e., MSMS assignment and quantitation) is provided in column five and summarised in columns 6–10. Assigned oxidations are listed in column 6; no oxidation detected (ND); oxidation detected but not localised to a specific residue (NL). Note, prolyl hydroxylation was not detected. Quantitative data for control and PHD-reacted IVTTs is given for these oxidations (columns 7–8, respectively). Low abundance peptide ions of compatible mass for oxidation, which were below the threshold for MSMS determination but present in LC-MS data (within −5 min retention time window), were also quantified (columns 9–10). The abundance of each assigned or putative oxidation is expressed as a percentage of the non-hydroxylated peptide. Summary results for the products of control reactions that were conducted in parallel on HIF-1α to verify PHD enzyme activity are shown in columns 11–14; values were obtained by similar methods (see Supplementary file 2 for figures depicting these primary data). Each row relates a specific ‘test’ reaction to its batch control HIF-1α reaction; note that high levels of activity on HIF-1α substrates were observed upon addition of exogenous PHD enzyme in all controls.

https://doi.org/10.7554/eLife.46490.007
Non-HIF substrateHIF-1α control
Quantified peptideFigureOxidationAssigned ox (%)Unassigned ions (%)HIF-1α P402ox (%)HIF-1α P564ox (%)
SubstratePHD IsoformProteaseControlEnzymeControlEnzymeControlEnzymeControlEnzyme
ACACBPHD3LysCRIPVQAVWAGWGHASENPKLPELLC(+57.02)K3, s1ND--0.4%1.7%58%52%53%72%
DVDEGLEAAERIGFPLMIK3, s2M45276%77%2.3%0.9%
ACTBPHD3TrypsinDLYANTVLSGGTTMYPGIADR3, s3M30571%48%NDND6.3%9.9%29%91%
EITALAPSTMK3, s4M32554%30%0.3%0.1%
ADRB2PHD3TrypsinLLC(+57.02)EDLPGTEDFVGHQGTVPSDNIDSQGR3, s5D3802.8%1.5%ND<0.1%6.3%9.9%29%91%
AKT1PHD2TrypsinSGSPSDNSGAEEMEVSLAK3, s6M13435%39%NDND18%94%30%96%
TFC(+57.02)GTPEYLAPEVLEDNDYGR3, s7ox: NL0.6%0.8%NDND
LSPPFKPQVTSETDTR3, s8ND--NDND
ATF4PHD3ElastaseGHLPESLTKPDQVAPFTFLQPLPLSPG3, s9ND--NDND6.3%9.9%29%91%
STPDHSFSLELGSEVDITEGDRKPDYT3, s10ND--NDND
CENPNPHD2TrypsinSLAPAGIADAPLSPLLTC(+57.02)IPNKR3, s11ND--NDNDNDND22%94%
CEP192PHD1TrypsinWHLSSLAPPYVK3, s12ND--<0.1%ND51%95%60%82%
EEF2KPHD2TrypsinHMPDPWAEFHLEDIATER3, s13M9548%38%ND0.2%0.5%88%36%93%
EPORPHD3LysC + GluCYTILDPSSQLLRPWTLC(+57.02)PELPPTPPHLK3, s14ox: NL1.4%1.4%NDND9.5%15%23%94%
diox: W4392.0%1.8%
FLNAPHD2TrypsinFNEEHIPDSPFVVPVASPSGDAR3, s15ND--0.1%0.3%NDND22%94%
FOXO3PHD1TrypsinGSGLGSPTSSFNSTVFGPSSLNSLR3, s16ND--2.2%0.9%14%97%25%86%
IKBKBPHD1TrypsinELDQGSLC(+57.02)TSFVGTLQYLAPELLEQQK3, s17ND--14%14%14%97%25%86%
MAPK6PHD3TrypsinYMDLKPLGC(+57.02)GGNGLVFSAVDNDC(+57.02)DKR3M2119%12%0.3%0.3%9.5%15%23%94%
NDRG3PHD2TrypsinMADC(+57.02)GGLPQVVQPGK3, s18M28748%21%1.8%0.9%17%92%24%93%
PDE4DPHD2TrypsinLMHSSSLTNSSIPR3, s19M37161%36%NDND0.5%88%36%93%
IAELSGNRPLTVIMHTIFQER3, s20M42451%45%NDND
PKMPHD3TrypsinLAPITSDPTEATAVGAVEASFK3, s21ND--<0.1%0.1%6.3%9.9%29%91%
PPP2R2APHD2TrypsinIWDLNMENRPVETYQVHEYLR3, s22M31514%20%NDND27%86%36%91%
SPRY2PHD1TrypsinAQSGNGSQPLLQTPR----NDND----
PHD33, s23ND--NDNDNDND52%92%
PHD1LLGSSFSSGPVADGIIR3, s24ND--0.9%ND9.5%92%23%83%
PHD33, s25ND--NDNDNDND52%92%
PHD1SELKPGELKPLSK3, s26ND--NDND9.5%92%23%83%
PHD33, s27ND--NDNDNDND52%92%
TELO2PHD3TrypsinAVLIC(+57.02)LAQLGEPELR3, s28ND--8.9%6.5%NDND52%92%
THRAPHD2TrypsinSLQQRPEPTPEEWDLIHIATEAHR3, s29ox: NL0.9%0.7%1.8%1.3%15%94%26%96%
diox: W1655.4%5.1%
PHD33, s30ox: NL0.9%0.8%1.8%0.8%15%16%26%86%
diox: W1655.4%4.8%
TP53PHD1TrypsinTC(+57.02)PVQLWVDSTPPPGTR3, s31ND--NDND9.5%92%23%83%
PHD3LysCEPGGSRAHSSHLK3, s32ND--ND0.4%21%24%30%78%
TRPA1PHD2TrypsinNLRPEFMQMQQIK3, s33M39731%30%NDND0.5%88%36%93%
M39933%34%

Reactions with non-HIF substrates were conducted in batches, in parallel with HIF-1α, to ensure activity of the PHDs under the test condition. In these assays, to increase potential hydroxylation of non-HIF substrates, the quantity of PHD enzyme was increased 2-fold or 5-fold relative to that used in the parallel HIF-1α reaction.

MS analyses were initially performed using an ESI-LC-MS platform (QExactive, Thermo Scientific) in data-dependent acquisition (DDA) mode. Using this approach, we were able to detect substrate peptides containing the target prolyl residue(s) in non-hydroxylated form with high confidence. One drawback of DDA, however, is that only a subset of the most abundant precursor ions are isolated and fragmented by MSMS. The stochastic nature of precursor ion selection raised the possibility that low stoichiometry hydroxylation(s) of lesser abundance might not be selected for fragmentation. To address this limitation, we also measured the abundance of precursor ions in the raw data. Guided by previous work in which hydroxylation had a relatively modest effect on chromatographic behaviour (Singleton et al., 2014; Singleton et al., 2011), we considered precursor ions that eluted up to 5 min in advance of the non-hydroxylated ion under reverse-phase chromatography conditions. This window was subsequently guided by the elution characteristics of peptide standards.

The results are summarised in Table 2. MSMS assigned potential oxidations (+16 Da shifts) are indicated and displayed alongside manually-curated precursor ion quantitation, in which the oxidation is expressed as a percentage relative to the unmodified peptide. For each batch of analyses, quantification of hydroxylation on the control HIF-1α polypeptide was carried out. Since the lysates used in IVTT reactants contain endogenous PHD activity, significant levels of HIF-1α hydroxylation were observed in IVTTs without addition of recombinant PHDs. However, robust increases in HIF-1α hydroxylation were always observed following addition of a recombinant PHD, and are reported in columns 11–14 of Table 2; note that PHD1 and PHD2 catalysed hydroxylations at both P402 and P564, whereas PHD3 had little activity on P402, consistent with known HIF substrate specificity (Hirsilä et al., 2003). To provide a further positive control we also tested whether prolyl hydroxylation at the reported sites in all three HIF-α isoforms was supported in these assays. Therefore, in a further series of experiments, IVTTs of HIF-1α, HIF-2α and HIF-3α were reacted in parallel with each of the PHDs. These experiments confirmed robust prolyl hydroxylation at P402 and P564 in HIF-1α, P405 and P531 in HIF-2α and P492 in HIF-3α, with both PHD1 and PHD2 and robust hydroxylation of HIF-1α P564, HIF-2α P531 and HIF-3α P492, but not at the other two sites for PHD3, consistent with the known site specificity of PHD3 (Figure 2 and supplements).

Figure 2 with 5 supplements see all
Activity of PHD enzymes on full-length HIF substrates produced by IVTT.

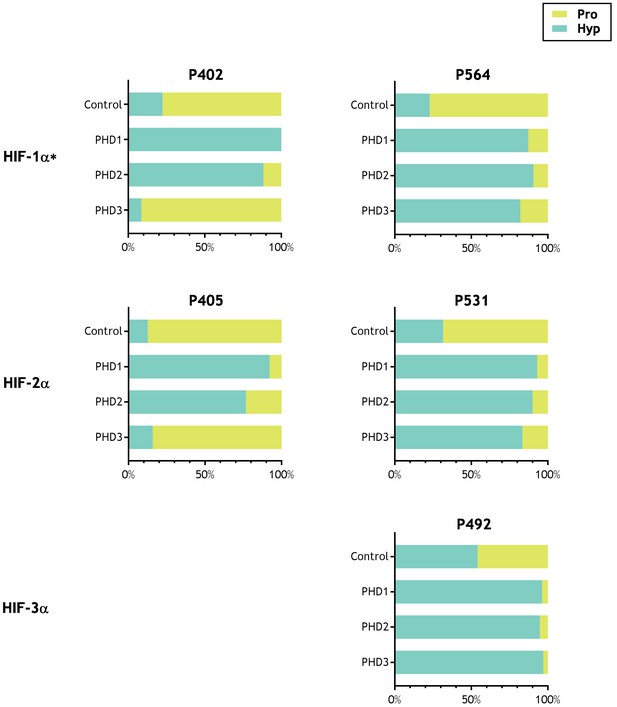

HIF substrates (HIF-1α, HIF-2α and HIF-3α) were produced by IVTT and reacted in the absence (Control) or presence of the indicated recombinant PHD enzyme. Endogenous PHD activity in IVTT lysate gave rise to a basal (Control) level of hydroxylation that markedly increased upon addition of recombinant PHD. Data are summarised as stacked bar charts that are grouped by target site and report the (%) level of prolyl hydroxylation determined by LC-MSMS. Key: Pro (unoxidised prolyl, yellow), Hyp (hydroxyprolyl, turquoise). Extracted ion chromatograms corresponding to each hydroxylation reaction are provided as the following supplements to Figure 2—figure supplement 1, HIF-1α P402; Figure 2—figure supplement 2, HIF-1α P564; Figure 2—figure supplement 3, HIF-2α P405; Figure 2—figure supplement 4, HIF-2α P531; Figure 2—figure supplement 5, HIF-3α P492. *Modified HIF-1α sequence (M561A, M568A) assayed.

https://doi.org/10.7554/eLife.46490.009

By contrast, prolyl hydroxylation was not assigned on any of the reported non-HIF substrate sites by the software search, even though the non-oxidised target peptide was always identified. A number of peptides spanning the reported site of prolyl hydroxylation bore putative hydroxylations (i.e. +16 Da mass increments) that could be assigned to residues other than proline. These were most frequently on methionine, but also included aspartate and di-hydroxylation of tryptophan; in three substrates the putative oxidation event could not be localised to a specific residue. These assignments are indicated in Table 2, column 6.

Automated analyses were followed by in-depth manual analyses. Extracted ion chromatograms (XICs) corresponding to the mass-to-charge (m/z) ratio of assigned unmodified precursor ions and their observed or putative oxidised species (as determined by mass shift) were compared between control and PHD supplemented reactions, giving a complete view of all relevant precursor ions within the stated retention time window. Panel B of Figure 3 illustrates an example of such an analysis on the reported substrate mitogen-activated protein kinase 6; panel B of Figure 3—figure supplements 133 to Figure 3 illustrate these analyses for each putative substrate prepared by IVTT and reacted with the relevant PHD enzyme. Peak area integrations were performed on all MSMS assigned species and compared between PHD-reacted and control IVTTs; this XIC-derived quantitation is summarised in columns 7 and 8, Table 2. These analyses also revealed unassigned ions of compatible m/z for oxidation that were typically of low stoichiometry relative to the non-hydroxylated species. These species were also quantified in PHD-reacted and control IVTTs, using similar methods; the data is summarised in columns 9 and 10 of Table 2. Neither the assigned oxidations, nor these putative oxidised species were significantly increased by reaction with the relevant PHD. Overall therefore, this analysis provided no evidence for prolyl hydroxylation at the proposed sites on the non-HIF target polypeptides, and no evidence for PHD enzyme-dependent oxidation of any type within the relevant tryptic digest peptides.

Figure 3 with 33 supplements see all

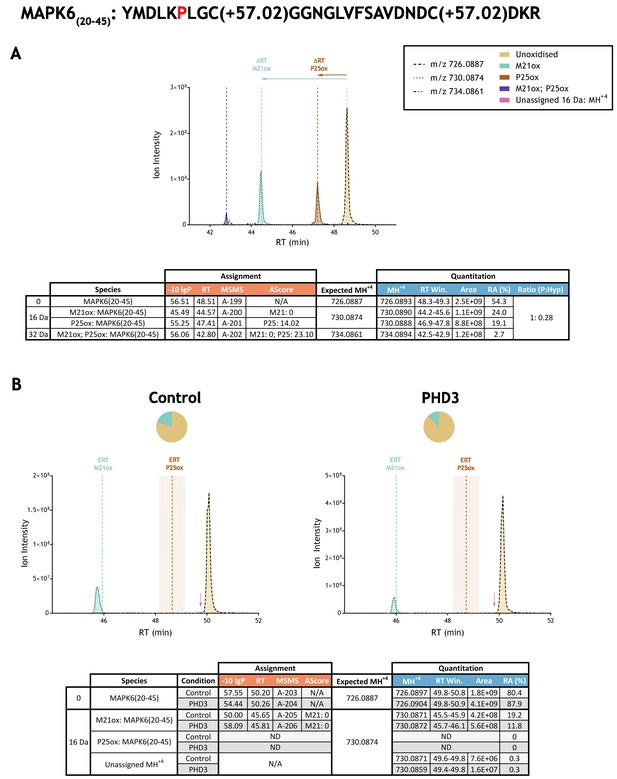

Example of quantitation of peptide oxidation on IVTT substrates reacted with PHD enzyme by extracted ion chromatogram (XIC).

(A) Shows ion intensity and retention time (RT) characteristics of equimolar synthetic peptide standards for unoxidised and P25ox forms of the tryptic MAPK6(20–45) peptide. MSMS assigned species including non-enzymatic oxidations are coloured (see inset); vertical dashed lines define peak maxima used to derive ΔRT values for key oxidised ions. (B) Shows comparable XIC data for protease-digested IVTT substrates under control (left) or PHD3-reacted (right) conditions. Peaks corresponding to unoxidised and M21ox forms of MAPK6(20–45) were assigned by MSMS (see inset for colour code); P25ox was not detected. Estimated RT (ERT) values for oxidised peptides, derived from (A), are indicated by dashed vertical lines, shading applied to ERT P25ox corresponds to a 1 min RT window. Peptide ions of low abundance that were compatible with oxidation but not assigned by MSMS are also indicated (pink arrow). Quantitative data for observed species are presented as pie charts with XIC data. Assignment and quantitative data is provided below each panel as follows: (−10lgP) significance score of leading assignment at given (RT) with ambiguity score (AScore) for PTM localisation and reference to primary MSMS data in Supplementary file 1. Quantitative data reports ion counts (Area) of observed masses (MH+4) integrated over time (RT Win.), expressed as relative abundance (RA). Data on detection efficiency for synthetic peptides (Panel A, P: Hyp) is an aggregated ratio of prolyl (P) to hydroxyprolyl (Hyp) species.

https://doi.org/10.7554/eLife.46490.015

Nevertheless, given previous reports of PHD-catalysed prolyl hydroxylation, we considered the possibility that PHD-catalysed prolyl hydroxylations might have been missed through altered ionisation/detection efficiencies in our experiments, or might have been obscured by other putative oxidations (+16 Da shifts) on the peptides. Although these oxidations appeared to arise independently of PHD activity, it is possible that co-elution of a prolyl hydroxylated species with a non-enzymatically oxidised ion could confound the quantification of PHD-dependent hydroxylation, that is a high level of non-enzymatic oxidation could obscure a low level of PHD-dependent prolyl hydroxylation. We therefore synthesised each peptide of interest (i.e., the trypsin, or other protease, generated fragment spanning the reported target prolyl residue) in unhydroxylated (prolyl) and trans C-4 hydroxylated (4(R)-hydroxyprolyl) forms. These peptide standards (Table 2—source data 1.) were first used to determine whether prolyl hydroxylation resulted in major changes in ionisation efficiency for any of the species. To account for any differences in solubility or purity, weighed aliquots of peptides were first quantified by comparison with an internal trimethylsilylpropanoic acid (TSP) standard using 1H NMR spectroscopy. Equimolar quantities of prolyl- and hydroxyprolyl-peptides, as defined by NMR, were then analysed by MS on the same instrumentation, using identical acquisition conditions to those used for the IVTT hydroxylation assays. Accordingly, peptide intensities were quantified by peak area integration of extracted ion chromatograms and expressed as relative ratios. Related peptide sets displayed broadly comparable ion counts, as summarised in Table 2—source data 1. Although deviation from a 1:1 ratio was observed for certain pairs, this data does not support the possibility that failure to detect hydroxyprolyl peptides derived from IVTT products might be due to suppression of peptide ionisation.

The use of peptide standards also provided precise data on the effect of prolyl hydroxylation on chromatographic elution. A reproducible shift in chromatographic retention between related pairs of prolyl and hydroxyprolyl peptides was observed. This shift was variable across peptide pairs, ranging from −0.14 to −4.72 min for a given hydroxyprolyl modification resolved on a 60 min linear gradient (Table 2—source data 1.). This indicated that manual searches for oxidised peptides within a retention time window of −5 min to 0 min of the unoxidised peptide had covered all potential prolyl hydroxylated ions. Re-examination of the data, together with the performance of additional IVTT reactions and LC-MS runs in which peptide standards were run immediately after the IVTT samples, indicated that in the large majority (all except two), any oxidised ions were chromatographically distinct from the putative prolyl hydroxylated species (see panel A of Figure 3 and Figure 3—figure supplements 133). This procedure provides security that prolyl hydroxylated species are unlikely to have been obscured.

To further address the assignment of potentially oxidised species on the two peptides, where we considered that there was a possibility that co-elution might impair detection of low levels of prolyl hydroxylation, we performed additional reactions and analysed the products by parallel reaction monitoring using an ESI-LC-MS spectrometer (Fusion Lumos, Thermo Scientific) in order to measure diagnostic fragment ions that are specific to the hydroxylation site on the precursor peptide. This procedure enabled the dependence of any potentially oxidised species on reaction with PHD to be defined by reference to specific fragment ions, in addition to extracted ion chromatograms. These analyses are illustrated in Figure 4. Despite robust detection of diagnostic fragment ions derived from hydroxyprolyl peptide standards, no such ions were observed in the IVTT material either before or after reaction with the relevant PHD enzyme. Thus MS-based analyses of reported non-HIF PHD substrates did not support the catalysis of detectable levels of hydroxylation, at least under these conditions.

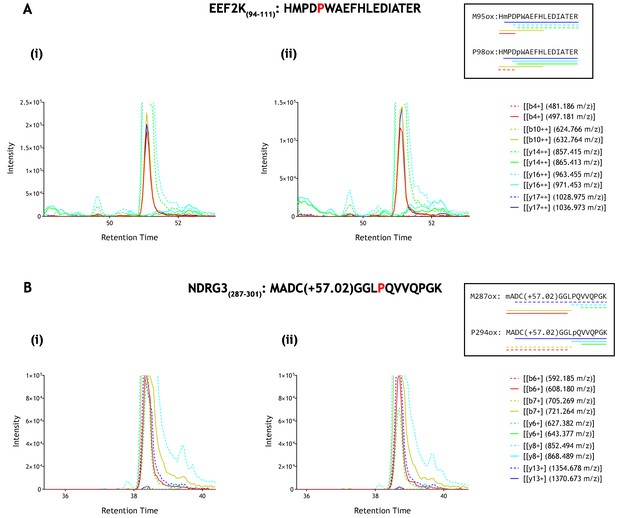

Parallel reaction monitoring (PRM) of oxidised EEF2K(94-111) and NDRG3(287–301) peptide species by mass spectrometry.

Fragment ions (n = 5), including ions of discriminatory mass for proline and methionine oxidation (see inset for schematic representation of fragment ions; dashed lines: unoxidised, solid lines: oxidised) were selected for PRM acquisition, based on existing MSMS data (Supplementary file 1: A167-169 and A207-209). The figure shows XIC data of PRM fragment ions corresponding to oxidised forms of (A) EEF2K(94-111) and (B) NDRG3(287–301) derived from IVTT hydroxylation assays under (i) control or (ii) PHD2-reacted conditions. Fragment ion masses indicative of proline oxidation were not observed across the elution profile. Note, the y-axis has been truncated to show fragment ions of lesser abundance (peak maxima for panels A and B: >1×106 ion counts).

https://doi.org/10.7554/eLife.46490.049

To further consider the possibility that these assays might not have detected hydroxylation of prolyl residues, we conducted direct assays for hydroxyproline using a radiochemical assay. For these assays, the IVTTs representing the reported polypeptide were produced and reacted with the relevant PHD using the same procedures as for the MS analysis, except for the use of radiolabelled L-[2,3,4,5-3H]proline in the IVTT reaction (Koivunen et al., 2006). Following the substrate-PHD reaction, the samples were dialysed extensively to remove any remaining free 3H-proline, and the 4-hydroxy-3H-proline formed in the substrate was analysed by a specific radiochemical procedure (Juva and Prockop, 1966). The results are provided in Figure 5. Despite the presence of only two target prolyl residues in HIF-1α, robust PHD-dependent hydroxylation was detected. However, no PHD-dependent hydroxylation was detected on any of the other polypeptides.

Radiochemical assay measuring the relative amount of 4-Hydroxy[3H]proline formed after incubation of reported substrate with PHD enzyme.

Substrates were produced by IVTT in the presence of L-[2,3,4,5-3H]proline and incubated with and without the indicated recombinant PHD enzyme. Conversion to 4-hydroxy[3H]proline was measured by radiochemical assay with data expressed as DPM Hyp/1 × 106 DPM Pro, DPM of the reaction without the PHD being subtracted. Assay efficacy was confirmed with a positive HIF-1α (WT) control. Background DPM range was determined with a negative PP/AG HIF-1α (P402A, P564G proline mutant) control. The hydroxylation level observed in PHD-reacted non-HIF substrates was not above background. Data are from two independent assays with the following (n = 1) exceptions: PKM (PHD3); TELO2 (PHD3); TRPA1 (PHD2).

https://doi.org/10.7554/eLife.46490.050

Discussion

Multiple potential non-HIF substrates of the PHD enzymes have been reported using a range of methods, including interaction assays with PHDs or pVHL, analyses of proteomic responses to hypoxia or 2-oxoglutarate dioxygenase inhibitors (e.g. dimethyloxalylglycine), or through candidacy inferred from cell biological experiments. The presence of hydroxyproline was usually assigned either by MSMS or by use of anti-hydroxyprolyl antibodies, though in some cases the modification was not demonstrated directly. In some cases, in vitro reactions using isolated PHDs were performed to support the proposed assignment of PHD-catalysed prolyl hydroxylation. These approaches present challenges en route to the confident assignment of post-translational modifications; in particular, in the specificity of immunodetection using antibodies, in the accurate assignment of peptide oxidations, and in distinguishing between enzymatic and artefactual oxidation. Nevertheless, we were surprised by the discrepancy between the reported assignments of prolyl hydroxylation and the results of our study.

Using several different MS methods, including detailed manual analysis of the data guided by unmodified and hydroxyprolyl-modified peptide standards, we were unable to detect catalytic activity of the PHDs on any of the reported non-HIF substrates. We were also unable to detect such activity using radiochemical assays monitoring conversion of proline to hydroxyproline in the full-length target proteins.

In the course of the work we considered several reasons for this discrepancy. Firstly, it could be that, despite evidence that HIF-α peptides initially bind to PHD2 in a substantially unstructured conformation (Chowdhury et al., 2009), longer polypeptides might be necessary for this interaction with non-HIF substrates, as is the case for some other 2OG dependent protein hydroxylases (Feng et al., 2014). We therefore performed extensive additional experiments using full-length polypeptide substrates. Secondly, it could be that despite high activity of the isolated catalytic domains of the PHDs on HIF-α, full-length enzymes may be necessary for activity on non-HIF substrates. We therefore performed assays using preparations of the full-length enzyme. Thirdly, we were concerned that our MS analyses might have overlooked hydroxylated species. To minimise this possibility, we used peptide standards to test whether trans C-4 prolyl-hydroxylation affected ionisation efficiency and to enable distinction from confounding oxidised species. We also carried out radiochemical assays for hydroxylation monitoring conversion of [3H]-proline to 4-hydroxy-[3H]-proline. As with the peptide work, these experiments included attempts to enhance the hydroxylation of non-HIF substrates using several times the quantity of PHD enzyme that was necessary to drive the hydroxylation of HIF substrates to near completion. None of these series of experiments revealed any evidence for catalytic hydroxylation activity on any of the reported non-HIF substrates.

The reasons for the discrepancy between our results and the published reports of non-HIF PHD substrates that prompted this survey are unclear. It is possible that the bona fide hydroxylation rates with isolated enzymes/substrates are much less than those for HIF-α peptides and were below the detection limits of our assays. It is also possible that PHD-catalysed hydroxylation might take place in cells but not in our assays. For instance, some or all reported non-HIF substrates might require one or more adaptor molecules, which are unnecessary for HIF substrates, to promote hydroxylation.

Several large ‘in depth’ MS based analyses of cellular proteomes are reported (Bekker-Jensen et al., 2017; Geiger et al., 2012; Davis et al., 2017). Although cells and culture conditions used in these experiments were not necessarily identical to those in the published reports of PHD-catalysed prolyl hydroxylation, this in cellulo data can be interrogated for evidence of prolyl hydroxylation on the proposed non-HIF substrates. We therefore analysed the deposited data using the same processing pipeline as that used in our analyses of the PHD-reacted polypeptides produced by IVTT. The results are summarised in Table 3. Among 12.8 million assigned spectra, we observed a total of 18,192 that corresponded to the trypsinolysis-derived peptides containing the proposed site(s) of prolyl hydroxylation in 17 of the non-HIF PHD substrates; in the remaining six substrates the target peptide was not identified. A total of 5038 putative singly oxidised peptides were assigned among 13 of these 17 identified sequences. Only 67 of these spectra were assigned as potential prolyl hydroxylations. However, inspection of the data revealed that all the computationally assigned putative prolyl oxidations were either at low fragment ion intensity and/or of low confidence with respect to the localisation of the oxidised residue. Most of these computer assignments of prolyl hydroxylation were on β-actin (ACTB) proline 322. These observations led us to consider the possibility that there are specific peptides that are prone to non-enzymatic oxidation and for which, because of the sequence context, PTM localisation is difficult. To this end, we applied a similar processing pipeline to spectra generated by the analyses of the synthetic unmodified (i.e. unhydroxylated) peptides used as standards for our earlier analyses of IVTT produced polypeptides. These analyses revealed a high prevalence of oxidation, some of which was computer assigned as hydroxyproline, on several of the peptides, including ACTB residues 316–326, AKT1 residues 308–328, and MAPK6 residues 20–45 (Table 3—source data 1.).

Table 3
Analysis of the cellular proteome for oxidised peptides encompassing reported sites of prolyl hydroxylation.

The number of unmodified and singly oxidised peptides containing reported sites of PHD-catalysed hydroxylation were counted over a range of stringency filters. Where multiple reported oxidation sites of one protein occur on separate peptides the number of spectra recorded is a summation of all interrogated peptides. The number of assigned target site prolyl oxidations is indicated in bold; methionine (Met) and alternate oxidation sites, including non-target proline residues (Other) are also presented together with unoxidised peptides for comparison. Stringency filters were applied as follows; PTM assignment confidence as assessed by ambiguity score (AScore:>20) and fragment ion intensity (Ion Intensity:>5%). These filters were applied separately and in combination to derive a list of assigned peptides with confidently localised oxidations. There are no high confidence proline oxidation assignments (i.e., meeting both AScore and Ion Intensity thresholds) of the reported substrates, suggesting a high degree of uncertainty from the software.

https://doi.org/10.7554/eLife.46490.052

# Spectra filtered by confidence of modification site
Gene IDReported siteAssignedNo filterAScoreIon IntensityAScore and Ion Intensity
ACACBP343, P450, P2131Unoxidised63N/AN/AN/A
ACTBP307, P322P32257711-
Met45286474096406
Other33658627
Unoxidised8650N/AN/AN/A
ADRB2P382*, P395*Unoxidised1N/AN/AN/A
AKT1P125, P313*, P318*, P423Unoxidised160N/AN/AN/A
CENPNP311Unoxidised7N/AN/AN/A
EEF2KP98Met5---
Unoxidised41N/AN/AN/A
FLNAP2317*, P2324*P23242---
Other1---
Unoxidised562N/AN/AN/A
FOXO3P426*, P437*Unoxidised4N/AN/AN/A
NDRG3P294Met135--
Unoxidised49N/AN/AN/A
PDE4DP29, P382, P419Met141399
Other1---
Unoxidised23N/AN/AN/A
PKMP403*, P408*P40331--
P4085---
Other5---
Unoxidised3394N/AN/AN/A
PPP2R2AP319Met50112611
Other18---
Unoxidised119N/AN/AN/A
SPRY2P18, P144, P160Unoxidised7N/AN/AN/A
TELO2P374, P419, P422Unoxidised47N/AN/AN/A
THRAP160*, P162*Unoxidised20N/AN/AN/A
TP53P142, P359Unoxidised7N/AN/AN/A









TotalPro678110
Met46106764131426
Other36158627
Unoxidised13154000
All181927424204433
  1. *Doubly oxidised peptides were interrogated when multiple prolyl hydroxylation sites had been reported on the same tryptic peptide.

Putative oxidations were also observed on residues close to the target prolyl residue in the in vitro assays and in some cases, low abundance oxidations were observed that could not be assigned robustly from simple analysis of the fragmentation pattern. The use of peptide standards provided a means to assign these species, or at least distinguish them from hydroxyprolyl containing species and accurately assess the dependence of the modification on PHD enzyme activity. Although shifts in chromatographic retention were reproducible for a given pair of prolyl- and hydroxyprolyl- bearing peptides, there were large differences in this shift across different peptide pairs. This means that chromatographic differences between prolyl-hydroxylated and other oxidised species cannot be predicted, increasing the risks of confusion if standards are not used.

Difficulties in confirming reported substrate repertoires have been highlighted for other enzymes, leading to guidelines on the need for more complete biochemical analysis of the enzyme dependence of the proposed protein modification (Kudithipudi and Jeltsch, 2016). Given the potential for artefactual oxidations to confound MS analyses of prolyl hydroxylation, that was apparent in this and other studies (Arsenault et al., 2015), care is also required in assigning new substrates to the PHD enzymes. This includes the need for accurate location of the proposed prolyl oxidation event, and a clear demonstration of its dependence on PHD-catalysis under conditions proposed to support hydroxylation. Our analyses clearly cannot disprove the presence of prolyl hydroxylation on reported non-HIF substrates under conditions other than those we have examined; they also do not exclude the possibility that the PHD enzymes have non-HIF substrates which have not yet been identified. However, they do suggest that the PHDs are relatively specific for their HIF-α substrates. This contrasts with the HIF asparaginyl hydroxylase, FIH (factor inhibiting HIF), which has been shown to catalyse hydroxylations at asparaginyl (and other) residues on a wide range of ankyrin repeat domain containing proteins, in addition to HIF-α (Chowdhury et al., 2016; Elkins et al., 2003). Consistent with this, FIH-catalysed asparaginyl hydroxylation of both HIF-α and non-HIF substrates was readily observed using the assays described in our current work (data not shown). These differences raise a question as to the underlying reasons for the apparent difference in selectivity between the two classes of HIF hydroxylase. X-ray and NMR structural analyses of HIF-α peptide in complex with the PHD catalytic domain reveal that the bound peptide makes multiple contacts with the enzyme (Chowdhury et al., 2009).There are also substantial conformational changes in the PHD structures on binding HIF-α substrates, including a loop which moves to tightly enclose the catalytic site and C-terminal region of the enzyme (Chowdhury et al., 2016). These observations contrast with FIH, which crystallographic studies imply has a much more accessible catalytic site and does not itself demonstrate a major conformational change upon substrate binding (Elkins et al., 2003).

These characteristics of PHDs likely contribute to their specificity for HIF-α substrates, but make it difficult predict other substrates from the primary sequence. Therefore, in an effort to better understand PHD substrate specificity, we compared both predicted and defined secondary structures across a range of HIF-α prolyl hydroxylation sites from different metazoan species and the reported non-HIF human substrates (Table 1—source data 2.). This revealed that despite considerable variation in primary sequence, most (possibly all) HIF-α peptides are predicted to form an α-helix to the N-terminal side of the target prolyl residue, as was observed in PHD2-HIF-α complex structures. In contrast, this feature was seen in few of the reported non-HIF substrates, where no clear pattern was evident. Although such an α-helix may therefore contribute to selectivity for HIF-α and/or guide future attempts to identify non-HIF substrates of the PHDs, a caveat is that the PHDs might have the capacity to generate major conformational changes in folded substrates, such as have been described for the PHD homologue in Pseudomonas aeruginosa complexed with its EF-Tu (Elongation Factor Thermal unstable) substrate (Scotti et al., 2014).

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Gene (human)ACACBORFeome collaborationGenBank: BC172264
Gene (human)ACTBMammalian Gene CollectionGenBank: BC001301.1
Gene (human)ADRB2Mammalian Gene CollectionGenBank: BC073856.1
Gene (human)AKT1ORFeome collaborationGenBank: EU832571.1
Gene (human)ATF4ORFeome collaborationGenBank: DQ891758.2
Gene (human)CENPNMammalian Gene CollectionGenBank: BC008972.1
Gene (human)CEP192PMID: 23641073
Gene (human)EEF2KORFeome collaborationGenBank: DQ894050.2
Gene (human)EPORSino BiologicalNCBI Refseq: NR_033663.1
Gene (human)FLNAAddgene (#8982)
Gene (human)FOXO3Mammalian Gene CollectionGenBank: BC020227.1
Gene (human)IKBKBAddgene (#11103)
Gene (human)MAPK6ORFeome collaborationGenBank: DQ894810.2
Gene (human)NDRG3Mammalian Gene CollectionGenBank: BC144169.1
Gene (human)PDE4DORFeome collaborationGenBank: JF432192.1
Gene (human)PKMMammalian Gene CollectionGenBank:
BC012811.2
Gene (human)PPP2R2AAddgene (#13804)
Gene (human)SPRY2ORFeome collaborationGenBank: AM392994.1
Gene (human)TELO2ORFeome collaborationGenBank: AM392917.1
Gene (human)THRAORFeome collaborationGenBank: DQ895726.2
Gene (human)TP53ORFeome collaborationGenBank: DQ892492.2
Gene (human)TRPA1ORFeome collaborationGenBank: BC148423.1
Recombinant DNA reagent3xFLAG-tagged ORFThis studyVector backbone: pT7CFE1 (Thermo Fisher Scientific)
Recombinant proteinPHD3 (EGLN3)PMID: 27502280E. coli expression
Recombinant proteinPHD3 (EGLN3)PMID: 12788921Insect cell (Sf9) expression
Recombinant proteinPHD2 (EGLN1)PMID: 12788921Insect cell (Sf9) expression
Recombinant
protein
PHD1 (EGLN2)PMID: 12788921Insect cell (Sf9) expression
PeptideAssorted peptidesThis studySequence information provided in Table 1—source data 1.and Table 2—source data 1.
Commercial assay or kit1-Step Human Coupled IVT kitThermo Fisher Scientific
Software, algorithmPEAKS StudioBioinformatics Solutions

Preparation of recombinant PHD enzymes in insect cells

Request a detailed protocol

Recombinant full-length human PHD1 and PHD2 with a C-terminal Flag-His6 tag and PHD3 with an N-terminal GST tag and a C-terminal Flag-His6 tag (Hirsilä et al., 2005; Hirsilä et al., 2003) were produced in H5 insect cells cultured in suspension in Sf900IISFM serum-free medium (Invitrogen). The cells were infected at a density of 1 × 106/ml with the recombinant baculoviruses at a multiplicity of 5 and harvested 72 hr after infection, washed with a solution of 150 mM NaCl and 20 mM phosphate, pH 7.4, and homogenised in a 0.1% Triton X-100, 150 mM NaCl, 100 mM glycine, 5 μM FeSO4, 10 μM DTT, 10 mM Tris buffer, pH 7.8 (4°C), supplemented with cOmplete EDTA-free protease inhibitor cocktail (Roche). The homogenate was centrifuged (10,000 rpm, 15 min) and the soluble fraction was filtered through a 0.45 μm filter and subjected to purification with an anti-FLAG M2 affinity gel (Sigma) equilibrated with 150 mM NaCl, 100 mM glycine, 10 μM DTT, 10 mM Tris buffer, pH 7.8 (4°C). A volume ratio of 1:5 of the affinity gel to soluble fraction of the insect cell homogenate was used and binding of the recombinant PHDs to the affinity gel was performed in a batch mode for 1 hr with gentle rotation at 4°C. The slurry was then poured into a chromatography column, the gel was allowed to settle, washing 4 times with 5 volumes of 150 mM NaCl, 5 μM FeSO4, 50 mM Tris buffer, pH 7.4 (4°C), supplemented with the EDTA-free protease inhibitor cocktail, and the recombinant PHDs were eluted with 150 μg/ml of FLAG peptide (Sigma) in the same buffer, elution volume being 3 × 2 ml per 1 ml of affinity gel.

Preparation of recombinant PHD3 in E. coli

Request a detailed protocol

Full-length human PHD3 with a dual N-terminal thioredoxin-His6-tag was produced as described (Chan et al., 2016). E. coli BL21(DE3) cell cultures in 2TY medium were grown to OD600 of 0.6–0.8, then induced with isopropyl-β-D-thiogalactopyranoside (IPTG, 0.05 mM); growth was continued overnight at 18°C. Cells were lysed by sonication in Tris-HCl (20 mM, pH 7.5), NaCl (500 mM), imidazole (5 mM), glycerol (5%), DTT (5 mM), and PHD3 was purified by affinity chromatography using a His-trap column (GE Healthcare).

Peptide synthesis

Request a detailed protocol

Peptides were either obtained commercially (ChinaPeptides or GLBiochem) or synthesised in-house on a Liberty Blue automated microwave peptide synthesiser (CEM). These peptides were prepared using Fluorenyl-methyloxycarbonyl (Fmoc) Rink amide MBHA resin (CS Bio), Nα-Fmoc-protected amino acids (Polymer labs), and the activators hydroxybenzotriazole (HOBt) and diisopropylcarbodiimide (DIC) at a ratio of 1:1 in DMF. Peptides were treated with a cleavage mix containing trifluoroacetic acid (TFA, 92.5% (v/v)), triisopropylsilane (2.5%), 1,3-dimethoxybenzene (2.5%) and water (2.5%). The cleaved peptides were precipitated by adding diethyl ether, lyophilised and purified by High Pressure Liquid Chromatography (HPLC).

HPLC-purified peptides employed as mass spectrometry standards in the IVTT hydroxylation assays (Figure 3 and Figure 3—figure supplements 133) were synthesised in-house (Peptide Chemistry STP, Francis Crick Institute) using Fmoc-protected amino acids on either Wang or Rink amide resin.

Calibration of peptide standards

Request a detailed protocol

NMR peptide calibration experiments were performed using a Bruker AVIII 700 MHz spectrometer using an inverse TCI probe and 5 mm NMR tubes. 1H spectra were recorded with 296 transients. Peptide standards were prepared at an estimated concentration of 50 µM by weighing the lyophilised material and dissolving in 500 μL D2O, supplemented with 1 µL of 10 mg/mL trimethylsilylpropanoic acid (TSP), an internal standard. The NMR-measured peptide concentrations were calculated by integration of the signal of the corresponding amino acid residues (in the 0–0.5 or 6–8 ppm region) compared to that of the internal standard at 0 ppm.

Peptide hydroxylation assays

Request a detailed protocol

Electrospray-ionisation liquid chromatography–mass spectrometry (ESI-LC-MS) assays were performed using an ACQUITY Xevo G2-S QToF mass spectrometer (Waters). Recombinant enzyme (PHD1 and PHD2: 2 μM, PHD3: 10 μM) was incubated with peptide substrates (50 μM in assays using PHD1 and PHD2, 100 μM in assays using PHD3, sequences in Table 1—source data 1.) in the presence of (NH4)2Fe(II)(SO4)2 (50 μM), 2-oxoglutarate disodium salt (300 μM), and sodium L-ascorbate (300 μM) in Tris (50 mM, pH 7.5) for 4 hr at 37°C. Reactions were quenched with formic acid (1 % v/v). The samples were separated on a ProSwift RP-1S Analytical column (Thermo Scientific) using a 10 min separation method with a gradient of solution A (Milli-Q H2O, 0.1% formic acid) and solution B (acetonitrile, 0.1% formic acid) under standard calibration. Instrument control and data analysis was conducted with MassLynx V4.1.

Substrate production by IVTT

Request a detailed protocol

PHD protein substrates were prepared using an in vitro transcription and translation (IVTT) system derived from HeLa cell lysate (Thermo Scientific). Open reading frames (ORFs) were inserted into the pT7CFE1 expression vector (Thermo Scientific) encoding for proteins with a 3x FLAG epitope tag at either the N- or C-terminus of the protein. PCR and Gateway methods were employed, with the latter facilitated by the creation of a destination vector (pT7CFE 3xFLAG/Dest); sequence integrity was verified by Sanger sequencing. Substrate ORFs corresponded to canonical full-length human proteoforms (see Table 1) with the following exceptions referenced to Uniprot accession: CEP192 (Q8TEP8-1); EPOR (P19235-1; amino acids 274–508), NDRG3 (Q9UGV2-1; amino acids 108–375) PDE4D (Q08499-8). Substrates were translated for 3 hr at 30°C, after which lysates were clarified by centrifugation (21,600 x g for 35 min) to remove insoluble aggregates (Niwa et al., 2009).

IVTT hydroxylation assay and sample handling for MS

Request a detailed protocol

Hydroxylation assays were performed in batches with the amount of non-HIF substrate normalised to the HIF-1α comparator by FLAG immunoblotting. Substrate levels were also referenced to an internal bovine serum albumin standard to facilitate normalisation across batches. HIF-1α hydroxylation assays were performed in a reaction volume of 2.5 ml comprising 50 mM Tris pH 7.4, 28 nM 3x FLAG-HIF-1α (in HeLa IVTT lysate), 2 mg/ml BSA, 0.1 mM DTT, 0.06 mg/ml catalase, 2 mM ascorbate, 160 μM 2-oxoglutarate, 5 µM FeSO4 and PHD enzyme (PHD1: 2.8 nM; PHD2: 0.56 nM; PHD3 14 nM) for 2 hr at 37°C. For non-HIF substrates the amount of PHD enzyme was increased 2 to 5-fold. PHD-reacted substrates were immunopurified using FLAG magnetic beads (Sigma) and eluted with 100 μg/ml 3x FLAG peptide. Eluates were reduced and alkylated by treatment with DTT (5 mM; 1 hr at 25°C) and iodoacetamide (20 mM; 1 hr at 25°C) respectively, before methanol/chloroform precipitation/desalting. Samples were resuspended in urea buffer (6 M urea, 100 mM Tris pH 7.8) and sonicated to enhance solubilisation. Protease digestion used MS grade proteases (Trypsin from Sigma; Lys-C, from Promega; Asp-N and Glu-C from Roche; Elastase from Worthington Biochemical) and was performed under denaturing (1M urea) conditions. Peptides were purified and concentrated on C-18 spin columns (Thermo Scientific) prior to recovery in aqueous 2% (v/v) acetonitrile 0.1% (v/v) formic acid and subsequent mass spectrometric analysis. Peptide digests were multiplexed prior to mass spectrometric analysis as detailed in Supplementary file 3. The mass spectrometry proteomics (LC-MSMS) data have been deposited to the ProteomeXchange Consortium via the PRIDE partner repository with the dataset identifier PXD013112 and 10.6019/PXD013112. Peptide LC-MS files have been archived at the Dryad digital repository and made publically available (doi:10.5061/dryad.917hb55).

Mass spectrometry

Request a detailed protocol

Data dependent acquisitions (DDA) were acquired on a nano UPLC (Dionex Ultimate 3000; Thermo Scientific) coupled to a hybrid quadrupole Orbitrap mass spectrometer (Q Exactive, Thermo Scientific). Reverse phase separation was performed at a flow rate of 250 nL/min on an EASY-spray PepMap RSLC C18 column (75 μM x 500 mm, 2 μm particle size; Thermo Scientific) over a 1 hr gradient of 2% to 35% acetonitrile in 5% DMSO/0.1% Formic Acid. MS1 spectra were acquired with a resolution of 70,000 and an AGC target of 3E6. MSMS spectra were acquired at a resolution of 17,500 for up to 128 ms and an AGC target of 1E5 for up to 15 precursors per duty cycle and a normalised collision energy of 28%. Selected precursors were isolated in the quadrupole with an isolation window of 1.6 m/z and excluded for 7 s for repeated selection. Parallel Reaction Monitoring (PRM) of selected peptides was undertaken on an Orbitrap Fusion Lumos instrument using the same chromatographic parameters as above. iRT peptides (Biognosys) were included as retention time references. MS1 spectra were acquired in the Orbitrap with a resolution of 120,000 and an AGC target of 7E5. PRM scans were acquired in the Orbitrap after quadrupole isolation with 1.2 m/z, HCD fragmentation (25% NCE) and with a resolution of 60,000 in a top 12 duty cycle. AGC target was set to 1E5 and the maximum injection time was 118 ms. PRM scans were scheduled with ±10 min around previously observed retention times.

Analysis of mass spectrometry data

Request a detailed protocol

Processing of DDA data was performed using PEAKS (versions 8.5 and X; Bioinformatics Solutions) with the following parameters applied: 5 ppm mass error tolerance for precursor ion mass and 0.02 Da tolerance for fragment ion masses; protease specificity was semi-specific with up to two missed cleavages; cysteine carbamidomethylation was selected as a fixed modification; variable modifications considered oxidation (C, D, H, F, K, M, N, P, R, W, Y) and di-oxidation (M, W, Y) in addition to deamidation (N, Q) and acetylation (protein N-termini); and a maximum of 3 PTMs per peptide. Additional unspecified PTM searches were considered via Peaks PTM algorithm. Raw data were matched against the canonical human Uniprot reference (retrieved July 9, 2018) supplemented with the modified HIF-1α (M561A/M568A) protein sequence. Peptide false discovery rate was set to 1% using a target/decoy fusion approach. PTM site determination used a probability-based ambiguity score (AScore; −10 x log10 P); an AScore value of 20 is equivalent to a p-value of 0.01.

Peptide abundance measurements were obtained by manual peak area integration of extracted ion chromatograms using Qual Browser (Xcalibur; Thermo Scientific); minimal smoothing (Gaussian, three points) was automatically applied to XIC data. Unoxidised non-HIF substrate peptides were all identified by MSMS. For HIF substrate peptides that showed near complete hydroxylation upon enzyme addition, accurate mass and retention time (AMT) signatures were employed, where necessary, to facilitate quantitation of precursor ions in all enzyme-reacted and control samples, including those lacking supporting MSMS. Stringent tolerances were used (5 ppm m/z window and 1 min retention time deviation between related runs) reflecting the reproducible chromatography and high mass accuracy of the nanoLC QExactive platform.

Benchmark deep proteome datasets (PXD002395, PXD003977, PXD004452) were downloaded from the PRIDE repository and batch processed with Peaks 8.5, grouping raw files according to cell type, fragmentation mode and, where appropriate, replicate status. Processing parameters were identical to those used in the in-house DDA data, with the following modifications: (i) precursor mass tolerance set to 10 ppm; (ii) fragment mass tolerance was specific to the MSMS acquisition mode; 0.5 Da for ion trap acquisitions and 0.05 Da for orbitrap; (iii) full tryptic specificity was applied; (iv) data were matched to the unmodified canonical human Uniprot reference (retrieved July 9, 2018); (v) Accurate PTM site determination considered AScore (>20) and minimal relative fragment ion intensity values (major b- or y-fragment ions with >5% relative ion intensity before and after the modified amino acid). Values reported in Table 3 are indicative of leading peptide scores for each Peaks 8.5 processed dataset, exported as a supporting peptides file (protein-peptides.csv).

Processing of PRM data was performed with Spectrodive 8 (Biognosys) using default analysis settings. Ion chromatograms corresponding to five different fragment ions, which were assigned during spectral library generation (Spectronaut Pulsar X; Biognosys) were extracted with a 10 ppm mass tolerance. Quantitative information (e.g. area counts) and retention time recalibration, facilitated by the use of iRT spike-in peptides in reference (DDA for spectral library generation) and PRM data, was automated in Spectrodive.

Radioassay for hydroxyproline

Request a detailed protocol

PHD substrates were prepared using a HeLa cell lysate-derived IVTT expression system (Thermo Scientific) supplemented with 70 μCi of L-[2,3,4,5-3H]proline (85 mCi/μmol; PerkinElmer Life Sciences) per 25 μl IVTT reaction as described above. The IVTT reaction containing the translated 3H-proline labeled substrate was divided into parallel aliquots and subjected to hydroxylation in a reaction volume of 0.5 ml as described above, with each substrate being incubated in parallel with and without the relevant exogenous recombinant PHD. Following the 2 hr hydroxylation reaction at 37°C, the samples were dialysed extensively to remove any remaining free L-[2,3,4,5-3H]-proline, and the 4-[3H]-hydroxyproline formed in the substrate was analyzed by an optimised procedure for the analysis of radiolabelled [3H]-hydroxyproline involving its oxidation to pyrrole (Juva and Prockop, 1966). The amount of 4-hydroxy[3H]proline formed during the reaction is given as DPM (disintegrations per minute) 4-hydroxy[3H]proline per 1 × 106 DPM total [3H]-proline and was calculated by subtracting the DPM values for the reaction carried out without the recombinant PHD. Wild type and P402A/P564G double mutant HIF-1α were included as positive and negative control substrates alongside each hydroxylation assay to ensure efficient hydroxylation of a known substrate and to analyse background DPM generated due to the technical limitations of the assay, respectively.

Replicates

Request a detailed protocol

A summary table detailing the number of independent assays for each target is provided in Supplementary file 4.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51

Decision letter

  1. Celeste Simon
    Reviewing Editor; University of Pennsylvania, United States
  2. Utpal Banerjee
    Senior Editor; University of California, Los Angeles, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Lack of activity of recombinant HIF prolyl hydroxylases (PHDs) on reported non-HIF substrates" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Utpal Banerjee as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission. The reviewers in their deliberations are quite clear that they would like to see this work published in eLife. The only substantial request is for you to speculate/comment on what might be expected for FIH (see Essential Revisions). The full reviews are included in case you would like to address them, but doing so is entirely discretionary.

Summary:

The discovery of HIF prolyl hydroxylase enzymes raises the important question as to the existence of additional non-HIF substrates, where the HIF-PHDs might govern other biological responses to hypoxia. More than 20 putative substrates have been published previously; however, the authors failed to detect enzymatic activity on any of these peptides or proteins under conditions readily detecting HIFα hydroxylation. While the authors do not exclude prolyl hydroxylation under other conditions not employed in their study, they find no evidence for any of the reported non-HIF substrates in the literature at this time.

Essential revisions:

During the review process, online discussions by the three reviewers have led to a recommendation that the paper include some discussion (in that section of the paper) on the likelihood that the other principle HIFα subunit dioxygenase hydroxylating a C-terminal asparagine residue (FIH) would also have non-HIF substrates, based on your own analyses and assessment of the literature at this time. Moreover, the Discussion section would benefit from added text describing your hypotheses as to why the PHDs are so selective for HIFα subunits, given the noted flexibility of amino acids around their highly conserved prolyl hydroxylation sites. Finally, at least two reviewers recommend several additional experiments that would significantly benefit the paper. In our view these should be able to be completed in approximately two months or less.

Overall, all three reviewers felt a suitably revised manuscript would add significant new information that would benefit the HIF, O2-dependent dioxygenase, and oxygen sensing fields.

As such, a revised paper represents a good candidate for the journal. We hope you find the three reviewers' comments provided below helpful and look forward to hearing from you soon.

Title: Suggest "HIF prolyl hydroxylases (PHDs) lack activity toward reported non-HIF substrates".

Reviewer #1:

The paper by Cockman et al., entitled "Lack of activity of HIF prolyl hydroxylases (PHDs) on reported non-HIF substrates" represents a technical 'tour de force' that seeks to clarify a large body of literature spanning more than 10 years of work by numerous labs. The background for this important study is that the discovery of the HIF-PHDs as 'oxygen sensors' raised the critical question as to whether there are other prolyl hydroxylation substrates for the three HIF-PHDs (PHD1, PHD2, and PHD3) beyond HIF-α subunits (i.e. α1, α2, and α3). This was an appealing hypothesis, suggesting that non-HIF dependent pathways would similarly be regulated by oxygen availability based on the PHDs as central O2 sensors. There are also important clinical implications at play here, in that highly specific PHD enzymatic activity inhibitors are making their way through multiple clinical trials: on target specificity of such drugs for non-HIF substrates could result in significant dose limiting toxicities for patient care. To date, >20 non-HIF PHD substrates have been published. In order to more carefully examine each of these proteins as bone fide enzymatic targets of PHD1-3, the authors carried out exhaustive efforts to measure the prolyl hydroxylation of synthetic peptides (and even full-length purified proteins) representing the reported sites of hydroxylation.

Table 1 summarizes (a) 24 putative non-HIF targets, (b) proposed proline residues in these targets reported to be hydroxylated, (c) which PHD isoform is responsible, and (d) primary references in the literature. To their enormous credit, the authors considered every conceivable technical explanation for why they failed to detect target hydroxylation in their assays (while HIF-1α always served as an internal positive control): (1) length of peptide substrate being inadequate, (2) altered ionization/detection efficiencies in their experiments, (3) co-elution of prolyl hydroxylated species with non-enzymatically oxidized ions, and (4) prolyl hydroxylation that occurs below the limits of detection by their MS approaches (these were explored by independent radiochemical procedures), to name but a few. They also evaluated previously published MS based cellular proteomes for evidence of prolyl hydroxylation of the proposed non-HIF substrates, as an independent unbiased approach. Collectively, they observed no experimental support for the three PHDs having multiple non-HIF substrates, or at least those reported cannot be unequivocally shown to be bona fide PHD substrates.

The authors took great pains to report their findings objectively and comprehensively. As such, this study is a 'landmark' in the O2 sensing field and highly worthy of publication expediently as possible, I have no real substantive revisions to suggest, other than expanding the legend for Table 2 to make it easier for the reader to digest without more extensive evaluation of the detailed methods provided in the paper.

Reviewer #2:

The discovery of PHD catalyzed hydroxylation of HIF as the key event in the transcriptional response to hypoxia raises the question of whether there are non-HIF substrates that could conceivably enlarge the scope of PHD-regulated hypoxic responses. Over that past decade, over 20 such substrates have been reported. These include protein kinases, transcription factors, metabolic enzymes, and cytoskeletal proteins, among others. The means by which prolyl hydroxylation has been identified in these publications has varied and has included mass spectrometry and anti-hydroxyproline antibodies. In order to independently assess hydroxylation of these reported substrates, the authors have performed an extensive analysis using recombinant PHD1-3, HIF-1α or HIF-2α as a positive control, and three in vitro assays: (1) Incubation of the PHDs with full length substrates from Hela cell extract using vitro transcription/translation (IVTT) reactions followed by immunopurification and mass spec; (2) incubation of the PHDs with substrate derived peptides followed by mass spec; (3) incubation of the PHDs with IVTT proteins in the presence of 3H-proline, followed by assessment of hydroxylation of 3H-proline. The surprising result is that under conditions in which HIF hydroxylation is readily detected, they did not find evidence of hydroxylation of any of the non-HIF substrates reported in the literature.

The experiments are well performed, systematic, and meticulously reported. The data are convincing. The use of independent assays and the inclusion of HIF positive controls in these assays lends substantial weight to the results. The author appropriately discuss limitations of their study, which include the possibility that hydroxylation might occur in a cellular environment but not in vitro. Their findings are at odds with a large number of publications that report non-HIF substrates, and as such, would represent a very important contribution to the literature. Undoubtedly, this will provoke further discussion and investigation.

Reviewer #3:

This article describes a very thorough investigation of the hydroxylation of essentially all of the reported non-HIF substrates of the PHD enzymes. The use of both peptides and full length proteins, exhaustive analysis by mass spectrometry, including determining of differences in ionisation efficiency between hydroxylated and non-hydroxylated peptides, and the complementary methodology of radiolabeled enzyme assays is a major strength of this study. The results are generally very well presented and described, although complex and not necessarily appreciated by a more general audience outside this specific field. The major conclusions drawn from the in vitro data are very well supported.

The results are unexpected, given the numerous publications presenting both cell-based and in vitro evidence by mass spectrometry for hydroxylation of these substrates. These findings make a very important contribution to this field, and raise doubt as to whether any of these are actually substrates in vivo, and if they are why they do not appear to be substrates in vitro. This, of course, has important implications for the therapeutic use of PHD-specific inhibitors.

However, with only the in vitro experiments included in this study, the key question of whether any of these are substrates in vivo is not addressed, at least experimentally. The authors do propose a number of potential reasons for this lack of hydroxylation in vitro compared to reports in cells, which are logical, from none of these being substrates of the PHDs (artefacts), through to the lack of necessary cellular components in the in vitro assay, or assay-specific differences.

What is lacking from this study is some attempt to rationalise this key issue, by attempting to replicate some of the published cell-based experiments using the more the intensive interrogation by mass spectrometry used in this study. This analysis could have been performed, for example, by hydroxylating substrates in vitro using whole cell extracts, with PHDs either inhibited, knocked down or knocked out, as used in other studies, to determine whether additional factors are required. Or by extracting and analysing endogenous proteins to determine whether it is more likely an issue with interpretation of the mass spectrometry such as misinterpretation of oxidation. Ultimately, we are left with a set of very provocative results, but uncertain whether this is an artefact of the in vitro system or of real physiological significance.

https://doi.org/10.7554/eLife.46490.071

Author response

Essential revisions:

During the review process, online discussions by the three reviewers have led to a recommendation that the paper include some discussion (in that section of the paper) on the likelihood that the other principle HIFα subunit dioxygenase hydroxylating a C-terminal asparagine residue (FIH) would also have non-HIF substrates, based on your own analyses and assessment of the literature at this time. Moreover, the Discussion section would benefit from added text describing your hypotheses as to why the PHDs are so selective for HIFα subunits, given the noted flexibility of amino acids around their highly conserved prolyl hydroxylation sites. Finally, at least two reviewers recommend several additional experiments that would significantly benefit the paper. In our view these should be able to be completed in approximately two months or less.

Overall, all three reviewers felt a suitably revised manuscript would add significant new information that would benefit the HIF, O2-dependent dioxygenase, and oxygen sensing fields.

As such, a revised paper represents a good candidate for the journal. We hope you find the three reviewers' comments provided below helpful and look forward to hearing from you soon.

Title: Suggest "HIF prolyl hydroxylases (PHDs) lack activity toward reported non-HIF substrates".

The reviewing editor has asked that we add text to the discussion concerning why the PHDs are apparently so selective for their HIF-α substrates. This question is indeed of interest, because, as the editor points out, many amino acid substitutions can be tolerated in HIF-α peptides without the total loss of activity that was observed with the non-HIF substrates tested in these experiments.

We are not yet sure of the precise reasons, which are the subject of on-going work. However, X-ray and NMR structural analyses of HIF-α peptides in complex with both human PHD2 protein and that of the simplest animal Trichoplax adhaerens reveal that the bound peptide makes multiple contacts with PHD2. There are also substantial conformational changes in the PHD structures on binding HIF-α substrates, including those involving at least one loop, which on substrate binding moves to enclose the catalytic site and the C-terminal region of the enzyme(1-3). Thus (so far), the complex nature of the protein-protein interactions between the PHDs and their HIF substrates means it is difficult to predict PHD substrates from primary sequences (as is the case for other 2-oxoglutarate dependent oxygenases (4).

In revision, we have added a brief discussion of this. We have also (as suggested by reviewer 2) added a supplementary table comparing both predicted and defined secondary structure in HIF-α peptides and the reported non-HIF substrates. This reveals that, despite substantial primary sequence variation, many (possibly all) HIF-α peptides are predicted to form a helix immediately adjacent to the target prolyl residue. This prediction is supported by crystal structures of PHD2 in complex with CODD and NODD. However, a caveat is that binding to the enzyme may impose other structural changes and constraints, which cannot be predicted from this type of bioinformatic analysis.

The reviewing editor also asks that we discuss the likelihood that the HIF asparaginyl hydroxylase, FIH has other substrates. We (and others) have reported that FIH hydroxylates asparaginyl (and other) residues in a wide range of ankyrin-repeat domain (ARD)-containing proteins, in addition to HIF-α. As an additional control for this study we tested these substrates in the IVTT assays with FIH and confirmed that both ARD-containing proteins and HIF-α are efficiently hydroxylated by FIH. Multiple X-ray structures of peptide substrates complexed to FIH imply a much more open binding site than PHD2/HIF-α, with less induced fit (at least from the enzyme perspective), with FIH substrate peptides binding in a largely extended configuration(5, 6). These results, together with the observation that suitably sited residues in the ankyrin fold other than asparagine may be hydroxylated(7), suggests that the substrate specificity of FIH may be much broader than the PHDs. However, FIH must unfold its ankyrin repeat substrates from their canonical structure and the extent to which this process constrains the FIH substrate repertoire is not understood. Nevertheless, we agree the subject is of interest and have added text covering this to the Discussion section of the revised manuscript.

Reviewer #1:

[…]

The authors took great pains to report their findings objectively and comprehensively. As such, this study is a 'landmark' in the O2 sensing field and highly worthy of publication expediently as possible, I have no real substantive revisions to suggest, other than expanding the legend for Table 2 to make it easier for the reader to digest without more extensive evaluation of the detailed methods provided in the paper.

We have expanded the legend to Table 2 as suggested.

Reviewer #2:

The discovery of PHD catalyzed hydroxylation of HIF as the key event in the transcriptional response to hypoxia raises the question of whether there are non-HIF substrates that could conceivably enlarge the scope of PHD-regulated hypoxic responses. Over that past decade, over 20 such substrates have been reported. These include protein kinases, transcription factors, metabolic enzymes, and cytoskeletal proteins, among others. The means by which prolyl hydroxylation has been identified in these publications has varied and has included mass spectrometry and anti-hydroxyproline antibodies. In order to independently assess hydroxylation of these reported substrates, the authors have performed an extensive analysis using recombinant PHD1-3, HIF-1α or HIF-2α as a positive control, and three in vitro assays: (1) Incubation of the PHDs with full length substrates from Hela cell extract using vitro transcription/translation (IVTT) reactions followed by immunopurification and mass spec; (2) incubation of the PHDs with substrate derived peptides followed by mass spec; (3) incubation of the PHDs with IVTT proteins in the presence of 3H-proline, followed by assessment of hydroxylation of 3H-proline. The surprising result is that under conditions in which HIF hydroxylation is readily detected, they did not find evidence of hydroxylation of any of the non-HIF substrates reported in the literature.

Point 1: Like the reviewing editor, this reviewer also raises the question of substrates specificity determinants for the PHDs. We agree this is an interesting point; our response is as set out above.

Point 2: We were uncertain what was intended in this comment, as the effect of prolyl hydroxylation on the chromatographic behaviour of the peptide standards is summarised at the point of reference to the tabulated data (Table 2). This can be found towards the end of the Results section. It could that the reviewer was suggesting that we give this data earlier but overall we think that the flow of the manuscript is best with the text as written, which is in line with the order in which the work was performed.

Point 3: We have added further detail on the radiochemical assay. We have also revised Figure 5 in a way which we think more accurately portrays the data, in particular we have extended the scale below zero to indicate that values for the non-HIF substrates include negative values. These values cluster around zero, rather than the small positive value that might have been suggested by the way the figure was originally drawn. The IVTT reaction containing the translated [3H]-proline labeled substrate was divided into two aliquots and subjected to hydroxylation with and without the recombinant PHD. The data is now given as DPM [3H]-hydroxyproline formed during the reaction per 1 x 106 DPM total [3H]-proline. This is calculated by subtracting such DPM values for the control reaction carried out without the recombinant PHD from the test reaction. Wild-type and the P402A/P564G double mutant HIF-1α are included as positive and negative control substrates in each hydroxylation assay, to verify efficient hydroxylation of a known substrate and to display the background DPM range due to technical limitations of the assay, respectively. As requested, details are provided in the revised Materials and methods section.

The experiments are well performed, systematic, and meticulously reported. The data are convincing. The use of independent assays and the inclusion of HIF positive controls in these assays lends substantial weight to the results. The author appropriately discuss limitations of their study, which include the possibility that hydroxylation might occur in a cellular environment but not in vitro. Their findings are at odds with a large number of publications that report non-HIF substrates, and as such, would represent a very important contribution to the literature. Undoubtedly, this will provoke further discussion and investigation.

The reviewer raises two questions. First, based on existing evidence, are the proposed non-HIF substrates unstructured in the regions containing the proposed site of hydroxylation? Second, what is the extent of conservation across metazoans in the regions of HIF-α polypeptides that are targeted for prolyl hydroxylation.

These questions impinge on the editor’s suggestion that we discuss hypotheses as to the determinants of PHD selectivity towards HIF substrates. As outlined above our response to the editor, we have added a supplementary table comparing both predicted and defined secondary structure in HIF-α regions that are targeted for prolyl hydroxylation in different metazoan species, together with similar analyses on reported non-HIF substrates. This reveals that, despite substantial primary sequence variation, HIF-α peptides are predicted to form an α-helix close to the target prolyl residue. In contrast, we observed no common secondary structure (either observed or predicted) in the region of the proposed sites of prolyl hydroxylation in reported non-HIF substrates.

Reviewer #3:

This article describes a very thorough investigation of the hydroxylation of essentially all of the reported non-HIF substrates of the PHD enzymes. The use of both peptides and full length proteins, exhaustive analysis by mass spectrometry, including determining of differences in ionisation efficiency between hydroxylated and non-hydroxylated peptides, and the complementary methodology of radiolabeled enzyme assays is a major strength of this study. The results are generally very well presented and described, although complex and not necessarily appreciated by a more general audience outside this specific field. The major conclusions drawn from the in vitro data are very well supported.

The results are unexpected, given the numerous publications presenting both cell-based and in vitro evidence by mass spectrometry for hydroxylation of these substrates. These findings make a very important contribution to this field, and raise doubt as to whether any of these are actually substrates in vivo, and if they are why they do not appear to be substrates in vitro. This, of course, has important implications for the therapeutic use of PHD-specific inhibitors.

However, with only the in vitro experiments included in this study, the key question of whether any of these are substrates in vivo is not addressed, at least experimentally. The authors do propose a number of potential reasons for this lack of hydroxylation in vitro compared to reports in cells, which are logical, from none of these being substrates of the PHDs (artefacts), through to the lack of necessary cellular components in the in vitro assay, or assay-specific differences.

What is lacking from this study is some attempt to rationalise this key issue, by attempting to replicate some of the published cell-based experiments using the more the intensive interrogation by mass spectrometry used in this study. This analysis could have been performed, for example, by hydroxylating substrates in vitro using whole cell extracts, with PHDs either inhibited, knocked down or knocked out, as used in other studies, to determine whether additional factors are required. Or by extracting and analysing endogenous proteins to determine whether it is more likely an issue with interpretation of the mass spectrometry such as misinterpretation of oxidation. Ultimately we are left with a set of very provocative results, but uncertain whether this is an artefact of the in vitro system or of real physiological significance.

The reviewer raises an issue as to whether we should attempt further experiments to resolve the differences between the results of the work we report, and those reporting non-HIF substrates. In particular, it is suggested that we might attempt to hydroxylate substrates in vitro using whole cell extracts, or that we extract and analyse endogenous proteins.

First, we should point out that our IVTT experiments used substrates that were produced in Hela cell extracts. In all reactions conducted with HIF-α polypeptides as positive controls, we observed an increase in hydroxylation of the anticipated prolyl residues upon addition of the relevant recombinant PHD. However, we also observed clear evidence of prolyl hydroxylation at the HIF target sites in IVTT samples prior to these reactions. Thus, if endogenous PHD activity in whole cell extracts were sufficient to hydroxylate the reported non-HIF substrates then this should have been evident in the analyses that we report. We cannot exclude that some cell type difference (e.g. in PHD isoform expression) that was not captured in our experiments might nevertheless be capable of supporting hydroxylation, which is why we are careful to point out that we cannot exclude hydroxylation occurring under conditions other than those of our experiments.

The reviewer is correct that in theory it would be possible to extract and analyse endogenous proteins, at least those for which efficient immuno-precipitating antibodies exist. However, together with the necessary analytical controls, and interventions on enzyme activity, this would entail a very extensive further set of technically challenging experiments (especially at natural abundance levels), well beyond work which would be consistent with timely revision. We also think that it is important to publish at this stage in an unprejudiced manner, so that others are aware of the results in planning their research and have the opportunity to contribute further.
