Initiation of chromosome replication controls both division and replication cycles in E. coli through a double-adder mechanism

  1. Guillaume Witz  Is a corresponding author
  2. Erik van Nimwegen
  3. Thomas Julou
  1. University of Basel, Switzerland
  2. University of Bern, Switzerland
Research Article
  • Cited 0
  • Views 754
  • Annotations
Cite this article as: eLife 2019;8:e48063 doi: 10.7554/eLife.48063

Abstract

Living cells proliferate by completing and coordinating two cycles, a division cycle controlling cell size and a DNA replication cycle controlling the number of chromosomal copies. It remains unclear how bacteria such as Escherichia coli tightly coordinate those two cycles across a wide range of growth conditions. Here, we used time-lapse microscopy in combination with microfluidics to measure growth, division and replication in single E. coli cells in both slow and fast growth conditions. To compare different phenomenological cell cycle models, we introduce a statistical framework assessing their ability to capture the correlation structure observed in the data. In combination with stochastic simulations, our data indicate that the cell cycle is driven from one initiation event to the next rather than from birth to division and is controlled by two adder mechanisms: the added volume since the last initiation event determines the timing of both the next division and replication initiation events.

Introduction

Across all domains of life, cell proliferation requires that the chromosome replication and cell division cycles are coordinated to ensure that every new cell receives one copy of the genetic material. While in eukaryotes this coordination is implemented by a dedicated regulatory system in which genome replication and division occur in well-separated stages, no such system has been found in most bacteria. This suggests that the molecular events that control replication initiation and division might be coordinated more directly in bacteria, through molecular interactions that are yet to be elucidated. The contrast between this efficient coordination and the apparent absence of a dedicated regulatory system is particularly remarkable since most bacteria feature a unique replication origin which imposes that multiple rounds of replication occur concurrently in fast growth conditions. For example, in the specific case of E. coli that we study here, it has long been known that growth rate, cell size, and replication initiation are coordinated such that the average number of replication origins per unit of cellular volume is approximately constant across conditions (Donachie, 1968) or that cellular volume grows approximately exponentially with growth rate (Taheri-Araghi et al., 2017). Although several models have been proposed over the last decades to explain such observations (for a review and a historical perspective see for example Willis and Huang, 2017), so far direct validation of these models has been lacking, due to a large extent to the lack of quantitative measurements of cell cycles parameters in large samples with single-cell resolution.

Thanks to techniques such as microfluidics in combination with time-lapse microscopy, it has recently become possible to perform long-term observation of growth and division in single bacteria. By systematically quantifying how cell cycle variables such as size at birth, size at division, division time, and growth rate vary across single cells, insights can be gained about the mechanism of cell cycle control. Several recent studies have focused on understanding the regulation of cell size, resulting in the discovery that E. coli cells maintain a constant average size by following an adder strategy: instead of attempting to reach a certain size at division (i.e. a sizer mechanism) or to grow for a given time (i.e. a timer mechanism), it was found that cells add a constant length dL to their birth length Lb before dividing (Amir, 2014; Campos et al., 2014; Taheri-Araghi et al., 2017). In particular, while the cell size at division and the division time correlate with other variables such the cell size at birth and growth rate, the added length dL fluctuates independently of birth size and growth rate. A remarkable feature of the adder model is its capacity to efficiently dampen large cell size fluctuations caused by the intrinsically noisy regulation, without the need for any fail-safe mechanism. This efficient strategy has been shown to be shared by various bacterial species as well as by archea (Eun et al., 2018) and even some eukaryotes such as budding yeast (Soifer et al., 2016).

Here, we focus on how the control of replication initiation is coordinated with cell size control in E. coli, a question that has attracted attention for a long time (Helmstetter, 1974; Pierucci, 1978; Koppes and Nanninga, 1980). Several models have been proposed to explain how the adder behavior at the level of cell size might arise from a coordinated control of replication and division. Broadly, most models assume that the accumulation of a molecular trigger, usually assumed to be DnaA, leads to replication initiation, which in turn controls the corresponding future division event (Campos et al., 2014; Ho and Amir, 2015; Wallden et al., 2016). Subtle variations in how the initiation trigger accumulates and how the initiation to division period is set in each model imply distinct molecular mechanisms, and thus fundamentally different cell cycle regulations. Specifically, most models assume that initiation is triggered either when a cell reaches a critical absolute volume (initiation size, see for example Wallden et al., 2016) or alternatively when it has accumulated a critical volume since the last initiation event (see e.g. Ho and Amir, 2015). In order to explain the coordination between cell cycle events, division is often assumed to be set by a timer starting at replication initiation, but recent studies have also proposed that the two cycles might be independently regulated (Micali et al., 2018a; Si et al., 2019). Finally, it is often assumed that the regulation strategy could be different at slow and fast growth where different constraints occur.

We use an integrated microfluidics and time-lapse microscopy approach to quantitatively characterize growth, division, and replication in parallel across many lineages of single E. coli cells, both in slow and fast growth conditions. We show that insights about the underlying control mechanisms can be gained by systematically studying the structure of correlations between these different variables. Our single-cell observations are inconsistent with several previously proposed models including models that assume replication is initiated at a critical absolute cell volume and models that assume division is set by a timer that starts at replication initiation. Instead, the most parsimonious model consistent with our data is a double-adder model in which the cell cycle commences at initiation of replication and both the subsequent division and the next initiation of replication are controlled by the added volume. We show that this model is most consistent with the correlation structure of the fluctuations in the data and, through simulations, we show that this model accurately reproduces several non-trivial observables including the previously observed adder behavior for cell size control, the distribution of cell sizes at birth, and the distribution of the number of origins per cell at birth. Moreover, the same model best describes the data both at slow and fast growth rates. As far as we are aware, no other proposed model at the same level of parsimony can account for the full set of observations we present here.

Results

To test possible models for the coordination of replication and division in E. coli we decided to systematically quantify growth, replication initiation, and division across thousands of single E. coli cell cycles, across multiple generations, and in various growth conditions. To achieve this, cells were grown in a Mother Machine type microfluidic device (Wang et al., 2010) and imaged by time-lapse microscopy. We used M9 minimal media supplemented with glycerol, glucose or glucose and eight amino acids, resulting in doubling times of 89, 53 and 41 min, respectively. The cell growth and division cycles were monitored by measuring single-cell growth curves obtained through segmentation and tracking of cells in phase contrast images using the MoMA software (Kaiser et al., 2018). The replication cycle was monitored by detecting initiation as the duplication of an oriC proximal FROS tagged locus imaged by fluorescence microscopy (Figure 1A). This of course only offers a proxy for initiation timing, as origin splitting can be affected by a cohesion time (Reyes-Lamothe et al., 2008). These measurements allowed us to quantify each single cell cycle by a number of variables such as the growth rate, the sizes at birth, replication initiation, and division, the times between birth and replication initiation and the time between birth and division. As done previously, we assume that cell radius is constant and use cell length as a proxy for cell volume (Adiciptaningrum et al., 2016; Taheri-Araghi et al., 2017). Since we can follow cells over multiple generations, we can also measure quantities that span multiple division cycles such as the total time or total cell growth between consecutive replication initiation events. As we analyze growth conditions spanning cases with both single and overlapping rounds of replication, we defined two alternative ways of defining variables. In particular, while the cell cycle is classically defined from division to division (Figure 1C), we also use an alternative framework proposed recently (Ho and Amir, 2015; Amir, 2017), in which the cell cycle is defined from one replication initiation to the next (Figure 1D). As this framework is centered on origins of replication rather than on cells, we consequently define a new quantity Λ, the cell length per origin, which allows tracking of the amount of cell growth per origin of replication. For instance, in a case where a cell is born with an ongoing round of replication which started at time t, Λi for that cell is defined as Λi=Li/4 where Li is the length of the mother cell which contains four origins at time t (Figure 1—figure supplement 1). Using these definitions allows us to avoid having to apply artificial cut-offs as for example done in Wallden et al. (2016). In this article, we explore a wide variety of models that take either a division-centric or replication-centric view of the cell cycle. Using specific correlations observed in our data, we show how entire classes of models can be rejected. In addition, we present a general statistical framework for ranking models based on their ability to capture the full correlation structure of the data.

Figure 1 with 1 supplement see all

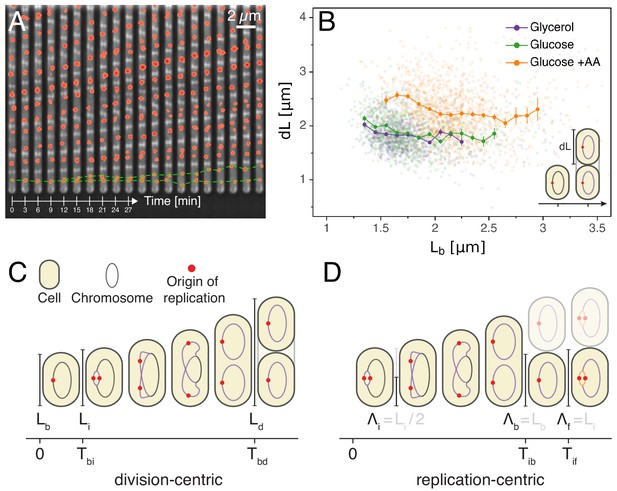

Experimental approach and analysis framework.

(A) Time-lapse of E. coli cells growing in a single microfluidic channel. The fluorescence signal from FROS labeling is visible as red spots in each cell. The green dotted line is an aid to the eye, illustrating the replication of a single origin. (B) Consistent with an adder model, the added length between birth and division is uncorrelated with length at birth (here and in all other scatter plots, the darker lines show the mean of the binned data and the error bars represent the standard error per bin). (C) The classical cell cycle is defined between consecutive division events, shown here with replication and division for slow growth conditions (i.e. without overlapping rounds of replication). (D) We introduce an alternative description framework where the cell cycle is defined between consecutive replication initiation events. The observables that are relevant to characterize the cell cycle in these two frameworks are indicated (see also Table 1).

Cell size adder

We first verified whether our measurements support the previously observed adder behavior in cell size, and find that added length dL between birth and division is indeed uncorrelated with length at birth Lb in all growth conditions (Figure 1B), and, also in agreement with the adder model, the heritability of birth length between mother and daughter is characterized by a Pearson correlation coefficient of r0.5 (see Appendix 1—table 1). There has been a question in the literature as to whether adder behavior is also observed at slow growth. Slow growth conditions have only been tested in two studies. While an initial study reported that adder behavior is not observed at slow growth (Wallden et al., 2016), a more recent study did observe adder behavior at slow growth (Si et al., 2019). Our own observations are thus in line with this later study and it should also be noted that Si et al. (2019) only found a weak deviation from adder behavior when reanalyzing the data of Wallden et al. (2016). Thus, while more independent studies are needed, on the whole the currently available data appear to support that adder behavior is independent of growth conditions.

Replication initiation mass

A popular idea dating back to the 1960s and still often used today to explain the coupling of division and replication cycles is the initiation mass model. The observations that cell volume grows exponentially with growth rate (Schaechter et al., 1958) and that, across a range of conditions, the time between replication initiation and division is roughly constant (Helmstetter et al., 1968) led Donachie to propose that the volume per origin of replication is held constant (Donachie, 1968). In particular, the model proposes that initiation occurs when a cell reaches a critical volume. A simple prediction of this model is that, for a given cell, the cell length Li at which initiation occurs should be independent of other cell cycle variables such as the length at birth Lb. However, as can be seen in Figure 2A, we observe that the initiation length Li and birth length Lb are clearly correlated in all conditions, rejecting the initiation mass model. The absence of an initiation mass has already been shown by Adiciptaningrum et al. (2016) and confirmed in a recent comprehensive analysis (Micali et al., 2018a). Note that, by assuming that the concentration of the molecule that controls initiation is the same independent of growth rate, and a critical amount of this molecule has to accumulate per origin to trigger initiation, then this model would still predict that the average volume per origin in bulk is independent of growth rate (Si et al., 2017).

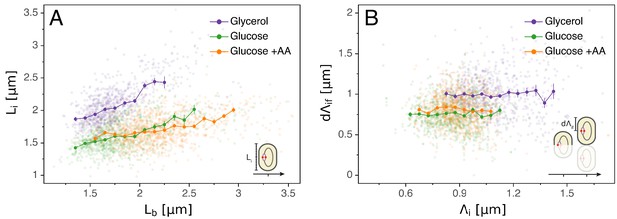

Models for initiation control.

(A) The initiation mass model predicts that the length at initiation Li should be independent of the length at birth Lb. However, we observe clear positive correlations between Li and Lb in all growth conditions. (B) In contrast, the length accumulated between two rounds of replication dΛif is independent of the initiation size Λi, suggesting that replication initiation may be controlled by an adder mechanism.

Multiple origins accumulation model

Just as a constant average cell size can be accomplished by adding a constant volume per division cycle rather than by dividing at a critical division volume, so a constant average volume per origin of replication can also be implemented by controlling the added volume between replication initiations rather than by a critical initiation volume. A concrete proposal for such an adder mechanism, called the multiple origins accumulation model, has recently received increasing attention (Ho and Amir, 2015). In this model, a molecule that is expressed at a constant cellular concentration accumulates at each origin until it reaches a critical amount, triggering replication, after which it is degraded and starts a new accumulation cycle. Given that, for a molecule at constant concentration, the added volume over some time period is proportional to the amount produced of the molecule, the result of this process is that the cell adds a constant volume per origin dΛif between initiation events (with dΛif=Λf-Λi where indexes stand for 'initial’ and 'final’ respectively, see Figure 1D and Table 1 for more details). Note also that in this 'per origin’ formalism dΛif is independent of the status of the division cycle, for example a cell might have two origins nori=2 and a length at initiation Liori2 or have already divided and have one origin nori=1 and a length Liori1, but Λi=Liori2/2=(Liori2/2)/1=Liori1/1 is invariant. If replication is indeed triggered by such an adder mechanism, then one would expect the observed added lengths dΛif to be independent of the length Λi at the previous initiation. As shown in Figure 2B, our data support this prediction.

Table 1
Variables definitions.
Division-centricReplication-centric
Measured variables
LbSize at birth*ΛiSize per origin at initial replication initiation*
LdSize at division*ΛfSize per origin at final replication initiation*
TbdDuration between birth and divisionTifDuration between consecutive replication initiations
LiSize at replication initiation*ΛbSize per origin at birth*
TbiDuration between birth and replication initiationTibDuration between replication initiation and birth
Derived variables
λ=1TbdlogLdLbCell growth rate* (between birth and division)α=1TiflogΛfΛiCell growth rate* (between consecutive replication initiations)
dL=Ld-LbDivision 'adder'dΛib=Λb-ΛiReplication 'adder'
dLbi=Li-LbBirth-to-initiation 'adder'dΛif=Λf-ΛiInitiation-to-birth 'adder'
Rbd=Ld/LbGrowth ratio between birth
and division
Rif=Λf/ΛiGrowth ratio between con-
secutive initiations
Rbi=Li/LbGrowth ratio between birth
and initiation
Rib=Λb/ΛiGrowth ratio between initia-
tion and birth
  1. * variables indicated by a star are measured from a linear fit of exponential elongation.

Connecting replication and division cycles

Having validated the multiple origins accumulation model for replication control, we now investigate its relation to the division cycle. A common assumption is that the period Tid from initiation to division (classically split into the replication period C and the end of replication to division period D) is constant and independent of growth rate (Cooper and Helmstetter, 1968; Ho and Amir, 2015). Such a constant period might suggest a timer mechanism by which, on average, a fixed time elapses in each cell between initiation and division. However, as visible in Figure 3A, while on average Tid is indeed rather constant across growth conditions, within each condition fast growing cells clearly complete this period faster than slow growing cells. One possibility is to assume that the time Tid is coupled to growth rate λ by an unspecified mechanism in such a way as to recover the empirically observed correlation (Wallden et al., 2016). However, Figure 3B reveals another and arguably simpler solution. We find that dΛid=Λd-Λi, the length per origin added by a cell between initiation and division, has an adder behavior as well: independently of its size at initiation Li, a cell will complete the corresponding division cycle after having accumulated a constant volume per origin dΛid.

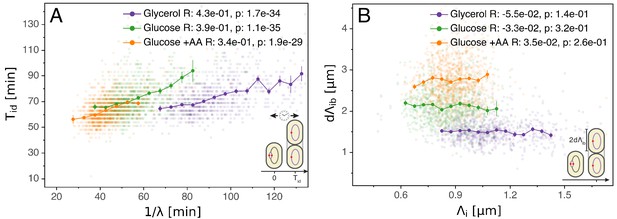

Initiation to division period.

(A) Several models assume that a constant time passes from an initiation event to it corresponding division event. However, within each growth condition, that period is clearly dependent on fluctuations in growth rate. (B) The length accumulated from initiation to division is constant for each growth condition, suggesting an adder behavior for that period. In A and B, the Pearson correlation coefficient R and p values are indicated for each condition.

The double-adder model

These observations motivated us to formulate a model in which the cell cycle does not run from one division to the next, but rather starts at initiation of replication, and in which both the next initiation of replication and the intervening division event, are controlled by two distinct adder mechanisms. In this replication-centric view, the cell cycles are controlled in a given condition by three variables: an average growth rate λ, an average added length per origin dΛif, and an average added length dΛid between replication initiation and division. In particular, we assume that these three variables fluctuate independently around these averages for each individual cell cycle, and that all other parameters such as the sizes at birth, initiation, and the times between birth and division or between initiation and division, are all a function of these three fundamental variables. This double-adder model is sketched in Figure 4 for the case of slow growth conditions: a cell growing at rate λ initiates replication at length Li and thereby starts two adder processes. The cell then divides when reaching a size Ld=Li+ndΛid=n(Λi+dΛid), where n=2 is the number of replication origins. Second, the next replication round will be initiated when the total length has increased by dΛif per origin.

Figure 4 with 1 supplement see all

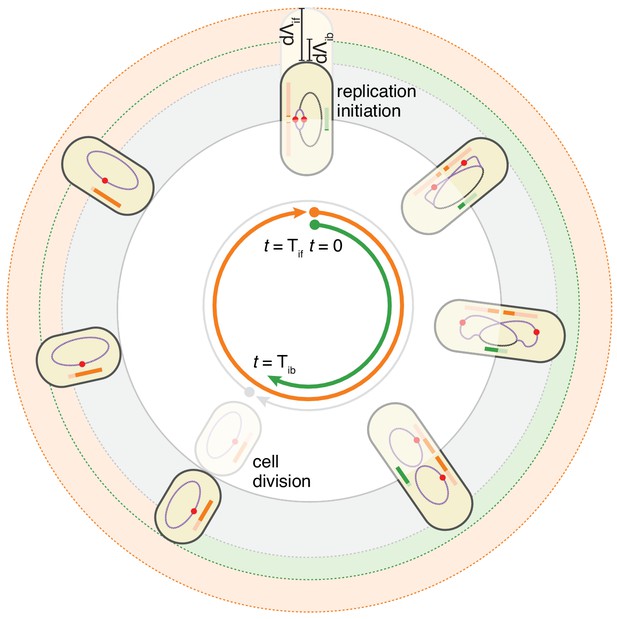

The double-adder model postulates that E. coli cell cycle is orchestrated by two independent adders, one for replication and one for division, reset at replication initiation.

Both adders (shown as coloured bars) start one copy per origin at replication initiation and accumulate in parallel for some time. After the division adder (green) has reached its threshold, the cell divides, and the initiation adder (orange) splits between the daughters. It keeps accumulating until it reaches its own threshold and initiates a new round of division and replication adders. Note that the double-adder model is illustrated here for the simpler case of slow growth.

Simulations of the double-adder model

To assess to what extent our double-adder model can recover our quantitative observations, we resorted to numerical simulations. We first obtained from experimental data the empirical distributions of growth rates λ, the added length per initiation dΛif, and the added length between initiation and division dΛid. A series of cells are initialized at the initiation of replication, with sizes taken from the experimental distributions. For each cell, a growth rate λ is independently drawn from its empirical distribution, and values of dΛid and dΛif are drawn from independent distributions, to set the times of the next division and replication initiation events. This procedure is then iterated indefinitely, that is a new growth rate and values of each adder are independently drawn for each subsequent cycle. As has been observed previously (Campos et al., 2014) the growth rate is correlated (r0.3) between mother and daughter. Accounting for this mother-daughter correlation in growth rate was found not to be critical for capturing features of E. coli cell cycle, but was included in the model to reproduce simulation conditions of previous studies.

As can be seen in Figure 5, the double-adder model accurately reproduces measured distributions and correlations at all growth rates. In particular, the global adder behavior for cell size regulation naturally emerges from it (Figure 5A). Note however that in particular at fast growth (Glucose +AA), the relation between dL and Lb deviates from pure adder behavior, that is dL weakly anti-correlates with Lb (Figure 1B). Interestingly, this deviation is recovered as well in the simulations (Figure 5A), supporting the validity of our model. The specific relation between length at initiation Li and length at birth Lb, which prompted us to reject the initiation mass model, is too reproduced by the model (Figure 5B). Furthermore, the distribution of the number of origins at birth, which reflects the presence of overlapping replication cycles is also reproduced (Figure 5D). Finally, we note that while the average cell length parameters (e.g. for Lb in Figure 5C) are recovered in the simulations, the variances of the simulated distributions are a bit larger in the faster growth conditions, which can be attributed to an overestimation of the variances of the two adder distributions. An exhaustive comparison between experiments and simulations can be found in Figure 5—figure supplement 1 through Figure 5—figure supplement 4.

Figure 5 with 4 supplements see all

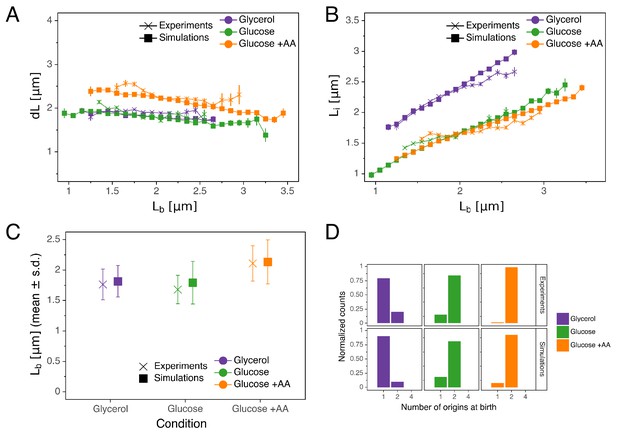

Comparison of predictions of the double-adder model with experimental observations.

(A) Binned scatter plot of the added length between birth and division dL versus length at birth Lb shows no correlations in both the data and the simulations, demonstrating that the double-adder model reproduces the adder behavior at the level of cell size. (B) Binned scatter plot of the length at initiation Li versus length at birth Lb shows almost identical correlations in data and simulation. (C) Average (± s.d) cell length at birth Lb. Both the mean and standard deviation are recovered in the model simulation. (D) The distribution of the number of origins at birth is also highly similar between experiments and data for all growth conditions.

As our model recovers the classic adder from birth to division, that is independence of Lb and dL, one could ask whether, instead of assuming division to be controlled by an adder between initiation and birth, one could simply have a classic birth-to-division adder running independently and in parallel with a replication adder. Harris and Theriot (2016) proposed that a homeostatic mechanism maintaining a constant cell surface to volume ratio could produce a birth-to-division adder, but only if division were controlled completely independently of replication. A recent study that emerged during the course of this work (Si et al., 2019) also argued that the division and replication cycles are uncoupled and controlled independently. To test these ideas, we implemented a model in which division and replication are controlled by completely independent adder mechanisms. Although this model recapitulates most experimental observations, it predicts a negative correlation between volume at initiation Li and the added volume dΛib between initiation and birth (Appendix 2), which is at odds with the adder behavior we observe in the data (Figure 3). It should also be noted that purely geometric division models such as the Harris and Theriot (2016) model have been recently challenged more broadly by research indicating that surface expansion is coupled to dry-mass increase rather than to volume increase (Oldewurtel et al., 2019).

Recently, Micali et al. (2018b) introduced a wider class of models in which the replication and division cycles are controlled by two concurrently running processes, which are coupled through a check-point that demands a certain minimal amount of time has to elapse between replication initiation and division. This class includes models in which independent replication and division adders are coupled through such a check-point and, if parameters are appropriately tuned, it is possible for such a model to exhibit no correlation between Li and dΛib, that is reproduce the observed adder behavior for the period between replication initiation and division (Micali and Cosentino Lagomarsino, personal communication). Although such a model is thus potentially consistent with our observations, it requires the parameters to be precisely tuned and, moreover, this tuning has to apply to all growth conditions.

The double-adder model best captures the correlation structure of the data

In this work, we used empirically observed correlations between certain variables, such as those shown in Figure 2 and Figure 3, to motivate our double-adder model, and then used numerical simulations of this model to show that this model also successfully reproduces other features of the experimental data (Figure 5). However, it is conceivable that other models would be equally successful in reproducing the experimental observations. We thus aimed to devise a general approach for systematically comparing the performance of a large class of models.

The basic idea behind this approach is that, if the cell cycle is controlled by independent control processes, then we expect the variables associated with these control processes to fluctuate independently. To illustrate this, let’s consider for the moment the simpler case of the division cycle and cell size control (Figure 6A). If cell size homeostasis were controlled by a ‘sizer’ mechanism, we would expect the size at division Ld to fluctuate independently of size at birth Lb and growth rate λ. If it were instead controlled by a ‘timer’, then we would expect the time Tbd between birth and division to fluctuate independently from size at birth Lb and growth rate λ. However, the measurements show that the time Tbd is clearly negatively correlated with both growth rate and size at birth. Instead, the added volume dL fluctuates almost independently of size at birth Lb and growth rate λ (Figure 6A). It is precisely this independence of fluctuations in added volume from fluctuations in the other variables, that constitutes the support of the adder mechanism. Here, we generalize this idea by systematically considering all sets of variables that can be used to describe the cell cycle in single cells, and quantifying, for each set of variables, the extent to which they fluctuate independently.

Figure 6 with 1 supplement see all

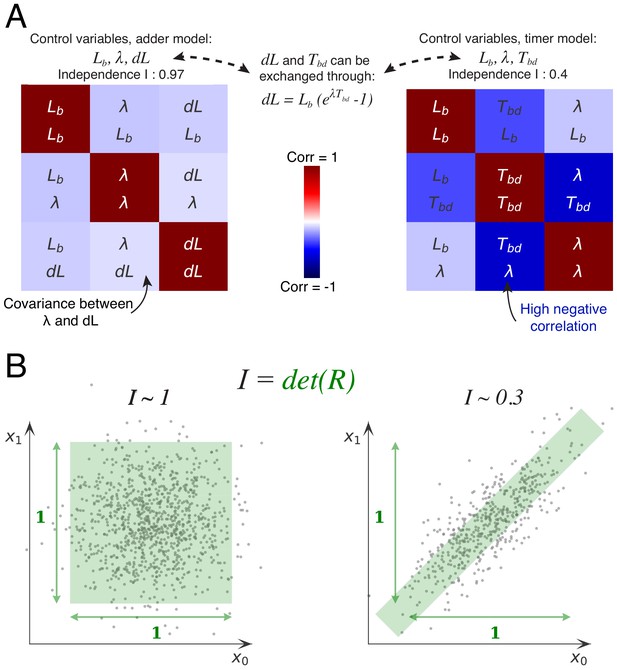

Decomposition method.

(A) The cell division cycle of a single cell can be described by different combinations of three variables which we refer to as decompositions. For example, the set (Lb,dL,λ) corresponds to an adder decomposition, while (Lb,Tbd,λ) corresponds to a timer decomposition. For each possible decomposition, we can calculate the matrix R of observed correlations Rij between each pair of variables in the decomposition from the data. Shown are the correlation matrices for the adder decomposition (left) and the timer decomposition (right), with positive correlations shown in red and negative correlations in blue. The independence I of each decomposition is defined as the determined of the correlation matrix I=det(R) and is indicated on top of each matrix. While the independence for the adder decomposition is close to the possible maximum of 1, the independence of the timer correlation is much lower due to a strong negative correlation between growth rate λ and the cell cycle duration Tbd. (B) Conceptual illustration of the independence measure I. For each decomposition, the data can be thought of as a scatter of points in the space of the decomposition’s variables, normalized such that the variance of points along each dimension is 1. In this conceptual example, we show two scatters of points for the two variables x0 and x1. The independence I corresponds to the square of the volume covered by the scatter of points. On the left, there is virtually no correlation between the two variables, that is R010, such that the independence I=det(R)=1-R0121. In contrast, on the right there is a strong correlation, leading to a much lower independence I0.3. In this way, the independence measure quantifies to what extent the variables in the decomposition fluctuate independently, and this measure applies to scatters of any number of dimensions.

A single division cycle needs 3 variables to be fully described and we will refer to such sets of variables as decompositions. For example, the set (Lb,Ld,λ) corresponds to a ‘sizer’ decomposition, the set (Lb,Tbd,λ) to a ‘timer’ decomposition, and (Lb,dL,λ) to an adder decomposition. For each decomposition, we can now calculate, from the data, the matrix R of observed correlations Rij between each pair of variables (i,j) in the decomposition. For example, Figure 6A shows the correlation matrices R for the adder and timer decompositions. The more independent the variables are in the decomposition, the smaller the correlations will be. As a measure for the overall independence of the variables in a decomposition we use the determinant of the matrix R, that is we define I=det(R). The intuitive meaning of this measure is illustrated in Figure 6B. We can think of each cell cycle as a point in the three-dimensional space spanned by the decomposition, such that all cell cycle observations form a scatter of points in this space. If we normalize each axis by setting its scale such that the variance equals 1 along the axis, then the independence I=det(R) corresponds exactly to the volume covered by the scatter of points. Note that, if there are no correlations, the matrix R will become the identity matrix, that is Rii=1 and Rij=0 when ij, and the independence will become exactly 1. The larger the correlations between the variables, the smaller the volume I will become, and it will become zero in the limit of perfect correlation between 2 or more variables. Thus, the independence per definition ranges from 0 to 1 (perfect independence).

We can now apply this systematic approach to the complete cell cycle case. In this case, we measured the variables shown in Table 1 (measured variables) either for the replication- or the division-centric view of the cell cycle. As for the division cycle case analyzed in Figure 6, we can use equations relating these variables in order to derive a set of additional variables as shown in Table 1 (derived variables). We need four variables to define both replication and division cycles, and using now all the measured and derived variables, as well as the equations connecting them, we can create all possible decompositions of four variables sufficient to describe the cell cycle, and measure their independence using the decomposition method. Finally, we can rank all decompositions according to their independence to find which ones offer the most accurate description of the data. Such a statistical analysis is only relevant when applied to a large dataset and we therefore focus here on the slow growth condition (M9 glycerol) for which we implemented automatic origin tracking.

The tables in Figure 7A show the five best models ranked by decreasing independence (all decompositions can be found in Figure 7—figure supplement 3). Note that these variable sets include previously proposed sizer and timer models as special cases, for example the inter-initiation model combined with an initiation to division timer (Ho and Amir, 2015) is highlighted in red in Figure 7—figure supplement 3. The most successful decompositions are shown in greater detail as correlation matrices Figure 7B. We find in general that none of the division-centric models accomplishes high independence. For example, as shown in the covariance matrix of Figure 7B right, the best division-centric model is plagued by high correlation between Lb and dLbi. This strongly suggests that the cell cycle control is better described from a replication-centric point of view. Of all replication-centric models, our double-adder model clearly reaches the highest independence, followed by various derivative models in which one of the adders is replaced by another variable. Notably, the top three decompositions are the same for the real data and for the data from the simulations of the double-adder model, underscoring that these near optimal variants are expected for data produced by a double-adder mechanism. We note that independence of our double-adder model on the real data is a bit lower than on simulated data Figure 7B, that is 0.88 versus 0.98. This residual dependence might either result from correlated errors in the measurements, or it might reflect some small biological dependence not captured by our model. As an additional control, we also applied our decomposition analysis to a dataset from a simulation with the multiple origins accumulation model in which there is an inter-initiation added volume dΛif and a timer from initiation to division Tib. As shown in Figure 7—figure supplement 4, the decomposition analysis successfully identifies the model used in the simulation as having the highest Independence I. Finally, to verify that the results obtained by analyzing the fluctuations of the division and replication cycles are not primarily driven by differences in experimental details (such as strains or reporters used to measure replication initiation), we also applied our decomposition method to a dataset from a study that appeared in the course of this work (Si et al., 2019). As shown in Figure 7—figure supplement 5, here again the double-adder model is the most successful at explaining the experimental measurements. In summary, this systematic analysis shows that, within a large class of alternative models, the double-adder model best captures the correlation structure of both our data and data recently obtained by another laboratory.

Figure 7 with 5 supplements see all

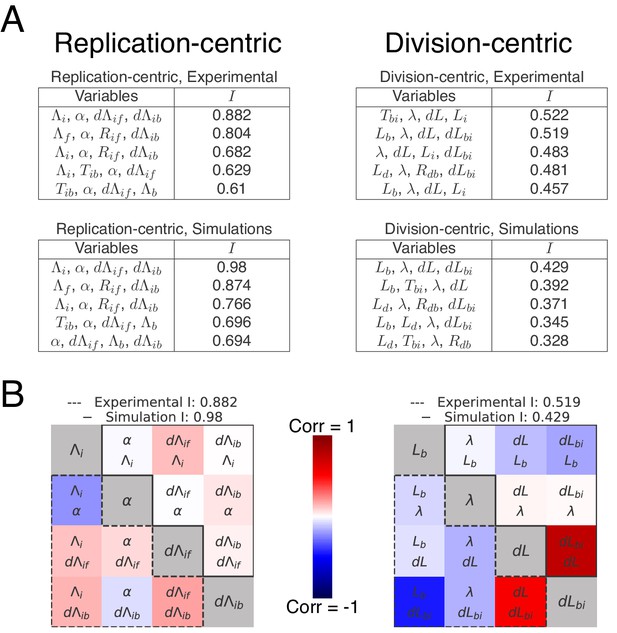

Decomposition analysis applied to the division and replication cycles.

(A) The tables show the independence measures I for the top scoring decompositions of the division and replication cycles. In these tables, each line represents a possible decomposition and its independence I. As there are two ways to see the cell cycle (replication- and division-centric), we present decompositions for both replication- (left) and division-centric decompositions (right). In addition, we show the top decompositions both for the correlation matrices of the experimental data of the growth conditions M9+glycerol (automated analysis) and for the data from the simulations of the double-adder model (top and bottom rows, respectively). Results for the full list of decompositions can be found in Figure 7—figure supplement 3. Note that the decomposition analysis clearly identifies the replication-centric double-adder characterized by Λi, α, dΛif and dΛib as the best decomposition. The fact that the double-adder decomposition is also top scoring (with I1) for data from the simulation of the double-adder confirms that the decomposition analysis works as expected. (B) Correlation matrices for the best decompositions for replication-centric (left) and division-centric models (right). As in Figure 6A, each matrix represents one decomposition, and each element of the matrix shows the correlation of the two variables indicated within it. The level and sign of correlation is given by the color bar. As the lower left and upper right triangles of the matrices are redundant, we use them to show correlations from both experimental and simulation data in a single matrix. The lower-left corners bounded by a dotted line contain correlations from experimental data and the upper-right ones, bounded by a continuous line, from simulation data. The diagonal summarizes the set of variables. The best replication-centric model (left) has only weak correlations between its variables as reflected in high independence, while the best division-centric model has a few highly correlated variables leading to low independence.

Discussion

Thanks to experimental techniques like the one used here, models of bacterial cell cycle regulation dating back to the 1960s have been recently re-examined in detail in several studies (Campos et al., 2014; Tanouchi et al., 2015; Ho and Amir, 2015; Adiciptaningrum et al., 2016; Wallden et al., 2016; Si et al., 2017; Logsdon et al., 2017; Micali et al., 2018a; Eun et al., 2018; Si et al., 2019). Although these data have shed important new light on the regulation of bacterial physiology, such as identifying the adder behavior in cell growth and division, it has remained somewhat unclear to what extent different models are consistent with the data. In particular, many studies only focus on certain correlations and dependencies between measurable cell cycle quantities, and these can often be explained by multiple models. In this study, we have in a first step empirically built a model which is based on previous ideas and which recapitulates measured cell cycle parameters. This model makes replication the central regulator of the cell cycle, with each initiation round triggering subsequent division and replication events through concurrent adder processes. In a second step, we then designed and applied a statistical method to determine, within a class of models built on biologically relevant cell cycle variables, which set of those variables best explains the correlation structure observed in the measurements. Following this fully independent and more systematic approach, our empirical double-adder model clearly comes out as the most successful. It should be noted that, whereas models based on a timer between initiation and division naturally predict the well-known exponential increase of average cell-size with average growth rate measured in the bulk (Schaechter et al., 1958; Taheri-Araghi et al., 2017), the double-adder does not require such a relationship. However, neither is such a relationship inconsistent with the double-adder model. The difference between a timer and adder model is in the nature of the correlations of different cell cycle quantities across single cells within one condition, and not in the behavior of their averages across conditions. Therefore, it is possible to implement the same dependence of average size on growth rate using different models that have different single-cell correlation structure. In particular, in order for the average bulk cell-size cell size to grow exponentially with the average bulk growth rate, it is enough that the average time between initiation and division is independent of growth rate and this can also be achieved with an adder model. For example, if we imagine that the initiation to division adder is implemented by the accumulation of a key molecule to a critical amount, and we assume that the average rate of accumulation of this molecule is independent of the bulk growth rate, then the average cell-size will grow exponentially with growth rate. At the same time, within such an adder model the single-cell fluctuations in the added volume will be independent of the single-cell fluctuations in growth rate and initiation size, as required by our observations, and in contrast to the predictions of a timer model, which would predict fluctuations in growth rate and added volume to correlate positively.

While the division and replication cycles are seemingly coupled, our analysis demonstrates that two simple adders connected to replication initiation are sufficient to recapitulate both cycles without explicitly enforcing constraints reflecting mechanisms such as over-initiation control by SeqA and nucleoid occlusion which ensures that division only occurs after chromosome replication is completed. The initiation-to-initiation adder mimics SeqA activity by creating a refractory period without initiation, and the initiation-to-division adder ensures that a minimal time is allocated for replication to complete. While the simulations might in rare cases generate unrealistic situations, for example if a large initiation adder is combined with a small division adder leading to premature division, those clashes seem rare enough to not affect the global statistical behavior of the model. Naturally, the model would break down and these controls would need to be explicitly included in the case where cells are subject to stress conditions where these control mechanisms act as fail-safes for example to ensure that division is delayed if DNA repair is needed. In the course of our study, new research proposed that division and replication cycles are only seemingly connected, and used perturbation methods to drive cells to states where the uncoupling is revealed (Si et al., 2019). While such perturbation studies are very informative, more work is needed to understand to what extent hidden compensatory mechanisms might be at play when affecting DnaA or FtsZ expression. Also, that study focuses exclusively on a model which explicitly enforces various correlations between variables unlike our model which naturally produces such relations. Another recent study (Wehrens et al., 2018) using a perturbative approach has shown that cells driven to a filamentous state recover normal sizes through successive single division events seemingly independently from initiation and following an adder behaviour. As division inhibition also hinders replication related processes such as chromosome segregation (Sánchez-Gorostiaga et al., 2016), it is difficult to untangle the different mechanisms that might be at play. Complementing such experiments with a monitoring of replication as done here would surely be a worthwhile future endeavour, a task though which is beyond the purpose of this study, which tries to clarify the normal growth case.

Interestingly, a double-adder mechanism similar to the one that we propose here has been shown to explain cell cycle control in mycobacteria (Logsdon et al., 2017). These mycobacteria have a much more complex cell cycle than E. coli, in particular characterized by a strong asymmetry between daughter cells and a growth rate almost an order of magnitude smaller than that of E. coli. Despite those important differences, it was shown that mycobacterial cell cycles exhibit adder behavior for both division and replication starting at initiation, in a manner highly similar to our observations in E. coli. This suggests that the mechanism connecting replication and division must be quite fundamental and independent of the specifics of available genes and their expression.

Although the single-cell observations provide clear indications of which variables are most likely to be directly involved in the cell cycle control, they of course do not indicate the underlying molecular mechanisms. However, it is not hard to speculate about possible molecular mechanisms that could implement the double-adder behavior. As others have pointed out previously (Ho and Amir, 2015), an adder for the regulation of replication initiation can be easily implemented at the molecular level by having a 'sensor’ protein that builds up at each origin, and that triggers replication initiation whenever a critical mass is reached at a given origin. If this sensor protein is additionally homeostatically controlled such that its production relative to the overall protein production is kept constant, then the average volume per origin will also be kept constant across conditions.

It is more challenging to define a molecular system that can implement the second adder that controls division. The main challenge is that this adder does not run throughout the entire cell cycle, but only between replication initiation and division. It is well known that division is driven by the polymerization of the FtsZ ring, which includes a host of other FtsZ-ring associated proteins, and its progressive constriction. It might seem simplest to assume that the division adder could be implemented directly through FtsZ production, again in the logic of the regulated 'sensor’ mentioned above. However, this would require FtsZ to be produced and accumulating at the division sites only from replication initiation to cell division. Although this is conceivable, that is it is known that FtsZ and other division proteins are heavily regulated at several levels (Dewar and Dorazi, 2000) and that especially in slow growth conditions its concentration varies during the cell cycle (Männik et al., 2018), it is hard to imagine how this model could work under fast growth conditions in which there are overlapping rounds of replication such that FtsZ would be constantly expressed. Moreover recent data (Si et al., 2019) rather suggest that FtsZ concentration is constant during the cell cycle.

Alternatively, rather than FtsZ production, Ftsz polymerization could be regulated. One remarkable observation that is well known within the field (Lau et al., 2004; Nielsen et al., 2006) and that we also observe in our data (see Figure 4—figure supplement 1), is that origins always occupy the position of future division sites (mid-cell, 1/4 and 3/4 positions etc.) when replication is initiated. This observation not only suggests that, at replication initiation, some local molecular event occurs that will eventually trigger division at the same site, but it is also remarkably consistent with the idea of an adder running only between replication initiation and division. One long-standing idea that is consistent with these observations is that some molecular event that occurs during replication initiation triggers the start of FtsZ ring formation, and that the timing from initiation to division is controlled by the polymerization dynamics of the FtsZ ring (Weart and Levin, 2003). At the molecular level, the common triggering of initiation and polymerization might be explained by the accumulation of acidic phosholipids in the cell membrane precisely at future division sites (Renner and Weibel, 2011) where they probably interact with components of the division machinery. At the same time those lipids are known to play a role in promoting replication by rejuvenating the initiator protein DnaA-ADP into DnaA-ATP (Saxena et al., 2013), and might therefore be a 'hub’ coordinating the two cycles. Finally, it remains to be explained how FtsZ polymerization or pole building could result in an adder behavior. For that purpose, future experiments should focus on combining the type of information collected in this study and detailed measures of the dynamics of FtsZ-ring assembly and constriction as done in Coltharp et al. (2016).

Materials and methods

Bacterial strains and media

Request a detailed protocol

All strains are derived from the K-12 strain BW27378, a Δ(araH-araF)570(::FRT) derivative of the Keio collection background strain (Baba et al., 2006) obtained from the Yale Coli Genetic Stock Center. This strain was further modified by λ-Red recombination (Datsenko and Wanner, 2000) and P1 transduction to result in ΔaraFGH(::FRT), ΔaraE(::FRT), ΔlacIZYA(::FRT). A 250 lacO repeats FROS array with chloramphenicol resistance was inserted close to the origin of replication in the asnA gene by λ-Red recombination and P1 transduction resulting in strain GW273. The lacO-CmR array was derived from the original plasmid pLau43 (Lau et al., 2004) by replacing the kanamycin resistance and a series of operators on both sides of it with the CmR gene. For visualization of the array, GW273 was transformed with plasmid pGW266 expressing a LacI-mVenus fusion, resulting in strain GW296. The plasmid is derived from the original FROS plasmid pLAU53 (Lau et al., 2004) from which the tetR construct was removed and the lacI-CFP replaced with lacI-mVenus. For the experiment analyzed automatically, strain GW296 was additionally transformed with plasmid pGW339 expressing FtsZ-mVenus under the control of the araBAD promoter using 0.002% arabinose for induction, resulting in strain GW339. Expression is tightly controlled by using the approach proposed in Morgan-Kiss et al. (2002).

All experiments were done using M9 minimal media supplemented with 2mM MgSO4, 0.1mM CaCl2, and sugars (0.2% for glucose and 0.2% for glycerol). In one experiment, the media was supplemented with eight amino acids at a concentration of 5 µg/mL-1: Threonine, Aspagrinine, Methionine, Proline, Leucine, Tryptophane, Serine, Alanine. All experiments were carried out at 37°C.

Microfluidic device fabrication

Request a detailed protocol

Mother Machine experiments were performed using the Dual Input Mother Machine (DIMM) microfluidic design which has been described elsewhere (Kaiser et al., 2018) and is freely available online (https://metafluidics.org/devices/dual-input-mother-machine/); since no change of conditions was intended during experiments, the same media was flown at both inputs.

Several microfluidics masters were produced using soft lithography techniques by micro-resist Gmbh; two masters with regular growth channels of suitable size ( 0.8 µm width × 0.9 µm height for growth in glycerol, and 1 µm width × 1.2 µm height for growth in glucose) were used for all experiments.

For each experiment, a new chip was produced by pouring PDMS (Sylgard 184 with 1:9 w/w ratio of curing agent) on the master and baking it for 4 hrs or more at 80°C. After cutting the chip and punching inlets, the chip was bonded to a #1.5 glass coverslip as follows: the coverslip was manually washed in water and soap, rinsed in isopropanol then water; the chip cleaned from dust using MagicTape, rinsed in isopropanol then water; surfaces were activated with air plasma (40 s at 1500 µm of Hg) before being put in contact; the assembled chip was cooked 1 hr or more at 80°C.

Before running the experiment, the chip was primed and incubated 1 hr at 37°C using passivation buffer (2.5 mg/mL salmon sperm DNA, 7.5 mg/mL bovine serum albumin) for the mother machine part and water for the overflow channels.

Experiment setup and conditions

Request a detailed protocol

Bacteria were stored as frozen glycerol stocks at −80°C and streaked onto LB agar plates to obtain clonal colonies. Overnight precultures were grown from single colonies in the same growth media as the experiment. The next day, cells were diluted 100-fold into fresh medium and harvested after 4–6 hr.

The experimental apparatus was initialized, pre-warmed and equilibrated. Media flow was controlled using a pressure controller and monitored with flow-meters, set to run a total flow of ≈ 1.5 L/min (corresponding to a pressure of ≈ 1600 mbar).

The primed microfluidic chip was mounted, connected to media supply and flushed with running media for 30 min or more to rinse passivation buffer. The grown cell culture was centrifuged at 4000× g for 5 min, and the pellet re-suspended in a few µL supernatant and injected into the device from the outlet using the pressure controller. To facilitate the filling of growth channels by swimming and diffusing cells, the pressure was adjusted in order to maintain minimal flow in the main channel (loading time ≈ 40 min).

After loading, bacteria were incubated during 2 hr before starting image acquisition. Every 3 min, phase contrast and fluorescence images were acquired for several well-separated positions in parallel.

Microscopy and image analysis

Request a detailed protocol

An inverted Nikon Ti-E microscope, equipped with a motorized xy-stage and enclosed in a temperature incubator (TheCube, Life Imaging Systems), was used to perform all experiments. The sample was fixed on the stage using metal clamps and focus was maintained using hardware autofocus (Perfect Focus System, Nikon). Images were recorded using a CFI Plan Apochromat Lambda DM ×100 objective (NA 1.45, WD 0.13 mm) and a CMOS camera (Hamamatsu Orca-Flash 4.0). The setup was controlled using microManager (Edelstein et al., 2014) and time-lapse movies were recorded with its Multi-Dimensional Acquisition engine. Phase contrast images were acquired using 200 ms exposure (CoolLED pE-100, full power). Images of mCherry fluorescence were acquired using 200 ms exposure (Lumencor SpectraX, Green LED at 33% with ND4) using a Semrock triple-band emission filter (FF01-475/543/702-25).

Image analysis was performed using MoMA (Kaiser et al., 2018) as described in its documentation (https://github.com/fjug/MoMA/wiki). Raw image datasets were transferred to a centralised storage and preprocessed in batch. Growth channels were chosen randomly after discarding those where cell cycle arrest occurred in the mother cell, and curated manually in MoMA. An exponential elongation model was then fitted to each cell cycle, and cycles presenting large deviations were discarded (1–3% of each experiment, see Appendix 1).

For the automated origin detection and tracking, we used custom Python code (Witz, 2019; copy archived at https://github.com/elifesciences-publications/DoubleAdderArticle) which makes extensive use of the packages numpy (van der Walt et al., 2011), scipy (Jones et al., 2001), matplotlib (Hunter, 2007), pandas (McKinney, 2010), and scikit-image (van der Walt et al., 2014). Spots were detected following the method proposed in Aguet et al. (2013). Briefly, amplitude and background are estimated for each pixel using a fast filtering method and a spot model corresponding to the optical setup. Among the local maxima found in the amplitude estimates, spots are then selected using a statistical test based on the assumption that background noise is Gaussian. To track spots, we used the trackpy package (Allan et al., 2018). Cell cycles with incoherent properties (e.g. missing origin because of a failed detection) were discarded (~14%). The time of initiation was assigned as the first time point where a track splits into two. For the manual analysis of the other experiments, the frame showing origin splitting was selected manually.

Using the timing of origin splitting, the corresponding cell length could be determined. All further variables like dL or dΛib are deduced from the primary variables. For the decomposition analysis, a pseudo-cell cycle was created by concatenating the mother cell cycle from initiation to division with the daughter cell cycle from birth to initiation (the operation is repeated for both daughters separately). The growth rate α for this pseudo-cell cycle was again obtained by fitting an exponential growth model. All the growth lanes corresponding to a given conditions were then pooled to generate the various statistics shown in this article.

The entire analysis pipeline is available as Python modules and Jupyter Notebooks on Github, https://github.com/guiwitz/DoubleAdderArticle (Witz, 2019).

Simulations

Request a detailed protocol

The numerical implementation of the model described in Figure 4 and used in Figure 5 requires several parameters for each individual cell cycle. To generate those, the following distributions were extracted from experimental data, and if needed their means and variances were obtained by a fitting procedure:

  • The growth rate distributions P(λ).

  • The growth rate correlation from mother to daughters.

  • The length distributions of the two adder processes P(dΛib) and P(dΛif).

  • The distributions of length ratios between sister cells to account for imprecision in division placement P(r).

For the simulation, a series of 500 cells is initialized with all required parameters: initial length L0 taken from the birth length distribution, λ=P(λ), number of origins nori=1, and the two adders dΛib=P(λ) and dΛif=P(dΛif) whose counters are starting at 0. The exact initialization is not crucial as the system relaxes to its equilibrium state after a few generations. Cells are then growing incrementally following an exponential law, and the added length is monitored. Every time the cell reaches its target dΛif, the number of origins doubles and a new initiation adder is drawn from P(dΛif). Every time the cell reaches its target dΛib the cell (1) divides into two cells using a division ratio drawn P(r), (2) the number of origins per cell is divided by two, (3) a new division adder is drawn from P(dΛib), and finally (4) a new growth rate is drawn from P(λ). Each simulation runs for 30 hrs in steps of 1 min. In the end, the cell tracks resulting from the simulation are formatted in the same format as the experimental data, and follow the same analysis pipeline. The code is available on Github.

Appendix 1

Experiments statistics

Appendix 1—table 1
Statistics for all experiments.

Glycerol auto is the dataset analyzed automatically, while Glycerol is the one analyzed manually. Each growth condition represent one experiment during which multiple positions on the chip where recorded and for which multiple growth channels were analyzed. The discarded fraction represents cell cycles not following exponential growth. In the automated analysis (Glycerol auto) an additional 14% of cycles are discarded because of a failed origin tracking. r stands for Pearson correlation, and the m-d superscript indicates a mother-daughter correlation. The doubling time (1/λ) is obtained by fitting the distribution of growth rates with a log-normal distribution.

ExperimentDiscarded %# cell cycles1/λ[min]Adder rλmdrLbmdr
Glycerol auto3.3307086.0−0.100.330.45
Glycerol2.181089.0−0.070.420.58
Glucose2.1103553.0−0.040.470.66
Glucose +AA2.4115941.0−0.120.360.48

Appendix 2

Other models

In this article we have shown that models relying on the concept of initiation mass, as well as those involving a constant timer from initiation to division are incompatible with measurements. Still, those models are able to reproduce a wide range of experimental measurements, and we wanted to understand where they would break. We give here two examples of such an analysis. In the first case we tried to reproduce the model proposed in Wallden et al. (2016). This model assumes that cells initiate replication around a specific initiation mass length Li and then grow for an amount of time depending on growth rate TCD(μ) before dividing (Appendix 2—figure 1A). In panels B and C of Appendix 2—figure 1 we show that we are successfully reproducing the model used for example in Figure 6 of Wallden et al. (2016). The histogram of the number of origins at birth shown in Appendix 2—figure 1D shows a clear failure of the model a majority of cells in slow growth conditions are born with an ongoing round of replication in contradiction with experimental data (see e.g. Figure 3 of Wallden et al., 2016).

Appendix 2—figure 1

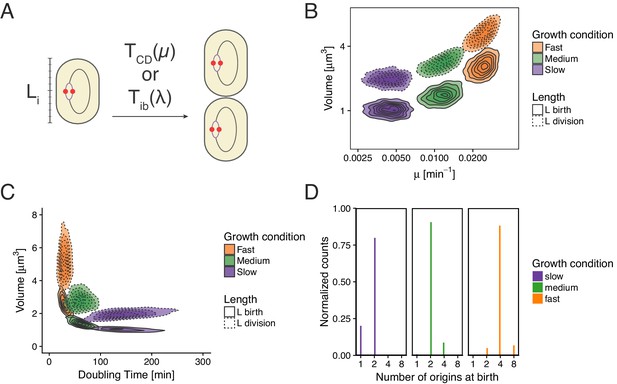

Re-implementation of the model proposed in Wallden et al. (2016) for three growth conditions.

(A) Cells initiation at length Li and grow for a time TCD(μ) before dividing. (B) Cell volume at birth and division as a function of growth rate. (C) Cell volume at birth and division as a function of generation time. (D) Distributions of the number of origins at birth.

The second model we are investigating here is based on the idea that replication and division are uncoupled and that the division cycle can be simply modeled as an adder (e.g. as in Harris and Theriot, 2016). As in our double-adder model, the replication cycle is controlled by an inter-initiation adder per origin. In very rare cases (0.4%), division happens in a cell with a single unreplicated origin. To avoid such rare unrealistic events, we condition division on the presence of two origins. The results are shown in Appendix 2—figure 2. The model surprisingly reproduces most of the features of the experimental data with one exception: the initiation to division variable dΛib is clearly not anymore an adder.

Appendix 2—figure 2
Comparison of distributions and correlations for slow growth case between experimental (M9+glycerol auto) and simulation data from a model combining an inter-initiation adder and a classic adder dL=Ld-Lb.

References

  1. 1
  2. 2
  3. 3
    Trackpy, version v0.4.1
    1. DB Allan
    2. T Caswell
    3. NC Keim
    4. CM van der Wel
    (2018)
    Zenodo.
  4. 4
  5. 5
  6. 6
    Construction of Escherichia coli K-12 in-frame, single-gene knockout mutants: the keio collection
    1. T Baba
    2. T Ara
    3. M Hasegawa
    4. Y Takai
    5. Y Okumura
    6. M Baba
    7. KA Datsenko
    8. M Tomita
    9. BL Wanner
    10. H Mori
    (2006)
    Molecular Systems Biology 2:2:2006.0008.
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
    SciPy: Open source scientific tools for Python
    1. E Jones
    2. T Oliphant
    3. P Peterson
    (2001)
    SciPy: Open source scientific tools for Python.
  21. 21
  22. 22
    Positive correlation between size at initiation of chromosome replication in Escherichia coli and size at initiation of cell constriction
    1. LJ Koppes
    2. N Nanninga
    (1980)
    Journal of Bacteriology 143:89–99.
  23. 23
  24. 24
  25. 25
  26. 26
    Data structures for statistical computing in Python
    1. W McKinney
    (2010)
    Proceedings of the 9th Python in Science Conference. pp. 51–56.
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
    Dimensions of Escherichia coli at various growth rates: model for envelope growth
    1. O Pierucci
    (1978)
    Journal of Bacteriology 135:559–574.
  33. 33
  34. 34
  35. 35
    Life without division: physiology of Escherichia coli FtsZ-Deprived filaments
    1. A Sánchez-Gorostiaga
    2. P Palacios
    3. R Martínez-Arteaga
    4. M Sánchez
    5. M Casanova
    6. M Vicente
    (2016)
    mBio 7:5.
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50

Decision letter

  1. Michael T Laub
    Reviewing Editor; Massachusetts Institute of Technology, United States
  2. Gisela Storz
    Senior Editor; National Institute of Child Health and Human Development, United States
  3. Alan Leonard
    Reviewer

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This paper uses time-lapse microscopy of individual cells to examine the coupling of chromosome replication and cell division. The authors present a new model suggesting a "dual adder" mechanism in which the volume added by cells controls both the subsequent round of replication initiation and cell division. This new model contrasts with recent single "adder" models. Although a dissection of the mechanistic basis remains to be done, this new model represents an important new concept that will guide future studies of the bacterial cell cycle.

Decision letter after peer review:

Thank you for submitting your article "Chromosome replication initiation controls both division and replication cycles in E. coli via a double-adder mechanism" for consideration by eLife. Your article has been reviewed by Gisela Storz as the Senior Editor, a Reviewing Editor, and three reviewers. The following individuals involved in review of your submission have agreed to reveal their identity: Alan Leonard (Reviewer #1).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The regulatory mechanisms that coordinate the bacterial cell cycle remain obscure, but recent technological advances in single cell analysis have resulted in an avalanche of recent manuscripts focused on "adder mechanisms", particularly those related to cell size control where cells add constant length to their birth length and the added length fluctuates independently of either birth size or growth rate. While the "classic" adder model is insightful as a universal cell size maintenance mechanism, its application to other aspect of cell cycle regulation are less satisfying. The studies and model presented here in Witz et al., based on time lapse microscopy of individually growing cells, take the adder concept in an interesting new direction. The authors present an intriguing model that focuses on the initiation of chromosome replication as the critical starting point and incorporates "dual adder" mechanisms whereby cell volume increases from the initiation point controlling the subsequent cell division as well as the next initiation of replication. Importantly, the authors show that their model is compatible with the known parameters for both slow and fast growth conditions (Figure 5), parameters not usually examined or even addressed successfully in prior adder models. The authors also present a compelling comparison of their model with other models in Figure 6 and Figure 6—figure supplement 1. Despite the general enthusiasm for the work, the reviewers have several comments/concerns regarding the analyses presented as well as how the work relates to previous work. These issues will need to be addressed in a revision. Some of the following points are from different reviewers but hit on related points, so some revisions may address multiple points below.

Essential revisions:

1) The results of this study seem to disagree with those of Wallden et al. The latter does not find "adder" correlations in the slower conditions studied. The authors reference Wallden et al., but do not address the discrepancy.

2) The double-adder proposed do not capture the well-established exponential dependence of cell size on growth rate at the bulk level (Donachie, 1968). As such, their statement, in the Discussion section, on how models "fail to capture at least one important observation" may be applicable to the double-adder as well (at least in fast growth conditions).

3) The argument against the previous work of Wallden et al., in Appendix 2 seems incorrect. The authors state that "The histogram of the number of origins at birth shown in Figure 1D shows a clear failure of the model where cells in slow growth conditions are all born with an ongoing round of replication in contradiction with experimental data". But in fact, Figure 1D of this appendix is consistent with initiation occurring shortly after cell birth, which is precisely what the Wallden et al., experimental data shows in the slow growth condition. Moreover, the authors attempt to use (both in the main text Figure 5D and in Appendix 2) the bimodal distribution of the number of origin as a "smoking gun" for one model or another. But such bimodal distributions of origin numbers are mostly model-agnostic, and therefore cannot be used to discriminate between models.

4) In order to discriminate between models, a clearer statement of which models were considered is necessary. In particular, how is noise implemented exactly in the various models considered? e.g. does the noise affect the generation time or the growth rate, and how? What is the biologically dominant source of noise? One reason this might be important is that different implementations might affect the analysis used in Figure 6.

5) In Figure 6, the authors propose a new method for distinguishing between models. The authors should also test the method and validate it on synthetic data, to show that the method can indeed decouple the newly proposed model from previous ones. From the text and Figure 6, it is not obvious that correlation patterns similar to the double-adder cannot be generated by other models (e.g., can this method distinguish between the multiple origins accumulation model and the double-adder?).

6) The results of Figure 5C do not seem compelling. Could the authors perform some statistical analysis to test the data more quantitatively?

7) Regarding the Wallden model test (Appendix 2), it would be useful to show in panel D the data from Figure 3 of the Wallden paper, as to judge the claimed contradiction. Please then also provide a comparison with your model (Figure 5D), so that one can judge how well it predicts their data.

8) This also addresses another general topic: how similar are the data sets from the different studies? Is would be good to do this not only for 5D-style data, but also other quantifications. Are they qualitatively or quantitatively similar? If they are different, what are the causes?

9) In Figure 2 of the appendix, red and blue do not appear to be properly labelled.

10) Regarding the presentation of the modelling, I can guess what the 3x3 and the colouring means, but descriptions are not given in Appendix 3—figure 1, nor what the use of 'estimating independence' is. The former is given in Figure 6A, but no clarification is given about the aim of this exercise – e.g., why are these 4x4 the 'best decompositions' (how can I see that from these 4x4 diagrams)? But also, very basic aspects of their approach, like the notion that different rows in Figure 6A bottom are different models, is highly non-intuitive. In 6B caption, what is the difference between 'blue area', 'shaded blue'. What is the difference between the mathematical 'determinant of the correlation matrix' and the more usual correlation coefficient? Because of its unusual nature, more effort needs to go into explaining such basics. The authors did try to explain some aspects in the main text (subsection “The double-adder model best captures the correlation structure of the data”), but overall these quite crucial parts of the paper are very difficult to follow, even with a quantitative background.

11) The authors did a good job in discussing their results in relation to the possible molecular mechanisms, such as the possibility of replication initiation setting future division sites. This relates to recent work showing rapid min-system-driven repositioning of the FtsA rings in filamentous cells, which appear to be odds with such a notion (Wehrens, 2018), which would be good to discuss. On a different note, that study also found adder behaviour despite already having multiple chromosomes because of the filamented state, and single division events despite many potential division sites and rings, all suggesting some division to division regulation. It would be good to discuss these findings, also to keep open the possibility that such a division to division mechanism may exist, even if it is not required to explain the data presented here.

12) It would similarly be important to discuss surface to volume ratio models, and the extent to which they are consistent or not consistent with the presented data and models.

13) The authors do not discuss at the D period, or its compensations. I was trying to determine whether a birth-division adder has some bearing on this, but could not resolve it. The C period rather fixed in time, while the D period can compensate for (eg small) size at termination (Adicipingrum, 2015). That could be consistent with a birth-division adder, or at least both observations indicate the D period is not a constant time, as suggested in much of the literature, which would be good to discuss.

https://doi.org/10.7554/eLife.48063.sa1

Author response

Essential revisions:

1) The results of this study seem to disagree with those of Wallden et al. The latter does not find "adder" correlations in the slower conditions studied. The authors reference Wallden et al., but do not address the discrepancy.

There is indeed a discrepancy here. The same discrepancy has been already noted in (Si et al., 2019). In addition, (Si et al. 2019) re-analyzed the Wallden et al., data and found that these data in fact are more consistent with adder than sizer behavior. We clarify this point in the subsection "Cell size adder".

2) The double-adder proposed do not capture the well-established exponential dependence of cell size on growth rate at the bulk level (Donachie, 1968). As such, their statement, in the Discussion section, on how models "fail to capture at least one important observation" may be applicable to the double-adder as well (at least in fast growth conditions).

Our comment in the discussion pointed out that, for models other than our double-adder model, there is at least one experimental observation that is at odds with predictions of these models. This is not the case for our double-adder model, i.e. we are not aware that there are experimental observations that are at odds with this model. However, we do agree with the reviewer that some of the other models naturally predict that bulk average cell size should grow exponentially with growth rate, and that our double-adder model does not require such a relationship. However, our model is also not inconsistent with this relationship. In particular, if the initiation-to-division adder is implemented by the accumulation of a key molecule to a critical amount, and the rate of production of this molecule is independent of the bulk growth rate, then this will lead the average cell size to grow exponentially with bulk growth rate. We have added comments in the Discussion section to clarify these points.

3) The argument against the previous work of Wallden et al., in Appendix 2 seems incorrect. The authors state that "The histogram of the number of origins at birth shown in Figure 1D shows a clear failure of the model where cells in slow growth conditions are all born with an ongoing round of replication in contradiction with experimental data". But in fact, Figure 1D of this appendix is consistent with initiation occurring shortly after cell birth, which is precisely what the Wallden et al., experimental data shows in the slow growth condition. Moreover, the authors attempt to use (both in the main text Figure 5D and in Appendix 2) the bimodal distribution of the number of origin as a "smoking gun" for one model or another. But such bimodal distributions of origin numbers are mostly model-agnostic, and therefore cannot be used to discriminate between models.

We believe that the reviewer must have misunderstood what Figure 1D of the appendix and Figure 5D of the main text show because the distribution of the number of origins at birth does show a clear discrepancy between the predictions of the model of (Wallden et al., 2016) and experimental observations at slow growth. In Appendix 2—figure 1 we show results of our simulation of the model of (Wallden et al., 2016). As shown in panels B and C, our simulation successfully reproduces results of their model. However, as shown in Figure 1D, this model also predicts that in slow growth conditions, 80% of the cells should already have two origins at birth. That is, the model of (Wallden et al., 2016) predicts that in 80% of the cells, initiation has already taken place in the mother and the number of origins will go from 2 to 4 between birth and division. This is clearly at odds not only with our data at slow growth (Figure 5D) but also with the results of (Wallden et al., 2016) themselves which, as the reviewer correctly points out, show initiation from 1 to 2 origins taking place shortly after birth and that essentially no cells are observed that already have 2 origins at birth (e.g. see Figure S4 of (Wallden et al., 2016) and its caption "the typical number of origins at initiation are 1, 2, 4 for slow, intermediate and fast growth conditions"). We feel that it is important to point out this discrepancy between experimental observations and predictions of the model of (Wallden et al., 2016).

4) In order to discriminate between models, a clearer statement of which models were considered is necessary. In particular, how is noise implemented exactly in the various models considered? e.g. does the noise affect the generation time or the growth rate, and how? What is the biologically dominant source of noise? One reason this might be important is that different implementations might affect the analysis used in Figure 6.

There seems to be here a confusion between “different models" and “different decompositions". A similar confusion appears in other points raised by the referees, which made it clear to us that we insufficiently explained our approach. Crucially, different decompositions do not correspond to different models for generating data, but rather to different ways of parametrizing a dataset of cell cycles (which may either results from experimental measurements or from a simulation of a model). For example, the birth-to-division cycle of a cell can be fully characterized by a set of three variables. These might be directly measured variables, i.e. cell size at birth Lb, cell size at division Ld, and time between birth and division Tbd. But one can also use other sets of variables such as: size at birth Lb, added size dL=Ld-Lb and growth rate λ=log(Ld/Lb)/Tbd. We call such different sets of variables “decompositions". The basic idea behind the decomposition analysis of Figure 6 (now Figure 7) is that, if the cell-cycle control mechanisms operate on particular variables, the fluctuations in these variables should be independent of each other, i.e. the argument for an’ adder’ model of the birth-to-division cycle is precisely that added volume fluctuates independently of growth rate and size at birth, whereas other variables do not fluctuate independently. We thus devised an independence measure I that quantifies, for each possible decomposition, the extent to which the data supports that its variables fluctuate independently. Or to put it differently, if one were to implement a model in which the variables of the decomposition were chosen independently for each cell cycle, then I measures how close the correlation structure of such a model would be to the correlation structure of a given dataset. Importantly, Figure 7 does not compare results of simulations of different models but rather, compares different decompositions on two datasets: our experimental data from growth in glycerol, and results of simulations of our double-adder model. The latter is only included as a control to show that our independence measure I successfully identifies the set of variables that was used in the simulation. Since we clearly insufficiently explained the decomposition approach, we have completely reshaped subsection “The double-adder model best captures the correlation structure of the data”. We introduce it now in more detail and with the help of a new Figure 6 focusing on the simpler example of the division cycle (which was previously in Appendix 3) and have also simplified the mathematical explanation of independence measure I. We put the (unchanged) results of the full analysis in a new Figure 7. We hope that we clarified the description of the correlation matrices both in the text and in the legends. We also systematically added a color scale helping to understand the meaning of the colors in the matrices.

5) In Figure 6, the authors propose a new method for distinguishing between models. The authors should also test the method and validate it on synthetic data, to show that the method can indeed decouple the newly proposed model from previous ones. From the text and Figure 6, it is not obvious that correlation patterns similar to the double-adder cannot be generated by other models (e.g., can this method distinguish between the multiple origins accumulation model and the double-adder?).

The method is validated in Figure 7 by applying the decomposition analysis to simulated data of our double-adder model and showing that the top decomposition is indeed the set of variables used in the simulation and that other decompositions score much more poorly (by a large margin, i.e. the bottom rows of tables in Figure 7A). As highlighted in Figure 7—figure supplement 3, the decomposition that corresponds to the multiple origins accumulation model performs clearly worse both on experimental data (I=0.609, row 5) and on simulation data (I=0.487, row 11). The reason for this poor performance is easily explained by the fact that there is a strong correlation between the time Tib between initiation and the next division and the doubling time (see Figure 3A), which significantly lowers the independence score of this model. In order to verify more in-depth the validity of the decomposition method, we have now applied it on two additional datasets. As suggested by the reviewer, we created additional synthetic data by simulating an alternative model (Figure 7—figure supplement 4) and showed that the decomposition approach successfully recovers the variables used in that simulation. Importantly, we now also apply the method to an experimental dataset from another laboratory (Figure 7—figure supplement 5) of cells of a different strain growing in different growth medium and show that here too the decomposition method indicates that the double-adder model best describes the correlation structure in the data.

6) The results of Figure 5C do not seem compelling. Could the authors perform some statistical analysis to test the data more quantitatively?

There are several reasons why we do not expect the simulation to perfectly recover the distribution of cell sizes. For example, because all measurements are noisy, the distributions of the fluctuations that we infer from the measurements are a bit larger than they truly are, leading to slightly larger variation in the simulations than in the data. Our intent was to show that, even though the distribution of cell sizes is not used to set the parameters of the model, our model approximately correctly recovers their means and variances. In the revision we have clarified these points. First, we changed the panel and show now the means and variances of the distributions in a regular plot rather than the entire distributions. Second, we added a comment in the text about the reasons behind the limited accuracy of this aspect of our model (subsection “Simulations of the double-adder model”).

7) Regarding the Wallden model test (Appendix 2), it would be useful to show in panel D the data from Figure 3 of the Wallden paper, as to judge the claimed contradiction. Please then also provide a comparison with your model (Figure 5D), so that one can judge how well it predicts their data.

Unfortunately this is not possible as Figure 3 in (Wallden et al., 2016) only shows a distribution of replisomes as a function of cell size, from which it is not possible to extract initiation time (as stated by the authors “The detection of DnaQ does not allow us to reliably monitor the individual replication initiation events in individual cells"). However, it is clear that the data of (Wallden et al., 2016) are inconsistent with the prediction of their model that most cells already have 2 origins at birth (our Appendix 2—figure 1). First, from the distribution of initiation volumes as a function of birth volumes (Figure 4b where the authors used SeqA to monitor initiation) it is clear that the large majority of cells are initiating after birth, i.e. have only one origin at birth. Second, as already noted in point 3 above, the authors themselves state that in their slow growth conditions most cells are born with a single origin.

8) This also addresses another general topic: how similar are the data sets from the different studies? Is would be good to do this not only for 5D-style data, but also other quantifications. Are they qualitatively or quantitatively similar? If they are different, what are the causes?

As mentioned in point 5, we now applied our decomposition method to an additional dataset from the recent publication of (Si et al., 2019). This is to our knowledge the only other available large-scale dataset with initiation measurements in multiple consecutive cell cycles. For that dataset too, we find that the double-adder model best describes the data, showing the validity of our model across data from different studies. We added the decomposition analysis of the data of (Si et al. 2019) as Figure 7—figure supplement 5.

9) In Figure 2 of the appendix, red and blue do not appear to be properly labelled.

For the sake of clarity, we added a legend to all supplementary figures and made in particular sure Figure 2 is properly labelled.

10) Regarding the presentation of the modelling, I can guess what the 3x3 and the colouring means, but descriptions are not given in Appendix 3—figure 1, nor what the use of 'estimating independence' is. The former is given in Figure 6A, but no clarification is given about the aim of this exercise – e.g, why are these 4x4 the 'best decompositions' (how can I see that from these 4x4 diagrams)? But also, very basic aspects of their approach, like the notion that different rows in Figure 6A bottom are different models, is highly non-intuitive. In 6B caption, what is the difference between 'blue area', 'shaded blue'. What is the difference between the mathematical 'determinant of the correlation matrix' and the more usual correlation coefficient? Because of its unusual nature, more effort needs to go into explaining such basics. The authors did try to explain some aspects in the main text (subsection “The double-adder model best captures the correlation structure of the data”), but overall these quite crucial parts of the paper are very difficult to follow, even with a quantitative background.

As mentioned in point 4, we agree our presentation was not sufficiently clear and we completely rewrote the decomposition section, aiming specifically to clarify the questions that the reviewer raises. Please see point 4 for details.

11) The authors did a good job in discussing their results in relation to the possible molecular mechanisms, such as the possibility of replication initiation setting future division sites. This relates to recent work showing rapid min-system-driven repositioning of the FtsA rings in filamentous cells, which appear to be odds with such a notion (Wehrens, 2018), which would be good to discuss. On a different note, that study also found adder behaviour despite already having multiple chromosomes because of the filamented state, and single division events despite many potential division sites and rings, all suggesting some division to division regulation. It would be good to discuss these findings, also to keep open the possibility that such a division to division mechanism may exist, even if it is not required to explain the data presented here.

The work of (Wehrens et al., 2018) is indeed relevant for the discussion and we now cite and discuss it in the text. As this work does not provide data on replication or chromosome segregation, we find it hard to draw definite conclusions from these intriguing observations for models of cell cycle homeostasis during normal growth conditions. We cite and discuss this work in the Discussion section.

12) It would similarly be important to discuss surface to volume ratio models, and the extent to which they are consistent or not consistent with the presented data and models.

The Theriot model (Harris and Theriot, 2016) is primarily concerned with giving a mechanistic explanation to the adder behavior and does not try to model the replication cycle. Also, it assumes that the initiation and division cycles are uncoupled. In Appendix 2—figure 2 we show that such a model is at odds with our experimental observations. Also, some very recent work (Oldewurtel et al., 2019) suggests that some assumptions of that model are at odds with new observations. We now comment on the Theriot model in the article (subsection “Simulations of the double-adder model”). We also clarified that the model presented in Appendix 2—figure 2 in fact corresponds to the type of model that Theriot proposes, rather than the more refined class of models from (Micali et al., 2018).

13) The authors do not discuss at the D period, or its compensations. I was trying to determine whether a birth-division adder has some bearing on this, but could not resolve it. The C period rather fixed in time, while the D period can compensate for (e.g. small) size at termination (Adicipingrum, 2015). That could be consistent with a birth-division adder, or at least both observations indicate the D period is not a constant time, as suggested in much of the literature, which would be good to discuss.

While our data and modeling has clear implications for the total C+D period, our experimental setup does not allow us to directly measure termination and therefore we cannot decompose this period into the separate C and D periods. Also, our double-adder model does not make any assumptions about how the C+D period is composed out of separate C and D periods. Hence, we do not think that our data allow us to bring a constructive contribution on this specific question.

https://doi.org/10.7554/eLife.48063.sa2

Article and author information

Author details

  1. Guillaume Witz

    1. Biozentrum, University of Basel, Basel, Switzerland
    2. Swiss Institute of Bioinformatics, University of Bern, Bern, Switzerland
    Present address
    Mathematical Institute, University of Bern, Bern, Switzerland
    Contribution
    Conceptualization, Resources, Data curation, Software, Formal analysis, Funding acquisition, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    guillaume.witz@math.unibe.ch
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1562-4265
  2. Erik van Nimwegen

    1. Biozentrum, University of Basel, Basel, Switzerland
    2. Swiss Institute of Bioinformatics, University of Bern, Bern, Switzerland
    Contribution
    Formal analysis, Funding acquisition, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  3. Thomas Julou

    1. Biozentrum, University of Basel, Basel, Switzerland
    2. Swiss Institute of Bioinformatics, University of Bern, Bern, Switzerland
    Contribution
    Resources, Formal analysis, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7123-198X

Funding

Schweizerischer Nationalfonds zur Förderung der Wissenschaftlichen Forschung (PZ00P3_161467)

  • Guillaume Witz

Schweizerischer Nationalfonds zur Förderung der Wissenschaftlichen Forschung (31003A_159673)

  • Erik van Nimwegen

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This study was funded through the SNSF Ambizione grant PZ00P3-161467 to GW and the SNSF grant 31003A-159673 to EvN.

Senior Editor

  1. Gisela Storz, National Institute of Child Health and Human Development, United States

Reviewing Editor

  1. Michael T Laub, Massachusetts Institute of Technology, United States

Reviewer

  1. Alan Leonard

Publication history

  1. Received: April 30, 2019
  2. Accepted: November 7, 2019
  3. Accepted Manuscript published: November 11, 2019 (version 1)
  4. Version of Record published: December 3, 2019 (version 2)

Copyright

© 2019, Witz et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 754
    Page views
  • 166
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Computational and Systems Biology
    2. Plant Biology
    Mary-Ann Blätke, Andrea Bräutigam
    Research Article Updated
    1. Computational and Systems Biology
    2. Epidemiology and Global Health
    Isa Kristina Kirk et al.
    Research Article
