Abstract

Angiogenesis requires the temporal coordination of the proliferation and the migration of endothelial cells. Here, we investigated the regulatory role of microRNAs (miRNAs) in harmonizing angiogenesis processes in a three-dimensional in vitro model. We described a microRNA network which contributes to the observed down- and upregulation of proliferative and migratory genes, respectively. Global analysis of miRNA–target gene interactions identified two sub-network modules, the first organized in upregulated miRNAs connected with downregulated target genes and the second with opposite features. miR-424–5p and miR-29a-3p were selected for the network validation. Gain- and loss-of-function approaches targeting these microRNAs impaired angiogenesis, suggesting that these modules are instrumental to the temporal coordination of endothelial migration and proliferation. Interestingly, miR-29a-3p and its targets belong to a selective biomarker that is able to identify colorectal cancer patients who are responding to anti-angiogenic treatments. Our results provide a view of higher-order interactions in angiogenesis that has potential to provide diagnostic and therapeutic insights.

Introduction

The expansion of a vascular network through the sprouting angiogenesis (SA) process requires a coordinated control of many cellular functions, including the activation of quiescent endothelial cells (ECs), cell protrusion, basal lamina and extracellular matrix degradation, cell migration and proliferation, deposition of new basement membrane, cell junctions and cell polarity alteration (Carmeliet and Jain, 2011). In response to an angiogenic stimulus, activated ECs acquire distinct specialized phenotypes to accomplish these different tasks (Jakobsson et al., 2010), ultimately leading to the formation of a new functional vascular network. In particular, during SA, ECs dynamically switch from a tip phenotype, which guides the network expansion, to a stalk cell state that is characterized by active proliferation.

Vascular Endothelial Growth Factor-A (VEGF-A) is the most prominent cytokine that activates a genetic program that sustains this morphogenetic process (Simons et al., 2016). Transcriptomic analysis of tip and stalk cells isolated from the retinal vascular plexus showed differential expression of molecular determinants, represented by genes that are involved in extracellular matrix remodeling for tip cells and that encode components of the Notch signaling pathway for stalk cells (del Toro et al., 2010; Strasser et al., 2010). It also has been proposed that the EC fate decision towards the tip or stalk cell phenotype is affected by VEGF-A gradient concentration in the surrounding extracellular matrix and by VEGF receptors expression levels (Gerhardt et al., 2003). Nevertheless, the gene expression regulatory events that sustain the initial transition from quiescent to activated ECs in response to an angiogenic stimulus have not yet been fully elucidated. We hypothesized that such phenotypic transition would require profound transcriptomic alterations that are brought about through the coordination of multiple regulation layers, including microRNA-mediated post-transcriptional regulation.

MicroRNAs (miRNAs) are a class of small non-coding RNAs that extensively modulate gene expression at the post-transcriptional level by targeting the mRNAs of protein-coding genes, directing their repression through mRNA degradation or (to a lesser extent) inhibition of protein translation (Guo et al., 2010). Interestingly, one of the first functions attributed to miRNAs was the control of developmental processes in which a morphogen gradient directs cell fate by activating specific genetic programs (Inui et al., 2012; Ivey and Srivastava, 2015). In this scenario, miRNAs are an integral part of the regulatory network that allows transitions between different cell states (Hornstein and Shomron, 2006). A role for miRNAs in ECs biology and vascular development has been established in vitro and in vivo by inhibition of two endonucleases that are required for mature miRNAs generation, namely Dicer and Drosha (Ha and Kim, 2014). The consequent reduction in the level of miRNAs resulted in alteration of several key properties of ECs, including their sprouting ability (Kuehbacher et al., 2007), and impaired postnatal angiogenesis (Suárez et al., 2008).

The activity of specific miRNAs in connection with the VEGF signaling pathway components has been studied more extensively (Dang et al., 2013). Several studies have demonstrated that miR-15a and miR-16, among other miRNAs, repress VEGF expression (Chamorro-Jorganes et al., 2011; Yin et al., 2012), whereas miR-126 promotes VEGF signaling by targeting the downstream effector PIK3R2 (Fish et al., 2008). Furthermore, miR-27b and miR-221 are required for tip cell specification (Biyashev et al., 2012; Nicoli et al., 2012). Recently, RNA-sequencing (RNAseq) technology allowed the generation of a complete annotation of the miRNAs that are expressed by two-dimensional cultured human ECs in normal (Kuosmanen et al., 2017) or hypoxic (Voellenkle et al., 2012) conditions. Yet, the extent to which miRNAs could affect ECs phenotypic specification during SA has not been fully captured to date. Using RNAseq technology and network analysis, we exploited a three-dimensional model of SA that specifically describes the lateral inhibition-driven tip cell selection (Heiss et al., 2015; Nowak-Sliwinska et al., 2018), which is considered to be the first step in capillary nascence (Eilken and Adams, 2010). The information obtained was used to generate a co-expression network encompassing the post-transcriptionally regulated interactions between modulated miRNAs and their predicted protein-coding gene targets. Here, we show that in the initial step of SA, miRNAs act cooperatively to give robustness to the specification of the tip cell phenotype by reducing the expression of genes that are associated with cell-cycle progression and of members of the mitogen-associated protein kinase (MAPK) cascade that sustains VEGF-A-mediated cell proliferation, while de-repressing genes that are involved in cell migration and extracellular matrix remodeling.

Results

VEGF-A induces the tip phenotype of endothelial cells in a 3D model of sprouting angiogenesis

To study the activation of quiescent endothelial cells induced by an angiogenic stimulus, and the impact that miRNAs may exert on this process, we exploited a three-dimensional (3D) model that mimics the initial phase of SA in vitro (Heiss et al., 2015; Nowak-Sliwinska et al., 2018). ECs were induced to form 3D spheroids that are characterized by mature EC–EC junctions that are responsible for quiescent proliferation state (Weidemann et al., 2013). Spheroids were then embedded in a 3D collagen matrix and exposed to VEGF-A to trigger SA and to stimulate the formation of capillary-like structures (Figure 1A). Spheroids that had been exposed to VEGF-A for 18 hr (SPHV) and control spheroids (SPHC) were then processed for long- and small-RNAseq. Expression analysis of protein-coding genes identified 3071 differentially expressed (DE) genes in SPHV compared to SPHC (Figure 1—figure supplement 1A), revealing dramatic changes in the global transcriptomic profile during the early phase of sprouting. Upregulation of VEGFR2, the major VEGF signal transducer, was validated by real-time PCR and Western blot analysis (Figure 1—figure supplement 1B–D). By looking at the expression of known tip and stalk cell markers (De Bock et al., 2013; del Toro et al., 2010; Strasser et al., 2010), we observed a general upregulation of tip marker genes and a downregulation of stalk marker genes in the comparison between SPHV and SPHC (Figure 1B). To visualize the organization of tip and stalk cells in this model, we analyzed the tip cell markers DLL4 and CXCR4 by immunofluorescence, or we transduced ECs with a fluorescent reporter of Notch activity to visualize stalk cells (Figure 1—figure supplement 2A). Although the EC sprouts strongly expressed DLL4 and CXCR4, cells in which the Notch reporter was activated were present only occasionally, so ECs largely acquired a tip-cell phenotype. Furthermore, manipulation of the Notch pathway by the γ-secretase inhibitor DAPT or by exogenous DLL4 resulted in increased or reduced sprouting, respectively (Figure 1—figure supplement 2B). Altogether, these observations indicate that this sprouting model can be used, at this specific developmental time point, to represent the early phase of VEGF-A response that involves activation of quiescent ECs and differentiation to tip cells.

To identify key biological pathways or that set of genes that is relevant to the sprouting process, the gene expression dataset was interrogated by taking advantage of Gene Set Enrichment Analysis (GSEA) (Subramanian et al., 2005). When comparing SPHV with SPHC, this analysis confirmed the upregulation of known VEGF-A responder genes (‘VEGF-A UP’), and revealed a positive enrichment of gene sets that are representative of several biological pathways and classes of molecules, including ‘Translation’, ‘Cell adhesion molecules’, ‘Integrin pathway’, ‘Extracellular matrix organization’, and ‘Collagen formation’. Altogether, these alterations in gene expression mirror the transcriptional landscape that allows the migratory process. Other representative enriched pathways included ‘Oxidative phosphorylation’ and ‘Lysosome’ (Figure 1C).

Figure 1 with 2 supplements see all
VEGF-A induces the tip phenotype of endothelial cells in a 3D model of sprouting angiogenesis.

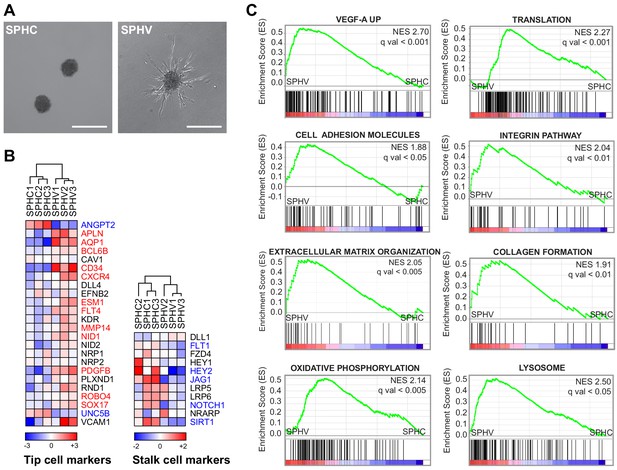

(A) EC spheroids were embedded in a collagen matrix and stimulated with VEGF-A to induce endothelial cell sprouting. RNA-sequencing analysis was performed on control spheroids (SPHC) not stimulated with VEGF-A, and on spheroids after 18 hr from stimulus (SPHV). Scale bars, 200 µm. (B) Heatmaps showing the expression of tip and stalk cell markers in SPHC and SPHV. Color bars indicate log2(fold change) (log2FC) in the comparison SPCV versus SPHC. (C) Positively enriched gene sets identified by the GSEA study in the genesets collection for canonical pathways. False discovery rate (FDR) was accepted when q value <0.05.

Early VEGF-A response does not involve cell proliferation

Activation of the VEGF pathway through VEGF receptors initiates a signaling cascade that promotes the proliferation of ECs, among other actions (Simons et al., 2016). Nonetheless, and in agreement with the non-proliferating tip cell phenotype, GSEA showed a strongly negative enrichment score (ES) for cell-cycle-controlling genes (Figure 2A). Indeed, when looking at the expression levels of genes belonging to the ‘cell cycle’ KEGG pathway (Kanehisa et al., 2016), expression analysis showed that 52 genes out of 113 were DE in SPHV compared to SPHC, of which 50 were downregulated (Figure 2B). Hypergeometric test confirmed a statistically significant over-representation of this subset of genes among all the DE genes (= 7.40x10-5). Only cyclin D2 (CCND2) and cyclin E1 (CCNE1), two genes belonging to the cyclin family and participating in the G1phase of the cell cycle, were upregulated. The finding that VEGF-A did not activate the proliferation of ECs and the accompanying DNA synthesis was also confirmed by the negative ES of gene sets that are representative of pyrimidine metabolism (Figure 2C) and, to a lesser extent, purine metabolism (Figure 2D). Indeed, we observed a general downregulation of genes involved in de novo synthesis of nucleotides (Figure 2—figure supplement 1A). Downregulations of the cyclin B1 gene and of IMPDH2, the rate-limiting enzyme in de novo guanine nucleotide biosynthesis, were validated by a real-time PCR assay (Figure 2—figure supplement 1B,C). We then measured the activities of the enzymes PPAT and CAD, which are considered to be indices of de novo synthesis of purine and pyrimidine nucleotides and of ATIC, which catalyzes the last step of purine synthesis, respectively. VEGF-A stimulation decreased the activity of these three enzymes in the 3D model (Figure 2E) indicating that, in this condition, de novo nucleotide synthesis is not required. On the contrary, their activity significantly increased in a control experiment performed with ECs cultured in 2D conditions (Figure 2—figure supplement 1D). Measurement of the percentage of cells that entered the S phase of the cell cycle confirmed that SPHC displayed a quiescent, non-proliferative status, and that VEGF-A was not able to trigger cell proliferation in spheroids significantly within an 18-hr time frame (Figure 2F). By contrast, VEGF-A activity on cell proliferation was well evident in cells cultured in standard 2D conditions, both in a proliferation assay and in a GSEA of the corresponding microarray data (Figure 2—figure supplement 1E,F). Furthermore, ECs that were mitotically inactivated by mitomycin C treatment maintained the ability to migrate and to form endothelial sprouts (Figure 2G). Taken together, these observations indicate that, in 3D conditions, early VEGF-A activity is primarily directed towards cell migration rather than towards cell proliferation.

Figure 2 with 1 supplement see all
Early VEGF-A response does not involve cell proliferation.

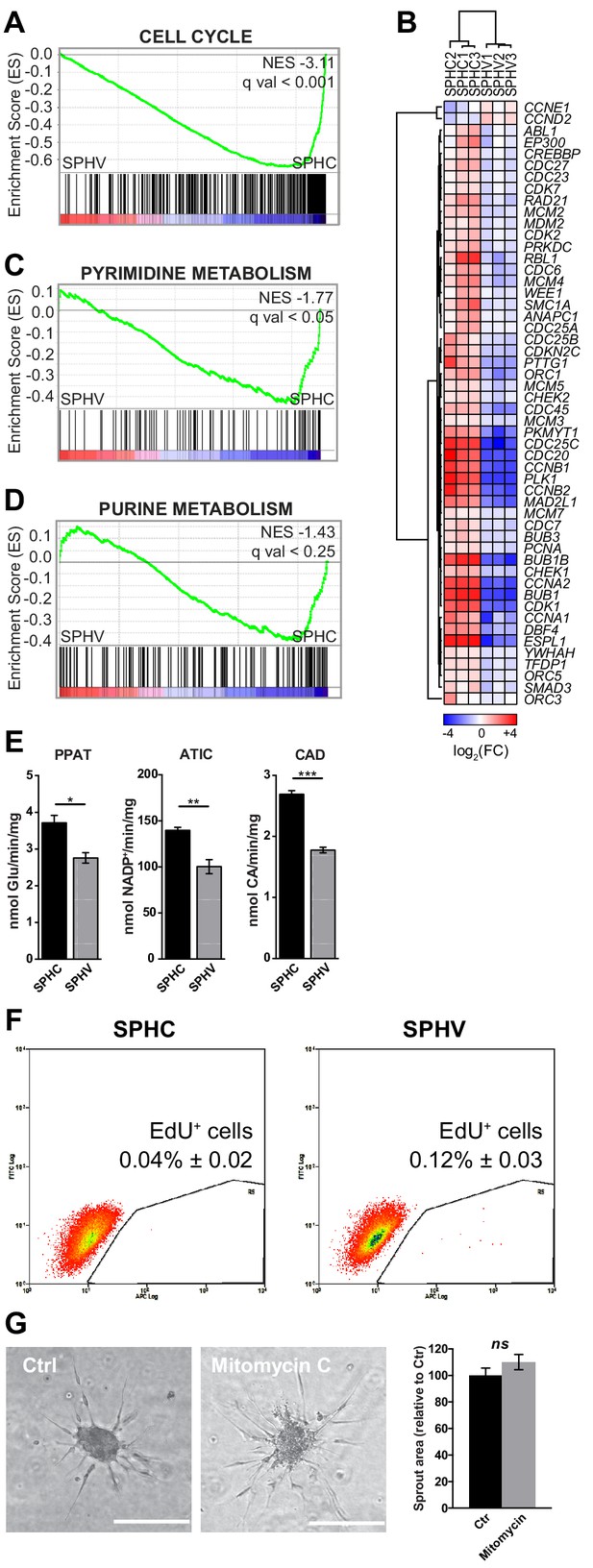

(A) GSEA plot showing negative association with the ‘cell cycle’ gene set in SPHV compared to SPHC. (B) Heatmap representing the expression of genes that are included in the KEGG pathway ‘cell cycle’ and are differentially expressed with a log2(Fold Change)>0.5, FDR < 0.05 when comparing SPHV versus SPHC. Color bar indicates log2(fold change). (C, D) GSEA plots showing, respectively, negative association with ‘pyrimidine metabolism’ and ‘purine metabolism’ gene sets in SPHV compared to SPHC. FDR was accepted when q value < 0.05. (E) Measure of the VEGF-A-induced enzymatic activity of three enzymes involved in de novo nucleotide synthesis in SPHC and SPHV. PPAT, phosphoribosyl pyrophosphate amidotransferase; ATIC, 5-aminoimidazole-4-carboxamide ribonucleotide formyltransferase/IMP cyclohydrolase; CAD, carbamoyl-phosphate synthetase 2/aspartate transcarbamylase/dihydroorotase. Data are represented as mean ± SEM of n = 3 experiments. (F) Cell proliferation rate analysis in SPHC and SPHV performed by evaluation of EdU incorporation into the newly synthetized DNA. Representative plots of n = 3 experiments. Data represent the mean percentage of proliferating cells ± SEM of n = 3 experiments. p<0.05 in the comparison between SPHC and SPHV. (G) Sprouting assay performed with ECs pre-treated with the cell replication blocker mitomycin C, and the corresponding quantification of sprout area. Data are represented as mean ± SEM from n = 3 experiments. ***, p<0.001; **, p<0.01; *, p<0.05; ns, not significant.

A miRNA-dependent regulatory network sustains acquisition of the tip cell phenotype

Analysis of the small-RNAs sequencing data allowed the annotation of 639 mature miRNAs that were expressed by ECs across the two experimental conditions (SPHC and SPHV), at levels above a fixed cutoff (raw counts = 5) (Figure 3—source data 1). To assess the impact of endogenous miRNAs on the phenotypic differentiation that occurs during SA, we applied a bioinformatics pipeline based on the co-expression analysis of miRNAs and protein-coding genes, the prediction of miRNA target genes, and the association of miRNAs with biological pathways, followed by network analysis (Figure 3A). We first performed pair-wise correlation analysis between miRNAs and the expression of protein-coding expression, and plotted the distribution of the correlator (Figure 3B). We then isolated the subset of pairs that contained evolutionarily conserved or non-conserved miRNA–target gene interactions, based on TargetScan predictions (Agarwal et al., 2015). The frequency distribution of the correlator for the conserved interactions subset showed a significant enrichment in negative correlations compared to that for the entire dataset (Figure 3B, blue line). This is indicative of the repressive activity exerted by miRNAs on their targets; that is, when a miRNA is upregulated, its protein-coding gene target is downregulated and vice-versa. By contrast, the non-conserved interactions subset did not show any significant alteration in the correlator frequency distribution (Figure 3—figure supplement 1A). Considering that target-site conservation is believed to be an indication of functional repression for mammalian miRNAs (Friedman et al., 2009), the integration of the SA gene expression dataset with information about evolutionarily conserved miRNA–target gene interactions provides information on the global activity of miRNAs taking place during the early sprouting phase. Therefore, this strategy permits the identification of target genes and biological processes that are more likely to be affected by miRNA-mediated post-transcriptional regulation.

GSEA-based analysis of correlation between miRNA expression and groups of genes participating in the regulation of specific biological pathways, represented as gene sets, was also used to support our findings (Figure 3C). This analysis identified five clusters of genesets representing distinct biological functions that are modulated during SA, together with their associated miRNAs. Gene ontology-based enrichment analysis performed on the genes contained in each cluster showed the following classes: 1) extracellular matrix remodeling and cell migration, 2) protein translation and metabolic processes, 3) intracellular signaling pathways, 4) RNA and protein processing, and, 5) cell cycle, DNA repair and MAPK cascade (Figure 3D). Clusters 1 and 2 contained genes that are mostly upregulated in SPHV compared to SPHC, whereas clusters 3, 4 and 5 contained genes that are mostly downregulated. To generate the global post-transcriptional regulatory network that sustains SA, the results from the above analyses were integrated. The resulting miRNA-centered co-expression network is composed of 149 miRNAs and 717 protein-coding genes connected by 1713 edges (Figure 4 and Figure 4—source data 1). This network is essentially characterized by two individual components: one representing upregulated miRNAs connected with downregulated target genes, and one representing downregulated miRNAs connected with upregulated target genes. Degree distribution for both miRNAs (out-degree) and protein-coding genes (in-degree) observed a power-law behavior (Figure 3—figure supplement 1B,C), indicating that this network is compatible with the scale-free hypothesis, a typical feature of biological networks (Barabási and Pósfai, 2016).

Figure 3 with 1 supplement see all
Construction of the post-transcriptional regulatory network that sustains acquisition of the tip cell phenotype.

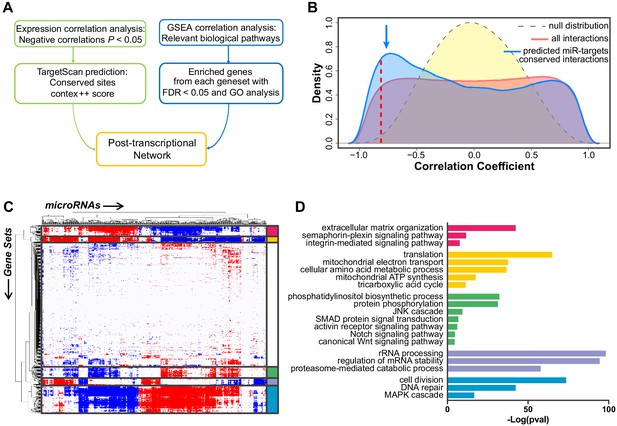

(A) Schematic view of the computational approach used to generate the post-transcriptional regulatory network. (B) Distribution of the correlator (Pearson coefficient) of the pair-wise analysis that considered the expression profile of all miRNAs and of protein-coding genes expressed in SPCH and SPHV. The gray dashed curve represents the null hypothesis distribution (uncorrelated miRNA–protein coding gene pairs) obtained by sample randomization with 1000 permutations; the red curve represents all pair-wise miRNA–protein-coding gene interactions; the blue curve represents the subset of miRNA–protein-coding gene pairs containing an evolutionarily conserved interaction as predicted by the TargetScan database. The blue arrow points to the enrichment in negative correlations. The red dashed line indicates the statistical significance threshold chosen for the correlator (P < 0.05). (C) Association matrix of the expression profiles of miRNAs (columns) with functional gene sets (rows) representing canonical pathways. Significant associations (FDR < 0.05) are shown in red (positive) or blue (negative). White, not significant. Biologically relevant clusters are highlighted with different colors. (D) For each cluster in (C), genes contributing to enrichment in the correlated gene sets were analyzed by functional annotation. Graph shows –Log(P value) of representative gene ontology terms.

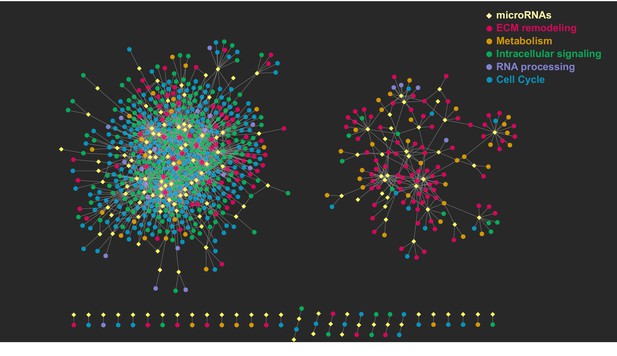

Graphical representation of the post-transcriptional network.

The network consists of two major, independent components. The component on the left includes the interactions between upregulated miRNAs and their respective downregulated target genes; the component on the right includes the interactions between downregulated miRNAs and their respective upregulated target genes. Yellow diamonds represent miRNAs, circles represent their target genes, colored on the basis of the gene ontology cluster to which they belong. Edges are the miRNA–target gene pairs with a predicted direct interaction and a significant negative correlation.

The ERK gene module is under the control of a miRNA network in sprouting angiogenesis

VEGF-mediated EC proliferation and migration recognize the ERK pathway (Wong and Jin, 2005) and p38 MAP kinase activity (Rousseau et al., 2000), respectively, as master signaling modules (Simons et al., 2016). The data shown so far demonstrate that genes controlling cell proliferation were strongly downregulated (Figure 2), as were the expression levels of miRNAs correlated with genes associated with cell division and the MAPK cascade (Figure 3D). On these bases, we asked whether miRNAs have a role in suppressing the proliferative signal downstream VEGF-A through ERK pathway inhibition, while supporting cell migration in a 3D context. To this purpose, we interrogated the previously defined global post-transcriptional network (Figure 4—source data 1), and extracted the nodes corresponding to genes that encode known MAP kinases (Craig et al., 2008) together with their targeting miRNAs. Mapping of these interactions generated a network composed of one major component, which represents the inhibitory activity of miRNAs over several MAP kinases (Figure 5A). These MAP kinases showed reduced expression in SPHV compared to SPHC. The TAOK1 gene, whose protein product is a kinase that activates stress response (Raman et al., 2007), and MAPK1, whose protein product is ERK2, were the most targeted genes in this sub-network, being targeted by 11 and 7 different miRNAs, respectively. Notably, all components constituting the ERK module, namely C-Raf (RAF1), MEK (MAP2K1) and ERK2 (MAPK1), were represented. Among the four members composing the p38MAPK family (p38α, -β, -γ and -δ), only p38α (MAPK14) was present, but this gene was not connected with the major component of the network because its expression is increased in SPHV compared to SPHC. Downregulation of RAF1, MAP2K1, MAPK1 and TAOK1, and upregulation of MAPK14 in SPHV compared to SPHC, was validated by real-time PCR (Figure 5B). Furthermore, ERK activity was measured in SPHC and SPHV by Meso Scale Technology (MSD) and expressed as P-ERK/total ERK ratio in order to take variations in total ERK expression into account. Figure 5C shows that ERK activity decreases after VEGF treatment. We also analyzed the effect in the sprouting model of SHC 772984 or SB 202190 compounds, which inhibit ERK1/2 and p38MAPK, respectively. Effective inhibitor concentrations were assessed by evaluating the inhibitory activity on VEGF-A-induced enzyme phosphorylation (Figure 5—figure supplement 1). As shown in Figure 5D, treatment with the ERK inhibitor SCH 772984 did not have any effect on sprouting, confirming that ERK activity is not required, and in agreement with the observed low proliferation rate (Figure 2). By contrast, treatment with p38MAPK inhibitor SB 202190 completely abrogated the ability of ECs to migrate and to form sprouts.

Figure 5 with 1 supplement see all
ERK activation is not required for sprouting and the ERK module is repressed by miRNAs.

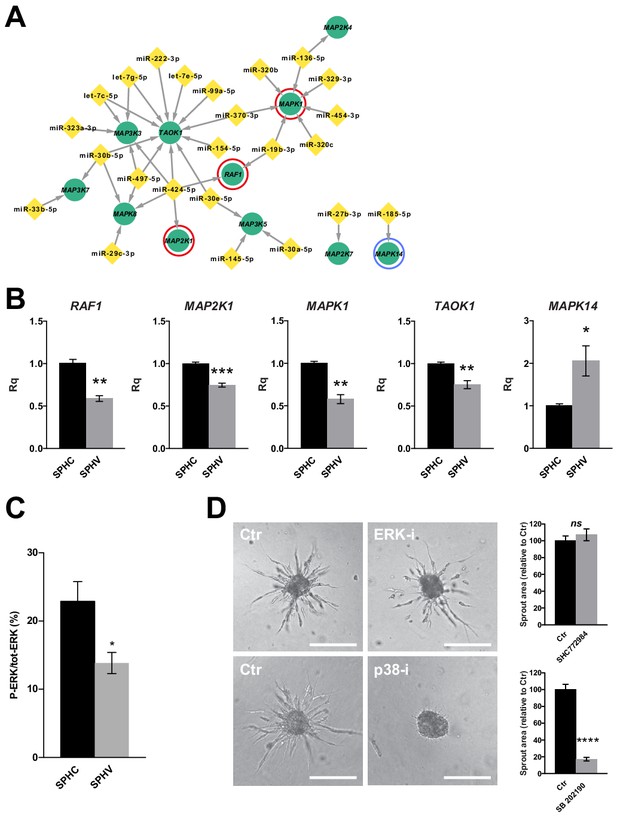

(A) Sub-network representing miRNAs targeting MAPK genes, derived from the global post-transcriptional network. The ERK module, consisting of RAF1 (C-Raf), MAP2K1 (MEK) and MAPK1 (ERK2), is highlighted by red circles. MAPK14 (p38α) is highlighted by a blue circle. (B) Real-time PCR validations of the RNA-sequencing data for some of the MAPK sub-network members, in SPHC and SPHV. Data are represented as mean ± SEM for n = 3 experiments. (C) ERK activity in SPHC and SPHV measured by Meso Scale Discovery (MSD) technology and expressed as the ratio of P-ERK/total ERK. Data are represented as mean ± SEM from n = 4 experiments. (D) Sprouting assay performed in the presence of the ERK inhibitor SHC 772984 or in the presence of the p38 inhibitor SB 202190, and the corresponding quantification of sprout area. Scale bars, 200 µm. ****, p<0.0001; ***, p<0.001; **, p<0.01; *, p<0.05; ns, not significant.

DICER knock-down rescues the proliferative effect of VEGF-A

To demonstrate a regulatory role exerted by miRNAs on their predicted target genes and, more generally, to confirm the involvement of miRNAs in the control of the sprouting process, we removed mature miRNAs from the system by inactivating DICER, one of the endonucleases responsible for the generation of mature miRNAs from their precursors (Ha and Kim, 2014). This approach, which investigated the effects of miRNAs on the global post-transcriptional network, was preferred over the inhibition of individual miRNAs. Cells in which DICER expression was knocked-down by a short-hairpin RNA (DICERKD) showed a reduction of sprouting to about 50% of that seen in cells transduced by non-targeting shRNA (DICERWT) (Figure 6—figure supplement 1A), in agreement with previous observations (Kuehbacher et al., 2007). Effective DICER knock-down was verified by real-time PCR (Figure 6—figure supplement 1B). Then, we measured RAF1, MAP2K1, MAPK1, TAOK1, and MAPK14 expression in SPHV generated with DICERWT or DICERKD cells by real-time PCR. All of these genes were upregulated in the DICERKD condition (Figure 6A), indicating that their expression is subjected to a miRNA-mediated post-transcriptional control. The amount of P-ERK also increased in DICERKD spheroids (Figure 6B). We repeated the sprouting assay with DICERKD spheroids in the presence of the ERK inhibitor SCH 772984. DICERWT spheroids were not affected by ERK inhibition, as shown previously in Figure 5D. Nonetheless, DICERKD spheroids that were treated with the ERK inhibitor showed a further reduction of sprouting (Figure 6C,D), confirming that removal of miRNAs by DICER knock-down restored ERK pathway activity and thus sensitizing cells to the ERK inhibitor SCH 772984.

Furthermore, we performed a microarray study to analyze the gene expression profiles of DICERWT and DICERKD spheroids. GSEA comparison showed levels of expression of ‘cell cycle’- and ‘metabolism of nucleotides’-related genes in DICERKDspheroids that were higher than those in DICERWT spheroids stimulated with VEGF-A (Figure 6E), but no higher than those in control spheroids (Figure 6—figure supplement 1C). These findings indicate that the activity of miRNAs can restrain the expression of genes that promote cell proliferation following VEGF-A stimulation, in agreement with the network analysis (Figure 3) and the results shown in Figure 2. This observation was further validated by measuring proliferation rate in SPHC and SPHV (Figure 6F). DICERKD spheroids displayed a VEGF-A-dependent increase of cell proliferation compared to DICERWT spheroids, confirming that the removal of miRNAs allows activation of the proliferative pathway downstream of VEGF-A. Interestingly, when the proliferation assay was performed on ECs cultured in 2D, DICERKD cells showed a reduced proliferative response to VEGF compared to DICERWT cells, suggesting that different miRNA activities are involved in the 2D or 3D environments (Figure 6—figure supplement 1D).

Figure 6 with 1 supplement see all

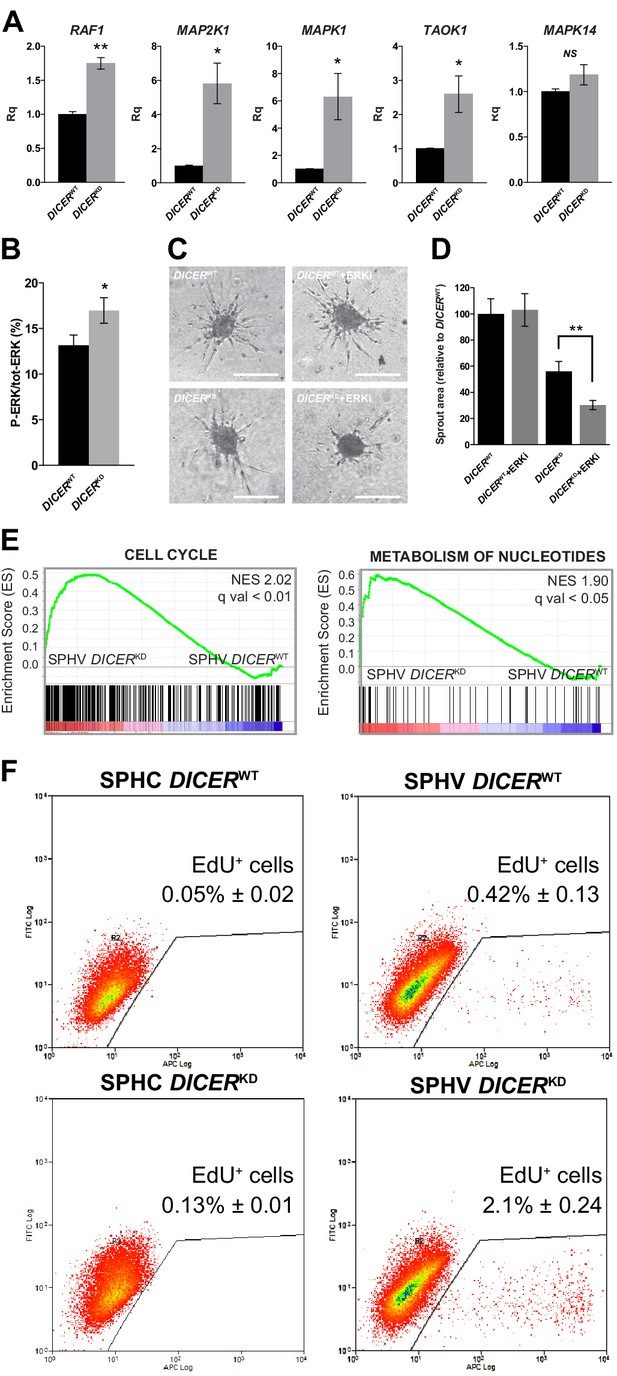

DICER knock-down rescues VEGF-A proliferative effect.

(A) Real-time PCR analysis of RAF1, MAP2K1, MAPK1, TAOK1, and MAPK14 in SPHV generated with DICERWT cells or DICERKD cells. Data are represented as mean ± SEM from n = 3 experiments. (B) ERK activity in SPHV generated with DICERWT cells or DICERKD cells measured by MSD and expressed as the ratio of P-ERK/total ERK. Data are represented as mean ± SEM from n = 3 experiments. (C) Sprouting assay performed with spheroids generated with DICERWT cells or DICERKD cells, in the presence of the ERK inhibitor SHC 772984. Scale bars, 200 µm. (D) Quantification of sprouts area for the cells shown in panel (C). Data are represented as mean ± SEM from n = 3 experiments. (E) GSEA study performed against the canonical pathways gene sets collection showed positive enrichment in the 'cell cycle' and 'metabolism of nucleotides' gene sets, in the comparison between DICERKD and DICERWT stimulated spheroids (SPHV). FDR was accepted when q value < 0.05. (F) Cell proliferation assessed by cytofluorimetric analysis of EdU incorporation into the DNA in spheroids generated from DICERWT cells or DICERKD cells that were either not stimulated (SPHC) or stimulated (SPHV) with VEGF-A. Representative plots of n = 3 experiments. Data represent mean percentages of proliferating cells ± SEM from n = 3 experiments. **, p<0.01; *, p<0.05.

Biological validation of the miRNA hub network regulating sprouting angiogenesis

As previously shown, network analysis indicates that only few miRNAs are predicted to target a large number of protein-coding genes (Figure 4—source data 1), in agreement with the scale-free hypothesis that describes real networks. These hub miRNAs therefore should be pivotal to the network architecture and to the post-transcriptional regulatory activity that sustains the sprouting process. To validate the accuracy of the network analysis, and the relevance of the predicted miRNA-mediated post-transcriptional control of the genetic program sustaining SA, we subjected two miRNAs to further investigations. To validate the network, we selected miR-424–5p and miR-29a-3p, which are well-known miRNAs involved in angiogenesis regulation, and showed a high number of interactions with coding genes. miR-424–5 p was upregulated and targeted 98 genes, which were mainly related to intracellular signaling, including the MAPK pathway (Figure 5A) and cell cycle control (Figure 7A and Figure 4—source data 1). miR-29a-3p was downregulated and controlled the post-transcriptional regulation of 25 genes, mostly related to extracellular matrix remodeling (Figure 7B and Figure 4—source data 1). These miRNA–target interactions are also reported in the publicly available databases miRTarBase (Chou et al., 2018), TarBase (Karagkouni et al., 2018) and starBase (Li et al., 2014), which store miRNA–mRNA interactions supported by experimental evidence. In particular, for miR-424–5 p, 97 out of 98 interactions were present in these databases (24 of them in all three databases, and 73 in one or two); for miR-29a-3p, 23 out of 25 interactions were present in the databases (7 of them in all three databases, 16 in one or two) (Figure 7—source data 1). RNAseq expression data for miR-424–5p and miR-29a-3p in SPHC and SPHV were confirmed by real-time PCR analysis (Figure 7—figure supplement 1A,B). The expression of these two miRNAs can also be altered when the Notch pathway is manipulated. In fact, inhibition of the Notch pathway with DAPT, which increases sprouting (Figure 1—figure supplement 2B), increased the expression of miR-424–5p and reduced the expression of miR-29a-3p; the opposite effect was obtained when spheroids were treated with exogenous DLL4 (Figure 7C,D).

To assess the role of miR-424–5p and miR-29a-3p in the sprouting process, we altered their expression in ECs by using miRNA mimics or inhibitors (Figure 7—figure supplement 1D,E), and performed the sprouting assay (Figure 7E). Quantification of sprout areas (Figure 7F) indicated that both upregulation by miRNA mimics and downregulation by miRNA inhibitors of miR-424–5p and miR-29a-3p impaired the ability of ECs to sprout, suggesting that the equilibrium of the network architecture requires that the expression of these two hub miRNAs is maintained at controlled levels. In a tip competition assay, spheroids were generated by mixing an equal number of ECs expressing the fluorescent protein DsRed with ECs transfected with miR-424–5p or miR-29a-3p mimics or inhibitors. Fluorescent or non-fluorescent cells occupying the tip position of the sprouts were counted. Figure 7—figure supplement 2 shows that cells with altered expression of miR-424–5p or miR-29a-3p were impaired in reaching the tip cell position. To ascertain the robustness of the gain-of-function/loss-of-function approach, we also altered the expression of miR-16–5 p, which belongs to the same family as miRNA-424–5p, with which it putatively shares the same subset of target genes. However, our network analysis, which integrates target predictions with expression data, predicted a different subset of target genes for miR-424–5p and miR-16–5 p in the spheroid model (Figure 4—source data 1), and miR-16–5 p appeared to be a more peripheral miRNA that had only 16 predicted target genes. Indeed, miR-16–5 p modulation did not affect sprouting (Figure 7—figure supplement 1F,G). miR-424–5p and miR-29a-3p expression was significantly reduced in DICERKD spheroids compared to DICERWT spheroids (Figure 7—figure supplement 1H), suggesting that impaired expression of these two miRNAs could account, at least in part, for the sprouting defects observed in spheroids after DICER knock-down and in agreement with their role in network hierarchy. Furthermore, modulation of miR-424–5p, which is involved in the MAPK sub-network shown in Figure 5A, resulted in the alteration of P-ERK activity according to the bioinformatics prediction, whereas modulation of miR-29a-3p, which is not involved in this network, was not effective (Figure 7—figure supplement 1I).

The effect of modulation of miR-424–5p and miR-29a-3p on cell proliferation was also tested in the spheroid model, the limitation of this assay being that the inhibition of cell proliferation cannot be evaluated as it is already close to zero. Indeed, none of the treatments could significantly increase cell proliferation (Figure 7—figure supplement 3A). In a 2D VEGF-dependent cell proliferation assay, however, treatment with the miR-424–5p mimic was able to reduce cell proliferation by 50% (Figure 7—figure supplement 3B). When tested in a 2D VEGF-dependent cell migration experiment, the miR-424–5p mimic had a positive effect on cell migration, whereas the miR-29a-3p mimic had a negative effect, the latter in agreement with its predicted role as a negative regulator of cell migration. miRNA inhibitors, however, did not show any significant effect (Figure 7—figure supplement 3C).

To further validate miR-424–5p and miR-29a-3p activity in the different biological pathways identified by the network analysis, we used real-time PCR to analyze the expression of 10 predicted target genes for miR-424–5p and 10 for miR-29a-3p. The targets investigated included genes involved in cell proliferation control (MAP2K1, CCND2), as well as genes involved in cell migration and extracellular remodeling (ITGA2, NID1), whose alteration could account for the phenotype observed. Indeed, we were able to verify a reduction in the expression of target genes when the corresponding miRNA mimic was overexpressed (Figure 7H,I). The effect of the miRNA inhibitors on the selected targets was, however, less pronounced, and we were able to observe upregulation for only three target genes for each condition (Figure 7—figure supplement 4A,B). Therefore, we analyzed the expression of other miR-424–5p and miR-29a-3p targets that are present in their respective miRNA subnetworks and that were not previously analyzed. For most of these target genes, we observed a significant upregulation upon inhibition of miRNAs (Figure 7—figure supplement 4C,D).

Figure 7 with 4 supplements see all
Hub miRNAs are essential to the sprouting process.

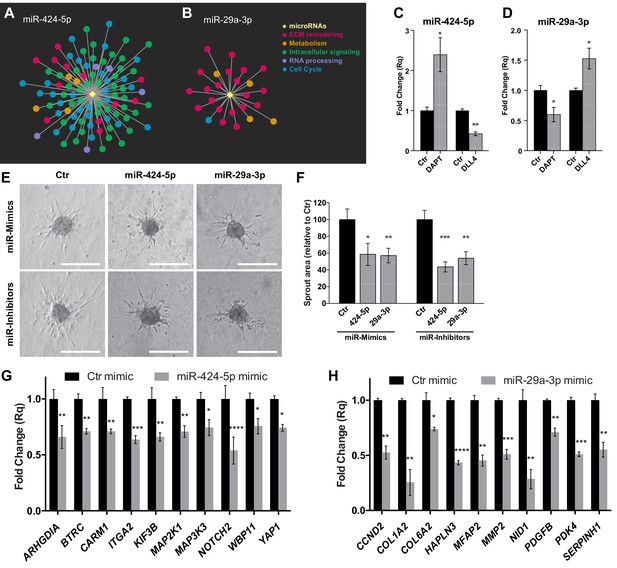

Graphical representation of miR-424–5p (A) and miR-29a-3p (B) sub-networks, characterized by different patterns of functional classes target genes. (C) Real-time PCR analysis of miR-424–5p expression in SPHV treated with DAPT or with exogenous DLL4. Data are represented as mean ± SEM from n = 3 experiments. (D) Real-time PCR analysis of miR-29a-3p expression in SPHV treated with DAPT or with exogenous DLL4. Data are represented as mean ± SEM for n = 3 experiments. (E) Sprouting assay performed with ECs transfected with miR-424–5p or miR-29a-3p mimics and inhibitors. Scale bars, 200 µm. (F) Quantification of sprout area for the cells shown in panel (E). Data are represented as mean ± SEM from n = 4 experiments. (G) Real-time PCR assays in EC transfected with miR-424–5p mimic detecting the expression of miR-424–5p targets predicted from the network analysis. Data are represented as mean ± SEM from n = 3 experiments. (H) Real-time PCR assays in EC transfected with miR-29a-3p mimic detecting the expression of miR-29a-3p targets predicted from the network analysis. Data are represented as mean ± SEM from n = 3 experiments. ****, p<0.0001; ***, p<0.001; **, p<0.01; *, p<0.05.

Modulation of miRNA hubs alters network architecture

The data showed above indicate, for some of the experiments performed, a non-symmetrical effect of miRNA upmodulation and downmodulation. This might be explained by the existence of a broader effect on the network architecture that would involve indirect miRNA–miRNA interactions. To gain more insights into the impact that modulation of a hub miRNA can have on the global network architecture, we analyzed the expression of a large panel of miRNAs (of which 127 are represented in the SA network) by TaqMan array microRNA cards when miR-424–5p or miR-29a-3p were either upregulated or downregulated. The results indicate that 76 miRNAs showed altered expression (|∆∆Ct| > 2) upon up- or downmodulation of miR-424–5p or miR-29a-3p in at least two conditions (Figure 8A). In particular, when the analysis was restricted to the subset of miRNAs that share common target genes with miR-424–5p or miR-29a-3p in the SA network, 27 of these miRNAs showed altered expression (Figure 8B). Interestingly, several miRNAs showed increased expression under the effect of miR-424–5p or miR-29a-3p inhibitors. Altogether, these data indicate that that miR-424–5p and miR-29a-3p modulations induce a deep rewiring of the global miRNA network in addition to the modulation of their target coding genes, which can also account for the differences observed when comparing the effects of miRNA mimics and miRNA inhibitors.

Modulation of miRNA hubs alters network architecture.

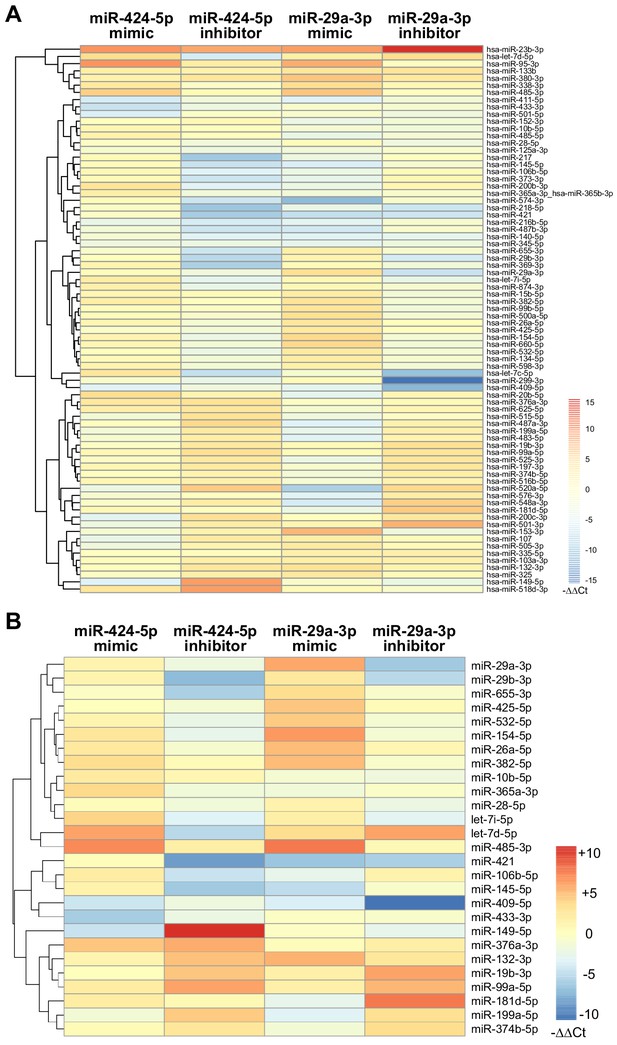

(A) Heatmap showing the result of a differential gene expression analysis of a panel of miRNAs upon up- or downmodulation of miR-424–5p or miR-29a-3p. Only miRNAs with |∆∆Ct| > 2 are represented. Color bar indicates –∆∆Ct values. (B) Heatmap showing only those differentially expressed miRNAs that have predicted target genes in common with miR-424–5p or miR-29a-3p. Color bar indicates –∆∆Ct values.

Upregulation of genes that are targeted by miRNAs during sprouting angiogenesis correlates with tumor angiogenesis

To extend the results derived from the SA model in a human setting, and to identify possible implications of our findings in tumor biology, we evaluated the expression of the global upregulated and downregulated gene modules extracted from the network analysis, as well as the expression of single miRNA targets, in a collection of colorectal cancers (CRC). This type of tumor was chosen because angiogenesis plays an important role in its progression (Battaglin et al., 2018), and some of the patients benefit from anti-angiogenic therapy with the VEGF blocker bevacizumab. 450 CRC samples were first ranked by their endothelial gene signature or endothelial score, a parameter that takes into account the expression of 35 EC-specific genes, not expressed by CRC or other stromal components, and that correlates with ongoing angiogenesis (Isella et al., 2015). When GSEA was used to correlate the different miRNA-target gene subsets obtained from the network analysis (Figure 4—source data 1) with CRC samples, we observed a significant positive enrichment for the miR-29a-3p-targets subset (Figure 9A), meaning that expression of miR-29a-3p targets is higher in CRCs that have a high endothelial score. Furthermore, average expression in CRC samples of the genes that were present in the network analysis and that are upregulated in SPHV (upregulated module, Figure 9—source data 1) also showed a significant positive correlation with endothelial score (Figure 9B). Likewise, GSEA analysis in which the endothelial score was used as phenotype classifier revealed a significant enrichment of the upregulated module (Figure 9C) and allowed the identification of a core gene set of 58 genes that are coherently regulated in vitro and in vivo (Figure 9—source data 1). This gene subset was further challenged in a dataset from CRC patients treated with the VEGF inhibitor bevacizumab (Pentheroudakis et al., 2014). Indeed, the core subset of the upregulated gene module was significantly enriched in bevacizumab-responding patients (Figure 9D), thus confirming the involvement of the genes within this module during pathological angiogenic remodeling.

Upregulation of genes that are targeted by miRNAs during SA correlates with tumor angiogenesis.

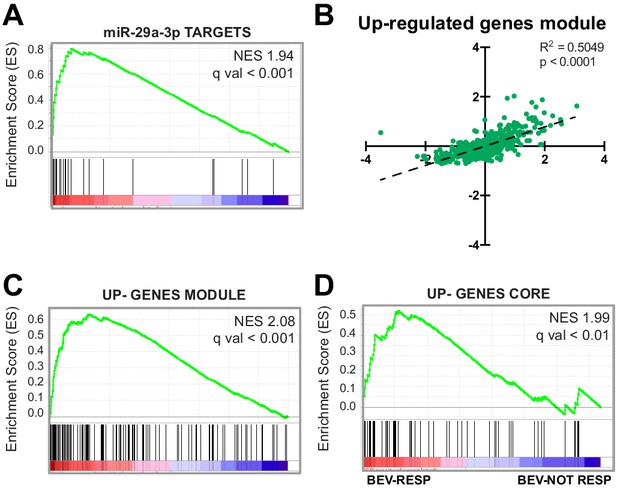

(A) GSEA plot showing significant positive association for miR-29a-3p target genes in CRC samples stratified by their endothelial score. (B) Scatter plot showing correlation, in CRC samples, between the expression of genes that constitute the upregulated gene module from the network analysis and endothelial score. (C) GSEA plot showing significant positive association for the up-gene module with CRC samples stratified by their endothelial score. (D) GSEA plot showing significant positive association for the upregulated genes core, extracted from panel (B), with a cohort of bevacizumab-responding CRC patients (bev-resp), compared to not-responding patients (bev-not resp). FDR was accepted when q value < 0.05.

Discussion

The spheroid model as a tool to study tip cell selection

In this study, we generated protein-coding gene and miRNAs RNAseq data from a VEGF-A dependent, well-established three-dimensional model of SA (Korff and Augustin, 1998; Nowak-Sliwinska et al., 2018). We showed that initial response to VEGF-A in ECs consists of a profound remodeling of the transcriptome, which allows differentiation toward the tip phenotype. This includes the activation of genes that regulate extracellular matrix remodeling, which is essential to the migratory process, and the repression of genes that promote cell proliferation and nucleotide de novo synthesis (Figure 1B and Figure 2). The observation that these two fundamental VEGF-A downstream pathways might not be synchronous in tip cells is in agreement with earlier studies on pathophysiological angiogenesis, in which it was demonstrated that the onset of vascular sprouting depends on the migration of existing ECs and does not require EC proliferation (Ausprunk and Folkman, 1977; Sholley et al., 1984). The spheroid model described here cannot, however, recapitulate all of the molecular events that lead to the formation of a more complex vascular bed. Furthermore, it cannot allow the analysis of tip-stalk cell dynamics because of the inability to differentiate stalk cells properly. This can be attributed to the intrinsic short life of the model compared to the mouse retina model and to the absence of other co-regulatory events, such as the generation of a VEGF gradient by neurons (Okabe et al., 2014). Nonetheless, the specificity of this model in the generation of tip cells allowed the analysis, at a molecular level, of the post-transcriptional regulation that sustains tip cells selection.

Functions of miRNA in the context of regulatory networks

Here, information about the expression of miRNAs was used to generate a global post-transcriptional regulatory network based on co-expression between miRNAs and their predicted protein-coding target genes. Using this unbiased approach, we were able to emphasize a role of miRNAs in repressing genes that regulate cell proliferation and other signaling pathways downstream of VEGF. Such pathways include the MAPKs signaling cascade, which is mainly involved in transducing the VEGF-A mitogenic signal. Meanwhile, miRNAs also promoted the expression of genes that are involved in extracellular matrix remodeling.

Several studies have highlighted the importance of both transcriptional and post-transcriptional interactions in the shaping of global regulatory networks. The connections involving both transcription factors and miRNAs can be described in terms of small regulatory patterns (Hornstein and Shomron, 2006; Tsang et al., 2007). Some circuits topologies, in their incoherent form, can be associated with positive correlation patterns between the expression of miRNAs and their predicted target genes, and are generally thought to have a buffering function on transcriptional noise. On the other hand, the coherent form of miRNA-target circuits is thought to mediate a post-transcriptional reinforcement of transcriptional regulation and is associated with negative correlation schemes of gene expression (Cora' et al., 2017). Our experimental setup intrinsically highlights and selects such negative correlations (Figure 3B). In this context, miRNA activity is meant to reinforce the transcriptional program and to facilitate phenotypic transitions by precisely shaping a genetic program that is triggered by external cues (Ebert and Sharp, 2012). In principle, however, we cannot preclude the presence, among the miRNA–gene network presented, of a later layer of indirect interactions between miRNAs and their targets or between the miRNAs themselves that is able to fine-tune the behavior of the network elements.

Regulation of MAP kinase activity by miRNAs

To demonstrate carefully the robustness of the post-transcriptional regulatory network described here at a system level, we performed a series of experimental validation by envisaging two different approaches: 1) removal of mature miRNAs by DICER knock-down to evaluate the global effects of miRNA-mediated post-transcriptional activity on SA, and 2) validation of predicted targets for two miRNAs identified as hubs from the network analysis. For the first validation approach, we focused on a MAPK-specific subnetwork, due to its role in cell proliferation control, that pinpointed a coordinated miRNA inhibitory activity on the ERK module, represented by the RAF1, MAP2K1 and MAPK1 genes (Figure 5A). Removal of mature miRNAs by means of DICER knock-down reverted the downregulation of these genes that was observed after VEGF-A stimulus (Figure 5B and Figure 6A), increased P-ERK activity (Figure 6B), and restored a proliferative response (Figure 6F). Although the process that is triggered by a mitogenic stimulus depends on subsequent substrate phosphorylation throughout the MAPK cascade, it has been shown that the final outcome can also be influenced by miRNA-mediated post-transcriptional regulation of MAPK genes themselves. In particular, and in accordance with the interactions presented in this work, RAF1 targeting by miR-497 inhibits breast cancer cell growth (Li et al., 2011), whereas downregulation of miR-424 leads to aberrant cell proliferation through MEK1 (MAP2K1) upregulation in senile hemangioma (Nakashima et al., 2010). Here, we also identified novel miRNA–MAPK interactions, such as miR-424–5p targeting MAP2K1 and MAP3K3, or miR-19b-3p and miR-320b/c targeting MAPK1, although more specific experimental validations are required to demonstrate the function of these interactions.

Our data also indicate that the effect of miRNA activity in ECs is highly context-dependent. In fact, previous studies attributed the angiogenesis defects induced by DICER inhibition to a reduction of VEGF-induced proliferation (Suárez et al., 2007; Suárez et al., 2008). However, the mechanistic demonstration of this hypothesis was limited to in vitro experiments that used 2D-cultured ECs only. Although we confirmed the reported effects of DICER inhibition in 2D cultures, we also demonstrated that the activation of ECs that enables tip cell selection and migration (the first step in SA [Carmeliet and Jain, 2011]) benefits from a miRNA-mediated inhibition of cell proliferation. Therefore, in the more complex in vivo scenario, in which different ratios of migratory (tip) and proliferating (stalk) ECs exist simultaneously, miRNAs could have different effects depending on the EC phenotype considered. Nevertheless, owing to its broad effect on the expression of miRNAs, DICER inhibition could also have affected regulatory pathways other than ERK, and thus could have contributed to the observed phenotype.

Role of two hub miRNAs in the post-transcriptional regulatory network

For the second validation approach, we focused on two hub miRNAs: miR-424–5p and miR-29a-3p, which belong to the network component containing up- and downregulated miRNAs, respectively. Their expression could be further modulated when the Notch pathway is either repressed or activated (Figure 7C,D), supporting the concept that their regulation promotes tip cell specification. Earlier studies in two-dimensional EC cultures reported that miR-424–5p upregulation reduced VEGF-induced proliferation (Chamorro-Jorganes et al., 2011), or indirectly modulated HIF-α expression thus promoting angiogenesis (Ghosh et al., 2010), whereas miR-29a inhibition impaired cell-cycle progression (Yang et al., 2013). However, it is also known that a widespread feature of miRNA activity toward a specific target is context-dependency, which also highlights the importance of target validation under physiological conditions (Erhard et al., 2014). In our three-dimensional model, integration of expression data with target prediction allowed the identification of context-specific targets. In fact, miR-424–5p showed preferential targeting activity towards genes that are associated with cell-cycle progression and intercellular signaling, whereas miR-29a-3p activity was more specific to genes involved in extracellular matrix remodeling (Figure 7A,B). A similar targeting pattern, for both miRNAs, has been described in previous evidence-based computational studies in different cellular models (Tsang et al., 2010). Our independent analyses in ECs support the concept that a single miRNA can act on different targets belonging to the same pathway to reinforce its biological effect.

Finally, our unbiased approach disclosed an unpredicted hierarchical role of miR-424–5p and miR-29a-3p in a complex process such as SA. In fact, perturbation of miR-424–5p and miR-29a-3p expression levels propagated throughout the network, causing alterations in the expression levels of a large number of other miRNAs, including miRNAs that share coding targets with miR-424–5p or mir-29a-3p. Considering that each gene in the network is targeted by several different miRNAs, such broad network rearrangement could explain why inhibition of a single miRNA did not result in a significant increase in the expression of all its targets in a predictable way, and why inhibition of miR-424–5p alone was not as effective as removal of miRNAs by DICER knock-down in rescuing cell proliferation upon VEGF-A stimulus.

Signature of the activity of miRNAs in tumor angiogenesis

To prove the strength of our experimental design and extend our findings to clinical data, we investigated the angiogenic post-transcriptional activity in human tumors. Indeed, in a collection of 450 CRC, we successfully challenged the correlation between gene modules that constitute a signature of the activity of miRNAs and ongoing angiogenesis in the stromal compartment. A significant correlation was, however, not detected for the downregulated gene modules, which mostly included cell-proliferation-associated genes. This can be explained by the fact that, in whole tumor transcriptomic data, the signal from the highly proliferating epithelial cancer cells overcome the signal coming from the less represented ECs. In addition, a signature composed of 58 sprouting-associated genes, which also included miR-29a-3p targets, was able to identify patients who benefitted from anti-angiogenic treatment with the VEGF-A blocking agent bevacizumab. On one side, this strengthens the evidence of the involvement of post-transcriptional regulation in tumor angiogenesis, and on the other side, it paves the way for future development of predictive markers for VEGF-A blocking agents. This analysis could also be extended to other cancer types, such as ovarian, cervical, non-small cell lung cancer or glioblastoma, in which angiogenesis is recognized to support tumor growth and in which bevacizumab is an approved therapeutic option. In summary, network analysis of whole transcriptomic data obtained from an in vitro SA model identified miRNA-mediated regulatory modules that fine-tune the response of ECs to VEGF-A and that could be exploited to identify new druggable biomarkers in angiogenesis-related diseases.

Materials and methods

Primary cell cultures

Request a detailed protocol

Human umbilical vein endothelial cells (HUVECs) were isolated from the cords of newborns by collagenase digestion of the interior of the umbilical vein, as previously described (Nowak-Sliwinska et al., 2018). To reduce the experimental variability that results from the different genetic backgrounds of individuals, each HUVEC batch was composed of cells derived from three to five different cords. HUVECs were cultured in M199 medium supplemented with 20% fetal bovine serum (FBS), 0.05 μg/ml porcine heparin, 2% penicillin-streptomycin solution (all from Sigma-Aldrich, St. Louis, MO, USA) and 0.2% brain extract. HUVECs were used for experiments until the third passage. Collection of umbilical cords for the isolation of HUVECs is governed by an agreement between Università degli Studi di Torino and the Azienda Ospedaliera Ordine Mauriziano di Torino, protocol number 1431 02/09/2014. Informed consent was obtained from all subjects involved.

Spheroid capillary sprouting assay

Request a detailed protocol

EC spheroids were generated as described previously (Nowak-Sliwinska et al., 2018) with minor modifications. HUVECs within the third passage were trypsinized and cultured in hanging drops (800 cells/drop) in M199 containing 10% FBS and 0.4% (w/v) methylcellulose (Sigma-Aldrich). After 10 hr or overnight incubation, spheroids were collected and embedded in a solution containing 15% FBS, 0.5% (w/v) methylcellulose, 1 mg/ml rat tail collagen I solution, 30 Mm HEPES and M199 from 10X concentrate (all from Sigma-Aldrich). 0.1M NaOH was added to adjust the pH to 7.4 to induce collagen polymerization. After 30 min incubation at 37°C, polymerized gel was overlaid with M199 medium. Sprouting was induced by addition of 20 ng/ml recombinant human VEGF-A (R and D Systems, Minneapolis, MN, USA) to the collagen solution and to the overlaying medium. After 18 hr incubation at 37°C in a 5% CO2 incubator, spheroids were imaged, or collected for further analysis. When indicated, inactivation of cell proliferation was performed by treating the cells with mitomycin C (Sigma-Aldrich) at 10 μg/ml for 2 hr in M199, 24 hr prior spheroids generation. When spheroids assay was performed in the presence of drugs, the drugs were added at the moment of collagen I embedding. The fluorescent ECs used in the tip competition assay were generated by transduction with lentiviral particles carrying the plasmid pLVX-DsRed-Express2-N1 (Takara, Mountain View, CA, USA) followed by puromycin selection for 48 hr. For experiment of Notch pathway modulation, spheroids were incubated with either DAPT (Sigma-Aldrich) 2 µM or human recombinant DLL4 (R and D Systems) 1 mg/ml.

Imaging

Request a detailed protocol

Spheroids in 3D collagen matrix were fixed with 4% PFA for 30 min at room temperature and imaged under bright field using an AF6000LX-TIRF workstation (Leica, Wetzlar, Germany). Measurement of the total sprout area of individual spheroids was performed using the Image J software package. For each experimental condition, the sprout area of at least 20 spheroids was measured and averaged to achieve 5% significance and 80% power.

RNA isolation

Request a detailed protocol

To isolate ECs after the sprouting assay, the collagen matrix was digested by incubation with 0.25% Collagenase A (Sigma-Aldrich) in M199 medium at 37°C for 10 min. Total RNA was isolated from HUVECs by using TRIzol (ThermoFisher Scientific, Waltham, MA, USA) reagent and an miRNeasy Mini Kit (Qiagen, Hilden, Germany). Residual DNA was removed by treatment with Rnase-Free Dnase Set (Qiagen). The quality and concentration of RNAs were assessed with a NanoDrop ND-1000 spectrophotometer (ThermoFisher Scientific). The quality of the RNA samples that were subsequently processed for RNA-sequencing and microarray analysis was further assessed using a Qubit RNA HS Assay Kit and an Agilent RNA 6000 Nano Kit in an Agilent Bioanalyzer (Agilent, Santa Clara, CA, USA).

RNA-sequencing analysis

Request a detailed protocol

Total RNA from spheroids exposed to VEGF-A for 18 hr (SPHV) and control spheroids (SPHC) that were not exposed to VEGF-A were subjected to high throughput sequencing for poly-A+ RNAs by an external next generation sequencing (NGS) facility (Fasteris, Geneva, Switzerland). Three biological replicates from each biological condition were analyzed. RNA sequencing was performed on a HiSeq 2000 sequencer (Illumina, San Diego, CA, USA), obtaining a mean of 100 million paired-end reads of 100 bps per sample. Reads to counts conversion and differential expression analysis were performed using the software implementation described by Beccuti et al. (2018). In brief, fastq files were mapped with STAR-2.5 to the reference genome (hg19 assembly) and gene counts were generated using RSEM-1.3.0 and ENSEMBL annotation. Differential expression analysis was performed using DESeq2 version 1.14.1 (Love et al., 2014) to detect modulated genes (| log2FC |>0.5 and FDR < 0.05). Data were deposited in the GEO database, with accession number GSE115817.

For miRNAs, the same external NGS facility (Fasteris, Geneva, Switzerland) was used to perform small-RNA sequencing profiling on the same matched samples as those used for mRNA sequencing. Sequencing was performed on a HiSeq 2000 sequencer (Illumina), obtaining a mean of 8 million 50-bps single-end reads per sample. From the raw data, adaptors were first trimmed by the FASTX-Toolkit. Then, inserts were mapped by the BWA tool (Li and Durbin, 2010) on mature miRNA sequences from miRBase v22 (Kozomara and Griffiths-Jones, 2014), thus producing an expression level for all annotated miRNAs. Data were deposited in the GEO database, with accession number GSE115954.

Microarray analysis

Request a detailed protocol

450 ng total RNA was employed to synthetize biotinylated cRNA probes using an Illumina TotalPrep RNA Amplification Kit (ThermoFisher Scientific), according to the manufacturer’s instructions. After quantification in an Agilent Bioanalyzer, 750 ng cRNAs were hybridized to an Illumina HumanHT-12 v4.0 Expression Bead Chip for 18 hr at 58°C. Biotinylated probes were then labeled with streptavidin-Cy3. Fluorescent signal was acquired by an Illumina BeadArray Reader, and data were extracted using the GenomeStudio software V2011.01. Probe intensities across the chip were normalized by applying the cubic spline normalization algorithm. For subsequent analysis, only probes with a detection p-value <0.05 were selected. For each gene, we retained the associated probe with the largest mean expression value across all samples. For each probe, the log2 signal was converted to the log2 ratio against the global average expression of that probe in all samples. Each experimental point was assessed with two biological replicates. Data were deposited in the GEO database, with accession numbersGSE116039 and GSE129275.

Gene set enrichment analysis (GSEA)

Request a detailed protocol

GSEA was run on the dataset of protein-coding genes in SPHV versus SPHC against the canonical pathway genesets collection (c2.cp.v5.2, Broad Institute) by using 1000 genesets permutations. Only genesets with FDR < 0.05 were considered. Meta-analysis on colorectal cancer was performed on RNAseq data provided by The Cancer Genome Atlas (TCGA) (Cancer Genome Atlas Network, 2012), and on microarray data from the GEO Series GSE53127. GSEA was performed by evaluating the enrichment of upregulated modules and miRNA targets for genes that had high correlation with endothelial scores. Only genesets with FDR < 0.05 were considered.

Generation of the post-transcriptional network

Request a detailed protocol

Pair-wise correlation analysis was performed on the gene expression profiles of protein-coding genes and miRNAs from the RNA-sequencing data of SPHC and SPHV samples by using Pearson correlation as co-expression measure. Association between functional biological pathways and miRNAs was performed using the GSEA algorithm. Briefly, miRNA expression data were used as the phenotype to calculate the Pearson correlation coefficient between each pair of miRNA and protein-coding genes and to find association with biological processes. Genesets with FDR < 0.05 that positively or negatively correlated with miRNAs expression were extracted and used to generate a matrix that was subsequently clusterized using GenePattern (Broad Institute). Genes constituting the core enrichment were extracted from significant genesets and subjected to functional annotation using the online David functional annotation platform. To find associations between miRNA and their protein-coding target genes, we extracted data from TargetScan database V7.1, selecting evolutionarily conserved interactions with a weighted context++ score percentile >50. For non-conserved interactions, we considered a weighted context++ score percentile >90. Graphical representation of networks was performed using Cytoscape software, version 3.3.0 (Shannon et al., 2003). Power-law fitting and the corresponding statistical analysis were performed in MATLAB, according to Clauset et al. (2009).

Real-time PCR

Request a detailed protocol

To analyze mRNAs expression, 1 μg of DNAse-treated RNA was reverse-transcribed using a High Capacity cDNA Reverse Transcription kit and random primers (ThermoFisher Scientific). cDNA amplification was performed using gene-specific TaqMan assays and TaqMan PCR Universal MasterMix (ThermoFisher Scientific) in a CFX96 thermocycler (Bio-Rad, Hercules, CA, USA). Each assay was run in triplicate. To analyze miRNA expression, 350 ng of DNAse-treated RNA was reverse-transcribed using a High Capacity cDNA Reverse Transcription kit in the presence of a miRNA-specific primer (ThermoFisher Scientific). Real-time PCR was performed using miRNA-specific TaqMan MicroRNA Assays and TaqMan Universal PCR Master Mix (ThermoFisher Scientific) in a CFX96 (Bio-Rad) Real-Time PCR. Each assay was run in triplicate. Expression of TBP or RNU44 was used as the endogenous control for mRNA or miRNA relative quantifications, respectively. Relative quantification of gene expression levels between samples (Rq) was performed using the comparative Ct (threshold cycle number) method (Livak and Schmittgen, 2001). A complete list of the Real-time PCR assays used is provided in Supplementary file 2.

miRNA expression profiling under miRNA hubs modulation was performed using TaqMan Advanced miRNA Human A Card (ThermoFisher Scientific). 10 ng of total RNA from each sample were retrotranscribed using a TaqMan Advanced miRNA cDNA Synthesis Kit (ThermoFisher Scientific). Each sample was run in biological duplicate. Expression data were first normalized following manufacturer’s instructions; subsequently, the ∆∆Ct method was used to evaluate the relative expression level (fold change) in each condition versus the corresponding control. ∆∆Ct values were loaded in the R environment software for statistical analysis and the heatmap function was used to perform hierarchical clustering analysis and to represent data in a heatmap.

Transient transfections

Request a detailed protocol

Sub-confluent ECs were transfected with the mirVana miRNA mimic, to overexpress miRNAs, or with mirVana miRNA inhibitor (ThermoFisher Scientific), to inhibit miRNAs activity, at a final concentration of 90 nmol/L by using RNAiMAX lipofectamine in Optimem medium (ThermoFisher Scientific), according to the manufacturer protocol. Effective overexpression or inhibition was verified by real-time PCR, as described. Subsequent assays were performed 24 hr post-transfection.

shRNA-mediated gene knock-down

Request a detailed protocol

DICER1 knock-down was performed by transducing ECs with shRNAs carried by lentiviral particles. Self-inactivating, replication-incompetent lentiviral particles were generated by cotransfection of expression plasmid (TRC1 pLKO.1-puro Non-Target shRNA as negative control or TRC1 pLKO.1-puro carrying DICER1-targeting shRNAs, Sigma-Aldrich), envelope plasmid (pVSV-G) and packaging plasmid (pCMV-Dr8.91) into HEK-293t cells using the calcium phosphate method, as previously described (Follenzi et al., 2000). ECs were transduced with lentiviral particles at a multiplicity of infection (MOI) = 1 in the presence of 8 μg/ml polybrene. Medium was replaced after 24 hr, and cells stably expressing the shRNA were selected by growth in puromycin (1 μg/ml) for 24 hr. Effective DICER knock-down of two different shRNAs was evaluated by real-time PCR. The shRNA with the highest silencing efficacy was chosen (sh#3) and used for subsequent experiments. Spheroid assays were performed 48 hr post-transduction.

Western blot analysis

Request a detailed protocol

Total proteins were obtained by cell lysis in an extraction buffer containing 0.125 M Tris-HCl (pH 6.8), 4% SDS, 20% glycerol, and quantified by BCA assay (ThermoFisher Scientific). Equal amounts of protein extract per sample were separated on an SDS-PAGE and subsequently blotted onto a PVDF membrane. Membranes were incubated with specific primary antibodies and appropriate HRP-conjugated secondary antibodies. Immunoreactive proteins were visualized using an enhanced chemiluminescence (ECL) system and acquired using a ChemiDoc Touch Gel Imaging System (Biorad). Images were analyzed with Image Lab software 5.2.1 (Biorad). Antibodies used were anti-VEGFR2, anti-P38, anti-phospho-P38, anti-ERK1/2, anti-phospho-ERK1/2 (Cell Signaling Technology, Danvers, MA, USA), and anti-GAPDH (Abcam, Cambridge, UK).

ERK activity assessment

Request a detailed protocol

Total ERK and phospho-ERK proteins were measured using the Meso Scale Discovery (MSD) technology. MAP Kinase (Total Protein) Whole Cell Lysate Kit and MAP Kinase Whole Cell Lysate Kit MULTI-SPOT plates were used (Meso Scale Diagnostics, Rockville, MA, USA) according to the MSD manufacturer's information. 7 μg of each sample were used for the detection. The amount of phosphoprotein was calculated according to the MSD directions using the following formula: % phosphoprotein = ((2 x phospho-signal) / (phospho-signal + total signal)) x 100.

Whole-mount immunofluorescent staining

Request a detailed protocol

Collagen gels containing spheroids were fixed with 4% paraformaldehyde for 30’ min, followed by 3 hr incubation in blocking buffer (PBS 0.5% Triton + 0.1% tween 20% and 10% donkey serum). Anti-DLL4 antibody (Abcam) or anti-CXCR4 antibody (Abcam) were diluted 1:1000 in blocking buffer and incubated overnight at 4°C. After extensive washing in blocking buffer, collagen gels were incubated with AF555-conjugated secondary antibody (ThermoFisher Scientific) in the same buffer for 1 hr. Cell nuclei were counterstained with DAPI.

Notch signaling activity

Request a detailed protocol

The plasmid pWPT-12XCSL-DsRedExpressDR was generated by subcloning the Notch fluorescent reporter 12xCSL-DsRedExpressDR (Hansson et al., 2006) into the lentiviral vector pWPT. Generation of lentiviral particles and transduction of ECs were performed as described above. Spheroid assays were performed 48 hr post-transduction.

Proliferation assay

Request a detailed protocol

A proliferation assay was performed using Click-It EdU Flow Cytometry Cell Proliferation Assay (ThermoFisher Scientific). For 2D proliferation assays, 2.5 × 103 ECs were plated in six well plates and starved in serum-free M199 supplemented with 0.1% BSA for 10 hr. Cell proliferation was induced by the addition of 20 ng/ml VEGF-A to the culture medium, and maintained for additional 18 hr. 10 µM of 5-ethynyl-2′-deoxyuridine (EdU) was added 2 hr prior to cell harvesting. For cell proliferation measurement in spheroids, 10 µM EdU was added 2 hr prior to spheroids collection. EdU detection was performed according to the manufacturer's protocol and samples were analyzed in a CyAn ADP flow cytometer with Summit five software (Beckman Coulter, Brea, CA, USA).

Migration assay

Request a detailed protocol

Real-time directional cell migration was measured with an xCELLigence RTCA DP instrument in a CIM plate (ACEA Biosciences, San Diego, CA, USA). The bottom of the upper chamber was coated with 1% gelatin for 5 min at room temperature. The lower chamber was filled with M199 medium, 10% FBS, and VEGF 20 ng/ml as chemoattractant. 3 × 105 HUVECs were seeded in the upper chamber in 100 μl M199 medium. ECs migration was continuously monitored by measuring the Cell Index every 30 min for 24 hr in a CO2 incubator at 37°C. Data were analyzed with the xCELLigence RTCA software (ACEA Biosciences). The slope of the curve obtained by Cell Index measurements, which represents the speed of cell migration, was calculated the slope.

Enzymatic activity measurements

Purine synthesis

Request a detailed protocol

The activity of glutamine amidophosphoribosyltransferase (PPAT) was measured as described previously (Capello et al., 2016). The [14C]-L-glutamate generated from the reaction was separated from [14C]-L-glutamine by ion exchange chromatography in a 2 ml column. The radioactivity of the eluate containing [14C]-L-glutamate was counted by liquid scintillation and expressed as nmol glutamate (Glu)/h/mg cell proteins. The activity of aminoimidazole-4-carboxamide ribonucleotide formyltransferase/inosine monophosphate cyclohydrolase (ATIC) was measured as reported previously (Boccalatte et al., 2009). Results were expressed as nmol NADP+/min/mg cell proteins.

Pyrimidine synthesis

Request a detailed protocol

The activity of carbamoyl phosphate synthetase II (CAD) was measured as described previously (Capello et al., 2016). Results were expressed as pmol carbamoyl aspartate (CA)/min/mg cell proteins.

ERK and p38 pharmacological inhibition

Request a detailed protocol

6 × 105 cells were plated in six well plates and pretreated with the ERK inhibitor SHC772984 (Cayman Chemical, Ann Arbor, MI, USA) or the p38 inhibitor SB 202190 (Sigma-Aldrich) for 18 hr, using the following concentrations: 30, 100 or 300 nM for ERK inhibitor, and 10, 100 or 300 μM for p38 inhibitor. Cells were starved for 3 hr in serum-free M199 and then stimulated with 20 ng/ml VEGF-A for 10 min. Starving and stimulation were performed in the presence of the drugs. Cells were then processed for protein extraction and western blot analysis.

Statistical analyses

Request a detailed protocol

All statistical analyses were performed using the GraphPad Prism six software, the R statistical package, or MATLAB. For all the datasets included in t-tests, Shapiro‐Wilk normality test was applied to assess normal distribution. Pooled data are expressed as the mean ± SEM. n represents the number of biological replicates, each performed with different HUVEC batches. Significance was determined by using unpaired Student’s t-test (two tailed); p<0.05 was considered significant. Specific details for each experiment can be found in the corresponding figure legend. Elsewhere, for hypergeometric tests, p<0.05 was considered significant; for the Kolmogorov-Smirnov test, > 0.1 was considered significant.

Data access

Request a detailed protocol

All raw and processed sequencing data generated in this study have been submitted to the NCBI Gene Expression Omnibus (GEO; http://www.ncbi.nlm.nih.gov/geo/) and are available under the accession numbers GSE116039, GSE115954, GSE115817 and GSE129276.

References

  1. 1
  2. 2
  3. 3
    Network Science
    1. A-L Barabási
    2. M Pósfai
    (2016)
    Cambridge, United Kingdom: Cambridge University Press.
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
    Regulation of microRNA biogenesis
    1. M Ha
    2. VN Kim
    (2014)
    Nature Reviews Molecular Cell Biology 15:509–524.
    https://doi.org/10.1038/nrm3838
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
    Mechanisms of neovascularization vascular sprouting can occur without proliferation of endothelial cells
    1. MM Sholley
    2. GP Ferguson
    3. HR Seibel
    4. JL Montour
    5. JD Wilson
    (1984)
    Laboratory Investigation; a Journal of Technical Methods and Pathology 51:624–634.
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67

Decision letter

  1. Stefania Nicoli
    Reviewing Editor; Yale University School of Medicine, United States
  2. Didier YR Stainier
    Senior Editor; Max Planck Institute for Heart and Lung Research, Germany
  3. Minna U Kaikkonen
    Reviewer; University of Eastern Finland, Finland

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

MicroRNAs (miRNAs) are pivotal regulator of gene expression during cell behaviors. Yet, the network of target-gene regulation that enables their mode of function is often difficult to decipher in biological systems due to the high complexity of their predicted mRNA matches. Sprouting angiogenesis is mediated by the activation of the vascular endothelial growth factor (VEGF-A) signaling cascade that coordinate proliferation, migration and survival of endothelial cells. Using a combination of computational and genomics analysis of VEGF-signaling responses in 3D spheroid and 2 D endothelial cell-based assays, the authors show that VEGF-A activated a complex miRNA-centered co-expression network characterized by the repression of cell cycle genes and de-repression of extracellular matrix remodeling and cell migration genes. The consequences of loss of miRNA processing, via Dicer silencing, support that VEGF-A activates such network changes to enable migration instead of a proliferation phenotype during tip-cell formation in the sprouting angiogenesis of the 3D-spheroid model. In addition, miRNAs were found dispensable for VEGF-A-mediated angiogenesis in the 2D endothelia cell model. This work illuminates the high degree of post-transcriptional regulation that controls endothelial cells responses to VEGF-A and will improve our understanding of different modes of VEGF-A function during the genesis of blood vessels in diverse tissues.

Decision letter after peer review:

Thank you for submitting your article "A regulatory microRNA network controls endothelial cell phenotypic switch during sprouting angiogenesis" for consideration by eLife. Your article has been reviewed by three peer reviewers and the evaluation has been overseen by Didier Stainier as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Minna U Kaikkonen (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The manuscript by Rosano et al. investigates the role of miRNAs in the regulation of angiogenesis in 3D in vitro model. They compare the 3D angiogenesis model to 2D angiogenesis and demonstrate that the 3D conditions directs cell migration over cell proliferation. In the second part of the manuscript, they identify post-transcriptional regulatory networks by performing pair-wise correlation of mRNA and miRNA expression. They provide evidence that MAPKs play an important role in sprouting angiogenesis through regulation of RAF1, MAP2K1, MAPK1 and TAOK1 expression. Finally, they provide characterization of the effect of miR-424-5p and miR-29a-3p in angiogenesis and regulation of genes implicated in cell proliferation and migration.

General assessment:

The reviewers find that the paper describes a very interesting study of the mechanism by which VEGF-A-signaling coordinate tip cells behaviors during sprouting angiogenesis via controlling post-transcriptional regulation.

Central conclusions:

1) Trascriptome analysis indicates that a proliferation-to-migration switch occurs during VEGF-A induction of sprouting angiogenesis in 3D spheroids vs. 2D cell culture assay.

2) Post-transcriptional regulatory networks driven by the miRNA machinery protein, Dicer, are essential to suppress proliferative tip cells behavior in 3D and promote motile behavior.

3) miR-424-5p and miR-29a-3p regulation of genes hub is implicated in buffering cell proliferation and migration during sprouting angiogenesis.

The reviewers raise a number of concerns that must be addressed before the paper can be accepted. There is some skepticism on how the data discovered with the spheroids 3D vs. 2D models can be relevant for the scientific community that study sprouting angiogenesis in vivo. This point could be substantially improved by providing a deeper phenotypic characterization of spheroids model (with or without miRs) as suggested by reviewers. Further experimentation is also required to better characterize and validate the conclusions draw by the manipulation of miR-424 and 29 -signaling pathways in spheroids.

Essential revisions:

1) It is unclear if the 3D spheroid assay is a suitable model for probing coordination of tip cell proliferation and migration in angiogenesis. The switch from quiescent to activated angiogenic endothelial cell phenotype is classically associated with (and dependent on) a global increase in proliferation and high levels of P-ERK in tip cells – both of which are not observed in the spheroid assay. Indeed, recent work elegantly demonstrates that mid to low levels of P-ERK drive proliferation in the mouse retinal vessels, whereas high levels reduce tip cell proliferation via induction of p21 (Pontes-Quero, Nat. Comm. 2019). However, Rosano et al. indicate that P-ERK is repressed and dispensable in spheroid angiogenesis. Although the authors point out key differences between their 2D and 3D assays, such discrepancies between the spheroid assay and in vivo observations are overlooked. In particular:

- Why is ERK dispensable in this system but indispensable in vivo?

- Why are such low levels of proliferation (<4% of cells versus >90% in vivo) observed and why so variable between experiments (4% in Figure 2F versus 0.42% in Figure 6E – rising to only 2% upon DICER KD – i.e. below control levels of Figure 2F)? Do both tip and stalk cells not proliferate in this system? Considering spheroids are treated with VEGF for 18 hours, could the short 2 hour EdU pulse simply miss an earlier synchronized burst of VEGF-induced mitotic events?

- What is the organization of tip and stalk cells and localization of tip markers in this assay? Would a lack of stalk signatures upon VEGF stimulation suggest a disorganized structure? Does manipulation of Notch-mediated tip versus stalk identity generate predictable shifts in proliferation, P-ERK and miRNA expression? This information is key to confirming that VEGF-regulated miRNAs drive a tip (not stalk) phenotype, as proposed.

- Are phenotypes observed in the spheroid assay dependent or independent of p21?

2) How were the p38 and ERK selected? Evidently, the logical thing would have been to select those based on targets of those pathways being enriched in the Figure 3D but this is unclear from the manuscript.

3) Knockdown of DICER evidently has dramatic genome-wide effects through various pathways so it is impossible to rule out effects that act through other pathways than ERK. This should be clarified.

4) Can the authors prove that proliferation is promoted in the Dicer KO 3D cells using PCNA or cell cycle analysis via flow cytometer? It would be helpful to have some experiments that analyze the phenotype of the spheroid rather than the gene expression only.

5) Loss of Dicer promote the level of proliferative genes and inhibit SA, suggesting that the activation of proliferation inhibits SA – that is why it needs to be actively inhibited. However, I don't understand why inhibiting proliferation (with ERK inhibitor) in Dicer KO spheroid further reduces SA. The prediction is that SA in Dicer Ko should be rescued by the inhibition of proliferation, right? Why do they see a further decrease in absence of miRNAs?

6) I found the differences between Dicer/VEGF interaction in 3D vs. 2D model very interesting. Can the authors test if components of the miRNA machinery are differentially regulated by VEGF-A treatment in 3D vs. 2D? This should be easily extrapolated by their RNA seq data, or it could be easily done by qPCR with a time course of treatment with VEGF-A. I think that it would be interesting to know if vega regulates miRNAs biogenesis to mediate such a switch, or it is an innate response from the 3D vs. 2D cell behaviors? Perhaps some comments on this in the Discussion would be useful.

7) In general, the interpretation of proliferation vs. migration signaling in SA and why these should be regulated in 3D vs. 2D it is not clear. Do the authors believe that proliferation and migration need to be buffered to promote SA? Do they think that they need to be differentially regulated in time? For example, do they think that miRNA first stop proliferation then miRNA release migration? A clearer model that supports their main conclusion would be critical to follow the interpretation of these results.

8) The role of miR-424 and miR-29a have already been established in angiogenesis so the real novelty lies in identifying the target gene networks through which the miRNAs act. However, the validations are incomplete as only experimental evidence of miRNA mimics affecting gene expression (Figure 7D, E) is shown and the inhibitor data is missing. This missing experimental evidence should be provided.

9) Currently the experimental evidence provided under section "Biological validation of the miRNA Hub network in regulating Sprouting Angiogenesis" is insufficient to support the claim. To be able to present in an unbiased way that the miRNAs are regulating the computationally predicted networks, the authors need to perform RNA-seq analysis of mRNAs upon miRNA perturbation. This would significantly strengthen the manuscript that currently lies on predictions for miRNA effects and insufficient validation of few selected candidates.

10) miRNA-mRNA pairwise correlation demonstrated that miR-424-5p expression is induced and the targets (MAPK and cell cycle related) are repressed whereas the miR-29a-3p was downregulated and target mRNAs (ECM-related) upregulated. The angiogenesis assay (Figure 7D), however, does not support this. This puts in question the 3D model and whether it is more prone to any perturbation. Would you see an opposite effect in proliferation assay or in 2D angiogenesis model?

11) The functions of identified miRNA networks in angiogenesis are mostly implied rather than directly tested. As such, additional experimentation providing mechanistic insight would greatly improve the manuscript. For example:

- What is the function of modulating MAPK genes identified in Figure 5? Are P-ERK levels perturbed in VEGF-treated spheroids, as predicted?

- Which miRNAs are responsible for regulation of ERK pathway genes in Figure 5 and can modulation of these miRNAs predicable impact sprouting, P-ERK levels and proliferation?

- Likewise, does DICER impact P-ERK levels, as predicted in Figure 6?

- In Figure 7, does miR-inhibition increase target expression?

- Does miR mimic/inhibitor expression predictably increase/decrease proliferation and P-ERK?

- If so, can ERK inhibition further modulate effects of miR 424-5p? But not 29a-3p?

- It is stated that these miRNAs allow proliferation and migration to be "spatially segregated in different EC populations" but how would this be achieved? Are they expressed in distinct tip or stalk domains?

- If cells expressing miR 424-5p/29a-3p mimic/inhibitor are mixed with WT cells, how well do they compete for the tip position?

12) The relevance of last Results paragraph? I'd suggest the authors revise the text to better convey the main message. For example, "Furthermore, average expression of genes belonging to the up-regulated module identified in the network analysis showed a significant positive correlation with endothelial score." What does this mean? Please explain the endothelial score in the text. What is the relevance of findings i.e. is the effect specific to CRC or would some cancers not show enrichment for angiogenesis related gene modules?

13) The Discussion is confusing and would profit from more structure (separate paragraphs etc).

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "A regulatory microRNA network controls endothelial cell phenotypic switch during sprouting angiogenesis" for further consideration by eLife. Your revised article has been evaluated by Didier Stainier as the Senior Editor, a Reviewing Editor and two reviewers.

The authors have improved the manuscript by clarifying many questions from the reviewers' comments and providing extensive further experimental evidence to support the conclusions. There are some points, however, that still need to be addressed.

1) To provide further validation of the miRNA-regulated networks (reply to reviewer comments 8-9), the authors demonstrated that up- or down-modulation of miR-424 and miR-29a significantly regulated several other miRNAs. The data, however, is not incorporated in the manuscript. Please include the data in the manuscript, to strengthen the conclusion of these two miRNAs representing central players of the transcriptional response.

2) Similarly, please provide the results evaluating the miR-424-5p and MiR-29-3p target expression upon inhibitor treatment (reply to reviewer comment 11).

3) The proliferation levels of < 0.5% makes it impossible to evaluate if there are any differences in SPHC and SPHV or to demonstrate any effect of the manipulation of miR-424-5p and MiR-29-3p levels. Therefore, the authors should avoid to overly interpret the data and discuss the limitations. The authors should also provide the information about the miR-424-5p and MiR-29-3p mimics/inhibitors not affecting proliferation in the 3D model to complement the results shown for the 2D model (Figure 7—figure supplement 3) that currently was only mentioned in the response letter.

4) Figure 4. Please explain which is the upregulated and downregulated hub in the figure legend.

5) VEGF does further repress pro-proliferative genes, but this is not a phenotypic switch as there is no change in proliferative phenotype. Also, the function of this repression of pro-proliferative genes is unknown, as 424-5p miR inhibitor fails to increase proliferation. The subtle increase in EC proliferation (and pro-proliferative genes) seen upon DICER KD is not evidence that miRs block proliferation upon VEGF treatment, as only VEGF-treated cells are shown. Are these also elevated in non-VEGF-treated cells? The authors should show the cytofluorimetric analysis of EdU incorporation into the DNA in DICER-WT and DICER-KD spheroids without VEGF-A (Figure 6E) to support that the effects of Dicer are VEGF-A depended.

6) In addition, the dispensability of proliferation and ERK in spheroid SA does not demonstrate that they essentially have to be repressed to enable SA in WT cells. Overall, there is insufficient evidence to support profound statements such as "the first SA step requires a miRNA-mediated inhibition of cell proliferation", or that migration and proliferation pathways "cannot be activated at the same time". Please revise the statement.

https://doi.org/10.7554/eLife.48095.sa1

Author response

The reviewers raise a number of concerns that must be addressed before the paper can be accepted. There is some skepticism on how the data discovered with the spheroids 3D vs. 2D models can be relevant for the scientific community that study sprouting angiogenesis in vivo. This point could be substantially improved by providing a deeper phenotypic characterization of spheroids model (with or without miRs) as suggested by reviewers. Further experimentation is also required to better characterize and validate the conclusions draw by the manipulation of miR-424 and 29 -signaling pathways in spheroids.

Essential revisions:

1) It is unclear if the 3D spheroid assay is a suitable model for probing coordination of tip cell proliferation and migration in angiogenesis. The switch from quiescent to activated angiogenic endothelial cell phenotype is classically associated with (and dependent on) a global increase in proliferation and high levels of P-ERK in tip cells – both of which are not observed in the spheroid assay. Indeed, recent work elegantly demonstrates that mid to low levels of P-ERK drive proliferation in the mouse retinal vessels, whereas high levels reduce tip cell proliferation via induction of p21 (Pontes-Quero, Nat. Comm. 2019). However, Rosano et al. indicate that P-ERK is repressed and dispensable in spheroid angiogenesis. Although the authors point out key differences between their 2D and 3D assays, such discrepancies between the spheroid assay and in vivo observations are overlooked. In particular:

- Why is ERK dispensable in this system but indispensable in vivo?

Spheroid assay exploited in this manuscript is based on the capability of endothelial cells to sense an angiogenic stimulus in a 3D gel of collagen I. According to several published observations, this assay supports the formation of tip cells that precedes the elongation of individual capillary-like sprouts originating from single spheroids (Heiss et al., 2015). Indeed, this assay has been used to demonstrate the inhibitory effects of molecules on tip cell formation (Adam et al., 2013). The gene expression heatmap presented in Figure 1B confirms at molecular level these observations, showing that VEGF-stimulated spheroids are enriched in tip marker genes. Therefore, we are aware that this assay does not recapitulate the complexity of the tip-stalk dynamics occurring in in vivo sprouting angiogenesis; nonetheless, it is a powerful tool to understand the effect of angiogenic inducers in the first events of capillary nascence, which are characterized by the lateral inhibition-driven tip cell selection (Eilken et al., 2010). The limit of our assay is now specified in the last paragraph of the Introduction.

Regarding the role of ERK in VEGF signaling, the first version of the manuscript reported that treatment with the ERK inhibitor SCH 772984 did not alter sprout activity, suggesting a negligible involvement of ERK in sprouting. We also reported that spheroid stimulation by VEGF resulted in reduced expression of some members of MAPK family, but we did not evaluate the level of P-ERK. Following the reviewer’s request, the current version of the manuscript now reports the P-ERK amount in control spheroids and in VEGF-stimulated spheroids, evaluated by Mesoscale technology (see Materials and methods section). We demonstrated that VEGF stimulation decreases the basal level of P-ERK (Figure 5C). To better elucidate the correlation between ERK function and the predicted role of miR-mediated post-transcriptional control of SA, in the first version of the manuscript we analyzed MAPK1 expression in DICER-silenced endothelial cells and showed that its expression increased (Figure 6A). In the present version of the manuscript, we also analyzed P-ERK levels in DICER-silenced endothelial cells and showed that DICER silencing resulted in an increased amount of P-ERK (Figure 6B), thus supporting the observed sensitivity of the assay to ERK inhibitor as reported in the first version of the manuscript (first version Figure 6B, C, now Figure 6C, D). Furthermore, differential expression analysis performed with DESeq2 showed that CDKN1A (p21) mRNA is not differentially expressed (log2(Fold Change) = -0.17, P value adjusted = 0.68), and p21 inhibition by the selective drug UC2288 did not have any effect on sprouting (Author response image 1). This indicates that sprouting, in this model and at the stage considered, does not depend on p21 activity.

Author response image 1

We agree that our data do not support the recent observations published in Nature Communications by Benedicto’s group, which performed in vivo retina studies in mice. This discrepancy is now discussed in the Discussion section according to these points: (i) the different time scale characterizing the two models (hours versus days); (ii) the feature of our in vitro model, which precisely describes the early tip selection from a cell monolayer and its motion and cannot take into account other co-regulatory events characterizing SA, in comparison to the retina model where neurons play a relevant role in establishing available amount of VEGF (Okabe et al., 2014); (iii) the inability of the spheroid model to analyze tip-stalk dynamics.

- Why are such low levels of proliferation (<4% of cells versus >90% in vivo) observed and why so variable between experiments (4% in Figure 2F versus 0.42% in Figure 6E – rising to only 2% upon DICER KD – i.e. below control levels of Figure 2F)?

We apologize for a mistake that happened during the uploading of the figures. The current manuscript contains the correct figure that shows a 0.04% of proliferating cells in SPHC and a 0.12% of proliferating cells in SPHV. (The correct figure was indeed already included in the initial submission version of the manuscript).

Do both tip and stalk cells not proliferate in this system?

As explained above, the SA model utilized here is not suitable to analyze stalk cell behavior, nor to study the interplay between tip and stalk cells. This limit is most probably due to the short life time of endothelial cells in these experimental conditions. This assumption is supported by the following observations:

i) RNAseq analysis clearly demonstrates that stalk specific genes are down-modulated in our experimental conditions (Figure 1B);

ii) DLL4 (tip cell marker) immunofluorescence shows a strong labeling of all endothelial cell sprouts (Figure 1—figure supplement 2A);

iii) Spheroids generated with endothelial cells transduced with a fluorescent reporter of Notch activity showed that very few cells activated the Notch pathway. These cells mainly localized within the spheroid core, therefore cannot be considered stalk cells. An image representative of this experiment has been included in the current version of the manuscript in Figure 1—figure supplement 2A).

Having showed that the spheroid model generates mainly tip cells and that the number of stalk cells is negligible (see below), and because of the short period of time took into account (18 h) compared to the retina model, we believe that substantial cell proliferation in this initial phase of SA is not to be expected.

Considering spheroids are treated with VEGF for 18 hours, could the short 2 hour EdU pulse simply miss an earlier synchronized burst of VEGF-induced mitotic events?

To exclude that low proliferation rate observed after VEGF stimulation was simply depending on the temporal window chosen for the EdU pulse, we analyzed cell proliferation by pulsing cells at 2, 6 or 12 hours. As shown Author response image 2, cell proliferation remained under 1% in all the 4 experimental conditions analyzed, indicating that the reported data in Figure 2F are not an underestimation due to an incorrect choice of the time-point took into account.

Author response image 2

- What is the organization of tip and stalk cells and localization of tip markers in this assay?

Besides the gene expression data above mentioned (Figure 1B), we studied the localization of DLL4 and CXCR4, and by using a fluorescent CBF1/RBP-J reporter we evaluated Notch pathway activity, which respectively are considered markers of tip and stalk cells (Moya et al., 2012). VEGF stimulated spheroids were fixed, permeabilized and stained with Ab anti-DLL4, or the DsRed fluorescent protein, indicative of Notch activity, was visualized. Figure 1—figure supplement 2A, which is representative of 16 different spheroids from two independent experiments, clearly shows that DLL4 and CXCR4 staining are predominant, while very few cells with active Notch signaling pathway (white arrow) contributed to the formation of endothelial sprouts, indicating that the model is markedly oriented toward the tip phenotype. CXCR4 immunofluorescence and Notch reporter experiment have been added to Figure 1—figure supplement 2A.

Would a lack of stalk signatures upon VEGF stimulation suggest a disorganized structure? Does manipulation of Notch-mediated tip versus stalk identity generate predictable shifts in proliferation, P-ERK and miRNA expression? This information is key to confirming that VEGF-regulated miRNAs drive a tip (not stalk) phenotype, as proposed.

Manipulation of Notch pathway was achieved by treating spheroids with the γ-secretase inhibitor DAPT or with the Notch ligand DLL4, which respectively halts and triggers this pathway (Jakobsson et al., 2010; Shah et al., 2017). Spheroids obtained under these two conditions were subjected to i) morphometric analysis, ii) miR-424-5p and miR-29a-3p expression analysis, iii) P-ERK measurement, iv) proliferation assay.

The results obtained are summarized in Author response table 1:

TreatmentsproutingmiR-424miR-29aP-ERKProliferation
VEGF+DAPTincreasedincreasedreduceddecreasedNot affected
VEGF+DLL4reducedreducedincreasedunaffectedNot affected

i) Effects of Notch pathway manipulation on spheroids morphology and corresponding quantification of sprouting are now reported in Figure 1—figure supplement 2B. Notch pathway inhibition by DAPT, which favors the tip phenotype (Jakobsson et al., 2010), increased sprouting, while the opposite was obtained by treatment with exogenous DLL4.

ii) DAPT treatment resulted in increased expression of miR-424-5p and decreased expression of miR-29a-3p. The opposite effect was obtained with DLL4 treatment. This further supports the concept that miR-424-5p and miR-29a-3p expression is regulated during tip cells specification. In fact, in our model miR-424-5p expression increases while miR-29a-3p expression decreases. Data about miR-424-5p and miR-29a-3p expression after Notch pathway manipulation are now reported in Figure 7C, D.

iii) We analyzed the effect of Notch pathway manipulation on of P-ERK levels in SPHV, measured by Meso Scale Discovery (MSD) technology and expressed as ratio of P-ERK/total ERK. The data obtained are shown in Author response image 3. According with our envisaged scenario where inhibition of ERK pathway by miRNAs occurs during tip cells selection, Notch pathway inhibition by DAPT, which increases tip cells, further decreases P-ERK in SPHV. However, DLL4 stimulation does not result in a mirrored effect as reported for tip selection and miRNAs modulation.

Author response image 3

We underline that the complexity of signaling pathways, their reciprocal interferences, and the methods here used to modulate Notch pathway (a ligand versus a chemical inhibitor) can explain the incoherence between these results. Furthermore, the analysis of single signaling event (i.e. P-ERK) does not necessarily match an observed biological function (i.e. sprouting) because of the well-established occurrence of crosstalks, referring to the case where two inputs work through distinct signaling pathways but cooperate to regulate the cellular work. Therefore, we decided to not show some of these results because, in our opinion, they do not modify the general meaning of the other data obtained by Notch modulation, which confirm that VEGF triggers a tip phenotype in the early phase of SA by a miR-dependent mechanism. To explain the observed discrepancy between DDL4 and DAPT effect on VEGF mediated P-ERK level in tip cells, more experiments would be required, which are out of the scope of this manuscript.

iv) We analyzed cell proliferation levels by flow cytometry in SPHV treated with DAPT or DLL4. Cell proliferation was not significantly affected (Author response image 4). Considering the data shown in Figure 1 and Figure 1—figure supplement 2, we can explain these results as follows:

i) Stalk cells population, which should represent the proliferating component, in this model is negligible. Therefore, treatment with DAPT favors tip cell selection more than could actually decrease stalk cells number. In this situation, it is not possible to expect a reduction in cell proliferation rate which is already close to zero.

ii) DLL4 treatment reduced sprouting, meaning a reduction in tip cells rather than an increase in stalk cells number, which can explain the lack of a proliferative response.

Author response image 4

- Are phenotypes observed in the spheroid assay dependent or independent of p21?

We performed the sprouting assay in the presence of increasing concentrations of the p21-specific chemical inhibitor UC2288. Quantifications of the sprout area did not indicate any effect on sprouting when p21 is suppressed, as reported in Author response image 1 (average of two experiments ± SEM).

2) How were the p38 and ERK selected? Evidently, the logical thing would have been to select those based on targets of those pathways being enriched in the Figure 3D but this is unclear from the manuscript.

The main observations taken into account were the strong down-regulation of genes controlling cell proliferation and the fact that MAPK1 (an upstream regulator of cell proliferation genes) is one of the genes most targeted by miRNAs in the whole network. The GO analysis presented in Figure 3D showed a selection of few (of many) GO terms with the lowest P-values. Indeed, the “MAPK cascade” term was present in the output of this analysis, and associated with the “blue” cluster. This information has been added to Figure 3D. MAPK1 and other MAP kinases constitute the “MAPK cascade” GO term, while p38 upstream activators are shared with the “JNK cascade”, which is associated with the “green” cluster in Figure 3D. Furthermore, p38 and ERK were selected on the basis of a huge number of papers that demonstrate that p38 and ERK represent two intermediate nodes of VEGF receptor signaling pathway able to switch the input respectively towards a motogenic or mitogenic activity. Excellent reviews overview this concept (Koch et al., 2011; Simons et al., 2016). The whole paragraph and Figure 3 have been reshaped for improved clarity.

3) Knockdown of DICER evidently has dramatic genome-wide effects through various pathways so it is impossible to rule out effects that act through other pathways than ERK. This should be clarified.

The experiments based on DICER silencing were planned to support the concept that miR-mediated post-transcriptional control is instrumental to SA and they have to be considered as complementary to the GOF and LOF experiments specifically targeting miR-29a-3p and miR-424-5p. The concept that DICER inhibition can affect multiple pathways is now clarified in the Discussion section at the end of the paragraph ‘Regulation of MAP Kinase activity by miRNAs’.

4) Can the authors prove that proliferation is promoted in the Dicer KO 3D cells using PCNA or cell cycle analysis via flow cytometer? It would be helpful to have some experiments that analyze the phenotype of the spheroid rather than the gene expression only.

We respectfully underline that in the first version of the manuscript we measured the percentage of proliferating cells by EdU detection and flow cytometry (Figure 6E of the first version, now Figure 6F). In this experiment, as well as in all other experiments where we measured cell proliferation, the BrdU analog EdU is added to the cell culture where it is incorporated into the newly synthetized DNA in cells that are actively proliferating. The percentage of EdU positive cells therefore corresponds to the percentage of cells being in the S phase of the cell cycle.

5) Loss of Dicer promote the level of proliferative genes and inhibit SA, suggesting that the activation of proliferation inhibits SA – that is why it needs to be actively inhibited. However, I don't understand why inhibiting proliferation (with ERK inhibitor) in Dicer KO spheroid further reduces SA. The prediction is that SA in Dicer KO should be rescued by the inhibition of proliferation, right? Why do they see a further decrease in absence of miRNAs?

We showed that loss of DICER increased cells proliferation. However, the lack of miRNA had an extensive effect on the transcriptome, due to their broad activity. For instance, DICER silencing caused a general downregulation of cell adhesion molecules (Author response image 5, from the GSEA analysis of SPHV_DICERKD versus SPHV_DICERWT), which can account for reduced cell motility. We currently cannot rule out that the extensive rewiring of the network that sustains sprouting caused by the lack of miRNAs could benefit, to a certain extent, from increased ERK activation, and therefore making the system sensitive to ERK inhibition, i.e. presence of proliferating cells in the sprouts.

A second point to be considered is related to methodological aspects of our assay characterized by the presence of homotypic cellular junctions, which mediate a contact inhibition of cell proliferation. The stimulation of spheroids with VEGF triggers cell motility, loss of endothelial-endothelial junctions and in principle it should allow cell proliferation. The findings of this paper (e.g. miR-mediated arrest of cell-cycle) predict that the sequence migration/proliferation in sprouting angiogenesis is temporally regulated and reflects the tip/stalk dynamics occurring in vivo.

However, in this in vitro assay, the block of miRNA machinery by DICER silencing inhibits the motility phase of sprouting angiogenesis and subsequently impairs the cell-cell junction dismantling. This condition may mask the theoretical expected result of ERK inhibition in DICER-silenced cells.

Author response image 5

6) I found the differences between Dicer/VEGF interaction in 3D vs. 2D model very interesting. Can the authors test if components of the miRNA machinery are differentially regulated by VEGF-A treatment in 3D vs. 2D? This should be easily extrapolated by their RNA seq data, or it could be easily done by qPCR with a time course of treatment with VEGF-A. I think that it would be interesting to know if vega regulates miRNAs biogenesis to mediate such a switch, or it is an innate response from the 3D vs. 2D cell behaviors? Perhaps some comments on this in the Discussion would be useful.

From the expression datasets from 2D or 3D cells stimulated with VEGF we extracted information about genes involved in miRNA biogenesis (DGCR8, DICER1, DROSHA, TARBP2, XPO5) or in miRNA-target recognition (AGO1-4). The results of the differential expression (DE) analysis performed with LIMMA (Author response image 6) do not indicate any statistically significant change in these gene’s expression, either in 2D or 3D condition (fold change >0.5 and adjusted P value <0.05 for a gene to be considered differentially expressed).

Author response image 6

This would suggest that VEGF regulates miRNAs expression at the transcriptional level, although we cannot rule out the existence of post-transcriptional modifications (i.e. phosphorylations) occurring to the proteins that constitute the miRNA machinery (Treiber et al., 2019), which could alter the catalytic activity of some of its components. It would be very interesting, therefore, to compare alterations of global miRNAs expression upon VEGF stimulation in 3D vs. 2D condition but we believe it is beyond the main scope of this paper. We did, nonetheless, measure the expression of miR-424-5p and miR-29a-3p by real-time PCR in HUVECs cultured in 2D (H2D) and stimulated with VEGF (Author response image 7, average of n=3 experiments ± SEM). In this condition, where VEGF triggers cell proliferation, miR-424-5p expression decreased after VEGF stimulation, as opposite to the spheroid model. miR-29a-3p expression was downregulated as in spheroids, in agreement with the fact that VEGF stimulation in 2D culture also activates cell scatter migration.

Author response image 7

7) In general, the interpretation of proliferation vs. migration signaling in SA and why these should be regulated in 3D vs. 2D it is not clear. Do the authors believe that proliferation and migration need to be buffered to promote SA? Do they think that they need to be differentially regulated in time? For example, do they think that miRNA first stop proliferation then miRNA release migration? A clearer model that supports their main conclusion would be critical to follow the interpretation of these results.

2D culture models cannot recapitulate the complexity of the in vivo environment. In a 2D culture of ECs stimulated with VEGF, proliferating cells coexist with cells with increased motility, due to dual role of VEGF on ECs as activator of both cell proliferation and cell migration. In the 3D spheroid model, however, being closer to an in vivo condition, it was possible to observe that cells that are initially contact-inhibited are induced to migrate by VEGF, while not entering in a proliferative state. We believe that miRNAs, by repressing proliferation genes, act in this phase as a switch that allows endothelial cells to enter the tip phenotype. A different (stalk) phenotype characterized by cell proliferation would emerge at a later point. It would be very interesting, therefore, to analyze miRNAs activity in stalk cells, but unfortunately in this model they are not enough represented.

8) The role of miR-424 and miR-29a have already been established in angiogenesis so the real novelty lies in identifying the target gene networks through which the miRNAs act. However, the validations are incomplete as only experimental evidence of miRNA mimics affecting gene expression (Figure 7D, E) is shown and the inhibitor data is missing. This missing experimental evidence should be provided.

9) Currently the experimental evidence provided under section "Biological validation of the miRNA Hub network in regulating Sprouting Angiogenesis" is insufficient to support the claim. To be able to present in an unbiased way that the miRNAs are regulating the computationally predicted networks, the authors need to perform RNA-seq analysis of mRNAs upon miRNA perturbation. This would significantly strengthen the manuscript that currently lies on predictions for miRNA effects and insufficient validation of few selected candidates.

Points 8 and 9 raised by the reviewers concern very important aspects of the biology and functioning of miRNA-mediated regulatory networks. We decided to address point 8 and 9 together because, in our opinion, the requested experiments need to be discussed taking into account the general rules by which miRNA-mediated mechanisms occur in living cells and are common to the two points. Actually, it is well demonstrated that the principles of degeneracy and pluripotentiality of miRNA function imply that individual protein coding genes can be targeted by several miRNAs whereas a single miRNA may concomitantly regulate a subset of several different protein coding genes. We believe that the results presented in our work have to be interpreted in agreement to this principle. Before analyzing by mRNA-seq the SA gene network in endothelial cells in which miR-424 and 29a would be perturbed, to answer to point 9 issue we decided preliminarily to investigate the impact of GOF and LOF approaches targeting miR-424 and 29a on miRNA expression. To this purpose, by means of miRNA-PCR cards we studied the global effect of miRNA perturbation on the expression levels of a large panel of miRNAs, selected among those that are endogenously expressed in our model. The entire procedure was performed for the GOF of miR-424 and miR-29a, as well as for the LOF of the same two miRNAs. Strikingly, results point out a vast reshaping of endogenous miRNA levels upon the modulation of the two “hub” miRNAs, miR-424 and 29a, thus indicating that miR-424 and miR-29a modulation induces a deep re-wiring of the global miRNA network in addition to a modulation of their target coding genes. These miRNA-miRNA modulations are probably due to indirect interactions, e.g. TF-mediated. As example of the results, we show in Author response image 8, a heatmap reporting the top-differentially expressed miRNAs (| logFC | > 2.0) upon up- or down-modulation of miR-424 and miR-29a, having restricted the list to the miRNAs present in the two “hub” modules – in other words, modulated miRNAs that share the same targets with miR-424-5p or miR-29a-3p.

Author response image 8

The above experiments also highlighted the opposite effect on the modulated miRNAs between the GOF or LOF experiments, thus indicating a non-specular trend following the up-modulation or down-modulation procedure. The global reshaping of the miRNAs observed is likely to propagate to the downstream regulated target coding genes.

Overall, the interpretation of these results prompted us to stress a high interconnection among miRNA themselves and thus the miRNA-gene network, making it arduous to isolate the effect of a single miRNA from the global behavior of the whole miRNA network by means of a high-throughput mRNA-seq, at least in our system. On the basis of these results the mRNA-seq experiment suggested at point 9 seems not so robust to validate the predicted network, since our miRNA-card experiments demonstrate that the perturbation of one miRNA can reset the whole miRNA network and indeed change in unpredictable ways the network of differential expressed coding genes. In other words, the expected results of a mRNA-seq experiment upon GOF or LOF of miR-424 and miR-29a would probably require fully recapitulating the behavior of their target genes, and the discussion of such indirect interactions. We believe this is a very interesting observation that will need specific effort to be explored but it concerns the biology of miRNA rather than the control of SA and we plan to address this issue in future studies. Inside this scenario, we consider a major point in our work the results reported in the section “DICER Knock-Down Rescues VEGF-A Proliferative Effect”, where we used a DICER Knock-Down strategy to illustrate the rescue of the sprouting phenotype rather than the effect of a single miRNA. At the same time, the biological validations reported in the section “Biological validation of the miRNA Hub network regulating Sprouting Angiogenesis” illustrate the role of miR-424 and miR-29a as overall capable of sustain the observed phenotype upon up- or down-modulation. Of note, by real-time PCR, expression of 10 predicted target genes for miR-424-5p and 10 for miR-29a-3p were already validated in the current version of our manuscript. To partially overcome this issue, thinking also to reviewer’s point 8, we investigated publicly available databases (namely MirTarbase, DIANA Tarbase and StarBase) of experimentally validated miRNA-gene interactions for the presence of miR-424 and miR-29a target genes among the ones present in our two hubs. The results are the following:

For miR-424:

97 out of 98 of the miR-424 hub target genes are validated in the above databases (24 of them validated by all the three databases, whilst 73 of them are validated by at least one).

For miR-29a:

23 out of 25 of the miR-29a target genes are validated in the above databases (7 of them validated by all the three databases, whilst 16 of them are validated by at least one).

This information has been added in the Results section ‘Biological validation of the miRNA Hub Network Regulating Sprouting Angiogenesis’ and as Table 1—source data 1.

Summing up the above analysis, we can say that > 90% of the miR-424 and miR-29a target genes present in our two hubs are already experimentally validated in some model systems, hence supporting our answer to the reviewer’s question regarding insufficient validation of selected targets. We believe that the lack of reciprocity between miRNA inhibitors and mimics in regulating coding genes depends on the miRNA features above summarized. Therefore, we propose not to show these data in the main text, planning to discuss these issued in a separate paper. We are thankful again for the reviewer’s comments. To address these concerns, the main text was updated in the in the Results section and in the Discussion section basically avoiding the usage of terms indicating the uniqueness of direct interactions among the miRNA-network we presented.

10) miRNA-mRNA pairwise correlation demonstrated that miR-424-5p expression is induced and the targets (MAPK and cell cycle related) are repressed whereas the miR-29a-3p was downregulated and target mRNAs (ECM-related) upregulated. The angiogenesis assay (Figure 7D), however, does not support this. This puts in question the 3D model and whether it is more prone to any perturbation.

To exclude unspecific effects induced by the GOF/LOF strategy targeting miR-424-5p and miR-29a-3p, which could be accountable for a general sensitivity of the system to any perturbation, we used the same strategy to modulate miR-16-5p expression. The results are shown in Figure 7—figure supplement 1F, G, and indicate that miR-16-5p GOF/LOF did not have any relevant effect on spheroids sprouting. We chose specifically miR-16-5p because, other than having a recognized role in angiogenesis, belongs to the same family miR-424-5p belongs, having in common the same seed region. This implies that miR-424-5p and miR-16-5p can, in principle, target the same set of genes, according to TargetScan predictions. However, our bioinformatics analysis, which integrates TargetScan predictions with expression data, predicted a different subset of target genes for miR-424-5p and miR-16-5p in our 3D model (Figure 4—source data 1). We believe that this result is consistent with the idea that miRNA activity on their predicted targets depends also on the global cellular context, i.e. expression levels of miRNAs and targets availability. Furthermore, miR-424-5p and miR-29a-3p, having a high number of connections in our network, can be considered “hub” miRNAs, while miR-16-5p is a more peripheral miRNA. According to the network theory, disturbance of a hub, not of a peripheral node, is expected to cause a dramatic effect on the whole system, and that is actually what we observed. This experiment therefore demonstrates that the effects of miR-424-5p and miR-29a-3p GOF/LOF are specific, and reinforces the effectiveness of our bioinformatics analyses. This information has now been clarified in the manuscript.

Would you see an opposite effect in proliferation assay or in 2D angiogenesis model?

We performed a proliferation assay using HUVECs treated with miRNA mimics or inhibitors, cultured in 2D and stimulated with VEGF for the same time as spheroids (18h). We observed a reduction of proliferation in cells treated with miR-424-5p mimic, while miR-424-5p inhibitor was not significantly effective. miR-29a-3p mimic and inhibitor were both not effective.

We also performed a migration assay by using the xCELLigence real time cell analyzer, in which VEGF was used as chemoattractant for HUVECs treated with miRNA mimics or inhibitors. In this experiment, miR-424-5p mimic had a positive effect on cell migration, while miR-29a-3p mimic had a negative effect, in agreement with its predicted role of negative regulator of cell migration. However, we did not obtain any effect in cells treated with miRNA inhibitors.

These data have been added to the manuscript as Figure 7—figure supplement 3.

11) The functions of identified miRNA networks in angiogenesis are mostly implied rather than directly tested. As such, additional experimentation providing mechanistic insight would greatly improve the manuscript. For example:

- What is the function of modulating MAPK genes identified in Figure 5?

According to what explained in point 2, we decided to modulate the activity of ERK and p38 because they constitute the two nodes of VEGF pathway respectively involved in directing cell work towards proliferation or migration. In fact, the ERK inhibitor targets the protein product of MAPK1 gene ERK2, while the p38 inhibitor targets the protein product of MAPK14 gene p38α.

Are P-ERK levels perturbed in VEGF-treated spheroids, as predicted?

A new experiment is shown in Figure 5C demonstrating that VEGF reduces P-ERK levels in our experimental model.

- Which miRNAs are responsible for regulation of ERK pathway genes in Figure 5 and can modulation of these miRNAs predicable impact sprouting, P-ERK levels and proliferation?

In principle, all the miRNAs represented in Figure 5 can contribute to the post-transcriptional regulation of their respective MAPK targets. The network proposed here, in fact, integrates target prediction with expression data that were specifically obtained from the spheroid model. Our main goal here was to draw attention to how miRNAs can impact the regulation of a complex biological process (proliferation versus migration), rather than analyzing every single miRNA-target interaction, which would require a specific experimental approach due to the combinatorial nature and cumulative effect which is intrinsic of the miRNA activity. Some of the interaction showed here have been, however, already demonstrated, as mentioned in the Discussion section, such as miR-494/RAF1 or miR-424/MAP2K1. We did, however, show that expression of several MAPK target genes increases when miRNAs expression is reduced by DICER knock down, and we investigated more in detail the role of miR-424-5p, which is the miRNA with the highest number of connections (5) in the MAPK sub-network. Figure 7E shows the impact of miR-424-5p modulation on sprouting, Figure 7G shows the effect of miR-424-5p mimic on the MAPK target genes MAP2K1 and MAP3K3, and Figure 7—figure supplement 3 shows the effect of miR-424-5p mimic and inhibitor on P-ERK levels.

- Likewise, does DICER impact P-ERK levels, as predicted in Figure 6?

A new experiment is shown in Figure 6B demonstrating that DICER silencing increases P-ERK levels in VEGF-treated spheroids.

- In Figure 7, does miR-inhibition increase target expression?

We evaluated the expression of miR-424-5p and miR-29a-3p targets that were previously analyzed in the mimic experiments in spheroids transfected with the miRNA inhibitors. The results are shown in Author response image 9 (average of n=2 experiments ± SEM). We could observe upregulation in only a few target genes, while for most of the genes analyzed the miRNA inhibitor did not elicit a significant effect.

Author response image 9

We then analyzed the expression of other miR-424-5p and miR-29a-3p targets that are present in their respective miRNA subnetworks and that were not previously analyzed (Author response image 10, average of n=2 experiments ± SEM). For most of these target genes, we could observe a significant upregulation upon miRNAs inhibition.

Author response image 10

As discussed in the reply to points 8 and 9, miRNAs modulation by miRNA mimics or inhibitors causes significant alterations to many other miRNAs’ expression levels. The heatmaps in Author response image 11 show more in detail that inhibition of miR-424-5p and mir-29a-3p significantly increases the expression of several miRNAs that are represented in the sprouting network and share the same targets with miR-424-5p or mir-29a-3p.

Author response image 11

We believe this could explain why inhibition of a single miRNA does not result in a significant increase of expression of all its predicted targets in a predictable way, also considering that each single gene is targeted by several other miRNAs. This might also explain why inhibition of miR-424-5p alone was not sufficient to revert the proliferative phenotype, while removal of miRNAs by DICER knock-down was effective. Another consideration is that transfection of miRNA inhibitors, although successful, do not completely abrogate miRNAs expression, as shown in Figure 7—figure supplement 1E.

- Does miR mimic/inhibitor expression predictably increase/decrease proliferation and P-ERK?

We performed the sprouting assay with cells transfected with miR-424-5p and mir-29a-3p mimics or inhibitors, and analyzed P-ERK levels by MSD technology. Figure 7—figure supplement 1I shows that only miR-424-5p manipulation could perturb the system, resulting in reduced P-ERK activity with miR-424-5p mimic and increased P-ERK activity with miR-424-5p inhibitor. This is in agreement with the predictions showed in the MAPK network (Figure 5A), where miR-424-5p interacts with, and should down-regulate, several MAPK upstream of ERK, while miR-29a-3p is not part of the MAPK network.

We did not, however, observe any effect on cell proliferation when miR-424-5p or miR-29a-3p expression was manipulated in spheroids by miRNA mimics or inhibitors. This can be explained by the fact that changes in P-ERK activity were modest, and by the fact that many different miRNAs are involved in the MAPK network (Figure 5A). Actually, only miR-424-5p inhibitor would predictably increase cell proliferation, which cannot be lowered further by miR-424-5p mimic. We did, however observe increased proliferation in spheroids DICER KD (Figure 6) and reduced proliferation in 2D cells treated with the miR-424-5p mimic.

- If so, can ERK inhibition further modulate effects of miR 424-5p? But not 29a-3p?

In the sprouting assay, treatment with ERK inhibitor did not further modulate effects of miRNA mimics or inhibitors (Author response image 12, average of n=2 experiments ± SEM).

Author response image 12

- It is stated that these miRNAs allow proliferation and migration to be "spatially segregated in different EC populations" but how would this be achieved? Are they expressed in distinct tip or stalk domains?

Our experiments indicate that in the initial phase of SA miRNAs have an inhibitory effect on proliferative signals and contribute to the differentiation of non-proliferating tip cells. The phrase has been modified to “these two fundamental VEGF-A downstream pathways cannot be activated at the same time in tip cells” in the Discussion section.

- If cells expressing miR 424-5p/29a-3p mimic/inhibitor are mixed with WT cells, how well do they compete for the tip position?

Spheroid assay was performed by mixing in equal parts HUVECs transfected with miRNA mimics or inhibitors, or relative controls, and HUVECs transduced with a lentiviral vector for the stable expression of the fluorescent protein DsRed. Fluorescent cells at the very tip of the sprouts were counted. Figure 7—figure supplement 2 shows that cells transfected with either miR-424-5p or miR-29a-3p mimics or inhibitor were impaired in reaching the tip position. This observation is consistent with the data showed in Figure 7E, F, where alteration of miR-424-5p and miR-29a-3p expression impairs sprouting.

12) The relevance of last Results paragraph? I'd suggest the authors revise the text to better convey the main message. For example, "Furthermore, average expression of genes belonging to the up-regulated module identified in the network analysis showed a significant positive correlation with endothelial score." what does this mean? Please explain the endothelial score in the text. What is the relevance of findings i.e. is the effect specific to CRC or would some cancers not show enrichment for angiogenesis related gene modules?

The last paragraph has been extensively revised and the endothelial score explained. These findings could be extended to any other cancer whose growth depends on angiogenesis, or any cancer type for which anti-angiogenic therapy has been proven beneficial. This information has been added to the Discussion section.

13) The Discussion is confusing and would profit from more structure (separate paragraphs etc).

The Discussion has been divided into paragraphs, each with a title.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

The authors have improved the manuscript by clarifying many questions from the reviewers' comments and providing extensive further experimental evidence to support the conclusions. There are some points, however, that still need to be addressed.

1) To provide further validation of the miRNA-regulated networks (Reply to reviewer comments 8-9), the authors demonstrated that up- or down-modulation of miR-424 and miR-29a significantly regulated several other miRNAs. The data, however, is not incorporated in the manuscript. Please include the data in the manuscript, to strengthen the conclusion of these two miRNAs representing central players of the transcriptional response.

A new paragraph entitled “Modulation of miRNA hubs alters network architecture” and a figure (Figure 8) describing the effect of miR-424-5p and miR-29a-3p modulation on other miRNAs have been added to the Results section. To reinforce the concept that miR-424-5p and miR-29a-3p modulation has a widespread effect on other miRNAs’ expression, we included a heatmap (Figure 8A) that was not initially included in the previous reply to reviewers. This heatmap shows the effect of miR-424-5p and miR-29a-3p modulation on all the miRNAs expressed in our model. The second heatmap (Figure 8B) focuses only on the miRNAs comprised in the SA network. The results have also been discussed.

2) Similarly, please provide the results evaluating the miR-424-5p and MiR-29-3p target expression upon inhibitor treatment.

Expression of miR-424-5p and miR-29a-3p targets upon inhibitor treatment have been added in Figure 7—figure supplement 4.

3) The proliferation levels of < 0.5% makes it impossible to evaluate if there are any differences in SPHC and SPHV or to demonstrate any effect of the manipulation of miR-424-5p and MiR-29-3p levels. Therefore, the authors should avoid to overly interpret the data and discuss the limitations. The authors should also provide the information about the miR-424-5p and MiR-29-3p mimics/inhibitors not affecting proliferation in the 3D model to complement the results shown for the 2D model (Figure 7—figure supplement 3) that currently was only mentioned in the response letter.

The information about the proliferation assay in the 3D model has been added as Figure 7—figure supplement 3A, and the limitations of the assay have been discussed. In the Discussion section, the phrases “Furthermore, miR-424-5p and miR-29a-3p target prediction can be an example of how the activity of a miRNA can be directed to a specific cellular function” and “extended the existing information about cell-autonomous function of these miRNAs thus identifying new molecular targets related to the endothelial role in cancer SA” have been removed.

4) Figure 4. Please explain which is the upregulated and downregulated hub in the figure legend.

The description of the two network components has been added to the figure legend.

5) VEGF does further repress pro-proliferative genes, but this is not a phenotypic switch as there is no change in proliferative phenotype. Also, the function of this repression of pro-proliferative genes is unknown, as 424-5p miR inhibitor fails to increase proliferation. The subtle increase in EC proliferation (and pro-proliferative genes) seen upon DICER KD is not evidence that miRs block proliferation upon VEGF treatment, as only VEGF-treated cells are shown. Are these also elevated in non-VEGF-treated cells? The authors should show the cytofluorimetric analysis of EdU incorporation into the DNA in DICER-WT and DICER-KD spheroids without VEGF-A (Figure 6E) to support that the effects of Dicer are VEGF-A depended.

GSEA data for the comparison of DICERKD versus DICERWT in non-stimulated spheroids has been added as Figure 6—figure supplement 1C (not significant). The cytofluorimetric analysis of spheroids not stimulated with VEGF-A (SPHC) has been added in Figure 6F, showing that DICERKD per se does not affect cell proliferation.

6) In addition, the dispensability of proliferation and ERK in spheroid SA does not demonstrate that they essentially have to be repressed to enable SA in WT cells. Overall, there is insufficient evidence to support profound statements such as "the first SA step requires a miRNA-mediated inhibition of cell proliferation", or that migration and proliferation pathways "cannot be activated at the same time". Please revise the statement.

The indicated statements have been revised.

https://doi.org/10.7554/eLife.48095.sa2

Article and author information

Author details

  1. Stefania Rosano

    1. Department of Oncology, University of Turin, Candiolo, Italy
    2. Candiolo Cancer Institute FPO-IRCCS, Candiolo, Italy
    Contribution
    Conceptualization, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  2. Davide Corà

    1. Department of Translational Medicine, Piemonte Orientale University, Novara, Italy
    2. Center for Translational Research on Autoimmune and Allergic Diseases - CAAD, Novara, Italy
    Contribution
    Data curation, Formal analysis
    Competing interests
    No competing interests declared
  3. Sushant Parab

    1. Department of Oncology, University of Turin, Candiolo, Italy
    2. Candiolo Cancer Institute FPO-IRCCS, Candiolo, Italy
    Contribution
    Formal analysis, Bioinformatics analyses on publicly available databases
    Competing interests
    No competing interests declared
  4. Serena Zaffuto

    1. Department of Oncology, University of Turin, Candiolo, Italy
    2. Candiolo Cancer Institute FPO-IRCCS, Candiolo, Italy
    Contribution
    Validation, Investigation
    Competing interests
    No competing interests declared
  5. Claudio Isella

    1. Department of Oncology, University of Turin, Candiolo, Italy
    2. Candiolo Cancer Institute FPO-IRCCS, Candiolo, Italy
    Contribution
    Formal analysis, Methodology
    Competing interests
    No competing interests declared
  6. Roberta Porporato

    Candiolo Cancer Institute FPO-IRCCS, Candiolo, Italy
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  7. Roxana Maria Hoza

    1. Department of Oncology, University of Turin, Candiolo, Italy
    2. Candiolo Cancer Institute FPO-IRCCS, Candiolo, Italy
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  8. Raffaele A Calogero

    Molecular Biotechnology Center, Department of Biotechnology and Health Sciences, University of Turin, Turin, Italy
    Contribution
    Software, Formal analysis
    Competing interests
    No competing interests declared
  9. Chiara Riganti

    Department of Oncology, University of Turin, Candiolo, Italy
    Contribution
    Validation, Investigation
    Competing interests
    No competing interests declared
  10. Federico Bussolino

    1. Department of Oncology, University of Turin, Candiolo, Italy
    2. Candiolo Cancer Institute FPO-IRCCS, Candiolo, Italy
    Contribution
    Conceptualization, Supervision, Funding acquisition
    Contributed equally with
    Alessio Noghero
    For correspondence
    federico.bussolino@unito.it
    Competing interests
    No competing interests declared
  11. Alessio Noghero

    1. Department of Oncology, University of Turin, Candiolo, Italy
    2. Candiolo Cancer Institute FPO-IRCCS, Candiolo, Italy
    Present address
    Lovelace Biomedical Research Institute, Albuquerque, United States
    Contribution
    Conceptualization, Formal analysis, Supervision, Validation, Investigation, Visualization, Methodology
    Contributed equally with
    Federico Bussolino
    For correspondence
    anoghero@lrri.org
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8266-9247

Funding

Associazione Italiana per la Ricerca sul Cancro (12182)

  • Federico Bussolino

Associazione Italiana per la Ricerca sul Cancro (18652)

  • Federico Bussolino

Regione Piemonte (A1907A Deflect)

  • Federico Bussolino

Ministero dell’Istruzione, dell’Università e della Ricerca (PRIN 2017, 2017237P5X)

  • Federico Bussolino

Ministero della Salute (Era-net TRS-2018-00000689)

  • Federico Bussolino

Fondazione CRT

  • Federico Bussolino

Associazione Italiana per la Ricerca sul Cancro (22910)

  • Federico Bussolino

Ministero dell’Istruzione, dell’Università e della Ricerca (FPRC 5xmille 2016 Biofilm)

  • Federico Bussolino

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by AIRC – Associazione Italiana Per la Ricerca sul Cancro (grants 22910, 12182 and 18652), Regione Piemonte (grant A1907A, Deflect), Fondazione CRT, Ministero dell’Università e della Ricerca (PRIN 2017, grant 2017237P5X), FPRC 5xmille 2016 MIUR (Biofilm) and ERA-Net Transcan-2 (grant TRS-2018–00000689) to FB. We thank Prof. Urban Lendahl for the gift of the Notch reporter plasmid and Dr. Jeffrey F Thompson for revising the manuscript.

Ethics

Human subjects: Informed consent was obtained from all subjects involved. Collection of umbilical cords is governed by an agreement between Università degli Studi di Torino and the Azienda Ospedaliera Ordine Mauriziano di Torino, protocol number 1431 02/09/2014.
