Successful engineering of T-cell specificity requires the stable expression of a functional exogenous TCR, as well as the preservation of important cellular characteristics. One such characteristic is cell motility, which is essential for efficient antigen search in a physiological 3D setting. Here, we have optimised the procedures to engineer naïve human CD4 and CD8 T-cells using mRNA electroporation. The common approach to render T-cells antigen-specific relies on lentiviral transduction of the TCR, which requires prior expansion of T-cells to achieve high expression efficiency and hinders the study of natural quiescent populations, namely naïve and memory T-cells (Dai et al., 2009). To avoid the need for cell expansion, it is possible to use electroporation to deliver the genetic materials. However, reported approaches using electroporation suffer from low efficiency of expression, low viability, and most importantly impaired cell motility, a critical consideration in the context of delivery to target tissues. Using a square-wave electroporation apparatus, we are able to express the 1G4 TCR, specific to the NY-ESO tumour associated antigen (Chen et al., 2000) in naïve (Figure 2A) and memory (Figure 2—figure supplement 1A) CD8 T-cells as well as the 868 TCR specific for the HIV gag protein (Varela-Rohena et al., 2008) (Figure 2—figure supplement 1B), both presented by HLA-A*0201. Successful pairing of the alpha and beta heterodimer of the TCR is important for the expression and assembly at the cell surface, this was achieved by introducing cysteine modifications in the TCR chains (Figure 2—figure supplement 1B and Table 1) (Cohen et al., 2007), as well as co-transfection with the human CD3ζ (Figure 2—figure supplement 1C), as the endogenous protein is most likely sequestered by the endogenous TCR limiting the expression of the introduced TCR. The functionality of naïve CD8 T-cells following TCR electroporation was confirmed by the formation of a mature immunological synapse in naïve and activated CD8 T-cells (IS, Figure 2B and Figure 2—figure supplement 1D–E), and the upregulation of the activation marker CD69 (Figure 2—figure supplement 2A). The efficiency of TCR expression varied among donors with an average value of 81 ± 7% (mean ± SD, n = 13), with more than 90% cell viability and 80–90% cell recovery, both of which were severely reduced using alternative electroporation approaches (Figure 2—figure supplement 3).

Figure 2 with 5 supplements see all

Download asset Open asset

Figure 2—source data 1

TCR expression following mRNA electroporation.

https://cdn.elifesciences.org/articles/48221/elife-48221-fig2-data1-v2.xlsx

Download elife-48221-fig2-data1-v2.xlsx

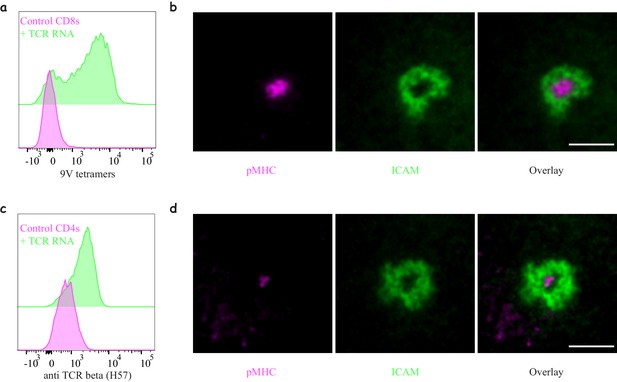

The induction of expression of an exogenous TCR in CD4 T-cells is considerably harder than in CD8 T-cells (Dai et al., 2009). Using natural sequences or the introduction of cysteine modifications used for 1G4 and 868 failed to induce expression of TCRs in naïve CD4 T-cells. However, replacing the constant region of the human TCR with that of mouse TCR (Table 2) (Cohen et al., 2006) allowed for successful chain pairing and we were able to achieve expression in 72 ± 8.9% (mean ± SD, n = 15) of the cells detected using H57 mAb against the mouse constant region of the β chain. We have successful expressed three different HLA-DPB1*04 restricted TCRs in naïve CD4s: 6F9 (Figure 2C) and R12C9, both specific to the MAGE-A3 protein (Yao et al., 2016) and SG6 specific for NY-ESO (Zhao et al., 2006a) (Figure 2—figure supplement 4A). The expression of SG6 was consistently lower than 6F9 and R12C9 in naïve CD4 T-cells. However, when the same TCRs were electroporated into recently activated CD4 T-cells, high expression levels were achieved in 97.8 ± 1% (mean ± SD, n = 15) of the cells (Figure 2—figure supplement 4B). The functionality of the naïve CD4 T-cells upon TCR electroporation was confirmed by IS formation (Figure 2D and Figure 2—figure supplement 4C–D) and T-cell activation (Figure 2—figure supplement 2B). The enhanced expression of the TCR in activated CD4 T-cells resulted in enhanced pMHC accumulation at the IS (Figure 2—figure supplement 4D).

Using the square-wave electroporator we were able to maintain the motile behaviour and interaction dynamics of naïve CD8 T-cells expressing 1G4, at similar levels to those of untouched cells, on 2D stimulatory ‘spots’ (Figure 2—figure supplement 5, Video 1 and Mayya et al., 2018).

Video 1

Download asset

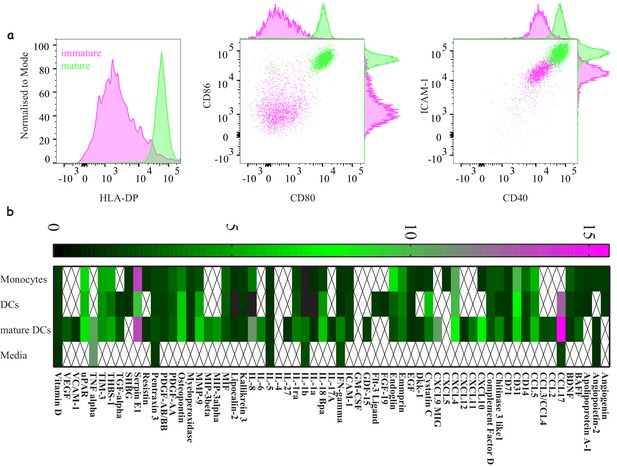

Naïve T-cells get activated by interacting with professional antigen presenting cells (APCs); the most potent are dendritic cells (DCs). The closest model for bona fide DCs is monocyte-derived DCs (moDCs) with well-established protocols for their generation. The caveat with those protocols is their extended duration (7–10 days) (Zhou and Tedder, 1995), a time-frame which may alter autologous T-cells’ phenotype. We therefore optimised a 48 hr protocol (Obermaier et al., 2003) to generate fully matured moDCs. During the first 24 hr monocyte differentiation into DC was induced, followed by 24 hr maturation to get activated DCs (acDCs) (Figure 3). The ‘express’ moDCs are able to upregulate MHC and other costimulatory molecules and produce a similar profile of soluble factors as the ‘classical’ moDC (Figure 3—figure supplement 1A–B). We have also quantified peptide loading on these cells and achieved levels similar to those previously reported with other APCs (Figure 3—figure supplement 1C) (Zehn et al., 2006).

Figure 3 with 1 supplement see all

Download asset Open asset

Figure 3—source data 1

Cytokine production by classical DC.

https://cdn.elifesciences.org/articles/48221/elife-48221-fig3-data1-v2.xlsx

Download elife-48221-fig3-data1-v2.xlsx

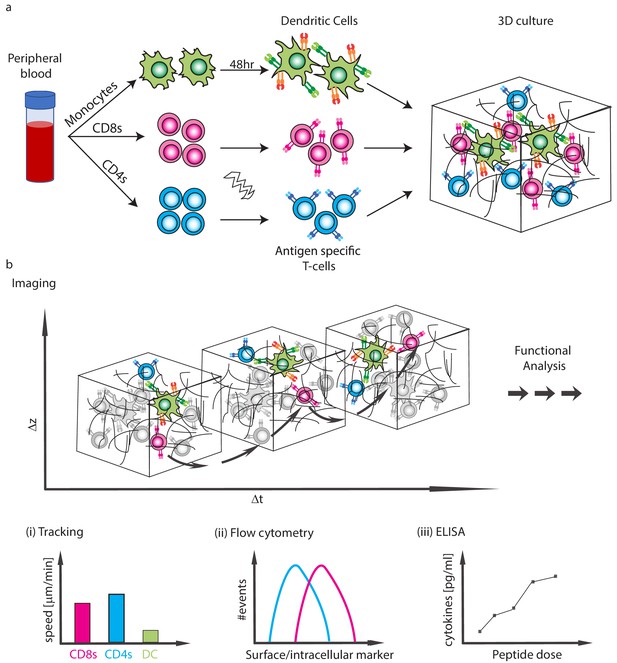

T-cells–DC interactions have been extensively studied in mice using explants and intravital imaging (Miller et al., 2002); however, such studies are practically impossible in humans. Furthermore, accurate control and manipulation of parameters such as antigen dose and cell ratios is limited. Having successfully engineered naïve human T-cells we set out to establish a flexible 3D platform to interrogate their dynamics and interactions with APCs using a multitude of correlated functional readouts. The desired platform should: (1) support the culture of T-cells and APCs for multiple days, (2) support the motility of the cells, (3) allow live imaging, (4) enable downstream analysis and (5) be easy to use. To achieve these goals we chose collagen I -based 3D matrices (Gunzer et al., 2000), which we optimised to support the culture of human immune cells. Culturing cells in the presence of human serum results in better basal motility than FBS (Figure 4A, Figure 4—figure supplement 1A and Video 2, Table 3), which is significantly enhanced by the addition of homeostatic chemokines such as CCL19 (Video 3), CCL21 and CXCL12 (Video 4). However, only CXCL12 was able to maintain high motility in cultures with FBS. We have explored different sources of collagen I (undigested and trypsin digested bovine and human collagen) and other complex extracellular matrices, ECM (Figure 4—figure supplement 1B). All collagens were equally good in supporting motility and interactions, while more advanced ECM may have a marginal advantage for motility. Yet, the larger batch variation, higher background activation and the complexity in extracting cells for downstream analysis weighed against adopting them for our assays. In our view, the use of bovine collagen-I as the 3D scaffold, with human serum, and CXCL12 to enhance motility provides an optimal 3D system with similar movement parameters to T-cells in mouse lymph nodes or explanted human tissues (Bougherara et al., 2015; Murooka et al., 2012; Salmon et al., 2012; Woolf et al., 2007). We have also re-evaluated two additional electroporation methods, namely Lonza-Amaxa and ThermoFisher-Neon. In addition to their lower performance in cell recovery and protein expression (Figure 2—figure supplement 3), they further resulted in poor motility dynamics and hence activation of cells within the 3D environment, where the search for antigen loaded APCs becomes a confounding factor (Figure 4—figure supplement 1C–F).

Figure 4 with 2 supplements see all

Download asset Open asset

Figure 4—source data 1

Cell speed in 3D matrices.

https://cdn.elifesciences.org/articles/48221/elife-48221-fig4-data1-v2.xlsx

Download elife-48221-fig4-data1-v2.xlsx

Video 2

Download asset

Video 3

Download asset

Video 4

Download asset

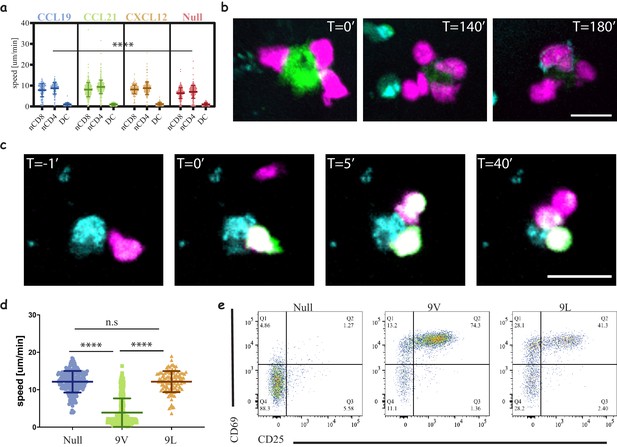

We present here a proof of concept of the usefulness of our set-up by interrogating naïve CD8 T-cells activation. We used live cell imaging to follow the interactions in real-time by upregulation of CD69 (Figure 4B and Video 5) as well as calcium flux (Figure 4C and Video 6). We observed major changes in interaction dynamics as a function of peptide affinity (Aleksic et al., 2010) (Figure 4D). A high affinity peptide, NY-ESO-9V, (Video 7) induced T-cell arrest, whereas a lower affinity peptide, NY-ESO-9L, (Video 8), led to similar dynamics non-peptide loaded (Video 9) where no stable contacts are formed. Since our 3D culture offers a relatively simple way to extract cells for flow cytometry and downstream analyses, we were able to correlate the interaction dynamics with the activation state of the cells and observe marginal differences in the response relative to the major differences in dynamics (Figure 4E, Figure 4—figure supplement 1A). Using our system, we were also able to monitor cytokine production (Figure 4—figure supplement 1B), proliferation (Figure 4—figure supplement 1C) and intracellular markers (Figure 4—figure supplement 1D). In order to study the interaction dynamics of T-cells at different time points we could pre-load the DCs prior to or following gel polymerisation to mimic the delivery of antigen to lymph nodes (Figure 4—figure supplement 1E and Videos 10–11, respectively).

Video 5

Download asset

Video 6

Download asset

Video 7

Download asset

Video 8

Download asset

Video 9

Download asset

Video 10

Download asset

Video 11

Download asset

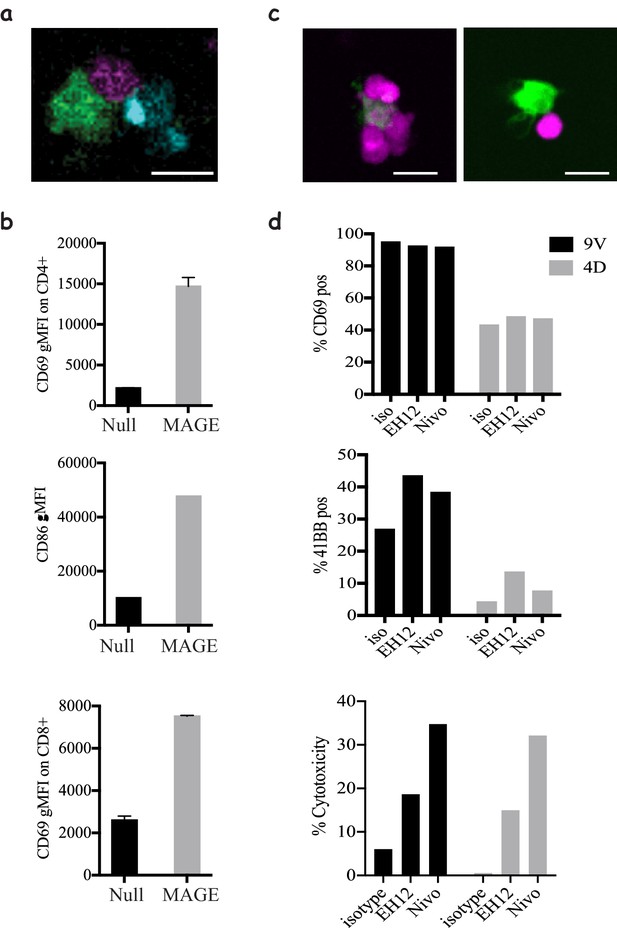

Our ability to engineer both CD4 and CD8 T-cells independently with different TCRs enables us to interrogate complex dynamics of a trinary cellular system whereby both types of T-cells can interact with similar or different APCs. We show here that using our system we can interrogate the dynamics of CD4 T-cells help to CD8 T-cells (Castellino et al., 2006) (Figure 5A, Video 12) where the activation of CD4 T-cells (Figure 5B, top) coincides with enhanced maturation of the DCs by upregulation of CD86 (Figure 5B, middle) and enhanced activation of the CD8 T-cells (Figure 5B, bottom).

Figure 5 with 1 supplement see all

Download asset Open asset

Video 12

Download asset

Furthermore, we utilised our system to mimic one of the most successful immune checkpoint blockades currently in clinical use; PD-1 blockade, which is known to act by enhancing CD8 T-cell responses towards target cells. To that end, we used memory CD8 T-cells and treated them with two clones of blocking antibodies against PD1; Nivolumab and EH12. Despite the lack of any change in the motility dynamics of the cells (Figure 5—figure supplement 1A), there was a clear evidence that the presence of the checkpoint blockade enhances the clustering of CD8 T-cells around their targets (Figure 5C). This has also been corroborated by enhanced activation, although only observable for late readouts such as 41BB expression and target cell killing (Figure 5D). Interestingly, we saw an enhanced expression of PDL-1 (Figure 5—figure supplement 1B), the ligand for PD-1, on CD8 T-cells, which could lead to cis interactions that act as a cell intrinsic regulation mechanism (Sugiura et al., 2019). Surprisingly, we noted differences between the pathways enhanced by the two blocking antibody clones: EH12 seemed superior at enhancing surface markers, whereas Nivolumab outperformed EH12 in the killing assays.

RPMI 1640 (31870074) was purchased from ThermoFisher Scientific. Hyclone fetal bovine serum (FBS) was obtained from Fisher Scientific. The following anti-human antibodies were purchased from Biolegend: CD62L (DREG-56), CD3 (OKT3), CD8 (HIT8a), HLA-A2 (BB7.2), CD80 (2D10), CD86 (IT2.2), CD40 (5C3), CD69 (FN50), 4-1BB (4B4-1), CD107 (H4A3), TNFα (Mab11) and anti-mouse TCRβ (Η57–97). The following anti-human antibodies were purchased from BD Bioscience: CD45RA (HI100), CD4 (RPA-T4), and CD11c (B-ly6), CD14 (MΦP9) and PD-1 (EH12.2H7). Nivolumab (Ab00791-13.12) was obtained from Absolute Antibody. The following anti-human antibodies were purchased from eBioscience: CD83 (HB15e), IFNγ (4S.B3) and PDL-1 (MIH1). HLA-A*0201 with 9V was generated and folded in house. HLA-DPB1*04:01 biotinylated monomers were obtained from the NIH tetramer facility. NY-ESO-9V_157-165 (SLLMWITQV), NY-ESO-4D_157-165 (SLLDWITQV), NY-ESO-6T_157-165 (SLLMWTTQV) and NY-ESO-9L_157-165 (SLLMWITQL), MAGE-A3_243-258 (KKLLTQHFVQENYLEY), NY-ESO_161-180 (WITQCFLPVFLAQPPSGQRA) and HIV p17 GAG_77-85 (SLYNTVATL) were purchased from GeneScript with >95% purity and resuspended in DMF at 1 mg/ml and stored at −20°C.

The sequences for the 1G4 TCR were provided by Vincenzo Cerundolo, the 868 TCR was provided by Andrew Sewell, and all the MHC-II restricted TCRs (SG6, R12C9 and 6F9) were shared by Steven Rosenberg.

All TCR constructs were synthesised using GeneArt services from ThermoFisher; a Kozak sequence was added and codon optimisation for human expression was performed. The 1G4 and 868 constructs included a cysteine modification in the alpha and beta chains (see Supplementary table for sequences).

Constructs for the MHC-II restricted TCRs were synthesised so that the human constant region was replaced with that of mouse (see Supplementary table for sequences).

The alpha and beta chains were cloned separately into a pGEM-GFP-64A plasmid (gift of James Riley) between HindIII and NotI for MHC-I restricted TCRs and for human CD3ζ and between AgeI and NotI for MHC-II restricted TCRs.

Human T-cells were isolated from anonymised leukopoiesis products obtained from the NHS at Oxford University Hospitals (REC 11/H0711/7). Resting human T-cell subsets were isolated using negative selection kits (Stemcell Technologies), total CD4 or CD8 T-cells were enriched using RosetteSep kit from Stemcell Technologies, followed by EasySep kit for the corresponding naïve and memory sub-population, following the manufacturer’s protocol. Cell purity was assayed with anti-CD4, anti-CD8, anti-CD62L and anti-CD45RA and all cells used had >95% purity.

CD4 and CD8 T-cells were cultured at 37°C, 5% CO₂, in RPMI 1640 (Roswell Park Memorial Institute) medium supplemented with 10% FBS (Gibco), 5% penicillin-streptomycin (PenStrep, Gibco), 1x MEM non-essential emino acids solution, 20 mM HEPES, 1 mM sodium pyruvate, 2 mM Glutamax and 50 μM 2-mercaptoethanol (Sigma) (all from Thermo Fisher unless stated otherwise).

For T-cell activation, 1:1 anti-CD3/anti-CD28- coated T-cell activation beads (11132D) were added at a 1:1 ratio with 50 U/ml of IL-2 for two days, followed by removal of the beads and propagation of the culture in IL-2 until day 7.

Monocytes were enriched from the same leukopoiesis products as T-cells using RosetteSep kit (Stemcell Technologies), and were then cultured at 1−2 × 10⁶/ml in 12-well plates with 1 ml of differentiation medium containing 50 ng/ml Interleukin 4 (IL-4, 200–04 A, Peprotech) and 100 ng/ml granulocyte-monocyte colony stimulating factor (GM-CSF, 11343125, Immunotools) for 24 hr. For maturation the following cytokines were added for an additional 24 hr: 1 μM prostaglandin E₂ (PGE₂, P6532, Sigma), 10 ng/ml interleukin one beta (IL1β, 201-LB-025/CF, Biotechne), 50 ng/ml tumour necrosis factor alpha (TNFα, 300-01A, Peprotech) and 20 ng/ml interferon gamma (IFNγ, 285-IF-100/CF, Bio-techne). Cell purity of the monocyte population was assessed using antibodies against CD14 and CD11c and typically was above 80%. Any non-monocyte contaminants should be removed by adhering the cells for 2–3 hr immediately after isolation followed by washing off any unbound cells and applying the differentiation media.

Peptide loading on DC was quantified using an AlexaFluor 647 conjugated high affinity soluble TCR (c113 against NY-ESO) (Zhao et al., 2007) with a known dye ratio and Quantum MESF AlexaFluor 647 beads as calibration (647, Bangs Laboratories).

Secretion of soluble factors was assessed using 0.5 ml of culture medium, and the corresponding controls of media containing the differentiation and activation cytokines, following the manufacturer’s protocol (Proteome Profiler Human XL Cytokine Array kit, ARY022B, R &D Systems).

For antigen-specific experiments, the donors were assessed for the relevant HLA. For CD8-based experiments, 50 μl of whole blood was taken for flow cytometry analysis using an anti-HLA-A2 mAb (clone BB7.2). For CD4 -based experiments, 50 μl of blood was used to extract DNA with the QIAamp DNA Mini kit (51304, Qiagen). The extracted DNA was used for PCR analysis using the AllSet+ Gold HLA DPB1 High-Resolution Kit (54070D, VH Bio) to determine whether or not the suitable haplotype was expressed. We were also able to induce the expression of a single chain dimer of HLA-A*02 in moDCs from donors which were HLA-A*02-negative donors using the mRNA electroporation approach.

To express TCR constructs within resting naïve and memory T-cells, we used mRNA electroporation. mRNA for the relevant TCRα, TCRβ and CD3ζ chains was prepared from a linearised pGEM-64A vector or a T7 containing PCR product was done using mMESSAGE mMACHINE T7 ULTRA Transcription kit as per manufacturer’s protocol (ThermoFisher, AM1345). The mRNA was purified using MegaClear kit (ThermoFisher, AM1908) and was aliquoted and kept at −80°C (Zhao et al., 2006b). To achieve high efficiency of expression, mRNA quality was assessed using agarose gels and samples showing any sign of degradation were discarded. Any mRNA preparation with yields bellow 40 μg mRNA per 1 μg of DNA was considered of low quality; finally, all mRNA aliquots were stored at concentrations > 1 μg/μl, which was achieved by concentrating the mRNA product using ammonium acetate precipitation or by combining >3 reactions of in vitro transcription during the MegaClear clean-up step.

T-cells were harvested and washed three times with Opti-MEM (LifeTechnologies). The cells were resuspended at 25 × 10⁶/ml and 2.5−5 × 10⁶ cells were mixed with the desired mRNA products and aliquoted into 100–200 μl per electroporation cuvette (Cuvette Plus, 2 mm gap, BTX). For 10⁶ cells CD8 T-cells, 2 μg of each TCRα, TCRβ and CD3ζ RNA was used. For 10⁶ CD4 T-cells, 4 μg of TCRα and TCRβ was used. Cells were electroporated at 300 V, 2 ms in an ECM 830 Square Wave Electroporation System (BTX). The cells were then collected from the cuvette and cultured in 1 ml pre-warmed media. Amaxa and Neon electroporation systems were also tested but failed in either achieving efficient TCR expression or affected T-cell motility. For Amaxa electroporation, the human T-cell nucleofector kit (VAPA-1002) was used and the manufacturer's protocol was followed. Three different settings were tested: V-24, U-14 and T-23. For Neon electroporation, 2.5 × 10⁶ cells were resuspended in a 100 μl tip, and two settings were tested (1700 V 10 ms, 4 pulses and 2150 V, 20 ms one pulse) (Aksoy et al., 2019).

Note, extended culture (>5 days) prior to electroporation also results in marginal reduction in TCR expression efficiency, although no reduction is observed for control GFP.

The exogenous TCR can be detected up to 96 hr post electroporation.

SLBs were prepared as previously described (Dustin et al., 2007). In brief, piranha and plasma cleaned coverslips were mounted on sticky-Slide VI0.4 chamber (ibidi). Small unilamellar liposomes (LUVs) were prepared using 4 mM 18:1 DGS-NTA(Ni), ‘NTA-lipids’, (790404C-AVL, Avanti Polar Lipids), 4 mM CapBio 18:1 Biotinyl Cap PE (870282C-AVL, Avanti Polar Lipids), ‘CapBio-lipids’, and 4 mM 18:1 (Δ9-Cis) PC, ‘DOPC-lipids’, (850375C-AVL, Avanti Polar Lipids,). NTA-lipids were used at a final concentration of 2 mM and CapBio lipids were used at a dilution resulting in site density of 100 molecules/μm (Council MRC, 2008). SLBs were allowed to form by incubating the coverslips with the appropriate LUVs for 20 min at room temperature (RT) followed by a wash with HEPES-buffered saline (HBS) supplemented with 1 mM CaCl₂ and 2 mM MgCl₂, and human serum albumin (HBS/HSA). The SLBs were loaded with saturating amounts of AlexaFluor568 labelled streptavidin, 5 μg/ml (S11226, ThermoFisher) for 10 min at RT followed by pMHC at 100 molecules/μm (Council MRC, 2008) and ICAM-1 200 molecules/μm (Council MRC, 2008) for 20 min at RT.

Micro-patterned surfaces presenting pMHC molecules were prepared using micro-contact printing by modifying the procedures described previously (Mayya et al., 2018). Topological masters with repetitive circle patterns of 10 μm in diameter, spaced 30 μm centre-to-centre on a square grid were used to cover the entire channel of a sticky-Slide VI^0.4 chamber (ibidi). The master was used for casting of polydimethylsiloxane (PDMS) elastomer stamps. Sylgard 184 (Dow Corning) was used by mixing 1/7 (v/v) of curing agent to the elastomer. Rectangular stamps of PDMS were coated with biotinylated, AlexaFluor 674 labelled Fc IgG (AG714, Merck Millipore) at 2 μg/ml in 150 μl of PBS for one hour. The blocks were then rinsed extensively in PBS, PBS with 0.05% Tween-20 and finally in MilliQ-grade water followed by gentle drying with N₂ to remove droplets of water. Fc coated PDMS blocks were stamped onto the cleaned coverslips for 5 min under ~20 g of load for efficient transfer. Attempts to directly stamp pMHC, avidin or streptavidin resulted in partially or completely non-functional proteins. Streptavidin stamps were also non-uniform and eroded with subsequent washes. The patterned coverslip was then affixed to the sticky-Slide VI^0.4 and washed sequentially with MilliQ-grade water and PBS, then coated with 13.5 μg/ml of CCL21 in 30 μl for one hour, followed by 3 μg/ml of ICAM1 in 180 μl for 3 hr at 37°C. Coverslips were then used immediately for the following steps or kept in PBS at 4°C overnight. The stamped and protein coated channels were blocked with 10% dialysed FCS (to remove any free biotin) for 30 min at RT. Then unlabelled streptavidin was introduced into the channel at 2 μg/ml for 10 min at RT, followed by washing and introduction of 9V/A2 pMHC at 1 μg/ml for 20 min at RT.

DCs were loaded with the peptide specified in the figures for 90 min at 37°C. For imaging experiments, T-cells were labelled with a volumetric dye as described below (Imaging) or loaded with cell trace violet (C34557, ThermoFisher) for proliferation assays, or otherwise kept unlabelled.

Collagen mix was made by modifying the approach of Gunzer et al. (2000) using 5 μl 7.5% sodium bicarbonate, 10 μl 10x MEM, 75 μl 3 mg/ml Bovine Collagen I (PureCol) and a chemokine, 1 μg/ml of CCL21 (300-35-100, Peprotech) or CCL19 (300-29B, Peprotech) or 0.3 μg/ml of SDF1-a/CXCL12 (300-28A, Peprotech). All the work with collagen was done on ice to prevent polymerisation. Other matrices tested: VitroCol Human Collagen I (5007-A, CellSystems), Matrigel (at final conc. of ~4 mg/ml, two batches tested with similar results), and GelTrex (A1413301, ThermoFisher, at final conc.n of ~8 mg/ml, two batches tested with similar results). All 3D cultures were made with bovine collagen I, except for the comparison shown in Figure 4—figure supplement 1B, and mainly with CXCL12 unless otherwise stated.

Cell-containing media (15 μl) supplemented with 10% Human serum (S-101B-FR, APS) (or 10% FBS) wasadded to 35 μl of the collagen mix so that the final culture contained 200,000 CD8, 200,000 CD4s T-cells and DCs at varying ratios (typically 1:1, 1:5 and 1:10 to T-cells). Lower cell numbers can be used for functional experiment but the reported numbers here are ideal for good density for imaging.

Collagen mix is then added to a μ-slide angiogenesis chamber or sticky-Slide VI^0.4 chamber (ibidi) and put upside down in a 37°C incubator with 5% CO₂ for ~60 min (to entrap the cells in the gel as it polymerises). The wells were then topped up with 30 μl media containing the same concentration of chemokines as the gel (for μ-slide angiogenesis) or 100 μl per well (for sticky-Slide VI^0.4). For in gel loading experiments, the media contained a peptide at 2x the reported concentration. Samples were either taken for imaging or kept in the incubator for functional analysis. For PD-1 blockade, the antibody or isotype control was added to the T-cells for 15 min prior to incorporation in the gel so the final antibody concentration was 10 μg/ml.

Extended culture in the 3D system leads to ~50% reduction in cell speed due to chemokine desensitisation and can be overcome by the addition of fresh chemokine after 18 hr.

1G4 TCR expression was assessed using 9V-HLA-A2 tetramers, 868 TCR expression was assessed using SL9-HLA-A2 streptamers (6-7004-001, iba) and 6F9, SG6 and R12C9 expression was assessed with anti-mouse TCR β (H57) antibody. The MHC II restricted TCRs seem to have very low affinity towards their antigen, preventing detection using tetramers (attempts to measure affinity using SPR suggest a K_D above 500 μM). In brief, 50,000 cells were stained with 2.5 μg/ml tetramers (9V/A2) or 5 μg/ml streptamers (SL9/A2) or 1 μg/ml antibody for 20 min at 4°C, washed with PBS containing 2% FBS and 2 mM EDTA and taken for analysis on a flow cytometr (FORTESSA X-20, BD Biosciences).

To analyse samples from collagen gels, the gels were first digested into solution using collagenase VII (Sigma #C0773) at 100 U/ml for 1 hr at 37°C. The supernatant was subsequently removed, and the cells were stained with the desired antibody combination for 20 min 4°C. For intracellular staining, the cells were cultured in collagen gels and brefeldin A or monensin was added, after 20 hr for 2 hr to prevent cytokine secretion to the supernatant and retain them inside the cells, along with stimulation of phorbol 12-myristate 13-acetate (PMA, P8139, Sigma) at 1 μg/ml and ionomycin (I0634, Sigma) at 1 μM, the cells were then stained using the FoxP3 intracellular staining kit (00-5523-00, eBioscience) and the desired antibodies. For experiments measuring LAMP1 expression, an antibody against it was added at the start of the culture.

LDH Cytotoxicity Detection kit (MK401, Takara Bio) was used as per manufacturer instructions to detect cell killing.

Cells were labelled with one of the volumetric dyes (all from ThermoFisher): CMFDA (250 nM) ), CMRA (500 nM) or Deep Red (100 nM) for 20 min in complete media. For imaging CD69 activation, the collagen mixture described above was supplemented with a BV421 labelled anti-CD69 at 1 μg/ml (adjustments in volume are made to the media to maintain the same final collagen concentration). For calcium imaging, T-cells were loaded with 1 μM of Fluo4-AM (ThermoFisher) for 20 min at 37°C. Cells were imaged using either a Dragonfly Spinning Disk system, a Perkin Elmer Spinning disk or an Olympus FluoView FV1200 confocal microscope using a 30x Super Apochromat silicone oil immersion objective with 1.05 NA. All microscopes included an environmental chamber to maintain temperature at 37°C and CO₂ at 5%. Time-lapse images were acquired every 30 or 60 s. z-Scans were acquired every 3 μm.

SLB imaging was performed on an Olympus IX83 inverted microscope equipped with a TIRF module and Photomertrics Evolve delta EMCCD camera using an Olympus UApON 150x TIRF N.A 1.45 objective.

Microscopy data from collagen gels was rendered and analysed using built-in tools in IMARIS software (Bitplane). Speeds bellow 2 μm/min were considered to correspond to stationary cells. Synapse images were analysed using Fiji. Image analysis for micro-contact printing data was done using TIAM (Mayya et al., 2015) as described in Mayya et al. (2018). In brief, cells were tracked using DIC images. IRM and fluorescence signal-positive segments of the tracks were used to calculate the attachment rate and the number of cells interacting with stimulatory spots to extract the half-life of interactions where a simple first order rate was used dA/dt=-k[A]; where A is cell number and k is the off-rate constant representing the exit from the spots by dissolution of the IS. Data from IMARIS and FlowJo were plotted and analysed in Prism (GraphPad), where all statistical tests were performed.
