Comprehensive transcriptome analysis of cochlear spiral ganglion neurons at multiple ages

  1. Chao Li
  2. Xiang Li
  3. Zhenghong Bi
  4. Ken Sugino
  5. Guangqin Wang
  6. Tong Zhu
  7. Zhiyong Liu  Is a corresponding author
  1. Chinese Academy of Sciences, China
  2. Howard Hughes Medical Institute, Janelia Research Campus, United States
  3. Shanghai Center for Brain Science and Brain-Inspired Intelligence Technology, China


Inner ear cochlear spiral ganglion neurons (SGNs) transmit sound information to the brainstem. Recent single cell RNA-Seq studies have revealed heterogeneities within SGNs. Nonetheless, much remains unknown about the transcriptome of SGNs, especially which genes are specifically expressed in SGNs. To address these questions, we needed a deeper and broader gene coverage than that in previous studies. We performed bulk RNA-Seq on mouse SGNs at five ages, and on two reference cell types (hair cells and glia). Their transcriptome comparison identified genes previously unknown to be specifically expressed in SGNs. To validate our dataset and provide useful genetic tools for this research field, we generated two knockin mouse strains: Scrt2-P2A-tdTomato and Celf4-3xHA-P2A-iCreER-T2A-EGFP. Our comprehensive analysis confirmed the SGN-selective expression of the candidate genes, testifying to the quality of our transcriptome data. These two mouse strains can be used to temporally label SGNs or to sort them.


Genome-wide profiling analyses such as RNA-Seq are being increasingly used for dissecting the mechanisms underlying cell-fate determination, development, and disease progression. RNA-Seq can be employed to address several developmental questions, including these two key questions: (1) Which genes are expressed specifically in one cell type but not others within one tissue and/or organ? (2) Which genes exhibit expression patterns that change dynamically at distinct developmental ages within the same cell type? RNA-Seq analyses fall within two main categories: the first is Bulk-Seq, where the data represent an average of gene-expression patterns from multiple cells (Ozsolak and Milos, 2011), and although this allows for vast sequencing coverage (or depth), the incurred cost is that variations among the pooled cells are obscured. The second is single-cell RNA-Seq, which enables assessment of gene expression at unprecedented single-cell resolution (Tang et al., 2013), but the coverage and detection sensitivity here are typically lower than those in Bulk-Seq. Because the two approaches complement each other in their strengths, the optimal strategy would be to run both Bulk-Seq and single-cell RNA-Seq, thus obtaining both sequencing depth and single-cell-resolution data. Notably, this combined approach was used in two recent studies examining mouse inner ear auditory and utricle cells (Jen et al., 2019; Yamashita et al., 2018).

In mouse cochlea, two types of hair cells (HCs) coexist: outer hair cells (OHCs) and inner hair cells (IHCs) and they differ in function and innervation (Kelley, 2006). Whereas OHCs act as sound amplifiers and are innervated by Type II cochlear spiral ganglion neurons (SGNs), IHCs form synapses with Type I SGNs. Type I SGNs can be divided into three subtypes, Ia, Ib, and Ic, as revealed by three recent single-cell RNA-Seq studies of mouse SGNs (Petitpré et al., 2018; Shrestha et al., 2018; Sun et al., 2018). Multiple genes, such as Calb2, Pou4f1, and Lypd1, show markedly different expression patterns across the three subtypes. However, these studies focused on transcriptomic differences among distinct SGN subtypes: no comparisons were performed between the transcriptomes of SGNs and non-SGN cells (i.e. HCs or glia). Thus, the identity of the genes that are specifically expressed in SGNs but not in other cell types within the inner ear remains unclear, as does the temporal dynamics of these genes during SGN differentiation (i.e. it is not known which genes show notable expression differences at distinct developmental stages). However, cell-type specificity and temporal specificity are both critical features that should be presented by genes that regulate SGN fate determination and maturation. Therefore, identification of the genes that possess these properties represents a critical first step that will enable the function of these genes to be studied. In addition to advancing our understanding of SGN development, identifying these key regulators will also likely facilitate studies focusing on regenerating degenerated or damaged SGNs from other cells such as cochlear glial cells (Noda et al., 2018).

Here, we addressed the aforementioned two questions, on cell-type specificity and temporal specificity of SGN genes, by employing bulk RNA-Seq covering mRNAs and other types of RNA (Liu et al., 2015). We manually picked SGNs at five distinct ages: embryonic day 15.5 (E15.5), postnatal day 1 (P1), P8, P14, and P30. To identify SGN-specific genes, we compared the transcriptomes of SGNs with those of inner ear HCs at P12 and cochlear glial cells at P8, which resulted in the discovery of multiple previously unknown SGN-specific genes. These SGN-specific genes were further divided into genes exhibiting constant or dynamic expression. Moreover, we analyzed the dynamics of genes expressed in SGNs, regardless of whether they are expressed in HCs and glia. To further validate our transcriptome analysis, 8 SGN-specific genes were analyzed using RNA in situ hybridization, and from these genes, Scrt2 and Celf4 were selected for generating, respectively, Scrt2-P2A-tdTomato and Celf4-3xHA-P2A-iCreER-T2A-EGFP knockin mice. Characterization of these two mouse strains showed that Scrt2 and Celf4 are expressed in SGNs and exhibit constant expression (from early embryonic to adult ages) and dynamic expression, respectively. Thus, this work provides a comprehensive transcriptome analysis, with high-quality data and deep sequencing coverage, of SGNs at five developmental ages. Furthermore, the two new mouse strains developed here will help future studies aimed at sorting SGNs or temporally manipulating gene expression in SGNs. Lastly, because Scrt2 and Celf4 are also expressed in the central nervous system, the two knockin mouse lines should also serve as useful tools for brain research in general.


Isolated and purified SGNs are highly enriched in neuronal genes and depleted in HC and glial genes

Cochlear SGNs transiently and specifically express Sonic Hedgehog (Shh) (Bok et al., 2013; Liu et al., 2010; Tateya et al., 2013), and we used this gene to isolate SGNs. Briefly, our previous fate-mapping study showed that ShhCre/+ exclusively labels SGNs in the cochlea (Liu et al., 2010). In cochlear tissues of ShhCre/+; Rosa26-CAG-loxp-stop-loxp-tdTomato (Ai9)/+ mice, tdTomato+ cells were observed in the ganglion area at P1 (Figure 1A–A’). These tdTomato+ cells expressed the neuronal marker Mafb (Yu et al., 2013), but not glial marker Sox10 (Li et al., 2018) (Figure 1B–B’’’), confirming that the tdTomato+ cells were SGNs and not their neighboring glial cells. In this study, tdTomato+ SGNs were obtained by our routinely employed manual picking/washing approach (Hempel et al., 2007; Li et al., 2018; Liu et al., 2015). To minimize gene expression profiling alteration in the in vitro condition, we used a total of 3 ~ 3.5 hr from mice euthanasia to cell preservation in lysis buffer.

Figure 1 with 1 supplement see all

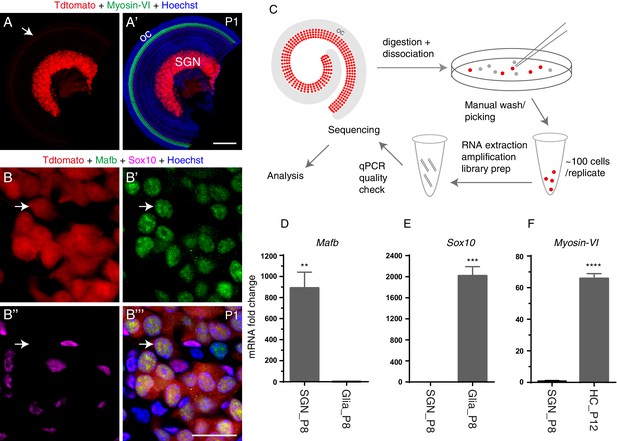

Genetic model, bulk RNA-Seq methodology, and qPCR quality check.

(A–A’) SGNs were endogenously labeled with tdTomato at P1 (or other ages after E15.5) in the mouse line ShhCre/+; Rosa26-CAG-loxp-stop-loxp-tdTomato/+. Arrow (in A) indicates SGN fibers with weak tdTomato expression innervating Myosin-VI+ HCs (green in A’) in the organ of Corti (oc). (B–B’’’) Cochlear tissues triple-labeled with Mafb and Sox10 antibodies and endogenous tdTomato fluorescence. Arrows: one tdTomato+ SGN expressing the neuronal marker Mafb but not the glial marker Sox10. (C) Illustration of our experimental procedures. Red SGNs were manually picked under a fluorescence microscope, washed three times, and placed in lysis buffer. (D–F) qPCR analysis of three genes, Mafb (D), Sox10 (E), and Myosin-VI (F). SGNs passed our quality check if they showed significant enrichment of Mafb but depletion of Sox10 and Myosin-VI; otherwise, the SGNs were discarded. **p<0.01, ***p<0.001, ****p<0.0001. Scale bars: 200 μm (A’) and 20 μm (B’’’).

Figure 1—source data 1

Neuronal gene was enriched, HC and glial genes were depleted in SGNs at P8.

SGNs were picked at five different ages: E15.5, P1, P8, P14 and P30. E15.5 was the earliest age at which we could visualize a bright tdTomato signal and pick tdTomato+ SGNs confidently (Figure 1C). Three replicates were performed per age, and each replicate contained ~100 SGNs. We hypothesized that these five ages should capture the main signatures of gene expression profiles during the process of SGN differentiation. SGNs are likely highly immature at E15.5 and P1, actively differentiating at P8, well differentiated at P14 as mice start detecting sound, and fully differentiated and functional at P30. Besides picking SGNs, we isolated, as reference cells, HCs (vestibular and cochlear) at P12 and cochlear glial cells at P8. The methods section contains detailed information regarding the HCs and glial cells. Briefly, gene-expression profiles of HCs and glia were used as a reference database for quality-check analyses and for revealing SGN-specific genes (showing constant or dynamic expression) within the inner ear, which was our primary goal in this study.

Before fragmenting full-length cDNA derived from SGNs at the different ages, qPCR analysis was performed to determine the purity of the collected cells. For a sample to pass this first quality check point (pre-sequencing stage), the sample had to be significantly enriched in the neuronal gene Mafb and depleted in both the glial gene Sox10, and HC gene Myosin-VI (Myo6) (Avraham et al., 1995). For example, in SGNs at P8, Mafb expression was enriched 890.7 ± 150.2 fold, as compared to glia cells (n = 3 sample replicates) (Figure 1D), whereas, Sox10 expression was reduced by 2016.7 ± 174.1 fold (n = 3 sample replicates) (Figure 1E). Similarly, Myosin-VI expression was 65.7 ± 3.1 fold lower in SGNs than in HCs (n = 3 sample replicates) (Figure 1F). Similar qPCR quality checks were performed for SGNs at other four ages (Figure 1—figure supplement 1). Collectively, our data suggest that the isolated SGN samples were pure and that the cDNA was of high quality. Only the samples that passed this qPCR quality control were proceeded into library construction and paired-end sequencing.

Acquiring high quality transcriptome data

On average, there were 21.5 million sequence reads per library, of which ~ 85% were mapped to the mm10 genome (Figure 2—figure supplement 1A–B). Per sample, approximately 15,000 genes were detected with a TPM (transcripts per million) threshold of 1 (Figure 2—figure supplement 1C), and ~6000 of these genes featuring TPM values of >10 (Figure 2—figure supplement 1D). Pearson’s correlation coefficient analysis revealed that the general transcriptomes of SGNs were highly distinct from those of HCs and glial cells (Figure 2—figure supplement 1E). Moreover, SGNs of different ages clustered into distinct groups, which supported the hypothesis that global gene profiles dynamically change throughout SGN differentiation.

Before searching for genes showing constant or dynamic expression, we performed a second quality check at this post-sequencing stage to further ensure the purity of the SGN samples. We used additional gene markers that together covered 10 different cell types (Figure 2—figure supplement 2). In addition, we also examined three house-keeping genes, Gapdh, Actg1 and Actb, all of which were detected in all samples (Figure 2—figure supplement 2). Again, we found that SGNs were significantly enriched with neural genes Mafb, Slc17a6, Slc17a7 and Lypd1, but dramatically depleted of genes of HC-specific (Myo6, Myo7a, Pou4f3 and Gfi1) and glial-specific (Sox10, Foxd3 and Plp1) (Figure 2—figure supplement 2). We included both vestibular and cochlear HCs to cover most of the genes expressed in inner ear HCs. Vestibular HCs are known to express Sox2, which was accordingly detected here in the HC populations (Figure 2—figure supplement 2). Together, the quality checks at the pre-sequencing stage (Figure 1D–F and Figure 1—figure supplement 1) and post-sequencing stage (Figure 2—figure supplement 2) ensured that the SGN samples were highly pure and that the RNA-Seq data were of high quality.

Identifying SGN-specific genes with constant and dynamic expression pattern

We first aimed to identify genes that are both highly and specifically expressed in SGNs but are not expressed in HCs or glia. For example, Parvalbumin and Calbindin are expressed in both HCs and SGNs, and are not our target genes (Liu et al., 2012). We classified the SGN-specific genes into two categories based on their expression during development: constant and dynamic. Computational analysis revealed 21 SGN-specific genes showing constant expression patterns in SGNs at all timepoints examined (Figure 2A), and 68 SGN-specific genes showing dynamic expression patterns (Figure 2B). Notably, Mafb, which showed dynamic expression and was included in Figure 2B, is known to decrease between E16.5 and P15 in SGNs and to be critical for SGN development (Yu et al., 2013). This suggests that although our bioinformatics analysis for defining SGN-specific genes was highly stringent, it was still sensitive. Because most of the identified genes were not previously known to be SGN-specific, we validated the following eight genes (four from each category) by using RNA in situ hybridization at P1: Elavl4, Esrrg, Scrt1, Scrt2, Stmn3, Shox2, Gabbr2, and Celf4. All eight genes were specifically expressed in SGN region (Figure 2—figure supplement 3), which again validated the quality of our RNA-Seq data. Note that genes above were SGN-specific within the cochlea organ. As to be discussed below, Scrt2 and Celf4 were also expressed in vestibular neurons (VGNs) and neurons in the central nervous system.

Figure 2 with 3 supplements see all
SGN-specific genes showing constant and dynamic expression.

(A) Our selection criteria for constant expression were met by 21 SGN-specific genes, which were expressed in SGNs at all ages but not expressed in HCs or glia. (B) Dynamic expression was exhibited by 68 SGN-specific genes; the expression levels of these genes in SGNs changed significantly across ages, being either lower at younger ages but higher at older ages, or vice versa. For these genes to be considered bona fide SGN-specific genes, they had to be depleted in HCs and glial cells. (C) Scrt2 and Celf4 are used here as examples to illustrate expression levels across different ages. Y-axis: expression in transcripts per million (TPM); data are shown as means ± SEM. Scrt2 (red): SGN-specific gene showing constant expression; Celf4 (blue): SGN-specific gene showing dynamic expression. (D) qPCR analysis of Celf4 in SGNs at all five ages. Celf4 mRNA levels were significantly different between E15.5 and P30 (**p<0.01) and between P14 and P30 (*p<0.05).

Figure 2—source data 1

Scrt2 and Celf4 expression level by RNA-Seq and q-PCR analyisis.

Classifying dynamics of genes expressed in SGNs

Next, we analyzed genes that were expressed in SGNs, regardless of their patterns in HCs and glias, because genes shared by these cell types may also regulate SGN development (Figure 3). For this analysis, one of three states, up-regulated (u), down-regulated (d) and unchanged (-) was assigned according to whether a gene was significantly (q < 0.05) up-regulated (fold change (FC) >2) and down-regulated (FC >2) when transitioning to the next profiled age. For illustration, these transitions were represented in Figure 3A by the arrows between, for example, E15.5 and P1, or P1 and P8. In the case of 8047 genes, no significant differences were detected across the transitions and these genes were considered to show constant expression (----) (Figure 3B). By contrast, we identified 8 categories of dynamic genes, with different numbers (>10) of genes in each group (Figure 3C–J).

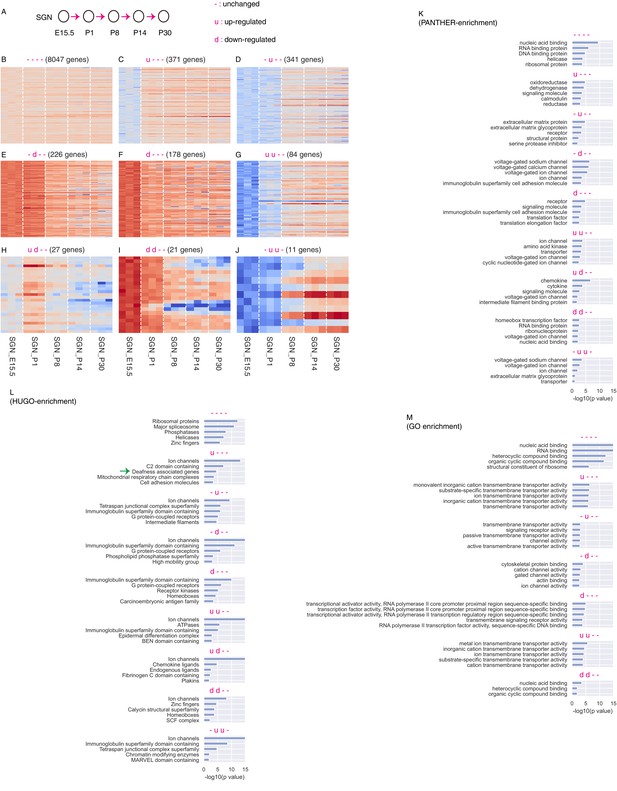

Computational analysis SGN genes without considering whether they are SGN-specific or not.

(A) Cartoon depicting definition of up-regulation (u), down-regulation (d), and unchanged expression (-) during gene transitions between two neighboring ages (arrows). (B) The unchanged category included 8047 genes. (C–J) Dynamic genes were divided into eight categories. (K–M) Gene-group enrichment analysis was performed using three different gene annotations: HUGO, PANTHER, and Gene Ontology.

Next, to minimize any bias in our analysis, we used three different ontology annotations to examine enrichment of specific gene groups: GO (Gene Ontology) (Ashburner et al., 2000), PANTHER (Mi et al., 2017) and HUGO (Braschi et al., 2019) (Figure 3K–M). Among the 8047 genes that were constantly expressed in SGNs, we found that ribosomal proteins and spliceosome were enriched. The dynamic-expression group showed particular enrichment of genes encoding ion channels. For example, ion channel genes, such as Hcn3, Kcnq3, Kcnt1 and Cacna1d, were transiently up-regulated between E15.5 and P1, and then rapidly down-regulated between P1 and P8, and these genes belonged to the gene category (ud--, 27 genes) as shown in Figure 3H. Accordingly, Hcn3 is reported to be expressed in guinea pig SGNs and to exhibit an apical-to-basal expression gradient (Bakondi et al., 2009). It will be of interest to determine whether those transiently up-regulated genes are responsible for the spontaneous and sound-independent firing activity of SGNs that are only present before hearing onset (Tritsch et al., 2007).

Mafb belonged to the gene category (-d--) that was significantly down-regulated between P1 and P8 (Figure 3E), and this category included 226 genes. Mafb regulates the formation of large postsynaptic density containing abundant AMPA-type receptors/channels (Yu et al., 2013). In agreement with this finding, channel related genes and cell adhesion genes were enriched in those 226 genes, as suggested by all three ontology annotations (Figure 3K–M). Further investigation is required to determine whether other genes in this group regulate SGN functions.

In addition, deafness-associated genes were over-represented among the 371 genes that were up-regulated between E15.5 and P1 (u---), as illustrated in Figure 3C and L. Those deafness-associated genes included well-known HC genes, such as Cdh23 (Cadherin-23) and Cib2 (calcium and integrin binding family member 2), which were also detected in one previous single-cell SGN RNA-Seq study (Shrestha et al., 2018). Intriguingly, Esrrb (estrogen-related receptor beta) also belonged to this category and mutation of this gene causes autosomal-recessive nonsyndromic hearing impairment (autosomal recessive deafness-35, DFNB35) (Collin et al., 2008). Collectively, the results of our RNA-Seq analyses revealed roughly nine distinct expression patterns during SGN development. The categories with gene numbers less than 10 were not presented in Figure 3, but the entire patterns of each gene identified were listed in Supplementary file 1.

Scrt2 is specifically and constantly expressed in SGNs

To further validate the accuracy of our transcriptome data in vivo, we sought to exploit the specificity of the genes listed in Figure 2 for generating knockin mouse strains. This approach allowed us to concurrently validate our findings, characterize genes at single-cell resolution, and develop valuable genetic tools for future SGN studies. Thus, we selected two candidate genes: Scrt2, from the category of SGN-specific genes showing a constant expression pattern and featuring a mean TPM value of 89.5 at P1 (Figure 2—figure supplement 3D); and Celf4, belonging to the category of SGN-specific genes showing a dynamic expression pattern and featuring a mean TPM value of 39.5 at P1 (Figure 2—figure supplement 3H).

We selected Scrt2 to generate a new knockin mouse strain: Scrt2-P2A-tdTomato (Scrt2-tdTomato for short). Scrt2, which encodes a protein named scratch-family zinc finger 2, has been found to control brain neurogenesis (Paul et al., 2014), but Scrt2 expression in the inner ear has not been reported. We hypothesized that Scrt2 might be involved in SGN development and thus selected this gene as a candidate. By using our usual CRISPR/Cas9 gene-targeting approach in zygotes (Li et al., 2018; Zhang et al., 2018), we inserted a P2A-tdTomato fragment immediately before the TGA stop codon of Scrt2, which should result in tdTomato expression being completely controlled by the endogenous Scrt2 promoter and/or enhancer (Figure 4A). Scrt2 expression was maintained intact by using the 2A-peptide approach (Figure 4—figure supplement 1A–C), as we have reported previously (Li et al., 2018). Southern blotting analysis confirmed that no random insertion of donor DNA in the mouse genome occurred (Figure 4—figure supplement 1D and E). Wild-type, heterozygous, and homozygous mice were identified through tail-DNA PCR-genotyping (Figure 4—figure supplement 1F). We used tdTomato as an indicator of Scrt2 expression (at the mRNA level) in the analyses described below.

Figure 4 with 3 supplements see all
Scrt2 is expressed in SGNs but not HCs or glia at E15.5 and P1.

(A) Illustration of the genetically modified Scrt2 locus. Detailed information please refer to Figure 4—figure supplement 1. (B–C) Double-labeling for HC-marker Myosin-VI and tdTomato in cochlear basal/middle portion (B) and middle/apical portion (C) dissected from Scrt2-tdTomato/+ mice at E15.5. Several tdTomato+ cells were observed in the SGN area (white dotted circle). At this stage, the apical part did not yet harbor Myosin-VI+ HCs, and the middle turn contained only a single row of IHCs. Asterisk (B and C): blood cells showing high red autofluorescence. (D) High-resolution image of basal cochlea double-labeled for Myosin-VI and tdTomato. HCs did not express tdTomato. (E–F’’’) Low- and high-magnification (E–E’’’, F–F’’’) confocal images of cochlear tissues labeled for tdTomato, Sox10, and Map2 at E15.5. Arrows in (F–F’’’): one tdTomato+ SGN that expressed Map2 but not Sox10. (G–H) Double-labeling for HC marker Myosin-VI and tdTomato in whole-mount (G) and cryosection (H) analyses at P1. Myosin-VI+ HCs did not express tdTomato (Scrt2). (I–I’’’) Triple-labeling for Map2, Sox10, and tdTomato. Arrows: one tdTomato+ SGN that expressed Map2 but not Sox10. This confirms that Scrt2 was expressed in SGNs but not glial cells at P1. Scale bars: 200 μm (B, C, E, G, and H) and 20 μm (D, F, and I’’’).

Although Sox2+/tdTomato+ cells were found in the hindbrain regions that were close to the otocyst (Figure 4—figure supplement 2A–A’’), Sox2+ SGN progenitors, referred to as neuroblasts, did not express tdTomato at E10.5 (Figure 4—figure supplement 2B, n = 3, mouse numbers). This suggests that Scrt2 expression is not turned on in neuroblasts at E10.5. However, whole-mount analysis showed that many tdTomato+ cells were present in both SGN and VGN regions at E13.5 (white dotted lines in Figure 4—figure supplement 2C, n = 3, mouse numbers). Furthermore, triple labeling for tdTomato, Sox10 and Map2 demonstrated that tdTomato+ cells expressed the neuronal marker Map2 but not the glial marker Sox10 (Figure 4—figure supplement 2D–E’’’). This confirmed that Scrt2, at least at the mRNA level, is expressed in SGNs at E13.5 (arrows in Figure 4—figure supplement 2E–E’’’).

Similar patterns of tdTomato expression were observed in cochlear samples at E15.5 (n = 3, mouse numbers), by which time Myosin-VI+ HCs were present at basal and middle but not apical turns (Figure 4B and C). The Myosin-VI+ HCs did not express tdTomato (Figure 4D), demonstrating that Scrt2 was not expressed in HCs. As expected, tdTomato+ cells were distributed densely in the SGN area in all three cochlear turns (Figure 4E–E’’’), and the cells expressed Map2 but not Sox10 (arrows in Figure 4F–F’’’). This again confirmed that Scrt2 was expressed in SGNs but not glial cells.

We also analyzed inner ear samples of Scrt2-tdTomato/+ mice at four postnatal ages: P1, P8, P14 and P30. Numerous tdTomato+ cells were present in SGN regions in all cochlear turns at P1 (n = 3, mouse numbers), as visualized in whole-mount (Figure 4G) and cryosection analysis (Figure 4H). As before, tdTomato+ cells expressed Map2 but not Sox10 (arrows in Figure 4I–I’’’). Similar tdTomato expression patterns were also observed at P8, P14, and P30 (Figure 4—figure supplement 3A–B’’’, C–D’’’ and E–F’’’, respectively; n = 3 mouse numbers/age). The tdTomato+ cells expressed Map2 but not Sox10 (arrows in Figure 4—figure supplement 3B–B’’’ and D–D’’’) or Sox2 (another glial marker) (arrows in Figure 4—figure supplement 3F–F’’’). With tdTomato serving as the read-out, the data overall indicate that Scrt2 mRNA expression is turned on between E10.5 and E13.5 and then permanently and specifically maintained in SGNs. Glial cells and HCs did not express Scrt2.

Celf4 is dynamically expressed in both embryonic and adult SGNs

From the list of dynamically expressed genes (Figure 2B), we selected Celf4 to confirm its temporal dynamics in vivo. RNA-Seq data analysis suggested that Celf4 expression gradually increased from E15.5 to P30 (Figure 2C). This increment was further confirmed through qPCR analysis of Celf4 (Figure 2D). Celf4 (CUGBP Elav-like family member 4) encodes an RNA-binding protein involved in mRNA stability, protein translation, and seizure occurrence (Ladd et al., 2001; Wagnon et al., 2012; Wagnon et al., 2011). No previous study has reported Celf4 expression in the inner ear. We selected Celf4 because it was highly expressed at adult ages and was thus considered a promising candidate for generating a CreER driver line in which adult SGNs are specifically labeled within the inner ear. Moreover, because our previous work showed that RNA-binding proteins can precisely regulate gene translation and cell-fate maintenance (Liu et al., 2015), we also aim to characterize, in future studies, the potential roles of Celf4 in inner ear SGN fate determination and differentiation.

By CRISPR/Cas9-mediated gene editing in zygotes, we generated the second knockin mouse strain, Celf4-3xHA-P2A-iCreER-T2A-EGFP (Celf4-iCreER for short), in which we inserted the fragment, 3xHA-P2A-iCreER-T2A-EGFP, immediately before the TGA stop codon of the Celf4 locus (Figure 5A and Figure 5—figure supplement 1A–C). This mouse line enables three new assays: (1) precise visualization of Celf4 protein, because the protein C-terminus is tagged with 3 × HA (which can be detected using anti-HA antibodies); (2) lineage tracing of Celf4-expressing cells through tamoxifen injection at different ages by using iCreER; and (3) detection of Celf4 mRNA expression based on EGFP. Absence of random insertion of donor DNA was confirmed through Southern blotting (Figure 5—figure supplement 1D–E), and knockin (KI) and wild type (+) alleles were identified using PCR genotyping (Figure 5—figure supplement 1F).

Figure 5 with 1 supplement see all
Celf4 is detected in SGNs at E15.5 and further increased at P1 and P30.

(A) Illustration of the genetically modified Celf4 locus. Detailed information please refer to Figure 5—figure supplement 1. (B) Cochlear cryosectioned tissues from Celf4-3xHA-P2A-iCreER-T2A-EGFP/+ (Celf4-iCreER/+) mice at E15.5 were stained with EGFP antibody. EGFP signal was observed in SGN areas in all three cochlear turns and in vestibular neuron (VGN) regions. (C–C’’) Double-labeling for EGFP and neuronal marker Map2. Arrows: one EGFP+ cell that expressed Map2, confirming that it was an SGN. (D–D’’) Double-labeling for EGFP and glial marker Sox10. Arrows: one EGFP+ cell that did not express Sox10, confirming that it was not a glial cell. (E) Cochlear cryosectioned tissues from Celf4-iCreER/+ mice at P1 were stained with EGFP antibody. (F–F’’’) Triple-labeling with EGFP, HA, and Map2 antibodies. Arrows: one SGN that expressed EGFP, HA-tagged Celf4, and Map2. (G–H’’’) Triple-labeling for EGFP, HA, and Map2 in cochlear cryosection tissues, shown at low (G–G’’’) and high resolution (H–H’’’), from Celf4-3xHA-P2A-iCreER-T2A-EGFP/+ (Celf4-iCreER/+) mice at P30. Arrows in (H–H’’’): one SGN that expressed EGFP, HA (Celf4), and Map2. VGNs (G’’’) also expressed Celf4. Because the EGFP and HA signals were stronger in VGNs than in SGNs, Celf4 expression level is expected to be higher in VGNs. Sac: sacculus. Scale bars: 200 μm (B, E and G’’’) and 20 μm (C’’, D’’, F’’’ and H’’’).

We first characterized inner ear samples from Celf4-iCreER/+ mice at E15.5 (n = 3, mouse numbers). EGFP+ cells were observed in the SGN region of all three cochlear turns (Figure 5B). These EGFP+ cells expressed Map2 (arrows in Figure 5C–C’’) but not Sox10 (arrows in Figure 5D–D’’), confirming that these cells were SGNs and not glial cells. In agreement with our finding that Celf4 mRNA levels gradually increased (dynamic expression) after E15.5 (Figure 2C–D), Celf4 protein was detected at a low signal-to-noise ratio at E15.5 with an anti-HA antibody (data not shown), but by P1, the signal-to-noise ratio of HA (Celf4) staining in EGFP+/Map2+ SGNs was considerably increased (arrows in Figure 5F–F’’’). Moreover, EGFP and HA (Celf4) expression was maintained in Map2+ SGNs at P30 (Figure 5G–H’’’). Furthermore, in addition to SGNs, VGNs expressed EGFP (Figure 5B, E and G’’’). In summary, Celf4 was expressed in SGNs and exhibited dynamic expression; this agrees with our RNA-Seq data (Figure 2C) and qPCR analysis of Celf4 mRNA (Figure 2D).

Fate mapping analysis by using Celf4-iCreER/+ mouse strain

Besides analyzing the temporal pattern of Celf4 expression, we performed fate mapping analysis by using the Celf4-iCreER/+; Rosa26-CAG-loxp-stop-loxp-tdTomato (Ai9)/+ mice (experimental group), as illustrated in Figure 6A. The control group included Rosa26-CAG-loxp-stop-loxp-tdTomato/+ mice. Both groups (n = 3, mouse numbers in each) were injected with tamoxifen at P1/P2 and analyzed at P11 (Figure 6B–D’’), or injected at P8/P9 and analyzed at P18 (Figure 6E–G’’), or at P30/P31 and analyzed at P40 (Figure 6H–J’’). No tdTomato+ cells were observed in any of the control groups. For brevity, those data were not presented here.

Figure 6 with 2 supplements see all
Fate-mapping analysis of Celf4-iCreER/+; Rosa26-CAG-loxp-stop-loxp-tdTomato/+ mice across multiple ages.

(A) Illustration of fate-mapping analysis method. (B–D’’) Tamoxifen was injected at P1 and P2, and analysis was performed at P11. We detected tdTomato+ cells in SGN and VGN areas based on tdTomato endogenous fluorescence (B). Double-labeling was performed for tdTomato and Tuj1 (C–C’’) or Sox10 (D–D’’). White arrows in (C–C’’): one Tuj1+/tdTomato+ SGN. Asterisk: one SGN that was not tdTomato+ due to the mosaicism of tamoxifen-mediated Cre-recombination. Yellow arrows in (D–D’’): one tdTomato+ SGN that did not express Sox10. (E–G’’) Tamoxifen was injected at P8 and P9, and analysis was performed at P18. As before, tdTomato+ cells were observed in SGN and VGN areas (E). Double-labeling was performed for tdTomato and Map2 (F–F’’) or Sox2 (G–G’’). Arrows in (F–F’’): one Map2+/tdTomato+ SGN. Yellow arrows in (G–G’’): one tdTomato+ SGN that did not express Sox2. (H–J’’) Tamoxifen was injected at P30 and P31, and analysis was performed at P40. Again, most of the tdTomato+ cells were detected in SGN and VGN areas (H). Double-labeling was performed for tdTomato and Map2 (I–I’’) or Sox2 (J–J’’). Arrows in (I–I’’): one Map2+/tdTomato+ SGN. As expected, the SGN indicated by yellow arrows in (J–J’’) expressed tdTomato but not Sox2, confirming that glial cells did not express Celf4. (K–M) Quantification of tdTomato+ SGNs in each turn after tamoxifen injection at P1 and P2 (K), P8 and P9 (L), or P30 and P31 (M); no significant differences (n.s.) were found between different turns at each age. TMX: tamoxifen. Scale bars: 200 μm (B, E, and H) and 20 μm (C’’, D’’, F’’, G’’, I’’, and J’’).

Figure 6—source data 1

Percentage of tdtomato+ SGNs when tamoxifen was given at postnatal ages.

We detected tdTomato+ cells in SGN regions at P11, P18, and P40 at a similar density (white arrows in Figure 6B,E and H). These tdTomato+ cells expressed the SGN markers Tuj1 and Map2 (white arrows in Figure 6C–C’’, Figure 6F–F’’ and Figure 6I–I’’) but not the glial markers Sox10 and Sox2 (yellow arrows in Figure 6D–D’’, Figure 6G–G’’ and Figure 6J–J’’). Because tamoxifen was not taken up by all cells, a few Tuj1+ SGNs did not express tdTomato (asterisks in Figure 6C–C’’). Quantification of the data did not reveal significant differences in the percentage of tdTomato+ SGNs between the different cochlear turns at P11 (Figure 6K), P18 (Figure 6L) or P40 (Figure 6M). At P11, P18 and P40, 33.5%–52.4%, 32.5–44.4% and 13.0–21.5% of SGNs were tdTomato+, respectively (n = 3, mouse numbers for each age). The EGFP signal here was also detected in cochlear duct cells, including HCs at P1 (Figure 5E); this should be regarded as background signal because no tdTomato+ HCs were visible in whole-mount analysis performed during the lineage tracing (tamoxifen injection at P1/P2) (Figure 6—figure supplement 1). We also detected tdTomato+ mesenchymal cells beneath the basilar membrane at P11 (Figure 6—figure supplement 1D).

To determine whether Celf4 is expressed in the early embryonic otocyst, Celf4-iCreER/+; Rosa26-CAG-loxp-stop-loxp-tdTomato/+ embryos (n = 3, embryo numbers) were administered tamoxifen at E10.5 and analyzed at E18.5 (Figure 6—figure supplement 2). Numerous tdTomato+ cells were observed in SGN regions (Figure 6—figure supplement 2A–C). Those tdtomato+ cells expressed Mafb (arrows in Figure 6—figure supplement 2D and D’), but not Sox2 (arrows in Figure 6—figure supplement 2E–E’’). Again, it confirms that tdTomato+ cells were SGNs but not glial cells. Interestingly, there was a significant difference regarding the percentage of tdTomato+ SGNs at basal (14.3 ± 1.53%), middle (5.04 ± 1.22%) and apical (0.60 ± 0.41%) turns (Figure 6—figure supplement 2F). It suggests that cells with higher Celf4 expression around E10.5 preferentially develop into SGNs at basal or middle turns. Moreover, we analyzed cochlear samples of Celf4-iCreER/+; Rosa26-CAG-loxp-stop-loxp-tdTomato/+ mice at P1 (n = 3, mouse number) that had not been administered tamoxifen. No tdTomato+ cells were observed in this case, which confirmed that Cre activity strictly depends on tamoxifen injection. Together, our data suggest that Celf4 expression is turned on in neuroblasts (SGN progenitors) by E10.5 and maintained in SGNs at a high level in adult ages. Celf4 was also expressed in other inner ear cells, such as mesenchymal cells (Figure 6—figure supplement 1).

Scrt2 and Celf4 are expressed in both type I and type II SGNs at adult ages

In the adult cochlea, Type I SGNs account for ~95% of all SGNs and Type II for only ~5%. Scrt2 and Celf4 were expressed in numerous SGNs at P30 (Figure 4—figure supplement 3E and Figure 5G–H’’’). Gata3 is highly expressed in adult Type II SGNs, but is not expressed or expressed at a very low level in adult Type I SGNs (Nishimura et al., 2017; Yu et al., 2013). To precisely determine whether Celf4 and Scrt2 were expressed in Type II SGNs, we co-labeled for tdTomato and Gata3 in Celf4-iCreER/+; Rosa26-CAG-loxp-stop-loxp-tdTomato/+ mice that were administered tamoxifen at P30/P31 and analyzed at P40, as well as in Scrt2-P2A-tdTomato/+ mice at P30. In SGN regions of both models, tdTomato+/Gata3+ cells were observed (arrows in Figure 7A–B’’), which showed that Type II SGNs expressed Scrt2 and Celf4. The tdTomato+ cells exhibiting no or very low Gata3 expression were Type I SGNs (asterisks in Figure 7A–B’’).

Figure 7 with 1 supplement see all
Scrt2 and Celf4 are expressed in both Type I and Type II SGNs in adult mouse cochlea.

(A–B’’) Co-labeling of tdTomato and Gata3 in cryosection cochlear samples from Scrt2-P2A-tdTomato/+ mice at P30 (A–A’’) and Celf4-iCreER/+; Rosa26-CAG-loxp-stop-loxp-tdTomato/+ mice that were administered tamoxifen at P30 and P31 and analyzed at P40 (B–B’’). Arrows: Type II SGNs, expressing both Type II marker Gata3 and tdTomato; asterisk: Type I SGNs, expressing only tdTomato; tdTomato represents expression of Scrt2 (A–A’’) and Celf4 (B–B’’). (C) Whole mount cochlear samples from Celf4-iCreER/+; Rosa26-CAG-loxp-stop-loxp-tdTomato/+ mice were co-stained with tdTomato and Gata3. Gata3 was widely expressed in cochlea including cells in organ of Corti (oc) and SGN areas. (D–D’) High-resolution confocal z-stack projection images of oc region at P40. Tdtomato+ fiber terminals were distributed in both IHCs and OHCs. Scale bars: 200 μm (C), 20 μm (A’’, B’’ and D’).

Besides SGN area (primarily in SGN peripheral region), Gata3 is widely expressed in many other cochlear cells including HCs (Figure 7C). Tdtomato+ fibers were found in OHC and IHC regions of Celf4-iCreER/+; Rosa26-CAG-loxp-stop-loxp-tdTomato/+ mice at P40 (Figure 7D–D’). Again, it supported that Celf4 was expressed both type I and II SGNs. However, it is also possible that some of those tdTomato+ fibers were efferent. Whole mount staining of tdTomato and Gata3 were also performed in cochlear samples of Scrt2-P2A-tdTomato/+ mice at P30. Similar to Figure 4—figure supplement 3E, plenty of tdtomato+ SGNs were observed. Unfortunately, signal-to-noise ratio of tdtomato+ fibers close to IHCs and OHCs were low and the poor quality images were not presented here. We speculated that the expression level of tdtomato driven by Scrt2 endogenous gene was lower than that driven by CAG promoter in Rosa26 locus in Celf4-iCreER/+; Rosa26-CAG-loxp-stop-loxp-tdTomato/+ mice. Together, we conclude that both Type I and Type II SGNs express Scrt2 and Celf4 at P30.

Scrt2 and Celf4 are expressed in adult brain tissues

Last, we also briefly characterized the expression patterns of Scrt2 and Celf4 in the adult mouse brain. Celf4 was previously reported to be expressed in the olfactory bulb, cortex, hippocampus and cerebellum in the adult brain (Wagnon et al., 2011; Yang et al., 2007; Yue et al., 2014). Accordingly, tdTomato+ cells were detected in these four brain areas of Celf4-iCreER/+; Rosa26-CAG-loxp-stop-loxp-tdTomato/+ mice that were administered tamoxifen at P42 and P43, and analyzed at P52 (Figure 7—figure supplement 1A–D). Triple labeling for tdTomato, EGFP and HA revealed that both Celf4 mRNA and protein were expressed (arrows in Figure 7—figure supplement 1E–E’’’).

Similarly, tdTomato+ cells were also observed in the olfactory bulb, cortex, hippocampus and cerebellum of Scrt2-P2A-tdtomato/+ mice at 4-month-old of age (Figure 7—figure supplement 1F–I). Notably, several tdTomato+ cells with long branched dendrites were observed in the cerebellum and these are likely Purkinje cells (arrow in inset of Figure 7—figure supplement 1I). The observed Scrt2 expression in the adult cerebellum and cortex is consistent with the mouse Encode transcriptome data (Yue et al., 2014). Scrt2 has been recently reported to be a critical regulator of cerebellum development (Ha et al., 2019). Future work is also needed to investigate whether Celf4 and Scrt2 are expressed in auditory ascending and descending neurons in brain. It will be able to address whether some tdTomato+ fibers were efferent or exclusively afferent (Figure 7D–D’). Together, our data suggest that Celf4 and Scrt2 are not exclusively expressed in SGNs and might be general regulators for neuron development.


We performed bulk RNA-Seq analysis of cochlear SGNs at five ages, E15.5, P1, P8, P14, and P30, covering distinct developmental states of SGNs. By comparing the transcriptomes of these SGNs and HCs/glial cells, we identified previously unknown SGN-specific genes, and we classified these genes as either constant or dynamic genes depending on their expression profile during development (Figure 2A and B). The accuracy of our dataset was further partially validated by our RNA in situ hybridization and thorough analysis of two knockin mouse strains that we generated. Thus, we have presented a precise and comprehensive dataset covering the transcriptomes of coding and noncoding genes that were not provided by previous studies.

Comparison between our bulk RNA-Seq and three previous single-cell RNA-Seq analyses of SGNs

Pioneering single-cell RNA-Seq studies of SGNs were recently reported by three research groups (Petitpré et al., 2018; Shrestha et al., 2018; Sun et al., 2018). These groups used distinct methods: one group produced SGN cell suspensions from 9-week-old mice and used droplet microfluidics (10 × Genomics) (Sun et al., 2018); another group used manual picking and the Smart-seq2 method with P25–P27 mice (Shrestha et al., 2018); and the third group used fluorescence-activated cell sorting (FACS) to obtain SGNs from P17, P21, and P33 mice and constructed sequencing libraries by using Smart-seq2 (Petitpré et al., 2018). Despite differences related to age and single-cell RNA-Seq methods in the studies, similar conclusions were drawn: SGNs can be divided into Type Ia, Type Ib, Type Ic, and Type II subtypes. Multiple SGN genes, such as Pou4f1, Lypd1, Calb1 and Calb2, are differentially expressed in each Type I subtype. Recently, nano-pore long-read RNA-Seq analysis has revealed the splicing diversity of inner ear HCs and Deiters’cells (Ranum et al., 2019); we speculate that a higher degree of heterogeneity (than currently appreciated) will be found among SGNs if long-read RNA-Seq is used.

All three aforementioned single-cell RNA-Seq studies focused on the heterogeneities among SGNs or among different cochlear turns for tonotopic analysis. By contrast, we focused here on comparing the transcriptomes of SGNs and two other inner ear cell types, HCs and glia. Our aim was to identify genes that were expressed specifically in SGNs within cochlea and exhibited either constant (e.g. Scrt2) or dynamic (e.g. Celf4) expression patterns. We expect these genes to represent promising candidate regulators of SGN cell-fate determination and/or differentiation. Accordingly, Mafb appeared in our list of dynamic genes, and this gene is known to be required for SGN to function properly (Yu et al., 2013). Because only HCs and glial cells were used as reference cells in this study, we cannot rule out the possibility that other cell types in the cochlea also transiently or permanently express the genes listed in Figure 2. In accord with this view, Celf4 expression was also sporadically detected in mesenchymal cells in our lineage-tracing assays (Figure 6—figure supplement 1). Comprehensive analysis in the future will be necessary to confirm the in situ expression of each of these genes.

Another distinguishing feature of our study as compared with other studies is that we did not limit our analysis to coding mRNAs. Whereas single-cell RNA-Seq can only capture mRNAs harboring poly-A tails, our approach uses both oligo-dT and random primers and thus captures both mRNAs and noncoding RNAs. For example, mir680-2 (microRNA 680–2) was identified as an SGN dynamic gene (Figure 2B). Our method also allowed for greater depth of coverage than before because we pooled ~100 pure SGNs; this led to the detection of ~15,000 genes (TPM >1), which is considerably deeper than the coverage in previous SGN single-cell RNA-Seq studies:~2000 genes with 10 × Genomics v2 (Sun et al., 2018) or ~8000 genes with Smart-seq2 approach (Shrestha et al., 2018). It is reported that SGNs were easily contaminated by blood cells (Sun et al., 2018). We found that genes of blood cells, such as Hbb-bs and Hbb-bt, were depleted in our samples (Figure 2—figure supplement 2), which indicated that the three SGN washing steps in our procedure markedly diminished the RNAs released by blood cells. In summary, to our knowledge, this bulk RNA-Seq database represents the first report of SGN-specific genes showing constant or dynamic expression and it features a large and vast covering depth. A combination of our bulk RNA-Seq and previous single-cell RNA-Seq of SGNs will enable future investigation of SGN gene expression from multiple perspectives. Last, besides the aforementioned RNA-Seq data of SGNs, data are available from one microarray study of SGNs and VGNs covering ages from E12 to P15 (Lu et al., 2011). Interestingly, both the microarray data and our bulk RNA-Seq data show that immune-related genes are overrepresented in SGNs, and thus the functions of these genes warrant further investigation. Different from microarray data, our bulk RNA-Seq can reveal SGN-specific genes because we used HCs and glias as reference. In addition, relative to microarray analysis, RNA-Seq dataset can reveal wider range of gene expression level difference.

Applications of Scrt2-tdTomato/+ knockin mouse model

We generated the knockin Scrt2-tdTomato/+ mouse strain not only because we sought to validate our RNA-Seq data, but also to provide a useful genetic tool for future studies on SGN development and regeneration. For example, attempts to regenerate SGNs from neighboring glial cells are of increasing interest and importance (Noda et al., 2018); but conducting functional patch-clamp studies to validate such attempts requires the precise identification of new SGNs without antibody staining. Therefore, use of a fluorescent protein whose expression is driven by an SGN-specific gene promoter/enhancer can facilitate such studies. For this purpose, Scrt2 is more suitable than Parvalbumin and Calbindin, which are expressed both in HCs and SGNs. Previous single-cell RNA-Seq data (Shrestha et al., 2018) and our own Scrt2 analysis data showed that Scrt2 is expressed in both Type I and Type II SGNs (Figure 7A–A’’). Thus, regardless of whether new SGNs resemble the Type I or II SGN subtype, the Scrt2-tdTomato/+ strain can be used as a readout.

Our Scrt2-tdTomato/+ strain also offers advantages over Mapt (Tau)-EGFP/+ mice (Jax#: 029219). First, Mapt-EGFP/+ are knockout mice and EGFP expression replaces Mapt expression (Tucker et al., 2001). However, because we used the 2A-peptide approach to generate Scrt2-tdTomato/+ mice, Scrt2 expression is intact even in the homozygous background for brighter tdTomato. Second, the EGFP pattern in Mapt-EGFP/+ mice primarily recapitulates the Tuj1 (β-tubulin III) pattern. Tuj1 is reported to be only strongly expressed in Type I SGNs at adult ages (Nishimura et al., 2017). Therefore, if the goal is to label as many SGNs as possible with a bright fluorescent protein, particularly from the SGN regeneration perspective, the Scrt2-tdTomato/+ strain is comparatively more powerful. Note that tdTomato signal was strong in cell body of SGNs but weak in their fiber terminals.

Potential contributions of Celf4-iCreER/+ knockin mouse strain to future SGN studies

The Cre/loxP system has been widely used in genetic studies in the inner ear field in the past two decades (Cox et al., 2012). Multiple Cre mouse strains are available, especially in the case of HCs. Gfi1Cre (knockout) and Gfi1-P2A-GFP-CreERT2 (Gfi1-GCE) knockin mice can be used to perform conditional loss-and-gain of function studies in HCs soon after HCs are formed (Tang et al., 2019; Yang et al., 2010). In the transgenic strain Atoh1-CreER+, neonatal cochlear HCs are targeted (Chow et al., 2006). By contrast, knockin strains Prestin-CreER/+ and vGlut3-iCreER/+ permit genetic manipulations in cochlear OHCs and IHCs at different postnatal ages (Fang et al., 2012; Li et al., 2018). These powerful tools together allow temporal genetic manipulations to be performed on HCs or specific HC subtypes.

Comparatively fewer SGN-specific CreER tools are currently available. Besides ShhCre/+ (used in this study), Neurog1-Cre/+ and Bhlhe22-Cre/+ lines (Quiñones et al., 2010; Ross et al., 2010), are highly suitable tools for deleting or activating genes in embryonic SGNs (Appler et al., 2013; Yu et al., 2013). However, these are all straight Cre lines, and gene deletion or activation occurs soon after SGN formation without temporal control with tamoxifen. A Neurog1-CreERT2 transgenic line (Jax#: 008529) is also available, and this can be used for embryonic tamoxifen-mediated temporal control (Koundakjian et al., 2007; Raft et al., 2007). However, in our RNA-Seq analysis, Neurog1 expression was rarely detected in SGNs at E15.5 and the tested postnatal ages, which suggests that Neurog1 is turned off after late embryonic ages. Therefore, none of the aforementioned lines can be used to manipulate gene functions starting at postnatal ages and particularly at adult ages.

Unlike the Cre lines mentioned above, Celf4-iCreER/+ is not very sensitive to the time of tamoxifen injection, and can efficiently target SGNs when tamoxifen is injected at P1/P2, P8/P9, or P30/P31 (Figure 6). We also observed tdTomato+ SGNs when tamoxifen was administered in Celf4-iCreER/+; Rosa26-CAG-loxp-stop-loxp-tdTomato/+ mice during embryonic stages (E10.5). Thus, Celf4-iCreER/+ holds the potential to emerge as a highly valuable tool for temporally manipulating SGN gene function at different ages. Besides Celf4-iCreER/+, a BAC transgenic Mafb-CreER+ line is available that can be used for sparse labeling of SGNs with tdTomato at P25–P27, assuming that tamoxifen is injected around P20 or earlier (Di Meglio et al., 2013; Shrestha et al., 2018). Mafb expression in Type I SGNs gradually decreased during postnatal ages (Yu et al., 2013). Mafb expression in Type I SGNs was substantially lower than in Type II SGNs. Therefore, we expected the percentage of Type I SGNs labeled in the Mafb-CreER+ strain to be smaller than that of Type II SGNs at adult ages. However, our data showed that Type II SGNs were frequently labeled by Celf4-iCreER/+ at P30 (Figure 7B–B’’). All of the Cre or CreER lines described above, except Prestin-CreER/+, are also active in the brain and other tissues. We are not aware of any SGN-specific Cre or CreER line that is exclusive for SGNs and shows no expression in any other mouse tissues.

What are the functions of SGN-specific genes showing constant or dynamic expression?

We noticed that many of the genes identified in our study were not previously known to be SGN-specific within cochlea. Both Scrt2 and Celf4 were expressed in both type I and II SGNs (Shrestha et al., 2018). Mafb, one of the genes found here to show dynamic expression, is recognized to control SGN differentiation and normal synaptogenesis between SGNs and IHCs (Yu et al., 2013). Apart from this example, the function of the majority of genes identified in SGNs remains unknown. One of our SGN-specific genes, Esrrg, which encodes estrogen-related receptor-γ, is reported to be involved in congenital hearing loss, but the detailed mechanisms underlying its function remain unclear (Schilit et al., 2016). Another SGN-specific gene, Lrrc55 (leucine-rich-repeat containing 55), is detected in SGNs as early as E15.5. Intriguingly, Lrrc52 (leucine-rich-repeat containing 52) is selectively expressed in Type I SGNs (Shrestha et al., 2018). Lrrc52, Lrrc55, and other members of this gene family (Lrrc26 and Lrrc58) are involved in the regulation of BK channels (large-conductance calcium- and voltage-activated potassium channels) and in various acoustic information-processing steps (Pyott and Duncan, 2016). For detailed functional validation of these newly identified SGN-specific genes, in vivo genetic studies are necessary. This will be one of our future research directions, and it will be facilitated by our recently established high-throughput CRISPR/Cas9-mediated base-editing (loss-of-function) method (Zhang et al., 2018).

In summary, we have provided a comprehensive high-quality SGN transcriptome database covering five ages, from early embryonic stage (E15.5) to the adult stage (P30) in mice, with deep coverage of a large number of genes. In contrast to other RNA-Seq analyses of SGNs, our study focused on identifying SGN-specific genes exhibiting constant or dynamic expression. Moreover, we generated two knockin mouse strains here: Scrt2-tdTomato/+ and Celf4-iCreER/+; we believe these will serve as useful tools for future studies on inner ear SGNs and on the central nervous system in general.

Materials and methods

Key resources table
Reagent type
(species) or
DesignationSource or
Strain, strain background (Mus musculus)ShhCre/+Liu et al., 2010Jackson Labstock #: 005622
Strain, strain background (Mus musculus)Atoh1-CreER+Chow et al., 2006MMRRCstock #: 029581-UNC
Strain, strain background (Mus musculus)vGlut3-iCreER/+Li et al., 2018Available upon request from Liu LabPlease contact (
Strain, strain background (Mus musculus)Scrt2-P2A-tdTomato/+It is a knockin mouse line where tdTomato can reflect Scrt2 mRNA expression patternJackson Labstock #: 034390 (will be deposited soon)
Strain, strain background (Mus musculus)Celf4-3xHA-P2A-iCreER-T2A-EGFP/+It is a knockin mouse line where HA is tagged at Celf4 protein c terminus. In addition, iCreER and EGFP are controlled by Celf4 promoter/enhancerJackson Labstock #: 034391 (will be deposited soon)
RNA extraction kitPicoPure RNA Isolation KitThermo ScientificCat#: KIT0204Extracting RNA from isolated cells
cDNA generation kitOvation RNA-Seq V2Tecan GenomicsCat#:7102–32Converting RNA to cDNA
Library construction kitOvation Rapid DR Multiplex SystemTecan GenomicsCat#: 0319–32Generating sequencing library with eight samples multiplexing
Digestion enzymeProteaseSigmaCat#: P5147Digesting inner ear tissues

Genetic labeling and pre- and post-sequencing quality checks of SGNs, HCs, and glial cells, and library construction

View detailed protocol

SGNs at different ages were manually picked to guarantee the highest purity of our samples. Manual picking allowed us to not only monitor the tdTomato fluorescence, morphology, and health of the cells, but also avoid picking up cellular debris. The picked cells were washed three times, to maximize sample purity, before loading into lysis buffer. We also used manual picking for one reference-cell population, P8 glial cells. We initially attempted to use FACS to obtain glial cells, but the purity of these cells did not meet our quality criteria. In the case of the second reference-cell population, P12 HCs (both cochlear and vestibular), the samples obtained using FACS met our quality criteria and were thus used.

Three genetic models were used for labeling each cell type with tdTomato. SGNs were genetically labeled with tdTomato by using ShhCre/+; Rosa26-CAG-loxp-stop-loxp-tdTomato/+ strain (Figure 1). After microdissection, cochlear tissues were examined under a fluorescence microscope to ascertain whether tdTomato+ cells were limited to the SGN region; this step eliminated any sample exhibiting germ-line leakage of ShhCre/+: leakage results in all cells in the inner ear becoming tdTomato+. HCs were genetically labeled with tdTomato by using Atoh1-CreER+; Rosa26-CAG-loxp-stop-loxp-tdTomato/+ mice that were administered tamoxifen at P0 and P1 (Chow et al., 2006). Lastly, glial cells and cochlear IHCs were designed to express tdTomato+ by using vGlut3-iCreER/+; Rosa26-CAG-loxp-stop-loxp-tdTomato/+ mice that were administered tamoxifen at P2 and P3 (Li et al., 2018), and only the tissues in the SGN area were dissected out in order to discard tdTomato+ IHCs. We followed the same tissue-digestion and cell-picking protocols as previously described (Li et al., 2018; Liu et al., 2015). PicoPure RNA Isolation Kit (KIT0204, Thermo Scientific) was used to extract RNA. Ovation RNA-Seq V2 (7102–32, Tecan Genomics) and Ovation Rapid DR Multiplex System (0319–32, Tecan Genomics) were used for cDNA conversion and library construction.

The pre-sequencing quality check was performed using qPCR. Mafb, Sox10, and Myosin-VI were selected as genes specific for SGNs, glia, and HCs, respectively, and the criterion applied was that for each cell type, the sample must show at least 30-fold enrichment or depletion in Mafb, Sox10, and Myosin-VI, as exemplified in P8 SGNs (Figure 1D-1F). The qPCR data were statistically analyzed using Student’s t test. Supplementary file 2 includes the qPCR primer sequences for each gene. The post-sequencing quality check was performed using additional known genes to verify the quality and purity of the cells. Besides SGN, HC, and glial markers, we evaluated genes covering seven other cell types: inhibitory neurons, catecholaminergic neurons, oligodendrocytes, astrocytes, microglia, choroid plexus cells, and blood cells—as well as housekeeping genes (Figure 2—figure supplement 2). Only samples passing both pre-and post-sequencing checkpoints were included in our study. All mice were bred and raised in SPF-level animal rooms, and animal procedures were performed according to the guidelines (NA-032–2019) of the IACUC of Institute of Neuroscience (ION), Chinese Academy of Sciences.

Computational analysis of RNA-Seq data

Request a detailed protocol

RNA-Seq reads in FASTQ files were mapped to the mouse mm10 genome using STAR (Dobin et al., 2013). Mapped reads were then quantified with featureCounts (Liao et al., 2014) using the mouse gencode.vM15 annotation (Harrow et al., 2012). Inter-group pairwise differential expressions were calculated: genes featuring CPM (counts per million) values of >1 for all the replicates in at least one group were selected to be considered for the subsequent analysis (21,293 out of 52,550, including HC and glia, or 17, 531 excluding HCs and glia).

To filter out SGN-specific genes showing either constant or dynamic expression (Figure 2A and B), the count data were TMM (the weighted trimmed mean of M-values) normalized and pairwise differential expressions were evaluated for all the pairs of groups using the limma package with its voom method (Law et al., 2014). First, SGN-specific genes showing constant expression were defined as genes at the intersection of these four conditions (Figure 2A): 1) differentially expressed between all SGNs and HC, glia (with fold change, FC > 4 and qval <0.01); 2) not differentially expressed between SGNs at different ages (FC < 2), 3) TPM (transcripts per million) values in HC and glia populations were <5; 4) mean TPM value in SGNs was >30. Second, SGN-specific genes showing dynamic expression were extracted according to the following conditions (Figure 2B): 1) a significant difference was found between at least one of the SGN groups and both HC and glia (qval <0.01 and FC > 4); 2) a significant difference was present in at least one paired comparison between different SGN groups (qval <0.05 and FC > 2); 3) maximum mean TPM of SGN group was >75; 4) maximum mean TPM of SGN group was at least 25 times as much as that of HC and glia. The use of relatively less stringent criteria should result in the identification of additional SGN-specific genes showing constant or dynamic expression patterns.

We also analyzed dynamics of SGN genes (CPM > 10 for all replicates in at least one age; 9349 genes) without considering their expression patterns in HC and glia (Figure 3). To classify gene dynamics, they are designated as up-regulated (u), down-regulated (d) or unchanged (-), between one age and the next age (e.g. SGN_E15.5 to SGN_P1). Up or down-regulation is determined based on these values: qval <0.05 and FC >2. Unchanged is determined based on qval >0.1, FC <2 and maximum element-wise FC <4. All other altered genes were designated as ‘noisy’. For simplicity, the noisy genes were included in the unchanged group (Figure 3B). The dynamics for the entire period were classified as the combination of the individual transitions (e.g. ‘u---" indicates up-regulation from E15.5 to P1, following by unchanged expression from P1 to P8, P8 to P14, and P14 to P30). Note that the dynamics here were focused on changes between two neighboring ages (Figure 3C–J). This differs from the dynamics in the context of SGN-specific genes showing dynamic expression patterns, which were defined as genes that exhibited significantly different expression between any of the two compared ages (Figure 2B). Because of this difference, Celf4 belonged to unchanged (----) category (Figure 3B). However, Celf4 expression at the adult age (P30) was significantly higher than that at E15.5 (Figure 2C), as also validated by qPCR analysis of Celf4 (Figure 2D). Therefore, Celf4 was defined as an SGN-specific gene showing dynamic expression (Figure 2B). Dynamic patterns of each gene (Figure 3B–J) were described in Supplementary file 1.

Last, to find what kind of genes belong to each of the above classified group, gene enrichment analyses (Figure 3K–M) were performed for each dynamic gene group using 1) the top-level HUGO gene groups (Braschi et al., 2019), 2) PANTHER Classification System (Mi et al., 2017), and 3) the Molecular Function component of the Gene Ontology Annotation (Ashburner et al., 2000). Enrichment p-value was calculated using hypergeometric distribution. All the raw data of our RNA-seq have been deposited in GEO (Gene Expression Omnibus) under the accession: GSE132925. The read counts of all the genes are available in the file: GSE132925-cochlear-SGN-cnts.txt.gz attached in GEO.

Generation of Scrt2-tdTomato/+ and Celf4-iCreER/+ knockin mouse strains

Request a detailed protocol

The Scrt2-tdTomato/+ mouse was generated by co-injecting a pre-tested sgRNA against Scrt2, donor DNA (Figure 4—figure supplement 1), and Cas9 mRNA into one-cell-stage mouse zygotes. The Scrt2 sgRNA sequence used was 5ʹ-Gcctcggcgggcatcccgca-3ʹ. Detailed donor DNA sequences are available upon request. Junction PCR was used to screen F0 mice, after which the F0 mice were crossed with wild-type C57BL/6 mice for germ-line transition and to produce F1 mice. The F1 mice were further screened using junction PCR and Southern blotting (Figure 4—figure supplement 1D and E). The Southern blotting results confirmed that no random insertion of donor DNA occurred in the mouse genomes; Southern blotting was performed according to our previously described protocol (Li et al., 2018). Tail-DNA PCR allowed us to distinguish wild-type (+/+), heterozygous (KI/+), and homozygous (KI/KI) mice. When primers F2 and R1 were used, the obtained KI PCR amplicon was 894 bp long; conversely, with primers F1 and R1, the obtained wild-type PCR amplicon was of 350 bp long. Theoretically, primers F1 and R1 should generate a 1844 bp band in the KI allele, but because of the short extension time of our PCR protocol, this band was not produced.

To produce the Celf4-iCreER/+ strain, a pre-tested Celf4 sgRNA, donor DNA, and Cas9 mRNA were injected into one-cell-stage mouse zygotes. All other procedures were identical to those described above and thus are not repeated here. We selected the gene Celf4-201 (ENSMUST00000025117.13 in Ensembl website) for gene targeting. The Celf4 sgRNA sequence used was 5ʹ-tacgggcgattggcgtcttt-3ʹ. Southern blotting analysis ruled out random insertion of donor DNA into the mouse genomes. When primers F1 and R1 were used, the obtained wild-type PCR amplicon was 471 bp long; with primers F2 and R1, the KI PCR amplicon was 612 bp long. As before, primers F1 and R1 did not successfully produce a 3402 bp amplicon in the KI allele due to the limited extension time of our PCR protocol. All sequences used for the genotyping-PCR primers for the two mouse strains are listed in Supplementary file 2. These two strains will be available at The Jackson Laboratory Repository ( under JAX Stock Nos. 034390 and 034391.

Sample processing, histology and immunofluorescence and RNA in situ hybridization

Request a detailed protocol

For lineage-tracing analysis of Celf4-iCreER/+; Rosa26-CAG-loxp-stop-loxp-tdTomato /+ mice, tamoxifen (T5648, Sigma) dissolved in corn oil (C8267, Sigma) was administered at P1/2 or P8/9 at a dosage of 3 mg/40 g body weight, or at P30/31 at a dosage of 9 mg/40 g body weight. Inner ear tissues from embryonic mice or mice younger than P10 were dissected out and fixed in fresh 4% PFA overnight at 4°C. Mice older than P10 were heart-perfused with 1 × PBS and then perfused with fresh 4% PFA, and this was followed by a second fixation in fresh 4% PFA overnight at 4°C. Inner ear tissues were washed three times with 1 × PBS and then either directly used in whole-mount analysis or soaked in 30% sucrose at 4°C overnight, embedded in OCT, cryosectioned at 14 μm thickness, and then examined.

The following primary antibodies were used: anti-Myosin-VI (rabbit, 1:200, Cat#: 25–6791, RRID:AB_10013626, Proteus Bioscience), anti-Mafb (rabbit, 1:300, Cat#: HPA005653, RRID:AB_1079293, Sigma), anti-GFP (chicken, 1:1000, Cat#: ab13970, RRID:AB_300798, Abcam), anti-Sox2 (goat, 1:1000, Cat#: sc-17320, RRID:AB_2286684, Santa Cruz Biotechnology), anti-HA (rat, 1:200, Cat#: 11867423001, RRID:AB_390918, Sigma), anti-Tuj1 (mouse, 1:500, Cat#: 801201, RRID:AB_2313773, BioLegend), anti-Gata3 (goat, 1:200, Cat#:AF2605, RRID: AB_2108571, R and D systems), anti-Map2 (rabbit, 1:400, Cat#: M3696, RRID:AB_1840999, Sigma), and anti-Sox10 (goat, 1:200, Cat#: sc-17342, RRID:AB_2195374, Santa Cruz Biotechnology). All secondary antibodies were purchased either from Thermo Scientific (Molecular Probes) or Jackson ImmunoResearch Laboratory. During the last step of immunostaining, samples were counter stained with Hoechst33342 (1:1000, Cat#: 62249, RRID:AB_2651135, Thermo Scientific) solution in 1x PBS to visualize nuclei. Slides were mounted with Prolong gold anti-fade mounting medium (Cat#: P36930, RRID:SCR_015961, Thermo Scientific). All images were captured using a Nikon NiE-A1 plus or Nikon C2 confocal microscope, and analyzed using Image-J. For detailed inner ear histology protocols, please refer to our previous study (Liu et al., 2010). RNA in situ hybridization was performed according to protocols described previously (Li et al., 2018). The detailed sequence of the RNA probe for each gene was listed in Supplementary file 3.

Quantification and statistical analysis of tdTomato+ SGNs in Celf4-iCreER/+; Rosa26-CAG-loxp-stop-loxp-tdTomato /+ mice

Request a detailed protocol

To quantify the number of tdTomato+ SGNs in the distinct cochlear turns of Celf4-iCreER/+; Rosa26-CAG-loxp-stop-loxp-tdTomato /+ mice of different ages, we used a cryosectioning approach (Figure 6 and Figure 6—figure supplement 2D–E’’). To precisely discriminate SGNs in basal, middle, and apical turns, we analyzed only those inner ear cryosection slices that included all three cochlear turns (Figure 6B,E and H, and Figure 6—figure supplement 2D–E’’). For each slice obtained from the same mouse, we determined, per cochlear turn, the number of dual tdTomato+/Tuj1+ (or Map2+ or Mafb+) SGNs, and then normalized these numbers against the total number of Tuj1+ (or Map2+ or Mafb+) SGNs to obtain an averaged percentage of tdTomato+ SGNs. These results are presented as means ± SEM (Figure 6K–M, and Figure 6—figure supplement 2F, n = 3 mouse numbers/age). Statistical analyses were performed using a one-way ANOVA, followed by a Student’s t test with Bonferroni correction. GraphPad Prism 6.0 was used for all statistical analyses.

Data availability

Sequencing data have been deposited in GEO under accession codes GSE132925.

The following data sets were generated


Article and author information

Author details

  1. Chao Li

    Institute of Neuroscience, State Key Laboratory of Neuroscience, CAS Center for Excellence in Brain Science and Intelligence Technology, Chinese Academy of Sciences, Shanghai, China
    Data curation, Formal analysis, Investigation, Writing - review and editing
    Contributed equally with
    Xiang Li and Zhenghong Bi
    Competing interests
    No competing interests declared
  2. Xiang Li

    Institute of Neuroscience, State Key Laboratory of Neuroscience, CAS Center for Excellence in Brain Science and Intelligence Technology, Chinese Academy of Sciences, Shanghai, China
    Data curation, Formal analysis, Investigation, Writing - review and editing
    Contributed equally with
    Chao Li and Zhenghong Bi
    Competing interests
    No competing interests declared
  3. Zhenghong Bi

    Institute of Neuroscience, State Key Laboratory of Neuroscience, CAS Center for Excellence in Brain Science and Intelligence Technology, Chinese Academy of Sciences, Shanghai, China
    Data curation, Formal analysis, Investigation, Writing - review and editing
    Contributed equally with
    Chao Li and Xiang Li
    Competing interests
    No competing interests declared
  4. Ken Sugino

    Howard Hughes Medical Institute, Janelia Research Campus, Ashburn, United States
    Software, Formal analysis, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5795-0635
  5. Guangqin Wang

    Institute of Neuroscience, State Key Laboratory of Neuroscience, CAS Center for Excellence in Brain Science and Intelligence Technology, Chinese Academy of Sciences, Shanghai, China
    Data curation, Formal analysis, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Tong Zhu

    Institute of Neuroscience, State Key Laboratory of Neuroscience, CAS Center for Excellence in Brain Science and Intelligence Technology, Chinese Academy of Sciences, Shanghai, China
    Data curation, Formal analysis
    Competing interests
    No competing interests declared
  7. Zhiyong Liu

    1. Institute of Neuroscience, State Key Laboratory of Neuroscience, CAS Center for Excellence in Brain Science and Intelligence Technology, Chinese Academy of Sciences, Shanghai, China
    2. Shanghai Center for Brain Science and Brain-Inspired Intelligence Technology, Shanghai, China
    Conceptualization, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9675-1233


Ministry of Science and Technology of the People's Republic of China (2017YFA0103901)

  • Zhiyong Liu

Chinese Academy of Sciences (XDB32060100)

  • Zhiyong Liu

National Natural Science Foundation of China (81771012)

  • Zhiyong Liu

Shanghai Municipal Education Commission (2018SHZDZX05)

  • Zhiyong Liu

Boehringer Ingelheim (DE811138149)

  • Zhiyong Liu

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.


We thank Dr. Qian Hu and the Optical Imaging Facility from the Institute of Neuroscience for support with the image analysis, Dr. Hui Yang (Principal Investigator from the Institute of Neuroscience) for sharing the zygote microinjection system to generate the knockin mice, Ms. Wenqin Ying (from the laboratory of Dr. Hui Yang at the Institute of Neuroscience) for helping us in transplanting zygotes into pseudopregnant female mice, and Dr. Virginia MS Rutten (HHMI-Janelia Research Campus, Ashburn, VA, USA) for assistance in editing the text.


Animal experimentation: All mice were bred and raised in SPF level animal rooms and animal procedures were performed according to guidelines (NA-032-2019) of the IACUC of Institute of Neuroscience (ION), Chinese Academy of Sciences.

Version history

  1. Received: July 24, 2019
  2. Accepted: January 7, 2020
  3. Accepted Manuscript published: January 8, 2020 (version 1)
  4. Version of Record published: January 24, 2020 (version 2)


© 2020, Li et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.


  • 6,170
    Page views
  • 883
  • 39

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Chao Li
  2. Xiang Li
  3. Zhenghong Bi
  4. Ken Sugino
  5. Guangqin Wang
  6. Tong Zhu
  7. Zhiyong Liu
Comprehensive transcriptome analysis of cochlear spiral ganglion neurons at multiple ages
eLife 9:e50491.

Share this article

Further reading

    1. Developmental Biology
    2. Immunology and Inflammation
    Amir Hossein Kayvanjoo, Iva Splichalova ... Elvira Mass
    Research Article Updated

    During embryogenesis, the fetal liver becomes the main hematopoietic organ, where stem and progenitor cells as well as immature and mature immune cells form an intricate cellular network. Hematopoietic stem cells (HSCs) reside in a specialized niche, which is essential for their proliferation and differentiation. However, the cellular and molecular determinants contributing to this fetal HSC niche remain largely unknown. Macrophages are the first differentiated hematopoietic cells found in the developing liver, where they are important for fetal erythropoiesis by promoting erythrocyte maturation and phagocytosing expelled nuclei. Yet, whether macrophages play a role in fetal hematopoiesis beyond serving as a niche for maturing erythroblasts remains elusive. Here, we investigate the heterogeneity of macrophage populations in the murine fetal liver to define their specific roles during hematopoiesis. Using a single-cell omics approach combined with spatial proteomics and genetic fate-mapping models, we found that fetal liver macrophages cluster into distinct yolk sac-derived subpopulations and that long-term HSCs are interacting preferentially with one of the macrophage subpopulations. Fetal livers lacking macrophages show a delay in erythropoiesis and have an increased number of granulocytes, which can be attributed to transcriptional reprogramming and altered differentiation potential of long-term HSCs. Together, our data provide a detailed map of fetal liver macrophage subpopulations and implicate macrophages as part of the fetal HSC niche.

    1. Developmental Biology
    2. Neuroscience
    Smrithi Prem, Bharati Dev ... Emanuel DiCicco-Bloom
    Research Article Updated

    Autism spectrum disorder (ASD) is defined by common behavioral characteristics, raising the possibility of shared pathogenic mechanisms. Yet, vast clinical and etiological heterogeneity suggests personalized phenotypes. Surprisingly, our iPSC studies find that six individuals from two distinct ASD subtypes, idiopathic and 16p11.2 deletion, have common reductions in neural precursor cell (NPC) neurite outgrowth and migration even though whole genome sequencing demonstrates no genetic overlap between the datasets. To identify signaling differences that may contribute to these developmental defects, an unbiased phospho-(p)-proteome screen was performed. Surprisingly despite the genetic heterogeneity, hundreds of shared p-peptides were identified between autism subtypes including the mTOR pathway. mTOR signaling alterations were confirmed in all NPCs across both ASD subtypes, and mTOR modulation rescued ASD phenotypes and reproduced autism NPC-associated phenotypes in control NPCs. Thus, our studies demonstrate that genetically distinct ASD subtypes have common defects in neurite outgrowth and migration which are driven by the shared pathogenic mechanism of mTOR signaling dysregulation.
