Cell-type-specific regulation of neuronal intrinsic excitability by macroautophagy

  1. Ori J Lieberman  Is a corresponding author
  2. Micah D Frier
  3. Avery F McGuirt
  4. Christopher J Griffey
  5. Elizabeth Rafikian
  6. Mu Yang
  7. Ai Yamamoto
  8. Anders Borgkvist
  9. Emanuela Santini
  10. David Sulzer  Is a corresponding author
  1. Columbia University Vagelos College of Physicians and Surgeons, United States
  2. Karolinska Institute, Sweden
  3. New York State Psychiatric Institute, United States
Research Article
  • Cited 2
  • Views 1,026
  • Annotations
Cite this article as: eLife 2020;9:e50843 doi: 10.7554/eLife.50843

Abstract

The basal ganglia are a group of subcortical nuclei that contribute to action selection and reinforcement learning. The principal neurons of the striatum, spiny projection neurons of the direct (dSPN) and indirect (iSPN) pathways, maintain low intrinsic excitability, requiring convergent excitatory inputs to fire. Here, we examined the role of autophagy in mouse SPN physiology and animal behavior by generating conditional knockouts of Atg7 in either dSPNs or iSPNs. Loss of autophagy in either SPN population led to changes in motor learning but distinct effects on cellular physiology. dSPNs, but not iSPNs, required autophagy for normal dendritic structure and synaptic input. In contrast, iSPNs, but not dSPNs, were intrinsically hyperexcitable due to reduced function of the inwardly rectifying potassium channel, Kir2. These findings define a novel mechanism by which autophagy regulates neuronal activity: control of intrinsic excitability via the regulation of potassium channel function.

Introduction

Although classically studied in the context of neurodegeneration, macroautophagy, hereafter referred to as autophagy, has recently been identified as a critical regulator of neuronal activity and function (Friedman et al., 2012; Hernandez et al., 2012; Nikoletopoulou and Tavernarakis, 2018; Nixon, 2013; Tang et al., 2014; Yamamoto and Yue, 2014). Autophagy is a process in which proteins or organelles are enclosed in a double membrane organelle, known as an autophagosome, which then traffics to the lysosome for degradation of its cargo (Klionsky, 2007). Autophagosomes also fuse with recycling endosomes, to form amphisomes that act as key intermediates for the degradation of endosomal cargo including plasma membrane proteins (Eskelinen, 2005; Yamamoto and Yue, 2014).

Autophagy plays evolutionarily conserved roles in the regulation of synapse formation, structure and function. In early development, autophagic function is required presynaptically for axon pathfinding and circuit formation (Dragich et al., 2016; Stavoe et al., 2016) and, in mature neural circuits, the absence of presynaptic autophagy leads to deficits in neurotransmitter release and synaptic vesicle recycling due to the accumulation of damaged synaptic vesicles or mitochondria (Hernandez et al., 2012; Hoffmann et al., 2019; Vijayan and Verstreken, 2017). In excitatory projection neurons of the hippocampus and cortex, autophagy controls neurotransmission postsynaptically via the degradation of ionotropic glutamate and GABA receptors and synaptic scaffolding proteins such as PSD95 and Arc (Nikoletopoulou et al., 2017; Rowland, 2006; Shehata et al., 2012; Sumitomo et al., 2018; Tang et al., 2014; Yan et al., 2018). Developmental synaptic pruning in the cortex is dependent on both neuronal and microglial autophagy (Kim et al., 2017; Lieberman et al., 2019b; Tang et al., 2014) and autophagic degradation of unidentified neuronal proteins contributes to hippocampal synaptic plasticity (Glatigny et al., 2019; Nikoletopoulou et al., 2017). Thus, autophagy is a ubiquitous cellular process critical to proper synaptic function in the central nervous system.

The brain is, however, composed of heterogenous populations of neurons with distinctive patterns of activity determined by the interplay of a complement of ion channels and synaptic inputs. Whether autophagy regulates neurotransmission via distinct processes in specific classes of neurons remains unknown.

The striatum is the primary input nucleus of the basal ganglia, a collection of subcortical brain structures required for learning and executing goal-directed behaviors. In contrast to hippocampal and cortical pyramidal neurons where the contribution of autophagy to neurotransmission has been most studied, the striatum is composed of two intermixed and morphologically indistinguishable classes of GABAergic projection neurons: direct pathway (dSPN) and indirect pathway (iSPN) spiny projection neurons (Gerfen and Surmeier, 2011). SPNs receive convergent excitatory inputs from cortical and thalamic projection neurons, inhibitory input from local interneurons, and a variety of modulatory synaptic inputs (Doig et al., 2010; Gerfen and Surmeier, 2011). SPN activity in response to these inputs is governed by their low intrinsic excitability and high latency to fire, necessitating coordinated excitatory synaptic inputs on dendritic spines and shafts to elicit an action potential (Wilson and Kawaguchi, 1996). The disruption of normal SPN activity produces deficits in motor activity (Durieux et al., 2012; Kravitz et al., 2010); motivation (Carvalho Poyraz et al., 2016; Kellendonk et al., 2006); and responses to drugs of abuse (Dong et al., 2006). Striatal dysfunction has also been linked to autism spectrum disorders (Chang et al., 2015; Fuccillo, 2016), a disease in which autophagic dysfunction has been reported in mouse models and postmortem human brain tissue (Poultney et al., 2013; Tang et al., 2014; Yan et al., 2018). How autophagy contributes to striatal function and SPN physiology, however, remains unknown.

Here, we generated conditional knockouts of Atg7, a protein required for autophagy (Komatsu et al., 2005), in dSPNs and iSPNs and find that loss of Atg7 in either SPN subtype led to behavioral abnormalities in the absence of neurodegeneration. Loss of Atg7 in dSPNs led to alterations in their dendritic arbor, dendritic spines and synaptic inputs, similar to that reported in pyramidal neurons. In contrast, dendritic arborization, spine density and synaptic inputs were not changed in iSPNs lacking Atg7. Instead, Atg7 in iSPNs was required for the function of the inwardly rectifying Kir2 channel, which maintains the hyperpolarized resting membrane potential and low input resistance that are characteristic of SPNs. We found that ongoing Atg5- and Atg7-dependent autophagy contributes to the lysosomal delivery of endocytosed Kir2 channels and, in its absence, Kir2 channel abundance was elevated on the plasma membrane but exhibited reduced activity. We further found that the excess channels are inactivated by acetylation, explaining the intrinsic hyperexcitability of Atg7-deficient iSPNs. These results introduce the regulation of neuronal intrinsic excitability by autophagy, indicate how this occurs at a specific molecular target, and demonstrate a role for this pathway in normal behaviors.

Results

Generation of conditional knockout mice lacking autophagy in dSPNs or iSPNs

To address the role of autophagy in SPN physiology and striatal function, we generated separate lines of mice lacking Atg7 in dSPNs or iSPNs using Cre driver lines (CreDrd1aey262 for dSPNs and CreAdora2aKG139 for iSPNs) (Figure 1A–B) (Gong et al., 2007; Komatsu et al., 2006; Komatsu et al., 2005). Mice lacking Atg7 in dSPNS or iSPNs (referred to as dSPNAtg7cKO and iSPNAtg7cKO, respectively) were born at Mendelian ratios and survived into adulthood (data not shown). Littermate control mice harbored the floxed Atg7 allele without the Cre driver. We conducted a subset of electrophysiological and biochemical experiments in Cre+ Atg7wt mice but found no effect of Cre expression compared to Cre- Atg7Fl/Fl controls and have thus combined these data.

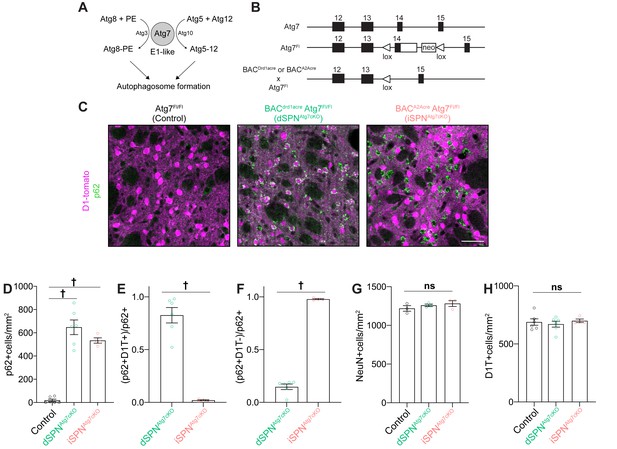

Specific loss of Atg7-mediated autophagy in dSPNs or iSPNs in the absence of neurodegeneration in dSPNAtg7cKO mice and iSPNAtg7cKO, respectively.

(A) Schematic representation of the role of Atg3, 5, 7, 8, 10, and Atg12 in a cascade leading to autophagosome formation. (B) Schematic of Atg7 locus in Atg7Fl/Fl mice and following Cre-mediated recombination. (Adapted from Komatsu et al., 2006). (C) Immunofluorescent images of striatal sections from Atg7Fl/Fl (Control), D1-cre Atg7Fl/Fl (dSPNAtg7cKO) or A2Acre-Atg7Fl/Fl (iSPNAtg7cKO) mice. (D) p62+ cells per field in control, dSPNAtg7cKO or iSPNAtg7cKO mice. Control: N=6 mice, dSPNAtg7cKO: N = 6 mice, iSPNAtg7cKO: N=4 mice. Data analyzed by one-way ANOVA, F(2,13)=65.73, p = 0.001. (E-F) Number of (E) D1-tomato+ or (F) D1-Tomato-, p62+ cells in dSPNAtg7cKO and iSPNAtg7cKO mice. N = 6 dSPNAtg7cKO mice and N=4 iSPNAtg7cKO mice. Data in (E-F) were analyzed by two-tailed unpaired t test. (E) t8=8.816, p = 0.0001. (F) t8=24.94, p = 0.0001. (G-H) There were no differences in NeuN+ [Control: N = 3 mice, dSPNAtg7cKO: N = 3 mice, iSPNAtg7cKO: N = 3 mice; analyzed by one-way ANOVA F(2,6) = 1.019, p = 0.4160] or D1-tomato+ cells per field [Control: N=6 mice, dSPNAtg7cKO: N = 6 mice, iSPNAtg7cKO: N=4 mice; analyzed by one-way ANOVA F(2,13) = 0.3144, p = 0.7356]. ns p>0.05, * p<0.05, ** p<0.01, *** p<0.001, † p<0.0001.

To identify SPN subtype, we utilized BAC transgenic mice expressing the tdTomato fluorescent protein under the dopamine D1 receptor promoter (D1-tomato), which specifically labels dSPNs (Ade et al., 2011) and crossed this line into control, iSPNAtg7cKO and dSPNAtg7cKO mice. A Cre-dependent reporter at the Rosa26 locus could have been used to mark recombined cells but the Atg7 locus is close to the Rosa26 locus on chromosome six and we were therefore unable to generate recombinants (data not shown).

As SPNs represent >95% of neurons in the striatum, D1-tomato negative cells are predominantly iSPNs (Shuen et al., 2008). In the absence of autophagy, cytosolic inclusions containing the autophagy cargo receptor, p62, form. p62 puncta were selectively observed in ~80% of D1-tomato-positive neurons (presumed dSPNs) in dSPNAtg7cKO mice and ~95% D1-tomato-negative (presumed iSPNs) in iSPNAtg7cKO mice (Figure 1C–F). We note that in dSPNAtg7cKOmice ~ 15% of p62+ cells were D1-tomato-negative, suggesting that some non-specific Cre-mediated recombination of the ‘floxed’ Atg7 allele occurs as previously described for this Cre driver line. Finally, we confirmed that similar numbers of p62+ cells are present in the striatum of dSPNAtg7cKO and iSPNAtg7cKO mice at P28, when electrophysiological recordings in Figures 3 and 4 were collected (data not shown).

Loss of neuronal autophagy can lead to neurodegeneration (Hara et al., 2006; Komatsu et al., 2006). We found no difference in the number of NeuN+ or D1-Tomato+ cells at 5 months of age in dSPNAtg7cKO or iSPNAtg7cKO mice compared to controls (Figure 1G–H). Together, these results demonstrate that these conditional knockouts permit the analysis of the consequences of the specific loss of dSPN or iSPN autophagy in the absence of neurodegeneration.

Loss of autophagy in SPNs leads to behavioral deficits

We generated multiple cohorts of male and female dSPNAtg7cKO and iSPNAtg7cKO mice along with respective littermate controls. We combined data from the littermate control groups of each cross as there was no difference between littermate controls from these two crosses in any behavioral task. We included approximately equal numbers of male and female mice from each genotype in these cohorts and did not find an interaction between sex and genotype. Table 1 includes behavioral results split by sex.

We identified several behavioral and phenotypic consequences of loss of autophagy in SPNs. Both male and female dSPNAtg7cKO mice weighed less than control mice from weaning until 3 months of age while iSPNAtg7cKO mice were indistinguishable from littermate controls (Figure 2A).

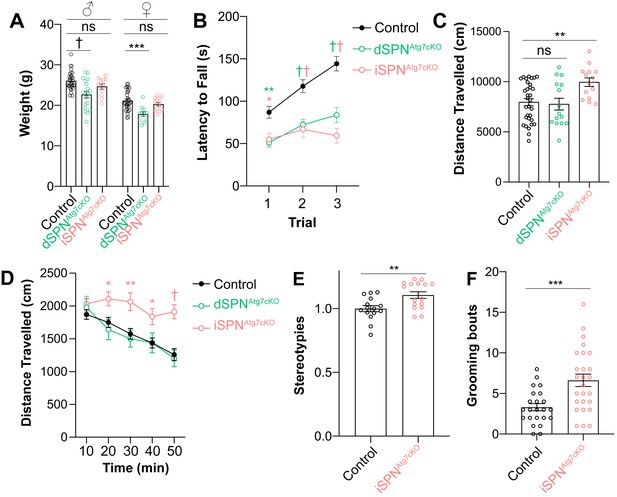

Atg7 in SPNs is required for motor performance and learning.

(A) Nine-week-old male and female dSPNAtg7cKO mice, but not iSPNAtg7cKO mice, weigh less than controls. Data were analyzed by two-way ANOVA followed by Bonferroni post-hoc test. Sex x Genotype: F(2,111) = 0.1073, p = 0.8983; Genotype: F(2,111) = 17.58, p<0.0001; Sex: F(1,111) = 87.65, p<0.0001. (B) Both dSPNAtg7cKO and iSPNAtg7cKO mice have a lower latency to fall off the accelerating rotarod. Control n = 50, dSPNAtg7cKOn = 34, iSPNAtg7cKOn = 23. Data were analyzed by two-way ANOVA followed by Bonferroni post-hoc test. Trial x Genotype: F(4,208) = 6.198, p<0.0001; Trial: F(2,208) = 26.34, p<0.0001; Genotype: F(2,104) = 20.73, p<0.0001. (C) iSPNAtg7cKO mice, but not dSPNAtg7cKO, demonstrate locomotor hyperactivity in the open field arena. One-way ANOVA followed by Bonferroni post-hoc test. (D) Time course of locomotor activity in the open field. Control n = 32, dSPNAtg7cKOn = 15, iSPNAtg7cKOn = 14. Data were analyzed by two-way ANOVA followed by Bonferroni post-hoc test. Time x Genotype: F(8,240) = 2.547, p = 0.0111; Time: F(4,240) = 21.99, p<0.0001; Genotype: F(2,60) = 6.270, p = 0.0034. (E) Automated scoring of stereotypies in the open field. Control: n = 15; iSPNAtg7cKO: n = 16. Data analyzed by two-tailed, unpaired t test. t29 = 2.994, p = 0.0056. (F) Manual scoring of grooming bouts over thirty minutes following habituation during a separate session. Control: n = 23; iSPNAtg7cKO: n = 26. Data analyzed by two tailed, unpaired t test. t47 = 3.623, p = 0.0007. See Table 1 for detailed statistics split by sex. ns p>0.05, *p<0.05, **p<0.01, ***p<0.001, † p<0.0001.

Table 1
Statistics split by sex for behavioral experiments in Figure 2.
SexGenotype (N)Mean (SEM)Statistics
Rotarod – learning rate (rpm/trial; trial 3- trial 1)
MaleControl (28)57.29 (10.17)p = 0.0088
 dSPNAtg7cKO (20)15.85 (8.333)
 iSPNAtg7cKO (11)22.45 (13.17)
FemaleControl (22)57.18 (12.89)p = 0.0029
 dSPNAtg7cKO (14)38.43 (12.69)
 iSPNAtg7cKO (12)−11.92 (12.33)
CombinedControl (50)57.24 (7.954)p = 0.0001
 dSPNAtg7cKO (34)25.15 (7.306)
 iSPNAtg7cKO (23)4.522 (9.526)
Sex x Genotype F(2,101) = 2.218 p = 0.1141
Weight (g)
MaleControl (31)26.07 (0.4074)p = 0.0003
 dSPNAtg7cKO (19)22.66 (0.8216)
 iSPNAtg7cKO (12)24.67 (0.6438)
FemaleControl (31)21.15 (0.4341)p = 0.0003
 dSPNAtg7cKO (11)17.85 (0.5850)
 iSPNAtg7cKO (13)20.29 (0.4439)
Sex x Genotype F(2,111) = 0.1073 p = 0.8983
Open Field – Distance traveled (cm)
MaleControl (17)6777 (397.9)p = 0.0159
 dSPNAtg7cKO (7)8073 (883.5)
 iSPNAtg7cKO (6)9318 (573.1)
FemaleControl (15)9307 (369.4)p = 0.0257
 dSPNAtg7cKO (7)7967 (773.3)
 iSPNAtg7cKO (8)10433 (584.5)
CombinedControl (32)7963 (351.7)p = 0.0048
 dSPNAtg7cKO (15)7762 (585.4)
 iSPNAtg7cKO (15)9955 (427.4)
Sex x Genotype F(2,54) = 3.045 p = 0.0558
Open Field – Stereotypies (data normalized)
MaleiSPNCtrl (7)1.00 (0.030)p = 0.0293
 iSPNcKO (6)1.136 (0.047)
FemaleiSPNCtrl (8)1.00 (0.038)p = 0.0819
 iSPNcKO (8)1.094 (0.032)
CombinediSPNCtrl (15)1.00 (0.024)p = 0.0043
 iSPNcKO (14)1.112 (0.027)
Sex x genotype F(1,25) = 0.3226 p = 0.5751
Grooming bouts
MaleiSPNCtrl (11)3.091 (0.8252)p = 0.0542
 iSPNcKO (13)5.846 (1.031)
FemaleiSPNCtrl (12)3.500 (0.4174)p = 0.0048
 iSPNcKO (13)7.385 (1.130)
CombinediSPNCtrl (23)3.304 (0.4420)p = 0.0007
 iSPNcKO (26)6.615 (0.7648)
  1. Sex x genotype F(1,45) = 0.3781 p = 0.5417.

We assessed motor learning, a task dependent on the striatum, as well as other brain regions, using the accelerating rotarod (Durieux et al., 2012). Both dSPNAtg7cKO and iSPNAtg7cKO mice had a significantly lower latency to fall off the rotarod than controls on all three trials, indicating that Atg7 in dSPNs and iSPNs was required for motor learning and performance (Figure 2B). We note that differences in motor learning may exist between dSPNAtg7cKO and iSPNAtg7cKO mice as the rotarod test is highly sensitive to body weight (McFadyen et al., 2003) and dSPNAtg7cKO mice weight significantly less than iSPNAtg7cKO mice (Figure 2A).

Changes in striatal activity can also lead to alterations in locomotor behavior in a novel environment (Durieux et al., 2012). iSPNAtg7cKO mice displayed hyperactivity in the open-field arena, which arose during the later habituation phase, than controls while dSPNAtg7cKO were not different (Figure 2C–D). Automated scoring of iSPNAtg7cKO mutants during the open field test revealed increased stereotypies (Figure 2E), which was confirmed by manually scoring self-directed grooming bouts in a separate session (Figure 2F). These results demonstrate that loss of Atg7 in dSPNs or iSPNs leads to behavioral deficits and disruptions in striatal function.

Autophagy is required for proper excitatory synapse function on dSPNs but not iSPNs

Autophagy regulates dendritic spine density and both excitatory and inhibitory synaptic transmission in the cortex and hippocampus (Nikoletopoulou and Tavernarakis, 2018; Sumitomo et al., 2018; Tang et al., 2014; Yan et al., 2018). Due to the deficit in motor learning in dSPNAtg7cKO and iSPNAtg7cKO mice, we examined if synaptic deficits were present on dSPNs or iSPNs in the dorsal striatum, a striatal subregion required for motor learning (Durieux et al., 2012; Yin et al., 2009). Note that we have combined data from both sexes in this analysis. We did not design these experiments to detect sex differences as there was no interaction between sex and genotype in the behavioral analysis.

Reconstruction of the dendritic tree from neurobiotin-filled dSPNs (D1-tomato-positive cells) revealed reductions in the total dendritic length and the complexity of the dendritic tree in dSPNs from dSPNAtg7cKO mice compared to controls (Figure 3A–D). In contrast, loss of autophagy in iSPNs from iSPNAtg7cKO mice did not affect total dendritic length or dendritic complexity (Figure 3A–D). We also found a reduction in the dendritic spine density on dSPNs from dSPNAtg7cKO mice while the dendritic spine density on iSPNs from iSPNAtg7cKO mice was not different than controls (Figure 3E).

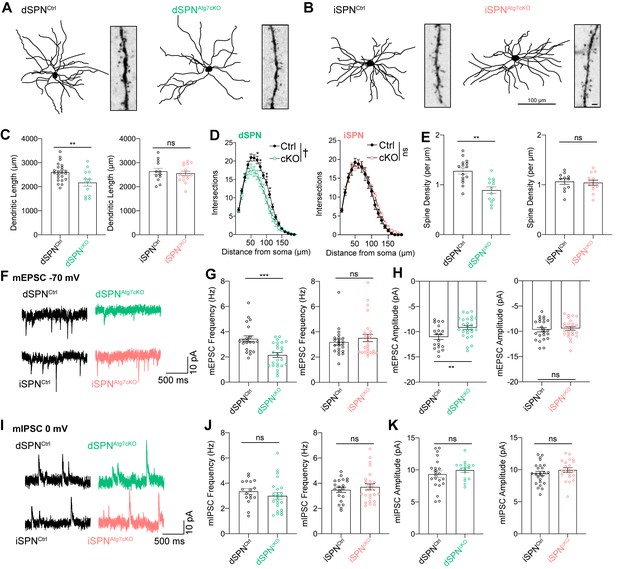

Atg7 contributes to synaptic function and dendritic complexity in dSPNs but not iSPNs.

(A) Sample dendritic trees of dSPNs from control of dSPNAtg7cKO mice. Reconstructions of neurobiotin filled neurons (left) and dendritic segment (right). (B) Sample dendritic trees from reconstructed iSPNs in control or iSPNAtg7cKO mice. Left: reconstructed dendritic tree, scale bar 100 μm. Right: dendritic segment, scale bar 1 μm. (C) Cumulative dendritic length is significantly reduced in dSPNs from dSPNAtg7cKO mice compared to control (left) but not in iSPNs from iSPNAtg7cKO mice compared to control (right). dSPNCtrl: n = 22 cells, five mice, dSPNcKO: n = 12,4. iSPNCtrl: n = 12,3; iSPNcKO: n = 16,3. (D) Sholl analysis reveals a significant reduction in dendritic complexity in dSPNs from dSPNAtg7cKO mice compared to control (left) but not in iSPNs from iSPNAtg7cKO mice compared to control (right). dSPNCtrl: n = 22, 5, dSPNcKO: n = 12,4. iSPNCtrl: n = 13,3; iSPNcKO: n = 16,3. (E) Dendritic spine density on dendritic segments 50–100 µm from the soma. dSPNCtrl: n = 15, 5, dSPNcKO: n = 13,4. iSPNCtrl: n = 8,3; iSPNcKO: n = 8,3. (F) Representative traces of mEPSCs in dSPNs (top) and iSPNs (bottom). (G-H) A significant reduction in (G) mEPSC frequency and (H) mEPSC amplitude in dSPNs from dSPNAtg7cKO mice compared to control but no difference in iSPN mEPSC frequency or amplitude between genotypes. Frequency: dSPNCtrl: n = 21, 5, dSPNcKO: n = 25,4. iSPNCtrl: n = 22,3; iSPNcKO: n = 26,4. Amplitude: dSPNCtrl: n = 19, 5, dSPNcKO: n = 26,4. iSPNCtrl: n = 23,5; iSPNcKO: n = 26,4. (I) Representative traces of mIPSCs in dSPNs (top) and iSPNs (bottom) (J-K) No difference in mIPSC frequency or amplitude after loss of autophagy in either dSPNs or iSPNs. Frequency: dSPNCtrl: n = 17, 5, dSPNcKO: n = 23,4. iSPNCtrl: n = 20,5; iSPNcKO: n = 25,4. Amplitude: dSPNCtrl: n = 17,5, dSPNcKO: n = 22,4. iSPNCtrl: n = 21,5; iSPNcKO: n = 24,4. See Table 2 for detailed statistics. ns p>0.05, *p<0.05, **p<0.01, † p<0.0001.

Table 2
Detailed statistics for Figure 3.
FigureGroups (n;N)*: Mean (sem)Test$Resultsp-value
3C (left)dSPNCtrl (23;5): 26.05 (77.83) dSPNAtg7cKO (13;4): 2172 (145.6)Two-tailed, unpaired t testT34 = 2.8880.0067
3C (right)iSPNCtrl (12;3): 2640 (128.4) iSPNAtg7cKO (16;3): 2556 (90.11)Two-tailed, unpaired t testT26 = 0.53800.5952
3D (left)dSPNCtrl (22;5) dSPNAtg7cKO (12;4)Two-way repeated measures ANOVADistance: F(18,576) = 198.9
Genotype: F(1,32) = 7.124
Interaction: F(18,576) = 2.981
Distance:<0.0001
Genotype: 0.0118
Intx:<0.0001
3D (right)iSPNCtrl (13;3) iSPNAtg7cKO (16;3)Two-way repeated measures ANOVADistance: F(18,486) = 204.9
Genotype: F(1,27) = 0.8747
Interaction: F(18,486) = 0.5927
Distance:<0.0001
Genotype: 0.3580
Intx: 0.9057
3E (left)dSPNCtrl (15;5): 1.428 (0.062) dSPNAtg7cKO (13;4): 0.8928 (0.066)Two-tailed, unpaired t testT26 = 4.2860.0002
3E (right)iSPNCtrl (8;3): 1.062 (0.07246) iSPNAtg7cKO (8;3): 1.054 (0.06648)Two-tailed, unpaired t testT16 = 0.078560.9384
3G (left)dSPNCtrl (21;5): 3.435 (0.2402) dSPNAtg7cKO (25;4): 2.155 (0.1928)Two-tailed, unpaired t testT44 = 4.2060.0001
3G (right)iSPNCtrl (22;5): 3.192 (0.2325) iSPNAtg7cKO (26;4): 3.344 (0.2382)Two-tailed, unpaired t testT46 = 0.45230.6531
3H (left)dSPNCtrl (19;5): −11.03 (0.5341) dSPNAtg7cKO (26;4): −9.174 (0.4162)Two-tailed, unpaired t testT43 = 2.7880.0079
3H (right)iSPNCtrl (23;5): −9.669 (0.4282) iSPNAtg7cKO (26;4): −9.417 (0.3507)Two-tailed, unpaired t testT47 = 0.45990.647
3J (left)dSPNCtrl (17;5): 3.351 (0.2287) dSPNAtg7cKO (23;4): 3.000 (0.2634)Two-tailed, unpaired t testT38 = 0.96540.3404
3J (right)iSPNCtrl (20;5): 3.480 (0.2026) iSPNAtg7cKO (25;4): 3.708 (0.2449)Two-tailed, unpaired t testT43 = 0.69420.4913
3K (left)dSPNCtrl (17;5): 9.972 (0.3499) dSPNAtg7cKO (22;4): 9.346 (0.5072)Two-tailed, unpaired t testT37 = 0.95580.3454
3K (right)iSPNCtrl (21;5): 9.950 (0.3571) iSPNAtg7cKO (24;4): 9.409 (0.3485)Two-tailed, unpaired t testT43 = 1.0810.2859
  1. *n is the number of cells, N is the number of mice.

    $ Post hoc analysis: for two way ANOVA, we used Bonferroni post-hoc test. For one way ANOVA, we used the Holm-Sidak posthoc test.

Changes in dendritic spine density and dendritic architecture may lead to functional differences in excitatory or inhibitory inputs onto SPNs. We recorded miniature excitatory postsynaptic currents (mEPSC; VHold = −70 mV) and miniature inhibitory postsynaptic currents (mIPSC; VHold = 0 mV) in whole-cell patch clamp recordings in the presence of tetrodotoxin (TTX) to block action potentials. The use of this internal solution permits measurement of both mEPSCs and mIPSCs in individual cells. In a subset of cells, we confirmed that inward currents at VHold = −70 mV were glutamatergic in origin by bath applying the AMPAR antagonist, CNQX (5 µM) and outward currents at VHold = 0 mV were GABAergic by bath application of picrotoxin (25 µM; data not shown). We found a reduction in both mEPSC frequency and amplitude in dSPNs lacking Atg7 without a change in mIPSC frequency or amplitude (Figure 3F–K). In iSPNs lacking Atg7, in contrast, neither mEPSC frequency and amplitude nor mIPSC frequency and amplitude were different than controls (Figure 3F–K), consistent with the absence of a change in dendritic length or spine density. These data demonstrate that, as in excitatory neurons of the cortex and hippocampus (Tang et al., 2014; Yan et al., 2018), autophagy contributes to synaptic function in dSPNs but is dispensable for proper synaptic transmission onto iSPNs.

Autophagy controls iSPN intrinsic excitability

Despite the absence of synaptic deficits in iSPNs lacking Atg7, iSPNAtg7cKO mice demonstrated locomotor hyperactivity and deficits in motor learning (Figure 2). How is iSPN function affected by loss of Atg7? SPN activity is governed by the interplay of synaptic excitation and inhibition with a low intrinsic excitability (Kreitzer, 2009; Wilson and Kawaguchi, 1996). We, therefore, hypothesized that iSPNs lacking Atg7 may be dysfunctional due to a change in their intrinsic excitability. In whole cell recordings, iSPNs from iSPNAtg7cKO mice exhibited a depolarized RMP, increased input resistance, and decreased rheobase, suggesting that autophagy is required for the normally low intrinsic excitability of iSPNs (Figure 4A–D). These effects occurred in the absence of a change in membrane capacitance (Figure 4E). The combination of increased input resistance, decreased rheobase and depolarized RMP led to a left-shifted current-response curve, suggesting that iSPNs were hyperresponsive to depolarizing inputs (Figure 4F).

Figure 4 with 1 supplement see all
Loss of Atg7 leads to intrinsic hyperexcitability due to reduced Kir2 currents in iSPNs.

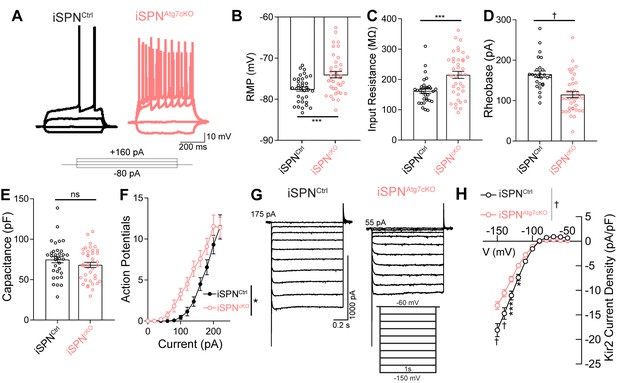

(A) Representative current clamp traces in iSPNs from control or iSPNAtg7cKO mice. (B-F) iSPNs lacking Atg7 display (B) depolarized resting membrane potential (t70=3.617, p = 0.0006; iSPNCtrl: n=34 (8), iSPNAtg7cKO: n=38 (9)), (C) elevated input resistance (t68=3.630, p = 0.0005; iSPNCtrl: n=32 (8), iSPNAtg7cKO: n=38 (9)), (D) decreased rheobase (t61=4.456, p<0.0001; iSPNCtrl: n=26 (7), iSPNAtg7cKO: n=37(9)), (E) no change in capacitance (t67 = 0.8096, p = 0.4210; iSPNCtrl: n=33 (8), iSPNAtg7cKO: n=39 (9)) and (F) a left-shifted current-response curve [APs/500 msec (Current x Genotype: F(13,772) = 1.538, p = 0.0983; Current F(13,772)=421.5, p<0.0001; Genotype: F(1,772) = 6.586, p = 0.0141); iSPNCtrl: n=25(7), iSPNAtg7cKO: n=36(8)]. Data in (B-F) analyzed with a two-tailed, unpaired t test. Data in (F) analyzed with two-way repeated measures ANOVA. (G) Representative voltage clamp recordings of Kir2 currents. (H) iSPNs have lower Kir2 current density in iSPNAtg7cKO mice compared to iSPNs in iSPNCtrl mice. iSPNCtrl: n = 17(5), iSPNAtg7cKO: n=25(6). Data analyzed with a two-way repeated measures ANOVA, followed by Bonferooni post-hoc test. Voltage x Genotype: F(10,400) = 13.39, p<0.0001. ns p>0.05, * p<0.05, *** p<0.001, † p<0.0001.

We next asked whether Atg7 also regulated intrinsic excitability in dSPNs. While neither the RMP nor the rheobase of dSPNs in dSPNAtg7cKO were different from controls, dSPNs lacking Atg7 had an elevated input resistance and decreased membrane capacitance (Table 3). These results are consistent with change in the passive membrane properties of dSPNs caused by reduced dendritic length and complexity (Figure 3), in contrast to a primary effect on intrinsic excitability (see Discussion).

Table 3
Intrinsic excitability in dSPNs from control, dSPNAtg7cKO, and iSPNAtg7cKO mice.
GenotypeRMP (mV)Rin (MΩ)Rheobase (pA)Capacitance (pF)Kir2 current density (pA/pF)
dSPNControl−77.39 ± 0.8508 (24)145.7 8.110 (24)175 6.285 (24)80.28 ± 4.808 (22)−16.59 ± 0.8121 (20)
dSPNAtg7cKO−77.75 ± 0.9328 (30)189.3 12.52 (25) **156.1 9.409 (26)62.22 ± 4.766 (27) *−17.05 ± 0.8715 (22)
dSPNs from iSPNAtg7cKO−78.40 ± 0.7481 (16)129.1 8.452 (14)177.8 8.685 (14)81.58 ± 4.728 (14)−15.20 ± 1.675 (14)

The change in intrinsic excitability in iSPNs from iSPNAtg7cKO may arise as a response to differences in the striatal network activity, in which case, dSPNs from iSPNAtg7cKO mice (which have autophagy) may also be affected, or they could be cell-intrinsic, in which case dSPNs in these mice would not be affected. We recorded from dSPNs in iSPNAtg7cKO mice and found no difference in the RMP, rheobase, input resistance or capacitance in dSPNs from iSPNAtg7cKO mice compared to control dSPNs, suggesting that Atg7 regulates intrinsic excitability in iSPNs through a cell-intrinsic mechanism (Table 3).

These results suggest that Atg7 may directly regulate intrinsic excitability in iSPNs but not dSPNs and provide a new mechanism through which autophagy can control neuronal function.

Kir2 currents are decreased in the absence of autophagy

Although either reduced dendritic complexity (Gertler et al., 2008; Mainen and Sejnowski, 1996) or changes in specific ionic conductances can lead to intrinsic hyperexcitability following somatic current injection, we did not observe a change in dendritic arborization in iSPNs lacking autophagy (Figure 3), suggesting that a change in ion channel function underlies this phenotype. Inwardly rectifying potassium currents, mediated by Kir2.1 and Kir2.3 channels (referred to as Kir2 currents) (Cazorla et al., 2012; Karschin et al., 1996; Shen et al., 2007), are the predominant potassium conductance active around the resting membrane potential of SPNs and are the critical determinants of RMP, input and input resistance (Nisenbaum et al., 1994; Wilson and Kawaguchi, 1996). As iSPNs lacking autophagy exhibit a depolarized RMP and elevated input resistance, we hypothesized that autophagy may regulate Kir2 function.

Kir2 currents are measured as an inwardly rectifying, barium-sensitive current triggered by hyperpolarizing current steps (Figure 4—figure supplement 1A–F). We found a decrease in the whole cell Kir2 current density in iSPNs from iSPNAtg7cKO mice compared to control iSPNs (Figure 4G–H). This was not associated with a change in the voltage dependence of the Kir2 current (Figure 4—figure supplement 1G–I). Interestingly, there was no difference in Kir2 current density in dSPNs from dSPNAtg7cKO or iSPNAtg7cKO mice compared to controls (Table 3). These results suggest that autophagy is required for Kir2 currents in iSPNs but not dSPNs and further support the conclusion that autophagy controls neuronal function via cell-type-specific pathways.

Autophagy controls Kir2 degradation

Because autophagy has not been described to regulate neuronal intrinsic excitability or potassium channel function, we further investigated the relationship between Atg7 and Kir2 channels.

To test if loss of Atg7 leads to reduced Kir2 current via downregulation of Kir2.1 or Kir2.3 mRNA levels, we coupled immunofluorescence and RNAScope analysis to measure the abundance of Kir2.1 and Kir2.3 mRNA on a single-cell level in DARPP32+ (to label all SPNs) and p62+ cells. Loss of Atg7 did not affect the number of Kir2.1 or Kir2.3 RNAScope puncta per cell in iSPNAtg7cKO mice compared to controls (Figure 5A–C). These results suggest that decreased Kir2 current in the absence of Atg7 does not result from a change in Kir2.1 or Kir2.3 mRNA expression.

Figure 5 with 3 supplements see all

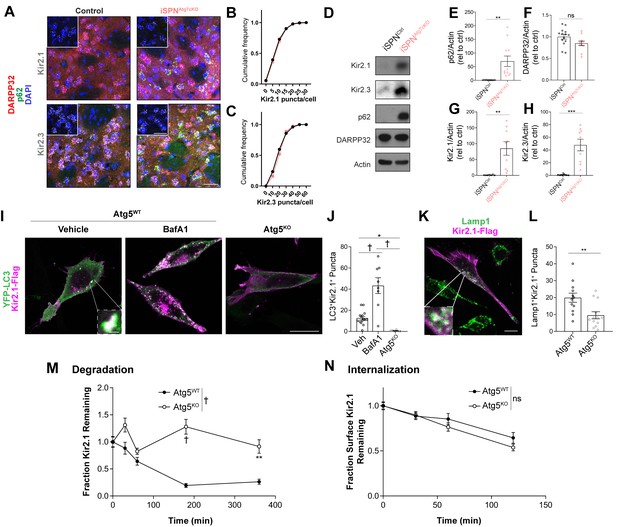

Autophagy is required for Kir2 degradation.

(A–C) There was no difference in Kir2.1 or Kir2.3 mRNA expression in SPNs of iSPNAtg7cKO mice in an RNAscope assay (N = 77–173 cells from three mice per group). Inset shows just RNAscope and DAPI. Scale bar 30 µm. Data analyzed by the Kolmogorov-Smirnov test, Genotype effect: p>0.05 for Kir2.1 and Kir2.3. (D) Representative western blots of specified proteins from total striatal lysates from iSPNCtrl or iSPNAtg7cKO mice. Quantifications of (E) p62 (t20 = 3.551, p = 0.0020), (F) DARPP32 (t23 = 1.984, p = 0.0593), (G) Kir2.1 (t14 = 3.435, p = 0.0040), and (H) Kir2.3 (t14 = 4.492, p = 0.0005) relative to actin. p62: iSPNctrl: n = 11, iSPNAtg7cKO: n = 11. DARPP32: iSPNctrl: n = 14, iSPNAtg7cKO: n = 11. Kir2.1: iSPNctrl: n = 7, iSPNAtg7cKO: n = 9. Kir2.3: iSPNctrl: n = 7, iSPNAtg7cKO: n = 9. Data analyzed by two-tailed, unpaired t test. (I-J) Kir2.1 is localized in LC3-GFP+ puncta in Atg5WT but not Atg5KO MEFs. BafilomycinA1 (BafA1; 100 nM 2 hr) treatment increases the number of LC3/Kir2.1-double labeled puncta in Atg5WT MEFs. Scale bar 20 µm. Inset scale bar 1 µm. Analyzed by one-way ANOVA followed by Bonferroni post-hoc test. F(2,26)=25.64, p<0.0001. (K-L) A reduction of Lamp1+Kir2.1+ puncta in Atg5KO MEFs. Scale bar 20 µm, inset scale bar 1 µm. Data analyzed by two-tailed, unpaired t test. t23 = 3.083, p = 0.0053. (M) Reduced degradation of SNAP-tag labeled Kir2.1 in Atg5KO MEFs. N: (WT,KO): T = 0 min (35,30), T = 30 min (30,27), T = 60 min (25,38), T = 180 min (33,67), T = 360 min (40,20). Data analyzed by two-way ANOVA. Genotype x time: F4,335 = 7.880, p<0.0001. (N) No significant difference in the internalization of antibody-labeled surface Kir2.1 channels in Atg5KO MEFs. N: (WT,KO): T = 0 min (76,56), T = 30 min (52,37), T = 60 min (41,42), T = 120 min (28,38). Data analyzed by two-way ANOVA. Genotype x time: F3,362 = 0.8038, ns; Time: F(3,362) = 25.88, p = 0.0001; Genotype: F(1,362) = 1.877, ns. ns p>0.05, *p<0.05, **p<0.01, ***p<0.001, † p<0.0001.

Instead of regulating Kir2 channels at the transcriptional level, Atg7 could affect Kir2 protein stability, which would explain reduced Kir2 current. We generated total striatal lysates from control, dSPNAtg7cKO, or iSPNAtg7cKO mice and confirmed that loss of Atg7 led to an increase in p62 levels in both dSPNAtg7cKO and iSPNAtg7cKO mice compared to controls (Figure 5D–E and Figure 5—figure supplement 1F).

Furthermore, we validated our striatal dissections by blotting for DARPP32, an SPN marker, and found no difference across genotype (Figure 5D,F and Figure 5—figure supplement 1). Remarkably, however, total striatal levels of Kir2.1 and Kir2.3 were elevated in iSPNAtg7cKO mice compared to controls (Figure 5D,G–H), while levels of Kir2.1 and Kir2.3 in dSPNAtg7cKO mice were not different from controls (Figure 5—figure supplement 1A–C; note y-axis difference between Figure 5D,G–H and Figure 5—figure supplement 1A–C). These data suggest that Atg7 oppositely regulates Kir2 channel abundance and Kir2 current, specifically in iSPNs.

Although autophagy has previously been shown to regulate integral plasma membrane proteins by controlling membrane protein trafficking, interaction with partners, or degradation (Gao et al., 2018; Rowland, 2006; Shehata et al., 2012; Sumitomo et al., 2018; Yan et al., 2018), the unexpected inverse relationship between total Kir2 protein and Kir2 current in iSPNs lacking Atg7 warranted further validation. To address this, we virally overexpressed Kir2.1 in dSPNs or iSPNs from control, dSPNAtg7cKO or iSPNAtg7cKO mice. We hypothesized that if reduced Kir2 currents were driven by reduced expression of Kir2 channels, viral overexpression would normalize Kir2 currents in cells lacking Atg7. If, however, Atg7 controlled Kir2 protein function, viral overexpression of Kir2.1 would not normalize Kir2 currents in cells lacking Atg7.

We injected iSPNAtg7cKO, dSPNAtg7cKO and control (A2Acre+ Atg7WT or D1cre+Atg7WT) mice unilaterally with an adeno-associated virus (AAV) to drive Cre-dependent overexpression of either Kir2.1 and the fluorescent protein, ZsGreen (Rothwell et al., 2014) or an AAV expressing mCherry as a control on the contralateral side (Figure 6A). After 3–4 weeks, acute brain slices were prepared and Kir2 current density measured using whole-cell voltage clamp recordings. Kir2 current density was higher in dSPNs overexpressing Kir2.1 than mCherry in CreDrd1aey262 and dSPNAtg7cKO mice (Figure 6B). Similarly, Kir2.1 overexpression increased Kir2 current density in iSPNs from CreAdora2aKG139Atg7wt mice (Figure 5—figure supplement 2C). In contrast, Kir2.1 overexpression in SPNs from CreAdora2aKG139Atg7Fl/Fl (iSPNAtg7cKO) mice did not display a higher Kir2 current density than mCherry expressing SPNs (Figure 6C), confirming that Atg7 is required for overexpressed Kir2.1 channels to be functional. These results further highlight the cell-type specificity of the requirement of Atg7 for Kir2.1 current.

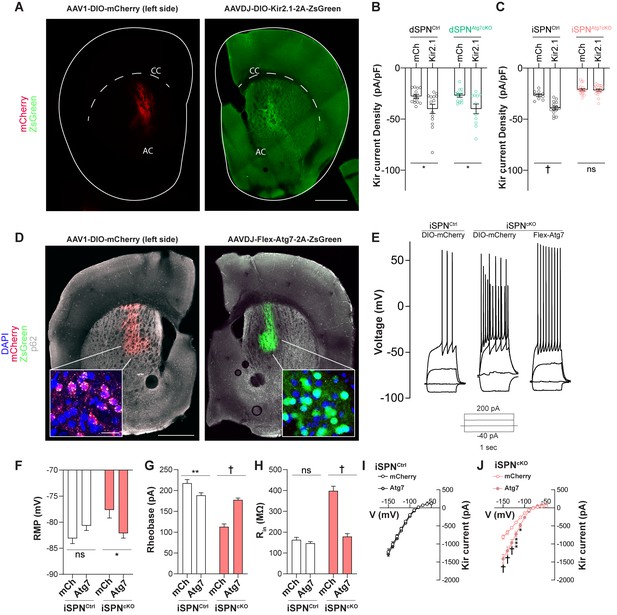

Atg7 reexpression but not Kir2.1 overexpression rescues changes in iSPN physiology.

(A) Immunofluorescent images of striatal hemisections from mice injected with AAV1-DIO-mCherry or AAVDJ-DIO-Kir2.1-t2A-zsGreen stained against mCherry (left) or GFP (right). Scale bar 500 µm. (B) Significant effect of Kir2.1 overexpression on Kir2 current density in dSPNs from control and dSPNs from dSPNAtg7cKO mice. Data analyzed with two-way ANOVA. Genotype x virus: F(1,47)=0.01278, p = 0.9105; Genotype: F(1,47)=0.01840, p = 0.8937; Virus: F(1,47) = 13.23, p=0.0007. N = dSPNCtrl (D1cre Atg7wt/wt, mCh: n = 13(4), Kir2.1: n = 14(4)) or dSPNAtg7cKO (D1cre Atg7Fl/Fl, mCh: n = 13(4), Kir2.1: n = 11 (3)). (C) Significant effect of Kir2.1 overexpression on Kir2 current density in iSPNs from control but not from iSPNAtg7cKO mice. Data analyzed with two-way ANOVA. Genotype x virus: F(1,54) = 17.62, p = 0.0001. N = iSPNCtrl (A2Acre Atg7wt/wt, mCh: n = 9 (3), Kir2.1: n = 14(3)) or iSPNAtg7cKO (A2Acre Atg7Fl/Fl, mCh: n = 18(5), Kir2.1: n = 17(4)). (D) Representative hemisections from iSPNAtg7cKO mice injected with AAV1-DIO-mCherry (left) or AAVDJ-Flex-Atg7-2A-ZsGreen (right) showing reduction in p62 puncta in cells expressing Atg7 (right) compared to mCherry (left). Scale Bar 500 µm. Inset, scale bar 20 µm. (E) Representative current clamp traces from mCherry-expressing iSPN in a control (A2Acre) mouse, mCherry expressing iSPN in an iSPNAtg7cKO mouse or an Atg7-expressing iSPN from an iSPNAtg7cKO mouse. (F-J) Reexpression of Atg7 normalizes RMP [N = iSPNCtrl: mCh: n = 25(5), Kir2.1: n = 26(5)) or iSPNAtg7cKO: mCh: n = 13(3), Kir2.1: n = 15(3). Genotype x virus: F(1,76)=9.491, p = 0.0029], rheobase [N = iSPNCtrl: mCh: n = 25(5), Kir2.1: n = 26(5)) or iSPNAtg7cKO: mCh: n = 14(3), Kir2.1: n = 15(3). Genotype x virus: F(1,75)=36.54, p<0.0001], Rin [N = iSPNCtrl: mCh: n = 25(5), Kir2.1: n = 26(5)) or iSPNAtg7cKO: mCh: n = 13(3), Kir2.1: n = 16(3). Genotype x virus: F(1,76)=55.55, p<0.0001], and Kir2 current in iSPNs from iSPNAtg7cKO mice compared to mCherry control but only reduces Rin in controls. All data analyzed by two-way ANOVA. In (I), N = iSPNCtrl: mCh: n = 9 (5), Kir2.1: n = 9 (5). Voltage x virus: F(10,160)=0.1170, p = 0.9996; Voltage: F(10,160) = 178.8, p<0.0001; Virus: F(1,16)=0, p = 0.9929. In (J), N = iSPNAtg7cKO: mCh: n = 10(3), Kir2.1: n = 12(3). Genotype x virus: F(10,200) = 18.56, p<0.0001. ns p>0.05, *p<0.05, **p<0.01, ***p<0.001, † p<0.0001.

We confirmed that the effect of loss of Atg7 on Kir2 current could be complemented in adulthood by constructing a virus to Cre-dependently express Atg7 in iSPNs (Figure 6D). Viral reexpression of Atg7, but not a fluorophore-only control, decreased p62 accumulation in transduced cells (Figure 6D). Furthermore, reexpression of Atg7 corrected SPN hyperexcitability and increased Kir2 currents in iSPNAtg7cKO cells but had no effect in control iSPNs from iSPNctrl mice (Figure 6D–J). These results demonstrate that reduced Kir2 current in iSPNAtg7cKO mice could be complemented by Atg7 reexpression, but not Kir2.1 overexpression, in adulthood.

We next examined why Kir2 currents were decreased but Kir2 protein was increased, in the absence of Atg7, to define the mechanism through which autophagy may regulate neuronal intrinsic excitability. To do this, we expressed a Kir2.1 fusion with a C-terminal FLAG and SNAP-tag (Kir2.1FlagSNAP) in a well-validated, and transfectable line of mouse embryonic fibroblasts (MEFs) lacking Atg5, a protein required for autophagosome biosynthesis (Figure 5—figure supplement 2A) (Kuma et al., 2004). We chose to use a well-validated transformed MEF cell line lacking Atg5 in contrast to primary striatal culture for two reasons: (1) the maturation of SPN intrinsic excitability occurs postnatally, suggesting that the intrinsic excitability of dissociated SPNs in culture may depend on processes distinct from those in vivo (Kuo and Liu, 2019; Lieberman et al., 2018); (2) almost all SPNs in primary culture express markers of dSPNs (Falk et al., 2006), and this population does not display Kir2 regulation by autophagy in vivo.

Transformed MEFs lacking Atg5 (Atg5KO MEFs) transiently transfected with Kir2.1FlagSNAP demonstrated a higher steady-state level of Kir2.1 expression but reduced LC3B-ii/LC3B-i, a measurement of autophagic activity (Figure 5—figure supplement 3B-CKabeya et al., 2000). Immunofluorescence analysis demonstrated colocalization of Kir2.1FlagSNAP with YFP-LC3 puncta, a marker of autophagosomes, in MEFs (Figure 5I–J). The colocalization of Kir2.1FlagSNAP with YFP-LC3 increased following incubation with bafilomycin to collapse the lysosomal pH gradient and block autophagosome fusion with lysosomes (Yamamoto et al., 1998) (Figure 5I–J). We observed that the Kir2.1FlagSNAP colocalization with YFP-LC3 was dependent on Atg5 (Figure 5I–J). Furthermore, in the absence of Atg5, we found a reduced number of Kir2.1+Lamp1+ late endosomes/lysosomes (Figure 5K–L), supporting the conclusion that autophagy plays a role in the lysosomal degradation of Kir2.1.

To address whether Kir2.1 degradation itself was dependent on autophagy, we pulse-labeled transfected Atg5WT and Atg5KO MEFs with SNAPcell ligand and fixed cells following a chase interval (Figure 5M). We found that the half-life of labeled Kir2.1FlagSNAP was greatly extended in Atg5KO compared to Atg5WT MEFs (Figure 5M). We further confirmed that the Kir2.1FlagSNAP half-life was extended in Atg5KO MEFs using a cycloheximide pulse-chase assay (Figure 5—figure supplement 2D–E). This demonstrates that autophagy is required for Kir2.1 degradation.

Thus, multiple independent approaches indicate that autophagy is required for Kir2.1 degradation. Previous reports have suggested that Kir2.1 is endocytosed and trafficked to the lysosome for degradation in an ESCRT-dependent manner (Jansen et al., 2008; Kolb et al., 2014). Autophagy could contribute to lysosomal degradation of Kir2.1 by affecting internalization and endocytosis, or the transport of endocytosed Kir2.1 to the lysosome. To address this, we engineered a hemagglutinin (HA) tag (Kir2.1extHA-FlagSNAP) into an extracellular loop of Kir2.1, at a site which has previously been used to tag the extracellular face of Kir2.1 without affecting channel function (Chen et al., 2002). We labeled live Atg5WT or Atg5KO MEFs transfected with Kir2.1extHA-FlagSNAP with anti-HA antibodies and measured the remaining surface resident-labeled channels after a chase period. We found no difference in the internalization of Kir2.1extHA-FlagSNAP in the absence of autophagy (Figure 4N), suggesting that autophagy is required for Kir2.1 degradation at a post-endocytic step.

We generated primary Atg7KO MEFs to confirm that Atg7, in addition to Atg5, was required for Kir2.1 degradation (Figure 5—figure supplement 3A). We pulse labeled primary Atg7WT and Atg7KO MEFs transfected with Kir2.1FlagSNAP and found an elevated level of SNAPcell-labeled Kir2.1FlagSNAP after a 120 min chase in Atg7KO MEFs compared to controls (Figure 5—figure supplement 3A–C).

We conclude that autophagy is required for the lysosomal delivery and degradation of endocytosed Kir2.1 channels.

Lack of autophagy leads to increased surface levels of Kir2 channels despite reduced channel function

If autophagy is required for Kir2.1 degradation, but Kir2 channel abundance is elevated in the absence of autophagy, why are Kir2 currents decreased in cells lacking autophagy? One possibility is that Kir2 channels could be mislocalized in the absence of autophagy and are absent from the plasma membrane.

To address whether Kir2.1 function is regulated by autophagy in MEFs, we measured Kir2 currents using whole-cell patch clamp recordings in Kir2.1FlagSNAP transfected MEFs. We detected a Ba2+-sensitive, inwardly rectifying current that was absent from untransfected cells (Figure 7A). Despite the increase in total Kir2.1FlagSNAP levels in Atg5KO MEFs (Figure 5—figure supplement 3B–C), the Kir2 current in Atg5KO MEFs was decreased relative to Atg5WT MEFs (Figure 7B). This phenocopies the situation in the iSPNAtg7cKO striatum and suggests that the mechanism through which Kir2.1 is regulated by autophagy can be explored in this heterologous system.

Figure 7 with 1 supplement see all
Autophagy is not required for Kir2 trafficking.

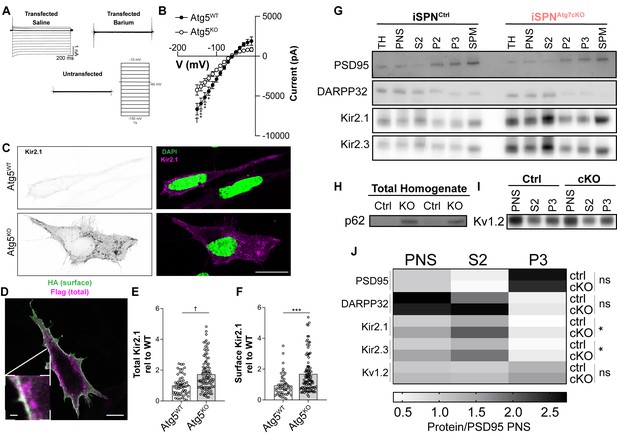

(A) Sample traces from MEFs transfected with Kir2.1 demonstrate an inwardly rectifying, barium sensitive current that is absent in untransfected cells. (B) Atg5KO MEFs have reduced Kir2.1 current compared to Atg5WT MEFs. WT: N = 8, KO: N = 12. Voltage step x genotype: F(14, 252)=8.985, p<0.0001. (C) Representative micrographs of Atg5WT and Atg5KO MEFs. On right, the Kir2.1 channel in the WT image has been contrasted to compare staining pattern. Scale bar 20 µm. (D-F) Elevated levels of both surface and total levels of Kir2.1 in Atg5KO MEFs. Scale bar 20 µm, inset scale bar 1 µm. (E) t147=4.511, p<0.0001. (F) t147=4.511, p<0.0001. (G-J) Subcellular fractionation reveals elevated levels of Kir2.1 and Kir2.3 in all fractions of iSPNAtg7cKO mice compared to controls but no change in the relative distribution of Kir2.1 or Kir2.3 between genotypes. (H) p62 is elevated in the total homogenate of iSPNAtg7KO mice. (I) No change in distribution or level of Kv1.2 between genotypes. iSPNCtrl: N = 5. iSPNAtg7cKO: N = 3. TH, total homogenate; PNS, post-nuclear supernatant; S2, 20,000xg supernatant; P2, 20,000xg pellet; P3, resuspended P2 spun at 100,000xg; SPM, synaptic plasma membranes isolated from 1.0M and 1.2M sucrose interface. Data were analyzed by two-way ANOVA for each analyzed protein with fraction and genotype as factors. No significant interaction between fraction and genotype was found for any protein. Fraction was significant for each protein. Genotype was only significant for Kir2.1 and Kir2.3. Kir2.1: Genotype: F(1,6)=9.373, p = 0.0222. Kir2.3: Genotype: F(1,6)=6.615, p = 0.0422. See Table 1 for detailed statistics. ns p>0.05, *p<0.05, **p<0.01, ***p<0.001, † p<0.0001. Experiments in B, E, and F were combined from at least three independent experiments.

Autophagy may be required for both the localization and the degradation of Kir2.1, which would explain why, in the absence of autophagy, Kir2.1 levels are elevated but Kir2.1 current is decreased. We found, however, that Kir2.1FlagSNAP was located on the surface and in intracellular vesicles in both control and Atg5KO MEFs (Figure 7C). In addition, similar patterns of Kir2.1 localization were observed in Atg7WT and Atg7KO primary MEFs (Figure 5—figure supplement 3D).

Next, we measured the steady-state amount of surface-resident Kir2.1 by fixing MEFs transfected with Kir2.1extHA-FlagSNAP and staining for the HA tag without permeabilization. Subsequent permeabilization and staining for the FLAG tag permitted quantification of the total Kir2.1 protein expressed per cell. We found that both surface and total levels of Kir2.1 were elevated in Atg5KO MEFs relative to controls (Figure 7D–F), further emphasizing that the reduced Kir2 currents in the absence of autophagy do not arise from fewer surface-resident channels.

We confirmed that Kir2.1 and Kir2.3 were also similarly localized in vivo in iSPNAtg7cKO striatum compared to control using subcellular fractionation. Kir2.1 and Kir2.3 are localized to the somatodendritic region and to dendritic spines in SPNs (Shen et al., 2007). We isolated striatal synaptosomes from iSPNCtrl or iSPNAtg7cKO mice using a sucrose gradient approach (Bermejo et al., 2014). To confirm that we had enriched for synaptic plasma membranes, we blotted for the cytosolic protein DARPP32 or the postsynaptic density scaffolding protein PSD95. We found that there was no difference in the levels of PSD95 in total striatal lysates in iSPNAtg7cKO mice compared to controls (Figure 5—figure supplement 1H–J) and that we were able to enrich PSD95 and deplete DARPP32 in the synaptic plasma membrane (SPM) fractions in both genotypes (Figure 7G,J). Kir2.1 and Kir2.3 were enriched, compared to the postnuclear supernatant (PNS), in both the S2 fraction, containing cytosol and light membranes, and SPM/S3 fraction in both iSPNCtrl and iSPNAtg7cKO striatum (Figure 7G). Interestingly, although there was no relative difference in the distribution of Kir2.1 and Kir2.3, there were higher levels of both Kir2.1 and Kir2.3 in all fractions in iSPNAtg7cKO compared to iSPNCtrl striatum (Figure 7G,J). These data support the conclusion that although total and synaptic Kir2.1 and Kir2.3 levels are elevated, their distribution is unaffected by the absence of Atg7 in vivo.

To address whether loss of Atg7 in iSPNs disrupts degradation or localization of other potassium channels in iSPNs, we examined the localization of another potassium channel expressed by dSPNs and iSPNs in the conditional knockout lines. We found that there was no change in the localization or total level of Kv1.2, a voltage-gated potassium channel expressed by SPNs (Figure 7I–J and Figure 5—figure supplement 1H–I) (Shen et al., 2004). This suggests that loss of autophagy in iSPNs does not lead to global disruption of ion channel degradation.

These results were further confirmed by floating striatal membrane pellets in a discontinuous iodixanol gradient, which separates plasma membranes (light fraction) from other organelles (heavy fractions). Kir2 channels classically exhibit a bimodal distribution between heavy and light membrane fractions as a population of these channels exist in cholesterol-rich membrane domains (Tikku et al., 2007). No difference in the distribution of endogenous Kir2.1 or KV1.2 was observed between iSPNCtrl and iSPNAtg7cKO striatum using this gradient approach (Figure 7—figure supplement 1A–D). We confirmed that Kir2 channels were not trapped in cholesterol-rich membranes, where they are inactive (Romanenko et al., 2004), by treating acute brain slices from iSPNAtg7cKO mice with methyl-β-cyclodextrin (MβCD), to remove cholesterol, and found that Kir2 currents were not increased iSPNs relative to iSPNs from vehicle-treated slices (Figure 7—figure supplement 1E).

These results demonstrate that Kir2 channels are localized to the plasma membrane but are less functional in the absence of Atg7.

Kir2 channels are acetylated and inactivated in the absence of autophagy

As Kir2 channels are localized to the plasma membrane in higher quantities in the absence of autophagy both in vivo and in MEFs (Figure 7D–J), it remained unclear why Kir2 currents were decreased. We hypothesized that these channels may be inhibited by a post-translational modification in the absence of autophagy. Several proteins that are selectively degraded by autophagy undergo lysine modification by ubiquitin or acetylation (Khaminets et al., 2016). Immunoprecipitation of Kir2.1extHA-FlagSNAP from Atg5WT or Atg5KO cells indicated that in the absence of autophagy the level of Kir2.1 acetylation was markedly increased while its ubiqutination status was unaffected (Figure 8A).

Figure 8 with 1 supplement see all

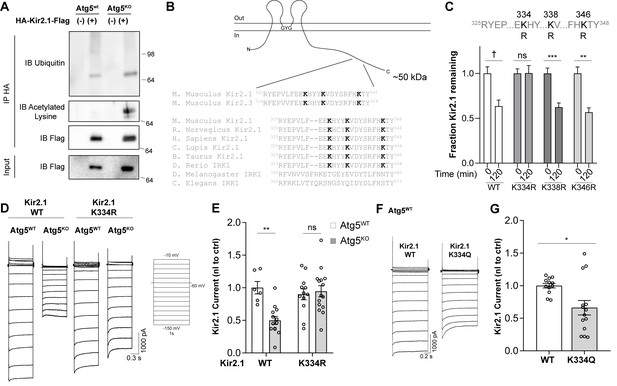

Hyperacetylation of Kir2.1 at K334 in the absence of autophagy inhibits channel activity.

(A) Immunoprecipitation of Kir2.1 reveals elevated levels of acetylated lysines on Kir2.1 in Atg5KOMEFs without a change in ubiquitination. Representative blots shown from at least three independent replicates. (B) A conserved motif in the C-terminal tail of Kir2.1 and Kir2.3 contains three modifiable lysines and has previously been implicated in Kir2 channel degradation. (C) A degradation screen in which K334, K338 and K346 were mutated to the unmodifiable residue, arginine, reveals that K334 is required for Kir2.1 degradation in Atg5WT MEFs. N: (T=0min, T = 120 min) WT (52,79), K334R (27,51), K338R (40,41), K346R (23,11). Data analyzed by two-way ANOVA followed by Bonferroni post-hoc test. Kir genotype x time: F(3,390) = 3.211, p = 0.0230. (D-E) Kir2.1 K334R current is normalized in Atg5KO MEFs but does not affect Kir2.1 current in Atg5WT MEFs. Data analyzed by two-way ANOVA followed by Bonferroni post-hoc test. Cell genotype x Kir genotype: F(1,42) = 9.603, p = 0.0035. (F-G) Kir2.1 K334Q, with an acetylation-mimic at K334, has reduced current in Atg5WT MEFs. Voltage step protocol is the same as in (D). Data analyzed by two-tailed unpaired t test. t24=2.707, p=0.0123. ns p>0.05, * p<0.05, ** p<0.01, *** p<0.001, † p<0.0001. Experiments in C, E and G were combined from at least three independent experiments.

Both of these modifications can signal for proteins to enter the autophagy pathway for degradation and we therefore hypothesized that the acetylated lysine residue was also required for autophagic degradation of Kir2.1, as this would explain why a modified channel accumulates in the absence of autophagy: acetylated Kir2.1 may be targeted for degradation but, in the absence of autophagy, cannot be eliminated.

To identify the acetylated lysine that may be responsible for inhibition of Kir2.1 and targeting it for autophagic degradation, we searched for lysines in Kir2.1 previously implicated in its degradation. Kir2.1 contains a motif in its C-terminus that regulates Kir2.1 surface residence and degradation (Figure 8C) (Ambrosini et al., 2014), is evolutionarily conserved, and is present in Kir2.3 (Figure 8B). Three lysines are present within this sequence, two of which, K338 and K346, are known to undergo ubiquitination (Figure 8B) (Ambrosini et al., 2014; Wagner et al., 2012). We mutated K334, K338 and K346 individually to arginines to prevent addition of ubiquitin or acetyl groups and screened these mutants in a degradation assay in Atg5WT cells. Kir2.1 K334R underwent significantly less degradation than Kir2.1 WT, K338R or K346R (Figure 8C), suggesting that K334 is required for degradation of Kir2.1.

We assessed whether the Kir2.1 K334R channel was less acetylated in Atg5KO MEFs that WT channel. We transfected Atg5KO MEFs with WT Kir2.1extHA-FlagSNAP or Kir2.1extHA-FlagSNAP K334R and immunoprecipitated lysates with an anti-HA antibody. Immunoprecipitates were then sequentially blotted for FLAG and acetyl-lysines and we found that lysine acetylation of the Kir2.1extHA-FlagSNAP K334R mutant was reduced by ~50% (Figure 8—figure supplement 1A–B), suggesting that other residues are acetylated in Kir2.1 but are not necessary for inhibition of the channel in Atg5KO cells.

We next examined whether the K334R mutant, which could not be modified, was also fully functional even in the absence of autophagy by transfecting Atg5WT and Atg5KO cells with Kir2.1 K334R. We found that the K334R mutation did not affect channel function in Atg5WT cells but significantly increased channel function in Atg5KO cells compared to Kir2.1 WT (Figure 8D–E), suggesting that modification of K334 was necessary for the inhibition of Kir2 function in the absence of autophagy.

We next engineered a mutant Kir2.1 channel that harbors an acetylation-mimic glutamine instead of K334. Kir2.1 K334Q had reduced function in Atg5WT cells compared to Kir2.1 WT (Figure 8F–G), demonstrating that acetylation of Kir2.1 at K334 is both necessary and sufficient to control channel function.

How may acetylation of Kir2.1 at K334 affect channel function? One possibility is that surface residence of the channel could be affected. To examine this possibility, we stained for surface-resident channels, as described above, in Atg5WT and Atg5KO cells expressing WT Kir2.1extHA-FlagSNAP, Kir2.1extHA-FlagSNAP K334R, and Kir2.1extHA-FlagSNAP K334Q. We found that WT, K334R and K334Q all had increased surface expression in Atg5KO MEFs compared to Atg5WT MEFs but there were no differences in surface residence between WT or mutant channels (Figure 8—figure supplement 1C). This suggests that acetylation of Kir2.1 affects channel activity on the surface but does not affect surface levels of the channel.

These data indicate that, in the absence of autophagy, Kir2 channels are present on the plasma membrane but are inhibited by acetylation at K334. We conclude that acetylation of K334 acts to promote the autophagy-dependent degradation of Kir2.1.

Discussion

Although originally studied in the central nervous system in the context of neurodegenerative disease, autophagy has recently been identified as a key regulator of neurotransmission. Emphasizing the need to understand autophagic function at the synapse, autophagic dysfunction has been reported in neurodevelopmental disorders that are thought to arise from synaptic deficits. Here, we investigated the role of autophagy in the function of both classes of GABAergic projection neurons in the striatum, a region implicated in the pathophysiology of several neurodevelopmental disorders. We found that, in dSPNs, the required autophagy gene, Atg7, is required for dendritic structure and spine density and the function of excitatory inputs onto dSPNs. In iSPNs, we did not detect changes in dendritic arborization, spine density or excitatory and inhibitory inputs in the absence of Atg7. In contrast, however, loss of Atg7 in iSPNs led to intrinsic hyperexcitability, due to reduced Kir2 function. We then demonstrated that Kir2 channels are degraded by autophagy and have decreased activity in the absence of autophagy. Furthermore, loss of Atg7 in either dSPNs or iSPNs led to deficits in behavioral tasks considered to depend at least in part on the striatum (Durieux et al., 2012). These results demonstrate that autophagy contributes to striatal function via distinct molecular pathways in dSPNs and iSPNs.

Autophagic control of synaptic function in dSPNs

Autophagy is required for normal synaptic structure and function in C. elegans, the Drosophila neuromuscular junction, and excitatory neurons in the mouse cortex and hippocampus (Glatigny et al., 2019; Nikoletopoulou et al., 2017; Shehata et al., 2012; Shen and Ganetzky, 2009; Stavoe et al., 2016; Tang et al., 2014; Vanhauwaert et al., 2017; Yan et al., 2018). We report that, in dSPNs, loss of autophagy led to reduced complexity of the dendritic tree, lower dendritic spine density, and functional deficits in excitatory inputs. The mechanism through which autophagy may regulate dendritic structure and function in dSPNs remains unknown. Dendritic complexity and spine density can be controlled by neurotrophic factors (Horch et al., 1999; Li et al., 2012), mitochondrial function (Li et al., 2004), neuromodulatory signaling (Villalba and Smith, 2013), and synaptic inputs and neurotransmission (Alvarez and Sabatini, 2007; Lambot et al., 2016). Each of these cellular pathways is modulated by autophagy and therefore could lead to altered dSPN dendritic arborization and excitatory synaptic inputs (Kononenko et al., 2017; Nikoletopoulou et al., 2017; Youle and Narendra, 2011). A key unanswered question is whether these synaptic pathologies arise during early dSPN development or as a degenerative process and could be addressed via a longitudinal analysis of these parameters in dSPNAtg7cKO mice. We hypothesize that, given the dynamic changes in autophagic flux that occur in SPNs during early postnatal development (P10-P18; Lieberman et al., 2019a), autophagy may play a role in dendritic growth and excitatory synaptogenesis on dSPNs.

Although we did not observe a difference between the dendritic morphology of dSPNs and iSPNs, there are conflicting reports on morphological differences between dSPNs and iSPNs (Cepeda et al., 2008; Gertler et al., 2008; Suárez et al., 2014). Future studies must aim to reconcile these disparate findings.

Interestingly, in some neuronal populations, loss of autophagy leads to increased cell size and increased synaptic contacts (Shen and Ganetzky, 2009; Tang et al., 2014). Mechanistic studies aimed at defining how autophagy regulates synapse formation or maintenance would provide insight into how loss of the same cellular pathway could also yield reduced spine density in dSPNs.

Perhaps, most surprising is the fact that iSPNs that lack Atg7 do not show changes in dendritic complexity, spine density or excitatory inputs. One possible explanation would be a difference in the timing of Cre expression and Atg7 knockout between dSPNAtg7cKO and iSPNAtg7cKO mice. However, Cre-mediated recombination has been reported in both driver lines before postnatal day 7 (Kozorovitskiy et al., 2015; Kozorovitskiy et al., 2012), which is before excitatory synaptogenesis occurs in the striatum (Hattori and McGeer, 1973; Tepper et al., 1998). An additional confounding factor may be Cre-mediated recombination that occurs in the cortex of dSPNAtg7cKO mice, which could synergize with dSPN loss of Atg7 to affect synaptic inputs (data not shown). iSPNAtg7cKO mice do not demonstrate Cre-mediated recombination outside of the striatum (data not shown). Future efforts to define the underlying mechanisms that contribute to cell-type-specific roles for autophagy in the striatum could include Cre-driver lines in which both dSPNs and iSPNs are targeted to rule out a contribution of different expression time courses between the Cre lines used in this study.

Alternatively, excitatory synaptogenesis onto iSPNs may occur in an autophagy-independent manner. Once the mechanism through which autophagy regulates dendritic complexity and synaptogenesis in dSPNs is identified, future studies could compare this process with iSPNs and define why loss of autophagy in iSPNs does not affect iSPN synaptogenesis.

Atg7 is also involved in non-autophagic processes such as LC3-associated phagocytosis and secretion of lysosomal contents (Subramani and Malhotra, 2013). It is possible that Atg7 contributes to dSPN dendritic morphology and synaptic inputs via these processes as opposed to ‘classical’ autophagic degradation. Future studies comparing loss of other autophagy-associated genes that do not contribute to LC3-associated phagocytosis or lysosomal exocytosis may provide further insight.

Autophagy regulates iSPN intrinsic excitability via Kir2 currents

In contrast to dSPNs, Atg7 was not required for excitatory or inhibitory transmission onto iSPNs. Rather, whole cell recordings revealed an intrinsic hyperexcitability in iSPNs lacking Atg7 that was characterized by a depolarized RMP, elevated input resistance, decreased rheobase and left-shifted current response curve.

SPN intrinsic excitability is tightly regulated by a complement of potassium channels (Nisenbaum et al., 1994; Shen et al., 2005; Shen et al., 2004; Wilson and Kawaguchi, 1996). At hyperpolarized potentials, the RMP and input resistance of the cell is determined by Kir2 currents, mediated by the Kir2.1 and Kir2.3 channels (Cazorla et al., 2012; Karschin et al., 1996; Shen et al., 2007). SPNs are thought to be depolarized from their resting potential of around −80 mV by the coordinated activity of excitatory inputs and once the cell reaches ~ −60 mV, the Kir2 current inactivates, and other potassium currents, such as IA, ID, and IM regulate the number of action potentials fired and the spike frequency (Kreitzer, 2009; Wilson and Kawaguchi, 1996). The depolarized RMP and increased input resistance around the RMP strongly support a primary role for reduced Kir2 currents in the hyperexcitable phenotype of iSPNs lacking Atg7.

Autophagy has not been previously implicated in the regulation of potassium channels. To address the mechanism through which Atg7 may control Kir2 channels and, in turn, neuronal activity, we conducted experiments in heterologous cells and in vivo in iSPNAtg7cKO mice with largely congruent results. We found that ectopically expressed Kir2.1 was localized in an LC3+ compartment in MEFs in an Atg5-dependent manner. Treatment with Bafilomycin A1, an inhibitor of the lysosomal proton pump which prevents fusion of autophagosomes with lysosomes and degradation of autophagic cargo (Yamamoto et al., 1998), increased the number of Kir2.1+ LC3+ puncta. This is consistent with previous studies demonstrating that Kir2.1 undergoes lysosomal degradation in mammalian cells (Jansen et al., 2008; Kolb et al., 2014). Finally, using the SNAPtag system and a cycloheximide pulse chase assay, we found that the half-life of Kir2.1 was greatly extended in Atg5KO and Atg7KO MEFs. These data were supported by the finding that Kir2.1 and Kir2.3 protein levels were higher in the striatum of iSPNAtg7cKO mice without a change in mRNA expression. Together, these data indicate that Atg7-dependent autophagy is required for Kir2 function and degradation.

We further used a viral overexpression strategy to confirm that the decreased Kir2 activity in iSPNs lacking Atg7 did not arise from reduced Kir2 mRNA expression. Viral overexpression of Kir2.1 failed to increase Kir2 currents in iSPNs lacking Atg7, demonstrating that Atg7 is required for newly synthesized channels to become functional. This experiment also permitted us to acquire additional support for differences in Kir2 handling between dSPNs and iSPNs. Although Kir2.1 overexpression failed to increase Kir2 currents in iSPNs lacking Atg7, it did increase Kir2 currents in dSPNs lacking Atg7. These experiments support our conclusions that Atg7 is required for Kir2 channel function but not synthesis, and that dSPNs and iSPNs have different requirements for Atg7 in Kir2.1 activity. We hypothesize that newly synthesized Kir2.1 in iSPNs lacking Atg7 is acetylated and does not undergo autophagic degradation, preventing functional increases in Kir2.1 current.

Autophagy associated genes, such as Atg5 and Atg7, have been proposed to play a role in other cellular processes such as LC3-associated phagocytosis, lysosomal exocytosis and endocytosis (Subramani and Malhotra, 2013). Here, we argue that Kir2.1 is a direct substrate of autophagy for the following reasons. First, Kir2.1 degradation is deficient in both Atg5KO and Atg7KO MEFs. Additional studies in cells lacking other required autophagy proteins such as Fip200 would further support this hypothesis. Second, we have demonstrated direct colocalization with LC3+ vesicles and that the amount of Kir2.1 in LC3+ vesicles increases in response to blockade of autophagosome-lysosome fusion. Finally, Kir2.1 internalization, measured with antibody feeding assays, is not affected in Atg5KO MEFs, arguing against a role of Atg5 in endocytosis of Kir2.1. Collectively, these data indicate that Kir2.1 must pass through an autophagy-dependent organelle, presumably an amphisome, before undergoing lysosomal degradation.

While autophagic degradation is classically initiated when cytosolic proteins are sequestered in newly formed autophagosomes or autophagic membranes surround membrane-bound organelles (Klionsky, 2007), autophagy may be required for Kir2.1 degradation via a distinct mechanism. We found that autophagy is not required for Kir2.1 internalization, suggesting that autophagy acts at a post-endocytic step. Endosomes fuse with autophagosomes to form amphisomes, and this step is required for the degradation of some proteins and the overall function of the autophagosomal and endosomal system (Filimonenko et al., 2010; Hollenbeck, 1993; Liang et al., 2008; Rabinowitz et al., 1992; Sanchez-Wandelmer and Reggiori, 2013; Wang et al., 2016). We speculate that Kir2.1+ endosomes require fusion with an autophagic intermediate for lysosomal delivery. Alternatively, autophagic membranes may form de novo on the surface of Kir2.1+ endosomes, leading to the lysosomal degradation of endosomal contents. We cannot exclude the possibility that Kir2 channels are endocytosed in early autophagic structures that mature into autophagosomes in an Atg5/7-dependent manner for degradation (Ravikumar et al., 2010; Wu et al., 2016). These potential mechanisms are consistent with data demonstrating a role for autophagy in the degradation of other membrane proteins including Notch1 (Wu et al., 2016), GluR1 (Shehata et al., 2012), and the Na+/H+ exchanger regulatory factor 2 (Gao et al., 2018).

Selectivity and cell-type specificity of the autophagic degradation of Kir2 channels

Recent work has highlighted a role for selective, as opposed to bulk, autophagy in the maintenance of cellular homeostasis. Here, we find that loss of autophagy does not lead to a global disruption of membrane or synaptic protein levels, but instead has relatively specific effects on Kir2.1 and Kir2.3 channels. For example, the protein level of the voltage-gated potassium channel, Kv1.2, which is expressed by both dSPNs and iSPNs (Shen et al., 2004) is not affected by loss of autophagy. Furthermore, components of the postsynaptic density, such as PSD95, which are degraded by autophagy in excitatory neurons (Nikoletopoulou et al., 2017; Tang et al., 2014; Yan et al., 2018), are not affected by loss of autophagy in dSPNs or iSPNs. Finally, AMPA receptors, which can be degraded by autophagy in excitatory neurons (Shehata et al., 2012), do not seem to be affected in iSPNs as mEPSC amplitude is unchanged in iSPNAtg7cKO mice. An unbiased proteomics approach in iSPNAtg7cKO mice would provide additional evidence for the relatively selective degradation of Kir2 channels in iSPNs.

How might this specificity be achieved? Other forms of selective autophagy depend on cargo adapter proteins which interact with autophagosomal proteins, such as LC3, and specific cargo (Svenning and Johansen, 2013; Zaffagnini and Martens, 2016). In some cases, autophagy cargo adapters select substrates depending on substrate post-translational modifications, providing an additional mechanism that could regulate selectivity (Khaminets et al., 2016). Finally, substrates can directly interact with autophagosome proteins via intrinsic LC3-interacting motifs (Birgisdottir et al., 2013). Future studies should address possible cargo adapters that bind to Kir2 channels and are required for Kir2 channel degradation or whether Kir2 channels have intrinsic LC3-interacting motifs that could explain why Kir2 channels undergo autophagy-dependent degradation but other membrane proteins in iSPNs do not.

In contrast to iSPNs, Kir2.1 and Kir2.3 abundance and Kir2 currents were unaffected by loss of autophagy in dSPNAtg7cKO mice. As Kir2 channels are expressed in both populations of SPNs and play important roles in both dSPN and iSPN physiology (Cazorla et al., 2012; Gertler et al., 2008; Lieberman et al., 2018; Shen et al., 2007), these data suggest that the degradation of Kir2 channels by autophagy occurs via cell type-specific mechanisms. This cell-type specificity could arise from differential expression of cargo adapters, post-translational modification of Kir2 channels that target them for autophagic degradation, or increased activity of alternative endolysosomal protein degradation pathways that contribute to Kir2 degradation in cardiomyocytes (Ambrosini et al., 2014; Jansen et al., 2008; Kolb et al., 2014). Future work will focus on the mechanism that confers cell-type specificity to the autophagic degradation of Kir2 channels.

Kir2 channels are acetylated and have reduced activity in the absence of autophagy

In previous cases where autophagy regulates membrane proteins, substrate protein levels correlate with substrate protein activity (Gao et al., 2018; Shehata et al., 2012; Wu et al., 2016). Furthermore, most mutations or manipulations that inhibit lysosomal degradation of Kir2.1 lead to increased Kir2 currents (Ambrosini et al., 2014; Jansen et al., 2008; Kolb et al., 2014; Varkevisser et al., 2013). In iSPNs, however, loss of autophagy led to increased Kir2 abundance and decreased Kir2 current.

One possible explanation for the inverse correlation between Kir2 protein abundance and Kir2 current in iSPNs and MEFs lacking autophagy could be via changes in its trafficking or surface residence. However, we found that surface levels of heterologously expressed Kir2.1 were elevated in the absence of autophagy, and loss of autophagy was not associated with intracellular Kir2.1 inclusions or increased ER localization in MEFs. This was consistent with our subcellular fractionation results in striatal tissue from control and iSPNAtg7cKO mice, which displayed no difference in the distribution of Kir2 channels but higher levels within each fraction. We thus conclude that autophagy is not required for Kir2 trafficking.

We, therefore, hypothesized that Kir2 channels were inhibited in the absence of autophagy via post-translational modification. We measured the relative levels of ubiquitination and acetylation, two PTMs that can target proteins for autophagic degradation (Khaminets et al., 2016), of Kir2.1 in autophagy-deficient cells. We found that acetylation but not ubiquitination of Kir2.1 increased in this condition. K334, a conserved lysine that is in the same intracellular loop as two other lysines that can be ubiquitinated in Kir2.1 (Ambrosini et al., 2014; Ziv et al., 2011), was required for Kir2.1 degradation in Atg5WT cells. Mutation of K334 to arginine, which cannot be acetylated, rescued channel function in the absence of autophagy. Finally, changing K334 to an acetylation-mimic glutamine was sufficient to reduce channel function in Atg5WT cells. These results demonstrate that acetylation of Kir2.1 at K334 is required for proper channel degradation and function in the absence of autophagy.

While it is likely not the only acetylated residue on Kir2.1, we found that K334 acetylation plays a critical role in channel function and half-life. Although we were unable to biochemically isolate acetylated Kir2.1 in wild-type cells, the genetic evidence suggests that Kir2.1 acetylation at this residue is required for channel degradation. We hypothesize that acetylated Kir2.1 may represent a short-lived intermediate and that the channel is deacetylated when it reaches an Atg5-dependent organelle. Thus, in the absence of autophagy, acetylated Kir2.1 may never colocalize with its cognate deacetylase, explaining the elevated level of acetylated Kir2.1 in Atg5KO MEFs. Defining the specific acetyltransferase and deacetylase that control Kir2.1 acetylation would provide significant insight into how this process is regulated and whether this represents a response the physiological stimuli known to regulate Kir2.1 activity in the striatum (Cazorla et al., 2012; Lieberman et al., 2018; Shen et al., 2007; Zhao et al., 2016).

Although acetylation was initially described as a PTM for histones and other nuclear proteins, numerous examples suggest that acetylation may affect the function of non-nuclear proteins, including some proteins involved in autophagy (Narita et al., 2019). K334 is located within the Kir2 C-terminus, near regions that interact with obligate cofactors, suggesting a possible mechanism for how acetylation at this residue could affect channel function. Finally, it is attractive to speculate that Kir2 acetylation at K334 could act as a dynamic regulator of Kir2 currents over both long and short timescales: acetylation at K334 would not only reduce channel activity at the surface but also target Kir2 channels for autophagic degradation and affect long-term Kir2 activity.

Several alternative models could explain our data including decreased levels of a required cofactor for Kir2 in autophagy-deficient cells and changes in membrane localization that are below the detection limit of our approaches. Future examination of the Kir2 interactome in wild-type and autophagy-deficient cells could elucidate these mechanisms.

Implications for neuropsychiatric disorders with dysfunctional autophagy

We demonstrate here that the absence of autophagy in dSPNs or iSPNs results in deficits in striatal-based behaviors. Our data are consistent with reports of hyperactivity in the open-field and reduction of motor learning in multiple animal models with disrupted SPN function (Durieux et al., 2012; Fuccillo, 2016; Peça et al., 2011; Rothwell et al., 2014; Wang et al., 2017). A disruption of striatal-based learning, hyperactivity and increased stereotypies, as seen in dSPNAtg7cKO and iSPNAtg7cKO mice, is also observed in neurodevelopmental syndromes including autism spectrum disorder (ASD) (Fuccillo, 2016). Genetic variants in autophagy-associated genes are risk factors for the development of ASDs and reduced autophagic function is observed in human post-mortem tissue from ASD cases and in mouse models of the disease, suggesting that changes in autophagic function in the striatum in addition to other brain regions may contribute to the pathophysiology of ASDs (Lieberman et al., 2019b; Poultney et al., 2013; Tang et al., 2014; Yan et al., 2018). Identifying the cell-type-specific effects of loss of autophagy in distinct neuronal subtypes may permit targeted development of therapeutics that act downstream of the autophagy machinery to correct neural circuit deficits and avoid undesired effects of non-specific autophagic activation.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
Gene (Mouse)Atg7Ensembl:ENSMUSG00000030314
Gene (Mouse)Atg5Ensembl:ENSMUSG00000038160
Strain, strain background (M. musculus, Male and Female)C57/Bl6J
Strain, strain background (E. coli)DH5αThermoFisherCat # 18265017
Genetic reagent (Mouse)B6.Cg-Tg(Drd1a-tdTomato)6Calak/JJackson LaboratoriesRRID: IMSR_JAX:016204
Genetic reagent (Mouse)Tg(Adora2a-cre)KG139GsatMMMRCRRID:MMRRC_031168-UCD
Genetic reagent (Mouse)Tg(Drd1-cre)EY262GsatMMMRCRRID:MMRRC_030989-UCD
Genetic reagent (Mouse)Atg7tm1.1Tchi/Atg7tm1.1TchiGift of Masaaki KomatsuRRID:MGI:3590136(Komatsu et al., 2005)
Genetic reagent (Mouse)129S1/Sv-Hprttm1(CAG-cre)Mnn/J(Tang et al., 2002)RRID:IMSR_JAX:004302
Cell line (Mouse)Atg5-/- transformed MEFGift of Ana Maria Cuervo; (Kuma et al., 2004)RRID:CVCL_0J75
Cell line (Mouse)Atg5+/+ transformed MEFGift of Ana Maria Cuervo; (Kuma et al., 2004)
Cell line (Mouse)Atg7-/- primary MEFThis studySee Materials and methods
Cell line (Mouse)Atg7+/+ primary MEFThis studySee Materials and methods
AntibodyRabbit anti-Red fluorescent protein polyclonalRocklandCat # 600-401-379See Table S3 in Supplementary file 1
AntibodyRabbit anti-DARPP32 monoclonalCell Signaling TechnologyCat # 2306SSee Table S3 in Supplementary file 1
AntibodyMouse anti-beta actin monoclonalNovus BiologicalsCat # NB600-501See Table S3 in Supplementary file 1
AntibodyMouse anti-Kir2.1 monoclonalAntibodies IncorporatedItem # 73–210
RRID:AB_11000720
See Table S3 in Supplementary file 1
AntibodyMouse anti-Kir2.3 monoclonalAntibodies IncorporatedItem # 75–069
RRID:AB_2130742
See Table S3 in Supplementary file 1
AntibodyMouse anti-Kv1.2 monoclonalAntibodies IncorporatedItem # 75–008
RRID:AB_2296313
See Table S3 in Supplementary file 1
AntibodyRabbit anti-PSD95 polyclonalAbcamCat # Ab18258See Table S3 in Supplementary file 1
AntibodyGuinea pig anti p62 polyclonalAmerican Research ProductsCat # 03-GP62-CSee Table S3 in Supplementary file 1
AntibodyRabbit anti p62 polyclonalMBLCat # PM045See Table S3 in Supplementary file 1
AntibodyRabbit anti LC3B polyclonalNovus BiologicalsCat # NB600-1384See Table S3 in Supplementary file 1
AntibodyChicken anti GFP polyclonalAbcamCat # Ab13970See Table S3 in Supplementary file 1
AntibodyRat anti Lamp1 monoclonalIowa Hybridoma BankCat # 1D4BSee Table S3 in Supplementary file 1
AntibodyRabbit anti Kir2.1 polyclonalAlomone LabsCat # APC-026See Table S3 in Supplementary file 1
AntibodyMouse anti ubiquitin antibody monoclonal VU-1LifeSensorsCat # VU101See Table S3 in Supplementary file 1
AntibodyMouse anti-acetyl-lysine monoclonal, clone 4G12MilliporeCat # 05–515See Table S3 in Supplementary file 1
AntibodyMouse Anti-Flag M2 monoclonalSigmaCat # F1804See Table S3 in Supplementary file 1
AntibodyRabbit anti-HA polyclonalAbcamCat # ab9110See Table S3 in Supplementary file 1
AntibodyMouse anti-NeuN, monoclonal clone A60MilliporeCat # MAB377See Table S3 in Supplementary file 1
AntibodyRabbit Anti-Atg7 (D12B11) monoclonalCell Signaling TechnologyCat # 8558See Table S3 in Supplementary file 1
AntibodyMouse anti-Tubulin (TU-01)InvitrogenCat # 13–8000See Table S3 in Supplementary file 1
AntibodyPierce Protein A/G Magnetic BeadsThermoCat # 88802See Table S3 in Supplementary file 1
AntibodyGoat anti Guinea Pig IgG (H+L) Secondary antibody, Alexa 488InvitrogenCat # A-11073See Table S3 in Supplementary file 1
AntibodyGoat anti Guinea Pig IgG (H+L) Secondary antibody, Alexa 647InvitrogenCat # A-24150See Table S3 in Supplementary file 1
AntibodyDonkey anti-Rabbit IgG (H+L) Secondary Antibody, Alexa 488InvitrogenCat # A-21206See Table S3 in Supplementary file 1
AntibodyDonkey anti-Rabbit IgG (H+L) Secondary Antibody, Alexa 594InvitrogenCat # A-21207See Table S3 in Supplementary file 1
AntibodyGoat anti-Mouse IgG1 (H+L) Secondary Antibody, Alexa 488InvitrogenCat # A-21121See Table S3 in Supplementary file 1
AntibodyDonkey anti-Mouse IgG1 (H+L) Secondary Antibody, Alexa 594InvitrogenCat # A-21125See Table S3 in Supplementary file 1
AntibodyGoat anti-Chicken IgY (H+L) Secondary Antibody, Alexa 488InvitrogenCat # A-11039See Table S3 in Supplementary file 1
AntibodyGoat anti-Rat IgG1 (H+L) Secondary Antibody, Alexa 647InvitrogenCat # A-21248See Table S3 in Supplementary file 1
AntibodyDonkey anti-Rabbit IgG (H+L) Secondary IRDye 680LTLI-CORP/N 925–68023See Table S3 in Supplementary file 1
AntibodyStreptavidin, Alexa 488 conjugateInvitrogenS11223See Table S3 in Supplementary file 1
AntibodyDonkey anti-Mouse IgG (H+L) conjugated to HRPJackson ImmunoresearchCode: 715-035-151See Table S3 in Supplementary file 1
AntibodyDonkey anti-Rabbit IgG (H+L) conjugated to HRPJackson ImmunoresearchCode: 715-035-152See Table S3 in Supplementary file 1
Recombinant DNA reagentAAVDJ-CMV-DIO-Kir2.1-t2A-ZsGreenStanford Viral Vector Core (Rothwell et al., 2014)AAV61
Recombinant DNA reagentAAV2-EF1a-DIO-mCherry (3.2 × 1012 viral genomes/mL)UNC Viral Vector Core
Recombinant DNA reagentAAVDJ-hSyn-FLEX-mmAtg7-t2A-ZsGreen (1.7 × 1013 genome copies/mL)Vector BioLabsThis study
Sequence-based reagentRNAScope Multiplex Fluorescent ReagentAdvanced Cell DiagnosticsCat # 320850
Sequence-based reagentRNAScope probe: Mm-Kcnj2 (Kir2.1)Advanced Cell DiagnosticsCat # 476261
Sequence-based reagentRNAScope probe: Mm-Kcnj4 (Kir2.3)Advanced Cell DiagnosticsCat # 525181-C3
Commercial assay or kitBCA protein assay kitThermoFisherCat # 23225
Commercial assay or kitImmobilon Western Chemiluminescent HRP SubstrateMilliporeCan # WBKLS0500
Commercial assay or kitXhoINew England BiolabsCat # R0146S
Commercial assay or kitBamHI-HFNew England BiolabsCat # R3136S
Commercial assay or kitHindIII-HFNew England BiolabsCat # R3104S
Commercial assay or kitDpnINew England BiolabsCat # R0176S
Commercial assay or kitHerculase II fusion DNA polymeraseAgilent TechnologiesCat # 600675
Commercial assay or kitdNTP mixThermoFisherCat # R0191
Commercial assay or kitHalt Protease Inhibitor Cocktail (100X)ThermoFisherCat # 78430
Chemical compound, drugBafilomycin A1Tocris BiosciencesCat # 1334
Chemical compound, drugTetrodotoxin citrateTocris BiosciencesCat # 1069/1
Chemical compound, drugPicrotoxinTocris BiosciencesCat # 1128/1G
Chemical compound, drugSNAP-Cell 505-StarNew England BiolabsCat # S9103S
Chemical compound, drugSNAP-Cell TMR-StarNew England BiolabsCat # S9105S
Chemical compound, drugNeurobiotin tracerVector LaboratoriesCat # SP-1120
Chemical compound, drugTrypLEThermoFisherCat # 12604054
Chemical compound, drugTrichostatin ATocris BiosciencesCat # 1406
Chemical compound, drugNicotinamideTocris BiosciencesCat # 4106
Chemical compound, drugN-ethylmaleimideSigmaCat # E3876
Chemical compound, drugPR-619SigmaCat # SML0430
Software, algorithmIgorWavemetricsRRID:SCR_000325
Software, algorithmpClampMolecular DevicesRRID:SCR_011323
Software, algorithmImage Studio LiteLI-CORRRID:SCR_014211
Software, algorithmBenchlingRRID:SCR_013955
Software, algorithmGraphPad Prism 7RRID:SCR_002798
Software, algorithmImageJNIHRRID:SCR_003070

Contact for reagent and resource sharing

Request a detailed protocol

Further information and requests for resources and reagents should be directed to and will be fulfilled by the Lead Contact, David Sulzer (ds43@columbia.edu).

Experimental model and subject details

Animals

A2A-cre (KG139) and D1-cre (ey262) were obtained from the Mutant Mouse Resource and Research Center (MMRRC). Mice were backcrossed onto C57Bl6J mice from Jackson Laboratories (Bar Harbor, ME). Atg7Fl/Fl mice were a gift of Masaaki Komatsu (Komatsu et al., 2005) and backcrossed onto the C57Bl6 background. D1-tomato mice (B6.Cg-Tg(Drd1a-tdTomato)6Calak/J) were obtained from Jackson Laboratories. iSPNCtrl (Atg7Fl/Fl) and iSPNAtg7cKO experimental mice were obtained as follows. A2Acre hemizygous mice were crossed with Atg7Fl/Fl mice. A2Acre Atg7Fl/wt offspring were crossed with Atg7Fl/Fl mice, yielding experimental offspring. For experiments with mice expressing the D1-tomato allele, either parent (A2Acre Atg7Fl/wt or Atg7Fl/Fl) harboring a single D1-tomato allele was used. The D1-tomato and the A2Acre alleles were always maintained in hemizygosity. The same strategy was used to generate dSPNCtrl (Atg7Fl/Fl) and dSPNAtg7cKO (D1cre Atg7Fl/Fl) mice. For viral injections, some crosses included A2Acre Atg7Fl/wt, D1cre Atg7Fl/wt with Atg7Fl/wt to generate A2Acre Atg7wt/wt (or D1cre Atg7wt/wt) and A2Acre Atg7Fl/Fl (or D1cre Atg7Fl/Fl) littermates. Mice were housed on a 12:12 hr light:dark cycle and provided with food and water ad libitum. Mice were genotyped using Transnetyx genotyping services (Memphis, TN). Pups were weaned on postnatal day 18–21 into same sex groups of 3–5 mice. All subjects were randomly assigned to groups. All experiments were conducted according to NIH guidelines and approved by the Institutional Animal Care and Use Committees of Columbia University and the New York State Psychiatric Institute.

Generation of primary Atg7WT and Atg7KO MEFs

Request a detailed protocol

To generate Atg7 wildtype and knockout MEFs, male C57BL/6 mice homozygous for the conditional Atg7Fl allele (Komatsu et al., 2005), were crossed to female mice expressing Cre recombinase in the X-linked Hprt gene (Tang et al., 2002), permitting excision of the loxP-flanked exon 14 of Atg7 at the zygote or early cleavage stage in progeny. Mice in the F1 generation (Atg7+/-) were intercrossed to generate pregnant dams with F2 embryos for experimental isolation.

At E14.5, embryos were collected from deeply anesthetized pregnant dams. Uterine horns were dissected and rinsed in ice-cold Hank’s buffered saline solution (HBSS), and embryos were individually separated into HBSS. The liver, heart, and head were removed from the embryos and collected for genomic DNA extraction. The remaining tissue was incubated in 0.25% trypsin first overnight at 4°C, then 10 min at 37°C. Samples were triturated with fire-polished glass pipettes and diluted in MEF media: DMEM (Thermo Fisher) with 10% FBS (Thermo Fisher), 0.1 mM beta-mercaptoethanol (Sigma), and 1x Antibiotic-Antimycotic (Thermo Fisher). Cells were filtered through a 100-micron sieve and plated in MEF media. After plating, genotypes were confirmed and cells were collected for western blot analysis.

Method details

Behavior

Request a detailed protocol

Cohorts of iSPNCtrl and iSPNAtg7cKO or dSPNCtrl and dSPNAtg7cKO mice were assembled from 4 to 6 litters of the cross described above born within 3 weeks of each other. Behavioral experiments were conducted on these cohorts between 3 and 5 months of age. A similar number of male and female mice was used in behavioral experiments. Data were combined for Figure 2 as no interaction between sex and genotype was observed. See Table 1 for behavioral data split by sex. All behavioral results were combined from at least three independent cohorts of mice. Mice in these cohorts were handled weekly by the experimenter and weighed at these times. Two dSPNAtg7cKO mice were excluded from the behavioral analysis due to observed handling-induced seizures.

Open field

Request a detailed protocol

Each mouse is gently placed in the center of a clear Plexiglas arena (27.31 × 27.31×20.32 cm, Med Associates ENV-510) lit with dim light (~10 lux), and is allowed to ambulate freely for 50 min. Infrared (IR) beams embedded along the X, Y, Z axes of the arena automatically track distance moved, horizontal movement, vertical movement, stereotypies, and time spent in center zone. At the end of the test, the mouse is returned to the home cage and the arena is cleaned with 70% ethanol and wiped dry.

Rotarod

Request a detailed protocol

The accelerating rotarod test is widely to evaluate the motor coordination and motor learning in rodents. Two to four experimental mice are placed on the still rotarod (Ugo Basile) in one lane of the rotating drum (3 cm in diameter, textured to avoid slips) for two minutes. The mice are returned to the homecage for thirty minutes. Mice are then returned to the rotarod, rotating at a constant speed for 5 rpm, for 2 min, followed by return to the homecage for thirty minutes. For the first experimental session (Trial 1), experimental mice are placed on the rotating drum. The rotating speed of the Rotarod (Ugo Basile) is set at 5 rpm. Once all mice are steady, the rotation speed is gradually increase from 5 to 40 rpm over a 5-min period. Latency to fall is recorded automatically when the animal lands on the sensing platform below each lane or when the mouse grabbed on to the drum and executed a full revolution without running. To avoid injury, a cut-off latency of 300 s is applied to each trial. Animals were returned to the home cage for 30 min followed by two additional trials. The drum and the platform are wiped clean with paper towel moistened with 70% ethanol and let dry.

Home cage repetitive behaviors

Request a detailed protocol

Repetitive behaviors and stereotypies such as excessive self-grooming, circling, jumping, and back flipping were evaluated in a simple test using clean mouse cages as described in a recent study (Yang et al., 2015). Each subject mouse was placed in a clean home cage, allowed to habituate for 30 min and monitored for an additional 30 min. The cage bottom was covered with a thin layer of clean bedding. The cage is equipped with a metal wire bar lid as some repetitive back flipping involve the use of the metal lid. Occurrences of self-grooming were quantified for one minute every ten minutes from the final thirty minutes and summed together.

Viral injections

Request a detailed protocol

D1cre Atg7wt/wt, D1cre Atg7Fl/Fl, A2Acre Atg7wt/wt or A2Acre Atg7Fl/Fl mice (2–3 months old littermates of both sexes) were anesthetized with 5% isoflurane. Animals were transferred onto a Kopf Stereotax and maintained under isoflurane anesthesia (1–2%). Hair was removed, the scalp was sterilized using chlorhexidine solution and an incision was made. The coordinates of Bregma and Lambda were determined. Virus was injected at AP +0.8, ML, −1.6, and DV −2.8 from the dura. A small hole was drilled into the skull and 230 nL of virus (see above table for viral titers) was injected through a glass pipet using a Nanoject 2000 (Drummond Scientific; 50 pulses of 4.6 nL). The glass pipet was slowly withdrawn after 5 min. The skull was closed using vicryl sutures. Animals were housed for 3–4 weeks before being sacrificed for electrophysiology.

Cloning/molecular biology

Request a detailed protocol

The Kir2.1 coding sequence was PCR amplified from pAAV-mmKir2.1 (Gift from C. Kellendonk) into FUGW-VAMP2-Flag-SNAP (Sheehan et al., 2016) using the XhoI-BamHI sites (Tables S1 and S2 in Supplementary file 1). Kir2.1-ExtHA was synthesized by Genewiz with the HA tag inserted at amino acid 114 (Chen et al., 2002) and subcloned into FUGW-mmKir2.1-FLAG-SNAP. For cell culture electrophysiology experiments, mmKir2.1 CDS was PCR amplified from FUGW-mmKir2.1-FLAG-SNAP into the HindIII-BamHI sites of pcDNA2.1-eGFP (Addgene 13031).

Site-directed mutagenesis of FUGW-mmKir2.1-FLAG-SNAP or FUGW-mmKir2.1-ExtHA-FLAG-SNAP was conducted using Herculase II polymerase and primer pairs containing the desired mutation according to the manufacturer’s instructions (See Table S2 in Supplementary file 1). The PCR reaction was then treated with DpnI for 4–6 hr at 37°C, column purified (Qiagen) and transformed into DH5α competent cells. Mutated sequences were confirmed by Sanger sequencing (Genewiz or Eton Biosciences).

Plasmid preps for transfection were generated using Qiagen midi or maxiprep kits following manufacturer instructions.

Cell culture

Request a detailed protocol

Atg5WT and Atg5KO MEFs were obtained from Ana Maria Cuervo (Albert Einstein College of Medicine, New York). Cells were cultured using standard techniques in Dulbecco’s modified Eagle medium (DMEM; Gibco) supplemented with 10% fetal bovine serum (Gibco) and antibiotic-antimycotic mix (Gibco). Cells were not passaged more than ten times. Cells were incubated at 37°C in 5% CO2. Cell lines were Mycoplasma negative. Genotype of the cell line was validated biochemically with assays for autophagy function as described in the manuscript.

Transfection

Request a detailed protocol

For experiments, cells were plated and allowed to settle for 1–2 days. Cells were then transfected with Calfectin and plasmid DNA prepared with Qiagen Maxiprep or Midiprep kits according to manufacturer’s instructions. Experiments were conducted 36–48 hr after transfection.

Electrophysiology

Slice

Request a detailed protocol

Animals of either sex in Figures 34 were 4–6 weeks old at the time of experiment. Animals in Figure 6 were 3–4 months old. No interaction between sex and genotype was observed in electrophysiological or morphological analysis; however, we were underpowered for these analyses. Acute slices were generated as described (Lieberman et al., 2018). Briefly, mice underwent rapid cervical dislocation without anesthesia. Brains were removed and submerged in ice-cold cutting solution (in mM): 10 NaCl, 2.5 KCl, 25 NaHCO3, 0.5 CaCl2, 7 MgCl2, 1.25 NaH2PO4, 180 sucrose, 10 glucose bubbled with 95% O2/5% CO2 to pH 7.4. The cerebellum was removed and the brain was mounted on its caudal surface on a vibratome. 250 µm coronal sections including the striatum were collected.

Slices were allowed to recover at 34°C for 30 min in artificial cerebrospinal fluid (ACSF; in mM): 125 NaCl, 2.5 KCl, 25 NaHCO3, 2 CaCl2, 1 MgCl2, 1.25 NaH2PO4 and 10 glucose bubbled with 95% O2/5% CO2 to pH 7.4. Slices were then maintained at room temperature throughout the remainder of the experiment.

Slices were transferred to a recording chamber under constant perfusion with carbogenated ACSF at 1.5–2 mL/min. Cells in the dorsal striatum were identified using a 40X water immersion objective and IR/DIC optics. D1-tomato, mCherry or GFP fluorescence was observed as indicated. Liquid junction potential was not corrected. Data were digitized at 10 kHz and filtered at 5 kHz. Signals were acquired on an Axon Instruments Axopatch 200B, digitized on a Digidata 1440A (Axon Instruments). All recordings were made within 6 hr of slice preparation.

For synaptic recordings (in voltage clamp), whole cell recordings were established with glass pipettes (3–6 MΩ) filled with internal solution of (in mM): 120 CsMeSO3, 5 NaCl, 10 HEPES, 1.1 EGTA, 4 MgATP, 0.3 NaGTP, 10 TEA, 1 mg/mL Qx314 Bromide, pH 7.25. Once the whole-cell configuration was established, the internal solution was allowed to diffuse into the cell for at least 10 min. Pipette capacitance was compensated. Series resistance was continuously monitored and cells were excluded if series resistance was > 25 MΩ, changed by more than 20% or pipette capacitance transients changed by more than 20%. TTX (1 µM) was perfused in the ACSF. mEPSCs were recorded at −70 mV for a 2–4 min epoch. Cells were then held at 0 mV for a 2–4 min epoch to record mIPSCs. Traces were analyzed offline using a custom Igor script which has previously been reported by our lab for amperometric quantal analysis (Mosharov and Sulzer, 2005). Source code is included with the manuscript. Traces were imported to Igor and converted from. abf files. Traces were ‘smoothed’ using the plugin. mEPSC traces were inverted (as the plugin detects positive-going peaks) and peaks were detected using a threshold of 4 standard deviations above the noise. Median interevent interval was used to calculate the event frequency and median peak amplitude is presented. For mIPSC traces, a threshold of 3 standard deviations was set. Settings were determined following manual inspection of a subset of records (from both control and cKO neurons) and then kept the same for final analysis of all traces.

For current clamp recordings, glass pipets were filled with (in mM): 115 potassium gluconate, 20 KCl, 20 HEPES, 1 MgCl2, 2 MgATP, 0.2 NaGTP adjusted to pH 7.25 with KOH, osmolarity 285 mOsm. ACSF contained 1.5 mM CaCl2 instead of 2 mM CaCl2 to reduce contribution of calcium currents to Kir2 current measurements (Lieberman et al., 2018). Excitability parameters and Kir2 currents were measured as described in Lieberman et al. (2018). For current density measurements, the barium-sensitive current (0.1 mM BaCl2) was normalized to that cell’s capacitance measured in current clamp recordings as described (Lieberman et al., 2018).

MEFs

Request a detailed protocol

MEFs were cultured as described above. For electrophysiology experiments cells were cultured on 15 mm diameter glass coverslips placed in 35 mm diameter tissue culture dishes. Cells were transfected 36–48 hr before the experiment as described above. At the time of the experiment, coverslips were washed three times in recording saline (in mM): 135 NaCl, 4.8 KCl, 1.8 CaCl2, 1 MgCl2, 10 Glucose, 5 HEPES, pH 7.4 (Ambrosini et al., 2014). Cells were identified using IR/DIC optics and fluorescence was confirmed. In recordings in Figure 5, cells were transfected with Kir2.1-Flag-SNAP and labeled 1 hr prior to recording with SNAPcell TMR Star as described below. Because of the low intensity of the TMR star fluorescence, we subcloned Kir2.1 into pcDNA-eGFP as described above to have native GFP fluorescence for recordings in Figure 6. No difference was found in maximal Kir2 amplitude between cells transfected with Kir2.1-Flag-SNAP compared to Kir2.1-eGFP. Glass pipets (2–4 MΩ) were filled with (in mM): 115 potassium gluconate, 20 KCl, 20 HEPES, 1 MgCl2, 2 MgATP, 0.2 NaGTP adjusted to pH 7.25 with KOH, osmolarity 285 mOsm. After the whole cell configuration was established, cells were voltage clamped at −60 mV and currents were recorded using the same protocol as used for SPNs above (Lieberman et al., 2018).

Neuronal fills/spine counting

Request a detailed protocol

Dendritic reconstructions were obtained and analyzed essentially as described in Lieberman et al. (2018). For dendritic reconstructions, neurobiotin (1 mg/mL, Vector Laboratories) was added to the internal solution. Once the whole cell configuration was established, the neurobiotin was allowed to diffuse into the recorded cell for 15 min. The patch pipette was then carefully withdrawn. The slice was removed from the recording chamber and fixed overnight in 4% PFA in 0.1M phosphate buffer (PB), pH7.4. Only one cell was filled per slice. Slices were then washed in TBS. Slices were stained overnight with Alexafluor488-conjugated streptavidin (1:200, ThemoFisher) in 0.6% TritonX-100 in TBS. Slices were then washed in TBS and mounted on slides. Slices were allowed to dry overnight in the dark before being coverslipped with Fluoromount-G containing DAPI. Slides were imaged on a Leica SP5 confocal microscope in system optimized Z-stacks using a 20X objective. Segments of the dendritic tree approximately 50 microns from the soma were subsequently imaged with a 63x/1.4x oil objective with system optimized z stacks to permit analysis of spine density.

Dendritic trees were traced using the simple neurite tracer plugin in ImageJ. Traced neurites were collapsed into a max projection and analyzed using the Sholl analysis plugin. Dendritic spine density was manually determined from max projections of z-stacks obtained using the 63x objective. Dendritic protrusions defined by being 0.5–2 µm long with a shaft and head were counted from at least three dendritic segments of 20–50 µm per cell. The number of spines per micron were then averaged for each cell. At least three cells were analyzed per animal. Data were combined from 3 to 5 animals per group.

In vivo biochemistry

Request a detailed protocol

Whole striatal lysates were generated by acute cervical dislocation and decapitation. The brain was rapidly removed and the striatum was removed as described in Lieberman et al. (2018). Striata were sonicated in RIPA buffer containing 1X protease inhibitor cocktail (Pierce). Protein concentration was determined using the BCA kit and lysates were diluted in sample buffer. Lysates were stored at −80°C until analysis.

The synaptosome preparation technique was adapted from a recent study (Bermejo et al., 2014). Two striata from a single mouse were removed as above and dounce homogenized in 1 mL of 320 mM sucrose, 4 mM HEPES pH 7.4 on ice. All subsequent steps were conducted at 4°C. Homogenized tissue (TH, total homogenate) was spun at 1000xg for 10 min. The supernatant was collected (PNS; post-nuclear supernatant) and spun at 10000xg for 15 min. The supernatant was collected and labeled S2. The pellet (Crude synaptosomal pellet; P2) then underwent hypotonic lysis by resuspending the pellet in 1 mL ddH2O followed by 4 strokes of dounce homogenization. Four µL of 1 M HEPES pH7.4 was added and the sample was rotated for 30 min. Until this point, all centrifugation steps were completed on a tabletop ultracentrifuge. The sample was then spun at 25000 x g for 20 min in a fixed angle S140-AT rotor in a Sorvall ultracentrifuge. The supernatant (S3) was collected. The pellet was resuspended in 320 mM Sucrose, 4 mM HEPES pH7.4 and layered on top of a discontinuous sucrose gradient (0.8M, 1.0M, 1.2M). The sample was then spun 150,000xg for 2 hr. The 1.0M, 1.2M interface was collected and diluted to 320 mM sucrose, 4 mM HEPES pH7.4. The samples was then spun at 200,000 x g for 30 min to collect the synaptic plasma membranes (SPM). Aliquots were collected from each fraction described during the procedure. Equivalent protein concentrations of each fraction was used for Western blot analysis.

For the optiprep (iodixanol) gradient, samples were prepared using a procedure modified from Optiprep Application Sheet S62). Striata were dissected as for synaptosomal preparation and dounce homogenized in 250 mM Sucrose, 1 mM EDTA, 20 mM HEPES pH7.4. This homogenate was spun for 10 min at 1000xg. The supernatant was spun on an S80AT3 fixed-angle rotor at 100,000xg for 1 hr. The pellet was resuspended in 30% iodixanol, 250 mM Sucrose, 1 mM EDTA, 20 mM HEPES pH7.4. On top of the pellet, the following layers were loaded in equal volumes: 30%, 25%, 17%, 10%, 2.5% and spun at 165,000xg for 3.5 hr. 100 µL fractions were collected and equal volumes were run on a gel for western blot analysis.

Preparations were completed for the specified number of adult mice (3–4 months old, littermate and sex-matched iSPNCtrl and iSPNAtg7cKO) in parallel. For the total lysate experiment, samples were collected from four separate cohorts and combined for final analysis.

Perfusion fixation

Request a detailed protocol

Perfusion fixation was conducted as described (Lieberman et al., 2018). Animals were deeply anesthesized with an intraperitoneal injection of euthasol. Following loss of the righting and toe-pinch reflex, animals were transcardially perfused with 10–20 mL 0.9% NaCl followed by 50 mL of freshly prepared 4% paraformaldehyde in 0.1M PB, pH 7.4. Brains were removed and post-fixed in 4%PFA overnight at 4°C. Brains were subsequently washed with PBS and sectioned in 30–50 µm sections on a Leica vibratome. Sections were stored at −20°C in cryoprotective solution (30% ethylene glycol, 30% glycerol, 0.1M PB, pH7.4) until staining.

Immunohistochemistry

Request a detailed protocol

Immunohistochemical analysis was performed as described (Lieberman et al., 2018). Briefly, sections were removed from cryoprotectant solution and washed three times in TBS. Sections were then blocked in 10% normal donkey serum (NDS), 0.1% Triton-X 100, TBS for 1 hr at room temperature. Sections were then transferred to primary antibody solution in 2% NDS, 0.1% Triton-X 100, TBS overnight at 4°C. The next day, sections were washed three times in TBS and subsequently incubated in secondary antibodies in 2% NDS, 0.1% Triton-X 100, TBS at room temperature for 1 hr. Alexafluor conjugated secondary antibodies were used at a concentration of 1:500. Sections were then washed in TBS and mounted on slides, coversliped with Fluoromount-G containing DAPI and stored for imaging.

RNAScope

Request a detailed protocol

Brain sections were removed from cryoprotectant and washed in TBS. Sections were then mounted on charged Superfrost slides and allowed to dry overnight. A border was made with a PAP pen around the sections. Sterile water was dropped onto the slide and allowed to sit twice for two minutes. Pretreat IV was dropped onto the slide and slides were incubated in a humidified oven at 40°C for 30 min. Sections were rinsed twice for 2 min each in sterile water. Premixed probes were added to the slide and allowed to incubate for 2 hr at 40°C. Each section received probes against either Kir2.1 or Kir2.3. A custom probe in the C3 channel was developed by Advanced Cell Diagnostics (Newark, CA) for Kir2.3. A commercially available probe in the C1 channel was used for Kir2.1. Signals were amplified using the RNAScope Fluorescence Multiplex Kit. Sections were then immunohistochemically labeled for DARPP32 and p62 as described above.

Cell culture lysates

Request a detailed protocol

Cells were grown in 10 cm diameter dishes. Dishes were rinsed twice with PBS. RIPA buffer containing 1X protease inhibitors, deubiquitinase inhibitors (5 mM N-ethylmaleimide, 50 µM PR619) and deacetylase inhibitors (200 nM Trichostatin A and 5 mM Nicotinamide) was added to the plate. Dishes were rotated at 4°C for 5 min. Cells were scraped off of the dish, sonicated and allowed to sit on ice for 1 hr. Lysates were then spun at 10,000xg for 10 min. The supernatant was saved. Protein concertation was determined.

Cycloheximide pulse chase

Request a detailed protocol

Cells were plated and transfected in a 6-well plate. 36–48 hr after transfection with FUGW-Kir2.1-FLAG-SNAP, cells were treated with cycloheximide (0.1 mg/mL) for the specified amount of time. Cells were then lysed as described above.

Immunoprecipitation

Request a detailed protocol

Cells were transfected with FUGW-Kir2.1-extHA-FLAG-SNAP or FUGW-Kir2.1-K334R-FLAG-SNAP 36–48 hr before lysis. Cell lysates were generated as above. All steps were performed at 4°C. For immunoprecipitation (IP), equal amounts of protein (0.5–1.0 mg) of lysate was precleared with Protein A/G magnetic beads (Thermo) for 1 hr. Beads were removed with a strong magnet. Four µg of rabbit anti-HA (Abcam) were added to the cleared supernatant and rotated overnight. The next day, 25 µL of Protein A/G magnetic beads were added and samples were rotated for 1 hr. Beads were collected, washed once in one volume of RIPA buffer, three times in one volume of RIPA buffer containing 500 mM NaCl (instead of 150 mM NaCl) and one final time in RIPA Buffer. Beads were then lysed in 1X sample buffer. The entire eluted volume of the IP was used for a gel.

Western blot analysis

Request a detailed protocol

10% or 12% polyacrylamide homemade gels were prepared as described (Santini et al., 2007). For some experiments, 4–12% gradient NuPage gels were used. Protein was transferred on PVDF membrane (pore size 0.2 µm; Immobilon-Fl). Membranes were blocked in 5% non-fat milk (Biorad) in TBS-T (TBS + 0.1% Tween-20) at room temperature for 1 hr. Membranes were incubated overnight at 4° in primary antibody in 5% bovine serum albumin in TBS-T. Antibody concentrations are specified in Table S3 in Supplementary file 1. Blots were then washed three times in TBS-T, followed by incubation in secondary antibody in 5% milk TBS-T for one hour at room temperature. Blots were washed three more times in TBS-T.

Blots were developed as follows: Blots for PSD-95 and KV1.2 were imaged using a LICOR Odyssey. All other blots were developed using HRP-conjugated secondaries and Immobilon enhanced chemiluminescence solutions (Millipore) and imaged on an Azure Biosystems C600 system.

For some experiments, blots were stripped using 2% SDS, 62 mM Tris pH6.8, 0.8% β-mercaptoethanol at 50–55°C for 30 min. Blots were then rinsed in ddH2O and washed with TBS-T as described in Kanner et al. (2017).

Blots developed using the ECL technique were analyzed in ImageJ using standard routines. Blots developed using the LICOR Odyssey were analyzed in ImageStudio Lite.

Snap labeling/immune/quantification

Request a detailed protocol

For YFP-LC3 colocalization with Kir2.1, FUGW-Kir2.1-FLAG-SNAP and an expression vector expressing YFP-LC3 were co-transfected. Some cells were treated with Bafilomycin (100 nM) or DMSO vehicle control (DMSO concentration 0.1%) for 2 hr.

SNAPcell ligands were purchased from New England Biolabs, dissolved to 1 mM in DMSO and frozen in aliquots. Transfected cells (with FUGW-Kir2.1-FLAG-SNAP or specified mutants) on glass coverslips were placed in a 24-well plate in complete media. The media was replaced with complete media containing 1 µM SNAPcell ligand and incubated at 37°C in 5% CO2 for 30 min. Coverslips were then washed three times in PBS and returned to the incubator in fresh complete media (without SNAPcell ligand) for 30 min. Complete media was replaced again. This was considered time = 0 min. At the specified time, cells were removed from the incubator and fixed as described below.

Immunofluorescence

Request a detailed protocol

Cells were fixed as described (Lieberman et al., 2017). Cells on glass coverslips were removed from the incubator and washed three times in PBS. Cells were then fixed in 4% paraformaldehyde (Electron Microscopy Sciences) diluted in 5% Sucrose and 1X PBS for 5 min at room temperature. Coverslips were then washed in PBS and incubated in pre-chilled methanol and stored at −20°C until staining.

Coverslips were removed and washed in PBS three times. Coverslips were then blocked in 10% Normal Donkey serum in PBS with 0.1% triton x-100 for 1 hr at room temperature. Coverslips were then incubated for 1 hr at room temperature in primary antibody (See Table S4) in 2% NDS, PBS, 0.1% Triton X-100. Coverslips were then washed three times in PBS and incubated in secondary antibody diluted in 2% NDS, PBS, 0.1% Triton X-100 for 1 hr at room temperature. Coverslips were then washed in PBS and mounted on glass slides with Fluoromount-G containing DAPI.

For experiments that quantified colocalization of Kir2.1 signal with another organelle marker, images were acquired using a confocal microscope (Leica SP5 system) in a single mid-nuclear plane using a 63/1.4x oil objective.

Surface labeling/internalization

Request a detailed protocol

For determining the level of Kir2.1 on the cell surface in cell culture, cells were grown and transfected as described above with FUGW-Kir2.1-extHA-FLAG-SNAP. Cells were then fixed in 4% PFA, 5% Sucrose, 1X PBS for 10 min at room temperature. Coverslips were washed in PBS and then blocked in 10% NDS, PBS (without triton) for one hour at room temperature. Coverslips were then incubated in Rabbit anti HA (Abcam) in 2% NDS, PBS (no triton) for one hour at room temperature. Coverslips were washed three times in PBS and then blocked and permeabilized with 10% NDS, PBS and 0.1% Triton X-100 for 1 hr at room temperature. They were then transferred to primary antibody solution containing Ms anti FLAG M2 (Sigma) 2% NDS, PBS, 0.1% Triton X-100 for 1 hr at room temperature. Coverslips were then washed in PBS and transferred to secondary antibody in 2% NDS, PBS, 0.1% Triton X-100 for 1 hr followed by washes and mounting.

For quantifying Kir2.1 internalization, live, transfected cells on glass coverslips were washed in ice cold Earl’s balanced salt solution (EBSS). Coverslips were then labeled with Rabbit anti HA antibody (10 µg/mL) in 5% BSA in EBSS for 15 min at 4°C. Cells were then washed 2x in ice-cold 5% BSA/EBSS, 1x in PBS and into complete media. This was considered time = 0 min. Coverslips were fixed at the specified time as described for surface labeling. Coverslips were blocked for 30 min in 10% NDS, PBS followed by incubation in AlexaFluor conjugated anti Rabbit secondary antibody. Cells were then blocked and permeabilized for staining against the FLAG tag as described above.

Epifluorescence imaging

Request a detailed protocol

For quantification of SNAPcell fluorescence, surface labeling and surface internalization, cells were imaged following staining on an Olympus IX81 inverted fluorescence microscope using a 63x/1.35 oil objective (Olympus) and the corresponding fluorescence fulter set. Images were captured using an Orca Flash 4 V3 camera (Hamamatsu) and MetaMorph software (Molecular Devices). For all experiments, specified fluorescence (i.e. SNAPcell ligand, surface signal) was normalized to FLAG fluorescence intensity (total Kir2.1 protein) for each cell to control for variations in the level of Kir2.1 expression following transient transfection. Exposures were set to ensure that no pixels were saturated. The exposure times were constant for each fluorescence channel across condition. For each transfection (independent replicate) at least 20 cells from three to four fields were imaged. In all experiments, data was combined from at least three independent replicates, unless otherwise specified.

Image analysis

Brain slice

Request a detailed protocol

NeuN, p62, or D1-tomato -positive cells were manually counted in single Z-planes of 500 µm2 containing the dorsal striatum. Cells were counted from 4 to 8 images per animal. RNAScope puncta were manually counted in single Z-planes. The number of cells counted are listed in the Figure legend and arise from sections from at least four mice. All counting was conducted by an observer blind to genotype.

Cell culture

Request a detailed protocol

For analysis of colocalization of Kir2.1 puncta with organelle markers (YFP-LC3, Lamp1, or EEA1), a mask was created using a multiple threshold analysis plugin on ImageJ (Borgkvist et al., 2015) over YFP-LC3, Lamp1, or EEA1 puncta in single, mid-nuclear Z-planes. Results were similar when data were combined from multiple Z-sections per cell. Puncta with Kir2.1 intensity greater than two standard deviations above the background were considered Kir2.1+.

Kir2.1-FLAG-SNAP degradation was analyzed using epifluorescent images (as described above) and ImageJ. ROIs were set over cells in the FLAG channel (total Kir2.1) and the mean intensity of this ROI was collected from the FLAG channel and the SNAPcell labeled channel (pulse-labeled Kir2.1). The ratio of SNAPcell intensity of FLAG intensity was determined for each ROI to normalize SNAPcell intensity to total Kir2.1 levels (Sheehan et al., 2016). This ratio was collected form the specified number of cells and combined from three individual coverslips (separate transfections and labeling) per time point.

A similar approach was taken to analyze surface staining of Kir2.1-extHA-FLAG-SNAP or Kir2.1 internalization. An ROI was drawn over cells in the FLAG channel (total Kir2.1) and the mean intensity of the FLAG channel and the HA channel was collected. The intensity of the HA channel was normalized against the FLAG intensity for each cell/ROI. This ratio was collected form the specified number of cells and combined from three individual coverslips (separate transfections and labeling) per time point.

All image analysis was conducted blind to condition.

Data analysis

Request a detailed protocol

All data analysis were conducted blinded to genotype and treatment. Electrophysiology data was analyzed offline using Clampfit Software (Molecular Devices, Sunnyvale, California). Statistical analysis was conducted in GraphPad Prism 7 (La Jolla, CA). No explicit power analysis was used but group sizes were determined based on past work from our group (Lieberman et al., 2018; Tang et al., 2014). Comparisons between two groups were made with a two-tailed, unpaired t-test. Comparisons between two or more groups were made with a one-way ANOVA followed by a Bonferroni post-hoc test. Comparisons with two variables were made with a two-way ANOVA followed by Bonferroni post-hoc tests unless otherwise specified. For electrophysiology N is the number of cells recorded from and the number of mice is listed in parentheses. Data were not formally tested for being parametric. Some datasets were formally tests for outliers with the Grubbs’ test with a cutoff of p<0.05. RNAScope data (puncta per cell) were analyzed with the Kolmogorov-Smirnov test.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
    IRK(1-3) and GIRK(1-4) inwardly rectifying K+ channel mRNAs are differentially expressed in the adult rat brain
    1. C Karschin
    2. E Dissmann
    3. W Stühmer
    4. A Karschin
    (1996)
    The Journal of Neuroscience 16:3559–3570.
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92
  93. 93
  94. 94
  95. 95
  96. 96
  97. 97
  98. 98
  99. 99
  100. 100
  101. 101
  102. 102
  103. 103
  104. 104
  105. 105
    Mechanisms of mitophagy
    1. RJ Youle
    2. DP Narendra
    (2011)
    Nature Reviews Molecular Cell Biology 12:9–14.
    https://doi.org/10.1038/nrm3028
  106. 106
  107. 107
  108. 108

Decision letter

  1. Andrew B West
    Reviewing Editor; Duke University, United States
  2. Gary L Westbrook
    Senior Editor; Oregon Health and Science University, United States
  3. Andrew B West
    Reviewer; Duke University, United States
  4. Austen J Milnerwood
    Reviewer; Montreal Neurological Institute, McGill University, Canada

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This study succinctly demonstrates, through multiple orthogonal approaches and powerful conditional models, that macroautophagy can control neurotransmission and animal behavior with cell-type dependent mechanisms. The demonstration that hyperexcitability arises in iSPNs in the striatum due to loss of macroautophagy and Kir2-channel acetylation accumulation provides a mechanism to understand these observations. In other populations of striatal projection neurons, dSPNs, loss of macroautophagy led to more dramatic dendritic morphological changes. These are some of the first demonstrations of autophagy control of neuronal intrinsic excitability and highlights how strikingly different the effects of the same macroautophagy depletion can be on biochemically/morphologically similar cells. Many readers will be left with the important impression that one cannot a priori assume how different neuronal populations will respond to inhibition of autophagy.

Decision letter after peer review:

Thank you for submitting your article "Cell-type specific regulation of neuronal intrinsic excitability by macroautophagy" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Andrew B West as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by Gary Westbrook as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Austen J Milnerwood (Reviewer #3).

The reviewers and Editors have all discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The authors present a dense body of work that is overall compelling and comprehensive, focusing on mice that combine Drd1-Cre and Adora2A-Cre with Atg7-fl/fl. The report has many strengths – autophagy in both dPSN and iPSN with electrophysiology analysis; describing a novel autophagy substrate Kir2 and potential molecular basis for its degradation and inhibition; and cell type-specific degradation of Kir2 in the brain, etc. This is solid work from a lab that has published many interesting reports on the role of autophagy in neuronal function.

Essential revisions:

1) All reviewers thought the manuscript was still in a draft format, with critical errors in cross-referencing figures, as well as sub-optimal organization for eLife. As described in the compendium of points made below, the manuscript is not ready for publication and was unnecessarily difficult to read through. A careful rewriting and re-editing is necessary.

2) Overall, reviewers thought that some experiments were underpowered (based on the proposed effect size, or say, a rodent experiment with few animals), and these should be distinguished better from central points (perhaps these data moved to supplement). In turn, some of the supplemental that presented critical data should be moved into the main figure set. Further, sex should be an included as a co-variable and mentioned in all legends, as well as additional clarity as to the total number of animals involved in each experiment. In general, all reviewers felt the strength of the conclusions did not always match the experimental rigor, so the text may need to be more conservatively modified in this regard.

3) The discourse is lacking elements of critical interpretation and alternative explanations, in general, which we think will lessen the impact of the work for some readers. Some relevant (specific) points to consider are listed below:

Reformatting: Figure 6 (confusingly referred to as Supplemental Figure 5 in the Results section?) should probably be a main figure with a broader discussion. Similarly, Figure 1 is very important and demonstrates functionally the success of the model in achieving autophagy deficiency in the majority of SPNs (with the D1-tomato being a very nice control here). There are no space requirements that should necessitate the constant flipping between supplement and main figure files for important experiment results. Along these lines, the abstract is overly tight and awkwardly crafted in flipping back and forth between the iSPN and dSPN data.

Interpretation: Does the timing of autophagy deficiency and p62 accumulation with respect to the developmental stage of outgrowth and synapse formation account for some of the phenotypic differences between iSPNs and dSPNs observed? (Does Drd1 and Adora2 expression activate in the exact same phase of SPN maturation, and even with that, could differential Cre strength (i.e., expression of Cre) exact a delay in recombination in iSPNs compared to dSPNs?)

Interpretation: the authors relatively ignore why the iSPNs are relatively resistant to the morphological changes caused by autophagy deficiency seen in other neurons, but more discussion here could help interpretation.

Interpretation: It is intriguing that accumulation of Kir2 occurs only in Atg7 specific deletion iPSN but not dPSN. If Kir2 is indeed a substrate of autophagy as the study indicated, it is puzzling that cKO of Atg7 in dPSN does not cause Kir2 accumulation. The authors could consider in the text the possibility that the phenotypes observed in Atg7 cKO mice are non-autophagy related, unless the authors also examined additional cKO mice in dPSN specific manner with another Atg deletion. Otherwise I suggest modifying the use of "autophagy" only throughout the manuscript in interpreting the data; at least for the conclusion "Atg7-mediated autophagy" could be better.

Interpretation: Reviewers were not satisfied by the stated explanation for the inhibition of Kir2 activity due to acetylation caused by lack of Atg7 or autophagy in iPSN. For example, the increased level of Kir2 and lack of Kir2-over-expression rescue seemingly necessitates a major fraction of Kir2 protein acetylated. But in theory those Kir2 that are destined for degradation only will be modified and inhibited. Therefore, additional mechanisms could be involved in the inhibition. How common is it for the Kir2 channel to be degraded by autophagy in CNS neurons in general? Would dPSN be an unusual cell type for Kir2 not being degraded by autophagy? Or autophagy is not essential for Kir2 degradation in dPSN? Speculate the mechanism?

Interpretation: In the second paragraph of the Introduction, the author should cite the previous work on dopamine neuron specific autophagy deficiency that causes reduced striatal dopamine transmission (Friedman LG, et al., 2012). In general, the Discussion section should be better focused.

Interpretation: No difference between D1 and D2 control morphology, unlike other reports e.g., Gertler 2006. Should be discussed? More of a concern, representative (best traces?) very choppy / noisy, especially for slice recording where baselines are usually very clean. This is a concern because the average mEPSC and mIPSC amplitudes are coming out at 5-7pA, I worry about what has been included in these data (what are the Ra and IRMS for these recordings?). Evoked currents in Figure S2 C, grouped data should be shown, not overlaid curves; moreover for this an n of 7 is not sufficient, such numbers can be achieved in single day / mouse preparation.

Interpretation: Figure 5 For the fractionation experiment I recommend they use the same terminology in the manuscript, the figure and the supplements. In the blot for Kir2.1 and 2.3, a close examination suggests either image handling issue or some weird stitching artefact. There are three white diagonal lines passing in kir2.1 KO P3, and for kir2.3 blot in ctrl S2 and ko SPNs. The reviewers must see (and the document must contain) high resolution original (uncropped) images of blots.

Interpretation: Figure 6 seems clear but where is the proof that the K334R is less acetylated (as in 6.A)? Related, what about the acetylation status of the Kir2.1 or 2.3 in the dSPN Atg7KO?

Interpretation: Figure 1) Effect size exaggerated by y axis starting above zero in two cases. Male and female mouse weights are different, good reason to split the data, but this should be maintained for all analyses (clear why it wasn't see below). Further, body weight should be taken into account, for rotarod especially, where weight and performance are tightly (negatively) correlated. Since this is a negative correlation, this may reveal differences between the two KO lines, however, see below. It is also of interest that the D1 mice, despite being bad, improve their performance (learn) over the three trials, as well as controls, whereas d2 do not.

Interpretation: how has the specificity of the Kir2.1 and 2.3 antibody been validated? There is very little info on the suppliers website and their antibody detected Kir2.1 in overexpressing cos cells, but not rat brain? is this a concern? Recommend some in house validation (with flag variants shown later in paper?),

The following areas suffer from "low N" problem. These experiments either need adequate sample size or should not be included in the manuscript:

Figure 1) Only 3 mice assessed for D1 dSPN and p62 ranging from only 50% and up. Justify?

Two of the clearest behavioral phenotypes (latency to fall and grooming bouts) are not even close to confidence at p=0.2 in males, and significance is only achieved by grouping the sexes. To support definitive claims about the effects of these deletions on behavior, the behavioral assessment must be more rigorous.

For slice data the number of cells and the number of animals from which these came should be given and at least 4 or 5 animals minimum; even in other more complete data sets in the main document sometimes the animal n=3, which is why I expect the information is buried in a table and not presented with the data. Recommend this would be at least 12-15 cells, animal n of 4 or 5 and presented throughout. Further, the evoked currents in S2.D appear to be emerging from the stimulus artefact, and more so in the dSPNcko, this will impact upon amplitude measures. The stimulating electrode is likely too close to the cell if there is no latency to the response. The current clamp data is much more clearly produced, the authors might consider removing the voltage clamp results, or increasing their observations a lot.

The three datum in Figure 5—figure supplement 1 are important but far too few against which to conclude there is no change (a strong trend exists) in Kir2.1 for dSPN atg7ko; especially given the huge range shown in figure 4G for iSPN with 9 data points.

https://doi.org/10.7554/eLife.50843.sa1

Author response

Summary:

The authors present a dense body of work that is overall compelling and comprehensive, focusing on mice that combine Drd1-Cre and Adora2A-Cre with Atg7-fl/fl. The report has many strengths – autophagy in both dPSN and iPSN with electrophysiology analysis; describing a novel autophagy substrate Kir2 and potential molecular basis for its degradation and inhibition; and cell type-specific degradation of Kir2 in the brain, etc. This is solid work from a lab that has published many interesting reports on the role of autophagy in neuronal function.

We thank the reviewers for their enthusiasm regarding this manuscript. As detailed below, we have edited and reorganized the manuscript to enhance clarity. In addition, to address reviewer concerns and suggestions, we have added multiple new data sets to the manuscript including: (1) electrophysiological recordings from 60 cells arising from 13 additional mice (including several following stereotaxic surgery), (2) western blot data from 28 additional mice (14 controls, 7 dSPNAtg7cKO, and 7 iSPNAtg7cKO mice), (3) behavioral data from a new cohort of 36 animals including rotarod and grooming, as suggested by the reviewers, and (4) cell culture experiments aimed at explaining the mechanism through which acetylation affects Kir2 channel activity. We feel that these additional data substantially strengthen the conclusions in this manuscript and hope that the reviewers agree that it is now suitable for publication in eLife.

Essential revisions:

1) All reviewers thought the manuscript was still in a draft format, with critical errors in cross-referencing figures, as well as sub-optimal organization for eLife. As described in the compendium of points made below, the manuscript is not ready for publication and was unnecessarily difficult to read through. A careful rewriting and re-editing is necessary.

We thank the reviewers for pointing out the general need to enhance the readability of the study. We have carefully edited the manuscript to improve its flow and organization. This has involved renumbering figures and tables, and to ease the comparison of versions, this table lists the differences in figures and tables between the revised and original submissions.

Revised submissionOriginal submissionAdditional Data in revision
Figure 1Figure S1
Figure 2Figure 1
Figure 3Figure 2
Figure 4Figure 3
Figure 4—figure supplement 1Figure S3
Figure 5Figure 4Western blot analysis from 14 new mice (p62)
Figure 5—figure supplement 1Figure S5Western blot analysis from 28 additional mice
Figure 5—figure supplement 2Figure S6
Figure 5—figure supplement 3Figure S6
Figure 6Figure S4Recordings from 10 additional mice following stereotaxic viral injections
Figure 7Figure 5
Figure 7—figure supplement 1Figure S8
Figure 8Figure 6
Figure 8—figure supplement 1Not in original submissionAdditional cell culture data demonstrating that Kir2.1 K334R is less acetylated than WT channel and examining surface levels of Kir2.1
K334R and K334Q mutants
Removed from revised manuscriptFigure S2As suggested by the reviewers
Table 1Table S1Additional data have been included for mice of each sex as detailed below.
Table 2Table S2Statistical information for all figures have been incorporated in the text of the figure legends, except for Figure 3 which remains in Table 2.
Table 3Table S3
Table S1Table S4
Table S2Table S5
Table S3Table S6

2) Overall, reviewers thought that some experiments were underpowered (based on the proposed effect size, or say, a rodent experiment with few animals), and these should be distinguished better from central points (perhaps these data moved to supplement). In turn, some of the supplemental that presented critical data should be moved into the main figure set. Further, sex should be an included as a co-variable and mentioned in all legends, as well as additional clarity as to the total number of animals involved in each experiment. In general, all reviewers felt the strength of the conclusions did not always match the experimental rigor, so the text may need to be more conservatively modified in this regard.

We thank the reviewers for these comments and believe that the additional data in the revised manuscript strengthens its conclusions. We now include 7 additional mice in the analysis of the cell-type specificity of Cre-mediated recombination in Figure 1; 36 mice of both sexes in the behavioral analysis in Figure 2; 13 mice in electrophysiological experiments in Figure 3 and Figure 6; and 28 mice in biochemical experiments in Figure 5 and Figure 5—figure supplement 1.

Please note that for many of the conclusions in this manuscript, we present data from multiple orthogonal approaches (for example, combining in vivo biochemistry with heterologous systems) that provide congruent findings. We hope that the independent approaches, in addition to the new data, will enhance the reviewers’ evaluation of rigor.

We have further largely rewritten the Discussion section to provide a more balanced perspective on our findings.

With regard to including sex as a variable in the manuscript, we now include additional male and female mice of all genotypes in the behavioral analysis of Figure 2. We performed two-way ANOVAs for each behavioral task, with sex and genotype as factors, and did not find a significant interaction between sex and genotype in any behavioral task (see Table 1). We thus conclude that sex does not significantly modify the genotype effect in these experiments and use pooled data from both sexes in subsequent figures. Furthermore, as we did not initially design these experiments to detect sex-related differences, we are underpowered to make claims about any sex differences in the electrophysiology and biochemistry experiments. We have added a statement in the Results section clarifying this:

“Note that we have combined data from both sexes in this analysis. We did not design these experiments to detect sex differences, as there was no interaction between sex and genotype in the behavioral analysis.”

3) The discourse is lacking elements of critical interpretation and alternative explanations, in general, which we think will lessen the impact of the work for some readers. Some relevant (specific) points to consider are listed below:

We acknowledge the reviewers’ deep engagement with our manuscript and appreciate the detailed suggestions. which we feel have strongly improved the manuscript. Our responses and changes to the manuscript are detailed below.

1) Reformatting: Figure 6 (confusingly referred to as Supplemental Figure 5 in the Results section?) should probably be a main figure with a broader discussion.

We apologize for the incorrect reference to this figure in the original submission. We now include this figure as a main figure (Figure 6 in the revised manuscript) as suggested by the reviewers.

In addition, we have extended our description of this experiment in the Results section and added a section about this figure in the Discussion section:

From the Results section:

“Although autophagy has previously been shown to regulate integral plasma membrane proteins by controlling membrane protein trafficking, interaction with partners, or degradation (Gao et al., 2018; Rowland et al., 2006; Shehata et al., 2012; Sumitomo et al., 2018; Yan et al., 2018), the unexpected inverse relationship between total Kir2 protein and Kir2 current in iSPNs lacking Atg7 warranted further validation. […] These results demonstrate that reduced Kir2 current in iSPNAtg7cKO mice could be complemented by Atg7 reexpression, but not Kir2.1 overexpression, in adulthood.”

From the Discussion section:

“We further used a viral overexpression strategy to confirm that the decreased Kir2 activity in iSPNs lacking Atg7 did not arise from reduced Kir2 mRNA expression. Viral overexpression of Kir2.1 failed to increase Kir2 currents in iSPNs lacking Atg7, demonstrating that Atg7 is required for newly synthesized channels to become functional. […] We hypothesize that newly synthesized Kir2.1 in iSPNs lacking Atg7 these experiments is acetylated and does not undergo autophagic degradation, preventing functional increases in Kir2.1 current.”

Similarly, Figure 1 is very important and demonstrates functionally the success of the model in achieving autophagy deficiency in the majority of SPNs (with the D1-tomato being a very nice control here).

We agree with this point and have moved this to main Figure 1 in the revised manuscript.

We also now mention that the ‘floxed’ Atg7 mouse, D1cre, and A2Acre transgenic mice have been previous validated and used widely in the literature (for example (Durieux et al., 2012; Hernandez et al., 2012; Komatsu et al., 2006, 2005, Kozorovitskiy et al., 2015, 2012; Tang et al., 2014)).

There are no space requirements that should necessitate the constant flipping between supplement and main figure files for important experiment results. Along these lines, the abstract is overly tight and awkwardly crafted in flipping back and forth between the iSPN and dSPN data.

We have now incorporated figure supplements in line with the text in the revised manuscript as it would appear in the published eLife format to reduce the need to flip between the main text and the supplement. We have incorporated Figure S1 and Figure S4 from the original submission as Figure 1 and Figure 6, respectively, of the revised submission (see response to point 5 below).

We have rewritten the Abstract as follows:

“The basal ganglia are a group of subcortical nuclei that contribute to action selection and reinforcement learning by evaluating sensorimotor and reward inputs and controlling thalamocortical activity and motor output. The principal neurons of the striatum, GABAergic spiny projection neurons of the direct (dSPN) and indirect (iSPN) pathways, maintain low intrinsic excitability and require convergent excitatory inputs to fire and thereby filter information before transmitting it to basal ganglia output nuclei. What cellular mechanisms ensure proper synaptic and intrinsic properties in SPNs? Recent findings indicate that macroautophagy regulates synaptic activity in excitatory neurons, the Drosophila neuromuscular junction, and nematode neurons. Here, we examined the role of autophagy in SPN physiology and animal behavior by generating conditional knockouts of Atg7 in either dSPNs or iSPNs. Loss of autophagy in either SPN population led to changes in motor learning but distinct effects on cellular physiology. dSPNs, but not iSPNs, required autophagy for normal dendritic structure and synaptic input. In contrast, iSPNs, but not dSPNs, were intrinsically hyperexcitable. iSPN intrinsic hyperexcitability arose from reduced function of the inwardly rectifying potassium channel, Kir2. In the absence of autophagy, total and surface levels of Kir2 protein were elevated but Kir2 activity was inhibited by acetylation. These findings define a novel mechanism by which autophagy regulates neuronal activity: control of intrinsic excitability via the regulation of potassium channel function.”

2) Interpretation: Does the timing of autophagy deficiency and p62 accumulation with respect to the developmental stage of outgrowth and synapse formation account for some of the phenotypic differences between iSPNs and dSPNs observed? (Does Drd1 and Adora2 expression activate in the exact same phase of SPN maturation, and even with that, could differential Cre strength (i.e., expression of Cre) exact a delay in recombination in iSPNs compared to dSPNs?)

Perhaps the most striking and surprising findings in our study are the divergent consequences that loss of autophagy has on dSPNs and iSPNs. While a possible explanation could be differences in the age at which Cre expression occurs between the D1cre and A2Acre driver lines, the deletions both occur well before the changes in excitability.

In detail, both Cre driver lines used in this study (D1cre ey262 and A2Acre KG139) demonstrate widespread expression in the appropriate cell type by postnatal day 7 (Kozorovitskiy et al., 2015, 2012), which is before the maturation of SPN intrinsic excitability and the main period of striatal synaptogenesis (Lieberman et al., 2018; Peixoto et al., 2016; Tepper et al., 1998). In addition, we confirmed that similar numbers of p62+ cells are present in dSPNAtg7cKO and iSPNAtg7cKO mice at P28, the age at which the electrophysiological recordings in Figure 3 and Figure 4 were conducted (Author response image 1). Furthermore, similar fractions of dSPNs and iSPNs display p62 inclusions in the respective conditional knockouts during adulthood (Figure 1).

Author response image 1
Similar numbers of p62+ cells in dSPNAtg7cKO and iSPNAtg7cKO striatum at P28.

Data were analyzed with a one-way ANOVA followed by a Bonferroni post-hoc test.

Please also note that the approach we have taken to compare the effect of loss of a particular protein in dSPNs or iSPNs (use Credriver lines) has been reported previously in the literature with these same specific Cre driver lines (Daigle et al., 2014; Hutton et al., 2017; Koranda et al., 2018; Kozorovitskiy et al., 2012; Lambot et al., 2016; Rothwell et al., 2014; Tan et al., 2013; Urs et al., 2016, 2012).

This evidence suggests to us that the difference in the timing of Cre expression does not affect the distinct phenotypes observed between conditional knockout lines in this study and emphasizes the validity of this approach in analyzing cell-type specific effects of loss of autophagy on dSPNs and iSPNs. We think that the data provide support for an important implication of this study: that autophagy may be required in distinct cell types at different developmental windows.

In further comparison between cre lines, in the ey262 D1cre driver line, cortical recombination occurs as previously described (Kozorovitskiy et al., 2012), but this is absent in the A2Acre line (data not shown). The loss of autophagy in some populations of cortical neurons may contribute to the synaptic changes in dSPNs and, at this time, we are unable to exclude this possibility; however, we have attempted to address this in two ways. First, if the synaptic deficits arise solely due to presynaptic loss of Atg7, we would expect that mEPSC frequency would be different in iSPNs from dSPNAtg7cKO mice because dSPNs and iSPNs share most cortical inputs (Guo et al., 2015). mEPSC frequency and amplitude was not different in iSPNs from dSPNAtg7cKO compared to dSPNAtg7ctrl mice (Author response image 2). We have chosen not to include this data in the revised submission because we do not have corresponding data in dSPNs from iSPNAtg7cKO mice, but are happy to discuss this if the reviewers feel strongly.

Author response image 2
No change in mEPSC frequency or amplitude in iSPNs from dSPNAtg7cKO mice.

mEPSCs were recorded from iSPNs in dSPNAtg7cKO mice and compared to control iSPNs. We show here that iSPNs from dSPNAtg7cKO mice have equivalent (A) mEPSC frequency and (B) mEPSC amplitude as iSPNs from control mice. Data from dSPNs arising from control or dSPNAtg7cKO mice are reproduced here for reference from Figure 3. Control iSPN data, also reproduced from Figure 3. Data are analyzed by two-way ANOVA followed by Bonferroni posthoc test. (A) Subtype x Genotype: F(1,75)=11.57, p=0.0011. (B) Subtype x Genotype: F(1,77)=4.444, p=0.0383. iSPNs from dSPNAtg7cKO mice: n=11,3. N for other group are the same as in Figure 3.

Second, we note that the paired pulse ratio of evoked excitatory post-synaptic currents (eEPSCs), the classical test of presynaptic release probability, in dSPNs from dSPNAtg7cKO was not different from that of dSPNs from dSPNAtg7Ctrl mice (Author response image 3). This suggests that at the time of our recording, there is no difference in the paired pulse ratio of excitatory inputs onto dSPNs (and so no apparent change in release probability) and, therefore, the change in mEPSC frequency in dSPNS from dSPNAtg7cKO mice does not arise from ongoing dysfunction of presynaptic inputs. As per the reviewer suggestions below (see response to that point), we have not included this data in the revised submission.

We have added a sentence to the Results section mentioning that equal numbers of p62+ cells are present in the striatum at P28. We have also included an additional paragraph in the Discussion section of the revised submission that addresses the possibility that differences between the Cre driver lines may underlie the cell-type specific effects of loss of autophagy in the striatum.

Results section: “Finally, we confirmed that similar numbers of p62+ cells are present in the striatum of dSPNAtg7cKO and iSPNAtg7cKO mice at P28, when electrophysiological recordings in Figure 3 and Figure 4 were collected (data not shown).”

Discussion section: “Perhaps most surprising is the fact that iSPNs that lack Atg7 do not show changes in dendritic complexity, spine density or excitatory inputs. […] Future efforts to define the underlying mechanisms that contribute to cell-type specific roles for autophagy in the striatum could include Credriver lines in which both dSPNs and iSPNs are targeted to rule out a contribution of different expression time courses between the Cre lines used in this study.”

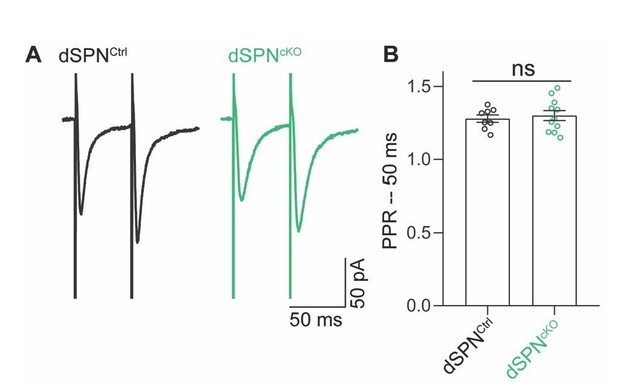

Author response image 3
No change in paired-pulse ratio (PPR) of excitatory inputs to dSPNs from dSPNAtg7cKO mice.

(A) Representative traces of evoked EPSCs in dSPNs from control or dSPNAtg7cKO mice. EPSCs were evoked in the presence of 25 μM picrotoxin following electrical stimulation within the striatum >100μm from the cell body. (B) No effect of loss of dSPN autophagy on the paired pulse ratio of evoked EPSCs. Control: n=7,2; dSPNAtg7cKO: n=11,3. Latency of EPSC is between 5-10 ms in all cells examined.

3) Interpretation: the authors relatively ignore why the iSPNs are relatively resistant to the morphological changes caused by autophagy deficiency seen in other neurons, but more discussion here could help interpretation.

We thank the reviewers for prodding us to expand our discussion about why iSPNs do not demonstrate the morphological changes that we and others have seen in other neuronal populations after loss of autophagy. This is a particularly interesting question given that dSPNs do have these changes.

Unfortunately, little is known about how autophagy may control neuronal morphology (O. J. Lieberman et al., 2019; Nikoletopoulou and Tavernarakis, 2018). Possibilities include changes in mitochondrial function, response to neurotrophic factors, and differential response by the cytoskeleton to neuromodulatory signaling. Future efforts will focus on comparing the effect of loss of autophagy on these molecular pathways in dSPNs and iSPNs. These possibilities are addressed in additional paragraphs in the new Discussion section:

“Excitatory synaptogenesis onto iSPNs may occur in an autophagy-independent manner. Once the mechanism through which autophagy regulates dendritic complexity and synaptogenesis in dSPNs is identified, future studies could compare this process with iSPNs and define why loss of autophagy in iSPNs does not affect iSPN synaptogenesis.”

and

“Autophagy is required for normal synaptic structure and function in C. elegans, the Drosophila neuromuscular junction, and excitatory neurons in the mouse cortex and hippocampus (Glatigny et al., 2019; Nikoletopoulou et al., 2017; Shehata et al., 2012; Shen and Ganetzky, 2009; Stavoe et al., 2016; Tang et al., 2014; Vanhauwaert et al., 2017; Yan et al., 2018). […] We hypothesize that, given the dynamic changes in autophagic flux that occur in SPNs during early postnatal development (P10-P18; (O. Lieberman et al., 2019)), autophagy may play a role in dendritic growth and excitatory synaptogenesis on dSPNs.”

4) Interpretation: It is intriguing that accumulation of Kir2 occurs only in Atg7 specific deletion iPSN but not dPSN. If Kir2 is indeed a substrate of autophagy as the study indicated, it is puzzling that cKO of Atg7 in dPSN does not cause Kir2 accumulation. The authors could consider in the text the possibility that the phenotypes observed in Atg7 cKO mice are non-autophagy related, unless the authors also examined additional cKO mice in dPSN specific manner with another Atg deletion. Otherwise I suggest modifying the use of "autophagy" only throughout the manuscript in interpreting the data; at least for the conclusion "Atg7-mediated autophagy" could be better.

As suggested by the reviewers, Atg7, although initially identified as required gene for macroautophagy, plays roles in other cellular processes such as LC3-associated phagocytosis and secretion of lysosomal contents (Subramani and Malhotra, 2013). Please note that while we only examined Atg7 conditional knockout mice, we found that Kir2.1 degradation was disrupted in both Atg7KO and Atg5KO MEFs, suggesting additional autophagy-associated genes are required for the phenotype we observe. Nevertheless, the morphological and synaptic deficits observed in dSPNAtg7cKO may arise from an autophagy-independent role of Atg7, and moreover, Kir2 degradation may occur through autophagy-independent but Atg5 and Atg7-dependent processes. As the reviewer suggests, we have modified the language in our manuscript to emphasize that we are addressing the role of Atg7 in these neuronal population, and that this may affect additional cellular processes besides autophagy. We have added three sections to the Discussion section that address this point as follows:

We have added a section to the Discussion raising the possibility that the observed phenotypes are not mediated by autophagy per se:

“Atg7 is also involved in non-autophagic processes such as LC3-associated phagocytosis and secretion of lysosomal contents (Subramani and Malhotra, 2013). It is possible that Atg7 contributes to dSPN dendritic morphology and synaptic inputs via these processes as opposed to “classical” autophagic degradation. Future studies comparing loss of other autophagy-associated genes that do not contribute to LC3-associated phagocytosis or lysosomal exocytosis may provide further insight.”

We have also included an expanded section in the Discussion section about the cell-type specific differences in Kir2 degradation observed in the striatum:

“In contrast to iSPNs, Kir2.1 and Kir2.3 abundance and Kir2 currents were unaffected by loss of autophagy in dSPNAtg7cKO mice. As Kir2 channels are expressed in both populations of SPNs and play important roles in both dSPN and iSPN physiology (Cazorla et al., 2012; Gertler et al., 2008; Lieberman et al., 2018; Shen et al., 2007), these data suggest that the degradation of Kir2 channels by autophagy occurs via cell type-specific mechanisms. This cell-type specificity could arise from differential expression of cargo adapters, post-translational modification of Kir2 channels that target them for autophagic degradation, or increased activity of alternative endolysosomal protein degradation pathways that contribute to Kir2 degradation in cardiomyocytes (Ambrosini et al., 2014; Jansen et al., 2008; Kolb et al., 2014). Future work will focus on the mechanism that confers cell-type specificity to the autophagic degradation of Kir2 channels.”

Finally, we have added a paragraph to the Discussion section outlining the evidence for our conclusion that Atg7 is required for autophagic degradation of Kir2 channels:

“Autophagy associated genes, such as Atg5 and Atg7, have been proposed to play a role in other cellular processes such as LC3-associated phagocytosis, lysosomal exocytosis and endocytosis (Subramani and Malhotra, 2013). Here, we argue that Kir2.1 is a direct substrate of autophagy for the following reasons. First, Kir2.1 degradation is deficient in both Atg5KO and Atg7KO MEFs. Additional studies in cells lacking other required autophagy proteins such as Fip200 would further support this hypothesis. Second, we have demonstrated direct colocalization with LC3+ vesicles and that the amount of Kir2.1 in LC3+ vesicles increases in response to blockade of autophagosome-lysosome fusion. Finally, Kir2.1 internalization, measured with antibody feeding assays, is not affected in Atg5KO MEFs, arguing against a role of Atg5 in endocytosis of Kir2.1. Collectively, these data indicate that Kir2.1 must pass through an autophagy-dependent organelle, presumably an amphisome, before undergoing lysosomal degradation.”

5) Interpretation: Reviewers were not satisfied by the stated explanation for the inhibition of Kir2 activity due to acetylation caused by lack of Atg7 or autophagy in iPSN. For example, the increased level of Kir2 and lack of Kir2-over-expression rescue seemingly necessitates a major fraction of Kir2 protein acetylated. But in theory those Kir2 that are destined for degradation only will be modified and inhibited. Therefore, additional mechanisms could be involved in the inhibition.

We thank the reviewers for pointing this out. We agree that our data would suggest a model in which a large fraction of Kir2 channels would be acetylated in iSPNs or MEFs lacking autophagy. We propose that Kir2 channels must be acetylated to undergo autophagic degradation, and that this process proceeds unchecked in iSPNs or MEFs lacking autophagy as the acetylated channel is no longer degraded by autophagy or deacetylated in an autophagy-dependent organelle.

Although this model explains the data we present in this manuscript, alternative possibilities exist that we have not ruled out. For example, Kir2.1 may be unable to interact with a required cofactor in Atg5KO MEFs or iSPNs lacking Atg7. Alternatively, we cannot exclude changes in Kir2 localization that our techniques were not sensitive enough to detect.

To address these alternative mechanisms for Kir2.1 inhibition, we have conducted additional experiments and added a paragraph to the Discussion section.

First, we measured the effect of increasing PIP2 levels in iSPNs lacking autophagy. PIP2 is a required lipid cofactor for Kir2 activity. To address whether this interaction is reduced in iSPNs lacking autophagy, we included diC8-PIP2, a water soluble PIP2 analog, which is sufficient to rescue reduced Kir2 activity in other models of SPN hyperexcitability (Lieberman et al., 2018), to our internal solution but found no effect on Kir2 currents (Author response image 4). In WT cells, diC8-PIP2 does not have an effect on Kir2 currents as the PIP2 binding site on Kir2 channels are

saturated under baseline conditions (Logothetis et al., 2007; Xie et al., 2008). In contrast, if decreases in PIP2 binding to Kir2 were responsible for the Kir2 inhibition in autophagy-deficient cells, diC8-PIP2 should increase Kir2 currents. The absence of an effect of diC8-PIP2 in autophagy-deficient iSPNs suggests that the loss of autophagy does not affect Kir2 interaction with PIP2. We have chosen not to include this in the revised manuscript as this was not part of a comprehensive characterization of Kir2 interactors, but can include it if the reviewers feel strongly that it should be a part of

this manuscript.

Author response image 4
Increasing cellular PIP2 levels does not rescue Kir2 currents in Atg7-deficient iSPNs.

(A) diC8-PIP2 (50 μM) was included in the intracellular solution. Percent change in Kir2 currents after 12 minutes of dialysis with the internal solution ((Lieberman et al., 2018). No effect of diC8-PIP2 was found in either genotype. Data analyzed with two-way ANOVA followed by Bonferroni test. Genotype x PIP2: F(1,29)=1.124, p=0.2978; Genotype: F(1,29)=0.8626, p=0.3607; PIP2: F(1,29)=0.03962, p=0.8436. Each condition arose from >3 mice each.

Second, we conducted experiments aimed at understanding whether acetylation affects Kir2 surface residence or instead affects channel function on the surface (Figure 8 – Figure Supplement 1). We quantified the surface levels of WT, K334R and K334Q Kir2.1

in both Atg5WT and AtgKO MEFs. In this experiment, we reproduced the increased surface levels of Kir2.1 WT in Atg5KO compared to Atg5WT MEFs. However, the surface levels of the K334R and K334Q mutants were not different that WT Kir2.1 in either Atg5WT or Atg5KO MEFs. These data provide additional mechanistic insight into how acetylation status of Kir2.1 at K334 could affect Kir2 channel activity: it must do so by regulating function at the surface as opposed to controlling surface residence. Future studies aimed at defining the biophysical mechanism for Kir2 channel inhibition in this system are warranted.

We have added an additional section to the Discussion where we enumerate alternatives to the model we propose:

“Several alternative models could explain our data including decreased levels of a required cofactor for Kir2 in autophagy-deficient cells and changes in membrane localization that are below the detection limit of our approaches. Future examination of the Kir2 interactome in wild-type and autophagy-deficient cells could elucidate these mechanisms.”

How common is it for the Kir2 channel to be degraded by autophagy in CNS neurons in general? Would dPSN be an unusual cell type for Kir2 not being degraded by autophagy? Or autophagy is not essential for Kir2 degradation in dPSN? Speculate the mechanism?

Kir2 channel degradation has not been examined in any detail in other CNS neurons. However, in cardiomyocytes, strong evidence supports a role for lysosomal degradation, but it is unclear if this occurs downstream of autophagy per se and/or other endosomal degradation pathways. Additional experiments comparing Kir2 channel handling in other neuronal populations would provide insight into these processes.

With regard to the lack of Kir2 accumulation in dSPNAtg7cKO mice, we do not believe that this affects our conclusion that in iSPNs (and in cultured MEFs) Kir2 is degraded via an Atg5/7-dependent process (referred to here as autophagy). The evidence for autophagic degradation of Kir2 is: (1) Kir2 degradation is dependent on Atg7 and Atg5 in MEFs, and Atg7 in iSPNs; (2) Kir2.1 localizes in an LC3+ compartment in an Atg5-dependent manner in MEFs; (3) raising the lysosomal pH by treating cells with bafilomycin increases localization of Kir2.1 to an LC3+ compartment.

In dSPNs, alternative mechanisms must be in place for Kir2 degradation. For example, in cardiomyocytes, Kir2 channels may be degraded via alternative endolysosomal mechanisms, although the interaction between Kir2 and autophagy has not been formally examined in the heart (Ambrosini et al., 2014; Jansen et al., 2008; Kolb et al., 2014). At a molecular level, differences in the localization, expression, or activity of the (yet unidentified) acetyltransferase required for Kir2 degradation in some cell types may not guide Kir2 towards autophagic degradation in dSPNs. Alternatively, the (yet unidentified) adapter protein that recruits Kir2 to the Atg7-dependent autophagic intermediate may also be differentially expressed in dSPNs. Finally, we note that the absence of Kir2 accumulation in dSPNAtg7cKO may not mean that Kir2 is not degraded by autophagy under basal conditions, but may instead suggest that dSPNs, but not iSPNs, possess a compensatory mechanism that is activated in the absence of autophagy and prevent Kir2 accumulation. Ongoing efforts in our lab are aimed at defining the molecular mechanisms that promote autophagic degradation of Kir2 and their identification will lead to new hypotheses about the difference between Kir2 trafficking in dSPNs and iSPNs.

We have included a new paragraph in the Discussion section speculating on possible mechanisms for the cell-type specific degradation of Kir2.1, as shown above in response to Intepretation point 4.

6) Interpretation: In the second paragraph of the Introduction, the author should cite the previous work on dopamine neuron specific autophagy deficiency that causes reduced striatal dopamine transmission (Friedman LG, et al., 2012). In general, the Discussion section should be better focused.

We thank the reviewer for pointing out this paper and apologize for the omission. We now cite this paper in the Introduction when describing the role of autophagy in neurotransmission. Note that this study did not show reduced striatal dopamine transmission, as they dissected the striatum and measured dopamine content with HPLC, rather than the release of transmitter.

7) Interpretation: No difference between D1 and D2 control morphology, unlike other reports e.g., Gertler 2006. Should be discussed? More of a concern, representative (best traces?) very choppy / noisy, especially for slice recording where baselines are usually very clean. This is a concern because the average mEPSC and mIPSC amplitudes are coming out at 5-7pA, I worry about what has been included in these data (what are the Ra and IRMS for these recordings?). Evoked currents in Figure S2 C, grouped data should be shown, not overlaid curves; moreover for this an n of 7 is not sufficient, such numbers can be achieved in single day / mouse preparation.

The literature regarding differences between dSPN and iSPN morphology is controversial. Although Gertler and Surmeier (Gertler et al., 2008) report differences in dendritic length between SPN subtypes, others do not find differences (Cepeda et al., 2008; Suárez et al., 2014). In our data, we do not see a clear difference in total dendritic length or dendritic complexity between control dSPNs and iSPNs; however, we note that this was not a preplanned comparison. We have added a sentence to the Discussion section where we note this difference that exists in the literature:

“Although we did not observe a difference between the dendritic morphology of dSPNs and iSPNs, there are conflicting reports on morphological differences between dSPNs and iSPNs (Cepeda et al., 2008; Gertler et al., 2008; Suárez et al., 2014). Future studies must aim to reconcile these disparate findings.”

More of a concern, representative (best traces?) very choppy / noisy, especially for slice recording where baselines are usually very clean. This is a concern because the average mEPSC and mIPSC amplitudes are coming out at 5-7pA, I worry about what has been included in these data (what are the Ra and IRMS for these recordings?). Evoked currents in Figure S2 C, grouped data should be shown, not overlaid curves; moreover, for this an n of 7 is not sufficient, such numbers can be achieved in single day / mouse preparation.

Regarding the mEPSC and mIPSCs, we apologize for the way the sample traces were rendered in Figure 2 from the original submission. We have replaced the corresponding sample traces in Figure 3 of the revised submission.

The root mean square noise on the rig in which this data was collected is consistently between 1.5-2.5 pA. The median mEPSC amplitudes in our recordings are ~ 10 pA, >3x the rms noise. Series resistance was monitored online both before and after the recorded epochs in which mEPSCs or mIPSCs were measured. If series resistance was >25 MOhms or changed by >20%, the cells were excluded. These criteria are clearly stated in the Materials and methods section of the original and revised manuscripts.

In addition, we analyzed the data using a custom Igor script that has been published and used repeatedly by our lab and others (Mosharov and Sulzer, 2005). Peaks are detected using the first derivative of the trace and the amplitude of the called peaks must then exceed a user-defined number of standard deviations (SD) of the root mean square noise. The SD cutoffs were set as 4x for mEPSCs and 3x for mIPSCs as described in the methods section. We are thus confident that our mEPSC and mIPSC data contain appropriate information that endorses the conclusions from Figure 3 of the revised manuscript.

Regarding the evoked EPSCs, as per the reviewers’ suggestion below, we have removed the input/output curves originally in Figure S2 of the original submission. Nevertheless, we emphasize that as stated in the Materials and methods section: all electrophysiology data arose from at least 3 mice (usually 4-5 mice) and all cell culture experiments were independently replicated in at least three separate experiments.

Interpretation: Figure 5 For the fractionation experiment I recommend they use the same terminology in the manuscript, the figure and the supplements. In the blot for Kir2.1 and 2.3, a close examination suggests either image handling issue or some weird stitching artefact. There are three white diagonal lines passing in kir2.1 KO P3, and for kir2.3 blot in ctrl S2 and ko SPNs. The reviewers must see (and the document must contain) high resolution original (uncropped) images of blots.

We thank the reviewer for pointing out inconsistencies in our references to different fractions from the fractionation experiment. We note that we conducted two orthogonal fractionation approaches and, thus, the terminology is distinct between the fractionation experiment in Figure 6 and in Figure 6—figure supplement 1.

We acquired the images of western blots in Figure 5—figure supplement 2, Figure 7—figure supplement 1, Figure 7, Figure 8, and Figure 8—figure supplement 1 on an Azure Biosystems C600 with the default settings. Beyond cropping the images to highlight the relevant band within the blot, no image editing or stitching was done. The three white diagonal lines mentioned by the reviewer are present on the original image from the Azure machine. Western blots in other figures were acquired using film and digitized with a scanner or with the LICOR Odyssey system and do not have this artifact.

We include full length blots for all western blots in the Supplementary files.

Interpretation: Figure 6 seems clear but where is the proof that the K334R is less acetylated (as in 6.A)? Related, what about the acetylation status of the Kir2.1 or 2.3 in the dSPN Atg7KO?

To address whether Kir2.1 K334R is less acetylated than WT channel, we immunoprecipitated WT or K334R Kir2.1 from Atg5KO MEFs and immunoblotted for acetyllysine residues and Flag as in Figure 7A. We found an approximately 50% decrease in acetylation on Kir2.1 K334R relative to WT channel in Atg5KO MEFs and have included this data in Figure 7 – figure supplement 1. We conclude that Kir2.1 is acetylated on multiple residues, but that the K334R mutant significantly reduces total acetylation of the channel.

We have attempted to isolate acetylated Kir2.1 or Kir2.3 from mouse striatum but have been unable to successfully immunoprecipitate the channel with the available antibodies against the endogenous protein. There are further no reports in the literature of immunoprecipitation of endogenous Kir2 channel from mouse brain.

Interpretation: Figure 1) Effect size exaggerated by y axis starting above zero in two cases. Male and female mouse weights are different, good reason to split the data, but this should be maintained for all analyses (clear why it wasn't see below). Further, body weight should be taken into account, for rotarod especially, where weight and performance are tightly (negatively) correlated. Since this is a negative correlation, this may reveal differences between the two KO lines, however, see below. It is also of interest that the D1 mice, despite being bad, improve their performance (learn) over the three trials, as well as controls, whereas d2 do not.

We thank the reviewers for these comments. We address them individually.

1) While the y-axis begin above zero more clearly displays the relative differences between groups in Figure 1A and 1E (Figure 1 of the original submission, Figure 2 in the revised submission), especially considering no mice weighed less than 15 g, we have changed the y-axis for both panels to begin at zero.

2) Rotarod performance indeed has a significant inverse correlation with body weight (McFadyen et al., 2003). We agree that this may suggest that the dSPNAtg7cKO mice may be performing worse on the rotarod than iSPNAtg7cKO mice because their latency to fall was similar, but they weighed significantly less. We have added a sentence to the Results addressing this possibility.

“We note that differences in motor learning may exist between dSPNAtg7cKO and iSPNAtg7cKO mice as the rotarod test is highly sensitive to body weight (McFadyen et al., 2003) and dSPNAtg7cKO mice weight significantly less than iSPNAtg7cKO mice (Figure 2A).”

3) We agree that one possible interesting feature of this experiment is that dSPNAtg7cKO mice, in contrast to iSPNAtg7cKO mice, seem to improve their performance over three trials, suggesting that they learn the task better. To examine this, we compared the difference in latency to fall between trial 1 and trial 3 in control, dSPNAtg7cKO and iSPNAtg7cKO mice (Author response image 5). We found that the learning was not significantly different between control and dSPNAtg7cKO mice but was significantly worse in iSPNAtg7cKO mice. There was not a significant difference between the learning of dSPNAtg7cKO mice and iSPNAtg7cKO mice. We therefore chose not to include a statement in the manuscript addressing differences in learning of the two conditional knockout mice.

Author response image 5
Motor learning differences between control, dSPNAtg7cKO and iSPNAtg7cKO mice.

The difference in latency to fall between trial 3 and trial 1 were plotted for each mouseincluded in Figure 2B. Data was analysed with a one-way ANOVA followed by a Bonferroni post-hoc test.

Interpretation: how has the specificity of the Kir2.1 and 2.3 antibody been validated? There is very little info on the suppliers website and their antibody detected Kir2.1 in overexpressing cos cells, but not rat brain? is this a concern? Recommend some in house validation (with flag variants shown later in paper?).

The Kir2.1 and Kir2.3 antibodies used in this study have been used in the literature in mouse brain, in particular in striatal lysates (Cazorla et al., 2012; Lieberman et al., 2018). As suggested, we have validated the Kir2.1 antibody using our Flag tagged variants in MEFs (Author response image 6). We find that the Kir2.1 antibody detects a band of the correct size (~75 kDa; Kir2.1 + Flag tag + SNAP tag) in Atg5WT and Atg5KO MEFs transfected with this construct but does not detect a band in untransfected sister cultures. This band was also detected by the Anti-Flag antibody. Note also the increase in p62 in Atg5KO MEFs and that the anti-Kir2.3 antibody does not detect a band in any of the lysates. This experiment has been repeated 4 times.

Author response image 6
Specificity of Kir2.1 antibody.

Lysates were generated from Atg5WT and Atg5KO MEFs, with or without transfection with Kir2.1FlagSNAP and blotted for Flag, Kir2.1, Kir2.3, p62 and actin.

The following areas suffer from "low N" problem. These experiments either need adequate sample size or should not be included in the manuscript:

Figure 1) Only 3 mice assessed for D1 dSPN and p62 ranging from only 50% and up. Justify?

Both the D1cre (eye262) and A2Acre (KG139) driver lines have been previously characterized and are extensively utilized in the study of different striatal cell types, and we chose to characterize the efficiency and specificity of the Cre-mediated recombination of the “floxed” Atg7 allele in these animal models. To increase the confidence in our analysis, we performed immunohistochemistry on 3 additional control mice (Atg7Fl/FlD1T), 3 additional dSPNAtg7cKO mice (D1cre Atg7Fl/Fl D1T) and 1 additional iSPNAtg7cKO mouse(A2Acre Atg7Fl/Fl D1T). We have combined this data with data from the original submission in Figure 1—figure supplement 1 (see discussion above). We find that ~75-80% of dSPNs have p62 “aggregates,” which is a proxy for loss of autophagy (Klionsky et al., 2016; Komatsu et al., 2007; Tang et al., 2014). In addition, we find that approximately 15% of the p62+ cells are D1-tomato negative (putative iSPNs). Although this suggests that Cre-mediated recombination in this line is not 100% efficient, and has some non-specific recombination, these numbers are similar to existing reports in the literature and give us confidence that these animal models allow us to examine the role of autophagy in dSPN physiology.

Two of the clearest behavioral phenotypes (latency to fall and grooming bouts) are not even close to confidence at p=0.2 in males, and significance is only achieved by grouping the sexes. To support definitive claims about the effects of these deletions on behavior, the behavioral assessment must be more rigorous.

We agree that increasing the number of animals in our analysis would increase our confidence in the conclusions. To address this, we generated additional cohorts of dSPNAtg7cKO mice and iSPNAtg7cKO mice and respective littermate controls. These new cohorts included 15 controls (9 male and 6 female), 11 dSPNAtg7cKO mice (7 male and 3 female) and 10 iSPNAtg7cKO mice (5 male and 5 female). After adding the data from this cohort to our analysis (including the data from the original submission), we again found no interaction between sex and genotype following two-way ANOVA, suggesting that it is appropriate to combine males and females in our final analysis. For completeness, as in the original manuscript, we have included all data from these behavioral experiments in Table 1, separating them both by sex and by genotype. We hope that this additional cohort of mice satisfies the reviewers’ concerns about the rigor of the behavioral experiments.

For slice data the number of cells and the number of animals from which these came should be given and at least 4 or 5 animals minimum; even in other more complete data sets in the main document sometimes the animal n=3, which is why I expect the information is buried in a table and not presented with the data. Recommend this would be at least 12-15 cells, animal n of 4 or 5 and presented throughout.

We thank the reviewers for these comments. In the original submission, we reported the N for our electrophysiological experiments as follows: we conveyed the number of cells in our electrophysiological analyses in the bar graphs (with individual points representing single cells). For clarity of the figure legends (as suggested in the guide to authors on the eLife website), we included the number of animals for each group in a supplemental table along with detailed information about the statistical tests run.

To address the reviewers’ point, we have taken a two-pronged approach. First, we have included recordings from 13 additional mice (>60 additional cells), increasing the number of cells recorded and reconstructed in Figure 3, and the number of cells recorded from mice with viral injections in Figure 6. In all experiments, the recorded cells come from at least 4 mice. Second, we explicitly included the number of cells and the number of animals, the t or F statistic and statistical test used as well as exact p values in the figure legends. We have kept Table 2 with detailed information about the mean and error for each observation, the number of cells and mice, the statistical test used, t or F value (as appropriate), and p value in Figure 3 as this figure legend is unmanageable when this information is included and have added a sentence to the Results section of the manuscript highlighting the presence of this resource. We hope that these changes strengthen the reviewers’ and editor’s confidence in these conclusions.

Further, the evoked currents in S2.D appear to be emerging from the stimulus artefact, and more so in the dSPNcko, this will impact upon amplitude measures. The stimulating electrode is likely too close to the cell if there is no latency to the response. The current clamp data is much more clearly produced, the authors might consider removing the voltage clamp results, or increasing their observations a lot.

We thank the reviewer for this comment and have removed the data about evoked EPSCs (eEPSCs) from the supplemental data. However, we would like to emphasize that we see a latency of 510 ms for our recorded eEPSCs and they are blocked by NBQX, an AMPAR antagonist, supporting the conclusion that they are synaptically evoked responses.

The three datum in Figure 5—figure supplement 1 are important but far too few against which to conclude there is no change (a strong trend exists) in Kir2.1 for dSPN atg7ko; especially given the huge range shown in Figure 4G for iSPN with 9 data points.

To address this concern, we have generated striatal lysates from 28 additional mice (14 controls, 7 dSPNAtg7cKO, and 7 iSPNAtg7cKO) and blotted them for Kir2.1, Kir2.3, p62, Kv1.2, PSD95 and actin. The new data is included in Figure 5 and Figure 5—figure supplement 1. No conclusion was changed.

https://doi.org/10.7554/eLife.50843.sa2

Article and author information

Author details

  1. Ori J Lieberman

    Department of Psychiatry, Columbia University Vagelos College of Physicians and Surgeons, New York, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Validation, Investigation, Visualization, Methodology
    For correspondence
    ojl2106@columbia.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0467-0875
  2. Micah D Frier

    Department of Psychiatry, Columbia University Vagelos College of Physicians and Surgeons, New York, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  3. Avery F McGuirt

    Department of Psychiatry, Columbia University Vagelos College of Physicians and Surgeons, New York, United States
    Contribution
    Validation, Investigation
    Competing interests
    No competing interests declared
  4. Christopher J Griffey

    Department of Neurology, Columbia University Vagelos College of Physicians and Surgeons, New York, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  5. Elizabeth Rafikian

    Mouse NeuroBehavior Core, Institute for Genomic Medicine, Columbia University Vagelos College of Physicians and Surgeons, New York, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  6. Mu Yang

    Mouse NeuroBehavior Core, Institute for Genomic Medicine, Columbia University Vagelos College of Physicians and Surgeons, New York, United States
    Contribution
    Supervision, Investigation, Methodology
    Competing interests
    No competing interests declared
  7. Ai Yamamoto

    Department of Neurology, Columbia University Vagelos College of Physicians and Surgeons, New York, United States
    Contribution
    Supervision, Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7059-2449
  8. Anders Borgkvist

    Department of Neuroscience, Karolinska Institute, Stockholm, Sweden
    Contribution
    Supervision, Methodology
    Competing interests
    No competing interests declared
  9. Emanuela Santini

    Department of Neuroscience, Karolinska Institute, Stockholm, Sweden
    Contribution
    Supervision, Funding acquisition
    Competing interests
    No competing interests declared
  10. David Sulzer

    1. Department of Psychiatry, Columbia University Vagelos College of Physicians and Surgeons, New York, United States
    2. Department of Neurology, Columbia University Vagelos College of Physicians and Surgeons, New York, United States
    3. Department of Pharmacology, Columbia University Vagelos College of Physicians and Surgeons, New York, United States
    4. Division of Molecular Therapeutics, New York State Psychiatric Institute, New York, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition
    For correspondence
    ds43@cumc.columbia.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7632-0439

Funding

National Institute of Mental Health (5F30MH114390-02)

  • Ori J Lieberman

National Institute of General Medical Sciences (T32GM007367)

  • Ori J Lieberman
  • Christopher J Griffey

National Institute on Drug Abuse (R01DA007418)

  • David Sulzer

Simons Foundation (514813)

  • David Sulzer

JPB Foundation

  • David Sulzer

National Institute of Neurological Disorders and Stroke (R00NS087112)

  • Emanuela Santini

National Institute of Neurological Disorders and Stroke (R01NS063973)

  • Ai Yamamoto

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Drs. C Kellendonk, M Quick, D Agalliu, E Gallo, M Sonders, M Salling and T Cheung for invaluable advice and discussions throughout this project; Dr. AM Cuervo for invaluable advice and cell lines; Drs. J Crittenden and E Mosharov for critical review of an earlier draft of the manuscript; and E Kanter and I Pigulevskiy for generous support.

Ethics

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocols (AAAV9459 and AAAR4414) of Columbia University.

Senior Editor

  1. Gary L Westbrook, Oregon Health and Science University, United States

Reviewing Editor

  1. Andrew B West, Duke University, United States

Reviewers

  1. Andrew B West, Duke University, United States
  2. Austen J Milnerwood, Montreal Neurological Institute, McGill University, Canada

Publication history

  1. Received: August 4, 2019
  2. Accepted: January 7, 2020
  3. Accepted Manuscript published: January 8, 2020 (version 1)
  4. Version of Record published: January 27, 2020 (version 2)

Copyright

© 2020, Lieberman et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,026
    Page views
  • 204
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Developmental Biology
    Moran Cohen-Berkman et al.
    Research Article Updated
    1. Biochemistry and Chemical Biology
    2. Cell Biology
    Andrea Ruiz-Velasco et al.
    Research Article Updated
