Abstract

A hallmark of Spemann organizer function is its expression of Wnt antagonists that regulate axial embryonic patterning. Here we identify the tumor suppressor Protein tyrosine phosphatase receptor-type kappa (PTPRK), as a Wnt inhibitor in human cancer cells and in the Spemann organizer of Xenopus embryos. We show that PTPRK acts via the transmembrane E3 ubiquitin ligase ZNRF3, a negative regulator of Wnt signaling promoting Wnt receptor degradation, which is also expressed in the organizer. Deficiency of Xenopus Ptprk increases Wnt signaling, leading to reduced expression of Spemann organizer effector genes and inducing head and axial defects. We identify a '4Y' endocytic signal in ZNRF3, which PTPRK maintains unphosphorylated to promote Wnt receptor depletion. Our discovery of PTPRK as a negative regulator of Wnt receptor turnover provides a rationale for its tumor suppressive function and reveals that in PTPRK-RSPO3 recurrent cancer fusions both fusion partners, in fact, encode ZNRF3 regulators.

eLife digest

How human and other animals form distinct head- and tail-ends as embryos is a fundamental question in biology. The fertilized eggs of the African clawed frog (also known as Xenopus) become embryos and grow into tadpoles within two days. This rapid growth makes Xenopus particularly suitable as a model to study how animals with backbones form their body plans.

In Xenopus embryos, a small group of cells known as the Spemann organizer plays a pivotal role in forming the body plan. It produces several enzymes known as Wnt inhibitors that repress a signal pathway known as Wnt signaling to determine the head- and tail-ends of the embryo.

Chang, Kim et al. searched for new Wnt inhibitors in the Spemann organizer of Xenopus embryos. The experiments revealed that the Spemann organizer produced an enzyme known as PTPRK that was essential to permit the head-to-tail patterning of the brain. PTPRK inhibited Wnt signaling by activating another enzyme known as ZNRF3.

Previous studies have shown that defects in Wnt signaling and in the activities of PTPRK and ZNRF3 are involved in colon cancer in mammals. Thus, these findings may help to develop new approaches for treating cancer in the future.

Introduction

The Spemann organizer is an evolutionary conserved signaling center in early vertebrate embryos, which coordinates pattern formation along the anterior–posterior, dorsal–ventral, and left–right body axes (Harland and Gerhart, 1997; De Robertis et al., 2000; Niehrs, 2004). In amphibian embryos, the organizer corresponds to the upper dorsal blastopore lip, constituting mostly dorsal mesendoderm. Molecularly, the Spemann organizer functions by negative regulation of BMP, Nodal, and Wnt signaling. Wnt/β-catenin signaling plays a key role in antero-posterior (a-p) patterning the Xenopus neural plate where a signaling gradient promotes posterior fate (Hoppler et al., 1996; Hoppler and Moon, 1998; Kiecker and Niehrs, 2001), a role, which is evolutionary conserved (Niehrs, 2010). Various Wnt antagonists or membrane-bound Wnt inhibitors are expressed in neural-inducing dorsal mesoderm and/or the prospective neuroectoderm itself to promote organizer function, and to pattern the neural plate, including cerberus, frzb, dkk1, shisa, tiki, notum, angptl4, and bighead (Bouwmeester et al., 1996; Leyns et al., 1997; Glinka et al., 1998; Yamamoto et al., 2005; Zhang et al., 2012; Cruciat and Niehrs, 2013; Zhang et al., 2015; Kirsch et al., 2017; Ding et al., 2018). Thus, the Xenopus Spemann organizer has been a treasure trove for the discovery of negative Wnt regulators, informing on their function in cell and tissue homeostasis as well as in disease (Cruciat and Niehrs, 2013). With regard to the latter, activation of Wnt/β-catenin signaling is a ubiquitous feature in colorectal cancer (Nusse and Clevers, 2017; Zhan et al., 2017) and thus comprehensive understanding of Wnt regulators is a key towards developing therapeutic approaches for cancer.

Wnt/β-catenin signaling operates via the transcriptional coactivator β-catenin, whose level is tightly regulated by Axin/APC/GSK3 destruction complex-mediated phosphorylation, ubiquitination, and proteasomal degradation. Binding of Wnt ligands to Frizzleds (FZDs) receptors and co-receptors of the LDL Receptor Related Protein (LRP) −5 and −6 family inhibits GSK3 and the destruction complex, hence β-catenin can accumulate and translocate to the nucleus (Nusse and Clevers, 2017; Zhan et al., 2017). In addition, Wnt signaling is also elaborately tuned at the receptor level (Niehrs, 2012; Kim et al., 2013; Green et al., 2014). For example, the single transmembrane E3 ligases ZNRF3/RNF43 ubiquitylate and downregulate FZDs and LRP6, imposing negative feedback control on Wnt signaling. R-spondin ligands sequester ZNRF3/RNF43 with LGR4/5/6 and lead to the membrane clearance of ZNRF3/RNF43 (Carmon et al., 2011; de Lau et al., 2011; Glinka et al., 2011; Hao et al., 2012; Koo et al., 2012). Thereby, R-spondins increase the membrane abundance of Wnt receptors and potentiate Wnt signaling.

Aberrant Wnt/R-spondin/ZNRF3 signaling is implicated in tumorigenesis, where 7% of colon cancer and 31% of serrated adenoma samples harbor RSPO3 gene fusions with the neighboring Protein tyrosine phosphatase receptor-type kappa (PTPRK) gene (Seshagiri et al., 2012; Sekine et al., 2016). In these gene fusions, the signal sequence of PTPRK is fused to RSPO3, reducing PTPRK and leading to elevated RSPO3 protein levels, which in transgenic mouse models are sufficient to drive tumor initiation (Han et al., 2017).

The tumor-promoting effect of PTPRK-RSPO3 gene fusions is solely attributed to elevated R-spondin levels, while little attention has been paid to a possible role of PTPRK in this context. PTPRK belongs to R2B subfamily of Receptor type protein tyrosine phosphatases (RPTP) (Jiang et al., 1993), which contain an adhesion molecule-like extracellular domain and a cytoplasmic tyrosine phosphatase domain (Lee et al., 2015). PTPRK can be cleaved by multiple proteases to generate a soluble intracellular fragment that can translocate into the nucleus (Anders et al., 2006; Tonks, 2006). Hence, PTPRK can have a variety of substrates from the membrane to the nucleus. PTPRK dephosphorylates and inactivates oncogenic proteins such as STAT3, EGFR and CD133, is frequently downregulated in human cancers, and is considered a tumor suppressor (McArdle et al., 2001; Flavell et al., 2008; Tarcic et al., 2009; Assem et al., 2012; Scrima et al., 2012; Mo et al., 2013; Sun et al., 2013; Chen et al., 2015; Shimozato et al., 2015).

Here, we report that not only RSPO3 but also its fusion partner PTPRK encodes a regulator of ZNRF3 and Wnt/β-catenin signaling. In Xenopus embryos, both ptprk and znrf3 are expressed in the Spemann organizer and are required to inhibit Wnt signaling to promote early embryonic axial patterning and head formation. PTPRK binds to ZNRF3, causes its tyrosine-dephosphorylation at a conserved ‘4Y’ internalization signal, and enhances ZNRF3-mediated Wnt receptor turnover. Thus, PTPRK has the opposite function of RSPO3, promoting- instead of preventing Wnt receptor removal. Our study suggests that in PTPRK-RSPO3 gene fusions, truncation of PTPRK and increased expression of RSPO3 in fact work in the same direction, impairing ZNRF3 to augment Wnt signaling.

Results

PTPRK is a negative regulator of Wnt/β-catenin signaling

To uncover novel regulators of Wnt/β-catenin signaling, a genome-wide small interfering RNA (siRNA) screen using Wnt reporter assay as a readout was previously performed (Cruciat et al., 2010) and PTPRK was discovered as a potential candidate. In the H1703 human lung adenocarcinoma cell line, knockdown of PTPRK enhanced Wnt3a induced signaling in Topflash reporter assays (Figure 1A and Figure 1—figure supplement 1A) as well as expression of the endogenous Wnt target gene AXIN2 (Figure 1B and Figure 1—figure supplement 1B). siPTPRK also increased cytosolic β-catenin levels and nuclear accumulation of β-catenin upon Wnt3a treatment (Figure 1C–D). PTPRK was reported to promote membrane association of β-catenin (Novellino et al., 2008), but we found no change in β-catenin in the membrane fraction in siPTPRK treated cells (Figure 1—figure supplement 1C). Furthermore, in epistasis experiments, siPTPRK increased Topflash reporter activity only when the Wnt reporter was activated by Wnt3a but not following transfection of Wnt1/Fzd8/LRP6, Dvl1 (Dishevelled 1), or constitutively active β-catenin (S37A) (Figure 1E). PTPRK affected Wnt signaling only upon knockdown, but not overexpression (Figure 1—figure supplement 1D). Moreover, unlike other negative Wnt regulators such as Naked, APC, or GSK3, which act universally, Wnt inhibition by PTPRK was not observed in e.g. HEK293T cells (Figure 1—figure supplement 1E), and hence PTPRK seems to act cell-type specifically. In addition, when we tested other RPTPs expressed in H1703 cells (based on available RNAseq databases), siPTPRK showed the strongest effect on inducing AXIN2 expression, besides siPTPRF (Figure 1—figure supplement 1F). Taken together, these results indicate that PTPRK acts at the receptor level to inhibit Wnt/β-catenin signaling in H1703 cells.

Figure 1 with 1 supplement see all
Download asset Open asset

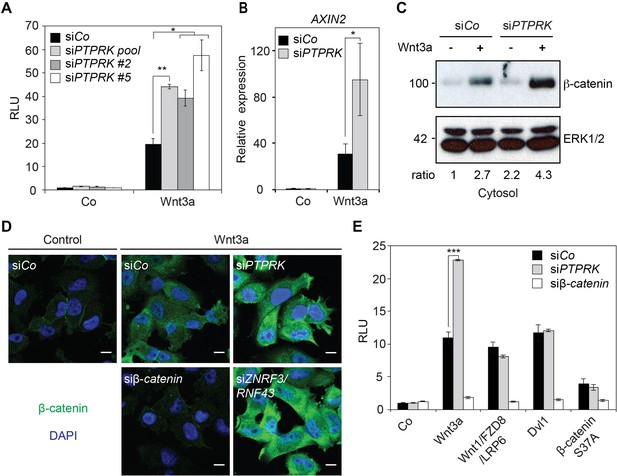

PTPRK inhibits Wnt/β-catenin signaling at the receptor level.

(A) Topflash reporter assay in H1703 cells upon siCo, siPTPRK pool, or single siPTPRKs (siPTPRK #2, #5) transfection, with or without overnight Wnt3a treatment. Further experiments were done with siPTPRK #2. (B) qRT-PCR analysis of AXIN2 in H1703 cells treated with Wnt3a overnight upon siCo, siPTPRK transfection. (C) Western blot analysis of cytosolic β-catenin in H1703 cells upon siCo or siPTPRK transfection. Cells were treated with Wnt3a for 2 h before harvest and permeabilized with 0.05% Saponin. Ratio, relative levels of β-catenin normalized to ERK1/2. (D) Immunofluorescence microscopy showing nuclear and cytosolic β-catenin in H1703 cells. Cells were transfected with the indicated siRNAs and treated with Wnt3a for 2 h. siβ-catenin and siZNRF3/siRNF43 were used as negative and positive control, respectively. (E) Topflash reporter assay in H1703 cells upon PTPRK or β-catenin knockdown. Topflash activity was stimulated by overnight treatment of Wnt3a, or transfection of Wnt1/Fzd8/LRP6, Dvl1, or hβ-catenin S37A. Data in all graphs are displayed as means ± SD, and show one representative of multiple independent experiments with three biological replicates. RLU, relative light units. *p<0.05 **p<0.01, ***p<0.001.

Ptprk is expressed in the Spemann organizer and is required to inhibit Wnt signaling

We next studied the role of PTPRK in vivo in the African clawed frog Xenopus tropicalis, since the role of early Wnt signaling in the Spemann organizer of amphibian embryos is well-established (Niehrs, 2004). Analysis of Xenopus ptprk by qRT-PCR showed that it was expressed maternally and continued to be expressed at similar levels during gastrulation, increasing with organogenesis (Figure 2—figure supplement 1A). By whole-mount in situ hybridization, ptprk was expressed in the animal hemisphere of blastula embryos (Figure 2—figure supplement 1B). In early gastrulae, ptprk was prominently expressed in the Spemann organizer (Figure 2A). While clearly enriched on the dorsal side, ptprk expression was not exclusive to the organizer but was also weakly detected in ventral cells. Interrogating a database derived from RNAseq of Xenopus genes with ranked organizer-specific expression (Ding et al., 2017) confirmed differential expression of ptprk on the dorsal side, but with lower enrichment than some other ‘organizer genes’ (Figure 2D). In neurulae and tailbud embryos, ptprk was most prominently expressed in the notochord (Figure 2B–C), an organizer derivative, which plays a critical role in neural patterning (Hemmati-Brivanlou et al., 1990; Yamada et al., 1991; Roelink et al., 1994; Barnett et al., 1998; Wilson and Maden, 2005). Low expression was detected in the neural plate, as well as branchial arches and dorsal lateral plate (Figure 2B). We conclude that Xenopus ptprk is prominently expressed in the Spemann organizer and notochord.

Figure 2 with 1 supplement see all
Download asset Open asset

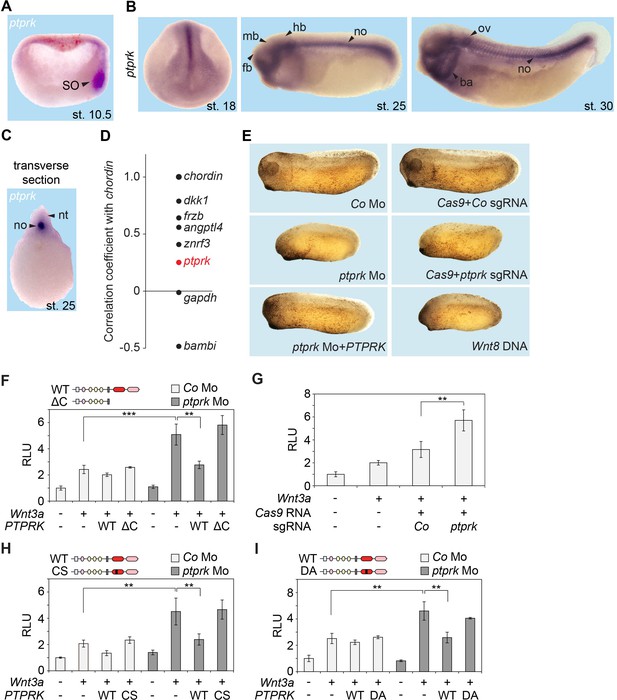

Ptprk inhibits Wnt signaling in the Xenopus Spemann organizer.

(A–C) In situ hybridization of ptprk in Xenopus tropicalis at (A) gastrula (hemisected, dorsal to the right), (B) neurula, tailbud, and tadpole stages, and in (C) transverse dissected tailbud embryo. ba, branchial arches; fb, forebrain; hb, hindbrain; mb, midbrain; no, notochord; nt, neural tube; ov, otic vesicle; SO, Spemann organizer. (D) Data mining using data from Ding et al. (2017), showing gene expression correlation with a dorsal/organizer marker chordin. Xenopus dkk1, frzb, and angptl4 are known organizer-expressed genes, gapdh is shown as housekeeping gene, and bambi is a ventrally expressed gene. (E) Representative phenotypes of tailbud stage Xenopus tropicalis embryos injected animally at 2- to 8 cell stage and as indicated. For quantification, see Figure 2—figure supplement 1D–E. (F–I) Topflash reporter assays performed with neurulae (stage 18). Embryos were injected animally at 2- to 8 cell stage (F, H–I) or one cell stage (G) with reporter plasmids and the indicated mRNAs and Mos. Domain structures of WT PTPRK and mutants are shown on top. Normalized Topflash activity of Co-injected embryos only with reporter plasmids was set to 1. Data in all graphs are displayed as means ± SD, and show one representative of multiple independent experiments with three biological replicates. RLU, relative light units. **p<0.01, ***p<0.001.

We depleted Ptprk by Morpholino antisense oligo (Mo) injection, targeting the splice site between exon 1 and intron 1 of Xenopus tropicalis ptprk, and efficiently reduced ptprk mRNA (Figure 2—figure supplement 1C). Microinjection of ptprk Mo in Xenopus (‘morphants’) led to reduced head structures and shortened body axis, which was rescued by coinjection of untargeted human PTPRK mRNA (Figure 2E and Figure 2—figure supplement 1D), demonstrating Mo specificity. To further confirm specificity of these defects, we carried out CRISPR/Cas9 mediated ptprk gene editing. A single guide RNA (sgRNA) was designed to target a sequence within ptprk exon one and the genome modification was confirmed by StuI enzyme digestion (Figure 2—figure supplement 1F–G). The ptprk genome-edited embryos (‘crispants’) showed the same phenotype as ptprk morphants. Anterior and tail formation defects are characteristically observed following overactivation of zygotic Wnt signaling (Christian and Moon, 1993) and expectedly Wnt8 DNA overexpression phenocopied the ptprk morphant and crispant phenotype (Figure 2E and Figure 2—figure supplement 1D–E). Concordantly, depletion of Ptprk upregulated Wnt-induced Topflash activity in Xenopus embryos, both in morphants (Figure 2F) and crispants (Figure 2G). Increased Wnt activity in ptprk morphants was restored by human wild-type PTPRK RNA but not by an intracellular domain deletion mutant (PTPRK-ΔC) or phosphatase-dead mutants (PTPRK-CS, PTPRK-DA) (Figure 2F,H–I), indicating that the tyrosine phosphatase activity is essential for Wnt inhibition. The importance of PTPRK phosphatase activity in Wnt regulation was also confirmed in H1703 cells (Figure 2—figure supplement 1H). We conclude that ptprk depletion upregulates Wnt signaling and phenocopies Wnt overactivation during early Xenopus tropicalis development, supporting that Ptprk is a negative regulator of Wnt signaling not only in H1703 cancer cells but also in vivo.

Ptprk promotes Spemann organizer function

Inhibition of zygotic Wnt signaling is required for normal organizer gene expression (Hoppler et al., 1996; Kirsch et al., 2017; Ding et al., 2018). Consistently, microinjection of ptprk Mo downregulated expression of Spemann organizer effector genes, including chordin (chd), goosecoid (gsc) and Xnot2 (Figure 3A and Figure 3—figure supplement 1A–C). Zygotic Wnt signaling inhibits anterior neural gene expression, which is counteracted by Wnt antagonists. To corroborate the role of Ptprk in Wnt-mediated anterior neural patterning, we analyzed expression of the forebrain markers, bf1 and otx2. Unilateral injection of ptprk Mo with lineage tracer downregulated bf1 and otx2 expression on the injected side, as did Wnt8 DNA overexpression (Figure 3B and Figure 3—figure supplement 1D–E). Neural induction was not impaired as expression of the pan-neuronal marker sox3 was unaffected (Figure 3B and Figure 3—figure supplement 1F). We carried out rescue experiments in Xenopus noggin-neuralized animal cap explants (Lamb et al., 1993). BMP4 inhibition by noggin mRNA injection expectedly induced neural markers, and ptprk Mo reduced the expression of bf1 and otx2, but not sox3 (Figure 3C–E and Figure 3—figure supplement 1G). Importantly, knockdown of lrp6 or β-catenin using established Mos (Heasman et al., 2000; Hassler et al., 2007) rescued the effects of ptprk Mo on bf1 or otx2 expression in a dose-dependent manner (Figure 3C–D). These results confirm that the reduction of forebrain markers in ptprk morphants resulted from increased Wnt activity. We conclude that Ptprk promotes Spemann organizer function by negatively modulating Wnt/β-catenin signaling at the Lrp6 receptor level in vivo.

Figure 3 with 1 supplement see all
Download asset Open asset

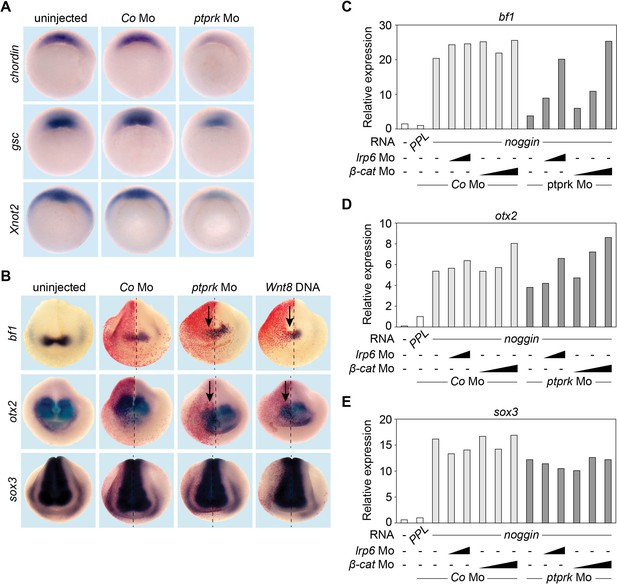

Ptprk regulates Spemann organizer function by inhibiting Wnt signaling.

(A) Whole mount in situ hybridization of chordin, gsc, and Xnot2 in gastrula embryos (stage 10.5). Embryos were injected at 2- to 8 cell stage animally with Co or ptprk Mo. For quantification, see Figure 3—figure supplement 1A–C. (B) Whole mount in situ hybridization of forebrain marker bf1 and otx2, and pan-neural marker sox3 in neurula embryos (stage 18). Embryos were injected at 4- to 8 cell stage unilaterally in animal blastomeres as indicated (β-galactosidase lineage tracer in red; arrows mark injected side). For quantification, see Figure 3—figure supplement 1D–F. (C–E) qRT-PCR analysis showing the expression of (C) bf1, (D) otx2 and (E) sox3 in Xenopus tropicalis animal cap explants. Embryos were injected animally at 2- to 8 cell stage as indicated. Xenopus noggin mRNA was injected to induce to neural fate in animal cap explants. Animal caps were excised at stage 9 and harvested at stage 18. The expression of each gene was normalized to odc. PPL and Co Mo injected embryos were set to 1. Data show one representative experiment of at least three independent experiments with similar results.

PTPRK regulates surface levels of Wnt receptors through ZNRF3

The in vitro and in vivo data clearly indicated that PTPRK regulates Wnt signaling at the receptor level. Moreover, PTPRK depletion increased not only LRP6 phosphorylation/activation, but also total LRP6 levels in H1703 cells and Xenopus embryos (Figure 4A–C and Figure 4—figure supplement 1A,C), without affecting LRP6 mRNA levels (Figure 4—figure supplement 1B,D). This suggests that PTPRK directly or indirectly reduces LRP6 protein levels. The transmembrane E3 ligases ZNRF3 and its homolog RNF43 are key negative regulators of Wnt receptor levels at the plasma membrane (Hao et al., 2012; Koo et al., 2012). Hence, we explored if PTPRK may act through ZNRF3/RNF43.

Figure 4 with 1 supplement see all
Download asset Open asset

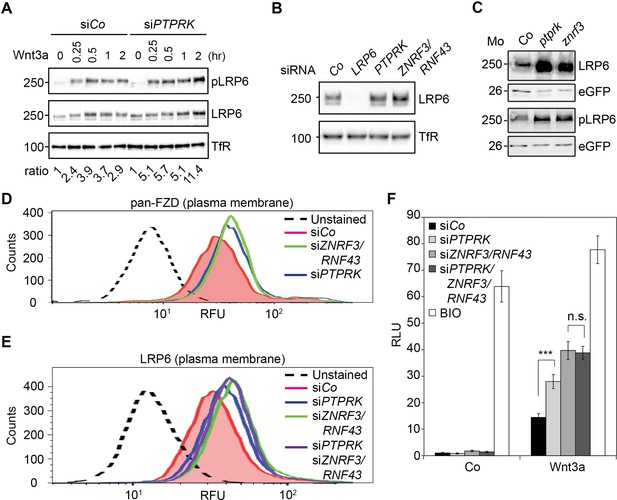

PTPRK reduces FZD and LRP6 surface levels via ZNRF3/RNF43.

(A) Western blots analysis of membrane fractions from H1703 cells upon siRNA transfection. Cells were treated with Wnt3a for the indicated time and were analyzed. Ratio, phospho-LRP6 (pLRP6) levels normalized to control (transferrin receptor, TfR). Representative results from three independent experiments with similar outcome are shown. (B) Western blots analysis of membrane fractions from H1703 cells upon siRNA transfection. Transferrin receptor (TfR) served as loading control. Representative results from three independent experiments with similar outcome are shown. (C) Western blot analysis of LRP6 and phospho-LRP6 (pLRP6) in neurula (stage 18) embryos injected with LRP6 RNA, eGFP RNA and indicated Mo. eGFP served as an injection control. Data show one representative result from three independent experiments. (D) Flow cytometric analysis of cell surface Frizzled receptors (pan-FZD antibody) in H1703 cells upon siRNA knockdown of PTPRK or ZNRF3/RNF43. Only live cells were counted and dead cells were gated out by propidium iodide (PI) staining. Dashed line, unstained H1703 cells. RFU, relative fluorescence units. (E) Flow cytometric analysis of cell surface LRP6 in H1703 cells upon siRNA depletion of PTPRK, ZNRF3/RNF43 or combination of both. Only live cells were counted and dead cells were gated out by propidium iodide (PI) staining. Dashed line, unstained H1703 cells. RFU, relative fluorescence units. (F) Topflash reporter assay in H1703 cells upon transfection of indicated siRNAs. Cells were treated with Wnt3a with or without 20 μM BIO for 24 hr before measurement. (Mean ± SD, n = 3; ***p<0.001, n.s., not significant, student t-test). RLU, relative light.

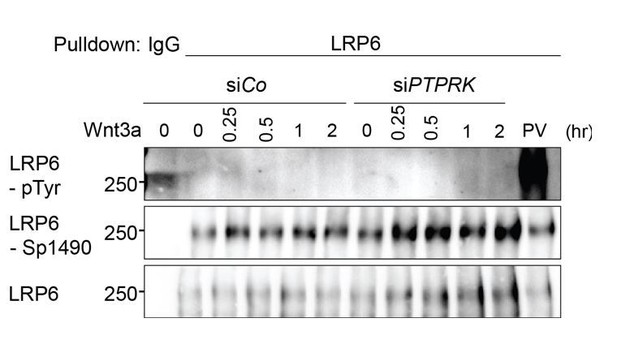

PTPRK depletion upregulated LRP6 levels similarly to knockdown of ZNRF3 and RNF43 in H1703 cells (Figure 4B and Figure 4—figure supplement 1A) as well as in Xenopus embryos (Figure 4C and Figure 4—figure supplement 1C). ZNRF3/RNF43 degrade not only LRP6 but also FZD receptors (Hao et al., 2012; Koo et al., 2012). We therefore monitored FZD levels at the plasma membrane by flow cytometry using a pan-FZD antibody (OMP-18R5) (Gurney et al., 2012; Hao et al., 2012). Consistently, not only siZNRF3/RNF43 but also siPTPRK increased FZD cell surface levels (Figure 4D). Examining their epistasis, siPTPRK and siZNRF3/RNF43 treatments both elevated LRP6 cell surface levels, but LRP6 levels were not further enhanced by their combined knockdown (Figure 4E). Likewise, depletion of PTPRK or ZNRF3/RNF43 elevated Topflash activity, while the combined knockdown did not further increase it (Figure 4F and Figure 4—figure supplement 1E).

Since a role for ZNRF3 has not been reported in Xenopus, we characterized its expression in Xenopus tropicalis. Maternal znrf3 mRNA was detected in the animal hemisphere; in gastrulae it was prominently expressed in the organizer (Figure 5A), consistent with RNAseq analysis (Figure 2D). ZNRF3 is a Wnt target gene (Hao et al., 2012) and likewise in Xenopus embryos it shows a pattern that follows high Wnt activity (Figure 5A) (Borday et al., 2018), including the posterior of early neurulae, and in tailbud embryos the midbrain, the dorsal neural tube and branchial arches.

Figure 5 with 1 supplement see all
Download asset Open asset
Znrf3 is coexpressed- and cooperates with ptprk in early Xenopus embryos.

(A) Spatial expression of znrf3 in Xenopus tropicalis embryos at blastula (animal view), gastrula (hemisected dorsal to the right), neurula, tailbud and tadpole stages. ba, branchial arches; bp, blastopore; hb, hindbrain; mb, midbrain; nt, neural tube; ov, ovic vesicle; SO Spemann organizer. (B) Representative phenotypes of tailbud stage Xenopus tropicalis embryos injected animally at 2- to 8 cell stage as indicated. (C) Quantification of phenotypes shown in (B). The number of embryos per condition is indicated on the top. (D) Whole mount in situ hybridization of gsc and chordin in gastrula embryos (stage 10.5). Embryos were injected at 2- to 8 cell stage animally with Co or ptprk Mo with or without ZNRF3 RNA. For quantification, see Figure 5—figure supplement 1C. (E) Topflash reporter assay performed with neurulae (stage 18). Embryos were injected animally at 2- to 8 cell stage as indicated. Suboptimal dosages of ptprk or znrf3 Mos were used in this experiment. Normalized Topflash activity of Co Mo injected embryos was set to 1. (F) Topflash reporter assay performed with neurulae (stage 18). Embryos were injected animally at 2- to 8 cell stage as indicated. Normalized Topflash activity of Co Mo injected embryos was set to 1. Data in all graphs are displayed as means ± SD, and show one representative of multiple independent experiments with three biological replicates. RLU, relative light units. **p<0.01.

We knocked down znrf3 in Xenopus with two independent antisense Mos. One targets the splice site between exon 1 and intron 1 of Xenopus tropicalis znrf3, robustly reducing znrf3 mRNA levels (Mo1, Figure 5—figure supplement 1A); the other targets the 5’-UTR (Mo2). Depletion of Znrf3 elicited axial defects that phenocopied ptprk morphants/crispants (Figure 5B–C). Xenopus znrf3 morphants were rescued by coinjection of human untargeted ZNRF3 mRNA (Figure 5B–C). Expectedly, znrf3 Mo robustly induced Topflash activity in Xenopus embryos (Figure 5—figure supplement 1B). Both ptprk and znrf3 show Spemann organizer expression and downregulate Wnt signaling. Accordingly, to examine whether Ptprk regulates Spemann organizer genes through Znrf3, we coinjected ptprk Mo with or without human ZNRF3 mRNA. ZNRF3 overexpression rescued both gsc and chordin expression, which were decreased by ptprk Mo (Figure 5D and Figure 5—figure supplement 1C). To test for their functional cooperation, we co-injected ptprk and znrf3 antisense Mos at sub-threshold doses, which individually hardly produced an effect. However, when combined, ptprk and znrf3 Mos synergistically enhanced Topflash activity (Figure 5E). In addition, overexpression of human ZNRF3 rescued Topflash induction by ptprk Mo (Figure 5F).

Taken together, the results support that PTPRK is an upstream positive regulator of ZNRF3 and thereby reduces cell surface Wnt receptors, which is essential for proper Spemann organizer function and Xenopus axial patterning.

PTPRK promotes ZNRF3 mediated LRP6 and FZD degradation

We explored by co-immunoprecipitation (CoIP) if PTPRK and ZNRF3 physically interact. We used ZNRF3-ΔRING as it is more stable at the plasma membrane compared to wild-type ZNRF3. In CoIP experiments, full-length and phosphatase dead (DA) PTPRK bound to ZNRF3-ΔRING, whereas PTPRK-ΔC did not (Figure 6A). Moreover, PTPRK but not PTPRK-ΔC colocalized with ZNRF3-ΔRING in punctae at the plasma membrane (Figure 6—figure supplement 1A). These results indicate that PTPRK binds to ZNRF3 via its intracellular domain.

Figure 6 with 1 supplement see all
Download asset Open asset

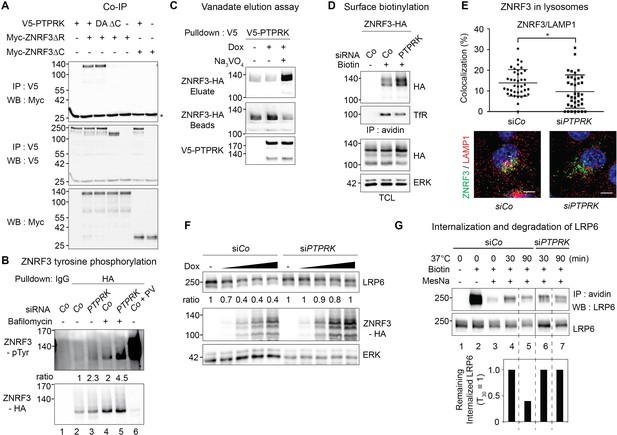

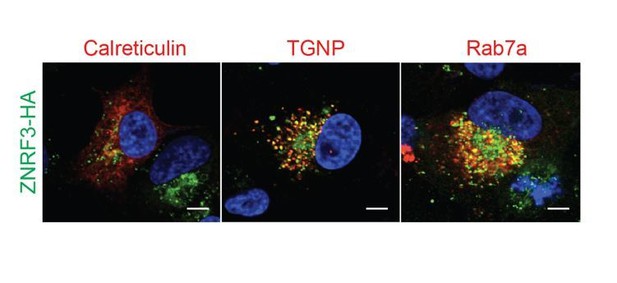

PTPRK binds ZNRF3 and promotes its dephosphorylation and lysosomal trafficking.

(A) Co-immunoprecipitation experiments in HEK293T cells transfected with the indicated constructs and analyzed 48 hr after transfection. Data show a representative result from three independent experiments with similar outcomes. Asterisk, IgG light chain. (B) Tyrosine phosphorylation of ZNRF3 in TetOn ZNRF3-HA H1703 cells upon siRNA transfection with or without bafilomycin treatment overnight. Cells were treated with Dox for 48 hr before harvest. As a control, cells were treated with Na-pervanadate (PV, phosphatase inhibitor) for 30 min before harvest. Lysates were pulled down with anti-HA antibody or control IgG and subjected to Western blot analysis. Ratio, tyrosine phosphorylation of ZNRF3 normalized to total ZNRF3. (C) PTPRK-ZNRF3 interaction is vanadate-sensitive. Immobilized, immunoisolated V5-PTPRK from TetOn V5-PTPRK cells was incubated with total cell lysate from ZNRF3-HA expressing, Na-pervanadate treated cells. Bound ZNRF3-HA was eluted with 20 mM vanadate as indicated and eluate and beads were separated before Western blot analysis. (D) Cell surface biotinylation assay performed in TetOn ZNRF3-HA H1703 cells upon siRNA treatment. Cells were treated with Dox for 48 hr before harvest. After labeling surface proteins with Sulfo-NHS-LC-LC-Biotin, lysates were pulled down with streptavidin beads and subjected to Western blot analysis. Transferrin receptor (TfR), loading control for avidin pull down; ERK, total cell lysate (TCL) control. A representative result from three independent experiments with similar outcomes is shown. (E) Colocalization by immunofluorescence microscopy (IF) of ZNRF3 (Green) with LAMP1 (Red) in TetOn ZNRF3-HA H1703 cells upon siRNA treatment. Top, graph shows quantification of ZNRF3 colocalizing with LAMP1 (Mean ± SD, *p<0.05, student t-test). Bottom, representative IF images. Note that plasma membrane localized ZNRF3 cannot be seen due to low microscope laser power used for optimal vesicular co-localization in. Colocalization data are pooled from two independent experiments. (F) Western blot analysis of Dox treated TetOn ZNRF3-HA H1703 cells upon siRNA treatment. Ratio, LRP6 normalized to ERK. A representative result from three independent experiments with similar outcomes is shown. (G) Internalization and degradation assay of LRP6 in TetOn ZNRF3-HA H1703 cells treated as indicated. After labeling of surface proteins with Sulfo-NHS-SS-Biotin, endocytosis was induced by shifting cells to 37°C for the indicated times. At each indicated time point, cells were treated with MesNa to remove biotinylated surface proteins and then harvested. Cells were lysed, and biotinylated proteins were pulled down with streptavidin beads and analyzed with indicated antibodies. Lane 1: non-biotin treated control, Lane 3: MesNa treated after biotin labeling without inducing endocytosis (monitoring MesNa efficiency). The graph below shows avidin pulled down LRP6 levels normalized to total LRP6 levels (remaining internalized LRP6 at 30 min upon siCo was set to 1).

We generated a H1703 cell line harboring doxycycline (Dox) inducible ZNRF3-HA (TetOn ZNRF3-HA) to overcome both, poor transfection efficiency in this cell line and general lack of ZNRF3 antibodies. Employing this cell line, we tested if ZNRF3 is tyrosine phosphorylated and may be a substrate of PTPRK. By CoIP and Western blot detection with a phospho-Tyr-specific antibody, we observed very little phosphorylated ZNRF3 (Figure 6B, lane 2). However, inhibiting endocytic traffic and lysosomal degradation with bafilomycin induced ZNRF3 phosphorylation, and treatment with the pan-PTP inhibitor Na-pervanadate (PV) massively increased ZNRF3 phosphorylation (Figure 6B, lanes 4, 6). These results suggest that i) ZNRF3 is tyrosine-phosphorylated but becomes rapidly dephosphorylated by PTPs, ii) that its phosphorylation status is related to vesicular traffic and lysosomal degradation. Interestingly, siPTPRK enhanced tyrosine phosphorylation of ZNRF3 both in control as well as in bafilomycin-treated cells (Figure 6B, lane 3, 5), suggesting that ZNRF3 is a substrate of PTPRK. Concordantly, when phosphorylated ZNRF3 was bound to immobilized PTPRK, ZNRF3 could be eluted by vanadate (Figure 6C), which mimics the conformation of the phosphate group at the transition state for phosphoryl transfer (Lindquist et al., 1973), hence indicating an enzyme-substrate interaction. Moreover, siRNA knockdown of other PTPRs also increased ZNRF3 phosphorylation, notably siPTPRF (Figure 6—figure supplement 1B), which also induced Wnt signaling (AXIN2 expression; Figure 1—figure supplement 1F).

ZNRF3 and RNF43 continuously degrade Wnt receptors by binding and recruiting them to the lysosome in an ubiquitin-dependent manner (Koo et al., 2012; Tsukiyama et al., 2015; Park et al., 2018). Hence, we analyzed whether PTPRK regulates ZNRF3 plasma membrane levels using a cell surface biotinylation assay. siPTPRK robustly increased surface levels of ZNRF3 but not that of ZNRF3-ΔRING (Figure 6D and Figure 6—figure supplement 1C–D), indicating that PTPRK promotes ZNRF3 internalization for which the RING domain is required. To analyze if tyrosine phosphorylation impacts the E3 ligase activity of ZNRF3, we carried out an in vitro ubiquitination assay, monitoring autoubiquitination of ZNRF3 by using immunoprecipitated ZNRF3 and recombinant E2 ubiquitin conjugating enzyme. There was no change in ZNRF3 autoubiquitination following increased tyrosine phosphorylation upon either siPTPRK or Na-pervanadate treatment (Figure 6—figure supplement 1E). This suggests that tyrosine phosphorylation does not regulate the catalytic activity of ZNRF3.

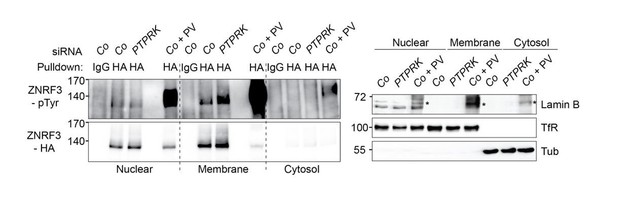

We hypothesized that increased surface ZNRF3 upon PTPRK depletion is due to reduced lysosomal traffic. Concordantly, siPTPRK reduced the colocalization of ZNRF3 with the lysosomal marker LAMP1 (Figure 6E). In contrast, siPTPRK did not increase vesicular colocalization of ZNRF3 and Rab11 (recycling endosome marker) (Figure 6—figure supplement 1F).

ZNRF3 and RNF43 deplete Wnt receptors from the cell surface and target them towards lysosomal degradation (Koo et al., 2012; Tsukiyama et al., 2015). Consistently, in TetOn ZNRF3-HA cells, Dox treatment dose-dependently increased ZNRF3 and decreased LRP6 levels (Figure 6F). siPTPRK treatment reversed the effect on LRP6 and further increased ZNRF3 levels. Similarly, transfected ZNRF3 reduced FZD5 dose-dependently, while this effect of ZNRF3 was abolished upon siPTPRK treatment (Figure 6—figure supplement 1G). To confirm this result, we monitored the kinetics of LRP6 internalization and degradation using cleavable biotin. In siCo cells, internalized LRP6 was detected after 30 min (Figure 6G, compare lanes 2 and 4) and decreased after 90 min, likely due to lysosomal degradation (compare lanes 4 and 5). In contrast, siPTPRK prevented degradation of internalized LRP6 (compare lanes 6 and 7). Taken together, these results support a model in which vesicular trafficking of ZNRF3 and its ability to degrade Wnt receptors is regulated by tyrosine phosphorylation: Phosphorylation maintains plasma membrane residence while dephosphorylation by PTPRK promotes lysosomal targeting and degradation (Figure 7—figure supplement 2).

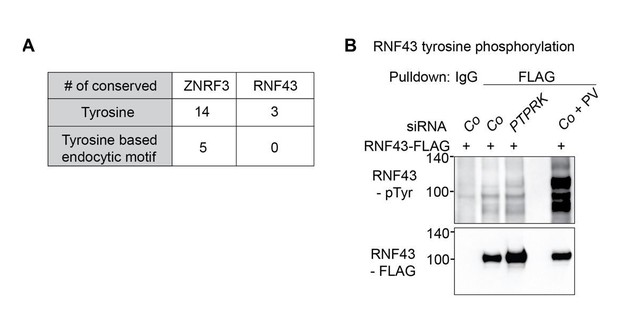

PTPRK dephosphorylates a 4Y endocytic signal on ZNRF3

Tyrosine-containing motifs are known to play a critical role in regulating endocytosis of transmembrane proteins. Specifically, unphosphorylated YXXXφ, φXXY, as well as YXXφ (φ = bulky hydrophobic amino acid) sites can serve as internalization motifs (Zhang and Allison, 1997; Roush et al., 1998; Bonifacino and Traub, 2003; Royle et al., 2005). By multisequence alignment and inspection of the intracellular domain of ZNRF3, we identified a matching cluster of four adjacent tyrosine residues, or ‘4Y’ motif (Y465, Y469, Y472 and Y473), which is highly conserved among vertebrates (Figure 7A). Each of these four tyrosine residues conforms to the aforementioned internalization motifs, suggesting that 4Y represents a cluster of four consecutive internalization signals.

Figure 7 with 2 supplements see all
Download asset Open asset

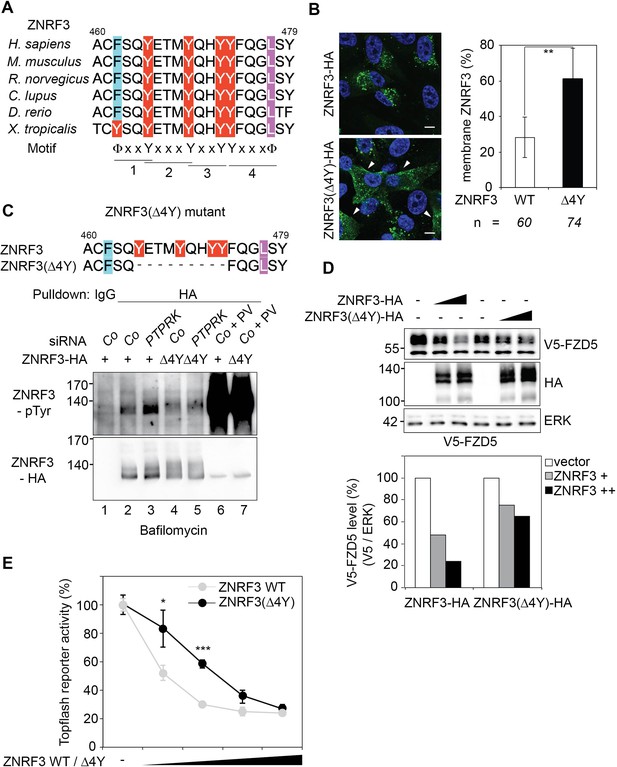

A "4Y" endocytic motif in ZNRF3 is regulated by PTPRK.

(A) Multiple sequence alignment of ZNRF3 among different species. Y: Tyrosine, X: any amino acids, and Φ: hydrophobic bulky amino acids. (B) Subcellular localization by immunofluorescence microscopy (IF) of ZNRF3-HA or ZNRF3(Δ4Y)-HA in H1703 cells with bafilomycin treatment overnight. Left, representative IF images. Arrowheads indicate membrane ZNRF3. Right, graph shows quantification of membrane ZNRF3 positive cells (Mean ± SD, **p<0.01, student t-test). The number of cells per condition is indicated at the bottom (n). IF data are pooled from two independent experiments. (C) Tyrosine phosphorylation of ZNRF3-HA or ZNRF3(Δ4Y)-HA in H1703 cells upon siRNA transfection with bafilomycin treatment overnight. As a control, cells were treated with Na-pervanadate (PV, phosphatase inhibitor) for 30 min before harvest. Lysates were pulled down with anti-HA antibody or control IgG and subjected to Western blot analysis. (D) Western blot analysis of H1703 cells transfected as indicated. The graph below shows quantification of V5-FZD5 normalized to ERK. The level of V5-FZD5 without ZNRF3-HA transfection was set to 100%. A representative result from two independent experiments with similar outcomes is shown. (E) Topflash reporter assay in H1703 cells upon transfection of different amount of ZNRF3-HA or ZNRF3(Δ4Y)-HA plasmids. All samples were Wnt3a treated for 24 hr before measurement. (Mean ± SD, n = 3; *p<0.05, ***p<0.001, student t-test). Topflash activity without ZNRF3 transfection was set to 100%. A representative result from three independent experiments with similar outcomes is shown.

To test whether the 4Y motif regulates ZNRF3 endocytosis, we designed a deletion construct ZNRF3(Δ4Y) (deletion of 9 amino acids encompassing the four tyrosines) and monitored its subcellular localization. Indeed, ZNRF3(Δ4Y) displayed enhanced membrane staining compared to wild-type (Wt) ZNRF3 (Figure 7B). Moreover, PTPRK knockdown induced tyrosine phosphorylation of Wt ZNRF3 but not that of ZNRF3(Δ4Y) (Figure 7C; compare lanes 3 and 5). This result was confirmed with a mutant ZNRF3(4YF), wherein all four tyrosine residues are substituted by phenylalanine (Figure 7—figure supplement 1A; compare lanes 3 and 7). Note though, that Na-pervanadate (PV) treatment induced massive tyrosine phosphorylation of ZNRF3 regardless of its mutation status, indicating additional PTPRK-independent phosphosites. We hypothesized that reduced endocytosis of ZNRF3(Δ4Y) would impair its ability to internalize Wnt receptors and render it hypoactive. Concordantly, ZNRF3(Δ4Y) downregulated FZD5 less efficiently than Wt ZNRF3 (Figure 7D). Moreover, ZNRF3(Δ4Y) and ZNRF3(4YF) were less efficient in inhibiting Topflash reporter assays compared to Wt ZNRF3 (Figure 7E; Figure 7—figure supplement 1B).

Taken together, our results suggest a model (Figure 7—figure supplement 2) where the 4Y motif of ZNRF3 represents an endocytic signal that promotes ZNRF3-Wnt receptor co-internalization. Phosphorylation of the 4Y motif by an unknown tyrosine kinase(s) prevents internalization and degradation of Wnt receptors, resulting in higher Wnt signaling. PTPRK counteracts this activity by dephosphorylating the 4Y motif, allowing efficient endocytosis of ZNRF3-Wnt receptor complexes and reducing Wnt signaling.

Discussion

The three main conclusions of this study are i) that the transmembrane phosphatase PTPRK, whose gene is found in prominent cancer-related fusion events with the ZNRF3 negative regulator RSPO3, is itself a positive regulator of ZNRF3. Thereby, PTPRK acts as negative regulator of Wnt/β-catenin signaling, enhancing Wnt receptor turnover; ii) that PTPRK depletes cell surface LRP6 and FZD by promoting lysosomal trafficking of ZNRF3, which it binds and whose tyrosine dephosphorylation on a 4Y endocytic signal it promotes; iii) that Wnt inhibition by PTPRK and ZNRF3 is essential in the Spemann organizer to regulate anterior neural development.

During animal development, Wnt signaling serves as a posteriorizing signal, and the tail-to-head gradient of Wnt activity is critical for the a-p specification of the neural plate (Petersen and Reddien, 2009; Niehrs, 2010). The Spemann organizer is a rich source of negative Wnt regulators, which maintain organizer function and promote anterior development. Joining this group of proteins, Ptprk is essential to downregulate Lrp6 and Wnt signaling to promote Spemann organizer and anterior development in Xenopus. Also the zebrafish ptprk ortholog is expressed in the early dorsal axis and notochord (van Eekelen et al., 2010). In contrast, Ptrpk null mutant mice are viable (Skarnes et al., 1995) and similarly we observed in mammalian cell-lines that the function of PTPRK is not universal but cell-line dependent, possibly reflecting redundancy with other RPTPs. Species differences in the essentiality of orthologous genes is common, even between the more closely related mouse and man, where > 20% of human essential genes have nonessential mouse orthologs (Liao and Zhang, 2008). Indeed, we found that PTPRF may also regulate ZNRF3 and Wnt signaling and be functionally redundant with PTPRK.

Despite its key importance as a negative Wnt regulator, the regulation of ZNRF3 is incompletely understood (Deng et al., 2015; Shi et al., 2016; Ci et al., 2018; Qiao et al., 2019). Our results in H1703 cells and Xenopus embryos clearly indicate that PTPRK regulates Wnt signaling in a phosphatase activity-dependent manner. Concordantly, PTPRK binds to ZNRF3 via its intracellular domain and the binding is abolished by vanadate, corroborating that ZNRF3 is a PTPRK substrate. We identify a 4Y endocytic signal in ZNRF3, which is tyrosine phosphorylated by an unknown kinase and dephosphorylated by PTPRK and whose mutation leads to plasma membrane accumulation of ZNRF3. Tyrosine phosphorylation is known to play an important role in sorting of transmembrane proteins to endosomes and lysosomes. For example, tyrosine phosphorylation of an endocytic YXXφ signal was shown to inhibit endocytosis and lysosomal targeting of CTLA-4 by decreasing binding to the endocytic adaptor protein AP2 (Bonifacino and Traub, 2003). Our results support a model in which lysosomal trafficking of ZNRF3 regulates its ability to degrade Wnt receptors, likely by escorting them (Figure 7—figure supplement 2). However, while PTPRK promotes ZNRF3 internalization via the 4Y motif, the overexpressed ZNRF3(Δ4Y) mutant is still able to deplete Wnt receptors and inhibit Wnt signaling, albeit less efficiently (Figure 7D–E). Hence, the 4Y motif and PTPRK only have a modulatory role towards ZNRF3.

PTPRK belongs to the R2B RPTP subfamily, which also includes PTPRM, PTPRT and PTPRU, sharing a common protein architecture (Craig and Brady-Kalnay, 2015). Among these, PTPRK, PTPRM, and PTPRT are implicated as tumor suppressors (Zhao et al., 2010; Sudhir et al., 2015), raising the possibility that they may also regulate ZNRF3 in certain cell types. We found that knockdown of PTPRF (R2A) and PTPRH (R3) also increases ZNRF3 tyrosine phosphorylation in H1703 cells. PTPRK (R2B), PTPRF and PTPRS (R2A) were reported to dephosphorylate EGFR and attenuate EGF signaling (Suárez Pestana et al., 1999; Xu et al., 2005; Wang et al., 2015), suggesting that there can be functional redundancy between R2A and R2B RPTPs.

PTPRK is a candidate tumor suppressor in mouse intestinal tumorigenesis as per insertional mutagenesis (Starr et al., 2009; March et al., 2011), and is a gene fusion partner with the oncogene RSPO3 in colorectal cancers (Seshagiri et al., 2012). Our results provide a rationale how PTPRK may function as a tumor suppressor in Wnt-ON tumors. ZNRF3 and RNF43 play a widespread role as negative feedback regulators in Wnt signaling (Hao et al., 2012). They are frequently mutated in a variety of cancers and their mutation signatures have shown promise as predictive biomarkers in pre-clinical models for the efficacy of upstream Wnt inhibitors (Hao et al., 2016). Downregulation of PTPRK and hence ZNRF3 would derepress Wnt-receptors, activate Wnt signaling, and promote tumorigenesis. However, other modes of action of PTPRK, such as dephosphorylating other signaling factors like β-catenin, EGFR, or STAT3 (Xu et al., 2005; Novellino et al., 2008; Chen et al., 2015), or cell junction proteins (Fearnley et al., 2019), may also contribute to its tumor-suppressive function.

Translocations where the signal sequence or part of the extracellular domain of PTPRK is fused to RSPO3 are recurrent events in a subset of colorectal cancers (Seshagiri et al., 2012). The tumorigenicity of these fusions has been solely attributed to upregulation of RSPO3 and hence ZNRF3/RNF43 depletion. However, our results indicate that haploinsufficiency of PTRPK could also contribute to tumorigenicity by further reducing ZNRF3 and increasing Wnt receptor levels. The close proximity of PTPRK and RSPO3 loci and occurrence in gene fusions, their common function as Wnt signaling regulators, and the fact that at least one more Wnt regulatory gene, RNF146 (Zhang et al., 2011), is located within the 1.5 Mb genomic interval encompassing RSPO3 and PTPRK, is suggestive of a mini ‘Wnt-operon’ at this locus. Hence, it may be worthwhile probing the other four genes located in this interval (ECHDC1, SOGA3, THEMIS, C6orf58) for a Wnt-regulatory function.

Our results suggest that tyrosine kinases phosphorylating ZNRF3 at its 4Y endocytic signal are candidate targets for Wnt-directed tumor therapy, as their inhibition may promote ZNRF3 internalization and Wnt receptor turnover. Hence, it will be interesting in the future to characterize the 4Y kinase(s).

Materials and methods

Key resources table
Reagent type
(species) or
resource		DesignationSource or
reference		IdentifiersAdditional
information
Gene
(Homo spiens)		PTPRKRZPDDKFZ p686c2268Q2
Gene
(Homo spiens)		ZNRF3Feng Cong
PMID: 22575959
Gene
(Homo spiens)		FZD5NCBINM_003468.4
Strain, strain background (Xenopus tropicalis)Xenopus tropicalisNascoLM00822
Strain, strain background (Xenopus tropicalis)Xenopus tropicalisNational Xenopus Resource (NXR)NXR_1018 RRID:SCR_013731
Strain, strain background (Xenopus tropicalis)Xenopus tropicalisEuropean Xenopus Resource Centre (EXRC)RRID:SCR_007164
Cell line (Homo-sapiens)H1703ATCCCRL-5889
RRID:CVCL_1490
Cell line (Homo-sapiens)293TATCCCRL-3216
RRID:CVCL_0063
Cell line (Homo-sapiens)H1703 TetOn ZNRF3-HAThis papergenerated from H1703
cell line (Homo-sapiens)H1703 TetOn V5-PTPRKThis papergenerated from H1703
Antibodyanti-transferrin receptor (Rabbit monoclonal)Cell signalingCat# 13113
RRID:AB_2715594		WB (1:5000)
Antibodyanti-LRP6 (Rabbit monoclonal)Cell signalingCat# 2560
RRID:AB_2139329		WB (1:1000)
Antibodyanti-LRP6 (Mouse monoclonal)R and D systemsCat#: MAP1505
RRID:AB_10889810		FACS (2.5 µg/ml)
Antibodyanti-phospho LRP6 (Sp1490) (Rabbit monoclonal)Cell signalingCat#: 2568
RRID:AB_2139327		WB (1:1000)
Antibodyanti-Rab11 (Mouse monoclonal)BD bioscienceCat#: 610656
RRID:AB_397983		IF (1:200)
Antibodyanti-β-catenin (Mouse monoclonal)BD bioscienceCat#: 610154
RRID:AB_397555		WB (1:5000)
Antibodyanti-phosphotyrosine(4G10) (Mouse monoclonal)BD bioscienceCat#: 610000
RRID:AB_397423		IF (1:1000)
Antibodyanti-Erk1/2 (Rabbit polyclonal)Sigma AldrichCat#: M8159
RRID:AB_477245		WB (1:5000)
Antibodyanti-V5 (Mouse monoclonal)Thermo scientificCat#: R960-25 RRID:AB_2556564WB (1:5000)
IF (1:1000)
Antibodyanti-HA (Rat polyclonal)RocheCat#: 1867423
RRID:AB_390918		WB (1:1000)
IF (1:1000)
Antibodyanti-Myc (Mouse monoclonal)DSHBCat#: 9E10
RRID:AB_2266850		WB (1:1000)
Antibodyanti-Myc (Rabbit polyclonal)MilliporeCat#: 06–549 RRID:AB_310165IF (1:1000)
Antibodyanti-pan FZD (humanized)Austin Gurney (former Oncomed pharmaceuticals)OMP-18R5FACS (2.5 µg/ml)
Antibodyanti-GFP (Rabbit polyclonal)InvitrogenCat#: A11122
RRID:AB_221569		WB (1:1000)
Antibodyanti-Ubiquitin (Rabbit polyclonal)DakoCat#: Z0458
RRID:AB_2315524		WB (1:1000)
Antibodyanti-LAMP1 (Rabbit polyclonal)AbcamCat#: ab24170
RRID:AB_775978		IF (1:200)
Antibodygoat-anti mouse HRPDianova115-035-174
RRID:AB_2338512		WB (1:10000)
Antibodygoat-anti rabbit HRPDianova111-035-144
RRID:AB_2307391		WB (1:10000)
Antibodygoat-anti rat HRPDianova112-035-175
RRID:AB_2338140		WB (1:10000)
Antibodygoat-anti mouse Alexa 488InvitrogenA11029
RRID:AB_138404		IF (1:200)
Antibodydonkey-anti rabbit Alexa 647InvitrogenA31573
RRID:AB_2536183		IF (1:200)
Antibodygoat-anti rat Alexa 488InvitrogenA11006
RRID:AB_141373		IF (1:200)
Antibodydonkey-anti mouse Alexa 647InvitrogenA31571
RRID:AB_162542		IF (1:200)
Antibodygoat-anti human Alexa 488InvitrogenA11013
RRID:AB_141360		FACS (1:500)
Recombinant DNA reagentpCS2+ (plasmid)Ralph AW Rupp
PMID: 7926732
Recombinant DNA reagentpCS2-V5PTPRK (plasmid)This paperSee ‘Expression constructs’
Recombinant DNA reagentpCS2-V5PTPRK D1057A (plasmid)This paperSee ‘Expression constructs’
Recombinant DNA reagentpCS2-V5PTPRK C1089S
(plasmid)		This paperSee ‘Expression constructs’
Recombinant DNA reagentpCS2-V5PTPRK ΔC
(plasmid)		This paperSee ‘Expression constructs’
Recombinant DNA reagentpcDNA4/TO-ZNRF3HA (plasmid)Feng Cong
PMID: 22575959
Recombinant DNA reagentMyc-ZNRF3ΔRING (plasmid)Feng Cong
PMID: 22575959
Recombinant DNA reagentpcDNA4/TO-ZNRF3(Δ4Y) (plasmid)This paperSee ‘Expression constructs’
Recombinant DNA reagentpcDNA4/TO-ZNRF3(4YF) (plasmid)This paperSee ‘Expression constructs’
Recombinant DNA reagentpcDNA4/TO-ZNRF3-Flag (plasmid)Feng Cong
PMID: 25891077
Recombinant DNA reagentpCS2-V5-Frizzled5This paperSee ‘Expression constructs’
Recombinant DNA reagentpCDNA3-mWnt1-Mycfrom Xi He
Recombinant DNA reagentpRK5-mFz8from J Nathans
Recombinant DNA reagentpCS2-hLRP6from Xi He
Recombinant DNA reagentpCS2-hDvl1RZPDIRALp962D1142
Recombinant DNA reagenthβ-catenin S37Afrom M Boutros
Peptide, recombinant proteinCatalaseSigma AldrichCat. #: C1345
Commercial assay or kitNucleoSpin RNAMacherey-NagelCat. #: 740955
Commercial assay or kitSuperSignal West pico ECLThermo ScientificCat. #: 34577
Chemical compound, drugBafilomycinCalbiochemCat. #: 196000
Chemical compound, drugBIOCayman chemical companyCat. #: 16329
Chemical compound, drugMesnaCayman chemical companyCat. #: 21238
Software, algorithmLightCycler 480 softwareRoche4994884001
Software, algorithmFluoroskan Ascent FL softwareThermo scientific11540775
Software, algorithmLAS 3000 Reader ver 2.2Fuji film
Software, algorithmMulti-gauge ver 3.2Fuji film
Software, algorithmFlowJo software ver 10.5.3BDRRID:SCR_008520
Software, algorithmZen blackCarl ZeissRRID:SCR_013672
Software, algorithmGraphpadPrismRRID:SCR_002798
Software, algorithmFiji (image J)Open source
PMID: 22743772		RRID:SCR_002285
OtherHoechstSigma AldrichB-2883(1 µg/mL)
OtherProtein A magnetic beadThermo Scientific88846
OtherStrepavidin agaroseThermo Scientific20359
Othersulfo-NHS-LC-LC-BiotinThermo Scientific213380.25 mg/ml
Othersulfo-NHS-SS-BiotinThermo Scientific213310.5 mg/ml

Cell culture

Request a detailed protocol

H1703 cells (ATCC) were maintained in RPMI with 10% FBS, supplemented with 2 mM L-glutamine, 1 mM sodium pyruvate and penicillin/streptomycin. HEK293T cells (ATCC) were maintained in DMEM with 10% FBS, supplemented with 2 ml L-glutamine and 1 mM penicillin/streptomycin. Cell identity was authenticated by ATCC by STR profiling. Regular mycoplasma test showed both cell lines were mycoplasma negative.

Expression constructs

Request a detailed protocol

V5 tagged PTPRK (1–1446), PTPRKΔC (1-776) and FZD5 (1–585) were generated by inserting human PTPRK or FZD5 into a pCS-based vector containing the V5 epitope after the signal peptide of mouse Krm2. Site directed mutagenesis for V5-PTPRK-CS (C1089S; Catalytic Cys in phosphate binding site changed to Ser) and V5-PTPRK-DA (D1057A; Asp in WPD loop changed to Ala) was done by two-step PCR and mutations were validated by sequencing. hZNRF3-HA, Myc-ZNRF3-ΔRING and Myc-ZNRF3-ΔC were kindly provided by F. Cong (Hao et al., 2012). ZNRF3(Δ4Y)-HA (deletion of 465–474) or ZNRF3(4YF)-HA (phenylalanine substitution of Y465, Y469, Y472 and Y473) were done by amplification of whole plasmids with 5’-phosphorylated primers followed by DpnI digestion and self-ligation.

Real time quantitative PCR

Request a detailed protocol

H1703 cells in 12-well plates were lysed with RNA lysis buffer containing 1% β-mercaptoethanol. RNA isolation was performed with Nucleospin RNA isolation kit following the manufacturer’s instruction (Macherey-Nagel, Düren, Germany). Reverse transcription and PCR amplification were performed as described before (Berger et al., 2017). Primers and siRNA information are listed in Supplementary file 1.

Luciferase reporter assay

Request a detailed protocol

For Topflash assay in H1703 cell line, 3.25 × 103 cells per well were plated in 96-well plates. Where indicated, cells were transfected with 25 nM siRNAs using Dharmafect (Dharmacon, Lafayette, CO). After 24 hr, cells were transfected with plasmids including 5 ng of pTK-Renilla, 25 ng of SuperTop, 2 ng of mWnt1, 2.4 ng of hLRP6, 0.24 ng of Mesd, 0.8 ng of mFzd8, 12 ng of hDvl1, 0.08 ng of human β-catenin S37A using Lipofectamine 3000 (Invitrogen, Carlsbad, CA). pCS2+ vector was used to adjust total DNA amount to 100 ng per well. For Topflash assay in HEK293T cell line, 104 cells per well were plated in 96-well plates and 1 ng of pTK-Renilla, 5 ng of SuperTop, were transfected. After 48 hr of DNA transfection, luciferase activities were measured with Dual-luciferase kit (Promega, Madison, WI). When necessary, Wnt3a conditioned medium was treated 24 hr before measuring the luciferase activities.

Western blot and immunoprecipitation

Request a detailed protocol

For isolation of total cell lysates, cells were harvested in cold PBS and lysed with Triton lysis buffer (20 mM Tris-Cl, pH 7.5, 1% Triton X-100, 150 mM NaCl, 1 mM EDTA, 1 mM EGTA, 1 mM β-glycerophosphate, 2.5 mM sodium pyrophosphate, 1 mM Na-orthovanadate) supplemented with complete protease inhibitor cocktail (Roche, Basel, Switzerland). For membrane-enriched fractions, cells were lysed with Saponin lysis buffer (20 mM Tris-Cl, pH 7.5, 0.05% Saponin, 1 mM MgCl2, 1 mM Na-orthovanadate) supplemented with complete protease inhibitor cocktail (Roche, Basel, Switzerland). After centrifugation, the supernatant (cytosolic fraction) was discarded and the pellets were lysed with Triton lysis buffer. Lysates were cleared by centrifugation, and Bradford assay was performed to measure the protein concentration. For Western blot, 30 μg of lysates were mixed with NuPage LDS sample buffer containing 50 mM DTT and heated at 70°C for 10 min.

For co-immunoprecipitation or pull-down assay, 300 ~ 800 μg of total cell lysates were precleared with 10 μl of A/G plus agarose (Santacruz Biotechnologies, Santacruz, CA) on a rotator at 4°C for 1 hr. Precleared lysates were incubated with 10 μl of anti-V5 agarose (Sigma Aldrich, St. Louis, MO) or with 20 μl of A/G plus agarose with anti-HA (1867423; Roche, Basel, Switzerland) on a rotator at 4°C overnight. Immunoprecipitated proteins were washed with triton lysis buffer for four times and mixed with NuPage LDS sample buffer containing 50 mM DTT, followed by heated at 70°C for 10 min. Samples were subjected to SDS-PAGE, transferred to nitrocellulose membrane, and blocked with 5% BSA in TBST (10 mM Tris-Cl, pH 8.0, 150 mM NaCl, 0.05% Tween-20). Primary antibodies in blocking buffer were applied overnight at 4°C, and incubation of secondary antibodies was carried out at RT for 1 hr. Western blot images were taken with SuperSignal West pico ECL (Thermo Scientific, Waltham, MA) using LAS-3000 (Fujifilm, Tokyo, Japan). Densitometry analyses were done with Multi-gauge software (Fujifilm, Tokyo, Japan). Antibody information is listed in key resource table.

Vanadate elution assay

Request a detailed protocol

TetOn V5-PTPRK or V5-PTPRK-DA H1703 cells (bait) were harvested after 48 hr of doxycycline (200 ng/ml) treatment and lysed in 400 μl lysis buffer A (20 mM Tris-Cl, pH 7.5, 100 mM NaCl, 10% Glycerol, 1% Triton) supplemented with complete protease inhibitor cocktail (Roche, Basel, Switzerland). One milligram of total cell lysate was pulled down with 300 ng anti-V5 antibody plus 10 μl protein A magnetic beads (88846; Thermo Scientific, Waltham, MA) overnight. Beads were washed twice with lysis buffer A and mixed with prey (see below).

TetOn ZNRF3-HA H1703 cells (prey) were harvested after treatment of 100 μM of freshly prepared Na-pervanadate for 30 min and washed twice with cold PBS followed by lysis with 400 μl buffer B (50 mM Tris-Cl, pH 7.5, 150 mM NaCl, 10% Glycerol, 1% Triton, 1 mM EDTA, pH 8.0, 5 mM Iodoacetamide and 10 mM NaF). One milligram of total cell lysate was added to the immunoprecipitated bait on protein A beads with additional 500 μl lysis buffer A for 2 hr at 4°C with rotation. After four times wash with lysis buffer A, vanadate elution was done at RT for 30 min by adding 20 mM Na-orthovanadate in 30 μl of buffer A. Supernatants were separated from beads and both were boiled with LDS sample buffer with 50 mM DTT and subjected to SDS-PAGE.

For the preparation of Na-pervanadate, 10 μl of 100 mM Na3VO4 was added to 50 μl of 20 mM HEPES (pH 7.5) containing 0.3% H2O2, followed by 940 μl H2O and 5 min incubation. 2 μg of catalase (C1345; Sigma Aldrich, St. Louis, MO) was added for 5 min to remove unreacted H2O2.

Subcellular fractionation

Request a detailed protocol

H1703 cells were harvested in cold PBS 72 hr post siRNA transfection, and lysed with hypotonic buffer (5 mM HEPES, 1 mM MgCl2, 2 mM Na-orthovanadate) containing complete protease inhibitor cocktail (Roche, Basel, Switzerland). After 30 min of incubation on ice, cell membranes was disrupted by syringe pipetting with 26 gauge needles, followed by centrifugation at 800 x g for 5 min at 4°C. The supernatant was centrifuged at 5,000 rpm for 5 min at 4°C to remove the debris. After further centrifugation at 30,000 rpm for 20 min at 4°C using a Beckman TL-100 with TLA-55 rotor, the pellet contained the membrane fraction and the supernatant the cytosolic part. The membrane pellet was solubilized in Triton lysis buffer. Equal amounts of proteins were mixed with NuPAGE LDS Sample Buffer, heated at 70°C for 10 min, followed by SDS-PAGE and Western blot analysis.

In vitro ubiquitination assay

Request a detailed protocol

TetOn ZNRF3-HA H1703 cells were seeded in 10 cm dishes (4.3 × 105 cells per dish) and transfected with the indicated siRNAs. After 24 hours, cells were treated with doxycycline (200 ng/ml) to activate ZNRF3 expression. Three days post induction cells were harvested and lysed in 400 μl Triton lysis buffer (50 mM Tris-Cl, pH 7.5, 150 mM NaCl, 10% Glycerol, 1% Triton, 1 mM EDTA, pH 8.0, 5 mM Iodoacetamide, 1 mM Na-orthovanadate, 10 mM N-Ethylmaleimide and 10 mM NaF). After pre-clearing the lysates with A/G plus agarose for 1 hr at 4°C, they were pulled down with 150 ng anti-HA and 20 μl A/G plus agarose for 4 hr at 4°C followed by four washes with lysis buffer (20 mM Tris-Cl, pH 7.5, 100 mM NaCl, 10% Glycerol, 1% Triton) and once with PBS. The ZNRF3 IP-beads were resuspended in a volume of 10 μl containing reaction buffer (40 mM HEPES, pH 7.4, 50 mM NaCl, 8 mM magnesium acetate), 10 μM Ubiquitin, 30 μM ATP, 50 nM UBE1 (E1), 2 μM UbcH5b (E2) as indicated in the Figure. Samples were incubated for 5 hr at 37°C with gentle shaking before boiling in NuPAGE LDS Sample Buffer containing 50 mM DTT for 2 min at 95°C, followed by PAGE analysis.

Immunofluorescence microscopy

Request a detailed protocol

Cells were grown on coverslips in 6-well plates and fixed in 4% PFA for 10 min. The immunofluorescence experiments were performed as published (Berger et al., 2017). Coverslips were mounted with Fluoromount G.

Flow cytometry analysis

Request a detailed protocol

Cells were harvested with Versane solution (Lonza, Basel, Switzerland) and washed with FACS buffer (PBS, 1% BSA, 0.1% Sodium Azide) followed by blocking with FACS buffer containing 20 μl of FcγR inhibitor (eBioscience, San Diego, CA) for 30 min. After blocking, samples were incubated with 2.5 μg/ml of pan-FZD or LRP6 antibody at 4°C for 3 hr followed by two washes with FACS buffer. Goat anti-human Alexa488 or goat anti-mouse Alexa488 with a dilution of 1:1000 was applied to the sample for 1 hr at 4°C. After two washes with FACS buffer, samples were incubated with 1 μg/ml of propidium iodide for 5 min before analysis on a FACScalibur. Ten thousand live cells per sample were acquired and analyzed with FlowJo (Tree Star Inc, Ashland, OR).

Cell surface biotinylation assay

Request a detailed protocol

H1703 cells were transfected with siRNA for 72 hr and the washed three times with cold PBS. Surface proteins were biotinylated with 0.25 mg/ml sulfo-NHS-LC-LC-Biotin (Thermo scientific, Waltham, MA) at 4°C for 30 min. For non-biotinylated control, PBS was added. The reaction was quenched by 3 washes with 10 mM Monoethanolamine and cells were harvested and lysed with Triton lysis buffer. 200–300 μg of lysate was incubated with 10 μl streptavidin agarose (Thermo scientific, Waltham, MA) to pull-down biotinylated surface proteins, and precipitated proteins were subjected to Western blot and detected with indicated antibodies.

Surface internalization assay with cleavable sulfo-NHS-SS-Biotin

Request a detailed protocol

TetOn ZNRF3-HA H1703 cells were transfected with siRNA for 24 hr and then treated with doxycycline (200 μg/ml) for 48 hr. Surface proteins were biotinylated with 0.5 mg/ml sulfo-NHS-SS-Biotin (Thermo Scientific, Waltham, MA) at 4°C for 30 min. After quenching excessive biotin with 10 mM Monoethanolamine, pre-warmed culture medium was added for the indicated times at 37°C to induce internalization. At the indicated times, remaining surface-biotin was removed by 50 mM MesNa (2-mercaptoethanesulfonate, membrane impermeable reducing agent) in 100 mM Tris-HCl, pH 8.6, 100 mM NaCl and 2.5 mM CaCl2 at 4°C for 30 min and MesNa protected biotinylated proteins were analyzed. Cells were lysed with RIPA buffer (20 mM Tris-Cl, pH 7.4, 120 mM NaCl, 1% Triton X-100, 0.25% Na-deoxycholate, 0.05% SDS, 50 mM sodium fluoride, 5 mM EDTA, 2 mM Na-orthovanadate) supplemented with complete protease inhibitor cocktail (Roche, Basel, Switzerland). 200–300 μg lysate was incubated with 10 μl streptavidin agarose (Thermo Scientific, Waltham, MA) to pull down biotinylated protein, and precipitated proteins were subjected to Western blot and detected with indicated antibodies.

Xenopus methods

Request a detailed protocol

Xenopus tropicalis frogs were obtained from Nasco, National Xenopus Resource (NXR) and European Xenopus Resource Centre (EXRC). In vitro fertilization, embryo culture, preparation of mRNA, and microinjection were carried out as described (Gawantka et al., 1995). For Xenopus tropicalis embryo injection, mRNA/DNA/Morpholino oligonucleotide (Mo) was injected animally between the 2- to 8 cell stage. Equal amounts of total mRNA/DNA or Mo were injected by adjustment with preprolactin (PPL) RNA/DNA or standard control Mo (GeneTools, Philomath, OR). Based on Xenopus tropicalis ptprk sequence (ENSXETG00000010633), an antisense Mo was designed: 5’-TTCTTACCTGCACACTTGGTTCTTG-3’. The sequence of the antisense Mo targeting Xenopus tropicalis znrf3 (ENSXETG00000019942) was: 5’-CCACTTACCTGCACGATCTCCCCCT-3’ (Mo1, splice-blocking Mo) and 5’-AACATAATTTCCCAGTCCTCAGTGG-3’ (Mo2, translation-blocking Mo). Injected amount (per embryo) of each Mo was as follows: 0.5 or 1 ng of lrp6 Mo, 1, 2, or 5 ng of β-catenin Mo, and 5 or 10 ng of ptprk Mo, 2 or 10 ng of znrf3 Mo1, 40 ng of znrf3 Mo2. The injected mRNA amounts were 1 pg Wnt3a, 500 pg PTPRK WT or mutants, and 30 pg ZNRF3.

For luciferase reporter assays, embryos were injected with Topflash and Renilla-TK plasmid DNA plus indicated Mos and synthetic mRNA. Three pools of 5 embryos each were lysed with passive lysis buffer (Promega, Madison, WI) and assayed for luciferase activity using the Dual luciferase system (Promega, Madison, WI). All luciferase reporter assays represent the mean ± standard error of 3 independent measurements of pools (five embryos per pool; total n = 15 per experiment shown). The reproducibility was confirmed by at least three independent experiments in different batches of Xenopus tropicalis embryos.

Whole-mount in situ hybridizations were carried out essentially as described (Gawantka et al., 1995). The in situ hybridization probe for Xenopus tropicalis ptprk was generated by PCR using Xenopus tropicalis ptprk cDNA (IMAGE ID: 7708108) as a template, a forward primer: 5’-CCCCCCGGGGAGCCTCCAAGGCCTATTGC-3’, and a reverse primer: 5’-CCCGAATTCGGATGGTAGTCCCTGGATGC-3’ to amplify a fragment with a size of 835 bp. The PCR product was cloned into pBluescript KS+ using SmaI and EcoRI as the upstream and downstream cloning site respectively. The in situ hybridization probe for Xenopus tropicalis znrf3 was generated by PCR using cDNA (IMAGE ID: 7656097) as template, a forward primer: 5’-ATAAGAATGCGGCCGCATGCACCCACTTGGACTCTGTAAT −3’, and a reverse primer: 5’-ACGCGTCGACGTCCTGAAGATGCATGGTCCAGT-3’ to amplify a fragment with a size of 1000 bp. The PCR product was cloned into pBluescript KS+ using NotI and SalI. For lineage tracing, embryos were injected with 10 ng of ptprk Mo or 10 pg of Wnt8 DNA plus lacZ mRNA (200 pg per embryo). Embryos were collected at embryonic stage 11 (gastrula) or 18 (neurula) and processed for in situ hybridization. β-galactosidase staining was performed as described (Bradley et al., 1996) using Rose-Gal substrate (Genaxxon bioscience, Ulm, Germany). Phenotypes were scored using a stereomicroscope by comparing wild-type and Mo-injected embryo morphology and counting embryos with the indicated abnormalities.

For animal cap assay, embryos were injected at 2- to 8 cell stage with 100 pg (per embryo) of noggin RNA and indicated Mos into the animal hemisphere. Animal cap explants were excised at stage 9 from 20 embryos and cultivated in 0.5x Barth solution containing Penicillin/Streptomycin. Animal cap explants were harvested at stage 18 and lysed in TRIzol (Thermo scientific, Waltham, MA) for RNA extraction, and qRT-PCR assays were performed to analyze the expression of indicated genes.

For qRT-PCR analysis, 10 embryos at tailbud stage (stage 25) or 20 animal cap explants at neurula stage equivalent (stage 18) were harvested and lysed in 1 ml of TRIzol (Thermo Scientific, Waltham, MA), and RNA extraction and precipitation was performed following the manufacturer’s instruction. Reverse transcription was performed with 1 μg RNA using SuperScript II reverse transcriptase and random primers (Invitrogen). The obtained cDNA was subjected to PCR amplification using UPL (Universal ProbeLibrary; Roche, Basel, Switzerland) probes and corresponding primers, and analyzed by LightCycler 480 (Roche, Basel, Switzerland).

For Western blot analysis, Xenopus tropicalis embryos were injected with indicated Mos at 2- to 8 cell stage into the animal hemisphere. Embryos were harvested at stage 18, homogenized in NP-40 lysis buffer (2% NP-40, 20 mM Tris-HCl, pH 7.5, 150 mM NaCl, 10 mM NaF, 10 mM Na3VO4, 10 mM sodium pyrophosphate, 5 mM EDTA, 1 mM EGTA, 1 mM PMSF, and protease inhibitors (Roche, Basel, Switzerland) with a volume of 4 μl per embryo. Lysates were cleared with Freon followed by centrifugation (21,000 x g, 10 min at 4°C), 70°C for 10 min with NuPAGE LDS Sample Buffer, and SDS-PAGE analysis.

CRISPR/Cas9-mediated mutagenesis was performed as described (Nakayama et al., 2014). In brief, embryos were injected at one-cell in the animal hemisphere with 5 nl per embryo. After injection, embryos were cultured in 1/18 MR until stage 18 for Luciferase assays or stage 30 for phenotyping and genotyping. The putative sgRNA target site for Xenopus tropicalis ptprk and specificity check were predicted on online database CCTop - CRISPR/Cas9 target online predictor (https://crispr.cos.uni-heidelberg.de/) (Stemmer et al., 2015) and CRISPRdirect (https://crispr.dbcls.jp/) (Naito et al., 2015) using the exon 1 sequence of ptprk (Transcript ID: ENSXETT00000023302.3). The linear DNA template for ptprk sgRNA was synthesized using a PCR-based strategy. The 5’ primer was: 5’-GCAGCTAATACGACTCACTATAGTGTGGTGGTGCAATAGGCCTGTTTTAGAGCTAGAAATA-3’, and the 3’ primer was: 5’-AAAAGCACCGACTCGGTGCCACTTTTTCAAGTTGATAACGGACTAGCCTTATTTTAACTTGCTATTTCTAGCTCTAAAAC-3’. For genotyping using restriction enzyme digestion, individual embryo was transferred to a 0.2 ml PCR tubes containing 100 μl of lysis buffer (50 mM Tris, pH 8.8, 1 mM EDTA, 0.5% Tween 20,) with freshly added proteinase K at a final concentration of 200 μg/ml. Embryos were incubated at 56°C for 2 hr to overnight, followed by 95°C for 10 min to inactivate proteinase K. Lysates were centrifuged at 17,000 x g for 10 min at 4°C. One microliter of lysate was used as a template for PCR to amplify the targeted genomic region using a forward primer: 5’-AGCCTCAGTCTGGCTTTTTAATTT-3’, and a reverse primer: 5’-CTCAAGGTTAACGCTACGAAAAATC-3’. The PCR products were digested by StuI and analyzed by agarose electrophoresis.

Data availability

All data generated or analysed during this study are included in the manuscript.

The following previously published data sets were used
    1. Ding Y
    2. Colozza G
    3. Zhang K
    4. Moriyama Y
    5. Ploper D
    6. Sosa EA
    7. Benitez MDJ
    8. De Robertis EM
    (2016) NCBI Gene Expression Omnibus
    ID GSE75278. Genome-wide analysis of dorsal and ventral transcriptomes of the Xenopus laevis gastrula.
    https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE75278

References

    1. Bradley L
    2. Wainstock D
    3. Sive H
    (1996)
    Positive and negative signals modulate formation of the xenopus cement gland
    Development 122:2739–2750.
    1. Kiecker C
    2. Niehrs C
    (2001)
    A morphogen gradient of wnt/beta-catenin signalling regulates anteroposterior neural patterning in xenopus
    Development 128:4189–4201.

Decision letter

  1. Roel Nusse
    Reviewing Editor; Stanford University, United States
  2. Michael B Eisen
    Senior Editor; HHMI, University of California, Berkeley, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The work in this paper centers around the function and expression of Wnt antagonists in the Spemann organizer. Several of these antagonists had been described in the past but the authors identify a novel activity, the protein tyrosine phosphatase receptor-type kappa (PTPRK). This protein was previously known to be acting as a tumor suppressor. Moreover, the authors link the activity of PTPRK to another Wnt inhibitor, the transmembrane E3 ubiquitin ligase ZNRF3, which was implicated in Wnt receptor degradation. ZNRF3 is also expressed in the Spemann organizer. Inactivation of PTPRK increases Wnt signaling and induces head and axial developmental defects. Mechanistically, PTPRK interacts with a '4Y' endocytic signal on ZNRF3 molecule. The finding of PTPRK acting as an inhibitor of Wnt receptor turnover may explain its action as a tumor suppressor.

Decision letter after peer review:

Thank you for submitting your article "The tumor suppressor PTPRK promotes ZNRF3 function and is required for Wnt inhibition in the Spemann organizer" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors and the evaluation has been overseen by Michael Eisen as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Your paper "The tumor suppressor PTPRK promotes ZNRF3 function and is required for Wnt inhibition in the Spemann organizer" has now been reviewed by three referees. As you will see, the reviewers' opinions are mixed. Each of them expresses interest in the data and comment in positive words on the relevance of your findings for understanding the role of Wnt signaling in development and in cancer.

On the other hand, two of the reviewers ask for a fairly obvious addition: an analysis and discussion of the localization of tyrosine residues within the ZNRF3 tail. It seems to me that you must have considered this and possibly have done the experiments. If added to the paper, it would strengthen the evidence that ZNRF3 phosphorylation is increased by siPTPRK. It would then also possibly show that these residues are conserved and whether mutations of those residues generate a hyperactive ZNRF3 protein.

The reviewers raise a number of other issues that you should consider when submitting a revised version. Reviewer 2 suggests to adjust the interpretation of the results.

Reviewer #1:

The authors have identified the tumor suppressor Protein tyrosine phosphatase receptor-type kappa (PTPRK), as a Wnt inhibitor. Most of the work is done in Xenopus, as part of investigations into the nature of the organizer.

Previously, it was known that PTPRK can be part of a fusion protein, with the Wnt modulator RSPO3 in cancer fusions. The new work would now suggest that both fusion partners, PTPRK and RSPO3 are contributing to excess Wnt activity in tumors.

A major new result in the manuscript is that PTPRK acts via the transmembrane E3 ubiquitin ligase ZNRF3, a negative feedback regulator of Wnt signaling. The authors claim that ZNRF3 is tyrosine phosphorylated and that PTPRK binds to ZNRF3 and promotes its dephosphorylation and internalization.

The results would explain that a deficiency of PTPRK would lead to an increase in Wnt signaling, consequently leading to reduced expression of Spemann organizer effector genes and defects in axis formation.

The work is overall interesting and well done. There is however one piece of information missing, as surely realized by the authors as well: what are the phosphorylated tyrosine residues on ZNRF3? This is important to know, as it may also shed light on the nature of the tyrosine kinase phosphorylating ZNRF3. The phosphorylated tyrosine sites could themselves be targets in cancer as well. It seems to me that it should be possible to experimentally establish which sites are phosphorylated.

A related question is whether the binding of PTPRK to ZNRF3, as shown in figure 6A, is dependent on the phosphorylated status of ZNRF3.

Reviewer #2:

This study reports on the identification of PTPRK as a negative regulator of Wnt signaling. Using Wnt-responsive H1703 cells and Xenopus embryos combined with siRNA and CRISPR-based approaches, the inhibitory effects of PTPRK are positioned upstream in the Wnt cascade and shown to depend on phosphatase activity. Depletion of PTPRK mediates increased LRP6 and FZD levels at the cell surface of both H1703 cells and neurula embryos. These findings suggest that PTPRK acts by negatively regulating Wnt receptor levels at the cell surface. Due to phenotypic similarities with the Wnt receptor-downregulating Ub ligases ZNRF3 and RNF43, the authors investigate a cooperative mode of action between PTPRK and ZNRF3. Mechanistically, the authors propose a model in which PTPRK enhances Wnt receptor turnover via dephosphorylation of ZNRF3, followed by its enhanced lysosomal trafficking and turnover.

Although the identification of PTPRK as a negative regulator of Wnt signaling is of potential interest, the claims made on the underlying mechanism appear not sufficiently substantiated. The evidence that ZNRF3 phosphorylation is increased by siPTPRK is rather weak and consequences for ZNRF3 internalization and lysosomal turnover appear inconsistent. Direct dephosphorylation of ZNRF3 by PTPRK is not shown. In addition, alternative explanations of the results are not explored.

Major points:

1) Alternative possibilities are not considered – can the authors exclude a direct effect of PTPRK on the regulation of Wnt receptor stabilization?

2) An analysis and discussion of the localization of tyrosine residues within the ZNRF3 tail is lacking. Are these residues conserved? Are they located within or close to known internalization motifs? Which of those Tyr residues show increased phosphorylation in PTPRK-depleted cells? Do mutation of those Tyr residues generate a hyperactive ZNRF3 protein? Insights in these issues will help to understand how Tyr phosphorylation might prevent ZNRF3 endocytosis and trafficking.

3) No data are shown on how PTPRK might regulate RNF43, the functional homologue of ZNRF3. Are the effects of PTPRK selective for ZNRF3?

4) The fact that overexpression of PTPRK does not show a phenotype is puzzling and not well-explained by the model. What about expression of a catalytically inactive variant, are any dominant negative effects seen?

5) Based on the results presented in Figure 6B, the authors state that an increase in ZNRF3 phosphorylation in PTPRK-depleted cells corresponds with enhanced lysosomal turnover (Figure 6B). However, levels of phosphorylation merely seem to increase due to stabilization of ZNRF3 protein in bafilomycin-treated cells. Also, these results should be shown with an empty lane in between lane 5 and 6 to prevent spilling over due to the strongly increased levels of phosphorylation in PV-treated cells (lane 6).

6) In the co-IP experiments of Figure 6C, ZNRF3 ends up in the pellet even though no V5-PTPRK is expressed and thus no material should be pulled down (lane 1). Thus, ZNRF3 is expected to reside in the supernatant fraction in these conditions.

7) In Figure 6D, surface levels of ZNRF3 appear increased upon PTPRK depletion. Do these cell surface-retained receptors contain higher pTyr levels? This will be important to show, to substantiate the point that Tyr phosphorylation prevents endocytic trafficking.

8) In Figure 6E, PTPRK kd decreases the colocalization of ZNRF3 with LAMP1. Surprisingly, no increase at the plasma membrane is observed, while this would be expected based on the results shown in 6D. Also, as ZNRF3 does not end up in LAMP1-positive late endosomes/lysosomes in PTPRK-depleted cells (Figure 6E), in what intracellular compartments does the protein reside?

9) ZNRF3 phosphorylation does not appear to affect ubiquitin ligase activity. In many models, ubiquitination actually follows phosphorylation and destines proteins for endocytosis. The endocytic system is loaded with Ub-binding adaptor proteins. How do the authors envision that ubiquitinated ZNRF3 species are prevented from being internalized? How does the interplay between ZNRF3 phosphorylation and ubiquitination take place?

Reviewer #3:

This is an interesting paper that adds to our understanding of Wnt regulation in diverse contexts, though developmental and tumorigenesis settings are of particular interest here.

There is already an abundance of negative regulation of Wnt signaling, with recent interest in the turnover of receptors by the Ubiqutin E3 ligases ZNRF3 and RNF43. In turn, these E3 ligases are turned over by R-spondin/lgr5 so that Wnt signaling is potentiated. In this current paper, an additional layer of regulation of Wnt receptors by a Transmembrane Phosphatase has been demonstrated. The PTPRK phosphatase removes phosphates from the ZNRF3 molecule, stimulating internalization, where it is proposed to carry the Fzd/LRP6 receptor complexes into the lysosome. Of interest to the tumor field, there are gene fusions between the adjacent PTPRK and RSPO3 that increase RSPO3 expression. Normally RSPO3 binds to Lgr5 and stimulates removal of ZNFR3/RNF43, thereby allowing the Wnt receptors to stay on the cell surface. The fusion also reduces the activity of PTPRK, so phosphorylated ZNRF3 no longer internalizes and destabilizes FZD/LRP6, also leading to increased Wnt signaling. Thus, a new finding is that the gene fusion is predicted to have dual effects, both of which potentiate Wnt signaling, and promote tumor formation.

Figure 1. The effect was discovered in an RNAi screen, and followed up carefully with Topflash, Axin2 expression, immunofluorescence, and Western blot tests for the function and abundance of β-catenin.

Figure 2. shows the expression of the PTPRK gene in frog embryos, where it is enriched in the organizer and other tissues. Knockdown by splice blocking Mo or CRISPR causes a small head and truncated tail phenotype, typical of excess Wnt signaling, and TOPflash experiments confirm this.

Figure 3 shows effects on organizer gene expression of the ptprk Mo, presumably because this interferes with the early cleavage Wnt signal that promotes organizer formation, in a secondary effect at the gastrula and neurula stage, the Mos cause restriction of anterior gene expression.

Figure 4 shows that knocking down the E3 ligases or PTPRK the amount of Fzd or LRP6 on the cell surface.

Figure 5 shows expression of znfr3 in coincident locations to ptprk in Xenopus embryos, and that both knockdowns work in a similar direction.

Figure 6 shows biochemical interaction between ZNRF3 and PTPRK, and the consequences of knockdown of PTPRK on the subcellular distribution of ZNRF3, with more efficient removal of ZNFR3 to lysozomes in the presence of PTPRK.

Supplementary figures show appropriate controls quantifying various effects.

The supplemental summary figure is useful, though it might be a little clearer to show another (dephosphorylated) ZNRF3 molecule on its way to interact with the FZD LRP6 complex. The work is clearly presented, though with so many negative interactions, a little mind bending.

https://doi.org/10.7554/eLife.51248.sa1

Author response

Your paper "The tumor suppressor PTPRK promotes ZNRF3 function and is required for Wnt inhibition in the Spemann organizer" has now been reviewed by three referees. As you will see, the reviewers' opinions are mixed. Each of them expresses interest in the data and comment in positive words on the relevance of your findings for understanding the role of Wnt signaling in development and in cancer.

On the other hand, two of the reviewers ask for a fairly obvious addition: an analysis and discussion of the localization of tyrosine residues within the ZNRF3 tail. It seems to me that you must have considered this and possibly have done the experiments. If added to the paper, it would strengthen the evidence that ZNRF3 phosphorylation is increased by siPTPRK. It would then also possibly show that these residues are conserved and whether mutations of those residues generate a hyperactive ZNRF3 protein.

The reviewers raise a number of other issues that you should consider when submitting a revised version. Reviewer 2 suggests to adjust the interpretation of the results.

We appreciate the editors and the reviewer’s constructive suggestions, which helped improving our manuscript. We have now addressed all the comments, including by new experiments. Notably, as requested, we now have identified the tyrosine phosphorylation site in ZNRF3 that is regulated by PTPRK. It is an evolutionary conserved endocytic signal, consisting of four consecutive tyrosine residues and conforming to classical internalization signal motifs. Mutation of the site eliminates PTPRK regulation and affects ZNRF3/Wnt signaling. We believe this finding has significantly improved our study, opening up further possibilities to specifically interfere with ZNRF3 function e.g. in cancer context.

In addition to requested experiments, we added one unsolicited experiment to the manuscript, which is displayed in Figure 5D and Figure 5 —figure supplement 1C. The data show that ZNRF3 overexpression can restore the decrease of Spemann organizer gene expression caused by ptprk removal. This further strengthens our model that Ptprk inhibits Wnt signaling via Znrf3 in Spemann organizer.

Reviewer #1:

The authors have identified the tumor suppressor Protein tyrosine phosphatase receptor-type kappa (PTPRK), as a Wnt inhibitor. Most of the work is done in Xenopus, as part of investigations into the nature of the organizer.

Previously, it was known that PTPRK can be part of a fusion protein, with the Wnt modulator RSPO3 in cancer fusions. The new work would now suggest that both fusion partners, PTPRK and RSPO3 are contributing to excess Wnt activity in tumors.

A major new result in the manuscript is that PTPRK acts via the transmembrane E3 ubiquitin ligase ZNRF3, a negative feedback regulator of Wnt signaling. The authors claim that ZNRF3 is tyrosine phosphorylated and that PTPRK binds to ZNRF3 and promotes its dephosphorylation and internalization.

The results would explain that a deficiency of PTPRK would lead to an increase in Wnt signaling, consequently leading to reduced expression of Spemann organizer effector genes and defects in axis formation.

The work is overall interesting and well done. There is however one piece of information missing, as surely realized by the authors as well: what are the phosphorylated tyrosine residues on ZNRF3? This is important to know, as it may also shed light on the nature of the tyrosine kinase phosphorylating ZNRF3. The phosphorylated tyrosine sites could themselves be targets in cancer as well. It seems to me that it should be possible to experimentally establish which sites are phosphorylated.

It is known that Tyrosine-containing YXXφ, YXXXφ, and φXXY sites can serve as internalization motifs (where φ denotes a bulky hydrophobic amino acid; Royle et al., 2005; Roush et al., 1998). In the cytoplasmic domain of ZNRF, we identified a matching cluster of four adjacent tyrosines, or ‘4Y’ motif (Y465, Y469, Y472 and Y473), which is highly conserved in vertebrates (Figure 7A). We constructed ZNRF3 mutants with deletion (ZNRF3(Δ4Y)) or Phe-substitution (ZNRF3(4YF)) of the 4Y motif. Unlike for Wt ZNRF3, PTPRK knockdown does not increase tyrosine phosphorylation of either ZNRF3(Δ4Y) or ZNRF3(4YF) (Figure 7A, C and Figure 7—figure supplement 1A). These results indicate that PTPRK regulates tyrosine phosphorylation via the 4Y motif on ZNRF3 to regulate endocytosis of ZNRF3.

A related question is whether the binding of PTPRK to ZNRF3, as shown in figure 6A, is dependent on the phosphorylated status of ZNRF3.

No, binding of PTPRK to ZNRF3 is independent on the phosphorylated status of ZNRF3 when tested with the new ZNRF3 mutants (Author response 1). This result seems inconsistent with Figure 6C, which shows that PTPRK bound to ZNRF3 is eluted by Na3VO4. The explanation for this discrepancy could lie in a recent finding of Fearnley et al., (2019). They reported that 30% of all PTPRK substrates bind to its non-catalytic D2 domain, indicating that this distal domain provides additional substrate specificity in addition to the catalytic D1 phosphatase domain. We speculate that when PTPRK and ZNRF3 are co-transfected for co-IP, their binding occurs mainly via the D2 domain due to limited amount of endogenous kinases phosphorylating the tyrosine cluster. In contrast, in the vanadate elution experiment, we treated ZNRF3 expressing cells with Na-pervanadate prior to harvest, which massively induces tyrosine phosphorylation. Under these conditions, binding between PTPRK and ZNRF3 would be more dominated by phosphorylation- dependent interaction via the D1 phosphatase domain.

Author response image 1
Download asset Open asset

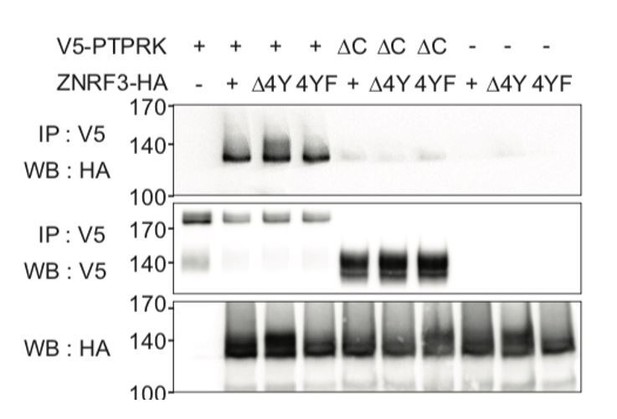

Internalization-motif mutants of ZNRF3 still bind PTPRK.

CoIP experiments in HEK293T cells transfected with the indicated constructs. Data show a representative result from three independent experiments with similar outcomes.

Reviewer #2:

This study reports on the identification of PTPRK as a negative regulator of Wnt signaling. Using Wnt-responsive H1703 cells and Xenopus embryos combined with siRNA and CRISPR-based approaches, the inhibitory effects of PTPRK are positioned upstream in the Wnt cascade and shown to depend on phosphatase activity. Depletion of PTPRK mediates increased LRP6 and FZD levels at the cell surface of both H1703 cells and neurula embryos. These findings suggest that PTPRK acts by negatively regulating Wnt receptor levels at the cell surface. Due to phenotypic similarities with the Wnt receptor-downregulating Ub ligases ZNRF3 and RNF43, the authors investigate a cooperative mode of action between PTPRK and ZNRF3. Mechanistically, the authors propose a model in which PTPRK enhances Wnt receptor turnover via dephosphorylation of ZNRF3, followed by its enhanced lysosomal trafficking and turnover.

Although the identification of PTPRK as a negative regulator of Wnt signaling is of potential interest, the claims made on the underlying mechanism appear not sufficiently substantiated. The evidence that ZNRF3 phosphorylation is increased by siPTPRK is rather weak and consequences for ZNRF3 internalization and lysosomal turnover appear inconsistent. Direct dephosphorylation of ZNRF3 by PTPRK is not shown. In addition, alternative explanations of the results are not explored.

Major points:

1) Alternative possibilities are not considered – can the authors exclude a direct effect of PTPRK on the regulation of Wnt receptor stabilization?

We have investigated the possibility of LRP6 as a substrate of PTPRK. First, we tested for increased tyrosine phosphorylation of LRP6 upon PTPRK knockdown. However, at least in H1703 cells, we could not detect tyrosine phosphorylation of LRP6 without Na-pervanadate treatment (Author response image 2). Second, as shown in Figure 4F and 4E, PTPRK knockdown does not change Topflash or surface LRP6 level when ZNRF3/RNF43 are depleted. Third, PTPRK knockdown stabilizes both LRP6 and Frizzled (Figure 4D-E), which imitates loss of ZNRF3/RNF43, supporting that PTPRK regulates Wnt receptors via ZNRF3/RNF43.

Author response image 2
Download asset Open asset
PTPRK depletion does not induce LRP6 Tyrosine phosphorylation.

Tyrosine phosphorylation of LRP6 in H1703 cells with Wnt3a treatment upon siRNA transfection. As a control, cells were treated with Na-pervanadate (PV, phosphatase inhibitor) for 30 min before harvest. Cells were treated with Wnt3a for the indicated time before harvest. Lysates were pulled down with anti-LRP6 antibody or control IgG and subjected to Western blot analysis.

2) An analysis and discussion of the localization of tyrosine residues within the ZNRF3 tail is lacking. Are these residues conserved? Are they located within or close to known internalization motifs? Which of those Tyr residues show increased phosphorylation in PTPRK-depleted cells? Do mutation of those Tyr residues generate a hyperactive ZNRF3 protein? Insights in these issues will help to understand how Tyr phosphorylation might prevent ZNRF3 endocytosis and trafficking.

It is known that Tyrosine-containing YXXφ, YXXXφ, and φXXY sites can serve as internalization motifs (where φ denotes a bulky hydrophobic amino acid; Royle et al., 2005; Roush et al., 1998). In the cytoplasmic domain of ZNRF, we identified a matching cluster of four adjacent tyrosines, or ‘4Y’ motif (Y465, Y469, Y472 and Y473), which is highly conserved in vertebrates (Figure 7A). We constructed ZNRF3 mutants with deletion (ZNRF3(Δ4Y)) or Phe-substitution (ZNRF3(4YF)) of the 4Y motif. Unlike for Wt ZNRF3, PTPRK knockdown does not increase tyrosine phosphorylation of either ZNRF3(Δ4Y) or ZNRF3(4YF) (Figure 7A, C and Figure 7—figure supplement 1A). These results indicate that PTPRK regulates tyrosine phosphorylation via the 4Y motif on ZNRF3 to regulate endocytosis of ZNRF3.

A hyperactive ZNRF3 would require Tyr substitution by a constitutively unphosphorylated Tyr-mimic, which to our knowledge does not exist (Tyr in YXXφ cannot be substituted by other aromatic amino acids; Bonifacino and Traub, 2003). Instead, both deletion and phenylalanine mutation of the tyrosine based endocytic motif are predicted to disrupt the internalization motif of ZNRF3, and hence to render the protein hypoactive. Indeed, ZNRF3(Δ4Y) degraded FZD5 less efficiently than wild-type ZNRF3 (Figure 7D). Moreover, transfected ZNRF3(Δ4Y) showed prominent membrane localization compared to wild-type ZNRF3 (Figure 7B), supporting that the 4Y motif functions as internalization signal and is essential for efficient degradation of Wnt receptors. In line with this, ZNRF3(Δ4Y) and ZNRF3(4YF) showed reduced ability to inhibit Topflash activity compared to Wt ZNRF3 (Figure 7E and Figure 7—figure supplement 1B).

3) No data are shown on how PTPRK might regulate RNF43, the functional homologue of ZNRF3. Are the effects of PTPRK selective for ZNRF3?

Unlike ZNRF3, close inspection by multi-sequence alignment showed that RNF43 does not contain the 4Y motif, nor any other conserved Tyr residues in an internalization consensus context. Next, we tested whether PTPRK modulates tyrosine phosphorylation of RNF43. We monitored pTyr in transfected RNF43 upon PTPRK knockdown and found tyrosine phosphorylation of RNF43 was unaffected by PTPRK depletion (Author response image 3). Moreover, we found that Na-pervanadate treatment does not induce massive tyrosine phosphorylation of RNF43 like in ZNRF3 (Figure 7C, lane 6, 7).

Author response image 3
Download asset Open asset
siPTPRK does not affect tyrosine phosphorylation of RNF43.

(A) Table showing the comparison of multiple sequence alignment result of ZNRF3 and RNF43 intracellular domain among different species including H. sapiens, M. musculus, R. norvegicus, C. lupus, D. rerio and X. tropicalis. (B) siPTPRK does not affect tyrosine phosphorylation of RNF43. Tyrosine phosphorylation of RNF43-FLAG in H1703 cells was analyzed in bafilomycin treated cells. As a control, cells were treated with Na-pervanadate (PV, phosphatase inhibitor) for 30 min before harvest. Lysates were pulled down with anti-FLAG antibody or control IgG and subjected to Western blot analysis. A representative result from two independent experiments with similar outcomes is shown.

4) The fact that overexpression of PTPRK does not show a phenotype is puzzling and not well-explained by the model. What about expression of a catalytically inactive variant, are any dominant negative effects seen?

As shown in our Figure 1—figure supplement 1D, we have transfected PTPRK and PTPRKDA (catalytically inactive PTPRK) cells to test the effect of overexpression of PTPRK on Wnt signaling. However, we have not observed any significant effect on Topflash activity. The lack of gof activity might be due to the need of PTPRK to undergo proteolytic processing by multiple proteases for full activity (Anders et al., 2006). These proteolytic steps may be limiting when PTPRK is overexpressed.

5) Based on the results presented in Figure 6B, the authors state that an increase in ZNRF3 phosphorylation in PTPRK-depleted cells corresponds with enhanced lysosomal turnover (Figure 6B). However, levels of phosphorylation merely seem to increase due to stabilization of ZNRF3 protein in bafilomycin-treated cells. Also, these results should be shown with an empty lane in between lane 5 and 6 to prevent spilling over due to the strongly increased levels of phosphorylation in PV-treated cells (lane 6).

We do not exclude that the increase of tyrosine-phosphorylated ZNRF3 by PTPRK knockdown might also be partially due to overall ZNRF3 stabilization. However, when pTyr is normalized to total ZNRF3, there is still more phosphorylation upon PTPRK knockdown (Figure 6B).

Regarding spill-over: in Figure 7C and Figure 7—figure supplement 1A, we loaded Na-pervanadate treated samples two lanes or five lanes away from PTPRK knockdown samples respectively, and we could still observe increased phosphorylation of ZNRF3 upon PTPRK removal.

6) In the co-IP experiments of Figure 6C, ZNRF3 ends up in the pellet even though no V5-PTPRK is expressed and thus no material should be pulled down (lane 1). Thus, ZNRF3 is expected to reside in the supernatant fraction in these conditions.

The experiment in Figure 6C is not a regular Co-IP. As bait, we pulled down V5-PTPRK from Dox-inducible cells. As prey, ZNRF3 was prepared from another inducible cell line under Na-pervanadate treatment, which massively induces ZNRF3 phosphorylation. Then, we mixed bait and prey and eluted bound ZNRF3 with 20 mM Na3VO4. This eluate is what we indicated as Sup and the beads are referred to as Pellet. Thus, ZNRF3 cannot be seen in supernatant from lane 1 because it is already washed out, and the ZNRF3 signal from pellet or sup is background. We realized that this misunderstanding is due to insufficient explanation for the experiment and have clarified this point.

7) In Figure 6D, surface levels of ZNRF3 appear increased upon PTPRK depletion. Do these cell surface-retained receptors contain higher pTyr levels? This will be important to show, to substantiate the point that Tyr phosphorylation prevents endocytic trafficking.

To answer this question, we fractionated samples into nuclear/ER-, membrane- and cytosol fractions, followed by pulldown of ZNRF3 and detection with phospho-tyrosine antibody (Author response image 4). Tyrosine phosphorylation of ZNRF3 was clearly increased upon PTPRK knockdown in the membrane fraction, while there was no change in the nuclear/ER fraction, supporting that PTPRK regulates phosphorylation of ZNRF3 at the plasma membrane level, consistent with our model.

Author response image 4
Download asset Open asset
PTPRK regulates tyrosine phosphorylation of ZNRF3 at the plasma membrane.

Left: Tyrosine phosphorylation of ZNRF3 in TetOn ZNRF3-HA H1703 cells upon siRNA transfection after subcellular fractionation. As a control, cells were treated with Na-pervanadate (PV, phosphatase inhibitor) for 30 min before harvest. Right: Subcellular markers to validate fractionation. Lamin B: Nucleus; TfR (transferrin receptor), Plasma membrane; Tubulin, cytosol marker. Note that nuclear fraction displaying TfR signal indicates that nuclear fraction contains ER. Asterisk: non-specific bands from Na-pervanadate treatment. A representative result from two independent experiments with similar outcomes is shown.

8) In Figure 6E, PTPRK kd decreases the colocalization of ZNRF3 with LAMP1. Surprisingly, no increase at the plasma membrane is observed, while this would be expected based on the results shown in 6D. Also, as ZNRF3 does not end up in LAMP1-positive late endosomes/lysosomes in PTPRK-depleted cells (Figure 6E), in what intracellular compartments does the protein reside?

Imaging was optimized for vesicular ZNRF3 detection. ZNRF3 staining is much stronger in vesicles than at the plasma membrane. With higher imaging sensitivity, we now show increased ZNRF3 staining on the plasma membrane following PTPRK knockdown (Figure 6—figure supplement 1D).

The reviewer also asked in which intracellular compartment ZNRF3 resides beside lysosome. Colocalization with organelle markers indicates that ZNRF3 punctae co-localize with TGNP (trans-Golgi network) and Rab7a (late endosome) (Author response image 5).

Author response image 5
Download asset Open asset
PTPRK resides in secretory vesicles and endosomes.

Immunofluorescence microscopy showing colocalization of ZNRF3-HA (green) with mCherry-Calreticulin, mCherry-TGNP or mCherry-Rab7a (red).

9) ZNRF3 phosphorylation does not appear to affect ubiquitin ligase activity. In many models, ubiquitination actually follows phosphorylation and destines proteins for endocytosis. The endocytic system is loaded with Ub-binding adaptor proteins. How do the authors envision that ubiquitinated ZNRF3 species are prevented from being internalized? How does the interplay between ZNRF3 phosphorylation and ubiquitination take place?

We are monitoring auto-ubiquitination of ZNRF3, which was unaffected by phosphorylation status, suggesting that phosphorylation does not induce a conformational change, which would affect the catalytic activity of the ZNRF3 ligase. This is different from what the referee refers to, where other substrate proteins are ubiquitinated by E3 ligases, which is often phosphorylation dependent, by creation of a phospho-degron.

Reviewer #3:

This is an interesting paper that adds to our understanding of Wnt regulation in diverse contexts, though developmental and tumorigenesis settings are of particular interest here.

There is already an abundance of negative regulation of Wnt signaling, with recent interest in the turnover of receptors by the Ubiqutin E3 ligases ZNRF3 and RNF43. In turn, these E3 ligases are turned over by R-spondin/lgr5 so that Wnt signaling is potentiated. In this current paper, an additional layer of regulation of Wnt receptors by a Transmembrane Phosphatase has been demonstrated. The PTPRK phosphatase removes phosphates from the ZNRF3 molecule, stimulating internalization, where it is proposed to carry the Fzd/LRP6 receptor complexes into the lysosome. Of interest to the tumor field, there are gene fusions between the adjacent PTPRK and RSPO3 that increase RSPO3 expression. Normally RSPO3 binds to Lgr5 and stimulates removal of ZNFR3/RNF43, thereby allowing the Wnt receptors to stay on the cell surface. The fusion also reduces the activity of PTPRK, so phosphorylated ZNRF3 no longer internalizes and destabilizes FZD/LRP6, also leading to increased Wnt signaling. Thus a new finding is that the gene fusion has two effects, both of which potentiate Wnt signaling, and promote tumor formation.

Figure 1. The effect was discovered in an RNAi screen, and followed up carefully with Topflash, Axin2 expression, immunofluorescence, and Western blot tests for the function and abundance of β-catenin.

Figure 2. shows the expression of the PTPRK gene in frog embryos, where it is enriched in the organizer and other tissues. Knockdown by splice blocking Mo or CRISPR causes a small head and truncated tail phenotype, typical of excess Wnt signaling, and TOPflash experiments confirm this.

Figure 3 shows effects on organizer gene expression of the ptprk Mo, presumably because this interferes with the early cleavage Wnt signal that promotes organizer formation, in a secondary effect at the gastrula and neurula stage, the Mos cause restriction of anterior gene expression.

Figure 4 shows that knocking down the E3 ligases or PTPRK the amount of Fzd or LRP6 on the cell surface.

Figure 5 shows expression of znfr3 in coincident locations to ptprk in Xenopus embryos, and that both knockdowns work in a similar direction.

Figure 6 shows biochemical interaction between ZNRF3 and PTPRK, and the consequences of knockdown of PTPRK on the subcellular distribution of ZNRF3, with more efficient removal of ZNFR3 to lysozomes in the presence of PTPRK.

Supplementary figures show appropriate controls quantifying various effects.

The supplemental summary figure is useful, though it might be a little clearer to show another (dephosphorylated) ZNRF3 molecule on its way to interact with the FZD LRP6 complex. The work is clearly presented, though with so many negative interactions, a little mind bending.

We have now modified our model for better understanding (Figure 7—figure supplement 2).

https://doi.org/10.7554/eLife.51248.sa2

Article and author information

Author details

  1. Ling-Shih Chang

    Division of Molecular Embryology, DKFZ-ZMBH Alliance, Deutsches Krebsforschungszentrum (DKFZ), Heidelberg, Germany
    Contribution
    Conceptualization, Validation, Investigation, Visualization, Writing - original draft, Writing - review and editing
    Contributed equally with
    Minseong Kim
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0025-0862

  2. Minseong Kim

    Division of Molecular Embryology, DKFZ-ZMBH Alliance, Deutsches Krebsforschungszentrum (DKFZ), Heidelberg, Germany
    Contribution
    Conceptualization, Validation, Investigation, Visualization, Writing - original draft, Writing - review and editing
    Contributed equally with
    Ling-Shih Chang
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3927-4899

  3. Andrey Glinka

    Division of Molecular Embryology, DKFZ-ZMBH Alliance, Deutsches Krebsforschungszentrum (DKFZ), Heidelberg, Germany
    Contribution
    Resources, Methodology, Contributed to interpretation of data
    Competing interests
    No competing interests declared

  4. Carmen Reinhard

    Division of Molecular Embryology, DKFZ-ZMBH Alliance, Deutsches Krebsforschungszentrum (DKFZ), Heidelberg, Germany
    Contribution
    Resources, Validation
    Competing interests
    No competing interests declared

  5. Christof Niehrs

    1. Division of Molecular Embryology, DKFZ-ZMBH Alliance, Deutsches Krebsforschungszentrum (DKFZ), Heidelberg, Germany
    2. Institute of Molecular Biology (IMB), Mainz, Germany
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    niehrs@dkfz-heidelberg.de
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9561-9302

Funding

Deutsche Forschungsgemeinschaft (CRC1324)

  • Ling-Shih Chang
  • Minseong Kim
  • Andrey Glinka
  • Carmen Reinhard
  • Christof Niehrs

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank C Cruciat, D Ingelfinger, and M Boutros for cooperation during the original siRNA screen, and Y Cheng for providing Cas9 plasmid; F Cong (Novartis) for providing the ZNRF3 constructs; A Gurney for providing pan-FZD antibody (OMP-18R5; vantictumab); H Ulrich and C Renz for providing materials and advice for the in vitro ubiquitination assay. We thank Dr. G Roth and Aska Pharmaceuticals Tokyo for generous supplying hCG. Expert technical support by the DKFZ core facility for flow cytometry, light microscopy and the central animal laboratory of DKFZ is gratefully acknowledged. We thank A Hirth for help with BioRender. This work was supported by the DFG (CRC 1324).

Ethics

Animal experimentation: All Xenopus experiments were approved by the state review board of Baden-Wuerttemberg, Germany (License number: G-13/186 & G-141/18) and performed according to the federal and institutional guideline.

Senior Editor

  1. Michael B Eisen, HHMI, University of California, Berkeley, United States

Reviewing Editor

  1. Roel Nusse, Stanford University, United States

Version history

  1. Received: August 21, 2019
  2. Accepted: January 12, 2020
  3. Accepted Manuscript published: January 14, 2020 (version 1)
  4. Version of Record published: February 3, 2020 (version 2)

Copyright

© 2020, Chang et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,493
    Page views
  • 387
    Downloads
  • 21
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Ling-Shih Chang
  2. Minseong Kim
  3. Andrey Glinka
  4. Carmen Reinhard
  5. Christof Niehrs
(2020)
The tumor suppressor PTPRK promotes ZNRF3 internalization and is required for Wnt inhibition in the Spemann organizer
eLife 9:e51248.
https://doi.org/10.7554/eLife.51248

Categories and tags

Research organisms

Further reading

    1. Cell Biology

    A MET-PTPRK kinase-phosphatase rheostat controls ZNRF3 and Wnt signaling

    Minseong Kim, Carmen Reinhard, Christof Niehrs
    Research Advance Updated

    Zinc and ring finger 3 (ZNRF3) is a transmembrane E3 ubiquitin ligase that targets Wnt receptors for ubiquitination and lysosomal degradation. Previously, we showed that dephosphorylation of an endocytic tyrosine motif (4Y motif) in ZNRF3 by protein tyrosine phosphatase receptor-type kappa (PTPRK) promotes ZNRF3 internalization and Wnt receptor degradation (Chang et al 2020). However, a responsible protein tyrosine kinase(s) (PTK) phosphorylating the 4Y motif remained elusive. Here we identify the proto-oncogene MET (mesenchymal-epithelial transition factor) as a 4Y kinase. MET binds to ZNRF3 and induces 4Y phosphorylation, stimulated by the MET ligand HGF (hepatocyte growth factor, scatter factor). HGF-MET signaling reduces ZNRF3-dependent Wnt receptor degradation thereby enhancing Wnt/β-catenin signaling. Conversely, depletion or pharmacological inhibition of MET promotes the internalization of ZNRF3 and Wnt receptor degradation. We conclude that HGF-MET signaling phosphorylates- and PTPRK dephosphorylates ZNRF3 to regulate ZNRF3 internalization, functioning as a rheostat for Wnt signaling that may offer novel opportunities for therapeutic intervention.

    1. Cell Biology

    PM2.5 leads to adverse pregnancy outcomes by inducing trophoblast oxidative stress and mitochondrial apoptosis via KLF9/CYP1A1 transcriptional axis

    Shuxian Li, Lingbing Li ... Xietong Wang
    Research Article

    Epidemiological studies have demonstrated that fine particulate matter (PM2.5) is associated with adverse obstetric and postnatal metabolic health outcomes, but the mechanism remains unclear. This study aimed to investigate the toxicological pathways by which PM2.5 damaged placental trophoblasts in vivo and in vitro. We confirmed that PM2.5 induced adverse gestational outcomes such as increased fetal mortality rates, decreased fetal number and weight, damaged placental structure, and increased apoptosis of trophoblasts. Additionally, PM2.5 induced dysfunction of the trophoblast cell line HTR8/SVneo, including in its proliferation, apoptosis, invasion, migration and angiogenesis. Moreover, we comprehensively analyzed the transcriptional landscape of HTR8/SVneo cells exposed to PM2.5 through RNA-Seq and observed that PM2.5 triggered overexpression of pathways involved in oxidative stress and mitochondrial apoptosis to damage HTR8/SVneo cell biological functions through CYP1A1. Mechanistically, PM2.5 stimulated KLF9, a transcription factor identified as binding to CYP1A1 promoter region, which further modulated the CYP1A1-driven downstream phenotypes. Together, this study demonstrated that the KLF9/CYP1A1 axis played a crucial role in the toxic progression of PM2.5 induced adverse pregnancy outcomes, suggesting adverse effects of environmental pollution on pregnant females and putative targeted therapeutic strategies.

    1. Cell Biology
    2. Microbiology and Infectious Disease

    PerTurboID, A targeted in situ method reveals the impact of kinase deletion on its local protein environment in the cytoadhesion complex of malaria causing parasites

    Heledd Davies, Hugo Belda ... Moritz Treeck
    Tools and Resources

    Reverse genetics is key to understanding protein function, but the mechanistic connection between a gene of interest and the observed phenotype is not always clear. Here we describe the use of proximity labeling using TurboID and site-specific quantification of biotinylated peptides to measure changes to the local protein environment of selected targets upon perturbation. We apply this technique, which we call PerTurboID, to understand how the P. falciparum exported kinase, FIKK4.1, regulates the function of the major virulence factor of the malaria causing parasite, PfEMP1. We generated independent TurboID fusions of 2 proteins that are predicted substrates of FIKK4.1 in a FIKK4.1 conditional KO parasite line. Comparing the abundance of site-specific biotinylated peptides between wildtype and kinase deletion lines reveals the differential accessibility of proteins to biotinylation, indicating changes to localization, protein-protein interactions, or protein structure which are mediated by FIKK4.1 activity. We further show that FIKK4.1 is likely the only FIKK kinase that controls surface levels of PfEMP1, but not other surface antigens, on the infected red blood cell under standard culture conditions. We believe PerTurboID is broadly applicable to study the impact of genetic or environmental perturbation on a selected cellular niche.
