Presynaptic developmental plasticity allows robust sparse wiring of the Drosophila mushroom body

  1. Najia A Elkahlah
  2. Jackson A Rogow
  3. Maria Ahmed
  4. E Josephine Clowney  Is a corresponding author
  1. The University of Michigan, United States
  2. The Rockefeller University, United States
Research Article
  • Cited 0
  • Views 1,130
  • Annotations
Cite this article as: eLife 2020;9:e52278 doi: 10.7554/eLife.52278

Abstract

In order to represent complex stimuli, principle neurons of associative learning regions receive combinatorial sensory inputs. Density of combinatorial innervation is theorized to determine the number of distinct stimuli that can be represented and distinguished from one another, with sparse innervation thought to optimize the complexity of representations in networks of limited size. How the convergence of combinatorial inputs to principle neurons of associative brain regions is established during development is unknown. Here, we explore the developmental patterning of sparse olfactory inputs to Kenyon cells of the Drosophila melanogaster mushroom body. By manipulating the ratio between pre- and post-synaptic cells, we find that postsynaptic Kenyon cells set convergence ratio: Kenyon cells produce fixed distributions of dendritic claws while presynaptic processes are plastic. Moreover, we show that sparse odor responses are preserved in mushroom bodies with reduced cellular repertoires, suggesting that developmental specification of convergence ratio allows functional robustness.

eLife digest

Despite having a limited number of senses, animals can perceive a huge range of sensations. One possible explanation is that the brain combines several stimuli to make each specific sensation.

The olfactory learning system in the fruit fly Drosophila melanogaster is in a part of the brain called the mushroom body. It allows fruit flies to associate a specific smell with a reward (e.g. food) or a punishment (e.g. poison) and behave accordingly. Two groups of neurons process stimuli from sensory receptors in the mushroom body: olfactory projection neurons carry information from the receptors and pass it on to neurons called Kenyon cells. The system relies on Kenyon cells receiving the combined input of multiple olfactory projection neurons, and therefore information from multiple receptors. The number of inputs each Kenyon cell receives is thought to determine the number of sensations that can be told apart, and thus, the number of signals that can be used for learning.

While many mechanisms dictating the complexity of a neuron’s shape have been described, the logic behind how two populations of neurons become connected to combine several inputs into a single sensation has not been addressed. A better understanding of how these connections are established during development can help explain how the brain processes information, and the D. melanogaster mushroom body is a good system to address these questions.

Elkahlah, Rogow et al. manipulated the number of olfactory projection neurons and Kenyon cells in the mushroom body of fruit flies during development. They found that despite there being a varying number of cells, the number of connections into a post-synaptic cell remained the same. This indicates that the logic behind the combinations of inputs required for a sensation depends on the Kenyon cell, while olfactory projection neurons can adapt during their development to suit these input demands. Thus, if there are fewer Kenyon cells, the olfactory projection neurons will each provide connections to fewer cells to compensate, and if there are fewer olfactory projection neurons, each of them will input into more Kenyon cells. To show that the developing mushroom body could indeed adapt to different numbers of olfactory projection neurons and Kenyon cells, the modified flies were tested for olfactory perception: their responses to odor were largely normal.

These results underline the robustness of neuronal circuits. During development, the mushroom body can compensate for missing or extra neurons by modifying the numbers of connections between two groups of neurons, thus allowing the olfactory system to work normally. This robustness may also predispose the system to evolutionary change, since it allows the system to continue working as it changes. These findings are relevant to any area of the brain where neurons rely on combined input from many sources.

Introduction

The environmental stimuli animals encounter on a day-to-day basis are extraordinarily numerous. Olfactory systems have evolved to cope with this diversity by maximizing the chemicals that can be detected, through the amplification of chemosensory receptor gene families, and through combinatorial coding, which expands representation capacity from the number of receptors in the genome to the number of combinations among them. The arthropod mushroom body is a cerebellum-like associative learning structure with a well-understood role in representing sensory stimuli and associating sensory and contextual cues (Farris, 2011; Hige, 2018; Kennedy, 2015). While mushroom bodies of different insect species process information from a variety of sensory modalities, 90% of Kenyon cell inputs in Drosophila melanogaster are olfactory (Zheng et al., 2018). The mushroom body of each hemisphere has ~2000 Kenyon cells (KCs), which are two synapses from the sensory periphery. Each olfactory receptor neuron in the antennae of adult flies expresses one or two of 75 olfactory receptor genes encoded in the genome. The axons of neurons expressing the same receptor converge on one of 54 glomeruli in the antennal lobe. ~150 uniglomerular projection neurons (PNs) have dendrites in one of the 54 glomeruli and carry signals about distinct receptor channels to two regions of the protocerebrum, the lateral horn and the mushroom body calyx (Figure 1A). PN inputs to the lateral horn are thought to underlie innate behaviors, while inputs to the mushroom body allow flexible learned association of odor stimuli with behavioral context (Chin et al., 2018; de Belle and Heisenberg, 1994; Fişek and Wilson, 2014; Jefferis et al., 2007; Ruta et al., 2010).

Figure 1 with 3 supplements see all

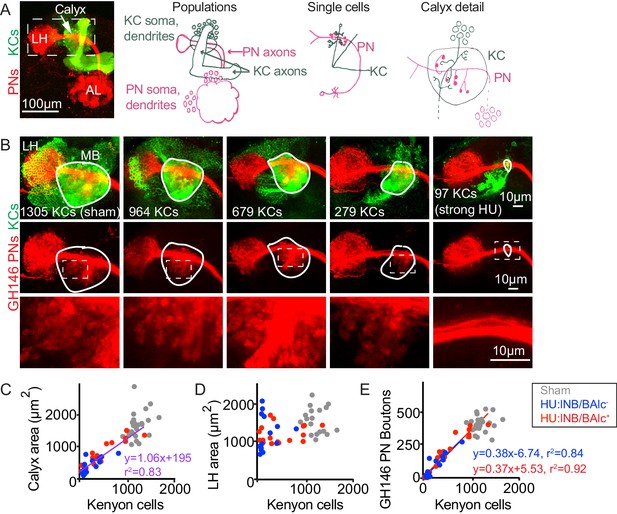

Reduction of Kenyon cells leads to reduced projection neuron innervation of the mushroom body calyx.

(A) Image (left) and models (right) of olfactory PNs and KCs in the adult fly brain. PNs (red) receive input from olfactory sensory neurons in the antennal lobe (AL) and project to the mushroom body calyx and the lateral horn (LH). In the calyx, PNs synapse with KCs (green) in microglomeruli. Dashed box at left indicates region shown in B. (B) Maximum intensity projections of confocal stacks of the brains of adult flies subjected to HU treatment or sham treatment just after larval hatching. PNs labeled red using GH146-Gal4, KCs green using MB247-LexA. White outlines indicate the extent of the MB calyx in each sample; dashed boxes are regions shown magnified below. (C, D) Relationship between number of KCs and calyx (C) or lateral horn (D) maximum cross-sectional area in HU treated (blue, red dots) and sham treated (gray dots) MBs. Treated samples are separated by presence (red) or absence (blue) of lNB/BAlc progeny. Here and throughout, each dot is one hemisphere. Purple trend line in (C) combines all HU-treated samples. (E) Relationship between KC number and GH146+ bouton number in brains of HU- and sham-treated animals.

In the mushroom body calyx, the presynaptic sites of individual olfactory PNs cluster into multi-synaptic boutons, with PNs of different types (innervating different glomeruli) producing consistent, characteristic bouton numbers (Caron et al., 2013; Zheng et al., 2018). Each PN makes 1–20 boutons, and each bouton is wrapped by claws of ~10 KCs, such that each PN sends output to between 10 and 200 of the 2000 KCs (Leiss et al., 2009). KCs in turn have 3–10 (average of five) claws, which innervate boutons of various PNs (Caron et al., 2013; Gruntman and Turner, 2013; Zheng et al., 2018). Each KC therefore receives innervation from only a minority of the 54 incoming sensory channels, and different individual KCs receive different and relatively unstructured combinations of inputs (Caron et al., 2013; Eichler et al., 2017; Honegger et al., 2011; Murthy et al., 2008; Zheng et al., 2018). The sets of inputs to individual cells vary across hemispheres and likely across individuals (Caron et al., 2013; Eichler et al., 2017; Honegger et al., 2011; Murthy et al., 2008). Associative learning mechanisms operate at KC output synapses, in the mushroom body axonal lobes, to re-weight KC outputs depending on experience and shift animal behavior (Cohn et al., 2015; Handler et al., 2019; Hige et al., 2015; Owald and Waddell, 2015).

The mushroom body is a simplified and experimentally tractable example of an expansion layer, in which a set of sensory inputs is mapped combinatorially onto a much larger set of postsynaptic cells, increasing the dimensionality of sensory representations. Like the diversification of antibodies by V(D)J recombination, the diversification of sensory input combinations across KCs is thought to allow them to represent arbitrary odors, regardless of evolutionary experience. Neurons of many other expansion layers receive similarly few, or sparse, sensory inputs. These include the cerebellum proper, the electric organ of mormyrid fish, the dorsal cochlear nucleus, and the hippocampus (Bell et al., 2008; Keene and Waddell, 2007; Mugnaini et al., 1980). Cerebellar granule cells have an average of four large, claw-shaped dendrites that are innervated by clustered mossy fiber presynaptic sites in mossy fiber rosettes. The similar convergence ratios in the cerebellum and mushroom body (4 or 5 sensory inputs, respectively, per expansion layer cell) are thought to maximize dimensionality of sensory representations by optimizing the tradeoff between stimulus representation, which is maximized when expansion layer neurons receive large combinations of inputs, and stimulus separation, which is maximized when expansion layer neurons receive few inputs (Albus, 1971; Cayco-Gajic et al., 2017; Litwin-Kumar et al., 2017; Marr, 1969). The number of sensory inputs received by expansion layer neurons is thus a crucial parameter in sensory coding. How the density of inputs to expansion layer neurons is developmentally programmed is not understood in any system.

Innervation complexity more generally has been studied in the peripheral nervous system and in the developing mammalian cortex. In peripheral sensory neurons, most prominently those of the Drosophila larval body wall, cell-autonomous mechanisms profoundly influence dendritic complexity (Corty et al., 2016; Jan and Jan, 2010; Ziegler et al., 2017). However, sensory neurons do not need to coordinate their innervation with presynaptic partners. In the vertebrate peripheral nervous system, including the rabbit ciliary ganglion and vertebrate neuromuscular junction, postsynaptic neurons or muscles are thought to dictate wiring complexity (Gibbins et al., 2003; Hume and Purves, 1983; Hume and Purves, 1981; Purves and Hume, 1981; Turney and Lichtman, 2012). In contrast, in the developing cortex, extracellular signals including BDNF play a strong role in influencing dendritic complexity, suggesting that presynaptic cells and glia also influence connectivity density (Kohara et al., 2003; McAllister et al., 1997; McAllister et al., 1995; Purves, 1986). Therefore, while mechanisms acting in both pre- and post-synaptic cells can influence innervation complexity, there is a need to directly compare how pre- and post-synaptic cells influence one another.

We sought to ask how convergence ratio is set in the mushroom body calyx. By bidirectionally varying the populations of pre- and post-synaptic cells, we were able to make many different mushroom body aberrations. Across these conditions, we found a consistent pattern of compensations: the number of claws per KC remained largely constant, while the number of presynaptic boutons per olfactory PN varied bidirectionally and in response to changes of both the PN and KC populations. We therefore conclude that in this circuit, connectivity density is set by aspects of KC specification and is accomplished by flexible innervation of the calyx by PNs.

Results

In order to ask whether presynaptic olfactory PNs or postsynaptic KCs (or both) dictate sparse wiring density in the mushroom body calyx, we used a variety of methods to manipulate the ratio between pre- and post-synaptic cells during embryonic or larval stages, well before adult connections form in the pupa. Through a combination of genetic and pharmacological interventions, we were able to vary both cell populations up and down. In these four conditions, we then examined gross calyx anatomy in adult animals and, when possible, the processes of individual PNs and KCs. These experiments allowed us to ask which population of neurons would adjust its production of processes in response to the perturbation. As we will describe, in all four cases, PNs adjusted their repertoire of presynaptic sites while KC claw number remained similar to that of unmanipulated animals.

Projection neurons reduce bouton number when Kenyon cell number is reduced

First, we sought to reduce the KC population, to ask whether remaining cells would increase their claw number to fully innervate incoming PN boutons, or whether PNs would scale down their boutons to the KC repertoire. To do this, we took advantage of existing pharmacological techniques for KC neuroblast ablation (de Belle and Heisenberg, 1994; Sweeney et al., 2012). In the fly, four KC neuroblasts in each hemisphere produce ~500 KCs each (Ito et al., 1997). While most neuroblasts pause their divisions for the first 8 hr after larval hatching (ALH), the KC neuroblasts continue to divide; if larvae are fed the mitotic poison hydroxyurea (HU) during this time, KC neuroblasts can be specifically ablated (de Belle and Heisenberg, 1994). In these animals, lacking all KCs that receive olfactory inputs, olfactory learning is abrogated while innate olfactory behaviors are spared (de Belle and Heisenberg, 1994). The uniglomerular, excitatory olfactory PNs that innervate the MB calyx are produced by two neuroblasts, called lNB/BAlc and adNB/BAmv3 . Besides the KC neuroblasts, lNB/BAlc is the only other neuroblast in the fly central nervous system dividing from 0 to 8 hr ALH and is thus also susceptible to HU ablation (Das et al., 2013; Ito and Hotta, 1992; Lovick et al., 2016; Lovick and Hartenstein, 2015; Stocker et al., 1997; Sweeney et al., 2012).

While ablation of all eight KC neuroblasts (4/hemisphere) was used to demonstrate the role of KCs in olfactory learning (de Belle and Heisenberg, 1994), we sought to perform more subtle manipulations of the mushroom body cell populations. We generated animals in which PNs and KCs were fluorescently labeled to facilitate scoring, and reduced the concentration and duration of HU application, producing mushroom bodies with a variety of Kenyon cell complements, likely due to sporadic loss of different neuroblast complements in each hemisphere (Figure 1B).

Together, these neuroblast losses could potentially produce 1–2 PN neuroblasts and mushroom bodies derived from 0 to 4 KC neuroblasts. Using our reporters, we scored the presence or absence of PNs ventrolateral to the antennal lobe, derived from lNB/BAlc, and counted the number of KCs (Figure 1C). In practice, some of the neuroblast states did not occur and some were overrepresented (Figure 2—figure supplement 1). Hemispheres from the same brain did not generally show the same neuroblast state as one another, but were often similar in severity of neuroblast losses (Figure 2—figure supplement 1).

KCs of different types are produced in a characteristic sequence in development: γ KCs are born in the embryo and early larva, α’β’ KCs are born in late larvae, and αβ KCs are born in pupae. We identified samples in which all 4 KC neuroblasts had been ablated by looking for samples lacking mushroom body vertical lobes, which are composed of axons of α’β’ and αβ KCs and thus do not form if all KC neuroblasts are killed by HU just after hatching. We confirmed previous findings that in animals with all four KC neuroblasts ablated, the PNs fail to target the calyx and project only to the lateral horn (Stocker et al., 1997). In these animals, ~100 KCs remained (Figure 1B). These represent the KC population that is born prior to larval hatching, and which is thus unaffected by KC neuroblast ablation after hatching. Recently, these earliest-born cells, called γd KCs, have been shown to receive visual and not olfactory input in adult flies (Vogt et al., 2016; Yagi et al., 2016). These observations suggest that γd KCs are molecularly distinct from later-born cells during pupal calyx wiring, such that even when all the olfactory KCs are absent, olfactory PNs cannot innervate visual KCs. Remarkably, these embryonic-born γd KCs receive olfactory inputs in the early larva and are sufficient for olfactory learning at that time (Eichler et al., 2017; Pauls et al., 2010); they must therefore switch their partner preferences across developmental stages.

We then examined calyx anatomy in animals with intermediate populations of KCs, likely derived from 1 to 3 remaining neuroblasts. We found a progressive decrease in the size of the mushroom body calyx in these animals as measured by the maximum cross-sectional area of the calyx (Figure 1B,C) or by calyx volume (Figure 1—figure supplement 1, Figure 1—video 1). To ask if this corresponded to a decline in bouton number, we counted the number of PN boutons in each hemisphere (Figure 1E, Figure 1—figure supplement 2). This revealed a linear relationship between KC number and PN bouton number, suggesting that PNs reduce their population of boutons to match the KC population. The lateral horn appeared normal in these animals and its size did not correlate with KC number, suggesting that PN projections to these two brain areas develop independent of one another (Figure 1B,D). The presence or absence of ventrolateral PNs did not obviously predict bouton number, suggesting individual PNs may be able both to tailor their bouton production to the number of KCs and to adjust to the number of other PNs. However, we were not able to obtain enough samples to draw firm conclusions about whether PN cell number affected PN bouton number in calyces derived from matched KC neuroblast complements. To test this, we developed alternative methods to ablate PNs, described below.

To score KC clones directly, we developed a strategy to label only the latest-born, ‘αβ core’ KCs. The somata and principle neurites of these late-born cells remain clustered in the adult, allowing us to count KC clones by counting groups of labeled soma or axon tracts as they leave the calyx (Figure 2A,B). Again, we found that calyx size tracked KC clone number, and that the presence or absence of the PN progeny of lNB/BAlc did not predict calyx size (Figure 2C). KC loss could reduce PN bouton number because PNs die or fail to be born when lacking KC contacts or trophic support. We thus counted the number of anterodorsal PNs (derived from adNB/BAmv3) and ventrolateral PNs (derived from lNB/BAlc) in this cohort. The number of anterodorsal PNs was not reduced in animals with some or all KC neuroblasts ablated, and the number of ventrolateral PNs was binary rather than graded, suggesting that vlPN number is determined by whether lNB/BAlc succumbed to HU, rather than by the KC complement (Figure 2D,E). These results suggest that PN neurogenesis and survival do not require KC signals. Like γd KCs, a few PNs derived from lNB/BAlc remained in adults; these likely represent PNs born embryonically from lNB/BAlc.

Figure 2 with 3 supplements see all

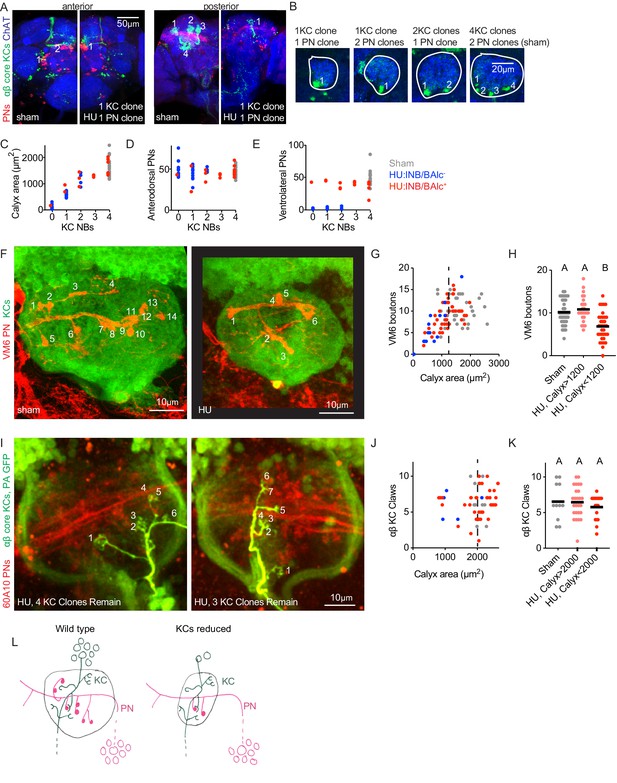

Individual projection neurons scale their bouton repertoire to the Kenyon cell population.

(A) Maximum intensity projections of confocal stacks of the anterior (left) and posterior (right) of HU and sham-treated animals. GH146 labels PNs (red). 58F02 labels late-born αβ ‘core’ KCs (green). Cholinergic neurons labeled with ChAT immunostaining (blue). Numbers indicate PN and KC clones. Anterior and posterior images are of the same brains. (B) Confocal slices of the mushroom body calyx in sham-treated (right) and various HU treated (left) hemispheres. ChAT signal highlights bouton structures, while 58F02 signal allows scoring of the number of KC clones. Numbered neurite bundles innervate the pedunculus when traced through the stack, while green signals not numbered derive from non-KC cell types labeled by 58F02. (C–E) Relationship between KC clone number and maximum calyx cross-sectional area (C), and number of anterodorsal (D) and ventrolateral (E) PNs. (F–H) Example images (F) and quantification (G, H) of MB calyx boutons on the VM6 PN, labeled by 71D09 (red). KCs labeled by MB247 (green). Numbers in (F) indicate counted boutons, and these two calyces are displayed at the same scale. Dashed vertical lines in (G) indicate cutoff between HU-treated calyces similar to controls and those affected by the manipulation. Significance, one-way ANOVA with correction for multiple comparisons. Here and throughout, letters above scatterplots indicate statistically distinguishable versus undistinguishable groups by ANOVA. Black horizontal bars represent medians. (I–K) Example images (I) and quantification (J, K) of GFP photoactivation of individual KCs in HU treated or sham brains. PNs labeled by 60A10 and αβ ‘core’ KCs by 58F02. Examples in (I) show two hemispheres of the same HU treated brain. Note that calyx area is larger in brains imaged ex vivo by two photon (as in I-K) versus fixed, stained, and imaged by confocal (as in F-H). Quantification in (J, K) includes αβ KCs labeled as shown in (I) and those labeled as shown in Figure 2—figure supplement 3; quantification of γ KCs labeled by both methods is shown in Figure 2—figure supplement 3. lNB/BAlc status was scored by examining PN somata near the antennal lobe, as in (A). (L) Model of the effect of KC loss on calyx development. Remaining KCs exhibit wild-type numbers of claws, while PNs reduce their bouton repertoire, reducing the size of the calyx.

Reduction in the number of PN boutons in the calyx could occur because individual PNs quantitatively reduce their bouton production. To ask whether individual PNs alter their production of presynaptic boutons as the KC repertoire changes, we identified two methods to label single PNs. We focused on anterodorsal PNs, as these are not susceptible to ablation of lNB/BAlc. First, we used 71D09-Gal4 to label the anterodorsal VM6 PN (Ward et al., 2015) and then subjected labeled animals to HU ablation. Because we found a linear relationship between KC number and calyx area (Figures 1C2C), we used calyx area as a proxy for KC number. While VM6 usually produces ~10 boutons, we found only ~5 boutons in animals with reduced calyx size, and 0–1 bouton in animals with severe calyx reductions, likely lacking all olfactory KCs (Figure 2F–H). These results suggest that individual PNs do reduce their bouton production as the KC complement is reduced, and that this reduction is graded rather than binary (i.e. in animals with some but not all KC neuroblasts ablated, bouton number is in between 0 and the wild type number). To characterize additional PNs, we expressed photoactivatable GFP under control of R42D01-Gal4, which labels ~10 anterodorsal PNs innervating the VM3 and VM4 glomeruli. We photoconverted individual somata using two photon microscopy (Figure 2—figure supplement 2). Though bouton counts were somewhat more variable than for VM6 as this strategy labels different types of PNs with different characteristic bouton numbers, we again found a correlation between KC loss and bouton reduction (Figure 2—figure supplement 2).

The graded reductions in bouton number we observed for different PN types would preserve the relative representation of these odor channels in the calyx. We also note that the range of bouton numbers we observed are consistent with adjustments to compensate for the presence or absence of ventrolateral PNs. For example, most VM6 neurons innervating a calyx derived from 1 KC neuroblast produced between 3 and 7 boutons, as compared to the median of 10 in unperturbed animals. If KCs are reduced by ¾ without loss of lNB/BAlc, perfect compensation by PNs would reduce boutons from 10 to 2.5. If lNB/BAlc was also lost, perfect compensation would reduce boutons from 10 to 5. These predicted values are similar to the bouton range we observed experimentally.

Finally, we sought to ask if KC claw number changes as KC number changes. We used GFP photoactivation to label individual KCs in animals subjected to HU ablation. The different KC classes have different median claw numbers: γ KCs have ~7 claws, αβ cells have ~5 claws, and α’β’ KCs have ~3 claws (Caron et al., 2013); we therefore used two different strategies to label individual KCs in animals subjected to HU ablation, both of which allow us to assign KC type. First, we expressed PA-GFP broadly in Kenyon cells using MB247-Gal4, and assigned KC type by imaging the axonal lobe innervation of photoactivated cells (Figure 2—figure supplement 3). Second, we expressed PA-GFP only in αβ or γ KCs using 58F02-Gal4 (Figure 2I) and 89B01-Gal4, respectively. Combining data from these two methods, we found no change in claw number on individual αβ KCs (Figure 2J–K) or γ KCs (Figure 2—figure supplement 3) as the KC population was reduced. From these experiments, we conclude that PNs reduce their bouton production on a cell-by-cell basis as the KC population shrinks, while KC claw number is unaffected by the size of the KC population (model, Figure 2L).

Olfactory projection neurons increase bouton repertoire as Kenyon cell number increases

In order to assess whether PNs can vary their presynaptic bouton number bidirectionally, we next created a method to specifically amplify the KC population. Recent work has suggested that ectopic or supernumerary populations of neurons can integrate into a variety of fruit fly neural circuits (Meng et al., 2019; Pop et al., 2019; Prieto-Godino et al., 2019; Seroka and Doe, 2019; Shaw et al., 2018), and previous studies identified a mutant, called mushroom body defect (mud) in which the mushroom body and other brain areas are dramatically expanded (Guan et al., 2000; Prokop and Technau, 1994). Mud/NuMA is a spindle orientation protein that ensures neuroblasts divide asymmetrically to produce one neuroblast and one differentiating neuron or neural progenitor (Siller et al., 2006). In mud mutants, neuroblasts occasionally divide symmetrically to produce two neuroblasts, amplifying the progeny of that neuroblast. To restrict amplification to KCs, we drove UAS-mud-RNAi (BL 35044) using OK107-Gal4, which is expressed in KC neuroblasts as well as in KCs (Liu et al., 2015). Importantly, in our RNAseq data from 45 hr APF and adult animals, we observe no expression of mud in PNs, KCs, or other brain cells, suggesting mud is not expressed in differentiating neurons (EJ Clowney, unpublished).

As OK107 labels mature KCs as well as KC neuroblasts, we included UAS-CD8GFP in these animals to count KCs. We observed potent amplification of KCs that was variable across animals, sometimes more than doubling KC number (Figure 3A,B). We measured calyx size, which expanded dramatically, and used GH146-driven fluorescence to count PN bouton number, which doubled in mushroom bodies with the largest KC expansions (Figure 3C, Figure 3—video 1). These results suggest that just as PNs scale down their boutons if the KC population is reduced, PNs scale up their boutons when the KC population is expanded.

To test whether PNs increased boutons on a cell-by-cell basis in these animals, we labeled VM6 using 71D09-LexA, and PNs innervating DA1, VA1d, and DC3 using MZ19-QF. First, we observed no change in VM6 or MZ19+ cell numbers in brains with KC expansions (Figure 3E,H), suggesting that PN numbers do not increase as KC number increases. We observed no change in VM6 bouton numbers, perhaps because the VM6 PN already has a relatively large number of boutons (Figure 3H). In contrast, MZ19 cells increased their number of presynaptic boutons as the KC population expanded, from an average of 3.5 boutons per cells in the control genotype to an average of 4.75 boutons per cell in the KC-expansion genotype. In brains with measurably enlarged calyces, indicative of KC population expansion, MZ19+ boutons doubled (Figure 3D,F,G).

Figure 3 with 2 supplements see all
Increase in Kenyon cell number leads to increased projection neuron bouton complement.

(A) Confocal slice of control calyx and calyx subjected to KC expansion by expression of mud-RNAi in KC neuroblasts via OK107-Gal4. GH146 labels PNs (red) and OK107 labels KCs (green). (B, C) Relationship between number of KCs and maximum calyx cross-sectional area (B) and PN bouton number (C) in control (gray) and KC neuroblast>mud RNAi hemispheres (red). (D) Maximum intensity projection of confocal stack of calyx bouton production by ~16 MZ19+ PNs (red) in control and KC neuroblast>mud RNAi. ChAT immunostaining (blue) highlights calyx extent. (E) Quantification of MZ19 cells in the two genotypes. Significance: unpaired t-test. Throughout this figure, black horizontal bars represent medians. (F, G) Relationship between maximum calyx cross-sectional area and MZ19 bouton production. Vertical dashed line indicates calyces larger than 2000 μm2,observed only in the experimental genotype. Significance: one-way ANOVA. (H) Boutons of the VM6 PN, labeled by 71D09-LexA, in control (gray) or brains subjected to KC expansion via OK107>mudRNAi (red). Every hemisphere contained one VM6 neuron in both genotypes except the three circled datapoints, which had two VM6 PNs. Significance: unpaired t-test. (I) Maximum intensity projection of two-photon stack of single KCs highlighted by GFP photoactivation (C3PA driven by OK107) in control or OK107>mudRNAi calyces. Position of out-of-plane somata in control image indicated by white circle. Red arrowheads indicate scored claws. (J, K) Quantification of claws of KCs labeled as in (I). Y axis is average number of claws per KC as multiple KCs were photoactivated in some samples. Significance: unpaired t-test; here and throughout, *: p<0.05, **: p<0.01, ***: p<0.001, ****: p<0.0001. (L) Model of the effect of KC expansion on calyx development. KCs retain normal claw numbers while PNs increase their bouton numbers, increasing calyx size.

To rule out reductions in the number of claws per KC as the KC population expands, we expressed photoactivatable GFP under the control of OK107 in animals with UAS-mud-RNAi or control and subjected individual or small groups of KCs to photoactivation. We scored the number of claws per labeled KC in each calyx. As above, calyx size predicted KC number in these animals, so we used calyx size as a proxy for KC number. Rather than a decrease in claw number per KC in animals with expanded KC complements, we found a slight increase in claw number, from a median of 5 to a median of 6 claws. As different types of KCs produce different characteristic numbers of claws, this could represent a change in claw production, a change in the distribution of KC types in these animals, or bias in which KC types we labeled in expanded versus control brains. While we were unable to identify LexA lines to specifically label αβ or γ KCs in OK107>mudRNAi brains, we found a LexA line, R41C07, that labeled α’β’ KCs, and targeted these specifically for photoactivation (Figure 3—figure supplement 1). In these KCs of matched type, we found no change in KC claw number per cell, though we cannot rule out subtle differences. Together, these experiments suggest that in animals with an amplified KC complement, PNs dramatically increase their bouton production to match the KC population, while KCs may moderately increase, and do not reduce, their individual claw production.

Individual projection neurons decrease bouton number as the projection neuron population expands

We have shown that olfactory PNs bidirectionally vary their presynaptic boutons to suit populations of KCs derived from 0 to 8 KC neuroblasts. To ask whether PNs can also vary their bouton production in response to changes in their own numbers, or in response to changes in the ratio between PNs and KCs that do not affect KC clone number, we identified methods to vary the PN population. We found that just as we could expand the KC population by knocking down mud in KC neuroblasts, we could expand the PN population by knocking down mud in PN neuroblasts. This strategy produced GH146-labeled PN complements of up to 600 cells, as compared to ~120 GH146-labeled PNs we counted in controls. While the PN neuroblast Gal4 we used, 44F03, can label both lNB/BAlc and adNB/BAmv3 progeny (Awasaki et al., 2014), we found that ventrolateral PNs were much more susceptible to expansion than anterodorsal PNs.

Supernumerary PNs innervated the antennal lobe, causing a massive expansion of antennal lobe area (Figure 4A,C). The normal glomerular map in the AL appeared distorted, but glomerular divisions were still present. These PNs also projected to the calyx, observed by thickening of the PN axon tract crossing the calyx (red, Figure 4D), and increased the density of PN innervation of the lateral horn (Figure 4D), though not lateral horn area (Figure 4—figure supplement 1). However, there was no change in calyx area or total bouton number in these animals compared to wild type (Figure 4E–H). At a population level, the average number of boutons per PN was half that in controls (Figure 4I).

Figure 4 with 1 supplement see all
Individual projection neurons scale boutons down as projection neuron population increases.

(A) Maximum intensity projection of confocal stack of anterior of the brain of control or animal subjected to PN expansion by expression of mud-RNAi in PN neuroblasts via 44F03-Gal4. GH146 labels PNs (red) and ChAT staining highlights cholinergic neurons. (B, C) Relationship between PN number (measured by counting GH146+ cells, about 60% of the total PNs) and antennal lobe maximum cross-sectional area in control (gray) or PN neuroblast>mudRNAi hemispheres (red). Significance: unpaired t-test. Throughout this figure, black horizontal bars represent medians. (D) Maximum intensity projection of confocal stacks of the posteriors of the same brains shown in A. Excess PNs can be seen to project to the calyx, due to thickening of the axonal tract passing on top of the calyx (red), and produce increased innervation density in the lateral horn. (E–I) Relationship between PN number and maximum cross-sectional area of the calyx (E, F), PN bouton number (G, H), and ratio of ChAT+ boutons to GH146+ PNs (I) in control and PN neuroblast>mudRNAi brains. Significance: unpaired t-test. (J) Maximum-intensity projections of confocal stacks of antennal lobes (top) and calyces (bottom) of control and PN neuroblast>mudRNAi brains. MZ19+ PNs labeled red. Dashed outlines on anterior show antennal lobe extent; solid outline on anterior, groups of PN somata; solid outlines on posterior, calyx extent. (K–M) Quantification of MZ19+ boutons in control and PN neuroblast>mudRNAi brains. Dashed vertical line indicates 25 MZ19+ PNs, as controls seldom exceed this number. Significance: one-way ANOVA. (N) Model of the effect of increasing PN numbers on calyx development. As PNs increase, PNs reduce bouton production so that the overall number of boutons, and calyx size, stays similar to wild type.

To ask how small groups of PNs adjusted to PN expansion, we again used MZ19-QF, which labels 15–20 PNs in controls (Figure 4J,K). We counted MZ19+ cells and boutons in control versus animals of the expansion genotype (Figure 4K). As the expansion was highly variable and we rarely observed more than 25 MZ19+ cells in controls, we divided the expanded genotype into hemispheres with <25 PNs or ≥25 PNs. There was a modest but insignificant increase in MZ19+ boutons in the ≥25 PNs groups (Figure 4L), attributable to a strong and significant reduction of average number of boutons per PN (Figure 4M). Thus PNs scale down their individual bouton repertoire to compensate for increases in the size of the PN population. Like MZ19 PNs, the VM6 PN also maintained a stable number of total boutons as the PN population expanded (Figure 4—figure supplement 1). This was possible because the VM6 cell(s) had similar numbers of total boutons as the VM6 population expanded.

Projection neuron bouton expansion partially compensates for severe reductions in the projection neuron population

In order to reduce the PN repertoire independent of KC number, we identified two Gal4 lines, VT033006 and VT033008, that label large complements of uniglomerular PNs in the adult (Figure 5A). We drove diphtheria toxin A (Berdnik et al., 2006) and fluorescent reporters under control of these lines in animals where additional PNs were labeled by GH146-LexA (Figure 5B,G). In each case, DTA eliminated all Gal4+ cells as well as additional GH146+ PNs, suggesting that these lines drive DTA expression in broader PN populations at earlier stages of development. Driving DTA under control of VT033008 reduced the total PNs labeled by VT033008 and/or GH146 by nearly half (Figure 5C), while VT033006>DTA reduced PNs labeled by VT03006 and/or GH146 by >90% (Figure 5H). PN labeling by VT033006 and VT033008, and cell loss when used to drive DTA, were already evident in third instar larvae, suggesting PNs are lost well before pupal calyx wiring (Figure 5—figure supplement 1). While PN dendrites have been shown to occupy glomerular territories in pupal stages before OSNs innervate the antennal lobe (Jefferis et al., 2004), we found that antennal lobes lacking the vast majority of uniglomerular PNs retained glomerular divisions. This suggests that these PNs may not be required for the formation of glomerular divisions in the adult antennal lobe.

Figure 5 with 2 supplements see all
Projection neurons partially compensate for decreases in projection neuron population.

(A) Maximum-intensity projections of two-photon stacks of brains with VT033006 (left) and VT033008 (right) driving GFP. (B) Maximum intensity projection of confocal stack of antennal lobes of control (left) and VT033008>DTA (right) brains. VT033008+ cells shown in green, GH146+ PNs, which partially overlap with VT033008+ PNs, shown in red. (C) Quantitation of PNs positive for GH146, VT033008, or both in control and VT033008>DTA brains. All VT033008+ cells are ablated in this genotype. Significance: unpaired t-test. Throughout this figure, red horizonal bars represent medians. (D) Single confocal slice of control or VT033008>DTA calyx. Phalloidin signal shown in blue and ChAT+ boutons shown in red. (E, F) Quantification of calyx maximum cross-sectional area and bouton number in control and VT033008>DTA animals. Significance: unpaired t-test. (G) Maximum intensity projection of confocal stack of antennal lobes of control (left) and VT033006>DTA (right) brains. VT033006+ cells shown in green, GH146+ PNs, which partially overlap with VT033006+ PNs, shown in red. Green signals outside the antennal lobe in both conditions are autofluorescence. (H) Quantitation of PNs positive for GH146, VT033006, or both in control and VT033006>DTA brains. All VT033006+ cells are ablated in this genotype as well as most GH146+ PNs, even those that are not VT033006+ in the adult. Examination of ChAT+ neurites entering the calyx in VT033006>DTA brains suggests that up to 10 PNs may be labeled by neither VT033006 nor GH146, and that some of these may survive ablation. Significance: unpaired t-test. (I) Single confocal slice of control (left) or VT033006>DTA (right) calyx. KCs labeled using MB247-dsRed (shown green for continuity), ChAT+ boutons shown in red. (J–L) Quantification of the number of MB247+ KCs (J), calyx area (K), and ChAT+ boutons (L) in control or VT033006>DTA brains. Significance: unpaired t-test.

We measured maximum calyx cross-sectional area and bouton number across these conditions and found that in each case, the effect on the calyx was measurable but much less severe than the reduction in PN number. For VT033008>DTA, loss of nearly half the PNs yielded no change in calyx area and a 20% reduction in overall bouton number (Figure 5D–F). Remarkably, while we estimate that only ~10 PNs remain in VT033006>DTA animals (~7% the normal complement, Figure 5H), the number of boutons in the calyx was reduced by only half (Figure 5H,L). This suggests that individual PNs could have expanded their bouton production by as much as 6-fold. While remaining PNs sometimes appeared to make exuberant collections of boutons (e.g. Figure 6D), distortion of the antennal lobes in these animals prevented us from assigning identities to these spared PNs and comparing bouton numbers to matched individual PNs in controls.

Kenyon cell claw number is unaffected by projection neuron bouton reduction.

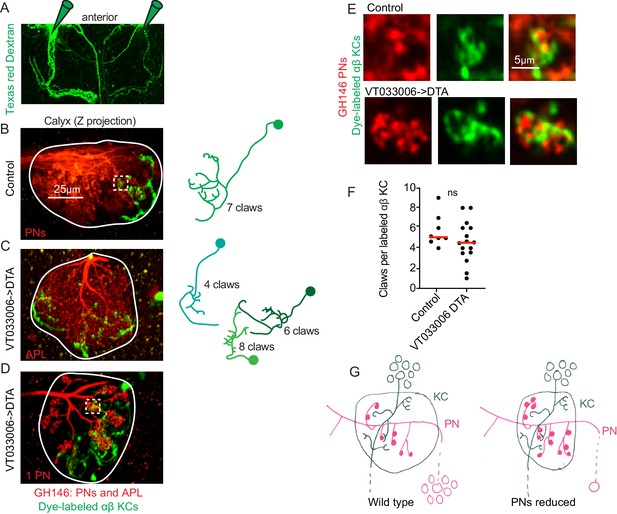

(A) Texas red dextran (colored green for continuity with green KCs in other figures) was electroporated into the tips of the mushroom body α lobes to allow specific targeting of αβ KCs. (B–D) Maximum intensity projections of two photon stacks of control (B) and VT033006>DTA (C, D) calyces. GH146, shown in red, labels PNs and APL. In control (B), APL is obscured by dense PN signal. In some VT033006>DTA hemispheres, as in (C), all GH146+ PNs were ablated, making APL signal apparent. In other VT033006>DTA hemispheres, as in (D), 1–2 GH146+ PNs remained. Texas red dextran dye diffusing from KC axons is shown in green. Diagrams show reconstructed anatomies of dye-labeled KCs. In (B), one KC with seven claws is labeled. In C, three KCs with 4, 6, and eight claws are labeled and can be spatially separated from one another. In D, 8 KCs are labeled and cannot be reconstructed. White boxes in (B) and (D) show regions magnified in (E). (E) Texas red dextran dye-labeled KC claws (green) wrapping GH146+ PN boutons (red) in control (top) and VT033006>DTA brains. (F) Quantification of claws per KC in control or VT033006>DTA samples. Each data point is the average number of claws per labeled KC for a spatially separated individual KC or small group of KCs. Significance: unpaired t-test. Red horizontal bars represent medians. (G) Model of the effect on calyx development of ablating large groups of PNs. Remaining PNs increase their production of boutons but cannot fully compensate for lost PNs, reducing the size of the calyx. KC claw numbers are similar to wild type; their source of innervation is unknown.

This severe loss of inputs could lead to KC death. We therefore labeled and counted KCs in VT033006>DTA animals with severe PN loss. While we cannot rule out a small reduction in KC complement, at least 80% of KCs remained in these brains. We also subjected control and VT033006>DTA brains to flow cytometry and found that PN ablation brains had at least 85% as many KCs as did control brains (Figure 5—figure supplement 2).

Projection neuron insufficiency has little effect on Kenyon cell claw number

We expected that while KC claw number was largely invariant in the face of increases and decreases of the KC population, KCs would be forced to reduce their claw number when PN bouton production was reduced by 50%, as in VT033006>DTA animals. We therefore compared individual KCs in these animals versus controls. As different KC types produce different numbers of claws in wild type, we sought to simplify the analysis by labeling only a single KC type. To do this, we targeted Texas red dextran dye electroporation to the tips of the mushroom body α lobes, which are innervated by αβ KCs (Figure 6A). This allowed us to label 1–12 KCs per calyx. We could discern discrete dye-labeled claws and somata in animals with eight or fewer KCs labeled, and restricted our analyses to these samples (Figure 6B–D). For each hemisphere we counted labeled somata and claws, generating one average value, claws per labeled KC, per separable group of cells (Figure 6F). Surprisingly, despite 90% reduction in the number of PNs and 50% reduction in their boutons, we observed no reduction in claw number per KC.

Do these enduring claws receive inputs? While labeled KCs in VT033006>DTA brains sometimes made clear contacts with spared PNs, as in Figure 6D,E, in other samples we also observed KCs that avoided the one or few GH146-labeled, spared PNs (data not shown). Besides PNs, GH146 labels an inhibitory neuron, APL, that innervates the mushroom body lobes and calyx. APL is presynaptic to KCs in the calyx, but innervates portions of KCs that are not claws (Lin et al., 2014; Zheng et al., 2018). Labeled KCs in VT033006>DTA brains still formed contacts with APL (Figure 6C).

A recent study in the Drosophila larval body wall found that neurons manipulated to produce excess dendrites can obtain input from atypical presynaptic partners (Tenedini et al., 2019). In wild type animals, 10% of bouton inputs to Kenyon cells in the main (olfactory) calyx are from gustatory or thermal modalities (Caron et al., 2013; Eichler et al., 2017; Frank et al., 2015; Kirkhart and Scott, 2015; Zheng et al., 2018). It is possible that thermal or gustatory neurons projecting to the calyx could have also expanded their production of boutons to make up for the losses of olfactory PNs. We cannot yet determine whether the excess KC claws observed in this condition get inputs from PN boutons, from APL, or from some other source. Nevertheless, these data suggest that KCs are inflexible in their production of claws, even in the face of severe reduction of their typical, favored presynaptic partners.

Developmental plasticity preserves sparse odor coding despite perturbations to cell populations

The disparate and numerous strategies we used above to vary the ratio between PNs and KCs all produced the same result, that PNs adjusted to changes in PN::KC ratio by altering their presynaptic boutons, while the distribution of KC claw numbers changed little even when perturbations to PNs were so severe as to prevent production of the normal bouton complement. This finding suggests that developmental mechanisms prioritize the sparseness of olfactory inputs to KCs, and might therefore preserve sparse odor coding and high-dimensional odor representations despite stark changes to the underlying circuit constituents. We therefore sought to ask how KC odor responses were affected by perturbations to the PN::KC ratio.

We used OK107 to drive GCaMP6s expression in all KCs, and subjected animals to HU just after larval hatching. We then imaged KC somatic odor responses in vivo in 24 adult HU-treated and 14 adult sham-treated animals. We observed robust odor responses in both conditions, with 8/28 sham-treated and 4/46 HU-treated calyces completely unresponsive. To identify HU-treated hemispheres with reduced KC complement, following functional imaging we imaged the anatomy of the calyx by two-photon or by immunostaining and confocal. Among ablated animals, we identified 14 of 46 imaged hemispheres in which calyces were clearly still present but of reduced size, which we designate as ‘reduced-KC’ calyces. We subjected these datasets and 17 responsive controls to motion correction using Suite2p (Pachitariu et al., 2017). After motion correction, seven sham and seven reduced KC calyces were sufficiently still to allow us to define ROIs for individual somata. For each cell, we calculated peak change in fluorescence following odor stimulus (Figure 7—source data 1). Example responses for sham-treated and reduced-KC calyces are shown in Figure 7A, CFigure 7—figure supplement 1, and in Figure 7—video 1, 2.

Figure 7 with 3 supplements see all
Odor responses in calyces with reduced KCs.

(A) Example KC somatic odor responses in sham-treated hemisphere and HU-treated hemisphere with reduced KCs. (B) Post-imaging immunostaining showing calyces and KC somata of samples shown in (A). (C) Peak post-odor responses of individual KCs from samples shown in (A). Only cells that remained stable in their ROI for the whole stimulus panel are shown. Data was clustered by row such that cells with more similar odor responses are closer to one another. MO: Mineral oil (mechanosensory control), EA: Ethyl Acetate, IBA: Isobutyl Acetate, BZH: Benzaldehyde, MCH: Methylcyclohexanol. (D) Peak odor responses of all cells, aggregated from all analyzed samples. Dashed line indicates 20% Δf/f threshold. Significance: Mann-Whitney test. (E) Fraction of cells in each sample responding to each odor at 20% Δf/f threshold. Significance: unpaired t-test. (F) For samples in which the same cells could be tracked across all odor presentations, fraction of cells responding to 0, 1, or multiple odors is shown. Bar plots in (E, F) show medians.

In order to compare response magnitudes across conditions, we first pooled all cells from each condition and compared overall Δf/f in response to each odor (Figure 7D). The distributions were statistically indistinguishable between conditions for mineral oil (mechanosensory control), ethyl acetate, and isobutyl acetate, and significantly different for benzaldehyde and methylcyclohexanol. Using these aggregate responses, we set a threshold for ‘responsive’ cells of 20% increase in fluorescence over baseline, as we observed bifurcation of the cellwise response distribution at this cutoff. Using these criteria, a median of ~50% of cells from sham calyces responded to ethyl acetate and isobutyl acetate, and ~20–30% of cells to benzaldehyde and methylcyclohexanol (Figure 7E). These response rates are higher than has been reported with GCaMP3 and GCaMP1 (Honegger et al., 2011; Wang et al., 2004), but correspond with spiking response rates observed electrophysiologically (Murthy et al., 2008). We observed variation in odor responses in both control and reduced-KC calyces; interindividual variation is expected given the stochastic innervation of KCs by PNs.

We next compared the proportions of KCs per calyx responding to each odor between sham and reduced-KC calyces. These distributions were statistically indistinguishable (Figure 7E). Finally, we asked how many odors each cell responded to (Figure 7F). In each condition, ~60% of cells responded to 0 or one odors. Together, these findings suggest that the developmental plasticity mechanisms operating to set the density of olfactory inputs to KCs preserve qualitatively sparse KC odor responses when the KC population is experimentally reduced. Further experiments will be required to assess quantitative effects of KC reduction on responses to odors that typically stimulate fewer cells, like benzaldehyde and methylcyclohexanol.

Discussion

Cerebellum-like architectures are found repeatedly in phylogenetically distinct organisms, suggesting that they have broad evolutionary utility. Yet the developmental production of sparseness, a key wiring feature allowing high-dimensional sensory representations, is not understood. Here, we have begun to investigate the development of sparse connectivity in the cerebellum-like associative learning center of insects, the mushroom body. By varying the ratio between presynaptic olfactory PNs and postsynaptic KCs, we find that connectivity density is set by KCs: KC claw number changes little across a wide range of PN::KC ratios, KC number predicts PN bouton number, and PNs exhibit wide variety in bouton number to satisfy KC demands. As described below, we expect that this strategy for generating connectivity density would preserve sparseness in KC inputs across developmental time and upon evolutionary changes in cell repertoires and thus maintain the olfactory coding function of the mushroom body over a range of conditions.

Implications for development: Different projection neuron to Kenyon cell ratios across developmental stages

For many animals, brain development continues while juveniles are already living freely--searching for food, navigating, and learning about the environment. Developmental transitions in brain structure are particularly stark in holometabolous insects, who build the brain twice. In D. mel, neurons generated during embryonic and early larval stages wire the larval nervous system. These circuits support larval behaviors, while neural stem cells continue to generate additional neurons that will be used to build the adult circuit. In keeping with this, the ratio between PNs and KCs in the larval olfactory circuit is starkly different from the adult: 21 embryonically-born PNs wire to early-born KCs to construct the larval mushroom body (Eichler et al., 2017; Masuda-Nakagawa et al., 2005; Ramaekers et al., 2005). Connections among these populations dissolve in early pupae, and are then re-wired during pupal development (Lee et al., 1999; Marin et al., 2005), joined by ~100 more larvally-born PNs, and >1000 more KCs per hemisphere that continue to be born until immediately before adult eclosion.

The 21 PNs in the early larva connect to ~75 KCs, a 1:3 ratio, while in the adult, ~150 PNs connect to ~2000 KCs, a 1:10 ratio. (Eichler et al., 2017; Zheng et al., 2018). We found that unlike cells in many other systems, including the vertebrate cerebellum, PNs and KCs did not rely on each other for survival signals (Fan et al., 2001). This may be due to the constantly changing ratio between these cell types across developmental time. Instead, setting connectivity density cell-autonomously in KCs could allow KCs to obtain the appropriate number of inputs at the different life stages of the animal, when cellular constituents are very different from one another. Similarly, while PN neurogenesis ceases well before PNs and KCs begin to contact one another in the pupa, we estimate that ~10% of KCs are born after PN:KC synapsis has already initiated (Muthukumar et al., 2014). Strict, cell-autonomous dendrite structuring and flexible PN bouton production could together ensure that late-born KCs obtain the inputs appropriate to support coding.

Implications for coding: Balancing projection neuron representations across the calyx

Olfactory PNs of different types are specified in a predictable temporal order, have characteristic numbers of boutons, and overlap in their innervation of the calyx (Lai et al., 2008; Yu et al., 2010; Zheng et al., 2018). Differences in bouton number across different PNs allow different odor channels to be differentially represented in the calyx and in KC odor responses (Caron et al., 2013; Honegger et al., 2011; Murthy et al., 2008). Several classes of PNs also differ in number between the sexes (Grabe et al., 2016). While PNs changed their individual bouton repertoires in response to changes in cell repertoires, we found that to some extent, the representation level of different PNs in the calyx was preserved. For example, in Figure 2F and Figure 2—figure supplement 2, we show the effect of reducing KC number on bouton production by the VM6 PN and 42D01 PNs. While each population of PNs reduced individual bouton number in this condition, they retained their typical relative representation. The VM6 PN reduced its boutons from 10 to 5, while the 42D01 PNs decreased their boutons from 4 to 2. Similarly, in Figure 4, we expanded the PN population by inducing ectopic PN neuroblast duplication. In these experiments, we mainly observed amplification of the ventrolateral clone. We found that individual anterodorsal VM6 cells did not scale down their boutons when the ventrolateral PN clone expanded, but only when VM6 itself was duplicated. Again, this could maintain the relative wild type representations of different odor channels in the calyx. A recent analysis suggests that the spontaneous activity of different ORs correlates with number of boutons representing that odor channel in the calyx (Kennedy, 2019). One possible model for how PNs scale to KC numbers while maintaining their relative representations in the calyx is thus that KC number limits total bouton number across all PNs, while allocation of these boutons to individual PNs is determined by activity-based competition among PN types.

Implications for coding: Maximizing dimensionality of odor representations

Qualitative aspects of sparse coding in the mushroom body appear robust to severe perturbations to the circuit. Alternative developmental compensatory mechanisms would be much less likely to preserve sparse coding. For example, we increased the ratio of PNs to KCs in two ways, by increasing the number of PNs and by decreasing the number of KCs. In both cases, PNs dialed down their bouton number, making 25–50% of the boutons they make in wild type. This allowed the KCs to receive their typical number of inputs. If in contrast bouton number was rigid and claw number flexible, in these cases KCs would have expanded their claw production 2–4 fold to innervate all the incoming PN boutons. Individual KCs with for example 20 instead of 5 claws would receive input from ~40% of glomeruli, increasing the overlap in tuning across different KCs and degrading the ability of the network to distinguish different stimuli from one another (Litwin-Kumar et al., 2017).

In two other cases, we increased the ratio of KCs to PNs, by increasing the number of KCs and by decreasing the number of PNs. Again, KCs retained their typical claw number. If instead PNs had maintained a static production of boutons while KCs had adjusted their claw production, KCs would receive very few inputs. While increasing the number of inputs per KC is theorized to reduce dimensionality of odor responses by making different KCs more similar to one another, decreasing the number of inputs per KC is theorized to reduce dimensionality by reducing the number of different possible KC input combinations (Litwin-Kumar et al., 2017). That this sweet spot maximizing dimensionality, ~5 inputs per cell, is programmed into KC identity testifies to the evolutionary importance of maintaining connectivity density in associative brain centers that rely on combinatorial coding.

Implications for evolution: The potential for mushroom body function despite perturbations

The olfactory receptors are the largest insect gene family and have been subject to frequent and extreme gains and losses in many clades. Similarly, brain centers devoted to learning are radically different across species, as exemplified by the diversity in KC repertoire across arthropods (Strausfeld et al., 2009). In order to acquire a novel olfactory circuit, many different evolutionary changes are required: A new receptor must evolve, an OSN type that uniquely expresses the receptor needs to arise, that OSN needs to synapse onto PNs, and a new PN type and new glomerulus must arise. For these events to accrue over time, each individual change must be compatible with continued circuit function and olfactory behavior. While development of a dedicated circuit that assigns an innate meaning to a newly-detectable odor would require many further changes, the signal could add to fitness immediately through representation in the mushroom body.

We have described two mechanisms of developmental robustness that maintain coherent mushroom body wiring in the face of a broad range of phenotypic alterations. First, we observe that olfactory PNs can adjust to gain and loss of PNs while maintaining the balance of odor channel representations in the calyx. Plastic development of PN presynaptic sites that makes room for additional players in the repertoire would allow immediate access of evolutionarily expanded PNs to the calyx and the use of their signals for olfactory learning, thus making time for the evolution of hardwired circuits for innate interpretations. Second, we show here that developmental programs wiring the calyx can accommodate variation in KC number from at least ¼ to 2-fold the endogenous complement. Again, this flexibility could support continued MB function on the path to the evolution of mushroom body innovations. Future experiments will ask how KC claw number is developmentally programmed, and what mechanisms operate in olfactory PNs to allow them to tailor bouton production to the KC repertoire.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Gene (Drosophila melanogaster)mudFLYB: FBgn0002873
Genetic reagent (Drosophila melanogaster)GH146Gal4 (II)Bloomington Drosophila Stock CenterBDSC 30026(Stocker et al., 1997)
Genetic reagent (Drosophila melanogaster)10XUAS-IVS-myr::tdTomato (attp40)Bloomington Drosophila Stock CenterBCSC 32222(Pfeiffer et al., 2012)
Genetic reagent (Drosophila melanogaster)MB247-LexAVP16 (III)Scott Waddell, University of Oxford(Pitman et al., 2011)
Genetic reagent (Drosophila melanogaster)LexAop-CD2-GFP (III)Bloomington Drosophila Stock CenterBDSC 66544(Lai and Lee, 2006)
Genetic reagent (Drosophila melanogaster)GH146LexA (II)Tzumin Lee, Janelia Farms Research Campus(Lai et al., 2008)
Genetic reagent (Drosophila melanogaster)lexAop-mRFP-nls (II)Bloomington Drosophila Stock CenterBDSC 29956Gunter Merdes
Genetic reagent (Drosophila melanogaster)58F02-Gal4 (attp2)Bloomington
Drosophila Stock Center
BDSC 39186(Jenett et al., 2012)
Genetic reagent (Drosophila melanogaster)UAS-GCaMP6s (attp40)Bloomington
Drosophila Stock Center
BDSC 42746(Akerboom et al., 2012)
Genetic reagent (Drosophila melanogaster)UAS-GCaMP6s (VK0005)Bloomington Drosophila Stock CenterBDSC 42749(Akerboom et al., 2012)
Genetic reagent (Drosophila melanogaster)MB247-DsRed (II)André Fiala(Riemensperger et al., 2005)
Genetic reagent (Drosophila melanogaster)71D09-Gal4 (attp2)Bloomington Drosophila Stock CenterBDSC 39584(Jenett et al., 2012)
Genetic reagent (Drosophila melanogaster)UAS-CD8GFP (III)Bloomington Drosophila Stock CenterBDSC 5130(Lee and Luo, 1999)
Genetic reagent (Drosophila melanogaster)42D01-Gal4 (attp2)Bloomington Drosophila Stock CenterBDSC 50152(Jenett et al., 2012)
Genetic reagent (Drosophila melanogaster)UAS-C3PA (II)Vanessa Ruta, Rockefeller University(Ruta et al., 2010)
Genetic reagent (Drosophila melanogaster)UAS-C3PA (III)Vanessa Ruta, Rockefeller University(Ruta et al., 2010)
Genetic reagent (Drosophila melanogaster)60A10-LexA (attp40)Bloomington Drosophila Stock CenterBDSC 52821Pfeiffer, Rubin LexA Collection
Genetic reagent (Drosophila melanogaster)LexAop-tdTomato.Myr (su(Hw)attp5)Bloomington Drosophila Stock CenterBDSC 56142(Chen et al., 2014)
Genetic reagent (Drosophila melanogaster)89B01-Gal4 (attp2)Bloomington Drosophila Stock CenterBDSC 40541(Jenett et al., 2012)
Genetic reagent (Drosophila melanogaster)13XLexAop2-IVS-Syn21-mC3PA-GFP-p10 (attp2)Gerry Rubin, Janelia Farms Research Campus(Pfeiffer et al., 2012)
Genetic reagent (Drosophila melanogaster)GH146QF, QUAS-mtdTomato-3xHA (II)Bloomington
Drosophila Stock Center
BDSC 30037(Potter et al., 2010)
Genetic reagent (Drosophila melanogaster)UAS-mud-RNAi (attp2)Bloomington Drosophila Stock CenterBDSC 35044(Perkins et al., 2015)
Genetic reagent (Drosophila melanogaster)OK107Gal4 (IV)Bloomington Drosophila Stock CenterBDSC 854(Connolly et al., 1996)
Genetic reagent (Drosophila melanogaster)P(caryP) (attp2)Bloomington Drosophila Stock CenterBDSC 36303(Perkins et al., 2015)
Genetic reagent (Drosophila melanogaster)P(caryP) (attp40)Bloomington Drosophila Stock CenterBDSC 36304(Perkins et al., 2015)
Genetic reagent (Drosophila melanogaster)MZ19QF (II)Bloomington Drosophila Stock CenterBDSC 41573(Hong et al., 2012)
Genetic reagent (Drosophila melanogaster)QUAS-mtdTomato-3xHA (II)Bloomington Drosophila Stock CenterBDSC 30004(Potter et al., 2010)
Genetic reagent (Drosophila melanogaster)41C07-LexA (attp40)Bloomington Drosophila Stock CenterBDSC 54791Pfeiffer, Rubin LexA Collection
Genetic reagent (Drosophila melanogaster)89B01-LexA (attp40)Bloomington Drosophila Stock CenterBDSC 54380Pfeiffer, Rubin LexA Collection
Genetic reagent (Drosophila melanogaster)71D09-LexA (attp40)Bloomington Drosophila Stock CenterBDSC 54931Pfeiffer, Rubin LexA Collection
Genetic reagent (Drosophila melanogaster)LexAop-SPA-T2A-SPA (II)n/a(Clowney et al., 2015)
Genetic reagent (Drosophila melanogaster)44F03-Gal4 (attp2)Tzumin Lee, Janelia Farms Research Campus(Awasaki et al., 2014)
Genetic reagent (Drosophila melanogaster)VT033006-Gal4 (attp2)Yoshi Aso, Janelia Farms Research Campus(Kvon et al., 2014)
Genetic reagent (Drosophila melanogaster)VT033008-Gal4 (attp2)Yoshi Aso, Janelia Farms Research Campus(Kvon et al., 2014)
Genetic reagent (Drosophila melanogaster)UAS-DTA (UAS-Cbbeta\DT-A.I)[18] (II)Bloomington Drosophila Stock CenterBDSC 25039(Han et al., 2000)
AntibodyChAT (mouse monoclonal)Developmental Studies Hybridoma Bank9E10(1:200)
AntibodyDsRed (rabbit polyclonal)Clontech632496(1:500-1:1000)
AntibodyGFP (sheep polyclonal)Bio-Rad4745–1051(1:250-1:1000)
AntibodyGFP
(chicken polyclonal)
Gift from Dawen Cain/a(1:5000)
AntibodyAlexa 488 anti-mouse (goat polyclonal)FisherA11029(1:500)
AntibodyAlexa 647 anti-mouse (goat polyclonal)FisherA21236(1:500)
AntibodyAlexa 488 anti-sheep (donkey polyclonal)FisherA11015(1:500)
AntibodyAlexa 488 anti-chicken (goat polyclonal)FisherA11039(1:500)
AntibodyAlexa 568 anti-rabbit (goat polyclonal)FisherA11036(1:500)
Chemical compound, drugTexas Red DextranFisherD3328
Chemical
compound, drug
Alexa 568 PhalloidinFisherA12380
Chemical compound, drugSchneider’s mediumSigmaS0146
Chemical
compound, drug
ParaformaldehydeEMS15710
Chemical compound, drugHydroxyureaSigmaH8627
Chemical compound, drugBenzaldehydeSigma418099
Chemical compound, drugIsobutyl acetateSigma537470
Chemical compound, drugEthyl acetateSigma270989
Chemical compound, drugMethylcyclohexanolSigma153095
Peptide, recombinant proteinCollagenaseSigmaC0130
Software, algorithmSuite2p(Pachitariu et al., 2017)
OtherDuck EZ Start Packaging tapeOffice Depot511879
OtherUV GlueLoctite3106
OtherJAXMAN 365 nm FlashlightAmazonB077GPXBK1
OtherElectra WaxerAlmore66000
OtherGulfwax ParaffinGrocery storeC0130
Otherhairself

Flies

Flies were maintained on cornmeal-molasses (‘R’) food (Lab Express, Ann Arbor, MI) in a humidified incubator at 25C on a 12:12 light:dark cycle.

Genotypes were as follows:

Figure 1, and Figure 1—video 1Figure 1—figure supplement 1GH146Gal4, 10XUAS-IVS-myr::tdTomato/CyO; MB247-lexA, lexAop-CD2-GFP/TM2
Figure 1—figure supplement 2GH146LexA, lexAop-mRFP-nls/P(caryP)attp40; VT033006-Gal4, UAS-CD8GFP/+
Figure 2A–EGH146LexA, lexAop-mRFP-nls/CyO; 58F02-Gal4, UAS-GCaMP6s/TM2
Figure 2F–HMB247-DsRed/CyO; 71D09-Gal4, UAS-CD8GFP/"
Figure 2I60A10-LexA, LexAop-tdTomato.Myr/CyO; 58F02-Gal4, UAS-C3PA/"
Figure 2J,KGH146Gal4, 10XUAS-IVS-myr::tdTomato/CyO; MB247-lexA, 13XLexAop2-IVS-Syn21-mC3PA-GFP-p10/"
60A10-LexA, LexAop-tdTomato.Myr/CyO; 58F02-Gal4, UAS-C3PA/"
Figure 2—figure supplement 1GH146LexA, lexAop-mRFP-nls/CyO; 58F02-Gal4, UAS-GCaMP6s/TM2
Figure 2—figure supplement 2MB247-DsRed/CyO; 42D01-Gal4, UAS-C3PA/"
Figure 2—figure supplement 3A,BGH146Gal4, 10XUAS-IVS-myr::tdTomato/CyO; MB247-lexA, 13XLexAop2-IVS-Syn21-mC3PA-GFP-p10/"
Figure 2—figure supplement 3C,DGH146Gal4, 10XUAS-IVS-myr::tdTomato/CyO; MB247-lexA, 13XLexAop2-IVS-Syn21-mC3PA-GFP-p10/"
60A10-LexA, LexAop-tdTomato.Myr/CyO; 89B01-Gal4, UAS-C3PA/"
Figure 3A–CGH146QF, QUAS-mtdTomato-3xHA /+; UAS-CD8GFP/UAS-mud-RNAi; OK107Gal4/+
GH146QF, QUAS-mtdTomato-3xHA /+; UAS-CD8GFP/P(caryP)attp2; OK107Gal4/+
Figure 3D–GMZ19QF, QUAS-mtdTomato-3xHA/Bl; UAS-mud-RNAi/TM2 or TM6B; OK107Gal4/+
MZ19QF, QUAS-mtdTomato-3xHA/Bl; P(caryP)attp2/TM2 or TM6B; OK107/+
Figure 3H71D09-LexA, LexAop-tdTomato.Myr/Bl; UAS-mud-RNAi/TM2; OK107 Gal4/+
71D09-LexA, LexAop-tdTomato.Myr/Bl; P(caryP)attp2/TM2; OK107 Gal4/+
Figure 3IUAS-C3PA/+; UAS-C3PA/UAS-mud-RNAi; OK107Gal4/+
UAS-C3PA/+; UAS-C3PA/P(caryP)attp2; OK107Gal4/+
Figure 3J,KUAS-C3PA/+; UAS-C3PA/UAS-mud-RNAi; OK107Gal4/+
UAS-C3PA/+; UAS-C3PA/P(caryP)attp2; OK107Gal4/+
UAS-C3PA/41C07-LexA, LexAop-tdTomato.Myr; UAS-C3PA/UAS-mud-RNAi; OK107Gal4/+
UAS-C3PA/41C07-LexA, LexAop-tdTomato.Myr; UAS-C3PA/P(caryP)attp2; OK107 Gal4/+
UAS-C3PA/89B01-LexA, LexAop-tdTomato.Myr; UAS-C3PA/UAS-mud-RNAi; OK107 Gal4/+
UAS-C3PA/89B01-LexA, LexAop-tdTomato.Myr; UAS-C3PA/P(caryP)attp2; OK107 Gal4/+
Figure 3—figure supplement 141C07-LexA, LexAop-tdTomato.Myr/UAS-C3PA; UAS-mud-RNAi 35044/UAS-C3PA; OK107 Gal4/+
41C07-LexA, LexAop-tdTomato.Myr/UAS-C3PA; P(caryP)attp2/UAS-C3PA; OK107 Gal4/+
Figure 4A–IGH146LexA, LexAop-SPA-T2A-SPA/+; 44F03-Gal4/UAS-mud-RNAi
GH146LexA, LexAop-SPA-T2A-SPA/+; 44F03-Gal4/P(caryP)attp2
Figure 4J–MGH146LexA, LexAop-SPA-T2A-SPA/MZ19QF, QUAS-mtdTomato-3xHA; 44F03-Gal4/UAS-mud-RNAi
GH146LexA, LexAop-SPA-T2A-SPA/MZ19QF, QUAS-mtdTomato-3xHA; 44F03-Gal4/P(caryP)attp2
MZ19QF, QUAS-mtdTomato-3xHA/+; 44F03-Gal4/UAS-mud-RNAi
MZ19QF, QUAS-mtdTomato-3xHA/+; 44F03-Gal4/P(caryP)attp2
Figure 4—figure supplement 1A,BGH146LexA, LexAop-SPA-T2A-SPA/+; 44F03-Gal4/UAS mud-RNAi
GH146LexA, LexAop-SPA-T2A-SPA/+; 44F03-Gal4/P(caryP)attp2
Figure 4—figure supplement 1C–F
71D09-LexA, LexAop-tdTomato.Myr/+; 44F03-Gal4/UAS-mud-RNAi
71D09-LexA, LexAop-tdTomato.Myr/+; 44F03-Gal4/P(caryP)attp2
Figure 5ACyO/+; VT033006-Gal4/UAS-CD8GFP
CyO/+; VT033008-Gal4/UAS-CD8GFP
Figure 5B,CGH146LexA, lexAop-mRFP-nls/UAS DTA; VT033008-Gal4, UAS-CD8GFP/+
GH146LexA, lexAop-mRFP-nls/P(caryP)attp40; VT033008-Gal4, UAS-CD8GFP/+
Figure 5D–FUAS-DTA/+; VT033008-Gal4/TM6B
UAS-DTA/+; P(caryP)attp2/TM6B
Figure 5G–HGH146LexA, lexAop-mRFP-nls/UAS DTA; VT033006-Gal4, UAS-CD8GFP/+
GH146LexA, lexAop-mRFP-nls/P(caryP)attp40; VT033006-Gal4, UAS-CD8GFP/+
Figure 5I–LMB247-DsRed/UAS DTA; VT033006-Gal4, UAS-CD8GFP/+
MB247-DsRed/+; VT033006-Gal4, UAS-CD8GFP/+
Figure 5—figure supplement 1AGH146LexA, lexAop-mRFP-nls/UAS DTA; VT033008-Gal4, UAS-CD8GFP/+
GH146LexA, lexAop-mRFP-nls/CyO; VT033008-Gal4, UAS-CD8GFP/+
Figure 5—figure supplement 1BGH146LexA, lexAop-mRFP-nls/UAS DTA; VT033006-Gal4, UAS-CD8GFP/+
GH146LexA, lexAop-mRFP-nls/CyO; VT033006-Gal4, UAS-CD8GFP/+
Figure 5—figure supplement 2MB247-DsRed/UAS DTA; VT033006-Gal4, UAS-CD8GFP/+
MB247-DsRed/+; VT033006-Gal4, UAS-CD8GFP/+
Figure 6GH146LexA, LexAop-SPA-T2A-SPA/UAS DTA; VT033006-Gal4/+
GH146LexA, LexAop-SPA-T2A-SPA/P(caryP)attp40; VT033006-Gal4/+
Figure 7, Figure 7—figure supplement 1, Figure 7-videos 1, 2UAS-GCaMP6s/UAS-GCaMP6s; UAS-GCaMP6s/UAS-GCaMP6s; OK107Gal4/ OK107Gal4 or +

HU ablation

Request a detailed protocol

Protocol was adapted from Sweeney et al. (2012). Briefly, we set up large populations of flies in cages two days prior to ablation and placed a 35 or 60 mm grape juice agar plate (Lab Express, Ann Arbor, MI) in the cage with a dollop of goopy yeast. One day prior to the ablation, we replaced the grape juice/yeast plate with a new grape juice/yeast plate. On the morning of the ablation, we removed the plate from the cage and discarded the yeast puck and any hatched larvae on the agar. We then monitored the plate for up to four hours, until many larvae had hatched. Larvae were washed off the plate using a sucrose solution, and eggs were discarded. Larvae were then strained in coffee filters, and submerged in hydroxyurea (Sigma, H8627) in a yeast:AHL mixture, or sham mixture without HU. Ablation conditions were as follows:

Larvae were then strained through coffee filters again, rinsed, and placed in a vial or bottle of R food until eclosion. We opened a new container of hydroxyurea each month as it degrades in contact with moisture and we found its potency gradually declined. We typically analyzed 5–10 animals (10–20 hemispheres) of each condition per batch, except in in vivo imaging experiments, where we analyzed 1–5 animals per condition per batch.

Applying HU for four hours produced a somewhat U-shaped distribution, with many samples unaffected and many with all four KC neuroblasts lost. Shifting from 3, to 5, to 10 mg over this long time scale shifted how many brains were completely ablated versus unaffected, but did little to increase the proportion of brains with intermediate phenotypes. Applying the stronger concentration, 10 mg, for a shorter time produced more sporadic effects, with more brains showing 1, 2, or 3 KC neuroblasts remaining. lNB/BAlc was more affected by HU concentration than time of application, with stronger effects seen applying 10 mg/mL for one hour than applying 3 or 5 mg/mL for four hours. Overall, combining these different protocols allowed us to observe a broad range of mushroom body states.

Immunostainings

Request a detailed protocol

Brains were dissected for up to 20 min in external saline (108 mM NaCl, 5 mM KCl, 2 mM CaCl2, 8.2 mM MgCl2, 4 mM NaHCO3, 1 mM NaH2PO4, 5 mM trehalose, 10 mM sucrose, 5 mM HEPES pH7.5, osmolarity adjusted to 265 mOsm), before being transferred to 1% paraformaldehyde in PBS, on ice. All steps were performed in cell strainer baskets (caps of FACS tubes) in 24 well plates, with the brains in the baskets lifted from well to well to change solutions. Brains were fixed overnight at 4C in 1% PFA in PBS. On day 2, brains were washed 3 × 10’ in PBS supplemented with 0.1% triton-x-100 on a shaker at room temperature, blocked 1 hr in PBS, 0.1% triton, 4% Normal Goat Serum, and then incubated for at least two overnights in primary antibody solution, diluted in PBS, 0.1% triton, 4% Normal Goat Serum. Primary antibody was washed 3 × 10’ in PBS supplemented with 0.1% triton-x-100 on a shaker at room temperature, then brains were incubated in secondary antibodies for at least two overnights, diluted in PBS, 0.1% triton, 4% Normal Goat Serum. When used, Alexa 568-conjugated phalloidin (1:80) and/or DAPI (one microgram/mL) were included in secondary antibody mixes. Primary antibodies used were mouse anti-ChAT 9E10 (DSHB, 1:200), Rabbit anti-dsRed (Clontech, 1:500-1:1000), Sheep anti-GFP (Bio-Rad, 4745–1051, 1:250-1:1000), Chicken anti-GFP (1:5000, gift from Dawen Cai). Secondary antibodies were Alexa 488, 568, and 647 conjugates (1:500, Invitrogen).

Brains were mounted in 1x PBS, 90% glycerol supplemented with propyl gallate in binder reinforcement stickers sandwiched between two coverslips. Samples were stored at 4C in the dark prior to imaging. The coverslip sandwiches were taped to slides, allowing us to perform confocal imaging on one side of the brain and then flip over the sandwich to allow a clear view of the other side of the brain. This allowed us to score features on the anterior and posterior sides of each sample. Scanning confocal stacks were collected along the anterior-posterior axis on a Zeiss 880 or Leica SP8 with one micrometer spacing in Z and ~200 nm axial resolution.

Statistical considerations

Request a detailed protocol

Determination of sample size: Brains were prepared for imaging in batches of 5–10. In initial batches, we assessed the variability of the manipulation, for example if we were trying to change Kenyon cell number, we looked at how variable the size of the Kenyon cell population was following the manipulation. We used this variability to determine how many batches to analyze so as to obtain enough informative samples. To avoid introducing statistical bias, we did not analyze the effect of the manipulation on the other cell type until after completing all batches; for example if the manipulation was intended to alter Kenyon cell numbers, we did not assess projection neuron bouton phenotypes until completing all samples. Genotypes or conditions being compared with one another were always prepared for staining together and imaged interspersed with one another to equalize batch effects, and we used at least two batches for each type of experiment.

Criteria for exclusion, treatment of outliers: In Figures 16, we only excluded from analysis samples with overt physical damage to the cells or structures being measured. In figures and analyses we treated outliers the same way as other data points. For Figure 7, full criteria for inclusion and exclusion of each sample are shown under Analysis of KC somatic odor responses, below.

Recent discussions among experts have suggested that biological studies over-rely on statistical tests, report p values when statistical differences are self-evident, and emphasize statistical significance rather than effect size (Goedhart, 2018a; Goedhart, 2018b; Ho et al., 2019). These choices can cloud findings instead of clarifying them. In order to communicate our findings in the simplest and most complete way, we have displayed each data point for each sample to allow readers to assess effect size and significance directly.

Image analysis

Request a detailed protocol

In general, we analyzed mixed-sex populations, where sex ratios were carefully balanced across experimental conditions. Because MZ19 labels the sexually dimorphic DA1 PNs, in MZ19 experiments we analyzed the two sexes independently in pilot experiments. As we observed no correlation with sex (not shown), in subsequent MZ19 experiments we used mixed sexes.

Researchers performing quantification could not generally be blinded to experimental condition due to the overt changes in neuron numbers and brain structures induced by our manipulations. However, analysis was performed blind to the goals of the experiment when possible, and quantitation of features on the anterior and posterior sides of the brain were recorded independent of one another and merged after all quantifications were completed. Moreover, many of our analyses make use of variation within an experimental condition or genotype, providing an additional bulwark against observational bias.

To measure neuropil structures such as the mushroom body calyx, lateral horn, or antennal lobe, we used markers such as ChAT and phalloidin to visualize the structure, identified its largest extent in Z (i.e. along the A-P axis), outlined it in FIJI (as in white outlines in Figure 1B) and then calculated the cross-sectional area using the ‘Measure’ command.

To analyze calyx volumes we used ImageJ. Briefly, we drew Regions of Interest (ROIs) around the MB247 (Figure 1) or OK107 (Figure 3) calyx signal for each slice. Other imaging channels displaying projection neurons and nc82 staining were used as a reference. The drawn ROIs for each slice were saved using the ROI manager plugin and the area of each ROI in a stack was measured using the Measure tool. The measured areas were added together and then multiplied by the Z-spacing between slices (one micron) to get the volume of the combined ROI through the stack. The 3D viewer plugin was used to make movies of the kenyon cell and calyx volumes. To produce 3D Movies of the calyx volumes without somata, areas outside the selected ROIs were cleared and then the 3D viewer plugin was used to display only the 3D ROI volume that was measured for the volume analysis. To facilitate comparison in 3D movies, stacks in a set were all given the same depth in Z by adding blank slices at the end of the stack when necessary.

To count aggregate boutons, we used ChAT signal with reference to phalloidin (which stains actin-rich structures, including KC dendrites), except in Figure 1 and Figure 3A, where we counted GH146-positive boutons. We counted as separate structures ChAT signals that were compact and appeared discontinuous with one another and that were 2+ micrometers in diameter (Figure 1—figure supplement 2). When phalloidin signal or KC fluorescence was available, two boutons would be counted separately if ChAT signals were separated by phalloidin signal or KC signal. In initial analyses, we found that boutons in slice 0 often appeared in slices −1 and +1 as well, but never in slices −2 or +2. In order to avoid counting the same boutons more than once, we therefore began counting at the most superficial slice in the stack where boutons were visible, and counted every other slice, i.e. every second micron. To count boutons of small groups of PNs, we drove fluorescent reporters under control of 42D01, 71D09, or MZ19 and counted coherent and compact fluorescent signals, with reference to ChAT signals and to phalloidin, when available. As GH146 labels ~2/3 of PNs, our counts of 450–650 total GH146+ boutons in Figures 13, which would correspond to 675–975 total boutons per calyx, correspond with estimates established by EM (578 boutons) and light microscopy (768 total boutons, or five boutons per PN) (Leiss et al., 2009; Turner et al., 2008; Zheng et al., 2018).

To count cell populations, we used genetically-encoded fluorescence as indicated. We counted labeled somata in every third slice in the stack (every third micron along the A-P axis), with reference to DAPI to distinguish individual cells from one another. As we did for boutons, in analyzing somata we initially determined that somata in slice 0 could also be seen in slices −2, –1, +1, and +2 but not in slice −3 or +3. To avoid double-counting, we therefore counted every third micron.

To count KC claws, we scanned image stacks for cup-shaped terminal structures of the appropriate size (1–2 μm in diameter). We sometimes labeled small groups of KCs. We scored independently any single KC or small group of KCs that could be visually separated from one another (like the 3 cells shown in Figure 6C). For Figure 2 and Figure 2—figure supplement 3, we did not score any cells which we could not separate from one another because we did not want to mix counts for KCs of different types. For Figure 3I, where we did not attempt to separate KCs of different types, and Figure 6F, where our dye labeling strategy was specific to αβ KCs, we present an average claw/KC data point for small groups of 2–4 cells whose dendritic structures were interwoven. Finally, in Figure 3I, we found that in calyces with expanded KC populations, KC axons sometimes could not enter the pedunculus and instead wandered around at the base of the calyx. As CNS neurons in D. mel are unipolar, these wandering axons could be difficult to distinguish from dendritic claws. To determine whether these wandering axons should be counted as claws, we stained a subset of photoactivated brains with anti-ChAT (not shown), to determine which labeled KC neurites were in the bouton region of the calyx, and should thus be scored for claws, and which were ‘lost’ axons. Though photoactivated GFP signals were only poorly preserved following staining, relating ChAT-stained images to images of the same brain by two photon allowed us to learn to identify the bouton region of the calyx in subsequent experiments due to its ‘swiss cheese’ appearance, where the presence of PN boutons produces holes in KC fluorescence.

To determine KC and PN neuroblast state--PN lNB/BAlc: Whenever possible, we included GH146 or 60A10 driving a fluorescent report in our animals and scored the presence or absence of a group of somata lateral to the antennal lobe on the anterior side of the brain for each analyzed hemisphere. In Figure 2F–H, we examined ChAT+ somata ventrolateral of the antennal lobe to determine the presence or absence of lNB/BAlc progeny. KC neuroblasts: In Figure 2A–C, we used 58F02 to fluorescently label late-born KCs and counted clumps of labeled somata surrounding the calyx as well as groups of labeled neurites leaving the calyx and entering the pedunculus. These estimates usually matched; in the few cases where they did not, we used the number of axon clumps, as somata are closer to the surface of the brain and more susceptible to mechanical disruption during dissection. As seen in Figure 2B, 58F02 labels additional neurons; these were easy to discriminate from KCs as they did not enter the calyx or pedunculus.

For Figure 2J,K and Figure 2—figure supplement 3C,D, we combined data from two different types of experiments. In some experiments, we expressed PA-GFP in all KCs using MB247. We traced the axons of labeled KCs into the lobes to assign KC type (Figure 2—figure supplement 3). In a second group of experiments, we used 58F02-Gal4 to express PA-GFP exclusively in αβ core KCs (Figure 2I), or 89B01 Gal4 to express PA-GFP only in γ KCs and thus knew KC type a priori. 89B01 also labels γd KCs, which can be distinguished from olfactory γ KCs as they do not innervate the main calyx. We do not include γd KCs in our analysis.

GFP photoactivation and Texas red dextran dye labeling were performed as previously described (Clowney et al., 2015; Ruta et al., 2010), using a Bruker Investigator microscope and Spectra-Physics MaiTai laser with DeepSee module. Dye filling electrodes were pulled using a Brown/Flaming puller (Sutter Instruments) and were guided to the mushroom body α lobes using visible light illumination and/or two photon autofluorescence.

Identification of driver lines for relevant cell populations

Request a detailed protocol

To identify Gal4 and/or LexA lines labeling PN populations, we screened the Janelia FlyLight collection online database and then crossed lines with potential to fluorescent reporters. While 42D01 (~10 PNs) and 60A10 (60 PNs) were the most useful PN lines for us here, we also identified other lines, 33C10 and 37H08, that each label small groups of PNs and may be of use to others. To identify Gal4 lines labeling individual KC types, we screened expression of ‘regular’ FlyLight Gal4 constructs made using the same regulatory fragments incorporated in KC-type-specific split Gal4s (Aso et al., 2014). We found 58F02 useful for labeling α/β core KCs, 89B01 for γ KCs (labels both γmain and γd), and 41C07 for α’/β’ KCs. 89B01 and 58F02 LexA did not recapitulate Gal4 expression patterns driven by the same fragments.

Flow Cytometry

Request a detailed protocol

Brains were dissected in Schneider’s medium (Sigma S0146) supplemented with 1% BSA and placed on ice. After all dissections were completed, collagenase (Sigma C0130) was added to a final concentration of 2 mg/mL and samples were incubated at 37C for 20 min. Samples were dissociated by trituration and spun down at 300g, 4C, for 5 min. Collagenase solution was removed and replaced with PBS+0.1% BSA supplemented with 1:1000 DyeCycle Violet. Cells were incubated with dye for 30 min on ice and passed through a cell strainer cap, before being subjected to flow cytometry on an Attune Flow Cytometer. Forward scatter and side scatter measurements were used to gate single cells, and DyeCycle Violet signal was used to gate cell bodies from membrane debris.

In vivo functional imaging

Request a detailed protocol

We prepared 2–7 day old adult flies subjected to HU or sham treatment just after larval hatching for in vivo two photon calcium imaging on a Bruker Investigator essentially as described previously (Ruta et al., 2010), affixing the fly to packaging tape (Duck EZ Start) with human hair and UV glue (Loctite 3106). The fly was tilted to allow optical access to KC somata, at the dorsal posterior surface of the brain. In some experiments, we waxed the proboscis in an extended position to reduce motion. Imaging was performed in external saline. For odor delivery, half of a 1200 mL/min airstream, or 600 mL/min, was directed toward the antennae through a Pasteur pipette mounted on a micromanipulator. At a trigger, 25% of the total air stream was re-directed from a 10 mL glass vial containing mineral oil to a vial containing odorants diluted 1:10 in mineral oil, or a second vial of mineral oil (mechanosensory control). Final odor dilution was therefore 1:40. Filter paper ‘wicks’ were inserted into each vial to allow odor to saturate the vial headspace. Odors were delivered for two seconds, with 30–60 s in between stimulations. We used a simplified olfactometer capable of delivering five different odorants in which overall airflow was metered by analogue flowmeters (Brooks Instruments) and valve switching controlled by an Arduino. Odor delivery was initially optimized using a mini-PID placed in the half of the air stream not directed at the fly (Aurora Biosciences). Images were collected at 1.5–5 Hertz, and we imaged a single plane for each sample.

Analysis of KC somatic odor responses

Request a detailed protocol

We collected data from a total of 14 sham-treated animals (28 hemispheres imaged) and 24 HU-treated animals (46 hemispheres imaged). The two hemispheres were imaged separately. Occasionally, only one hemisphere was imaged due to the preparation and a few hemispheres were excluded from analysis because of poor image quality. Mineral oil was delivered first, and then each of four odors was delivered twice, in sequence. Following mineral oil, odor order varied. Because experiments in locust found that the first presentation of certain odors can cause distinct KC responses to all subsequent presentations of that same odor, we analyzed the second presentation of each odor, according to convention (Murthy et al., 2008; Stopfer and Laurent, 1999). We also observed that in some animals, enduring increases in fluorescence followed the first presentation of isobutyl acetate.

Following functional imaging, we either collected a Z-stack of the mushroom body on the two-photon, or dissected out the brain and subjected it to immunostatining and confocal imaging. We used these images to categorize the extent of KC reduction. All samples are accounted for here:

Total
hem
Poor
Damaged/
not responsive
UnknownFull
ablation
Can’t tell
if ablated
Doesn’t
look ablated
Too much
motion
Analyzed
Sham28281N/AN/AN/A107: four fem, three male
HU46401351077: four male,
three fem

We excluded 11 hemispheres from the control dataset due to damage or poor image quality. We also excluded 34 hemispheres from the ablation dataset because of any of the following: the samples were fully ablated, unaffected by ablation, ablation status was ambiguous, or the mushroom body calyx appeared damaged. The remaining samples were motion-corrected using Suite2p (Pachitariu et al., 2017). Using FIJI, we blinded ourselves to the remaining datasets and excluded datasets if there was too much motion to be able to follow the same cell over time. After this gate, there were seven sham and seven reduced-KC hemispheres for the analysis. ROIs were chosen in each of the fourteen samples and we measured Δf/f (i.e. (f-f0)/f0), comparing stimulus frames with pre-stimulus frames. ROIs were manually chosen and we were careful about ensuring that the cell remained within its ROI for all frames. For two of the ablated samples, we had to choose different ROIs for two of the odor deliveries due to motion. These samples were only used to calculate the proportion of cells that were responsive to each odor, and not in calculating the number of odors each cell responded to. The baseline was determined for each odor delivery by taking the average of the frames within the three seconds before the trigger. The stimulus frame was determined by taking the peak response between 0–4.5 s after stimulus onset, to account for the valve opening and the two second odor delivery. To define ‘responsive’ cells, we chose to use the same cutoff, Δf/f > 0.2 (20% increase in fluorescence over baseline) across samples. This was in order to avoid obscuring overall differences in responsiveness across ablated and sham-treated calyces. For visualization, we used the Pretty Heatmap package in R to cluster cells with similar odor responses and display them.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
    Prevent p-value parroting
    1. J Goedhart
    (2018b)
    The Node. Accessed September 20, 2019.
  25. 25
  26. 26
  27. 27
  28. 28
    Investigating the function of follicular subpopulations during Drosophila oogenesis through hormone-dependent enhancer-targeted cell ablation
    1. DD Han
    2. D Stein
    3. LM Stevens
    (2000)
    Development 127:573–583.
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
    The Drosophila mushroom body is a quadruple structure of clonal units each of which contains a virtually identical set of neurones and glial cells
    1. K Ito
    2. W Awano
    3. K Suzuki
    4. Y Hiromi
    5. D Yamamoto
    (1997)
    Development 124:761–771.
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
    Representation and Learning in Cerebellum-Like Structures
    1. A Kennedy
    (2015)
    Columbia University.
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
    Development of the Drosophila mushroom bodies: sequential generation of three distinct types of neurons from a neuroblast
    1. T Lee
    2. A Lee
    3. L Luo
    (1999)
    Development 126:4065–4076.
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92
  93. 93
  94. 94
  95. 95
  96. 96
  97. 97
  98. 98
  99. 99

Decision letter

  1. Claude Desplan
    Reviewing Editor; New York University, United States
  2. Catherine Dulac
    Senior Editor; Harvard University, United States
  3. Bassem A Hassan
    Reviewer; ICM, France

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Your paper uses the olfactory circuit of Drosophila to test developmental plasticity and robustness in a stochastic sparse wiring circuit between olfactory projection neurons and Kenyon cells in the mushroom body. This sparse wiring encodes olfactory perception. Your simple, well designed and elegant experiments revealed that there is significant presynaptic developmental plasticity explaining the robustness of sparse wiring. By manipulating cell divisions of either Kenyon cells or projection neurons to increase or decrease their population size and measuring "claws" (their connections), you realized that the number of post-synaptic sites of Kenyon cells is invariant while the number of presynaptic sites of projection neurons changes accordingly.

Decision letter after peer review:

Thank you for submitting your article "Presynaptic developmental plasticity allows robust sparse wiring of the Drosophila mushroom body" for consideration by eLife. Your article has been reviewed by Catherine Dulac as the Senior Editor, a Reviewing Editor, and three reviewers. The following individuals involved in review of your submission have agreed to reveal their identity: Bassem A Hassan (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

The three reviewers agree about the importance of the work and find the problem and the way it is addressed to be highly significant: The principle of developmental plasticity in presynaptic neurons in this circuit is fascinating and the way you manipulate it is very good!

However, as you will see from the comments, two of the three reviewers have some serious issues with the counting of buttons that are presented in Figure 7. They agree that this is not a trivial task (although others have done so very well, see Leiss, 2009) but they are not convinced by the experimental data that you show and they found it difficult to verify the accuracy of the counting, which is critical to the paper.

Therefore, we would like you to provide more information on how you did the counting and to show precise images with markers indicating what is counted as a bouton, and what is not. In particular, you need to elaborate about how you avoided counting errors across optical sections. Furthermore, the n number is too low to allow statistics and might need to be improved.

Reviewer #1:

The authors examine the rules for wiring the input connections in the mushroom body, what sets the degree of synaptic convergence of PN inputs onto KCs. They address this by manipulating cell divisions of either KC or PN progenitors to increase or decrease population size. Based on measurements of KC claws and calyx cross-section, the number of KC post-synaptic sites appears invariant across conditions, while the number of PN presynapses changes.

There are some important technical points that are not adequately described and may not be adequate to justify the conclusions. Figure 7 is based on a seriously insufficient data set. Without resolving these issues, I am not confident in their results:

1) They quantify the size of the calyx as the maximum cross-sectional area. They should quantify calyx volume instead. There could be large change in calyx volume without changes in max cross-sectional area.

The Materials and methods section description of this should also be clarified. It says: '…identified its [calyx's] largest extent in z, outline it in FIJI…'. Do they mean they found the confocal plane with the widest cross section and calculated the area there? They should use brain-based coordinates (i.e. dorso-ventral/A-P) rather than Z since I don't know how they're scanning the brain. Also, it sounds like they simply measure a diameter and assume the calyx is a circle. If so, that is too crude a measure. They should make a more precise measurement of the 3D boundary of the calyx and calculate volume.

2) It's unclear how they actually counted PN boutons/cell bodies/claws. Again, the Materials and methods section description should be more accurate. It says ' counted every other slice' and 'counted every third slice' How do we know whether there is or isn't overlap between slices? We'd need to know the axial resolution, as well as the distance between slices but these are not reported. As written, it sounds like they made an arbitrary decision to skip counting some slices. It's impossible to tell if they could be double counting or missing many counts.

In Figure 1E the number of PN boutons a little less than 500, which is low compared to published results, Leiss et al., 2009 counted between 780 and 1600 depending on markers used, and Turner et al., 2008 estimated 1165 based on PN labeling. Also, the numbers in Figure 1E don't match their statement of '1000/calyx' on in the Materials and methods section. Can the authors please clarify?

Figure 2B shows examples of how they count the number of KC neuroblasts using the 58F02 driver. However, there are sometimes clusters of green cells that are apparently not counted e.g. left panel shows one big cluster and two smaller ones, second from left shows one cluster at 6'oclock and one at 9o'clock but this is assessed to be only one KC Nb. This needs more explanation. Is the driver not completely KC specific? How did they know that a cluster is made of up KCs and not other cells, especially with the 9 o'clock cluster.

3) The authors must take more measurements of KC odor responses in ablated animals, n=3 is not sufficient for any conclusions. In fact, there are no statistical tests in Figure 7 to support any conclusion.

What does the df/f value shown in e.g. Figure 7C represent? Is it peak df/f during the odor, or area under the curve or what?

It would be far better to show some example plots of df/f versus time (as a simple line plot rather than heatmap). This is a better way for the reader to evaluate the data, in particular to assess movement artefacts. Presenting essentially a single point, as in Figure 7C, can mask experimental issues.

The authors also use an arbitrary threshold to define a response: 20% df/f. This is not particularly well-justified and not standard in the field. In any case, there's no need for a response threshold to analyze these data. A better analysis would be to measure df/f values across the entire set of KCs and plot those distributions for ablated and sham animals. Viewing those two distributions is far more informative than a% response, which apparently ranges from 5-40% by the current criterion, so it's not a very robust measurement anyway. (In fact, in Figure 7D I see a number around 0.5, very high!)

The authors should be more forthcoming in their description of these results. Subsection “Developmental plasticity preserves sparse odor coding despite perturbations to cell populations” says 'variation is similar to previous reports' but the Materials and methods section says that more responses were observed in this study than previous, both referring to Honegger, 2011. The authors should be straightforward about the differences between the observations in both Main Text and Materials and methods section. The analysis suggested above should be adequate support for their claims (with enough n), since they are comparing sham and ablated.

Related to overall quality of these experiments: in Figure 7C are there instances of negative df/f values in the responses? It is hard to tell with the colormap the authors use, but I see it ranges down to -0.5. If so, that should be commented on, since inhibition is rarely seen with GCaMP. The concern is that movement artefacts are likely to give negative df/f values, so that should be ruled out.

Additionally, the high level of responsiveness the authors observe relative to previous work could also be due to movement artefacts giving artificially large df/f values. The authors should analyze some non-odor period of their calcium signals to see if similar response frequencies are observed. And do the same for inhibitory responses (if those are in fact negative values).

Reviewer #2:

The manuscript "Presynaptic developmental plasticity allows robust sparse wiring of the Drosophila mushroom body" by Elkahlah et al., uses various alteration in the ratios of neurons that contribute to the calyx of the Drosophila mushroom body to address how the convergence of combinatorial inputs is established during development. The idea put forth by the authors is that the convergence ratio is set by post-synaptic Kenyon cells-such that Kenyon cells produce relatively invariant numbers of claws, whereas the number of pre-synaptic specializations on Projection Neurons can vary bi-directionally.

I very much like the question and approach described in this manuscript. I especially like that the authors took their analysis all the way to circuit function. However, much of the primary anatomical data is not always convincing. And there are experimental oversights that are either problematic or it is not fully explained why they are not problematic.

Figure 1. The authors variably reduce the number of Kenyon Cell neuroblasts and Projection Neuron neuroblasts using chemical ablation approaches. They show this leads to reduction of Kenyon Cell number and reductions in projection neuron bouton numbers.

Can the authors show projection neuron boutons at higher resolution? I have no idea how they counted the boutons from these images. Much of their argument hinges on their ability to count these structures, so showing this in a convincing way in Figure 1 is important.

Figure 2. In the same manipulation as Figure 1, the authors score for additional phenotypes-In panel F, how do these images allow one to count boutons? The images are too low-resolution to tell, could they be displayed bigger, or without the overlay? I can't tell how the drawings are the right correspond to the images that are shown. Similarly, but more dramatically, for the claws in Figure 2F, especially the bottom panel, I cannot understand how the raw image data gives the authors the schematic that they show at the right. I want to believe their quantified data, but seeing these types of raw data make me question!

Figure 3. The authors knock down Mud to expand the Kenyon Cell neuroblast pool. Figure 3C

-Are the neurons properly specified? Are there molecular markers that could be used confirm neuronal identity? (Similar comments are true for PN data in Figure 4).

-Why is it of no concern to the authors that OK107 drives mud-RNAi in mature neurons?

-Subsection “Olfactory projection neurons increase bouton repertoire as Kenyon cell number increases” of the text says that the MZ19+ boutons are doubled and cites Figure 3C-D. There is no expansion show in Figure 3C-D. What is Figure 3E What are AA and B above the panel on the right? (Similar annotations show elsewhere were confusing).

In Figure 3F, I can't see the claws. These images are not high-enough resolution.

Figure 4. The authors knock down Mud to expand the Projection Neuron neuroblast pool. I cannot understand how the authors counted projection neuron neuroblast number. In Figure 4C, it looks like there is an increased density of boutons?

Figure 5. On the y-axis of 5C and 5G what does "+" mean? Does it mean "both" or "expressing"?

In Figure 5F, what is the residual green?

Do the authors not think it is important to know when they kill cells with DTA?

Reviewer #3:

Elkahlah and colleagues use the PN-MB olfactory circuit in flies to test the limits of developmental plasticity and robustness in a stochastic sparse wiring circuit, where the sparsity of wiring is thought to be critical for encoding.

I truly enjoyed reading this manuscript. The authors perform a number of simple, well designed and elegant experiments to address the question. They find that there is significant presynaptic developmental plasticity explaining the robustness of sparse wiring. I particularly love the approach of testing an idea through clever manipulation of neuronal numbers showing that one does not necessarily need a "molecular mechanism" to understand a basic principle of how the brain is wired.

I have no major comments and think that the paper can be published essentially as it is.

https://doi.org/10.7554/eLife.52278.sa1

Author response

However, as you will see from the comments, two of the three reviewers have some serious issues with the counting of buttons that are presented in Figure 7. They agree that this is not a trivial task (although others have done so very well, see Leiss, 2009) but they are not convinced by the experimental data that you show and they found it difficult to verify the accuracy of the counting, which is critical to the paper.

Therefore, we would like you to provide more information on how you did the counting and to show precise images with markers indicating what is counted as a bouton, and what is not. In particular, you need to elaborate about how you avoided counting errors across optical sections. Furthermore, the n number is too low to allow statistics and might need to be improved.

In reading through the reviews, we think the summary about methods of bouton counting is related to Figure 1, Figure 2, Figure 3, Figure 4, Figure 5, Figure 6, as Figure 7 has no bouton counts. We think the comment related to n is related to in vivo imaging, in Figure 7.

As described below, we have provided more information and supplemental figures showing how we count the boutons, as well as summarizing the existing literature. We have also increased the sample size in Figure 7 from 3 animals per condition to 7 animals per condition.

Reviewer #1:

The authors examine the rules for wiring the input connections in the mushroom body, what sets the degree of synaptic convergence of PN inputs onto KCs. They address this by manipulating cell divisions of either KC or PN progenitors to increase or decrease population size. Based on measurements of KC claws and calyx cross-section, the number of KC post-synaptic sites appears invariant across conditions, while the number of PN presynapses changes.

There are some important technical points that are not adequately described and may not be adequate to justify the conclusions. Figure 7 is based on a seriously insufficient data set. Without resolving these issues, I am not confident in their results:

1) They quantify the size of the calyx as the maximum cross-sectional area. They should quantify calyx volume instead. There could be large change in calyx volume without changes in max cross-sectional area.

The Materials and methods section description of this should also be clarified. It says: '…identified its [calyx's] largest extent in z, outline it in FIJI…'. Do they mean they found the confocal plane with the widest cross section and calculated the area there? They should use brain-based coordinates (i.e. dorso-ventral/A-P) rather than Z since I don't know how they're scanning the brain. Also, it sounds like they simply measure a diameter and assume the calyx is a circle. If so, that is too crude a measure. They should make a more precise measurement of the 3D boundary of the calyx and calculate volume.

We apologize for the vagueness in our methods. At the outset of this project, we tested a number of different methods for measuring calyx size in order to find an analysis approach that was both accurate and feasible given the large number of samples to be quantified. We found that for KC ablation experiments (Figures1, Figure 2), the maximum cross-sectional area of the calyx served as an accurate proxy for the number of Kenyon cells. As we now clarify in the methods, this area is determined by drawing a precise outline around the calyx at its maximum extent along the A-P axis and measuring the area inside this shape. Ovals such as shown in Figure 1 were not used for quantification. To give a better sense of calyx dimensions following ablation, we now show volume contours for the images in Figure 1B (Figure 1—video 1), and measure the volumes of these five samples (Figure 1—figure supplement 1). As calyx max cross-sectional area is correlated with both KC number and with calyx volume (Figure 1—figure supplement 1), we are confident that it serves as a relevant metric.

We also quantified the number of total boutons in our images. Except in Figure 5 and Figure 6, where we ablate olfactory projection neurons, we did not observe alterations in bouton size or shape, or empty areas of the calyx. Bouton number therefore provides a functionally meaningful measure of alterations across the whole volume of the calyx. In Figure 5 and Figure 6, we indeed describe that calyx area is no longer a good proxy for calyx contents.

Please note: In Figure 1—video 1, we have not been able to force the rendered mushroom bodies to be displayed at the same scale, though a standard-sized bounding box (red) is displayed on each sample. This is due to the time frame of the revision and the software available to us. So as not to delay the submission of the revision, we are including the video as is. We will include it or exclude it from the published paper as advised.

2) It's unclear how they actually counted PN boutons/cell bodies/claws. Again, the Materials and methods section description should be more accurate. It says ' counted every other slice' and 'counted every third slice' How do we know whether there is or isn't overlap between slices? We'd need to know the axial resolution, as well as the distance between slices but these are not reported. As written, it sounds like they made an arbitrary decision to skip counting some slices. It's impossible to tell if they could be double counting or missing many counts.

In Figure 1E the number of PN boutons a little less than 500, which is low compared to published results, Leiss et al., 2009 counted between 780 and 1600 depending on markers used, and Turner et al., 2008 estimated 1165 based on PN labeling. Also, the numbers in Figure 1E don't match their statement of '1000/calyx' on in the Materials and methods section. Can the authors please clarify?

Thank you to the reviewers for calling attention to discrepancies in bouton counts and in the number of boutons reported in the literature. We will summarize all comments related to bouton counts here.

a) How many boutons are there actually in the calyx?

We have reviewed the prior literature about bouton number and think that 600-800 is likely to be the correct number, with 1600 an overestimate. First, recent EM data reports 578 boutons/calyx, less than the estimates from Leiss et al., 2009 or Turner et al., 2008. Second, the estimate in Turner of 1115 boutons is made by extrapolating from the number of boutons on individual PNs to an estimated population of 216 PNs. More recent estimates suggest there are 150 or fewer PNs (Frechter et al., 2019; Zheng et al., 2018), which would reduce the estimate from Turner to ~800 total boutons. Third, in Leiss, the average number of boutons identified by manual counting is 768. When the authors overexpress a LimK-GFP fusion protein, they are able to count boutons “semiautomatically” but obtain more than double the number, ~1600. LimK is an actin binding protein, and Kenyon cell dendrites are actin-rich structures, suggesting that bouton number and morphology may not be wild type in these animals. Indeed, the authors suggest that the high number of boutons in this condition may be due to changes in bouton morphology caused by overexpression of LimK. Together with the three other quantifications (Turner, Zheng, and our analysis here), as well as the uncertainty about the effects of LimK overexpression, it is likely that 1600 is the outlier, and the true bouton number is closer to 600-800. Together, these results suggest that while the rule of thumb in the field is that there are ~1000 boutons/calyx, the great majority of calyces likely have less than this number. Indeed, we did not observe 1000 boutons/calyx in our own data; our statement on line 859 was incorrect.

a) What did we count?

In Figure 1 and Figure 3, we counted not total boutons (stained with ChAT), but GH146-positive boutons. GH146 labels ~2/3 of total PNs. We stated this in the legend of Figure 1 but were in error in describing Figure 3 as counting ChAT-positive boutons. We have now fixed Figure 3 and made more clear that in Figure 1 we count GH146-positive boutons. Given that we count 450-700 GH146+ boutons, the total number in the calyx would be ~1.5-fold higher, or 675-1050. This is a reasonable number of total boutons given the prior literature.

a) How did we count the boutons?

Reviewer 1 suggests that our bouton counts were arbitrary. This is far from the case! We collected confocal stacks from anterior to posterior with ~200nm axial resolution (depending on the wavelength) and 1μm slices in Z. We have moved this information from the Materials and methods section closer to our description of bouton counting to allow more clarity. We then counted all boutons in every second image (a census every two microns), as described in the original manuscript. When we counted somata, we counted every third micron.

In initiating our analysis, we scanned through our confocal stacks to define how far boutons extended across images. We found that boutons visible in slice 0 were often visible in slices -1 and +1, but never in slices -2 and +2. Specifically, to avoid overcounting, we therefore counted all boutons every second micron. While this may undersample the boutons, undersampling is not statistically problematic a priori. Moreover, we definitely did not double-count boutons, which would be statistically problematic. Most important of all for our purposes is that the control and experimental datasets are sampled equivalently, which our methods ensured. We now include a supplemental methods image showing what we count as boutons from a particular confocal slice (Figure 1—figure supplement 2).

We tried, both previously and in response to the reviewer comments, to count as is described in Leiss, “…constantly moving through the Z-stack.” We found that making this assessment of when to count and when not to count a bouton allowed too much room for experimenter interpretation and bias and was therefore less consistent than counting every second micron. However, for 71D09 experiments, where we count boutons of just a single PN, we were able to confirm that scanning up and down gave the same results as counting every second micron.

Importantly, we were not able to measure boutons in any automated way, though we tried various software packages, and the authors in Leiss were only able to use automated methods to count boutons when bouton morphology became more orderly, through LimK overexpression in Kenyon cells.

Figure 2B shows examples of how they count the number of KC neuroblasts using the 58F02 driver. However, there are sometimes clusters of green cells that are apparently not counted e.g. left panel shows one big cluster and two smaller ones, second from left shows one cluster at 6'oclock and one at 9o'clock but this is assessed to be only one KC Nb. This needs more explanation. Is the driver not completely KC specific? How did they know that a cluster is made of up KCs and not other cells, especially with the 9 o'clock cluster.

Yes, the reviewer is correct to point out that the driver does not label Kenyon cells exclusively, and that the green clumps not highlighted are not Kenyon cells. We defined what signals corresponded to Kenyon cells by following them into the mushroom body pedunculus. We have now clarified this in the legend of Figure 2B.

3) The authors must take more measurements of KC odor responses in ablated animals, n=3 is not sufficient for any conclusions. In fact, there are no statistical tests in Figure 7 to support any conclusion.

In Figure 7, we have now more than doubled our dataset, so that we present 7 sham and 7 reduced-KC samples. We include statistical tests and additional analyses in Figure 7 and Figure 7—figure supplement 1. We note that to our knowledge, this is the first analysis that attempts to define effects on neural function of developmental perturbations of this circuit, and that the number of sham-treated animals we present is consistent with the number of animals used in previous studies to draw conclusions about Kenyon cell function in unmanipulated animals.

In this context, our analyses have not been exhaustive. While many aspects of odor representation appear preserved in reduced-KC calyces, we also observe statistically significant differences in responses to some odors when cells are pooled across animals for analysis. It is difficult to decide whether each cell should “count” as a biological replicate, or each animal, and of course our statistical power to detect changes is very different depending on that choice. There may also be additional quantitative differences between conditions that we cannot capture even with our increased sample size, due to the high variability across control animals (which is expected given that Kenyon cells are randomly innervated, and corresponds with prior literature). We hope we have been appropriately circumspect in our language about what we can and cannot learn given our data.

What does the df/f value shown in e.g. Figure 7C represent? Is it peak df/f during the odor, or area under the curve or what?

This is the peak df/f; we have now clarified this throughout.

It would be far better to show some example plots of df/f versus time (as a simple line plot rather than heatmap). This is a better way for the reader to evaluate the data, in particular to assess movement artefacts. Presenting essentially a single point, as in Figure 7C, can mask experimental issues.

We now show such traces over time in Figure 7—figure supplement 1, and provide supplemental videos (Figure 7—video1, Figure 7—video 2) of imaging datasets.

The authors also use an arbitrary threshold to define a response: 20% df/f. This is not particularly well-justified and not standard in the field. In any case, there's no need for a response threshold to analyze these data. A better analysis would be to measure df/f values across the entire set of KCs and plot those distributions for ablated and sham animals. Viewing those two distributions is far more informative than a% response, which apparently ranges from 5-40% by the current criterion, so it's not a very robust measurement anyway. (In fact, in Figure 7D I see a number around 0.5, very high!)

Thank you for this suggestion. In Figure 7D of the revised manuscript, we now show such an analysis. We also now present df/f values for all our analyzed cells and samples (Figure 7—source data 1) such that others can perform their own analyses.

We were also surprised that so many Kenyon cells responded to isobutyl acetate and ethyl acetate, given rules of thumb in the field that ~10% of KCs respond to a given odor. We are using a more sensitive GCaMP than prior imaging studies (GCaMP6s versus GCaMP3 and GCaMP1.3), so we may detect more responses than in previous work. There is also variation across studies in the odor concentrations used (from 1:10 to 1:1000; we used 1:40), and variation in composition of the bath saline, which will also affect neuronal responsiveness. It is therefore reasonable that the proportion of cells responding to odor would be different across studies.

We performed a systematic review of studies that report the responses of individual Kenyon cells to a variety of odors. Responsiveness reported in electrophysiological datasets varies depending on the spiking criteria used to define “responsive,” as discussed in Murthy, Fiete and Laurent, 2008, from a maximum of 18% of KCs called as “responding” to a given odor in Turner, 2008, versus up to 75% in Murthy. Moreover, proportion of Kenyon cells responding to odors increases along with the sensitivity of the GCaMP variant used, from a maximum of 2% of cells responding to a particular odor with GCaMP1 (Wang, 2004), to a maximum of 20% of cells with GCaMP3 (Honegger 2013, Campbell 2013), and up to 80% responding with GCaMP6s (our results). Our results with GCaMP6s correspond well with the spiking criteria defined in Murthy, and are also consistent with the expectation that GCaMP1 and GCaMP3 will underrepresent neuronal activity compared to GCaMP6s.

StudyMethodSalineOdor ConcentrationKCs responding
Wang 2004GCaMP1.3 in OK107“adult fly saline”1:1000.1% to 2%
Murthy 2008Whole cell patch clampMurthy1:1025%-75%
Murthy 2008Whole cell patch clampMurthy1:10017%-37%
Murthy 2008Whole cell patch clampMurthy1:10000%-50%
Turner 2008Whole cell patch clampWilson1:10000%-18%
Campbell 2013GCaMP3 in OK107Wilson1:1003%-17%
Honegger 2013GCaMP3 in OK107Wilson1:1001%-20%
Elkahlah 2019GCaMP6s in OK107External saline1:400%-80%

Wilson saline (in mM): NaCl 103, KCl 3, TES 5, trehalose 10, glucose 10, sucrose 7, NaHCO3 26, NaH2PO4 1, CaCl2 1.5, MgCl2 4 (adjusted to 280 mOsm). The saline was bubbled with 95% O2/5% CO2 and continuously perfused over the preparation (2ml/min).

Murthy saline (in mM): NaCl 103, KCl 3, TES 5, NaHCO3 26, NaH2PO4 1, CaCl2 1.5, MgCl2 4, trehalose 10, glucose 10, sucrose 9 (pH = 7.25, 275 mOsm). The saline was bubbled with 95% O2 and 5% CO2 and continuously perfused over the preparation.

External saline (Clowney): 108 mM NaCl, 5 mM KCl, 2 mM CaCl2, 8.2 mM MgCl2, 4 mM NaHCO3, 1 mM NaH2PO4, 5 mM trehalose, 10 mM sucrose, 5 mM HEPES pH7.5, osmolarity adjusted to 265 mOsm.

“adult fly saline” (Wang): 115 mm NaCl, 5 mm KCl, 6 mm CaCl2·2H2O, 1 mm MgCl2·6H2O, 4 mm NaHCO3, 1 mM NaH2PO4·1H2O, 5 mm trehalose, 75 mm sucrose, and 5 mm N-Tris (hydroxymethyl) methyl-2-aminoethanesulfonic acid, pH 7.1, 356 mOsm]

The authors should be more forthcoming in their description of these results. Subsection “Developmental plasticity preserves sparse odor coding despite perturbations to cell populations” says 'variation is similar to previous reports' but the Materials and methods section says that more responses were observed in this study than previous, both referring to Honegger, 2011. The authors should be straightforward about the differences between the observations in both Main Text and Materials and methods section. The analysis suggested above should be adequate support for their claims (with enough n), since they are comparing sham and ablated.

We specifically made a distinction here between absolute proportion of cells responding, which indeed is higher in our work compared to Honegger, versus the high levels of variation in cell-wise responsiveness seen across different animals, which is consistent between our analysis and Honegger.

Related to overall quality of these experiments: in Figure 7C are there instances of negative df/f values in the responses? It is hard to tell with the colormap the authors use, but I see it ranges down to -0.5. If so, that should be commented on, since inhibition is rarely seen with GCaMP. The concern is that movement artefacts are likely to give negative df/f values, so that should be ruled out.

Additionally, the high level of responsiveness the authors observe relative to previous work could also be due to movement artefacts giving artificially large df/f values. The authors should analyze some non-odor period of their calcium signals to see if similar response frequencies are observed. And do the same for inhibitory responses (if those are in fact negative values).

Indeed, movement artifacts can be very difficult to eliminate in in vivo imaging in flies, especially in imaging closely packed and tiny somata (a “bowl of grapes” problem). We have made changes in our experimental preparation, imaging, and analysis to reduce these artifacts. First, in the new samples included here, we have reduced motion in the preparation by waxing the proboscis in an extended conformation prior to imaging. Second, we started to collect data at a higher frame rate (5 Hz), and to collect images continuously during the rest periods between odors trials. These two changes improve Suite2p motion correction. Third, for both the new samples presented here and the samples presented in the original submission, we have now included only ROIs in analysis for which the cell does not leave the ROI during the odor trial. As can be seen in the new Figure 7—figure supplement 1, our cell-wise traces over time look stable and responses are time-locked to odor stimulus. While a few motion artifacts are still present (e.g. see “MCH sham” panel in that figure), these are clearly distinguishable from odor-driven changes.

Reviewer #2:

The manuscript "Presynaptic developmental plasticity allows robust sparse wiring of the Drosophila mushroom body" by Elkahlah et al., uses various alteration in the ratios of neurons that contribute to the calyx of the Drosophila mushroom body to address how the convergence of combinatorial inputs is established during development. The idea put forth by the authors is that the convergence ratio is set by post-synaptic Kenyon cells-such that Kenyon cells produce relatively invariant numbers of claws, whereas the number of pre-synaptic specializations on Projection Neurons can vary bi-directionally.

I very much like the question and approach described in this manuscript. I especially like that the authors took their analysis all the way to circuit function. However, much of the primary anatomical data is not always convincing. And there are experimental oversights that are either problematic or it is not fully explained why they are not problematic.

Figure 1. The authors variably reduce the number of Kenyon Cell neuroblasts and Projection Neuron neuroblasts using chemical ablation approaches. They show this leads to reduction of Kenyon Cell number and reductions in projection neuron bouton numbers.

Can the authors show projection neuron boutons at higher resolution? I have no idea how they counted the boutons from these images. Much of their argument hinges on their ability to count these structures, so showing this in a convincing way in Figure 1 is important.

Thank you for pointing this out, we now show higher resolution images in Figure 1B, as well as a supplemental figure, Figure 1—figure supplement 2, showing what counts as a bouton during quantification.

Figure 2. In the same manipulation as Figure 1, the authors score for additional phenotypes-In panel F, how do these images allow one to count boutons? The images are too low-resolution to tell, could they be displayed bigger, or without the overlay? I can't tell how the drawings are the right correspond to the images that are shown. Similarly, but more dramatically, for the claws in Figure 2F, especially the bottom panel, I cannot understand how the raw image data gives the authors the schematic that they show at the right. I want to believe their quantified data, but seeing these types of raw data make me question!

Yes, we now show higher-resolution images in Figure 2F and point to what counts as a bouton and have removed the schematics

Figure 3. The authors knock down Mud to expand the Kenyon Cell neuroblast pool. Figure 3C

-Are the neurons properly specified? Are there molecular markers that could be used confirm neuronal identity? (Similar comments are true for PN data in Figure 4).

-Why is it of no concern to the authors that OK107 drives mud-RNAi in mature neurons?

-Subsection “Olfactory projection neurons increase bouton repertoire as Kenyon cell number increases” of the text says that the MZ19+ boutons are doubled and cites Figure 3C-D. There is no expansion show in Figure 3C-D. What is Figure 3E What are AA and B above the panel on the right? (Similar annotations show elsewhere were confusing).

In Figure 3F, I can't see the claws. These images are not high-enough resolution.

We do think the neurons are properly specified, as they continue to express the KC marker OK107, and PNs continue to express the marker GH146. (While these are enhancer traps, not antibodies, they are both integrated into loci, eyeless and oaz, that are important for patterning these cell types.) The fact that these neurons still contact each other is itself a reflection of their proper specification. Moreover, these neurons innervate other appropriate targets-supernumerary PNs innervate the antennal lobe and lateral horn, in addition to the calyx, and KCs innervate the mushroom body axonal lobes except in the most extreme expansions.

We have RNAseq data for wild type PNs and KCs at 45h APF and in adults. We show here that there is no endogenous expression of mud in either cell type at either time point, which makes us comfortable using an RNAi that is not restricted to neuroblasts. We think it is overkill to add these 9 RNAseq datasets to the publication, but are open to doing so if desired. To generate this data, we labeled KCs with MB247, and PNs with GH146. We dissociated neurons as already described in our FACs-analysis methods, and FAC-sorted them, retaining PNs, KCs, and unlabeled cells (“Double Negative” or “DN”). We prepared RNA using SmartSeq V2, and subjected libraries to deep sequencing. We include below Oaz and ey, markers of PNs and KCs, respectively. Adult data is an average of two replicates; 45h APF data is from a single library for each cell type. Numbers here are FPKM generated by Cufflinks/Cuffdiff.

DN45hPN45hKC45hDNadult (Avg)PNadult (Avg)KCadult (Avg)
mud0.02234680.039413700.005883490.01086540
nsyb337.596230.206155.922740.2042628.74787.3
Oaz0.16764966.01460.1284230.25497171.6220
ey5.421951.21215227.7887.577510.143108275.23
l(2)gl1.045422.1538400.3767960.5273450.301086
aPKC37.24537.6717643.212881.0263185.60193.7232
pros19.957212.40618.5323748.9148152.8460.9881

We cannot completely rule out a role for mud in neuronal identity/specification, but we are more comfortable using mud than other neuroblast factors which continue to be expressed in differentiating neurons, e.g. aPKC, l(2)gl, and pros shown above. We continue to search for additional methods to expand these populations.

We also note that because expansion of these populations is sporadic, many of the mud-RNAi brains have indistinguishable neuron numbers from wild type and olfactory circuits that appear indistinguishable from wild type despite mud knockdown. This also suggests that mud knockdown does not affect specification.

Subsection “Olfactory projection neurons increase bouton repertoire as Kenyon cell number increases” —The KC expansions we obtained from the genotype with the MZ19 PNs labeled were more subtle than in other experiments; we are not sure why this is the case. However, we obtained 4 brains with calyces larger than any of the controls (>2000µM). One of these is shown in the right panel of Figure 3C (Figure 3D in the revision). As shown in Figure 3F, calyces with maximum cross-sectional area greater than 2000µM have an average of ~100 MZ19+ boutons, versus ~55 in controls. The letters above these graphs are the statistically same and different groups from ANOVA, which we have clarified in the legend. (i.e. groups with the same letter are statistically indistinct, while groups with different letters are statistically distinct).

Figure 4. The authors knock down Mud to expand the Projection Neuron neuroblast pool. I cannot understand how the authors counted projection neuron neuroblast number. In Figure 4C, it looks like there is an increased density of boutons?

We did not count PN NB number, but rather number of PNs. Because of the described role for mud in neuroblast asymmetric division, we assume change in PN number results from change in PN NB number.

The increased density in red in Figure 4C is due to thickened PN axon tract passing over the calyx in this maximum intensity Z-projection, which we have now clarified in the text. As shown in the ChAT staining in blue, the density of boutons is similar to control.

Figure 5. On the y-axis of 5C and 5G what does "+" mean? Does it mean "both" or "expressing"?

In Figure 5F, what is the residual green?

Do the authors not think it is important to know when they kill cells with DTA?

We include a new figure, Figure 5—figure supplement 1, where we image reporter expression driven by VT033006 and VT033008, and effects of using these lines to drive DTA, in third-instar larvae. As can be seen in those panels, these drivers are “on” at least this early, and the cells are lost when toxin is present at least this early. This is around 2.5 days before PNs and KCs synapse (around 60h APF), and ~5 days before adult eclosion.

https://doi.org/10.7554/eLife.52278.sa2

Article and author information

Author details

  1. Najia A Elkahlah

    Department of Molecular, Cellular and Developmental Biology, The University of Michigan, Ann Arbor, United States
    Contribution
    Formal analysis, Investigation, Visualization, Methodology, Writing - review and editing
    Contributed equally with
    Jackson A Rogow
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9657-1777
  2. Jackson A Rogow

    Laboratory of Neurophysiology and Behavior, The Rockefeller University, New York, United States
    Contribution
    Formal analysis, Investigation, Visualization, Methodology, Writing - review and editing
    Contributed equally with
    Najia A Elkahlah
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5060-6770
  3. Maria Ahmed

    Department of Molecular, Cellular and Developmental Biology, The University of Michigan, Ann Arbor, United States
    Contribution
    Formal analysis, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0054-3315
  4. E Josephine Clowney

    Department of Molecular, Cellular and Developmental Biology, The University of Michigan, Ann Arbor, United States
    Contribution
    Conceptualization, Resources, Formal analysis, Supervision, Funding acquisition, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    jclowney@umich.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9150-9464

Funding

Rita Allen Foundation (Milton Cassel Scholar)

  • E Josie Clowney

Alfred P. Sloan Foundation (Research Fellow in Neuroscience)

  • E Josie Clowney

University of Michigan (Startup Funds)

  • E Josie Clowney

University of Michigan (Neuroscience Scholar Award)

  • E Josie Clowney

Helen Hay Whitney Foundation (Simons Fellow)

  • E Josie Clowney

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank the Bloomington Drosophila Stock Center, Yoshi Aso, and Tzumin Lee for providing fly strains; Vanessa Ruta for intellectual and material support during the early phases of this project; Isaac Levine, Shiloh Boosamra, Noella Holmer, Joseph Carter, and James Harrison for technical assistance; Shyama Nandakumar for help with flow cytometry experiments; Christina May, Swathi Yadlapalli, Ari Zolin, Yoshi Aso, Ashok Litwin-Kumar, Laura Buttitta, and members of the Cheng-Yu Lee lab for experimental advice and discussion; and Cathy Collins, Monica Dus, Rich Hume, Vanessa Ruta, and members of the EJC lab for comments on the manuscript. This work was supported by the Simons Fellowship of the Helen Hay Whitney Foundation to EJC. EJC is the Rita Allen Foundation Milton Cassel Scholar and is supported by the Alfred P Sloan Foundation Award, and by a Neuroscience Scholar Award and start-up funds from the University of Michigan.

Senior Editor

  1. Catherine Dulac, Harvard University, United States

Reviewing Editor

  1. Claude Desplan, New York University, United States

Reviewer

  1. Bassem A Hassan, ICM, France

Publication history

  1. Received: September 28, 2019
  2. Accepted: January 7, 2020
  3. Accepted Manuscript published: January 8, 2020 (version 1)
  4. Version of Record published: February 18, 2020 (version 2)

Copyright

© 2020, Elkahlah et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,130
    Page views
  • 271
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Developmental Biology
    Moran Cohen-Berkman et al.
    Research Article
    1. Developmental Biology
    2. Evolutionary Biology
    Charles C Roseman
    Insight
