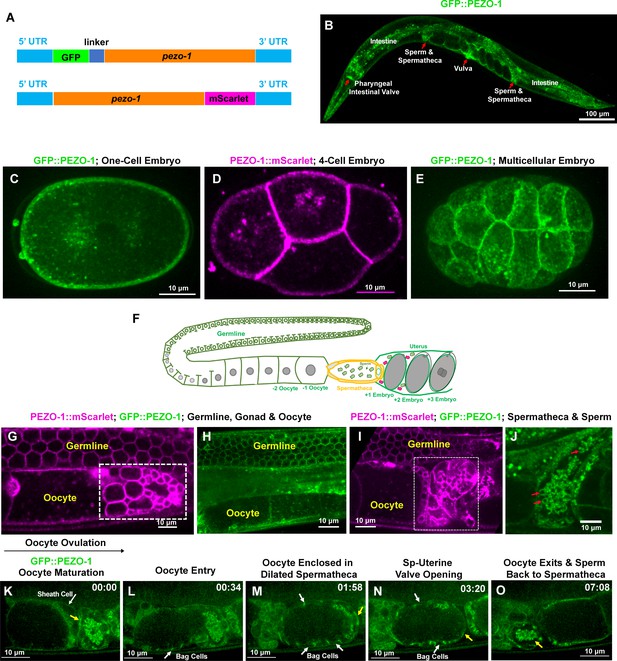

The C. elegans genome encodes a single PIEZO ortholog, pezo-1, of which there are 14 mRNA isoformsas the result of differential splicing and transcriptional start sites (Figure 1—figure supplement 1A; Harris et al., 2019); these 14 isoforms code for 12 different PEZO-1 proteins. All isoforms share a common C-terminus. To visualize the expression pattern of pezo-1 in vivo accurately, we directly knocked-in different fluorescent reporter genes into both the N-terminus and C-terminus of the pezo-1 endogenous locus using CRISPR/Cas9. The C-terminal knock-in reporters should tag all pezo-1 isoforms, whereas the N-terminal knock-in reporters should only tag the eight longest pezo-1 isoforms (Figure 1A, Figure 1—figure supplement 1A). Both GFP and mScarlet were used as reporters to generate N- and C-terminal fusions proteins. GFP::PEZO-1, mScarlet::PEZO-1, and PEZO-1::mScarlet were widely expressed from embryonic stages through adulthood (Figure 1B–E,G–J, Figure 1—figure supplement 1B–G). The genome-edited animals behaved normally, suggesting that tagging PEZO-1 with these fluorescent reporter genes causes no functional disruption. Notably, PEZO-1 is strongly expressed in several tubular tissues, including the pharyngeal-intestinal and spermathecal-uterine valves, which is consistent with our hypothesis that pezo-1 may be responsible for mechanoperception in these tissues (Figure 1B, Figure 1—figure supplement 1B,C). Under higher magnification, we observed PEZO-1 on the plasma membranes of oocytes and embryonic cells during a variety of embryonic stages, suggesting that PEZO-1 is a transmembrane protein (Figure 1C–E). PEZO-1 is expressed in multiple reproductive tissues, including the germline, somatic oviduct, and spermatheca (Figure 1F–J). Higher magnification imaging of the spermatheca revealed that PEZO-1 is also expressed on sperm membranes (Figure 1J). Consistent with the hypothesis that reproductive tissues are regulated by mechanosensitive stimuli in C. elegans, expression of PEZO-1 probably functions to sense physical strain or contractility during ovulation and fertilization. Live imaging and detailed analysis of PEZO-1 expression patterns during reproduction revealed that GFP::PEZO-1 is expressed in sheath cells, sperm, both spermathecal valves and the spermathecal bag cells (Figure 1K–O, Video 1). The fluorescent signal of GFP::PEZO-1 is observed in both spermathecal valves, suggesting that PEZO-1 may function to sense the mechanical stimuli at the valves during ovulation (Figure 1K,M,N, Video 1). As the fertilized oocyte is pushed into the uterus, GFP::PEZO-1-labeled sperm crawl back into the constricting spermatheca after each ovulation (Figure 1O, Video 1). Collectively, these data indicate that PEZO-1 is expressed in the somatic gonadal cells and germline cells.

Figure 1 with 1 supplement see all

Download asset Open asset

Figure 1—source data 1

Number of independent samples were collected for pezo-1 expression pattern in C. elegans.

https://cdn.elifesciences.org/articles/53603/elife-53603-fig1-data1-v3.xlsx

Download elife-53603-fig1-data1-v3.xlsx

Video 1

Download asset

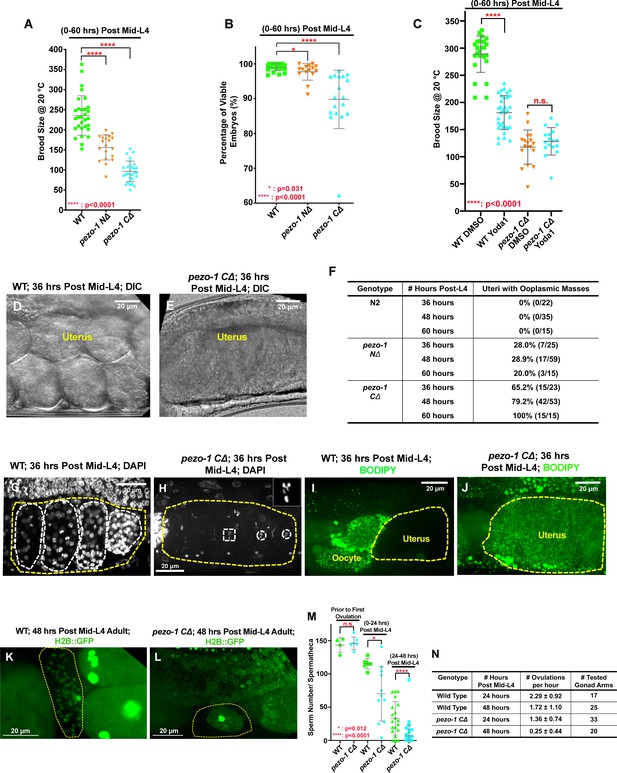

To investigate the function of pezo-1, the phenotypes of pezo-1 knockout (pezo-1^KO) animals were analyzed. Three candidate null alleles were generated by CRISPR/Cas9 genome editing; one allele was a deletion of exons 1–13 (pezo-1 NΔ), a second had a deletion of the last seven exons, 27–33 (pezo-1 CΔ) (Figure 2—figure supplement 1A,B), and a third had a full-length deletion of the entire pezo-1 coding sequence (pezo-1 full deletion). Two other alleles were generated by CRISPR/Cas9: pezo-1(sy1398), which has a deletion of an exon unique to the two shortest isoforms, i and j, and a putative null allele, pezo-1(sy1199), which has a ‘STOP-IN’ mutation in exon 27 that should interfere with translation of the C-termini of all isoforms (Figure 2—figure supplement 1B). Although GFP::PEZO-1 and PEZO-1::mScarlet are expressed widely in adult worms, we did not observe obvious morphological differences between homozygous pezo-1^KO mutants and control animals. However, in all tested pezo-1 mutants, the number of F₁ progeny was significantly lower than in the wild type (Figure 2A, Figure 2—figure supplement 1C). The decrease in brood size was enhanced as animals aged (36–60 hr post mid-L4, Figure 2—figure supplement 1C) or when grown at a higher temperature (25°C, Figure 2—figure supplement 1D). In addition, about 5–25% of F₁ embryos failed to hatch from pezo-1 CΔ homozygous mutants (Figure 2B). To mimic a gain-of-function phenotype in pezo-1, we fed wildtype animals with Yoda1, a PIEZO1-specific chemical agonist that keeps the channel open (Syeda et al., 2015). Reduced brood sizes were observed when wildtype animals were exposed to 20 μM Yoda1 (Figure 2C). This phenotype did not worsen when pezo-1^KO animals were also treated with Yoda (Figure 2C). These data suggest that either deletion or overactivation of PEZO-1 is sufficient to disrupt brood size.

Figure 2 with 1 supplement see all

Download asset Open asset

Figure 2—source data 1

Quantification data describing brood size, the percentage of viable embryos and sperm counts of pezo-1 mutants compared with wild-type.

https://cdn.elifesciences.org/articles/53603/elife-53603-fig2-data1-v3.xlsx

Download elife-53603-fig2-data1-v3.xlsx

Using differential interference contrast (DIC) and confocal microscopy, we analyzed the defects associated with the observed reduction in brood size. Although embryos fill the uterus in wildtype mothers (Figure 2D), a mass of ooplasm in the uteri of both pezo-1^KO and STOP-IN mutants was observed (Figure 2E, Figure 2—figure supplement 1E). Occasionally, a few fertilized embryos were observed inside this mass of ooplasm (data not shown). pezo-1 CΔ and STOP-IN mutants displayed the most severe defects, with 100% of animals having a uterus filled with ooplasm at 60 hr post L4 (Figure 2F, Figure 2—figure supplement 1E). Staining with DAPI in pezo-1^KO uteri revealed chromosome structures that were indicative of diakinesis-staged oocytes (Figure 2H). Sperm chromatin was not clearly observed, so we cannot state for certain that these crushed oocytes were not fertilized. By contrast, only mitotic chromatin of variably aged embryos were detected in control animals (Figure 2G). Consistent with this observation, only unfertilized oocytes and newly fertilized embryos without intact eggshells were stained with the lipophilic dye, BODIPY, in wildtype animals (Figure 2I). BODIPY staining revealed widespread penetration of the entire ooplasmic mass in the uteri of pezo-1 CΔ animals (Figure 2J). These data suggest that some oocytes are not fertilized upon transit through the spermatheca and that these unfertilized oocytes may be crushed when they pass through the spermathecal valves. Although these crushed oocyte phenotypes are reminiscent of those observed in animals depleted of some eggshell components (Johnston et al., 2010), there are notable differences. The pezo-1 mutant oocytes are not fertilized and do not make an eggshell. The lack of fertilization or eggshell synthesis is not likely to be responsible for the crushed oocyte phenotype, because the oocytes in spe mutants survive spermatheca transit and are often laid after passing through the uterus. A more detailed characterization of the ovulation defects is provided below.

In addition to these apparently crushed oocytes, reduced numbers of sperm resident in the spermatheca were observed in Day 1 pezo-1 adults (0–24 hr post mid-L4) and even fewer were observed in the spermathecae in Day 2–3 adults (24–48 hr post mid-L4) compared with wild type (Figure 2K–M). Normal numbers of sperm were present in these mutant hermaphrodites prior to the first ovulation, suggesting that the ability of the sperm to return to the spermatheca after each ovulation was disrupted (Figure 2M). Sperm loss could also contribute to the low brood sizes observed in our pezo-1 mutants.

Ovulation rates were significantly reduced in pezo-1 CΔ Day 2 (post mid-L4 48 hr) animals (Figure 2N), which is consistent with the reduced brood sizes that worsen in Day 2 animals. As the presence of sperm in the spermatheca is known to stimulate ovulation (McCarter et al., 1999; Miller, 2001), the reduction in sperm number could be responsible for this reduction in ovulation rate. Overall, the reduced brood size in pezo-1 mutants is probably due to a combination of defects in multiple tissues, resulting in defective ovulations, crushed oocytes, and defects in the ability of sperm to navigate back into the spermatheca after each ovulation.

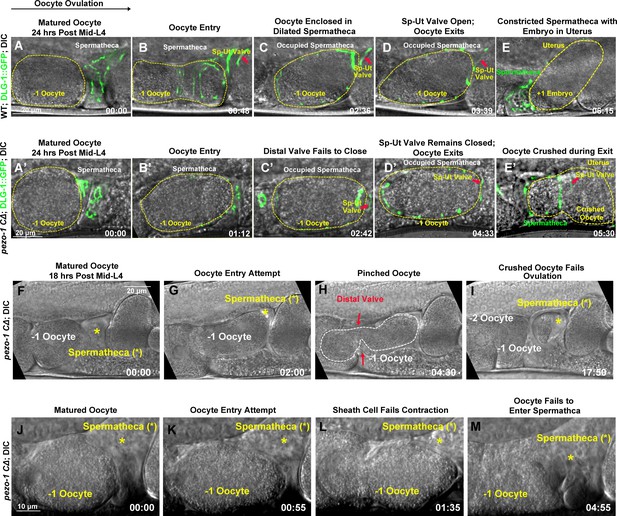

To characterize the transit of oocytes through the spermatheca carefully, we performed live imaging to record the ovulation and fertilization process in both wildtype and pezo-1^KO animals (Figure 3A–E’, Videos 2 and 3). The imaging began with the mature oocyte entering the spermatheca, labeled by the apical junction marker DLG-1::GFP (Figure 3A,B). In wildtype animals, the contracting sheath cells push the oocyte into the spermatheca, and simultaneously pull the open spermatheca over the oocyte (Videos 2 and 3). Once the oocyte enters the spermatheca, both spermatheca valves remain closed during fertilization (Figure 3C). Opening of the sp-ut valve allows the fertilized oocyte to be expelled into the uterus (Figure 3D,E). In pezo-1 mutants, many of the oocytes that did successfully enter the spermatheca were crushed when they exited through the sp-ut valve (Figure 3A′–E′, Videos 2 and 3). We observed that the sp-ut valve, labeled by DLG-1::GFP, did not completely open when the oocyte attempted to exit the spermatheca, which may lead to crushing the oocyte (Figure 3C′–E′, Video 3). The ooplasm from the crushed oocytes accumulated in the uterus (Figure 3E’, Video 3) as a large ooplasmic mass (as shown in Figure 2E). During our analysis of the pezo-1 mutants, we frequently observed that oocytes partially entered the spermatheca but were then pinched off and broken into two pieces, one of which remained trapped in the oviduct (proximal gonad; Figure 3F–I, Video 4). Moreover, some oocytes failed to enter the spermatheca and slid back into the oviduct (Figure 3J–M, Video 5). The defective ovulation is probably due to incomplete constriction of the sheath cells. Overall, disrupted ovulation and oocyte transit defects were observed in pezo-1 mutants, consistent with the decreased brood size observed in all of our pezo-1 mutants.

Figure 3

Download asset Open asset

Figure 3—source data 1

Number of independent samples were collected for imaging ovulation defects in pezo-1 mutants.

https://cdn.elifesciences.org/articles/53603/elife-53603-fig3-data1-v3.xlsx

Download elife-53603-fig3-data1-v3.xlsx

Video 2

Download asset

Video 3

Download asset

Video 4

Download asset

Video 5

Download asset

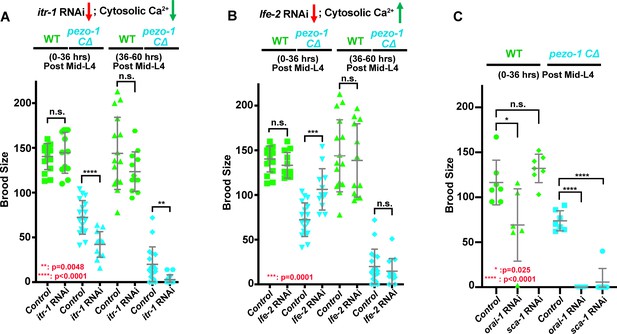

Given that PEZO-1 is the ortholog of mammalian mechanosensitive calcium channels and that Ca²⁺ signaling is a major regulator of C. elegans spermathecal contractility, we tested whether there was suppression or enhancement when pezo-1 mutants were combined with the depletion of several important cytosolic Ca²⁺ regulators. To manipulate potential calcium signaling, an ER Ca²⁺ release channel, ITR-1, and an inositol-1,4,5-triphosphate (IP₃) kinase, LFE-2, were depleted by RNAi in both wildtype and pezo-1 mutants. IP₃ binding to ITR-1 releases Ca²⁺ from the ER, which activates myosin for spermathecal contractility (Bouffard et al., 2019; Clandinin et al., 1998; Kovacevic et al., 2013). Therefore, we hypothesized that combining pezo-1 mutants with itr-1 RNAi would greatly enhance the reduction in brood size if they were both critical to ovulation and fertilization. We carefully calibrated itr-1 RNAi treatment and determined that feeding L4 animals for 36–60 hr produced optimal intermediate conditions that caused minimal developmental defects and normal brood sizes in wildtype animals. Consistent with our hypothesis, feeding itr-1 RNAi resulted in even smaller broods than those observed in pezo-1 mutants alone (Figure 4A). By contrast, feeding lfe-2 RNAi, which should elevate cytosolic Ca²⁺, partially rescued the reduced brood size (Figure 4B). Therefore, pezo-1^KO mutants were further compromised with itr-1 (RNAi), yet partially rescued when combined with lfe-2 (RNAi). Similarly, depletion of the plasma membrane Ca²⁺ channel orai-1, which is activated to replenish Ca²⁺in the cytosol from an extracellular source (Lorin-Nebel et al., 2007), led to nearly zero brood size in pezo-1 CΔ mutant but only a 40% reduction in brood size in wild type (Figure 4C). Furthermore, disruption of ER Ca²⁺ stores with sarcoplasmic/ER Ca²⁺ ATPase (SERCA) sca-1 (RNAi) (Yan et al., 2006) also caused an extremely low brood size in pezo-1 CΔ (Figure 4C), whereas sca-1 (RNAi) slightly increased the brood size in wild type (Figure 4C). Therefore, these observations are consistent with the hypothesis that pezo-1 may function in cytosolic and ER Ca²⁺ homeostasis, which is crucial for proper spermathecal contractility and dilation. pezo-1 mutants show normal calcium signaling in spermatheca cells during ovulation.

Figure 4

Download asset Open asset

Figure 4—source data 1

Quantification of brood size for genetic interaction of pezo-1 mutants with RNAi depletion of calcium regulators.

https://cdn.elifesciences.org/articles/53603/elife-53603-fig4-data1-v3.xlsx

Download elife-53603-fig4-data1-v3.xlsx

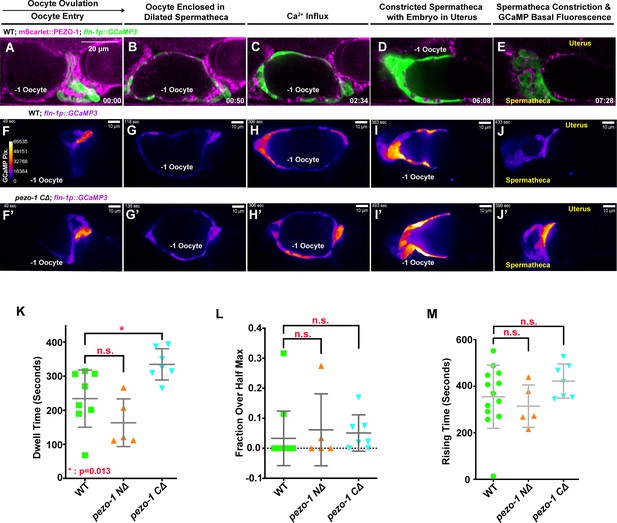

Owing to the permeability of PIEZO channels to Ca²⁺ and the importance of calcium signaling in regulating spermathecal contractility, we tested whether the deletion of pezo-1 disrupted cytosolic Ca²⁺ homeostasis. We imaged oocyte passage through the spermathecae of both wild type and pezo-1 mutants expressing the Ca²⁺ indicator GCaMP3, which was driven by a spermatheca-specific fln-1 promoter (Bouffard et al., 2019; Kovacevic et al., 2013). Co-localization of the GCaMP3 transgene with mScarlet::PEZO-1 in the spermatheca suggested that this transgene would be useful for the analysis of pezo-1 function in spermathecal calcium signaling (Figure 5A–E, Video 6). To determine whether calcium signaling was altered in our pezo-1 mutants, a set of high-speed GCaMP imaging data from different animals was generated and the average pixel intensity of each frame was quantified (Figure 5F–J', Figure 5—figure supplement 1A–D, Video 6). We defined the initial time frame as the time just before the oocyte entered the spermatheca. In wildtype animals, the fluorescent intensity of GCaMP3 at the sp-ut valve immediately increased when the oocyte entered the spermatheca (Figure 5A,F and F', Videos 6 and 7). During fertilization, an increase in intensity of GCaMP3 was frequently observed in the bag cells and the sp-ut valve until the oocyte exited the spermatheca (Figure 5B–D,G–I and G'–I', Videos 6 and 7). The GCaMP3 signal decreased to basal intensity after the fertilized oocyte was expelled into the uterus (Figure 5E,J and J', Videos 6 and 7). To quantify statistically and to analyze the oocyte transit, we defined a series of parameters, including the dwell time and two calcium signaling metrics from the GCaMP3 time series (Bouffard et al., 2019). A spermathecal tissue function metric, dwell time, is defined as the time from spermathecal distal valve closure to sp-ut valve opening, which represents the time during which the oocyte resides in the enclosed spermatheca. The calcium signaling metric, fraction over half max, is defined as the duration of the dwell time over the GCaMP3 half-maximal value divided by the total dwell time. The fraction over half max allows us to capture the relative level of calcium throughout the time during which the embryo passes through the spermatheca. Rising time indicates the time from the opening of the distal valve to the first time point at which the GCaMP fluorescent intensity reaches half maximum (Bouffard et al., 2019). In pezo-1 CΔ mutants, longer transit times of the oocyte through the spermatheca resulted in elongated dwell times (Figure 5K, Video 7), suggesting that deletion of pezo-1 resulted in disrupted tissue function. Surprisingly, GCaMP3 fluorescence in pezo-1 was not significantly different from that in the wildtype (Figure 5L,M, Video 7; see 'Materials and methods'). GCaMP3 time series (Figure 5—figure supplement 1A,B, Video 7), heat maps (Figure 5—figure supplement 1C), and kymograms (Figure 5—figure supplement 1D,E) also displayed normal Ca²⁺ levels during oocyte passage through the spermatheca in pezo-1 mutants. It should be noted that we only imaged the GCaMP3 reporter during the very first three ovulations in young adult animals to avoid Ca²⁺ signaling interference from a distorted gonad morphology and mechanical pressure from a gravid uterus. Furthermore, it is difficult to monitor older pezo-1 hermaphrodites as they do not ovulate on microscope slides. As only mild defects were observed in the pezo-1 mutants during these early ovulations and oocyte transit defects increased in severity over time (Figure 2F), our data does not exclude the possibility that Ca²⁺ signaling may be more severely disrupted as the animal goes through more ovulation cycles. Alternatively, the live imaging assay may not be sensitive enough to detect subtle variations in calcium signaling.

Figure 5 with 1 supplement see all

Download asset Open asset

Figure 5—source data 1

Quantification of calcium metrics in pezo-1 mutants and wild-type.

https://cdn.elifesciences.org/articles/53603/elife-53603-fig5-data1-v3.xlsx

Download elife-53603-fig5-data1-v3.xlsx

Video 6

Download asset

Video 7

Download asset

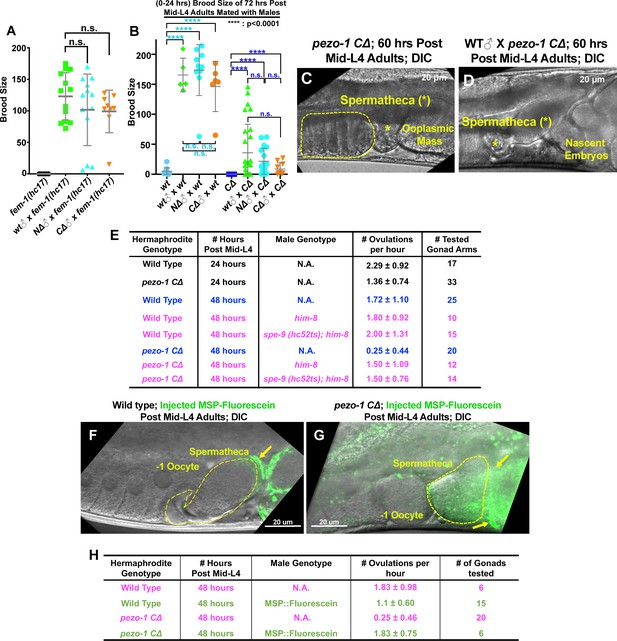

In C. elegans, successful ovulation and fertilization requires signal coordination between sperm, oocytes, and sheath cells (Han et al., 2010). Given that PEZO-1 is expressed in these tissues, it is plausible that oocyte transit defects and reduced brood sizes are the result of impaired inter-tissue signaling, which may be mediated by PEZO-1. To investigate how this may occur, bidirectional signaling between sperm and oocytes was first tested. To test for the ability of sperm to fertilize oocytes, both wildtype and pezo-1 mutant males were mated with fem-1(hc17) hermaphrodites, which do not produce any sperm or self-progeny (Doniach and Hodgkin, 1984) and are essentially females. The fem-1(hc17) animals produced cross-progeny after mating with pezo-1 mutant males, indicating that the pezo-1 mutant males are fertile and that their sperm can crawl through the uterus to the spermatheca upon mating (Figure 6A). As pezo-1 mutant hermaphrodites do not produce any self-progeny after Day 3 (60 hours post mid-L4) (Figure 6B), we tested whether mating with either wildtype or mutant males would result in any cross progeny in the aged pezo-1 mutants. pezo-1 mutant hermaphrodites resumed ovulation and fertilization upon mating once the male’s sperm (from either wildtype or pezo-1 males) reached the spermatheca (Figure 6B–D). To test whether sperm signaling was defective in inducing ovulation in pezo-1 mutants, we mated both spe-9(hc52ts) and control him-8(e1489) males with both wildtype and pezo-1 mutant hermaphrodites. spe-9(hc52ts) male sperm can physically contact the oocytes but fail to fertilize them, although the sperm signaling is apparently normal and triggers ovulation (Singson et al., 1998). Interestingly, the low ovulation rate in older pezo-1 CΔ animals was significantly rescued by spe-9(hc52ts) sperm (Figure 6E), although the ovulated oocytes were not fertilized. An additional experiment was performed to test the ability of the sheath to respond to the sperm signal that triggers ovulation. Even though our data in Figure 6E suggest that just the presence of sperm can trigger ovulation, we went on to show that purified MSP-fluorescein can also trigger ovulation in older pezo-1 C∆ hermaphrodites that are depleted of sperm and are no longer ovulating (Figure 6F–H). Overall, these data suggest that the absence of self-sperm contributes to a profound reduction of oocyte maturation, ovulation rate, and self-fertility in the aged pezo-1 mutants.

Figure 6 with 1 supplement see all

Download asset Open asset

Figure 6—source data 1

Quantification of sire progeny in different mating assays.

https://cdn.elifesciences.org/articles/53603/elife-53603-fig6-data1-v3.xlsx

Download elife-53603-fig6-data1-v3.xlsx

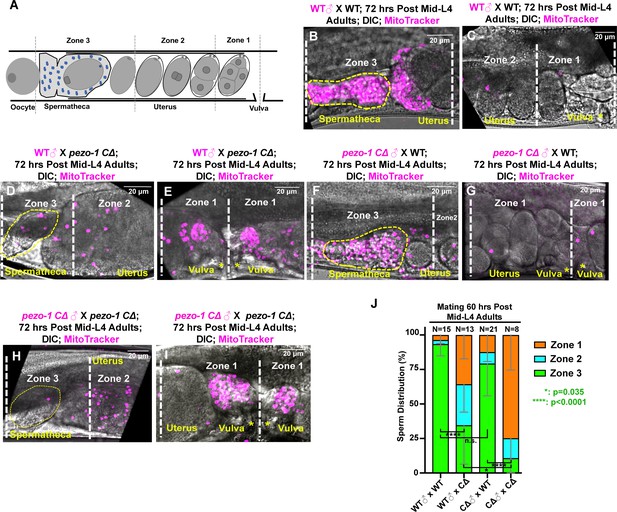

In wildtype hermaphrodites, the sperm are constantly being pushed out of the spermatheca each time the sp-ut valve opens to expel the fertilized oocyte into the uterus. These sperm, however, are fully capable of crawling back to the spermatheca to induce high levels of oocyte maturation and ovulation (Miller, 2001; Miller et al., 2003). This is a very efficient mechanism, such that almost every self-sperm in a hermaphrodite is used to fertilize an oocyte. It is sperm number that defines brood size; oocytes are in excess. Oocytes secrete F-series prostaglandins derived from polyunsaturated fatty acids (PUFAs) to guide sperm to the spermatheca (Han et al., 2010; Kubagawa et al., 2006). To test whether pezo-1 hermaphrodites fail to attract the sperm back to the spermatheca, male sperm navigational performance was assessed in vivo by staining males with a vital fluorescent dye, MitoTracker CMXRos, which efficiently stains sperm in live animals (Whitten and Miller, 2007). Both wildtype and pezo-1 CΔ stained males were mated to non-labeled wildtype hermaphrodites for 30 min. The sperm distribution was assessed and quantified by dividing the uterus into three zones (Figure 7A) and counting the number of fluorescent sperm in each zone (McKnight et al., 2014) one hour after males were removed from the mating plates. In wildtype hermaphrodites, most fluorescent sperm from both wildtype and pezo-1 CΔ males navigated through the uterus and accumulated in the spermatheca (Figure 7B,C,F,G). However, fewer fluorescent male sperm reached the spermatheca in Day 3 adult pezo-1 CΔ hermaphrodites, and most sperm remained throughout zones 1 and zone 2, the zones furthest from the spermatheca (Figure 7D,E,H,I). This was observed for both wildtype and pezo-1 mutant male sperm in mating with pezo-1 CΔ hermaphrodites (Figure 7J). These observations suggest that in the reproductive tracts of wildtype hermaphrodites, pezo-1 mutant male sperm are motile and display normal navigational behavior. However, in pezo-1 mutant hermaphrodite reproductive tracts, both wildtype and pezo-1 mutant sperm were compromised in their navigational behavior over the time frame of this experiment. Although it remains possible that the ooplasmic masses that accumulate in the uterus of pezo-1 mutant hermaphrodites could physically interfere with the migration of wildtype and pezo-1 mutant sperm back to the spermatheca, our labeled sperm experiments with female pezo-1 mutants (see below) suggest that this is not a likely explanation.

Figure 7

Download asset Open asset

Figure 7—source data 1

Quantification of sperm count in sperm distribution assays.

https://cdn.elifesciences.org/articles/53603/elife-53603-fig7-data1-v3.xlsx

Download elife-53603-fig7-data1-v3.xlsx

To test whether the defective ovulation and sperm attraction were just self-sperm problems, we generated the same pezo-1 CΔ (used throughout this study) in temperature-sensitive fem-1(hc17ts) females. In pezo-1 CΔ female mutants, the number of F₁ progeny was significantly reduced compared with that in control fem-1(hc17ts) at the permissive temperature of 15°C, which allows for the production of self-sperm (Figure 6—figure supplement 1A). We then mated these Day 2 (36 hours post mid-L4) females with both wildtype and mutant males and scored for cross progeny at the non-permissive temperature of 25°C. The male sperm were labeled by MitoTracker CMXRos before mating. We carefully quantified the number of male sperm in the reproductive tract of the pezo-1 C∆ females after mating for 30 min (Figure 6—figure supplement 1B). All tested female animals sired crossed progeny but at greatly reduced levels in pezo-1 CΔ females (Figure 6—figure supplement 1C,D). This suggests that the attractive signal from the oocytes or sheath cells are defective in their ability to attract male sperm to the spermatheca. Thus, the defect in the ability to attract sperm to the spermatheca is not just a self-sperm problem; cross sperm from males also fail to migrate to the spermatheca.

The data shown in Figure 6A and B suggest that mutant sperm, when mated with WT hermaphrodites or fem-1 females, can migrate to the spermatheca and fertilize a large number of oocytes. However, when mated into the pezo-1 C∆ hermaphrodites, these mutant sperm do sire cross progeny but at greatly reduced levels compared to wildtype male sperm (Figure 6B, right side). This result supports the conclusion that an attractive signal from the oocytes or sheath cells is missing or reduced in pezo-1 hermaphrodites. Thus, we believe that there is no problem with the ability of sperm to crawl and fertilize oocytes.

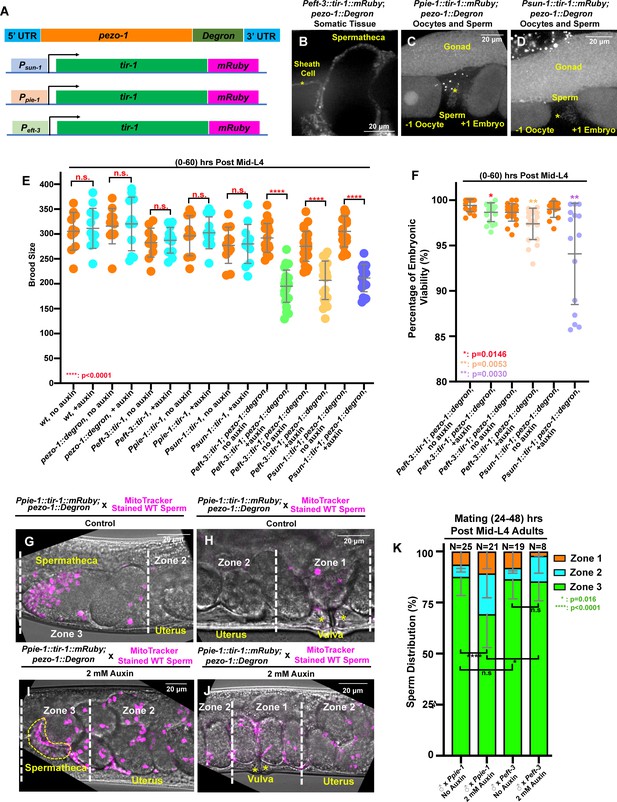

Our study aims to reveal the role of PEZO-1 in regulating reproduction and coordinating inter-tissue signaling. To dissect PEZO-1 function in distinct tissues, we utilized an auxin-inducible degradation system (AID) to degrade PEZO-1 in the soma and the germ line (Zhang et al., 2015). We knocked-in the degron coding sequence at the pezo-1 C-terminus using CRISPR/Cas9, so that all isoforms would be targeted (Figure 8A). To activate the AID system, this line was then crossed with the strains expressing the degron interactor transgene tir-1::mRuby driven by the following promoters: P_eft-3, P_pie-1 and P_sun-1 (Zhang et al., 2015). P_eft-3::tir-1::mRuby was expressed in most or all somatic tissues, including the spermatheca and the sheath cells (Figure 8B), whereas P_pie-1::tir-1::mRuby and P_sun-1::tir −1::mRuby were expressed in the germ line (Figure 8C,D). Weak TIR1-1::mRuby expression was observed in the sperm and oocytes of the germline strains (Figure 8C,D, Figure 8—figure supplement 1A–C).

Figure 8 with 3 supplements see all

Download asset Open asset

Figure 8—source data 1

Quantification of brood size and sperm counts in each AID strain.

https://cdn.elifesciences.org/articles/53603/elife-53603-fig8-data1-v3.xlsx

Download elife-53603-fig8-data1-v3.xlsx

To assess the efficacy of PEZO-1 degradation in different reproductive tissues, we generated a strain in which the pezo-1 gene was tagged at its N-terminus with GFP and at its C-terminus with the degron (GFP::PEZO-1::Degron). This strain was crossed with the strains expressing tir-1::mRuby driven by the three different promoters described above (Figure 8—figure supplement 2B–B′′; D–D′′, F–F′′). GFP::PEZO-1::Degron strongly expresses at the plasma membrane of germline cells, oocytes, sperm, somatic sheath cells, and spermathecal cells (Figure 8—figure supplement 2A–A′′, B–B′′, D–D′′, F–F′′). The animals were exposed to either 0.25% ethanol as control or 2 mM auxin (indole-3-acetic acid, or IAA) for one generation, and the GFP fluorescent intensity in their F₁ progeny was analyzed. The strain expressing the degron interactor transgene P_eft-3::tir-1::mRuby had a significant reduction of the fluorescent intensity of GFP::PEZO-1::Degron at the sheath and spermathecal cells (Figure 8—figure supplement 2C–C′′). GFP fluorescence intensities in the germline and on oocytes in the germline-specific GFP::PEZO-1::Degron animals were 2–3 fold lower when the animals were exposed to auxin, but the intensities were not affected in the somatic tissues (Figure 8—figure supplement 2E–E′′, G–G′′, H, I). Therefore, auxin-inducible degradation of GFP::PEZO-1::Degron in the different tissues is consistent with the TIR-1::mRuby expression pattern.

To characterize further the defects associated with the degradation of PEZO-1 in these different tissues, L4 animals were exposed to either 0.25% ethanol as control or 2 mM auxin, and brood sizes were determined 0–60 hr post L4 (Day 1–3). Interestingly, the brood sizes were significantly reduced in each of the PEZO-1::Degron strains compared with control, regardless of the promoter used. However, the reduction in brood size was less severe than that observed in the pezo-1^ko mutants (Figures 8E,F and 2A). To ensure efficient degradation, we exposed animals to auxin for one generation and analyzed the brood size of their F₁ progeny. This longer auxin exposure did not significantly enhance the reduction in brood size (data not shown).

Depletion of PEZO-1 in the somatic tissues, including spermathecal and sheath cells, led to a variety of ovulation defects (Figure 8—figure supplement 3A–I). Pinched oocytes were frequently observed during ovulation (N = 9/27, Figure 8—figure supplement 3I). A fraction of the pinched oocytes entered the spermatheca, whereas the rest were left in the oviduct (Figure 8—figure supplement 3C,D,I). Surprisingly, most of the pinched oocytes were successfully expelled into the uterus and underwent embryogenesis as smaller embryos (data not shown). In addition, the process of oocyte entry into the spermatheca was frequently delayed or blocked (Figure 8—figure supplement 3E–I), suggesting that the distal spermathecal valve remained closed. In experiments in which wildtype sperm were in vivo labeled as described earlier, and mated into control and somatic-specific PEZO-1::Degron hermaphrodites, nearly 90% of the labeled sperm reached the spermatheca (zone 3) and only a few labeled sperm were observed in the uterus (Figure 8G,H,K). Notably, the ooplasmic uterine masses that we observed in our pezo-1^ko mutants were rarely observed in the somatic-specific degron strain.

Consistent with our male mating experiments, only 69% of the MitoTracker-labelled wildtype sperm accumulated at the spermatheca (zone 3) in the germline-specific PEZO-1::Degron animals exposed to auxin (Figure 8I–K). The remaining sperm were observed throughout the whole uterus (zones 1 and 2) after one hour of mating (Figure 8I,J). Crushed oocytes were rarely observed in the uterus of the germline-specific PEZO-1::Degron animals, in which the sperm distribution assay was performed. Therefore, the degradation of PEZO-1 in the germ line did not cause the severe uterine ooplasmic masses as we have observed for our pezo-1^ko mutants but it did interfere with sperm navigation to the spermatheca, suggesting impaired attractant signaling. This is a more likely explanation as uterine ooplasmic masses are not a physical impediment that could account for the defects in sperm migration.

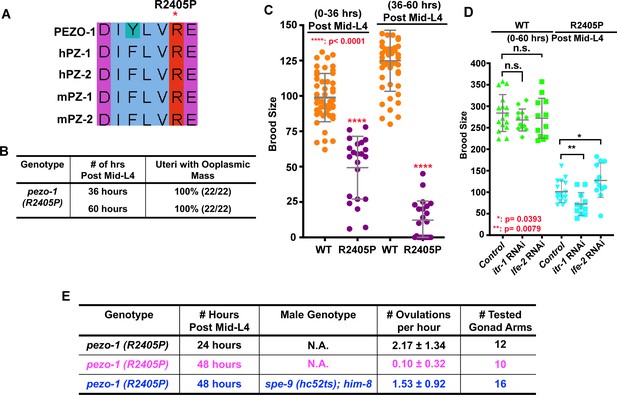

PIEZO patient-specific alleles, which are known to disrupt the normal physiological functioning of the cardiovascular, musculoskeletal, and blood systems in humans, were the motivation for examining the role of pezo-1 in the tubular structures of C. elegans. Our studies with null alleles of pezo-1 provide strong evidence that pezo-1 is essential for normal C. elegans reproduction. It is therefore reasonable to model human monogenic diseases that are associated with PIEZO1 and PIEZO2 mutations using the C. elegans reproductive system as a read-out of function. Individuals diagnosed with Dehydrated Hereditary Stomatocytosis (DHSt) were found to have a missense mutation in a conserved arginine residue (R2488Q) of PIEZO1. The orthologous residue (R2718L/P) was also mutated in PIEZO2 in individuals with Distal Arthrogryposis type 5 (DA5) (Andolfo et al., 2013; Coste et al., 2013; Li et al., 2018; McMillin et al., 2014).

Previous studies have shown that these arginine changes are functioning as gain-of-function mutations in their respective PIEZO protein (Albuisson et al., 2013; Coste et al., 2013; Li et al., 2018; McMillin et al., 2014). Sequence alignment indicated that R2405 in C. elegans PEZO-1 is the arginine residue homologous to both R2488 in human PEIZO1 and R2718 in human PIEZO2 (Figure 9A). Using CRISPR/Cas9, we generated the patient-specific PIEZO2 allele (p.R2718P) in C. elegans, named pezo-1(R2405P). To compare this patient-specific allele with that of our null alleles, and to determine the phenotypic consequences of a patient-specific allele, homozygous animals carrying the pezo-1(R2405P) mutation were created. Such homozygotes displayed reproductive defects similar to the pezo-1^ko mutants, including reduced ovulation rates, ooplasmic uterine masses (Figure 9B), and reduced brood sizes (Figure 9C). In addition, the phenotypes of pezo-1(R2405P) homozygotes were mildly enhanced in combination with itr-1 RNAi and suppressed with lfe-2 RNAi, consistent with our findings with pezo-1^ko mutants (Figure 9D). Interestingly, similar to the rescue assay in pezo-1 CΔ, the reduced ovulation rate in pezo-1(R2405P) was also significantly rescued by spe-9(hc52ts) sperm, suggesting that this variant of pezo-1 may similarly disrupt ovulation and sperm-to-sheath signaling, leading to self-sterility (Figure 9E). Overall, these observations support the idea that C. elegans is an appropriate model system for the study of PIEZO diseases. Future suppressor screens with this and other pezo-1 patient-specific alleles should help to identify other genetic interactors.

Figure 9

Download asset Open asset

Figure 9—source data 1

Quantification of brood size in mutants for the patient-specific allele pezo-1(R2405P) and the genetic interaction of pezo-1(R2405P) with the RNAi depletion of calcium regulators.

https://cdn.elifesciences.org/articles/53603/elife-53603-fig9-data1-v3.xlsx

Download elife-53603-fig9-data1-v3.xlsx

Ovulation is driven by the rhythmic and coordinated contraction of the gonadal sheath cells and the opening of the spermathecal distal valve (McCarter et al., 1999). Similarly, expulsion of the fertilized zygote into the uterus is achieved by the contraction of the spermatheca and the opening of the spermathecal-uterine valve. Mutations in the pezo-1 gene cause dramatic effects on this entire process. We observed sheath cell defects such that the mature oocyte was not properly pushed into the spermatheca. In addition, spermathecal valve defects either inhibited proper entry of the oocyte into the spermatheca, or proper exit. In many cases, the oocyte was crushed as it progressed through the spermatheca, resulting in accumulation of ooplasm in the uterus. Genetic interactions between pezo-1 mutants and itr-1 or lfe-2 RNAi support the idea that pezo-1 may play a role in maintaining Ca²⁺ homeostasis during ovulation and zygote expulsion from the spermatheca. This is consistent with previous studies showing PIEZO1 responses to mechanical stimuli through Ca²⁺ signaling (He et al., 2018; Li et al., 2014).

On the basis of the present studies, we hypothesize a few possible pathways for a Ca²⁺-mediated response to mechanical stimuli to which PEZO-1 may contribute. One possibility is that PEZO-1 may detect when cytosolic Ca²⁺ levels are extremely low and might replenish the cell with extracellular Ca²⁺, in a manner similar to that involving the CRAC channel ORAI-1 (Lorin-Nebel et al., 2007). Consistent with this idea, our genetic data revealed an enhancement of the pezo-1 phenotype upon CRAC channel orai-1 RNAi, which is responsible for replenishing cytosolic Ca²⁺ (Figure 4C). This suggests that PEZO-1 and ORAI-1 act in parallel pathways to replenish cytosolic Ca²⁺.

Previous studies identified the ER Ca²⁺ pump sarco/endoplasmic reticulum Ca²⁺ ATPase (SERCA) as an interacting partner of PIEZO1, which suppresses PIEZO1 activation (Zhang et al., 2017). SERCA is essential for recycling Ca²⁺ into SR/ER Ca²⁺ stores, which is an important process for maintaining Ca²⁺ homeostasis during tissue contractility (Periasamy and Huke, 2001; Zwaal et al., 2001). PIEZO1 has been reported to be involved in integrin activation to recruit the small GTPase R-Ras to the ER, which promotes Ca²⁺ release from an intracellular store to the cytosol (McHugh et al., 2010). These observations suggest that PEZO-1 may act as an ER Ca²⁺ channel to regulate ER Ca²⁺ homeostasis.

Last, normal spermathecal GCaMP fluorescence was observed during the first three ovulations in pezo-1 mutants, suggesting that other Ca²⁺ or mechanosensitive channels may perform redundant functions during Ca²⁺ influx. One alternative model could be that PEZO-1 acts in parallel to these Ca²⁺ regulators and yet does not have a direct role in calcium homeostasis itself. Future studies will be required to resolve the precise molecular effect of PEZO-1 on Ca²⁺ and to understand how PEZO-1 regulates inter/intra cellular communication with/without Ca²⁺ and potentially how other interacting partners coordinate during these processes.

C. elegans employs multiple peptide and lipophilic hormones to coordinate different tissues during reproduction. Ovulation is initiated by MSP (major sperm proteins) signaling derived from sperm to trigger oocyte maturation and sheath cell contraction (Kuwabara, 2003; McCarter et al., 1999; Miller, 2001). After each fertilization event, oocytes secrete F-series prostaglandins (F-PGs) into the extracellular environment of the reproductive tract and stimulate sperm attraction back to the spermatheca (Hoang et al., 2013). Our observations revealed a strong expression of PEZO-1 on the plasma membranes of both oocytes and sperm. Dysfunction of pezo-1 causes a severe reduction of the ovulation rate and defective sperm navigation back to the spermatheca in aged animals. Male mating significantly rescued the very low ovulation rate in pezo-1 mutants, as did the injection of purified fluorescently tagged MSP. Furthermore, the sperm navigation defects were observed in the germline-specific degradation of PEZO-1 animals, which showed fewer sperm successfully navigating back to the spermatheca. Collectively, depletion of PEZO-1 disrupted the ability of sperm to navigate back to the spermatheca, which may contribute to the reduced ovulation rate and defective sheath cell contraction.

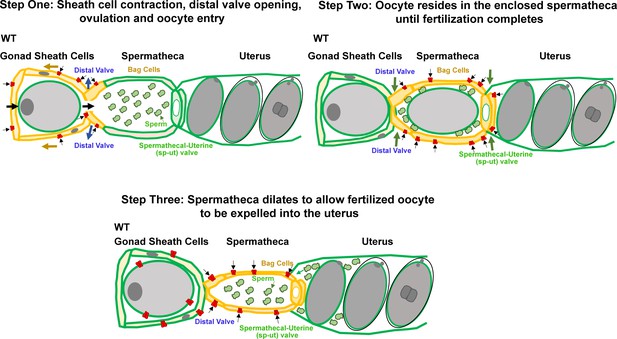

Our study supports the working model that PEZO-1 functions to promote the sheath cell contractions that push the oocyte into the spermatheca as the first step in ovulation (Figure 10, step 1). Simultaneously, PEZO-1 may play a role in sensing the sheath cell contractions and in triggering the spermathecal distal valve to open to allow oocyte entry into the spermatheca. During fertilization, the distal and spermathecal-uterine valves have to remain closed, which is probably influenced by PEZO-1 (Figure 10, step 2). After fertilization, PEZO-1 regulates the spermathecal tissues and controls the sp-ut valve to trigger a series of events to expel the fertilized oocyte into the uterus. Last, PEZO-1 appears to function in the attraction of the sperm back into the spermatheca after being pushed out by the exiting of the newly fertilized oocyte (Figure 10, step 3). Thus, dysfunction of PEZO-1 may contribute to multiple defects in all of these steps, including failure of oocyte entry into the spermatheca, the crushing of oocytes as they transit through the ovary and spermatheca, and defective sheath-to-sperm signaling that perturbs the ability of sperm to crawl back into the spermatheca after each ovulation (Figure 10). Future studies are underway to determine the PEZO-1 function in each tissue (sheath, spermatheca, oocyte, and sperm) more precisely using even more cell-specific promoters in the AID degradation system.

Figure 10

Download asset Open asset

Clinical reports indicate that either gain-of-function or loss-of-function mutations in human PIEZO1 and PIEZO2 cause a variety of physiological disorders (Alper, 2017). Interestingly, both gain-of-function and loss-of-function missense mutations were identified in the same PIEZO disease, such as hydrops fetalis and lymphatic dysplasia. However, the molecular mechanism underlying both extremes of PIEZO channel dysfunction remains unclear (Alper, 2017). Complete knockout of PIEZO1 and PIEZO2 in mammalian models results in embryonic lethality and fetal cardiac defects, suggesting an important role of PIEZO1/2 in embryonic and cardiac development (Ranade et al., 2014; Zhang et al., 2019). However, the lack of surviving homozygous PIEZO1/2 mutants in mammalian models makes it challenging to investigate the PIEZO function during embryogenesis and development.

A DA5 patient-specific allele in the C. elegans pezo-1 gene displayed reproductive phenotypes that were identical to those of our pezo-1 deletion mutants, suggesting that this allele must be loss-of-function. The observation that our pezo-1 deletion strains and a putative patient-specific gain-of-function mutation both lead to reproductive defects suggests that either hypomorphic or hypermorphic PEZO-1 channel activity is harmful. Therefore, our study demonstrates the usefulness of C. elegans as a model system to investigate PIEZO-derived human diseases.

The phenotypes described here in C. elegans do not exactly resemble those of the PIEZO-derived human diseases, but there are similarities at the cellular level that may be relevant to the human diseases. Stretch-sensitive channels from the Piezo family are important for vascular development and lymphatic valve formation. In zebrafish, Piezo channels sense fluid flow to regulate both endothelial and smooth muscle cell maturation and heart valve development (Duchemin et al., 2019). In mice, PIEZO1 is required for the formation of lymphatic valves, a key structure for proper lymphatic circulation in the body (Nonomura et al., 2018). However, both the mechanisms by which Piezo proteins operate and the proteins with which they interact remain unclear. In our study, we introduce a facile in vivo system for the study of PEZO-1 in the reproductive tract of C. elegans, a tubular tissue (spermatheca) with valves (spermatheca-uterine valve and distal valve) that must sense the incoming and exiting oocyte during ovulation and fertilization. The formation and function of these structures are probably conserved between humans and C. elegans.

The dramatic reduction in brood size that we observed in all of our pezo-1 mutants will allow us to screen plausible chemical antagonists and agonists for PIEZO1 and PIEZO2 patient-specific alleles in vivo. In summary, we have demonstrated that the C. elegans PIEZO1/2 ortholog pezo-1 is required for efficient reproduction, and demonstrate the utility of C. elegans for the study of PIEZO functions. Future studies will determine whether other patient-specific alleles disrupt ovulation and sperm navigational signaling. Using promoters with more restricted expression patterns, the tissue-specific degradation system used in this report will also allow us to further dissect the cells or tissues that influence each of the phenotypes that we observed in this study. Future genetic and FDA-approved drugs screens will be used to identify putative suppressors in pezo-1 mutants. These screens may provide insightful approaches for future clinical therapy.

C. elegans strains were maintained with standard protocols. Strain information is listed in Table 1. AG493, AG494 and AG495 were created by crossing AG487 (pezo-1::Degron) males with hermaphrodites containing ieSi65 [Psun-1::tir1::sun-1 3′UTR + Cbr-unc-119(+)] II, ieSi57 [Peft-3::tir1::mRuby::unc-54 3'UTR + Cbr-unc-119(+)] II, and fxIs1[Ppie-1::tir1::mRuby] I, respectively. We screened the F₃ adults for the presence of the tir-1::mRuby transgene by microscopy and genotyped for the pezo-1::Degron by PCR. AG532 was created by crossing pezo-1(av146 [gfp::pezo-1]) IV males with the unc-119(ed3); pwIs98 [YP170::tdimer2 + unc-119(+)] III hermaphrodites containing YP170::tdimer2. F₃ adults with YP170::tdimer2 were genotyped by PCR screening for the pezo-1^KO allele.

The RNAi-feeding constructs were obtained from the Ahringer and Vidal libraries (Fraser et al., 2000; Rual et al., 2004). RNAi bacteria were grown until log phase was reached and spread on MYOB plates containing 1 mM IPTG and 25 μg/ml carbenicillin and incubated overnight. To silence the target genes itr-1 and lfe-2, mid-L4 hermaphrodites were picked onto plates with the IPTG-induced bacteria. Animals were grown on RNAi plates at 20°C for 36–60 hr. In order to improve the RNAi penetrance of orai-1 and sca-1, L1 hermaphrodites were picked for RNAi-feeding assays. Alternatively, mid-L4 hermaphrodites were incubated on the orai-1 or sca-1 RNAi plates for one generation, and F₁ mid-L4 hermaphrodites were moved to fresh RNAi plates for brood size assays.

Single mid-L4 hermaphrodites were picked onto 35 mm MYOB plates seeded with 10 μl of OP50 bacteria and allowed to lay eggs for 36 hr (plate one contains the brood size from 0 to 36 hr post mid-L4). The same hermaphrodite was moved to a new 35 mm MYOB plate to lay eggs for another 24 hr and then were removed from the plate (this plate contains the brood size from 36 to 60 hr post mid-L4). Twenty-four hours after removing the mothers, only fertilized embryos and larvae were counted to determine brood size. Brood sizes were determined at 36 hr and 60 hr. Percentage of embryonic viability = (the number of hatched larva/the total brood size) *100%.

BODIPY 493/503 (Invitrogen # D3922) was dissolved in 100% DMSO to 1 mg/ml. BODIPY stock was diluted by M9 to 6.7 μg/ml BODIPY (final concentration of DMSO was 0.8%) as the working stock. Hermaphrodites were washed in M9 three times and incubated in 6.7 μg/ml BODIPY for 20 min and then washed again in M9 at least three times. All washes and incubations were performed in a concavity slide (ThermoFisher, # S99369). The stained hermaphrodites were anesthetized with 0.1% tricaine and 0.01% tetramisole in M9 buffer for 15–30 min. The anesthetized animals were then transferred to a 5% agarose pad for imaging. Image acquisition was captured using a Nikon 60 × 1.2 NA water objective with 1 μm z-step size.

Animals were washed in M9 in a concavity slide, and then transferred to 1 μl of egg white/M9/azide on SuperFrost slides (Daigger # EF15978Z). Alternatively, animals were directly picked from plates into egg white/M9/azide, trying not to carry over too much bacteria. With an eyelash, buffer around animals was spread out to a very thin layer, until the animals were almost desiccated onto the slide. Slides were immersed in a Coplin jar containing Carnoy’s fixative and fixed for a minimum of 1.5 hr or for as long as one week at room temperature or 4°C. Sequential ethanol (EtOH) rehydration was carried out in coplin jars containing about 50 ml of the following solutions for 2 min each: 90% EtOH in water, 70% EtOH in water, 50% EtOH in PBS, 25% EtOH in PBS, and PBS alone. Slides were then immersed in coplin jars containing DAPI stain (1 μg/ml) in PBS for 10 min. Slides were rinsed three times, 5 min each, in PBS. A drop of Vectashield mounting medium (#H-1500–10) was added, as was a coverslip, followed by nail polish to seal the coverslip. Image acquisition was captured by a Nikon 60 × 1.2 NA water objective with 1 μm z-step size.

Yoda1 (Tocris # 5586) was dissolved in DMSO to a stock concentration of 2.5 mM. This stock was added to 100 ml MYOB medium to a final concentration of 20 µM. Single mid-L4 hermaphrodites were picked onto 35 mm Yoda1-supplemented MYOB plates and control DMSO-only MYOB plates, each seeded with 10 μl of OP50 bacteria and allowed to lay eggs for 36 hr (plate one contains the brood from 0 to 36 hr post mid-L4). Each hermaphrodite was moved to a new 35 mm MYOB plate (with or without Yoda1) to lay eggs for another 24 hr and then was removed from the plate (this plate contains the brood from 36 to 60 hr post mid-L4). Twenty-four hours after removing the mothers, only fertilized embryos and larvae were counted to determine the brood size. Brood sizes were determined at 60 hr. Percentage of embryonic viability = (the number of hatched larva/the total number of hatched and unhatched animals) *100%.

For imaging ovulation, animals were immobilized on 4% agar pads with anesthetic (0.1% tricaine and 0.01% tetramisole in M9 buffer). DIC image acquisition was captured by a Nikon 60 × 1.2 NA water objective with 1–2 μm z-step size; 10–15 z planes were captured. Time interval for ovulation imaging was every 45–60 s, and duration of imaging was 60–90 min. Ovulation rate = (number of successfully ovulated oocytes)/total image duration.

We used the Bristol N2 strain as the wild type for CRISPR/Cas9 editing. The gene-specific 20-nucleotide sequences for crRNA synthesis were selected with the help of a guide RNA design checker from Integrated DNA Technologies (IDT) (https://www.idtdna.com) and were ordered as 20 nmol or 4 nmol products from Dharmacon (https://dharmacon.horizondiscovery.com), along with tracrRNA. Repair template design followed the standard protocols (Paix et al., 2015; Vicencio et al., 2019). Approximately 30 young gravid animals were injected with the prepared CRISPR/Cas9 injection mix, as described in the literature (Paix et al., 2015). pezo-1 NΔ and pezo-1 CΔ mutants were generated by CRISPR/Cas9 mixes that contained two guide RNAs at flanking regions of pezo-1 coding regions. Heterozygous pezo-1 deletion animals were first screened by PCR and then homozygosed in subsequent generations. mScarlet insertions at the pezo-1 C-terminus were performed by Nested CRISPR (Vicencio et al., 2019). Homozygous nest-1 edited animals were confirmed by PCR and restriction enzyme digestion and selected for the secondary CRISPR/Cas9 editing. Full-length mScarlet insertion animals were screened by PCR and visualized by fluorescence microscopy. All homozygous animals edited by CRISPR/Cas9 were confirmed by Sanger sequencing (Eurofins). The detailed sequence information for the repair template and guide RNAs are listed in Table 2.

The short isoform deletion, pezo-1(sy1398), was generated using Cas9 expressed from a plasmid (Friedland et al., 2013) and four guides (GAGAACTTGAATTCAATGG, AAGCTTCTTCCGTCTCCGG, GCAGTATTTGACCAACTGG, ATAAAACAAGGCAACCAGG) along with a dpy-10 guide and repair oligo. These reagents were injected into young adult N2 animals, and successful injections were identified by the presence of roller or dumpy progeny on the plate. Roller progeny were singled out and screened via PCR for the deletion mutation. The deletion was verified by Sanger sequencing using two external primers (CTCTCGCCTATCCACTTGAGCTTA and GGAAACAATTGAGCCGAGAATGGA) to amplify the region. This deletion should only disrupt the expression of isoforms i and j (Figure 2—figure supplement 1B). The CRISPR-Cas9 STOP-IN mutant, pezo-1(sy1199), was generated using purified Cas9 protein at 10 μg/μl concentration, a purified guide RNA near the mutation location (CCAGAAGCTCGTAAGCCAGG), and a single-stranded DNA repair oligo containing three stop codons, one in every reading frame (underlined, cttatcgctgtttctgaaccagaagctcgtaagccGGGAAGTTTGTCCAGAGCAGAGGTGACTAAGTGATAAgctagcaggaggcactgaagaaacggatggtgatgaag). These reagents were injected into N2 young adults along with a dpy-10 guide and repair oligo. Successful injections were identified by the presence of dumpy and roller progeny. Thirty roller progeny were singled out from ‘jackpot’ plates (plates with a high incidence of dumpy and roller progeny) and screened via PCR (GACAGGACTTTCCCGCCAACTTAA and ATCATTCGCCGATTGCACAAGTTG) and the presence of a NheI restriction site that was included in the repair oligo.

25–30 mid-L4 wildtype or pezo-1 mutant hermaphrodites were isolated to a fresh growth plate for 60 hr (such animals should be Day 3 adults at this time). To ensure mating success, ~30 adult males and 10–15 Day 3 hermaphrodites were transferred onto a 35 mm MYOB plate seeded with 10–20 μl of OP50 bacteria and allowed to mate for 12 hr. The other 10–15 Day 3 hermaphrodites were singled and transferred to 35 mm MYOB plates seeded with 10 μl of OP50 bacteria as the controls. After the group mating, single mated hermaphrodites (72 hr post mid-L4) and 3–5 adult males were then transferred to a fresh 35 mm growth plate where mating could continue for another 24 hr. After 24 hr, the hermaphrodites (96 hr post mid-L4) and males were removed. The brood size (those embryos laid between 72–96 hr post mid-L4) and embryonic viability were determined 24 hr later after removal of all adults. Meanwhile, the broods from 60 to 96 hr post-mid L4 were also determined for the other 10–15 unmated Day 3 hermaphrodites that were kept on single plates as controls.

10–15 mid-L4 BA17 fem-1(hc17ts) hermaphrodites raised from embryos at the non-permissive temperature of 25°C were picked to mate with ~30 adult males for 12 hr at 25°C. Single mated hermaphrodites and 3–5 males were then transferred to a fresh 35 mm growth plate and allowed to mate for another 24 hr at 25°C before all adults were removed from the plates. As control, 10–15 unmated BA17 hermaphrodites grown at 25°C were kept on single plates. The brood sizes and embryonic viability were determined 24 hr later. Alternatively, 10–15 L1 BA17 fem-1(hc17ts) hermaphrodites were isolated on a fresh growth plate and incubated at 25°C for 48 hr (young adult hermaphrodites). Approximately 30 adult males and 10–15 BA17 young hermaphrodites were then transferred onto a 35 mm MYOB plate seeded with 10–20 ul of OP50 bacteria and allowed to mate for 12 hr at 25°C. Single mated hermaphrodites and 3–5 males were then transferred to a fresh 35 mm growth plate. After laying embryos for 24 hr, the hermaphrodites and males were removed. Meanwhile, the other same-age 10–15 unmated Day 3 hermaphrodites were kept on single plates as the control. The brood size and embryonic viability were counted 24 hr later after removal of all adults. All of the animals were incubated at 25°C during mating and propagation to ensure the penetration of the fem-1(hc17ts) phenotype.

10–15 hermaphrodites were picked to mate with ~30 AG521 [spe-9(hc52ts)] adult males for 12 hr at 25°C. Mated hermaphrodites were immobilized on 4% agar pads with anesthetic (0.1% tricaine and 0.01% tetramisole in M9 buffer) for ovulation rate assays. The acquisition of DIC images was performed by confocal imaging system (see below) with a Nikon 60 × 1.2 N with 1–2 μm z-step size and 10–15 z planes. Time interval for ovulation imaging is every 45–60 s, and the duration of imaging is 60–90 min. Ovulation rate = (number of successfully ovulated oocytes)/total image duration.

MitoTracker Red CMXRos (MT) (Invitrogen # M7512) was used to label male sperm following the protocol adapted from previous studies (Hoang et al., 2013; Kubagawa et al., 2006). MT was dissolved in 100% DMSO to 1 mM. About 100 males were transferred to a concavity slide (ThermoFisher, # S99369) with 150 μl 10 μM MT solution (diluted in M9 buffer). Males were incubated in the MT buffer for 2 hr and then transferred to fresh growth plates to recover overnight. The plates were covered by foil to prevent light exposure. About 30 males were placed with 10 anesthetized hermaphrodites (0.1% tricaine and 0.01% tetramisole in M9 buffer) on MYOB plates seeded with a 50–100 μl OP50 bacteria. After 30 min of mating, hermaphrodites were then isolated and allowed to rest on food for one hour. The mated hermaphrodites were then mounted for microscopy on 5% agarose pads with the anesthetic. Image acquisition was captured by a Nikon 60 × 1.2 NA water objective with 1 um z-step size. Quantification of sperm distribution in the uterus starts at the vulva and extends up to and includes the spermatheca. The sperm counted were throughout the gonad at a focal depth of about 30 μm. The whole uterus was divided into three zones. Zone 1 contains the vulva region, and Zone 3 contains the spermatheca. The number of sperm was manually counted within each zone. The distribution percentage = (the number in each zone) / (the total labeled sperm observed) * 100%. The quantified data contains at least 30 total stained sperm in the entire uterus. At least 3–7 mated hermaphrodites were counted in each mating assay, and experiments were repeated at least 3 times.

Animals were grown on bacteria-seeded MYOB plates containing auxin. The natural auxin indole-3-acetic acid (IAA) was purchased from Alfa Aesar (#A10556). IAA was dissolved in ethanol as a 400 mM stock solution. Auxin was added to autoclaved MYOB agar when it cooled to about 50–60°C before pouring. MYOB plates containing the final concentration of auxin (1 or 2 mM) were used to test the degron-edited worms.

To degrade the target protein efficiently, L1 or L2 hermaphrodites were picked onto auxin plates. Animals were grown on the plates at 20°C for 36–60 hr for the brood size assay. Alternatively, mid-L4 hermaphrodites were incubated on the auxin plate for one generation, and F₁ mid-L4 hermaphrodites were picked to a fresh auxin plate for the brood size assay or for phenotypic imaging.

The microinjection of 101.6 μM NHS-Fluorescein-labeled MSP-142 into both aged (day 2, 48 hr post mid-L4) wildtype and pezo-1 CΔ hermaphrodites was performed as previously described (Miller, 2001). The injected worms recovered for 4 hr on MYOB plates with OP50 food before imaging. The acquisition of GFP and DIC images was performed by our confocal imaging system (see below) with 1–2 μm z-step size and 10–15 z planes. Time interval for ovulation imaging was every 45–60 s, and duration of imaging was 60–90 min. Ovulation rate = number of successfully ovulated oocytes / total duration of imaging.

Live imaging was performed on a spinning disk confocal system that uses a Nikon 60 × 1.2 NA water objective, a Photometrics Prime 95B EMCCD camera, and a Yokogawa CSU-X1 confocal scanner unit. Images were acquired and analyzed by Nikon’s NIS imaging software and ImageJ/FIJI Bio-formats plugin (National Institutes of Health) (Linkert et al., 2010; Schindelin et al., 2012). GCaMP3 images were also acquired by a 60×/1.40 NA oil-immersion objective on a Nikon Eclipse 80i microscope equipped with a SPOT RT39M5 sCMOS camera (Diagnostic Instruments, Sterling Heights, MI, USA) with a 0.63x wide field adapter, controlled by SPOT Advanced imaging software (v. 5.0) with Peripheral Devices and Quantitative Imaging modules. Images were acquired at 2448 × 2048 pixels, using the full camera chip, and saved as 8-bit TIFF files. Fluorescence excitation was provided by a Nikon Intensilight C-HGFI 130 W mercury lamp and shuttered with a Lambda 10-B SmartShutter (Sutter Instruments, Novato, CA), also controlled through the SPOT software. Single-channel GCaMP time-lapse movies were acquired using a GFP filter set (470/40 × 495 lpxr 525/50 m) (Chroma Technologies, Bellows Falls, VT) at 1 frame per second, with an exposure time of 40–60 ms, gain of 8, and neutral density of 16.

For all GCaMP3 imaging data, animals were immobilized on 7.5% agarose pads with 0.05 μm polystyrene beads and imaged using confocal microscopy as described above. Images were acquired every 1 s and saved as 16-bit TIFF files. DIC images were acquired every 3 s. Only successful embryo transits (embryos that were expelled through the sp-ut valve) were analyzed for this GCaMP3 study. The GCaMP3 metrics, including rising time and fraction over half max data, as well as the GCaMP3 intensity heat map were processed by the custom Fiji and Matlab coded platform (Bouffard et al., 2019). GCaMP3 kymograms were generated by custom Fiji code using the commands Image > Stacks > Reslice followed by Image > Stacks > Z Project (Average Intensity) (Bouffard et al., 2019). Only the very first three ovulations were imaged for each animal. Detailed processing and analysis of the GCaMP time series was performed exactly as described in Bouffard et al., 2019.

Statistical significance was determined by p-value from an unpaired two-tailed t-test. P-values: ns, not significant; *, <0.05; **, <0.01; ***, <0.001; ****, <0.0001. Both the Shapiro-Wilk and the Kolmogorov-Smirnov Normality test indicated that all data follow normal distributions.
