Multiple Wnts act synergistically to induce Chk1/Grapes expression and mediate G2 arrest in Drosophila tracheoblasts

  1. Amrutha Kizhedathu
  2. Rose Sebastian Kunnappallil
  3. Archit V Bagul
  4. Puja Verma
  5. Arjun Guha  Is a corresponding author
  1. Institute for Stem Cell Science and Regenerative Medicine (inStem), GKVK Campus, India
  2. SASTRA University, India
Research Advance
  • Cited 1
  • Views 963
  • Annotations
Cite this article as: eLife 2020;9:e57056 doi: 10.7554/eLife.57056

Abstract

Larval tracheae of Drosophila harbour progenitors of the adult tracheal system (tracheoblasts). Thoracic tracheoblasts are arrested in the G2 phase of the cell cycle in an ATR (mei-41)-Checkpoint Kinase1 (grapes, Chk1) dependent manner prior to mitotic re-entry. Here we investigate developmental regulation of Chk1 activation. We report that Wnt signaling is high in tracheoblasts and this is necessary for high levels of activated (phosphorylated) Chk1. We find that canonical Wnt signaling facilitates this by transcriptional upregulation of Chk1 expression in cells that have ATR kinase activity. Wnt signaling is dependent on four Wnts (Wg, Wnt5, 6,10) that are expressed at high levels in arrested tracheoblasts and are downregulated at mitotic re-entry. Interestingly, none of the Wnts are dispensable and act synergistically to induce Chk1. Finally, we show that downregulation of Wnt signaling and Chk1 expression leads to mitotic re-entry and the concomitant upregulation of Dpp signaling, driving tracheoblast proliferation.

Introduction

The development of a single cell into a multicellular organism is achieved by a highly regulated process of cell proliferation. Cells divide at the appropriate time and place or remain paused either in the G1/G0 (Cheung and Rando, 2013) or G2 (Bouldin and Kimelman, 2014) phases of the cell cycle. In this study, we investigate the mechanisms that regulate developmental G2 arrest.

The transition from G2 to M occurs via a mechanism that is conserved from yeast to humans. Mitotic entry is triggered by the activation of the Cyclin-dependant kinase 1 (Cdk1/Cdc2)-Cyclin B complex. Upon activation, the Cdc2-Cyclin B complex phosphorylates substrates in the cytoplasm and nucleus and prepares the cell for mitosis (Bouldin and Kimelman, 2014). The activation of the Cdc2-Cyclin B complex is dependent on the dephosphorylation of Cdc2 by the phosphatase Cdc25. Mechanisms regulating developmental G2 arrest have been studied extensively in Drosophila (Johnston and Edgar, 1998; Ayeni et al., 2016; Otsuki and Brand, 2018) and more recently in Zebrafish (Nguyen et al., 2017). An emerging theme is that cells paused in G2 lack the essential drivers of G2-M such as Cdc25 and Cyclin B respectively.

Our studies on G2 arrest have focused on the progenitors of the thoracic tracheal (respiratory) system of adult Drosophila (tracheoblasts). Tracheoblasts arrest in G2 for a period of ~56 hr during larval life and then enter mitosis at the onset of pupariation. The tracheoblasts, and the tracheae they comprise, grow in size while arrested (increase ~11 fold in volume) and undergo rapid size-reductive divisions thereafter (cell division time ~10 hr)(Kizhedathu et al., 2018). Contrary to other models of developmental G2 arrest in Drosophila, tracheoblasts express all the drivers necessary for G2-M and utilize a different mechanism for G2 arrest. We have shown previously that tracheoblasts co-opt the ATR (mei-41)/Chk1(Grapes) DNA damage checkpoint pathway for the induction of G2 arrest (Kizhedathu et al., 2018). Loss of ATR/Chk1 results in tracheoblasts initiating mitoses precociously.

What remained unclear in this study is the mechanism by which the ATR/Chk1 axis is controlled. Although the activation of ATR/Chk1 has typically been associated with DNA damage, there was no evidence for DNA damage in arrested tracheoblasts.

Developmental signals coordinate G2 arrest and G2-M by controlling the expression of positive regulators of G2-M. For example, a pulse of Drosophila steroid hormone Ecdysone has been shown to induce the expression of Cdc25/Stg mRNA in imaginal histoblasts (Ninov et al., 2009). Along these lines, the Notch and Wnt signaling pathways repress the expression of Stg in neural precursors in the wing imaginal disc (Johnston and Edgar, 1998). More recently, a study on neural stem cells has found that Insulin signaling upregulates Stg protein levels via repression of Tribbles expression; Tribbles is a kinase that targets Stg for proteosomal degradation (Otsuki and Brand, 2018). These studies led us to investigate the possibility that developmental signaling pathways control the activation of the ATR/Chk1 pathway in tracheoblasts.

To identify signals that regulate ATR/Chk1, we knocked down the components of each of ten developmental signaling pathways that regulate cell proliferation and growth and examined whether these perturbations result in precocious mitotic re-entry. We found that perturbations in Wnt signaling led to premature cell division akin to Chk1 mutants. This led us to examine the role of the Wnt signaling pathway in the regulation of the ATR/Chk1 pathway.

Results

Wnt signaling is required for G2 arrest in Tr2 tracheoblasts

The tracheal branches of the second thoracic metamere (Tr2) in the Drosophila larva are comprised of cells that also serve as the progenitors of the thoracic tracheal system of the adult animal. These tracheoblasts remain quiescent through most of larval life and rekindle a mitotic program prior to pupariation. Tracheoblasts in the Dorsal Trunk (DT) in Tr2 enter larval life in G1, transition from G1 to S to G2 in the first larval instar (L1) and remain arrested in G2 from second instar (L2) till 32–40 hr into third larval instar (L3) whereupon they re-enter mitosis (Figure 1A; Kizhedathu et al., 2018). These cells express high levels of Chk1 mRNA and phosphorylated Chk1 (pChk1) during the period in which they are paused in G2 and downregulate levels of Chk1 mRNA and pChk1 upon mitotic re-entry. Loss of Chk1 leads to precocious proliferation by 16–24 h L3,~24 hr earlier than expected (Figure 1B, Figure 1—source data 1).

Figure 1 with 2 supplements see all

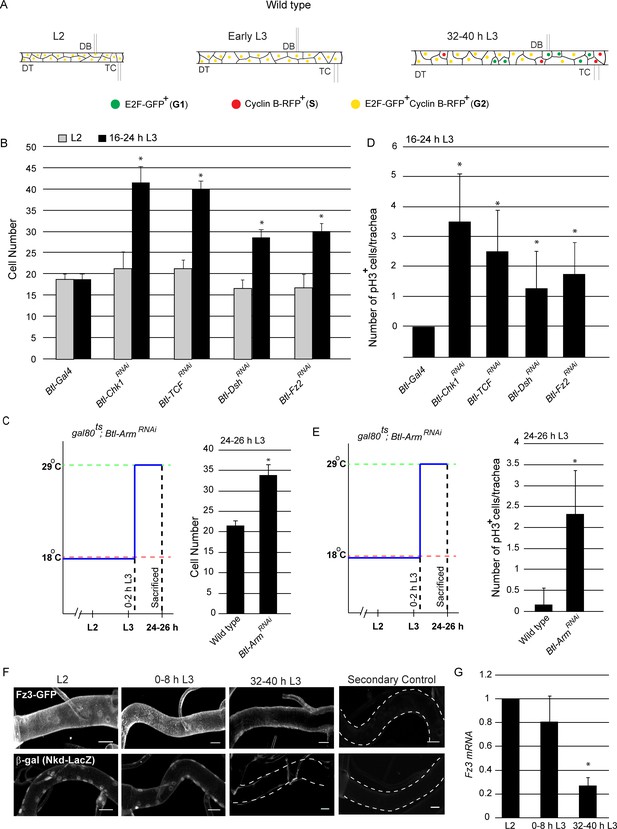

Wnt signaling is required for G2 arrest in Tr2 tracheoblasts.

(A) Cartoon representing the cell cycle phasing of cells in wild type Tr2 DT at different larval stages based on FUCCI. (B-C) Impact of knockdown of Chk1 and components of the Wnt signaling pathway on cell numbers in Tr2 DT. (B) Graph shows cells numbers in wild type (btl-GAL4), Btl-Chk1RNAi (btl-GAL4/UAS-Chk1RNAi), and Btl-Wnt pathway components RNAi (btl-GAL4/+; UAS-TCFRNAi/+, btl-GAL4/UAS-DshRNAi, btl-GAL4/UAS-Fz2RNAi) at L2 and 16–24 h L3. (C) Graph shows cell numbers in wild type (tub-GAL80ts/+; UAS-ArmRNAi/Tb) and Armadillo mutants (tub-GAL80ts/+; btl-GAL4/UAS-ArmRNAi) at 24–26 h L3. Larvae were grown at 18°C and transferred to 29°C at 0–2 hr into L3. (D-E) Impact of reduction in levels of Chk1 or in levels of different components of the Wnt signaling pathway on mitotic indices in Tr2 DT. (D) Graph shows frequency of pH3+ nuclei at 16–24 h L3 in wild type (btl-GAL4), Chk1 mutant (btl-GAL4/UAS-Chk1RNAi), and Wnt pathway mutants (btl-GAL4/+; UAS-TCFRNAi/+, btl-GAL4/UAS-DshRNAi, btl-GAL4/UAS-Fz2RNAi) (E) Graph shows the frequency of pH3+ nuclei in wild type (tub-GAL80ts/+; UAS-ArmRNAi/Tb) and Armadillo mutants (tub-GAL80ts/+; btl-GAL4/UAS-ArmRNAi) at 24–26 h L3. Larvae were grown as stated above. (F) Expression pattern of Wnt reporters Fz3-GFP (fz3-GFP) and Nkd- LacZ (nkd-lacZ) in Tr2 DT at different larval stages. Panels show immunostaining for GFP in Fz3-GFP (fz3-GFP) (top panel) and β-Gal in Nkd- LacZ (nkd-lacZ) (Bottom panel) and their respective secondary controls (G) Quantitative PCR analysis of Fz3 mRNA levels in micro-dissected Tr2 DT fragments at different stages. Graph shows fold change in mRNA levels with respect to L2 (n = 3 experiments, n ≥ 15 Tr2 DT fragments/condition/experiment, mean ± standard deviation). DT = Dorsal Trunk, DB = Dorsal Branch, TC = Transverse Connective. Scale bar = 20 µm (mean ± standard deviation, n ≥ 7 tracheae) Student's paired t-test: *p<0.05.

Figure 1—source data 1

Figure 1B Numerical data for number of cells in Tr2 DT of wild type, Btl-Chk1RNAi and Btl-Wnt pathway RNAi larvae at different stages.

Figure 1C Numerical data for number of cells in Tr2 DT of wild type and Btl-ArmRNAi larvae at 24–26 h L3.

https://cdn.elifesciences.org/articles/57056/elife-57056-fig1-data1-v4.xlsx

To explore the possibility that developmental signals control the activation of the ATR/Chk1 axis in tracheoblasts, we knocked-down expression of essential transducers of the EGF, FGF, insulin/PI3K, Hedgehog, JAK/STAT, Ecdysone, JNK, Hippo, Wnt and Dpp signaling pathways in the trachea by RNA interference (under the control of trachea-specific Breathless (btl)-GAL4 driver) and determined if these perturbations led to precocious mitotic re-entry at 16–24 hr in L3 (Figure 1—figure supplement 1). Of the abovementioned signaling pathways, downregulation of components of the Wnt pathway resulted in precocious proliferation at 16–24 h L3 (Figure 1B, Figure 1—source data 1). These findings led us to examine more carefully the role of Wnt signaling in the activation of the ATR/Chk1 axis in tracheoblasts.

The Wingless/Wnt signaling pathway regulates many different developmental processes in metazoans. Wnt genes encode secreted proteins that can act as signaling molecules and morphogens. The Wnt pathway is activated upon the binding of Wnt ligands to Frizzled (Fz) receptors. Ligand-receptor engagement leads to the activation of the cytoplasmic phosphoprotein Dishevelled (Dsh). Phosphorylated Dsh antagonizes an intracellular complex that targets β-Catenin for degradation. The consequent stabilization of β-Catenin facilitates its translocation to the nucleus where it binds the TCF/LEF family of transcription factors and initiates the transcription of downstream genes (Bejsovec, 2006). Apart from this ‘canonical’ mechanism, there are ‘non-canonical’ mechanisms for Wnt signaling that do not require β-Catenin (Zhan et al., 2017; Swarup and Verheyen, 2012).

To characterize the role of Wnt signaling in tracheoblasts, we knocked-down the abovementioned components of the pathway in the trachea by RNA interference and examined the timing of mitotic re-entry. To establish the timecourse of cell proliferation in the tracheae we utilized two assays. First, we counted the numbers of tracheoblasts in Tr2 DT at L2 and at 16–24 h L3. Second, we quantified the frequencies of phospho-histone H3+ (pH3+) mitotic figures. Knockdown of Fz2, Dsh and TCF (Pangolin) did not affect numbers of tracheoblasts in L2 but led to increased numbers at 16–24 h L3 (Figure 1B,n ≥ 7 tracheae per timepoint here and in all subsequent figures showing cell frequencies, Figure 1—source data 1). In our hands, the knockdown of Drosophila β-Catenin (Armadillo (Arm)) in the tracheal system from embryonic stages resulted in embryonic lethality. Thus, to characterize the role of β-Catenin in tracheoblasts at larval stages we knocked-down Arm expression in the trachea specifically at larval stages using the temperature sensitive Gal4-UAS-gal-80ts system (see schematic in Figure 1C). Briefly, control (tub-GAL80ts/+; UAS-ArmRNAi/Tb) and Btl-ArmRNAi (tub-GAL80ts/+; btl-GAL4/UAS-ArmRNAi) animals were grown at 18°C till 0–2 h L3 and moved to 29°C for 24 hr. The animals were dissected at 24–26 h L3 and the cell numbers in Tr2 DT were counted. Knockdown of Arm did not perturb numbers of cells in Tr2 DT in L2 but led to increased numbers of cells at 24 h L3 (Figure 1C,n ≥ 7 tracheae per condition, Figure 1—source data 1).

Apart from quantifying cell numbers at L2 and early L3, we assayed mitotic activity by immunostaining with an antibody against phosphorylated Histone H3 (pH3), a marker for cells undergoing mitosis. We found increased frequencies of pH3+ figures at early L3 in all backgrounds in which we observed increased numbers of cells at early L3 (Figure 1D–E). We also examined the timecourse of cell proliferation throughout L3 in wild type, Chk1 and Wnt pathway mutants. We found that tracheoblasts in Wnt pathway mutants, akin to Chk1 mutants, enter mitosis precociously and continue cell division thereafter (Figure 1—figure supplement 2). Together, the cell proliferation assays show that loss of Wnt signaling leads to precocious mitotic re-entry and proliferation.

Next, we investigated the spatiotemporal pattern of Wnt signaling in Tr2 DT during larval stages. For this, we examined the expression of two reporters for Wnt signaling (Frizzled3 (Fz3)-GFP and Naked (Nkd)-lacZ) at L2, 0–8 h L3 and 32–40 h L3 (Sivasankaran et al., 2000; Xu et al., 2018; Tian et al., 2016). Immunostaining using anti-GFP and anti-β-gal antisera respectively revealed that levels of expression of fz3-GFP and nkd-lacZ were high at L2 and 0–8 h L3 and significantly lower at 32–40 hr into L3 (Figure 1F, n = 6 tracheae per condition per experiment, n = 2). We also measured the expression of Fz3 mRNA in Tr2 DT by quantitative real time PCR (qPCR). qPCR analysis showed that the expression of Fz3 mRNA is high in L2 and early L3 and significantly lower at 32–40 h L3 (Figure 1G, n = 3). These data show that canonical Wnt signaling is active in G2 arrested cells and is downregulated upon mitotic re-entry.

pChk1 levels are reduced in Wnt pathway mutants

Since perturbations in Wnt signaling led to precocious proliferation akin to the loss of Chk1, next we probed the role of Wnt pathway in Chk1 activation (phosphorylated Chk1, pChk1). pChk1 levels are high in tracheoblasts in L2 and early L3 and significantly lower at 32–40 h L3 (Kizhedathu et al., 2018). pChk1 immunostaining in Btl-TCFRNAi at L2 showed that the levels of pChk1 were dramatically reduced in comparison to wild type (Figure 2A, n = 6–8 tracheae per condition per experiment, n = 3). We inferred that the Wnt pathway is required Chk1 activation in the tracheoblasts.

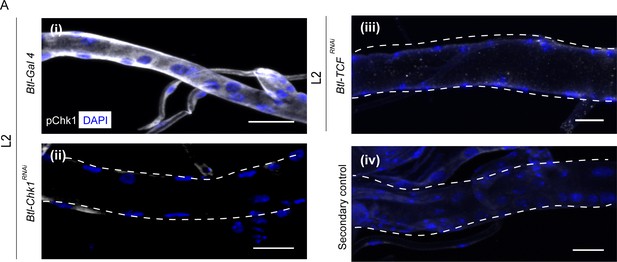

Phosphorylated Chk1 levels are diminished in the absence of Wnt signaling.

(A) Activated Chk1 (phospho-Chk1Ser345, pChk1) immunostaining (white) in Tr2 DT in Chk1 mutants and Wnt pathway mutants. pChk1 immunostaining in Tr2 DT in (i) wild type (btl-GAL4), (ii) Btl-Chk1RNAi (btl-GAL4/UAS-Chk1RNAi) (iii) Btl-TCFRNAi (btl-GAL4/+; UAS-TCFRNAi/+) at L2 and (iv) wild type treated with secondary antibody alone. Scale bar = 20 µm.

Wnt signaling upregulates Chk1 expression

Our earlier studies have shown that levels of pChk1 and Chk1 mRNA are correlated in Tr2 DT. In other words, both pChk1 and Chk1 mRNA levels are high in L2 and early L3 and diminish at 32–40 h L3. Studies in yeast (Ford et al., 1994), Drosophila (Bayer et al., 2018) and Xenopus (Kumagai et al., 1998) have shown that the overexpression of Chk1 is sufficient to induce G2 arrest. Thus, we hypothesized that Wnt signaling facilitates high levels of pChk1 via induction of high levels of Chk1 expression.

To investigate the relationship between Wnt signaling and Chk1 expression, we utilized two approaches. First, we quantified levels of Chk1 mRNA in Tr2 DT. Second, we characterized Chk1 promoter activity using an enhancer trap line (Chk1-lacZ). We quantified the levels of Chk1 mRNA in microdissected Tr2 fragments from wild type, Btl-TCFRNAi and Btl-ArmS10 (an activated form of Armadillo (Btl-ArmS10)) at different larval stages using quantitative real-time PCR (qPCR). The loss of Wnt signaling (Btl-TCFRNAi) led to a reduction in Chk1 levels at L2 and early L3; the levels of expression at these stages were comparable to 32–40 h L3. Conversely, overexpression of ArmS10 led to an increase in the level of Chk1 transcript (Figure 3A,≥15 tracheal fragments per timepoint per experiment, n = 3 experiments). Next, we examined the expression of Chk1-lacZ. Anti-β-gal immunostaining of tracheae from Chk1-lacZ animals at different larval stages showed that β-gal expression is high in L2 and early L3 and declines at 32–40 hr into L3 (Figure 3B, n = 6 tracheae per condition per experiment, n = 2). We then analysed the expression of the reporter in Btl-TCFRNAi animals at L2. We found that β-gal expression was considerably diminished in L2 (Figure 3B, n = 6 tracheae per condition per experiment, n = 2). Together, the analysis of Chk1 mRNA levels and Chk1-lacZ in control and Wnt signaling-deficient tracheoblasts show that Wnt signaling is required for high levels of Chk1 expression in G2-arrested cells.

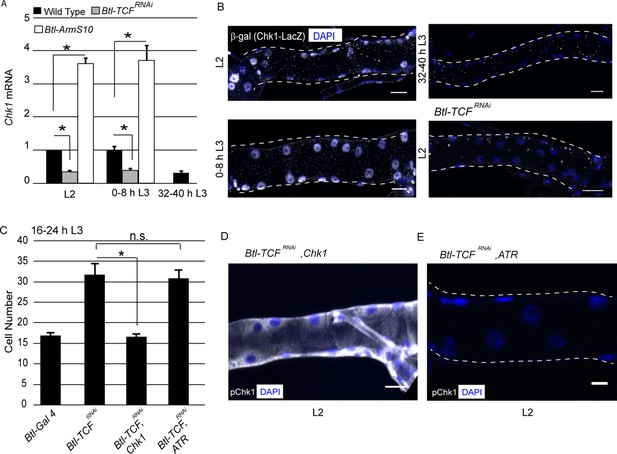

Wnt signaling regulates Chk1 transcription.

(A) Quantitative PCR analysis of Chk1 mRNA levels in micro-dissected Tr2 DT fragments at different stages. Graph shows fold change in Chk1 mRNA in Tr2 DT fragments from wild type (btl-GAL4), Wnt pathway loss-of-function (btl-GAL4/+; UAS-TCFRNAi/+) and Wnt pathway gain-of-function (UAS-ArmS10/+; btl-GAL4/+) larvae. Fold change has been represented with respect to L2 (n = 3 experiments, n ≥ 15 Tr2 DT fragments/condition/experiment, mean ± standard deviation). (B) Analysis of Chk1-lacZ expression in Tr2 DT in wild type and Wnt pathway mutants. β-Gal immunostaining in larvae expressing Chk1-lacZ at L2, 0–8 h L3 and 32–40 h L3 and in Btl-TCFRNAi (btl-GAL4/Chk1 lacZ; UAS-TCFRNAi/+) at L2. (C) Impact of overexpression of Chk1 and ATR in TCF mutants. Graph shows cell numbers in wild type (btl-GAL4, UAS-FUCCI/Cyo GFP; +/Tb), Btl-TCFRNAi (btl-GAL4, UAS-FUCCI/+; UAS-TCFRNAi/+), Btl-TCFRNAi, Chk1 (btl-GAL4, UAS-FUCCI/+; UAS-TCFRNAi/UAS-Chk1) and Btl-TCFRNAi, ATR (btl-GAL4, UAS-FUCCI/+; UAS-TCFRNAi/UAS ATR) at 16–24 h L3. (D) Impact of reduction of TCF and overexpression of Chk1 on levels of pChk1 in Tr2 DT. pChk1 immunostaining (white) in Btl-TCFRNAi, UAS-Chk1 (btl-GAL4, UAS-FUCCI/+; UAS-TCFRNAi/UAS-Chk1) animals at L2 (This image has been acquired at a lower laser power and gain setting compared to Figure 2A to prevent saturation of white pixels). (E) Impact of reduction of TCF and overexpression of ATR on levels of pChk1 in Tr2 DT. pChk1 immunostaining (white) in Btl-TCFRNAi, UAS-ATR (btl-GAL4, UAS-FUCCI/+; UAS-TCFRNAi/UAS-ATR) animals at L2 (mean values ± standard deviation, n ≥ 7 tracheae) Scale bar = 20 µm. Student's paired t-test: *p<0.05.

Figure 3—source data 1

Figure 3C Numerical data for number of cells in Tr2 DT of wild type, Btl-TCFRNAi, Btl-TCFRNAi, Chk1 and Btl-TCFRNAi, ATR expressing larvae at 16–24 h L3.

https://cdn.elifesciences.org/articles/57056/elife-57056-fig3-data1-v4.xlsx

To substantiate our findings that Wnt signaling regulates G2 arrest via control of Chk1 expression, we overexpressed Chk1 or ATR in Btl-TCFRNAi animals and determined if this prevented precocious proliferation and restored levels of pChk1. Cell counts in Tr2 DT at 16–24 h L3 in Wild type, Btl-TCFRNAi, Btl-TCFRNAi, Chk1 (TCF knockdown with Chk1 overexpression) and Btl-TCFRNAi, ATR (TCF knockdown with ATR overexpression) expressing animals showed that Chk1 overexpression did indeed prevent premature mitotic re-entry (Figure 3C, Figure 3—source data 1). The overexpression of ATR did not (Figure 3C, Figure 3—source data 1). Immunostaining for pChk1 revealed that the levels were high and comparable to wild type in Btl-TCFRNAi, Chk1 animals. In contrast, the levels of pChk1 were not restored in Btl-TCFRNAi, ATR expressing animals and were comparable to Btl-Chk1RNAi animals at the same stage (Figure 3D–E, n = 6 tracheae per experiment, n = 2). We independently confirmed that the overexpression of ATR did result in increased levels of ATR mRNA expression by qPCR (data not shown). These data support the hypothesis that Wnt dependent regulation of Chk1 expression is necessary for G2 arrest in Tr2 DT.

Wg, Wnt5, Wnt6 and Wnt10 are required for Chk1 expression

Having identified Wnt signaling as a regulator of Chk1 expression and G2 arrest, next we focused on our attention on the mechanism by which the pathway is activated in the tracheal system. Since Wnt signaling is high when the cells are arrested and diminished once cells start dividing, we surmised that the ligands that activate Wnt signaling might also be expressed in the tracheal system in the same temporal pattern. To investigate this possibility, we measured levels of various Wnt ligand mRNAs in microdissected Tr2 fragments using qPCR. The analysis revealed that mRNA levels of 4 Wnt ligands – Wg, Wnt5, Wnt6 and Wnt10 - are high in L2 and 0–8 h L3 and low at 32–40 h L3 (Figure 4A, ≥15 tracheal fragments per timepoint per experiment, n = 3 experiments). Wnt2, Wnt4 and WntD were undetectable in the tracheae at all stages (data not shown). The qPCR data showed that the timecourse of expression of some Wnt ligands in Tr2 DT paralleled the timecourse of Wnt signaling in this segment.

Figure 4 with 2 supplements see all

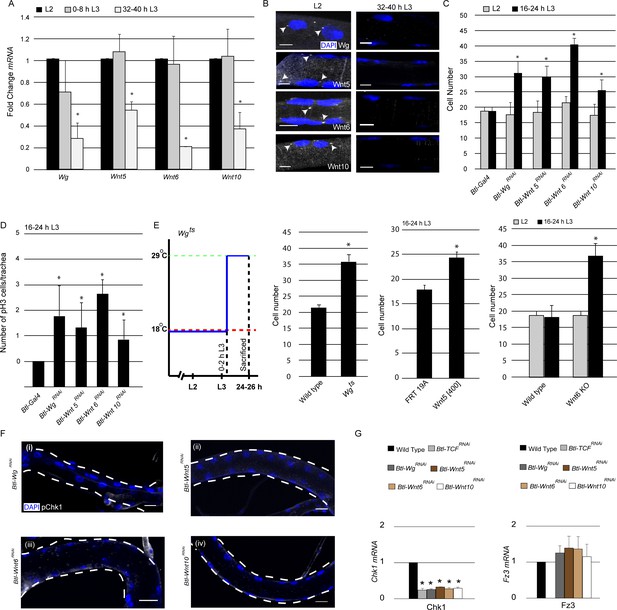

Wg, Wnt5, Wnt6 and Wnt10 are required to maintain Chk1 expression.

(A) Quantitative PCR analysis for levels of Wg, Wnt5, Wnt6 and Wnt10 mRNA in micro-dissected Tr2 DT fragments at different stages. Graph shows fold change in Wg, Wnt5, Wnt6 and Wnt10 mRNA in Tr2 DT fragments from wild type (btl-GAL4) larvae at L2, 0–8 h L3 and 32–40 h L3. Fold change has been represented with respect to L2 (n = 3 experiments, n ≥ 15 Tr2 DT fragments/condition/experiment, mean ± standard deviation). (B) smFISH for Wg, Wnt5, Wnt6 and Wnt10 mRNA in Tr2 DT at L2 and 32–40 h L3. Arrowheads point to the sites of mRNA accumulation. (Scale bar = 5 µm) (C) Impact of knockdown of components of the Wnt signaling pathway on cell numbers in Tr2 DT. Graph shows cells numbers in wild type (btl-GAL4, Same as Figure 1B) and Btl-Wnt pathway componentsRNAi (btl-GAL4/+; UAS-WgRNAi/+, btl-GAL4/+; UAS-Wnt5RNAi/+ btl-GAL4/+; UAS-Wnt6RNAi/+, btl-GAL4/+; UAS-Wnt10RNAi/+) at L2 and 16–24 h L3. (D) Impact of reduction in levels of different components of the Wnt signaling pathway on mitotic indices in Tr2 DT. Graph shows frequency of pH3+ nuclei at 16–24 h L3 in wild type (btl-GAL4, Same as Figure 1D) and Wnt pathway mutants (btl-GAL4/+; UAS-WgRNAi/+, btl-GAL4/+; UAS-Wnt5RNAi/+, btl-GAL4/+; UAS-Wnt6RNAi/+, btl-GAL4/+; UAS-Wnt10RNAi/+) (E) Impact of expression of mutant Wg, Wnt5 and Wnt6 on cell numbers in Tr2 DT. Graphs show cell numbers in wild type and Wg mutants (Wgts) at 24–26 h L3, (Larvae were grown at 18°C and transferred to 29°C at 0–2 hr into L3) Wnt5 mutant (Wnt5[400] FRT19A) and Wnt6 (Wnt6 KO) on cell numbers in Tr2 DT. (F) Activated Chk1 (phospho-Chk1Ser345, pChk1) immunostaining (white) in Tr2 DT in Wnt pathway mutants. pChk1 immunostaining in Tr2 DT in (i) Btl-WgRNAi(btl-GAL4/+; UAS-WgRNAi/+), (ii) Btl-Wnt5RNAi(btl-GAL4/+; UAS-Wnt5RNAi/+), (iii) Btl-Wnt6RNAi(btl-GAL4/+; UAS-Wnt6RNAi/+) and Btl-Wnt10RNAi(btl-GAL4/+; UAS-Wnt10RNAi/+) at L2. (G) Quantitative PCR analysis of Chk1 and Fz3 mRNA levels in micro-dissected Tr2 DT fragments at L2. Graphs show fold change in Chk1 and Fz3 mRNA in Wild type, Btl-TCFRNAi(btl-GAL4/+; UAS-TCFRNAi/+), Btl-WgRNAi (btl-GAL4/+; UAS-WgRNAi/+), Btl-Wnt5RNAi(btl-GAL4/+; UAS-Wnt5RNAi/+), Btl-Wnt6RNAi(btl-GAL4/+; UAS-Wnt6RNAi/+) and Btl-Wnt10RNAi(btl-GAL4/+; UAS-Wnt10RNAi/+) in Tr2 DT fragments. Fold change has been represented with respect to Wild type (n = 3 experiments, n ≥ 15 Tr2 DT fragments/condition/experiment, mean ± standard deviation).(mean values ± standard deviation, n ≥ 7 tracheae) Scale bar = 20 µm. Student's paired t-test: *p<0.05.

Figure 4—source data 1

Figure 4C Numerical data for number of cells in Tr2 DT of wild type, Btl-WgRNAi, Btl-Wnt5RNAi, Btl-Wnt6RNAi and Btl-Wnt10RNAi larvae at different stages.

Figure 4E Numerical data for number of cells in Tr2 DT of wild type, Wgts, Wnt5[400] and Wnt6[KO] larvae at different stages.

https://cdn.elifesciences.org/articles/57056/elife-57056-fig4-data1-v4.xlsx

To corroborate the qPCR data and examine the spatial pattern of Wnt ligand expression, we performed single molecule FISH (smFISH) for Wg, Wnt5, Wnt6 and Wnt10. To confirm that the technique was working optimally in our hands, we first examined the distribution of GAPDH-specific probes. As expected, smFISH signals were detected in all tracheal cells at L2 and L3. We detected both prominent nuclear spots, representing putative sites for mRNA transcription, and faint spots in the cytoplasm (Figure 4—figure supplement 1, C). Next we examined the expression of the Wnt ligands. smFISH for Wg, Wnt5, Wnt6 and Wnt10 detected both nuclear spots and faint spots in the cytoplasm in virtually all the cells in Tr2 DT at L2 (Figure 4B) and 0–8 h L3 (data not shown). Neither the prominent nuclear spots (Figure 4B arrowheads) nor faint cytoplasmic signals were detectable at 32–40 h L3. To confirm that smFISH was indeed ligand-specific, we hybridized probes for Wnt5 to trachea from Wnt5[400] null mutants (Fradkin et al., 2004). We did not detect any specific signal in these tracheae at L2 (Figure 4—figure supplement 1, B). Together, the qPCR and smFISH data show that the timecourse of expression of Wg, Wnt5, Wnt6 and Wnt10 in tracheoblasts in Tr2 DT parallels the timecourse of Wnt signaling in this segment and implicates these ligands as the activators of the Wnt pathway.

Next we examined how perturbations in the expression of the abovementioned ligands affect the timing of mitotic entry in Tr2 DT. Here again, we quantified numbers of cells in Tr2 DT at L2 and 16–24 h L3 and frequencies of pH3+ nuclei in Tr2 DT at 16–24 h L3. Knockdown of Wg, Wnt5, Wnt6 and Wnt10 in the trachea led to an increase in cell number at 16–24 hr into L3 (Figure 4C, Figure 4—source data 1). There was also an increase in pH3+figures in these backgrounds at 16–24 h L3 (Figure 4D). To validate these observations, we quantified the cell numbers in Wg (Wgts(Swarup and Verheyen, 2012), Wnt5 (Wnt5[400]) (Fradkin et al., 2004) and Wnt6(Wnt6 KO) (Doumpas et al., 2013) mutants and in a different RNAi line for Wnt10. Wgts animals were grown at 18°C till 0–2 h L3 and moved to 29°C for 24 hr. The animals were then dissected at 24–26 h L3 and the cell numbers in Tr2 DT were counted. We found an increase in cell numbers in Wgts animals that were raised at 29°C (Figure 4E, Figure 4—source data 1). Cell counts at L2 and16-24 h L3 in Wnt5[400], Wnt6 mutants and Btl-Wnt10RNAi (btl-GAL4/UAS-Wnt10RNAi) showed that there were increased numbers of cells in these backgrounds at 16–24 h L3 (Figure 4E, Figure 4—figure supplement 1A, Figure 4—source data 1). Taken together, these data show that Wg, Wnt5, Wnt6 and Wnt10 are required to maintain G2 arrest in Tr2 DT. We also quantified cell numbers upon knockdown of the Wnt ligands that are not detected (Wnt2, Wnt4 and WntD) and there was no increase in cell numbers at 16–24 h L3 in these backgrounds (Figure 4—figure supplement 2).

Since Wg, Wnt5, Wnt6 and Wnt10 are high in L2 and early L3 and the loss of any one of these ligands results in precocious proliferation, we examined whether the ligands could impact expression of each other. To test whether the knockdown of one of the ligands impacts the expression of others we measured mRNA levels of Wg, Wnt5, Wnt6 and Wnt10 in microdissected Tr2 DT fragments from Btl-WgRNAi, Btl-Wnt5RNAi, Btl-Wnt6RNAi, and Btl-Wnt10RNAi animals respectively. We found that the reduction of expression of any one ligand did not impact the expression of others (Figure 4—figure supplement 1A,≥15 tracheal fragments per timepoint per experiment, n = 3 experiments). Based on this analysis, we inferred that the expression of each of the Wnt ligands is independent of the others and that each ligand contributes toward G2 arrest.

Next we probed whether perturbations in Wg, Wnt5, Wnt6 and Wnt10 expression affected levels of Chk1 (pChk1 and Chk1 mRNA). pChk1 immunostaining of Btl-WgRNAi, Btl-Wnt5RNAi, Btl-Wnt6RNAi and Btl-Wnt10RNAi showed that levels of pChk1 in each of these backgrounds was diminished, the extent of the reduction in staining was comparable to what was observed in Btl-Chk1RNAi expressing animals (Figure 4F, compare with Figure 2A (ii)). Quantification of Chk1 mRNA in Btl-TCFRNAi, Btl-WgRNAi, Btl-Wnt5RNAi, Btl-Wnt6RNAi and Btl-Wnt10RNAi showed that the loss of any one of the ligands led to diminished levels of Chk1 mRNA expression. The levels of mRNA in each of these mutant backgrounds was comparable to the levels detected in Btl-TCFRNAi (Figure 4G). Together, these data showed that all four ligands regulate Chk1 expression in Tr2 DT. In parallel with the analysis of Chk1 mRNA, we also examined the levels of Fz3 mRNA, a conventional target of Wnt signaling. There was no significant change in Fz3 mRNA levels in Btl-WgRNAi, Btl-Wnt5RNAi, Btl-Wnt6RNAi and Btl-Wnt10RNAi (Figure 4G). However, the levels of Fz3 were considerably reduced in Btl-TCFRNAi We infer that the expression of any one of the abovementioned Wnt ligands is sufficient to induce Fz3 expression in Tr2 DT but that all four are required to induce Chk1 expression.

Exit from G2 arrest is required for activation of mitogenic signaling

Our analysis shows that loss of Wnt signaling and Chk1 expression leads to precocious mitotic re-entry in early L3. The subsequent timecourse of cell proliferation in these mutants reveals that tracheoblasts that enter mitosis prematurely in L3 continue to divide post mitotic re-entry (Figure 1—figure supplement 2). The reason that Wnt/Chk1-deficient tracheoblasts continue to divide after exiting G2 arrest was unclear to us. A previous study has identified Dpp (the Drosophila homolog of TGF-β) as the signal required for proliferation of tracheoblasts post mitotic re-entry. Dpp signaling is initiated by the binding of the ligand (Dpp) to the receptor Serine/Threonine Kinase Thickveins (Tkv). This in turn leads to the phosphorylation of the transcriptional activator Mad. Phosphorylated Mad (pMad) translocates to the nucleus and regulates gene expression. Pertinently, an earlier study on tracheoblasts showed that Dpp signaling (pMad immunostaining) was undetectable in cells in G2 arrest and observed mid L3 onwards once the cells start dividing (Djabrayan and Casanova, 2016). In light of the proliferation in Chk1 and Wnt pathway mutants, we examined the levels of Dpp signaling in these mutant backgrounds prior to and post mitotic re-entry.

As reported previously, pMad immunostaining was undetectable in L2 and early L3 (0–8 h L3 and 16–24 h L3) and nuclear localized at 32–40 h L3, once the cells entered mitosis (Figure 5A). We stained Btl-Chk1RNAi and Btl-Wnt6RNAi at 16–24 h L3 for pMad and detected abundant nuclear localized signal (Figure 5B). This suggested that release from G2 arrest leads to the concomitant upregulation of Dpp signaling that further stimulates proliferation. Next we investigated how the expression of an activated form of Tkv (Btl-TkvQD) (Djabrayan and Casanova, 2016) impacts pMad levels in arrested cells. We found that pMad immunostaining was undetectable in Btl-TkvQD animals at L2 (Figure 5C). Taken together, these observations suggest that arrest in G2 prevents the activation of Dpp signaling and that exit from G2 leads to the activation of Dpp signaling and continued cell proliferation.

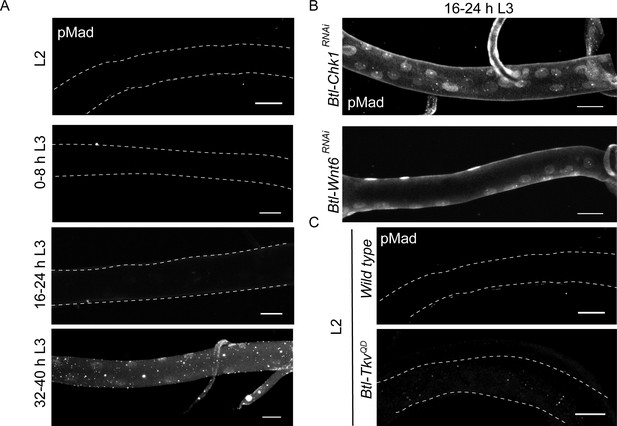

Exit from G2 arrest is required for activation of Dpp signaling.

(A) phospho-Mad (pMad) immunostaining in wild type Tr2 DT at L2, 0–8 h L3, 16–24 h L3 and 32–40 h L3. (B) Impact of reduction of Chk1 or Wnt pathway components on pMad expression in Tr2 DT. pMad immunostaining in Tr2 DT from Btl-Chk1RNAi (btl-GAL4/UAS-Chk1RNAi) and Btl-Wnt6RNAi (btl-GAL4/+; UAS-Wnt6RNAi/+) animals at 16–24 h L3. (C) Impact of overexpression of activated form of Tkv (Btl-TkvQD) on pMad expression in Tr2 DT. pMad immunostaining in Tr2 DT from wild type and Btl-TkvQD (btl-GAL4/+; UAS- TkvQD /+) animals at L2. Scale bar = 20 µm.

Juxtaposition of positive and negative regulators is required for optimal growth of Tr2 DT

The mechanism for G2 arrest in tracheoblasts is integral to their growth and to the growth of the tracheae they comprise. We have previously reported that arrested tracheoblasts, and the tracheae they comprise, grow significantly during the period in which the cells are arrested in G2. Premature exit from arrest resulting from the knockdown of Chk1 retards growth and results in a reduction in the overall size of Tr2 DT (Figure 6A, Kizhedathu et al., 2018). In light of the role of Wnt signaling in the regulation of Chk1, we examined how Wnt mutants impact the growth of the tracheae. Quantification of percentage growth between L2 and 32–40 h L3 revealed that compared to a 268 ± 32% (n = 6 tracheae) growth in length and 247 ± 19% (n = 12 tracheae) growth in width in control animals (Kizhedathu et al., 2018), TCF mutants grew only by 178 ± 8% (n = 6 tracheae) in length and 176 ± 13% (n = 6 tracheae) in width. Thus, consistent with our earlier finding that Chk1 is required for optimal tracheal growth, Wnt signaling is also required for growth of the thoracic tracheae during larval stages.

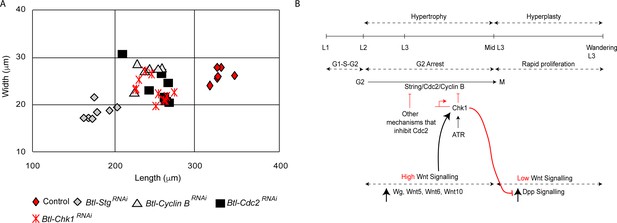

Loss of Stg, Cdc2 or Cyclin B perturbs hypertrophic growth of Tr2 DT.

(A) Impact of reduction of Chk1 or different drivers of G2-M on the size of Tr2 DT at 32–40 h L3. Scatter plot shows length and width of Tr2 DT from Wild type, Btl-Chk1RNAi (btl-GAL4/UAS-Chk1RNAi), Btl-StgRNAi (btl-GAL4/+; UAS-StgRNAi/+), Btl-Cdc2RNAi(btl-GAL4/UAS-Cdc2RNAi) and Btl-CyclinBRNAi (btl-GAL4/+; UAS-CyclinBRNAi/+) at 32–40 h L3. Values shown in red are from data previously published in Kizhedathu et al., 2018. (n ≥ 6 tracheae). (B) Model for the regulation of G2 arrest by Wnt signaling. Wnt signaling negatively regulates G2-M by transcriptionally upregulating Chk1. Arrest in G2 negatively regulates Dpp signaling, preventing precocious proliferation and allowing for hypertrophic growth of Tr2 DT.

An unusual aspect of G2 arrest in Tr2 DT is that the cells express both drivers of G2-M (Cdc2/Cdk1, CyclinB, Stg) and simultaneously activate negative regulators of G2-M (Chk1, [Kizhedathu et al., 2018], this study). The significance of Cdc2, CycB and Stg expression in arrested tracheoblasts has been unclear. We hypothesized that the expression of positive regulators of G2-M could be necessary for growth. To test this hypothesis, we knocked down Stg, Cdc2/Cdk1 and Cyclin B in the trachea and measured the length and width of Tr2 DT at 32–40 h L3. The loss of any one of these G2-M drivers led to a reduction in the size of Tr2 DT (Figure 6A). These data suggest that the juxtaposition of positive and negative regulators is required for the growth of the tracheoblasts and the tracheae they comprise (see model in Figure 6B).

Discussion

Progenitors of the thoracic tracheal system of adult Drosophila arrest in G2 in a Chk1-dependent manner during larval stages. In this study we have investigated the mechanism for Chk1 activation in tracheoblasts. We find that Chk1 is transcriptionally upregulated in arrested tracheoblasts by the canonical Wnt signaling pathway and that this upregulation is sufficient to induce arrest. Our studies reveal that Wnt signaling is activated by four Wnt ligands - Wg, Wnt5, Wnt6, Wnt10 – that are all expressed in the tracheoblasts. We show that all four ligands are required for Chk1 upregulation and that the temporal expression of the ligands is also under transcriptional control. Wg, Wnt5, Wnt6, and Wnt10 are high when the cells are arrested in G2 and low at the time the cells enter division.

A fascinating aspect of Wnt signaling in the trachea is that as many as four ligands appear to be required for G2 arrest; Wg, Wnt5, Wnt6 and Wnt10 are all necessary. The loss of any one of the ligands leads to a reduction in Chk1 mRNA levels in tracheoblasts comparable with the knockdown of TCF. Interestingly, our data also show that these 4 Wnts act redundantly to regulate Fz3 in the same cells. We hypothesize that the ligands act synergistically to maintain a threshold of Wnt signaling necessary for Chk1 expression. Consistent with this, we found that overexpression of Wnt5 or Wnt10 in Wnt6RNAi-expressing animals was able to prevent precocious proliferation at 16–24 h L3 (Btl-Wnt6RNAi at 16–24 h L3 Avg: 32.4 ± 1.2 cells, n = 8 tracheae; Btl-Wnt6RNAi, Wnt5 at 16–24 h L3 Avg: 19.1 ± 0.8, n = 8 tracheae; Btl-Wnt6RNAi, Wnt10 at 16–24 h L3 Avg: 18.2 ± 1.7 cells, n = 8 tracheae).

It is noteworthy that Wnt5, which in Drosophila has been implicated in non-canonical Wnt signaling (Shimizu et al., 2011), facilitates canonical Wnt signaling in tracheoblasts. There is evidence in other systems that non-canonical Wnt ligands can activate canonical Wnt signaling (Fu et al., 2016; Lyons et al., 2004). Preliminary expression profiling of the larval tracheal system has indicated that both Derailed and Doughnut, RYK family receptors that mediate non-canonical Wnt signaling, are expressed (AG, AK unpublished). This suggests that Wnt5 could act either directly or indirectly to facilitate canonical Wnt signaling in tracheoblasts.

The role of the Wnt pathway in activation of the ATR/Chk1 axis in a developmental context has, to the best of our knowledge, not been reported previously. However, there is evidence that Wnt signaling can induce the DNA damage checkpoint and G2 arrest in chemo/radio resistant tumors. Radioresistant tumor cells exhibit higher levels of Wnt signaling that leads to upregulation of Myc expression and in turn Chk1/2 expression (Zhao et al., 2018). It is plausible that Wnt-dependent upregulation of Chk1 evidenced here and in other contexts could be a general mechanism for the activation of a G2 checkpoint.

The mechanism for G2 arrest in Tr2 tracheoblasts is intimately linked with growth. Tr2 tracheoblasts switch from hypertrophic growth to hyperplastic growth during larval life. The balance between these modes of growth determines tracheal size at the onset of pupariation. We have shown that withdrawal of negative regulators like Wnt/Chk1 leads to a precocious switch from hypertrophy to hyperplasty and to a reduction in tracheal size. An unusual feature of G2 arrest in tracheoblasts is that the concomitant expression of both positive and negative cell cycle regulators. We show here that the juxtaposition of positive and negative regulators is essential for hypertrophic growth and that the withdrawal of either positive or negative regulators perturbs growth. These findings could be broadly relevant to growth control in other systems.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Genetic reagent (Drosophila melanogaster)btl-GAL4Shiga et al., 1996FLYB: FBtp0001208This line was a gift from Dr.Shigeo Hayashi
Genetic reagent (Drosophila melanogaster)UAS-Chk1RNAiVDRC110076
Genetic reagent (Drosophila melanogaster)UAS-TCFRNAiVDRC3014
Genetic reagent (Drosophila melanogaster)UAS-Chk1Kizhedathu et al., 2018 and
This paper
FLYB: FBgn0261278Developed using clone from DGRC: UFO05423
AntibodyPhospho-Chk1 (Ser345)CST2348Rabbit monoclonal antibody (1:200)
Commercial assay or kitTyramide signal amplification systemThermo Fisher ScientificB40922

Fly strains and handling

Request a detailed protocol

The following strains were obtained from repositories: TubGAL80ts; TM2/TM6b,Tb, UAS-FUCCI, UAS-Wnt2RNAi (29441), UAS-Wnt4RNAi (29442), UAS-Wnt5RNAi (28534), UAS-Wnt6RNAi (30493), UAS-WntDRNAi (28947), UAS-Wnt10RNAi (31989), UAS-CyclinBRNAi (34544), UAS-StgRNAi (29556), nkd-lacZ, Chk1-LacZ, fz3-GFP, UAS-ArmS10, UAS-TkvQD, Wnt6 KO, Wnt5400, Wgts (Bloomington Drosophila Stock Center), UAS-Chk1RNAi (110076), UAS-TCFRNAi (3014), UAS-Fz2RNAi (44391), UAS-WgRNAi (13352), UAS-Wnt10RNAi (100867), UAS-DshRNAi (101525), UAS-ArmRNAi (7767), UAS-Cdc2RNAi (106130) (Vienna Drosophila Resource Center), UAS-Chk1 (In-house fly facility). The following strains were received as gifts: btl-GAL4, UAS-ATR, UAS-Wnt10. Strains were raised on a diet of cornmeal-agar and maintained at 25°C except GAL80ts and Wgts strains that were maintained at 18°C. For experiments involving GAL80ts and Wgts strains, the animals were moved to 29°C at indicated stages for indicated time periods. All experiments were performed on animals raised at 25°C unless otherwise indicated.

Larval staging

Request a detailed protocol

Larval staging was performed as previously described (Guha and Kornberg, 2005) based on the morphology of the anterior spiracles. L2 larvae were collected and examined to identify animals that had undergone the L2-L3 molt in 8 hr intervals (0–8 h L3). 0–8 h L3 cohorts collected in this method were staged for subsequent time points.

Immunohistochemistry and imaging

Request a detailed protocol

Animals were dissected in PBS and fixed for 30 min with 4% (wt/vol) Paraformaldehyde in PBS. The following antisera were used for Immunohistochemical analysis: Chicken anti-GFP (Aves, 1:500), Rabbit anti-phospho Chk1 (CST, 1:200), Rabbit anti-phospho Smad (CST, 1:150) Rabbit anti-pH3 (Millipore, 1:500), and Alexa 488/568/647-conjugated Donkey anti-Chicken/Rabbit/Mouse secondary antibodies (Invitrogen, 1:200). Tyramide signal amplification was used as per manufacturer recommendations for p-Chk1 detection. The following reagents were used as part of this protocol: Tyramide amplification buffer and Tyramide reagent (Thermofisher), Vectastain A and B and Biotinylated donkey anti Rabbit IgG (1:200, Vector Labs). Tracheal preparations were flat-mounted in ProLong Diamond Antifade Mountant with DAPI (Molecular Probes) and imaged on Zeiss LSM-780 laser-scanning confocal microscopes. Images were processed using Image J. For quantification of cell number, fixed specimens were mounted in ProLong Diamond Antifade Mountant with DAPI and the number of nuclei were counted on an Olympus BX 53 microscope. The DT of the second thoracic metamere was identified morphologically based on the cuticular banding pattern at anterior and posterior junctions.

Single molecule FISH (smFISH)

Request a detailed protocol

Probe sets for Wg, Wnt5, Wnt6 and Wnt10 were designed using Stellaris RNA FISH Probe Designer (Biosearch Technologies, Inc, Petaluma, CA) available online at www.biosearchtech.com/stellarisdesigner. smFISH was performed as per manufacturers instructions. Briefly, the tissues were fixed for 45 min in 4% (wt/vol) paraformaldehyde at room temperature and permeabilized overnight in 70% ethanol. The hybridization was performed overnight at 37°C. The samples were then washed and imaged on a Zeiss LSM-780 laser-scanning confocal microscope. The probes for Wg and Wnt6 were validated by detecting the pattern of the stripe in WL3 wing disc. Wnt5 probes were validated by staining the trachea from a Wnt5 null mutant where we did not observe any signal.

RNA isolation and quantitative PCR

Request a detailed protocol

RNA extraction and qPCR were performed as described in Kizhedathu et al., 2018. Primer sequences for Chk1, Fz3, Wg, Wnt5, Wnt6, Wnt10 and GAPDH (internal control) are provided below. Relative mRNA levels were quantified using the formula RE = 2- ∆∆Ct method.

The following primer sets were used:

GAPDH Forward5' CGTTCATGCCACCACCGCTA 3'
GAPDH Reverse5' CACGTCCATCACGCCACAA 3'
Chk1 Forward5' AACAACAGTAAAACGCGCTGG 3'
Chk1 Reverse5' TGCATATCTTTCGGCAGCTC 3'
Wg Forward5’ AAATCGTTGATCGAGGCTGC 3’
Wg Reverse5’ GGTGCAGGACTCTATCGTTCC 3’
Wnt5 Forward5’ AGGATAACGTGCAAGTGCCA 3’
Wnt5 Reverse5’ ACTTCTCGCGCAGATAGTCG 3’
Wnt6 Forward5’ AGTTTCAATTCCGCAACCGC 3’
Wnt6 Reverse5’ TCGGGAATCGCGCATTAAGA 3’
Wnt10 Forward5’ CACGAATGGCCCGAAAACTG 3’
Wnt10 Reverse5’ CCCACGGTGCCCTGTATATC 3’
Fz3 Forward5’ ATGAATGTCGTTCAAAGTGG 3’
Fz3 Reverse5’ TATAGTAAATGGGGCTTGCG 3’

Data availability

All data generated or analysed during this study are included in the manuscript.

References

Decision letter

  1. Didier YR Stainier
    Senior Editor; Max Planck Institute for Heart and Lung Research, Germany
  2. Amin S Ghabrial
    Reviewing Editor; Columbia University, United States
  3. Bruce Edgar
    Reviewer; University of Utah, United States
  4. Greg Beitel
    Reviewer; Northwestern University, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Thank you for submitting your article "Multiple Wnts act synergistically to induce Chk1/Grapes expression and mediate G2 arrest in Drosophila tracheoblasts" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Didier Stainier as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Bruce Edgar (Reviewer #2); Greg Beitel (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

In their manuscript entitled "Multiple Wnts act synergistically to induce Chk1/Grapes expression and mediate G2 arrest in Drosophila tracheoblasts," Kizhedathu and colleagues investigate the developmental regulation of Chk1 activation in larval tracheoblasts of the Dorsal Trunk segment Tr2. They find that four Wnt ligands are required to achieve a level of active Chk1 (pChk1) needed to maintain tracheoblasts in G2 arrest. This regulation is achieved by autocrine signaling in which the canonical Wnt pathway is activated by 4 Wnt ligands expressed in the trachea at high levles. Wnt signaling is required for transcription of Chk1. None of the 4 highly expressed Wnts are dispensable. Release from G2 is required for activation of the Dpp/Tkv/pMad pathway that spurs continuing cell divisions.

This is a Research Advance manuscript following up on work reported in a prior publication entitled "Negative regulation of G2-M by ATR/Chk1 (Grapes) facilitates tracheoblast growth and tracheal hypertrophy in Drosophila." The current work makes several important contributions. Having initially identified a G2 cell cycle arrest dependent on Chk1 and ATR, but not upon DNA damage, the authors now show that the cell cycle arrest is maintained through a canonical Wnt signal that mediates transcription of Chk1 mRNA. The authors identify 4 Wnt ligands expressed in the tracheoblasts and show that all 4 are required for G2 maintenance via Chk1 transcription, although individually dispensable for fz3 transcription. The authors also show that the Dpp pathway signal required to drive tracheoblast cell divisions cannot operate during G2 cell cycle arrest. Lastly, authors note that Wnt5 is thought to signal through a nonconical pathway, but in this instance contributes to canonical signaling.

Essential revisions:

1) Additional controls to confirm the requirement for 4 Wnts

– Is there any chance that there are off target effects from the RNAi that may cause this? Do the Wnt ligands impact each other’s expression? Wnt ligand KD followed by qPCR analysis of the Wnt ligands could be useful. This issue is important to discuss, and test.

– Test of second independent RNAi line where classic loss of function alleles are not available.

– Test RNAi of the non-expressed Wnt ligands and addition of a supplemental table documenting the screen (Wnt and other pathways) with RNAi line numbers, drivers, temperatures and results.

2) Clarify ability of overexpressed Wnts to rescue, and determine the requirement for nonconical Wnt pathway

– Address whether derailed or doughnut are required in tracheoblasts.

– Authors Wnt threshold model hinges on ability of overexpressed Wnt to compensate for loss of one Wnt ligand. However, this was only reported for one loss of function case (Wnt 6 RNAi), and only with one overexpressed Wnt (Wnt5). Authors should test ability of other Wnts to rescue and should also address whether a conventional Wnt can substitute, when overexpressed, for Wnt5.

3) Address inhibition of mitoses during L2:

– The authors show that downregulating the Wnt pathway in L2 stage does lead to the reduction of Chk1 mRNA (Figures 3A and 2, respectively), but that this does not result in tracheoblast mitoses. This indicates that in L2, in contrast to L3, there must be some additional control which is lifted after L2/L3 metamorphosis. The authors should discuss this issue and present possible explanations. If they have any more relevant data, this should also be presented.

4) Move Figure 5—figure supplement 1 into Results.

– Discussion paragraph four. Minimally, it is not appropriate to introduce data in the discussion that is not discussed in the main Results section. Moreover, the experiments and results are super interesting. I could be wrong because I am not an expert in the cell cycle, but I don't think the idea of a G2 arrested cell continuing to grow physically because it still expresses cell cycle promoting genes while in G2 arrest is really out there in the literature on cell and organ size control (although I think mammalian oocytes arrest in G2 and they get really big, but they also may have bridges to nurse-like cells to supplement growth). As such, I would strongly encourage the authors to make Figure 5—figure supplement 1 part of the main figures and discuss the basic findings in the Results section. Then it could be revisited in the Discussion section to put the result in the bigger picture context.

https://doi.org/10.7554/eLife.57056.sa1

Author response

Essential revisions:

1) Additional controls to confirm the requirement for 4 Wnts

– Is there any chance that there are off target effects from the RNAi that may cause this?

We have used the UP-TORR (Updated Targets of RNAi Reagents) to analyse the potential off target effects of the Wnt ligand RNAi lines used in the manuscript. It provides up-to-date annotation of the RNAi lines that can be sourced from public collections. The analysis shows that the Wnt RNAi lines that we have used are indeed specific to their respective Wnts and are unlikely to have off-target effects (OTE, see Author response table 1).

Author response table 1

OTE: off target effect on other Wnts

Yanhui Hu, Charles Roesel, Ian Flockhart, Lizabeth Perkins, Norbert Perrimon, and Stephanie E Mohr. 2013. “UP-TORR: online tool for accurate and Up-to-Date annotation of RNAi Reagents.” Genetics, 195, 1, Pp. 37-45.

Do the Wnt ligands impact each other’s expression? Wnt ligand KD followed by qPCR analysis of the Wnt ligands could be useful. This issue is important to discuss, and test.

We have performed qPCR experiments to determine how knocking down expression of one Wnt ligand impacts the expression of other ligands. (Figure 4—figure supplement 1D). We find that a reduction in the expression of one ligand (Wg, Wnt5, Wnt6, Wnt10) does not impact the expression of the remaining ligands. Based on this data we infer that expression of Wnts are not dependent on each other and that each Wnt contributes independently toward G2 arrest.

– Test of second independent RNAi line where classic loss of function alleles are not available.

We sourced an independent RNAi line for Wnt10 from VDRC to test the role of Wnt 10 in G2 arrest. We find that expression of Wnt10RNAi also it leads to precocious proliferation at 16-24 h L3. This data further supports the finding that Wnt10 is required for G2 arrest (Figure 4—figure supplement 1A).

– Test RNAi of the non-expressed Wnt ligands and addition of a supplemental table documenting the screen (Wnt and other pathways) with RNAi line numbers, drivers, temperatures and results.

The supplemental table is provided in Figure 4—figure supplement 2. Precise descriptions of the Wnt RNAi lines that have been used is now included in the Materials and methods section.

2) Clarify ability of overexpressed Wnts to rescue, and determine the requirement for nonconical Wnt pathway

– Address whether derailed or doughnut are required in tracheoblasts.

We have shown that it is possible to rescue the Btl-Wnt6RNAi phenotype by overexpression of Wnt5. We now show that it is also possible to rescue the Btl-Wnt6RNAi phenotype by overexpression of Wnt10. This data has been included in the text. Based on the results of Wnt 5/10 overexpression we infer that the Wnts are able to complement each other. The overexpression of Wg could not be tested as it is lethal.

Our finding that Btl-Wnt 5RNAi abrogates G2 arrest suggests non-canonical Wnt signalling could also play a role in mediating arrest. Wnt5 activates the non-canonical pathway by binding to the RYK family receptor tyrosine kinases Derailed and Doughnut. We have examined how knockdown of Derailed (Btl-Gal4/UAS-DrlRNAi) and Doughnut (Btl-Gal4/+; UAS-DntRNAi/+) in the trachea impacts G2 arrest (see graph in Author response image 1). Neither the knockdown of Derailed nor Doughnut leads to precocious mitotic entry. While this does not eliminate the possibility that the non-canonical Wnt signalling pathway has a role in mediating G2 arrest, we have found no evidence for this.

Author response image 1

– Authors Wnt threshold model hinges on ability of overexpressed Wnt to compensate for loss of one Wnt ligand. However, this was only reported for one loss of function case (Wnt 6 RNAi), and only with one overexpressed Wnt (Wnt5). Authors should test ability of other Wnts to rescue and should also address whether a conventional Wnt can substitute, when overexpressed, for Wnt5.

As stated above, we have tested whether Wnt10 overexpression can rescue the Btl-Wn6 RNAi phenotype. We find that the overexpression of Wnt10 can also rescue the loss of Wnt6. Together with the data that Wnt5 overexpression can also rescue the Btl-Wnt6RNAi phenotype, these findings suggest that one Wnt can compensate for another.

3) Address inhibition of mitoses during L2:

– The authors show that downregulating the Wnt pathway in L2 stage does lead to the reduction of Chk1 mRNA (Figures 3A and 2, respectively), but that this does not result in tracheoblast mitoses. This indicates that in L2, in contrast to L3, there must be some additional control which is lifted after L2/L3 metamorphosis. The authors should discuss this issue and present possible explanations. If they have any more relevant data, this should also be presented.

There is indeed an additional mechanism of negative control that is lifted after the L2/L3 molt. In our earlier paper (Kizhedathu et al., 2018) we showed that induction of a constitutively active Cdc2 (Cdc2AF) cannot induce mitoses in L2 but can after the L2/L3 molt. We have reason to think that this additional layer of control could be linked to mitochondrial dynamics. We find that the mitochondria are fused in L2 and fragment immediately after the molt. We are currently investigating how mitochondrial dynamics are regulated and how these dynamics impact the cell cycle program. These findings are beyond the scope of this manuscript.

4) Move Figure 5—figure supplement 1 into Results.

– Discussion paragraph four. Minimally, it is not appropriate to introduce data in the discussion that is not discussed in the main Results section. Moreover, the experiments and results are super interesting. I could be wrong because I am not an expert in the cell cycle, but I don't think the idea of a G2 arrested cell continuing to grow physically because it still expresses cell cycle promoting genes while in G2 arrest is really out there in the literature on cell and organ size control (although I think mammalian oocytes arrest in G2 and they get really big, but they also may have bridges to nurse-like cells to supplement growth). As such, I would strongly encourage the authors to make Figure 5—figure supplement 1 part of the main figures and discuss the basic findings in the Results section. Then it could be revisited in the Discussion section to put the result in the bigger picture context.

Done.

https://doi.org/10.7554/eLife.57056.sa2

Article and author information

Author details

  1. Amrutha Kizhedathu

    1. Institute for Stem Cell Science and Regenerative Medicine (inStem), GKVK Campus, Bangalore, India
    2. SASTRA University, Thirumalaisamudram, India
    Contribution
    Conceptualization, Formal analysis, Validation, Investigation, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  2. Rose Sebastian Kunnappallil

    Institute for Stem Cell Science and Regenerative Medicine (inStem), GKVK Campus, Bangalore, India
    Present address
    National Centre for Biological Sciences, Tata Institute of Fundamental Research, Bangalore, India
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  3. Archit V Bagul

    Institute for Stem Cell Science and Regenerative Medicine (inStem), GKVK Campus, Bangalore, India
    Present address
    Institute of Genetics and Molecular and Cellular Biology, Illkirch-Graffenstaden, France
    Contribution
    Conceptualization, Methodology
    Competing interests
    No competing interests declared
  4. Puja Verma

    Institute for Stem Cell Science and Regenerative Medicine (inStem), GKVK Campus, Bangalore, India
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  5. Arjun Guha

    Institute for Stem Cell Science and Regenerative Medicine (inStem), GKVK Campus, Bangalore, India
    Contribution
    Conceptualization, Writing - original draft, Writing - review and editing
    For correspondence
    arjung@instem.res.in
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3753-1484

Funding

Department of Biotechnology, Ministry of Science and Technology (inStem Core Grant)

  • Arjun Guha

Department of Biotechnology, Ministry of Science and Technology (InStem Core Grant)

  • Arjun Guha

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Shigeo Hayashi, Anja C Nagel and Prachi Yadav for fly strains and the Central Imaging and Flow Cytometry Facility (CIFF) and Fly Facility at BLiSc for their support. We thank Benny Shilo, members of the Regulation of Cell Fate Theme at inStem and Narmada Khare for comments on the manuscript. Support: Ramalingaswami Fellowship (Department of Biotechnology, Government of India, AG) and institutional funds from inStem (AK, RSK, PV).

Senior Editor

  1. Didier YR Stainier, Max Planck Institute for Heart and Lung Research, Germany

Reviewing Editor

  1. Amin S Ghabrial, Columbia University, United States

Reviewers

  1. Bruce Edgar, University of Utah, United States
  2. Greg Beitel, Northwestern University, United States

Publication history

  1. Received: March 20, 2020
  2. Accepted: August 29, 2020
  3. Accepted Manuscript published: September 2, 2020 (version 1)
  4. Accepted Manuscript updated: September 9, 2020 (version 2)
  5. Version of Record published: September 21, 2020 (version 3)
  6. Version of Record updated: September 24, 2020 (version 4)

Copyright

© 2020, Kizhedathu et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 963
    Page views
  • 100
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    Hiroko Katsuno-Kambe et al.
    Research Article Updated

    Epithelial networks are commonly generated by processes where multicellular aggregates elongate and branch. Here, we focus on understanding cellular mechanisms for elongation using an organotypic culture system as a model of mammary epithelial anlage. Isotropic cell aggregates broke symmetry and slowly elongated when transplanted into collagen 1 gels. The elongating regions of aggregates displayed enhanced cell proliferation that was necessary for elongation to occur. Strikingly, this locoregional increase in cell proliferation occurred where collagen 1 fibrils reorganized into bundles that were polarized with the elongating aggregates. Applying external stretch as a cell-independent way to reorganize the extracellular matrix, we found that collagen polarization stimulated regional cell proliferation to precipitate symmetry breaking and elongation. This required β1-integrin and ERK signaling. We propose that collagen polarization supports epithelial anlagen elongation by stimulating locoregional cell proliferation. This could provide a long-lasting structural memory of the initial axis that is generated when anlage break symmetry.

    1. Cell Biology
    2. Neuroscience
    Shahzad S Khan et al.
    Research Advance Updated

    Activating LRRK2 mutations cause Parkinson’s disease, and pathogenic LRRK2 kinase interferes with ciliogenesis. Previously, we showed that cholinergic interneurons of the dorsal striatum lose their cilia in R1441C LRRK2 mutant mice (Dhekne et al., 2018). Here, we show that cilia loss is seen as early as 10 weeks of age in these mice and also in two other mouse strains carrying the most common human G2019S LRRK2 mutation. Loss of the PPM1H phosphatase that is specific for LRRK2-phosphorylated Rab GTPases yields the same cilia loss phenotype seen in mice expressing pathogenic LRRK2 kinase, strongly supporting a connection between Rab GTPase phosphorylation and cilia loss. Moreover, astrocytes throughout the striatum show a ciliation defect in all LRRK2 and PPM1H mutant models examined. Hedgehog signaling requires cilia, and loss of cilia in LRRK2 mutant rodents correlates with dysregulation of Hedgehog signaling as monitored by in situ hybridization of Gli1 and Gdnf transcripts. Dopaminergic neurons of the substantia nigra secrete a Hedgehog signal that is sensed in the striatum to trigger neuroprotection; our data support a model in which LRRK2 and PPM1H mutant mice show altered responses to critical Hedgehog signals in the nigrostriatal pathway.
