Estrogen exacerbates mammary involution through neutrophil-dependent and -independent mechanism

  1. Chew Leng Lim
  2. Yu Zuan Or
  3. Zoe Ong
  4. Hwa Hwa Chung
  5. Hirohito Hayashi
  6. Smeeta Shrestha
  7. Shunsuke Chiba
  8. Feng Lin
  9. Valerie Chun Ling Lin  Is a corresponding author
  1. NTU Institute for Health Technologies, Interdisciplinary Graduate School, Nanyang Technological University, Singapore
  2. School of Biological Sciences, Nanyang Technological University, Singapore
  3. Division of Chemistry and Biological Chemistry, School of Physical and Mathematical Sciences, Nanyang Technological University, Singapore
  4. School of Basic and Applied Sciences, Dayananda Sagar University, India
  5. School of Computer Science and Engineering, Nanyang Technological University, Singapore
https://doi.org/10.7554/eLife.57274
Share this article
Cite this article
  1. Chew Leng Lim
  2. Yu Zuan Or
  3. Zoe Ong
  4. Hwa Hwa Chung
  5. Hirohito Hayashi
  6. Smeeta Shrestha
  7. Shunsuke Chiba
  8. Feng Lin
  9. Valerie Chun Ling Lin
(2020)
Estrogen exacerbates mammary involution through neutrophil-dependent and -independent mechanism
eLife 9:e57274.
https://doi.org/10.7554/eLife.57274
  2. Download BibTeX
  3. Download .RIS

Abstract

There is strong evidence that the pro-inflammatory microenvironment during post-partum mammary involution promotes parity-associated breast cancer. Estrogen exposure during mammary involution drives tumor growth through neutrophils’ activity. However, how estrogen and neutrophils influence mammary involution are unknown. Combined analysis of transcriptomic, protein, and immunohistochemical data in BALB/c mice showed that estrogen promotes involution by exacerbating inflammation, cell death and adipocytes repopulation. Remarkably, 88% of estrogen-regulated genes in mammary tissue were mediated through neutrophils, which were recruited through estrogen-induced CXCR2 signalling in an autocrine fashion. While neutrophils mediate estrogen-induced inflammation and adipocytes repopulation, estrogen-induced mammary cell death was via lysosome-mediated programmed cell death through upregulation of cathepsin B, Tnf and Bid in a neutrophil-independent manner. Notably, these multifaceted effects of estrogen are mostly mediated by ERα and unique to the phase of mammary involution. These findings are important for the development of intervention strategies for parity-associated breast cancer.

Introduction

There is strong evidence that the mammary microenvironment during the post-partum mammary involution promotes mammary tumor progression. High levels of tissue fibrillar collagen and elevated expression of cyclooxygenase-2 (COX-2) in the mammary gland have been shown to drive tumor growth and lymph angiogenesis (Lyons et al., 2014; Lyons et al., 2011). Wound healing-like tissue environment associated with mammary involution is also known to promote tumor development and dissemination (Foster et al., 2018). Estrogen has been shown to stimulate the growth of estrogen receptor-negative mammary tumors during mammary involution and estrogen-stimulated neutrophil activity plays a crucial role in fostering the pro-tumoral microenvironment (Chung et al., 2017). This suggests that estrogen exposure during post-weaning mammary involution is a risk factor for parity-associated breast cancer. However, the functional roles of estrogen and neutrophils in mammary biology during involution have been little studied to date.

Post-weaning mammary involution is a process for the lactating mammary gland to return to the pre-pregnancy state. The distinctive features of mammary involution include massive cell death of the secretory mammary alveoli, acute inflammation, extracellular matrix remodelling and adipocyte repopulation. Involution is commonly divided into two phases. In mice, the first phase is the reversible phase whereby the reintroduction of the pups within 48 hr can re-initiate lactation (Li et al., 1997; Jaggi et al., 1996). It is typified by a decrease in milk protein synthesis and increased mammary cell death resulting in the appearance of shed, dying cells within the lumen of the distended alveoli (Strange et al., 1992; Walker et al., 1989). Inflammation also occurs in the first phase with the infiltration of immune cells and up-regulation of immune response genes (Stein et al., 2004; Clarkson and Watson, 2003). The second, and irreversible phase of mammary involution occurs after 72 hr of weaning. This phase is morphologically characterized by the collapse of the alveolar structure, the second wave of epithelial cell death, continued inflammation and the repopulation of adipocytes. This is followed by mammary regeneration and tissue remodelling to the pre-pregnancy state.

Neutrophils are the most abundant leukocytes in the innate immune system against invading pathogens. Neutrophils are also activated in response to sterile inflammation, but the outcome is complicated and depends on the context (Wang, 2018). The importance of neutrophils in tumor development has been increasingly recognized in recent years. Tumor-associated neutrophils have been classified into the anti-tumor neutrophils (N1) and pro-tumor neutrophils (N2) based on the expression of specific markers (Fridlender et al., 2009). Neutrophils are known to accumulate in the peripheral blood of patients with cancer and a high circulating neutrophil-to-lymphocyte ratio is known as a strong biomarker of poor prognosis in various cancers (Shaul and Fridlender, 2019). Based on density gradient centrifugation, circulating neutrophils in mice model can also be classified into the low-density and high-density neutrophils (LDN and HDN) (Sagiv et al., 2015; Mishalian et al., 2017). LDN was associated with immunosuppressive activity promoting tumor growth while HDN was considered cytotoxic to the tumor. Neutrophils were reported to be the first immune cells recruited into mammary tissue during involution (Stein et al., 2004), although the significance of their presence is not known.

Estrogen is well studied on its mitogenic effect and plays essential roles in mammary ductal development. However, the studies of estrogen influence on mammary involution are scarce. In mice, a histological examination in 1970 reported that estrogen treatment retards mammary involution (Satoh, 1970). However, estrogen was reported to promote the regression of mammary glands in rats by up-regulating a 60K gelatinase which degrades collagen and participate in extracellular matrix remodelling (Ambili et al., 1998). Similar to the observation in rats, injection of estrogen during the dry off period in dairy cows hastened involution based on the abrupt decline of milk synthesis and secretion (Athie et al., 1997; Athie et al., 1996). Those early preliminary studies clearly indicate the involvement of estrogen in the modulation of mammary involution, but the pieces of evidence are limited and inconsistent among different models.

In this present study, we investigated the influence of estrogen on the progression of mammary involution in mice. We also evaluated the roles of neutrophils in estrogen regulation of this process in neutrophil depletion experiments. Our data show that estrogen plays a multifaceted role in the regulation of post-weaning mammary involution by enhancing inflammation, cell death, adipocyte occupancy, and tissue remodelling through both neutrophil-dependent and neutrophil-independent mechanisms. Global transcriptomic analysis revealed striking effect of estrogen on neutrophil activities that likely exert profound influence on mammary microenvironment that may have significantly impact on the development of parity-associated breast cancer.

Results

Estrogen promotes inflammation, programmed cell death and adipocytes repopulation during post-weaning mammary involution

Acute inflammation, programmed cell death, and adipocytes repopulation are the hallmarks of the acute phase of post-weaning mammary involution. To understand the roles of estrogen in mammary involution, its effect on these hallmarks were evaluated. Ovariectomized (OVX) mice at 24 hr post-weaning (INV D1) were treated with or without 17β-estradiol benzoate (E2B) for 48 hr. E2B caused significantly more mammary cell death, as evidenced by the increase of the number of shed cells with hyper-condensed nuclei in the lumen, a characteristic of programmed cell death (Figure 1, Ai, and 1B, p=0.0131). This effect was associated with an increase in the number of cleaved caspase-3-positive (CC3+) mammary cells (Figure 1, Aii, and 1B, p=0.0283). E2B also significantly increased the repopulation of adipocytes based on the staining of perilipin, a lipid droplet-associated protein (Greenberg et al., 1991; Figure 1, Aiii, and 1B, p=0.0155). Accordingly, E2B decreased the expression of milk proteins β-casein (Csn2) (Figure 1C, p=0.0187).

Figure 1 with 1 supplement see all
Download asset Open asset

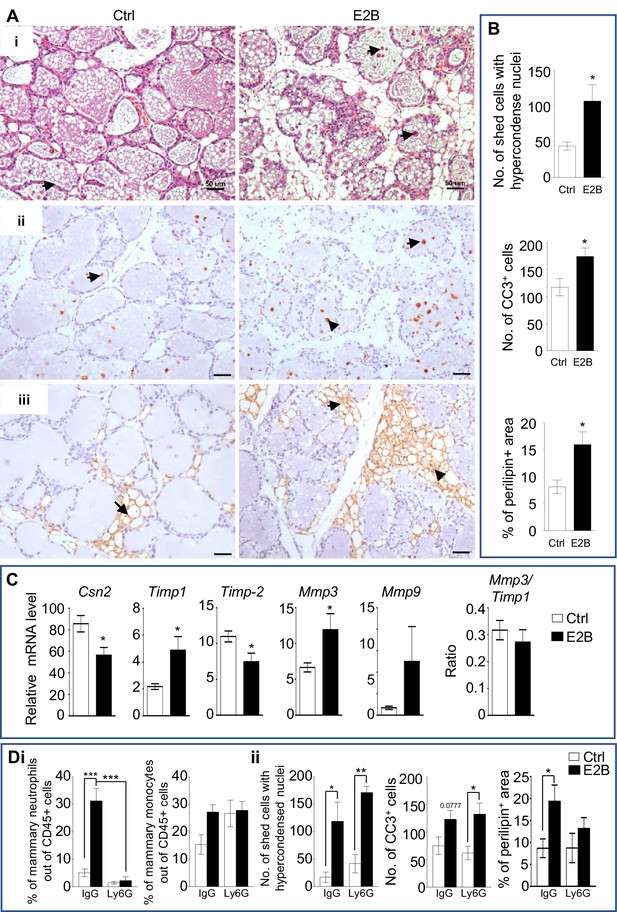

Estrogen accelerates mammary involution.

(A-C) Mice on the day of weaning (involution day 1-INV D1) were treated with vehicle control (Ctrl) or E2B for 48 hr before mammary tissues were collected for analysis; (A) (i) H and E stained mammary tissue sections; shed cells with hyper-condensed nuclei are indicated by arrows; (ii) IHC of cleaved caspase-3 (CC3); arrows indicate CC3+ cells; (iii) Perilipin IHC; arrows indicate perilipin+ adipocytes; Scale bars: 50 µm; (B) The number of shed cells with hyper-condensed nuclei in the lumens of H and E sections is based on the total of 5 random field per mouse (Ctrl n = 9, E2B n = 8); the number of CC3+ cells is based on the average of CC3+ cells of 5 random field per mouse (Ctrl n = 7, E2B n = 6); adipocytes repopulation is based on the percentage of perilipin stained area of the total section (Ctrl n = 7, E2B n = 8); (C) Gene expression of Csn2 and tissue remodelling enzymes Timp1, Timp2, Mmp3, and Mmp9 relative to Rplp0 by qPCR analysis (Ctrl n = 7, E2B n = 6). (D) Mice at INV D1 was treated with anti-Ly6G antibody (Ly6G) or isotype control (IgG). 6 hr later, they were treated with vehicle control (Ctrl) or E2B for 48 hr; Di, E2B treatment in mice given IgG significantly increased the percentage of mammary neutrophils by 9-folds which was abolished by neutrophil depletion with Ly6G; Percentage of mammary neutrophils (CD45+ CD11b+ Gr1+ F4/80-) and monocytes (CD45+ CD11b+ Ly6Chi) out of live CD45+ population; Dii, Neutrophil depletion had no effect on cell shedding and number of Cc3+ cells, but attenuated estrogen-induced adipocytes repopulation (Ctrl+IgG n = 4, E2B+IgG n = 4, Ctrl+Ly6G n = 3, E2B+Ly6G, n = 3). Data represented as mean ± SEM.

Coordinated activities of metalloproteinases and the tissue inhibitor of metalloproteinases are key players in mammary tissue remodelling and adipocyte repopulation during mammary involution. In particular, stromelysin-1 (Mmp3) gene deletion or Timp1 overexpression in mice accelerated mammary adipogenesis (Barker et al., 2011; Alexander et al., 2001). Intriguingly, E2B-induced adipocyte repopulation was associated with increases in the gene expression of Timp1, Mmp3 and Mmp9, but decrease in the expression of Timp2. However, the ratio of Mmp3 to Timp1 did not change in response to E2B (Figure 1C). It is plausible that calibrated activities of MMPs and their inhibitors are involved in E2B-induced adipocyte repopulation and tissue remodeling.

We reported previously that E2B markedly induced the expression of inflammatory genes and neutrophil infiltration (Chung et al., 2017). We questioned if neutrophils are involved in E2B-induced cell death and adipocytes repopulation. The effect of estrogen on mammary involution following neutrophil depletion using anti-Ly6G antibody (Ly6G) were evaluated. Figure 1Di shows that estrogen increased mammary neutrophils significantly (p=0.0002). Ly6G antibody reduced neutrophils in the mammary tissue of E2B-treated samples by ~90%. Estrogen also visibly increases mammary monocytes but not to a statistically significant level (Figure 1Di, p=0.1103). Interestingly, whilst neutrophil depletion had no effect on E2B-induced mammary cell death, it attenuated E2B-induced adipocytes repopulation (Figure 1Dii). The representative histological images of the effect of neutrophil depletion on cell death and adipocytes repopulation are shown in Figure 1—figure supplement 1. Taken together, we conclude that estrogen promotes mammary involution, and neutrophils are critical for estrogen-induced inflammation and adipocytes repopulation, but not for mammary cell death.

Majority of estrogen-regulated genes in involuting mammary tissue is mediated through neutrophils

To elucidate the mechanism of estrogen regulation during mammary involution, RNA-Seq analysis of mammary tissue was conducted. Since estrogen has been shown to induce neutrophil infiltration in mammary tissue, the involvement of neutrophils in estrogen regulation of gene expression was also determined. OVX mice were injected with anti-Ly6G antibody (Ly6G) to deplete neutrophils at 24 hr post-weaning (INV D1). Mice given isotype control antibody (IgG) were used as controls. Mice were subsequently treated with or without E2B for 24 hr. Consistent with the previous study (Chung et al., 2017), E2B induced the infiltration of neutrophil and monocytes (CD45+ CD11b+ Ly6Chi) in mammary tissue during mammary involution. (Figure 2—figure supplement 1B). Anti-Ly6G treatment reduced neutrophil (CD45+ CD11b+ Gr1hi) levels in the blood and mammary tissue by more than 95% (Figure 2—figure supplement 1A, p<0.05). Mammary monocytes were decreased by anti-Ly6G, although this reduction was not statistically significant (Figure 2—figure supplement 1B, p=0.1417). It is plausible that E2B-induced monocytes infiltration is partly mediated by neutrophils.

RNA-Seq data were analyzed using DESeq2 (Love et al., 2014) to identify differentially expressed (DE) genes between the different treatments. As shown in the volcano plot (Figure 2A, top panel), a total of 1987 genes were significantly (padj < 0.05) regulated by E2B in IgG groups with very high fold changes (Figure 2B). Of these genes, 513 genes were up-regulated, and 148 genes were down-regulated with a fold change ≥ 2 (Figure 2A, top panel). Gene ontology (GO) analysis showed that estrogen regulates genes involved in diverse biological processes (Figure 2C). Leukocyte migration, regulation of inflammatory response, and cytokine-mediated signalling are among the top biological processes regulated. E2B also regulated genes in epithelial cell proliferation, cell death, and fat cell differentiation.

Figure 2 with 1 supplement see all
Download asset Open asset

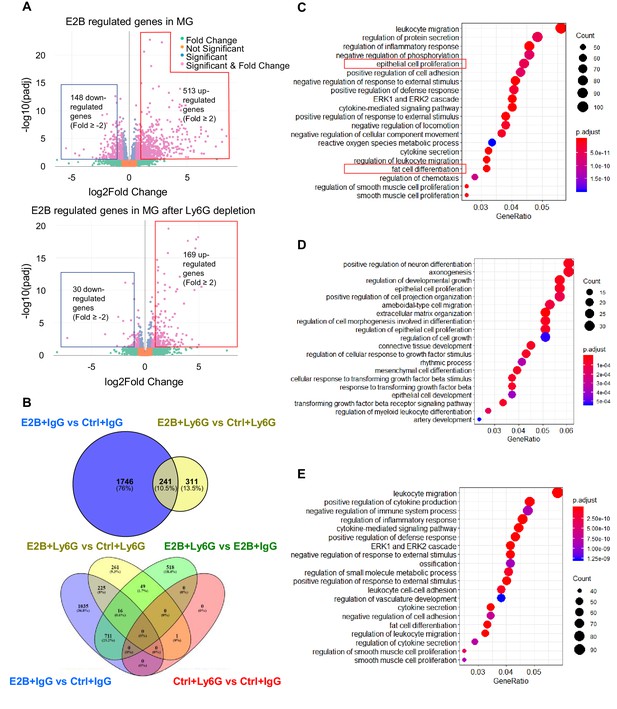

Estrogen regulates a multitude of neutrophil-dependent and –independent biological processes in involuting mammary gland.

Mice at INV D1 were treated with anti-Ly6G antibody (Ly6G) or isotype control (IgG). 24h later, they were treated with vehicle control (Ctrl) or E2B for 24h (Ctrl+IgG n=3, Ctrl+Ly6G n=3, E2B+IgG n=3, E2B+Ly6G n=3). RNA-Seq data were processed and analyzed with DESeq2 followed by GO over-representation analysis. (A) Volcano plot for the differentially expressed E2B regulated genes in mammary gland (MG) from IgG- and Ly6G-treated animals. (B) Venn diagram for the differentially expressed genes identified from the DESeq2 analysis of the RNA-Seq data. (C) Top 20 Gene Ontology (GO) terms for E2B regulated genes in MG without neutrophil depletion. (D) Top 20 GO terms for the E2B regulated genes in MG after neutrophil depletion. E, Top 20 GO terms for E2B regulated genes lost as a result of neutrophil depletion.

Figure 2—source data 1

DESeq2 analysis result between Ctrl+IgG and Ctrl+Ly6G.

https://cdn.elifesciences.org/articles/57274/elife-57274-fig2-data1-v2.xlsx
Figure 2—source data 2

DESeq2 analysis result between E2B+IgG and Ctrl+IgG.

https://cdn.elifesciences.org/articles/57274/elife-57274-fig2-data2-v2.xlsx
Figure 2—source data 3

DESeq2 analysis result between E2B+Ly6G and Ctrl+Ly6G.

https://cdn.elifesciences.org/articles/57274/elife-57274-fig2-data3-v2.xlsx
Figure 2—source data 4

DESeq2 analysis result between E2B+IgG and E2B+Ly6G.

https://cdn.elifesciences.org/articles/57274/elife-57274-fig2-data4-v2.xlsx
Figure 2—source data 5

GO over-representation analysis result of DE genes between E2B+IgG and Ctrl+IgG.

https://cdn.elifesciences.org/articles/57274/elife-57274-fig2-data5-v2.xlsx
Figure 2—source data 6

GO over-representation analysis result of DE genes between E2B+Ly6G and Ctrl+Ly6G.

https://cdn.elifesciences.org/articles/57274/elife-57274-fig2-data6-v2.xlsx
Figure 2—source data 7

GO over-representation analysis result of DE genes found only in E2B+IgG.

https://cdn.elifesciences.org/articles/57274/elife-57274-fig2-data7-v2.xlsx

Remarkably, neutrophil depletion eliminated 88% of estrogen-regulated genes (Figure 2B, top panel), that is, 1746 out of 1987 E2B-regulated genes in mammary tissue were regulated in neutrophils directly, or indirectly through the activities of neutrophils. Correspondingly, 12% (241 genes) of E2B-regulated genes in mammary tissue are independent of neutrophils. It is also noteworthy that there is only one differentially regulated gene (padj < 0.05) between IgG and Ly6G groups in the absence of estrogen (Figure 2B, bottom panel). This could be due to the fact that the number of mammary neutrophils present in these Ctrl samples were too low (less than 1% of the total live cells in FACS analysis) to account for any differences in gene expression. Consistent with the function of neutrophils, E2B-regulated GO terms including leukocyte migration, inflammatory response, cytokines and chemokines related pathways, and fat cell differentiation were all eliminated in neutrophil depleted samples (Figure 2D). On the other hand, GO terms such as epithelial cell proliferation and developmental growth persisted in neutrophil-depleted samples, suggesting that their stimulation by E2B are independent of neutrophils (Figure 2C and D).

Taken together, global gene expression analysis of mammary tissue demonstrates that estrogen regulates genes in a plethora of biological processes during post-weaning mammary involution, and 88% of estrogen-regulated genes are mediated in neutrophils, or through neutrophils’ influence on other cells such as macrophages or monocytes. Therefore, the E2B-induced pro-inflammatory microenvironment during mammary involution is primarily due to its regulation of neutrophil activities, which play a significant role in post-weaning mammary involution. In the subsequent studies, we investigated the mechanism of estrogen-induced neutrophil infiltration, mammary cell death, and adipocytes repopulation during post-weaning mammary involution.

Estrogen-induced Cxcr2 signalling in neutrophils plays a key role in mammary neutrophil infiltration

Based on the GO over-representation analysis, 63 E2B-regulated genes with fold change ≥ 3 were associated with leukocyte migration and inflammation (Figure 3A). All 63 genes were no longer E2B-regulated after neutrophil depletion (in Ly6G group). This suggests that the regulation of inflammation by estrogen is primarily exerted through neutrophils. Aconitate decarboxylase 1 (Acod1), triggering receptor expressed on myeloid cells 1 (Trem1), triggering receptor expressed on myeloid cells 3 (Trem3), and interleukin one beta (Il1b) are among the top up-regulated genes based on fold induction. These genes were validated with qPCR in isolated neutrophils (Figure 3B, Acod1, p=0.0845; Trem1, p=0.0252; Trem3, p=0.0181; Il1b, p=0.0527). Another interesting estrogen-regulated gene is myocardial infraction associated transcript 2 (Mirt2; Figure 3B, p=0.008), which was found to be one of the highest E2B-regulated gene in the RNA-Seq data. Mirt2 is a lipopolysaccharides (LPS)-induced long non-coding RNA (lncRNA) in macrophages and was reported to be a negative regulator of LPS-induced inflammation both in vivo and in vitro (Du et al., 2017). Thus, Mirt2 upregulation by E2B in neutrophils indicates its involvement in the moderation of estrogen-induced inflammatory response during mammary involution.

Figure 3 with 2 supplements see all
Download asset Open asset

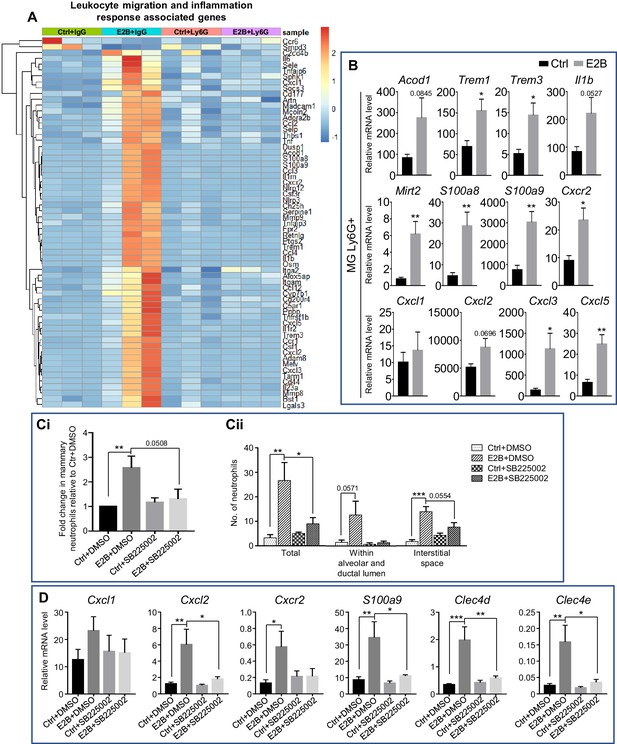

Estrogen-induced Cxcr2 signalling in neutrophils plays a key role in neutrophil infiltration into the involuting mammary gland.

(A) Heatmap representation of estrogen-regulated genes associated to leukocyte migration and inflammation in neutrophils (≥3 and ≤ −3-fold); Experiment is conducted according to the description in Figure 2. (B) qPCR analysis of estrogen-regulated expression of Acod1, Mirt2, Trem1, Trem3, S100a9, S100a8, Cxcl1, Cxcl2, Cxcl3, Cxcl5, Cxcr2, and Il1b relative to Gapdh in isolated mammary neutrophils following treatment with or without E2B for 24 hr (Ctrl n = 5, E2B n = 5). (C-D) E2B-induced Cxcr2 in neutrophils is critical for E2B-induced neutrophil infiltration. Mice at INV D1 were treated with Ctrl or E2B in the absence or presence of CXCR2 inhibitor SB225002 for 48 hr; (C) SB225002 reduces E2B-induced mammary neutrophil (CD45+ CD11b+ Ly6G+) by flow cytometry analysis (Ci) (Ctrl+DMSO n = 7, E2B+DMSO n = 7, Ctrl+SB225002 n = 7, E2B+SB225002 n = 6), and the number of infiltrated neutrophils in 20 mm2 of mammary sections (Cii) (Ctrl+DMSO n = 4, E2B+DMSO n = 3, Ctrl+SB225002 n = 3, E2B+SB225002 n = 3); (D) SB225002 reduces E2B-induced Cxcl2, Cxcr2, S100a9, Clec4d, and Clec4e expression in the involuting gland (Ctrl+DMSO n = 7, E2B+DMSO n = 6, Ctrl+SB225002 n = 7, E2B+SB225002 n = 5). Data represented as mean ± SEM.

Consistent with a previous report (Chung et al., 2017), S100 calcium-binding protein A8 (S100a8) and A9 (S100a9) were all induced by E2B in neutrophils and validated by qPCR (Figure 3A and B). More interestingly, C-X-C motif chemokine receptor 2 (Cxcr2) and its known ligands in the mouse (Bachelerie et al., 2019), C-X-C motif chemokine ligand Cxcl1, Cxcl2, Cxcl3 and Cxcl5 were all upregulated by E2B (Figure 3A). Furthermore, qPCR analysis verified that estrogen upregulated the expression of Cxcr2, Cxcl2, Cxcl3 and Cxcl5 in Dynabeads-isolated neutrophils (Figure 3B). Together, the analyses confirm that the up-regulation of inflammatory genes by E2B occurs mostly in neutrophils.

Next, we investigated the mechanism of estrogen-induced neutrophils infiltration. S100A8, S100A9 are known neutrophil chemoattractants that promote neutrophil migration during inflammation (Wang et al., 2018). S100A8 and S100A9 are small calcium-binding proteins that activate calcium-dependent signalling through receptor for advanced glycation end products (RAGE) or toll-like receptor 4 (TLR4). Paquinimod (PAQ) is a derivative of quinoline-3-carboxamide that has been shown to inhibit S100A9 activity through binding with S100A9 (Bengtsson et al., 2012; Björk et al., 2009). The binding inhibits S100A9 dimerization or the formation of heterodimer with S100A8, thereby preventing the activation of RAGE or TLR4. To evaluate the role of S100A9 in estrogen-induced neutrophil infiltration, PAQ was synthesized following the reported method (Jönsson et al., 2004) and tested whether it inhibits E2B-induced neutrophil infiltration by treating OVX mice with E2B or E2B+PAQ at INV D1 for 48 hr in a pilot experiment. Flow cytometry analysis (Figure 3—figure supplement 1A) showed that E2B+PAQ treatment resulted in an increase in mammary neutrophils (CD45+ CD11b+ Ly6G+, p=0.0238) and monocytes (CD45+ CD11b+ Ly6Chi, p=0.0242) when compared to E2B treated samples. Consistently, qPCR analysis also revealed a significant increase in pro-inflammatory markers such as Cxcl2 (p=0.0124), S100a8 (p=0.0233), S100a9 (p=0.0161), and C-type lectin domain family 4, member e (Clec4e; p=0.0186) (Figure 3—figure supplement 1C). As it is not clear if PAQ has a yet to be characterized functional property that induces neutrophil infiltration, we cannot conclude from this experiment whether S100A8/A9 were significantly involved in the E2B-induced neutrophil infiltration.

CXCR2 is known to be important for neutrophil infiltration in a number of experimental settings (Aziz et al., 2012; Alves-Filho et al., 2010; Cacalano et al., 1994). Since Cxcr2 and all its ligands were significantly up-regulated by E2B, we explored the involvement of CXCR2 signalling in E2B-induced neutrophil recruitment. OVX mice were treated with Ctrl or E2B at INV D1 for 48 hr in the presence of vehicle control DMSO, or CXCR2 antagonist SB225002 (White et al., 1998). To take into consideration of the large variations between experiments, the percentages of infiltrated mammary neutrophils (CD45+ CD11b+ Ly6G+) were presented as fold change over the Ctrl+DMSO group. As shown in Figure 3Ci, E2B treatment alone without the antagonist (E2B+DMSO) led to 2.57-fold increase (p=0.0082) in mammary neutrophils as compared to the Ctrl+DMSO. E2B+SB225002 treatment caused a 2.26-fold reduction in mammary neutrophils when compared to the E2B+DMSO group (p=0.0508). Quantification of the number of infiltrated mammary neutrophils within a 20 mm2 area of stained mammary tissue also showed a significant reduction of neutrophil infiltration within mammary tissue (Figure 3Cii, p=0.0369). qPCR analysis of the mammary tissue samples showed that the E2B-induced pro-inflammatory markers such as Cxcl2, S100a9, Clec4d, and Clec4e were all significantly reduced with E2B+SB225002 treatment compared with E2B+DMSO treatment (Figure 3D, Cxcl2, p=0.0279; S100a9, p=0.0199; Clec4d, p=0.0051; Clec4e, p=0.0183). This is consistent with SB225002-induced inhibition of neutrophil infiltration because these genes are estrogen-induced in neutrophils. Collectively, the data showed that the E2B-induced activation of CXCR2 signalling and the up-regulation of CXCR2 ligands Cxcl2, Cxcl3, Cxcl5 in neutrophils plays a pivotal role in estrogen-induced neutrophil recruitment.

Estrogen-induced adipocyte repopulation is associated with the induction of adipogenic and tissue remodelling genes through neutrophils

Mammary adipocytes regress during pregnancy and lactation as the mammary epithelial proliferate and differentiate to fill up the mammary fat pad. Adipocytes expansion or repopulation is a hallmark of post-lactational mammary involution. Figure 1 shows that estrogen significantly induces adipocyte repopulation during mammary involution, and neutrophil depletion attenuates it. We also determined the effect of neutrophil depletion by the Ly6G antibody on adipocytes repopulation in the intact (non-OVX) mice during mammary involution. Mice were given daily injection of Ly6G antibody from INV D1 for 2 or 3 days. Neutrophil depletion efficiency at INV D3 and D4 were ~ 95%. It was also shown that the infiltrated neutrophils at INV D4 is ~ 8 times of that at D3 (Figure 4A), indicating an increase of infiltrated neutrophils as involution proceeded. During sterile inflammation, infiltrated neutrophils was known to recruit monocytes from the circulation (Shen et al., 2013). In our study, neutrophils depletion also reduced mammary monocytes at both D3 and D4, although it is statistically not significant (Figure 4B). At INV D3, neutrophil depletion showed no effect on adipocytes repopulation (Figure 4C, p=0.3737 and Figure 4—figure supplement 1). However, there was a significant reduction in adipocytes repopulation with neutrophil depletion at INV D4 based on perilipin immunostaining (Figure 4C, p=0.0077, and Figure 4—figure supplement 1). The data suggest that neutrophils involvement in adipocytes repopulation during mammary involution is limited to a specific time window when the levels of neutrophil infiltration is high. GO over-representation analysis of RNA-Seq data indicates that E2B regulated genes that are associated with fat cell differentiation. Neutrophils depletion attenuated most of E2B-induced genes in fat cell differentiation category (Figure 4D). Intriguingly, some of these E2B-regulated changes indicate anti-adipogenic effect, whereas others appear pro-adipogenic. For example, E2B down-regulated the expression of Adipoq, Pparg, and Lpl independent of neutrophils, all of which are positive regulators of adipogenesis. On the other hand, E2B also up-regulated some of the upstream regulators of adipogenesis, such as early growth response 2 (Egr2), adipogenin (Adig), CCAAT/enhancer binding protein (C/EBP), beta (Cebpb), and CCAAT/enhancer binding protein (C/EBP), delta (Cebpd), all of which were validated by qPCR analysis (Figure 4E). Neutrophil depletion abolished the up-regulation of Egr2, Adig and Cebp/b. Interestingly, although Cebpb and Cebpd are no longer upregulated by E2B in neutrophils depleted samples, the relative expressions of Cebpb and Cebpd were increased upon neutrophil depletion (Figure 4E). This seems to suggest that neutrophils depletion exerted positive influence on the expression of Cebpb and Cebpd in mammary tissue and this would limit a further increase in response to E2B.

Figure 4 with 3 supplements see all
Download asset Open asset

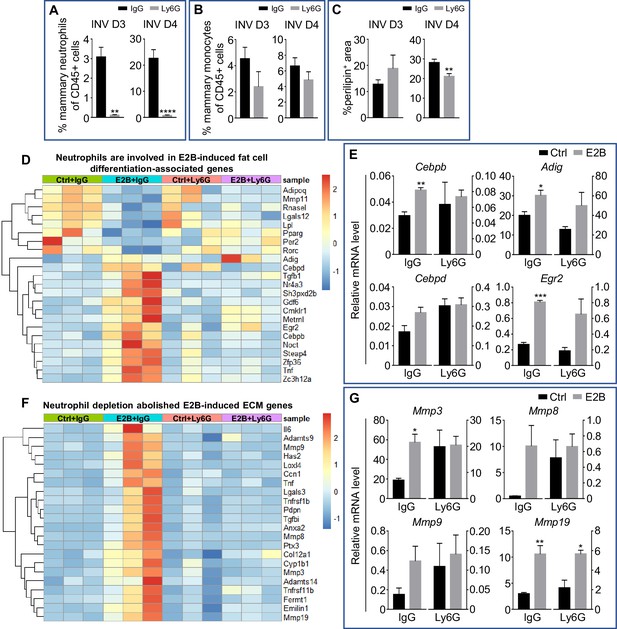

Estrogen-induced adipocyte repopulation is associated with induction of adipogenic and tissue remodelling genes in neutrophils.

(A-C) Non-OVX mice were treated daily with either anti-Ly6G antibody (Ly6G) or isotype control (IgG) from 24h post-weaning (INV D1); (A) Flow cytometry analysis of mammary neutrophils (CD45+ CD11b+ Gr1hi) from mice treated with IgG or Ly6G; (B) Flow cytometry analysis of mammary monocytes (CD45+ CD11b+ Ly6Chi) from mice treated with IgG or Ly6G; (C) Quantification of percentage of perilipin stained area at INV D3 (IgG n=3, Ly6G n=4) and INV D4 (IgG n=10, Ly6G n=9). (D) Heatmap representation of genes associated to fat cell differentiation identified from the GO over-representation analysis (≥ 1.5 and ≤ -1.5-fold); Experiment is conducted according to the description in Figure 2; (E) Gene expression of adipogenesis genes Adig, Egr2, Cebpb, and Cebpd relative to Rplp0 by qPCR analysis. (F) Heatmap representation of genes associated to extracellular matrix organization identified from the GO over-representation analysis (≥ 2 and ≤ -2-fold); Section of heatmap replotted from Figure 4—figure supplement 2; Experiment is conducted according to the description in Figure 2; (G) Gene expression of tissue remodelling genes Mmp3, Mmp8, Mmp9, and Mmp19 relative to Rplp0 by qPCR analysis (Ctrl+IgG n=3, Ctrl+Ly6G n=3, E2B+IgG n=3, E2B+Ly6G n=3). Data represented as mean ± SEM.

ECM remodelling also plays a key role in adipocyte repopulation during mammary involution (Alexander et al., 2001). GO over-representation analysis showed 43 ECM organization associated genes with fold regulation ≥ 2 fold (Figure 4—figure supplement 2). 22 of the 43 ECM-related genes were induced by E2B, and their inductions were abolished with neutrophil depletion (Figure 4F). Since matrix metallopeptidases (MMPs) are strongly induced in obese adipose tissue and modulate during adipocytes differentiation (Chavey et al., 2003), the expression of Mmp3, 8, 9, and 19 were validated by qPCR. All four Mmps were upregulated by E2B in the IgG group (Figure 4G), although the induction of Mmp8 and Mmp9 was not statistically significant due to one outlier in the samples. This was likely due to variations in neutrophil numbers in these samples as the expression of MMP8 was reported to occur mainly in neutrophils (Owen et al., 2004). The E2B-induced up-regulation of Mmp3, Mmp8 and Mmp9 was abolished or attenuated significantly with neutrophil depletion (Figure 4G), suggesting that E2B upregulated these Mmps in neutrophils or in other cell types due to the activity of neutrophils.

E2B also regulated genes related to lipid metabolic process (Figure 4—figure supplement 3). Consistently, the regulations of most of these genes were also attenuated by neutrophil depletion. The top five up-regulated genes based on fold induction are Il1b, Ptgs2 (coding for COX-2), Nr4a3, Fpr2 and Hcar2. Il1b has been reported to inhibit lipolysis (Bing, 2015), whereas Ptgs2, Fpr2, and Hcar2 are known to promote lipolysis and adipogenesis (Ghoshal et al., 2011; Chen et al., 2019; Ren et al., 2009).

Taken together, the study suggests that E2B regulated both pro and anti-adipogenic genes. Most of these effects are attenuated by neutrophil depletion. Thus, neutrophils play a role in E2B stimulation of adipocytes repopulation. However, other cell types may also be involved. For example, E2B also induced infiltration of monocytes which share some common properties with macrophages, and macrophages have been shown to be critical for mammary adipocytes repopulation (O'Brien et al., 2012).

Estrogen accelerates lysosomal-mediated programmed cell death during involution

Mammary epithelial cells undergo LM-PCD during the early stage of involution as lysosomes in the mammary cells undergo membrane permeabilization, releasing lysosomal proteases into the cytosol, triggering apoptosis independent of executioner caspases such as caspase 3, 6, and 7 (Sargeant et al., 2014; Kreuzaler et al., 2011; Watson and Kreuzaler, 2011). Signal transducer and activator of transcription 3 (STAT3) has been shown to be a regulator for LM-PCD during involution by inducing the expression of lysosomal proteases cathepsin B (CTSB) and L (CTSL), while down-regulating their endogenous inhibitor Spi2A (Kreuzaler et al., 2011).

Despite its well-known function in stimulating mammary growth, estrogen significantly enhanced cell death during the acute phase of mammary involution (Figure 1A and B, p<0.05). Since both RNA-Seq analysis and qPCR demonstrated E2B up-regulation of Ctsb expression (Figure 5A, IgG, p=0.0163; Ly6G, p=0.0182, and Figure 5—figure supplement 1), we evaluated the protein levels of cathepsins. Indeed, the pro and active form (sc, single-chain) of CTSB were significantly up-regulated (pro-CTSB, p=0.0358; sc-CTSB, p=0.0101) in the E2B-treated mammary gland. Furthermore, the sc-form of cathepsin D (CTSD) and CTSL were also significantly up-regulated by E2B (Figure 5B, sc-CTSD, p=0.0222; sc-CTSL, p=0.0385), although the levels of pro-CTSD and CTSL were unchanged. Since E2B had no effect on the expression of Ctsd and Ctsl (data not shown), the increase of the sc-form of CTSD and CTSL can be explained by the up-regulation of CTSB which catalyses the removal of the N-terminal propeptide from itself and from CTSD and CTSL, leading to an increase in active forms of cathepsins B, D, and L (Mach et al., 1994; Ménard et al., 1998). Consistent with the lack of neutrophil influence on E2B-induced cell death, neutrophil depletion had no effect on E2B-induced increase of active form of CTSB (Figure 5C).

Figure 5 with 2 supplements see all
Download asset Open asset

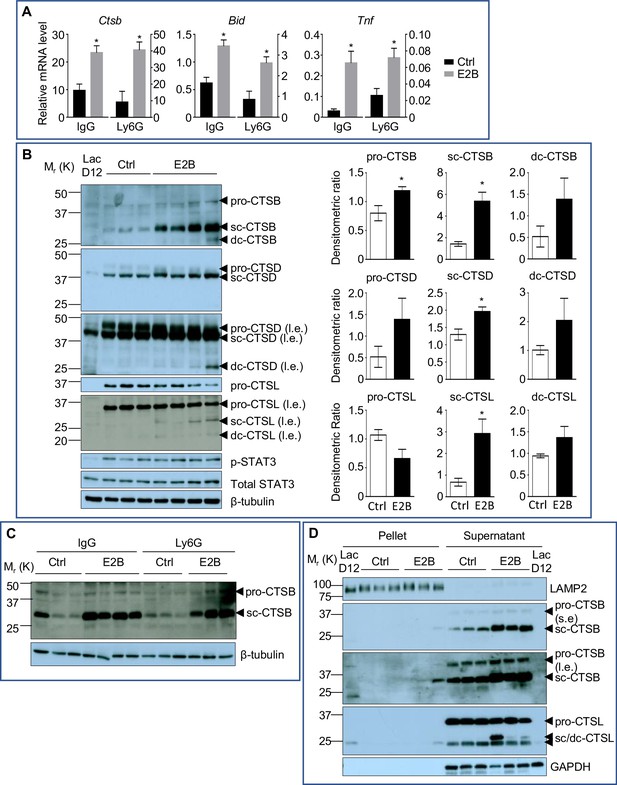

Estrogen stimulates the activity of lysosomal proteases that are critical for LM-PCD.

(A) qPCR validation of E2B-induced expression of Bid, Ctsb, and Tnf relative to Rplp0 identified from DESeq2 analysis (Figure 5—figure supplement 1) (Ctrl+IgG n = 3, Ctrl+Ly6G n = 3, E2B+IgG n = 3, E2B+Ly6G n = 3). Mice on INV D1 were treated with Ctrl or E2B for 48 hr before MG were collected for analysis; (B) Western blots of cathepsin B, D and L proteins (sc, single-chain; dc, heavy chain of the double-chain form) in mammary tissue of 48 hr treatment (Ctrl n = 3, E2B n = 4). (C) Western blotting analysis shows that depletion of neutrophils did not affect estrogen-induced increase of single-chain (sc) and double-chain (dc) forms of CTSB (Ctrl+IgG n = 3, E2B+IgG n = 4, Ctrl+Ly6G n = 3, E2B+Ly6G n = 3). (D) Effect of E2B on protein levels of lysosomal and cytosolic CTSB and CTSL proteins after subcellular fractionation. LAMP2 is used as a lysosomal marker (s.e, short exposure; l.e., long exposure) (Ctrl n = 3, E2B n = 3). Data are presented as Mean ± SEM.

E2B also significantly induced the expression of tumor necrosis factor (Tnf) (Figure 5A, IgG, p=0.0161; Ly6G, p=0.0343, and Figure 5—figure supplement 1), which is a known upstream activator of STAT3. However, E2B did not affect the levels of phosphorylated and total STAT3 (Figure 5B). This suggests that the up-regulation of Ctsb expression by E2B is a direct event independent of STAT3 activation. Furthermore, E2B also up-regulated the expression of BH3 interacting domain death agonist (Bid), independent of neutrophils (Figure 5A, IgG, p=0.0119; Ly6G, p=0.0248, and Figure 5—figure supplement 1). Bid is a well-established pro-apoptotic marker, and its overexpression has been reported to promote cell death (Fukazawa et al., 2003; Li et al., 2012).

Physiological LM-PCD during mammary involution is associated with the leakage of lysosomal cathepsins into the cytosol. We further tested if estrogen-induced increase of active CTSB and CTSL protein is associated with an increase of cytosolic cathepsins by lysosome and cytosol fractionation. Lysosome-associated membrane protein 2 (LAMP2) was used as a lysosomal marker (Figure 5D). Consistently, E2B-induced increases of the sc-form of CTSB and CTSL occurred mostly in the cytosolic fraction (Figure 5D). These findings further support the notion that E2B promotes mammary cell death by increasing the activity of lysosomal proteases CTSB, CTSD, and CTSL under the cellular condition of mammary involution.

Estrogen-induced cell death under physiological condition is hitherto unreported. We hypothesized that pro-inflammatory condition may prime estrogen-induced cell death during the acute phase of mammary involution. As wild-type MCF7 does not express caspase-3 (Jänicke, 2009), the hypothesis was tested in an in vitro model using MCF7-caspase3(+) breast cancer cell line (Jänicke et al., 1998). The idea was to recapitulate estrogen-induced cell death during mammary involution using the pro-inflammatory cytokine TNFα. MCF7-caspase3(+) cells were first treated with TNFα or vehicle control for 1 hr. This was followed by treatment with 17β-estradiol (E2) or vehicle control for 24 hr before the cells were stained with propidium iodide (PI) for analysis with flow cytometer. Cells undergoing programmed cell death exhibit increased membrane permeability and hence will stain positive for PI. As shown in Figure 6A, increasing concentration of TNFα from 2 ng/ml to 10 ng/ml led to a dose-dependent increase in the percentage of dead cells (p<0.01). As expected, E2B treatment alone did not cause cell death. However, E2B+TNFα treatment significantly enhanced the percentage of dead cells compared to TNFα treatment alone at doses of 5 ng/ml (p=0.0104) and 10 ng/ml (p=0.0007). Expectedly, TNFα induced increases in p-STAT3 and cleaved poly-ADP ribose polymerase (PARP) protein as compared to the vehicle-treated controls (Figure 6B). E2B+TNFα increased the levels of p-STAT3 and cleaved PARP significantly compared to TNFα treatment alone (Figure 6B and C, p-STAT3, p=0.0404; cleaved PARP, p<0.0001). These molecular changes are consistent with a greater level of cell death induced by the combined treatment of E2B and TNFα. Together, the in vitro data support the notion that pro-inflammatory cytokines such as TNFα primes the death-inducing effect of estrogen. However, the increased p-STAT3 is not associated with increases of active CTSD and CTSB (data not shown), suggesting that estrogen-induced cell death in the presence of TNFα may not be via LM-PCD in the MCF7-caspase3(+) cells.

Figure 6
Download asset Open asset

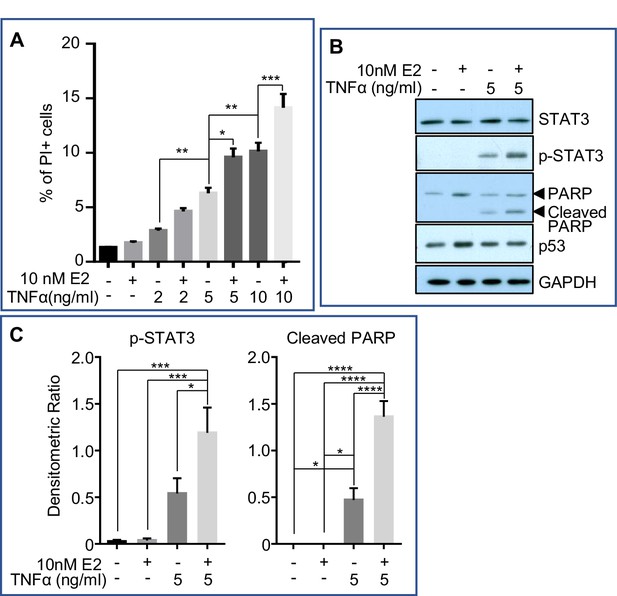

Estrogen accelerates TNFα-induced cell death in vitro.

MCF7-caspase3(+) cells were treated with either vehicle control (1xPBS) or TNFα of varying concentrations. An hour later, cells were treated with either vehicle control (0.01% ethanol) or 10nM 17β-estradiol (E2) for 24h, after which they were collected for analysis. (A) Flow cytometry analysis for the percentage of propodium iodide (PI)-positive cells (dead cells) after treatment (4 independent experiments with triplicates for each group). (B) Representative western blotting analysis of various proteins from the treated cells. (C) Densitometric analysis of protein expressions normalized against GAPDH (3 independent experiments with duplicates for each group). Data represented as mean ± SEM.

Estrogen remains a mitogenic hormone during mammary involution

Despite its effect on mammary cell death, estrogen retains its function as a mitogen as indicated by E2B-induced expression of pro-growth genes in the RNA-Seq analysis. The up-regulation of amphiregulin (Areg), epiregulin (Ereg), and myelocytomatosis oncogene (c-Myc) were validated by qPCR in the IgG group (Figure 5—figure supplement 2, Areg, p=0.0448; Ereg, p=0.0435; c-Myc, p=0.0063) and the E2B’s effects were largely unaffected by neutrophil depletion. These data provide evidence that during post-weaning mammary involution, following the massive cell death events, estrogen promotes the regeneration of the mammary gland.

The effect of estrogen in age-matched nulliparous mammary tissue is distinct from that undergoing mammary involution

To confirm that the effect of estrogen on neutrophils and on gene regulation during mammary involution does not occur similarly in the post-pubertal mammary gland, OVX nulliparous mice were given isotype IgG the day prior to E2B treatment in order to match the IgG treatment in the involuting mice. 24 hr later, these animals were given either vehicle control or E2B for 24 hr. Flow cytometry analysis of the mammary gland showed that E2B treatment resulted in a 56.33% decrease in mammary neutrophils (CD45+ CD11b+ Gr1hi) (Figure 7A, p=0.0349). E2B had no significant effect on the percentage of mammary monocytes (CD45+ CD11b+ Ly6Chi, p=0.2965). qPCR analysis was also performed to investigate the effect of E2B on the expression of pro-inflammatory markers and cell death-related genes. E2B significantly down-regulated S100a9 (p=0.0095), Cxcl2 (p=0.0382), and Cxcr2 (p=0.0236) while had no effect on the expression of S100a8, Clec4d, Il1b, and Trem3 (Figure 7C). The expression of Clec4e, Mirt2, and Trem1 were also analyzed but had no amplification in the qPCR reactions. These observations contrast with that in the involuting mammary gland where the expression of all these pro-inflammatory genes were up-regulated with E2B treatment. As for the cell death-related genes, E2B up-regulated Ctsb (p=0.0166), consistent with the understanding that Ctsb is an ER target gene (Lee and Choi, 2013). However, E2B had no effect on the expression of Bid while Tnf displays no amplification in the qPCR reaction due to the low level of expression (Figure 7D). Hence, unlike its effect during mammary involution, E2B exerts an anti-inflammatory effect on the mammary gland of nulliparous mice.

Figure 7
Download asset Open asset

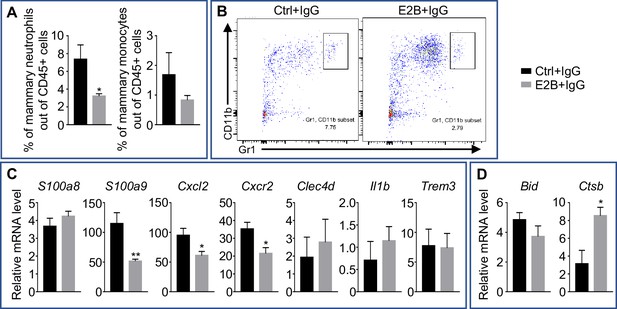

Estrogen regulation of inflammatory and apoptotic genes in nulliparous mammary tissue.

OVX nulliparous mice were treated with isotype control (IgG). 24 hr later, they were treated with either Ctrl or E2B for 24 hr. (A) Flow cytometry analysis of mammary neutrophils (CD45+ CD11b+ Gr1hi) and monocytes (CD45+ CD11b+ Ly6Chi). (B) Representative flow cytometry dot plot for the percentage of neutrophils in the MG. (C) Gene expression of pro-inflammatory genes S100a8, S100a9, Cxcl2, Cxcr2, Clec4d, Il1b, and Trem3 relative to Rplp0 by qPCR. (D) Gene expression of cell death associated genes Bid and Ctsb relative to Rplp0 by qPCR. Ctrl+IgG n = 5, E2B+IgG n = 5. All data are presented as mean ± SEM.

Estrogenic stimulation of mammary inflammation and mammary cell death is mediated by ERα

Mammary gland and neutrophils express both ERα and ERβ. To elucidate which of these ER subtypes mediates the effect of E2B on the various process of mammary involution, we evaluated the effect of ERα-specific agonist, (4,4',4''-(4-Propyl-[1H]-pyrazole-1,3,5-triyl) trisphenol (PPT) (Stauffer et al., 2000) and ERβ-specific agonist Diarylpropionitrile (DPN) (Meyers et al., 2001). Ovariectomized mice were treated with control vehicle, PPT, or DPN on INV D1. Mammary gland were collected for analysis after 48 hr’s treatment. Similar to the effect of E2B, ERα agonist PPT evidently increased the expression of Ctsb, Bid and Tnf that are known to promote cell death (Figure 8A). PPT also consistently increased the levels of cleaved CTSB (sc-CTSB), cleaved CTSD (sc-CTSD), and cleaved CTSL (sc-CTSL and dc-CTSL) (Figure 8B), which are executioner proteases (Foghsgaard et al., 2001; Luzio et al., 2007). Unlike the effect of E2B which also increased pro-CTSB, PPT did not seem to increase pro-CTSB. We suspect that the PPT-induced increase of pro-CTSB was already converted to the cleaved form as the pharmacodynamics of E2B and PPT are likely different. In contrast, ERβ-specific agonist DPN did not have any effect on the gene expression of the death-inducing genes, or the activation of lysosomal proteases (Figure 8A and B). These observations indicate that ERα mediates E2B-induced LM-PCD during mammary involution.

Figure 8 with 1 supplement see all
Download asset Open asset

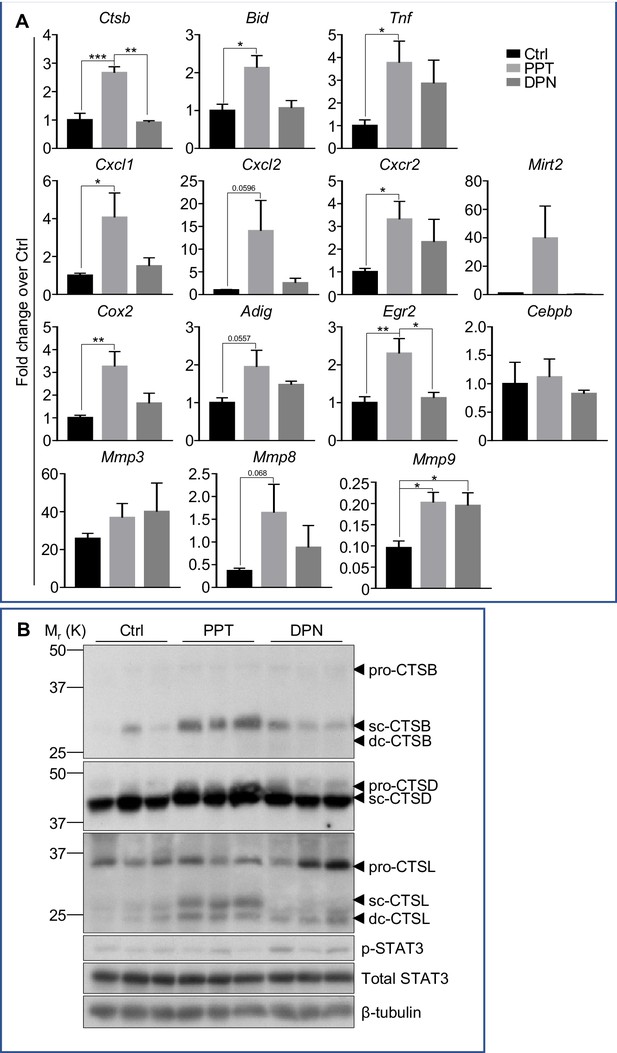

Estrogenic stimulations of neutrophil gene expression and mammary cell death are mediated by ERα.

Mice at INV D1 was treated with vehicle control (Ctrl), ER-α agonist PPT, or ER-β agonist DPN for 48h before mammary gland were collected for analysis. (A) qPCR analysis of gene expression in mammary tissue. The results are expressed as fold change (Mean ± SEM) in response to PPT or DPN (Ctrl n=7, PPT n=5, DPN n=3). (B) Western blotting analysis of cathepsin B, D, L, and STAT3 proteins (sc, single-chain; dc, heavy chain of the double-chain form) in mammary tissue (Ctrl n=3, PPT n=3, DPN n=3).

We also analyzed a panel of genes known to be regulated by E2B through the activity of neutrophils. PPT, but not DPN treatment, significantly increased mammary expression of Cxcl1, Cxcl2, Cxcl2, and Mirt2 (Figure 8A). This suggests that the regulatory effect of E2B on mammary inflammation and on neutrophil activity in particular is primarily mediated by ERα.

Similar to the effect of E2B, PPT, but not DPN increased the expression of adipogenesis-related genes, Ptgs2 (Cox-2), Adig, and Egr2 (Figure 8A). However, neither PPT nor DPN affected the expression of Cebpb. We also looked at their effects on Mmps. Both PPT and DPN did not affect the expression of Mmp3 but increased the expression of Mmp9. On the other hand, PPT but not DPN enhanced the expression of Mmp8. We deduce from these observations that ERα is likely involved in E2B-induced adipocytes repopulation through the activity of neutrophils. It is possible that ERβ is negatively involved in the regulation of adipocytes repopulation because ERβ is known to repress the transcriptional activity of PPARγ and inhibit adipocyte differentiation (Foryst-Ludwig et al., 2008). But these effects may not involve neutrophils.

Discussion

This is a comprehensive study of biological effects of estrogen on the acute phase of mammary involution. We report that estrogen accelerates mammary involution by exacerbating mammary inflammation, programmed mammary cell death, and adipocytes repopulation. These effects were found to be mediated through distinct mechanisms. First, the effect on mammary inflammation is primarily mediated through the activities of mammary neutrophils. RNA-Seq analysis revealed the remarkable extent of estrogen regulation of neutrophil activity. Neutrophil depletion eliminated 88% of estrogen-regulated genes in mammary tissue, even though neutrophils account for less than 5% and 1% of the total number of live cells in FACS analysis of estrogen-treated and control samples respectively. This 88% of the genes were regulated by estrogen either in neutrophils, or as a result of neutrophil activities on other cells. Functional analysis showed that neutrophils are the primary mediators of estrogen-induced inflammation and neutrophil infiltration. The remarkable impact of estrogen on neutrophil activities would conceivably have a significant influence on the mammary tissue microenvironment. This affirms the pivotal roles of neutrophils in mediating the pro-tumoral effect of estrogen on ER-negative tumor development in mammary tissue during involution (Chung et al., 2017). Second, estrogen promotes mammary LM-PCD independent of neutrophils by inducing the expression and activity of lysosomal cathepsins and other pro-apoptotic markers such as Bid and Tnf. It is well known that dying cells release signaling molecules to stimulate inflammation and recruitment of phagocytic cells for their clearance (Rock and Kono, 2008). Likewise, estrogen-induced cell death may aggravate inflammation, leading to a greater level of neutrophil recruitment. Third, neutrophils play an important role in estrogen-induced adipocytes repopulation as neutrophils depletion attenuated adipocytes repopulation. Notably, all these effects of estrogen are unique to the mammary tissue during post-weaning involution, signifying the plasticity of estrogen action depending on the tissue microenvironment.

Plasticity of estrogen action on neutrophils

In sharp contrast to the effect on neutrophils during mammary involution, estrogen reduced mammary neutrophil infiltration in age-matched nulliparous mice. Estrogen-regulated expression of cytokines such as S100a9, Cxcl2, and Cxcr2 in nulliparous mice also occurs in the opposite direction as that in mice undergoing mammary involution. The observation in nulliparous mice is consistent with reports that estrogen inhibits inflammation in obesity-induced mammary inflammation (Bhardwaj et al., 2015), and in Staphylococcus aureus infected bovine mammary epithelial cells (Medina-Estrada et al., 2016). To our knowledge, this is the first evidence of the plasticity of estrogen action on neutrophils that is shaped by the tissue microenvironment in an in vivo model. This suggests that there are fundamental differences in the cistrome of mammary neutrophils between these two states.

Neutrophils are known to express ERα, ERβ, and GPER30 (Molero et al., 2002). ERα and ERβ are members of the nuclear receptor superfamily of transcription factors, whereas GPER30 is a G protein-coupled membrane receptor. Several lines of evidence suggest that the effect of estrogen on mammary neutrophils during mammary involution is mediated by ERα. Firstly, the relative expression of Esr1 (ERα) in mammary neutrophils during involution is approximately 40 times that of Esr2 (ERβ) (Figure 8—figure supplement 1). Secondly, ERα-specific agonist PPT elicited similar changes as E2B on the expression of a panel of inflammatory and adipogenesis-related genes in neutrophil (Figure 8). In contrast, ERβ-specific agonist DPN, had no effect. ERα has also been reported to mediate estrogen-induced neutrophil migration in the uterus through ERα phosphorylation at serine 216 (Shindo et al., 2013), and ERα mediated the effect of estrogen on myeloid-derived suppressor cells, which are mostly granulocytic cells, in stimulating tumor development in mice model (Svoronos et al., 2017). Thus, ERα plays a major part in mediating estrogen regulation of neutrophils activity during mammary involution.

Immune cells are notably plastic in their ability to adapt to changes in their environment. There has been growing evidence of phenotypic heterogeneity and functional plasticity in neutrophils, which has been the subject of comprehensive reviews (Ng et al., 2019; Silvestre-Roig et al., 2019). How neutrophils evolve into different phenotype with distinct function is still unclear. Ng et al suggested two non-mutually exclusive mechanisms: intrinsic heterogeneity in the bone marrow and blood, and extrinsic heterogeneity inducible by local or systemic factors (Ng et al., 2019). The latter would conceivably apply to neutrophils in tissues, resident or conditionally infiltrated, that evolve into specialized phenotypes in order to meet the developmental demand. The distinct transcriptional responses to estrogen in infiltrated mammary neutrophils between post-weaning mice and nulliparous mice reflects this functional plasticity during development. Given that estrogen regulation of gene transcription is mediated by ERα, we postulate that signaling molecules in inflammatory mammary tissue remodel the epigenetic landscape of neutrophils so as to modify ERα cistrome. It has been reported that neutrophils undergo dynamic changes in their epigenome during development (Grassi et al., 2018; Rönnerblad et al., 2014). Under mature state, neutrophils respond to environmental cues with epigenetic modification and transcription changes. For example, the inactive IL-6 genomic locus in human neutrophils undergoes chromatin remodeling in response to ligands for TLR8, leading to IL-6 secretion (Zimmermann et al., 2015). It is known that ERα cistrome is reprogrammable and TNFα has been shown to reshape the genomic action of estrogen in breast cancer cells through redistribution of NF-kB and pioneer factor FOXA1 binding across the genome (Frasor et al., 2009; Franco et al., 2015). Thus, the inflammatory microenvironment in mammary tissue during involution may trigger a global shift of ER-cistrome in mammary neutrophils so as to modify estrogen response that is distinct from that in nulliparous mice. The mammary involution model is thus useful for the elucidation of mechanisms that drive epigenetic and phenotypic changes in neutrophils.

It should be recognized that ERβ has been reported to play a role in neutrophil regulation of tumor biology. Selective ERβ agonist LY500307 was found to reduce lung metastasis of triple-negative breast cancer cells (Zhao et al., 2018). This was associated with significant increase of infiltration of neutrophils in the lung. However, this was mediated by the up-regulation of IL-1β in cancer cells which promotes neutrophil infiltration to the metastatic niche. Whether the ERβ agonist regulated the phenotypes of neutrophils directly is not clear.

Estrogen promotes CXCR2 signalling to elicit neutrophil infiltration

The involvement of CXCR2 signalling in neutrophil infiltration has been widely reported. In an acute lung injury model, Cxcr2 gene deletion abolished hyperoxia-induced neutrophil accumulation (Sue et al., 2004). In studies of reperfusion injury, inhibition of CXCR2 with repertaxin or anti-CXCR2 antibodies led to the reduction of neutrophils accumulation (Cugini et al., 2005; Belperio et al., 2005; Bertini et al., 2004). The CXCR2 antagonist SB225002 has also been reported to reduce neutrophil recruitment and pro-inflammatory factor expression in LPS-induced acute lung injury (Cao et al., 2018). Using CXCR2 antagonist SB225002, this study identified CXCR2 signalling as a major pathway for estrogen to induce neutrophil infiltration in mammary tissue during mammary involution (Figure 3C and D). This is likely mediated by the significant upregulation of Cxcr2 and its ligands Cxcl2, Cxcl3, and Cxcl5 in neutrophils (Figure 3B). It is conceivable that the recruitment of neutrophils involves an autocrine loop, in which estrogen induces neutrophil release of CXCR2 ligands which activate CXCR2 signalling in neutrophils.

Additionally, a number of the estrogen-regulated genes through neutrophils are also linked to chemotaxis, leukocytes adhesion and migration. CXCR2 signalling likely cooperates with other estrogen-induced chemotactic factors. Trem1 and Trem3 are among the top estrogen-regulated genes in neutrophils (Figure 3A). TREM1 was first identified to be selectively expressed on neutrophils and monocytes (Bouchon et al., 2000). TREM3 is highly homologous to TREM1 and is believed to have overlapping function. TREM1/3-deficient mice displayed impaired neutrophil trans-epithelial infiltration into the lung when challenged with P. aeruginosa (Klesney-Tait et al., 2013). TREM1 was also known to amplify inflammation, as TREM1 overactivation with activating antibodies following LPS treatment led to the up-regulation of cytokines such as TNFα, MCP-1, and IL8 (Bouchon et al., 2000). It is plausible that Trem1/3 up-regulation also plays a role in estrogen-induced neutrophil infiltration.

Estrogen-stimulated neutrophils play a part in adipocytes repopulation

Estrogen is traditionally known to promote metabolism and inhibit adipogenesis (Chen and Brown, 1793). It has been reported recently that ERα signalling is required for the adipose progenitor identity and the commitment of white fat cell lineage (Lapid et al., 2014). The present study provides the first evidence that estrogen stimulates adipocytes repopulation during mammary involution. This effect likely involved neutrophils because neutrophils depletion attenuated estrogen-induced adipocytes repopulation and the gene expression related to fat cell differentiation, lipid metabolism, and ECM remodelling (Figure 1D). It is to be noted that mammary macrophages and infiltrated monocytes likely play a role in estrogen-induced adipocytes repopulation. First, macrophages have been shown to be critical for adipocytes repopulation during mammary involution (O'Brien et al., 2012). Whilst we did not examine the effect of estrogen on mammary resident macrophages, estrogen has been reported to regulate gene expression of peritoneal macrophages involved in various processes including cell proliferation, immune response and wound healing (Pepe et al., 2017). Thus, estrogen may stimulate macrophage activity for adipocytes repopulation. Second, estrogen also induces infiltration of monocytes into mammary tissue (Chung et al., 2017), which share common properties with F4/80+ macrophages. Third, consistent with the understanding that infiltrated neutrophils recruit monocytes into the tissue during sterile inflammation (Shen et al., 2013), we observed that estrogen-induced neutrophil depletion reduced, to a small extent, infiltrating monocytes (Figure 2—figure supplement 1B). Taken together, estrogen-induced adipocytes repopulation is plausibly mediated by the activities of neutrophils, infiltrated monocytes as well as resident macrophages in the mammary gland.

Estrogen promotes LM-PCD during mammary involution

Mammary involution in the first 48 hr is known as phase I (reversible phase) of mammary involution. In phase I, LM-PCD has been shown to be the major mechanism of mammary cell death, and it is independent of caspases 3, 6, and 7 (Kreuzaler et al., 2011). The present study provides the first evidence that estrogen treatment in the reversible phase of mammary involution accelerates cell death when there is ongoing LM-PCD. This is mediated by increased expression of Ctsb, and the cytosolic protein levels of active (cleaved) CTSB, CTSD, and CTSL (Figure 5B). We propose the following model to explain how estrogen-induced Ctsb drives LM-PCD. First, increased gene expression and protein levels of CTSB lead to increased levels of activated CTSB due to heightened lysosomal activity in mammary cells with ongoing LM-PCD. The activated CTSB would further increase the cleavage and activation of CTSB, CTSD, and CTSL. CTSB can also enhance the permeability of lysosomal membrane because lysosomal leakage is markedly decreased in cathepsin B-deficient cells in respond to TNFα treatment (Werneburg et al., 2002). Hence, estrogen-induced expression of Ctsb triggers a chain of events, culminating in increased LM-PCD. In addition, estrogen-induced expression of Tnf and Bid further enhances this process. Although estrogen-induced Tnf is not associated with increased activation of STAT3, TNFα has been reported to redistribute the zinc transporter ZnT2 to increase Zn in lysosomes. The high levels of Zn cause lysosomal swelling and cathepsin B release during mammary involution (Hennigar and Kelleher, 2015; Hennigar et al., 2015). Additionally, it is well known that cathepsins cleave BID to tBID and degrade antiapoptotic BCL-2 homologues to execute LM-PCD (Droga-Mazovec et al., 2008; Stoka et al., 2001). Increased Bid level would thus reinforce cathepsin-stimulated LM-PCD. Hence, estrogen-induced increases of cytosolic cathepsins together with increase of Tnf and Bid accelerate LM-PCD during mammary involution.

On the other hand, estrogen induction of Ctsb in nulliparous mice (Figure 7D) without ongoing LM-PCD would not lead to cell death due to the lack of a permissive cellular environment. This notion is supported by the study of estrogen in MCF7-Caspase3(+) cells, in which treatment with TNFα primes estrogen to stimulate cell death. In contrast to the observation in involuting mammary gland in which estrogen did not increase total or pSTAT3, estrogen plus TNFα enhanced STAT3 phosphorylation as compared to TNFα alone in MCF7-Caspase3(+) cells (Figure 6C). However, TNFα did not affect the levels of cathepsins significantly in the cell model, and hence it unlikely induced LM-PCD. Nonetheless, the in vitro study demonstrates that estrogen can be primed to heighten cell death under a pro-inflammatory stimulus. Estrogen has also been reported to induce apoptosis in experimental endocrine resistance models through inducing endoplasmic reticulum stress and inflammatory response (Ariazi et al., 2011). Thus, estrogen can induce cell death under certain cellular context, but the mechanisms may vary.

Mammary macrophages have also been shown to be important for mammary involution including LM-PCD (O'Brien et al., 2012). Depletion of mammary macrophage in Macrophage Fas-induced apoptosis (Mafia) transgenic mice targeting CSF1R-expressing cells resulted in delayed mammary involution and loss of LM-PCD due to attenuated activation of Stat3. Since estrogen induced monocyte recruitment and is known to regulate the transcriptional activity of macrophages (Chung et al., 2017; Pepe et al., 2017), we speculate that monocytes and macrophages played a part in estrogen-induced LM-PCD by heightening the proinflammatory tissue environment, leading to further activation of estrogen-induced lysosomal proteases.

Conclusion

In summary, the study reveals novel mechanisms of estrogen action that are unique to the mammary tissue during post-weaning mammary involution and most of the effects are mediated by ERα (Figure 9). Estrogen treatment intensely and extensively regulates the activity of neutrophils to elicit inflammation and adipocytes repopulation. The study identified CXCR2 signalling in neutrophils as an important mechanism of estrogen-induced neutrophil recruitment. Additionally, estrogen also exacerbates mammary LM-PCD by inducing the expression of Ctsb, Tnf, Bid, and subsequent lysosomal activation and leakage of CTSB, CTSD, and CTSL independent of neutrophils. At the same time, estrogen retains its function in inducing the expression of pro-growth genes to facilitate mammary regeneration for the subsequent reproduction. It should also be recognized that programmed cell death is often associated with growth, when the elimination of unwanted cells can benefit tissue remodelling and regeneration (Pérez-Garijo and Steller, 2015). It has been shown in Drosophila eye imaginal discs that apoptotic cells release Spi, the EGF ligand in flies, to promote the proliferation of neighbouring cells (Fan et al., 2014). Whether estrogen-induced LM-PCD during mammary involution additionally facilitates mammary regeneration and tumor development is an interesting area for future study.

Figure 9
Download asset Open asset

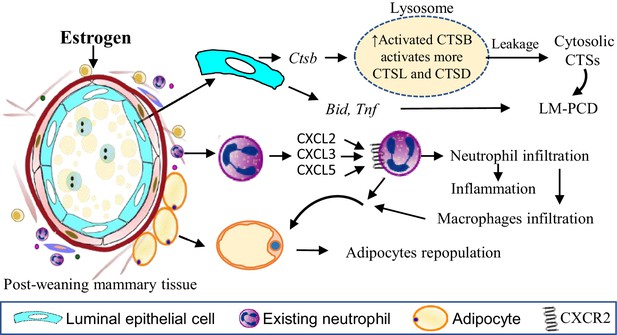

Estrogen exacerbates mammary cell death, inflammation and adipocytes repopulation through distinct mechanisms.

Estrogen induces Ctsb gene expression in the mammary cells leading to increased pro-CTSB which is cleaved and activated in lysosomes. The increased active sc-CTSB further activates CTSD and CTSL. Increased CTSB activity enhanced lysosomal permeabilization during mammary involution resulting in the leakage of more activated CTS into the cytosol stimulating a heightened LM-PCD. Estrogen treatment also induces expression of Bid and Tnf gene which are reported to be involved in the induction of LM-PCD (Hennigar and Kelleher, 2015; Stoka et al., 2001). The apoptotic protein BID is cleaved into the active tBID by the activated cytosolic CTSs. TNFα is known to induce LM-PCD via the ZnT2-mediated zinc accumulation in lysosomes, leading to PCD (Hennigar and Kelleher, 2015). Estrogen stimulates neutrophil infiltration into the involuting mammary tissue via CXCR2 signalling by up-regulating CXCR2 and its ligands CXCL2, CXCL3, CXCL5 in neutrophils in a autocrine fashion. Meanwhile, estrogen promotes the expression of numerous proinflammatory genes such as Trem1, Trem3, Il1b, S100a8, S100a9 in neutrophils that likely heighten mammary inflammation. Estrogen induction of genes coding for adipogenic proteins (e.g. CEBPB, Adig and Egr2), for extracellular matrix remodelling enzymes (e.g. Mmp19, Mmp3, Mmp8, Ptx3, Col8a2, Has2) and for Cox-2 etc can facilitate adipocyte repopulation. In addition, estrogen-induced monocytes infiltration and macrophage activity may further contribute to estrogen-induced adipocyte repopulation.

Both circulating and tissue neutrophils are known to undergo functional and phenotypic changes during cancer development and under other pathological conditions (Sagiv et al., 2015; Nicolás-Ávila et al., 2017). The observation that neutrophils in the mammary tissue during mammary involution respond to estrogen distinctively from that of nulliparous mice suggests that mammary neutrophils in these two developmental stages are functionally and phenotypically different due to epigenetic differences. Since estrogen promotes mammary tumor growth in mice undergoing mammary involution but not in nulliparous mice (Chung et al., 2017), it is tempting to speculate that neutrophils in inflammatory breast cancer may be responsive to the pro-inflammatory effect of estrogen and promote tumor development. Further understanding of the epigenetic changes of mammary neutrophils during involution may yield biomarkers that are predictive pro-tumoral neutrophils.

Materials and methods

Animal studies

Request a detailed protocol

All animal experiments were performed in accordance with the protocol approved by the Nanyang Technological University Institutional Animal Care and Use Committee (NTU-IACUC) (IACUC protocol number: A0306 and A18036). BALB/cAnNTac mice used in the study were housed in specific pathogen-free (SPF) facility under a 12 hr dark/light cycle and provided food and water ad libitum. Female mice at 7 to 8 weeks old were mated and subsequently housed individually prior to giving birth. Bilateral ovariectomy (OVX) was performed on the lactating mice two days post-partum to remove the endogenous source of estrogen. The litter sizes were standardized to 5–6 pups per lactating mouse. Mammary involution was initiated by forced weaning on lactating day 12. Nulliparous mice were handled similarly to the pregnant mice. All mice were randomly distributed into the different treatment groups.

Drug and estrogen treatment

Request a detailed protocol

17β-estradiol-3-benzoate (E2B) (Sigma-Aldrich) dissolved in benzyl alcohol was administrated subcutaneously at 20 µg/kg of body weight per day in sesame oil. Control (Ctrl) animals received sesame oil at the corresponding volume per body weight. ER-α-selective agonist propyl pyrazole triol (PPT) (Sigma-Aldrich) was administrated subcutaneously at 10 mg/kg of body weight per day in sesame oil. ER-β-selective agonist diarylpropionitrile (DPN) (Sigma-Aldrich) was administrated subcutaneously at 5 mg/kg of body weight per day in sesame oil.

CXCR2 inhibitor SB225002 (Sigma-Aldrich) was dissolved in DMSO to a stock concentration of 20 mg/ml. Mice were treated twice daily at a dosage of 0.3 mg/kg body weight via intraperitoneal injection. Stock concentration of SB225002 was diluted to a working concentration of 0.2 mg/ml with 0.25% (v/v) Tween 20 (Bio-Rad) in 1xPhosphate-buffered saline (PBS) (Vivantis). Control mice were treated with DMSO in 0.25% Tween 20 in 1xPBS.

Putative S100A9 inhibitor Paquinimod (PAQ) or ABR-215757 was synthesized (Figure 3—figure supplement 2) by following the reported protocol (Jönsson et al., 2004). The stock solution was prepared by dissolving PAQ in DMSO to a concentration of 50 mg/ml. Mice were treated with a daily dosage of 20 mg/kg body weight via intraperitoneal injection of PAQ diluted with 1xPBS to a working concentration of 5 mg/ml. Control mice were treated with DMSO in 1xPBS.

Neutrophil depletion

Request a detailed protocol

At 24 hr post-weaning, involution day 1 (INV D1), mice were administered with either rat IgG2a isotype control (clone 2A3, BioXCell) or rat monoclonal anti-mouse Ly6G antibody (clone 1A8, BioXCell) via intraperitoneal injection. Antibodies were administered at a daily dosage of 20 µg in 100 µl of 1xPBS. For nulliparous animals, antibody treatment was performed at 24 hr prior to hormone injection. The efficiency of neutrophil depletion by the neutralizing antibodies was determined by flow cytometry analysis of the blood and the mammary gland.

RNA-sequencing (RNA-Seq)

Request a detailed protocol

OVX female mice were treated with either anti-Ly6G or IgG antibody at INV D1. At INV D2, mice were then treated with either Ctrl or E2B for 24 hr. Mammary tissues were collected and snap-frozen in liquid nitrogen and stored at −80°C. Total RNA was extracted from the powdered 9th abdominal mammary gland using TRIzol reagent (Life technologies) followed by treatment with DNase I (DNA-free DNA Removal Kit, Invitrogen) to remove contaminating DNA according to the manufacturers’ protocol. The total RNA was then sent for library preparation and paired-end sequencing by A*STAR GIS (Agency for Science, Technology and Research, Genome Institute of Singapore) using Illumina HiSeq4000. The Illumina adapter sequence was removed using Trimmgalore. Processed sequences were subsequently mapped to the Mus musculus BALB/cJ reference genome (obtained from Ensembl) and counted using the stringtie and featurecount program. Gene annotation files were also obtained from Ensembl.

Processed RNA-Seq data were analyzed for differential gene expression using the DESeq2 package with contrast method (Love et al., 2014). Statistically significant differential gene expression was determined by Benjamini-Hochberg adjusted p-value (padj). Volcano plot based on the results of DESeq2 analysis was generated using the plotly package (Sievert, 2018). Venn diagram was plotted using the online software Venny (Oliveros, 2007). Pathway analysis of the differentially expressed (DE) gene (padj < 0.05) was then conducted using the clusterProfiler package (Yu et al., 2012) where gene ontology (GO) over-representation analysis was performed. The enriched GO terms obtained from the GO over-representation analysis were removed of redundancy using the ‘simplify’ function which removes highly similar enriched GO terms and keeps only one representative term. The DESeq2, plotly, and clusterProfiler package was run in R using RStudio (R Studio Team, 2018; R Development Core Team, 2019).

Isolation of mammary neutrophils

Request a detailed protocol

Mammary tissues collected from the euthanized mice were minced into small pieces of approximately 1 mm. Minced mammary tissues were then digested in phenol-red free Dulbecco's Modified Eagle Medium (DMEM) (Nacalai Tesque) containing 2 mM L-glutamine (GE healthcare), 1 mg/ml collagenase (Sigma-Aldrich), and 120 Kunitz DNase I (Sigma-Aldrich) for 1 hr at 37°C in water bath with agitation. Digestion was inactivated with an equal volume of medium and cells were sieved through a 100 µm sieve and centrifuged at 450 g for 5 min at 4°C. Red blood cells (RBC) lysis was then performed with 1 ml NH4Cl buffer (1 vol of 0.17M Tris-HCL and 9 vol of 0.155M NH4Cl). After inactivation of RBC lysis with 10 vol of 1xPBS, cells were pellet and incubated with 120 Kunitz/ml DNase I for 15 min at room temperature. Cells were then centrifuged again and removed of supernatant before resuspension in isolation buffer (calcium and magnesium-free 1xPBS, 0.1% (w/v) bovine serum albumin (BSA) (Cell Signaling Technology), 2 mM EDTA, pH7.4).

Isolation of mammary neutrophils using Dynabeads (Thermo Fisher Scientific) from the digested mammary cells were carried out following the manufacturer’s protocol. Briefly, 5 million cells from the mammary tissue digest were incubated with 1 µg of biotin-anti-Ly6G antibody (clone 1A8, BioLegend) at 4°C for 10 min. After washing, cells were then incubated with 10 µl of Dynabeads for 30 min at 4°C with gentle rotation and tilting. Dynabeads-bound cells were separated from the non-bound cells using a magnetic stand (Milipore) on ice. Isolated Dynabeads bound neutrophils were washed and then added TRIzol, snap-frozen with liquid nitrogen and stored at −80°C. A small amount of the non-bound cell fraction after washing was used for flow cytometry analysis of cell depletion efficiency. Remaining non-bound cells were also collected in TRIzol, snap-freeze and stored at −80°C. A concurrent separate isolation was also performed with the same above described protocol with no antibody incubation. This was done to obtain a negative control to ensure the specificity of the Dynabeads isolation process.

Quantitative PCR (qPCR)

Request a detailed protocol

Following the isolation of total RNA with TRIzol, reverse transcription was carried out using qScript cDNA SuperMix (Quantabio) following the manufacturer’s protocol. qPCR was carried out with KAPA SYBR FAST qPCR Master Mix (KAPA Biosystems) on the Quantstudio 6 Flex Real-Time PCR System (Applied Biosystems). qPCR for each target gene was performed in duplicates. For quantitative analysis, the comparative Threshold Cycle (Ct) method was used, while normalizing to Ct value of Rplp0 or Gapdh in the same sample. Relative quantification was performed using the 2−ΔCt method (Schmittgen and Livak, 2008). The data are expressed as relative mRNA level in arbitrary values. Primers are listed in Supplementary file 1.

Histological analysis

Request a detailed protocol

4% paraformaldehyde-fixed mammary tissue samples (4th abdominal mammary gland) were paraffin-embedded and sectioned at 5 µm for haematoxylin and eosin (H and E) staining and immunohistochemical (IHC) staining. To quantify epithelial cell death, the number of dying cells with hyper-condensed nuclei shed into the alveolar lumen of the mammary gland was counted. Cleaved caspase3+ cells were identified by immunostaining with antibody against cleaved caspase 3. IHC staining was carried out using the VECTASTAIN Elite ABC Kit (Vector laboratories) and perilipin A (1:100, D418 Cell Signaling) or cleaved caspase 3 (1:100, #9661 Cell Signaling) followed by the DAB (3,3’-diaminobenzidine) peroxidase (HRP) substrate kit (with Nickel) (Vector Laboratories). The tissue sections were counterstained with Richard-Allan Scientific Signature Series Hematoxylin 2. All histological analysis was performed with images from at least five random fields for each sample.

Subcellular fractionation

Request a detailed protocol

Subcellular fractionation of mammary glands was carried out based on the published protocol (Kreuzaler et al., 2011). Briefly, mammary tissues in liquid nitrogen were powdered and homogenized in a handheld homogenizer in subcellular fractionation buffer (​20 mM HEPES-​KOH, 250 mM ​sucrose, ​10 mM KCl, ​1.5 mM MgCl2, ​1 mM EDTA, ​1 mM EGTA, ​8 mM dithiothreitol, ​1 mM Pefabloc, at pH7.5) and centrifuged at 750 g for 10 min at 4°C to remove cell nuclei and debris. The supernatant was then spun at 10,000 g for 15 min at 4°C to pellet organelles. The pellet was washed and re-suspended in subcellular fractionation buffer as lysosomal fraction. Organelles were disrupted by three cycles of freezing and thawing. To collect the cytosolic fraction, the supernatant collected after pelleting organelles was spun at 100,000 g for 1 hr at 4°C to remove microsomes. Protein concentration was determined by the Bradford protein assay (Bio-rad).

Flow cytometry analysis

Request a detailed protocol

Blood cells collected via cardiac puncture were lysed of RBC via incubation with NH4Cl buffer for 15 min at room temperature with gentle tilting. RBC lysis was inactivated with equal volume of 1xPBS followed by centrifugation at 450 g for 5 min at 4°C and resuspended in 1xPBS. Mammary tissues were digested as previously described until after the RBC lysis step in which mammary cells were subsequently reconstituted in 1xPBS. Staining of cells was carried out with a cocktail of primary antibodies from either BioLegend or eBioscience comprising of APC-Cy7-anti-CD45 (clone 30-F11), FITC-anti-Ly6C (clone HK1.4), PE-anti-Ly6G (clone 1A8), Biotin-anti-Gr1 (clone RB6-8C5), and BV605-anti-CD11b (clone M1/70). Secondary antibody staining was performed with Alexa Fluor 647-streptavidin antibody (BioLegend). Dead cells were stained with eFluor 450-fixable viability dye (eBioscience) before fixation with fixative buffer (BioLegend).

Protein collection and western blotting

Request a detailed protocol

Proteins were isolated from cells or tissues by adding cold lysis buffer containing 50 mM HEPES (pH7.5), 150 mM NaCl, 100 mM NaF, 1 mM PMSF, 1% (v/v) Triton X-100, and a cocktail of proteinase inhibitors (2 ug/ml aprotinin, 5 ug/ml leupeptin, 1 mM Na3VO4, and 5 ug/ml pepstatin A). After lysis, cells were centrifuged at 13800 rpm for 15 min at 4°C and the supernatant collected. Protein concentration was determined with the BCA protein assay kit (Thermo Fisher Scientific) following the manufacturer’s protocol. The collected protein lysate supernatant was added 5x Laemmli sample buffer and stored at −80°C. Protein samples collected were analyzed with western blotting. The protein band of interest was subsequently quantitated (normalized to the reference protein band) using quantity one software (Bio-rad). Antibodies used for western blot analysis are listed in Supplementary file 2.

In vitro studies of estrogen-induced cell death

Request a detailed protocol

MCF7-caspase3(+) cells originally from Porter AG (Jänicke et al., 1998) were used in order to observe TNFα-induced apoptosis. The cells were not authenticated since it is only for a very minor portion of the study. However, the cells have been tested negative for mycoplasma using PCR analysis prior to usage. Cells were maintained in DMEM containing 2 mM L-glutamine and 7.5% fetal calf serum (FCS) (HyClone) and kept at 37°C in a humidified 5% carbon dioxide and 95% air atmosphere.

For estrogen treatment, phenol-red free DMEM supplemented with 2 mM L-glutamine and 5% DCC-FCS (fetal calf serum treated with dextran-coated charcoal) was used. Treatment of FCS with dextran-coated charcoal was performed to remove steroid hormones present in the FCS. MCF7-caspase3(+) cells were plated at 150 k in 6-well plate (Corning) with the DCC-FCS supplemented medium. After 48 hr, the medium was replaced, and cells were treated with either TNFα (ProSpec) diluted in 1xPBS or vehicle control. One hour after TNFα treatment, cells were then treated with 10 nM 17β-estradiol (E2) diluted in 100% ethanol or vehicle control. MCF7-caspase3(+) cells were harvested for analysis 24 hr after E2 treatment. Both floating dead cells and the adherent live cells were collected. Harvested cells were resuspended in 1xPBS and stained with 0.1 μg PI per 100 ul of 1xPBS for 15 min at room temperature. After staining, 400 μl of 1xPBS were added and cells were immediately analyzed with the flow cytometer.

Statistical analysis

Request a detailed protocol

Graphs were plotted using the mean value with the standard error of the mean (SEM). When comparing two groups, statistical significance was determined using a two-tailed unpaired student’s t-test. When comparing between more than two groups, one-way ANOVA followed by post-hoc turkey test was performed. All statistical analysis was performed using the GraphPad Prism seven software. p-value:<0.05 (*),<0.01 (**),<0.001 (***),<0.0001 (****).

Data availability

Sequencing data have been deposited in DR-NTU (DATA) accessible with the URL https://doi.org/10.21979/N9/YBRINN.

The following data sets were generated
    1. Lim CL
    (2020) DR-NTU (DATA)
    RNA-sequencing data of Balb/c involuting mammary gland treated with anti-Ly6G antibody and estrogen.
    https://doi.org/10.21979/N9/YBRINN

References

    1. Greenberg AS
    2. Egan JJ
    3. Wek SA
    4. Garty NB
    5. Blanchette-Mackie EJ
    6. Londos C
    (1991)
    A major hormonally regulated adipocyte-specific phosphoprotein associated with the periphery of lipid storage droplets
    The Journal of Biological Chemistry 266:11341–11346.
    1. Mach L
    2. Mort JS
    3. Glössl J
    (1994)
    Maturation of human procathepsin B. proenzyme activation and proteolytic processing of the precursor to the mature proteinase, in vitro, are primarily unimolecular processes
    The Journal of Biological Chemistry 269:13030–13035.
    1. Strange R
    2. Li F
    3. Saurer S
    4. Burkhardt A
    5. Friis RR
    (1992)
    Apoptotic cell death and tissue remodelling during mouse mammary gland involution
    Development 115:49–58.

Decision letter

  1. Yuting Ma
    Reviewing Editor; Suzhou Institute of Systems Medicine, China
  2. Tadatsugu Taniguchi
    Senior Editor; Institute of Industrial Science, The University of Tokyo, Japan

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The microenvironment of the involuting mammary gland is an important determinant of pregnancy- and lactation-associated breast cancer. This study revealed interesting links between a female sex hormone and mammary involution, including estrogen-triggered neutrophil accumulation and CXCR2 signaling that exacerbated local inflammation, as well as lysosome-mediated programmed death of mammary cells.

Decision letter after peer review:

Thank you for submitting your article "Estrogen exacerbates mammary involution through neutrophil dependent and independent mechanism" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Tadatsugu Taniguchi as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

Lin and colleagues aim to explore how estrogen promotes post-partum mammary involution and increases the risk of parity-associated breast cancer. Previous studies have unraveled different molecular mechanisms of mammary gland involution (see a previous summary PMID: 30448440). The authors highlighted that estrogen causes mammary involution by stimulating the accumulation of neutrophils, sculpturing the pro-inflammatory microenvironment, facilitating adipocytes differentiation, and causing lysosome-related programmed death of mammary cells. These findings are interesting, but further efforts are needed to nail down some of the major conclusions and to clarify the underlying mechanisms.

Essential revisions:

1) A major concern is about several discoveries on neutrophils. The contribution of neutrophils during estrogen-induced mammary involution should be cautiously defined with solid experimental evidence. Do other immune cell populations, such as macrophages, actively participate in this process? Does Ly6G antibody efficiently deplete neutrophils, rather than masking the labeling of Gr1 antibody (for validation)? As neutrophils have short half-life, secret lots of inflammatory mediators, and quickly replenish from BM progenitors, this point is important. The possible coordinations between neutrophils and other immune cells (e.g. macrophages, monocytes), and their relative importance at different stages of mammary involution can be examined and discussed (see a previous summary PMID: 24952477). In addition, more evidences are needed to prove whether the recruitment of neutrophils depends on a positive-feedback loop of CXCL1 and CXCL2. Quality controls are needed for the application of inhibitors.

2) Another major concern is about estrogen-triggered mammary cell death. How do ERα, ERβ or death receptor-mediated signals contribute to this process? Does estrogen-induced programmed cell death exclusively rely on lysosome leakage and related effector molecules? Have the authors tested the existence of other cell death modalities? Does estrogen-induced cell death augment local inflammation and perhaps the accumulation of immune cell populations?

3) The authors may consider to rephrase/weaken some of their claims and reorder the display of some of their results.

Reviewer #1:

Dr. Valerie Lin discovered some interesting links between estrogen signals and the differentiation and programmed death of mammary cells, as well as the formation of pro-inflammatory microenvironment, which facilitate post-partum mammary involution and presumably parity-associated breast cancer. They also demonstrated that mammary gland-infiltrating neutrophils emerge as a major immune cell participant during this process.

1) Dr Shengtao Zhou reported that ERβ has potent antitumor effects, which suppress lung metastasis by recruiting antitumor neutrophils to the metastatic niche. It is recommended to carefully address whether estrogen specifically target ERα or ERβ on post-weaning mammary cells and infiltrating neutrophils in this setting.

2) Perhaps a missing point is whether estrogen-induced mammary cell death subsequently cause inflammation (presumably augmenting neutrophil accumulation), since several cell death modalities has been associated to inflammation via the release of danger molecules.

3) Besides lysosome-mediated PCD, can estrogen induce other cell death modalities, such as pyroptosis, necroptosis, ferroptosis, which are all caspase 3/7/8-independent? It is important to make a clear conclusion.

4) Since the synthetic estrogen regulate the differentiation associated genes of fat cells and accelerated LM-PCD. Does estrogen affect lipid metabolic pathways? How does this metabolic remodeling affect cell death and differentiation of adipocytes and the function of neutrophils? By carefully going over the Seq data, the authors may add more important discussions.

Reviewer #2:

In this study, Chew Leng Lim et al. determined the diverse effects of Estrogen exposure on neutrophil infiltration, inflammation responses, cell death and adipocytes repopulation in mice models. While the authors revealed some new findings, this study suffers from obvious defects, including overdependence on the use of chemical inhibitors, lack of in-depth mechanistic investigation as well as unfocused research topics.

1) In addition to neutrophil, estrogen exposure also induced macrophage infiltration, while "neutrophil" deletion by using anti-Ly6G antibody obviously reduced the infiltration of macrophage (Figure 2—figure supplement 1). Therefore, the role of macrophage in Estrogen exposure-induced biological responses should be deeply determined.

2) Since anti-Ly6G antibody also reduced macrophage infiltration significantly, it is very likely macrophage play a pivotal role in Estrogen exposure-regulated gene expressions and cellular phenotypes. Therefore, the conclusion that 88% of estrogen-regulated genes are mediated through neutrophil is not solid. This point should be addressed by specific deletion of macrophage and neutrophil, individually.

3) The source of CXCL1/CXCL2 upon estrogen exposure should be further investigated. In Figure 8, the authors indicated that CXCL1 and CXCL2 are produced by existing neutrophil. Further evidence to support this should be provided.

4) Many biological and small molecule inhibitors, including anti-Ly6G antibody, PAQ (S100a9 inhibitor), CXCR2 antagonist SB225002, etc, have been frequently used in this study. However, the effects and specificity of some of these agents have not been well validated during the study. The use of genetic mice models for critical signaling pathways is highly suggested.

5) Figure 5, The critical role of CTSB in the activation of CTSD/CTSL and induction of LM-PCD upon E2B treatment should be validated by downregulation of CTSB expression pharmacologically or genetically.

6) The data presented in Figure 7 based on the analysis in a single cell line is not reliable.

Reviewer #3:

This paper reported that estrogen can accelerate mammary involution by exacerbating mammary inflammation, inducing programmed cell death, and promoting adipocytes repopulation, that the effects of estrogen on the expressions of genes during mammary involution are majorly mediated by neutrophils, and that estrogen promotes mammary LM-PCD independent of neutrophils by inducing the expression and activity of lysosomal cathepsins and other pro-apoptotic markers such as Bid and Tnf. These findings are potentially interesting, and could expand the functions of estrogen. However, there is a lack in mechanistic insight into these observations. I. The mechanism underlying estrogen-induced cell death needs to be further explored. For example, what kind of player(s) connects estrogen with cell death? Whether TNF-α plays a role in linking estrogen to cell death? Is there any enrichment of cell death genes associated with the estrogen treatment in RNA-Seq data? Why the artificial MCF-7/Caspase-3 cells were used? The results about MCF-7/Caspase-3 cells showed that estrogen promoted TNF-α-induced apoptosis, rather than lysosomes-associated cell death. Maybe the authors should try MCF-10A cells as the model. II. Based on the data on Figure 4, it is not so convincible to conclude that neutrophils are involved in adipocytes repopulation during mammary involution normally, please see also Issues#3. The authors need to re-consider the relationship between these data and the conclusion. Maybe they should re-describe these results or modify the conclusion. III. The most interesting finding is that estrogen does not trigger the similar biological actions in age-matched nulliparous mammary tissue. However, this study does not figure out the molecular mechanism underneath the difference between the functions of estrogen in involutional and nulliparous mammary tissues. At least, the author should discuss about the potential possibilities.

Other issues:

1) Quantification in Figure 1B should indicate the fractions, for example, No. cells of total or area. The data in Figure 1C, except Csn2, were not described in the content, and these data should be associated with adipogenesis. As for Figure 1D, no any description was presented about Ly6G, and in fact, it was described in the second part of Results section. Supplemental Figure 2 was mentioned in the content before Supplemental Figure 1. The first part of results was very important for readers to understand the paper, but these problems confuse the readers.

2) "E2B treatment alone without the antagonist (E2B+DMSO) lead to an expected 1.57-fold increase (p=0.0082) in mammary neutrophils as compared to the Ctrl+DMSO". Should "1.57-fold" be "2.57-fold" or something other? It is not the case based on the data in Figure 3Ci.

3) In Figure 4B, upon neutrophil depletion, Cebpb and Cebpd were already increased, which could limit their further enhancement when treated with E2B. As for Adig and Egr2, it seemed that they also apparently increased. In Figure 4D, the data had the similar problem to those in Figure 4B. No description about Figure 4E and 4F was found in the content. Overall, these data put it in question that estrogen-induced adipocyte repopulation is associated with the induction of adipogenic and tissue remodeling genes through neutrophils.

4) "This suggests that the up-regulation of Ctsb expression by E2B is a direct event independent of STAT3 activation". These data in Figure 5B could not demonstrate that Ctsb expression is the direct event of E2B. In Figure 5D, why the lysosomal pellet fractions showed no lysosomal proteins, such as catheptins. In Figure 5A, at least the protein level of TNF-α should be measured, because it was very important for the functions of E2B, based on the data in Figure 6.

5) In Figure 6, TNF induces p-STAT3 while Figure 5A shows E2 induces TNF expression (mRNA), but no p-STAT3 was increased in Figure 5B. The increased mRNA does not mean the increased protein. Please measure the TNFα proteins in Figure 5A (See Issue#4). The MCF-7/Casp3 model seems not to well support the conclusion. The data in Figure 6 are about typical apoptosis not the lysosomes-associated cell death involved in the functions of estrogen as revealed in this study.

https://doi.org/10.7554/eLife.57274.sa1

Author response

Essential revisions:

1) A major concern is about several discoveries on neutrophils. The contribution of neutrophils during estrogen-induced mammary involution should be cautiously defined with solid experimental evidence. Do other immune cell populations, such as macrophages, actively participate in this process?

We agree that mammary monocytes and macrophages may also contribute to estrogen-induced mammary involution. During sterile inflammation, infiltrated neutrophils was known to recruit macrophages into the tissue from the circulation [1]. We also reported that estrogen induced recruitment of monocytes [2] (Supplementary Figure 2), although the functional consequence of this recruitment has not been looked at. Additionally, neutrophils depletion reduced mammary monocytes, albeit not to a statistically significant degree. Macrophages have been reported to be critical for cell death and adipocyte repopulation during mammary involution [3]. Whilst we did not investigate the role of estrogen-induced monocytes during mammary involution, estrogen is also known to regulate gene activity in peritoneal macrophages [4].

The possible involvement of mammary monocytes/macrophages in estrogen-induced adipocyte repopulation and LM-PCD have been discussed in the revised manuscript.

In Supplementary Figure 2 of the previous study estrogen significantly induced monocytes infiltration, but not F4/80 macrophages. Although it marginally (p=0.0538 for CD4 cells) reduced the percentage of CD4 and CD8 cells, this decrease is likely due to increases in the percentage of neutrophils and monocytes.

Does Ly6G antibody efficiently deplete neutrophils, rather than masking the labeling of Gr1 antibody (for validation)? As neutrophils have short half-life, secret lots of inflammatory mediators, and quickly replenish from BM progenitors, this point is important.

Anti-Ly6G antibody (clone 1A8) is widely known to effectively and specifically deplete neutrophils. Furthermore, neutrophils has been demonstrated to co-stain with both clone 1A8 anti-Ly6G and clone RB6-8C5 anti-Gr1 [5], suggesting that the two antibodies target different epitopes. In our hands through a number of experiments, Ly6G antibody consistently reduced blood and mammary neutrophils by more than 90%. Therefore, the use of Gr1 antibody clone RB6-8C5 to check for neutrophil depletion efficiency by Ly6G antibody (clone 1A8) is valid and reliable.

The possible coordinations between neutrophils and other immune cells (e.g. macrophages, monocytes), and their relative importance at different stages of mammary involution can be examined and discussed (see a previous summary PMID: 24952477).

This has been addressed above.

In addition, more evidences are needed to prove whether the recruitment of neutrophils depends on a positive-feedback loop of CXCL1 and CXCL2. Quality controls are needed for the application of inhibitors.

The involvement of CXCR2 signalling in neutrophil recruitment to tissues has been widely reported [6-9]. CXCR2 receives input from several chemokine ligand. In mice, CXCR2 ligands include CXCL1, CXCL2, CXCL3 and CXCL5 [10]. Our RNA-Seq analysis showed that estrogen up-regulated the expression of all four chemokines and neutrophil depletion abolished their upregulation (Figure 3A) Furthermore, we provide new data in Figure 3B that the upregulation of Cxcl2, Cxcl3, and Cxcl5 occurs in isolated neutrophils by qPCR analysis. We propose that the recruitment of neutrophils involves an autocrine mechanism, in which estrogen induces neutrophil release of chemokines which in turn recruit neutrophils through CXCR2 signalling.

We have revised the manuscript and according to this analysis. We also revised the model incorporating this new data.

As for the comment on a positive-feedback loop for estrogen-induced neutrophil recruitment, we agree that it is a logical and attractive deduction of our current data. Positive feedback refers to the mechanism in which a change triggers a response that enhances the change. It is logical to deduce that estrogen-induced upregulation of Cxcls in neutrophils (change) that causes neutrophil recruitment (response) would enhance Cxcl2 release (change) as more neutrophils are recruited. However, this would need a time course experiment to demonstrate an incremental increase of mammary neutrophils recruitment in response to estrogen overtime. This time course experiment would require a large number of mice (3 time points x 4 mice per treatment x 4 groups, at a minimum) and approval from institutional animal care and use committee. We would like to seek your understanding that we are unable to justify for this experiment to test a hypothesis that seems to be a logical deduction.

2) Another major concern is about estrogen-triggered mammary cell death. How do ERα, ERβ or death receptor-mediated signals contribute to this process?

To elucidate whether ERα or ERβ mediates the effect of E2B on various process of mammary involution, we evaluated the effect of ERα-specific agonist, (4,4',4''-(4-Propyl-[1H]-pyrazole-1,3,5-triyl) trisphenol (PPT) [11] and ERβ-specific agonist Diarylpropionitrile (DPN) [12]. Similar to the effect of E2B, ERα agonist PPT evidently increased the expression Ctsb, Bid and Tnf that are known to promote cell death (Figure 8A). PPT also consistently increased the protein levels of cleaved CTSB (sc-CTSB), cleaved CTSD (sc-CTSD), and cleaved CTSL (sc-CTSL and dc-CTSL) (Figure 8B), which are executioner proteases [13, 14]. In contrast, ERβ-specific agonist DPN did not have any effect on the gene expression of the death-inducing genes, or the activation of lysosomal proteases. These observations indicate that ERα mediates E2B-induced LM-PCD during mammary involution.

The results of PPT and DPN are described under the section “Estrogenic stimulation of mammary inflammation and mammary cell death is mediated by ERα”.

Does estrogen-induced programmed cell death exclusively rely on lysosome leakage and related effector molecules? Have the authors tested the existence of other cell death modalities?

Estrogen-induced mammary cell death was evaluated at 48h post-weaning. Mammary involution in the first 48h is known as phase I (reversible phase) of mammary involution. In phase I, LM-PCD was found to be the major mechanism of mammary cell death [15]. The evidence obtained in this study also indicates that estrogen induces LM-PCD by inducing the expression of Ctsb, TNF and Bid, and the activation of CTSB, D and L.

Although we have not tested experimentally if estrogen induced other forms of cell death, we did look through the RNA-Seq data related to cell death and survival. We could not find any consistent pattern to suggest additional mechanism of estrogen-induced cell death. For example, we found that estrogen induced the expression of CRADD which is known to recruit Casp2 to promote cell apoptosis [16]. However, estrogen down-regulated Casp2 independent of neutrophils, which is inconsistent with the involvement of CRADD-Casp2 pathway in estrogen-induced cell death (Figure 5—figure supplement 1).

We also noticed that estrogen induces Ripk3 expression that is dependent on neutrophils (Figure 5—figure supplement 1), which we subsequently validated by qPCR. Ripk3 is an important modulator of necroptosis in which cells release reactive molecules like DAMPs (damage-associated molecular patterns) into the tissue triggering inflammation [17-19]. RIPK3 activation is important in the formation of neutrophil extracellular traps and the subsequent neutrophil death in venous thrombosis model [20]. It can be hypothesized that estrogen-induced upregulation of RIPK3 in neutrophils affects neutrophils survival, but this would require further evaluation.

We have added the following in the revised manuscript to lend support to the idea that estrogen-induced cells death is mainly mediated through LM-PCD: “Mammary involution in the first 48h is known as phase I (reversible phase) of mammary involution. In phase I, LM-PCD has been shown to be the major mechanism of mammary cell death, and it is independent of caspases 3, 6 and 7 [15]. [...] Hence, estrogen-induced increases of cytosolic cathepsins together with increase of Tnfα and Bid accelerate LM-PCD during mammary involution.”

Does estrogen-induced cell death augment local inflammation and perhaps the accumulation of immune cell populations?

We have added the following in the Discussion:

“It is well known that dying cells release signalling molecules to stimulate inflammation and recruitment of phagocytic cells for the clearance of dying cells [21]. Likewise, estrogen-induced cell death may aggravates inflammation and immune cell recruitment. This may further contribute to neutrophil recruitment in response to estrogen in mammary involution model.”

We also added additional discussion under the section “Estrogen promotes LM-PCD during mammary involution”

“Mammary macrophages have also been shown to be important for mammary involution including LM-PCD [3]. Depletion of mammary macrophage in Macrophage Fas-induced apoptosis (Mafia) transgenic mice targeting CSF1R-expressing cells resulted in delayed mammary involution and loss of LM-PCD due to attenuated activation of Stat3. Since estrogen induced monocyte recruitment and is reported to regulate the transcriptional activity of macrophages [2, 4], we speculate that monocytes and macrophages played a part in estrogen-induced LM-PCD by heightening the proinflamamtory tissue environment, leading to further activation of estrogen-induced lysosomal proteases”.

3) The authors may consider to rephrase/weaken some of their claims and reorder the display of some of their results.

We have gone through the manuscript to rephrase some of the writing.

Reviewer #1:

1) Dr Shengtao Zhou reported that ERβ has potent antitumor effects, which suppress lung metastasis by recruiting antitumor neutrophils to the metastatic niche. It is recommended to carefully address whether estrogen specifically target ERα or ERβ on post-weaning mammary cells and infiltrating neutrophils in this setting.

We added the following to the discussion “It should be recognized that ERβ has been reported to play a role in neutrophil regulation of tumour biology. Selective ERβ agonist LY500307 was found to reduce lung metastasis of triple-negative breast cancer cells [22]. This was associated with significant increase of infiltration of neutrophils in the lung. However, this was mediated by the up-regulation of IL-1β in cancer cells which promotes neutrophil infiltration to the metastatic niche. There was no evidence whether ERβ agonist regulated the phenotypes of neutrophils directly.”

2) Perhaps a missing point is whether estrogen-induced mammary cell death subsequently cause inflammation (presumably augmenting neutrophil accumulation), since several cell death modalities has been associated to inflammation via the release of danger molecules.

This point has been addressed in revised manuscript.

3) Besides lysosome-mediated PCD, can estrogen induce other cell death modalities, such as pyroptosis, necroptosis, ferroptosis, which are all caspase 3/7/8-independent? It is important to make a clear conclusion.

This is addressed in revised manuscript.

4) Since the synthetic estrogen regulate the differentiation associated genes of fat cells and accelerated LM-PCD. Does estrogen affect lipid metabolic pathways? How does this metabolic remodeling affect cell death and differentiation of adipocytes and the function of neutrophils? By carefully going over the Seq data, the authors may add more important discussions.

GO analysis revealed that estrogen regulated genes in the category of "Regulation of lipid metabolic process”. 67 genes are grouped in this category. We described and discussed the significance of top 5 most regulated genes in this category based on fold changes. A general impression is that the gene regulation by estrogen points to both pro- and anti-adipogenic effect.

Reviewer #2:

1) In addition to neutrophil, estrogen exposure also induced macrophage infiltration, while "neutrophil" deletion by using anti-Ly6G antibody obviously reduced the infiltration of macrophage (Figure 2—figure supplement 1). Therefore, the role of macrophage in Estrogen exposure-induced biological responses should be deeply determined.

We agree that estrogen-induced increase in mammary monocytes (macrophages) may contribute to estrogen-induced involution. This point has been addressed above and in the revised manuscript.

2) Since anti-Ly6G antibody also reduced macrophage infiltration significantly, it is very likely macrophage play a pivotal role in Estrogen exposure-regulated gene expressions and cellular phenotypes. Therefore, the conclusion that 88% of estrogen-regulated genes are mediated through neutrophil is not solid. This point should be addressed by specific deletion of macrophage and neutrophil, individually.

Anti-Ly6G antibody reduced monocytes infiltration marginally (p>0.05). Nonetheless, we also recognize the potential involvement of macrophages and infiltrating monocytes in estrogen-regulation of mammary involution and discuss as above. Our conclusion is “This 88% of the genes was regulated by estrogen either in neutrophils, or regulated as a result of neutrophil activities on other cells”, which include neutrophil-recruited immune cells such as monocytes. The effect of estrogen on the activity of macrophages and infiltrated monocytes was not investigated in this study.

3) The source of CXCL1/CXCL2 upon estrogen exposure should be further investigated. In Figure 8, the authors indicated that CXCL1 and CXCL2 are produced by existing neutrophil. Further evidence to support this should be provided.

This point has been addressed in the early part of the letter and in the manuscript.

4) Many biological and small molecule inhibitors, including anti-Ly6G antibody, PAQ (S100a9 inhibitor), CXCR2 antagonist SB225002, etc, have been frequently used in this study. However, the effects and specificity of some of these agents have not been well validated during the study. The use of genetic mice models for critical signaling pathways is highly suggested.

The specificity and efficacy of CXCR2 inhibitor SB225002 and the anti-Ly6G antibody clone 1A8 have been well-validated by other studies. Our data using these 2 reagents are consistent with those reported in the literature.

Paquinimod is a derivative of quinoline-3-carboxamide that has been shown to inhibit S100A9 activity through binding with S100A9 [23, 24]. The binding inhibits S100A9 dimerization or the formation of heterodimer with S100A8, thereby preventing the activation of RAGE or TLR4. However, reports on Paquinimod as an inhibitor of S100A9 in the context of neutrophils infiltration is not very well defined. In a study looking at the effect of Paquinimod on immune cell infiltration during sterile peritoneal inflammation, Paquinimod reduced necrotic tumour cell-induced accumulation of monocytes and eosinophils, but not that of neutrophils [25]. Other study showed effectiveness of Paquinimod in inhibiting neutrophils-derived S100A8/A9-mediated inflammatory response, but not specifically on neutrophil infiltration [26, 27]. Contrary to our expectation, Paquinimod increased neutrophil infiltration and the expression levels of S100A8 and S100A9 in estrogen-treated mice (Figure 3—figure supplement 1). This suggests that the functional properties of Paquinimod have yet to be well characterized. The specificity of paquinimod during mammary involution require more evaluation. Bu we do not have the resources to conduct further experiments to understand why it behaved unexpectedly. We thought to include the data to benefit readers who may be interested in this unusual property of Paquiminod.

While we acknowledge the importance of validating the effect of S100A9 with genetic mice model, we did not have access to these mice to embark in these experiments for the current study. We moved on to characterize the involvement of CXCR2 using its chemical inhibitor SB225002.

5) Figure 5, The critical role of CTSB in the activation of CTSD/CTSL and induction of LM-PCD upon E2B treatment should be validated by downregulation of CTSB expression pharmacologically or genetically.

We thought about testing CTSB inhibitor CA-074ME but decided against it because it has already been shown to inhibit LM-PCD during mammary involution [15]. We believe that CTSB inhibitor will inhibit LM-PCD in our estrogen–treated mouse model, but it would not tell us whether it inhibits estrogen-induced LM-PCD or just the LM-PCD in general because they are the same process.

6) The data presented in Figure 7 based on the analysis in a single cell line is not reliable.

Since the observation of estrogen-induced cell death is novel under physiological condition, the purpose of the experiment in Figure 6 in MCF7-caspase3(+) cells was to show that estrogen can induce cell death when primed by certain proinflammatory factors such as TNFα. The results was reproducible from 3 independent experiments and hence proved that estrogen under certain pro-inflammatory condition can induce cell death.

Reviewer #3:

I) The mechanism underlying estrogen-induced cell death needs to be further explored. For example, what kind of player(s) connects estrogen with cell death? Whether TNF-α plays a role in linking estrogen to cell death? Is there any enrichment of cell death genes associated with the estrogen treatment in RNA-Seq data? Why the artificial MCF-7/Caspase-3 cells were used? The results about MCF-7/Caspase-3 cells showed that estrogen promoted TNF-α-induced apoptosis, rather than lysosomes-associated cell death. Maybe the authors should try MCF-10A cells as the model.

The mechanism of estrogen-induced cell death is explained as the following:

“We propose the following model to explain how estrogen-induced Ctsb drives LM-PCD. First, increased gene expression and protein levels of CTSB lead to increased levels of activated CTSB due to heightened lysosomal activity in mammary cells with ongoing LM-PCD. […] Hence, estrogen-induced increases of cytosolic cathepsins together with increase of Tnfα and Bid accelerate LM-PCD during mammary involution.”

Regarding enrichment of cell death genes associated with the estrogen treatment in RNA-Seq data, the heat map of the list of genes associated with cell death is included in Figure 5—figure supplement 1. We did further analysis on Tnfα, Bid and Ctsb as is shown in Figure 5.

“why the artificial MCF-7/Caspase-3 cells were used? The results about MCF-7/Caspase-3 cells showed that estrogen promoted TNF-α-induced apoptosis, rather than lysosomes-associated cell death. Maybe the authors should try MCF-10A cells as the model.”

Since this is the first evidence that estrogen as a well-known mitogenic hormone elicits cell death under physiological condition, we wanted to show that estrogen can heighten cell death when primed by proinflammatory cytokines such as TNFα. The parental MCF-7 cell line is caspase 3-negative and is not responsive to some apoptotic stimuli [33]. Caspase 3 expression sensitizes MCF-7 cells to apoptosis inducers [34], and is commonly used for studying cell death-related mechanisms. To ensure the model we use are sensitive to TNFα-induced cell death, we choose to use MCF7-caspase3(+). The result proved our hypothesis, but the mechanism of cell death in MCF7-caspase3(+) cells is not LM-PCD.

MCF-10A does not express estrogen receptor and hence is not suitable for the evaluation of estrogen’s effect.

II) Based on the data on Figure 4, it is not so convincible to conclude that neutrophils are involved in adipocytes repopulation during mammary involution normally, please see also Issues#3. The authors need to re-consider the relationship between these data and the conclusion. Maybe they should re-describe these results or modify the conclusion.

We agree that macrophages and monocytes may also be involved. We have addressed this point in the revised manuscript.

III) The most interesting finding is that estrogen does not trigger the similar biological actions in age-matched nulliparous mammary tissue. However, this study does not figure out the molecular mechanism underneath the difference between the functions of estrogen in involutional and nulliparous mammary tissues. At least, the author should discuss about the potential possibilities.

We agree with the reviewer’s suggestion. Discussion of possible mechanisms and significance of estrogen’s plasticity on neutrophils is added in the revised manuscript.

Other issues:

1) Quantification in Figure 1B should indicate the fractions, for example, No. cells of total or area. The data in Figure 1C, except Csn2, were not described in the content, and these data should be associated with adipogenesis. As for Figure 1D, no any description was presented about Ly6G, and in fact, it was described in the second part of Results section. Supplemental Figure 2 was mentioned in the content before Supplemental Figure 1. The first part of results was very important for readers to understand the paper, but these problems confuse the readers.

Thank you for pointing them out.

In Figure 1B, the number of shed cells is the total of 5 random field per mouse. For CC3+ cells, it is the average of CC3+ cells of 5 random field per mice. The reason to present as total number of shed cells from 5 random fields is that it is harder to discern the shed cells with hyper-condensed nuclei and the number is small and more variable among different field. We though it is better to use the sum instead of the average. In contrast, identification of CC3+ cells based on immunostaining is easier and there is less variation in different field so we took the average per mouse. The use of two quantification methods gave use more confidence in the data.

The data has now been put in order and described. We added description for Figure 1C and added more description for Figure 1D.

2) "E2B treatment alone without the antagonist (E2B+DMSO) lead to an expected 1.57-fold increase (p=0.0082) in mammary neutrophils as compared to the Ctrl+DMSO". Should "1.57-fold" be "2.57-fold" or something other? It is not the case based on the data in Figure 3Ci.

Again thank you for pointing out the mistake. The number have been corrected to 2.57 and 2.26, respectively.

3) In Figure 4B, upon neutrophil depletion, Cebpb and Cebpd were already increased, which could limit their further enhancement when treated with E2B. As for Adig and Egr2, it seemed that they also apparently increased. In Figure 4D, the data had the similar problem to those in Figure 4B. No description about Figure 4E and 4F was found in the content. Overall, these data put it in question that estrogen-induced adipocyte repopulation is associated with the induction of adipogenic and tissue remodeling genes through neutrophils.

We agree with the reviewer’s interpretation of Cebpb and Cebpd data. Figure 4 has been now rearranged and described accordingly.

4) "This suggests that the up-regulation of Ctsb expression by E2B is a direct event independent of STAT3 activation". These data in Figure 5B could not demonstrate that Ctsb expression is the direct event of E2B. In Figure 5D, why the lysosomal pellet fractions showed no lysosomal proteins, such as catheptins. In Figure 5A, at least the protein level of TNF-α should be measured, because it was very important for the functions of E2B, based on the data in Figure 6.

Our interpretation is based on the following. First, STAT3 activation has been shown to induce cathepsin expression during mammary involution [35]. Although we did not detect an increase in p-STAT3 with estrogen treatment, we observed a significant increase in Ctsb expression in response to estrogen. This implies that Ctsb is up-regulated by mechanism other than Stat3. Second, Ctsb is a known estrogen target gene that is also induced in nulliparous mice (Figure 7). Therefore, we rationalize that estrogen induced Ctsb expression was independent of STAT3 activation.

Cathepsin was not detected in Figure 5D in the pellet (lysosomal) fraction because during mammary involution, there is increased lysosomal leakiness and cathepsins are all leaked to the cytosol [35]. Therefore, cathepsin was only detected in the supernatant fraction but not in the pellet fraction after sub-cellular fractionation.

We tried ELISA to detect TNF-α in mammary cell lysate. But the signals are too low to allow a reliable evaluation. On the other hand, the upregulation of TNF-α gene expression by estrogen has been consistent in different experiment settings including an experiment in our previous report [2].

5) In Figure 6, TNF induces p-STAT3 while Figure 5A shows E2 induces TNF expression (mRNA), but no p-STAT3 was increased in Figure 5B. The increased mRNA does not mean the increased protein. Please measure the TNFα proteins in Figure 5A (See Issue#4). The MCF-7/Casp3 model seems not to well support the conclusion. The data in Figure 6 are about typical apoptosis not the lysosomes-associated cell death involved in the functions of estrogen as revealed in this study.

The data in Figure 6 was meant to demonstrate that under an inflammatory condition, estrogen (which is more commonly known as a mitogen) can stimulate cell death. But we did not expect it to be via LM-PCD because MCF7-Caspase3(+) cells are different in many ways from the mouse involuting mammary tissue.

Reference

https://www.guidetopharmacology.org/GRAC/ObjectDisplayForward?objectId=69

1. Shen, H., D. Kreisel, and D.R. Goldstein, Processes of sterile inflammation. J Immunol, 2013. 191(6): p. 2857-63.2. Chung, H.H., et al., Estrogen reprograms the activity of neutrophils to foster protumoral microenvironment during mammary involution. Scientific Reports, 2017. 7.3. O'Brien, J., et al., Macrophages are crucial for epithelial cell death and adipocyte repopulation during mammary gland involution. Development, 2012. 139(2): p. 269-75.4. Pepe, G., et al., Self-renewal and phenotypic conversion are the main physiological responses of macrophages to the endogenous estrogen surge. Sci Rep, 2017. 7: p. 44270.5. Daley, J.M., et al., Use of Ly6G-specific monoclonal antibody to deplete neutrophils in mice. J Leukoc Biol, 2008. 83(1): p. 64-70.6. Sue, R.D., et al., CXCR2 is critical to hyperoxia-induced lung injury. J Immunol, 2004. 172(6): p. 3860-8.7. Bertini, R., et al., Noncompetitive allosteric inhibitors of the inflammatory chemokine receptors CXCR1 and CXCR2: prevention of reperfusion injury. Proc Natl Acad Sci U S A, 2004. 101(32): p. 11791-6.8. Belperio, J.A., et al., CXCR2/CXCR2 ligand biology during lung transplant ischemia-reperfusion injury. J Immunol, 2005. 175(10): p. 6931-9.9. Cugini, D., et al., Inhibition of the chemokine receptor CXCR2 prevents kidney graft function deterioration due to ischemia/reperfusion. Kidney Int, 2005. 67(5): p. 1753-61.10. ; Available from: .11. Stauffer, S.R., et al., Pyrazole ligands: structure-affinity/activity relationships and estrogen receptor-α-selective agonists. J Med Chem, 2000. 43(26): p. 4934-47.12. Meyers, M.J., et al., Estrogen receptor-β potency-selective ligands: structure-activity relationship studies of diarylpropionitriles and their acetylene and polar analogues. J Med Chem, 2001. 44(24): p. 4230-51.13. Foghsgaard, L., et al., Cathepsin B acts as a dominant execution protease in tumor cell apoptosis induced by tumor necrosis factor. Journal of Cell Biology, 2001. 153(5): p. 999-1009.14. Luzio, J.P., P.R. Pryor, and N.A. Bright, Lysosomes: fusion and function. Nat Rev Mol Cell Biol, 2007. 8(8): p. 622-32.15. Kreuzaler, P.A., et al., Stat3 controls lysosomal-mediated cell death in vivo. Nature cell biology, 2011. 13(3): p. 303-9.16. Di Donato, N., et al., Mutations in CRADD Result in Reduced Caspase-2-Mediated Neuronal Apoptosis and Cause Megalencephaly with a Rare Lissencephaly Variant. Am J Hum Genet, 2016. 99(5): p. 1117-1129.17. Vanden Berghe, T., et al., Necroptosis, necrosis and secondary necrosis converge on similar cellular disintegration features. Cell Death Differ, 2010. 17(6): p. 922-30.18. Kono, H. and K.L. Rock, How dying cells alert the immune system to danger. Nat Rev Immunol, 2008. 8(4): p. 279-89.19. Orozco, S., et al., RIPK1 both positively and negatively regulates RIPK3 oligomerization and necroptosis. Cell Death Differ, 2014. 21(10): p. 1511-21.20. Nakazawa, D., et al., Activated platelets induce MLKL-driven neutrophil necroptosis and release of neutrophil extracellular traps in venous thrombosis. Cell Death Discov, 2018. 4: p. 6.21. Rock, K.L. and H. Kono, The inflammatory response to cell death. Annu Rev Pathol, 2008. 3: p. 99-126.22. Zhao, L., et al., Pharmacological activation of estrogen receptor β augments innate immunity to suppress cancer metastasis. Proc Natl Acad Sci U S A, 2018. 115(16): p. E3673-E3681.23. Bengtsson, A.A., et al., Pharmacokinetics, tolerability, and preliminary efficacy of paquinimod (ABR-215757), a new quinoline-3-carboxamide derivative: studies in lupus-prone mice and a multicenter, randomized, double-blind, placebo-controlled, repeat-dose, dose-ranging study in patients with systemic lupus erythematosus. Arthritis Rheum, 2012. 64(5): p. 1579-88.24. Bjork, P., et al., Identification of human S100A9 as a novel target for treatment of autoimmune disease via binding to quinoline-3-carboxamides. PLoS Biol, 2009. 7(4): p. e97.25. Deronic, A., et al., The quinoline-3-carboxamide paquinimod (ABR-215757) reduces leukocyte recruitment during sterile inflammation: leukocyte- and context-specific effects. Int Immunopharmacol, 2014. 18(2): p. 290-7.26. Kraakman, M.J., et al., Neutrophil-derived S100 calcium-binding proteins A8/A9 promote reticulated thrombocytosis and atherogenesis in diabetes. J Clin Invest, 2017. 127(6): p. 2133-2147.27. Wache, C., et al., Myeloid-related protein 14 promotes inflammation and injury in meningitis. J Infect Dis, 2015. 212(2): p. 247-57.28. Werneburg, N.W., et al., Tumor necrosis factor-α-associated lysosomal permeabilization is cathepsin B dependent. American journal of physiology. Gastrointestinal and liver physiology, 2002. 283(4): p. G947-56.29. Hennigar, S.R. and S.L. Kelleher, TNFalpha Post-Translationally Targets ZnT2 to Accumulate Zinc in Lysosomes. J Cell Physiol, 2015. 230(10): p. 2345-50.30. Hennigar, S.R., et al., ZnT2 is a critical mediator of lysosomal-mediated cell death during early mammary gland involution. Sci Rep, 2015. 5: p. 8033.31. Droga-Mazovec, G., et al., Cysteine cathepsins trigger caspase-dependent cell death through cleavage of bid and antiapoptotic BCl-2 homologues. J Biol Chem, 2008. 283(27): p. 19140-50.32. Stoka, V., et al., Lysosomal protease pathways to apoptosis. Cleavage of bid, not pro-caspases, is the most likely route. J Biol Chem, 2001. 276(5): p. 3149-57.33. Janicke, R.U., et al., Caspase-3 is required for DNA fragmentation and morphological changes associated with apoptosis. J Biol Chem, 1998. 273(16): p. 9357-60.34. Yang, X.H., et al., Reconstitution of caspase 3 sensitizes MCF-7 breast cancer cells to doxorubicin- and etoposide-induced apoptosis. Cancer Res, 2001. 61(1): p. 348-54.35. Kreuzaler, P.A., et al., Stat3 controls lysosomal-mediated cell death in vivo. Nat Cell Biol, 2011. 13(3): p. 303-9.

https://doi.org/10.7554/eLife.57274.sa2

Article and author information

Author details

  1. Chew Leng Lim

    1. NTU Institute for Health Technologies, Interdisciplinary Graduate School, Nanyang Technological University, Singapore, Singapore
    2. School of Biological Sciences, Nanyang Technological University, Singapore, Singapore
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Visualization, Writing - original draft, Writing - review and editing
    Contributed equally with
    Yu Zuan Or
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4529-2732

  2. Yu Zuan Or

    School of Biological Sciences, Nanyang Technological University, Singapore, Singapore
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Visualization, Writing - original draft, Writing - review and editing
    Contributed equally with
    Chew Leng Lim
    Competing interests
    No competing interests declared

  3. Zoe Ong

    School of Biological Sciences, Nanyang Technological University, Singapore, Singapore
    Contribution
    Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared

  4. Hwa Hwa Chung

    School of Biological Sciences, Nanyang Technological University, Singapore, Singapore
    Contribution
    Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared

  5. Hirohito Hayashi

    Division of Chemistry and Biological Chemistry, School of Physical and Mathematical Sciences, Nanyang Technological University, Singapore, Singapore
    Contribution
    Resources
    Competing interests
    No competing interests declared

  6. Smeeta Shrestha

    School of Basic and Applied Sciences, Dayananda Sagar University, Bangalore, India
    Contribution
    Formal analysis, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6560-4230

  7. Shunsuke Chiba

    Division of Chemistry and Biological Chemistry, School of Physical and Mathematical Sciences, Nanyang Technological University, Singapore, Singapore
    Contribution
    Resources
    Competing interests
    No competing interests declared

  8. Feng Lin

    School of Computer Science and Engineering, Nanyang Technological University, Singapore, Singapore
    Contribution
    Supervision
    Competing interests
    No competing interests declared

  9. Valerie Chun Ling Lin

    School of Biological Sciences, Nanyang Technological University, Singapore, Singapore
    Contribution
    Conceptualization, Resources, Formal analysis, Supervision, Funding acquisition, Validation, Visualization, Project administration, Writing - review and editing
    For correspondence
    cllin@ntu.edu.sg
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7997-2771

Funding

Ministry of Education of Singapore (MOE2017-T1-002-081)

  • Valerie Chun Ling Lin

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This research is funded the Ministry of Education of Singapore. Academic Research Fund Tier I, MOE2017-T1-002-081. We thank Drs. Natasa Bajalovic, Amanda Woo and Mr. Lee Shi Hao for their technical assistance.

Ethics

Animal experimentation: All animal experiments were performed in accordance with the protocol approved by the Nanyang Technological University Institutional Animal Care and Use Committee (NTU-IACUC) under the protocol number A0306 and A18036.

Senior Editor

  1. Tadatsugu Taniguchi, Institute of Industrial Science, The University of Tokyo, Japan

Reviewing Editor

  1. Yuting Ma, Suzhou Institute of Systems Medicine, China

Publication history

  1. Received: March 26, 2020
  2. Accepted: July 23, 2020
  3. Accepted Manuscript published: July 24, 2020 (version 1)
  4. Version of Record published: August 10, 2020 (version 2)

Copyright

© 2020, Lim et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,287
    Page views
  • 160
    Downloads
  • 11
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Chew Leng Lim
  2. Yu Zuan Or
  3. Zoe Ong
  4. Hwa Hwa Chung
  5. Hirohito Hayashi
  6. Smeeta Shrestha
  7. Shunsuke Chiba
  8. Feng Lin
  9. Valerie Chun Ling Lin
(2020)
Estrogen exacerbates mammary involution through neutrophil-dependent and -independent mechanism
eLife 9:e57274.
https://doi.org/10.7554/eLife.57274

Categories and tags

Research organisms

Further reading

    1. Developmental Biology
    2. Neuroscience

    Local angiogenic interplay of Vegfc/d and Vegfa controls brain region-specific emergence of fenestrated capillaries

    Sweta Parab, Olivia A Card ... Ryota L Matsuoka
    Research Article Updated

    Fenestrated and blood-brain barrier (BBB)-forming endothelial cells constitute major brain capillaries, and this vascular heterogeneity is crucial for region-specific neural function and brain homeostasis. How these capillary types emerge in a brain region-specific manner and subsequently establish intra-brain vascular heterogeneity remains unclear. Here, we performed a comparative analysis of vascularization across the zebrafish choroid plexuses (CPs), circumventricular organs (CVOs), and retinal choroid, and show common angiogenic mechanisms critical for fenestrated brain capillary formation. We found that zebrafish deficient for Gpr124, Reck, or Wnt7aa exhibit severely impaired BBB angiogenesis without any apparent defect in fenestrated capillary formation in the CPs, CVOs, and retinal choroid. Conversely, genetic loss of various Vegf combinations caused significant disruptions in Wnt7/Gpr124/Reck signaling-independent vascularization of these organs. The phenotypic variation and specificity revealed heterogeneous endothelial requirements for Vegfs-dependent angiogenesis during CP and CVO vascularization, identifying unexpected interplay of Vegfc/d and Vegfa in this process. Mechanistically, expression analysis and paracrine activity-deficient vegfc mutant characterization suggest that endothelial cells and non-neuronal specialized cell types present in the CPs and CVOs are major sources of Vegfs responsible for regionally restricted angiogenic interplay. Thus, brain region-specific presentations and interplay of Vegfc/d and Vegfa control emergence of fenestrated capillaries, providing insight into the mechanisms driving intra-brain vascular heterogeneity and fenestrated vessel formation in other organs.

    1. Developmental Biology

    Npr3 regulates neural crest and cranial placode progenitors formation through its dual function as clearance and signaling receptor

    Arun Devotta, Hugo Juraver-Geslin ... Jean-Pierre Saint-Jeannet
    Research Article Updated

    Natriuretic peptide signaling has been implicated in a broad range of physiological processes, regulating blood volume and pressure, ventricular hypertrophy, fat metabolism, and long bone growth. Here, we describe a completely novel role for natriuretic peptide signaling in the control of neural crest (NC) and cranial placode (CP) progenitors formation. Among the components of this signaling pathway, we show that natriuretic peptide receptor 3 (Npr3) plays a pivotal role by differentially regulating two developmental programs through its dual function as clearance and signaling receptor. Using a combination of MO-based knockdowns, pharmacological inhibitors and rescue assays we demonstrate that Npr3 cooperate with guanylate cyclase natriuretic peptide receptor 1 (Npr1) and natriuretic peptides (Nppa/Nppc) to regulate NC and CP formation, pointing at a broad requirement of this signaling pathway in early embryogenesis. We propose that Npr3 acts as a clearance receptor to regulate local concentrations of natriuretic peptides for optimal cGMP production through Npr1 activation, and as a signaling receptor to control cAMP levels through inhibition of adenylyl cyclase. The intracellular modulation of these second messengers therefore participates in the segregation of NC and CP cell populations.

    1. Developmental Biology
    2. Evolutionary Biology

    Mutation of vsx genes in zebrafish highlights the robustness of the retinal specification network

    Joaquín Letelier, Lorena Buono ... Juan R Martínez-Morales
    Research Article

    Genetic studies in human and mice have established a dual role for Vsx genes in retina development: an early function in progenitors’ specification, and a later requirement for bipolar-cells fate determination. Despite their conserved expression patterns, it is currently unclear to which extent Vsx functions are also conserved across vertebrates, as mutant models are available only in mammals. To gain insight into vsx function in teleosts, we have generated vsx1 and vsx2 CRISPR/Cas9 double knockouts (vsxKO) in zebrafish. Our electrophysiological and histological analyses indicate severe visual impairment and bipolar cells depletion in vsxKO larvae, with retinal precursors being rerouted toward photoreceptor or Müller glia fates. Surprisingly, neural retina is properly specified and maintained in mutant embryos, which do not display microphthalmia. We show that although important cis-regulatory remodelling occurs in vsxKO retinas during early specification, this has little impact at a transcriptomic level. Our observations point to genetic redundancy as an important mechanism sustaining the integrity of the retinal specification network, and to Vsx genes regulatory weight varying substantially among vertebrate species.
