Self-organized patterning of cell morphology via mechanosensitive feedback

  1. Natalie A Dye  Is a corresponding author
  2. Marko Popović
  3. K Venkatesan Iyer
  4. Jana F Fuhrmann
  5. Romina Piscitello-Gómez
  6. Suzanne Eaton
  7. Frank Jülicher  Is a corresponding author
  1. Max Planck Institute for Molecular Cell Biology and Genetics, Germany
  2. Cluster of Excellence Physics of Life, Technische Universität Dresden, Germany
  3. Mildred Scheel Nachwuchszentrum (MSNZ) P2, Medical Faculty, Technische Universität Dresden, Germany
  4. Institute of Physics, École Polytechnique Fédérale de Lausanne, Switzerland
  5. Max Planck Institute for the Physics of Complex Systems, Germany
  6. Center for Systems Biology Dresden, Germany
Research Article
  • Cited 0
  • Views 2,713
  • Annotations
Cite this article as: eLife 2021;10:e57964 doi: 10.7554/eLife.57964

Abstract

Tissue organization is often characterized by specific patterns of cell morphology. How such patterns emerge in developing tissues is a fundamental open question. Here, we investigate the emergence of tissue-scale patterns of cell shape and mechanical tissue stress in the Drosophila wing imaginal disc during larval development. Using quantitative analysis of the cellular dynamics, we reveal a pattern of radially oriented cell rearrangements that is coupled to the buildup of tangential cell elongation. Developing a laser ablation method, we map tissue stresses and extract key parameters of tissue mechanics. We present a continuum theory showing that this pattern of cell morphology and tissue stress can arise via self-organization of a mechanical feedback that couples cell polarity to active cell rearrangements. The predictions of this model are supported by knockdown of MyoVI, a component of mechanosensitive feedback. Our work reveals a mechanism for the emergence of cellular patterns in morphogenesis.

eLife digest

During development, carefully choreographed cell movements ensure the creation of a healthy organism. To determine their identity and place across a tissue, cells can read gradients of far-reaching signaling molecules called morphogens; in addition, physical forces can play a part in helping cells acquire the right size and shape. Indeed, cells are tightly attached to their neighbors through connections linked to internal components. Structures or proteins inside the cells can pull on these junctions to generate forces that change the physical features of a cell. However, it is poorly understood how these forces create patterns of cell size and shape across a tissue.

Here, Dye, Popovic et al. combined experiments with physical models to examine how cells acquire these physical characteristics across the developing wing of fruit fly larvae. This revealed that cells pushing and pulling on one another create forces that trigger internal biochemical reorganization – for instance, force-generating structures become asymmetrical. In turn, the cells exert additional forces on their neighbors, setting up a positive feedback loop which results in cells adopting the right size and shape across the organ. As such, cells in the fly wing can spontaneously self-organize through the interplay of mechanical and biochemical signals, without the need for pre-existing morphogen gradients.

A refined understanding of how physical forces shape cells and organs would help to grasp how defects can emerge during development. This knowledge would also allow scientists to better grow tissues and organs in the laboratory, both for theoretical research and regenerative medicine.

Introduction

During morphogenesis, tissues with complex morphologies are formed from the collective interplay of many cells. This process involves spatial patterns of signaling activity, and previous work has discovered mechanisms for generating tissue-scale patterns of activity in signaling pathways such as Hedgehog, TGFβ, and Wnt (Green and Sharpe, 2015). In addition, patterns of cellular morphology arise during morphogenesis. Such patterns can be important for ensuring the function of the resulting tissue. For example, the compound eye of Drosophila consists of hundreds of ommatidia organized in a precise hexagonal array that is required to fully sample the visual field (Kumar, 2012). Patterns of cellular morphology that arise during morphogenesis can also guide the morphogenetic processes itself. For example, spatial patterns of cell morphology emerge during growth of the Drosophila larval imaginal discs, which are precursors of adult tissues (Aegerter-Wilmsen et al., 2010; Condic et al., 1991; Legoff et al., 2013; Mao et al., 2013). These patterns have been proposed to be involved in the eversion process, during which these flattened epithelial sacs turn themselves inside out when the animal transitions from larva to pupa (Condic et al., 1991). While extensive work has studied the emergence of biochemical signaling patterns, how patterns of cellular morphology arise during tissue development is poorly understood.

Here, we investigate tissue-scale patterning of cell morphology in the Drosophila larval wing imaginal disc, which has a geometry that is ideal for studying spatial patterns of epithelial cell morphology. We focus specifically on the cell shape patterns in the central ‘pouch’ region, which is the precursor of the adult wing blade. To a good approximation, this region is planar and ellipsoidal. Cells near the center have smaller cell areas and are more isotropic in shape, whereas cells near the periphery have larger cell areas and are elongated tangentially (Aegerter-Wilmsen et al., 2010; Legoff et al., 2013; Mao et al., 2013). Cell shape has been correlated with mechanical stress: tangentially oriented bonds of elongated cells in the periphery are under higher tension than radially oriented bonds (Legoff et al., 2013).

It has been previously proposed that this pattern of cell morphology in the wing pouch could stem from differential proliferation: if the center grows faster than the rest, the resulting area pressure could stretch peripheral cells tangentially (Mao et al., 2013). Indeed, there is evidence to suggest that cells divide slightly faster closer to the center during very early stages (before 80hr after egg laying, AEL). It was suggested that this early growth differential is sufficient to account for the persistence of the cell morphology pattern through the remaining 40hr of development. However, it has since been shown that cell rearrangements occur (Dye et al., 2017; Heller et al., 2016), which could relax stress patterns once growth has become uniform. Furthermore, stress patterns may even relax during homogeneous growth in the absence of cell rearrangements (Ranft et al., 2010). Thus, it remains unclear how cell morphology patterns generated early by differential growth could be maintained through later stages, and alternative mechanisms for the establishment of these patterns must be considered.

Here, we measure the spatial patterns of cell morphology, cell divisions, and cell rearrangements during the middle of the third larval instar (starting at 96hr AEL). We quantify the pattern of tangential cell elongation and show that it becomes stronger over time, even though growth is spatially uniform and cell rearrangements are frequent. Strikingly, this change in tangential cell elongation is coupled to a radially biased pattern of cell neighbor exchanges. Using a physical model of tissue dynamics, we show that active patterning of radial cell neighbor exchanges can account for the observed morphology patterns in the absence of differential growth. Lastly, using a combination of experiment and theory, we provide evidence that this active patterning could be self-organized by mechanosensitive feedback.

Results

Cell morphology patterns can persist and strengthen in the absence of differential growth

Cell morphology patterns in the wing disc have been previously analyzed using static images (Aegerter-Wilmsen et al., 2010; Legoff et al., 2013; Mao et al., 2013). However, relating cell morphology patterns to patterns of growth, cell divisions, and cell rearrangements requires dynamic data. We therefore performed long-term timelapse imaging of growing explanted wing discs using our previously described methods (Dye et al., 2017), starting at 96hr AEL and continuing for 13hr of imaging. We used Ecadherin-GFP as an apical junction marker (Figure 1A).

Figure 1 with 3 supplements see all
Cell morphology patterns can persist and strengthen in the absence of differential growth.

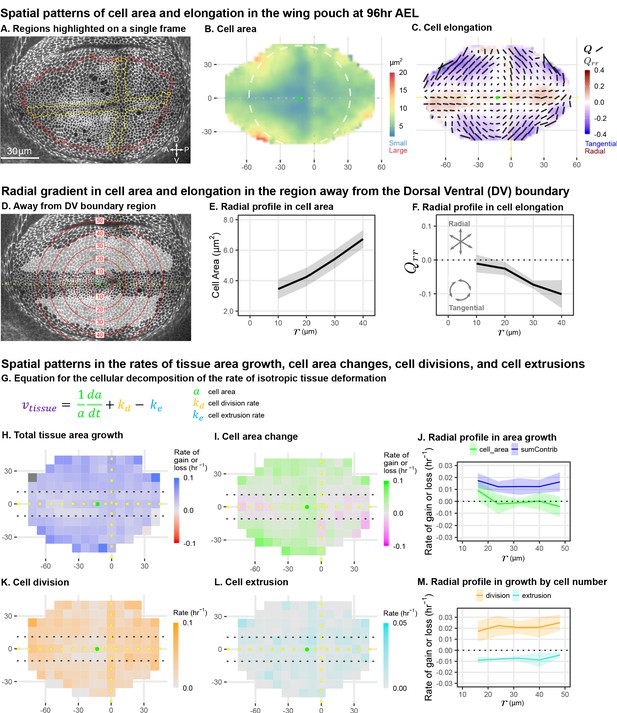

(A) Ecadherin-GFP-expressing wing disc growing in ex vivo culture (explanted at 96hr AEL). We analyze apical cell morphology in the proliferating disc proper layer in a 2D projection, after correcting for local tissue curvature (see Materials and methods and Figure 1—figure supplement 1A). Red outline indicates the presumptive 'blade' region; yellow outline indicates cells of the compartment boundaries, which are used to align different movies. Dorsal is up, and anterior is left. (B–C) Spatial maps of cell area (B) or cell elongation (C) were generated by averaging across the middle timepoints of five movies. Axis labels indicate the distance in μm from the AP boundary (along X) or DV boundary (along Y). Dotted lines indicate the compartment boundaries. The calculated center of symmetry is represented by a green dot. In (B), the white dashed circle is added to highlight the near-circular symmetry. In (C), the bars represent the cell elongation tensor Q, where the length of the bar is proportional to the magnitude and the angle indicates its orientation. In addition, the radial component of cell elongation is presented in color. More information about this cell elongation pattern and how we define the center point is included in Figure 1—figure supplement 1. (D) The blade cells that are tangentially elongated and lying well outside the DV boundary region are shaded in gray on a single image of the timelapse. Red circles indicate the radial binning used in (E–F), where the numbers indicate the radius (in μm). The region around the DV boundary was separately analyzed in Figure 1—figure supplement 2. For the region depicted in (D), the radial gradient in average cell area (E) and radial cell elongation Qrr (F) were calculated. Solid lines indicate the average over all five movies in the middle time window. The shaded region indicates the standard deviation. Data showing how these radial gradients change over time during imaging are shown in Figure 1—figure supplement 3. Source data for (B–F) are available on Dryad. (G) Decomposition of isotropic tissue deformation into cellular contributions. (H–I, K–L) Maps of the total tissue area growth (H) and its contributions from cell area change (I), cell divisions (K), and cell extrusions (L) do not show pronounced spatial patterns. (J, M) The radial profile of tissue growth and its cellular contributions, analyzed in radial bins. sumContrib in blue is the sum of all contributions, corresponding to total tissue deformation. Source data files for isotropic tissue deformation are provided as Figure 1—source data 1, 2.

Figure 1—source data 1

Isotropic contributions to tissue deformation calculated in a grid.

https://cdn.elifesciences.org/articles/57964/elife-57964-fig1-data1-v3.zip
Figure 1—source data 2

Isotropic contributions to tissue deformation calculated radially.

https://cdn.elifesciences.org/articles/57964/elife-57964-fig1-data2-v3.zip

To quantify cell morphology, we averaged apical cell area and cell elongation locally in space, using data from five wing discs, and in time using 2hr intervals. Over the course of the 13hr time-lapse, the qualitative features of the morphological patterns do not change. Therefore, in Figure 1B–C, we present the spatial patterns calculated for the middle timepoint. Cell area is represented as a color code. Cell elongation is characterized by a tensor Q, which defines an axis and a strength of elongation and is represented by bars in Figure 1C (see Materials and methods, Figure 1—figure supplement 1B; Etournay et al., 2015; Merkel et al., 2017). To quantify the radial symmetry of this pattern, we first determined the center of symmetry (Figure 1—figure supplement 1 and Materials and methods). We then introduce a polar coordinate system at the center with the radial coordinate r and present the radial projection Qrr of the cell elongation tensor as a color code in Figure 1C (see also Figure 1—figure supplement 1). This figure highlights the pattern of tangential cell elongation, with cells elongating on average perpendicular to the radial axis (blue in Figure 1C). It also reveals that this pattern is interrupted around the Dorsal-Ventral (DV) boundary, where cells are elongated parallel to this boundary (red in Figure 1C). We quantify this region separately (Figure 1—figure supplement 2) and exclude it from our analysis of the circular patterns (Figure 1D–F). The Anterior-Posterior (AP) boundary also affects cell morphology (Landsberg et al., 2009), but the effect is weaker and more variable at this stage; thus, we do not quantify it separately.

The spatial maps of cell morphology reveal that both cell area and cell elongation magnitude are largest at the periphery and decrease toward the center (Figure 1B–C). We quantified this radial gradient in cell area and observe that cell area ranges from 37μm2 when moving toward the periphery (Figure 1E). We also observe a radial gradient in cell elongation starting from Qrr0 at r=10 μm and extending to about Qrr-0.1 at r=40 μm (Figure 1F). The negative value corresponds to tangential elongation (Figure 1C). When evaluated over the timelapse, we find that these radial gradients grow slightly more pronounced over time (Figure 1—figure supplement 3C–D).

As previously proposed, differential growth can generate such patterns of cell elongation (Mao et al., 2013). However, indirect metrics of tissue growth in vivo do not indicate that differential growth still occurs at this later stage (Mao et al., 2013). We directly measured the spatial pattern of growth during timelapse. Cell division rate has been previously used as an indicator of growth; however, tissue growth actually results from a combination of cell division, cell area changes, and cell extrusions (Figure 1G). Thus, we evaluated the spatial pattern (Figure 1H,I,K,L) and radial profiles (Figure 1J,M) of total tissue growth and its cellular contributions. These data show that tissue area growth, as well as cell division rate, are to a good approximation independent of the distance to the center.

In summary, we quantified cell morphology patterns in mid-third instar wing explants during live imaging. We confirm previous static observations of the pattern and further identify a region around the DV boundary with a morphological pattern that differs from the rest of the wing pouch. We quantify the radial gradients in cell area and cell elongation existing outside of the DV boundary region and show that they strengthen in time in the absence of differential growth, raising the question of what mechanism underlies the persistence of these cell morphology patterns during mid to late stages of wing growth.

Radially oriented cell rearrangements balance tangential cell elongation

To directly relate the observed cell morphology patterns with cell rearrangements, we next analyzed the spatial patterns in cellular contributions to tissue shear (Figure 2A). Tissue shear can be decomposed into contributions from cell divisions, cell elongation changes, T1 transitions, and so-called correlation effects (Etournay et al., 2015; Merkel et al., 2017). Here, correlation effects result mainly from correlated fluctuations in cell elongation and cell rotation (see Appendix 3 and Merkel et al., 2017).

Radially oriented cell rearrangements balance tangential cell elongation.

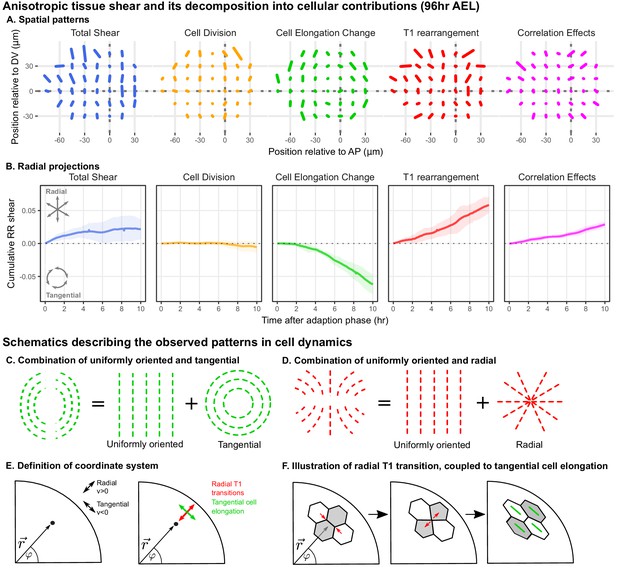

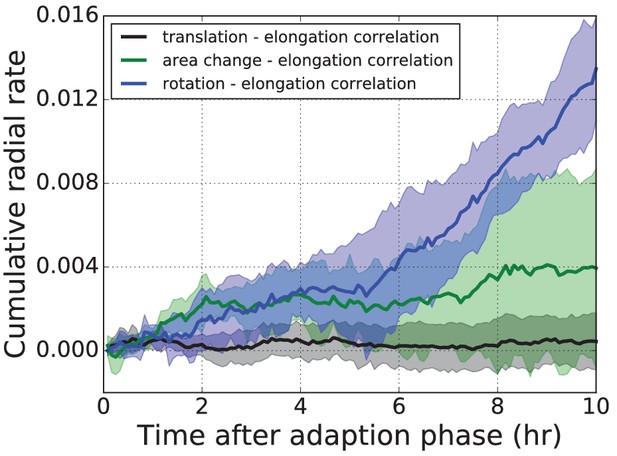

(A) Cumulative tissue deformation and its cellular contributions, measured in a grid centered on the compartment boundaries (dotted gray lines) and averaged over all five movies. Bars represent nematic tensors, where the length is proportional to the magnitude of deformation and the angle indicates its orientation. The contribution from cell extrusion is small and thus not shown. Data used to present these plots are included in Figure 2—source data 1. (B) The radial projection of cumulative tissue deformation and its cellular contributions are plotted as a function of time after the first 2hr of adaption to culture (Dye et al., 2017). Solid lines indicate the average over all five movies; shading indicates the standard deviation. Data used to present these plots are included in Figure 2—source data 2. (C) Schematics indicating how a uniformly oriented pattern would combine with a tangential pattern to produce a pattern resembling that of the cell elongation change (left) or with a radial pattern to produce a pattern resembling that of the T1 transitions (right). (E–F) Illustrations demonstrating radially-oriented T1 transitions coupled to tangential cell elongation. For simplicity, we diagram only the posterior-dorsal quadrant, but the pattern is radially symmetric. In (E), we define the radial coordinate system, where velocity in the radial direction is positive and that in the tangential direction is negative. Patterns in A indicate that T1 transitions are biased to grow new bonds in the radial direction, and cell elongation is biased to increase tangentially. (F) In a radially oriented T1 transition, cells preferentially shrink tangentially oriented bonds and grow new bonds in the radial direction. When oriented in this direction, T1 transitions do not dissipate tangential elongation but increase it (green bars in each cell represent cell elongation).

Figure 2—source data 1

Anisotropic contributions to tissue deformation calculated in a grid.

https://cdn.elifesciences.org/articles/57964/elife-57964-fig2-data1-v3.zip
Figure 2—source data 2

Cumulative radial shear plots over time.

https://cdn.elifesciences.org/articles/57964/elife-57964-fig2-data2-v3.zip

We find that the spatial patterns of tissue growth and its cellular contributions exhibit overall anisotropies perpendicular to the DV boundary, as reported previously (Dye et al., 2017). In addition, the patterns of cell elongation changes and T1 transitions can be described as a superposition of a uniformly oriented pattern and an approximately radial or tangential pattern (Figure 2C–D). To determine the magnitude of the radial or tangential patterns in all quantities, we quantified their average radial projections as cumulative plots over time (Figure 2B). The radial component of tissue shear is small, and cell divisions do not contribute to radial tissue shear. In contrast, we observe a pronounced buildup of a tangential pattern of cell elongation accompanied by a radial pattern of T1 transitions and of correlation effects.

As shown above (Figure 1J), tissue area growth does not have a radial gradient and thus does not contribute to the increase in tangential cell elongation that we observe at this time (Figure 2A–B, Figure 1—figure supplement 3C–D). Furthermore, we observe numerous T1 transitions (on average 1.0 cell-1 hr-1), and their radially biased orientation increases rather than relaxes tangential cell elongation (Figure 2E–F). Thus, we are not observing the relaxation of a pattern of cell elongation caused by early differential growth. Rather, our data support a model whereby a radially patterned morphogenetic cue actively biases the direction of T1 transitions and consequently the complementary pattern of cell shape changes.

Polarity-driven cell rearrangements can create the observed cell morphology patterns in the wing disc

We next apply a biophysical model to determine whether radially patterned T1 transitions could account for the observed cell morphology patterns in the wing disc. This model takes into account the interplay of T1 transitions, cell shape changes, and tissue shear in a continuum description (Etournay et al., 2015; Popović et al., 2017). Active anisotropic force-generating processes that bias cell rearrangements in the tissue, such as polarization of the actomyosin cytoskeleton, are captured by a nematic cell polarity q, defined by a magnitude and an orientation axis. We propose that such a patterning cue leads to the radially oriented pattern of T1 transitions we observe in the wing disc.

In our model, we consider the spatial patterns of tissue shear rate v~, the patterns of cell shape Q, and the patterns of cell rearrangements R, which have nematic symmetry and are represented by traceless symmetric tensors that describe the magnitude and orientation. Tissue shear is defined as a velocity gradient tensor that results from a combination of cell shape changes and cell rearrangements (Etournay et al., 2015; Merkel et al., 2017):

(1) v~=DQDt+R

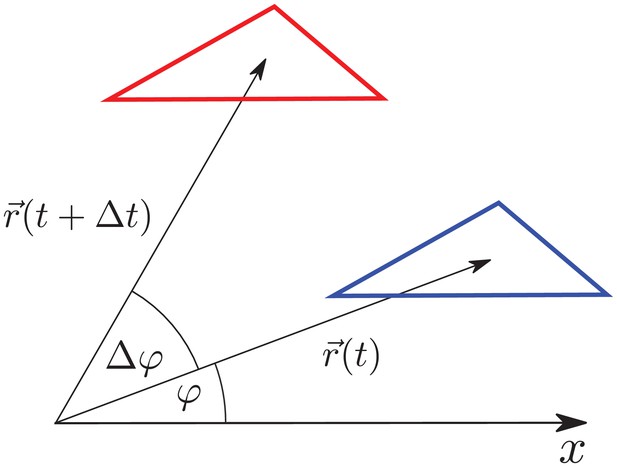

Here, DQ/Dt is a co-rotational time derivative of Q, and the shear due to cell rearrangements R includes contributions from T1 transitions, cell divisions and extrusions, and also correlation effects.

Tissue material properties are described by constitutive equations for the tissue shear stress σ~ and the shear due to cell rearrangements R (Figure 3A–B):

(2) σ~=2KQ+ζq
(3) R=1τQ+λq
Polarity-driven cell rearrangements can create the observed cell morphology patterns.

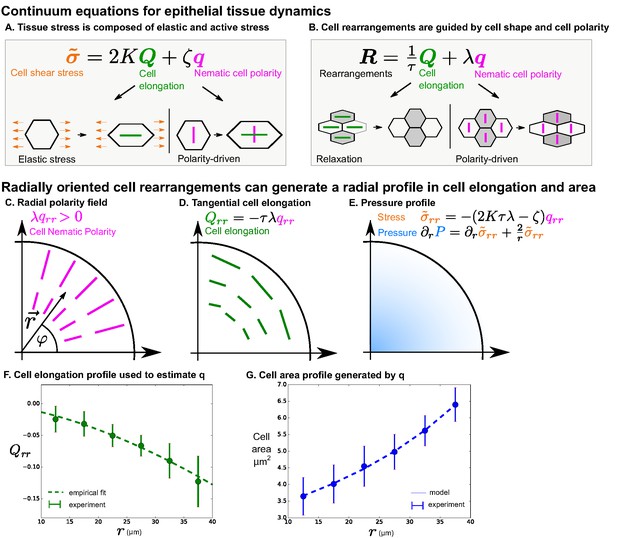

(A) Stress is a combination of elastic and polarity-driven stresses. Similarly, in (B), cell rearrangements occur to relax a stretched cell shape or to respond to an internal nematic cell polarity cue. In the cartoons in (A)-(B), we chose to depict scenarios where ζ and λ are >0. (C–G) We apply this model to a radially symmetric tissue at steady state to approximate the wing disc. If we impose a radial polarity field (C), cell elongation is oriented in the opposite direction, according to the equation in (D) when Rrr=0 (steady state). (E) Considering force balance in the tissue, our model also predicts a pressure profile with higher pressure in the center. (F) To fit experimental data in the wing disc, we estimate the radial profile of qrr from Equation 4 by measuring cell elongation as a function of r in the last (5hr) of the timelapse. We solve for qrr by making an empirical fit to this cell elongation data (see Appendix 1 part 2). (G) The cell area distribution we observe in the wing disc is consistent with the pressure profile predicted by our model (E and Appendix 1 part 2).

Here, the shear stress tensor σ~ is the sum of the elastic and active stress. The elastic stress is associated with cell elongation Q and characterized by the shear elastic modulus K. The active stress associated with the cell polarity cue q (Figure 3A) is described by the coefficient ζ. The shear rate due to cell rearrangements R given by Equation 3 is driven in part by shear stress, and therefore depends on the cell elongation Q, and in part by active processes that are oriented by the nematic cell polarity q (Figure 3B). τ is a relaxation time for cell rearrangements over which elastic stresses are relaxed, and λ is the rate of cell rearrangements driven by cell polarity. In this coarse-grained picture, subcellular processes are captured by effective coefficients. For simplicity, we do not include dissipative processes on cellular scales, such as cytoskeletal viscosity or cell-cell friction. Such dissipative processes are relevant on short timescales and are small in comparison with elastic stresses on tissue relevant timescales.

To discuss the wing disc, we consider a radially symmetric geometry and average the oriented quantities after projection onto the radial axis. Radial tissue shear is small compared to that associated with cell shape changes and T1 transitions during our observed time window (Figure 2B). We therefore consider a steady state with v~rr=0, DQrr/Dt=0, and Rrr=0. In this case, cell elongation becomes:

(4) Qrr=-τλqrr

Thus, we find that the steady state cell elongation pattern is a result of cell rearrangements that are oriented by the cell polarity cue q (Figure 3C–D). Note that our data show that the wing disc is not exactly at steady state: cells slowly change their shape and rearrange radially (Figure 2A–B). However, as we show in Appendix 1 part 1-2, Equation 4 holds to a good approximation.

Can the radial pattern of T1 transitions defined by q also explain the observed radial profile of cell area (Figure 1B,E)? To answer this question, we then considered force balances in the tissue. We consider tissue area pressure:

(5) P=K¯ln(aa0)

where P is the difference in pressure from a reference value, K¯ is tissue area compressibility, a is the average cell area, and a0 is a reference cell area. As pressure increases, cell area decreases. To calculate the cell area profile, we again approximate the wing pouch as a radially symmetric disc. In the radially symmetric geometry, force balance can be expressed as:

(6) rP=rσ~rr+2rσ~rr

A radial profile of pressure determined from this equation implies a radial pattern of cell area via Equation 5 (see Figure 3C–E and Appendix 1 part 1-2). To test this implication, we first quantify the radial profile of cell elongation Qrr to estimate the profile of qrr using Equation 4 (Figure 3F). We represent the cell elongation data in a functional form using an empirical power law that is fit to the data. Then, using this functional form in Equations 2, 5, and 6, we solve for the cell area profile (Figure 3G and Appendix 1 part 1-2). Finally, we show that this function can account for the observed pattern of cell area (see Figure 3G).

From this analysis, we conclude that the cell morphology patterns observed in the wing disc could be generated by radially biased cell rearrangements. Next, we test whether the stress profile predicted by the model (Equation 2) exists in the tissue, and we measure key mechanical parameters of the model. Later, we address the potential molecular origin of the cell polarity cue orienting the cell rearrangements.

Circular laser ablation reveals patterns of tissue stress

Our model predicts a stress pattern in the wing disc that results from active processes that are radially oriented by a cell polarity cue. To compare this prediction to experiment, we infer tissue stress using laser ablation. Tissue stress has been estimated previously by laser ablation techniques that are based on determining the initial retraction velocity (Bonnet et al., 2012; Etournay et al., 2015; Farhadifar et al., 2007; Legoff et al., 2013; Mao et al., 2013; Shivakumar and Lenne, 2016). However, to compare theory and experiment, ideally one should measure quantities that are well-captured by the model. Therefore, instead of using initial retraction velocity, we perform circular cuts and analyze the final, relaxed position of the inner and outer elliptical contours of tissue formed by the cut (Figure 4A, Appendix 2). From the size and the anisotropy of the cut, we can infer anisotropic and isotropic tissues stress, normalized by the respective elastic constants, as well as the ratio of elastic constants (see Appendix 2). Furthermore, we can also infer the existence of polarity-driven stress. We name this method ESCA (Elliptical Shape after Circular Ablation).

Figure 4 with 1 supplement see all
Circular laser ablation reveals patterns of tissue stress.

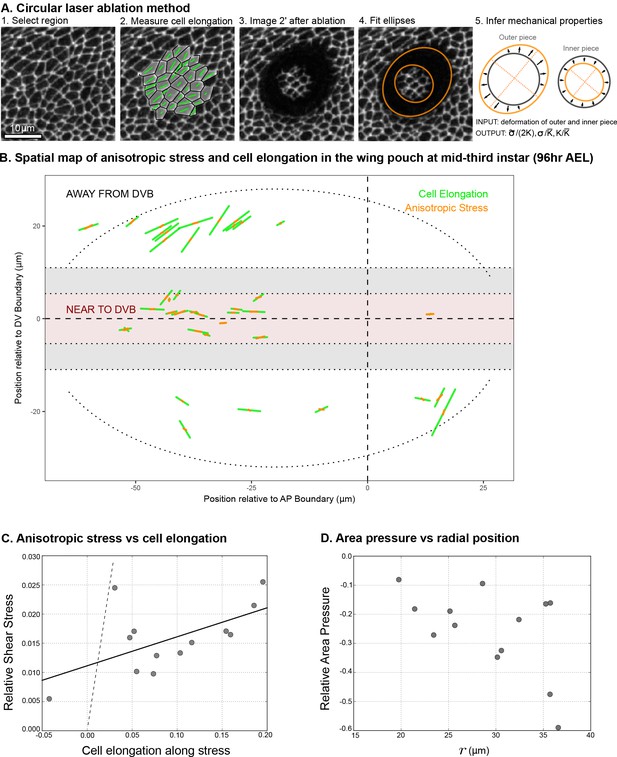

(A) Description of the circular laser ablation method ESCA. The tissue is cut in a circle (radius 7μm), and cell elongation is averaged in this region before the cut. After the tissue relaxes (2min), we fit ellipses to the cut region. We then infer mechanical properties using our model, which inputs deformation and outputs stress as a function of elastic constant and the ratio of the isotropic and anisotropic elastic constants (see also Figure 4—figure supplement 1). (B) Map of stress and cell elongation in the wing disc (96hr AEL). Each line represents a nematic, where length indicates the magnitude, and angle indicates its orientation. Each data point comes from a different wing disc. The gray region indicates a border region, in which a cut would straddle the two regions. Cuts centered in this region were not included in the analysis. The dotted lines on either side of the DV boundary indicate our cut-offs for delineating the border and DV boundary regions (see Materials and methods). (C) Magnitude of anisotropic stress (σ~/2K) is plotted against cell elongation (projected onto the stress axis) for all ablations outside the DV boundary. Dotted line indicates a line with slope =1, corresponding to a tissue lacking a nematic cell polarity cue. Fit line is solid black (See Appendix 2). Data for the DV boundary region is presented in Figure 4—figure supplement 1D-F. (D) Relative area pressure is plotted against r for all ablations outside the DV boundary. The correlation coefficient =0.52. Data used in this figure are included in Figure 4—source data 1.

Figure 4—source data 1

Laser ablation data on cell elongation and stress.

https://cdn.elifesciences.org/articles/57964/elife-57964-fig4-data1-v3.zip

We perform local measurements of tissue mechanics by cutting the tissue in the smallest possible circle that would still allow us to measure the shape of the inner piece left by the cut (radius = 7μm, encircling 515 cells, Figure 4A). To relate measurements of tissue stress to cell elongation, we calculate the average cell elongation in the ablated region before it is cut (Figure 4A). In Figure 4B, we present the measured cell elongation and shear stress tensors at the position of ablation. We find that local average cell elongation correlates well with the principal direction of shear stress. Also, we observe that the cells in the band around the DV boundary, which are exposed to high Wg and Notch signaling, have different mechanical properties than elsewhere in the tissue. Near the DV boundary, cells elongate less than outside this region for comparable amounts of stress (Figure 4B and Figure 4—figure supplement 1B,E). The ratio of elastic constants in this region is also smaller: near the DV boundary 2K/K¯=2.3±0.3, whereas outside this region, 2K/K¯=3.4±0.4 (see also Figure 4—figure supplement 1C,F). We focus hereafter on the radial patterns of elongation and stress outside of the DV boundary region.

The relationship between cell elongation and stress normalized by the elastic modulus has a slope 1 in the absence of polarity-driven stress (see Equation 2). We observe a much smaller slope for this relationship in our data (Figure 4C), indicating that polarity-driven stress is significant. We now use these data to estimate the parameters of our mechanical model. We write the shear stress defined in Equation 2 in terms of cell elongation and cell rearrangements, eliminating the orientational cue qrr using Equation 3. For the radial components, we have:

(7) σ~rr=2K*Qrr+2K-K*τRrr

where K* = 1-ζ/(2Kτλ)K is an effective shear elastic coefficient. The difference between K* and K depends on the parameters ζ and λ associated with the nematic cell polarity. We fit Equation 7 to the data and find K*/K=0.05±0.02 and (1-K*/K)τRrr=0.011±0.002 (Figure 4C, see Appendix 1 part 3). Combined with data from Figure 1, we find an estimate for the tissue relaxation time τ=2±2 hr, which is roughly consistent with that found during pupal morphogenesis (Etournay et al., 2015). From our data, we can also infer the radial profile of tissue area pressure, revealing that pressure increases toward the center (Figure 4D and Appendix 1 part 3). This finding is consistent with the observed cell area profile, with smaller cell areas toward the center (Figure 1B,E).

In sum, we find a stress profile in the wing disc that is consistent with the observed measurements of both cell elongation and area. Further, we use these data to measure certain parameters of our biophysical model, including the tissue relaxation timescale and the effective shear elastic coefficient.

Reduction of planar cell polarity pathways does not reduce tangential cell elongation

In our model, the radial orientation cue is required to generate the observed patterns of cell morphology, cell rearrangement, and tissue stress. Candidates for such an orientational cue are the planar cell polarity pathways (PCP), which are groups of interacting proteins that polarize within the plane of the epithelium. There are two well-characterized PCP pathways: Fat and Core (Butler and Wallingford, 2017; Eaton, 2003). In the wing, these systems form tissue-scale polarity patterns during growth (Brittle et al., 2012; Merkel et al., 2014; Sagner et al., 2012) and are required to position the hairs and cuticle ridges on the adult wing (Adler et al., 1998; Doyle et al., 2008; Eaton, 2003; Gubb and García-Bellido, 1982; Hogan et al., 2011). To determine whether either of these pathways could function as the orientational cue described in our model, we analyzed cell elongation patterns after their removal.

We perturbed the Fat pathway using nub-Gal4 to drive the expression of RNAi constructs targeting both fat (ft) and dachs (d) in the pouch region throughout the third larval instar. This perturbation results in almost complete loss of Dachsous from the apical membrane, and any residual signal is no longer polarized, confirming the loss of PCP (Figure 5—figure supplement 1A–B). Furthermore, we observe a suppression of tissue growth upon ft+d double RNAi knockdown (visible at the end of larval development in Figure 5A and in the resulting adult wings in Figure 5—figure supplement 1C), consistent with previous work on the loss of both Dachs and Fat (Cho and Irvine, 2004). Nonetheless, the pattern of tangential cell elongation persists to the end of larval development (Figure 5A–C). Using scaled coordinates, we find that the radial profiles of cell elongation in ft+d RNAi and control wings are similar (Figure 5D).

Figure 5 with 1 supplement see all
Disruption of two PCP pathways does not reduce tangential cell elongation.

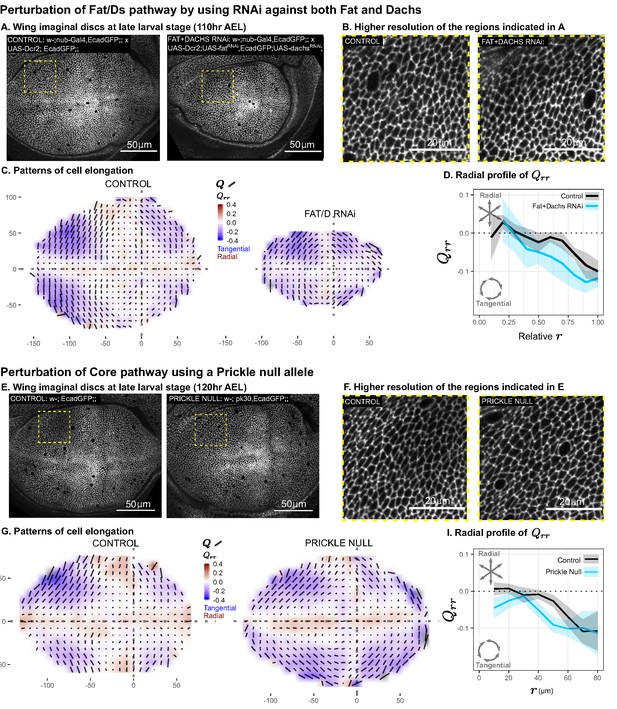

(A–D) RNAi was induced against both fat and dachs in the pouch (nub-Gal4 > UAS-Dcr, UAS-fatRNAi, UAS-dachsRNAi), and cell elongation patterns at the end of larval development (110hr AEL) are presented along with control (nub-Gal4 > UAS-Dcr). Data are included in Figure 5—source data 1. (E–I) Cell elongation patterns at the end of larval development are presented for a null mutant in prickle (pk30) and the wild-type control. Data are included in Figure 5—source data 2. (A,E) Representative images of each genotype, with apical cell boundaries marked with Ecadherin-GFP. Yellow box indicates the inset that is presented in higher resolution in (B,F). (C,G) Cell elongation averaged across several discs for each genotype in a grid centered on the AP and DV boundaries. Bars represent the average cell elongation tensor Q, where the length of the bar is proportional to the magnitude of cell elongation, and the angle indicates its orientation. Color indicates the radial component of cell elongation Qrr. Axis labels indicate distance from the AP (X) or DV (Y) compartment boundaries (in μm). (D,I) The radial profile of cell elongation for each genotype was quantified by averaging Qrr in radial bins and plotting as a function of r. Since the ft+d RNAi wings are smaller, we present this profile as a relative distance to the center. The band of cells around the DV boundary was removed, and because the ft+d RNAi discs are smaller, this region of exclusion is a larger relative distance. Plots in (C–D) represent averages of N=7-8 wing discs per genotype; for plots in (G–I), N=11-14 per genotype.

We perturbed the Core PCP pathway using a previously characterized null mutation in prickle (pk30), which causes defects in adult wing hair orientation (Gubb et al., 1999). We found that the cell elongation pattern in the pk mutant is similar to the wild-type control (Figure 5E–I). In the pk mutant, the region of tangential cell elongation extends even further into the center than in control wings.

We conclude that the tangential cell elongation pattern persists in the absence of either PCP pathway. This result excludes these pathways as orienting cues for the cell elongation patterns.

Mechanosensitive feedback generates self-organized patterns of cell morphology

We have shown that perturbing PCP pathways does not affect the radial patterns of morphology, raising the question of how orientational cues might arise. In previous sections, we have considered the orientational cue to be provided by a cell polarity system that is independently patterned. However, cell polarity in general would be affected by stresses in the tissue. Indeed, there are many examples of cells polarizing in response to mechanical stress (Duda et al., 2019; Hirashima and Adachi, 2019; Ladoux et al., 2016; Ohashi et al., 2017). Here, we show that introducing mechanosensitive feedback to the model of tissue mechanics can give rise to spontaneous emergence of the cell polarity cue (Figure 6).

Mechanosensitive feedback generates self-organized patterns of cell morphology.

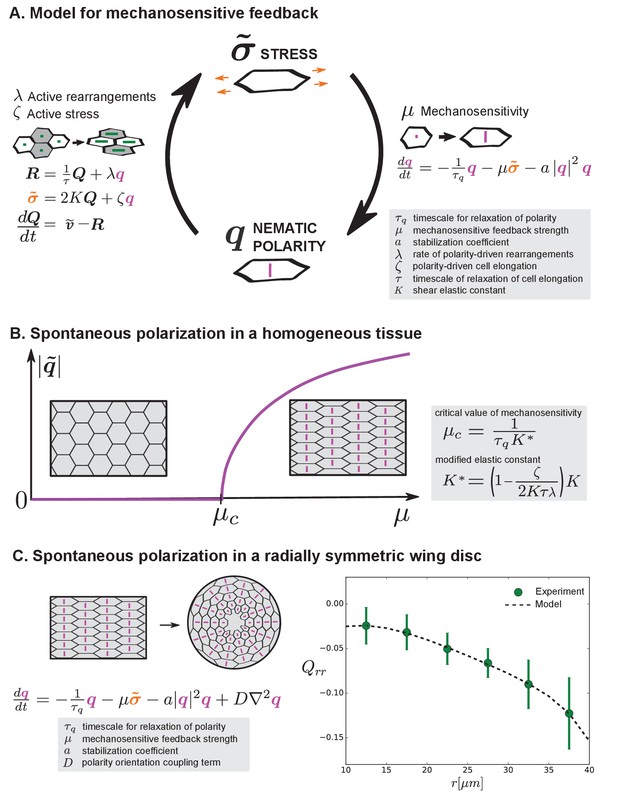

(A) We introduce mechanosensitive feedback into our model with a dynamic equation relating the orientational cue q to tissue stress. With a change in q, there can be a change in polarity-driven cell rearrangements and stress. (B) Above a critical value of μ, the isotropic state is unstable and the system spontaneously polarizes. (C) Application of the model to the radially symmetric wing disc. Generation of large-scale tissue polarity requires the orientation coupling term D. We find a set of parameters that can account for the experimental data on cell elongation in the wing disc (see Appendix 1 part 4 and Table 1).

Mechanosensitivity is incorporated into our model of tissue mechanics through a dynamic equation for the orientational cue q that becomes stress-dependent:

(8) dqdt=1τqqμσ~α|q|2q+D2q

Here, τq is a relaxation timescale for qμ is a mechanosensitive feedback strength, the coefficient α>0 ensures stability, and D is a coupling strength locally aligning orientational cues.

Now, Equation 8 provides a mechanosensitive feedback to Equations 1, 2 and 3. These combined equations show a novel behavior. Specifically, the orientational cue can emerge spontaneously by self-organization (Figure 6A–B). Beyond a critical value μc of the mechanosensitive feedback strength μ, an isotropic tissue with q=0 is no longer stable, and a state with an orientational cue q0 emerges instead (Figure 6B and Appendix 1 part 4). The magnitude of this spontaneous polarization is |q|=q0, where q02=(τqμ(2Kτλ-ζ)-1)/(ατq), where a positive coefficient α is needed to stabilize the polarized state. By this mechanism, the anisotropic cue introduced earlier in our model can be locally generated by mechanosensitive self-organization and does not require the existence of pre-patterned polarity cues. To generate a large-scale pattern from locally generated anisotropic cues, they need to be aligned in neighboring regions. This local alignment is captured in Equation 8 by the orientation coupling term with strength D, which is similar to alignment terms found in anisotropic physical systems, such as liquid crystals (Gennes and Prost, 1993; Jülicher et al., 2018; Marchetti et al., 2013).

To discuss cell morphology profiles in the wing disc, we consider a simplified tissue model with radial symmetry, where the rate of radial cell rearrangement Rrr is given (as estimated in Appendix 1 part 2) and the cell shape pattern and tissue stress pattern are calculated. Using a fit of cell elongation to the experimental data, we find a set of parameter values that accounts for the observed cell elongation patterns in the wing disc (Table 1, Appendix 1, Figure 6C). From this cell elongation pattern also follows the cell area pattern (as described above, Figure 3).

Table 1
Parameter values obtained by fitting the tangential cell elongation profile shown in Figure 6C to the self-organized model.

Values in the last two rows are boundary conditions that are required to calculate the tangential cell elongation profile. The reported parameter uncertainty intervals were obtained by fitting 101 uniformly sampled tangential cell elongation profiles from the range defined by the standard deviation in the experimental tangential cell elongation profile (error bars in Figure 6C). The interval limits are the 10th and 90th percentiles of the obtained values.

Fit parameterParameter valueUncertainty interval
q020.01[0.06,0.11]
λτ1.0[0.2,1.3]
Dα0.5μm20.2, 27 μm2
1D1τλ+2KμτRrr9104μm2[0.0,3.2]103μm2
qrr(rin)0.024[0.014,0.105]
rqrr(rin)1.2103μm1[9.3,0.0]103μm1

We conclude that our mechanosensitive model can account for the radial pattern of cell morphology in the wing disc. Due to the relatively large number of parameters used to fit a single experimental curve, there are large uncertainties when estimating parameter values. Nonetheless, these uncertainties do not affect the qualitative prediction that a reduction in mechanosensitivity μ would lead to less polarization and thereby reduced cell elongation (see Appendix 1 part 4). We next test this prediction of our model experimentally.

Suppression of mechanosensitivity weakens the gradients in cell elongation and cell size

In order to test our prediction that the reduction of mechanosensitivity will reduce the magnitude of cell elongation, we used RNAi to reduce the levels of Myosin VI (MyoVI), a molecular motor implicated in mechanosignaling. MyoVI, encoded by jaguar (jar) in Drosophila, is an upstream component of a Rho-dependent signaling pathway that reorganizes the actin-myosin cytoskeleton in response to mechanical stress (Acharya et al., 2018). Experiments in wing discs also indicate that mechanosensation involves Rho polarization and signaling (Duda et al., 2019). We performed RNAi targeting MyoVI in the wing pouch using nub-Gal4 and evaluated cell morphology at the end of larval development (120hr AEL). We observe a clear reduction in the magnitude of tangential cell elongation as compared to wild type at this stage (Figure 7A–D, Figure 7—figure supplement 1). In addition, our model predicts that such reduction of cell elongation would result in an increase of cell area in the wing (Equations 1-6). The observed pattern of increased cell area upon reducing MyoVI levels with RNAi is consistent with this prediction (Figure 7E–F). Therefore, the qualitative predictions of our model upon reducing the mechanosensitive feedback strength μ are confirmed by the experimental downregulation of the mechanosensitive motor MyoVI.

Figure 7 with 1 supplement see all
Suppression of mechanosensitivity weakens the gradients in cell elongation and cell size.

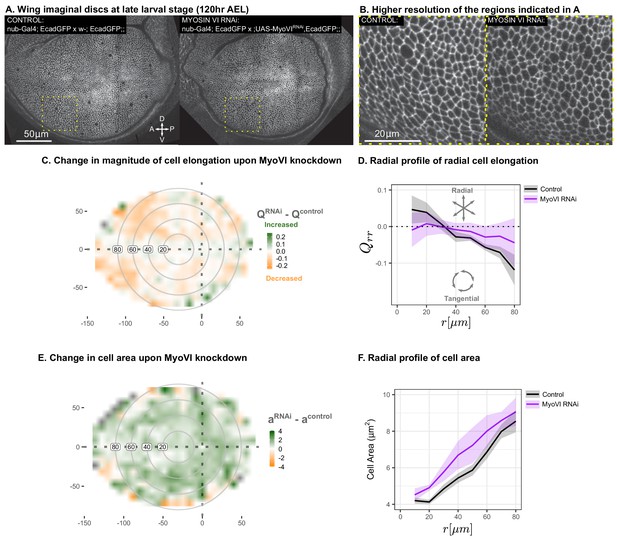

MyoVI levels were reduced with RNAi in the pouch (nub-Gal4 > UAS-MyoVIRNAi), and cell elongation and cell area were assessed at the end of larval development (119hr AEL). Data are included in Figure 7—source data 1 and 2. Shown in (A) are representative images, with apical cell boundaries marked by Ecadherin-GFP. Yellow box indicates the inset that is presented in higher resolution in (B). The spatial pattern of radial cell elongation is presented in Figure 7—figure supplement 1. The difference in magnitude of cell elongation (C) or cell area (E) between MyoVIRNAiand the corresponding control is presented. Axis labels indicate the distance to the AP boundary (X) or DV boundary (Y) in μm. Gray circles indicate radial bins, with numbers corresponding to distance (in μm) from the center. (D,F) The radial profile in the radial component of cell elongation Qrr (D) or cell area (F) was quantified for each genotype. Plots in (C-F) represent averages of N=6-7 wing discs per genotype.

Discussion

Here, we have shown that patterns of cell shape and stress in the mid-third instar Drosophila wing disc do not rely on PCP pathways or differential growth. Instead, radially-oriented T1 transitions and tangential cell elongation emerge via mechanosensitive feedback in a self-organized process. We have presented a continuum model of tissue dynamics for this self-organization based on a mechanosensitive nematic cell polarity that accounts for the observed patterns of cell area, T1 transitions, and cell shape. Our work highlights a mechanism for the self-organized emergence of cellular patterns in morphogenesis, expanding our understanding of pattern formation emerging from mechanical feedbacks in active systems (Bois et al., 2011; Howard et al., 2011; Recho et al., 2019).

A pattern of T1 transitions is critical for cell morphology patterning in the Drosophila wing

Our work shows that the spatial pattern of T1 transitions is an integral part of the emergence of tissue organization during wing development. In contrast to situations such as germband extension, where T1 transitions exhibit clearly discernible patterns, the patterns of T1 transitions in the wing disc have been elusive. Many T1 transitions occur in the tissue in seemingly random orientations. However, on average, they exhibit a spatial pattern. We revealed these patterns by quantifying the nematics of T1 transitions and cell shape changes using the previously-described triangle method (Merkel et al., 2017) and then quantified them with radial averaging (Figure 2A–B). In this way, we revealed that a radial pattern of T1 transitions is linked to a tangential pattern of cell elongation.

Given this radial pattern of T1 cell rearrangements, the observed cell morphology pattern follows from a continuum tissue model based on a radially oriented nematic cell polarity field (Figure 3). The polarity-oriented radial T1s create a cell shape pattern with corresponding patterns of tissue stress and tissue area pressure. The 2D area pressure is higher in the center and is lower toward the periphery. Note that this pressure profile does not rely on differential proliferation, as was previously proposed (Mao et al., 2013) but instead relies on a radial pattern of T1 transitions. We test our model using a novel circular laser ablation method. This method allows us to determine specific combinations of tissue parameters. In particular, we estimate the ratio of elastic constants 2K/K¯=3.4±0.4 and K*/K=0.05±0.02, as well as the cell shape relaxation timescale τ=2±2hr.

This analysis raised the question of which nematic cell polarity cues guide the cell rearrangement and cell elongation patterns. PCP pathways are required for the proper orientation of T1 transitions in other contexts (Bosveld et al., 2012). However, we found that neither of the two known PCP pathways in the wing are required for the observed tangential cell elongation patterns (Figure 5). We instead show that an orientation cue can arise through self-organization via mechanosensitivity and identify MyoVI as a key molecular player.

Mechanosensitive feedback can create self-organized patterns of cell morphology

Cell polarity cues can emerge via mechanosensitive feedback by transforming mechanical cues into chemical anisotropies. Nematic cell polarity can then orient active stresses and thereby amplify the mechanical stimulus (Figure 6). We introduce this mechanosensitive feedback in our continuum theory, which quantitatively describes the emergence of patterns of cell shape and cell rearrangements. The strength of this mechanosensitive feedback is described by a parameter μ. If μ exceeds a critical value μc, an orientation cue and elongated cell shapes spontaneously emerge (Figure 6B). This model can account for the observed patterns of cell area and cell elongation in the wing disc and predicts that the reduction of mechanosensitivity will result in reduced cell elongation. To test this prediction, we perturbed a RhoA-dependent mechanotransduction pathway by lowering levels of an upstream component, MyoVI, using RNAi (Figure 7). We find a clear phenotype of reduced cell elongation and increased cell areas in the center region, as predicted by our model. In the spatially resolved model, which includes the term coupling polarity orientation of neighboring cells (Figure 6C), a polarity pattern can be induced even below μc by imposing polarity at the tissue boundaries. Thus, the residual pattern of cell elongation that we observe after removal of MyoVI in the wing pouch could be due to polarity existing outside of this perturbed region. In addition, the residual pattern could also indicate an incomplete knockdown from RNAi or the presence of other mechanosensitive elements in the tissue. Nevertheless, given the clear phenotype that is fully consistent with our model, we propose that the mechanosensitive feedback mechanism is a significant determinant of the cell shape patterns in the wing pouch.

Our data, together with the fact that MyoVI is involved in Rho-dependent activation of actin-myosin cytoskeleton (Acharya et al., 2018), suggest that MyoVI is a molecular component of the mechanosensitive feedback we describe in our self-organized model. However, the molecular nature of the cue that defines the nematic cell polarity is unknown. This cue may organize the structure or dynamics of the actin-myosin cytoskeleton or the actin-myosin system itself could define nematic cell polarity. Indeed, it has been shown that Myosin II (MyoII) localizes to long cell boundaries in the wing (Legoff et al., 2013), corresponding to a nematic polarity aligned with the nematic cell polarity q. Also, wing disc stretching experiments have shown that MyoII can polarize in response to exogenous stress in a Rho-dependent manner (Duda et al., 2019). Furthermore, it has been suggested that MyoII polarity arises as a consequence of cell stretching and functions as a negative mechanical feedback (Legoff et al., 2013), consistent with the role of q in our model. Precisely how the actin-myosin cytoskeleton is affected by MyoVI in this system and how these cytoskeletal elements together guide cell rearrangements in response to anisotropic tissue stresses and cell shape changes remain open questions for future research.

Lastly, our laser ablation analysis shows that the region around the DV boundary has a different ratio of elastic constants than the rest of the tissue, which could affect the self-organized pattern formation we describe. Therefore, it will be interesting to study how Wingless/Notch signaling, which defines the DV boundary, may influence the mechanical properties that lead to mechanosensitive self-organization of polarity and morphology. In addition, we observe a richer pattern emerging very late in development (see Figure 7—figure supplement 1, Figure 5), including a region anterior to the AP boundary that is radially elongated. Future research will expand upon the model presented here to explore the dynamics of these patterns.

In summary, we used the Drosophila wing disc to identify a mechanism by which tissue morphology can arise from the self-organization of a mechanical feedback coupling cell polarity to active cell rearrangements. This mechanism is general and could be employed in other tissues and organisms to generate patterns of cell shape and cell area. Thus, we hope our work inspires new avenues of research that integrate theory and experiment to understand biological self-organization.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
AntibodyAnti-Drosophila SRF (Mouse monoclonal)Active MotifCat#:39093; RRID:AB_2793614lot# 03504001; IF(1:100)
AntibodyAnti-GFP (Rabbit polyclonal)InvitrogenCat#:A11122; RRID:AB_221569IF(1:1000)
AntibodyAnti-Drosophila Patched; Apa 1, conc; (Mouse monoclonal)Developmental Studies Hybridoma BankCat#:Apa1; RRID:AB_528441IF(1:100)
AntibodyAnti Drosophila Wingless; 4D4, conc; (Mouse monoclonal)Developmental Studies Hybridoma BankCat#:4d4; RRID:AB_528512IF(1:100)
AntibodyAnti-Dachsous, 2828; (Mouse monoclonal)Merkel et al., 2014IF(1:50)
Chemical compound, drugGrace’s insect mediumSigma AldrichCat#:G9771−10 × 1L
Chemical compound, drugFetal Bovine SerumThermo-FisherCat#:10270098
Chemical compound, drug20-HydroxyecdysoneSigma AldrichH5142
Chemical compound, drugPenicillin-StreptomycinSigma AldrichP4333
Genetic reagent
(D. melanogaster)
Ecadherin-GFP; Ecad-GFPHuang et al., 2009yw-; EcadGFP;;
Genetic reagent
(D. melanogaster)
nub-Gal4Bloomington Drosophila Stock CenterCat#:86108; RRID:BDSC_86108Combined with EcadGFP in this work
Genetic reagent
(D. melanogaster)
fat+dachsRNAiVienna Drosophila Resource CenterCat#:9396; Cat#:12555Combined with Dcr2 on 1st chromosome and EcadGFP on 2nd in this work
Genetic reagent
(D. melanogaster)
pk30Bloomington Drosophila Stock CenterCat#44229; RRID:BDSC_44229Combined with EcadGFP in this work
Genetic reagent
(D. melanogaster)
MyoVIRNAiVienna Drosophila Resource CenterCat#37534Combined with EcadGFP in this work
Software, algorithmTissueMinerEtournay et al., 2016

Lead contact and materials availability

Request a detailed protocol

This study did not generate any new unique reagents. All requests for further information and reagents may be directed to the lead author, natalie_anne.dye@tu-dresden.de.

Experimental model and subject details

Request a detailed protocol

All experiments were performed with Drosophila melanogaster, using lines that are publicly available and previously published. Our Drosophila lines were fed with a standard media containing cornmeal, molasses agar and yeast extract and grown under a 12hr light/dark cycle. All experiments were performed at 25C. Both males and females were analyzed, and the sex of the animals was not recorded, as we have no reason to believe there is any sexual dimorphism in the studied phenomenon. To synchronize development, we collected eggs deposited within a defined time window on apple juice agar plates. To do so, we transferred the flies from standard food vials to cages covered by apple juice agar plates containing a dollop of yeast paste for food. After at least 2hr, the plates were replaced, and the timing of collection started. Eggs laid within a 2hr time window were collected by cutting out a piece of the agar and transferring it to a standard food vial. We limited the number of eggs per vial to <15 to avoid crowding. The middle of the time window for egg collection was considered to be 0hr AEL. Experiments from timelapse imaging and laser ablation (Figures 1, 2, and 4) were captured after explanting at 96hr AEL, whereas those involving RNAi (Figures 5 and 7) were explanted at 110120hr AEL to allow the maximal amount of time for the RNAi phenotype to emerge. The specific genotypes used for each experiment are indicated in the Key Resources Table and in the figures.

Method details

Timelapse image acquisition and processing

Request a detailed protocol
Sample preparation
Request a detailed protocol

Wing explants were grown ex vivo as described previously (Dye et al., 2017). Briefly, wing discs were dissected from larvae in growth media (Grace’s cell culture media + 5% fetal bovine serum +20nM 20-hydroxyecdysone + Penicillin-Streptomycin) at room temperature. Then, they were transferred to a Mattek #1 glass bottom petri-dish to the center of a hole cut in a double-sided tape spacer (Tesa 5338) and covered with a porous filter. The dish was then filled with fresh growth media.

Acquisition
Request a detailed protocol

Data from movies 1 to 3 were used previously (Dye et al., 2017). Movie 4 was acquired after publication of the first manuscript, in the same exact way as movies 1 to 3. Briefly, Ecadherin-GFP-expressing wing discs were imaged in growth media using a Zeiss spinning-disc microscope to acquire 0.5μm spaced Z-stacks at 5 min intervals with a Zeiss C-Apochromat 63X/1.2NA water immersion objective and 2×2 tiling (10% overlap). This microscope consisted of an AxioObserver inverted stand, motorized xyz stage, stage-top incubator with temperature control set to 25C, a Yokogawa CSU-X1 scanhead, a Zeiss AxioCam MRm Monochrome CCD camera (set with 2×2 binning), and 488 laser illumination. We circulated growth media during imaging using a PHD Ultra pump (Harvard Apparatus) at a rate of 0.03ml/min. Time 0hr of the movie was considered to be the start of imaging acquisition, typically 4560min from the start of dissection (time required for sample and microscope preparation).

Movie 5 was acquired on a newer microscope with a larger field of view that eliminated the need to tile across the wing pouch. This microscope has an Andor IX 83 inverted stand, motorized xyz stage with a Prior ProScan III NanoScanZ z-focus device, a Yokogawa CSU-W1 with Borealis upgrade, and a Pecon cage incubator for temperature control at 25C. We used an Olympus 60x/1.3NA UPlanSApo Silicone-immersion objective with 488 laser illumination and an Andor iXon Ultra 888 Monochrome EMCCD camera. We acquired 0.5μm spaced Z-stacks of a single tile at 5min intervals, as for the other movies. Movie 5 was also acquired without the constant flow of new media.

For all movies, care was taken to limit light exposure, using laser power values of <0.08mW and exposure times less than 350ms per image.

Processing
Request a detailed protocol

Raw Z-stacks were denoised using a frequency bandpass filter and background subtraction tools available in FIJI (Schindelin et al., 2012). Then, we used a custom algorithm as described previously (Dye et al., 2017) to make 2D projections of the apical surface, marked by Ecadherin-GFP. This algorithm also outputs a height-map image, in which the value for each pixel corresponds to the level in the Z-stack of the identified apical surface. For those movies that were tiled, we used the Grid/Collection Stitching FIJI plugin (Preibisch et al., 2009) to stitch the 2D projections, and then used that calculated transformation to stitch the height map images, so that we could correct the cell area and elongation values for local curvature (see below). We focus in this work exclusively on the disc proper layer, which is the proliferating layer of the disc that goes on to produce the adult wing. We did not consider cell shape patterns in the peripodial layer, the non-proliferating layer of the wing disc that is largely destroyed at the onset of pupariation.

Single timepoint image acquisition and processing for analysis of RNAi/mutant phenotypes

Request a detailed protocol
Sample preparation
Request a detailed protocol

Samples for single timepoint imaging were acquired exactly as described for live imaging: dissected in growth media and imaged in Mattek dishes under a porous filter.

Acquisition
Request a detailed protocol

All imaging of single timepoint data was performed with the same microscope described above for Movie 5. We did not acquire timelapse data for these genetic perturbations, and thus we chose to image the entire disc using 2×2 tiling, 0.5μm spaced Z-stacks. Approximately 610 discs were imaged per dish, within approximately 3060min .

Processing
Request a detailed protocol

Tiled images were stitched together as Z-stacks; then we obtained the apical surface projection and its corresponding height map as described above and in Dye et al., 2017.

Circular laser ablation

Request a detailed protocol
Acquisition
Request a detailed protocol

Wing discs from mid-third-instar larvae (96hr AEL) were dissected and mounted exactly as was done for the live imaging timelapses. Due to constraints on the speed of ablation, we only cut regions of the wing disc pouch that were completely flat, so that we could cut in a single plane at the apical surface (rather than having to cut in each plane of a Z stack). Where this flat region lies depends on how the disc happens to fall on the coverslip during mounting. Because the anterior compartment is larger and higher, most of our ablations are in this compartment. To access other regions, we also mounted some wing discs on an agarose shelf: stripes of 1% agarose (in water) were dried onto the surface of the coverslip and wing discs were arranged their anterior half propped up on the agarose shelf prior to adding the porous filter cover.

Ablations were performed using ultraviolet laser microdissection as described in Grill et al., 2001 using a Zeiss 63X water objective. First, we took a full Z-stack of the sample prior to the cut. Then, we selected a 7μm radius circle that would ablate in the flattest region of the tissue. No imaging is possible during ablation, but we acquired a 2min timelapse immediately after the cut in a single Z-plane. This timelapse data was not used except to estimate whether or not the sample was fully cut. After, once the sample has finished expanding but not started to heal (2min), we took another full Z-stack to image the endpoint. We excluded a small number of data points if any of the following were true: (1) the inner piece remaining after the ablation was no longer visible (sometimes it floats or is destroyed); (2) the cut appeared to expand highly asymmetrically (rare); (3) the wing discs were clearly too young to be considered 96hr AEL (poor staging).

Immunofluorescence after ablation
Request a detailed protocol

Due to a limited field of view on the microscope used for ablation, we performed immunofluorescence after the ablation in order to better estimate the position of the cut in the wing pouch. After all the discs in the dish were ablated (<10 discs/dish), the entire dish was fixed through the filter by adding 4% PFA and incubating 20min at room temperature. After, the dish was rinsed and kept in PBST (PBS + 0.5% Triton X-100) until all discs from that image acquisition day were completed (24hr). All samples were then blocked using 1% BSA in PBST + 250mM NaCl for 45min1hr, and then incubated in primary antibody overnight (diluted in BBX: 1% BSA in PBST). Initially, we labeled samples with SRF (Active Motif, 1:100 dilution), but later we switched to Patched and Wingless (DSHB, 1:100) to identify the compartment boundaries. Primary antibody toward GFP (recognizing the Ecadherin-GFP) was also included at 1:1000. After overnight incubation at 4C, we washed with BBX, followed by BBX+ 4% normal goat serum (NGS), for at least 1hr. Secondary antibodies were added for 2hr at RT in BBX+NGS. Finally, samples were washed 4x10min in PBST and imaged in this media. Imaging was performed on one of the two spinning disc microscopes described above for live imaging. We matched the stained samples with the ablation images by (1) keeping track of the position of each disc on the dish and where it was ablated during acquisition and (2) morphology of the disc before/after ablation. All antibody information are listed in the Key Resources Table.

Validation of Fat/D PCP RNAi

Request a detailed protocol
Sample preparation
Request a detailed protocol

To immunostain larval wing discs, late third instar larvae were partially dissected in 1× PBS, inverting the heads to expose the wing discs, and then fixed in 4% PFA for 20min. Samples were then washed twice for 15min each with PBX2 (1× PBS + 0.05% Triton X-100), and blocked in BBX250 (PBX2 + 1mg/ml BSA + 5mM NaCl) for 45min. Incubation in primary antibody diluted 1:50 in BBX (PBX2 + 1mg/ml BSA) was performed overnight at 4C. We used a mouse monoclonal antibody against Dachsous (Merkel et al., 2014). After, the sample was washed twice with BBX, 20min for each wash, followed by one 45min wash with BBX + 4C normal goat serum (NGS). Incubation with secondary antibody was performed either for 23hr at room temperature or overnight at 4C. We used a goat anti-mouse Alexa-Fluor 647 as the secondary antibody (ThermoFisher,Cat No. A28181) at 1:500 dilution in (BBX+4% NGS). The secondary antibody was removed by washing twice with PBX2, followed by washing twice with 1× PBS. The tissues were stored in PBS and dissected from the body wall just before mounting. Wing discs were mounted on a slide within a thin channel created by two strips of double-sided tape (Tesa 5338). Wings were transferred to the middle of the channel with a p200 pipette, the excess PBS was removed, and the tissues were arranged with apical sides up. Next, the sample was covered with a 22×22mm #1 coverslip, adhering the coverslip to the double-sided tape. Vectashield mounting medium (Vector laboratories) was added to one side of the coverslip and allowed to seep in by capillary action. Excess Vectashield was removed, and the sides of the coverslip were sealed using transparent nail polish. The slides were then stored at 4C until imaging.

To image the adult wing morphology, male flies of the desired genotype were collected and stored in isopropanol. Wings were dissected and collected in isopropanol. To mount, wings were transferred to a glass slide using a p200 pipet. In a centrifuge tube, 500μl of isopropanol was mixed with 500μl of Euperal, and about 50μl of this mix was added to the slide containing the wings. The wings were then aligned on the slide, adding more isopropanol/Euperal mix when necessary to avoid drying. Once the wings were all aligned, more isopropanol-Euperal mix was added and allowed to partially dry. Once the mix was almost dry, a clean 22×22 coverslip containing about 2050μl of Euperal was inverted on top of the wings. The slides was allowed to cure for 24hr before imaging.

Acquisition
Request a detailed protocol

Immunostained samples were imaged on an Olympus IX81 microscope equipped with a spinning disk module (Yokogawa) and back illuminated EMCCD (Andor Technology, iXon Ultra 888) with an exposure time of 100ms and EM gain of 250. A confocal z-stack of immunostained samples was acquired using a 60× silicon immersion objective with 0.47μm z-spacing.

Adult wings were imaged on an inverted wide field microscope (Zeiss) using a 5× objective. The images were analyzed using a custom code written in MATLAB (Mathworks, USA) to measure wing area.

Quantification and statistical analysis

Cell segmentation, tracking, and alignment

Request a detailed protocol
Segmentation and tracking
Request a detailed protocol

Using the 2D projections, we performed cell segmentation and tracking using the FIJI plugin, TissueAnalyzer (Aigouy et al., 2016). We manually corrected errors in the automated segmentation and tracking as much as possible and then generated a relational database using TissueMiner (Etournay et al., 2016). Images were rotated to a common orientation (Anterior left, dorsal up). We then manually identified three regions of interest at the last point in the timelapse, using the FIJI macros included with TissueMiner: the ‘blade’ was defined roughly as an elliptical region surrounded by the most distal folds; and the Anterior-Posterior and Dorsal-Ventral boundaries were estimated using the brightness of Ecadherin-GFP and apical cell size (Jaiswal et al., 2006).

For the timelapse data, we used only the cells within these manually defined regions that were trackable during the entire course of the movies. An example of this region is presented for Movie 1 in Figure 1A. Furthermore, we also excluded from all of our analysis the first 2hr of imaging, the so-called adaption phase, where cells uniformly shrink in response to culture (Dye et al., 2017).

For the RNAi data (Figures 5 and 7), we did not acquire timelapses, rather a single timepoint at late stages of development. We nevertheless chose to analyze these data using the same TissueMiner workflow for simplification. Because TissueMiner was developed for timelapse data, however, it requires at least two timepoints. Thus, we duplicated the data and labeled the two images as if they were timepoints 0 and 1 of a timelapse. We then only analyzed timepoint 0. The regions of interest in these data, therefore, are manually defined and not simply the region that is trackable (since it is static data).

Alignment on compartment boundaries
Request a detailed protocol

To average across all movies of timelapse data, or all discs of the same genotype of the static RNAi data, we generated a disc-coordinate system by normalizing the position of each cell to the AP and DV boundaries for that disc. To do so, we averaged the absolute xy positions of all the cells in the AP or DV boundaries over all time after the adaption phase. We then calculated the distance of each cell to the new X axis (average position of the AP boundary) and Y axis (average position of the DV boundary).

Analysis of cell size and shape

Request a detailed protocol
Definition of the cell elongation tensor
Request a detailed protocol

The cell elongation tensor Q is a traceless symmetric tensor that quantifies the anisotropy of cell shapes in a region of the tissue. We define cell elongation using a triangulation of the tissue obtained by connecting centroids of connected cells (Etournay et al., 2015; Merkel et al., 2017). The state of each triangle is described by a tensor s, defined by a mapping an equilateral reference triangle to the triangles in the tissue. The state tensor contains information about the triangle elongation tensor q~t, orientation angle θ, and area a:

s=atat01/2expq~tRθ.

Here, a0t is the area of the reference triangle, and R is a 2-dimensional rotation matrix. Cell elongation in the tissue region is defined as an area weighted average of triangle elongation. For details about the method see Merkel et al., 2017.

Adjustment of cell area and elongation to account for tissue curvature
Request a detailed protocol

The wing disc pouch has a slightly domed shape (Figure 1—figure supplement 1A). After projection onto a 2D surface, the cell shapes and areas will be distorted. To ensure that the radial profiles we measure in a 2D projection (Figure 1B,C,E and F and Figure 3F,G) are not a result of tissue curvature, we account for the distortion caused by projection. We use the height maps generated by our projection algorithm, which identifies the apical surface of the pouch within the 3D Z-stacks. We smooth this height map with a gaussian filter of width σ=2 μm to find the height field h(x,y), and then we calculate the height gradient field. We then smooth the result again with the same gaussian filter to find h=(xh,yh). The deprojected cell or triangle area a0 is obtained from the measured area a as a0=a1+|h|, where h is evaluated at the cell center. To find the deprojected cell elongation of a triangle we evaluate h at the triangle center. Then, we find the angle of steepest ascent α=arctan(yh/xh) in the projected plane and define the tilt transformation:

N=1+h+12+1+h-12cos2α1+h-12sin2α1+h-12sin2α1+h+12-1+h-12cos2α

We apply this transformation to the triangle shape tensor s, as defined in Merkel et al., 2017, to determine the deprojected triangle shape tensor s0:

s0=Ns

The cell elongation tensor Q is obtained from the triangle shape tensor s0 as the corresponding area weighted average using the deprojected cell area, as described in Merkel et al., 2017.

Spatial maps of cell size and shape
Request a detailed protocol

To generate the color-coded smoothed plots of area and elongation (Figure 1B–C), we divided the aligned wings into a grid with boxsize =10 pixels (2μm). For each position, we averaged cell area or performed an area-weighted averaged of triangle elongation in a neighborhood box = 20 pixels (4μm). To create the nematic elongation pattern, we similarly averaged elongation of triangles whose centers lie within each grid box, with grid box size =30 pixels (6μm). Tables containing the corrected cell area and triangle elongation values for each movie at each timepoint have be uploaded to Dryad: doi:10.5061/dryad.jsxksn06b.

Calculation of radial elongation center point
Request a detailed protocol

We define the center of the wing pouch to be on the DV boundary. To determine the location of the center along the DV boundary xc we divide the pouch into four regions defined by the DV boundary and a line perpendicular to it located at some position x, as shown in Figure 1—figure supplement 1E. Then, we define a function:

F(x)=AIQxyaI-AIIQxyaII+AIIIQxyaIII-AIVQxyaIV

for all values of x along the DV boundary. Here, AI-IV are the areas of the four regions and QxyaI-IV are the area weighted averages of the cell elongation component Qxy calculated in the four regions. Finally, xc is the value that minimizes F(x) (Figure 1—figure supplement 1F). We find that the center point lies just anterior to the intersection with the anterior-posterior (AP) boundary (Figure 1, Figure 1—figure supplement 1, consistent with Legoff et al., 2013).

In time-lapse experiments, cell centers were determined using the last 20 timepoints. In single timepoint image experiments (Figures 5 and 7), all images of a single genotype were used together after alignment on the DV and AP boundaries.

Exclusion of the band of cells near the DV boundary
Request a detailed protocol

In contrast to the other regions (blade, AP and DV boundaries), the definition of the band around the DV boundary (Figure 1—figure supplement 2) and the region of the blade that excludes this region (Figure 1D) were not defined manually using the FIJI scripts of TissueMiner. Rather, we defined them after the TissueMiner databases were generated, using the position of cells relative to the DV boundary in the last frame. Using the plots of the radial elongation on each disc, we estimated the width of the stripe region and then filtered for cells included in and excluded from this region. Once these cells in the last frame were identified, we used the UserRoiTracking.R of TissueMiner to backtrack these two regions, producing a list of all cells belonging to this lineage that are traceable forward and backward in the movie.

For the static RNAi data, we used the average width of the band around the DV boundary from timelapse data as an estimate and excluded this region from the static images to analyze the radial gradients in cell area and elongation (Figures 5 and 7).

Plotting area and elongation versus distance to the center of elongation
Request a detailed protocol

For the timelapse data, we defined the radial elongation center (described above) for each movie and then calculated the distance away from this center for each cell. After excluding the band of cells around the DV boundary, we binned cells by radius by rounding to the nearest 10μm. We also binned the movie across five equal time windows (2hr), excluding the adaption phase. Average cell area and area-weighted average of cell elongation were calculated for each of these bins in each time group for each movie. Including data from all five movies, we report the global average and its standard deviation (Figure 1E–F). For Figure 3, we averaged over the last 5hr. For the band of cells around the DV boundary (Figure 1—figure supplement 2), we binned cells in x, rather than in radius, and report the gradient along the x axis, defined as the DV boundary.

The static RNAi data were analyzed similarly. We report the global average of all discs in the genotype and the standard deviation (Figures 5D,I and 7D). The number of discs analyzed in each genotype is listed in the figure legend.

Regional analysis of isotropic tissue deformation

Request a detailed protocol
Spatial maps of cellular contributions to isotropic tissue deformation
Request a detailed protocol

To analyze the pattern of isotropic deformation, we locally averaged cell behavior by dividing the tissue into a grid centered upon the crossing of the AP and DV boundaries. First, we determined the average position of cells in the AP and DV boundaries to generate a common frame of reference across all movies. Second, we divided the tissue visible in the last frame into a grid centered on these compartment boundary positions, with grid size = 8μm. Grid boxes that were incompletely filled (less than 33% of the area of the box filled by cells) were discarded to eliminate noise along the tissue border. Third, each grid box was considered an 'ROI' and then tracked through the entire movie using TissueMiner’s ROI tracking code. Fourth, the rate of deformation by each type of cellular contribution was calculated as a moving average (kernel =11) for each grid position for each timestep. Last, we averaged these rates over all time points post-adaption period and plotted in space (Figure 1H,I,K,L).

Plotting the radial profile
Request a detailed protocol

To show tissue deformation as a function of distance to the center, we first calculated the distance to the center of symmetry for each cell. Second, we divided the tissue visible in the last frame into radial bins, rather than a grid, by rounding the radial position of each cell to its nearest 10μm. Third, as we did for the grid, we defined each radial bin to be an 'ROI' and then tracked the region forward and backward using TissueMiner’s ROI tracking code. Fourth, the rate of deformation by each type of cellular contribution was calculated as a moving average (kernel =11) for each radial bin ROI at each timestep. Last, we averaged these rates over all time points post-adaption period and plotted this rate as a function of distance to the center. Note that we also show the spatial profiles of tissue growth in the band around the DV boundary in Figure 1—figure supplement 1, but here we binned along x, not r.

Regional analysis of anisotropic tissue deformation

Request a detailed protocol
Spatial maps of cellular contributions to anisotropic tissue deformation
Request a detailed protocol

We previously published patterns of cellular contributions to anisotropic tissue shear from movies 1 to 3 (Dye et al., 2017); however here, we calculated these patterns in a more accurate way and report averages over multiple movies (Figure 2A). Previously, we assigned a grid at each timepoint as in Etournay et al., 2015; Etournay et al., 2016. While this method provides a simple first approximation of the pattern, it is not completely accurate because we are not tracking the box in time but reassigning it at each timepoint; thus, cell movement in/out of the box is not counted. Here, we perform grid box tracking, as described above for the calculation of cellular contributions to isotropic tissue deformation but with grid box size =15μm. Further, we present a global average of not just movies 1 to 3, but also the two new movies. We calculated for each movie the rate of tissue deformation by each cellular contribution as a moving average (kernel =11) in time. Then, we averaged across all five movies at each timepoint and presented the pattern as a cumulative sum, starting from the end of the adaption phase (first 2hr) and continuing through the end of the timelapse. All correlation terms were added together (see Merkel et al., 2017). The contribution to tissue shear from cell extrusion is very small and thus not shown.

Accumulating cellular contributions to radial tissue shear
Request a detailed protocol

We calculated a moving average (kernel size =11) total value for each cellular contribution to radial tissue shear, averaged across the blade (excluding the band around the DV boundary). Then, we accumulated the contributions after the adaption phase (first 2hr) and plotted over time (Figure 2B). In addition to the previously described types of correlations (Merkel et al., 2017), the radial decomposition also involves a correlation between cell area and shear (see Appendix 3). We added all correlation terms together in Figure 2B.

Quantification of circular laser ablation

Request a detailed protocol
Measurement of stress, cell elongation, and cell area
Request a detailed protocol

For the ablation data, we first projected the Z-stack images of the wing discs before and after ablation using our custom surface projection (Dye et al., 2017).

To quantify cell elongation and area, we used the images taken before the cut. Cells were segmented using the FIJI plugin TissueAnalyzer and then processed with TissueMiner to rotate the disc to a common orientation (anterior to the left; dorsal up) and to create a triangle network and a database structure. The area-weighted average of triangle elongation and the average cell area was calculated for those cells included in the center of a circle of a radius r=1.3×rcut (4.55μm) centered at the center of the cut. Varying the size of this region only slightly affects the result: <1.0×rcut, the distribution becomes more noisy because we are averaging a smaller region with less cells, but regions that are too big (1.8×rcut) may begin to include cells that span different regions of the wing (i.e. the band around the DV boundary). In Figure 4C and Figure 4—figure supplement 1B,E, we plot cell elongation projected onto the stress axis.

To measure the shape of the tissue after ablation, we fit ellipses to the inner and outer piece left by the cut using the projected after-cut images. These images were first rotated using the transformation performed on the before-cut images to orient the tissue. We used Ilastik (v. 1.2.2) (Berg et al., 2019) to segment the cut region: we trained the classifier using all the data from a single day’s acquisition, delineating three regions: cells, membranes, and dark regions. Using the trained classifier, we then generated a thresholded binary image of the cut tissue’s shape and cropped the image around the cut. We then fit inner and outer ellipses to these images.

Grouping ablations into regions of the wing pouch
Request a detailed protocol

To quantify the position of the cut in the wing pouch, the immunofluorescence post-cut images were projected using maximum intensity. In FIJI, we manually measured (in μm) the distance from the center of the cut to the DV boundary and AP boundary. We noted that fixation causes the tissue to shrink. We estimated the extent of shrinkage using a subset of the samples in which the compartment boundaries were visible in the Z-stack taken of the live sample before the cut. We used FIJI to measure distances from the center of the cut to the compartment boundaries in both the pre-fix live images and in the post-fix immunofluorescence images for this subset. We measure a discrepancy indicating that the tissue shrinks by ∼15%. Thus, we compensate for this shrinkage when measuring distances to the compartment boundaries in our analysis. We also noted the compartment (dorsal/ventral/anterior/posterior) in post-fix images and added a sign to the distances to the boundaries (ventral and posterior getting negative 'distances') to create the spatial map shown in Figure 4B.

To classify the cuts by position, we first estimated the width of the band around the DV boundary from the timelapse data to be 22μm (centered on the DV boundary). We then classified a cut as in the DV boundary if its cut boundary extended no more than 1.4μm (20% of the 7μm radius) outside this 22μm horizontal stripe region. Likewise, cuts were classified as outside this region if it did not extend more than 1.4μm into the 22μm horizontal stripe. We excluded all cuts that appear to straddle the border between these regions (gray in Figure 4B). We also excluded those cuts with centers lying within 7μm of the AP boundary, in case material properties at this boundary region are also different.

ESCA: determination of stress from response to circular ablation
Request a detailed protocol

To obtain the normalized shear stress σ~/(2K), normalized isotropic stress σ/K¯ and the ratio of elastic constant 2K/K¯, we fit ellipses to the inner and outer tissue outlines simultaneously. These three parameters determine the large and small semi-axes of the two ellipses. Other fitting parameters are the center positions of the two ellipses and the angles of major axes. Stress is calculated by considering how the ellipses were generated by a circular laser ablation, as described in detail in the Appendix 2. When calculating the deformation from initial to final positions, we considered that the cells that were directly hit by the laser would die and thus not contribute to the evolution of the tissue after the cut. To account for this loss of cells, we first calculated average cell area for those cells that would be hit by the laser. Then, we adjusted the radius of the initial position by this amount.

Fits were performed on all of the laser ablations in the same region (either within or outside of the band around the DV boundary) for a range of fixed values of the ratio 2K/K¯. The optimal value was considered to be the one that minimizes the sum of fit residuals (Figure 4—figure supplement 1C,F). We defined a threshold of fit residual, as shown in Figure 4—figure supplement 1A, to eliminate cuts with non-elliptical outlines. The uncertainty of 2K/K¯ was estimated by bootstraping a subset of 7 cuts in each region 100 times; we report the standard deviation of the results.

Appendix 1

Continuum model of the wing disc epithelium

1 Model definition

We use a previously developed continuum model to describe tissue mechanics (Etournay et al., 2015; Popović et al., 2017). Tissue shear flow v~ij consists of convected co-rotational change of cell elongation Qij and a contribution from cell rearrangements Rij

(A1) v~ij=DQijDt+Rij.

Tissue shear stress consists of an elastic part and a contribution from nematic cell polarity qij

(A2) σ~ij=2KQij+ζqij.

Shear flow due to cell rearrangements consists of term accounting for cell shape relaxation and a contribution due to nematic cell polarity qij

(A3) Rij=1τQij+λqij.

Force balance couples shear stress and area pressure

(A4) jσ~ijiP=0

which will be reflected in cell area. We use a constitutive relation

(A5) P=K¯ln(aa0)

where a represents cell area and a0 corresponds to value of a at P=0.

We consider a simple model in which the tissue is a radially symmetric disc, see Figure 3C–E of the main text. We use polar coordinate system (r,φ), where the radial force balance reads

(A6) rP=rσ~rr+2rσ~rr

Furthermore, in the model we consider a constrained tissue with negligible radial shear flow v~rr=0, consistent with experimental observations, see Figure 2 of the main text.

2 Cell area profiles follow from cell elongation profiles

Empirically, the radial cell elongation profile can be described by a power law

(A7) Qrr(rrQ)θ,

with values for rQ=140±20μm and θ=1.6±0.1 obtained by fitting the data on the last 5hr of the experiments, see red line in Appendix 1—figure 1A. We find rQ=84±3μm and θ=2.8±0.3 by fitting the data from the first 5hr. Data is averaged over five experiments, and errorbars represent a standard deviation among the mean values in each experiments.

Appendix 1—figure 1

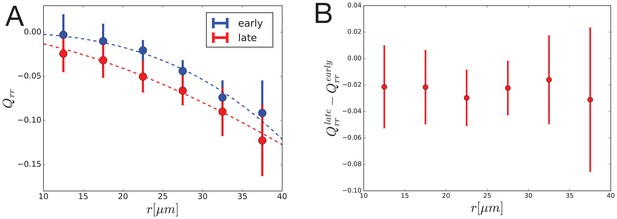

Dynamics of radial cell elongation profile.

Left: Radial cell elongation in the first half of the movies (’early’) are shown in blue and in the second half of the movies (’late’) are shown in red. Fits of power law are shown with dashed lines in corresponding colors, with fit parameters rQ=84±3μm, θ=2.8±0.3 and rQ=140±20μm, θ=1.6±0.1 for "early" and "late" profiles, respectively. Right: Radial cell elongation change suggests that there is no significant gradient of radial shear due to cell rearrangements Rrr during the experiment.

At this point, it is useful to estimate the spatial profile of shear due to cell rearrangements Rrr. We calculate the difference between late and early cell elongation profiles, as shown in Appendix 1—figure 1B. Since v~rr210-3h-1 we find Rrr(6±7)10-3h-1 with no significant variation in r.

Now, we find an expression for cell area using Equations A2, A3, A5, A6 and A7

(A8) a=a0ecaK¯+2KK¯θ+2θ(rrQ)θ2KK¯(1KK)τRrrln(rrQ),

where

(A9) K=(1ζ2Kτλ)K

and ca is an integration constant. We fit the Equation A8 to the experimental data as shown in Figure 3G of the main text, and we find parameter values

(A10)a0ecaK¯=3.3±0.3,(A11)2KK¯θ+2θ=5.4±0.7,(A12)2KK¯(1KK)τRrr=0.00±0.07,

where the reported uncertainties represent square roots of the fit covariance matrix and the parameter in Equation A12 was constrained to be positive, motivated by the fact that we do not find K*>K (see Equation A18 below).

3 Laser ablation experiments provide an estimate of model parameters

We write Equation A2 in the form

(A13) σ~rr2K=KKQrr+(1KK)τRrr.

We fit this equation to the experimentally obtained shear stress as a function of cell elongation in the laser ablation experiments. We find

(A14)KK=0.05±0.02,(A15)(1KK)τRrr=0.011±0.002.

Using the estimate for Rrr we find

(A16) τ=(2±2)hr.

This value is consistent with the one found for the cell elongation relaxation time-scale in the pupal wing (Etournay et al., 2015).

In Equation A3, we can now show that cell elongation profile in the wing pouch reflects the profile of nematic cell polarity. Namely, |Qrr|τ|Rrr|0.012 in most of the tissue, except in the vicinity of the DV boundary, and thus

(A17) qrrτλQrr.
Comparison of laser ablation and area profile fits

It is interesting to notice that from Equation A11 and the value for 2K/K¯=3.4±0.4 obtained from the laser ablation experiments (main text and Materials and methods), we can estimate

(A18) KK=0.6±0.1.

This value is significantly higher than the one obtained by a direct fit to the laser ablation data (Equation A14). This apparent discrepancy stems in part from the fact that the elastic constant K¯ in Equation A5 is a non-linear elastic modulus. It can only be related to the one used in the laser ablation method by linearizing it around a typical value of a in the data. When this value is not equal to a0 the linearized elastic constant will differ from the original K¯ in Equation A5. Furthermore, Equation A5 does not take into account any adaptation of cell area to pressure or nematic cell polarity, which could influence the measured value K*/K when fitting the cell area profile. However interesting, these effects are beyond the scope of our current work.

4 Mechanosensitivity leads to spontaneous cell polarity by self-organization

a Homogeneous tissue

We propose a dynamical equation of the polarity tensor qij

(A19) DqijDt=1τqqijμσ~ij,

where the parameter μ represents the mechanosensitive response of nematic cell polarity to shear stress. We use Equations A1, A2, A3 and A19 to obtain a dynamic equation for shear stress

(A20) σ~ijt=2Kv~ij(1τ+ζμ)σ~ij(2Kλ+ζ(1τq1τ))qij.

The system of linear Equations A19 and A20 becomes unstable when

(A21) 2Kτqμ>1.

This instability will result in a finite value of nematic cell polarity in the tissue. To account for this polarized state we have to include a stabilising higher order term in Equation A19

(A22) DqijDt=1τqqijμσ~ijαq2qij.

In the steady state, the magnitude squared of the nematic cell polarity is

(A23) q2=q022Kτqμ1ατq.

Here, we have introduced the strength of polarity q0, corresponding to the magnitude of polarity in a homogeneous system. Note that the definition of q02 allows for negative values, which would correspond to no spontaneous polarization in the tissue.

b Polarization of a radially symmetric tissue

To account for spatial variations of nematic cell polarity, we introduce a Laplacian term in Equation A22

(A24) DqijDt=1τqqijμσ~ijαq2qij+D2qij

To fit the radial profile of Qrr observed in time-lapse experiments we account for non-vanishing Rrr as well. Consistent with the observation that during the experiments Rrr does not vary significantly in time (Figure 2B main text) we use approximation τtRrrRrr. Then qrr satisfies

(A25) r2qrr+1rrqrrqrrr2=αD(qrr3q02qrr)+1D(1τλ+2Kμτ)Rrr,

where the left hand side is the radial component of the Laplacian of qij in the polar coordinate system. From the solution of this equation, the Qrr profile is obtained as Qrr-τλqrr. This quantity is fitted to the experimentally measured tangential cell elongation profile by optimizing four tissue parameters, as well as two boundary conditions qrr(rin) and rqrr(rin) required to solve Equation A25. Here rin=10μm is the smallest radius at which we measure the tangential cell elongation profile in Figure 6C of the main text. Parameters obtained by the fit are reported in Table 1 of the main text, and the fitted Qrr profile is shown in Figure 6 of the main text. Parameter uncertainties were estimated as the 10th and 90th percentile intervals obtained by fitting uniformly sampled profiles of Qrr from the interval Qrr(r)+ΔQrr(r) and Qrr(r)-ΔQrr(r), see Figure 3 of the main text, with 101 realisations. Obtained uncertainty intervals are reported in the Table 1 of the main text.

c Predictions for experiments

Spontaneous cell polarity in our model depends on mechanosensitive feedback characterized by the feedback strength μ. The characteristic polarity strength q0 grows monotonically with μ. A prediction from our model is therefore that when μ is reduced, cell elongation will be reduced because it is mediated by cell polarity. In order to test this prediction, we performed MyoVI knockdown experiments, which indeed show a decrease in cell elongation (Figure 7).

Our qualitative prediction is rather robust and does not depend on details of the system, such as the influence of compartment boundaries that disrupt the radial symmetry. However, boundary conditions, which we do not know, could have a significant influence on the system. Therefore, a full quantitative prediction of experiments is difficult. To show the self-consistency of our prediction, we test if the value of q0 that we use to describe the data is consistent with the actual cell elongations observed. Indeed we have q00.1, see Table 1 which predicts a typical strength of cell elongation Q0=-λτq0-0.1, consistent with experimentally measured values, see Figure 6C of the main text. This suggests that our qualitative prediction is robust given the uncertainties in the system.

Appendix 2

Theory of circular laser ablations

We developed a method to infer the stresses in an epithelial tissue from the tissue boundary shape after a circular ablation. Here, we first briefly review linear elasticity in polar coordinates. Then, we derive equations relating the shape of the inner and outer boundaries obtained by the ablation of an infinite elastic sheet in the small deformation regime. The solution to this problem is by no means new, see for example (Muskhelishvili, 1977). Here, we present our derivation of the solution. The application of the method and the obtained parameter estimates are described in the Materials and methods section.

1 Linear elasticity in polar coordinates

a Displacement gradient

The deformation of an elastic object is described by the displacement vector of each point on the sheet

(B1) ui(xj)=xi(xj)xi

where xi is the intial position of a point on the elastic sheet and xi is the position of that point after the deformation. Shape changes are described by the symmetric traceless gradient of displacement

(B2) uij=12(jui+iuj),

which can be decomposed into the isotropic part u=ukk and the shear part u~ij=uij-δiju/2. Note that we use summation convention over repeated indices. In polar coordinates displacement gradient is given by

(B3)urr=rur(B4)uφφ=1rφuφ+1rur(B5)urφ=12(ruφ1ruφ+1rφur)
b Linear elastic constitutive relation

We are considering the linear elastic constitutive relation

(B6) σij=2Ku~ij+ζqij+K¯uδij,

where σ~ij is the traceless symmetric component of shear stress, with shear elastic modulus K and bulk elastic modulus K¯. Here, we allow for the presence of active stresses due to a nematic field qij, corresponding to the nematic cell polarity in the wing disc. However, a constant active stress does not influence our results in the small deformation limit, since it simply redefines the reference configuration. We can therefore write this constitutive equation as

(B7) uij=12Kσ~ij+14K¯σkkδij.
c Force balance and compatibilty: Airy stress function

Force balance imposes

(B8) jσij=0.

In two dimensions, force balance is satisfied by all stress fields whose components are derived from the Airy stress function Φ

(B9) σxx=y2Φ,σxy=xyΦ,σyy=x2Φ,

which can be expressed in polar coordinates

(B10)σrr=1rrΦ+1r2φ2Φ,(B11)σrφ=r(1rφΦ),(B12)σφφ=r2Φ.

Now, a compatibility condition, which follows from a requirement of continuity of the displacement field, can be written as

(B13) 4Φ=0.

The general solution of this equation in polar coordinates, also called the Michell solution, is given by

(B14) Φ=[A0r2+B0r2lnr+C0lnr]+[I0r2+I1r2lnr+I2lnr+I3]φ+[A1r+B1r1+B¯1rφ+C1r3+D1rlnr]cosφ+[E1r+F1r1+F¯1rφ+G1r3+H1rlnr]sinφ+n>1[Anrn+Bnrn+Cnrn+2+Dnrn+2]cosnφ+n>1[Enrn+Fnrn+Gnrn+2+Hnrn+2]sinnφ.

Inferring the stresses from laser ablation experiments consists of solving two elastic problems using the Michell solution as we now show.

2 Circular ablation of an elastic sheet under stress

Laser ablation splits the elastic sheet into inner and outer pieces. We now show that the boundary shapes of the two pieces are ellipses by solving the corresponding elastic problems.

a Inner piece

We consider a piece of elastic sheet stretched by stress σxx=σxx0, σyy=σyy0, σxy=0. After a circular laser ablation, the inner piece is under no stress. To infer the original stresses in the sheet, we determine the shape of the sheet boundary assuming the stresses are known. Then, given the boundary shape, we will be able to infer the stresses.

Stress in a sheet that is in mechanical equilibrium, under no external body force, is uniform throughout the sheet. Therefore, using Equation B3 we can integrate Equation B7 to find the components of the displacement vector ui

(B15)ur=r2K[σ~cos2φ+K2K¯σ](B16)uφ=r2Kσ~sin2φ,

where we have introduced

(B17)σ=σxx0+σyy0(B18)σ~=(σxx0σyy0)/2.

To relate the displacement to the shape of the inner piece boundary, we have to solve Equation B1 for r(φ), in the configuration illustrated in Appendix 2—figure 1

(B19) rr^+urr^+uφφ^=Rr^.

Using the fact that

(B20)r^r^=cos(φφ)(B21)r^φ^=sin(φφ)

we obtain

(B22) r(φ|σK¯,σ~K)=R[1+σ4K¯+σ~2Kcos(2φ)]2+[σ~2Ksin(2φ)]2.

To simplify the notation, we introduce

(B23)s~=σ~2K(B24)s=σK¯,

and we write the solution in the form

(B25) r(φ|s,s~)=R[1+14s+s~cos(2φ)]2+[s~sin(2φ)]2.

We denote semiaxes of this ellipse along the x and y axes, as defined in Appendix 2—figure 1, by ain and bin, respectively. We find that

(B26)ain=R|1+14s+s~|(B27)bin=R|1+14ss~|
Appendix 2—figure 1

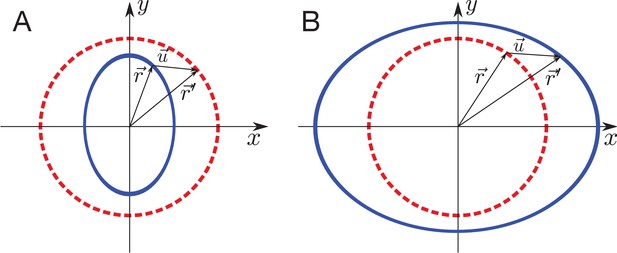

Schematic of elastic sheet boundary shape after a circular ablation.

(A) Inner piece problem: Blue ellipse shape of the boundary after the ablation is the reference shape deformed by uniform stress σxx=σxx0, σyy=σyy0 to the red circle boundary shape before the ablation. (B) Outer piece problem: The red circle boundary shape before the ablation is the reference in this case. The final boundary shape after the ablation is blue ellipse.

b Outer piece

As in the case of the inner piece, we need to find the boundary shape as a function of the original stresses in the sheet. In this case, the normal stress at the ablation boundary is zero, but the sheet is not stress-free. To simplify the problem, we consider an initially stress-free sheet with a circular hole to which boundary stresses -σij0 are applied. For small deformations, where the elastic problem is linear and solutions of the problems commute, the boundary shape is equivalent to the one created by the laser ablation of a sheet under stress σij0.

Now, we have to solve the full elastic problem, since stresses are not uniform. We keep the terms of the Airy stress function Φ, which obey nematic symmetry of the problem and relax sufficiently fast at infinity. We also assume that the polar axis is oriented along one of the principal axes of stress tensor, such that the off-diagonal component of stress vanishes. We obtain

(B28) Φ=C0lnr+(D2+B2r2)cos(2φ)

and for stress components, using Equation B10

(B29)σrr=C0r22(2D2r2+3B2r4)cos(2φ)(B30)σrφ=2(D2r2+3B2r4)sin(2φ)(B31)σφφ=C0r2+6B2r4cos(2φ)

The stress boundary condition reads

(B32)σrr(r=R)=σ2σ~cos(2φ)(B33)σrφ(r=R)=σ~sin(2φ)

allows us to determine coefficients in Equation B29

(B34)C0=12σR2(B35)B2=12σ~R4(B36)D2=σ~R2.

Now we can calculate and then integrate the deformation gradient components to obtain

(B37)ur=R[K¯4KσK¯Rr+[2(1+KK¯)RrR3r3]σ~2Kcos(2φ)](B38)uφ=R[2KK¯Rr+R3r3]σ~2Ksin(2φ).

Finally, as for the inner cut, we have to solve

(B39) Rr^+urr^+uφφ^=rr^

for r(φ). We express the solution using the angle φ as a parameter

(B40)φ(φ|σK¯,σ~2K,KK¯)=φarctan((1+2KK¯)σ~2Ksin(2φ)1+K¯4KσK¯+(1+2KK¯)σ~2Kcos(2φ))(B41)r(φ|σK¯,σ~2K,KK¯)=R[1+K¯4KσK¯+(1+2KK¯)σ~2Kcos(2φ)]2+[(1+2KK¯)σ~2Ksin(2φ)]2.

Note the ratio of elastic constants appears as a parameter of shape.

Now we show that the shape defined by Equations B40 and B41 is an ellipse. To this end, we first define

(B42)A=(1+2KK¯)σ~2K(B43)B=1+K¯4KσK¯.

This allows us to write Equations B40 and B41 as

(B44)φ(φ)=φarctan(Asin(2φ)B+Acos(2φ))(B45)r(φ)=RA2+B2+2ABcos2φ.

Now we show that r(φ) is an ellpise. An ellipse equation can be written as

(B46) r(φ)=aoutboutbout2cos2φ+aout2sin2φ,

where aout and bout are semiaxes of the ellipse oriented along x and y axes, respectively. Starting from Equation B46 and expressing φ from Equation B44 we will show that we can recover Equation B45 for a particular choice of parameters a and b.

We first calculate

(B47)cosφ=(A+B)cosφA2+B2+2ABcos2φ(B48)sinφ=(BA)sinφA2+B2+2ABcos2φ.

Inserting these identities into Equation B46 we find

(B49) r(φ)=aoutboutA2+B2+2ABcos2φbout2(A+B)2cos2φ+aout2(BA)2sin2φ.

Now, we only need to find aout and bout for which

(B50) aout2bout2R2=bout2(A+B)2cos2φ+aout2(BA)2(1cos2φ),

for all φ. The solutions are

(B51)aout=R|A+B|(B52)bout=R|BA|,

or in terms of the original parameters

(55) (B53)aout=R|1+K¯4KσK¯+(1+2KK¯)σ~2K|(B54)bout=R|1+K¯4KσK¯(1+2KK¯)σ~2K|.

If, in addition to Equations B23 and B24 we define

(B55) ξ=2KK¯,

we can write

(B56)aout=R|1+12ξs+(1+ξ)s~|(B57)bout=R|1+12ξs(1+ξ)s~|

Equations B26, B27, B56 and B57 impose four constraints on three parameters: s, s~, and ξ. When determining these parameters from experimental data we are in general not able to satisfy all four equations simultaneously. Instead, we find the three parameters that best fit the segmented outlines of tissue boundaries, see Materials and methods.

Appendix 3

Correlation between cell elongation and cell movement contributes to the tissue radial shear flow

In this work, we use the previously developed method to define and calculate the cell elongation tensor and tissue shear due to T1 transitions, cell divisions, and extrusions (Etournay et al., 2015; Merkel et al., 2017). However, we apply the method in the polar coordinate system. To make it fully consistent, we have to introduce a new correlation term Sij, which arises in the polar coordinate system when translation and elongation are correlated. To demonstrate the origin and derive an expression for Sij, we consider a tissue that translates over the time interval Δt but does not change otherwise. The tissue is triangulated by connecting the neighboring cell centers, see Merkel et al., 2017. Initially, the angle of a triangle k with with respect to a center point is φ, blue triangle in Appendix 3—figure 1. During the translation by Δr=r(t+Δt)-r(t), the radial angle of the triangles changes by a small angle Δφk. Therefore, the components of the triangle elongation tensor q~ijt in the polar coordinate system change by

(C1) Δq~ijt=2ϵikq~kjtΔφ.
Appendix 3—figure 1
Triangle translation changes its radial elongation.

Triangle is translated by Δr=r(t+Δt)-r(t). Although the triangle elongation did not change during the translation, the radial component of the triangle elongation changes due to the change of radial direction by Δφ.

However, since the triangles are only translating, there is no shear flow. Therefore, the average radial shear flow also vanishes and an additional term is necessary to account for the change in the average radial cell elongation in a translating tissue

(C2) v~ij=0=ΔQijΔt+Sij.

Therefore, the correlation term is given by

(C3) Sij=1Δt2ϵikq~kjtΔφ.

In Appendix 3—figure 2, we show the new correlation term in black measured in the pouch of the wing disc, averaged over five time-lapse experiments. For comparison, we show the correlation term stemming from correlated fluctuations of triangle rotation and elongation in blue and the correlation term stemming from correlated fluctuations of triangle area and elongation in green. For definitions and discussion of the other two correlation terms see Etournay et al., 2015; Merkel et al., 2017. We find that the contribution of the new correlation term to the radial shear flow is much smaller that the other two correlation terms. Therefore, the contribution to radial tissue shear flow of the correlation between translation and triangle elongation is negligible in the wing disc.

Appendix 3—figure 2
Three correlation terms contributing to the average radial tissue shear flow.

The three correlation terms contributing to radial tissue shear flow measured in the wing disc pouch, averaged over five time-lapse movies.

Shaded regions correspond to one standard deviation of that sample. Blue: Correlation term stemming from correlated fluctuations of rotation and elongation of triangles. Green: Correlation term stemming from correlated fluctuations of area and elongation of triangles. Black: The new correlation term stemming from translation and elongation of triangles. The new correlation term (black) is very small in comparison to the other two.

Data availability

We have made all data analyzed during this study available. Data for Figures 1H–M, 2,4,5, and 7 are provided as source data files. The data on cell area and elongation in Figure 1A–F, 3F,G, and 6C are too large to be submitted here and are available on Dryad (https://doi.org/10.5061/dryad.jsxksn06b).

The following data sets were generated
    1. Dye NA
    (2021) Dryad Digital Repository
    Data from: Self-organized patterning of cell morphology via mechanosensitive feedback.
    https://doi.org/10.5061/dryad.jsxksn06b

References

    1. Adler PN
    2. Charlton J
    3. Liu J
    (1998)
    Mutations in the cadherin superfamily member gene dachsous cause a tissue polarity phenotype by altering frizzled signaling
    Development 125:959–968.
    1. Condic ML
    2. Fristrom D
    3. Fristrom JW
    (1991)
    Apical cell shape changes during Drosophila imaginal leg disc elongation: a novel morphogenetic mechanism
    Development 111:23–33.
    1. Gubb D
    2. García-Bellido A
    (1982)
    A genetic analysis of the determination of cuticular polarity during development in Drosophila melanogaster
    Journal of Embryology and Experimental Morphology 68:37–57.

Decision letter

  1. Jaume Casademunt
    Reviewing Editor; University of Barcelona, Spain
  2. Aleksandra M Walczak
    Senior Editor; École Normale Supérieure, France
  3. Pierre Recho
    Reviewer; Institut Curie, France

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This paper investigates the mechanisms governing the emergence of cell shape and size patterns in the Drosophila wing imaginal disc during larval development. They take advantage of their recently developed ex-vivo wing disc culture protocol and powerful image analysis tools, to obtain dynamic insight into a system that has traditionally been inaccessible to live imaging. Combining high-quality data, elaborate physical modeling and appropriate genetic perturbations, they challenge the current view that the patterns arise due to early differences in growth rate. In their alternative scenario, they propose that the mechanism driving cell morphology patterning is self-organized and originates in a mechano-sensitive feedback.

Decision letter after peer review:

Thank you for submitting your article "Self-organized patterning of cell morphology via mechanosensitive feedback" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Aleksandra Walczak as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Pierre Recho (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

In this study, Dye et al. investigate the mechanisms leading to the proximal-distal cell shape and size pattern in the wing disc pouch, in which the cells at the periphery of are bigger and more elongated than the cells at the center. They take advantage of their recently developed ex-vivo wing disc culture protocol (Dye et al., 2017) and powerful image analysis tools (Etournay et al., 2015, Merkel et al., 2017), to obtain dynamic insight into a system that has traditionally been inaccessible to live imaging. Using a combination of descriptive data, mathematical modeling and genetic perturbations, they challenge the current view that the pattern arises due to early differences in growth rate (Mao et al., 2013, LeGoff et al., 2013). In their alternative scenario, they propose that the mechanism driving the cell morphology patterning is self-organized and originates in a mechano-sensitive feedback. They base the theoretical framework on an elaborate phenomenological continuum model, which guides the different tests performed.

Essential revisions:

The quality of the descriptive data reported is remarkable and the phenomenological model is well grounded, appealing and to some extent predictive. The genetic tests performed provide significant evidence in support of the model but have some limitations. The emerging biophysical picture is novel, compelling and worthy of attention, as it implies a significant conceptual shift. Whenever fully validated, the mechanism here proposed will certainly bring fundamental biological insights into our understanding of cell morphology patterning. It has been a matter of debate among the reviewers, however, to what extent the direct experimental validation of some of the essential points of the study has been achieved, in order for the manuscript to be suitable for publication. The inherent limitations of phenomenological nature of the theoretical framework has also been raised as possibly reducing the breath of appeal, in the absence of a more direct and complete validation. From the reviewers' discussion, the following points have been raised which should be addressed in the revision to strengthen the manuscript.

1. On the polarity cue. The emergence of a polarity cue is pivotal in the proposed scenario, where it results from an instability induced by a mechano-sensitive feedback. This is a phenomenological hypothesis, which allows to explain the observations, and is to some extent predictive. However, the actual biochemical nature is not really identified, and it is not clear whether other scenarios could exhibit similar behavior. When the authors introduce cell polarity q, it would help to specify what physical quantity they have in mind, presumably associated to cytoskeletal orientation. In any case, it would be interesting that the authors suggest possible direct experimental measurements of such quantity, not relying on the model, for future validation.

2. On the role of mechano-sensitive coupling. A strong prediction of the model is that, for a finite value of mechano-sensitivity, the patterning should be abruptly suppressed, not just decreased. It would thus be very convincing to see that the patterning completely disappears by tuning the mechano-sensitive feedback beyond a critical (finite) value. Could the authors comment on why they think they cannot reach the complete disappearance of the patterning? Is it just an experimental limitation? Can other coexisting sources of polarization be taking over when the self-organized polarization is suppressed?

3. On the tissue constitutive equation. The authors mention in the introduction the fluidization mechanism described in Ranft et al., 2010, as a way to relax stresses in growing tissues. Could the authors explain why this mechanism is not present or is not relevant in the problem at hand? In connection with this point, the constitutive equation for the tissue is taken as purely elastic, while in general a growing tissue would generically be viscoelastic. Could the authors explain better the rationale for their choice?

4. On the Myosin VI regulation of the RhoA-ROCK-Myosin II pathway.

LeGoff et al. (2013) use the ROCK inhibitor Y27632 in the wing disc to deplete Myosin II from cell-cell junctions. Surprisingly, they show it does not affect the cell size or shape patterns in the wing pouch. We suggest the authors to comment on that, given they are proposing a mechanosensation mechanism based on ROCK-Myosin II regulation through Myosin VI.

5. PCP and polarization. Part of the authors' argument for the existence of a self-organised polarization process is that classical PCP is not involved. Their evidence is based on a negative result with perturbation of PCP by RNAi. RNAi is known to achieve incomplete gene activation and with a delay. Their approach should therefore be validated (e.g. by staining preparation with anti-Fmi). Alternatively, they could analyze previously validated mutant ds05142 or ft4/ftG-rv.

6. Myosin VI and mechanosensation. An important conclusion of this paper is that mechanosensation by Myosin VI is essential for polarization. Here the authors assume that Myosin IV is a mechano-sensor by extrapolating data from CaCo cells. There is no evidence that this is also true in their system. Of course, direct evidence (e.g. with a stretching device) that Myosin IV is part of the inferred mechanosensing machinery would be great, although we understand that this may take some effort. However, the authors could relatively easily verify that Myosin IV knockdown does affect Myosin II polarization, as predicted.

https://doi.org/10.7554/eLife.57964.sa1

Author response

Essential revisions:

The quality of the descriptive data reported is remarkable and the phenomenological model is well grounded, appealing and to some extent predictive. The genetic tests performed provide significant evidence in support of the model but have some limitations. The emerging biophysical picture is novel, compelling and worthy of attention, as it implies a significant conceptual shift. Whenever fully validated, the mechanism here proposed will certainly bring fundamental biological insights into our understanding of cell morphology patterning. It has been a matter of debate among the reviewers, however, to what extent the direct experimental validation of some of the essential points of the study has been achieved, in order for the manuscript to be suitable for publication. The inherent limitations of phenomenological nature of the theoretical framework has also been raised as possibly reducing the breath of appeal, in the absence of a more direct and complete validation. From the reviewers' discussion, the following points have been raised which should be addressed in the revision to strengthen the manuscript.

1. On the polarity cue. The emergence of a polarity cue is pivotal in the proposed scenario, where it results from an instability induced by a mechano-sensitive feedback. This is a phenomenological hypothesis, which allows to explain the observations, and is to some extent predictive. However, the actual biochemical nature is not really identified, and it is not clear whether other scenarios could exhibit similar behavior. When the authors introduce cell polarity q, it would help to specify what physical quantity they have in mind, presumably associated to cytoskeletal orientation. In any case, it would be interesting that the authors suggest possible direct experimental measurements of such quantity, not relying on the model, for future validation.

The biochemical origin of the polarity cue that orients force-generating processes is indeed an important question. As part of an improved model presentation in the Results section, we now suggest actomyosin cytoskeletal polarization as a contribution to ԛ. MyoII, as well as PCP proteins, had already been shown experimentally to be planar polarized in the wing disc. We show in this work that the elimination of PCP does not result in a disrupted pattern of cell elongation. In contrast, we do think that MyoII, as a force-generating mechanosensitive motor, could be a significant component of ԛ, as suggested in the discussion of the original manuscript. We have now performed additional experiments (presented in Author response image 1) in response to point 6 supporting a contribution of MyoII to ԛ. However, the full molecular understanding of ԛ is beyond the scope of current manuscript. Thus, we prefer not to put these data in the manuscript.

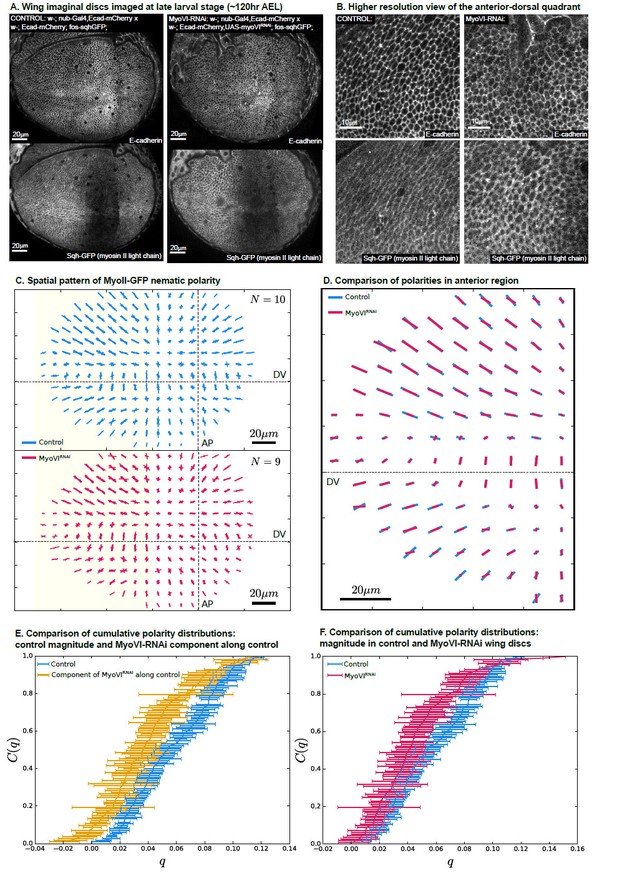

Author response image 1
MyoVI-RNAi disrupts polarity of MyoII.

(A) Ecad-mCherry and fos-sqhGFP (MyoII regulatory light chain) expressing wings imaged under control and MyoVI-RNAi conditions. Note that the fosmid-based reporter of MyoII appears to be poorly expressed in a region just anterior to the anterior-posterior boundary in both conditions. (B) A closer view of the proximal anterior-dorsal region highlights the perturbation of anisotropy in the distribution of Ecad and MyoII. (C) We measure a full spatial pattern of MyoII-GFP nematic polarity in MyoVI-RNAi and control wings. We show an overlay of all measured patterns, revealing a less organized pattern in MyoVI-RNAi wings. (D) We further compare the average pattern of MyoII-GFP nematic cell polarity in the anterior region, marked by the yellow rectangle in (C), which is not affected by the poor expression of the MyoII reporter. We find that MyoVI-RNAi wings have an average pattern of MyoII polarity that appears to be reduced in magnitude and not entirely aligned to the control. To quantify these differences, we first compare in (E) the cumulative distribution of cell polarity magnitude C(q) in control wings with the component of polarity in MyoVI-RNAi wings along the axis defined locally by the average polarity in control wings. This quantification reveals a clear reduction of MyoII cell polarity in MyoVI-RNAi wings. Secondly, in (F) we show a comparison of the cumulative cell polarity magnitude in control and MyoVI-RNAi wings. The difference in magnitudes is smaller but significant, showing that the overall reduction of the MyoII pattern stems from both a reduction in magnitude and alignment relative to the control wings.

2. On the role of mechano-sensitive coupling. A strong prediction of the model is that, for a finite value of mechano-sensitivity, the patterning should be abruptly suppressed, not just decreased. It would thus be very convincing to see that the patterning completely disappears by tuning the mechano-sensitive feedback beyond a critical (finite) value. Could the authors comment on why they think they cannot reach the complete disappearance of the patterning? Is it just an experimental limitation? Can other coexisting sources of polarization be taking over when the self-organized polarization is suppressed?

We acknowledge that our original description was unclear on this point. In the spatially resolved model, which includes the polarity orientation coupling term (Figure 6C), a polarity pattern can exist even below 𝜇𝑐 if polarity exists at the tissue boundaries. Thus, the residual pattern of cell elongation that we observe after removal of MyoVI in the wing pouch could be due to polarity existing outside of this region. Furthermore, in our experiments, there are several additional considerations:

– Our knockdown of MyoVI by RNAi begins around 80hAEL and likely requires several hours to significantly reduce the levels of MyoVI. The ensuing relaxation of the pattern of cell shape will require additional time, and therefore it is possible that we are not observing the final state that results from complete knockdown. Our attempt to apply a stronger perturbation by co-expressing Dicer or using actin-gal4 (to express even earlier and stronger) resulted in severe growth defects and/or lethality (not shown).

– There may be additional sources of mechanosensitivity, such as vinculin. There may also, as the reviewer mentions, be other sources of cell polarity that can polarize the cytoskeleton and contribute to the patterning of cell shape in the absence of MyoVI. However, these additional factors are not sufficient to fully maintain the cell shape pattern upon inhibition of MyoVI, as we do detect a phenotype (shown in Figure 7).

– The tissue surrounding the wing disc pouch extends into the folds and is connected to the peripodial membrane. Therefore, we expect that boundary stresses and polarization of the boundary tissue could play an important role, as suggested above.

– The wing tissue is not exactly in a steady state during our timelapse experiments. To account for this fact, we used a constant rate of T1-induced shear as a fit parameter, see SI Equation 25, when fitting the model to the experimental data.

Thus, our inability to completely remove the cell shape pattern is largely an experimental limitation. We have now adjusted the corresponding Discussion section to clarify this point.

3. On the tissue constitutive equation. The authors mention in the introduction the fluidization mechanism described in Ranft et al., 2010, as a way to relax stresses in growing tissues. Could the authors explain why this mechanism is not present or is not relevant in the problem at hand? In connection with this point, the constitutive equation for the tissue is taken as purely elastic, while in general a growing tissue would generically be viscoelastic. Could the authors explain better the rationale for their choice?

In the continuum model (following (Etournay et al., 2015; Merkel et al., 2017)), we consider the wing tissue as an active, viscoelastic fluid and the cells as elastic objects. Elastic stresses are relaxed by topological changes via the term R, which include both cell rearrangements and rearrangements associated with cell divisions. The effect of cell divisions in our model corresponds to a contribution to the coefficient 1τ in Equation 3, of magnitude proportional to the cell division rate 𝑘𝑑. This rate is roughly constant in our experiments and therefore does not affect the form of Equation 3. Thus, our model is consistent with Ranft et al., and the fluidization effects by divisions are effectively contained in the parameter 1τ in Equation 3.

4. On the Myosin VI regulation of the RhoA-ROCK-Myosin II pathway.

LeGoff et al. (2013) use the ROCK inhibitor Y27632 in the wing disc to deplete Myosin II from cell-cell junctions. Surprisingly, they show it does not affect the cell size or shape patterns in the wing pouch. We suggest the authors to comment on that, given they are proposing a mechanosensation mechanism based on ROCK-Myosin II regulation through Myosin VI.

We thank the reviewer for pointing out the relevance of this ROCK inhibitor experiment to our work. In (LeGoff et al., 2013), the authors indeed find that cell shape anisotropy in the periphery of the pouch is slightly but significantly increased after 40 minutes of exposure to Y27632 (Figure 5D in the reference). They state on p.4055 of this article that they, “do not favor a hypothesis linking MyoII cables and planar polarity pathways.” Instead, they “propose that MyoII polarity is a consequence of cell stretching” and “acts a negative mechanical feedback.” This conclusion is consistent with our observations and corresponds to our linearized mechanosensitive model. Our Equation 19 of SI describes the dependence of polarity on tissue shear stress (and consequently cell stretching). Equation 2 includes the “negative mechanical feedback,” whereby cell elongation is negatively influenced by changes in polarity on short timescales during which the stress does not relax by cell rearrangements. This equation is consistent with the stress changes observed after the 40min of Y27632 exposure. Namely, this 40 min incubation is likely shorter than the fluidization timescale 𝜏, which we estimate to be on the order of 2hr (see SI Equation 16). Interestingly, this experiment of LeGoff et al. provides additional information about the parameter values of our model, indicating that 𝜁 is positive in Equation 2 of SI. Our work goes beyond LeGoff et al. by suggesting that the cell morphology patterns emerge via a mechanosensitive instability in a self-organized process. We now comment on this point in the Discussion of the revised manuscript.

5. PCP and polarization. Part of the authors' argument for the existence of a self-organised polarization process is that classical PCP is not involved. Their evidence is based on a negative result with perturbation of PCP by RNAi. RNAi is known to achieve incomplete gene activation and with a delay. Their approach should therefore be validated (e.g. by staining preparation with anti-Fmi). Alternatively, they could analyze previously validated mutant ds05142 or ft4/ftG-rv.

We did not exclusively use RNAi to perturb PCP; we also used a previously characterized mutant of the core PCP component, Prickle. This mutation, pk30, eliminates the formation of the predominant Pk isoform that is expressed in the wing (Gubb et al., 1999). Our lab has previously shown that both the magnitude and orientation of Fmi polarity is reduced in pk30 mutant cells in the wing (Merkel et al., 2014). Other labs have also shown that the removal of Prickle isoforms in the wing disrupts the planar polarized distribution of Dsh, Stbm, and Fz on the membrane (pk-sple mutant, Bastock et al., 2003; Strutt, 2001; Tree et al., 2002). To further verify that the core PCP pattern is not necessary to achieve the proper cell shape pattern in the wing disc, we also examined this pattern in a null mutant for a different core PCP component, Strabismus (stbm8). We still see a similar pattern of cell shapes (not shown).

To perturb the Fat/Ds pathway, we used RNAi lines that have been previously used in several other publications (Ambegaonkar and Irvine, 2015; Misra and Irvine, 2016, 2019; Rauskolb et al., 2011; Rogulja et al., 2008). The severe undergrowth that we observe upon simultaneous knockdown of both Fat and Dachs strongly suggests that this pathway is affected by the end of larval development, when we examined cell shapes (Figure 5). We have now also added data showing the growth defect in the adult wing (now in Figure 5—figure supplement 1). To further verify the effectiveness of the RNAi approach, we have also performed new experiments to stain for Dachsous upon simultaneous RNAi for Fat and Dachs. We find that Dachsous is largely lost from the apical membrane and any residual signal is not planar polarized. Thus, this RNAi approach is effective at removing this PCP pathway. We have added these data to a new supplemental figure (Figure 5—figure supplement 1). Note that the authors of the Legoff 2013 work discussed above also concluded that myosin polarity was not a consequence of Ft/Ds PCP (using a null mutation in Dachs), in agreement with our conclusions. The classical loss-of-function mutants in Fat/Ds suggested by the reviewer are severely overgrown and therefore are likely to have significantly different distribution of stresses, which would complicate the interpretation of any changes in cell shape pattern.

6. Myosin VI and mechanosensation. An important conclusion of this paper is that mechanosensation by Myosin VI is essential for polarization. Here the authors assume that Myosin IV is a mechano-sensor by extrapolating data from CaCo cells. There is no evidence that this is also true in their system. Of course, direct evidence (e.g. with a stretching device) that Myosin IV is part of the inferred mechanosensing machinery would be great, although we understand that this may take some effort. However, the authors could relatively easily verify that Myosin IV knockdown does affect Myosin II polarization, as predicted.

We performed new experiments, as suggested, to look for the effect of MyoVI knockdown on MyoII distribution. We show these supporting data in Author response image 1. We generated a fly line expressing Ecad-mCherry from its endogenous locus, as well as a GFP fusion to the regulatory light chain of MyoII from a fosmid (Sarov et al., 2016). Note that this fosmid-based reporter of MyoII appears to be poorly expressed in a region just anterior to the anterior-posterior boundary, even in control wing discs. Nonetheless, outside of this region, the signal resembles that reported for MyoII in the literature (LeGoff et al., 2013; Mao et al., 2013).

To quantify the polarity of MyoII, we define a structure tensor based on the gradients of MyoII-GFP signal intensity (De Vos et al., 2016), averaging in grids of 10𝑥10 𝜇𝑚, aligned on the AP and DV boundaries (see Method for Author response image 1 below). In Author response image 1C, we show the superposition of the MyoII polarity profiles obtained in N=10 control experiments (top) and in N=9 MyoVI RNAi experiments (bottom). Upon MyoVI RNAi, the pattern of MyoII orientation is similar to control but appears noisier. We quantify this phenotype in the following panels. In D, we show the average MyoII polarity for each grid element, focusing on the anterior side of the wing to avoid the region of low MyoII signal. We find that MyoII polarity is reduced in the MyoVI RNAi wing discs for a majority of grid elements. We demonstrate that this difference is significant by comparing the cumulative distributions of MyoII polarity in MyoVI RNAi vs control in parts E-F. In E, the cumulative distribution of magnitudes of MyoII polarities in control discs is shown in blue. In yellow, we plot the cumulative distribution of MyoII polarities in RNAi discs, projected onto the axis defined by the MyoII polarity in control experiments in each grid element. The error bars show the standard deviation of the mean. We find that MyoII polarity is significantly perturbed, reflecting a reduced magnitude and an increased orientational disorder. Part F shows a comparison of the cumulative distributions of polarity magnitude.

This analysis clearly shows that MyoVI RNAi perturbs the polarity pattern of MyoII, consistent with the results shown in the main text. While these data are completely consistent with our suggestion that MyoII could significantly contribute to ԛ, after careful consideration we have decided to publish it only here in the response to reviewer comments. Precisely how MyoII affects the self-organization behavior deserves a more extensive investigation that is beyond the scope of this manuscript.

Method for Author response image 1:

Quantification of MyoII polarity using a structure tensor of GFP:

We divide the experimentally obtained images of MyoII-GFP signal into a rectangular grid starting at the intersection of AP and DV compartment boundaries with grid element size of 10𝑥10𝜇𝑚. In each of the grid elements we calculate a structure tensor S of the MyoII-GFP intensity 𝐼(𝑥, 𝑦) defined as:

Sij=1Agrid elementiI(x,y)jI(x,y)dxdy

where A=grid elementdxdy is the area of a grid element and indices 𝑖 and 𝑗 correspond to 𝑥 and 𝑦.

Now, nematic polarity tensor q in each grid element is defined by:

Sdet(S)=e2q

References:

Ambegaonkar, A. A., and Irvine, K. D. (2015). Coordination of planar cell polarity pathways through spiny-legs. eLife, 4(OCTOBER2015). https://doi.org/10.7554/eLife.09946

Bastock, R., Strutt, H., and Strutt, D. (2003). Strabismus is asymmetrically localised and binds to Prickle and Dishevelled during Drosophila planar polarity patterning. Development, 130(13), 3007– 3014. https://doi.org/10.1242/dev.00526

De Vos, W. H., Munck, S., and Timmermans, J.-P. (Eds.). (2016). Focus on Bio-Image Informatics (Vol. 219). Springer International Publishing. https://doi.org/10.1007/978-3-319-28549-8

Etournay, R., Popović, M., Merkel, M., Nandi, A., Blasse, C., Aigouy, B., Brandl, H., Myers, G., Salbreux, G., Jülicher, F., and Eaton, S. (2015). Interplay of cell dynamics and epithelial tension during morphogenesis of the Drosophila pupal wing. eLife, 4, e07090.

https://doi.org/10.7554/eLife.07090

Gubb, D., Green, C., Huen, D., Coulson, D., Johnson, G., Tree, D., Collier, S., and Roote, J. (1999). The balance between isoforms of the prickle LIM domain protein is critical for planar polarity in Drosophila imaginal discs. Genes and Development, 13(17), 2315–2327. https://doi.org/10.1101/gad.13.17.2315

LeGoff, L., Rouault, H., and Lecuit, T. (2013). A global pattern of mechanical stress polarizes cell divisions and cell shape in the growing Drosophila wing disc. Development, 140(19), 4051–4059. https://doi.org/10.1242/dev.090878

Mao, Y., Tournier, A. L., Hoppe, A., Kester, L., Thompson, B. J., and Tapon, N. (2013). Differential proliferation rates generate patterns of mechanical tension that orient tissue growth. The EMBO Journal, 32(21), 2790–2803. https://doi.org/10.1038/emboj.2013.197

Merkel, M., Etournay, R., Popović, M., Salbreux, G., Eaton, S., and Jülicher, F. (2017). Triangles bridge the scales: Quantifying cellular contributions to tissue deformation. Physical Review E, 95(3), 032401. https://doi.org/10.1103/PhysRevE.95.032401

Merkel, M., Sagner, A., Gruber, F. S., Etournay, R., Blasse, C., Myers, E., Eaton, S., and Jülicher, F. (2014). The balance of prickle/spiny-legs isoforms controls the amount of coupling between core and fat PCP systems. Current Biology, 24(18), 2111–2123.

https://doi.org/10.1016/j.cub.2014.08.005

Misra, J. R., and Irvine, K. D. (2016). Vamana Couples Fat Signaling to the Hippo Pathway. Developmental Cell, 39(2), 254–266. https://doi.org/10.1016/j.devcel.2016.09.017

Misra, J. R., and Irvine, K. D. (2019). Early girl is a novel component of the Fat signaling pathway. PLOS Genetics, 15(1), e1007955. https://doi.org/10.1371/journal.pgen.1007955

Rauskolb, C., Pan, G., Reddy, B. V. V. G., Oh, H., and Irvine, K. D. (2011). Zyxin links fat signaling to the hippo pathway. PLoS Biology, 9(6), e1000624. https://doi.org/10.1371/journal.pbio.1000624

Rogulja, D., Rauskolb, C., and Irvine, K. D. (2008). Morphogen Control of Wing Growth through the Fat Signaling Pathway. Developmental Cell, 15(2), 309–321. https://doi.org/10.1016/j.devcel.2008.06.003

Sarov, M. et al. (2016). A genome-wide resource for the analysis of protein localisation in Drosophila. eLife, 5(FEBRUARY2016). https://doi.org/10.7554/eLife.12068

Strutt, D. I. (2001). Asymmetric localization of frizzled and the establishment of cell polarity in the Drosophila wing. Molecular Cell, 7(2), 367–375. https://doi.org/10.1016/S1097-2765(01)001848

Tree, D. R. P., Shulman, J. M., Rousset, R., Scott, M. P., Gubb, D., and Axelrod, J. D. (2002). Prickle mediates feedback amplification to generate asymmetric planar cell polarity signaling. Cell, 109(3), 371–381. https://doi.org/10.1016/S0092-8674(02)00715-8

https://doi.org/10.7554/eLife.57964.sa2

Article and author information

Author details

  1. Natalie A Dye

    1. Max Planck Institute for Molecular Cell Biology and Genetics, Dresden, Germany
    2. Cluster of Excellence Physics of Life, Technische Universität Dresden, Dresden, Germany
    3. Mildred Scheel Nachwuchszentrum (MSNZ) P2, Medical Faculty, Technische Universität Dresden, Dresden, Germany
    Contribution
    Conceptualization, Resources, Data curation, Software, Validation, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Marko Popović
    For correspondence
    natalie_anne.dye@tu-dresden.de
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4859-6670
  2. Marko Popović

    1. Institute of Physics, École Polytechnique Fédérale de Lausanne, Lausanne, Switzerland
    2. Max Planck Institute for the Physics of Complex Systems, Dresden, Germany
    3. Center for Systems Biology Dresden, Dresden, Germany
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Funding acquisition, Validation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    Contributed equally with
    Natalie A Dye
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2360-3982
  3. K Venkatesan Iyer

    1. Max Planck Institute for Molecular Cell Biology and Genetics, Dresden, Germany
    2. Cluster of Excellence Physics of Life, Technische Universität Dresden, Dresden, Germany
    Present address
    Department of Mechanical Engineering, Indian Institute of Science, Bangalore, India
    Contribution
    Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Jana F Fuhrmann

    1. Max Planck Institute for Molecular Cell Biology and Genetics, Dresden, Germany
    2. Cluster of Excellence Physics of Life, Technische Universität Dresden, Dresden, Germany
    Contribution
    Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Romina Piscitello-Gómez

    1. Max Planck Institute for Molecular Cell Biology and Genetics, Dresden, Germany
    2. Cluster of Excellence Physics of Life, Technische Universität Dresden, Dresden, Germany
    Contribution
    Validation, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Suzanne Eaton (deceased)

    1. Max Planck Institute for Molecular Cell Biology and Genetics, Dresden, Germany
    2. Cluster of Excellence Physics of Life, Technische Universität Dresden, Dresden, Germany
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Methodology, Project administration
    Competing interests
    No competing interests declared
  7. Frank Jülicher

    1. Cluster of Excellence Physics of Life, Technische Universität Dresden, Dresden, Germany
    2. Max Planck Institute for the Physics of Complex Systems, Dresden, Germany
    3. Center for Systems Biology Dresden, Dresden, Germany
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    julicher@pks.mpg.de
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4731-9185

Funding

Max-Planck-Gesellschaft

  • Natalie A Dye
  • Marko Popovic
  • K Venkatesan Iyer
  • Jana Fuhrmann
  • Romina Piscitello-Gómez
  • Suzanne Eaton
  • Frank Jülicher

Deutsche Forschungsgemeinschaft (EA4/10-1)

  • Natalie A Dye
  • K Venkatesan Iyer
  • Suzanne Eaton

Swiss National Science Foundation (200021-165509)

  • Marko Popovic

Simons Foundation (454953)

  • Marko Popovic

Deutsche Forschungsgemeinschaft (EA4/10-2)

  • Natalie A Dye
  • K Venkatesan Iyer
  • Suzanne Eaton

ELBE PhD program

  • Romina Piscitello-Gómez

Deutsche Krebshilfe (MSNZ Dresden)

  • Natalie A Dye

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Stephan Grill for the microscope used to perform circular laser ablations. We thank the Light Microscopy Facility of the MPI-CBG for assistance with all other imaging experiments. Benoit Lombardot, formerly of the Image Analysis Facility of the MPI-CBG, provided us with a FIJI script to perform the projection of the apical surface, originally designed by Dagmar Kainmueller. Franz Gruber generated the pk30,ecadGFP fly line. We thank Christian Dahmann, Charlie Duclut, Kinneret Keren, Yonit Maroudas-Sacks, Alphee Michelot, and Ioannis Nellas for critical review of the manuscript. Lastly, we dedicate this manuscript to our co-author, Suzanne Eaton, who passed away tragically toward the conclusion of this work. This work was supported by funding from the Max-Planck-Gesellschaft (NAD, KVI, JFF, RPG, SE, FJ), Deutsche Forschungsgemeinschaft (EA4/10-1, EA4/10-2; NAD, KVI, SE), Swiss National Science Foundation (Grant #200021–165509; MP), the Simons Foundation (Grant #454953 to Matthieu Wyart; MP), the Deutsche Krebshilfe/MSNZ Dresden (NAD), and the ELBE PhD program (RPG). Funding sources were not involved in the study design, data collection, data interpretation, or the decision to submit the work for publication.

Senior Editor

  1. Aleksandra M Walczak, École Normale Supérieure, France

Reviewing Editor

  1. Jaume Casademunt, University of Barcelona, Spain

Reviewer

  1. Pierre Recho, Institut Curie, France

Publication history

  1. Received: April 16, 2020
  2. Accepted: March 25, 2021
  3. Accepted Manuscript published: March 26, 2021 (version 1)
  4. Version of Record published: May 19, 2021 (version 2)
  5. Version of Record updated: May 27, 2021 (version 3)

Copyright

© 2021, Dye et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,713
    Page views
  • 474
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Developmental Biology
    Keiichiro Koiwai et al.
    Tools and Resources

    Crustacean aquaculture is expected to be a major source of fishery commodities in the near future. Hemocytes are key players of the immune system in shrimps; however, their classification, maturation, and differentiation are still under debate. To date, only discrete and inconsistent information on the classification of shrimp hemocytes has been reported, showing that the morphological characteristics are not sufficient to resolve their actual roles. Our present study using single-cell RNA sequencing, revealed six types of hemocytes of Marsupenaeus japonicus based on their transcriptional profiles. We identified markers of each subpopulation and predicted the differentiation pathways involved in their maturation. We also predicted cell growth factors that might play crucial roles in hemocyte differentiation. Different immune roles among these subpopulations were suggested from the analysis of differentially expressed immune-related genes. These results provide a unified classification of shrimp hemocytes, which improves the understanding of its immune system.

    1. Developmental Biology
    2. Evolutionary Biology
    Cédric Girard-Buttoz et al.
    Research Article

    The biological embedding model (BEM) suggests that fitness costs of maternal loss arise when early-life experience embeds long-term alterations to hypothalamic-pituitary-adrenal (HPA) axis activity. Alternatively, the adaptive calibration model (ACM) regards physiological changes during ontogeny as short-term adaptations. Both models have been tested in humans but rarely in wild, long-lived animals. We assessed whether, as in humans, maternal loss had short- and long-term impacts on orphan wild chimpanzee urinary cortisol levels and diurnal urinary cortisol slopes, both indicative of HPA axis functioning. Immature chimpanzees recently orphaned and/or orphaned early in life had diurnal cortisol slopes reflecting heightened activation of the HPA axis. However, these effects appeared short-term, with no consistent differences between orphan and non-orphan cortisol profiles in mature males, suggesting stronger support for the ACM than the BEM in wild chimpanzees. Compensatory mechanisms, such as adoption, may buffer against certain physiological effects of maternal loss in this species.
