Identification of ubiquitin Ser57 kinases regulating the oxidative stress response in yeast

  1. Nathaniel L Hepowit
  2. Kevin N Pereira
  3. Jessica M Tumolo
  4. Walter J Chazin
  5. Jason A MacGurn  Is a corresponding author
  1. Department of Cell and Developmental Biology, Vanderbilt University, United States
  2. Department of Biochemistry, Vanderbilt University, United States

Abstract

Ubiquitination regulates many different cellular processes, including protein quality control, membrane trafficking, and stress responses. The diversity of ubiquitin functions in the cell is partly due to its ability to form chains with distinct linkages that can alter the fate of substrate proteins in unique ways. The complexity of the ubiquitin code is further enhanced by post-translational modifications on ubiquitin itself, the biological functions of which are not well understood. Here, we present genetic and biochemical evidence that serine 57 (Ser57) phosphorylation of ubiquitin functions in stress responses in Saccharomyces cerevisiae, including the oxidative stress response. We also identify and characterize the first known Ser57 ubiquitin kinases in yeast and human cells, and we report that two Ser57 ubiquitin kinases regulate the oxidative stress response in yeast. These studies implicate ubiquitin phosphorylation at the Ser57 position as an important modifier of ubiquitin function, particularly in response to proteotoxic stress.

Introduction

Ubiquitin is a post-translational modifier that regulates diverse cellular processes in eukaryotic cells. The broad utility of ubiquitin as a regulatory modification is due to the high degree of complexity associated with ubiquitin polymers, which are added to substrate proteins by the activity of ubiquitin conjugation machinery (E1-E2-E3 cascades) and removed from substrates by deubiquitylases (DUBs). Ubiquitin can be conjugated recursively at any of seven internal lysines or the N-terminus to generate polymers with distinct topological features (Herhaus and Dikic, 2015; Yau and Rape, 2016; Swatek and Komander, 2016). Complexity is further enhanced by the formation of mixed and branched polymers (Ohtake et al., 2018; Meyer and Rape, 2014; Swatek et al., 2019) and by post-translational modifications that can occur on ubiquitin itself (Herhaus and Dikic, 2015). For example, PINK1-mediated phosphorylation of ubiquitin at the Ser65 position plays an important role in mitophagy by regulating parkin-mediated ubiquitination of mitochondrial membrane proteins (Wauer et al., 2015; Ordureau et al., 2015; Koyano et al., 2014; Kazlauskaite et al., 2014; Kane et al., 2014; Ordureau et al., 2014). Phosphorylation of ubiquitin at the Ser57 has also been reported (Peng et al., 2003; Swaney et al., 2015; Lee et al., 2017), but the kinases that produce this modification and its regulatory significance remain unknown.

Many proteotoxic stresses activate ubiquitin networks to promote protein quality control and protect the cell from damage associated with systemic protein misfolding. Oxidative stress is highly damaging to the cell, triggering deployment and re-distribution of existing ubiquitin pools and induction of ubiquitin biosynthesis to promote survival by activating a repertoire of ubiquitin-mediated responses (Cheng et al., 1994). During oxidative stress, many proteins become damaged and misfolded, resulting in a global increase in K48-linked ubiquitin conjugation that targets substrates for clearance by proteasome-mediated degradation (Finley, 2009; Shang and Taylor, 2011). Oxidative stress also triggers translation arrest (Grant, 2011), resulting in K63-linked polyubiquitylation on ribosomes to stabilize the 80S complex and the formation of polysomes (Silva et al., 2015). Furthermore, oxidative damage of DNA activates signaling and repair processes that are tightly regulated by K63 ubiquitylation and deubiquitylation activities (Demple and Harrison, 1994; Bergink and Jentsch, 2009; Ng et al., 2016; Croteau and Bohr, 1997; Thorslund et al., 2015). Thus, ubiquitin networks regulate many cellular processes critical for survival during conditions of oxidative stress.

Although ubiquitin networks play a critical role in the eukaryotic cellular response to proteotoxic stress, precisely how these networks are tuned to enhance protein quality control and other protective functions remain unclear. Given that Ser65 phosphorylation of ubiquitin regulates the clearance of damaged mitochondria (Wauer et al., 2015; Ordureau et al., 2015; Koyano et al., 2014; Kazlauskaite et al., 2014; Kane et al., 2014; Ordureau et al., 2014), we hypothesized that phosphorylation at other positions may regulate ubiquitin function, particularly in conditions that promote protein damage and misfolding. Since it is the most abundant phosphorylated form (Swaney et al., 2015), we examined the biological functions of Ser57 phosphorylated ubiquitin in yeast, aiming to identify and characterize the molecular events and signaling processes that regulate its production.

Results

To probe potential biological functions of Ser57 ubiquitin phosphorylation in yeast, we generated yeast strains expressing exclusively wildtype, Ser57Ala (phosphorylation resistant, or S57A) or Ser57Asp (phosphomimetic, or S57D) ubiquitin. It is important to emphasize that such complete ubiquitin replacement may exaggerate effects associated with physiological ubiquitin phosphorylation, which occurs at very low stoichiometry (Swaney et al., 2015; Lee et al., 2017) and probably in a highly localized manner (as exemplified by PINK1-mediated Ser65 phosphorylation of ubiquitin on damaged segments of mitochondrial membrane [Pickrell and Youle, 2015]). With these limitations in mind, we examined the growth of these yeast strains in the context of various stressors, including heat stress, DNA damage and replication stress (hydroxyurea and arsenate), and protein misfolding stress (canavanine and thialysine, which are toxic analogs of arginine and lysine, respectively). We found that expression of S57A or S57D ubiquitin did not affect growth at ambient temperature (26°C) (consistent with previous reports [Peng et al., 2003; Lee et al., 2017; Sloper-Mould et al., 2001]) or sensitivity to arsenate (Figure 1A). However, expression of S57D ubiquitin conferred sensitivity to hydroxyurea and resistance to canavanine (which was reported previously [Lee et al., 2017]) and thialysine (Figure 1A). We also noticed that expression of S57D ubiquitin enhanced both long-term and acute tolerance of thermal stress (Figure 1B–D) while yeast expressing S57A ubiquitin exhibited thermal sensitivity (Figure 1E and Figure 1—figure supplement 1). These findings indicate that Ser57 phosphorylation of ubiquitin promotes cellular tolerance of various proteotoxic stressors.

Figure 1 with 1 supplement see all

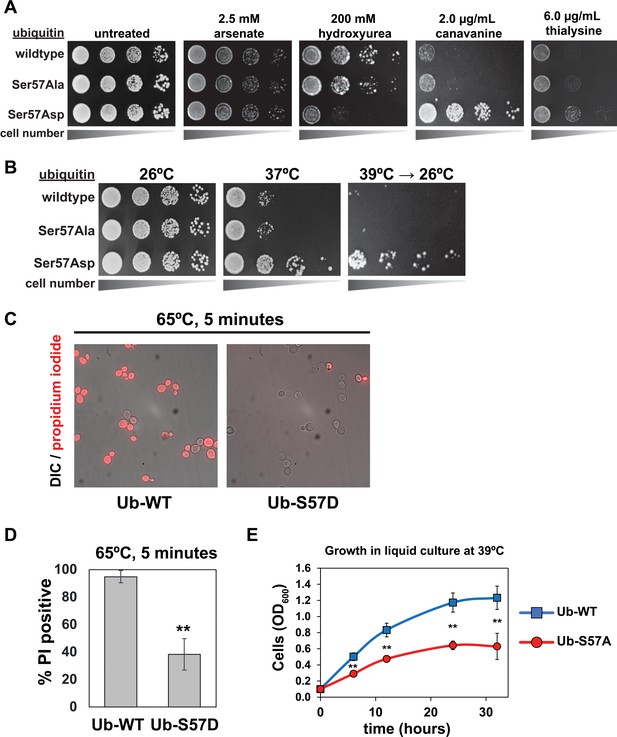

Genetic evidence of a role for Ser57 phosphorylation in the cellular response to stress.

Ubiquitin variants were shuffled into the SUB280 yeast background (as described in the Materials and Methods) to generate strains that express exclusively wildtype, S57A, or S57D ubiquitin. (A) Yeast strains expressing the indicated ubiquitin variants (wildtype, S57A or S57D) were plated in serial dilutions onto the indicated synthetic dextrose medium (SDM) agar plates. (B) Serial dilutions of yeast cells were plated onto YPD agar plates and incubated at 26°C, 37°C, or 39°C for 18 hr and shifted back to 26°C for recovery. (C) Fluorescence microscopy and (D) quantification of cells stained with propidium iodide (PI) after incubation at 65°C for 5 min. Dead cells are stained with PI. Results are means (n = 3) of % PI-positive cells ± SD (error bars). Double asterisk (**) indicates p value < 0.005 using a Student’s t-test. (E) With a starting OD600 of 0.1, cells were grown in liquid culture (-URA synthetic medium) at 39°C and OD600 was measured at different time points. Data was collected from four biological replicate experiments (n=4) and the mean OD600 ± SD (error bars) was calculated for each time point. Double asterisk (**) indicates p value < 0.005 using a Student’s t-test. For all statistical analysis associated with Figure 1, p values are reported in the Figure 1—source data 1.

Figure 1—source data 1

Quantification and statistical analysis for viability stain measurements (Figure 1D) and cell growth measurements (Figure 1E and Figure 1—figure supplement 1).

https://cdn.elifesciences.org/articles/58155/elife-58155-fig1-data1-v2.xlsx

Next, we analyzed the role of Ser57 phosphorylation in the oxidative stress response. Wildtype yeast cells arrest growth in response to oxidative stress and activate responses that help cells cope with the proteotoxic and DNA damaging effects of oxidation (Silva et al., 2015; Shapira et al., 2004; Petti et al., 2011; Martindale and Holbrook, 2002). Interestingly, while yeast cells expressing wildtype or S57D ubiquitin arrested growth in response to moderate oxidative stress (>1 mM H2O2), cells expressing S57A ubiquitin were deficient in this response and only arrested growth in response to more severe oxidative stress (>2 mM H2O2) (Figure 2A). The failed growth arrest observed for cells expressing S57A ubiquitin correlated with decreased viability (Figure 2B). Since oxidative stress induces the production of both K48- and K63-linked ubiquitin conjugates (Shang and Taylor, 2011; Silva et al., 2015; Sun et al., 2009; Tsirigotis et al., 2001) we tested if the expression of S57A and S57D ubiquitin alters ubiquitin conjugation patterns in response to oxidative stress. We found that 30 min exposure to H2O2 (1.0 mM) resulted in an increased abundance of total ubiquitin conjugates (Figure 2C) as well as K48-linked polymers (Figure 2C–D), consistent with a previous report (Silva et al., 2015). Compared to cells expressing wildtype ubiquitin, we found that cells expressing S57D ubiquitin exhibited increased abundance of K48-linked polymers and decreased abundance of K63-linked polymers (Figure 2C–E). By contrast, cells expressing S57A ubiquitin did not exhibit a significant increase in the production of K48-linked polyubiquitin chains in response to oxidative stress (Figure 2C–D). Since substitutions at the Ser57 position of ubiquitin (S57A, S57D) might interfere with the recognition of ubiquitin polymers by linkage-specific antibodies, we used SILAC-MS to analyze how the expression of phosphomimetic (S57D) ubiquitin affects ubiquitin polymer linkage abundance compared to wildtype ubiquitin during conditions of oxidative stress. Consistent with the immunoblot results, this analysis revealed that S57D expression increases the production of K48-linked polymers by 39% during oxidative stress (Figure 2—figure supplement 1 and Supplementary file 1). (Notably, K63-linked polymers are a blind spot of this analysis, since the K63-linked ubiquitin remnant peptide also harbors the Ser57 position which is mutated to Asp in the light channel of this experiment.) It is worth noting that complete ubiquitin replacement in these cells exaggerates the impact physiological phosphorylation of ubiquitin is likely to have on global poly-ubiquitin linkage abundance. Indeed, we found that oxidative stress induced an approximately two-fold increase in phosphorylation of ubiquitin at the Ser57 position (Figure 2F and Figure 2—figure supplement 2). Based on previous measurements (Swaney et al., 2015; Lee et al., 2017), this stress-induced ubiquitin phosphorylation remains sub-stoichiometric and may have localized effects but is unlikely to alter global poly-ubiquitin linkage patterns. Ultimately, a deeper understanding of how Ser57 phosphorylated ubiquitin contributes to cellular stress responses will require the identification and characterization of the kinases that produce it.

Figure 2 with 2 supplements see all

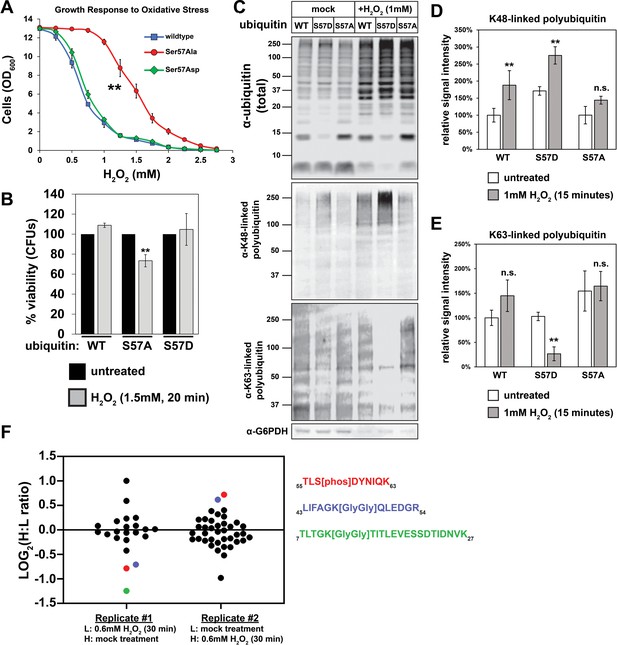

Ser57 phosphorylation of ubiquitin is important for the yeast oxidative stress response.

(A) OD600 of yeast cells cultured in YPD with different concentrations of H2O2 for 48 hr (starting OD600 = 0.025). Data was collected for four biological replicate experiments (n=4) and the means ± SD (error bars) were calculated. Double asterisk (**) indicates p value < 0.005 between the range of 0.5 mM to 2.5 mM H2O2 using a Student’s t-test, which was only observed for yeast expressing S57A ubiquitin. (B) CFU count of cells treated with 1.5 mM H2O2 for 20 min. Untreated control was taken before H2O2 treatment. Data was collected for three bioloigcal replicate experiments (n = 3) and the means ± SD (error bars) were calculated. Double asterisk (**) indicates p value < 0.05 comparing untreated to H2O2 treated cells using a Student’s t-test, which revealed that only yeast expressing S57A ubiquitin experienced a significant loss of viability during H2O2 treatment in this experiment. (C) Western blot with anti-ubiquitin, anti-K48 ubiquitin, and anti-K63 ubiquitin antibodies of lysates from cells treated with 1 mM H2O2 for 30 min. (D and E) Quantification of results from the experiment shown in (C) is presented as the mean of four biological replicate experiments (n = 4) ± SD (error bars). Double asterisk (**) indicates p value < 0.005 comparing untreated to H2O2 treated cells using a Student’s t-test. Correspondingly, p values > 0.05 are labeled as not significant (n.s.). Cells used in A-E are SUB280-derived strains exclusively expressing WT, S57A, or S57D ubiquitin variants. (F) SILAC-MS of affinity purified 3XFLAG-ubiquitin from yeast cells (JMY1312) treated with 0.6 mM H2O2 for 30 minutes. The peptide corresponding to Ser57 phosphorylation is colored red, while peptides corresponding to K48- and K11-linked poly-ubiquitin are colored blue and green, respectively. All other ubiquitin-derived peptide measurements are represented with black dots. All individual measurements and p values derived from statistical tests associated with the data in this figure are reported in Figure 2—source data 1.

Figure 2—source data 1

Quantification and statistical analysis for the growth (Figure 2A), cell viability (Figure 2B), and anti-K48/K63 western blot analysis (Figure 2D–E) of cells in the presence or absence of H2O2.

The source data for both replicates in Figure 2F are also included.

https://cdn.elifesciences.org/articles/58155/elife-58155-fig2-data1-v2.xlsx

To identify candidate ubiquitin kinases, we screened for Ser57 phosphorylation activity by co-expressing ubiquitin and yeast kinases in E. coli and immunoblotting lysates using an antibody specific for Ser57 phosphorylated ubiquitin. Initially, we focused on candidate kinases for which mutants exhibit phenotypes corresponding to those observed for cells expressing S57A or S57D ubiquitin. We found that co-expression of ubiquitin with the kinase Vhs1 resulted in immunodetection of Ser57 phosphorylated ubiquitin (Figure 3A and Figure 3—figure supplement 1). Vhs1 is part of the yeast family of Snf1-related kinases (Tumolo et al., 2020), and additional screening revealed three other kinases in this family that phosphorylated ubiquitin at the Ser57 position: Sks1 (which is 43% identical to Vhs1) (Figure 3B), Gin4 and Kcc4 (Figure 3—figure supplement 2). A previous study reported consensus phosphorylation motifs for Vhs1, Gin4, and Kcc4, and all bear similarity to the amino acid sequence surrounding Ser57 in ubiquitin (Supplementary file 2; Mok et al., 2010).

Figure 3 with 13 supplements see all

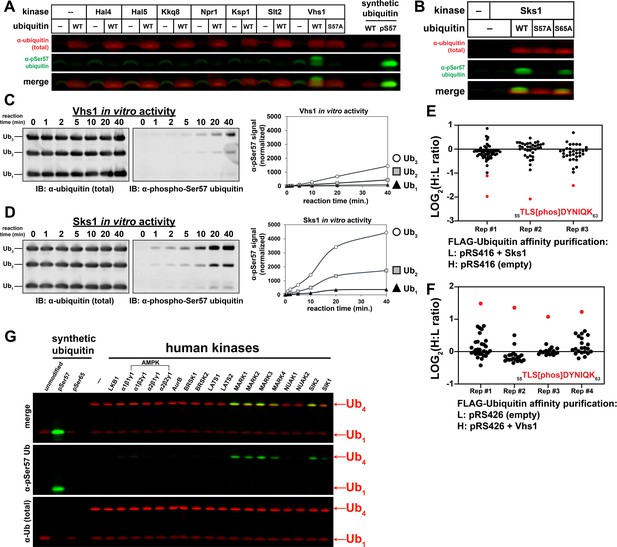

A subset of the Snf1-related family of kinases phosphorylates ubiquitin at the Ser57 position.

(A) Anti-phospho-Ser57 western blot of E. coli Rosetta 2 (DE3) lysates co-expressing ubiquitin and yeast kinases. (B) Anti-phospho-Ser57 western blot of E. coli Rosetta 2 (DE3) lysates co-expressing ubiquitin (wildtype, S57A, or S65A variants) and Sks1, a paralog of Vhs1. (C and D) In vitro reconstitution of ubiquitin Ser57 phosphorylation using purified recombinant Vhs1 (C) and Sks1 (D). Ubiquitin monomers as well as linear (M1-linked) dimers and trimers were included in equal amounts. Numerical values above each lane represent reaction time for the sample. (E and F) SILAC-MS of IP-enriched 3XFLAG ubiquitin from yeast cells (JMY1312 background) with either empty vector or with vector for overexpression of Sks1 (E) or Vhs1 (F). Black and red dots indicate resolved ubiquitin peptides and Ser57-phosphopeptides, respectively. All individual measurements are reported in Figure 3—source data 1. (G) In vitro activity assay of select human kinases of the AMPK family using equal amounts of mono-ubiquitin and M1-linked tetra-ubiquitin as substrates.

Figure 3—source data 1

Source measurements for the H:L ratio of ubiquitin peptides resolved in all replicate experiments of SUB280 cells overexpressing Sks1 (Figure 3E) or Vhs1 (Figure 3F).

https://cdn.elifesciences.org/articles/58155/elife-58155-fig3-data1-v2.xlsx

We further characterized the activity of Vhs1 and Sks1. Analysis of Vhs1 and Sks1 activity using Phos-tag acrylamide gels (Figure 3—figure supplement 3) confirmed the production of Ser57 phosphorylated ubiquitin. Using purified recombinant Vhs1 and Sks1, we reconstituted kinase activity toward Ser57 of ubiquitin and found that both kinases exhibited a preference for polymers (tri-ubiquitin > di ubiquitin > mono ubiquitin) although the activity of Sks1 was noticeably greater than that of Vhs1 (Figure 3C–D and Figure 3—figure supplement 4–5). Analysis of linkage specificity in the phosphorylation reaction revealed that Vhs1 is active toward linear (M1-linked), K29-, and K48-linked tetramers, while Sks1 is active toward linear, K48-, and K63-linked polymers (Figure 3—figure supplement 6). These differences in linkage-specific activities in vitro may underlie non-overlapping functions for these two kinases in vivo. To test if the observed in vitro activity correlated with in vivo activity, we used SILAC to quantify changes to ubiquitin modifications following over-expression of Vhs1 or Sks1. Importantly, we observed that overexpression of either Vhs1 or Sks1 increased ubiquitin phosphorylation at the Ser57 position (Figure 3E–F and Figure 3—figure supplement 7–8). Interestingly, this analysis also revealed a number of phosphopeptides derived from Vhs1 within its kinase domain (Ser86) and its Ser-rich C-terminus (Figure 3—figure supplement 9), suggesting that Vhs1 itself may be subject to complex phospho-regulation. Taken together our data indicate that Vhs1 and Sks1 are bona fide ubiquitin kinases that specifically phosphorylate the Ser57 position.

The family of Snf1-related kinases in yeast share homology with the human AMPK-related kinases (Tumolo et al., 2020). To test if human AMPK-related kinases exhibit activity toward ubiquitin, we performed in vitro kinase assays and found that a subset of this family phosphorylated ubiquitin at the Ser57 position specifically on tetramers (Figure 3G). This activity was apparent in the MARK kinases (MARK1-4) as well as related kinases SIK1 and SIK2. It is noteworthy that other candidate human ubiquitin kinases (initially identified by commercial screening services) did not exhibit Ser57 ubiquitin kinase activity in vitro (Figure 3—figure supplement 10). Mass spectrometry analysis confirmed production of Ser57 phosphorylated ubiquitin by MARK2 in vitro (Figure 3—figure supplement 11). Further analysis of MARK2 activity toward linkage-specific ubiquitin tetramers revealed a preference for linear, K11-, K29-, and K63-linked tetramers (Figure 3—figure supplement 12). Given that Ser57 ubiquitin phosphorylation activity was detected within yeast and human Snf1-related kinases (Figure 3—figure supplement 13), we propose that this is an evolutionarily conserved function for a subset of kinases within this family.

In an effort to understand the biological functions of Ser57-phosphorylated ubiquitin in yeast, we examined whether the deletion or overexpression of Ser57 ubiquitin kinases phenocopies expression of S57A or S57D ubiquitin, respectively (Figure 1A–B and Figure 2A). We did not observe heat tolerance phenotypes associated with deletion or overexpression of Ser57 ubiquitin kinases (Figure 4—figure supplement 1–2). However, yeast cells overexpressing VHS1 exhibited resistance to canavanine and thialysine (Figure 4A–B and Figure 4—figure supplement 3), reminiscent of canavanine and thialysine resistance conferred by S57D expression (Figure 1A; Lee et al., 2017). Overexpression of a catalytic dead variant (vhs1-K41R, which harbors a mutation in the conserved ATP binding pocket of the kinase domain) did not confer canavanine or thialysine resistance (Figure 4A–B and Figure 4—figure supplement 3). Importantly, the canavanine and thialysine resistance associated with VHS1 overexpression was suppressed in the presence of S57A ubiquitin (Figure 4C–D and Figure 4—figure supplement 4), indicating the phenotypes are driven by the production of Ser57-phosphorylated ubiquitin. We also observed that yeast cells overexpressing SKS1 exhibited hypersensitivity to hydroxyurea (Figure 4—figure supplement 5), consistent with the hydroxyurea sensitivity phenotype observed in yeast cells expressing S57D ubiquitin (Figure 1A). The hydroxyurea hypersensitivity associated with SKS1 overexpression was suppressed in the presence of S57A ubiquitin (Figure 4E), indicating the phenotype requires Ser57 phosphorylation of ubiquitin. Taken together, these phenotypic correlations suggest that Vhs1 and Sks1 exert stress phenotypes associated with the phosphorylation of ubiquitin at the Ser57 position.

Figure 4 with 5 supplements see all

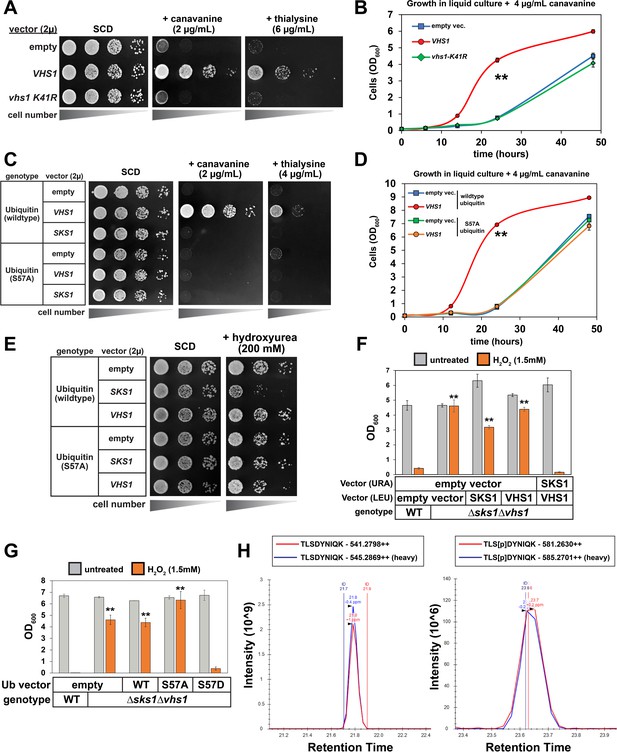

Regulation of proteotoxic stress responses by Ser57 ubiquitin kinases.

(A) Analysis of yeast strains containing high copy plasmids (empty vector, VHS1, or a kinase dead (vhs1 K41R) variant) grown on the indicated synthetic media plates. (B) Analysis of the same yeast strains in (A) grown in liquid culture containing canavanine (4 µg/mL). Values in each time point are means of three biological replicates (n = 3) and ± SD (error bars). Double asterisk (**) indicates p value < 0.005 at the 14 and 24 hr time points using a Student’s t-test, which was only observed for yeast overexpressing wildtype VHS1. (C) Analysis of yeast strains (SUB280 background, expressing either WT or S57A ubiquitin) containing the indicated high copy plasmids (empty vector or harboring VHS1 or SKS1) grown on the indicated synthetic media plates. (D) Analysis of the same yeast strains in (C) grown in liquid culture containing canavanine (4 µg/mL). Values in each time point are means of three biological replicates (n = 3) and ± SD (error bars). Double asterisk (**) indicates p value < 0.005 at the 14 and 24 hr time points using a Student’s t-test, which was only observed for yeast overexpressing wildtype VHS1 and expressing wildtype ubiquitin. (E) Analysis of yeast strains (SUB280 background, expressing either WT or S57A ubiquitin) containing the indicated high copy plasmids (empty vector or harboring VHS1 or SKS1) grown on the indicated synthetic media plates. (F) Analysis of the growth response to oxidative stress in WT and Δsks1Δvhs1 double mutant cells, with indicated complementation expression vectors. OD600 of cells (n = 4; ± SD error bars) in dropout SM media in the absence or presence of 1.5 mM H2O2 after incubation at 24 hr or 48 hr, respectively. Starting OD600 of 0.025 and data was collected for four biological replicate experiments (n=4). Double asterisk (**) indicates p value < 0.001 compared to wildtype yeast treated with H2O2 using a Student’s t-test, which was observed for yeast expressing empty vector, VHS1 individually, or SKS1 individually but not for yeast expressing both VHS1 and SKS1. (G) Analysis of the growth response to oxidative stress in WT and Δsks1Δvhs1 double mutant cells, with indicated ubiquitin expression vectors. OD600 of cells (n = 4; ± SD error bars) in dropout SM media in the absence or presence of 1.5 mM H2O2 after incubation at 24 hr or 48 hr, respectively. Starting OD600 of 0.025 and data was collected for four biological replicate experiments (n=4). Double asterisk (**) indicates p value < 0.001 compared to wildtype yeast treated with H2O2 using a Student’s t-test, which was observed for yeast expressing empty vector, wildtype ubiquitin, or S57A ubiquitin but not S57D ubiquitin. (H) Chromatography data serving as the basis for quantification of Ser57 phosphorylation corresponding to Table 1. Yeast cells expressing endogenous FLAG-ubiquitin (JMY1312 [SEY6210 background] parent cells) were cultured in heavy (H; wildtype cells [blue trace]) or light (L, isogenic Δvhs1Δsks1 deletion [red trace]) SILAC media to the mid-log phase and cells were treated with 1 mM H2O2 for 30 min before harvesting. Following cell lysis and overnight tryptic digestion of affinity-purified FLAG-ubiquitin, phospho-peptides were enriched using IMAC chromatography (see Materials and Methods) and analyzed by mass spectrometry. The Ser57 phosphopeptide is represented in the right panel, while the corresponding unmodified peptide is depicted in the left panel. All individual measurements and p values derived from statistical tests associated with the data in this figure are reported in Figure 4—source data 1.

Figure 4—source data 1

Quantification and statistical analysis for growth tolerance in canavanine (Figure 4B and D), thialysine (Figure 4—figure supplements 3 and 4), and hydrogen peroxide (Figure 4E and F).

https://cdn.elifesciences.org/articles/58155/elife-58155-fig4-data1-v2.xlsx

We also examined whether the deletion of Ser57 ubiquitin kinases phenocopied the oxidative stress response defect observed for yeast cells expressing S57A ubiquitin (Figure 2A). Notably, Δsks1Δvhs1 double mutant cells failed to arrest growth in response to oxidative stress, a phenotype that could only be complemented by the re-introduction of both VHS1 and SKS1 (Figure 4F). This phenotype of Δsks1Δvhs1 double mutant cells was also suppressed by the expression of S57D (but not WT or S57A) ubiquitin (Figure 4G) suggesting that the growth arrest defect in Δsks1Δvhs1 cells is linked to a deficiency in the production of ubiquitin phosphorylated at the Ser57 position. To explore this further, we used SILAC-MS to compare levels of Ser57 phosphorylated ubiquitin in untreated or H2O2-treated cells, however, this analysis did not reveal significant changes in Δsks1Δvhs1 cells (Figure 4H and Table 1). While these results indicate that Sks1 and Vhs1 are dispensable for production of Ser57 phosphorylated ubiquitin in the acute phase of the oxidative stress response, we cannot exclude roles for these kinases during prolonged exposure to oxidative stress or the possibility that they contribute to the phosphorylation of localized pools of ubiquitin.

Table 1
Corresponds to Figure 4H.

Analysis of ubiquitin phosphorylation in Δvhs1Δsks1 mutants. Yeast cells expressing endogenous FLAG-ubiquitin (JMY1312 [SEY6210 background] parent cells) were cultured in heavy (H; wildtype cells) or light (L, isogenic Δvhs1Δsks1 deletion) SILAC media to the mid-log phase. In Experiment #1, cells were untreated, and in Experiment #2 cells were treated with 1 mM H2O2 for 30 min before harvesting cells. Following cell lysis and overnight digestion of lysates with trypsin, phospho-peptides were enriched using IMAC chromatography (see Materials and methods) and analyzed by mass spectrometry. Phosphorylated ubiquitin peptides resolved in these experiments are indicated and the values presented in the table represent the H:L SILAC ratio, which has been normalized to the total ubiquitin H:L ratio for each experiment and log-transformed (log2). ‘n.d.’ for Ser19 in Experiment #1 indicates that this peptide was identified but could not be quantified in this experiment due to poor quality of chromatographic data.

PeptidePhospho- sitelog2 (H:L Ratio)
Expt #1Expt #2
TITLEVE[pS]SDTIDNVKSer19n.d.0.18
TL[pS]DYNIQKSer570.06−0.06
ES[pT]LHLVLRThr66−0.220.11

Discussion

The data presented here provide evidence that Ser57 phosphorylated ubiquitin and the kinases that produce it play an important role in several yeast stress responses, but the low stoichiometry of this modification suggests its effects are likely limited and localized in a physiological context. To the best of our knowledge, this study reports the first Ser57 ubiquitin kinases, and the only known ubiquitin kinases besides PINK1. Importantly, PINK1 activity is tightly regulated and highly localized to the outer membrane of damaged mitochondria. One potential explanation of the genetic and biochemical data presented here is that Sks1 and Vhs1 phosphorylate a localized pool (or pools) of ubiquitin in response to stress. However, the data also indicate that Sks1 and Vhs1 are not required for the production of Ser57 phosphorylated ubiquitin during normal growth or oxidative stress (Figure 4H and Table 1). This may be due to redundancy of kinase activities, possibly with Gin4, Kcc4, or other as-yet-unidentified ubiquitin kinases. However, such redundancy cannot explain the phenotypes observed during oxidative stress, since Δsks1Δvhs1 double mutant cells exhibit oxidative stress phenotypes that are suppressed by expression of phosphomimetic (S57D) ubiquitin (Figure 4G). In this case, we propose that a localized pool of ubiquitin phosphorylated by Sks1 and Vhs1 is critical for the oxidative stress response but is not resolved in our proteomic analysis, or only contributes a small fraction to a larger pool. This interpretation reconciles the genetic and biochemical data presented here, and it is consistent with the precedent established with PINK1, which is subject to tight regulation and contributes to localized production of Ser65 phosphorylated ubiquitin. However, further characterization of the Ser57 ubiquitin kinases reported here and analysis of localized ubiquitin pools will be required to validate this interpretation.

Genetic experiments presented here reveal that ubiquitin replacement with phosphomimetic ubiquitin phenocopies kinase gain of function (as is the case with canavanine, thialysine, and hydroxyurea sensitivities) while replacement with phosphorylation resistant ubiquitin phenocopies kinase loss of function (as is the case with sensitivity to H2O2). An important limitation of this genetic analysis is the built-in assumption that ubiquitin variants (phosphomimetic or phosphorylation resistant) behave as expected and do not alter other biochemical properties of ubiquitin in a cellular context. Additionally, such phenotypes associated with ubiquitin variants are likely to over-estimate the physiological effects of ubiquitin phosphorylation. In the case of phospho-mimetic (S57D) ubiquitin, this is because physiological ubiquitin phosphorylation is sub-stoichiometric. In the case of phosphorylation resistant (S57A) ubiquitin, this may be due to redundancy of kinases. Such redundancy seems likely since we identified multiple Ser57 ubiquitin kinases (Vhs1, Sks1, Gin4, and Kcc4) and the deletion of two kinases did not decrease the production of Ser57 phosphorylated ubiquitin (Figure 4H and Table 1). Furthermore, we cannot exclude the possibility that mutation of Ser57 alters the biochemical properties of ubiquitin in such a way as to phenocopy the effects associated with kinase deletion and/or overexpression. Going forward, these limitations present formidable challenges for dissecting the biological functions of ubiquitin phosphorylation, which is why the identification and characterization of ubiquitin kinases is critical. Ultimately, deeper characterization of Ser57 ubiquitin kinases – particularly to understand their localization and regulation in the context of proteotoxic stress – will likely be critical to understanding how phosphorylation regulates the biology of the ubiquitin code.

Materials and methods

Key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Strain, strain background
(S. cerevisiae)
SUB280D. Finley Lab; Finley et al., 1994
PMID:8035826
PMCID:PMC359070
MATa, lys2-801, leu2-3, 112, ura3-52, his3-D200, trp 1–1, ubi1-D1::TRP1, ubi2-D2::ura3, ubi3-Dub-2, ubi4-D2::LEU2 [pUB39 Ub, LYS2] [pUB100, HIS3]
Strain, strain background
(S. cerevisiae)
SUB280 Ub (WT, S57A, S57D)Lee et al., 2017
PMID:29130884
PMCID:PMC5706963
MATa, SUB280 [RPS31 (WT, S57A, S57D; URA3)]
Strain, strain background
(S. cerevisiae)
NHY318This paperMATa, SUB280 arg4::KANMX
Strain, strain background
(S. cerevisiae)
SEY6210S. Emr Lab; Robinson et al., 1988
PMID:3062374
PMCID:PMC365587
RRID:ATCC: 96099WT: MATα leu2-3,112 ura4-52 his3-D200 trp1-D901 lys2-801 suc2-D9
Strain, strain background
(S. cerevisiae)
SEY6210.1S. Emr Lab; Robinson et al., 1988
PMID:3062374
PMCID:PMC365587
WT: MATa leu2-3,112 ura4-52 his3-D200 trp1-D901 lys2-801 suc2-D9
Strain, strain background
(S. cerevisiae)
NHY175This paperMATα, SEY6210 gin4::NATMX
Strain, strain background
(S. cerevisiae)
NHY117This paperMATα, SEY6210 sks1::TRP1
Strain, strain background
(S. cerevisiae)
NHY118This paperMATα, SEY6210 vhs1::TRP1
Strain, strain background
(S. cerevisiae)
NHY196This paperMATa, SEY6210.1 sks1::TRP1 vhs1::TRP1
Strain, strain background
(S. cerevisiae)
NHY177This paperMATα, SEY6210 gin4::NATMX sks1::TRP1
Strain, strain background
(S. cerevisiae)
NHY179This paperMATα, SEY6210 gin4::NATMX vhs1::TRP1
Strain, strain background
(S. cerevisiae)
NHY181This paperMATα, SEY6210 gin4::NATMX sks1::TRP1 vhs1::TRP1
Strain, strain background
(S. cerevisiae)
JMY1312This paperMATα, SEY6210 arg4::KANMX FLAG-RPS3::TRP1, FLAG-RPL40B::TRP1
Strain, strain background
(S. cerevisiae)
NHY326This paperMATa, JMY1312 sks1::TRP1 vhs1::TRP1
Strain, strain background
(E. coli)
Rosetta 2 (DE3)Millipore (Burlington, MA)Cat# 71400F- ompT hsdSB(rB- mB-) gal dcm (DE3) pRARE2 (CamR)
Competent Cells - Novagen
Strain, strain background
(E. coli)
C41 (DE3)Lucigen Corporation (Middleton, WI)F ompT hsdSB (rB - mB -) gal dcm (DE3)
Competent Cells
Recombinant DNApRS415Stratagene(Empty Backbone) Yeast Centromere Plasmid (LEU2)
GenBank: U03449
Recombinant DNApRS416Sikorski and Hieter, 1989(Empty Backbone) Yeast Centromere Plasmid (URA3)
GenBank: U03450
Recombinant DNApJAM1303This paperpNative-Sks1 in pRS416 (URA3); yeast expression
Recombinant DNApJAM1304This paperpNative-Sks1 in pRS415 (LEU2); yeast expression
Recombinant DNApJAM1280This paperpTDH3-Sks1 in pRS415 (LEU2); yeast expression
Recombinant DNApJAM1253This paperpNative_Vhs1 in pRS415 (LEU2); yeast expression
Recombinant DNApRS327PMID:14989082RRID:Addgene_51787(Empty Backbone) multicopy (YEp) vector with a 2 μm origin of replication (LYS2); yeast expression
Recombinant DNApJAM1746This paperpTDH3-Gin4 in pRS327; yeast expression
Recombinant DNApJAM1749This paperpTDH3-Kcc4 in pRS327; yeast expression
Recombinant DNApJAM1743This paperpTDH3-Sks1 in pRS327; yeast expression
Recombinant DNApJAM1740This paperpTDH3-Vhs1 in pRS327; yeast expression
Recombinant DNApJAM1771This paperpTDH3-Vhs1 K41R (kinase dead) in pRS327; yeast expression
Recombinant DNApJAM1240This paper6XHis-Sks1 in pET15b, AmpR; E. coli expression
Recombinant DNApJAM1169This paperVhs1-6XHis in pET23d, AmpR; E. coli expression
Recombinant DNApJAM983This paperGin4-6XHis in pET23d, AmpR; E. coli expression
Recombinant DNApJAM1116This paperHal4-6XHis in pET23d, AmpR; E. coli expression
Recombinant DNApJAM1118This paperHal5-6XHis in pET23d, AmpR; E. coli expression
Recombinant DNApJAM1120This paperKkq8-6XHis in pET23d, AmpR; E. coli expression
Recombinant DNApJAM1336This paperSnf1-6XHis in pET23d, AmpR; E. coli expression
Recombinant DNApJAM585This paper6XHis-Npr1 in pCOLADuet, KmR; E. coli expression
Recombinant DNApJAM1270This paperKsp1-6XHis in pET23d,
AmpR; E. coli expression
Recombinant DNApJAM1186This paperGST-Slt2 in pGEX6p1; E. coli expression
Recombinant DNApJAM1335This paperFrk1-6XHis in pET23d, AmpR; E. coli expression
Recombinant DNApJAM987This paperKcc4-6XHis in pET23d, AmpR; E. coli expression
Recombinant DNApJAM1306This paperKin1-6XHis in pET23d, AmpR; E. coli expression
Recombinant DNApJAM1307This paperKin2-6XHis in pET23d, AmpR; E. coli expression
Recombinant DNApJAM1272This paperYpl150w-6XHis in pET23d, AmpR; E. coli expression
Recombinant DNApJAM1167This paper6XHis-GST-UBD, AmpR;E. coli expression
Recombinant DNApJAM1235This paperUbiquitin in pBG100; E. coli expression
Recombinant DNApJAM1236This paperUbiquitin S57A in pBG100; E. coli expression
Recombinant DNApJAM1237This paperUbiquitin S65A in pBG100; E. coli expression
Recombinant DNApJAM995This paperdi-Ub in pET23d, AmpR; E. coli expression
Recombinant DNApJAM996This papertri-Ub in pET23d, AmpR; E. coli expression
Antibodyα-Flag (FLAG(R) M2) mouse monoclonalSigma (St. Louis, MO)RRID:AB_262044WB (1:1000)
Antibodyα-Ubiquitin (VU101) mouse monoclonal; clone VU-1LifeSensors (Malvern, PA)Cat# VU101
RRID:AB_2716558
WB (1:1000)
Antibodyα-Glucose-6-Phosphate Dehydrogenase (G6PDH), yeast rabbit polyclonalSigma (St. Louis, MO)Cat# A9521
RRID:AB_258454
WB (1:10000)
Antibodyα-pSer57 Ubiquitin rabbit polyclonalThis paperWB (1:1000)
AntibodyK48-linkage Specific Polyubiquitin rabbit monoclonal; clone D9D5Cell Signaling Technology (Danvers, MA)Cat# 8081
RRID:AB_10859893
WB (1:1000)
AntibodyK63-linkage Specific Polyubiquitin rabbit monoclonal; clone Apu3Millipore (Burlington, MA)Cat# 05–1308
RRID:AB_1587580
WB (1:1000)
AntibodyIRDye 680RD-Goat anti-mouse polyclonalLI-COR Biosciences (Lincoln, NE)Cat# 926–68070
RRID:AB_10956588
WB (1:10000)
AntibodyIRDye 800CW-Goat anti-rabbit polyclonalLI-COR Biosciences (Lincoln, NE)Cat# 926–32211
RRID:AB_621843
WB (1:10000)
Commercial assay, kitPTMScan Ubiquitin Remnant Motif (α-K-ε-GG)Cell Signaling Technology (Danvers, MA)RRID:Cat# 5562bead-conjugated for immunoprecipitation of –GG-εK-conjugated peptides
Chemical compound, drugEZ view Red Anti-FLAG M2 Affinity GelSigma (St. Louis, MO)Cat# F2426-1ML
RRID:AB_2616449
mouse-monoclonal; clone M2
bead-conjugated for immunoprecipitation of FLAG-conjugated proteins
Chemical compound, drugL-Lysine-13C6,13N2hydrochlorideSigma (St. Louis, MO)Cat# 608041–1G
Chemical compound, drugL-Arginine-13C6,13N4hydrochlorideSigma (St. Louis, MO)Cat# 608033–1G
Chemical compound, drugSodium arsenate dibasic heptahydrateSigma (St. Louis, MO)Cat# A6756Synonym: arsenate
Chemical compound, drugHydrogen peroxideFisher (Hampton, NH)Cat# H325-500Synonym: H2O2
Chemical compound, drugHydroxyureaINDOFINE Chemical Company, Inc (Hillsborough, NJ)Cat# BIO-216
Chemical compound, drugS-(2-Aminoethyl)-L-cysteine hydrochlorideSigma (St. Louis, MO)Cat# A2636-1GSynonym: L-4-Thialysine hydrochloride, thialysine
Chemical compound, drugL-CanavanineSigma (St. Louis, MO)Cat. # C1625Synonym: canavanine
Chemical compound, drugDL-2-Aminoadipic acidSigma (St. Louis, MO)Cat. # A0637
Chemical compound, drugMG132Apexbio (Houston, TX)Cat. # A2585
Chemical compound, drugProtease inhibitor cocktail (cOmplete Tablets, Mini)Roche (Basel, Switzerland)Cat# 04693159001
Chemical compound, drugPhosSTOPRoche (Basel, Switzerland)Cat# 04906837001
Chemical compound, drugPhos-tag AcrylamideNARDCat# AAL-107
Software, algorithmMaxQuant
Version 1.6.5.0
Max Planck Institute of BiochemistryRRID:SCR_014485
Software, algorithmSkyline
Version 20.1.0.155
MacCoss Lab SoftwareRRID:SCR_014080
Software, algorithmAdobe Illustrator CS5.1
Version 15.1.0
Adobe (San Jose, CA)RRID:SCR_010279
Software, algorithmImage Studio Lite
Version 5.2
LI-COR Biosciences (Lincoln, NE)RRID:SCR_013715

Cell strains and culture

Request a detailed protocol

All Saccharomyces cerevisiae strains and reagents used in this study are described in the Key Resources Table. SUB280 cells were used to shuffle different ubiquitin variants (wildtype, S57A, and S57D) by counterselection on URA-dropout SDM plates containing DL-2-aminoadipic acid as previously described (Lee et al., 2019; Sloper-Mould et al., 2001). Such SUB280-derived cells were used in growth sensitivity assays in different stress conditions. SEY6210 cells were used to generate gene-deletion strains by resistance marker-guided recombination and cross-mating methods. Yeast strains for mass spectrometry experiments were JMY1312 (with chromosomally tagged RPS31 and RPL40B) and its derivatives. Cells were cultured at 26°C in yeast-peptone-dextrose (YPD) or synthetic dextrose minimal medium (SDM: 0.67% yeast nitrogen base, 2% dextrose, and required amino acids) at 200 rpm agitation. SILAC media were supplemented with light lysine (12C614N2 L-Lys) and arginine (12C614N4 L-Arg), or heavy isotopes of lysine (13C615N2 L-Lys) and arginine (13C615N4 L-Arg). For spot plate dilution assay, cells were grown for 18–24 hr, normalized to OD600 of 1.0, and sequentially diluted at 1:10 dilution onto SDM agar plates containing amino acid dropout mixture in the absence or presence of 2.5 mM NaH2AsO4, 200 mM hydroxyurea, 2.0 µg/mL canavanine, and 6.0 µg/mL thialysine. For H2O2 sensitivity assay, yeast cells grown to the mid-log phase (OD600 of 0.7) were diluted to OD600 of 0.025 with 1.5 mM H2O2 in SDM and terminal OD600 of cells was measured after 1–3 days of incubation. For growth sensitivity assay of liquid cultures, cells were grown for 18 hr at 26°C, normalized to OD600 of 5.0, and subcultured into fresh media with a starting OD600 of 0.1. OD600 of cells was recorded at different time points until cells reach the stationary phase. For bacterial cultures, the yeast kinase and ubiquitin were heterologously co-expressed in E. coli Rosetta 2 (DE3) by 1 mM IPTG induction at 26°C for 16 hr.

Protein preparation

Protein precipitation

Request a detailed protocol

Yeast proteins were precipitated by adding ice-cold 10% trichloroacetate in TE buffer (2 mM EDTA, 10 mM Tris-HCl, pH 8.0), washed with 100% acetone, and lyophilized by vacuum centrifugation. Desiccated protein was resolubilized in urea sample buffer.

Recombinant protein expression and purification of kinases

Request a detailed protocol

N-terminally tagged Vhs1 or Sks1 were produced in E. coli C41(DE3) cells cultured in LB Media. Cells were induced at an OD600 of 0.6 with 1 mM IPTG and allowed to express for 4 hr at 37°C. Cells were pelleted by centrifugation at 6000 × g for 25 min and flash-frozen with liquid nitrogen. Before purification, the cells were thawed on ice, resuspended in 5 mL of lysis buffer (50 mM Tris pH 8.0, 150 mM NaCl, 10 mM imidazole, 2 mM βME, complete protease inhibitors [Roche, Basel, Switzerland], 1 μg/mL DNase, 1 μg/mL lysozyme, and 1 mM PMSF) per 1 g of cells, and sonicated (21 min total, 5 s on and 10 s off). Cell lysates were cleared by centrifugation (50,000 × g for 30 min at 4°C) and filtered through a 0.45 μM filter. For purification, lysates were applied to Ni-NTA resin (Thermo Scientific, Rockford, IL) that had been equilibrated with lysis buffer containing 20 mM imidazole. The protein was eluted with lysis buffer containing 400 mM imidazole. Protein was buffer exchanged to remove imidazole (50 mM Tris pH 8.0, 100 mM NaCl, and 2 mM βME) and the purification tag was cleaved. The protein was loaded on a HiPrep Q FF Anion Exchange Column (GE Healthcare Life Sciences, Marlborough, MA) and eluted by buffer with 300 mM NaCl. Recombinant ubiquitin variants were purified using the Ni-NTA affinity protocol described above, followed by size exclusion chromatography using a HiLoad Superdex 75 pg column (GE Healthcare Life Sciences, Marlborough, MA). The protein was eluted in a buffer containing (50 mM Tris pH 7.5, 150 mM NaCl, and 2 mM DTT). Ubiquitin-containing fractions were pooled and concentrated by centrifugation to 1 mM.

Western blotting

Request a detailed protocol

Proteins in Laemmli buffer (for E. coli lysates) or urea sample buffer (for TCA-precipitated yeast proteins) containing 10% β-mercaptoethanol were resolved in 12–14% Bis-Tris PAGE gel by electrophoresis. Separated proteins were transferred onto PVDF membrane (0.2 µm, GE Healthcare Amersham) and immunoblotting was performed using the following primary antibodies: anti-ubiquitin (1:10,000; LifeSensors; MAb; clone VU-1), anti-K48 (1:10,000; Cell Signaling; RAb; clone D9D5), anti-K63 (1:4000; EMD Millipore; RAb; clone apu3), and anti-G6PDH (1:10,000; Sigma; RAb). Anti-mouse (IRDye 680RD-Goat anti-mouse) or anti-rabbit (IRDye 800CW-Goat anti-rabbit) secondary antibodies were purchased from LI-COR. Blots were visualized using Odyssey CLx (LI-COR Biosciences) and signal intensity was quantified using Image Studio Lite (LI-COR Biosciences).

Mass spectrometry

Request a detailed protocol

SILAC-based mass spectrometry for quantitation and mapping of ubiquitin phosphorylation sites was performed as previously described (Albuquerque et al., 2008; Lee et al., 2019). Briefly, an equal amount of JMY1312 cells (labeled with either light or heavy Arg and Lys) expressing endogenous 3XFLAG-RPS31 and 3XFLAG-RPL40B were harvested from the mid-log phase and disrupted by bead beating using ice-cold lysis buffer (50 mM Tris-HCl, pH 7.5, 150 mM NaCl, 5 mM EDTA, 0.2% NP-40, 10 mM iodoacetamide, 1 mM 1,10-phenanthroline, 1× EDTA-free protease inhibitor cocktail [Roche], 1 mM phenylmethylsulfonyl fluoride, 20 µM MG132, 1× PhosStop [Roche], 10 mM NaF, 20 mM BGP, and 2 mM Na3VO4). Lysate was clarified by centrifugation at 21,000 × g for 10 min at 4°C and supernatant was transferred into a new tube and diluted with three-fold volume of ice-cold TBS (50 mM Tris-HCl, pH 7.5, 150 mM NaCl). 3XFLAG-ubiquitin in 12 mL diluted lysate was enriched by incubation with 50 µL of EZview anti-FLAG M2 resin slurry (Sigma) for 2 hr at 4°C with rotation. The resin was washed three times with cold TBS and incubated with 90 µL elution buffer (100 mM Tris-HCl, pH 8.0, 1% SDS) at 98°C for 5 min. The collected eluate was reduced with 10 mM DTT, alkylated with 20 mM iodoacetamide, and precipitated with 300 µL PPT solution (50% acetone, 49.9% ethanol, and 0.1% acetic acid). Light and heavy protein pellets were dissolved with Urea-Tris solution (8 M urea, 50 mM Tris-HCl, pH 8.0). Heavy and light samples were combined, diluted four-fold with water, and digested with 1 µg MS-grade trypsin (Gold, Promega) by overnight incubation at 37°C. Phosphopeptides were enriched by immobilized metal affinity chromatography (IMAC) using Fe(III)-nitrilotriacetic acid resin as previously described (MacGurn et al., 2011) and dissolved in 0.1% trifluoroacetic acid. Peptides with K-ε-GlyGly remnant were isolated by immunoprecipitation as described in the PTMScan Ubiquitin Remnant Motif Kit (Cell Signaling Technologies) protocol. The GlyGly-peptide and phosphopeptide solutions were loaded on a capillary reverse-phase analytical column (360 μm O.D. × 100 μm I.D.) using a Dionex Ultimate 3000 nanoLC and autosampler and analyzed using a Q Exactive Plus mass spectrometer (Thermo Scientific). Data collected were searched using MaxQuant (ver. 1.6.5.0) and chromatograms were visualized using Skyline (ver. 20.1.0.31, MacCoss Lab).

In vitro kinase activity

Request a detailed protocol

Kinase activity assays were performed in a reaction mixture containing 50 mM Tris (pH 7.4), 150 mM NaCl, 10 mM MgCl2, 0.1 mM ATP, 1 mM DTT, 0.5 µM ubiquitin, and 50 nM kinase. Reactions on linkage-specific ubiquitin polymers were carried out at 30°C for 30 min and quenched by adding an equal volume of Laemmli buffer with 10% β-mercaptoethanol and heating at 98°C for 10 min.

Data availability

All data generated or analyzed during this study are included in the manuscript and supporting files.

References

    1. Sikorski RS
    2. Hieter P
    (1989)
    A system of shuttle vectors and yeast host strains designed for efficient manipulation of DNA in Saccharomyces cerevisiae
    Genetics 122:19–27.

Decision letter

  1. Benoît Kornmann
    Reviewing Editor; University of Oxford, United Kingdom
  2. David Ron
    Senior Editor; University of Cambridge, United Kingdom
  3. Benoît Kornmann
    Reviewer; University of Oxford, United Kingdom

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This work identifies candidate kinases for Ubiquitin in yeast, as well as their potential role in stress response poses foundations for further work in that undeniably interesting field.

Decision letter after peer review:

Thank you for submitting your article "Identification of ubiquitin Ser57 kinases regulating the oxidative stress response in yeast" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Benoît Kornmann as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by a Reviewing Editor and David Ron as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

This manuscript sets out to identify a role for ubiquitin phosphorylation and to identify the kinases necessary for it. The same group has previously shown that serine 57 phosphorylation can be detected in yeast cells. Here they generate strains expressing only phosphomimetic or phosphonull mutants and asses their phenotype in terms of Ubiquitin linkage alone and effect on cell physiology. Among other phenotypes, they find that a strain expressing a non phosphorylable ubiquitin likely fails to mount a response to low doses of H2O2, leading to a slightly increased sensitivity to this chemical. THey also find that treatment with H2O2 slightly increases the amount of phosphorylated Ubiquitin. They then go on to identify the kinases responsible for this phosphorylation using a screen in E. coli, which homes in two kinases, Vhs1 and Sks1.

They delete both kinase and show that this, to a large extent phenocopies the expression of a non-phosphorylable Ubiquitin, and that expression of a phosphomimetic rescued some of the phenotypes of the kinase deleted strain. They also show that overexpressing one of the kinase increases the amount of phosphorylation on ubiquitin.

Finally, they perform a similar screen using human kinases and human ubiquitin and identify a family of kinases that have the ability to phosphorylate ubiquitin in E. coli.

All three reviewers found the work of interest. Yet, because pSer57-Ubiquitin is so rare, they expressed concerns that the observed phosphorylation of Ubiquitin could be an epiphenomenon of little incidence to cell function.

First, the phenotypes of the alanine and aspartate mutants may be due to general effects on Ubiquitin rather than true phospho-Null and -mimetics effects. This concern is minimized by showing that the deletion and overexpression of the kinases phenocopy the ubiquitin mutants. Indeed, analysis of the ubiquitin mutant is only valid in the light of this phenocopy. Yet, because of its importance, this point can and should be pushed further. For instance, while the asp mutant is sensitive to hydroxyurea, the ala mutant behaves as a wildtype. This is at odds with the fact that the KO of each kinase individually increase HU resistance. In this case at least, the effect of deleting the kinase does not appear to involve a decrease in the level of ser57 phosphorylation. How can this be reconciled? Also, while you show that expressing the 57Asp bypasses the need for the kinase in the H2O2 sensitivity assay, is it also the case for the HU and tunicamicin resistance bestowed by the deletion of the kinases? Please find in the specific points a list of experiments required to better pinpoint the phenocopy that is so essential for the relevance of this study. Also, overexpression Vhs1 causes a slight canavanine resistance, reminiscent of canavanine resistance confered by s57d expression. Vhs1 overexpression should therefore not confer canavanine resistance if expressed in a s57a background. This is important to strengthen the phenocopy.

Second, while you show that both kinases can phosphorylate Ubiquitin in bacteria and in vitro, and that the overexpression of one of them increases the phosphorylation levels, you do not show how deletion of the kinase affect phosphorylation. This can and should be done, in particular to show if the observed increase in phosphorylation upon oxidative stress is mediated by these kinases.

Third, given the low abundance of pS57 ubiquitin, it is hard to conceive that this modification has an important effect on global chain linkage, unless this rare modification is applied to an equally rare set of substrates (like for instance PINK-1 mediated phosphorylation of ubiquitin is limited to the pool of ubiquitin that is on mitochondrial proteins). This should be better emphasized throughout the manuscript so as not to mislead readers into believing that a substantial fraction of ubiquitin is subjected to phosphorylation.

Fourth, in many cases, the experiments are not described to a sufficient amount of detail. For instance, vectors used herein are not described anywhere, nor is the way that all copies of ubiquitin have been replaced with mutant forms. The Supplementary file 2 is absent, so is Supplementary file 1. A much better method section is required to ensure the reproducibility of the experiments. Better descriptions of numbers pertaining to quantitative analysis, statistical test employed an p-value threshold, description of error bars (Stdev, SEM…) are also needed in figures and legends.

Essential revisions:

1) In Figure 1A and Figure 3—figure supplement 1, the authors test the effect of ubiquitin phospho-mutants and absence of kinases, respectively, on the ability of yeast cells to recover from acute heat stress. Firstly, it is puzzling though the experimental conditions are the same (39ᵒC for 18 hours and shifted back to 26ᵒC for recovery) in both cases, the wild-type strain is as good as dead in Figure 1A while it grows fine in Figure 3—figure supplement 1. Importantly, to validate the resistance phenotype of the S57D mutant, the authors should rather over-express the kinases and see that cells grow better in this condition compared to the wild-type and much better compared to the S57A mutant.

2) In Figure 1F, the authors employ anti-K48 ubiquitin and anti-K63 ubiquitin antibodies to show the specificity varies between S57A and the S57D mutant. The concern here is whether the serine mutants affect the binding of the antibodies. For instance, the epitope recognized by the anti-K63 ubiquitin antibody could involve the serine 57, however, when mutated to aspartate, the antibody can lose its ability to bind K63-linked ubiquitin. Is there a way to rule this out?

3) The authors show that S57D increase K48 but decrease K63-linkages whereas S57A decrease K48 but increase K63-linkages upon H2O2 treatment (Figure 1F). What about overexpression or deletion of Vhs1 and Sks1? Does absence of the kinases impact the mutual abundance of ubiquitin K48 and K63 linkages in vivo? Gly-Gly peptides analysis of the data in the experiment from Figure 2G might answer this.

4) Deletion of the kinases increase resistance to tunicamycin. However, expression of S57A does not. To strengthen the case of the phenocopy, it is important to check if kinases have ubiquitin-independet effects and how much of the phenocopy is actually wrought by independent mechanisms.

5) In general, the growth assays on tunicamycin, hydroxyurea or canavanin in Figure 1—figure supplement 1, Figure 3—figure supplement 2, Figure 3—figure supplement 3 and Figure3—figure supplement 4 should rather be moved to the main figures.

6) In Figure 4, human MARK kinases are found to trigger phosphorylation on UbS57 in vitro. It would be insightful to validate this finding in vivo and check whether phosphorylation of UbS57 also regulate the oxidative stress response in mammalian cells. I understand however that this might be take much longer to do than the timeframe which is allocated for revision. In this context, the authors may consider avoiding finishing the paper with these preliminary mammalian data and move them elsewhere in the manuscript. For instance, splitting data from Figure 2 in Figure 2 and Figure 3 and moving Figure 4C in the new Figure 2 (and Figure 4A and B in supplement) would save some space to end the paper with the current Figure 3 and its supplements.

Reviewer #1:

In this manuscript, Hepowit et al., unravel the yeast and the human kinases that phosphorylate ubiquitin at serine 57 and shed some light on the importance of this modification in conditions of stress. The authors back their claims with well designed and straightforward experiments. Phosphorylation of ubiquitin plays important roles, the extent of which is not yet fully understood. The findings in this paper are intriguing, important and pave the way to further research.

Essential revisions:

1) In Figure 1A and Figure 3—figure supplement 1, the authors test the effect of ubiquitin phospho-mutants and absence of kinases, respectively, on the ability of yeast cells to recover from acute heat stress. Firstly, it is puzzling though the experimental conditions are the same (39ᵒC for 18 hours and shifted back to 26ᵒC for recovery) in both cases, the wild-type strain is as good as dead in Figure 1A while it grows fine in Figure 3—figure supplement 1. Importantly, to validate the resistance phenotype of the S57D mutant, the authors should rather over-express the kinases and see that cells grow better in this condition compared to the wild-type and much better compared to the S57A mutant.

2) In Figure 1F, the authors employ anti-K48 ubiquitin and anti-K63 ubiquitin antibodies to show the specificity varies between S57A and the S57D mutant. The concern here is whether the serine mutants affect the binding of the antibodies. For instance, the epitope recognized by the anti-K63 ubiquitin antibody could involve the serine 57, however, when mutated to aspartate, the antibody can lose its ability to bind K63 ubiquitin. Is there a way to rule this out?

Reviewer #3:

Modifying the modifier is a principle that took all its meaning few years ago when Ubiquitin was found to be phosphorylated on Serine 65 to regulate mitophagy in mammalian cells through a crosstalk between the ubiquitin ligase Parkin and the mitochondrial kinase PINK1. Since then, MacGurn and colleagues have shown that Ubiquitin also undergoes phosphorylation in yeast on Serine 57 but kinases involved in this phosphorylation remain to be identified. In this short report, the same lab now finds that phosphorylation of UbSer57 is required for heat shock and oxidative stress responses in yeast and identifies two kinases of the Snf1-related family that mediate this phosphorylation. The experimental design of this study is very solid, the manuscript is very well written and the identification of kinases promoting ubiquitin phosphorylation in yeast is of high enough significance to warrant rapid publication in eLife. Besides aspects that are clearly out of scope for this short report (identification of ligases or substrates), I must admit that my suggestions for improvement of this study are only cosmetic.

Essential revisions:

- The authors show that S57D increase K48 but decrease K63-linkages whereas S57A decrease K48 but increase K63-linkages upon H2O2 treatment (Figure 1F). What about overexpression or deletion of Vhs1 and Sks1? Does absence of the kinases impact the mutual abundance of ubiquitin K48 and K63 linkages in vivo? Any Gly-Gly peptides detected in the experiment from Figure 2G?

- Deletion of the kinases mimic the growth effects of S57A on tunicamycin and hydroxyurea. It would be nice to check whether UbS57D can bypass the absence of the kinases in these conditions even if this has been evaluated for the responses to oxidative stress in Figure 3.

- In general, the growth assays on tunicamycin, hydroxyurea or canavanin in Figure 1—figure supplement 1, Figure 3—figure supplement 2, Figure 3—figure supplement 3 and Figure3—figure supplement 4 should rather be moved to the main figures.

- In Figure 4, human MARK kinases are found to trigger phosphorylation on UbS57 in vitro. It would be insightful to validate this finding in vivo and check whether phosphorylation of UbS57 also regulate the oxidative stress response in mammalian cells. I understand however that this might be take much longer to do than the timeframe which is allocated for revision. In this context, the authors may consider avoiding finishing the paper with these preliminary mammalian data and move them elsewhere in the manuscript. For instance, splitting data from Figure 2 in Figure 2 and Figure 3 and moving Figure 4C in the new Figure 2 (and Figure 4A and B in supplement) would save some space to end the paper with the current Figure 3 and its supplements.

Reviewer #4:

This manuscript by Hepowitt et al., focusses on the mechanism and phenotypic consequences of ubiquitin post-translational modification (PTM). Specifically, one of the first identified modifications – phosphorylation of Ser57. This loosely follows on from previous work conducted in the MacGurn lab in which they identified ubiquitin Ser57 phosphorylation (Ser57P) as a regulator of endocytic trafficking and ubiquitin turnover (Lee et al., 2017).

The current manuscript begins by presenting a number of varied phenotypes associated with yeast solely expressing Ser57Asp (a phosphomimetic) and Ser57Ala (non phosphorylatable) ubiquitin mutants (presumably from an endogenous ubiquitin loci). Yeast expressing Ser57Asp have a conspicuous heat tolerance phenotype (Figure 1A-C) and an increased sensitivity to hydroxyurea relative to wildtype yeast (Figure S1A). Curiously, the opposite trend is not observed with Ser57Ala ubiquitin. Conversely, Ser57Asp and Ser57Ala ubiquitin mutants do possess contrasting phenotypes, with respect to wildtype yeast, in terms of tunicamycin sensitivity (which increases in Ser57Asp and decreases in Ser57Ala expressing strains, respectively) (Figure S1A).

The authors then move towards the principal thesis of their manuscript; that modification of Ser57 is important for the proper regulation of the yeast oxidative stress response. In support of this tenet Hepowitt et al. present the somewhat contradictory observations that Ser57Ala ubiquitin permits more growth in the presence of H2O2 (Figure 1D) but reduced viability in response to a shorter H2O2 stress (Figure 1E). Ser57Asp mutation does not perturb the yeast in these assays, relative to wildtype strains. The authors suggest that these differences in response to oxidative stress may play out at the level of different polyubiquitin linkage types favoured by the different amino acids at residue 57 (as a proxy for different phosphorylation statuses). This is supported by the observation that Ser57Asp yeast have significantly elevated levels of poly-K48-linked ubiquitin and decreased levels of poly-K63-linked in response to H2O2 exposure and also seemingly under basal/0 mM H2O2 conditions, relative to wildtype (Figure 1F). The reciprocal phenotypes were also observed for Ser57Ala yeast. This observation, in turn, stimulates the authors to speculate that oxidative stress may induce the phosphorylation of Ser57 which subsequently favours poly-K48-linked ubiquitination and thus proteasomal degradation of the increased burden of oxidised/damaged protein. Accordingly, reduced carbonylated proteins are observed in Ser57Asp strains (Figure 1G). However, given the contrast between Ser57Asp and wildtype cells in terms of ubiquitin linkage both {plus minus} H2O2 (Figure 1F) the above hypothesis is conceptually difficult to marry with the observation of seeming parity between wildtype and Ser57Asp expressing yeast in terms of oxidative stress growth response and post-stress viability (Figure 1D-E) and with the observation that wildtype cells both increase K48 and K63-linked polyubiquitin in response to oxidative stress (Figure 1F).

An important experiment, and the first time the authors address the phosphorylation of Ser57 directly in this manuscript, is presented in Figure 1F. Based on this SILAC experiment it appears that oxidative stress (H2O2) can induce up to around a 1.7-fold increase in the amount of Ser57P ubiquitin. The authors then go on to demonstrate quite nicely that two SnfI-related Ser/Thr kinases VhsI and SksI can phosphorylate ubiquitin Ser57 in vitro, in an E. coli co-expression system and when SksI is overexpressed in yeast (the latter causing up to a 4-fold increase in Ser57P levels, Figure 1G). Crucially, however, the authors do not go on to show that endogenous VhsI and/or SksI directly influence the modification of endogenous ubiquitin at Ser57 in yeast and, by extension, they also do not show that these kinases regulate Ser57P in an oxidative stress dependent manner. That is to say, in order to substantiate their claim that these kinases regulate yeast oxidative stress response by phosphorylating Ser57 a similar experiment to Figure 1H, comparing the relative abundance of Ser57P peptides in wildtype and Δsks1Δvhs1 cells {plus minus} H2O2, should have been undertaken.

Instead, the authors compare kinase knockout phenotypes to the previous Ser51Asp and Ser51Ala phenotypes. Unfortunately, even these are performed in a rather haphazard fashion. For example, although Ser57Asp was shown to produce a robust heat tolerance phenotype and also a tunicamycin sensitivity (Figure 1A-C and S1A), in Figure S3C wildtype cells were only compared in this regard to Δsks1Δvhs1 and not also to SksI/VhsI over-expression (or to Ppz1/2 knockout, the phosphatase identified by this group in Lee at al., (2017) to be responsible for Ser57P dephosphorylation and surprisingly not mentioned or utilised in this paper). With respect to assaying the role of these kinases (and by extension the function of Ser57P) in an oxidative stress response the authors only examine the growth response to H2O2 (Figure 3). The presence of both kinases appears necessary for growth arrest, aligning with the lack of growth arrest previously observed in the Ser57Ala context. In order to more definitively demonstrate that this phenotype is due to an inability to phosphorylate ubiquitin's Ser57 the analysis in Figure 3 should have been extended. That is to say, the phenotypic rescue of Δsks1Δvhs1 by overexpression of SksI+VhsI should have been tested in different ubiquitin backgrounds. If the rescue is dependent on SksI+VhsI mediated phosphorylation of Ser57 then the growth Δsks1Δvhs1 phenotype should not be rescuable in the background of Ser57Ala mutant ubiquitin.

In summary, the authors do not adequately demonstrate that endogenous SksI and VhsI kinases are responsible for phosphorylation of endogenous ubiquitin at Ser57 either in the absence or presence of an oxidative stressor. As such, the claim that these kinases and by extension ubiquitin phosphorylation at Ser57 is important in the yeast oxidative stress response is poorly supported. The authors imply, largely based on replacement of the entire ubiquitin pool with either Ser57Ala or Ser57Asp mutants, that in response to oxidative stress SksI/VhsI phosphorylates Ser57 (with a strong preference for polyubiquitin, Figure 2E-F). This, in turn, results in an increased propensity for poly-K48-linkages and thus increased proteasomal clearance of oxidised or damaged proteins and by some mechanism an oxidative stress induced growth retardation (Figure 1). However, what is conspicuous by its absence is a lack of discussion regarding the stoichiometry of this modification. It was previously estimated by this group, using mass spectrometry, that in yeast lacking the Ser57 phosphatases (Ppz1 and Ppz2), which possessed a ca. 3-fold elevation in Ser57P modification, that the amount of ubiquitin modified at Ser57 was still less than 0.05% of the entire ubiquitin population (Lee at al., 2017). In this manuscript the authors find that oxidative stress causes less than a 2-fold upregulation in Ser57P levels, this would therefore represent less than 0.03% of the ubiquitin population being phosphorylated at Ser57 even after H2O2 application. The inferences that can therefore be drawn from replacing all of the endogenous ubiquitin with Ser57Ala and Ser57Asp (which may themselves have perturbing effects on the function and biochemistry of this highly conserved protein and may not be particularly representative of unmodified and phosphorylated Ser57, respectively) are extremely limited. The mechanism by which such a minor fraction of the ubiquitin pool could affect the oxidative stress response is a conundrum which is not at all addressed by Hepowit et al.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your article "Identification of ubiquitin Ser57 kinases regulating the oxidative stress response in yeast" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Benoît Kornmann as the Reviewing Editor and Reviewer #1, and the evaluation has been overseen by a Reviewing Editor and David Ron as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

You will be glad to learn that, despite some disagreement among reviewers, the consensus was that your story might deserve publication.

While all three reviewers acknowledge the potential importance of your work, they also acknowledge that you have not formally proven that VHS1 and SKS1 are kinases that phosphorylate ubiquitin in vivo and that this is important for stress response. What you have shown is that these two kinases are sufficient for phosphorylation in bacteria, but that they are not necessary for phosphorylation in vivo.

Your interpretation that Vhs1 and Sks1 are necessary for the phosphorylation of a defined subset of ubiquitin molecules (as is the case for PINK1) is plausible, but far from being the only interpretation.

Indeed, many of your experiments that assess fitness of strains with ubiquitin variants and kinase KO or overexpression hinge on the prerequisite that phosphomimic or phosphonull mutants behave as expected and do not affect any other aspect of ubiquitin biology, a point that you cannot ascertain.

Moreover the phosphomimic and phosphonull mutants are bound to have effects beyond what can be attributed to Vhs1 and Sks1, the mimics because they affect 100% of ubiquitins, while phospho-ubiquitins at maximum represent a small fraction, and the null mutants because they will affect non-Vhs1/Sks1-mediated phosphorylation, which is the majority of phosphorylation. Moreover, simply missing a hydroxyl group on the surface of ubiquitin might alter its properties, irrespective of phosphorylation.

So an equally plausible explanation is that ubiquitin biology is altered by your mutations in way which happens to phenocopy the kinases KO and overexpression, respectively, at least at the level of general fitness and stress survival.

The disagreement between the reviewers hinged upon allowing you the benefit of the doubt, or considering that the doubt was too great to constitute a publishable story. The consensus reached was that your paper deserves publication, provided that you make the following amendments to it:

1) The new proteomics results, as disappointing as you might find them, are an important part of the story and should constitute part of a main figure and not be buried in a Supplementary file. They should be the basis of an important discussion point (see below).

2) Instead of a result and Discussion section, the paper should have a stand-alone Discussion section, where these concerns should be thoroughly put forward.

3) In this discussion you should explicitly state that you are asking readers to accept the proposition that the phenotype in question arises from a small Sks1/Vhs1-dependent pool of Ub_pS57, which is undetectable on the background levels of Ub_pS57, which are themselves a very small fraction of Ub.

All reviewers sincerely hope that your views will be vindicated in due course, and that you will enjoy the satisfaction of knowing that you persevered for good reason in face of considerable skepticism, but in the meantime, it is important for all interested parties, to lay bare the limitations of your current study.

The individual reviews are appended for your perusal.

Reviewer #1:

The revised manuscript submitted here by Hepowit et al. addresses many of the concerns raised by the reviewers. In the first round of review and the manuscript presented here is therefore much improved. Still, the new data are not necessarily aligned with the authors’ original model. Some clarifications are therefore required.

1) Importantly, the model is that two kinases phosphorylate ubiquitin under stress. When directly tested in strains deficient for these two kinases, it appears that the kinases are not necessary for stress-induced phosphorylation of ubiquitin. This is an important result that deserves better than being mentioned and kept for a Supplementary file 3. Moreover, it is unclear what a SILAC ratio of 1 actually means since in all other figures, SILAC ratios are presented as log2. Here it appears to be on a linear scale (with 1 meaning 'no change'). This should be clarified and the data from Supplementary file 1 presented in a more visible fashion in the main figure. The fact that neither Sks1 nor Vph1 are required for stress induced phosphorylation of ubiquitin is too important to the comprehension of the implications of this paper.

2) It was shown in the first version of the paper that individual mutation of the kinases led to HU resistance (previous Figure 3—figure supplement 4). This was at odd with the finding that the expression of a non-phosphorylatable ubiquitin did not cause the same phenotype, indicating that both kinases exert their function on HU resistance through ubiquitin-independent mechanisms. These data have now disappeared from the manuscript. Although the interpretation of these results is not straightforward, it is something that readers will want to see, nonetheless.

Reviewer #2:

Taken together, the authors have made a good job in revising the manuscript and in taking reviewers comments into consideration. It is clearly disappointing that the combined absence of Vhs1 and Sks1 fails to induce detectable decrease in phosphorylation of UbS57. Yet, this can be explained by a possible specificity of Vhs1 and Sks1 toward limited ubiquitinated substrates and by the fact that other kinases, distinct form Vhs1 and Sks1, have the capacity to phosphorylate UbS57. While the authors emphasize these possibilities, they also provide several data that support this interpretation. As shown in the initial version of the manuscript, Gin4 and Kcc4 are two other kinases that can trigger UbS57 phosphorylation. Most importantly, new data from the revised version now support a possible specificity of Vhs1-mediated phosphorylation of UbS57 in protein misfolding stress (new Figure 4C) and of Sks1-mediated phosphorylation of UbS57 in DNA damage stress (new Figure 4E). Notably, Figures 3E and 3F also demonstrate that the overexpression of Sks1 and of Vhs1 both stimulate the phosphorylation of endogenous Ubiquitin at S57.

In the eyes of this reviewer, the revised manuscript is really improved and the new data appropriately support the claims of the authors.

Reviewer #3:

The claim for discovery here is that phosphorylation of Ub on serine 57 affects stress responsiveness of yeast.

The key evidence in support of this conclusion is the concordance in phenotype between a replacement allele that renders Ser57 unphosphorylateable (S57A) and inactivating mutations of two kinases demonstrated in a heterologous system to be capable of phosphorylating Ub_S57 [the authors also provide information on the phenotype of an Ub_S57D 'phosphomimetic' mutation and gain of function features of the kinases, but these give rise to a less clear cut picture and are thus ignored for the purpose of this review]

How credible is this interpretation?

The stoichiometry of S57 phosphorylation is exceedingly low, which is to say that in stressed cells most of the Ub remains unphosphorylated. To account for the phenotypic consequences of kinase inactivation and/or Ub_S57A one would have to conjure a scenario whereby phosphorylation affects a small pool of Ub that is critical to the stress adaptation. Given the potential precedent set by PINK1, this was a speculation we as reviewers were willing to sanction when we invited a revised version of the paper without insisting that evidence for the existence of such a pool be provided.

In the revised version of the manuscript we now learn that the kinases in question, Sks1 and Vhs1 are not essential for the stress-induced Ub phosphorylation – other kinases can compensate for this biochemical event, but not, apparently, for its phenotypic consequences. Thus, to uphold the paper's key conclusion we must now be willing to take an additional leap of faith, namely that the already small pool of Ub_pS57 is itself comprised of two sub-pools, one that is Sks1 and Vhs1-dependent – and important to the phenotype arising from the Ub_S57A mutation (and/or the inactivation of the kinases) – and a second pool that is irrelevant to this stress response.

As reviewers we need to ask ourselves if we are willing to endorse the publication of a paper that makes the aforementioned claim, supports it with the data provided here and then qualifies the conclusion with these key caveats relating to the unproven existence of a critical small pool of Sks1 and Vhs1-dependent Ub_pS57.

https://doi.org/10.7554/eLife.58155.sa1

Author response

All three reviewers found the work of interest. Yet, because pSer57-Ubiquitin is so rare, they expressed concerns that the observed phosphorylation of Ubiquitin could be an epiphenomenon of little incidence to cell function.

We are extremely grateful for the reviewers’ interest in the manuscript, and we agree with the concern that ubiquitin phosphorylation could be an epiphenomenon. However, we think these concerns are mitigated by the following:

- Several new lines of genetic evidence have been added to the revised manuscript which expand upon the genetic relationship between the Ser57 ubiquitin kinases that we identified and the phosphorylation of ubiquitin at the Ser57 position. The details of these new experiments are outlined in the following point-by-point response to reviewer comments.

- We think the data strongly indicate that Ser57 phosphorylation of ubiquitin plays a physiological role in cell stress responses. Biochemical data indicates that Ser57 phosphorylated ubiquitin is produced in response to conditions of oxidative stress, and genetic data indicates Ser57 phosphorylated ubiquitin is a requirement for the oxidative stress response. Our data also implicates a functional role for Ser57 phosphorylation in other proteotoxic stress responses.

- Although we cannot exclude the possibility that ubiquitin phosphorylation is an epiphenomenon, the stress tolerance phenotypes are real and therefore may have synthetic value. For example, mechanisms that promote cellular tolerance to proteotoxic stresses may ultimately have therapeutic value for diseases associated with protein misfolding. Additionally, yeast variants that exhibit thermal tolerance may have industrial applications. Therefore, the results reported in this study have potential impact beyond the understanding of cellular responses.

Overall, we believe the new experiments and revisions incorporated have resulted in a stronger manuscript that will be of significant interest to many labs in different fields – and we hope the editors and reviewers agree.

First, the phenotypes of the alanine and aspartate mutants may be due to general effects on Ubiquitin rather than true phospho-Null and -mimetics effects. This concern is minimized by showing that the deletion and overexpression of the kinases phenocopy the ubiquitin mutants. Indeed, analysis of the ubiquitin mutant is only valid in the light of this phenocopy. Yet, because of its importance, this point can and should be pushed further. For instance, while the asp mutant is sensitive to hydroxyurea, the ala mutant behaves as a wildtype. This is at odds with the fact that the KO of each kinase individually increase HU resistance. In this case at least, the effect of deleting the kinase does not appear to involve a decrease in the level of ser57 phosphorylation. How can this be reconciled? Also, while you show that expressing the 57Asp bypasses the need for the kinase in the H2O2 sensitivity assay, is it also the case for the HU and tunicamicin resistance bestowed by the deletion of the kinases? Please find in the specific points a list of experiments required to better pinpoint the phenocopy that is so essential for the relevance of this study. Also, overexpression Vhs1 causes a slight canavanine resistance, reminiscent of canavanine resistance confered by s57d expression. Vhs1 overexpression should therefore not confer canavanine resistance if expressed in a s57a background. This is important to strengthen the phenocopy.

These are excellent points raised by reviewers. In the revised manuscript, we have expanded our genetic analysis, which has revealed additional genetic interactions between the Ser57 ubiquitin kinases and the Ser57 position of ubiquitin. Specifically, we have included the following new experiments in Figure 4:

- Overexpression of VHS1 phenocopies the canavanine resistance phenotype observed with expression of S57D ubiquitin. This phenotype requires catalytic activity of Vhs1, and it is suppressed by expression of S57A ubiquitin.

- Overexpression of VHS1 phenocopies the thialysine resistance phenotype observed with expression of S57D ubiquitin. This phenotype requires catalytic activity of Vhs1, and it is suppressed by expression of S57A ubiquitin.

- Overexpression of SKS1 phenocopies the hydroxyurea sensitivity phenotype observed with expression of S57D ubiquitin. This phenotype is suppressed by expression of S57A ubiquitin.

All of these findings indicate that overexpression of SKS1 and VHS1 drive production of Ser57 phosphorylated ubiquitin (as shown in Figure 3E-F), which is required for the observed phenotypes. Combined with our original genetic analysis of these kinases in the context of oxidative stress, we think these results strengthen the main conclusions of the paper.

(Please note that we have also decided to remove our analysis of growth in the presence of tunicamycin. The tunicamycin resistance phenotype of Δsks1Δvhs1 double mutant cells is subtle and will require additional genetic analysis in follow-up studies. However, we do not believe this exclusion changes the main conclusions or significance of the manuscript.)

Second, while you show that both kinases can phosphorylate Ubiquitin in bacteria and in vitro, and that the overexpression of one of them increases the phosphorylation levels, you do not show how deletion of the kinase affect phosphorylation. This can and should be done, in particular to show if the observed increase in phosphorylation upon oxidative stress is mediated by these kinases.

This experiment was the major bottleneck to our resubmission, since it required us to generate new strains and due to significant delays at our proteomics core facility. We performed the requested experiment, and the data are now presented in Figure 4, Supplementary file 3. In this SILAC experiment, we compared wildtype and Δsks1Δvhs1 double mutant cells in regular growth conditions (Experiment #1) and following a 30 minute exposure to H2O2 (Experiment #2) and in neither case did we observe significant change in the amount of Ser57 phospho-ubiquitin. This result indicates that absence of Sks1 and Vhs1 does not affect global levels of Ser57 phosphorylated ubiquitin following acute exposure to H2O2. However, it does not exclude the possibility that these kinases may participate in the response to prolonged oxidative stress, and it does not account for localized production of phosphorylated ubiquitin. Redundancy with other kinases (Gin4, Kcc4, or other as-yet unidentified Ser57 ubiquitin kinases) may also be a factor – although redundancy is not consistent with the genetic requirement of SKS1 and VHS1 for growth arrest during oxidative stress. We have tried to objectively interpret the data (Results section) and we hope reviewers and editors will appreciate our effort despite the outcome.

Third, given the low abundance of pS57 ubiquitin, it is hard to conceive that this modification has an important effect on global chain linkage, unless this rare modification is applied to an equally rare set of substrates (like for instance PINK-1 mediated phosphorylation of ubiquitin is limited to the pool of ubiquitin that is on mitochondrial proteins). This should be better emphasized throughout the manuscript so as not to mislead readers into believing that a substantial fraction of ubiquitin is subjected to phosphorylation.

We agree that in physiological circumstances the production of phospho-ubiquitin is highly localized – as is the case for Pink1-mediated production of Ser65 phosphorylated ubiquitin. Indeed, this interpretation is consistent with many of our observations presented throughout the manuscript, and this is also the reason why genetics has been a powerful tool for accessing the biology of Ser57 phosphorylated ubiquitin. To emphasize this point, we have made the following changes and additions to the text:

- Results section: By way of introducing the yeast ubiquitin replacement strains used in this study (S57A and S57D) we emphasize that this strategy inherently over-estimates the stoichiometry of ubiquitin phosphorylation, and thus the phenotypes likely exaggerate effects that are likely localized and transient in a physiological context.

- Results section: In discussing the impact S57A and S57D have on linkage types used in conjugation, we re-emphasize the point that complete ubiquitin replacement in the strains used exaggerates the effects expected at physiological phosphorylation levels. We also link this to discussion of our result that Ser57 phosphorylation is induced by oxidative stress, but the stoichiometry is still sufficiently low that the impact is likely highly localized.

- Results section: In this concluding paragraph, we emphasize the low stoichiometry of ubiquitin phosphorylation in a physiological context. We also compare Ser57 kinases to Pink1, speculating that activity of these kinases on localized pools of ubiquitin likely drives the biology that is underscored by the genetics.

We think these changes capture the spirit of the reviewer/editorial critique. In doing so, we have more clearly articulated the limitations associated with the data we present, and we believe this strengthens the manuscript as a whole.

Fourth, in many cases, the experiments are not described to a sufficient amount of detail. For instance, vectors used herein are not described anywhere, nor is the way that all copies of ubiquitin have been replaced with mutant forms. The Supplementary file 2 is absent, so is Supplementary file 1. A much better method section is required to ensure the reproducibility of the experiments. Better descriptions of numbers pertaining to quantitative analysis, statistical test employed an p-value threshold, description of error bars (Stdev, SEM…) are also needed in figures and legends.

We apologize for these oversights, which have been addressed in the revised manuscript. Here is a list of specific changes and additions to address this concern:

- All strains and plasmids used in this study are now described in a Key Resources Table.

- We have also provided in the Materials and methods section a better description of our ubiquitin replacement yeast strains and how those were generated.

- In Figure Legends, we now provide a thorough description of statistical tests, error bars, significance thresholds, and numbers of biological replicates for all relevant experiments depicted in main and supplemental figures.

- We have included source data files corresponding to each figure, which includes all numerical data and statistical analysis that was used to generate all graphs presented in this study.

We have expanded the experimental details provided in our Materials and methods section to ensure reproducibility of the experiments.

Essential revisions:

1) In Figure 1A and Figure 3—figure supplement 1, the authors test the effect of ubiquitin phospho-mutants and absence of kinases, respectively, on the ability of yeast cells to recover from acute heat stress. Firstly, it is puzzling though the experimental conditions are the same (39ᵒC for 18 hours and shifted back to 26ᵒC for recovery) in both cases, the wild-type strain is as good as dead in Figure 1A while it grows fine in Figure 3—figure supplement 1.

This disparity is due to differences in strain background between these two experiments. For cells expressing only WT, S57A, or S57D ubiquitin, we have used the SUB280 background, which was designed to express ubiquitin from a single source and is therefore used in experiments for phenotypic analysis of strains expressing S57A and S57D ubiquitin. (Figure 4—figure supplement 2) was performed in the SEY6210 strain background, which has greater thermal tolerance than SUB280. In the revised manuscript, we have added text in the Materials and methods to clarify why SUB280 and SEY6210 background were used in different experiments.

Importantly, to validate the resistance phenotype of the S57D mutant, the authors should rather over-express the kinases and see that cells grow better in this condition compared to the wild-type and much better compared to the S57A mutant.

These are good suggestions raised by reviewers. Our analysis did not uncover any thermal tolerance phenotypes associated with the deletion or overexpression of Ser57 ubiquitin kinases identified in this study (Figure 4—figure supplement 1, Figure 4—figure supplement 2). However, this does not exclude a role for Ser57 phosphorylation in the heat stress response, and we hypothesize there may be additional (and as yet unidentified) Ser57 ubiquitin kinases that function specifically in the heat stress response.

We have also included new data revealing that yeast cells expressing S57A ubiquitin exhibit thermal sensitivity (Figure 1E and Figure 1—figure supplement 1). This provides additional evidence of a role for Ser57 phosphorylated ubiquitin in promoting thermal tolerance, which we think strengthens the revised manuscript.

2) In Figure 1F, the authors employ anti-K48 ubiquitin and anti-K63 ubiquitin antibodies to show the specificity varies between S57A and the S57D mutant. The concern here is whether the serine mutants affect the binding of the antibodies. For instance, the epitope recognized by the anti-K63 ubiquitin antibody could involve the serine 57, however, when mutated to aspartate, the antibody can lose its ability to bind K63-linked ubiquitin. Is there a way to rule this out?

This is an excellent point raised by reviewers. Signal from blotting with the anti-K63 antibody is typically very weak, but we actually detect a baseline signal for K63 linkage detection that declines with oxidative stress (Figure 2C). We have also now quantified this over triplicate experiments (Figure 2D-E). These data suggest that S57D ubiquitin is recognized by the anti-K63 antibody but the signal decreases with oxidative stress.

To validate the findings of Figure 2C-E using methods that do not rely on linkage-specific antibodies, we turned to SILAC-MS combined with enrichment of ubiquitin-remnant (di-Gly) peptides comparing cells expressing wildtype (heavy-labelled) and S57D (light-labelled) ubiquitin. In this analysis, we resolved linkage-specific peptides corresponding to K6-, K33- and K48-linked polymers (Figure 2, Supplementary file 1). Consistent with our blotting analysis, SILAC quantification revealed a 39% increase in K48-linked polymers associated with S57D ubiquitin. Importantly, K63-linked polymers are a blind spot of this analysis, since the Ser57Asp mutation occurs on the same peptide that harbors K63. (Thus, these peptides differ between the two samples and cannot be quantified by SILAC.) Nevertheless, these results are consistent with immunoblotting results presented in Figure 2, and they provide additional quantitative analysis of other linkage-types not amenable to immunoblot analysis (e.g., K6- and K33linkages). We believe the addition of this new experimental data addresses the reviewers concerns and strengthens the manuscript.

3) The authors show that S57D increase K48 but decrease K63-linkages whereas S57A decrease K48 but increase K63-linkages upon H2O2 treatment (Figure 1F). What about overexpression or deletion of Vhs1 and Sks1? Does absence of the kinases impact the mutual abundance of ubiquitin K48 and K63 linkages in vivo? Gly-Gly peptides analysis of the data in the experiment from Figure 2G might answer this.

This is an excellent idea – and we went back over the data for Figures 3E-F (formerly Figure 2G). Although some linkage-specific diGly peptides were resolved in this analysis, there are no consistent trends for any peptides other than the Ser57 phosphopeptide in these experiments. This finding suggests that production of Ser57 phospho-ubiquitin, at least at the levels attained in these experiments, is not sufficient to substantially affect global ubiquitin linkage patterns. The source data for these experiments is now provided in Figure 3—source data 1.

4) Deletion of the kinases increase resistance to tunicamycin. However, expression of S57A does not. To strengthen the case of the phenocopy, it is important to check if kinases have ubiquitin-independet effects and how much of the phenocopy is actually wrought by independent mechanisms.

Actually, the initial submission included data revealing that kinase deletion and S57A expression both resulted in slight resistance to tunicamycin, but because this phenotype was subtle in both cases we decided to remove the tunicamycin results from this study in favor of stronger phenotypes. Instead, we have included new data for canavanine, thialysine, and hydroxyurea phenotypes that link the kinases to ubiquitin-dependent effects. We think this strengthens the revised manuscript.

5) In general, the growth assays on tunicamycin, hydroxyurea or canavanin in Figure 1—figure supplement 1, Figure 3—figure supplement 2, Figure 3—figure supplement 3 and Figure3—figure supplement 4 should rather be moved to the main figures.

This is an excellent suggestion – and we have moved more phenotypic data to the main figures (Figure 4) in the revised manuscript.

6) In Figure 4, human MARK kinases are found to trigger phosphorylation on UbS57 in vitro. It would be insightful to validate this finding in vivo and check whether phosphorylation of UbS57 also regulate the oxidative stress response in mammalian cells. I understand however that this might be take much longer to do than the timeframe which is allocated for revision. In this context, the authors may consider avoiding finishing the paper with these preliminary mammalian data and move them elsewhere in the manuscript. For instance, splitting data from Figure 2 in Figure 2 and Figure 3 and moving Figure 4C in the new Figure 2 (and Figure 4A and B in supplement) would save some space to end the paper with the current Figure 3 and its supplements.

This is an excellent suggestion, and we have re-structured the revised manuscript accordingly.

Reviewer #4:

This manuscript by Hepowitt et al., focusses on the mechanism and phenotypic consequences of ubiquitin post-translational modification (PTM). Specifically, one of the first identified modifications – phosphorylation of Ser57. This loosely follows on from previous work conducted in the MacGurn lab in which they identified ubiquitin Ser57 phosphorylation (Ser57P) as a regulator of endocytic trafficking and ubiquitin turnover (Lee et al., 2017).

The current manuscript begins by presenting a number of varied phenotypes associated with yeast solely expressing Ser57Asp (a phosphomimetic) and Ser57Ala (non phosphorylatable) ubiquitin mutants (presumably from an endogenous ubiquitin loci). Yeast expressing Ser57Asp have a conspicuous heat tolerance phenotype (Figure 1A-C) and an increased sensitivity to hydroxyurea relative to wildtype yeast (Figure S1A). Curiously, the opposite trend is not observed with Ser57Ala ubiquitin. Conversely, Ser57Asp and Ser57Ala ubiquitin mutants do possess contrasting phenotypes, with respect to wildtype yeast, in terms of tunicamycin sensitivity (which increases in Ser57Asp and decreases in Ser57Ala expressing strains, respectively) (Figure S1A).

These are excellent observations. We note that we have included additional data in the revised manuscript that reveal a heat sensitivity phenotype of yeast expression S57A ubiquitin (Figure 1E and Figure 1—figure supplement 1). We have also decided to remove our analysis of growth in the presence of tunicamycin. The tunicamycin resistance phenotype of Δsks1Δvhs1 double mutant cells is subtle and will require additional genetic analysis in follow-up studies. However, we do not believe this exclusion changes the main conclusions or significance of the manuscript.

The authors then move towards the principal thesis of their manuscript; that modification of Ser57 is important for the proper regulation of the yeast oxidative stress response. […] However, given the contrast between Ser57Asp and wildtype cells in terms of ubiquitin linkage both {plus minus} H2O2 (Figure 1F) the above hypothesis is conceptually difficult to marry with the observation of seeming parity between wildtype and Ser57Asp expressing yeast in terms of oxidative stress growth response and post-stress viability (Figure 1D-E) and with the observation that wildtype cells both increase K48 and K63-linked polyubiquitin in response to oxidative stress (Figure 1F).

In consideration of these excellent points raised by reviewer #4, we have more rigorously addressed and quantified the linkage-type affects associated with expression of S57A and S57D ubiquitin in yeast (Figure 2C-E and Figure 2—figure supplement 2 and Supplementary file 1). While the phenotypic experiments (Figure 2A-B) do not reveal any difference between yeast cells expressing wildtype and those expression S57D ubiquitin variants, it is notable that no loss of viability is detected in wildtype cells (Figure 2B) so we cannot conclude phenotypic parity between wildtype and S57D expressing yeast. Furthermore, while there does appear to be an increase in K63-linked polyubiquitin in response to oxidative stress, quantification of our results does not reveal this to be statistically significant. This may reflect a limitation of the sensitivity (or specificity) of the anti-K63 antibody and so we refrain from making strong conclusions on this point in the manuscript. In contrast, we believe the most significant observations in these experiments pertain to abundance of K48-linked polyubiquitin, which is appears much elevated in the presence of S57D and at the expense of K63-linked polymers. Additionally, we include new SILAC-MS analysis of polyubiquitin linkage abundance in these strains, and we have revised the text to include a more nuanced discussion of these observations – which includes consideration of the limitations associated with using ubiquitin replacement yeast strains, where ubiquitin is exclusively S57A or S57D. We hope reviewer #4 will agree that these revisions have helped to strengthen the manuscript, and that despite these limitations the results are still significant and worthy of publication.

Instead, the authors compare kinase knockout phenotypes to the previous Ser51Asp and Ser51Ala phenotypes. Unfortunately, even these are performed in a rather haphazard fashion. For example, although Ser57Asp was shown to produce a robust heat tolerance phenotype and also a tunicamycin sensitivity (Figure 1A-C and S1A), in Figure S3C wildtype cells were only compared in this regard to Δsks1Δvhs1 and not also to SksI/VhsI over-expression (or to Ppz1/2 knockout, the phosphatase identified by this group in Lee at al., (2017) to be responsible for Ser57P dephosphorylation and surprisingly not mentioned or utilised in this paper).

These are excellent points raised by reviewer #4. While our data do implicate Ser57 phosphorylation of ubiquitin in thermal tolerance, our analysis did not uncover a kinase responsible for this particular phenotype. We suspect that there may be additional, as yet unidentified ubiquitin kinases which may confer thermal tolerance.

Please note that we have also decided to remove our analysis of growth in the presence of tunicamycin. The tunicamycin resistance phenotype of Δsks1Δvhs1 double mutant cells is subtle and will require additional genetic analysis in follow-up studies. However, we do not believe this exclusion changes the main conclusions or significance of the manuscript.

Examining a role for Ppz phosphatases as antagonists of these kinases is also an excellent idea. While we have some genetic data to support this relationship, we think this will require a deeper genetic and biochemical analysis that is outside the scope of the current manuscript.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

1) The new proteomics results, as disappointing as you might find them, are an important part of the story and should constitute part of a main figure and not be buried in a Supplementary file. They should be the basis of an important discussion point (see below).

We were advised by eLife editorial staff that tables cannot be incorporated into figures. As such, we decided to move the data from Supplementary file 3 into Table 1, which is now part of the main article. To link this to Figure 4, we now reference Table 1 in the Figure 4 legend (and vice versa). Additionally, to highlight this further, we have added the chromatography data that is the basis of quantification, which is now displayed in Figure 4H. We agree with reviewers that these revisions help to emphasize this important result.

At the request of reviewer 1, we have also log transformed the data in Table 1, to make it more consistent with our treatment of other similar data throughout the manuscript. This is described in the revised legend for Table 1.

2) Instead of a result and Discussion section, the paper should have a stand-alone Discussion section, where these concerns should be thoroughly put forward.

We agree, and we have implemented this suggestion in the revised manuscript.

3) In this discussion you should explicitly state that you are asking readers to accept the proposition that the phenotype in question arises from a small Sks1/Vhs1-dependent pool of Ub_pS57, which is undetectable on the background levels of Ub_pS57, which are themselves a very small fraction of Ub.

We have now expanded our discussion and included a more thorough explanation of our proposed interpretation, as well as the limitations associated with it. We have also included additional discussion of the limitations associated with genetic analysis of ubiquitin replacement yeast strains. These revisions are all found in the new Discussion section of the manuscript.

https://doi.org/10.7554/eLife.58155.sa2

Article and author information

Author details

  1. Nathaniel L Hepowit

    Department of Cell and Developmental Biology, Vanderbilt University, Nashville, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7614-2756
  2. Kevin N Pereira

    Department of Cell and Developmental Biology, Vanderbilt University, Nashville, United States
    Contribution
    Methodology
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5377-397X
  3. Jessica M Tumolo

    Department of Cell and Developmental Biology, Vanderbilt University, Nashville, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  4. Walter J Chazin

    Department of Biochemistry, Vanderbilt University, Nashville, United States
    Contribution
    Conceptualization, Resources
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2180-0790
  5. Jason A MacGurn

    Department of Cell and Developmental Biology, Vanderbilt University, Nashville, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Investigation, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    jason.a.macgurn@vanderbilt.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5063-259X

Funding

National Institutes of Health (R21 AG053562)

  • Jason A MacGurn

National Institutes of Health (R01 GM118491)

  • Jason A MacGurn

National Institutes of Health (R35 GM118089)

  • Walter J Chazin

National Institutes of Health (T32 CA119925)

  • Jessica M Tumolo

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We are very grateful to K Rose for technical advice and assistance with quantitative mass spectrometry analysis. We are also grateful to B Brasher for technical advice and recommending reagents. We also thank T Graham for critical reading of the manuscript. JMT was funded by NIH training grant T32 CA119925. This research was supported by NIH grant R21 AG053562 (to JAM), R01 GM118491 (to JAM), and R35 GM118089 (to WJC).

Senior Editor

  1. David Ron, University of Cambridge, United Kingdom

Reviewing Editor

  1. Benoît Kornmann, University of Oxford, United Kingdom

Reviewer

  1. Benoît Kornmann, University of Oxford, United Kingdom

Version history

  1. Received: April 22, 2020
  2. Accepted: October 18, 2020
  3. Accepted Manuscript published: October 19, 2020 (version 1)
  4. Version of Record published: November 6, 2020 (version 2)

Copyright

© 2020, Hepowit et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,104
    Page views
  • 367
    Downloads
  • 7
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Nathaniel L Hepowit
  2. Kevin N Pereira
  3. Jessica M Tumolo
  4. Walter J Chazin
  5. Jason A MacGurn
(2020)
Identification of ubiquitin Ser57 kinases regulating the oxidative stress response in yeast
eLife 9:e58155.
https://doi.org/10.7554/eLife.58155

Further reading

    1. Cell Biology
    2. Structural Biology and Molecular Biophysics
    Bronwyn A Lucas, Benjamin A Himes, Nikolaus Grigorieff
    Research Advance

    Previously we showed that 2D template matching (2DTM) can be used to localize macromolecular complexes in images recorded by cryogenic electron microscopy (cryo-EM) with high precision, even in the presence of noise and cellular background (Lucas et al., 2021; Lucas et al., 2022). Here, we show that once localized, these particles may be averaged together to generate high-resolution 3D reconstructions. However, regions included in the template may suffer from template bias, leading to inflated resolution estimates and making the interpretation of high-resolution features unreliable. We evaluate conditions that minimize template bias while retaining the benefits of high-precision localization, and we show that molecular features not present in the template can be reconstructed at high resolution from targets found by 2DTM, extending prior work at low-resolution. Moreover, we present a quantitative metric for template bias to aid the interpretation of 3D reconstructions calculated with particles localized using high-resolution templates and fine angular sampling.

    1. Cell Biology
    2. Immunology and Inflammation
    Yijun Zhang, Tao Wu ... Li Wu
    Research Article

    Dendritic cells (DCs), the key antigen-presenting cells, are primary regulators of immune responses. Transcriptional regulation of DC development had been one of the major research interests in DC biology, however, the epigenetic regulatory mechanisms during DC development remains unclear. Here, we report that Histone deacetylase 3 (Hdac3), an important epigenetic regulator, is highly expressed in pDCs, and its deficiency profoundly impaired the development of pDCs. Significant disturbance of homeostasis of hematopoietic progenitors was also observed in HDAC3-deficient mice, manifested by altered cell numbers of these progenitors and defective differentiation potentials for pDCs. Using the in vitro Flt3L supplemented DC culture system, we further demonstrated that HDAC3 was required for the differentiation of pDCs from progenitors at all developmental stages. Mechanistically, HDAC3 deficiency resulted in enhanced expression of cDC1-associated genes, owing to markedly elevated H3K27 acetylation (H3K27ac) at these gene sites in BM pDCs. In contrast, the expression of pDC-associated genes was significantly downregulated, leading to defective pDC differentiation.
