The LINC complex transmits integrin-dependent tension to the nuclear lamina and represses epidermal differentiation

  1. Emma Carley
  2. Rachel M Stewart
  3. Abigail Zieman
  4. Iman Jalilian
  5. Diane E King
  6. Amanda Zubek
  7. Samantha Lin
  8. Valerie Horsley  Is a corresponding author
  9. Megan C King  Is a corresponding author
  1. Department of Cell Biology, Yale School of Medicine, United States
  2. Department of Molecular, Cell and Developmental Biology, Yale University, United States
  3. Sunnycrest Bioinformatics, United States
  4. Department of Dermatology, Yale School of Medicine, United States
Research Article
  • Cited 2
  • Views 1,762
  • Annotations
Cite this article as: eLife 2021;10:e58541 doi: 10.7554/eLife.58541

Abstract

While the mechanisms by which chemical signals control cell fate have been well studied, the impact of mechanical inputs on cell fate decisions is not well understood. Here, using the well-defined system of keratinocyte differentiation in the skin, we examine whether and how direct force transmission to the nucleus regulates epidermal cell fate. Using a molecular biosensor, we find that tension on the nucleus through linker of nucleoskeleton and cytoskeleton (LINC) complexes requires integrin engagement in undifferentiated epidermal stem cells and is released during differentiation concomitant with decreased tension on A-type lamins. LINC complex ablation in mice reveals that LINC complexes are required to repress epidermal differentiation in vivo and in vitro and influence accessibility of epidermal differentiation genes, suggesting that force transduction from engaged integrins to the nucleus plays a role in maintaining keratinocyte progenitors. This work reveals a direct mechanotransduction pathway capable of relaying adhesion-specific signals to regulate cell fate.

Introduction

Physical forces and the architecture of the extracellular environment are an emerging area of cell fate regulation (Discher et al., 2009). Cells sense changes in the physical environment through cell-cell and cell-extracellular matrix adhesions, providing a mechanism by which mechanical inputs can contribute to the control of cell fate. While several studies have linked geometrical and physical inputs to changes in cellular signaling through mechanoresponsive transcription factors such as YAP/TAZ (Totaro et al., 2018) or MKL/MRTF (Connelly et al., 2010), whether direct transmission of mechanical force to the nucleus can influence cell fate is not known.

The interfollicular epidermis is an excellent model to explore how mechanical inputs regulate cell fate. Epidermal stem cells adhere to the underlying basal lamina through β1 integrin-based adhesions and β4 integrin-based hemidesmosomes (Raghavan et al., 2000), which maintain stem cell fate, proliferation, and inhibit differentiation (Hotchin et al., 1995; Levy et al., 2000; Rippa et al., 2013; Watt et al., 1993). Upon differentiation, basal keratinocytes release their integrin-based adhesions, initiate gene expression changes to activate terminal differentiation (Tsuruta et al., 2011), and move upward to enter the stratified epithelium until they are shed at the skin’s surface. Despite the well-established role for integrin adhesions in regulating epidermal differentiation, how integrin signals are propagated to the nucleus to regulate the keratinocyte differentiation program is not well understood.

Here, we explore whether mechanical cues can regulate keratinocyte cell fate via tension on the nucleus via the linker of nucleoskeleton and cytoskeleton (LINC) complex. The LINC complex, composed of tail-anchored Nesprins integrated into the outer nuclear membrane and SUN proteins integrated into the inner nuclear membrane, spans the nuclear envelope to mechanically integrate the cytoplasmic cytoskeleton and the nuclear interior – specifically the nuclear lamina and its associated chromatin (Chang et al., 2015). While the LINC complex has been postulated to act either as a direct mechanosensor or as a conduit for mechanotransduction to influence gene expression (Alam et al., 2016; Wang et al., 2009), whether the LINC complex controls gene expression in vivo remains largely untested. Indeed, to date direct gene targets of the LINC complex that regulate genetic programs in vivo, for example, during differentiation, remain to be identified.

Several lines of evidence suggest that epidermal differentiation is regulated by the nuclear lamina, yet the mechanisms remain unknown. First, during basal stem cell differentiation, a large chromosomal region termed the epidermal differentiation complex (EDC), which consists of 60 consecutive genes necessary for epidermal stratification and the production of the cornified envelope, relocates away from the nuclear lamina toward the nuclear interior to be transcriptionally activated (Gdula et al., 2013; Mardaryev et al., 2014; Williams et al., 2002). Further, the AP-1 transcription factor complex, itself regulated by A-type lamins, influences EDC gene expression in both proliferating and differentiating keratinocytes in vitro (Oh et al., 2014). AP-1 also coordinates with EZH2 in the polycomb complex, which promotes targeting of chromatin to the nuclear lamina (Harr et al., 2015) and regulates epidermal differentiation (Ezhkova et al., 2009). Lastly, a skin-specific lamin-null mouse model (Lamin B1/B2/A/C triple-knockout) exhibits a thickened epidermis attributed to precocious differentiation (Jung et al., 2014).

Here, we provide evidence that the LINC complex regulates epidermal differentiation in vitro and in vivo. Using a novel molecular biosensor to measure forces exerted on LINC complex molecules, we find that tension is high on the LINC complex and A-type lamins in epidermal stem cells in an integrin-dependent manner and is reduced upon differentiation. In mouse keratinocytes (MKCs) lacking LINC complexes, we observe precocious differentiation in vitro and expansion of the differentiated, suprabasal layers of the skin in vivo. This work suggests that tension from integrins is communicated through the LINC complex to the nuclear lamina to maintain the progenitor state of basal keratinocytes, providing a potential mechanism by which cell fate is regulated directly by mechanical cues.

Results and discussion

A tension sensor in Nesprin-2 is sensitive to integrin engagement

In order to visualize tension on the LINC complex in living cells, we generated a molecular biosensor to measure force on individual Nesprin proteins. To this end, we inserted a tension sensor module composed of the fluorescence resonance energy transfer (FRET) pair mTFP and Venus connected by an elastic flagelliform linker (Grashoff et al., 2010) into the juxtamembrane region of a mini-Nesprin-2 construct (Luxton et al., 2011), called hereafter ‘N2G-JM-TSMod’. The mTFP-Venus TSMod has been shown previously to be sensitive to forces in the single pN range (Grashoff et al., 2010). In the N2G-JM-TSMod construct, the TSMod lies between the transmembrane domain and the entire cytosolic domain of mini-Nesprin-2, which contains both the N-terminal calponin homology domains that engage actin and a portion of the spectrin repeat region (Figure 1A). This construct is distinct from previously described Nesprin tension sensors in its design (Arsenovic et al., 2016; Déjardin et al., 2020). We also generated a tension-insensitive construct by inserting the TSMod at the N-terminus of mini-Nesprin2 (Figure 1A, ‘NoT_TSMod’) as well as ‘dark’ controls that allow for bleed through between fluorescence channels to be assessed (Figure 1—figure supplement 1).

Figure 1 with 1 supplement see all

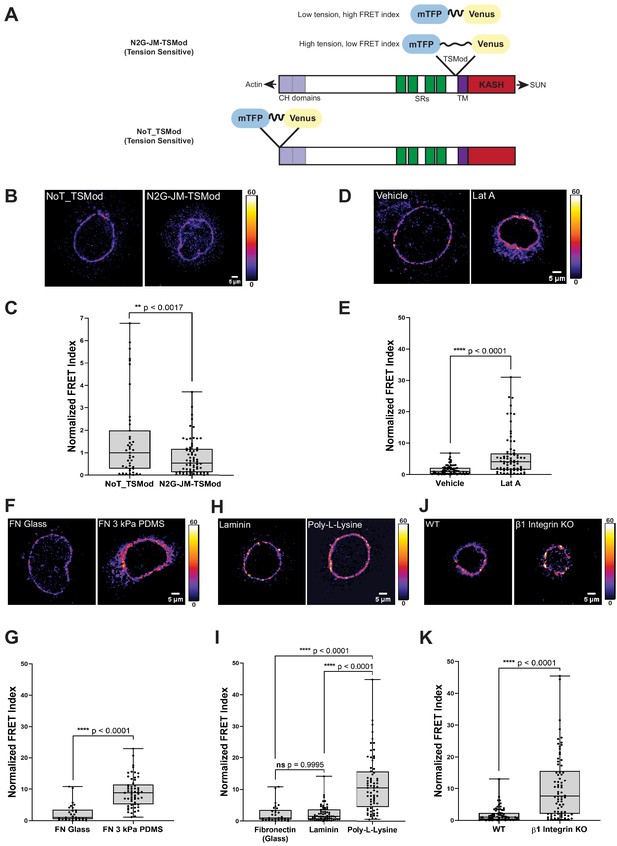

A tension sensor in mini-Nesprin-2 is under actin-dependent tension when mouse keratinocytes (MKCs) engage the extracellular matrix through integrins.

(A) Cartoon of the N2G-JM-TSMod, in which the mTFP-Venus tension sensor module is inserted between the cytoplasmic domain and the C-terminal KASH domain/transmembrane domain of mini-Nesprin-2. Tension leads to a reduction in the fluorescence resonance energy transfer (FRET) index. Cartoon of the NoT_TSMod control, in which the TSMod resides at the N-terminus of the N2G, and therefore cannot experience intramolecular tension. (B, C) The N2G-JM-TSMod displays higher tension (lower FRET index) than the no-tension NoT_TSMod control (higher FRET index) when expressed in MKCs plated on FN-coated glass. Representative images show that, at low expression levels, both the N2G-JM-TSMod and NoT_TSMod are successfully targeted to the nuclear envelope. Images are pseudocolored according to the normalized FRET index (Feige et al., 2005). The median FRET index value of cells expressing the NoT_TSMod was set to a value of 1 in (C) and used to scale to relative values for the N2G-JM-TSMod. (D, E) Disruption of actin filaments with 0.5 μM latrunculin A (Lat A) decreases the tension on the N2G-JM-TSMod, leading to a higher FRET index. The median FRET index of cells expressing the N2G-JM-TSMod was set to a value of 1 in (E). (F, G) Tension on the N2G-JM-TSMod is sensitive to substrate mechanics. Plating of MKCs on FN-coated compliant substrates (3 kPa PDMS) leads to increased FRET compared to MKCs plated on FN-coated glass. (H, I) Plating of MKCs on extracellular matrix that engages integrins drives high tension on the N2G-JM-TSMod. MKCs grown on glass coated with fibronectin or laminin drive a higher tension state (low FRET index) than for cells grown on glass coated with poly-L-lysine (high FRET index). The median FRET index value of cells expressing the N2G-JM-TSMod plated on FN-coated glass was set to a value of 1 in (G) and (I). Data for FN replotted from (I). (J, K) MKCs lacking β1 integrin fail to drive high tension on the N2G-JM-TSMod. Representative images demonstrate that the N2G-JM-TSMod is successfully targeted to the nuclear envelope in wild-type (WT) and β1 integrin null MKCs. Higher FRET indexes at the nuclear envelope in β1 integrin null MKCs demonstrate that β1 integrin engagement with the extracellular matrix is required for high tension on the N2G-JM-TSMod. The median FRET index value of cells expressing the N2G-JM-TSMod plated on fibronectin-coated glass was set to a value of 1 in (K). For all plots, errors reflect SD, n ≥ 30 cells for each condition measured from n = 3 experiments. ****p<0.0001 as determined by unpaired t-test (C, E, G, K) or one-way ANOVA (I). All scale bars = 5 μm.

We transfected primary undifferentiated MKCs cultured on fibronectin-coated glass bottom dishes with either the N2G-JM-TSMod or NoT_TSMod construct; both were targeted efficiently to the nuclear envelope when expressed at moderate levels (Figure 1B, D, F, H, J). We anticipated that the tension-insensitive NoT_TSMod would exhibit constitutively high FRET indexes, reflecting the conformational freedom at the N-terminus of the mini-Nesprin-2 protein. By contrast, we expected that intramolecular tension exerted on the N2G-JM-TSMod would lead to a decrease in the FRET index (Figure 1A). Indeed, relative to the mean NoT_TSMod FRET ratio (set to a value of 1), the N2G-JM-TSMod exhibited lower FRET indexes when expressed in undifferentiated MKCs as assessed qualitatively by the pseudocolored images reflecting the relative FRET index (Figure 1B) or quantitatively across populations of MKCs (Figure 1C). To determine if the actin cytoskeleton is required for tension on the N2G-JM-TSMod in undifferentiated MKCs, we pharmacologically disrupted filamentous actin with latrunculin A (Lat A). After 5 hr of Lat A treatment, the N2G-JM-TSMod displayed relaxed tension compared to the vehicle control (set to a value of 1) as indicated by an increase in the FRET indexes (Figure 1D, E). By contrast, Lat A treatment had no effect on the NoT_TSMod, as expected (Figure 1—figure supplement 1B). Based on these data, we conclude that (1) the tension reported by the N2G-JM-TSMod reflects intramolecular tension exerted on the juxtamembrane region and (2) the N2G-JM-TSMod is sensitive to actin-dependent tension at the nuclear envelope.

Next, we examined how the properties of cell-substrate engagement influenced tension on the LINC complex. We plated undifferentiated MKCs on glass or 3 kPa polydimethylsiloxane (PDMS) substrates coated with fibronectin (FN) (Mertz et al., 2013). We observed high tension on the N2G-JM-TSMod on stiff glass substrates (set to a value of 1) relative to cells plated on the 3 kPa substrates, which displayed lower tension (higher FRET ratio; Figure 1F, G). Proliferative keratinocyte progenitor cells bind to the basement membrane via several integrin-based adhesions with the laminin receptors α3β1 and the hemidesmosome-specific α6β4 being the chief epidermal integrins (reviewed in Burgeson and Christiano, 1997). Thus, we also explored how substrate composition affects tension on the LINC complex by plating MKCs on either FN- or laminin-coated glass coverslips or those coated with poly-L-lysine, which allows cell adhesion through its positive charge rather than specific cellular adhesions. MKCs expressing the N2G-JM-TSMod exhibited high tension (lower relative FRET ratio) at the nuclear envelope when plated on fibronectin or laminin relative to when MKCs were plated on poly-L-lysine (Figure 1H, I). Furthermore, β1 integrin (Itgb1) null MKCs plated on glass coverslips coated with FN had higher N2G-JM-TSMod FRET ratios (lower tension) than WT controls (Figure 1J, K). As MKCs lacking β1 integrin expression possess high levels of actomyosin contractility and can still engage with the substrate through β6 integrins (Bandyopadhyay et al., 2012; Raghavan et al., 2003), these observations suggest that β1 integrin engagement is explicitly required for high tension on LINC complexes at the nuclear envelope in epidermal progenitor cells.

Cell-intrinsic integrin engagement predicts N2G-JM-TSMod tension and differentiation in cohesive MKC colonies

Primary MKCs can be induced to differentiate in vitro by elevating extracellular calcium levels, leading to the formation of cohesive colonies that engage E-cadherin-based cell-cell adhesions and subsequently differentiate as assessed by upregulation of markers expressed in epidermal suprabasal layers in vivo (Mertz et al., 2013). In our previous work, we demonstrated that this transition leads to a reorganization of focal adhesions and traction stresses to cells at the colony periphery, while cells in the colony interior solely engage cell-cell adhesions (Mertz et al., 2013Figure 2A). We also documented that cells at the colony periphery display a biased nuclear position toward the colony center while cells within the colony interior display a central nuclear position (Figure 2A), suggesting that LINC complex tension might be distinct between MKCs at the colony periphery and interior (Stewart et al., 2015). To test if tension on the N2G-JM-TSMod is sensitive to the presence of cell-intrinsic focal adhesion engagement, we segmented cells in cohesive MKC colonies into ‘periphery’ and ‘interior’ cells. We find that the FRET ratio of the N2G-JM-TSMod for interior cells is significantly higher than that observed for cells at the colony periphery (Figure 2B), indicating that tension on the LINC complex is lost in interior cells that contain solely cell-cell adhesions. These data are consistent with the ability of focal adhesions to drive LINC complex tension in a cell-intrinsic manner in undifferentiated MKCs and reinforce that actomyosin contractility and stress fibers, which are present in both periphery and interior cells, are not sufficient to induce a high-tension state on LINC complexes in contexts where integrins are not engaged.

Figure 2 with 1 supplement see all

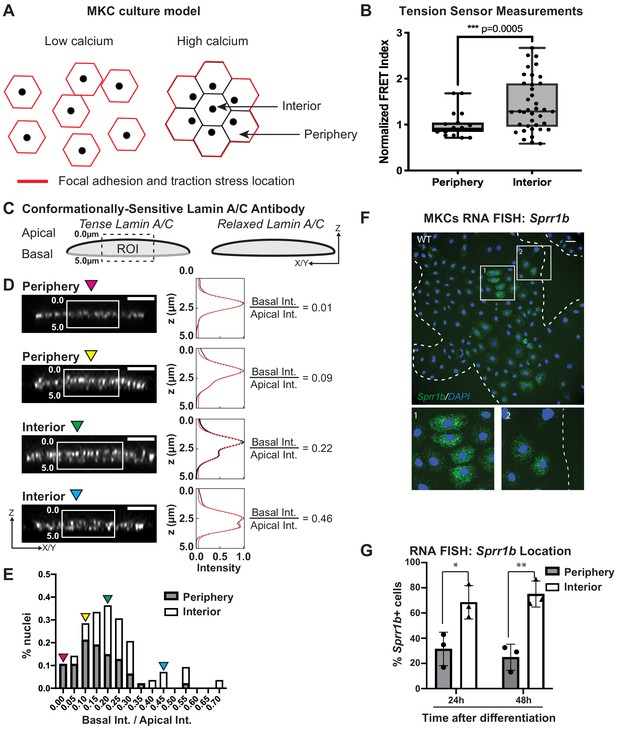

Tension on the N2G-JM-TSMod and nuclear lamina is released at the interior of cohesive mouse keratinocyte (MKC) colonies concomitant with differentiation.

(A) Cartoon of cell junction reorganization upon differentiation. In single MKCs grown in low calcium media, focal adhesions and traction forces are found at the periphery of each cell (red). In response to high calcium, MKCs form cohesive colonies and engage cell-cell junctions, which leads to a reorganization of focal adhesions and traction forces to the colony periphery. Cells in the colony interior have cell-cell but not cell-matrix adhesions. (B) The fluorescence resonance energy transfer index is higher in cells at the interior of cohesive MKC colonies compared to cells at the periphery, suggesting that tension on the N2G-JM-TSMod requires cell-intrinsic focal adhesion engagement. (C) Cartoon of method used to measure changes in the tension state of A-type lamins using a conformationally sensitive lamin A/C antibody whose epitope is lost when lamins are under tension. Cells under tension (left) lose staining on the basal side of the nuclear envelope. The profile of fluorescence intensity from the apical to basal side of each nuclei was measured for a region of interest in XZ and YZ slices from individual nuclei at varying locations within a colony. (D) Tension at the basal surface of nuclei is lost at the interior of cohesive MKC colonies and is maintained in cells at the colony periphery in response to differentiation. Examples of XZ and YZ confocal sections of individual nuclei and corresponding Z-intensity profiles measured in the region of interest, indicated by the white box (left). Intensity profiles were fit to two gaussians (right), representing staining of the apical and basal sides of the nuclear envelope. The intensity of antibody staining was defined as the area under the curve of the gaussian distribution corresponding to each side of the nuclear envelope. A ratio of the intensity of antibody staining of the basal relative to the apical side of the nuclear envelope was calculated. This analysis revealed that tension on the basal nuclear surface is relaxed at the colony interior relative to the colony periphery. Scale bar = 5 μm. (E) A histogram of the ratio of basal to apical intensity calculated as described in (C) for all cells analyzed (n = 47 for periphery and n = 28 for interior) shows that the ratio of basal to apical intensity for interior cells is shifted to higher values relative to cells at the periphery, indicating the lamina is under less tension. Values were binned every 0.05 arbitrary units, and the central value of each bin is labeled. Representative images for the low (magenta triangle) and high (blue triangle) bins, and bins corresponding to the highest percentage of periphery (yellow triangle) and interior (green triangle) are shown in (C). (F, G) The differentiation marker Sprr1b is expressed at higher levels in the colony interior than at the colony periphery. (F) Representative image of RNA fluorescence in situ hybridization for Sprr1b 24 hr after addition of calcium to induce differentiation. Inset 1 shows Sprr1b-positive cells at the colony interior. Inset 2 shows Sprr1b-positive and -negative cells at the colony periphery. Dotted lines are colony outline. Scale bar = 100 μm. (G) Quantitation of the percent of Sprr1b-positive cells that are located at the interior and periphery of WT MKC colonies normalized to the total Sprr1b-positive cells. 24h: 24 hr calcium treatment; 48h: 48 hr calcium treatment. *p<0.05. **p<0.01 as determined by unpaired t-test. Error bars are SD. N = 3 biological replicates.

Given that the LINC complex has been shown to transmit tension from the cell substrate to the lamin network at the nuclear periphery (Ihalainen et al., 2015), we examined whether tension on lamin A/C within cohesive MKC colonies mirrored that observed for the LINC complex with the N2G-JM-TSMod. To this end, we employed a conformationally sensitive lamin A/C antibody, which has been used to examine changes in lamin tension due to substrate stiffness (Ihalainen et al., 2015). When A-type lamins are under tension, the epitope of lamin A/C becomes inaccessible, resulting in a decrease in fluorescence. We immunostained differentiated, cohesive MKC colonies with a conformationally sensitive lamin A/C antibody and examined cells at the periphery and interior. We imaged nuclei in which we could resolve the apical and basal regions of the nuclear envelope and quantified the fluorescent signal in the z-plane as described (Ihalainen et al., 2015Figure 2C). We fitted the signal with two gaussian curves and extracted the ratio of the basal to apical intensity across many colonies (n = 17). In cells at the colony periphery, we observe a strong bias of fluorescence at the apical nuclear surface compared to the basal surface (Figure 2D), indicating that tension on the lamin network is high on the basal surface in cells at the periphery of colonies. By contrast, cells in the colony interior display far more uniform conformationally sensitive lamin A/C staining (Figure 2E). Taken together, these results suggest that cells at the colony periphery that engage focal adhesions have high tension on both LINC complexes and the nuclear lamina, while cells at the colony interior possess relaxed LINC complexes and lamin A/C.

To examine whether the cells in the colony interior are more likely to express differentiation markers, we performed RNA fluorescence in situ hybridization (FISH) for Sprr1b mRNA, which is upregulated in differentiated MKCs and is found in the EDC. We find that MKCs at the colony interior express more Sprr1b and Ivl (involucrin) mRNA 24 and 48 hr after induction of differentiation compared to cells at the colony periphery (Figure 2F, G, Figure 2—figure supplement 1). These data indicate that tension on LINC complexes and the nuclear lamina is more prominent in cells that maintain integrin adhesions and a progenitor fate.

The epidermis of Sun dKO mice displays precocious differentiation despite normal adhesion

To determine whether tension on LINC complexes controls MKC differentiation, we analyzed the skin of mouse models lacking the ubiquitously expressed SUN proteins, SUN1 and SUN2, which are expected to lack all LINC complexes in somatic tissues (Zhang et al., 2009; Zhang et al., 2007). Similar to our prior analysis of postnatal mouse skin (Stewart et al., 2015), SUN1 and SUN2 are expressed at the nuclear envelope in all cellular layers of the E15.5 developing epidermis (Figure 3—figure supplement 1A). Although Sun1-/-/Sun2-/- (hereafter Sun dKO) mice die after birth (Zhang et al., 2009), we were able to analyze the developing epidermis of Sun dKO mice at E15.5. Western blot analysis revealed that SUN1 and SUN2 proteins were absent in the skin of Sun dKO compared to wild-type (WT mice that express both SUN proteins (Figure 3—figure supplement 1B)).

Histological analysis of E15.5 skin tissue revealed a thickening of the epidermis in the Sun dKO mouse compared to WT littermates (Figure 3A). Immunostaining of skin sections of WT and Sun dKO mice with antibodies against proteins expressed in differentiated keratinocytes revealed an expansion of keratin 10 (K10) and K1 in the spinous layer, involucrin in the spinous and granular layers, and fillagrin in the granular and cornified layers (Figure 3B, C, Figure 3—figure supplement 2). These observations suggest that LINC complex ablation in the epidermis could enhance keratinocyte differentiation.

Figure 3 with 2 supplements see all

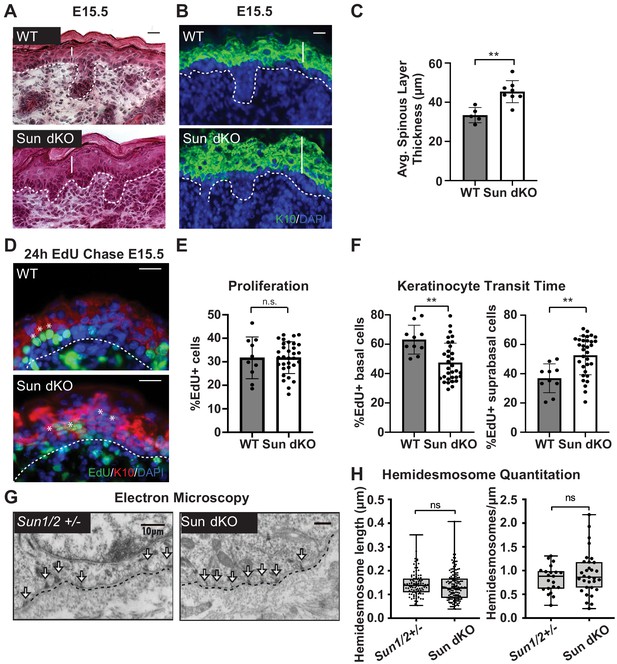

Linker of nucleoskeleton and cytoskeleton complex ablation leads to precocious epidermal differentiation in vivo.

(A) Increased epidermal thickness in Sun dKO mice. Representative hematoxylin and eosin staining of WT and Sun dKO skin at age E15.5. Dotted line denotes dermal/epidermal junction. Vertical line denotes epidermal thickness. Scale bar = 20 μm. (B) Expansion of the spinous layer in Sun dKO mice. Representative immunostaining for keratin 10 (K10) in WT and Sun dKO skin at age E15.5. Dotted line denotes dermal/epidermal junction. Vertical line denotes spinous layer thickness. Scale bar = 20 μM. Nuclei are stained with DAPI. (C) Quantitation of average spinous layer thickness as determined by immunostaining for K10 in WT and Sun dKO epidermis at E15.5. Unpaired t-test was used to determine statistical significance. **p<0.01. Error bars are SD. N = 5–8 biological replicates per genotype. (D–F) Pulse chase analysis reveals an increase in EdU-positive cells in the suprabasal layers of Sun dKO mice (and a decrease in EdU-positive basal cells) but no increase in overall proliferation. (D) Representative images of E15.5 WT and Sun dKO skin 24 hr after EdU pulse. Spinous layer keratinocytes are marked by K10 staining. Dotted line denotes dermal/epidermal junction. Asterisks denote suprabasal keratinocytes marked with EdU. Scale bar = 20 μm. Nuclei are stained with DAPI. (E) Quantitation of total EdU-positive cells normalized to total epidermal cells in both WT and Sun dKO epidermis at E15.5. Statistical significance was determined using unpaired t-test. ns: not significant. N = 3 mice/genotype. (F) Quantitation of location of EdU-positive cells in the epidermis of E15.5 WT and Sun dKO epidermis 24 hr after EdU pulse. K10 staining was used to differentiate suprabasal from basal keratinocytes. Statistical significance was determined by performing unpaired t-test. **p<0.01. N = 3 mice/genotype. (G, H) Adhesion between basal keratinocytes and the basal lamina is normal in the Sun dKO skin. (G) Representative electron microscopy images of P0.5 WT and Sun dKO basal keratinocytes in vivo. Scale bar = 10 μm. Dotted line denotes basement membrane. Arrows point to hemidesmosomes. (H) Quantitation of hemidesmosome length (left) and the number of hemidesmosomes per surface area (right) in control and Sun dKO epidermis at age P0.5. ns: not statistically significant as determined by unpaired t-test.

To further examine whether the thickened epidermis of Sun dKO mice resulted from changes in differentiation and/or proliferation, we performed an EdU pulse chase experiment. We labeled proliferating cells in embryonic WT and Sun dKO mice with EdU and examined the skin after 24 hr (Figure 3D). Immunostaining skin sections with K10 antibodies and staining for EdU incorporation revealed that the total number of EdU-positive cells was similar between WT and Sun dKO epidermis, indicating that proliferation was not altered in the absence of LINC complexes in skin (Figure 3E). However, while 40% of EdU-positive cells had moved to the suprabasal, K10-positive layer in WT tissue (Figure 3F), 60% of EdU-positive cells were observed in the differentiated layers in Sun dKO skin (Figure 3D, F), indicating an increase in keratinocyte differentiation in the absence of LINC complexes. Thus, Sun dKO keratinocytes precociously differentiate in vivo without changes in proliferation.

As integrin signals are required to repress the differentiation of basal keratinocytes (Adams and Watt, 1989; Levy et al., 2000; Zhu et al., 1999), we explored the possibility that cell-matrix adhesions are altered in number and/or size in the epidermis of Sun dKO mice. We therefore performed electron microscopy on skin sections from heterozygous (Sun1/2+/-) and Sun dKO mice at P0.5. The basal layer-basal lamina interface in Sun1/2+/- and Sun dKO skin appeared indistinguishable, displaying tight association in mice from both genotypes (Figure 3G). Moreover, hemidesmosomes (which can be observed in electron micrographs, arrows) were of equivalent number and size (Figure 3H). These observations suggest that Sun dKO mice display precocious epidermal differentiation in vivo that is uncoupled from changes in adhesion between basal keratinocytes and the basal lamina.

Sun dKO MKCs exhibit precocious differentiation in vitro

To further analyze keratinocyte differentiation, we isolated WT and Sun dKO MKCs from newborn mice and performed global transcriptional profiling on WT and Sun dKO MKCs grown in either low calcium media to maintain a progenitor state or high calcium media to induce differentiation. Gene ontology analysis revealed striking differences in the expression of genes associated with keratinocyte differentiation between WT and Sun dKO MKCs in both low and high calcium, including those that reside in the EDC (Figure 4A, B and Supplementary files 1 and 2). Further examination of these RNAseq data revealed evidence of precocious differentiation in Sun dKO MKCs. For example, numerous members of the gene family in the SPRR region of the EDC (Figure 4A) were de-repressed in Sun dKO MKCs grown in the low calcium condition (Figure 4C). We validated this global analysis by RT-qPCR analysis of Sprr genes (Figure 4D, Figure 4—figure supplement 1A). Not only do we observe precocious expression of genes such as Sprr1b in Sun dKO MKCs cultured in low calcium media, but we also observe much higher expression in the presence of calcium in Sun dKO MKCs (Figure 4D, Figure 4—figure supplement 1A). RNA FISH analysis of the level of Sprr1b (Figure 4EFigure 4F) and Ivl (Figure 4—figure supplement 1B, C) transcripts further confirmed that Sun dKO MKCs displayed higher expression levels of differentiation genes compared to WT MKCs.

Figure 4 with 2 supplements see all

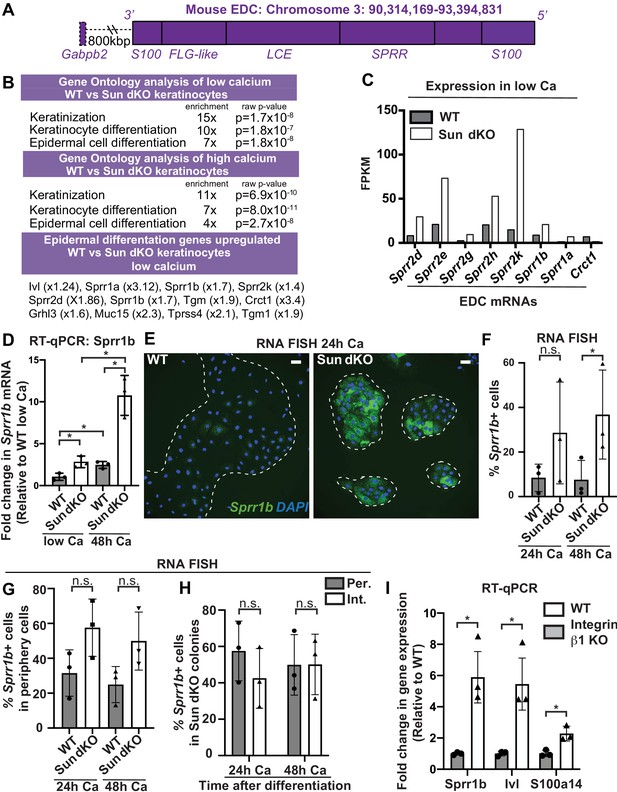

Linker of nucleoskeleton and cytoskeleton complex ablation leads to precocious mouse keratinocyte (MKC) differentiation in vivo, which is associated with aberrant upregulation of differentiation markers at the colony periphery.

(A) Cartoon of the epidermal differentiation complex (EDC), a large genic region that is coordinately upregulated upon epidermal differentiation. (B) Comparative transcriptome analysis reveals that Sun dKO MKCs display precocious expression of epidermal differentiation genes when cultured in low calcium media and higher levels of expression of epidermal differentiation genes in high calcium media. See also Supplementary files 1 and 2. (C) Examples of EDC genes that are precociously expressed in Sun dKO MKCs cultured in low calcium media from the RNAseq data, expressed as fragments per kb of transcript per million reads. (D) Real-time qPCR analysis of Sprr1b in WT and Sun dKO MKCs in the presence and absence of calcium validates precocious Sprr1b expression in Sun dKO MKCs without calcium stimulation. Ct values were normalized to GAPDH. Fold change in expression was determined by calculating the 2ΔΔCt relative to the mean ΔCt of WT MKCs cultured in low calcium media. Statistical significance was determined by performing multiple t-tests. * p<0.05. The Holm–Sidak method was used to correct for multiple comparisons. Error bars are SD. N = 3 biological replicates. (E–G) Cohesive Sun dKO MKCs express elevated levels of differentiation markers and lose the relationship between position in the colony and EDC gene expression. (E) Representative images of RNA fluorescence in situ hybridization (FISH) for Sprr1b in WT and Sun dKO MKCs after 24 hr calcium treatment. Dotted lines are colony outline. Scale bar = 100 μm. (F) Quantitation of RNA FISH for Sprr1b in WT and Sun dKO MKCs after calcium treatment. Sprr1b-positive cells were counted and normalized to total cells in each field. 24h: 24 hr calcium treatment; 48h: 48 hr calcium treatment. Statistical significance was determined by performing unpaired t-test. *p<0.05. ns: not statistically significant. Error bars are SD. N = 3 biological replicates. (G) Quantitation of the percent of Sprr1b-positive cells that are located at the periphery of WT and Sun dKO MKC colonies normalized to the total Sprr1b-positive cells. 24 hr Ca: 24 hr calcium treatment; 48 hr Ca: 48 hr calcium treatment; ns: not statistically significant as determined by unpaired t-test. Error bars are SD. N = 3 biological replicates. (H) Quantitation of the percent of Sprr1b-positive cells that are located at the interior and periphery of Sun dKO MKC colonies normalized to the total Sprr1b-positive cells. 24h: 24 hr calcium treatment; 48h: 48 hr calcium treatment; ns: not statistically significant as determined by unpaired t-test. Error bars are SD. N = 3 biological replicates. (I) Real-time qPCR analysis of Sprr1b, involucrin (Ivl), and S100a14 demonstrate precocious differentiation in β1 integrin null (KO) MKCs. Ct values were normalized to GAPDH. Fold change in expression was determined by calculating the 2ΔΔCt relative to the mean of WT ΔCt. Statistical significance was determined by Student’s t-tests. *p<0.05. Error bars are SD. N = 3 biological replicates.

Since we found that the differentiated, interior MKCs within cohesive colonies displayed low tension on the LINC complex and A-type lamins (Figure 2), we hypothesized that the lack of LINC complexes may result in differentiation of progenitor cells at the colony periphery despite integrin engagement, which is normally associated with maintenance of the progenitor fate. To address this hypothesis, we performed RNA FISH on WT and Sun dKO cohesive MKC colonies. While we demonstrated that WT MKCs biased expression of differentiation markers such as Sprr1b and Ivl at the colony interior over the colony periphery (Figure 2F, G) in agreement with repressive signals from integrin engagement in cells at the colony periphery, Sun dKO MKC colonies instead expressed Sprr1b mRNAs in MKCs residing in both the interior and periphery (Figure 4E), despite still having focal adhesions in peripheral cells (Figure 4—figure supplement 2). As a consequence, expression of differentiation markers is both elevated at the colony periphery and is random with respect to colony position in the absence of LINC complexes (Figure 4HFigure 4G). Finally, we directly tested if β1 integrins are required for proper keratinocyte differentiation by performing RT-PCR to analyze Sprr1b, Involucrin (Ivl), and S100a14 mRNA levels in β1 integrin null MKCs. β1 integrin null MKCs displayed precocious expression of all three of these epidermal differentiation genes (Figure 4I), mirroring our observations in Sun dKO MKCs. Taken together, these results suggest that LINC complexes are required to repress epidermal differentiation genes when integrins are actively engaged.

Sun dKO MKCs exhibit an increase in chromatin accessibility at genes within the EDC

The EDC moves away from the nuclear lamina during epidermal differentiation (Gdula et al., 2013; Mardaryev et al., 2014; Williams et al., 2002) with an associated loss of repressive H3K27me3 chromatin marks at differentiation-specific genes (Lien et al., 2011). Given that Sun dKO MKCs display a precocious differentiation phenotype, we hypothesized that the EDC may be more accessible when LINC complexes are ablated. To test this, we applied assay for transposase-accessible chromatin using sequencing (ATAC-seq) (Figure 5—figure supplement 1 and Supplementary file 3) to determine if chromatin accessibility was changed in Sun dKO MKCs with a focus on the EDC. Globally, most genes with annotated ATAC-seq peak(s) are conserved between WT and Sun dKO MKCs cultured in low calcium media (9307 genes, Figure 5—figure supplement 1 and Supplementary file 4). Sun dKO MKCs showed a loss of 1070 genes with annotated ATAC-seq peaks compared to WT MKCs, which are outnumbered by gains in Sun dKO MKCs (2935 genes; Figure 5—figure supplement 1 and Supplementary file 4). Taken together, we conclude that there is a relatively modest increase in global chromatin accessibility in Sun dKO MKCs.

It is therefore striking that Sun dKO MKCs displayed almost twice as many ATAC-seq peaks within the EDC region (34 peaks) relative to WT MKCs (19 peaks) (Figure 5). Specifically, in Sun dKO MKCs we observed 18 additional peaks, 16 maintained peaks, and a loss of just 3 peaks compared to WT MKCs (Figure 5A). This net gain of peaks is observed throughout all regions of the EDC, with the SPRR region displaying the most striking change, gaining five novel ATAC-seq peaks upon loss of SUN proteins (Figure 5B, C). Importantly, while there is a trend toward increased chromatin accessibility in regions flanking the EDC (Figure 5—figure supplement 2A) in line with a trend toward increased accessibility across the genome (Figure 5—figure supplement 1), the gain of ATAC-seq peaks is more pronounced in the EDC compared to chromatin regions 5′ and 3′ (Figure 5D). We also noted examples in which the additional ATAC-seq peak was located near the promoter region of epidermal differentiation genes such as Sprr2a3 (Figure 5—figure supplement 2B). We next investigated if there are changes in chromatin accessibility at other genes tied to epidermal differentiation that reside outside the EDC. We observed a trend toward additional ATAC-seq peaks in some genic regions encoding keratins and cell adhesion genes tied to epidermal differentiation in Sun dKO MKCs (Supplementary file 5). We further asked if Sun dKO MKCs displayed hallmarks of repression of cell proliferation genes, which might be expected upon loss of MKC progenitors due to precocious keratinocyte differentiation. However, no such trend was observed (Supplementary file 5). Thus, the changes in chromatin accessibility support a model in which keratinocyte differentiation genes are precociously expressed in Sun dKO cells despite largely normal accessibility at genes that underlie progenitor maintenance.

Figure 5 with 2 supplements see all

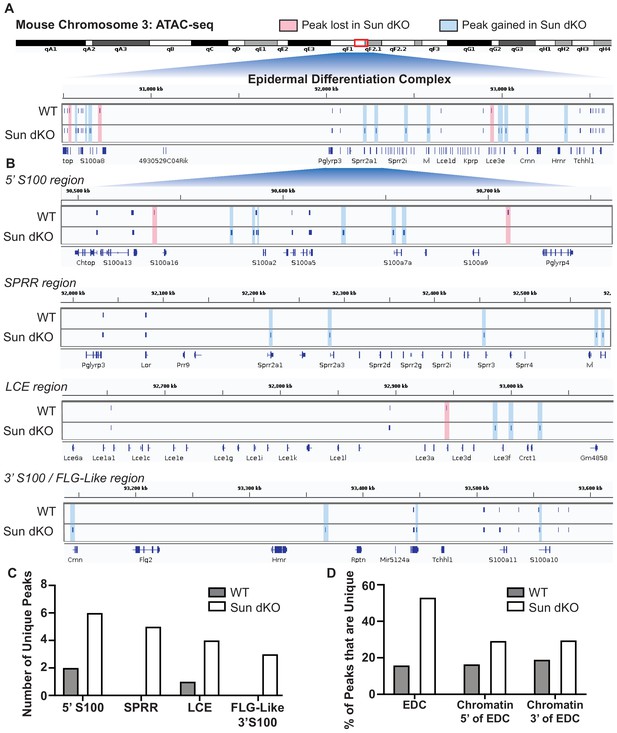

Linker of nucleoskeleton and cytoskeleton complex ablation leads to an increase in chromatin accessibility of genes residing in the epidermal differentiation complex (EDC).

Assay for transposase-accessible chromatin using sequencing (ATAC-seq) tracks generated from either WT (top; N = 2) or Sun dKO (bottom; N = 2) mouse keratinocytes (MKCs) grown in low calcium media. (A) There is an increase in the number of accessible peaks (n = 38) within the EDC in Sun dKO MKCs compared to WT MKCs (n = 19). Peaks gained in Sun dKO MKCs are highlighted in blue, and peaks lost are highlighted in red. Unchanged peaks are not highlighted. (B) Expanded view of ATAC-seq peaks in each indicated region of the mouse EDC. Peaks gained in Sun dKO MKCs are highlighted in blue, and peaks lost are highlighted in red. Unchanged peaks are not highlighted. (C) Quantitation of novel ATAC-seq peaks in WT and Sun dKO MKCs. The number of unique peaks over the indicated regions is plotted for the two genotypes. (D) Quantitation of the percentage of total ATAC-seq peaks that are novel in WT and Sun dKO MKCs for the EDC and surrounding chromatin regions (ATAC-seq tracks in Figure 5—figure supplement 1). While a trend toward gains in ATAC-seq peaks is observed in Sun dKO MKCs, the gain of novel peaks at the EDC is more pronounced than in equivalently sized chromatin regions 5′ and 3′ to the EDC. See also Supplementary file 3.

To test if this mode of regulation is specific to keratinocyte differentiation, we also looked at the chromatin state upon loss of SUN proteins at other master transcriptional regulators that have previously been shown to be repressed in basal keratinocytes (Ezhkova et al., 2009). Indeed, chromatin at the master transcriptional regulators for muscle (Myod1) and the HOX (Hoxd10, Hoxb13, and Hoxa11) gene families is in a closed chromatin state in both WT and Sun dKO MKCs (Figure 5—figure supplement 2C). Two of four neuronal master transcription factors (Olig2 and Neurog2) also remained in a closed state while the others (Olig3 and Neurog2) revealed a novel peak in Sun dKO cells (Figure 5—figure supplement 1). Taken together, our observations suggest that LINC complexes are required to maintain a closed, inhibited state of the EDC in undifferentiated keratinocytes, providing a mechanism by which loss of LINC complexes leads to precocious keratinocyte differentiation.

Discussion

Here, we demonstrate that LINC complex tension in MKCs responds specifically to β1 integrin engagement in a cell-intrinsic manner. While β1 integrin-dependent signals normally repress the differentiation of keratinocytes, in the absence of functional LINC complexes these basal progenitors instead differentiate precociously both in vitro and in vivo. Based on our findings, we propose a model in which LINC complexes transmit forces from the β1 integrin-engaged actin network to the nuclear lamina to directly regulate the expression of epidermal differentiation genes (Figure 6), although an indirect role for the LINC complex in an alternative signaling pathway remains possible. In particular, as our electron microscopy data strongly suggest that adhesion between basal keratinocytes and the basal lamina remains normal in Sun dKO animals, we strongly favor this direct model (Figure 6). Of note, cells migrating through constrictions or plated at high versus low packing density display lower tension on a distinct Nesprin TSMod variant similar in design to the one described here, suggesting that tension on the LINC complex may respond to a number of mechanical inputs depending on the experimental system (Déjardin et al., 2020). However, high tension on the LINC complex at the edge of cell monolayer upon wounding compared to the interior of the monolayer (Déjardin et al., 2020) is in line with the integrin dependence observed in this study.

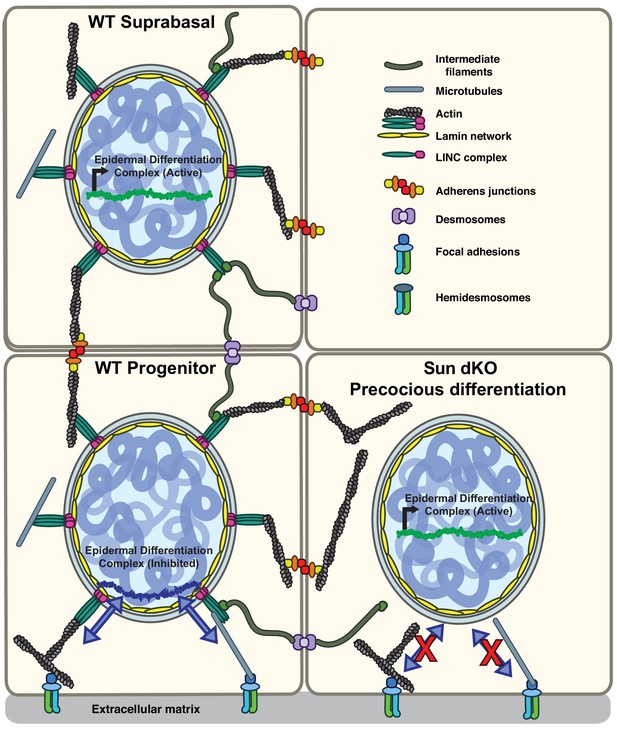

Model for the mechanism of precocious differentiation in the Sun dKO epidermis.

WT progenitor cells adhere to the basal lamina through integrins, leading to tension on linker of nucleoskeleton and cytoskeleton (LINC) complexes that is transmitted to the basal surface of the nuclear lamina to maintain repression of the epidermal differentiation complex (EDC). As cells move into the suprabasal layer, they lose integrin engagement. In suprabasal cells that only engage cell-cell junctions, LINC complexes and the nuclear lamina are relaxed, leading to upregulation of EDC gene expression. In the Sun dKO epidermis, tension from engaged integrins is not propagated to the nucleus in progenitor cells despite normal adhesion, leading to precocious expression of EDC genes.

Interestingly, our data indicate that high Rho activity and actin contractility are not sufficient to drive tension on the LINC complex – indeed, this represents a critical point that lies at the heart of our model. For instance, cells at the interior of cohesive MKC colonies also display extensive stress fibers integrated at cell-cell adhesions (Mertz et al., 2013; Stewart et al., 2015), but nonetheless show low tension on the LINC complex and the nuclear lamina, as demonstrated in Figure 2A–D. These observations suggest that actomyosin contractility is not sufficient, in and of itself, to drive LINC complex tension. This point is underscored by our finding that the LINC complex is relaxed in MKCs lacking β1 integrin, which have high Rho activity, strong focal adhesions (nucleated through β6 integrin), and massive stress fibers (Bandyopadhyay et al., 2012; Raghavan et al., 2003). Further studies will be required to define why only engagement of β1 integrins is sufficient to exert high tension on the LINC complex.

How might tension on the nuclear lamina regulate epidermal differentiation? As a skin-specific mouse model lacking A- and B-type lamin expression also demonstrated precocious epidermal differentiation (Jung et al., 2014) and we find that MKC differentiation results in a relaxation of lamin A/C tension (Figure 2D, E), the LINC complex may act through tension-dependent remodeling of the nuclear lamina. The chromosome region housing the EDC moves away from the nuclear lamina during epidermal differentiation (Gdula et al., 2013; Mardaryev et al., 2014; Williams et al., 2002) and is associated with the loss of H3K27me3 chromatin marks on differentiation-specific genes (Lien et al., 2011). If and how lamin tension influences this change in nuclear compartmentalization remains to be defined. We favor a model in which stretching of lamins drives remodeling of the composition of the nuclear lamina to maintain the epidermal progenitor state. Interestingly, the conformational epitope in lamin A/C examined in this work (Figure 2) overlaps with binding sites for DNA, histones, SUN proteins, and the integral inner nuclear membrane protein emerin (Haque et al., 2010; Ihalainen et al., 2015). Thus, the force-dependent differential exposure of these binding sites may influence the interaction of lamin A/C with the genome, either directly or through modulation of the activity of its binding partners. Indeed, stretching of MKCs leads to the release of emerin from the nuclear lamina; abrogating this mechanical response also leads to precocious differentiation (Le et al., 2016). Moreover, this response involves the formation of a perinuclear actin cage, a structure that we found previously to be perturbed in MKCs lacking SUN2 (Stewart et al., 2015). We note, however, that our ATAC-seq data do not reveal a global shift in chromatin accessibility in the absence and presence of LINC complex engagement, as observed previously in response to critical stretch of keratinocyte monolayers (Le et al., 2016; Nava et al., 2020), suggesting that constitutive tension on the LINC complex and the response to rapid stretching or cyclic stretch of the cell substratum may drive distinct responses.

Further work will be required to determine if the levels and geometry of forces exerted on LINC complexes differ between integrin-based adhesions and cell-cell adhesions. Another open question is whether building tension on the nuclear lamina requires a force opposing that is mediated by the LINC-actin-integrin axis. In our prior work, we found that control over nuclear position in MKCs at the periphery of cohesive colonies was dictated by a ‘tug-of-war’ between the actomyosin and microtubule networks (Stewart et al., 2015). Whether coupling of microtubules to LINC complexes contributes to building tension on the LINC-actin-integrin axis, and the magnitude of these intramolecular forces, remains an open question as all Nesprin TSMod constructs devised to date (Arsenovic et al., 2016; Déjardin et al., 2020), including the one we describe here, lack the spectrin repeats responsible for mediating interactions with microtubules and microtubule motors (Schneider et al., 2011). Examining whether the geometry of exogenous force application to cells influences nuclear lamina-dependent regulation of gene expression by modulating the extent of chromatin stretch (Tajik et al., 2016) represents another exciting direction.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
Strain, strain background (Mus musculus)WT
C57Bl/6J
Jackson Laboratories, Bar Harbor, MEStock number 000664
Genetic reagent (M. musculus)Sun1-/-/Sun2-/-(Sun dKO)Jackson Laboratories, Bar Harbor, MEB6;129S6-Sun1tm1Mhan/J
Stock No: 012715 crossed to B6;129S6-Sun2tm1Mhan/J
Stock No: 012716
Cell line (M. musculus)Primary WT keratinocyteThis paperIsolated from WT pups
Cell line (M. musculus)Primary Sun dKO keratinocyteThis paperIsolated from Sun dKO pups
Cell line (M. musculus)Integrin β1 null keratinocyteBandyopadhyay et al., 2012
AntibodySUN1 antibody
(rabbit monoclonal)
Abcamab124770IHC (1:1000)
WB (1:100)
AntibodySUN2 antibody
(rabbit monoclonal)
Abcamab124916IHC (1:1000)
WB (1:100)
AntibodyKeratin 10 antibody
(rabbit polyclonal)
Gift from Julia Segre (Harmon et al., 2013)IHC (1:500)
AntibodyKeratin 1 antibody
(chicken polyclonal)
Gift from Julia Segre Harmon et al., 2013IHC (1:500)
AntibodyInvolucrin antibody
(rabbit polyclonal)
Gift from Julia Segre Harmon et al., 2013IHC (1:500)
AntibodyFilaggrin antibody
(chicken polyclonal)
Gift from Julia Segre Harmon et al., 2013IHC (1:500)
Antibodyβ-Actin antibody
(mouse monoclonal)
Abcamab13772WB: 1:1000
AntibodyConformationally sensitive Lamin A/C antibodyAbcamab8984IF: 1:200
Recombinant DNA reagentN2G-JM-TSMod (plasmid)This paperConstructed from pEGFP-C1 containing mini-Nesprin-2G (Luxton et al., 2010)
Recombinant DNA reagentN2G-JM-TSMod Dark Venus (plasmid)This paperMutation in Venus Y67L
Recombinant DNA reagentN2G-JM-TSMod Dark mTFP (plasmid)This paperMutation in mTFP Y72L
Recombinant DNA reagentNoT_TSMod (Plasmid)This paperConstructed from pEGFP-C1 containing N2G-JM-TSMod
Sequence-based reagentInvolucrin RNA FISH probeThermo FisherVB1-3030396-VC
Sequence-based reagentSprr1b RNA FISH probeThermo FisherVB4-3117172-VC
Sequence-based reagentGAPDH_FThis paperqPCR primerAGGTCGGTGTGAACGGATTTG
Sequence-based reagentGAPDH_RThis paperqPCR primerTGTAGACCATGTAGTTGAGGTCA
Sequence-based reagentSprr1b_FThis paperqPCR primerGATCCCAGCGACCACAC
Sequence-based reagentSprr1b_RThis paperqPCR primerGCTGATGTGAACTCATGCTTC
Sequence-based reagentSprr2d_FThis paperqPCR primerGTGGGCACACAGGTGGAG
Sequence-based reagentSprr2d_RThis paperqPCR primerGCCGAGACTACTTTGGAGAAC
Sequence-based reagentInvolucrin_FThis paperqPCR primerGCAGGAGAAGTAGATAGAG
Sequence-based reagentInvolucrin_RThis paperqPCR primerTTAAGGAAGTGTGGATGG
Sequence-based reagentS100a14_FThis paperqPCR primerGGCAGGCTATAGGACA
Sequence-based reagentS100a14_RThis paperqPCR primerCCTCAGCTCCGAGTAA
Peptide, recombinant proteinFibronectinSigma-AldrichF475950 μg/mL
Peptide, recombinant proteinPoly-L-lysineSigma-AldrichP915550 μg/mL
Peptide, recombinant proteinLamininThermo FisherCB-4023250 μg/mL
Chemical compound, drugLatrunculin ACayman Chemical Company100106300.5 μM
Commercial assay, kitViewRNA ISH Cell Assay kitThermo FisherQVC0001
Commercial assay, kitClick-iTEdU Cell Proliferation Kit for ImagingInvitrogenC10337Alexa Fluor 488 dye
Commercial assay, kitRNeasy Plus mini kitQIAGEN74134
Commercial assay, kitTruSeq RNA sample preparation kitIlluminaRS-122-2001
Commercial assay, kitiScript cDNA synthesis kitBio-Rad1708890
Commercial assay, kitSYBR Green SupermixBio-Rad170-8882
Commercial assay, kitNextera Library Prep KitIllumina15028212
Commercial assay, kitMinElute PCR Purification KitQIAGEN28004
Software, algorithmImageJ /FijiNational Institutes of HealthVersion 1.50e
Software, algorithmGraphPad Prism 8.0GraphPadVersion 8.0
Software, algorithmPixFRET ImageJ PluginFeige et al., 2005
Software, algorithmGaussian fitThis paperhttps://github.com/LusKingLab/GaussianFitCarley, 2021; copy archived at swh:1:rev:09e7545145b4dbbcb67d284a004d780176620130
Software, algorithmBowTie/TopHat2Kim et al., 2013
Software, algorithmDESeq2Love et al., 2014
Software, algorithmENCODE ATAC-seq pipelineThe ENCODE Project Consortium, 2013 Kundaje LabVersion 1.8.0https://github.com/ENCODE-DCC/atac-seq-pipeline
OtherProlong Gold with DAPIInvitrogenP36935
OtherSera-Mag Select BeadsGE29343052
OtherCY 52–276Dow Corning52-276To make 3 kPa hydrogels
OtherGil 2 HaematoxylinRichard Allan ScientificCat # 72504
OtherEosin-Y AlcoholicRichard Allan ScientificCat # 71204
OtherJetPrimePolyplus transfection114-07Transfection reagent

Cell culture and plasmid transfection

Request a detailed protocol

MKCs were isolated from skin from E18.5 embryos or newborn whole-body Sun1−/−/Sun2−/− (Sun dKO) or WT pups as previously described (Mertz et al., 2013). Under sterile conditions, pups were sacrificed, and back skin was excised, washed in phosphate-buffered saline (PBS), and floated on dispase at 4°C for 16–20 hr. The epidermis was separated from the dermis with forceps and incubated in 0.25% trypsin for 15 min at room temperature (RT). Cells were liberated by trituration, filtered using a 40–70 µm strainer, and plated on mitomycin-C–treated J2 fibroblasts in medium-calcium medium (0.3 mM CaCl2). After 2–4 passages, keratinocytes were plated on plastic dishes without feeder cells and maintained in media containing 0.05 mM CaCl2 (E-low calcium media). Cells at low passage were stored under liquid nitrogen, and thawed cells were only used to passage 16. Integrin β1 null keratinocytes and corresponding WT controls (Bandyopadhyay et al., 2012) (kind gift from David Calderwood and Srikala Raghavan) were cultured at 32°C with 7.5% CO2 in E media (DMEM/F12 in a 3:1 ratio with 15% fetal bovine serum supplemented with insulin, transferrin, hydrocortisone, cholera toxin, triidothyronone, and penicillin-streptomycin). MKCs were tested and found to be mycoplasma-free. Sun dKO MKC cell lines were validated by western blotting (see below).

Construction and application of N2G-JM-TSMod constructs

Request a detailed protocol

The N2G-JM-TSMod construct was derived from pEGFP-C1 harboring mini-Nesprin2 (Luxton et al., 2010) (kind gift from Gant Luxton and Gregg Gundersen). The sequence encoding green fluorescent protein was removed by QuikChange mutagenesis. The mTFP-Venus tension sensor module (Grashoff et al., 2010) (kind gift from Martin Schwartz) was inserted just prior to the transmembrane domain. Dark controls were generated using QuikChange mutagenesis (Dark Venus: Y67L; Dark mTFP: Y72L). The no-tension (NoT_TSmod) construct was generated by inserting the mTFP-Venus tension sensor module 5′ of mini-Nesprin2 using the AgeI and XhoI restriction sites. For FRET experiments, cells were plated in E-low calcium media (or E media for Integrin β1 null MKCs ) 16 hr before transfections on glass-bottomed dishes (MatTek Corporation) coated with 50 μg/mL fibronectin (20 min at room temperature, Sigma-Aldrich), poly-L-lysine (2 hr at room temperature, Sigma P9155), or laminin (2 hr at 37°C, Thermo, Cat# CB-40232). Cells were transfected using JetPrime reagent (Polyplus) according to the manufacturer’s instructions and imaged the following day. Donor bleed-through samples consisted of cells transfected with mini-Nesprin2G-mTFP1 alone (Figure 1—figure supplement 1). Acceptor cross-excitation samples consisted of cells transfected with mini-Nesprin2G-Venus alone (Figure 1—figure supplement 1). In addition, untransfected cells were also used as dark controls (Figure 1—figure supplement 1). FRET samples consisted of Nesprin2G-JM-TSMod. Actin depolymerization was achieved by the addition of 0.5 μM Lat A (or vehicle control) for 5 hr prior to imaging.

Generation of hydrogels

Request a detailed protocol

The soft 3 kPa PDMS gels were prepared by mixing a 1:1 ratio (w/w) of CY 52-276A and CY 52-276B (Dow Corning). Components were mixed thoroughly and immediately degassed for 15 min in a desiccator. The surface of 35 mm glass-bottomed culture dishes (MatTek Corporation) were covered with 200 µL of the mixed gel. Each dish was then spin-coated at 1000 rpm for 60 s using a spin coater instrument (Headway Research, PWM32). Gels were cured at room temperature overnight. The next morning gels were sterilized for 30 min under UV light and then washed once with sterile PBS. Rheometry analysis (ARES-LS1) confirmed that the Young’s modulus of the PDMS was ~3 kPa.

RNA FISH experiments

Request a detailed protocol

WT and Sun dKO MKCs were plated at low density (15,000 cells/well of 24-well dish) onto glass coverslips coated with 50 μg/mL fibronectin (Sigma-Aldrich), MKCs were cultured in E-low calcium media overnight before switching to 1.2 mM calcium media to induce differentiation for 24 or 48 hr. RNA FISH was performed using the ViewRNA ISH Cell Assay kit (Thermo Fisher Cat# QVC0001) with probes for involucrin (Thermo Fisher Cat# VB1-3030396-VC) and Sprr1b (Thermo Fisher Cat# VB4-3117172-VC) according to manufacturer’s instructions. Coverslips were mounted onto glass slides with Prolong Gold with DAPI (Invitrogen P36935) and sealed with clear nail polish. Images were acquired with the Zeiss Imager M1 using Zen software. Images for the same marker were acquired at the same exposure, pixel range, and gamma values. Acquired images were equally brightened, contrasted, and cropped using ImageJ/Fiji (version 1.50e) software (Schindelin et al., 2012). For quantitation, signal threshold was determined using no probe controls for each individual experiment. Colony outlines were drawn and then cells were counted and scored as positive or negative for gene expression and interior or periphery based on location within colony. Statistical analysis was performed using Prism 8 software.

Mouse tissue isolation, histology, and immunofluorescence staining

Request a detailed protocol

This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health (IACUC protocol number 2018-11248). All animal care and experimental procedures were conducted in accord with requirements approved by the Institutional Animal Care and Use Committee of Yale University. At harvest, embryos were submerged in O.C.T. compound (Tissue-Tek) and sectioned using a cryostat (CM3050S; Leica). Sections were cut in a specific and consistent orientation relative to embryo morphology and stained with hematoxylin and eosin for routine histopathology or incubated with primary antibodies and Alexa Fluor-conjugated secondary antibodies for indirect immunofluorescence as previously described (Stewart et al., 2015). Primary antibodies against SUN1 (1:100, Abcam, ab124770) and SUN2 (1:100; Abcam ab124916) were used. Primary antibodies to keratin 10 (K10), keratin 1 (K1), involucrin, and filaggrin were gifts from the Segre lab and are described in Harmon et al., 2013. Images were acquired with the Zeiss Imager M1 using Zen software. Images for the same marker were acquired at the same exposure, pixel range, and gamma values. Acquired images were equally brightened, contrasted, and cropped using ImageJ/Fiji. Spinous layer thickness was quantitated by making 5–8 measurements per image using ImageJ software. Statistical analysis was performed using Prism 8 software.

Western blot analysis

Request a detailed protocol

Whole-cell lysates of WT, Sun2-/-, and Sun dKO MKCs were prepped as previously described (Stewart et al., 2015). Primary antibodies against SUN1 (1:100, Abcam, ab124770), SUN2 (1:100; Abcam ab124916), and β-actin (1:1000; mouse; Abcam) were used.

EdU incorporation and quantitation

Request a detailed protocol

Pregnant females were pulsed with EdU via IP injection when embryos were age E14.5. 24 hr after injection, embryos were isolated and embedded in O.C.T. media (Tissue-Tek) and stored at −80°C until sectioning using a cryostat (CM3050S; Leica). After sectioning, the Click-iTEdU Cell Proliferation Kit for Imaging, Alexa Fluor 488 dye (Invitrogen C10337), was used according to manufacturer’s instructions to evaluate EdU incorporation. Tissue sections were then co-stained for K10 (see 'Mouse tissue isolation, histology, and immunofluorescence staining'). Before imaging, coverglass was mounted onto slides using Prolong Gold with DAPI (Invitrogen P36935) and sealed with clear nail polish. Images were acquired with the Zeiss Imager M1 using Zen software. Total EdU-positive cells were counted and normalized to the total number of epidermal cells (determined by DAPI staining). Location of proliferating cells was determined by K10 staining (basal keratinocytes [EdU+/K10-], suprabasal keratinocytes [EdU+/K10+]) and then normalized to total EdU-positive cells. Statistical analysis was performed using Prism 8 software.

Electron microscopy

Request a detailed protocol

Transmission electron microscopy was performed in the Yale School of Medicine Center for Cellular and Molecular Imaging Electron Microscopy core facility. Back skin sections from Sun 1+/-/Sun2-/- and Sun dKO pups were isolated at age P0.5; three mice were examined for each genotype. Tissue blocks were fixed in 2.5% glutaraldehyde/2% paraformaldehyde in 0.1 M sodium cacodylate buffer, pH 7.4, for 30 min at RT and 1.5 hr at 4°C. The samples were rinsed in sodium cacodylate buffer and were postfixed in 1% osmium tetroxide for 1 hr. The samples were rinsed and en bloc stained in aqueous 2% uranyl acetate for 1 hr followed by rinsing, dehydrating in an ethanol series to 100%, rinsing in 100% propylene oxide, infiltrating with EMbed 812 (Electron Microscopy Sciences) resin, and baking overnight at 60°C. Hardened blocks were cut using an ultramicrotome (UltraCut UC7; Leica). Ultrathin 60 nm sections were collected and stained using 2% uranyl acetate and lead citrate for transmission microscopy. Carbon-coated grids were viewed on a transmission electron microscope (TecnaiBioTWIN; FEI) at 80 kV. Images were taken using a CCD camera (Morada; Olympus) and iTEM (Olympus) software. The length and number of hemidesmosomes was quantitated from sections from three mice of each genotype.

Immunofluorescence

Request a detailed protocol

WT and Sun dKO keratinocytes were plated at low density (15,000 cells/well of 24-well dish) onto glass coverslips coated with 50 μg/mL fibronectin (Sigma-Aldrich), MKCs were cultured in E-low calcium media overnight before switching to 1.2 mM calcium media to induce differentiation for 48 hr. Cells were fixed with methanol at −20°C for 5 min and washed with PBS. Cells were permeabilized using 0.5% Triton X-100 in PBS at RT for 20 min and blocked using 10% goat serum, 5% bovine serum albumin (BSA), and 0.5% Tween 20 in PBS for 1 hr. Cells were incubated in primary antibody, conformationally sensitive lamin A/C (1:200; ab8984; Abcam), diluted in blocking buffer at 4°C overnight. Coverslips were washed with PBS for three 5 min intervals and incubated with Alexa Fluor 488-conjugated secondary antibody (1:1000; Invitrogen Cat# A-11029) diluted in blocking buffer at RT for 1 hr. Coverslips were then costained with Hoechst 33342 (1:2000; Thermo Fisher Scientific) and Alexa Fluor 594-conjugated Wheat Germ Agglutinin (1:1000; Life Technologies) diluted in PBS for 5 min at RT. Coverslips were washed with PBS, mounted using Fluoromount-G, and sealed with clear nail polish.

Imaging and image analysis

Request a detailed protocol

Live FRET imaging was performed on a Zeiss LSM 710 DUO NLO confocal microscope using a 100×, 1.4 NA oil objective with a stage maintained at 37°C and 7.5% CO2. Images were acquired using Zen software. FRET imaging was performed in a similar manner as previously described (Grashoff et al., 2010; Kumar et al., 2016). Three sequential images were acquired: the donor mTFP1 channel using a 458 nm laser line (ex), 458 nm MBS filter, and PMT detector set for mTFP1 emission; the acceptor Venus channel using a 514 nm laser line (ex), 458/514 nm MBS filter, and PMT detector set for Venus emission; and the FRET channel using a 458 nm laser line (ex), 458/514 nm MBS filter, and PMT detector set for Venus emission. In all cases, the nuclear midplane was imaged. Acquisition settings were standardized and maintained during experiments. FRET image analysis was performed using the intensity-based FRET method, implemented as previously described (Kumar et al., 2016). Nonlinear spectral bleed-through corrections were first determined using the PixFRET plugin (Feige et al., 2005) for ImageJ/Fiji (Schindelin et al., 2012). Donor mTFP1 leakage was quantified using cells transfected with mini-Nesprin2G-mTFP1 alone (dark Venus control), while acceptor Venus cross-excitation was quantified using cells transfected with mini-Nesprin2G-Venus alone (dark mTFP control). At least 10 cells each were used for bleed-through corrections. For FRET index determination, masks consisting of a three pixel-wide band encompassing the nuclear envelope were used to segment the nuclear envelope. Mean FRET index per nucleus was then determined using previously published software, either PixFRET (Figure 1Feige et al., 2005) or in-house MATLAB scripts (Figure 2Kumar et al., 2016).

Imaging of conformationally sensitive lamin A/C was performed on a Leica SP5 confocal microscope using the LAS-AF software. Lamin A/C (AF488) was imaged using a 488 nm laser line (ex) and PMT detector set for AF488 emission; and the WGA (AF594) using a 594 nm laser line (ex) and PMT detector set for AF594 emission. PMT gain was adjusted for each sample to avoid over-/under-exposure. Acquisition settings were standardized and maintained during experiments. Single-plane images to determine the location of each cell within a colony were acquired using a 40× 1.25 NA air objective, imaging the AF488 and AF594 channels sequentially. Next, Z-stacks of each images were acquired using a 63×, 1.4 NA oil objective in the AF488 channel. Image zoom and size was adjusted such that voxel size was 55–65 nm in the xy-plane and 130 nm in the z-plane. Image stacks were deconvolved using Huygens Professional software (Scientific Volume Imaging, The Netherlands, http://svi.nl) as described (Ihalainen et al., 2015). A theoretical point spread function was used for iterative deconvolution. Deconvolution was performed using the following software parameters: image signal to noise was set to 5, the quality threshold was 0.01, and maximum iterations was 50 (however, usually fewer than 20 iterations were required to reach the quality threshold). Images were then analyzed using ImageJ/Fiji (Schindelin et al., 2012). The apical-basal lamin A/C intensity was measured for a single XZ or YZ slice from the middle of each individual nucleus of interest. The intensity of antibody staining was measured from the apical to the basal side of the nucleus using a straight line along the z-axis that is approximately half the width of the nucleus of interest. The fluorescence intensity across the z-axis was plotted and fit to two gaussian curves, one corresponding to the apical side of the nuclear envelope and the second corresponding to the basal side. The area under each curve and the ratio of these areas were calculated using MATLAB R2019b, and the software can be found on GitHub at: https://github.com/LusKingLab/GaussianFit.

RNAseq

Request a detailed protocol

WT and Sun dKO cells were grown in E-low calcium media for 24 hr to 100% confluency (undifferentiated) or were switched to high calcium media to induce adhesion formation and differentiation for 48 hr. Total RNA was isolated using the RNeasy Plus kit (QIAGEN) according to the manufacturer’s instructions for three biological replicates for each condition. cDNA was synthesized using reagents from the TruSeq RNA sample preparation kit (Illumina) according to the manufacturer's instructions. cDNA libraries were sequenced (paired end 75 nts) at the Yale Stem Cell Center Genomics and Bioinformatics Core on the HiSeq4000 platform. Reads were mapped using BowTie/TopHat2 (Kim et al., 2013) to the mm10 genome build. Differentially expressed genes between the WT and Sun dKO conditions in the undifferentiated and differentiated states were identified using DESeq2 (Love et al., 2014). All sequencing data can be accessed at NCBI under BioProject Accession PRJNA636991.

RT-qPCR

Request a detailed protocol

WT and Sun dKO MKCs were plated in a fibronectin-coated (50 ng/mL; Sigma-Aldrich) 6-well dish such that they were 70–80% confluent. They were cultured in E-low calcium media overnight before switching to 1.2 mM calcium media to induce differentiation for 48 hr. Total RNA was isolated using the RNeasy Plus kit (QIAGEN) according to the manufacturer’s instructions. The iScript cDNA Synthesis Kit (Bio-Rad) was used to generate cDNA from equal amounts of total RNA (1 mg) according to the manufacturer’s instructions. Quantitative real-time PCR was performed with a Bio-Rad CFX96 using iTaq Universal SYBR Green Supermix (Bio-Rad) for 40 cycles. Primers used include GAPDH forward: AGGTCGGTGTGAACGGATTTG and reverse: TGTAGACCATGTAGTTGAGGTCA; Sprr1b forward: GATCCCAGCGACCACAC and reverse: GCTGATGTGAACTCATGCTTC; Sprr2d forward: GTGGGCACACAGGTGGAG and reverse: GCCGAGACTACTTTGGAGAAC; involucrin forward: GCAGGAGAAGTAGATAGAG and reverse: TTAAGGAAGTGTGGATGG; S100a14 forward: GGCAGGCTATAGGACA and reverse: CCTCAGCTCCGAGTAA. PCR product levels were normalized to GAPDH mRNA levels.

ATAC-seq

Request a detailed protocol

ATAC-seq libraries were generated as previously described (Buenrostro et al., 2015). Briefly, 50,000 nuclei were purified from WT or Sun dKO cells and DNA was tagmented using the Nextera Library Prep Kit (Illumina). Tagmented DNA was purified using the QIAGEN MinElute PCR Purification kit, then amplified using PCR. RT-qPCR was used to determine the appropriate number of cycles of amplification. The DNA was then purified twice using Sera-Mag Select beads (GE). Library purity and quality was assessed using an Agilent Bioanalyzer, then was sequenced on the Illumina HiSeq 4000 using paired end reads. Sequencing was performed at the Yale Stem Cell Center Genomics Core facility. Sequences were processed using the ENCODE ATAC-seq pipeline version 1.8.0, an automated end-to-end quality control and processor of ATAC-seq data. The minimum template seeded the input JSON onto the mm10 genome build with the autodetect adapter parameter set to true. All sequencing data can be accessed at NCBI under BioProject Accession PRJNA636991.

Data availability

Sequencing data have been deposited as a single BioProject at NCBI with accession number PRJNA636991.

The following data sets were generated
    1. Carley E
    2. Stewart RK
    3. Zieman A
    4. Jalilian I
    5. King DE
    6. Zubek A
    7. Lin S
    8. Horsley V
    9. King MC
    (2020) NCBI BioProject
    ID PRJNA636991. Regulation of epidermal differentiation by the LINC complex.

References

    1. Watt FM
    2. Kubler MD
    3. Hotchin NA
    4. Nicholson LJ
    5. Adams JC
    (1993)
    Regulation of keratinocyte terminal differentiation by integrin-extracellular matrix interactions
    Journal of Cell Science 106:175–182.

Decision letter

  1. Elaine Fuchs
    Reviewing Editor; Howard Hughes Medical Institute, The Rockefeller University, United States
  2. Anna Akhmanova
    Senior Editor; Utrecht University, Netherlands

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This work will be of broad interest, because it provides new insights into how cells sense tension and transmit it to the cell nucleus. With ever increasing excitement as to how cells sense tension and transmit it to the nucleus, your new work will now be an important addition to this arena.

Decision letter after peer review:

Thank you for submitting your article "The LINC complex transmits integrin-dependent tension to the nuclear lamina and represses epidermal differentiation" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Anna Akhmanova as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

The reviews of your manuscript are now in. As you can see, the consensus is that your manuscript strives to address a fundamental and largely understudied question, and your tools and strategy have the potential to significantly advance our understanding of how connections between cell-matrix adhesions and the nucleus have direct consequences on cell fate. That said, all your reviewers encourage you to provide better support for the central claims of your manuscript. There are five pressing concerns summarized below.

Essential revisions:

1. Their central hypothesis is that a relay of tension between integrins and the LINC complex maintains nuclear organization such that EDC gene expression is repressed. As tension on basally localized integrins is released, either by delamination or by redistribution of forces to cell-cell junctions (as happens in the middle of keratinocyte colonies), the chromatin state changes such that transcription of the differentiation program may be de-repressed. This attractive hypothesis needs to be tested more rigorously using their current models and existing experimental tools. For example, DNA-FISH approaches (as used in Mardaryev, Development, 2014) to test whether the positioning of the EDC chromosomal region within the nucleus is differentially located the interior of colonies (where tension is low) compared to the outside of colonies (where tension is high), or spatially correlates with LINC tension at the single-cell level (if their tension sensor is suitable for fixation and DNA-FISH conditions). The authors should also test whether nuclear positioning of the EDC cluster and/or genes associated with epidermal differentiation is misregulated in the Sun1/2-dKO epidermis. The inclusion of such data would significantly strengthen the central claim and broader impact of the manuscript.

2. There is a paucity of validation for the FRET sensor construct. To make conclusions about tension, a number of experiments can be conducted. A version of the construct lacking the actin-binding or KASH domains of Nesprin2 is important; similar controls were vital to the conclusions drawn in the original Schwartz paper (Grashoff et al., 2010) and in other contexts where the TS-module has been used (eg. Cai et al., Cell, 2013). Having the TS "free floating" on the N-terminus would also be valuable. These controls are also very important as e.g. treatment with latruculin or other inhibitors can affect the FRET efficiency in similar directions independent of tension. Other manipulations of cell tension (besides poly-lysine coating and Latrunculin treatment), such as coating with varying concentrations of fibronectin, culturing cells on substrates of different stiffness, or exogenous force application to culture substrates, would significantly improve confidence that their construct indeed reports on mechanical tension in the nuclear envelope. Standard for validation of FRET experiments is to include an acceptor photobleaching experiment. Also, although the raw data for Venus/mTFP channels and bleedthrough controls with single colour constructs should be shown.

3. The data with the force-sensitive epitope LaminA/C antibody is not of sufficient quality. In the original paper where this tool was developed (Nat Materials, 2015), the signal of the LaminA/C was normalized against signal from a force-insensitive LaminB antibody. Otherwise, how do we know we are looking at the nuclear envelope? Or that there aren't overall differences in nuclear envelope morphology/composition that contribute to the differences in A/C signal that we see, rather than an effect that can be specifically attributed to tensional differences?

4. Some baseline description of the LINC complex in the epidermis would provide insights that may lend support for (or refute) their hypothesis. For example, where in the epidermis is Sun1/2 expressed? Is there any developmental regulation of LINC complex organization? One might predict reduced expression or altered localization of LINC complex components (such as SUN1/2) in the differentiated layers of the epidermis. Can the force-sensitive Lamin-A/C antibody be used in vivo to see if there are differences between staining patterns in the basal layer where cells have integrin-mediated contacts compared to the suprabasal, differentiating layers where they do not? Are there differences in nuclear morphology in the presence or absence of sun1/2 dKO epidermis that might support their model? Does loss of Sun1/Sun2 alter nuclear stiffness? If the authors can show that the regulation of molecular tension across the Linc complex directly correlates to changes in nuclear tension, this will strengthen the paper.

5. The molecular links how integrins control tension on the Linc complex, or how altered tension at the Linc complex controls differentiation are not at all addressed, and the paper should at least provide some insight into either upstream or downstream control of how integrin dependent regulation of Sun1/2 regulates differentiation; e.g. explore the molecular link between integrin and the linc complex (in their model both actin and MTs are potentially implicated for example), alterations in epigenetic marks, chromatin organization of e.g. relocalization of the EDC locus etc.

The conditional b1 and KO of integrin a3 integrins do not result in altered/precocious differentiation in the skin (although it does affect proliferation and hair follicle morphogenesis). Presumably the link between integrins and the LINC complex under these conditions would be altered as well? The idea that LINC complex may control differentiation is possible, however the role of integrin based adhesions in this process has not been parsed out. At the very least the authors could have disrupted integrin signaling using KO cells or blocking antibodies. So it is possible that there may be alternative mechanisms? This should be considered.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

Thank you for submitting your revised article "The LINC complex transmits integrin-dependent tension to the nuclear lamina and represses epidermal differentiation" for consideration by eLife. Your article has now been re-reviewed by a Reviewing Editor and by Anna Akhmanova as the Senior Editor.

We agree that your manuscript is much improved and has an important message for eLife. That said, there still several items remaining, that we feel need to be addressed prior to publication.

Three issues remain. First, changes in nuclear structure and likely mechanics in keratinocytes induce rather global changes in chromatin and transcription (Le et al., 2016), and hence it would be helpful if you can present the ATAC data more generally and not just pick a few loci to analyze. Are your data specific for the EDC locus or are other differentiation genes also affected? One would also predict changes in the so-called stem cell genes-can you comment on whether this is observed? These minor adjustments will provide even a better global vision on how the nuclear envelope tension regulates gene expression and differentiation.

Second, the b1 KO cells have to be cultured in high calcium media and have very high levels of Rho activity, strong focal adhesions (nucleated through integrin b6) and massive stress fibers (Raghavan et al. 2003, Bandyopadhyay and Raghavan 2012). Given the role of the actin cytoskeletal network in transmitting the forces via the LINC complex to the nucleus, it seems surprising that the tension sensor shows such high FRET (low tension) compared to the WT cells. It would be helpful if you could add a bit of discussion as to how you interpret these data and reconcile this point. Toning down some of the conclusions made regarding this point might be warranted.

Finally, it would seem that you should add a brief discussion and referencing of the recent Nava et al. Cell paper, that shows heterochromatin driven changes in nuclear mechanics in keratinocytes.

https://doi.org/10.7554/eLife.58541.sa1

Author response

Essential revisions:

1. Their central hypothesis is that a relay of tension between integrins and the LINC complex maintains nuclear organization such that EDC gene expression is repressed. As tension on basally localized integrins is released, either by delamination or by redistribution of forces to cell-cell junctions (as happens in the middle of keratinocyte colonies), the chromatin state changes such that transcription of the differentiation program may be de-repressed. This attractive hypothesis needs to be tested more rigorously using their current models and existing experimental tools. For example, DNA-FISH approaches (as used in Mardaryev, Development, 2014) to test whether the positioning of the EDC chromosomal region within the nucleus is differentially located the interior of colonies (where tension is low) compared to the outside of colonies (where tension is high), or spatially correlates with LINC tension at the single-cell level (if their tension sensor is suitable for fixation and DNA-FISH conditions). The authors should also test whether nuclear positioning of the EDC cluster and/or genes associated with epidermal differentiation is misregulated in the Sun1/2-dKO epidermis. The inclusion of such data would significantly strengthen the central claim and broader impact of the manuscript.

We have carried out a variety of additional experiments to provide more direct evidence for (1) changes at the level of the chromatin at the EDC upon loss of the LINC complex and (2) the ability of disrupting β1-integrin to release tension on the LINC complex and recapitulate loss of the LINC complex with respect to regulation of epidermal differentiation genes.

Specifically, in this revision we added:

1) Additional analysis of individual EDC genes in WT and Sun dKO MKCs (Figure 4—figure supplement 1).

2) Direct assessment of MKCs lacking β1-integrin to demonstrate that β1-integrin is essential to 1) drive the high tension state on the LINC complex (Figure 1 J, K) and 2) repress epidermal differentiation markers, thereby recapitulating our observations in Sun dKO MKCs (Figure 4I).

3) We believe the most compelling addition are our results from Assay for Transposase Accessible Chromatin followed by sequencing (ATAC-seq) in WT and Sun dKO mouse keratinocytes (MKCs)(new Figure 5). We observe a clear increase in chromatin accessibility as revealed by gains in ATAC peaks in the EDC of Sun dKO MKCs across the EDC in the low calcium condition when these genes are repressed in WT MKCs, indicative of a more open chromatin state and consistent with our model of precocious differentiation.

We tried extensively to analyze the EDC position by FISH as suggested. Although we were able to detect the EDC at a central nuclear position in Sun dKO MKCs, we were not able to robustly detect signal in WT MKCs for comparison. We believe this could reflect our inability to sufficiently denature the probe targets when the region is heterochromatized, as we expect it to be in WT MKCs cultured in low calcium media. Despite our inability to complete this experiment, the new data described above provide additional support for the role of the LINC complex in regulating chromatin accessibility at epidermal differentiation genes and their expression.

2. There is a paucity of validation for the FRET sensor construct. To make conclusions about tension, a number of experiments can be conducted. A version of the construct lacking the actin-binding or KASH domains of Nesprin2 is important; similar controls were vital to the conclusions drawn in the original Schwartz paper (Grashoff et al., 2010) and in other contexts where the TS-module has been used (eg. Cai et al., Cell, 2013). Having the TS "free floating" on the N-terminus would also be valuable. These controls are also very important as e.g. treatment with latruculin or other inhibitors can affect the FRET efficiency in similar directions independent of tension. Other manipulations of cell tension (besides poly-lysine coating and Latrunculin treatment), such as coating with varying concentrations of fibronectin, culturing cells on substrates of different stiffness, or exogenous force application to culture substrates, would significantly improve confidence that their construct indeed reports on mechanical tension in the nuclear envelope. Standard for validation of FRET experiments is to include an acceptor photobleaching experiment. Also, although the raw data for Venus/mTFP channels and bleedthrough controls with single colour constructs should be shown.

We thank the reviewers for their feedback and suggestions. We have provided additional controls to ensure that changes in the FRET indexes of the mini-Nesprin2 TSMod (N2G-JM-TSMod) indeed reflect tension on the LINC complex. To this end, we made a tension insensitive construct (no-tension construct) by inserting the TSMod at the N-terminus of the mini-Nesprin2 (Figure 1 A, “NoT_TSMod”) where it cannot bear any load. Comparing FRET index measurements at the nuclear envelope for MKCs transfected with the TSMod inserted at the juxtamembrane region (N2G-JM-TSMod) and the NoT_TSMod control (Figure 1B,C) indeed revealed that the N2G-JM-TSMod is under tension in WT MKCs. We also compared the response of the two TSMods to treatment with latrunculin A to depolymerize actin. While the N2G-JM-TSMod was under higher tension that was relaxed upon treatment of latrunculin A (Figure D,E), the tension insensitive NoT_TSMod control showed no change in tension at the nuclear envelope (Figure 1—figure supplement 1B). Last, we provide new evidence that tension on the N2G-JM-TSMod is sensitive to the mechanics of the substrate (Figure 1F,G). Bolstered by these additional data we conclude that (1) the TSMod is sensitive to actin-dependent tension at the nuclear envelope; and (2) the changes in FRET efficiency reported by the N2G-JM-TSMod reflects intramolecular tension exerted on the juxtamembrane region, as the no tension control is insensitive to load. As suggested by the reviewers, we also now show additional experimental controls including “dark” donor only and acceptor only constructs used for bleed through correction (Figure 1—figure supplement 1A,C,D).

3. The data with the force-sensitive epitope LaminA/C antibody is not of sufficient quality. In the original paper where this tool was developed (Nat Materials, 2015), the signal of the LaminA/C was normalized against signal from a force-insensitive LaminB antibody. Otherwise, how do we know we are looking at the nuclear envelope? Or that there aren't overall differences in nuclear envelope morphology/composition that contribute to the differences in A/C signal that we see, rather than an effect that can be specifically attributed to tensional differences?

We thank the reviewers for this critical feedback. We agree that ideally we would co-stain nuclei with a force-insensitive lamin A/C or lamin B antibody to address the concerns raised by the reviewers. However, we have tested numerous commercially available tension insensitive lamin antibodies, including those used in the 2015 Nature Materials paper, as well as antibodies to other nuclear envelope and nuclear pore complex proteins. Ultimately, we were unable to identify an antibody that stained the nuclear envelope of the mouse keratinocytes under conditions compatible with the tension-sensitive lamin A/C antibody with the performance required for this experiment (although we verified this does work well in fibroblasts, as published). Since we found that we could successfully co-stain human epidermal keratinocytes, we further attempted to validate our system in this model. However, the nuclei of these cells are flatter than the mouse keratinocyte nuclei, and we were unable to achieve sufficient resolution with our confocal imaging and deconvolution set-up to resolve the apical and basal surfaces of the nucleus, even with manipulation of substrate conditions. This said, we developed our approach specifically because it allows us to robustly resolve the nuclear and basal surfaces. We have softened the language we use in the revised manuscript to acknowledge that while we observe decreased staining with this conformationally-sensitive antibody, this could reflect multiple changes in the state of the basal lamina, including a higher tension state.

The revised manuscript also includes abundant further characterization of the our N2G-JM-TSMod including its sensitivity to the presence of β1 integrin (Figure 1J,K) and the stiffness of the substrate on which the MKCs are plated (Figure 1F,G). As our observations using the tension-sensitive lamin A/C antibody mirror the results obtained from our now thoroughly-characterized N2G-JM-TSMod, we continue to favor the model that LINC complexes are under more tension in cells at the colony periphery versus the interior.

4. Some baseline description of the LINC complex in the epidermis would provide insights that may lend support for (or refute) their hypothesis. For example, where in the epidermis is Sun1/2 expressed? Is there any developmental regulation of LINC complex organization? One might predict reduced expression or altered localization of LINC complex components (such as SUN1/2) in the differentiated layers of the epidermis. Can the force-sensitive Lamin-A/C antibody be used in vivo to see if there are differences between staining patterns in the basal layer where cells have integrin-mediated contacts compared to the suprabasal, differentiating layers where they do not? Are there differences in nuclear morphology in the presence or absence of sun1/2 dKO epidermis that might support their model? Does loss of Sun1/Sun2 alter nuclear stiffness? If the authors can show that the regulation of molecular tension across the Linc complex directly correlates to changes in nuclear tension, this will strengthen the paper.

We performed immunostaining for SUN1 and SUN2 in E15.5 mouse skin. As described for post-natal skin in our prior manuscript (Stewart et al. JCB 2015), we find that both SUN1 and SUN2 are expressed throughout the basal and suprabasal layers of the epidermis (Figure 3—figure supplement 1A,B). We have been unable to perform staining for the force sensitive lamin-A/C antibody in skin sections due to poor antibody performance in IHC. Further, measuring nuclear stiffness directly, a technique with which we have experience, requires a substantial additional commitment and we have not attempted this approach here. We note, however, that the literature suggests that while LINC complexes are essential for force transduction to the nucleus, they have little effect on the force response (e.g. work from the Lammerding lab – Lombardi et al., JBC, 2011). We do not observe any gross changes in the nuclear morphology in Sun dKO epidermis, but would argue that our lack of understanding of the tension network in keratinocytes in vivo does not rule out there are nonetheless changes in tension exerted on the nucleus. Indeed, we have noted in our prior work that changes in nuclear shape can reflect both LINC complex-dependent and -independent factors (Stewart et al., JCB, 2015; Stewart et al., MBoC, 2019).

5. The molecular links how integrins control tension on the Linc complex, or how altered tension at the Linc complex controls differentiation are not at all addressed, and the paper should at least provide some insight into either upstream or downstream control of how integrin dependent regulation of Sun1/2 regulates differentiation; e.g. explore the molecular link between integrin and the linc complex (in their model both actin and MTs are potentially implicated for example), alterations in epigenetic marks, chromatin organization of e.g. relocalization of the EDC locus etc.

The conditional b1 and KO of integrin a3 integrins do not result in altered/precocious differentiation in the skin (although it does affect proliferation and hair follicle morphogenesis). Presumably the link between integrins and the LINC complex under these conditions would be altered as well? The idea that LINC complex may control differentiation is possible, however the role of integrin based adhesions in this process has not been parsed out. At the very least the authors could have disrupted integrin signaling using KO cells or blocking antibodies. So it is possible that there may be alternative mechanisms? This should be considered.

We appreciate the reviewer’s feedback and agree that further investigation into the role of integrins in the regulation of LINC complex tension and keratinocyte differentiation is warranted. In this revision, we include new experiments to directly address the role that integrins play in regulating tension on the LINC complex by examining the tension on the N2G-JM-TSMod in β1 integrin KO MKCs. Our FRET analysis demonstrates that the FRET index of the N2G-TSMod was significantly higher in β1 integrin KO MKCs compared to WT MKCs (Figure 1J,K) indicating that β1 integrin is required for the high LINC complex tension state. Our additional data demonstrating that the N2G-TSMod is also sensitive to substrate stiffness (Figure 1F,G) further reinforces this relationship.

We also examined the expression of differentiation genes in β1 integrin KO MKCs. RT-qPCR analysis of Sprr1b, Involucrin (Ivl), and S100a14 revealed a significantly elevated expression of these mRNAs in β1 integrin KO MKCs cultured in low calcium conditions (Figure 4I). These data mirror our observations in Sun dKO MKCs and support a role for β1 integrin in mediating tension on the LINC complex and its role in suppressing epidermal differentiation.

[Editors' note: further revisions were suggested prior to acceptance, as described below.]

We agree that your manuscript is much improved and has an important message for eLife. That said, there still several items remaining, that we feel need to be addressed prior to publication.

Three issues remain. First, changes in nuclear structure and likely mechanics in keratinocytes induce rather global changes in chromatin and transcription (Le et al., 2016), and hence it would be helpful if you can present the ATAC data more generally and not just pick a few loci to analyze. Are your data specific for the EDC locus or are other differentiation genes also affected? One would also predict changes in the so-called stem cell genes-can you comment on whether this is observed? These minor adjustments will provide even a better global vision on how the nuclear envelope tension regulates gene expression and differentiation.

We have now added a supplemental panel (Figure 5—figure supplement 1B) and accompanying Supplementary File 4 to provide genome-wide analysis of the ATAC-seq data. Across the genome, most ATAC-seq peaks are found at the same genes for WT and Sun dKO MKCs. Sun dKO MKCs also show both gains and losses of ATAC-seq peaks associated with genes compared to WT MKCs, with a bias towards gains. Further analysis revealed that additional ATAC-seq peaks are found at genes encoding keratins and cell adhesion genes in Sun dKO MKCs, suggesting that epidermal differentiation genes outside of the EDC also show increased chromatin accessibility (Supplementary File 5). However, we do not see premature loss of ATAC-seq peaks at proliferation genes or “stem cell genes” (Supplementary File 5), arguing that precocious expression of epidermal differentiation genes is the primary alteration upon loss of the LINC complex. Of note, these data differ from the results of Le et al., 2016, who found global down-regulation of genes upon critical stretch of keratinocyte monolayers. We conclude, as outlined in the Discussion, that stretch achieved with the device employed by Le et al. and constitutive tension on the LINC complex dictated by integrin engagement represent two distinct contexts.

Second, the b1 KO cells have to be cultured in high calcium media and have very high levels of Rho activity, strong focal adhesions (nucleated through integrin b6) and massive stress fibers (Raghavan et al. 2003, Bandyopadhyay and Raghavan 2012). Given the role of the actin cytoskeletal network in transmitting the forces via the LINC complex to the nucleus, it seems surprising that the tension sensor shows such high FRET (low tension) compared to the WT cells. It would be helpful if you could add a bit of discussion as to how you interpret these data and reconcile this point. Toning down some of the conclusions made regarding this point might be warranted.

We appreciate this perspective. However, our data from this manuscript and other published work clearly indicate that high Rho activity and actin contractility are not sufficient to drive tension on the LINC complex – indeed this represents the critical point that lies at the heart of our model. For instance, cells at the interior of cohesive MKC colonies also display extensive stress fibers integrated at cell-cell adhesions (see our prior work – Mertz et al., PNAS, 2013; Stewart et al., JCB, 2015) and show low tension on the LINC complex and the nuclear lamina, as demonstrated in Figure 2 A-D. Thus, our data indicate that actomyosin contractility is not sufficient, in and of itself, to drive a high-tension state on the LINC complex. While we agree that these findings may be, on the surface, surprising, this model provides an explanation for how the LINC complex could specifically contribute to repressing epidermal differentiation genes in basal but not suprabasal keratinocytes. As for the specificity for integrin b1 and not integrin b6, further studies will be required to define why only engagement of the former is sufficient to exert high tension on the LINC complex. We now include a more detailed discussion on these points in the discussion of the revised manuscript.

Finally, it would seem that you should add a brief discussion and referencing of the recent Nava et al. Cell paper, that shows heterochromatin driven changes in nuclear mechanics in keratinocytes.

We now cite and discuss this paper, as suggested. However, we would point out that stretched cells and constitutive tension on LINC complexes with engaged b1-integrins likely represent distinct regimes as we do not observe the global changes observed by Le et al. and. Nava et al.

https://doi.org/10.7554/eLife.58541.sa2

Article and author information

Author details

  1. Emma Carley

    Department of Cell Biology, Yale School of Medicine, New Haven, United States
    Contribution
    Data curation, Software, Investigation, Visualization, Methodology, Writing - review and editing
    Contributed equally with
    Rachel M Stewart and Abigail Zieman
    Competing interests
    No competing interests declared
  2. Rachel M Stewart

    Department of Cell Biology, Yale School of Medicine, New Haven, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing - original draft
    Contributed equally with
    Emma Carley and Abigail Zieman
    Competing interests
    No competing interests declared
  3. Abigail Zieman

    Department of Molecular, Cell and Developmental Biology, Yale University, New Haven, United States
    Contribution
    Data curation, Formal analysis, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing - review and editing
    Contributed equally with
    Emma Carley and Rachel M Stewart
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8236-207X
  4. Iman Jalilian

    Department of Cell Biology, Yale School of Medicine, New Haven, United States
    Contribution
    Formal analysis, Investigation, Visualization, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Diane E King

    Sunnycrest Bioinformatics, Flemington, United States
    Contribution
    Data curation, Software, Formal analysis
    Competing interests
    No competing interests declared
  6. Amanda Zubek

    Department of Dermatology, Yale School of Medicine, New Haven, United States
    Contribution
    Conceptualization, Formal analysis, Investigation, Visualization, Methodology
    Competing interests
    No competing interests declared
  7. Samantha Lin

    Department of Molecular, Cell and Developmental Biology, Yale University, New Haven, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  8. Valerie Horsley

    1. Department of Molecular, Cell and Developmental Biology, Yale University, New Haven, United States
    2. Department of Dermatology, Yale School of Medicine, New Haven, United States
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Writing - original draft, Project administration
    For correspondence
    valerie.horsley@yale.edu
    Competing interests
    Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1254-5839
  9. Megan C King

    1. Department of Cell Biology, Yale School of Medicine, New Haven, United States
    2. Department of Molecular, Cell and Developmental Biology, Yale University, New Haven, United States
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Visualization, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    megan.king@yale.edu
    Competing interests
    Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1688-2226

Funding

National Institutes of Health (R01 GM129308)

  • Emma Carley
  • Iman Jalilian
  • Megan C King

American Heart Association (16PRE27460000)

  • Rachel M Stewart

Ludwig Family Foundation

  • Megan C King
  • Rachel M Stewart

National Institutes of Health (R01 AR060295)

  • Valerie Horsley

National Institutes of Health (R01 AR069550)

  • Valerie Horsley

National Institutes of Health (T32 AR007016)

  • Abigail Zieman

National Institutes of Health (T32 GM007223)

  • Emma Carley

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank the laboratories of GW Gant Luxton (University of California, Davis), Gregg Gundersen (Columbia University), Julia Segre (NHGRI), Srikala Raghavan (Institute for Stem Cell Science and Regenerative Medicine), David Calderwood (Yale University), Martin Schwartz, (Yale University), and Chinedum Osuji (Yale University) for sharing of reagents, instrumentation, and/or expertise. The high-throughput sequencing was conducted by the Yale Stem Cell Center Genomics and Bioinformatics Core facility, which was supported by the Connecticut Regenerative Medicine Research Fund. This work would not have been possible without the support of the Ludwig Family Foundation and the Physical Engineering Biology Program at Yale University.

Ethics

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All animal care and experimental procedures were conducted in accord with requirements approved by the Institutional Animal Care and Use Committee of Yale University. IACUC Approval 2018-11248.

Senior Editor

  1. Anna Akhmanova, Utrecht University, Netherlands

Reviewing Editor

  1. Elaine Fuchs, Howard Hughes Medical Institute, The Rockefeller University, United States

Publication history

  1. Received: May 5, 2020
  2. Accepted: March 26, 2021
  3. Accepted Manuscript published: March 29, 2021 (version 1)
  4. Version of Record published: April 16, 2021 (version 2)

Copyright

© 2021, Carley et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,762
    Page views
  • 345
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    Alberto T Gatta et al.
    Research Article Updated

    Through membrane sealing and disassembly of spindle microtubules, the Endosomal Sorting Complex Required for Transport-III (ESCRT-III) machinery has emerged as a key player in the regeneration of a sealed nuclear envelope (NE) during mitotic exit, and in the repair of this organelle during interphase rupture. ESCRT-III assembly at the NE occurs transiently during mitotic (M) exit and is initiated when CHMP7, an ER-localised ESCRT-II/ESCRT-III hybrid protein, interacts with the Inner Nuclear Membrane (INM) protein LEM2. Whilst classical nucleocytoplasmic transport mechanisms have been proposed to separate LEM2 and CHMP7 during interphase, it is unclear how CHMP7 assembly is suppressed in mitosis when NE and ER identities are mixed. Here, we use live cell imaging and protein biochemistry to examine the biology of these proteins during M-exit. Firstly, we show that CHMP7 plays an important role in the dissolution of LEM2 clusters that form at the NE during M-exit. Secondly, we show that CDK1 phosphorylates CHMP7 upon M-entry at Ser3 and Ser441 and that this phosphorylation reduces CHMP7’s interaction with LEM2, limiting its assembly during M-phase. We show that spatiotemporal differences in the dephosphorylation of CHMP7 license its assembly at the NE during telophase, but restrict its assembly on the ER at this time. Without CDK1 phosphorylation, CHMP7 undergoes inappropriate assembly in the peripheral ER during M-exit, capturing LEM2 and downstream ESCRT-III components. Lastly, we establish that a microtubule network is dispensable for ESCRT-III assembly at the reforming nuclear envelope. These data identify a key cell-cycle control programme allowing ESCRT-III-dependent nuclear regeneration.

    1. Biochemistry and Chemical Biology
    2. Cell Biology
    Jingxiang Li et al.
    Research Article Updated

    Autophagy acts as a pivotal innate immune response against infection. Some virulence effectors subvert the host autophagic machinery to escape the surveillance of autophagy. The mechanism by which pathogens interact with host autophagy remains mostly unclear. However, traditional strategies often have difficulty identifying host proteins that interact with effectors due to the weak, dynamic, and transient nature of these interactions. Here, we found that Enteropathogenic Escherichia coli (EPEC) regulates autophagosome formation in host cells dependent on effector NleE. The 26S Proteasome Regulatory Subunit 10 (PSMD10) was identified as a direct interaction partner of NleE in living cells by employing genetically incorporated crosslinkers. Pairwise chemical crosslinking revealed that NleE interacts with the N-terminus of PSMD10. We demonstrated that PSMD10 homodimerization is necessary for its interaction with ATG7 and promotion of autophagy, but not necessary for PSMD10 interaction with ATG12. Therefore, NleE-mediated PSMD10 in monomeric state attenuates host autophagosome formation. Our study reveals the mechanism through which EPEC attenuates host autophagy activity.
