Establishment and maintenance of motor neuron identity via temporal modularity in terminal selector function

  1. Yinan Li
  2. Anthony Osuma
  3. Edgar Correa
  4. Munachiso A Okebalama
  5. Pauline Dao
  6. Olivia Gaylord
  7. Jihad Aburas
  8. Priota Islam
  9. André EX Brown
  10. Paschalis Kratsios  Is a corresponding author
  1. Department of Neurobiology, University of Chicago, United States
  2. Committee on Neurobiology, University of Chicago, United States
  3. Cell and Molecular Biology Program, University of Chicago, United States
  4. Committee on Development, Regeneration and Stem Cell Biology, University of Chicago, United States
  5. MRC London Institute of Medical Sciences, United Kingdom
  6. Institute of Clinical Sciences, Imperial College London, United Kingdom
  7. The Grossman Institute for Neuroscience, Quantitative Biology, and Human Behavior, University of Chicago, United States
Research Advance
  • Cited 0
  • Views 429
  • Annotations
Cite this article as: eLife 2020;9:e59464 doi: 10.7554/eLife.59464

Abstract

Terminal selectors are transcription factors (TFs) that establish during development and maintain throughout life post-mitotic neuronal identity. We previously showed that UNC-3/Ebf, the terminal selector of C. elegans cholinergic motor neurons (MNs), acts indirectly to prevent alternative neuronal identities (Feng et al., 2020). Here, we globally identify the direct targets of UNC-3. Unexpectedly, we find that the suite of UNC-3 targets in MNs is modified across different life stages, revealing ‘temporal modularity’ in terminal selector function. In all larval and adult stages examined, UNC-3 is required for continuous expression of various protein classes (e.g. receptors, transporters) critical for MN function. However, only in late larvae and adults, UNC-3 is required to maintain expression of MN-specific TFs. Minimal disruption of UNC-3’s temporal modularity via genome engineering affects locomotion. Another C. elegans terminal selector (UNC-30/Pitx) also exhibits temporal modularity, supporting the potential generality of this mechanism for the control of neuronal identity.

Introduction

Nervous system development is a multi-step process that culminates in the generation of distinct neuron types necessary for animal behavior. Seminal studies in many model systems have begun to elucidate the molecular mechanisms that control the early steps of neuronal development, such as specification of neural progenitors and generation of post-mitotic neurons (Catela and Kratsios, 2019; Doe, 2017; Greig et al., 2013; Jessell, 2000; Lodato and Arlotta, 2015; Perry et al., 2017). However, our understanding of the final steps of neuronal development is very rudimentary. Once neurons become post-mitotic, how do they acquire their unique functional features, such as neurotransmitter synthesis, electrical activity and signaling properties? And, perhaps more importantly, how do neurons maintain such features throughout post-embryonic life?

Terminal selectors represent one class of transcription factors (TFs) with continuous expression – from development through adulthood – in specific neuron types (Hobert, 2008; Hobert, 2011; Hobert, 2016b; García-Bellido, 1975). A defining feature of terminal selectors is the ability to activate the expression of effector genes, whose protein products determine the terminally differentiated state, and thereby function, of a given neuron type. Such effector genes, herein referred to as ‘terminal identity genes’, are expressed continuously in specific neuron types and endow them with distinct functional and phenotypic properties. Examples include neurotransmitter (NT) biosynthesis components, NT receptors, ion channels, neuropeptides, and adhesion molecules (Hobert, 2008; Hobert, 2011; Hobert, 2016b). Numerous studies support the idea that terminal selectors establish during development and maintain throughout life neuronal identity (and function) by activating expression of terminal identity genes (Deneris and Hobert, 2014; Hobert, 2008; Hobert, 2016b; Hobert and Kratsios, 2019). Multiple cases of terminal selectors have been described thus far in worms, flies, chordates and mice (Deneris and Hobert, 2014; Hobert and Kratsios, 2019; Konstantinides et al., 2018), suggesting high conservation of this type of regulators. Importantly, human mutations in terminal selectors and their effector target genes have been linked to either developmental or degenerative conditions of the nervous system (Deneris and Hobert, 2014).

However, the molecular mechanisms through which terminal selectors establish and maintain neuronal identity are poorly understood, in part due to two major challenges. First, the majority of studies follow a candidate approach focused on a select subset of terminal identity genes (Flames and Hobert, 2009; Hobert, 2016a; Lopes et al., 2012). Hence, the extent of terminal identity features and breadth of biological processes controlled by terminal selectors remain largely unknown. Addressing this knowledge gap requires unbiased methods for the identification of terminal selector target genes, but such approaches have only been applied to a limited number of terminal selectors to date (Corbo et al., 2010; Housset et al., 2013; Kadkhodaei et al., 2013; Wyler et al., 2016; Yu et al., 2017). Second, the continuous expression of terminal selectors represents an additional challenge because it is not known whether their function - in a particular neuron type - remains the same, or changes at different life stages. This is partly due to the difficulty of tracking individual neurons in the complex vertebrate nervous system throughout embryonic and post-natal life. Hence, longitudinal studies in simple model organisms are needed to determine whether terminal selectors control an identical suite of target genes across different stages (e.g., embryo, adult), or whether the suite of targets can change over time. Addressing these two challenges may extend our knowledge of how terminal selectors control neuronal identity, as well as advance our understanding of how cellular identity is established and maintained.

This study focuses on UNC-3, the sole C. elegans ortholog of the Collier/Olf/Ebf (COE) family of TFs (Dubois and Vincent, 2001). UNC-3 acts as a terminal selector in cholinergic motor neurons (MNs) of the C. elegans ventral nerve cord (Kratsios et al., 2011). Importantly, mutations in EBF3, a human ortholog of UNC-3, cause a neurodevelopmental syndrome characterized by motor developmental delay (Blackburn et al., 2017; Chao et al., 2017; Harms et al., 2017; Sleven et al., 2017). A previous study proposed that UNC-3 controls cholinergic MN identity in C. elegans by activating directly the expression of various terminal identity genes (e.g., acetylcholine biosynthesis components, ion channels, NT receptors, neuropeptides), which were identified via a candidate approach (Kratsios et al., 2011). More recently, it was demonstrated that UNC-3 can also act indirectly to prevent the adoption of alternative neuronal identities (Feng et al., 2020). Lastly, animals lacking unc-3 gene activity display severe locomotion defects (Brenner, 1974; Feng et al., 2020), suggesting UNC-3 may broadly control gene expression in cholinergic MNs. However, an unbiased identification of UNC-3 targets, as well as a longitudinal analysis of unc-3 mutants are currently lacking.

Here, we employ chromatin immunoprecipitation followed by DNA sequencing (ChIP-Seq) and report the identification of ~3500 protein-coding genes as putative direct targets of UNC-3. Protein class ontology analysis suggests that UNC-3, besides terminal identity genes, also controls additional biological processes, such as neuronal metabolism and downstream gene regulatory networks comprised of numerous TFs and nucleic acid-binding proteins. These findings help obtain a comprehensive understanding of terminal selector function.

Through a longitudinal analysis of unc-3 mutants at embryonic, larval and adult stages, we identified two groups of target genes with distinct temporal requirements for UNC-3 in cholinergic MNs. One group encodes multiple classes of proteins (e.g., receptors, secreted molecules, TFs) that require UNC-3 for both embryonic initiation and post-embryonic maintenance of their expression. Contrasting this stable mode of regulation over time, a second group of targets consists exclusively of TFs (cfi-1/Arid3a, bnc-1/BNC1-2, mab-9/Tbx20, ceh-44/CUX1-2, nhr-40/nuclear hormone receptor) that do not require UNC-3 for initiation, but depend on UNC-3 activity for maintenance. Hence, the suite of UNC-3 targets in cholinergic MNs is modified across different life stages, a phenomenon we term ‘temporal modularity’ in terminal selector function. To provide mechanistic insights, we focused on the second group of targets and identified a molecular mechanism for their unc-3-independent initiation that relies on Hox proteins. Importantly, preventing UNC-3’s ability to selectively maintain expression of a single TF (cfi-1/Arid3a) from the second target group led to locomotion defects, indicating minimal disruption of temporal modularity affects animal behavior. Lastly, we provide evidence for temporal modularity in the function of UNC-30/PITX, the terminal selector of GABAergic MN identity in C. elegans (Eastman et al., 1999; Jin et al., 1994). Because terminal selectors have been identified in both invertebrate and vertebrate nervous systems (Deneris and Hobert, 2014; Hobert and Kratsios, 2019), we hypothesize that temporal modularity in their function may be a general mechanism for the establishment and maintenance of neuronal identity.

Results

Identifying the global targets of UNC-3 via ChIP-Seq

To identify in an unbiased manner putative UNC-3 target genes, we employed chromatin immunoprecipitation followed by DNA sequencing (ChIP-Seq). We used a reporter strain with in-frame GFP sequences inserted immediately upstream of the stop codon of the endogenous unc-3 gene (Figure 1A). Expression of UNC-3::GFP fusion protein was observed in the nucleus of 53 cholinergic MNs (SAB subtype = 3 neurons, DA = 9, DB = 7, VA = 12, VB = 11, AS = 11) and 19 other neurons known to express unc-3 (Figure 1A), indicating that this reporter faithfully recapitulates the endogenous unc-3 expression pattern (Pereira et al., 2015; Prasad et al., 1998). Insertion of GFP does not detectably alter the function of UNC-3 since expression of known UNC-3 targets (cho-1/ChT, unc-17/VAChT, ace-2/AChE) is unaffected in unc-3::gfp animals (Figure 1B). Unlike unc-3 null mutants, unc-3::gfp animals do not display locomotion defects. We therefore performed ChIP-Seq on unc-3::gfp animals at larval stage 2 (L2) because all unc-3 expressing neurons have been generated by this stage.

Figure 1 with 1 supplement see all

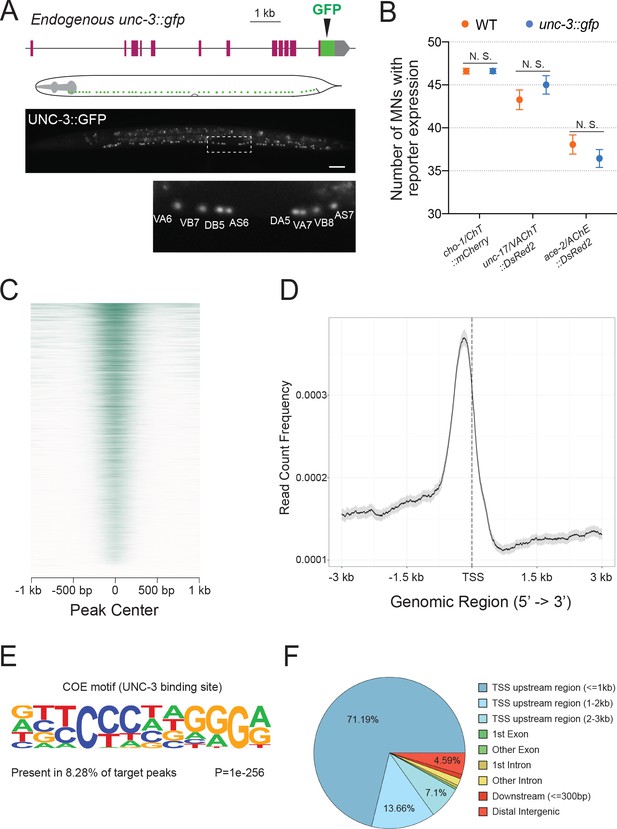

Mapping UNC-3 binding genome-wide with ChIP-Seq.

(A) Diagram illustrating the endogenous reporter allele of UNC-3. GFP is inserted immediately upstream of unc-3’s stop codon. Below, a representative image at L2 stage showing expression of UNC-3::GFP fusion protein in cholinergic MN nuclei. Region highlighted in dashed box is enlarged. Scale bar, 20 μm. (B) Quantification of terminal identity gene markers that report expression of known UNC-3 targets (cho-1/ChT, unc-17/VAChT, ace-2/AChE) in WT and ot839 [unc-3::gfp] animals at the L4 stage (N = 15). N. S.: not significant. (C) Heatmap of UNC-3 ChIP-Seq signal around 1.0 kb of the center of the binding peak. (D) Summary plot of UNC-3 ChIP-Seq signal with a 95% confidence interval (gray area) around 3.0 kb of the TSS. The average signal peak is detected at ~200 bp upstream of the TSS. (E) de novo motif discovery analysis of 6,892 UNC-3 binding peaks identifies a 12 bp-long UNC-3 binding motif. (F) Pie chart summarizes genomic distribution of UNC-3 ChIP-Seq signal.

Our ChIP-Seq dataset revealed strong enrichment of UNC-3 binding in the genome by identifying a total of 6892 unique binding peaks (q-value cutoff: 0.05) (Figure 1C and Figure 1—figure supplement 1). The majority of UNC-3 binding peaks (91.95%) are predominantly located between 0 and 3 kb upstream of a transcription start site, whereas only a small fraction is found in introns (2.05%) or downstream of a gene (0.99%), suggesting UNC-3 chiefly acts at promoters and enhancers to regulate gene expression (Figure 1D and F). Through de novo motif discovery analysis (see Materials and methods), we identified a 12 bp pseudo-palindromic sequence overrepresented in the UNC-3 binding peaks (Figure 1E), which highly resembles the binding site of UNC-3 vertebrate orthologs (Treiber et al., 2010a; Treiber et al., 2010b; Wang and Reed, 1993; Wang et al., 1997). To test the quality of our ChIP-Seq results, we sought to determine whether UNC-3 binding peaks are present in the cis-regulatory region of all previously described UNC-3 targets in cholinergic MNs, because these neurons constitute the majority of unc-3-expressing cells (53 out of 72 cells). Previous studies identified 10 terminal identity genes as putative direct UNC-3 targets and 43 terminal identity genes whose expression is affected by genetic removal of unc-3 (Kratsios et al., 2015; Kratsios et al., 2011). In the current study, we found UNC-3 binding peaks in 9 out of 10 (90%) direct UNC-3 targets and 38 of the 43 (88.37%) downstream targets of UNC-3, indicating high quality in the ChIP-Seq results (Figure 2A and Figure 1—figure supplement 1, Supplementary file 1). Moreover, ChIP-Seq for UNC-3 appears highly sensitive, as it identified peaks in unc-3-dependent genes expressed in a limited number of neurons (e.g., glr-4/GluR is expressed in 4 out of 72 unc-3+ neurons) (Figure 2A). In conclusion, our ChIP-Seq experiment generated a comprehensive map of UNC-3 binding in the C. elegans genome and provided biochemical evidence to the hypothesis that UNC-3 binds to the cis-regulatory region of multiple terminal identity genes, consolidating UNC-3’s function as a terminal selector of cholinergic MN identity.

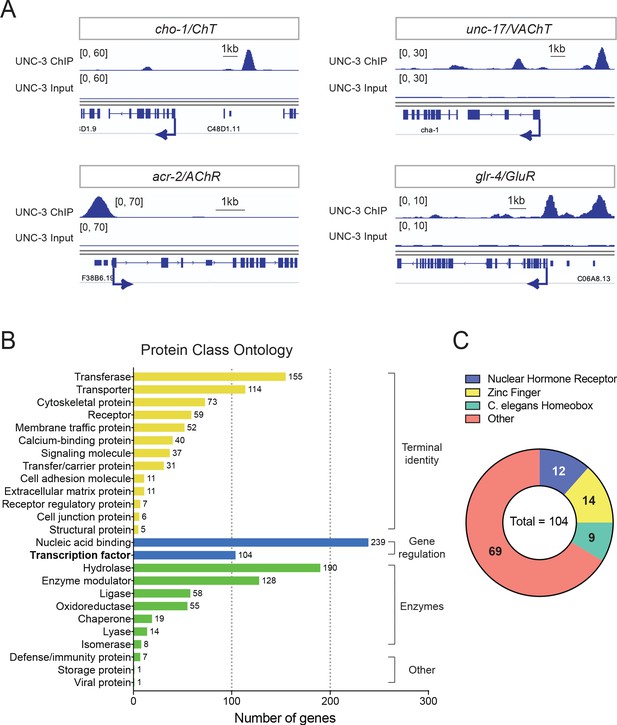

Global analyses of UNC-3 ChIP-Seq data.

(A) Snapshots of UNC-3 ChIP-Seq and input (negative control) signals at the cis-regulatory regions of known UNC-3 targets (cho-1/ChT, unc-17/VAChT, acr-2/AChR, glr-4/GluR). (B) Graph summarizing protein class ontology analysis of putative target genes of UNC-3 identified by ChIP-Seq. Out of the 3502 protein-coding UNC-3 targets, 1425 encode for proteins with known protein class terms and these were the ones considered by PANTHER. This analysis classifies UNC-3 targets into three broad categories: terminal identity genes, gene expression regulators, and enzymes. (C) Pie chart breaking down TF families that show UNC-3 binding.

Our bioinformatic analysis of the UNC-3 binding peaks revealed 3502 protein-coding genes as putative UNC-3 targets (see Materials and methods). To classify these new targets, we performed gene ontology (GO) analysis focused on protein classes using PANTHER (Mi et al., 2013). This analysis revealed three broad categories (Figure 2B, Supplementary file 2). First, there is a preponderance (42.18% of the total number of UNC-3 targets classified by PANTHER) of terminal identity genes (e.g., 114 transporter proteins, 111 receptors and trans-membrane proteins, 37 signaling molecules, 11 cell adhesion molecules), suggesting that UNC-3 broadly affects multiple features of neuronal terminal identity. The second overrepresented category (24.07% of UNC-3 targets) contains a large number of proteins involved in the control of gene expression, such as 239 nucleic acid-binding proteins (16.77%) and 104 TFs (7.3%), highlighting the possibility of an extensive network of gene regulatory factors downstream of UNC-3. The third category (24.14%) consists of genes coding for various types of enzymes (e.g., hydrolases, ligases, oxidoreductases), suggesting a new role for UNC-3 in neuronal metabolic pathways. Together, this analysis unravels the breadth of biological processes potentially under the direct control of UNC-3.

The ChIP-Seq experiment was performed on endogenously tagged UNC-3, which is expressed in 53 cholinergic MNs of the nerve cord and 19 other neurons located in the C. elegans head and tail (Pereira et al., 2015). Since MNs are the majority (53 cells) of unc-3-expressing cells (72 in total), a significant portion of the UNC-3-bound genes may be expressed in MNs. To test this, we used available single-cell RNA-Seq data (CeNGEN project: www.cengen.org) that identified 576 transcripts specifically enriched in cholinergic MNs (Taylor et al., 2019). We found that 52.95% of these MN-expressed genes are bound by UNC-3 and fall in the aforementioned gene categories (Supplementary file 3), thereby constituting putative UNC-3 targets in cholinergic MNs.

Cis-regulatory analysis reveals novel TFs as direct UNC-3 targets in MNs

Our ChIP-Seq results provide an opportunity to reveal new roles for UNC-3, beyond the direct control of terminal identity genes. To this end, we focused on the 104 TFs identified by ChIP-Seq as putative UNC-3 targets (Figure 2B–C). To functionally test whether the UNC-3 bound DNA elements upstream of these TF-encoding genes carry information critical for gene expression, we carried out a cis-regulatory analysis. We isolated and fused to RFP elements located upstream of 16 randomly selected TFs of different families (e.g., homeobox, nuclear hormone receptors, Zn finger) (Figure 2C, Table 1). We generated transgenic reporter animals and found that 10 of these TF reporters were sufficient to drive RFP expression in ventral cord MNs (Table 1). Next, we identified 9 TFs (nhr-1, nhr-40, mab-9, ztf-26, ceh-44, zfh-2, cfi-1, bnc-1, nhr-19) with expression in cholinergic MNs. Some of those are also expressed in the unc-3-negative GABAergic MNs of the nerve cord (Table 1). Interestingly, one reporter (nhr-49) is exclusively expressed in GABAergic MNs. Expression of five TFs (nhr-1, nhr-19, nhr-49, zfh-2, ztf-26) in ventral cord MNs has not been previously described. The remaining 5 TFs (cfi-1/Arid3a, bnc-1/Bnc1/2, mab-9/Tbx20, nhr-40, ceh-44/Cux1) are known to be expressed in subsets of unc-3-positive MNs (Kerk et al., 2017; Pocock et al., 2008; Brozová et al., 2006), but our analysis revealed cis-regulatory elements sufficient for their MN expression. Next, we tested for unc-3 dependency at the L4 stage, and found that 8 of the 9 TF reporters (nhr-1, nhr-40, zfh-2, ztf-26, ceh-44, cfi-1, bnc-1, mab-9) with expression in cholinergic MNs are positively regulated by unc-3; their expression significantly decreased in unc-3 mutants (Table 1, Figure 3—figure supplement 1). On the other hand, nhr-49, which is normally expressed in GABAergic MNs, is negatively regulated by unc-3; ectopic expression was observed in cholinergic MNs of unc-3 mutants (Table 1, Figure 3—figure supplement 1). Together, this cis-regulatory analysis revealed novel TFs as direct UNC-3 targets in cholinergic MNs. Besides its known role as an activator of terminal identity genes (Kratsios et al., 2015; Kratsios et al., 2011), these findings suggest UNC-3 can also act directly to either activate or repress expression of multiple TF-encoding genes. Alternatively, UNC-3 binding could facilitate recruitment of other factors that function either as activators or repressors. Altogether, these data uncover an extensive gene regulatory network downstream of UNC-3.

Table 1
Summary of cis-regulatory analysis to identify novel transcription factors controlled by UNC-3.

Transgenic reporter (RFP) animals for each TF were generated and examined for neuronal expression. GFP markers for cholinergic and GABAergic MNs were used to define TF reporter expression. TF reporters expressed in MNs were further tested for UNC-3 dependency. Eighteen reporters were generated that correspond to 16 TFs (Two reporters were generated for nhr-1 and nhr-40 because two distinct UNC-3 ChIP-Seq peaks were found in the cis-regulatory region of these genes). Not applicable (N/A).

Number of reportersGeneTF familyDNA region included relative to ATGunc-3 dependenceRFP expressionExpression in cholinergic MNsExpression in GABAergic MNs# of lines
1nhr-1
(second peak)
Nuclear hormone receptor−838 bp to +1,535 bpPositively regulatedVNC, Head and Tail NeuronsYESYES2
2nhr-40
(second peak)
Nuclear hormone receptor+4,356 bp to +5,525 bpPositively regulatedVNC, Head and Tail NeuronsYESYES2
3mab-9T-box−5,561 bp to −3,773 bpPositively regulatedVNC, Head and Tail NeuronsYESYES2
4ztf-26Zinc finger+910 bp to 3,394 bpPositively regulatedVNC and Head NeuronsYESNO2
5ceh-44C. elegans homeobox+1,605 bp to 3,111 bpPositively regulatedVNC, Head and Tail NeuronsYESNot determined2
6zfh-2Zinc finger+12,048 bp to +13,549 bpPositively regulatedVNC, Head and Tail NeuronsYESNO2
7cfi-1AT-rich interaction domain−13,824 bp to −11,329 bpPositively regulatedVNC, Head and Tail NeuronsYESYES2
8bnc-1Zinc finger−1,800 bp to −1 bpPositively regulatedVNC and Tail NeuronsYESNO2
9nhr-19Nuclear hormone receptor+1,261 bp to +2,294 bpNOVNC, Head and Tail NeuronsYESYES2
10nhr-40
(first peak)
Nuclear hormone receptor+919 bp to +1,839 bpNOVNC, Head and Tail NeuronsYESYES2
11nhr-49Nuclear hormone receptor−750 bp to 75 bpNegatively regulatedVNC, Head and Tail NeuronsNOYES2
12nhr-1
(first peak)
Nuclear hormone receptor−7,452 bp to −5,871 bpNot determinedHead and Tail NeuronsN/AN/A2
13ccch-3Zinc finger−385 bp to −1 bpNot determinedHead NeuronsN/AN/A2
14ztf-17Zinc finger−1,031 bp to +3 bpNot determinedHead Neurons, Muscles, and IntestineN/AN/A2
15nhr-47Nuclear hormone receptor−675 bp to +171 bpN/ANo RFP expressionN/AN/A2
16unc-55Nuclear receptor−2,105 bp to −1,327 bpN/ANo RFP expressionN/AN/A2
17ztf-13Zinc finger−1,392 bp to −1 bpN/ANo RFP expressionN/AN/A2
18ztf-14Zinc finger−2,087 bp to −531 bpN/ANo RFP expressionN/AN/A2

Temporal modularity of UNC-3 function in cholinergic MNs

Terminal selectors are continuously expressed, from development through adulthood, in specific neuron types. However, it remains unclear whether – in the same neuron type – a terminal selector controls an identical suite of targets across different life stages, or the suite of targets can change over time. The case of UNC-3 offers an opportunity to address this issue because its direct targets (terminal identity genes and newly identified TFs [Table 1]) are continuously expressed in cholinergic MNs. However, unc-3 dependency of terminal identity genes was mostly tested at a single developmental stage, the last larval stage (L4) (Kratsios et al., 2011). We therefore performed a longitudinal analysis to determine whether target gene dependency on unc-3 remains stable or changes at different life stages.

First, we tested four terminal identity genes (acr-2/AChR, unc-129/TGFbeta, glr-4/GluR, unc-17/VAChT) at larval (L2, L4) and adult (day 1) stages and found that their MN expression, at every stage, critically depends on UNC-3 (Figure 3A). Because this analysis relied on animals lacking unc-3 gene activity since early development (a null allele was used), whether UNC-3 is continuously required to maintain expression of these genes remained unclear. We therefore employed the auxin-inducible degradation (AID) system to deplete the endogenous UNC-3 protein in cholinergic MNs at late larval and young adult stages (Zhang et al., 2015). Compared to controls, we found a significant decrease in the number of adult MNs expressing acr-2/AChR, glr-4/GluR, and unc-17/VAChT in animals treated with auxin (Figure 3—figure supplement 2). These findings indicate UNC-3 is required to initiate and maintain the expression of terminal identity genes, consolidating its role as a terminal selector of cholinergic MN fate.

Figure 3 with 2 supplements see all

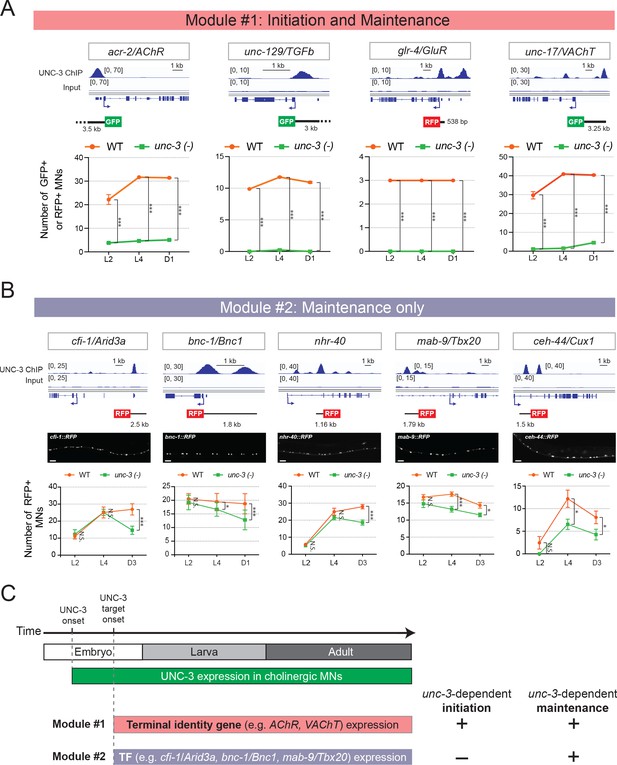

Terminal identity genes and transcription factors display distinct temporal requirements for UNC-3.

(A) Top: snapshots of UNC-3 ChIP-Seq and input (negative control) signals at the cis-regulatory regions of four cholinergic terminal identity genes (acr-2/AChR, unc-129/TFGb, glr-4/GluR, and unc-17/VAChT). The length of DNA elements included in each reporter is shown. Bottom: quantification of terminal identity gene reporters in WT and unc-3 (n3435) animals at three different developmental stages – L2, L4, and day 1 adults (N ⩾ 12). UNC-3 is required for both initiation and maintenance of all four terminal identity genes. ***p<0.001. (B) Top: snapshots of UNC-3 ChIP-Seq and input (negative control) signals at the cis-regulatory regions of 5 transcription factors (cfi-1/Arid3a, bnc-1/Bnc1, nhr-40, mab-9/Tbx20, and ceh-44/Cux1). The length of DNA elements included in each reporter is shown. Middle: representative images of WT L4 animals showing expression of the transgenic reporters in MNs. Scale bar, 20 μm. Bottom: quantification of transcription factor reporters in WT and unc-3 (n3435) animals at three different developmental stages – L2, L4, and young adults (day 1 or day 3) (N ⩾ 12). UNC-3 is required for maintenance, but not initiation of the 5 TFs. N.S.: not significant, *p<0.05, ***p<0.001. (C) Schematic summarizing the phenomenon of temporal modularity in UNC-3 function. The first module consists of terminal identity genes and TFs (Figure 3—figure supplement 2), which require UNC-3 for both initiation and maintenance of gene expression. The second module consists exclusively of TFs that require UNC-3 only for maintenance.

However, a different picture emerged after testing the 8 TF reporters that are positively regulated by UNC-3 (Table 1). Similar to terminal identity genes, the expression of 3 TFs (zfh-2/Zfhx3, ztf-26, nhr-1) critically depends on UNC-3 at every stage (L2, L4, adult) (Figure 3—figure supplement 1), suggesting UNC-3 controls initiation and maintenance of their expression. In striking contrast, the early expression (L2 stage) of five TFs (cfi-1, bnc-1, mab-9, nhr-40, ceh-44) does not require UNC-3 (Figure 3B). However, maintenance of their expression during late larval and/or adult stages does depend on UNC-3 (Figure 3B). Hence, this longitudinal analysis revealed two groups of targets with distinct requirements for UNC-3 at different life stages. One group consists of terminal identity genes (acr-2/AChR, unc-129/TGFbeta, glr-4/GluR, unc-17/VAChT) and TFs (zfh-2/Zfhx3, ztf-26, nhr-1) that require UNC-3 for both initiation and maintenance of expression (‘initiation and maintenance’ module, Figure 3A,C). The second group consists exclusively of TFs (cfi-1/Arid3a, bnc-1/Bnc1, mab-9/Tbx20, ceh-44/Cux1, nhr-40) that depend on UNC-3 for maintenance, but not initiation (‘maintenance-only’ module, Figure 3B–C).

Collectively, these findings suggest that, in cholinergic MNs, the suite of UNC-3 target genes can partially change at different life stages. In all larval and adult stages examined, UNC-3 is required for the continuous expression of one set of genes (‘initiation and maintenance’ module). However, only in late larvae and adults, UNC-3 is required to maintain expression of another set of genes (‘maintenance-only’ module). To describe this phenomenon, we use the term ‘temporal modularity in UNC-3 function’ given that the function of a TF in a specific cell type and at a particular life stage is determined by the suite of targets it controls in that cell type and at that stage (Figure 3C). In the following sections, we hone in on a single target (cfi-1/Arid3a) from the ‘maintenance-only’ module, aiming to dissect the molecular mechanisms underlying the temporal modularity of UNC-3 function in cholinergic MNs.

A distal enhancer is necessary for initiation and maintenance of cfi-1/Arid3a expression in MNs

Our cis-regulatory analysis suggests that maintenance, but not initiation, of cfi-1 expression depends on UNC-3 (Figure 3B). We therefore hypothesized that the sole UNC-3 binding peak on the cfi-1 locus (located ~12 kb upstream) demarcates an enhancer element selectively required for maintenance (Figures 3B and 4A). If this were to be the case, then it would be logical to assume that a separate cis-regulatory element would control cfi-1 initiation in MNs. To test this assumption, we conducted an unbiased cis-regulatory analysis in vivo by generating a series of 12 transgenic reporter (GFP or RFP) animals, with each reporter carrying small and contiguous DNA fragments spanning a ~15 kb region (Figure 4A). Surprisingly, this analysis did not reveal a separate initiation element. Instead, it showed that the same 2.5 kb distal element (reporter #7) that drives RFP expression in subsets of unc-3-expressing cholinergic MNs (DA, DB, VA, VB subtypes) at larval and adult stages (Figure 3B), is also sufficient for embryonic (3-fold stage) MN expression (Figure 4A–C). In addition, this 2.5 kb element also showed expression at all these stages in unc-3-negative neurons of the nerve cord, namely the GABAergic (DD, VD subtypes) MNs (Figure 4A,C), which will be discussed later in Results. We conclude that this enhancer element is sufficient for initiation and maintenance of cfi-1 reporter expression in nerve cord MNs.

Figure 4 with 1 supplement see all
UNC-3 acts through a distal enhancer to maintain cfi-1 expression in cholinergic motor neurons.

(A) Top: Snapshots of UNC-3 ChIP-Seq and input (negative control) signals at the cis-regulatory region of cfi-1. The gray bar highlights an UNC-3 binding peak located ~12 kb upstream of the TSS of cfi-1 (−11,391 bp to −12,146 bp). Bottom: schematic showing the strategy of constructing cfi-1 reporters. Twelve transcriptional fusion reporters ([−1 bp to −8,170 bp], #2 [993 bp to 3,764 bp], #3 [547 bp to −1,173 bp], #4 [-1,164 bp to −2,875 bp], #5 [−2,865 bp to −6,141 bp], #6 [-8,162 bp to −11,346 bp], #7 [−11,329 bp to −13,824 bp], #8 [−11,329 bp to −11,881 bp], #9 [−11,851 bp to −12,234 bp], #10 [−12,223 bp to −12,722 bp], #11 [−12,705 bp to −13,284 bp], and #12 [-13,263 bp to −13,824 bp]) carry cis-regulatory regions fused to fluorescent reporters (GFP or RFP). The endogenous reporter alleles (mNG::AID::cfi-1 and mNG::AID::cfi-1 Δenhancer (769 bp)) have an in-frame fluorescent protein mNeonGreen (mNG) insertion immediately after the ATG of cfi-1. The enhancer KO allele mNG::AID::cfi-1 Δenhancer (769 bp) carries a 769 bp deletion (−11,329 bp to −12,097 bp). Table on the right summarizes the expression pattern of each reporter allele at L4 stage. N ⩾ 12. +: reporter expressed, –: reporter not expressed, +/–: reporter partially expressed in the respective neurons. Number of independent transgenic lines tested for each reporter is shown on the right. (B) Representative images showing the expression of reporter #7, reporter #8, mNG::AID::cfi-1, and mNG::AID::cfi-1 Δenhancer (769 bp) at specific life stages. Areas highlighted in dashed boxes are enlarged and presented on the right side of each picture. The onset of cfi-1 expression occurs at the 3-fold embryonic stage. mNG+ MNs are annotated with arrowheads. Scale bars, 5 μm (3-fold embryos); 20 μm (larvae and adults). (C) Schematic summarizing the expression pattern of cfi-1 and unc-3 in nerve cord MNs. (D) Quantification of the number of cholinergic MNs expressing endogenous cfi-1 (mNG::AID::cfi-1) in WT and animals carrying the enhancer deletion (mNG::AID::cfi-1 Δenhancer (769 bp)). Deletion of the enhancer element located ~12 kb upstream of the TSS of cfi-1 completely abolishes cfi-1 expression in MNs at all tested stages. A red fluorescent marker (ttr-39::mCherry) for GABAergic MNs was used to exclude these neurons from the quantification. Cholinergic MNs expressing cfi-1 were positive for mNG and negative for mCherry. (E) Bioinformatic analysis predicted 8 UNC-3 binding sites (COE motifs, shown as pink boxes) in the cfi-1 enhancer region, which displays UNC-3 binding (−11,391 bp to −12,146 bp). Using CRISPR/Cas9, these eight motifs were mutated by substituting duplets or triplets of nucleotides as shown below, thereby generating the strain cfi-1 (syb1856 [mNG::AID::cfi-18 COE motifs mut]). (F) Quantification of the number of cholinergic MNs expressing the endogenous cfi-1 reporter (mNG::AID::cfi-1) in WT and unc-3 (n3435) animals, as well as in animals with mutated COE motifs (mNG::AID::cfi-18 COE motifs mut) at L2, L4, and day 1 adult stages (N ⩾ 12). N.S.: not significant, ***p<0.001.

To test the necessity of this element, we first generated via CRISPR/Cas9 an endogenous mNeonGreen (mNG) reporter allele for cfi-1, which also carries an auxin-inducible degron (AID) tag (mNG::AID::cfi-1), enabling inducible depletion of CFI-1 (depletion experiments are described later in Results). Animals carrying the mNG::AID::cfi-1 allele do not show any developmental phenotypes, suggesting that the mNG::AID tag does not detectably alter cfi-1 activity. This reporter showed expression in subsets of unc-3-expressing MNs (DA, DB, VA, VB subtypes), GABAergic nerve cord MNs (DD, VD subtypes), tail and head neurons, as well as head muscle (Figure 4A–C), a pattern consistent with previous studies describing cfi-1 expression (Shaham and Bargmann, 2002; Kerk et al., 2017). We determined the onset of the endogenous cfi-1 reporter (mNG::AID::cfi-1) in MNs to be at the 3-fold embryonic stage, coinciding with the onset of transgenic reporters (#7 and #8) containing the distal enhancer (Figure 4B). Next, we employed CRISPR/Cas9 genome editing and deleted 769 bp that constitute the core of the UNC-3 binding peak (located ~12 kb upstream) in the context of the endogenous cfi-1 reporter (mNG::AID::cfi-1Δ enhancer (769 bp)). We found that mNG::AID::cfi-1 expression is selectively eliminated in cholinergic (DA, DB, VA, VB) and GABAergic (DD, VD) nerve cord MNs at all life stages examined (3-fold embryo, L4, Day 1 adult) (Figure 4A–B, quantification of cholinergic MNs shown in Figure 4D).

We conclude that a distal 2.5 kb enhancer (located ~12 kb upstream of cfi-1) is sufficient for cfi-1 expression in nerve cord MNs. Genome editing suggests that a 769 bp sequence within this 2.5 kb enhancer is required for both initiation and maintenance of cfi-1 in nerve cord MNs (Figure 4D). In the ensuing sections, we test the hypothesis that this enhancer integrates UNC-3 input for cfi-1 maintenance in cholinergic MNs, as well as UNC-3-independent input for cfi-1 initiation in these neurons.

UNC-3 maintains cfi-1 expression in cholinergic MNs via direct activation of the distal enhancer

The binding of UNC-3 to the distal enhancer strongly suggests UNC-3 acts directly to maintain cfi-1 expression in cholinergic MNs (Figure 4A). However, the UNC-3 peak is spread across several hundred base pairs due to the inherently low ChIP-Seq resolution. Hence, the precise DNA sequences recognized by UNC-3 remained unknown. Through bioinformatic analysis (see Materials and methods), we identified eight putative UNC-3 binding sites (COE motifs) within the 769 bp distal enhancer (Figure 4E). Using CRISPR/Cas9 technology, we simultaneously mutated all eight motifs in the context of the endogenous cfi-1 reporter allele (mNG::AID::cfi-18 COE motifs mut) by substituting nucleotides known to be critical for DNA binding of UNC-3 orthologs (Treiber et al., 2010a; Wang et al., 1993; Figure 4E). During the L2 stage, expression of mNG in MNs is not affected in mNG::AID::cfi-1 8 COE motifs mut animals, indicating early cfi-1 expression occurs normally (Figure 4F). Intriguingly, mNG expression is significantly down-regulated in cholinergic MNs at later larval (L4) and adult (day 1) stages, resembling the phenotype of unc-3 null mutants (Figure 4F). We conclude that UNC-3 binds to the distal enhancer and directly acts through one or more of these 8 COE motifs to maintain cfi-1 expression in cholinergic MNs.

Previous studies in the nervous system have shown that a TF can maintain its own expression via transcriptional activation either by itself (positive auto-regulation), or in partnership with other TFs (Leyva-Díaz and Hobert, 2019; Scott et al., 2005; Xue et al., 1992). We found though that cfi-1 does not auto-regulate and UNC-3 binding at the distal enhancer occurs normally in cfi-1 null mutants (Figure 4—figure supplement 1), excluding a potential involvement of CFI-1 in its own maintenance.

LIN-39 (Scr/Dfd/HOX4-5) and MAB-5 (Antp/HOX6-8) control cfi-1 expression in cholinergic MNs through the same distal enhancer

If UNC-3 exerts a maintenance role, what are the factors that initiate cfi-1 expression in MNs? Previous work showed that two Hox proteins, LIN-39 (Scr/Dfd/HOX4-5) and MAB-5 (Antp/HOX6-8), control cfi-1 expression in MNs (Kratsios et al., 2017). However, analysis was performed at the last larval stage (L4) and transgenic cfi-1 reporter animals were used. Hence, it is unclear whether LIN-39 and MAB-5 are required for initiation of endogenous cfi-1.

Because lin-39; mab-5 double null mutants are viable (Liu and Fire, 2000), we performed a longitudinal analysis and found that expression of the endogenous mNG::AID::cfi-1 reporter in cholinergic MNs is severely affected at embryonic (3-fold), larval (L2, L4) and adult (D1) stages (Figure 5A–C). Since onset of cfi-1 expression occurs at the 3-fold embryonic stage (Figure 4B), these results suggest LIN-39 and MAB-5 are required for cfi-1 initiation. Conversely, initiation of cfi-1 expression is not affected in a null mutant of unc-3 (Figure 5B–C). Moreover, available ChIP-Seq data from modENCODE (Boyle et al., 2014) indicate that LIN-39 and MAB-5 bind to the cfi-1 distal enhancer (Figure 5A). Expression of a 2.5 kb transgenic cfi-1 reporter (reporter #7) that carries the distal enhancer is significantly affected in lin-39; mab-5 double mutants at early larval (L2) stages (Figure 5A,D). These results strongly suggest that LIN-39 and MAB-5 activate cfi-1 expression directly. Although the DNA sequence of the MAB-5 binding site is not known, mutation of a single, bioinformatically predicted LIN-39 binding site (wild-type: aaTTGAtg >mutated: aaGGGGtg) within the enhancer led to a decrease in reporter gene expression at L2 (Figure 5A,E). This decrease was weaker compared to lin-39; mab-5 double mutants (Figure 5C), likely due to compensation by MAB-5. Indeed, LIN-39 and MAB-5 appear to act synergistically because endogenous cfi-1 expression (mNG::AID::cfi-1) is mildly affected in lin-39 single mutants, but severely affected in lin-39; mab-5 double mutants (Figure 5F). We conclude that the Hox proteins LIN-39 and MAB-5 are necessary for cfi-1 initiation in cholinergic MNs (left panel, Figure 5G), and act through the same distal enhancer utilized by UNC-3 to maintain cfi-1 (right panel, Figure 5G).

Figure 5 with 3 supplements see all

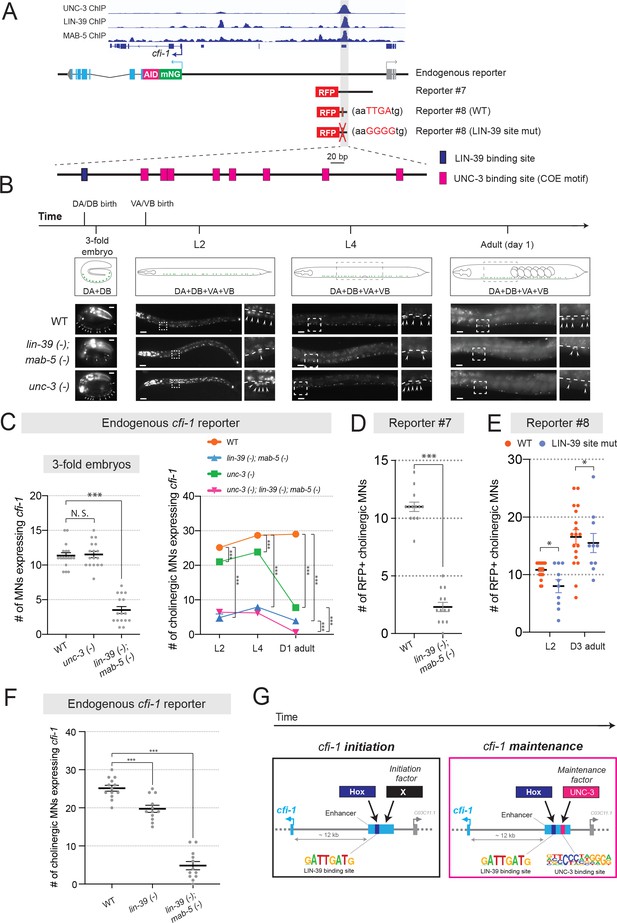

UNC-3 and Hox control cfi-1 expression in cholinergic MNs.

(A) A snapshot of UNC-3 (L2 stage), LIN-39 (L3 stage), and MAB-5 (L2 stage) ChIP-Seq signals at the cfi-1 locus. UNC-3, LIN-39, and MAB-5 bind to the same cfi-1 enhancer (highlighted in gray). Below: Schematics illustrating the reporters used in the rest of the figure. (B) Representative images showing the expression of the mNG::AID::cfi-1 in WT (same images shown in Figure 4B), unc-3 (n3435), and lin-39 (n1760); mab-5 (e1239) animals during 3-fold embryonic, L2, L4, and day 1 adult stages. cfi-1 is expressed in four cholinergic MN subtypes (DA, DB, VA, and VB). DA and DB are born embryonically, while VA and VB are born post-embryonically. Areas highlighted in dashed boxes are enlarged and presented on the right side of each picture. mNG+ MNs are annotated with arrowheads. Scale bars, 5 μm (3-fold embryos); 20 μm (larvae and adults). (C) Quantification of the number of cholinergic MNs expressing the endogenous cfi-1 reporter (mNG::AID::cfi-1) in WT animals, unc-3 (n3435) mutants, lin-39 (n1760); mab-5 (e1239) double mutants, and unc-3 (n3435); lin-39 (n1760); mab-5 (e1239) triple mutants during 3-fold embryonic, L2, L4, and day 1 adult stages (N ⩾ 12). N.S.: not significant, ***p<0.001. A red fluorescent marker (ttr-39::mCherry) for GABAergic MNs was used to exclude these neurons from the quantification. Cholinergic MNs expressing cfi-1 were positive for mNG and negative for mCherry. (D) Quantification of the expression of transgenic cfi-1 reporter #7 in WT and lin-39 (n1760); mab-5 (e1239) animals at L2 stage (N = 13). Reporter expression is strongly affected in lin-39 (-); mab-5 (-) double mutants. ***p<0.001. (E) Quantification of the WT transgenic reporter #8 and the same reporter with the LIN-39 binding site mutated (point mutations) at larval (L2) and adult (D3) stages (N ⩾ 13). *p<0.05. (F) Quantification of the expression of the mNG::AID::cfi-1 allele in WT animals, lin-39 (n1760) single mutants, and lin-39 (n1760); mab-5 (e1239) double mutants at the L2 stage (N ⩾ 12). While the number of cholinergic MNs with cfi-1 expression is mildly decreased in lin-39 single mutants, more severe effects are observed in double mutants. ***p<0.001. (G) Schematic summarizing the mechanisms underlying initiation and maintenance of cfi-1 expression in cholinergic MNs.

Because LIN-39 and MAB-5 are continuously expressed – from embryo through adulthood – in cholinergic MNs (Feng et al., 2020), it is likely that these Hox proteins, like UNC-3, are also required for maintenance. To test this, we used the AID system and depleted the endogenous LIN-39 protein at the last larval stage (L4) by using a previously described lin-39::mNG::AID allele (Feng et al., 2020; Zhang et al., 2015). However, expression of cfi-1 was unaffected in the adult (Figure 5—figure supplement 1). This negative result could be attributed to low and undetectable levels of LIN-39 and/or functional compensation by MAB-5. We therefore used lin-39; mab-5 double (null) mutants and crossed them to unc-3 null animals. Of note, Hox genes (lin-39, mab-5) and unc-3 do not cross-regulate their expression (Kratsios et al., 2017). If Hox proteins, similar to UNC-3, are required for cfi-1 maintenance in cholinergic MNs, stronger effects should be present in unc-3; lin-39; mab-5 triple mutants compared to unc-3 single mutants. Indeed, we found this to be the case in day 1 adult animals (graph on the right, Figure 5C). Supporting a maintenance role for Hox, mutation of the LIN-39 binding site within the cfi-1 enhancer (reporter #8) led to a sustained decrease in reporter gene expression from L2 to adult stages (Figure 5E).

Together, our findings suggest the Hox proteins LIN-39 and MAB-5 control initiation and maintenance of cfi-1 in cholinergic MNs via the same distal cis-regulatory region (enhancer) utilized by UNC-3 to maintain cfi-1 (Figure 5G). However, this region bears distinct UNC-3 and LIN-39 binding sites.

cfi-1/Arid3a is required post-embryonically to maintain MN subtype identity

Expression of cfi-1 in cholinergic MNs (DA, DB, VA, VB) is maintained throughout life by Hox and UNC-3 (Figure 5G). But why is it important to ensure continuous cfi-1 expression? Although its function in VA and VB remains unknown, CFI-1 is required during early development to establish the identity of DA and DB subtypes by acting as a transcriptional repressor (Kerk et al., 2017). In cfi-1 null animals, glutamate receptor subunit 4 (glr-4/GluR), a terminal identity gene normally activated by UNC-3 in another MN subtype (SAB), becomes ectopically expressed in DA and DB neurons (Figure 5—figure supplement 2). In animals lacking cfi-1 expression specifically in MNs at all stages (mNG::AID::cfi-1Δ enhancer (769 bp), Figure 4A–B), we also observed ectopic glr-4 expression in these neurons (Figure 5—figure supplement 2). Hence, early global removal of cfi-1, or MN-specific loss of cfi-1 both lead to DA and DB neurons adopting a mixed identity. However, whether CFI-1 is required post-embryonically to continuously prevent DA and DB from obtaining a mixed identity is not known.

To enable CFI-1 protein depletion selectively at post-embryonic stages, we used the mNG::AID::cfi-1 reporter allele (Figure 4A), which also serves as a conditional allele as it carries the auxin-inducible degron (AID) (Zhang et al., 2015). Auxin administration at the first larval (L1) stage resulted in efficient depletion of mNG::AID::cfi-1 expression, which was undetectable 2 days later (Figure 5—figure supplement 2). At the L3 stage (2 days upon continuous auxin treatment), we observed ectopic expression of glr-4 in DA and DB neurons. These results suggest that CFI-1 is required post-embryonically to prevent DA and DB neurons from adopting mixed identity, underscoring the critical role of UNC-3 and Hox in maintaining cfi-1 expression (Figure 5G).

Minimal disruption of temporal modularity in UNC-3 function leads to locomotion defects

Animals carrying unc-3 null alleles display severe locomotion defects (Feng et al., 2020), likely due to combined defects in the expression of UNC-3 targets from both ‘initiation and maintenance’ and ‘maintenance-only’ modules (Figure 3C). Genes from the ‘initiation and maintenance’ module include (among others) terminal identity genes coding for ACh biosynthesis components (Figure 3A). Hence, it is conceivable that loss of unc-3 can lead to defects in ACh biosynthesis, likely contributing to locomotion defects. However, it is unclear whether, in cholinergic MNs, the maintained expression of any of the UNC-3 targets from the ‘maintenance-only’ module is critical for locomotion. To test this, we focused on cfi-1/Arid3a and used the CRISPR-engineered allele (mNG::AID::cfi-1 8 COE motifs mut) that selectively affects maintenance, but not initiation, of cfi-1 expression in cholinergic MNs (Figure 4E–F). This allele minimally disrupts temporal modularity in UNC-3 function because UNC-3 can still control all its targets from both modules (Figure 3C), except one (cfi-1). As controls, we used animals carrying: (a) the endogenous cfi-1 reporter allele (mNG::AID::cfi-1), (b) a putative null cfi-1 allele (ot786) (Kerk et al., 2017), in which cfi-1 activity is affected in MNs and other neuron types of the motor circuit (Pereira et al., 2015; Shaham and Bargmann, 2002), and (c) a deletion of the distal enhancer (mNG::AID::cfi-1Δenhancer(769 bp)), in which both initiation and maintenance of cfi-1 are abrogated in nerve cord MNs (Figure 6A). We performed a high-resolution behavioral analysis of freely moving adult (day 2) animals of the above genotypes using automated multi-worm tracking technology (Javer et al., 2018b; Yemini et al., 2013). We found several features related to C. elegans locomotion (e.g., body curvature, velocity) severely affected in cfi-1 (ot786) putative null animals (Figure 6B–G). Compared to cfi-1 null mutants, animals carrying the mNG::AID::cfi-1 8 COE motifs mut allele (selective disruption of cfi-1 maintenance) display milder, but statistically significant locomotion defects in the adult (Figure 6B–G). As expected, these defects were also present in animals carrying the mNG::AID::cfi-1 Δenhancer (769 bp) allele, in which both initiation and maintenance of cfi-1 expression is affected. In summary, we specifically disrupted in cholinergic MNs the maintained expression of a single UNC-3 target (cfi-1 from the ‘maintenance-only’ module) by using the mNG::AID::cfi-1 8 COE motifs mut allele and observed locomotion defects. This analysis suggests that minimal disruption of temporal modularity in UNC-3 function can affect animal behavior.

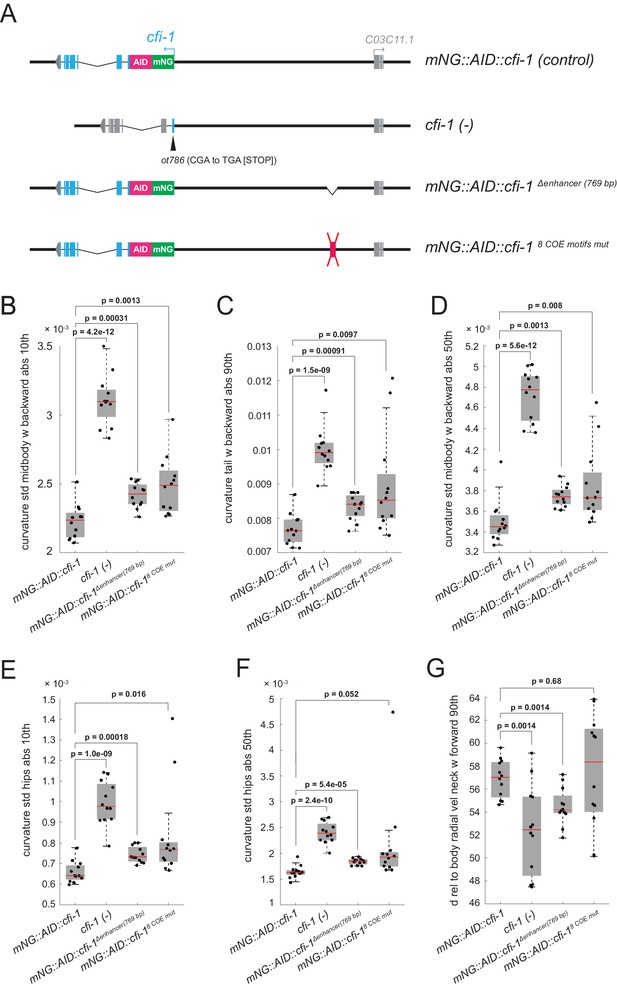

Minimal disruption of temporal modularity in UNC-3 function leads to locomotion defects.

(A) Schematics illustrating four cfi-1 alleles tested for behavioral analysis. (B–G) Examples of six locomotion features significantly disrupted in animals carrying a putative null (ot786) allele for cfi-1. Locomotion analysis was performed on day 2 adult worms. Animals lacking cfi-1 expression (initiation and maintenance) specifically in MNs (mNG::AID::cfi-1 Δenhancer (769 bp)) and animals unable to maintain cfi-1 expression in cholinergic MNs (mNG::AID::cfi-18 COE motifs mut) display locomotion defects when compared to control mNG::AID::cfi-1 animals. As expected, these defects are milder when compared to animals carrying the cfi-1 (ot786) allele. Panels B-F show locomotion features related to body curvature, whereas panel G shows radial velocity of the neck. A detailed description of each locomotion feature is provided below. (B) curvature_std_mid-body_w_backward_abs_10th: 10th percentile of the absolute value of the standard deviation of the curvature of the mid-body, while worm is moving backwards. (C) curvature_tail_w_backward_abs_90th: 90th percentile of the absolute value of the curvature of the tail, while worm is moving backwards. (D) curvature_std_mid-body_w_backward_50th: 50th percentile of the standard deviation of the curvature of the mid-body, while worm is moving backwards. (E) curvature_std_hips_abs_10th: 10th percentile of the absolute value of the standard deviation of the curvature of the hips. (F) curvature_std_hips_abs_50th: 50th percentile of the absolute value of the standard deviation of the curvature of the hips. (G) d_rel_to_body_radial_vel_neck_w_forward_90th: 90th percentile of the derivative of radial velocity of the neck relative to the centroid of the mid-body points, while worm is moving forwards.

Hox proteins and UNC-3 control bnc-1/BNC expression in cholinergic MNs

Our cis-regulatory analysis suggested that five TFs (cfi-1/Arid3a, bnc-1/BNC1-2, mab-9/Tbx20, ceh-44/CUX1-2, nhr-40/nuclear hormone receptor) require UNC-3 selectively for maintenance (Figure 3B). An in-depth analysis of cfi-1/Arid3a revealed that Hox proteins (LIN-39, MAB-5) and UNC-3 ensure the continuous expression of cfi-1 in subsets of unc-3-positive MNs (Figures 35). We next asked whether a similar mechanism applies to the regulation of bnc-1/BNC, which is also expressed in a subset of unc-3-positive MNs (VA, VB) and prevents them from adopting a mixed identity (Figure 5—figure supplement 3; Kerk et al., 2017). Using an endogenous reporter allele (bnc-1::mNG::AID), we found that LIN-39 and MAB-5 are required for bnc-1 expression at all stages examined (L2, L4, day 1 adult; Figure 5—figure supplement 3), suggesting a role for Hox in bnc-1 initiation and maintenance. Next, we found that UNC-3 is absolutely required for bnc-1 maintenance in the adult (day 1), albeit weaker effects were also observed at L2 and L4 (Figure 5—figure supplement 3). Similar to cfi-1, these findings strongly suggest that endogenous bnc-1 expression depends on Hox and UNC-3.

Temporal modularity of UNC-30/PITX function in GABAergic MNs

Is temporal modularity observed in the function of other terminal selectors? To address this, we focused on UNC-30/PITX, the terminal selector of GABAergic MN (DD, VD) identity in the C. elegans nerve cord (Figure 7A; Jin et al., 1994). UNC-30/PITX is known to directly activate the expression of several terminal identity genes (e.g., unc-25/GAD [glutamic acid decarboxylase], unc-47/VGAT [vesicular GABA transporter])(Eastman et al., 1999), but a longitudinal analysis of target gene expression in unc-30 null animals is lacking. Using reporter strains and methodologies similar to those used for UNC-3, we found that terminal identity gene (unc-25/GAD, unc-47/VGAT) expression is affected in GABAergic MNs of unc-30 mutants at all stages examined (3-fold embryo, L2, L4, adult [day 1]) (Figure 7B,D), suggesting a requirement for initiation and maintenance. As mentioned earlier (Figure 4C), cfi-1 is also expressed in GABAergic MNs (Figure 7A). Since UNC-3 is required for cfi-1 maintenance in cholinergic MNs, we asked whether UNC-30/PITX plays a similar role to maintain cfi-1 expression in GABAergic MNs. We found no effect at the embryonic stage (3-fold), but progressively stronger effects at larval (L2, L4) and adult (day 1) stages (Figure 7C), indicating that, in GABAergic MNs, UNC-30/PITX is selectively required for the maintenance, but not initiation of cfi-1 expression. Taken together, our findings indicate that, like UNC-3 in cholinergic MNs (Figure 3C), the function of UNC-30 in GABAergic MNs is organized into two modules (module #1: initiation and maintenance; module #2: maintenance-only) (Figure 7D–E), suggesting temporal modularity may be a shared feature among terminal selector type-TFs.

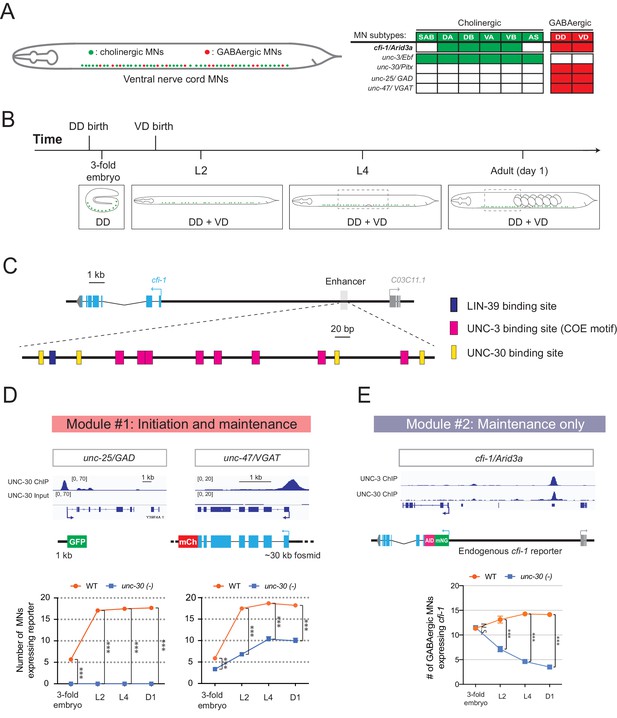

Temporal modularity in UNC-30/Pitx function in GABAergic MNs.

(A) Schematic summarizing the expression of cfi-1/Arid3a, unc-3/Ebf, unc-30/Pitx, unc-25/GAD, and unc-47/VGAT in MN subtypes of the C. elegans ventral nerve cord. (B) Schematic showing time of birth and cell body position of GABAergic nerve cord MNs. DD neurons are born embryonically. VD neurons are born post-embryonically. (C) Bioinformatic analyses predict 4 UNC-30 binding sites (yellow boxes) in the cfi-1 enhancer. The location of UNC-3 and LIN-39 binding sites are also shown. (D) Top: snapshots of UNC-30 ChIP-Seq and input (negative control) signals at the cis-regulatory regions of 2 GABAergic terminal identity genes (unc-25/GAD, unc-47/VGAT). Bottom: quantification of the expression of transgenic reporters in WT and unc-30 (e191) animals at four different developmental stages – 3-fold embryo, L2, L4, and day 1 adults (N = 15). UNC-30 is required for both initiation and maintenance of unc-25/GAD and unc-47/VGAT. ***p<0.001. (E) Top: a snapshot of UNC-3 ChIP-Seq and UNC-30 ChIP-Seq signals at the cfi-1 locus. Bottom: quantification of the number of MNs expressing the endogenous reporter mNG::AID::cfi-1 in WT and unc-30 (e191) animals. All cfi-1-expressing MNs in the ventral cord (cholinergic and GABAergic MNs) were counted in 3-fold embryos due to a lack of a specific marker that labels GABAergic MNs in embryos. Expression of cfi-1 specifically in GABA neurons was quantified at L2, L4, and day 1 adult stages (N ⩾ 12). At those stages, cholinergic MNs were identified based on a fluorescent marker (cho-1::mChOpti), which are ruled out during scoring. GABAergic MNs were scored positive for cfi-1 expression when the mNG::AID::cfi-1 (green) expression co-localized with ttr-39::mCherry (red). N.S.: not significant, ***p<0.001.

To gain mechanistic insights, we analyzed available UNC-30 ChIP-Seq data at the L2 stage (Yu et al., 2017). UNC-30 binds to the cis-regulatory region of terminal identity genes (unc-25/GAD, unc-47/VAGT) (Figure 7D), confirming previous observations (Eastman et al., 1999). UNC-30 also binds to the same distal enhancer of cfi-1 in GABAergic MNs, as UNC-3 does in cholinergic MNs (Figure 7E). However, the UNC-30 binding sites are distinct from the UNC-3 sites in this enhancer (Figure 7C). CRISPR-mediated deletion of this enhancer abolished cfi-1 expression in both cholinergic and GABAergic MNs (Figure 4A–B). This finding suggests that maintenance of cfi-1 expression in two different neuron types relies on the same enhancer receiving UNC-30/PITX input in GABAergic MNs and UNC-3/EBF input in cholinergic MNs. Interestingly, these results provide an example of ‘enhancer pleiotropy’ (Sabarís et al., 2019), in which the same cis-regulatory element is used to control gene expression in different neuron types.

Discussion

Terminal selectors are continuously expressed TFs that determine the identity and function of individual neuron types (Hobert, 2008; Hobert, 2016b). However, the breadth of biological processes controlled by terminal selectors remains unclear. Moreover, whether terminal selectors control an identical suite of target genes across different life stages, or the suite of targets can change over time is largely unexplored. Filling such knowledge gaps can help us understand how cellular identity is established during development and maintained throughout life, a fundamental goal in the field of developmental biology. In this study, we focus on UNC-3/Ebf, the terminal selector of cholinergic MNs in the C. elegans nerve cord. Through ChIP-Seq, we identify in an unbiased manner the direct targets of UNC-3, uncovering the breadth of biological processes potentially controlled by this terminal selector. Unexpectedly, we find two groups of target genes with distinct temporal requirements for UNC-3 in cholinergic MNs. One group encodes different classes of proteins (e.g., receptors, transporters) that require UNC-3 activation at all life stages examined. However, a second group exclusively encodes MN-specific TFs that selectively require UNC-3 for maintenance of their expression at late larval and adult stages. Hence, the suite of UNC-3 targets in cholinergic MNs is partially modified across different life stages, a phenomenon we term ‘temporal modularity’ in terminal selector function. Minimal disruption of this modularity by selectively removing the ability of UNC-3 to maintain expression of a single target gene (the TF cfi-1/Arid3a from the second group) led to locomotion defects, highlighting the necessity of temporal modularity for animal behavior.

Temporal modularity in terminal selector function may represent a general principle for neuronal subtype diversity

Why is there a need for temporal modularity in the function of continuously expressed TFs, such as terminal selectors? The case of UNC-3 suggests that temporal modularity is necessary for generating and maintaining neuronal subtype diversity. UNC-3 is continuously expressed in six MN subtypes (SAB, DA, DB, VA, VB, AS) of the C. elegans ventral nerve cord (Figure 4C; Pereira et al., 2015). However, most UNC-3 targets from either module (modules # 1 and #2, Figure 3C) are expressed in some, but not all, of these subtypes. By ensuring the continuous expression of genes from module #1 (‘initiation and maintenance’ module, Figure 3C), such as terminal identity genes [(Kratsios et al., 2011) and this study], UNC-3 consolidates the unique identity of each MN subtype. However, target genes from module #2 (‘maintenance-only’ module, Figure 3C) escape initiation by UNC-3, but do require UNC-3 for maintenance. Interestingly, all module #2 targets code for TFs (cfi-1/Arid3a, bnc-1/BNC1-2, mab-9/Tbx20, ceh-44/Cux1, nhr-40), specifically expressed in subsets of the six subtypes (SAB, DA, DB, VA, VB, AS) (Kerk et al., 2017 and this study). Three of these factors (cfi-1/Arid3a, bnc-1/Bnc1, mab-9/Tbx20) are thought to act as transcriptional repressors to prevent the adoption of mixed MN identity (Kerk et al., 2017). For example, loss of cfi-1 during early development results in ‘mixed’ identity of DA and DB subtypes, as these cells, in addition to their normal molecular signature, also acquire expression of genes (e.g., glr-4/GluR) normally expressed in other MNs (Figure 5—figure supplement 2). Through protein depletion experiments at post-embryonic stages, we show here that CFI-1 is continuously required to prevent DA and DB neurons from acquiring a mixed identity. Hence, UNC-3 indirectly maintains the unique identity of individual MN subtypes (DA, DB) by selectively maintaining expression of the TF cfi-1 (from module #2) during late larval and adult stages. In addition, UNC-3 acts directly to control DA and DB identity by ensuring the continuous expression of unc-129/TGFb, a DA- and DB-specific terminal identity gene (from module #1) (Figure 3A, Figure 5—figure supplement 2). Hence, temporal modularity in UNC-3 function can be envisioned as a ‘double safety’ mechanism for the generation and maintenance of MN diversity.

The mechanism of temporal modularity may represent a general paradigm of how terminal selectors establish and maintain subtype identity within a class of functionally related neurons. Indeed, the same terminal selector is often continuously expressed in multiple subtypes of a given neuronal class (Hobert and Kratsios, 2019). In mice, for example, the terminal selectors Nurr1 and Pet-1 are expressed in several subtypes of dopaminergic and serotonergic neurons, respectively (Kadkhodaei et al., 2009; Okaty et al., 2015). However, future studies are needed to determine whether temporal modularity in the function of these terminal selectors is necessary for establishing and maintaining neuronal subtype identity.

Temporal modularity offers key insights into how terminal selectors control neuronal identity over time

The prevailing hypothesis of how terminal selectors establish and maintain neuronal identity is that they bind constantly, from development through adulthood, on the cis-regulatory region of terminal identity genes, and thereby continuously activate their expression (Deneris and Hobert, 2014; Hobert, 2008; Hobert and Kratsios, 2019). For most terminal selectors, however, biochemical evidence for binding and longitudinal analysis of terminal selector mutant animals are currently lacking. Our analysis on module #1 genes (e.g., terminal identity genes) supports the aforementioned hypothesis; ChIP-Seq for UNC-3 demonstrated binding on these genes (Figure 3A,C). Moreover, our longitudinal genetic analysis combined with the UNC-3 protein depletion experiments in adult MNs demonstrate that UNC-3 is continuously required to maintain terminal identity gene expression.

Interestingly, the analysis on module #2 genes provides new mechanistic insights into how terminal selectors control neuronal identity over time. Instead of constantly activating the same set of genes, as predicted by the above hypothesis, terminal selectors can also partially modify the suite of their target genes at different life stages (temporal modularity), suggesting their function can be more dynamic than previously thought. This is based on the finding that UNC-3 is selectively required for maintenance, not initiation, of five conserved TF-encoding genes from module #2 (cfi-1/Arid3a, bnc-1/BNC1-2, mab-9/Tbx20, ceh-44/Cux1, nhr-40) (Figure 3B–C). Hence, some targets (module #1) require constant UNC-3 input from development through adulthood, whereas others (module #2) require UNC-3 only for maintenance.

By honing in on one TF (cfi-1/Arid3a) downstream of UNC-3, we identify a mechanism that potentially enables initiation and maintenance of module #2 genes (Figure 5G). That is, the Hox proteins LIN-39 and MAB-5 control initiation of cfi-1/Arid3a in cholinergic MNs independently of UNC-3, but cfi-1 maintenance in these same neurons depends on both Hox and UNC-3 (Figure 5G). Mechanistically, we propose that Hox-dependent initiation and Hox/UNC-3-dependent maintenance of cfi-1 are ‘funneled’ through the same distal enhancer, which bears both Hox and UNC-3 binding sites. This suggests embryonic initiation and post-embryonic maintenance of expression of a particular gene, in a specific cell type, can be achieved by distinct TF combinations acting upon the same cis-regulatory region (enhancer) (Figure 5G). This somewhat surprising mechanism differs from previous fly and mouse studies reporting distinct and physically separated cis-regulatory regions necessary for either initiation or maintenance of cell type-specific gene expression (Ellmeier et al., 2002; Johnson et al., 2011; Manzanares et al., 2001; Pfeffer et al., 2002; Rhee et al., 2016).

In summary, our findings critically extend the mechanisms underlying UNC-3 function. Previous work demonstrated that, in cholinergic MNs, UNC-3 not only activates expression of terminal identity genes (Kratsios et al., 2011), but also prevents alternative neuronal identities (Feng et al., 2020). Here, we report that the suite of UNC-3 targets in these neurons can be partially modified at different life stages, offering key insights into how terminal selectors control neuronal identity over time.

Hox proteins collaborate with stage-specific TFs to establish and maintain MN terminal identity

During early neuronal development, Hox proteins are essential for cell survival, neuronal diversity, and circuit assembly (Baek et al., 2013; Catela et al., 2016; Estacio-Gómez and Díaz-Benjumea, 2014; Karlsson et al., 2010; Miguel-Aliaga and Thor, 2004; Moris-Sanz et al., 2015; Philippidou and Dasen, 2013). However, their post-embryonic neuronal functions remain elusive. Moreover, Hox proteins are often continuously expressed in multiple cell types of a given body region (Baek et al., 2013; Hutlet et al., 2016; Takahashi et al., 2004), raising the question of how do they achieve cell type-specificity in their function. Our findings on mid-body Hox proteins LIN-39 and MAB-5 begin to address this question.

LIN-39 and MAB-5 are continuously expressed in multiple cell types located at the C. elegans mid-body region (Clark et al., 1993; Cowing and Kenyon, 1992; Feng et al., 2020; Maloof and Kenyon, 1998). We find that LIN-39 and MAB-5 exert a cell type-specific function; they are required to initiate (in embryo) and maintain (post-embryonically) cfi-1 expression in specific subsets of cholinergic MNs (DA, DB, VA, VB; Figure 4C). Such specificity likely arises through collaboration with distinct TFs responsible for either initiation or maintenance of cfi-1 (Figure 5G). Supporting this scenario, Hox (LIN-39, MAB-5) and UNC-3 are co-expressed in DA, DB, VA, and VB neurons (Feng et al., 2020). Moreover, UNC-3 is selectively required for cfi-1 maintenance (not initiation) in these neurons (Figure 5G). We surmise that other, yet-to-be-identified factors collaborate with Hox proteins at early stages to initiate cfi-1 expression specifically in DA, DB, VA, and VB neurons. Such initiation-specific factors likely act through the same distal enhancer because its deletion completely abolished cfi-1 expression in these neurons at early (and late) stages (Figures 4D and 5G). In summary, we propose that Hox proteins collaborate with distinct TFs over time, that is, initiation-specific factors and the terminal selector UNC-3, to ensure continuous expression of cfi-1/Arid3a in specific subtypes of cholinergic MNs. This mechanism may extend to the regulation of terminal identity genes, as we previously showed that LIN-39 and UNC-3 are required to maintain expression of acr-2/ human CHRNA1 (acetylcholine receptor subunit) and unc-77/ human NALCN (sodium channel) in cholinergic MNs (Feng et al., 2020). Altogether, these findings offer mechanistic insights into the recently proposed hypothesis that Hox proteins in C. elegans collaborate with terminal selectors to establish and maintain neuronal terminal identity (Kratsios et al., 2017; Zheng et al., 2015).

Limitations of this study

By conducting a longitudinal analysis for 14 UNC-3 target genes, we identified two groups with distinct temporal requirements (modules #1 and #2 in Figure 3C). It is likely though that UNC-3 temporally controls other targets through additional modules. For example, animals lacking unc-3 display severe axon guidance defects in cholinergic MNs (Prasad et al., 1998), but the underlying mechanisms remain unknown. Since axon guidance molecules are often expressed in a transient fashion during early neuronal development, we speculate that UNC-3 may transiently activate expression of such molecules, a possibility that would add another temporal module in UNC-3 function. Another likely scenario is an ‘initiation-only’ module where UNC-3 is responsible only for onset, but not maintenance, of a yet-to-be-identified set of targets.

In addition, the breadth of biological processes controlled by terminal selectors remains largely unknown. Our ChIP-Seq analysis potentially implicates UNC-3 in a range of biological processes. First, this dataset significantly extends previous reports on the role of UNC-3 in neuronal terminal identity (Kim et al., 2005; Kratsios et al., 2011) by identifying hundreds of terminal identity genes (42.18% of total ChIP-Seq hits) as putative UNC-3 targets. Second, the ChIP-Seq dataset suggests new roles for UNC-3 in neuronal metabolic pathways (24.14% of UNC-3 target genes code for enzymes) and gene regulatory networks (24.07% of UNC-3 targets are TFs and nucleic acid-binding proteins). However, future RNA-Sequencing studies in unc-3-depleted MNs are necessary to correlate gene expression changes with UNC-3 ChIP-Seq data, and thereby identify bona fide targets and biological processes under direct UNC-3 control. Such analysis may also uncover any indirect effects on gene expression in unc-3-depleted MNs, perhaps arising due to a partial cell fate transformation previously reported for these neurons (Feng et al., 2020).

Temporal modularity may be a shared feature among continuously expressed TFs

This study suggests that the suite of targets of two C. elegans terminal selectors (UNC-3/Ebf and UNC-30/Pitx) can be modified over time, providing evidence for temporal modularity in their function. Given that terminal selectors, as well as other neuron type-specific TFs with continuous expression, have been described in both invertebrate and vertebrate species (Deneris and Hobert, 2014; Hobert and Kratsios, 2019; Mayer et al., 2018; Mi et al., 2018), it will be interesting to determine the potential generality of the temporal mechanism described here. Supporting this possibility, the terminal selector of serotonergic neurons in mice (Pet-1) activates expression of serotonin biosynthesis proteins during development, but appears to switch transcriptional targets at later life stages (Wyler et al., 2016). Outside the nervous system, cell type-specific TFs with continuous expression have been described in worms, flies and mice (Pikkarainen et al., 2004; Soler et al., 2012; Wiesenfahrt et al., 2016; Zhou et al., 2017). Future studies will determine whether the principle of temporal modularity is widely employed for the control of cell type identity.

Materials and methods

Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiersAdditional information
Gene
(Caenorhabditis elegans)
unc-3WormbaseWBGene00006743
Gene
(C. elegans)
cfi-1WormbaseWBGene00000476
Gene
(C. elegans)
unc-30WormbaseWBGene00006766
Gene
(C. elegans)
lin-39WormbaseWBGene00003024
Gene
(C. elegans)
mab-5WormbaseWBGene00003102
Strain, strain
background
(C. elegans)
unc-3 (n3435)Bob Horvitz
(MIT, Cambridge MA)
MT10785Null Allele: deletion
Strain, strain
background
(C. elegans)
unc-3 (e151)Caenorhabditis
Genetics Center
CB151Allele: substitution
Strain, strain
background
(C. elegans)
lin-39 (n1760)
mab-5 (e1239)/ht2 III;
lgIs58 [[gcy-32::gfp]] V
Caenorhabditis
Genetics Center
LE4023
Strain, strain
background
(C. elegans)
lin-39 (n1760)/dpy-17
(e164) unc-32
(e189) III
Caenorhabditis
Genetics Center
MT4009Null Allele: substitution
Strain, strain
background
(C. elegans)
unc-30 (e191)Caenorhabditis
Genetics Center
CB845Allele: substitution
Strain, strain
background
(C. elegans)
cfi-1 (ot786)This paper.
Kratsios lab
(University of
Chicago, IL, USA).
KRA464Null Allele: substitution -
R to STOP (39); Strain
was 3x backcrossed
Strain, strain
background
(C. elegans)
unc-3
(ot839 [unc-3::gfp]) X
Oliver Hobert
(Columbia University,
New York NY)
OH13990CRISPR-generated allele
Strain, strain
background
(C. elegans)
cfi-1 (kas16
[mNG::AID::cfi-1]) I
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
KRA345CRISPR-generated allele; See
Materials and methods - Targeted
genome editing
Strain, strain
background
(C. elegans)
bnc-1 (ot845
[bnc-1::mNGAID]) V
Kerk et al., 2017OH14070CRISPR-generated allele
Strain, strain
background
(C. elegans)
lin-39 (kas9
[lin-39::mNG::AID]) III
Feng et al., 2020
Jan 3. doi:10.7554/eLife.50065
KRA467CRISPR-generated allele
Strain, strain
background
(C. elegans)
unc-3 (ot837
[unc-3::mNG::AID]) X;
ieSi57 [Peft-3::TIR1::
mRuby::unc-54 3’ UTR,
cb-unc-119(+)] II
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
KRA376CRISPR-generated allele
Strain, strain
background
(C. elegans)
cfi-1 (syb1812
[A4e_enhancer deletion
−13,264–12,495 from
cfi-1 ATG in kas16]
kas16[cfi-1::mNG::AID]) I
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
PHX1812See Materials and methods -
Targeted genome editing,
and Figure 4A legend
Strain, strain
background
(C. elegans)
cfi-1 (syb1856 [8 COE
motifs mut in A4e] kas16
[cfi-1::mNG::AID]) I
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
PHX1856See Materials and methods -
Targeted genome editing,
and Figure 4E legend
Strain, strain
background
(C. elegans)
otIs544 [cho-1(fosmid)::
SL2::mCherry::H2B +
pha-1(+)]
Oliver Hobert
(Columbia University,
New York NY)
OH13646
Strain, strain
background
(C. elegans)
juIs14 [acr-2p::GFP +
lin-15(+)] IV.
Caenorhabditis
Genetics Center
CZ631
Strain, strain
background
(C. elegans)
otIs426 [Punc-17_1 kb::
YFP, Pmyo-2::GFP]
Oliver Hobert
(Columbia University,
New York NY)
OH11454
Strain, strain
background
(C. elegans)
evIs82b [unc-129::
GFP + dpy-20(+)] IV.
Oliver Hobert
(Columbia University,
New York NY)
OH1894
Strain, strain
background
(C. elegans)
otIs476 [glr-4 prom::
TagRFP + pha-1(+)]
Kerk et al., 2017OH12052
Strain, strain
background
(C. elegans)
otIs477 [glr-4 prom::
TagRFP + pha-1(+)]
Oliver Hobert
(Columbia University,
New York NY)
OH12053
Strain, strain
background
(C. elegans)
vsIs48 [unc-17::GFP]Caenorhabditis
Genetics Center
LX929
Genetic reagent
(C. elegans)
Pcfi-1_8.17 kb::GFPShaham and Bargmann, 2002nsEx37See Figure 4A legend
Genetic reagent
(C. elegans)
cfi-1_−11,329 bp
−13,824 bp::RFP
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx12
kasEx182
kasEx183
See Materials and methods,
and Figure 4A legend
Genetic reagent
(C. elegans)
cfi-1_2.77 kb(993 bp
to 3,764 bp)::rfp
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx184
kasEx185
kasEx186
See Materials and methods,
and Figure 4A legend
Genetic reagent
(C. elegans)
cfi-1_1.72 kb (547 bp
to −1,173 bp)::rfp
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx187
kasEx188
kasEx189
See Materials and methods,
and Figure 4A legend
Genetic reagent
(C. elegans)
cfi-1_1.71 kb (−1,164 bp
to −2,875 bp): :rfp
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx190
kasEx191
kasEx192
See Materials and methods,
and Figure 4A legend
Genetic reagent
(C. elegans)
cfi-1_3.27 kb(−2,865 bp
to −6,141 bp)::rfp
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx193
kasEx194
kasEx195
See Materials and methods,
and Figure 4A legend
Genetic reagent
(C. elegans)
cfi-1_3.18 kb(−8,162 bp
to −11,346 bp): :rfp
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx196
kasEx197
See Materials and methods,
and Figure 4A legend
Genetic reagent
(C. elegans)
cfi-1_552 bp(−11,329 bp
to −11,881 bp): :rfp
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx198
kasEx199
kasEx200
See Materials and methods,
and Figure 4A legend
Genetic reagent
(C. elegans)
cfi-1_383 bp(−11,851 bp
to −12,234 bp): :rfp
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx201
kasEx202
kasEx203
See Materials and methods,
and Figure 4A legend
Genetic reagent
(C. elegans)
cfi-1_499 bp(−12,223 bp
to −12,722 bp)::rfp
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx204
kasEx205
See Materials and methods,
and Figure 4A legend
Genetic reagent
(C. elegans)
cfi-1_579 bp(−12,705 bp
to −13,284 bp)::rfp
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx206
kasEx207
kasEx208
See Materials and methods,
and Figure 4A legend
Genetic reagent
(C. elegans)
cfi-1_561 bp(−13,263 bp
to −13,824 bp)::rfp
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx209
kasEx210
See Materials and methods,
and Figure 4A legend
Genetic reagent
(C. elegans)
nhr-1 (peak 1,–7455
to −5853)::RFP::
unc-54 3'UTR
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx211See Materials and methods
- Generation of transgenic
animals carrying
transcriptional fusion reporters
Genetic reagent
(C. elegans)
nhr-1 (peak 2,–893 to
+1535)::RFP::
unc-54 3'UTR
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx212
kasEx213
See Materials and methods
- Generation of transgenic
animals carrying
transcriptional fusion reporters
Genetic reagent
(C. elegans)
nhr-40 (peak 1, +938 to
+1846)::RFP::
unc-54 3'UTR
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx214
kasEx215
See Materials and methods
- Generation of transgenic
animals carrying
transcriptional fusion reporters
Genetic reagent
(C. elegans)
nhr-40 (peak 2, +4360
to +5522)::RFP::
unc-54 3'UTR
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx216
kasEx217
See Materials and methods
- Generation of transgenic
animals carrying transcriptional
fusion reporters
Genetic reagent
(C. elegans)
zfh-2::rfp (12,048 bp
to 13,549 bp)
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx218
kasEx219
See Materials and methods
- Generation of transgenic
animals carrying transcriptional
fusion reporters
Genetic reagent
(C. elegans)
nhr-49 (−803 to +58)::
RFP::unc-54 3'UTR
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx220
kasEx221
See Materials and methods
- Generation of transgenic
animals carrying transcriptional
fusion reporters
Genetic reagent
(C. elegans)
nhr-19 (+1250 to
+2302)::RFP::unc-54
3'UTR
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx222
kasEx223
See Materials and methods
- Generation of transgenic
animals carrying transcriptional
fusion reporters
Genetic reagent
(C. elegans)
ccch-3 (Peak 1, 0 to
−387)::RFP::
unc-54 3’UTR
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx224
kasEx225
See Materials and methods
- Generation of transgenic
animals carrying transcriptional
fusion reporters
Genetic reagent
(C. elegans)
ztf-17 (Peak 1, 0 to
−1034)::RFP::
unc-54 3’UTR
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx226
kasEx227
See Materials and methods
- Generation of transgenic
animals carrying transcriptional
fusion reporters
Genetic reagent
(C. elegans)
ztf-26 (Peak 1,–1341
to +753)::RFP::
unc-54 3’UTR
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx228
kasEx229
See Materials and methods
- Generation of transgenic
animals carrying transcriptional
fusion reporters
Genetic reagent
(C. elegans)
ztf-26 (Peak 2, +909
to +3394)::RFP::
unc-54 3’UTR
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx230
kasEx231
See Materials and methods
- Generation of transgenic
animals carrying transcriptional
fusion reporters
Genetic reagent
(C. elegans)
mab-9 (−5569 to
−3768)::RFP::unc-54
3'UTR
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx232
kasEx233
See Materials and methods
- Generation of transgenic
animals carrying transcriptional
fusion reporters
Genetic reagent
(C. elegans)
ceh-44 (1,605 bp
to 3,111 bp): :rfp
This paper.
Kratsios lab
(University of
Chicago, IL, USA).
kasEx234
kasEx235
See Materials and methods
- Generation of transgenic
animals carrying transcriptional
fusion reporters
Antibodyanti-GFP (Rabbit
polyclonal)
AbcamAb290Dilution: 1:1000; RRID:AB_303395
Commercial assay or kitDynabeads
Protein G
Invitrogen1004D
Commercial assay or kitGibson Assembly
Cloning Kit
NEB#5510S
Commercial assay or kitQIAquick PCR
Purification Kit
QIAGEN#28104
Commercial assay or kitAmpure XP beadsBeckman Coulter
Life Sciences
A63881
Chemical compound,
drug
cOmplete ULTRA
Protease Inhibitor
Cocktail
Roche#05892970001
Chemical compound,
drug
Auxin
(indole-3-acetic acid)
Alfa Aesar#10196875
Software, algorithmZENZEISSVersion 2.3.69.1000,
Blue edition
RRID:SCR_013672
Software, algorithmImage JImage JVersion 1.52iRRID:SCR_003070
Software, algorithmAdobe Photoshop CS6AdobeVersion 13.0 × 64
Software, algorithmAdobe Illustrator CS6AdobeVersion 16.0.0 × 64

C. elegans strain culture

Request a detailed protocol

Worms were grown at 20C or 25°C on nematode growth media (NGM) plates supplied with E. coli OP50 as food source (Brenner, 1974). A list of all C. elegans strains used is provided in Key Resources Table.

Generation of transgenic animals carrying transcriptional fusion reporters

Request a detailed protocol

Reporter gene fusions for cis-regulatory analyses and validation of newly identified UNC-3 target genes were made with PCR fusion (Hobert, 2002). Genomic regions were amplified and fused to the coding sequence of tagrfp followed by the unc-54 3’ UTR. To mutate the LIN-39 binding motif, the reporter fusion was first introduced into the pCR-XL-TOPO vector using the TOPO XL PCR cloning kit (Invitrogen). Then, mutagenesis PCR was performed, and single clones containing plasmids that carry the desired mutation were isolated. PCR fusion DNA fragments were injected into young adult pha-1(e2123) hermaphrodites at 50 ng/µl together with pha-1 (pBX plasmid) as co-injection marker (50 ng/µl).

Chromatin immunoprecipitation (ChIP)

Request a detailed protocol

ChIP assay was performed as previously described (Yu et al., 2017; Zhong et al., 2010) with the following modifications. Synchronized L1 unc-3 (ot839 [unc-3::gfp]) worms and N2 worms were cultured on 10 cm plates seeded with OP50 at 20°C overnight. Late L2 worms were cross-linked and resuspended in FA buffer supplemented with protease inhibitors (150 mM NaCl, 10 μl 0.1 M PMSF, 100 μl 10% SDS, 500 μl 20% N-Lauroyl sarsosine sodium, 2 tablets of cOmplete ULTRA Protease Inhibitor Cocktail [Roche Cat.# 05892970001] in 10 ml FA buffer). For each IP experiment, 200 μl worm pellet was collected. The sample was then sonicated using a Covaris S220 at the following settings: 200 W Peak Incident Power, 20% Duty Factor, 200 Cycles per Burst for 1 min. Samples were transferred to centrifuge tubes and spun at the highest speed for 15 min. The supernatant was transferred to a new tube, and 5% of the material was saved as input and stored at −20°C. The remainder was incubated with 2 μl GFP antibody (Abcam Cat.# ab290) at 4°C overnight. Wild-type (N2) worms do not carry the GFP tag and serve as negative control. The unc-3 (ot839 [unc-3::gfp]) CRIPSR generated allele was used in order to immunoprecipitate the endogenous UNC-3 protein. On the next day, 20 μl Dynabeads Protein G (1004D) was added to the immunocomplex, which was then incubated for 2 hr at 4°C. The beads then were washed at 4°C twice with 150 mM NaCl FA buffer (5 min each), and once with 1M NaCl FA buffer (5 min). The beads were transferred to a new centrifuge tube and washed twice with 500 mM NaCl FA buffer (10 min each), once with TEL buffer (0.25 M LiCl, 1% NP-40, 1% sodium deoxycholate, 1 mM EDTA, 10 mM Tris-HCl, pH 8.0) for 10 min, and twice with TE buffer (5 min each). The immunocomplex was then eluted in 200 μl elution buffer (1% SDS in TE with 250 mM NaCl) by incubating at 65°C for 20 min. The saved input samples were thawed and treated with the ChIP samples as follows. One (1) μl of 20 mg/ml proteinase K was added to each sample and the samples were incubated at 55°C for 2 hr then 65°C overnight (12–20 hr) to reverse cross-link. The immonuprecipitated DNA was purified with Ampure XP beads (A63881) according to manufacturer’s instructions.

ChIP-sequencing data analysis

Request a detailed protocol

Unique reads were mapped to the C. elegans genome (ce10) with bowtie2 (Langmead and Salzberg, 2012). Peak calling was then performed with MACS2 (minimum q-value cutoff for peak detection: 0.005). For visualization purposes, the sequencing depth was normalized to 1x genome coverage using bamCoverage provided by deepTools (Ramírez et al., 2016), and peak signals were shown in IGV. Heatmap of peak coverage in regard to UNC-3 enrichment center was generated with NGSplot (Shen et al., 2014). The average profile of peaks binding to TSS region was generated with ChIPseeker (Yu et al., 2015). To study the distribution of peaks genome-wide, the peaks were annotated using annotatePeaks.pl provided by Homer (Heinz et al., 2010), and each peak was assigned to a gene with the nearest TSS. For de novo motif discovery, sequences containing 100 bp around the centers of each peak (from −50 bp to +50 bp) were extracted and supplied to findMotifsGenome.pl provided by Homer.

Protein class ontology analysis using PANTHER

Request a detailed protocol

Protein class ontology analysis was performed on 1,478 UNC-3-bound genes out of the 3502 protein-coding genes. The number of genes is significantly lower than the number of peaks because PANTHER analysis only considers genes with known protein class terms.

Targeted genome editing

Request a detailed protocol

The cfi-1 endogenous reporter strain kas16 [mNG::AID::cfi-1] was generated by employing CRISPR/Cas9 genome editing, inserting the mNG::3xFLAG::AID cassette immediately after the ATG of cfi-1. The cfi-1 enhancer knock-out allele mNG::AID::cfi-1Δenhancer (769 bp) was generated by using two guide RNAs flanking the cfi-1 enhancer to guide excision of the genomic region, which was then followed by homology dependent repair (HDR) to create a 769 bp deletion (−11,329 bp to −12,097 bp). The UNC-3 binding motif mutation allele mNG::AID::cfi-18 COE motifs mut was generated by creating nucleotide substitutions in the repair template, which carries homology arms complementary to the cfi-1 enhancer region and is then introduced into the genome through HDR.

Microscopy

Request a detailed protocol

Imaging slides were prepared by anesthetizing worms with sodium azide (NaN3, 100 mM) and mounting them on a 4% agarose pad on glass slides. Images were taken with an automated fluorescence microscope (Zeiss, Axio Imager Z2). Images containing several Z-stacks (0.50 µm intervals between stacks) were taken with Zeiss Axiocam 503 mono using the ZEN software (Version 2.3.69.1000, Blue edition). Representative images are shown following max-projection of 2–5 µm Z-stacks using the maximum intensity projection type. Image reconstruction was performed with Image J (Schindelin et al., 2012).

MN subtype identification

Request a detailed protocol

The identification of specific MN subtypes expressing a given UNC-3 target gene was assessed based on the following: (a) co-localization with fluorescent reporters that label specific MN subtypes; (b) Invariant position of neuronal cell bodies along the ventral nerve cord; (c) Birth order of specific MN subtypes (e.g. during embryogenesis or post-embryogenesis); (d) Total cell numbers in each MN subtype.

Bioinformatic prediction of binding motifs

Request a detailed protocol

Information of the LIN-39 binding motif is curated in the Catalog of Inferred Sequence Binding Preferences database (http://cisbp.ccbr.utoronto.ca). To predict and identify LIN-39 binding motifs and UNC-3 binding motifs (identified in this paper) in the cfi-1 enhancer (−11,391 bp to −12,146 bp), we utilized tools provided by MEME (Multiple Expectation maximization for Motif Elicitation) bioinformatics suite (http://meme-suite.org/), and performed Find Individual Motif Occurrences (FIMO) motif scanning analysis.

Temporally controlled protein degradation

Request a detailed protocol

Temporally controlled protein degradation was achieved with the AID system (Zhang et al., 2015). TIR1 expression was driven by the ubiquitously active eft-3 promoter in the transgene ieSi57 [eft-3prom::tir1], or a transgene that drives TIR1 selectively in neurons (otTi28). To induce degradation of proteins (LIN-39, CFI-1, UNC-3), the following alleles were used: lin-39 (kas9 [lin-39::mNG::AID]), cfi-1 (kas16 [mNG::AID::cfi-1]), and unc-3 (ot837 [unc-3::mNG::AID]). Worms at specific developmental stages (see figure legends for details) were grown at 20°C on NGM plates coated with 4 nM auxin (indole-3-acetic acid [IAA] dissolved in ethanol) or ethanol (negative control) for 1 day or 4 days before tested (see figure legends for more details). All plates were shielded from light.

Worm tracking

Request a detailed protocol

Worms were maintained as mixed stage populations by chunking on NGM plates with E. coli OP50 as the food source. Worms were bleached and the eggs were allowed to hatch in M9 buffer to arrest as L1 larvae. L1 larvae were refed on OP50 and allowed to grow to day 2 of adulthood. On the day of tracking, five worms were picked from the incubated plates to each of the imaging plates (see below) and allowed to habituate for 30 min before recording for 15 min. Imaging plates are 35 mm plates with 3.5 mL of low-peptone (0.013% Difco Bacto) NGM agar (2% Bio/Agar, BioGene) to limit bacteria growth. Plates are stored at 4°C for at least two days before use. Imaging plates are seeded with 50 μl of a 1:10 dilution of OP50 in M9 the day before tracking and left to dry overnight with the lid on at room temperature.

Behavioral feature extraction and analysis

Request a detailed protocol

All videos were analyzed using Tierpsy Tracker to extract each worm’s position and posture over time (Javer et al., 2018a). These postural data were then converted into a set of behavioral features selected from a large set of features as previously described (Javer et al., 2018b). For each strain comparison, we performed unpaired two-sample t-tests independently for each feature. The false discovery rate was controlled at 5% across all strain and feature comparisons using the Benjamini Yekutieli procedure (Benjamini and Yekutieli, 2001).

Statistical analysis

Request a detailed protocol

For data quantification, graphs show values expressed as mean ± standard error mean (SEM) of animals. The statistical analyses were performed using the unpaired t-test (two-tailed). Calculations were performed using the GraphPad QuickCalcs online software (http://www.graphpad.com/quickcalcs/). Differences with p<0.05 were considered significant.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
    The genetics of Caenorhabditis elegans
    1. S Brenner
    (1974)
    Genetics 77:71–94.
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
    Expression of the homeotic gene mab-5 during Caenorhabditis elegans embryogenesis
    1. DW Cowing
    2. C Kenyon
    (1992)
    Development 116:481–490.
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
    Overlapping roles of two hox genes and the exd ortholog ceh-20 in diversification of the C. elegans postembryonic mesoderm
    1. J Liu
    2. A Fire
    (2000)
    Development 127:5179–5190.
  50. 50
  51. 51
  52. 52
    The hox gene lin-39 is required during C. elegans vulval induction to select the outcome of Ras signaling
    1. JN Maloof
    2. C Kenyon
    (1998)
    Development 125:181–190.
  53. 53
    Independent regulation of initiation and maintenance phases of Hoxa3 expression in the vertebrate hindbrain involve auto- and cross-regulatory mechanisms
    1. M Manzanares
    2. S Bel-Vialar
    3. L Ariza-McNaughton
    4. E Ferretti
    5. H Marshall
    6. MM Maconochie
    7. F Blasi
    8. R Krumlauf
    (2001)
    Development 128:3595–3607.
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
    The activation and maintenance of Pax2 expression at the mid-hindbrain boundary is controlled by separate enhancers
    1. PL Pfeffer
    2. B Payer
    3. G Reim
    4. MP di Magliano
    5. M Busslinger
    (2002)
    Development 129:307–318.
  63. 63
  64. 64
  65. 65
  66. 66
    unc-3, a gene required for axonal guidance in Caenorhabditis elegans encodes a member of the O/E family of transcription factors
    1. BC Prasad
    2. B Ye
    3. R Zackhary
    4. K Schrader
    5. G Seydoux
    6. RR Reed
    (1998)
    Development 125:1561–1568.
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92

Decision letter

  1. Claude Desplan
    Reviewing Editor; New York University, United States
  2. Marianne E Bronner
    Senior Editor; California Institute of Technology, United States
  3. Chiou-Fen Chuang
    Reviewer

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This paper addresses the important point of how transcription factors maintain the identity of the tissue they specify. In this case, the paper shows how UNC-3 maintains motor neuron identity and addresses whether it retains the same targets through time and how dynamic it is. The use of a ChIP time series allowed the identification of the gene targets in very few neurons, showing that UNC-3 binds to (not all) terminal genes and to other genes, engaging in a broad regulatory networks.

Decision letter after peer review:

Thank you for submitting your article "Establishment and maintenance of motor neuron identity via temporal modularity in terminal selector function" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Marianne Bronner as the Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Chiou-Fen Chuang (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Your paper addresses the important point of how transcription factors maintain the identity of the tissue they specify. In this case, how does UNC-3 maintain motor neuron identity: Does it retain the same targets though time or is are they dynamic?

Your use of a ChIP time series allowed you to identify the gene targets in very few neurons, showing that UNC-3 binds to terminal genes and other genes, engaging in broad regulatory networks. You also showed, however, that some terminal genes might not always require direct UNC-3 input.

It is important that you clarify the difference between target genes for which UNC-3 works as a terminal selector versus those where it only initiates activation and is not required for maintenance.

The reviewers would therefore like you to examine whether UNC-3 is dispensable for reporter gene maintenance in some of the reporters. This should be a fairly easy experiment as you have UNC-3-AID worms where UNC-3 can be degraded after induction of gene expression. This point should also be discussed in detail in the paper.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.

Our expectation is that the authors will eventually carry out the additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

Reviewer #1:

Understating how neurons keep their identity is an important question in developmental biology and neuroscience. Li and co-workers use a previously we-all established C. elegans model to investigate how UNC-3 maintains motor neuron identity. Specifically, the authors aim to address if UNC-3 maintains its targets though time or its binding and targets are dynamic.

The authors use an appropriate method, a ChIP time series. It is technically challenging to obtain a time series for a gene expressed in a few neurons, and thus by itself is an achievement. UNC-3 binds to "classic" terminal genes but also other regulatory genes. This data suggest UNC-3 is, and perhaps all terminal selectors, engage in broader regulatory networks. The UNC-3 binding dynamics also revealed that some terminal genes might not require direct UNC-3 input at some developmental stages. Moreover, the authors find a possible "initiation module" for the motor neuron program that required UNC-3 for maintenance.

I am less convinced the presented experiments support "Disruption of temporal modularity in UNC-3 function leads to locomotion defects", as the subtitle claims. The experiments are designed around the cfi-1. Moreover, "it is unclear whether the expression of UNC-3 targets from the "maintenance-only" module is critical for locomotion". Following the authors' logic, it is not clear UNC-3 is a terminal selector because it might not be required to maintain cell fate. I believe it is good to challenge hypotheses, but the experiments must be designed to do so.

The results are not itself conceptually novel as other temporal TF series have been described, even for motor neurons. However, the work is a significant addition to their previous eLife publication. Thus, this reviewer believes it is appropriate as a Research Advance.

Reviewer #2:

Establishment and maintenance of motor neuron identity via temporal modularity in terminal selector function.

In this paper, the authors identified direct targets of UNC-3/Ebf, the terminal selector of C. elegans cholinergic motor neurons, using ChIP-seq. They found that UNC-3 is required for the initiation and maintenance of expression of one group of target genes, but UNC-3 is only required to maintain expression of motor neuron-specific transcription factors such as CFI-1. The authors also found that the Hox proteins LIN-39 and MAB-5 act synergistically to control initiation and maintenance of cfi-1 in cholinergic motor neurons through the same distal enhancer used by UNC-3 to maintain cfi-1 expression. The authors used the auxin-inducible protein degradation system to show that cfi-1 is required post-embryonically to maintain motor neuron subtype identity. In addition, a cfi-1 null mutation and deletion of the cfi-1 enhancer region cause locomotion defects. Furthermore, UNC-30, the terminal selector of GABAergic motor neurons, is required for the maintenance, but not initiation, of cfi-1 expression in GABAergic neurons. In summary, this study reveals temporal modularity in terminal selector function for motor neuron identity.

The paper is well written and figures are clearly organized.

Reviewer #3:

The manuscript by Li et al. describes in depth analysis of UNC-3 target genes. The genes can be divided based on the UNC-3 role as initiation and maintenance genes and maintenance only. The authors focus on the regulation of one target transcription factor – cfi-1. They identify an enhancer that recapitulates to large extent normal cfi-1 expression and provide evidence that the expression is initiated by Hox factors LIN-39 and MAB-5, while maintenance of the expression is controlled by UNC-3, possibly in conjunction with the Hox factors. Failure to maintain expression of CFI-1 in adult motor neurons has detrimental effects on motor neuron gene expression and worm motor behavior.

The findings are supported by extensive experimental evidence and in depth genetic and biochemical analysis of the enhancer. Overall this is an interesting in depth analysis of regulatory elements that sheds new light on dynamic changes in transcriptional complexes controlling target gene expression. Below I list several points that the authors should consider during the revision of the manuscript.

1) The authors place a lot of emphasis on division of target genes into two groups: initiation/ maintenance and maintenance only. However, the maintenance role in the first category has not been rigorously tested. That would require transient expression of unc-3 early to turn the reporters on, followed by UNC-3 degradation. This raises the possibility that the first category can be subdivided into another subgroup – initiation only genes. Such possibility should be included in the Discussion.

2) The complexity of expression patterns observed with the transgenic reporters (some are on at L2 some only at L4, some are on in most neurons some in very few), demonstrates that the studied enhancers are regulated by multiple additional transcription factors besides UNC-3 (e.g. MAB-5/LIN-39 shown later in the manuscript). Thus, the conclusion that "UNC-3 can also act directly to either activate or repress expression of multiple TF-encoding genes" needs to be reconsidered, as a likely scenario is that UNC-3 binding to the regulatory element facilitates recruitment of another transcription factor that functions as a strong repressor.

3) Describing the results in Figure 4 the authors state: "Instead, it identified a 2.5 kb distal element (reporter #7) demarcated by the UNC-3 binding peak (Figure 4A)". Isn't this the same fragment as the one already tested in Figure 3? Please clarify.

4) The authors claim that 769bp sequence is necessary and sufficient for expression of reporter gene, however I do not see data testing the sufficiency of this particular fragment. Sufficiency is tested for construct #8 (552bp) that recapitulates only partially expression of cfi-1 reporter. Moreover, it seems that even the full 2.5kb fragment is not sufficient to completely recapitulate the kinetics of cfi-1 expression as the transgenic reporter is expressed in ~12 motor neurons (Figure 3B) in L2 while cfi-1 endogenous reporter is on in ~25 neurons (Figure 4D).

5) Does UNC-3 bind to the cfi-1 enhancer in the absence of MAB-5 and LIN-39 or do these factors have to "pioneer" the enhancer for UNC-3 recruitment? Would replacement of the enhancer with a synthetic element that carries only multimeric UNC-3 binding sites suffice to induce expression of cfi-1 in cholinergic motor neurons?

6) What is the status of MAB-5 and LIN-39 expression in unc-3 mutants? And how about UNC-3 expression in lin-39/mab-5 mutants? The authors should consider the fate switch of motor neurons in unc-3 mutants that could negatively affect maintenance of many motor neuron genes indirectly and independent of the UNC-3 binding sites identified in their promoters.

7) The 8 COE motifs mut animals should be examined for derepression of glr-4 in adult motor neurons.

https://doi.org/10.7554/eLife.59464.sa1

Author response

It is important that you clarify the difference between target genes for which UNC-3 works as a terminal selector versus those where it only initiates activation and is not required for maintenance.

The reviewers would therefore like you to examine whether UNC-3 is dispensable for reporter gene maintenance in some of the reporters. This should be a fairly easy experiment as you have UNC-3-AID worms where UNC-3 can be degraded after induction of gene expression. This point should also be discussed in detail in the paper.

We thank the reviewers for their constructive comments. Through additional experiments and text modifications, we now clarify in the revised manuscript how UNC-3 controls over time these two distinct sets of target genes (module #1: terminal identity genes require UNC-3 for both initiation and maintenance; module #2: motor neuron-specific TFs require UNC-3 only for maintenance). All new data are included and discussed in detail in the revised manuscript (as described below).

Reviewer #1:

[…]

I am less convinced the presented experiments support "Disruption of temporal modularity in UNC-3 function leads to locomotion defects", as the subtitle claims. The experiments are designed around the cfi-1.

We totally agree with the reviewer and modified the subtitle in the Results to "Minimal disruption of temporal modularity in UNC-3 function leads to locomotion defects". As the reviewer correctly points out for this behavioral experiment, we only interfered with the ability of UNC-3 to maintain a single target gene (cfi-1) by using a CRISPR-engineered allele that bears mutations in the UNC-3 binding sites located at the distal enhancer of cfi-1 (Figure 6). Apart from these specific mutations that selectively affect cfi-1 maintenance (Figure 4E-F), animals carrying this allele do not bear any other mutations in UNC-3 targets either from module #1 (targets that require UNC-3 for initiation and maintenance) or module #2 (targets that require UNC-3 for maintenance only). Hence, the disruption of temporal modularity in UNC-3 function is minimal because UNC-3 can control all those targets, except one. In the revised manuscript, we modified the text in the Results (subsection “Minimal disruption of temporal modularity in UNC-3 function leads to locomotion defects”) to explain better our findings. Also, the phrase “minimal disruption…” appears in Abstract, Introduction, Results, and Discussion.

Moreover, "it is unclear whether the expression of UNC-3 targets from the "maintenance-only" module is critical for locomotion".

Following the reviewer’s suggestion, we modified this sentence to:

“However, it is unclear whether, in cholinergic MNs, the maintained expression of any of the UNC-3 targets from the “maintenance-only” module is critical for locomotion”.

Following the authors' logic, it is not clear UNC-3 is a terminal selector because it might not be required to maintain cell fate. I believe it is good to challenge hypotheses, but the experiments must be designed to do so.

We thank the reviewer for this comment, which enabled us to improve the manuscript in two ways. First, we used the auxin-inducible degradation (AID) system to selectively deplete UNC-3 in MNs at late larval/early adult stages. We found that UNC-3 is required to maintain the expression of 3 terminal identity genes (unc-17/ VAChT, acr-2/AChR, glr-4/GluR) (new Figure 3—figure supplement 2). In previous work (Kerk et al., 2017), we showed that UNC-3 is also required to maintain expression of another terminal identity gene (unc-129/ TGFb) in cholinergic MNs. In the current manuscript, we further found – by using a null allele – that UNC-3 is required to establish the early expression of all these 4 terminal identity genes (Figure 3A). Since the terminal selector definition entails that a TF is required to establish and maintain the expression of key effector molecules (e.g., neurotransmitter biosynthesis components, neurotransmitter receptors, ion channels) in a specific neuron type, our findings support the idea that UNC-3 operates as a terminal selector in cholinergic MNs. These new data are discussed in the Results (subsection “Temporal modularity of UNC-3 function in cholinergic motor neurons”) and Discussion (subsection “Temporal modularity offers key insights into how terminal selectors control neuronal identity over time”).

Second, we improved the Discussion (see the aforementioned subsection) by explaining that our findings do support the traditional view of how terminal selectors work. We find that module #1 targets do require UNC-3 both for initiation and maintenance, in accordance with the terminal selector concept. At the same time, our findings expand our understanding of terminal selectors because we suggest that terminal selector function can be more dynamic than previously thought. This is based on the data on module #2 targets that selectively require UNC-3 for maintenance (not initiation), suggesting terminal selectors can gain additional targets at later life stages.

The results are not itself conceptually novel as other temporal TF series have been described, even for motor neurons. However, the work is a significant addition to their previous eLife publication. Thus, this reviewer believes it is appropriate as a Research Advance.

To help the reader, we clarify in the revised manuscript the potential significance of temporal modularity in terminal selector function and how it expands our understanding of how terminal selectors control neuronal identity (Discussion, subsections “Temporal modularity in terminal selector function may represent a general principle for neuronal subtype diversity” and “Temporal modularity offers key insights into how terminal selectors control neuronal identity over time”).

Reviewer #3:

[…] Below I list several points that the authors should consider during the revision of the manuscript.

1) The authors place a lot of emphasis on division of target genes into two groups: initiation/ maintenance and maintenance only. However, the maintenance role in the first category has not been rigorously tested. That would require transient expression of unc-3 early to turn the reporters on, followed by UNC-3 degradation. This raises the possibility that the first category can be subdivided into another subgroup – initiation only genes. Such possibility should be included in the Discussion.

We thank the reviewer for this important point. We performed new experiments using the auxin-inducible degradation (AID) system to selectively deplete UNC-3 in MNs at late larval/early adult stages. We found that UNC-3 is required to maintain the expression of 3 terminal identity genes (unc-17/ VAChT, acr-2/AChR, glr-4/GluR) (new Figure 3—figure supplement 2). In previous work (Kerk et al., 2017), we showed that UNC-3 is also required to maintain expression of another terminal identity gene (unc-129/ TGFb) in cholinergic MNs. In the current manuscript, we further show – by using a null allele – that UNC-3 is required to establish the early expression of all these 4 genes (Figure 3A). Since the terminal selector definition entails that a TF is required to establish and maintain the expression of key effector molecules (e.g., neurotransmitter biosynthesis components, neurotransmitter receptors, ion channels) in a specific neuron type, our findings support the idea that UNC-3 operates as a terminal selector in cholinergic MNs. These new data are discussed in the Results (subsection “Temporal modularity of UNC-3 function in cholinergic motor neurons”) and Discussion (subsection “Temporal modularity offers key insights into how terminal selectors control neuronal identity over time”).

Moreover, the identification of UNC-3 targets from module #2 (e.g., UNC-3 is required to maintain, but not initiate, cfi-1 expression) expand our understanding of how terminal selectors control neuronal identity over time (Discussion, subsection “Temporal modularity offers key insights into how terminal selectors control neuronal identity over time”). As the reviewer correctly points out, UNC-3 could also be controlling additional targets in a different manner, for example, by only inducing but not maintaining their expression. This possibility is now mentioned in the Discussion (subsection “Limitations of this study”).

2) The complexity of expression patterns observed with the transgenic reporters (some are on at L2 some only at L4, some are on in most neurons some in very few), demonstrates that the studied enhancers are regulated by multiple additional transcription factors besides UNC-3 (e.g. MAB-5/LIN-39 shown later in the manuscript). Thus, the conclusion that "UNC-3 can also act directly to either activate or repress expression of multiple TF-encoding genes" needs to be reconsidered, as a likely scenario is that UNC-3 binding to the regulatory element facilitates recruitment of another transcription factor that functions as a strong repressor.

We totally agree and have included this possibility in the Results (subsection “Cis-regulatory analysis reveals novel TFs as direct UNC-3 targets in motor neurons”). In addition, the section entitled “Hox proteins collaborate with stage-specific TFs to establish and maintain MN terminal identity” in the Discussion mentions that additional, yet-to-be-identified factors are involved to control expression of UNC-3 targets.

3) Describing the results in Figure 4 the authors state: "Instead, it identified a 2.5 kb distal element (reporter #7) demarcated by the UNC-3 binding peak (Figure 4A)". Isn't this the same fragment as the one already tested in Figure 3? Please clarify.

Yes, it is the same fragment. We changed this confusing sentence to the following: “Instead, it showed that the same 2.5 kb distal element (reporter #7), that drives RFP expression in subsets of unc-3-expressing cholinergic MNs (DA, DB, VA, VB subtypes) at larval and adult stages (Figure 3B), is also sufficient for embryonic (3-fold stage) MN expression (Figure 4A-C).”

4) The authors claim that 769bp sequence is necessary and sufficient for expression of reporter gene, however I do not see data testing the sufficiency of this particular fragment. Sufficiency is tested for construct #8 (552bp) that recapitulates only partially expression of cfi-1 reporter. Moreover, it seems that even the full 2.5kb fragment is not sufficient to completely recapitulate the kinetics of cfi-1 expression as the transgenic reporter is expressed in ~12 motor neurons (Figure 3B) in L2 while cfi-1 endogenous reporter is on in ~25 neurons (Figure 4D).

We apologize for the confusion. The revised manuscript now states: “We conclude that a distal 2.5kb enhancer (located ~12 kb upstream of cfi-1) is sufficient for cfi-1 expression in nerve cord MNs. Genome editing suggests that a 769 bp sequence within this 2.5kb enhancer is required for both initiation and maintenance of cfi-1 in nerve cord MNs (Figure 4D)”.

5) Does UNC-3 bind to the cfi-1 enhancer in the absence of MAB-5 and LIN-39 or do these factors have to "pioneer" the enhancer for UNC-3 recruitment? Would replacement of the enhancer with a synthetic element that carries only multimeric UNC-3 binding sites suffice to induce expression of cfi-1 in cholinergic motor neurons?

These are both excellent questions. The first one is technically very challenging as it would require us to perform an UNC-3 ChIP experiment on lin-39 (-); mab-5 (-) double mutant animals at different developmental stages (embryos and larvae). Getting the required amount of animals for this experiment is extremely difficult, judging from our lab’s experience with ChIP-seq. We also attempted to address this question genetically by increasing the expression levels of UNC-3 in cholinergic motor neurons of lin-39 (-); mab-5 (-) double mutants. However, we were unable to generate the required transgenic animals for this experiment, despite repeated attempts.

To address the second question, we generated transgenic animals carrying 5 copies of the UNC-3 binding site fused to GFP. These animals failed to show GFP expression in cholinergic motor neurons at every life stage examined (larvae, adults), suggesting that other factors are needed to cooperate with UNC-3 and activate its target genes. This scenario is in agreement with our cfi-1 findings: we propose that the Hox proteins (LIN-39 and MAB-5) cooperate with UNC-3 to control cfi-1 expression in cholinergic motor neurons (Figure 5G).

6) What is the status of MAB-5 and LIN-39 expression in unc-3 mutants? And how about UNC-3 expression in lin-39/mab-5 mutants?

In a previous study (Kratsios et al., 2017), we showed that the Hox proteins (LIN-39, MAB-5) and UNC-3 do not cross-regulate each other’s expression in cholinergic motor neurons. We added this important information in the Results (subsection “LIN-39 (Scr/Dfd/Hox4-5) and MAB-5 (Antp/Hox6-8) control cfi-1 expression in cholinergic MNs through the same distal enhancer).

The authors should consider the fate switch of motor neurons in unc-3 mutants that could negatively affect maintenance of many motor neuron genes indirectly and independent of the UNC-3 binding sites identified in their promoters.

We are now mentioning this possibility in the Discussion (subsection “Limitations of this study”).

7) The 8 COE motifs mut animals should be examined for derepression of glr-4 in adult motor neurons.

As mentioned in the Results, CFI-1 represses glr-4/GluR expression in a subset of cholinergic MNs (~12 cells) that correspond to DA and DB subtypes. Animals carrying 8 COE motifs (UNC-3 sites) mutated in the context of the endogenous cfi-1 reporter allele (mNG::AID::cfi-18 COE motifs mut) show a reduction (from ~30 to ~15 cfi-1+ cells), but not complete elimination, of cfi-1 expression in adult (Day 1) cholinergic MNs (Figure 4E-F). This partial elimination is likely due to the presence of cryptic UNC-3 sites that we did not identify and therefore did not mutate in the mNG::AID::cfi-18 COE motifs mut allele. Supporting this possibility, cfi-1 expression at Day 1 in unc-3 (-) null animals is more severely affected compared to mNG::AID::cfi-18 COE motifs mut animals (Figure 4E-F). Hence, the remaining expression of cfi-1 in ~ 15 MNs of mNG::AID::cfi-18 COE motifs mut animals is likely the reason that we did not observe glr-4/GluR ectopic expression in MNs of these animals (new data in Figure 5—figure supplement 2B). We mention this reason in the figure legend.

However, animals that carry the mNG::AID::cfi-1Δ enhancer (769 bp) allele and completely lack cfi-1 expression in cholinergic motor neurons at all stages (Figure 4D) do show glr-4/GluR expression in MNs to similar levels observed in cfi-1 (ot786) putative null animals (new data in Figure 5—figure supplement 2B). We mention this data in the Results (subsection “cfi-1/Arid3a is required post-embryonically to maintain MN subtype identity”).

https://doi.org/10.7554/eLife.59464.sa2

Article and author information

Author details

  1. Yinan Li

    1. Department of Neurobiology, University of Chicago, Chicago, United States
    2. Committee on Neurobiology, University of Chicago, Chicago, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  2. Anthony Osuma

    1. Department of Neurobiology, University of Chicago, Chicago, United States
    2. Committee on Neurobiology, University of Chicago, Chicago, United States
    Contribution
    Formal analysis, Validation, Investigation
    Competing interests
    No competing interests declared
  3. Edgar Correa

    1. Department of Neurobiology, University of Chicago, Chicago, United States
    2. Cell and Molecular Biology Program, University of Chicago, Chicago, United States
    Contribution
    Formal analysis, Validation, Investigation
    Competing interests
    No competing interests declared
  4. Munachiso A Okebalama

    Department of Neurobiology, University of Chicago, Chicago, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  5. Pauline Dao

    Department of Neurobiology, University of Chicago, Chicago, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  6. Olivia Gaylord

    Committee on Development, Regeneration and Stem Cell Biology, University of Chicago, Chicago, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  7. Jihad Aburas

    Department of Neurobiology, University of Chicago, Chicago, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  8. Priota Islam

    1. MRC London Institute of Medical Sciences, London, United Kingdom
    2. Institute of Clinical Sciences, Imperial College London, London, United Kingdom
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  9. André EX Brown

    1. MRC London Institute of Medical Sciences, London, United Kingdom
    2. Institute of Clinical Sciences, Imperial College London, London, United Kingdom
    Contribution
    Project administration, Writing - review and editing
    Competing interests
    No competing interests declared
  10. Paschalis Kratsios

    1. Department of Neurobiology, University of Chicago, Chicago, United States
    2. Committee on Neurobiology, University of Chicago, Chicago, United States
    3. Cell and Molecular Biology Program, University of Chicago, Chicago, United States
    4. Committee on Development, Regeneration and Stem Cell Biology, University of Chicago, Chicago, United States
    5. The Grossman Institute for Neuroscience, Quantitative Biology, and Human Behavior, University of Chicago, Chicago, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Investigation, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    pkratsios@uchicago.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1363-9271

Funding

National Institute of General Medical Sciences (Graduate student fellowship (2R25GM109439-06))

  • Anthony Osuma

National Institute of General Medical Sciences (Graduate student fellowship (T32 GM007183))

  • Edgar Correa

Whitehall Foundation (New Faculty Award (2017-12-50))

  • Paschalis Kratsios

National Institute of Neurological Disorders and Stroke (R00NS084988)

  • Paschalis Kratsios

National Institute of Neurological Disorders and Stroke (R21NS108505)

  • Paschalis Kratsios

Medical Research Council (MC-A658-5TY30)

  • André EX Brown

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank the Caenorhabditis Genetics Center (CGC), which is funded by NIH Office of Research Infrastructure Programs (P40 OD010440), for providing strains. We thank the lab of Oliver Hobert for providing the OH14930 strain and Kaiyuan Tang for generating reporter gene constructs. We are grateful to Edwin Ferguson, Oliver Hobert, Daniele Canzio, Catarina Catela, and Weidong Feng for comments on this manuscript. This work was supported by a training grant [University of Chicago Initiative for Maximizing Student Development (IMSD), 2R25GM109439-06] to AO, a training grant (T32 GM007183) to EC, a Whitehall Foundation grant to PK, grants from National Institute of Neurological Disorders and Stroke (NINDS) of the NIH (Award Numbers R00NS084988 and R21NS108505) to PK, and a Medical Research Council grant MC-A658-5TY30 to AEXB.

Senior Editor

  1. Marianne E Bronner, California Institute of Technology, United States

Reviewing Editor

  1. Claude Desplan, New York University, United States

Reviewer

  1. Chiou-Fen Chuang

Publication history

  1. Received: June 1, 2020
  2. Accepted: September 20, 2020
  3. Version of Record published: October 1, 2020 (version 1)

Copyright

© 2020, Li et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 429
    Page views
  • 52
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    2. Genetics and Genomics
    Jason W Millington et al.
    Research Article

    Nutrient-dependent body size plasticity differs between the sexes in most species, including mammals. Previous work in Drosophila showed that body size plasticity was higher in females, yet the mechanisms underlying increased female body size plasticity remain unclear. Here, we discover that a protein-rich diet augments body size in females and not males because of a female-biased increase in activity of the conserved insulin/insulin-like growth factor signaling pathway (IIS). This sex-biased upregulation of IIS activity was triggered by a diet-induced increase in stunted mRNA in females, and required Drosophila insulin-like peptide 2, illuminating new sex-specific roles for these genes. Importantly, we show that sex determination gene transformer promotes the diet-induced increase in stunted mRNA via transcriptional coactivator Spargel to regulate the male-female difference in body size plasticity. Together, these findings provide vital insight into conserved mechanisms underlying the sex difference in nutrient-dependent body size plasticity.

    1. Developmental Biology
    Shiri Kult et al.
    Research Article

    The mechanical challenge of attaching elastic tendons to stiff bones is solved by the formation of a unique transitional tissue. Here, we show that murine tendon-to-bone attachment cells are bi-fated, activating a mixture of chondrocyte and tenocyte transcriptomes, under regulation of shared regulatory elements and Krüppel-like factors (KLFs) transcription factors. High-throughput bulk and single-cell RNA sequencing of humeral attachment cells revealed expression of hundreds of chondrogenic and tenogenic genes, which was validated by in situ hybridization and single-molecule ISH. ATAC sequencing showed that attachment cells share accessible intergenic chromatin areas with either tenocytes or chondrocytes. Epigenomic analysis revealed enhancer signatures for most of these regions. Transgenic mouse enhancer reporter assays verified the shared activity of some of these enhancers. Finally, integrative chromatin and motif analyses and transcriptomic data implicated KLFs as regulators of attachment cells. Indeed, blocking expression of both Klf2 and Klf4 in developing limb mesenchyme impaired their differentiation.
