An ABA-GA bistable switch can account for natural variation in the variability of Arabidopsis seed germination time

  1. Katie Abley
  2. Pau Formosa-Jordan
  3. Hugo Tavares
  4. Emily YT Chan
  5. Mana Afsharinafar
  6. Ottoline Leyser  Is a corresponding author
  7. James CW Locke  Is a corresponding author
  1. The Sainsbury Laboratory, University of Cambridge, United Kingdom
Research Article
  • Cited 1
  • Views 1,772
  • Annotations
Cite this article as: eLife 2021;10:e59485 doi: 10.7554/eLife.59485

Abstract

Genetically identical plants growing in the same conditions can display heterogeneous phenotypes. Here we use Arabidopsis seed germination time as a model system to examine phenotypic variability and its underlying mechanisms. We show extensive variation in seed germination time variability between Arabidopsis accessions and use a multiparent recombinant inbred population to identify two genetic loci involved in this trait. Both loci include genes implicated in modulating abscisic acid (ABA) sensitivity. Mutually antagonistic regulation between ABA, which represses germination, and gibberellic acid (GA), which promotes germination, underlies the decision to germinate and can act as a bistable switch. A simple stochastic model of the ABA-GA network shows that modulating ABA sensitivity can generate the range of germination time distributions we observe experimentally. We validate the model by testing its predictions on the effects of exogenous hormone addition. Our work provides a foundation for understanding the mechanism and functional role of phenotypic variability in germination time.

Introduction

In an environment where current cues cannot be used to predict future conditions, exhibiting a range of phenotypes may promote species survival. A population can hedge its bets against an uncertain environment by maintaining genetic variation within the population (e.g. balancing selection Delph and Kelly, 2014) or by containing a single genotype that produces a variety of phenotypes (a diversified bet-hedging strategy Cohen, 1966; Lewontin and Cohen, 1969; Philippi and Seger, 1989; Simons, 2011). Bacteria can use diversified bet-hedging strategies to survive a range of changes of condition, including antibiotic treatments (Balaban et al., 2004; Martins and Locke, 2015) and other environmental stresses (Patange et al., 2018). Mechanistic studies suggest that the required phenotypic variability among genetically identical individuals is generated by genetic networks amplifying stochasticity in molecular interactions to generate a range of outputs (Alon, 2007; Eldar and Elowitz, 2010; Viney and Reece, 2013).

In plants, theoretical work shows that variability in the germination time of genetically identical seeds is likely to be advantageous in environments that are unpredictable (Cohen, 1966; Simons, 2011). Indeed, ecological studies have found that variability in seed germination time is correlated with environmental unpredictability (Simons and Johnston, 2006; Venable, 2007). This variability can involve germination of genetically identical seeds being spread between seasons or within a season (or a combination of both), and all these behaviours exist in wild species. Hereafter we use the term ‘variability’ to refer to phenotypic differences between genetically identical individuals in the same environment and ‘variation’ to refer to differences between genetically distinct individuals, such as natural variation between accessions.

The mechanisms underlying how seed germination is spread between seasons have been studied in detail. Seeds can enter a ‘dormant’ state, refractory to germination even under favourable germination conditions (Baskin and Baskin, 2004; Bewley, 1997). Seed dormancy is a continuous variable, with genetically identical seeds having different depths of dormancy (Finch-Savage and Leubner-Metzger, 2006). However, the extent of dormancy for a batch of seeds is usually estimated by quantifying the percentage germination, which does not provide information about the distribution of germination times of individual seeds that germinate within a season, or experiment.

Although variability in germination times within a season has been studied in desert annuals (Simons and Johnston, 2006), these species are not amenable to genetic or mechanistic studies. Little is known about variability in germination time within a season in the model plant Arabidopsis thaliana. The extent of variability, the mechanisms that underlie it, or how related the underlying mechanisms are to those that control seed dormancy between seasons are unknown. However, there is a large body of work using percentage germination as a measure of seed dormancy. A number of quantitative genetic studies have identified loci (i.e. regions of the genome) that underlie natural variation in the extent of dormancy under different environmental conditions, with the DELAY OF GERMINATION (DOG) loci being the first identified and some of the most characterised (Alonso-Blanco et al., 2003; Bentsink et al., 2010; Clerkx et al., 2004; Footitt et al., 2020; Kerdaffrec and Nordborg, 2017; Meng et al., 2008; van Der Schaar et al., 1997). The molecular mechanisms underlying germination have also been uncovered. In-depth molecular studies have shown that the decision to germinate is controlled by the balance between two hormones, gibberellic acid (GA), which promotes germination, and abscisic acid (ABA), which represses it (Liu and Hou, 2018). These hormones function in a mutually antagonistic manner by each inhibiting the synthesis and promoting the degradation of the other (Liu and Hou, 2018; Piskurewicz et al., 2008; Topham et al., 2017). Additionally, the two hormones have opposing effects on downstream transcriptional regulators that control the balance between dormancy and germination (Liu et al., 2016; Piskurewicz et al., 2008; Shu et al., 2013).

Pioneering modelling work has suggested that variable germination times can be generated by variation in sensitivities to germination regulators in a batch of seeds (Bradford, 1990; Bradford and Trewavas, 1994) or due to stochastic fluctuations in the regulators of ABA (Johnston and Bassel, 2018). Interestingly, a combination of experiment and modelling has revealed that the ABA-GA network can be described as a bistable switch due to the mutual inhibition between ABA and GA, leading to two possible states, a dormant high ABA low GA state, or a germinating low ABA high GA state (Topham et al., 2017). This regulatory motif can explain the observation that Arabidopsis seed germination is more effectively triggered by fluctuating temperatures than continuous cold (Topham et al., 2017). However, it is unclear whether different Arabidopsis genotypes generate different degrees of variability in germination times or what the role of the ABA-GA bistable switch in generating these different germination time distributions might be.

Here we set out to investigate the causes of germination time variability among genetically identical Arabidopsis seeds and explore how variability in germination time could be accounted for by the ABA-GA bistable switch. We characterise germination time distributions for natural accessions (Vidigal et al., 2016; Kover et al., 2009) (i.e. genotypically and phenotypically distinct lines, originally collected from the wild in different locations) and the MAGIC multiparent recombinant inbred line population (Kover et al., 2009) (previously generated by intercrossing 19 accessions, followed by multiple generations of selfing, to obtain a set of inbred lines with genomes that are mosaics of those of the parents). Using these lines, we demonstrate that there is robust natural variation in germination time variability, and that this trait shows weak coupling to mode germination time (i.e. the timing of the peak of the distribution), making it possible for these traits to vary somewhat independently. We show that variability in germination time appears to be an inherent property of each seed, rather than being dependent on differences related to seed position on the parent plant. Using quantitative trait locus (QTL) mapping, we found two loci underlying variability in germination time, with candidate genes for both loci implicated in ABA sensitivity. Testing mutants of these candidate genes provided evidence that they may regulate variability in germination time. Based on this evidence, we generate a mathematical model of the ABA-GA bistable switch that underlies germination. We show that the switch can amplify variability and account for the observed natural variation in germination time distributions. Incorporating a role for the two QTL loci in modulating ABA sensitivity into our model allows us to capture the main features of germination time distributions observed in the MAGIC lines. We validate the model by testing predictions about the effects of perturbations to ABA and GA levels in genetic lines with high or low variability. We propose that natural variation in ABA sensitivity underlies differences in germination time distribution by affecting the degree to which the network operates in a bistable regime, as the bistable regime amplifies fluctuations to generate higher variability in germination times. Our work reveals the degree of variability in germination time in Arabidopsis as well as evidence for its genetic basis and provides a starting point for future work examining the mechanisms of phenotypic variability in seed germination time.

Results

Variability in seed germination time shows genetic variation in Arabidopsis

We first determined whether Arabidopsis exhibits natural variation in the variability of seed germination time. To do this, we quantified germination time distributions for 19 natural accessions and the MAGIC multiparent recombinant inbred line population, derived from those accessions (Kover et al., 2009). We also included 10 lines that we selected from a set of Spanish accessions as being likely to have low or high variability in germination time based on their germination time distributions over the first six days after sowing (Vidigal et al., 2016). We grew plants in controlled conditions for seed harvesting and collected all the seeds from three plants of each line. After a fixed period of dry storage (~30 days), we sowed a sample of each of these replicate batches of seeds in Petri dishes in controlled conditions and scored germination every day until there had been no further germination for a period of 2 weeks (see Materials and methods for further details). In these conditions, the MAGIC lines had low levels of seed dormancy (with 30 days of dry storage, 82% of lines had ≥ 50% germination), allowing us to quantify germination time distributions and estimate its variability. We used the coefficient of variation (CV = standard deviation/mean) of the germination time distribution as a measure of variability. We confirmed that CVs for the MAGIC parental lines remained similar over a range of lengths of dry storage period (30–60 days of dry storage), demonstrating that our results are not specific to one condition (Figure 1—figure supplement 1A, B).

The accessions showed a range of variabilities (Figure 1A). Some low CV accessions consistently germinated within 4 days, whilst higher CV lines germinated over a period of 19 days (Figure 1A). The MAGIC lines exhibited transgressive segregation, with greater variation in CV than the parental accessions (Figure 1A, compare orange and blue distributions, Figure 1B). The range of CVs observed in the Spanish accessions was within the range observed across all MAGIC lines (Figure 1B). A small number of MAGIC lines (8 out of 341 characterised) had very high CVs of germination time (>0.6) compared to the rest (Figure 1B), which was due to a fraction of seeds germinating very late, giving rise to bimodal distributions (e.g. M178 and M182 in Figure 1A).

Figure 1 with 1 supplement see all

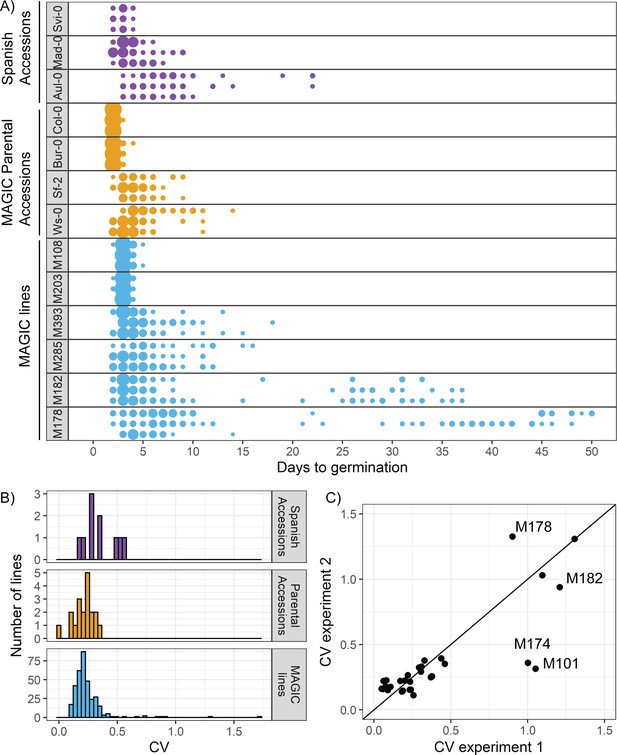

There is variation in variability in germination times in Arabidopsis.

(A) Examples of distributions of germination time for natural accessions and MAGIC lines. Each row shows the germination time distribution of a seed batch from a different parent plant of a particular line, and colours represent whether the line is a Spanish accession (purple), MAGIC parental accession (yellow) or MAGIC line (blue). The size of the circles is proportional to the percentage of seeds sown that germinated on a given day. For the two groups of accessions (Spanish accessions and MAGIC parents), examples of the lowest and highest variability lines are shown. For MAGIC lines, examples are shown of low variability (top two lines); high variability, long-tailed (middle two lines) and very high variability bimodal (bottom two lines) lines. (B) Frequency distribution of coefficient of variation (CV) of germination times for 10 Spanish accessions (purple), the 19 parental natural accessions that were used to generate the MAGIC lines (orange) and 341 MAGIC lines (blue). In the majority of cases, the CV of a given MAGIC line is the mean of the CVs of three batches of seeds collected from separate parent plants. (C) CV of germination times for a subset of 32 MAGIC lines in two separate experiments. The batches of seeds for the two experiments were derived from different independently sown mother plants. The line shows y = x and is for visualisation purposes only (i.e., it does not represent a trend line). Figure 1—figure supplement 1 shows the level of reproducibility of germination time distributions across replicates, lengths of period of dry storage and sowing conditions. Figure 1—source data 1 contains source data for (A). Figure 1—source data 2 contains source data for (B). Figure 1—source data 3 contains source data for (C).

The CV of most MAGIC lines tested was similar between repeat experiments involving independent seed harvests and sowing (Figure 1C) (Pearson’s r = 0.88, 95% CI [0.76, 0.94] for all lines for which repeats were done). In some of the very high variability lines, the presence of very late germinating seeds was reproducible between experiments (e.g. Figure 1C, Figure 1—figure supplement 1C, D, M182 and M178). In other lines, very late germinating seeds were not detected in all experiments, and thus the CV was higher in some experiments than others (e.g. Figure 1C, Figure 1—figure supplement 1E, F, M101 and M174). Thus, although the variability in seed germination time is reproducible for most lines, for some it is possible that their CVs may have been underestimated due to a failure to detect very late germinating seeds. To check whether the level of variability in seed germination time that we obtained for a given line was related to the specific sowing conditions, we sowed selected high and low variability lines on soil and found that although the exact distributions differed slightly between Petri dishes and soil, those lines with higher variability on Petri dishes also had higher variability on soil (Figure 1—figure supplement 1G). Overall, our results reveal variation in germination time variability in Arabidopsis, with CVs ranging from 0.09 to 1.7 across the MAGIC lines, giving a good basis for testing the genetic mechanisms underlying this trait. The broad-sense heritability (defined as the ratio of total genetic variance to total phenotypic variance) for CV was estimated to be ~40%, which is at the upper limit of heritabilities previously measured for variability in a number of post-germination plant traits (Hall et al., 2007).

Variability in germination times is observed within single siliques

Because germination was characterised for seed samples taken from whole plants, it is possible that the high variability observed in some lines is due to different siliques (fruits) having different germination behaviours. This could arise due to differences in the ages of siliques at the time of seed harvest or due to positional effects on the parent plant. To address whether the variability in germination time that we have observed can arise independently of between-silique differences, we collected seed from samples of individual siliques from four high or very high variability lines and characterised their germination time distributions. For these lines, the full range of germination times observed in whole-plant samples was also present in seed from individual siliques (Figure 2A, B, Figure 2—figure supplement 1). This suggests that variability in seed germination time can arise independently of position or age differences between siliques.

Figure 2 with 1 supplement see all

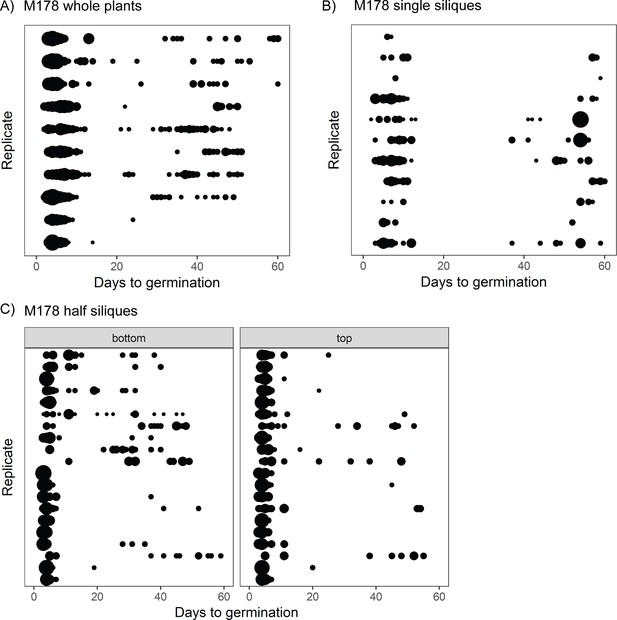

The full range of germination times can be found in individual siliques.

(A) Germination time distributions for a very high variability line, M178. Each row is the distribution obtained using a sample of pooled seeds from one plant, with different rows showing data from different mother plants. (B) As for (A) but each row represents the distribution obtained using seeds from a single silique. Single siliques were randomly sampled from parent plants, and single siliques sampled from seven parent plants are represented. (C) Individual siliques were cut in half, and seeds from the top and bottom halves (distal and proximal, furthest and closest to the mother plants’ inflorescence stems, respectively) were sown separately. Each row is the bottom and top half of a particular silique. Half siliques sampled from two parent plants are represented. Seeds from whole plants, single siliques and half siliques were obtained and sown in different experiments. The size of the circles is proportional to the percentage of seeds that were sown that germinated on a given day. Figure 2—figure supplement 1 shows examples for other MAGIC lines plus an experimental repeat and statistical analysis. Figure 2—source data 1 contains source data for (A). Figure 2—source data 2 contains source data for (B). Figure 2—source data 3 contains source data for (C).

We next hypothesised that germination time might be related to the position of the seed along the longitudinal axis of the silique. To test this, we cut siliques into halves and sowed seeds from the top halves (i.e. distal halves, furthest from the mother plant’s inflorescence stem) and bottom halves separately. For the lines tested, late and early germinating seeds were produced by both halves of the siliques, with no consistent differences between the top and bottom halves of siliques in the fraction of seeds that germinated late (Figure 2C, Figure 2—figure supplement 1A,B,D). Thus, variability in germination time in the lines tested can arise independently of positional or maturation gradients within the whole plant or individual siliques. This suggests that a mechanism exists to generate differences in germination behaviour of equivalent seeds from the same silique, which is not dependent on gradients of regulatory molecules along the fruit.

Variability is weakly coupled to modal germination time and percentage germination

To investigate which types of mechanism might underlie variability in germination time in the MAGIC population, we looked at the extent to which variability is correlated with the modal time taken to germinate and the percentage germination within the experiment. For each line, the experiment was defined as complete 2 weeks after no further seed germinated. If high CV correlates with late germination, or with low percentage germination, this would suggest that increased variability in germination times arises as a result of differences in the general regulation of germination or seed dormancy between MAGIC lines. If high CV occurs without high time to germination or low percentage germination, this would suggest that variability can be regulated somewhat independently from overall levels of seed dormancy.

We found weak correlations between CV and mode or percentage germination, with lower variability lines (low CV) tending to have a lower mode days to germination and higher percentage germination (Figure 3A, Figure 3—figure supplement 1A). Thus, some high variability lines had overall later germination and lower percentage germination than low variability lines, suggesting that they were generally more dormant (Figure 3A, D, E, Figure 3—figure supplement 1A). However, there were lines that had the same mode days to germination, with very different CVs (Figure 3A, B, C) and vice versa, lines with the same CV showed a range of modes (Figure 3A). There were also lines that were very similar with respect to both percentage germination and mode days to germination, but that had very different CVs (Figure 3—figure supplement 1). Thus, within the MAGIC population, variability is correlated with percentage germination and modal germination time, but can be uncoupled from these traits. The same trends were observed in the natural accessions, where CV was weakly correlated with mode and percentage germination but accessions could be found with similar mode and percentage germination and different CVs (Figure 3—figure supplement 2).

Figure 3 with 2 supplements see all

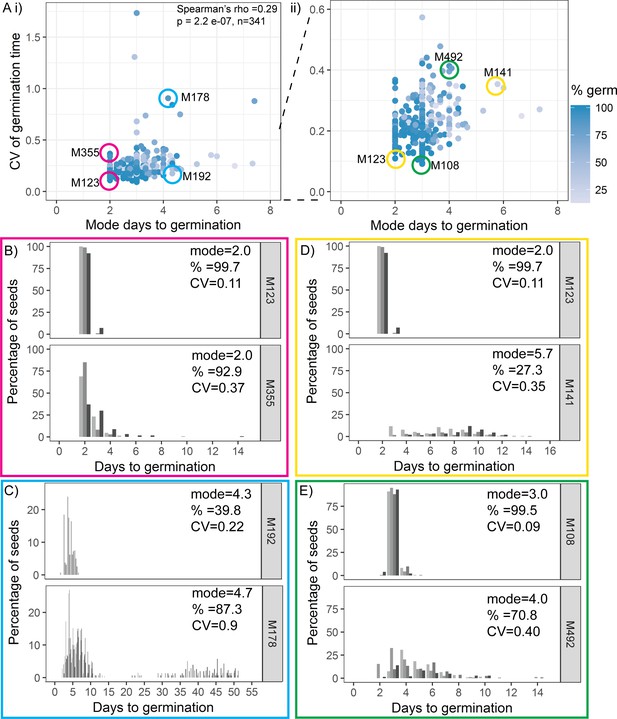

Variability is weakly coupled to modal germination time.

(A) Scatter plots of coefficient of variation (CV) of germination time versus mode days to germination for 341 MAGIC lines. Each point is a specific MAGIC line, and in the majority of cases, the CV and mode are mean values obtained from sowing one batch of seeds from each of three separate parent plants. Each point is shaded according to the percentage germination of the line (see scale bar). Coloured circles and labels indicate lines for which examples are shown in (BE). (ii) is a zoom in of (i) including only lines with CV < 0.6. Spearman’s correlation for the full set of 341 MAGIC lines is indicated in (i). (B–E) Distributions of germination times for pairs of MAGIC lines. The colour of the box matches the coloured circles in (A). Lower CV lines are shown on top. Grey-coloured bars show the germination time distribution of seed batches from replicate mother plants. (B, C) Exemplar lines with the same mode days to germination but different CVs of germination time. (D, E) Lines that have different CVs and different mode days to germination. For each line, the mode days to germination, final percentage germination and CV of germination time are shown. Note that the x-axis scale differs between plots. Figure 3—figure supplement 1 shows the relationship between CV and percentage germination for MAGIC lines. Figure 3—figure supplement 2 shows relationships between CV, mode and percentage germination for natural accessions. Figure 3—source data 1 contains source data for (A). Figure 3—source data 2 contains source data for (BE).

QTL mapping in MAGIC lines reveals two QTL underlying variability in germination time

We next performed QTL mapping on the germination data for the MAGIC lines (Kover et al., 2009) to investigate the genetics of germination time variability. The full set of MAGIC lines phenotyped includes lines with different types of germination time distributions. All low variability lines and most high variability lines have unimodal distributions of germination time (e.g. Figure 1A, M108, M203, M393 and M285). However, there are eight lines that tend to have bimodal distributions when sown on agar (e.g. Figure 1A, M182 and M178). As such, these lines lie at the extreme tail of the distribution of CVs, with much higher values than the other lines (Figure 1B). Therefore, we ran our QTL scans both with and without the bimodal lines as their extreme values may affect the QTL results disproportionately (Figure 4A, B).

Figure 4 with 5 supplements see all

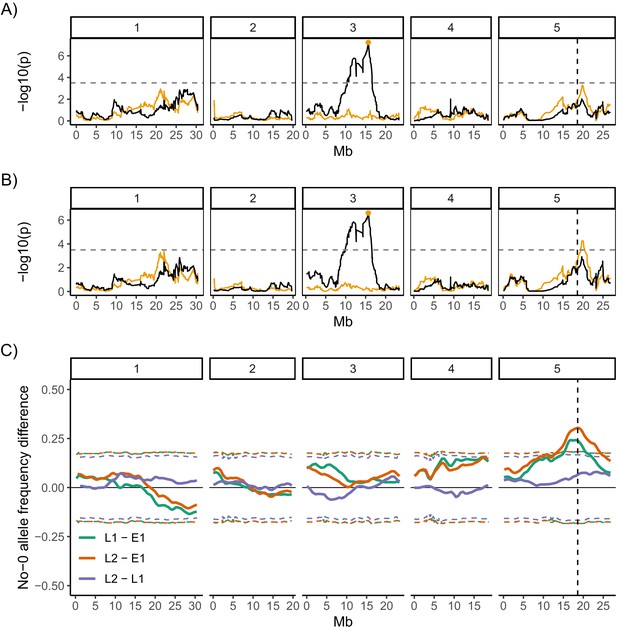

Quantitative trait locus (QTL) and bulk segregant mapping reveals two QTL underlying coefficient of variation (CV) of germination time.

(AB) Manhattan plots showing the QTL association results for each single nucleotide polymorphism (SNP) marker individually (black line) and for each marker when the Chr3 QTL SNP marker was added as a covariate (i.e. an additional variable) in the model (orange line). The orange line shows the variation in CV that is accounted for by each SNP across the genome when the variation that is explained by the Chr3 QTL SNP marker (orange point) is accounted for by adding it to the model as a covariate. The y-axis shows the p-values for the 1254 markers used, on a negative log10 scale, such that higher peaks indicate a stronger association between the region of the genome and CV. The numbered panels represent the five chromosomes of Arabidopsis. The horizontal dashed line shows a 5% genome-wide threshold corrected for multiple testing (based on simulations in Kover et al., 2009). The vertical dashed line indicates the DOG1 gene. (A) is for the full set of 341 MAGIC lines that was phenotyped and (B) excludes the eight bimodal lines with very high CV. Figure 4—figure supplement 1 shows QTL mapping for mean and mode days to germination and percentage germination. Figure 4—figure supplement 2 shows estimated effects of accession haplotypes on CV, mode and percentage germination. (C) Mapping QTL by bulk-segregant analysis using whole-genome pooled sequencing of F2 pools from a Col-0 × No-0 cross. One early and two late germinating F2 pools were sequenced. The plot shows the No-0 allele frequency differences between pairs of pools indicated in the legend (Figure 4—figure supplement 3 shows details of pool selections; E1, "early pool"; L1, "late one pool"; L2, "late two pool"). The horizontal dashed lines indicate the 95% thresholds based on simulating the null hypothesis of random allele segregation, taking into account the size of the sampled pools and the sequencing depth at each site (Magwene et al., 2011; Takagi et al., 2013). Positive values above the top line indicate enrichment for No-0 alleles, while negative values below the bottom line indicate enrichment for Col-0 alleles. As predicted, late germinating pools were enriched for the No-0 haplotype in the region of the Chr5 QTL. Here, the peak of association overlaps with the DOG1 gene (dashed vertical line). Figure 4—figure supplement 4 shows germination phenotypes of F3 seeds from Col-0 x No-0 F2 plants that themselves germinated early or late.

QTL mapping for both the full set of lines and the set excluding bimodal lines revealed a region of chromosome 3 (i.e. Chr3) that accounted for ~14% of the variance in CV of germination time in the MAGIC lines used (Figure 4A, B). The region of significant association was broad and spanned the centromere. The tip of the peak co-located with the previously identified DELAY OF GERMINATION 6 (DOG6) QTL, at 15.9 Mb (Bentsink et al., 2010; Hanzi, 2014). This Chr3 QTL was also associated with mean days to germination, mode days to germination and percentage germination, suggesting that this locus is a general regulator of germination time, rather than specifically affecting variability (Figure 4—figure supplement 1).

To investigate whether other loci explained any residual variance not explained by this major locus, we ran the QTL scans using the Chr3 QTL genotype as an additional variable (a covariate) in the model. This allows us to take into account the variance in traits that is explained by the Chr3 QTL and ask whether other regions of the genome can account for the remaining trait variance. This revealed a further putative QTL at 19.8 Mb on chromosome 5 (i.e., Chr5) associated with CV (Figure 4B). Unlike the Chr3 locus, this one was not significantly associated with mode or mean days to germination or percentage germination (Figure 4—figure supplement 1). This locus accounts for an extra 9% of the variance in CV of the MAGIC lines used. The QTL peak lies ~1.2 Mb downstream of the DELAY OF GERMINATION 1 (DOG1, AT5G45830 ) gene (at 18.59 Mb) and ~1.2 Mb upstream from the SEEDLING EMERGENCE TIME 1 (SET1) locus (at ~21 Mb) (Footitt et al., 2020). The QTL scans with and without the bimodal lines were very similar for the four germination traits (CV, mean, mode days to germination and percentage germination) except the Chr5 peak was not significantly associated with CV when bimodal lines were included (Figure 4A, Figure 4—figure supplement 1).

We next estimated the effects of particular accession haplotypes at the two QTL on the different germination traits (Figure 4—figure supplement 2). For the Chr3 QTL, there was a relatively strong negative correlation between haplotypic effects on CV and percentage germination, and a positive correlation between effects on CV and mode (Figure 4—figure supplement 2B, C). This supports the conclusion that this QTL is a general regulator of seed germination time. For the Chr5 QTL, there was a negative correlation between haplotypic effects on CV and percentage germination, but there was no correlation between their effects on CV and on mode (Figure 4—figure supplement 2B, C).

To confirm the effect of the Chr5 QTL on CV in an independent experiment, we used an F2 bulked-segregant mapping approach in a cross between two accessions (Col-0 and No-0) predicted to have haplotypes in this genomic region with different effects on CV (Figure 4—figure supplement 2A, Chr5 panel). We performed whole-genome sequencing on pools of F2 plants that germinated late, at the right tail of the F2’s germination time distribution, and were therefore predicted to be enriched for the No-0 haplotype at ~20 Mb on Chr5, promoting high variability. We compared their sequences to those of a pool of early germinating F2 plants (Figure 4C; for details of pools, see Figure 4—figure supplement 3). The results independently verified that a locus at ~20 Mb of Chr5 has an influence on variability. In this experiment, the peak of association was located at 18.6 Mb on Chr5, which overlaps precisely with the DOG1 gene (Figure 4C). We also quantified germination traits of the F3 offspring of F2 plants that themselves germinated early or late. This showed that late germinating F2 plants produced seeds with higher CVs of germination time, lower percentages of germination and similar average germination times compared to seeds of early germinating F2 plants (Figure 4—figure supplement 4).

In summary, we have shown that at least two loci contribute to variability in seed germination time in the MAGIC lines (Chr3, ~16 Mb and Chr5, ~18.6/19.8 Mb). Consistent with a correlation between CV, mode days to germination and percentage germination in the MAGIC lines, the main QTL on Chr3 has correlated effects on all these three traits. The locus at ~19 Mb on Chr5 appears to affect variability most strongly.

The Chr5 peak obtained in the bulk segregant mapping overlaps with the DOG1 gene known to play a role in seed dormancy level. The peak obtained in the QTL mapping is slightly shifted and lies equidistant between DOG1 and the nearby SET1 locus (at ~21 Mb) which affects dormancy levels in the field in response to environmental conditions. Consistent with a role for this region of Chr5 in seed dormancy in the MAGIC lines, its haplotypic effects on CV and on percentage germination were negatively correlated (Figure 4—figure supplement 2B, Chr5 panel). Additionally, our Col-0 × No-0 F2 and F3 analysis suggested that seeds from plants enriched for the No-0 haplotype at this locus (which is associated with high CV) had a lower percentage germination than seeds from plants enriched for the low CV Col-0 haplotype (Figure 4—figure supplement 4). However, perhaps surprisingly, this locus was not significantly associated with percentage germination in the QTL mapping (Figure 4A, B). This may be because, unlike the Cvi accession that was used originally to map both DOG1 and SET1 loci (Alonso-Blanco et al., 2003; Footitt et al., 2020), the accessions used to generate the MAGIC lines have relatively weak dormancy and may not carry alleles in this region that promote dormancy sufficiently strongly to be detected for percentage germination in the QTL mapping.

Effects of QTL candidate genes on seed germination time variability

There is evidence to suggest that the best candidate genes underlying our identified loci influence ABA sensitivity. The effect of the DOG6 locus overlapping our Chr3 QTL is proposed to be caused by the ANAC060 gene (Hanzi, 2014), which influences ABA sensitivity in seedlings, directly binds to the promoter of the ABA-responsive transcription factor, ABA INSENSITIVE 5 (ABI5), and can downregulate expression of both ABI4 and ABI5 (Li et al., 2014; Yu et al., 2020). Coincidently, the two candidate genes for the Chr5 locus are closely related in function. The SET1 locus in this region is hypothesised to be caused by the ABA-HYPERSENSITIVE GERMINATION 1 (AHG1) gene (Footitt et al., 2020). AHG1 is a type 2C protein phosphatase (PP2C) that inhibits ABA signalling via dephosphorylating class II SNF1-related protein kinase 2 (SnRK2), which promote seed dormancy by activating ABA-responsive transcriptional changes (Liu and Hou, 2018; Née et al., 2017a; Nishimura et al., 2007, Nishimura et al., 2018). DOG1 has been shown to directly bind to AHG1, independently from ABA, and inhibit its function, thus allowing DOG1 to inhibit germination via the ABA pathway (Carrillo-Barral et al., 2020; Née et al., 2017a; Nishimura et al., 2018). Mutants of all three candidate genes have altered ABA sensitivity: anac060 mutant seedlings and ahg1 mutant seeds have increased ABA sensitivity (Yu et al., 2020; Li et al., 2014; Nishimura et al., 2007), while dog1 mutant seeds have decreased ABA sensitivity (Née et al., 2017a).

We tested these mutants for their effects on germination time distributions and found that the dog1-3 mutant in the Col-0 background (Bentsink et al., 2006) consistently had reduced CV of germination time, and reduced mean and mode days to germination compared to the wild type (Figure 4—figure supplement 5A). Since in Col-0 all seeds normally germinate within 3 days in seed batches stored for 30 days, we also did this experiment in seed batches stored for a shorter period of time (5 days after harvesting [DAH]). In this case, in Col-0 there were later germinating seeds that were not present in the dog1-3 mutant, making the effect of the dog1-3 mutant allele more apparent. We also obtained a dog1 T-DNA insertion mutant in the No-0 accession background (Kuromori et al., 2004) since the No-0 haplotype of the Chr5 QTL locus is predicted to be associated with high variability in the MAGIC lines (Figure 4—figure supplement 2A). The dog1 mutant in the No-0 background showed a similar phenotype to dog1-3 in Col-0, with reduced CV, mean and mode (Figure 4—figure supplement 5C). Consistent with previously published work (Née et al., 2017a), we observed reduced ABA sensitivity of the dog1 mutants in the Col-0 and No-0 backgrounds in our germination assays, with higher levels of exogenous ABA required to observe a change in the germination fraction (Figure 4—figure supplement 5B, D). On the other hand, the ahg1-5 mutant in the Col-0 background (Née et al., 2017a) showed a slight increase in CV of germination time, which was associated with an increase in ABA sensitivity (Figure 4—figure supplement 5E, F). Thus, both of these candidate genes for the Chr5 locus have an effect on the CV of germination time which is consistent with their altered ABA sensitivities.

For the anac060 mutant in the Col-0 background (Li et al., 2014), we observed a slight increase in CV, with an increase in mode and decrease in percentage germination compared to Col-0 in seed sown 3 DAH (Figure 4—figure supplement 5G, 3 DAH), but did not see a convincing phenotype in seeds that were stored for 30 days prior to sowing (i.e. in the same conditions as the MAGIC lines used for QTL mapping) (Figure 4—figure supplement 5G, 30 DAH). We observed a weak tendency towards an increase in ABA sensitivity in the anac060 mutant, but this was not as striking as that reported in seedlings (Li et al., 2014). Thus, it is possible that a gene other than ANAC060 underlies the Chr3 QTL, or if it is responsible, then its effect on germination may depend on the genetic background or on the specific alleles present in the populations we studied.

Overall, our results support the hypothesis that the candidate genes underlying the Chr5 QTL peak could influence variability through an effect on ABA sensitivity and suggest that this could also be the case for the ANAC060 candidate gene for the Chr3 QTL peak.

A stochastic model of the ABA-GA bistable switch can account for the observed genetic variation in germination time distributions

The hypothesis that natural variation in germination time distributions is caused by differences in ABA sensitivity raises the question of how differences in ABA sensitivity between lines could affect their levels of variability in germination time. To answer this, we built a simplified mathematical model of the core ABA-GA network that governs germination time (Liu and Hou, 2018Figure 5A). We reasoned that it was necessary to include both ABA and GA in the model since the decision to germinate is governed by the relative levels of the two hormones (Née et al., 2017b; Shu et al., 2016b), and both converge to regulate the expression of a common set of transcription factors that control seed dormancy and germination (Liu and Hou, 2018; Piskurewicz et al., 2008; Shu et al., 2016a). A previous modelling study that solely considered ABA regulation has proposed that stochastic fluctuations in the regulation of ABA can generate variability in germination times (Johnston and Bassel, 2018) and the ABA-GA network has been modelled previously to account for germination decisions (Topham et al., 2017). However, the ability of the ABA-GA network to generate variability in germination time has not been explored.

Figure 5 with 5 supplements see all

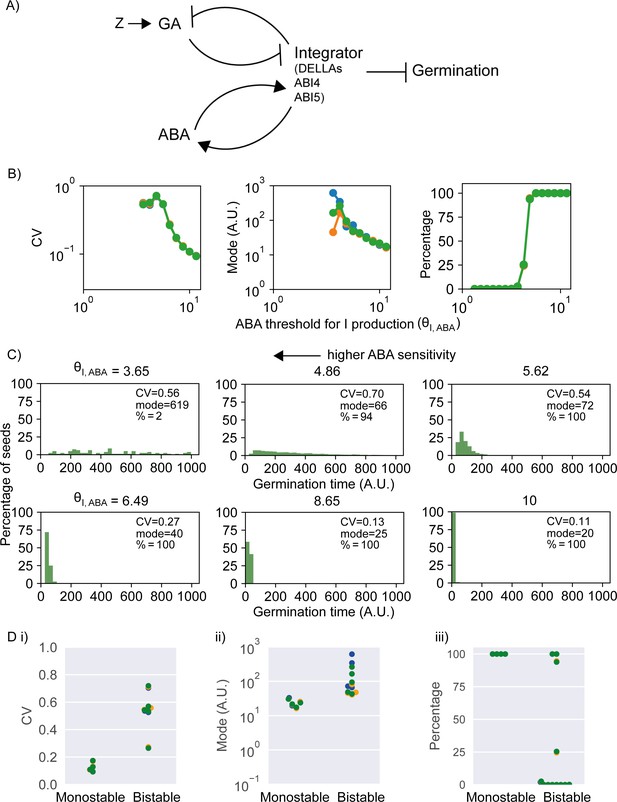

Model of the abscisic acid–gibberellic acid (ABA-GA) bistable switch and effect of ABA sensitivity parameter on germination traits.

(A) Model scheme of the ABA-GA network. Normal arrows represent effective promotion and blunt arrows represent effective inhibition. We represent the inhibitors of germination – DELLAs, ABI4 and ABI5 – as one factor, called Integrator, which we assume must drop below a threshold for germination to occur. We assume that ABA promotes the production of Integrator and that GA promotes its degradation. Integrator is assumed to promote ABA production and inhibit GA production. A factor, Z, increases upon sowing and promotes GA production. Figure 5—figure supplement 1 provides information on the dynamics of the model. (B) Effects on coefficient of variation (CV), mode and percentage germination of simulated germination time distributions as the ABA threshold for Integrator (I) production parameter values are changed. This parameter is inversely correlated with sensitivity of Integrator to ABA. Each panel shows the results of three different runs of stochastic simulations on 4000 seeds. (C) Simulated germination time distributions for six values of the ABA threshold for Integrator production parameter, showing positively correlated changes in CV and mode. The arrow indicates increasing sensitivity of Integrator production to ABA towards the top left. (D) CV, mode and percentage germination in bistable and monostable regions of the model parameter space after the rise in GA production (see Figure 5—figure supplement 1 for details of monostable and bistable regimes). See Materials and methods for regions of the parameter space that we exclude from these plots because they are considered less biologically relevant. Colours in (B) and (D) represent different runs of stochastic simulations. See Materials and methods for further details on parameters and numerical simulations.

Our mathematical model captures the relationships between the hormones ABA and GA and the key transcriptional regulators that act as inhibitors of germination, such as DELLAs, ABI4 and ABI5 (Ariizumi et al., 2008; Liu et al., 2016; Piskurewicz et al., 2008; Shu et al., 2016a; Tyler et al., 2004). We represent these germination inhibitors as one factor, called Integrator. We model the net effects of ABA and GA on the germination inhibitors by assuming that the production of Integrator is promoted by ABA, and that its degradation is promoted by GA (Figure 5AAriizumi et al., 2008; Liu et al., 2016; Piskurewicz et al., 2008; Shu et al., 2016a; Tyler et al., 2004). The germination inhibitors are known to feed-back to influence GA and ABA levels through effects on their biosynthesis or catabolism (Ko et al., 2006; Oh et al., 2007; Piskurewicz et al., 2008; Shu et al., 2016a, Shu et al., 2013). This feedback is represented in the model by assuming that Integrator promotes the production of ABA (Ko et al., 2006; Zentella et al., 2007) and inhibits the production of GA (Shu et al., 2013; Oh et al., 2007). To capture the inhibitory effect of the DELLAs, ABI4 and ABI5 on germination, we assume that in each seed the Integrator level must drop below a threshold for germination to occur. Finally, we include a factor, Z, to simulate a light-induced increase in GA production rate upon sowing (Derkx and Karssen, 1993; Oh et al., 2007, Oh et al., 2006). Full details and justifications of the model assumptions are provided in the Materials and methods section.

The model behaves as a mutual inhibition circuit (GA inhibits Integrator and vice versa) and a mutual activation circuit (ABA promotes integrator and vice versa) coupled by the Integrator (Figure 5A). Overall, this constitutes a double positive feedback loop that can act as a bistable switch, where there are two stable steady state solutions: low Integrator, low ABA and high GA resulting in germination; or high Integrator, high ABA and low GA resulting in no germination (Figure 5—figure supplement 1H). We hypothesised that variability in germination time is generated from stochastic fluctuations in the dynamics of the underlying gene regulatory network. To model these stochastic fluctuations, we adopt the chemical Langevin equation formalism (see Materials and methods), which takes into account the intrinsic stochasticity of the chemical reactions happening within the cell throughout time (Adalsteinsson et al., 2004; Gillespie, 2000).

Although the model is a simplified representation of the interactions between GA and ABA, it can make predictions concerning network behaviour. To investigate the effect of ABA sensitivity on germination time distributions in the model, we varied the parameter governing the ABA threshold for Integrator production, which is inversely correlated with the sensitivity to ABA (see Materials and methods). Varying this parameter can cause correlated effects on CV and mode (Figure 5B) and can account for a range of germination time distributions, from less variable (i.e. more peaked), to more variable (i.e. long tailed) (Figure 5C), that qualitatively match the range of germination time distributions we observe experimentally (Figure 1A, Figure 3). As the sensitivity of integrator to ABA increases (lower values of ABA threshold for integrator production), the germination time distributions are more long tailed with a higher CV and mode (Figure 5C). For very high sensitivities, the germination time distributions become flat.

Changes to the sensitivity of Integrator to ABA affect CV by influencing the stability of the non-germination steady state and whether it exists following sowing. In our modelling approach, we assume that all seeds of all lines exist in a stable non-germinating state prior to sowing, and, as mentioned above, we assume that sowing (i.e. exposure to water and light) causes a rise in the rate of GA production, which enables this situation to change. After this rise in GA production, the model may operate in a monostable regime where germination is the only possible state (i.e. the non-germination steady state is lost) (Figure 5—figure supplement 1A, B), or a bistable regime, where seeds may either germinate or not (Figure 5—figure supplement 1H, I). With low sensitivity to ABA, the model is monostable after sowing, with the high GA, low ABA, low Integrator (germination) steady state the only stable state after the sowing-induced rise in GA production (Figure 5—figure supplement 1A, B). This means that all seeds switch rapidly from their initial non-germinating state (as it disappears upon the rise in GA production) into the germination state (Figure 5—figure supplement 1C–G). With higher ABA sensitivity, the model is bistable after sowing and the rise in GA production, with a low GA, high ABA, high integrator (non-germination) steady state in addition to the germination steady state both existing after sowing (Figure 5—figure supplement 1H, I). In this bistable scenario, after the rise in GA production, seeds can remain in the non-germination steady state for some time but are driven to transition to the germination steady state by stochastic fluctuations, which results in variable germination times and a later average germination time (Figure 5—figure supplement 1J–N). Hence, the bistable regime is associated with an increase in CV and mode of germination time (Figure 5D). Thus, the coupled variation in CV and mode of MAGIC line germination time distributions can be at least partly accounted for by variation in the parameter controlling the sensitivity of integrator production to ABA: as the sensitivity to ABA increases, the model becomes bistable, with later and more variable germination times.

Additionally, once within the bistable regime, increases in ABA sensitivity increase the stability of the non-germination steady state (Figure 5—figure supplement 1O–U compared with Figure 5—figure supplement 1H–N). This can result in an increasing proportion of seeds remaining in this state and not germinating (decreasing percentage germination) and can also further increase the variability of germination time of the seeds that do germinate (Figure 5—figure supplement 1Q–U compared to Figure 5—figure supplement 1J–N). Hence, we hypothesise that natural variation between MAGIC lines in the variability of germination time could be due to differences in ABA sensitivity that cause (i) the ABA-GA network to operate in different regimes (i.e. monostable versus bistable) in different lines and (ii) differences between lines in the stability of the non-germination steady state.

It should be noted that the model can also show other types of dynamical behaviour in addition to the regimes described. These include when the rise in GA production is not enough to enable the existence of a stable germination state (i.e. in this case, the integrator stable state is above the germination threshold), but germination still occurs, being driven by stochastic fluctuations. However, we consider the monostable and bistable regimes that we describe the most biologically relevant (see Materials and methods for a full description of possible behaviours and a discussion of their biological relevance).

We next performed parameter screens for other parameters in the model and investigated their effect on CV and mode. We were interested in whether parameters other than that governing ABA sensitivity could account for the coupling between CV and mode, and whether other parameters could have decoupled effects on CV and mode, to explain the weak coupling between these traits in the MAGIC lines. Specifically, we varied the basal production and degradation rates of ABA, GA and Integrator, the parameters governing the sensitivity of the interactions between the three factors, as well as the level of noise in the system. We performed 2D parameter explorations to check the effect of varying a given parameter for a range of values of a second parameter, to ensure that the behaviours observed were robust across a range of parameter sets (Figure 5—figure supplement 4).

We found that the model could capture multiple possible relationships between the CV and mode of germination time distributions, with the nature of the relationship changing depending on which parameter was being varied. A number of parameters showed positively correlated effects on CV and mode (e.g. Figure 5—figure supplement 2A), although the strength of this correlation varied depending on the region of parameter space and the parameter being changed (Figure 5—figure supplement 4). We confirmed that these relationships between CV and mode were not due to changes in the percentage of seeds germinating as they were observed in cases where percentage germination remained constant (Figure 5—figure supplement 2A). A positive correlation between effects on CV and mode was observed for parameters controlling the rates of basal production and degradation of GA, ABA and Integrator (Figure 5—figure supplement 4A–C) as well as for those controlling the GA-dependent degradation rate of the Integrator (Figure 5—figure supplement 4D). Positive correlations between the effects on CV and mode were also observed for the sensitivity of ABA production to Integrator levels (we define sensitivity as the inverse of the Integrator threshold for promotion of ABA production and use the equivalent definition for all subsequent sensitivity parameters; see Figure 5—figure supplement 4E). Thus, multiple other parameters in addition to that governing ABA sensitivity (Figure 5B, C, Figure 5—figure supplement 4F, G) could account for the positive correlation between CV and mode of germination time distributions in the MAGIC lines. In most cases, low percentage germination tends to be associated with high CV and mode while high percentage germination tends to be associated with low CV and mode, similar to the correlations observed within the MAGIC lines (e.g. see Figure 5B, C, Figure 5—figure supplement 4A–C, Figure 3—figure supplement 1A). There are also regions of parameter space where high percentage germination is associated with high CV and high mode (Figure 5—figure supplement 4C), which is consistent with observation that the germination traits can be uncoupled in the MAGIC lines.

Dependent on the area of the parameter space, specific parameters could show different effects on CV and mode. For example, although varying the ABA sensitivity parameter tends to have positively correlated effects on CV and mode (Figure 5), for some regions of parameter space it does not affect these traits (Figure 5—figure supplement 4F, G). Additionally, some parameters showed both correlated and anti-correlated effects on CV and mode and some generated decoupled changes in CV and mode. For example, for the parameter controlling basal GA production and that controlling the rate of Integrator production, in addition to the positively correlated effects on CV and mode described above, anti-correlated effects on these traits were also observed in other regions in parameter space (Figure 5—figure supplement 4B, C). For some areas of parameter space, anti-correlated effects on CV and mode occurred when modulating the sensitivity of the Integrator to GA-promoted degradation (Figure 5—figure supplement 2B, Figure 5—figure supplement 3B, Figure 5—figure supplement 4F, H). In other regions of the parameter space, varying this parameter caused larger changes in mode than in CV (Figure 5—figure supplement 2C, Figure 5—figure supplement 3C). Somewhat decoupled changes in CV and mode were also observed when varying the parameter that controls the level of noise in the system, such that, for some regions of parameter space, reductions in noise decreased the CV while maintaining a relatively constant mode and percentage germination (Figure 5—figure supplement 2D, Figure 5—figure supplement 3D, Figure 5—figure supplement 4G, H). Thus, the model can capture complex relationships between different germination traits.

To understand further how differences in CV and mode of germination time distributions are generated by the model, we looked across all the parameter screen results to see how CV and mode varied as the model switched between the situation where the model is monostable after the rise in GA production (e.g. Figure 5—figure supplement 1A–G) and the situation where it is bistable following this rise in GA production (e.g. Figure 5—figure supplement 1H–U). We found that across a range of parameter sets, both modes and CVs of germination times tend to be higher when bistability rather than monostability occurs after the sowing-induced rise in GA production (Figure 5—figure supplement 5). Thus, in general, the model predicts that high variability in germination time is associated with the ABA-GA network operating in the bistable regime.

Exogenous ABA and GA addition validates the model predictions

To generate testable predictions, we next sought to understand how the model behaves when the levels of ABA and GA are varied through exogenous addition. To simulate ABA and GA addition to high and low variability MAGIC lines, we represent these two different classes of lines with a difference in the parameter controlling the sensitivity of Integrator production to ABA. The low variability lines are represented by low ABA sensitivity, with the model operating in the monostable regime with a more peaked germination time distribution. The high variability lines are represented by high ABA sensitivity, with the model operating in the bistable regime and having a longer tailed germination time distribution.

Although here we chose to model low variability lines as being in the monostable regime, some parameter sets in the bistable regime can also be associated with relatively low CV (Figure 5—figure supplement 5), hence it is possible that some low variability Arabidopsis lines operate within the monostable regime whilst others operate within the bistable regime. This would be consistent with the experimental observation that the MAGIC lines with lowest variability have 100% germination (Figure 3—figure supplement 1Aii) suggesting that they operate within the monostable regime, while there are also low variability MAGIC lines that have lower germination percentages, suggesting that they operate within the bistable regime (Figure 3—figure supplement 1A).

The model predicts that starting from germination time distributions with low or high variability, increasing concentrations of exogenous ABA will initially increase the CVs of the germination time distributions (Figure 6Ai), causing long-tailed distributions to emerge (Figure 6—figure supplement 2A). This is because the addition of exogenous ABA stabilises the high Integrator, high ABA, low GA non-germination state, requiring stronger fluctuations to allow germination (Figure 6—figure supplement 3A). At higher concentrations of exogenous ABA, the germination time distribution becomes flattened into a seemingly uniform distribution with a high mean and therefore lower CV (Figure 6Ai, ii, Figure 6—figure supplement 2A, [ABA]exo = 2.5). In this situation, the mode shows an increase with some noticeable fluctuations due to the flattened germination time distribution, where mode is less well defined (Figure 6Aiii). At high enough levels of exogenous ABA, the time to achieve the low integrator state can become larger than our chosen final simulation time; seeds exhibiting this behaviour are not considered as germinated, emulating the finite time window during which the germination scoring is performed in this experiment (see Materials and methods). Hence, the increase of exogenous ABA also reduces the percentage of germinated seeds (Figure 6Aiv). The high exogenous ABA can make the system become monostable, causing the non-germination solution to be the only one.

Figure 6 with 4 supplements see all

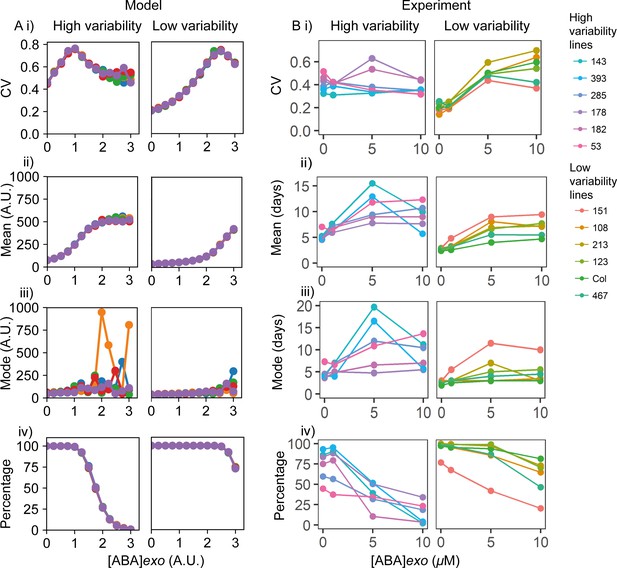

Exogenous addition of abscisic acid (ABA) to high and low variability lines.

(A) Simulations of addition of increasing doses of exogenous ABA (x-axes), starting from a point in the parameter space that shows higher seed germination time variability (left) and lower variability (right) when no exogenous ABA is added. High variability in seed germination time is simulated with a lower value of the ABA threshold for I production (θI,ABA ) (i.e. higher ABA sensitivity) than low variability in seed germination time. Plots show the effects on the coefficient of variation (CV) (i), mean (ii), mode (iii) and percentage of seeds that germinated (iv) for the resulting germination time distributions. Each panel shows the result of five stochastic simulations for 4000 seeds, each plotted in a different colour. Parameter values for the high and low variability lines simulations are the same with the exception of the ABA threshold for I production (θI,ABA = 7 for the low variability lines and θI,ABA = 5.8 for the high variability lines). See Materials and methods for further simulation details and parameter values. (B) Experimental ABA dose response for six high variability MAGIC lines (left) and six low variability lines (five MAGIC lines plus Col-0) (right). (B) (i) shows mean CVs of individual lines for different exogenous ABA concentrations (means are of at least two independent experiments), (ii) as for (i) but for mean days to germination, (iii) mode days to germination and (iv) percentage germination. Treatments with ‘0’ μM are vehicle control treatments. Figure 6—figure supplement 1 shows exogenous addition of gibberellic acid (GA) in the model and experimentally to the high and low variability lines. Figure 6—figure supplement 2 shows simulated germination time distributions for selected concentrations of exogenous ABA and GA. Figure 6—figure supplement 3 shows the results of nullcline analysis in the presence of exogenous ABA and GA. Figure 6—figure supplement 4 shows the effects of exogenous ABA and GA on germination time distributions for example high and low variability lines. Figure 6—source data 1 contains source data for (B).

We next sought to experimentally test the model prediction that increasing exogenous ABA tends to increase variability in germination time. To do this we treated a number of high or low variability lines with a range of exogenous ABA doses and quantified germination at 1-day intervals. The low variability lines behaved similarly to each other under the addition of ABA (Figure 6B) and GA (Figure 6—figure supplement 1B), as did the high variability lines, irrespective of their specific QTL haplotypes on Chr3 and Chr5 (Table 1). This supports our use of ABA sensitivity as a general parameter for modulating germination time distribution in the model, rather than modelling specific lines and QTL haplotypes with different parameter sets. Consistent with the hypothesis that high and low variability lines differ in their ABA sensitivity, the percentage germination of high variability lines tended to be more sensitive to exogenous ABA compared to low variability lines (Figure 6Biv).

Table 1
High and low variability lines used for abscisic acid (ABA) and gibberellic acid (GA) dose responses and their haplotypes at the Chr3 and Chr5 quantitative trait loci .

Haplotypes were classified according to their estimated effect on coefficient of variation (CV), as shown in Figure 4—figure supplement 2. Haplotype effect is classified as low/high when its average predicted effect is less than/higher than the mean haplotype effect, and the 95% confidence interval of the haplotype's effect does not overlap with mean haplotype effect. Haplotype effect is classified as medium when its 95% confidence interval overlaps with mean haplotype effect.

LineH/L variabilityChr3 haplotypeChr3 haplotype effect on CVChr5 haplotypeChr5 haplotype effect on CV
143HighCanMediumZuHigh
178HighWuHighRschMedium
182HighEdiMediumHiMedium
285HighLerHighZuHigh
393HighLerHighKnHigh
53HighSfHighRschMedium
108LowTsuLowRschMedium
123LowBurMediumWuMedium
151LowBurMediumWuMedium
213LowWilLowCanMedium
467LowWilLowEdiLow
Col-0LowCol-0LowCol-0Medium

ABA treatments tended to increase the spread of germination time distributions, particularly for low variability lines. In the low variability lines, high ABA concentrations of 5 and 10 μM caused large increases in the CV of germination time, such that the distributions of germination times for low variability lines treated with ABA were similar to those of high variability lines in control conditions (Figure 6Bi, Figure 6—figure supplement 4A, compare Col-0, 5 and 10 μM [ABA]exo with M182, 0 μM [ABA]exo). This was consistent with the prediction from the model that an initial increase in exogenous ABA concentration causes an increase in CV (Figure 6Ai, Figure 6—figure supplement 2A). Changes in mode were modest for low variability lines (Figure 6Biii), with a more obvious effect on percentage germination, which decreased at 10 μm (Figure 6Biv). These observations are compatible with the model (Figure 6A). The experimental observation that the moderate ABA dose of 5 μM caused larger increases in CV compared with the changes in the mode was also consistent with the model (Figure 6Ai, iii, Figure 6—figure supplement 2A, [ABA]exo = 0 compared to [ABA]exo = 1.5). For high variability lines, increasing concentrations of ABA increased mean and mode germination times, but had relatively little effect on CV (Figure 6Bi-iii, Figure 6—figure supplement 4A, M182). Some high variability lines show an increase in CV followed by a decrease, which is consistent with the model, and some lines show a slight decrease (Figure 6Bi). It is possible that these lines occupy different positions in parameter space due to variation at loci (and therefore components of the ABA-GA network) that are not accounted for in our simulations of these lines. Consistent with a less striking effect of exogenous ABA on the CV of high variability lines compared to low variability lines, in the model, the fold changes in CV upon ABA addition for high variability lines were smaller than those predicted for low variability lines (Figure 6Ai).

In contrast to ABA treatments, addition of exogenous GA to high and low variability lines in the simulations led to a reduced mode and less variable germination times (Figure 6—figure supplement 1Ai, iii, Figure 6—figure supplement 2B). This is because addition of GA can destabilise and even destroy the high Integrator, high ABA and low GA non-germination steady state (Figure 6—figure supplement 3B), causing the model to become monostable. In this situation, there is a rapid decrease of the Integrator, leading to rapid and less variable germination times (see dynamics of monostable scenario in Figure 5—figure supplement 1A–G).

As predicted by the model, when added experimentally to high and low variability MAGIC lines, GA tended to decrease the level of variability in germination time, with the effect strongest for the high variability genotypes (Figure 6—figure supplement 1B, Figure 6—figure supplement 4B, M182). As expected from previous studies (Bewley, 1997; Koornneef and Karssen, 1994; Ni and Bradford, 1993), high GA addition also increased germination percentages and tended to decrease the mean germination time in high variability lines (Figure 6—figure supplement 1B). For low variability lines, GA had little effect on the variability (CV), percentage germination, mean or mode germination times (Figure 6—figure supplement 1B, Figure 6—figure supplement 4B, Col-0) as these lines germinated in a less variable manner with high percentage germination even in the absence of GA. Thus, for both ABA and GA, the overall effects of exogenous addition were qualitatively similar between the model and experiments.

We also sought to investigate the effects of altered levels of ABA or GA on germination time distributions using mutants. To test the effect of increased ABA concentration in the low variability background of the Col-0 accession, we used the cyp707a1 and cyp707a1 cyp707a2 mutants, which lack enzymes required for ABA catabolism (Kushiro et al., 2004; Okamoto et al., 2006), effectively decreasing the ABA degradation rate. Similar to the effect of exogenous addition of ABA on low variability lines, loss of function of the CYP707A1 enzyme caused the Col-0 germination time distribution to become more long-tailed, with a small shift in the mode days to germination of ~1 day (Figure 7). Loss of both enzymes severely inhibited germination time and caused a large increase in the mode days to germination, similar to the effect of higher concentrations of exogenous ABA, which in both cases is related to the germination time distribution becoming more uniform (Figure 7). The correlated effect we found on CV, mode and percentage germination due to a change in the ABA degradation rate is also consistent with the results from changing the ABA degradation parameter in the model (Figure 5—figure supplement 4Ai-iii).

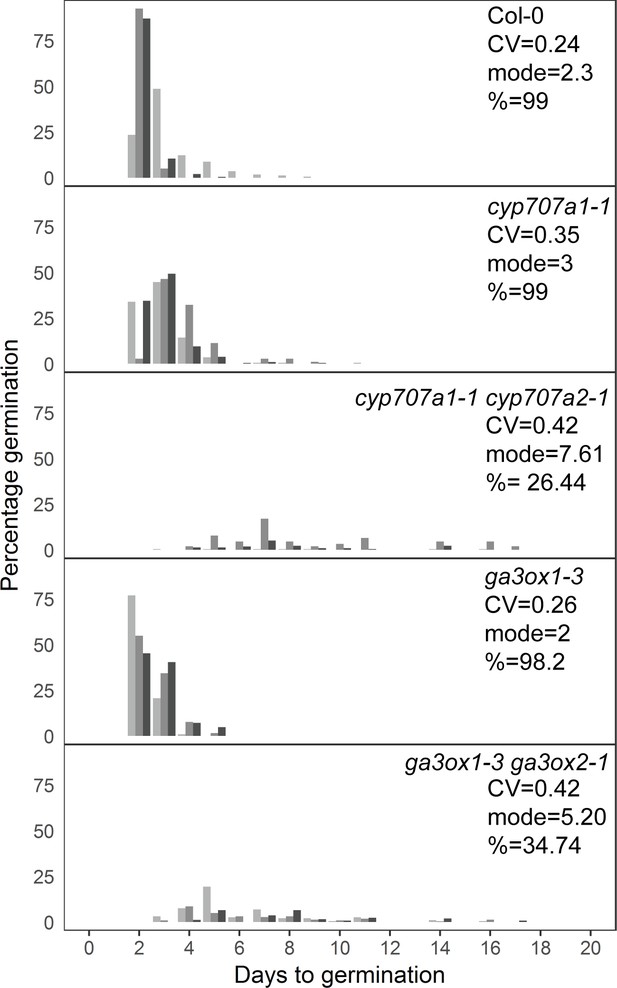

Mutants with altered levels of abscisic acid (ABA) and gibberellic acid (GA) have altered germination time variability.

Distributions of germination times for indicated genotypes. cyp707a1-1 and cyp707a1-1 cyp707a2-1 mutants lack enzymes involved in ABA catabolism, while ga3ox-3 and ga3ox1-3 ga3ox2-1 mutants lack enzymes involved in GA biosynthesis. Plots show the percentage of all seeds that were sown, that germinated on a given day. Grey-coloured bars show the germination time distribution of seed batches from replicate mother plants. For Col-0 and each mutant, the mean coefficient of variation of germination times, mode days to germination and final percentage germination is shown (averaged across the replicate batches [n = 3]). Data are representative of at least two independent experiments for each genotype. Source data is provided in Figure 7—source data 1.

To test genetically the effect of decreasing the GA concentration on the germination time distribution of Col-0, we used the ga3ox1-3 ga3ox2-1 mutant, which lacks two enzymes involved in GA biosynthesis (Mitchum et al., 2006). This double mutant, which has reduced GA levels (Mitchum et al., 2006), showed an increased CV and, similar to the cyp707a1-1 cyp707a2-1 mutant, had increased mode and decreased percentage germination (Figure 7). Together with the GA and ABA dose–response experiments, these findings support the model predictions regarding the effects of altering ABA and GA levels on CV, mode and percentage germination.

Discussion

Variability in seed germination time is relevant for plant survival in the wild, where high variability may function as a bet-hedging strategy. The advantages of variability in the wild contrast to the situation in agriculture, where minimal levels of variability are desirable to promote crop uniformity needed for optimal harvests (Finch-Savage and Bassel, 2016; Mitchell et al., 2017). By describing detailed distributions of germination time for hundreds of Arabidopsis lines grown in a common environment, our work reveals that these distributions are genetically controlled since they can vary greatly between different lines and are reproducible for a given genotype. Using this natural variation, we identified two loci underlying variability and present evidence that candidate genes underlying the loci may alter germination time through influencing ABA sensitivity. Furthermore, modelling and experiments show that perturbation of the ABA-GA network can modulate variability in germination times in a predictable manner. These findings suggest that high or low variability could be specifically selected for both in the wild and in crop breeding programmes.

Previously it was shown that, in some Arabidopsis accessions, seeds matured on primary inflorescences had different germination behaviours to those that developed on branches (Boyd et al., 2007). It was also reported that developmental differences exist along the Arabidopsis inflorescence, and these developmental differences between flowers could, in principle, create differences in seed germination time between fruits (Plackett et al., 2018). Here we show that variability in germination time exists even for seeds from the same silique of Arabidopsis, suggesting that it can arise independently from developmental gradients in the plant. We also show that seeds from proximal and distal halves of siliques have similar germination behaviours, indicating that variability is likely not caused by gradients of regulatory molecules along the length of the fruit. Thus, our findings indicate that a mechanism exists to generate different behaviours amongst seeds that are as equivalent as possible.

We show that at least two genetic loci underlie germination time variability in the MAGIC population (Kover et al., 2009). The QTL at ~16 Mb on Chr3 overlaps with the DELAY OF GERMINATION 6 (DOG6) locus (Alonso-Blanco et al., 2003; Bentsink et al., 2010), and is associated with CV, mean and mode germination time and percentage germination. There is published evidence from a GWAS study on seed dormancy that suggests that the DOG6 locus corresponds to the ANAC060 gene, which regulates ABA sensitivity (Li et al., 2014; Hanzi, 2014). When we tested the effect of the anac060 mutation on germination time distributions and ABA sensitivity in our germination assays, we found a slight increase in ABA sensitivity and evidence for a small increase in the CV and mode of germination times compared to Col-0 in seeds sown 3 DAH. However, we did not observe a difference in germination time distributions between the mutant and Col-0 when seeds were stored for 30 DAH as was done in the QTL mapping. Thus, it may be the case that a gene other than ANAC060 underlies the effect of our QTL, or if it does underlie it, then its effect may be stronger in other genetic backgrounds within the MAGIC lines, or there may be allele-specific effects on germination time distributions. We note that our results are in contrast with Hanzi, 2014, who showed a large effect of the same anac060 T-DNA mutation on percentage germination.

The peak of the locus at ~18.6 Mb on Chr5 identified from our F2 bulked-segregant mapping approach overlaps with the DOG1 gene (Alonso-Blanco et al., 2003; Bentsink et al., 2006), which feeds in to promote ABA signalling independently from the presence of ABA and thus increases sensitivity to ABA in germination assays (Née et al., 2017a; Nishimura et al., 2018). Consistent with this, and supporting DOG1 being a candidate gene for the Chr5 locus, in our germination assays we observe a decrease in CV and mode of germination time distributions in the dog1 mutant, in the Col-0 and No-0 accession backgrounds, which is associated with decreased ABA sensitivity. However, the peak of the Chr5 QTL identified in the MAGIC population lies at 19.8 Mb, equidistant between DOG1 and a newly identified germination locus, SET1, which lies at around 21 Mb on chromosome 5 (Footitt et al., 2020). SET1 was shown to influence the sensitivity of seeds buried in the soil to seasonal cycles of environmental conditions that influence germination time in the field (Footitt et al., 2020). It has been hypothesised that the SET1 locus corresponds to the ABA‐HYPERSENSITIVE GERMINATION1 (AHG1) gene, which is itself inhibited by DOG1 and acts to suppress ABA-imposed seed dormancy (Fuchs et al., 2013; Née et al., 2017a; Nishimura et al., 2018Footitt et al., 2020). Consistent with this, we found a slight increase in CV and mode in the ahg1 mutant background. Thus, it is possible that SET1/AHG1 rather than DOG1 underlies the Chr5 locus, or that both are relevant in the MAGIC lines, or that another gene underlies the effect of this locus.

In the QTL mapping, the Chr5 locus was only found to be significantly associated with the CV of germination time. However, besides their effect on CV, the mutant alleles of the two candidate genes we tested, DOG1 and AHG1, also affected mode and percentage germination (Bentsink et al., 2006; Née et al., 2017a). The fact that we did not detect an association between this region of Chr5 and those two latter traits could be explained by differences between the naturally occurring alleles within the MAGIC population (which may predominantly affect CV) and the mutant alleles of these genes (which affect multiple traits). It could also be the case that the MAGIC lines’ alleles affect multiple germination traits but that we did not have enough statistical power to detect this in the QTL mapping.

Further work will be needed to identify the causal variants underlying both of the QTL identified here and to determine the extent to which they have correlated or uncoupled effects on different germination traits. It will be important to test directly candidate genes through transforming candidate gene null mutants with corresponding alleles cloned from high and low variability lines (Weigel, 2012). These transgenic lines could then be used to understand how natural variation at the two QTL influences germination time distributions by using them to quantify the effects of the different accession alleles on CV, mode and percentage germination as well as on traits related to the ABA-GA network such as ABA and GA sensitivity. In future work, it would also be informative to repeat the QTL mapping for variability in seed germination time under alternative conditions for maternal growth, seed storage and sowing, thus testing the extent to which common loci are involved under different environmental conditions.

Our stochastic model of a simplified representation of the underlying ABA-GA network suggests that this bistable switch can generate variability in germination times and account for differences between MAGIC lines. We show that, when operating in the bistable region of parameter space after the rise in GA production that occurs upon sowing, the model tends to generate higher CVs and higher modal germination times compared with when operating in the monostable region. We also show that having a more stable non-germination steady state when operating within the bistable regime can lead to increased variability associated with increased mode and decreased percentage germination. Thus, by having both monostable and bistable behaviours, with different stabilities of the non-germination steady state, the model can generate a large range of ‘phenotypes’ in terms of CV, mode and percentage germination, accounting for the variation in these traits observed in MAGIC lines and natural accessions. We show that the main differences between high and low variability lines can be accounted for by assuming differences in the sensitivity to ABA, as suggested by the candidate genes for the QTL. We note that our parameter explorations reveal that other parameters, including those governing the rates of ABA, GA and Integrator production and degradation, as well as the GA-dependent degradation rate of the Integrator and the sensitivity of ABA production to Integrator levels, can all have similar effects to the ABA sensitivity parameter and could also account for the correlations between CV, mode and percentage germination in the MAGIC lines.

We found that other parameters caused a variety of other behaviours in terms of the relationship between the CV and mode of the germination time distributions. This is consistent with the observation of a complex relationship between CV and mode in the MAGIC lines and accessions, whereby these traits are weakly positively correlated between lines, but can be partially decoupled. Since it is likely that we have not detected all genetic loci that influence germination time distributions in our QTL mapping (the Chr3 and Chr5 QTL together only account for 23% of the variance in CV in the MAGIC lines), it is possible that undetected genetic variation in multiple components of the ABA-GA network contributes to the variation in germination time distributions that we observe and the complex relationship between CV, mode and percentage germination in the data.

Because germination in our model is driven by the rise in GA production that occurs upon sowing, it behaves as a time-dependent toggle switch (Verd et al., 2014) with stochastic fluctuations. In such time-dependent systems, steady states that exist in the beginning of the simulation can cease to exist or can change in their stability over time due to the changes in the time-dependent term (here, the GA production). The former occurs in what we refer to as the ‘monostable scenario’. Here the stable non-germination steady state that exists before the rise in GA production can disappear in what is called a saddle-node bifurcation, causing seeds to transition directly to the germination steady state, resulting in rapid germination. In the bistable scenario, the non-germination stable steady state remains after the rise in GA production, allowing seeds to exist in this state for some time. Stochastic fluctuations can then result in seeds being displaced sufficiently from this state so that they are then attracted to the stable steady state associated with germination. The more stable the non-germination state is, the less readily seeds are sufficiently displaced from it by stochastic fluctuations to cause transition to the germination steady state, meaning that the time required for all seeds to experience a large enough fluctuation to cause them to germinate becomes larger, causing more variable germination times. Thus, our work shows that a time-dependent toggle switch (Verd et al., 2014) with stochastic fluctuations can be used as a framework to understand variable germination behaviour.

In future work, this framework can be used to integrate additional components of the ABA-GA network. Recent work has shown that feedback acting upon ABA biosynthesis and catabolism can modulate variability in ABA concentrations independent of the mean concentration (Johnston and Bassel, 2018). In the future, it will be possible to extend our initial ABA-GA model to evaluate the effects of different feedback motifs acting on the two hormones. It is likely that with a more detailed implementation of the network the model would have an increased ability to ascribe different germination traits to specific parameters, allowing us to make further mechanistic hypotheses about the effects of particular loci. With such a model, it might also be possible to capture the rare bimodal distributions that we observe in some MAGIC lines.

One limitation of our model is that we represent a seed as a single compartment in which we simulate the effects of stochastic molecular interactions. In fact, the decision to germinate is likely made by groups of cells in the embryonic root (Mitchell et al., 2020; Topham et al., 2017), and thus it is unclear how the noise arising in individual cellular compartments would influence this multicellular decision. One possibility is that noise would be averaged out across the cells, reducing the level of noise at the multicellular level. This appears to be the case during vernalisation, where polycomb-based epigenetic silencing of the floral repressor FLOWERING LOCUS C (FLC) occurs in response to cold (Angel et al., 2011; Song et al., 2012). In a model of this system (Angel et al., 2015), the silencing of each FLC locus in each cell is proposed to be a probabilistic event, with the likelihood of silencing increasing with the duration of cold treatment. This generates heterogeneity in FLC expression at the individual cell level, which is then averaged out at the level of downstream processes, resulting in the plant flowering at a time that accurately reflects the duration of cold exposure.

On the other hand, noise in gene expression and phenotypic outputs has been reported for multiple pathways in plants (Jimenez-Gomez et al., 2011; Joseph et al., 2015), and recent work quantifying genome-wide transcriptional variability among individual seedlings in the same environment shows that, for many genes, there is a large degree of between-plant variability in transcript levels (Cortijo et al., 2019), suggesting that variability is not always averaged out to give uniformity of multicellular individuals. One possibility is that for some genetic networks high levels of variability in gene expression arise because the properties of the network mean that stochasticity is amplified. Interestingly, the transcriptomic study of Cortijo et al., 2019 showed that genes that were highly variable in their expression between seedlings were enriched for those involved in the response to ABA, supporting the idea that the bistable switch governing ABA levels amplifies stochasticity to generate variability in gene expression and phenotypes. In further support of a potential role of the ABA-GA bistable switch in regulating phenotypic variability beyond germination, a recent study implicated redundantly acting GA receptors of tomato in maintaining phenotypic stability of plant growth (i.e. low variability) under ambient conditions (Illouz-Eliaz et al., 2019).

Our work provides the foundation for future functional and mechanistic work on phenotypic variability using germination time as a model system. Alternative functions beyond bet-hedging can be explored, including the possible function of distributed germination times in avoiding seedling competition, or that the variable germination could contribute to the seed bank, which acts as a persistent source of genetic diversity that may be advantageous for long-term species survival in variable environments (Templeton and Levin, 1979). Further mechanistic insights would be greatly increased by the development of new non-destructive techniques to track gene expression in seeds and correlate it with their germination time, which is challenging because of technical difficulties in imaging through the seed coat. However, destructive techniques have already revealed significant differences in the level of germination regulators in individual seeds of tomatoes (Still et al., 1997; Still and Bradford, 1997) and allowed measurement of ABA in individual seeds of a lowly variable Arabidopsis line (Col-0) (Kanno et al., 2010). It would be interesting to extend studies such as these to the lines identified here with high and low variability in germination times. In general, our work emphasises that the level of variability in germination times is an important trait that does not always correlate with the most common measure of germination behaviour, which is percentage germination. Thus, to fully understand the roles of germination regulators, future work should involve characterising their effects on the CV of germination time distributions as well as on traits such as percentage germination and average germination time.

Multiple other aspects of Arabidopsis development have been shown to display phenotypic variability, including both whole plant phenotypes such as growth rate and molecular-level phenotypes such as transcript abundance (Hall et al., 2007; Cortijo et al., 2019; Jimenez-Gomez et al., 2011; Joseph et al., 2015; Shen et al., 2012). Similar to our findings, a common feature across studies and traits is that multiple QTL tend to affect variability of a trait, and while some of them also affect the average trait value, others do not. By establishing variability in germination time as a robust trait that varies between natural accessions of Arabidopsis, our study reveals that germination time is a plausible system for studying the genetics of inter-individual variability.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Biological samples (Arabidopsis thaliana)MAGIC linesNASCNASC ID: N782242PMID:19593375
Biological samples (Arabidopsis thaliana)MAGIC parental accessionsNASCIDs of individual parental accessions:
http://arabidopsis.info/CollectionInfo?id=112
PMID:19593375
Biological samples (Arabidopsis thaliana)Spanish accessionsNASCPMID:26991665
Biological sample (Arabidopsis thaliana)cyp707a1-1PMID:16543410Eiji Nambara, University of Toronto
Biological sample (Arabidopsis thaliana)cyp707a1-1 cyp707a2-1PMID:16543410Eiji Nambara, University of Toronto
Biological sample (Arabidopsis thaliana)ga3ox1-3NASCNASC ID: N6943PMID:16460513
Biological sample (Arabidopsis thaliana)ga3ox1-3 ga3ox2-1NASCNASC ID: N6944PMID:16460513
Biological sample (Arabidopsis thaliana)dog1-3 (Col-0)
(SALK 000867)
NASCNASC ID: N500867PMID:17065317
Biological sample (Arabidopsis thaliana)anac060
(SALK 012554C)
NASCNASC ID: N665285PMID:24625790
Biological sample (Arabidopsis thaliana)ahg1-5PMID:28706187Guillaume Née, University of Münster
Biological sample (Arabidopsis thaliana)dog1 (No-0)
(dog1 mutant in No-0 background)
RIKENBRC number: pst21966
Line number:
15-3980-1
Sequence-based reagentDOG1N_FThis paperPCR primersGAAATCCGCTCCTTGTACCG
See Supplementary file 4
Sequence-based reagentDOG1N_RThis paperPCR primersGCATCCCTGAGCTCAAACAA
See Supplementary file 4
Sequence-based reagentDs5-2aPMID:14996221PCR primersTCCGTTCCGTTTTCGTTTTTTAC
See Supplementary file 4
Sequence-based reagentDOG1-3 FThis paperPCR primersTTCCAGGAACGTTGTCGTATC
See Supplementary file 4
Sequence-based reagentDOG1-3 RThis paperPCR primersAGTTTGTGACCCACACAAAGC
See Supplementary file 4
Sequence-based reagentLBb1.3http://signal.salk.edu/tdnaprimers.2.htmlPCR primersATTTTGCCGATTTCGAAC
See Supplementary file 4
Sequence-based reagentANAC060 FThis paperPCR primersTGGACTCTGTTTGAAGCCTTG
See Supplementary file 4
Sequence-based reagentANAC060 RThis paperPCR primersTATGCCTGTCCTGATTTGCTC
See Supplementary file 4
Sequence-based reagentAHG1 LPPMID:28706187PCR primersACCGACACGTGTTCTGTCTTC
See Supplementary file 4
Sequence-based reagentAHG1 RPPMID:28706187PCR primersCTAAAACTCGACCACCAGCTG
See Supplementary file 4
Chemical compound, drugGibberellin A4Sigma AldrichG7276
Chemical compound, drugAbscisic acidSigma AldrichA1049
Commercial assay, kitNEB Next Ultra DNA Library Prep KitNew England BioLabsE7370L
Software, algorithmOrganismPMID:15961462https://gitlab.com/slcu/teamHJ/Organism
Software, algorithmRR Foundation for Statistical Computinghttps://www.R-project.org/
Software, algorithmPythonPython Software FoundationVersion: Python 2.7
https://www.python.org/download/releases/2.7/
Software, algorithmData analysis and modelling scriptsThis paperhttps://gitlab.com/slcu/teamJL/abley_formosa_etal_2020Abley et al., 2021 copy archived at swh:1:rev:0a97b841e58b128c174d93fc759b28f1df2966a2

Plant materials

Request a detailed protocol

MAGIC lines (Kover et al., 2009) and accessions (Vidigal et al., 2016) were obtained from the Nottingham Arabidopsis Stock Centre (NASC). The cyp707a1-1 and cyp707a1-1 cyp707a2-1 mutants are as described in Okamoto et al., 2006 and were kindly provided by Eiji Nambara. ga3ox1-3 and the ga3ox1-3 ga3ox2-1 mutants are as described in Mitchum et al., 2006 and were obtained from NASC. The dog1-3 mutant in the Col-0 background is SALK 000867 (as described in Bentsink et al., 2006), and the anac060 mutant is SALK 012554C (as described in Li et al., 2014). The ahg1-5 mutant is as described in Née et al., 2017a and was kindly provided by Guillaume Née. dog1-3, anac060 and ahg1-5 were all confirmed to be homozygous by PCR based genotyping, with primers detailed in Supplementary file 4. The dog1 mutant in the No-0 background was obtained as a segregating Ds transposon tagged line from RIKEN, BRC number: pst21966, line number: 15-3980-1 (Kuromori et al., 2004). We obtained homozygous mutants by PCR-based genotyping with primers detailed in Supplementary file 4. We also obtained homozygous wild-type lines from the pst21966 segregating population and used them as controls in the germination assay (labelled as No-0 in Figure 4—figure supplement 5).

To generate seed for assaying germination time distributions, plants were grown in batches of 40 lines in P40 trays with F2 soil treated with Intercept 70WG (both Levington, http://www.scottsprofessional.co.uk). In total, 345 MAGIC lines and 29 accessions were phenotyped. The parental plants used for seed collection were sown in a staggered manner across 13 batches. We checked that the sowing batch of the parental plants was not a major contributor to the variation seen between lines (~6% of the total phenotypic variance for CV could be attributed to the sowing batch, while 52% was due to the genotype of the line).

Plants for seed collection were grown in Conviron growth chambers with 16 hr of light (170 µM/m2/s) and 8 hr of dark, with a day time temperature of 21°C and night-time temperature of 17°C at 65% relative humidity. These are standard conditions for Arabidopsis growth and similar or the same as those used for seed harvest in a number of studies (Donohue et al., 2005; Finch-Savage et al., 2007; Linder, 2014; Springthorpe and Penfield, 2015).

Some of the accessions required vernalisation to flower. For these lines, after 10 days of growth in the standard conditions described above, the plants were transferred to a Conviron growth chamber with 8 hr of light (15 µM/m2/s) and 16 hr of dark, with a constant temperature of 5°C at 90% relative humidity. For the MAGIC parental accessions that were vernalised, the plants were kept in the cold for a period of 8 weeks. For the Spanish accessions, different lengths of vernalisation period were used, as described in Vidigal et al., 2016. Details of which accessions were vernalised, and the period of vernalisation for the Spanish accessions, are provided as Supplementary files Supplementary file 2 and Supplementary file 3. To ensure that all plants used for seed harvest for QTL mapping were treated in an identical way, none of the MAGIC lines were vernalised; thus, only MAGIC lines that flowered without vernalisation were used in our study.

In a given sowing, genotypes were distributed across all trays (in random positions) and the trays were rotated approximately every three days to make sure that the parent plants were exposed to as similar microenvironmental conditions as possible. Six replicate plants of each line were grown. Each plant was bagged as soon as its first siliques started to ripen. Plants were watered until most (~95%) of the siliques had ripened, and then watering was stopped and plants were left in the growth chamber for 7 days to dry (Huang et al., 2014). Seeds obtained from these plants were then stored for approximately 30 days before sowing (e.g. Linder, 2014) in a dark chamber kept at 15°C and 15% relative humidity. To check the quality of seed collected and stored for ~30 days in these conditions, we performed stratification experiments for a subset of MAGIC lines (32 lines, including the most highly variable lines) by putting imbibed seeds at 4°C in the dark for 4 days prior to sowing. All but three lines had >90% germination after stratification, and the three lines that germinated poorly after stratification showed >97% germination when sown on plates containing 10 μM gibberellin A4 (Sigma Aldrich, G7276).

Prior to sowing, seeds were sterilised for 4 min with 2.5% bleach, followed by one rinse with 70% ethanol for 1 min and then washed four times with sterile water.

After sterilising, seeds were suspended into 0.1% agar and pipetted on to an empty Petri dish, with even spacing between seeds. 0.9% agar was melted, cooled to 35°C, then poured on top of the seeds (25 ml per round Petri dish) and allowed to dry. This method of sowing seeds below agar makes scoring seeds over long time periods easier and helps to maintain a more constant environment than sowing on top of agar (where condensation forms) or on filter paper where it is difficult to maintain constant moisture levels. We checked the germination time distributions for 20 lines that were sown above agar (by pipetting seeds on top of solidified and cooled agar) or below agar, as described above, and found that we obtained similar CVs of germination time for both methods. Plates were sealed with micropore tape and put into a tissue culture room with 16 hr of light (85 µM/m2/s) and 8 hr of dark, a day time temperature of 20.5°C a night-time temperature of 18.5°C and 50% relative humidity. Each Petri dish contained approximately 150 seeds. Seed germination was scored daily, using a dissecting microscope to detect radicle protrusion, and plates were checked until at least 2 weeks after the last germination event was observed (with the exception of ABA and GA dose–response experiments, which were scored until 19 or 20 days after sowing, see ABA and GA dose–response methods section). The germination time data is provided in data files Supplementary file 1Supplementary file 2 and Supplementary file 3 . To calculate germination statistics, the data were filtered to exclude plates where less than 10 seeds germinated. We reasoned that a minimum number of seeds was needed to reliably estimate the CV. This filtering meant that 4 MAGIC lines out of the 345 that we phenotyped were excluded completely from further analysis. For 24 MAGIC lines, one or more replicate seed batches were excluded from further analysis. Following filtering, for 91% of MAGIC lines, at least three replicate seed batches (each collected from a different parent plant) were used for each genotype. The seed batches were sown separately, with one Petri dish for each of the three batches. For 9% of lines, only one or two replicates were used (25 lines had two batches, 6 had only one batch).

For 32 MAGIC lines, the whole experiment was repeated, with parental plants for seed harvest from a new independent sowing. The germination time distributions of MAGIC lines and natural accessions were all determined on agar plates as described above. The Col-0 × No-0 F2 experiment was phenotyped on soil in the same conditions as those described above for growing plants for seed harvest. Transparent lids were kept on the trays of soil, and newly germinated seedlings were removed and counted every day. A seed was considered to have germinated when its cotyledons had visibly emerged.

QTL mapping by bulked-segregant analysis

Request a detailed protocol

Col-0 × No-0 F2 seeds were sown on soil as described above. Seedlings that germinated early (day 4, early pool, E1) or in two late pools (late one pool, L1: days 31–39 and late two pool, L2: days 43–60) were moved into separate P40 trays and grown until flowering. The primary apices of 152 plants from E1, 321 from L1 and 213 plants from L2 were collected onto dry ice shortly after bolting and stored at −80°C. The apices from each pool were combined and ground together in liquid nitrogen, and then genomic DNA was extracted using a CTAB method (Glazebrook and Weigel, 2002). Genomic DNA library preparation and sequencing was carried out by Novogene (UK) Company Limited using NEB Next Ultra DNA Library Prep Kit (cat no. E7370L). The libraries were sequenced on an Illumina NovaSeq 6000 machine with 300 cycles (150 bp paired-end reads).

All of the bioinformatics processing steps and options used are detailed in the scripts provided with this paper (see data availability), so we only provide a brief summary here. We used FastQC v0.11.3 (Andrews, 2020) for checking read quality. Quality filtering was performed using cutadapt 1.16 (Martin, 2011) to remove Illumina adapters from the reads, remove reads with ambiguous base calls and trim reads if the base quality dropped below a phred score of 20, keeping only those reads with at least 50 bp after trimming. Over 99% of bases were retained after filtering. The filtered reads were aligned to the Arabidopsis reference genome (TAIR10 version) using bwa mem 0.7.12 (Li and Durbin, 2009) with default options, except we used the `-M` option to mark short split alignments as secondary. Potential PCR duplicates were removed using Picard MarkDuplicates 2.18.1 (~20% of the reads were marked as duplicates). We performed realignment around indels using the `RealignerTargetCreator` tool from GATK 3.4–46 (McKenna et al., 2010). Finally, we obtained allele counts at variant sites using freebayes v1.2.0 (Garrison and Marth, 2012) using the `--pooled-continuous` mode, and restricting calls to sites with a depth of coverage between 10 and 400 including a minimum Phred base quality score and read mapping quality score of 20, and a minimum count of 2 and minimum frequency of 1% for the non-reference allele. We did not include indels in the analysis. To assess the presence of a QTL from these data, we used both the G’ statistic of Magwene et al., 2011 and the simulation-based approach of Takagi et al., 2013 to compare the three pools with each other. Both of these methods are implemented in the R/QTLseqr v0.7.5.2 package (Mansfeld and Grumet, 2018) and gave similar results, so we report only the latter.

QTL mapping in MAGIC lines

Request a detailed protocol

QTL mapping in the MAGIC lines was performed using the happy.hbrem R package (Kover et al., 2009) and our custom package MagicHelpR v0.1 (available at https://github.com/tavareshugo/MagicHelpR). In summary, for each of the 1254 available markers, the probability of ancestry of an individual’s genotype at that marker was inferred using the function `happy` from the R/happy.hbrem package (Mott, 2015). For each marker, an N × 19 matrix is obtained with the probabilities that the N individuals inherited that piece of genome from each of the 19 founder accessions of the MAGIC population. This matrix was then used to fit a linear model, regressing the trait of interest onto this probability matrix. This type of model was used for each trait analysed. In all cases, significance was assessed using an F-test to compare the full model to a reduced model that excluded the genotype matrix, and we report the −log10(p-value) of this test. We used a genome-wide significance threshold of −log10(p-value) = 3.5, which is an approximate threshold at α = 0.05 based on simulations (Kover et al., 2009). Significance of candidate QTL was also confirmed from a permutation-based empirical p-value based on 1000 phenotype permutations. The variance explained by candidate QTL markers was obtained from the coefficient of determination (R2) of the linear model.

The founder accession’s effect at each candidate QTL was estimated using the method in Kover et al., 2009 and adapted from the R function `imputed.one.way.anova` in the magic.R script available at http://mtweb.cs.ucl.ac.uk/mus/www/magic/ (last accessed May 2020). In summary, each MAGIC line was assigned to a single-founder accession based on its ancestry probabilities at that marker. MAGIC lines are then grouped by founder accession, and the trait’s average is calculated for the 19 accessions. This procedure was repeated 500 times to produce an average estimate and associated 95% confidence interval (taken as the 0.025 and 0.975 quantiles of the phenotype distributions thus obtained).

All trait data were rank-transformed to achieve normality and constant variance of the residuals in the QTL model. However, our results were robust to data transformation.

ABA and GA dose–response experiments

Request a detailed protocol

For Figure 6 and Figure 6—figure supplement 1, dose–response experiments were performed on six high variability MAGIC lines (M143, M393, M285, M178, M182, M53) and five low variability MAGIC lines (M151, M108, M123, M213, M467), plus Col-0. Seed batches were pools of seed from three parent plants of each genotype. Dose responses were performed at least twice using independently collected seed batches for each MAGIC line used, except for MAGIC lines 467 and 151, which have one replicate in the GA dose response experiment.

Seeds were obtained, sowed and grown as described above for phenotyping, except that the indicated concentrations of gibberellin A4 (Sigma Aldrich, G7276) or abscisic acid (Sigma Aldrich, A1049) were added to the 0.9% agar medium used for germination assays. The GA4 stock was made using ethanol, and the ABA stock using methanol and respective vehicle control treatments were used. Germination was scored as radicle emergence until 20 days after sowing.

The ABA dose responses on candidate gene mutants in Figure 4—figure supplement 5 were performed as described above, and germination was scored until 19 days after sowing. For dog1-3 and Col-0 seeds sown 5 DAH in the absence of ABA, five independent experiments were performed, each with three separate seed batches from different parent plants. For anac060 and Col-0 seeds sown 3 DAH in the absence of ABA, four independent experiments were performed, each with three separate seed batches from different parent plants. For all other mutant versus wild-type comparisons and the ABA dose responses, one experiment was performed with three separate seed batches from different parent plants.

Minimal mathematical model for seed germination

Request a detailed protocol

We developed a model to capture the relationships between the hormones ABA and GA and key transcriptional regulators that act as inhibitors of germination. ABA and GA are known to have opposing effects on the transcription, protein levels or protein activity of the transcriptional regulators DELLAs, ABI4 and ABI5 (Ariizumi et al., 2008; Liu et al., 2016; Piskurewicz et al., 2008; Shu et al., 2016a; Tyler et al., 2004). Here we represent these germinator inhibitors as one factor, called Integrator, the production of which is promoted by ABA and the degradation of which is promoted by GA.

The germination inhibitors are known to feedback to influence GA and ABA levels through effects on their biosynthesis or catabolism (Ko et al., 2006; Oh et al., 2007; Piskurewicz et al., 2008; Shu et al., 2016a, Shu et al., 2013). For example, DELLAs promote the levels of expression of XERICO, which promotes ABA biosynthesis (Ko et al., 2006; Zentella et al., 2007). We capture this in the model by assuming that Integrator promotes ABA biosynthesis, creating a positive feedback loop between ABA and Integrator. Since GA inhibits the Integrator, GA ends up effectively inhibiting ABA levels through the integrator.

With regards to the feedback between the germination inhibitors (represented by the Integrator) and GA, the literature is less clear about the nature of the interaction. ABI4 appears to negatively regulate GA levels (Shu et al., 2013), supporting a double-negative (i.e. positive) feedback loop between GA levels and Integrator. However, there are mixed reports about the relationship between DELLAs and GA during germination, with studies suggesting both inhibition (Oh et al., 2007) and promotion (Topham et al., 2017; Zentella et al., 2007). As has previously been suggested (Yamaguchi and Kamiya, 2000), we assume that, on balance, the net relationship between the germination inhibitors and GA is negative during germination, creating a mutual inhibition between the inhibitors and GA levels. This may contribute to the large increases in GA levels that occur following sowing. With this set of interactions, since ABA increases the levels of Integrator, it effectively inhibits GA. Thus, the model captures the mutual inhibition between ABA and GA. Overall, the model exhibits a mutual inhibition and mutual activation circuit coupled by Integrator (see Figure 5A), constituting a double-positive feedback.

The deterministic model for ABA ([ABA]), GA ([GA]) and the Integrator ([I]) is described by the following equations:

(1) d[ABA]dt=βABA+fABA([I])vABA[ABA]
(2) d[GA]dt=βGA+βGA,Z[Z]+gGA([I])vGA[GA]
(3) d[I]dt=βI+fI([ABA])(vI+fI([GA]))[I],

where βX and vX are constitutive production and degradation rates for each X variable, respectively, and βGA,Z is a coefficient for another production term for GA, coming from a first-order reaction to simulate the sowing-induced increase in GA production (see below). fX(y) and gX(y) correspond to Hill increasing and decreasing regulatory functions acting on variable X, defined as fX(y)=CX,YyhθX,Yh+yh and gX(y)=CX,Y1+yhθX,Yh, respectively, where CX,Y and θX,Y are parameters in the function dependent on variable Y acting on variable X , and h is the exponent in these functions. For simplicity, we set all exponents to the same value. We refer to θX,Y parameters as regulatory thresholds, representing the Y concentration value at which the regulatory function is half of its maximal value. Note that the inverse of θX,Y parameters can be understood as sensitivities to Y acting on X; high θX,Y values will generally require high Y quantities to affect X dynamics through the regulatory function, meaning low sensitivity of X to Y.

We simulate a sowing-induced increase in GA production rates by adding an extra factor, [Z], which follows the dynamics governed by Equation 4 and feeds into Equation 2:

(4) d[Z]dt=βZvZ[Z].

We focus on those parameters leading to either monostability or bistability, typically showing a low GA – high ABA – high Integrator stable state and a high GA – low ABA – low Integrator stable state. To capture the inhibitory effect of the DELLAs, ABI4 and ABI5 (represented by Integrator) on germination, we assume that in each seed the Integrator level must drop below a threshold for germination to occur. If the system switches to the low GA – high ABA – low Integrator state, and this Integrator state is below a certain threshold, then germination occurs.

Our model can be understood as a time-dependent switch (Verd et al., 2014) with stochastic fluctuations, and variability in timing – in this case, germination time – is captured when crossing a concentration threshold (Ghusinga et al., 2017). Note that this circuit can also lead to tristability, but, for simplicity, we do not explore this model feature in detail.

In simulations of exogenous ABA or GA application, the Integrator equation follows the dynamics

(5) d[I]dt=βI+fI([ABA]+[ABA]exo)(vI+fI([GA]+[GA]exo))[I],

where [ABA]exo and [GA]exo are constant variables representing the concentrations of exogenous ABA and GA.

To take into account the intrinsic fluctuations of the network, we simulated the stochastic chemical Langevin equations (Gillespie, 2000; Adalsteinsson et al., 2004) of the model Equations 1–4 , which read

(6) d[ABA]dt=βABA+fABA([I])vABA[ABA]+12V(βABA+fABA([I])+vABA[ABA])ηABA(t)
(7) d[GA]dt=βGA+βGA,Z[Z]+gGA([I])vGA[GA]+12V(βGA+βGA,Z[Z]+gGA([I])+vGA[GA])ηGA(t)
(8) d[I]dt=βI+fI([ABA])(vI+fI([GA]))[I]+12V(βI+fI([ABA])+(vI+gI([GA]))[I])ηI(t)
(9) d[Z]dt=βZvZ[Z]+12V(βZ+vZ[Z])ηZ(t),

where V is an effective volume of the modelled system, which determines the strength of the stochastic term; ηX is a Gaussian random number with zero mean that fulfils <ηX(t)ηY(t)>=δ(tt)δX,Y;δX,Y is the Kronecker delta, where X and Y refer to concentration variables and δ(t-t’) is the Dirac delta, where t and t’ are two arbitrary time points. We will refer to noise intensity as the inverse of the V parameter, given that the stochastic terms diminish with the increase of V. Note that all stochastic equations recover the deterministic limit when V parameter goes to infinity, as expected for the standard chemical Langevin equation (Gillespie, 2000).

The stochastic version for Equation 5 for modelling the application of exogenous ABA and GA reads

(10) d[I]dt=βI+fI([ABA]+[ABA]exo)(vI+fI([GA]+[GA]exo))[I]+12V(βI+fI([ABA]+[ABA]exo)+(vI+fI([GA]+[GA]exo))[I])ηI(t).

This bistable switch model is reminiscent of the bistable switch model proposed by Topham et al., 2017, although the mutual inhibition has been implemented differently, and we considered stochastic fluctuations.

Initial conditions were set at the fixed point of the deterministic model that exhibited the highest Integrator value before the sowing-induced increase in GA production (i.e. the highest root solution for the Integrator when βGA,Z=0). When exogenous ABA or GA were applied, we assumed that seeds were in the same initial state as they would have been in the absence of exogenous hormone treatments. Numerical integration of the chemical Langevin equations with the îto interpretation was performed with the Heun algorithm (Carrillo et al., 2003) with an absorptive barrier at 0 to prevent negative concentration values. After each integration step, seeds were tagged as germinated if their Integrator concentration was below the germination threshold. The integration time step was set at dt = 0.1. All simulations were stopped at time 1000.

Fixed points of the deterministic dynamics were computed by finding the solutions to the nullclines for the deterministic model Equations 1–4, that is, d[ABA]/dt=d[GA]/dt=d[I]/dt=d[Z]/dt = 0, and then by substituting all the variables into the Integrator equation. The algebraic equation to solve reads

(11) [I]0=βI+fI([ABA]0)vI+fI([GA]0),

with

(12) [ABA]0=βABA+fABA([I]0)vABA
(13) [GA]0=βGA+βGA,Z[Z]0+gGA([I]0)vGA
(14) [Z]0=βZvZ,

where [ABA]0, [GA]0, [I]0 and [Z]0 are the steady state solutions of the different variables. For finding the fixed points in the cases of exogenous application of GA and ABA, an equivalent procedure was performed with Equations 1, 2, 4 and 5.

To find all the solutions at each particular parameter set, we first used the bisection method throughout logarithmically spaced intervals for the Integrator variable to find approximate solutions, and then used the opt.brentq scipy function in Python to find the exact solutions. We also represented the left- and right-hand side of Equation 11 or an equivalent equation for the exogenous application of GA and ABA to graphically see the solutions of the system (see Figure 5—figure supplement 1 and Figure 6—figure supplement 3). In these plots, we represented the deterministic stability by analysing the sign of dI/dt at the vicinity of the solutions (Strogatz, 2015). Upon the variation of a certain parameter value or the application of exogenous ABA or GA, a given stable fixed point will approach to (or get further from) the separatrix, i.e. the hyperplane in the solution space separating the basins of attraction of the stable fixed points (Strogatz, 2015), which contains an unstable fixed point in our case. When studying the stochastic system, we will assume that a stable fixed point will lose stability when it approaches the unstable fixed point, given that this most likely will facilitate the stochastic switching to the other stable fixed point; conversely, a stable fixed point will gain stability when it gets further from the unstable fixed point. This assumption is consistent with the outcome of our simulations (Figure 5—figure supplement 1H–U, Figure 6—figure supplement 2A, Figure 6—figure supplement 3A).

Parameter values for the simulations and the theoretical plots were set as described in Table 2.

Table 2
Default values for each parameter in our mathematical model and varying parameters used in figures showing 1D parameter scans.

βX: production rate for X; vX: degradation rate for X; θX,Y: threshold above which Y has an effect on X; CX,Y: coefficient for regulatory functions of Y acting on X; h: exponent of regulatory functions; V: effective system volume (modulates noise). All parameter units are arbitrary.

DefaultFigure 5B–DFigure 5—figure supplement 2AFigure 5—figure supplement 2BFigure 5—figure supplement 2CFigure 5—figure supplement 2D
βABA1Varying
βGA0.3
βGA,Z0.01
βZ39
βI0.3
vABA11.58
vGA1
vZ0.1
vI0.4
θABA,I3.7
θGA,I1.2
θI,ABA6.5Varying1010
θI,GA6VaryingVarying
CABA,I10
CGA,I4
CI,ABA10
CI,GA6
h4
V30100Varying

To better understand the dynamics across several parameter ranges, we performed simulations varying two parameters at the same time. The resolution of the parameter exploration was of 4–5 parameter values per order of magnitude, logarithmically spaced. In this parameter space exploration, we also studied the different regions of the parameter space that could be predicted from nullcline analysis. This allowed us to find the bistable and tristable regions of the parameter space, the regions where no germination is expected in the deterministic limit and the regions where germination would instantaneously occur. The remaining regions in the parameter space were monostable. Note that monostable, bistable and tristable regions were computed by counting the number of steady states after the rise of GA production. Regions where no germination would occur in the deterministic limit were those where the lowest fixed point for the integrator was higher than the germination threshold. Regions where germination would instantaneously occur were those regions having the highest Integrator fixed point below the germination threshold before the sowing-induced increase of GA production. CV and mode of the simulations were represented when there were more than nine seeds germinating out of 1000, so the percentage of germination was equal to or higher than 1%.

The theoretical regions across the parameter spaces, obtained from nullcline analysis of the deterministic model, closely predicted the stochastic simulation outcomes (Figure 5—figure supplement 4). One exception was that simulations occasionally showed some germination happening after a small number of simulation steps in the instantaneous germination region. In these cases, even if initial conditions were below the germination threshold, after an integrator step, the Integrator variable was not below the threshold anymore due to the stochastic fluctuations, and therefore, germination happened later on during the simulation (Figure 5—figure supplement 4F). Also, in the area where no germination was expected in the deterministic limit, germination could occur in some occasions due to stochastic fluctuations, leading to different germination percentages. This happened either when the germination threshold was just below the lowest Integrator fixed point after the rise of GA production or at high noise intensities (e.g. see Figure 5—figure supplement 4E,G).

Our theoretical analysis and simulations showed that there are two different prototypical dynamical behaviours that are most biologically relevant (Figure 5—figure supplement 1). On one side, simulations in which there is bistability after the rise of GA production, where seeds can undergo a transient in which they remain in a high Integrator state above the germination threshold, until stochastic fluctuations make them switch to the low Integrator state, driving germination. On the other side, simulations in which there is monostability after the rise of GA production, where the seeds achieve the low Integrator state in a more direct manner. Those simulations falling within the instantaneous germination region would not be biologically relevant, given that a certain time is needed for seeds to germinate after sowing. Simulations leading to germination and falling within the non-germination region in the deterministic limit would also be less biologically relevant, given that the Integrator would repeatedly cross the threshold back and forth, not persisting below it.

Note the instantaneous germination regions and the non-germination regions can also contain monostable, bistable and tristable cases. For simplicity, throughout the text, we use the term monostable regions to refer to those regions in the parameter space that are monostable after the rise of GA production and do not overlap with these two less biologically relevant regions (i.e. such biologically relevant monostable regions correspond to the white theoretical predicted regions in Figure 5—figure supplement 4).

The parameter space explorations and derived panels in Figure 5—figure supplements 25 show stochastic simulation runs for 400 seeds. The exploration of the ABA sensitivity parameter (Figure 5) and the dose dependence plots and derived panels shows simulation runs for 4000 seeds (Figure 6, Figure 6—figure supplements 1 and 2), as do simulations shown in Figure 5—figure supplement 1.

In most of the presented simulated results we have excluded those simulation points corresponding to parameter values that could lead to germination even without the rise of GA production (i.e. for βGA,Z = 0). These excluded parameters would represent the possibility of having germination prior to sowing, which is not biologically relevant. In particular, additional stochastic simulations on 4000 seeds were run in relation to Figure 5 to exclude such non-biologically relevant points, and simulations on 40 seeds were run in relation to Figure 5—figure supplements 2 and 5 for the same purpose. Additionally, we corroborated that no germination occurred if we eliminated the rise of GA production for the simulation cases studied in Figure 5—figure supplement 1, and for the cases in which no exogenous ABA and GA was applied in Figure 6 and Figure 6—figure supplement 1. To do so, in each of these cases, a stochastic simulation on 4000 seeds was run with βGA,Z = 0. In all these figures, we also excluded those points falling within the less biologically relevant theoretical regions mentioned above, that is, the non-germination region in the deterministic limit, and the spontaneous germination region – and we found that parameter values falling in the spontaneous germination region were a subset of parameters where there would be germination even without the rise of GA production. When applying exogenous ABA or GA in Figure 6 and Figure 6—figure supplement 1, we performed appropriate checks, checking that both controls and the applied doses were not fulfilling the spontaneous germination condition (as indicated by the level of the highest unperturbed fixed point of the Integrator) and that the controls did not germinate without the rise of GA production, as explained above. We also corroborated that both the controls and the applied doses would not fall in the non-germination condition in the deterministic limit. In the 2D parameter explorations (Figure 5—figure supplement 4), we represented all the simulated points, such that all behaviours (biologically relevant and less biologically relevant) could be studied and exemplified.

Numerical simulations were performed with the Organism simulator (https://gitlab.com/slcu/teamHJ/OrganismJonsson et al., 2005). Modelling figures were produced with the Matplotlib Python library (Hunter, 2007).

Data availability statement

Request a detailed protocol

Whole-genome sequence data was deposited to NCBI's Short Read Archive (BioProject accession PRJNA486286). All data analysis and modelling scripts can be found at https://gitlab.com/slcu/teamJL/abley_formosa_etal_2020. Both the raw and processed experimental data for use with the analysis scripts are available from the Cambridge Apollo Repository (https://doi.org/10.17863/CAM.66984).

Data availability

Whole genome sequence data was deposited to NCBI's Short Read Archive (BioProject accession PRJNA486286). All data analysis and modelling scripts can be found at https://gitlab.com/slcu/teamJL/abley_formosa_etal_2020, copy archived at https://archive.softwareheritage.org/swh:1:rev:0a97b841e58b128c174d93fc759b28f1df2966a2. Both the raw and processed experimental data for use with the analysis scripts are available from the Cambridge Apollo Repository (https://doi.org/10.17863/CAM.66984).

The following data sets were generated
    1. Abley K
    2. Tavares H
    3. Formosa-Jordan P
    4. Chan EY
    5. Afsharinafar M
    6. Leyser O
    7. Locke JCW
    (2021) Cambridge Apollo Repository
    Data supporting 'An ABA-GA bistable switch can account for natural variation in the variability of Arabidopsis seed germination time', Abley & Formosa-Jordan et al., eLife (2021).
    https://doi.org/10.17863/CAM.66984
    1. Abley K
    2. Formosa-Jordan P
    3. Tavares H
    4. Chan E
    5. Leyser O
    6. Locke JCW
    (2018) NCBI BioProject
    ID PRJNA486286. Genetic basis for variability in Arabidopsis seed germination time.
The following previously published data sets were used
    1. Kover PX
    2. Valdar W
    3. Trakalo J
    4. Scarcelli N
    5. Ehrenreich IM
    6. Purugganan MD
    7. Durrant C
    8. Mott R
    (2009) NA
    ID NA. A Multiparent Advanced Generation Inter-Cross to Fine-Map Quantitative Traits in Arabidopsis thaliana.

References

    1. Alonso-Blanco C
    2. Bentsink L
    3. Hanhart CJ
    4. Blankestijn-de Vries H
    5. Koornneef M
    (2003)
    Analysis of natural allelic variation at seed dormancy loci of Arabidopsis thaliana
    Genetics 164:711–729.
    1. Donohue K
    2. Dorn L
    3. Griffith C
    4. Kim E
    5. Aguilera A
    6. Polisetty CR
    7. Schmitt J
    (2005)
    The evolutionary ecology of seed germination of Arabidopsis thaliana variable natural selection on germination timing
    Evolution 59:758–770.
    1. Gillespie DT
    (2000) The chemical Langevin equation
    The Journal of Chemical Physics 113:297–306.
    https://doi.org/10.1063/1.481811
  1. Book
    1. Glazebrook J
    2. Weigel D
    (2002)
    Arabidopsis: A Laboratory Manual
    Cold Spring Harbor Laboratory Press.
  2. Book
    1. Hanzi H
    (2014)
    Environmental Regulation of Seed Performance
    Wageningen University.
    1. Ko J-H
    2. Yang SH
    3. Han K-H
    (2006)
    Upregulation of an Arabidopsis RING-H2 gene, XERICO, confers drought tolerance through increased abscisic acid biosynthesis
    The Plant Journal : For Cell and Molecular Biology 47:343–355.
    1. Koornneef M
    2. Karssen CM
    (1994)
    12 seed dormancy and germination
    Cold Spring Harbor Monograph Archive 27:313–334.
  3. Software
    1. Mott R
    (2015)
    happy.hbrem: Quantitative Trait Locus genetic analysis in Heterogeneous Stocks
    happy.hbrem: Quantitative Trait Locus genetic analysis in Heterogeneous Stocks.
    1. Simons AM
    2. Johnston MO
    (2006)
    Environmental and genetic sources of diversification in the timing of seed germination: implications for the evolution of bet hedging
    Evolution 60:2280–2292.
  4. Book
    1. Strogatz SH
    (2015)
    Nonlinear Dynamics and Chaos: With Applications to Physics, Biology, Chemistry, and Engineering
    Westview Press.
    1. Viney M
    2. Reece SE
    (2013) Adaptive noise
    Proceedings of the Royal Society B: Biological Sciences 280:20131104.
    https://doi.org/10.1098/rspb.2013.1104

Decision letter

  1. Daniel J Kliebenstein
    Reviewing Editor; University of California, Davis, United States
  2. Jürgen Kleine-Vehn
    Senior Editor; University of Freiburg, Germany

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This work begins to study how non-linear regulatory systems and natural variation intersect to control key fitness traits. They show that natural variation in a bistable switch relationship between ABA and GA, two key plant hormones, influences the natural variation and stochasticity in seed germination timing within Arabidopsis thaliana.

Decision letter after peer review:

Thank you for submitting your article "An ABA-GA bistable switch can account for natural variation in the variability of Arabidopsis seed germination time" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Christian Hardtke as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another, and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

In this work, the authors proceed to begin investigating the basis of stochastic variation in seed germination using modelling and natural variation.

Essential revisions:

All the reviewers and editors agreed that the work presented was very interesting. However, the work feels like two separate manuscripts, one on modelling and one on natural variation. The editors and reviewers judged that there needs to be some form of more explicit connection between the two parts. Each reviewer provided some ideas on how to accomplish this including some that revolve around solely analyzing the existing data.

There is also a desire to be more introspective about the discussion of coupling between mean and CV of this trait as there is a genetic and mechanistic connection. For example, there is a correlation between mean and CV but this by no means explains all the data. As such, they are not independent, but neither are they fully dependent. An acknowledgement of this throughout and possibly finishing with saying that more work is needed to find and test how many loci are unique to mode or CV versus shared between the two would be sufficient.

Finally, we are not fully convinced by the bet-hedging experiment. It does not seem to have much connection to biology and is more a proof that if plants are alive, they are selected against. This experiment is not really essential to the manuscript and could be dropped. Or possibly perform an ecological analysis of haplotype diversity across Europe to provide more biological relevance to this claim.

Reviewer #1:

This is a very interesting manuscript looking at CV in germination timing from a number of angles including natural variation and modelling. There are some terminology and statistical issues that complicate the manuscript, but these are readily addressable. The biggest struggle I had was that there is a disconnect between the MAGIC and Modelling work. Essentially the MAGIC ends with saying it might be one ABA and one GA related gene controlling the variation in CV and the Modelling instantly jumps into the ABA/GA. While this is interesting, there is not a strong link in the end between the two sections. In Figure 7, the authors use the ABA/GA concentrations on the high and low variability lines but then never really go back and use this data to show that these lines are altering the expected components in the model. This could be readily tested by looking at the haplotypes at the two QTL in these lines, incorporating them into the ABA/GA model and comparing to the results. For example, do the haplotypes predict the unique response to GA in Figure 7B-iv? Instead, the authors simply treat them as high vs low lines rather than diving down to the haplotypes at the two QTLs. Without this connection, the manuscript feels like a set of disconnected vignettes. While I provide one instance of how to link the model to haplotype variation there are other possibilities, and this should be attempted.

The authors discuss in the Introduction that bet-hedging is solely where the same genotype produces different phenotypes, but this is simply one form of bet-hedging. It is also possible to achieve bet-hedging by the presence of standing genetic variation within a population as a way to respond to fluctuating or other non-linear selective processes. It would help to clarify that the authors are focused on stochastic or probabilistic bet-hedging and not the other forms.

The authors focus solely on how bet-hedging may enable the avoidance of stress conditions. But there is another possibly equally important effect of lengthening the generation time which allows the long-term maintenance of genetic variation required for stressful conditions. There is literature on how longer generation times provide a form of "memory" to maximize the ability to maintain the potential to have genetic variation required for unique selective events. In this model, delayed germination would lengthen the generation time and actually work to maintain germplasm that is adapted to rare stressful conditions.

Discussing the variation of variation is not the easiest thing to write and there are places where the text is not very clear. For example, the sentence "Additionally, the extent to which there is natural variation in germination time distributions in Arabidopsis has not been described." Is meant to be specific about mapping the distribution as the trait but it is kind of fuzzy and the authors of the DOG studies may take umbrage with sentences like this. I would suggest developing a single terminology for variance as a trait and use it consistently. I understand that it is not the most pleasant in a grammatical context to repeat terminology but given that the community is not used to variance as a trait this will greatly help the audience to really understand what is being communicated. For example, "variability in germination time" could equally be referring to natural genetic variation that alters the mean or the stochastic component of the trait.

The seeds from 3 plants were collected. Were they phenotyped separately or were the 3 plants mixed?

I am a bit puzzled by this sentence "We chose a relatively short period of dry storage for our experiments as we reasoned that this would best reflect the state of naturally shed seeds". Is there evidence that most Arabidopsis accessions rapidly re-germinate within a month? This would only be true in some specific environments, correct? For example, seeds in Mediterranean environments should have a long delay to ensure that they germinate at the start of the next rains. And Scandinavian summer accessions would equally over-winter as seeds. Even going to 60 days in these environments does not capture the spectrum. I agree that this is a choice but am not sure that it is valid to say it reflects the "natural state". The authors had to choose one environment. I would simply state this and that this is the one chosen, and it would be useful to try other environments in the future.

In the Results, it appears that the authors have conducted independent biological experiments of maternal growth and seed set. This provides the ability to directly quantify heritability of CV rather than the more visual analysis that has been done. The authors should utilize a linear model to directly estimate the heritability of CV in this trait to compare with other traits where CV heritability has been measured.

In Figure 1—figure supplement 1 part A/B, the authors should not include a line of 1:1 unless they have explicitly tested for a relationship. Given this analysis, the authors should conduct a mixed linear ANCOVA with genotype and seed age to directly quantify the influence of the two factors on the CV. Given this analysis, it is likely that they will find that the slope of CV is decreasing across storage time and as such, storage is having an influence on the CV. This will also allow them to show that the rank order of genotypes is not greatly changing across time.

In Figure 2B, it is not clear what these represent. Are these all the siliques on a single plant arranged from top to bottom or are they single siliques from the same plants shown in part A? Similarly, I'm not sure how the top and bottom half of a single silique provides sufficient information to claim that there is no variation along an inflorescence. And by bottom/top, is this distance from the maternal rosette or from the inflorescence stem? The gradients in a single silique would be largely driven by the distance from the inflorescence stem.

As a general statistical guideline, whenever a regression line is shown in a plot, the figure legend should have the information surrounding the line, method, R2, N and significance. Additionally, most of these regressions are conducted using Pearson which is very sensitive to abnormal distributions which are present in most of these data. These should most likely be conducted using Spearman Rank or other similar non-parametric tests.

I'm unsure why the authors correlated the parental effects to the haplotype effects for the two QTLs in a system where there is transgressive segregation and likely epistasis. The use of this correlation is only valid if the model is totally additive with no transgression. In this system, this data doesn't provide evidence one way or another. At best they could develop a two-locus model using the haplotypes and run them as a model together to look at additivity and epistasis to try and explain the parents. But running as single loci isn't informative.

The bet-hedging experiment seems unconnected to the natural variation. Essentially this treatment is a 100% selection event that is never going to occur in nature. The experiment is set up to test if non-germinated seedlings provide the ability to evade absolute death that occurs at a specific date prior to the latest germination time. As such, this is less an experiment and more a control that the phenotyping is reproducible. I'm not sure if this really adds to the manuscript as is. It would need to incorporate some aspect of the natural variation like are the high CV parents more likely to be in fluctuating environments, etc to help support the argument.

Reviewer #2:

Abley et al., use seed germination from the model plant Arabidoss to study, at the genetic level, phenotypic variability. For this, authors used 19 natural accessions and a multi-parent recombinant inbred population. QTL analysis led to the identification of two loci, one in chromosome 3 and the other in chromosome 5. Genes related to ABA signaling such as DOG1 and DOG6 are part of the loci. Mathematical modelling was needed to explain how such genetic loci could influence germination time. A stochastic model involving a bistable switch of players from ABA and GA pathways, led authors to test the effects of disturbing, genetically or by exogenous application, ABA and GA levels, on germination. Finally, authors suggest that variation in seed germination is a strategy of the plant survive upon drastic abiotic stress.

If we consider the study in several consecutive parts such as A. The analysis on germination times of the diverse genetic backgrounds which led to B. a QTL analysis to find genes that were already known to influence germination, such as SOG1 and SOG6, that led to C. Modelling involving, very few by the way, players in ABAignalling pathways to explain D. that GA and ABA levels are key to understand phenotypic variation on germination time.

1) My main concern is how can authors explain the need of the model in this story? since based on their data in B they could have gone directly to D.

2) Moreover, the stochastic model suggested to test the levels of GA and ABA, but even if they sustain in their response the need of the model, how can they connect the data in B with the need to explore, involve, GA in the equation,?

3) Authors should elaborate how they justify the inclusion of GA signalling in the model, if QTL data did not suggest this. Of course, they can claim that GA and ABA are well known players in seed germination, but still the way it is written it feels that GA appears suddenly in the story.

4) If the tracked phenotype is related to loci that involves SOG1, SOG6 and SET1

genes, why authors did not generate, or use mutants in these genes to explore seed germination time? this is one of my major questions, and the only extra experiment work that this reviewer would like to see in a future version of the manuscript.

Reviewer #3:

In this manuscript, Abley and colleagues map differences in germination phenotypes, including the coefficient of variation (CV), the mode, and the percent germinated, in the A. thaliana MAGIC line population, finding two QTL. They then develop a computational model for germination incorporating the integration of ABA and GA pathways to generate a bistable switch for the germination decision and demonstrate that the model can output a variety of CV, mode, and germination percentage phenotypes. Using the model, they then predict and test the response of MAGIC lines with high and low CV to exogenous ABA and GA applications.

I agree with the general premise that bet-hedging and CV variation are potentially ecologically and evolutionarily important and I appreciate the development of a model that serves as a basis for understanding both the molecular and natural genetic mechanisms that generate germination phenotypes. My major concern with this manuscript, however, is that it doesn't quite meet its promise in showing that the bistable switch proposed by the model underlies natural variation in the phenotypes measured here. What is demonstrated is that the model can (possibly) account for the effect of endogenous ABA or GA on MAGIC lines with different CVs. Strictly speaking this isn't the same as demonstrating that the model explains how this CV variation in the MAGIC (or parental lines) is generated to begin with. To do this, one would have to have specific information/predictions about how underlying genetic variation affected model components and then demonstrate that THESE modulations could generate the CV variation observed in parental lines (or MAGIC lines). For example, let's say that a particular allele at the QTL on chromosome three caused reduced expression of DELLAs, subsequently changing the integrator parameter of the model. Would incorporating this modified parameter explain the CV variation between plants with the different variants of this QTL? In some cases, the manuscript makes the distinction between the response and origin questions clear, but in key areas (like the title and abstract), this difference gets blurred.

1) The experiment meant to demonstrate that there is no pattern of germination variability along the plant is not very conclusive. Showing single silique distribution patterns with siliques ordered basipetally would more convincingly demonstrate that there is no relationship between silique age and CV.

2) I am not convinced that mode, CV, and percent germination can be genetically uncoupled. For the most part, there are fairly strong relationships between these phenotypes in the MAGIC lines, with a few (maybe 10 or so) outlying lines where the CV is (presumably) much higher than would be predicted from the mode or percentage germination (Figure 4A – by the way, what is the overlap between these outliers and with the lines with bimodal CV distributions?). The data demonstrating uncoupling consists of several cherry-picked examples in Figure 3 (and its associated supplements). One would really need to look at this more systematically to demonstrate the extent to which this decoupling is actually significant (i.e. considering the variability in mode and CV estimates between replicates, are there lines in which the relationship between CV and mode is different from the predicted relationship?). And in fact, the QTL results also suggest that these phenotypes can't be uncoupled – any QTL for mode or percent is also a QTL for CV, and the QTL on chromosome 5 that the authors claim is CV-specific both explains little variation and its marginal significance depends on whether or not 8 particular lines with bimodal distributions (and therefore perhaps cases in which mode doesn't describe centrality well) are included in the analysis. Even in the bulk segregant analysis, there is a clear relationship between germination time of F2s parents and CV of subsequent F3s. I therefore think that the strength of this claim needs to be reconsidered.

3) Comparing Figure 6 and Figure 7 (the predicted and observed responses of GA and ABA in high and low CV lines), there seem to be quite a number of cases in which the predicted response is different from that observed (the mean and mode in response to GA for example) or in which there is extremely high variability among the lines tested, with only a subset of lines matching the predicted responses (the CV and mean response of high CV lines to ABA, for example). So, at what point can one say that the predicted response is consistent with the observed one? And why would one expect such high variability between lines? Do they harbor QTL alleles that would explain these differences? This might be one way to tie the mapping and modeling parts of the manuscript together better (they currently kind of feel like two disconnected stories – one doesn't need to have mapped QTL to generate the model or confirm the response of high/low CV lines to GA and ABA).

4) The experiment meant to demonstrate the adaptive value of bet hedging is quite trivial – one doesn't really need an experiment to show that killing more plants in one genotype will result in fewer plants of that genotype – and therefore I think the importance of result is overstated in the manuscript. Demonstrating that differences in CV have adaptive value really would be a difficult experiment to do and would need to incorporate some sort of natural (or very closely simulated natural) conditions. If such experiments are attempted, I would also strongly recommend NOT using Col as one of the accessions. Col is presumably adapted to lab conditions, not natural ones, and it is easy to think of how early and low CV germination would be selected for in a laboratory setting (especially if CV can be impacted by a 1-2 major loci).

https://doi.org/10.7554/eLife.59485.sa1

Author response

Essential revisions:

All the reviewers and editors agreed that the work presented was very interesting. However, the work feels like two separate manuscripts, one on modelling and one on natural variation. The editors and reviewers judged that there needs to be some form of more explicit connection between the two parts. Each reviewer provided some ideas on how to accomplish this including some that revolve around solely analyzing the existing data.

We thank the reviewers for their suggestions on how we could form a better link between the natural variation and modelling parts. We have explored all of the suggestions given and have made changes to more explicitly link the genetics and natural variation with the modelling. In the revised version presented here, we explore the hypothesis that the difference between high and low variability lines lies in differences in their ABA sensitivity. This hypothesis is suggested by the candidate genes underlying the QTL peaks, which we have tested in this revised version, providing evidence for their roles in ABA sensitivity during germination and for effects on germination time distributions (see response to reviewer 2, comment 2). We show that, in the model, varying ABA sensitivity can capture differences in variability and the positive correlation in the MAGIC lines between CV and mode.

We simulate high and low variability MAGIC lines, and the ABA and GA dose responses applied to them, with a difference in ABA sensitivity and provide experimental evidence for higher ABA sensitivity in the high variability MAGIC lines.

We also show that other parameters in addition to ABA sensitivity could account for correlated variation in CV and mode, and that some parameters can account for uncoupled variation in CV and mode (and so genetic variation for these parameters could explain the weak coupling between CV and mode seen in the MAGIC lines).

We provide more insight into the basis of high variability in the model, and show that variation in ABA sensitivity, and in some other parameters, affects CV by influencing whether the model operates in a monostable or bistable regime and by influencing the stability of the non-germination steady state within the bistable regime. In our modelling approach, we assume that all seeds of all lines exist in a stable non-germinating state prior to sowing and that sowing (i.e. exposure to water and light) causes a rise in the rate of GA biosynthesis, enabling this situation to change. After this rise in GA biosynthesis, we explore cases where the model operates either in a monostable regime where germination is the only possible state (i.e. the non-germinating state is lost), or a bistable regime, where seeds may either germinate or not. With low ABA sensitivity the model is monostable after sowing, with the high GA, low ABA, low integrator (germination) steady state the only stable state after sowing and the rise in GA biosynthesis. This means that all seeds switch rapidly from their initial non-germinating state (as it disappears upon the rise in GA biosynthesis) into the germination state. With higher ABA sensitivity, the model is bistable after sowing and the rise in GA biosynthesis, with a low GA, high ABA, high integrator (non-germination) steady state in addition to the germination steady state both existing after sowing. After the rise in GA biosynthesis, seeds can remain in the non-germination steady state for some time but are driven to transition to the germination steady state by stochastic fluctuations, which results in variable germination times. When operating within the bistable regime, the stability of the nongermination steady state influences the level of variability such that when this state is more stable, if germination still occurs, it becomes more variable. Hence, our overall hypothesis is that the natural variation between MAGIC lines in the variability of germination time is caused by (i) the ABA-GA network operating in different regimes (i.e. monostable vs bistable) in different lines, and (ii) differences between lines in the stability of the non-germination steady state when bistability occurs following sowing.

There is also a desire to be more introspective about the discussion of coupling between mean and CV of this trait as there is a genetic and mechanistic connection. For example, there is a correlation between mean and CV but this by no means explains all the data. As such, they are not independent, but neither are they fully dependent. An acknowledgement of this throughout and possibly finishing with saying that more work is needed to find and test how many loci are unique to mode or CV versus shared between the two would be sufficient.

We have updated the text throughout to de-emphasise the extent to which the traits are decoupled. We agree with the reviewer that it is likely that there is a genetic and mechanistic connection between CV and mode/mean and we now argue that this coupling can be accounted for by assuming that the major difference between high and low variability lines is related to ABA sensitivity.

We have changed the subsection to: “Variability is weakly coupled to modal germination time and percentage germination”.

In the Results we conclude: “Thus, within the MAGIC population, variability is correlated with percentage germination and modal germination time but can be uncoupled from these traits.”

We have changed the titles of Figure 3 and Figure 3—figure supplement 1 to read: “Variability is weakly coupled to x trait.”

We have changed the subsection to read: “QTL mapping in MAGIC lines reveals two QTL underlying variability in germination time”, thus de-emphasising the claim that the Chr5 QTL controls CV independent from other traits. We’ve also made changes in the text of this Results section so that we no longer claim the Chr5 QTL is variability specific, just that we couldn’t detect statistically significant effects for mode, mean and percent germination. We conclude this section with: “In summary, we have shown that at least two loci contribute to variability in seed germination time in the MAGIC lines (chromosome 3, ~16 Mb and chromosome 5, ~18.6/ 19.8 Mb). Consistent with a correlation between CV, mode days to germination and percentage germination in the MAGIC lines, the main QTL on chromosome 3 has correlated effects on all these three traits. The locus at ~19 Mb on chromosome 5 appears to affect variability most strongly.”

We also now discuss that given that the chromosome 5 QTL is most likely caused by the DOG1 gene (or possibly AHG1), which are both general regulators of germination, the lack of a detectable effect on mode could be because the alleles of these genes present in the MAGIC lines most strongly effect CV or could be due to us not having enough statistical power to detect an effect on this trait. We explore this in the Discussion, where we state:

“In the QTL mapping, the chromosome 5 locus was only found to be significantly associated with the CV of germination time. However, besides their described effect on CV, the mutant alleles of the two candidate genes we tested, DOG1 and AHG1, also affected mode and percentage germination (Née et al. 2017; Bentsink et al. 2006). The fact that we did not detect an association between this region of chromosome 5 and those two latter traits could be explained by differences between the naturally occurring alleles within the MAGIC population (which may predominantly affect CV) and the mutant alleles of these genes (which affect multiple traits). It could also be the case that the MAGIC lines’ alleles affect multiple germination traits but that we didn’t have enough statistical power to detect this.”

Finally, we are not fully convinced by the bet-hedging experiment. It does not seem to have much connection to biology and is more a proof that if plants are alive, they are selected against. This experiment is not really essential to the manuscript and could be dropped. Or possibly perform an ecological analysis of haplotype diversity across Europe to provide more biological relevance to this claim.

We have removed the bet-hedging experiment.

Reviewer #1:

This is a very interesting manuscript looking at CV in germination timing from a number of angles including natural variation and modelling. There are some terminology and statistical issues that complicate the manuscript, but these are readily addressable. The biggest struggle I had was that there is a disconnect between the MAGIC and Modelling work. Essentially the MAGIC ends with saying it might be one ABA and one GA related gene controlling the variation in CV and the Modelling instantly jumps into the ABA/GA. While this is interesting, there is not a strong link in the end between the two sections. In Figure 7, the authors use the ABA/GA concentrations on the high and low variability lines but then never really go back and use this data to show that these lines are altering the expected components in the model. This could be readily tested by looking at the haplotypes at the two QTL in these lines, incorporating them into the ABA/GA model and comparing to the results. For example, do the haplotypes predict the unique response to GA in Figure 7B-iv? Instead, the authors simply treat them as high vs low lines rather than diving down to the haplotypes at the two QTLs. Without this connection, the manuscript feels like a set of disconnected vignettes. While I provide one instance of how to link the model to haplotype variation there are other possibilities, and this should be attempted.

We thank the reviewer for their positive assessment of our work, as well as their very useful suggestions for making stronger connections between the experimental and modelling sections of the manuscript. Please see response to editor’s comment 1 where we describe how we have made a more explicit hypothesis for the mechanism underlying the differences between high and low variability lines.

In relation to the reviewer’s suggestion about looking into the haplotypes at the two QTL for the lines used for the ABA and GA dose responses, we have included Table 1, which shows which haplotypes the high and low variability MAGIC lines have at the two QTL and the estimated effects of these haplotypes on CV. This shows that the high and low variability MAGIC lines we chose for the experiment separate most clearly by the Chr3 haplotypes: all of the high variability MAGIC lines have Chr 3 haplotypes associated with medium or high CV and all of the low variability MAGIC lines have Chr3 haplotypes associated with medium or low CV (and although there are haplotypes of “medium” effect in both high and low variability groups, all the haplotypes in the high variability lines were associated with higher effect on CV than those in the low variability lines) (see Figure 4—figure supplement 2A for haplotype effects). The overall tendency is for all of the low variability lines to behave similarly to each other, and the same for the high variability lines, despite the presence of different haplotypes at the 2 QTL amongst each group of lines. We would need to perform the ABA and GA dose responses for a much larger number of lines systematically chosen for different haplotype combinations to make inferences about how individual haplotypes are related to the response to ABA or GA. Or alternatively, we could analyse haplotype effects in transgenic lines where mutants in Col-0 were complemented with different accession haplotypes (see last comment of this section). We feel that these experiments are beyond the scope of this paper. But the ABA dose response experiment presented here shows that the high variability lines are more sensitive to ABA than the low variability lines (Figure 6B iv), supporting our hypothesis that the difference between high and low variability lines lies in their ABA sensitivity. Since we now think that the best parameter to represent the effects of candidate genes for both QTL is that controlling the sensitivity of integrator production to ABA, we have changed how we model the high and low variability lines and represent them with high and low sensitivities to ABA, respectively.

The behaviour of line 285 cannot be explained by its haplotype effects at these QTL. This line has chromosome 3 and chromosome 5 haplotypes associated with high variability, as does line 393, but the responses of the two lines are different. As we are not able to account for the MAGIC lines with unique responses to ABA/GA with their Chr3 and Ch5 haplotypes (i.e. the haplotypes were not informative in explaining the response) we didn’t attempt to model each MAGIC line with a unique parameter value.

In the discussion we state that in the future it will be important to investigate further the role of specific haplotypes, stating:

“Further work will be needed to identify the causal variants underlying both of the QTL identified here and to determine the extent to which they have correlated or uncoupled effects on different germination traits. It will be important to test directly candidate genes through transforming candidate gene null mutants with corresponding alleles cloned from high and low variability lines (Weigel, 2012). These transgenic lines could then be used to understand how natural variation at the two QTL influences germination time distributions, by using them to quantify the effects of the different accession alleles on CV, mode and percentage germination as well as on traits related to the ABA-GA network such as ABA and GA sensitivity.”

The authors discuss in the Introduction that bet-hedging is solely where the same genotype produces different phenotypes, but this is simply one form of bet-hedging. It is also possible to achieve bet-hedging by the presence of standing genetic variation within a population as a way to respond to fluctuating or other non-linear selective processes. It would help to clarify that the authors are focused on stochastic or probabilistic bet-hedging and not the other forms.

We agree with the reviewer that there is more than one way for a plant population to hedge its bets, and so now clarify the type of bet-hedging we are interested in in the introduction as the reviewer suggests. We have introduced the possibility of phenotypic diversity being produced through maintenance of genetic diversity and clarified that we are focused on differences between genetically identical individuals. Our Introduction now starts as follows:

“In an environment where current cues cannot be used to predict future conditions, exhibiting a range of phenotypes may promote species survival. A population can hedge its bets against an uncertain environment by maintaining genetic variation within the population (e.g. balancing selection (Delph and Kelly, 2014)) or by containing a single genotype that produces a variety of phenotypes (a diversified bethedging strategy (Cohen, 1966, 1966; Lewontin and Cohen, 1969, 1969; Philippi and Seger, 1989; Simons, 2011, 2011)). Bacteria can use diversified bet-hedging strategies to survive a range of changes of condition, including antibiotic treatments (Balaban et al., 2004; Martins and Locke, 2015) and other environmental stresses (Patange et al., 2018). Mechanistic studies suggest that the required phenotypic variability between genetically identical individuals is generated by genetic networks amplifying stochasticity in molecular interactions to generate a range of outputs (Alon, 2007; Eldar and Elowitz, 2010; Viney and Reece, 2013).

In plants, theoretical work shows that variability in the seed germination time of genetically identical seeds is likely to be advantageous in environments that are unpredictable (Cohen, 1966; Simons, 2011).”

And later in the Introduction, we state: “Here we set out to investigate the causes of germination time variability among genetically identical Arabidopsis seeds”.

The authors focus solely on how bet-hedging may enable the avoidance of stress conditions. But there is another possibly equally important effect of lengthening the generation time which allows the long-term maintenance of genetic variation required for stressful conditions. There is literature on how longer generation times provide a form of "memory" to maximize the ability to maintain the potential to have genetic variation required for unique selective events. In this model, delayed germination would lengthen the generation time and actually work to maintain germplasm that is adapted to rare stressful conditions.

We agree that other functions are possible for variable germination times, and that variability in germination time, like seed dormancy, could contribute to the long-term maintenance of genetic diversity by contributing to seed bank formation. We have added the following to the Discussion:

“Alternative functions beyond bet-hedging can be explored, including the possible function of distributed germination times in avoiding seedling competition, or that the variable germination could contribute to the seed bank, which acts as a persistent source of genetic diversity that may be advantageous for longterm species survival in variable environments (Templeton and Levin 1979).”

Discussing the variation of variation is not the easiest thing to write and there are places where the text is not very clear. For example, the sentence "Additionally, the extent to which there is natural variation in germination time distributions in Arabidopsis has not been described." Is meant to be specific about mapping the distribution as the trait but it is kind of fuzzy and the authors of the DOG studies may take umbrage with sentences like this. I would suggest developing a single terminology for variance as a trait and use it consistently. I understand that it is not the most pleasant in a grammatical context to repeat terminology but given that the community is not used to variance as a trait this will greatly help the audience to really understand what is being communicated. For example, "variability in germination time" could equally be referring to natural genetic variation that alters the mean or the stochastic component of the trait.

We agree with the reviewer that the terminology involved can be confusing, and we thank them for their suggestions. In the Introduction, we have clarified our use of terms:

“Hereafter we use the term “variability” to refer to phenotypic differences between genetically identical individuals, and “variation” to refer to differences between genetically distinct individuals, such as natural variation between accessions.”

We have changed the sentence that the reviewer points out as ambiguous and now state: “it is unclear whether different Arabidopsis genotypes generate different degrees of variability in germination times”.

The seeds from 3 plants were collected. Were they phenotyped separately or were the 3 plants mixed?

We have made this more explicit in the Materials and methods:

“Following filtering, for 91% of MAGIC lines, at least three replicate seed batches (each collected from a different parent plant) were used for each genotype. The seed batches were sown separately, with one petri dish for each of the three batches.”

I am a bit puzzled by this sentence "We chose a relatively short period of dry storage for our experiments as we reasoned that this would best reflect the state of naturally shed seeds". Is there evidence that most Arabidopsis accessions rapidly re-germinate within a month? This would only be true in some specific environments, correct? For example, seeds in Mediterranean environments should have a long delay to ensure that they germinate at the start of the next rains. And Scandinavian summer accessions would equally over-winter as seeds. Even going to 60 days in these environments does not capture the spectrum. I agree that this is a choice but am not sure that it is valid to say it reflects the "natural state". The authors had to choose one environment. I would simply state this and that this is the one chosen, and it would be useful to try other environments in the future.

We have removed the sentence that the reviewer highlights. We have added the following sentence to the first paragraph of the Discussion:

“In future work it would also be informative to repeat the QTL mapping for variability in seed germination time under alternative conditions for maternal growth, seed storage and sowing, thus testing the extent to which common loci are involved under different environmental conditions.”

In the Results, it appears that the authors have conducted independent biological experiments of maternal growth and seed set. This provides the ability to directly quantify heritability of CV rather than the more visual analysis that has been done. The authors should utilize a linear model to directly estimate the heritability of CV in this trait to compare with other traits where CV heritability has been measured.

We thank the reviewer for this suggestion and have calculated the broad-sense heritability for CV. We have added:

“The broad-sense heritability (defined as the ratio of total genetic variance to total phenotypic variance) for CV was estimated to be ~40%, which is at the upper limit of heritabilities previously measured for variability in a number of post-germination plant traits (Hall et al., 2007)

In Figure 1—figure supplement 1 part A/B, the authors should not include a line of 1:1 unless they have explicitly tested for a relationship. Given this analysis, the authors should conduct a mixed linear ANCOVA with genotype and seed age to directly quantify the influence of the two factors on the CV. Given this analysis, it is likely that they will find that the slope of CV is decreasing across storage time and as such, storage is having an influence on the CV. This will also allow them to show that the rank order of genotypes is not greatly changing across time.

The line showing x=y is for visualisation purposes and is not intended to imply a 1:1 relationship. We have added to the figure legend: “The black lines show x = y to aid data visualisation (they do not represent models fitted to the data)”.

We are not intending to claim that the CV is unchanged with days after ripening (DAR), but that the small deviation from x=y indicates that the CV obtained for a given line is not highly sensitive to this parameter.

We performed a mixed linear ANCOVA as the reviewer suggested, but it doesn’t reveal a specific pattern of change in CV with DAR. There is some variation in how each accession responds, but the uncertainty intervals are relatively large and mostly overlap with zero (no difference). This is plotted in Author response image 1, as the difference relative to 30 DAR (the data were standardised, so the units are standard deviations away from the overall mean):

Author response image 1

In Figure 2B, it is not clear what these represent. Are these all the siliques on a single plant arranged from top to bottom or are they single siliques from the same plants shown in part A? Similarly, I'm not sure how the top and bottom half of a single silique provides sufficient information to claim that there is no variation along an inflorescence. And by bottom/top, is this distance from the maternal rosette or from the inflorescence stem? The gradients in a single silique would be largely driven by the distance from the inflorescence stem.

We have clarified these issues in the main text and in the legends of Figure 2 and figure 2—figure supplement 1. The figure shows different individual siliques from different plants, not all the siliques from one plant. The point is that variability can be found within one silique. We’ve updated the main text to make it clear that we’re not claiming that there is no difference between siliques depending on position, but that this wouldn’t be required to generate the variability in germination time we see for pooled seeds of the whole plant, as much of this variability is seen in individual siliques. The top/bottom comparison is presented to show that variation along the length of a silique (not along an inflorescence) is not what underlies the variability within a silique. Top/ bottom refers to the distance from the inflorescence stem, as the reviewer suggests, so we’ve clarified this. The main text states:

“To address whether the variability in germination time that we have observed can arise independently of between-silique differences, we collected seed from samples of individual siliques from 4 high or very high variability lines and characterised their germination time distributions. For these lines, the full range of germination times observed in whole-plant samples was also present in seed from individual siliques (Figure 2A, B; Figure 2—figure supplement 1). This suggests that variability in seed germination time can arise independently of position or age differences between siliques.

We next hypothesised that germination time might be related to the position of the seed along the longitudinal axis of the silique. To test this, we cut siliques into halves and sowed seeds from the top halves (i.e. distal halves, furthest from the mother plant’s inflorescence stem) and bottom halves separately. For the lines tested, late and early germinating seeds were produced by both halves of the siliques, with no consistent differences between the top and bottom halves of siliques in the fraction of seeds that germinated late (Figure 2C; Figure 2—figure supplement 1D). Thus, variability in germination time in the lines tested can arise independently of positional or maturation gradients within the whole plant or individual siliques. This suggests that a mechanism exists to generate differences in germination behaviour of equivalent seeds from the same silique, which is not dependent on gradients of regulatory molecules along the fruit.”

Figure 2 legend states:

B) As for A) but each row represents the distribution obtained using seeds from a single silique. Single siliques were randomly sampled from parent plants, and single siliques sampled from 7 parent plants are represented. C) Individual siliques were cut in half and seeds from the top and bottom halves (distal and proximal, furthest and closest to the mother plants’ inflorescence stems, respectively) were sown separately. Each row is the bottom and top half of a particular silique. Half siliques sampled from 2 parent plants are represented.

Figure 2—figure supplement 1 legend states:

“Germination time distributions for M182 (A) and M53 (B), for samples of seeds pooled from whole plants, or for single siliques separated into top and bottom halves. Seeds from whole plants and half siliques were obtained and sown in different experiments. The siliques were randomly sampled from parent plants, and halved siliques from multiple plants are represented (3 parent plants for M182 and 10 for M53). For whole plants, each row is the distribution obtained using a sample of pooled seeds from one plant. For half siliques, each row is the bottom and top half of a particular silique (top half is that furthest from the mother plants’ inflorescence stem). The size of the circles is proportional to the percentage of seeds that were sown that germinated on a given day. (C) As for (A) and (B) but for M4, showing whole siliques in the right-hand panel. Single siliques sampled from 8 parent plants are represented.”

As a general statistical guideline, whenever a regression line is shown in a plot, the figure legend should have the information surrounding the line, method, R2, N and significance. Additionally, most of these regressions are conducted using Pearson which is very sensitive to abnormal distributions which are present in most of these data. These should most likely be conducted using Spearman Rank or other similar non-parametric tests.

For Figure 3 and its supplements, we have removed the regression lines and calculated Spearman’s correlations, which we report in the figure panels in the following way: Spearman’s rho = , p = , n =.

I'm unsure why the authors correlated the parental effects to the haplotype effects for the two QTLs in a system where there is transgressive segregation and likely epistasis. The use of this correlation is only valid if the model is totally additive with no transgression. In this system, this data doesn't provide evidence one way or another. At best they could develop a two-locus model using the haplotypes and run them as a model together to look at additivity and epistasis to try and explain the parents. But running as single loci isn't informative.

The reviewer has a good point. If anything, the lack of correlation between QTL effect and parental phenotype does imply there is epistasis (the effect of the QTL depends on the background). We tried to fit the two-locus model as the reviewer suggests, but actually, this is not so straightforward. With 19 alleles in each locus, we have 19x19 possible genotype combinations, which is higher than our sample size of ~330 MAGICs. Basically, if we take combinations of Chr3+Chr5 haplotypes most of them occur only once. So, unfortunately, we can only really look at individual locus effects, not interaction (epistasis) effects, as the resulting uncertainty intervals are too wide.

We have instead replaced the panels in question with plots showing the ranked effects of the accessions’ haplotypes, not relating these to the accessions’ phenotypes:

The bet-hedging experiment seems unconnected to the natural variation. Essentially this treatment is a 100% selection event that is never going to occur in nature. The experiment is set up to test if non-germinated seedlings provide the ability to evade absolute death that occurs at a specific date prior to the latest germination time. As such, this is less an experiment and more a control that the phenotyping is reproducible. I'm not sure if this really adds to the manuscript as is. It would need to incorporate some aspect of the natural variation like are the high CV parents more likely to be in fluctuating environments, etc to help support the argument.

We have removed the bet-hedging experiment

Reviewer #2:

If we consider the study in several consecutive parts such as A. The analysis on germination times of the diverse genetic backgrounds which led to B. a QTL analysis to find genes that were already known to influence germination, such as SOG1 and SOG6, that led to C. Modelling involving, very few by the way, players in ABAignalling pathways to explain D. that GA and ABA levels are key to understand phenotypic variation on germination time.

1) My main concern is how can authors explain the need of the model in this story? since based on their data in B they could have gone directly to D.

2) Moreover, the stochastic model suggested to test the levels of GA and ABA, but even if they sustain in their response the need of the model, how can they connect the data in B with the need to explore, involve, GA in the equation?

3) Authors should elaborate how they justify the inclusion of GA signalling in the model, if QTL data did not suggest this. Of course, they can claim that GA and ABA are well known players in seed germination, but still the way it is written it feels that GA appears suddenly in the story.

We thank reviewer 2 for these comments and acknowledge that we did not previously do enough to justify the need for the model. As mentioned in the response to the editor’s point 1), we have now made a much closer link between the results of the QTL mapping and the modelling.

In response to reviewer 2’s comments, at the beginning of the manuscript we have now introduced the importance of the interactions between ABA and GA for the decision to germinate and emphasise that there is a lack of understanding about how the ABA-GA bistable switch could generate and influence variability in germination times. We now state:

“Pioneering modelling work has suggested that variable germination times can be generated by variation in sensitivities to germination regulators in a batch of seeds (Bradford, 1990; Bradford and Trewavas, 1994), or due to stochastic fluctuations in the regulators of ABA (Johnston and Bassel, 2018). Interestingly, a combination of experiment and modelling has revealed that the ABA-GA network can be described as a bistable switch due to the mutual inhibition between ABA and GA, leading to two possible states, a dormant high ABA low GA state, or a germinating low ABA high GA state (Topham et al., 2017). This regulatory motif can explain the observation that Arabidopsis seed germination is more effectively triggered by fluctuating temperatures than continuous cold (Topham et al., 2017). However, it is unclear whether different Arabidopsis genotypes generate different degrees of variability in germination times, or what the role of the ABA-GA bistable switch in generating these different germination time distributions might be.

Here we set out to investigate the causes of germination time variability between genetically identical Arabidopsis seeds and to explore how variability in germination time could be accounted for by the ABAGA bistable switch.”

We have also given more justification for the decision to model the genetic differences between lines with a difference in ABA sensitivity and state:

“There is evidence to suggest that the best candidate genes underlying our identified loci influence ABA sensitivity. The effect of the DOG6 locus overlapping our chromosome 3 QTL is proposed to be caused by the ANAC060 gene (Hanzi, 2014), which influences ABA sensitivity in seedlings, directly binds to the promoter of the ABA-responsive transcription factor, ABA INSENSITIVE 5 (ABI5), and can down-regulate expression of both ABA INSENSITIVE 4 (ABI4) and ABI5 (Li et al., 2014; Yu et al., 2020). Coincidently, the two candidate genes for the chromosome 5 locus are closely related in function. The SET1 locus in this region is hypothesised to be caused by the ABA-HYPERSENSITIVE GERMINATION 1 (AHG1) gene (Footitt et al., 2019). AHG1 is a type 2C protein phosphatase (PP2C) that inhibits ABA signalling via dephosphorylating class II SNF1-related protein kinase 2 (SnRK2), which promote seed dormancy by activating ABA-responsive transcriptional changes (Liu and Hou, 2018; Née et al., 2017a; Nishimura et al., 2007, 2018). DOG1 has been shown to directly bind to AHG1, independently from ABA, and inhibit its function, thus allowing DOG1 to inhibit germination via the ABA pathway (Carrillo-Barral et al., 2020; Née et al., 2017a; Nishimura et al., 2018). Mutants of all three candidate genes have altered ABA sensitivity: anac060 mutant seedlings and ahg1 mutant seeds have increased ABA sensitivity (Yu et al., 2020; Li et al., 2014; Nishimura et al., 2007), while dog1 mutant seeds have decreased ABA sensitivity (Née et al., 2017a).” (This is followed by a characterisation of these mutants, see response to reviewer 2, comment 2).

And we give more justification for the requirement to include GA in the model:

“The hypothesis that natural variation in germination time distributions is caused by differences in ABA sensitivity raises the question of how differences in ABA sensitivity between lines could affect their levels of variability in germination time. To answer this, we built a simplified mathematical model of the core ABA-GA network that governs germination time (Liu and Hou, 2018) (Figure 5A). We reasoned that it was necessary to include both ABA and GA in the model, since the decision to germinate is governed by the relative levels of the two hormones (Née et al., 2017b; Shu et al., 2016b), and both converge to regulate expression of a common set of transcription factors that control seed dormancy and germination (Liu and Hou, 2018; Piskurewicz et al., 2008; Shu et al., 2016a). A previous modelling study that solely considered ABA regulation has proposed that stochastic fluctuations in the regulation of ABA can generate variability in germination times (Johnston and Bassel, 2018) and the ABA-GA network has been modelled previously to account for germination decisions (Topham et al., 2017). However, the ability of the ABA-GA network to generate variability in germination time has not been explored.”

Because of the cited previous work on the mechanistic link between ABA and GA, and the fact that the bistable switch that their interactions form is key to the decision to germinate, we believe that a model of ABA dynamics that doesn’t include GA would be significantly lacking. Additionally, the lack of strong GA-related candidate genes underlying the QTL we identified doesn’t mean that GA is not involved in the decision to germinate or in the mechanism underlying variability in germination time in the MAGIC lines, it only suggests that the main natural variation may be in ABA-related genes, but which are operating in the context of the ABA-GA network. A role for GA is supported by our results that modifying GA levels through exogenous addition (Figure 6—figure supplement 1) or genetically in GA biosynthesis mutants (Figure 7) affects the variability in germination time.

4) If the tracked phenotype is related to loci that involves SOG1, SOG6 and SET1

genes, why authors did not generate, or use mutants in these genes to explore seed germination time? this is one of my major questions, and the only extra experiment work that this reviewer would like to see in a future version of the manuscript.

We thank the reviewer for this suggestion and in response we have characterised the germination time distributions and ABA sensitivities of the mutants. We found evidence that the 3 mutants tested (dog1, ahg1 and anac060) influence ABA sensitivity and the distribution of germination times, with the strongest evidence for dog1. We have added the following to subsection “Effects of QTL candidate genes on seed germination time variability”:

“We tested these mutants for their effects on germination time distributions and found that the dog1-3 mutant in the Col-0 background (Bentsink et al., 2006) consistently had reduced CV of germination time, and reduced mean and mode days to germination compared to the wild-type (Figure 4—figure supplement 5A). Since in Col-0 all seeds normally germinate within 3 days in seed batches stored for 30 days, we also did this experiment in seed batches stored for a shorter period of time (5 days after harvesting). In this case, in Col-0 there were later germinating seeds that were not present in the dog1-3mutant, making the effect of the dog1-3mutant allele more apparent. We also obtained a dog1 T-DNA insertion mutant in the No-0 accession background (Kuromori et al., 2004), since the No-0 haplotype of the Chr5 QTL locus is predicted to be associated with high variability in the MAGIC lines (Figure 4—figure supplement 2A). The dog1 mutant in the No-0 background showed a similar phenotype to dog1-3 in Col-0, with reduced CV, mean and mode (Figure 4—figure supplement 5C). Consistent with previously published work (Née et al., 2017a), we observed reduced ABA sensitivity of the dog1 mutants in the Col-0 and No-0 background in our germination assays (Figure 4—figure supplement 5B, D). On the other hand, the ahg1-5 mutant in the Col0 background (Née et al., 2017a) showed a slight increase in CV of germination time, which was associated with an increase in ABA sensitivity (Figure 4—figure supplement 5E, F). Thus, both of these candidate genes for the Chr5 locus have an effect on the CV of germination time which is consistent with their altered ABA sensitivities.

For the anac060 mutant in the Col-0 background (Li et al., 2014), we observed a slight increase in CV, with an increase in mode and decrease in percentage germination compared to Col-0 in seed sown 3 days after harvest (Figure 4—figure supplement 5G, 3 DAH), but did not see a convincing phenotype in seeds that were stored for 30 days prior to sowing (i.e. in the same conditions as the MAGIC lines used for QTL mapping) (Figure 4—figure supplement 5G, 30 DAH). We observed a weak tendency towards an increase in ABA sensitivity in the anac060 mutant, but this was not as striking as that reported in seedlings (Li et al., 2014). Thus, it is possible that a gene other than ANAC060 underlies the Chr3 QTL, or if it is responsible, then its effect on germination may depend on the genetic background or on the specific alleles present in the populations we studied.

Overall our results support the hypothesis that the candidate genes underlying the Chr 5 QTL peak could influence variability through an effect on ABA sensitivity and suggest that this could also be the case for the ANAC060 candidate gene for the Chr 3 QTL peak.”

In these cases, each shade of grey is the germination time distribution from a single experiment, with the behaviours of its 3 separate seed batches pooled together for plotting, treated as one sample.

We discuss these results in the Discussion, by stating:

“Further work will be needed to identify the causal variants underlying both of the QTL identified here and to determine the extent to which they have correlated or uncoupled effects on different germination traits. It will be important to test directly candidate genes through transforming candidate gene null mutants with corresponding alleles cloned from high and low variability lines (Weigel, 2012). These transgenic lines could then be used to understand how natural variation at the two QTL influences germination time distributions, by using them to quantify the effects of the different accession alleles on CV, mode and percentage germination as well as on traits related to the ABA-GA network such as ABA and GA sensitivity.”

Reviewer #3:

In this manuscript, Abley and colleagues map differences in germination phenotypes, including the coefficient of variation (CV), the mode, and the percent germinated, in the A. thaliana MAGIC line population, finding two QTL. They then develop a computational model for germination incorporating the integration of ABA and GA pathways to generate a bistable switch for the germination decision and demonstrate that the model can output a variety of CV, mode, and germination percentage phenotypes. Using the model, they then predict and test the response of MAGIC lines with high and low CV to exogenous ABA and GA applications.

I agree with the general premise that bet-hedging and CV variation are potentially ecologically and evolutionarily important and I appreciate the development of a model that serves as a basis for understanding both the molecular and natural genetic mechanisms that generate germination phenotypes. My major concern with this manuscript, however, is that it doesn't quite meet its promise in showing that the bistable switch proposed by the model underlies natural variation in the phenotypes measured here. What is demonstrated is that the model can (possibly) account for the effect of endogenous ABA or GA on MAGIC lines with different CVs. Strictly speaking this isn't the same as demonstrating that the model explains how this CV variation in the MAGIC (or parental lines) is generated to begin with. To do this, one would have to have specific information/predictions about how underlying genetic variation affected model components and then demonstrate that THESE modulations could generate the CV variation observed in parental lines (or MAGIC lines). For example, let's say that a particular allele at the QTL on chromosome three caused reduced expression of DELLAs, subsequently changing the integrator parameter of the model. Would incorporating this modified parameter explain the CV variation between plants with the different variants of this QTL? In some cases, the manuscript makes the distinction between the response and origin questions clear, but in key areas (like the title and abstract), this difference gets blurred.

We thank the reviewer for their suggestion to make a more explicit connection between the genetic variation and the model, which we have taken on board. See response to Editor’s comment 1.

1) The experiment meant to demonstrate that there is no pattern of germination variability along the plant is not very conclusive. Showing single silique distribution patterns with siliques ordered basipetally would more convincingly demonstrate that there is no relationship between silique age and CV.

Please see response to reviewer 1 comment 9. We have changed the main text to make it clear that we’re not claiming there is no relationship between silique age/ position and CV, but that since individual siliques show a large degree of variability in germination times, germination distributions that we see in seeds pooled from whole plants can be accounted for independently from differences in germination time across the plant. Our results from single and half siliques show that a mechanism exists to generate differences in germination time between seeds in the same developmental context.

2) I am not convinced that mode, CV, and percent germination can be genetically uncoupled. For the most part, there are fairly strong relationships between these phenotypes in the MAGIC lines, with a few (maybe 10 or so) outlying lines where the CV is (presumably) much higher than would be predicted from the mode or percentage germination (Figure 4A – by the way, what is the overlap between these outliers and with the lines with bimodal CV distributions?). The data demonstrating uncoupling consists of several cherry-picked examples in Figure 3 (and its associated supplements). One would really need to look at this more systematically to demonstrate the extent to which this decoupling is actually significant (i.e. considering the variability in mode and CV estimates between replicates, are there lines in which the relationship between CV and mode is different from the predicted relationship?). And in fact, the QTL results also suggest that these phenotypes can't be uncoupled – any QTL for mode or percent is also a QTL for CV, and the QTL on chromosome 5 that the authors claim is CV-specific both explains little variation and its marginal significance depends on whether or not 8 particular lines with bimodal distributions (and therefore perhaps cases in which mode doesn't describe centrality well) are included in the analysis. Even in the bulk segregant analysis, there is a clear relationship between germination time of F2s parents and CV of subsequent F3s. I therefore think that the strength of this claim needs to be reconsidered.

We thank the reviewer for pointing this out, please see response to Editor’s comment 2. We have changed the text throughout so that now we described the traits are being weakly correlated rather than decoupled. In response to reviewers’ specific questions, there is still some degree of uncoupling between CV and mode when the bimodal lines are excluded from the data, for example, from Figure 3A ii, where only lines with CV < 0.6 are shown (and therefore bimodal lines are excluded), lines with a mode of 3 show a range of CVs between ~0.1 and ~0.6. Therefore, we do not agree that it is only in cherry picked examples where variation in CV independent of variation in mode is seen. We do agree however that the traits are most likely genetically and mechanistically linked and we have changed how we present the QTL mapping in accordance with the reviewer’s suggestion, deemphasising a specific effect of the Chr5 QTL on CV. As mentioned in the response to editor’s comment 2, we now state in the Discussion:

“In the QTL mapping, the chromosome 5 locus was only found to be significantly associated with the CV of germination time. However, besides their described effect on CV, the mutant alleles of the two candidate genes we tested, DOG1 and AHG1, also affected mode and percentage germination (Née et al. 2017; Bentsink et al. 2006). The fact that we did not detect an association between this region of chromosome 5 and those two latter traits could be explained by differences between the naturally occurring alleles within the MAGIC population (which may predominantly affect CV) and the mutant alleles of these genes (which affect multiple traits). It could also be the case that the MAGIC lines’ alleles affect multiple germination traits but that we didn’t have enough statistical power to detect this.”

In relation to the question about Figure 4A “what is the overlap between these outliers and with the lines with bimodal CV distributions?”

This is explained in the main text, where we state: “However, there are 8 lines that tend to have bimodal distributions when sown on agar (e.g. Figure 1A, M182 and M178). As such, these lines lie at the extreme tail of the distribution of CVs, with much higher values than the other lines (Figure 1B). Therefore, we ran our QTL scans both with and without the bimodal lines, as their extreme values may affect the QTL results disproportionately (Figure 4A, B).”

3) Comparing Figure 6 and Figure 7 (the predicted and observed responses of GA and ABA in high and low CV lines), there seem to be quite a number of cases in which the predicted response is different from that observed (the mean and mode in response to GA for example) or in which there is extremely high variability among the lines tested, with only a subset of lines matching the predicted responses (the CV and mean response of high CV lines to ABA, for example). So at what point can one say that the predicted response is consistent with the observed one? And why would one expect such high variability between lines? Do they harbor QTL alleles that would explain these differences? This might be one way to tie the mapping and modeling parts of the manuscript together better (they currently kind of feel like two disconnected stories – one doesn't need to have mapped QTL to generate the model or confirm the response of high/low CV lines to GA and ABA).

We agree that there is variation between the different high/ low variability lines, and this cannot be explained by their haplotypes at the Chr3 and Chr 5 QTL (We have now addressed this in the text, please see response to reviewer 1, comment 1 for details). However, we believe that this situation is to be expected given the genetic differences between the lines throughout the genome. It is likely that other loci which we were not able to detect in the QTL mapping underlie their different responses to the hormones. We have now raised this possibility in the Discussion:

“We found that other parameters caused a variety of other behaviours in terms of the relationship between the CV and mode of the germination time distributions. This is consistent with the observation of a complex relationship between CV and mode in the MAGIC lines and accessions, whereby these traits are weakly positively correlated between lines, but can be partially decoupled. Since it is likely that we have not detected all genetic loci that influence germination time distributions in our QTL mapping (the Chr 3 and Chr 5 QTL together only account for 23% of the variance in CV in the MAGIC lines), it is possible that undetected genetic variation in multiple components of the ABA-GA network contributes to the variation in germination time distributions that we observe and the complex relationship between CV, mode and percentage germination in the data.”

In response to the specific points:

- “there seem to be quite a number of cases in which the predicted response is different from that observed (the mean and mode in response to GA for example)”,

In both model and experiment the mean and mode tend to decrease in response to GA, but the magnitude of this response is greater in the model. We have now plotted both simulation results and experiments on a log scale and the results look more similar than previously. The model has not been parameterized to fit the data in any way, therefore we believe that a qualitative match in behaviour is the best that can be expected. We conclude: “Thus, for both ABA and GA, the overall effects of exogenous addition were qualitatively similar between the model and experiments.” We are only claiming that a qualitative comparison can be made.

- “or in which there is extremely high variability among the lines tested, with only a subset of lines matching the predicted responses (the CV and mean response of high CV lines to ABA, for example)”.

We have changed the text to mention the variation amongst the lines tested:

“For high variability lines, increasing concentrations of ABA increased mean and mode germination times, but had relatively little effect on CV (Figure 6B i, ii and iii, Figure 6—figure supplement 4A, 182). Some high variability lines show an increase in CV followed by a decrease, which is consistent with the model, and some lines show a slight decrease (Figure 6B i). It is possible that these lines occupy different positions in parameter space due to variation at loci (and therefore components of the ABA-GA network) that are not accounted for in our simulations of these lines. Consistent with a less striking effect of exogenous ABA on the CV of high variability lines compared to low variability lines, in the model, the fold-changes in CV upon ABA addition for high variability lines were smaller than those predicted for low variability lines (Figure 6A i).”

4) The experiment meant to demonstrate the adaptive value of bet hedging is quite trivial – one doesn't really need an experiment to show that killing more plants in one genotype will result in fewer plants of that genotype – and therefore I think the importance of result is overstated in the manuscript. Demonstrating that differences in CV have adaptive value really would be a difficult experiment to do and would need to incorporate some sort of natural (or very closely simulated natural) conditions. If such experiments are attempted, I would also strongly recommend NOT using Col as one of the accessions. Col is presumably adapted to lab conditions, not natural ones, and it is easy to think of how early and low CV germination would be selected for in a laboratory setting (especially if CV can be impacted by a 1-2 major loci).

We have removed the bet-hedging experiment.

https://doi.org/10.7554/eLife.59485.sa2

Article and author information

Author details

  1. Katie Abley

    The Sainsbury Laboratory, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Validation, Investigation, Methodology, Writing - original draft, Writing - review and editing, carried out experiments
    Contributed equally with
    Pau Formosa-Jordan
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5524-6786
  2. Pau Formosa-Jordan

    The Sainsbury Laboratory, University of Cambridge, Cambridge, United Kingdom
    Present address
    Max Planck Institute for Plant Breeding Research, Cologne, Germany
    Contribution
    Conceptualization, Formal analysis, Supervision, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing, carried out modelling
    Contributed equally with
    Katie Abley
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3005-597X
  3. Hugo Tavares

    The Sainsbury Laboratory, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Data curation, Formal analysis, Investigation, Methodology, Writing - original draft, Writing - review and editing, carried out QTL mapping and sequence data analysis
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9373-2726
  4. Emily YT Chan

    The Sainsbury Laboratory, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Formal analysis, Investigation, carried out modelling
    Competing interests
    No competing interests declared
  5. Mana Afsharinafar

    The Sainsbury Laboratory, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Investigation, carried out experiments
    Competing interests
    No competing interests declared
  6. Ottoline Leyser

    The Sainsbury Laboratory, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing - review and editing
    For correspondence
    ol235@cam.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2161-3829
  7. James CW Locke

    The Sainsbury Laboratory, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing - original draft, Writing - review and editing.
    For correspondence
    james.locke@slcu.cam.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0670-1943

Funding

Gatsby Charitable Foundation (GAT3272C)

  • Ottoline Leyser

Gatsby Charitable Foundation (GAT3272/GLC)

  • James CW Locke

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Sandra Cortijo for critical reading of the manuscript and Casandra Villava, Ting Wang and Helena Kelly for help with taking care of plants and seed scoring. P F-J. thanks Ruben Perez-Carrasco for fruitful discussions about the modelling. Work in the Locke and Leyser labs was supported by fellowships from the Gatsby Charitable Foundation (Locke lab: GAT3272/GLC and Leyser Lab: GAT3272C).

Senior Editor

  1. Jürgen Kleine-Vehn, University of Freiburg, Germany

Reviewing Editor

  1. Daniel J Kliebenstein, University of California, Davis, United States

Publication history

  1. Received: May 29, 2020
  2. Accepted: March 1, 2021
  3. Version of Record published: June 1, 2021 (version 1)

Copyright

© 2021, Abley et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,772
    Page views
  • 195
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Crossref, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Computational and Systems Biology
    2. Epidemiology and Global Health
    Ewan Colman et al.
    Research Article

    Humans and other group-living animals tend to distribute their social effort disproportionately. Individuals predominantly interact with a small number of close companions while maintaining weaker social bonds with less familiar group members. By incorporating this behavior into a mathematical model, we find that a single parameter, which we refer to as social fluidity, controls the rate of social mixing within the group. Large values of social fluidity correspond to gregarious behavior, whereas small values signify the existence of persistent bonds between individuals. We compare the social fluidity of 13 species by applying the model to empirical human and animal social interaction data. To investigate how social behavior influences the likelihood of an epidemic outbreak, we derive an analytical expression of the relationship between social fluidity and the basic reproductive number of an infectious disease. For species that form more stable social bonds, the model describes frequency-dependent transmission that is sensitive to changes in social fluidity. As social fluidity increases, animal-disease systems become increasingly density-dependent. Finally, we demonstrate that social fluidity is a stronger predictor of disease outcomes than both group size and connectivity, and it provides an integrated framework for both density-dependent and frequency-dependent transmission.

    1. Computational and Systems Biology
    2. Neuroscience
    Sean R Bittner et al.
    Research Article

    A cornerstone of theoretical neuroscience is the circuit model: a system of equations that captures a hypothesized neural mechanism. Such models are valuable when they give rise to an experimentally observed phenomenon -- whether behavioral or a pattern of neural activity -- and thus can offer insights into neural computation. The operation of these circuits, like all models, critically depends on the choice of model parameters. A key step is then to identify the model parameters consistent with observed phenomena: to solve the inverse problem. In this work, we present a novel technique, emergent property inference (EPI), that brings the modern probabilistic modeling toolkit to theoretical neuroscience. When theorizing circuit models, theoreticians predominantly focus on reproducing computational properties rather than a particular dataset. Our method uses deep neural networks to learn parameter distributions with these computational properties. This methodology is introduced through a motivational example of parameter inference in the stomatogastric ganglion. EPI is then shown to allow precise control over the behavior of inferred parameters and to scale in parameter dimension better than alternative techniques. In the remainder of this work, we present novel theoretical findings in models of primary visual cortex and superior colliculus, which were gained through the examination of complex parametric structure captured by EPI. Beyond its scientific contribution, this work illustrates the variety of analyses possible once deep learning is harnessed towards solving theoretical inverse problems.
