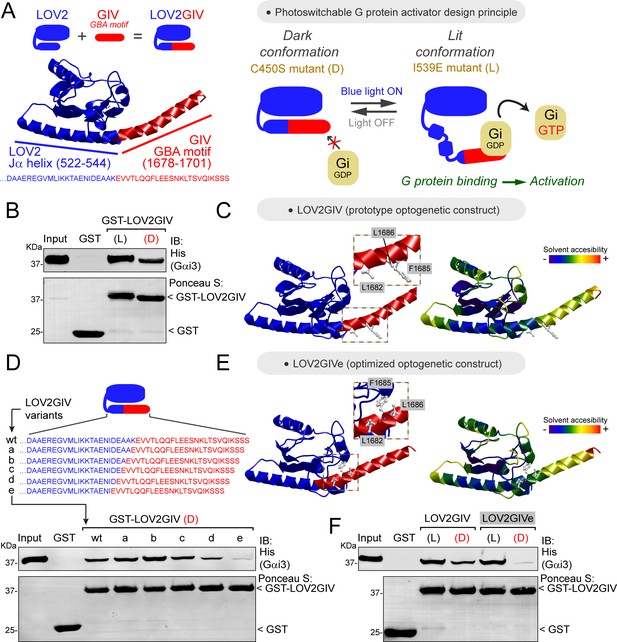

We envisioned the design of a genetically-encoded photoswitchable activator of heterotrimeric G-proteins by fusing a short sequence (~25 amino acids) from the protein GIV (a.k.a. Girdin) called the Gα-Binding-and-Activating (GBA) motif to the C-terminus of LOV2 (Figure 1A, left). GBA motifs are evolutionarily conserved sequences found in various cytoplasmic, non-GPCR proteins that are sufficient to activate heterotrimeric G-protein signaling (DiGiacomo et al., 2018). We reasoned that the GBA motif would be ‘uncaged’ and bind G-proteins when the C-terminal Jα-helix of LOV2 becomes disordered upon illumination (Harper et al., 2003; Figure 1A, right). We named this optogenetic construct LOV2GIV (pronounced ‘love-to-give’). To facilitate the biochemical characterization of LOV2GIV, we initially used two well-validated mutants that mimic either the dark (D) or the lit (L) conformation of LOV2 (Harper et al., 2004; Harper et al., 2003; Zimmerman et al., 2016; Figure 1A, right), with the intent of subsequently validating the G-protein regulatory activity of LOV2GIVe in cells using light.

Figure 1 with 1 supplement see all

Download asset Open asset

Our first LOV2GIV prototype had a suboptimal dynamic range, as it bound the G-protein Gαi3 in the lit conformation only ~3 times more than in the dark conformation (Figure 1B). Based on a structural homology model of LOV2GIV (Figure 1C), we reasoned that it could be due to the relatively high accessibility of Gαi3-binding residues of the GIV GBA motif (L1682, F1685, L1686) within the dark conformation of LOV2GIV. In agreement with this idea, fusion of the GBA motif at positions of the Jα helix more proximal to the core of the LOV2 domain tended to lower G-protein binding, including one variant (‘e’, henceforth referred to as LOV2GIVe) in which binding to the dark conformation was almost undetectable (Figure 1D). Consistent with this, a structure homology model of LOV2GIVe showed that amino acids required for G-protein binding are less accessible than in the LOV2GIV prototype (Figure 1E). In contrast, the lit conformation of LOV2GIVe displayed robust Gαi3 binding, thereby confirming an improved dynamic range compared to the LOV2GIV prototype (Figure 1F). Mutation of GIV’s F1685 to alanine, a replacement known to preclude G-protein binding (de Opakua et al., 2017; Garcia-Marcos et al., 2009), resulted in greatly diminished binding of Gαi3 to the lit conformation of LOV2GIVe (Figure 1—figure supplement 1).

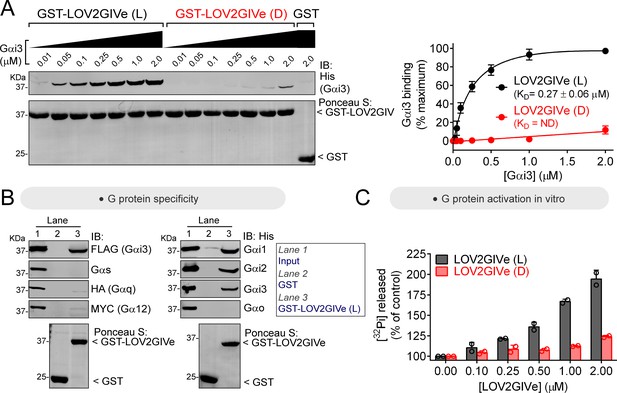

Concentration-dependent binding curves revealed that the affinity of Gαi3 for the dark conformation of LOV2GIVe is orders of magnitude weaker than for the lit conformation (Figure 2A), which had an equilibrium dissociation constant (K_D) similar to that previously reported for the GIV-Gαi3 interaction (DiGiacomo et al., 2017). We also found that LOV2GIVe retains the same G-protein specificity as GIV. Much like GIV (Garcia-Marcos et al., 2010; Marivin et al., 2020), LOV2GIVe bound robustly only to members of the G_i/o family among the four families of Gα proteins (G_i/o, G_s, G_q/11,and G_12/13), and could discriminate within the G_i/o family by binding to Gαi1, Gαi2 and Gαi3 but not to Gαo (Figure 2B). Next, we assessed if LOV2GIVe can activate G-proteins in vitro, that is whether it retains GIV’s GEF activity. First, we measured Gαi3’s steady-state GTPase activity in the presence of LOV2GIVe to assess its GEF activity. Under steady-state conditions, nucleotide exchange is rate limiting because GTP hydrolysis occurs orders of magnitude faster than GTP loading for Gαi proteins (Mukhopadhyay and Ross, 2002). Thus, steady-state GTP hydrolysis can report changes in the rate of nucleotide exchange on Gαi, which we have previously validated for GIV and other related non-receptor GEFs (Aznar et al., 2015; Coleman et al., 2016; Garcia-Marcos et al., 2010; Garcia-Marcos et al., 2011). We found that LOV2GIVe in the lit, but not the dark, conformation led to a dose-dependent increase of Gαi3 activity (Figure 2C), which was comparable to that previously shown for GIV (Garcia-Marcos et al., 2009). Using a GTPγS binding assay that measures nucleotide exchange more directly, we also found that LOV2GIVe in the lit conformation promoted nucleotide exchange on Gαi3, an effect that was impaired upon introduction of the F1685A (FA) mutation that reduces G-protein binding or when using the dark-mimicking mutant (D) of LOV2GIVe (Figure 2—figure supplement 1). These findings indicate that LOV2GIVe recapitulates the G-protein activating properties of GIV in vitro, and that these are effectively suppressed for the dark conformation.

Figure 2 with 1 supplement see all

Download asset Open asset

Figure 2—source data 1

Numerical data used for panel A.

https://cdn.elifesciences.org/articles/60155/elife-60155-fig2-data1-v2.xlsx

Download elife-60155-fig2-data1-v2.xlsx

Figure 2—source data 2

Numerical data used for panel C.

https://cdn.elifesciences.org/articles/60155/elife-60155-fig2-data2-v2.xlsx

Download elife-60155-fig2-data2-v2.xlsx

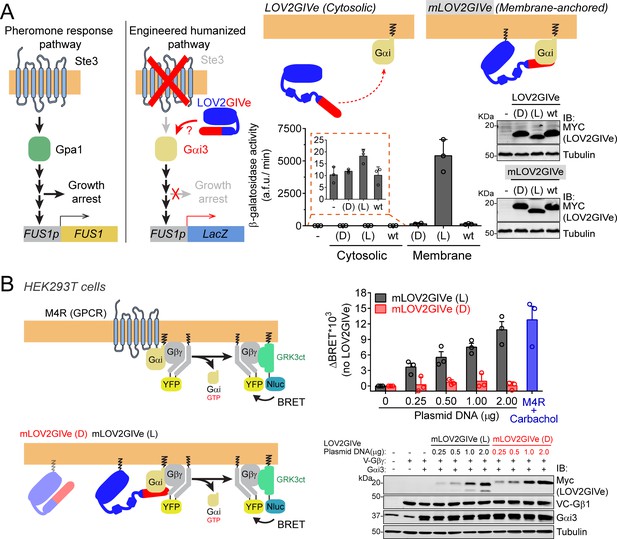

To investigate LOV2GIVe-dependent G-protein activation in cells, we initially used a humanized yeast-based system (Cismowski et al., 1999; DiGiacomo et al., 2020) in which the mating pheromone response pathway has been co-opted to measure activation of human Gαi3 using a gene reporter (LacZ, β-galactosidase activity) (Figure 3A, left). When we expressed LOV2GIVe dark (D), lit (L) or wt in this strain, only very weak levels of β-galactosidase activity were detected (Figure 3A, right). We reasoned that this could be due to the subcellular localization of the construct, presumed to be cytosolic in the absence of any targeting sequence, because we have previously shown that GIV requires membrane localization to efficiently activate G-proteins (Parag-Sharma et al., 2016). Expressing LOV2GIVe (L) fused to a membrane-targeting sequence (mLOV2GIVe) led to a very strong induction of β-galactosidase activity, which was not recapitulated by expression of mLOV2GIVe (D) or wt (Figure 3A, right). LOV2GIVe-mediated activation levels (several hundred-fold over basal) are comparable to those previously reported for the endogenous pathway in response to GPCR activation by mating pheromone (Hoffman et al., 2002; Lambert et al., 2010). Next, we tested mLOV2GIVe in mammalian cells. Instead of using a downstream signaling readout as we did in yeast, we used a Bioluminescence Resonance Energy Transfer (BRET) biosensor that measures G-protein activity directly (Figure 3B, left). Expression of mLOV2GIVe (L), but not (D), led to an increase of BRET proportional to the amount of plasmid transfected (Figure 3B, right). At the highest amount tested, mLOV2GIVe (L) caused a BRET increase comparable to that observed upon maximal stimulation of the M4 muscarinic receptor, a Gi-activating GPCR (Figure 3B, right, Figure 3—figure supplement 1). Introducing a mutation that precludes G-protein activation by GIV’s GBA motif (F1685A (FA), [Garcia-Marcos et al., 2009]), in mLOV2GIVe (L) also abolished its ability to induce a BRET increase (Figure 3—figure supplement 2). As an alternative readout of G-protein regulation by LOV2GIVe, we measured cAMP levels in cells because the enzymes that produce this second messenger, adenylyl cyclases, are classical effectors of GTP-bound Gαi subunits. Acute activation of Gi proteins leads to inhibition of adenylyl cyclase activity, but prolonged Gi activation leads to the opposite effect— it sensitizes adenylyl cyclases to subsequent activating inputs, such as the stimulation of a Gs-linked GPCR, leading to the potentiation of cAMP production (Brust et al., 2015; Watts and Neve, 2005). We found that expression of LOV2GIVe (L) leads to a potentiation of the cAMP response induced by the β-adrenergic agonist isoproterenol, suggesting prolonged activation of Gi proteins in cells (Figure 3—figure supplement 3). The magnitude of the potentiation (~2 fold) is comparable to that reported for many Gi-activating GPCRs (Watts and Neve, 2005). In contrast, expression of similar amounts of LOV2GIVe (L) bearing the F1685A (FA) mutation or of LOV2GIVe (D), which do not bind or activate Gαi, failed to recapitulate the potentiation of the cAMP response elicited by LOV2GIV (L) (Figure 3—figure supplement 3), further supporting the involvement of Gαi activation. Taken together, our results indicate that the lit conformation of LOV2GIVe activates G-protein signaling in different cell types.

Figure 3 with 3 supplements see all

Download asset Open asset

Figure 3—source data 1

Numerical data used for panel A.

https://cdn.elifesciences.org/articles/60155/elife-60155-fig3-data1-v2.xlsx

Download elife-60155-fig3-data1-v2.xlsx

Figure 3—source data 2

Numerical data used for panel B.

https://cdn.elifesciences.org/articles/60155/elife-60155-fig3-data2-v2.xlsx

Download elife-60155-fig3-data2-v2.xlsx

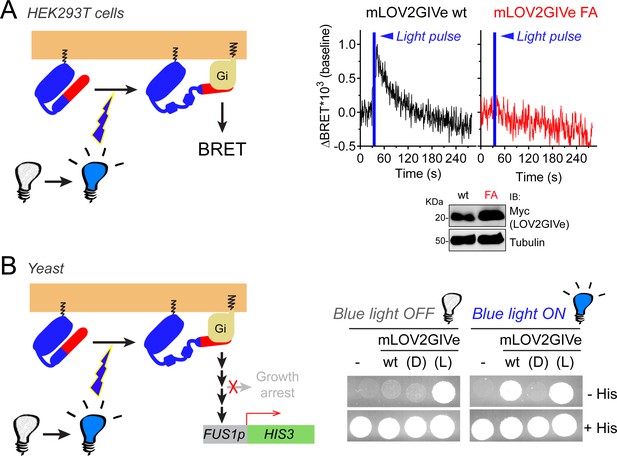

Next, we tested whether LOV2GIVe can trigger G-protein activation in cells in response to light. For this, we used two complementary experimental systems. The first one consisted of measuring G-protein activity directly with the mammalian cell BRET biosensor described above upon illumination with a pulse of blue light. We found that, in HEK293T cells expressing mLOV2GIVe wt, a single short light pulse resulted in a spike of G-protein activation that decayed at a rate similar to that reported for the transition from lit to dark conformation of LOV2 (T_1/2 ~1 min) (Figure 4A). This response was not recapitulated by a mLOV2GIVe construct bearing the GEF-deficient FA mutation (Figure 4A). For the second system, we turned to the humanized yeast strain described above. Instead of using β-galactosidase assays to report G-protein dependent activation of the FUS1 promoter by light, we assayed conditional histidine prototrophy controlled by the FUS1 promoter using spot growth assays because they are better suited to allow homogenous and continued illumination than the cell suspension conditions used of the β-galactosidase assay (Figure 4B, left). Yeast cells expressing mLOV2GIVe wt grew in the absence of histidine only when exposed to blue light (Figure 4B, right). This effect was specifically caused by light-dependent activation of mLOV2GIVe wt because cells expressing the light-insensitive mLOV2GIVe (D) construct failed to grow under the same illumination conditions, whereas mLOV2GIVe (L) grew the same regardless of illumination conditions (Figure 4B, right). Taken together, these results show that mLOV2GIVe activates G-protein signaling in cells upon blue light illumination.

Figure 4

Download asset Open asset

Figure 4—source data 1

Numerical data used in panel A.

https://cdn.elifesciences.org/articles/60155/elife-60155-fig4-data1-v2.xlsx

Download elife-60155-fig4-data1-v2.xlsx

Here, we have presented proof-of-principle evidence for a photoswitchable G-protein activator that does not rely on opsins, that is light-activated GPCRs. This tool is based on a modular design that combines the properties of the light-sensitive LOV2 domain with a motif present in a non-GPCR activator of G-proteins of the Gi family. We propose that the versatility of the LOV2GIVe design could help overcome some limitations of currently available optogenetic tools that are based on GPCR-like proteins. For example, recent evidence suggests that opiod receptors can activate Gi proteins in different subcellular compartments (Stoeber et al., 2018), but it has not been possible to control GPCR activation in specific subcellular compartments to address the consequences of spatially encoded signals. Given that our results indicate that LOV2GIVe requires targeting to membranes where the substrate G-protein localizes (Figure 3A), it would be possible in the future to target it to different membranous organelles to trigger Gi activation in specific subcellular compartments. LOV2GIVe could also be useful for neurobiogical applications because Gi proteins are critical mediator of inhibitory neuromodulation. Combined with the potential for subcellular compartmentalization, LOV2GIVe could be leveraged to assess the different impact of inhibitory modulation at pre- or post-synaptic sites. Our results also support that LOV2GIVe can activate G-protein signaling even in cellular systems where there is not sufficient synthesis of retinal to support opsin-based activation, like in the yeast S. cerevisiae (Scott et al., 2019). This could open the application of optogenetic Gi activation to organisms or experimental settings in which the lack of external supplementation of retinal is detrimental, such those required prolonged and/or repeated stimulation. A general advantage of optogenetic approaches over other synthetic biology approaches to activate G-proteins like chemogenetics with Designer Receptors Exclusively Activated by Designer Drugs (DREADDs) (Urban and Roth, 2015) is that they allow for the rapid and accurate temporal control of both activation and deactivation. Thus, LOV2GIVe could be used to investigate Gi signaling processes over a broad temporal scale, also including intermittent or pulsatile activation. A limitation of LOV2GIVe is that it only acts on one subset of heterotrimeric G-proteins, those containing Gαi subunits. Nevertheless, potential applications are still broad, as Gi proteins control processes as diverse as inhibitory neuromodulation, opioid action, or heart rate, among many others.

Unless otherwise indicated, all chemical reagents were obtained from Sigma or Fisher Scientific. Fluorescein di-β-D-galactopyranoside (FDG) was from Marker Gene Technologies, and the protein inhibitor mixture was from Sigma (catalog no. S8830). Leupeptin, pepstatin, and aprotinin were from Gold Biotechnology. All restriction endonucleases and E. coli strain BL21(DE3) were from Thermo Scientific. E. coli strain DH5α was purchased from New England Biolabs. Pfu ultra DNA polymerase used for site-directed mutagenesis was purchased from Agilent. [γ-³²P]GTP was from Perkin Elmer. Mouse monoclonal antibodies raised against α-tubulin (T6074), FLAG tag (F1804) or His-tag (H1029) were from Sigma. Mouse monoclonal antibody raised against hemagglutinin (HA) tag (clone 12CA5, #11583816001) was obtained from Roche. Mouse monoclonal antibody raised against MYC-tag (9B11, #2276) was from Cell Signaling. Rabbit polyclonal antibody raised against Gαs (C-18, sc-383) was purchased from Santa Cruz Biotechnology. Goat anti-rabbit Alexa Fluor 680 (A21077) and goat anti-mouse IRDye 800 (#926–32210) secondary antibodies were from Life technologies and LiCor, respectively.

The parental LOV2GIV sequence was obtained as a synthetic gene fragment from GenScript and subsequently amplified by PCR with extensions at the 5’ and 3’ ends that made it compatible with a ligation-independent cloning (LIC) system (Stols et al., 2002). For the bacterial expression of GST-LOV2GIV constructs, we inserted the LOV2GIV sequence into the pLIC-GST plasmid kindly provided by J. Sondek (UNC-Chapel Hill) (Cabrita et al., 2006) to generate the plasmid pLIC-GST-LOV2GIV. Two previously described LOV2 mutations (L514K and L531E) that reduce the spurious unwinding of the Jα helix in the dark conformation (Lungu et al., 2012; Zimmerman et al., 2016) were introduced in this construct. These and other mutations to generate the dark (D, C450S) and lit (L, I539E) conformations, the a, b, c, d, and e variants described on Figure 1D, and the GEF-deficient FA mutant were made using the QuikChange II Mutagenesis Kit from Agilent. Full sequences of the parental LOV2GIV and LOV2GIVe variant are provided in Supplementary Information. For the yeast expression of LOV2GIVe constructs, we inserted the LOV2GIVe sequence into two different versions of a previously described pYES2 derived plasmid (Coleman et al., 2016): pLIC-YES2 and pLIC-YES2-N9Gpa1. Both versions contain a MYC-tag sequence cloned upstream of the LIC cassette between the HindIII and KpnI sites, but in one of the two plasmids it was preceded by a sequence encoding the first nine amino acids of S. cerevisiae Gpa1, a previously validated membrane-targeting sequence (Parag-Sharma et al., 2016; Song et al., 1996). For the mammalian expression of LOV2GIVe constructs, we inserted the LOV2GIVe sequence into a modified pLIC-myc plasmid (Cabrita et al., 2006, kindly provided by J. Sondek (UNC-Chapel Hill, NC)), in which a sequence encoding the first 11 amino acids of Lyn, a previously validated membrane-targeting sequence (Inoue et al., 2005; Parag-Sharma et al., 2016), was inserted in the AflII/KpnI sites upstream of the MYC-tag (pLIC-lyn11-myc). The resulting sequence preceding the first amino acid of LOV2GIVe is MGCIKSKGKDSGTELGSMEQKLISEEDLGILYFQSNA (bold = Lyn11, underline = MYC-tag). Cloning of the pET28b-Gαi3 and pET28b-Gαo plasmids for the bacterial expression of rat His-Gαi3 or rat His-Gαo (isoform A), respectively, have been described previously (Garcia-Marcos et al., 2010; Garcia-Marcos et al., 2009). Plasmid pLIC-Gαi1(int.6xHis) for the bacterial expression of rat Gαi1 with an internal hexahistidine tag at position 120 was generated by PCR amplification from pQE6-Gαi1(int.6xHis) (Dessauer et al., 1998, kindly provided by Carmen Dessauer, University of Texas, Houston) and insertion at NdeI/BglII sites of the pLIC-His plasmid (Stols et al., 2002). The plasmid for the bacterial expression of rat His-Gαi2 (pET28b-Gαi2) was generated by inserting the Gαi2 sequence into the NdeI/EcoRI of pET28b. Plasmids for expression of FLAG-Gαi3 (rat, p3XFLAG-CMV10-Gαi3, N-terminal 3XFLAG tag) or Gαs (human, pcDNA3.1(+)-Gαs) in mammalian cells were described previously (Beas et al., 2012; Garcia-Marcos et al., 2009). Plasmids for the expression of Gαq-HA (mouse, pcDNA3-Gαq-HA, internally tagged) or Gα12-MYC (mouse, pcDNA3.1-Gα12-MYC, internally tagged) in mammalian cells were kindly provided by P. Wedegaertner (Thomas Jefferson University) (Wedegaertner et al., 1993) and T. Meigs (University of North Carolina, Asheville) (Ritchie et al., 2013), respectively. Plasmid for the expression of Gβ1 and Gγ2 fused to a split Venus (pcDNA3.1-Venus(1-155)-Gγ₂ (VN-Gγ₂) and pcDNA3.1-Venus(155-239)-Gβ₁ (VC-Gβ₁)) or for untagged Gβ1 (pcDNA3.1-Gβ₁) and Gγ2 (pcDNA3.1-Gγ₂) were kindly provided by N. Lambert (Augusta University, GA) (Hollins et al., 2009). pcDNA3.1-masGRK3ct-Nluc and pcDNA3.1-Nluc-EPAC-VV (Masuho et al., 2015) were a gift from K. Martemyanov (Scripps Research Institute, FL). The pcDNA3-Gαi3 plasmid for the expression of rat Gαi3 in mammalian cells has been described previously (Garcia-Marcos et al., 2010; Garcia-Marcos et al., 2009). The plasmid for the expression of M4R was obtained from the cDNA Resource Center at Bloomsburg University (pcDNA3.1-3xHA-M4R, cat# MAR040TN00).

All His-tagged and GST-tagged proteins were expressed in BL21(DE3) E. coli transformed with the corresponding plasmids by overnight induction at 23°C with 1 mM isopropyl-β-D-1-thio-galactopyranoside (IPTG). Protein purification was carried out following previously described protocols (Garcia-Marcos et al., 2010; Garcia-Marcos et al., 2009). Briefly, bacteria pelleted from 1 L of culture were resuspended in 25 mL of buffer [50 mM NaH₂PO₄, pH 7.4, 300 mM NaCl, 10 mM imidazole, 1% (v:v) Triton X-100 supplemented with protease inhibitor cocktail (Leupeptin 1 µM, Pepstatin 2.5 µM, Aprotinin 0.2 µM, PMSF 1 mM)]. For His-Gαi3 and His-Gαo, this buffer was supplemented with 25 µM GDP and 5 mM MgCl₂. After sonication (four cycles, with pulses lasting 20 s/cycle, and with 1 min interval between cycles to prevent heating), lysates were centrifuged at 12,000 g for 20 min at 4°C. The soluble fraction (supernatant) of the lysate was used for affinity purification on HisPur cobalt or glutathione- agarose resins (Pierce) and eluted with lysis buffer supplemented with 250 mM imidazole or with 50 mM Tris-HCl, pH 8, 100 mM NaCl, 30 mM reduced glutathione, respectively. GST-tagged proteins were dialyzed overnight at 4°C against PBS. For His-Gαi1, His-Gαi2, His-Gαi3 and His-Gαo, the buffer was exchanged for 20 mM Tris-HCl, pH 7.4, 20 mM NaCl, 1 mM MgCl₂, 1 mM DTT, 10 μM GDP, 5% (v/v) glycerol using a HiTrap Desalting column (GE Healthcare). All protein samples were aliquoted and stored at −80°C.

GST pulldown assays were carried out as described previously (Garcia-Marcos et al., 2010; Garcia-Marcos et al., 2011) with minor modifications. GST or GST-fused LOV2GIV constructs (described in ‘Plasmid Constructs’) were immobilized on glutathione-agarose beads for 90 min at room temperature in PBS. Beads were washed twice with PBS, resuspended in 250–400 µL of binding buffer (50 mM Tris-HCl, pH 7.4, 100 mM NaCl, 0.4% (v:v) NP-40, 10 mM MgCl₂, 5 mM EDTA, 1 mM DTT, 30 µM GDP) and incubated 4 hr at 4°C with constant tumbling in the presence of His-tagged G-proteins purified as described in ‘Protein Expression and Purification’ or lysates of HEK293T cells expressing different G-proteins. For the latter, HEK293T cells (ATCC CRL3216) were grown at 37°C, 5%CO₂ in high-glucose Dulbecco's Modified Eagle Medium (DMEM) supplemented with 10% FBS, 100 U/mL penicillin, 100 µg/mL streptomycin and 1% L-glutamine. HEK293T cells were not authenticated by STR profiling or tested for mycoplasma contamination. Approximately two million HEK293T cells were seeded on 10 cm dishes and transfected the day after using the calcium phosphate method with plasmids encoding the following constructs (DNA amounts in parenthesis): FLAG-Gαi3 (3 μg), Gαs (3 μg), Gαq-HA (6 μg) or Gα12-MYC (3 μg). Cell medium was changed 6 hr after transfection. Thirty two hours after transfection, cells were harvested by scraping in PBS and centrifugation before resuspension in 500 μL of ice-cold lysis buffer (20 mM Hepes, pH 7.2, 125 mM K(CH₃COO), 0.4% (vol:vol) Triton X-100, 1 mM DTT, 10 mM β-glycerophosphate and 0.5 mM Na₃VO₄ supplemented with a protease inhibitor cocktail [SigmaFAST, #S8830]). Cell lysates were cleared by centrifugation at 14,000 g for 10 min at 4°C. Approximately, 20–25% of the lysate from a 10 cm dish was used for each binding reaction. After incubation with purified proteins or cell lysates, beads were washed four times with 1 mL of wash buffer (4.3 mM Na₂HPO₄, 1.4 mM KH₂PO₄, pH 7.4, 137 mM NaCl, 2.7 mM KCl, 0.1% (v/v) Tween-20, 10 mM MgCl₂, 5 mM EDTA, 1 mM DTT, and 30 µM GDP) and resin-bound proteins eluted by boiling for 5 min in Laemmli sample buffer before processing for IB (see below ‘Immunoblotting’).

Models of LOV2GIV and LOV2GIVe were generated using the server I-TASSER (https://zhanglab.ccmb.med.umich.edu/I-TASSER/, [Yang et al., 2015]). Best scoring models were chosen for further analysis (LOV2GIV C-score = −0.64, LOV2GIVe C-score = −0.33). Protein structures were visualized and displayed using ICM version 3.8–3 (Molsoft LLC., San Diego, CA).

This assay was performed as described previously (Garcia-Marcos et al., 2010; Garcia-Marcos et al., 2009; Garcia-Marcos et al., 2011). Briefly, His-Gαi3 (400 nM) was pre-incubated with different concentrations of GST-LOV2GIVe constructs for 15 min at 30°C in assay buffer [20 mM Na-HEPES, pH 8, 100 mM NaCl, 1 mM EDTA, 25 mM MgCl₂, 1 mM DTT, 0.05% (w:v) C₁₂E₁₀]. GTPase reactions were initiated at 30°C by adding an equal volume of assay buffer containing 1 µM [γ-³²P]GTP (~50 c.p.m/ fmol). Duplicate aliquots (25 μL) were removed at 15 min and reactions stopped with 975 μL of ice-cold 5% (w/v) activated charcoal in 20 mM H₃PO₄, pH 3. Samples were then centrifuged for 10 min at 10,000 g, and 500 μL of the resultant supernatant were scintillation counted to quantify [³²P]Pi released. Background [³²P]Pi detected at 15 min in the absence of G-protein was subtracted from each reaction and data expressed as percentage of the Pi produced by His-Gαi3 in the absence of GST-LOV2GIVe. Background counts were <5% of the counts detected in the presence of G-proteins.

GTPγS binding to purified His-Gαi3 was determined as described previously (Garcia-Marcos et al., 2010; Leyme et al., 2014). Purified His-Gαi3 (100 nM) was diluted in assay buffer (20 mM Na-HEPES, pH 8, 100 mM NaCl, 1 mM EDTA, 25 mM MgCl₂, 1 mM DTT, 0.05% (wt:vol) C₁₂E₁₀) and pre-incubated with purified GST-LOV2GIVe proteins (2 µM final) for 15 min at 30°C. Reactions were initiated, by adding an equal volume of assay buffer containing 1 µM [³⁵S]GTPγS (~50 c.p.m/ fmol) at 30°C. Duplicate aliquots (25 μL) were removed 15 min after the reaction start, and binding of radioactive nucleotide was stopped by addition of 2 mL of ice-cold wash buffer (20 mM Tris-HCl, pH 8.0, 100 mM NaCl, 25 mM MgCl₂). The quenched reactions were rapidly passed through BA-85 nitrocellulose filters (GE Healthcare) and washed with 2 mL cold wash buffer. Filters were dried and subjected to liquid scintillation counting. Background [³⁵S]GTPγS detected in the absence of G-protein was subtracted from each reaction and data expressed as percentage of the [³⁵S]GTPγS bound to His-Gαi3 in the absence of GST-LOV2GIVe.

The previously described (Cismowski et al., 1999) S. cerevisiae strain CY7967 [MATα GPA1(1–41)-Gαi3 far1Δ fus1p-HIS3 can1 ste14:trp1:LYS2 ste3Δ lys2 ura3 leu2 trp1 his3] (kindly provided by James Broach, Penn State University) was used for all yeast experiments. The main features of this strain are that the gene encoding only pheromone responsive GPCR (STE3) is deleted, the endogenous Gα-subunit Gpa1 is replaced by a chimeric Gpa1(1-41)-human Gαi3 (36-354) and the gene encoding the cell cycle arrest-inducing protein Far1 is deleted. In this strain, the pheromone response pathway can be upregulated by the ectopic expression of activators of human Gαi3 and does not result in the cell cycle arrest that occurs in the native pheromone response (Cismowski et al., 2002; Cismowski et al., 1999; Maziarz et al., 2018). Plasmid transformations were carried out using the lithium acetate method. CY7967 was first transformed with a centromeric plasmid (CEN TRP) encoding the LacZ gene under the control of the FUS1 promoter (FUS1p), which is activated by the pheromone response pathway. The FUS1p::LacZ-expressing strain was transformed with pLIC-YES2 plasmids (2 µm, URA) encoding each of the LOV2GIV constructs described in ‘Plasmid Constructs’. Double transformants were selected in synthetic defined (SD)-TRP-URA media. Individual colonies were inoculated into 3 mL of SDGalactose-TRP-URA and incubated overnight at 30°C to induce the expression of the proteins of interest under the control of the galactose-inducible promoter of pLIC-YES2. This starting culture was used to inoculate 20 mL of SDGalactose-TRP-URA at 0.3 OD600. Exponentially growing cells (~0.7–0.8 OD600, 4–5 hr) were pelleted to prepare samples for ‘β-galactosidase Activity Assay’ and ‘Yeast Spot Growth Assay’ described below and for preparing samples for immunobloting as previously described (de Opakua et al., 2017; Maziarz et al., 2018). Briefly, pellets corresponding to 5 OD600 were washed once with PBS + 0.1% BSA and resuspended in 150 µL of lysis buffer (10 mM Tris-HCl, pH 8.0, 10% (w:v) trichloroacetic acid (TCA), 25 mM NH₄OAc, 1 mM EDTA). 100 µL of glass beads were added to each tube and vortexed at 4°C for 5 min. Lysates were separated from glass beads by poking a hole in the bottom of the tubes followed by centrifugation onto a new set of tubes. The process was repeated after the addition of 50 µL of lysis buffer to wash the glass beads. Proteins were precipitated by centrifugation (10 min, 20,000 g) and resuspended in 60 µL of solubilization buffer (0.1 M Tris-HCl, pH 11.0, 3% SDS). Samples were boiled for 5 min, centrifuged (1 min, 20,000 g), and 50 µL of the supernatant transferred to new tubes containing 12.5 µL of Laemmli sample buffer and boiled for 5 min.

This assay was performed as described previously (Hoffman et al., 2002; Maziarz et al., 2018) with minor modifications. Pellets corresponding to 0.5 OD600 (in duplicates) were washed once with PBS + 0.1% (w:v) BSA and resuspended in 200 µL assay buffer (60 mM Na₂PO₄, 40 mM NaH₂PO₄, 10 mM KCl, 1 mM MgCl₂, 0.25% (v:v) β-mercaptoethanol, 0.01% (w:v) SDS, 10% (v:v) chloroform) and vortexed. 100 µL were transferred to 96-well plates and reactions started by the addition of 50 µL of the fluorogenic β-galactosidase substrate fluorescein di-β-D-galactopyranoside (FDG, 100 µM final). Fluorescence (Ex. 485 ± 10 nm/ Em. 528 ± 10 nm) was measured every 2 min for 90 min at 30°C in a Biotek H1 synergy plate reader. Enzymatic activity was calculated as arbitrary fluorescent units (a.f.u.) per minute (min).

BRET experiments were conducted as described previously (Maziarz et al., 2018). HEK293T cells (ATCC, CRL-3216) were seeded on 6-well plates (~400,000 cells/well) coated with gelatin and after one day transfected using the calcium phosphate method with plasmids encoding for the following constructs (DNA amounts in parenthesis): Venus(155-239)-Gβ₁ (VC-Gβ₁) (0.2 μg), Venus(1-155)-Gγ₂ (VN-Gγ₂) (0.2 μg) and Gαi3 (1 μg) mas-GRK3ct-Nluc (0.2 μg) along with mLOV2GIVe constructs in the amounts indicated in the corresponding figure legends. Approximately 16–24 hr after transfection, cells were washed and gently scraped in room temperature PBS, centrifuged (5 min at 550 g) and resuspended in assay buffer (140 mM NaCl, 5 mM KCl, 1 mM MgCl₂, 1 mM CaCl₂, 0.37 mM NaH₂PO₄, 20 mM HEPES pH 7.4, 0.1% glucose) at a concentration of 1 million cells/mL. 25,000–50,000 cells were added to a white opaque 96-well plate (Opti-Plate, Perkin Elmer) and mixed with the nanoluciferase substrate Nano-Glo (Promega cat# N1120, final dilution 1:200) for 2 min before measuring luminescence signals in a POLARstar OMEGA plate reader (BMG Labtech) at 28°C. Luminescence was measured at 460 ± 40 nm and 535 ± 10 nm, and BRET was calculated as the ratio between the emission intensity at 535 ± 10 nm divided by the emission intensity at 460 ± 40 nm. For the activation of M4R in Figure 3B, cells were exposed to 100 µM carbachol for 4 min prior to measuring BRET. For measurements shown in Figure 3B and Figure 4B, BRET data are presented as the difference from cells not expressing LOV2GIVe constructs. For kinetic BRET measurements shown in Figure 4A, luminescence signals were measured every 0.24 s for the duration of the experiment. The illumination pulse was achieved by switching from the luminescence read mode to the fluorescence read mode of the plate reader, with the following settings: 485 ± 6 nm filter, 200 flashes (~1.5 s). After the pulse of illumination, measurements were returned to luminescence mode with the same settings as prior to illumination. BRET data were corrected by subtracting the BRET signal baseline (average of 30 s pre-light pulse) and then subjected to a smoothening function (second order, four neighbors) in GraphPad for presentation. At the end of some BRET experiments, a separate aliquot of the same pool of cells used for the luminescence measurements was centrifuged for 1 min at 14,000 g and pellets stored at −20°C. To prepare lysates for IB, pellets were resuspended in lysis buffer (20 mM HEPES, pH 7.2, 5 mM Mg(CH3COO)₂, 125 mM K(CH3COO), 0.4% Triton X-100, 1 mM DTT, and protease inhibitor mixture). After clearing by centrifugation at 14,000 g at 4°C for 10 min, protein concentration was determined by Bradford and samples boiled in Laemmli sample buffer for 5 min before following the procedures described in ‘Immunoblotting’.

This assay was performed using the previously described BRET-based biosensor NLuc-EPAC-VV (Leyme et al., 2017; Masuho et al., 2015). HEK293T cells were seeded, transfected, and harvested as described above (‘BRET-based G-protein activation assay’) except that the plasmids used were (quantities in parenthesis): Nluc-EPAC-VV (0.05 μg), Gαi3 (1 μg) Gβ1 (0.5 μg), Gγ2 (0.5 μg) and the mLOV2GIVe constructs indicated in the figures (2 µg). A POLARstar OMEGA plate reader (BMG Labtech) was used to measure luminescence signals at 460 ± 20 nm and 528 ± 10 nm at 28°C every 5 s and BRET calculated as the ratio between the emission intensity at 528 ± 10 nm divided by the emission intensity at 460 ± 20 nm. Results were normalized to the basal BRET ratio before the addition of isoproterenol and presented as the inverse of this normalized BRET ratio. Isoproterenol (0.1 µM) was added at 60 s. Preparation of protein samples for IB was performed as described in ‘BRET-based G- Protein Activation Assay’.

Cells bearing LOV2GIVe constructs growing exponentially in SDGalactose media were pelleted as described above (‘Yeast Strains and Manipulations’), and resuspended at equal densities. Equal volumes of each strain were spotted on agar plates in four identical sets. Two of the sets were seeded on SDGalactose-TRP-URA plates with histidine and the other two sets were seeded on SDGalactose-TRP-URA-HIS (supplemented with 5 mM 3-amino-1,2,4-triazole). From each one of the two pairs of sets, one of the plates was exposed to a homemade array of blue LED strips positioned approximately 12 cm above the plates (~2,000 Lux as determined by a Trendbox Digital Light Meter HS1010A) whereas the other one was incubated side by side under the same light but tightly wrapped in aluminum foil. Plates were incubated simultaneously under these conditions for 4 days at 30°C and then imaged using an Epson flatbed scanner.

Proteins were separated by SDS-PAGE and transferred to PVDF membranes, which were blocked with 5% (w:vol) non-fat dry milk and sequentially incubated with primary and secondary antibodies. For protein-protein binding experiments with GST-fused proteins, PVDF membranes were stained with Ponceau S and scanned before blocking. The primary antibodies used were the following: MYC (1:1,000), His (1:2,500), FLAG (1:2,000), α-tubulin (1:2,500), HA (1:1,000) and Gαs (1:500). The secondary antibodies were goat anti-rabbit Alexa Fluor 680 (1:10,000) and goat anti-mouse IRDye 800 (1:10,000). Infrared imaging of immunoblots was performed using an Odyssey Infrared Imaging System (Li-Cor Biosciences). Images were processed using the ImageJ software (NIH) and assembled for presentation using Photoshop and Illustrator softwares (Adobe).

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

This work was supported by NIH grant R01GM136132 (to MG-M). MM was supported by an American Cancer Society - Funding Hope Postdoctoral Fellowship, PF-19-084-01-CDD. We thank N Lambert (Augusta University), K Martemyanov (The Scripps Research Institute, Florida), C Dessauer (University of Texas, Houston), J Sondek (University of North Carolina-Chapel Hill), P Wedegaertner (Thomas Jefferson University) , and T Meigs (University of North Carolina-Asheville) for providing the plasmids.
