Cryo-EM analysis of PIP2 regulation in mammalian GIRK channels

  1. Yiming Niu
  2. Xiao Tao
  3. Kouki K Touhara
  4. Roderick MacKinnon  Is a corresponding author
  1. Laboratory of Molecular Neurobiology and Biophysics, The Rockefeller University, Howard Hughes Medical Institute, United States
Research Article
  • Cited 0
  • Views 1,335
  • Annotations
Cite this article as: eLife 2020;9:e60552 doi: 10.7554/eLife.60552

Abstract

G-protein-gated inward rectifier potassium (GIRK) channels are regulated by G proteins and PIP2. Here, using cryo-EM single particle analysis we describe the equilibrium ensemble of structures of neuronal GIRK2 as a function of the C8-PIP2 concentration. We find that PIP2 shifts the equilibrium between two distinguishable structures of neuronal GIRK (GIRK2), extended and docked, towards the docked form. In the docked form the cytoplasmic domain, to which Gβγ binds, becomes accessible to the cytoplasmic membrane surface where Gβγ resides. Furthermore, PIP2 binding reshapes the Gβγ binding surface on the cytoplasmic domain, preparing it to receive Gβγ. We find that cardiac GIRK (GIRK1/4) can also exist in both extended and docked conformations. These findings lead us to conclude that PIP2 influences GIRK channels in a structurally similar manner to Kir2.2 channels. In Kir2.2 channels, the PIP2-induced conformational changes open the pore. In GIRK channels, they prepare the channel for activation by Gβγ.

Introduction

The inward rectifier K+ (Kir) channels were originally named for their rectifying current-voltage relationship (Hagiwara et al., 1976; Hagiwara and Takahashi, 1974; Hodgkin and Horowicz, 1959; Noble, 1965). Today, this class of ion channels is defined by characteristic structural features encoded by the Kir family of related genes (Hibino et al., 2010). All Kir channels are tetramers of identical or related subunits that encode a K+ selectivity filter-containing transmembrane pore (TMD for transmembrane domain) and a cytoplasmic domain (CTD) (Tao et al., 2009; Whorton and MacKinnon, 2011). The TMD and CTD are covalently linked by a tether, called here the TMD-CTD linker (Tao et al., 2009; Whorton and MacKinnon, 2011). In eukaryotic cells, Kir channels underlie many physiological processes, including neuronal electrical activity, electrolyte homeostasis in the kidney, insulin secretion, and heart rate control (Hibino et al., 2010).

To fulfill their many biological roles, different eukaryotic Kir channels respond to unique ligands. However, as far as we know, they all respond to the signaling lipid phosphatidylinositol 4,5-bisphosphate (PIP2) (Hibino et al., 2010; Hilgemann et al., 2001; Huang et al., 1998; Stanfield et al., 2002). In fact, the two features all eukaryotic Kir channels have in common are K+ selectivity and responsiveness to PIP2. A specific mechanism for PIP2 regulation of Kir2.2 has been proposed (Hansen et al., 2011; Tao et al., 2009). As depicted (Figure 1A), in the absence of PIP2 the CTD is disengaged from the TMD, resulting in an ‘extended’ conformation (Tao et al., 2009). Upon PIP2 binding, the TMD-CTD loop forms a helix and the CTD engages the TMD to form a ‘docked’ conformation in which the channel opens (Hansen et al., 2011).

Figure 1 with 3 supplements see all

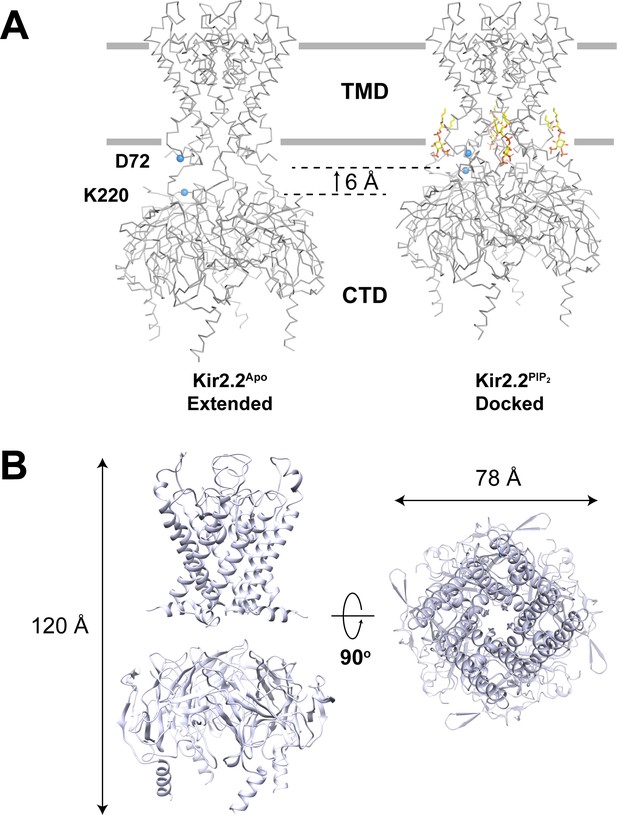

GIRK2 adopts an extended conformation in the absence of PIP2.

(A) Conformational changes upon PIP2 binding in the Kir2.2 channel viewed from side with the extracellular side above (Left: the extended conformation without PIP2, PDB: 3JYC. Right: the docked conformation upon PIP2 binding, PDB: 3SPI). Four PIP2 molecules are shown as sticks and colored according to atom type: carbon, yellow; phosphorous, orange; and oxygen, red. The CTD translates towards the TMD by 6 Å upon PIP2 binding. A set of reference atoms (Asp72 and Lys220 α-carbons) are highlighted as blue spheres in each structure. (B) Side and top views of the cryo-EM structure of the GIRK2 channel in an extended conformation.

G-protein-gated inward rectifier K+ (GIRK) channels are activated by both PIP2 and Gβγ (Huang et al., 1998; Logothetis et al., 1987; Logothetis and Zhang, 1999; Sui et al., 1998). Detailed mechanistic studies in a reconstituted system using a neuronal isoform of GIRK (GIRK2) showed that both PIP2 and Gβγ are required to open the pore (Wang et al., 2014). Crystal structures of GIRK2 in the absence and presence of PIP2 (and in the presence of Gβγ) did not show a change in the relationship between the CTD and TMD as was seen in Kir2.2 (Hansen et al., 2011; Tao et al., 2009; Whorton and MacKinnon, 2011; Whorton and MacKinnon, 2013). In this manuscript, we study the structural effects of PIP2 on neuronal GIRK2 and cardiac GIRK1/4 using cryo-electron microscopy (cryo-EM) and correlate these effects with known properties of PIP2 activation.

Results

GIRK2 adopts an extended conformation in the absence of PIP2

Figure 1B shows the structure of the mouse GIRK2 channel in the absence of PIP2 (CryoEMApo) at a resolution of 3.9 Å by cryo-EM single particle analysis. The corresponding cryo-EM map is shown in Figure 1—figure supplements 1 and 2. In the absence of PIP2 it is clear that GIRK2 can adopt a conformation in which the CTD is disengaged from the TMD and the TMD-CTD linker has to be extended to account for the separation between the TMD and CTD. Thus, in the absence of PIP2, the global conformation of GIRK2 appears much like the Kir2.2 channel in the absence of PIP2 (i.e. both channels adopt an extended conformation) (Figure 1A and B; Tao et al., 2009).

Using X-ray crystallography, we had determined a structure of GIRK2 in the absence of PIP2 (CrystalApo) that did not adopt this extended conformation (Figure 1—figure supplement 3A; Whorton and MacKinnon, 2011). Detailed differences in the structures of CryoEMApo and CrystalApo are shown (Figure 1—figure supplement 3B and C). The crystal lattice offers a possible explanation for conformational differences between CryoEMApo and CrystalApo (Figure 1—figure supplement 3D). Symmetry-related tetramers in the crystal contact each other through ~500 Å2 buried surface area on the CTD (PISA server) (Krissinel and Henrick, 2007), as shown in the inset of Figure 1—figure supplement 3D. Because in the extended conformation the CTD and TMD are free to move with respect to each other without hindrance, these two structured regions may have been pushed together when the crystal was formed. Single particle cryo-EM, without the potential interference of lattice contacts, might provide a structure that more accurately portrays a GIRK2 channel in the cell membrane.

GIRK2 and Kir2.2 are structurally similar channels, but differ functionally in an important aspect. PIP2 is necessary and sufficient to open Kir2.2, but must operate in conjunction with Gβγ to open GIRK2. This important distinction notwithstanding, the difference between CrystalApo and CryoEMApo conformations leads us to ask which conformation better reflects reality in the membrane? To pursue this question further, we used cryo-EM single particle analysis to study the dependence of the GIRK2 conformation as a function of PIP2 concentration.

GIRK2 conformation as a function of PIP2 concentration

GIRK2 channels were vitrified in the presence of PIP2 (soluble C8-PIP2) concentrations ranging from 0 mM to 1.0 mM. Data were collected and analyzed using the approach applied to the Na+ dependence of the Slo2 K+ channel conformation (Hite and MacKinnon, 2017). Images from all concentrations were merged into a single 'titration dataset' and 3D refinement was carried out in RELION (Scheres, 2012). Particles were then classified (five classes requested) without refinement of angles or translations. Four classes (1-4) were similar to each other and showed a disengaged CTD (i.e. extended conformation) with an unresolved TMD-CTD linker (Figure 2A). Class 5 showed an engaged CTD (i.e. CTD-docked conformation) and a visible TMD-CTD linker (Figure 2A). The fraction of channels contributing to the CTD-docked conformation (class 5) increased as PIP2 concentration increased (Figure 2B and C).

Figure 2 with 1 supplement see all

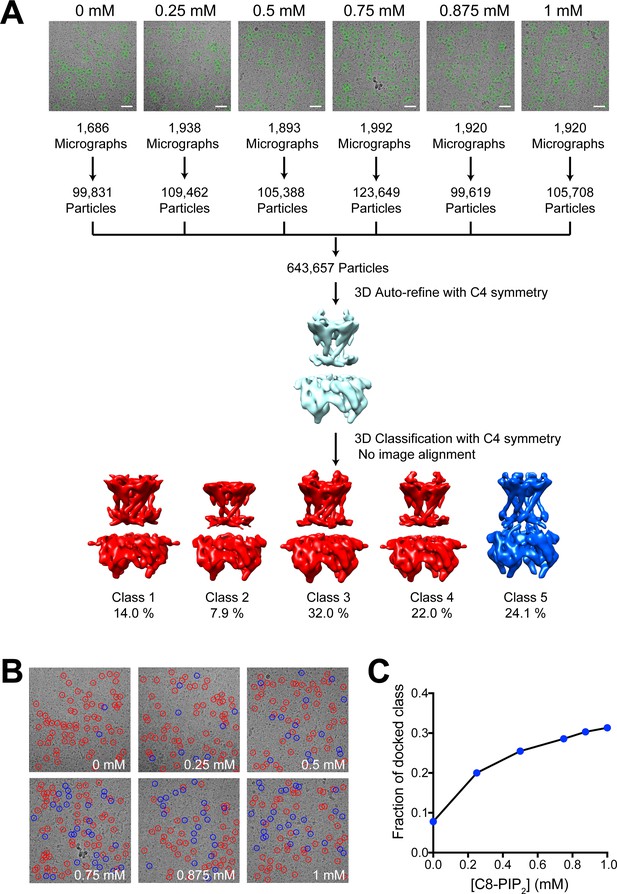

GIRK2 conformation as a function of PIP2 concentration.

(A) Structural titration image analysis workflow. Representative images of GIRK2 channels recorded in the presence of 0, 0.25, 0.5, 0.75, 0.875 or 1 mM C8-PIP2. GIRK2 particles were automatically selected from the images (green circles). The extracted particles from the respective images were combined into a single titration dataset for 3D refinement with C4 symmetry in RELION. Using the angles and translations obtained from the 3D refinement, the particles from the titration dataset were classified into five classes. The extended classes are colored red and the docked class blue. (B) Representative cryo-EM images of GIRK2 in the presence of 0, 0.25, 0.5, 0.75, 0.875 or 1 mM C8-PIP2. Particles marked with a red circle were classified as extended, and those with a blue circle were classified as docked. (C) The fraction of particles classified as the docked conformation of GIRK2 is plotted against the concentration of C8-PIP2.

To further examine the 3D classification result, we performed classification five times independently and compared the outcome. As shown in Figure 2—figure supplement 1A, the fraction of channels contributing to the docked class at each PIP2 concentration remained fairly constant for the five independent runs, indicating that the classification algorithm yields a reproducible outcome. In addition, of all the channels classified as docked, more than 80% were classified as such four or five times (Figure 2—figure supplement 1B). These data indicate that the population of channels in the docked conformation is positively correlated with the concentration of PIP2.

Figure 2C shows that the fraction of docked channels increased from approximately 0.08 to 0.30 when PIP2 is increased from 0 mM to 1.0 mM. We previously showed that the activity of GIRK2 channels in membranes increases as a function of PIP2 concentration with an activation constant ~15 μM (and Hill coefficient ~3.1) (Wang et al., 2014). The large difference in PIP2 activity between these studies likely originates in the difference between the detergent micelle and the lipid membrane environment. PIP2 partitions into membranes (differently than into detergent micelles) and therefore the local concentrations of PIP2 are unknown.

It is also notable that a fraction (~0.08) of docked channels exists in the absence of PIP2 (Figure 2C). In functional studies in membranes we found that the open fraction of GIRK2 channels in the absence of PIP2 (but in the presence of Gβγ) is probably less than 0.01 (Wang et al., 2014). Again, there is an uncertainty that precludes direct comparison of these numbers: we do not know what fraction of docked channels are open. In other words, docking may be a necessary but not necessarily a sufficient condition to open the pore.

We found previously that the presence of 32 mM Na+ substantially increases the open probability of GIRK2 at all concentrations of PIP2 examined (Wang et al., 2014). The experiments behind Figure 2 were carried out in the absence of added Na+. It is possible that addition of Na+ would increase the fraction of docked channels.

Presently, we conclude that formation of the docked channel is positively correlated with increased PIP2 concentration.

GIRK1/4 channels also form extended and docked conformations

GIRK2 channels predominate in the nervous system while GIRK4 (Kir3.4) and heteromultimeric GIRK1/4 (Kir3.1/Kir3.4) channels function in the cardiovascular system where they regulate heart rate through parasympathetic nervous system control (Corey and Clapham, 1998; Karschin et al., 1996; Krapivinsky et al., 1995; Kubo et al., 1993; Lesage et al., 1994; Lesage et al., 1995). GIRK1/4 channels were expressed as previously described (Touhara et al., 2016) and cryo-EM samples were prepared in the presence of 0.5 mM C8-PIP2. Data were collected and images processed as shown (Figure 3—figure supplement 1). 3D classification revealed both extended (26% particles) and docked (22% particles) conformations (Figure 3 and Figure 3—figure supplement 1). Three remaining classes, accounting for 52% of the data, were insufficiently resolved to determine details of the underlying conformations. The two resolved conformations exhibit features similar to those of GIRK2, with lengths of ~119 Å and ~112 Å for extended and docked conformations, respectively, a well-resolved linker in the docked conformation but not in the extended conformation, and a 35° difference in the rotation of the CTD with respect to the TMD (Figure 3). We conclude that GIRK1/4, like GIRK2, can adopt the extended and docked conformations.

Figure 3 with 1 supplement see all

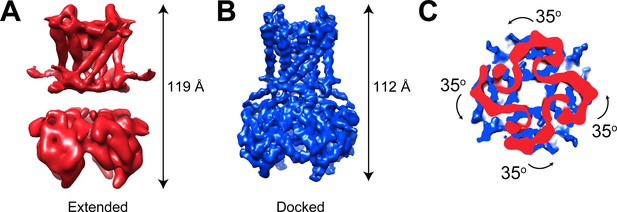

GIRK1/4 channels also form extended and docked conformations.

(A and B) Side views of the cryo-EM density map of the extended (A) and docked (B) conformations of the GIRK1/4 channel. (C) Top view of the CTD regions aligned with respect to the TMD reveals a 35° rotation from extended to docked conformations.

Conformational changes in the PIP2 and Gβγ binding sites on GIRK2

Using all particles classified as ‘docked’ in the titration dataset, we reconstructed a best map of the GIRK2 channel with four bound PIP2 molecules (CryoEMPIP2) at a resolution of 3.3 Å (Figure 4A, Figure 4—figure supplements 1 and 2). The TMD-CTD linker forms a well-resolved helix in contrast to a flexible loop in the CryoEMApo structure. This conformational change positions Lys199 and Lys200, along with Lys194 from the inner helix and Lys90 from the outer helix, to form electrostatic interactions with the PIP2 molecule (Figure 4B). In addition, the 6 Å translation and 35o rotation of the CTD associated with PIP2 binding brings Lys64 (from the N-terminus) near enough to PIP2 to engage its 4’-phosphate (Figure 4B and C and Figure 4—figure supplement 3). The sidechains of positively charged residues that coordinate PIP2 are disordered in the CryoEMApo structure. Thus, PIP2 binding stabilizes the docked conformation through interactions between the 4’,5’-phosphate-substituted inositol head group of PIP2 and Lys64 (with the 4’ phosphate) and Lys194, Lys199, Lys200 (with the 5’ phosphate). An analogous constellation of charge-pair stabilization is observed in the PIP2 bound form of Kir2.2 (Hansen et al., 2011; Tao et al., 2009).

Figure 4 with 3 supplements see all

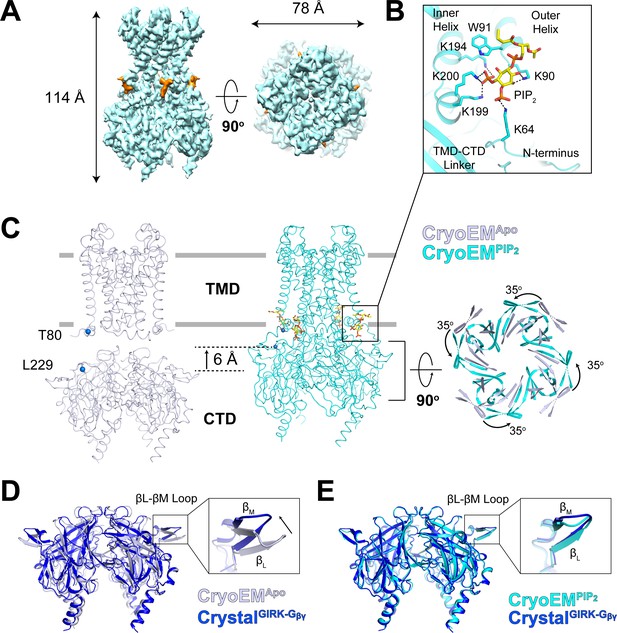

Conformational changes between the docked and extended GIRK2 channel upon PIP2 binding.

(A) Side and top views of the cryo-EM density map of the docked conformation of GIRK2 channel (cyan) with four bound PIP2 molecules (orange). The PIP2 acyl chains were only partially resolved. (B) Close-up view of the PIP2 binding pocket. PIP2 is shown as sticks and colored according to atom type (carbon, yellow; phosphorous, orange; and oxygen, red). The PIP2 interacting residues are also shown as sticks (carbon, cyan and nitrogen, blue). (C) Comparison of the extended (gray, no PIP2) and the docked (cyan, with 4 PIP2 bound) structures. The channel is viewed from the side with the extracellular side above. The lipid bilayer boundaries are shown as grey bars. Four PIP2 molecules are shown as sticks and colored as in panel (B). The PIP2 molecule in a similar orientation as in (B) is outlined by a black box. Upon PIP2 binding, the CTD in the extended structure translates towards the TMD by 6 Å accompanied by a 35° rotation viewed from the extracellular side. (D and E) Local conformational changes at the binding site for Gβγ in the βL-βM loop of GIRK2 CTD are shown by structural superposition. The CTD region of GIRK2 CryoEMApo, CryoEMPIP2 and CrystalGIRK-Gβγ structures are colored gray, cyan, and blue, respectively. Rearrangement of the βL-βM loop is indicated by an arrow.

Another conformational change associated with PIP2 binding occurs on the side of the CTD, involving the βL-βM loop, as shown (Figure 4D and E). The βL-βM loop does not make direct contact with the PIP2 binding site but apparently is allosterically coupled to it. The possible importance of the βL-βM loop conformational change is implied through superposition of CryoEMApo CTD and CryoEMPIP2 CTD with the CTD from the crystal structure of GIRK2 in complex with Gβγ (CrystalGIRK-Gβγ). The βL-βM loop is located on the surface to which Gβγ binds. In CryoEMPIP2, the βL-βM loop adopts the position observed in the Gβγ complex. Thus, it would appear that PIP2 binding to GIRK2 pre-configures the Gβγ binding surface on the CTD into a receptive conformation.

Discussion

The main conclusion of this study is that GIRK channels – GIRK2 as well as GIRK1/4 – can adopt extended and docked conformations. With GIRK2 we show that the docked conformation is favored in the presence of PIP2. We think that crystal contacts in the previous CrystalApo structure pushed the CTD and TMD into close proximity (Whorton and MacKinnon, 2011). It seems likely that PIP2 in GIRK channels, as previously proposed for Kir2.2 channels (Hansen et al., 2011; Tao et al., 2009), mediates the docking of the CTD onto the TMD. Electrostatic interactions between the anionic headgroup of PIP2 and cationic amino acid sidechains on the channel serve to tether the CTD to the TMD. Many of these electrostatic interactions are conserved in GIRK and Kir2.2. A secondary conformational change occurs on the side of the CTD corresponding to the Gβγ binding surface. This change configures the surface ready to bind Gβγ.

These effects of PIP2 on GIRK2 are summarized in a cartoon (Figure 5A and B). By tethering the CTD to the TMD, PIP2 brings the CTD close to the membrane surface where it can be reached by Gβγ, which is held at the membrane surface by its covalent attachment to a lipid tail. Coincidentally, the binding surface for Gβγ on the CTD adopts a permissive conformation, allowing Gβγ to bind. This proposed mechanism is consistent with the demonstration that Gβγ is unable to open GIRK2 in the absence of PIP2 (Wang et al., 2014): without PIP2, Gβγ is unable to access its binding site on GIRK2.

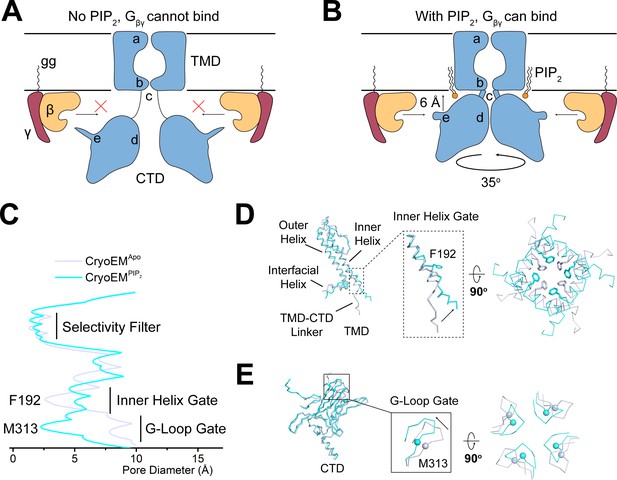

PIP2 serves as an allosteric regulator to permit Gβγ binding.

(A and B) A cartoon depiction of PIP2 regulation of GIRK channels. The blue shape depicts the GIRK channel. a, b, c, d, and e indicate the selectivity filter, inner helix gate, TMD-CTD linker, the G-loop gate, and the βL-βM loop, respectively. Circular arrow indicates the rotation about the pore axis with respect to the TMD and perpendicular arrow indicates CTD translation upon PIP2 binding. The ‘gg’ label represents the geranylgeranyl lipid modification at the C terminus of Gγ. In the absence of PIP2 (A), GIRK2 channel adopts the extended conformation and is not positioned for Gβγ binding. Upon PIP2 binding (B), the GIRK2 channel transits to the docked conformation, allowing Gβγ binding to occur. (C) Plot of pore diameter (between van der Waals surfaces, calculated with Hole) for the extended (gray) and docked (cyan) structures. (D and E) Superposition of the channel TMD from the extended (gray) and docked (cyan) structures. Conformational changes at the inner helix gate (D) and G-loop gate (E) are boxed and zoomed-in details are shown. Sidechains of the inner helix gate-forming residue Phe192 are shown as sticks. Cα atoms of the G-loop gate constriction residue Met313 are shown as spheres.

How do the PIP2-induced conformational changes help to open the pore? GIRK channels have two gates along their ion conduction pore: an inner helix gate in the TMD and a G-loop gate at the apex of the CTD (Doyle et al., 1998; Jiang et al., 2002; Nishida et al., 2007; Pegan et al., 2005; Whorton and MacKinnon, 2011; Whorton and MacKinnon, 2013). In the absence of PIP2, the inner helix gate of GIRK2 is most tightly constricted at position Phe192 in the inner helix, which lines the pore on the intracellular side of the selectivity filter (Figure 5C and D). PIP2 binding and docking of the CTD onto the TMD is associated with a modest change in the conformation of the inner helix, a repositioning of the sidechain of Phe192, and widening of the pore. The G-loop gate actually constricts when the CTD docks onto the TMD (Figure 5C and E). Thus, it would appear that when four PIP2 molecules bind to GIRK2, the inner helix gate opens, or begins to open, but the pore remains closed owing to a constricted G-loop gate. This interpretation is consistent with functional data showing that PIP2 is unable to open GIRK2 in the absence of Gβγ (Wang et al., 2014) because the G-loop gate remains closed.

In summary, it appears that PIP2 in GIRK channels enables Gβγ-mediated opening by bringing the CTD near the intracellular membrane surface and rendering the Gβγ binding surface permissive for attachment.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
Gene (Mus musculus GIRK2)GIRK2syntheticSynthesized at GeneWiz.
Gene (Homo sapiens GIRK1)GIRK1syntheticSynthesized at GeneWiz.
Gene (Homo sapiens GIRK4)GIRK4syntheticSynthesized at GeneWiz.
Strain, strain background (Escherichia coli)DH10BacThermoFisher10361012
Recombinant DNA reagentpPICZ-GIRK2https://doi.org/10.1016/j.cell.2011.07.046Maintained at the Mackinnon lab
Recombinant DNA reagentGIRK1-His10-pEG BacMamhttps://doi.org/10.7554/eLife.15750.001Maintained at the Mackinnon lab
Recombinant DNA reagentGIRK4-1D4-pEG BacMamhttps://doi.org/10.7554/eLife.15750.001Maintained at the Mackinnon lab
Cell line (Pichia pastoris)SMD1163InvitrogenC17500
Cell line
(Spodoptera frugiperda)
Sf9ATCCCat# CRL-1711
Cell line (Homo sapiens)HEK293S GnTI-ATCCCat# CRL-3022
Chemical compound, drugSF-900 II SFM mediumGIBCOCat# 10902–088
Chemical compound, drugL-Glutamine (100x)GIBCOCat# 25030–081
Chemical compound, drugPen StrepGIBCOCat# 15140–122
Chemical compound, drugGrace’s insect mediumGIBCOCat# 11605–094
Chemical compound, drugFreestyle 293 mediumGIBCOCat# 12338–018
Chemical compound, drugFetal bovine serumGIBCOCat# 16000–044
Chemical compound, drugCellfectin II reagentInvitrogenCat# 10362100
Chemical compound, drugCholesteryl hemisuccinate (CHS)AnatraceCH210
Chemical compound, drugn-Dodecyl-β-D-Maltopyranoside (DDM)AnatraceD310S
Chemical compound, drugn-Decyl-β-D-Maltopyranoside (DM)AnatraceD322S
Chemical compound, drug1,2-dioctanoyl-sn-glycero-3-phospho-(1'-myo-inositol-4',5'-bisphosphate) (ammonium salt) (C8-PIP2)Avanti Polar Lipids850185P
Chemical compound, drug(1H, 1H, 2H, 2H-Perfluorooctyl)phosphocholine (FFC8)AnatraceF300F
Commercial assay or kitCNBr-activated Sepharose beadsGE HealthcareCat# 17-0430-01
Commercial assay or kitSuperdex 200 Increase 10/300 GLGE Healthcare Life Sciences28990944
Commercial assay or kitR1.2/1.3 400 mesh Au holey carbon gridsQuantifoil1210627
Commercial assay or kitSuperose 6 Increase 10/300 GLGE Healthcare Life Sciences29091596
Software, algorithmRELION 3.0https://doi.org/10.7554/eLife.42166.001http://www2.mrc-lmb.cam.ac.uk/relion
Software, algorithmRELION 3.1https://doi.org/10.1101/798066http://www2.mrc-lmb.cam.ac.uk/relion
Software, algorithmMotionCor2https://doi.org/10.1038/nmeth.4193http://msg.ucsf.edu/em/software/motioncor2.html
Software, algorithmGctf 1.0.6https://doi.org/10.1016/j.jsb.2015.11.003https://www.mrc-lmb.cam.ac.uk/kzhang/Gctf/
Software, algorithmCtfFind4.1.8https://doi.org/10.1016/j.jsb.2015.08.008http://grigoriefflab.janelia.org/ctffind4
Software, algorithmGautomatchhttps://www.mrc-lmb.cam.ac.uk/kzhang/Gautomatch/
Software, algorithmCryoSPARC 2.4.0https://doi.org/10.7554/eLife.46057.001https://cryosparc.com/
Software, algorithmPyemhttps://github.com/asarnow/pyem
Software, algorithmCOOThttps://doi.org/10.1107/S0907444910007493http://www2.mrc-lmb.cam.ac.uk/personal/ pemsley/coot
Software, algorithmPHENIXhttps://doi.org/10.1107/S0907444909052925https://www.phenix-online.org
Software, algorithmAdobe Photoshop version 16.0.0 (for figure preparation)Adobe Systems, Inc
Software, algorithmGraphPad Prism version 8.0GraphPad Software
Software, algorithmMacPyMOL: PyMOL v2.0 Enhanced for Mac OS XSchrodinger LLChttps://pymol.org/edu/?q=educational/
Software, algorithmChimerahttps://doi.org/10.1002/jcc.20084https://www.cgl.ucsf.edu/chimera/download.html
Software, algorithmSerial EMhttps://doi.org/10.1016/j.jsb.2005.07.007http://bio3d.colorado.edu/SerialEM
Software, algorithmHOLEhttps://doi.org/10.1016/S0263-7855(97)00009-Xhttp://www.holeprogram.org

Protein expression and purification

Request a detailed protocol

Mouse GIRK2 (residues 52–380) was expressed in Pichia pastoris as previously described (Whorton and MacKinnon, 2011). Frozen cells were lysed in a mixer mill, and resuspended in 50 mM HEPES (pH 7.4), 150 mM KCl and protease inhibitor cocktail for 1 hr at 4°C. The resuspension was adjusted to pH 8.0, then 4% (w/v) n-decyl-β-D-maltopyranoside (DM) and 0.8% (w/v) cholesterol hemisuccinate (CHS) (or 4% n-dodecyl-β-D-maltopyranoside (DDM) and 0.8% CHS for the apo GIRK2 sample) were added to extract for 2 hr at 4°C. The mixture was centrifuged at 37,500 g for 30 min and the supernatant incubated with GFP nanobody-coupled CNBr-activated Sepharose resin (GE Healthcare) for 1–2 hr at 4°C (Kubala et al., 2010). The resin was subsequently washed with 10 column volumes of wash buffer (50 mM HEPES pH 7.4, 150 mM KCl, 0.2% DM and 0.04% CHS for structural titration samples, or 0.05% DDM and 0.01% CHS for apo GIRK2 sample). The washed resin was incubated overnight with PreScission protease at a target protein to protease ratio of 40:1 (w:w) to cleave off GFP and release the protein from the resin. The protein was eluted with wash buffer, concentrated using an Amicon Ultra centrifugal filter (MWCO 100 kDa), and then injected onto a Superdex 200 increase 10/300 GL column (GE Healthcare) equilibrated with SEC buffer (20 mM Tris-HCl pH 7.5, 150 mM KCl, 10 mM DTT, 1 mM EDTA, 0.2% DM and 0.04% CHS for structural titration samples, or 0.05% DDM and 0.01% CHS for apo GIRK2 sample). Peak fractions corresponding to the GIRK2 tetramer were pooled and concentrated to 6–7 mg/ml using an Amicon Ultra centrifugal filter (MWCO 100 kDa).

Full-length human GIRK1 and GIRK4 genes were cloned into a pEG BacMam vector, and co-expressed in HEK293S GnTI- (ATCC CRL-3022) cells as previously described (Touhara et al., 2016). Cells were solubilized in 50 mM HEPES (pH 7.4), 150 mM KCl, 1.5% (w/v) DDM, 0.3% (w/v) CHS, and protease inhibitor cocktail. Two hours after solubilization, lysed cells were centrifuged at 37,500 g for 30 min and supernatant was incubated with Talon metal affinity resin (Clontech Laboratories, Inch. Mountain View, CA) for 1 hr at 4°C with gentle mixing. The resin was washed in batch with five column volumes of buffer A (50 mM HEPES pH 7.0, 150 mM KCl, 0.05% [w/v] DDM, 0.01% [w/v] CHS), then loaded onto a column and further washed with five column volumes of buffer A + 10 mM imidazole. The protein was then eluted with buffer A + 200 mM imidazole. The peak fraction was collected and incubated with the 1D4 affinity resin for 1 hr at 4°C with gentle mixing. The resin was loaded onto a column and washed with buffer A. Five mM DTT and 1 mM EDTA were added and eGFP and affinity tags were cut with PreScission protease overnight at 4°C. The cleaved protein was then concentrated to run on a Superose 6 10/300 GL gel filtration column in 20 mM Tris-HCl (pH 7.5), 150 mM KCl, 100 mM NaCl, 0.025% (w/v) DDM, 0.005% (w/v) CHS, 10 mM DTT, and 1 mM EDTA. Protein was finally concentrated to ~5 mg/ml using an Amicon Ultra centrifugal filter (MWCO 100 kDa).

Cryo-EM sample preparation and data collection

Request a detailed protocol

For the apo GIRK2 sample, purified GIRK2 at a concentration of 6–7 mg/ml was mixed with Fluorinated Fos-Choline-8 (FFC8) (Anatrace) stock at 29 mM to a final concentration of 2.9 mM immediately prior to application of 3.5 μL of the mixture onto a glow-discharged Quantifoil R1.2/1.3 400 mesh Au grid (Quantifoil), blotted for 4 s at room temperature (RT) with a blotting force of 2–4 and plunge-frozen in liquid ethane using a Vitrobot Mark IV (FEI).

For the structural titration samples, purified GIRK2 at a concentration of 6–7 mg/ml was mixed with C8-PIP2 stock at 10 mM to a final concentration of 0, 0.25, 0.5, 0.75, 0.875 or 1 mM. In an earlier study (Wang et al., 2014), we showed that C8-PIP2 activates GIRK2 channels in lipid membranes with an activation constant ~15 μM and Hill coefficient n ~ 3. C8-PIP2 partitions into membranes and thus the local concentration near the channel is unknown. We chose the higher concentration range in the structural study because the channels are in detergent micelles, where local concentrations of PIP2, compared to studies with lipid membranes, are expected to be lower. The mixtures were further mixed with FFC8 stock to a final concentration of 2.9 mM, and 3.5 μL aliquots of the protein were pipetted onto glow-discharged Quantifoil R1.2/1.3 400 mesh Au grids and blotted with the same settings as for apo GIRK2 using a Vitrobot Mark IV.

For GIRK1/4 samples, purified GIRK1/4 at a concentration of ~5 mg/ml was mixed with C8-PIP2 stock at 10 mM to the final concentration of 0.5 mM. 3.5 μL aliquots of the protein were then pipetted onto glow-discharged Quantifoil R1.2/1.3 400 mesh Au grids and blotted for 1 s at RT with a blotting force of 1 and plunge-frozen in liquid ethane using a Vitrobot Mark IV.

Cryo-EM data were collected on a 300-kV Titan Krios electron microscope (Thermo Fisher Scientific) equipped with a K3 Summit (apo GIRK2 sample) or K2 Summit (other samples) direct electron detector in super-resolution mode. After binning over 2 × 2 pixels, the calibrated pixel size was 0.86 Å, 1 Å and 1.03 Å for apo GIRK2, structural titration samples and GIRK1/4, respectively. For the apo GIRK2 sample, exposures of 3 s were dose-fractionated into 80 frames with a dose rate of 25.5 electrons per pixel per second, resulting in a total dose of 103.3 electrons per Å2. For structural titration samples and GIRK1/4 samples, exposures of 10 s were dose-fractionated into 50 frames with a dose rate of 8 electrons per pixel per second, resulting in a total dose of 80 (structural titration samples) or 75.4 (GIRK1/4 sample) electrons per Å2, respectively. Cryo-EM data collection statistics are summarized in Table 1.

Table 1
Cryo-EM data collection and refinement statistics, related to Figures 1, 2 and 4.
GIRK2ExtendedGIRK2DockedGIRK1/4ExtendedGIRK1/4Docked
EMDB IDEMD-22199EMD-22200EMD-22201EMD-22202
PDB ID6XIS6XIT
Data collection
MicroscopeTitan Krios
DetectorK3 summitK2 summit
Voltage (kV)300
Pixel size (Å)0.430.50.515
Total electron exposure
(e-2)
103.380.075.4
Defocus range (μm)1.0 to
3.0
1.5 to
2.5
1.5 to
3.5
Micrographs collected210311,3493415
Reconstruction
Final particle images112,517155,12857,64448,757
Pixel size (Å)1.2911.031.03
Box size (pixels)256400256256
Resolution (Å)
(FSC = 0.143)
3.93.37.94.6
Map Sharpening B-factor (Å2)−26−12-−192
Model composition
Non-hydrogen atoms946010,252
Protein residues124013,08
Ligands04
Metals03
Refinement
Model-to-map CC (mask)0.620.72
Model-to-map CC (volume)0.640.75
R.m.s deviations
Bond length (Å)0.0060.009
Bond angles (°)1.31.3
Validation
MolProbity score2.001.80
Clash score8.559.91
Ramachandran plot
Outliers (%)00
Allowed (%)1.74.0
Favored (%)98.396.0
Rotamer outliers (%)1.400.74
C-beta deviations (%)00

Cryo-EM data processing

Request a detailed protocol

Image processing was performed in both CryoSPARC-2.9.0 (Structura Biotechnology) (Punjani et al., 2017) and RELION (Scheres, 2012; Zivanov et al., 2018; Zivanov et al., 2020). All movie frames were corrected with a gain reference collected during the same EM session, and specimen movement was corrected using MotionCorr2 (Zheng et al., 2017) with dose weighting. The contrast transfer function (CTF) parameters were estimated using Gctf-1.0.6 (Zhang, 2016). Images showing substantial ice contamination, abnormal background, thick ice, low contrast or poor Thon rings were discarded.

For structure determination of the apo GIRK2, 2049 of 2103 micrographs were selected for further processing. Particles were picked with the Laplacian-of-Gaussian auto-picking implemented in RELION-3 without templates. 502,731 auto-picked particles were extracted into 384 × 384 pixel images. The particle images were binned 1.5 times and subjected to Ab-initio reconstruction in CryoSPARC-2.9.0, specifying four output classes. The best class, including 216,085 particles were selected for homogeneous refinement with C4 symmetry, which yielded a map at 5.6 Å resolution. The particles were transferred back to RELION-3 using the pyem package (https://github.com/asarnow/pyem), re-extracted into 320 × 320 pixel images, binned 1.5 times and further refined with C4 symmetry after Bayesian polishing and CTF refinement, generating an improved map at 4.3 Å resolution. Focused refinement was performed on the CTD region, followed by the focused 3D classification on the TMD region without image alignment similar to a previous report (Lee and MacKinnon, 2018), revealing significant heterogeneity at the TMD region. Finally, 112,571 particles with fine features of TMD were selected and subjected to Non-uniform refinement and local refinement in CryoSPARC-2.9.0, which yielded the final map at 3.9 Å resolution.

For the structural titration of the GIRK2 channel, roughly 90–95% of micrographs from each PIP2 concentration dataset were selected for further processing. Different views from 2D averages of the apo GIRK2 dataset were selected as templates for particle picking using Gautomatch (https://www.mrc-lmb.cam.ac.uk/kzhang/Gautomatch/). Auto-picked particles for each PIP2 concentration were extracted into 384 × 384 pixel images, binned 1.5 times, and subjected to Ab-initio reconstruction in CryoSPARC-2.9.0, specifying four output classes (Punjani et al., 2017). Non-protein particles were removed, resulting in 99,381, 109,462, 105,388, 123,649, 99,619 and 105,708 particle images for the 0, 0.25, 0.5, 0.75, 0.875 and 1 mM PIP2 datasets, respectively. After manual inspection, all these particles were combined (a total of 643,657) and transferred back to RELION-3. The particles were re-extracted into 320 × 320 pixel images, binned 1.5 times and subjected to 3D refinement in RELION-3 with the density map of apo GIRK2 as reference (low-pass filtered to 60 Å). Subsequently, the angular and translational parameters determined using 3D auto-refine were fixed throughout 25 cycles of 3D classification, specifying five classes in RELION-3 with the map generated by 3D auto-refine low-pass filtered to 60 Å serving as the initial model. Manual inspection identified one class with characteristics of the docked class and contributions of all six datasets to this 3D class were determined using identifiers uniquely associated with each particle during particle extraction. To ensure the reproducibility of the 3D classification algorithm, the 643,657 particles were subjected to five independent runs of 3D auto-refine and 3D classification.

For structure determination of GIRK2 with PIP2 bound, the 155,128 particles corresponding to the docked class in the structural titration dataset was refined applying C4 symmetry using the Non-uniform refinement algorithm in CryoSPARC-2.9., resulting in a map at 4.6 Å resolution. The refined particles were then transferred back to RELION, followed by CTF refinement and Bayesian polishing, which improved the map to 4.0 Å. Particles were then re-extracted into 400 × 400 pixel images and subjected to multiple runs of CTF refinement in RELION-3.1 as described (Scheres, 2019; Zivanov et al., 2020). Further 3D refinement with C4 symmetry in RELION-3.1 yielded a final map at 3.3 Å resolution.

For the GIRK1/4 channel dataset with 0.5 mM C8-PIP2, 3377 of 3415 micrographs were selected for further processing. Different views of 2D averages from the apo GIRK2 dataset were selected as templates and Gautomatch was used for particle picking. The auto-picked 554,081 particles were extracted into 256 × 256 pixel images, binned two times and subjected to Ab-initio reconstruction in CryoSPARC-2.9.0, specifying four output classes. The best of the four classes, including 221,633 particles, were selected for homogeneous refinement applying C2 symmetry, which yielded a map at 7.7 Å resolution. The particles were transferred back to RELION-3 using the pyem package with angular and translational parameters and re-extracted into 256 × 256 pixel images. 3D classification was performed requesting five classes without image alignment, using the refined map from CryoSPARC low-pass filtered to 60 Å as the initial model. Two out of five classes showed typical features of docked and extended conformations, accounting for 22% (48,757) and 26% (57,644) of the particles, respectively. These two classes were processed separately using the same approach. Specifically, per-particle Defocus-U and Defocus-V values were first determined in the local-fitting mode of Gctf-1.0.6. 3D refinement with C2 symmetry yielded the final map of the extended class at 7.9 Å. For the docked class, local CTF estimation yielded a map at 6.1 Å resolution and subsequent Bayesian polishing and CTF refinement with C2 symmetry further improved the map to 4.6 Å resolution.

We chose C2 symmetry in the analysis of GIRK1/4 images based on the empirical observation that it yielded a better map than refinement without symmetry. The resolution of the GIRK1/4 data precluded distinction between the GIRK1 and GIRK4 subunits; however, the improved refinement by application of C2 symmetry implies that these subunits might alternate in their positions around the pore’s central axis.

Model building and refinement

Request a detailed protocol

For the apo GIRK2 structure (extended conformation), models of the CTD and TMD region from the crystal structure of GIRK2 channel monomer without PIP2 (PDB: 3SYO) were placed into the density using UCSF Chimera (Pettersen et al., 2004). Then the two regions were manually connected in Coot and rounds of real-space refinement were performed in Phenix with secondary structure restraints (Adams et al., 2010). The refined channel monomer was then copied and fit into corresponding density of the other three subunits using the Jiggle-fit and chain-refine command of Coot 0.9 in the CCPEM suite (Burnley et al., 2017; Wood et al., 2015) to generate the channel tetramer. Finally, several iterative cycles of refinement using the phenix.real_space_refine in PHENIX with secondary structure and NCS restraints and manual adjustments in COOT yielded the final model for the apo structure of the GIRK2 channel.

For the structure of GIRK2 with PIP2 (docked conformation), models of channel monomer and the PIP2 molecule (PDB: 3SYA) were placed into density using UCSF Chimera (Pettersen et al., 2004) and several rounds of real-space refinement were performed in Phenix with secondary structure restraints (Adams et al., 2010). The channel tetramer was generated using Coot 0.9 in a similar manner to the apo GIRK2 structure. Finally, iterative refinement cycles using the phenix.real_space_refine in PHENIX with secondary structure and NCS restraints and manual adjustments in COOT yielded the final model for the docked conformation of GIRK2 channel with 4 PIP2 molecules bound.

Refinement statistics are summarized in Table 1. For model validation, the final model for each map was refined against one of the half maps (half map 1). FSC curves were then calculated between the refined model and half map 1 (work), half map 2 (free) as well as the combined full map. Local resolutions were estimated using Relion3 (Zivanov et al., 2018).

Structural analysis

Request a detailed protocol

Structural alignment and figures were made in UCSF Chimera (Pettersen et al., 2004) and PyMOL (www.pymol.org). Pore diameter between van der Waals surfaces for the extended and docked structures of the GIRK2 channel was calculated with Hole (www.holeprogram.org).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
    IRK(1-3) and GIRK(1-4) inwardly rectifying K+ channel mRNAs are differentially expressed in the adult rat brain
    1. C Karschin
    2. E Dissmann
    3. W Stühmer
    4. A Karschin
    (1996)
    The Journal of Neuroscience 16:3559–3570.
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
    Constitutively active and G-protein coupled inward rectifier K+ channels: Kir2.0 and Kir3.0
    1. PR Stanfield
    2. S Nakajima
    3. Y Nakajima
    (2002)
    In: E Cordat, D. L Barber, editors. Reviews of Physiology, Biochemistry and Pharmacology. Springer. pp. 47–179.
    https://doi.org/10.1007/BFb0116431
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42

Decision letter

  1. Merritt Maduke
    Reviewing Editor; Stanford University School of Medicine, United States
  2. Kenton J Swartz
    Senior Editor; National Institute of Neurological Disorders and Stroke, National Institutes of Health, United States
  3. Bruce P Bean
    Reviewer; Harvard Medical School, United States
  4. Sudha Chakrapani
    Reviewer; Case Western Reserve University, United States
  5. Ryan E Hibbs
    Reviewer; University of Texas Southwestern Medical Center, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

This paper presents structural data showing that the signaling lipid PIP2 biases the structure of a G-protein regulated potassium channel (GIRK2) towards a "docked" conformation. The authors present a model whereby this PIP2-mediated docking allows binding of the G-protein subunits. The data and model therefore explain why both PIP2 and G-proteins are necessary for the opening of GIRK2 channels.

Decision letter after peer review:

Thank you for submitting your article "Cryo-EM analysis of PIP2 regulation in GIRK channels" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Merritt Maduke as the Reviewing Editor and Kenton Swartz as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Bruce P Bean (Reviewer #1); Sudha Chakrapani (Reviewer #2); Ryan E Hibbs (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, we are asking editors to accept without delay manuscripts, like yours, that they judge can stand as eLife papers without additional data, even if they feel that they would make the manuscript stronger. Thus the revisions requested below only address clarity and presentation.

Summary:

This short paper presents cryo-EM data focused on structural elucidation of GIRK activation by PIP2. GIRK channels are unique among inward rectifiers in that they require the binding of both PIP2 and Gβγ proteins for activation, potentially affecting two gates, the inner gate at helix bundle and the G loop gate, respectively. The Mackinnon group previously determined structures of GIRK2 (in the absence and presence of PIP2) and a GIRK2-Gβγ complex by X-ray crystallography. While providing high-resolution structural insights into the architecture and G-protein activation, these structures did not reveal conformational changes that may underlie PIP2 regulation. Particularly, the transmembrane domain (TMD) and cytoplasmic domain (CTD) were tightly juxtaposed even in the absence PIP2. In addition, both the G-loop gate and the inner helix gate remained closed in the PIP2-bound structure. These results raised questions because PIP2 binding to GIRK2 did not result in the kind of conformational change observed in another inward rectifying K+ channel, Kir2.2.

Here, the authors report structures of neuronal GIRK2 in the apo and PIP2 bounds forms determined by cryo-EM. C8-PIP2 was titrated into GIRK2 samples, which enabled determination of cryo-EM structures of GIRK2 in docked (CTD and TMD tightly juxtaposed) and extended conformations. The docked conformation is progressively populated with increasing concentration of PIP2. The authors also report broadly similar findings for cardiac GIRK1/4 heteromeric channels.

Overall, the study is clearly written and logical and resolves a mystery for GIRK2- now we know it can adopt an extended conformation in the presence of PIP2. Further, the study demonstrates conservation in mechanism across several Kir members, as the docked vs. undocked conformational changes are similar to those observed with Kir2.2. Finally, the authors present a model whereby this PIP2-mediated docking allows binding of Gβγ to the channels. The data and model therefore explain why both PIP2 and Gβγ are necessary for the opening of GIRK channels.

Essential revisions:

1) The GIRK2 extended-conformation map quality is poor in some important regions. This map contains ~no reliable density for a slab between the CTD and TMD, however linkers and loops are modeled here. For example, 314-319 do not fit the map and 197-201 are built into very noisy density. Some regions of this map are quite good, and many are very noisy, consistent with Figure 1—figure supplement 1D showing a drop in FSC to ~0.5 at around 7A resolution. The Materials and methods describe this model being built through docking of earlier structures for the two halves followed by refinement (sounds fine). We ask that the authors clarify regions in which ambiguity is present in the Materials and methods section (or in the main text if they prefer), and describe the basis for modeling of the linkers (314-319 and 197-201) in particular. Please take a look also at 186-196. The helix appears to unwind in a couple of places (and the map is a bit ambiguous), and the important gate-keeping residue Phe 192 is modeled such that it pushes the backbone out of density. Maybe this is correct- it is unclear in the absence of more information.

2) Why were the GIRK1/4 data processed in C2? Is the subunit arrangement defined (understood) such that C2 is appropriate? Were C4 and C1 refinements or classifications attempted? Is pseudosymmetry is a concern? Are there classes with partial PIP2 occupancy?

3) The Materials and methods section doesn't describe how GIRK1/4 particle alignment was done. What structural features differ between 1 and 4 that aid alignment?

4) There are no functional assays shown in the manuscript, particularly to corroborate the shift in equilibrium population for the concentration range seen in cryo-EM. The authors may want to comment on why the docked conformation only constitutes ~30% of the total particles even at 1 mM PIP2. Are there other lipids such as cholesterol required?

5) Subsection “GIRK2 conformation as a function of PIP2 concentration”: How was the range of [C8-PIP2] chosen, and can the results of the titration be related to physiological experiments?

6) An interesting result is that even with no added PIP2, about 8% of the GIRK channels are in the docked conformation. If the authors have any thoughts about this it would probably be of interest to readers. Does this mean that there is a chance that some small fraction of channels could be bound by Gβγ even in the absence of PIP2? Or is there any chance that there is endogenous PIP2 in the expression system that can be retained during protein purification?

7) The figures for the conformational changes could be better with more detailed labeling (Figures 4 and 5).

8) What is the contour levels for the densities in Figure 1—figure supplement 2 and Figure 4—figure supplement 2?

9) Crystal packing is suggested to be responsible for the absence of obtaining an extended conformation previously. Is the preparation for the cryo-EM structural analysis being in detergent of any concern to the authors? The similarities to what has been seen with Kir2.2 provide some confidence.

10) The GIRK2 docked map and model look fine; PIP2 tails are not well resolved, which is worth mentioning perhaps in the Materials and methods.

https://doi.org/10.7554/eLife.60552.sa1

Author response

Essential revisions:

1) The GIRK2 extended-conformation map quality is poor in some important regions. This map contains ~no reliable density for a slab between the CTD and TMD, however linkers and loops are modeled here. For example, 314-319 do not fit the map and 197-201 are built into very noisy density. Some regions of this map are quite good, and many are very noisy, consistent with Figure 1—figure supplement 1D showing a drop in FSC to ~0.5 at around 7A resolution. The Materials and methods describe this model being built through docking of earlier structures for the two halves followed by refinement (sounds fine). We ask that the authors clarify regions in which ambiguity is present in the Materials and methods section (or in the main text if they prefer), and describe the basis for modeling of the linkers (314-319 and 197-201) in particular. Please take a look also at 186-196. The helix appears to unwind in a couple of places (and the map is a bit ambiguous), and the important gate-keeping residue Phe 192 is modeled such that it pushes the backbone out of density. Maybe this is correct- it is unclear in the absence of more information.

The density for 197-201 is essentially nonexistent and therefore we have removed these residues from the model (updated in Table 1) and changed wording in the text to reflect the absence of density for this region. We have also deleted this region in Figure 1, Figure 4, and Figure 1—figure supplement 3 to reflect such changes. However, this does not change our conclusions regarding separation of the CTD and TMD.

Density for 314-319 is continuous. We have further refined the atomic model for a better fit of the density. While there is uncertainty in the build, with restraints in model refinement weighted towards protein chemistry (as should be the case when refining a structure at this resolution), we think the model is the most objective molecular representation of the data.

Residues 186-196 do not appear to deviate from an α-helix and therefore we have built it as such.

2) Why were the GIRK1/4 data processed in C2? Is the subunit arrangement defined (understood) such that C2 is appropriate? Were C4 and C1 refinements or classifications attempted? Is pseudosymmetry is a concern? Are there classes with partial PIP2 occupancy?

The GIRK1/4 data were processed under C2 constraint because this yielded a better map. We added a new paragraph addressing this issue in the Materials and methods subsection “Cryo-EM data processing”. Occupancy of PIP2 is indeterminant at the resolution of this study.

3) The Materials and methods section doesn't describe how GIRK1/4 particle alignment was done. What structural features differ between 1 and 4 that aid alignment?

A more complete description of particle alignment is given in the Materials and methods subsection “Cryo-EM data processing”.

4) There are no functional assays shown in the manuscript, particularly to corroborate the shift in equilibrium population for the concentration range seen in cryo-EM. The authors may want to comment on why the docked conformation only constitutes ~30% of the total particles even at 1 mM PIP2. Are there other lipids such as cholesterol required?

In prior studies from our lab, published in eLife (Wang et al., 2014), we presented detailed analyses of PIP2 activation of GIRK channels. These previous data are now discussed in a new paragraph in the Results subsection “GIRK2 conformation as a function of PIP2 concentration” and in the Materials and methods subsection “Cryo-EM sample preparation and data collection”.

5) Subsection “GIRK2 conformation as a function of PIP2 concentration”: How was the range of [C8-PIP2] chosen, and can the results of the titration be related to physiological experiments?

This issue is addressed in the Materials and methods subsection “Cryo-EM sample preparation and data collection”.

6) An interesting result is that even with no added PIP2, about 8% of the GIRK channels are in the docked conformation. If the authors have any thoughts about this it would probably be of interest to readers. Does this mean that there is a chance that some small fraction of channels could be bound by Gβγ even in the absence of PIP2? Or is there any chance that there is endogenous PIP2 in the expression system that can be retained during protein purification?

We now address this point in a new paragraph in the Materials and methods subsection “Cryo-EM sample preparation and data collection”.

7) The figures for the conformational changes could be better with more detailed labeling (Figures 4 and 5).

We very much like these figures as they are.

8) What is the contour levels for the densities in Figure 1—figure supplement 2 and Figure 4—figure supplement 2?

The contour levels are now stated in the corresponding figure legends.

9) Crystal packing is suggested to be responsible for the absence of obtaining an extended conformation previously. Is the preparation for the cryo-EM structural analysis being in detergent of any concern to the authors? The similarities to what has been seen with Kir2.2 provide some confidence.

The distinction between detergent and lipid membranes in this study is important through the unique environmental influences on C8-PIP2 partitioning (and thus, local concentration). This is now discussed in the Materials and methods subsection “Cryo-EM sample preparation and data collection”.

10) The GIRK2 docked map and model look fine; PIP2 tails are not well resolved, which is worth mentioning perhaps in the Materials and methods.

Partial resolution of C8-PIP2 acyl chains is now addressed in the legend to Figure 4 and Figure 4—figure supplement 2.

https://doi.org/10.7554/eLife.60552.sa2

Article and author information

Author details

  1. Yiming Niu

    Laboratory of Molecular Neurobiology and Biophysics, The Rockefeller University, Howard Hughes Medical Institute, New York, United States
    Contribution
    Data curation, Software, Validation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Xiao Tao
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5683-1781
  2. Xiao Tao

    Laboratory of Molecular Neurobiology and Biophysics, The Rockefeller University, Howard Hughes Medical Institute, New York, United States
    Contribution
    Data curation, Software, Validation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Yiming Niu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9381-7903
  3. Kouki K Touhara

    Laboratory of Molecular Neurobiology and Biophysics, The Rockefeller University, Howard Hughes Medical Institute, New York, United States
    Contribution
    Data curation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3167-9784
  4. Roderick MacKinnon

    Laboratory of Molecular Neurobiology and Biophysics, The Rockefeller University, Howard Hughes Medical Institute, New York, United States
    Contribution
    Conceptualization, Resources, Data curation, Supervision, Funding acquisition, Validation, Investigation, Visualization, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    mackinn@mail.rockefeller.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7605-4679

Funding

National Institutes of Health (GM43949)

  • Roderick MacKinnon

Howard Hughes Medical Institute

  • Roderick MacKinnon

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Mark Ebrahim and Johanna Sotiris at the Evelyn Gruss Lipper Cryo-EM Resource Center at Rockefeller University for assistance in data collection; Dr. Chia-Hsueh Lee (St. Jude Children's Research Hospital) for critical reading of the manuscript and suggestions for image analysis; Dr. Yixiao Zhang and Dr. Hiroshi Suzuki (Rockefeller University) for advice and help on data collection; Dr. Richard Hite (Memorial Sloan Kettering Cancer Center) for advice on the structural titration analysis; and members of the MacKinnon lab and Chen lab (Rockefeller University) for assistance. This work was supported in part by GM43949. RM is an investigator in the Howard Hughes Medical Institute.

Senior Editor

  1. Kenton J Swartz, National Institute of Neurological Disorders and Stroke, National Institutes of Health, United States

Reviewing Editor

  1. Merritt Maduke, Stanford University School of Medicine, United States

Reviewers

  1. Bruce P Bean, Harvard Medical School, United States
  2. Sudha Chakrapani, Case Western Reserve University, United States
  3. Ryan E Hibbs, University of Texas Southwestern Medical Center, United States

Publication history

  1. Received: June 29, 2020
  2. Accepted: August 25, 2020
  3. Accepted Manuscript published: August 26, 2020 (version 1)
  4. Version of Record published: September 10, 2020 (version 2)

Copyright

© 2020, Niu et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,335
    Page views
  • 355
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics
    Roman O Fedoryshchak et al.
    Research Article

    PPP-family phosphatases such as PP1 have little intrinsic specificity. Cofactors can target PP1 to substrates or subcellular locations, but it remains unclear how they might confer sequence-specificity on PP1. The cytoskeletal regulator Phactr1 is a neuronally-enriched PP1 cofactor that is controlled by G-actin. Structural analysis showed that Phactr1 binding remodels PP1's hydrophobic groove, creating a new composite surface adjacent to the catalytic site. Using phosphoproteomics, we identified mouse fibroblast and neuronal Phactr1/PP1 substrates, which include cytoskeletal components and regulators. We determined high-resolution structures of Phactr1/PP1 bound to the dephosphorylated forms of its substrates IRSp53 and spectrin aII. Inversion of the phosphate in these holoenzyme-product complexes supports the proposed PPP-family catalytic mechanism. Substrate sequences C-terminal to the dephosphorylation site make intimate contacts with the composite Phactr1/PP1 surface, which are required for efficient dephosphorylation. Sequence specificity explains why Phactr1/PP1 exhibits orders-of-magnitude enhanced reactivity towards its substrates, compared to apo-PP1 or other PP1 holoenzymes.

    1. Cell Biology
    2. Structural Biology and Molecular Biophysics
    Lin Mei et al.
    Research Article

    The actin cytoskeleton mediates mechanical coupling between cells and their tissue microenvironments. The architecture and composition of actin networks are modulated by force, but it is unclear how interactions between actin filaments (F-actin) and associated proteins are mechanically regulated. Here, we employ both optical trapping and biochemical reconstitution with myosin motor proteins to show single piconewton forces applied solely to F-actin enhance binding by the human version of the essential cell-cell adhesion protein αE-catenin, but not its homolog vinculin. Cryo-electron microscopy structures of both proteins bound to F-actin reveal unique rearrangements that facilitate their flexible C-termini refolding to engage distinct interfaces. Truncating α-catenin's C-terminus eliminates force-activated F-actin binding, and addition of this motif to vinculin confers force-activated binding, demonstrating that α-catenin's C-terminus is a modular detector of F-actin tension. Our studies establish that piconewton force on F-actin can enhance partner binding, which we propose mechanically regulates cellular adhesion through a-catenin.
