Dynamic Na+/H+ exchanger 1 (NHE1) – calmodulin complexes of varying stoichiometry and structure regulate Ca2+-dependent NHE1 activation

  1. Lise M Sjøgaard-Frich
  2. Andreas Prestel
  3. Emilie S Pedersen
  4. Marc Severin
  5. Kristian Kølby Kristensen
  6. Johan G Olsen
  7. Birthe B Kragelund  Is a corresponding author
  8. Stine Falsig Pedersen  Is a corresponding author
  1. Section for Cell Biology and Physiology, Department of Biology, Faculty of Science, University of Copenhagen, Denmark
  2. Structural Biology and NMR Laboratory, Department of Biology, Faculty of Science, University of Copenhagen, Denmark
  3. Finsen Laboratory, Rigshospitalet, Denmark
  4. Biotech Research and Innovation Centre (BRIC), University of Copenhagen, Denmark
Research Article
  • Cited 0
  • Views 846
  • Annotations
Cite this article as: eLife 2021;10:e60889 doi: 10.7554/eLife.60889

Abstract

Calmodulin (CaM) engages in Ca2+-dependent interactions with numerous proteins, including a still incompletely understood physical and functional interaction with the human Na+/H+-exchanger NHE1. Using nuclear magnetic resonance (NMR) spectroscopy, isothermal titration calorimetry, and fibroblasts stably expressing wildtype and mutant NHE1, we discovered multiple accessible states of this functionally important complex existing in different NHE1:CaM stoichiometries and structures. We determined the NMR solution structure of a ternary complex in which CaM links two NHE1 cytosolic tails. In vitro, stoichiometries and affinities could be tuned by variations in NHE1:CaM ratio and calcium ([Ca2+]) and by phosphorylation of S648 in the first CaM-binding α-helix. In cells, Ca2+-CaM-induced NHE1 activity was reduced by mimicking S648 phosphorylation and by mutation of the first CaM-binding α-helix, whereas it was unaffected by inhibition of Akt, one of several kinases phosphorylating S648. Our results demonstrate a diversity of NHE1:CaM interaction modes and suggest that CaM may contribute to NHE1 dimerization and thereby augment NHE1 regulation. We propose that a similar structural diversity is of relevance to many other CaM complexes.

Introduction

Calmodulin (CaM) is a ubiquitously expressed EF-hand Ca2+-binding hub protein, which regulates a plethora of Ca2+-dependent cellular processes such as ion transport, muscle contraction, proliferation, and apoptosis (Berchtold and Villalobo, 2014; Chin and Means, 2000; Villalobo et al., 2018; Villarroel et al., 2014; Yap et al., 2000). CaM is a small, α-helical protein consisting of two similar, but not identical, N- and C-terminal domains (for CaM termed the N-lobe and C-lobe, respectively) connected by a helical linker with a disordered, flexible hinge. Upon changes in the free cytosolic Ca2+ concentration, [Ca2+]i, CaM binds up to four Ca2+ ions. This induces structural rearrangements exposing hydrophobic patches through which CaM interacts with numerous structurally and functionally different proteins (Tidow and Nissen, 2013; Villalobo et al., 2018). In most cases where this has been studied to date, CaM wraps both its lobes around its α-helix-forming targets, exemplified by the interaction with myosin light chain kinase (Ikura et al., 1992; Meador et al., 1992). However, recent structures have shown diversity in binding and a range of CaM binding modes and motifs exist. Indeed, in some cases, CaM with Ca2+ present only in one lobe is bound to the target, whereas in other cases only the apo-form of CaM is bound (Lee et al., 2019; Nunomura et al., 2014; Nunomura et al., 2011). Still, common features of CaM-binding regions, such as high α-helix propensity, net positive charge, and obligate hydrophobic docking residues, exist (Villalobo et al., 2018). CaM also engages with many membrane proteins and examples include the CaM substrates estrogen receptor alfa (ERα; Li et al., 2005; Zhang et al., 2012), the voltage-gated K+ channel Kv10.1 (eag1; Schönherr et al., 2000; Whicher and MacKinnon, 2016), and aquaporin 0 (Reichow et al., 2013).

One widely studied CaM-binding membrane protein is the Na+/H+ exchanger, NHE1 (SLC9A1), a major acid-extruding transporter localized in the plasma membrane in essentially all mammalian cells studied (Orlowski and Grinstein, 2011; Pedersen and Counillon, 2019). Upon activation by cytosolic acidification or a wide range of mitogenic and other signaling events, NHE1 extrudes H+ from the cytosol in exchange for Na+ ions. In addition to its role in intracellular pH (pHi) regulation, NHE1 regulates key cellular functions such as proliferation, growth/death balance, cell volume, cell motility, and tissue homeostasis (Orlowski and Grinstein, 2011; Pedersen and Counillon, 2019). Consequently, NHE1 hyperactivity is implicated in many important pathologies including cancers (Cardone et al., 2005; Stock and Pedersen, 2017), as well as cardiovascular disease, especially ischemia-reperfusion damage and cardiac hypertrophy (Imahashi et al., 2007; Karmazyn et al., 1999; Nakamura et al., 2008) and non-alcoholic steatohepatitis (Prasad et al., 2014).

NHE1 which, like many other membrane transport proteins, functions as a dimer (Fafournoux et al., 1994; Pedersen and Counillon, 2019), consists of a 12-transmembrane (TM)-helix transport domain and an ~300 residue long cytoplasmic C-terminal domain with extensive disordered regions (Nørholm et al., 2011). Via this tail, NHE1 activity is regulated through multiple phosphorylation–dephosphorylation events and interactions with a plethora of binding partners, one of which is CaM (for reviews, see Hendus-Altenburger et al., 2014; Orlowski and Grinstein, 2011; Pedersen and Counillon, 2019). CaM binds directly to the cytoplasmic domain of NHE1 in the presence of Ca2+ (Bertrand et al., 1994; Köster et al., 2011) as originally demonstrated in vitro by binding of either an NHE1 fusion protein or full-length protein (Bertrand et al., 1994). The binding of Ca2+-loaded CaM to NHE1 in response to an increase in [Ca2+]i elicits an alkaline shift in the pHi sensitivity of NHE1 in cells, resulting in its activation at less acidic pHi (Bertrand et al., 1994; Wakabayashi et al., 1994). Mechanistically, NHE1:CaM interaction has been proposed to activate NHE1 by relieving an autoinhibitory interaction of the C-terminal tail of NHE1 with its TM region (Ikeda et al., 1997; Wakabayashi et al., 1997). CaM binding has also been implicated in activation of NHE1 by a wide range of hormones and growth factors, including epidermal growth factor, serotonin, angiotensin, and endothelin (Coaxum et al., 2009; Li et al., 2013; Turner et al., 2007). NHE1:CaM interaction was suggested to be regulated by Akt kinase-mediated phosphorylation of S648 of human NHE1. However, the role of S648 phosphorylation in NHE1 regulation has been reported both as inhibitory (Snabaitis et al., 2008) and stimulatory (Meima et al., 2009), pointing to a possible context dependence of NHE1:CaM complex formation.

Two neighboring α-helical CaM-binding sites of NHE1 each bind CaM, but with different affinities. For an NHE1 variant deleted in CaM-binding region 2 (CB2, defined as D656-L691), Kd was ~20 nM and for an NHE1 variant deleted in CaM-binding region 1 (CB1, defined as N637-A656) Kd was ~350 nM (Figure 1a, bBertrand et al., 1994). Testifying to its importance, deletion or mutation of CB1 resulted in loss of NHE1 [Ca2+]i responsiveness (Bertrand et al., 1994; Wakabayashi et al., 1994). A crystal structure of CaM bound to a peptide of NHE1 containing both CaM-binding sites (A622-R690) revealed an unusual binding mode. CaM assumed an extended configuration, and the N-terminal CaM-binding site of NHE1 (H1 in the following) made an uncommon interaction with the ‘back side’ of the C-lobe, whereas the N-lobe of CaM engaged with the low-affinity C-terminal site of NHE1 (H2 in the following) forming an α-helix in the hydrophobic ligand-binding groove (Köster et al., 2011). This extraordinary mode of CaM binding, combined with the fact that NHE1 forms active dimers in the membrane, raises the possibility that in solution other types of CaM complexes of relevance to the function of NHE1 may exist. So far, the only analysis of the complex in solution was conducted using small-angle X-ray scattering (Köster et al., 2011). Here, the derived molecular envelope showed a poor fit to the crystal structure, further spurring a re-evaluation of the conformational landscape of the CaM:NHE1 complex to understand its functional relevance.

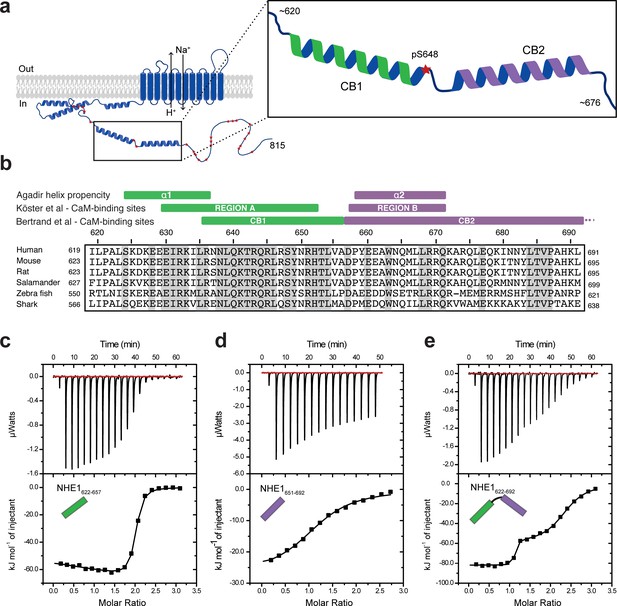

Na+/H+-exchanger:calmodulin (NHE1:CaM) interactions in vitro adopt different stoichiometries.

(a) Sketch of NHE1 (blue) in the membrane highlighting helical elements in the cytoplasmic tail and known phosphorylation sites (red stars). Magnified region depicts the two previously described CaM-binding (CB) α-helices CB1 (green) and CB2 (purple) with the phosphorylated S648. (b) Alignment of the sequences of human, mouse, rat, salamander, zebra fish, and shark NHE1 is highlighted in gray identical residues. Indicated above are structural and functional regions based on either an Agadir α-helix prediction, the CaM-binding region A (green) and region B (purple), as defined by Köster et al., 2011 or the CaM-binding region I (CB1) and II (CB2), as defined by Bertrand et al., 1994. (c)-(e). Binding NHE1 to CaM by isothermal titration calorimetry (ITC). In representative ITC experiments, we injected (c) NHE1622-657 or (d) NHE1651-692 or (e) NHE1622-692 into CaM. The upper parts show baseline-corrected raw data from the titrations, and the lower parts the normalized integrated binding isotherms with the fitted binding curves assuming a single binding event in (d) and two binding events in (c) and (e). The NHE1 peptides titrated into CaM are shown in cartoon.

Figure 1—source data 1

Isothermal titration calorimetry raw data and fits of triplicate experiments for the titration of calmodulin with H1, H2, and H1H2 (relating to Figure 1c–e).

https://cdn.elifesciences.org/articles/60889/elife-60889-fig1-data1-v2.xlsx

To explore the structural landscape of possible NHE1:CaM complexes in solution and elucidate the precise mechanism and role of phosphorylation of S648, which is localized in the C-terminal part of the first CaM-binding helix of NHE1, we employed a combination of solution state-nuclear magnetic resonance (NMR) spectroscopy, isothermal titration calorimetry (ITC), NHE1 mutations, proximity ligation assays (PLA), and real-time analyses of NHE1-mediated acid extrusion after stable expression of wildtype (WT) and variant NHE1 in mammalian fibroblasts. Our findings reveal that, in solution, CaM interacts with NHE1 by exploiting different binding modes and stoichiometries, thereby forming several possible structures. Accordingly, in cells, Ca2+-induced NHE1 activation, but not NHE1:CaM proximity, was modulated by mutations preventing (S648A) or mimicking (S648D) phosphorylation, as well as reduced by charge-reversal (CR) mutations of the first CaM-binding site. This was not dependent on Akt kinase, inhibition of which did not affect Ca2+-induced activation of NHE1 under these conditions. Consistent with this notion, S648 phosphorylation could be mediated by other Ser/Thr kinases. We propose that the interaction between CaM and NHE1 is highly dynamic, involving both CaM-binding helices of NHE1, and with a functional role of S648 that is not exclusively downstream from Akt. We suggest that the high degree of diversity observed for NHE1:CaM complexes may be relevant to other CaM complexes, particularly those involving membrane proteins.

Results

CaM interacts with NHE1 in multiple conformations in vitro

In order to characterize the interaction of CaM with NHE1 in vitro, we designed three NHE1 peptides: human (h)NHE1622-657 (H1), hNHE1651-692 (H2), and hNHE1622-692 (H1H2); all based on previous studies (Köster et al., 2011), sequence conservation, and helix propensity calculations (Figure 1a, b). First, ITC was applied to determine binding thermodynamics and stoichiometries of the NHE1-derived peptides and CaM. In line with previous results (Bertrand et al., 1994), H1 bound CaM with high affinity. In addition, we surprisingly observed that one CaM molecule bound two H1 peptides (n = 1.92 ± 0.06, Figure 1c). Fitting the ITC data to a binding model with two independent sites revealed similar high affinities (Kd,1 = 27 ± 8 nM; Kd,2 = 42 ± 6 nM, Figure 1c), but with different enthalpic and entropic contributions (Table 1). We then addressed the binding of the second helix, H2, to CaM. Here, the affinity was almost three magnitudes weaker (Kd = 9.0 ± 0.6 µM) than that of H1. This interaction showed only one transition, indicating the formation of a 1:1 complex (n = 1.15 ± 0.08, Figure 1d). Finally, the binding isotherm for the H1H2 peptide displayed two distinct transitions, suggesting successive binding events and/or diverse binding modes with different CaM:H1H2 stoichiometries. Fitting to a two-site binding model allowed us to determine the affinity of the first binding event to Kd,1 = 0.27 ± 0.07 nM with a stoichiometry of 1 (n1 = 1.04 ± 0.05), and the affinity of the second binding event to Kd,2 = 560 ± 15 nM with n2 = 1.22 ± 0.06, summing up to a total stoichiometry of 1:2 (Figure 1e).

Table 1
Thermodynamic parameters of NHE1:CaM interactions.
ΔH1 (kJ/mol)TΔS1 (kJ/mol)Kd,1 (nM)n1ΔH2 (kJ/mol)TΔS2 (kJ/mol)Kd,2 (nM)n2
H1 (one site)−60 ± 3−17 ± 223 ± 51.92 ± 0.06
H1 (two site)−39 ± 114 ± 1027 ± 80.92 ± 0.05−83 ± 8−41 ± 842 ± 60.98 ± 0.01
H2 (one site)−29 ± 40 ± 38900 ± 6001.15 ± 0.08
H1H2 (two site)−84 ± 5−29 ± 50.27 ± 0.071.04 ± 0.05−62 ± 3−26 ± 3560 ± 101.22 ± 0.06
H1H2 pS648 (two site)−75 ± 3−27 ± 25 ± 40.93 ± 0.02−58 ± 7−26 ± 82700 ± 7001.16 ± 0.06
NHE1: Na+/H+-exchanger; CaM: calmodulin.

These results demonstrate the formation of variable NHE1:CaM complexes with different stoichiometries as well as thermodynamic profiles in vitro. Furthermore, it suggests that the interaction between NHE1 and CaM cannot be fully explained by the crystallized 1:1 complex alone.

Structural insight into the NHE1 complexes with CaM in solution

We next set out to obtain structural insight into these additional complexes of CaM:H1H2 in solution using NMR spectroscopy, which is uniquely powerful to obtain information about the structure and dynamics of proteins and multi-state protein complexes (Alderson and Kay, 2021). The NMR signals of CaM in complex with H1H2 were at all tested stoichiometries and conditions severely broadened and made direct determination of the three-dimensional structure of this complex by NMR impossible. We therefore addressed this structure using NMR data recorded on the CaM complexes with the individual H1 and H2 peptides. From a comparison of these high-quality assigned spectra to the broad signals in the CaM:H1H2 spectra, we could extract information and infer important structural details of the CaM:H1H2 complexes.

Both lobes of CaM can interact independently with H1 with high affinity

En route to understanding the spectra of the CaM:H1H2 NMR spectra, we started out titrating 15N-labeled CaM with increasing concentrations of unlabeled H1 and followed the changes in shape, intensity, and position of the NMR peaks (Figure 2a). Upon addition of H1 (50 µM CaM + 50 µM NHE1), most signals from both CaM lobes broadened drastically, indicating exchange between free and bound state(s) on an intermediate NMR timescale (kex ≈ Δδ) (Prestel et al., 2018Figure 2b). This suggests dynamics in the complex occurring on the microsecond to millisecond timescale. After addition of excess H1 peptide (50 µM CaM + 125 µM H1, denoted 1:2 in the following), the signals re-sharpened and no further spectral changes were observed upon further addition of H1 (Figure 2a, b). This is in line with the CaM:H1 stoichiometry of 1:2 obtained by ITC. Although at a molar ratio of 1:1 all the NMR signals were broadened by exchange processes, it was evident that signals from the C-lobe of CaM were located close to the position of the fully bound state (1:2), while signals of the N-lobe were positioned close to those of the free form of CaM, as exemplified for G135 and G62, respectively (Figure 2b). This suggested that in the main state at a 1:1 stoichiometry H1 is bound to the higher affinity C-lobe, as depicted in the cartoon in Figure 2c. Not all peaks could be followed throughout the titration, but the high-quality NMR spectra of the 1:2 (CaM:H1) complex allowed assignments of CaM in the ternary complex and mapping of the chemical shift perturbations (CSPs) onto the sequence (Figure 2d). Large CSPs were observed for residues throughout CaM, highlighting binding of H1 to both lobes. The rate constants for dissociation of H1 from the C-lobe and N-lobe were determined by 2D NMR lineshape analysis to koff,1 = 40 ± 5 s−1 and koff,2 = 16 ± 3 s−1, respectively (Figure 2—figure supplement 1aTable 2), revealing a >10 times faster association with the C-lobe than with the N-lobe. To further substantiate these results, the opposite titration was performed: 15N-labeled H1 was monitored as the concentration of unlabeled CaM was increased. Only a few signals from the free peptide were visible at 37°C, presumably due to its disordered nature, while at a 1:2 (CaM:H1) molar ratio, two sets of signals became distinct and could be assigned to H1 bound to either of the two CaM lobes, respectively (Figure 2—figure supplement 2a). When more CaM was added, the set of signals originating from H1 bound to the N-lobe decreased in intensity and vanished at a molar ratio of 3:1 (CaM:H1). At this condition, the peptide was almost exclusively bound to the higher affinity C-lobe of CaM (Figure 2—figure supplement 2a).

Figure 2 with 3 supplements see all

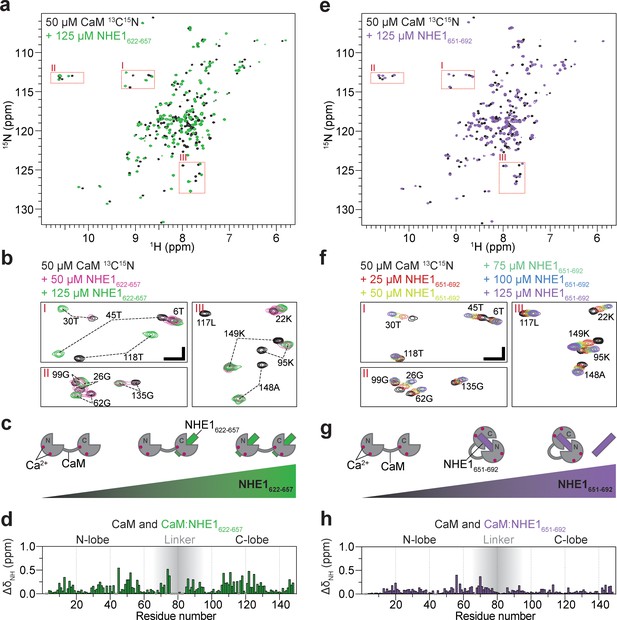

Calmodulin (CaM) interaction with NHE1622-657 (H1) and NHE1651-692 (H2).

(a) 1H,15N HSQC spectra of 50 μM 15N-CaM alone (black) and in the presence of 125 μM unlabeled NHE1622-657 (H1, green). (b) Zoom on the three highlighted regions from the spectrum in (a); 1H,15N HSQC spectra of 50 μM 15N-CaM in the presence of 0 μM (black), 50 μM (dashed red), and 125 μM (green) unlabeled NHE1622-657. The horizontal and vertical scale bars correspond to 0.1 ppm δ1H and 0.5 ppm δ15N, respectively. (c) Cartoon representation of CaM interaction with increasing amounts of NHE1622-657. (d) Chemical shift perturbations (CSP; ΔδNH) of CaM upon interaction with NHE1622-657 at saturation (125 μM NHE1622-657, 50 μM 15N-CaM, denoted 2:1 NHE1:CaM). (e) 1H,15N HSQC spectra of 50 μM 15N-CaM alone (black) and in the presence (purple) of unlabeled NHE1651-692. (f) Zoom on the three highlighted regions from the spectrum in (e); 1H,15N HSQC spectra of 15N-CaM titrated from 0 to 125 μM (black to purple) with unlabeled NHE1651-692 (H2). The horizontal and vertical scale bars correspond to 0.1 ppm δ1H and 0.5 ppm δ15N, respectively. (g) Cartoon representation of CaM interaction with increasing amounts of NHE1651-692. (h) CSP (ΔδNH) of CaM upon interaction with NHE1651-692 at saturation (125 μM NHE1651-692, 50 μM 15N-CaM). HSQC - Heteronuclear Single Quantum Coherence; DMSO - Dimethylsulfoxide; RMSD - Root-mean-square deviation; NOE - Nuclear overhauser effect; BSA - Bovine serum albumine; SDS - Sodium dodecylsulfate; IPTG - Isopropyl-β-D-thiogalactoside; DSS -2,2-Dimethyl-2-silapentane-5-sulfonate sodium salt.

Table 2
Exchange kinetics from 2D NMR lineshape analysis.
kon,1 (M−1 s−1)koff,1 (s−1)Kd,1 (nM)kon,2 (M−1 s−1)koff,2 (s−1)Kd,2 (nM)
H1 (two site)(1.5 ± 0.6) × 10940 ± 527*(3.7 ± 1.3) × 10816 ± 342*
H2 (one site)(1.6 ± 0.1) × 1082600 ± 10016000 ± 1000
  1. *Kds taken from ITC analysis, kept constant during fitting.

    NMR: nuclear magnetic resonance; ITC: isothermal titration calorimetry.

We next titrated 15N-labeled CaM with the low-affinity H2 peptide. Here, in contrast to the H1 titration, the NMR signals were gradually moving with increasing peptide concentration, indicating the free and bound states to be in fast exchange on the NMR timescale (kex > Δδ, Figure 2e–fPrestel et al., 2018). The change in peak position could be followed throughout the titration, and 2D NMR lineshape analysis resulted in affinity and dissociation rate constants of Kd = 16 ± 1 µM and koff = 2600 ± 100 s−1, respectively (Figure 2—figure supplement 1bTable 2). Again, the CSPs spanned both CaM lobes (Figure 2h), although they were less pronounced for the C-lobe and generally smaller compared to those induced by H1 binding. Inverting the titration gave a similar result (Figure 2—figure supplement 2b). However, in this case the spectral quality of 15N-labeled H2 in both free and bound states was inferior with very heterogeneous signal intensities and only few assignable signals, likely originating from weak self-association (Figure 2—figure supplement 3). This will interfere with CaM interaction and provides a likely explanation for the affinity variations obtained from different titration setups.

Taken together, these data show that each of the CaM lobes can bind one NHE1 H1 with high affinity forming a 1:2 complex, with the C-lobe energetically slightly favored. CaM binds NHE1 H2 with lower affinity in a 1:1 complex with both CaM lobes involved, suggesting a more classical CaM binding as depicted in the cartoon in Figure 2g.

CaM can interact with NHE1 H1H2 in different conformations with different stoichiometries

We now revisit the complex between CaM and H1H2 by NMR. First, we titrated unlabeled H1H2 into 15N-labeled CaM and compared the 15N HSQC fingerprint spectra at different stoichiometries to those obtained with H1 or H2 alone. At a molar ratio of 1:2 (CaM:H1H2), the 15N HSQC spectrum closely resembled the state where only H1 is present in twofold excess (Figure 3a–c). This suggested that at this stoichiometry each CaM lobe interacts with one H1 of H1H2 in a ternary complex, while H2 is not involved in the interaction, as depicted in Figure 3a. At a stoichiometry of 1:1, the signals of the N-lobe of CaM still overlaid almost perfectly with the spectrum of 15N-labeled CaM at saturation with H1. However, signals of the C-lobe now overlaid with the spectrum of CaM bound to H2 (Figure 3d–f). Thus, at this molar ratio, the major state is the N-lobe of CaM bound to H1 and the C-lobe bound to H2, as depicted in Figure 3d. It is worth noting that a second set of very weak peaks was detectable for many of the residues. Comparing these to the spectra from the simpler systems of the individual peptides, this suggested the presence of a minor state with the opposite architecture: the N-lobe of CaM bound to H2 and the C-lobe bound to H1 (Figure 3—figure supplement 1). The severely broadened signals may thus be explained by exchange between these two states, and judging from the relative signal intensities, the equilibrium was highly shifted toward the H1:N-lobe;H2:C-lobe complex, as depicted in Figure 3d. A titration of 15N-labeled H1H2 with CaM supports these findings, although the spectral analysis was complicated by severe signal overlap (Figure 2—figure supplement 2c, d). At a stoichiometry of 1:2 (CaM:H1H2), two sets of signals originated from each residue of H1, while signals from H2 closely resembled those of unbound H2 (Figure 2—figure supplement 2c). This suggests a state with H1 bound to both CaM lobes, while H2 did not partake in the interaction. At a stoichiometry of 1:1, signals from H1 overlapped with the N-lobe bound state, while signals from H2 were either invisible or closely resembled the C-lobe bound state (Figure 2—figure supplement 2d). For both H1H2:CaM stoichiometries analyzed, the described complexes were the major states as judged by the relative NMR signal intensities. It is, however, important to note that at 1:1 as well as 1:2 (CaM:H1H2) stoichiometries the NMR signals were drastically broadened compared to those of free CaM or of the 1:2 complex saturated with H1 (Figure 3a, d), indicating a dynamic equilibrium of states with different stoichiometries, including potential higher order oligomers. Due to these challenges, it was not possible to determine the atomistic structure of the CaM:H1H2 complexes directly. Instead, to assess the absolute sizes of the complexes and support the proposed complex architectures (cartoons in Figure 3a, d), we used pulsed field gradient NMR diffusion measurements (PFG-NMR), dynamic light scattering (DLS), and size exclusion chromatography coupled to multiple angle light scattering (SEC-MALS). The results of these experiments are shown in Figure 3g–i and summarized in Table 3. The mass of the complex at a 1:1 stoichiometry as determined from SEC-MALS (25.0 ± 1.6 kDa) was in perfect agreement with the expected molecular weight of a 1:1 complex (25.5 kDa) and suggested that, if higher oligomers were present, their population was low under these conditions. Unfortunately, the H1H2 peptide interacted with the column material when not fully saturated with CaM, which made the analysis of the free peptide as well as the 1:2 complex by SEC-MALS impossible. However, these complexes were readily accessible by DLS and PFG-NMR: both experiment series showed a stepwise increase of the complex size from free CaM to the complexes formed at 1:1 and 1:2 stoichiometries, respectively.

Figure 3 with 2 supplements see all

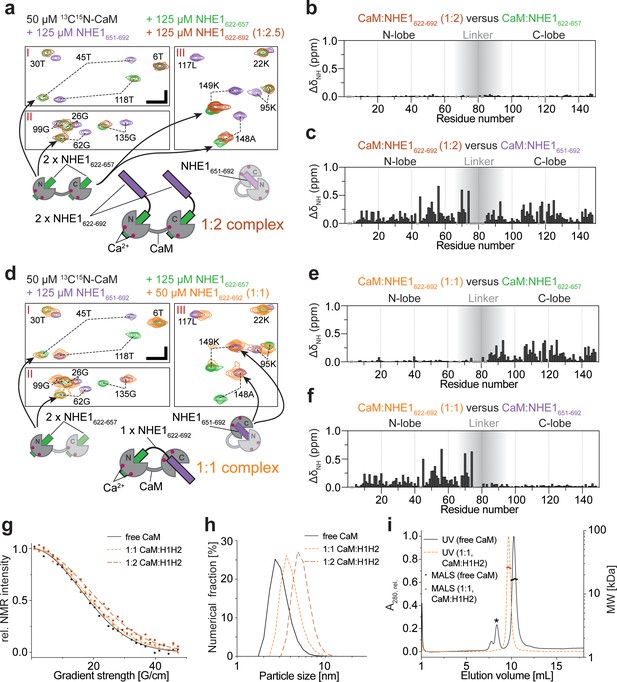

Calmodulin (CaM) interaction with NHE1622-692 (H1H2) at two different stoichiometries.

(a) The 1:2 CaM:NHE1622-692 (H1H2) complex (molar ratio 1:2). Three regions of the 1H,15N HSQC spectra of 50 μM 15N-CaM with 125 μM NHE1622-657 (green), 125 μM NHE1651-692 (purple), or 125 μM NHE1622-692 (orange) are shown. The horizontal and vertical scale bars correspond to 0.1 ppm δ1H and 0.5 ppm δ15N, respectively. The complexes giving rise to the indicated peaks are depicted in the cartoons below (right and left), with the 1:2 complex in the center. (b) Chemical shift perturbations (CSPs) (ΔδNH) between the 1:2 CaM:NHE1622-692 complex and the 1:2 CaM:NHE1622-657 complex (dark red and green spectra in a). The gray shade illustrates the linker region of CaM. (c) CSPs (ΔδNH) between 1:2 CaM:NHE1622-692 and 1:1 CaM:NHE1651-692 (dark red and purple spectra in a). (d) The 1:1 CaM:NHE1622-692 complex. Three regions of the 1H,15N HSQC spectra of 50 μM 15N-CaM in the presence of 125 μM NHE1622-657 (green), 125 μM NHE1652-692 (purple), or 50 μM NHE1622-692 (orange). The horizontal and vertical scale bars correspond to 0.1 ppm δ1H and 0.5 ppm δ15N, respectively. Smaller cartoons represent the 1:2 CaM:NHE1622-657 complex (left) and 1:1 CaM:NHE1651-692 complex (right) and the 1:1 CaM:NHE1622-692 complex identified from overlapping peaks in the 1H,15N HSQC spectra. (e) CSPs (ΔδNH) between 1:1 CaM:NHE1622-692 and 1:2 CaM:NHE1622-657 (orange and green spectrum in d). (f) CSPs (ΔδNH) between 1:1 CaM:NHE1622-692) and 1:1 CaM:NHE1651-692 (orange and purple spectrum in (d). The chemical shifts are available in BMRB accession code 34521. (g) Pulsed field gradient nuclear magnetic resonance diffusion measurements of 40 μM 15N-CaM without ligand (black), with 40 μM NHE1622-692 (1:1, orange), and with 80 μM NHE1622-692 (1:2, red). (h) Number-averaged particle size distribution from dynamic light scattering at a total protein concentration of 1 mg/mL in all three cases. (i) Size exclusion chromatography coupled to multiple angle light scattering elution profiles of free CaM (black, *bovine serum albumin from calibration run) and the 1:1 complex of CaM:H2 (orange).

Figure 3—source data 1

Pulsed field gradient nuclear magnetic resonance raw data (relating to Figure 3g).

https://cdn.elifesciences.org/articles/60889/elife-60889-fig3-data1-v2.xlsx
Figure 3—source data 2

Raw dynamic light scattering correlation data (relating to Figure 3h).

https://cdn.elifesciences.org/articles/60889/elife-60889-fig3-data2-v2.xlsx
Figure 3—source data 3

Raw size exclusion chromatography coupled to multiple angle light scattering data (relating to Figure 3i).

https://cdn.elifesciences.org/articles/60889/elife-60889-fig3-data3-v2.xlsx
Table 3
Size evaluation of CaM-H1H2 complexes at different stoichiometries.
DNMR (1010 ms−1)Rh,NMR (Å)Number; volume; intensity averaged Rh, DLS (Å)Elution volumeSEC (mL)MWMALS
(kDa)
Free CaM1.57 ± 0.0520.8 ± 0.816 ± 1; 20 ± 1; 27 ± 210.27 ± 0.0517.0 ± 0.9
CaM:H1H2 (1:1)1.43 ± 0.0422.8 ± 0.721 ± 2; 26 ± 2; 34 ± 29.68 ± 0.0525.0 ± 1.6
CaM:H1H2 (1:2)1.20 ± 0.0527.2 ± 0.827 ± 2; 31 ± 2; 37 ± 2**
  1. *Not obtainable due to interaction of H1H2 with the SEC column material.

    CaM: calmodulin; SEC: size exclusion chromatography; MALS: Multi-angle light scattering.

These results show that in vitro NHE1 and CaM can form multiple high-affinity complexes of different stoichiometries and structures, depending on the availability of each binding partner.

Structure of the ternary complex of CaM and two NHE1 H1 helices

Our results suggested that CaM can act as an NHE1 dimerization switch at high [Ca2+]i, where each of the CaM lobes bind one H1, bridging two NHE1 tails. To obtain a more detailed understanding of this interaction, we determined the structure of the ternary complex of CaM bound to two H1 peptides using NMR, which is the major state in solution when either H1 or H1H2 are present in twofold excess (Figure 3a, b). Furthermore, the spectral quality of the complex with H1 was far superior to the exchange-broadened spectra of the CaM complex with H1H2. Therefore, the 1:2 complex of CaM and H1 constituted the foundation for obtaining the NMR constraints for structure determination. The results of the structure determination are shown in Figure 4 and Table 4. Both CaM lobes have one H1 bound inside the hydrophobic cleft (Figure 4a). An overlay of the 10 lowest energy structures shows that the individual lobes are well defined (backbone RMSD: N-lobe + H1N = 0.77 ± 0.16 Å; backbone RMSD C-lobe + H1c = 0.83 ± 0.18 Å), while no NOEs between the two lobes could be obtained, suggesting that the linker region remains flexible in the bound state (Figure 4b, c). In both lobes, the interaction surface is defined by contacts between the hydrophobic face of the amphipathic H1 (L623, I631, I634, L635, N638, L639, T642, and L646; Figure 4d, e) and the central methionines in the hydrophobic cleft of each CaM-lobe. For the N-lobe, this involves M37, M52, M72, and M73; and for the C-lobe M110, M125, M145, and M146. In addition, a high complementarity in electrostatics is evident, with multiple positively charged residues on the opposite side of NHE1 H1 (K625, K637, R632, K633, R636, K641, R643, R645) complementing the negatively charged surface of CaM (Figure 4f–i). Although this complex is very different from that shown in the published crystal structure (Köster et al., 2011), inspection of the neighboring molecules in the crystal lattice reveals that the mode of interaction between the CaM C-lobe and H1, which we describe here by NMR, was also present in the crystal, but was translated as crystal contacts between symmetry-related molecules (Figure 4—figure supplement 1). The minor state observed by NMR at a stoichiometry of 1:1 (Figure 3—figure supplement 1) is similar to the crystal structure in that it has the same overall architecture (i.e., H1 bound to the hydrophobic cleft of the C-lobe and H2 bound to the hydrophobic cleft of the N-lobe). However, in the crystal structure, CaM binds to H1 and H2 from two different H1H2 molecules, while in solution we show by PFG-NMR, DLS, and SEC-MALS that the fraction of such higher oligomers is low at concentrations of 50 µM and below. The absolute protein concentration is certainly a parameter that can shift the equilibrium in this dynamic system, and the high concentrations used for crystallization might favor the formation of higher oligomers. Thus, collectively, these data depict a highly flexible system that is sensitive to the conditions under which they are studied.

Figure 4 with 1 supplement see all

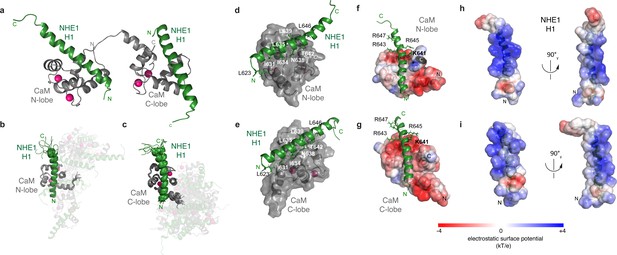

The ternary complex between calmodulin (CaM) and two Na+/H+-exchanger (NHE1) H1s.

(a) Cartoon of the complex showing the two lobes of CaM in gray and the two NHE1 H1 helices in green. Ca2+ ions are shown in magenta. (b, c) Superimposition of the 10 lowest energy structures of the calculated ensemble aligned by (b) the CaM N-lobe with NHE1 H1 bound or (c) the CaM C-lobe with the second NHE1 H1 bound, showing mobility around the CaM linker. (d, e) Hydrophobic residues of NHE1 H1 forming contacts to CaM in the (d) N-lobe and (e) C-lobe, respectively. Electrostatic complementarity between Ca2+-CaM and NHE1-H1 in the (f) CaM N-lobe and the (g) CaM C-lobe shown by the surface potential of CaM and (h, i) for the two correspondingly bound H1 helices (PDB accession code 6zbi).

Table 4
Structural statistics (PDB accession code 6zbi).
Nuclear magnetic resonance restraints
 Distance, short-range |i–j| ≤ 11019
 Distance, medium-range 1 < |i–j| < 5361
 Distance, long-range |i–j| ≥ 5224
 Distance, intermolecular213
 Dihedral restraints (Talos-N):336
Average pairwise RMSD
 N-lobe + H1N
 8.73 (chain A), 623.644 (chain C)
Backbone: 0.77 ± 0.16 Å
Heavy atoms: 1.42 ± 0.14 Å
 C-lobe + H1C
 83.148 (chain A), 623.644 (chain B)
Backbone: 0.83 ± 0.18 Å
Heavy atoms: 1.57 ± 0.17 Å
Ramachandran statistics
 Most favored regions95.7%
 Additionally allowed regions3.7%
 Generously allowed regions0.3%
 Disallowed regions0.3%

Influence of Ca2+ availability on complex formation

The experiments described so far were all performed under Ca2+ saturation. However, cellular [Ca2+]i is tightly regulated and numerous Ca2+-binding proteins compete for the available pool. To investigate the effect of limited Ca2+ availability on the structural ensemble of NHE1 and CaM, we monitored the state of CaM based on the 1H,15N HSQC fingerprint spectrum both under nominally Ca2+-free conditions and in the presence of the Ca2+ chelator ethylenediaminetetraacetic acid (EDTA). In the absence of Ca2+, we still observed CSPs of CaM after addition of 2.5-fold molar excess of H1H2 (Figure 3—figure supplement 2a), suggesting that also the Ca2+-free form of CaM binds NHE1 H1H2. Under conditions where both Ca2+ (here 2 mM) and high EDTA (here 6.6 mM) were present, free CaM gets stripped of Ca2+. However, in the additional presence of 2.5-fold molar excess of H1H2, signals of the C-lobe overlapped with those from Ca2+-CaM bound to H1, while signals of the N-lobe closely resembled the Ca2+-free state (Figure 3—figure supplement 2b). Thus, the presence of H1 increased the affinity for Ca2+ in the C-lobe. This further suggests that competition for Ca2+ favors another mode of interaction where the CaM C-lobe is bound to Ca2+ and to H1 of NHE1, while the N-lobe is in its Ca2+-free form.

These data show that [Ca2+] modulates the structural landscape of NHE1:CaM complexes further. Given the complexity of the cellular Ca2+ landscape, especially at the plasma membrane–cytosolic interface where NHE1 functions, we therefore proceeded to address the functional role of NHE1:CaM interactions in a cellular context.

In a cellular context, Ca2+-dependent NHE1 activation is regulated by S648 phosphorylation status

In addition to the interaction with Ca2+:CaM, cellular regulation of NHE1 is governed by the phosphorylation status of multiple sites in the C-terminal tail, some of which are located in the CaM-binding region (Hendus-Altenburger et al., 2014). S648, which can be phosphorylated by Akt (Meima et al., 2009; Snabaitis et al., 2008), is located at the C-terminal distal end of H1. In cardiomyocytes, the S648A mutation increased CaM binding to NHE1 in vitro, and S648 phosphorylation by Akt was proposed to inhibit NHE1 by preventing CaM binding (Snabaitis et al., 2008). In contrast, in fibroblasts, S648 phosphorylation by Akt was required for NHE1 activation by platelet-derived growth factor (Meima et al., 2009), indicating that the impact of this residue may be cell-type- and/or context-specific.

Reasoning that our new structural understanding of the NHE1:CaM complexes could help reveal the relation between Ca2+:CaM, S648, and Akt in regulation of NHE1, we proceeded to investigate this issue. We first determined the effect of Ca2+-CaM interaction and S648 phosphorylation on NHE1 localization and function. To this end, we generated stable clones of PS120 cells (a mammalian fibroblast cell line that lacks endogenous NHE1; Pouyssegur et al., 1984) expressing full-length WT hNHE1 and three variants. The 1K3R1D3E (K641D, R643E, R645E, R647E) variation introduces a charge reversal (CR) of four residues in H1, and will be referred to as H1-CR. A similar CR variant (1K3R4E) of hNHE1 was reported to exhibit reduced CaM-binding and increased pHi sensitivity, and fibroblasts expressing this variant showed reduced Ca2+-induced NHE1 activation (Bertrand et al., 1994; Wakabayashi et al., 1994). Furthermore, MDA-MB-231 breast cancer cells expressing this CR variant (1K3R4E) showed increased invasion, migration, and spheroid growth compared to cells expressing WT NHE1 (Amith et al., 2016). The other two NHE1 variants expressed were S648A and S648D, representing the non-phosphorylated and phosphorylated states of S648, respectively. WT NHE1 and all three variants localized primarily to the plasma membrane – the expected pattern for exogenously expressed NHE1 localization in PS120 cells (Figure 5Denker and Barber, 2002; Hendus-Altenburger et al., 2016; Hendus-Altenburger et al., 2019). NHE1 protein expression levels were comparable between cell lines, albeit slightly higher in cells expressing the variants compared to WT, as shown by immunoblot analysis (Figure 5b, c). As expected, endogenous CaM exhibited similar expression levels in all cell lines (Figure 5b, d) and localized mainly diffusely in the cytosol (Figure 5—figure supplement 1).

Figure 5 with 2 supplements see all

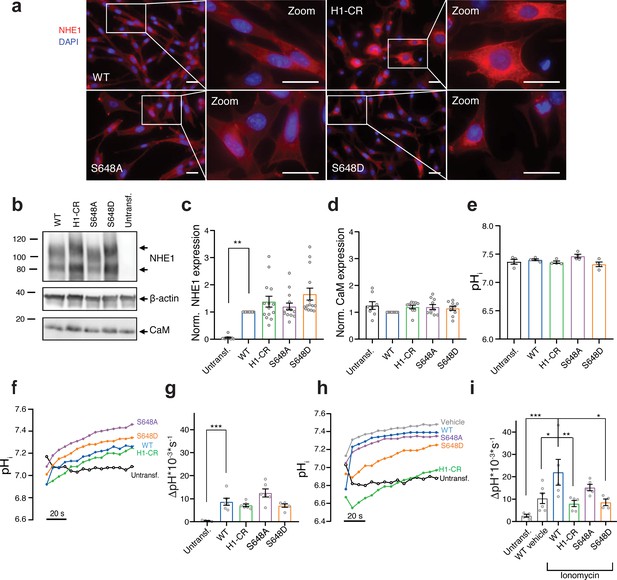

S648 phosphorylation status regulates Ca2+-dependent Na+/H+-exchanger (NHE1) activation.

(a) Representative immunofluorescence (IF) images of PS120 cells stably expressing wild-type (WT) or variant hNHE1 and stained for NHE1 (red) and DAPI (blue) to evaluate NHE1 expression and localization. Images were taken at ×60 magnification on an inverted Olympus Cell Vivo IX83 microscope, and areas marked with white squares are magnified. Scale bars represent 20 μm (n = 5). IF images of calmodulin (CaM) in all cell lines are shown in Figure 5—figure supplement 1. (b) Representative western blot of the four variant PS120 cell lines as well as untransfected PS120 cells blotted for NHE1 and endogenous CaM. For NHE1, the lower band corresponds to the immature protein and the upper band to fully glycosylated NHE1. β-actin was used as loading control (n = 8–14). (c, d) Total NHE1 (n = 11–14) or CaM (n = 8–10) expression was quantified using ImageJ and normalized for each variant to the loading control and then to the expression in the WT NHE1 cell line. (e) Steady-state pHi measured in Ringer solution in the absence of HCO3- for each cell line. (n = 4). (f–i) Representative traces of BCECF-AM fluorescence converted to pHi for the four NHE1 variant cell lines and untransfected PS120 cells illustrating the time course of pHi recovery in Ringer in the absence of HCO3- after an NH4Cl-prepulse-induced acid load without (f, g) or with (h, i) the addition of 5 μM ionomycin or vehicle (EtOH). The recovery rates as ∆pH*10−3*s−1 of each cell line are depicted in (g) (n = 4–6) and (i) (n = 4–6). The rate of pHi recovery is expressed as ΔpH/s because steady-state pHi and acidification were similar between cell lines, allowing direct comparison. It should be noted that the variant NHE1 proteins 1K3R1D3E, S648A, and S648D harbor a spontaneous F395Y mutation. The expression and pHi recovery rates of two WT NHE1s (two different clones) did not differ from that of F395Y (Figure 5—figure supplement 2). Data represent mean ± SEM. For (d, g, i), one-way analysis of variance with Dunnett’s post-test comparing all cells to WT was carried out. For (c, e), Kruskal–Wallis non-parametric test comparing all cells to WT was carried out. Exact p-values stated for each group compared to WT were as follows: (c) untransf. p = 0.002, H1-CR p > 0.9999, S648A p > 0.9999, S648D p = 0.1054; (d) untransf. p = 0.8894, H1-CR p = 0.6035, S648A p = 0.5309, S648D p = 0.8852; (e) untransf. p > 0.9999, H1-CR p > 0.9999, S648A p > 0.9999, S648D p = 0.6911; (g) untransf. p = 0.0009, H1-CR p = 0.7781, S648A p = 0.1097, S648D p = 0.7652; (i) untransf. p = 0.0007, WT vehicle p = 0.0254, H1-CR p = 0.0089, S648A p = 0.3367, S648D p = 0.0195. *, ** and *** denote p < 0.05, p < 0.01 and p < 0.001, respectively.

Next, we determined the effect of CaM binding and S648 phosphorylation status on NHE1 ion transport activity. Cells were loaded with the pH-sensitive fluorescent probe BCECF-AM and subjected to real-time analysis of pHi. The steady-state pHi was similar between all cell lines, ranging from ~7.4 to 7.5 (Figure 5e). To directly assess Na+/H+ exchange activity, we measured the rate of pHi recovery after an NH4Cl-prepulse-induced acid load. Since PS120 cells lack endogenous NHE1 activity (Figure 5f–i, untransf.), pHi recovery in the nominal absence of HCO3- reflects the activity of exogenously expressed NHE1 (Pedersen and Counillon, 2019). Following an acid load without further stimulation, recovery rates were not significantly different between cells expressing WT and variant NHE1s (Figure 5f, g). In the presence of the Ca2+-ionophore ionomycin, which causes elevated [Ca2+]i, added concomitantly with the acid load, cells expressing WT NHE1 recovered significantly faster than WT vehicle controls (Figure 5h, i), in agreement with previous reports (Wakabayashi et al., 1994). Under ionomycin-stimulated conditions, recovery was significantly reduced in cells expressing the NHE1 H1-CR and S648D variants compared to those expressing WT NHE1 (Figure 5h, i).

These results show that mutations within the CaM-binding region (specifically H1) or mimicking S648 phosphorylation reduce Ca2+-stimulated NHE1 activation in PS120 fibroblasts.

Cellular NHE1:CaM proximity is resistant to H1-CR and S648 NHE1 mutations

To study the interaction between CaM and NHE1 in situ, we employed PLA, which detects close proximity (≤40 nm) of two proteins of interest in situ (Söderberg et al., 2006). Previous work has established the feasibility of detecting CaM interactions specifically using PLA and demonstrated that PLA signals between two binding partner proteins can be abrogated by mutation of one protein partner (Edin et al., 2010; Ulke-Lemée et al., 2015). Figure 6a shows the localization of NHE1:CaM PLA puncta (magenta) and NHE1 (green). Confirming assay specificity, PLA puncta were absent in native PS120 cells not expressing NHE1 (Figure 6b, Figure 6—figure supplement 1). In PS120 cells expressing WT NHE1, PLA puncta, representing ≤40 nM proximity of CaM and NHE1, were clearly detected (Figure 6a, b). The number of PLA puncta per area did not increase upon ionomycin treatment (Figure 6a, b), suggesting that an increase in [Ca2+]i does not detectably increase the number of CaM and NHE1 proteins within close proximity of each other.

Figure 6 with 2 supplements see all

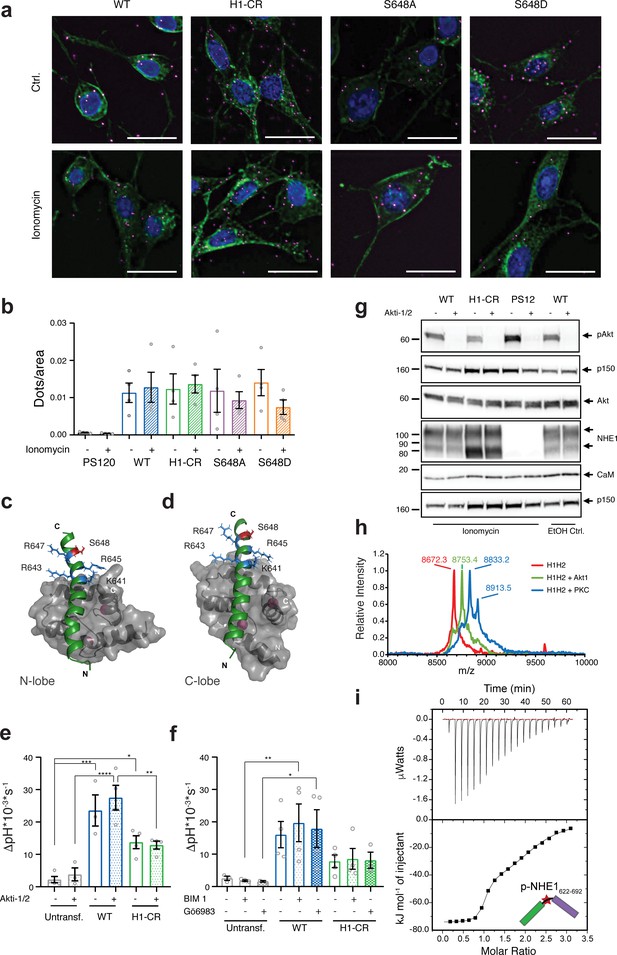

Cellular Na+/H+-exchanger:calmodulin (NHE1:CaM) proximity is resistant to H1-CR and S648 NHE1 mutations, and Akt and PKC activity does not significantly impact ionomycin-induced NHE1 activity.

(a) Proximity ligation assay (PLA) of wildtype (WT) and variant hNHE1 in PS120 cells, with addition of vehicle (EtOH) or 5 μM ionomycin as shown (n = 4–7). Negative controls are shown in Figure 6—figure supplement 1 PLA signal is magenta, co-staining for NHE1 is green, and nuclei (DAPI) are blue. Scale bars represent 20 μm. (b) Quantification of PLA signal in ImageJ after background subtraction and normalization to cell area. Approximately 400 cells were counted per condition per n (n = 4). Two-way analysis of variance (ANOVA) with Tukey’s post-test comparing all conditions to one another showed no significant differences between groups. As there are 45 exact p-values for this figure, these are available upon request. (c, d) Structures of the individual lobes of the (2:1) NHE1 H1-CaM complex highlighting the position of the mutated residues and S648 in (c) the N-lobe and (d) the C-lobe. (e) Recovery rates as ∆pH * 10−3 * s−1 of each cell line with addition of 10 μM Akti-1/2 or vehicle (DMSO) (n = 4). Two-way ANOVA with Tukey’s post-test was used to compare cell types to one another within each treatment group. Exact p-values were as follows: (e) Ctrl group: untransf. WT p = 0.0001, untransf. H1-CR p = 0.0141, WT H1-CR p = 0.0559; Akti-1/2 group: untransf. WT p < 0.0001, untransf. H1-CR p = 0.0792, WT H1-CR p = 0.0024. (f) As in (e), except that where indicated cells were treated with 5 µM of bisindolylmaleimide I (BIM) or 3 µM of Gö6983 (Go) (n = 4) or DMSO (vehicle). Exact p-values were as follows: Ctrl group: untransf. WT p = 0.0501, WT H1-CR p = 0.2291; BIM I group: untransf. WT p < 0.0091, WT H1-CR p = 0.0844; Go group: untransf. WT p < 0.0370, WT H1-CR p = 0.1823. (g) Western blot assessing the inhibition of Akt activity by Akti-1/2, assessed as phosphorylation of Ser473 of Akt (pAkt) compared to total Akt, in PS120 cells expressing WT and variant NHE1 (n = 4). The blot also illustrates endogenous levels of CaM and exogeneous NHE1. p150 was used as a loading control. NHE1 and CaM were detected on the same membrane as Akt. (h) Matrix-assisted laser desorption/ionization time of flight mass spectrometry analyses of NHE1-H1H2 before (red) and after addition of Akt (green) or protein kinase C (blue). (i) Representative binding experiments of Akt-phosphorylated NHE1-H1H2 titrated into CaM using isothermal titration calorimetry. The upper part shows baseline-corrected raw data from the titrations, and the lower part the normalized integrated-binding isotherms with the fitted binding curves assuming a two-site binding event. The peptide titrated into CaM is shown in cartoon, and the star indicates the phosphorylated S648. Data represent mean ± SEM. *, **, *** and **** denote p < 0.05, p < 0.01, p < 0.001, and p < 0.0001, respectively.

Figure 6—source data 1

Raw Na+/H+-exchanger calmodulin proximity ligation assays data (relating to Figure 6a, b).

https://cdn.elifesciences.org/articles/60889/elife-60889-fig6-data1-v2.xlsx
Figure 6—source data 2

pHi data summaries (relating to Figure 6e, f).

https://cdn.elifesciences.org/articles/60889/elife-60889-fig6-data2-v2.xlsx
Figure 6—source data 3

Raw western blots (relating to Figure 6g).

https://cdn.elifesciences.org/articles/60889/elife-60889-fig6-data3-v2.pptx
Figure 6—source data 4

Isothermal titration calorimetry raw data and fits of triplicate experiments for the titration of calmodulin with pS648 H1H2 (Figure 6h).

https://cdn.elifesciences.org/articles/60889/elife-60889-fig6-data4-v2.xlsx

To determine the impact of S648 phosphorylation status on NHE1:CaM interaction in a cellular context, PS120 cells stably expressing WT NHE1, H1-CR, and the two phosphorylation variants, S648A and S648D, were also probed for NHE1:CaM proximity by PLA. In contrast to their inhibitory effect on Ca2+-induced NHE1 activation (Figure 5h, i), none of the three variants abolished NHE1:CaM PLA in situ (Figure 6a, b). We therefore examined the solution NMR structure of the 1:2 (CaM:H1) complex and the positions of the different mutated residues. In the complex, the four residues K641, R643, R645, and R648 are all solvent exposed both when bound to the N-lobe or the C-lobe of CaM, with some hydrophobic contacts from K641 (Figure 6c, d). Likewise, in either of the lobes, S648 does not form direct contacts with CaM (Figure 6c, d). While several other mechanisms are possible (see Discussion), this may explain why the H1-CR, S648A, and S648D mutations have no apparent effect on NHE1:CaM proximity, although both H1-CR and S648D reduced Ca2+-induced NHE1 activity.

These results show that despite their effects on Ca2+-CaM-induced NHE1 activity neither H1-CR, S648A, nor S648D mutations abrogate the close proximity between NHE1 and CaM in a cellular context.

Ca2+-dependent NHE1 activation is dependent on CaM interaction but does not require Akt or PKC

In addition to its phosphorylation by Akt (Meima et al., 2009; Snabaitis et al., 2008), S648 is phosphorylated or predicted to be phosphorylated by several other kinases, including protein kinase C (PKC) (Hendus-Altenburger et al., 2014). To investigate the phosphorylation of S648 by these kinases and study how it impacts NHE1:CaM interaction in vitro, we tried to phosphorylate the H1H2 peptide using either recombinant Akt or PKCδ in an in vitro phosphorylation assay. Phosphorylation of a single residue by Akt was confirmed by mass spectrometry, and S648 was identified by NMR, while PKCδ gave rise to mono-, double-, and triple phosphorylated forms of H1H2, identified by NMR at residues T642, S648, and T653 (Figure 6h, Figure 6—figure supplement 2). Thus, H1H2 is a potential target for other kinases. We used ITC to measure the affinity of monophosphorylated (pS648) H1H2 for CaM. As for the unphosphorylated H1H2, we observed two transitions in the binding isotherm and fitted this to a two-site binding model. The first binding event gave a Kd,1 = 5 ± 4 nM with a stoichiometry n1 = 0.93 ± 0.02, while the second binding event gave a Kd,1 = 2700 ± 600 nM with n2 = 1.16 ± 0.06 (Figure 6i, Table 1). Thus, indeed, phosphorylation of S648 results in a tenfold weakened binding to CaM compared to WT.

We next asked whether Akt or PKC were essential regulators of Ca2+-dependent NHE1 activity. A 10 min stimulation with ionomycin had no detectable effect on Akt activation (phosphorylation) in PS120 cells (Figure 6g). Furthermore, Akt activity was ablated under both control and ionomycin conditions by the Akt inhibitor Akti-1/2 (Figure 6g), yet Akti-1/2 had no significant effect on ionomycin-stimulated NHE1 activity after an acid load (Figure 6e). Similarly, two well-established PKC inhibitors, bisindolylmaleimide I (BIM I) – targeting PKCα, -β1, -β2, -γ, -δ, and -ε – and Gö6983 – targeting PKCα, PKCβ, -γ, -δ, and -ζ (Figure 6f) – also had no significant effects on the Ca2+-dependent NHE1 activity after acidification. These observations suggest that other kinases than Akt and these PKC isozymes can regulate S648 phosphorylation in the context of an increase in [Ca2+]i.

Our results show that S648 is phosphorylated by Akt and PKCδ in vitro, weakening H1H2 binding to CaM tenfold. However, under the conditions studied, inhibition of Akt or multiple PKC isoforms does not alter Ca2+-induced cellular WT NHE1 activity. Thus, other kinases are likely important for S648 phosphorylation. Our findings also identify T642 and T653, present within the binding interface of the H1H2 NHE1 complex, as other phosphorylation sites potentially important for regulating NHE1:CaM interaction.

Discussion

CaM is highly abundant in cells and its interactome comprises hundreds of proteins, the majority of which form 1:1 complexes with CaM (Berchtold and Villalobo, 2014; Villalobo et al., 2018). Most existing structures of CaM complexes have been determined by crystallography and X-ray diffraction, providing static representations of the interactions. Here, we used solution NMR and reveal that the energy landscape of the CaM complex with the Na+/H+ exchanger NHE1 – a key regulator of pHi in mammalian cells – is much broader than previously anticipated. In solution, it populates several different states with different affinities and structures, and the equilibrium between these states can be modulated by phosphorylation, NHE1:CaM ratio, and [Ca2+]i (Figure 7a, b). In vitro, we found that NHE1 and CaM can form either 1:1 or 2:1 (NHE1:CaM) complexes with similar affinities but different structures, suggesting that the complex is highly dynamic and that the relevant state at any time is dependent on the availability of Ca2+-CaM and NHE1 in the cell (Figure 7). In the absence of Ca2+, apo-CaM can associate weakly with NHE1-binding sites in a different type of complex (Figure 7c). A recent study of the interaction between CaM and a truncated, minimal version of eEF-2K showed that the Ca2+-free C-lobe of CaM bound the truncated eEF-2K in the absence of Ca2+. Increasing [Ca2+] introduced an avidity effect through additional binding to the Ca2+-loaded N-lobe (Lee et al., 2019). In a cellular context, where resting [Ca2+]i is around 50–80 nM, a low [Ca2+-CaM] scenario is more likely than complete absence of Ca2+. Under such low Ca2+ conditions, our results show that in vitro NHE1:CaM interaction can stabilize Ca2+-binding to the C-lobe of CaM, resulting in an apo-state N-lobe and a Ca2+-loaded C-lobe bound to H1 (Figure 7d). At higher [Ca2+-CaM], corresponding to, for example, mitogenic stimuli, which can increase [Ca2+]i to up to around 1 µM, the present study indicates that two scenarios are possible: one is a 1:1 NHE1:CaM complex, with the major state having the N-lobe bound to H1 and the C-lobe bound to H2 (Figure 7e), and the second is a 2:1 NHE1:CaM complex, with the CaM N- and C-lobes both interacting with H1 on two adjacent NHE1 C-tails, potentially stabilizing the dimeric state of NHE1 (Figure 7f). As CaM is limiting in a cellular context, the two latter scenarios will be modulated both by local [Ca2+]i and CaM interactions with other proteins at any given time. Although the total cellular [CaM] is 5–6 µM as measured in various cell types, the global free Ca2+-CaM concentration in a cell has been estimated to be around 50 nM, that is, ~1% of the total [CaM] (Persechini and Stemmer, 2002; Saucerman and Bers, 2012). Both [CaM] and [Ca2+]i may, however, reach much higher concentrations locally, for example, close to Ca2+ channels (Mori et al., 2004), and the precise local Ca2+-CaM availability around NHE1 will be dependent on local and global Ca2+ signaling and competition with other CaM-binding proteins of various affinities. Our data suggest that in a cellular context CaM is bound to NHE1 at basal global [Ca2+]i. It is, however, possible that the local [Ca2+]i immediately surrounding the NHE1 C-tail may reach substantially higher levels due to local complex formation with Na+/Ca2+ exchanger 1 (Yi et al., 2009). Hence, the precise Ca2+ requirement for binding in a cellular context may be higher than the global [Ca2+]i.

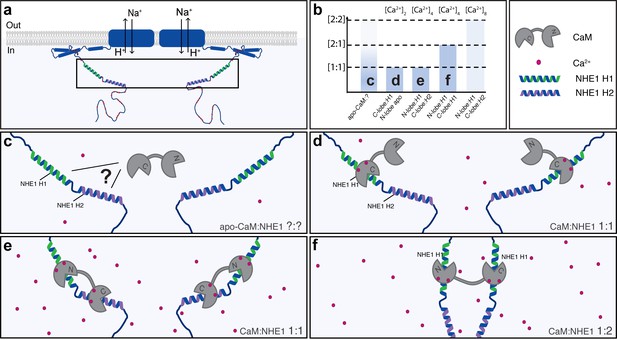

A dynamic view on Na+/H+-exchanger:calmodulin (NHE1:CaM) interaction.

Multiple possible complexes exist depending on the [NHE1], [CaM], and [Ca2+], including ternary complexes, suggesting that CaM may also contribute to NHE1 dimerization. (a) Schematic of NHE1 with a zoom on the CaM-binding region. The orientation of the monomers (N-terminal to N-terminal) in the NHE1 dimer is arbitrarily chosen. (b) Overview of the multiple complexes between CaM and NHE1 and their dependence on Ca2+ (top). The indices (c–f) refer to the states shown in cartoon below. (c) Interaction between apo-CaM and NHE1 is seen, but its structure is unknown (indicated by a question mark). (d) At low Ca2+ levels, NHE1-H1 is bound to the Ca2+-loaded C-lobe of CaM, whereas the N-lobe is in its apo-state. (e) At high Ca2+ levels, and high NHE1:Ca2+-CaM ratio, a 1:1 complex is formed with H1 bound to the N-lobe and H2 bound to the C-lobe of CaM. (f) At high Ca2+ levels, and low NHE1:Ca2+-CaM ratio, a 1:2 complex is formed, where NHE1-H1 is bound to both the N-lobe and the C-lobe of CaM.

CaM-mediated oligomerization has been reported for both soluble and membrane proteins. Examples of the former include the ERα, with two ERα binding to one Ca2+-CaM, one in each lobe, to maximally activate transcription (Li et al., 2017; Zhang et al., 2012). The affinity of one CaM lobe for ERα is almost 100-fold lower than what we measured for H1 of NHE1, further supporting a unique role of the 1:2 CaM:NHE1 complex. For membrane proteins, both CaM-mediated multimerization and apo-CaM binding are well studied for tetrameric, voltage-gated K+ channels. Small-conductance Ca2+-activated K+-(SK) channel monomers form 1:1 complexes with apo-CaM through C-lobe binding, thereby keeping the channel inactive. When [Ca2+]i increases, the N-lobe also associates with the channel, triggering dimerization and channel opening (Barros et al., 2019; Lee and MacKinnon, 2018; Schumacher et al., 2001). Another example is the eag1/Kv10.1 channel, which is inhibited by CaM. Also for this interaction, the stoichiometry is 1:1, and it is proposed that CaM acts as a molecular clamp interacting with domains from neighboring subunits, thereby ‘twisting’ the pore closed (Whicher and MacKinnon, 2016).

NHE1 proteins are functional homodimers involving several incompletely understood mechanisms (Pedersen and Counillon, 2019). Based on our findings, it could be speculated that CaM binding contributes to NHE1 C-tail dimerization in a similar way as was observed for ERα, with CaM binding to H1 on two separate NHE1s in a 2:1 (NHE1:CaM) stoichiometry (Figure 7f), as shown in the ternary complex (Figure 4). Conceivably, the 1:1 stoichiometry observed for CaM:NHE1622-692, with a C-lobe:H2 and N-lobe:H1 interaction, could also be possible through a 2:2 complex. This would require each CaM to span two NHE1 C-tails, binding to two different sites on two tails, forming a crossover structure (not shown). Whether this is feasible in a given cellular context will depend on the structural organization of the C-tail complexed with its binding partners and on the interaction of the NHE1 lipid interaction domain (LID) with the plasma membrane (Hendus-Altenburger et al., 2020). At the conditions studied here, we did not detect the 2:2 complex. However, a role for CaM as a dimerization switch would provide a structural understanding of previous reports of dimerization sites in the C-terminal tail of NHE1 (Fafournoux et al., 1994; Hisamitsu et al., 2004), as well as reports based on kinetic analyses of transport indicating that dimerization contributes to the regulation of NHE1 activity (Fuster et al., 2008; Hisamitsu et al., 2006; Lacroix et al., 2004; Otsu et al., 1989). Finally, in addition to the direct NHE1:CaM interactions studied here, the spectrum of NHE1:CaM interactions in vivo additionally involves indirect interactions, such as within the complex between the disordered NHE1 C-tail and the CaM-binding Ser/Thr phosphatase calcineurin (Hendus-Altenburger et al., 2019; Hisamitsu et al., 2012).

Since the discovery that NHE1 is a CaM-binding protein (Bertrand et al., 1994; Wakabayashi et al., 1994), interaction with CaM has emerged as important for its regulation in response to a wide range of stimuli (Coaxum et al., 2009; Li et al., 2013; Turner et al., 2007). In most cases, however, the mechanisms involved have remained unaddressed. Initially, release of an autoinhibitory interaction with an allosteric ‘pH sensor site’ on NHE1 by CaM interaction was proposed (Wakabayashi et al., 1994). However, detailed kinetic analyses have questioned the existence of such a site and indicated that NHE1 activity is regulated by its dimerization state (Fuster et al., 2008; Lacroix et al., 2004; Otsu et al., 1989; Pedersen and Counillon, 2019). Our finding that CaM may contribute to stabilization of the NHE1 dimer state would reconcile these models. Finally, given the key role of anionic lipids including phosphatidyl-inositol(4,5)-diphosphate (PI[4,5]P2) in regulating NHE1 by interacting with the C-tail (Aharonovitz et al., 2000; Shimada-Shimizu et al., 2014), Ca2+-CaM could also regulate NHE1 through electrostatic tuning of the NHE1:PI(4,5)P2 interaction. Such mechanisms are reported for several other membrane proteins (Cao et al., 2013; Monteiro et al., 2014) and would be consistent with the folding of the NHE1-LID domain upon membrane interaction, bringing the CaM-binding region in close proximity to the NHE1-LID and the membrane (Hendus-Altenburger et al., 2020).

The role of phosphorylation of S648 in NHE1 regulation has been a conundrum, with apparent conflicting findings in different cell types (Meima et al., 2009; Snabaitis et al., 2008). Here, we show that S648 phosphorylation, located at the distant end of H1, reduced NHE1:CaM interaction in vitro, yet both the H1-CR variant and the two phosphorylation variants, S648A and S648D, retained close (≤40 nm) proximity to CaM in cells. This may reflect that the effect of phosphorylation on the interaction was not strong enough to fully prevent interaction in vivo. Interestingly, the observation mirrors a recent study of CaM binding to smoothelin-like 1 (SMTNL1), where, CaM-SMTNL1 proximity was retained in cells upon mutation, despite loss of interaction in vitro (Ulke-Lemée et al., 2015). Our results agree with earlier work showing that cellular NHE1:CaM interaction is partially retained in an NHE1 variant functionally similar to our H1-CR variant (Bertrand et al., 1994). Additionally, cellular NHE1:CaM interactions may occur through C-tail interactions with other proteins (e.g., calcineurin) or membrane lipids (Hendus-Altenburger et al., 2019; Hendus-Altenburger et al., 2020), independent of the residues studied here but also giving rise to PLA signals. Finally, while NHE1:CaM proximity in the absence of interaction cannot be excluded, the observed binding of NHE1 to apo-CaM in vitro and the lack of effect of ionomycin on the number of proximity events observed in cells indicate that a fraction of NHE1:CaM complexes are present at all times.

In congruence with the reduced CaM affinity of the S648-phosphorylated H1H2 in vitro, Ca2+-induced NHE1 activity in PS120 cells was reduced by the S648D phospho-mimicking variant. Inhibiting the kinase responsible for S648 phosphorylation would therefore be expected to increase Ca2+-induced NHE1 activity. In our hands, an increase in [Ca2+]i did not activate Akt, one obvious candidate kinase (Meima et al., 2009; Snabaitis et al., 2008), and inhibition of Akt had no significant effect on Ca2+-mediated NHE1 activity. Furthermore, S648 was phosphorylated in vitro by both Akt and PKC, which have overlapping consensus sites, strongly indicating that other kinases than Akt can act via S648 to regulate NHE1. We reasoned that the conventional PKCs, which require an increase in [Ca2+]i for activation, were particularly relevant in this context. However, inhibition of conventional PKCs using two different inhibitors also had no effect on Ca2+-induced NHE1 activation. Furthermore, as R643, R645, and R647, which are mutated in NHE1 H1-CR, also did not abrogate CaM:NHE1 complexes in cells and as they constitute key residues of the Akt and PKC consensus recognition site (Rust and Thompson, 2011), this can support an additional role for other kinases. Whether these phosphorylation sites are interdependent, potentially allowing a rheostatic response as, for instance, reported for the tumor suppressor p53 (Lee et al., 2010) and the cyclin-dependent kinase inhibitor Sic1 (Borg et al., 2007), remains to be addressed. T653 has not been studied in the context of CaM but has been implicated in NHE1 regulation by Rho kinase (Wallert et al., 2015) and β-Raf (Li et al., 2016). Thus, the mechanisms involved in physiological regulation of NHE1 via S648 (and T642 and T653) deserve further studies.

In conclusion, we show that NHE1 and CaM engage in diverse complexes of different NHE1:CaM stoichiometries and structures in vitro. The interactions can be dynamically tuned by variations in the concentrations of NHE1, CaM, and Ca2+ and by phosphorylation of S648. In cells, Ca2+-induced NHE1 activity was reduced by mutation in the first CaM-binding helix, as well as by mimicking S648 phosphorylation, but not by inhibition of Akt. In contrast, NHE1:CaM proximity was not lost by these mutations, likely reflecting further complexity of NHE1:CaM interactions in vivo. S648 phosphorylation in vitro was facilitated by both Akt and PKC, and Ca2+-stimulated NHE1 activity was not affected by Akt inhibition, suggesting that multiple kinases regulate S648 phosphorylation in vivo. Finally, we determined the structure of the ternary complex between CaM and two NHE1 peptides, pointing to a possible role of CaM in stabilizing NHE1 dimers via binding to two C-terminal regulatory tails. Our results provide novel insight into the dynamics and regulation of NHE1:CaM interaction, and we suggest that an additional NHE1 regulatory layer tuned by Ca2+-CaM availability may contribute to NHE1 dimerization. As CaM binding to membrane proteins is widespread, similar regulatory mechanisms and structural diversity may be relevant for tuning oligomerization and function in many other membrane proteins.

Materials and methods

Antibodies and reagents

Request a detailed protocol

Antibody against NHE1 (#sc-136239) was from Santa Cruz Biotechnology, Dallas, TX. Antibodies against CaM (#45689 and #05-173) were from Abcam, Cambridge, GB, and EMD Millipore, Burlington, MA, respectively. Antibodies against Akt (#9272) and pAkt (Ser473) (#4060) were from Cell Signaling Technology, Danvers, MA. Antibody against p150Glued (#610473) was from BD Transduction Laboratories, Franklin Lakes, NJ. Antibody against β-actin (#A5441) was from Sigma-Aldrich, St. Louis, MO. Anti-mouse (#P0447) and anti-rabbit (#P0448) HRP-conjugated secondary antibodies were from Dako, Glostrup, DK. Anti-mouse-Alexa Fluor 568 (#A10037), anti-rabbit- Alexa Fluor 488 (#A21206), and anti-mouse-Alexa Fluor 488 (#A21202) secondary antibodies for immunofluorescence were from Invitrogen, Carlsbad, CA. The Akt inhibitor Akti-1/2 (#124019) was from EMD Millipore, and the PKC inhibitors BIM I (cat# HY-13867) and Gö6983 (cat# HY-13689) were from MedChemExpress (Monmouth Junction, NJ).

Cell lines and cell culture

Request a detailed protocol

PS120 cells (a kind gift from Laurent Counillon, University of Nice, France) were grown in DMEM (Life Technologies, Carlsbad, CA) supplemented with 5% (v/v) FBS (Sigma-Aldrich), 100 units, and 0.1 mg/mL Pen/Strep (Sigma-Aldrich) and 600 μg/mL G418 (EMD Millipore). The latter only for the transfected cells. Cells were grown at 37°C, 95% humidity, 5% CO2, and passaged at a confluence of ~70–100%.

Stable transfection of PS120 cells with variant NHE1

Request a detailed protocol

Transfections were performed with the Lipofectamine 3000 kit (Thermo Fisher, Waltham, MA). For each well in a 6-well plate, 125 μL medium with no supplements mixed with 3.75 μL Lipo3000 was added to a mixture of 125 μL medium with no supplements containing 4 μL P3000 reagent and 1 μg plasmid DNA. After 15 min incubation at room temperature (RT), 250 μL of the mixture was added to cells at 40–60% confluency without Pen/Strep and G418 and incubated 5 hr. After 5 hr, fresh medium containing Pen/Strep was added. The next day, fresh medium containing both Pen/Strep and serum as described was added. At a confluence of ~75–95%, cells were split and grown in medium with the addition of 1900 μg/mL G418 (EMD Millipore). Medium was changed every 2–3 days and cells were split when needed until untransfected control cells had died. To ensure clonality, single colonies of cells arising from a single cell were picked using cell culture cylinders greased with Dow Corning high-vacuum silicon grease (Sigma-Aldrich). Briefly, cells were thinly seeded in 10 cm Petri dishes, washed in PBS, and cylinders placed on top of the colonies in question. Then, 50 μL 5% (v/v) trypsin (Sigma-Aldrich) was added, cells incubated in the incubator for 5 min, and 100–150 μL fresh medium added into the cylinders. Cell suspension from each cylinder was transferred to a well in a 6-well plate and medium added. After clonal selection, the concentration of G418 was decreased to 600 μg/mL.

Immunofluorescence (IF) analysis

Request a detailed protocol

Cells were seeded on 12 mm coverslips in 6-well plates. At an ~70–90% confluence, cells were fixed in 100% MeOH for 15 min on ice and washed (3 × 5 min) in PBS on ice. Next, the coverslips were placed on parafilm and incubated with 0.5% (v/v) Triton X-100 in TBST (0.01 M Tris/HCl, 0.12 M NaCl, 0.1% Tween 20) for 15 min, blocked in 5% (w/v) BSA in TBST for 30 min, and incubated with primary antibodies diluted in 1% (w/v) BSA in TBST for 1.5 hr at RT. Coverslips were washed in TBST (3 × 5 min) and incubated with fluorophore-conjugated secondary antibodies in BSA/TBST for 1.5 hr. Coverslips were washed in TBST (5 × 5 min) including DAPI at dilution 1:1000 in BSA/TBST, mounted with N-propyl-gallate, sealed, and visualized using an inverted Olympus Cell Vivo IX83 with a Yokogawa CSU-W1 confocal scanning unit. Images were processed using ImageJ/Fiji.

Immunoblotting

Request a detailed protocol

Cells were lysed (1% SDS, 10 mM Tris-HCl pH 7.5, 1 mM Na3VO4, cOmplete protease inhibitor cocktail (Sigma-Aldrich), heated to 95°C), sonicated for 2 × 30 s, and centrifuged for 5 min at 20,000 × g at 4°C. Total protein amount was determined (DC Protein Assay kit, Bio-Rad, Hercules, CA) and samples equalized with ddH2O and NuPAGE LDS 4× Sample Buffer (Invitrogen) with dithiothreitol (DTT) added to final concentrations of 1× (sample buffer) and 125 mM DTT. Samples were run on precast Criterion TGX 10% gels (BioRad) in Tris/Glycine SDS buffer (BioRad) with Benchmark ladder (Invitrogen) and transferred to nitrocellulose membranes (BioRad). Membranes were Ponceau S (Sigma-Aldrich) stained, blocked (5% w/v nonfat dry milk in TBST), and incubated with primary antibodies overnight (o/n) at 4°C. Then, membranes were washed in TBST for 30 min, incubated with HRP-conjugated secondary antibodies for 1.5–2 hr, washed in TBST for 30 min, and developed with Pierce ECL Western Blotting Substrate (Thermo Fisher). Band intensities were quantified using ImageJ and normalized to the respective controls.

Measurements of pHi

Request a detailed protocol

Measurements of pHi were performed using the ammonium pre-pulse technique. Briefly, 8 * 104–12 * 104 PS120 variant cells were seeded in 24-well plates 24 hr prior to the experiment, then loaded with 2′,7′-bis-(2-carboxyethyl)−5-(and-6)-carboxyfluorescein acetoxymethylester (BCECF-AM, 1.6 µM, Life Technologies) for 30 min at 37°C. Cells were washed in Ringer solution (in mM, 130 NaCl, 3 KCl, 20 HEPES, 1 MgCl2, 0.5 CaCl2, 10 NaOH pH 7.4) twice, then bathed in Ringer solution again and placed in a FluoStar Optima plate reader thermostated at 37°C. Emission was measured at 520 nm and excitation at 485 nm. After baseline measurement (10 min) in Ringer solution, acidification was induced by washout of either 20 mM NH4Cl after 5 min exposure (Figure 5f) or 5 mM after 25 min exposure (Figure 5h). Na+-free solution (in mM, 135 NMDGCl, 3 KCl, 20 HEPES, 1 MgCl2, 0.5 CaCl2, pH 7.4) was applied (1.5 min), then the recovery was measured in Ringer solution for 10 min (Figure 5f). For the ionomycin experiment, 5 μM ionomycin (Sigma-Aldrich) or 96% EtOH (final dilution 0.48% v/v) was added to the Na+-free and normal Ringer solutions during recovery and recovery was measured for 5 min (Figure 5h). For the Akti-1/2, BIM I, and Gö6983 experiments, 10 μM Akti-1/2 or DMSO (final dilution 0.11 % v/v) or 5 µM BIM I, 3 µM Gö6983 or DMSO (final dilution 0.2 % v/v) as indicated was added to the cells while incubating for 30 min with BCECF-AM as well as to the Ringer and NH4Cl solutions and 5 μM ionomycin or 96% EtOH (final dilution 0.48% v/v) was added to the Na+-free and Ringer solutions during recovery, which was measured for 5 min (Figure 6e–f). Calibration was performed using the high-K+/nigericin technique (high K+ Ringer: in mM, 140 KCl, 10 HEPES, 1 MgCl2, 0.5 CaCl2, 50 μM nigericin, pH 7.4) and an eight-point calibration curve obtained by fitting to the expression Fave,pH=xFave,pH=7.4=1+b(10pHpK1+10pHpK107.4pK1+107.4pK), where b and pK are constants used for the conversion from fluorescence to pH pH=pKlog10(by1+ba1), where α=107.4pK1+107.4pK (Boyarsky et al., 1988; Pedersen et al., 1998). Maximal acidification did not differ significantly between cell lines. Recovery rate was determined by fitting data to the expression IF(x<x0, y0) and calculating the derivative at 6 s after addition of Ringer recovery solution. Recovery rate for PS120 untransfected controls as well as a few traces that were not properly fitted using the expression above (H1-CR in n = 2 and n = 7 in Figure 5i; H1-CR BIM 5 μM in n = 3 and H1-CR in n = 4 in Figure 6f) was calculated as the slope of the initial approximately linear part of the curve.

Proximity ligation assay

Request a detailed protocol

Cells were seeded on coverslips and treated for 10 min with either 96% EtOH (final dilution 0.48% v/v) in Ringer solution or 5 μM ionomycin in Ringer solution at a confluence of ~50–70%. Then, cells were fixed and permeabilized as described for IF analysis. The assay was carried out using Duolink PLA kit (Sigma-Aldrich) following manufacturer’s protocol. Briefly, blocking solution was added for 25 min at RT, coverslips were then incubated with primary antibodies for 1 hr at 37°C, and washed 3 × 5 min in TBST in a 6-well plate with gentle shaking. PLA probes (PLUS and MINUS) were then added and incubated for 1 hr at 37°C, followed by washing as described. Ligase solution was added and incubated for 30 min at 37°C, followed by washing. Amplification solution containing polymerase was then added and incubated for 100 min at 37°C, followed by washing protected from light. In some experiments, green anti-mouse fluorophore-conjugated secondary antibody was applied o/n at 4°C to stain NHE1. The next day, coverslips were washed and DAPI diluted 1:1000 in ddH2O was added for 5 min at RT, followed by washing. Coverslips were then mounted with N-propyl-gallate, sealed, and visualized using an inverted Olympus Cell Vivo IX83 with a Yokogawa CSU-W1 confocal scanning unit or, for z-stacks, an Olympus BX63. Coverslip identity was blinded for the observer. Confocal images were captured in a single plane across a grid of each coverslip. Images were quantified with ImageJ using the Analyze Particles function on binary images with background subtraction. Cells on coverslips used for quantification (Figure 6b) were not stained for NHE1. Approximately 400 cells were counted per condition per experiment. Cell sizes were measured manually using merged z-stacks of coverslips stained for NHE1 (Figure 6a).

Protein expression and purification

Request a detailed protocol

A modified pET24a-vector coding for His-SUMO-tagged human NHE1 A622-D657 (H1), NHE1 R651-D692 (H2), or NHE1 A622-D692 (H1H2) was transformed into Escherichia coli BL21 Rosetta 2 (DE3)pLysS cells and grown o/n at 37°C in 10 mL LB media with 50 μg/mL kanamycin (kan) and 35 μg/mL chloramphenicol (cam). For expression of unlabeled NHE1 peptides, the cultures were added to 1 L LB media with 50 μg/mL kan and 35 μg/mL cam and grown at 37°C, 185 rpm to an OD600 of 0.6–0.8, and induced with 0.5 mM IPTG and harvested after 3 hr by centrifugation at 4700 × g for 10 min at 4°C. For expression of stable isotope-labeled NHE1 peptides, the o/n culture was added to 1 L M9 minimal media (22 mM KH2PO4, 42 mM Na2HPO4·2H2O, 17 mM NaCl, 1 mM MgSO4), added 1:1000 of M2 trace element solution, 20 mM glucose (if required: 13C-labeled), 19 mM NH4Cl (if required: 15N-labeled) with 50 μg/mL kan and 35 μg/mL cam, and grown similar to LB media cultures. After resuspension in 25 mL 50 mM Tris-HCl, pH 7.4, and centrifugation at 5000 × g for 15 min at 4°C, the pellet was dissolved in in 25 mL buffer NA (50 mM Tris-HCl, 10 mM imidazole, 150 mM NaCl, pH 8.0) supplemented with one tablet EDTA-free protease inhibitor (Roche). The cell solution on ice was sonicated 3 × 1 min at 90% amplitude (0.5 s cycles) using a UP200S Ultrasonic Processor (Hielscher), with 1 min breaks in between to cool down the sample. Subsequently, phenylmethylsulfonyl fluoride was added to the sample at a final concentration of 1 mM and centrifuged at 20,000 × g for 45 min at 4°C and the pellet discarded. A total of 5 mL Ni2+ Sepharose 6 Fast Flow (GE Healthcare) was transferred to a 20 mL gravity flow column. The lysate supernatant was added to the column and incubated for 1 hr at RT under gentle shaking. The column was washed with 50 mL buffer NB (50 mM Tris-HCl, 10 mM imidazole, 1 M NaCl, pH 8.0), followed by a wash with 50 mL buffer NA. The protein was eluted with 10 mL buffer NC (50 mM Tris-HCl, 300 mM imidazole, 150 mM NaCl), and subsequently β-mercaptoethanol was added to a final concentration of 3 mM together with ∼100 μg ubiquitin-like-specific protease and incubated for 1 hr at RT. After cleavage, the NHE1 peptides were further purified by means of reversed-phase chromatography. A 17.35 mL Zorbax 300 Å StableBond C18 column was utilized using an Äkta Purifier 10 HPLC system. Trifluoroacetic acid (TFA) was added to the samples containing NHE1 peptides to a final concentration of 0.1% and centrifuged at 20,000 × g for 20 min at RT to remove insoluble aggregates prior to application. The column was equilibrated with 100% buffer RA (0.1% TFA [v/v] in MQ water) and a total volume of 5 mL was applied over two injections. A step gradient from 0% to 100% buffer RB (0.1% TFA [v/v], 70% acetonitrile [v/v] in MQ water) was set over 10 CV with a flow of 3.5 mL/min. A280 was measured and fractions of 0.5–2.5 mL were collected and analyzed by SDS-PAGE. Fractions containing NHE1 peptides were pooled, flash-frozen, lyophilized o/n, and stored at −20°C.

A pET5-vector coding for full-length bovine CaM (1–149, 100% protein sequence identity to human CaM) was transformed into E. coli BL21 CodonPlus (DE3)-RP cells and grown o/n at 37°C in 10 mL LB media with 100 μg/mL ampicillin (amp) and 35 μg/mL cam. One liter of culture medium (LB or M9) was inoculated with 10 mL of the o/n culture, and expression was induced with 0.5 mM IPTG at an OD ~0.6. After induction, the cells were grown for 4 hr at 37°C and harvested by centrifugation at 6000 × g for 10 min. The cell pellet was suspended in 30 mL loading buffer (20 mM Tris-HCl, 500 mM NaCl, 10 mM CaCl2, pH 7.5) supplemented with one pellet EDTA-free protease inhibitor (Roche), and sonicated on ice for 5 × 30 s at 80% amplitude (0.5 s cycles) using a UP200S Ultrasonic Processor (Hielscher), with 30 s breaks in between to cool down the sample. Subsequently, the lysate was centrifuged at 20,000 × g for 45 min at 4°C and the pellet discarded. The lysate supernatant was filtered using a 0.45 µm syringe filter and loaded onto a 5 mL phenyl Sepharose column. The column was subsequently washed with 40 mL loading buffer before eluting the protein in fractions of 2 mL using a 10 mL gradient from 0–100% elution buffer and additional 10 mL 100% elution buffer (20 mM Tris-HCl, 500 mM NaCl, 50 mM EDTA, pH 7.5). A280 was measured and fractions were collected and analyzed by SDS-PAGE. The samples containing CaM were concentrated to ~1 mM, and the buffer was exchanged to the Gelfitration buffer (20 mM Tris, 100 mM KCl, optional 2 mM CaCl2 depending on whether the Ca2+ bound or unbound form was desired, pH 7.5) using an Amicon centrifugal filter (10 kDa cutoff) and applied to a HiLoad16/600 Superdex75 column. A280 was measured and fractions were collected and analyzed by SDS-PAGE. Fractions containing CaM were pooled and stored at −20°C.

NMR spectroscopy

Request a detailed protocol

All NMR spectra were recorded on Bruker Avance III 600 MHz or 750 MHz spectrometers equipped with TCI cryo-probes. If not specified otherwise, the sample conditions were 20 mM Tris, 100 mM KCl, 2 mM CaCl2, 5% D2O, 125 µM DSS (adjusted to pH 7.5 with 1 M HCl) at a temperature of 37°C. All spectra were referenced to DSS in the 1H direct dimension and indirectly in the 15N and 13C dimensions using the gyromagnetic ratios. All spectra were zero-filled, apodized using a cosine bell window function in all dimensions, Fourier transformed, and phase corrected manually using either TopSpin3.6, NmrPipe (Delaglio et al., 1995), or qMDD (Kazimierczuk and Orekhov, 2011) if spectra were recorded using non-linear sampling. All spectra were analyzed and assigned manually using CCPNmr Analysis 2.4.2 (Vranken et al., 2005). For titrations experiments, series of 1H,15N HSQC NMR spectra of either protein (15N-labeled) were recorded at 37°C in the absence and with increasing concentrations of the other up to 1:2.5 molar ratios, keeping the detected protein concentration constant.

NMR assignment

Request a detailed protocol

Backbone and sidechain resonances of free CaM (sample A: 1.2 mM 13C,15N-labeled CaM), free H1 (sample B: 0.5 mM 13C,15N-labeled H1, recorded at 5°C), free H2 (sample C: 0.5 mM 13C,15N H2, recorded at 5°C), as well as of the CaM:H1 complex (sample D: 0.5 mM 13C,15N-labeled CaM + 1.15 mM unlabeled H1; sample E: 1 mM 13C,15N-labeled H1 + 0.5 mM unlabeled CaM) were assigned using sets of triple resonance spectra HNCO, HN(CA)CO, HNCACB, NH(CO)CACB, HcCH-TOCSY, hCCH-TOCSY, 15N-NOESY-HSQC, and 13C-NOESY-HSQC.

2D NMR lineshape analysis

Request a detailed protocol

The 1H,15N HSQC spectra were processed using an exponential weighting function in both dimensions (4 and 8 Hz line broadening in F1 and F2, respectively) and analyzed using the 2D lineshape analysis tool TITAN for Matlab (Waudby et al., 2016) with a two-state binding model for the titration of CaM with H2. For the titration of CaM with H1, a model with two independent sites (four states) was used for fitting. To reduce the number of variables, the Kds as determined from ITC were kept as constants in the fitting process and the assumption that the relaxation rates R2(1H) and R2(15N) of a residue in one lobe are not affected by peptide binding to the other lobe. In both cases, >20 isolated peaks were analyzed, and the errors were determined by a bootstrap analysis and are given by the standard deviation from the mean from 100 replicas.

Structure calculations and refinements

Request a detailed protocol

Intra- and intermolecular distance restraints were obtained from samples D and E using a set of heteronuclear 3D NOESY experiments (15N-NOESY-HSQC, 13C-NOESY-HSQC as well as 12C/14N filtered versions yielding exclusively intermolecular NOEs). The mixing time in all NOESY experiments was 120 ms. Backbone angular restraints were calculated from chemical shifts using Talos N (Shen and Bax, 2013). Initial NOE assignments and structure calculations for the CaM:H1 complex were done iteratively using Cyana 3.98.5 (Güntert and Buchner, 2015). Four Ca2+ ions were included and the geometry of calcium coordination was fixed based on distance and angular restraints from crystal structures (PDB accession code: 1CLL; Chattopadhyaya et al., 1992). The structures were further refined with an implicit water model (eefxPot; Tian et al., 2014) using XPLOR-NIH v2.44 (Bermejo and Schwieters, 2018).

Pulsed field gradient NMR diffusion experiments

Request a detailed protocol

For the determination of the diffusion coefficients by PFG-NMR, three samples of 40 μM of 15N-labeled CaM were prepared either without any ligand, with 40 μM H1H2 (1:1 complex), or with 80 μM H1H2 (1:2 complex), respectively. A series of 15N filtered 1D 1H spectra with preceding PFG-LED diffusion filter (Wu et al., 1995) were recorded on a Bruker Avance III 600MHz spectrometer equipped with a TCI cryo-probe, and the gradient strength was increased linearly from 2.4 to 47.2 G/cm. To determine the diffusion coefficients D, the decay curves of the integrated amide signals in the range of 7–9 ppm were plotted against the gradient strength and fitted in Dynamics Center (Bruker) using the equation:

I=I0∗exp(−D∗x2∗γ²∗δ²(Δ−δ/3)∗104)

where is the intensity of the NMR signal at the respective gradient strength, I0 is the intensity without applied gradient, x is the gradient strength in G/cm, γ = 26752 rad/(G*s), δ = 3 ms, and Δ = 200 ms. Rh was calculated from the diffusion coefficient using the Stokes–Einstein relation Rh = kBT/(6πηD) with η = 0.6959 mPa * s (dynamic viscosity of water at 37°C).

Isothermal titration calorimetry

Request a detailed protocol

All ITC data were recorded on a Microcal instrument ITC200 (Malvern). Data were recorded at 25°C with a stirring speed of 307 rpm and a reference power of 10 µCal/s. The buffer composition was 20 mM Tris (adjusted to pH 7.5 with 1 M HCl), 100 mM KCl, 2 mM CaCl2, and all samples were degassed freshly before usage. For the high-affinity interactions (H1, H1H2, and H1H2 pS648), CaM was at an initial concentration of 10 µM in the sample cell and the peptides were added from a stock concentration of 150 µM in the syringe. The titration of H2 into CaM was conducted at 50 µM CaM in the cell and 670 µM H2 in the syringe. In this case, the heat of dilution was determined from a control experiment, where H2 was injected into a buffer solution, and this data set was subsequently used for baseline correction. Data from the ITC experiments were analyzed using the Origin 7 software package (MicroCalTM). The data sets were fitted to models for a single binding site (H1, H2) or two independent binding sites (H1, H1H2, H1H2 pS648). The extracted thermodynamic parameters (Table 1) are the mean and standard deviation of three independent experiments, and one representative experiment is shown in Figure 1c–e.

Dynamic light scattering

Request a detailed protocol

DLS experiments were carried out on a Malvern Zetasizer NANO ZSP at a total protein concentration of 1 mg/mL. The data was analyzed with the Malvern Zetasizer software v8.1 using standard settings. The calculated values are given in Table 3 as the average and standard deviation of three measurements.

Size exclusion chromatography coupled to multiple angle light scattering

Request a detailed protocol

SEC-MALS was performed using an ÄKTA Pure (GE) system and a Superdex S75 10/300 column in line with a multiangle light scattering detector (miniDAWN TREOS, Wyatt Technologies) and a refractometer (Optilab T-rex, Wyatt Technologies). Data analysis was performed with the analysis software ASTRA (version 7.3.1.9 provided by Wyatt Technologies). An aliquot of 100 µL of either 50 µM CaM or 50 µM CaM+H1H2 (1:1 complex) was injected over the column at a flow rate of 0.5 mL/min in 10 mM Tris, 100 mM KCl, 2 mM CaCl2, pH 7.4. The normalization, alignment, and band broadening were performed in ASTRA based on a BSA standard.

Helix propensity

Request a detailed protocol

Helix propensity was predicted using Agadir (http://agadir.crg.es/) using standard settings (Muñoz and Serrano, 1997).

In vitro phosphorylation and mass spectrometry

Request a detailed protocol

In vitro phosphorylation assays were carried out with 100 μM unlabeled or 13C,15N-labeled H1H2 in 50 or 200 μL phosphorylation buffer (25 mM 3-(N-morpholino)propanesulfonic acid, 25 mM MgCl2, 5 mM ethylene glycol-bis(β-aminoethyl ether)-N,N,N′,N′-tetraacetic acid, 2 mM EDTA, 10 mM adenosine triphosphate, 5 mM DTT, pH = 7.2), respectively. To this, 0.3 µg of active, GST-tagged, human Akt1 (Sigma-Aldrich) or 0.3 µg active, GST-tagged, human PKC δ (Biaffin GmbH) was added and incubated at 37°C for up to 120 hr. The unlabeled samples were analyzed by matrix-assisted laser desorption/ionization time of flight mass spectrometry on a Bruker autoflex III smartbeam spectrometer with α-cyano-4-hydroxycinnamic acid as matrix after 24 hr. The 13C,15N-labeled samples were analyzed by NMR spectroscopy after 120 hr and partially assigned as described above.

Statistical analysis

Request a detailed protocol

Data are shown as representative images or as means with standard error of means error bars as indicated. Statistical analysis was carried out with software GraphPad Prism 8. Statistical significance for experiments with one variable (e.g., cell type/group) was assessed using one-way analysis of variance (ANOVA) followed by Dunnett’s or Tukey’s post-test where appropriate (applied for pHi and protein expression data in Figure 5) or Kruskal–Wallis where appropriate (applied for steady-state pHi and protein expression in Figure 5). Statistical significance for experiments with two variables (e.g., cell type and treatment) was assessed using unmatched two-way ANOVA followed by Tukey’s post-test (applied for pHi and PLA data in Figure 6). The comparisons carried out and the exact p-values from each test are indicated in the figure legends except for Figure 6b, where the 45 exact p-values are available upon request.

*, **, *** and **** denote p<0.05, 0.01, 0.001, and 0.0001, respectively, unless otherwise specified.

Data availability

Source data files are provided for Figure 1, 3, 5 and 6. Resonance assignments of the ternary complex of CaM and two H1 have been deposited in the Biological Magnetic Resonance Bank (BMRB) under ID code 34521. The atomic coordinates for the ternary complex of CaM and two H1 have been deposited in the Protein Data Bank under the ID code 6zbi.

The following data sets were generated
    1. Prestel A
    2. Sjøgaard-Frich LM
    3. Pedersen SF
    4. Kragelund BB
    (2021) Biological Magnetic Resonance Data Bank
    ID 34521. 1H, 13C and 15N chemical shift assignments of the 2:1 complex between NHE1 and calmodulin.
    1. Prestel A
    2. Sjøgaard-Frich LM
    3. Pedersen SF
    4. Kragelund BB
    (2021) RCSB Protein Data Bank
    ID 6ZBI. Ternary complex of Calmodulin bound to 2 molecules of NHE1.

References

Decision letter

  1. Lewis E Kay
    Reviewing Editor; University of Toronto, Canada
  2. Olga Boudker
    Senior Editor; Weill Cornell Medicine, United States
  3. Walter J Chazin
    Reviewer; Vanderbilt University, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The reviewers recognize the importance of structural dynamics studies of complexes, emphasizing that biological systems are not fixed, but rather interact dynamically with their targets. Your work focusing on the engagement of calmodulin with the Na/H exchanger NHE1, using a number of different biophysical methods, in particular NMR, provides a nice illustration of this, with multiple states modulated by the stoichiometries of the components. It further adds to the many different important roles of calmodulin in its interactions with targets.

Decision letter after peer review:

[Editors’ note: the authors submitted for reconsideration following the decision after peer review. What follows is the decision letter after the first round of review.]

Thank you for submitting your work entitled "Dynamic NHE1-Calmodulin complexes of varying stoichiometry and structure regulate Ca2+-dependent NHE1 activation" for consideration by eLife. Your article has been reviewed by a Senior Editor, a Reviewing Editor, and two reviewers. The following individual involved in review of your submission has agreed to reveal their identity: Walter J Chazin (Reviewer #2).

Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife.

All of us are convinced of the importance of solution NMR in studies of the sort that you do involving multiple interactions and dynamic systems. Yet there were several flaws identified, including the lack of a structure of CaM bound to the full C-terminal cytoplasmic domain (or a fragment containing H1 and H2) and establishment of binding stoichiometry to full length NHE1. Is it a 1:2 or 2:2 complex, or a mixture of both? A 2:2 complex would agree with the crystal structure, whereas 1:2 stoichiometry would support the NMR structure of CaM/H1. Lastly, it was felt that the section on phosphorylation did not contribute substantially to the manuscript.

Reviewer #1:

The manuscript presents NMR, ITC and functional data for the protein calmodulin (CaM) and its interaction with NHE1. Importantly, the study suggests that CaM may bind to NHE1 in multiple ways and that CaM binding may stabilize dimerization of NHE1. The data and approach all seem satisfactory. However, I have a few serious concerns below about the interpretation of the NMR structure in Figure 4 (and implications in Figure 7), and the narrow scope of the approach, which all need to be addressed before a final evaluation can be made.

1) The NMR structure of CaM bound to the NHE1 H1 helix (residues 620-650) in Figure 4 provides a very narrow view of the CaM interaction with NHE1, and is difficult to interpret the wider significance of this structure without knowing the overall stoichiometry of CaM binding to the full-length NHE1. Is the overall stoichiometry of CaM bound to full-length NHE1 known? If not, then it needs to be determined in this study in order to properly interpret the structure in Figure 4. For example, does the full-length NHE1 dimer bind to two CaM (2:2 complex) or just one CaM (1:2 complex)? If the CaM/NHE1 stoichiometry is 2:2, then the crystal structure of CaM bound to H1H2 complex (2YGG) already explains how CaM could stabilize dimerization of NHE1. The crystal structure (Figure 4—figure-supplement 1) shows that the CaM C-lobe binds to H1 of one molecule from NHE1 dimer, while the CaM N-lobe binds to H2 of the second molecule from NHE1 dimer. In other words, the two CaM lobes are domain swapped in the NHE1 dimer, which reveals how CaM stabilizes NHE1 dimerization as a 2:2 complex. So, if the overall CaM/NHE1 stoichiometry is measured to be 2:2, then the crystal structure already nicely explains how CaM stabilizes dimerization of NHE1 and the NMR structure in Figure 4 would merely confirm what was already known from the crystal structure. Alternatively, if the overall stoichiometry turns out to be 1 CaM per NHE1 dimer (1:2 complex), then the prediction from the crystal structure about domain swapping may be wrong, and the NMR structure in Figure 4 will in that case become far more interesting. For example, if the overall stoichiometry is 1:2, then the structure depicted in Figure 7f would explain how CaM stabilizes dimerization by having each CaM lobe bind to H1 (while H2 does not bind to CaM). This is at complete odds with the 2:2 structure (crystal structure) in which the CaM C-lobe binds to H1 and CaM N-lobe binds to H2. A simple way to distinguish the 1:2 model (Figure 7F) from the 2:2 model (crystal structure) would be to delete H2 from the full-length NHE1. The deletion of H2 should not affect CaM-induced dimerization of NHE1 in the 1:2 model, because CaM does not bind to H2 in this model. However, the deletion of H2 should abolish CaM-induced dimerization of NHE1 in the 2:2 model. So, in addition to measuring the overall CaM/NHE1 stoichiometry, it will also be necessary to prepare the H2 deletion construct of NHE1 and see if this deletion mutant impairs CaM-induced NHE1 dimerization.

2) Why was the NMR structure only reported for CaM/H1 complex? It would be far better to report the NMR structure of CaM bound to H1H2 or the entire C-terminal cytosolic domain. Does CaM bind to H1H2 (or cytosolic domain) as a 2:2 complex in solution? In other words, does CaM induce dimerization of H1H2 in solution (like what is implied in the crystal structure)? Does the C-terminal cytosolic domain form a dimer in solution, and does CaM binding stabilize this dimerization?

3) Figure 3D shows a model of CaM bound to H1H2 in a 1:1 complex. This model predicts the CaM N-lobe binds to H1 and CaM C-lobe binds to H2, which is the exact opposite of what was shown in the crystal structure (CaM N-lobe binds to H2). The discrepancy here needs more explanation. How do you know that the CaM N-lobe is bound to H1 in the 1:1 complex here? The NMR structure of CaM bound to H1H2 is needed here to prove whether the N-lobe actually binds to H1 or H2 in the CaM/H1H2 complex.

4) Figure 7 shows various types of CaM/NHE1 interaction. Unfortunately, the most interesting interaction (2:2 complex predicted from the crystal structure) is not shown. An extra panel should be added in Figure 7 to show the 2:2 interaction (implied from the crystal structure), in which the CaM N-lobe binds to H2 from one molecule of NHE1 dimer, and the CaM C-lobe binds to H1 from the other molecule of NHE1 dimer. The 2:2 interaction should depict two CaM molecules interacting in a crisscrossed fashion with the NHE1 dimer. Again, it will be important here to experimentally test the 1:2 model (Figure 7F) versus the 2:2 model implied by the crystal structure. The H2 deletion described above in point 1 can distinguish these models. The most direct way to determine which model is functionally most relevant would be to measure the overall stoichiometry of CaM/NHE1. Is it 1:2 or 2:2 or perhaps a composite of the two? Without knowing the CaM/NHE1 stoichiometry, the functional relevance of the NMR structure in Figure 4 cannot be properly understood.

Reviewer #2:

This manuscript reports several interesting observations about the interaction of calmodulin with NHE1, a Na+/H+ transport channel. The experiments are well-designed and technically sound. However, these observations are not well connected to each other. What is the main point? Is it defining the physical interaction of calmodulin with NHE1, the mechanism of NHE1 S648 phophorylation, NHE1 activation, or something else? More importantly, it is not evident that a significant advancement has been made in understanding either the biochemical mechanism or biological function of system.

1) There is an obvious gap in logic that is not addressed, i.e. why the solution NMR structure was determined for only half of the NHE1 interaction domain. The ITC data clearly point to the necessity of working with the entire domain and no rationale is given for why just one of the two binding motifs was used for structural analysis.

2) It is no longer true that CaM uses the wrap-around mode of binding in the vast majority of cases.

3) Observing that Akt is not critical to calcium-induced activation of NHE1 is interesting, but this line of study would be much more significant if the kinase(s) that phosphorylate S648 were identified.

4) Subsection “Structure of the ternary complex of CaM and two NHE1 H1 helices”. The absence of NOEs between the two CaM domains/lobes suggests but does not “indicate” that the linker remains flexible. NMR relaxation, NMR RDCs, or SAXS analysis are required to draw any conclusion about inter-domain flexibility.

5) Discussion. This discussion should be modified because the based the authors' own data, which suggests that CaM will be pre-localized to NHE1 at basal levels of calcium.

6) Discussion. The reduction in the Kd value is quite modest. Hence, one cannot rule out that it is sufficient to pass the threshold required to alter CaM-NHE1 interaction in vivo or even in cells as detected by PLA.

https://doi.org/10.7554/eLife.60889.sa1

Author response

[Editors’ note: the authors resubmitted a revised version of the paper for consideration. What follows is the authors’ response to the first round of review.]

Reviewer #1:

The manuscript presents NMR, ITC and functional data for the protein calmodulin (CaM) and its interaction with NHE1. Importantly, the study suggests that CaM may bind to NHE1 in multiple ways and that CaM binding may stabilize dimerization of NHE1. The data and approach all seem satisfactory. However, I have a few serious concerns below about the interpretation of the NMR structure in Figure 4 (and implications in Figure 7), and the narrow scope of the approach, which all need to be addressed before a final evaluation can be made.

1) The NMR structure of CaM bound to the NHE1 H1 helix (residues 620-650) in Figure 4 provides a very narrow view of the CaM interaction with NHE1, and is difficult to interpret the wider significance of this structure without knowing the overall stoichiometry of CaM binding to the full-length NHE1. Is the overall stoichiometry of CaM bound to full-length NHE1 known? If not, then it needs to be determined in this study in order to properly interpret the structure in Figure 4. For example, does the full-length NHE1 dimer bind to two CaM (2:2 complex) or just one CaM (1:2 complex)?

The in vivo stoichiometry of flNHE1 to CaM i is not known and in our opinion not trivial to obtain, since there is no experimental protocol established to express and purify dimeric flNHE1 or the complete cytosolic domain. Further, as we previously showed, flNHE1 and Calmodulin also interact indirectly via Calcineurin (Hendus-Altenburger et al., 2019), thus obtaining a reliable stoichiometry in vivo would require the separation of these interactions, which we do not consider feasible. We would be grateful for any suggestions of how to prove the stoichiometry in vivo. Equally importantly, the in vitro part of our study shows that there is not a single complex with ONE fixed stoichiometry but that there are various complexes formed depending on the conditions and availability of the binding partners. Thus, we propose that the stoichiometry of flNHE1 to CaM in vivo is similarly variable, allowing fine-tuning of NHE1 function in response to the specific subcellular environment, including the free concentrations of CaM and Ca2+ in conjunction with NHE1 phosphorylation state and other regulatory interactions.

If the CaM/NHE1 stoichiometry is 2:2, then the crystal structure of CaM bound to H1H2 complex (2YGG) already explains how CaM could stabilize dimerization of NHE1. The crystal structure (Figure 4—figure-supplement 1) shows that the CaM C-lobe binds to H1 of one molecule from NHE1 dimer, while the CaM N-lobe binds to H2 of the second molecule from NHE1 dimer. In other words, the two CaM lobes are domain swapped in the NHE1 dimer, which reveals how CaM stabilizes NHE1 dimerization as a 2:2 complex.

The crystal structure does not show a 2:2 complex and the article describing the crystal structure does not suggest a 2:2 complex in any way. The unit cell is 1:1 and the accompanying SAXS data is in clear disagreement with a 2:2 stoichiometry. The SAXS data is also in poor agreement with the proposed 1:1 complex (pdb-code: 2YGG), suggesting that the 1:1 model we propose in Figure 3d is actually the main complex in solution. The following are citations from the original paper describing the crystal-structur (pdb-code: 2YGG): “The overall structure shows a 1:1 binding stoichiometry of the NHE1CaMBR and CaM.”… “The scattering curves and the distance distribution function P(R) calculated from the crystal structure do not fit the experimental data perfectly (Figure 5A and B), where a shoulder at Dmax of 40–60 Å was more apparent for the complex structure. However, the deviations were small, and the agreement is fully consistent with a 1:1 stoichiometry of CaM and NHE1CaMBR in the complex. Any differences between the measured and calculated scattering curves can be attributed to flexibility of the NHE1CaMBR helix termini as well as the CaM helix connecting the lobes. The SAXS data show that the complex is monomeric in solution”.

So, if the overall CaM/NHE1 stoichiometry is measured to be 2:2, then the crystal structure already nicely explains how CaM stabilizes dimerization of NHE1 and the NMR structure in Figure 4 would merely confirm what was already known from the crystal structure. Alternatively, if the overall stoichiometry turns out to be 1 CaM per NHE1 dimer (1:2 complex), then the prediction from the crystal structure about domain swapping may be wrong, and the NMR structure in Figure 4 will in that case become far more interesting. For example, if the overall stoichiometry is 1:2, then the structure depicted in Figure 7f would explain how CaM stabilizes dimerization by having each CaM lobe bind to H1 (while H2 does not bind to CaM).

To our knowledge there is no data available that confirms that Ca2+/Calmodulin dependent activation of NHE1 is a one step process. So, it might very well be that complexes with different stoichiometries (1:1, 1:2, 2:2) are populated under different conditions in vivo, making the regulation of NHE1 a complex multistep process rather than a simple on/off switch.

This is at complete odds with the 2:2 structure (crystal structure) in which the CaM C-lobe binds to H1 and CaM N-lobe binds to H2.

All complexes described in this study in solution are at odds with the 1:1 (not 2:2) crystal structure. We think that crystallization is not the best method to study this dynamic, multi-state system and that the complex that crystallized in the previously published work is only populated to a very small extent in solution. In contrast, our solution NMR approach provides strong experimental evidence for the proposed models in Figure 3.

A simple way to distinguish the 1:2 model (Figure 7F) from the 2:2 model (crystal structure) would be to delete H2 from the full-length NHE1. The deletion of H2 should not affect CaM-induced dimerization of NHE1 in the 1:2 model, because CaM does not bind to H2 in this model. However, the deletion of H2 should abolish CaM-induced dimerization of NHE1 in the 2:2 model. So, in addition to measuring the overall CaM/NHE1 stoichiometry, it will also be necessary to prepare the H2 deletion construct of NHE1 and see if this deletion mutant impairs CaM-induced NHE1 dimerization.

We agree that many of the implications of our in vitro findings have to be put to a thorough test in vivo. And the suggested experiment is definitely an interesting option. But whatever the outcome of this experiment will be, it will be far from simple to interpret: first, the suggested interpretation is based on the assumption that the interaction has to be either a 1:2 or a 2:2 complex in the cell, neglecting that both forms of the complex might have a cellular function and regulate NHE1 differently and even be present simultaneously. Second, it will be difficult to pinpoint the functional effect of deleting the full H2 to the interaction with CaM, since other functional implications of this part of the protein might be present (for example the week self-association we also describe in the manuscript). Finally, as also pointed out in the manuscript, the dimerization of full-length NHE1 is supported by multiple interactions in both the transmembrane and cytosolic regions of the protein rather than only by H2. It would be exceedingly difficult, if not impossible, to dissect the contributions of each interaction from studies of the full-length protein in vivo and arrive at conclusive findings. Just as one example, Kd values for each interaction will be affected by the specific subcellular environment. Hence, while we fully acknowledge its limitations, a major strength of the in vitro experiments is the ability to study the interactions in a highly controlled environment.

2) Why was the NMR structure only reported for CaM/H1 complex? It would be far better to report the NMR structure of CaM bound to H1H2 or the entire C-terminal cytosolic domain. Does CaM bind to H1H2 (or cytosolic domain) as a 2:2 complex in solution? In other words, does CaM induce dimerization of H1H2 in solution (like what is implied in the crystal structure)? Does the C-terminal cytosolic domain form a dimer in solution, and does CaM binding stabilize this dimerization?

We stated in the manuscript: “It is, however, important to note that at 1:1 as well as 1:2 (CaM:H1H2), the NMR signals were drastically broadened compared to those of free CaM or of the 1:2 complex saturated with H1 (Figure 3A,D), indicating a dynamic equilibrium of states with different stoichiometries. Higher order complexes are also possible.” For this reason it was not possible for us to do a “classical” structure determination of the CaM:H1H2 complexes by NMR. In our opinion there is no way to determine the structure of this dynamic ensemble of complexes in a classic way since it is too small for cryo-EM, crystallization only gives an artifact of a minor subpopulation, and the dynamic nature of the complex in solution renders its NMR signals broad and inaccessible for higher dimensional NMR experiments needed for a structure determination. Our strategy of deducing structural information of the complex state with H1H2 by comparing the peak positions in the 15N-HSQC with the well-defined single state complexes of CaM with H1 or H2 is therefore the only way to come up with the models of the full complex at different stoichiometries.

3) Figure 3D shows a model of CaM bound to H1H2 in a 1:1 complex. This model predicts the CaM N-lobe binds to H1 and CaM C-lobe binds to H2, which is the exact opposite of what was shown in the crystal structure (CaM N-lobe binds to H2). The discrepancy here needs more explanation. How do you know that the CaM N-lobe is bound to H1 in the 1:1 complex here? The NMR structure of CaM bound to H1H2 is needed here to prove whether the N-lobe actually binds to H1 or H2 in the CaM/H1H2 complex.

At a 1:1 stoichiometry of CaM:H1H2 all 70 peaks (140 chemical shifts) of the calmodulin N-lobe overlap strikingly well with the state where CaM is bound to H1 and the same is true for the 70 peaks of the C-lobe and H2 (Figure3D-F). Thus, the 2 models we propose in Figure 3A,D are very well supported by experimental evidence (~280 observations of chemical shifts on calmodulin that are additionally backed up from the NMR studies on labelled NHE1 as shown in the figure supplement 2), so we are not sure what more evidence we can provide, since a full structure determination is not possible for the reasons described above.

4) Figure 7 shows various types of CaM/NHE1 interaction. Unfortunately, the most interesting interaction (2:2 complex predicted from the crystal structure) is not shown. An extra panel should be added in Figure 7 to show the 2:2 interaction (implied from the crystal structure), in which the CaM N-lobe binds to H2 from one molecule of NHE1 dimer, and the CaM C-lobe binds to H1 from the other molecule of NHE1 dimer. The 2:2 interaction should depict two CaM molecules interacting in a crisscrossed fashion with the NHE1 dimer. Again, it will be important here to experimentally test the 1:2 model (Figure 7F) versus the 2:2 model implied by the crystal structure. The H2 deletion described above in point 1 can distinguish these models. The most direct way to determine which model is functionally most relevant would be to measure the overall stoichiometry of CaM/NHE1. Is it 1:2 or 2:2 or perhaps a composite of the two? Without knowing the CaM/NHE1 stoichiometry, the functional relevance of the NMR structure in Figure 4 cannot be properly understood.

As explained above, this is based on a misunderstanding, as there is no experimental evidence for the existence of a 2:2 complex, neither in our submitted study nor in the study that solved the crystal structure. The spatial proximity of two cytosolic tails in a flNHE1 dimer makes this a feasible alternative organization, as we mention in the discussion part of the paper. Nevertheless, we wanted to only include models in our final figure where we have solid experimental evidence for.

Reviewer #2:

1) There is an obvious gap in logic that is not addressed, i.e. why the solution NMR structure was determined for only half of the NHE1 interaction domain. The ITC data clearly point to the necessity of working with the entire domain and no rationale is given for why just one of the two binding motifs was used for structural analysis.

Thank you for this comment, which likely reflects that we have not sufficiently clearly explained the basis for our strategy:

We state in the manuscript: “It is, however, important to note that at 1:1 as well as 1:2 (CaM:H1H2), the NMR signals were drastically broadened compared to those of free CaM or of the 1:2 complex saturated with H1 (Figure 3A,D), indicating a dynamic equilibrium of states with different stoichiometries. Higher order complexes are also possible.” For this reason, it is not possible to do a “classical” structure determination of the CaM:H1H2 complexes by NMR. In our opinion there is no way to determine the structure of this dynamic ensemble of complexes in a classical way since it is too small for cryo-EM, crystallization only provides insight to a minor subpopulation, and the dynamic nature of the complex in solution renders its NMR signals broad and inaccessible for higher dimensional NMR experiments needed for a structure determination.

Our strategy of deducing structural information of the complex ensemble of CaM with NHE1-H1H2 was therefore to compare the peak positions in the 15N-HSQCs with the well-defined single state complexes of CaM with either H1 or H2. We believe this is the only way to deduce models of the full complex at different stoichiometries. Indeed, the state populated with excess H1 is the same state we see when CaM is saturated with H1H2. The NMR spectra overlap nicely and thus allow access to the CaM:H1H2 structure through the CaM:H1 complex.

At a 1:1 stoichiometry of CaM:H1H2 all 70 peaks (140 chemical shifts) of the CaM N-lobe (or N-domain) overlap strikingly well with the state where CaM is bound to H1. The same is true for the 70 peaks of the C-lobe (or C-domain) and H2 (Figure 3D-F). At a 1:2 stoichiometry all 140 peaks of CaM:H1H2 overlap with the state where CaM is bound to H1. This indicates the NMR-structure we solved is equivalent to the major state in solution at a stoichiometry of 1:2 (CaM:H1H2). So the two models we propose in Figure 3A,D are very well supported by experimental evidence: ~280 observations of chemical shifts on CaM that are additionally backed up from the NMR studies on labelled NHE1 as shown in Figure supplement 2 and the size determinations in our revised manuscript. Since a direct structure determination is not possible for the reasons described above, we believe our approach is the most appropriate, and we think we can provide ample experimental evidence for the conclusions that we draw.

While this was mentioned in the original manuscript and the data shown, we agree that we did not make this point sufficiently clear. To emphasize this important information, we have therefore rewritten the manuscript, and now initiate this section by presenting the CaM:H1H2 complex and highlighting that the quality of these spectra did not allow for its full structure determination. We then explain our comparative strategy for elucidating the structure of the 1:2 complex using the complexes of CaM with the individual peptides. This has resulted in a complete rewrite of the text in this part of the manuscript, and we now explain the logics of our approach much clearer (please see the revised manuscript). We thank the reviewer for spurring this rewrite, which we think have improved the clarity of our strategy.

2) It is no longer true that CaM uses the wrap-around mode of binding in the vast majority of cases.

Thank you for this comment. We agree, and the statement has been rephrased to “In most cases where this has been studied to date, CaM wraps both its lobes around its α-helix-forming targets, exemplified by the interaction with myosin light chain kinase (Ikura et al., 1992; Meador, Means and Quiocho, 1992). However, it is now clear that a single CaM binding mode or a single binding motif does not exist.”.

3) Observing that Akt is not critical to calcium-induced activation of NHE1 is interesting, but this line of study would be much more significant if the kinase(s) that phosphorylate S648 were identified.

We agree that this mechanism would be highly interesting to unravel. We therefore carried out a series of new experiments. As our data showed that both Akt and protein kinase C-δ (PKCδ) phosphorylated this residue in vitro (Figure supplement 9B), we tested the effect of two well-established PKC inhibitors, bisindoylmaleimide I (BIM 1) – targeting PKCα, -β1, -β2, -γ, -δ, and –ε, and Gö6983 – targeting PKCα, PKCβ, -γ, -δ and -ζ. The data, presented as new Figure 6f, show that preincubation with even high doses of these PKC inhibitors does not prevent ionomycin-induced NHE1 activation. Thus, we conclude that while Akt and PKC can phosphorylate S648, they are not essential for calcium-induced NHE1 activation. It may be noted that BIM I also inhibits GSK3 (Hers, Tavare and Denton, 1999), hence, this kinase, which has a similar consensus sequence as Akt and PKC, is also not required for the Ca2+-induced activation. Given that we identified several other potential phosphosites on NHE1 that may play a role but require extensive further studies, a full understanding of the mechanism will await further studies. The new data have been presented on p 17-18 of the revised manuscript.

4) Subsection “Structure of the ternary complex of CaM and two NHE1 H1 helices”. The absence of NOEs between the two CaM domains/lobes suggests but does not “indicate” that the linker remains flexible. NMR relaxation, NMR RDCs, or SAXS analysis are required to draw any conclusion about inter-domain flexibility.

We fully agree and have changed indicate to suggest in the revised manuscript. Thank you for pointing this out.

5) Discussion. This discussion should be modified because the based the authors' own data, which suggests that CaM will be pre-localized to NHE1 at basal levels of calcium.

Thank you for pointing this out. We agree and have rephrased the paragraph in the revised manuscript to read:

“As CaM is limiting in a cellular context, the two latter scenarios will be modulated both by local [Ca2+]i and by CaM interactions with other proteins at any given time. Although the total cellular [CaM] is 5-6 µM as measured in various cell types, the global free Ca2+-CaM concentration in a cell has been estimated to around 50 nM, i.e. ~1% of total [CaM] (Persechini and Stemmer, 2002; Saucerman and Bers, 2012). Both [CaM] and [Ca2+]i may, however, reach much higher concentrations locally, e.g. close to Ca2+ channels (Mori, Erickson andYue, 2004), and the precise local Ca2+-CaM availability around NHE1 will be dependent on local and global Ca2+ signaling and competition with other CaM binding proteins of various affinities. Our data suggest that in a cellular context, CaM is bound to NHE1 at basal global [Ca2+]i. It is however possible that the local [Ca2+]i immediately surrounding the NHE1 C-tail may reach substantially higher levels due to local complex formation with Na+/Ca2+ exchanger 1(NCX1) (Yi et al., 2009). Hence, the precise Ca2+ requirement for binding in a cellular context may be higher than the global [Ca2+]i.”

6) Discussion. The reduction in the Kd value is quite modest. Hence, one cannot rule out that it is sufficient to pass the threshold required to alter CaM-NHE1 interaction in vivo or even in cells as detected by PLA.

While the reduction is actually a factor of 10 which is not in our view insignificant, we do agree that such a scenario is feasible in vivo, especially in a high-competition scenario. We have thus rephrased the text to “….proximity to CaM in cells. This may reflect that the effect of phosphorylation on the interaction was not strong enough to prevent interaction in vivo. Interestingly, the observation mirrors….”.

https://doi.org/10.7554/eLife.60889.sa2

Article and author information

Author details

  1. Lise M Sjøgaard-Frich

    Section for Cell Biology and Physiology, Department of Biology, Faculty of Science, University of Copenhagen, Copenhagen, Denmark
    Contribution
    Conceptualization, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Andreas Prestel
    Competing interests
    No competing interests declared
  2. Andreas Prestel

    Structural Biology and NMR Laboratory, Department of Biology, Faculty of Science, University of Copenhagen, Copenhagen, Denmark
    Contribution
    Conceptualization, Formal analysis, Supervision, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Contributed equally with
    Lise M Sjøgaard-Frich
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5459-9608
  3. Emilie S Pedersen

    Structural Biology and NMR Laboratory, Department of Biology, Faculty of Science, University of Copenhagen, Copenhagen, Denmark
    Contribution
    Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  4. Marc Severin

    Section for Cell Biology and Physiology, Department of Biology, Faculty of Science, University of Copenhagen, Copenhagen, Denmark
    Contribution
    Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
  5. Kristian Kølby Kristensen

    1. Finsen Laboratory, Rigshospitalet, Copenhagen, Denmark
    2. Biotech Research and Innovation Centre (BRIC), University of Copenhagen, Copenhagen, Denmark
    Contribution
    Formal analysis, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  6. Johan G Olsen

    Structural Biology and NMR Laboratory, Department of Biology, Faculty of Science, University of Copenhagen, Copenhagen, Denmark
    Contribution
    Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  7. Birthe B Kragelund

    Structural Biology and NMR Laboratory, Department of Biology, Faculty of Science, University of Copenhagen, Copenhagen, Denmark
    Contribution
    Conceptualization, Resources, Formal analysis, Supervision, Funding acquisition, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    bbk@bio.ku.dk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7454-1761
  8. Stine Falsig Pedersen

    Section for Cell Biology and Physiology, Department of Biology, Faculty of Science, University of Copenhagen, Copenhagen, Denmark
    Contribution
    Conceptualization, Resources, Formal analysis, Supervision, Funding acquisition, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    sfpedersen@bio.ku.dk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3044-7714

Funding

Danish Research Academy (4181-00344)

  • Birthe B Kragelund

Novo Nordisk Fonden (NNF15OC0016670)

  • Birthe B Kragelund

Novo Nordisk Fonden (NNF18OC0034070)

  • Stine Falsig Pedersen

Novo Nordisk Fonden (NNF19OC0057241)

  • Stine Falsig Pedersen

Novo Nordisk Fonden (NNF18OC0032996)

  • Birthe B Kragelund

Villum Fonden

  • Birthe B Kragelund

Carlsbergfondet (CF20-0491)

  • Stine Falsig Pedersen

Novo Nordisk

  • Lise M Sjøgaard-Frich

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank Ruth Hendus-Altenburger for valuable discussion in the early phase of the study and Johs Dannesboe, Katrine Franklin Mark, Rikke Larsen Agersnap, and Signe A Sjørup for skilled technical assistance.

Senior Editor

  1. Olga Boudker, Weill Cornell Medicine, United States

Reviewing Editor

  1. Lewis E Kay, University of Toronto, Canada

Reviewer

  1. Walter J Chazin, Vanderbilt University, United States

Publication history

  1. Received: July 9, 2020
  2. Accepted: March 1, 2021
  3. Accepted Manuscript published: March 3, 2021 (version 1)
  4. Version of Record published: March 30, 2021 (version 2)

Copyright

© 2021, Sjøgaard-Frich et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 846
    Page views
  • 151
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Medicine
    Richard Nakamura et al.
    Research Article

    Background: Blinding reviewers to applicant identity has been proposed to reduce bias in peer review.

    Methods: This experimental test used 1200 NIH grant applications, 400 from Black investigators, 400 matched applications from White investigators, and 400 randomly selected applications from White investigators. Applications were reviewed by mail in standard and redacted formats.

    Results: Redaction reduced, but did not eliminate, reviewers' ability to correctly guess features of identity. The primary, pre-registered analysis hypothesized a differential effect of redaction according to investigator race in the matched applications. A set of secondary analyses (not pre-registered) used the randomly selected applications from White scientists and tested the same interaction. Both analyses revealed similar effects: Standard format applications from White investigators scored better than those from Black investigators. Redaction cut the size of the difference by about half (e.g. from a Cohen's d of 0.20 to 0.10 in matched applications); redaction caused applications from White scientists to score worse but had no effect on scores for Black applications.

    Conclusions: Grant-writing considerations and halo effects are discussed as competing explanations for this pattern. The findings support further evaluation of peer review models that diminish the influence of applicant identity.

    Funding: Funding was provided by the NIH.

    1. Cell Biology
    2. Stem Cells and Regenerative Medicine
    Nicholas Strash et al.
    Research Article

    Multiple mitogenic pathways capable of promoting mammalian cardiomyocyte (CM) proliferation have been identified as potential candidates for functional heart repair following myocardial infarction. However, it is unclear whether the effects of these mitogens are species-specific and how they directly compare in the same cardiac setting. Here, we examined how CM-specific lentiviral expression of various candidate mitogens affects human induced pluripotent stem cell-derived CMs (hiPSC-CMs) and neonatal rat ventricular myocytes (NRVMs) in vitro. In 2D-cultured CMs from both species, and in highly mature 3D-engineered cardiac tissues generated from NRVMs, a constitutively-active mutant form of the human gene Erbb2 (cahErbb2) was the most potent tested mitogen. Persistent expression of cahErbb2 induced CM proliferation, sarcomere loss, and remodeling of tissue structure and function, which were attenuated by small molecule inhibitors of Erk signaling. These results suggest transient activation of Erbb2/Erk axis in cardiomyocytes as a potential strategy for regenerative heart repair.
