Physically asymmetric division of the C. elegans zygote ensures invariably successful embryogenesis

  1. Radek Jankele
  2. Rob Jelier
  3. Pierre Gönczy  Is a corresponding author
  1. Swiss Institute for Experimental Cancer Research (ISREC), School of Life Sciences, Swiss Federal Institute of Technology Lausanne (EPFL), Switzerland
  2. Centre of Microbial and Plant Genetics, Katholieke Universiteit Leuven, Belgium
Research Article
  • Cited 1
  • Views 1,035
  • Annotations
Cite this article as: eLife 2021;10:e61714 doi: 10.7554/eLife.61714

Abstract

Asymmetric divisions that yield daughter cells of different sizes are frequent during early embryogenesis, but the importance of such a physical difference for successful development remains poorly understood. Here, we investigated this question using the first division of Caenorhabditis elegans embryos, which yields a large AB cell and a small P1 cell. We equalized AB and P1 sizes using acute genetic inactivation or optogenetic manipulation of the spindle positioning protein LIN-5. We uncovered that only some embryos tolerated equalization, and that there was a size asymmetry threshold for viability. Cell lineage analysis of equalized embryos revealed an array of defects, including faster cell cycle progression in P1 descendants, as well as defects in cell positioning, division orientation, and cell fate. Moreover, equalized embryos were more susceptible to external compression. Overall, we conclude that unequal first cleavage is essential for invariably successful embryonic development of C. elegans.

Introduction

Asymmetric divisions generate cell fate diversity during development and differentiation. Daughter cells of such divisions can differ not only in their asymmetric inheritance of fate determinants but also in their relative size. Such physically unequal asymmetric divisions are widespread during development. For instance, in Caenorhabditis elegans larvae, QR.a neuroblasts divide unequally owing to the asymmetric distribution of the non-muscle myosin II NMY-2, resulting in a larger daughter with a neuronal fate and a smaller daughter that undergoes apoptosis (Ou et al., 2010). Equalizing QR.a division through NMY-2 manipulation results in two cells adopting the neuronal fate (Ou et al., 2010). Likewise, Drosophila stem-like larval neuroblasts divide unequally to regenerate a larger neuroblast and a smaller ganglion mother cell that differentiates towards a neuronal fate. Experimentally induced size equalization of the neuroblast division prevents such differentiation despite proper asymmetric inheritance of the neuronal fate determinant Prospero (Cabernard and Doe, 2009; Kitajima et al., 2010). These examples illustrate how size differences can have a drastic consequence on the fate of resulting daughter cells. Physically unequal divisions are particularly prevalent during early embryogenesis in many systems, but the specific importance of size differences at this early stage for successful completion of development has been scarcely addressed.

Early embryogenesis in the nematode C. elegans entails several asymmetric divisions, including ones that yield daughter cells of different sizes (reviewed in Rose and Gönczy, 2014). The first of these is the unequal cleavage of the one-cell stage embryo (hereafter zygote) into the larger anterior cell AB and the smaller posterior cell P1, corresponding respectively to ~60% and 40% of total embryo size. The variability in this size difference is minimal in the wild type (Kemphues et al., 1988), suggestive of functional importance. Further support for such importance comes from the fact that unequal first cleavage occurs throughout the entire Rhabditida order, which is estimated to encompass an evolutionary distance as large as that between echinoderms and mammals (Kiontke, 2005Kiontke et al., 2011), although the extent of size asymmetry varies between nematode species within this order (Brauchle et al., 2009; Valfort et al., 2018).

The unequal cleavage of the C. elegans zygote results from a rapid sequence of events that begins after fertilization (reviewed in Rose and Gönczy, 2014). First, symmetry of the zygote is broken by the centrosomes derived from the sperm (Goldstein and Hird, 1996; Sadler and Shakes, 2000). Thereafter, the contractile cortical acto-myosin network moves towards the future embryo anterior (Munro et al., 2004), accompanied by the establishment of mutually exclusive cortical domains of PAR polarity domains, with aPKC-3/PAR-3/PAR-6 at the anterior and PAR-1/PAR-2/LGL-1 at the posterior (reviewed in Kemphues and Strome, 1997; Rose and Gönczy, 2014). The PAR polarity network then ensures the asymmetric distribution of proteins and mRNAs through the action of polarity mediators, including the RNA-binding proteins MEX-5/6, which are present in an anterior–posterior (A-P) gradient prior to first cleavage (Schubert et al., 2000).

A-P polarity cues also direct asymmetric positioning of the mitotic spindle, which is located slightly off-center towards the posterior side by the end of anaphase, thus dictating unequal first cleavage (Grill et al., 2001). Asymmetric spindle positioning relies on an evolutionarily conserved ternary complex that anchors the molecular motor dynein at the cell cortex (reviewed in Kotak and Gönczy, 2013). In C. elegans, this ternary complex comprises the membrane-associated Gα proteins GOA-1 and GPA-16, the TPR and GoLoCo domain-containing proteins GPR-1/2, as well as the coiled-coil protein LIN-5, which interacts with a dynein motor complex (Colombo et al., 2003; Gotta et al., 2003; Gotta and Ahringer, 2001; Srinivasan et al., 2003). Dynein thus anchored at the cell cortex is thought to exert a pulling force on the plus-end of depolymerizing astral microtubules and, thereby, on the connected spindle poles. In response to A-P polarity cues, more GPR-1/2 and possibly LIN-5 are present on the posterior cortex, resulting in a larger net force pulling on the posterior spindle pole, leading to the unequal cleavage of the zygote into the larger AB cell and the smaller P1 cell (Colombo et al., 2003; Gotta et al., 2003; Grill et al., 2003; Grill et al., 2001; Park and Rose, 2008; Tsou et al., 2003).

During subsequent stages of C. elegans embryogenesis, most cells derived from AB divide symmetrically and with nearly synchronous timing, whereas P1 descendants undergo three additional asymmetric divisions, generating sister lineages with asynchronous division timing (Sulston et al., 1983). Overall, this leads to the generation of seven founder cells that will each yield specific tissues; for instance, E will give rise to the intestine and P4 to the germline (Sulston et al., 1983). The fate of each founder cell is specified by asymmetrically distributed maternally provided components, together with regulated protein translation and degradation mechanisms operating in the embryo (reviewed in Rose and Gönczy, 2014; Zacharias and Murray, 2016). Global activation of zygotic transcription occurs at the ~26-cell stage (Powell-Coffman et al., 1996; Schauer and Wood, 1990), which is also when the onset of gastrulation is apparent by ingression of the E descendants Ea/Ep from the embryo periphery (reviewed in Goldstein and Nance, 2020). Whereas Ea/Ep descendants adopt an intestinal fate in a cell-autonomous manner, for other cells proper fate acquisition and behavior, including division orientation, relies on interactions among neighbors (reviewed in Goldstein and Nance, 2020; Mango, 2009; Rose and Gönczy, 2014). Overall, as a result of stereotyped division timing, cell positioning, division orientation, and fate allocation, the hermaphrodite C. elegans embryo invariably hatches with 558 cells (Sulston et al., 1983).

Despite the wealth of knowledge brought by decades of investigating developmental mechanisms in C. elegans, the specific importance of the size difference component of asymmetric division in the early embryo is not clear, including for the unequal division of the zygote. Investigating this question requires to specifically alter the size of the daughter cells resulting from first cleavage without altering A-P polarity or compromising subsequent cell divisions. This has been challenging: although par mutant embryos undergo equal first cleavage, A-P polarity is abolished entirely in these cases (Kemphues et al., 1988). Moreover, whereas depletion of goa-1/gpa-16, gpr-1/2, or lin-5 by RNAi results in equal first division without A-P polarity impairment, such embryos exhibit severe cell division defects in subsequent cycles (Colombo et al., 2003; Fisk Green et al., 2004; Gotta et al., 2003; Gotta and Ahringer, 2001; Lorson et al., 2000; Srinivasan et al., 2003). Here, we specifically equalized AB and P1 without altering A-P polarity or disrupting later cell divisions using acute genetic inactivation or optogenetic manipulation of LIN-5, allowing us to address specifically the importance of the physical asymmetry of the C. elegans zygote division.

Results

Altering cell size asymmetry through manipulation of lin-5 function

To address whether the size difference between AB and P1 that derives from the unequal division of the C. elegans zygote is important for subsequent development, we took advantage of the temperature-sensitive lin-5(ev571) mutant allele (Lorson et al., 2000). We discovered that shifting lin-5(ev571) zygotes from 17°C to 27°C for ~5 min during mitosis results in the spindle remaining in the cell center, yielding AB and P1 cells of more similar sizes than normal (Figure 1A–C, Figure 1—figure supplement 1, Videos 13). Such embryos are referred to as ‘upshifted lin-5(ev571)’ hereafter. There was a slight variability in the size of AB relative to that of the entire zygote in these embryos (51.2%±2.8 standard deviation [SD], N = 257). Moreover, we found that inactivation of function was readily reversible since returning upshifted lin-5(ev571) embryos to 17°C after the ~5 min upshift rapidly restored LIN-5 function, allowing subsequent cell divisions to proceed (see below). Furthermore, to control for potential effects of the lin-5(ev571) mutation unrelated to AB and P1 equalization, early 2-cell stage lin-5(ev571) embryos were shifted from 17°C to 27°C for ~5 min; such embryos are referred to as ‘controls’ throughout the article.

Figure 1 with 3 supplements see all

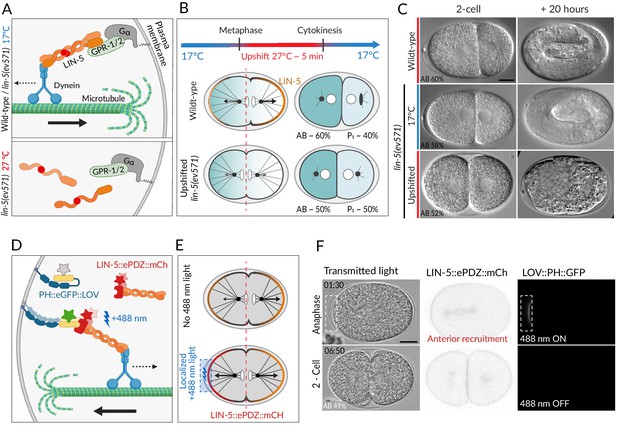

Two methods for equalizing first cell division in C. elegans embryos.

(A) The ternary complex comprising Gα, GPR-1/2, and LIN-5 dimers tethers a dynein complex (only the motor protein is represented here) to the cell cortex, thereby generating pulling forces on astral microtubules (top). The lin-5(ev571) temperature-sensitive mutant encodes a protein with a 3-amino acid insertion (red disc) in the coiled-coil domain; this mutant protein cannot dimerize or generate pulling forces at the restrictive temperature (bottom). (B) Schematic of transient temperature upshift during the first division of the C. elegans zygote to equalize AB and P1 sizes using lin-5(ev571). Such transient upshift has no impact on the asymmetry of the first unequal division in the wild type, yielding AB and P1 cells corresponding to ~60% and ~40% of embryo size, respectively (middle), due to asymmetric net cortical pulling forces acting on the spindle poles (arrows), stemming from the posterior enrichment of the ternary complex (orange). Cortical pulling forces are impaired upon transient upshift of lin-5(ev571) embryos, resulting in equalized first division (bottom). The red dashed line indicates the embryo center. Embryos are oriented with anterior to the left here and all figure panels. (C) Differential interference contrast (DIC) microscopy images from time-lapse recordings at the 2-cell stage (left) and 20 hr thereafter (right). Upshifted wild-type embryo (top) or lin-5(ev571) embryo kept at 17°C (middle) divide unequally and develop into 3-fold larvae that later hatch, while upshifting lin-5(ev571) embryos results in equalized division (bottom), which can lead to embryonic lethality. In this and other figure panels, scale bar is 10 µm and relative AB cell size at the 2-cell stage is indicated. See also Videos 13. (D) Schematic of optogenetic-mediated LIN-5::ePDZ::mCherry recruitment to the anterior cortex by localized activation of PH::eGFP::LOV interaction with a 488 nm laser. A helix in the LOV domain unfolds upon illumination, allowing binding of ePDZ. Star represents fluorescent protein fusion (GFP: gray to start with, green upon illumination; mCherry: red). (E) Embryos expressing LIN-5::ePDZ::mCherry and PH::eGFP::LOV divide unequally without 488 nm exposure due to asymmetric localization of LIN-5 (top). Optogenetic-mediated recruitment of LIN-5::ePDZ::mCherry to the anterior cortex during mitosis (blue rectangle) results in balanced net pulling forces on the two spindle poles and equal first division (bottom). (F) Images from time-lapse recording of optogenetic-mediated first division equalization. LIN-5::ePDZ::mCherry was recruited to the anterior cortex from anaphase onset until cytokinesis completion by scanning the 488 nm laser in the indicated rectangular region. Note that endogenous LIN-5 is tagged with ePDZ::mCherry, hence resulting in the fusion protein being present also on the spindle, the centrosomes, and the posterior cortex during anaphase. Note that that this strain also expresses GFP::TBB-2, which is not visible in the small illuminated portion of the cortex. Time indicated in min:s. See also Video 4.

Video 1
Unequal division of the wild-type C. elegans zygote.

The resulting 2-cell stage of this particular embryo had an AB size of 62% of the total embryo in the mid-plane. Note vertical rocking of spindle as it moves towards the posterior pole during anaphase. Time is indicated in min:s in this and all other videos.

Video 2
Unequal division of the lin-5(ev571) mutant zygote at the permissive temperature of 17°C (relative AB size 58%).

Note severely dampened anaphase spindle rocking indicating reduced cortical pulling forces in this video and in Video 3.

Video 3
Transient upshift of lin-5(ev571) embryo from 17°C to 27°C from metaphase until the completion of cytokinesis results in equalized or even inverted division, as in this particular embryo, in which AB is smaller than P1 (AB size 47%).

Severe or complete depletion of lin-5 function does not impair A-P polarity (Srinivasan et al., 2003), and we found the same to be true upon acute LIN-5 inactivation in upshifted lin-5(ev571) embryos, as evidenced by the normal distribution of the posterior polarity protein PAR-2 (Figure 1—figure supplement 2A, B). Moreover, the polarity mediator MEX-5, which is enriched in the anterior cytoplasm of the wild-type zygote in response to A-P polarity cues (Cuenca, 2003; Schubert et al., 2000), was localized similarly in control and upshifted lin-5(ev571) embryos, resulting in MEX-5 enrichment in AB following first division (Figure 1—figure supplement 2C). In addition, as anticipated from the more centrally located first cleavage furrow, slightly more MEX-5 was present in P1 in upshifted lin-5(ev571) embryos than in the control (Figure 1—figure supplement 2D). Taken together, these observations indicate that upshifted lin-5(ev571) zygotes exhibit normal A-P polarity, providing us with an experimental means to address specifically the impact of cell size asymmetry.

In search for a complementary method to equalize first division, we reasoned that optogenetic recruitment of LIN-5 to the anterior cortex could counteract the larger posterior forces normally acting on astral microtubules, thus maintaining the spindle in the center (Fielmich et al., 2018). We used an extant worm strain expressing both LOV::PH::GFP bound to the plasma membrane and endogenously tagged LIN-5::ePDZ::mCherry, which can thus be recruited to the desired portion of the plasma membrane by transient local induction of LOV<-> ePDZ interaction using 488 nm laser light (Fielmich et al., 2018; Figure 1D, E). As anticipated, we found that acute recruitment of LIN-5::ePDZ::mCherry to a small region of the anterior cortex can maintain the spindle in the center of the zygote, producing similarly sized AB and P1 cells (Figure 1F, Video 4).

Video 4
Optogenetic recruitment of transgenic LIN-5 to the anterior cortex during mitosis counteracts posterior forces and results in equalized division (relative AB size 49%).

Montage showing DIC recording (left), LIN-5::EPDZ::mCherry (middle), and PH::EGFP::LOV (right). LIN-5::EPDZ::mCherry was recruited to membrane-bound PH::EGFP::LOV by exposing a small rectangular region at the anterior cortex with a 488 nm laser during mitosis.

Overall, we conclude that two means of balancing anterior and posterior pulling forces during mitosis can serve to equalize the first division.

First cleavage equalization can be tolerated up to a size asymmetry threshold

To assess the potential importance of the size difference between AB and P1 for subsequent development, we utilized time-lapse microscopy to analyze upshifted lin-5(ev571) embryos and optogenetically manipulated embryos following return to their respective permissive conditions, scoring embryonic lethality at the motile 3-fold stage or at hatching (Materials and methods). We found that those upshifted lin-5(ev571) embryos that died invariably failed to elongate into a worm shape towards the end of embryogenesis, reflecting a failure in ventral closure of the epidermis that was accompanied by extrusion of endodermal and mesodermal tissues as muscle contraction began (Figure 1C, Figure 1—figure supplement 3, Video 5, Video 6; n = 92). The terminal embryonic phenotype of optogenetically manipulated embryos that died was likewise characterized by a failure in ventral epidermal closure, with the exception of one embryo that died as an unhatched larva (n = 26). Moreover, we found several post-embryonic phenotypes among upshifted lin-5(ev571) animals that hatched, including death during larval stages and reduced adult fertility (Figure 1—figure supplement 3C), demonstrating that equalizing the first division can result in lethality beyond embryogenesis.

Video 5
Ventral closure of epidermis at the end gastrulation in control lin-5(ev571) embryo at the permissive temperature of 17°C.

Lateral cells migrate over ventral neuroblasts to enclose the embryo in a continuous epidermal layer called the hypodermis. Subsequently, differentiating muscles start to contract and the embryo gradually elongates into a tubular body shape.

Video 6
Upshifted equalized lin-5(ev571) embryo failing to undergo ventral epidermis closure, resulting in the extrusion of internal tissues from the body cavity as muscles start contracting.

Embryo shown here had a relative AB size of 53%.

We took advantage of the slight variability in relative AB size following equalization to ask whether this trait correlated with the incidence of embryonic lethality. As shown in Figure 2A, B, we observed that whereas control embryos exhibited nearly identical lethality compared to lin-5(ev571) embryos maintained at 17°C (~7%), lethality of upshifted lin-5(ev571) embryos gradually increased as AB and P1 became closer in size, from ~24% when relative AB size was (56–54]% to ~75% when it was (50–48]% (refer to Supplementary file 6 for statistical analyses throughout the article). We found a similar gradual increase of embryonic lethality when AB and P1 became closer in size in optogenetically manipulated embryos (Figure 2C, D), which however exhibited ~23% lethality even when not exposed to 488 nm laser light. In addition, we found in both experimental settings that embryos with a relative AB size smaller than 48% invariably died (Figure 2B, D; ‘inverted embryos’ hereafter).

Figure 2 with 1 supplement see all

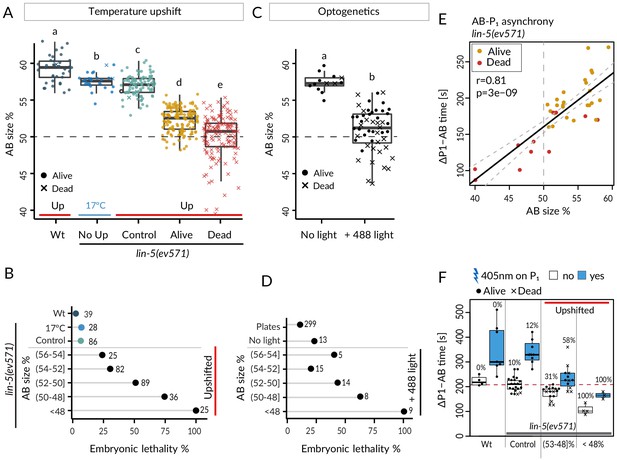

Equalized first cell division decreases embryonic viability.

(A) Boxplots of relative AB size distribution determined in the mid-plane (here and thereafter) in embryos of the indicated conditions; upshifted (Up) wild-type (Wt), lin-5(ev571) kept at 17°C (No Up), lin-5(ev571) upshifted in the early 2-cell stage (Control), as well as lin-5(ev571) upshifted during the first mitotic division and binned into embryos that later lived (Alive) or died (Dead). Here and in other figure panels, two boxplots that do not share the same letter are significantly different from each other with p<0.05; Welch's t-test. See Supplementary file 6 for exact p value and complete statistical analyses for this and all other figures. Dashed lines here and in C indicate equal AB and P1 sizes. (B) Lethality of embryos of from A, with Alive and Dead categories binned as a function of relative AB size and an indication of the number of embryos in each bin. Brackets indicate a mathematical notation for the size interval, [with an inclusion of the value next to the square bracket], (but not of that next to the round bracket), so that individual bins do not overlap. (C) Relative AB size in embryos expressing LIN-5::ePDZ::mCherry and PH::eGFP::LOV, either not subjected to 488 nm laser light (left, n = 13) or equalized through optogenetic recruitment of LIN-5 to the anterior cortex (right, n = 56). (D) Lethality of embryos from C as a function of relative AB size; binning as in B. ‘Plates’ refers to embryos expressing LIN-5::ePDZ::mCherry and PH::eGFP::LOV scored for hatching on plates, without filming. (E) Division asynchrony between AB and P1 as a function of AB size in upshifted lin-5(ev571) embryos; time was determined using anaphase onset monitored with mCherry::H2B. Shown is the subset of lin-5(ev571) control and upshifted embryos from A for which AB-P1 asynchrony was measured. Pearson’s correlation value (r) is shown here and in subsequent figure panels, together with significance of association between two variables determined via the asymptotic t approximation (cor.test function in R, p). (F) Division asynchrony between AB and P1 in embryos of indicated conditions; upshifted lin-5(ev571) embryos were split into two bins as a function of AB sizes, as shown. Percentage above each boxplot indicates proportion of embryonic lethality; blue: illumination of P1 with 405 nm laser to delay cell cycle progression and restore asynchrony between AB and P1. Non-illuminated embryos: same data as in E. Dashed line indicates mean time difference in control embryos. See also Figure 2—source data 1 and Figure 2—source code 1 for underlying analysis and data for this figure.

Figure 2—source code 1

Cell size manipulation and lethality analysis in lin-5(ev571) and optogenetic embryos.

https://cdn.elifesciences.org/articles/61714/elife-61714-fig2-code1-v3.zip
Figure 2—source data 1

Cell size measurements and division timing in lin-5(ev571) and optogenetic embryos.

https://cdn.elifesciences.org/articles/61714/elife-61714-fig2-data1-v3.xlsx

Taken together, these findings establish that first cleavage equalization can be tolerated to some extent since a subset of embryos with similar AB and P1 sizes survive. However, other such embryos die, suggesting that the unequal first cleavage is required for invariably successful embryogenesis. Furthermore, our findings reveal a size asymmetry threshold at the 2-cell stage below which embryogenesis always fails.

Decreased asynchrony between AB and P1 upon first division equalization does not cause lethality of equalized embryos

We investigated further the consequences of rendering AB and P1 similar in size. We utilized the lin-5(ev571) upshift setting for all experiments described hereafter because the optogenetic strain exhibited higher background lethality and was not amenable to investigation with fluorescently labeled markers since both GFP and mCherry channels are already occupied.

We first report our analysis of cell division timing. In the wild type, AB divides before P1, in part owing to a size difference between the two cells (Brauchle et al., 2003). We addressed whether such a reduction in asynchrony was recapitulated in upshifted lin-5(ev571) embryos, using H2B::mCherry to precisely time anaphase onset. As shown in Figure 2E, we indeed found a strong correlation between relative AB size and extent of division asynchrony, confirming that the size difference between AB and P1 contributes to their division asynchrony. Moreover, inverted embryos retained residual asynchrony (Figure 2E), verifying that cell size is only one of the factors dictating such asynchrony (Budirahardja and Gönczy, 2008; Rivers et al., 2008).

Could the reduction in division asynchrony between AB and P1 cause the lethality of upshifted lin-5(ev571) embryos? We reasoned that if this were the case, then survival should be higher in upshifted lin-5(ev571) embryos in which asynchrony between the two cells was experimentally restored to the wild-type timing. Therefore, we set out to specifically slow down the cell cycle of P1 in upshifted lin-5(ev571) embryos by directing a 405 nm laser onto its nucleus, adapting a method used previously for endodermal cells in the worm (Lee et al., 2006). We determined a non-lethal irradiation regime that retarded P1 division timing in the wild type by 132 ± 94 s on average (n = 7), but did not cause lethality (Materials and methods). We found that a similar treatment in upshifted lin-5(ev571) embryos restored the extent of asynchrony between AB and P1 to that of control embryos (Figure 2F). Despite this, however, viability was not rescued (Figure 2F), leading us to conclude that reduction in division asynchrony between AB and Pper se is not responsible for the lethality of upshifted lin-5(ev571) embryos.

Interestingly, in addition, we found a severe phenotype arising at the 4-cell stage in a minor fraction of upshifted lin-5(ev571) embryos, which we reasoned might be related to reduced division asynchrony between AB and P1. In the wild type, division asynchrony results in the AB spindle elongating before the P1 spindle, and thereby to an oblique positioning of the AB daughter cells due to the geometrical constraints imposed by the eggshell (Figure 2—figure supplement 1A). This leads to a characteristic rhomboid arrangement at the 4-cell stage, with the P1 daughter P2 contacting the AB daughter ABp (Figure 2—figure supplement 1A). P2 expresses the Delta-like ligand APX-1, which interacts with the Notch receptor GLP-1 present on ABp, thereby instructing ABp descendants to adopt neural and epidermal fates (Mango et al., 1994b; Mello et al., 1994; Shelton and Bowerman, 1996; Figure 2—figure supplement 1B). We found that ~4% of upshifted lin-5(ev571) embryos adopted an abnormal T-like arrangement at the 4-cell stage (T-arrangement thereafter) (Figure 2—figure supplement 1C; Video 7; n = 257). In such embryos, P2 cannot contact ABp and, by inference, Delta/Notch signaling cannot take place between the two cells (Figure 2—figure supplement 1D). As anticipated from such lack of signaling, all embryos with a T-arrangement at the 4-cell stage later died (n = 11).

Video 7
Equalized size of AB and P1 leads to an aberrant T-arrangement at the 4-cell stage in ~4% of equalized embryos (relative AB size is 50% in this case).

Overall, we conclude that reduced division asynchrony between AB and Pper se is not responsible for the lethality of most upshifted lin-5(ev571) embryos. Moreover, we find that a minor fraction of upshifted lin-5(ev571) embryos lack contact between P2 and ABp and, thereby, a critical Delta/Notch induction event, illustrating how the size difference between AB and P1 can contribute to successful fate acquisition.

Comprehensive 4D cell lineaging to monitor development of equalized embryos

To reach a more comprehensive understanding of potential deviations from normal development following first division equalization, we conducted systematic 4D lineage tracing using nuclear H2B::mCherry as a proxy for cell position (Bao et al., 2006; Jelier et al., 2016; Krüger et al., 2015). We collected data up to the ~120 cell stage, assessing 13 features for each cell, including division timing, cell position, and division orientation, resulting in up to ~2000 data points per embryo, although not all stages or features could be scored in every instance (see Supplementary file 1 for information regarding each lineaged embryo and Supplementary file 2 for individual cell data). The entire lineaging data set is available at https://github.com/UPGON/worm-rules-eLife; (Jankele, 2021; copy archived at swh:1:rev:069c5e3147b7721885b5824282f342cac8a4de5b). The lineaging data set comprised wild-type embryos (wild-type, n = 10), lin-5(ev571) embryos shifted early in the 2- cell stage (control, n = 18), as well as upshifted lin-5(ev571) embryos that were equalized (empirically defined as having a relative AB size of 48–53%), and that either lived (equalized alive, n = 21) or died (equalized dead, n = 28). There was no significant difference in relative AB size between these two equalized groups (50.6% in both; p=0.99), so that their distinct fate later in embryogenesis cannot be attributed to a size difference at the 2-cell stage. In addition, we lineaged lin-5(ev571) embryos with a <48% relative AB size, all of which died (inverted, n = 7). Given their severe and early departure from normality, we did not lineage the minor fraction of lin-5(ev571) embryos with a 4-cell stage T-arrangement.

We set out to mine this rich data set to uncover deviations from normal development following AB and P1 equalization, comparing wild-type and control embryos with equalized lin-5(ev571) and inverted lin-5(ev571) embryos. In addition, we investigated whether differences could be unveiled between equalized alive and equalized dead lin-5(ev571) embryos to identify features that may cause lethality in the latter group.

Lineaging reveals global alteration in cell cycle progression in the P1 lineage and an altered sequence of cell division in equalized embryos

We first report our analysis of temporal aspects in the lineaging data. Plotting separately the proliferation of cells descending from AB and P1 (hereafter referred to as AB and P1 lineage, respectively), we observed no statistically significant difference in division timing in the AB lineage between wild-type or control and equalized or inverted lin-5(ev571) embryos (Figure 3A – overlapping confidence intervals, Supplementary file 2). In stark contrast, we found a clear difference in the P1 lineage, where cell number increased more rapidly in equalized and in inverted embryos compared to wild-type or control embryos (Figure 3B). Furthermore, cell cycle duration in equalized lin-5(ev571) embryos was rarely correlated with relative AB size for AB descendants, but highly correlated for most P1 descendants (Figure 3—figure supplement 1, Supplementary file 3).

Figure 3 with 1 supplement see all

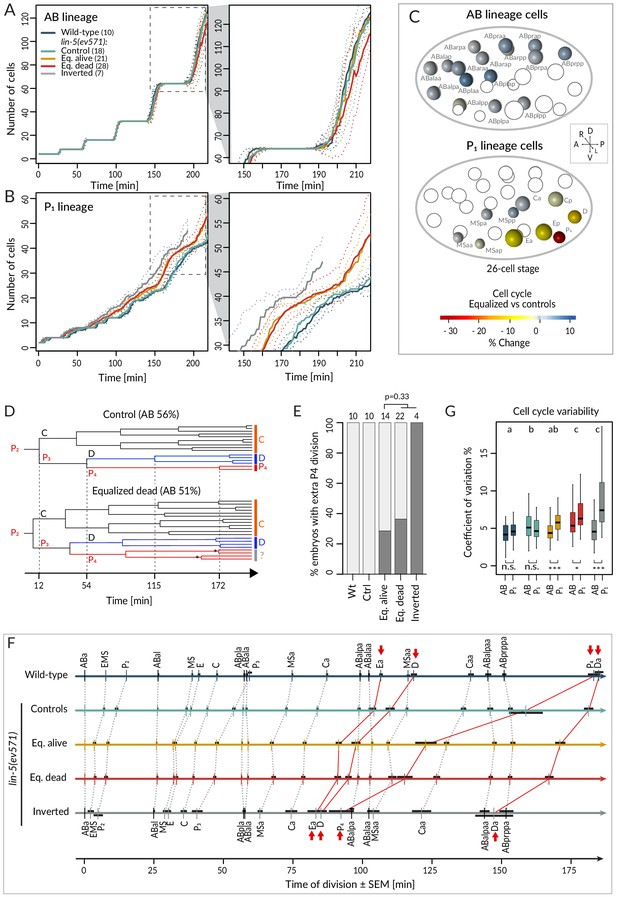

Faster cell cycle progression in P1 descendants of equalized embryos results in altered division sequence.

(A, B) Number of cells in the AB (A) and P1 (B) lineages starting from the 4-cell stage in embryos of indicated conditions. Dashed rectangular region is enlarged on the right. In this and subsequent figure panels, time 0 corresponds to ABa cleavage. Dotted lines – most visible in the enlargements on the right – indicate standard deviations. (C) Graphical depiction of differences in cell cycle timing in individual cells of the AB (top) and P1 (bottom) lineages at the 26 cell stage; colors indicate relative change of cell cycle timing in equalized lin-5(ev571) embryos compared to control lin-5(ev571) condition. In each representation, empty circles represent cells of the other lineage. (D) Partial lineage tree of a control lin-5(ev571) embryo (top) and an equalized lin-5(ev571) embryo (bottom). Normally, P4 divides only once to produce the germline precursors Z2 and Z3, which remain quiescent until hatching (top). In some equalized and inverted embryos, P4 divides more than once, suggesting a repetition of the P3 fate or a fate transformation towards a D-like state (bottom, labeled by question mark). Also, a global acceleration of the C and D lineages is apparent in the equalized embryo compared to the control. Vertical grid lines and time indicated on the x axis correspond to division of P2, P3, D, and P4 in the control embryo. (E) Frequency of embryos with one or more extra divisions in the P4 lineage in indicated conditions (dark gray), with number of analyzed embryos shown on top. Light gray corresponds to embryos with a normal phenotype here and in similar panels in other figures. Ectopic P4 lineage divisions are not significantly more frequent in dying embryos than in those that are alive (Fisher’s exact test, p=0.33). (F) Temporal division sequence in embryos in indicated conditions. Note that the faster cell cycle of P1 lineage cells in equalized and inverted embryos leads to an altered division sequence, highlighted by connecting red lines and arrows for Ea, D, P4, and Da. Dark horizontal bars indicate standard error of the mean. Not all AB cells are shown due to space constrains, but the first and last AB cell in each division round are indicated. (G) Variability in cell cycle duration in AB and P1 lineage expressed as variation coefficient to normalize for cell cycle duration in different cells. Color code as in A. Here and in Figure 4C, D, letters above groups indicate statistical comparison of overall variability among five groups using ANOVA and Tukey's honest significant difference post-hoc test for all pairwise combinations, whereas comparisons between AB and P1 lineages within groups are indicated below boxplots using Welch’s two-sample t-test; asterisks indicate significance levels at 0.05 (*) or 0.001 (***).

Investigating cell cycle duration in individual blastomeres revealed that the germline precursor P4 was most affected, with the cell cycle being ~33% shorter in equalized embryos compared to the control (Figure 3C, p<0.001 with Welch’s two-sample t-test, which is used also hereafter unless stated otherwise). Interestingly, we also uncovered a deviation from the normal division pattern in the P4 lineage suggestive of fate transformation. Whereas P4 normally undergoes a single division (Figure 3D, top, Figure 3E), we found that it underwent at least one additional division in ~35% of equalized lin-5(ev571) embryos (n = 36), and in all four inverted lin-5(ev571) embryos scored for this trait (Figure 3D, bottom, Figure 3E). Overall, we conclude that following first division equalization the cell cycle is shortened most in the germline precursor P4, the fate of which is also imparted less faithfully.

We found in addition that faster cycling in the P1 lineage of equalized embryos eventually changed the relative order of cell division during development (Figure 3F). Notably, the division of the P1 descendants Ea/Ep, D, Da, and P4 occurred before that of the corresponding AB lineage cells (Figure 3F, red arrows). Could such an altered sequence of events in the AB versus the P1 lineage contribute to the lethality of equalized lin-5(ev571) embryos? To address this question, we investigated whether there was a statistically significant difference in cell cycle duration or division timing comparing individual cells in equalized alive and equalized dead embryos, but found none (Supplementary file 2, Welch’s t-tests with Benjamini–Hochberg correction for multiple tests). Taken together, our data demonstrate that equalizing the first division results in a global increase in cell cycle pace in the P1 lineage, leading to an altered sequence of divisions, but that this alone does not explain why some equalized embryos die whereas others do not.

We were also interested in exploring the variability of cell cycle duration in the lineaging data set. We determined the coefficient of variation (CV) for each cell and found that the overall average CV of cell cycle duration was 4.4% ± 1.8 in the wild-type and 5.3% ± 1.8 in lin-5(ev571) control embryos (Figure 3G, p<0.001), indicative of increased variability already in the latter group. In addition, we found that whereas the CV in cell cycle duration in equalized alive lin-5(ev571) embryos was comparable to that of control embryos (5.2% ± 2.4, p=0.75), it was significantly larger than that in equalized dead and inverted lin-5(ev571) embryos, a difference due strictly to the P1 lineage (Figure 3G, 6.6% ± 2.7% and 6.5% ± 4.2, respectively, p<0.0001). We conclude that equalized dead and inverted lin-5(ev571) embryos exhibit less stereotyped cell cycle durations.

Lineaging reveals that equalized embryos frequently exhibit defects in cell positioning and division orientation

We next report our analysis of spatial aspects in the lineaging data. In particular, we monitored cell position and division orientation along the three embryonic axes, comparing their averages to a reference model of spatially and temporally aligned control lin-5(ev571) embryos (Jelier et al., 2016) (Materials and methods).

We found that equalized alive lin-5(ev571) embryos exhibited a mild increase in the average positional deviation per cell from the control starting at the 4-cell stage; this deviation remained essentially constant thereafter (Figure 4A, compare blue and yellow). By contrast, cell positions in equalized dead lin-5(ev571) embryos diverged increasingly from the control over time (Figure 4A, compare blue and red). For inverted embryos, cell positions deviated already early on and diverged further thereafter (Figure 4A, gray). Furthermore, we found that division orientation of individual cells exhibited a mild increase in angular deviation in equalized alive lin-5(ev571) embryos compared to the control, and that this deviation was more pronounced in equalized dead and inverted lin-5(ev571) embryos (Figure 4B). Together, these findings establish that embryos that die following first division equalization diverge more from the norm in terms of cell positioning and division orientation than those that live.

Figure 4 with 1 supplement see all

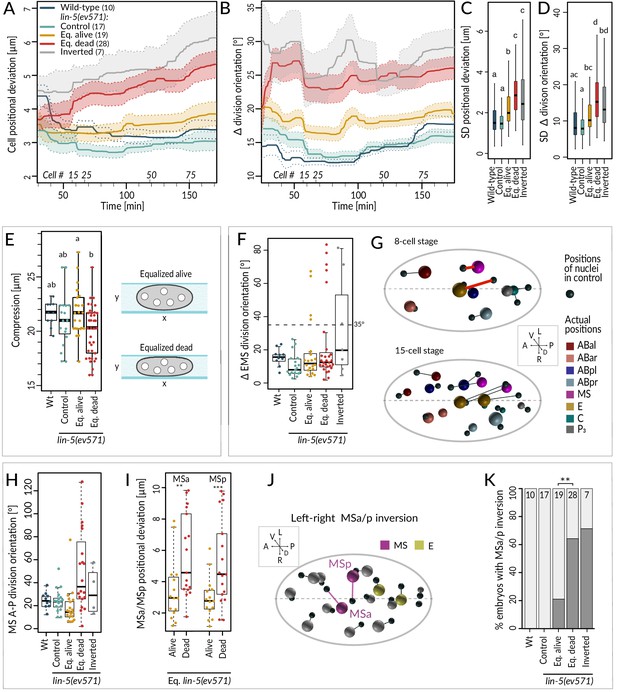

Cell division axis and cell position are frequently altered in equalized embryos.

(A, B) Mean positional deviation (A) or angular deviation (B) ± SD per cell over time in embryos of indicated conditions compared to control lin-5(ev571) reference. The mean positional deviation per cell was calculated at 1 min intervals as the sum of Euclidean distances of individual cells divided by the number of cells at that stage. Only embryos lineaged past the 15-cell stage were included in this analysis. (C, D) Variability in cell position deviation (C) and angular deviation of division orientation (D) in embryos of indicated conditions expressed as SD for cells between 25 and 180 min of development (time 0 corresponds to ABa division). (E) Compression (sample height) in embryos of indicated conditions. Comparisons between groups were performed using Tukey's honest significant difference post-hoc test. (F) Angular deviation of EMS spindle at anaphase onset in embryos of indicated conditions compared to the control lin-5(ev571) reference. Note that the four live equalized embryos exhibiting a >35o EMS skew at anaphase onset corrected spindle orientation to near normality during late anaphase. (G) Nuclear positions in the control lin-5(ev571) reference shown with black spheres, connected by lines with the position of the corresponding nuclei in an equalized lin-5(ev571) embryo exhibiting the EMS skew; sphere size is proportional to nuclear diameter. The skew in EMS division leads to mispositioning of E and MS at the 8-cell stage (highlighted by red line; top), resulting in widespread positioning defects at the 15-cell stage (bottom) and thereafter (not shown). Here and in J, dashed line indicates center of the L-R axis. The directions of the three embryonic axes are depicted here and in other panels. (H) Deviation of MS division orientation angle in embryos of indicated conditions compared to the control lin-5(ev571) reference. (I) Mispositioning of MSa and MSp in equalized lin-5(ev571) embryos measured as the distance to corresponding positions in the control lin-5(ev571) reference. (J) Positions of nuclei in equalized lin-5(ev571) embryo with L-R inversion of MSa and MSp (MSa and MSp: magenta; Ea and Ep: yellow), connected by lines to cell positions in the control lin-5(ev571) reference, indicated as small black spheres. (K) Quantification of MSa/MSp inversion phenotype in indicated conditions scored prior to MSa/MSp division; the phenotype is significantly associated with the outcome of development among equalized lin-5(ev571) embryos (Fisher’s exact test, p=0.007).

Alterations in EMS and MS division orientation contribute to lethality of equalized embryos

Investigating spatial features in the lineaging data for individual blastomeres revealed a striking skew in the division axis of EMS at the 6-cell stage in a subset of embryos. In the wild type, the EMS spindle is oriented along the A-P axis owing to Wnt/Src signaling emanating from P2 (Bei et al., 2002; Liro and Rose, 2016). We found that EMS division orientation was skewed by >35° in ~19% equalized and ~43% inverted lin-5(ev571) embryos (Figure 4F; n = 48 and 7). In all eight embryos with such a skew that later died, this alteration led to striking cell mispositioning at the 8-cell stage, with E and MS assuming abnormal oblique positions (Figure 4G, top), a defect that propagated subsequently (Figure 4G, bottom). By contrast, in the four equalized embryos that lived despite an initially aberrant EMS division angle (Figure 4F), the skew was corrected in late anaphase, resulting in essentially normally positioned E and MS. These observations indicate that, unless corrected, a skew in the EMS division axis results in embryonic lethality.

To uncover further differences between equalized alive and equalized dead lin-5(ev571) embryos, excluding embryos with a T-arrangement at the 4-cell stage and those with an EMS skew at the 6-cell stage, we compared all spatial features between the two sets of embryos from the 4- to the 15-cell stage (Figure 4—figure supplement 1A, Supplementary file 4). This analysis uncovered 10 features that differed significantly between the two groups and that were highly correlated with each other (Figure 4—figure supplement 1A). Among these features, we found notably that the division orientation of MS deviated approximately three times more with respect to the A-P axis in equalized dead lin-5(ev571) embryos than in equalized alive ones (Figure 4H). This led to increased mispositioning of the MS daughter cells MSa and MSp (Figure 4I), which were frequently inverted along the L-R axis, a phenotype significantly associated with death (Figure 4J, K). However, such L-R inversion was also observed in some equalized alive lin-5(ev571) embryos (Figure 4I), indicating that it can be compatible with successful embryogenesis, presumably owing to subsequent compensatory movements. Taken together, these observations lead us to conclude that severe mispositioning of E and MS, as well as of MSa and MSp, can occur in equalized dead lin-5(ev571) embryos and contribute to lethality.

Like for the temporal data, we explored the overall variability of cell positioning and division orientation in the lineaging data set, comparing the SDs of all individual cells. As shown in Figure 4C, we found a slight increase in overall variability of cell positioning among equalized alive lin-5(ev571) embryos compared to the control, as well as a further significant increase among equalized dead and inverted lin-5(ev571) embryos (Figure 4D). Together, these results indicate that cell positioning and division orientation defects in equalized embryos are also variable rather than stereotyped, especially in embryos that die.

Serendipitously, we found that 6 of the 10 features identified above correlate with the extent of compression the embryo experienced from the coverslip during time-lapse imaging, suggesting that this external factor affects cell positioning, division angles, and cell migration differently in equalized alive and dead lin-5(ev571) embryos. Furthermore, equalized dead lin-5(ev571) embryos tended to be significantly more compressed than equalized alive ones (Figure 4E, 19.8 ± 2.1 µm versus 21.9 ± 2.2 µm, p<0.002), whereas a comparable degree of compression had no detrimental effect on control embryos (Figure 4E). These observations led us to investigate directly whether equalized embryos die less frequently in the absence of compression. Therefore, we imaged uncompressed embryos using 45 µm diameter beads or removing the coverslip after first division equalization, finding decreased lethality of equalized embryos compared to imaging under mild compressed condition with 20–25 µm beads or in the continued presence of the coverslip (33% versus 55%, n = 45 and 174, p=0.03, Fisher’s exact test). Together, these findings indicate that equalized embryos tolerate less well mechanical compression, which may perturb cell positioning, division orientation, and cell–cell contacts.

Defective cell fate allocation in equalized embryos

We investigated whether defects in cell fate might occur following first division equalization, focusing our analysis on the endodermal and pharyngeal lineages.

In the wild-type endodermal lineage, the P1-derived Ea/Ep cells exhibit a nearly twofold lengthening of the cell cycle compared to the MS lineage sister cells as they ingress into the blastocoel (Figure 5A, B, Sulston et al., 1983). Interestingly, we found that Ea/Ep divided earlier and ingressed less in equalized dead lin-5(ev571) embryos than in either control or equalized alive lin-5(ev571) embryos, proportionally to relative AB size (Figure 5C, D, Figure 5—figure supplement 1A, B, Video 8). We noted also that Ea/Ep tended to divide while still in contact with the eggshell in most equalized embryos (Figure 5E, green nuclei and dashed cell contour). Overall, we conclude that endodermal cells divide precociously and ingress only partially in equalized lin-5(ev571) embryos, particularly in the subset that later dies.

Figure 5 with 1 supplement see all

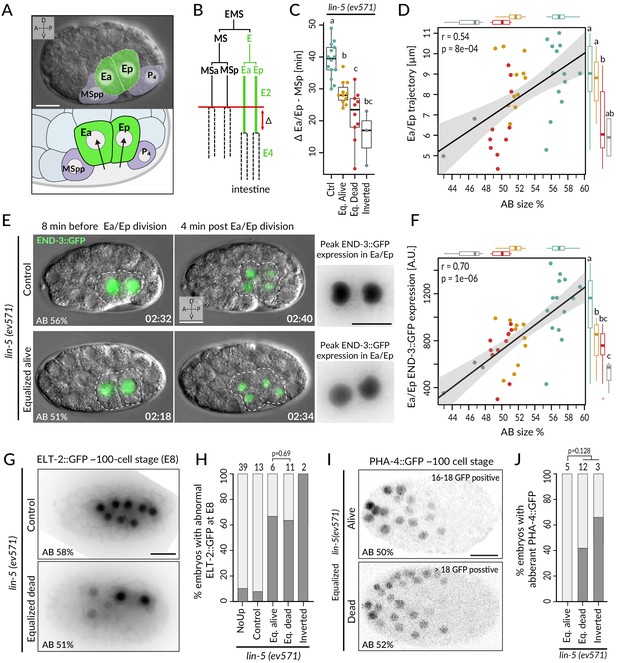

Incomplete fate acquisition in endodermal and pharyngeal lineages in equalized lin-5(ev571) embryos.

(A) Gastrulation in C. elegans begins with ingression of Ea/Ep. Actual embryo viewed by DIC with partial overlay (top) and enlarged corresponding schematic (bottom). (B) Gastrulation is accompanied by a nearly twofold lengthening of the Ea/Ep cell cycle compared to that of their MSa/MSp cousins. Ea/Ep normally divide after internalization. Red arrow indicates usual delay between MSp and Ea/Ep divisions shown in C. (C) Time delay between MSp and Ea/Ep divisions in embryos of indicated conditions. (D) Average trajectory of Ea/Ep interphase nucleus as a function of initial AB size. Here and in F: same color code as in C; moreover, marginal boxplots show overall distribution of individual groups of corresponding color, with letters indicating whether the mean differs statistically between groups (Welch's t-test, p<0.05). (E) END-3::GFP expression in Ea/Ep (dashed area) in control and equalized lin-5(ev571) embryo; Ea/Ep cells in the latter divide close to the eggshell, before completing ingression. Higher magnification views on the right show the time point with peak END-3::GFP expression. Time is indicated in h:min from the time of first cleavage. See also Video 8. (F) Quantification of END-3::GFP peak expression during the Ea/Ep cell cycle as a function of initial AB size. Statistical comparisons are indicated using the letters code above the marginal boxplot (Welch’s test, BH-corrected p-value<0.05). See also Figure 5—source data 1 and Figure 5—source code 1 for analysis for C–F. (G) Control (top) or equalized dead lin-5(ev571) (bottom) ~100-cell stage embryo expressing GFP::PH (not shown) and ELT-2::GFP in inverted black and white rendition. Note that the image of the control embryo has been rotated, explaining the white areas in the corners. (H) Quantification of embryos with abnormal ELT-2::GFP expression (defined as <8 GFP-positive cells at the ~100-cell stage) in indicated conditions. Lethality of equalized embryos is not significantly associated with ELT-2::GFP expression pattern (p=0.69, Fisher’s exact test). (I) Expression of PHA-4::GFP in inverted black and white rendition at the ~100-cell stage in an equalized alive (top) and equalized dead (bottom) lin-5(ev571) embryo. (J) Quantification of embryos with abnormal PHA-4::GFP expression at the ~100-cell stage in indicated conditions. Lethality of equalized embryos is not significantly associated with PHA-4::GFP expression pattern (p=0.128, Fisher’s exact test). See Figure 5—figure supplement 1E for detailed annotation of expression patterns.

Figure 5—source code 1

Analysis of Ea/Ep migration, cell cycle duration, and END-3::GFP expresion in lin-5(ev571) and control embryos.

https://cdn.elifesciences.org/articles/61714/elife-61714-fig5-code1-v3.zip
Figure 5—source data 1

Ea/Ep migration, cell cycle duration, and END-3::GFP expresion in individual lin-5(ev571) and control embryos.

https://cdn.elifesciences.org/articles/61714/elife-61714-fig5-data1-v3.xlsx
Video 8
Expression of the endodermal marker END-3::GFP in control (left) and equalized (right) lin-5(ev571) embryos (relative AB size 58% and 53%, respectively).

In the equalized embryo, Ea/Ep express less END-3::GFP than they normally do, and divide prematurely, before completing ingression.

We set out to assess whether these alterations in Ea/Ep behavior are accompanied by improper endodermal fate specification. Normally, such specification is imparted by a redundant cascade of GATA-family transcription factors, including END-3/END-1, which peak in Ea/Ep and activate ELT-7/ELT-2, with ELT-2 remaining present throughout embryogenesis (reviewed in Maduro, 2015; McGhee, 2013). Suggestively, we found that END-3::GFP in equalized lin-5(ev571) embryos was expressed at lower levels than in controls (~62 ± 19%, p<0.001), correlating with relative AB size and Ea/Ep cell cycle duration (Figure 5E, F; n = 18 and 19, respectively, Figure 5—figure supplement 1C, Video 8). Furthermore, ELT-2::GFP, which is normally expressed in eight intestinal progenitors at the ~100-cell stage, was often expressed in only 2–6 cells in equalized lin-5(ev571) embryos (Figure 5G, H). Together, these findings indicate that endodermal fate is acquired less faithfully following first division equalization, although altered ELT-2::GFP distribution is not significantly associated with embryonic lethality (p=0.69, Fisher’s exact test), in line with the notion that even embryos with a partial gut can survive (Choi et al., 2017).

We also investigated fate specification of the pharyngeal lineage. In the wild type, the anterior pharynx is induced in ABalp and ABara through Delta/Notch signaling stemming from MS/MSa/MSp (reviewed in Mango, 2009). Although all four ABa descendants express the GLP-1 Notch receptor, normally ABala and ABarp are not induced since they do not contact the MS/MSa/MSp cells that express the Delta ligand (Figure 5—figure supplement 1D). We analyzed embryos expressing the pharyngeal marker PHA-4::GFP, which is detectable at the ~100-cell stage in the lineages of MS, ABalp, and ABara, labeling 18 cells in total (Horner et al., 1998; Mango et al., 1994a; Murray et al., 2008). We found that equalized alive lin-5(ev571) embryos systematically harbored PHA-4::GFP in 18 nuclei (Figure 5I, J; n = 5). By contrast, abnormal PHA-4::GFP expression was observed in ~47% of equalized dead and inverted lin-5(ev571) embryos, usually with >18 positive nuclei (Figure 5J, Figure 5—figure supplement 1E; n = 15). Ectopic PHA-4::GFP was present in some cells derived from ABala in five such embryos and in ABarp in another one (Figure 5—figure supplement 1E), suggesting that MS/MSa/MSp formed illegitimate contacts in these cases, leading to aberrant pharynx induction in their descendants.

Overall, we conclude that equalized lin-5(ev571) embryos exhibit defective fate acquisition at the least in the endodermal and pharyngeal lineages.

Viability of equalized embryos can be predicted at the 15-cell stage

We explored whether the above described defects occurred simultaneously in equalized embryos. However, we found no significant association between any pair of qualitative features described thus far in equalized embryos in the entire lineaging data set (Fisher’s exact test), including between additional P4 division, EMS skew, MSa/MSp inversion, aberrant ELT-2, or PHA-4 expression, suggesting that these defects frequently arise independently of each other.

Despite such widespread phenotypic variability among equalized lin-5(ev571) embryos, we wondered whether the ultimate fate of equalized embryos could be predicted early in development. Again excluding embryos with a T-arrangement at the 4-cell stage or with an EMS skew at the 6-cell stage, we utilized a machine learning approach to identify a small number of features that hold predictive value for distinguishing the two sets of embryos. To this end, we utilized Lasso (Least absolute shrinkage and selection operator), which is a penalized regression method that iteratively eliminates features that contribute the least to the predictive performance of a statistical model, eventually converging on a simpler solution (Tibshirani, 1996). We conducted this analysis at the 4-, 8-, 15-, and 28- cell stage, using as input all available features in each case for equalized lin-5(ev571) embryos (n = 31 embryos scored for all features at all four stages, Supplementary file 7). To obtain a robust classifier despite the relatively small sample size, we used repeated fivefold cross-validation, which randomly splits the data into five subsets of similar sizes, four of which are used for training the model, which is then evaluated against the remaining subset for goodness of fit. Performing 250 repetitions of cross-validation in each case, we found that features extracted at the 15-cell and 28-cell stage hold similarly high predictive value, with an overall model accuracy of ~88 ± 6% SD and ~85 ± 10% SD, respectively (Figure 6A). Remarkably, we found in particular that ~89% of the models selected at the 15-cell stage contained just three predictive features (Figure 6B, C): ABara dorsoventral (D-V) position, ABara positional deviation (pOV), and Ca net movement (Ca.netdis). The best performing model at the 15-cell stage achieved 100% sensitivity – meaning that all dead embryos were correctly classified – and 86% specificity – meaning that a small fraction of alive embryos were misclassified (Figure 6D).

Figure 6 with 3 supplements see all

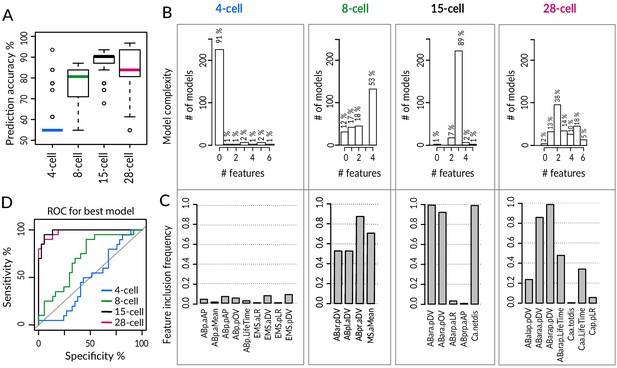

Logistic Lasso regression machine learning analysis predicts lethality in early equalized embryos.

(A) Prediction accuracy of lethality versus survival in equalized embryos for individual logistic Lasso models generated by fivefold cross-validation (cv) over 250 repetitions in indicated stages. Note that embryos with a T-arrangement at the 4-cell stage or with a skewed EMS division at the 6-cell stage were excluded from this analysis, as were embryos with missing values for some of the cells. (B) Number of predictive features in individual Lasso models over cv 250 iteration; 14 alive and 17 dead equalized lin-5(ev571) embryos were used for training. Y-axis: number of iterations in which a model with the indicated number of features was selected. Zero features dominant at the 4-cell stage indicates that an empty model (intercept only) was selected in the majority of iterations and performed poorly overall. (C) Inclusion frequency of individual features in an optimal model at each cv iteration over 250 repetitions at indicated stages. Selected variables were chosen from 18, 72, 150, and 249 features present at 4-, 8-, 15-, and 28-cell stage, respectively. Supplementary file 7 lists all features used at each stage for Lasso analysis. (D) Receiver–operator curve (ROC) of best model selected at each stage with the minimal cross-validation error. Shown are selectivity and sensitivity as a function of changing the threshold value for assigning embryos to dead or alive category; diagonal line: random classification. We noted also that even though the models at the 8-cell stage had inferior accuracy, MS division orientation was repeatedly selected among four predictive features at that stage, highlighting the importance of the MSa and MSp inversion phenotype described in Figure 4.

Discussion

Asymmetric division can take several forms. In some cases, distinct fates result solely from the partitioning of cytoplasmic components asymmetrically to daughter cells of equal size. In other cases, however, asymmetric division also entails different sizes of daughter cells. Here, we uncover that C. elegans embryos stemming from experimentally induced equalized first division exhibit a range of incompletely penetrant phenotypic deviations from the norm (Figure 6—figure supplement 1), demonstrating that physically asymmetric division of the zygote is critical to ensure invariably successful embryogenesis.

On the importance of physically unequal asymmetric cell division

A striking example of physically unequal asymmetric division is that of the female meiotic divisions, where minute polar bodies are generated in addition to the much larger oocyte. There is little doubt that the unequal size of daughter cells is of paramount importance in this case to ensure proper allocation of maternal components to the oocyte and future embryo. Physically unequal divisions, albeit less striking in terms of size inequality, are also frequent during early embryogenesis of metazoan organisms. One possibility is that this ensures swift and proper allocation of components to daughter cells destined to yield different numbers and types of descendants in early embryos that rely on maternally contributed components and undergo rapid cell cycles. This may be particularly important in holoblastic embryos, which cleave within the constraints of an eggshell or an analogous structure, precluding compensation for potential variability in blastomere volumes through differential cell growth.

A paradigmatic example of a physically unequal division in early embryos is that of the C. elegans zygote, which normally yields a larger AB daughter and a smaller P1 daughter. Previously, the specific role of size inequality had not been addressed independently from fate asymmetry. Here, we addressed this question by altering the function of the spindle positioning protein LIN-5 to equalize first cleavage without affecting A-P polarity. We discovered that first division equalization is tolerated to some extent, as evidenced by approximately half of equalized embryos completing development. Moreover, we discovered that embryos with a relative AB size smaller than 48% always die, revealing a size asymmetry threshold for viability.

Alterations in cell cycle timing can be tolerated during C. elegans embryogenesis

Prior work established that the size difference between AB and P1 contributes to their division asynchrony in the wild type because the DNA replication checkpoint is engaged preferentially in Pcompared to AB (Brauchle et al., 2003; Stevens et al., 2016). In addition to this mechanism, the positive regulators of mitotic entry polo-like-kinase I (PLK-1), cyclin B3, and CDC-25 phosphatase are enriched in AB compared to P1, thereby also contributing to division asynchrony, in a size-independent manner (Budirahardja and Gönczy, 2008; Michael, 2016; Rivers et al., 2008). As anticipated from these studies, we found here that division asynchrony decreases following first division equalization, in a manner that depends on AB size. However, this asynchrony alone does not cause subsequent death since equalized embryos with experimentally restored asynchrony die at a similar rate. This is in line with the viability of embryos depleted of DNA replication checkpoint components, which also exhibit decreased asynchrony between AB and P1 (Brauchle et al., 2003). Likewise, the majority of embryos in which asynchrony between the two cells is abrogated entirely through local infrared treatment of P1 also live (Choi et al., 2020). Furthermore, we uncovered here that cell cycle progression is not set merely by size in all C. elegans embryonic blastomeres since diminishing the size of AB and its descendants does not slow their cell cycle, perhaps because the abovementioned positive mitotic regulators are present in excess in AB.

We found also that not only P1, but also many of its descendants, progress faster through the cell cycle upon first division equalization. It will be interesting to address whether these later differences reflect a sustained excess of positive regulators such as PLK-1, cyclin B3, and CDC-25 inherited following first division equalization. Regardless of the underlying cause, faster cell cycle progression in the P1 lineage might have repercussions also for fate acquisition, which can be reliant on precisely timed expression of transcription factors during C. elegans embryogenesis (Murray et al., 2012; Nair et al., 2013; Sarov et al., 2012).

Cell positioning, division orientation, and cell fate defects upon first division equalization

Although not detrimental to viability per se, faster cell cycle progression in the P1 lineage, but not in the AB lineage, results over time in an altered sequence of cell division in equalized embryos, which can lead to missing or aberrant interactions between cells. A particularly striking example occurs in a minor fraction of equalized embryos that exhibit an aberrant T-arrangement at the 4-cell stage, leading to a lack of inductive Delta/Notch signaling. Suggestively, we found that equalized embryos with such a T-arrangement tend to be elongated (see legend of Figure 2—figure supplement 1). Compatible with embryo length playing a role, T-arrangements also occur in lon-1 mutant embryos, which are very elongated but where AB and P1 have normal relative sizes (Yamamoto and Kimura, 2017). Interestingly, a similar T-arrangement occurs naturally in other Nematode clades, reflecting plasticity in early division patterns that likely requires adaptations of fate determination networks (Brauchle et al., 2009; Schulze and Schierenberg, 2011; Schulze and Schierenberg, 2009).

Missing or aberrant interactions between cells can also derive from defective division orientation, leading to daughter cell mispositioning, as exemplified with the skewed EMS and MS division orientation. Interestingly, an EMS skew is observed also upon impaired Wnt signaling from P2 (Bei et al., 2002; Schlesinger et al., 1999; Thorpe et al., 1997). More generally, a posterior signaling center that relies on a Wnt-dependent relay mechanism originating from P2/P3 polarizes multiple cells during C. elegans embryogenesis (Bischoff and Schnabel, 2006), and our findings are compatible with the possibility that this signaling center is compromised upon first cleavage equalization. Furthermore, the EMS skew might affect cell–cell contacts and therefore alter the instructive Delta/Notch signaling that normally occurs between MS and two adjacent ABa-derived cells, which are thereby triggered to differentiate towards pharyngeal fates (reviewed in Mango, 2009). We indeed observed inappropriate induction of pharyngeal fate in several ABa cells, raising the possibility that aberrant contacts occurred between MS/MSa/MSp, which express a Delta ligand, and ABala or ABarp, which express a Notch receptor, but that are normally shielded from ligand binding owing to their distant location. Moreover, we noted that the intestinal progenitors Ea/Ep expressed less END-3::GFP in equalized embryos, perhaps reflecting insufficient induction by maternal factors, followed by stochastic expression of the downstream component ELT-2. Compatible with this view, maternally provided SKN-1, as well as its targets END-1 and END-3, must reach a critical threshold for complete activation of ELT-2 (Maduro, 2015; Raj et al., 2010).

Regarding MS position, a physical computational model predicted that abolishing both size asymmetry and asynchrony between AB and P1 lineages would impact the positions of MS and E daughters at the 24- cell stage in ~25% of embryos (Fickentscher et al., 2016). Accordingly, we observed instances of MSa/MSp mispositioning and incomplete ingression of E daughters in equalized lin-5(ev571) embryos. Thus, these defects in equalized embryos could be at least in part explained by abnormal forces experienced by cells with altered volumes and division timing.

Detailed lineage analysis enabled us to uncover that in many equalized embryos the germline progenitor P4 undergoes continued divisions in a manner that resembles the behavior of its cousin D. Such a defect in germline fate specification could help explain the reduced fertility observed in some adults that derive from embryos that survived equalization. Lineage transformation of P4 into D also occurs in embryos derived from mes-1 mutant animals, in which P2 and P3 lack proper polarity (Berkowitz and Strome, 2000). By extension, such polarity defects may also be present following first division equalization. In the wild type, P4 divides symmetrically and its daughters remain quiescent until hatching (Sulston et al., 1983). A size-dependent switch from asymmetric to symmetric division occurs in P4 as it reaches a size too small to allow formation of the reciprocal PAR protein gradient (Hubatsch et al., 2019). Our findings lead us to speculate that P4 cell size reduction might be required not only for this switch of division mode but also to maintain germline progenitors quiescent until hatching.

Physically asymmetric division of the C. elegans zygote ensures invariably successful embryonic development

Wild-type C. elegans embryogenesis is highly stereotyped, exhibiting little variability between embryos in terms of division timing, cell positioning, division orientation, and fate acquisition, ultimately yielding 558 cells at hatching in the hermaphrodite (Richards et al., 2013; Sulston et al., 1983). The array of incompletely penetrant and variable defects revealed here implies that a physically unequal first division is critical for the stereotypy of C. elegans embryogenesis.

Despite important phenotypic variability upon first division equalization, we found that three features at the 15-cell stage together hold strong predictive power in predicting the ultimate fate of equalized embryos: ABara D-V position, ABara positional deviation, and Ca net displacement. Closer analysis of cell positions in the lineaging data set lends further support to the importance of these three features. Indeed, several AB descendants on the right side of embryo, including ABar and its progeny, were significantly shifted dorsally as early as the 8-cell stage solely in dying embryos (Figure 6—figure supplement 2, Supplementary file 2). Although the mechanisms responsible for such dorsally shifted position or for increased Ca movement in equalized dead lin-5(ev571) embryos remain to be fully understood, we conclude that these three features provide a shared early signature among most equalized embryos that then diverges into more variable phenotypic manifestations.

We also wondered whether having differently sized AB and P1 blastomeres contributes to robust embryogenesis. Developmental systems are deemed to be robust if they remain unchanged or else change in a reproducible manner in the face of a given perturbation. The loss of robustness is manifested by increased variability upon perturbation without a change in the mean (reviewed in Félix and Barkoulas, 2015). Applying these criteria to features monitored in our data set, we found only 23 of the 1608 analyzed in which the mean remained the same but the variability increased when comparing equalized lin-5(ev571) and control embryos (Figure 6—figure supplement 3). This indicates that these features in particular are less robust to perturbation by first division equalization. Moreover, our findings suggest that having differently sized AB and P1 blastomeres provides resilience against mechanical stress, as evidenced by the increased lethality of equalized lin-5(ev571) embryos upon compression. Normally, compressed C. elegans embryos can correct specific defects in cell positioning through the concerted migration of several AB descendants (Jelier et al., 2016). Presumably compressed equalized embryos cannot undertake such corrective movements for steric reasons or because their fate is compromised.

How general is the importance of having differently sized blastomeres in early embryogenesis? Physically asymmetric cleavage of the zygote is present across the Rhabditida order (Brauchle et al., 2009; Valfort et al., 2018), suggesting functional importance over substantial evolutionary times. Moreover, unequal cleavages are present in early development of other systems, including annelid, ascidian, and echinoderm embryos (reviewed in Moorhouse and Burgess, 2014; Negishi and Nishida, 2017; Shimizu et al., 1998). Conversely, generating cells of equal sizes seems of importance during early human development since unevenly sized blastomeres frequently correlate with aneuploidy and lower rates of implantation and pregnancy (Hardarson, 2001). Overall, generating appropriately proportioned daughter cells is widespread in metazoan organisms, and our work demonstrates the importance of physical asymmetry of the first division in C. elegans, which is fundamental for ensuring invariably successful development.

Materials and methods

C. elegans strains and embryo preparation

Request a detailed protocol

C. elegans strains used in this study are listed in Supplementary file 5 and were maintained on standard NGM plates with OP50 Escherichia coli as a food source. Temperature-sensitive strains were maintained at 16°C, other strains at 20°C. Strains expressing the desired fluorescent markers were crossed with the lin-5(ev571) carrying strain, and homozygous progeny selected based on temperature sensitivity and fluorescent marker expression. After establishing a given strain, worms were maintained for at least one generation prior to analysis. For embryo imaging, 1–2-day-old adult lin-5(ev571) hermaphrodites were dissected in M9 buffer chilled at 15°C, and one-cell stage embryos with visible pronuclei collected using a mouth pipet. Embryos were then mounted either on a 2% agarose pad for DIC imaging with oil immersion objectives or into a bead slurry containing ~20 µm polystyrene beads (Polysciences, #18329-5) in M9 + 0.5% (w/v) methylcellulose for water immersion objectives or 20% iodixanol (Optiprep, Sigma Aldrich) for glycerol objectives to raise the refractive index of the medium (Boothe et al., 2017). Two methods were utilized to image embryos without compression. First, we mounted embryos in a viscous M9 medium containing + 0.5% (w/v) methylcellulose and 45 µm polystyrene beads. Second, embryos were mounted on a 2% agarose pad as usual, but the coverslip removed after the temperature shift, and the embryo then deposited with the pad onto an NGM plate. Non-compressed embryos obtained by either method were analyzed jointly for the extent of embryonic lethality.

Temperature shift for size equalization

Request a detailed protocol

Rapid temperature shifts between 17°C and 27°C were performed on the microscope stage with the CherryTemp fluidic temperature controller (Cherry Biotech, France). The CherryTemp device is equipped with two thermalization chambers that were set to 17°C and 27°C. By changing the chamber through which the thermalization solution flowed, the sample was rapidly (~15 s) shifted to the desired temperature. To generate equally dividing lin-5(ev571) one-cell stage embryos, we performed the upshift right after nuclear envelope breakdown (NEBD) for embryos imaged by DIC and at metaphase for embryos expressing fluorescently labeled histone, and kept them at the restrictive temperature of 27°C until the completion of cytokinesis, ~5 min thereafter. Thereafter, the sample was shifted back to the permissive temperature of 17°C for the rest of embryogenesis. Embryos imaged only for a fraction of embryogenesis were moved to an incubator set to 17°C and survival scored the next day. In all experiments, we scored as ‘alive’ embryos that reached a normal looking, motile, 3-fold pre-larval stage, or that hatched, and as ‘dead’ embryos with an abnormal morphology at that stage or unable to hatch. Note that the lin-5(ev571) strain used for the majority of experiments expressed in addition the plasma membrane marker GFP::PH and the chromatin marker mCherry::H2B; this strain exhibited a lethality on plates of 4.7% (n = 829), close to that of lin-5(ev571) embryos (2.5%, n = 394).

Time-lapse microscopy

Request a detailed protocol

DIC time-lapse microscopy was performed on a Zeiss Axioscope 2 equipped with DIC optics and a 100 × 1.25 NA Achrostigmat objective, recording with a USB 3.0 1.3 MP monochrome CMOS camera (Ximea, model MQ013MG-E2, Slovakia), controlled by the open-source μManager software (Edelstein et al., 2014).

Combined DIC and epifluorescence time-lapse microscopy was performed on a motorized Zeiss Axio Observer D1 using a 63 × 1.2 NA C-Apochromat water immersion objective, equipped with an Andor Zyla 4.2 sCMOS camera, a piezo-controlled Z-stage (Ludl Electronic Products), and an LED light source (Lumencor SOLA II). The setup was controlled by μManager.

The lineaging data set was acquired on a Leica SP8 laser scanning confocal microscope equipped with a 60× HC PL APO 1.3 NA glycerol immersion objective, HyD detectors set to 100% sensitivity, and a tunable Chameleon laser (Coherent). Time-lapse recordings were acquired at 2.5 min intervals, capturing 35 slices 0.75 µ apart, typically for 100 frames. The microscope was set to 8 kHz resonance scanning mode to reduce phototoxicity (Richards et al., 2013), 4 × line averaging plus 2 × frame accumulation, with a pixel size of 140 nm, a pixel dwell time of 50–70 ns, and the pinhole set to 1.2 Airy units. To compensate for the signal loss deeper in the sample, the excitation light was ramped across the Z range from 2% to 15% for the 488 nm laser line and from 2% to 18% for the 585 nm laser line. Embryos were mounted in M9–20% iodixanol (Optiprep, Sigma Aldrich) to match the sample’s refractive index (Boothe et al., 2017) and placed in a sandwich between two #1.5 coverslips (40 × 22 mm and 18 × 18 mm) separated by ~20 µm polystyrene beads and sealed with melted VALAP (vaseline, lanolin, paraffin, 1:1:1). Sample temperature was maintained at 17°C using the CherryTemp temperature controller. The coverslip sample sandwich was attached to the CherryTemp thermalization chip glass surface through a thin layer of water.

Optogenetic-mediated division equalization

Request a detailed protocol

Worms expressing LIN-5::EPDZ::mCherry, PH::EGFP::LOV, and GFP::TBB-2 in the embryo (a kind gift from Sander van den Heuvel) were dissected in a dark room under a red light to prevent premature activation of PH::LOV and mounted for imaging on 2% agarose pads (Fielmich et al., 2018). Imaging was performed on a Leica SP8 in the Live Data Mode of the LAS X software, allowing to toggle laser lines on/off during acquisition. The microscope settings were the same as above with the following modifications: no Z-compensation of exposure, time-lapse acquired at 10 s interval, capturing 11 slices with 1.25 µm spacing, and this for 80–100 frames (from 1- to 4-cell stage); moreover, the temperature was maintained at 22°C. LIN-5::EPDZ::mCherry distribution was monitored with a 585 nm laser; 585 nm transmitted light images were collected on an additional PMT detector to follow NEBD for analysis of AB/P1 mitotic asynchrony. Interaction of LIN-5::LOV with PH::EPDZ was induced by activating the 488 nm laser at 3–5% intensity only during acquisition in a small rectangular region (~10 × 5 µm) at the anterior cortex, from NEBD until cytokinesis completion.

Cell cycle retardation with 405 nm laser

Request a detailed protocol

A pulsed 405 nm diode laser (at 70% output, 700 mW/cm2 at 100%) was continuously scanned over the entire P1 nucleus early in the 2-cell stage for 4.5 min at 8 kHz using a 70 ns dwell time on the SP8 confocal setup described above. This induces photodamage, likely in the form of thymidine dimers in the DNA, which might cause replication fork stalling and activation of the DNA replication checkpoint. Using otherwise wild-type embryos expressing mCherry::H2B, we determined experimentally an optimal non-lethal duration (4.5 min) of continuous laser scanning that induces and enhances the delay between AB and P1 mitoses from the normal ~3.5 ± 0.34 min to ~6 ± 1.6 min at 17°C.

Image processing and analysis

Request a detailed protocol

All images were rotated, Z-projected, and adjusted in Fiji (ImageJ) for display (Schindelin et al., 2012). The 2D surface of the AB and P1 cells was determined manually from DIC images or from the GFP::PH plasma membrane signal in strains expressing this marker. This was achieved by tracing cell outlines with a Fiji polygon tool at the mid-plane, with both nuclei in focus, when the interface between AB and P1 was perfectly straight, ~5 min after cytokinesis. The size of AB was then expressed relative to the embryo cross-sectional area, corresponding to the sum of the P1 and AB surfaces. To assess how well the 2D mid-plane cell area measurements matched the corresponding 3D cell volumes, we analyzed embryos expressing GFP::PH, segmenting the full 3D volumes of AB and P1 using a watershed-based segmentation (MorphoLibJ plugin in Fiji).

Analysis of marker gene expression

Request a detailed protocol

Embryos expressing endogenously tagged PAR-2::GFP and mCherry::MEX-5 were imaged on a wide-field Zeiss Axio-Observer microscope as described above. Images were taken every 30 s until the 4-cell stage, capturing 11 planes with 1.5 µm spacing. For signal quantification, we determined the mean intensity in the mid-plane at the 2-cell stage, including the area covering the nucleus and the entire cortex. MEX-5 intensity was normalized to the mean AB intensity in control embryos from the corresponding day because MEX-5 intensity differed significantly between experiments.

Transgenic embryos expressing END-3::GFP or ELT-2::GFP in a lin-5(ev571) background were imaged using combined DIC and fluorescence time-lapse microscopy as described above, with 2 min intervals and 1 µm optical slicing, capturing a 25 µm stack. Gastrulation movements of Ea/Ep cells were tracked in 3D with the TrackMate Fiji plugin (Tinevez et al., 2017), utilizing the nuclear END-3::GFP signal, which is expressed from the beginning of the Ea/Ep cell cycle (Maduro et al., 2005). We then quantified the peak GFP intensity, that is, the mean voxel intensity in the nuclear volume obtained from the sphere detection macro in TrackMate. The ELT-2::GFP expression pattern was scored visually for the number of GFP-positive cells at the E8 stage. Analysis of pharyngeal differentiation was based on the PHA-4::GFP expression pattern in embryos co-expressing the pan-nuclear mCherry::H2B marker (Sarov et al., 2012). Embryos were imaged with the SP8 confocal microscope as described above, followed by cell lineaging as described below, allowing us to determine the identity of GFP-positive cells at the ~100-cell stage.

Statistics and data analysis

Request a detailed protocol

Box and whisker plots shown throughout this article were generated in R using the boxplot function. Briefly, each box contains 50% of all data points between the first and third quartile (interquartile range [IQR]) and its center lies at the mean along the Y-axis, with the median indicated by a thick line in the box. Whiskers extend to ±1.58 IQR/sqrt(n). Data points out of this range are shown as individual points and can be considered as outliers, except for plots of variability, where outliers are not displayed for simplicity.

Statistical comparisons were performed in R using Welch’s two-sample t-test with Benjamini–Hochberg correction for multiple comparisons unless indicated otherwise in the figure legends. Simultaneous comparisons of multiple groups for difference in their means were performed using Tukey’s honest significant difference test.

Lineage tracing

Request a detailed protocol

Three-dimensional time-lapse recordings of embryos expressing mCherry::H2B in either wild-type or lin-5(ev571) background were first preprocessed to enhance the nuclear signal and remove noise with the Noise2Void/CARE machine learning pipeline (Krull et al., 2019). Thereafter, a custom Fiji macro was used to correct the drift using the first polar body as a bright fiducial marker. The lineage was then traced using a level-set image segmentation and model evolution implemented in MATLAB (MathWorks, USA) as described previously (Dzyubachyk et al., 2010; Krüger et al., 2015), and corrected in the WormDeLux Java-based lineage editor (Jelier et al., 2016). Results were exported in the StarryNite format (Bao and Murray, 2011). Cells were then automatically named in the lineage editor according to the canonical lineage (Sulston et al., 1983), and manually checked afterward for possible errors, especially in mutant embryos that often substantially deviated in division orientation and cell positioning from the wild-type model used for naming.

As mentioned also in the results section, all lineage files and the source code are available at https://github.com/UPGON/worm-rules-eLife. Note that we excluded embryos with the 4-cell stage T-arrangement from the lineage analysis because they are known to exhibit specific defects stemming from the lack of ABp induction (Priess and Thomson, 1987), which would introduce additional variability and thus mask potential novel phenotypes. Note that some embryos were imaged only up to the 26 cell stage; therefore, the number of embryos used for statistical comparison differs for individual cells and in different analyses reported in this article; Supplementary file 2 reports the number of embryos/cells used for each comparison.

Data analysis of lineaged embryos

Request a detailed protocol

Lineages in the StarryNite format were imported into R version 3.6.1 (R Development Core Team, 2014). The growth curves of all embryos were aligned in time, and a specific scaling factor for each embryo was deployed to match the mean pace of wild-type development at 17°C based on the maximum correlation between the wild type and each experimental curve (Supplementary file 1). Differential pace of development could be caused by slight variations in temperature or by inherent embryo variability. We then set ABa division time as time 0 because time-lapse recording for the lineaging experiments typically started at the 4-cell stage, after the temperature upshift was performed during the first division, or in the early 2-cell stage for controls.

Embryos were aligned in space with respect to their inferred A-P and D-V axes using a custom Java-based script (Jelier et al., 2016). First, nuclear positions were normalized to length, width, and height of each embryo along each imaging axis. Then, the alignment method first determines the A-P axis coinciding with the first principal component of the PCA calculated from all nuclear positions within first 100 frames of development. The D-V axis is orthogonal to the A-P axis and proceeds through the ventral surface of the embryo defined as the average position of the MS lineage cells. Finally, the left–right (L-R) axis is orthogonal to both the A-P and D-V axes.

Feature extraction

Request a detailed protocol

We then computed 13 features (variables) using this aligned data set for each cell in every embryo. First, we computed the time of cell birth (variable name [v]: StartTime), and cell cycle duration (v: LifeTime), as well as the time of division (v: EndTime). Next, we recorded 3D positions of each cell along the three principal axes at the last frame before anaphase (variables: pAP, pLR, pDV), as well as the total trajectory distance (totdis) and the net displacement (netdis) of each cell as the Euclidean distance between nuclear 3D coordinates at birth and at the end of the cell cycle. Further, division angles (v: aAP, aLR, aDV) were computed with respect to the inferred embryonic axes at the first frame after anaphase onset. The last two variables, that is, angular (v: aMean) and positional deviation (v: pOV), required a comparison of a given embryo to the lin-5(ev571) control model that was determined by aligning embryos in time and space using the General Procrustes Analysis (Gower, 1975) and then calculating average positions of individual cells. Using this model, overall angular deviation (v: aMean) was computed as an angle between the reference division vector and the observed spindle orientation vector in a given embryo for each cell (Jelier et al., 2016). Similarly, positional deviation was calculated as the Euclidean distance between the position of a given nucleus at metaphase from that in the control model. Supplementary file 2 contains complete statistics for all 13 features in experimental groups of embryos.

Variable filtering and intra-group variation

Request a detailed protocol

We filtered variables according to effect size and statistical significance comparing equalized dead and alive lin-5(ev571) embryos at the 15-cell stage. We chose an arbitrary effect threshold of 15% and calculated Welch’s unequal variances t-test for each variable. The p-value cut-off α = 0.008 was determined for a false discovery rate of 10% using scrambled experimental data with shuffled group labels (100 repetitions). We then plotted effect size versus p-value as a volcano plot.

To assess variability within each group of embryos, we calculated the standard deviation and CV for each cell and every feature. In particular, the CV was used to compare cell cycle variability among different cells that have lineage and stage-specific differences in average cell cycle duration. To assess the mean and the variance (Figure 6—figure supplement 3), we required each feature to be scored in at least five embryos in both alive and dead equalized groups, thereby decreasing the total number of analyzed features to 1608.

Predictive model of developmental outcome using Lasso

Request a detailed protocol

We searched the parameter space of variables at 4-, 8-, 15-, and 28-cell stage for features that would predict lethality in equalized embryos (n = 31 embryos scored for all features at all these stages). Data preprocessing before feeding data into the model building pipeline included removing those variables with low overall variance (empirically set at <2.5%, n = 24 variables), those that would have more than 25% of missing value (n = 12 variables), and also replacing missing values with the group mean (128/18,228 values), and scaling each variable within a 0–1 range. We used the penalized Lasso regression to generate a binary classification model (glmnet R package). We employed a machine learning strategy to obtain a robust value of the shrinkage coefficient lambda by performing fivefold cross-validation (cv) 250 times and choosing a model with minimal cross-validation mean squared error. We report average classification accuracy for best models selected over 250 cv iterations. To evaluate the stability of solutions thus obtained, we scored the number of chosen predictors and their identity over 250 iterations.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source data files and code have been provided as individual files for: Figure 1—figure supplement 1–3, Figures 2, Figure 2—figure supplement 1, Figure 5, Figure 5—figure supplement 1, and Figure 6— figure supplement 1. Further, the lineaging data, as well as the source code used for their analysis, are available from GitHub: https://github.com/UPGON/worm-rules-eLife (copy archived at https://archive.softwareheritage.org/swh:1:rev:069c5e3147b7721885b5824282f342cac8a4de5b/).

The following data sets were generated
    1. Jankele R
    2. Jelier R
    3. Gonczy P
    (2020) Dryad Digital Repository
    Dataset of traced lineages for embryos between 4- to 100-cell stage for Jankele et al.
    https://doi.org/10.5061/dryad.ghx3ffbmx

References

    1. Berkowitz LA
    2. Strome S
    (2000)
    MES-1, a protein required for unequal divisions of the germline in early C. elegans embryos, resembles receptor tyrosine kinases and is localized to the boundary between the germline and gut cells
    Development 127:4419–4431.
    1. Goldstein B
    2. Hird SN
    (1996)
    Specification of the anteroposterior Axis in Caenorhabditis elegans
    Development 122:1467–1474.
  1. Book
    1. Kemphues KJ
    2. Strome S
    (1997)
    Fertilization and Establishment of Polarity in the Embryo
    In: Riddle D. L, Blumenthal T, Meyer B. J, Priess J. R, editors. C. elegans II. Cold Spring Harbor Laboratory Press. pp. 335–359.
    1. Mango SE
    2. Lambie EJ
    3. Kimble J
    (1994a)
    The pha-4 gene is required to generate the pharyngeal primordium of Caenorhabditis elegans
    Development 120:3019–3031.
    1. Mango SE
    2. Thorpe CJ
    3. Martin PR
    4. Chamberlain SH
    5. Bowerman B
    (1994b)
    Two maternal genes, apx-1 and pie-1, are required to distinguish the fates of equivalent blastomeres in the early Caenorhabditis elegans embryo
    Development 120:2305–2315.
    1. McGhee JD
    (2013) The Caenorhabditis elegans intestine
    Wiley Interdisciplinary Reviews. Developmental Biology 2:347–367.
    https://doi.org/10.1002/wdev.93
    1. Sadler PL
    2. Shakes DC
    (2000)
    Anucleate Caenorhabditis elegans sperm can crawl, fertilize oocytes and direct anterior-posterior polarization of the 1-cell embryo
    Development 127:355–366.
    1. Schauer IE
    2. Wood WB
    (1990)
    Early C. elegans embryos are transcriptionally active
    Dev Camb Engl 110:1303–1317.
    1. Shelton CA
    2. Bowerman B
    (1996)
    Time-dependent responses to glp-1-mediated inductions in early C. elegans embryos
    Development 122:2043–2050.

Decision letter

  1. Michael B Eisen
    Senior and Reviewing Editor; University of California, Berkeley, United States
  2. Clemens Cabernard
    Reviewer; University of Washington, Switzerland
  3. Morris Maduro
    Reviewer

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Asymmetric cell divisions of size and fate are important in many developmental contexts. In this work the authors use a clever genetic manipulation to alter the size asymmetry of the first division of the zygote in the nematode, C. elegans. They find strong evidence that when the size symmetry is perturbed, the embryo experiences variation in subsequent cell divisions, cell fates, and survival, suggesting that there has been strong selection to maintain the size asymmetry of the first division in this species.

Decision letter after peer review:

Thank you for submitting your article "Unequal cell division of the C. elegans zygote buffers variability and ensures successful embryogenesis" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Michael Eisen as the Senior and Reviewing Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Clemens Cabernard (Reviewer #1); Morris Maduro (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.

Our expectation is that the authors will eventually carry out the additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

Summary:

Asymmetric cell division is an evolutionary conserved mechanism that creates cellular diversity. ACD can be manifested in biased segregation of molecular cell fate determinants, organelles or daughter cell size difference. Daughter cell size difference occurs frequently in metazoans but the functional significance remains poorly understood.

Here, Jankele et al., use C. elegans to investigate whether the stereotypic cell size difference between AB and P1 cells in the early embryo is important for overall embryo development. They use a temperature sensitive allele of Lin-5 and an optogenetic approach to misposition the mitotic spindle, resulting in an equalization of the AB and P1 cell in the early worm embryo. The authors discover that a size asymmetry threshold exists that determines embryo viability. Furthermore, they uncover that equalized embryos show faster cell cycle progression but also display additional defects in cell positioning, spindle orientation and cell fate acquisition.

This is an elegant study, addressing an important question in vivo. With its fixed cell lineage, availability of molecular genetic tools and advanced live cell imaging, C. elegans is the ideal choice to address this question. The use of the temperature sensitive lin-5 allele and the optogenetic approach are simple, yet effective.

In discussing the paper, the editor and reviewers had several broad concerns that must be addressed in a revision. We call particular attention to point (3) below, regarding claims of buffering, which are highlighted by the authors in the title and throughout the manuscript. It is our feeling that these claims were not made in a sufficiently rigorous manner. As the reviewers note, Barkoulas and Felix provide rigorous criteria for what should be called "robustness” and how it should be measured. It is essential that the authors either make a stronger case for robustness by the Barkoulas and Felix (or other appropriate) criteria, or tone down the claims about buffering/robustness.

Essential revisions:

1) Our first concern is that their conclusions hinge on LIN-5 manipulation only affecting size asymmetry. While they use appropriate controls, both the lin-5(ts) and the optogenetic lines already show an increase in embryonic lethality, albeit low, in control conditions (permissive temperature, no light) as well as mild cell positioning defects. Moreover, there is also a surprising amount of lethality (25%) in embryos with rather normal size asymmetry. Given the requirements for LIN-5 in many processes beyond spindle positioning in the zygote, including cortex behavior/blebbing, chromosome segregation, pronuclear rotations, spindle positioning in other cells, etc., it is difficult to rule out that these lines may be sensitized or that LIN-5 manipulation comprises development independently of size asymmetry, at least to some degree. To my knowledge, there is no other method available to reliably equalize divisions, so this is probably the best one can do at the moment. However, the authors should at least acknowledge this potential caveat in the absence of an independent mechanism to symmetrize divisions as it is very difficult to be sure that the only thing being affected in these experiments is size asymmetry.

2) LIN-5 caveats aside, while broadly consistent with a role for size asymmetry in development, what role asymmetry is playing is rather unclear. What emerges most clearly is that loss of size asymmetry via LIN-5 manipulation is associated with a highly pleiotropic array of defects, including changes in division timing, division orientation, blastomere positioning and patterns of fate induction, and it is seems that a variable number of potential defects accumulate, each potentially resulting in an additive increase in probability of death, particularly in perturbed conditions (e.g. excessive compression).

3) Finally, the phenotypic defects and variability in traits such as cell cycle timing and orientation are used to claim that size asymmetric divisions buffer variability. This is a rather stretched reading of the data. Notably, the authors cite Barkoulas and Felix, who in their review criticize the increasing frequency of claims of robustness genes/pathways. A key argument Barkoulas and Felix make is that compromising the function of a molecule in a system such that the system is more sensitive to further perturbations does not mean that molecule/pathway acts as buffering or robustness mechanism, but could simply be pushing the system closer to a breakdown point. The claim of buffering here rests on the observation that in dying embryos, phenotypes are more variable. However, as Barkoulas argue, one expects higher phenotypic variability as one moves the system away from wild-type behavior and starts to exceed the capacity of development control mechanisms to cope with defects. Following this line of thinking and given that most variability is coupled to pronounced changes in the mean behavior (i.e. shorter cell cycle times, directed positional shifts), we would argue that a more likely conclusion is that lin-5 manipulation simply introduces sub-lethal defects that prime the system for loss of viability when combined with other perturbations such as compression. Hence, while symmetrically dividing cells may be more sensitive to additional perturbations, we would argue that this result does not say anything about whether size asymmetry buffers the effects of other sources of variability or perturbations of development

4) The reviewers generally found the manuscript hard to follow, and that it would benefit from systematic efforts to make it accessible to a non-technical audience.

Reviewer #1:

1) Sibling cell size asymmetry occurs in several metazoan cell types. Unfortunately, the authors failed to cite the corresponding literature in the very first paragraph of the Introduction. I am sure this is not an attempt to inflate the novelty of this study. In most cases, the significance of daughter cell size asymmetry has not been clearly demonstrated in any organism. The authors need to reference not just what has been written in C. elegans on the topic but also include studies from human cells, Drosophila and other species.

2) The majority of the data is derived from upshifted lin-5 embryos. I wonder whether the optogenetic approach yielded the same results. It would be worth mentioning early in the manuscript why the authors chose to focus on the upshift experiments exclusively.

3) Figure labelling and annotations are often unclear. For instance, what is meant with “plates” in Figure 2D? The y-axis indicates the range of AB size in %.

4) Figure 5D and following: what do the colored bar plots on top and on the side of these scatter plots indicate? I could not find any specific information in the legend. Although I could make an educated guess, I would prefer the authors to tell me what the graphs refer to.

5) Figure 6: The authors mention the extraction of several features from their live cell imaging experiments. I was trying to find specific information about the nature of these features (the supplemental tables did not help) but did not succeed. It would be beneficial to mention in the manuscript and Figure 6B what these features are, and how and why they were extracted.

6) As mentioned above, the manuscript is riddled with imprecise and diffusive statements such as this:.…" suggesting that the mechanisms coping with equalization are not fully operative, implying that unequal first cleavage is required for invariably successful embryogenesis.” What is meant by “not fully operative”?

“Developmental systems are deemed to be robust if they remain unchanged or else change in a reproducible manner in the face of a given perturbation, with increased variability upon perturbation indicative of a non-robust system.” What is this supposed to mean?

Would it be possible to explain in simple terms what “lasso penalized logistic regression machine learning approach” entails?

7) Several conclusions appear not to be supported by the data. Examples:

– Figure 3A: The authors conclude that the differences in division timing appear not to be significant. Based on what statistical test did the authors reach this conclusion? I cannot find the corresponding information in the figure or text.

– The authors conclude that unless corrected, a skew in the EMS division axis results in embryonic lethality. Where is this shown? How can mispositioning of cells, e.g E and MS explain the observed lethality?

Reviewer #2:

Jankele et al. cleverly seeks to use two new tools, a rapidly reversible temperature sensitive allele of lin-5 and optogenetic manipulation of LIN-5 localization to equalize division of the C. elegans zygote and assess its impact on development through an impressive and comprehensive array of quantitative readouts, representing one of the best attempts to date in tackling the important and poorly understood question of the role of size asymmetry during cell division. The authors use this approach to make two key claims – first that division asymmetry per se is important for development, and second, that division asymmetry confers robustness to development by suppressing phenotypic variability. In general the manipulations and quantifications reflect a solid body of work and the data are consistent with a role for size asymmetry in development – though see comments above. At the same time why size asymmetry is important is less clear and we are not sold on the claims of phenotypic buffering.

Reviewer #3:

Many of the early embryonic cell divisions of C. elegans are asymmetrical in both cell size and fate. The first division of the zygote produces a much larger anterior AB cell and a smaller P1 cell. In this work, the authors use a clever genetic manipulation to interrupt function of the lin-5 gene product, required for the posterior displacement of the spindle that produces this asymmetric division, producing similar-sized AB and P1 cells. They can then restore LIN-5 function to subsequent divisions. An optogenetic method to enhance localization of LIN-5 to the anterior cortex could also produce a similar AB-P1 division in the absence of a temperature shift. The authors can then examine the consequences of the smaller AB and larger P1 on development.

As a control for potential disruption of A-P polarity, the authors find that asymmetric localization of MEX-5 and PAR-2 occurs apparently normally in lin-5 upshifted embryos. (They also interrupt LIN-5 function for a similar 5-minute window after a normal AB-P1 asymmetric division as a further control.)

In their first result, they find that degree of symmetry of the AB-P1 division correlates with inability of embryos to undergo proper enclosure and elongation, i.e. the more symmetrical, the more likely is inviability. In particular, if AB represents 48% of the embryo volume or smaller, embryos were always inviable. This establishes a threshold of AB/P1 size ratios compatible with viability.

The authors next examined cell division timing within the AB and P1 lineages following forced symmetry. Although correlated with loss of asymmetry in cell cycle timings, a forced delay of the AB cell cycle by mild laser treatment could restore cell cycle timings in symmetric AB/P1 embryos, but these embryos were not rescued for loss of viability. A small percentage of embryos were found in which alterations in timing resulted in a T-shaped configuration of cells at the 4-cell stage which prevents the P2-to-ABp induction required for ABp specification and is known to be lethal from other examples in which this induction is blocked.

Next, the authors perform lineage analysis up to the 120-cell stage and examine various patterns of development to understand the features that are affected by forced AB-P1 symmetry. They find that degree of symmetry correlates with cell cycle durations in the P1 lineage, but not the AB lineage. In general, the cell cycle becomes faster in the P1 descendants with the germline precursor P4 being the most affected as it also underwent an extra division. Relative cell positions between AB and P1 descendants become altered (as expected) because of the heterochrony between the two lineages, but there was not a statistically significant change in the duration of the cell cycle for individual cells between surviving and non-surviving equalized embryos, suggesting this alone was not the proximal cause of a failure to survive.

Quantitatively, the authors find that the coefficients of variation of cell cycle timing in the surviving embryo P1 lineages is smaller than in the equalized embryos that die. Hence, a loss of robustness in cell cycle durations is correlated with a lack of survival.

The authors examined their 4D lineage data at high resolution, documenting cell positions and division orientation. As might be expected, cell divisions deviated from controls over time and were more pronounced and variable in embryos that did not survive. An interesting result arose from noting that dead equalized embryos experienced more physical compression by the coverslip than controls by about 10%. More specifically, a skew in the division axis of EMS resulted in a mispositioning of MS and E that correlated with lethality. A similar mispositioning of MSa/p was correlated as well. The E daughters divide precociously if they are mis-specified, and consistent with this the authors find decreased or delayed expression of reporters that mark endoderm specification. Pharynx is made by both the MS and ABa descendants in normal embryos, and the authors find evidence that AB-derived pha-4 expression occurs in excess, likely due to disrupted MS-to-AB lineage cell-cell interactions that induced pharynx specification from the AB lineage.

Using a machine learning approach, the authors then identify (even from their small sample size) that three features (two from the AB lineage, and one from C) are sufficient to predict survival of an equalized embryo at the 15-cell stage. This is consistent with the notion that cell position deviations from normal are responsible for lethality.

I really enjoyed this paper. The experiments have a “classic” feel like the early days of experimental embryology in C. elegans where pressure from outside the eggshell was used to manipulate the positioning of the spindle as AB divided, reorienting ABa to contact P2 instead of ABp. The data are richly detailed and the images and analysis of high quality. The result that interfering with normal early cell divisions in a stereotyped system leads to stochastic failures in later development is not particularly novel, however given the way this question was addressed and analyzed is makes the manuscript worthy of eLife with addressing of my comments below.

1) If illegitimate contacts are predicted by the ectopic expression of pha-4::GFP, then it should be possible to look in the 4D data for whether or not these cells or their ancestors were in contact with MS lineage descendants, for example by measuring inter-nuclear distances between MS and AB lineage cells and comparing with distances in wild-type embryos.

2) The hypothesis that embryos tolerate deformation under a coverslip less well following perturbation of the AB-P1 asymmetry is interesting and bears further investigation. For example, it predicts that “equalized” embryos that were treated and then had the coverslip removed would be more likely to be viable.

3) A major finding of the paper is that cell cycle times in the P1 descendants are sensitive to the size of P1. In the Discussion the authors stopped short of suggesting a mechanism by which cell cycles are sped up. Are there candidate nuclear and/or cytoplasmic factors whose concentrations would be perturbed enough to speed up the cell cycle?

4) It would be good to mention findings in other nematodes that show that the alternative cell arrangements (in particular the T-arrangement) seen in the lin-5-manipulated C. elegans embryos are found naturally in other nematode species (e.g. Schulze and Schierenberg, 2011). The size differences between AB and P1 are also not as pronounced in other systems as in C. elegans. This would remind readers of the diversity of early embryonic cell arrangements in other nematodes.

5) The predictive data in the latter part of the paper could be related to studies of early human embryogenesis (e.g. Wong et al., 2010, PMID 20890283) in which features of mitosis timing and cell arrangements were used to correlate with surviving blastocysts.

6) Reduced levels of END-3::GFP could also result from a reduction of nuclear POP-1 levels in E. As a general feature of the C. elegans embryo, POP-1 asymmetry (see Huang et al., 2007, PMID 17567664) results from both cell-cell interactions (in some cases, like the P2 to EMS induction) and the PAR proteins: Anterior daughters resulting from A/P divisions have high POP-1 levels while posterior daughters have lower nuclear POP-1. Perturbation of division axes resulting from similar-size AB and P1 would be expected to alter POP-1 asymmetry as well. In the case of end-3, with a rotated EMS spindle, there may be higher nuclear POP-1 which would in turn decrease activation of end-3.

https://doi.org/10.7554/eLife.61714.sa1

Author response

Essential revisions:

1) Our first concern is that their conclusions hinge on LIN-5 manipulation only affecting size asymmetry. While they use appropriate controls, both the lin-5(ts) and the optogenetic lines already show an increase in embryonic lethality, albeit low, in control conditions (permissive temperature, no light) as well as mild cell positioning defects. Moreover, there is also a surprising amount of lethality (25%) in embryos with rather normal size asymmetry. Given the requirements for LIN-5 in many processes beyond spindle positioning in the zygote, including cortex behavior/blebbing, chromosome segregation, pronuclear rotations, spindle positioning in other cells, etc., it is difficult to rule out that these lines may be sensitized or that LIN-5 manipulation comprises development independently of size asymmetry, at least to some degree. To my knowledge, there is no other method available to reliably equalize divisions, so this is probably the best one can do at the moment. However, the authors should at least acknowledge this potential caveat in the absence of an independent mechanism to symmetrize divisions as it is very difficult to be sure that the only thing being affected in these experiments is size asymmetry.

We attempted to mitigate this potential issue by minimizing to the extent possible perturbation of LIN-5 function at other times and places. We acknowledge that the strain used for the optogenetic experiments exhibits ~23% embryonic lethality even without exposure to 488 nm laser light, indicating that mCh::LIN-5::ePDZ is not fully functional. By contrast, control lin-5(ev571) embryos upshifted early in the second cell cycle exhibit a marginal embryonic lethality of ~7%. Therefore, the adverse consequences of first division equalization reported in the manuscript cannot be ascribed simply to this mutant background or to spending 5 minutes at 27 oC. As suggested by the reviewers, we now explicitly discuss these points in the revised manuscript.

Note also that we explored two alternative methods in attempting to symmetrize first division. First, we used a microneedle to deform the eggshell and thus prevent the posterior spindle from moving. However, when the needle was retracted in such experiments, the spindle quickly assumed a posterior position anew, thus precluding first division symmetrization. Moreover, substantial cytoplasm mixing took place in such embryos, which would have prevented rigorous analysis of further development. Second, we used laser tweezers to prevent movement of the posterior spindle pole, but the power needed to achieve this killed the embryo. Overall, these attempts led us to the conclusion that restricted perturbation of LIN-5 function, using primarily the lin-5(ev571) allele, was best suited for analyzing the consequences of first division symmetrization for subsequent development.

2) LIN-5 caveats aside, while broadly consistent with a role for size asymmetry in development, what role asymmetry is playing is rather unclear. What emerges most clearly is that loss of size asymmetry via LIN-5 manipulation is associated with a highly pleiotropic array of defects, including changes in division timing, division orientation, blastomere positioning and patterns of fate induction, and it is seems that a variable number of potential defects accumulate, each potentially resulting in an additive increase in probability of death, particularly in perturbed conditions (e.g. excessive compression).

We fully agree with this view: loss of size asymmetry indeed results in a pleiotropic array of defects rather that a single phenotype. Figure 6—figure supplement 1 encapsulates this point, which we now emphasize also in the Abstract, and expand on in the Discussion section of the revised manuscript.

In addition, we have now analyzed the phenotype of those equalized lin-5(ev571) embryos that live beyond embryogenesis, finding additional defects in larvae and adults. This data set is reported in the novel panel Figure 1—figure supplement 3C, and indicates that first division equalization can be detrimental also beyond embryogenesis, a point that is mentioned also in the revised manuscript.

3) Finally, the phenotypic defects and variability in traits such as cell cycle timing and orientation are used to claim that size asymmetric divisions buffer variability. This is a rather stretched reading of the data. Notably, the authors cite Barkoulas and Felix, who in their review criticize the increasing frequency of claims of robustness genes/pathways. A key argument Barkoulas and Felix make is that compromising the function of a molecule in a system such that the system is more sensitive to further perturbations does not mean that molecule/pathway acts as buffering or robustness mechanism, but could simply be pushing the system closer to a breakdown point. The claim of buffering here rests on the observation that in dying embryos, phenotypes are more variable. However, as Barkoulas argue, one expects higher phenotypic variability as one moves the system away from wild-type behavior and starts to exceed the capacity of development control mechanisms to cope with defects. Following this line of thinking and given that most variability is coupled to pronounced changes in the mean behavior (i.e. shorter cell cycle times, directed positional shifts), we would argue that a more likely conclusion is that lin-5 manipulation simply introduces sub-lethal defects that prime the system for loss of viability when combined with other perturbations such as compression. Hence, while symmetrically dividing cells may be more sensitive to additional perturbations, we would argue that this result does not say anything about whether size asymmetry buffers the effects of other sources of variability or perturbations of development

We thank the reviewers for bringing up this important point. We agree that our original conclusions attributing the observed increase in variance upon first division equalization to loss of robustness did not fit the strict definition of Barkoulas and Félix, which requires increased variance without a change in the mean upon a challenge. As a result, we altered substantially the manuscript, including changing the title to “Physically asymmetric division ensures invariably successful embryogenesis”.

Moreover, we removed statements about robustness from the Results section entirely, focusing instead solely on the observed increases in variance. We also analyzed our data further, finding that only a minority of features (23/1608 between the 4- and 100- cell stage) exhibited a significant increase of variance without a change in the mean in equalized embryos, suggestive of loss of robustness upon first division equalization merely for these features. We report these findings in the new Figure 6—figure supplement 3, mentioning them also briefly in the Discussion.

4) The reviewers generally found the manuscript hard to follow, and that it would benefit from systematic efforts to make it accessible to a non-technical audience.

We have reorganized and streamlined the manuscript so that it is now hopefully accessible to a broader readership.

Reviewer #1:

1) Sibling cell size asymmetry occurs in several metazoan cell types. Unfortunately, the authors failed to cite the corresponding literature in the very first paragraph of the Introduction. I am sure this is not an attempt to inflate the novelty of this study. In most cases, the significance of daughter cell size asymmetry has not been clearly demonstrated in any organism. The authors need to reference not just what has been written in C. elegans on the topic but also include studies from human cells, Drosophila and other species.

We had cited such analyzes of cell size asymmetry in other metazoan systems in the Discussion of the original submission, but agree that they could be mentioned earlier in the text. Therefore, we moved this entire paragraph to the Introduction of the revised manuscript.

2) The majority of the data is derived from upshifted lin-5 embryos. I wonder whether the optogenetic approach yielded the same results. It would be worth mentioning early in the manuscript why the authors chose to focus on the upshift experiments exclusively.

We chose to focus on the upshift experiments with lin-5(ev571) for two reasons. First, as mentioned above, the optogenetic strain exhibits ~23% embryonic lethality even without exposure to 488 nm laser light, which would have hampered analyzing the consequences of first division equalization for subsequent development. Second, the optogenetic strain is not amenable to investigation with most extant fluorescently labeled marker strains because both GFP and mCherry channels are already occupied with PH::eGFP::LOV and LIN5::ePDZ::mCherry, something that was already mentioned in the Materials and methods section of the original submission. These two reasons are now mentioned explicitly in the Results section of the revised manuscript. Importantly, in addition, we now report that the terminal defective ventral closure phenotype of embryos equalized using optogenetics was similar to that observed in equalized lin-5(ev571) embryos (with the exception of one embryo that reached the 3-fold state but did not hatch), as mentioned in the revised manuscript.

3) Figure labelling and annotations are often unclear. For instance, what is meant with “plates” in Figure 2D? The y-axis indicates the range of AB size in %.

The legend for Figure 2D clearly states that “Plates” refers to the hatching rate on plates of embryos expressing LIN-5::ePDZ::mCherry and PH::eGFP::LOV. To further help clarify that both “Plates” and “No light” correspond to control conditions, we separated them with a horizontal line in the revised Figure 2D to prevent confusion with the y-axis label “AB size %”.

4) Figure 5D and following: what do the colored bar plots on top and on the side of these scatter plots indicate? I could not find any specific information in the legend. Although I could make an educated guess, I would prefer the authors to tell me what the graphs refer to.

Apologies about this lack of clarity. We added an explanation regarding these marginal boxplots in the legend of Figure 5. Note also that we imaged additional embryos expressing END-3::GFP, thereby increasing the data set for Figure 5.

5) Figure 6: The authors mention the extraction of several features from their live cell imaging experiments. I was trying to find specific information about the nature of these features (the supplemental tables did not help) but did not succeed. It would be beneficial to mention in the manuscript and Figure 6B what these features are, and how and why they were extracted.

We thank the reviewer for his comment. The features in question correspond to all measured variables for each cell, i.e. the time of division, cell cycle duration, cell position in 3D, division angles along the 3 embryonic axes, as well as two derived measures compared to control embryos – cell mispositioning and angular deviation of division axis. We clarified the nature of these features in the revised manuscript by expanding the corresponding Material and Methods section, and generated a new Supplementary file 7 listing all the features used at each stage, as well as inclusion frequency during model selection and coefficients for the best performing model.

6) As mentioned above, the manuscript is riddled with imprecise and diffusive statements such as this:.…" suggesting that the mechanisms coping with equalization are not fully operative, implying that unequal first cleavage is required for invariably successful embryogenesis.” What is meant by “not fully operative”?

We modified the sentence that was singled out, thereby clarifying what was meant. We have likewise altered the writing in other places to minimize and hopefully eliminate what was perceived as imprecise and diffusive statements.

“Developmental systems are deemed to be robust if they remain unchanged or else change in a reproducible manner in the face of a given perturbation, with increased variability upon perturbation indicative of a non-robust system.” What is this supposed to mean?

What we intended to convey is that developmental robustness refers to the capacity of systems to produce a uniform output despite internal noise and changing external conditions. As mentioned above, loss of robustness is characterized by increased variance in a given trait without change of mean value upon perturbation. As also mentioned above, we have revised our conclusions regarding robustness, which has led to the removal of the sentence singled out by the reviewer from the revised manuscript.

Would it be possible to explain in simple terms what “lasso penalized logistic regression machine learning approach” entails?

Following the request of the reviewer, we now explain that Lasso (Least Absolute Shrinkage and Selection Operator) is a form of penalized regression approach that iteratively eliminates features that contribute least to a predictive performance of a statistical model, thus eventually converging on a simpler solution.

7) Several conclusions appear not to be supported by the data. Examples:

– Figure 3A: The authors conclude that the differences in division timing appear not to be significant. Based on what statistical test did the authors reach this conclusion? I cannot find the corresponding information in the figure or text.

We compared cell cycle duration of all individual cells between all pairwise combinations of experimental groups (i.e. wild-type, control, equalized alive, equalized dead, inverted) with Welsh’s two sample t-test with Benjamini-Hochberg correction. We added a reference in the text to Supplementary file 2, which contains all the statistical analysis for the lineaging dataset, including division timing of individual cells. This shows notably that there is no statistically significant change in timing comparing equalized dead and alive embryos. In addition, we now mention explicitly in the text that the confidence intervals of all groups shown in Figure 3A fully overlap, indicating that there is no difference between proliferation curves for AB lineage cells.

– The authors conclude that unless corrected, a skew in the EMS division axis results in embryonic lethality. Where is this shown? How can mispositioning of cells, e.g E and MS explain the observed lethality?

Our statement “unless corrected” stems from the data reported in Figure 4F, where it can be seen that four equalized embryos with an initial EMS division angle deviation >35º survived (Eq. Alive) and, as revealed upon closer inspection of the corresponding lineaging data, exhibited normal E and MS positions following correction during late anaphase/telophase. The lineage data supporting this and all other observations are available from GitHub (https://github.com/UPGON/worm-rules-eLife). That this is the case was already indicated in the Materials and methods section of the original submission, but is now mentioned also explicitly in the Results section of the revised manuscript.

Furthermore, we now mention a potential hypothesis regarding how such a skew, if not corrected, could eventually lead to embryonic lethality.

Reviewer #3:

[…]

1) If illegitimate contacts are predicted by the ectopic expression of pha-4::GFP, then it should be possible to look in the 4D data for whether or not these cells or their ancestors were in contact with MS lineage descendants, for example by measuring inter-nuclear distances between MS and AB lineage cells and comparing with distances in wild-type embryos.

We thank the reviewer for suggesting this interesting analysis. We investigated inter-nuclear distances between MS and ABal/ABar, as well as between their descendants, in equalized embryos expressing PHA-4::GFP (data from Figure 5G, code included on GitHub).

The most frequently observed aberrant pattern in our data was the ectopic expression of PHA-4::GFP in ABala lineage (see Figure 5—figure supplement 1). Therefore, we compared the 5 such embryos to the 14 that did not express GFP in any ABala cell. We found that MS-ABal, MS-ABala and MSa-ABala internuclear distances were not reduced (Wilcoxon test, not shown). However, we found that MS-ABara and MSa-ABara were significantly further apart in embryos with ectopic PHA4::GFP (see Author response image 1), for reasons that remain to be determined. Given the already dense contents of our work, we chose not to include this piece of information in the revised manuscript.

Author response image 1

2) The hypothesis that embryos tolerate deformation under a coverslip less well following perturbation of the AB-P1 asymmetry is interesting and bears further investigation. For example, it predicts that “equalized” embryos that were treated and then had the coverslip removed would be more likely to be viable.

This comment is related to the point raised by reviewer 2, which led us to perform experiments under conditions in which embryos were not compressed. As mentioned above, those experiments lead us to conclude that compression further challenges embryos in which AB size is diminished, as evidenced by compounded embryonic lethality.

Prompted by the suggestion of the reviewer, we removed the coverslip at the 2- to 4-cell stage to recover specimens for scoring of potential post-embryonic phenotypes. In such an uncompressed setting, we observed 35% lethality among equalized embryos (N=20), which was not significantly different from the 52% lethality in compressed equalized embryos reported in Figure 2A (N=174, p=0.24, Fisher-exact test, documented in Figure 2—source code 1, and source data 1), due to the small sample size. However, combining this small data set with that of embryos imaged using 45 μm beads, we found that lethality decreased in a statistically significant manner to 33% in uncompressed equalized embryos (AB size range 48-53%, N=174 and 45, respectively, p = 0.03, Fisher’s exact test). Overall, these findings indicate that mechanical constrains imposed by compression make equalized embryos more prone to failure during embryonic development, and are reported in the revised manuscript.

3) A major finding of the paper is that cell cycle times in the P1 descendants are sensitive to the size of P1. In the Discussion the authors stopped short of suggesting a mechanism by which cell cycles are sped up. Are there candidate nuclear and/or cytoplasmic factors whose concentrations would be perturbed enough to speed up the cell cycle?

Potential candidates include PLK-1, cyclin B3 and the phosphatase CDC-25, which are positive regulator of cell cycle progression and are normally enriched in AB compared to P1. Following first division equalization, P1 and its descendants are predicted to inherit more such components than normally owing to more centrally positioned cleavage, which could promote cell cycle progression. This hypothesis has been added to the Discussion of the revised manuscript.

4) It would be good to mention findings in other nematodes that show that the alternative cell arrangements (in particular the T-arrangement) seen in the lin-5-manipulated C. elegans embryos are found naturally in other nematode species (e.g. Schulze and Schierenberg, 2011). The size differences between AB and P1 are also not as pronounced in other systems as in C. elegans. This would remind readers of the diversity of early embryonic cell arrangements in other nematodes.

Thank you for these suggestions, which we took on board. We now mention these notions in the revised manuscript.

5) The predictive data in the latter part of the paper could be related to studies of early human embryogenesis (e.g. Wong et al., 2010, PMID 20890283) in which features of mitosis timing and cell arrangements were used to correlate with surviving blastocysts.

We thank the reviewer for pointing out to this interesting paper. However, after careful reading, we found two important differences between that study and our work. First, the authors used three time-related variables for predicting blastocyst survival, but did not factor blastomere size in their model. An examination of the Lasso analysis reported in our Figure 6 shows that variables related to cell cycle timing rarely figure among good predictors. Second, the work of Wong et al. demonstrates that all the differences observed amongst human embryos can be traced to the quality of the oocyte, while our experimental intervention occurs in the zygote. Interestingly, in addition, a study by Hardarson et al., 2001 found that having unevenly sized blastomeres in early human embryos frequently correlates with aneuploidy and lower rates of implantation and pregnancy, indicating that proper size allocation at cell division is also important in that case, albeit in a different manner than in C. elegans. That this is the case is mentioned in the Discussion of the revised manuscript.

6) Reduced levels of END-3::GFP could also result from a reduction of nuclear POP-1 levels in E. As a general feature of the C. elegans embryo, POP-1 asymmetry (see Huang et al., 2007, PMID 17567664) results from both cell-cell interactions (in some cases, like the P2 to EMS induction) and the PAR proteins: Anterior daughters resulting from A/P divisions have high POP-1 levels while posterior daughters have lower nuclear POP-1. Perturbation of division axes resulting from similar-size AB and P1 would be expected to alter POP-1 asymmetry as well. In the case of end-3, with a rotated EMS spindle, there may be higher nuclear POP-1 which would in turn decrease activation of end-3.

We agree with the reviewer that it would be interesting to assess nucler POP-1 levels in equalized embryos, but this is something that will have to be left out for the future owing to time constraints.

https://doi.org/10.7554/eLife.61714.sa2

Article and author information

Author details

  1. Radek Jankele

    Swiss Institute for Experimental Cancer Research (ISREC), School of Life Sciences, Swiss Federal Institute of Technology Lausanne (EPFL), Lausanne, Switzerland
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1056-6556
  2. Rob Jelier

    Centre of Microbial and Plant Genetics, Katholieke Universiteit Leuven, Leuven, Belgium
    Contribution
    Conceptualization, Resources, Software, Formal analysis, Funding acquisition, Visualization, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6395-1407
  3. Pierre Gönczy

    Swiss Institute for Experimental Cancer Research (ISREC), School of Life Sciences, Swiss Federal Institute of Technology Lausanne (EPFL), Lausanne, Switzerland
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    pierre.gonczy@epfl.ch
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6305-6883

Funding

Swiss National Science Foundation (31003A_155942)

  • Radek Jankele
  • Pierre Gönczy

Research Foundation Flanders (G055017N)

  • Rob Jelier

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We are grateful to Zoltan Spiró for his initial observation of acute temperature sensitivity of lin-5(ev571), as well as to Sander van den Heuvel, Joel Rothman, and Geraldine Seydoux for their generous sharing of strains. Some strains were provided by the Caenorhabditis Genetics Center (CGC), which is funded by the NIH Office of Research Infrastructure Programs (P40 OD010440). We thank Alessandro Berto, Alexandra Bezler, Nils Kalbfus, and Fabian Schneider for constructive comments on the manuscript, as well as Marco Mina for advice on statistics. For help with image acquisition and processing, we thank Olivier Burri and Nicolas Chiaruttini from the Bioimaging and Optics platform of the School of Life Sciences (EPFL, Lausanne).

Senior and Reviewing Editor

  1. Michael B Eisen, University of California, Berkeley, United States

Reviewers

  1. Clemens Cabernard, University of Washington, Switzerland
  2. Morris Maduro

Publication history

  1. Received: August 3, 2020
  2. Accepted: February 22, 2021
  3. Accepted Manuscript published: February 23, 2021 (version 1)
  4. Accepted Manuscript updated: February 25, 2021 (version 2)
  5. Version of Record published: March 18, 2021 (version 3)

Copyright

© 2021, Jankele et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,035
    Page views
  • 181
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cancer Biology
    2. Cell Biology
    Kerrie-Ann McMahon et al.
    Research Article

    Caveolae-associated protein 3 (cavin3) is inactivated in most cancers. We characterized how cavin3 affects the cellular proteome using genome-edited cells together with label-free quantitative proteomics. These studies revealed a prominent role for cavin3 in DNA repair, with BRCA1 and BRCA1 A-complex components being downregulated on cavin3 deletion. Cellular and cell-free expression assays revealed a direct interaction between BRCA1 and cavin3 that occurs when cavin3 is released from caveolae that are disassembled in response to UV and mechanical stress. Overexpression and RNAi-depletion revealed that cavin3 sensitized various cancer cells to UV-induced apoptosis. Supporting a role in DNA repair, cavin3-deficient cells were sensitive to PARP inhibition, where concomitant depletion of 53BP1 restored BRCA1-dependent sensitivity to PARP inhibition. We conclude that cavin3 functions together with BRCA1 in multiple cancer-related pathways. The loss of cavin3 function may provide tumor cell survival by attenuating apoptotic sensitivity and hindering DNA repair under chronic stress conditions.

    1. Cell Biology
    2. Neuroscience
    Haining Zhong et al.
    Tools and Resources Updated

    Precise and efficient insertion of large DNA fragments into somatic cells using gene editing technologies to label or modify endogenous proteins remains challenging. Non-specific insertions/deletions (INDELs) resulting from the non-homologous end joining pathway make the process error-prone. Further, the insert is not readily removable. Here, we describe a method called CRISPR-mediated insertion of exon (CRISPIE) that can precisely and reversibly label endogenous proteins using CRISPR/Cas9-based editing. CRISPIE inserts a designer donor module, which consists of an exon encoding the protein sequence flanked by intron sequences, into an intronic location in the target gene. INDELs at the insertion junction will be spliced out, leaving mRNAs nearly error-free. We used CRISPIE to fluorescently label endogenous proteins in mammalian neurons in vivo with previously unachieved efficiency. We demonstrate that this method is broadly applicable, and that the insert can be readily removed later. CRISPIE permits protein sequence insertion with high fidelity, efficiency, and flexibility.
