DCC regulates astroglial development essential for telencephalic morphogenesis and corpus callosum formation

  1. Laura Morcom
  2. Ilan Gobius
  3. Ashley PL Marsh
  4. Rodrigo Suárez
  5. Jonathan WC Lim
  6. Caitlin Bridges
  7. Yunan Ye
  8. Laura R Fenlon
  9. Yvrick Zagar
  10. Amelia M Douglass
  11. Amber-Lee S Donahoo
  12. Thomas Fothergill
  13. Samreen Shaikh
  14. Peter Kozulin
  15. Timothy J Edwards
  16. Helen M Cooper
  17. IRC5 Consortium
  18. Elliott H Sherr
  19. Alain Chédotal
  20. Richard J Leventer
  21. Paul J Lockhart
  22. Linda J Richards  Is a corresponding author
  1. The University of Queensland, Queensland Brain Institute, Australia
  2. Bruce Lefroy Centre for Genetic Health Research, Murdoch Children’s Research Institute, Royal Children’s Hospital, Australia
  3. Department of Paediatrics, University of Melbourne, Australia
  4. Sorbonne Université, INSERM, CNRS, Institut de la Vision, France
  5. The University of Queensland, Faculty of Medicine, Australia
  6. Members and Affiliates of the International Research Consortium for the Corpus Callosum and Cerebral Connectivity (IRC5), United States
  7. Departments of Neurology and Pediatrics, Institute of Human Genetics and Weill Institute of Neurosciences, University of California, San Francisco, United States
  8. Neuroscience Research Group, Murdoch Children’s Research Institute, Australia
  9. Department of Neurology, University of Melbourne, Royal Children’s Hospital, Australia
  10. The University of Queensland, School of Biomedical Sciences, Australia
Research Article
  • Cited 1
  • Views 848
  • Annotations
Cite this article as: eLife 2021;10:e61769 doi: 10.7554/eLife.61769

Abstract

The forebrain hemispheres are predominantly separated during embryogenesis by the interhemispheric fissure (IHF). Radial astroglia remodel the IHF to form a continuous substrate between the hemispheres for midline crossing of the corpus callosum (CC) and hippocampal commissure (HC). Deleted in colorectal carcinoma (DCC) and netrin 1 (NTN1) are molecules that have an evolutionarily conserved function in commissural axon guidance. The CC and HC are absent in Dcc and Ntn1 knockout mice, while other commissures are only partially affected, suggesting an additional aetiology in forebrain commissure formation. Here, we find that these molecules play a critical role in regulating astroglial development and IHF remodelling during CC and HC formation. Human subjects with DCC mutations display disrupted IHF remodelling associated with CC and HC malformations. Thus, axon guidance molecules such as DCC and NTN1 first regulate the formation of a midline substrate for dorsal commissures prior to their role in regulating axonal growth and guidance across it.

Introduction

The corpus callosum (CC) is the largest fibre tract in the human brain and comprises approximately 200 million axons (Paul et al., 2007; Tomasch, 1954) connecting similar regions between the left and right cerebral hemispheres (Fenlon and Richards, 2015; Fenlon et al., 2017; Suárez et al., 2018). All eutherian mammals have a CC (Suárez et al., 2014a; Suarez, 2017Suárez et al., 2018), with malformations or complete absence (agenesis) of the CC occurring in at least 1 in 4000 human live births (Glass et al., 2008). Collectively, these genetically heterogeneous disorders are known as CC dysgenesis and can result in a wide spectrum of neurological, developmental and cognitive deficits (Brown and Paul, 2019; Edwards et al., 2014; Paul et al., 2007).

During brain development, the callosal tract forms between the two telencephalic hemispheres through a midline region initially separated by the interhemispheric fissure (IHF; Gobius et al., 2016; Rakic and Yakovlev, 1968; Silver et al., 1982). Recently, we demonstrated that remodelling of the IHF tissue by specialized astroglial cells, known as midline zipper glia (MZG; Silver et al., 1993), is mediated by FGF8 signalling and subsequent regulation of astrogliogenesis by nuclear factor I (NFI) transcription factors and is essential to provide a permissive substrate for callosal axons to cross the telencephalic midline (Gobius et al., 2016). MZG are derived from radial glia in the telencephalic hinge, located rostral to the third ventricle. From this ventricular zone, they migrate rostro-dorsally as bipolar cells to the IHF pial surface and transition into multipolar astrocytes. This latter step facilitates their intercalation across the midline and subsequent elimination of the intervening leptomeningeal tissue that comprises the IHF. The MZG thereby fuse the medial septum in a fashion that resembles a ‘zipper’ mechanism (Gobius et al., 2016), which does not occur in naturally acallosal mammals such as monotremes and marsupials (Gobius et al., 2016). Developmental defects in IHF remodelling invariably result in callosal agenesis in mouse models, and, strikingly, all 38 individuals in a human cohort with callosal agenesis also displayed aberrant retention of the IHF and an abnormal separation of the medial septum (Gobius et al., 2016). Thus, the remarkably high prevalence of midline defects in human callosal disorders suggests that there are additional determinant genes for IHF remodelling that have not yet been identified. These could include axon guidance genes, which are frequently mutated in humans (and mice) with CC abnormalities (Edwards et al., 2014).

Netrin 1 (NTN1) is a secreted ligand for the deleted in colorectal carcinoma (DCC) receptor, and these molecules function as axon guidance cues in species ranging from Drosophila to mammals (Chan et al., 1996; de la Torre et al., 1997; Fazeli et al., 1997; Hedgecock et al., 1990; Keino-Masu et al., 1996; Kolodziej et al., 1996; Serafini et al., 1996). Indeed, NTN1-DCC signalling attracts pioneering callosal axons towards the midline and attenuates chemorepulsive signalling in neocortical callosal axons ex vivo to facilitate crossing the midline (Fothergill et al., 2014). Heterozygous and homozygous DCC pathogenic variants also result in human callosal dysgenesis at high frequency (Jamuar et al., 2017; Marsh et al., 2018; Marsh et al., 2017) with an estimated incidence of 1 in 14 in unrelated individuals with callosal dysgenesis (Marsh et al., 2017), and Ntn1 and Dcc mouse mutants do not form a CC (Fazeli et al., 1997; Finger et al., 2002; Fothergill et al., 2014; Serafini et al., 1996). Instead of crossing the midline, callosal axons in Ntn1 and Dcc mutant mice form ipsilateral ‘Probst’ bundles that run parallel to the midline (Fazeli et al., 1997; Finger et al., 2002; Fothergill et al., 2014Probst, 1901; Ren et al., 2007; Serafini et al., 1996). Together, these results have led to the conclusion that NTN1 and DCC act primarily as axon guidance genes during callosal formation. However, in Ntn1 and Dcc mutant mice, only the CC and hippocampal commissure (HC) are completely absent, while other axon tracts remain intact or are mildly affected (Fazeli et al., 1997; Serafini et al., 1996; Yung et al., 2015), indicating that additional processes might affect the development of the CC and HC in these mice. Moreover, elimination of the leptomeninges, which normally occurs during IHF remodelling (Gobius et al., 2016), is severely disrupted in Ntn1 mutant mice (Hakanen and Salminen, 2015), further suggesting that NTN1 and its receptor, DCC, may play a hitherto unidentified role in IHF tissue remodelling.

Here, we identify a distinct and developmentally earlier role for NTN1 and DCC signalling during CC formation, involving the regulation of MZG development and subsequent IHF remodelling. We find that IHF remodelling is impaired in both Ntn1 and Dcc mouse mutants, as well as in humans with DCC pathogenic variants that also display agenesis of the CC and HC. Moreover, in contrast to the wildtype receptor, these human pathogenic variants of DCC are unable to regulate cell morphology. Furthermore, we find that defects in astroglial morphology and migration to the IHF in Ntn1 and Dcc mutant mice prevent MZG intercalation and, therefore, IHF remodelling and midline crossing of commissural axons. Taken together, our findings indicate that pathogenic variants in NTN1 and DCC are most likely to affect human CC and HC development through misregulation of astroglial shape, motility and function during IHF remodelling.

Results

DCC signalling is required for IHF remodelling and subsequent CC and HC formation

To re-investigate how Dcc and Ntn1 regulate callosal formation, we first analysed the relationship between the IHF and callosal axon growth during midline development in horizontal sections of Ntn1 and Dcc mutant mice. These mouse mutants include Dcc knockout, Dcckanga mice, which express a truncated DCC receptor that lacks the P3 intracellular signalling domain, and Ntn1-lacZ mutant mice, which express reduced levels of NTN1 protein that subsequently becomes sequestered in intracellular organelles (Fazeli et al., 1997; Finger et al., 2002; Fothergill et al., 2014; Serafini et al., 1996). Immunohistochemistry was performed following commissure formation at embryonic day (E)17 against the axonal marker Gap43 together with pan-Laminin, which labels both leptomeningeal fibroblasts and the basement membrane surrounding the IHF (Figure 1A). This revealed that commissural axons in Dcc knockout, Dcckanga, and Ntn1-lacZ mice remain within the ipsilateral hemisphere and do not form a CC or HC, consistent with previous reports (Fazeli et al., 1997; Finger et al., 2002; Fothergill et al., 2014; Ren et al., 2007; Serafini et al., 1996). We further identified that IHF remodelling had not occurred in Dcc knockout, Dcckanga, and Ntn1-lacZ mice, evidenced by complete retention of the IHF, which separated the majority of the telencephalic midline (Figure 1A). This likely prevented formation of the HC in addition to the CC (Figure 1A). The extent of IHF retention, measured as the ratio of IHF length to total midline length, is significantly larger in Dcc and Ntn1 mutants compared to their wildtype littermates (Supplementary file 1; Figure 1A, B), but did not differ between mutants (Supplementary file 1; Figure 1A, B). This suggests that NTN1 and DCC may interact or act in a similar manner to regulate IHF remodelling prior to commissural axon crossing, and that the P3 intracellular domain of DCC is crucial for this function. The brain phenotype of adult Dcc knockout and Ntn1-lacZ mice was unable to be investigated as these animals die shortly after birth (Fazeli et al., 1997; Finger et al., 2002; Serafini et al., 1996). However, immunohistochemistry for the axonal marker neurofilament in adult Dcckanga mice revealed that the retention of the IHF and absence of the CC and HC persists into adulthood (Supplementary file 1; Figure 1B, Figure 1—figure supplement 1), resembling human congenital callosal agenesis (Edwards et al., 2014; Gobius et al., 2016).

Figure 1 with 1 supplement see all
Netrin 1 (NTN1) and deleted in colorectal carcinoma (DCC) are crucial for remodelling of the interhemispheric fissure (IHF), corpus callosum (CC) and hippocampal commissure (HC) formation.

(A) Staining for Gap43-positive axons (green) and pan-Laminin (LAM)-positive leptomeninges and basement membrane (magenta) in wildtype, Dcc knockout, Dcckanga, and Ntn1-lacZ mice at embryonic day (E)17 indicates midline formation or absence of the CC and HC (white brackets) and extent of the IHF (yellow brackets). (B) The ratio of IHF length over the total midline length with schema. (C) T1-weighted MR images of a control subject compared with an individual with a DCC mutation demonstrate the presence or absence of the CC (white arrowheads) and extent of the IHF (red arrowheads and brackets) within the septum (yellow arrowheads). Graph represents mean ± SEM. Statistics by Mann–Whitney test: **p<0.01, ***p<0.001. See related Figure 1—figure supplement 1 and Supplementary file 1.

Figure 1—source data 1

Ratio of interhemispheric fissure (IHF) length/total telencephalic midline length in Dcc and Ntn1 mouse mutants.

https://cdn.elifesciences.org/articles/61769/elife-61769-fig1-data1-v2.xlsx

We previously reported that humans carrying DCC pathogenic variants develop dysgenesis of the CC with incomplete penetrance (Marsh et al., 2017). T1-weighted MRI of four individuals from two unrelated families carrying missense pathogenic variants in DCC (p.Val793Gly affecting fibronectin type III-like domain 4 of DCC and p.Met1217Val; p.Ala1250Thr affecting the cytoplasmic domain of DCC; Figure 8A; Marsh et al., 2017) revealed in all cases that the complete absence of the CC was associated with aberrant retention of the IHF and an unfused septum (Figure 1C). Importantly, these individuals were also previously reported to lack a HC (Marsh et al., 2017), suggesting that a defect in IHF remodelling may also impact HC development. Since IHF remodelling is required for subsequent callosal axon crossing (Gobius et al., 2016), these results collectively suggest that the underlying cause of callosal agenesis in Ntn1 and Dcc mutant mice and in humans with DCC mutations is a failure of IHF remodelling.

DCC and NTN1 are expressed by MZG cells throughout interhemispheric remodelling

We previously demonstrated that DCC is expressed on axons of the CC, HC and the fornix during midline development, while NTN1 is expressed at the telencephalic midline, within the indusium griseum and the septum but not within callosal axons themselves (Fothergill et al., 2014; Shu et al., 2000). Since our analysis of Ntn1 and Dcc mutant mice revealed that these genes are necessary for IHF remodelling, we then investigated whether they are expressed by the MZG, which mediate IHF remodelling (Gobius et al., 2016). MZG arise in the telencephalic hinge, a region in the septal midline caudal to the IHF and rostral to the third ventricle. Radial glia within the telencephalic hinge are attached to both the third ventricle and the IHF and mature into MZG as they undergo somal translocation to the IHF between E12 and E16 in mice (Gobius et al., 2016). Fluorescent in situ hybridization for Dcc and Ntn1 transcripts, combined with immunohistochemistry for the MZG marker Glast (Gobius et al., 2016), revealed Dcc and Ntn1 expression in radial MZG progenitor cells within the telencephalic hinge at E12 and E15 (Figure 2B–D, F, H, Figure 2—figure supplement 1H–J), and in MZG migrating to the IHF at E15 (Figure 2F, H). Furthermore, Dcc was expressed in Glast-positive radial glia within the septum but not in the neocortex (Figure 2—figure supplement 1A–C). DCC protein can be identified on Glast-positive processes of radial glia attached to the IHF (Figure 2G), which are adjacent to Gap43-positive axons traversing the midline region that also express DCC (Figure 2—figure supplement 1E). Following IHF remodelling at E17, mature Gfap-positive/Sox9-positive multipolar MZG cells (Gobius et al., 2016; Sun et al., 2017) and Glast-positive MZG cells within the telencephalic hinge continue to express DCC (Figure 2J–L). A comparison of DCC immunohistochemistry in wildtype and Dcc knockout mice confirmed that the antibody specifically recognized DCC protein within both commissural axons and MZG cells (Figure 2—figure supplement 1K). Importantly, we did not observe specific staining for either Dcc or Ntn1 mRNA within the IHF (including the leptomeninges) at any stage analysed (Figure 2, Figure 2—figure supplement 1).

Figure 2 with 1 supplement see all

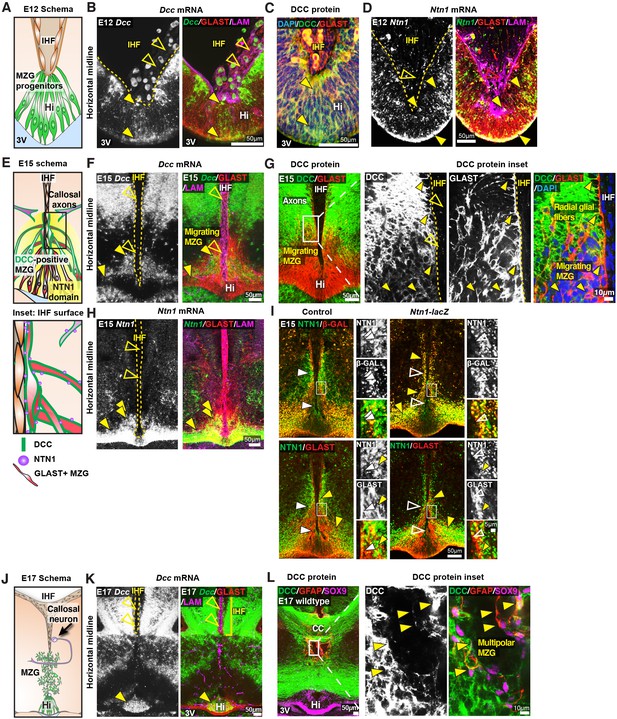

Deleted in colorectal carcinoma (DCC) and netrin 1 (NTN1) are expressed in midline zipper glia (MZG) and MZG progenitors.

(A, E, J) Schematics depicting the cellular composition of the ventral telencephalic midline at embryonic day (E)12, E15 and E17. (B, F, K) Dcc mRNA (green), Glast-positive glia (red) and pan-Laminin (LAM)-positive leptomeninges and basement membrane (magenta) in E12, E15 and E17 wildtype mice reveal Dcc-positive/Glast-positive glial fibres (yellow arrowheads) and absence of Dcc within the interhemispheric fissure (IHF) (open yellow arrowheads). (C, G) DCC protein (green) and Glast protein (red) at E12 and E15 in wildtype mice reveal DCC-positive/Glast-positive glial fibres (yellow arrowheads) and absence of DCC within the IHF (open yellow arrowheads). (D, H) Ntn1 mRNA (green), Glast (red) and pan-LAM (magenta) in E12 and E15 wildtype mice show Ntn1-positive/Glast-positive glial fibres (yellow arrowheads) and absence of Ntn1 within the IHF (open yellow arrowheads). (E, inset) Schema of DCC and NTN1 expression at the E15 IHF surface, based on the results from F–I and Figure 2—figure supplement 1. (I) NTN1 (green) and Glast (red) or β-galactosidase (β-GAL; red) immunolabelling in E15 control and Ntn1-lacZ mice identify regions of NTN1 staining present in control heterozygotes and absent in homozygous Ntn1-lacZ mice (white arrowheads) and NTN1-/β-GAL-positive puncta located in Glast-positive glia (yellow arrowheads), with insets. (L) DCC protein (green), glial-specific nuclear marker SOX9 (magenta) and mature astroglial marker (GFAP) in E17 wildtype mice identify DCC-positive/GFAP-positive/SOX9-positive glia (yellow arrowheads). 3V: third ventricle; Hi: telencephalic hinge. See related Figure 2—figure supplement 1.

Since NTN1 is a secreted cue (Kennedy et al., 1994; Lai Wing Sun et al., 2011), we investigated which cells express NTN1, and where secreted NTN1 may be deposited, by comparing patterns of immunohistochemistry for β-galactosidase (β-gal) and NTN1 antibodies in heterozygous and homozygous Ntn1-lacZ mutants, in which NTN1 is fused to a β-gal and trapped in intracellular compartments (Serafini et al., 1996). NTN1/βgal-positive puncta were enriched in Glast-positive MZG cells in Ntn1-lacZ mice (Figure 2I). Furthermore, we identified NTN1 protein on the IHF basement membrane (Figure 2I, Figure 2—figure supplement 1G), on growing commissural axons (Figure 2—figure supplement 1G) and on MZG membranes in control heterozygotes, but not in Ntn1-lacZ homozygous mutant mice (Figure 2I). Therefore, MZG cells produce and secrete NTN1 that becomes deposited on the basement membrane of the IHF, on commissural axons and on MZG cell processes in the region of initial IHF remodelling (Figure 2E). Collectively, our results demonstrate that both Ntn1 and Dcc are expressed by MZG and suggest that autocrine NTN1-DCC signalling may regulate MZG development and subsequent IHF remodelling.

Dcc signalling regulates MZG cell morphology and process organization prior to IHF remodelling

Two key steps in IHF remodelling are the somal translocation of radial MZG progenitors to the IHF, and their subsequent transition into multipolar MZG cells that intercalate across the midline (Gobius et al., 2016). As both NTN1 and DCC are expressed by MZG, we next asked whether these molecules regulate MZG development. Immunohistochemistry for Nestin and Glast, which are markers of radial MZG, revealed distinct differences in MZG development in Dcckanga mice from E14 onwards, but not in radial MZG progenitors at E13 (Figure 3Figure 3—figure supplement 1A). In wildtype mice, the endfeet and cell bodies of radial Glast-positive MZG cells are evenly distributed along the medial septum and adjacent to the pial surface of the IHF (Figure 3B, D, Figure 4A, C). However, in Dcckanga mutants, radial MZG accumulate at the base of the IHF (Figure 3A–D). Furthermore, long radial Nestin-positive MZG processes extending from the ventricular zone to the rostral-most pial surface of the IHF are noticeably absent from Dcckanga mutants, and instead, Nestin-positive Dcckanga processes cluster close to the rostral IHF pial surface and appear disorganized (Figure 3A, C, C’, E, Figure 3—figure supplement 1B–D). These abnormalities were further quantified as a significant increase in fluorescence intensity of Glast staining within the base of the IHF and a concomitant decrease in the region 150–200 µm distant from the IHF base in Dcckanga mutants compared to their wildtype littermates at E14 (Supplementary file 1; Figure 3B, B’, G). Just prior to IHF remodelling at E15, there was an overall decrease in Glast-positive radial MZG processes in Dcckanga mutants (Figure 3C, H; Supplementary file 1). While there was no difference in fluorescence intensity of Glast-positive radial MZG processes one day later at E16, Dcckanga MZG processes continued to display irregular morphology and failed to intercalate across the IHF (Figure 3E, F, I; Supplementary file 1). Interestingly, we identified a similar defect in the distribution of Glast-positive MZG processes in Ntn1-lacZ mutant mice at E15 (Figure 3K). These results suggest that both DCC and NTN1 are required for the correct morphology and distribution of MZG processes prior to IHF remodelling. Moreover, abnormal morphology and increased abundance of GLAST-positive and NESTIN-positive radial fibres of the dorsal glial population, known as the glial wedge, were also evident in E15 Dcckanga mice (Figure 3C, D), suggesting that DCC regulates the morphology and distribution of at least two midline glial populations prior to CC development.

Figure 3 with 1 supplement see all

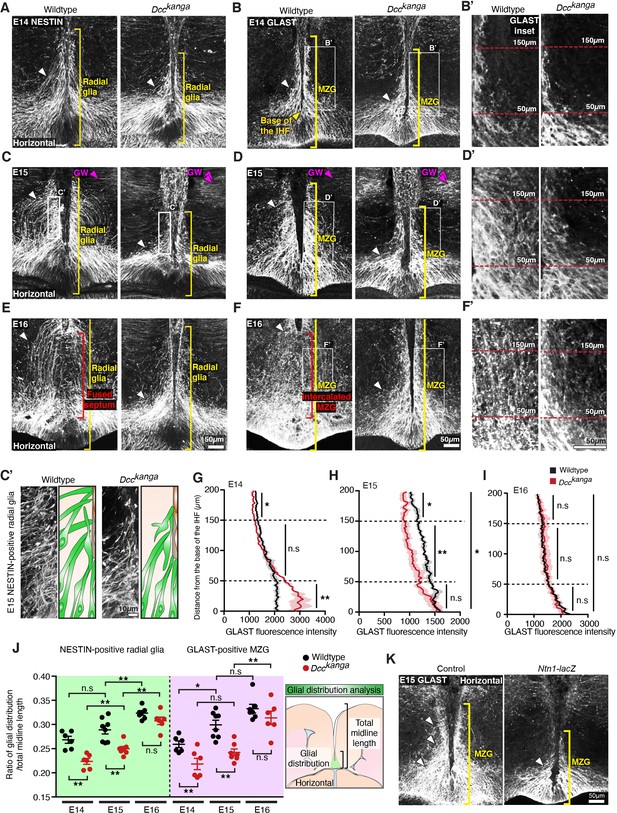

Netrin 1 (NTN1) and deleted in colorectal carcinoma (DCC) regulate midline zipper glia (MZG) morphology and spatial distribution.

Nestin-positive radial glia (white; A, C, E) and Glast-positive glia (white; B, D, F, K) in embryonic day (E)14–E16 Dcckanga mice (A–F) and E15 Ntn1-LacZ mice (K) demonstrate the distribution of glial processes along the interhemispheric fissure (IHF) surface (yellow brackets) and lateral to the IHF (white arrowheads) with insets (C’, B’, D’, F’). Radial fibres of the glial wedge (GW) are indicated with magenta arrowheads. The mean fluorescence intensity of Glast staining between wildtype and Dcckanga mice at E14 (G), E15 (H) and E16 (I) based on the results from (B), (D) and (F), respectively. (J) The ratio of glial distribution over total midline length, with schema, based on the results from (A) to (F). All graphs represent mean ± SEM. Statistics by Mann–Whitney test . n.s: not significant; *p<0.05, **p<0.01. See related Figure 3—figure supplement 1 and Supplementary file 1.

Figure 3—source data 1

Fluorescence intensity of GLAST and ratio of glial distribution/total midline length in Dcc mouse mutants.

https://cdn.elifesciences.org/articles/61769/elife-61769-fig3-data1-v2.xlsx
Figure 4 with 1 supplement see all

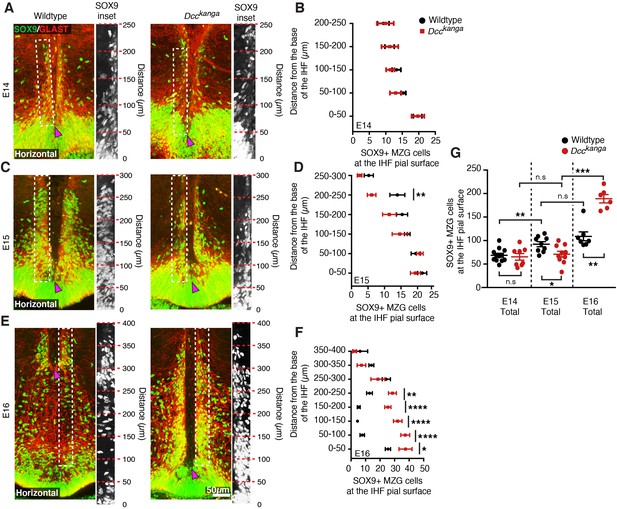

Deleted in colorectal carcinoma (DCC) regulates midline zipper glia (MZG) migration to the interhemispheric fissure (IHF) surface.

(A, C, E) Nuclear glial marker SOX9 (green) and MZG marker Glast (red) in embryonic day (E)14–E16 Dcckanga mice reveal SOX9-positive/Glast-positive MZG at the pial IHF surface (boxed region and insets) above the base of the IHF (magenta arrowhead). (B, D, F, G) Quantification of SOX9-positive/Glast-positive MZG at the IHF pial surface based on the results from (A), (C) and (E). All graphs represent mean ± SEM. Statistics by Mann–Whitney test or Two-way unpaired Student's T test (G) or two-way ANOVA with post Sidak’s multiple comparison test (B, D, F): *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001. n.s: not significant. See related Figure 4—figure supplement 1 and Supplementary file 1.

Figure 4—source data 1

Number and distribution of SOX9-positive midline zipper glia (MZG) in Dcc mouse mutants.

https://cdn.elifesciences.org/articles/61769/elife-61769-fig4-data1-v2.xlsx

To further characterize the defect in MZG cell distribution in Dcckanga mice, we then measured the maximum rostro-caudal extent to which MZG occupy the IHF pial surface and normalized this value to the total midline length from E14 to E16 (Figure 3A–F, J). The distribution of Nestin-positive and Glast-positive MZG along the IHF was significantly decreased at both E14 and E15 in Dcckanga mice compared to their wildtype littermates (Figure 3A–D, J; Supplementary file 1). The attachment of MZG processes to the IHF pial surface is therefore specifically reduced in the rostral region of the IHF prior to IHF remodelling in Dcckanga mice. This may impact the directed somal translocation of Dcckanga MZG cell bodies and their subsequent distribution along the IHF surface prior to IHF remodelling.

Next, we further investigated whether the aberrant organization of radial glial processes along the IHF in Dcckanga mice was due to a loss of endfoot adhesion to the IHF pial surface. There was no difference in fluorescence intensity of Nestin-positive MZG processes within 5 µm adjacent to the IHF surface between Dcckanga and wildtype mice, suggesting comparable attachment of radial glial endfeet to the IHF in both strains (Supplementary file 1; Figure 3—figure supplement 1E, G). This was further evidenced by the normal localization of α- and β-dystroglycan at the pial IHF surface in Dcckanga mice, where these molecules form crucial adhesions between radial glial endfeet and the extracellular matrix (Myshrall et al., 2012; Supplementary file 1; Figure 3—figure supplement 1D). Moreover, molecules that normally maintain the bipolar morphology of radial glia, such as β-catenin and N-cadherin, were also expressed normally within Dcckanga Nestin-positive radial glia, but adenomatous polyposis coli (APC) was instead significantly reduced in Dcckanga Nestin-positive radial glial endfeet (Supplementary file 1; Figure 3—figure supplement 1D, E; Yokota et al., 2009). APC regulates the growth and extension of basal radial glial processes and cell polarity of radial glia and migrating astrocytes (Etienne-Manneville and Hall, 2003; Yokota et al., 2009). Thus, reduced localization of APC within Dcckanga radial glial basal endfeet may indicate perturbed regulation of cell process growth and/or cell polarity. Therefore, Dcckanga Nestin-positive radial glia display reduced elongation and reduced occupation of the pial IHF surface compared to wildtype radial progenitors of MZG. Collectively, these results suggest that DCC is not required for radial MZG to adhere to the IHF, but instead regulates the morphology and organization of radial MZG processes along the pial IHF surface prior to IHF remodelling.

DCC signalling regulates MZG somal translocation to the IHF prior to IHF remodelling

To determine if the aberrant morphology and organization of radial glial processes observed in Dcckanga mice affects the subsequent distribution of translocated MZG cell bodies at the IHF surface, immunohistochemistry for glial markers Sox9 and Glast was performed in E14–E16 Dcckanga mice. Wildtype MZG undergo substantial somal translocation to the IHF between E14 and E15 (Gobius et al., 2016; Supplementary file 1; Figure 4A, C, G). In contrast, Dcckanga mice showed reduced somal translocation to the IHF (Supplementary file 1; Figure 4A, C, G), with significantly fewer MZG cells at the IHF pial surface by E15 in Dcckanga compared to wildtype mice (Supplementary file 1Figure 4C). When binned along the rostro-caudal axis, we found a significant reduction in the number of cell bodies reaching the rostral IHF pial surface in E15 Dcckanga mice (200–250 µm; Supplementary file 1; Figure 4C, D). Since MZG progenitors somal translocate towards their basal process attached to the IHF (Gobius et al., 2016), our results suggest that the lack of radial MZG processes occupying the rostral E14 IHF surface in Dcckanga mice results in a decrease of MZG cell bodies present in the corresponding region 1 day later. There was, however, a significant increase in MZG cell bodies present at the IHF pial surface between E15 and E16 in Dcckanga mice (Supplementary file 1; Figure 4C, E, G). This suggests that MZG migration towards the IHF is delayed but does eventually occur in Dcckanga mice, albeit after IHF remodelling would normally have been initiated. Dcckanga MZG remain adjacent to the unremodelled IHF at E16 in contrast to wildtype MZG, which are scattered along the midline where IHF remodelling has occurred and continue to expand their domain rostral and dorsal for further IHF remodelling (Gobius et al., 2016). Furthermore, despite DCC having been previously implicated in regulating cell proliferation and cell death (Arakawa, 2004; Llambi et al., 2001; Mehlen et al., 1998), cell birth-dating, differentiation and apoptosis experiments did not reveal any significant differences between the MZG of Dcckanga and wildtype mice (Supplementary file 1; Figure 4—figure supplement 1). Taken together, these results suggest that the irregular morphology and distribution of radial Dcckanga MZG processes is associated with delayed somal translocation of MZG to the IHF surface and may prevent the initiation of IHF remodelling.

Radial glia in the corticoseptal boundary detach from the pial surface and cluster their processes to form a triangular group of cells known as the glial wedge, while other radial glia in this region translocate their soma to the IHF (similar to MZG cells), where they subsequently form the indusium griseum glia (Shu et al., 2000Smith et al., 2006). We investigated whether DCC also regulates the development of these glial populations, which were observed to be abnormal at E15 (Figure 3C, D) and secrete axon guidance molecules during CC formation (reviewed in Donahoo and Richards, 2009; Gobius and Richards, 2011; Morcom and Edwards, 2016). In Dcckanga and Dcc knockout mice, the glial wedge was malformed and there was a major reduction in somal translocation of Sox9-positive indusium griseum glia to the IHF surface, which subsequently prevented formation of this glial guidepost cell population (Supplementary file 1; Figure 4—figure supplement 1G–I). Thus, DCC may play a more general role in regulating the morphological maturation and migration of multiple radial astroglial populations in the developing midline, which are critical for CC formation.

DCC signalling regulates MZG cell morphology and spatial distribution during IHF remodelling

We previously demonstrated that MZG differentiation is controlled by molecular signalling initiated by the morphogen FGF8 via the mitogen-activated protein kinase (MAPK) pathway to NFI transcription factors A and B (Gobius et al., 2016). Members of this signalling pathway (Fgf8, NFIA, NFIB and p-ERK1/2) were expressed normally in Dcckanga MZG compared to MZG in their wildtype littermates at E15 (Figure 5—figure supplement 1B, D–F; Supplementary file 1). Further, Dcckanga MZG continue to express Mmp2 mRNA (Figure 5—figure supplement 1C, D; Supplementary file 1), which we previously demonstrated to be expressed during MZG-mediated degradation of the IHF during remodelling (Gobius et al., 2016).

Next, we investigated the distribution and maturation of MZG in Ntn1 and Dcc mutant mice at E16 and 17 when wildtype MZG normally differentiate into multipolar astrocytes during IHF remodelling (Gobius et al., 2016). Immunohistochemistry for Nestin, Glast (Figure 3F, J) and Gfap (Figure 5A) demonstrated that Dcckanga, Dcc knockout and Ntn1-lacZ MZG remain attached to the caudal IHF pial surface and have not intercalated at stages equivalent to when wildtype MZG have infiltrated and remodelled the IHF (Figure 3F, K, Figure 5A; Supplementary file 1). DCC-deficient MZG expressed GFAP at comparable levels to wildtype MZG at E17 and demonstrated no precocious expression of GFAP at E15, similar to wildtype MZG (Figure 5A, B, Figure 5—figure supplement 1A; Supplementary file 1). Therefore, DCC-deficient MZG do not mature precociously prior to migration and IHF remodelling, or fail to differentiate during callosal development. However, Ntn1-lacZ, Dcckanga and Dcc knockout mice demonstrate a significant reduction of GFAP-positive glia at E17 in the region where the CC normally forms in wildtype mice (i.e., >450 µm from the third ventricle; Figure 5A–C; Supplementary file 1). Instead, MZG in these mutants remain close to the third ventricle and the majority fail to migrate. To quantify this, we normalized the level of GFAP between sections and calculated a rostro-caudal ratio of this fluorescence. We observed a significant reduction in the rostro-caudal ratio of GFAP fluorescence in Ntn1-lacZ, Dcckanga and Dcc knockout mice compared to controls (Figure 5A–D; Supplementary file 1). Since progressive migration and intercalation of MZG is required for IHF remodelling (Gobius et al., 2016), these results indicate that Ntn1 and Dcc affect IHF remodelling by regulating the morphology and spatial organization of both radial MZG progenitors and mature MZG, and therefore their ability to intercalate across the IHF, but not their proliferation and adhesion to the pial IHF surface.

Figure 5 with 1 supplement see all

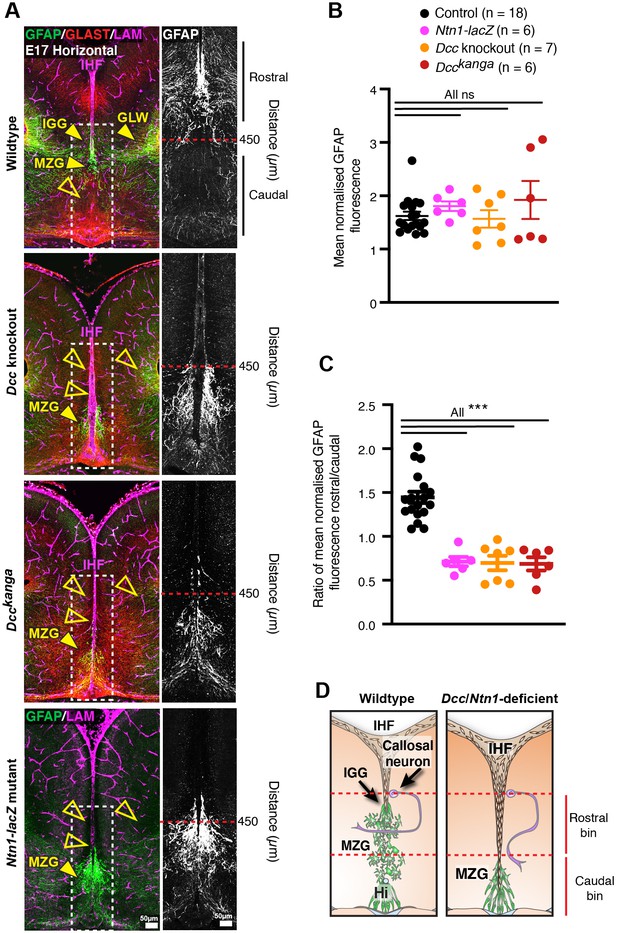

Netrin 1 (NTN1) and deleted in colorectal carcinoma (DCC) regulate midline zipper glia (MZG) organization during interhemispheric fissure (IHF) remodelling.

(A) Gfap-positive mature astroglia (green or white in inset), Glast-positive glia (red) and pan-Laminin (LAM)-positive IHF and basement membrane (magenta) in embryonic day (E)17 wildtype Dcckanga, Dcc knockout and Ntn1-LacZ mice. Yellow arrowheads indicate presence (filled) or absence (open) of midline glial populations, the MZG, indusium griseum glia (IGG) and glial wedge (GW). Fluorescence intensity of Gfap staining from insets or bins in insets (red dotted line) was quantified in (B) and (C). (D) Schema of MZG development, IHF remodelling and corpus callosum (CC) formation in wildtype mice and mice deficient for NTN1 or DCC. Red dotted lines indicate rostral and caudal bins that were used to calculate the ratio of GFAP fluorescence in (C). All graphs represent mean ± SEM. Statistics by Kruskal–Wallis test with post-hoc Dunn’s multiple comparison test. ***p<0.001; ns: not significant. See related Figure 4—figure supplement 1, Figure 5—figure supplement 1 and Supplementary file 1.

Figure 5—source data 1

Normalized fluorescence intensity of GFAP adjacent to the telencephalic midline in E17 Dcc and Ntn1 mutant mice.

https://cdn.elifesciences.org/articles/61769/elife-61769-fig5-data1-v2.xlsx

Variable DCC knockdown during midline development causes a spectrum of callosal phenotypes

The current and previous results from our laboratory indicate at least two distinct roles for NTN1 and DCC during CC formation: first, they act on astroglia to facilitate remodelling of the IHF, and second, they regulate the pathfinding of callosal axons to the telencephalic midline (Fothergill et al., 2014). To investigate these roles further, we aimed to disrupt DCC expression specifically within the progenitors of callosal neurons, sparing expression within MZG. We designed two Dcc-targeted CRISPR/CAS9 constructs (Dcc-CRISPR) and acquired a Dcc-targeted shRNA (Dcc-shRNA; Zhang et al., 2018) for targeted in utero electroporation into the E13 cingulate cortex in wildtype and Dcckanga mice and successfully labelled callosal axons that reach the contralateral hemisphere by E18 (Figure 6—figure supplement 1A). We observed no phenotype in all experimental cases (Figure 6—figure supplement 1A) and instead found that these techniques failed to reduce DCC expression sufficiently; the only significant reduction in DCC protein was observed in heterozygous Dcckanga mice electroporated with Dcc-shRNA (average DCC expression reduced to 93.06% compared to the non-electroporated hemisphere; Figure 6—figure supplement 1A–C; Supplementary file 1). In order to knockout DCC more robustly in the cortex, we crossed Dccflox/flox mice (Krimpenfort et al., 2012) with mice carrying Emx1iCre (Kessaris et al., 2006) and the tdTomatoflox_stop reporter allele (Madisen et al., 2010).

At birth, we observed a spectrum of callosal phenotypes in Dcc cKO mice, including complete callosal absence (4/12 mice), partial CC absence (5/12 mice) and a normal CC that was comparable to control mice, which do not express Emx1iCre (3/12 mice) based on rostral-caudal CC length across ventral, middle and dorsal horizontal sections (Figure 6A, F). Moreover, the HC was significantly reduced in the majority of animals and was absent in one Dcc cKO mouse (Figure 6A, H; Supplementary file 1). Unexpectedly, we found that the IHF was significantly retained across Dcc cKO mice, indicating that IHF remodelling had not been completed (Figure 6A, D–ESupplementary file 1). The severity of callosal agenesis and HC dysgenesis was significantly correlated with the extent to which the IHF had been remodelled (Figure 6A, J, K, Figure 6—figure supplement 1D–G; Supplementary file 1). Complete callosal agenesis Dcc cKO mice demonstrated the most severe retention of the IHF, encompassing the majority of the telencephalic midline, while partial callosal agenesis and even full CC Dcc cKO mice demonstrated a retention of the rostral IHF (Figure 6A, E; Supplementary file 1). Moreover, in partial callosal agenesis and full CC Dcc cKO mice that demonstrated partial retention of the rostral IHF, callosal axons often crossed the midline more caudal in a region where the IHF had been remodelled compared to control mice (see corpus callosum remnant or CCR in Figure 6A). This suggests that in the absence of their normal substrate callosal axons are able to adapt and cross the midline in a region where the substrate is available. These results were reflected by a significant increase in the rostro-caudal depth of the partial or full CC in Dcc cKO mice (Figure 6A, G; Supplementary file 1). In Dcc cKO mice with complete callosal agenesis, callosal axons were unable to cross the midline and accumulated adjacent to the IHF that had not been remodelled (red arrowheads in Figure 6A), similar to Dcckanga and Dcc knockout mice. These results demonstrate that DCC regulates the extent of IHF remodelling throughout the telencephalic midline. The retention of the IHF in these mice was unexpected; we had instead expected that reduced DCC expression in the cortex would cause callosal axon misguidance with normal formation of an interhemispheric substrate. Instead, our results suggest that DCC primarily regulates the formation of the interhemispheric substrate to determine CC size in mice.

Figure 6 with 1 supplement see all

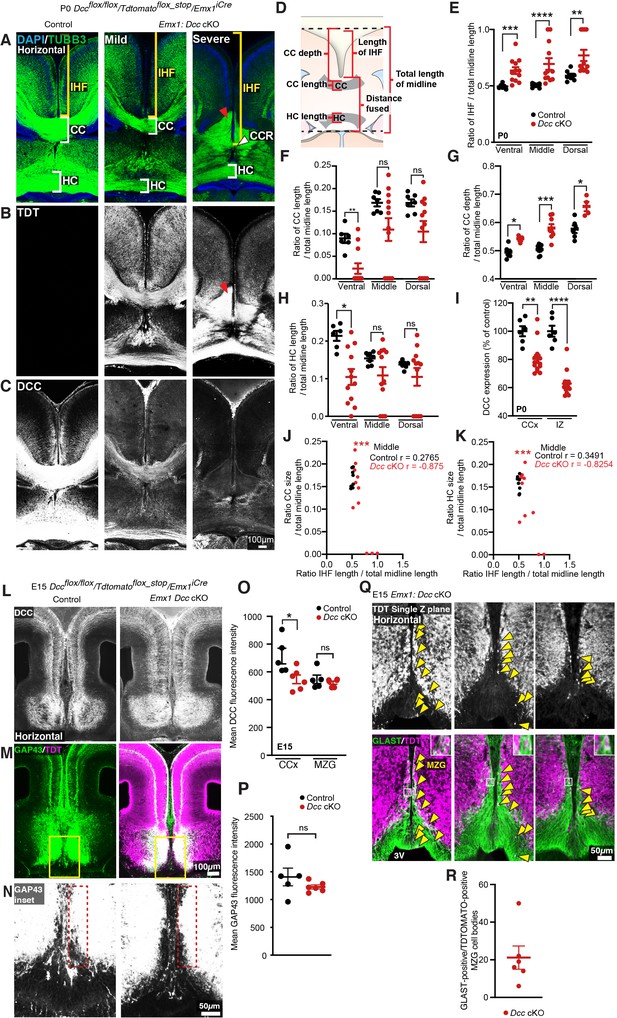

Conditional knockdown of deleted in colorectal carcinoma (DCC) within EMX1 cells causes a spectrum of callosal phenotypes.

(A) Axonal marker TUBB3 (green), (B) TDT (white) or (C) DCC (white) in P0 Dcc cKO demonstrate a spectrum of callosal and interhemispheric fissure (IHF) remodelling phenotypes and a reduction in DCC expression within mice expressing Emx1iCreThe corpus callosum (CC) or CC remnant (CCR) and hippocampal commissure (HC) are indicated with white brackets or white arrowheads, and the IHF is indicated with yellow brackets. Red arrowheads indicate axon bundles that have not crossed the midline. (D) Schema of measurements taken for quantification shown in (CE). (E) Quantification of the ratio of IHF length normalized to total telencephalic midline length measured for P0 Dcc cKO mice. (F, G) Quantification of CC length (F) and depth (G) normalized to the total telencephalic midline length in P0 Dcc cKO mice. (H) Quantification of HC length normalized to the total telencephalic midline length in P0 Dcc cKO mice. (I) Quantification of DCC expression measured from the cingulate cortex (CCx) and intermediate zone (IZ) of Dcc cKO mice. (J, K) Scatterplots of the relationship between CC length (J) or HC length (K) normalized to total telencephalic midline length and IHF length normalized to total telencephalic midline length for middle horizontal sections of P0 Dcc cKO mice. Pearson r correlations are shown. (L) DCC (white), (M, N) axonal marker GAP43 (green or white, insets) and TDT (magenta) in embryonic day (E)15 Dcc cKO mice, with quantification of mean DCC fluorescence in (O) and quantification of mean GAP43 fluorescence within 50 µm from the IHF (dotted red lines) in (P). (Q) TDT (white or magenta) and glial marker GLAST (green) in E15 Dcc cKO with insets and yellow arrowheads indicating GLAST-positive/TDT-positive MZG, and quantified in (R). All graphs represent mean ± SEM. Statistics by Mann–Whitney test or unpaired t-test: *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001; n.s: not significant. See related Figure 5—figure supplement 1 and Supplementary file 1.

Figure 6—source data 1

Measurements of interhemispheric fissure (IHF), corpus callosum (CC) and hippocampal commissure (HC) length and depth, deleted in colorectal carcinoma (DCC) fluorescence and GLAST-positive/TDTOMATO-positive midline zipper glia (MZG) cell bodies in Dcc cKO mice.

https://cdn.elifesciences.org/articles/61769/elife-61769-fig6-data1-v2.xlsx

We next explored whether loss of DCC expression within callosal axons might cause prior callosal axon misguidance that could indirectly impact IHF remodelling. We found that DCC expression was significantly reduced in the cingulate cortex and adjacent intermediate zone in the majority of P0 Dcc cKO mice (mean expression reduced to 80.4 and 62.9%, respectively; Figure 6A, I; Supplementary file 1), and within E15 Dcc cKO mice (mean DCC expression in the cingulate cortex reduced to 76.6% in Dcc cKO; Figure 6L, O; Supplementary file 1), as expected. Surprisingly, we found that TDTOMATO-positive/GAP43-positive axons, which had reduced DCC expression, approached the interhemispheric midline in Dcc cKO mice, similar to their cre-negative littermates (Figure 6M–N, P; Supplementary file 1). This suggests that axons with reduced, but not entirely eliminated, DCC expression approach the midline adjacent to the IHF in a timely and spatially appropriate manner, and are unable to cross the midline in regions where the IHF is not remodelled in Dcc cKO mice.

Next, we investigated the recombination pattern and development of MZG in Dcc cKO mice. Cre activity, as measured by TDTOMATO expression, was widespread in cells throughout the telencephalic midline, including septal cells and HC axons, resulting in reduced DCC expression in multiple cell types (Figure 6B). Mean DCC expression within the telencephalic hinge was comparable between Dcc cKO mice and their cre littermates (Figure 6L, OSupplementary file 1), but we also observed TDTOMATO-positive/GLAST-positive MZG cell bodies within the telencephalic hinge, and at the IHF surface in Dcc cKO mice (Figure 6Q–R; Supplementary file 1). This suggests the potential for Dcc knockdown in a subset of MZG cells within Dcc cKO mice, which may fail to intercalate across the IHF, possibly causing the IHF remodelling defect observed in P0 Dcc cKO mice. However, unlike Dcckanga mice, we were unable to find a significant population difference in the distribution of GLAST-positive MZG between Dcc cKO mice and their cre-negative littermates at the level of DCC knockdown observed in this model (Figure 6—figure supplement 1H, I; Supplementary file 1). Thus, the variable callosal and IHF remodelling phenotypes observed in Dcc cKO mice likely arise from varying degrees of DCC knockdown in these models due to the mosaic expression of Emx1iCre within MZG. In order to further explore the role of DCC and the impact of human DCC mutations on the behaviour of astroglia, we next investigated the function of human DCC mutations using in vitro assays.

NTN1-DCC signalling promotes cytoskeletal remodelling of astroglia and neural progenitors

Our results suggest that NTN1 and DCC may have important functions in the morphological development of radial glia more broadly. We established in vitro assays to test the function of NTN1-DCC signalling and DCC mutant receptors in regulating the morphology of astroglial-like cells. Such assays can also be used to examine human variants of DCC pathogenic mutations (see next section). To develop these assays, we employed N2A neuroblast cells, which display neural progenitor properties (Augusti-Tocco and Sato, 1969; Shea et al., 1985), as well as U251 glioma cells, which express astroglial markers and display invasive capacity (Zhang et al., 2013) similar to MZG cells. Importantly, endogenous DCC has previously been demonstrated to render several glioma cell lines migratory in response to a gradient of NTN1 as a chemoattractant (Jarjour et al., 2011). Both cell lines were transfected with either full-length DCC fused to a TDTOMATO reporter (pCAG-DCC:TDTOMATO) to express wildtype DCC or a membrane-targeted TDTOMATO reporter (pCAG-H2B-GFP-2A-Myr-TDTOMATO) as a control and stimulated with NTN1. Moreover, we transfected U251 cells with a DCCkanga construct (pCAG-DCCkanga:TDTOMATO) to test whether the P3 domain was critical for NTN1-DCC signalling effects on cell morphology.

Expression of DCC:TDTOMATO in U251 cells in the absence of ligand (vehicle alone) promoted cell spreading and elongation, reflected by a significant increase in average cell area and cell perimeter, and a significant decrease in cell circularity compared to control (Supplementary file 1; Figure 7A–F). This effect was not observed following expression of the DCCkanga construct alone (Supplementary file 1; Figure 7A–F), suggesting that the P3 domain of DCC is critical for inducing changes in glial cell shape. We further confirmed that these morphological changes were due to the presence of the coding region of wildtype DCC by comparing to cells transfected with plasmids where DCC had been excised and only the TDTOMATO remained (pCAG-TDTOMATO; Supplementary file 1; Figure 6—figure supplement 1BFigure 7—figure supplement 1A). A similar effect was observed following DCC overexpression in N2A cells, which also registered a significant increase in average cell area and cell perimeter, and decrease in cell circularity, compared to controls (Supplementary file 1; Figure 7G–I, Figure 7—figure supplement 1G, H), further indicating similar effects on cell morphology in glial and neural progenitor lineages. Interestingly, application of NTN1 did not affect cell shape following DCC expression in either cell line (Supplementary file 1; Figure 7A–F), suggesting that endogenous NTN1, which is known to be expressed by U251 cells (Chen et al., 2013), may be sufficient for activation of DCC:TDTOMATO receptors or that NTN1 is not required for this effect. To investigate this, we examined NTN1 expression in these cell lines using western blot analysis. We confirmed that both our cell lines expressed NTN1 endogenously and that transfection of DCC increased DCC levels but did not affect NTN1 expression (Figure 7—figure supplement 1J). No endogenous DCC was detected by western blot in either cell line (Figure 7—figure supplement 1J). Thus, addition of DCC induced cytoskeletal rearrangements in both N2A and U251 cells, which may involve autocrine NTN1 signalling. Typical features of DCC-expressing cells with or without bath application of NTN1 included actin-rich regions resembling filopodia, lamellipodia and membrane ruffling in U251 cells, while only filopodia were highly abundant in DCC:TDTOMATO-expressing N2A cells; all of these features were rarely observed in control cells from both cell lines (Figure 7A, G). No difference in cleaved-caspase 3-mediated cell apoptosis was observed following DCC expression in either cell line (Figure 7—figure supplement 1I). This suggests that DCC signalling does not mediate programmed cell death but rather promotes remodelling of the actin cytoskeleton in glioma and neuroblast cells in a similar manner to neurons and oligodendrocytes (Rajasekharan et al., 2009; Shekarabi and Kennedy, 2002).

Figure 7 with 1 supplement see all

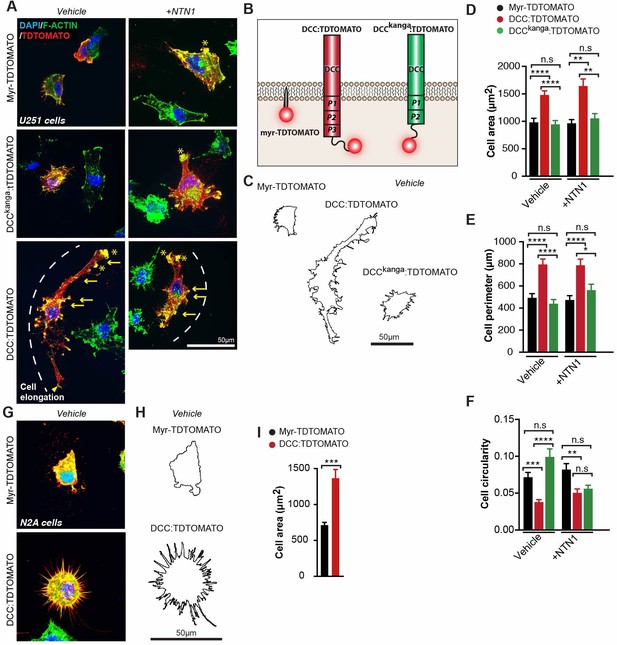

Netrin 1-deleted in colorectal carcinoma (NTN1-DCC) signalling promotes cytoskeletal remodelling of astroglia.

(A, G) Representative images of U251 glioblastoma cells (A) and N2A cells (G) immunolabelled for TDTOMATO (red) and F-actin (green) following transfection with plasmids encoding Myr-TDTOMATO, DCC:TDTOMATO or DCCkanga:TDTOMATO demonstrating the presence of actin-rich regions resembling filopodia (yellow arrows), lamellipodia (yellow arrowheads) and membrane ruffles (yellow asterisks) with/without stimulation with recombinant mouse NTN1 protein. (B) Schema of predicted structure of proteins on the cell membrane encoded by the plasmids expressed in cells from (A) and (G). (C, H) Outline of cell perimeter generated from images in (A) and (G), respectively. (D–F, I) Quantification of the area, perimeter and circularity of cells represented in (A) and (G). Graphs represent mean ± SEM. Statistics by Kruskal–Wallis test for multiple comparisons. n.s: not significant; *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001. See related Figure 6—figure supplement 1 and Supplementary file 1.

Figure 7—source data 1

U251 or N2A cell area, perimeter and circularity following overexpression of DCC:TDTOMATO or myr-TDTOMATO.

https://cdn.elifesciences.org/articles/61769/elife-61769-fig7-data1-v2.xlsx

Humans with agenesis of the CC carry loss-of-function pathogenic variants in DCC that are unable to modulate cell shape

Having established that DCC signalling rearranges the cytoskeleton of astroglial-like cells and that the P3 domain of DCC is crucial for this function, we next investigated whether DCC mutant receptors from humans with dysgenesis of the CC affected this function. Site-directed mutagenesis was performed to introduce missense mutations into the pCAG-DCC:TDTOMATO expression vector in order to model mutated DCC receptors found in six families with previously reported cases of complete or partial agenesis of the CC (p.Met743Leu, p.Val754Met, p.Ala893Thr, p.Val793Gly, p.Gly805Glu, p.Met1217Val;p.Ala1250Thr; Marsh et al., 2017; Marsh et al., 2018; Figure 6—figure supplement 1CFigure 8A). We further included two artificial mutant receptors that were previously shown to perturb NTN1 binding and chemoattraction (p.Val848Arg, p.His857Ala; Finci et al., 2014). First, these mutants were transfected into HEK293T and COS-7 cells that do not endogenously express DCC (Chen et al., 2013; Shekarabi and Kennedy, 2002). Immunoblotting and immunohistochemistry performed without cell permeabilization revealed that all mutant DCC receptors were appropriately expressed and localized to the cell membrane (Gad et al., 2000; Figure 7—figure supplement 1E). Using a previously established in vitro binding assay (Müller and Soares, 2006; Zelina et al., 2014), we discovered that DCC mutant proteins with altered residues located at the NTN1 binding interface (p.V793G and p.G805E) were unable to bind NTN1 (Figure 8B), while all other receptors with altered residues lying outside of the NTN1 binding interface still bound NTN1 (p.M743L, p.V754M, p.A893T and p.M1217;A1250T; Figure 8B). Surprisingly, all eight mutant DCC receptors were unable to modulate cell morphology in the presence of NTN1 (Figure 8C–E; Supplementary file 1). Collectively, our results suggest a model whereby mutations that affect the ability for DCC to regulate cell shape (Figure 8F) are likely to cause callosal agenesis through perturbed MZG migration and IHF remodelling.

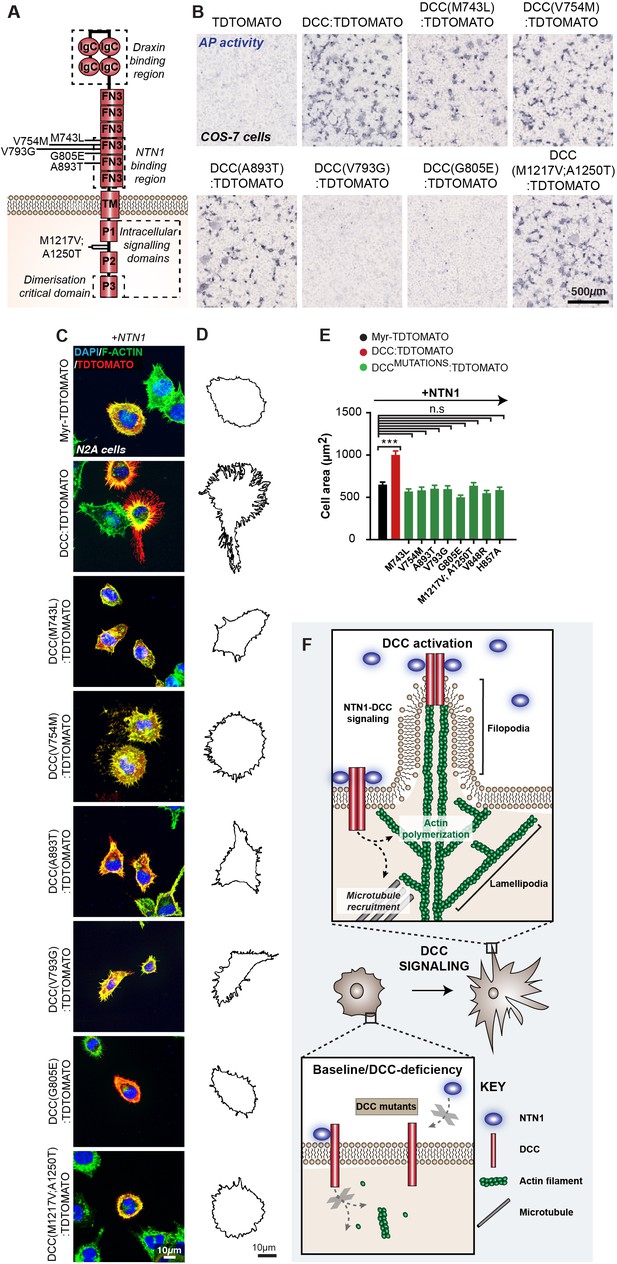

DCC mutations associated with human callosal agenesis are unable to modulate cell shape and show varied netrin 1 (NTN1) binding.

(A) Schema of transmembrane receptor deleted in colorectal carcinoma (DCC) and its structural domains. Lines indicate the position of altered residues from missense DCC pathogenic variants identified in human individuals with corpus callosum (CC) abnormalities. FN3: fibronectin type III-like domain; IgC: immunoglobulin like type C domain; TM: transmembrane domain; p: P motif. (B) Colorimetric detection of alkaline phosphatase activity in COS-7 cells transfected with plasmids encoding TDTOMATO, DCC:TDTOMATO and mutant DCC:TDTOMATO constructs and incubated with a NTN1 alkaline phosphatase fusion protein. (C) Representative images of N2A cells immunolabelled for TDTOMATO (red) and F-actin (green) following transfection with plasmids encoding Myr-TDTOMATO, DCC:TDTOMATO or DCC:TDTOMATO carrying missense mutations and stimulated with recombinant mouse NTN1 protein. (D) Outline of cell perimeter generated from images in (B). (E) Quantification of the area of cells represented in (B). Graph represents mean ± SEM. Statistics by Kruskal–Wallis test for multiple comparisons. n.s: not significant, ***p<0.001. (F) Schema of model for DCC-mediated changes in cell shape: activation of DCC by NTN1 induces dimerization of the receptor and recruits intracellular signalling effectors to regulate actin polymerization for filopodia and lamellipodia formation, and to regulate microtubule dynamics to promote membrane protrusions. Mutations that affect DCC signalling prevent DCC-mediated changes in cell shape. See related Figure 6—figure supplement 1 and Supplementary file 1.

Figure 8—source data 1

N2A cell area following overexpression of DCC:TDTOMATO, DCC:TDTOMATO carrying a mutation or myr-TDTOMATO.

https://cdn.elifesciences.org/articles/61769/elife-61769-fig8-data1-v2.xlsx

Discussion

Genes that encode axon guidance molecules frequently cause callosal dysgenesis when knocked out in mice (Edwards et al., 2014). This has led to the prevalent view that callosal dysgenesis in these mice might be primarily due to defects in callosal axon guidance towards and across the midline. Here, we identified a novel function for the classical axon guidance genes NTN1 and DCC in regulating the morphology of midline astroglia for IHF remodelling prior to CC and HC formation. Importantly, normal astroglial development and IHF remodelling are critical processes that precede and are necessary for subsequent CC axon guidance across the interhemispheric midline (Gobius et al., 2016). We find that defects in IHF remodelling are consistently associated with dysgenesis of the CC and HC in mice and humans with pathogenic variants in Ntn1 or Dcc.

Our in vitro assays and analysis of mouse and human cell morphology indicate that the cytoskeletal remodelling function of NTN1-DCC signalling is likely to be crucial for MZG development, IHF remodelling and subsequent CC formation. The timely differentiation and appropriate distribution of MZG cells at the IHF surface is required for their intercalation and IHF remodelling function (Gobius et al., 2016). Our data suggest a model whereby failed IHF remodelling associated with mutations in Ntn1 and Dcc occurs due to delayed astroglial migration to the IHF as a consequence of perturbed process extension and organization of MZG precursors. Notably, no medial extension of MZG processes across the basement membrane or perforations in the IHF to allow glia from each hemisphere to interact and intercalate were observed in Ntn1 or Dcc mutant mice at any developmental stage examined. This suggests that NTN1-DCC signalling might also be required for MZG intercalation and removal of the intervening leptomeninges. The DCC homolog UNC-40 is known to facilitate formation of a polarized actin-rich cell protrusion in the Caenorhabditis elegans anchor cell, which breaches the basement membrane rich in UNC-6 (NTN1 homolog), enabling the cell to invade the vulval epithelium (Hagedorn et al., 2013; Ziel et al., 2009). DCC may perform a similar function in MZG by engaging secreted NTN1, which we found to be localized at the IHF basement membrane in agreement with the localization of radial-glial-derived NTN1 in the spinal cord (Varadarajan et al., 2017) and preferentially polarizing actin remodelling and process extension towards the IHF during MZG intercalation. Moreover, callosal axons that also rely on DCC-mediated cytoskeletal remodelling for growth and guidance may non-cell-autonomously influence the final stages of MZG development via a secreted cue or contact-dependent mechanism. Further dissecting this would ideally involve even greater precision in complete and cell-type-specific knockout of DCC and NTN1 since knockdown in a subset of cells or merely lowering the expression level was insufficient to induce a consistent phenotype.

Notably, we find that the P3 domain-dependent functions of DCC may be required for astroglial development and IHF remodelling. These functions include receptor dimerization, interaction with the co-receptor ROBO1 or interaction with effectors FAK, MYO10 and TUBB3 (Fothergill et al., 2014; Li et al., 2004; Qu et al., 2013; Stein and Tessier-Lavigne, 2001; Wei et al., 2011; Xu et al., 2018). Accordingly, mice deficient in Robo1, Fak and Tubb3, as well as their signalling effectors Cdc42, Fyn, Enah and Mena, which normally act downstream of DCC to regulate the cell cytoskeleton, all display dysgenesis of the CC (Andrews et al., 2006; Beggs et al., 2003; Goto et al., 2008; Menzies et al., 2004; Tischfield et al., 2010; Yokota et al., 2010). Similarly, astroglial cells remodel their cytoskeleton to transition from a bipolar to multipolar morphology, and this process is known to involve the intracellular DCC effectors CDC42, RAC1, RHOA, N-WASP and EZRIN (Abe and Misawa, 2003; Antoine-Bertrand et al., 2011; Derouiche and Frotscher, 2001; Lavialle et al., 2011; Murk et al., 2013; Racchetti et al., 2012; Shekarabi et al., 2005; Zeug et al., 2018). Whether these molecules serve as downstream effectors of DCC to influence astroglial development and IHF remodelling during CC formation is an interesting question for future research.

In addition to NTN1 and DCC, as shown here, mice lacking the axon guidance molecules DRAXIN, ENAH, SLIT2, SLIT3 and RTN4R have previously been reported to have incomplete IHF remodelling and disrupted midline glial development associated with callosal dysgenesis (Menzies et al., 2004Morcom et al., 2020; Unni et al., 2012; Yoo et al., 2017). Taken together, those studies and ours suggest that other axon guidance genes may play similar roles in astroglial development and IHF remodelling during CC formation. Additional candidate axon guidance molecules that may regulate IHF remodelling include EPHB1, EFNB3, GAP43, HS6ST1, HS2ST1, ROBO1 and VASP since mouse mutants lacking these molecules display disrupted midline glial development and callosal dysgenesis (Andrews et al., 2006; Conway et al., 2011; Mendes et al., 2006; Menzies et al., 2004; Shen et al., 2004; Unni et al., 2012). Additional molecules of interest are EFNB1, EFNB3, EPHB2 and EPHA4 since these are expressed by MZG (Mendes et al., 2006).

In summary, we have demonstrated that rather than solely regulating axon guidance during telencephalic commissure formation, Dcc and Ntn1 are critical genes required for IHF remodelling. Moreover, our study provides a novel role for axon guidance receptor DCC in regulating astroglial morphology, organization and migration. Exemplified by Ntn1 and Dcc, our study provides support for widespread consideration of astroglial development and IHF remodelling as possible underlying mechanisms regulated by these and other classically regarded ‘axon guidance genes’ during CC formation.

Materials and methods

Experimental models and subject details

Animals

Dccflox/flox (Krimpenfort et al., 2012), Dcc knockout (Fazeli et al., 1997), Dcckanga (Finger et al., 2002), Emx1iCre (Kessaris et al., 2006), Ntn1-lacZ (Serafini et al., 1996) and tdTomatoflox_stop (Madisen et al., 2010) mice on the C57BL/6J background and CD1 wildtype mice were bred at the University of Queensland. Prior approval for all breeding and experiments was obtained from the University of Queensland Animal Ethics Committee. Male and female mice were placed together overnight, and the following morning was designated as E0 if a vaginal plug was detected. Dcc knockout and Dcckanga mice were genotyped by PCR, and Ntn1-lacZ mice were tested for the presence of the LacZ gene and deemed homozygous if the β-galactosidase enzyme was trapped intracellularly, as previously described (Fazeli et al., 1997; Finger et al., 2002; Fothergill et al., 2014; Krimpenfort et al., 2012; Serafini et al., 1996). Dccflox/flox mice were genotyped by the Australian Equine Genetics Research Centre at the University of Queensland.

Human subjects

Request a detailed protocol

Ethics for human experimentation was acquired by local ethics committees at the University of Queensland (Australia), the Royal Children’s hospital (Australia) and UCSF Benioff Children’s Hospital (USA). Genetic studies were performed previously (Marsh et al., 2017). Structural MR images were acquired as previously described (Marsh et al., 2017). In our study, we analysed the brain phenotype of affected individuals in family 2 (carrying DCC p.Val793Gly) and family 9 (carrying DCC p.Met1217Val;p.Ala1250Thr in cis) from our previous study.

Method details

Cell birth-dating and tissue collection

Request a detailed protocol

For cell birth-dating studies, 5-ethynyl-2′-deoxyuridine (EdU; 5 mg per kg body weight, Invitrogen) dissolved in sterile phosphate buffer solution (PBS) was injected into the intraperitoneal cavity of awake pregnant dams. Brains were fixed via transcardial perfusion or immersion fixation with 4% paraformaldehyde (PFA).

Cell lines

Request a detailed protocol

HEK293 cells (from ATCC CRL-1573, not authenticated, free of mycoplasma contamination) were used to express alkaline phosphatase-conjugated NTN1 (NTN1-AP) in the supernatant of COS-7 cell culture. Although this cell line is commonly misidentified, this did not affect the conclusion of the binding assay done in COS-7 cells. U251 cells were obtained as U-373MG (RRID:CVCL_2219) but subsequently identified as U-251 via PCR-based short tandem repeat profiling. All cell lines were routinely tested for mycoplasma to ensure that cell lines were free of mycoplasma contamination. See the Key resources table (Appendix 1—key resources table) for more information.

Cell culture

Request a detailed protocol

All cell lines were cultured at 37°C within a humidified atmosphere containing 5% CO2 and immersed in Dulbecco's Modified Eagle's Medium medium (Invitrogen or HyClone), supplemented with 10% fetal bovine serum. U251 cells were plated on poly-d-lysine-coated coverslips (via submersion in 0.05 mg/mL solution, Sigma-Aldrich) at 10% confluence 24 hr prior to transfection. The pCAG-TDTOMATO, pCAG-H2B-GFP-2A-MyrTDTOMATO, pCAG-DCC:TDTOMATO and pCAG-DCCkanga:TDTOMATO plasmids (1 µg) were transfected into the plated U251 cells using FuGENE 6 (Promega) in Opti-MEM (Gibco, Life Technologies). Cells were then grown for 20 hr and either fixed with 4% PFA/4% sucrose or stimulated with ligand. Since 100 ng/mL of recombinant NTN1 is sufficient to induce morphological changes in primary oligodendrocyte precursor cells (Rajasekharan et al., 2009), 200 ng of recombinant mouse NTN1 protein (R&D Systems) was diluted in sterile PBS and added to cultures within 2 mL media. When ligand was added, cells were grown for a further 12 hr before fixation with 4% PFA/4% sucrose. N2A cells were cultured and transfected as outlined for the U251 cells except that after NTN1 stimulation the cells were cultured for only 8 hr before fixation. The pCAG-DCC:TDTOMATO wildtype and missense mutant receptor constructs (1.764 µg) were also transfected into HEK293T cells cultured on acid-washed coverslips using FuGENE HD (Promega) in Optimem (Gibco, Life Technologies). After 24 hr, cells were fixed with 4% PFA/4% sucrose.

NTN1-binding assay

Request a detailed protocol

Supernatant containing alkaline phosphatase-conjugated NTN1 (NTN1-AP) was generated from expression in HEK293T cells as previously described (Zelina et al., 2014). The pCAG-DCC:TDTOMATO wildtype and missense mutant receptor constructs (0.2 µg) were transfected into COS-7 cells using Lipofectamine 2000 (Invitrogen). After 48 hr, cells were incubated with NTN1-AP supernatant (1:50) for 90 min at room temperature. Cells were washed and NTN1-binding activity was determined using colorimetric detection as previously described (Zelina et al., 2014).

Western blot

Request a detailed protocol

Whole-cell protein extracts were prepared from N2A and U251 cells, 20 hr after transfection with pCAG-DCC:TDTOMATO and pCAG-myr-TDTOMATO constructs (1 µg) as previously described (Bunt et al., 2010). Moreover, COS-7 protein extracts were prepared 48 hr after transfection with the pCAG-DCC:TDTOMATO wildtype and missense mutant receptor constructs (0.2 µg). Western blots were performed to detect mouse DCC expression levels using a goat polyclonal anti-DCC antibody (1:200 COS-7 or 1:800, sc-6535, Santa Cruz Biotechnology) and mouse NTN1 using a goat polyclonal antibody (1:500 U251 or 1:1000 N2A, AF1109, R&D Systems). GADPH was used as a loading control and detected using rabbit monoclonal anti-GADPH antibodies (1:2000, 2118, Cell Signaling Technology for COS-7; 1:1000, IMG-5143A, IMGENEX for N2A and U251).

Immunohistochemistry

Request a detailed protocol

Brain sections were processed for standard fluorescence immunohistochemistry as previously described (Moldrich et al., 2010) with the following minor modifications: all sections were post-fixed on slides with 4% PFA and then subjected to antigen retrieval (125°C for 4 min at 15 psi in sodium citrate buffer) prior to incubation with primary antibodies. Alexa Fluor IgG (Invitrogen), horseradish peroxidase-conjugated (Millipore) or biotinylated (Jackson Laboratories) secondary antibodies, used in conjunction with Alexa Fluor 647-conjugated Streptavidin (Invitrogen) amplification, were used according to the manufacturer’s instructions. EdU labelling was performed using the Click-iT EdU Alexa Fluor 488 Imaging Kit (Invitrogen). Cell nuclei were labelled using 4′,6-diamidino-2-phenylindole, dihydrochloride (DAPI, Invitrogen) and coverslipped using ProLong Gold anti-fade reagent (Invitrogen) as mounting media. Primary antibodies used for immunohistochemistry were rabbit anti-APC (1:250, ab15270, Abcam), mouse anti-α-dystroglycan (1:250, clone IIH6C4, 05-593, Merck), rabbit anti-β-catenin (1:500, 9562, Cell Signaling Technology), mouse anti-β-dystroglycan (1:50, MANDAG2, 7D11, Developmental Studies Hybridoma Bank), chicken anti β-galactosidase (1:500, ab9361, Abcam), rabbit anti-cleaved-caspase 3 (1:500, 9661, Cell Signaling Technology), goat anti-DCC (1:500, sc-6535, Santa Cruz Biotechnology), mouse anti-Gap43 (1:500; MAB347, Millipore), mouse anti-Gfap (1:500; MAB3402, Millipore), rabbit anti-Gfap (1:500; Z0334, Dako), mouse anti-Glast (or Eaat1; 1:500; ab49643, Abcam), rabbit anti-Glast (or Eaat1; 1:250; ab416, Abcam), mouse anti-Ki67 (1:500; 550609, BD Pharmingen), chicken anti-Laminin (1:500; LS-C96142, LSBio), rabbit anti-Laminin (1:500; L9393, Sigma), mouse anti-N-cadherin (CDH2; 1:250, 610921, BD Biosciences), rat anti-Nestin (NES; 1:50, AB 2235915, DSHB), chicken anti-Nestin (1:1000, ab134017, Abcam), goat anti-NTN1 (1:500; AF1109, R&D Systems), mouse anti-neurofilament (1:500; MAB1621, Millipore), rabbit anti-Nfia (1:500; ARP32714, Aviva Systems Biology), rabbit anti-Nfib (1:500; HPA003956, Sigma), rabbit anti-neuronal-specific-ßIII-tubulin (1:500; ab18207, Abcam), rabbit anti-phospho p44/42 Mapk (or Erk1/2; 1:250; 9101, Cell Signaling Technology), rabbit anti-SOX9 (1:500, AB5535, Merck) and goat anti-TDTOMATO (1:500, ab8181-200, Sicgen). For actin staining, Alexa Fluor-conjugated phalloidin (A22287, Thermo Fisher Scientific) was incubated on tissue for 30 min in the dark as per the manufacturer’s instructions prior to the addition of primary antibodies. Immunohistochemistry was performed in a similar manner for cultured cells, with the following minor exceptions: HEK293T cells expressing wildtype and mutant pCAG-DCC:TDTOMATO constructs were not permeabilized to confirm exogenous DCC receptor localization to the plasma membrane.

In situ hybridization

Request a detailed protocol

In situ hybridization was performed as previously described (Moldrich et al., 2010), with the following minor modifications: Fast red (Roche) was applied to detect probes with fluorescence. The Fgf8 cDNA plasmid was a kind gift from Gail Martin, University of California, San Francisco. The Ntn1 cDNA plasmid was provided by the Cooper lab. The Mmp2 cDNA plasmid was generated by the Richards lab with the following primers: forward 5′-GAAGTATGGATTCTGTCCCGAG-3′ and reverse 5′-GCATCTACTTGCTGGACATCAG-3′. The Dcc cDNA plasmid was generated by the Richards lab with the following primers, courtesy of the Allen Developing Brain Atlas: forward 5′- ATGGTGACCAAGAACAGAAGGT-3′ and reverse 5′-AATCACTGCTACAATCACCACG-3′.

Plasmid expression constructs for cell culture and in utero electroporation

Request a detailed protocol

A TDTOMATO fluorophore (Clontech) was subcloned into a pCAG backbone to generate the pCAG-TDTOMATO plasmid. pCAG-H2B-GFP-2A-MyrTDTOMATO was provided by Arnold Kriegstein (University of California San Francisco). The Dcc-shRNA construct was provided by Xiong Zhiqi (Chinese Academy of Sciences, Shanghai; shRNA 1355 in Zhang et al., 2018). The Dcc-CRISPR nickase constructs were designed using the ATUM tool and obtained from ATUM to target Dcc exon 2 (Dcc-CRISPR 1, targeting chr18:71954969–71955009) and Dcc exon 3 (Dcc-CRISPR 2, targeting chr18:71826146–71826092). Dcc-CRISPR 1 had the maximum target score across the whole DCC coding sequence, while Dcc-CRISPR 1 had the maximum target score within exon 3 only.

To generate the pCAG-DCC:tdTomato plasmid, DCC:TDTOMATO (pmDCC:TDTOMATO; provided by Erik Dent, University of Wisconsin-Madison) was subcloned into the pCag-DsRed2 plasmid (Addgene, 15777, Cambridge, MA) by excising DsRed2.

For site-directed mutagenesis, the QuickChange II Site-Directed Mutagenesis Kit (Stratagene, catalogue #200524) was used in accordance with the manufacturer’s instructions. The following primer pairs were used for site-directed mutagenesis:

p.Met743Leu: forward 5′-GAGGAGGTGTCCAACTCAAGATGATACAGTTTGTCTG-3′, reverse 5′-CAGACAAACTGTATCATCTTGAGTTGGACACCTCCTC-3′.

p.Val754Met: forward 5′-TAATATAGCCTCTCACCATGATGTTTGGGTTGAGAGG-3′, reverse 5′-CCTCTCAACCCAAACATCATGGTGAGAGGCTATATTA-3′.

p.Ala893Thr: forward 5′-ACTTGTACTTGGTACTGGCAGAAAAGCTGGTCCT-3′, reverse 5′-AGGACCAGCTTTTCTGCCAGTACCAAGTACAAGT-3′.

p.Val793Gl: forward 5′-ACTAGAGTCGAGTTCTCATTATGGAATCTCCTTAAAAGCTTTCAAC-3′, reverse 5′- GTTGAAAGCTTTTAAGGAGATTCCATAATGAGAACTCGACTCTAGT-3′.

p.Gly805Glu: forward 5′-CACTTTCGTAGAGAGGGACCTCTTCTCCGGCATTGTTGAA-3′, reverse 5′- TTCAACAATGCCGGAGAAGAGGTCCCTCTCTACGAAAGTG-3′.

p.Met1217Val;p.Ala1250Thr: forward 1 5′-GTTCCAAAGTGGACACGGAGCTGCCTGCGTC-3′, reverse 1 5′-GACGCAGGCAGCTCCGTGTCCACTTTGGAAC-3′, forward 2 5′-GTACAGGGATGGTACTCACAACAGCAGGATTACTGG-3′, reverse 2 5′-CCAGTAATCCTGCTGTTGTGAGTACCATCCCTGTAC-3′.

p.Val848Arg: forward 5′-CAGCCTGTACACCTCTTGGTGGGAGCATGGGGG-3′, reverse 5′-CCCCCATGCTCCCACCAAGAGGTGTACAGGCTG-3′.

p.His857Ala: forward 5′-ACCCTCACAGCCTCAGCGGTAAGAGCCACAGC-3′, reverse 5′-GCTGTGGCTCTTACCGCTGAGGCTGTGAGGG-3′.

p.del-P3(Kanga): forward 5′-CCACAGAGGATCCAGCCAGTGGAGATCCACC-3′, reverse 5′-GGTGGATCTCCACTGGCTGGATCCTCTGTGG-3′.

In utero electroporation

Request a detailed protocol

In utero electroporation was performed as previously described (Suárez et al., 2014b). Briefly, 2 µg/µL of Dcc-shRNA or Dcc-CRISPR were combined with 0.5 µg/µL TDTOMATO and 0.0025% Fast Green dye, and then microinjected into the lateral ventricles of E13 Dcckanga embryos. 5 × 35 V square wave pulses separated by 100 ms were administered with 3 mm paddles over the head of the embryo to direct the DNA into the cingulate cortex. Embryos were collected at E18 for analysis.

Image acquisition

Request a detailed protocol

Confocal images were acquired as either single 0.4–0.9 µm optical sections or multiple image projections of ~15–20 µm thick z-stacks using either an inverted Zeiss Axio-Observer fitted with a W1 Yokogawa spinning disk module, Hamamatsu Flash4.0 sCMOS camera and Slidebook 6 software or an inverted Nikon TiE fitted with a Spectral Applied Research Diskovery spinning disk module, Hamamatsu Flash4.0 sCMOS camera and Nikon NIS software. Alternatively, for images of HEK293T cells, a LSM 780 confocal microscope was used. For imaging of NTN1-AP binding, a NanoZoomer 2.0-HT whole slide imager was used in conjunction with Hamamatsu (NDP_Viewer) software. For wide-field imaging of U251 and N2A cells stained for cleaved-caspase 3, Zen software (Carl Zeiss) was used to capture images on a Zeiss upright Axio-Imager fitted with Axio-Cam HRc camera. Images were pseudocolored to permit overlay, cropped, sized and contrast-brightness enhanced for presentation with ImageJ and Adobe Photoshop software.

Measurements and cell quantification

Request a detailed protocol

Measurements of IHF length were performed using ImageJ v1.51s freeware (National Institutes of Health, Bethesda, USA). The length of the IHF within the interhemispheric midline was determined by comparing Laminin and DAPI-staining. To account for inter-brain variability, this length was then normalized to the entire length of the telencephalon along the interhemispheric midline, which was measured from the caudal-most point of the telencephalon to the rostral edge of cerebral hemispheres.

Cell proliferation and cell death in Dcckanga MZG was automatically counted using Imaris software (Bitplane) from a region of interest delineated by Glast staining, and excluding the IHF within a single z-slice. Cleaved-caspase 3-positive, TDTOMATO-positive N2A and U251 cells were manually counted using the Cell Counter plugin in ImageJ v1.51s freeware (National Institutes of Health), from a 1187 × 954 µm region of interest.

The number of Sox9-positive cell bodies was counted manually using the Cell Counter plugin in ImageJ v1.51s freeware. Cell proliferation and cell death in tissue were automatically counted using Imaris software (Bitplane) from a region of interest delineated by Glast staining that excluded the IHF in a single z-slice.

The perimeter, circularity and area of U251 and N2A cells were measured from the mean intensity projections of TDTOMATO images following thresholding in ImageJ v1.51s freeware (National Institutes of Health). 48–191 cells per condition were analysed from 3 to 5 biological replicates.

Fluorescence intensity analysis

Request a detailed protocol

To compare fluorescence intensity, tissue sections were processed under identical conditions for immunofluorescence. Fluorescent images at ×20 or ×40 magnification were acquired using identical exposure settings for each fluorescent signal and identical number of slices through the z plane. A multiple intensity projection was created for each z-stack to create a 2D image. Identical regions of interest were outlined in ImageJ freeware, the fluorescence intensity was plotted versus the distance and the average fluorescence intensity was calculated.

Quantification and statistical analysis

Request a detailed protocol

A minimum of three animals were analysed for each separate phenotypic analysis. Sex was not determined for embryonic studies. A mix of male and female adult mice was used to determine the length of the IHF in Dcckanga and C57Bl/6 mice. All measurements and cell counting were performed on deidentified files so that the researcher remained blind to the experimental conditions. For comparison between two groups, the data was first assessed for normality with a D’Agostino–Pearson omnibus normality test and then statistical differences between two groups were determined either with a parametric Student’s t-test or a nonparametric Mann–Whitney test in Prism software (v.6–v.8; GraphPad). To test whether CC or HC length was correlated with IHF length as normalized to total telencephalic midline length, the data was also assessed for normality with D’Agostino–Pearson omnibus normality tests, and a Pearson correlation coefficient was computed if the data was representative of a Gaussian distribution; otherwise, a nonparametric Spearman correlation was performed. For multiple comparisons of cell culture conditions or measurements of GFAP fluorescence across mouse strains, a Kruskal–Wallis test was performed with post-hoc Dunn’s multiple comparison test. p≤0.05 was considered significantly different, where all p values are reported in text. All values are presented as mean ± standard error of the mean (SEM).

Contact for reagent and resource sharing

Request a detailed protocol

Further information and requests for resources and reagents should be directed to and will be fulfilled by Professor Linda J Richards (richards@uq.edu.au).

Appendix 1

Appendix 1—key resources table
Reagent type (species) or resourceDesignationSource or referenceIdentifiersAdditional information
Gene (Homo sapiens)DCCNCBI1630
Gene (Mus musculus)DccNCBI13176
Gene (Mus musculus)Ntn1NCBI18208
Strain, strain background (Mus musculus)Dccflox/flox, C57BL/6JKrimpenfort et al., 2012N/A
Strain, strain background (Mus musculus)Dcckanga, C57BL/6JFinger et al., 2002N/A
Strain, strain background (Mus musculus)Dcc-/-, C57BL/6JFazeli et al., 1997N/A
Strain, strain background (Mus musculus)Emx1iCre, C57BL/6JKessaris et al., 2006N/A
Strain, strain background (Mus musculus)Ntn1-lacZ, C57BL/6JSerafini et al., 1996N/A
Strain, strain background (Mus musculus)tdTomatoflox_stop, C57BL/6JMadisen et al., 2010N/A
Cell line (Homo sapiens)HEK293TATCCRRID:CVCL_0045ATCC Cat# CRL-1573
Cell line (Homo sapiens)U251MGATCCRRID:CVCL_0021Obtained as U-373MG (RRID:CVCL_2219) but subsequently identified as U-251 via PCR-based short tandem repeat profiling
Cell line (Mus musculus)Neuro-2A (N2A)ATCCRRID:CVCL_0470Obtained via the University of Queensland
Cell line (Chlorocebus aethiops)COS-7ATCCRRID:CVCL_0224ATCC Cat# CRL-1651
AntibodyGoat polyclonal anti-DCCSanta Cruz Biotechnologysc-6535, RRID:AB_2245770(1:200) western blot; (1:500)immunofluorescence
AntibodyGoat polyclonal anti-NTN1R&D SystemsAF1109, RRID:AB_2298775(1:500) western blot; (1:500) immunofluorescence
AntibodyRabbit monoclonal anti-GADPHCell Signaling Technology2118, RRID:AB_561053(1:2000) western blot
AntibodyRabbit polyclonal anti-GADPHIMGENEXIMG-5143A, RRID:AB_613387(1:1000) western blot
AntibodyRabbit polyclonal anti-APCAbcamab15270, RRID:AB_301806(1:250)
AntibodyMouse monoclonal anti-α-DAG1Merck05-593, RRID:AB_309828(1:250)
AntibodyRabbit polyclonal anti-β-cateninCell Signaling Technology9562, RRID:AB_331149(1:500)
AntibodyMouse monoclonal anti-β-dystroglycan (MANDAG2)Developmental Studies Hybridoma Bank7D11, RRID:AB_2211772(1:50)
AntibodyChicken polyclonal anti-β-galactosidaseAbcamab9361, RRID:AB_307210(1:500)
AntibodyRabbit polyclonal anti-cleaved-caspase 3Cell Signaling Technology9661, RRID:AB_2341188(1:500)
AntibodyGoat polyclonal anti-DCCSanta Cruz Biotechnologysc-6535, RRID:AB_2245770(1:500)
AntibodyMouse monoclonal anti-GAP43MilliporeMAB347, RRID:AB_94881(1:500)
AntibodyMouse monoclonal anti-GFAPMilliporeMAB3402, RRID:AB_94844(1:500)
AntibodyRabbit polyclonal anti-GFAPDakoZ0334, RRID:AB_10013382(1:500)
AntibodyMouse monoclonal anti-Glast (EAAT1)AbcamAb49643, RRID:AB_869830(1:500)
AntibodyRabbit polyclonal anti-Glast (EAAT1)AbcamAb416, RRID:AB_304334(1:250)
AntibodyMouse monoclonal anti-KI67BD Pharmingen550609, RRID:AB_393778(1:500)
AntibodyChicken polyclonal anti-LamininLS-BioC96142, RRID:AB_2033342(1:500)
AntibodyRabbit polyclonal anti-Laminin (pan-Laminin)SigmaL9393, RRID:AB_477163(1:500)
AntibodyMouse monoclonal anti-N-cadherin (CDH2)BD Biosciences610921, RRID:AB_398236(1:250)
AntibodyRat monoclonal anti-Nestin (NES)Developmental Studies Hybridoma BankAB 2235915, RRID:AB_2235915(1:50)
AntibodyChicken polyclonal anti-Nestin (NES)AbcamAb134017, RRID:AB_2753197(1:1000)
AntibodyGoat polyclonal anti-NTN1R&D SystemsAF1109, RRID:AB_2298775(1:500)
AntibodyMouse monoclonal anti-neurofilamentMilliporeMAB1621, RRID:AB_94294(1:500)
AntibodyRabbit polyclonal anti-NFIAAviva Systems BiologyARP32714, RRID:AB_576739(1:500)
AntibodyRabbit polyclonal anti-NFIBSigmaHPA003956, RRID:AB_1854424(1:500)
AntibodyRabbit polyclonal anti-neuronal-specific-ßIII-tubulin (TUBB3)AbcamAb18207, RRID:AB_444319(1:500)
AntibodyRabbit polyclonal anti-phospho p44/42 MAPK (ERK1/2)Cell Signaling Technology9101, RRID:AB_331646(1:250)
AntibodyRabbit polyclonal anti-SOX9MerckAB5535, RRID:AB_2239761(1:500)
AntibodyGoat polyclonal anti-TDTOMATOSicgenAb8181-200, RRID:AB_2722750(1:500)
Recombinant DNA reagentpCAG-TDTOMATOThis paper
Recombinant DNA reagentpCAG-DCC:TDTOMATOThis paper
Recombinant DNA reagentpCAG-DCCKANGA:TDTOMATOThis paper
Recombinant DNA reagentpCAG-DCCM743L:TDTOMATOThis paper
Recombinant DNA reagentpCAG-DCCV754M:TDTOMATOThis paper
Recombinant DNA reagentpCAG-DCCA893T:TDTOMATOThis paper
Recombinant DNA reagentpCAG-DCCV793G:TDTOMATOThis paper
Recombinant DNA reagentpCAG-DCCMG805E:TDTOMATOThis paper
Recombinant DNA reagentpCAG-DCCM1217V;A1250T:TDTOMATOThis paper
Recombinant DNA reagentpCAG-H2B-GFP-2A-MyrTDTOMATOArnold Kriegstein (UCSF)
Recombinant DNA reagentp-SUPER-Dcc-shRNAXiong Zhiqi; Zhang et al., 2018
Recombinant DNA reagentpCAG-Dcc-CRISPR 1Atum; this paperTargeting chr18:71954969– 71955009
Recombinant DNA reagentpCAG-Dcc-CRISPR 2Atum; this paperTargeting chr18:71826146– 71826092
Recombinant DNA reagentFgf8 cDNAGail Martin, UCSFIn situ hybridization riboprobe
Recombinant DNA reagentNtn1 cDNAHelen CooperIn situ hybridization riboprobe
Recombinant DNA reagentMmp2 cDNAThis paperIn situ hybridization riboprobe
Sequence-based reagentMmp-2 cDNA forward primerAllen Brain Atlas5’-ATGGTGACCAAGAACAGAAGGT
Sequence-based reagentMmp-2 cDNA reverse primerAllen Brain Atlas5’-AATCACTGCTACAATCACCACG
Sequence-based reagentDcc site-directed mutagenesis p.Met743Leu forward primerThis paper5’-GAGGAGGTGTCCAACTCAAGATGATACAGTTTGTCTG
Sequence-based reagentDcc site-directed mutagenesis p.Met743Leu reverse primerThis paper5’-CAGACAAACTGTATCATCTTGAGTTGGACACCTCCTC
Sequence-based reagentDcc site-directed mutagenesis p.Val754Met forward primerThis paper5’-TAATATAGCCTCTCACCATGATGTTTGGGTTGAGAGG
Sequence-based reagentDcc site-directed mutagenesis p.Val754Met reverse primerThis paper5’-CCTCTCAACCCAAACATCATGGTGAGAGGCTATATTA
Sequence-based reagentDcc site-directed mutagenesis p.Ala893Thr forward primerThis paper5’- ACTTGTACTTGGTACTGGCAGAAAAGCTGGTCCT
Sequence-based reagentDcc site-directed mutagenesis p.Ala893Thr reverse primerThis paper5’-AGGACCAGCTTTTCTGCCAGTACCAAGTACAAGT
Sequence-based reagentDcc site-directed mutagenesis p.Val793Gl forward primerThis paper5’-ACTAGAGTCGAGTTCTCATTATGGAATCTCCTTAAAAGCTTTCAAC
Sequence-based reagentDcc site-directed mutagenesis p.Val793Gl reverse primerThis paper5’-GTTGAAAGCTTTTAAGGAGATTCCATAATGAGAACTCGACTCTAGT
Sequence-based reagentDcc site-directed mutagenesis p.Gly805Glu forward primerThis paper5’-CACTTTCGTAGAGAGGGACCTCTTCTCCGGCATTGTTGAA
Sequence-based reagentDcc site-directed mutagenesis p.Gly805Glu reverse primerThis paper5’-TTCAACAATGCCGGAGAAGAGGTCCCTCTCTACGAAAGTG
Sequence-based reagentDcc site-directed mutagenesis p.Met1217Val;p.Ala1250Thr forward 1 primerThis paper5’-GTTCCAAAGTGGACACGGAGCTGCCTGCGTC
Sequence-based reagentDcc site-directed mutagenesis p.Met1217Val;p.Ala1250Thr reverse 1 primerThis paper5’-GACGCAGGCAGCTCCGTGTCCACTTTGGAAC
Sequence-based reagentDcc site-directed mutagenesis p.Met1217Val;p.Ala1250Thr forward 2 primerThis paper5’-GTACAGGGATGGTACTCACAACAGCAGGATTACTGG
Sequence-based reagentDcc site-directed mutagenesis p.Met1217Val;p.Ala1250Thr reverse 2 primerThis paper5’-CCAGTAATCCTGCTGTTGTGAGTACCATCCCTGTAC
Sequence-based reagentDcc site-directed mutagenesis p.Val848Arg forward primerThis paper5’-CAGCCTGTACACCTCTTGGTGGGAGCATGGGGG
Sequence-based reagentDcc site-directed mutagenesis p.Val848Arg reverse primerThis paper5’-CCCCCATGCTCCCACCAAGAGGTGTACAGGCTG
Sequence-based reagentDcc site-directed mutagenesis p.His857Ala forward primerThis paper5’-ACCCTCACAGCCTCAGCGGTAAGAGCCACAGC
Sequence-based reagentDcc site-directed mutagenesis p.His857Ala reverse primerThis paper5’-GCTGTGGCTCTTACCGCTGAGGCTGTGAGGG
Sequence-based reagentDcc site-directed mutagenesis p.p.del-P3(Kanga) forward primerThis paper5’-CCACAGAGGATCCAGCCAGTGGAGATCCACC
Sequence-based reagentDcc site-directed mutagenesis p.p.del-P3(Kanga) reverse primerThis paper5’-GGTGGATCTCCACTGGCTGGATCCTCTGTGG
Peptide, recombinant proteinNtn1R&D Systems1109-N1100 ng/mL
Peptide, recombinant proteinNTN1-APThis paperGenerated as supernatant from HEK293T as previously described in Zelina et al., 2014
Commercial assay, kitClick-iT EdU Alexa Fluor 488 Imaging KitInvitrogenC10337
Commercial assay, kitQuickChange II Site-Directed Mutagenesis KitStratagene200524
Software, algorithmFijiFijiRRID:SCR_002285
Software, algorithmPrismGraphPadRRID:SCR_002798
Software, algorithmImarisBitplaneRRID:SCR_007370

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for all figures that contain numerical data.

References

    1. Finger JH
    2. Bronson RT
    3. Harris B
    4. Johnson K
    5. Przyborski SA
    6. Ackerman SL
    (2002)
    The netrin 1 receptors Unc5h3 and dcc are necessary at multiple choice points for the guidance of corticospinal tract axons
    The Journal of Neuroscience 22:10346–10356.
  1. Book
    1. Morcom LR
    2. Edwards TJ
    (2016) Chapter 14 - Cortical architecture, midline guidance, and tractography of 3D white matter tracts
    In: Rockland K. S, editors. Axons and Brain Architecture. San Diego: Academic Press. pp. 289–313.
    https://doi.org/10.1016/C2013-0-19199-4
    1. Probst M
    (1901)
    The structure of complete dissolving corpus callosum of the cerebrum and also the microgyry and heterotropy of the grey substance
    Archiv Fur Psychiatrie Und Nervenkrankheiten 34:709–786.

Decision letter

  1. Carol A Mason
    Reviewing Editor; Columbia University, United States
  2. Huda Y Zoghbi
    Senior Editor; Texas Children's Hospital, United States
  3. Samantha J Butler
    Reviewer; University of California, Los Angeles, United States
  4. Thomas Pratt
    Reviewer

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Your study is a welcome follow-up to your previous demonstration that midline zipper glia (MZG) migrate along the interhemispheric fissure (IHF) and intercalate across the hemispheres, and in doing so, remodel the meningeal basement membrane to provide a substrate for callosal axon growth. You identify DCC and its ligand Netrin1 to be important for this process, by acting on the distribution and morphology of MZG. Importantly, human subjects with DCC mutations display disrupted IHF remodelling associated with corpus callosum and hippocampal commissure malformations. Your work thus nicely establishes that, in addition to service as axon guidance signals for callosal axons attraction to and across the midlin, DCC and Netrin-1 are crucial in callosal formation and interhemispheric fusion.

Decision letter after peer review:

Thank you for submitting your article "DCC regulates astroglial development essential for telencephalic morphogenesis and corpus callosum formation" for consideration by eLife. Your article has been reviewed by 3 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Huda Zoghbi as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Samantha J Butler (Reviewer #2); Thomas Pratt (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

We would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). Specifically, when editors judge that a submitted work as a whole belongs in eLife but that some conclusions require a modest amount of additional new data, as they do with your paper, we are asking that the manuscript be revised to either limit claims to those supported by data in hand, or to explicitly state that the relevant conclusions require additional supporting data.

Our expectation is that the authors will eventually carry out the additional experiments and report on how they affect the relevant conclusions either in a preprint on bioRxiv or medRxiv, or if appropriate, as a Research Advance in eLife, either of which would be linked to the original paper.

Summary:

This study is a welcome follow-up to your earlier demonstration that midline zipper glia (MZG) migrate along the interhemispheric fissure (IHF) and intercalate across the hemispheres, and in doing so, remodel the meningeal basement membrane to provide a substrate for callosal axon growth. You identify DCC and its ligand Netrin1 to be important for this process, by acting on the distribution and morphology of MZG, in addition to their service as axon guidance signals for callosal axons to be attracted to and across the midline.

The reviewers were very favorable about the manuscript in the reviews and in the off-line Consultation Session. Reviewers 1 and 2 asked for several modifications of your data presentation, but do not ask for new data (except for the first point below, optional). Below are some key points to address, and others that you can see in the appended reviews.

Essential revisions:

1. Reviewer 2 thought that you should consider removing the shRNA approach from the manuscript and re-focusing the cKO data on a description of a Dcc phenotypic series, to better fit with the initial description of lack of interhemispheric remodeling observed in Dcc/Ntn mutant mice, and relate this to phenotypes observed in patients. Reviewer 1 thought you could simply downplay some of the focus on cell autonomy since the shRNA/CRISPR and conditional KO did not give a particularly clear answer. It is your preference as to which to do.

2. Reviewer 1 suggested that to lend more credence to a suspected causal relationship between the severity of callosal agenesis and the extent to which the IHF had been remodeled, it would be informative to generate scatterplots of IHF length vs. CC/HC length.

3. On the large increase in the total number of Sox9+ cells along the IHF by E16: Reviewer 1 asks for an possible explanation, while Reviewer 2 wonders whether the increase might be due to an absence of a stop signal at the midline.

4. Both Reviewers 1 and 2 ask why simply transfecting WT DCC into cell lines results in such a dramatic change in morphology but addition of NTN1 does not. Have you checked whether the cell lines express Netrin1?

Reviewer #1:

In this manuscript, the authors revisit DCC and NTN1 mutants in order to better define the basis for midline crossing defects. This group recent demonstrated that midline zipper glia (MZG) must migrate along the interhemispheric fissure (IHF) and intercalate across the midline while remodeling the meningeal basement membrane to provide a substrate for callosal axons to cross the midline. In this study, they show that DCC and its ligand NTN1 are required for proper midline zipper glia (MZG) distribution/morphology along the IHF, proper remodeling of the basement membrane, and subsequent corpus callosum (CC) formation. The data in figures 2 and 3 generally do a nice job of supporting the model that DCC and NTN1 are expressed in MZG and that the morphology and distribution of MZG are affected in DCC/NTN1 mutants. There appear to be some defects in MZG migration that may account for this (Figure 4). Due to technical limitations, the author's attempt to use a conditional knockout of DCC to genetically dissect whether CC formation defects are due to defects in MZG or callosal axons are a bit inconclusive (Figure 6). Finally, the paper ends with experiments showing that mutations in DCC identified in acallosal patients are loss-of-function using an in vitro cell morphology assay (Figure 7 and 8).

The authors are commended for the quality of their imaging data and for being as quantitative as possible when measuring their in vivo phenotypes, which is not often done with these types of studies. There are few issues that need to be addressed.

1. In Figure 4, in addition to the migration defects of Sox9+ MZG, there seems to be a rather large increase in the total number of Sox9+ cells along the IHF by E16 (more than 2 fold, Figure 4G). The authors show there is no change in cell cycle or apoptosis of these cells in the supplemental data (Figure S4), so what accounts for this increase? Is this also seen with NFIA/B staining at E16?

2. Regarding the attempt to distinguish between DCC in MZG versus callosal axons (Figure 6), the incomplete deletion/loss of DCC protein (Figures 6C, I, J) is a bit concerning. It’s not clear to me why this would happen, but it confounds the interpretation of the results. While the authors state "The severity of callosal agenesis was associated with the extent to which the IHF had been remodeled" (pg 15), they don't actually quantify this. It might be informative to generate scatterplots of IHF length vs. CC/HC length to determine if there is a significant correlation between the two. This might lend more evidence to a causal relationship between IHF remodeling and CC/HC formation.

3. At the end of the result section, the authors state: "mutations that affect the ability for DCC to regulate cell shape (Figure 8F), are likely to cause callosal agenesis through perturbed MZG migration and IHF remodelling." (pg. 19). While the authors nicely show that patient mutations in DCC affect the morphology of cell in cell lines (Figure 7-8), it is not clear why simply transfecting WT DCC into cell lines results in such a dramatic change in morphology, or why addition of NTN1 doesn't increase this. The authors mention that the cell lines could express NTN1 or that NTN1 is not required for the effect. This seems an important distinction. Did the authors check this? Could they use a function blocking antibody or a soluble fragment of the NTN1 binding domain of DCC to block NTN1:DCC interactions? DCC has been shown to function as a "dependence receptor" that can induce apoptosis in the absence of ligand, are the authors certain that the morphology changes they are seeing in DCC transfected cells aren't cytoskeletal changes resulting from caspase activation?

Reviewer #2:

This paper is the second in a series of landmark studies from the Richards lab that re-assess the molecular and cellular mechanisms that permit the corpus callosum (CC) to cross the interhemispheric midline in the telencephalon. The Richards lab previously showed key role for a specialized population of fetal astrocytes, the midline zipper glia (MZG), establishing this substrate when the MZG migrate into the interhemispheric fissure (IHF), intercalate with one another and degrade the intervening leptomeninges. In this manuscript, the authors now assess the requirement for the Ntn1/Dcc pathway in remodeling the IHF. In an elegant series of experiments, they shown that Ntn1/Dcc regulate the migration pathway of the MZG, potentially by directly controlling cytoskeletal dynamics. This mechanism is conserved between humans and rodents; the authors show that Dcc mutations that cause CC dysgenesis in humans, cause striking changes in the morphology of astroglial-like cells, consistent with the regulation of MZG migration. Thus, Dcc appears to have two roles first, remodeling the MGZ and then guiding CC axons towards the telencephalic midline. Together, these studies continue the overgoing re-evaluation of the role of netrin1/Dcc in establishing neural circuitry, and shed further understanding on a fascinating and beautiful piece of biology.

This is a very beautiful manuscript, the authors are to be congratulated for the very high quality of their images, and detailed quantifications. Would that all studies were so thorough. These studies will be of great interest to the developmental neuroscience research and clinical communities. I strongly support publication.

The authors should be congratulated by including what was clearly a difficult conditional analysis to assess whether Dcc is required in the callosal axons, or in the MZG radial fibers. This analysis was confounded (a) by the low efficiency of the shRNA to knock down Dcc and (b) the mosaic nature of Emx::cre line, which appears to be variably expressing cre in both callosal neurons and MZG, given that TDT/Dcc are present in both axons (Figure 5B), and the MZG (Figure 5O) in the less severely affected animals.

As currently presented, however, the analysis (sadly) does not greatly add to the paper, since technical issues beyond the authors' control, have made it difficult to assess specifically where Dcc is required with much confidence. Would the authors could consider removing the shRNA approach from the manuscript, and re-focusing the cKO data on a description of a Dcc phenotypic series? This analysis might fit better with the initial description of lack of interhemispheric remodeling observed in Dcc/Ntn mutant mice, and how they relates to (variable?) phenotypes observed in patients.

Reviewer #3:

This is a very thorough study giving new insight into a non-cell autonomous mechanism for DCC in axon guidance in midline fusion important for corpus callosum axon guidance.

I have no substantive concerns.

https://doi.org/10.7554/eLife.61769.sa1

Author response

Essential revisions:

1. Reviewer 2 thought that you should consider removing the shRNA approach from the manuscript and re-focusing the cKO data on a description of a Dcc phenotypic series, to better fit with the initial description of lack of interhemispheric remodeling observed in Dcc/Ntn mutant mice, and relate this to phenotypes observed in patients. Reviewer 1 thought you could simply downplay some of the focus on cell autonomy since the shRNA/CRISPR and conditional KO did not give a particularly clear answer. It is your preference as to which to do.

We thank the reviewers for raising this point and for understanding the experimental limitations inherent in this system. The Results section entitled, ‘Variable DCC knockdown during midline development causes a spectrum of callosal phenotypes’, has been revised (page 14-18) to reduce the focus on cell autonomy. The text describing the shRNA approaches has been reduced considerably, shifting the focus to the cKO data as both reviewers suggested. We also include scatterplots showing a strong relationship between IHF remodelling and CC/HC length as reviewer 1 suggested (in point 2).

2. Reviewer 1 suggested that to lend more credence to a suspected causal relationship between the severity of callosal agenesis and the extent to which the IHF had been remodeled, it would be informative to generate scatterplots of IHF length vs. CC/HC length.

We thank the reviewer for this suggestion and have included this analysis in the manuscript. Scatterplots have been included in figure 6 and figure S6 and statistics have been described in the text on page 15 and updated in supplementary table 1. We report a significant correlation between IHF length and CC or HC length. References to panels in figure 6 were amended throughout the results on page 15-17 to include these changes.

3. On the large increase in the total number of Sox9+ cells along the IHF by E16: Reviewer 1 asks for an possible explanation, while Reviewer 2 wonders whether the increase might be due to an absence of a stop signal at the midline.

We appreciate the reviewers’ interest in this striking phenotype. Our quantification of cell proliferation, cell death and total differentiated GFAP-positive MZG suggest that a similar number of MZG cells are generated and differentiate between our mouse models. However, although Sox9+ cell migration is delayed at earlier ages, it does increase at E16 suggesting a delay in the migration of these cells. Once they arrive at the midline, they are unable to undertake IHF remodelling due to further defects in differentiation mediated by DCC/Netrin 1 signalling. Thus, more MZG are present at the base of the IHF at E16 than wildtype, which migrate rostral and dorsal for further IHF remodelling. We have amended the text on page 12 to further clarify this point as such:

Dcckanga MZG remain adjacent to the unremodelled IHF at E16 and do not undergo further maturation to enable IHF remodelling. In contrast, wildtype MZG at E16 are scattered along the midline where IHF remodelling has already occurred and continue to expand their domain rostral and dorsal for further IHF remodelling (Gobius et al., 2016).”

4. Both Reviewers 1 and 2 ask why simply transfecting WT DCC into cell lines results in such a dramatic change in morphology but addition of NTN1 does not. Have you checked whether the cell lines express Netrin1?

We thank the reviewers for highlighting this. In response to the reviewer’s suggestion, we performed western blots of NTN1 expression. These are shown in Figure 7—figure supplement 1j and demonstrate that these cell lines indeed endogenously express NTN1. We include this new result on page 18.

“Interestingly, application of NTN1 did not affect cell shape following DCC expression in either cell line (Supplementary File 1 and Figure 7A-F), suggesting that endogenous NTN1, which is known to be expressed by U251 cells (Chen et al., 2017), may be sufficient for activation of DCC:TDTOMATO receptors, or that NTN1 is not required for this effect. […] Thus, addition of DCC induced cytoskeletal rearrangements in both N2A and U251 cells, which may involve autocrine NTN1 signalling.”

We have also updated the methods, raw data file and Supplementary file 1 to reflect these changes.

Reviewer #1:

In this manuscript, the authors revisit DCC and NTN1 mutants in order to better define the basis for midline crossing defects. This group recent demonstrated that midline zipper glia (MZG) must migrate along the interhemispheric fissure (IHF) and intercalate across the midline while remodeling the meningeal basement membrane to provide a substrate for callosal axons to cross the midline. In this study, they show that DCC and its ligand NTN1 are required for proper midline zipper glia (MZG) distribution/morphology along the IHF, proper remodeling of the basement membrane, and subsequent corpus callosum (CC) formation. The data in figures 2 and 3 generally do a nice job of supporting the model that DCC and NTN1 are expressed in MZG and that the morphology and distribution of MZG are affected in DCC/NTN1 mutants. There appear to be some defects in MZG migration that may account for this (Figure 4). Due to technical limitations, the author's attempt to use a conditional knockout of DCC to genetically dissect whether CC formation defects are due to defects in MZG or callosal axons are a bit inconclusive (Figure 6). Finally, the paper ends with experiments showing that mutations in DCC identified in acallosal patients are loss-of-function using an in vitro cell morphology assay (Figure 7 and 8).

The authors are commended for the quality of their imaging data and for being as quantitative as possible when measuring their in vivo phenotypes, which is not often done with these types of studies. There are few issues that need to be addressed.

1. In Figure 4, in addition to the migration defects of Sox9+ MZG, there seems to be a rather large increase in the total number of Sox9+ cells along the IHF by E16 (more than 2 fold, Figure 4G). The authors show there is no change in cell cycle or apoptosis of these cells in the supplemental data (Figure S4), so what accounts for this increase? Is this also seen with NFIA/B staining at E16?

Please refer to the “Essential revisions” comment number 3 (above). NFIA and NFIB immunostaining are less-specific for MZG at later ages, since they are also expressed by neurons and oligodendrocyte precursors, therefore we have not quantified NFIA/NFIB positive cells at E16 since they do not exclusively represent the SOX9-positive population.

2. Regarding the attempt to distinguish between DCC in MZG versus callosal axons (Figure 6), the incomplete deletion/loss of DCC protein (Figures 6C, I, J) is a bit concerning. It’s not clear to me why this would happen, but it confounds the interpretation of the results. While the authors state "The severity of callosal agenesis was associated with the extent to which the IHF had been remodeled" (pg 15), they don't actually quantify this. It might be informative to generate scatterplots of IHF length vs. CC/HC length to determine if there is a significant correlation between the two. This might lend more evidence to a causal relationship between IHF remodeling and CC/HC formation.

Please see “Essential revisions number 2” for our response.

3. At the end of the result section, the authors state: "mutations that affect the ability for DCC to regulate cell shape (Figure 8F), are likely to cause callosal agenesis through perturbed MZG migration and IHF remodelling." (pg. 19). While the authors nicely show that patient mutations in DCC affect the morphology of cell in cell lines (Figure 7-8), it is not clear why simply transfecting WT DCC into cell lines results in such a dramatic change in morphology, or why addition of NTN1 doesn't increase this. The authors mention that the cell lines could express NTN1 or that NTN1 is not required for the effect. This seems an important distinction. Did the authors check this? Could they use a function blocking antibody or a soluble fragment of the NTN1 binding domain of DCC to block NTN1:DCC interactions? DCC has been shown to function as a "dependence receptor" that can induce apoptosis in the absence of ligand, are the authors certain that the morphology changes they are seeing in DCC transfected cells aren't cytoskeletal changes resulting from caspase activation?

Please see Essential revisions number 4 for our response regarding NTN1 expression in the cell lines. In addition, we performed immunohistochemistry for cleaved-caspase3, a marker of apoptosis but found very little apoptosis occurring in our cultures, and no difference in expression was observed between groups. We have included this new data in Supplementary figure 7I, addressed this in the text on page 18, and updated the methods (page 28), supplementary table 1 and raw data file to reflect this addition.

Reviewer #2:

This paper is the second in a series of landmark studies from the Richards lab that re-assess the molecular and cellular mechanisms that permit the corpus callosum (CC) to cross the interhemispheric midline in the telencephalon. The Richards lab previously showed key role for a specialized population of fetal astrocytes, the midline zipper glia (MZG), establishing this substrate when the MZG migrate into the interhemispheric fissure (IHF), intercalate with one another and degrade the intervening leptomeninges. In this manuscript, the authors now assess the requirement for the Ntn1/Dcc pathway in remodeling the IHF. In an elegant series of experiments, they shown that Ntn1/Dcc regulate the migration pathway of the MZG, potentially by directly controlling cytoskeletal dynamics. This mechanism is conserved between humans and rodents; the authors show that Dcc mutations that cause CC dysgenesis in humans, cause striking changes in the morphology of astroglial-like cells, consistent with the regulation of MZG migration. Thus, Dcc appears to have two roles first, remodeling the MGZ and then guiding CC axons towards the telencephalic midline. Together, these studies continue the overgoing re-evaluation of the role of netrin1/Dcc in establishing neural circuitry, and shed further understanding on a fascinating and beautiful piece of biology.

This is a very beautiful manuscript, the authors are to be congratulated for the very high quality of their images, and detailed quantifications. Would that all studies were so thorough! These studies will be of great interest to the developmental neuroscience research and clinical communities. I strongly support publication.

The authors should be congratulated by including what was clearly a difficult conditional analysis to assess whether Dcc is required in the callosal axons, or in the MZG radial fibers. This analysis was confounded (a) by the low efficiency of the shRNA to knock down Dcc and (b) the mosaic nature of Emx::cre line, which appears to be variably expressing cre in both callosal neurons and MZG, given that TDT/Dcc are present in both axons (Figure 5B), and the MZG (Figure 5O) in the less severely affected animals.

As currently presented, however, the analysis (sadly) does not greatly add to the paper, since technical issues beyond the authors' control, have made it difficult to assess specifically where Dcc is required with much confidence. Would the authors could consider removing the shRNA approach from the manuscript, and re-focusing the cKO data on a description of a Dcc phenotypic series? This analysis might fit better with the initial description of lack of interhemispheric remodeling observed in Dcc/Ntn mutant mice, and how they relates to (variable?) phenotypes observed in patients.

Please see Essential revisions number 1 for our full response. The Results section entitled, ‘Variable DCC knockdown during midline development causes a spectrum of callosal phenotypes’, has been revised (page 14-18) to reduce the focus on cell autonomy. The text describing the shRNA approaches has been reduced considerably, shifting the focus to the cKO data as both reviewers suggested.

https://doi.org/10.7554/eLife.61769.sa2

Article and author information

Author details

  1. Laura Morcom

    The University of Queensland, Queensland Brain Institute, Brisbane, Australia
    Present address
    The University of Cambridge, Department of Paediatrics, Wellcome-MRC Stem Cell Institute, Cambridge, United Kingdom
    Contribution
    Conceptualization, Formal analysis, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6683-4356
  2. Ilan Gobius

    The University of Queensland, Queensland Brain Institute, Brisbane, Australia
    Present address
    The University of Queensland, Diamantina Institute, Brisbane, Australia
    Contribution
    Conceptualization, Formal analysis, Supervision, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  3. Ashley PL Marsh

    1. Bruce Lefroy Centre for Genetic Health Research, Murdoch Children’s Research Institute, Royal Children’s Hospital, Parkville, Australia
    2. Department of Paediatrics, University of Melbourne, Parkville, Australia
    Present address
    Departments of Child Health, Neurology, Cellular and Molecular Medicine and Program in Genetics, University of Arizona College of Medicine, Phoenix, United States
    Contribution
    Conceptualization, Resources, Validation, Investigation, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6049-6931
  4. Rodrigo Suárez

    The University of Queensland, Queensland Brain Institute, Brisbane, Australia
    Present address
    The University of Queensland, School of Biomedical Sciences, Brisbane, Australia
    Contribution
    Conceptualization, Supervision, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5153-5652
  5. Jonathan WC Lim

    The University of Queensland, Queensland Brain Institute, Brisbane, Australia
    Contribution
    Investigation
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5074-6359
  6. Caitlin Bridges

    The University of Queensland, Queensland Brain Institute, Brisbane, Australia
    Contribution
    Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  7. Yunan Ye

    The University of Queensland, Queensland Brain Institute, Brisbane, Australia
    Contribution
    Formal analysis, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9084-6314
  8. Laura R Fenlon

    The University of Queensland, Queensland Brain Institute, Brisbane, Australia
    Present address
    The University of Queensland, School of Biomedical Sciences, Brisbane, Australia
    Contribution
    Supervision, Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5132-2419
  9. Yvrick Zagar

    Sorbonne Université, INSERM, CNRS, Institut de la Vision, Paris, France
    Contribution
    Resources, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  10. Amelia M Douglass

    The University of Queensland, Queensland Brain Institute, Brisbane, Australia
    Present address
    Division of Endocrinology, Diabetes, and Metabolism, Department of Medicine, Beth Israel Deaconess Medical Center, Harvard Medical School, Boston, United States
    Contribution
    Conceptualization, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5398-6473
  11. Amber-Lee S Donahoo

    The University of Queensland, Queensland Brain Institute, Brisbane, Australia
    Contribution
    Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  12. Thomas Fothergill

    The University of Queensland, Queensland Brain Institute, Brisbane, Australia
    Present address
    Bruker Fluorescence Microscopy, Madison, United States
    Contribution
    Resources, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  13. Samreen Shaikh

    The University of Queensland, Queensland Brain Institute, Brisbane, Australia
    Present address
    The University of Queensland, School of Biomedical Sciences, Brisbane, Australia
    Contribution
    Investigation, Writing - review and editing
    Competing interests
    No competing interests declared
  14. Peter Kozulin

    The University of Queensland, Queensland Brain Institute, Brisbane, Australia
    Contribution
    Supervision, Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7872-9884
  15. Timothy J Edwards

    1. The University of Queensland, Queensland Brain Institute, Brisbane, Australia
    2. The University of Queensland, Faculty of Medicine, Brisbane, Australia
    Present address
    Great Ormond Street Institute of Child Health, University College London, London, United Kingdom
    Contribution
    Investigation, Methodology, Writing - review and editing
    Competing interests
    No competing interests declared
  16. Helen M Cooper

    The University of Queensland, Queensland Brain Institute, Brisbane, Australia
    Contribution
    Conceptualization, Resources, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9838-5743
  17. IRC5 Consortium

    Members and Affiliates of the International Research Consortium for the Corpus Callosum and Cerebral Connectivity (IRC5), Los Angeles, United States
    Contribution
    Conceptualization, Validation
  18. Elliott H Sherr

    Departments of Neurology and Pediatrics, Institute of Human Genetics and Weill Institute of Neurosciences, University of California, San Francisco, San Francisco, United States
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4118-5385
  19. Alain Chédotal

    Sorbonne Université, INSERM, CNRS, Institut de la Vision, Paris, France
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Validation, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7577-3794
  20. Richard J Leventer

    1. Department of Paediatrics, University of Melbourne, Parkville, Australia
    2. Neuroscience Research Group, Murdoch Children’s Research Institute, Parkville, Australia
    3. Department of Neurology, University of Melbourne, Royal Children’s Hospital, Parkville, Australia
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Writing - review and editing
    Competing interests
    No competing interests declared
  21. Paul J Lockhart

    1. Bruce Lefroy Centre for Genetic Health Research, Murdoch Children’s Research Institute, Royal Children’s Hospital, Parkville, Australia
    2. Department of Paediatrics, University of Melbourne, Parkville, Australia
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2531-8413
  22. Linda J Richards

    1. The University of Queensland, Queensland Brain Institute, Brisbane, Australia
    2. The University of Queensland, School of Biomedical Sciences, Brisbane, Australia
    Contribution
    Conceptualization, Supervision, Funding acquisition, Investigation, Visualization, Methodology, Writing - original draft, Project administration, Writing - review and editing
    For correspondence
    richards@uq.edu.au
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7590-7390

Funding

National Health and Medical Research Council (GNT456027)

  • Linda J Richards

National Health and Medical Research Council (GNT631466)

  • Linda J Richards

National Health and Medical Research Council (GNT1048849)

  • Linda J Richards

National Health and Medical Research Council (GNT1126153)

  • Linda J Richards

National Health and Medical Research Council (GNT1059666)

  • Richard J Leventer
  • Paul J Lockhart

National Institutes of Health (5R01NS058721)

  • Elliott H Sherr
  • Linda J Richards

Australian Research Council (DE160101394)

  • Rodrigo Suárez

Department of Education, Skills and Employment, Australian Government (Australian Postgraduate Award, Research Training Program)

  • Laura Morcom
  • Ashley PL Marsh
  • Jonathan WC Lim

Queensland Brain Institute (Top-Up scholarship)

  • Laura Morcom
  • Jonathan WC Lim
  • Amber-Lee S Donahoo

University of Queensland (UQ development fellowship)

  • Laura R Fenlon

Murdoch Children's Research Institute (Melbourne Children's Clinician Scientist fellowship)

  • Richard J Leventer

National Health and Medical Research Council (GNT1120615)

  • Linda J Richards

National Health and Medical Research Council (GNT1156820)

  • Ashley PL Marsh

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Marc Tessier-Lavigne for the Ntn1-lacZ and Dcc knockout mouse lines, and Susan Ackermann (Jackson Laboratory) for the Dcckanga mouse lines. We thank colleagues for providing the constructs listed. We thank Luke Hammond, Rumelo Amor, Arnaud Guardin, Andrew Thompson and Matisse Jacobs for assistance with microscopy, which was performed in the Queensland Brain Institute’s Advanced Microscopy Facility. This work was supported by Australian NHMRC grants GNT456027, GNT631466, GNT1048849 and GNT1126153 to LJR and GNT1059666 to PJL and RJL, and US National Institutes of Health grant 5R01NS058721 to ES and LJR. RS received an Australian Research Council DECRA fellowship (DE160101394). APLM, JWCL, and LM were supported by a research training program scholarship (Australian Postgraduate Award). APLM was further supported by a NHMRC Early Career Research Fellowship (GNT1156820). ALSD was supported by an Australian Postgraduate award. ALSD, JWCL, and LM received a Queensland Brain Institute Top-Up Scholarship. LRF was supported by a UQ Development Fellowship, RJL was supported by a Melbourne Children’s Clinician Scientist Fellowship and LJR was supported by an NHMRC Principal Research Fellowship (GNT1120615).

We thank the families and members of the Australian Disorders of the Corpus Callosum (AusDoCC) for their support and time in being involved in this research. We thank the International Research Consortium for the Corpus Callosum and Cerebral Connectivity (IRC5, https://www.irc5.org) researchers for discussions and input.

Ethics

Human subjects: Ethics for human experimentation was acquired by local ethics committees at The University of Queensland (Australia), the Royal Children's hospital (Australia), and UCSF Benioff Children's Hospital (USA). The research was carried out in accordance with the provisions contained in the National Statement on Ethical Conduct in Human Research (USA) under IRB number 10-01008 and with the regulations governing experimentation on humans (Australia), under the following human ethics approvals: HEU 2007/163 (previously 2006000899), HEU 2014000535, HEU 2015001306.

Animal experimentation: Prior approval for all breeding and experiments was obtained from the University of Queensland Animal Ethics Committee and was conducted in accordance with the Australian code for the care and use of animals for scientific purposes. The protocol, experiments and animal numbers were approved under the following project approval numbers: (QBI/305/17, QBI/311/14 NHMRC (NF), QBI/356/17, QBI/306/17, and QBI/240/14/MDF (NF)).

Senior Editor

  1. Huda Y Zoghbi, Texas Children's Hospital, United States

Reviewing Editor

  1. Carol A Mason, Columbia University, United States

Reviewers

  1. Samantha J Butler, University of California, Los Angeles, United States
  2. Thomas Pratt

Publication history

  1. Received: August 4, 2020
  2. Accepted: April 18, 2021
  3. Accepted Manuscript published: April 19, 2021 (version 1)
  4. Version of Record published: May 12, 2021 (version 2)

Copyright

This is an open-access article, free of all copyright, and may be freely reproduced, distributed, transmitted, modified, built upon, or otherwise used by anyone for any lawful purpose. The work is made available under the Creative Commons CC0 public domain dedication.

Metrics

  • 848
    Page views
  • 156
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    Zhaoyang Liu et al.
    Research Article

    Adolescent idiopathic scoliosis (AIS) is the most common spine disorder affecting children worldwide, yet little is known about the pathogenesis of this disorder. Here, we demonstrate that genetic regulation of structural components of the axial skeleton, the intervertebral discs, and dense connective tissues (i.e., ligaments and tendons) are essential for the maintenance of spinal alignment. We show that the adhesion G protein-coupled receptor ADGRG6, previously implicated in human AIS association studies, is required in these tissues to maintain typical spine alignment in mice. Furthermore, we show that ADGRG6 regulates biomechanical properties of tendon and stimulates CREB signaling governing gene expression in cartilaginous tissues of the spine. Treatment with a cAMP agonist could mirror aspects of receptor function in culture, thus defining core pathways for regulating these axial cartilaginous and connective tissues. As ADGRG6 is a key gene involved in human AIS, these findings open up novel therapeutic opportunities for human scoliosis.

    1. Developmental Biology
    2. Genetics and Genomics
    Yukiko Tando et al.
    Research Article

    Exposure to environmental factors during fetal development may lead to epigenomic modifications in fetal germ cells, altering gene expression and promoting diseases in successive generations. In mouse, maternal exposure to di(2-ethylhexyl) phthalate (DEHP) is known to induce defects in spermatogenesis in successive generations, but the mechanism(s) of impaired spermatogenesis are unclear. Here, we showed that maternal DEHP exposure results in DNA hypermethylation of promoters of spermatogenesis-related genes in fetal testicular germ cells in F1 mice, and hypermethylation of Hist1h2ba, Sycp1, and Taf7l, which are crucial for spermatogenesis, persisted from fetal testicular cells to adult spermatogonia, resulting in the downregulation of expression of these genes. Forced methylation of these gene promoters silenced expression of these loci in a reporter assay. These results suggested that maternal DEHP exposure-induced hypermethylation of Hist1h2ba, Sycp1, and Taf7l results in downregulation of these genes in spermatogonia and subsequent defects in spermatogenesis, at least in the F1 generation.
