Swarming bacteria undergo localized dynamic phase transition to form stress-induced biofilms

  1. Iago Grobas
  2. Marco Polin  Is a corresponding author
  3. Munehiro Asally  Is a corresponding author
  1. Warwick Medical School, Universityof Warwick, United Kingdom
  2. Centre for Mechanochemical Cell Biology, University of Warwick, United Kingdom
  3. Physics Department, University of Warwick, United Kingdom
  4. Mediterranean Institute for Advanced Studies (IMEDEA UIB-CSIC), C/ Miquel Marqués, Spain
  5. Bio-Electrical Engineering Innovation Hub, University of Warwick, United Kingdom
  6. Warwick Integrative Synthetic Biology Centre, University of Warwick, United Kingdom
  7. School of Life Sciences, University of Warwick, United Kingdom
Research Article
  • Cited 2
  • Views 3,243
  • Annotations
Cite this article as: eLife 2021;10:e62632 doi: 10.7554/eLife.62632

Abstract

Self-organized multicellular behaviors enable cells to adapt and tolerate stressors to a greater degree than isolated cells. However, whether and how cellular communities alter their collective behaviors adaptively upon exposure to stress is largely unclear. Here, we investigate this question using Bacillus subtilis, a model system for bacterial multicellularity. We discover that, upon exposure to a spatial gradient of kanamycin, swarming bacteria activate matrix genes and transit to biofilms. The initial stage of this transition is underpinned by a stress-induced multilayer formation, emerging from a biophysical mechanism reminiscent of motility-induced phase separation (MIPS). The physical nature of the process suggests that stressors which suppress the expansion of swarms would induce biofilm formation. Indeed, a simple physical barrier also induces a swarm-to-biofilm transition. Based on the gained insight, we propose a strategy of antibiotic treatment to inhibit the transition from swarms to biofilms by targeting the localized phase transition.

Introduction

The ability to sense, respond, and adapt to varieties of chemical, physical, and environmental stresses is fundamental to the survival of organisms. In addition to general stress-response pathways at individual cell level, which activate target genes in response to a variety of stresses, multicellular systems can tolerate stresses through self-organization, the emergence of order in space and time resulting from local interactions between individual cells (Ben-Jacob et al., 2000; Kirschner et al., 2000; Schweisguth and Corson, 2019). Bacterial biofilm formation and swarming are ancient forms of multicellular adaptation (de la Fuente-Núñez et al., 2013; Lyons and Kolter, 2015), where cells can coordinate their behaviors through chemical (Daniels et al., 2004; Xavier, 2011), mechanical (Grobas et al., 2020; Be'er and Ariel, 2019; Mazza, 2016), and bioelectrical (Benarroch and Asally, 2020; Prindle et al., 2015) interactions. Biofilm cells are much more tolerant to various stresses than genetically identical cells in isolation (Meredith et al., 2015), owing to the physicochemical properties of extracellular polysubstance (EPS) (Flemming and Wingender, 2010), metabolic coordination (Liu et al., 2015), slow cell growth (Costerton et al., 1999), and in the case of air-exposed biofilms, diffusion barrier by the archetypical wrinkled morphology (Epstein et al., 2011; Vlamakis et al., 2013).

Swarming bacteria can also collectively tolerate antibiotic treatments that are lethal to planktonic cells – albeit only to a lesser degree than biofilms – through motility-induced mixing and reduced small-molecule absorption (Bhattacharyya et al., 2020; Butler et al., 2010; Lai et al., 2009). As a rapid mode of surface colonization (Kearns, 2010), a swarm’s ability to withstand high antibiotic concentrations could therefore lead to the subsequent establishment of highly resilient biofilms in regions that could not have been reached otherwise. The formation of biofilms is linked to general stress response pathways (Lories et al., 2020; Nadezhdin et al., 2020); it has been reported that biofilms can be induced from free-swimming planktonic cells by a wide range of biochemical and mechanical stressors, such as aminoglycoside antibiotics (Hoffman et al., 2005; Jones et al., 2013), redox-active compounds (Wang et al., 2011), nutrient depletion (Zhang et al., 2014), and mechanical stress (Chu et al., 2018). However, whether swarming collectives may also transit into more resilient biofilms upon exposure to stressors, and -if so- how such a transition can be initiated within a self-organized swarm, are unknown.

Biophysics of collective motion in bacteria, such as flocking and swarming, is a major topic within the rapidly growing research area of active matter (Bechinger et al., 2016; Geyer et al., 2019; Vicsek et al., 1995). Theoretical models of active matter have repeatedly predicted that at a sufficient concentration, a collection of motile particles, be it swimming cells or self-propelled artificial microswimmers, can spontaneously form high-density clusters (Barré et al., 2015; Gonnella et al., 2015). Indeed, this process has been implicated in the development of cell inhomogeneities leading to fruiting-body formation in M. xanthus (Liu et al., 2019). This transition, known as Motility Induced Phase Separation (MIPS), is based on feedback between the localized decrease in particles’ speed at high concentration, caused by physical interactions, and the spontaneous accumulation of active particles in the clusters where their speed is lower (Gonnella et al., 2015). When the particles’ speed is sufficiently high and their concentration is in the appropriate range (typical volume fractions of 0.3–0.8 or 0.6–0.7 for round or rod-shaped particles, respectively [Digregorio et al., 2018; van Damme et al., 2019]), inherent density fluctuations are amplified by the particles’ slowing down, and the system effectively phase separates into high-density/low-motility clusters surrounded by a low-density/high-motility phase (Cates and Tailleur, 2015).

The theory of MIPS, then, suggests that persistent heterogeneity in cell density – the MIPS clusters – can develop spontaneously when both cell speed and density are appropriate (Figure 1, gray U-shape region) (Cates et al., 2010). Such conditions should be achievable within a bacterial swarm. Given that cell-density heterogeneity can lead to the production of matrix and biofilm formation mediated by localized cell death (Asally et al., 2012; Ghosh et al., 2013), we hypothesized that the heterogeneity caused by putative MIPS-like clusters could in turn underpin a transition from bacterial swarms into biofilms (Figure 1). As MIPS-like clustering is an emergent phenomenon arising from physical interactions between individual agents, it may endow swarms with a collective response to a wide spectrum of stressors that cause changes in cell motility and/or density.

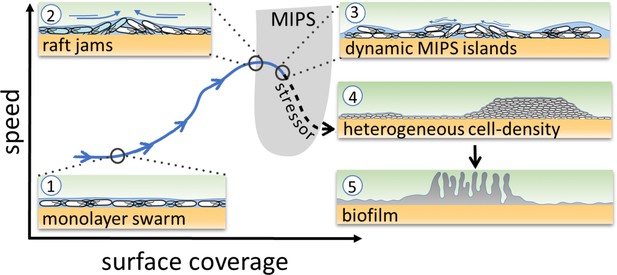

Schematic of the transition from swarming to biofilm formation through MIPS.

B. subtilis cells swarm in a monolayer (stage 1). As cell density increases, cells form fast-moving rafts which can collide and form transient jams. Cells at the boundary between the colliding rafts are pushed upwards and protrude from the surrounding monolayer (stage 2). Further increase in surface coverage can promote the formation of dynamic MIPS-like islands where cells accumulate within the swarm while still being dynamic (stage 3). Eventually, this uneven distribution of cells gives rise to macroscopic spatial heterogeneity in cell density (stage 4), which can lead to the formation of biofilms (stage 5).

Here, we show that Bacillus subtilis swarms can indeed transit into biofilms through a MIPS-like process, induced by physical or chemical stresses applied at the swarming front. When swarming cells are exposed to kanamycin, they activate the expression of the biofilm matrix operon, tapA-sipW-tasA, and eventually develop wrinkled biofilms. The transition is initiated by a localized phase transition, where the expanding swarming monolayer generates multilayer clusters of cells as a consequence of motility- and stress-induced elevation of cell density. Based on the insights gained from our investigation, we show that targeting the multilayered region by administering a given amount of antibiotic in two separate doses is effective in inhibiting the formation of wrinkly biofilms from swarming cells.

Results

Swarming B. subtilis transits into a biofilm in presence of a spatial kanamycin gradient

To examine if a stressor triggers biofilm formation from a swarming collective, we performed swarming assays using B. subtilis with a spatial gradient of the aminoglycoside kanamycin. Specifically, a disk containing 30 μg of kanamycin was placed on the side of a swarming plate (0.5% agar) and allowed to rest for 24 hr to establish a space-dependent antibiotic concentration profile (Figure 2a and Figure 2—figure supplement 1). An inoculum of B. subtilis culture was then placed at the center of the dish, ~4 cm away from the kanamycin source, and the plate was imaged while being kept at 30°C (Figure 2a). After ~2 hr of lag period, the cells formed a rapidly expanding swarming front (~4 mm/hr), which became progressively slower towards the source of kanamycin until it completely stopped ~0.3 cm away from the disk (Figure 2—figure supplement 2 and Video 1). After further incubation at 30°C for 36 hr, the colony developed prominent wrinkles, the morphological hallmark of B. subtilis pellicles and colony biofilms (Cairns et al., 2014; Vlamakis et al., 2013), across a ~ 3 mm band ~1.3 cm away from the kanamycin disk (Figure 2b). The estimated level of kanamycin at the site was around the minimum inhibitory concentration (MIC) of planktonic cells (Figure 2—figure supplement 1).

Figure 2 with 7 supplements see all

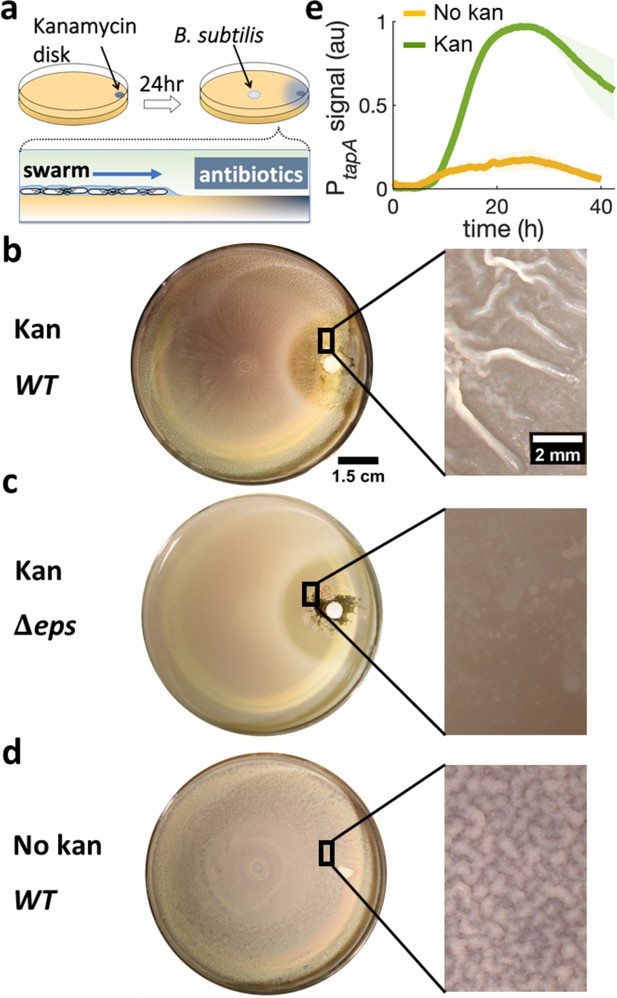

Swarming cells transit into biofilm in the presence of kanamycin gradient.

(a) Schematics of swarming bacteria expanding from the center of a 9-cm Petri dish toward a kanamycin-diffusive disk. Kanamycin disk was placed for 24 hr to form a spatial gradient (Figure 2—figure supplement 1). (b, c, d) Swarming B. subtilis plates after 40 hr incubation. Wrinkles are formed at the region ~2 cm away from disk with (b) wildtype (WT), but not with (c) Δeps deletion strain. (d) WT swarming plate with a diffusive disk without antibiotics. Zoomed images show the colony surface. (e) Mean fluorescence intensity of PtapA-yfp was measured in the region just after the depletion zone created by the kanamycin-diffusive disk (green). A region in a similar location was measured in absence of kanamycin (yellow). The mean was taken from three independent experiments. The shady areas represent the s.e.m.

Video 1
Expansion of swarming bacteria in presence of a gradient of kanamycin.

Wild-type Bacillus subtilis was inoculated at the center of the plate. Eventually, bacteria at the swarming front halt due to the presence of the kanamycin-diffusive disk placed on a side of a 9-cm Petri Dish 24 hr prior to inoculation. After the front stops, the swarm is still dynamic since multiple waves of swarming bacteria come from the center of the plate.

To quantify the degree of biofilm formation, we measured the characteristic wavelength and roughness of the wrinkles. In this study, the term biofilm is interpreted as wrinkly biofilm, and the wrinkles’ wavelength is used as a convenient indirect quantification of biofilm formation since the wavelength has been reported to correlate with biofilm stiffness and extracellular matrix (Asally et al., 2012; Kesel et al., 2016; Yan et al., 2019). More specifically, the wavelength is smaller in colonies of matrix mutants and greater in hyper biofilm-forming mutants. The wrinkles appearing near the kanamycin disk had a wavelength of λ = 560 μm and roughness r = 10, indicating a much stiffer biofilm than the case without kanamycin, which only produced a faint small-wavelength surface roughness (λ = 91 μm, r = 5.5; Figure 2—figure supplement 3).

To further verify the association of these wrinkles to biofilms, we repeated the assay using Δeps, a mutant known to be impaired in biofilm formation (Nagorska et al., 2010; Branda et al., 2001) but capable of swarming (Video 2), and confirmed no wrinkles with this mutant (Figure 2c). Furthermore, we measured the expression of tasA, which encodes an essential matrix component for B. subtilis biofilm formation (Romero et al., 2010), using a strain carrying PtapA-yfp, a fluorescence reporter for the expression of the tapA-sipW-tasA operon (Vlamakis et al., 2008). The result showed a greater fluorescence signal from the promoter reporter when swarming cells were exposed to kanamycin (Figure 2e), suggesting that the exposure to kanamycin results in higher abundance in extracellular matrix and induces biofilm formation in a swarming colony on a soft-agar plate.

Video 2
Swarming Bacillus subtilis Δeps deletion strain was inoculated at the center of the plate.

Eventually, bacteria at the swarming front halt due to the presence of the kanamycin diffusive disk placed on a side of a 9 cm Petri dish 24 hr before inoculation.

The emergence of wrinkles across a ~ 3 mm-band away from kanamycin suggests that the swarm-to-biofilm transition corresponds to exposure to a certain concentration range of kanamycin. Indeed, increasing the initial concentration of antibiotic in the disk, wrinkles emerged further away from the disk (Figure 2—figure supplement 4), while a disk without antibiotic did not promote wrinkle formation (Figure 2d and Figure 2—figure supplement 5). Intriguingly, spotting individual colonies on hard agar plates (1.5%) typically used for biofilm colony assays, showed that kanamycin inhibited biofilm formation (Figure 2—figure supplement 6). When cells were instead uniformly spread across the hard agar plate at concentrations similar to those of a swarming monolayer, the system developed only faint wrinkles around the antibiotic exclusion zone (Figure 2—figure supplement 7). The fact that a kanamycin gradient promotes wrinkle formation significantly more in a swarming colony than a non-motile culture, pointed to a fundamental role played by cell motility and suggested the need to investigate the swarming dynamics in detail.

The emergence of the biofilm is templated by a localized transition from mono- to multilayers at the swarming front

To investigate the potential link between swarming dynamics and biofilm formation, we characterized the swarming dynamics at the single-cell level, with and without a kanamycin gradient. We combined time-lapse imaging at both microscopic (10×; 30 fps) and macroscopic (2×; 0.006 fps) scales to capture both swarming, which is microscopic and fast (~70 μm2 cell rafts; speed ~60 μm/s), and biofilm formation, which occurs at a macroscopic scale over hours to days. For the microscopic imaging, we focused on the cells at ~1 cm from the kanamycin disk, where wrinkles eventually appear and kanamycin level is around MIC for planktonic cells (Figure 2—figure supplement 1). The cells displayed typical swarming dynamics during the expansion of the colony front (Figure 3a). As time progressed, we observed the local surface coverage of the monolayer swarm to progressively increase from initial values of ~20% to ≳60%, at which point the swarming rafts started displaying jamming events lasting ~1–2 s, during which cell speed was strongly reduced and groups of cells protruded temporarily from the swarming monolayer (typical size of jammed group ~500 µm2, see Video 3). Interestingly, in this area we did not observe a significant fraction of immotile cells, as previously reported for swarming in presence of a uniform concentration of kanamycin (Benisty et al., 2015).

Figure 3 with 4 supplements see all
Swarming bacteria form patterned multilayer regions in presence of kanamycin.

(a, b, c) Microscopy images of swarming bacteria and side-view illustrations at different levels of cell density (ρ). Timestamp is relative to the formation of dynamic multilayer islands. (a) When cell density is below a threshold ρc, cells swarm in a monolayer. Image is 57 min prior to islands formation. Inset is a zoomed image showing swarming rafts. (b) Increase in cell density leads to formation of second layers, that appear as darker regions in the swarm. These islands are highly dynamic, and cells are motile. The shape of the islands changes dynamically within 1 s (insert). See also Video 4. (c) Over time, the islands increase their size and merge together to form double-layered regions, coexisting with mono-layered regions. Double-layered regions are seen darker than mono layered regions. (d, e) Images of swarming colony with and without kanamycin. The diagram illustrates the regions of interest (ROI) used for the panels. The dynamics of island formation are color coded using the lookup table. The origin of times is the appearance of island. The earliest islands correspond to the darkest colors whereas the new features correspond to the lightest ones. See also Video 6. (d) In the absence of kanamycin, multilayer regions are much grainer with no clear patterns of propagation. (e) In the presence of kanamycin, multilayered regions have a defined pattern, starting from the regions closer to kanamycin to form an elongated shape. These regions appear predominantly at ~7 mm away from kanamycin.

Video 3
Swarming bacteria during the jamming process visualized as darker cells in the field of view observed at ×60 magnification.

The speed plot shows the average speed in the field of view and the blue shade represents s.e.m. The vertical line in the graph indicates the frame of the time-lapse in which the average speed was calculated. It can be observed that the jam makes the overall speed to drop by half of the initial magnitude.

The jamming of aligned rafts has been predicted numerically for elongated self-propelled particles on a plane (Peruani et al., 2011; Weitz et al., 2015), although in that case the planar confinement precluded any possible excursion in the third dimension. With a slight further increase in local cell density, the temporary jams led to permanent isolated multilayered regions, which we call ‘islands’, typically ~27,000 μm2 in size and with constantly fluctuating boundaries (Figure 3b inset, Video 4). The islands did not appear to be related to any evident inhomogeneity of the underlying agar. Consistent with a previous study reporting the reduction in speed by kanamycin (Benisty et al., 2015), we observed the speed declined before island formation (Figure 3—figure supplement 1). Within islands, cells were highly dynamic and appeared to meander across the layers albeit at a reduced speed (Figure 3—figure supplement 2, Video 5). Cell movement within islands highlights the fact that these are formed by actively motile cells, rather than groups of immotile bacteria which spontaneously separate from the monolayer. In particular, we did not find any evidence for clusters of immotile cells templating the islands. Rather, motile cells were constantly exchanged between the multilayer and the surrounding monolayer. Following a continuous increase in cell density with time, islands grew in size and merged with each other, eventually forming a much larger multilayered region (Figure 3c, Video 6). The nucleation and merging of islands were observed up to four layers before we lost the ability to recognize further transitions due to a flattening of the image contrast (Figure 3—figure supplement 3).

Video 4
Process of jams and islands formation under ×10 magnification.

The left panel shows swarming bacteria continuously jamming. The jams look like dark localized small regions in the field of view which continuously appear and disappear. The right panel shows the same scenario 10 min later, when the islands become more stable. Islands look like extended dark regions in the field of view which are highly dynamic and with highly fluctuating boundaries.

Video 5
Coexistence between a second layer of swarming bacteria (darker region in the field of view) and a surrounding monolayer of swarming cells under ×40 magnification.

The boundaries of the island continuously exchange cells with the monolayer surrounding it. Within the island, cell appear to meander across the layers.

Video 6
Formation of multilayers in a swarming plate with a kanamycin-diffusive disk.

The multilayer starts forming in the region near the disk where multiple islands appear. The islands become very elongated at the front and they grow in size until they merge. The nucleation and merging of islands were observed up to four layers before we lost the ability to recognize further transitions due to a flattening of the image contrast. In the opposite side of the plate, away from kanamycin, the islands appear and merge homogeneously in the whole region.

The formation of islands was also observed by macroscopic time-lapse imaging. In absence of kanamycin, islands emerged simultaneously throughout the plate, forming an intricate granular pattern with a typical size of ~2000 µm2 (Figure 3d), a phenomenology reminiscent of spinodal decomposition in binary fluids (Qiu et al., 2001). In contrast, the process of islands formation and growth was markedly different in presence of kanamycin (Figure 3e). After the swarming front expansion was stopped due to inhibition by the antibiotic, well-defined, distinct islands first emerged within a ~ 5 mm-wide band just inside of the arrested swarming front, and then grew with a strongly anisotropic pattern oriented transversally to the front of the swarm (Video 6). This phenomenology is reminiscent of a binodal – rather than spinodal – liquid-liquid phase separation in a temperature gradient (Bartolini et al., 2019) which here might reflect a kanamycin-induced speed gradient. The resulting macroscopic cell-density heterogeneity was followed by the subsequent formation of biofilm wrinkles, ~1 cm away from the disk (Figure 2b).

Since quorum sensing is often associated with bacterial collective behavior, we wondered if quorum sensing may play a role in the emergence of islands and the ensuing multilayer. We therefore repeated the experiments with ΔphrC and Δopp mutant strains, lacking the Phr quorum-sensing system in B. subtilis but still capable of swarming. In both cases, we observed the wild-type phenomenology of wrinkled biofilms and the emergence of islands (Figure 3—figure supplement 4). The results indicated that this quorum-sensing system is not responsible for the multilayer transition, suggesting that exposure to kanamycin can promote cell-density heterogeneity by multilayer islands formation in a quorum-sensing independent manner.

Transition from monolayer to multilayer resembles motility induced phase separation

To address the mechanism of multilayer formation, we wondered if physical stresses may be responsible for this emergent collective behavior since single-to-multilayer transitions have been reported for confined bacterial aggregates, either growing or gliding, as a consequence of build-up of internal mechanical stresses (Takatori and Mandadapu, 2003; Grant et al., 2014; Su et al., 2012). In particular, we considered if the active matter model of MIPS for rod-shape particles (Cates and Tailleur, 2015) could act as a useful paradigm for understanding the emergence of multilayer regions. We therefore mapped our experimental results onto the typical phase space considered when studying MIPS transitions, where an active two-dimensional system is characterized by its surface coverage, φ, and its rotational Péclet number, Per = u/LDr. The latter is defined in terms of the average speed u, characteristic size L, and rotational diffusivity Dr of the active particles. MIPS clusters are expected within a U-shaped region characterized by a sufficiently large Per and a range of surface coverages that, for rod-like particles like B. subtilis, is pushed to values higher than the ~50%, typical of circular particles, due to antagonistic effects of cell-to-cell alignment (Figure 4a, gray U-shape region shows the prediction for aspect ratio two from van Damme et al., 2019). We then quantified the cell density (surface coverage, φ) and the rotational Péclet number from the different stages of the swarming process. Figure 4a shows these two quantities for cells in the monolayer (blue dots) and for bacterial jams (red dots). While bacteria in the monolayer corresponded overwhelmingly to points well outside the MIPS region (Figure 4a blue dots), bacterial jams – the first stage in the development of stable multilayer islands – clustered around the area predicted for MIPS in two-dimensional self-propelled disks (Figure 4a, red dots; MIPS region from van Damme et al., 2019). Jamming events were also characterized by a sudden drop in cells’ speed (Figure 4b and Video 3), consistent with the basic premise of MIPS. This is only a temporary slowing down due to cell-cell interactions rather than the persistent decrease in motility that can be induced by prolonged exposure to kanamycin (Benisty et al., 2015). Altogether, these results show that the mechanism leading to the development of multilayered islands is compatible with the MIPS process in active matter. Having established the similarities between MIPS and multilayer formation in the swarm, it is important to test the ability of the model to predict the results of new experiments.

Figure 4 with 1 supplement see all
The interplay between cell density and cell speed primes jamming and multi-layer formation.

(a) Phase diagram of surface coverage and the rotational Péclet number (Per). Per is proportional to cells' speed (see Materials and methods). Grayed region depicts motility-induced phase separation (MIPS) heterogeneity. Each data point represents a result of a 4-s single-cell time-lapse microscopy data. The time-lapse data in which jamming events are observed are shown in red (see Video 3). Jams appear exclusively under the conditions near the border of the MIPS region. (b) The speed of motile cells drops by half during jamming (highlighted by dashed rectangle). Increase in jamming events lead to formation of islands (see Figure 2 and Video 4). (c, left) Illustrative diagram showing the accumulation of cells by UV irradiation. Cell speeds drop within the irradiated region (show by purple square), which elevates the surface coverage. (c, right) UV irradiation elevates surface coverage. The graph shows the dynamics of surface coverage (black) and cell speed (cyan). Magenta is the period with UV light illumination (1.2 mW/mm2). Vertical dashed line shows the onset of jamming events. (d) Time evolution trajectories of surface coverage and rotational Péclet number with UV illumination experiment. Blue dots are before UV illumination and red dots are when jams appear. Increasing surface coverage by UV induces formation of jams at the border to MIPS region (gray).

Local accumulation of swarming cells induces multilayer transition and biofilm formation

The MIPS paradigm makes the experimentally testable prediction that it should be possible to induce multilayer formation by altering the local density of motile cells, thereby forcing the system to enter the MIPS region in phase space (Figure 4a, shaded region). We tested this in two ways: by UV irradiation, and through the use of a physical barrier to block front expansion. Near-UV light can decrease cell speed in gram-negative bacteria like E. coli and S. marcescens (Krasnopeeva et al., 2019; Yang et al., 2019) as well as, as we report here, in B. subtilis (Figure 4—figure supplement 1). Locally slowing down motility by light can lead to a local increase in cell concentration through the accumulation of cells from non-irradiated regions (Figure 4c). We first verified that the illumination by UV light itself does not induce a multilayer transition, by illuminating an area >200 fold greater than the field of view. This prevented cells outside of the irradiated area from accumulating within the field of view during the experiment. Accordingly, the surface coverage increased only marginally (φ ≃ 0.45 to φ ≃ 0.47 in 3 min; Figure 4—figure supplement 1). The UV illumination caused an initial sudden drop in average speed from 65 to 50 μm/s (Figure 4—figure supplement 1), followed by a nonlinear progressive slow down over the course of 3 min. Within the phase space picture (Figure 4a, Figure 4—figure supplement 1b), this corresponds to a trajectory that essentially just moves towards progressively lower values of Per. This should not lead to either jams or island formation, which in fact were never observed (Figure 4a, Figure 4—figure supplement 1b).

We next illuminated a region of size similar to the field of view. This arrangement allowed cells from the outer region to accumulate within the field of view due to UV-induced slow-down, a phenomenon which is a direct consequence of the active, out-of-equilibrium nature of the swarm with no counterpart in statistical systems in equilibrium (Arlt et al., 2018; Cates, 2012; Frangipane et al., 2018). As a consequence, the cell density increased significantly (φ ≃ 0.42 to φ ≃ 0.7 in 2 min; Figure 4c). For the first ~2 min, the average drop in cell speed was likely compensated by the density increase. It is well known, in fact, that cell density can enhance swarming motility through cooperative raft formation (Be'er and Ariel, 2019; Jeckel et al., 2019). Eventually, however, the increase in cell density resulted first in the formation of jams and finally of multilayer islands (Figure 4c, Video 7). Figure 4d shows the trajectories followed by the irradiated swarms in phase space. Jamming of swarming cells, the first step in island formation, occurs only for cell densities within a range that compares very well with predictions by MIPS for self-propelled rod-like particles (Figure 4d shaded region and van Damme et al., 2019). These results provide a direct support to the hypothesis that a biophysical MIPS-like process underpins the transition from swarming monolayers to multilayers in B. subtilis.

Video 7
Time-lapse of accumulation of bacteria over time when they are being continuously irradiated by UV light in a region that is as large as the field of view.

Eventually, bacteria accumulation gives rise to the formation of localized islands, which appear as dark regions in the field of view, finally leading to a confluent second layer.

To further examine if a local cell-density increase is sufficient by itself to induce a localized transition from monolayer to multilayer, we used a physical barrier to impede the advance of the swam and locally increase cell density. Again, consistently with the MIPS picture, the arrest of the swarm front led to an increase in cell density and the subsequent emergence of multilayer islands near the barrier (Video 8). After 36 hr of further incubation, wrinkles developed near the physical barrier precisely in the region where the islands had started to appear initially (Figure 5a). As for the kanamycin case, also for the barrier the development of wrinkles is accompanied by a stronger local expression of tasA (Figure 5b and Figure 5—figure supplement 1).

Figure 5 with 1 supplement see all

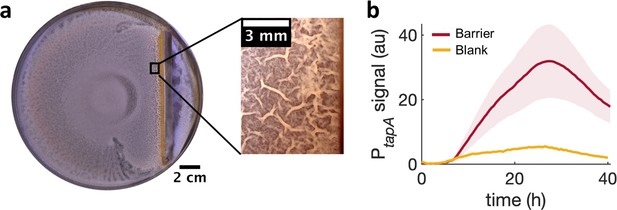

Locally increasing cell density is sufficient to induce wrinkle formation.

(a) A physical barrier placed on agar triggers wrinkle formation. Wrinkles are formed at the region close to the barrier. A plate was incubated for 40 hr as in Figure 1. (b) Mean fluorescence intensity of PtapA-yfp measured just by the barrier for four different experiments and for two different experiments in the blank case. The shade indicates the s.e.m.

Video 8
Process of island formation when the swarming front hits a physical barrier which is placed just on the right of the field of view.

Islands start forming in the region closer to the barrier and then propagate towards the opposite direction. After the initial island formation, we can see that the swarm is still dynamic and keep forming multiple layers through island formation and merging.

Altogether, these results show that B. subtilis swarms can undergo a single-to-multi-layer transition driven principally by a physical mechanism compatible with MIPS, which can be either global and spinodal-like, or localized and binodal-like. When this transition is localized, regardless of it being caused by antibiotics or physical confinements, the resultant macroscopic cell-density heterogeneity could determine the emergence of wrinkled biofilms.

Sequential administration of antibiotics reduces the emergence of biofilms from swarms

While more complex signaling pathways regulating biofilm matrix production are likely involved in the passage from localized multi-layers to wrinkles, our results suggest that simply altering the expansion dynamics of a swarm promotes biofilm formation. This implies that exposing bacterial swarms to stressors, such as kanamycin, a physical barrier or UV light, may inadvertently increase their resilience by promoting the formation of biofilms that are much more difficult to eradicate. This is difficult to prevent by simply increasing the amount of antibiotics. In fact, when we used a ~ sevenfold greater dose of kanamycin in the diffusion disk (200 µg), wrinkles still appeared on the plate, although at a greater distance from the disk (Figure 2—figure supplement 4). However, our findings suggest that the multi-layer band could be a good target for antibiotic treatment aimed at suppressing the emergence of biofilms. Such multilayer band happens at a concentration of antibiotic that bacteria can tolerate since the cells are still motile (Figure 3—figure supplement 2, Video 5). We therefore wondered if a two-step sequential antibiotic administration could prevent biofilm formation, where the first administration induces multilayer formation and the second targets the multilayer area before completing biofilm formation. To test this conjecture, we decided to administer a total amount of 200 µg of kanamycin in two steps, an initial one when placing the disk on the plate, and the second as the swarming front stopped. We used a variation of the Kirby-Bauer assay to estimate the kanamycin profile over time at the regions where wrinkles would form and confirmed that the kanamycin concentration at the wrinkle location is compatible across the different dosage protocols (Figure 6a, Figure 6—figure supplement 1). The emergence of wrinkles was greatly inhibited when kanamycin was administrated sequentially, despite keeping constant the total amount of antibiotic added to the disk (Figure 6b,c and Figure 6—figure supplement 2). The effect was most evident when the second dose was greater than the first. These results thus propose a promising strategy for treating bacterial collectives with aminoglycosides while minimizing the emergence of biofilms.

Figure 6 with 2 supplements see all

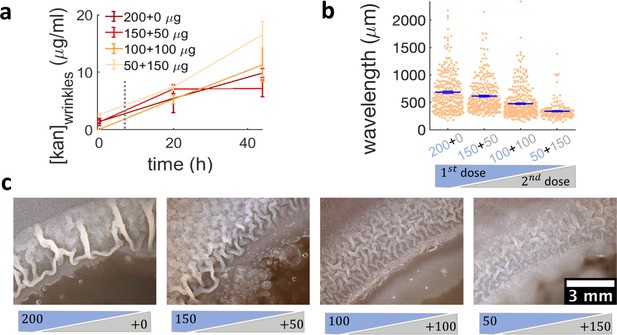

Administering the same amount of kanamycin in two sequential doses reduces wrinkle formation.

(a), (b), (c) Kanamycin was sequentially administered in two different doses to a disk while keeping the total amount at 200 µg. The first administration was added as in other experiments, while the second was added to the disk as a 4 µl drop when the islands were about to appear. (a) Concentration profile of kanamycin over time for the four concentrations of the sequential administration of antibiotic assay. The measurements were made using the modified Kirby-Bauer assay (see Materials and methods) at the distance from the kanamycin disk where the wrinkles are formed for the four different initial concentrations: 1.32 cm for 50 µg, 1.59 cm for 100 µg, 1.74 cm for 150 µg, and 1.85 cm for 200 µg. The time when the second dose of antibiotic is added is indicated with a dotted gray line (~7 hr after inoculation). (b) The wavelengths of wrinkles with respect to the doses of first (blue font) and second (gray font) administrations (µg). (c) Microscopy images of wrinkles induced by kanamycin. The first dose is in the blue shade and the second dose in the gray shade.

Discussion

This work reveals a biophysical mechanism underpinning the initial stage of the collective stress-induced transition from swarms to biofilm in B. subtilis, governed by motility and cell density. This is based on the halting of swarming expansion, which promotes the accumulation of cells at the front, resulting in the formation of MIPS-like multi-layered islands. Upon exposure to the aminoglycoside kanamycin, the swarming colony expresses the tapA-sipW-tasA operon and eventually develops a wrinkled biofilm. Consistent with this view, we demonstrate that different stressors, from antibiotics to UV and physical confinement, can all induce formation of islands. Moreover, based on our findings, we show that a sequential antibiotic monotherapy can be effective in reducing biofilm formation from a swarming colony in B. subtilis. As the underpinning mechanism of the transition is an emergent phenomenon driven by physical interactions between swarming cells, we believe similar transitions should also happen in other bacterial species. It would be interesting, for example, to examine if swarms of clinically relevant bacteria, such as Pseudomonas aeruginosa and Salmonella enterica, may also transit into biofilms through a similar process. Such investigations would be an important step forward to see if sequential antibiotic administrations could be effective in inhibiting, and eventually altogether preventing, stress-induced biofilm formation in pathogenic bacteria.

This study addresses a fundamental question about the mechanism by which cell collectives adapt their behavior in response to various physical and chemical stresses. In the present case, a local cell-density increase caused by the halting of the swarming front, may be part of a general collective stress response mechanism, which triggers a switch in the collective behavior from swarming to biofilm. For expansion in presence of kanamycin, these effects might compound with the anomalous motility that has been reported for prolonged exposure to low levels of the antibiotic (Benisty et al., 2015). The stress response mechanism that we observe at the collective level could allow the swarming colony to develop biofilms in response to various stressors, regardless of the stressors’ exact molecular mode of action. We expect that further research will determine whether this form of environmental sensing and adaptation of cell collectives via cell-density increase is common to other biological systems. Interestingly, this idea is in line with recent advancements in the understanding of mechanochemical feedback in development and disease, where local cell density can determine the fates of cell collectives (Hannezo and Heisenberg, 2019). The connection we discovered could represent a primitive example of a collective mechanochemical feedback loop, underpinned by one of the most fundamental types of emergent phenomena (MIPS) in collections of motile agents either alive or synthetic. To this end, the gained biophysical insights may not only offer new biomedical treatment strategies against the rise of biofilm-associated antimicrobial resistance but may also contribute to our understanding of development and cell-fate determination.

Following our discovery of stress-induced swarm-to-biofilm transition, we present a detailed characterization of the initial stage of the transition, namely development of multilayered islands. As with every discovery, this also brings a host of new questions. For example, it is unclear whether the molecular signaling mechanisms driving biofilm development from planktonic cells are identical to those from swarms. We show the activation of tasA gene during the kanamycin-induced transition from swarms to biofilms, suggesting the commonality between these processes. However, our data is inconclusive on this point in part due to the lack of single-cell level analysis of the expression dynamics. The expression of biofilm matrix genes is regulated by various complex pathways, where Spo0A, SinR and AbrB being central regulators (Vlamakis et al., 2013). If swarms develop biofilms through different pathways, elucidating the molecular regulatory machinery during the transition from swarm to biofilm may unveil new molecular pathways regulating biofilm formation.

From the perspective of biofilm being a multicellular adaptation, it would be interesting to determine the stage at which a swarming collective loses the ability to adapt to environmental changes. The biophysical transition that we report here would suggest that this happens once the ageing swarm cannot be driven anymore to within the putative MIPS region by the external stressor. It would be useful to explore this further within the general framework of biophysical models for cluster formation (Be’er et al., 2020; Worlitzer et al., 2020), 3D architecture formation (Partridge et al., 2018) and motility-induced buckling within a bacterial swarm (Meacock et al., 2020; Takatori and Mandadapu, 2003). Another important question lies in the interplay between biophysical and molecular mechanisms regulating stress-induced biofilm development. Characterizing the gene expression profiles in the high-cell-density clusters resulting from multilayered islands, while simultaneously monitoring the mechanical interactions, would be an important step forward toward gaining a holistic understanding of collective stress response. We hope that our work will inspire new research in this area and look forward to further exciting results in the near future.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional information
Strain, strain background (Bacillus subtilis)NCIB3610PMID:20374491Gift from Süel lab
Genetic reagent (Bacillus subtilis)epsH:: tetRPMID:11572999Gift from Kolter lab
Genetic reagent (Bacillus subtilis)phrC::neoRPMID:23012477Gift from Süel lab
Genetic reagent (Bacillus subtilis)oppD::cmRPMID:23012477Gift from Süel lab
Genetic reagent (Bacillus subtilis)PtapA-yfp, sacA::PyqxM-trsA216-yfp, cmRPMID:26196509Gift from Süel lab
OtherMounted LEDThorlabsM405L4405 nm, 1000 mW
OtherAspheric Condenser LensesThorlabsACL25416U-BØ1’, f = 16.0 mm
Other25 mm SPUTTERED EDGEPASS FILTERThorlabsFELH0450Longpass 450 nm
OtherRetaining RingThorlabsCMRRC-Mount (1.00’−32)
OtherCage cubeThorlabsCm1-dchDichroic Filter Mount
OtherAdapterThorlabsSm1a9External C-Mount Threads and Internal SM1 Threads
OtherLeica DMI Microscope Camera Port AdapterThorlabsSm1a50Internal SM1 Threads, External SM2 Threads
OtherCoupler, External ThreadsThorlabsSm1t20.5’ Long
OtherAdapterThorlabsSm1a10External SM1 Threads and Internal C-Mount Threads

Kanamycin gradient assay

Request a detailed protocol

Glycerol stock of Bacillus subtilis NCIB 3610 wild-type strain (WT) was streaked on a lysogeny-broth (LB) 1.5% agar plate and grown overnight at 37°C. When specified in figure caption, a genetically modified strain (listed in key resource table) was used instead of WT. A single colony was picked from this plate and incubated in 1 ml of liquid LB for 3 hr at 37°C. A 4 µl inoculum from this culture was placed in the center of a 0.5% LB agar plate supplemented with 2% of glycerol and 0.1 mM MnSO4 (LBGM Shemesh and Chai, 2013) to favor biofilm formation. A kanamycin-diffusive disk (Oxoid 30 µg) was placed on a side of the plate 24 hr before inoculation to allow the antibiotic to diffuse at room temperature. The distance between the inoculum and the kanamycin disk was approximately 3.2 cm, and plates were incubated for additional 40 hr after inoculation at 30°C.

Images of swarming plates

Request a detailed protocol

Low magnification images of the plates were acquired with a DSLR D5000 Nikon camera (lens AF-S Micro NIKKOR 40 MM 1.28) with an inhouse stand in a 30°C incubator (Kantsler et al., 2020). The incubator was covered by black tape to avoid reflections and the illumination was provided by a white LED placed on a side of the plate. Higher magnification images (e.g. of the wrinkles) were taken by an Olympus SZ61 microscope by placing the plates in a dark background with illumination coming from a LED ring attached to the microscope.

Quantification of the PtapA-yfp reporter

Request a detailed protocol

Biofilm extracellular matrix production was characterized by using a modified strain carrying PtapA-yfp, a fluorescence reporter for the expression of tapA-sipW-tasA operon. The kanamycin gradient assay and the barrier experiments were repeated by inoculating this strain in LBGM (1.2% and 2% glycerol) swarming agar plates. The experiment was replicated three times for the kanamycin case with three different lenses and microscopes: 2x (Nikon Apo Lambda 2x UW, NA 0.1), 2x (Nikon Plan 2x UW, NA 0.06), 2.5x (Leica 2.5x N PLAN, NA 0.07); microscopes: two Nikon Eclipse Ti2 and a Leica DMi8. For the barrier case the experiment was repeated four times and it was performed in the Nikon Eclipse Ti2 using 2x (Nikon Plan 2x UW, NA 0.06). Images were taken every half an hour for a period of ~40 hr in a region of 3 × 9 cm2 going from the disk to the inoculum. The images were stitched using the ‘Grid/Collection stitching’ plugin (Preibisch et al., 2009) in Fiji (Schindelin et al., 2012). The experiment was repeated three times in absence of kanamycin with the first two microscopes and lenses. To calculate the fluorescent signal, a region of interest was drawn in Fiji surrounding the area where the wrinkles appeared, normally found just at the edge of the depletion region created by the kanamycin disk or just right next to the physical barrier. For the kanamycin assay, the signal was normalized by subtracting the minimum value of pixel intensity recorded in the time-lapse and dividing by the maximum of the signal for each of the microscopes to account for the difference in signal of each microscope. In the barrier case, all the experiments were performed with the same microscope and lens, so the raw signal is shown.

Raft and islands sizes

Request a detailed protocol

The size of the rafts within the swarm were obtained from three different experiments. A freehand line drawn with Fiji/imageJ (Schindelin et al., 2012) enclosing the raft was used to measure the area within the line. Measurements across different positions and time points were used to account for the variability in raft size within a swarm depending on the position and/or time after expansion begins (Jeckel et al., 2019). To measure the islands size, time-lapses of islands formation in presence and absence of kanamycin were used. The first frame (just before islands appeared) was subtracted to the time-lapse and then a gaussian filter was applied to remove noise. Finally, the time-lapse was thresholded and the initial size of the islands was measured by ‘regionprops’ in Matlab.

Characterization of island formation

Request a detailed protocol

We characterized the double layer using 2x (Nikon Plan 2x UW, NA 0.06), 2.5x (Leica 2.5x N PLAN, NA 0.07) and 10x (Nikon 10x PLAN FLUOR PH2 DLL, NA 0.3) magnifications in two different microscopes, Nikon Eclipse Ti2 and Leica DMi8. The images were acquired every 2 min in the Nikon Eclipse Ti2 and every 1 min in the Leica Dmi8 using brightfield illumination. Cell motility and cell density were recorded with a 40x objective (Nikon 40x LWD, NA 0.55) at 37°C. Cell motility was measured by adapting a Particle Image Velocimetry (PIV) code written in Matlab (Sveen, 2004). The surface coverage was measured by thresholding the images and dividing the area covered by bacteria by the total area of our field of view. The threshold was set by using the command ‘imbinarize’ in Matlab and adapting the sensitivity of its threshold to account for the best estimate of cells in the field of view.

Near UV experiments

Request a detailed protocol

Bacteria were irradiated by near UV-Violet light for 30 s using the inverted microscope DMi8 (Leica Microsystems) and the LED light source, SOLA SM II Light Engine (Lumencor), with an excitation filter 400/16 using a 40x objective (Leica 40x PH2 HC PL FLUO, NA 0.6) for approximately 3.5 min at an intensity of 1.2 to 5.3 mW/mm2. The light intensities were measured by placing a photodiode power sensor (Thorlabs S120C) on the microscope stage. To irradiate a larger area than the one with the epi-fluorescence set up, a Thorlabs 405 nm light LED was coupled to a cage cube (see key resources table for details about the components of the set up). The light coming from the LED was concentrated by an aspheric condenser lens and reflected by a 45° dichroic mirror towards the sample. The area illuminated is roughly a circle of 2.5 mm radius at an intensity of 1.5 mW/mm2. The surface coverage was calculated by binarizing the time lapses applying a locally adaptive threshold in Matlab. The sensitivity of such threshold was changed along the time lapse when cell density was rapidly increasing and the same value of the threshold could not account for the total number of particles.

The trajectories of the swarming bacteria ensemble in the phase diagram were extracted by calculating the Per and the surface coverage as detailed in the previous section. In the case of UV exposure, trajectories are the result of continuous irradiation with either of the setups previously described. When illuminated by the epifluorescence the trajectories were plotted until a jamming of bacterial rafts was observed in the field of view. When shining UV from the condenser the trajectories were plotted until bacteria were completely immotile, as jamming events never happened (Figure 4—figure supplement 1). Data for speed and surface coverage of bacteria has been smoothed over 8 and 100 points respectively by the ‘smooth’ function in Matlab.

Quorum-sensing experiments

Request a detailed protocol

The same protocol explained in the section on the ‘kanamycin gradient assay’ was also used to investigate the swarming behavior, the formation of islands and the biofilm development of the two quorum-sensing knockout strains: Δopp and Δhprc. Formation of islands and biofilm images were acquired as explained in previous sections.

Phase diagram

Request a detailed protocol

To calculate the phase diagram of rotational Péclet number (Per) with respect to surface coverage, time-lapses of swarming bacteria coming from six different experiments were analyzed. The ‘jammed bacteria’ data plotted in the diagram (Figure 4a) were calculated by analyzing the 4 s of the time lapse prior to jam formation. Videos were acquired at 29–33 fps.

The average speed within the swarm was calculated as described earlier and used to then calculate the Per, defined as:

Per=uLDr

where u is the average cell speed within the swarm for a given time point, L=0.823±0.16 µm the average width of the swarming cells -as used in van Damme et al., 2019- and Dr is the rotational diffusivity of the bacteria. For swarming cells, the rotational diffusivity cannot be measured directly. Therefore we decided to use, as estimate for Dr, a value such that the Péclet number of our system and that in van Damme et al., 2019 coincide at surface coverage 0.65. This returns Dr = 0.81 ± 0.19 s−1, from an average of 13 different values from three independent experiments. To check whether this result was sensible, we then resuspended in water a sample of swarmer cells from a plate and extracted the rotational diffusivity of motile cells from a 10 s movie, with a Python-based tracking code which measures position and orientation of elongated objects (Mosby et al., 2020). The gradient of the angular mean-square displacement of the tracks returned a value of Dr = 0.35 s−1. Although this is slightly lower than the previous result, it should be kept in mind that the former estimate is for cells that are moving on an agar surface, which experience a higher drag than those swimming in a bulk fluid.

Notice that, Per in van Damme et al., 2019 is obtained from instantaneous velocities of individual particles, which cannot be directly followed within a swarm. Therefore, we used an effective Per derived from the local average velocity within the swarm. This is likely to overestimate the value of Per of the experimental points.

Physical barrier

Request a detailed protocol

A 3% agarose solution in water was autoclaved and then poured in a Petri dish. Once it solidified, a rectangular region (6 cm x 1 cm) was cut out and placed vertically on a molten swarming liquid LBGM (0.5% agar). After the system solidified, swarming bacteria were inoculated in the centre of the plate. Videos of the formation of islands were recorded under 2x (Nikon Plan 2x UW, NA 0.06) in a Nikon Eclipse Ti2 microscope.

Biofilm inhibition assay

Request a detailed protocol

A total of 4 µl of the antibiotic kanamycin coming from four different stocks at concentrations of 50, 37.5, 25, and 12.5 µg/µl were added to four different diffusive disks. The diffusive disks were then placed on the side of different LBGM 0.5% agar plate for 24 hr. After bacteria inoculation, the plates were incubated at 30°C for roughly 6 hr until the swarming front halted. Then, additional 4 µl of the second stock concentrations of kanamycin were added to the initial ones. For the four concentrations above, these were respectively 0, 12.5, 25, and 37.5 µg/µl. As a result, the total amount of kanamycin administered was kept constant and equal to 200 µg.

Estimation of the kanamycin profile on the swarming plate

Request a detailed protocol

The concentration profile of the kanamycin in the plate (Figure 5a) was characterized by using a variation of the Kirby-Bauer assay (Bauer et al., 1966). A total of 800 µl of a 18 hr bacteria culture at 30°C was inoculated in three plates containing LB with 1.5% agar. Immediately after, disks containing 0.1, 0.2, 0.4, 0.78, 1.56, 3.13, 6.3, 12.5, 25, 50, 100, 150, and 200 µg of kanamycin were placed on the surface of separate confluent LB agar plates. After an incubation of 24 hr at 37°C, we measured the diameter of the clearance region around the disks. Each measurement was done in triplicates. The logarithm of the mass of kanamycin added was plotted against the difference between the diameter of the clearance region and the diameter of the disk. This calibration curve was then used to characterize the kanamycin profile in both the swarming and the biofilm-inhibition assays. For each replica agar plate, a 3 mm diameter biopsy puncher was used to extract 5 small samples in a range of 0–2 cm every 0.5 cm distance from the kanamycin diffusive disk. The agar punches were then placed on top of a confluent plate of WT B. subtilis and incubated overnight at 37°C. We then measured the clearance around the pads and used the linear fit to the calibration curve (Bonev et al., 2008) to estimate the (logarithm of) total amount of kanamycin within the punch. This was then divided by the volume of the punch to estimate the concentration.

Wrinkle wavelength quantification

Request a detailed protocol

To measure the wavelength of the wrinkles we calculated the interdistance of nearest parallel wrinkles. When this was not possible, the wavelength was estimated by calculating the autocorrelation function of image intensity in space using a Fiji macro made by Michael Schmid (https://imagej.nih.gov/ij/macros/RadiallyAveragedAutocorrelation.txt) (2008) and then fitting the decay of that function to a double exponential of the form:

f(x)=aebx+cedx.

Here, the two characteristic wavelengths (1/b and 1/d) correspond to the image noise and the actual wrinkle wavelength respectively.

Calculation of the minimum inhibitory concentration (MIC)

Request a detailed protocol

A single colony of Bacillus subtilis was incubated in 1 ml LB overnight in a shaking incubator at 37°C. The OD was measured 18 hr later and the culture was diluted down to an OD of 0.0085 and incubated for 18 hr in 5 concentrations of kanamycin from 1 to 5 µg/ml. The MIC was determined as the minimum concentration at which growth was not observed in the liquid culture. Each well plate had five replicates and the experiment was repeated at least three times for each concentration.

Roughness measurements for wrinkles

Request a detailed protocol

A 50 pixels wide strip was drawn over the wrinkles and then the intensity profile was extracted using ‘Plot profile’ in ImageJ. The roughness of the profile was defined as:

roughness=iN|IiI|N,

where Ii is the intensity of ith pixel in the profile, I¯ is the mean of the profile obtained using the ‘smooth’ function in Matlab and N, the total number of points in the profile.

Quantification of the speed at the swarming front

Request a detailed protocol

To calculate the speed at the swarming edge (Figure 2—figure supplement 2), the position of the front closest to the diffusive disk was recorded over time with a DSLR camera (Nikon D5300; lens AF-S Micro NIKKOR 40 MM 1.28) at 37°C. Consecutive front positions were subtracted to highlight the position of the front. This was then used to estimate the front’s speed on both the kanamycin side and the opposite side of the agar pad using the inter-frame time of 5 min. From these time lapses, we also extracted the distance at which the swarming front halts from the kanamycin disk.

Multilayer formation within the swarm

Request a detailed protocol

To investigate the spatial difference in multilayer formation throughout the swarm, videos of the bacteria were taken at ×2 magnification and one frame per minute, for 2 hr at 30°C (Video 6). The videos were acquired following a tiling of the rectangular region from the diffusive disk to the opposite end of the plate, with 12 sectors along the diameter and five across. The videos were then stitched together using the ‘Grid/Collection stitching’ plugin (Preibisch et al., 2009) in Fiji. To enhance the contrast of the different layers, the frame just before the multilayer appeared was subtracted from the rest of the time-lapse. The different layers appearing in the swarm were counted for four different positions and they were identified by a local increase in gray value in a wide area of the swarm (Figure 3—figure supplement 3). After the fourth layer, the increase in gray value could not be further identified. Time is measured from the onset of the first islands within the field of view.

Distance from wrinkles to kanamycin disks of different concentration

Request a detailed protocol

To characterize how the distance between the kanamycin disk and the wrinkles depends on the initial antibiotic concentration within the disk (Figure 2—figure supplement 4), diffusive disks containing 30, 100, and 200 µg of kanamycin were placed on 2-3% glycerol LBGM agar plates. To create the disks, Whatman filter paper was punched with a hole puncher (diameter 7 mm) and imbibed with 0.6, 2, or 4 µl of a 50 µg/µl kanamycin solution in water. The minimum distance between the kanamycin disk and the nearest wrinkles was measured in six different experiments for 30 µg and 200 µg of antibiotic and one experiment with three repliclates for 100 µg.

Biofilm formation in solid agar near the kanamycin

Request a detailed protocol

To check whether wrinkle formation was promoted also in absence of motility near the kanamycin diffusive disk, the kanamycin-diffusive assay was repeated in 1.5% agar. To do so, a kanamycin-diffusive disk was place on one side of the plate of the solid agar LBGM (2% glycerol) plate. The position was chosen to match the disk position in the swarming experiments. After 24 hr, a single colony of B. subtilis was incubated in 5 ml of LB for 3 hr. Of this culture, 700 µl was spread on each solid agar plate and then incubated for 40 hr at 30°C.

We also check the wrinkle formation in 1.5% agar by spotting 4 µl of the bacteria culture without spreading them to see if wrinkles were promoted in the wrinkly biofilms that appear when bacteria are spotted in hard agar. In total, four different colonies were spotted on the plate: the closest one was spotted 2 cm away from the kanamycin disk, other two spots were placed 2 cm to the right and the left of this central spot and finally, a last colony was spotted 6 cm away from the kanamycin disk (Figure 2—figure supplement 6).

Measuring the width of the band where wrinkles appear

Request a detailed protocol

The width of the band where wrinkles appeared around the kanamycin disk was measured for three independent experiments using 30 and 200 µg of kanamycin. The width was determined by drawing a line across the band where the wrinkles appeared.

Statistics

Data are reported as Mean± s.e.m. calculated from at least three independent experiments unless otherwise indicated.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files.

References

  1. Software
    1. Sveen JK
    (2004)
    An Introduction to MatPIV v. 1.6.1
    An Introduction to MatPIV v. 1.6.1.

Decision letter

  1. Irene Giardina
    Reviewing Editor; Università Sapienza, Italy
  2. Aleksandra M Walczak
    Senior Editor; École Normale Supérieure, France

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

The paper presents very interesting results linking bacterial swarming to biofilm formation. It shows that swarming bacteria can initiate biofilm formation through a motility induced phase separation process.

Decision letter after peer review:

Thank you for submitting your article "Swarming bacteria undergo localized dynamic phase transition to form stress-induced biofilms" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Aleksandra Walczak as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

This manuscript is based around a potentially very interesting finding that links bacterial swarming to biofilm formation. The authors suggest that swarming bacteria can initiate biofilm formation through a mobility induced phase separation (MIPS) like process. The authors demonstrate that biofilms form near areas of the plate where a kanamycin gradient is placed. They put forward the hypothesis that this is caused by a MIPS transition.

Both reviewers found the paper interesting, and results potentially relevant. However, they have raised a few major concerns.

Essential revisions:

i) Even though the data, in terms of jamming and island formation, appears consistent with a MIPS transition, there is less evidence that this transition plays a role in the formation of biofilms.

ii) Some of the claims based on the experimental results are not fully justified and additional control experiments are required.

The reviewers have listed a number of important issues to be addressed and have suggested experiments/analysis to solve them. All these issues must be solved before publication. Please do all the changes/additional work the reviewers ask for and reply to all their comments.

Reviewer #1:

The authors do not actually show that kanamycin reduces cell motility, even though this is a core assumption of their interpretation. Can the authors directly measure that the addition of certain concentrations of kanamycin reduce B. subtilis flagella-based motility (e.g. in liquid culture)? This appears to be a key control experiment. Furthermore, how do the authors rationalize that an aminoglycoside could reduce swarming motility?

Given that the swarm cannot expand beyond the swarming plate, the walls of the petri dish should also pose a barrier to it. Could the authors comment on why no biofilm formation can be observed in the case of a swarm growing in a regular petri dish, as they show in Figure 2D, E? Does this mean that a particular geometry of the barrier is required in order to trigger biofilm formation?

For the experiments using a physical barrier as well as a two-step antibiotic treatment, the authors use the existence of wrinkles and their wavelength as a measure for biofilm formation. These measures are more a quantification of the biofilm structure/architecture/morphology, and not a quantification of the biofilm formation capability. The more appropriate metric for quantifying biofilm amount is the biofilm biovolume or biomass (i.e. non motile cells that are bound in an extracellular matrix). Could the authors please modify their language accordingly, or provide a measurement of the biofilm biomass in some form?

Regarding Figure 5, and the sequential application of kanamycin. The wording of the Results text is currently not justified by the data. The authors write "sequential administration of antibiotics suppresses the emergence of biofilms from swarms" and "…effective in preventing biofilm formation…". However, the data in Figure 5 only shows that the wrinkling wavelength is reduced. Therefore, the data show that biofilms are not suppressed, they are still there, they just have a different shape. Results in Figure 5 are interesting, but I think that the authors have to walk back their conclusions a little bit here, to more closely align with their data.

The following point may require a better explanation in the Discussion or in the Results: It is unclear to me while sometimes the cells can move on top of each other across the cell layers (see Results), and how the authors on the other hand argue that there is jamming when the cell density gets too high. What cell density then causes jamming if it is not achieved by complete surface coverage? Is it perhaps that once the cells start to produce extracellular matrix, the matrix produces a barrier that causes jamming? More careful wording of the relevant sections is required.

Reviewer #2:

It has been demonstrated for multiple bacteria that sub-inhibitory amounts of antibiotics, including kanamycin, can induce biofilm formation, under growth conditions that do not necessarily support a MIPS hypothesis (e.g. liquid culture (PMID: 24260549)). These previous works are not discussed in the paper and could point to a different mechanism of biofilm formation through antibiotic addition than a MIPS transition through swarming.

The data presented could be explained by a different hypothesis rather than a MIPS transition. For example, just the fact that biofilm formation requires high cell density. The experiments are carried out on biofilm inducing medium – this suggests that only high cell density is needed for biofilm formation and if the authors waited long enough biofilms would form under all the conditions tested (irrespective of antibiotic application or swarming). There is not a great deal of evidence that the MIPS transition is actually playing a role. For example, the authors use growth on hard agar (which does not support swarming) as evidence that swarming is required for biofilm formation. But the hard agar plates are made with biofilm promoting media, so presumably the only reason no biofilms are seen is that the cell density is not high enough. In the hard agar control, at the beginning of the experiment cells are spread across the whole plate.

What happens with an inoculum started in the centre of the hard agar plate (similar to the swarming experiments) and a KAN disc placed nearby. Too many differences exist between the hard agar and swarming experiments (e.g. number of cells, placement of antibiotic disk in different location on dish, method for inoculum placement) to be able to say clearly that swarming is required for biofilm formation near the KAN gradient.

The double antibiotic experiment appears to have an issue. As I understand it the design of the experiment is as follows “We administer a total amount of 200 µg of kanamycin in two steps, an initial one when placing the disk on the plate, and the second as the swarming front stopped (Figure 5B, Figure 6—figure supplement 2). The emergence of wrinkles was greatly suppressed when kanamycin was administrated sequentially, despite keeping the total amount of antibiotic constant (Figure 5B, C and Figure 6—figure supplement 2).”

I am concerned that the authors do not know exactly how much antibiotic the cells are experiencing as the antibiotics will diffuse over time into the plate (as the authors show in Figure 2—figure supplement 1). Are the authors sure that the cells at the edge of the disc are really experiencing the same amount of antibiotic if the antibiotic is added 24 h later? I would assume that the concentrations would be higher for the cells at the swarming front on the second application due to less time for the kanamycin to diffuse (as suggested by Figure 2—figure supplement 1). Could this explain why the second application is so effective? Apologies if this is controlled for and I missed it.

https://doi.org/10.7554/eLife.62632.sa1

Author response

Reviewer #1:

The authors do not actually show that kanamycin reduces cell motility, even though this is a core assumption of their interpretation. Can the authors directly measure that the addition of certain concentrations of kanamycin reduce B. subtilis flagella-based motility (e.g. in liquid culture)? This appears to be a key control experiment. Furthermore, how do the authors rationalize that an aminoglycoside could reduce swarming motility?

The reduction of cell motility in a swarming B. subtilis colony by kanamycin was investigated in a seminal paper by Benisty et al. (Benisty et al., 2015). Figure 2B in Benisty et al. shows a linear decrease of the average cell motility in swarming B. subtilis with [Kan], ~1 µg/ml. We thank the reviewer for this comment, which made us realise that we had inadvertently left out this reference. It has now been added to the manuscript.

To test whether this is happening also in our kanamycin experiments, which exposes the cells to an antibiotic gradient, we have now measured the average swarming speed at the distance of 0.7, 1.7 and 2.7 cm from the kanamycin disk. Figure 3—figure supplement 1, which follows the speed at these locations from 60 min before islands emerge (-60 min) until their emergence (0 min), shows that a significant reduction in speed happens at all distances, although the trend is less pronounced at the largest separation (2.7cm) probably due to the minute concentration of kanamycin at that position. Notice that, as the front propagates along the kanamycin gradient, from ~1.7 cm at -60 min to ~0.7 cm at -15 min, the speed of cells at the front of the swarm drops from >40 µm/s to 0 µm/s. Within the final 15 min, this happens without an appreciable advance of the swarming front (which is approximately at 0.7 cm). Altogether, the study by Benisty et al. and our measurements of cell speed at the swarming front demonstrate that the cells slow down under kanamycin exposure and can eventually become immotile.

At the same time, we respectfully disagree with the reviewer’s statement that reduction of cell motility by kanamycin is a core assumption of our interpretation. The fact that kanamycin blocks the expansion of the swarming front is important for the emergence of islands because it leads to an increase in cell density within the swarm. However, the reduction in cell motility does not have a direct role in the formation of islands per se. It is important here to distinguish between -on one hand- a general reduction in cell motility like that caused by prolonged exposure to kanamycin; and -on the other hand- the fact that there is a reduction in speed when cells moving within a monolayer take part in a jamming event or become part of a multilayer island. In the second case, the speed reduction is essentially a result of crowding. If/when cells manage to go back to moving within the monolayer, they will go back to their original (high) speed (see e.g. Video 3). MIPS is based on this crowding-induced slowdown (and on the fact that it is self-reinforcing), and not on a general speed reduction like the one induced by kanamycin. In fact, our barrier experiments show directly that an exogenously-induced general slowdown of the average speed is not necessary for islands to emerge. Instead, what is important is that movement within the multilayer islands is effectively slower than in the monolayer. This makes sense given the disordered nature of these multi-layered regions, with cells clearly moving across the different layers (see Video 4) and it is also borne out of PIV measurements from high-magnification videos. PIV-based estimates of local cell movement suggest a reduction of about 50% in the 2D speed of cells within an island compared to the surrounding monolayer (see Figure 3—figure supplement 2).

Given that the swarm cannot expand beyond the swarming plate, the walls of the petri dish should also pose a barrier to it. Could the authors comment on why no biofilm formation can be observed in the case of a swarm growing in a regular petri dish, as they show in Figure 2D, E? Does this mean that a particular geometry of the barrier is required in order to trigger biofilm formation?

In fact, we observed that the wrinkles can be formed at the petri boundary both in the experiments with a kanamycin disk and in experiments without kanamycin. An example can be seen in Author response image 1. However, these wrinkles are much fainter than our barrier experiment. While there could be many explanations to this, including barrier geometry, we suspect that this may be due to the agar meniscus on petri boundary. This meniscus is both a complicating factor for swarm visualisation and causes potentially different local conditions in nutrient availability, as the local thickness of the agar is different from the rest of the petri dish. Using a straight barrier was a better controlled experiment for test our hypothesis and show that a physical barrier can indeed promote prominent wrinkle formation as presented in our main figure.

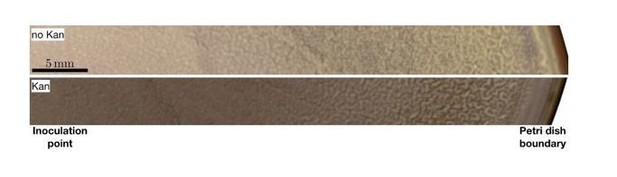

Author response image 1
Radial transects of a 9 cm-diameter petri dish with a swarming B. subtilis culture in conditions corresponding to “no kanamycin” and “kanamycin”, as specified in the manuscript.

For the experiments using a physical barrier as well as a two-step antibiotic treatment, the authors use the existence of wrinkles and their wavelength as a measure for biofilm formation. These measures are more a quantification of the biofilm structure/architecture/morphology, and not a quantification of the biofilm formation capability. The more appropriate metric for quantifying biofilm amount is the biofilm biovolume or biomass (i.e. non motile cells that are bound in an extracellular matrix). Could the authors please modify their language accordingly, or provide a measurement of the biofilm biomass in some form?

While we agree with the reviewer that wavelengths of wrinkles are a morphological feature, their connection with the mechanical properties of biofilms in B. subtilis is well established (Asally et al., 2012; Kesel et al., 2016; Yan et al., 2019). Biofilms are defined as a structured community of cells enclosed in extracellular matrix. There is a general consensus that extracellular matrix is an integral part of biofilms. In the case of B. subtilis, it has been shown that the colonies formed by the mutants lacking the genes encoding extracellular matrix still develop biomass/biovolume, but do not develop the wrinkled morphology (Branda et al., 2001). As such, we believe that the wrinkled morphology is an immediate and convenient reporter of biofilm development. In the original submission, we commented explicitly on this point in the text: “To quantify the degree of biofilm formation, we measured the characteristic wavelength and roughness of the wrinkles, which have been reported to correlate with biofilm stiffness […]”.

In order to try to be as clear as possible, we also amended the text right after the lines quoted above, which now reads:

“In this study, the term biofilm is interpreted as wrinkly biofilm, and the wrinkles’ wavelength is used as a convenient indirect quantification of biofilm formation since the wavelength has been reported to correlate with biofilm stiffness and extracellular matrix (Asally et al., 2012; Kesel et al., 2016; Yan et al., 2019). More specifically, the wavelength is smaller in colonies of matrix mutants and greater in hyper biofilm-forming mutants.”

Moreover, we would like to draw attention to our experiments with a tapA promoter reporter strain to measure upregulation of TasA extracellular matrix component. As seen in Figure 2E, the conditions that lead to the development of wrinkles from the swarm also lead to a strong fluorescence signal, suggesting a higher local production of TasA.

Altogether, we believe that our focus on the wrinkle phenomenology to characterise locally the biofilm is appropriate and justified.

Regarding Figure 5, and the sequential application of kanamycin. The wording of the Results text is currently not justified by the data. The authors write "sequential administration of antibiotics suppresses the emergence of biofilms from swarms" and "…effective in preventing biofilm formation…". However, the data in Figure 5 only shows that the wrinkling wavelength is reduced. Therefore, the data show that biofilms are not suppressed, they are still there, they just have a different shape. Results in Figure 5 are interesting, but I think that the authors have to walk back their conclusions a little bit here, to more closely align with their data.

As noted above, in the case of B. subtilis air-interfacing biofilms, wrinkle wavelengths have been shown to correlate with the biofilms’ mechanical stiffness and extracellular matrix abundance (Asally et al., 2012; Trejo et al., 2013).

Nevertheless, we agree with the reviewer that the sequential administration did not completely eliminate the development of wrinkles. We have now amended the text of the manuscript in both places to read:

“Sequential administration of antibiotics reduces the emergence of biofilms from swarms” and “[…] Moreover, based on our findings, we show that a sequential antibiotic monotherapy can be effective in reducing biofilm formation from a swarming colony in B. subtilis.[…]”.

The following point may require a better explanation in the Discussion or in the Results: It is unclear to me while sometimes the cells can move on top of each other across the cell layers (see Results), and how the authors on the other hand argue that there is jamming when the cell density gets too high. What cell density then causes jamming if it is not achieved by complete surface coverage? Is it perhaps that once the cells start to produce extracellular matrix, the matrix produces a barrier that causes jamming? More careful wording of the relevant sections is required.

We apologise if the paper was not clear on this point. The jamming we refer to has nothing to do with secretion of extracellular matrix, which happens only much later in the system. Instead, it happens when sufficiently large rafts within the swarming monolayer collide. The collision creates a transient localised region of high cell concentration, characterised by a strong reduction in the average speed of the cells and the protrusion of several cells outward from the monolayer. However, if the overall cell concentration is low enough, these temporary jams eventually disappear, as the cells manage to move away.

We have now included a video showing this phenomenon at 40x magnification (Video 5). We apologise for not including it earlier, despite it being cited in the manuscript. This was due to a trivial mistake in the uploading of the videos in the first submission, which has now been corrected. As seen in Video 4 (revised version), these localised temporary jamming events can also be observed at low magnification as darker regions that appear and then disappear. Notice that this is true both before and after the emergence of stable islands (left and right panels in the video) although in the latter case temporary jams have the tendency to last longer. This is coherent with our understanding of jamming events as are nucleation attempts for islands, similarly to what happens in a standard first order phase transition.

In order to clarify the issue raised by the reviewer, besides including Video 3 we have modified the text to read:

“[…] at which point the swarming rafts started displaying jamming events lasting ~1-2 sec, during which cell speed was strongly reduced and groups of cells protruded temporarily from the swarming monolayer […]”.

Reviewer #2:

It has been demonstrated for multiple bacteria that sub-inhibitory amounts of antibiotics, including kanamycin, can induce biofilm formation, under growth conditions that do not necessarily support a MIPS hypothesis (e.g. liquid culture (PMID: 24260549)). These previous works are not discussed in the paper and could point to a different mechanism of biofilm formation through antibiotic addition than a MIPS transition through swarming.

Indeed, it is known that aminoglycosides can induce biofilm formation in P. aeruginosa and E. coli (Hoffman et al., 2005; Jones et al., 2013). We agree that this is an important point to flag in the manuscript and have now added the paper suggested by the reviewer. While these prior studies investigated biofilm formation from swimming cells, our study was focused on the transition from swarming cells. It is also worth noting that, to the best of our knowledge, the induction of biofilm formation by aminoglycosides has not been demonstrated in B. subtilis.

What we observe in the experiments, however, is that kanamycin exposure is not enough to promote biofilm formation per se. We address this point in more detail in our answer to the next question by this reviewer. Instead, at the same time, even a simple barrier can induce the formation of biofilm. This appears through a local cell accumulation which is fundamentally identical to the kanamycin case, as in both cases it results from halting the expansion of the swarming front. This local cell accumulation happens by itself as a result of cell motility through a single-to-multi layer transition that has the hallmarks of MIPS.

Therefore, although we agree with the reviewer that there are multiple avenues to the formation of biofilms, we believe that our study reveals a general novel mechanism that is not just the result of exposure to antibiotic, but happens instead as a result of collective dynamics whenever a swarms’ expansion is arrested.

The data presented could be explained by a different hypothesis rather than a MIPS transition. For example, just the fact that biofilm formation requires high cell density. The experiments are carried out on biofilm inducing medium – this suggests that only high cell density is needed for biofilm formation and if the authors waited long enough biofilms would form under all the conditions tested (irrespective of antibiotic application or swarming). There is not a great deal of evidence that the MIPS transition is actually playing a role. For example, the authors use growth on hard agar (which does not support swarming) as evidence that swarming is required for biofilm formation. But the hard agar plates are made with biofilm promoting media, so presumably the only reason no biofilms are seen is that the cell density is not high enough. In the hard agar control, at the beginning of the experiment cells are spread across the whole plate.

What happens with an inoculum started in the centre of the hard agar plate (similar to the swarming experiments) and a KAN disc placed nearby. Too many differences exist between the hard agar and swarming experiments (e.g. number of cells, placement of antibiotic disk in different location on dish, method for inoculum placement) to be able to say clearly that swarming is required for biofilm formation near the KAN gradient.

We believe that this issue comes from a misunderstanding of the message that we are trying to convey, which we agree can probably be explained better. We agree with the reviewer that high cell density is essential for biofilm formation. For example, a previous study by one of the authors (Asally et al., 2012) showed that creating local high-cell density regions enables prescribed patterning of biofilm wrinkles. Our point here is that high cell density can be achieved by different mechanisms. For B. subtilis swarms, which expand as a monolayer, arresting the swarm progression leads to a localised accumulation of cells at the front. We believe that it is this localised accumulation which then promotes wrinkle formation. MIPS here enters as the spontaneous mechanism leading to the initial accumulation. Of course, cell density can be increased in many different ways. However, for swarming B. subtilis, when the front progression is arrested this happens spontaneously through a MIPS-like mechanism. We would like to stress that, a priori, it did not have to be like this. The swarming monolayer could have just stopped and remained a monolayer until all cells became immotile. We believe that in this case the system would not have produced the wrinkles we observe, and in fact wrinkles do not form far from the kanamycin disk (or from boundaries), where the localised accumulation we describe does not happen. Altogether our observations imply that, for a B. subtilis swarm, the observed local emergence of wrinkles is the consequence of the local cell accumulation caused by the arrest of the swarm’s front. This cell accumulation happens through a MIPS-like transition.

Regarding the question of whether biofilm would have developed anyway in control swarming plates had the experiments run for long enough time, we have re-run swarming plates without kanamycin and kept them for 7 days. Figure 2—figure supplement 5 shows a representative example, and we can see that no wrinkles developed far from the plate’s boundary (for the region close to the plate boundary, see the Results and Author response image 1). This behaviour is representative of all the 10 replicates.

We believe that waiting 7 days is appropriate, since it has been shown that wrinkle biofilms complete developing in 1.5 days and begin to relax after 3 days (Leiman et al., 2013). Consistent with this, we observed that the wrinkled morphology in the kanamycin and barrier experiments is most prominent after 2 days post inoculation, and then slowly decayed over time.

Regarding the control with hard agar, we originally spread cells evenly across the plate to mimic the uniform distribution in our swarming assay. We have now repeated this experiment with the kanamycin disk next to the edge of the petri dish to make the control in hard agar more similar to the swarming experiments, as suggested by the reviewer. This has now been included in the amended Figure 3—figure supplement 2. The figure shows that there does not appear to be any noticeable difference between the weak wrinkles that form at the boundary around the kanamycin disk when this is placed either at the centre or at the boundary of the petri dish. We note that these wrinkles might well be appearing due to the presence of motile bacteria within in the culture that we spread on the plate, although at present we have not tested this.

To further address the issues raised by the reviewer, we have decided to look at the effect of spotting a colony on hard agar at different distances from the kanamycin disk. We note that when a colony is spotted on hard agar, it does not expand more than ~1 cm (Figure 2—figure supplement 6). On a kanamycin hard agar pad, made as described in the main paper, we spotted 4 μ l of culture at 4 different positions (4 μ l at each), as shown in Figure 2—figure supplement 6. The closest, ~2 cm away from the kanamycin disk, shows a strong inhibition of wrinkle formation. The two on the sides, 2 cm away from the previous one, show an inhibition of wrinkle formation on the side of the inoculum towards the kanamycin disk. These should be compared to the normal growth that can be observed in the farthest colony. Overall, we see that kanamycin inhibits wrinkle formation. This is consistent with our previous reports of lack of strong wrinkles on hard agar around the kanamycin disk.

The double antibiotic experiment appears to have an issue. As I understand it the design of the experiment is as follows “We administer a total amount of 200 µg of kanamycin in two steps, an initial one when placing the disk on the plate, and the second as the swarming front stopped (Figure 5B, Figure 6—figure supplement 2). The emergence of wrinkles was greatly suppressed when kanamycin was administrated sequentially, despite keeping the total amount of antibiotic constant (Figure 5B, C and Figure 6—figure supplement 2).”

I am concerned that the authors do not know exactly how much antibiotic the cells are experiencing as the antibiotics will diffuse over time into the plate (as the authors show in Figure 2—figure supplement 1). Are the authors sure that the cells at the edge of the disc are really experiencing the same amount of antibiotic if the antibiotic is added 24 h later? I would assume that the concentrations would be higher for the cells at the swarming front on the second application due to less time for the kanamycin to diffuse (as suggested by Figure 2—figure supplement 1). Could this explain why the second application is so effective? Apologies if this is controlled for and I missed it.

We agree with the reviewer that this is an important point, and we would like to address this in two steps.

Firstly, we would like to stress that it was not our aim to guarantee that the cells experience always the same amount of antibiotics. We wanted to use the same amount, but that does not per se guarantee that the cells are exposed to the same amount (we agree with the reviewer on this, but see below). The question that we wanted to pose is whether, without increasing the human use of antibiotics, there are antibiotic-administration strategies that are better at preventing -or at least reducing- the emergence of the wrinkly biofilm we observe. According to our experiments, the answer to this question is yes. Splitting the same total amount of antibiotic added to the disk into a low initial dose followed by a large one, brings a noticeable reduction in the wrinkle wavelengths compared to using all of the antibiotic in a single initial dose. This translates into a weaker biofilm (see also our reply to comment #3 from reviewer #1). To clarify this point, we amended the sentence “The emergence of wrinkles was greatly suppressed when kanamycin was administrated sequentially, despite keeping the total amount of antibiotic constant (Figure 6B, C and Figure 6—figure supplement 2).” to read “The emergence of wrinkles was greatly suppressed when kanamycin was administrated sequentially, despite keeping constant the total amount of antibiotic added to the disk (Figure 6B, C and Figure 6—figure supplement 2).”

At the same time, following the reviewer’s advice, we tried to measure the local antibiotic concentration at the distance from the kanamycin disk where the wrinkles are formed. To this end, we used a Kirby-Bauer assay to measure the antibiotic concentration profile at 5 different positions along the line connecting the centre of the petri dish and the disk (see Figure 6—figure supplement 1). We performed the measurements at 0h, 20h, 44h, starting when the front propagation towards the kanamycin disk stopped. Each time point measurement was repeated 3 times for each of the administration protocols. Different plates were used at different time points for a total of 36 plates. We stress that the experiments were performed on inoculated swarming plates, not on blank plates with just the kanamycin disk. This is because the spread of the antibiotic could in principle be influenced by surface effects (e.g. Marangoni flows driven by biosurfactants) that would be different between a plate with a swarming colony and one without. The curves were then used to estimate the antibiotic concentration in the area where the wrinkles form, which is dependent on the antibiotic dosage protocol. The results can be seen in Figure 6A. As shown in Figure 6A, the estimated kanamycin concentration at the wrinkle location is compatible across the different dosage protocols with a potential minor difference for the 150-µg case. The discrepancy observed in this case is possibly the result of non-diffusive transport.

https://doi.org/10.7554/eLife.62632.sa2

Article and author information

Author details

  1. Iago Grobas

    Warwick Medical School, Universityof Warwick, Coventry, United Kingdom
    Contribution
    Conceptualization, Formal analysis, Investigation, Visualization, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3609-8081
  2. Marco Polin

    1. Warwick Medical School, Universityof Warwick, Coventry, United Kingdom
    2. Centre for Mechanochemical Cell Biology, University of Warwick, Coventry, United Kingdom
    3. Physics Department, University of Warwick, Coventry, United Kingdom
    4. Mediterranean Institute for Advanced Studies (IMEDEA UIB-CSIC), C/ Miquel Marqués, Balearic Islands, Spain
    Contribution
    Conceptualization, Supervision, Funding acquisition, Investigation, Visualization, Writing - original draft, Writing - review and editing
    Contributed equally with
    Munehiro Asally
    For correspondence
    M.Polin@warwick.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0623-3046
  3. Munehiro Asally

    1. Bio-Electrical Engineering Innovation Hub, University of Warwick, Coventry, United Kingdom
    2. Warwick Integrative Synthetic Biology Centre, University of Warwick, Coventry, United Kingdom
    3. School of Life Sciences, University of Warwick, Coventry, United Kingdom
    Contribution
    Conceptualization, Supervision, Funding acquisition, Investigation, Visualization, Writing - original draft, Writing - review and editing
    Contributed equally with
    Marco Polin
    For correspondence
    m.asally@warwick.ac.uk
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8273-7617

Funding

Medical Research Council (MR/N014294/1)

  • Iago Grobas

Engineering and Physical Sciences Research Council (EP/M027503/1)

  • Marco Polin
  • Munehiro Asally

Biotechnology and Biological Sciences Research Council (BB/M017982/1)

  • Munehiro Asally

Ministerio de Ciencia e Innovación (RYC-2018-025345-I)

  • Marco Polin

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This research is funded by the MRC Doctoral Training Partnership (MR/N014294/1). MP and MA acknowledge support from EPSRC grant, Bridging the Gaps initiative (EP/M027503/1). MA acknowledges BBSRC/EPSRC grant to the Warwick Integrative Synthetic Biology Centre (BB/M017982/1). MP acknowledges support from a Ramón y Cajal Fellowship (RYC-2018-025345-I). We thank Matthew Painter and Chris Norman for their help in the first experimental stages of the project, Lewis Mosby for his help with estimates of the rotational diffusivity, the Nelson lab for use of their stereomicroscope, the Süel lab and the Kolter lab for the strains, and Drs. Darius Köster and Meera Unnkrishnan for their comments to the manuscript.

Senior Editor

  1. Aleksandra M Walczak, École Normale Supérieure, France

Reviewing Editor

  1. Irene Giardina, Università Sapienza, Italy

Publication history

  1. Received: August 31, 2020
  2. Accepted: February 26, 2021
  3. Version of Record published: March 16, 2021 (version 1)

Copyright

© 2021, Grobas et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,243
    Page views
  • 280
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Neuroscience
    2. Physics of Living Systems
    Kelsey M Hallinen et al.
    Research Article Updated

    We investigated the neural representation of locomotion in the nematode C. elegans by recording population calcium activity during movement. We report that population activity more accurately decodes locomotion than any single neuron. Relevant signals are distributed across neurons with diverse tunings to locomotion. Two largely distinct subpopulations are informative for decoding velocity and curvature, and different neurons’ activities contribute features relevant for different aspects of a behavior or different instances of a behavioral motif. To validate our measurements, we labeled neurons AVAL and AVAR and found that their activity exhibited expected transients during backward locomotion. Finally, we compared population activity during movement and immobilization. Immobilization alters the correlation structure of neural activity and its dynamics. Some neurons positively correlated with AVA during movement become negatively correlated during immobilization and vice versa. This work provides needed experimental measurements that inform and constrain ongoing efforts to understand population dynamics underlying locomotion in C. elegans.

    1. Physics of Living Systems
    Vaidhiswaran Ramesh, J Krishnan
    Research Article Updated

    Multisite modification is a basic way of conferring functionality to proteins and a key component of post-translational modification networks. Additional interest in multisite modification stems from its capability of acting as complex information processors. In this paper, we connect two seemingly disparate themes: symmetry and multisite modification. We examine different classes of random modification networks of substrates involving separate or common enzymes. We demonstrate that under different instances of symmetry of the modification network (invoked explicitly or implicitly and discussed in the literature), the biochemistry of multisite modification can lead to the symmetry being broken. This is shown computationally and consolidated analytically, revealing parameter regions where this can (and in fact does) happen, and characteristics of the symmetry-broken state. We discuss the relevance of these results in situations where exact symmetry is not present. Overall, through our study we show how symmetry breaking (i) can confer new capabilities to protein networks, including concentration robustness of different combinations of species (in conjunction with multiple steady states); (ii) could have been the basis for ordering of multisite modification, which is widely observed in cells; (iii) can significantly impact information processing in multisite modification and in cell signalling networks/pathways where multisite modification is present; and (iv) can be a fruitful new angle for engineering in synthetic biology and chemistry. All in all, the emerging conceptual synthesis provides a new vantage point for the elucidation and the engineering of molecular systems at the junction of chemical and biological systems.
