Protein-based condensation mechanisms drive the assembly of RNA-rich P granules

  1. Helen Schmidt
  2. Andrea Putnam
  3. Dominique Rasoloson
  4. Geraldine Seydoux  Is a corresponding author
  1. HHMI and Department of Molecular Biology and Genetics, Johns Hopkins University School of Medicine, United States
Research Article
  • Cited 0
  • Views 1,401
  • Annotations
Cite this article as: eLife 2021;10:e63698 doi: 10.7554/eLife.63698

Abstract

Germ granules are protein-RNA condensates that segregate with the embryonic germline. In Caenorhabditis elegans embryos, germ (P) granule assembly requires MEG-3, an intrinsically disordered protein that forms RNA-rich condensates on the surface of PGL condensates at the core of P granules. MEG-3 is related to the GCNA family and contains an N-terminal disordered region (IDR) and a predicted ordered C-terminus featuring an HMG-like motif (HMGL). We find that MEG-3 is a modular protein that uses its IDR to bind RNA and its C-terminus to drive condensation. The HMGL motif mediates binding to PGL-3 and is required for co-assembly of MEG-3 and PGL-3 condensates in vivo. Mutations in HMGL cause MEG-3 and PGL-3 to form separate condensates that no longer co-segregate to the germline or recruit RNA. Our findings highlight the importance of protein-based condensation mechanisms and condensate-condensate interactions in the assembly of RNA-rich germ granules.

Introduction

In animals with germ plasm, specification of the germline depends on the segregation of maternal RNAs and proteins (germline determinants) to the primordial germ cells. Germline determinants assemble in germ granules, micron-sized dense assemblies that concentrate RNA and RNA-binding proteins (Jamieson-Lucy and Mullins, 2019; Marnik and Updike, 2019; Seydoux, 2018; Trcek and Lehmann, 2019). Superficially, germ granules resemble RNA-rich condensates that form in the cytoplasm of somatic cells, including P bodies and stress granules. In recent years, much progress has been made in our understanding of stress granule assembly with the realization that stress granules resemble liquid condensates that assemble by liquid-liquid phase separation (LLPS). LLPS is a thermodynamic process that causes interacting molecules to dynamically partition between a dense condensed phase and a more dilute phase (e.g., the cytoplasm) (Banani et al., 2017; Mitrea and Kriwacki, 2016). Low-affinity-binding interactions, often involving disordered and RNA-binding domains, are sufficient to drive LLPS of proteins and RNA in reconstituted systems (Lin et al., 2015; Molliex et al., 2015; Zagrovic et al., 2018). The ability of RNA to phase separate in the absence of proteins in vitro has also been proposed to contribute to RNA granule assembly in vivo, especially in the case of stress granules, which arise under conditions of general translational arrest (Tauber et al., 2020; Van Treeck et al., 2018). An emerging model is that the combined action of many low-affinity interactions between RNA molecules and multivalent RNA-binding proteins creates RNA-based protein networks that drive LLPS (Guillén-Boixet et al., 2020; Sanders et al., 2020; Yang et al., 2020; Zhang et al., 2015).

Unlike the dynamic condensates assembled by LLPS in vitro, germ granules are not well-mixed, single-phase liquid droplets. High-resolution microscopy has revealed that germ granules are heterogenous assemblies of dynamic and less dynamic condensates that co-assemble but do not fully mix. For example, Drosophila germ granules contain non-dynamic RNA clusters embedded in dynamic, protein-rich condensates (Little et al., 2015; Niepielko et al., 2018; Trcek et al., 2015). Germ granules in zebrafish and Xenopus are built on an amyloid-like scaffold that organizes mRNAs in nonoverlapping, transcript-specific zones (Boke et al., 2016; Fuentes et al., 2018; Roovers et al., 2018). The mechanisms that bring together condensates with different material properties and their contribution to RNA recruitment in germ granules are not well understood.

In this study, we examine the assembly of P granules, germ granules in Caenorhabditis elegans. At the core of P granules are liquid condensates assembled by PGL proteins. PGL-1 and PGL-3 are self-dimerizing, RGG domain proteins that readily form condensates able to recruit other P granule components, such as the VASA-related RNA helicase GLH-1 (Aoki et al., 2016; Hanazawa et al., 2011; Saha et al., 2016; Updike et al., 2011). PGL condensates exist in germ cells throughout oogenesis and are maternally inherited by the embryo. In newly fertilized zygotes, the surface of PGL condensates becomes covered by smaller condensates assembled by MEG-3 and MEG-4, two homologous intrinsically disordered proteins (Wang et al., 2014). Unlike PGL condensates, MEG-3 condensates resist dilution and salt challenge, consistent with a gel-like material (Putnam et al., 2019). (In this study, we use the term condensate to refer to concentrated protein assemblies that self-assemble without implying a mechanism for assembly, which could involve aggregation, LLPS, or other mechanisms, and may or may not include RNA.) During zygote polarization, MEG-3 and MEG-4 condensates enrich with other germ plasm components in the posterior cytoplasm (Putnam et al., 2019; Smith et al., 2016; Wang et al., 2014). This relocalization correlates with preferential growth of MEG-coated PGL droplets in the posterior and dissolution of ‘naked’ PGL droplets in the anterior side (Brangwynne et al., 2009; Smith et al., 2016). In addition to PGL and MEG co-assemblies, P granules also concentrate specific maternal transcripts (Parker et al., 2020; Seydoux and Fire, 1994). A survey of mRNAs that immunoprecipitate with PGL-1 and MEG-3 suggests that MEG-3 is most directly responsible for recruiting mRNAs to P granules (Lee et al., 2020). MEG-3 binds to ~500 maternal mRNAs, including transcripts coding for germline determinants. Recruitment of mRNAs to P granules ensures their preferential segregation to the primordial germ cells. Embryos lacking MEG-3 and MEG-4 do not localize PGL droplets, do not condense P granule-associated mRNAs, and display partially penetrant (30%) sterility (Lee et al., 2020; Wang et al., 2014).

To understand how MEG-3 coordinates PGL and RNA condensation, we used genome editing of the meg-3 locus and reconstitution experiments in vitro to define functional domains in MEG-3. We find that MEG-3 is a bifunctional protein with separate domains for RNA recruitment and protein condensation. We identify a predicted ordered motif (HMGL) required for binding to PGL-3 in vitro that is essential to build MEG-3/PGL-3 co-assemblies that recruit RNA in vivo. The MEG-3 IDR binds RNA and enriches MEG-3 in germ plasm but is not sufficient on its own to assemble RNA-rich condensates. Our observations highlight the importance of condensation driven by protein-protein interactions in the assembly of germ granules.

Results

The MEG-3 C-terminus is the primary driver of MEG-3 condensation in zygotes

IUPred2A (Mészáros et al., 2018) predicts in the MEG-3 sequence a N-terminal domain with high disorder and a C-terminal domain with lower disorder separated by a boundary region with mixed order/disorder (aa544–698) (Figure 1A, B). The C-terminus contains a predicted ordered 44 amino acid sequence (aa700–744) with homology to the HMG-like-fold found in the GCNA family of intrinsically disordered proteins (Figure 1C). Like MEG-3, GCNA family members contain long N-terminal disordered domains, but these do not share sequence homology with the MEG-3 IDR (Carmell et al., 2016). To test the functionality of MEG-3 domains in vivo, we used CRISPR genome editing to create four MEG-3 derivatives at the endogenous locus: MEG-3Cterm (aa545–862); MEG-3IDR (aa1–544); MEG-3698, an extended version of MEG-3IDR terminating right before the HMG-like motif; and MEG-3HMGL-, a full-length MEG-3 variant with alanine substitutions in four conserved residues in the HMG-like motif (Figure 1B, C). (We also constructed a MEG-3Cterm (aa545–862) variant with mutations in the HMG-like motif, but this variant was not expressed at sufficiently high levels for analysis.) The MEG-3 variants were created in a C. elegans line where the meg-4 locus was deleted to avoid possible complementation by MEG-4, a close MEG-3 paralog. To allow visualization of MEG-3 protein by immunofluorescence, each variant (and wild-type meg-3) was tagged with a C-terminal OLLAS peptide (Figure 2A). We avoided the use of fluorescent tags as fluorescent tags have been reported to affect the behavior of proteins in P granules (Uebel and Phillips, 2019).

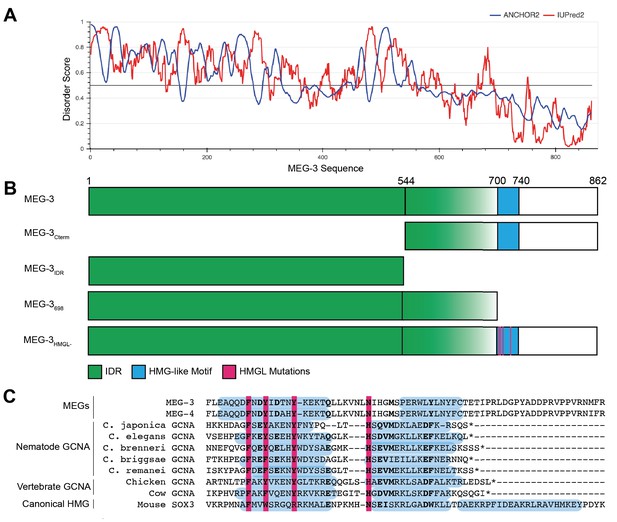

Domain organization of MEG-3.

(A) MEG-3 amino acid sequence (N- to C-terminus) on the X-axis is plotted against disorder score on the Y-axis as predicted by ANCHOR2 (blue) and IUPred2 (red) (Mészáros et al., 2018) with a range from 0 to 1, where 1 is the most disordered. (B) Schematics of wild-type MEG-3 and four MEG-3 variants analyzed in this study. Amino acid positions are aligned with (A). The disordered region (green) and HMG-like motif (blue) are indicated. Magenta bars (alanine substitutions) correspond to four conserved residues in the HMG-like motif shaded in magenta in (C). (C) Alignment of the HMG-like motif in MEG-3 and MEG-4 with the HMG-like motif in GCNA proteins (Carmell et al., 2016) and the canonical HMG box of mouse SOX3. Amino acids predicted to form alpha-helices are highlighted in blue (Drozdetskiy et al., 2015). Bold indicates positions with >70% amino acid similarity. Magenta bars indicate residues mutated to alanine in MEG-3HMGL-.

Figure 2 with 1 supplement see all

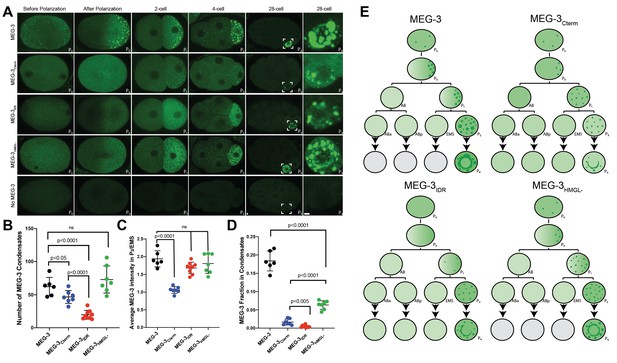

Localization of wild-type MEG-3 and variants in early embryos.

(A) Representative photomicrographs of embryos immunostained for OLLAS and expressing the indicated OLLAS-tagged MEG-3 derivatives. Last row shows meg-3 meg-4 embryos as negative control for OLLAS staining. Images are representative of stages indicated above each column. Before and after polarization are one-cell stage zygotes, other stages are indicated by the total number of cells in each stage. The name of the P (germ) blastomere is indicated in the bottom right of each image. A minimum of three embryos from two independent experiments were analyzed for each stage. Scale bars are 1 μm. All images are maximum projections normalized to same fluorescent intensity range except for the last column showing high-magnification views of P4 from the 28-cell stage image adjusted to highlight MEG-3 granules. (B) Scatterplot showing the number of MEG-3 condensates in the P2 blastomere in embryos expressing the indicated MEG-3 derivatives. Each dot represents an embryo. (C) Scatterplot showing enrichment of MEG-3 in the P2 blastomere over the somatic blastomere (EMS), calculated by dividing the average intensity in P2 by the average intensity in EMS. Each dot represents an embryo also included in the analysis shown in (B). (D) Scatterplot showing the fraction of the MEG-3 signal localized to condensates over total signal in P2. Each dot represents an embryo also included in the analysis in (B). (E) Summary of MEG-3 (green) distribution derived from data presented in (A). Each row corresponds to a different stage as in (A), starting with unpolarized zygote, polarized zygote, 2-cell, 4-cell, and 28-cell stage. Horizontal lines denote one-cell division, arrows indicate multiple divisions. Note that wild-type MEG-3 and MEG-3HMGL- are rapidly turned over in somatic cells after the four-cell stage (gray cells) as shown in Figure 2—figure supplement 1B, C.

Figure 2—source data 1

Condensation and enrichment of MEG-3 in four-cell embryos.

https://cdn.elifesciences.org/articles/63698/elife-63698-fig2-data1-v3.xlsx

As reported previously for untagged MEG-3 (Wang et al., 2014), MEG-3 tagged with OLLAS could be detected diffusively in the cytoplasm and in condensates (Figure 2A). Before polarization, MEG-3 was uniformly distributed throughout the zygote. After polarization, MEG-3 in the cytoplasm and in condensates became enriched in the posterior half of the zygote destined for the germline blastomere P1 (‘germ plasm’). MEG-3 continued to segregate preferentially with P blastomeres in subsequent divisions (P1 through P4) (Figure 2A).

All four MEG-3 variants exhibited unique localization patterns distinct from wild-type. MEG-3IDR enriched in posterior cytoplasm and segregated preferentially to P blastomeres but did not appear robustly in condensates until the four-cell stage (P2 blastomere, Figure 2A). MEG-3698 behaved identically to MEG-3IDR (Figure 2—figure supplement 1A). MEG-3Cterm did not enrich asymmetrically in the cytoplasm but formed condensates in the zygote posterior and continued to form condensates only in P blastomeres despite being present in the cytoplasm of all cells (Figure 2A). MEG-3HMGL- behaved most similarly to wild-type MEG-3 enriching in the zygote posterior and forming condensates as early as the one-cell stage, although the condensates appeared smaller at all stages (Figure 2A).

For each MEG-3 derivative, we quantified the number of condensates and the degree of enrichment in the P blastomere (P2) over somatic blastomeres and in condensates over the cytoplasm at the four-cell stage. Wild-type MEG-3 and MEG-3HMGL- formed a similar number of condensates, while MEG-3Cterm formed fewer and MEG-3IDR the least in the four-cell stage (Figure 2B). The MEG-3Cterm did not enrich in the P2 blastomere, whereas MEG-3IDR and MEG-3HMGL- enriched as efficiently as wild-type (Figure 2C). Finally, none of MEG-3 derivatives enriched in condensates as efficiently as wild-type (Figure 2D).

After the four-cell stage, the low levels of wild-type MEG-3 and MEG-3HMGL- inherited by somatic blastomeres were rapidly cleared. In contrast, MEG-3IDR and MEG-3Cterm persisted in somatic blastomeres at least until the 28-cell stage (Figure 2—figure supplement 1B). Western analyses revealed that MEG-3 and MEG-3HMGL- accumulate to similar levels, whereas MEG-3IDR and MEG-3Cterm were more abundant in mixed-stage embryo lysates, consistent with slower turnover in somatic lineages (Figure 2—figure supplement 1C).

The condensation, segregation, and turnover patterns of MEG-3, MEG-3IDR, MEG-3Cterm,and MEG-3HMGL- are summarized in Figure 2E. From this analysis, we conclude that (1) the MEG-3 IDR is necessary and sufficient for enrichment of cytoplasmic MEG-3 in germ plasm, (2) the MEG-3 C-terminus is necessary and sufficient to assemble MEG-3 condensates in germ plasm starting in the zygote stage, (3) the HMG-like motif enhances, but is not essential for, condensation, and (4) both the C-terminus and the IDR are required for timely turnover of MEG-3 in somatic lineages.

Co-assembly of MEG-3/PGL-3 condensates in vivo is driven by the MEG-3 C-terminus and requires the HMGL motif

MEG-3 and MEG-4 are required redundantly to localize PGL condensates to the posterior of the zygote for preferential segregation to the P lineage (Smith et al., 2016; Wang et al., 2014). To examine the distribution of PGL condensates relative to MEG-3 condensates, we utilized the KT3 and OLLAS antibodies for immunostaining of untagged endogenous PGL-3 and OLLAS-tagged MEG-3. In embryos expressing wild-type MEG-3, MEG-3 and PGL-3 co-localize in posterior condensates that are segregated to the P1 blastomere (Figure 3A). In embryos lacking meg-3 and meg-4, PGL-3 condensates distributed throughout the cytoplasm of the zygote and segregated equally to AB and P1 (Figure 3A). We observed a similar pattern in embryos expressing MEG-3IDR, MEG-3698, and MEG-3HMGL- indicating that none of these MEG-3 derivatives are sufficient to localize PGL condensates (Figure 3A, Figure 3—figure supplement 1A). In contrast, in embryos expressing MEG-3Cterm, PGL-3 condensates preferentially assembled in P1, although they were smaller and fewer than in wild-type (Figure 3A, B). Embryos expressing MEG-3Cterm enriches PGL-3 in P1, though not as efficiently as wild-type, while PGL-3 is not enriched in meg-3 meg-4, or embryos expressing MEG-3IDR or MEG-3HMGL- (Figure 3C). In wild-type 28-cell stage embryos, PGL-3 condensates are highly enriched in P4. No such enrichment was observed in embryos expressing the MEG-3Cterm or any other MEG-3 variant (Figure 3—figure supplement 1). We conclude that the MEG-3Cterm is sufficient to enrich PGL-3 condensates in P blastomeres in early stages, but not sufficient to support robust PGL-3 localization through P4.

Figure 3 with 1 supplement see all

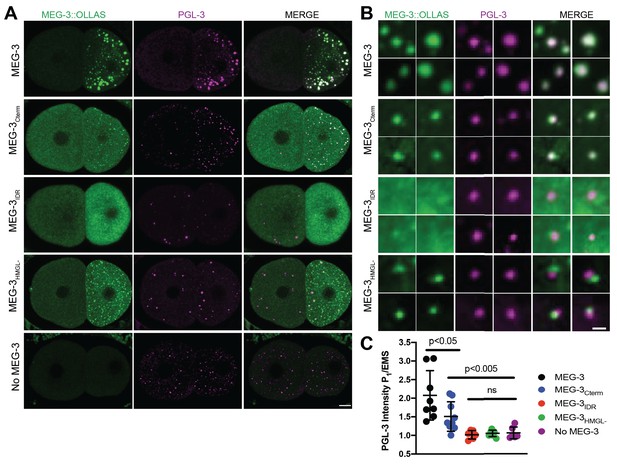

Localization of PGL-3 relative to wild-type MEG-3 and variants in two-cell embryos.

(A) Representative photomicrographs of two-cell embryos expressing the indicated MEG-3 mutants and immunostained for MEG-3 (anti-OLLAS antibody) and PGL-3 (anti-PGL-3 antibody). Scale bar is 5 μm. (B) High-magnification photomicrographs of individual MEG-3/PGL-3 assemblies in embryos expressing the indicated MEG-3 derivatives. White color in the merge indicates overlap. Scale bar is 1 μm. (C) Scatterplot of the enrichment of PGL-3 in P1 calculated by dividing the average intensity in P1 by the average intensity in the somatic blastomere (AB). Each dot represents an embryo.

Figure 3—source data 1

Enrichment of PGL-3 in P1 in embryos expressing wild-type MEG-3 and variants.

https://cdn.elifesciences.org/articles/63698/elife-63698-fig3-data1-v3.xlsx

Wild-type MEG-3 condensates associate closely with the surface of PGL condensates (Putnam et al., 2019; Wang et al., 2014). With the resolution afforded by immunostaining, this configuration appears as co-localized MEG and PGL puncta in fixed embryos (Wang et al., 2014, Figure 3B). We found that PGL-3 condensates co-localized with MEG-3Cterm condensates (37/37 PGL-3 condensates scored in P1; Figure 3B) as in wild-type. In contrast, we observed no such co-localization with MEG-3IDR or MEG-3HMGL-. The MEG-3IDR is mostly cytoplasmic and forms only rare condensates in P1. We occasionally observed PGL condensates with an adjacent MEG-3IDR condensate (5/19 PGL-3 condensates scored in P1, Figure 3B), but these were not co-localized. Unlike the MEG-3IDR, MEG-3HMGL- forms many condensates in P1, although these tended to be smaller than wild-type (Figure 3A, B). Still, although we occasionally observed PGL condensates with an adjacent MEG-3HMGL- condensate (12/30 PGL-3 condensates scored in P1; Figure 3B), we never observed fully overlapping PGL/MEG-3HMGL- co-condensates. We conclude that, despite forming many condensates in P blastomeres, MEG-3HMGL- condensates do not associate efficiently with, and do not support the localization of, PGL-3 condensates.

Efficient recruitment of Y51F10.2 mRNA to P granules requires the MEG-3 IDR, C-terminus, and HMG-like motif

MEG-3 recruits mRNAs to P granules by direct binding that traps mRNA into the non-dynamic MEG-3 condensates (Lee et al., 2020). To determine which MEG-3 domain is required for mRNA recruitment to MEG-3 condensates in vivo, we performed in situ hybridization against the MEG-3-bound mRNA Y51F10.2. Prior to polarization, Y51F10.2 is uniformly distributed throughout the zygote cytoplasm (Figure 4A). Y51F10.2 becomes progressively enriched in P granules starting in the late one-cell stage and forms easily detectable micron-sized foci by the four-cell stage (Lee et al., 2020; Figure 4A). In contrast, in meg-3 meg-4 embryos, Y51F10.2 remains uniformly distributed in the cytoplasm at all stages. Strikingly, we observed the same failure to assemble Y51F10.2 foci in embryos expressing MEG-3IDR, MEG-3Cterm, and MEG-3HMGL- (Figure 4A). This was surprising since all three MEG-3 variants form visible condensates by the four-cell stage (Figure 3A).

Figure 4 with 3 supplements see all

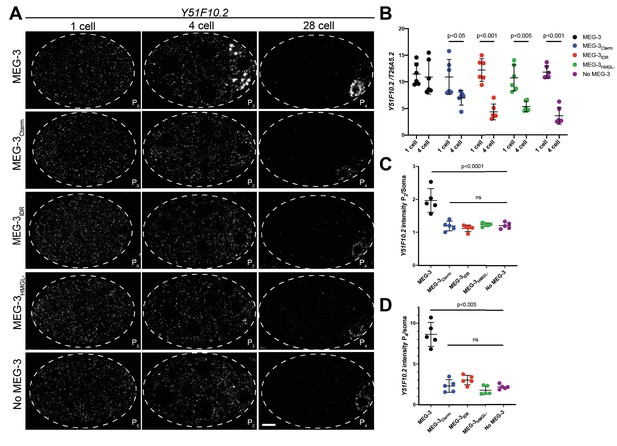

Distribution of Y51F10.2 mRNA in embryos expressing wild-type MEG-3 and variants.

(A) Representative photomicrographs of single confocal slices of fixed embryos expressing the indicated MEG-3 variants and hybridized to fluorescent probes complementary to the P granule-enriched mRNA Y51F10.2 (white signal). (B) Scatterplot showing the ratio of Y51F10.2 to T26A5.2 mRNA signal in P0 and P2 embryos expressing the indicated MEG-3 derivatives. Each dot represents an embryo. See Figure 4—figure supplement 1 for T26A5.2 mRNA localization and levels. (C) Scatterplot showing enrichment of Y51F10.2 mRNA in P2 relative to somatic blastomeres in embryos expressing the indicated MEG-3 derivatives. Each dot represents an embryo (Materials and methods). (D) Scatterplot showing enrichment of Y51F10.2 mRNA in P4 relative to somatic blastomeres in embryos expressing the indicated MEG-3 derivatives. Each dot represents an embryo (Materials and methods).

Figure 4—source data 1

Y51F10.2 mRNA levels in embryos expressing wild-type MEG-3 and variants.

https://cdn.elifesciences.org/articles/63698/elife-63698-fig4-data1-v3.xlsx

To characterize the fate of Y51F10.2 transcripts in meg-3 meg-4 mutants, we compared the intensity of the Y51F10.2 in situ hybridization signal relative to a control RNA (T26A5.2) in one-cell and four-cell stage embryos (Figure 4B, Materials and methods, Figure 4—figure supplement 1). In wild-type, Y51F10.2 RNA levels do not change significantly from the one-cell to the four-cell stage. In contrast, in meg-3 meg-4 embryos, Y51F10.2 levels decreased by ~50% by the four-cell stage, despite starting at levels similar to wild-type in the one-cell stage. This finding is consistent with RNAseq results, which indicated lower levels of P granule mRNAs in meg-3 meg-4 embryos (Lee et al., 2020). We observed a similar loss of Y51F10.2 RNA in embryos expressing MEG-3IDR, MEG-3Cterm, and MEG-3HMGL- (Figure 4B). We repeated this analysis with a second MEG-3-bound mRNA, nos-2. Similar to Y51F10.2, nos-2 levels remained constant from the one-cell to four-cell stage in embryos expressing wild-type MEG-3, and decreased in meg-3 meg-4 embryos and embryos expressing MEG-3IDR, MEG-3Cterm, and MEG-3HMGL- (Figure 4—figure supplement 2). These results suggest that failure to recruit Y51F10.2 and nos-2 mRNAs into granules leads to their premature degradation.

After the four-cell stage, as has been reported for other maternal RNAs (Baugh et al., 2003; Seydoux and Fire, 1994), Y51F10.2 is rapidly turned over in somatic blastomeres. At the four-cell stage, Y51F10.2 mRNA levels were approximately twofold higher P2 than in somatic blastomeres in wild-type embryos, and ~1.2-fold higher in meg-3 meg-4 embryos and in embryos expressing MEG-3IDR, MEG-3Cterm, and MEG-3HMGL- (Figure 4C). By the 28-cell stage, in wild-type embryos, Y51F10.2 levels were ~10-fold higher in the germline founder cell P4 compared to somatic blastomeres. In contrast, in meg-3 meg-4 embryos, Y51F10.2 mRNA levels were only approximately twofold enriched over somatic levels. Similarly, in embryos expressing the MEG-3IDR, MEG-3Cterm, and MEG-3HMGL-, Y51F10.2 enrichment in P4 averaged around approximately twofold (Figure 4A, D).

Enrichment of mRNAs in P granules can also be detected using an oligo-dT probe to detect polyadenylated mRNAs (Seydoux and Fire, 1994). In wild-type 28-cell stage embryos, a concentrated poly-A signal is detected around the nucleus of the P4 blastomere. Poly-A signal intensity in P4 is ~1.8-fold higher than that observed in somatic blastomeres (Figure 4—figure supplement 3A, B). This enrichment was not detected in meg-3 meg-4 mutants. In meg-3 meg-4 mutants, and in embryos expressing the three MEG-3 derivatives, poly-A signal intensity was similar between the somatic and P4 blastomeres. The lack of poly-A enrichment in P4 was particularly striking in the case of MEG-3IDR and MEG-3HMGL- since those variants assemble robust perinuclear condensates in P4 (Figure 2A).

Failure to efficiently segregate and stabilize maternal mRNAs in P blastomeres has been linked to the partial penetrance maternal-effect sterility (~30%) of meg-3 meg-4 mutants (Lee et al., 2020). We observed similar levels of sterility in hermaphrodites derived from mothers expressing the MEG-3IDR, MEG-3Cterm, and MEG-3HMGL- (Figure 4—figure supplement 3C). We conclude that the MEG-3 C-terminus, IDR, and HMG-like motif are all required for efficient mRNA recruitment to P granules, which in turn is required for enrichment and stabilization in the P lineage and robust germ cell fate specification.

The MEG-3 IDR is necessary and sufficient for RNA binding in vitro

We showed previously that MEG-3 readily condenses with RNA in vitro (Lee et al., 2020). To analyze the properties of MEG-3 variants in vitro, we expressed and purified His-tagged full-length MEG-3, MEG-3Cterm, MEG-3IDR, MEG-3698, MEG-3HMGL-, and MEG-3Cterm HMGL-, a MEG-3Cterm variant with a mutated HMGL motif (same alanine substitutions as in MEG-3HMGL-). We first tested each variant for its ability to bind RNA. Using fluorescence polarization and gel shift assays, we previously showed that the MEG-3 IDR binds an RNA oligo (poly-U(30)) with near nanomolar affinity in vitro (Smith et al., 2016). We repeated these observations using a filter binding assay where proteins are immobilized on a filter to minimize possible interference due to condensation of MEG-3 in solution (Materials and methods, Figure 5A). Consistent with previous observations (Smith et al., 2016), we found that MEG-3IDR and MEG-3698 exhibit high affinity for poly-U(30) (Figure 5A, Figure 5—figure supplement 1B). Wild-type MEG-3 also bound poly-U(30) efficiently albeit at a lower affinity compared to MEG-3IDR and MEG-3698. In contrast, MEG-3Cterm exhibited negligible RNA binding (Figure 5A). HMG domains are common in DNA-binding proteins and have been shown to mediate protein:nucleic acid interactions in vivo (Genzor and Bortvin, 2015; Reeves, 2001; Thapar, 2015). MEG-3HMGL- bound to RNA as efficiently as full-length MEG-3, indicating that the HMGL motif does not contribute to RNA binding in MEG-3 (Figure 5A).

Figure 5 with 1 supplement see all

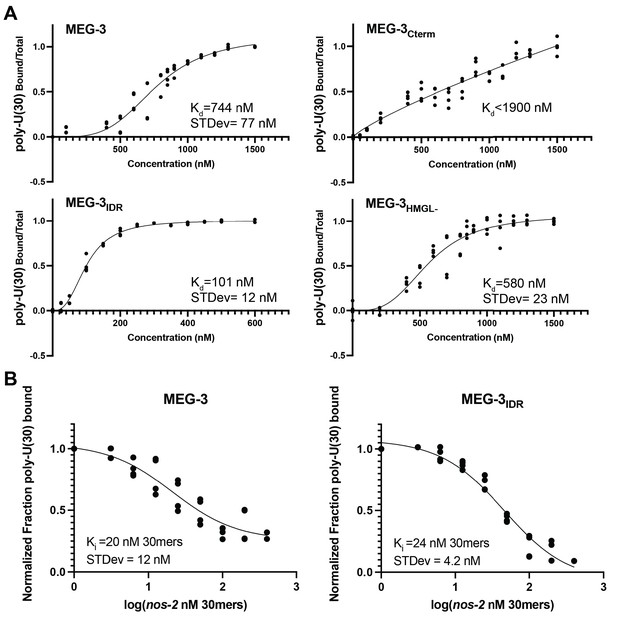

In vitro RNA binding of wild-type MEG-3 and variants.

See Figure 5—figure supplement 1 for an SDS-PAGE gel of the purified proteins used in Figures 5, 6, 7. (A) 30U RNA-binding curves for MEG-3, MEG-3Cterm, MEG-3IDR, and MEG-3HMGL-. Protein concentration is plotted on the X-axis. The ratio of bound poly-U(30) RNA to total, normalized to the ratio at the maximum concentration, is plotted on the Y-axis. Each dot represents a replicate at a given concentration. The average Kd and standard deviation were calculated from four replicate curves fit independently to a specific binding with Hill slope model (Materials and methods). (B) Competitive nos-2 RNA-binding curves for MEG-3 and MEG-3IDR. The log of nos-2 RNA concentration is plotted on the X-axis. The ratio of bound poly-U(30) to total RNA, normalized to the ratio in the absence of nos-2, is plotted on the Y-axis. Each dot represents a replicate at a given concentration. The average Ki and standard deviation were calculated from four replicate curves fit independently to a one-site competitive binding model (Materials and methods).

In vivo, MEG-3 binds to maternal mRNAs including nos-2 (Lee et al., 2020). To examine the affinity of MEG-3 for nos-2 RNA, we repeated the filter binding assay with labeled poly-U(30) using unlabeled nos-2 RNA as a competitor (Figure 5B). The competition assay revealed that full-length MEG-3 and MEG-3IDR bind to nos-2 RNA with the same high affinity. We conclude that the MEG-3 IDR is necessary and sufficient for RNA binding.

The MEG-3 C-terminus is the primary driver of MEG-3 condensation in vitro

To determine which regions of MEG-3 are required for condensation in vitro, MEG-3 and variants were trace-labeled with covalently attached fluorophores and examined for condensate formation by microscopy. MEG-3 condensation is sensitive to salt and RNA concentration with RNA having a strong solubilizing influence especially in low salt (Lee et al., 2020). We tested four conditions varying RNA and salt and keeping MEG-3 concentration constant at 150 nM near the physiological range (Figure 6A, Figure 6—figure supplement 1). At that concentration, MEG-3 and variants were all soluble in low salt/high RNA condensation buffer (50 mM NaCl to 80 ng/μL nos-2 RNA) (Figure 6—figure supplement 1). Under higher salt conditions (150 mM NaCl salt and 20 ng/μL or 80 ng/μL nos-2 RNA), MEG-3IDR and MEG-3698 remained mostly soluble forming only rare condensates (Figure 6A, Figure 6—figure supplements 1, 2). In contrast, full-length MEG-3 formed robust condensates under those conditions. MEG-3C-term also formed condensates, albeit with lower efficiency compared to MEG-3 (Figure 6A, Figure 6—figure supplement 1). The MEG-3Cterm condensates were also approximately twofold less efficient at recruiting RNA compared to full-length MEG-3 and MEG-3IDR (Figure 6A, Figure 6—figure supplement 1B). We conclude that, as observed in vivo, the C-terminus is the primary driver of MEG-3 condensation. The MEG-3 C-terminus is not sufficient, however, for maximum condensation or RNA recruitment, which additionally require the IDR.

Figure 6 with 3 supplements see all
In vitro condensation of wild-type MEG-3 and variants.

(A) Plot of the condensation of MEG-3 and MEG-3 derivatives incubated with 20 ng/μL nos-2 mRNA and 150 nM salt. MEG-3 condensates were identified in ImageJ (Materials and methods). The total fluorescence intensity in condensates normalized to the total image intensity is plotted on the X-axis. The total intensity of RNA in condensates divided by the intensity of MEG-3 in condensates is plotted on the Y-axis. Each dot represents the mean of three replicates, and bars represent the standard deviation; three images from the same slide were quantified in each replicate. Representative photomicrographs and values at additional NaCl and RNA conditions are shown in Figure 6—figure supplement 1. (B) Representative photomicrographs of 150 nM MEG-3 and MEG-3 derivatives (trace-labeled with Alexa647) incubated for 30 min with 2.5 μM PGL-3 (trace-labeled with Dylight488), 40 ng/μL nos-2 RNA (trace-labeled with Alexa555), and 150 μM poly-U(30) RNA. Full-field photomicrographs and photomicrographs of MEG-3/PGL-3 co-condensates with either 20 ng/μL nos-2 RNA or no RNA in Figure 6—figure supplement 3. (C) Scatterplot of nos-2 RNA enrichment in PGL-3 condensates with and without MEG-3 or MEG-3 variants in the presence of 150 μM poly-U30 RNA. The intensity of nos-2 fluorescence in condensates divided by the total image intensity and normalized to the No MEG-3 condition is plotted on the Y-axis. Each dot represents a replicate; three images from the same slide were quantified in each replicate. (D) Scatterplot of MEG-3 and MEG-3 variants enrichment in PGL-3 condensates in the presence of 40 ng/μL nos-2 RNA and 150 μM 30U RNA. The intensity of MEG-3 fluorescence in condensates divided by the total image intensity and normalized to the wild-type MEG-3 condition is plotted on the Y-axis. Each dot represents a replicate; three images from the same slide were quantified in each replicate.

Figure 6—source data 1

MEG-3 and variants condensation with and without PGL-3 in vitro.

https://cdn.elifesciences.org/articles/63698/elife-63698-fig6-data1-v3.xlsx

Surprisingly, under all conditions, MEG-3HMGL- and MEG-3CtermHMGL- behaved identically to MEG-3 and MEG-3Cterm, respectively (Figure 6, Figure 6—figure supplement 1), indicating that the HMGL motif is dispensable for RNA recruitment and condensation in vitro. HMGL was required for RNA recruitment and efficient condensation in vivo (Figure 4), suggesting that our in vitro conditions do not fully reproduce in vivo conditions (see below).

Formation of a MEG-3 condensate layer on PGL-3 condensates requires the MEG-3 C-terminus and does not require the IDR or RNA in vitro

When combined in condensation buffer, MEG-3 and PGL-3 form co-condensates that resemble the architecture of P granules in vivo, with the smaller MEG-3 condensates (~100 nm) forming a dense layer on the surface of the larger PGL-3 condensates (Putnam et al., 2019; Figure 6B, Figure 6—figure supplement 3A). We found that the MEG-3Cterm formed co-condensates with PGL-3 that were indistinguishable from those formed by wild-type MEG-3 (Figure 6—figure supplement 3A, B). The MEG-3IDR, in contrast, mixed homogenously with the PGL-3 phase as previously reported (Putnam et al., 2019, Figure 6—figure supplement 3A). MEG-3HMGL- and MEG-3CtermHMGL- behaved as MEG-3 and MEG-3Cterm, respectively. In vivo, MEG-3HMGL- does not associate efficiently with PGL-3 condensates (Figure 3B), again suggesting that in vitro conditions do not reproduce the more stringent in vivo environment.

We repeated the co-condensation assays in the absence of RNA using a higher concentration of PGL to force PGL condensation in the absence of RNA. Under these conditions, MEG-3 and PGL-3 formed co-condensates that were indistinguishable from co-condensates assembled in the presence of RNA (compare right and left panels, Figure 6—figure supplement 3A and B). Again, the C-terminus was necessary and sufficient for co-assembly. MEG-3IDR homogenously mixed with the PGL-3 phase and did not form independent condensates. We conclude that condensation of MEG-3 on the surface of PGL condensates requires the MEG-3 C-terminus and does not require RNA in vitro.

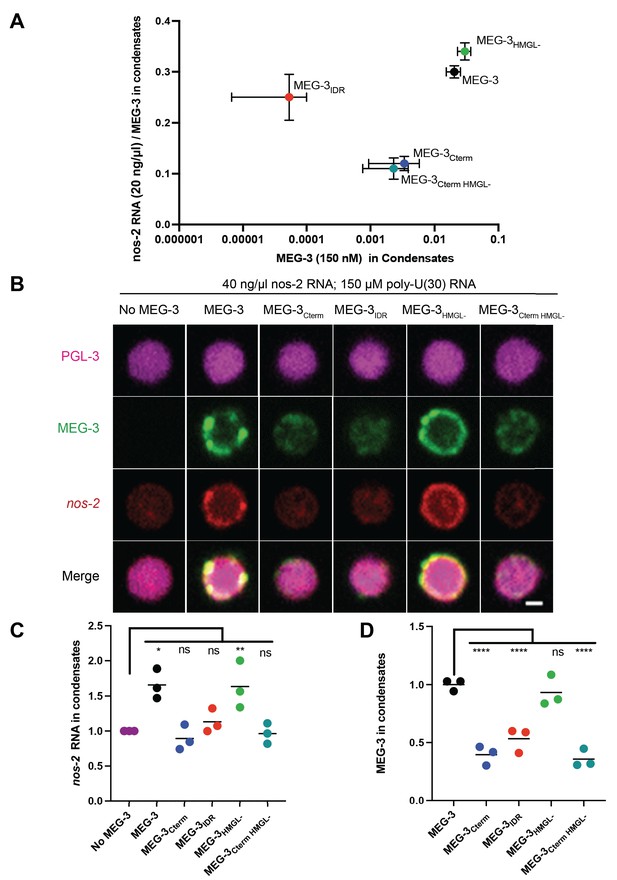

Recruitment of nos-2 RNA to MEG-3/PGL-3 co-condensates requires the MEG-3 IDR and C-terminus

To examine the ability of MEG-3 to recruit nos-2 RNAs to MEG-3/PGL-3 co-condensates, we assembled the co-condensates in the presence of labeled 40 ng/μL labeled nos-2 RNA and unlabeled 150 μM poly-U(30). Unlabeled poly-U(30) was necessary to prevent nos-2 RNA from accumulating non-specifically in the PGL-3 phase. Under these high RNA conditions, all variants were recruited to PGL condensates, but only full-length MEG-3 (and MEG-3HMGL-) formed a distinctive layer around PGL condensates that recruited RNA above the background level recruited to the PGL-3 phase (Figure 6B–D). MEG-3IDR and MEG-3Cterm, in contrast, mixed with the PGL phase and did not enrich nos-2 RNA above background levels (Figure 6B, C). These observations suggest that enrichment of nos-2 RNA in MEG-3/PGL-3 co-condensates requires robust MEG-3 condensation driven by the combined action of the MEG-3 IDR and C-terminus.

The HMG domain is required for MEG-3 binding to PGL proteins

We reported previously that MEG-3 binds directly to PGL-1, as determined in a GST-pull-down assay using partially purified recombinant proteins (Wang et al., 2014). HMG domains have been implicated in protein-protein interactions (Reeves, 2001; Stros et al., 2007; Wilson and Koopman, 2002). To examine whether the HMG domain is required to mediate MEG-3/PGL binding, we repeated the GST-pull-down assay using fusion proteins of GST::MEG-3Cterm and MBP::PGL-1 and PGL-3 (Figure 7A). GST::MEG-3IDR fusions were not expressed and thus could not be tested in this assay. We found that the GST::MEG-3Cterm binds efficiently to PGL-1 and PGL-3, but not to MBP or to an unrelated control protein PAA-1 (Figure 7A, B). A GST::MEG-3Cterm fusion with mutations in the HMG-like domain bound less efficiently to both PGL-1 and PGL-3 (Figure 7A, B). To complement the GST assay, we examined the ability of purified labeled PGL-3 to bind to beads coated with purified labeled MEG-3 derivatives (bead halo assay) (Figure 7C, Figure 7—figure supplement 1A-C). We found that PGL-3 is recruited efficiently to beads coated with MEG-3C-term, but not to beads coated with MEG-3IDR or MEG-3Cterm HMGL- (Figure 7C, Figure 7—figure supplement 1A). We conclude that the MEG-3C-term binds directly to PGL-3 and that this interaction requires the HMGL motif. This finding provides a potential explanation for why the HMGL is required for co-assembly of MEG-3 and PGL-3 condensates in vivo but not in vitro. Direct binding between MEG-3 and PGL-3 molecules may be necessary to assemble co-condensates in the crowded in vivo environment and may not be required in vitro where no other proteins or condensates compete for binding to MEG-3 or PGL-3.

Figure 7 with 1 supplement see all

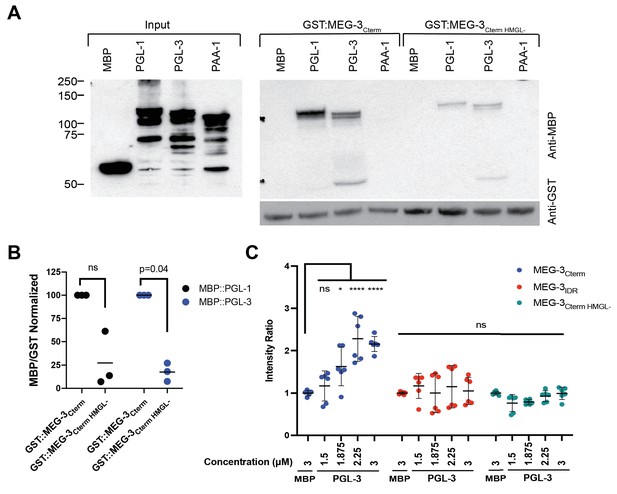

The HMGL motif is required for MEG-3 binding to PGL-3.

(A) Analysis of GST::MEG-3Cterm and MBP::PGL-1 and MBP::PGL-3 interactions by GST-pull-down assay with MBP and MBP::PAA-1 as negative controls. Western blots of Escherichia coli lysates expressing the indicated MBP-fusions before (input) and after immobilization on magnetic beads with the indicated GST-fusions. Western blot of GST fusions is shown below. (B) Scatterplot of the ratio of the indicated MBP fusions to GST:MEG-3Cterm HMGL- normalized to the ratio of the same MBP fusion to GST:MEG-3Cterm from the same experiment. Each dot represents an independent pull-down experiment. p-values indicated above were calculated by a paired ratio t-test of the GST:MEG-3Cterm and GST:MEG-3Cterm HMGL- ratios before normalization. (C) Scatterplot of the ratio of PGL-3 (trace-labeled with Alexa555) to His-tagged MEG-3 derivatives (trace-labeled with Alexa647) immobilized on Nickel-NTA beads, normalized to the average ratio of MBP to MEG-3 derivatives (Materials and methods). Each dot represents an image containing multiple beads; two independent replicates with three images each were performed. SDS-PAGE gels of the protein inputs and representative photomicrographs of the beads in Figure 7—figure supplement 1.

Discussion

In this study, we have examined the function of MEG-3 in P granule assembly using genome editing in vivo and recombinant proteins in vitro. We found that the MEG-3 IDR binds RNA and the MEG-3 C-terminus drives condensation. In vitro, the IDR and C-terminus are sufficient to assemble MEG-3/PGL-3 co-condensates that enrich RNA. In vivo, co-assembly additionally requires the HMGL motif, which mediates direct binding between MEG-3 and PGL-3. These findings (summarized in Figure 8) combined with prior analyses (Putnam et al., 2019; Lee et al., 2020) suggest the following model for P granule assembly: binding between PGL-3 and MEG-3 recruits MEG-3 to the surface of PGL-3 condensates in germ plasm and stimulates condensation of MEG-3 and MEG-3-bound RNAs. The MEG-3 layer protects mRNAs from degradation and stabilizes PGL-3 condensates in germ plasm ensuring their preferential segregation to the germline founder cell P4.

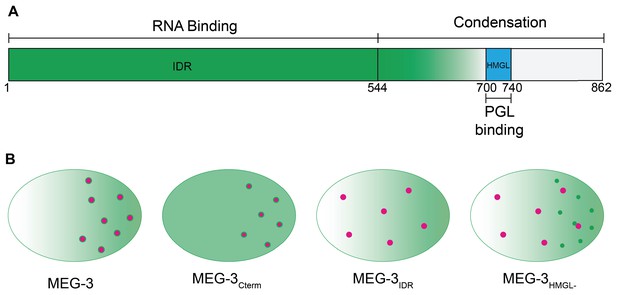

Model.

(A) Schematic of MEG-3 function by region. The disordered region (green), ordered C-terminus (white), and HMG-like motif (blue) are indicated. (B) Schematics of one-cell zygotes showing distribution of MEG-3 (green) and PGL-3 (magenta). Wild-type MEG-3 forms robust condensates that recruit RNA and interact with, and enrich, PGL-3 condensates in posterior cytoplasm. MEG-3Cterm forms condensates that do not recruit RNA but still interact with, and enrich, PGL-3 condensates in posterior. MEG-3IDR localizes in posterior-rich cytoplasm but does not form condensates, and does not localize PGL-3. MEG-3HMGL- assembles condensates in posterior cytoplasm that do not recruit RNA and do not interact efficiently with, nor localize, PGL-3 condensates.

Assembly of MEG-3/PGL-3 co-condensates depends on the MEG-3 C-terminus and HMGL domain and does not require RNA

The MEG-3 C-terminus contains an HMG-like motif required to bind to PGL-3 and additional predicted low-disorder sequences that drive condensation by an unknown mechanism. The HMGL domain is not required for condensation in vitro but is required for maximal condensation efficiency in vivo. We suggest the HMGL domain enhances condensation indirectly in vivo by concentrating MEG-3 on the surface of PGL droplets, which stimulates condensation (Putnam et al., 2019). Docking of P bodies on stress granules has been proposed to involve RNA:RNA duplexes (Tauber et al., 2020). In contrast, we find that docking of MEG-3 condensates on PGL condensates does not require RNA in vitro and can occur in the absence of any visible RNA enrichment in vivo. Most strikingly, mutations in the HMGL domain that prevent binding between MEG-3 and PGL-3 molecules in solution prevent docking of MEG-3 and PGL condensates in vivo. Together, these observations suggest that MEG-3 condensation and co-assembly with PGL-3 condensates is driven primarily by protein-protein interactions and does not require RNA. We note that the HMGL domain is dispensable for co-assembly of MEG-3 and PGL-3 condensates in vitro, indicating that our condensation assay conditions do not fully reproduce the stringent environment of the cytoplasm.

Efficient MEG-3/PGL co-assembly correlates with stabilization of PGL droplets in germ plasm

We previously reported that enrichment of PGL droplets to the posterior of the zygote requires meg-3 (Smith et al., 2016; Wang et al., 2014). Our new findings suggest that this activity is linked to MEG-3’s ability to associate stably with the PGL interface. MEG-3Cterm, which is sufficient for MEG-3/PGL co-assembly, is sufficient to localize PGL in zygotes. Conversely, MEG-3HMGL- condensates, which do not interact stably with PGL condensates, fail to enrich PGL condensates in the posterior of zygotes. PGL localization involves preferential growth and dissolution of PGL droplets in the anterior and posterior, respectively. One possibility is that tight binding of MEG condensates lowers the surface tension of PGL droplets allowing MEG/PGL co-assemblies in the posterior to grow at the expense of the less stable, ‘naked’ PGL droplets in the anterior.

What enriches MEG-3 condensates in the posterior? We previously hypothesized that MEG-3 asymmetry is driven by a competition for RNA between the MEG-3 IDR and MEX-5, an RNA-binding protein that acts as an RNA sink in the anterior (Smith et al., 2016). Consistent with this hypothesis, the MEG-3 IDR is sufficient to enrich MEG-3 in posterior cytoplasm. Unexpectedly, however, we found that the MEG-3Cterm condenses preferentially in the zygote posterior despite uniform distribution in the cytoplasm, suggesting that additional mechanisms acting on the MEG-3 C-terminus contribute to MEG-3 regulation in space. Consistent with this view, a recent study examining MEG-3 dynamics by single-molecule imaging (Wu et al., 2019) found that the slowly diffusing MEG-3 molecules that populate the MEG-3 gradient in the cytoplasm represent a distinct population of MEG-3 molecules from those that associate with PGL droplets. We propose that MEG-3 asymmetry is sustained by two independent mechanisms: one acting on the MEG-3 C-terminus that biases condensation of MEG-3 in posterior cytoplasm and one acting on the MEG-3 IDR that enriches MEG-3 molecules in posterior cytoplasm. We speculate that the latter may serve to segregate high levels of MEG-3 to P blastomeres needed to support PGL asymmetry through the P4 stage. Consistent with this view, the MEG-3Cterm, which does not enrich in a gradient, is not sufficient to localize PGL condensates in P blastomeres past the four-cell stage.

MEG-3 condensation on PGL droplets creates a platform for RNA recruitment

The MEG-3 IDR binds RNA with high-affinity in vitro but is not sufficient to enrich RNA in vivo despite forming some condensates. RNA recruitment in vivo additionally requires the MEG-3 C-terminus including the HMG-like motif. These observations suggest that maximal MEG-3 condensation is essential to build a protein scaffold that can support stable RNA recruitment in vivo. Separate domains for RNA-binding and protein condensation have also been observed for other germ granule scaffolds. For example, the Balbiani body protein Xvelo uses a prion-like domain to aggregate and a separate RNA-binding domain to recruit RNA (Boke et al., 2016). Similarly, condensation of Drosophila Oskar does not require the predicted Oskar RNA-binding domain, although this domain augments condensation (Kistler et al., 2018). These observations parallel our findings with MEG-3 and contrast with recent findings reported for the stress granule scaffold G3BP. Condensation of G3BP in vitro requires RNA and two C-terminal RNA-binding domains. A N-terminal dimerization domain is also required but, unlike the prion-like domain of Xvelo or the C-terminus of MEG-3, is not sufficient to drive condensation on its own. Dimerization of G3BP is thought to enhance LLPS indirectly by augmenting the RNA-binding valency of G3BP complexes. G3BP also contains an inhibitory domain that gates its RNA-binding activity and condensation at low RNA concentrations. This modular organization ensures that G3BP functions as a sensitive switch that initiates LLPS when sufficient RNA molecules are available to cross-link G3BP dimers into a large network (Guillén-Boixet et al., 2020; Yang et al., 2020). Stress granules are transient structures that form under conditions of general translational arrest where thousands of transcripts are released from ribosomes. In contrast, germ granules are long-lived structures that assemble in translationally active cytoplasm and recruit only a few hundred specific transcripts (~500 in C. elegans embryos) (Jamieson-Lucy and Mullins, 2019; Lee et al., 2020; Trcek and Lehmann, 2019; Updike and Strome, 2010). One possibility is that protein-based condensation mechanisms may be better suited to assemble long-lived granules able to capture and retain rare transcripts. By concentrating IDRs with affinity for RNA, protein scaffolds could act as seeds for localized LLPS to amplify protein and RNA condensation. Consistent with this view, IDRs have been observed to undergo spontaneous LLPS in cells when artificially tethered to protein modules that self-assemble into large multimeric structures (Nakamura et al., 2019). A challenge for the future will be to understand the mechanisms that regulate the assembly and disassembly of protein scaffolds at the core of germ granules.

Materials and methods

Key resources table
Reagent type
(species) or
resource
DesignationSource or
reference
IdentifiersAdditional
information
Strain, strain background (Caenorhabditis elegans)JH3477Smith et al., 2016MEG-3::OLLAS meg-4 deletionmeg-3(ax3051) meg-4(ax3052)
Strain, strain background (C. elegans)JH3479Smith et al., 2016MEG-3IDR::OLLAS meg-4 deletionmeg-3(ax3056) meg-4(ax3052)
Strain, strain background (C. elegans)JH3517This studyMEG-3698::OLLAS MEG-4::3xFLAGmeg-3(ax4500) meg-4(ax2080)
Strain, strain background (C. elegans)JH3630This studyMEG-3698::OLLAS meg-4 deletionmeg-3(ax4500) meg-4(ax3052)
Strain, strain background (C. elegans)JH3632This studyMEG-3(HMGL deletion)::OLLAS meg-4 deletionmeg-3(ax4501) meg-4(ax3052)
Strain, strain background (C. elegans)JH3861This studyMEG-3HMGL-::OLLAS meg-4 deletionmeg-3(ax4502) meg-4(ax3052)
Strain, strain background (C. elegans)JH3420This studyMEG-3Cterm::OLLAS MEG-4::3xFLAGmeg-3(ax4503) meg-4(ax2080)
Strain, strain background (C. elegans)JH3553This studyMEG-3Cterm::OLLAS meg-4 deletionmeg-3(ax4503) meg-4(ax4504)
Strain, strain background (C. elegans)JH3475Smith et al., 2016meg-3 deletion meg-4 deletionmeg-3(ax3055) meg-4(ax3052)
AntibodyAnti-OLLAS-L2Novus Cat# NBP1-06713RRID:AB_1625979(1:200 IF, 1:1000 Western)
AntibodyAnti-PGL-3 KT3DSHB Cat# KT3RRID:AB_1556927(1:10 IF)
AntibodyGoat Anti-Mouse IgA 650Abcam Cat# ab97014RRID:AB_10680780(1:200 IF)
AntibodyGoat Anti-Rat IgG (H + L) 488Thermo Fisher Scientific Cat# A-11006RRID:AB_2534074(1:200 IF)
AntibodyAnti-α-TubulinSigma-Aldrich Cat# T6199RRID:AB_477583(1:1000 Western)
AntibodyGoat Anti-Rat IgG (H + L) HRPThermo Fisher Scientific Cat# 31470RRID:AB_228356(1:2500 Western)
AntibodyGoat Anti-Mouse IgG1 HRPJackson ImmunoResearch Labs Cat# 115-035-205RRID:AB_2338513(1:6000 Western)
Sequence-based reagentdcr12: crRNA to cut meg-3 at 2408 bpSmith et al., 2016tgaaagcttgacagcattcc
Sequence-based reagentrHS03: cRNA cuts meg-3 5 bp upstream of stop codonSmith et al., 2016tcagtacaatcattgatctc
Sequence-based reagentrHS20: crRNA to cut meg-3 at 2386 bpThis studygtcaagctttcagaaatgcg
Sequence-based reagentrHS20: crRNA to cut meg-3 at 2546 bpThis studyatccaatcttggaattgtct
Sequence-based reagentrHS26: cRNA to cut MEG-3(HMGL deletion) strainThis studytccaatcttggaattgtgcg
Sequence-based reagentrHS01: crRNA to cut meg-3 at 23 bpSmith et al., 2016tcctcaaaaccttacccaag
Sequence-based reagentrHS01: crRNA to cut meg-3 at 1694 bpSmith et al., 2016tcagatcaatcggaacaatg
Sequence-based reagentdcr11: crRNA to cut meg-4 3'UTR, 133 bp downstream of stop codonSmith et al., 2016tctgcccaggaacttgtaac
Sequence-based reagentpk06: crRNA to cut meg-4 at 25 bpSmith et al., 2016catgtgatctgccaaactcc
Sequence-based reagentdc89: homology template to delete meg-4 and insert a synthetic guide sequenceSmith et al., 2016gttgcaggtatgagttcttcaaagctttcctcatgtgggaagtttgtccagagcagaggaacgggtagttttctattgttatcaggactgctgc
Sequence-based reagentdc257: Homology template to make MEG-3698This studycaccacctcgcatttctgaaagcttgacagcattccaatccggattcgccaacgagctcggaccacgtctcatgggaaagtgattgtaccaatttatatctattacttgtagactata
Sequence-based reagentoHS264: Homology template to delete the HMGLThis studyctcaagatccagcttcaacctcgccaccacctcgcacaattccaagattggatggtccttatgccgatgg
Sequence-based reagentoHS270, 272: Homology template to insert MEG-3HMGL- mutations in the HMGL deletion strainThis studyctcaagatccagcttcaacctcgccaccacctcgcatttctgaaagcttgacagcatttttggaggcgcaacaggatgccaacgacgctattgatactaacgccaaagaaaagacacaactcctgaaagtgaatttggctattcacgggatgtcacctgaaagatggctgtacttgaattatttttgcaccgagacaattccaagattggatggtccttatgccgatgg
Sequence-based reagentdc198: Homology template to make MEG-3IDRThis studygatttttgcaggtatgagctcctcaaaaccttacccaaatgtggatgtaaagagaacaccttcctcgtcaatc

Worm handling, maternal-effect sterility counts

Request a detailed protocol

C. elegans was cultured at 20° C according to standard methods (Brenner, 1974). To measure maternal-effect sterility, 10 gravid adults were picked to an OP50 plate and allowed to lay eggs for ~2 hr, then removed. Adult progeny were scored for empty uteri (white sterile phenotype) under a dissecting microscope.

Identification of MEG-3 HMG-like region

Request a detailed protocol

MEG-3 and MEG-4 protein sequences were aligned with HMG boxes from GCNA proteins of Caenorhabditis and example vertebrates along with the canonical HMG box of mouse SOX3 using MUSCLE (Edgar, 2004). Alignment was manually adjusted according to the published CGNA HMG Hidden Markov Model (Carmell et al., 2016). Amino acids were chosen for mutation based on conservation in nematodes.

CRISPR genome editing

Request a detailed protocol

Genome editing was performed in C. elegans using CRISPR/Cas9 as described in Paix et al., 2017. Strains used in this study, along with guides and repair templates, are listed in Supplementary file 1. Some strains were generated in two steps. For example, MEG-3HMGL- was generated by deleting the entire HMGL-like motif in a first step (JH3632) and inserting a modified HMG-like motif with the desired mutations in a second step (JH3861). Genome alterations were confirmed by Sanger sequencing, and expression of tagged strains was verified by immunostaining and western blotting (Figure 2—figure supplement 1C).

Statistical analysis and plotting

Request a detailed protocol

On all scatterplots, central bars indicate the mean and error bars indicate one standard deviation. Unless otherwise indicated, differences within three or more groups were evaluated using a one-factor ANOVA and differences between two groups using an unpaired Student’s t-test.

Confocal imaging

Request a detailed protocol

Fluorescence confocal microscopy for Figure 2—figure supplement 1A and Figure 6—figure supplements 1, 2 was performed using a Zeiss Axio Imager with a Yokogawa spinning-disc confocal scanner. Fluorescence confocal microscopy for all other figures was performed using a custom-built inverted Zeiss Axio Observer with CSU-W1 Sora spinning disk scan head (Yokogawa), 1×/2.8× relay lens (Yokogawa), fast piezo z-drive (Applied Scientific Instrumentation), and a iXon Life 888 EMCCD camera (Andor). Samples were illuminated with 405/488/561/637 nm solid-state laser (Coherent), using a 405/488/561/640 transmitting dichroic (Semrock) and 624-40/692-40/525-30/445-45 nm bandpass filter (Semrock), respectively. Images from either microscope were taken with using Slidebook v6.0 software (Intelligent Imaging Innovations) using a 40×–1.3 NA/63×–1.4 NA objective (Zeiss) depending on sample.

Immunostaining

Request a detailed protocol

Adult worms were placed into M9 on poly-l-lysine (0.01%)-coated slides and squashed with a coverslip to extrude embryos. Slides were frozen by laying on aluminum blocks pre-chilled with dry ice for >5 min. Embryos were permeabilized by freeze-cracking (removal of coverslips from slides) followed by incubation in methanol at −20°C for >15 min and in acetone −20°C for 10 min. Slides were blocked in PBS-Tween (0.1%) BSA (0.5%) for 30 min at room temperature and incubated with 50 μL primary antibody overnight at 4°C in a humid chamber. For co-staining experiments, antibodies were applied sequentially (OLLAS before KT3, K76) to avoid cross-reaction. Antibody dilutions (in PBST/BSA): KT3 (1:10, DSHB), K76 (1:10 DSHB), and Rat αOLLAS-L2 (1:200, Novus Biological Littleton, CO), Secondary antibodies were applied for 2 hr at room temperature. Samples were mounted Prolong Diamond Antifade Mountant or VECTASHIELD Antifade Mounting Media with DAPI. Embryos were staged using DAPI stained nuclei and 25 confocal slices spaced 0.18 µm apart and centered on the P cell nucleus were taken using a 63× objective. Unless otherwise indicated, images presented in figures are maximum projections.

Quantification of immunostaining images

Request a detailed protocol

All analyses were performed in ImageJ. For measurements of embryos/cells (Figure 2B-D, 3C), confocal stacks were sum projected and the integrated density was measured within a region of interest. For measurements of condensate intensity and number (Figure 2B-D), the 3D objects' counter function was used with a minimum size of 10 pixels on the full confocal stack confined to a region of interest drawn around the P cell and including objects on edges. The integrated density for all identified particles was summed to give the total intensity in condensates.

Single-molecule fluorescence in situ hybridization (smFISH)

Request a detailed protocol

smFISH probes were designed using Biosearch Technologies’s Stellaris Probe Designer, with the fluorophor Quasar670. For sample preparation, embryos were extruded from adults on poly-l-lysine (0.01%) slides and subjected to freeze-crack followed by methanol fixation at >20°C for >15 min. Samples were washed five times in PBS-Tween (0.1%) and fixed in 4% PFA (Electron Microscopy Science, No. 15714) in PBS for 1 hr at room temperature. Samples were again washed four times in PBS-Tween (0.1%), twice in 2× SCC, and once in wash buffer (10% formamide, 2× SCC) before blocking in hybridization buffer (10% formamide, 2× SCC, 200 µg/mL BSA, 2 mM Ribonucleoside Vanadyl Complex, 0.2 mg/mL yeast total RNA, 10% dextran sulfate) for >30 min at 37°C. Hybridization was then conducted by incubating samples with 50 nM probe solutions in hybridization buffer overnight at 37°C in a humid chamber. Following hybridization, samples were washed twice in wash buffer at 37°C, twice in 2× SCC, once in PBS-Tween (0.1%) and twice in PBS. Samples were mounted Prolong Diamond Antifade Mountant.

Quantification of in situ hybridization images

Request a detailed protocol

All measurements were performed on a single confocal slice centered on the P cell nucleus in ImageJ. For early embryos where there is distinct punctate signal (one- and four-cell stage; Figure 4B, C, Figure 4—figure supplements 1,2), a region of interest was drawn, the Analyze Particles feature was used with a manual threshold to identify and measure the integrated density of the puncta. The raw integrated density for all particles in the region of interest was summed to give the total intensity of the mRNA in that region. For 28-cell embryos (Figure 4D, Figure 4—figure supplement 3), a region of interest was drawn around the P4 blastomere and the intensity of that region was divided by the intensity of a region of the same size in the anterior soma.

Western blotting of embryonic lysates

Request a detailed protocol

Worms were synchronized by bleaching to collect embryos, shaken approximately 20 hr in M9, then plating on large enriched peptone plates with a lawn of Escherichia coli NA22 bacteria. Embryos were harvested from young adults (66 hr after starved L1 plating) and sonicated in 2% SDS, 65 mM Tris pH 7, 10% glycerol with protease and phosphatase inhibitors. Lysates were spun at 14,000 rpm for 30 min at 4°C and cleared supernatants were transferred to fresh tubes. Lysates were run on 4–12% Bis-Tris pre-cast gels (Bio-Rad Hercules, CA). Western blot transfer was performed for 1 hr at 4°C onto PVDF membranes. Membranes were blocked overnight and washed in 5% milk, 0.1% Tween-20 in PBS; primary antibodies were incubated overnight at 4°C; secondary antibodies were incubated for 2 hr at room temperature. Membranes were first probed for OLLAS then stripped by incubating in 62.5 mM Tris HCl pH 6.8, 2% SDS, 100 mM ß-mercaptoethanol at 42°C. Membranes were then washed, blocked, and probed for α-tubulin. Antibody dilutions in 5% milk/PBST: Rat α OLLAS-L2 (1:1000, Novus Biological Littleton, CO), Mouse α-tubulin (1:1000, Sigma, St. Louis, MO).

His-tagged protein expression, purification, and labeling

Expression and purification of MEG-3 His-tagged fusion proteins

Request a detailed protocol

MEG-3 full-length (aa1–862), IDR (aa1–544), Cterm (aa545–862), and HMGL-proteins were fused to an N-terminal 6XHis tag in pET28a and expressed and purified from inclusion bodies using a denaturing protocol (Lee et al., 2020). SDS-PAGE gels of purified MEG-3 proteins used in this study are provided in Figure 5—figure supplement 1.

Purification of MBP-TEV-PGL-3 was expressed and purified as described (Putnam et al., 2019) with the following modifications: MBP was cleaved using homemade TEV protease instead of commercial. A plasmid expressing 8X-His-TEV-8X-Arg tag protease was obtained from Addgene and purified according to the published protocol (Tropea et al., 2009). Before loading cleaved PGL-3 protein on to a heparin affinity matrix, cleaved MBP-6X-His and 6X-His-TEV protease were removed using a HisTRAP column (GE Healthcare).

Protein labeling

Request a detailed protocol

Proteins were labeled with succinimidyl ester reactive fluorophores from Molecular Probes (Alexa Fluor 555 or 647 or DyLight 488 NHS Ester) following the manufacturer's instructions. Free fluorophore was eliminated by passage through three Zeba Spin Desalting Columns (7K MWCO, 0.5 mL) into protein storage buffer. The concentration of fluorophore-labeled protein was determined using fluorophore extinction coefficients measured on a Nanodrop ND-1000 spectrophotometer. Labeling reactions resulted in ~0.25–1 label per protein. Aliquots were snap frozen and stored. In phase separation experiments, fluorophore-labeled protein was mixed with unlabeled protein for final reaction concentrations of 25–100 nM of fluorophore-labeled protein.

In vitro transcription and labeling of RNA

Request a detailed protocol

mRNAs were transcribed using T7 mMessageMachine (Thermo Fisher) using the manufacturer’s recommendation as described (Lee et al., 2020). Fluorescently labeled mRNAs were generated by including a trace amount of ChromaTide Alexa Fluor 488–5-UTP or 546–14-UTP in the transcription reaction. Template DNA for transcription reactions was obtained by PCR amplification from plasmids. Free NTPs and protein were removed by lithium chloride precipitation. RNAs were resuspended in water and stored at −20°C. The integrity of RNA products was verified by agarose gel electrophoresis.

In vitro condensation experiments and analysis

Request a detailed protocol

Protein condensation was induced by diluting proteins out of storage buffer into condensation buffer containing 25 mM HEPES (pH 7.4), salt adjusted to a final concentration of 50 or 150 mM (37.5 mM KCl, 12.5 or 112.5 mM NaCl), and RNA. For MEG-3 and PGL-3 co-condensate experiments with RNA, we used 150 nM MEG-3, 1.8 μM PGL-3. For MEG-3 and PGL-3 co-condensate poly-U(30) competition experiments with nos-2, we used 150 nM MEG-3, 2.5 μM PGL-3. For co-assembly experiments in the absence of RNA, we used 150 nM MEG-3, 5 μM PGL-3. MEG-3 and PGL-3 solutions contained 10–50 nM fluorescent trace labels with either 488 or 647 (indicated in the figure legends). MEG-3 and PGL-3 condensation reactions with nos-2 and poly-U(30) RNA were incubated at room temperature for 30 min before spotting onto a No. 1.5 glass bottom dish (Mattek) and imaged using a 40× with a 1× (used for quantification) and 2.8× (used for display) relay lens oil objective (Figure 6B). All other condensate reactions were imaged using thin-chambered glass slides (Erie Scientific Company 30-2066A) with a coverslip (Figure 6—figure supplements 1, 2). Images are single planes acquired using a 40× oil objective over an area spanning 171 × 171 μm.

To quantify the relative intensity of MEG-3 in condensates, a mask was created by thresholding images, filtering out objects of less than four pixels to minimize noise, applying a watershed filter to improve separation of objects close in proximity, and converting to a binary image by the Otsu method using the nucleus counter cookbook plugin. Minimum thresholds were set to the mean intensity of the background signal of the image plus 1–2 standard deviations. The maximum threshold was calculated by adding 3–4 times the standard deviation of the background. Using generated masks, the integrated intensity within each object was calculated. Any normalization is indicated in the corresponding figure legend. Each replicate contained three images each spanning an area of 171 × 171 μm (Figure 6A, Figure 6—figure supplement 1B and C) or 316.95 × 316.95 μm (Figure 6C, D).

RNA binding by fluorescence filter binding

Request a detailed protocol

Proteins were step-dialyzed from 6 M urea into 4.5 M urea, 3 M urea, 1.5 M urea, and 0 M urea in MEG-3 storage buffer (25 mM HEPES, pH 7.4, 1 M NaCl, 6 mM ß-mercaptoethanol, 10% glycerol). RNA-binding reactions consisted of 50 nM 3′ fluorescein-labeled 30U RNA oligonucleotides (poly-U(30)) incubated with either varying protein concentrations (direct binding of polyU(30)) or constant concentrations of protein and varying concentrations of nos-2 mRNA (long RNA binding by competition) for 30 min at room temperature (final reaction conditions 3.75 mM HEPES, 150 mM NaCl, 0.9 mM, 0.9 mM ß-mercaptoethanol, 1.5% glycerol, 10 mM Tris HCl). Fluorescence filter binding protocol was adapted from a similar protocol using radiolabeled RNA (Rio, 2012). Briefly, a pre-wet nitrocellulose was placed on top of Hybond-N+ membrane in a dot-blot apparatus, reactions were applied to the membranes, then washed 2× with 10 mM Tris HCl. Membranes were briefly dried in air, then imaged using a typhoon FLA-9500 with blue laser at 473 nm. Fraction of RNA bound for each reaction was calculated by dividing the fluorescence signal on the nitrocellulose membrane by the total signal from both membranes.

For direct binding (Figure 5A), Kd was calculated by plotting the bound fraction of poly-U(30) RNA as a function of protein concentration and fitting to the following equation in Prism8, where P is the protein concentration in nM, B is the bound fraction of poly-U(30) with non-specific binding subtracted, Bmax is the maximum specific binding, Kd is the concentration needed to achieve a half-maximum binding at equilibrium, and h is the Hill slope:

B=Bmax×PhKdh+Ph

For competition binding of nos-2 RNA (Figure 5B), IC50 was calculated by plotting the bound fraction of poly-U(30)as a function of the log of the concentration of nos-2 and fitting to the following equation, where B is the bound fraction of poly-U(30) in nM, Bmax is the maximum fraction bound, Bmin is the minimum fraction bound, X is the concentration of nos-2 RNA (in nM 30mers), and IC50 is the concentration of nos-2 RNA (in nM 30mers) needed to achieve half-maximum inhibition of poly-U(30) binding:

B=Bmax+Bmax-Bmin1+10X-log(IC50)

For a more direct comparison between MEG-3 variants that have a different Kd, the EC50 was converted to Ki using the following equation, where [30U] is the concentration of fluorescent labeled poly-U(30) in the reaction in nM and Kd is the experimentally determined Kd for that MEG-3 variant and poly-U(30):

Ki=IC501+[30U]Kd

All binding constants are the average value from fitting each replicate separately.

GST pull-downs

Request a detailed protocol

GST fusion proteins were cloned into pGEX6p1 (GE Healthcare, Pittsburgh, PA). MBP fusion proteins were cloned into pJP1.09, a Gateway-compatible pMAL-c2x (Pellettieri et al., 2003). Proteins were expressed in Rosetta E. coli BL21 cells grown for approximately 4 hr at 37°C, then induced with 1 mM IPTG and grown overnight at 16°C. 200 mg of bacterial pellet of GST fusion proteins was resuspended in 50 mM HEPES, 1 mM EGTA, 1 mM MgCl2, 500 mM KCl, 0.05% NP40, 10% glycerol, pH 7.4 (IP Buffer) with protease and phosphatase inhibitors, lysed by sonication, and bound to magnetic GST beads. Beads were washed and incubated with MBP fusion proteins at 4°C for 1 hr in the same buffer as for lysis. After washing, beads were eluted by boiling and eluates were loaded on SDS-PAGE. Western blot transfer was performed for 1 hr at 4°C onto PVDF membranes. Membranes were blocked and washed in 5% milk, 0.1% Tween-20 in PBS, and incubated with HRP conjugate antibodies. Antibody dilutions in 5% milk/PBST:anti-MBP HRP conjugated, 1:50,000 (NEB, and anti-GST HRP conjugates, 1:2000) (GE Healthcare). Scanned western blot films were quantified using the gel analysis tool in ImageJ.

Fluorescent protein bead halo assay

Request a detailed protocol

Fluorescent protein bead halo assay was adapted from Patel and Rexach, 2008. 50 μL of Nickel-NTA agarose beads (Qiagen) were incubated with 50 μL of 10 μM MEG-3 derivatives trace-labeled with Alexa647 or no protein in MEG-3 storage buffer for 1 hr. Beads were washed five times with IP Buffer then blocked for 1 hr in blocking buffer (4 mg/mL BSA, 50 mM HEPES, 1 mM EGTA, 1 mM MgCl2, 500 mM KCl, 0.05% NP40, 10% glycerol, pH 7.4). MBP and PGL-3 trace-labeled with Alexa555 were prepared in PGL-3 storage buffer and diluted to 3 μM in blocking buffer. Additional concentrations of PGL-3 were diluted from this solution to maintain the ratio of label to total protein. 5 μL of blocked MEG-3 or empty beads was added to 50 μL of PGL-3 or MBP solution and incubated for 1 hr. Beads were washed five times in blocking buffer and resuspended in PBS. Beads were spotted onto a No. 1.5 glass-bottom dish (Mattek) and imaged using a 10× air objective. Images are single planes through the center of the beads.

To quantify the relative intensity of PGL-3 to MEG-3 derivatives on the beads, a mask was created using the Analyze Particles feature in ImageJ on the MEG-3 channel, using a minimum size of 10−5 cm2. Using the generated mask, the integrated intensity within each bead was calculated for both the MEG-3 and MBP/PGL-3 channels. To remove non-specific binding signal, the mean intensity empty beads incubated with MBP or PGL-3 were subtracted from each pixel yielding the total intensity of each bead. To calculate the intensity ratio for each image, the total intensity on beads of MBP or PGL-3 was divided by the total intensity of MEG-3 on beads. This ratio was normalized to the mean MBP ratio.

Data availability

All data generated or analyzed during this study are included in the manuscript and supporting files. Source data files have been provided for Figures 2–7.

References

    1. Brenner S
    (1974)
    The genetics of Caenorhabditis elegans
    Genetics 77:71–94.
    1. Uebel CJ
    2. Phillips CM
    (2019)
    Phase-separated protein dynamics are affected by fluorescent tag choice
    microPublication Biology 2019:143.

Decision letter

  1. Robert H Singer
    Reviewing Editor; Albert Einstein College of Medicine, United States
  2. James L Manley
    Senior Editor; Columbia University, United States

In the interests of transparency, eLife publishes the most substantive revision requests and the accompanying author responses.

Acceptance summary:

Previous work from the Seydoux lab showed that P granules are multi-layered, with a liquid-like internal compartment formed by PGL proteins and gel like outer compartments formed by the RNA binding proteins, MEG-3/4, that assemble on the surface of the PGL compartment. Here they have used a combination of in vitro reconstitution and in vivo experiments to dissect MEG-3, to understand how interactions of its different regions produce this organization. They find that a C-terminal MEG-3 fragment is the dominant element necessary to form PGL-containing condensates in vivo. An HMGL motif in the C-terminus appears to contribute to both functions. In contrast, the N-terminal IDR of MEG-3 binds RNA in vitro, but does not form robust condensates in vivo. This leads to a model in which MEG-3 is recruited to PGL condensates through its C-terminal region, and all elements of the protein are necessary to produce fully functional P granules.

Decision letter after peer review:

Thank you for submitting your article "Coordination of RNA and protein condensation by the P granule protein MEG-3" for consideration by eLife. Your article has been reviewed by 2 peer reviewers, and the evaluation has been overseen by a Reviewing Editor and James Manley as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

As the editors have judged that your manuscript is of interest, but as described below that additional experiments are required before it is published, we would like to draw your attention to changes in our revision policy that we have made in response to COVID-19 (https://elifesciences.org/articles/57162). First, because many researchers have temporarily lost access to the labs, we will give authors as much time as they need to submit revised manuscripts. We are also offering, if you choose, to post the manuscript to bioRxiv (if it is not already there) along with this decision letter and a formal designation that the manuscript is "in revision at eLife". Please let us know if you would like to pursue this option. (If your work is more suitable for medRxiv, you will need to post the preprint yourself, as the mechanisms for us to do so are still in development.)

Summary:

Previous work from the Seydoux lab showed that P granules are multi-layered, with a liquid-like internal compartment formed by PGL proteins and gel like outer compartments formed by the RNA binding proteins, MEG-3/4, that assemble on the surface of the PGL compartment. Here they have used a combination of in vitro reconstitution and in vivo experiments to dissect MEG-3, to understand how interactions of its different regions produce this organization.

They find that a C-terminal MEG-3 fragment is the dominant element necessary to form PGL-containing condensates in vivo. An HMGL motif in the C-terminus appears to contribute to both functions. In contrast, the N-terminal IDR of MEG-3 binds RNA in vitro, but does not form robust condensates in vivo. This leads to a model in which MEG-3 is recruited to PGL condensates through its C-terminal region, and all elements of the protein are necessary to produce fully functional P granules.

The reviewers feel that this represents nice work. However both have some issues with the determination of the binding site of the Meg-3 protein. In addition, both reviewers feel that the correlation between the in vitro and in vivo data is not very good.

Essential revisions:

There are several essential revisions the reviewers feel should be done, pertaining to Figure 2. First, they would like it to be shown that RNA is co-recruited into the granule and to determine the region in the C terminus that is necessary for localization and second, whether the IDR is necessary for PGL binding.

Title: Somewhat overstates the data since the coordination of RNA and protein is not fully characterized.

The full reviews are included below.

Reviewer #1:

Previous work from the Seydoux lab showed that P granules are multi-layered, with a liquid-like internal compartment formed by PGL proteins and gel like outer compartments formed by the RNA binding proteins, MEG-3/4, that assemble on the surface of the PGL compartment. Here they have used a combination of in vitro reconstitution and in vivo experiments to dissect MEG-3, to understand how interactions of its different regions produce this organization.

They find that a C-terminal MEG-3 fragment binds PGL-3 in vitro and is the dominant element necessary to form PGL-containing condensates in vivo. An HMGL motif in the C-terminus appears to contribute to both functions. In contrast, the N-terminal IDR of MEG-3 binds RNA in vitro, but does not form robust condensates in vivo. Both fragments of MEG-3, including the HMGL motif, are needed to generate RNA foci in vivo. This leads to a model in which MEG-3 is recruited to PGL condensates through its C-terminal region, and all elements of the protein are necessary to produce fully functional P granules.

I have two main concerns regarding the data and story:

1. As an eLife paper on the molecular mechanism by which MEG-3 acts to create P granules, the work does not go far enough in understanding how the sequence and structural elements of MEG-3 interact with PGL condensates and RNA to produce the full granule.

It is unclear how we should think about the functionality of the C-terminal fragment of MEG-3. Is the whole element a single folded domain, which mediates binding to PGL-3, layered condensate formation, and localization of PGL condensates to one pole of the embryo? Or is the fragment a folded HMGL domain surrounded by either other domains or partially disordered elements with independent activities? The hydrophobicity plot in Figure 1 suggests a folded domain might exist at ~residues 720-880. Relatedly, does mutating the HMGL motif disrupt a binding surface, or unfold a domain? What region of the MEG-3 C-terminus mediates localization in vivo? Apparently not the HMGL motif, as the HMGL- mutant still localizes properly. Without such information it is hard to precisely understand the activities of the C-terminal fragment.

Further, the authors should make an effort to understand why the MEG-3IDR forms homogeneous condensates with PGL-3, while the C-terminal fragment and HMGL- protein remain demixed, forming a heterogeneous structure. What sequence features or binding properties are necessary for demixing? This multi-layered architecture is an important feature of P granules and should be addressed.

Finally, why does the MEG-3IDR bind RNA with ~7-fold higher affinity than the full-length protein? This suggests some autoinhibition in the protein. Can the C-terminus act in trans to decrease the affinity of the IDR for RNA? If so, does it bind to the IDR?

2. The in vitro and in vivo data do not correlate particularly well, clouding a clear mechanistic picture of the cellular behaviors. The authors acknowledge this issue in some areas, but we are still left not understanding substantial differences between the molecular behaviors in the two settings. For example, it is not clear how to reconcile the co-condensation with PGL-3 of the MEG-3IDR and HMGL- proteins in vitro with the cellular behaviors of these proteins. From the data presented, both robustly phase separate with PGL-3 (figure 2), but do not co-assemble in vivo (figure 4). This does not seem to be a matter of degree, as the HMGL- construct assembles with PGL-3 in vitro identically to WT MEG-3. Quantifying the effect of the HMGL- mutations on affinity for PGL-3 in physiologic conditions may clarify.

It is similarly unclear why the MEG-3IDR and HMGL- proteins form foci in cells, and should be able to bind RNA with high affinity (the former better than WT MEG-3) based on in vitro data, do not recruit Y51F10.2 into those foci. Even if RNA levels are reduced in embryos expressing the mutants, one would expect the RNA that is expressed to be recruited into the protein foci. Along these lines, in figure 2, the authors should examine co-recruitment of RNA into the MEG-3/PGL-3 condensates. Recruitment should track with binding, but it is important to show this, in part to compare with the cellular results in Figure 5. Perhaps such experiments would show that there is no in vitro/in vivo discrepancy here, although in that case one would have to explain why IDR and HMGL- can bind RNA but do not recruit it into their condensates.

Two technical points relate to these concerns:

First, the authors should quantify the binding data in Figure 2, showing the interactions of PGL proteins with the MEG-3 C-terminus, ideally determining the Kd of the interactions. They claim the interaction is of high affinity, but this cannot be inferred from a single blot performed at a single concentration. Similarly, the magnitude of the change in affinity induced by mutation of the HMGL motif cannot be inferred from these data, especially given that the amount of GST fusion was higher in the HMGL- protein than in the WT C-term protein (cf. GST bands at bottom of blot).

Second, it is disappointing that the MEG-3IDR was not analyzed for direct binding to PGL proteins. I understand that the GST-fusion did not express, but there are a variety of ways around this technical difficulty, especially given that the His-tagged version of the protein could be expressed and purified. The authors imply that the dominant interaction is mediated by the C-terminus, but the co-LLPS of the IDR with PGL-3 indicates the IDR can also interact with some affinity.

Reviewer #2:

The manuscript by Schmidt et al. performs a functional dissection of the C. elegans MEG-3 protein in assembling P granules. P granules are a prime model for studying the properties of ribonucleoprotein condensates but how condensates like P granules are actually assembled is less well understood. Previous work has shown that MEG-3, along with the redundantly functioning MEG-4, is required to localize PGL-1 and PGL-3 condensates to the posterior of the embryo. MEG-3/4 form a gel like shell that surrounds a more liquid-like core comprising PGL-1 and PGL-3. In addition, MEG-3 binds to RNA and is thought to recruit RNAs to P granules. How MEG-3 can perform these functions to assemble P granules is the focus of this paper. The authors perform both in vitro and in vivo experiments testing the activities of different domains/regions of the MEG-3 protein. They find that the HMG domain in the C-terminal half of MEG-3 is required for MEG-3 to interact with PGL-3 and that the C-terminal half (including the HMG domain) are required for PGL-3 condensates to localize in the posterior of the embryo, whereas the IDR in the N-terminal half of MEG-3 binds to RNA and recruits RNA to P granules. Notably, the IDR and RNA recruitment are not required for MEG-3 condensation, its localization, or its ability to bind to, localize, and stabilize PGL-3 condensates. The authors guardedly conclude that "germ granule assembly depends at least in part on protein-protein interactions that drive protein condensation independent of RNA".

Overall, this is really nice work – the experiments are carefully executed, the data are convincing, and the conclusions are solid. I have two main concerns:

1) From the data presented, it seems likely that the functions the authors map to MEG-3Cterm can be attributed to the HMG domain but the authors carefully evade this issue. It seems like this is an important distinction to make and would provide significantly more resolution to the analysis. Testing the function of MEG-3Cterm with the HGML mutation would help to answer the question.

2) The authors seem overly timid in making connections between their findings and in their conclusions. For example, it seems like they want to argue that RNA is largely a passenger rather than an instigator in P granule assembly but are afraid to make that case. In addition, the discussion would benefit from a more thorough fleshing out of their model, with better explanation of how they envision the different domains are MEG-3 are regulating localization, condensation, stabilization of PGL condensates, recruitment of RNA, etc. Why does MEG-3Cterm only condense in the posterior even though it is not localized, why are all the domains are needed for RNA recruitment?

Reviewer #3:

Previously, the Seydoux lab discovered a class of genes, the meg genes, which encode for intrinsically disordered phospho-regulated proteins, and which are required for P granule segregation in C. elegans embryos (Wang et al., 2014). In further studies the lab showed that the MEG-3 protein can bind to RNA and that MEG-3 can phase separate in vitro in the presence of RNA. Importantly, the authors find that the intrinsically disordered region and the RNA concentrations tune phase separation (Smith et al., 2016). In further work, the lab suggested, that MEG-3 is in a rather gel-like protein phase which does not dissolve upon temperature shifts in vivo (Putnam et al., 2019) and which has different material properties than the PGL phase which is liquid-like and forms by phase separation. Both, the MEG phase and the PGL phase overlap but do not seem to mix, both in vitro and in vivo, and the question is how this process could be regulated.

In a recent study, the lab looked for interacting RNAs in C. elegans embryos by using crosslinking approaches in combination with immunoprecipitations. Surprisingly, they found the majority of mRNA’s bound by MEG-3 after immunoprecipitations rather than to the RGG domain P granule protein PGL-1. Several of the identified mRNA’s indeed colocalize with MEG-3 in combined immunofluorescence/FISH experiments and show as well P lineage enrichment. In the same study, in vitro assays with MEG-3 and RNA indicated that the MEG-3 protein aggregates in the presence of low RNA concentrations and high or low salt conditions, whereas it associates into condensates with high RNA concentrations and medium salt concentrations.

Now, in the new study by Schmidt et al. the authors further study the protein MEG-3 and do an in vivo and in vitro structure/function analysis of the protein. They suggest that MEG-3 coordinates RNA and protein condensation, propose that the C-terminus is “necessary and sufficient to build MEG-3/PGL co-condensates independent of RNA” (line 16 of the abstract) and suggest that the IDR is required but not sufficient for RNA recruitment to P granules. This is a good paper and has lots of excellent data on the role of the MEGs.

However, the current manuscript has several inconsistencies with their previous work.

Here are the detailed arguments:

MEG-3 seems to contain a C-terminal HMG-like motif, which seems to interact in vitro with the PGL P granule proteins.

In vitro, the C-terminal part of MEG-3 seems to interact with PGL-1 and PGL-3 in pull down assays. Mutations of conserved residues in the HMG-like motif strongly reduces the PGL binding. But how does full length MEG-3 behave in the same pull down assay? Do the mutations in the HMG-like motif as well strongly reduce the interaction? How do the authors conclude that the HMG domain is required for “high affinity” binding to PGL proteins? (see line 162). Whether these interactions play a role in vivo remains unclear as well, especially as MEGs and PGL proteins seem to have very different biophysical material properties.

MEG-3 interacts with RNA by the IDR region only.

These results are inconsistent with previous experiments. Full length MEG-3 interacts with polyU RNA in the low nM (around 30nM) range, whereas the IDR region shows around 15 fold lower binding affinities (around 500nM) (see Smith et al., 2016). Now Schmidt et al. report that full length MEG-3 binds to nos-2 RNA in the high nM range (around 800nM, roughly 30 fold lower), whereas the IDR region binds in the low nM range (around 100nM, which is around 8 fold higher). These differences may be explained by the differences in RNA, but could as well represent differences in the MEG-3 protein quality and differences in the assay. MEG-3 protein as well as its fragments tend to aggregate and do not seem spherical as published previously (compare Fig. 2A from this manuscript with Fig. 4 and Fig 4S from Lee et al., 2020). Protein quality control as well as performing gel shift assays, as in previous report, would indicate the quality of the protein and be important to resolve these inconsistencies. Partially aggregated MEG-3 might be present in the filter binding assays and eventually lead to much lower apparent RNA binding constants for the MEG-3 full length protein.

In further in vitro assays it is tested whether MEG-3 interacts with PGL-3 condensates. Indeed, all MEG-3 fragments interact with the PGL condensates and form domains on the PGL condensates in the presence of RNA (see Fig. 2C). In the absence of RNA the MEG-3 IDR domain fully mixes with the PGL domain indicating strong interaction with PGL-3. However, this domain was not tested for interaction with PGL-3 by any other assays, and in vivo does not interact with PGLs.

Co-assembly of MEG/PGL condensates is driven by the MEG-3 C-terminus.

The MEG-3 fragments tested in vitro are now generated in vivo by replacing the endogenous meg-3 locus with the gene variants by CRISPR/Cas9. The authors do a series of immunofluorescence experiments in the meg-3 variant lines and stain for MEG-3 and PGL-3. The authors state that “in embryos expressing MEG-3 Cterm, PGL-3 condensates localized properly in P1…”. However, as their images (see Fig4A) as well as their quantification indicates, this is not the case. Only full length MEG-3 shows proper localization of PGL-3, and neither the C-terminal, nor the IDR or the HMGL variant show correct PGL-3 localisation. Although there seems to be an enrichment of PGL-3 in P1 in the Cterm mutant, clearly other parts of the protein contribute to PGL-3 localization as seen in MEG-3 full length (see Fig. 4C)

Efficient recruitment of mRNA to P granules requires all parts of the MEG-3 protein. Previously, the Seydoux lab discovered that hundreds of mRNA crosslink to MEG-3 in vivo and several of these mRNA are indeed enriched in the P lineage (Lee et al., 2020). Now, they test which part of MEG-3 is required for enrichment of Y51F10.2. Intriguingly, Y51F10.2 becomes only considerably enriched in P4 cells if all domains of the MEG-3 protein get expressed, indicating that enrichment of PGL’s by the MEG-3Cterm construct is not sufficient for enrichment of Y51F10.2 mRNA. However, to address if mRNA recruitment requires indeed all MEG-3 domains it would be much better to quantify the level of polyA enrichment in the different MEG-3 mutants (see Fig 5 supp1). Previously, Lee et al have shown that nearly all polyA RNA which is accessible to FISH in early embryos is located in the P lineage in the P2 cell and this depends on the presence of wildtype copies of meg-3 and meg-4 (see Fig 1F, Lee et al., 2020). And if indeed the IDR of MEG-3 recruits mRNA than the MEG-3Cterm mutant should not enrich any mRNA in P1 to P4. Importantly, very little polyA RNA is enriched in pgl-1 pgl-3 mutants indicating that MEG-3 enrichment is not sufficient for P lineage enrichment of mRNA.

https://doi.org/10.7554/eLife.63698.sa1

Author response

Essential revisions:

There are several essential revisions the reviewers feel should be done, pertaining to Figure 2. First, they would like it to be shown that RNA is co-recruited into the granule and to determine the region in the C terminus that is necessary for localization and second, whether the IDR is necessary for PGL binding.

Thank you for these recommendations. To address the reviewers’ comments, we have reworked our entire in vitro analyses examining MEG-3 binding to RNA and PGL-3 and MEG-3 condensation with and without PGL-3. The new data address what is required for RNA to be recruited to MEG/PGL co-condensates (robust condensation driven by both the IDR and Cterm), and what MEG-3 domains contribute to PGL binding (the HMGL domain and NOT the IDR). The new data are presented in three new figures (Figures 5, 6 and 7) that replace Figure 2 in the original submission.

The revised in vitro data better aligns with the in vivo data and supports the main thesis of the paper: MEG-3 is a modular protein with separate domains required for RNA binding (IDR, aa 1-544), PGL-3 binding (HMGL domain, aa 700-740) and protein condensation (aa 544 to 862). The three domains synergize in vivo to assemble P granules: MEG-3/PGL-3 co-condensates that recruit and protect from degradation specific maternal RNAs.

Title: Somewhat overstates the data since the coordination of RNA and protein is not fully characterized.

We have changed the title and abstract to better reflect the broader take-home message of the paper: protein condensation mechanisms drive P granule assembly. As described in the Introduction and Discussion, recent studies examining stress granules have highlighted the role of RNA in RNA granule assembly. Our findings illustrate a different paradigm where RNA plays a more passive role and protein-protein interactions drive condensate assembly.

The full reviews are included below.

Reviewer #1:

[…] I have two main concerns regarding the data and story:

1. As an eLife paper on the molecular mechanism by which MEG-3 acts to create P granules, the work does not go far enough in understanding how the sequence and structural elements of MEG-3 interact with PGL condensates and RNA to produce the full granule.

It is unclear how we should think about the functionality of the C-terminal fragment of MEG-3. Is the whole element a single folded domain, which mediates binding to PGL-3, layered condensate formation, and localization of PGL condensates to one pole of the embryo? Or is the fragment a folded HMGL domain surrounded by either other domains or partially disordered elements with independent activities? The hydrophobicity plot in Figure 1 suggests a folded domain might exist at ~residues 720-880. Relatedly, does mutating the HMGL motif disrupt a binding surface, or unfold a domain? What region of the MEG-3 C-terminus mediates localization in vivo? Apparently not the HMGL motif, as the HMGL- mutant still localizes properly. Without such information it is hard to precisely understand the activities of the C-terminal fragment.

We have reworked our in vitro analysis of MEG-3 variants. By comparing proteins with and without mutations in the HMGL domain in the context of full-length MEG-3 and MEG-3C-term, we have found that the HMGL domain is only required for binding to PGL-3 and is dispensable for condensation and localization in vitro.

These observations indicate that the C-terminal domain of MEG-3 codes for two independent activities: binding to PGL-3 driven by the HMGL motif (aa 700-740) and condensation in posterior cytoplasm driven by aa 740 to 862, and possibly sequences N-terminal to the HMGL motif (598-698) – although these are not sufficient for condensation in the context of MEG-3698. As the reviewer suggests, our observations are consistent with mutations in the HMGL motif affecting only a PGL-3 binding surface and not the entire C-terminal domain, since MEG-3Cterm and MEG-3C-termHMGL- exhibited identical condensation properties in vitro. We do not know yet whether the C-terminal sequences responsible for condensation fold into a globular domain or not. (MEG-3C-termHMGL- was not expressed at high enough levels to be analyzed in vivo).

Further, the authors should make an effort to understand why the MEG-3IDR forms homogeneous condensates with PGL-3, while the C-terminal fragment and HMGL- protein remain demixed, forming a heterogeneous structure. What sequence features or binding properties are necessary for demixing? This multi-layered architecture is an important feature of P granules and should be addressed.

Our new findings indicate that de-mixing correlates with conditions that favor robust MEG-3 condensation. Full length MEG-3 condense most efficiently, followed by MEG-3C-term and the MEG-3IDR which condenses poorly at concentrations in the physiological range (150 nM; Figure 6A). In the presence of high RNA, which has a strong solubilizing influence on MEG-3 (Lee et al., 2020), only full-length MEG-3 fully de-mixes from PGL-3 (Figure 6B). Under low or no RNA conditions, both full-length MEG-3 and MEG-3C-term de-mix (Figure 6 Supplement 3). The MEG-3IDR does not de-mix under any conditions (Figure 6 and supplement). The HMGL domain does not contribute to MEG-3 condensation in vitro and is not required for de-mixing under any condition.

Finally, why does the MEG-3IDR bind RNA with ~7-fold higher affinity than the full-length protein? This suggests some autoinhibition in the protein. Can the C-terminus act in trans to decrease the affinity of the IDR for RNA? If so, does it bind to the IDR?

The difference in RNA binding between full length MEG-3 and MEG-3IDR was observed using the non-physiological RNA poly-U30. To examine whether this difference holds when using a physiological substrate, we examined binding to nos-2 RNA using a competition assay (Figure 5 B). We detected no difference between full length MEG-3 and MEG-3IDR (Figure 5 B) in binding to nos-2 RNA.

We did test the possibility that the C-terminus acts in trans to reduce the affinity of the IDR for poly-U as suggested by the reviewer. These experiments, however, were confounded by the fact that the C-terminus also binds poly-U (albeit with much lower affinity) complicating the assay, which required using high concentrations of the C-terminus. We therefore did not include these experiments in the manuscript but present them as Author response images 1-3.

MEG-3Cterm RNA binding competition assays:

In these experiments, we examined binding of MEG-3IDR (105nM) to polyU RNA (50nM) in the presence of increasing concentrations of MEG-3Cterm.

Replication of a normally intramolecular inhibitory interaction in trans is expected to require high concentration of the inhibitory domain. We therefore first tested whether how much RNA is bound by MEG-3Cterm at high concentrations. We found that at micromolar concentration, MEG-3Cterm binding to RNA becomes non-negligible, binding as much as 15% of RNA.

Author response image 1

When MEG-3IDR and MEG-3Cterm were pre-mixed and added to poly-U30 and allowed to equilibrate in binding buffer solution, we observed that the fraction of bound RNA remained roughly constant with increasing MEG-3Cterm.

Author response image 2

Subtracting the fraction of RNA bound by the MEG-3Cterm (observed when MEG-3 is tested alone) from the fraction of RNA bound by the combination of the MEG-3IDR and MEG-3Cterm, we observed a decrease in bound RNA with increasing MEG-3Cterm.

Author response image 3

These results indicate that mixing of the MEG-3IDR and MEG-3Cterm results in lower RNA binding than would be expected from the sum of their independent binding, consistent with competition. However, because both domains bind RNA under these conditions, we were not able to determine conclusively whether the MEG-3Cterm inhibits MEG-3IDR binding to RNA or vice versa. We prefer therefore not to draw any conclusions from these experiments.

2. The in vitro and in vivo data do not correlate particularly well, clouding a clear mechanistic picture of the cellular behaviors. The authors acknowledge this issue in some areas, but we are still left not understanding substantial differences between the molecular behaviors in the two settings. For example, it is not clear how to reconcile the co-condensation with PGL-3 of the MEG-3IDR and HMGL- proteins in vitro with the cellular behaviors of these proteins. From the data presented, both robustly phase separate with PGL-3 (figure 2), but do not co-assemble in vivo (figure 4). This does not seem to be a matter of degree, as the HMGL- construct assembles with PGL-3 in vitro identically to WT MEG-3. Quantifying the effect of the HMGL- mutations on affinity for PGL-3 in physiologic conditions may clarify.

It is similarly unclear why the MEG-3IDR and HMGL- proteins form foci in cells, and should be able to bind RNA with high affinity (the former better than WT MEG-3) based on in vitro data, do not recruit Y51F10.2 into those foci. Even if RNA levels are reduced in embryos expressing the mutants, one would expect the RNA that is expressed to be recruited into the protein foci. Along these lines, in figure 2, the authors should examine co-recruitment of RNA into the MEG-3/PGL-3 condensates. Recruitment should track with binding, but it is important to show this, in part to compare with the cellular results in Figure 5. Perhaps such experiments would show that there is no in vitro/in vivo discrepancy here, although in that case one would have to explain why IDR and HMGL- can bind RNA but do not recruit it into their condensates.

We have identified in vitro conditions that best correlate with in vivo observations. We now present the in vitro data AFTER the in vivo data to make it clear that we evaluated several in vitro conditions (Figure 6 Supplement 1) and identified those that most closely reproduced the in vivo observations (150mM NaCl, 150nM MEG-3 and 20ng/ul RNA, all within the range of estimated physiological conditions). Under these conditions, we find that full length MEG-3 is required to promote maximum MEG-3 condensation and RNA recruitment as is observed in vivo. The C-term performs better than the IDR in promoting condensation, but is less efficient than full length MEG-3, and does not recruit RNA as efficiently as either full length MEG-3 or the IDR (Figure 6A).

One difference that remains between in vitro and in vivo findings is that the IDR and MEG-3HMGL- are recruited to PGL-3 condensates in vitro but not in vivo.

To address this discrepancy, we built on our prior finding that MEG-3 binds to PGL-3 directly in a GST-pull down assay. We developed a second binding assay that allowed us to examine the MEG-3IDR, MEG-3Cterm and MEG-3CtermHMGL- in parallel for binding to PGL-3. In this assay, we found that only wild-type MEG-3Cterm binds to PGL-3. (The binding assays are done under conditions where PGL-3 does not form condensates).

These results suggest that co-assembly of MEG-3 and PGL-3 condensates in vivo depends on a direct binding interaction between MEG-3 and PGL-3 mediated by the HMGL domain. We hypothesize that the complexity of the cytoplasm makes for a competitive environment not reproduced in our in vitro reconstitutions with purified proteins. Consequently, specific binding between MEG-3 and PGL-3 mediated by the HMGL is required for co-assembly in vivo but not in vitro.

We showed previously that association with PGL-3 condensates stimulates MEG-3 condensation (Putnam et al. 2019). As expected therefore, the condensation efficiency of MEG-3HMGL- was reduced compared to wild-type in vivo (Figure 2 D). We suggest that this reduced condensation efficiency may also account for why MEG-3HMGL- fails to assemble support RNA recruitment in vivo (Figure 4).

In conclusion, although the new in vitro conditions do not fully recapitulate the complex environment of the C. elegans cytoplasm, they have allowed us to define three regions in MEG-3 (IDR, HMGL motif, and C-terminal domain) with distinct activities that play complementary roles in P granule assembly. The take-home message overall is that protein-protein and condensate-condensate interactions are the primary drivers of P granule assembly. We have rewritten the abstract and title to better reflect this emphasis.

Two technical points relate to these concerns:

First, the authors should quantify the binding data in Figure 2, showing the interactions of PGL proteins with the MEG-3 C-terminus, ideally determining the Kd of the interactions. They claim the interaction is of high affinity, but this cannot be inferred from a single blot performed at a single concentration. Similarly, the magnitude of the change in affinity induced by mutation of the HMGL motif cannot be inferred from these data, especially given that the amount of GST fusion was higher in the HMGL- protein than in the WT C-term protein (cf. GST bands at bottom of blot).

We have addressed these concerns in a new bead-based assay for protein-protein interactions (Figure 7 C). The new assay utilizes purified proteins, which allowed us to compare different concentrations of MEG-3Cterm.

Second, it is disappointing that the MEG-3IDR was not analyzed for direct binding to PGL proteins. I understand that the GST-fusion did not express, but there are a variety of ways around this technical difficulty, especially given that the His-tagged version of the protein could be expressed and purified. The authors imply that the dominant interaction is mediated by the C-terminus, but the co-LLPS of the IDR with PGL-3 indicates the IDR can also interact with some affinity.

We have now tested the MEG-3IDR for PGL-3 binding in the new bead-based assay and found that the MEG-3IDR does NOT bind PGL-3, unlike MEG-3Cterm.

Reviewer #2:

[…] Overall, this is really nice work – the experiments are carefully executed, the data are convincing, and the conclusions are solid. I have two main concerns:

1) From the data presented, it seems likely that the functions the authors map to MEG-3Cterm can be attributed to the HMG domain but the authors carefully evade this issue. It seems like this is an important distinction to make and would provide significantly more resolution to the analysis. Testing the function of MEG-3Cterm with the HGML mutation would help to answer the question.

As suggested, we have tested the properties MEG-3Cterm with the HGML mutation (Figures 6-7). We find that the HMGL- mutation does not affect condensation and recruitment in vitro, but severely reduces binding to PGL-3. These findings confirm that the C-terminus has two independent activities: driving MEG-3 condensation which does NOT require the HMGL motif, and binding to PGL-3 which requires HMGL.

The HMGL domain is essential for assembly of PGL-MEG co-condensates in vivo but not in vitro. We speculate this discrepancy is due to the presence of other factors or condensates in vivo that compete with PGL-3 condensates for co-assembly with MEG-3.

We previously showed that PGL-3 stimulates MEG-3 condensation (Putnam et al., 2019). The observation that MEG-3HMGL- does not condense as efficiently as wild-type in vivo, therefore, is consistent with the inability of MEG-3HMGL- to interact efficiently with PGL-3 in vivo. We have clarified these points in the text.

2) The authors seem overly timid in making connections between their findings and in their conclusions. For example, it seems like they want to argue that RNA is largely a passenger rather than an instigator in P granule assembly but are afraid to make that case. In addition, the discussion would benefit from a more thorough fleshing out of their model, with better explanation of how they envision the different domains are MEG-3 are regulating localization, condensation, stabilization of PGL condensates, recruitment of RNA, etc. Why does MEG-3Cterm only condense in the posterior even though it is not localized, why are all the domains are needed for RNA recruitment?

We agree and have expanded the discussion to make these points more clearly and reworked the title and abstract to emphasize our main finding: that P granule assembly is driven primarily by protein-based condensation mechanisms.

Reviewer #3:

Previously, the Seydoux lab discovered a class of genes, the meg genes, which encode for intrinsically disordered phospho-regulated proteins, and which are required for P granule segregation in C. elegans embryos (Wang et al., 2014). In further studies the lab showed that the MEG-3 protein can bind to RNA and that MEG-3 can phase separate in vitro in the presence of RNA. Importantly, the authors find that the intrinsically disordered region and the RNA concentrations tune phase separation (Smith et al., 2016). In further work, the lab suggested, that MEG-3 is in a rather gel-like protein phase which does not dissolve upon temperature shifts in vivo (Putnam et al., 2019) and which has different material properties than the PGL phase which is liquid-like and forms by phase separation. Both, the MEG phase and the PGL phase overlap but do not seem to mix, both in vitro and in vivo, and the question is how this process could be regulated.

In a recent study, the lab looked for interacting RNAs in C. elegans embryos by using crosslinking approaches in combination with immunoprecipitations. Surprisingly, they found the majority of mRNA’s bound by MEG-3 after immunoprecipitations rather than to the RGG domain P granule protein PGL-1. Several of the identified mRNA’s indeed colocalize with MEG-3 in combined immunofluorescence/FISH experiments and show as well P lineage enrichment. In the same study, in vitro assays with MEG-3 and RNA indicated that the MEG-3 protein aggregates in the presence of low RNA concentrations and high or low salt conditions, whereas it associates into condensates with high RNA concentrations and medium salt concentrations.

Now, in the new study by Schmidt et al. the authors further study the protein MEG-3 and do an in vivo and in vitro structure/function analysis of the protein. They suggest that MEG-3 coordinates RNA and protein condensation, propose that the C-terminus is “necessary and sufficient to build MEG-3/PGL co-condensates independent of RNA” (line 16 of the abstract) and suggest that the IDR is required but not sufficient for RNA recruitment to P granules. This is a good paper and has lots of excellent data on the role of the MEGs.

However, the current manuscript has several inconsistencies with their previous work.

Here are the detailed arguments:

MEG-3 seems to contain a C-terminal HMG-like motif, which seems to interact in vitro with the PGL P granule proteins.

In vitro, the C-terminal part of MEG-3 seems to interact with PGL-1 and PGL-3 in pull down assays. Mutations of conserved residues in the HMG-like motif strongly reduces the PGL binding. But how does full length MEG-3 behave in the same pull down assay? Do the mutations in the HMG-like motif as well strongly reduce the interaction? How do the authors conclude that the HMG domain is required for “high affinity” binding to PGL proteins? (see line 162). Whether these interactions play a role in vivo remains unclear as well, especially as MEGs and PGL proteins seem to have very different biophysical material properties.

We have expanded our analyses of the MEG-3/PGL-3 interaction using a new bead halo assay using purified proteins (Figure 7C). The new data confirms that MEG-3 interacts with PGL-3 via the HMGL motif. Unlike the C-term, the IDR does not interact with PGL-3. Additionally we have modified our language and no longer characterize this interaction as “high affinity” since our data do not address binding affinity, only specificity.

MEG-3 interacts with RNA by the IDR region only.

These results are inconsistent with previous experiments. Full length MEG-3 interacts with polyU RNA in the low nM (around 30nM) range, whereas the IDR region shows around 15 fold lower binding affinities (around 500nM) (see Smith et al., 2016). Now Schmidt et al. report that full length MEG-3 binds to nos-2 RNA in the high nM range (around 800nM, roughly 30 fold lower), whereas the IDR region binds in the low nM range (around 100nM, which is around 8 fold higher). These differences may be explained by the differences in RNA, but could as well represent differences in the MEG-3 protein quality and differences in the assay.

The differences are likely due to 1) the new assay used to measure RNA binding and 2) improvements in our protein purification protocols.

The assay used previously was based on fluorescence anisotropy. Since phase separation can alter the fluorescence anisotropy signal, this assay suffers potentially from complications resulting from phase separation that occurs at different concentrations for MEG-3 and variants.

We also have added a size exclusion step to the protein purification protocol described in Smith et al 2016 which significantly improves protein purity. See protein gels in Figure 5 – figure supplement 1 showing purity of each MEG-3 variant.

MEG-3 protein as well as its fragments tend to aggregate and do not seem spherical as published previously (compare Fig. 2A from this manuscript with Fig. 4 and Fig 4S from Lee et al., 2020).

In the absence of RNA, MEG-3 form amorphous aggregates as reported in Lee et al., 2020. In the revised in vitro analyses, we avoid conditions that induce aggregates (e.g. high MEG-3 concentration/no RNA which is non physiological). We show that all the variants are soluble under high RNA/low salt conditions. High salt conditions in the presence of RNA lead to condensation and no aggregation. The new data are shown in Figures 5,6,7 and replace Figure 2 in the original version.

Protein quality control as well as performing gel shift assays, as in previous report, would indicate the quality of the protein and be important to resolve these inconsistencies. Partially aggregated MEG-3 might be present in the filter binding assays and eventually lead to much lower apparent RNA binding constants for the MEG-3 full length protein.

The conditions used in the filter binding assay (150mM NaCl and variable amounts of RNA) will prevent formation of MEG-3 aggregates, which only form in the absence of RNA (Lee et al., 2020).

Also, we now include new experiments that show that the apparent lower RNA affinity of full-length MEG-3 is only seen with poly-U30. Binding assays using nos-2 RNA show no differences between full length MEG-3 and MEG-3 IDR (Figure 5).

In further in vitro assays it is tested whether MEG-3 interacts with PGL-3 condensates. Indeed, all MEG-3 fragments interact with the PGL condensates and form domains on the PGL condensates in the presence of RNA (see Fig. 2C). In the absence of RNA the MEG-3 IDR domain fully mixes with the PGL domain indicating strong interaction with PGL-3. However, this domain was not tested for interaction with PGL-3 by any other assays, and in vivo does not interact with PGLs.

Mixing into a condensate is NOT necessarily an indication of a strong or specific binding interaction. Phase separation is known to be driven by weak interactions and IDRs often show non-specific mixing. We have tested directly the IDR for binding to PGL-3 in a new bead assay (Figure 7) and found no evidence for specific binding to PGL-3.

Co-assembly of MEG/PGL condensates is driven by the MEG-3 C-terminus.

The MEG-3 fragments tested in vitro are now generated in vivo by replacing the endogenous meg-3 locus with the gene variants by CRISPR/Cas9. The authors do a series of immunofluorescence experiments in the meg-3 variant lines and stain for MEG-3 and PGL-3. The authors state that “in embryos expressing MEG-3 Cterm, PGL-3 condensates localized properly in P1…”. However, as their images (see Fig4A) as well as their quantification indicates, this is not the case. Only full length MEG-3 shows proper localization of PGL-3, and neither the C-terminal, nor the IDR or the HMGL variant show correct PGL-3 localisation. Although there seems to be an enrichment of PGL-3 in P1 in the Cterm mutant, clearly other parts of the protein contribute to PGL-3 localization as seen in MEG-3 full length (see Fig. 4C)

We agree and have revised our discussion of what drives MEG and PGL asymmetry in the Discussion.

Efficient recruitment of mRNA to P granules requires all parts of the MEG-3 protein. Previously, the Seydoux lab discovered that hundreds of mRNA crosslink to MEG-3 in vivo and several of these mRNA are indeed enriched in the P lineage (Lee et al., 2020). Now, they test which part of MEG-3 is required for enrichment of Y51F10.2. Intriguingly, Y51F10.2 becomes only considerably enriched in P4 cells if all domains of the MEG-3 protein get expressed, indicating that enrichment of PGL’s by the MEG-3Cterm construct is not sufficient for enrichment of Y51F10.2 mRNA. However, to address if mRNA recruitment requires indeed all MEG-3 domains it would be much better to quantify the level of polyA enrichment in the different MEG-3 mutants (see Fig 5 supp1).

We have included an additional specific RNA probe (nos-2) in Figure 4 – Figure supplement 2, as well as quantifying the polyA data now in Figure 4 Figure supplement-3 to further support our conclusion that enrichment of mRNA in the P cell requires all the MEG-3 domains.

Previously, Lee et al have shown that nearly all polyA RNA which is accessible to FISH in early embryos is located in the P lineage in the P2 cell and this depends on the presence of wildtype copies of meg-3 and meg-4 (see Fig 1F, Lee et al., 2020). And if indeed the IDR of MEG-3 recruits mRNA than the MEG-3Cterm mutant should not enrich any mRNA in P1 to P4. Importantly, very little polyA RNA is enriched in pgl-1 pgl-3 mutants indicating that MEG-3 enrichment is not sufficient for P lineage enrichment of mRNA.

We agree and have clarified this in the text (see in particular last section of Discussion). All domains of MEG-3 are required for RNA enrichment.

https://doi.org/10.7554/eLife.63698.sa2

Article and author information

Author details

  1. Helen Schmidt

    HHMI and Department of Molecular Biology and Genetics, Johns Hopkins University School of Medicine, Baltimore, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3449-2790
  2. Andrea Putnam

    HHMI and Department of Molecular Biology and Genetics, Johns Hopkins University School of Medicine, Baltimore, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7985-142X
  3. Dominique Rasoloson

    HHMI and Department of Molecular Biology and Genetics, Johns Hopkins University School of Medicine, Baltimore, United States
    Contribution
    Resources, Validation, Investigation, Writing - original draft, Writing - review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-2210-1569
  4. Geraldine Seydoux

    HHMI and Department of Molecular Biology and Genetics, Johns Hopkins University School of Medicine, Baltimore, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing - original draft, Writing - review and editing
    For correspondence
    gseydoux@jhmi.edu
    Competing interests
    serves on the Scientific Advisory Board of Dewpoint Therapeutics, Inc
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8257-0493

Funding

National Institutes of Health (5R37HD037047)

  • Helen Schmidt
  • Andrea Putnam
  • Geraldine Seydoux

National Institutes of Health (F32GM134630)

  • Andrea Putnam

Howard Hughes Medical Institute

  • Geraldine Seydoux
  • Dominique Rasoloson

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank the Johns Hopkins Neuroscience Research Multiphoton Imaging Core (NS050274) and the Johns Hopkins Integrated Imaging Center (S10OD023548) for excellent microscopy support. We thank the Page lab for assistance identifying the HMG-like motif, the Nathans lab for the OLLAS antibody, and Addgene for TEV protease from the Waugh lab. We thank Deepika Calidas for collaboration on strains JH3479, JH3517, and JH3420, Mario Martinez for assistance in protein purification, and Baltimore Worm Club and the Seydoux lab for many helpful discussions. This work was supported by the National Institutes of Health (grant number GS: 5R37HD037047, AP: F32GM134630). GS is an investigator of the Howard Hughes Medical Institute.

Senior Editor

  1. James L Manley, Columbia University, United States

Reviewing Editor

  1. Robert H Singer, Albert Einstein College of Medicine, United States

Publication history

  1. Received: October 2, 2020
  2. Accepted: June 8, 2021
  3. Accepted Manuscript published: June 9, 2021 (version 1)
  4. Accepted Manuscript updated: June 14, 2021 (version 2)
  5. Version of Record published: June 28, 2021 (version 3)

Copyright

© 2021, Schmidt et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,401
    Page views
  • 242
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    Lisa M Strong et al.
    Research Article Updated

    Autophagy is a cellular process that degrades cytoplasmic cargo by engulfing it in a double-membrane vesicle, known as the autophagosome, and delivering it to the lysosome. The ATG12–5–16L1 complex is responsible for conjugating members of the ubiquitin-like ATG8 protein family to phosphatidylethanolamine in the growing autophagosomal membrane, known as the phagophore. ATG12–5–16L1 is recruited to the phagophore by a subset of the phosphatidylinositol 3-phosphate-binding seven-bladedß -propeller WIPI proteins. We determined the crystal structure of WIPI2d in complex with the WIPI2 interacting region (W2IR) of ATG16L1 comprising residues 207–230 at 1.85 Å resolution. The structure shows that the ATG16L1 W2IR adopts an alpha helical conformation and binds in an electropositive and hydrophobic groove between WIPI2 ß-propeller blades 2 and 3. Mutation of residues at the interface reduces or blocks the recruitment of ATG12–5–16 L1 and the conjugation of the ATG8 protein LC3B to synthetic membranes. Interface mutants show a decrease in starvation-induced autophagy. Comparisons across the four human WIPIs suggest that WIPI1 and 2 belong to a W2IR-binding subclass responsible for localizing ATG12–5–16 L1 and driving ATG8 lipidation, whilst WIPI3 and 4 belong to a second W34IR-binding subclass responsible for localizing ATG2, and so directing lipid supply to the nascent phagophore. The structure provides a framework for understanding the regulatory node connecting two central events in autophagy initiation, the action of the autophagic PI 3-kinase complex on the one hand and ATG8 lipidation on the other.

    1. Cell Biology
    Laura Le Pelletier et al.
    Research Article

    Aging is associated with central fat redistribution and insulin resistance. To identify age-related adipose features, we evaluated the senescence and adipogenic potential of adipose-derived-stromal cells (ASCs) from abdominal subcutaneous fat obtained from healthy normal-weight young (<25y) or older women (>60y). Increased cell passages of young-donor ASCs (in vitro aging), resulted in senescence but not oxidative stress. ASC-derived adipocytes presented impaired adipogenesis but no early mitochondrial dysfunction. Conversely, aged-donor ASCs at early passages displayed oxidative stress and mild senescence. ASC-derived adipocytes exhibited oxidative stress, and early mitochondrial dysfunction but adipogenesis was preserved. In vitro aging of aged-donor ASCs resulted in further increased senescence, mitochondrial dysfunction, oxidative stress and severe adipocyte dysfunction. When in vitro aged young-donor ASCs were treated with metformin, no alteration was alleviated. Conversely, metformin treatment of aged-donor ASCs decreased oxidative stress and mitochondrial dysfunction resulting in decreased senescence. Metformin's prevention of oxidative stress and of the resulting senescence improved the cells' adipogenic capacity and insulin sensitivity. This effect was mediated by the activation of AMP-activated-protein-kinase as revealed by its specific inhibition and activation. Overall, aging ASC-derived adipocytes presented impaired adipogenesis and insulin sensitivity. Targeting stress-induced senescence of ASCs with metformin may improve age-related adipose tissue dysfunction.
